Intravital deep-tumor single-beam 3-photon, 4-photon, and harmonic microscopy

  1. Gert-Jan Bakker  Is a corresponding author
  2. Sarah Weischer
  3. Júlia Ferrer Ortas
  4. Judith Heidelin
  5. Volker Andresen
  6. Marcus Beutler
  7. Emmanuel Beaurepaire
  8. Peter Friedl  Is a corresponding author
  1. Department of Cell Biology, Radboud Institute for Molecular Life Sciences, Radboud University Medical Centre, Netherlands
  2. Laboratory for Optics & Biosciences École Polytechnique, CNRS, INSERM, France
  3. LaVision BioTec GmbH, a Miltenyi Biotec company, Germany
  4. APE Angewandte Physik & Elektronik GmbH, Germany
  5. Cancer Genomics Centre, Netherlands
  6. David H. Koch Center for Applied Genitourinary Cancers, The University of Texas MD Anderson Cancer Center, United States

Abstract

Three-photon excitation has recently been demonstrated as an effective method to perform intravital microscopy in deep, previously inaccessible regions of the mouse brain. The applicability of 3-photon excitation for deep imaging of other, more heterogeneous tissue types has been much less explored. In this work, we analyze the benefit of high-pulse-energy 1 MHz pulse-repetition-rate infrared excitation near 1300 and 1700 nm for in-depth imaging of tumorous and bone tissue. We show that this excitation regime provides a more than 2-fold increased imaging depth in tumor and bone tissue compared to the illumination conditions commonly used in 2-photon excitation, due to improved excitation confinement and reduced scattering. We also show that simultaneous 3- and 4-photon processes can be effectively induced with a single laser line, enabling the combined detection of blue to far-red fluorescence together with second and third harmonic generation without chromatic aberration, at excitation intensities compatible with live tissue imaging. Finally, we analyze photoperturbation thresholds in this excitation regime and derive setpoints for safe cell imaging. Together, these results indicate that infrared high-pulse-energy low-repetition-rate excitation opens novel perspectives for intravital deep-tissue microscopy of multiple parameters in strongly scattering tissues and organs.

Editor's evaluation

Nonlinear microscopy is in the unique position that high-resolution images of cells and other tissue components can be obtained in live tissue. However, scattering and absorption limit the penetration depth and thus the level of 3D information that can be achieved. In this manuscript, the authors develop a new approach that can accomplish deeper imaging in complex specimens, which has potential to provide new insight into biological mechanisms within living tissues and whole organisms.

https://doi.org/10.7554/eLife.63776.sa0

Introduction

Intravital microscopy enables studies of the physiology and malfunction of live cells in multicellular organisms (Ritsma et al., 2012). Several excitation and detection modalities have been applied for multiparameter three-dimensional (3D) imaging in live tissues, yielding different compromises between imaging depth and resolution. Linear imaging modalities such as confocal microscopy enable a penetration depth less than 100 µm (Helmchen and Denk, 2005), which restricts their application to low-scattering, thin or surface-specific tissue models, such as the mouse inner ear and chick embryo (Deryugina, 2016; Tomo et al., 2007; Figure 1a, Supplementary file 1a). Taking advantage of reduced scattering and absorption of the excitation light and selective excitation of the focal plane (Helmchen and Denk, 2005; Diaspro et al., 2005), 2-photon (2P) microscopy based on high-frequency near-infrared excitation pulses (80 MHz, ~100–200 fs, 800–1300 nm, further referred to as lowIR) provides 100–400 µm imaging depth in highly scattering tissues, for example, liver (Ritsma et al., 2012) and skin (Andresen et al., 2009), and up to 500–800 µm in less scattering tissues, such as mouse brain cortex (Helmchen and Denk, 2005).

Figure 1 with 5 supplements see all

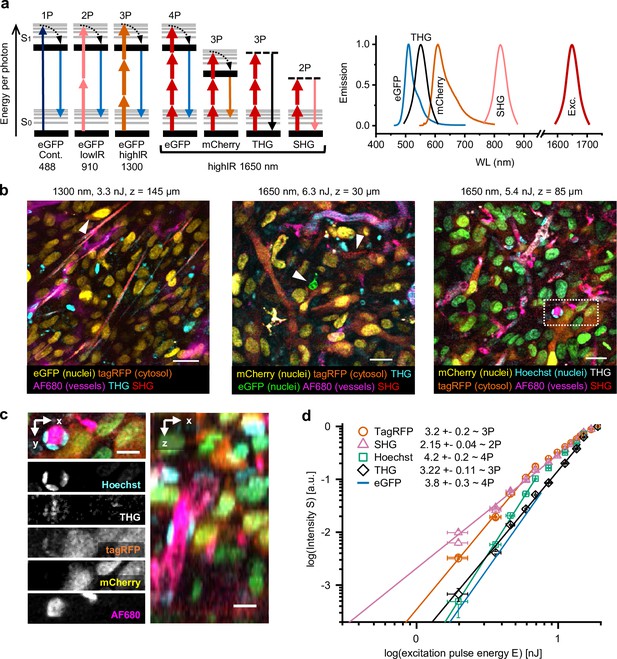

Multimodal microscopy of fluorescent skin tumor xenografts in vivo showing up to four fluorescent and two label-free tissue morphology channels, simultaneously excited with a single highIR wavelength.

(a) Jablonski diagrams (left) and scaled excitation/emission spectra (right) of 1-, 2-, 3-, and 4P-excited fluorescence and higher harmonic generation. Diagram 1–3 (left to right): 1- up to 3P excitation of eGFP with 488 nm continuous, 910 nm lowIR, and 1300 nm highIR, respectively. Diagram 4–7: excitation with 1650 nm results in signals of a distinct emission wavelength, including 4P-excited eGFP. S0 and S1, ground level and first-excited electron state, respectively, with vibrational levels (thin lines). Dashed lines, virtual states. Thin–thick upward arrows: low–high photon density required for excitation. Downward arrows: emission. (b) Five-channel 1300 nm excited (left) and six-channel 1650 nm excited (middle and right) images were taken in the center of fluorescent tumors through a dermis imaging window. Images were selected from median-filtered (one-pixel) z-stacks. The excitation wavelength, calculated pulse energy at the sample surface, and imaging depth z are indicated (top). Cell nuclei containing a mixture of mCherry and Hoechst appear as green (right). Details from images left to right: day-10, day-13, and day-14 tumor; 9.2, 4.5, and 4.4 s image acquisition time; 24, 12, and 12 µs pixel integration time; 0.36, 0.46, and 0.46 µm pixel size. (c) Zoomed xy-plane with individual channels (left) and orthogonal (xz-) projection (right) from (b), dotted rectangle. (d) Relation between measured emissions and excitation energy reveals the order of the excitation processes. Normalized emission intensity (S) as a function of pulse excitation energy (E), for TagRFP, SHG, Hoechst, third harmonic generation (THG), and eGFP recorded with an excitation wavelength of 1650 nm. Data was fitted with S(E) = A⋅En, with A the proportional factor and n the order of the excitation process (indicated as numbers in the figure). For curve fitting, excitation intensities at the sample surface below the threshold of physical damage (14 nJ) for SHG and THG and up to their saturation limit (7.6 nJ, eGFP; 6.9 nJ, TagRFP and Hoechst) for fluorophores were used. Images were acquired at the same position as panel (a, right), except for the fit line of eGFP, which was retrieved from a different dataset (Figure 1—figure supplement 4). Bars, 25 µm (b); 12.5 µm (c). Source data files: Figure 1—source data 1 and Figure 1-source data 2.

Figure 1—source data 1

Numerical data, calculations and templates used to generate graph panels.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig1-data1-v1.zip

With increasing imaging depth in tissue, 2P imaging requires to increase the excitation power in order to compensate for tissue-induced light scattering, absorption and aberrations, to maintain a constant intensity at the plane of focus. However, the required exponential increase in excitation power may provoke light-induced tissue damage (Débarre et al., 2014). Heating caused by linear absorption can be minimized by redistributing the excitation power into a reduced number of pulses per second and a higher energy per pulse (further referred to as highIR), which enhances the excitation efficiency per pulse. For example, reducing the pulse repetition rate from 80 to 1 MHz while increasing the pulse energy is an effective means to reach larger depths (Beaurepaire et al., 2001; Theer et al., 2003), albeit at the cost of reduced imaging speed, because 80 times less excitation events per second are introduced into the sample. Ultimately, 2P imaging depth in densely labeled fluorescent samples is limited by out-of-focus background produced in superficial regions, which at large depths becomes dominant over the signal produced in the focus (Helmchen and Denk, 2005; Theer and Denk, 2006).

To reduce these confounding effects, shifting the excitation wavelength to the infrared optical windows at ~1300 or 1650–1700 nm was shown to reduce light scattering and, by 3-photon (3P) excitation, improve confinement of the scan focus and thereby reduce out-of-focus background signal (Xu et al., 1996; Hell et al., 1996). This approach is compatible with commonly used fluorophores (Deng et al., 2019; Hontani et al., 2021), and was demonstrated to increase penetration in densely labeled brain tissue by 50–100%, reaching imaging depths beyond 1 mm in the brain of live mice (Horton et al., 2013; Ouzounov et al., 2017; Yildirim et al., 2019; Weisenburger et al., 2019).

In fundamental and preclinical cancer research, intravital microscopy is an important strategy to record dynamic processes of the tumor microenvironment, including tumor cell invasion, metastasis, and interactions with the tumor stroma. Intravital microscopy of the tumor microenvironment faces several tissue-intrinsic challenges. Tumors are dense, opaque, three-dimensional objects with a size of millimeters to centimeters, which causes strong light scattering (Andresen et al., 2009). In addition, analysis of the tumor microenvironment requires to detect multiple cell types, their morphology and activation states simultaneously, and tissue structures over time through a body window (Weigelin et al., 2021). HighIR combined with 3P microscopy enables the label-free detection of metabolites, tissue morphology, and leukocyte migration in mammary tumor microenvironment in vivo (You et al., 2018b). However, the relevance of 3P intravital microscopy for multiparametric detection of tumors expressing fluorescent reporters, as used in preclinical cancer research, and detection of tumor cells deeply inside the tumor has not been explored. We here apply 1300 and 1650–1700 nm highIR excitation to achieve 3- and 4P and higher harmonics microscopy of live fluorescent tumors in mice and other strongly scattering tissues, such as bone. We report improved multiparameter detection of cells and complex tissues, a 2-fold gain of penetration depth at non-toxic laser intensities, and established criteria to minimize photodamage that enable long-term time-lapse imaging of live-cell biology.

Results and discussion

3P excitation setup characterization

In contrast to the well-established 2P microscopy lowIR excitation regime (100–200 fs pulses with sub-nJ energy density at the focus), efficient 3P microscopy requires shorter (sub-100 fs) pulses at the focus with ~5–10 times higher energy (König et al., 1999) (highIR excitation) to generate comparable excitation of fluorophores (Xu et al., 1996; Wang and Xu, 2020; Supplementary file 1a, Figure 1a). To keep the average power and associated sample heating at an acceptable level, 3P microscopy applies lower pulse repetition rates (1–2 MHz) compared to pulse repetition rates commonly used for 2P microscopy (80 MHz) (Beaurepaire et al., 2001; Theer et al., 2003). The source used in this study consisted of a fiber laser pumping an optical parametric amplifier (OPA) providing 1 MHz, sub-100 fs pulses at 1300 or 1650 nm wavelengths. Excitation was focused with a high-NA objective, resulting in a resolution better than 0.8 µm in the lateral and 3 µm in the axial dimension (Figure 1—figure supplement 1). Physiological saline was used as immersion medium for high compatibility with the tissue and observation window. Since part of the excitation pulse energy (Eobj) was absorbed by the immersion medium, we calculated the pulse energy at the sample surface (E) as a reference for each experiment (Figure 1—figure supplement 2). We compared highIR excitation at 1300 and 1650 nm with lowIR excitation in the range 1100–1300 nm, the current standard for in-depth multiphoton imaging (Andresen et al., 2009). Using the mouse brain as a reference (Horton et al., 2013; Weisenburger et al., 2019), we confirmed that 1650 nm highIR excitation enables to resolve structural details with third harmonic generation (THG) contrast at depths encompassing the entire cortex (>1 mm), which outperforms the imaging depth obtained with 1270 nm lowIR excitation by almost a factor of two (Figure 1—figure supplement 3b,c). Since both high- and lowIR excitation measurements were using a 3P process to generate contrast, the superior performance with highIR excitation can be attributed to the enhanced excitation efficiency rather than to reduced out-of-focus background. We calculated the effective attenuation length (le), which is the mean distance travelled by light before being scattered or absorbed by the tissue (Wang et al., 2018b). In the neocortex, le was 336 µm for 1650 nm excitation and 280 µm for 1280 nm excitation (Figure 1—figure supplement 3d), in agreement with previous work (Horton et al., 2013; Wang et al., 2018b).

Simultaneous multicolor 3P, 4P, and harmonic generation microscopy with a single excitation beam

When applied to multicolor-labeled HT-1080 sarcoma tumors in the deep dermis, excitation with 1300 or 1650 nm highIR pulses produced simultaneous distinct signals from fluorescent proteins (eGFP, TagRFP, mCherry), a far-red vascular tracer (AlexaFluor680-conjugated 70-kD-dextran) and blue fluorescence (Hoechst 33342), together with second harmonic generation (SHG) and THG signals (Figure 1b–c, Figure 1—video 1). To understand the nonlinear processes underlying this unusually broad spectrum of fluorophores excited with a single laser line, we investigated the order of the excitation process for each signal (Figure 1a). We recorded the emission intensity in response to increasing excitation energy E and estimated the order of dependence between emission intensity and E by fitting the data to a power law (Figure 1d, Figure 1—figure supplement 4 and Supplementary file 1b). As internal controls, SHG and THG signals were used as reference for second- and third-order processes (Cheng et al., 2014). When excited at 1650 nm, the red fluorophores TagRFP, mCherry, and AF680 followed a cubic dependence on excitation power, while green and blue fluorophores eGFP and Hoechst followed a quartic dependence, consistent with respective third- and fourth-order processes (Cheng et al., 2014). This shows that 3- and 4-photon-excited fluorescence (3PEF, 4PEF) along with multi-harmonic SHG and THG signals were obtained simultaneously using 1650 nm excitation, resulting in six-channel images in a single scan (Figure 1b). Although independent control of each respective signal strength is not possible, a key advantage of this one-shot excitation scheme is that it is free of chromatic aberration, a common problem in multi-beam imaging (Theer et al., 2014).

Characterization of phototoxicity and bleaching

The high pulse energy required for efficient highIR excitation is a double-edged sword. Although it enables multi-modal excitation as seen above, pulsed light can induce nonlinear and linear perturbations. First, the energy density within the beam focus, which causes nonlinear interactions between a strong electric field and matter, may induce physical damage by ionization (Konig et al., 1997), toxic reactive oxygen species, and photobleaching (Débarre et al., 2014; Tirlapur et al., 2001). This focused energy may further cause local transient heating of the focal volume during the excitation pulse, caused by water absorption (Qiu et al., 2017). This type of phototoxicity is dependent on the pulse energy (nJ) at the focal plane. Second, phototoxicity may arise from linear absorption of light above and below the focal plane, which may cause accumulation of heat in a larger tissue volume (Débarre et al., 2014; Podgorski and Ranganathan, 2016; Wang et al., 2018a; Rowlands et al., 2017). Sample heating is proportional to the average power of the incident excitation beam. Previous studies have investigated phototoxicity mechanisms with 1300 nm highIR excitation in the brain, and have established safety thresholds for 3P imaging of neuronal activity in this wavelength range (Ouzounov et al., 2017; Yildirim et al., 2019; Wang et al., 2020). In this work, we investigated the mechanisms and onset of photoperturbation with 1700 nm highIR excitation in tumor models in vitro (tumoroids), and with 1300 and 1700 nm highIR excitation in mouse dermis tumors in vivo and achieved safe live-cell imaging conditions.

As a readout for cell stress, we continuously recorded the intracellular Ca2+ responses of live tumor cells expressing a Ca2+ sensor GCaMP6 (Chen et al., 2013) in combination with the cell-death indicator Sytox Green (Figure 2a). GCaMP6 fluorescence was monitored using lowIR 2P excitation (920 nm, 80 MHz) in parallel to 1700 nm highIR exposure (see Materials and methods). Intracellular Ca2+ responses represent a sensitive readout for non-lethal cell stress, caused by opening of calcium channels as well as by transient membrane damage caused by reactive oxygen species and other cytotoxic events (Hopt and Neher, 2001; Iwanaga et al., 2006). In a collagen-based 3D phantom containing a reconstituted cell-rich tumoroid, spontaneous reversible Ca2+ fluctuations and few Sytox-positive damaged cells were detected before highIR exposure (Figure 2b, frame #70). As a positive control, intermittent highIR scanning at toxic intensity (17 nJ) caused rapid-onset Ca2+ elevation in cell subsets followed by gradual increase of the Sytox signal (Figure 2b, frames #102–201). High exposure was further confirmed by significant photobleaching of mCherry emission from cell nuclei (Figure 2b, arrowheads). After termination of toxic highIR exposure, the Ca2+ elevation persisted, and an increasing number of cells became Sytox-positive (Figure 2b, frame #425). To study the toxicity of highIR exposure in detail, Sytox-positive and -negative cells at the endpoint (frame #425) were grouped and the kinetics of Ca2+ and Sytox responses of both subsets were quantified (Figure 2c and Figure 2—figure supplement 1a). The Sytox-negative, surviving cells showed a transient Ca2+ elevation which declined to half of the maximum amplitude after cessation of highIR exposure, whereas Sytox-positive cells showed an accelerated and transient Ca2+ elevation upon onset of highIR exposure in combination with delayed nuclear Sytox increment (Figure 2c). In Sytox-positive cells, the GCaMP6 signal level eventually declined to its initial level before highIR exposure, likely as a consequence of persisting membrane damage with leakage of GCaMP6 in parallel to Sytox entry. At the single-cell level, Ca2+ elevation was nearly instantaneous with the onset of laser exposure in Sytox-positive cells, followed by Sytox elevation thereafter with a large spread of the onset time (Figure 2—figure supplement 1b). Thus, the Ca2+ signal reliably indicated phototoxic stress, prior to detection of cell death by Sytox and even in cells which remained viable at the experimental endpoint.

Figure 2 with 4 supplements see all

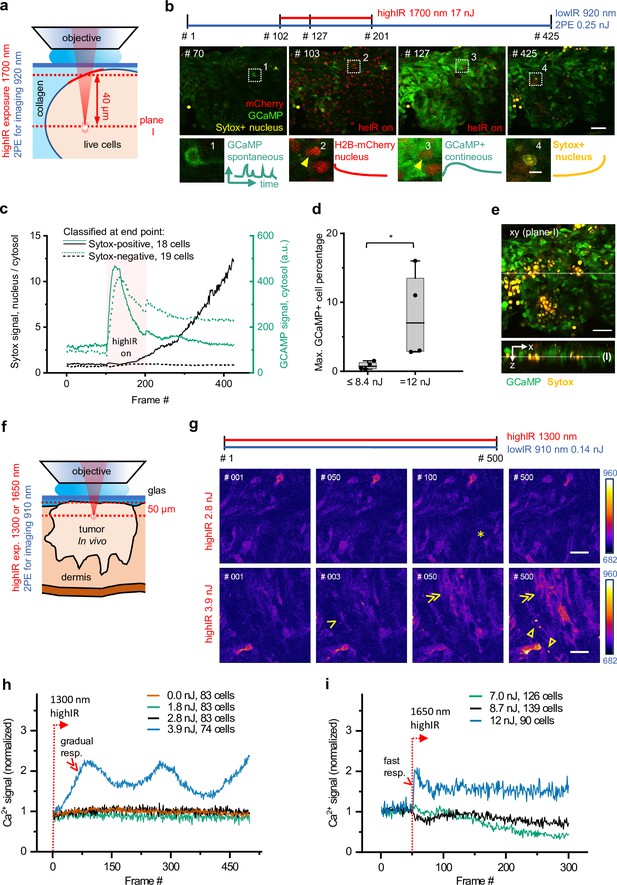

Phototoxicity and interference with biological function induced by continuous scanning with highIR excitation.

(a) Experimental approach for cell viability detection in vitro. B16F10/GCaMP6/H2B.mCherry (Chen et al., 2013) melanoma tumoroid embedded in 3D collagen was monitored through a coverglass. Sytox Green was supplemented to the medium. Both GCaMP and Sytox signals were continuously monitored (3.3 s/frame, 6 µs pixel integration time) at ~40 µm penetration depth using low pulse-energy excitation (920 nm). During part of the measurement, the sample was simultaneously exposed to 1700 nm highIR excitation, approximately at the same focal plane (I). ( b) Representative frames from continuous scanning with the indicated excitation pulse energy and detection of emitted signals. Details from dotted squares: (1) spontaneous reversible Ca2+ activity (green); (2) highIR-excited fading mCherry signal from the nuclei (red); (3) strong highIR-induced Ca2+ response in the majority of the cells and bleached, decreasing mCherry signal; and (4) Sytox-positive nucleus (yellow). (c) Intensity curves of Sytox (black, left y-axis) and GCaMP (turquoise, right y-axis) signals in cells developing Sytox-positive nuclei (solid lines) or not (dashed lines), classified at the endpoint by eye (frame #425). Data show the mean intensity of single-cell intensities. For technical details, see Figure 2—figure supplement 1a and b. (d) Predictive power of GCaMP positivity for photodamage. The highIR-induced percentage of GCaMP-positive cells was quantified over time for moderate- (≤8.4 nJ; ~1220 cells from n = 4 measurements) and high-exposure (12 nJ; ~720 cells from n = 4 measurements) conditions. *, p = 0.03, Mann-Whitney test. Data indicate the median (line), 25/75 percentile (box) and 5/95 percentile (whiskers). (e) Spatial restriction of GCaMP and Sytox positivity to excitation plane (I). A z-stack of 80 µm depth (5 µm step size) was taken 15 min after the endpoint of highIR exposure shown in (b). Above: xy-image at the highIR exposure plane I. Below: xz-sideview positioned at the line in the xy-image. Line in sideview: excitation plane I. (f) Detection of phototoxicity of highIR in vivo. Intradermal tumor imaged after 6 (1650 nm) or 11 days (1300 nm) of growth. GCaMP signal was continuously monitored (~1.5 s/frame, 6 µs pixel integration time) in an ~50 µm deep focal plane using lowIR excitation (910 nm). The sample was simultaneously exposed to highIR excitation at the same focal plane. (g) Ca2+ signaling in individual cells. Representative frames from the 1300 nm highIR exposure time-series at pulse energies at the sample surface below (2.8 nJ), or above (3.9 nJ) the toxicity threshold. Asterisk, spontaneous, reversible Ca2+ signal in single cell, as seen in ~10 of 83 cells in the field of view. Arrowhead, persistent Ca2+ signal starting at frame #2, as seen in 8 of 74 cells. Double arrowheads, multiple cells developing increasing Ca2+ signal, present in 45 of 74 cells. Closed arrowheads, burning marks. The frame number is indicated. (h, i) Ca2+ signal as a function of time for increasing highIR pulse energies at the sample surface, recorded with an excitation wavelength of 1300 nm (h) or 1650 nm (i). Single and double arrowheads: steep and gradual Ca2+ rise, respectively, related to cell populations as described in (g). Emission signal was retrieved after averaging over the image area, background subtraction and normalization to the first highIR-excited frame (#1, 1300 nm and #50, 1650 nm, dotted lines). The number of cells per field is indicated. Bars: 50 µm, 10 µm (details). Source data files: Figure 2—source data 1 and Figure 2-source data 2.

Figure 2—source code 1

Conversion of fiji manual tracking data into intensity-time traces.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig2-code1-v1.zip
Figure 2—source code 2

Raw microscopy image files, intermediate and analysis results.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig2-code2-v1.zip
Figure 2—source code 3

Retrieve cell fraction responding upon highIR exposure as a function of time.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig2-code3-v1.zip
Figure 2—source code 4

Retrieve cell fraction responding upon highIR exposure as a function of imaging depth.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig2-code4-v1.zip
Figure 2—source data 1

Numerical data, calculations and templates used to generate graph panels.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig2-data1-v1.zip

Using both GCaMP6 and Sytox recording, we then aimed to identify the highIR conditions tolerated by live tumor cells upon consecutive scanning, using a highIR energy escalation approach followed by quantification of the highIR-induced Ca2+ responding (GCaMP+) cell fraction for each condition (See Materials and methods section for further details). For moderate highIR pulse energies, comprising pooled datasets from 5.0 and 8.4 nJ, the median percentage of cells with elevated Ca2+ was 0.7%, whereas at 12 nJ this fraction was 10-fold increased (Figure 2d). Thus, a threshold for excitation energy in the focus of up to 8.4 nJ at the sample surface allows for safe time-lapse imaging inside the tissue, when focusing at least 40 µm deep inside the sample.

To account for linear phototoxicity outside of the highIR focal plane, depth stacks were obtained before and after time-lapse measurements at low-to-high highIR exposure dose (5.0–17 nJ). Both Ca2+ and Sytox signals were spatially restricted within the highIR excitation plane, without effects in regions above and below (Figure 2e and Figure 2—figure supplement 1c-f). This result shows that continuous scanning with 1700 nm highIR excitation power of 17 mW (17 nJ × 1 MHz) at the sample surface can be used without causing linear phototoxicity.

To verify the setpoint for phototoxicity for intravital microscopy, we exposed mouse dermis tumors to 1300 and 1650 nm highIR excitation and monitored their cellular Ca2+ responses (Figure 2f). During continuous highIR exposure for energies at the sample surface below or equal to 2.8 nJ (1300 nm) or 8.7 nJ (1650 nm), the Ca2+ signal retained background activity, with occasional spontaneous Ca2+ fluctuations (Figure 2g, asterisk; Figure 2—videos 1; 2). Higher excitation energies (3.9 nJ for 1300 nm, 12 nJ for 1650 nm) induced Ca2+ elevation in cell subsets (Figure 2g and Figure 2—videos 1; 2, arrowheads). These Ca2+ responses differed from the background fluctuations by their steep or gradual increase of signal (Figure 2h and i, arrowheads). Moreover, at prolonged exposure above the observed thresholds, Ca2+ signal induction preceded the onset of burning marks (Figure 2g and Figure 2—video 1 , Figure 2—video 2, closed arrowheads) or intravascular blood stasis (Figure 2—figure supplement 2a). Furthermore, to avoid thermal damage induced by heating, we applied average power levels at the sample surface of at most 38 mW (38 nJ times 1 MHz) under live-cell and in vivo conditions, which in the brain suffices to limit tissue heating below ~1.8°C (Podgorski and Ranganathan, 2016; Rowlands et al., 2017). Thus, we established a limit for power densities to be used for multimodal excitation in tumors to remain below functional phototoxicity levels and showed that higher doses induce different grades of damage (Iwanaga et al., 2006; Koester et al., 1999).

To quantify photobleaching, repeated 3D scanning was performed over 60–75 min (one 3D scan/min), using highIR exposure within the toxic (3.5 nJ, 1300 nm; 12 nJ, 1650 nm) or nontoxic range. Within the toxic range, eGFP intensity declined by 25% after 25 scans (1300 nm) and mCherry intensity declined by 25% after two scans (1650 nm) (Figure 2—figure supplement 2b). Within the non-toxic range, mCherry intensity decreased by 10–20% after 50 scans, while 3P-excited eGFP signal remained stable. This level of photobleaching may limit applicability for imaging with sub-second frame rates, as required for Ca2+ monitoring in the brain (Weisenburger et al., 2019), but remains acceptable for monitoring with lower frame rates, in the minute-range up to days, and for large-volume scanning, which are relevant imaging regimes for monitoring tumor cell kinetics and therapy response in tumor models (Haeger et al., 2020; Khalil et al., 2020).

Deep-tumor multiparameter microscopy with highIR excitation

We next investigated whether highIR excitation at 1300 and 1650 nm provides an advantage for imaging deep-tumors regions, with respect to conventional lowIR excitation at 1180 nm using a titanium sapphire/optical parametric oscillator (Ti:Sa/OPO) combination (Figure 3). To achieve arbitrarily constant emission with increasing imaging depth, we manually increased the excitation energy E using eGFP (for 1300 nm) and TagRFP (1180 and 1650 nm) as a reference, while remaining below the phototoxicity thresholds as defined above (Figure 3a, gray profiles). 3P and 4P highIR excitation resolved subcellular features of eGFP and TagRFP labeled cells at depths beyond 400 µm, as compared to 225 µm for OPO-generated 2P lowIR excitation (Figure 3a). Multiparameter recordings were reliably obtained at a depth of 350 µm inside the tumor using 1300 and 1650 nm highIR excitation, but not with the 1180 nm lowIR source (Figure 3b). To investigate the imaging depth limit for the different modalities, we first quantified the signal-to-noise ratio (SNR) of fluorescent features as a function of imaging depth. While the SNR remained above the detection limit (SNR ≥3) until a depth of only ~255 µm using the 2P lowIR excitation regime, the 3P highIR excitation regime enabled us to reach depths of ~395 µm (1650 nm) or ~415 µm (1300 nm) (Figure 3c), corresponding to a nearly 2-fold increase as compared to lowIR. The limits of deep-tissue microscopy also depend on resolution, which is affected by scattering and aberration of the incident excitation beam (Cheng et al., 2020). We thus evaluated how the axial resolution depends on imaging depth and excitation process. For 3PE and 4PE processes, resolution remained higher with increasing imaging depth as compared to the resolution achieved by 2PE, which declined steeply beyond 125 µm (Figure 3d). Thus, 3PE and 4PE modalities provide improved resolution in strongly scattering tissues compared to 2PE, which may be explained by the superior spatial confinement of the 3P or 4P excitation processes (Xu et al., 1996; Hell et al., 1996). In addition, light scattering and aberration may affect the quality of the focus and, thereby, resolution in a wavelength-dependent manner (Cheng et al., 2020). To address the attenuation of 3PE with increasing tissue penetration in tumors, we measured the fluorescence intensity as a function of increasing imaging depth and derived the effective attenuation length le (Figure 3e). le remained constant over hundreds of micrometers, indicating that the tumor composition was homogenous over this depth range. When red-shifting the excitation wavelength from 1180 to 1300 or 1650 nm, le increased from 103 to 128 or 220 µm, respectively. Thus, compared to lowIR excitation, the gain in resolution and SNR in deep-tissue zones with highIR excitation can be attributed to several effects, including: (i) improved localization of the multiphoton effect in the focus region (Theer and Denk, 2006; Xu et al., 1996), (ii) increased le in the 1300 and 1700 nm spectral excitation windows (Horton et al., 2013; Wang et al., 2018b; Wang et al., 2018a), and (iii) improved excitation efficiency as a consequence of increased pulse-energy and low laser repetition rate (Beaurepaire et al., 2001; Theer et al., 2003). Through these combined effects, highIR excitation increases the imaging depth by 2-fold compared to lowIR excitation using OPO-based sources and by 4-fold compared to lowIR excitation in the 800–900 nm range (Andresen et al., 2009).

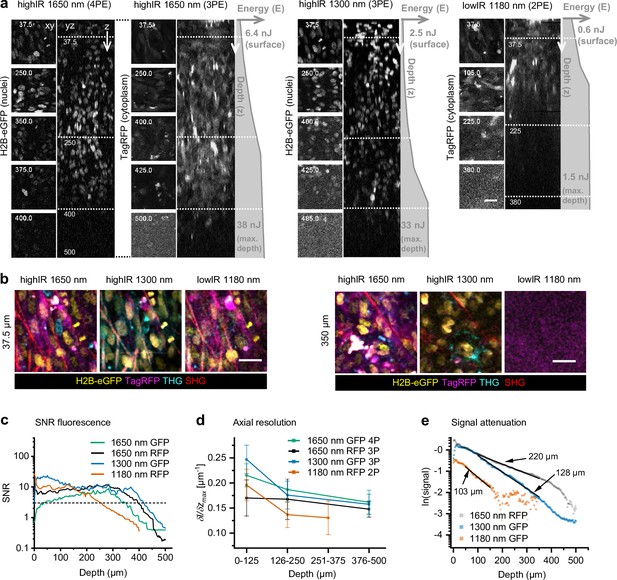

Tissue penetration of 2- (2P), 3- (3P), and 4-photon (4P) microscopy in tumors in vivo.

After 15 days growth, an intradermal HT-1080 sarcoma tumor expressing eGFP and TagRFP was repetitively imaged with highIR and lowIR excitation to compare tissue penetration of the respective excitation modalities. (a) Orthogonal (yz-) views of fluorescent tumor excited at 1650 nm (3PE and 4PE), 1300 nm (3PE), and 1180 nm (2PE). Z-stacks were recorded with increasing excitation pulse energy E at the sample surface with increasing imaging depth z (gray profiles right from orthogonal views). Left, representative (contrast enhanced xy-) images at different depths, represented by the dotted horizontal lines in the yz-views. Details from images: 2.2 s frame time, 20 µs pixel integration time. Numbers: depth in µm. Bar: 25 µm. (b) HighIR excitation enables simultaneous multiparameter microscopy up to 350 µm depth, in contrast to lowIR multiparameter microscopy. Images were processed (median filtered, 1 pixel). Bar: 25 µm. (c) Signal-to-noise ratio (SNR) of highIR- versus lowIR-excited fluorescent signals as a function of imaging depth, derived from the images shown in (a). Horizontal dotted line: detection limit (SNR = 3). (d) Axial resolution of the fluorescence signals derived for three depth ranges of the images in panel (a). The steepness of the transition between the normalized intensity of a fluorescent feature and its nonfluorescent surrounding along the z-direction ((δI/δz)max) was taken as a measure for resolution. For each depth range, the median and standard deviation were calculated over 11–17 fluorescent features per channel. (e) Attenuation of fluorescence signals for applied excitation wavelengths. The 3P-excited fluorescence intensities derived from (a) were normalized to the cubic of the calculated laser power at the sample surface and to the order of the excitation process to obtain normalized signal S, and plotted as a function of imaging depth (see Materials and methods). For 3PE, the effective attenuation length le of the tissue was defined as the depth at which fluorescence intensities attenuate by 1/e3, where e is Euler’s number (Wang et al., 2018b). le (indicated as numbers) were derived from single exponential decay functions (black lines) fitted to the normalized data. Source data files: Figure 3—source data 1 and Figure 3—source data 2.

Figure 3—source code 1

Derive relative resolution based on fiji intensity-z-profiles.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig3-code1-v1.zip
Figure 3—source data 1

Numerical data, calculations and templates used to generate graph panels.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig3-data1-v1.zip

Improved THG imaging depth of highIR over lowIR in soft and dense tissue models

Lastly, we compared lowIR and highIR excitation for THG microscopy in tissues with various scattering properties: tumor, bone, and brain. In the tumor, highIR-excited THG resolved extracellular and cellular details (arrowheads) at depths beyond 400 µm, while lowIR resolved primarily extracellular details until a depth of ~150 µm (Figure 4a). SNR analysis showed a maximum imaging depth of >400 µm for highIR and <100 µm for lowIR (Figure 4b). Imaging depth limits of THG microscopy with lowIR excitation results from the lower photon density in the focus, leading to a drastically lower excitation efficiency, in combination with the rapid attenuation of nonlinear signals upon scattering and absorption of excitation light (Beaurepaire et al., 2001; Theer et al., 2003). In contrast, THG by highIR excitation, which creates a multifold higher photon density in the focus, is achieved with only a small fraction of the available power at the tissue surface, which allows to increase the excitation energy at the sample surface with imaging depth further, to maintain a constant signal over a much broader depth range. Interestingly, different details were accentuated in THG images recorded with different excitation regimes. For example, THG by small collagen fibers under non-scattering conditions was best with excitation at 1180 nm, whereas THG by tumor cell nuclei was strongest at 1300 nm excitation (Figure 4a, arrowheads). The wavelength-dependent size of the focal volume relative to THG-generating cell and tissue structures is a possible explanation for these differences (Débarre et al., 2006). Bone is a strongly light-scattering tissue, yet thin cortical bone such as the mouse skull is amenable to highIR excitation (Wang et al., 2018a; Wang et al., 2019). To address whether thick bone can be effectively penetrated by highIR, we performed THG microscopy in an excised ossicle, which is an ectopic bone induced by a tissue engineering approach in the mouse (Dondossola et al., 2018). Subcellular structures were reliably resolved by highIR excitation beyond 220 µm depth, including osteocyte lacunae and canaliculi in the cortical bone layer and trabeculae in the bone marrow (Figure 4c; yz-projections and arrowheads). At comparable pulse energies and near the surface (<105 µm, 1300 versus 1270 nm), a superior SNR was obtained with lowIR excitation, taking advantage of the 80 times higher repetition rate and thus increased emission photon flux (Figure 4d). Beyond 150 µm depth, lowIR excitation reached its maximum available power, while highIR excitation power could be further increased to maintain a constant SNR. Thus, as a consequence of the improved excitation efficiency of highIR excitation, superior SNR beyond 165 µm scan depths was obtained compared to lowIR (Figure 4d, dotted lines). In addition, 1650 nm highIR excitation resulted in both increased effective attenuation length le and larger imaging depth compared to 1270 nm lowIR excitation (Figure 4e). Thus, consistent with previous reports in thin bone samples (Wang et al., 2019), highIR excitation improves deep-tissue bone microscopy and imaging depth is doubled when using 1300 or 1650 nm highIR excitation compared to 1270 nm lowIR excitation. We finally investigated the imaging depth limit in the mouse brain (Figure 1—figure supplement 3b). The SNR remained above the detection limit up to 928 µm depth for 1650 nm highIR, and up to 444 µm for 1270 nm lowIR excitation (Figure 1—figure supplement 3e, dotted lines). HighIR imaging depth was ultimately limited by the dense external capsule with short le, which was not reached with lowIR THG imaging (Figure 1—figure supplement 3b, d, and e).

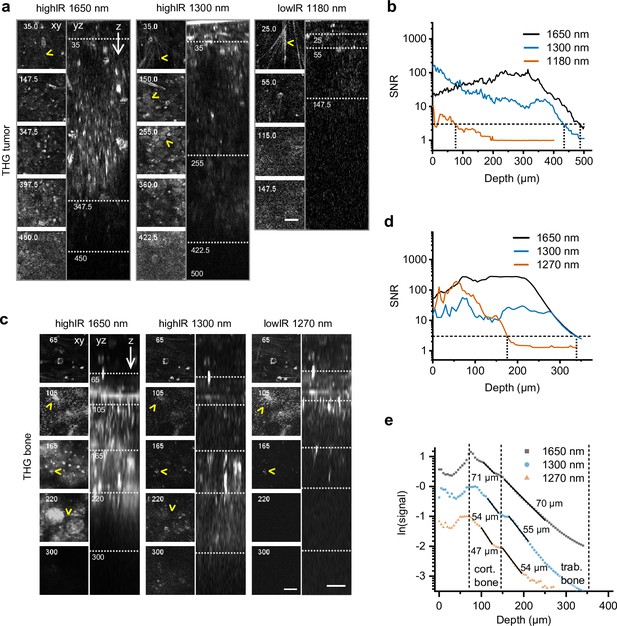

Tissue penetration of highIR- and lowIR-excited third harmonic generation (THG) microscopy in tumor and bone.

(a) THG microscopy in the tumor. THG images were registered simultaneously with the modalities presented in Figure 3a. The xy-images represent the intersections in the yz-images (dotted lines). Arrowheads: collagen fibers (top xy-images), tumor cell nuclei (1300 nm xy-images). Numbers: depth in µm. Bar: 25 µm. (b) Signal-to-noise ratio (SNR) as a function of imaging depth, derived from the data shown in panel (a). Horizontal dotted line: detection limit (SNR = 3). Vertical dotted lines: SNR-derived depth limit. (c) THG microscopy of ex vivo bone scaffold. Arrowheads: canaliculi (105 µm), channels (165 µm), and sheets of trabecular bone (220 µm). Excitation pulse energy, increasing from sample surface with imaging depth to the maximum: 4.6–32 nJ (left, 1650 nm highIR), 1.3–30 nJ (middle, 1300 nm highIR), and 1.1–1.9 nJ (right, 1270 nm lowIR). Details from images: 2.3 s frame time, 6 µs pixel integration time, 5 µm z-step size. Bars: 25 µm. (d) SNR as a function of imaging depth, derived from the image data shown in panel (c). Horizontal dotted line: detection limit (SNR = 3). Vertical dotted lines: SNR-derived depth limit. (e) Attenuation of THG signals from the bone as a function of imaging depth. The signals derived from (c) were normalized (see Materials and methods) and effective attenuation lengths le (indicated as numbers) were derived for cortical and trabecular bone layers (black lines). Source data files: Figure 4—source data 1 and Figure 4—source data 2.

Figure 4—source data 1

Numerical data, calculations and templates used to generate graph panels.

https://cdn.elifesciences.org/articles/63776/elife-63776-fig4-data1-v1.zip

When comparing the applicability of highIR for deep imaging, the depth gain for THG imaging was at least 2-fold compared to lowIR excitation and irrespective of tissue type and density, including brain, tumor, and bone (Figure 5a). We experienced stable imaging conditions by carefully increasing the excitation energy with increasing tissue penetration until the maximum energy was reached, followed by rapid deterioration of the signal. For tissues with higher scattering properties (smaller le), such as bone and cell-rich tumors, the excitation energy E needed to be increased faster with imaging depth, so that the average excitation power reached its maximum value at shallower imaging depths. For 1300 nm highIR excitation in tumor, we used maximum average powers (33 nJ at 1 MHz = 33 mW, Figure 3a) well below the reported limits for tissue heating (150 mW) (Wang et al., 2018a; Rowlands et al., 2017), and therefore the imaging depth can be extended further for this modality. However, additional experiments and simulations defining linear phototoxicity limits need to be performed for the 1700 nm excitation range. It remains to be established to what extend the maximum tolerable power depends on differences in water absorption at 1700 nm compared to 1300 nm (Horton et al., 2013; Cheng et al., 2014). Tissue heating may be reduced and imaging depth increased by reducing the imaging frame rate, which allows the tissue to cool down between images or lines, or by reducing the frequency of excitation pulses. This is possible when the biological process of interest can be monitored with lower frame rates or image resolution. For example, studying cancer cell invasion only requires image acquisition with 10 min intervals, which allows effective heat dissipation during image acquisition; conversely, high scan rates required for calcium imaging deeply inside the tumor (20 s) may require a higher repetition rate of excitation pulses and preclude effective deep imaging in highly scattering tissue (Weigelin et al., 2021).

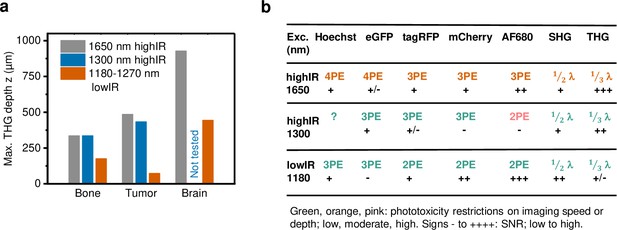

Performance comparison of 2P, 3P, and 4P processes excited by highIR versus lowIR.

(a) Third harmonic generation (THG) imaging depth limit in hard to soft tissues based on the signal-to-noise ratio (SNR) detection limit. Maximum imaging depth was derived from the SNR curves presented in Figures 3c, 4b and d and Figure 1—figure supplement 3d. (b) Summary of applicability of 2PE, 3PE, and 4PE of different fluorophores, based on signal strength and the required restrictions on imaging parameters to avoid phototoxicity. For each fluorophore multiphoton process (2-, 3-, or 4PE), the SNR performance and the severity of restrictions on imaging parameters to avoid phototoxicity are indicated. For THG and SHG, the emission wavelength (fraction of excitation wavelength λ) and the amount of signal are indicated. Source data files: Figure 3—source data 1 and Figure 4—source data 1.

We monitored laser-induced toxicity, including nonlinear effects in the focus and linear thermal toxicity in out-of-focus tissue, using a dual toxicity reporter strategy for transient cell stress (GCaMP6 Ca2+ reporter) and irreversible membrane damage and cell death (Sytox DNA probe). The Ca2+ detection of phototoxic cell stress was faster and more sensitive than recording of irreversible cell death. Additionally, the Ca2+ reporter enabled to detect damage which remained sublethal within the time frame of the experiments, which may affect cell functionally but could escape detection by commonly used live-death reporters, such as DNA intercalating probes. Cell stress and bleaching were induced in the focal plane when pulse energies reached threshold values (3.9 nJ for 1300 nm and 12 nJ for 1650 nm at 50 µm depth), eventually leading to physical disruption of tissue structures (burning marks), in line with observations by others (Hopt and Neher, 2001). Conversely, energy doses below the thresholds were tolerated by cells without in-focus Ca2+ elevation, and this energy level was sufficient to achieve high-quality multiparametric image acquisition at matched depth. The in-focus phototoxicity thresholds obtained in the cell-rich tumor model are comparable to the dynamic range detected in low-density tissues (Ouzounov et al., 2017; Yildirim et al., 2019; Wang et al., 2020), indicating that nonlinear phototoxicity might have a general cause, such as light-induced ionization or formation of reactive oxygen species (Débarre et al., 2014; Tirlapur et al., 2001), irrespective of the tissue density. The impact of sub-threshold highIR light exposure on long-term integrity of cell structure and function requires further exploration, including growth, differentiation, and chromatin integrity (Débarre et al., 2014), as well as benchmarking of stress-sensitive complex cell functions, such as cell migration and cell-cell interactions (Weigelin et al., 2021; Kiepas et al., 2020).

We generated up to six-channel multiparametric images in live tumors with sufficient signal-to-noise ratio using a single highIR excitation, simultaneously detecting 3PEF and 4PEF along with SHG and THG (Figure 5b). To achieve multiparametric imaging, the used excitation pulse energy in the focus was higher compared to previous studies: 1.4–2.1 times for 1650 nm (Horton et al., 2013; Li et al., 2020; Guesmi et al., 2018) and 0.7–1.7 times for 1300 nm (Ouzounov et al., 2017; Wang et al., 2018a), but still below the defined phototoxicity thresholds. Other methods to achieve multichannel imaging with highIR excitation have been demonstrated, such as simultaneous 1300 and 1700 nm highIR excitation (Guesmi et al., 2018). The method demonstrated here offers the advantage of single laser line excitation and therefore the absence of chromatic aberration and reduced excitation load. On the other hand, the requirements for fluorophore concentration and brightness are stricter for 4P, as compared to 3P excitation processes (Figure 5b), due to their even smaller absorption cross-section (Cheng et al., 2014). Therefore, fluorophores with high quantum efficiency and/or abundance, such as H2B/eGFP or Hoechst must be selected for 4P excitation. Besides addition of fluorescence channels by combination of 3P and 4P excitation, multiparametric imaging was also achieved by combination of 3P-excited fluorophores with different excitation/emission spectra, such as TagRFP, mCherry, and AlexaFluor680 at 1650 nm or TagRFP and eGFP at 1300 nm. At 1300 nm however, red fluorescent proteins were excited with reduced efficiency. Recently, the excitation efficiency of red fluorescent proteins at 1300 nm was enhanced by carefully tuning the central excitation wavelength to higher-energy electronic excited states, enabling multiparametric imaging with high SNR in three fluorescent channels, at the cost of accelerated photobleaching (Hontani et al., 2021). Thus, multiparametric imaging is a promising approach for the intravital study of complex tissue structures, but labeling and imaging conditions require careful optimization.

Upcoming technical improvements of highIR microscopy include lateral, axial, and temporal multiplexing (Weisenburger et al., 2019), refined compensation of pulse broadening and detection efficiency (Yildirim et al., 2019) and selective regional scanning (Li et al., 2020), providing means to reduce the photon burden and latent phototoxicity to advance imaging speed and depth. Furthermore, the advantages of lowIR excitation at shallow depths and highIR excitation at deep imaging regions can be combined, resulting in optimized imaging speed and SNR over the full imaging depth range (Weisenburger et al., 2019; Wang et al., 2020).

Conclusion

In conclusion, we find that the benefits of highIR excitation (1300/1700 nm, 1–2 MHz, sub-100 fs pulse length, and nJ-range pulse energy in the focus) previously demonstrated for brain deep-tissue microscopy (Horton et al., 2013) also prevail in even more strongly scattering tissues, including thick tumors and bone (Figure 5a). HighIR excitation has two important advantages in the context of tumor microscopy: it can roughly double the imaging depth compared to previous state-of-the-art 2P imaging, and it gives access to multiparametric imaging through the simultaneous detection of 3- and 4P fluorescence excitation and multi-harmonic signals (You et al., 2018b). We note that using several chromophores simultaneously with a single beam may require to adjust their relative labeling densities and to experimentally determine the best excitation wavelength to optimize the signal and average excitation power threshold to avoid phototoxic effects depending on the application (Figure 5b). Based on its simple single-beam excitation and improved imaging depth, highIR microscopy holds great potential to advance biomedicine and material sciences. In cancer research, highIR excitation will improve intravital microscopy of understudied regions, including the tumor core and necrosis zones (Deryugina and Kiosses, 2017). Beyond cancer, highIR excitation should advance live imaging of structurally challenging tissues, including the bone marrow (Kim and Bixel, 2020), organoids, and embryos (Débarre et al., 2014; Guesmi et al., 2018). In addition, the much-improved THG signal, together with SHG, 3- and 4P fluorescence excitation of molecular reporters and/or endogenous fluorophores, will allow to record cell type and dynamic functions in a broader morphological context (Hontani et al., 2021; You et al., 2018b; Guesmi et al., 2018), such as cell activities and inflammation in the tumor microenvironment and label-free intra-operative histology (You et al., 2018b; You et al., 2018a; Zhang et al., 2019; Weigelin et al., 2016).

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (murine, male)C57Bl/6J WTCharles River, GermanyC57Bl/6J WT8 to 24 weeks of age
Strain, strain background (murine, male)BALB/c CAnN.Cg-Foxn1nuCharles River, GermanyBALB/c CAnN.Cg-Foxn1nu8 to 24 weeks of age
Cell line (murine)B16F10ATCC, VARRID:CVCL_0159
Cell line (Homo sapiens)HT1080DSMZ, Braunschweig, GermanyRRID:CVCL_0317, ACC315
Transfected construct (Rattus norvegicus)GCaMP6shttps://doi.org/10.1038/nature12354RRID:Addgene_40753Chen et al., 2013
Biological sample (Rattus)Collagen I solutionCorning, NYREF 354249Final concentration 4 mg/ml
Chemical compound, drugDextran70-AlexaFluor680Invitrogen, CAC2980820–100 µl, 20 mg/ml in saline
Chemical compound, drugHoechst 33342Sigma-Aldrich145331.1 mg in milliQ
Chemical compound, drugSytox GreenThermo Fisher, Waltham, MAS70205 mM
Software, algorithmOrigin 2019OriginLab Corporation, MARRID:SCR_002815https://www.originlab.com/viewer/
Software, algorithmFiji/ImageJhttps://doi.org/10.1038/nmeth.2019version 1.52nhttps://imagej.net/software/fiji/ Schindelin et al., 2012
Software, algorithmMatlabMathworksR2017bhttps://www.mathworks.com
Other25 × 1.05 NA water immersion objective lensOlympus, Tokyo, JapanXLPLN25XWMP2
Other0.2 µm multicolor beadsPolysciences Inc, PACat. 24050FluoresBrite 0.2 µm

Imaging setup

Request a detailed protocol

The setup was based on a customized upright multiphoton microscope (TrimScope II, LaVision BioTec, a Miltenyi Biotec company, Bielefeld, Germany) equipped with two tunable Ti:Sa lasers (Chameleon Ultra I and II, Coherent, CA), an OPO (MPX, APE, Berlin, Germany) and up to six PMTs distributed over a two- and a four-channel port (Figure 1—figure supplement 1a). The setup was modified to facilitate high-energy, low-repetition rate excitation. A high-power fiber laser (Satsuma HP2, 1030 nm, 20 W, 1 MHz Amplitude Systèmes, Bordeaux, France) was used to pump an OPA (AVUS SP, APE), which generated 460 or 330 mW at 1300 or 1650 nm, respectively. A fixed-distance prism compressor (Femtocontrol, APE), glass block (IR-coated 25 mm ZnSe, for 1650 nm), and an autocorrelator with internal and external detector (Carpe, APE) were included in the optical path to control the pulse length under the objective lens. The beam path further included an adjustable 2:1 telescope (f = 80 mm and f = 40 mm apochromat lenses; IR-coated), a motorized half-wave plate and a glan-laser polarizer to control laser beam diameter, power, and polarization. The pulse length under the objective lens and its point-spread-function were optimized for the chosen OPA excitation wavelength by adjustment of the excitation path bulk compression, beam pointing, and telescope, such that the objective lens’ back focal plane was 10% overfilled. A movable mirror was used to guide either the OPO or the OPA beam into the scanhead, where it was spatially overlaid with the Ti:Sa beam. Mirrors, dichroic mirrors, and lenses in the scanhead were carefully selected for high reflectance or transmission in the extended excitation wavelength range. Microscopy was performed using a 25 × 1.05 NA water immersion objective lens (XLPLN25XWMP2, Olympus, Tokyo, Japan; transmission of 69% at 1700 nm, data not shown). The following filter/PMT configurations were used: blue-green emission was split off to a two-channel port with a 560lp dichroic mirror and a 700SP laser blocker filter, while red emission was split off to a two-channel port with a 900lp dichroic mirror and an 880SP laser blocker filter. Red emission was first split by a 697sp, then further split by a 605lp and a 750sp dichroic mirror, bandpass filtered with 572/28 (TagRFP) or 593/40 (TagRFP and mCherry), 620/60 (mCherry), 710/75 (AlexaFluor680), and 810/90 (AlexaFluor750, SHG) and detected by alkali, GaAsP, or GaAs PMT detectors (H6780-20, H7422A-40, or H7422A-50, Hamamatsu, Hamamatsu city, Japan). For 1180, 1270, and 1300 nm excitation, blue-green emission was split by a 506lp dichroic mirror, bandpass filtered with 447/60 (THG) and 525/50 (eGFP) and detected by alkali or GaAsP detectors (H6780-01, H6780-20, or H7422A-40, Hamamatsu). For 1650 nm excitation, blue-green emission was split by a 506lp (more THG signal) or 560lp (more eGFP signal) dichroic mirror, bandpass filtered with 447/60 (Hoechst) or 505/40 (eGFP) and 562/40 (THG) and detected by alkali or GaAsP detectors (Hamamatsu, H6780-01, H6780-20, or H7422A-40). Filters were fabricated by Semrock (New York, NY) or Chroma Technology GmbH (Olching, Germany). The setup was equipped with a warm plate (DC60 and THO 60–16, Linkam Scientific Instruments Ltd, Tadworth, UK) and a custom-made objective heater (37°C) for live-cell and in vivo experiments, as described (Haeger et al., 2020).

Determination of setup resolution

Request a detailed protocol

The point-spread-function was obtained using 0.2 µm multicolor beads (FluoresBrite 0.2 um, Cat. 24050, Polysciences Inc, PA). Beads were washed, suspended in agarose (A4718, 1 %w in 1× phosphate buffered saline (PBS), Sigma-Aldrich, MO), and scanned through a coverglass (18 × 18 mm2 #1, Menzel-Glaeser, Braunschweig, Germany). Z-stacks of 30 µm depth were recorded with 0.5 µm step interval, 0.24 µm pixel size, 1.0–1.5 µs pixel dwell time, and 4- to 10-fold line averaging and with 1650 nm (5.5 nJ, sample surface), 1300 nm (3.5 nJ, sample surface), 1280 nm (89 mW, under objective), or 910 nm (13 mW, under objective) excitation. Emission was bandpass filtered with 562/40 (1650, 1300, and 910 nm) or 620/60 (1280 nm) and detected with a GaAsP detector (specified above). The software PSFj (Theer et al., 2014) was used for point-spread-function analysis.

Intravital imaging procedures

Request a detailed protocol

Intravital microscopy of intradermal tumors was performed as described (Haeger et al., 2020). In brief, the animal was anesthetized (1–2% isoflurane in O2 for up to 4 hr), and vessels visualized using intravenously injected Dextran70-AlexaFluor680 (25 min prior to multiphoton imaging, 20–100 µl, 20 mg/ml in saline, C29808, Invitrogen, CA). At endpoint sessions, Hoechst 33342 (14533, 1.1 mg in milliQ, Sigma-Aldrich) was injected intravenously to visualize cell nuclei. To define regions of interest, overview images were obtained using an Olympus XL Fluor 4×/340 objective lens and epifluorescence excitation (X-Cite 120 lamp, Excelitas, MA; Olympus GFP/RFP filter block and a 2/3” cooled CCD camera) (Figure 1—figure supplement 1e). Prior to multiphoton imaging, the maximum average power under the objective was measured (FieldMaxII-TO power meter with PM2 sensor, resolution 1 mW, Coherent) and the excitation energy at the surface of the sample (Figure 1—figure supplement 2) was adjusted below the found functional toxicity threshold (Figure 2, Figure 2—figure supplement 1). To maintain a constant 3P emission over imaging depth, the excitation power was increased as defined in the measurement. For image acquisition, the pixel dwell time was set to 2 or 4 µs to synchronize with the laser repetition rate, line averaging was set between 1 and 6, pixel size was 0.7 µm and the step size of z-stacks was 2.5 µm unless stated otherwise. To ensure maximum compatibility of highIR excitation with open-window longitudinal imaging of in vivo tumors models, saline was used as immersion liquid.

Brain imaging ex vivo

Request a detailed protocol

At the endpoint, a tumor-bearing 9-week-old C57BL/6J mouse was anesthetized, intravenously injected with Dextran70-AF680, and sacrificed. The brain was excised, placed in a PBS filled container, and covered with a #1 microscope coverglass (Menzel-Glaser). Z-stack images were acquired in the neocortex above the hippocampus area, with 12 µs pixel dwell time, pixel size 0.50 µm, and 4 µm z-step size. Multiple measurements were performed, to optimize either THG and/or AF680 emission for different depth ranges, for 1650 and 1270 nm excitation wavelengths (Supplementary file 1c). Measurements were combined to generate signal attenuation curves and to compose one image stack with maximized penetration depth.

Image processing, data representation, and statistics

Request a detailed protocol

Unless stated otherwise, image processing was performed with Fiji/ImageJ, version 1.52n (Schindelin et al., 2012). Part of the datasets contained positional jitter, which was removed with the Image Stabilizer plugin (Li, 2008). Unless stated otherwise, Origin 2019 (OriginLab Corporation, MA) was used for numerical and statistical calculations, data fitting, and representation.

Study of the multiphoton processes underlying multimodal excitation

Request a detailed protocol

Excitation power under the objective was calibrated for all used attenuator settings. Images were acquired with stepwise decreasing– increasing excitation power (P). For bleaching correction, reference images were taken after each image at a fixed low excitation power (Pbleach). All images were acquired in one imaging plane, with pixel size 0.74 µm and pixel integration time 6.0 µs. For each channel, individual images were merged into two stacks; one for excitation power and one for bleaching correction. To quantify intensities, bright pixels and background pixels were selected by gating with a manually drawn region of interest (ROI) and/or by multiplication of the image stack with a binary mask. Masks were created by a combination of median filtering, auto-thresholding, and binary erode steps. For the selected pixels, area, mean intensity, and standard deviation (resp. Imean, σI for bright pixels; Bmean, σB for background) were quantified along the excitation and bleaching correction stacks. Normalized, bleaching corrected, background subtracted mean intensity (S) in relation to excitation power was derived as follows: S(P) = Fnorm[Imean(P) – Bmean(P)]/[Imean(Pbleach) – Bmean(Pbleach)], where Fnorm is a constant for normalization. To estimate the order of the excitation process (n), a power function S(P) = A⋅Pn was fitted to the data, with A the proportional factor. The orthogonal distance regression iteration algorithm was applied to include both P (measurement inaccuracy) and S (linear approximation including pixel noise and normalization) errors in the fitting process. Reduced chi-square and adjusted R-square values were below 2 and above 0.995, respectively. Standard errors were given for A and n.

Analysis of fluorescence bleaching

Request a detailed protocol

The H2B channel (1300 nm, eGFP or 1650 nm, mCherry) of the 3D + time stack was mean (2) filtered and average projected over the z-axis. Bright pixels in cells were selected by auto-thresholding (1300 nm, Huang or 1650 nm, Iso) in combination with manual selection of an ROI and their average intensity was obtained. The average background was calculated over the manually selected darkest region of the image stack and subtracted from the cell-based fluorescence signal for every time point, to obtain the background subtracted fluorescence signal as a function of time.

SNR analysis

Request a detailed protocol

The SNR as a function of imaging depth was calculated for every position in the depth stack from the average fluorescence intensity (Imean) over the brightest 1st (THG signal), 10th (nuclei, eGFP), or 40th (cytosol, TagRFP) percentile of pixels in the median filtered (2, fluorescence; 1, THG) image. As background signal, the average (Bmean) and standard deviation (σB) were calculated over an ROI in a dark location of the unfiltered stack. Then, the SNR was calculated as SNR = (Imean − Bmean)/σB. The SNR along a line profile was obtained from the intensity values along the line (Iline), as SNR = (Iline − Bmean)/σB.

Axial resolution analysis of in vivo data stacks

Request a detailed protocol

Pixels in fluorescent cell bodies or nuclei in the z-stack were selected with a fixed-size ROI, their average intensities were calculated over the ROI and intensity z-profiles were generated. Intensity z-profiles were normalized (0–1) and their maximum derivatives ((δI/δz)max) were calculated (Figure 3—source code 1, custom script, Matlab). Median and standard deviation values were derived over sets of (δI/δz)max and were used as a relative measure for axial resolution.

Signal attenuation analysis

Request a detailed protocol

To display signal attenuation curves independent of excitation power at the sample surface (P) and independent of the order of the excitation process (n), average pixel intensities (Imean) were background subtracted and normalized to P and n, to obtain the normalized signal S for each imaging depth: S = N⋅[(Imean − Bmean)/Pn]1/n, where N is a normalization constant and Bmean is the background. Imean was quantified (described in the paragraph SNR analysis) and Bmean was estimated by averaging all the pixel values of the last frame of the image stack. For 3P processes, the effective attenuation length le of the tissue was defined as the depthat which Imean attenuates by 1/e 3, where e is Euler’s number and Imean the average intensity of the 3P process (Horton et al., 2013). To obtain le, the normalized signal S of the attenuation curves was fitted with a single exponential function S(z) = A ⋅ exp(−z/le), where A is a proportional constant and z the imaging depth. Note that for 3P processes (n = 3), the signal S shown in the attenuation curves was normalized as: S(z) ∝ (Imean)1/3. Therefore, fitting the normalized signal S(z) with A ⋅ exp(−z/le) is similar to fitting (Imean − Bmean)/P3 with A ⋅ exp(–3z/le).

Cells and cell culture

Request a detailed protocol

Murine B16F10 melanoma cells (ATCC, VA) were cultured in RPMI (Gibco) supplemented with 10% FCS (Sigma-Aldrich), 1% sodium pyruvate (11360, GIBCO, MA), and 1% penicillin and streptomycin (PAA, P11/010) at 37°C in a humidified 5% CO2 atmosphere. Human HT1080 (ACC315) fibrosarcoma cells (DSMZ, Braunschweig, Germany) were cultured in DMEM (Gibco) supplemented with 10% FCS (Sigma-Aldrich), 1% sodium pyruvate (11360, Gibco), and 1% penicillin and streptomycin (PAA, P11/010) at 37°C in a humidified 5% CO2 atmosphere. Cell line identity was verified by a SNP_ID Assay (Sequenom, MassArray System, Characterized Cell Line Core facility, MD Anderson Cancer Center, Houston, TX). Cells were routinely tested for mycoplasma using MycoAltert Mycoplasma Detection Kit (Lonza, Basel, Switzerland). HT1080 cells were lentivirally transduced to stably express the fluorescent proteins eGFP or mCherry tagged to histone 2B and cytoplasmic TagRFP. B16F10 cells were lentivirally transduced to stably express the green fluorescent intracellular calcium sensor GCaMP6s (Chen et al., 2013) and mCherry tagged to histone 2B.

3D spheroid culture

Request a detailed protocol

3D spheroid culture was established as described (Veelken et al., 2017). Shortly, HT1080 fibrosarcoma cells from sub-confluent culture were detached with 2 mM EDTA (1 mM) and spheroids containing 1000 cells were formed with the hanging drop method. Aggregated spheroids were embedded into a collagen I solution (non-pepsinized rat-tail collagen type I, final concentration 4 mg/ml, REF 354249, Corning, NY) and transferred into a chambered coverglass prior to polymerization at 37°C. After polymerization, chambers were filled with culture medium (specified above), incubated overnight at 37°C in a humidified 5% CO2 atmosphere and sealed prior to microscopy.

Animal procedures

Request a detailed protocol

All animal procedures were approved by the ethical committee on animal experimentation (RU-DEC 2014–031) or the Central Authority for Scientific Procedures on Animals (CCD: AVD10300 2017 4444, license: 2017–0042). Handlings were performed at the central animal facility (CDL) of the Radboud University, Nijmegen, in accordance with the Dutch Animal experimentation act and the European FELASA protocol. C57Bl/6J WT mice and BALB/c CAnN.Cg-Foxn1nu were purchased from Charles River, Germany. Before the experiment, mice were housed in IVCM cages at standard housing conditions. Food and water were accessible ad libitum. Dorsal skinfold chambers (DSFC) were transplanted on 8- to 24-week-old male mice as described (Haeger et al., 2020). In short, mice were anesthetized using isoflurane anesthesia (2% in oxygen), the chamber was mounted on the dorsal skinfold of the mice, one side was surgically removed, and a coverglass was used to close the imaging window. Mice received an adequate peri-surgical analgesia using carprofen and buprenorphine. To prevent dislocation and inflammation of the DSFC, mice were housed with reduced cage enrichment during the experiment. Mice were housed in a temperature-controlled incubator at 28°C to minimize heat loss in the skin tissue due to the DSFC. One day after surgery, B16F10 melanoma (0.5 × 105) or HT1080 fibrosarcoma (2 × 106) were implanted as single-cell suspension into the deep dermis of the mouse using a 30-G needle (one or two tumors per mouse). To monitor tumor progression, mice were briefly anesthetized using isoflurane and epifluorescence overview images were taken (Figure 1—figure supplement 1e).

3D sample preparation for cell viability experiments in vitro

Request a detailed protocol

A chambered coverglass was filled halfway with collagen I solution (4 mg/ml, as described above) and allowed to polymerize (37°C, 5% CO2, humidified atmosphere) in a vertical position. Then, B16F10 melanoma cells from sub-confluent (25%) culture were detached with 2 mM EDTA (1 mM) and resuspended at high density (~1 × 108). Approximately 10 µl of cell suspension was transferred into a slightly bended 27-G hypodermic needle (BD) and positioned onto a P20 pipette. The needle was brought into the collagen gel, parallel to the coverglass. A small volume (~1 µl) was injected while retracting the needle to form a rod-shaped cell structure. Spill-over cells were removed by gently washing with PBS. Chambers were filled up with culture medium, placed in a 15 cm culture dish with wet paper to prevent evaporation, and incubated overnight (37°C, 5% CO2, humidified atmosphere). Prior to microscopy (~1 hr), 1 µM of Sytox Green (S7020, 5 mM, LOT #2204228, Thermo Fisher, Waltham, MA) was added to the medium and the sample was sealed.

Imaging setup for in vitro cell viability measurements

Request a detailed protocol

A custom-built setup was used for in vitro cell viability measurements. Shortly, the microscope was based on a lab-built upright frame in combination with the 25 × 1.05 NA water immersion objective, and a prototype highIR source (LOB and Amplitude Systèmes, Bordeaux, France) was used for excitation. The setup had the following highIR excitation specifications: 1700 nm central wavelength, 78 fs pulse length and >100 mW under the objective, 1 MHz pulse repetition rate, and 3 µm axial resolution for 3P excitation. Thus, these conditions matched those used on the intravital imaging setup. GCaMP6 and Sytox Green were 2P excited with an Axon920 source (Coherent Inc 920 nm, 140 fs, 80 MHz), which focal plane was shifted ~6 µm deeper into the sample as compared to 1700 nm excitation. Scanning and acquisition was controlled using ScanImage software (Vidrio Technologies). Emission was split by a R561 dichroic mirror with the slope centered at 575 nm, bandpass filtered with ET505/40 (Sytox Green and GCaMP6) and 650/100 (mCherry and Sytox Green) and detected by GaAsP detectors (H7422-40, Hamamatsu, Hamamatsu city, Japan). Sample temperature was kept at 37°C using a heating chamber for upright microscopes (H310 UP with an UP-1 × 35 M insert, Okolab SRL, Pozzuoli, Italy) and an objective heater (as described for the intravital setup).

Cell viability analysis based on tracking of individual cells

Request a detailed protocol

In the last recorded composite image of the time-lapse stack (Figure 2b most right image), a group of Sytox-positive and Sytox-negative cells were selected by visual inspection. The frame order of the stack was reversed to facilitate manual tracking, which was performed on the nucleus and cytosol of each selected cell (Figure 2—figure supplement 1a). Then, a Matlab script (Figure 2—source code 1, Figure 2—source code 2) was used to retrieve intensity-time traces at the coordinates of the manually tracked cells, from the spatially filtered (multiplication by 10, two-pixel mean) green channel of the raw time-lapse stack. Nucleus and cytosol intensity-time traces of Sytox-positive and Sytox-negative cells were imported into Origin2019 for further processing: the normalized single-cell GCaMP intensity-time traces (Figure 2—figure supplement 1b) were obtained by subsequent dark background subtraction, smoothing (method: Savitzky-Golay, window: 10 points, polynomal order: 2) and normalization to maximum of cytosol intensity-time traces. To obtain Sytox intensity-time traces without GCaMP crosstalk, the nucleus signal was divided by the cytosol signal, after background subtraction and prior to smoothing. The other processing steps were similar compared to the generation of GCaMP time traces. Cells were considered responsive (positive) if the trace intensity crossed a value threshold = meanbaseline + 3* SDbaseline, where meanbaseline and SDbaseline are respectively the mean and the standard deviation of the unsmoothed intensity-time trace before highIR exposure. Assuming a normal distribution of trace intensities around meanbaseline, a null hypothesis stating that intensity is below the threshold value can be rejected with p = 0.0015, if intensity values are above a threshold value equal to 3* SDbaseline above the meanbaseline (one-tailed z-test). The Sytox and GCaMP responses over time presented in Figure 2 were derived by averaging all raw intensity-time traces per group (nucleus and cytosol, Sytox positive and negative) prior to background subtraction and calculation of the ratio nucleus/cytosol for the Sytox response.

Image area-based cell viability analysis

Request a detailed protocol

The cell fraction responding upon highIR exposure (GCaMP+ or Sytox+ cell fraction) was derived from time-lapse and z-stack measurements within an ROI of the image for which cell mass above the highIR focal plane was 40±10 µm thick, unless stated otherwise (Figure 2a and Figure 2—figure supplement 1c). Here, the green channel images were used for quantification of GCaMP while the red channel was used for Sytox signals. An ImageJ script (Figure 2—source code 3, Figure 2—source code 4) was used to derive the fraction, in the following manner: first, to discriminate between responding and not responding cell area within frames, a threshold t = mean + 3*SD was defined, where mean and standard deviation (SD) were derived over the 95% dimmest pixels within the ROI, drawn in a time-lapse frame taken before highIR exposure. Second, a mask was created for every time point or depth in the median filtered (one-pixel) stack, where pixels above threshold t within the ROI are classified as high. In this mask all GCaMP+ or Sytox+ classified pixels were included, also those which were positive prior to highIR exposure. Since the aim was to quantify the positive cell fraction upon highIR exposure, the positively classified pixels prior to highIR exposure (caused by spontaneous fluctuations, dead or dying cells, melanin artifacts) were removed from the mask in the next steps. Third, a mask was created from the last time point or from the complete z-stack before highIR exposure, following the steps described above. Additionally, six dilation steps were applied to this mask, to correct for drift and/or expansion of detected features. Fourth, the last mask was subtracted from the uncorrected mask and the area of the highIR-induced GCaMP+ or Sytox+ pixels was quantified for each frame of the newly created mask. Finally, the area of the ROI corrected for positively classified pixels prior to highIR exposure was measured. The quantified areas per frame were exported to Origin2019 in order to derive the relative GCaMP+ or Sytox+ cell fractions upon highIR exposure for further representation and statistical analysis of time-lapse and z-stack measurements. For time-lapse measurements, the highIR-induced GCaMP+ cell fraction was defined as the maximum fraction obtained during highIR exposure.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files, including raw image data, have been provided for all figures and tables.

References

  1. Software
    1. Li K
    (2008)
    The image stabilizer plugin for ImageJ
    ImageJ.Net.
    1. Theer P
    2. Denk W
    (2006) On the fundamental imaging-depth limit in two-photon microscopy
    Journal of the Optical Society of America. A, Optics, Image Science, and Vision 23:3139–3149.
    https://doi.org/10.1364/josaa.23.003139

Decision letter

  1. Maddy Parsons
    Reviewing Editor; King's College London, United Kingdom
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States
  3. Scott E Fraser
    Reviewer; University of Southern California, United States
  4. Marloes Groot
    Reviewer; VU University, Netherlands

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Intravital Deep-Tumor Single-Beam 2-, 3-and 4-Photon Microscopy" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. Two of the following individuals involved in review of your submission have agreed to reveal their identity: Scott E Fraser (Reviewer #1); Marloes Groot (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Nonlinear microscopy is in the unique position that high-resolution images of cells and other tissue components can be obtained in live tissue. However, scattering and absorption limit the penetration depth. The impact of nonlinear microscopy in biomedicine and biology would be much improved if higher imaging depths can be achieved. In this manuscript, the authors show they can accomplish imaging in complex specimens using 3- and 4-photon excitation, deeper in the specimen than comparable optics can accomplish with 2-photon excitation laser scanning microscopy. Using a customised commercial system, the authors have incorporated a high-powered laser source with an OPA and dispersion compensation to generate either 1330nm or 1650nm laser lines with high peak pulse energies at low pulse repetition rates. They then compare the relative capabilities of each laser line in terms of number of fluorescence emission channels measured (skin tumour xenografts), fluorescence bleaching analysis and functional toxicity thresholds and fluorescence signal attenuation (excised murine bone).

This is a very interesting study with some potentially important findings from a technical perspective. However, there is a disconnect at present between the quality of the work and the quality of the presentation. There are many areas of quantitative imaging and intravital imaging that are well known to those in the direct field, and that are a complete mystery to vast majority of those that are not. It would therefore be highly beneficial to re-structure the manuscript in such a way that the findings can reach the many researchers that could benefit from this powerful approach rather than the few who already use it.

1. Duty cycles, fluorescence saturation, water absorption effects and longer acquisition times lead to greater phototoxicity, so may not be appropriate for most dynamic biological applications where acquisition speed and/or continued image acquisitions are the key factors. The authors should explain and perform cell viability tests to address this in the context of their current analysis approaches. Calcium imaging for assessing tissue viability is not the technique of choice for most readers and is presented in a way that assumes general knowledge that does not exist. Assays using membrane-impermeant DNA dyes, or other live-dead assays are far more common, and this study would benefit significantly from inclusion of these assays. The authors should also clearly explain the need for such viability analysis and clearly discuss the potential limitations of their imaging regimes with respect to live samples.

2. How long does it take to acquire a single frame with four-photon excitation at 1700nm? In none of the data sets was frame time mentioned in particular when acquired 3D data sets. Can the authors please ensure that these times are mentioned both in the main text and the figures containing images.

3. Line131/Fig3D: the authors present data showing relative axial resolution measurements. Are these features measured diffraction limited and how do they know? These are clearly not like for like structures (different fluorescent species) so it is not clear this can be used as a measure of resolution. Can the authors please provide other resolution measurements?

4. Lines 140-42: the authors present data showing the advantages of THG at 1650nm over other excitation lines. Aside from the excitation wavelength could this data be explained by the greater absorption and scattering at the emission wavelengths generated at these laser lines?

5. Figure 3A and C: the SNR for 1650nm increases whilst for 1300nm and 1180 excitation this decreases. Is this simply due to more of the exciting fluorophore species residing deeper into the tissue?

6. The authors should provide a clear view early on in the introduction of the problems associated with imaging biological tissues with the longer wavelengths that are used for confocal laser scanning microscopy and for two-photon laser scanning microscopy and present this in an accessible manner. For most readers, the need for a larger laser won't be their first question; instead, it will be the viability after/during the imaging session. The expected temperature rise, and an indirect mention of burn marks, comes at the end of the section but should be discussed early on so the potential limitations are transparently presented.

7. The findings and the figures in general should be presented in a more accessible and accurate manner. The figures are highly unlikely to be understandable by the readers who do not perform this sort of imaging, and the legends do not help as they are either far too brief or contain too many terms that are poorly explained. The legend and figure that it describes should be able to stand on their own, not simply defer to the body of the paper to explain what was done or is shown. For experts in the field, the figures are also not as convincing as they could be or presented in a way that they can be critically evaluated.

https://doi.org/10.7554/eLife.63776.sa1

Author response

This is a very interesting study with some potentially important findings from a technical perspective. However, there is a disconnect at present between the quality of the work and the quality of the presentation. There are many areas of quantitative imaging and intravital imaging that are well known to those in the direct field, and that are a complete mystery to vast majority of those that are not. It would therefore be highly beneficial to re-structure the manuscript in such a way that the findings can reach the many researchers that could benefit from this powerful approach rather than the few who already use it.

We rewrote the introduction and discussion for clarity and accessibility. We further discussed the relation between excitation parameters, linear and nonlinear phototoxicity, and cell viability as well as limitations of the method regarding imaging depth and speed in greater detail.

In addition, additional phototoxicity measurements (revised Figure 2) demonstrate the exquisite sensitivity of intracellular calcium measurements to report both reversible and irreversible cell damage, which outperforms endpoint analyses using nuclear dyes.

1. Duty cycles, fluorescence saturation, water absorption effects and longer acquisition times lead to greater phototoxicity, so may not be appropriate for most dynamic biological applications where acquisition speed and/or continued image acquisitions are the key factors. The authors should explain and perform cell viability tests to address this in the context of their current analysis approaches. Calcium imaging for assessing tissue viability is not the technique of choice for most readers and is presented in a way that assumes general knowledge that does not exist. Assays using membrane-impermeant DNA dyes, or other live-dead assays are far more common, and this study would benefit significantly from inclusion of these assays. The authors should also clearly explain the need for such viability analysis and clearly discuss the potential limitations of their imaging regimes with respect to live samples.

We share these concerns regarding phototoxicity associated with excitation at 1700 nm and are aware of the limitations which have been studied for 3-photon excitation in the brain18. Accordingly, the discussion has been revised, as follows (p. 12-13):

“However, additional experiments and simulations defining linear phototoxicity limits need to be performed for the 1700 nm excitation range. It remains to be established to what extend the maximum tolerable power depends on differences in water absorption at 1700 nm compared to 1300 nm10,11. Tissue heating may be reduced and imaging depth increased by reducing the imaging frame rate, which allows the tissue to cool down between images or lines, or by reducing the frequency of excitation pulses. This is possible when the biological process of interest can be monitored with lower frame rates or image resolution. For example, studying cancer cell invasion only requires image acquisition with 10-min intervals, which allows effective heat dissipation during image acquisition; conversely, high scan rates required for calcium imaging deeply inside the tumor (20 sec) may require a higher repetition rate of excitation pulses and preclude effective deep imaging in highly scattering tissue8.”

In our hands, using cells expressing relatively high H2B-eGFP and Hoechst applied at regular dose in vivo, 4-photon excitation was effective at pulse energies <= 9 nJ at the sample surface when focused 50 µm deep (revised Figure 1b and 3a), which is below the phototoxic threshold (revised Figure 2d and 2i). Therefore, we consider 4P excitation as a relevant new microscopic modality in life sciences. As potential shortcoming, we noted that restrictions on labelling density and quantum efficiency will be more severe for 4-photon excited fluorophores as compared to 3-photon excited fluorophores (revised Figure 5b). In summary, 3P and 4P fluorescence excitation will both be suitable for a broad range of live-cell biology applications.

2. How long does it take to acquire a single frame with four-photon excitation at 1700nm? In none of the data sets was frame time mentioned in particular when acquired 3D data sets. Can the authors please ensure that these times are mentioned both in the main text and the figures containing images.

The frame acquisition times have been included in the figure captions. As example, the following can be found in the figure caption of revised Figure 3, panel a: “Details from images: 2.2 s frame time, 20 µs pixel integration time.” This frame rate is sufficient for monitoring cell migration and tissue remodelling, as used in the tumor and immunology fields (addressed above).

3. Line131/Fig3D: the authors present data showing relative axial resolution measurements. Are these features measured diffraction limited and how do they know? These are clearly not like for like structures (different fluorescent species) so it is not clear this can be used as a measure of resolution. Can the authors please provide other resolution measurements?

The quantitative analyses on resolution using diffraction-limited 100 nm beads are presented in revised Figure 1—figure supplement 1d. In revised Figure 3d, the structures analysed for relative resolution measurements (nuclei, cell bodies) were not diffraction limited. Different fluorescent species indeed imply different resolutions, in case the order of the excitation process is different between the species. However, the steep discontinuity gradient of the label at the cell or nucleus edge provides an approximation for detecting the resolution in the axial direction in a discontinuous 3D tissue sample in vivo. We here aimed to provide a simple approach to detect resolution in vivo, given that direct detection of diffraction-limited beads is not possible in scattering fluorescent tumors in mice. We submit, that the steepness in the normalized signal strength over the discontinuity (minimum – maximum between 0 – 1) of different structures can serve as pragmatic measure for the axial resolution.

4. Lines 140-42: the authors present data showing the advantages of THG at 1650nm over other excitation lines. Aside from the excitation wavelength could this data be explained by the greater absorption and scattering at the emission wavelengths generated at these laser lines?

Indeed, THG intensity was strongest at 1650 nm excitation over the other excitation conditions. We did not directly address the mechanism of this difference, using physically controlled conditions.

The improved signal to noise and imaging depth of low repetition rate high pulse energy excitation (1300 nm and 1650 nm) with respect to high repetition rate low pulse energy excitation (1180 nm) has been addressed as follows (p. 11):

“Imaging depth limits of THG microscopy with lowIR excitation results from the lower photon density in the focus, leading to a drastically lower excitation efficiency, in combination with the rapid attenuation of nonlinear signals upon scattering and absorption of excitation light19,20. In contrast, THG by highIR excitation, which creates a multifold higher photon density in the focus, is achieved with only a small fraction of the available power at the tissue surface, which allows to increase the excitation energy at the sample surface with imaging depth further, to maintain a constant signal over a much broader depth range.”

The improved THG imaging performance of 1650 nm with respect to 1300 nm high-pulse-energy excitation may be addressed to several causes. Wavelength dependent differences in scattering and absorption of the laser light are the most plausible explanation for this effect. Scattering and absorption are dominant attenuation factors for excitation of THG, which depends on the cube of the excitation energy arriving at the focus, while the emission is much less dependent on these parameters19,21. Therefore, shifting the excitation wavelength may strongly modulate the detected signal in dense 3D tissue, since the effective attenuation length of tumor tissue is much longer for 1650 nm excitation as compared to 1300 nm excitation (revised Figure 3e).

In addition, absorption of the emitted light may indeed contribute to the improved THG signal at 1650 nm, because the blood absorption coefficient is 10 times higher at ~400 nm (THG emission at 1200-1300 nm incident wavelength) compared to 550 nm (emission from 1650 nm incident). However, we noted only minor impact of these emission wavelengths on the effective attenuation lengths (le), derived for 1300 nm excitation: le = 120 µm and le = 128 µm were found, for 433 nm (THG) and 500-550 nm (eGFP), respectively (revised Figure 3—figure supplement R1a, shown below). Also, for 1650 nm excitation, we did not find a strong correlation between the emission wavelength and the effective attenuation length: le = 218 µm and le = 220 µm were found, for 485-525 nm (4-photon excited eGFP) and 570-610 nm (TagRFP), respectively (revised Figure 3—figure supplement R1b). Notably, for 1650 nm we derived a larger effective attenuation length for THG emission centred around 550 nm as compared to fluorescence emission: le = 286 µm (revised Figure 3—figure supplement R1b), while this difference was absent for 1300 nm excitation. This finding indicates other excitation wavelength dependent mechanisms are influencing THG excitation efficiency as well, such as the size of THG signal emitting structures relative to the size of the focus.

While technically interesting, we feel that this data goes beyond the primary application focus of this work; however, should the referees and Editor support inclusion in the Supplement, we will be happy to revise accordingly.

In summary, we conclude that the longer excitation wavelength and higher excitation pulse energy are favourable for THG microscopy in the tumor, while the absorption and scattering of the emission are less critical.

Reviewer 1:

In this manuscript, the authors show they can accomplish imaging in complex specimens using 3- and 4-photon excitation, deeper in the specimen than comparable optics can accomplish with 2-photon excitation laser scanning microscopy. This is a clear advantage for imaging optically hostile specimens such as cultured organoids or spheroids, or in challenging in vivo settings. I am excited about these findings, but I am not at all supportive of the current version of the manuscript being used to present these lovely findings.

There are two strong reasons for my opinion:

i. The manuscript presents the findings in a manner that will only be understandable by the readers who are familiar with the topic, and who are likely to already have heard of the capabilities of 3- and 4-photon excitation to image deeper into specimens.

ii. The results are not presented in a way that the large body of potential readers can understand. They will be unable to grasp the way that the experiments were performed, or understand what the figures are showing, or critically evaluate the results that are presented.

Thus, there is a disconnect between the quality of the work and the quality of the presentation. There are many areas of quantitative imaging and intravital imaging that are well known to those that know about them (or uses them), and that are a complete mystery to vast majority of those that don't know about the tools or use them. The authors must take this as an opportunity to reach the many workers that could benefit from this powerful approach, rather than writing for the group that already knows (and even uses) the approaches presented.

We rewrote large parts of the introduction, added detail to the results to explain each section in greater depth, and expanded the discussion to better address a broad life sciences-oriented audience with affinity for microscopy.

1. Provide needed background and present important things first. The authors should give the reader a clear view into the issues in imaging biological tissues with the longer wavelengths that are used for confocal laser scanning microscopy (CLSM) and for two-photon laser scanning microscopy (TPLSM). There are several factoids presented, all seemingly true, but not presented in an accessible manner. Rather than starting with a mention of the expected temperature rise due to the dramatically higher absorbance by water of 1300nm and 1700nm light, the paper first presents the major absorbance of the light (~2/3 loss) and that this isn't a problem because there is sufficient laser power. For most readers, the need for a larger laser won't be their first question; instead, it will be the viability after/during the imaging session. The expected temperature rise, and an indirect mention of burn marks (!), comes at the end of the section.

The following specific points were revised:

1. The introduction has been rewritten to bring the proposed microscopy method in perspective with state-of-the-art methods used for intravital imaging of biological tissues, with the aim to familiarize a broad, life sciences-oriented audience to this relatively new technology.

2. The Results section has been restructured and new results characterizing phototoxicity with a commonly used viability probe have been integrated with the calcium sensor-based viability measurements. We now explain the principle of 3- and 4-photon excitation in comparison to 2-photon excitation; discuss the advantage of the presented method over the state-of-the-art methods available for intravital imaging of different tissues; application purposes; considerations for safe application, avoiding phototoxicity; and strategies to monitor phototoxicity in tissue models.

3. We added a panel explaining the principles of 1-, 2-, 3- and 4PE and higher harmonics generation (revised Figure 1a).

4. The excitation parameters of confocal LSM, conventional 2-photon microscopy and microscopy with high-pulse-energy low pulse-repetition-rate excitation are now summarized side-by-side (Supplementary File 1a).

5. The phototoxicity paragraph has been extended, to provide sufficient background on the different mechanisms, locations of phototoxicity and their relation with high-pulse-energy excitation. We further discuss approaches to detect phototoxicity, including real-time calcium imaging and commonly used endpoint analysis.

6. THG microscopy performance comparison has been addressed in a separate paragraph. As a consequence, Figures 3 and 4 have been rearranged to include separate fluorescence and THG microscopy-based figures.

7. The maximum imaging depth has been quantified by specifying a detection limit for the signal to noise ratio, to better support the sections on imaging depth improvements of 3-photon microscopy over conventional 2-photon microscopy.

8. New Figure 5 discusses 3- and 4-photon excitation modalities in comparison to conventional 2-photon microscopy.

9. Technical details were moved from the text body to supplementary images and/or to the Materials and methods section, including detailed setup resolutions and pixel dwell times.

2. Explain and perform cell viability tests. Calcium imaging for assessing tissue viability is not the technique of choice for most readers, and is presented in a way that assumes general knowledge that simply does not exist. Membrane patency assays using membrane-impermeant DNA dyes, or other live-dead assays are far more common, but not presented in this study. I am not insistent that the authors use any particular assay, but I am insistent that the authors present the need for viability assay(s), teach the reader the principles of the assay(s) used, and present the results in an understandable manner.

We explained the need for viability analyses more clearly and extended the background on phototoxicity as well as the rationale for calcium sensor for in vivo monitoring. We performed additional live cell experiments, showing the superior sensitivity and responsiveness of the calcium sensor with respect to membrane patency assays (Sytox green). Both the calcium sensor and Sytox green showed phototoxicity effects for excitation pulse energies above the same threshold (new Figure 2—figure supplement 1e), however calcium but not Sytox detection allows to quantify reversible phototoxic stress. Furthermore, the threshold for nonlinear phototoxicity (phototoxicity limited to the focal plane) was updated, including statistical analysis (p. 8 and revised Figure 2d).

We discuss the required pulse energies and safety thresholds as follows (p. 13): “Cell stress and bleaching were induced in the focal plane when pulse energies reached threshold values (3.9 nJ for 1300 nm and 12 nJ for 1650 nm at 50 µm depth), eventually leading to physical disruption of tissue structures (burning marks), in line with observations by others1. Conversely, energy doses below the thresholds were tolerated by cells without in-focus ca2+ elevation, and this energy level was sufficient to achieve high-quality multi-parametric image acquisition at matched depth. The in-focus phototoxicity thresholds obtained in the cell-rich tumor model are comparable to the dynamic range detected in low-density tissues2–4, indicating that nonlinear phototoxicity might have a general cause, such as light-induced ionization or formation of reactive oxygen species,5,6 irrespective of the tissue density.”

Furthermore, we discussed what experimental conditions may require to be further explored, to control for subtle effects on cell biology (p. 13): “The impact of sub-threshold highIR light exposure on long-term integrity of cell structure and function requires further exploration, including growth, differentiation and, chromatin integrity7, as well as benchmarking of stress-sensitive complex cell functions, such as cell migration and cell-cell interactions8,9.”

Lastly, we discuss how phototoxicity and signal to noise ratios within the acquired images restrict imaging speed and depth, as follows (p. 12-13): “However, additional experiments and simulations defining linear phototoxicity limits need to be performed for the 1700 nm excitation range. It remains to be established to what extend the maximum tolerable power depends on differences in water absorption at 1700 nm compared to 1300 nm10,11. Tissue heating may be reduced and imaging depth increased by reducing the imaging frame rate, which allows the tissue to cool down between images or lines, or by reducing the frequency of excitation pulses. This is possible when the biological process of interest can be monitored with lower frame rates or image resolution. For example, studying cancer cell invasion only requires image acquisition with 10-min intervals, which allows effective heat dissipation during image acquisition; conversely, high scan rates required for calcium imaging deeply inside the tumor (20 sec) may require a higher repetition rate of excitation pulses and preclude effective deep imaging in highly scattering tissue8.”

3. Present the finding and the figures in an accessible manner. The figures are simply not digestible by the readers who do not perform this sort of work, and the legends do not help sufficiently. For those of us who do perform work of this sort, the figures are not as convincing as they should be, or presented in a way that they can be critically evaluated.

Figures and captions have been revised to address a broad readership. Short titles explaining the main message of each subpanel have been included. As example, the revised cation of Figure 1 states: “Multimodal microscopy of fluorescent skin tumor xenografts in vivo showing up to 4 fluorescent and 2 label-free tissue morphology channels, simultaneously excited with a single highIR wavelength. (a) Jablonski diagrams (left) and scaled excitation / emission spectra (right) of 1-, 2-, 3- and 4P-excited fluorescence and higher harmonic generation. … (b) 5-channel 1300 nm excited (left) and 6-channel 1650 nm excited (middle and right) images were taken in the center of fluorescent tumors through a dermis imaging window. Images were selected from median-filtered (1 pixel) z-stacks. The excitation wavelength, calculated pulse energy at the sample surface and imaging depth z are shown (top). Cell nuclei containing a mixture of mCherry and Hoechst appear as green (right). Details from images left to right: … (c) Zoomed xy-plane with individual channels (left) and orthogonal (xz-) projection (right) from (b), dotted rectangle. (d) Relation between measured emissions and excitation energy reveals the order of the excitation processes. …”.

Consider the legend for Figure 1:

"Microscopy with simultaneous 2-, 3- and 4 photon processes excited in fluorescent skin tumor xenografts in vivo. Representative images were selected from median-filtered (1 pixel) z-stacks, which were taken in the center of fluorescent tumors through a dermis imaging window. a) Excitation at 1300nm (OPA) in day-10 tumor at 145 μm imaging depth with a calculated 3.3 nJ pulse energy at the sample surface, 24 μs pixel integration time and 0.36 μm pixel size. For calculation of pulse energy at the sample surface see Figure S3. b) Excitation at 1650 nm (OPA) in day-13 tumor at 30 μm depth with a calculated 6.3 nJ pulse energy at the sample surface, 12 μs pixel integration time and 0.46 μm pixel size. c) Excitation at 1650 nm (OPA) in day-14 tumor at 85 μm depth, with a calculated 5.4 nJ pulse energy at the sample surface, 12 μs pixel integration time and 0.46 μm pixel size. Cell nuclei containing a mixture of mCherry and Hoechst appear as green."

If I gave any of the figures and legends to the people in my lab, the half that don't do multi-photon imaging (but that have sat through many lab meetings) would just hand them back to me with quizzical expressions on their faces.

The figures are not as compelling as the results, and defer to the body of the paper to explain what was done or what was shown, and assumes that the average reader remembers the differences between OPO and OPA , for example (which they won't). The power plots showing nJ and mW in Figure 3 are inaccessible to most reader, and not well described.

See also previous reply. Abbreviations and acronyms introduced in the text body are now integrated in the figures. The power plots have been revised to be self-explanatory and the relation between excitation power and imaging depth has been updated, as follows (p. 36, Figure 3 figure caption): “Z-stacks were recorded with increasing excitation pulse energy E at the sample surface with increasing imaging depth z (grey profiles right from orthogonal views).”

I should mention that the figures, legends and text are not satisfying for the readers who are familiar with 2-, 3- and 4-photon imaging either. These are fantastic findings, and deserve figures that are as lovely as the results, and are compelling. Some of these issues are due to typos:

"Consistently, multiparameter recordings were achieved inside the tumor at 350 μm depth using excitation at 1650 nm and 1300 nm, but 1180 nm (Figure 3b). "

Typos have been corrected. The example given above has been corrected, as follows (p. 9): “Multiparameter recordings were reliably obtained at a depth of 350 µm inside the tumor using 1300 and 1650 nm highIR excitation, but not with the 1180 nm lowIR source (Figure 3b).”.

The scaling of part of the panels has been adapted to render the figures more balanced.

However, the greater problem is that the text doesn't present the findings in a straightforward, convincing fashion and then interpret them. Instead, the conclusion often leads the evidence:

"In line with an improved depth range, the signal-to-noise ratio (SNR) of 3PE TagRFP outperformed the SNR of 2PE TagRFP at depths beyond 150 μm (Figure 3c). Because H2B-eGFP expression in HT1080 tumors was very high, 3PE eGFP emission reached the highest SNR."

We agree and have restructured each Results section with the sequence background / aim, qualitative and quantitative results, concluding statement.

The legend and figure that it describes should be able to stand on their own, and convince a skeptical reader with the help of the text in the body of the manuscript.

We have revised the images and captions accordingly. For example, the addition of Figure panel 1a now provides additional background to understand the nonlinear excitation processes behind panel 1b, and explains the abbreviations 1P-4P, SHG and THG which are used in all images.

Reviewer 3:

1. It seems as though when you take into consideration duty cycles, fluorescence saturation, water absorption effects and longer acquisition times, which lead to greater phototoxicity, 4-PE at 1700nm excitation is not appropriate for most dynamic biological applications where acquisition speed and/or continued image acquisitions are the key factors. Could the authors comment on this?

We share these concerns regarding phototoxicity associated with excitation at 1700 nm and are aware of the limitations which have been studied for 3-photon excitation in the brain18. Accordingly, the discussion has been revised, as follows (p. 12-13): “However, additional experiments and simulations defining linear phototoxicity limits need to be performed for the 1700 nm excitation range. It remains to be established to what extend the maximum tolerable power depends on differences in water absorption at 1700 nm compared to 1300 nm10,11. Tissue heating may be reduced and imaging depth increased by reducing the imaging frame rate, which allows the tissue to cool down between images or lines, or by reducing the frequency of excitation pulses. This is possible when the biological process of interest can be monitored with lower frame rates or image resolution. For example, studying cancer cell invasion only requires image acquisition with 10-min intervals, which allows effective heat dissipation during image acquisition; conversely, high scan rates required for calcium imaging deeply inside the tumor (20 sec) may require a higher repetition rate of excitation pulses and preclude effective deep imaging in highly scattering tissue8.”

In our hands, using cells expressing relatively high H2B-eGFP and Hoechst applied at regular dose in vivo, 4-photon excitation was effective at pulse energies <= 9 nJ at the sample surface when focused 50 µm deep (revised Figure 1b and 3a), which is below the phototoxic threshold (revised Figure 2d and 2i). Therefore, we consider 4P excitation as a relevant new microscopic modality in life sciences. As potential shortcoming, we noted that restrictions on labelling density and quantum efficiency will be more severe for 4-photon excited fluorophores as compared to 3-photon excited fluorophores (revised Figure 5b). In summary, 3P and 4P fluorescence excitation will both be suitable for a broad range of live-cell biology applications.

2. How long does it take to acquire a single frame with four-photon excitation at 1700nm? In none of the data sets was frame time mentioned in particular when acquired 3D data sets. Can the authors ensure that these times are mentioned both in the main text and the figures containing images.

The frame acquisition times have been included in the figure captions. As example, the following can be found in the figure caption of revised Figure 3, panel a: “Details from images: 2.2 s frame time, 20 µs pixel integration time.” This frame rate is sufficient for monitoring cell migration and tissue remodelling, as used in the tumor and immunology fields (addressed above).

3. In line 131 and figure 3d the authors present data showing relative axial resolution measurements. Are these features measured diffraction limited and how do they know? There are clearly not measuring like for like structures (different fluorescent species) so do not think this can be used as a measure of resolution. Can the author provide other resolution measurements?

The quantitative analyses on resolution using diffraction-limited 100 nm beads are presented in revised Figure 1—figure supplement 1d. In revised Figure 3d, the structures analysed for relative resolution measurements (nuclei, cell bodies) were not diffraction limited. Different fluorescent species indeed imply different resolutions, in case the order of the excitation process is different between the species. However, the steep discontinuity gradient of the label at the cell or nucleus edge provides an approximation for detecting the resolution in the axial direction in a discontinuous 3D tissue sample in vivo. We here aimed to provide a simple approach to detect resolution in vivo, given that direct detection of diffraction-limited beads is not possible in scattering fluorescent tumors in mice. We submit, that the steepness in the normalized signal strength over the discontinuity (minimum – maximum between 0 – 1) of different structures can serve as pragmatic measure for the axial resolution.

4. In line 140 – 142 the authors present data showing the advantages of THG at 1650nm over other excitation lines. Aside from the excitation wavelength could this data be explained by the greater absorption and scattering at the emission wavelengths generated at these laser lines?

Indeed, THG intensity was strongest at 1650 nm excitation over the other excitation conditions. We did not directly address the mechanism of this difference, using physically controlled conditions.

The improved signal to noise and imaging depth of low repetition rate high pulse energy excitation (1300 nm and 1650 nm) with respect to high repetition rate low pulse energy excitation (1180 nm) has been addressed as follows (p. 11): “Imaging depth limits of THG microscopy with lowIR excitation results from the lower photon density in the focus, leading to a drastically lower excitation efficiency, in combination with the rapid attenuation of nonlinear signals upon scattering and absorption of excitation light19,20. In contrast, THG by highIR excitation, which creates a multifold higher photon density in the focus, is achieved with only a small fraction of the available power at the tissue surface, which allows to increase the excitation energy at the sample surface with imaging depth further, to maintain a constant signal over a much broader depth range.”

The improved THG imaging performance of 1650 nm with respect to 1300 nm high-pulse-energy excitation may be addressed to several causes. Wavelength dependent differences in scattering and absorption of the laser light are the most plausible explanation for this effect. Scattering and absorption are dominant attenuation factors for excitation of THG, which depends on the cube of the excitation energy arriving at the focus, while the emission is much less dependent on these parameters19,21. Therefore, shifting the excitation wavelength may strongly modulate the detected signal in dense 3D tissue, since the effective attenuation length of tumor tissue is much longer for 1650 nm excitation as compared to 1300 nm excitation (revised Figure 3e).

In addition, absorption of the emitted light may indeed contribute to the improved THG signal at 1650 nm, because the blood absorption coefficient is 10 times higher at ~400 nm (THG emission at 1200-1300 nm incident wavelength) compared to 550 nm (emission from 1650 nm incident). However, we noted only minor impact of these emission wavelengths on the effective attenuation lengths (le), derived for 1300 nm excitation: le = 120 µm and le = 128 µm were found, for 433 nm (THG) and 500-550 nm (eGFP), respectively (revised Figure 3—figure supplement 1a). Also, for 1650 nm excitation, we did not find a strong correlation between the emission wavelength and the effective attenuation length: le = 218 µm and le = 220 µm were found, for 485-525 nm (4-photon excited eGFP) and 570-610 nm (TagRFP), respectively (revised Figure 3—figure supplement 1b). Notably, for 1650 nm we derived a larger effective attenuation length for THG emission centred around 550 nm as compared to fluorescence emission: le = 286 µm (revised Figure 3—figure supplement 1b), while this difference was absent for 1300 nm excitation. This finding indicates other excitation wavelength dependent mechanisms are influencing THG excitation efficiency as well, such as the size of THG signal emitting structures relative to the size of the focus.

While technically interesting, we feel that this data goes beyond the primary application focus of this work; however, should the referees and Editor support inclusion in the Supplement, we will be happy to revise accordingly.

In summary, we conclude that the longer excitation wavelength and higher excitation pulse energy are favourable for THG microscopy in the tumor, while the absorption and scattering of the emission are less critical.

5. In figure 3A and 3C the SNR for 1650nm increases whilst for 1300nm and 1180 excitation this decreases. Is this simply due to more of the exciting fluorophore species residing deeper into the tissue?

Indeed, the slope of the curves shown in Figure 3C is bimodal. We escalated the excitation power gradually to achieve constant emission with increasing tissue penetration, and this correction was done “by eye” through the operator. Likely, this introduced some overcompensation and, accordingly, inaccuracy. We now describe the procedure, as follows (p. 9): “To achieve arbitrarily constant 3- or 2P emission with increasing imaging depth, we manually increased the excitation energy E using eGFP (for 1300 nm) and TagRFP (1180 and 1650 nm) as a reference, while remaining below the phototoxicity thresholds as defined above (Figure 3a, grey profiles).”

In Figure 3G (Figure 4B in the revised manuscript), different structures with different dimensions and orientations responded differently to the three excitation modalities. THG from thin fibrous collagen structures near the tumor surface was less efficiently excited with 1650 nm compared to shorter excitation wavelengths. On the other hand, cell and tissue structures within the tumor mass were excited more effectively with 1650 nm as compared to the collagen structures. At imaging depths beyond ~300 µm, excitation energy at the surface was not further increased, causing a decrease of the THG signal. As a consequence, the 1650 nm THG signal curve shows a peak. The thin fibrous collagen structures responded more strongly to 1180 nm and 1300 nm excitation, while cell and tissue structures inside the tumor emitted a relatively lower signal at these wavelengths. Therefore, 1180 and 1300 nm excited THG curves show a slope.

We now explain these differences in THG responses in greater detail, as follows (p. 11): “For example, THG by small collagen fibers under non-scattering conditions was best with excitation at 1180 nm, whereas THG by tumor cell nuclei was strongest at 1300 nm excitation (Figure 4a, arrowheads). The wavelength-dependent size of the focal volume relative to THG-generating cell and tissue structures is a possible explanation for these differences17.”

References:

1. Hopt, a and Neher, E. Highly nonlinear photodamage in two-photon fluorescence microscopy. Biophys. J. 80, 2029–36 (2001).

2. Ouzounov, D. G. et al. In vivo three-photon imaging of activity of GCaMP6-labeled neurons deep in intact mouse brain. Nat. Methods 14, 388–390 (2017).

3. Yildirim, M., Sugihara, H., So, P. T. C. and Sur, M. Functional imaging of visual cortical layers and subplate in awake mice with optimized three-photon microscopy. Nat. Commun. 10, 177 (2019).

4. Wang, T. et al. Quantitative analysis of 1300-nm three-photon calcium imaging in the mouse brain. eLife 9, 1–22 (2020).

5. Débarre, D. et al. Mitigating phototoxicity during multiphoton microscopy of live drosophila embryos in the 1.0-1.2 μm wavelength range. PLoS One 9, (2014).

6. Tirlapur, U. K., König, K., Peuckert, C., Krieg, R. and Halbhuber, K. Femtosecond near-infrared laser pulses elicit generation of reactive oxygen species in mammalian cells leading to apoptosis-like death. Exp. Cell Res. 263, 88–97 (2001).

7. Débarre, D., Olivier, N., Supatto, W. and Beaurepaire, E. Mitigating phototoxicity during multiphoton microscopy of live drosophila embryos in the 1.0-1.2 μm wavelength range. PLoS One 9, (2014).

8. Weigelin, B. et al. Cytotoxic T cells are able to efficiently eliminate cancer cells by additive cytotoxicity. Nat. Commun. 12, 1–12 (2021).

9. Kiepas, A., Voorand, E., Mubaid, F., Siegel, P. M. and Brown, C. M. Optimizing live-cell fluorescence imaging conditions to minimize phototoxicity. J. Cell Sci. 133, (2020).

10. Cheng, L.-C., Horton, N. G., Wang, K., Chen, S.-J. and Xu, C. Measurements of multiphoton action cross sections for multiphoton microscopy. Biomed. Opt. Express 5, 3427–33 (2014).

11. Horton, N. G. et al. In vivo three-photon microscopy of subcortical structures within an intact mouse brain. Nat. Photonics 7, 205–209 (2013).

12. Drobizhev, M., Makarov, N. S., Tillo, S. E., Hughes, T. E. and Rebane, A. Two-photon absorption properties of fluorescent proteins. Nat. Methods 8, 393–9 (2011).

13. Hontani, Y., Xia, F. and Xu, C. Multicolor three-photon fluorescence imaging with single-wavelength excitation deep in mouse brain. Sci. Adv. 7, (2021).

14. Podgorski, K. and Ranganathan, G. Brain heating induced by near-infrared lasers during multiphoton microscopy. J. Neurophysiol. 116, 1012–1023 (2016).

15. Wang, T. et al. Three-photon imaging of mouse brain structure and function through the intact skull. Nat. Methods 15, 789–792 (2018).

16. Rowlands, C. J. et al. Wide-field three-photon excitation in biological samples. Light Sci. Appl. 6, e16255-9 (2017).

17. Debarre, D. et al. Imaging lipid bodies in cells and tissues using third-harmonic generation microscopy. Nat. Methods 3, 47–53 (2006).

18. Li, B., Wu, C., Wang, M., Charan, K. and Xu, C. An adaptive excitation source for high-speed multiphoton microscopy. Nat. Methods 17, 163–166 (2020).

19. Beaurepaire, E., Oheim, M. and Mertz, J. Ultra-deep two-photon fluorescence excitation in turbid media. Opt. Commun. 188, 25–29 (2001).

20. Theer, P., Hasan, M. T. and Denk, W. Two-photon imaging to a depth of 1000 µm in living brains by use of a Ti:Al_2O_3 regenerative amplifier. Opt. Lett. 28, 1022 (2003).

21. Theer, P. and Denk, W. On the fundamental imaging-depth limit in two-photon microscopy. J. Opt. Soc. Am. A. Opt. Image Sci. Vis. 23, 3139–49 (2006).

22. Wang, M. et al. Comparing the effective attenuation lengths for long wavelength in vivo imaging of the mouse brain. Biomed. Opt. Express 9, 3534 (2018).

https://doi.org/10.7554/eLife.63776.sa2

Article and author information

Author details

  1. Gert-Jan Bakker

    Department of Cell Biology, Radboud Institute for Molecular Life Sciences, Radboud University Medical Centre, Nijmegen, Netherlands
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Project administration, Resources, Software, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    gert-jan.bakker@radboudumc.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3602-0014
  2. Sarah Weischer

    Department of Cell Biology, Radboud Institute for Molecular Life Sciences, Radboud University Medical Centre, Nijmegen, Netherlands
    Contribution
    Investigation, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Júlia Ferrer Ortas

    Laboratory for Optics & Biosciences École Polytechnique, CNRS, INSERM, Paris, France
    Contribution
    Conceptualization, Investigation, Methodology, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Judith Heidelin

    LaVision BioTec GmbH, a Miltenyi Biotec company, Bielefeld, Germany
    Contribution
    Conceptualization, Methodology, Resources, Writing – review and editing
    Competing interests
    Judith Heidelin is currently employed by LaVision BioTec GmbH and explores implementation of high-pulse-energy low-duty-cycle light sources as a microscopy product line
  5. Volker Andresen

    LaVision BioTec GmbH, a Miltenyi Biotec company, Bielefeld, Germany
    Contribution
    Conceptualization, Methodology, Writing – review and editing
    Competing interests
    Volker Andresen is currently employed by LaVision BioTec GmbH and explores implementation of high-pulse-energy low-duty-cycle light sources as a microscopy product line
  6. Marcus Beutler

    APE Angewandte Physik & Elektronik GmbH, Berlin, Germany
    Contribution
    Conceptualization, Methodology, Resources, Writing – review and editing
    Competing interests
    Marcus Beutler has a current employment at APE Angewandte Physik & Elektronik GmbH, which produces the AVUS SP as a commercial product
  7. Emmanuel Beaurepaire

    Laboratory for Optics & Biosciences École Polytechnique, CNRS, INSERM, Paris, France
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Peter Friedl

    1. Department of Cell Biology, Radboud Institute for Molecular Life Sciences, Radboud University Medical Centre, Nijmegen, Netherlands
    2. Cancer Genomics Centre, Utrecht, Netherlands
    3. David H. Koch Center for Applied Genitourinary Cancers, The University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    Conceptualization, Funding acquisition, Methodology, Supervision, Writing – review and editing
    For correspondence
    peter.friedl@radboudumc.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0119-4041

Funding

FP7 Ideas: European Research Council (617430-DEEPINSIGHT)

  • Peter Friedl

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (NWO Gravitation Programme 024.001.028)

  • Peter Friedl

Agence Nationale de la Recherche (ANR-11-EQPX-0029)

  • Emmanuel Beaurepaire

Agence Nationale de la Recherche (ANR-15-CE13-0015)

  • Emmanuel Beaurepaire

Fondation pour la Recherche Médicale (DEI201512440)

  • Emmanuel Beaurepaire

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We acknowledge Eleonora Dondossola for supplying bone samples; Esther Wagena, Bianca Lemmers-Van de Weem, and Mike Peters for expert technical support and assistance in animal experiments; and Mirjam Zegers for critical reading of the manuscript. We thank Amplitude Systèmes for providing a Satsuma HP2 demo system and Lucie Desclaux, Yoann Zaouter, Alexandre Thai, and Aurelia Durand for hardware support, and we further thank APE GmbH, Berlin, for providing the AVUS SP demo system. Lastly, we gratefully acknowledge Chris Xu, Willy Supatto, Pierre Mahou, Hugo Blanc, Xavier Solinas, Frédéric Druon, Raluca Niesner, Asylkhan Rakhymzhan, and Rafael Kurtz for insightful discussions. This work was supported by the European Research Council (617430-DEEPINSIGHT) to PF, Agence Nationale pour la Recherche (ANR-11-EQPX-0029, ANR-15-CE13-0015) to EB, Fondation pour la Recherche Médicale (DEI201512440) to EB, and the Cancer Genomics Center (CGC.nl) to PF.

Ethics

All animal procedures were approved by the ethical committee on animal experimentation (RU-DEC 2014-031) or the Central Authority for Scientific Procedures on Animals (CCD: AVD10300 2017 4444, license: 2017-0042). Handlings were performed at the central animal facility (CDL) of the Radboud University, Nijmegen, in accordance with the Dutch Animal experimentation act and the European FELASA protocol. Before the experiment, mice were housed in IVCM cages at standard housing conditions. Food and water were accessible ad libitum. All surgery was performed using isoflurane anesthesia (2 % in oxygen). Mice received an adequate peri-surgical analgesia using carprofen and buprenorphine. To prevent dislocation and inflammation of the dorsal skinfold imaging chamber, mice were housed with reduced cage enrichment during the experiment.

Senior Editor

  1. Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Reviewing Editor

  1. Maddy Parsons, King's College London, United Kingdom

Reviewers

  1. Scott E Fraser, University of Southern California, United States
  2. Marloes Groot, VU University, Netherlands

Publication history

  1. Received: October 7, 2020
  2. Accepted: January 6, 2022
  3. Version of Record published: February 15, 2022 (version 1)

Copyright

© 2022, Bakker et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,463
    Page views
  • 174
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Gert-Jan Bakker
  2. Sarah Weischer
  3. Júlia Ferrer Ortas
  4. Judith Heidelin
  5. Volker Andresen
  6. Marcus Beutler
  7. Emmanuel Beaurepaire
  8. Peter Friedl
(2022)
Intravital deep-tumor single-beam 3-photon, 4-photon, and harmonic microscopy
eLife 11:e63776.
https://doi.org/10.7554/eLife.63776

Further reading

    1. Cancer Biology
    2. Computational and Systems Biology
    Pan Cheng, Xin Zhao ... Teresa Davoli
    Research Article

    How cells control gene expression is a fundamental question. The relative contribution of protein-level and RNA-level regulation to this process remains unclear. Here, we perform a proteogenomic analysis of tumors and untransformed cells containing somatic copy number alterations (SCNAs). By revealing how cells regulate RNA and protein abundances of genes with SCNAs, we provide insights into the rules of gene regulation. Protein complex genes have a strong protein-level regulation while non-complex genes have a strong RNA-level regulation. Notable exceptions are plasma membrane protein complex genes, which show a weak protein-level regulation and a stronger RNA-level regulation. Strikingly, we find a strong negative association between the degree of RNA-level and protein-level regulation across genes and cellular pathways. Moreover, genes participating in the same pathway show a similar degree of RNA- and protein-level regulation. Pathways including translation, splicing, RNA processing, and mitochondrial function show a stronger protein-level regulation while cell adhesion and migration pathways show a stronger RNA-level regulation. These results suggest that the evolution of gene regulation is shaped by functional constraints and that many cellular pathways tend to evolve one predominant mechanism of gene regulation at the protein level or at the RNA level.

    1. Cancer Biology
    2. Chromosomes and Gene Expression
    Arnaud Carrier, Cécile Desjobert ... Paola B Arimondo
    Research Article

    Aberrant DNA methylation is a well‑known feature of tumours and has been associated with metastatic melanoma. However, since melanoma cells are highly heterogeneous, it has been challenging to use affected genes to predict tumour aggressiveness, metastatic evolution, and patients' outcomes. We hypothesized that common aggressive hypermethylation signatures should emerge early in tumorigenesis and should be shared in aggressive cells, independent of the physiological context under which this trait arises. We compared paired melanoma cell lines with the following properties: (i) each pair comprises one aggressive counterpart and its parental cell line, and (ii) the aggressive cell lines were each obtained from different host and their environment (human, rat, and mouse), though starting from the same parent cell line. Next, we developed a multi-step genomic pipeline that combines the DNA methylome profile with a chromosome cluster-oriented analysis. A total of 229 differentially hypermethylated genes were commonly found in the aggressive cell lines. Genome localization analysis revealed hypermethylation peaks and clusters, identifying eight hypermethylated gene promoters for validation in tissues from melanoma patients. Five CpG identified in primary melanoma tissues were transformed into a DNA methylation score that can predict survival (Log-rank test, p=0.0008). This strategy is potentially universally applicable to other diseases involving DNA methylation alterations.
