SARS-CoV-2 suppresses anticoagulant and fibrinolytic gene expression in the lung

  1. Alan E Mast
  2. Alisa S Wolberg
  3. David Gailani
  4. Michael R Garvin
  5. Christiane Alvarez
  6. J Izaak Miller
  7. Bruce Aronow
  8. Daniel Jacobson  Is a corresponding author
  1. Versiti Blood Research Institute, Department of Cell Biology Neurobiology and Anatomy Medical College of Wisconsin, United States
  2. Department of Pathology and Laboratory Medicine and UNC Blood Research Center, United States
  3. Department of Pathology, Microbiology and Immunology, Vanderbilt University Medical Center, United States
  4. Oak Ridge National Laboratory, Biosciences Division, United States
  5. University of Tennessee Knoxville, The Bredesen Center for Interdisciplinary Research and Graduate Education, United States
  6. Biomedical Informatics, Cincinnati Children’s Hospital Research Foundation, United States
  7. University of Cincinnati, United States
  8. University of Tennessee Knoxville, Department of Psychology, United States
Research Article
  • Cited 3
  • Views 1,257
  • Annotations
Cite this article as: eLife 2021;10:e64330 doi: 10.7554/eLife.64330

Abstract

Extensive fibrin deposition in the lungs and altered levels of circulating blood coagulation proteins in COVID-19 patients imply local derangement of pathways that limit fibrin formation and/or promote its clearance. We examined transcriptional profiles of bronchoalveolar lavage fluid (BALF) samples to identify molecular mechanisms underlying these coagulopathies. mRNA levels for regulators of the kallikrein–kinin (C1-inhibitor), coagulation (thrombomodulin, endothelial protein C receptor), and fibrinolytic (urokinase and urokinase receptor) pathways were significantly reduced in COVID-19 patients. While transcripts for several coagulation proteins were increased, those encoding tissue factor, the protein that initiates coagulation and whose expression is frequently increased in inflammatory disorders, were not increased in BALF from COVID-19 patients. Our analysis implicates enhanced propagation of coagulation and decreased fibrinolysis as drivers of the coagulopathy in the lungs of COVID-19 patients.

Introduction

The bradykinin storm model for COVID-19 pathogenesis was recently developed from our analyses of gene expression, clinical, autopsy, pathology, and ChIP-Seq data (Garvin et al., 2020). Several clinical studies by other groups have demonstrated positive results from therapeutic interventions predicted by our model (Entrenas Castillo et al., 2020; van de Veerdonk et al., 2020; WHO Rapid Evidence Appraisal for COVID-19 Therapies (REACT) Working Group et al., 2020). Here, we extend this model to include the concurrent dysregulation of the coagulation and fibrinolytic pathways.

SARS-CoV-2 displays considerable tissue tropism (Adachi et al., 2020; Barton et al., 2020; Su et al., 2020; Xu et al., 2020). The lungs are often affected with disease that can range from mild pneumonia, to severe dyspnea and hypoxia, to critical respiratory failure, shock, and multiorgan failure. The time course for the development of severe disease is typically 8–12 days, but some patients rapidly deteriorate about 7 days following development of symptoms. Lung tissue from people who died from COVID-19 has pauci-inflammatory septal capillary injury and luminal and mural fibrin deposition in alveolar septal capillaries (Lax et al., 2020; Magro et al., 2020), thrombi in small- and medium-sized arteries (Lax et al., 2020; Magro et al., 2020), and fibrinous thrombi in small pulmonary arterioles with evidence of tumefaction of the endothelium (Dolhnikoff et al., 2020; Fox et al., 2020; Geerdes-Fenge et al., 2020; Lax et al., 2020). A report that administering tissue plasminogen activator (tPA) to dissolve fibrin transiently alleviates respiratory distress in COVID-19 patients supports the premise that fibrin deposition contributes to the respiratory failure (Wang et al., 2020). Thus, it appears that COVID-19 hypoxemia stems at least partially from fibrin deposits surrounding alveoli that restrict oxygen transfer and microvascular thrombi that cause ventilation–perfusion defects.

Abnormal levels of circulating coagulation proteins are present in patients with COVID-19. Changes include increased levels of coagulation proteins associated with the acute phase response (e.g., fibrinogen and factor VIII) and endothelial activation (e.g., von Willebrand factor), as well as elevated biomarkers of coagulation activation (e.g., D-dimer) (Chen et al., 2020; Gattinoni et al., 2020; Helms et al., 2020; Middeldorp et al., 2020; Panigada et al., 2020; Tang et al., 2020; Zhou et al., 2020aHelms et al., 2020; Middeldorp et al., 2020; Panigada et al., 2020). Accordingly, thrombotic events have been detected in up to 30% of COVID-19 patients (Helms et al., 2020; Middeldorp et al., 2020; Panigada et al., 2020) including large vessel occlusions such as deep vein thrombosis, pulmonary embolism, and ischemic stroke, as well as microvascular thrombosis and extravascular fibrin deposition in a variety of tissues including lung and skin (Helms et al., 2020; Middeldorp et al., 2020; Panigada et al., 2020). Inappropriate fibrin deposition and thrombosis are thought to stem from the interaction of systemic (blood) changes with tissue-specific dysfunction. However, mechanisms that contribute to prevalence of thrombi and fibrin in the pulmonary vasculature and extravascular space, thought to be a major cause of morbidity and mortality in COVID-19, have remained elusive.

The goal of the present study was to identify changes in the lungs of patients with severe COVID-19 that could contribute to local derangement of hemostatic mechanisms. Bronchoalveolar lavage fluid (BALF) contains lung parenchymal, epithelial, and alveolar cells, as well as immune cells that infiltrate epithelial and luminal spaces. RNA sequencing of BALF provides a snapshot of the transcriptome at the interface where capillary gas exchange occurs and has been used to characterize lung function in many diseases (Gu et al., 2019; Jakieła et al., 2018; Kahn et al., 2015; Sengupta et al., 2019; Sun et al., 2019; Weigt et al., 2019; Zhang et al., 2019). Here, we compared the transcriptional signatures of BALF from patients with COVID-19 and uninfected controls. Our analyses focused on transcripts for proteins that function in coagulation, fibrinolysis, and kinin formation in the lung to identify dysregulated mechanisms that may contribute to COVID-19 pathophysiology.

Results and discussion

Changes in transcripts encoding proteins in the kallikrein–kinin/bradykinin system

Overview of pathways examined

The plasma kallikrein–kinin system is comprised of the protease precursors factor XII (FXII, encoded by F12) and prekallikrein (encoded by KLKB1) and the cofactor high-molecular-weight kininogen (HK, encoded by KNG1) (Schmaier, 2016; Schmaier et al., 2019). In healthy individuals, FXII and prekallikrein undergo reciprocal activation to the proteases FXIIa and kallikrein (Revenko et al., 2011; Schmaier, 2016). Kallikrein cleaves HK to liberate bradykinin, which contributes to setting vascular tone and permeability by interacting with bradykinin receptors (encoded by BDKRB1 and BDKRB2) (Marceau et al., 2020). This process is regulated by C1-Inhibitor (encoded by SERPING1) (Marceau et al., 2020). Congenital C1-Inhibitor deficiency causes hereditary angioedema, which is characterized by bouts of bradykinin-induced soft tissue swelling (Busse and Christiansen, 2020; Cicardi and Zuraw, 2018). C1-Inhibitor in blood is primarily of hepatocyte origin, although it also is produced by other cell types including vascular endothelium (Prada et al., 1998).

Study findings

Transcripts encoding C1-Inhibitor were decreased 80-fold in BALF from COVID-19 patients (Table 1), raising the possibilities that contact activation-initiated thrombin generation is locally dysregulated and control of bradykinin production is compromised. Furthermore, the angiotensin-converting enzyme (ACE) that degrades bradykinin (Cicardi and Zuraw, 2018; Davin et al., 2019) was downregulated eightfold in COVID-19 BALF.

Table 1
Differentially expressed coagulation genes.
GeneProtein productMean COVID-19Mean controlFold changeLog2FCFDR
A2Mα2-Macroglubulin3.9177.6−43.5−5.45.2E-15
BDKRB1Bradykinin receptor B13.30.0258.98.04.3E-91
BDKRB2Bradykinin receptor B28.90.249.15.61.9E-40
F13A1Factor XIII-A subunit2.59.2−3.6−1.82.6E-05
F13BFactor XIII-B subunit0.60.0117.86.92.7E-31
F12Factor XII0.53.2−4.4−2.15.7E-10
F11Factor XI6.60.181.26.37.9E-79
F10Factor X3.20.0169.97.47.9E-140
F9Factor IX0.90.0189.67.62.2E-39
F8Factor VIII3.915.8−4.6−2.21.6E-40
F7Factor VII10.10.0363.58.52.9E-73
F5Factor V9.76.81.40.50.13
F3Tissue Factor4.23.8-1.0-0.011
F2Prothrombin0.90.0188.87.67.8E-67
FGAFibrinogen Aα chain3.40.0322.58.33.4E-206
FGBFibrinogen Bβ chain3.70.0303.98.22.4E-151
FGGFibrinogen γ chain0.70.085.46.44.8E-17
KLKB1Kallikrein B11.31.8−1.4−0.52.1E-01
KNG1Kininogen3.30.0190.77.64.2E-163
PLATTissue plasminogen activator1.80.45.32.47.1E-24
PLAUUrokinase3.8158.3−37.1−5.28.2E-172
PLAURUrokinase receptor6.2313.3−42.1−5.46.4E-286
PLGPlasminogen2.20.075.36.27.3E-38
PROCProtein C2.00.0226.57.84.1E-158
PROCREndothelial protein C receptor1.757.9−33.8−5.11.9E-50
PROS1Protein S3.2195.3−54.2−5.81.1E-174
SERPINA5Protein C Inhibitor2.70.0786.89.65.4E-145
SERPINB2Plasminogen activator inhibitor-21.00.52.31.22.1E-01
SERPINC1Antithrombin1.90.113.63.83.1E-31
SERPIND1Heparin cofactor II3.00.094.06.62.2E-72
SERPINE1Plasminogen activator inhibitor-12.75.3−1.8−0.98.8E-02
SERPINF2α2-antiplasmin5.48.2−1.4−0.51.1E-02
SERPING1C-1 inhibitor23.31923.2−80.1−6.35.4E-33
TFPITissue factor pathway inhibitor3.40.47.72.98.7E-19
THBDThrombomodulin9.6224.0−22.2−4.53.2E-48
VWFVon Willebrand factor14.57.72.01.02.0E-05

Changes in transcripts encoding extrinsic pathway proteins that initiate thrombin generation

Overview of pathways examined

The integral cytoplasmic membrane protein tissue factor (TF, encoded by F3) is the primary initiator of thrombin generation in vivo. In many inflammatory conditions, cellular TF expression is upregulated (Edwards et al., 1979), providing a mechanistic explanation for hypercoagulable states associated with a variety of bacterial and viral infections (Grover and Mackman, 2018; Levi and van der Poll, 2017). Tissue factor pathway inhibitor (TFPI, encoded by TFPI) is a Kunitz-type protease inhibitor produced by vascular endothelium (Bajaj et al., 1990) and is the major inhibitor of the factor VIIa (FVIIa)/TF complex (Wood et al., 2014).

Study findings

Surprisingly, transcripts encoding TF were similar in COVID-19 and control BALF samples (Figure 1; Table 1), whereas transcripts for TFPI were increased eightfold in COVID-19 BALF. On balance, these data indicate that pulmonary fibrin deposition does not stem from enhanced local TF production and that counterintuitively, COVID-19 may dampen TF-dependent mechanisms in the lungs.

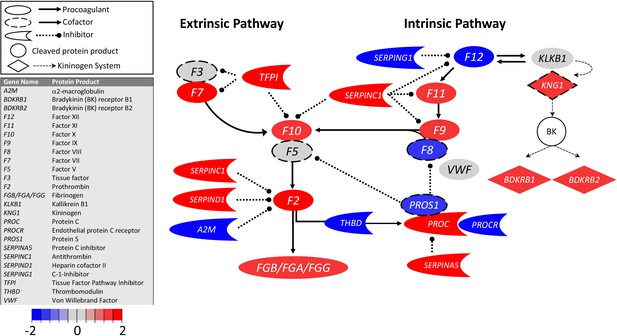

Transcriptional changes in lung induced by COVID-19 infection did not alter F3, but decreased aPC anticoagulant capacity, suggesting decreased inhibition of the propagation phase of coagulation.

Figure shows differential gene expression (log2 fold change) of coagulation pathway transcripts in BALF of COVID-19 patients; the image illustrates mechanistic relationships of the protein products of the identified transcripts during coagulation. Shading indicates relative expression in COVID-19 patients compared to controls: increased (red) or decreased (blue). There was minimal change in F3 (encoding tissue factor ) and increased TFPI (encoding the major inhibitor of tissue factor activity). There was decreased THBD, PROCR, and PROS1 (encoding proteins that enhance anticoagulant activity) and increased SERPINA5 (encoding protein C inhibitor). There was also decreased SERPING1 (encoding C1-Inhibitor). Other transcripts showing changes (e.g., F11, F10, F7, F2) encode proteins typically produced in the liver; local expression of these proteins is unclear.

Changes in transcripts encoding intrinsic pathway proteins that initiate thrombin generation

Overview of pathways examined

Increased thrombin generation can also be initiated by the plasma protease FXIIa (Maas and Renné, 2018; Stavrou, 2018). While FXIIa does not contribute to hemostasis, it is implicated in thrombo-inflammatory conditions. FXIIa converts factor XI (FXI, encoded by F11) to the protease FXIa (Ivanov et al., 2017; Long et al., 2016; Schmaier, 2016; Wang et al., 2019), a potent activator of the coagulation protease factor IX (FIX, encoded by F9) (Mohammed et al., 2018).

Study findings

Transcripts encoding FXII were slightly decreased (−4-fold) in COVID-19 and control BALF samples (Figure 1; Table 1), but the expression of the C1 inhibitor (encoded by SERPING1), which normally inhibits the FXII protein activity, is downregulated 80-fold. While it is not known if pulmonary tissues normally produce FXI or FIX, transcripts for FXI (81-fold) and FIX (190-fold) were both increased in BALF from COVID-19 patients. Numerous studies have reported correlations between plasma FIX and FXI levels and risk for venous thromboembolism and ischemic stroke (Ammollo et al., 2014; Folsom et al., 2015; Mohammed et al., 2018; Preis et al., 2017; Salomon et al., 2011, Salomon et al., 2008; Siegerink et al., 2010; Suri et al., 2010). Perhaps local increases in FIX or FXI expression enhance thrombin generation and promote thrombus formation.

Changes in transcripts encoding anticoagulant proteins

Overview of pathways examined

Healthy lung endothelium has membrane-associated anticoagulant proteins that inhibit different points in the thrombin generation pathway. These include TFPI, which inhibits the initiation of coagulation as described above, and thrombomodulin (encoded by THBD) and endothelial protein C receptor (EPCR, encoded by PROCR), which coordinate to inhibit the propagation of coagulation. Thrombomodulin captures thrombin and converts it from a procoagulant enzyme to an activator of protein C (encoded by PROC) in a process enhanced by binding of PC to EPCR. Activated PC with its cofactor protein S (encoded by PROS1) downregulates thrombin generation by inactivating factors VIIIa and Va and produces a cytoprotective/anti-inflammatory effect when bound to EPCR through cleavage of protease activated receptor-1 on endothelial cells (Ito et al., 2019; Riewald et al., 2002).

Study findings

Transcripts encoding thrombomodulin (−22-fold) and EPCR (−33-fold) were each reduced in BALF from COVID-19 patients compared with controls (Figure 1; Table 1), suggesting SARS-CoV-2 is associated with reduced expression of these proteins on vascular endothelium. We also observed a marked increase in protein C transcripts in BALF from COVID-19 patients (227-fold), but a significant reduction in PS transcripts (−54-fold). Since protein C and protein S in blood are primarily synthesized by hepatocytes, the importance of local synthesis of these proteins is not known. However, expression patterns in BALF are consistent with the observation that the plasma concentration of protein C is moderately elevated, and protein S moderately reduced, in COVID-19 patients (Panigada et al., 2020). In COVID-19 BALF, there was also a substantial increase (786-fold) in mRNA for protein C inhibitor (encoded by SERPINA5), a serpin regulator of activated protein C. Taken as a whole, the transcript pattern in COVID-19 BALF suggests a diminished capacity of the endothelial anticoagulant system to downregulate local thrombin generation.

Changes in transcripts that encode fibrinogen and proteins in the fibrinolytic pathway

Overview of pathways examined

The fibrinolytic system is responsible for enzymatic degradation of fibrin. Plasminogen activators convert plasminogen to plasmin, which cleaves fibrin and generates fibrin degradation products, including the circulating biomarker D-dimer. Cells within the lung express plasminogen activators (e.g., [tPA, encoded by PLAT], urokinase plasminogen activator [uPA, encoded by PLAU], and the uPA receptor [uPAR, encoded by PLAUR]) that prevent fibrin accumulation in small airways and the alveolar compartment and that maintain blood vessel patency (Shetty et al., 2008). uPA and uPAR are expressed by lung epithelial cells, alveolar macrophages, and fibroblasts, and reduced expression of these proteins contributes to acute lung injury (Shetty et al., 2008). The plasminogen activators are inhibited by plasminogen activator inhibitor-1 (PAI-1, encoded by SERPINE1). Plasma fibrinogen, a dimer of trimers (Aα22γ2) encoded by three genes, FGA, FGB, and FGG, is synthesized primarily by hepatocytes (Pieters and Wolberg, 2019); however, synthesis has been reported in stimulated cultured lung alveolar epithelial cells and in alveolar epithelium in an animal model of bacterial pneumonia (Guadiz et al., 1997; Simpson-Haidaris et al., 1998).

Study findings

Transcripts encoding the fibrinogen chains were increased in COVID-19 BALF (Table 1, Figure 2; ). Our findings suggest that local fibrinogen expression in the lungs of COVID-19 patients, like fibrinogen expression by hepatocytes, is upregulated during the acute phase response and may provide additional substrate for local thrombin-mediated fibrin production. Our analysis uncovered evidence of reduced expression of transcripts encoding uPA (−37-fold) and uPAR (−42-fold) (Table 1, Figure 2) in BALF from COVID-19 patients. Expression of transcripts encoding tPA was very low in BALF from healthy individuals. Transcripts encoding tPA were elevated (fivefold) in COVID-19 BALF, but absolute expression was low compared to uPA and uPAR transcripts in uninfected controls (Table 1, Figure 2). Similarly, expression of transcript for plasminogen (encoded by PLG) was elevated in COVID-19 BALF but remained low compared to other transcripts. The combination of increased fibrinogen expression and reduced production of uPA and uPAR indicates a loss of local fibrinolytic capacity, consistent with a lung environment permissive of the accumulation of fibrin deposits within pulmonary vessels and the alveolar space (Lax et al., 2020; Magro et al., 2020).

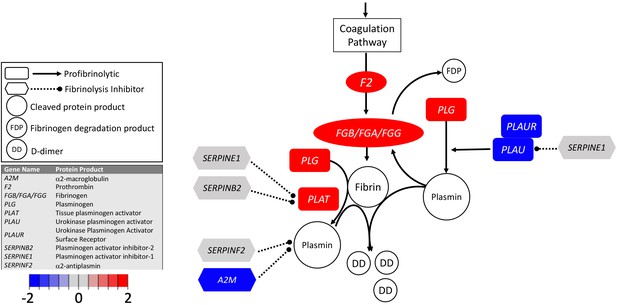

Transcriptional changes in lung induced by COVID-19 infection decreased PLAU and PLAUR, suggesting diminished fibrinolytic activity.

Figure shows differential gene expression (log2 fold change) of fibrinolytic pathway transcripts in BALF of COVID-19 patients; the image illustrates mechanistic relationships of the protein products of the identified transcripts during fibrinolysis. Shading indicates relative expression in COVID-19 patients compared to controls: increased (red) or decreased (blue). There was a moderate increase in PLAT (encoding tPA). There was also enhanced expression of FGB, FGA, and FGG (encoding fibrinogen chains) and decreased expression of PLAU and PLAUR (encoding uPA and uPAR, respectively). Other transcripts showing changes (e.g., F2, PLG) encode proteins typically produced in the liver; local expression of these proteins is unclear.

Conclusions

We detected pronounced changes in mRNA levels encoding proteins involved in regulation of coagulation, fibrinolysis, and inflammation in the lungs of COVID-19 patients. These changes include reductions in transcripts for proteins known to be expressed in normal pulmonary tissue (thrombomodulin, EPCR, uPA, uPAR) that would compromise the functions of anticoagulant and fibrinolytic pathways. In concert with enhanced production of bradykinin and vascular permeability, these changes are likely to create an environment in which plasma proteins are exposed to the extravascular space, resulting in increased fibrin production and reduced fibrin degradation, enabling the fibrin deposits in pulmonary vessels and alveolar spaces observed in autopsies of COVID-19 patients (Dolhnikoff et al., 2020; Fox et al., 2020; Geerdes-Fenge et al., 2020; Lax et al., 2020), and contributing to the virulence of the virus.

An unexpected finding was the lack of change in transcripts for F3, which encodes TF, the integral membrane protein responsible for triggering thrombin generation during hemostasis. TF expression is enhanced in a wide range of thrombo-inflammatory disorders, and its over-expression is thought to be important for driving consumptive coagulation. The apparent lack of increase in F3, coupled with an apparent increase in TFPI transcripts, raises the possibility that pathways unrelated to the FVIIa/TF complex may play a significant role in COVID-19-associated thrombosis. In this regard, thrombomodulin and EPCR transcripts were substantially decreased, suggesting reduced capacity of the lung endothelium to downregulate the propagation of thrombin generation. In addition, changes in regulation or activation of the plasma kallikrein–kinin system and contact activation may be important. This is consistent with our hypothesis that COVID-19 triggers a bradykinin storm (Garvin et al., 2020), the net effect of increased bradykinin production, reduced BK degradation, and increased local expression of bradykinin receptors, is expected to enhance vasodilation and vascular permeability, exposing blood components to extravascular proteins that promote fibrin formation and contribute to tissue damage.

Fibrin deposits and thrombi have been observed in organs other than the lungs in COVID-19 patients, including kidney (Su et al., 2020) and spleen (Mestres et al., 2020). It is tempting to speculate that transcriptional changes observed in BALF may occur in these other tissues. Currently, it is not clear whether fibrin deposition in specific organs indicates localized infection of those organs, perhaps stemming from differential distribution of the SARS-CoV-2 receptor ACE2, or reflects organ susceptibility to systemic changes induced by the infection. Analysis of transcriptional and proteomic changes in different organs in concert with information on virus entry into parenchymal cells may help explain the pattern of organ-specific thrombosis during SARS-CoV-2 infection.

Our study has limitations. Although we detected changes in multiple gene transcripts, we did not identify specific cell types for each transcript, which may include lung parenchymal cells, leukocytes, megakaryocytes (Fox et al., 2020), and other cells present in native and inflammatory states that undergo transcriptional changes in response to infection. Single-cell analyses will be required to better understand these changes during SARS-CoV-2 infection. As with all transcriptional data, we could not determine whether changes in mRNA manifest as changes in protein expression. While histologic analyses clearly demonstrate fibrin deposition in the lung, further studies using agnostic and targeted proteomics, as well as biochemical analyses will be needed to confirm causation. We focused on changes in coagulation and fibrinolytic pathways in the present study; however, the pathologic processes observed in the lungs of COVID-19 patients are likely to be influenced by changes in other pathways, such as those involving complement. Crosstalk between coagulation, fibrinolytic, and complement pathways is well documented (Ewald and Eisenberg, 1995; Foley et al., 2016; Fox et al., 2020; Kleniewski and Donaldson, 1987). Despite these limitations, it is instructive to consider how the changes in coagulation and fibrinolytic gene expression documented in our study of BALF may represent common events occurring in multiple vascular beds in COVID-19, as identification of a common dysfunction may reveal a targetable mechanism to prevent thrombosis in these patients.

Materials and methods

Study participants

Request a detailed protocol

The nine BALF samples from 5 patients used in this study were collected from patients in Wuhan, China. All patients displayed pneumonia and other severe symptoms upon admission to the hospital in Wuhan, China, in late December 2019 and were therefore admitted to the ICU (Table 2). They were originally used for RNA sequencing to identify the etiological agent for COVID-19 and to determine the genomic sequence of SARS-CoV-2. Human mRNA sequences from these samples were used to develop our bradykinin storm model (Garvin et al., 2020), but have not previously been analyzed to understand localized coagulopathy in the lungs of patients with COVID-19 (Zhou et al., 2020b). We compared mRNA transcripts for proteins involved in coagulation, fibrinolysis, and kinin formation in BALF from these samples with those from 40 controls from a study on the contribution of obesity to disease severity in asthmatics (Michalovich et al., 2019). The 40 control individuals included smokers and non-smokers, asthmatics and non-asthmatics, as well as obese and non-obese individuals. Given this diverse set of morbidities and the resulting variance in gene expression, they represent an informative control for patients with COVID-19 as statistically significant changes detected due to COVID-19 are not just representing subtle shifts in variance (Table 1). Expression datasets are available from the NCBI Sequence Read Archive under the accession numbers PRJNA605983 (severe acute respiratory syndrome coronavirus 2 raw sequence reads) and PRJNA434133 (Microbiome and Inflammatory Interactions in Obese and Severe Asthmatic Adults).

Table 2
Clinical data for patients from which BALF was extracted and analyzed for this study.
GISAID accessionIsolateNCBI accessionSRA accessionsSwab dateAgeSexPatient noDate onsetSymptoms_admissionStatus 1/13/20Diagnosis history
EPI_ISL_402127WIV02MN996527SRR11092058, SRR1109206312/30/1932MaleICU-0412/19/19Fever, cough, dyspneaFever, intermitttent coughNegative
EPI_ISL_402124WIV04MN996528SRR11092057, SRR1109206212/30/1949FemaleICU-0612/27/19Fever (37.9C), palpitationFever, malaise, coughCoronavirus (nt)
EPI_ISL_402128WIV05MN996529SRR1109206112/30/1952FemaleICU-0812/22/19Fever (38C), expectoration, malaise, dyspneaRecovered, dishargedStreptococcus pneumoniae (nt)
EPI_ISL_402129WIV06MN996530SRR11092056, SRR1109206012/30/1940MaleICU-0912/28/20Fever (38C), expectorationFever (38C), expectoration, dizzinessNegative
EPI_ISL_402130WIV07MN996531SRR11092059, SRR1109206412/30/1956MaleICU-1012/20/19Fever, dyspnea, chest tightnessFever, malaise, cough, dyspneaNegative

Gene expression analysis

Request a detailed protocol

The CLC Genomics Workbench (20.0.3) was used to trim FASTQ files downloaded from the NCBI Sequence Read Archive to remove any adapter sequences or other artifacts from processing. The RNA reads were mapped to the GRCh38_latest_rna.fna version of the human transcriptome. Mapping parameters included a cost penalty of two for mismatches and three for small insertions or deletions (INDEL), and similarity and length fraction were both set to 0.95. The resulting transcript profiles were manually inspected to account for expression artifacts, such as reads mapping solely to repetitive elements such as the Alu transposable element. Transcripts whose counts came solely from (or were dominated by) reads at repetitive elements were removed from the analysis. Where transcripts per million (TPM) values were zero (transcripts were not detected), we used the lowest TPM across samples to two decimal places. If all samples in a group had no detected transcripts, we used the lowest TPM to two decimal places from the entire set of genes queried. The edgeR package (McCarthy et al., 2012; Robinson et al., 2010) was used to identify genes that were differentially expressed in COVID-19 patient samples compared to controls. Count data were scaled to normalize for library size and normalization factors determined as instructed in edgeR documentation. Dispersion was estimated, and the read counts for each gene were fit with a negative binomial model. Each gene was tested for differential expression. The Benjamini–Hochberg method was used to determine the false discovery rate.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Data for control and COVID-19 bronchoalveolar lavage samples are available in the Sequence Read Archive at NCBI.

The following previously published data sets were used
    1. GlaxoSmithKline
    (2018) NCBI BioProject
    ID PRJNA434133. Microbiome and Inflammatory Interactions in Obese and Severe Asthmatic Adults.

References

    1. Cicardi M
    2. Zuraw BL
    (2018) Angioedema due to bradykinin dysregulation
    The Journal of Allergy and Clinical Immunology: In Practice 6:1132–1141.
    https://doi.org/10.1016/j.jaip.2018.04.022
    1. Kleniewski J
    2. Donaldson VH
    (1987)
    Comparison of human high molecular weight kininogen digestion by plasma kallikrein and by plasmin A revised method of purification of high molecular weight kininogen
    The Journal of Laboratory and Clinical Medicine 109:469–479.
    1. Pieters M
    2. Wolberg AS
    (2019) Fibrinogen and fibrin: an illustrated review
    Research and Practice in Thrombosis and Haemostasis 3:161–172.
    https://doi.org/10.1002/rth2.12191

Decision letter

  1. Noriaki Emoto
    Reviewing Editor; Kobe Pharmaceutical University, Japan
  2. Jos WM van der Meer
    Senior Editor; Radboud University Medical Centre, Netherlands

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript captivated the connection between COVID-19 and cardiovascular disease. Following their previous studies, the authors further investigate the dysregulation of the coagulation and fibrinolytic pathways on COVID-19 patients. The authors' conclusions are well supported, and the authors draw on deep expertise in the field to make exquisite use of gene expression data to obtain deep insights into COVID-19 pathogenesis.

Decision letter after peer review:

Thank you for submitting your article "SARS-CoV-2 Suppresses Anticoagulant and Fibrinolytic Gene Expression in the Lung" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Jos van der Meer as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Summary:

This manuscript extends the authors previous work using transcriptomics data to formulate their "bradykinin storm" hypothesis. Their previous work was extremely high-impact, as it challenged the dogma that a cytokine storm was the principle mechanisms underlying lung pathology in COVID-19. This manuscript further extends their prior work, linking bradykinin signaling to the accumulation of fibrin deposits within pulmonary vessels and the alveolar space, inferred from gene expression data from COVID-19 patients. The authors' conclusions are well supported, and the authors draw on deep expertise in the field to make exquisite use of gene expression data to obtain deep insights into COVID-19 pathogenesis.

Essential Revisions:

1) The reviewer acknowledges the extensive expertise of the impressive author group and congratulates the authors for an interesting investigation. That being said, the reviewer does not think your Abstract reflects the importance or insight of your findings, as your conclusion in the Abstract states "analysis documents increased vascular permeability, enhanced coagulation, and reduced fibrinolytic activity in the lungs of patients with COVID-19". The potential for acute lung injury, hypercoagulability, and microvascular thrombotic sequela of COVID 19 are well known. the reviewer thinks you need to include some of your important aspects of the investigation's findings in the Abstract rather than generalized conclusions.

2) The route of viral entry into the body to the respiratory tract initially triggers the local inflammatory response in the lung, with a host defense mechanism of microvascular thrombotic sequela due to microcirculatory injury, but as the disease progresses without any potential immunity, then multiple other organs may be involved. Again, with the initial insult to the lung and subsequent systemic responses that seem to be the sort of chronology of the infection, as a result, it would be helpful to include some time course of the disease progression that you describe. For example, the skin and other organ involvement is a later, not initial event in most patients. the reviewer thinks your Introduction could be shortened with the extensive literature that exists already about COVID 19 coagulopathy, but also, it would be helpful to provide some sense of the time course of the disease progression. The bronchial alveolar lavage specimens you have our impatience intubated and ventilated most likely, and clearly in an advance disease state. The reviewer thinks that needs to be specifically explained as well.

3) In the subsection “Conclusions”, your first three sentences, including the goal of the present study, need to be incorporated in your Introduction. The reviewer would start your conclusion section with the sentence "We detected pronounced changes in mRNA levels encoding proteins involved in regulation of coagulation, fibrinolysis, and inflammation in the lungs of COVID-19 patients.".

4) Gene and protein naming conventions: when specific proteins or hormones are listed in the text, it would be helpful to also list their formal names, e.g., the reviewer assumes that "tissue factor" in the Abstract refers to human protein CD142 – though later the informal name is given as "extravascular tissue factor (TF)". The informal name, however, is confusing since TF is also the formal symbol for the gene "Homo sapiens transferrin (TF)", RefSeq NM_001354704. It would be particularly helpful to list both gene and protein names parenthetically at each such mention. While this is less valuable for those who study the human system directly, it is very important for biologists specializing in model organisms who may be less familiar with medical parlance and informal gene and protein names. It is also extremely useful for AI/ML algorithms that parse Abstracts in search of gene names.

5) Introductory material in the Results section: The Results sections begin with lengthy introductions to the biomedical literature surrounding specific pathways, forcing the reader to scan for novel material. It would be better either to move this material to the Introduction with call-outs to specific Results sections, or, alternatively, to label such introductory paragraphs explicitly so that readers already familiar with the literature can quickly scan past them. As is, it took me a few reads to find the novel result within the first paragraph labeled, "Changes in transcripts encoding proteins in the Kallikrein-Kinin/Bradykinin System".

6) Speculative discussion in the Results section: The final sentence of the first section of Results is speculative, and would fit better in the Discussion:

(6a) "Consistent with our hypothesis that COVID-19 triggers a Bradykinin Storm, the net effect of increased BK production, reduced BK degradation, and increased local expression of BK receptors, may be to enhance vasodilation and vascular permeability that expose blood components to extravascular proteins that promote fibrin formation and contribute to tissue damage."

Or, alternatively, re-word to posit as a conclusion supported by a combination of data in this study and prior literature, perhaps as follows:

"Our observations of increased BK production, reduced BK degradation, and increased local expression of BK receptors, are expected in a system undergoing enhanced vasodilation and vascular permeability, where blood components are exposed to extravascular proteins that promote fibrin formation and contribute to tissue damage. Further, these findings are broadly consistent with our hypothesis that COVID-19 triggers a Bradykinin Storm."

or something like that – at least get rid of the "…may be to…".

(6b) Similarly, we have, "On balance, these data suggest that pulmonary fibrin deposition does not stem from enhanced local TF production and that counterintuitively, COVID-19 may dampen TF-dependent mechanisms in the lungs."

It would be better to use "indicate" than "suggest", or to rephrase something like:

"On balance, these data are inconsistent pulmonary fibrin deposition from enhanced local TF production – but are consistent, if perhaps counterintuitively, with the hypothesis that COVID-19 dampens TF-dependent mechanisms in the lungs."

(6c) The paragraph that begins, "Increased thrombin generation can also be initiated by the plasma protease factor XIIa (FXIIa).(50, 51)…" Appears to be entirely "Discussion" and should probably be removed from Results. Did I miss a new result there?

(6d) The last two sentences of the Results section are also quite speculative:

"The combination of increased fibrinogen expression, reduced production of uPA and uPAR, and a modest increase in PAI-1 suggests a loss of local fibrinolytic capacity. This change may permit the accumulation of fibrin deposits within pulmonary vessels and the alveolar space."

How about the following instead?:

"The combination of increased fibrinogen expression, reduced production of uPA and uPAR, and a modest increase in PAI-1 indicates a loss of local fibrinolytic capacity – consistent with a lung environment permissive of the accumulation of fibrin deposits within pulmonary vessels and the alveolar space (CITE)." and of course a citation should be added where indicated above.

7) Comments on Figures 1 and 2: please increase the resolution of the figure to at least 300dpi and ensure that all fonts are at least size 9. Providing a color scale would make the data more readable for the reader.

8) Table 1: Please provide the log2 data for the observed gene. Adding statistical analysis and providing the statistical significance would make the data more convincing.

9) Materials and methods: In this paper, the authors use 9 COVID-19 patient's BALF samples and 40 control. The reviewer found that in a previous paper (Garvin et al., 2020), the author's group also use the same number of COVID-19 cases and controls. Are these the same samples?

https://doi.org/10.7554/eLife.64330.sa1

Author response

Essential Revisions:

1) The reviewer acknowledges the extensive expertise of the impressive author group and congratulates the authors for an interesting investigation. That being said, the reviewer does not think your Abstract reflects the importance or insight of your findings, as your conclusion in the Abstract states "analysis documents increased vascular permeability, enhanced coagulation, and reduced fibrinolytic activity in the lungs of patients with COVID-19". The potential for acute lung injury, hypercoagulability, and microvascular thrombotic sequela of COVID 19 are well known. the reviewer thinks you need to include some of your important aspects of the investigation's findings in the Abstract rather than generalized conclusions.

We removed general background information from the Abstract and recapitulated the most important results to make the impact of the work clear.

2) The route of viral entry into the body to the respiratory tract initially triggers the local inflammatory response in the lung, with a host defense mechanism of microvascular thrombotic sequela due to microcirculatory injury, but as the disease progresses without any potential immunity, then multiple other organs may be involved. Again, with the initial insult to the lung and subsequent systemic responses that seem to be the sort of chronology of the infection, as a result, it would be helpful to include some time course of the disease progression that you describe. For example, the skin and other organ involvement is a later, not initial event in most patients. the reviewer thinks your Introduction could be shortened with the extensive literature that exists already about COVID 19 coagulopathy, but also, it would be helpful to provide some sense of the time course of the disease progression. The bronchial alveolar lavage specimens you have our impatience intubated and ventilated most likely, and clearly in an advance disease state. The reviewer thinks that needs to be specifically explained as well.

We made major changes to the Introduction. Overall we shortened the Introduction. Some portions of the first paragraph were moved to the "Overview of pathways examined" sections in the Results and Discussion, while some text from the “Conclusions” subsection was incorporated into this section.

We added text relating to disease progression to help put our model into context (e.g., Introduction, second paragraph, second sentence). The Results and Discussion have been changed extensively to make our model more clear.

We added Table 2 with the clinical characteristics of the patients from which the BALF were taken. All were admitted to the ICU, which we note in the new document.

We added text in the Materials and methods section "Study participants" regarding the severity of illness and the condition of the patients at the time of sampling.

3) In the subsection “Conclusions”, your first three sentences, including the goal of the present study, need to be incorporated in your Introduction. The reviewer would start your conclusion section with the sentence "We detected pronounced changes in mRNA levels encoding proteins involved in regulation of coagulation, fibrinolysis, and inflammation in the lungs of COVID-19 patients.".

The first 3 sentences from the subsection “Conclusions” were moved to the Introduction.

4) Gene and protein naming conventions: when specific proteins or hormones are listed in the text, it would be helpful to also list their formal names, e.g., the reviewer assumes that "tissue factor" in the Abstract refers to human protein CD142 – though later the informal name is given as "extravascular tissue factor (TF)". The informal name, however, is confusing since TF is also the formal symbol for the gene "Homo sapiens transferrin (TF)", RefSeq NM_001354704. It would be particularly helpful to list both gene and protein names parenthetically at each such mention. While this is less valuable for those who study the human system directly, it is very important for biologists specializing in model organisms who may be less familiar with medical parlance and informal gene and protein names. It is also extremely useful for AI/ML algorithms that parse Abstracts in search of gene names.

We changed gene and protein names throughout the text to use the formal names and include gene and/or protein symbols parenthetically where appropriate.

5) Introductory material in the Results section: The Results sections begin with lengthy introductions to the biomedical literature surrounding specific pathways, forcing the reader to scan for novel material. It would be better either to move this material to the Introduction with call-outs to specific Results sections, or, alternatively, to label such introductory paragraphs explicitly so that readers already familiar with the literature can quickly scan past them. As is, it took me a few reads to find the novel result within the first paragraph labeled, "Changes in transcripts encoding proteins in the Kallikrein-Kinin/Bradykinin System".

We separated these sections into subsections for "Overview of pathways examined" and

"Study findings."

6) Speculative discussion in the Results section: The final sentence of the first section of Results is speculative, and would fit better in the Discussion:

(6a) "Consistent with our hypothesis that COVID-19 triggers a Bradykinin Storm, the net effect of increased BK production, reduced BK degradation, and increased local expression of BK receptors, may be to enhance vasodilation and vascular permeability that expose blood components to extravascular proteins that promote fibrin formation and contribute to tissue damage."

Or, alternatively, re-word to posit as a conclusion supported by a combination of data in this study and prior literature, perhaps as follows:

"Our observations of increased BK production, reduced BK degradation, and increased local expression of BK receptors, are expected in a system undergoing enhanced vasodilation and vascular permeability, where blood components are exposed to extravascular proteins that promote fibrin formation and contribute to tissue damage. Further, these findings are broadly consistent with our hypothesis that COVID-19 triggers a Bradykinin Storm."

or something like that – at least get rid of the "…may be to…".

We moved this discussion point to the end of the “Conclusions” subsection.

(6b) Similarly, we have, "On balance, these data suggest that pulmonary fibrin deposition does not stem from enhanced local TF production and that counterintuitively, COVID-19 may dampen TF-dependent mechanisms in the lungs."

It would be better to use "indicate" than "suggest", or to rephrase something like:

"On balance, these data are inconsistent pulmonary fibrin deposition from enhanced local TF production – but are consistent, if perhaps counterintuitively, with the hypothesis that COVID-19 dampens TF-dependent mechanisms in the lungs."

We changed the text to "indicate" rather than "suggest."

(6c) The paragraph that begins, "Increased thrombin generation can also be initiated by the plasma protease factor XIIa (FXIIa).(50, 51)…" Appears to be entirely "Discussion" and should probably be removed from Results. Did I miss a new result there?

We added text to make the results clear; see text beginning with "Transcripts encoding FXII were slightly decreased (-4-fold)…", which is found in the section "Changes in transcripts encoding intrinsic pathway proteins that initiate thrombin generation" > "Study findings."

(6d) The last two sentences of the Results section are also quite speculative:

"The combination of increased fibrinogen expression, reduced production of uPA and uPAR, and a modest increase in PAI-1 suggests a loss of local fibrinolytic capacity. This change may permit the accumulation of fibrin deposits within pulmonary vessels and the alveolar space."

How about the following instead?:

"The combination of increased fibrinogen expression, reduced production of uPA and uPAR, and a modest increase in PAI-1 indicates a loss of local fibrinolytic capacity – consistent with a lung environment permissive of the accumulation of fibrin deposits within pulmonary vessels and the alveolar space (CITE)." and of course a citation should be added where indicated above.

We changed the text as suggested by the reviewer.

7) Comments on Figures 1 and 2: please increase the resolution of the figure to at least 300dpi and ensure that all fonts are at least size 9. Providing a color scale would make the data more readable for the reader.

Fixed resolution and added color scale.

8) Table 1: Please provide the log2 data for the observed gene. Adding statistical analysis and providing the statistical significance would make the data more convincing.

We added the log2-fold-change values and p-values, as well as the name of the protein for each gene.

9) Materials and methods: In this paper, the authors use 9 COVID-19 patient's BALF samples and 40 control. The reviewer found that in a previous paper (Garvin et al., 2020), the author's group also use the same number of COVID-19 cases and controls. Are these the same samples?

We added a table of the sample IDs (data available from NCBI) to help clarify that these are the same samples. This is listed as Table 1.

https://doi.org/10.7554/eLife.64330.sa2

Article and author information

Author details

  1. Alan E Mast

    Versiti Blood Research Institute, Department of Cell Biology Neurobiology and Anatomy Medical College of Wisconsin, Milwaukee, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Alisa S Wolberg and David Gailani
    Competing interests
    receives research funding from Novo Nordisk and has received honoraria for serving on Novo Nordisk advisory boards.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3740-0318
  2. Alisa S Wolberg

    Department of Pathology and Laboratory Medicine and UNC Blood Research Center, Chapel Hill, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Alan E Mast and David Gailani
    Competing interests
    receives research funding from Takeda and Bristol Myers Squibb
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2845-2303
  3. David Gailani

    Department of Pathology, Microbiology and Immunology, Vanderbilt University Medical Center, Nashville, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Alan E Mast and Alisa S Wolberg
    Competing interests
    receives research funding from Bayer and has received honoraria for serving on Anthos, Bristol-Myers Squibb, Ionis and Janssen advisory boards.
  4. Michael R Garvin

    Oak Ridge National Laboratory, Biosciences Division, Oak Ridge, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2204-7569
  5. Christiane Alvarez

    Oak Ridge National Laboratory, Biosciences Division, Oak Ridge, United States
    Contribution
    Visualization
    Competing interests
    No competing interests declared
  6. J Izaak Miller

    Oak Ridge National Laboratory, Biosciences Division, Oak Ridge, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Bruce Aronow

    1. University of Tennessee Knoxville, The Bredesen Center for Interdisciplinary Research and Graduate Education, Knoxville, United States
    2. Biomedical Informatics, Cincinnati Children’s Hospital Research Foundation, Cincinnati, United States
    3. University of Cincinnati, Cincinnati, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Daniel Jacobson

    1. Oak Ridge National Laboratory, Biosciences Division, Oak Ridge, United States
    2. University of Tennessee Knoxville, The Bredesen Center for Interdisciplinary Research and Graduate Education, Knoxville, United States
    3. University of Tennessee Knoxville, Department of Psychology, Knoxville, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    jacobsonda@ornl.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9822-8251

Funding

Oak Ridge National Laboratory (LOIS:10074)

  • Michael R Garvin
  • J Izaak Miller
  • Daniel Jacobson

National Institutes of Health (U24 HL148865)

  • Bruce Aronow

National Institutes of Health (HL068835)

  • Alan E Mast

National Institutes of Health (HL143403)

  • Alisa S Wolberg

National Institutes of Health (HL126974)

  • Alisa S Wolberg

National Institutes of Health (HL140025)

  • David Gailani

National Institute on Aging (3RF1AG053303-01S2)

  • Daniel Jacobson
  • Michael R Garvin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to acknowledge funding from the Oak Ridge National Laboratory, Laboratory Directed Research and Development Fund, LOIS:10074 (which supported the systems biology work), and the National Institutes of Health, U24 HL148865: the LungMap Consortium (which supported tissue and cell-based expression conceptualization). Funding was also provided by the National Institutes of Health grants HL068835 (AM), HL143403 (AW), HL126974 (AW), 3RF1AG053303-01S2 (DJ), and HL140025 (DG) to support analyses and interpretation of the coagulation and fibrinolytic pathways. This research used resources of the Oak Ridge Leadership Computing Facility, which is a DOE Office of Science User Facility supported under Contract DE-AC05-00OR22725. This research used resources of the Compute and Data Environment for Science (CADES) at the Oak Ridge National Laboratory.

Senior Editor

  1. Jos WM van der Meer, Radboud University Medical Centre, Netherlands

Reviewing Editor

  1. Noriaki Emoto, Kobe Pharmaceutical University, Japan

Publication history

  1. Received: October 26, 2020
  2. Accepted: March 6, 2021
  3. Accepted Manuscript published: March 8, 2021 (version 1)
  4. Accepted Manuscript updated: March 9, 2021 (version 2)
  5. Version of Record published: April 15, 2021 (version 3)

Copyright

© 2021, Mast et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,257
    Page views
  • 204
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Epidemiology and Global Health
    2. Microbiology and Infectious Disease
    Kelsey M Sumner et al.
    Research Article

    Background:Asymptomatic Plasmodium falciparum infections are common in sub-Saharan Africa, but their effect on subsequent symptomaticity is incompletely understood.

    Methods:In a 29-month cohort of 268 people in Western Kenya, we investigated the association between asymptomatic P. falciparum and subsequent symptomatic malaria with frailty Cox models.

    Results:Compared to being uninfected, asymptomatic infections were associated with an increased 1-month likelihood of symptomatic malaria [adjusted Hazard Ratio (aHR):2.61, 95%CI:2.05-3.33], and this association was modified by sex, with females [aHR:3.71, 95%CI:2.62-5.24] at higher risk for symptomaticity than males [aHR:1.76, 95%CI:1.24-2.50]. This increased symptomatic malaria risk was observed for asymptomatic infections of all densities and in people of all ages. Long-term risk was attenuated but still present in children under 5 [29-month aHR:1.38, 95%CI:1.05-1.81].

    Conclusions:In this high-transmission setting, asymptomatic P. falciparum can be quickly followed by symptoms and may be targeted to reduce the incidence of symptomatic illness.

    Funding:This work was supported by the National Institute of Allergy and Infectious Diseases (R21AI126024 to WPO, R01AI146849 to WPO and SMT).

    1. Epidemiology and Global Health
    Manoj Kumar et al.
    Tools and Resources Updated

    The COVID-19 pandemic originating in the Wuhan province of China in late 2019 has impacted global health, causing increased mortality among elderly patients and individuals with comorbid conditions. During the passage of the virus through affected populations, it has undergone mutations, some of which have recently been linked with increased viral load and prognostic complexities. Several of these variants are point mutations that are difficult to diagnose using the gold standard quantitative real-time PCR (qRT-PCR) method and necessitates widespread sequencing which is expensive, has long turn-around times, and requires high viral load for calling mutations accurately. Here, we repurpose the high specificity of Francisella novicida Cas9 (FnCas9) to identify mismatches in the target for developing a lateral flow assay that can be successfully adapted for the simultaneous detection of SARS-CoV-2 infection as well as for detecting point mutations in the sequence of the virus obtained from patient samples. We report the detection of the S gene mutation N501Y (present across multiple variant lineages of SARS-CoV-2) within an hour using lateral flow paper strip chemistry. The results were corroborated using deep sequencing on multiple wild-type (n = 37) and mutant (n = 22) virus infected patient samples with a sensitivity of 87% and specificity of 97%. The design principle can be rapidly adapted for other mutations (as shown also for E484K and T716I) highlighting the advantages of quick optimization and roll-out of CRISPR diagnostics (CRISPRDx) for disease surveillance even beyond COVID-19. This study was funded by Council for Scientific and Industrial Research, India.
