Castration delays epigenetic aging and feminizes DNA methylation at androgen-regulated loci

  1. Victoria J Sugrue
  2. Joseph Alan Zoller
  3. Pritika Narayan
  4. Ake T Lu
  5. Oscar J Ortega-Recalde
  6. Matthew J Grant
  7. C Simon Bawden
  8. Skye R Rudiger
  9. Amin Haghani
  10. Donna M Bond
  11. Reuben R Hore
  12. Michael Garratt
  13. Karen E Sears
  14. Nan Wang
  15. Xiangdong William Yang
  16. Russell G Snell
  17. Timothy A Hore  Is a corresponding author
  18. Steve Horvath  Is a corresponding author
  1. Department of Anatomy, University of Otago, New Zealand
  2. Department of Biostatistics, Fielding School of Public Health, University of California, Los Angeles, United States
  3. Applied Translational Genetics Group, School of Biological Sciences, Centre for Brain Research, The University of Auckland, New Zealand
  4. Department of Human Genetics, David Geffen School of Medicine, University of California, Los Angeles, United States
  5. Livestock and Farming Systems, South Australian Research and Development Institute, Australia
  6. Blackstone Hill Station, Becks, RD2, New Zealand
  7. Department of Ecology and Evolutionary Biology, UCLA, United States
  8. Center for Neurobehavioral Genetics, Semel Institute for Neuroscience and Human Behavior, University of California, Los Angeles (UCLA), United States
  9. Department of Psychiatry and Biobehavioral Sciences, David Geffen School of Medicine at UCLA, United States
Research Article
  • Cited 1
  • Views 7,915
  • Annotations
Cite this article as: eLife 2021;10:e64932 doi: 10.7554/eLife.64932

Abstract

In mammals, females generally live longer than males. Nevertheless, the mechanisms underpinning sex-dependent longevity are currently unclear. Epigenetic clocks are powerful biological biomarkers capable of precisely estimating chronological age and identifying novel factors influencing the aging rate using only DNA methylation data. In this study, we developed the first epigenetic clock for domesticated sheep (Ovis aries), which can predict chronological age with a median absolute error of 5.1 months. We have discovered that castrated male sheep have a decelerated aging rate compared to intact males, mediated at least in part by the removal of androgens. Furthermore, we identified several androgen-sensitive CpG dinucleotides that become progressively hypomethylated with age in intact males, but remain stable in castrated males and females. Comparable sex-specific methylation differences in MKLN1 also exist in bat skin and a range of mouse tissues that have high androgen receptor expression, indicating that it may drive androgen-dependent hypomethylation in divergent mammalian species. In characterizing these sites, we identify biologically plausible mechanisms explaining how androgens drive male-accelerated aging.

Introduction

Age has a profound effect on DNA methylation in many tissues and cell types (Horvath, 2013; Issa, 2014; Rakyan et al., 2010; Teschendorff et al., 2010). When highly correlated age-dependent sites are modeled through the use of a tool known as the epigenetic clock, exceptionally precise estimates of chronological age (termed ‘DNAm age’ or ‘epigenetic age’) can be achieved using only purified DNA as an input (Hannum et al., 2013; Horvath, 2013; Horvath and Raj, 2018; Levine et al., 2018). For example, despite being one of the earliest epigenetic clocks constructed, Horvath’s 353 CpG site clock is capable of estimating chronological age with a median absolute error (MAE) of 3.6 years and an age correlation of 0.96, irrespective of tissue or cell type (Horvath, 2013). Estimates generated by this and related epigenetic clocks are not only predictive of chronological age but also biological age, allowing identification of pathologies as well as novel genetic and environmental factors that accelerate or slow biological aging. For example, irrespective of ethnic background, females and exceptionally long-lived individuals are found to have reduced epigenetic aging compared to males and other controls (Horvath et al., 2016; Horvath et al., 2015).

Lifespan in mammals (including humans) is highly dependent upon an individual’s sex, whereby females generally possess a longevity advantage over males (Lemaître et al., 2020). Despite being a fundamental risk factor affecting age-related pathologies, the mechanistic basis of how sex influences aging is relatively unexplored. Perhaps not surprisingly, sex hormones are predicted to play a central role, with both androgens and estrogens thought to influence aspects of the aging process (Horstman et al., 2012). Castration has been shown to extend the lifespan of laboratory rodents (Asdell et al., 1967), as well as domesticated cats (Hamilton, 1965) and dogs (Hoffman et al., 2013). Castration has also been associated with longer lifespans in historical survival reports of 14th- to 20th-century Korean eunuchs (Min et al., 2012) and men housed in US mental institutions in the 20th century (Hamilton and Mestler, 1969), although not in castrato opera singers, somewhat common in the 15th–19th centuries (Nieschlag et al., 1993). Conversely, estrogen production appears to have some protective effect on aging in females, with ovariectomized mice having a shortened lifespan (Benedusi et al., 2015) and replacement of ovaries from young animals into old female mice extending lifespan (Cargill et al., 2003). Indeed, ovariectomy has been shown to accelerate the epigenetic clock (Stubbs et al., 2017), supporting predictions that estrogen production slows the intrinsic rate of aging relative to males. In humans, natural and surgical induction of menopause also hastens the pace of the epigenetic clock, while menopausal hormone therapy decreases epigenetic aging as observed in buccal cell samples (Levine et al., 2016). Female breast tissue has substantially advanced epigenetic age compared to other tissues (Horvath, 2013; Sehl et al., 2017), further implicating sex hormones. Nevertheless, the effects of castration and/or testosterone production on the epigenetic predictors of aging in males have remained unknown in either humans or animal models prior to the current study.

Domesticated sheep (Ovis aries) represent a valuable, albeit underappreciated, large animal model for human disease and share with humans more similar anatomy, physiology, body size, genetics, and reproductive lifestyle as compared with commonly studied rodents (Pinnapureddy et al., 2015). With respect to aging, sheep exhibit a remarkable female-specific lifespan advantage (Lemaître et al., 2020), and Soay sheep of the Outer Hebrides represent a cornerstone research paradigm for longevity in wild mammal populations (Fairlie et al., 2016; Jewell, 1997). Moreover, sheep are extensively farmed (and males castrated) in many countries, allowing incidental study of the effect of sex and sex hormones in aging to occur without increasing experimental animal use (Russell and Burch, 1959). Yet, exploration of the molecular aging process in sheep is relatively underdeveloped, particularly from the perspective of epigenetics and sex.

Here, we present the first sheep epigenetic clock and quantify its median error to 5.1 months, ~3.5–4.2% of their expected lifespan. Validating the biological relevance of our sheep model, we find age-associated methylation at genes well characterized for their role in development and aging in a wide range of animal systems. Significantly, we observed that not only castration affects the epigenome, but that the methylomes of castrated male sheep show reduced epigenetic aging compared to intact male and female counterparts, a result consistent with the increased longevity of castrated Soay sheep (Jewell, 1997). Many genomic regions and genes with differential age association between castrated and intact males were identified, some of which are known to be regulated or bound by androgen receptor (AR) in humans and show sexually dimorphic methylation patterns in divergent mammalian species. Taken together, these findings provide a credible mechanistic link between levels of sex hormones and sex-dependent aging.

Results

DNA methylation in blood and ear throughout sheep aging

To create an epigenetic clock for sheep, we purified DNA from a total of 432 sheep of the Merino breed (Figure 1A). The majority of DNA samples (262) were from ear punches sourced from commercial farms in New Zealand, with the remaining (168) blood samples from a South Australian Merino flock. DNA methylation was quantified using a custom 38K probe array consisting of CpG sites conserved among a wide range of mammalian species; with 33,136 of these predicted to be complementary to sheep sequences. Two ear samples from intact males were excluded by quality control measures.

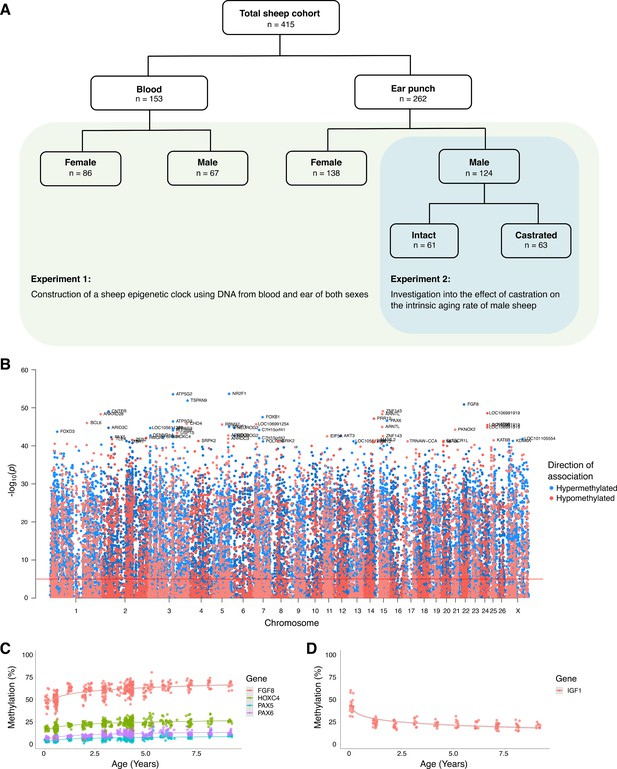

Figure 1 with 2 supplements see all
Association between age and DNA methylation in sheep.

(A) Depiction of sheep cohort for this study. (B) Manhattan plot of all CpGs and their correlation with chronological age. (C) Methylation levels of highly age-correlated probes within biologically relevant genes: FGF8 cg10708287 (r = 0.64, p=1.38E−51), PAX6 cg00953859 (r = 0.62, p=2.71E−47), PAX5 cg16071226 (r = 0.59, p=5.75E−43), and HOXC4 cg12097121 (r = 0.59, p=4.47E−43). (D) Methylation levels of IGF1 cg18266944 in ear of females only (r = 0.60, p=7.43−15). The p-values of the correlation were calculated using the standardScreeningNumericTrait function in WGNCA (Student's t-test).

To initially characterize methylation data, we performed hierarchical clustering that revealed two major clusters based on tissue source (Figure 1—figure supplement 1A). There was some sub-clustering based on sex and age; however, there was no separation based on known underlying pedigree variation or processing batches. Global average CpG methylation levels in ear tissue exhibited a small progressive increase with age, though the same trend was not seen in blood (Figure 1—figure supplement 1B).

Pearson correlation coefficients (r) describing the linear relationship between CpG methylation and chronological age ranged from −0.63 to 0.68 for all ear and blood samples (Figure 1B, Supplementary file 1). One of the most positively correlated mapped probes was located within the promoter of fibroblast growth factor 8 (FGF8) (Figure 1C), a well-described developmental growth factor (r = 0.64, p=1.38E−51). Probes located within several other well-known transcription factors (TFs) were also among those most highly correlated with age (PAX6, r = 0.62, p=2.71E−47; PAX5, r = 0.59, p=5.75E−43; HOXC4, r = 0.59, p=4.47E−43). Indeed, when we performed ontogeny analysis, we found that the top 500 CpGs positively correlated with age were enriched for transcription-related and DNA binding processes (Supplementary file 2), consistent with widespread transcriptional shifts during different life stages. When we stratified our data, we found considerable differences in age association with regard to tissue of origin (Figure 1—figure supplement 2); however, this is consistent with other clock studies (Horvath, 2013; Issa, 2014). Sex and castration status also produced group-specific age association hits; however, this was comparatively less than that for tissue, with many significantly associated sites being shared between females and males (blood, 45 shared sites) and females, intact males, and castrated females (ear, 84 shared sites) (Figure 1—figure supplement 2B, C). Interestingly, we also found a CpG (cg18266944) in the second intron of insulin-like growth factor 1 (IGF1) that becomes rapidly hypomethylated in ear following birth before leveling off post-adolescence (Figure 1D; r = −0.60, p=7.43E−15). We considered this a particularly encouraging age-associated epigenetic signal given that IGF1 is a key determinant of growth and aging (Junnila et al., 2013; Laron, 2001).

Construction of an epigenetic clock in sheep

We established epigenetic clocks from our sheep blood and ear methylation data, respectively, as well as a combined blood and ear clock (hereafter referred to as the multi-tissue clock) using a penalized regression model (elastic-net regression). In total, 185 CpG sites were included in the multi-tissue clock, which was shown to have a MAE of 5.1 months and an age correlation of 0.95 when calculated using a leave-one-out cross-validation (LOOCV) analysis (Figure 2A). Taking into account the expected lifespan of sheep in commercial flocks (10–12 years), the error of the multi-tissue clock is 3.5–4.2% of the lifespan – comparable to the human skin and blood clock at ~3.5% (Horvath et al., 2018) and the mouse multi-tissue clock at ~5% of expected lifespan (Meer et al., 2018; Petkovich et al., 2017; Stubbs et al., 2017; Thompson et al., 2018; Wang et al., 2017). When blood and ear clocks are constructed separately, the ear clock outperformed the blood clock in the LOOCV analysis (0.97 vs. 0.75 correlation, respectively, Figure 2B, C). While this may be related to blood being a more heterogeneous tissue than ear punch, fewer samples and an overrepresentation of young individuals are the likely drivers of this effect.

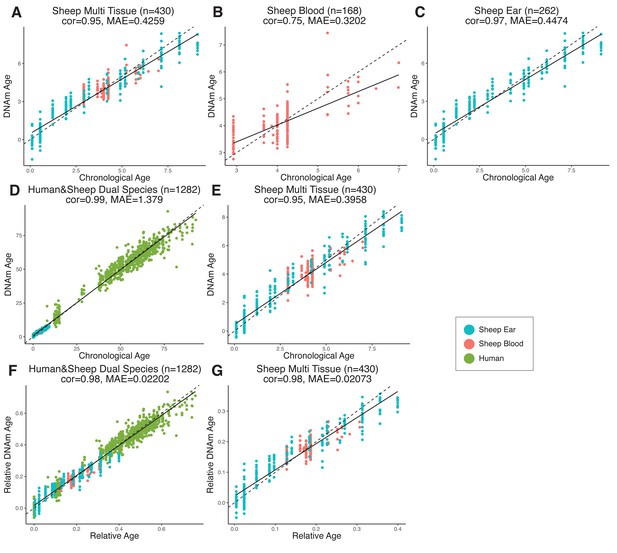

Comparison of chronological age (x-axis) and epigenetic age (y-axis) for a variety of clock models trained on (A–C) sheep only or (D–G) humans and sheep.

Epigenetic age (DNAm age), correlation (cor), and median absolute error (MAE) are indicated for (A) sheep multi-tissue (ear and blood) (cor = 0.95, MAE = 0.4259), (B) sheep blood (cor = 0.75, MAE = 0.3202), and (C) sheep ear (cor = 0.97, MAE = 0.4474) clocks. For (D–G), clocks were created using methylation data from both humans and sheep, with DNAm age predictions displayed for (D) human and sheep (cor = 0.99, MAE = 1.379) and (E) sheep only (cor = 0.95, MAE = 0.3958) as calculated using absolute time (years). DNAm age was also calculated relative to maximum lifespan for (F) human and sheep (cor = 0.98, MAE = 0.02202) and (G) sheep only (cor = 0.98, MAE = 0.02073). Maximum lifespan values used were for human and sheep, respectively, were 122.5 years and 22.8 years. Each data point represents one sample, colored based on origin.

Two human and sheep dual-species clocks were also constructed, which mutually differ by way of age measurement. One estimates the chronological ages of sheep and human (in units of years), while the other estimates the relative age – a ratio of chronological age of an animal to the maximum known lifespan of its species (defined as 22.8 years and 122.5 years for sheep and human, respectively) with resulting values between 0 and 1. The measure of relative age is advantageous as it aligns the ages of human and sheep to the same scale, yielding biologically meaningful comparison between the two species. The dual-species clock for chronological age leads to a median error of 16.53 months when considering both species or 4.74 months for sheep only (Figure 2D, E). The dual-species clock for relative age produced median errors of 0.020 of the maximum lifespans for both species (approximately 2.45 years for human or 5.4 months for sheep) and 0.021 for sheep only (approximately 5.7 months; (Figure 2F, G)).

Castration delays epigenetic aging in sheep

To test the role of androgens in epigenetic age acceleration, we exploited the fact that castrated male Merino sheep are frequently left to age 'naturally' on New Zealand high-country farms in return for yearly wool production in contrast to non-breeding males of other sheep varieties, which are usually sold as yearlings for meat. Both castrated males and intact aged-matched controls were sourced from genetically similar flocks kept under comparable environmental conditions. Interestingly, intact and castrated males showed equivalent epigenetic age as juveniles; however, once they advanced beyond the yearling stage, castrates appeared to have slowed rates of epigenetic aging (Figure 3A). Indeed, when we only considered sheep beyond 18 months of age, we found that castrates had significantly reduced epigenetic age compared to intact male controls (Figure 3B, p=0.018). While the extent of age deceleration consistently increased with advancing age, mature castrates were on average epigenetically 3.1 months 'younger' than their chronological age (Figure 3B). In contrast, DNAm age of intact males was comparable to their chronological age (0.14 months age decelerated), as were females (0.76 months age accelerated), who comprised the majority of the samples from which the clock was constructed. Notably, the age deceleration observed in castrates was corroborated using the human and sheep dual-species clock (Figure 3—figure supplement 1, p=0.04).

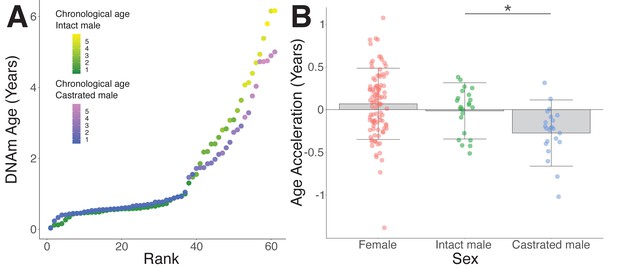

Figure 3 with 1 supplement see all
Epigenetic age deceleration in castrated sheep.

(A) Epigenetic age in age-matched castrated and intact males. To equate the cohort sizes for intact and castrated males, two age-matched castrates with DNAm age estimates closest to the group mean were excluded. (B) Age acceleration based on sex and castration status in sexually mature sheep only (ages 18 months+ only). Castrated males have decelerated DNAm age compared to intact males (*p=0.018, Mann–Whitney U test).

To explore the mechanistic link between androgens and epigenetic aging, we identified 4694 probes with significant differences between the rate of age-dependent methylation changes in castrated or intact males (Supplementary file 3). A recent comparison of age-related methylation changes in the blood of human males and females revealed that almost all regions of interest appeared to be X-linked (McCartney et al., 2019). Given that there are already well-characterized differences between male and female methylation patterns on the X-chromosome as a result of gene-dosage correction (Heard and Disteche, 2006), it could be argued that X-linked age-related differences may be driven by peculiarities of methylation arising from X-chromosome inactivation as opposed to differences in androgen production per se. To test this for sheep, we examined the genomic location of our androgen-sensitive differentially methylated probes (asDMPs) and found that they are evenly distributed between individual autosomes and the sex chromosomes (Figure 4—figure supplement 1A).

Interestingly, we found several sites that become progressively hypomethylated in intact males with age but maintain a consistent level of methylation throughout life in castrates and females (Figure 4A–D). Indeed, of the top 50 most significantly different asDMPs, only 2 (cg03275335 GAS1 and cg13296708 TSHZ3) exhibited gain of methylation in intact males (Figure 5A). We found that many asDMPs were linked to genes known to be regulated by AR (e.g., MKLN1, LMO4, FN1, TIPARP, ZBTB16; Jin et al., 2013), and as such, were encouraged to find further mechanistic connections between asDMPs and TF regulation.

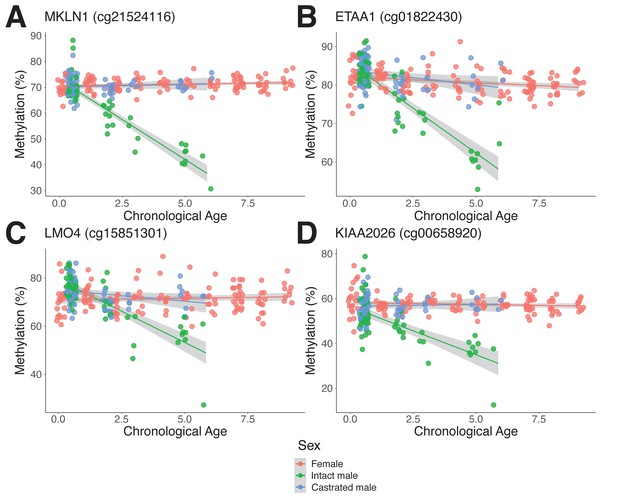

Figure 4 with 2 supplements see all
Androgen-sensitive differentially methylated probes (asDMPs) in sheep ear.

(A) MKLN1 (cg21524116, p=1.05E−27), (B) ETAA1 (cg01822430, p=1.31E−13), (C) LMO4 (cg15851301, p=1.62E−09), and (D) KIAA2026 (cg00658920, p=2.46E−09). The p-values were calculated using a t-test of the difference in linear regression slopes.

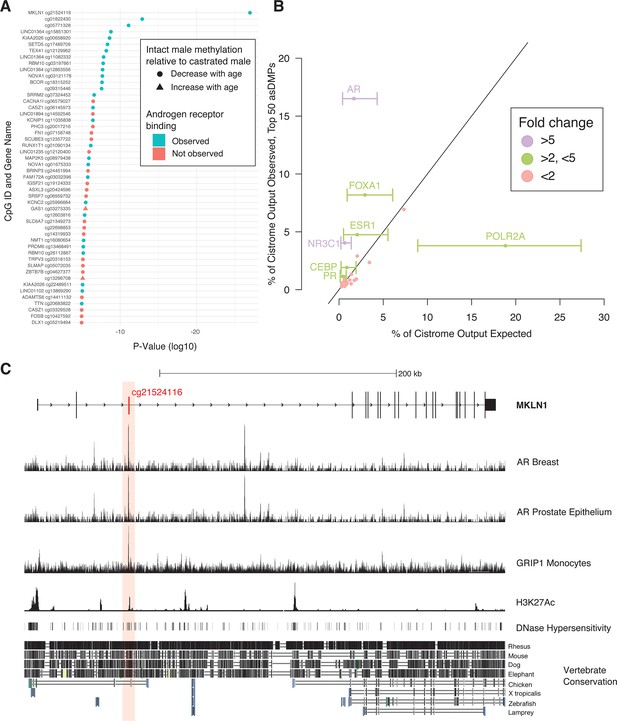

Figure 5 with 1 supplement see all
Analysis of chromatin immunoprecipitation and sequencing (ChIP-seq) data indicates functional links to sex-dependent epigenetic aging.

(A) Top 50 androgen-sensitive differentially methylated probes (asDMPs) between intact and castrated male sheep, and the human genes they map to (where applicable). The top 14 most significant asDMPs are all bound by androgen receptor (AR); and 48/50 of these sites exhibit hypomethylation with age in intact males relative to castrated males. (B) Observed transcription factor (TF) binding at the top 50 asDMPs compared to expected binding based upon empirical sampling at random CpGs (average of 1000 bootstrap replicates). TFs with greater than twofold variation and an absolute value of >1% are labeled with error bars showing the range of TF binding in bootstrap sampling. Colors indicate fold-change between observed and expected TF binding; <2 (red), 2–5 (green), and >5 (purple) (C) Genomic view of MKLN1 containing the most significant asDMP cg21524116 illustrating AR binding and indicators of active chromatin.

To do this, we examined TF binding of the human regions homologous to our asDMPs using the Cistrome dataset; although Cistrome contains data from a wide range of TFs, we noted that AR binds to over half the top 50 asDMPs (28/50), with the 14 most significant all showing AR binding (Figure 5A). To ensure that this was not a result expected by chance alone, we performed empirical sampling whereby 1000 replicates of binding analysis were performed, but with 50 random CpG sites from the methylation array at each bootstrap replicate. The observed/expected enrichment for AR binding in the top 50 asDMPs within the Cistrome dataset was 9.9-fold (16.5%/1.67%, p<0.001), and along with the glucocorticoid receptor (GR) (NR3C1, 6.7-fold enrichment), was much greater than any other TF. Nevertheless, there were several other interesting related TFs with observed/expected ratios >2 for the top 50 asDMPs, including the estrogen (ESR1) and progesterone (PR) receptors, as well as CCAAT/enhancer-binding protein beta (CEBP) and forkhead box A1 (FOXA1) (Figure 5B). These effects were not seen across all asDMPs - high observed/expected binding ratios were only found in the first 150 most significant asDMPs (e.g., AR and NR3C1 in Figure 4—figure supplement 1C, D), after which only background enrichment was seen.

While we saw similar features at other asDMPs (Figure 5—figure supplement 1), the asDMP that was the most different in epigenetic aging rate between castrates and males, MKLN1, stood out as being particularly interesting from a gene regulatory perspective (Figure 5C). Overlapping with this site, and AR binding, were peaks of DNase I hypersensitivity, H3K27ac histone marks, as well as good vertebrate conservation compared to surrounding sequences.

asDMPs are associated with body mass in juvenile males and conserved in divergent mammalian species in a tissue-specific manner

Juvenile males in our study did not show alterations in epigenetic age according to castration status (Figure 3A). Nevertheless, mass of these animals was recorded, and intact males were on average heavier than castrates, implying that there are phenotypic consequences of androgen exposure even during early puberty (Figure 6A). To explore this further, we tested if there was any relationship between the mass of juvenile males and methylation at asDMPs. Interestingly, when examined in windows of 100 (thus reducing noise), the most prominent asDMPs showed a negative association with sheep mass in intact males, but a positive association in castrates (Figure 4—figure supplement 2B). As less prominent asDMPs were analyzed, the significant difference between the castrate and intact male associations was lost (Figure 4—figure supplement 2C). Together, this shows that divergence of methylation at asDMP sites occurs early (i.e., as soon as physical traits like mass become dimorphic between intact and castrated males) and before differences in epigenetic age are manifested.

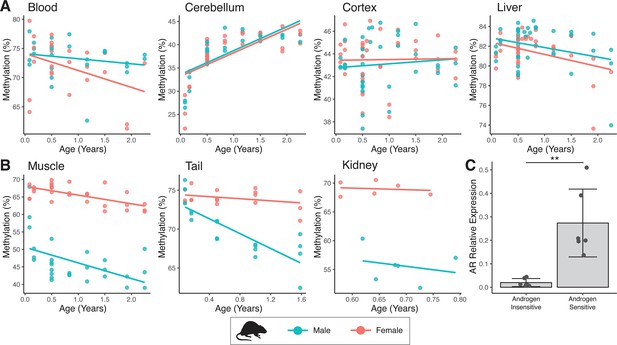

Figure 6 with 1 supplement see all
Sex-specific methylation patterns for cg21524116 (MKLN1) in mouse tissues are linked to androgen receptor (AR) expression.

In specific tissues of mouse, probe cg21524116 (MKLN1) exhibits either (A) no sex differences or (B) male exaggerated hypomethylation during aging. (C) AR mRNA expression is significantly higher in tissues showing male hypomethylation at MKLN1 (epidermis, kidney, skeletal muscle) compared to tissues where MKLN1 methylation is not different between sexes (cerebellum, cortex, liver) (p=0.007; t-test).

While the discovery of androgen-dependent age-associated methylation in sheep ear appeared striking, particularly for sites like MKLN1, we were unsure as to how widespread this phenomenon would be. Indeed, it appeared that significant male-specific hypomethylation was not present in sheep blood; and such compelling examples of this effect had not been reported previously in other species (most studies of which also involved blood). To explore this further, we assessed methylation changes in several mouse tissues using the pan-mammalian array. Again, cg21524116 in MKLN1 stood out – muscle, tail, and kidney exhibited the same male-specific hypomethylation as seen in sheep, whereby females retain a constant level of high methylation (Figure 6A, B). Importantly, however, this same trend could not be seen in mouse blood, cerebellum, cortex, and liver. To explain this tissue specificity, we made use of microarray expression data from mouse (Su et al., 2002) and found that the AR is highly expressed in muscle, kidney, and (epidermis of) skin, tissues where androgen sensitivity at MKLN1 was also observed (Figure 6C). In contrast, AR expression is significantly lower in cerebellum, cortex, and liver where male-specific hypomethylation at MKLN1 is not observed.

Currently, few datasets using the pan-mammalian array have been published that involve skin or other tissues where AR expression is expected to be high. Nevertheless, DNA methylation levels in skin from a range of bat species have recently been released (Wilkinson et al., 2021). We found that at least within Phyllostomus and Pteropus genera, where sufficient numbers of male and female samples were collected, male-specific hypomethylation of MKLN1 was present (Figure 6—figure supplement 1). When considered alongside the mouse data, this implies that androgen-dependent alterations in DNA methylation age association exist, at least to some extent, in a wide range of mammalian species.

Discussion

Epigenetic clocks are accurate molecular biomarkers for aging that have proven to be useful for identifying novel age-related mechanisms, diseases, and interventions that alter the intrinsic aging rate (Horvath and Raj, 2018). Here, we developed the first epigenetic clock for sheep and show that it is capable of estimating chronological age with a MAE of 5.1 months – between 3.5% and 4.2% of the average sheep lifespan. Significantly, we also present the first evidence that castration feminizes parts of the epigenome and delays epigenetic aging.

Improved survival has previously been reported in castrated sheep compared to intact males and females, at least part of which has been attributed to behavioral changes such as reduced aggression (Jewell, 1997). Our data shows that castration also causes a delay in intrinsic aging as assessed by the epigenetic clock, with an average reduction in epigenetic age of 3.1 months (Figure 3B). Moreover, delayed epigenetic aging in castrates is also seen relative to intact males and females, which is consistent with castrated males outliving intact animals of both sexes (Jewell, 1997). We also find that the degree of age deceleration observed in castrated males is dependent on their chronological age. For instance, the average DNAm deceleration is increased by an additional 1.2 months when considering individuals aged beyond 2.9 years. In contrast, we saw no difference between castrated and intact males younger than 18 months. Together this implies that the effects of androgen exposure on the epigenome and aging are cumulative. Similar findings of greater age deceleration at later chronological ages have been observed in rodent models, with long-lived calorie-restricted mice showing a younger epigenetic age relatively late in life, but similar epigenetic aging rates at younger ages (Petkovich et al., 2017).

These results support the reproductive cell-cycle theory as an explanation for sex-dependent differences in longevity of mammals (Atwood and Bowen, 2011; Bowen and Atwood, 2004). Androgens and other testicular factors may be working in an antagonistic pleiotropic manner whereby they push cells through the cell cycle and promote growth in early life to reach reproductive maturity, thus also influencing the epigenome in an age-related manner. This process, however, may become dysregulated and promote senescence at older ages, reflected in the hastening of the epigenetic clock observed in intact males compared to castrates. It is well known in farming practice that where it can be managed appropriately, leaving male sheep intact or partially intact (i.e., cryptorchid) increases body mass (Seideman et al., 1982), something we also observed in our study (Figure 4—figure supplement 2A). This indicates greater rates of cell cycle progression, cellular division, and tissue hyperplasia. Under this hypothesis, the effects of castration should depend on whether animals are castrated before or after puberty. In rats, castration just after birth (i.e., prior to puberty) causes substantial lifespan extension while castration after puberty has smaller effects (Talbert and Hamilton, 1965), supporting the idea that male gonadal hormones have effects at early-life stages that have deleterious consequences for survival.

Consequences of castration for increased survival and slowed epigenetic aging could also be linked to the effects of androgens on sexual dimorphism and adult reproductive investment (Brooks and Garratt, 2017). Life history theories predict that males in highly polygynous species, like sheep, should be selected to invest heavily in reproduction early in life, even at the expense of a shorter lifespan, because they have the potential to monopolize groups of females and quickly produce many offspring (Clutton-Brock and Isvaran, 2007; Tidière et al., 2015). By contrast, selection on females should promote a slower reproductive life strategy because female reproductive rate is limited by the number of offspring they can produce. While we show that castration slows epigenetic aging in sheep, loss of ovarian hormone production in mice and human (through ovariectomy or menopause) is associated with a hastening of the epigenetic clock (Levine et al., 2016; Stubbs et al., 2017), consistent with the beneficial effects of female ovarian hormones on survival. Thus, it appears that both male and female sex hormones differentially regulate the epigenetic aging process in directly opposing ways, in a manner that is consistent with the life history strategies classically thought to be optimal for each sex.

Comparison of intact and castrated males also allowed us to identify several age-related DMPs that display clear androgen-sensitivity (asDMPs, Figure 4A–D), with castrated males exhibiting a feminized methylation profile compared to intact counterparts at these sites. In contrast to similar experiments performed in human blood, we found that these sex-specific CpG sites are not predominantly X-linked in sheep (McCartney et al., 2019), but are instead distributed evenly throughout the genome (Figure 4—figure supplement 1A). As yet, we do not know if castration in later life would drive feminization of methylation patterns as we observed for early-life castration (Figure 4). This is, however, an interesting consideration – it is possible that castration late in life would quickly recapitulate the methylation differences seen in those castrated early in life or it may be that methylation patterns established during early growth and development are difficult to change once set on a particular aging trajectory. This distinction may be important from a functional perspective because early- and later-life castration can have differing effects on survival in rodents (Talbert and Hamilton, 1965). Moreover, while early-life castration has been shown to extend human lifespan, androgen depletion in elderly men can be associated with poor health (Araujo et al., 2011).

Many of the highly significant asDMPs (i.e., 28/50, or 58%) are bound by AR (Figure 5A). When considering TF binding compared to background levels, our data shows that particularly AR, but also NR3C1, ESR1, FOXA1, and CEBP binding are enriched in the most significant asDMPs; all of which share biologically integrated functions. NR3C1, which encodes the GR and has been previously linked to longevity in certain populations (Olczak et al., 2019), is an anabolic steroid receptor; thus, it shares significant homology in its binding domain with AR and targets many DNA sequences also bound by AR (Claessens et al., 2017). CEBP is known to directly bind AR in prostate cells (Agoulnik et al., 2003). FOXA1 has been found to regulate estrogen receptor binding (Carroll et al., 2005; Hurtado et al., 2011) as well as AR and GR binding (Sahu et al., 2013) in both normal and cancer cells. Furthermore, FOXA1 aids in ESR1-mediated recruitment of GRs to estrogen receptor binding regions (Karmakar et al., 2013). Interestingly, AR agonist treatment in breast cancer models reprograms binding of both FOXA1 and ESR (Ponnusamy et al., 2019), suggesting some degree of antagonistic function between the androgen and estrogen receptors. If this is true for asDMPs, these sites may well represent a conduit through which castrates and androgen-deprived males take on physiologically feminized traits, including delayed aging.

Having said this, it remains a possibility that methylation levels at androgen-sensitive sites have very little to do with biological aging and instead only diverge as time progresses due to the period of androgen exposure or deficiency. Specifically, the changes in methylation observed between intact and castrated males may not be adaptive at all, and rather, methylation is progressively ‘diluted’ by binding of AR to the DNA. Variable methylation at AR target genes has been reported in humans with androgen insensitivity syndrome (AIS) when compared to normal controls (Ammerpohl et al., 2013), supporting the notion that AR binding could influence age-associated methylation profiles.

The most striking example of age-dependent androgen-sensitive DNA methylation loss we found was that detected by the probe cg21524116, mapping to MKLN1 (Muskelin) (Figure 4A). Evidence for MKLN1 androgen-dependence has previously been reported (Jin et al., 2013), and MKLN1-containing complexes have been shown to regulate lifespan in Caenorhabditis elegans (Hamilton et al., 2005; Liu et al., 2020), although no links between this gene and mammalian longevity are yet known. Chromatin immunoprecipitation and sequencing (ChIP-seq) data demonstrates enriched AR binding at the position of this asDMP in human, as well as exhibiting high-sequence conservation, DNase hypersensitivity and H3K27ac marks – the latter two of which are markers of open chromatin and indicate transcriptionally active areas (Figure 5C; Creyghton et al., 2010; Wang et al., 2008). Significantly, we found that MKLN1 hypomethylation can be seen in skin from male bats, as well as tail, muscle, and kidney from mice – all tissues where there is high expression of AR (Figure 6A, B). In contrast, tissues showing no sex-dependent methylation changes in MKLN1 during aging (i.e., cortex, cerebellum, and liver) show lower or silenced expression of AR. While this needs to be tested in more species and tissues, together this implies that MKLN1 and other asDMPs represent potential biomarkers of androgen exposure over long time periods in a broad range of mammals.

In summary, this paper describes a robust epigenetic clock for sheep that is capable of estimating chronological age, detecting accelerated rates of aging, and contributes to a growing body of work on epigenetic aging. In addition to demonstrating the utility of sheep as an excellent model for aging studies, our data identify androgen-dependent age-associated methylation changes that affect known targets of sex hormone pathways and hormone binding TFs. While these changes may not promote aging per se, identification of loci with age-dependent androgen-sensitive methylation patterns uncovers novel mechanisms by which male-accelerated aging in mammals can be explained.

Materials and methods

DNA extraction and quantitation

Request a detailed protocol

Sheep DNA samples for this study were derived from two distinct tissues from two strains: ear tissue from New Zealand Merino and blood from South Australian Merino.

Sheep ear DNA source

Request a detailed protocol

Ear tissue was obtained from females and both intact and castrated male Merino sheep during routine on-farm ear tagging procedures in Central Otago, New Zealand. As a small piece of tissue is removed during the ear tagging process that is usually discarded by the farmer, we were able to source tissue and record the year of birth without altering animal experience, in accordance with the New Zealand Animal Welfare Act (1999) and the National Animal Ethics Advisory Committee (NAEAC) Occasional Paper No 2 (Carsons, 1998). The exact date of birth for each sheep is unknown; however, this was estimated to be the 18th of October each year, according to the date at which rams were put out with ewes (May 10th of each year), a predicted mean latency until mating of 12 days, and the mean gestation period from a range of sheep breeds (149 days) (Fogarty et al., 2005). Castration was performed by the farmer using the rubber ring method within approximately 5–50 days from birth as per conventional farming practice (National Animal Welfare Advisory Comittee NZ, 2018). Mass of yearlings was recorded by the farmer for both castrated and intact male sheep at 6.5 months of age as a part of routine growth assessment. In total, ear tissue from 138 female sheep aged 1 month to 9.1 years and 126 male sheep (63 intact, 63 castrates) aged 6 months to 5.8 years was collected and subjected to DNA extraction (Figure 1A).

DNA was extracted from ear punch tissue using a Bio-On-Magnetic-Beads (BOMB) protocol (Oberacker et al., 2019), which isolates DNA molecules using solid-phase reversible immobilization (SPRI) beads. Approximately 3 mm punches of ear tissue were lysed in 200 μL TNES buffer (100 mM Tris, 25 mM NaCl, 10 mM EDTA, 10% w/v SDS), supplemented with 5 μL 20 mg/mL Proteinase K and 2 μL RNAse A and incubated overnight at 55°C as per BOMB protocols. The remainder of the protocol was appropriately scaled to maximize DNA output while maintaining the necessary 2:3:4 ratio of beads:lysate:isopropanol. As such, 40 μL cell lysate, 80 μL 1.5X GITC (guanidinium thiocyanate), 40 μL TE-diluted Sera-Mag Magnetic SpeedBeads (GE Healthcare, GEHE45152105050250), and 80 μL isopropanol were combined. After allowing DNA to bind the SPRI beads, tubes were placed on a neodymium magnetic rack for ~5 min until the solution clarified and supernatant was removed. Beads were washed 1× with isopropanol and 2× with 70% ethanol, and then left to air dry on the magnetic rack. 25 μL of MilliQ H2O was added to resuspend beads, and tubes were removed from the rack to allow DNA elution. Tubes were once again set onto the magnets, and the clarified solution (containing DNA) was collected.

DNA was quantified using the Quant-iT PicoGreen dsDNA assay kit (Thermo Fisher Scientific, cat# P11496). 1 μL DNA sample was added to 14 μL TE diluted PicoGreen in MicroAmp optical 96-well plates (Thermo Fisher Scientific, cat# N8010560) as per the manufacturer's directions, sealed, and placed into a QuantStudio qPCR machine for analysis. Samples with DNA content greater than the target quantity of 25 ng/μL were diluted with MilliQ.

Sheep blood DNA source

Request a detailed protocol

DNA methylation was analyzed in DNA extracted from the blood of 153 South Australian Merino sheep samples (80 transgenic Huntington’s disease model sheep [OVT73 line] [Jacobsen et al., 2010] and 73 age-matched controls) aged from 2.9 to 7.0 years (Figure 1A). All protocols involving OVT73 sheep were approved by the Primary Industries and Regions South Australia (PIRSA, approval number 19/02) Animal Ethics Committee with oversight from the University of Auckland Animal Ethics Committee. The epigenetic age of the transgenic sheep carrying the HTT gene was not significantly different from controls (p=0.30, Mann–Whitney U test); therefore, the data derived from these animals was subsequently treated as one dataset (Figure 1—figure supplement 1C).

300 μL thawed blood samples were treated with two rounds of red cell lysis buffer (300 mM sucrose, 5 mM MgCl2, 10 mM Tris pH8, 1% Triton X-100) for 10 min on ice, 10 min centrifugation at 1800 RCF, and supernatant removed between each buffer treatment. The resulting cell pellet was incubated in cell digestion buffer (2.4 mM EDTA, 75 mM NaCl, 0.5% SDS) and Proteinase K (500 μg/mL) at 50°C for 2 h. Phenol:chloroform:isoamyl alcohol (PCI, 25:24:1; pH 8) was added at equal volumes, mixed by inversion, and placed in the centrifuge for 5 min at 14,000 RPM at room temperature (repeated if necessary). The supernatant was collected and combined with 100% ethanol at 2× volume, allowing precipitation of DNA. Ethanol was removed and evaporated, and 50 μL TE buffer (pH 8) was added to resuspend genomic DNA. DNA sample concentration was initially quantified using a nanodrop, followed by Qubit.

Data processing and clock construction

Request a detailed protocol

A custom Illumina methylation array (‘HorvathMammalMethyl40’) was used to measure DNA methylation. These arrays include 36k CpG sites conserved across mammalian species, though not all probes are expected to map to every species (Arneson et al., 2021). Using QuasR (Gaidatzis et al., 2015), 33,136 probes were assigned genomic coordinates for sheep genome assembly OviAri4.

Raw .idat files were processed using the minfi package for RStudio (v3.6.0) with noob background correction (Aryee et al., 2014; Triche et al., 2013). This generates normalized beta values that represent the methylation levels at probes on a scale between 0 (completely unmethylated) and 1 (fully methylated).

185 CpG sites were selected for the sheep epigenetic clock by elastic net regression using the RStudio package glmnet (Friedman et al., 2009). The elastic net is a penalized regression model that combines aspects of both ridge and lasso regression to select a subset of CpGs that are most predictive of chronological age. 88 and 97 of these sites correlated positively and negative with age, respectively. Epigenetic age acceleration was defined as residual resulting from regressing DNAm age on chronological age. By definition, epigenetic age acceleration has zero correlation with chronological age. Statistical significance of the difference in epigenetic age acceleration between each male group (castrated versus intact) was determined using a non-parametric two-tailed Mann–Whitney U test applied to sexually mature sheep only (>18 months of age).

The human and sheep dual-species clock was created by combining our sheep blood and ear sourced data with human methylation data previously measured using the same methylation array (‘HorvathMammalMethyl40’) (Arneson et al., 2021). This data comprises 1848 human samples aged 0–93 years and includes 16 different tissues. The clock was constructed identically to the sheep only clock, with an additional age parameter relative age defined as the ratio of chronological age by maximum age for the respective species. The maximum age for sheep and humans was set at 22.8 years and 122.5 years, respectively, as defined in the anAge database (de Magalhães et al., 2009).

Identification of age-associated and androgen-sensitive DMPs

Request a detailed protocol

Age-associated DMPs were identified using the weighted gene co-expression network analysis (WGCNA) function standardScreeningNumericTrait (Langfelder and Horvath, 2008), which calculates the correlation between probe methylation and age. WGCNA outputs Pearson correlation as standard; however, we repeated the analysis using Spearman correlation and good consistency was seen generally, with regions of interest (e.g., PAX6, FGF8, PAX5, HOXC4, and IGF1) showing very similar results. Significance values reported are uncorrected for multiple testing. Where mapped, gene names for the top 500 positively correlated probes were input into DAVID (Dennis et al., 2003) for functional classification analysis with the O. aries genes present on the methylation array as background. asDMPs were identified using a t-test of the difference between the slopes of linear regression lines applied to methylation levels across age in each sex. A difference in slope indicates that there is an interaction between age and sex for methylation status of a particular probe.

TF binding analysis

Request a detailed protocol

TF binding at specific asDMPs was evaluated by entering the equivalent human probe position into the interval search function of the Cistrome Data Browser Toolkit, an extensive online collection of ChIP-seq data (Mei et al., 2017; Zheng et al., 2019). TFs binding CpGs of interest in human were analyzed using a custom R script, with ChIP-seq tracks being viewed by Cistrome link in the UCSC genome browser alongside additional annotation tracks of interest for export and figure creation in Inkscape. To model the background levels of TF binding, 1000 replicates of 50 random probes sites were run in a similar manner using the Cistrome Human Factor dataset and compared to sheep orthologs in batches of 50 asDMPs using BEDtools (Quinlan and Hall, 2010) as well as custom R and Python scripts.

Data availability

Data and code is available via GitHub https://github.com/VictoriaSugrue/sheepclock (copy archived at https://archive.softwareheritage.org/swh:1:rev:b7e3088e28025ac34513778ccb23368246fc532c).

The following data sets were generated
    1. Sugrue VJ
    2. Zoller JA
    3. Narayan P
    4. Lu AT
    5. Ortega-Recalde OJ
    6. Grant MJ
    7. Bawden CS
    8. Rudiger SR
    9. Haghani A
    10. Bond DM
    11. Garratt M
    12. Sears KE
    13. Wang N
    14. Yang XW
    15. Snell RG
    16. Hore TA
    17. Horvath S
    (2021) GitHub
    ID sheepclock. Castration delays epigenetic aging and feminises DNA methylation at androgen-regulated loci.
The following previously published data sets were used
    1. Horvath S
    2. Snell RG
    (2020) NCBI Gene Expression Omnibus
    ID GSE147003. DNA methylation profiles from a transgenic sheep model of Huntington's disease.

References

  1. Book
    1. Carsons L
    (1998)
    Regulation of Animal Use in Research, Testing and Teaching in New Zealand - the Black, the White and the Grey
    Surveillance.
    1. Horstman AM
    2. Dillon EL
    3. Urban RJ
    4. Sheffield-Moore M
    (2012) The role of androgens and estrogens on healthy aging and longevity
    The Journals of Gerontology Series A: Biological Sciences and Medical Sciences 67:1140–1152.
    https://doi.org/10.1093/gerona/gls068
    1. Talbert GB
    2. Hamilton JB
    (1965)
    Duration of life in Lewis strain of rats after gonadectomy at birth and at older ages
    Journal of Gerontology 20:489–491.

Decision letter

  1. Sara Hägg
    Reviewing Editor; Karolinska Institutet, Sweden
  2. Matt Kaeberlein
    Senior Editor; University of Washington, United States
  3. Sara Hägg
    Reviewer; Karolinska Institutet, Sweden
  4. Amr Sawalha
    Reviewer; UPMC Children's Hospital of Pittsburgh, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The paper by Sugrue et al. demonstrates that androgen deficiency (induced by castration) in male sheep delays epigenetic aging. The paper also includes examples from human and bat samples, and provides new knowledge on sexual dimorphism and aging that should be of interest to everyone in the epigenetics field.

Decision letter after peer review:

Thank you for submitting your article "Castration delays epigenetic aging and feminises DNA methylation at androgen-regulated loci" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, including Sara Hägg as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Matt Kaeberlein as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Amr Sawalha (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

The paper by Sugrue et al. describes an epigenetic clock in sheep and explores how castration affects epigenetic aging. The study demonstrates that androgen deficiency (induced by castration) in male sheep delays epigenetic aging. Androgen specificity of probes that show differences in age-dependent methylation changes between castrated and non-castrated males was inferred by enrichment in AR binding sites suggesting presumed regulation by androgens.

Essential revisions:

1. The aim of the study is not adequately described. There are incentives for the epigenetic clock creation, but the results also include age-related changes on the methylome?

2. Not the same order of presentation in methods and results. Age-associated changes in the methylome comes first in results but not in methods.

3. Any batch effects corrected for in the methylation data?

4. Pearson correlations assumes linearity, sensitivity analysis using Spearman correlation may be needed?

5. Figure 1:

a. In the analysis correlating epigenetic changes with age, presented in Figure 1B, please clarify how these data were corrected for multiple testing.

b. Is there a difference between females and intact males in the analysis correlating methylation levels with chronological age (Figure 1B)?

c. The figure legend in does not reflect the data presented in the figure.

6. The epigenetic clock:

a. Is the castrated samples included in the elastic net regression model in the clock creation? This is unclear, and I don´t think these samples should be included as they deviate from normal aging in sheep, at least in 18 months old sheep.

b. Figure 2A. The correlation in sheep blood is not as good as in other selections. Why is this? There seems to be an overrepresentation of young sheep in the data, can this be corrected for using weighted effects in the elastic net to get a better prediction? Or what happens if the Huntington samples are removed? Are they causing this pattern?

c. Figure 2E seems to be identical to 2C, what is the difference here? Not adequately described.

d. The rationale for creating a dual species clock is not clear. What does it add?

e. Figure 3A, I don´t understand how the ranking of the samples was done? If you have age-matched castrated and intact male sheep, why don´t you also use a matched control setting for the test statistic to calculate the DNAmAge difference? That would most likely account for other unmeasured confounders as well.

f. Figure 3B, P-value in text and figure legend does not match.

7. I do not agree on this statement: "We found there was a sharp inflection in p value after approximately the 50 most significant probes (Figure S4A) and thus represented a natural cut-off for analysis." Looking into Table S3 and the p-values for the CpGs, this is not apparent. I suggest make a FDR-level cut-off and redo enrichment analyses as well.

8. The mouse methylation data are not described and the statistical test used in Figure 6 is not explained. Please put labels on top of Figure 6A and B.

9. It will be informative to examine DNA methylation differences between age-matched female and male sheep using a subset of the study samples. Also more specifically, is there a difference in methylation levels among the asDMPs identified?

10. To what extent does castration reverse methylation differences between males and females and/or methylation levels in asDMP compared to age-matched females? In other words do androgens completely or partly explain the difference between males and females?

11. It would have been nice if serum samples are available to explore the correlation between methylation levels in asDMP and androgen levels, but this might not be feasible.

12. The authors show significantly reduced mass of male lambs after castration. Within the castrated and intact groups separately, is there any correlation between mass and DNA methylation levels at any of the asDMP? This will help establish a "phenotypic" change associated with the DNA methylation changes induced by androgen deficiency.

13. Any specific positional annotation enrichment for age-correlated CpG sites and asDMP relative to CpG islands, shores, etc.

14. Can the authors further speculate about the reason behind tissue-specificity for asDMP (e.g. MKLN1), and how the presence or absence of androgens might be mechanistically linked to changes in DNA methylation? Why is there no difference seen in blood mammal tissues? The discussion around this needs to dig a little deeper.

https://doi.org/10.7554/eLife.64932.sa1

Author response

Essential revisions:

1. The aim of the study is not adequately described. There are incentives for the epigenetic clock creation, but the results also include age-related changes on the methylome?

In response to the reviewers comments we have made more of an effort to introduce the need to explore the fundamentals of molecular aging through DNA methylation (and its association with age). Key passages edited include:

“Moreover, sheep are extensively farmed (and males castrated) in many countries, allowing incidental study of the effect of sex and sex hormones in aging to occur without increasing experimental animal use (Russell and Burch, 1959). Yet, exploration of the molecular aging process in sheep is relatively under developed, particularly from the perspective of epigenetics and sex.”

and

“Here we present the first sheep epigenetic clock and quantify its median error to 5.1 months, ~3.5-4.2 % of their expected lifespan. Validating the biological relevance of our sheep model, we find age associated methylation at genes well-characterised for their role in development and aging in a wide range of animal systems.”

2. Not the same order of presentation in methods and results. Age-associated changes in the methylome comes first in results but not in methods.

We have now placed the "Identification of age-associated and androgen-sensitive DMPs" section earlier in the methods, before description of the clock.

3. Any batch effects corrected for in the methylation data?

In knowing the risk of batch effects potentially skewing our data, we sought to eliminate them from our main test comparison (i.e. castrates vs intacts) by arranging them on our array chips alternately (i.e. castrate_1, intact_1, castrate_2, intact_2….etc). Having put these protections in place, it appears they were not needed – hierarchical clustering revealed some clustering on the basis of sex and age as indicated in the manuscript, however, did not reveal any structuring on batch.

We have since clarified this point in the manuscript.

“There was some sub-clustering based on sex and age; however, there was no separation based on known underlying pedigree variation or processing batches”.

4. Pearson correlations assumes linearity, sensitivity analysis using Spearman correlation may be needed?

In response to the reviewers’ comment, we compared correlation between chronological age and methylation levels at each CpG using Pearson and Spearman, and found good consistency between the methods for all samples and for Ewe ear punch only (see Author response image 1 and 2). Importantly, sites we picked out as being biologically interesting showed high correlation using either Pearson or Spearman (highlighted red).

Author response image 1
Author response image 2

While we are pleased to have done this analysis, we are not convinced the results warrant inclusion in the manuscript. Nevertheless, details of what was done have now been included in the methods section.

“WGCNA outputs Pearson correlation as standard; however, we repeated the analysis using Spearman correlation and good consistency was seen generally, with regions of interest (e.g. PAX6, FGF8, PAX5, HOXC4 and IGF1) showing very similar results.”

5. Figure 1:

a. In the analysis correlating epigenetic changes with age, presented in Figure 1B, please clarify how these data were corrected for multiple testing.

No correction for multiple testing was done for this figure (i.e. only uncorrected p-values are showing). Nevertheless, the findings are still significant even after Bonferroni correction. This has now been clarified in the methods section.

b. Is there a difference between females and intact males in the analysis correlating methylation levels with chronological age (Figure 1B)?

In response to this comment we are now showing stratified data for tissue and sex in Figure 1—figure supplement 2. We found that sex and castration status had much less effect on age associations compared when tissue was used to stratify the data. This has been updated in the text as follows:

“When we stratified our data, we found considerable differences in age association with regard to tissue of origin (Figure 1—figure supplement 2), however, this is consistent with other clock studies. Sex and castration status also produced group-specific age association hits, however, this was comparatively less than for tissue, with many of the most significantly associated sites being shared between females and males (blood, 45 shared sites) and females, intact males and castrated females (ear, 84 shared sites) (Figure 1—figure supplement 2B-C).”

c. The figure legend in does not reflect the data presented in the figure.

We agree, this was an oversight – "Creation of the epigenetic clock in sheep." refers specifically to just one part of the Figure 1A, not the whole figure. As such, we have changed this figure title to "Association between age and DNA methylation in sheep".

6. The epigenetic clock:

a. Is the castrated samples included in the elastic net regression model in the clock creation? This is unclear, and I don´t think these samples should be included as they deviate from normal aging in sheep, at least in 18 months old sheep.

Castrated sheep were included in the elastic net regression as indicated in Figure 1. We felt this was important to include them in the clock, as modelling epigenetic age in castrates forms a central part of our analysis (if the castrates were not included, we risk having a clock that held sites not suitable for their population).

b. Figure 2A. The correlation in sheep blood is not as good as in other selections. Why is this? There seems to be an overrepresentation of young sheep in the data, can this be corrected for using weighted effects in the elastic net to get a better prediction? Or what happens if the Huntington samples are removed? Are they causing this pattern?

We feel there are two potential factors driving the lower correlation in blood. Firstly, there was far fewer sheep included in the blood only set, and as pointed out by the reviewers, an overrepresentation of young sheep. This means the clock will be less predictive in general, particularly at advanced ages. Secondly, blood is likely more heterogeneous as a tissue compared to ear punches.

There was no significant difference in predicted epigenetic age for Huntington sheep compared to controls (p=0.3), therefore, we think this is an unlikely contributing factor.

To clarify this point in the manuscript, we have added the following passage to the Results section:

“When blood and ear clocks are constructed separately, the ear clock outperformed the blood clock in the LOOCV analysis (0.97 vs 0.75 correlation respectively, Figure 2B-C). While this may be related to blood being a more heterogeneous tissue than ear punch, less samples and an overrepresentation of young individuals is a likely driver of this effect.”

Further, to assist readability, we have changed the order of Figure 2A-C so that the multi-tissue clock (that was used for the majority of the analysis) is presented first (Figure2A), with the blood and skin clocks following (Figure 2B and 2C respectively)

c. Figure 2E seems to be identical to 2C, what is the difference here? Not adequately described.

Figure 2E represents a sheep and human multi-tissue clock that has been applied to only sheep, whereas Figure 2C (in the old manuscript) is a sheep-only multi-tissue clock applied to sheep only. We have clarified this in the Figure legend as follows.

Figure 2. Comparison of chronological age (x-axis) and epigenetic age (y-axis) for a variety of clock models trained on (A-C) sheep only, or (D-G) humans and sheep. […] Maximum lifespan values used were for human and sheep respectively were 122.5 years and 22.8 years. Each data point represents one sample, coloured based on origin.”

d. The rationale for creating a dual species clock is not clear. What does it add?

In addition to defining a single set of sites that act as a clock in both species, a dual-species clock provides an extra 'sanity-check' on our data because spurious age associations will be reduced by having an additional species and extra samples. Indeed, the demonstration that epigenetic age deceleration of castrates was found using the dual-species clock provides additional support for the original observation using the sheep clock alone.

This has now been made clearer in the Results section:

“In order to broaden applicability of the sheep clock, and also substantiate its general characteristics, two human and sheep dual-species clocks were also constructed.”

and

“Notably, the age deceleration observed in castrates was corroborated using the human and sheep dual-species clock (Figure 3—figure supplement 3, p=0.04), thus providing additional support for this finding.”

e. Figure 3A, I don´t understand how the ranking of the samples was done? If you have age-matched castrated and intact male sheep, why don´t you also use a matched control setting for the test statistic to calculate the DNAmAge difference? That would most likely account for other unmeasured confounders as well.

The 'ranking' of the samples is done by epigenetic age, and only relates to Figure 3A (note, statistics was not applied on this ranked data). The reason we presented Figure 3A in this manner was so that it was obvious to the reader that as the sheep aged (chronologically), divergence in epigenetic age between castrated and intact males became greater.

f. Figure 3B, P-value in text and figure legend does not match.

This was a typographical error on our behalf – The "0.01" in the legend of Figure 3B was missing a digit (i.e. 0.018). This has now been corrected.

7. I do not agree on this statement: "We found there was a sharp inflection in p value after approximately the 50 most significant probes (Figure S4A) and thus represented a natural cut-off for analysis." Looking into Table S3 and the p-values for the CpGs, this is not apparent. I suggest make a FDR-level cut-off and redo enrichment analyses as well.

While we do believe there is an inflection point in p-value around this cut-off, we have nevertheless removed the top 50 as a cut-off for subsequent analysis; and have instead performed cistrome enrichments for all asDMPs identified. As this extended analysis required automation and updating of the cistrome database output, the numbers in Figure 5 have changed slightly, however, the interpretation remains the same.

Importantly, this extended analysis revealed that androgen receptor (AR) and the glucocorticoid receptor (NR3C1) have enriched binding in only the top ~200 most significant asDMPs, before returning to the expected background. This analysis is now included in Figure 4—figure supplement 4.

8. The mouse methylation data are not described and the statistical test used in Figure 6 is not explained. Please put labels on top of Figure 6A and B.

Figure 6 has been completely reconstructed on account of exciting new data. Nevertheless, we have labelled tissue and species much more clearly and described the statistical test used in the same manner as Figure 4.

9. It will be informative to examine DNA methylation differences between age-matched female and male sheep using a subset of the study samples. Also more specifically, is there a difference in methylation levels among the asDMPs identified?

We do not understand what the reviewers are asking for in this question – age matched female and male sheep methylation for the asDMPs is shown in Figure 4.

10. To what extent does castration reverse methylation differences between males and females and/or methylation levels in asDMP compared to age-matched females? In other words do androgens completely or partly explain the difference between males and females?

As in Figure 4, for the iconic asDMPs (MKLN1, ETAA1, LMO4, KIAA2026), androgens almost completely explain the differences between males and females. Despite being a strong effect at this site, there are some sexually dimorphic probes that are androgen-insensitive, so the effect is partial.

We have altered the discussion to clarify this point:

“Comparison of intact and castrated males also allowed us to identify several age-related DMPs that display clear androgen-sensitivity (asDMPs, Figure 4A-D), with castrated males exhibiting a feminised methylation profile compared to intact counterparts at these sites”.

11. It would have been nice if serum samples are available to explore the correlation between methylation levels in asDMP and androgen levels, but this might not be feasible.

Unfortunately this is not feasible (blood/serum was not taken from the rams where ear punches were also taken). While beyond the scope of the current paper, we agree this will be an interesting experiment to perform in the future – there is reasonable variation in ram testosterone level (Clarke et al., 2012; https://doi.org/10.1210/en.2011-1634), and this may be reflected in asDMP methylation. Nevertheless, we have performed live weight comparisons to methylation (as suggested by reviewers below) which somewhat acts as a proxy for testosterone level.

12. The authors show significantly reduced mass of male lambs after castration. Within the castrated and intact groups separately, is there any correlation between mass and DNA methylation levels at any of the asDMP? This will help establish a "phenotypic" change associated with the DNA methylation changes induced by androgen deficiency.

This was a really helpful suggestion that has given us new insight into the paper.

We examined the relationship between mass in the young males (i.e. <1 year old, the only sheep with mass recorded in this project) and DNA methylation and asDMPs. We found that, when individual sites were compared, the relationship to mass was on its own largely insignificant. For example, our 4 'iconic' asDMPs is given in Author response image 3 – of the 8 correlations shown here, only one was deemed significant (ram mass vs methylation at KIAA2026; p=0.0121). Nevertheless, it appeared that in general, there was a negative relationship between mass and methylation in intact males (green). For the castrates (blue), methylation at asDMPs and mass had a positive relationship.

Author response image 3

We then set out to explore how robust these associations were by comparing groups of 100 asDMPs at a time, and asking, (1) is there a difference in association of mass and asDMP methylation that changes for castrates and intact males, that is dependent upon asDMP prominence? and (2) does the mass vs methylation associations differ significantly between intact males and castrates? Indeed, starting with the 100 most prominent asDMPs identified, average association between mass and methylation was negative for intact rams and positive for castrates (p=1x10-9). To be sure these correlations were biologically meaningful, we sampled through less prominent asDMPs in a sliding window of 100, finding that significance merged with that of randomly chosen 100 CpG sites (10000 replicates) after the top ~1000 asDMPs.

What this analysis shows is that divergence of methylation at asDMP sites occurs early (i.e. as soon as physical traits like mass become dimorphic between intact and castrated males), and is detectable even before differences in epigenetic age are manifested. To illustrate this point, we have now included new panels in Figure 4—figure supplement 6, that show (B) the associations between mass and asDMP methylation in young sheep and (panel C) where significant differences are lost. The manuscript text has also been updated accordingly.

13. Any specific positional annotation enrichment for age-correlated CpG sites and asDMP relative to CpG islands, shores, etc.

The most striking positional enrichments found in this study was between asDMPs and the hormone related transcription factors (e.g. AR and NR3C1; as reported in Figure 5). We did perform CGI enrichment analysis – for the asDMPs, which predominantly demethylate with age in males, overlap with CGIs was observed at almost exactly the same rate as CpGs that are negatively correlated with age (i.e. 2.1% and 2.5% respectively). In contrast, sites where methylation is positively correlated with age (i.e. 'hypermethylated' over time) have lower rates of CGIs (0.32%). While it is useful to have verified that CGI enrichment is similar between asDMPs and similarly demethylating age-associated sites, we do not feel this warrants discussion in the manuscript.

14. Can the authors further speculate about the reason behind tissue-specificity for asDMP (e.g. MKLN1), and how the presence or absence of androgens might be mechanistically linked to changes in DNA methylation? Why is there no difference seen in blood mammal tissues? The discussion around this needs to dig a little deeper.

Again, this was a very helpful comment – we took advantage of new data from the pan-mammalian methylation array in mouse and classified them on the basis of whether there was any sex differences in methylation during aging. For MKLN1 we found mouse tail, kidney and muscle all showing asDMP behaviour, as in sheep ear punch. In contrast, mouse blood, cerebellum, cortex, heart, liver, spleen, striatum, and whole brain all lacked androgen sensitivity at this site (see more in revised Figure 6). Interestingly, those mouse tissues showing androgen sensitive methylation changes had significantly higher expression of the AR compared to tissue that do not. In addition to completely reformulating Figure 6, we have identified sex-dependent methylation changes in bats from published data of others (Figure 6—figure supplement 7). The results and discussion have been updated to reflect new data – we think together this represents an important new clues between TF binding and age-association, as well as uncovers some broader principles likely to be shared across divergent mammalian groups.

https://doi.org/10.7554/eLife.64932.sa2

Article and author information

Author details

  1. Victoria J Sugrue

    Department of Anatomy, University of Otago, Dunedin, New Zealand
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0427-5146
  2. Joseph Alan Zoller

    Department of Biostatistics, Fielding School of Public Health, University of California, Los Angeles, Los Angeles, United States
    Contribution
    Software, Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6309-0291
  3. Pritika Narayan

    Applied Translational Genetics Group, School of Biological Sciences, Centre for Brain Research, The University of Auckland, Auckland, New Zealand
    Contribution
    Data curation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Ake T Lu

    Department of Human Genetics, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Oscar J Ortega-Recalde

    Department of Anatomy, University of Otago, Dunedin, New Zealand
    Contribution
    Software, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Matthew J Grant

    Applied Translational Genetics Group, School of Biological Sciences, Centre for Brain Research, The University of Auckland, Auckland, New Zealand
    Contribution
    Resources
    Competing interests
    No competing interests declared
  7. C Simon Bawden

    Livestock and Farming Systems, South Australian Research and Development Institute, Roseworthy, Australia
    Contribution
    Resources
    Competing interests
    No competing interests declared
  8. Skye R Rudiger

    Livestock and Farming Systems, South Australian Research and Development Institute, Roseworthy, Australia
    Contribution
    Resources
    Competing interests
    No competing interests declared
  9. Amin Haghani

    Department of Human Genetics, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6052-8793
  10. Donna M Bond

    Department of Anatomy, University of Otago, Dunedin, New Zealand
    Contribution
    Resources
    Competing interests
    Director and shareholder of Totovision, a small agricultural consultancy.
  11. Reuben R Hore

    Blackstone Hill Station, Becks, RD2, Omakau, New Zealand
    Contribution
    Resources
    Competing interests
    Commercial sheep famer
  12. Michael Garratt

    Department of Anatomy, University of Otago, Dunedin, New Zealand
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Karen E Sears

    Department of Ecology and Evolutionary Biology, UCLA, Los Angeles, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9744-9602
  14. Nan Wang

    Center for Neurobehavioral Genetics, Semel Institute for Neuroscience and Human Behavior, University of California, Los Angeles (UCLA), Los Angeles, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  15. Xiangdong William Yang

    1. Center for Neurobehavioral Genetics, Semel Institute for Neuroscience and Human Behavior, University of California, Los Angeles (UCLA), Los Angeles, United States
    2. Department of Psychiatry and Biobehavioral Sciences, David Geffen School of Medicine at UCLA, Los Angeles, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3705-7935
  16. Russell G Snell

    Applied Translational Genetics Group, School of Biological Sciences, Centre for Brain Research, The University of Auckland, Auckland, New Zealand
    Contribution
    Resources, Data curation, Writing - review and editing
    Competing interests
    No competing interests declared
  17. Timothy A Hore

    Department of Anatomy, University of Otago, Dunedin, New Zealand
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration, Writing - review and editing
    Contributed equally with
    Steve Horvath
    For correspondence
    tim.hore@otago.ac.nz
    Competing interests
    is a shareholder and director of Totovision Ltd, a small agricultural and biotechnology consultancy.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6735-225X
  18. Steve Horvath

    Department of Human Genetics, David Geffen School of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Project administration, Writing - review and editing
    Contributed equally with
    Timothy A Hore
    For correspondence
    shorvath@mednet.ucla.edu
    Competing interests
    is a founder of the non-profit Epigenetic Clock Development Foundation which plans to license several patents from his employer UC Regents, including a patent for the mammalian assay utilised in this study (WO2020150705).

Funding

Paul G. Allen Frontiers Group

  • Steve Horvath

University of Otago

  • Timothy A Hore

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Ari Samaranayaka for his guidance with portions of the statistical analyses.

Ethics

Animal experimentation: All protocols involving OVT73 sheep were approved by the Primary Industries and Regions South Australia (PIRSA, Approval number 19/02) Animal Ethics Committee with oversight from the University of Auckland Animal Ethics Committee. Sheep ear tissue was obtained from females and both intact and castrated male Merino sheep during routine on-farm ear tagging procedures in Central Otago, New Zealand. As a small piece of tissue is removed during the ear tagging process that is usually discarded by the farmer, we were able to source tissue and record the year of birth without altering animal experience, in accordance with the New Zealand Animal Welfare Act (1999) and the National Animal Ethics Advisory Committee (NAEAC) Occasional Paper No 2 (Carsons, 1998).

Senior Editor

  1. Matt Kaeberlein, University of Washington, United States

Reviewing Editor

  1. Sara Hägg, Karolinska Institutet, Sweden

Reviewers

  1. Sara Hägg, Karolinska Institutet, Sweden
  2. Amr Sawalha, UPMC Children's Hospital of Pittsburgh, United States

Publication history

  1. Received: November 16, 2020
  2. Accepted: June 15, 2021
  3. Version of Record published: July 6, 2021 (version 1)

Copyright

© 2021, Sugrue et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 7,915
    Page views
  • 416
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Benoît Boulan et al.
    Research Article

    Neurodevelopmental axonal pathfinding plays a central role in correct brain wiring and subsequent cognitive abilities. Within the growth cone, various intracellular effectors transduce axonal guidance signals by remodeling the cytoskeleton. Semaphorin-3E (Sema3E) is a guidance cue implicated in development of the fornix, a neuronal tract connecting the hippocampus to the hypothalamus. Microtubule-Associated Protein 6 (MAP6) has been shown to be involved in the Sema3E growth-promoting signaling pathway. In this study, we identified the Collapsin Response Mediator Protein 4 (CRMP4) as a MAP6 partner and a crucial effector in Sema3E growth-promoting activity. CRMP4-KO mice displayed abnormal fornix development reminiscent of that observed in Sema3E-KO mice. CRMP4 was shown to interact with the Sema3E tripartite receptor complex within Detergent-Resistant Membrane (DRM) domains, and DRM domain integrity was required to transduce Sema3E signaling through the Akt/GSK3 pathway. Finally, we showed that the cytoskeleton-binding domain of CRMP4 is required for Sema3E's growth-promoting activity, suggesting that CRMP4 plays a role at the interface between Sema3E receptors, located in DRM domains, and the cytoskeleton network. As the fornix is affected in many psychiatric diseases, such as schizophrenia, our results provide new insights to better understand the neurodevelopmental components of these diseases.

    1. Developmental Biology
    2. Neuroscience
    Miguel Turrero García et al.
    Research Article

    The septum is a ventral forebrain structure known to regulate innate behaviors. During embryonic development, septal neurons are produced in multiple proliferative areas from neural progenitors following transcriptional programs that are still largely unknown. Here, we use a combination of single cell RNA sequencing, histology and genetic models to address how septal neuron diversity is established during neurogenesis. We find that the transcriptional profiles of septal progenitors change along neurogenesis, coinciding with the generation of distinct neuron types. We characterize the septal eminence, an anatomically distinct and transient proliferative zone composed of progenitors with distinctive molecular profiles, proliferative capacity and fate potential compared to the rostral septal progenitor zone. We show that Nkx2.1-expressing septal eminence progenitors give rise to neurons belonging to at least three morphological classes, born in temporal cohorts that are distributed across different septal nuclei in a sequential fountain-like pattern. Our study provides insight into the molecular programs that control the sequential production of different neuronal types in the septum, a structure with important roles in regulating mood and motivation.
