To investigate the effect of age on the B-cell receptor repertoire diversity and composition in turquoise killifish, we implemented an RNA-based repertoire-sequencing protocol based on the published protocol of Turchaninova et al., 2016, using template switching (Zajac et al., 2013) to add unique molecular identifiers (UMIs) to each RNA transcript of the immunoglobulin heavy chain (Figure 1; Bradshaw and Valenzano, 2020) to correct for errors and biases in abundance arising during PCR and Illumina sequencing (Vollmers et al., 2013). To test the validity and replicability of results obtained using this protocol, we performed three replicate library preps on whole-body total RNA samples from four adult (8-week-old) adult male turquoise killifish from the short-lived GRZ strain (Figure 1—figure supplement 1). Independent repertoires from the same individual showed a high degree of similarity in their clonal composition, with an average inter-replicate correlation in clone size of r = 0.89 (Figure 1—figure supplement 2). Inter-repertoire divergences computed with the published repertoire dissimilarity index (RDI) metric (Bolen et al., 2017) consistently identified replicates from the same individual as much more similar than repertoires from different individuals (Figure 1—figure supplement 3), demonstrating that this protocol is capable of accurately and reproducibly reconstructing the expressed heavy-chain repertoires of individual killifish.

Figure 1 with 3 supplements see all

Download asset Open asset

To investigate the effect of age on the structure and diversity of killifish antibody repertoires, we performed whole-body immunoglobulin sequencing on 32 adult male turquoise killifish from the short-lived GRZ strain (Hu and Brunet, 2018) at four different ages from early adulthood to late life (Figure 2A and Supplementary file 2a-d). The repertoire of each individual comprised some number of unique heavy-chain sequences, each of which could be classified by clonal identity (the ‘clonal repertoire’) and V/J usage (the ‘VJ repertoire’).

Figure 2 with 4 supplements see all

Download asset Open asset

The diversity of a population is a measure of the number (a.k.a. the richness) and relative frequency of different subdivisions within that population. For B-cell repertoires, diversity can be calculated over the different clonal lineages detected in a sample, or over different variable-region gene segment combinations.

To quantify immune-repertoire diversity in killifish heavy-chain repertoires, we computed Hill diversity spectra (Appendix 1—note 1), which provide a holistic overview of the diversity structure of a population (in this case, a repertoire) (Miho et al., 2018; Hill, 1973; Jost, 2006; Jost, 2007). Briefly, each Hill spectrum reports the ‘effective richness’ of a repertoire across a range of diversity orders; higher effective richness corresponds to a more diverse repertoire. At low diversity orders, species of different sizes are weighted more equally in the diversity calculation, while at higher orders, less-abundant species are progressively downweighted relative to more-abundant groups (Appendix 1—note 1). For the clonal repertoire, each clonotype (set of unique sequences descended from a single naïve ancestor B-cell) was designated a separate species; for the VJ repertoire, clonotypes with the same V/J identity were grouped together.

Separate spectra were computed for the clonal and VJ repertoires of each individual, and these individual spectra were used to compute averaged alpha-diversity spectra for each age group and repertoire type. For each diversity order, we tested for a significant age effect on repertoire diversity using a permutation test on the Kruskal-Wallis H statistic (Materials and methods).

The clonal diversity (Figure 2—figure supplement 1) of the whole-body killifish repertoire exhibited a significant decline with age (p < 0.05) at high diversity orders (Figure 2B, Figure 2—figure supplements 2–3), indicating a significant and extremely rapid age-related decline in the diversity of the largest B-cell clones. In contrast, lower-order clonal diversity exhibited no significant change with age, suggesting that the overall composition of the whole-body repertoire remains relatively unchanged. Since the B-cell clonal repertoire is overwhelmingly dominated by small, predominantly naïve clones (Figure 2—figure supplement 4A), low-order clonal diversity measurements are primarily driven by changes in the diversity of small clones. As such, these results indicate that the composition of small clones in the killifish antibody repertoire is much less sensitive to the effects of aging than that of large, expanded clones.

In contrast with the rapid age-related declines observed in high-order clonal diversity, the VJ diversity of the killifish repertoire exhibited no significant age-related change at any diversity order (Figure 2C). Examining the clone-size distribution of each V/J combination (Figure 2—figure supplement 4B) revealed that even the largest V/J combinations in each age group are overwhelmingly dominated by small clones, suggesting that the observed lack of an age effect on VJ diversity was due to the observed age-insensitivity of small clones (Figure 2B). To test this hypothesis, we filtered the repertoire dataset to separate sequences from small and large clones and computed VJ diversity repertoires for each subset (Figure 2D–E). While both small and large clones in isolation showed a significant age effect on VJ diversity, the relative reduction in VJ alpha diversity with age was dramatically stronger for large clones, an effect observed across all diversity orders (Figure 2F). As suggested by the clonal-diversity results, therefore, the repertoire diversity of large (expanded) clones in the killifish whole-body repertoire appears to be far more age-sensitive than that of small (predominantly naïve) clones.

In addition to the average within-individual diversity of a population (alpha diversity), the between-individual variation in composition (beta diversity) can provide important insights into repertoire development and evolution. Previous studies of human peripheral blood repertoires have suggested a decrease in alpha diversity but an increase in beta diversity with age (Gibson et al., 2009; de Bourcy et al., 2017). In our dataset, VJ beta-diversity spectra (Appendix 1) indicated a large age-related increase in beta diversity across a wide range of diversity orders (Figure 2G), indicating a similar pattern of progressive individualization in repertoire composition with age. Concordantly, older killifish also exhibited significantly greater pairwise RDI distances (Bolen et al., 2017), indicating progressive divergence in repertoire composition (Figure 2H–I). As in humans, therefore, younger killifish exhibit antibody repertoires that are significantly more similar to one another, which then become increasingly distinct and individualized as the cohort increases in age.

The naïve sequence diversity of the antibody heavy-chain repertoire depends on the molecular processes underlying the generation of novel sequences in developing B-cells: random selection of V, D, and J segments during VDJ recombination; deletions and palindromic (P-) insertions at the ends of conjoined segments; and nonpalindromic (N-) insertions between segments (Schatz and Swanson, 2011; Schroeder and Cavacini, 2010). Each of these contributes diversity to the overall generative process, increasing the variety of sequences that can be generated. Excluding nonfunctional sequences, the human generative process has an estimated Shannon entropy of roughly 70 bits, corresponding to a first-order Hill diversity of roughly 10²¹ possible unique sequences (Elhanati et al., 2015). However, little is known about how this generative diversity varies across species, or how it changes during aging.

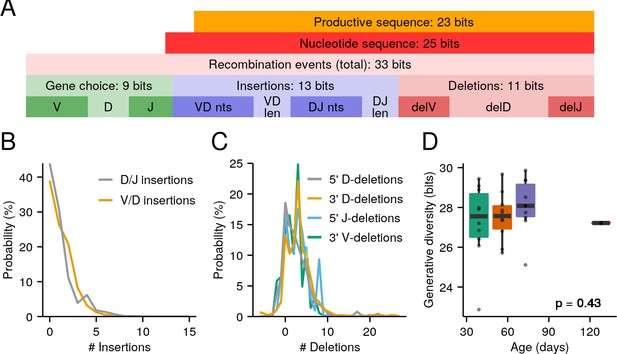

To gain insight into these generative processes in the turquoise killifish, we used IGoR (Marcou et al., 2018) to infer models of sequence generation from killifish repertoire data. In training these models, we restricted the dataset to nonfunctional naïve sequences, in order to avoid distortions introduced by positive and negative selection in the primary lymphoid organs (Elhanati et al., 2015; Marcou et al., 2018). As is often the case with RNA data, the number of naïve nonfunctional sequences available per individual was frequently low; hence, to better capture low-probability events in the generative process, we inferred models from pooled data from multiple individuals in the same age group. As the parameters of the generative model are typically very similar across conspecific individuals (Figure 3—figure supplements 1–2), especially in an inbred line, pooling data like this is a useful way to infer more robust generative models using IGoR (Marcou 2019, personal communication).

To model the generative process in its baseline state, we first inferred a model of the killifish generative repertoire from the four 8-week-old adult male individuals used in the pilot study (Figure 1—figure supplement 1). Using this model, we estimated a total raw entropy for the killifish generative repertoire of roughly 33 bits (Figure 3A). Of these 33 bits, roughly 8 arise from variability in VDJ segment choice, 12 from variability in the number and composition of junctional N-insertions, and 11 from P-insertions and deletions. Accounting for convergent production of identical sequences via different recombination events, and for events that give rise to nonfunctional nucleotide sequences (e.g. due to frame shift) reduced this initial raw estimate by 10 bits.

Figure 3 with 5 supplements see all

Download asset Open asset

Before initial selection in the primary lymphoid organs, therefore, the killifish generative process has an estimated Shannon entropy of roughly 23 bits (Figure 3A), corresponding to a first-order Hill diversity of roughly 10⁷ possible unique sequences. While, as in humans, only a small fraction of potential diversity will actually be generated in any single individual, this nevertheless represents a highly complex and sophisticated system capable of generating highly individualized IGH repertoires.

While impressive, the potential generative diversity of the killifish repertoire is nevertheless vastly lower than in humans, with a difference in productive generative entropy of almost 50 bits (Elhanati et al., 2015). While all components of the generative process exhibit lower entropies in killifish than in humans, by far the greatest difference lies in the junctional N-insertions, which contribute almost 40 bits more to the generative entropy of the human repertoire than that of killifish. The difference in the productive generative entropy between killifish and human arises from the distributions of N-insertions inferred from killifish and human data: in humans, these distributions peak at around 5 nt per junction and often yield insertions of 10–20 nt (Elhanati et al., 2015), while in killifish the insertion distribution peaks at 0 nt per junction, and sequences with more than 5 nt of insertions at either junction are very rare (Figure 3B and Figure 3—figure supplement 1). Since N-insertions are the dominant source of sequence diversity in human repertoires, the large reduction in N-insertions in killifish relative to humans unsurprisingly results in a much lower overall generative diversity for the killifish adaptive immune system.

The relative lack of change in the small-clone antibody repertoire in older turquoise killifish (Figure 2B–F) suggested to us that the diversity of the generative process in the primary lymphoid organs might remain relatively intact throughout the killifish lifespan. To test this hypothesis, we trained separate IGoR models for each individual in the 32-fish aging cohort (Figure 2A, Figure 3—figure supplements 3–4) and tested for an effect of age on the generative diversity inferred for each individual. As expected, no age effect was found in either total generative diversity (Figure 3D) or the contributions of different diversification processes (Figure 3—figure supplement 5). It therefore appears that, while some aspects of the killifish antibody repertoire certainly decline with age, the entropy of the generative process is not among them.

The populations of B-lymphocytes associated with mucosal epithelia play a crucial role in defending the body from pathogenic threats (Magadan et al., 2019), as well as in regulating the composition of resident microbial populations (Belkaid and Hand, 2014). Despite the importance of these distinctive B-cell compartments, relatively little is known about the structure of their antibody repertoires (Magadan et al., 2019), and still less about how these repertoires change with age.

As the site of the greatest microbiota diversity, the intestine is of particular relevance as an important and distinctive immune environment. Previous work on the killifish gut microbiota (Smith et al., 2017) has shown that it declines in alpha diversity and increases in beta diversity with age, patterns that mirror the changes seen in the whole-body composition of the killifish antibody repertoire (Figure 2). Transfer of intestinal content from young to middle-aged fish has also been shown to extend lifespan (Smith et al., 2017). Given these findings, and the intimate relationship between intestinal lymphocytes and gut bacteria (Belkaid and Hand, 2014), we investigated the effect of aging and microbiota transfer on the immune repertoires of gut-resident B-cell populations.

Using intestinal total RNA isolated by Smith et al., 2017, we sequenced the intestinal IGH repertoires of eighteen male GRZ-strain individuals, including four untreated 6-week-old individuals and fourteen 16-week-old individuals from various microbiota-transfer treatment groups (Supplementary file 2b), and investigated the effect of age and treatment condition on repertoire diversity in the killifish intestine.

Contrary to our expectations, neither the alpha nor beta diversity of the killifish intestinal repertoire were significantly affected by microbiota transfer, with no significant difference in clonal diversity, VJ diversity, or RDI distance measures (Figure 4—figure supplements 1–3). In sharp contrast to the whole-body data, however, there was a strong and significant decline in both clonal and VJ alpha diversity with age across all diversity orders (Figure 4B–C, Figure 4—figure supplements 2–3), even without partitioning by clone size. This age-related decline in alpha diversity was consistently far more dramatic than that observed in the whole-body samples at any diversity order. The B-cells of the killifish intestine, therefore, exhibit a much stronger age-dependent decline in repertoire diversity than is seen in the killifish body overall.

Figure 4 with 4 supplements see all

Download asset Open asset

While results from beta-diversity spectra showed large increases in beta diversity with age at some diversity orders but not at others (Figure 4D), the median pairwise RDI distance between­ individual gut repertoires increased substantially and significantly with age (Figure 4E and Figure 4—figure supplement 4), suggesting that, as in the whole body, killifish intestinal repertoires become increasingly distinct and individualized as they age.

One potential explanation for the stronger age-related drop in alpha diversity of intestinal samples is as a consequence of the constant strong antigen exposure experienced by intestinal B-cells, as a result of their interaction with the gut microbiota. This exposure could drive high levels of antigen-dependent clonal expansion, resulting in a greater loss in repertoire diversity (Caruso et al., 2009). Another explanation, not mutually exclusive with the first, is that the gut has different clone-size distribution relative to the whole body. Unlike the whole-body repertoire, the gut does not include the primary lymphoid organs, and so would be expected to be far less dominated by small, naïve clones. Since the population of large clones appears to be more prone to reductions in diversity with age than that of small clones (Figure 2), the stronger overall age-related diversity loss found in the gut repertoire could be a consequence of this greater relative prevalence of large clones.

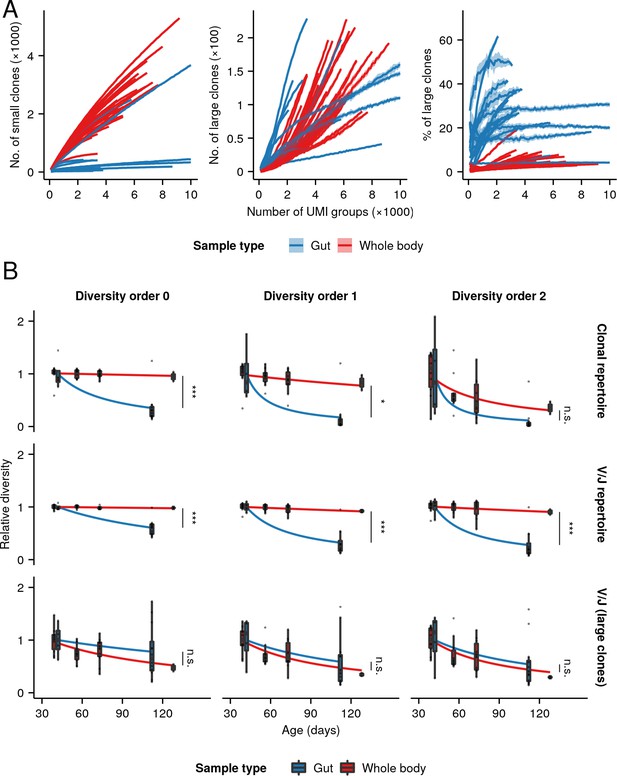

Rarefaction analysis of clonal counts in whole-body and intestinal repertoires showed that the latter indeed contained far fewer small clones, resulting in a much higher proportion of large clones (Figure 5A). If this difference in clonal composition, rather than some functional difference between intestinal and other B-cells, is primarily responsible for the apparent difference in aging phenotypes between whole-body and intestinal repertoires, we would expect to find a faster rate of clonal diversity loss during aging in intestinal repertoires at low diversity orders (which are dominated by small clones in whole-body samples), but not at high orders (which are dominated by large clones in both sample types). Similarly, we would expect to find faster loss in intestinal samples of V/J diversity considered over all clones, but not when the V/J diversity calculation is restricted to large clones alone.

Figure 5 with 1 supplement see all

Download asset Open asset

To test these hypotheses, we normalized the diversity measurements from each dataset by the mean diversity of the youngest group in that dataset, then fit generalized linear models for different diversity orders and methods of measuring diversity (Figure 5B and Figure 5—figure supplement 1), testing for a significant interaction between sample type (i.e. gut vs. whole body) and the effect of age on repertoire diversity. Gut samples exhibited significantly higher rates of age-dependent diversity loss under low-order clonal-diversity or total VJ-diversity measures, that is, those metrics for which clones of all sizes were included in the diversity calculation. Conversely, there was no significant difference in rate of diversity loss between sample types for higher-order clonal-diversity measures, nor for V/J-diversity measures restricted to only large clones, indicating that large clones undergo similar rates of age-dependent diversity loss in both sample types. These results closely match the predictions of the clonal-composition model: large clones in both gut and whole-body samples exhibit similarly strong aging phenotypes, but the higher proportions of large clones in gut samples result in these strong phenotypes manifesting more strongly in the behavior of the repertoire as a whole. It therefore appears that, as in whole-body samples, age-dependent diversity loss in killifish intestinal repertoires is primarily a phenomenon of mature, expanded clones.

Early work in killifish identified a number of age-associated phenotypes suggestive of immune decline, including thymic degeneration and increased incidence of lymphoma (Cooper et al., 1983). More recently, comparison of young vs. old killifish intestines found a marked age-related increase in the pathogenicity of the killifish gut microbiome, alongside an increase in expression of inflammatory markers, suggesting a decline in the intestinal immune system’s ability to maintain a healthy microbial community (Smith et al., 2017).

These results suggest that the turquoise killifish undergoes rapid functional immune decline with age. Since repertoire diversity also declines with age, this indicates that markers of functional immune decline are coincident with a reduction in repertoire diversity. These results are consistent with similar findings in humans (de Bourcy et al., 2017). However, in the absence of repertoire diversity data, these results do not necessarily imply a direct association between diversity and immune function in aging killifish.

To investigate the relationship between repertoire diversity and immune function more closely, we utilized previously collected intestinal RNA-seq data from the same cohort of killifish used in our intestinal antibody-repertoire analysis (Smith et al., 2017). Using these data alongside our repertoire diversity calculations, we carried out a differential expression analysis of transcript abundance with respect to repertoire diversity for six different diversity orders, controlling for age (Materials and methods). We then performed gene set enrichment analysis (GSEA) to identify gene ontology (GO) terms associated with higher or lower repertoire diversity, across a variety of diversity orders.

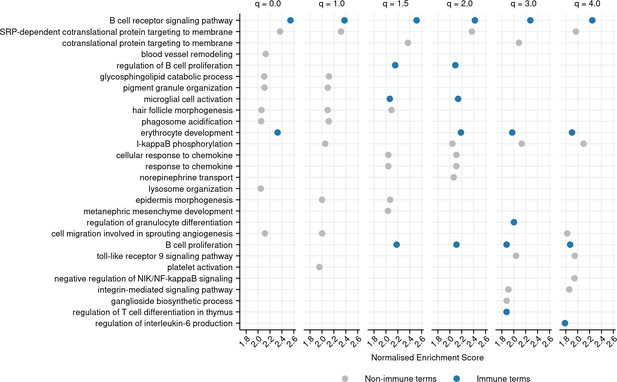

The GSEA identified a number of GO terms related to immune function that were significantly associated with increased repertoire diversity (Figure 6, Figure 6—figure supplements 1–3). Most strikingly, ‘B-cell receptor signaling pathway’ was the most strongly enriched term for all six diversity orders analyzed, often by a substantial margin. ‘B-cell proliferation’ was also consistently highly enriched, showing significant positive enrichment for five diversity orders (all except 1.0) and falling in the top 10 most positively enriched terms for four (Figure 6). Other immune terms that were significantly positively associated with repertoire diversity across at least four diversity orders include ‘leukocyte migration’, ‘lymphocyte activation’, ‘leukocyte differentiation’, and ‘regulation of interleukin-6 production’ (Supplementary file 3a). A decline in repertoire diversity is thus associated with a decline in B-cell immune activity in killifish intestine, supporting a functional role for diversity changes in killifish immunosenescence.

Figure 6 with 3 supplements see all

Download asset Open asset

Male turquoise killifish (N. furzeri, GRZ-AD strain) from a single hatching cohort were raised under standard husbandry conditions (Dodzian et al., 2018) and housed from 4 weeks’ post-hatching in individual 2.8 l tanks connected to a water-recirculation system. Fish received 12 hr of light per day on a regular light/dark cycle, and were fed bloodworm larvae and brine shrimp nauplii twice a day during the week and once a day during the weekend (Smith et al., 2017; Dodzian et al., 2018).

After being sacrificed in 1.5 g/l tricaine solution at room temperature tank water (Carter et al., 2010), fish (Supplementary file 2c) were flash-frozen in liquid nitrogen and ground to a homogenous powder with a pestle in a liquid-nitrogen-filled mortar. The powder was mixed thoroughly and stored at –80°C prior to RNA isolation. Intestinal total RNA for the gut experiments was provided by Smith et al., 2017.

Total RNA from whole-body killifish samples was isolated using QIAzol lysis reagent (QIAGEN, 1 ml of reagent per 0.1 g of homogenized tissue) and isopropanol precipitation; gut RNA from microbiota-transfer experiments (Smith et al., 2017) was already prepared and available. Quantification of RNA samples was performed with the Qubit 2.0 fluorometer (Thermo Fisher), while quality control and integrity measurement was performed using the TapeStation 4200 (Agilent).

Reverse transcription and template switching for library preparation was performed on total RNA samples using SMARTScribe Reverse Transcriptase, in line with the protocol specified in Turchaninova et al., 2016; Appendix 1—note 7. The reaction product was purified using SeraSure SPRI beads (Appendix 1—note 7), then underwent three successive rounds of PCR, each of which was followed by a further round of bead purification. The first of these PCR reactions added a second strand to the reverse-transcribed cDNA and amplified the resulting DNA molecules; the second added partial Illumina sequencing adapters and further amplified the library, and the third added complete Illumina adapters, including i5 and i7 indices.

The concentration of each library was then quantified and the libraries were pooled in equimolar ratio, concentrated using SeraSure beads, and size-selected with the BluePippin (Sage Science) to obtain a purified amplicon band. Finally, following a final round of quality control, the pooled and size-selected libraries were sequenced on an Illumina MiSeq System (MiSeq Reagent Kit v3, 2 × 300 bp reads, 30% PhiX spike-in), either at the Cologne Center for Genomics (whole-body libraries) or with Admera Health (intestinal libraries).

Pre-processing of raw sequencing data (including quality filtering, consensus-read generation, and clonotyping) was performed using the pRESTO (Vander Heiden et al., 2014) and Change-O (Gupta et al., 2015) suites of command-line tools (Appendix 1—note 7, Appendix 1—figure 1). Downstream analysis of processed data, including diversity-spectrum inference (Appendix 1—note 7), RDI computation, GLM fitting and rarefaction, was performed in R, as was figure generation and all statistical tests. Generative model inference was performed using IGoR (Marcou et al., 2018). Snakemake (Köster and Rahmann, 2012) was used to design and run data-processing pipelines.

Intestinal RNA-seq data for gut cohort killifish (Smith et al., 2017) were obtained from SRA (BioProject accession PRJNA379208, Supplementary file 2d). Reads were mapped to the turquoise-killifish genome (Reichwald et al., 2015) with STAR (Dobin et al., 2013), using standard parameters, to compute raw read counts for each transcript and each individual. Read counts were normalized using DESeq2’s default median-of-ratios method (Love et al., 2014). DESeq2 was then used to carry out differential expression analysis based on a generalized linear model, predicting abundance of each transcript in each individual given that individual’s age and repertoire diversity (as calculated above). This analysis was repeated for each of six diversity orders (0, 1, 1.5, 2, 3, and 4).

Killifish transcripts were mapped to human orthologues with BioMart (Durinck et al., 2009; Durinck et al., 2005). In cases where multiple killifish transcripts mapped to a single human transcript, the individual fold change estimates produced by DESeq2 for the killifish transcripts were replaced by a single mean value. Transcripts were then ranked by fold change in descending order, and this ranked list was used as input for GSEA using ClusterProfiler’s gseaGO function (Wu et al., 2021; Yu et al., 2012; Subramanian et al., 2005; Mootha et al., 2003), using the Benjamini-Hochberg method (Benjamini and Hochberg, 1995) to adjust for multiple comparisons and with a significance threshold of 0.05. This produced a list of GO terms (Gene Ontology Consortium, 2021; Ashburner et al., 2000) significantly enriched with respect to repertoire diversity, controlling for age. Redundant GO terms were summarized using ClusterProfiler’s simplify function, with a similarity cutoff of 0.7.

Immune-associated GO terms were identified by descent from one of a small set of high-level immune-associated terms (Supplementary file 3b), which were identified manually. Terms descended from these manually selected ancestor terms were identified using the GO function GOBPOFFSPRING (Gene Ontology Consortium, 2021; Ashburner et al., 2000); any such descendant term was designated as immune-associated.

Raw data used in these analyses is available via NCBI (BioProject accession PRJNA662612). Processed data and code are available at https://github.com/willbradshaw/killifish-igseq/, (copy archived at swh:1:rev:2c933de6564c1055cb363389778f86bfa3fe4ab2; Bradshaw, 2022).

The Hill number or ‘true diversity’ D of a population X describes the effective species richness of that population: the number of equally common species that would be required to produce a population with the same overall diversity as X (Jost, 2006). This value will increase with the number of species in the population, as well as with the evenness with which these species are distributed.

The term ‘species’ here can refer to any mutually exclusive and exhaustive set of classes into which elements in the population can be assigned; the nature of these classes will depend on the nature of the populations and elements being investigated. In the context of immune-repertoire sequencing, a ‘population’ is an individual repertoire, an ‘element’ is a unique sequence, and a ‘species’ will typically refer to either clones (sequences descended from a single naive ancestor B-cell) or V(D)J gene-segment combinations. In this paper, Hill diversities computed using clones as species are referred to as clonal diversities, while those computed using VJ segment combinations as species are referred to as VJ diversities.

In addition to the species composition of, X the Hill number depends on the diversity order, q which denotes the degree to which less-abundant species are downweighted relative to more-abundant species when calculating diversity. At a given value of q, the Hill number of X is given by:

where ${\displaystyle S}$ is the set of species in ${\displaystyle X}$ and ${\displaystyle p_s}$ is the relative frequency of a species ${\displaystyle s}$ (i.e. the fraction of all elements that belong to ${\displaystyle s}$). Note that, as higher values of ${\displaystyle q}$ progressively downweight the contributions of less-abundant species, ${\displaystyle {}^{q}D(X)}$ is monotonically decreasing with increasing ${\displaystyle q}$. As each diversity order captures a different aspect of the diversity structure of the population, plotting the value of ${\displaystyle {}^{q}D(X)}$ against ${\displaystyle q}$ – a diversity spectrum – gives a more informative view of the diversity of ${\displaystyle X}$ than any single diversity order alone.

Importantly, many other common diversity metrics can be converted into Hill numbers through simple transformations: ${\displaystyle {}^{0}D(X)}$ gives species richness, ${\displaystyle {}^{2}D(X)}$ gives the reciprocal of Simpson’s index, ${\displaystyle \stackrel{lim}{q\to \mathrm{\infty }}{}^{q}D(X)}$ gives the reciprocal of the Berger-Parker index, and ${\displaystyle \stackrel{lim}{q\to \mathrm{\infty }}{}^{q}D(X)}$ gives the exponential of the Shannon entropy (Jost, 2006; Miho et al., 2018). Hill diversity measurements of the appropriate order can therefore be easily converted to and from these other diversity metrics if needed. In practice, the exponential Shannon entropy is typically substituted for ${\displaystyle {}^{1}D(X)}$ (which is undefined) to produce a continuous function when plotting Hill diversity spectra:

In some cases, a population C can be partitioned into some number of disjoint subpopulations X₁, X₂,…, X_M, each with its own set of species S_X and species frequencies p_X, s. The diversity of C can then be conceptualized in several ways (Jost, 2007):

• The gamma diversity of C is the diversity across the whole population, ignoring its subpopulation structure.

• The alpha diversity of C is the diversity arising from differences in species identity among individuals within each subpopulation, and is given by a weighted generalized average of the diversities of those subpopulations; it can be thought of as the expected diversity of a single subpopulation drawn at random from C.

• The beta diversity of C is the diversity arising from variability in species composition between subpopulations; it is lowest when all subpopulations have identical species composition and highest when they have no species in common.

In terms of Hill diversity, ${\displaystyle {}^q{D}_{\gamma }(C)}$ gives the effective richness of the whole population, ignoring its subpopulation structure; ${\displaystyle {}^q{D}_{\alpha }(C)}$ gives the effective richness of an ‘average’' subpopulation from C, and ${\displaystyle {}^q{D}_{\beta }(C)}$ gives the effective number of disjoint subpopulations in C (i.e. the number of subpopulations with no species in common that would give rise to the same gamma diversity, given an alpha-diversity value).

The alpha and beta diversities of a population are independent; two different structured populations can have identical alpha and very different beta diversities, or vice versa, depending on the exact species compositions of their subpopulations. The alpha and beta diversity of a structured population also completely determine its gamma diversity (Jost, 2007):

and therefore

This (Equation 4) is typically the easiest way of computing the beta diversity of a given structured population. Note that, as the quotient of two monotonically decreasing functions, D_β(C) is itself not necessarily monotonically decreasing.

Under this framework, the diversities of order q for a structured population C are given (Jost, 2007) by:

where wx is the relative weighting of a subpopulation X. When all the subpopulations have equal sizes ${\displaystyle N_X=\frac{N}{M}}$ and equal weights, ${\displaystyle w=\frac{1}{M}}$ as is the case with our repertoire data, these formulae simplify to:

These equations are valid for all values of ${\displaystyle q\in \mathbb{R}}$ except 1, providing a spectrum of alpha-, beta-, or gamma-diversity measures analogous to the diversity spectra provided for simple populations in Appendix 1—note 1. As in that case, a special case needs to be made for q=1 in order to make these functions continuous, substituting the limit of the diversity as q→1 for the undefined value at q=1

More detailed derivations of Equation 8 to Equation 11 are available upon request.

As discussed in Appendix 1—note 2, while alpha and gamma diversity are expressed in terms of an effective number of species, beta diversity is expressed in terms of an effective number of subpopulations. Since the effective number of subpopulations is determined in part by the actual number of subpopulations, this means that the beta diversity, unlike alpha and gamma diversity, is directly dependent on the number of subpopulations M. If two different structured populations contain different numbers of subpopulations, it is therefore not possible to compare their beta diversity values directly; first, the beta diversity spectra of the populations must be rescaled to a common range.

The minimum beta diversity of a structured population obtains when all subpopulations have identical species composition. In this case, the beta diversity for the structured population is equal to 1. The maximum beta diversity, meanwhile, obtains when there is no overlap in species between any pair of subpopulations in the structured population. In this case beta diversity for the structured population is equal to the number of subpopulations M (derivations available upon request).

The beta diversity for a structured population with M subpopulations therefore ranges between 1 (identical composition) and M (maximally divergent composition). The beta diversities of such a population can thus be transformed onto a new scale from 0 (minimum beta diversity) to 1 (maximum beta diversity) as follows:

By transforming the beta-diversity spectra of different structured populations onto this common scale, the inter-subpopulation variability of those populations can be meaningfully compared, even if they differ in the number of subpopulations they contain.

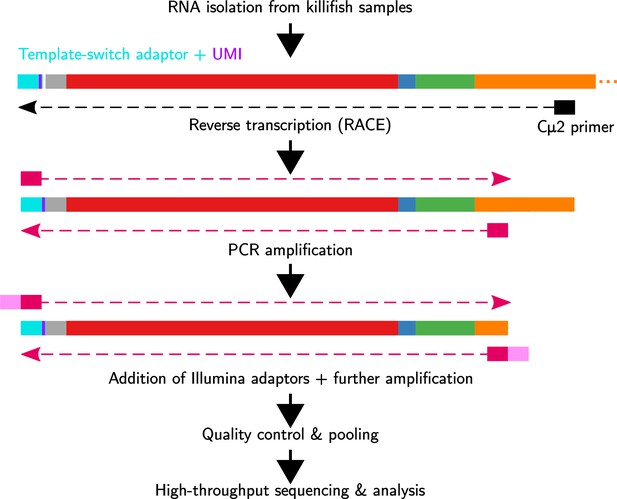

To reverse-transcribe antibody heavy-chain transcripts from total RNA samples, and to attach template-switch adapter oligos and UMIs, 750 ng of total RNA from a killifish sample was combined with 2 μl of 10 μmol gene-specific primer (GSP, Supplementary file 5a), homologous with the second constant-region exon of N. furzeri IgM (C_μ²) (Bradshaw and Valenzano, 2020). The reaction volume was brought to a total of 8 μl with nuclease-free water, and the resulting mixture was incubated for 2 min at 70°C to denature the RNA, then cooled to 42°C to anneal the GSP (Turchaninova et al., 2016). Following annealing, the RNA-primer mixture was combined with 12 μl of reverse transcription master-mix (Supplementary file 4a), including the reverse-transcriptase enzyme and template-switch adapter SmartNNNa, Supplementary file 5a and Appendix 1—figure 2, sequence provided in Turchaninova et al., 2016. The complete reaction mixture was incubated for 1 hr at 42°C for the reverse transcription reaction, then mixed with 1 μl of uracil DNA glycosylase (QIAGEN, 100 mg/ml) and incubated for a further 40 min at 37°C to digest the template-switch adapter.

Following reverse transcription, the reaction product was purified using SeraSure SPRI (solid-phase reversible immobilization) bead preparation (Fisher et al., 2011) (Appendix 1—note 5, Supplementary file 4e). The reaction mixture then underwent three successive rounds of PCR with 2× Kapa HiFi HotStart ReadyMix PCR Kit (Kapa Biosystems), using the general reaction protocol described in Supplementary file 4b and reaction-specific volumes and parameters from Supplementary file 4c. Each round of PCR was followed by a further round of bead cleanups (Appendix 1—note 5, Supplementary file 4e) to purify the reaction product prior to the next reaction.

Following the final PCR and cleanup, the total concentration of each library was assayed with the Qubit 2.0, while the size distribution of each library was obtained using the TapeStation 4200. To obtain the concentration of complete library molecules in each case (as opposed to primer dimers or other off-target bands), the ratio between the concentration of the desired library band (c. 620–680 bp) and the total concentration of the sample was calculated for each TapeStation lane, and the total concentration of each library as measured by the Qubit was multiplied by this ratio to obtain an estimate of the desired quantity. All the libraries for a given experiment were then pooled, such that the estimated concentration of each library in the final pooled sample was equal and the total mass of nucleic acid in the pooled sample was at least 240 ng. The pooled libraries underwent a final bead cleanup (Supplementary file 4e) to concentrate the samples, and the beads were separated and removed from the sample.

The pooled and concentrated samples underwent size selection with the BluePippin (Sage Science, 1.5% DF Marker R2, broad 400–800 bp target band) according to the manufacturer’s instructions. The size-selected libraries then underwent a final round of quality control with the Qubit and TapeStation (as above) to confirm their collective concentration (at least 1.5 nmol) and size distribution. Finally, the pooled and size-selected libraries were sequenced on an Illumina MiSeq System (MiSeq Reagent Kit v3, 2 × 300 bp reads, 30% PhiX spike-in) as described in the main text.

To prepare 50 ml of SeraSure bead suspension, a stock of SeraMag beads (GE Healthcare, 50 mg/ml) was vortexed thoroughly, and 1 ml was transferred to a new tube. This tube was then transferred to a magnetic rack and incubated at room temperature for 1 min, then the supernatant was removed and replaced with 1 ml TET buffer (10 mM Tris base, 1 mM Na₂-EDTA, 0.05% (v/v) Tween 20, pH 8.0) and the tube was removed from the rack and vortexed thoroughly. This washing process was repeated twice more, for a total of three washes in TET. A fourth cycle was used to replace the TET with incomplete SeraBind buffer (4.2 M NaCl, 16.8 mM Tris base, 1.68 mM Na₂-EDTA, pH 8.0). The vortexed 1 ml aliquot of beads was then transferred to a conical tube containing 28 ml incomplete SeraBind buffer and mixed by inversion. Twenty ml 50% (w/v) PEG 8000 solution was dispensed slowly down the side of the conical tube, bringing the total volume to 49 ml. Finally, this was brought to 50 ml by adding 250 μl 10% (w/v) Tween 20 solution and 750 μl autoclaved water to complete the SeraSure bead suspension.

To perform a bead cleanup, an aliquot of prepared SeraSure suspension was vortexed thoroughly to completely resuspend the beads, then the appropriate relative volume of SeraSure suspension was added to a sample, mixing thoroughly by gentle pipetting. The sample was incubated at room temperature for 5 min to allow the beads to bind the DNA, then transferred to a magnetic rack and incubated for a further 5 min to draw as many beads as possible out of suspension. The supernatant was removed and discarded and replaced with 80% ethanol, to a volume sufficient to completely submerge the bead pellet. The sample was incubated for 0.5–1 min, then the ethanol was replaced and incubated for a further 0.5–1 min. The second ethanol wash was removed, and the tube left on the rack until the bead pellet was almost, but not completely, dry, after which it was removed from the rack. The bead pellet was resuspended in a suitable volume of elution buffer (10 mM Tris-HCl, pH 8.5) then incubated at room temperature for at least 5 min to allow the nucleic acid molecules to elute from the beads.

Unless otherwise specified, the beads from a cleanup were left in a sample during subsequent applications. To remove beads from a sample, the sample was mixed gently but thoroughly to resuspend the beads, incubated for an extended time period (at least 10 min) to maximize nucleic acid elution, then transferred to a magnetic rack and incubated for 2–5 min to remove the beads from suspension. The supernatant (containing the eluted nucleic acid molecules) was then transferred to a new tube, and the beads discarded.

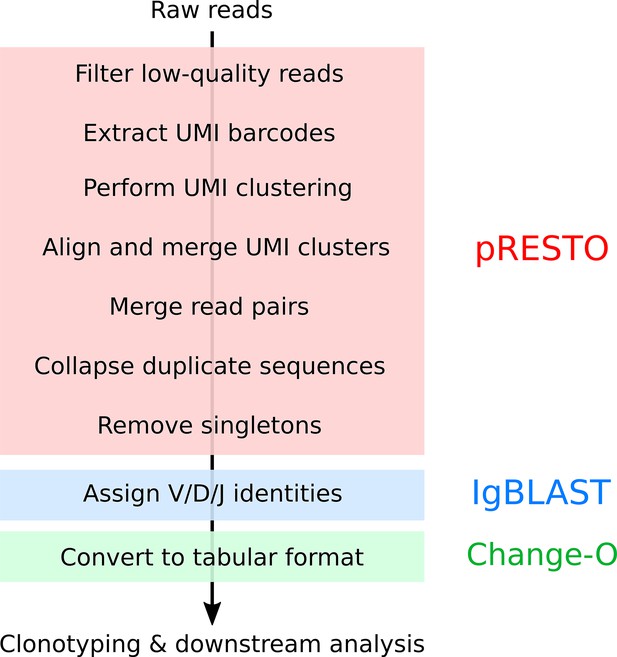

Unless otherwise specified, utilities used in the pre-processing pipelines were provided by the pRESTO (Vander Heiden et al., 2014) and Change-O (Gupta et al., 2015) suites of command-line tools. All code used as part of this pipeline, as well as for downstream analysis and visualization, will be made available at https://github.com/willbradshaw/killifish-igseq/, (copy archieved at swh:1:rev:2c933de6564c1055cb363389778f86bfa3fe4ab2; Bradshaw, 2022).

Demultiplexed, adapter-trimmed MiSeq sequencing data were uploaded by the sequencing provider to Illumina BaseSpace and accessed via the Illumina utility program BaseMount. Library annotation information (fish ID, sex, strain, age at death, death weight, etc.) was added to the read headers of each library FASTQ file, and library was assigned a replicate and individual identity. Reads from different sequencing libraries were pooled together, then split by replicate identity; this pooling and re-splitting process enables all reads considered to be a single replicate to be processed together even if sequenced separately, maximizing the effectiveness of UMI-based pre-processing, while also allowing all replicates to be processed in parallel.

After pooling and re-splitting, the raw read set underwent quality control, discarding any read with an average Phred score of less than 20. Invariant primer sequences were removed and UMI sequences identified and extracted.

In order to reduce the level of barcode errors in each dataset, primer-masked reads then underwent barcode clustering, in which reads with the same replicate identity and highly similar UMI sequences were grouped together into the same molecular identifier group (MIG). To do this, 5'-reads were first clustered by UMI sequence using a 90% sequence identity cutoff. In order to split any genuinely distinct MIGs accidentally united by this process, as well as to reduce the level of barcode collisions, the reads within each MIG were clustered again based on their insert sequences; the cluster dendrogram was cut at 75% total sequence identity, and each subcluster was separated into its own distinct MIG. These clustering thresholds (90% for barcode clustering, 75% for barcode splitting) were identified empirically as the values that maximize the number of reads passing downstream quality checks in turquoise-killifish data.

The cluster annotations from these two clustering steps were combined into a single annotation, uniquely identifying each MIG in each replicate. These annotations were further modified to designate the replicate identity of each read, giving each MIG a unique annotation across the entire dataset. These annotations were copied to the reverse reads, such that each read pair had a matching MIG annotation, and reads without a mate (due to differential processing of the two reads files) were discarded. The 5'-reads were then grouped based on MIG identity, and the reads in each cluster grouping were aligned and collapsed into a consensus read sequence; an identical consensus-read-generation step was performed on the reverse reads.

After consensus-read generation had been performed for both 5'- and 3'-reads, the annotations attached to each read were again unified across read pairs with matching cluster identities, and consensus reads without a mate of the same cluster identity were dropped. Consensus-read pairs with matching cluster annotations were then aligned and merged into a single contiguous sequence. To convert this dataset of MIGs (representing distinct RNA molecules) into one of unique sequences (representing distinct B-cells), merged consensus sequences with identical insert sequences but distinct cluster identities were collapsed together into a single FASTQ entry, recording the number, size, and UMI makeup of contributing MIGs in each case. Sequences represented by only a single read across all MIGs in the dataset were discarded as unreliable, and the remaining non-singleton sequences from all replicates were combined into a single FASTA file.

V/D/J identities were assigned to each sequence using IgBLAST (Ye et al., 2013), and the sequences imported into a tab-delimited Change-O database file for downstream processing. Clonotype identities inferred using Change-O’s nearest-neighbor distance-threshold technique (Gupta et al., 2015; Nouri and Kleinstein, 2018), with replicates from the same individual pooled before undergoing clonotyping to enable comparison of clonotype composition across replicates. A full-length germline sequence was constructed for each sequence entry, and improved V/D/J assignments were made based on the assignments of other sequences in the same clone. Finally, each sequence in the dataset was annotated according to whether or not it possessed V/D/J assignments and whether these assignments were ambiguous (i.e. whether multiple possible assignments were given rather than just one), and combined VJ and VDJ assignments were obtained by concatenating the individual segment assignments as appropriate. The processed sequence databases were then passed on to downstream analysis pipelines.

Methods for computing diversity spectra were adapted from those presented in the Alakazam R package (Gupta et al., 2015; Stern et al., 2014), following completion of the pre-processing pipeline described in Appendix 1—note 6.

To ensure comparability between individuals, and obtain estimates of confidence intervals for diversity estimates, the repertoire of each individual underwent multinomial bootstrap resampling: for each of 2000 bootstrap replicates, the same number of unique sequences was sampled, with replacement, from each individual. Following bootstrapping, Hill diversity estimates for each bootstrap replicate and diversity order were calculated as appropriate for the type of diversity being estimated:

• Individual diversity spectra (i.e. for individual fish, not aggregated by age group) were computed as specified in Equation 2.

• Alpha-diversity spectra for each age group were computed across all individuals in that age group as specified in Equation 9 and Equation 11.

• Gamma-diversity spectra for each age group were computed across all individuals in each age group as specified in Equation 8 and Equation 10.

• Beta-diversity spectra for each age group were computed as specified in Equation 7, and rescaled as described in Appendix 1—note 3.

Having computed diversity values for each bootstrap replicate, diversity spectra were visualized as the mean across all replicates, while 95% confidence intervals were computed empirically as the 0.025- and 0.975-quantiles of diversity across replicates.

To estimate the statistical significance of an age effect on individual repertoire diversity, we adopted a permutation-based approach. For each of 3000 permutations, the age-group assignments of the individuals in the dataset were randomly reshuffled, and a Kruskal-Wallis one-way analysis-of-variance test for an age effect was performed on the individual diversity estimates for each permutation, bootstrap replicate, and diversity order. For each permutation and diversity order, the largest Kruskal-Wallis H statistic across all bootstrap replicates was identified. The same process was repeated on the (unpermuted) real data for each bootstrap replicate and diversity order, again taking the largest H statistic across all bootstrap replicates for each diversity order. The p-value of the age effect at a given diversity order was then computed as the proportion of permutations with a higher maximum H value than that obtained from the real data.

Appendix 1—figure 1

Download asset Open asset

Appendix 1—figure 2

Download asset Open asset
