Fate mapping analysis reveals a novel murine dermal migratory Langerhans-like cell population

  1. Jianpeng Sheng
  2. Qi Chen
  3. Xiaoting Wu
  4. Yu Wen Dong
  5. Johannes Mayer
  6. Junlei Zhang
  7. Lin Wang
  8. Xueli Bai
  9. Tingbo Liang
  10. Yang Ho Sung
  11. Wilson Wen Bin Goh
  12. Franca Ronchese
  13. Christiane Ruedl  Is a corresponding author
  1. Zhejiang Provincial Key Laboratory of Pancreatic Disease, The First Affiliated Hospital, Zhejiang University School of Medicine, China
  2. Nanyang Technological University, School of Biological Sciences, Singapore
  3. Malaghan Institute of Medical Research, New Zealand
Research Article
  • Cited 2
  • Views 804
  • Annotations
Cite this article as: eLife 2021;10:e65412 doi: 10.7554/eLife.65412

Abstract

Dendritic cells residing in the skin represent a large family of antigen-presenting cells, ranging from long-lived Langerhans cells (LC) in the epidermis to various distinct classical dendritic cell subsets in the dermis. Through genetic fate mapping analysis and single-cell RNA-sequencing, we have identified a novel separate population of LC-independent CD207+CD326+ LClike cells in the dermis that homed at a slow rate to the lymph nodes (LNs). These LClike cells are long-lived and radio-resistant but, unlike LCs, they are gradually replenished by bone marrow-derived precursors under steady state. LClike cells together with cDC1s are the main migratory CD207+CD326+ cell fractions present in the LN and not, as currently assumed, LCs, which are barely detectable, if at all. Cutaneous tolerance to haptens depends on LClike cells, whereas LCs suppress effector CD8+ T-cell functions and inflammation locally in the skin during contact hypersensitivity. These findings bring new insights into the dynamism of cutaneous dendritic cells and their function opening novel avenues in the development of treatments to cure inflammatory skin disorders.

eLife digest

Our immune cells are constantly on guard to defend and protect us against invading pathogens, such as bacteria and viruses. Specialized immune cells, known as antigen-presenting cells, or APCs, have a key role in this process. They engulf invaders, chew them up, and travel to the closest local lymph node to stimulate other immune cells with small fragments of these pathogens. This ramps up the immune response to control infection and disease.

APCs are a large and diverse family of immune cells, which includes dendritic cells and macrophages. Some APCs work as mobile surveillance units, travelling around the body to find new threats. Others embed themselves in particular organs and tissues, such as the skin, to provide local, on-the-spot surveillance. Langerhans cells are one of the main types of APC in the skin and are found in the thin outer layer of the epidermis. While it is commonly believed that Langerhans cells can move from the epidermis to the skin-draining lymph nodes, some seemingly contradictory evidence exists to suggest that this may not be the case.

Now, Sheng et al. have investigated this issue by tracking APCs, including Langerhans cells, in the skin of mice. A powerful genetic cell labelling technique allowed them to track the movement of immune cells inside a living mouse. Sheng et al. found that majority of 'real' Langerhans cells did not leave the skin. Yet, a second lookalike cell that shared many of the same features of a Langerhans cell was found in the dermal layer of skin, and this cell could travel to local lymph nodes. Both the original and lookalike cells had distinct and separate roles in the skin.

This research, which has uncovered a new type of Langerhans-like immune cell in the skin, may be extremely useful for developing new targeted therapies to boost immune responses during infection; or to suppress inappropriate immune activation that can lead to autoimmune diseases, such as psoriasis.

Introduction

In 1868, Paul Langerhans described a novel dendritic-shaped, non-pigmentary cell population in the epidermis (Langerhans, 1868). These so-called Langerhans cells (LCs) were first classified as cellular members of the nervous system, due to their morphological similarity with neurons. It was not until the 1980s when it became clear that this peculiar epidermal cell fraction with its potent antigen presentation activity belonged to the dendritic cell (DC) family (Romani and Schuler, 1989; Schuler and Steinman, 1985). Despite the fact that LCs share many features with DCs, they are generally considered as epidermal tissue-resident macrophages, mainly due to their dependence on CSF1, their embryonic origin and local self-maintenance (Wynn et al., 2013), although a conventional ‘macrophage signature’ (e.g. CD16/32, CD64, and MerTK expression) is missing (Gautier et al., 2012).

LCs can sense invading pathogens and initiate an intrinsic maturation process that drives their migration out of the epidermis (Romani et al., 2001). As such, LCs have been regarded as a prototype antigen-presenting cell (APC) (Nagao et al., 2009) that can, after antigen capture, migrate to the draining lymph nodes (LNs) to initiate an immune response by priming naïve LN-resident T-cells (Romani et al., 2003). Antigen presentation can, however, occur in skin-draining LNs independently of LCs (Henri et al., 2010). In fact, the skin hosts several other distinct dermal DC subpopulations (Henri et al., 2010; Kissenpfennig et al., 2005), the presence of which complicates the analysis of the cellular contribution to skin immune responses, such as contact hypersensitivity (CHS). Consequently, the paradigm of ‘who is doing what’ (i.e. epidermal LCs versus dermal DC counterparts) is still controversial (Bennett et al., 2005; Bobr et al., 2010; Bursch et al., 2007; Clausen and Stoitzner, 2015; Kaplan et al., 2005; Noordegraaf et al., 2010; West and Bennett, 2017).

Here, we demonstrate that under steady-state conditions, LCs most likely do not exit the skin, or if so, in very low numbers. Through a combined use of genetic fate mapping and novel inducible LC-ablating mouse models, we show that the originally described LN LC fraction is actually an independent LClike cell population that originates from the dermis, not from the epidermis. These LClike cells are ontogenitically different from LCs and are replaced over time by bone marrow (BM)-derived cells with slow kinetics before trafficking to the LN.

Results

LClike cells are found in dermis and LNs

The skin and the skin-draining LNs contain several distinct DC subpopulations. To delineate migratory LCs and dermal DCs, we profiled DC subsets in the epidermis, dermis, and skin-draining LNs. In the epidermis, we confirmed that CD326+CD207+ LCs are predominantly found within the CD11bhiF4/80hi fraction (Nagao et al., 2009; Valladeau et al., 2000; Figure 1A). In the dermis, we found a fraction of CD11bhiF4/80hi cells that co-expressed CD326 and CD207 (Figure 1B, upper panel). These cells could be immigrated LCs, although we cannot exclude a contamination from the epidermis during the isolation procedure. As expected, the remaining dermal CD11bhiF4/80hi cells were CD326-CD207- tissue-resident macrophages (Sheng et al., 2015; Tamoutounour et al., 2013). Dermal DCs were localized in the F4/80int and CD11chiMHCII+ DC fraction, which we could separate into three subpopulations based on CD103 and CD11b expression: CD103+CD11b- (defined as cDC1), CD103-CD11blow, and CD103-CD11bhi (defined as CD11bhi). CD103+CD11b- DCs but not CD103-CD11bhi DCs co-expressed CD326 and CD207. We could also divide the CD103-CD11blow subpopulation into CD326-CD207- (defined as triple negative [TN]) and CD326+CD207+ (defined as LClike) fractions (Figure 1B, right panel). The signal regulatory protein α (Sirpa), a myeloid cell-specific receptor, was expressed on dermal LCs, LClike, TN, and CD11bhi DCs, while, as expected, dermal CD103+ DCs lacked this receptor (Figure 1—figure supplement 1A), result validated also by the single-cell RNA-sequencing (scRNA-seq) analysis shown later (Figure 3—figure supplement 1). In terms of costimulatory receptors, dermal LCs and LClike cells express similar levels of CD80 and CD86, whereas the remaining DC subpopulations display lower levels (Figure 1—figure supplement 1A).

Figure 1 with 2 supplements see all

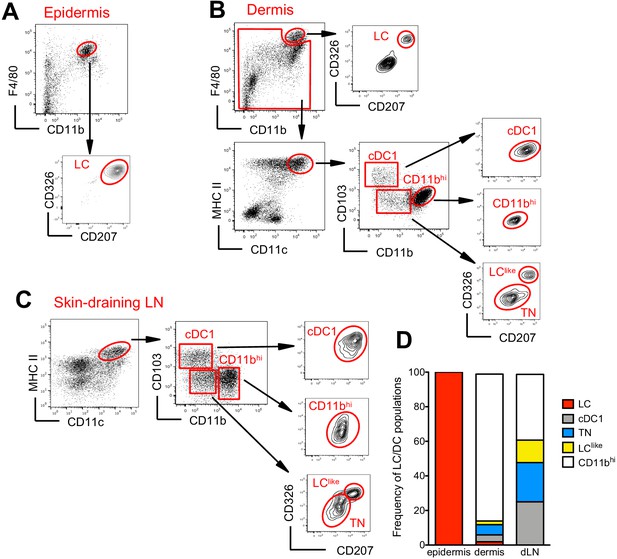

Characterization of cutaneous Langerhans cell (LC) and dendritic cell (DC) subpopulations.

(A) Representative flow cytometry dot plots for LC characterization in the epidermis. Cells from epidermis were first gated for FSC, SSC, and CD45 (not shown). Then, CD45+ cells were analysed for CD11b and F4/80 expression. The CD11bhiF4/80hi cell fraction was further analysed for CD207 and CD326 expression to identify classical bona fide LCs. (B) Representative flow cytometry dot plots for dermal LC and DC subpopulations. Isolated dermis cells were first gated for FSC, SSC, and CD45 (not shown). CD45+ cells were then analysed for CD11b and F4/80 expression. The CD11bhi F4/80hi fraction contained classical CD207+CD326+ LCs. The remaining cells were gated for CD11c+MHC II+ DCs and separated into three subsets based on CD103 and CD11b expression: CD103+CD11b- cells (labelled cDC1), CD103-CD11bhi DCs (labelled CD11bhi), and CD11blow/neg. CD207 and CD326 expression was detectable on cDC1 but not CD11bhi DCs, whereas CD11blow cells were further separated into CD207-CD326- (labelled triple negative [TN]) and CD207+CD326+ (labelled LClike). (C) Representative flow cytometry dot plots for cutaneous DC subpopulations in auricular skin-draining LNs. LN cells were first gated for FSC and SSC to exclude small lymphocytes before F4/80 and CD11b staining. The cell fraction excluding F4/80hi/CD11bhi cells was separated by CD11c and MHCII. CD11chiMHCIIhi migratory DCs were gated and analysed for CD103, CD11b, CD207, and CD326 expression. Four subsets were detected: CD103+CD11b-CD207+CD326+ (cDC1), CD103-CD11blowCD207-CD326- (TN), CD103-CD11blowCD207+CD326+ (LClike), and CD103-CD11bhiCD207-CD326-/+(CD11bhi). (D) Frequency of each DC subpopulation (LC, cDC1, LClike, TN, and CD11bhi) present in epidermis, dermis, and cutaneous lymph node (LN), respectively.

To track the corresponding migratory DCs in the skin-draining LNs, we first gated on CD11cint-hiMHCIIhi cells, which represent the migratory DC fraction (Sheng et al., 2017). Similar to our findings in the dermis, CD11b and CD103 labelling separated the migratory DCs into CD103+CD11b- (cDC1), CD103-CD11bhi (CD11bhi), and CD103-CD11blow cells (Figure 1C). The CD103-CD11blow cells could be further separated into two fractions: CD326-CD207- (TN) and CD326+CD207+ (LClike) subpopulations (Figure 1C). Notably, we did not detect the bona fide epidermal and dermal LCs showing the original F4/80hiCD11bhi phenotype in the LN (Figure 1C, right, lower panel).

In agreement with previous work (Henri et al., 2010), the CD11bhi DC fraction represented the largest DC subpopulation in the dermis, whereas in the LN all four DC subpopulations (CD11bhi, cDC1, TN, and LClike) were almost equally represented (Figure 1D).

To confirm our observation, we took advantage of the Lang-EGFP mouse to trace directly EGFP-expressing CD207+ cells in all three tissues (epidermis, dermis, and skin-draining LN). Clearly epidermal EGFP+ cells were co-expressing high levels of CD326 and F4/80 (Figure 1—figure supplement 2, upper panel). In the dermis, two main EGFP+ cells’ populations were detectable: one with lower levels of CD326 expressing xCR1, typical marker for cDC1 and a second population co-expressing EGFP and CD326 was further separated into F4/80hi and F4/80low fractions (Figure 1—figure supplement 2, middle panel). Differently to the skin, EGFP expression in the LN was weaker and was restricted to CD326low and CD326hi cells: CD326low cells represent resident (CD11chiMHCIIint) DCs and CD326hi cells the migratory (CD11cintMHCIIhi) fraction. With respect to resident DCs, EGFP+ cells were only detectable in xCR1+ cells but not in the CD11b+ fraction. On the contrary, the migratory DCs were further subdivided into CD326hiEGFP+/low xCR1+ cDC1 and F4/80low LClike cells. No CD326hiEGFP+/low F4/80hi cells were detectable in the LN (Figure 1—figure supplement 2, lower panel).

Because we detected no phenotypic F4/80hi LCs in the LNs, we hypothesized that the cutaneous DCs en route to the LN were not derived from epidermal LCs, but rather from distinct dermal CD11bhi, cDC1, TN, and F4/80low LClike DC populations. This analysis cannot exclude, however, the possibility that the migrating LCs might change their phenotype as demonstrated previously (Schuler and Steinman, 1985).

scRNA-seq confirms the presence of two independent LC and LClike cell populations in the dermis

Since LC and LClike cells co-exist together in the dermis, we aimed to investigate their relationship and respective gene signature by scRNA-seq analysis. Unsupervised clustering and uniform manifold approximation and projection (UMAP) were performed on 9605 enriched cells isolated from the dermis of ears obtained from five mice. The origin of distinct CD45+ and CD45- dermal cell subpopulations are visualized in a colour-coded UMAP plot (Figure 2A). Nine different cell clusters could be broadly identified by unsupervised clustering and classified as follows: (1) LC, (2) LClike, (3) mast cells/neutrophils, (4) DC/monocytes, (5) macrophages, (6) lymphocytes 1, (7) lymphocytes 2, (8) mesenchymal cells, and (9) epithelial cells. Conventional DCs, monocytes, and other myeloid-related signature genes, such as Zbtb46 (DCs), Xcr1 and Clec9a (cDC1), Siglech (plasmacytoid DC), Ly6c and Ccr2 (monocytes), Gata2 and Fcer1a (mast cells), and Ly6g (neutrophils), are mainly detectable in the DC/mono and mast cell/neutrophil clusters (3–4) and are mainly absent or weakly expressed in the LC/LClike clusters (1–2) (Figure 2B,C and Figure 2—figure supplement 1). Cd207 and Cd326 expressing cells are detected in LC (1), LClike (2), as well as in DC/monocyte cluster (4), which confirms the presence of three distinct CD207+CD326+ dermal subpopulations observed by flow cytometry (Figure 1B). Cd207 and Cd326 expressing cells detected in the cluster 4 are co-expressing Clec9a, Xcr1, Irf8 hence they represent the cDC1s (Figure 2B and Figure 2—figure supplement 1). Cd207 and Cd326 expressing cells in clusters 1 (LC) and 2 (LClike) share many of the previously reported LC signature genes (e.g. Cd11c, Adgre1, Cd74, Mafb, Pu.1, Csf1r, Tgfbr1) (Figure 2C and Figure 2—figure supplement 1), but several other genes are differentially expressed in LClike cells (e.g. Tgfbr2, Sylt3, Col27a1, Fernt2, Spry2) or in LC cells (e.g. Cd209a, Agpat4, Birc3, Dusp16, Gdpd3, Ly75 and Ppfibp2), respectively (Figure 2C,D).

Figure 2 with 1 supplement see all

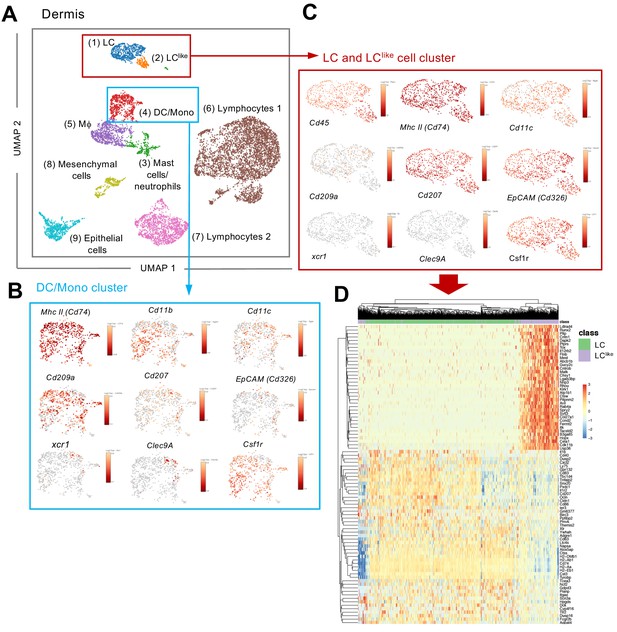

Single-cell RNA-seq analysis reveals Langerhans cell (LC) and LClike cells as two distinct cell populations in the dermis.

9605 cells pooled from the dermis collected from six mice which passed QC were imported for Seurat analysis. (A) Uniform manifold approximation and projection (UMAP) plot is revealing the existence of nine distinct cell clusters (1) LC (blue), (2) LClike(orange), (3) mast cells/neutrophils (green), (4) dendritic cell (DC)/monocytes (red), (5) macrophages (purple), (6) lymphocytes 1 (brown), (7) lymphocytes 2 (pink), (8) mesenchymal cells (light green), and (9) epithelial cells (light blue). (B, C) UMAP maps showing the expression of various LC signature genes in DC/mono (B) and LC/LClike clusters (C). (D) Heat-map of single-cell gene expression data based on the top differentially expressed genes discriminating LC/LClike clusters. Cells (LC in green; LClike in purple) are shown in rows and genes in columns.

To further elucidate the relationship between different dermal DC and macrophage populations, a developmental trajectory was obtained from a UMAP analysis specifically obtained from clusters 1, 2, 4, and 5 shown in Figure 2 (Figure 3A). Clearly there is a close relationship between LC and LClike as well as between macrophages/monocytes and CD11b+/TN DCs, whereas cDC1s are identified as a separate independent cell cluster (Figure 3A and B). Furthermore, detailed transcription factor (TF) analysis revealed that LC and LClike cells share many TFs, some equally expressed (Mafb, Irf4, Irf8), some higher expressed in LC (Pu.1), and some more elevated in LClike (Stat3, Runx2, Runx3, Id2, Klf4, Maf) (Figure 3C and Figure 3—figure supplement 1A). Zbtb46, a TF selectively expressed on classical DCs, is expressed on both LC and LClike cells but not as high as on classical DCs (cDC1, CD11b+, and TN) (Figure 3—figure supplement 1A). Interestingly, Zeb2, a specific cDC2 TF, is only weakly expressed on LC and LClike cells (Figure 3—figure supplement 1A).

Figure 3 with 1 supplement see all

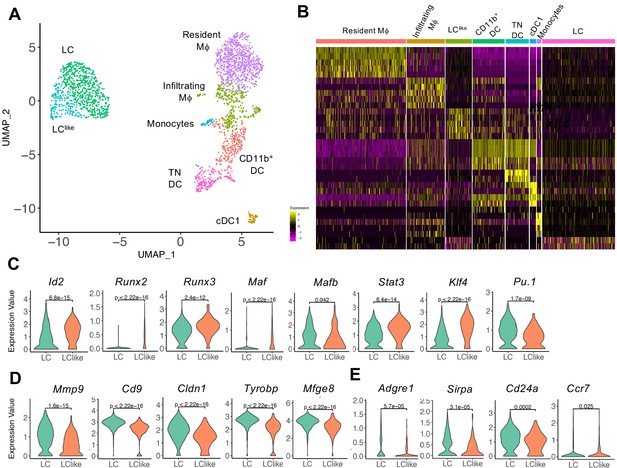

Detailed uniform manifold approximation and projection (UMAP) analysis from clusters 1, 2, 4, and 5 visualizes eight distinct Langerhans cell (LC)/dendritic cell (DC) and macrophage subpopulations.

(A) UMAP plot showing eight distinct LC/DC and macrophage clusters: LC (emerald green), LClike (turquoise), cDC1 (ocher), CD11b+ (red orange), triple negative (TN) DCs (magenta), resident macrophages (purple), monocytes (light blue), and infiltrating macrophages (green). Colours indicate unsupervised clustering by PhenoGraph. (B) Heat-map of single-cell gene expression data based on the top differentially expressed genes between the eight cell clusters. Yellow: upregulated; purple: downregulated. (C) Violin plots comparing transcription factor (TF) expression in LC and LClike cells. (D) Violin plots showing mRNA expression profile of LC signature genes in LC and LClike cells. (E) Violin plots showing Adgre1 (F4/80), Sirpa, Cd24a, and chemokine receptor Ccr7 expression in LC and LClike cells.

Furthermore, LC-related genes, such as Mmp9, Cd9, Mfge8, Cldn1 (Ferrer et al., 2019; Miyasaka et al., 2004; Ratzinger et al., 2002; Zimmerli and Hauser, 2007), are elevated in dermal LCs and weakly expressed in dermal LClike cells (Figure 3D), whereas no substantial differences are detected in expression of Sirpa, Ccr7, and Cd24a (Figure 3E, Figure 3—figure supplement 1B). The reduced expression of Adgre1 (F4/80) in LClike cells (Figure 3E), re-confirms the downregulation of F4/80 surface expression on this cell type observed in our previous flow cytometry analysis (Figure 1). Interestingly, both β and γ chains of the IL-2R (Il2rb and Il2rg), previously reported to be expressed in DCs (Zelante et al., 2012), are highly expressed in LClike cells, whereas LCs are the dermal cells expressing the lowest levels among the different DCs and macrophages subpopulations (Figure 3—figure supplement 1C).

In summary, the unsupervised clustering of single cells obtained from dermis suggests that LC and LClike cells are two independent cell fractions and distinct from CD207+CD326+ cDC1s as well as from cDC2 CD11b+ and TN DCs, as already shown in conventional flow cytometry analysis (Figure 1B).

Early yolk sac precursors contribute to the development of LC but not LClike cells

Fate mapping experiments have shown that epidermal LCs derived partially from primitive yolk sac progenitors (Hoeffel et al., 2012; Sheng et al., 2015); therefore, the developmental origin of LCs is distinct from conventional DCs and resembled more microglia. To study in detail a possible yolk sac origin of distinct cutaneous LC and DC subpopulations, a single injection of tamoxifen (TAM) was given to E7.5 pregnant KitMerCreMer/R26 mice (Figure 4A). Three months later, the epidermis, dermis, and brain (microglia as positive control) were collected and isolated cells were then analysed for YFP expression. As previously reported, microglia, the prototype yolk sac-derived macrophage, were strongly labelled (~40%) (Figure 4B and F). However, about 12% of epidermal LCs were YFP labelled, confirming their partial yolk sac origin (Figure 4C and F). In comparison, the dermal LC counterparts showed a similar labelling profile (~10%), whereas the remaining dermal DC subpopulations (LClike, cDC1, CD11bhi, and TN) showed a significantly lower 5% YFP signal, very likely, attributed to small spillover of labelling in the HSCs (haematopoietic stem cells) (Figure 4D and F). Therefore, YS only contributed to LCs but not to dermal LClike cells. Low YFP labelling was also obtained in all migratory LN DC counterparts (Figure 4E and F).

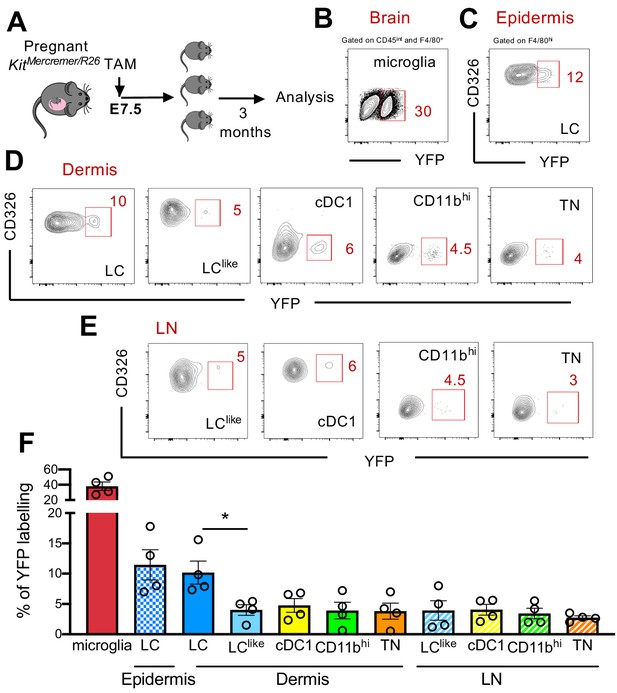

Distinct embryonic origin between Langerhans cell (LC) and LClike cells.

(A) Single pulse of TAM at E7.5 was given to label KitMercreMer/R26 embryos and the percentages of labelled brain microglia (positive control, gated on CD45intF4/80hi), epidermal LCs, and dermal LC/dendritic cell (DC) subpopulations were measured at 3 months of age. (B–D) Flow cytometry analysis of YFP labelling of microglia (B), and each LC and DC subpopulation in the epidermis (C), dermis (D), and lymph node (LN) (E) in KitMerCreMer/R26 fate mapping mice. Representative contour plots are shown. (F) The mean percentage of YFP+ cells of brain microglia, epidermal LC, and dermal DC subpopulations (LC, cDC1, LClike, CD11bhi, and triple negative [TN] cells). The error bars represent the SEM (n = 4 samples of two to three pooled mice for epidermis/dermis and n = 5 mice for LN). Data from two independent experiments. *p<0.05; two-way ANOVA followed by Bonferroni test. For clarity, non-significant values are not shown.

Figure 4—source data 1

Percentage of YFP+ cells of brain microglia, epidermal LC,dermal and LN DC subpopulations (LC, cDC1, LClike, CD11bhi,and TN cells).

https://cdn.elifesciences.org/articles/65412/elife-65412-fig4-data1-v2.xlsx

LClike DCs derive from both embryonic and adult BM haematopoiesis

LCs are the only cell type from the DC family that originate from self-renewing radio-resistant embryonic precursors (Merad et al., 2002); other DC subpopulations are short-lived and constantly replenished by BM progenitors (Kissenpfennig et al., 2005). To delineate the radio-resistant properties of the newly identified LClike cells, we generated BM chimeric mice by transplanting congenic CD45.1+ mouse BM cells into irradiated CD45.2+ recipients (Figure 5A). We then analysed the CD45.1+/CD45.2+ ratio in different skin-related DC subpopulations 1 or 4 months after reconstitution.

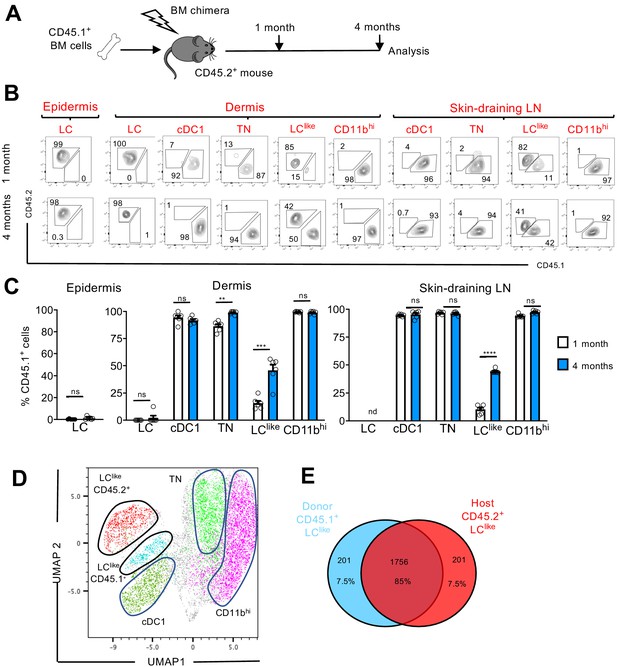

LClike cells derived from embryonic and adult haematopoiesis have a similar transcriptomic signature.

(A) Generation of BM chimeras: CD45.1+ WT BM cells (106) were transferred into lethally irradiated CD45.2+ recipient mice. The epidermis, dermis, and draining lymph nodes (LNs) obtained from the reconstituted chimeras were analysed 1 and 4 months later by flow cytometry. (B) Flow cytometry analysis of donor (CD45.1+) and host (CD45.2+) chimerism in different epidermal, dermal, and skin-draining LN LC and dendritic cell (DC) subpopulations, 1 and 4 months after reconstitution. LC, cDC1, triple negative (TN), LClike, and CD11bhi subsets were gated and analysed for CD45.1 (x-axis) and CD45.2 (y-axis) expression. (C) The percentage of CD45.1 donor cells detected in the epidermis, dermis, and skin-draining LNs of chimeras, 1 or 4 months after reconstitution. Data are represented as mean ± SEM; n = 6 single mice; **p<0.01; ***p<0.001; ****p<0.0001; ns, non-significant; two-tailed Student’s t-test. (D) Uniform manifold approximation and projection (UMAP) analysis of distinct LN DC subpopulations obtained from chimeras 4 months after reconstitution, based on the expression of different markers (CD11c, MHCII, CD103, CD11b, CD326, CD207, CD45.1, CD45.2). (E) Transcriptome analysis of LN CD45.1+ LClike cells (n = 3) and LN CD45.2+ LClike (n = 3) cells collected from 10 mice. The Venn diagram shows the percentage of overlapping genes expressed by CD45.1+ and CD45.2+ LClike cells.

Figure 5—source data 1

Percentage of CD45.1+ donor cells detected in the epidermis, dermis and skin-draining LNs of mouse chimeras, 1 or4monthsafter reconstitution.

https://cdn.elifesciences.org/articles/65412/elife-65412-fig5-data1-v2.xlsx

In the epidermis and dermis, LCs were mostly CD45.2+, and thus retained their host origins due to local self-renewal (Figure 5B,C). By contrast, dermal cDC1, TN, and CD11bhi DCs exhibited a wholly CD45.1+ phenotype after just 1 month following reconstitution; this finding means that they are fully BM-derived. Only LClike cells showed a mixed contribution from both CD45.2+ host and CD45.1+ donor cells. In fact, after 1 month following reconstitution, only a minority (~10%) of LClike cells were replenished by CD45.1+ cells; this percentage increased to ~50% by 4 months after reconstitution (Figure 5B,C).

In skin-draining LNs, we found that cDC1, TN, and CD11bhi cells were mostly derived from donor CD45.1+ BM cells, excluding their origins from the radio-resistant LC population. Comparable to its dermal counterpart, only the LClike cell fraction was split into donor CD45.1+ and host CD45.2+ cells, respectively (Figure 5B,C). In addition, the contribution of CD45.1+ donor cells increased over time, from ~10% after 1 month to ~45% after 4 months. This unique temporal replacement suggests a dual origin for LClike cells, distinguishing this DC fraction from both conventional long-lived radio-resistant self-renewing LCs and short-lived BM-derived DCs.

To allow high-resolution and unbiased data-driven dissection of skin DC subpopulations in the reconstituted chimeric mice, we performed a UMAP analysis of flow cytometry data. Both CD45.1+ and CD45.2+ LClike cells were clearly visible and clustered separately, but in close proximity (Figure 5D). Using this dimensional reduction algorithm, we detected that CD11c+MHCIIhi dermal DC subpopulations could be grouped into five separate clusters: cDC1, TN, CD11bhi, and two LClike cell clusters (BM-derived CD45.1+ and resident CD45.2+). To investigate the molecular relationship between the resident LClike cell population and the BM-derived LClike cells, we performed RNA-seq on LN LClike cells isolated from chimeric mice (CD45.1+ donor BM cells into CD45.2+ recipient mice). Unsupervised hierarchical clustering (Euclidean distance, complete linkage) and principal component analysis (PCA) analysis revealed that both CD45.1+ and CD45.2+ LClike cells clustered closely together (not shown), with ~85% of their gene expression overlapping (Figure 5E). The high level of similarity between resident and BM-derived LClike fractions indicates that the microenvironment, and not the cellular origin, seems to determine the LClike cell identity.

LClike cells display slow turnover kinetics

BM chimeras require full body irradiation, which can damage the local skin microenvironment and attract BM-derived newcomers. This irradiation could, therefore, complicate the analysis of skin-resident cell homeostatic turnover kinetics. To circumvent this issue, we performed a fate mapping study under steady-state conditions using KitMerCreMer/R26 fate mapping mice. These mice allow for the turnover rates of cell populations derived from BM precursors to be estimated (Sheng et al., 2015). We performed our analyses at different time points (1, 4, and 8 months) after TAM injection to ensure a sufficiently long time frame to monitor populations that turn over slowly (Figure 6A).

Figure 6 with 1 supplement see all

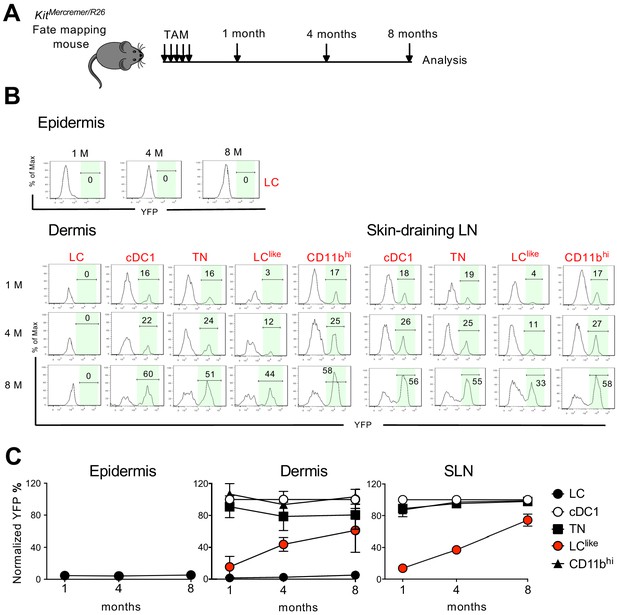

Slow turnover kinetics for dermal and lymph node (LN) LClike cells.

(A) KitMerCreMer/R26 mice aged 6 weeks old were injected with tamoxifen five times and groups of six animals were sacrificed 1, 4, and 8 months later for fate mapping analysis. (B) Flow cytometry analysis of YFP labelling of each LC and dendritic cell (DC) subpopulation in the epidermis, dermis, and skin-draining LNs in KitMerCreMer/R26 fate mapping mice. Representative histograms are shown. (C) The mean percentage of YFP+ cells after normalization to cDC1. Epidermis (left), dermis (middle), and skin-draining LNs (right) were analysed. The error bars represent the SEM (n = 6 mice).

Figure 6—source data 1

Percentage of YFP+ epidermal, dermal and LN cells analysed at 1, 4 and 8 months after tamoxifen injection.

Values have been normalized to cDC1 YFP labelling.

https://cdn.elifesciences.org/articles/65412/elife-65412-fig6-data1-v2.xlsx

In the epidermis, LCs showed minimal YFP labelling over the entire 8-month chase period; this finding was expected as these cells are not replaced by BM-derived cells (Figure 6B and C, left panel). Similarly in the dermis, CD11bhiF4/80hiCD326+CD207+ cells showed minimal labelling from 1 to 8 months (Figure 6B and C, middle panel). We propose that this fraction most likely represents immigrant LCs in the dermis. cDC1, TN, and CD11bhi DCs, however, were fully labelled with YFP after just 1 month and the labelling was maintained for the remaining 8 months. This finding is consistent with the fast turnover rate identified for these three DC subsets. By contrast, LClike cells gradually accumulated the label from 10% to 60% over the 8-month chase period, supporting that dermis-resident LClike DCs are replaced slowly by BM progenitors. In the skin-draining LNs, all DC subsets behaved similarly to their dermal counterparts (Figure 6B and C, right panel). Briefly, cDC1, TN, and CD11bhi DCs showed a fast turnover by reaching plateau level of labelling after 1 month while LClike cells demonstrated a slow turnover rate over the 8-month chase period.

Cell cycle analysis was performed for dermal LC, LClike, and different DC subsets based on scRNA-seq (Figure 6—figure supplement 1). The LClike subset exhibited higher proliferating capability than LC and other DC subsets, consistent with the previous findings that LCs are dividing extremely slow (Ginhoux and Merad, 2010) and conventional DCs do not proliferate in tissues and mainly depend on their BM progenitors for expansion (Liu and Nussenzweig, 2010). Overall, we showed that LClike cells displayed slower turnover kinetics than other DC subpopulations and higher proliferating capability to refill the emigration gap.

LClike cells are not derived from classical LCs

To interrogate the relationship between LC and LClike cells, we exploited a novel DC-SIGN-DTR transgenic mouse strain (Figure 7—figure supplement 1A), which allowed us to deplete epidermal and dermal LCs without affecting the LClike cell pool (Figure 7). Although not detectable by flow cytometry on the cell surface (Figure 1—figure supplement 1B), we measured DC-SIGN (or CD209a) specific mRNA levels in murine LCs as well as in CD11bhi DCs, the latter already known to express this receptor (Cheong et al., 2010), whereas cDC1, TN DCs, or LClike cells were negative (Figure 7—figure supplement 1B), a result which was corroborated by the scRNA analysis of dermal cells (Figure 2). Since DC-SIGN expression has never been reported for LCs, quantitative PCR (qPCR) analysis was performed to detect the expression of DTR (known as human heparin-binding EGF-like growth factor [HBEGF]) in LCs obtained from DC-SIGN-DTR mice. Accordingly, HBEGF mRNA was detected only in LC isolated from epidermis of DC-SIGN DTR mice and was absent in LCs obtained from WT mice (Figure 7—figure supplement 1C). Thus, the decrease in LCs observed after diphteria toxin (DT) injection was achieved due to the high sensitivity of the DT-DTR system (Ruedl and Jung, 2018), although no DC-SIGN was measurable on the cell surface of LCs from DC-SIGN DTR+ mice. To exclude a downregulation of the DC-SIGN receptor in LCs upon maturation, we sorted epidermal LCs, cultured them overnight with GM-CSF and LPS and compared by qPCR the Cd209a expression between unstimulated and stimulated epidermal LC fractions. Clearly no Cd209a downregulation was observed in activated LCs (Figure 7—figure supplement 1C); therefore, an eventual transition from maturing dermal DC-SIGNpos LCs to dermal DC-SIGNneg LClike cells can be excluded.

Figure 7 with 1 supplement see all

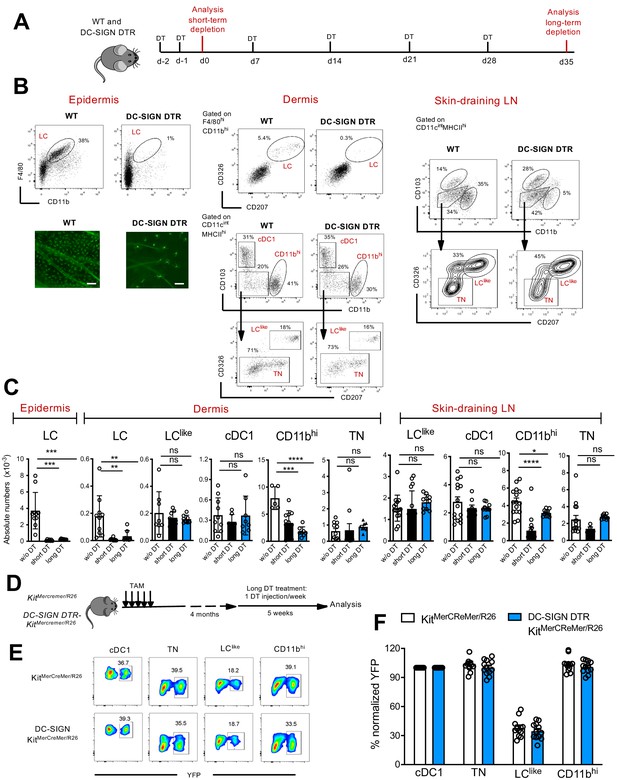

Classical Langerhans cells (LCs), but not LClike cells, are ablated in vivo in DC-SIGN DTR mice.

(A) The short-term and long-term depletion protocol in DC-SIGN-DTR mice. (B) Representative flow cytometry dot plots of single-cell suspensions from the epidermis (left), dermis (middle), and skin-draining lymph nodes (LNs) (right) obtained from diphteria toxin (DT)-injected WT and DC-SIGN-DTR mice. All mice were injected (i.p.) with 10 ng/g DT on days −2 and −1 and analysed on day 0. The gating strategy shown in Figure 1 was followed. Epidermal sheets obtained from WT and DC-SIGN mice were stained for MHC class II (green fluorescence) and analysed by immunofluorescence microscopy (lower left panel). (C) The absolute numbers of each gated myeloid cell subset (LC, cDC1, triple negative [TN], LClike, and CD11bhi cells) obtained from the epidermis, dermis, and skin-draining LNs of DT-injected WT and DC-SIGN DTR mice. Data are represented as mean ± SEM; n = 8–10 single mice. ****p<0.0001; ***p<0.001; **p<0.01; ns, non-significant; two-way ANOVA statistical test Bonferroni test. (D) Fate mapping analysis in DC-SIGN DTR-KitMerCreMer/R26 mice. Mice aged 6 weeks old were orally gavaged with TAM. After 4 months, DT was injected i.p. weekly for 5 weeks to ensure long-term LC depletion. (E) Representative contour plots showing the YFP labelling of distinct LN dendritic cell (DC) subpopulations in DT-treated KitMerCreMer/R26 and DC-SIGN DTR-KitMerCreMer/R26 mice. (F) The percentage of normalized YFP labelling detected in DC subpopulations (LC, cDC1, TN, LClike, and CD11bhi cells) of the skin-draining LNs. Normalization was performed as described in Figure 6; data are represented as mean ± SEM; n = 12 single mice.

Figure 7—source data 1

Absolute numbers of epidermal, dermal and LN DC subpopulations after short and long term depletion in DC-SIGN-DTR mice.

https://cdn.elifesciences.org/articles/65412/elife-65412-fig7-data1-v2.xlsx

We established short and long depletion protocols (Figure 7A) to capture even potentially very slowly migrating ‘LC derivatives’ (Bursch et al., 2007). In the DT-treated DC-SIGN DTR mice, LCs were efficiently depleted in both the epidermis and dermis by the short-term and long-term depletion protocols (Figure 7A–C). We also found that cells in the CD11bhi cell fraction were affected by the DT treatment; this was particularly evident during the short-term depletion protocol, in which the cell numbers were reduced by ~80% (Figure 7C). Importantly, cDC1, TN, and LClike cell numbers were unaffected and thus were comparable between DT-injected WT and DC-SIGN mouse strains. These results strongly support the independency of LClike cells from classical bona fide epidermal LCs.

To further confirm that LClike cells represent a distinct cell lineage from LCs, we crossed DC-SIGN DTR mice with a KitMerCreMer/R26 fate mapping mouse, which would enable us to trace BM-derived cells in absence of LC. We treated these mice (DC-SIGN DTR-KitMerCreMer/R26) with TAM and then injected them with DT for 5 weeks to maintain long-term LC depletion (Figure 7D). Although epidermal LCs were absent over the whole period, the YFP labelling profiles of skin-derived LN DC subsets, including the LClike fraction, were comparable between DT-injected DC-SIGN DTR+-KitMerCreMer/R26 and DC-SIGN DTRneg-KitMerCreMer/R26 mice (Figure 7E,F). These data show that in absence of LC, the replenishment of LClike cells by BM-derived cells is not affected.

LCs suppress cutaneous CHS responses within the skin

We next investigated the specific local contribution of LCs during CHS. Therefore, DT-injected WT and DC-SIGN DTR mice were sensitized with 0.5% 2,4-dinitrofluorobenzene (DNFB) and challenged at day 5 with 0.2% DNFB to induce a CHS reaction. The ear swelling was subsequently monitored over 12 days. In another group of mice, ears were processed 3 days post challenge for qPCR analysis as well as processed for cell isolation (Figure 8A). In absence of LCs, clearly a pronounced increased ear swelling persisted over 10 days (Figure 8B), a phenotype which was already reported in other LC-ablating transgenic mouse strains such as human langerin-DTA (hu-DTA) and human langerin-DTR (huDTR) mice (Kaplan et al., 2005; Bobr et al., 2010). Proinflammatory cytokines such as IL-6, TNF-α, and IL-1β were clearly significantly upregulated in ears of DT-treated DC-SIGN DTR mice (Figure 8C, upper panel). VEGFα, a biomarker for keratinocyte impairment (Canavese et al., 2010Bae et al., 2015), was also clearly augmented in absence of LCs (Figure 8C, lower panel). In addition, higher IFN-γ levels were measured in ears lacking LCs (Figure 8C, lower panel), values that correlated with an augmented CD8+ T-cell-dependent IFN-γ response observed by flow cytometry analysis (Figure 8D, Figure 8—figure supplement 1). In accordance with previously published data (Igyarto et al., 2009), no major difference was observed in activated dermal ICOS+ Tregs in presence or absence of LCs (Figure 8D, right panel, Figure 8—figure supplement 1A).

Figure 8 with 2 supplements see all

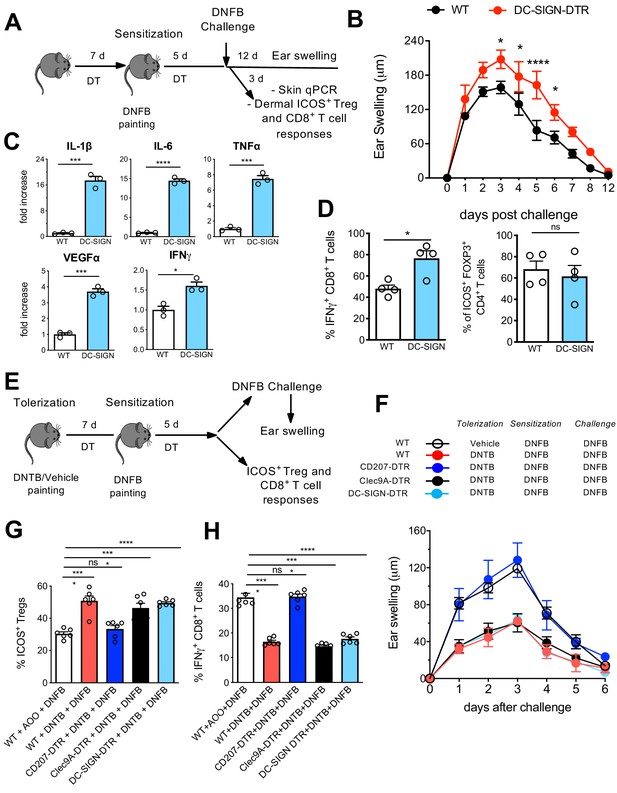

Differential contribution of Langerhans cell (LC) and LClike in skin immune responses.

(A) Diphteria toxin (DT)-treated WT and DC-SIGN DTR mice were sensitized with 0.5% 2,4-dinitrofluorobenzene (DNFB) (applied to the shaved back skin) and ear-challenged 5 days later with 0.1% DNFB. (B) Ear swelling response of challenged WT and DC-SIGN DTR mice was determined over a 12-day period post challenge. (C) Quantitative PCR analysis of distinct inflammatory cytokines and growth factors in ears collected at day 3 post challenge. The error bars represent the SEM (n = 3 mice). *p<0.05; ***p<0.001; ****p<0.0001; two-tailed Student’s t-test. (D) Percentages of dermal IFN-γ-producing CD8+ T-cells and dermal CD4+Foxp3+ICOS+ regulatory T-cells at day 3 post challenge. Single-cell suspensions were generated from the dermis and the cells were re-stimulated (5 hr) with PMA/Ionomycin to detect IFN-γ production or directly stained for determination of activated Tregs. The error bars represent the SEM (n = 4 mice). *p<0.05; ns, non-significant; two-tailed Student’s t-test. Gating strategy is shown in Figure 8—figure supplement 1. (E) DT-treated WT, CD207-DTR, Cleac9A-DTR, and DC-SIGN DTR mice were tolerized with 1% 2,4-dinitrothiocyanobenzene hapten (DNTB) (applied to the shaved abdomen skin). After 7 days, the mice were sensitized with 0.5% DNFB (applied to the shaved back skin) and ear-challenged 5 days later with 0.1% DNFB. (F) The ear swelling response of painted mice was determined over a 6-day period post challenge. (G) Percentage of activated CD4+Foxp3+ICOS+ regulatory T-cells in the draining lymph nodes (LNs) of mice, 5 days after vehicle or DNTB painting. The data were pre-gated on singlet, live CD3+CD4+Foxp3+ Treg cells. The error bars represent the SEM (n = 6 mice). ****p<0.0001; ns, non-significant; two-way ANOVA. (H) Percentages of IFN-γ-producing CD8+ T-cells in the draining LNs of vehicle or DNTB-painted mice followed by DNFB sensitization. Single-cell suspensions were generated from the LNs and the cells were re-stimulated (5 hr) with PMA/Ionomycin to detect IFN-γ production. The data were pre-gated on singlet, live CD3+ CD8+ T-cells. The error bars represent the SEM (n = 6 mice). ****p<0.0001; ns, non-significant; two-way ANOVA.

Figure 8—source data 1

Percentages of IFNgamma+ CD8+ T cells and ICOS+ FOXP3+ T regs measured in distinct skin immune repsonses.

https://cdn.elifesciences.org/articles/65412/elife-65412-fig8-data1-v2.xlsx

Depletion of LClike cells, but not LCs, breaks tolerance to DNTB

In our final assays, we aimed to determine the contribution of distinct skin-resident DC subpopulations to the induction of tolerance to CHS. Here, we injected a series of different DTR mice, including CD207-DTR, Clec9A-DTR, and DC-SIGN DTR mice, with DT to deplete the target cells over the whole period of tolerization, sensitization, and final challenge (Figure 8E). Of note, each DTR mouse strain shows a different LC/DC depletion profile: DT-treated CD207-DTR mice lack all epidermal and dermal CD207 expressing cells (LC, LClike, and cDC1) (Figure 8—figure supplement 2A–C), Clec9-DTR mice lack cDC1s (Figure 8—figure supplement 2A,D and E), and DC-SIGN lack epidermal and dermal LCs and CD207-CD326-CD11bhi DCs (Figure 7).

We next established an experimental 2,4-dinitrothiocyanobenzene hapten (DNTB)-mediated tolerance mouse model. Here, we induced immune tolerance against the strong contact sensitizer DNFB by epicutaneous application of an innocuous DNTB. We applied DNTB to the shaved abdomen of DT-injected WT, CD207-DTR, Clec9A-DTR, and DC-SIGN DTR mice 7 days prior to subsequent DNFB sensitization (Figure 8E). As a positive control, we established a group of WT mice that was not treated and tolerized with DNTB. When the mice were ear-challenged with DNFB, we found that the non-tolerized WT mice developed robust CHS, as evidence by ear swelling that increased over time upon DNFB challenge. CD207-DTR mice were clearly not tolerized against DNFB, since they showed robust ear inflammation over time. Such ear swelling was not observed in DNTB-tolerized WT, Clec9A-DTR, and DC-SIGN-DTR mice (Figure 8F). CHS is conferred by cytotoxic T-cell-mediated skin inflammation induced by exposure to strong contact sensitizers, such as DNFB. We thus analysed activated IFN-γ-producing CD8+ cytotoxic T-cells in the skin-draining LNs by flow cytometry on day 5 post DNFB sensitization. In line with the observed ear swelling profile, we found that a low IFN-γ-producing CD8+ cytotoxic T-cell response was restricted to DNTB-tolerized WT, Clec9A-DTR, and DC-SIGN-DTR mice. This response was comparatively enhanced in CD207-DTR and WT mice (Figure 8G, Figure 8—figure supplement 2B). The diminished level of ear inflammation in DNTB-tolerized WT, Clec9A-DTR, and DC-SIGN-DTR mice correlated with an increased presence of activated ICOS+CD4+FOXP3+ Tregs in the LN, which exhibit suppressive activity in CHS to DNFB (Vocanson et al., 2010). Remarkably, we did not observe this phenotype in DNTB-tolerized CD207-DTR or non-tolerized WT mice (Figure 8H, Figure 8—figure supplement 2B). Because of this clear difference between CD207-DTR mice (that lack CD207+ LCs/LC-like cells and CD207+ DC1s) and DC-SIGN DTR mice (that lack only CD207+ LCs) and Clec9A-DTR mice (that lack only CD207+ cDC1), we conclude that only LClike cells critically contribute to tolerance induction.

Discussion

Epidermal LCs are the only APCs localized in the epidermis. These cells were recently re-defined as ‘macrophages in DC clothing’ due to their unique ontogeny, and self-renewing and radio-resistant characteristics (Doebel et al., 2017). By contrast, there are multiple DC and macrophage subpopulations that reside in the dermis (Tamoutounour et al., 2013). Although these dermal DCs share some common markers with LCs (such as langerin [CD207] and EpCAM [CD326]), they constitute a distinct cell lineage on the basis of their developmental origins and cytokine requirements (Bursch et al., 2007; Ginhoux et al., 2007; Poulin et al., 2007). Three CD207+ DC subpopulations have been described in the skin-draining LN: two subpopulations are skin-derived and one subpopulation originates from the BM (Bursch et al., 2007; Douillard et al., 2005; Henri et al., 2001; Romani et al., 2010). Due to this diverse skin-resident DC network, it became evident that not only LCs but other skin-derived DCs might be involved either in tolerance or immune response induction in draining LNs.

Although it is commonly believed that the journey of an LC starts from the epidermis and ends in the skin-draining LN after a transit through the dermis in steady state, we found that it is in fact their look-alike counterparts, LClike cells, that migrate to the draining LNs. Our new insight was gained by re-analysing established mouse strains (KitMerCreMer/R26 mice) and exploiting newly generated transgenic mouse strains (DC-SIGN-DTR mice and DC-SIGN-DTR- KitMerCreMer/R26 fate mapping mice), which allowed us to visualize, with increasing resolution, the in vivo dynamics of skin-resident DCs under steady state. We first characterized and re-defined different DC/LC subsets in the dermis by flow cytometry and scRNA-seq analysis, which delineated classical F4/80hi LC and four different DC subsets, namely cDC1, TN DCs, CD11bhi DCs, and an unappreciated CD11blowF4/80low LClike cell fraction. With the exception of classical F4/80hi LCs, we found all of these cells in the migratory CD11cintMHCIIhi DC fraction of the skin-draining LN. This finding suggests that the majority of migratory CD326+CD207+ DCs are CD103+ cDC1 and CD103- LClike cells and not classical CD11bhiF4/80hi LCs which are hardly seen in the LN if not at all. Corroborating evidence for differential migratory behaviours among different skin DCs was provided by real-time intravital two-photon microscopy. Under steady-state conditions, due to the structural integrity of the basement membrane, epidermal LCs are sessile with static and almost immobile dendrites. In contrast, dermal DC subpopulations are actively crawling through the dermal interstitial space at high velocity even in absence of inflammation suggesting that continuous migration to LN is a steady-state property of dermal DCs and not epidermal LCs (Ng et al., 2008; Shklovskaya et al., 2011).

Our analysis of dermal DCs is in full agreement with recent published data by Henri et al., 2010. The DC family in the dermis was likewise disentangled in five subpopulations: two subsets lacking the expression of CD207 (CD207-CD11b- [TN] and CD207-CD11b+ [CD11bhi]) and three expressing CD207 (CD11bintCD207++ mLCs, CD11blow/-CD207+CD103+ [cDC1], and CD11blowCD207+CD103- [LClike]) (Henri et al., 2010).

Similarly, cutaneous LNs were distinguished in five analogous subpopulations including mLCs, which were defined for their characteristics in radioresistance and not for the expression of classical LC markers (CD11bhi and F4/80hi). Henri et al. speculated that LN LCs downregulated CD11b and F4/80 expression (Henri et al., 2010) and therefore these markers lost their discriminatory power to segregate distinct CD207+ cells in the LN.

To circumvent the ‘complication’ of the potential shift in phenotype, we adopted an alternative approach based on genetic fate mapping analyses which allowed to trace cell lineages between distinct LC and DC subpopulations avoiding lethal irradiation and generation of chimeric mice. First, our E7.5 embryo ‘labelling strategy’ demonstrated that only LCs are partially yolk sac-derived (Sheng et al., 2015), but not the other migratory DCs’ subpopulations, inclusive of LClike cells. Second, our detailed analyses of the fate mapping kinetics revealed that the radio-resistant and radiosensitive CD11blowCD207+CD103- subpopulations described by Henri et al. represented instead a truly homogeneous radio-resistant LClike subpopulation, which is gradually replaced over time by BM-derived progenitors. Furthermore, we corroborated their ‘LC independency’, since long-term absence of LCs did not affect the numbers of LClike cells in our DC-SIGN DTR mouse model. We also ruled out a possible downregulation of DC-SIGN during LC maturation which excludes the transition of a dermal DC-SIGNpos LC to a DC-SIGNneg LClike cell. Accordingly, our analysis delineated only four, and not five, LN migratory DC subpopulations, excluding LCs. The phenotypes, transcription profiles, and cytokine requirements of dermal cDC1, TN, and CD11bhi DCs have been extensively described (reviewed in Clausen and Stoitzner, 2015); however, there has been comparatively less attention given to the LClike subpopulation.

Unsupervised clustering of scRNA-seq trascriptome data of dermal cells indicated that LC and LClike cells, although sharing some common myeloid cell markers and TFs, are two independent cell fractions and clearly distinct from macrophages and the other skin DC subpopulations. However, unlike LCs, which are BM-independent, radio-resistant, and self-renewing (Ghigo et al., 2013; Hoeffel et al., 2012), LClike cells represent a radio-resistant population that is progressively replaced postnatally by BM-derived precursors. Similar to resident macrophages in tissues, such as skin, gut, kidney, and heart, LClike cells have a dual origin involving both embryonic (but not yolk sack-like LCs) and adult haematopoiesis (Molawi et al., 2014; Sheng et al., 2015; Soncin et al., 2018). Unlike other skin DC subpopulations, which are short-lived and exhibit a high turnover rate, we show that fetal-derived LClike cells are long-lived, show higher proliferation rates than conventional DCs, and are replaced very slowly by BM-derived cells. These fetal-derived and BM-derived LClike cells co-exist together in adult tissue, and although derived from different origins, they show high similarity. This finding suggests that it is the local tissue microenvironment and not the cellular origin that shapes their final identity. The existence of an LC-independent radio-resistant dermal DC fraction was previously observed in other study that described the presence of an in situ proliferating, radio-resistant dermal DC subpopulation not only in the murine but also in human dermis (Bogunovic et al., 2006). Similarly, a langerin-expressing dermal myeloid CD1+ DC fraction unrelated to XCR1+ DCs and LCs has been reported in human dermis (Bigley et al., 2015). It is likely that these cells are the LClike cells described here and further studies will be needed to analyse the potential relationship between murine CD207+ LClike cells and human myeloid CD207+ DC counterparts.

Although all dermal DCs migrate into LNs in a CCR7-dependent fashion (Förster et al., 1999), LClike cells seem to migrate at slower rate than other DCs under steady-state conditions. Similar slow trafficking dynamics was originally attributed to LCs (Bursch et al., 2007; Ruedl et al., 2000) but we now strongly believe that these previously reported slow migratory cells are in fact LClike cells.

To further rule out the possibility that epidermal F4/80hiCD11bhi LC downregulate CD11b and F4/80 and turn into F4/80lowCD11blow LClike cells in the dermis, we exploited a novel DC-SIGN DTR transgenic mouse strain where LCs, but not LClike cells, could be ablated. Even long-term depletion (6 weeks) of epidermal and dermal LCs had no effect on the numbers of LClike cells in the dermis and LNs while maintaining their LClike YFP-labelling profile in the absence of epidermal LCs in DC-SIGN DTR-KitMerCreMer/R26 mice.

The contribution of LCs to hapten sensitization is still controversial and matter of debate since the phenotype observed in different LC depleting mouse models is ranging from reduced to exaggerated CHS reactivity (Kaplan et al., 2005; Bennett et al., 2005; Noordegraaf et al., 2010, Bobr et al., 2010; Clausen and Stoitzner, 2015). The depletion of LCs, in the herein presented novel DC-SIGN DTR transgenic mouse line, resulted in enhanced CHS, a similar phenotype also reported in hu-DTA and huDTR mice (Kaplan et al., 2005; Bobr et al., 2010). The Tregs-independent LC-mediated suppressive effect is restricted locally to the skin since several proinflammatory cytokines (IL-6, TNF-α, and IL-1β) as well as effector IFN-γ CD8+ T-cells are enhanced at the challenged cutaneous side in absence of LCs. Interestingly VEGF-α, recently reported as a novel biomarker for pathological cutaneous alterations such as psoriasis (Canavese et al., 2010, Bae et al., 2015), is highly upregulated in LC-deficient mice which indicates an involvement of LCs in controlling keratinocytes in their VEGF production. In summary, our data corroborate the view that LCs data corroborate the view that LCs are one of the main immune regulators within the skin (West and Bennett, 2017).

The role of different skin-resident DCs in triggering tolerance is also widely debated. Several studies have demonstrated that LCs are crucial for inducing tolerance (Igyarto et al., 2009; Kautz-Neu et al., 2011; King et al., 2015; Price et al., 2015; Shklovskaya et al., 2011) by stimulating Tregs and anergizing CD8+ T-cells. This effect has been shown, for example, in an experimental CHS model (Gomez de Agüero et al., 2012). Conversely, others have demonstrated the specific contribution of dermal DCs into maintaining skin tolerance (Azukizawa et al., 2011; Tordesillas et al., 2018). Given that we only detected LClike cells and not bona fide LCs in the draining LNs, we readdressed this issue in a cutaneous tolerance model towards the weak contact allergen, DNTB. We used our novel inducible DC-SIGN DTR mice, in which LCs but not dermal or LN LClike cells can be ablated, together with other CD207+CD326+ LC/DCs depleting DTR strains (inducible CD207-DTR and Clec9A-DTR mice). Deletion of LCs or cDC1 had no effect on tolerance induction, while deletion of both LCs and LClike cells prevented tolerance induction. This finding demonstrates that migratory LClike cells, which are capable of reaching the draining LNs, are responsible for the expansion of ICOS+CD4+FOXP3+ Tregs and the suppression of a cytotoxic T-cell response.

In summary, our genetic fate mapping approach, used to delineate the complex skin DC network, does not support the established paradigm of LCs as being the main ‘prototype’ migrating APCs to draining LNs under homeostatic conditions (Wilson and Villadangos, 2004). We propose, rather, that LCs at steady state, similar to other tissue-resident macrophages, are sessile and act locally in the skin, whereas dermal LClike cells assume many of the functions previously attributed to LCs. The identification of this novel migratory dermal LClike subpopulation opens new avenues and approaches in the development of treatments to cure diseases such as contact allergic dermatitis and other inflammatory skin disorders like psoriasis.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyRat anti-mouse CD45 (30-F11)BiolegendCat#: 103108; RRID: AB_312972FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse CD45 (30-F11)BiolegendCat#: 103114; RRID: AB_312978FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse CD11b (M1/70)Becton Dickinson- BDCat#: 565976; RRID:AB_2721166FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse F4/80 (BM8)BiolegendCat#: 123114; RRID: AB_893490FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse Ly6c (HK1.4)BiolegendCat#: 128036; RRID: AB_2562352FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse I-A/I-E antibody (M5/114.15.2)BiolegendCat#: 107632; RRID: AB_10900075FACS (1:600; 100 μl per test)
AntibodyHamster anti-mouse CD11c (N418)BiolegendCat#: 117324; RRID: AB_830646FACS (1:600; 100 μl per test)
AntibodyHamster anti-mouse CD103 (2E7)BiolegendCat#: 121416; RRID: AB_1574957FACS (1:600; 100 μl per test)
AntibodyMouse anti-mouse CD209 (clone: MMD3)Thermo Fisher ScientificCat#: 50-2094-82; RRID:AB_11219065FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse CD326 (G8.8)BiolegendCat#: 118231; RRID: AB_2632774FACS (1:600; 100 μl per test)
AntibodyMouse anti-mouse CD207 (clone: 4C7)BiolegendCat#: 144204; RRID: AB_2561498FACS (1:600; 100 μl per test)
AntibodyMouse anti-mouse CD45.1 (A20)BiolegendCat#: 110726; RRID: AB_893347FACS (1:600; 100 μl per test)
AntibodyMouse anti-mouse CD45.2 (104)BiolegendCat#: 109830; RRID: AB_1186103FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse CD3 (17A2)BiolegendCat#: 100306; RRID: AB_312670FACS (1:500; 100 μl per test)
AntibodyRat anti-mouse CD4 (GK1.5)BiolegendCat#: 100414; RRID: AB_312699FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse CD8 (53–6.7)BiolegendCat#: 100722; RRID: AB_312761FACS (1:600; 100 μl per test)
AntibodyRat anti-mouse FOXP3 (MF-14)BiolegendCat#: 126407; RRID: AB_1089116FACS (1:600; 100 μl per test)
AntibodyHamster anti-mouse ICOS (15F9)BiolegendCat#: 107705; RRID: AB_313334FACS (1:600; 100 μl per test)
AntibodyRat anti-IFN-gamma
(XMG1.2)
BiolegendCat#: 505810; RRID:AB_315404FACS (1:600; 100 μl per test)
AntibodyFc-R block (2.4G2)Self-madeN/ABlocking step (1:100; 1000 ml per sample)
Chemical compound, drugBrefeldin ASigma-AldrichCat#: B765110 μg/ml
Chemical compound, drugPhorbol 12-myristate 13-acetateSigma-AldrichCat#: 7934610 μg/ml
Chemical compound, drugIonomycinSigma-AldrichCat#: I063410 μg/ml
Chemical compound, drugCollagenase DRocheCat#: 110888820011 mg/ml
Chemical compound, drugDispase IIGibcoCat#: 171050411 U/ml
Chemical compound, drugFicoll-PaqueGE HealthcareCat#: 17144003
Chemical compound, drugPercollMerckCat#: P4937-500ML
Chemical compound, drugDiphtheria toxinSigma-AldrichCat#: D056420 ng DT/g body weight, i.p.
Chemical compound, drugTamoxifenSigma-AldrichCat#: T56484 mg TAM for 5 consecutive days by oral gavage for adult labelling. Pregnant mice (E7.5) were injected once with 16 mg TAM for embryo labelling.
Chemical compound, drugIMDMThermo FisherCat#: 12440046
Chemical compound, drugAmmonium thiocyanateSigma-AldrichCat#: 221988
Chemical compound, drug5,5'-Dithio-bis- 2-nitrobenzoic acid (DNTB)Sigma-Aldrich
(Lancaster Synthesis)
Cat#: D8130
Chemical compound, drug1-Fluoro-2,4-
dinitrobenzene
(DNFB)
Sigma-AldrichCat#: D1529
Chemical compound, drugAcetoneSigma-AldrichCat#: 650501
Chemical compound, drugSaponinSigma-AldrichCat#: S7900
Chemical compound, drugTRIzol reagentThermo Fisher ScientificCat#: 15596026
Commercial assay or kitRNAsimple Total RNA kitTiangen Biotech LtdCat#: DP419
Commercial assay or kitFoxp3 staining buffereBioscienceCat#: 00-5521-00
Commercial assay or kitCytofix/cytopermeBioscienceCat#: 51-2090KZ
Commercial assay or kitOvation Universal RNA-seq systemNuGEN TechnologiesCat#: 0343–32
Commercial assay or kitDNA High Sensitivity Reagent KitAgilent, Santa Clara, CA, USACat#: 5067–4626
Commercial assay or kit10× Chromium Controller10X GenomicsCat #: 120263
Commercial assay or kitChromium Single Cell v3 reagent kit10X GenomicsCat #: PN-100009
Software, algorithmFlowJoTreeStarFlowJo 10.6
RRID:SCR_008520
Software, algorithmGraphPad PrismGraphPad SoftwareGraphPad 9.0
RRID:SCR_002798
Strain, strain background (mouse)C57BL/6JThe Jackson LaboratoryStock Nr. 000664
RRID:IMSR_JAX:000664
Strain, strain background (mouse)B6.SJL-Ptprca Pepcb/BoyJThe Jackson LaboratoryStock Nr. 002014
RRID:IMSR_JAX:002014
Strain, strain background (mouse)KitMerCreMer/Rosa26-LSL-eYFP (called KitMerCreMer/R26)Nanyang Technological University, Singapore
Sheng et al., 2015
Strain, strain background (mouse)Clec9A-DTRNanyang Technological University, Singapore
Piva et al., 2012
Strain, strain background (mouse)CD207-DTRSIgN, A*Star, Singapore
Kissenpfennig et al., 2005
Strain, strain background (mouse)DC-SIGN-DTRNanyang Technological University, SingaporeSheng et al., this paper
Strain, strain background (mouse)DC-SIGN-DTR-KitMerCreMer/R26Nanyang Technological University, SingaporeSheng et al., this paper
Strain, strain background (mouse)B6.129S2-Cd207tm2Mal/J (Lang-EGFP)The Jackson LaboratoryStock Nr. 016939
RRID:IMSR_JAX:016939
Sequenced-based reagentIfng_FThis paperPCR primersGACAATCAGGCCATCAGCAAC
Sequenced-based reagentIfng_RThis paperPCR primersACTCCTTTTCCGCTTCCTGAG
Sequenced-based reagentIl6_FThis paperPCR primersTGATGGATGCTACCAAACTGG
Sequenced-based reagentIl6_RThis paperPCR primersCCAGGTAGCTATGGTACTCCAGA
Sequenced-based reagentTnfa_FThis paperPCR primersAATTCGAGTGACAAGCCTGTAG
Sequenced-based reagentTnfa_RThis paperPCR primersTTGAGATCCATGCCGTTGG
Sequenced-based reagentIl1b_FThis paperPCR primersGGGCCTCAAAGGAAAGAATC
Sequenced-based reagentIl1b_RThis paperPCR primersTTCTTCTTTGGGTATTGCTTGG
Sequenced-based reagentVegfa_FThis paperPCR primersGCAGCTTGAGTTAAACGAACG
Sequenced-based reagentVegfa_RThis paperPCR primersGGTTCCCGAAACCCTGAG
Sequenced-based reagentHBEGF_FThis paperPCR primersATGACCACACAACCATCCTG
Sequenced-based reagentHBEGF_RThis paperPCR primersCCAGCAGACAGACAGATGACA
Sequenced-based reagentcd209a_FThis paperPCR primersCCAAGAACTGACCCAGTTGAA
Sequenced-based reagentcd209a_RThis paperPCR primersCTTCTGGGCCACAGAGAAGA
Sequenced-based reagentActb_FThis paperPCR primersAAGGCCAACCGTGAAAAGAT
Sequenced-based reagentActb_RThis paperPCR primersCCTGTGGTACGACCAGAGGCATACA

Mice

C57BL/6J and B6.SJL-Ptprca Pepcb/BoyJ (B6 CD45.1) were obtained from The Jackson Laboratory (USA). KitMerCreMer/Rosa26-LSL-eYFP (called KitMerCreMer/R26) and Clec9A-DTR mice were generated as previously described (Piva et al., 2012; Sheng et al., 2015). KitMerCreMer/R26 mice were backcrossed with DC-SIGN-DTR mice to obtain DC-SIGN-DTR-KitMerCreMer/R26 mice. B6.129S2-Cd207tm2Mal/J mice were bred and housed at the Malaghan Institute of Medical Research (Wellington, New Zealand). CD207-DTR mice were obtained from the Singapore Immunology Network (SIgN; A*Star, Singapore).

DC-SIGN DTR mice were generated as follows: the IRES-DTR fusion gene was inserted into the 3'-UTR region of the DC-SIGN gene locus on BAC RP24-306K4; the gene targeting vector was then retrieved from the modified BAC (Figure 7—figure supplement 1A). The gene targeting vector was linearized and electroporated into Balb/C embryonic stem (ES) cells and correctly recombined ES colonies were selected by PCR. Gene targeted ES cells were injected into C57BL/6 blastocysts and transferred into the oviduct of a pseudo-pregnant mother. F0 male chimera mice were mated with F1 Balb/C females to obtain F1 Balb/C DC-SIGN DTR mice; these mice were then backcrossed to C57BL/6 for 12 generations to generate C57BL/6 DC-SIGN DTR mouse used in this study.

All mice, with the exception of B6.129S2-Cd207tm2Mal/J mice, were bred and maintained in the specific pathogen-free animal facility of the Nanyang Technological University (Singapore). All studies involving mice in Singapore were carried out in strict accordance with the recommendations of the National Advisory Committee for Laboratory Animal Research and all protocols were approved by the Institutional Animal Care and Use Committee of the Nanyang Technological University (ARF-SBS/NIE A-0133; A-0257; A0126, A-18081). For animal work performed in New Zealand, experimental protocols were approved by the Victoria University of Wellington Animal Ethics Committee and performed in accordance with institutional guidelines.

TAM-inducible fate mapping mouse models

Request a detailed protocol

KitMerCreMer/R26 and DC-SIGN-DTR- KitMerCreMer/R26 fate mapping mice were used to monitor the turnover rates of distinct skin-related DC subpopulation subsets. Upon TAM injection, the YFP label will be induced in all c-kit-expressing cells, predominantly residing in the BM, and these cells will retain the YFP label once they left the BM and seeded into the periphery. Each mouse was administered 4 mg TAM (Sigma-Aldrich, St. Louis, MO, USA) for 5 consecutive days by oral gavage for adult labelling, as previously described (Sheng et al., 2015). Pregnant mice (E7.5) were injected once with 16 mg TAM for embryo labelling.

DT injection

Request a detailed protocol

DC-SIGN-DTRpos and DC-SIGN-DTRneg mice were injected intraperitoneally (i.p.) with 20 ng/g DT (Sigma-Aldrich) to deplete DC-SIGN-expressing cells. Two different DT injection protocols were used (Figure 7A). For the short-term depletion protocol, mice were injected i.p. at day −2 and −1 before collection of tissues. For the long-term protocol, DT was injected once a week over 5 weeks prior tissue collection.

Generation of BM chimeras

Request a detailed protocol

Chimeric mice were generated by irradiating recipient C57BL/6 or DC-SIGN-DTR mice (CD45.2+) with two doses of 550 cGy, 4 hr apart. Then, 106 B6.Ly5.1 (CD45.1+) BM cells were injected intravenously (i.v.), 24 hr after treatment. The mice were allowed to recover from 1 to 4 months before analysis.

Isolation of epidermal, dermal, and LN cells

Request a detailed protocol

Mouse ears were cut and separated into dorsal and ventral halves using fine forceps. Both the dorsal and ventral halves (with the epidermis side facing upwards) were incubated for 1 hr at 37°C in 1 ml IMDM (Thermo Fisher Scientific, Waltham, MA, USA) medium containing 1 U/ml Dispase II (Thermo Fisher Scientific). The epidermis and dermis were separated using fine forceps, cut into small pieces and digested for another 1 hr at 37°C in 1 mg/ml Collagenase D (Roche, Basel, Switzerland). To obtain single-cell suspensions, the digested tissue was passed through a 40 mm cell strainer. To process skin-draining auricular LNs, the dissected LNs were minced and incubated in 1 mg/ml collagenase D for 60 min at 37°C.

Antibodies

The following antibodies were used: anti-mouse CD45 (30-F11), anti-mouse CD11b (M1/70), anti-mouse F4/80 (BM8), anti-mouse Ly6c (HK1.4), anti-mouse CD11c (N418), anti-mouse I-A/I-E (M5/114.15.2), anti-mouse CD103 (2E7), anti-mouse CD326 (G8.8), anti-mouse CD207 (4C7), anti-mouse CD45.1 (A20), anti-mouse CD45.2 (104). They were purchased all from Biolegend (San Diego, CA, USA). Anti-mouse CD45 microbeads from Milteny (Bergisch Gladbach, Germany). All antibodies were used for extracellular stainings with the exception of the anti-CD207 Ab which was used for intracellular labelling after have fixed and permeabilized the cells with 2% paraformaldehyde and 0.05% saponin, respectively.

Flow cytometry analysis of skin-related DC subpopulations

Request a detailed protocol

Single-cell epidermal, dermal, or LN tissue suspensions were pre-incubated with 10 mg/ml anti-Fc receptor antibody (2.4G2) on ice for 20 min. Then, the suspensions were further incubated with fluorochrome-labelled antibodies at 4°C for 20 min, before being washed and re-suspended in PBS/2% FCS for analysis on a five-laser flow cytometer (LSR Fortessa; BD Bioscience, San Jose, CA, USA). The data were analysed with FlowJo software (TreeStar, Ashland, OR, USA) and UMAP analysis was performed using the FlowJo UMAP plugin.

scRNA-seq analysis

Request a detailed protocol

Immune cells were enriched using anti-mouse CD45 microbeads from dermal single-cell suspension. Briefly, enriched CD45+ dermal cells were loaded into chromium microfluidic chips with v3 chemistry and barcoded with a 10× Chromium Controller (10X Genomics, Pleasanton, CA, USA). RNA from the barcoded cells was subsequently reverse-transcribed and sequencing libraries constructed with reagents from a Chromium Single Cell v3 reagent kit (10X Genomics) according to the manufacturer’s instructions. Library sequencing was performed at Novogene Co., Ltd (Tianjin Novogene Technology Co., Tianjin, China) with Illumina HiSeq 2000 according to the manufacturer’s instructions (Illumina, San Diego, CA, USA).

Single-cell data analysis

Request a detailed protocol

FastQC was used to perform basic statistics on the quality of the raw reads. Raw reads were demultiplexed and mapped to the reference genome by 10X Genomics Cell Ranger pipeline using default parameters. All downstream single-cell analyses were performed using Cell Ranger and Seurat unless mentioned specifically. In brief, for each gene and each cell barcode (filtered by Cell Ranger), unique molecule identifiers were counted to construct digital expression matrices. Secondary filtration for Seurat analysis: a gene with expression in more than three cells was considered as expressed and each cell was required to have at least 200 expressed genes.

RNA-seq analysis

Request a detailed protocol

All mouse RNAs were analysed using an Agilent Bioanalyser (Agilent, Santa Clara, CA, USA). The RNA Integrity Number ranged from 3.4 to 9.3, with a median of 8.2. cDNA libraries were prepared from a range of 18, 24.2, 68, and 100 ng total RNA starting material using the Ovation Universal RNA-seq system. The length distribution of the cDNA libraries was monitored using a DNA High Sensitivity Reagent Kit on an Agilent Bioanalyser. All 11 samples were subjected to an indexed paired-end sequencing run of 2 × 100 bp on an Illumina Novaseq 6000 system (Illumina, San Diego, CA, USA).

The paired-end reads were trimmed with trim_galore1 (option: -q 20 –stringency 5 –paired). The trimmed paired-end reads were mapped to the Mouse GRCm38/mm10 reference genome using the STAR2 (version 2.6.0a) alignment tool with multi-sample two-pass mapping. Mapped reads were summarized to the gene level using featureCounts3 in the subread4 software package (version 1.4.6-p5) and with gene annotation from GENCODE release M19. DESeq25 was used to analyse differentially expressed genes, and significant genes were identified with Benjamini-Hochberg adjusted p-values<0.05. DESeq2 analysis was carried out in R version 3.5.2.

For functional analysis, hierarchical clustering based on Euclidean distance and complete linkage, was performed using the R ‘pheatmap’ package. PCA was performed using the R ‘prcomp’ package. The first two principal components were analysed on a multidimensional scatterplot that was created using the R ‘scatterplot 3D’ function.

Preparation and staining of epidermal sheets

Request a detailed protocol

DC-SIGN-DTRneg and DC-SIGN-DTR+ mice were treated for 2 days with DT. Ears were collected and split into dorsal and ventral halves and subsequently incubated with 3.8% ammonium thiocyanate (Sigma-Aldrich) in PBS for 20 min at 37°C. Epidermal and dermal sheets were separated and fixed in ice-cold acetone for 15 min. Then, the epidermal sheets were pre-incubated with 10 mg/ml anti-Fc receptor antibody (2.4G2) on ice for 20 min and subsequently stained with FITC-labelled anti-MHC class II antibody for a further 30 min on ice for LC visualization.

Quantitative real-time PCR

Request a detailed protocol

Ears were harvested and immediately homogenized in TRIzol reagent (Thermo Fisher Scientific). Total RNA was subsequently purified using the RNAsimple Total RNA kit (Tiangen Biotech Ltd, Beijing, China). Real-time PCR was performed according to the manufacturer’s instructions using the Primer design Precision FAST protocol (Primerdesign Ltd, Cambridge, UK).

In vitro maturation of LCs

Request a detailed protocol

F4/80hiCD326+ LCs were isolated from pooled murine epidermis sheets and purified by cell sorting (purity >90%). 5 × 104 LCs were immediately used for RNA processing, the remaining 5 × 104 LCs were cultured in a 96-well round bottom plate for 16 hr in presence of 20 ng/ml GM-CSF and 2 hr/ml LPS and processed the next day for RNA isolation.

Induction of CHS

Request a detailed protocol

WT and DC-SIGN DTR mice were injected with DT and 2 days later were sensitized with 1% DNFB dissolved in an acetone and olive oil mixture (4:1, v/v). DT injection was repeated for 7 days every 3–4 days to maintain the LC pool ablated. The ears of both WT and DC-SIGN DTR mice were challenged with 0.5% DNFB. Ear swelling was measured daily for 12 consecutive days post challenge. Another mouse group was sacrifized at day 3 post challenge for qPCR analysis and for dermal T-cell response analysis.

Induction of tolerance to CHS

Request a detailed protocol

WT, CD207-DTR, Clec9A-DTR, and DC-SIGN DTR mice were injected with DT every 3–4 days over a period of 20 days to maintain the depletion of the target cells (CD207-DTR: LC, cDC1, and LClike cells; Clec9A-DTR: cDC1 and DC-SIGN-DTR: LC and CD11bhi cells). All mouse strains were tolerized with a 100 μl volume of 1% DNTB (Sigma-Aldrich) in an acetone and olive oil mixture (AOO) (4:1, v/v), administered epicutaneously to the shaved abdomen. One group of WT mice was painted only with AOO as a control. After 7 days, all mouse strains were sensitized by skin painting the dorsal side of the ears with 0.5% DNFB (Sigma-Aldrich) (25 μl in AOO). Another group of mice was further ear-challenged 5 days later with 0.1% DNFB (4 μl in AOO), and ear swelling was measured using a digital caliper (Mitutoyo, Kanagawa, Japan) over the course of 6 days. In a second group of mice, the draining LNs were harvested at day 5 post tolerization/sensitization.

Analysis of T-cell responses

Request a detailed protocol

To determine the capacity of CD8+ T-cells to secrete IFN-γ, isolated cells were stimulated in a round-bottom 96-well culture plate (Corning, Corning, NY, USA) with 10 ng/ml phorbol 12,13-dibutyrate (PMA, Sigma-Aldrich) and 1 mg/ml Ionomycin (Sigma-Aldrich) in complete IMDM for 3 hr followed by an additional 2 hr incubation with 10 μg/ml Brefeldin A (Sigma-Aldrich) at 37°C. The cells were then harvested and stained for CD3 and CD8, fixed with 2% paraformaldehyde and permeabilized in 0.05% saponin (Sigma-Aldrich) before staining with anti-IFN-γ antibodies. To quantify activated Tregs, isolated cells were co-stained for CD4 and ICOS, fixed, and permeabilized using a Fix/Perm Buffer Set (eBioscience) before staining with an anti-Foxp3 antibody.

Statistics

The data represent the means ± SEM or SD, as indicated in the figure legends. GraphPad Prism software was used to display the data and for statistical analysis. Statistical tests were selected based on the appropriate assumptions with respect to data distribution and variance characteristics. All statistical tests are fully described in detail in the figure legends. Samples were analysed by two-tailed Student’s t-test to determine statistical differences between two groups. A two-way ANOVA with Bonferroni post-test was used to determine the differences between more than two groups. A p-value < 0.05 was considered to be statistically significant. The number of animals used per group is indicated in the figure legends as ‘n’.

Data availability

All RNA-sequencing data have been deposited in the Gene Expression Omnibus public database under accession number GSE139877. Single cell RNAseq have been deposited into NCBI SRA database with BioProject ID: PRJNA625270.

The following data sets were generated
    1. Wang L
    (2020) NCBI BioProject
    ID PRJNA625270. Langerhans cells do not migrate to draining lymph nodes.

References

    1. Langerhans P
    (1868) Ueber die nerven der menschlichen haut
    Archiv Für Pathologische Anatomie Und Physiologie Und Für Klinische Medicin 44:325–337.
    https://doi.org/10.1007/BF01959006

Decision letter

  1. Bernard Malissen
    Reviewing Editor; Centre d'Immunologie de Marseille-Luminy, Aix Marseille Université, France
  2. Carla V Rothlin
    Senior Editor; Yale School of Medicine, United States
  3. Nikolaus Romani
    Reviewer; Medical University of Innsbruck, Austria
  4. Matthew Collin
    Reviewer; Newcastle University, United Kingdom

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

The present study uses innovative approaches to further our knowledge of skin immunobiology. The corresponding results explain the expression of langerin on two fractions of dermal DC (CD103+ and CD103-) observed several years ago. The demonstration that epidermal LC do not contribute to LN populations in the steady state is completely unexpected and raises important question on the in vivo function of the LC-like subset unveiled in the present study.

Decision letter after peer review:

Thank you for submitting your article "Fate mapping analysis reveals a novel dermal migratory Langerhans-like cell population" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Carla Rothlin as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Nikolaus Romani (Reviewer #1); Matthew Collin (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

1. (a) Stain the new LC-like population for SIRP-alpha (as this was an important marker in Sandrine Henri's 2010 analyses) and (b) assess DC-SIGN protein expression in immature and mature epidermal Langerhans cells by FACS. There are no clear data in the literature regarding DC-SIGN expression on mouse Langerhans cells. The expression of DC-SIGN on mouse Langerhans cells will thus constitute a divergence with human Langerhans cells. Fixing these two points require simple FACS analyses.

2. Perform more in-depth analysis of the single cell data to better probe the relationship of the LC-like subset with LC.

3. Provide information on the proliferation of the LC-like subset. To give rise to such a substantial LN population, the LC-like subset is expected to have a fast turnover. Analysis of the single cell data or a FACS experiment documenting cell cycle markers can contribute to solve this important issue.

Reviewer #1 (Recommendations for the authors (required)):

I have some questions for clarifications. Most of the answers will be in the authors' existing files. I suggest two limited set of additional simple (FACS) experiments (see my points #3 and 4) to strengthen the conclusions.

1. Some questions and remarks to Figure 1 – flow cytometry analyses. Answers can easily be provided.

1a. For how many experiments are the FACS plots in Figure 1 representative?

1b. Where are – in Figure 1B dermis – the LC-like cells when backgating onto the F4/80 vs.CD11b plot? Just beneath the LC gate? In other words, how high is the level of F4/80 on the LC-like cells?

1c. Figure 1C. Lymph node. F4/80 vs. CD11b. Is this necessary at all? The gate does not really exclude many cells from further analysis. What is the rationale?

2. Figure 2: Single-cell analyses are interesting and the separate population is convincing. In Figure 2C, however, one cannot really see differences between LCs and LC-like cells. Would the difference in F4/80 expression be mirrored in these plots? Could they be shown? Likewise, maturation marker expression would be informative. Looks like these maturation markers are less expressed in the LC-like cells in panel D – correct? Please provide more information on this point.

3. The authors refer to Henri et al., 2010 in the JEM. Indeed, their populations conform to each other nicely. One marker, though, may be of additional importance, epecially since the authors are referring to that work several times. SIRP-α. Henri in Table I has it on "LC in transit" in the dermis. It discriminates these transiting LCs from the other langerin+ dermal populations. It would therefore be highly valuable to know about the status of this surface antigen on the populations in the dermis and the lymph node.

4. DC-SIGN-DTR mice – Figures 6 and S2. This new mouse model is as yet unpublished. Little if nothing is known about DC-SIGN/CD209 expression on mouse Langerhans cells. Here, the authors show "only" mRNA expression. Could it be possible that LC might down-regulate DC-SIGN surface protein expression upon maturation and in vivo migration? If so, this could explain why LC-like cells are spared from the toxic effect of DT. However, if this is not the case, it would reinforce the authors' conclusions. To determine this would be experimentally very easy: DC-SIGN antibody staining of freshly isolated epidermal LC versus LC cultured for 2 or 3 days – no need to enrich, bulk culture together with keratinocytes suffices – counterstain with langerin or MHC-II. I think this is also important to establish since human LC are clearly DC-SIGN-negative.

Reviewer #2 (Recommendations for the authors (required)):

The study uses a range of incisive and complementary technologies to delineate LC-like cells as distinct from epidermal LC, migratory LC and langerin+ cDC1. It is very well written, easy to follow and presents an interesting discussion showing how the current work fits with previous descriptions of murine dermal DC.

1. The dual origin of the LC-like cell (page 7 and figure 4) was inferred from BM chimera experiments in which there was incomplete turnover to donor origin within 4 months. However, this is completely consistent with simple slow kinetics as then demonstrated in the next section (page 8 and figure 5). I do not think that 50% turnover at 4 months following transplantation supports a 'dual origin' if one is considering HSC origin. The language 'dual origin' is confusing because this terminology is in use to describe primitive yolk sac and definitive HSC contributions to LC and macrophage populations. The authors do explain this in the discussion that their use of dual means 'fetal and adult' but this is again a kinetic rate of replacement issue from HSC rather than a critical distinction between primitive yolk sac and definitive HSC. I make this point also because the preceding section (page 6 and Figure 3) shows that the % yolk sac contribution to LC-like cells matches that of HSC-derived DC and is distinct from LC with their small yolk sac contribution. In this sense, the LC-like cell has the same single origin from HSC as other DC. It is just replaced at a slower rate.

2. Proliferation is a major variable that is missing from the data. Could the authors derive this from the single cell RNAseq? In situ proliferation possibly accounts for slow replacement kinetics of LC-like cells yet their substantial contribution to the LN populations. If they are not continually supplied by in situ proliferation in the tissues then presumably LC-like cells must also have an extended life in the LN, compared with other DC?

3. The authors could also do more with their single cell data to define the differences between LC-like and LC. A host of upregulated genes is depicted in Figure 2 in addition to DC-SIGN and TGFB2 but do these define certain pathways or transcription factor signatures?

4. Relate to this is it possible to probe similarities or differences between LC-like cells and other DC? Specifically, the data in 2A could be re-clustered taking only LC and DC which might potentially resolve cDC1 and cDC2 within DC/mono. This is relevant because the discussion about the equivalent human DC misses several studies on langerin expression in cDC2 detectable as mRNA in the blood, in cDC2 inhabiting the dermis and inducible to the same level as LC with TSLP/GM-CSF and TGFb. E.g PMID 25114264, 25352125, 25516751. LC-like cells may be directly comparable with human langerin+ DC (a cDC2) that are neither LC nor cDC1 (25516751). If there is insufficient resolution in the SC RNAseq data then another 6 mice/one lane of 10X might suffice. Without wanting to speculate too much, this relationship between cDC2 and LC may indicate a latent precursor function of cDC2 in humans and in mice (the non-monocyte LC precursor observed in several murine studies).

5. Given that there are about 3-4 times as many migratory LC as LC-like cells in the dermis (Figure 2A) and LC do not appear in the LN then where do they go?

https://doi.org/10.7554/eLife.65412.sa1

Author response

Essential Revisions:

1. (a) Stain the new LC-like population for SIRP-alpha (as this was an important marker in Sandrine Henri's 2010 analyses) and (b) assess DC-SIGN protein expression in immature and mature epidermal Langerhans cells by FACS. There are no clear data in the literature regarding DC-SIGN expression on mouse Langerhans cells. The expression of DC-SIGN on mouse Langerhans cells will thus constitute a divergence with human Langerhans cells. Fixing these two points require simple FACS analyses.

In a new Figure 1- figure 1A supplement, we have included flow cytomentry stainings showing Sirpa (1) and DC-SIGN (2) expression profiles in epidermal LC and dermal LC as well as in dermal LClike and the other three “classical” DC subpopulations.

1. Differently than Henri’s results, dermal LClike cells express Sirpa although at lower levels than the dermal LC counterparts.

2. Although flow cytometry analysis does not visualise DC-SIGN on the cell surface of LCs, our scRNAseq and qPCR analysis show the presence of DC-SIGN specific mRNA which drives the depletion of LCs in the DC-SIGN-DTR mouse. See also our answer to point 4 (Reviewer #1). We have included and discussed these new data in our revised manuscript

2. Perform more in-depth analysis of the single cell data to better probe the relationship of the LC-like subset with LC.

To elucidate the relationship between LC and LClike cells we have included an additional scRNAseq analysis for DC/LC/macrophage specific transcription factors as well as specific myeloid receptors expressed by LCs (Figure 3 and Figure 3- figure 1 supplement).

3. Provide information on the proliferation of the LC-like subset. To give rise to such a substantial LN population, the LC-like subset is expected to have a fast turnover. Analysis of the single cell data or a FACS experiment documenting cell cycle markers can contribute to solve this important issue.

We have added this new information as Figure 6- figure 1 supplement. Please also see our reply to reviewer #2 major point #2.

Reviewer #1 (Recommendations for the authors (required)):

I have some questions for clarifications. Most of the answers will be in the authors' existing files. I suggest two limited set of additional simple (FACS) experiments (see my points #3 and 4) to strengthen the conclusions.

1. Some questions and remarks to Figure 1 – flow cytometry analyses. Answers can easily be provided.

1a. For how many experiments are the FACS plots in Figure 1 representative?

This particular staining was repeated many times over the last years and reproduced also in other laboratories such as at the Malaghan Institute in Wellington, NZ. The LClike cell fraction can be visualized by different gating strategies, one of them is represented in Figure 1. Author response image 1 shows the gating strategy used at the Malaghan Institute giving the same result.

Author response image 1

1b. Where are – in Figure 1B dermis – the LC-like cells when backgating onto the F4/80 vs.CD11b plot? Just beneath the LC gate? In other words, how high is the level of F4/80 on the LC-like cells?

To clarify this point (down-regulation of F4/80 and CD11b on LClike DCs), we have not included a new Figure 1—figure supplement 2. Here we have used a Langerin eGFP mouse and backgated the GFP positive cells obtained from epidermis, dermis and LNs. Clearly the dermal CD326+CD207+ cells consists of two subpopulations (one F4/80highCD11bhigh and a F4/80intCD11bint)

1c. Figure 1C. Lymph node. F4/80 vs. CD11b. Is this necessary at all? The gate does not really exclude many cells from further analysis. What is the rationale?

This F4/80 versus CD11b dot plot was included to make sure to gate out any possible F4/80hi cell, although we agree they are almost not present in the LN. As advised, we have taken away this first level of back-gating.

2. Figure 2: Single-cell analyses are interesting and the separate population is convincing. In Figure 2C, however, one cannot really see differences between LCs and LC-like cells. Would the difference in F4/80 expression be mirrored in these plots? Could they be shown? Likewise, maturation marker expression would be informative. Looks like these maturation markers are less expressed in the LC-like cells in panel D – correct? Please provide more information on this point.

We have included a violin plot for the F4/80 (Adgre1) expression (new Figure 3, figure 1 supplement). Clearly lower mRNA expression in dermal LClike cells mirrors the lower F4/80 surface expression analysed by flow cytometry. We have added also CD80 and CD86 surface expression on epidermal LCs, dermal LCs and dermal LClike (new Figure 1, figure supplement 1A)

3. The authors refer to Henri et al., 2010 in the JEM. Indeed, their populations conform to each other nicely. One marker, though, may be of additional importance, epecially since the authors are referring to that work several times. SIRP-alpha. Henri in Table I has it on "LC in transit" in the dermis. It discriminates these transiting LCs from the other langerin+ dermal populations. It would therefore be highly valuable to know about the status of this surface antigen on the populations in the dermis and the lymph node.

We have now included the expression profile for SIRP-alpha for epidermal LC and for all five dermal DC subpopulations (new Figure 1, figure supplement 1 A).

4. DC-SIGN-DTR mice – Figures 6 and S2. This new mouse model is as yet unpublished. Little if nothing is known about DC-SIGN/CD209 expression on mouse Langerhans cells. Here, the authors show "only" mRNA expression. Could it be possible that LC might down-regulate DC-SIGN surface protein expression upon maturation and in vivo migration? If so, this could explain why LC-like cells are spared from the toxic effect of DT. However, if this is not the case, it would reinforce the authors' conclusions. To determine this would be experimentally very easy: DC-SIGN antibody staining of freshly isolated epidermal LC versus LC cultured for 2 or 3 days – no need to enrich, bulk culture together with keratinocytes suffices – counterstain with langerin or MHC-II. I think this is also important to establish since human LC are clearly DC-SIGN-negative.

We have never claimed that LCs are expressing DC-SIGN on their cell surface and, in fact, we could never see a positive staining with all tested DC-SIGN/CD209 antibodies (now shown in Figure 1—figure supplement 1 B). However our scRNA seq as well as qPCR data show that Cd209a is expressed at mRNA levels in LCs. Although the DC-SIGN is undetectable on the LC cell surface the mRNA expression levels are still enough to drive the expression of hHB-EGF, the engineered ligand for the Diphteria toxin. Relevant qPCR data are now added to the Figure 7—figure supplement 1 C. This result explains why LCs are depleted in this DC-SIGN DTR- transgenic mouse model although they do not express the receptor on their cell surface.

To address the raised point of DC-SIGN downregulation upon maturation, we have sorted F4/80hi/EPCAM+ LCs from epidermis of 20 pooled ear preparations and cultivated them overnight in a 96-well round bottom plate in presence of 20 ng/ml GM-CSF and 2 ng/ml LPS and extracted the RNA the subsequent day. Same sorting was repeated for the unstimulated LCs. qPCR analysis showed that “activated” LCs did not down regulate DC-SIGN (Cd209a) mRNA and therefore we can exclude a down-regulation of this receptor upon maturation.

Reviewer #2 (Recommendations for the authors (required)):

The study uses a range of incisive and complementary technologies to delineate LC-like cells as distinct from epidermal LC, migratory LC and langerin+ cDC1. It is very well written, easy to follow and presents an interesting discussion showing how the current work fits with previous descriptions of murine dermal DC.

1. The dual origin of the LC-like cell (page 7 and figure 4) was inferred from BM chimera experiments in which there was incomplete turnover to donor origin within 4 months. However, this is completely consistent with simple slow kinetics as then demonstrated in the next section (page 8 and figure 5). I do not think that 50% turnover at 4 months following transplantation supports a 'dual origin' if one is considering HSC origin. The language 'dual origin' is confusing because this terminology is in use to describe primitive yolk sac and definitive HSC contributions to LC and macrophage populations. The authors do explain this in the discussion that their use of dual means 'fetal and adult' but this is again a kinetic rate of replacement issue from HSC rather than a critical distinction between primitive yolk sac and definitive HSC. I make this point also because the preceding section (page 6 and Figure 3) shows that the % yolk sac contribution to LC-like cells matches that of HSC-derived DC and is distinct from LC with their small yolk sac contribution. In this sense, the LC-like cell has the same single origin from HSC as other DC. It is just replaced at a slower rate.

We amended accordingly and have taken away dual origin.

2. Proliferation is a major variable that is missing from the data. Could the authors derive this from the single cell RNAseq? In situ proliferation possibly accounts for slow replacement kinetics of LC-like cells yet their substantial contribution to the LN populations. If they are not continually supplied by in situ proliferation in the tissues then presumably LC-like cells must also have an extended life in the LN, compared with other DC?

Skin (epidermis and dermis) host distinct DC subpopulations in specific niches where innate and environmental factors control DC life span, turn-over, in situ proliferation and their numbers.

As suggested by the reviewer, cell cycle analysis was performed based on the scRNA-seq data, LClike cell did show a higher portion of proliferative cells compared to other macrophage and DC subsets within dermis (new Figure 6, figure supplement 1). LCs are known as long lived tissue resident macrophages of epidermis showing only few actively dividing cells. DCs, such as cDC1, TN DC and CD11bhi DCs are short lived cells with fast turn-over (Ruedl et al., 2000), therefore compensation of DCs in the tissue depends on the contribution of their BM progenitors. While LClike cells with a slower turnover kinetics exhibit higher proliferating capability to refill the emigration gap.

3. The authors could also do more with their single cell data to define the differences between LC-like and LC. A host of upregulated genes is depicted in Figure 2 in addition to DC-SIGN and TGFB2 but do these define certain pathways or transcription factor signatures?

We have included now a detailed profiling of different transcription factors and representative myeloid and DC/LC-related molecules comparing 8 distinct dermal LC, LClike and other DC and macrophage subpopulations (Figure 3, figure supplement 1).

4. Relate to this is it possible to probe similarities or differences between LC-like cells and other DC? Specifically, the data in 2A could be re-clustered taking only LC and DC which might potentially resolve cDC1 and cDC2 within DC/mono. This is relevant because the discussion about the equivalent human DC misses several studies on langerin expression in cDC2 detectable as mRNA in the blood, in cDC2 inhabiting the dermis and inducible to the same level as LC with TSLP/GM-CSF and TGFb. E.g PMID 25114264, 25352125, 25516751. LC-like cells may be directly comparable with human langerin+ DC (a cDC2) that are neither LC nor cDC1 (25516751). If there is insufficient resolution in the SC RNAseq data then another 6 mice/one lane of 10X might suffice. Without wanting to speculate too much, this relationship between cDC2 and LC may indicate a latent precursor function of cDC2 in humans and in mice (the non-monocyte LC precursor observed in several murine studies).

We have analysed our scRNAseq data of dermal LC/LClike/DC and macrophage subpopulations for transcription factors involved in DC and macrophage development and included the results in new Figure 3 and Figure 3—figure supplement 1. Clearly LC and LClike cells a very similar although some of the TFs (Id2, Klf4, Runx2 and 3, Stat3), are higher expressed in LClike cells, whereas pu.1 is higher expressed in LC. TFs highly expressed in conventional DCs such as Flt3 (cDC1, cDC2, TN), Irf 8 (cDC1), Zeb2 (cDC2) are expressed in LClike cells but not at the level of DCs, therefore we postulate their independent lineage. Obviously further experiments will be required using specific TF KO mice (currently not available in our laboratory) to profile the TF network involved in the LClike development. We have added this in the discussion part and cited the relevant published work about human langerin+ cDC2 cells.

5. Given that there are about 3-4 times as many migratory LC as LC-like cells in the dermis (Figure 2A) and LC do not appear in the LN then where do they go?

Currently we do not know and can only speculate. We favour the hypothesis that LCs, at least at steady state, similar to other tissue-resident macrophages, are sessile and act locally in the skin and our in vivo functional data show that LC are one of the main immunosuppressive regulators within the skin.

https://doi.org/10.7554/eLife.65412.sa2

Article and author information

Author details

  1. Jianpeng Sheng

    1. Zhejiang Provincial Key Laboratory of Pancreatic Disease, The First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China
    2. Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
  2. Qi Chen

    Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0658-7629
  3. Xiaoting Wu

    Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0281-8717
  4. Yu Wen Dong

    Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Johannes Mayer

    Malaghan Institute of Medical Research, Wellington, New Zealand
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6225-7803
  6. Junlei Zhang

    Zhejiang Provincial Key Laboratory of Pancreatic Disease, The First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  7. Lin Wang

    Zhejiang Provincial Key Laboratory of Pancreatic Disease, The First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  8. Xueli Bai

    Zhejiang Provincial Key Laboratory of Pancreatic Disease, The First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  9. Tingbo Liang

    Zhejiang Provincial Key Laboratory of Pancreatic Disease, The First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  10. Yang Ho Sung

    Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  11. Wilson Wen Bin Goh

    Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Supervision
    Competing interests
    No competing interests declared
  12. Franca Ronchese

    Malaghan Institute of Medical Research, Wellington, New Zealand
    Contribution
    Supervision
    Competing interests
    No competing interests declared
  13. Christiane Ruedl

    Nanyang Technological University, School of Biological Sciences, Singapore, Singapore
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    ruedl@ntu.edu.sg
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5599-6541

Funding

Ministry of Education - Singapore (Tier1)

  • Christiane Ruedl

Health Research Council of New Zealand (Independent Research Organisation grant)

  • Franca Ronchese

National Key R&D Program of China (2019YFA0803000)

  • Jianpeng Sheng

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank Monika Tetlak for mouse management, Su I-hsin and Lim Jun Feng Thomas, for technical advice and Insight Editing London for proofreading the manuscript prior to submission. This work was supported by Ministry of Education Tier1 grant awarded to CR and by the National Key R and D Program of China (Grant 2019YFA0803000) assigned to JS. Work at the MIMR was supported by an Independent Research Organisation Work at the MIMR was supported by a Health Research Council of New Zealand Independent Research Organisation grant to the Malaghan Institute of Medical Research awarded to the Malaghan Institute of Medical Research from the Health Research Council of New Zealand.

Ethics

Animal experimentation: All studies involving mice in Singapore were carried out in strict accordance with the recommendations of the National Advisory Committee for Laboratory Animal Research and all protocols were approved by the Institutional Animal Care and Use Committee of the Nanyang Technological University (ARF-SBS/NIE A-0133; A-0257; A0126, A-18081). For animal work performed in New Zealand, experimental protocols were approved by the Victoria University of Wellington Animal Ethics Committee and performed in accordance with institutional guidelines.

Senior Editor

  1. Carla V Rothlin, Yale School of Medicine, United States

Reviewing Editor

  1. Bernard Malissen, Centre d'Immunologie de Marseille-Luminy, Aix Marseille Université, France

Reviewers

  1. Nikolaus Romani, Medical University of Innsbruck, Austria
  2. Matthew Collin, Newcastle University, United Kingdom

Publication history

  1. Received: December 3, 2020
  2. Accepted: March 25, 2021
  3. Accepted Manuscript published: March 26, 2021 (version 1)
  4. Version of Record published: May 10, 2021 (version 2)

Copyright

© 2021, Sheng et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 804
    Page views
  • 146
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Immunology and Inflammation
    2. Medicine
    Daniela Fraccarollo et al.
    Research Article Updated

    Immature neutrophils and HLA-DRneg/low monocytes expand in cancer, autoimmune diseases and viral infections, but their appearance and immunoregulatory effects on T-cells after acute myocardial infarction (AMI) remain underexplored. We found an expansion of circulating immature CD16+CD66b+CD10neg neutrophils and CD14+HLA-DRneg/low monocytes in AMI patients, correlating with cardiac damage, function and levels of immune-inflammation markers. Immature CD10neg neutrophils expressed high amounts of MMP-9 and S100A9, and displayed resistance to apoptosis. Moreover, we found that increased frequency of CD10neg neutrophils and elevated circulating IFN-γ levels were linked, mainly in patients with expanded CD4+CD28null T-cells. Notably, the expansion of circulating CD4+CD28null T-cells was associated with cytomegalovirus (CMV) seropositivity. Using bioinformatic tools, we identified a tight relationship among the peripheral expansion of immature CD10neg neutrophils, CMV IgG titers, and circulating levels of IFN-γ and IL-12 in patients with AMI. At a mechanistic level, CD10neg neutrophils enhanced IFN-γ production by CD4+ T-cells through a contact-independent mechanism involving IL-12. In vitro experiments also highlighted that HLA-DRneg/low monocytes do not suppress T-cell proliferation but secrete high levels of pro-inflammatory cytokines after differentiation to macrophages and IFN-γ stimulation. Lastly, using a mouse model of AMI, we showed that immature neutrophils (CD11bposLy6GposCD101neg cells) are recruited to the injured myocardium and migrate to mediastinal lymph nodes shortly after reperfusion. In conclusion, immunoregulatory functions of CD10neg neutrophils play a dynamic role in mechanisms linking myeloid cell compartment dysregulation, Th1-type immune responses and inflammation after AMI.

    1. Genetics and Genomics
    2. Immunology and Inflammation
    Hyeogsun Kwon et al.
    Research Article

    Mosquito immune cells, known as hemocytes, are integral to cellular and humoral responses that limit pathogen survival and mediate immune priming. However, without reliable cell markers and genetic tools, studies of mosquito immune cells have been limited to morphological observations, leaving several aspects of their biology uncharacterized. Here, we use single-cell RNA sequencing (scRNA-seq) to characterize mosquito immune cells, demonstrating an increased complexity to previously defined prohemocyte, oenocytoid, and granulocyte subtypes. Through functional assays relying on phagocytosis, phagocyte depletion, and RNA-FISH experiments, we define markers to accurately distinguish immune cell subtypes and provide evidence for immune cell maturation and differentiation. In addition, gene-silencing experiments demonstrate the importance of lozenge in defining the mosquito oenocytoid cell fate. Together, our scRNA-seq analysis provides an important foundation for future studies of mosquito immune cell biology and a valuable resource for comparative invertebrate immunology.
