Sustained expression of unc-4 homeobox gene and unc-37/Groucho in postmitotic neurons specifies the spatial organization of the cholinergic synapses in C. elegans

  1. Mizuki Kurashina
  2. Jane Wang
  3. Jeffrey Lin
  4. Kathy Kyungeun Lee
  5. Arpun Johal
  6. Kota Mizumoto  Is a corresponding author
  1. Department of Zoology, University of British Columbia, Canada
  2. Graduate Program in Cell and Developmental Biology, University of British Columbia, Canada
  3. Life Sciences Institute, University of British Columbia, Canada
  4. Djavad Mowafaghian Centre for Brain Health, University of British Columbia, Canada
Research Article
  • Cited 0
  • Views 458
  • Annotations
Cite this article as: eLife 2021;10:e66011 doi: 10.7554/eLife.66011

Abstract

Neuronal cell fate determinants establish the identities of neurons by controlling gene expression to regulate neuronal morphology and synaptic connectivity. However, it is not understood if neuronal cell fate determinants have postmitotic functions in synapse pattern formation. Here we identify a novel role for UNC-4 homeobox protein and its corepressor UNC-37/Groucho, in tiled synaptic patterning of the cholinergic motor neurons in Caenorhabditis elegans. We show that unc-4 is not required during neurogenesis but is required in the postmitotic neurons for proper synapse patterning. In contrast, unc-37 is required in both developing and postmitotic neurons. The synaptic tiling defects of unc-4 mutants are suppressed by bar-1/β-catenin mutation, which positively regulates the expression of ceh-12/HB9. Ectopic ceh-12 expression partly underlies the synaptic tiling defects of unc-4 and unc-37 mutants. Our results reveal a novel postmitotic role of neuronal cell fate determinants in synapse pattern formation through inhibiting the canonical Wnt signaling pathway.

Introduction

Formation of a functional neuronal circuit starts from the establishment of individual neuronal identities. The establishment and maintenance of neuronal cell fates are governed by a series of transcription factors called neuronal cell fate determinants. These neuronal cell fate determinants regulate the gene expression profile that defines the functional traits and properties of the neuron, such as neurotransmitter choice and neuronal morphology (Allan and Thor, 2015; Hobert, 2016; Hobert and Kratsios, 2019). For example, a conserved LIM (LIN-11, Isl-1, MEC-3) homeobox transcription factor Isl1 determines cholinergic neuronal cell fates in the mice and chick spinal cord and hindbrain (Cho et al., 2014; Ericson et al., 1992; Liang et al., 2011; Pfaff et al., 1996; Tsuchida et al., 1994). Similarly, the Drosophila homolog of the vertebrate Isl1, islet, specifies motor neurons and interneurons in the ventral nerve cord (Thor and Thomas, 1997). Furthermore, the HB9/MNR2 transcription factor is required for the differentiation and specification of motor neurons in chick and mice (Arber et al., 1999; Tanabe et al., 1998). In Caenorhabditis elegans, MEC-3 and UNC-86, which are LIM and POU (Pit-1/Oct1/2/UNC-86) homeobox proteins, respectively, function cooperatively to specify the glutamatergic mechanosensory neurons (Duggan et al., 1998; Finney et al., 1988; Way and Chalfie, 1988; Xue et al., 1993).

Interestingly, many neuronal cell fate determinants are continuously expressed in postmitotic neurons (Deneris and Hobert, 2014). Consistent with this sustained expression, several studies have shown that neuronal cell fate determinants are crucial for the neuronal maturation and maintenance of the respective cell fates. For example, the ETS (Erythroblast Transformation Specific) domain transcription factor PET-1, which determines the serotonergic neuronal fates in the Raphe nuclei of the brainstem of mice, is continuously expressed (Hendricks et al., 1999) and controls the neuronal maturation of serotonergic neurons via controlling the expression of the neuronal maturation factor, Engrailed 1 (Wyler et al., 2016). In C. elegans, the COE (Collier/Olf/EBF) type transcription factor, UNC-3, is required for both specification and maintenance of the cholinergic motor neuron identities (Kerk et al., 2017; Kratsios et al., 2012). The POU homeobox protein UNC-86 and its mammalian ortholog, BRN3A, are required for the maintenance of the cell fates of several sensory neurons in C. elegans and the medial habenular neurons in the diencephalon of mice (Serrano-Saiz et al., 2018).

Several studies have also revealed the role of neuronal cell fate determinants in neuronal wiring and synaptic specificity. For example, Drosophila HB9 is required in a subset of ventrally projecting motor neurons and the serotonergic EW1, EW2, and EW3 interneurons for axon pathfinding and target specificity (Odden et al., 2002). In C. elegans, in the mutants of unc-55, which encodes an ortholog of COUP-TF (chicken ovalbumin upstream promoter transcription factor), the ventrally innervating D-class (VD) GABAergic motor neurons innervate the dorsal body wall muscles instead of the ventral body wall muscles, due to the ectopic expression of the genes which are normally expressed only in the dorsally innervating D-class (DD) neurons (Howell et al., 2015; Shan et al., 2005; Zhou and Walthall, 1998). In unc-3 mutants, the AVA interneurons lose the majority of the synaptic connections with the genuine targets and, in turn, form ectopic synaptic connections with unidentified neurons (Pereira et al., 2015). While functions of neuronal cell fate determinants in neuronal wiring and synaptic specificity have been identified, little is known about the postmitotic roles of neuronal cell fate determinants in neuronal wiring.

The paired-type homeobox transcription factor, UNC-4, specifies the ventral and dorsal A-type cholinergic motor neurons (VAs and DAs) by repressing the alternative B-type neuronal fates (VBs and DBs) in C. elegans (Kerk et al., 2017; Kratsios et al., 2012; Winnier et al., 1999). The repression of the B-type fates requires the physical interaction between UNC-4 and the Groucho-like transcriptional corepressor, UNC-37, to repress the expression of B-type-specific genes such as acr-16/nicotinic acetylcholine receptor and acr-5/acetylcholine receptor α-like subunit (Kerk et al., 2017; Winnier et al., 1999). While the loss of unc-4 and unc-37 and the subsequent ectopic expression of B-type genes does not alter the morphology of A-type motor neurons, this results in the altered connectivity of the A-type motor neurons from the upstream command interneurons (Miller et al., 1992; White et al., 1992). In wild-type animals, the VA motor neurons receive presynaptic input from the AVA command interneurons (White et al., 1986). However, in the loss of function mutants of unc-4 and unc-37, the VA neurons do not form synaptic connections with the AVA interneurons but instead form synaptic connections with the AVB command interneurons, which normally innervate the VB motor neurons (Miller et al., 1992; White et al., 1992; Winnier et al., 1999). Temporal knockdown experiments using a temperature-sensitive mutant of unc-4 showed that it is required for proper AVA>VA connectivity, primarily in the late first larval (L1) stage when the VA neurons are born, suggesting that this miswiring is likely due to the partial cell fate transformation of the A-type motor neurons to the B-type motor neurons (Miller et al., 1992). However, the knockdown of unc-4 at L2-L3 also caused partial AVA>VA wiring defect, suggesting that unc-4 is also required after the AVA>VA wiring completes. This observation implies that unc-4 also functions in the maintenance of AVA>VA synaptic connection (Miller et al., 1992). Recent work in Drosophila has identified the role of Unc-4 to promote cholinergic fate and to inhibit GABAergic fate during development (Lacin et al., 2020), suggesting a conserved role of unc-4 in neuronal cell fate specification.

In this study, we report a novel postmitotic role for unc-4 and unc-37 in precise synapse pattern formation in the DA class cholinergic motor neurons. DA neurons exhibit a unique ‘tiled’ synaptic innervation pattern, in which the synaptic domain of a DA neuron does not overlap with those from the neighboring DA neurons (White et al., 1976Figure 1A). Previously, we have shown that the interaxonal interaction between two DA neurons (DA8 and DA9) mediated by Semaphorin–Plexin signaling establishes the synaptic tiling of DA8 and DA9 (Chen et al., 2018; Mizumoto and Shen, 2013a). In the loss of function mutants of unc-4 and unc-37, we show that the tiled synaptic innervation between DA8 and DA9 is severely disrupted, similar to the mutants of Semaphorin-Plexin signaling components. Surprisingly, temporal knockdown of unc-4 using unc-4 temperature-sensitive mutants and the auxin-inducible degron (AID) system showed that unc-4 is required for synaptic tiling in the postmitotic DA neurons, but not required during the development of DA neurons. On the other hand, unc-37 is required in both the developing DA neurons and the postmitotic DA neurons. Interestingly, the expression patterns of A-type and B-type cholinergic neuronal cell fate markers are largely unaffected in the DA8 and DA9 neurons of unc-4 and unc-37 mutants, suggesting that the synaptic tiling defects in unc-4 and unc-37 are less likely due to the secondary defects of the cell fate determination. We also found that the Wnt-induced ectopic expression of ceh-12 homeobox gene underlies, at least in part, the synaptic tiling defects of unc-4 mutants. Taken together, we provide the postmitotic roles of cell fate determinants in precise synapse pattern formation.

Figure 1 with 4 supplements see all
unc-4 and unc-37 are required for tiled synaptic innervation of DA8 and DA9 neurons.

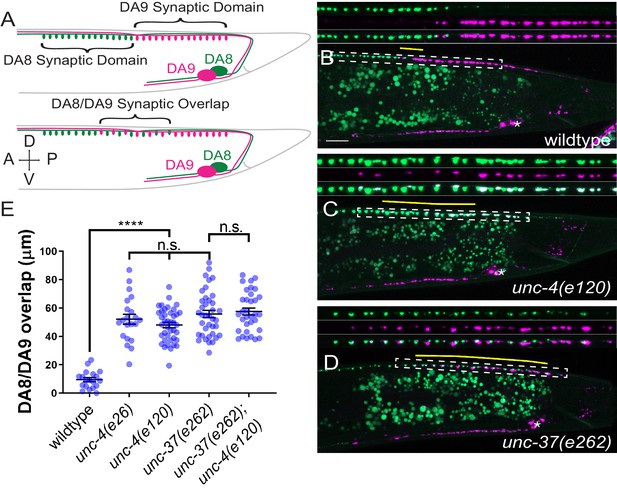

(A) Schematic of the tiled innervation between DA8 and DA9 neurons of wild-type (top) and synaptic tiling mutants (bottom). (B–D) Representative images of synaptic tiling in wildtype (B), unc-4(e120) (C), and unc-37(e262) (D) mutants. Magnified images (represented by the dotted box) of GFP, mCherry, and merged channels shown above. Synaptic overlap between the DA8 and DA9 synaptic domains are highlighted with yellow lines. Asterisks: DA9 cell body. Scale bar: 10 μm. (E) Quantification of overlap between DA8 and DA9 synaptic domains. See Figure 1—source data 1. Each dot represents a single animal. Black bars indicate mean ± SEM. n.s.: not significant; *: p<0.05; ****: p<0.0001.

Figure 1—source data 1

Quantification of overlap between DA8 and DA9 synaptic domains.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig1-data1-v1.xlsx

Results

unc-4 homeobox gene and unc-37/Groucho are required for the synaptic patterning of DA8 and DA9 neurons

The DA neurons extend axons within the dorsal nerve cord, where they form en passant synapses at specific subaxonal regions onto the dorsal body wall muscles (White et al., 1976). Previous electron microscopy reconstruction and fluorescent microscopy has revealed the tiled synaptic innervation pattern between neighboring DA neurons: the axonal region with synapses (synaptic domain) of a DA neuron does not overlap with those of its neighboring DA neurons (Chen et al., 2018; Mizumoto and Shen, 2013a; White et al., 1976). In this study we generated a new transgene (mizIs3) with improved color contrast between the two most posterior DA neurons, DA8 and DA9, under the fluorescent microscope. mizIs3 expresses the synaptic vesicle-associated protein, RAB-3, fused with a brighter GFP variant (GFPnovo2) (Hendi and Mizumoto, 2018) and ZF1 degron sequences (Armenti et al., 2014) in all DA neurons. It also expresses mCherry::RAB-3 and ZIF-1 in DA9. The expression of ZIF-1 in the DA9 neuron results in the ubiquitin-mediated protein degradation of ZF1::GFPnovo2::RAB-3, thereby allowing DA8 and DA9 synapses to be labeled in green and red, respectively (see experimental procedures) (Figure 1A). As previously described, DA8 and DA9 exhibited tiled synaptic innervation with minimal overlap in wild-type animals (Figure 1BChen et al., 2018; Mizumoto and Shen, 2013a).

In unc-4(e120) null mutants, we found significant overlap between the DA8 and DA9 synaptic domains: the synapses of DA8 and DA9 are intermingled in the region of overlap (Figure 1C,E). We noticed that the degradation of ZF1::GFPnovo2::RAB-3 was incomplete and mCherry::RAB-3 expression was slightly weaker in DA9 neurons of unc-4 mutants (Figure 1C). This is likely due to the reduced activity of the mig-13 promoter used to express ZIF-1 and mCherry::RAB-3 (see below). Indeed, the synaptic pattern of DA8 and DA9 in unc-4(e120); mizIs3 resembled that of unc-4(e120); wyIs446, which carries another synaptic tiling marker (wyIs446) we used in our previous work (Chen et al., 2018). wyIs446 transgene does not use the ZIF-1/ZF1 degradation system, and DA9 synapses are labeled with both GFP- and mCherry-fused RAB-3 (Figure 1—figure supplement 1A). In both synaptic tiling markers, mCherry::RAB-3 puncta colocalized with green fluorescent signal in unc-4 mutants (Figure 1—figure supplement 1B,C). Therefore, the synaptic tiling defects of unc-4 is not due to the compromised ZIF-1/ZF1 degron system. To exclude the possibility that the anteriorly extended DA9 synaptic domain judged by the mCherry RAB-3 in unc-4 mutants is due to the misexpression of mCherry::RAB-3 in DA8, we examined the mCherry::RAB-3 signal in the cell body of DA8 and DA9. In wild type, the dim mCherry::RAB-3 signal is observed in the cell body of DA9, which can only be visible with increased image brightness (Figure 1—figure supplement 2A). This mCherry signal is absent in the DA8 cell body in both wild-type and unc-4 mutants (Figure 1—figure supplement 2A,B). We therefore concluded that the mCherry::RAB-3 puncta represent DA9 synapses, and the synaptic tiling defect in unc-4 mutants is not due to the ectopic expression of mCherry::RAB-3 in DA8.

Similar to unc-4, hypomorphic mutants of unc-37(e262), which carry a single amino acid substitution (H539Y) (Pflugrad et al., 1997), exhibited significant overlap between the DA8 and DA9 synaptic domains, indicating that unc-37 is also required for synaptic tiling (Figure 1D,E). Moreover, unc-4(e120) did not enhance the synaptic tiling defects of unc-37(e262) (Figure 1E). This result is consistent with the fact that unc-4 and unc-37 function as a transcriptional repressor complex in the A-type motor neurons (Winnier et al., 1999). Approximately 15% of unc-4 and unc-37 mutants showed subtle defasciculation phenotype of the DA8 and DA9 axons (data not shown). As physical contact between the DA8 and DA9 axons is required for synaptic tiling (Mizumoto and Shen, 2013a), we excluded these animals from our quantification.

UNC-4 physically interacts with UNC-37 via its carboxy-terminal Engrailed-like repressor (eh1) domain (Winnier et al., 1999). To further test whether unc-4 and unc-37 function together in tiled synaptic innervation, we examined the synaptic tiling in unc-4(e26) mutants which carry a missense mutation in the eh1 domain that has been shown to disrupt the physical interaction between UNC-4 and UNC-37 (Winnier et al., 1999). Similar to unc-4(e120) null mutants, we observed severe synaptic tiling defects between the DA8 and DA9 neurons in unc-4(e26) mutant animals (Figure 1E). This result supports the idea that UNC-4 and UNC-37 act together as a repressor complex for proper tiled synaptic innervation.

unc-4 and unc-37 may function in the same genetic pathway as plx-1/Plexin

We have previously shown that Semaphorin (Sema)–Plexin signaling controls the synaptic tiling of DA8 and DA9 (Chen et al., 2018; Mizumoto and Shen, 2013a). In the loss of function mutants of smp-1/Sema, plx-1/Plexin, and rap-2/Rap2A, DA8 and DA9 show severe synaptic tiling defects (Chen et al., 2018; Mizumoto and Shen, 2013a). Since UNC-4 and UNC-37 are transcriptional regulators, it is possible that they regulate synaptic tiling by controlling the expression of Sema–Plexin signaling components. Consistent with this idea, plx-1 mutants did not enhance the synaptic tiling defects of unc-4 or unc-37 mutants (Figure 1—figure supplement 3A–D). This result suggests that both unc-4 and unc-37 may function in the same genetic pathway as plx-1. However, we do not exclude the possibility that synaptic tiling defects of unc-4 and unc-37 mutants are at the maximum severities so that plx-1 cannot enhance the phenotype.

We have previously shown that PLX-1::GFP is localized at the anterior edge of the DA9 synaptic domain where it locally inhibits synapse formation in a smp-1-dependent manner (Figure 1—figure supplement 3EMizumoto and Shen, 2013a). In unc-37 mutants, PLX-1::GFP localization was unaffected (Figure 1—figure supplement 3G), suggesting that smp-1 functions properly in the absence of unc-37. The expression of PLX-1::GFP in unc-4(e120) mutants was too dim to examine its subcellular localization in a reliable manner due to the diminished itr-1 promoter activity, which we used to express PLX-1::GFP (Figure 1—figure supplement 3H). In a temperature-sensitive mutant of unc-4(e2322ts) (Miller et al., 1992; Winnier et al., 1999), which show severe synaptic tiling defects when grown at the restrictive temperature (25°C) (see below), the expression from the itr-1 promoter was strong enough to examine the PLX-1::GFP localization. We observed normal PLX-1::GFP localization in the DA9 axon (Figure 1—figure supplement 3F), suggesting that smp-1 also functions properly in unc-4 mutants. We then tested the possible functions of unc-4 and unc-37 on plx-1 expression using a Pplx-1::GFP transcription reporter and found a minor reduction in plx-1 expression in unc-37 mutants (Figure 1—figure supplement 4A–D). However, this subtle reduction in plx-1 expression is unlikely to explain the complete penetrant synaptic tiling defect of unc-4 and unc-37 mutants. Furthermore, expression of plx-1 cDNA under the DA-neuron-specific promoter (Punc-4c) did not rescue the synaptic tiling defects of unc-4 or unc-37 mutants (data not shown).

While PLX-1::GFP localization was not affected in unc-4 and unc-37 mutants, we observed the ectopic synapse formation anterior to the PLX-1::GFP domain (Figure 1—figure supplement 3F and G). This phenotype is reminiscent to the mutant phenotype of PLX-1 downstream effectors such as rap-2 and mig-15, in which PLX-1 cannot locally inhibit synapse formation (Chen et al., 2018). However, we did not observe a reduction in rap-2 expression in unc-4 and unc-37 mutants (Figure 1—figure supplement 4E–H), and the expression of known Sema/Plexin signaling components (rap-2 and mig-15) under the DA neuron-specific promoter (Punc-4c) did not rescue the synaptic tiling defects of unc-4 and unc-37 mutants (data not shown). It is therefore possible that unc-4 and unc-37 regulate synaptic tiling by controlling the expression of previously uncharacterized Sema–Plexin signaling components.

DA8 and DA9 cell fates are largely unaffected in unc-4 and unc-37 mutants

As unc-4 and unc-37 determine the A-type motor neuron fates by repressing the expression of B-type motor neuron-specific genes (Kerk et al., 2017; Winnier et al., 1999), the synaptic tiling defects of unc-4 and unc-37 mutants may be a secondary defect of the abnormal neuronal cell fates in DA8 and DA9 neurons. We therefore examined the neuronal identity of DA8 and DA9 using a DA cell fate marker, Punc-53 (Kerk et al., 2017), and three DB cell fate markers, Punc-129DB, Pacr-16, and Pacr-5 (Kerk et al., 2017; Winnier et al., 1999) under the fluorescent microscope. We co-expressed his-24 fused to mCherry under the unc-4c promoter to label DA8 and DA9 nuclei. As relative position of the DA8 and DA9 cell bodies was variable, we distinguished them as anterior DA8/9 or posterior DA8/9 for examining these DA and DB cell fate markers. In wild-type animals, both anterior and posterior DA8/DA9 expressed the DA marker, Punc-53 but not the DB markers, Pacr-16, Punc-129DB, and Pacr-5 (Table 1). In the unc-4(e120) and unc-37(e262) mutant animals, the expression of Punc-53 was not affected in both anterior and posterior DA8/9 neurons, suggesting that DA8 and DA9 retain A-type identity (Table 1). The expression of a DB marker Punc-129DB in DA8/9 of unc-4 and unc-37 mutants was not different from wild type, while there was a slight increase in the number of animals expressing the other DB markers, Pacr-16 and Pacr-5, with a slightly higher penetrance in the posterior DA8/9 (Table 1). These results suggest that DA8 and DA9 might have minor cell fate defects that result in the leaky expression of some DB markers. However, the low penetrance of the partial cell fate defects is less likely to account for the fully penetrant synaptic tiling defects of unc-4 and unc-37 mutants.

Table 1
Expression of cell fate markers in the anterior or posterior DA8/DA9 neurons.
DA markerDB markersDA9 markers
Punc-53Punc-129DBPacr-16Pacr-5Pmig-13Pglr-4Pitr-1
GenotypeAnteriorPosteriorAnteriorPosteriorAnteriorPosteriorAnteriorPosteriorDA9DA9DA9
Wild type94/10094/1002/1004/1000/1000/1000/1000/100100/100100/100100/100
unc-4(e120)94/10091/1003/1004/1003/1008/1004/1008/100100/10099/100n.d.
unc-37(e262)92/10092/1001/1008/1002/10024/1001/10030/100100/10093/10098/100

We further tested the identity of DA9 neurons using DA9-specific markers, Pmig-13 (mizIs3), Pglr-4 (otIs476), and Pitr-1 (wyIs320) (Klassen and Shen, 2007; Kratsios et al., 2017). These DA9 markers label axon trajectory and/or synaptic varicosity allowing us to distinguish the DA9 neuron from the DA8 neuron. These DA9 markers were expressed in DA9 of wild-type animals at full penetrance (Table 1). In all unc-4 mutants, we observed expression of Pglr-4 and Pmig-13, while Pmig-13 expression was noticeably weaker than wild type as described above (Table 1 and Figure 1C). The Pitr-1 expression was also weaker in unc-4 mutants, and we were unable to reliably examine the dim expression of the Pitr-1 marker in unc-4 mutants under the fluorescent microscope due to the high expression of the Pitr-1 in the hindgut adjacent to the DA9 cell body (Table 1, Figure 1—figure supplement 3H). However, Pitr-1 expression was detected in DA9 at full penetrance under the confocal microscope (n = 40). In unc-37 mutant animals, the expression of these DA9 specific markers was mostly unaffected, with a small fraction of animals (7/100) lacking Pglr-4 expression in DA9 (Table 1).

Together we conclude that despite the subtle changes in the expression of some of the cell fate markers, the cell fates of DA8 and DA9 in unc-4 and unc-37 mutants are largely unaffected, and therefore, it is unlikely that the synaptic tiling defects of unc-4 and unc-37 mutants are due to the secondary defects of cell fate transformation of the DA neurons.

unc-4 and unc-37 are necessary and sufficient in the DA neurons to regulate synaptic tiling

We next determined in which cells unc-4 and unc-37 function by using the AID system to conditionally control the degradation of UNC-4 and UNC-37 in a spatiotemporally controlled manner. A plant F-box protein, TIR1, mediates the degradation of AID-tagged proteins in an auxin-dependent manner (Nishimura et al., 2009; Zhang et al., 2015). Using CRISPR/Cas9-mediated genome editing, we tagged endogenous unc-4 and unc-37 with AID and blue fluorescent protein (BFP) at the 3’ end of the unc-4 locus (miz40[unc-4::AID::BFP]) and unc-37(miz36[unc-37::AID::BFP]) (Figure 2—figure supplement 1B). Consistent with previous studies, we observed sustained expression of the UNC-4::AID::BFP and UNC-37::AID::BFP fusion proteins in the nuclei of DA and VA neurons (Fox et al., 2005; Miller and Niemeyer, 1995; Pflugrad et al., 1997) at the L4 stage (Figure 2—figure supplement 2A,C). We then crossed unc-4(miz40) and unc-37(miz36) with a strain carrying mizSi3 (Punc-4c::TIR1), a transgene that expresses TIR1 specifically in the DA neurons under the DA neuron-specific promoter (Punc-4c) (Figure 2—figure supplement 1A). unc-4(miz40); mizSi3 and unc-37(miz36); mizSi3 animals did not exhibit uncoordinated locomotion phenotype (data not shown) or synaptic tiling defects in the absence of auxin (Figures 2A, C, and E), suggesting that the UNC-4::AID::BFP and UNC-37::AID::BFP fusion proteins are fully functional. When unc-4(miz40); mizSi3 and unc-37(miz36); mizSi3 animals were grown in the presence of the water-soluble synthetic auxin analog (K-NAA) (Martinez et al., 2020), we observed loss of UNC-4::AID::BFP and UNC-37::AID::BFP signal in DA neurons, but not in VA neurons, suggesting the successful DA neuron-specific degradation of UNC-4 and UNC-37 (Figure 2—figure supplement 2B,D). Furthermore, unc-4(miz40); mizSi3 and unc-37(miz36); mizSi3 animals grown on K-NAA-containing plates did not exhibit backwards locomotion defects, which is attributed to the AVA>VA wiring defects in unc-4 and unc-37 mutants, suggesting UNC-4 and UNC-37 are fully functional in the VA neurons during DA-specific degradation of UNC-4 and UNC-37. Using this system, we first conducted the DA-specific continuous degradation of UNC-4 and UNC-37 by placing the L4 parental animals on K-NAA-containing plates and observing the progeny at the L4 stage. We observed severe synaptic tiling defects between the DA8 and DA9 synaptic domains (Figure 2B, D, and E), suggesting that unc-4 and unc-37 are required in the DA neurons for proper synaptic tiling.

Figure 2 with 2 supplements see all
unc-4 and unc-37 are necessary and sufficient for the tiled innervation of DA8 and DA9 neurons.

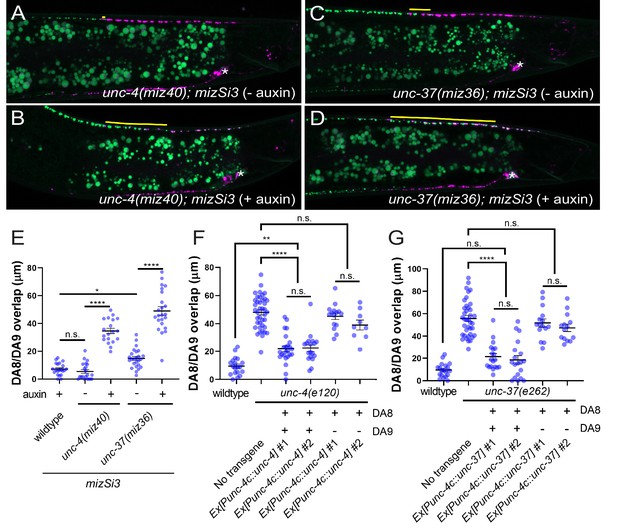

(A–D) Representative images of synaptic tiling in unc-4(miz40); mizSi3 (− auxin) (A), unc-4(miz40); mizSi3 (+ auxin) (B), unc-37(miz36); mizSi3 (− auxin) (C), and unc-37(miz36); mizSi3 (+auxin) (D). mizSi3 expresses TIR1 in the DA neurons for tissue-specific degradation of UNC-4 and UNC-37. The overlap between the DA8 and DA9 synaptic domains are highlighted with yellow lines. Asterisks: DA9 cell body. Scale bar: 10 μm. (E) Quantification of overlap of DA8 and DA9 synaptic domains of unc-4(miz40); mizSi3 and unc-37(miz36); mizSi3 animals treated with (+) and without (-) auxin. See Figure 2—source data 1. (F, G) Cell specific rescue of unc-4(e120) mutants with unc-4 cDNA using DA-specific promoter (Punc-4c). See Figure 2—source data 2. (F) Cell specific rescue of unc-37(e262) mutants with unc-37 cDNA using DA-specific promoter (Punc-4c). See Figure 2—source data 3. (G). Two independent transgenic lines were quantified. Mosaic experiment using Punc-4c::unc-4 and Punc-4c::unc-37 are also shown. Each dot represents a single animal. Black bars indicate mean ± SEM. n.s.: not significant; *: p<0.05; **: p<0.01; ****:p<0.0001.

Figure 2—source data 1

Quantification of overlap of DA8 and DA9 synaptic domains of unc-4(miz40); mizSi3 and unc-37(miz36); mizSi3 animals treated with (+) and without (-) auxin.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig2-data1-v1.xlsx
Figure 2—source data 2

Cell specific rescue of unc-4(e120) mutants with unc-4 cDNA using DA-specific promoter (Punc-4c).

https://cdn.elifesciences.org/articles/66011/elife-66011-fig2-data2-v1.xlsx
Figure 2—source data 3

Cell specific rescue of unc-37(e262) mutants with unc-37 cDNA using DA-specific promoter (Punc-4c).

https://cdn.elifesciences.org/articles/66011/elife-66011-fig2-data3-v1.xlsx

We also performed tissue-specific rescue experiments by expressing the unc-4 and unc-37 cDNAs under the DA-specific unc-4c promoter in unc-4(e120) and unc-37(e262) mutant animals, respectively. We co-expressed his-24 fused to GFPnovo2, under the unc-4c promoter to determine which DA neurons carry the extrachromosomal array. We observed significant rescue of the synaptic tiling defect when unc-4 is expressed in both DA8 and DA9 neurons of unc-4 mutant animals (Figure 2F). Similarly, we observed significant rescue of the synaptic tiling defects in unc-37 mutant animals when unc-37 is expressed in both DA8 and DA9 neurons (Figure 2G). However, in the genetic mosaic animals in which unc-4 or unc-37 is expressed only in DA9, we did not observe rescue of the synaptic tiling defects (Figure 2F,G). This suggests that unc-4 and unc-37 are not sufficient in DA9 and instead function in both DA8 and DA9 neurons to control synaptic tiling.

unc-37 but not unc-4 is required during embryonic development for proper synaptic tiling

The lack of apparent cell fate defects in DA8 and DA9 of unc-4 and unc-37 mutants suggests that unc-4 and unc-37 control tiled synaptic innervation independent of the cell fate determination function of the A-type motor neurons. We therefore sought to determine the temporal requirement of unc-4 and unc-37 in synaptic tiling. The DA neurons are born in the late gastrulation stage and completes the development during late embryogenesis (Sulston et al., 1983). The tiled synaptic innervation of DA8 and DA9 is observed at the early first larval (L1) stage in wild-type animals (Mizumoto and Shen, 2013a). To test the temporal requirement of unc-4 in tiled synaptic patterning, we used a reversible temperature-sensitive allele of unc-4 (Miller et al., 1992; Winnier et al., 1999). unc-4(e2322ts) mutants carry a point mutation (L121F) that resides in the homeodomain (Winnier et al., 1999). The unc-4(e2322ts) mutation is permissive at 16°C and restrictive at 25°C (Miller et al., 1992). When grown at the permissive temperature (16°C), unc-4(e2322ts) mutants did not exhibit synaptic tiling defects compared with wild type (Figure 3B,F). When grown at the restrictive temperature (25°C), unc-4(e2322ts) mutants showed severe synaptic tiling defects (Figure 3C,F). We then determined if unc-4 functions during DA neurogenesis or in postmitotic DA neurons to regulate synaptic tiling by down-shifting or up-shifting the growth temperature at the early L1 stage (Figure 3A). Interestingly, we did not observe significant synaptic tiling defects when unc-4 was knocked down embryonically by down-shifting the growth temperature of unc-4(e2322ts) mutant animals from 25°C to 16°C at the L1 stage (Figure 3D,F). This result indicates that unc-4 is not required for synaptic tiling during the embryonic stage when the DA8 and DA9 cell fates are determined by unc-4. Conversely, the postembryonic unc-4 knockdown by up-shifting the growth temperature from 16°C to 25°C at the L1 stage resulted in severe synaptic tiling defects (Figure 3E,F). Together, this suggests that unc-4 is required in the postmitotic DA8 and DA9 neurons in which the cell fates are already set.

unc-4 functions in postmitotic DA neurons for the synaptic tiling of DA8 and DA9 neurons.

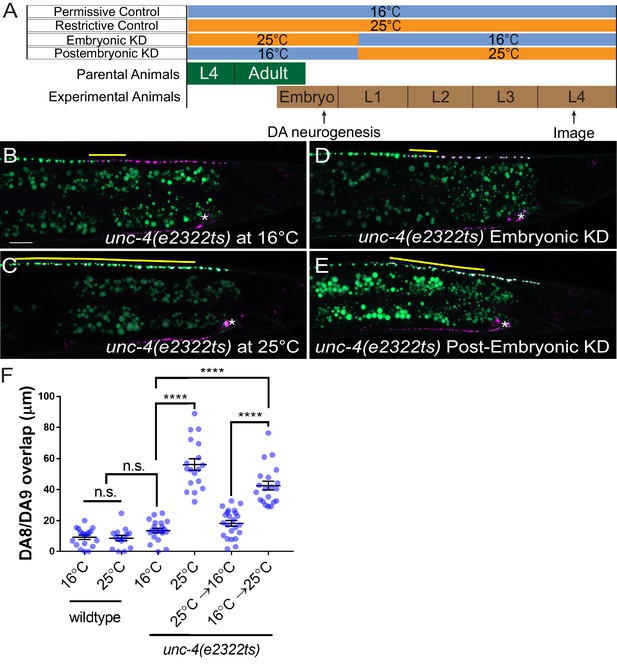

(A) Experimental design of the temperature shift assay. (B–E) Representative images of synaptic tiling in unc-4(e2322ts) at 16°C (B), unc-4(e2322ts) at 25°C (C), unc-4(e2322ts) embryonic knockdown (D), and unc-4(e2322ts) postembryonic knockdown (E). The overlap between the DA8 and DA9 synaptic domains are highlighted with yellow lines. Asterisks: DA9 cell body. Scale bar: 10 μm. (F) Quantification of overlap of DA8 and DA9 synaptic domains. See Figure 3—source data 1. Each dot represents a single animal. Black bars indicate mean ± SEM. n.s.: not significant; ****:p<0.0001.

Figure 3—source data 1

Quantification of overlap of DA8 and DA9 synaptic domains.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig3-data1-v1.xlsx

To verify the role of unc-4 and unc-37 in the postmitotic DA neurons, we conducted DA neuron-specific temporal degradation experiments using the AID system described above. We first conducted UNC-4 and UNC-37 degradation in DA neurons specifically during embryonic development. The L4 parental animals of unc-4(miz40); mizSi3 and unc-37(miz36); mizSi3 were cultured on K-NAA containing plates, and their progeny were transferred at the early L1 stage to the control plates (Figure 4A). Consistent with the temperature shift experiments using unc-4(e2322ts) mutants, we did not observe any synaptic tiling defects when UNC-4 was degraded during embryonic development (Figure 4B,F). On the other hand, embryonic degradation of UNC-37 resulted in severe synaptic tiling defects (Figure 4C,F), suggesting that UNC-37 but not UNC-4 is required during embryonic development to regulate synaptic tiling.

unc-37 but not unc-4 is required during DA neurogenesis for proper synaptic tiling of DA8 and DA9 neurons.

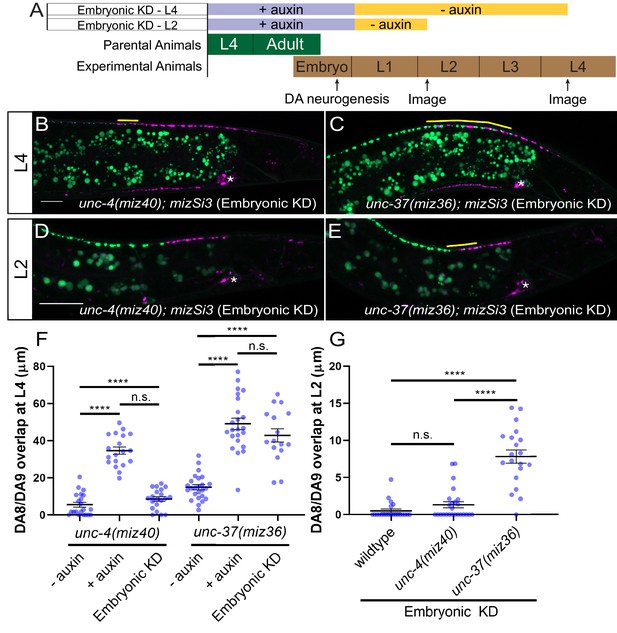

(A) Experimental design of the embryonic degradation of UNC-4 and UNC-37 using the AID system. (B, C) Representative images of synaptic tiling at L4 stage after embryonic degradation in unc-4(miz40); mizSi3 (B) and unc-37(miz36); mizSi3 (C). (D, E) Representative images of synaptic tiling at L2 stage after embryonic degradation in unc-4(miz40); mizSi3 (D) and unc-37(miz36); mizSi3 (E). The overlap between the DA8 and DA9 synaptic domains are highlighted with yellow lines. Asterisks: DA9 cell body. Scale bar: 10 μm. (F) Quantification of overlap of DA8 and DA9 synaptic domains at the L4 stage after embryonic auxin treatment. See Figure 4—source data 1. (G) Quantification of overlap of DA8 and DA9 synaptic domains at the L2 stage after embryonic auxin treatment. See Figure 4—source data 2. Each dot represents a single animal. Black bars indicate mean ± SEM. n.s.: not significant; ****:p<0.0001.

Figure 4—source data 1

Quantification of overlap of DA8 and DA9 synaptic domains at the L4 stage after embryonic auxin treatment.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig4-data1-v1.xlsx
Figure 4—source data 2

Quantification of overlap of DA8 and DA9 synaptic domains at the L2 stage after embryonic auxin treatment.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig4-data2-v1.xlsx

We have previously shown that synaptic tiling between DA8 and DA9 is observed as early as L1 stage (Mizumoto and Shen, 2013a). To determine if unc-4 and unc-37 are required for establishing the synaptic tiling, we examined the effect of embryonic degradation of UNC-4 and UNC-37 on synaptic tiling at early L2 stage. We found that embryonic degradation of UNC-37 but not UNC-4 caused synaptic tiling defects (Figures 4D, E, and G). Our results suggest that unc-4 is not required to establish the synaptic tiling, whereas unc-37 may be required to establish the synaptic tiling during embryonic development.

unc-4 and unc-37 are required throughout larval development in postmitotic DA neurons to regulate synaptic tiling

Next, we examined if unc-4 and unc-37 are required in the postmitotic DA neurons to regulate synaptic tiling using the AID system. We first transferred early L1 animals from the control plates to the K-NAA-containing plates and let them grow until the L4 stage (Figure 5A). Consistent with our findings using the temperature-sensitive mutant of unc-4, we found that postembryonic degradation of UNC-4 resulted in synaptic tiling defects, which were comparable to the continuous UNC-4 degradation (Figure 5B,F). Together with the lack of synaptic tiling defects after embryonic degradation of UNC-4, these data suggest that unc-4 is exclusively required in the postmitotic DA neurons to regulate synaptic tiling. We then examined the effect of postembryonic degradation of UNC-37 on synaptic tiling. Similar to unc-4, postembryonic degradation of UNC-37 resulted in severe synaptic tiling defects (Figure 5C,F). This suggests that, unlike unc-4, unc-37 is required for the synaptic tiling during DA neurogenesis as well as in the postmitotic DA neurons. Given that unc-4 is specifically required in the postmitotic DA neurons, this result suggests that unc-37 may function with other transcription factors during DA neurogenesis for synaptic tiling (Figure 7).

unc-4 and unc-37 are required in the postmitotic DA neurons to maintain synaptic tiling.

(A) Experimental design of the postembryonic degradation of UNC-4 and UNC-37 using the AID system. (B, C) Representative images of synaptic tiling after early postembryonic degradation in unc-4(miz40); mizSi3 (B) and unc-37(miz36); mizSi3 (C). (D, E) Representative images of synaptic tiling after late postembryonic degradation in unc-4(miz40); mizSi3 (D) and unc-37(miz36); mizSi3 (E). The overlap between the DA8 and DA9 synaptic domains are highlighted with yellow lines. Asterisks: DA9 cell body. Scale bar: 10 μm. (F) Quantification of overlap of DA8 and DA9 synaptic domains after postembryonic auxin treatment. See Figure 5—source data 1. Each dot represents a single animal. Black bars indicate mean ± SEM. n.s.: not significant; *:p<0.05; ****:p<0.0001.

Figure 5—source data 1

Quantification of overlap of DA8 and DA9 synaptic domains after postembryonic auxin treatment.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig5-data1-v1.xlsx

To determine whether unc-4 and unc-37 are required for the maintenance of the synaptic tiling in the postmitotic DA neurons, we conducted postembryonic degradation of UNC-4 and UNC-37 at a later larval stage (mid-L2) and examined the synaptic phenotype at the L4 stage (Figure 5A). We found that degradation of UNC-4 and UNC-37 after mid-L2 stage caused mild yet significant synaptic tiling defects (Figure 5D–F). Weaker synaptic tiling defects in the late postembryonic degradation of UNC-4 and UNC-37 suggest that unc-4 and unc-37 are required throughout postembryonic development for the maintenance of the synaptic tiling. Our results are consistent with the potential roles of unc-4 during L2 and L3 stages in VA neurons to maintain the synaptic wiring of the VA neurons (Miller et al., 1992).

ceh-12 functions downstream of unc-4 and unc-37 in synaptic tiling

It has been shown that unc-4 and unc-37 repress the expression of ceh-12, a member of the HB9 family of Homeobox genes, in the VA motor neurons to specify the AVA>VA synaptic connections (Von Stetina et al., 2007). Loss of ceh-12 partially restores the synaptic input and locomotion defects of unc-4 and unc-37 mutants (Von Stetina et al., 2007). Furthermore, the ectopic expression of ceh-12 in VA neurons is sufficient to induce unc-4 mutant-like uncoordinated locomotion phenotype (Von Stetina et al., 2007). To determine if ceh-12 also functions downstream of unc-4 and unc-37 in regulating tiled synaptic innervation, we first examined the ceh-12 expression in DA8 and DA9 neurons using a transcriptional reporter transgene wdIs62 (Pceh-12::GFP). Pceh-12::GFP expression was not detected in DA8 and DA9 of wild type at L1, L2, or L4 stage (Figure 6—figure supplement 1A–A”). We observed weak ectopic expression of Pceh-12::GFP in DA8 and DA9 neurons at L2 and L4 stage in unc-4 and unc-37 mutants (Figure 6—figure supplement 1B’–B” and C'-C'). However, at the L1 stage, the ectopic Pceh-12::GFP expression in DA8 and DA9 was only detected in unc-37 but not in unc-4 mutants (Figure 6—figure supplement 1B and C). This observation is consistent with our temporal knockdown experiments of unc-4 and unc-37 which demonstrated that the function of unc-4 is exclusive in the postembryonic DA neurons while unc-37 functions in both embryonic and postembryonic DA neurons.

To test whether the ectopic expression of ceh-12 in the DA neurons underlies the synaptic tiling defects of unc-4 and unc-37, we expressed ceh-12 cDNA using the DA neuron-specific promoter (Punc-4c) in wild-type animals. We observed significant synaptic tiling defects in these animals (Figure 6A,C), suggesting that unc-4 and unc-37 likely repress the expression of ceh-12 in DA neurons for proper synaptic tiling. To exclude the possibility that the synaptic tiling defects of the ceh-12-expressing animals are due to the ectopic expression of cell fate determinants in general, we expressed unc-55 in the DA neurons. unc-55 is expressed in VD GABAergic motor neurons and is required for repressing DD neuron-specific gene expression (Shan et al., 2005; Zhou and Walthall, 1998). Ectopic expression of unc-55 in DA neurons did not cause synaptic tiling defects (Figure 6B,C). While these results strongly suggest that ceh-12 functions downstream of unc-4 and unc-37 in synaptic tiling, ceh-12 mutation did not suppress the synaptic tiling defects of unc-4 and unc-37 mutants (Figure 6D). This suggests that the weak ectopic expression of ceh-12 in unc-4 and unc-37 mutants is not sufficient to cause the synaptic tiling defects, and there are additional factor(s) that function redundantly with ceh-12 under the control of unc-4 and unc-37 in synaptic tiling (Figure 7).

Figure 6 with 1 supplement see all
unc-4 and unc-37 inhibit canonical Wnt signaling to regulate synaptic tiling.

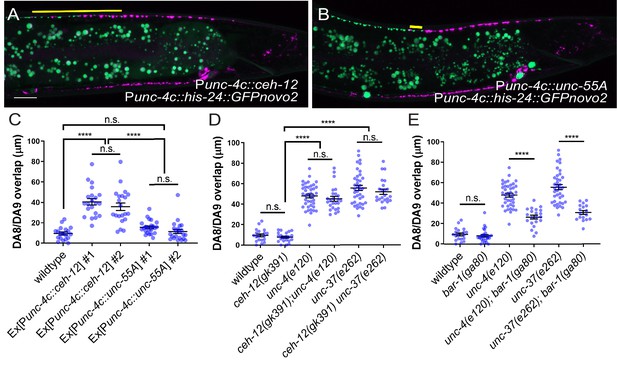

(A, B) Representative image of synaptic tiling in ectopic expression of ceh-12 under the unc-4c promoter (A) and unc-55A under the unc-4c promoter (B). The overlap between the DA8 and DA9 synaptic domains are highlighted with yellow lines. Scale bar: 10 μm. (C) Quantification of overlap between DA8 and DA9 synaptic domains. Two independent transgenic lines were quantified for each array. See Figure 6—source data 1. (D) Quantification of overlap between DA8 and DA9 synaptic domains in ceh-12 mutant animals. See Figure 6—source data 2. (E) Quantification of overlap between DA8 and DA9 synaptic domains in bar-1 mutant animals. See Figure 6—source data 3. Each dot represents a single animal. Black bars indicate mean ± SEM. n.s.: not significant; ****:p<0.0001.

Figure 6—source data 1

Quantification of overlap between DA8 and DA9 synaptic domains.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig6-data1-v1.xlsx
Figure 6—source data 2

Quantification of overlap between DA8 and DA9 synaptic domains in ceh-12 mutant animals.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig6-data2-v1.xlsx
Figure 6—source data 3

Quantification of overlap between DA8 and DA9 synaptic domains in bar-1 mutant animals.

https://cdn.elifesciences.org/articles/66011/elife-66011-fig6-data3-v1.xlsx

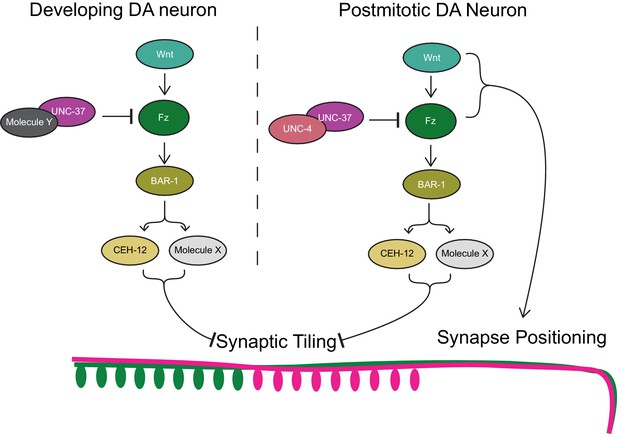

Model of UNC-4 and UNC-37 functions in synaptic tiling.

UNC-4 functions with UNC-37 in postmitotic DA neurons to regulate synaptic tiling by inhibiting canonical Wnt signaling. Ectopic expression of CEH-12 and other unknown molecules in DA neurons results in synaptic tiling defects. UNC-37 likely forms a repressor complex with an unknown transcription factor in developing DA neurons by inhibiting canonical Wnt signaling to regulate tiled synaptic innervation. Wnt and Fz also function in synapse positioning (Klassen and Shen, 2007Mizumoto and Shen, 2013b).

bar-1/β-catenin partially suppresses the synaptic tiling defect of unc-4 and unc-37 mutants

Previous work has shown that EGL-20, a Wnt morphogen that is expressed in the cells around the preanal ganglion (Whangbo and Kenyon, 1999), acts through the canonical Wnt signaling pathway components including bar-1/β-catenin, to positively regulate the expression of ceh-12 in VA motor neurons (Schneider et al., 2012). unc-4 and unc-37 inhibits the expression of ceh-12 by repressing the expression of the Frizzled receptors, mom-5 and mig-1 (Schneider et al., 2012). Given that the canonical EGL-20/Wnt signaling acts as a positive regulator of ceh-12 expression, it is possible that Wnt signaling induces the expression of other transcription factors that may function redundantly with ceh-12 in synaptic tiling (Figure 7). To test this possibility, we examined the synaptic tiling defects in unc-4(e120); bar-1(ga80) and unc-37(e262); bar-1(ga80) double mutants. Consistent with our idea, bar-1(ga80) partially suppressed the synaptic tiling defect of unc-4 and unc-37 mutants (Figure 6E). This result suggests that UNC-4 and UNC-37 control synaptic tiling by inhibiting the canonical Wnt signaling for the expression of multiple genes including ceh-12.

Discussion

In this study, we showed that the cell fate determinants of A-type cholinergic motor neurons, UNC-4 homeobox transcription factor and its corepressor UNC-37/Groucho, have novel roles in the postmitotic neurons to control the tiled presynaptic innervation pattern. Previous studies in both vertebrate and invertebrate systems have demonstrated that sustained expression of neuronal cell fate determinants in the differentiated neurons is required to maintain effector gene expression for the functionality of neurons (Altun-Gultekin et al., 2001; Carney et al., 2013; Cheng et al., 2004). For example, sustained expression of Nurr1 is required for the survival of the midbrain dopaminergic neurons and maintained expression of the genes required for dopamine synthesis and transport (Kadkhodaei et al., 2009; Saucedo-Cardenas et al., 1998; Zetterström et al., 1997). Our temporal knockdown experiments using temperature-sensitive mutants and the AID system revealed the critical functions of sustained expression of unc-4 and unc-37 in synapse pattern formation. Our work also highlights that the AID system is an effective method to uncover the novel spatiotemporal functions of well-characterized genes. Indeed, recent work using the AID system showed that the BRN3-type POU homeobox gene unc-86/Brn3a is required for both the initiation and maintenance of multiple neuronal identities in C. elegans (Serrano-Saiz et al., 2018). The combination of CRISPR/Cas9 genome editing technologies and the AID system will allow us to examine the spatiotemporal functions of any genes, including the genes whose null mutants are lethal.

Neuronal cell fate transformations often lead to altered synaptic connectivity. The temporal transcription factor Hunchback in Drosophila controls the neuroblast lineage NB7-1 that gives rise to the U1-5 motor neurons which innervate the dorsal (U1-2) and ventral (U3-5) muscles (Isshiki et al., 2001; Kohwi and Doe, 2013). Perturbed expression of Hunchback in the NB7-1 lineage results in the serial formation of U1 neurons, all of which project to the dorsal muscles (Isshiki et al., 2001; Pearson and Doe, 2003; Seroka and Doe, 2019). Likewise, unc-4 and unc-37 mutants exhibit synaptic specificity defects in the VA motor neurons due to the partial cell fate transformation of the VA neurons to VB neurons (Miller et al., 1992; White et al., 1992; Winnier et al., 1999). Similarly, Drosophila Unc-4 is required in the 7B neurons for the projections into the ipsilateral and contralateral leg neuropils (Lacin et al., 2020). This miswiring phenotype is also likely due to the cell fate transformation because Unc-4 is specifically required during development (Lacin et al., 2020). Our study showed that the presynaptic patterning defects of DA8 and DA9 in unc-4 and unc-37 was not accompanied with major cell fate defects. Our data therefore suggest that the synaptic patterning defects in the mutants of cell fate determinants could occur independent of the cell fate transformation.

The lack of apparent cell fate specification defects in the DA8 and DA9 neurons of unc-4 and unc-37 contradicts the previous works showing their critical functions in the specification of the A-type motor neurons (Kerk et al., 2017; Winnier et al., 1999). One possible explanation is that the mechanisms of the DA8 and DA9 cell fate specification is slightly distinct from the anterior DA neurons. Consistently, these two most posterior DA neurons, especially DA9, have distinct gene expression profiles compared with the other DA neurons, as exemplified by the series of DA9-specific markers (Kratsios et al., 2017).

Similar to DA neurons, VA neurons also exert tiled synaptic innervation (White et al., 1976). Because unc-4 and unc-37 have been shown to play crucial roles in the AVA>VA wiring specificity primarily during the development of VA neurons (Miller et al., 1992; Winnier et al., 1999), it would be interesting to examine if unc-4 and unc-37 also play a role in VA synaptic tiling. Unfortunately, we could not test this idea as the mizIs3 marker that should label the synapses of VA11 and VA12, with GFPnovo2::RAB-3 and mCherry::RAB-3, respectively, has variable expression in wild type. Nevertheless, the potential role for unc-4 in the maintenance of AVA>VA synaptic connection in the L2–L3 stage (Miller et al., 1992) is consistent with our discovery of the post-mitotic functions of unc-4 and unc-37 in precise neuronal pattern formation. Therefore, it is possible that unc-4 and unc-37 also have the additional role of regulating the synaptic tiling in VA neurons as well.

Could the abnormal synaptic tiling pattern of the DA8 and DA9 neurons also be a synaptic specificity defect between the presynaptic DA neurons and the postsynaptic muscle cells? While we do not know which muscles DA8 and DA9 innervate in wild-type and unc-4 mutants, several observations argue against this. First, our results show that unc-4 is specifically required in the postmitotic DA neurons after DA cell fates are set. Second, there is little contribution from the post-synaptic muscles for the tiled synaptic patterning of the DA neurons. Previously, we showed that the tiled synaptic pattern of DA8 and DA9 is solely dependent on the physical interaction between the axons of DA8 and DA9 which is mediated by Semaphorin–Plexin signaling (Mizumoto and Shen, 2013a). We also showed that the positions of DA8 and DA9 synapses are determined by the Wnt gradient cues rather than the position of the post-synaptic muscle cells (Klassen and Shen, 2007; Mizumoto and Shen, 2013b). Therefore, it is unlikely that the synaptic tiling defects we observed in unc-4 and unc-37 mutants are the synaptic specificity defects between the DA neurons and the post-synaptic muscle cells.

Our results showed that unc-4 is exclusively required in the differentiated postmitotic DA neurons, while unc-37 functions in both developing and differentiated DA neurons. This raises the possibility that UNC-37 functions with other transcription factors during neurogenesis of the DA neurons to control tiled synaptic innervation (Figure 5). The Groucho family of transcriptional corepressors are known to function with various transcription factors during animal development (Gasperowicz and Otto, 2005). In addition to UNC-4, UNC-37 interacts with eh1 domain-containing homeobox proteins (COG-1 and MAB-9) (Chang et al., 2003; Jafari et al., 2011; Winnier et al., 1999) and POP-1/T-cell factor (Calvo et al., 2001) to regulate cell fate specifications during development. UNC-37 may function with these transcription factors and/or unidentified UNC-37-interacting transcription factors during development of the DA neurons. Further genetic and biochemical studies to identify UNC-37 binding partners would help better understand the functions of unc-37 in synapse patterning.

UNC-4 inhibits canonical Wnt signaling to repress ceh-12 expression in VA neurons (Schneider et al., 2012; Von Stetina et al., 2007). Consistently, loss of egl-20/wnt or mig-1/frizzled in unc-4 mutants suppresses the ectopic expression of ceh-12 in the VA neurons and restores the VA-AVA connections (Schneider et al., 2012). We also showed that loss of bar-1/β-catenin partially restores the synaptic tiling defects of unc-4 and unc-37 mutants. On the other hand, unlike previous work that showed that ceh-12 mutants can suppress the synaptic connectivity defects between VA and AVA neurons in unc-4 mutants, we did not observe significant suppression of the synaptic tiling defects in the ceh-12(gk391); unc-4(e120) and ceh-12(gk391) unc-37(e262) double mutants. This suggests that ceh-12 is not the only Wnt effector gene that regulates synaptic tiling and is upregulated in the unc-4 and unc-37 mutants. Future single-cell RNA sequencing of the DA8 and DA9 neurons in unc-4 mutants, as well as genetic suppressor screening of the synaptic tiling defects in the ceh-12; unc-4 and ceh-12 unc-37 mutants will be necessary to identify additional factors that function redundantly with ceh-12.

The genetic interaction between bar-1 and unc-4 (and unc-37) indicates that the canonical Wnt signaling pathway is required for the proper tiled synaptic innervation in the DA neurons. Specifically, Wnt signaling functions as a negative regulator of synaptic tiling (Figure 7) which is controlled by Sema–Plexin signaling. Sema–Plexin signaling has been shown to function as a negative regulator of synapse formation in both C. elegans and mice (Duan et al., 2014; Mizumoto and Shen, 2013a; Tran et al., 2009). It is therefore possible that Wnt signaling functions as a prosynaptogenic cue by inhibiting Sema/Plexin signaling. Indeed, Wnt-7a has been shown to induce synaptogenesis (Hall et al., 2000; Lucas and Salinas, 1997). Uncovering the Wnt effector genes that control synaptic tiling would therefore help us understand the molecular functions of the canonical Wnt signaling in synapse formation.

In addition to the function of canonical Wnt signaling in synaptic tiling, we and others have shown that two Wnts, LIN-44 and EGL-20, function as gradient inhibitory cues for the proper positioning of DA8 and DA9 synapses (Klassen and Shen, 2007; Mizumoto and Shen, 2013b). Disruption of the Wnt gradient patterns affect the severity of the synaptic tiling defects of plx-1 mutants, due to the displaced synapse position of DA8 and DA9 (Mizumoto and Shen, 2013b). For example, egl-20 enhances the synaptic tiling defects of plx-1 mutants due to the posterior displacement of the DA8 synaptic domain. The function of Wnt gradient signal in synapse positioning is mediated by previously uncharacterized non-canonical pathways as it does not require canonical Wnt pathway components including bar-1/β-catenin (Klassen and Shen, 2007). Our results therefore suggest that canonical Wnt signaling and non-canonical Wnt signaling cooperatively regulate the precise synapse patterning in C. elegans.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Caenorhabditis elegans)unc-4WormBaseF26C11.2
Gene (Caenorhabditis elegans)unc-37WormBaseW02D3.9
Strain, strain background (C. elegans)unc-4(e120)C. elegans stock center (CGC)CB120
Strain, strain background (C. elegans)unc-4(e2322)C. elegans stock center (CGC)NC37
Strain, strain background (C. elegans)unc-37(e262)C. elegans stock center (CGC)CB262
Strain, strain background (C. elegans)ceh-12(gk391)C. elegans stock center (CGC)VC995
Strain, strain background (C. elegans)bar-1(ga80)C. elegans stock center (CGC)EW15
Strain, strain background (C. elegans)unc-4(miz40)This studyUJ1017unc-4::AID::BFP
Strain, strain background (C. elegans)unc-37(miz36)This studyUJ1013unc-37::AID::BFP
Strain, strain background (C. elegans)mizIs3This studyUJ124DA8/DA9 synaptic marker
Strain, strain background (C. elegans)mizSi3This studyUJ1133Punc-4c::TIR1

Strains

Bristol N2 strain was used as a wild-type reference. All strains were cultured in the nematode growth medium (NGM) with OP50 as described previously (Brenner, 1974). Unless noted, all strains were maintained at room temperature (22°C). The following alleles were used in this study: unc-4(e120), unc-4(e26), unc-4(e2322ts), unc-4(miz40), unc-37(e262), unc-37(miz36), plx-1(nc36), ceh-12(gk391), bar-1(ga80). Genotyping primers are listed in the supplemental material.

Transgenes

Request a detailed protocol

The following transgenes were used in this study: mizIs3 (Punc-4::zf1-GFPnovo2::rab-3, Pmig-13::zif-1, Pmig-13::mCherry::rab-3, Podr-1::RFP); wyIs320 (Pitr-1::plx-1::GFP, Pmig-13::mCherry::rab-3, Podr-1::GFP); mizEx362 (Pplx-1::GFP, Punc-4c::his-24::mCherry, Podr-1::GFP); mizEx365 (Prap-2::GFP, Punc-4c::his-24::mCherry, Podr-1::GFP); mizEx410 (Punc-4c::his-24::mCherry, Podr-1::GFP); hdIs1 (Punc-53::GFP, rol-6) (Kerk et al., 2017); mizEx396 (Punc-129DB::his-24::mCherry, Punc-4c::his-24::GFPnovo2, Podr-1::GFP); wdEx419(Pacr-16::GFP, rol-6(su1006)) (Winnier et al., 1999); otIs476 (Pglr-4::TagRFP) (Kratsios et al., 2017); wdIs62 (Pceh-12::GFP, unc-119(+)) (Von Stetina et al., 2007); mizEx394, mizEx395 (Punc-4c::ceh-12, Punc-4c::his-24::GFPnovo2, Podr-1::GFP); mizEx408, mizEx409 (Punc-4c::unc-55A, Punc-4c::his-24::GFPnovo2, Podr-1::GFP); mizEx434, mizEx435 (Pplx-1::plx-1::GFP, Punc-4c::his-24::mCherry, Podr-1::GFP); mizEx436 (Punc-4c::his-24::GFPnovo2, Podr-1::GFP); mizEx437, mizEx439 (Punc-4c::unc-4, Punc-4c::his-24::GFPnovo2, Podr-1::GFP); mizEx440, mizEx441 (Punc-4c::unc-37, Punc-4c::his-24::GFPnovo2, Podr-1::GFP).

The transgenic lines with extrachromosomal arrays were generated using the standard microinjection method (Fire, 1986; Mello et al., 1991). The integration of the extrachromosomal arrays into the chromosomes was conducted by standard UV irradiation method (Evans, 2006) For a DA8/DA9 synaptic tiling marker (mizIs3), we used the ZIF-1/ZF1 degradation system (Armenti et al., 2014). The synaptic vesicle-associated protein, RAB-3, was fused with GFPnovo2, a codon-optimized brighter variant of GFP (Hendi and Mizumoto, 2018), and ZF1 degron from PIE-1, and expressed under the unc-4 promoter. mCherry::RAB-3 and ZIF-1 are expressed under the DA9-specific mig-13 promoter. ZIF-1 expressed in DA9 leads the ZF1::GFPnovo2::RAB-3 fusion protein to the ubiquitin-mediated protein degradation thereby creating a better color separation of the DA8 synapses labeled with GFPnovo2 and DA9 synapses labeled with mCherry.

Plasmid construction

Request a detailed protocol

C. elegans expression clones were made in a derivative of pPD49.26 (A. Fire), the pSM vector (a kind gift from S. McCarroll and C. I. Bargmann). unc-4, unc-37, ceh-12, and unc-55 cDNAs were amplified with Phusion DNA polymerase (NEB) from N2 cDNA library synthesized with Superscript III first-strand synthesis system (Thermo Fisher Scientific). The amplified cDNAs were cloned into the AscI and KpnI sites of pSM vector using Gibson assembly method (Gibson, 2011).

The loxP_myo-2_NeoR dual-selection cassette vector (Au et al., 2019; Norris et al., 2015) was used to construct the repair template plasmids for unc-4::AID::BFP and unc-37::AID::BFP strains. AID and codon-optimized BFP sequences were cloned into the SacII site of the loxP_myo-2_NeoR plasmid using Gibson assembly (Gibson, 2011). The 5’ and 3’ homology arms of unc-4 and unc-37 were amplified from N2 genomic DNA using Phusion DNA polymerase and cloned into the SacII and NotI sites, respectively, by Gibson assembly.

The loxP_myo-2_NeoR was also used to construct the repair template plasmid for single copy insertion of Punc-4c::TIR1 at oxTi365 MosSCI site. Previously reported 5’ and 3’ homology arms of oxTi365 MosSCI site (Obinata et al., 2018) were amplified from N2 genomic DNA using Phusion DNA polymerase and cloned into the SacII and NotI sites, respectively, by Gibson assembly. The SrfI recognition sequence (GCCCGGGC) was inserted at the 3’ end of the 5’ homology arm. TIR1 from pLZ31 (Addgene #71720) was amplified and cloned into AscI and KpnI sites of the pSM plasmid containing the unc-4c promoter at the SphI and AscI sites. Punc-4c::TIR1::unc-54 utr from this plasmid was amplified and cloned into the SfrI site of the repair template by Gibson assembly.

pTK73 plasmid (Obinata et al., 2018) was used as a backbone vector for gRNA expression plasmids construction. The following gRNAs were used: unc-4#1: TTTGAACCGTGCCCTCCAT, unc-4#2: GCGACTAATGCATTGACTA, unc-37#1: ACTGGATCAGGGGAGAAGA, unc-37#2: CGATTATCGTACAGAATAG, and oxTi365: CGGTCGCGGTACTCCAAAT.

CRISPR/Cas9 genome editing unc-4(miz40[unc-4::AID::BFP]), unc-37(miz36[unc-37::AID::BFP]), and mizSi3 (Punc-4c::TIR1-loxP-Pmyo-2::GFP-NeoR-loxP) were generated using a dual-selection method as previously described (Au et al., 2019; Norris et al., 2015). To generate unc-4(miz40), unc-4 repair template plasmid, two unc-4 sgRNA plasmids and Cas9 plasmid (Addgene #46168) (Friedland et al., 2013) were co-injected into young adults. To generate unc-37(miz36), unc-37 repair template plasmid, two unc-37 sgRNA plasmids and Cas9 plasmid were co-injected into young adults. The screening of the genome edited animals was conducted according to previous works (Au et al., 2019; Norris et al., 2015). Briefly, F1 progenies from the injected animals were treated with Geneticin (G418) (Sigma-Aldrich) (50 mg/mL) for NeoR selection (Au et al., 2019). The fully penetrant, uniform, and low expression of Pmyo-2::GFP in the pharynx was used to select the genome-edited candidates. The selection cassette was excised by injecting Cre recombinase plasmid (pDD104, Addgene #47551) and screened for animals that lack Pmyo-2::GFP expression. The successful genome editing was confirmed by Sanger sequencing.

For the generation of mizSi3 (Punc-4c::TIR1-loxP-Pmyo-2::GFP-NeoR-loxP), we injected Punc-4c::TIR1 repair plasmid, oxTi365 gRNA, and Cas9 plasmid into wild-type animals and screened animals with uniform and penetrant Pmyo-2::GFP expression. For simplicity, we label mizSi3(Punc-4c::TIR1-loxP-Pmyo-2::GFP-NeoR-loxP) as mizSi3(Punc-4c::TIR1).

Neuronal cell fate marker expression

Request a detailed protocol

The following transgenes were used as cell fate markers: hdIs1[Punc-53::GFP] (DA-specific), mizEx396[Punc-129DB::his-24::mCherry, Punc-4c::his-24::GFPnovo2] (DB-specific), wdEx419[Pacr-16::GFP] (DB-specific), wdEx60[Pacr-5::GFP] (DB-specific), wyIs320[Pitr-1::plx-1::GFP, Pmig-13::mCherry::rab-3] (DA9-specific), otIs476[Pglr-4::TagRFP] (DA9-specific), mizIs3[Punc-4c::zf1-GFPnovo2::rab-3, Pmig-13::zif-1, Pmig-13::mCherry::rab-3] (DA9 specific). mCherry::RAB-3 expression in mizIs3 was used as an indicator of the mig-13 promoter activity. PLX-1::GFP signal was used to examine the itr-1 promoter activity. Scoring of the DA-, DB-, DA9 cell fate marker expressions in DA8 and DA9 neurons was conducted using ZEISS Axioplan two fluorescent microscope, except Pitr-1 in unc-4(e120) mutants, which was examined under the ZEISS LSM800 confocal microscope.

Temperature shift assay

Request a detailed protocol

For embryonic knockdown, the L4 parental animals of unc-4(e2322ts) mutants were transferred to 25°C (restrictive temperature). Newly hatched L1 animals from the parental animals were transferred to 16°C (permissive temperature) until L4 to examine the synaptic tiling of DA8 and DA9 neurons. For postembryonic knockdown, the L4 parental animals of unc-4(e2322ts) mutants were transferred to 16°C (permissive temperature) at L4 stage. Newly hatched L1 animals were transferred to 25°C (restrictive temperature) until L4 to examine the synaptic tiling of DA8 and DA9 neurons. Animals that were not transferred were used as controls. Wild-type controls were cultured at 16°C and 25°C.

Spatiotemporal degradation of UNC-4 and UNC-37 using the AID system

Request a detailed protocol

The synthetic auxin analog, α-napthaleneacetic acid (K-NAA) (Martinez et al., 2020), was dissolved in dH2O to prepare a 400 mM stock solution. The 4 mM working solution of K-NAA was prepared by diluting a stock solution with M9 buffer. 1000 μL of 4 mM K-NAA was added to the NGM plates with OP50 bacteria and were allowed to dry overnight at room temperature. To induce protein degradation, experimental animals were transferred onto the K-NAA plates and were kept at room temperature. As a control, animals were transferred onto the control (M9) plates. For embryonic degradation of UNC-4 and UNC-37, the L4 parental unc-4(miz40);mizSi3 and unc-37(miz36);mizSi3 animals were transferred to K-NAA plates at L4 stage. Newly hatched L1 animals from the parental animals were transferred to the control (M9) plates until L2 or L4 to examine the synaptic tiling of DA8 and DA9 neurons. For postembryonic degradation of UNC-4 and UNC-37, the L4 parental unc-4(miz40);mizSi3 and unc-37(miz36);mizSi3 animals were transferred to the control (M9) plates at L4 stage. Newly hatched L1 (early postembryonic degradation) or mid-late L2 (late postembryonic degradation) animals from the parental animals were transferred to K-NAA plates until L4 to examine the synaptic tiling of DA8 and DA9 neurons.

Confocal microscopy

Request a detailed protocol

Images of fluorescently tagged fusion proteins were captured in live C. elegans using a Zeiss LSM800 Airyscan confocal microscope (Carl Zeiss, Germany) with oil immersion lens 63× magnification (Carl Zeiss, Germany). Worms were immobilized on 2.5% agarose pad using a mixture of 7.5 mM levamisole (Sigma-Aldrich) and 0.225 M BDM (2,3-butanedione monoxime) (Sigma-Aldrich). Images were analyzed with Zen software (Carl Zeiss) and ImageJ (NIH, USA). Twenty to 26 Z-stack images were taken for each animal to encompass the cell bodies, axons, and synapses of the DA8 and DA9 neurons. The definition of DA8/DA9 synaptic overlap was defined by the distance between the most anterior DA9 synapse and the most posterior DA8 synapses (Mizumoto and Shen, 2013a; Chen et al., 2018). L4.4–L4.5 larval stage animals, judged by the stereotyped shape of the developing vulva (Mok et al., 2015), were used for quantification.

Statistics

Prism9 (GraphPad Software, USA) was used for statistical analyses. We applied the one-way ANOVA method with post hoc Tukey’s multiple comparison test for comparison among three or more parallel groups with multiple plotting points, and chi-square test (with Yates’ continuity corrected) for comparison between two binary data groups. Data were plotted with error bars representing standard errors of mean (SEM). *, **, and *** represent p-value < 0.05, < 0.01, and < 0.001, respectively.

Appendix 1

Supplemental information

Genotyping primers:

  • plx-1(nc36)

  • Forward: CTTCGAGAGCCCCCTCATTCTTAATG

  • Reverse: CCGGCACACGTTAAACTAGTGCTACCG

  • ceh-12(gk391)

  • Forward: TTGCCGCACATCTCTCATAC

  • Mutant Reverse: GCTTCTCGTCTTCTCGTCCT

  • Wild-type Reverse: GATGAGAAGACCACGAACCG

  • bar-1(ga80) (mutant pcr product can be digested with MseI)

  • Forward: GTGAGTTCTGGAATTGCTCG

  • Reverse: GATGACGGATGTAGAGATGA

  • unc-4(miz40)

  • Forward: AGTCTCCCCCTCTTCCAACC

  • Mutant Reverse: ACATGGAAGGAACCGTGGAC

  • Wild-type Reverse: CGTTTCATCTCTCTCATCTC

  • unc-37(miz36)

  • Forward: GCTCCGTTCTCTCATGTGAC

  • Mutant Reverse: ACATGGAAGGAACCGTGGAC

  • Wild-type Reverse: CGTTTCATCTCTCTCATCTC

Primers for plasmid construction:

  • unc-4 cDNA (cloned into AscI/KpnI sites of the ΔpSM vector)

  • Forward: CTTCTTCTTCCAAAAAGTGAAAGGCGCGCCATGATCGGTGCACTGCATGC

  • Reverse: GGAGCTCAGATATCAATACCATGGTACCTTATACACTTTTCAGTAATTCAGC

  • unc-37 cDNA (cloned into AscI/KpnI sites of the ΔpSM vector)

  • Forward: CTTCTTCTTCCAAAAAGTGAAAGGCGCGCCATGAAGGCATCGTATCTGGAAACC

  • Reverse: GCGGAGCTCAGATATCAATACCATGGTACCTTAATATTCAACTGCATAGAG

  • ceh-12 cDNA (cloned into AscI/KpnI sites of the ΔpSM vector)

  • Forward: CTTCTTCTTCCAAAAAGTGAAAGGCGCGCCCATGATGTTTTCCTCAATAGA

  • Reverse: CAATCAACTTCCTCTTCTTGAGGTACCATGGTATTGATATCTGAGCTC

  • unc-55 cDNA (cloned into AscI/KpnI sites of the ΔpSM vector)

  • Forward: CTTCTTCTTCCAAAAAGTGAAAGGCGCGCCATGCAGGATGGCTCATCAGG

  • Reverse: CAACTACCTTCCAGAAATTAGGGTACCATGGTATTGATATCTGAGCTC

CRISPR:

  • unc-4 gRNA

  • Forward 1: TCTTGTTTGAACCGTGCCCTCCAT

  • Reverse 1: AAACATGGAGGGCACGGTTCAAAC

  • Forward 2: TCTTGGCGACTAATGCATTGACTA

  • Reverse 2: AAACTAGTCAATGCATTAGTCGCC

  • unc-4 repair template

  • 5’ Forward: TAAAACGACGGCCAGTGAATTCCCGCGGAGGATGCTATGGTGGACCAG

  • 5’ Reverse: TTAGGGGCTCCGGCTCCGGCTCCTACACTTTTCAGTAATTCAGCAA

  • 3’ Forward: AGTTATAGTTGCAGGACCACTATTTTTTTAAAATTCAATTTTGAACCG

  • 3’ Reverse: CATGATTACGCCAAGCTTGCGGCCGCGCTCTGCGAGACGTCACTGTCATC

  • unc-37 gRNA

  • Forward 1: TCTTGACTGGATCAGGGGAGAAGA

  • Reverse 1: AAACTCTTCTCCCCTGATCCAGTC

  • Forward 2: TCTTGCGATTATCGTACAGAATAG

  • Reverse 2: AAACCTATTCTGTACGATAATCGC

  • unc-37 repair template

  • 5’ Forward: AACGACGGCCAGTGAATTCCCGCGGCTTGCACTCCCTATTAGTATTGC

  • 5’ Reverse: GGGGCTCCGGCTCCGGCTCCATATTCAACTGCATAGAGAGTTG

  • 3’ Forward: AGTTATAGTTGCAGGACCACTTTTTTTTCCGCAGTGAATTTATGATC

  • 3’ Reverse: ACCATGATTACGCCAAGCTTGCGGCCGCAATGGGTGGAGCCTTGGAGATA

  • AID::BFP cassette

  • Forward: GACGGCCAGTGAATTCCCGCGGGGAGCCGGAGCCGGAGCCGGAGCCCCTA

  • Reverse: ATAGGCCGCCTGATGCGCTAATTAAGCTTGTGACCCAGTTTG

  • oxTi365 gRNA

  • Forward: TCTTGCGGTCGCGGTACTCCAAAT

  • Reverse: AAACATTTGGAGTACCGCGACCGC

  • oxTi365 repair template

  • 5’ Forward: AAACGACGGCCAGTGAATTCCCGCGGAGCGTTGATGATTGGAGGGG

  • 5’ Reverse: AAGTTATAGGCCGCCTGATGCCCGGGCATTTGGAGTACCGCGACCGT

  • 3’ Forward: GTTATAGTTGCAGGACCACTAGGCAGGATATTCTCCATTTCTG

  • 3’ Reverse: CATGATTACGCCAAGCTTGCGGCCGCGGGAATGTGCGTGGTGTTTG

  • Punc-4c::TIR1 cassette (inserted into Srf1 site via Gibson assembly)

  • Forward: CGCGGTACTCCAAATGCCCATGACCATGATTACGCCAAG

  • Reverse: TTATAGGCCGCCTGATGCCCAAACGCGCGAGACGAAAGGG

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

    1. Altun-Gultekin Z
    2. Andachi Y
    3. Tsalik EL
    4. Pilgrim D
    5. Kohara Y
    6. Hobert O
    (2001)
    A regulatory cascade of three homeobox genes, ceh-10, ttx-3 and ceh-23, controls cell fate specification of a defined interneuron class in C. elegans
    Development 128:1951–1969.
    1. Brenner S
    (1974)
    The genetics of Caenorhabditis elegans
    Genetics 77:71–94.
  1. Book
    1. Evans TC
    (2006)
    The C. elegans Research Community
    WormBook.
    1. Fire A
    (1986)
    Integrative transformation of Caenorhabditis elegans
    The EMBO Journal 5:2673–2680.
    1. White JG
    2. Southgate E
    3. Thomson JN
    4. Brenner S
    (1976) The structure of the ventral nerve cord of Caenorhabditis elegans
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 275:327–348.
    https://doi.org/10.1098/rstb.1976.0086
    1. White JG
    2. Southgate E
    3. Thomson JN
    4. Brenner S
    (1986) The structure of the nervous system of the nematode Caenorhabditis elegans
    Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 314:1–340.
    https://doi.org/10.1098/rstb.1986.0056

Decision letter

  1. Kang Shen
    Reviewing Editor; Howard Hughes Medical Institute, Stanford University, United States
  2. K VijayRaghavan
    Senior Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

The reviewing team recognizes the importance of defining postmitotic function of transcription factor. They also found it interesting that your data showed that unc-4 and unc-37 function differently in synapse tiling. Overall, this study provided new insights in the molecular mechanisms of synapse tiling.

Decision letter after peer review:

Thank you for submitting your article "Sustained expression of unc-4 homeobox gene and unc-37/Groucho specifies the spatial synaptic organization in C. elegans" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by Kang Shen as the Reviewing Editor and K VijayRaghavan as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Both reviewers found your manuscript interesting and potentially suitable for publication in eLife. One reviewer summarized your findings as below. This manuscript by Kurashina et al. describes a novel post-mitotic role in synaptic patterning for a cell fate determining gene, unc-4, and its co-repressor, unc-37. The DA neurons in C. elegans are cholinergic motor-neurons that exhibit unique synaptic tiling of their dorsal axonal segments. Mizumoto et al. has previously shown that Semaphorin-Plexin signaling is required to establish the tiling between DA8 and DA9, by functioning in cis in the DA9 neuron. Using temperature-sensitive mutant of unc-4, as well as a combination of CRISPR/Cas9 genome editing with the AID system for specific temporal degradation, the authors nicely examine the spatiotemporal requirement of unc-4, and show that unc-4 is required only post-mitotically for synapse tiling, but not during the development of the DA neurons. Interestingly, activity of the corepressor unc-37 is required both during development and postmitotically for correct tiling. unc-4 and unc-37 are suggested to function by inhibiting the canonical wnt signaling. Overall this is an interesting study that sheds light on our understanding of the post-developmental role of cell fate genes in synapse patterning.

The reviewers did suggest the following essential revisions.

Essential revisions:

1) The authors present in their introduction the results from Kerk et al., regarding the role of unc-4 as a cell fate determining gene for the VAs and DAs. Kerk et al. have shown that UNC-4 is specifically required for the expression of DA genes, without affecting ACh pathway genes. Table 1, however, doesn't fully recapitulate the same results and actually shows that unc-4 and unc-37 mutants do not exhibit significant cell fate defects. The authors use these results to argue in the discussion that the synaptic patterning defects can occur independent of the cell fate transformation. The issue of unc-4 as a cell fate-determining gene of A type motor neurons needs to be more clearly addressed. The authors should test whether acr-5 expression is elevated in DAs in unc-4 and unc-37 mutants (Winnier 1999, Kerk 2017).

2) Both reviewers had some concerns about the tiling markers. The authors use a clever strategy to assess tiling of individual cholinergic motor neurons using DA8 and DA9 as a model, but in some cases observe variable degradation of the RAB-3::GFPnovo, presumably due to weak expression of ZIF1 in some of the mutants. This makes it a little difficult to assess the tiling defects in some of the figures. The residual GFPnovo signal seems to be defined based on colocalization with the more broadly expressed mCherry::RAB-3 marker, but no data is shown for the extent of colocalization in the absence of ZIF1. This analysis would benefit from more explanation.

In Figure 1, the anterior extension of the DA9 synapses in the unc-4 mutants is quite dramatic. However, all the anterior ectopic puncta shown in Figure 1C seem to co-localize with a green puncta. The authors should make sure that there is no ectopic expression of mig-13 in the DA8 neuron on unc-4 mutant. I don't have a similar concern for the unc-37 mutant because there is little perfect colocalization of the anterior synapses in the unc-37 mutants.

3) Two reviewers suggested to use plx-1::GFP to provide more insight in the phenotype of unc-4. Since the itr-1::plx-1::gfp is too dim in the unc-4 mutants, plx-1::plx-1::gfp (either transgene or knock in) might provide useful insight in how unc-4 controls plx-1. Of course, it could also be that plx-1 is expressed in many cells, in that case, it would be hard to have subcellular resolution.

4) In Figure 2+3, the authors drew the conclusion that unc-4 is not required during embryogenesis for synaptic connection. Since they imaged the animals during L4, it is possible that the unc-4 is required for both early and late for synaptic tiling. They should score the phenotype in late L1 or L2 to make sure that the phenotype is not there in the embryonic KD experiments.

Reviewer #3 (Recommendations for the authors):

Do the RAB-3::GFPnovo and RAB-3::mCherry markers always have complete overlap, for example in DA9? I'm wondering if variability in the extent of labeling across the 2 markers could influence the ability to assess tiling defects, for example in cases where the RAB-3::GFP marker is only partially degraded.

The previously defined roles for unc-4/unc-37 focused around AVA connectivity with post-embryonic born VA neurons. The authors provide evidence that a subset of neuronal identity markers in DA8 and DA9 neurons are largely unchanged in unc-4 and unc-37 mutants. Do the authors envision that unc-4 and unc-37 have distinct roles in embryonic born DA neurons from those in post embryonic born VA neurons? Or perhaps additional roles?

The downstream pathways (ceh-12, wnt) identified as important for tiling strongly overlap with those previously identified as important for neuronal fate determination. While perhaps not absolutely critical, identification of the proposed additional Wnt-regulated TF that is important (with ceh-12) for tiling might distinguish specific mechanisms for regulation of tiling and be a strong addition the story.

Related, has tiling been examined in VA neurons? Might unc-4/unc-37 have roles in both neuronal fate determination and later roles in synaptic tiling in these neurons? I don't expect the authors to resolve these questions experimentally, but a more direct discussion might help to clarify.

https://doi.org/10.7554/eLife.66011.sa1

Author response

Essential revisions:

1) The authors present in their introduction the results from Kerk et al., regarding the role of unc-4 as a cell fate determining gene for the VAs and DAs. Kerk et al. have shown that UNC-4 is specifically required for the expression of DA genes, without affecting ACh pathway genes. Table 1, however, doesn't fully recapitulate the same results and actually shows that unc-4 and unc-37 mutants do not exhibit significant cell fate defects. The authors use these results to argue in the discussion that the synaptic patterning defects can occur independent of the cell fate transformation. The issue of unc-4 as a cell fate-determining gene of A type motor neurons needs to be more clearly addressed. The authors should test whether acr-5 expression is elevated in DAs in unc-4 and unc-37 mutants (Winnier 1999, Kerk 2017).

We examined the expression of acr-5::GFP using the transgene used by Winnier et al., 1999 and confirmed that acr-5 is mis-expressed in many of the A-class motor neurons in the ventral nerve cord (see Author response image 1). However, we only found a minor degree of acr-5 misexpression in the DA8/9 neurons (yellow arrows in Author response image 1) similar to acr-16. While we do not have an explanation for why DA8/9 exhibit minor cell fate defects compared with more anterior DA neurons, this result is consistent with our conclusion that the minor cell fate defects of DA8 and DA9 in unc-4 and unc-37 mutants are unlikely to account for the severe and fully penetrant synaptic tiling defects. We have included the quantification of acr-5 expression in Table 1.

Author response image 1

2) Both reviewers had some concerns about the tiling markers. The authors use a clever strategy to assess tiling of individual cholinergic motor neurons using DA8 and DA9 as a model, but in some cases observe variable degradation of the RAB-3::GFPnovo, presumably due to weak expression of ZIF1 in some of the mutants. This makes it a little difficult to assess the tiling defects in some of the figures. The residual GFPnovo signal seems to be defined based on colocalization with the more broadly expressed mCherry::RAB-3 marker, but no data is shown for the extent of colocalization in the absence of ZIF1. This analysis would benefit from more explanation.

In Figure 1, the anterior extension of the DA9 synapses in the unc-4 mutants is quite dramatic. However, all the anterior ectopic puncta shown in Figure 1C seem to co-localize with a green puncta. The authors should make sure that there is no ectopic expression of mig-13 in the DA8 neuron on unc-4 mutant. I don't have a similar concern for the unc-37 mutant because there is little perfect colocalization of the anterior synapses in the unc-37 mutants.

To exclude the possibility that the synaptic tiling defects observed in unc-4 mutants is due to the compromised ZIF-1/ZF1 degron system in the mizIs3 synaptic tiling marker used in this study, we examined the synaptic tiling defects using another synaptic tiling marker, wyIs446, that we used in our previous work (Chen et al., 2018 eLife). Because wyIs446 does not use the ZIF-1/ZF1 degron system, both DA8 and DA9 express GFP::RAB-3, while mCherry::RAB-3 is only expressed in DA9. In both wildtype and unc-4 mutants, DA9 expressed both GFP::RAB-3 and mCherry::RAB-3, and GFP and mCherry puncta are nicely colocalized. In this condition we still observed drastic synaptic tiling defects in the unc-4 mutants. Therefore, we believe that the synaptic tiling defects observed in unc-4; mizIs3 is not due to the compromised ZIF-1/ZF1 degron system. We included their representative images and signal histogram of GFP and mCherry signals in Figure 1—figure supplement 1.

We also examined the expression of mCherry::RAB-3 in the DA8 cell body of unc-4 mutants. In wildtype, upon increasing the image brightness, mCherry::RAB-3 signal is detectable in the DA9 cell body but not in the DA8 cell body. In unc-4 mutants, we did not observe mCherry signal in the DA8 cell body, suggesting that DA8 does not express the DA9 marker, mCherry::RAB-3. Therefore, we believe that all of the synaptic puncta labeled with mCherry::RAB-3 are DA9 synapses. This result is included in Figure 1—figure supplement 2.

In conclusion, we did not find any evidence that suggests the synaptic tiling defects observed in unc-4; mizIs3 is due to the misexpression of the markers used in this strain.

3) Two reviewers suggested to use plx-1::GFP to provide more insight in the phenotype of unc-4. Since the itr-1::plx-1::gfp is too dim in the unc-4 mutants, plx-1::plx-1::gfp (either transgene or knock in) might provide useful insight in how unc-4 controls plx-1. Of course, it could also be that plx-1 is expressed in many cells, in that case, it would be hard to have subcellular resolution.

We examined the expression and localization of the endogenous PLX-1 by inserting GFPnovo2 cDNA at the 3’ end of the endogenous plx-1 locus using CRISPR/Cas9 genome editing, but we did not observe reliable level of expression from the dorsal axons including DA9. The transgenic overexpression of Pplx-1::plx-1::gfp highlighted the neuronal PLX-1::GFP in DA9 judged based on its commissural localization, but the signals from the other neurons and non-neuronal cells (hypodermis and muscles) masked the subcellular localization of PLX-1::GFP at the synaptic tiling border. At least, we observe no clear reduction in the overall expression level of PLX-1::GFP in unc-4 mutants.

Author response image 2

To test if unc-4 and unc-37 controls the expression of plx-1, we examined the expression of Pplx-1::gfp in unc-4 and unc-37 mutants, and found that there was slight reduction in % animals expressing Pplx-1::gfp in the anterior DA8/9 of unc-37 mutants (Figure 1—figure supplement 4). Given the fully penetrant synaptic tiling defects, we do not think that slight reduction in plx-1 expression is responsible for the synaptic tiling defects of unc-4 and unc-37 mutants. We also found that the expression of plx-1 cDNA under the DA neuron-specific promoter (Punc-4c) did not rescue the synaptic tiling defects of unc-4 and unc-37 mutants (not shown). Therefore, the loss or reduction of plx-1 expression is unlikely the mechanism underlying the synaptic tiling defects of unc-4 and unc-37.

4) In Figure 2+3, the authors drew the conclusion that unc-4 is not required during embryogenesis for synaptic connection. Since they imaged the animals during L4, it is possible that the unc-4 is required for both early and late for synaptic tiling. They should score the phenotype in late L1 or L2 to make sure that the phenotype is not there in the embryonic KD experiments.

We examined the synaptic tiling defects of the embryonic knockdown of unc-4 and unc-37 at early L2 stage. Consistent with our observation at L4 stage animals, we found that embryonic knockdown of unc-37 but not unc-4 caused synaptic tiling defects at L2 stage. This result further strengthens our conclusion that unc-4 is not required during DA neurogenesis at embryonic stage to control their synaptic tiling. The data is included in Figure 4.

Reviewer #3 (Recommendations for the authors):

Do the RAB-3::GFPnovo and RAB-3::mCherry markers always have complete overlap, for example in DA9? I'm wondering if variability in the extent of labeling across the 2 markers could influence the ability to assess tiling defects, for example in cases where the RAB-3::GFP marker is only partially degraded.

We have answered this comment in the essential revision #2

The previously defined roles for unc-4/unc-37 focused around AVA connectivity with post-embryonic born VA neurons. The authors provide evidence that a subset of neuronal identity markers in DA8 and DA9 neurons are largely unchanged in unc-4 and unc-37 mutants. Do the authors envision that unc-4 and unc-37 have distinct roles in embryonic born DA neurons from those in post embryonic born VA neurons? Or perhaps additional roles?

The lack of major cell fate defects in the DA8 and DA9 neurons of unc-4 and unc-37 mutants was surprising to us, because previous work indeed observed that the cell fate defects in the DA neurons in the ventral nerve cord (DA2-DA7) in unc-4 mutants (Winnier et al., 1999; Kerk et al., 2017). One possible explanation is that the mechanisms of cell fate specification of these two posterior DA neurons are slightly different from the rest of DA and VA neurons. Consistent with this idea, DA8 and DA9 exhibit distinct gene expression profile compared with anterior DA neurons (Kratsios et al., 2017). In the revised manuscript, we described this possibility in the discussion.

The downstream pathways (ceh-12, wnt) identified as important for tiling strongly overlap with those previously identified as important for neuronal fate determination. While perhaps not absolutely critical, identification of the proposed additional Wnt-regulated TF that is important (with ceh-12) for tiling might distinguish specific mechanisms for regulation of tiling and be a strong addition the story.

We agree that identifying the additional transcription factor(s) that function downstream of Wnt signaling would greatly enhance our understanding of transcriptional regulation of precise synapse pattern formation. However, given the genetic redundancy between ceh-12 and these factor(s), identification of these genes would be challenging. We hope to identify them through single cell RNA sequencing of DA8/9 in unc-4 mutants, as well as genetic suppressor screening of the synaptic tiling defects in the unc-4; ceh-12 mutants in the future. We included these future experiments in the revised discussion.

Related, has tiling been examined in VA neurons? Might unc-4/unc-37 have roles in both neuronal fate determination and later roles in synaptic tiling in these neurons? I don't expect the authors to resolve these questions experimentally, but a more direct discussion might help to clarify.

Our synaptic tiling marker is supposed to label two posterior VA neurons, VA11 and VA12, with GFPnovo2::RAB-3 and mCherry::RAB-3. However, the synaptic tiling between VA11 and VA12 labeled with mizIs3 (and wyIs446) are highly variable in wildtype, which made the phenotypic examination of unc-4 and unc-37 difficult. We hope to be able to answer this important question with a better VA-synaptic tiling marker in the future. In the revised manuscript, we have included a discussion regarding the potential functions of unc-4 and unc-37 in VA synaptic tiling and AVA-VA synaptic specificity.

https://doi.org/10.7554/eLife.66011.sa2

Article and author information

Author details

  1. Mizuki Kurashina

    1. Department of Zoology, University of British Columbia, Vancouver, Canada
    2. Graduate Program in Cell and Developmental Biology, University of British Columbia, Vancouver, Canada
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Jane Wang

    Department of Zoology, University of British Columbia, Vancouver, Canada
    Contribution
    Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Jeffrey Lin

    Department of Zoology, University of British Columbia, Vancouver, Canada
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Kathy Kyungeun Lee

    Department of Zoology, University of British Columbia, Vancouver, Canada
    Contribution
    Resources, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Arpun Johal

    Department of Zoology, University of British Columbia, Vancouver, Canada
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Kota Mizumoto

    1. Department of Zoology, University of British Columbia, Vancouver, Canada
    2. Graduate Program in Cell and Developmental Biology, University of British Columbia, Vancouver, Canada
    3. Life Sciences Institute, University of British Columbia, Vancouver, Canada
    4. Djavad Mowafaghian Centre for Brain Health, University of British Columbia, Vancouver, Canada
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    For correspondence
    mizumoto@zoology.ubc.ca
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8091-4483

Funding

Human Frontier Science Program (CDA-00004/2014)

  • Kota Mizumoto

Canadian Institutes of Health Research (PJT-148667)

  • Kota Mizumoto

Canada Research Chairs (950-232435)

  • Kota Mizumoto

Michael Smith Foundation for Health Research (SCH-2017-2001)

  • Kota Mizumoto

NSERC (Undergraduate Student Research Awards)

  • Jane Wang

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to David Miller and Don Moerman for suggestions on the project. We also thank Kenji Sugioka, Riley St. Clair, and Ardalan Hendi for comments on the manuscript. Some strains used in this study were obtained from the Caenorhabditis Genetics Center (CGC), which is funded by NIH Office of Research Infrastructure Programs (P40 OD010440) and C. elegans gene knockout consortium. This project is funded by HFSP (CDA-00004/2014) and CIHR (PJT-148667). KM is a recipient of Canada Research Chair and Michael Smith Foundation for Health Research Scholar. JW is a recipient of the NSERC Undergraduate Student Research Awards.

Senior Editor

  1. K VijayRaghavan, National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

Reviewing Editor

  1. Kang Shen, Howard Hughes Medical Institute, Stanford University, United States

Publication history

  1. Preprint posted: December 22, 2020 (view preprint)
  2. Received: December 22, 2020
  3. Accepted: August 7, 2021
  4. Version of Record published: August 13, 2021 (version 1)

Copyright

© 2021, Kurashina et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 458
    Page views
  • 45
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Alessandro Bonfini et al.
    Research Article

    The gut is the primary interface between an animal and food, but how it adapts to qualitative dietary variation is poorly defined. We find that the Drosophila midgut plastically resizes following changes in dietary composition. A panel of nutrients collectively promote gut growth, which sugar opposes. Diet influences absolute and relative levels of enterocyte loss and stem cell proliferation, which together determine cell numbers. Diet also influences enterocyte size. A high sugar diet inhibits translation and uncouples ISC proliferation from expression of niche-derived signals but, surprisingly, rescuing these effects genetically was not sufficient to modify diet's impact on midgut size. However, when stem cell proliferation was deficient, diet's impact on enterocyte size was enhanced, and reducing enterocyte-autonomous TOR signaling was sufficient to attenuate diet-dependent midgut resizing. These data clarify the complex relationships between nutrition, epithelial dynamics, and cell size, and reveal a new mode of plastic, diet-dependent organ resizing.

    1. Developmental Biology
    2. Physics of Living Systems
    Yonghyun Song, Changbong Hyeon
    Research Article Updated

    Spatial boundaries formed during animal development originate from the pre-patterning of tissues by signaling molecules, called morphogens. The accuracy of boundary location is limited by the fluctuations of morphogen concentration that thresholds the expression level of target gene. Producing more morphogen molecules, which gives rise to smaller relative fluctuations, would better serve to shape more precise target boundaries; however, it incurs more thermodynamic cost. In the classical diffusion-depletion model of morphogen profile formation, the morphogen molecules synthesized from a local source display an exponentially decaying concentration profile with a characteristic length λ. Our theory suggests that in order to attain a precise profile with the minimal cost, λ should be roughly half the distance to the target boundary position from the source. Remarkably, we find that the profiles of morphogens that pattern the Drosophila embryo and wing imaginal disk are formed with nearly optimal λ. Our finding underscores the cost-effectiveness of precise morphogen profile formation in Drosophila development.
