Dual expression of Atoh1 and Ikzf2 promotes transformation of adult cochlear supporting cells into outer hair cells
Abstract
Mammalian cochlear outer hair cells (OHCs) are essential for hearing. Severe hearing impairment follows OHC degeneration. Previous attempts at regenerating new OHCs from cochlear supporting cells (SCs) have been unsuccessful, notably lacking expression of the key OHC motor protein, Prestin. Thus, regeneration of Prestin+ OHCs represents a barrier to restore auditory function in vivo. Here, we reported the successful in vivo conversion of adult mouse cochlear SCs into Prestin+ OHC-like cells through the concurrent induction of two key transcriptional factors known to be necessary for OHC development: Atoh1 and Ikzf2. Single-cell RNA sequencing revealed the upregulation of 729 OHC genes and downregulation of 331 SC genes in OHC-like cells. The resulting differentiation status of these OHC-like cells was much more advanced than previously achieved. This study thus established an efficient approach to induce the regeneration of Prestin+ OHCs, paving the way for in vivo cochlear repair via SC transdifferentiation.
Introduction
Hair cells (HCs) are the auditory sensors that enable vertebrates to hear. These cells are located in the auditory epithelium, the latter referred to as the organ of Corti (OC) (Wu and Kelley, 2012). Located near HCs are several supporting cell (SC) subtypes, which, from the medial side to lateral side, are Pillar cells (PCs) and Deiters’ cells (DCs) (Montcouquiol and Kelley, 2020). Auditory HCs comprise two subtypes, inner and outer HCs (IHCs and OHCs). IHCs are the primary sensory cells and innervated by type-I cochlear spiral ganglion neurons (SGNs). IHCs specifically express vGlut3, encoded by Slc17a8, which is required for sound information transmission from IHCs to SGNs (Li et al., 2018b); consequently, Slc17a8−/− mice are completely deaf (Ruel et al., 2008; Seal et al., 2008). In contrast, OHCs act as sound amplifiers and lack vGlut3. OHCs express a motor protein unique to them, Prestin, encoded by Slc26a5 (Zheng et al., 2000). Prestin mediates electromotility, which enables OHCs to function as sound amplifiers, an important step in broadening our ability to perceive sounds. Indeed, Prestin-deficient (Slc26a5−/−) mice show severe hearing impairment (Liberman et al., 2002). IHCs and OHCs are believed to originate from communal pool of Atoh1+ progenitor cells (Driver et al., 2013; Groves et al., 2013; Matei et al., 2005; Tateya et al., 2019).
Atoh1 is a bHLH transcriptional factor (TF) that is necessary for specifying general HC fate, and, accordingly, both IHCs and OHCs are lost in Atoh1−/− mice (Bermingham et al., 1999). Two additional TFs, encoded by Insm1 and Ikzf2, are known to be required for specifying OHC fate and/or repressing IHC fate (Chessum et al., 2018; Wiwatpanit et al., 2018). Furthermore, OHCs in Insm1−/− and Ikzf2 point-mutant mice tend to transdifferentiate into IHCs. Insm1 and Ikzf2 differ in that the former is only transiently expressed in differentiating OHCs (Lorenzen et al., 2015), whereas the latter is expressed permanently throughout the lifetime of OHCs (Chessum et al., 2018). Unlike IHCs, OHCs are highly vulnerable to ototoxic drugs, noise, and aging and their damage is a common cause of hearing impairment. Non-mammalian vertebrates such as fish and chicken are able to regenerate HCs from neighboring SCs, during which key HC developmental genes (e.g. Atoh1) are reactivated (Atkinson et al., 2015). Mammals have lost this regenerative capacity (Janesick and Heller, 2019). Nonetheless, recent single-cell transcriptomic analyses of cochlear cells suggest that some SCs share recent progenitors with OHCs (particularly Lgr5+ PCs and DCs populations) and are thus regarded as a promising source for new OHCs (Chai et al., 2012; Kolla et al., 2020; McLean et al., 2017). Importantly, PCs and DCs are also in close physical proximity to OHCs requiring minimal if any displacement.
In previous work, we demonstrated that in vivo ectopic Atoh1 expression in neonatal and juvenile SCs (primarily PCs and DCs) is sufficient to convert these cells into nascent HCs that express early HC markers such as Myo6 and Myo7a (Liu et al., 2012a). In contrast, adult PCs and DCs are not sensitive to ectopic Atoh1 expression (Kelly et al., 2012; Liu et al., 2012a), unless additional manipulations are performed (Walters et al., 2017). Despite this progress, no newly in vivo transformed HCs has been reported to express Prestin (Chai et al., 2012; Liu et al., 2012a; Walters et al., 2017). Thus, an outstanding challenge is how to regenerate Prestin+ OHCs from SCs, particularly from adult lesioned cochlea; indeed, OHC damage is the much more prevalent in the elderly population, than in younger generations. As ectopic Ikzf2 induction in IHCs leads to ectopic Prestin expression (Chessum et al., 2018), we hypothesized that together Atoh1 and Ikzf2 might synergistically reprogram adult PCs and DCs into not only HCs, but into further differentiated Prestin+ OHCs.
To test this hypothesis, we generated genetic mice lines that allowed us to conditionally and concurrently induce ectopic expression of Atoh1 and Ikzf2 in adult cochlear SCs (primarily PCs and DCs), with or without pre-damaging wild-type OHCs. In summary, the results that emanated from our comprehensive genetic, transcriptomic, immunostaining, morphological, and fate-mapping analyses supported our general hypothesis. Indeed, new Prestin+ OHC-like cells were frequently observed across the entire cochlear duct; interestingly, this occurred much more readily when endogenous OHCs were pre-damaged. To the best of our knowledge, this is the first report of in vivo generation of Prestin+ OHC-like cells from adult cochlear SCs. Our findings identify Atoh1 and Ikzf2 as potential targets for OHC regeneration therapy in hearing-impaired patients. Nonetheless, future work is still called for as the Prestin+ OHC-like cells were still insufficiently differentiated to restore hearing loss caused by OHC damage.
Results
Generation of conditional Ikzf2-overexpression mouse model
To test whether concurrent Atoh1 and Ikzf2 expression was sufficient to induce transdifferentiation of adult SCs into OHCs, we needed various conditional transgenic lines. A conditional Atoh1-overexpression transgenic strain, CAG-Loxp-stop-Loxp-Atoh1*2xHA+ (CAG-LSL-Atoh1+ for short) already existed, and its ability to efficiently drive high Atoh1 protein expression was previously confirmed (Liu et al., 2012a). In this mouse line, 2× HA fragments were tagged to the C-terminus of Atoh1 as a practical means for reading out expression. However, a similar conditional expression model for Ikzf2 was not available. Therefore, we began by generating a Rosa26-CAG-Loxp-stop-Loxp-Ikzf2*3xHA-T2A-Tdtomato/+ knock in mouse line (Rosa26CAG-LSL-Ikzf2/+ for short), in which Ikzf2 is similarly tagged with 3× HA fragments at its C-terminus (Figure 1—figure supplement 1A–C). The mouse line was generated following the CRISPR/Cas9 gene-targeting approach (Li et al., 2020b), Southern blotting results confirmed the lack of random donor DNA insertion into the host mouse genome (Figure 1—figure supplement 1D,E), and PCR-genotyping of tail DNA allowed us to readily distinguish among wild-type, heterozygous, and homozygous littermates (Figure 1—figure supplement 1F). Both heterozygous and homozygous Rosa26CAG-LSL-Ikzf2/+ mice were healthy and fertile and did not display any noticeable abnormalities.
The genetic constructs were designed such that upon Cre-mediated recombination, Tdtomato and Ikzf2 would be translated, initially together from the same polycistronic mRNA, and subsequently cleaved by the 2A peptide (Li et al., 2020a); and once triggered, expression of Ikzf2 and Tdtomato would be permanent, enabling genetic fate-mapping analysis at single-cell resolution. Thus, this construct, when used in conjunction with a SC-specific Cre-driver, would readily allow us to distinguish potential new OHCs (Tdtomato+) derived from adult cochlear SCs (primarily PCs and DCs in this study) from endogenous OHCs (Tdtomato−). Due to the lack of high-quality commercial antibodies against either Atoh1 or Ikzf2, we used anti-HA antibody to assess the presence of ectopic Atoh1 and Ikzf2 proteins in CAG-LSL-Atoh1+ and Rosa26CAG-LSL-Ikzf2/+ strains, respectively.
Induction of ectopic Ikzf2 in IHCs is sufficient to induce OHC-markers, prestin, and Ocm expression, as well as reduce IHC-marker, Slc7a14 expression
We began by validating the ability of the new mouse model (Rosa26CAG-LSL-Ikzf2/+) to drive ectopic and ‘functional’ Ikzf2 expression. It is known that IHCs, infected with an Anc80-virus expressing Ikzf2 (Chessum et al., 2018), begin synthetizing the typically OHC-exclusive protein, Prestin (Fang et al., 2012; Liberman et al., 2002; Zheng et al., 2000). We therefore used ectopic Prestin expression as a proxy for ‘functional’ Ikzf2 expression in IHCs. More specifically, we crossed the transgenic Atoh1-CreER+ mouse line, in which Cre activity is restricted to HCs (both IHCs and OHCs) (Chow et al., 2006; Cox et al., 2012), to the new Rosa26CAG-LSL-Ikzf2/+ line. Atoh1-CreER+ or Rosa26CAG-LSL-Ikzf2/+ mice were used as controls, and Atoh1-CreER+; Rosa26CAG-LSL-Ikzf2/+ mice were experimental group mice. All groups were administered tamoxifen at postnatal day 0 (P0) and P1, and sacrificed and analyzed at P42 (Figure 1A, Figure 1—figure supplements 2 and 3).

Prestin was expressed in IHCs upon ectopic Ikzf2 induction.

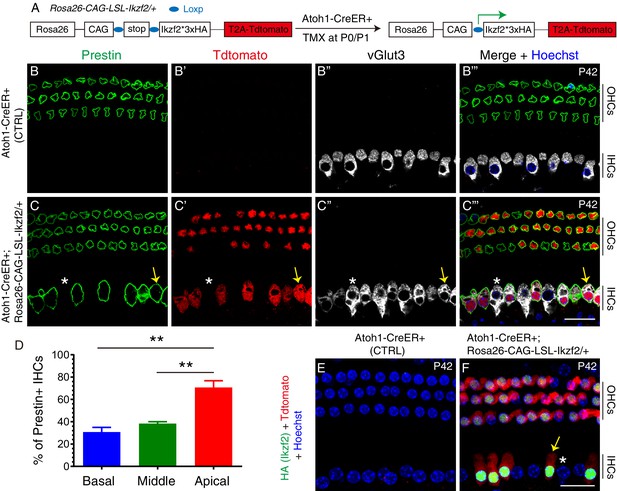

(A) Illustration of approach used to induce Ikzf2 expression in HCs (both IHCs and OHCs) using the Cre-LoxP system. The Atoh1-CreER+ line was used to efficiently drive Cre expression in HCs at neonatal ages when Tamoxifen (TMX) was given at P0 and P1. Tdtomato and Ikzf2 (tagged with HA) were placed in close proximity in the construct to ensure joint expression. (B–C’’’) Triple labeling against Prestin, Tdtomato, and vGlut3 in P42 cochlear samples: control Atoh1-CreER+ (B–B’’’) and experimental Atoh1-CreER+; Rosa26CAG-LSL-Ikzf2/+ (C–C’’’). In wild-type (B–B’’’) Prestin was only expressed in OHCs; in the experimental group (C–C’’’), expression was observed in both OHCs and some IHCs. Arrows in (C–C’’’): Tdtomato+/vGlut3+/Prestin+ IHC; asterisks in (C–C’’’): vGlut3+/Tdtomato-/Prestin- IHC. (D) Quantification of Prestin+ IHCs. More Prestin+ IHCs were present in the apical turn than in basal and middle turns of the cochleae. Data was presented as mean ± SEM, **p<0.01 (Student’s t test). (E, F) Co-staining against HA (Ikzf2) and Tdtomato in control (E) and experimental (F) mice at P42. HA+/Tdtomato + cells were present in experimental mice only. Arrow/asterisk in (F): IHC with/without HA (Ikzf2) expression. All Tdtomato+ cells were HA+ (Ikzf2 expressing) cells, and vice versa. Scale bar: 20 μm.
-
Figure 1—source data 1
It contained the numerical values of the data plotted in the graph of Figure 1D.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig1-data1-v2.xlsx
We focused our analysis on the IHC Prestin, HA (Ikzf2), and Tdtomato expression patterns, but we did note that OHCs were also directly affected by the manipulation. In the Atoh1-CreER+ control group (n = 3), neither Prestin nor Tdtomato was expressed in IHCs at P42 (Figure 1B–B’’’). In contrast, in the experimental P42 mice (n = 3) Prestin was ectopically expressed in IHCs that were vGlut3+/Tdtomato+ (arrows in Figure 1C–C’’’) and, as expected, not in IHCs that were vGlut3+/Tdtomato− (asterisks in Figure 1C–C’’’). All Tdtomato+ IHCs were Prestin+ and all Prestin+ IHCs were Tdtomato+. Quantification revealed that 30.8% ± 4.2%, 38.4% ± 1.6%, and 70.7% ± 6.0% of IHCs were Prestin+ in basal, middle, and apical turns, respectively, at P42 (Figure 1D, Figure 1—figure supplement 2); the apical turn thus harboring more Prestin+ IHCs than the basal and middle turns. This is in accord with the higher reported Cre efficiency of Atoh1-CreER+ in the apex of the cochlea (Cox et al., 2012). We also confirmed that all Tdtomato+ (Prestin+) IHCs expressed HA (Ikzf2) and vice versa (Figure 1E,F), which validated the co-expression of Ikzf2 and Tdtomato. As a point of potential interest, these results bring further support toward the ability of Ikzf2 to induce Prestin expression in IHCs. We noted that despite Tdtomato+ OHCs likely expressing both endogenous and ectopic Ikzf2, they appeared normal suggesting that these cells are able to tolerate additional Ikzf2 expression, at least until P42 (Figure 1C–C’’’ and F).
Besides Prestin, overexpressing Ikzf2 IHCs also upregulated a second OHC-specific marker, Oncomodulin (Ocm) (Simmons et al., 2010; Tong et al., 2016). This was only observed in the experimental mice (n = 3, P42), but not in the control Rosa26CAG-LSL-Ikzf2/+ mice (n = 3, P42) (Figure 1—figure supplement 3A-B''). Again, all Tdtomato+ IHCs were Ocm+ and vice versa. Moreover, triple staining against the IHC markers, Slc7a14 (Li et al., 2018a), Ctbp2 (a marker of synaptic ribbons) (Buran et al., 2010; Khimich et al., 2005; Liu et al., 2014a), showed that in the control Rosa26CAG-LSL-Ikzf2/+ group (n = 3, P42) Slc7a14 was expressed in IHCs and that the cells also contained Ctbp2+ puncta (Figure 1—figure supplement 3C–C'''). In contrast, in the experimental mice (n = 3, P42) Slc7a14 expression was diminished and the number of Ctbp2+ puncta was reduced in Tdtomato + IHCs (arrows in Figure 1—figure supplement 3D–D'''). In Tdtomato− IHCs, Slc7a14 level and number of Ctbp2 puncta were comparable to those of the control mice as expected (dotted line in Figure 1—figure supplement 3D–D'''). Lastly, we noted that the size of the cell nuclei, which can be estimated by the area covered by Ctbp2, was smaller in Tdtomato+ IHCs than that in Tdtomato− IHCs.
Taken together, these results show that the Rosa26CAG-LSL-Ikzf2/+ strain was able to drive sufficient ectopic Ikzf2 expression to induce endogenous IHCs to gain and lose some OHC and IHC characteristics respectively; more specifically, the OHC markers, Prestin and Ocm, were found to be over-expressed, and IHC marker, Slc7a14, downregulated in the Tdtomato+/overexpressing Ikzf2 IHCs. In summary, we confirmed that Rosa26CAG-LSL-Ikzf2/+ strain could be used as a powerful genetic model for inducing functional Ikzf2 expression in Cre-expressing cells.
Induction of Ikzf2 alone fails to convert adult PCs and DCs into HCs
We next determined whether Ikzf2 alone could reprogram adult cochlear SCs into Prestin+ OHCs. Fgfr3-iCreER+; Rosa26-Loxp-stop-Loxp-Tdtomato (Ai9)/+ (Fgfr3-Ai9 for short) mice were administered tamoxifen at P30/P31 and sacrificed at P60 (arrows in Figure 2A–A’’’). As expected, no Tdtomato+ HCs (neither IHCs nor OHCs) were observed, whilst most SCs (primarily PCs and DCs) were Tdtomato+ (inset in Figure 2A’); this was congruent with our previous reports that Fgfr3-iCreER is SC specific at adult ages (Liu et al., 2012a; Liu et al., 2012b). We also confirmed that induction of Atoh1 alone failed to convert adult cochlear SCs into HCs by analyzing Fgfr3-iCreER+; CAG-LSL-Atoh1+ mice (Fgfr3-Atoh1 for short) that were also administered tamoxifen at P30/P31 and sacrificed at P60 (Figure 2B–B’’’). Despite high levels of ectopic Atoh1 (tagged with HA) were observed in adult SCs (inset in Figure 2B), SCs remained Prestin- (Figure 2B’’). More extensive information regarding Atoh1 expression patterns in CAG-LSL-Atoh1+ mice is available in our previous study (Liu et al., 2012a).

Joint expression of Atoh1 and Ikzf2 in adult SCs (PCs and DCs) induced transition to an OHC-like cell state at low frequency.

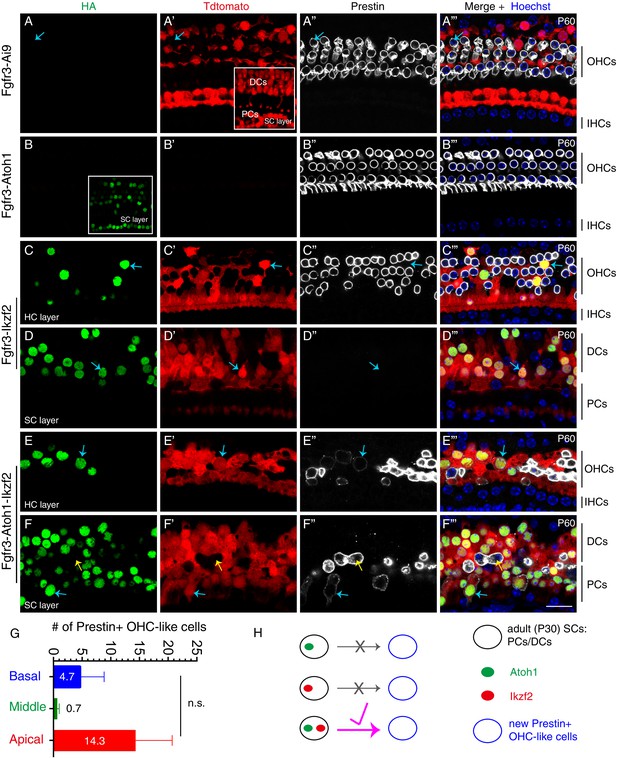

Triple labeling against HA, Tdtomato, and Prestin in four different mouse genetic models that were administered tamoxifen at P30 and P31 and sacrificed at P60. Confocal images scanned at HC or SC layers. (A–A’’’) In the control Fgfr3-iCreER+; Ai9/+ (Fgfr3-Ai9) mice, Tdtomato labelled SCs (primarily PCs and DCs) and no Prestin expression was observed in them. Inset in (A’): scan at SC layer. Arrows in (A–A’’’): Prestin+/Tdtomato- OHC. (B–B’’’) In mice expressing Atoh1 in adult SCs, Fgfr3-iCreER+; CAG-LSL-Atoh1+ (Fgfr3-Atoh1), no Tdtomato signal was detected and no HA+/Prestin+ cells were observed. Inset in (B): scan at SC layer. (C–D’’’) In mice expressing Ikzf2 in adult SCs, Fgfr3-iCreER+; Rosa26CAG-LSL-Ikzf2/+ (Fgfr3-Ikzf2), HA and Tdtomato were co-expressed in both the HC (C–C’’’) and SC (D–D’’’) layer. Arrows in both layers: two cells that were HA+/Tdtomato + but did not express Prestin. Alignment of endogenous Prestin+ OHCs was abnormal and some of them were lost. (E–F’’’) In mice, Fgfr3-iCreER+; CAG-LSL-Atoh1+; Rosa26CAG-LSL-Ikzf2/+ mice (Fgfr3-Atoh1-Ikzf2), some adult SCs were HA+/Tdtomato+/Prestin+, taking on an OHC-like phenotype. Arrows in (E–E’’’) indicated an OHC-like cell originating from an adult DC; in contrast, the blue arrows in (F–F’’’) indicated another OHC-like cell derived from adult PCs. Yellow arrows in (F–F’’’): Prestin+/Tdtomato- endogenous OHC appearing in the SC layer. Prestin expression in the new OHC-like cells was noted to be lower than that in wild-type endogenous OHCs. (G) Quantification of the number of OHC-like cells throughout the cochlear turns in the Fgfr3-Atoh1-Ikzf2 mice. Data was presented as mean ± SEM (n = 3); no statistical difference was detected between regions (Student’s t test). OHC-like cells were reliably observed in all animals, but cell numbers were low and showed large variations. (H) Summary of reprogramming outcomes in the three mice models. OHC-like cells were present only when both Atoh1 and Ikzf2 were concurrently reactivated in adult cochlear SCs. Scale bar: 20 μm.
-
Figure 2—source data 1
It contained the numerical values of the data plotted in the graph of Figure 2G.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig2-data1-v2.xlsx
We next tested whether driving Ikzf2 alone in SCs was sufficient to induce trans-differentiation into OHCs. To assess for sufficiency, Fgfr3-iCreER+; Rosa26CAG-LSL-Ikzf2/+ mice (Fgfr3-Ikzf2 for short) were administered tamoxifen at P30/P31 and analyzed at P60. Both the HC layer (Figure 2C–C’’’) and the SC layer (Figure 2D–D’’’) were imaged. As expected, numerous Tdtomato+ cells were observed in cochleae. As before, all Tdtomato+ cells expressed HA and vice versa (arrows in Figure 2C–D’’’). However, none of these Tdtomato+/HA+ cells expressed Prestin (arrows in Figure 2C–D’’’). Furthermore, we could not detect any Tdtomato+/Myo6 (HC marker)+ cells. We also noted the loss of endogenous OHCs (Prestin+/Tdtomato−) throughout the cochlear duct, particularly at the basal turn, which was likely a secondary effect of ectopic Ikzf2 expression in adult cochlear SCs. Collectively, these results suggested that Ikzf2 alone was insufficient for converting adult cochlear SCs into nascent Myo6+ HCs or Prestin+ OHCs. Thus, in terms of cell-fate conversion, more barriers from adult cochlear SCs into OHCs needed to be overcome than from IHCs to OHCs.
Concurrent induction of Ikzf2 and Atoh1 converts, at low efficiency, adult PCs, and DCs into Prestin+ OHC-like cells
Considering the synergistic effects reported among TFs, such as between Six1, Atoh1, Pou4f3, and Gata3 and between Myc and Notch signaling (Chen et al., 2021; Costa et al., 2015; Menendez et al., 2020; Shu et al., 2019; Walters et al., 2017), we hypothesized that concurrent induction of Ikzf2 and Atoh1 might convert adult cochlear SCs into OHCs. We tested this by analyzing cochlear samples from Fgfr3-iCreER+; CAG-LSL-Atoh1+; Rosa26CAG-LSL-Ikzf2/+ mice (Fgfr3-Atoh1-Ikzf2 for short) that were given tamoxifen at P30/P31 and sacrificed at P60. As before, Tdtomato+ SCs were abundant within the OC, and 88.0% ± 2.7%, 94.1% ± 4.3%, and 98.2% ± 1.8% of HA+ cells were Tdtomato+ in the basal, middle, and apical turns, respectively (n = 3). The fact that most Tdtomato+ cells were HA+ further confirmed the high Cre activity in the Fgfr3-iCreER model. The small fraction of HA+/Tdtomato− cells represented populations in which ectopic Atoh1, but not Ikzf2 was expressed (HA is tagged to both Atoh1 and Ikzf2 constructs) due to independent Cre-recombination events in the two loci. No Tdtomato+/HA− cells were observed as Tdtomato and HA are closely appositioned in the Rosa26CAG-LSL-Ikzf2/+ model.
Unlike in the case of exclusive Ikzf2 induction (Figure 2C–D’’’), in Fgfr3-Atoh1-Ikzf2 mice (n = 3), Tdtomato+/Prestin+ cells were occasionally observable (arrows in Figure 2E–F’’’) at P60. These cells were defined as new OHC-like cells as they were derived from the original Tdtomato+ cochlear SCs (PCs and DCs) but were not identical to wild-type adult OHCs (see below). These OHC-like cells were distributed in both HC (Figure 2E–E’’’) and SC layers (Figure 2F–F’’’). However, the number of new OHC-like cells was low, averaging to 4.7 ± 4.2, 0.7 ± 0.3, and 14.3 ± 6.4 in the basal, middle, and apical turns, respectively (Figure 2G). Moreover, Prestin protein expression was substantially lower in these OHC-like cells (blue arrows in Figure 2E–F’’’) compared to wild-type endogenous OHCs, the latter which expressed Prestin but not Tdtomato (yellow arrows in Figure 2F–F’’’). As observed before, endogenous OHC loss occurred throughout the cochlear ducts (Figure 2E–F’’’). These results supported the conclusion that concurrent induction of Atoh1 and Ikzf2 was sufficient to reprogram, albeit at low efficiency, adult cochlear SCs into Prestin+ OHC-like cells, whilst independently, neither gene was able to trigger this conversion (Figure 2H). In an attempt to boost the reprogramming efficiency, we next sought to test whether pre-damaging OHCs might act as a permissive and promoting factor to SCs conversion into Prestin+ OHC-like cells.
Generation of Slc26a5DTR/+ mouse line to study effects of OHC damage
To non-invasively damage adult OHCs in vivo, we resorted to making use of the diphtheria toxin (DT)/DT receptor (DTR) system, which has already been used to successfully lesion HCs in the inner ear (Cox et al., 2014; Golub et al., 2012; Tong et al., 2015). We generated a new knock-in mouse model, Slc26a5-P2A-DTR/+ (Slc26a5DTR/+ for short), in which the P2A-DTR fragment was inserted immediately before the stop codon (TAA) of Slc26a5 (enconding the OHC marker, Prestin) (Figure 3—figure supplement 1A–C). As a result DTR expression was entirely controlled by the endogenous Slc26a5 promoter and/or enhancers and thus restricted to being expressed in OHCs, whilst still leaving OHC Prestin expression itself in principle unaffected. Southern blotting results confirmed the absence of random insertion of donor DNA in the host genome Figure 3—figure supplement 1D,E, and tail-DNA PCR allowed us to readily distinguish between wild-type and post-gene-targeting Slc26a5 alleles (Figure 3—figure supplement 1F).
In the absence of DT treatment, co-staining for the OHC-marker, Prestin and IHC-marker, vGlut3 revealed that OHCs were normal in P42 Slc26a5DTR/+ mice (n = 3) (Figure 3A and A'). In contrast, after a single injection of DT (20 ng/g, body weight) at P36, severe OHC loss was observed in Slc26a5DTR/+ mice (n = 3) at P42, with only a few OHCs detectable throughout the cochlear duct (arrowhead in Figure 3B’). Debris from dying OHCs were frequently observed at P42 (arrows in Figure 3B’) but had disappeared by P60 (see below for details; see Figure 4). Conversely, IHCs appeared normal at P42 under DT treatment, which confirmed that DTR was indeed specifically expressed in OHCs only (Figure 3B and B’). Furthermore, the results of auditory brainstem response (ABR) measurement demonstrated that auditory thresholds at distinct frequencies in Slc26a5DTR/+ mice (n = 3) treated with DT were significantly higher than those in untreated control Slc26a5DTR/+ mice (n = 3) (Figure 3C). In logical accord with this, the ratio of OHC numbers to IHC number was significantly reduced in Slc26a5DTR/+ mice treated with DT (red in Figure 3D) being at ~0.19, compared to the ratio of ~3.23 in control population (blue in Figure 3D). Together, these results showed that DT treatment caused, within 6 days, marked hearing impairment due to selective OHC loss, and validated the use of Slc26a5DTR/+ as a powerful mouse model to study the selective effects wild-type endogenous OHC loss. We also note that, thanks to the exclusive expression of Prestin in cochlear OHCs, Slc26a5DTR/+ mice displayed no detectable abnormalities, apart from the desired deafness following DT treatment.

Targeted lesioning of adult endogenous OHCs via diphtheria toxin treatment.

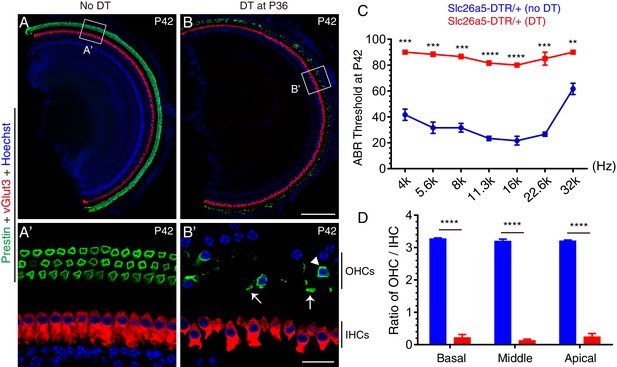

(A–B’) Slc26a5DTR/+ mice were treated without (A–A’, control) or with (B-B’, experimental) diphtheria toxin (DT) at P36 and analyzed at P42. Samples were co-stained against Prestin and vGlut3. (A’) and (B’): magnified images of boxed region in (A) and (B). DT treatment led to rapid OHC death within 6 days; only a few OHCs remained (arrowhead in B’); debris of dying OHCs were frequently detected (arrows in B’). Much of the green signal in (B) came from the dying OHC debris. (C) Auditory brainstem response (ABR) threshold measurement of Slc26a5DTR/+ mice treated with (red line) or without (blue line) DT. After DT treatment ABR thresholds were significantly higher throughout the frequency ranges. (D) Ratios of OHCs to IHCs within a same scanning area in control mice (blue) and experimental mice (red); relative OHC numbers were significantly reduced in the experimental mice. Data was presented as mean ± SEM (n = 3). Student’s t-test were run for statistical testing. **p<0.01, ***p<0.001, ****P<0.0001. Scale bars: 200 μm (B), 20 μm (B’).
-
Figure 3—source data 1
It contained the numerical values of the ABR thresholds presented in Figure 3C.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig3-data1-v2.xlsx
-
Figure 3—source data 2
It contained the numerical value of the ratio of OHCs to IHCs described in Figure 3D.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig3-data2-v2.xlsx

Lesion to endogenous OHCs enhances reprogramming efficiency of adult SCs by Atoh1 and Ikzf2.

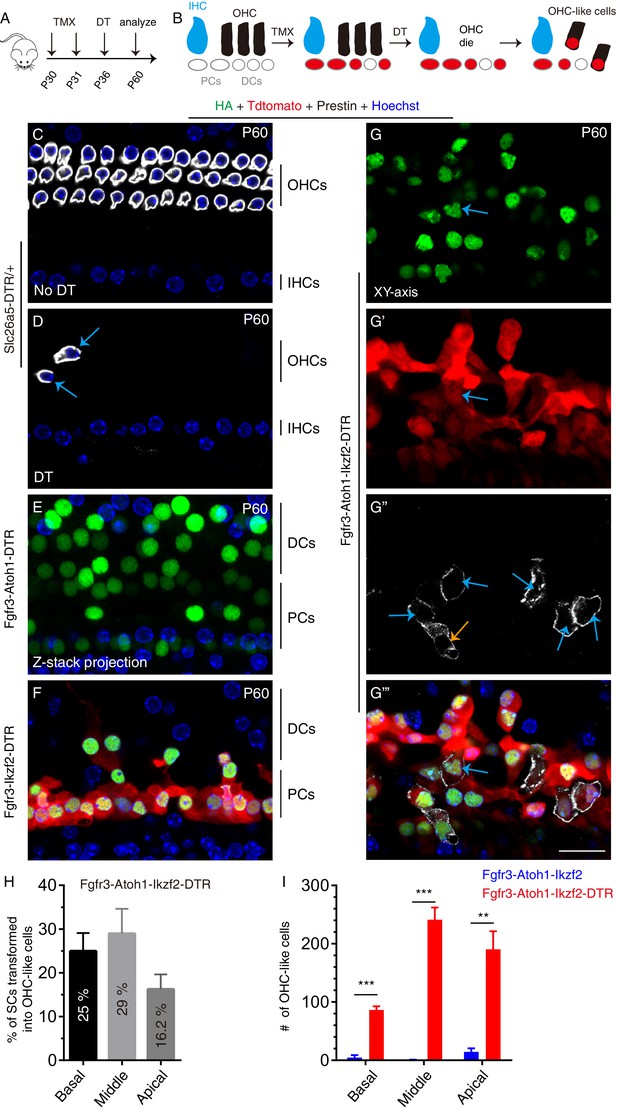

(A) Three distinct mice models were subject to tamoxifen (TMX) treatment at P30 and P31, followed by DT treatment at P36 and analysis at P60. (B) Illustration of key cellular events occurring during the experiment: induction of Atoh1 and Ikzf2 in adult PCs and DCs, which were permanently labeled with Tdtomato for the subsequent fate-mapping analysis. (C–G’’’) Triple labeling against HA, Tdtomato, and Prestin in four models: (1) Slc26a5DTR/+ (C, D), (2) Fgfr3-iCreER+; CAG-LSL-Atoh1+; Slc26a5DTR/+ (Fgfr3-Atoh1-DTR; E), (3) Fgfr3-iCreER+; Rosa26CAG-LSL-Ikzf2/+; Slc26a5DTR/+ (Fgfr3-Ikzf2-DTR; F), and (4) Fgfr3-iCreER+; CAG-LSL-Atoh1+; Rosa26CAG-LSL-Ikzf2/+; Slc26a5DTR/+ (Fgfr3-Atoh1-Ikzf2-DTR; G–G’’’). Relative to Slc26a5DTR/+ mice not treated with DT (C), DT-treated Slc26a5DTR/+ mice harbored fewer normal Prestin+ OHCs at P60 (arrows in D). Debris of dying OHCs had disappeared. No OHC-like cells were observed in the first three models, but Tdtomato+/HA+/Prestin+ OHC-like cells (orange and blue arrows in G’’) were present in the Fgfr3-Atoh1-Ikzf2-DTR model (G-G’’’). (H) Percentages of SCs that were transformed into OHC-like cells at different cochlear turns in Fgfr3-Atoh1-Ikzf2-DTR mice. (I) Comparison of OHC-like cell numbers between Fgfr3-Atoh1-Ikzf2-DTR and Fgfr3-Atoh1-Ikzf2 models (without damaging adult wild-type OHCs). Fgfr3-Atoh1-Ikzf2-DTR mice harbored considerably more OHC-like cells than Fgfr3-Atoh1-Ikzf2 mice. Data was presented as mean ± SEM (n = 3). Student’s t test was used for statistical analysis. **p<0.01, ***p<0.001. Scale bar: 20 μm.
-
Figure 4—source data 1
It contained the numerical values of the data plotted in the graph of Figure 4H.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig4-data1-v2.xlsx
-
Figure 4—source data 2
It contained the numerical values of the data plotted in Figure 4I.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig4-data2-v2.xlsx
Endogenous OHC damage considerably enhances capacity of Ikzf2 and Atoh1 to convert adult cochlear SCs into Prestin+ OHC-like cells
In non-mammalian vertebrates, HC loss triggers the regeneration of HCs through a cell-fate change in SCs (Janesick and Heller, 2019; Stone and Cotanche, 2007; Warchol and Corwin, 1996). This prompted us to test whether damaging endogenous wild-type adult OHCs would engender a more favorable environment for SC transdifferentiation, thereby potentially increasing the conversion efficiency of adult cochlear SCs overexpressing Ikzf2 and Atoh1 into OHC-like cells. For this, we compared four genetic mouse strains: (1) Slc26a5DTR/+; (2) Fgfr3-iCreER+; CAG-LSL-Atoh1+; Slc26a5DTR/+ (Fgfr3-Atoh1-DTR); (3) Fgfr3-iCreER+; Rosa26CAG-LSL-Ikzf2/+; Slc26a5DTR/+ (Fgfr3-Ikzf2-DTR); and (4) Fgfr3-iCreER+; CAG-LSL-Atoh1+; Rosa26CAG-LSL-Ikzf2/+; Slc26a5DTR/+ (Fgfr3-Atoh1-Ikzf2-DTR). All mice were first injected tamoxifen at P30 and P31, to trigger expression of Atoh1 or Ikzf2 or both or non. Six days later, at P36, DT was administered to trigger OHC damage (Figure 4A,B). By injecting Tamoxifen, prior to DT, we could selectively and permanently label adult SCs (mainly PCs and DCs) with HA and Tdtomato before any OHC damage. The reverse order was not used so as to avoid the possibility of OHC damage leading to changes in the Cre-expression pattern in Fgfr3-iCreER+ mice.
Akin to before, P60 Slc26a5DTR/+ mice treated with DT had few visible OHCs (arrows in Figure 4D) as compared to the untreated, same aged, Slc26a5DTR/+ control mice (Figure 4C). However, unlike the findings at P42, at P60 little OHC debris was observed. Furthermore, HA+/Prestin+ cells were identified in neither Fgfr3-Atoh1-DTR mice (Figure 4E) nor Fgfr3-Ikzf2-DTR mice (Figure 4F) at P60, suggesting that Atoh1 or Ikzf2 alone was insufficient to convert mature SCs into OHC-like cells after endogenous OHC damage.
In contrast, in P60 Fgfr3-Atoh1-Ikzf2-DTR mice, Tdtomato+/HA+/Prestin+ OHC-like cells were frequently observed. Confocal scanning of the entire cochlear duct (n = 3) revealed the presence of 359.3 ± 46.2, 878.0 ± 118.7, and 1195 ± 81.6 Tdtomato+/HA+ cells of which 86.3 ± 6.3, 241.0 ± 21.1, and 190.3 ± 31.1 cells were new Prestin+ OHC-like cells (arrows in Figure 4G–G’’’, Figure 4—figure supplement 1A–B''' and Video 1) in the basal, middle, and apical turns, respectively. Or in other words, 25.0% ± 4.1%, 29.0% ± 5.7%, and 16.2% ± 3.4% of adult cochlear tdTomato+ SCs trans-differentiated into OHC-like cells in the basal, middle, and apical turns, respectively (Figure 4H). This rate was significantly greater (Figure 4I) than that obtained with un-lesioned P60 Fgfr3-Atoh1-Ikzf2 mice (Figure 2E–G). Expression levels of Prestin were also higher in mice with pre-lesioned OHCs (Figure 4G–G’’’), but still remained considerably lower than those in wild-type endogenous OHCs (Figure 4C vs Figure 4G’’). In addition, ~ 82.6% of OHC-like cells were located in the top HC layer (blue arrows in Figure 4G’’, Figure 4—figure supplement 1A–A'''), whereas the rest remained in the bottom SC layer (orange arrows in Figure 4G’’, Figure 4—figure supplement 1B–B'''). These results demonstrated that damaging endogenous OHCs markedly enhanced the reprogramming ability of Ikzf2 and Atoh1 to convert adult cochlear SCs into OHC-like cells.
The confocal data presented in Figure 4G–G’’’ and Figure 4—figure supplement 1A–A''' was converted to Imaris format and loaded in the Imaris software to more readily visualize OHC-like cells using orthogonal projections of the data.
Red, green, and white colors represented Tdtomato signal and Prestin and HA labelling respectively. OHC-like cells were defined as triple-positive cells.
The conversion of SCs to OHC-like cells involves an intermediate general HC state
We next determined the time it took for adult cochlear SCs to form nascent HCs and OHC-like cells (Figure 4—figure supplement 2A–C'''). Nascent HCs were defined as Tdtomato+/Myo6+/Prestin− (arrowheads in Figure 4—figure supplement 2B–B'''). OHC-like cells were defined as Tdtomato+/Myo6+/Prestin+. P42 was the earliest age at which the nascent HCs were detected; Myo6 expression was weak at this stage. Scanning the entire cochlear duct at P42 revealed the presence of only 29.0 ± 13.5, 66.0 ± 35.23, and 52.7 ± 25.4 nascent HCs throughout the basal, middle, and apical turns (n = 3), respectively (black in Figure 4—figure supplement 2D). No Tdtomato+/Myo6+/Prestin+ OHC-like cells were detected at P42.
Four days later, at P46 (n = 4), there were 56.5 ± 28.8, 118.0 ± 61.2, and 111.0 ± 57.3 new HCs that were Tdtomato+/Myo6+ (gray in Figure 4—figure supplement 2D,F), and, of these, 27.8 ± 15.0, 43.5 ± 25.3, and 36.8 ± 21.0 were Tdtomato+/Myo6+/Prestin+ (classified as OHC-like cells; green in Figure 4—figure supplement 2E); thus, OHC-like cells accounted for 49.2% (27.8/56.5), 36.9% (43.5/118), and 33.2% (36.8/111) of total new HCs in basal, middle, and apical turns, respectively. As mentioned, the remaining Tdtomato+/Myo6+/Prestin− cells were defined as nascent HCs, and the Tdtomato+/Myo6-/Prestin− cells were defined as ‘SCs failing to become HCs’. Notably, we sorted new HCs into nascent HCs and OHC-like cells based solely on absence or presence of Prestin. Among the four mice analyzed, two mice harbored substantially fewer Tdtomato+/Myo6+ cells than the others, which caused the large variations in numbers; nevertheless, the overall trend was that the larger the number of Tdtomato+/Myo6+ cells, the larger the number of Tdtomato+/Myo6+/Prestin+ OHC-like cells. Importantly, no Tdtomato+/Prestin+ cells lacking Myo6 expression were detected. Together, these findings suggested that the generation of new OHC-like cells generally involved an initial cell-fate transition from SCs (PCs and DCs) into nascent HCs, which occurred by P42 (12 days after Atoh1 and Ikzf2 gene induction, and 6 days after DT treatment), and that this was followed by a second transition from nascent HCs into OHC-like cells.
New OHC-like cells are able to produce hair bundles
Scanning electron microscopy (SEM) was used to ascertain the presence and morphology of hair bundles (a cluster of stereocilia) of the Prestin+ new OHC-like cells at P60 (Figure 5). These characteristic staircase-shaped hair bundles are where mechanoelectrical transduction (MET) channels critical for hearing reside (Corey and Holt, 2016; Douguet and Honore, 2019; Wu and Muller, 2016). In non-DT-treated control Slc26a5DTR/+ mice, the stereotyped V- or W-shaped hair bundles were present in OHCs (Figure 5A,A’), whereas very few hair bundles remained in Slc26a5DTR/+ mice treated with DT (Figure 5B). This was consistent with the results from the immunostaining assays (Figure 4D).

Hair bundles were present in OHC-like cells.

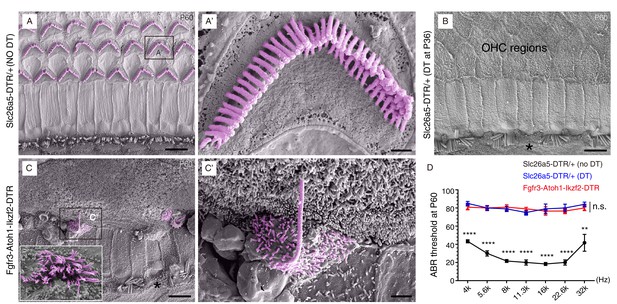

Scanning electron microscopy (SEM) analysis of samples from three different mouse models at P60. (A–A’) OHCs harbored V- or W-shaped hair bundles in Slc26a5DTR/+ mice not treated with DT. (A’): high-magnification view of boxed region in (A). (B) Majority of OHCs had disappeared by P60 in Slc26a5DTR/+ mice upon DT treatment at P36. Black asterisk: one IHC that was absent. (C) Immature hair bundles were frequently detected in the Fgfr3-iCreER+; CAG-LSL-Atoh1+; Rosa26CAG-LSL-Ikzf2/+; Slc26a5DTR/+ (Fgfr3-Atoh1-Ikzf2-DTR) model, but not in (A) and (B). These hair bundles were thought to originate from OHC-like cells. (C’): high-magnification view of boxed region in (C). Inset in C: instance of occasional hair bundles. Black asterisk: one IHC that was missing. (D) ABR measurements of the three mice models. Relative to the untreated Slc26a5DTR/+ control mice (black line, n = 3), the ABR thresholds of Slc26a5DTR/+ treated with DT (blue line, n = 5) and in Fgfr3-Atoh1-Ikzf2-DTR mice (red line, n = 6) were significantly higher. The blue and red lines showed no statistically significant difference at any frequency (n.s.). Data was presented as mean ± SEM. Student’s t-test was used for statistical testing. **p<0.01, ****p<0.0001. Scale bars: 5 μm (A–C), 1 μm (C’), and 500 nm (A’).
-
Figure 5—source data 1
It contained the numerical values of the ABR thresholds described in Figure 5D.
- https://cdn.elifesciences.org/articles/66547/elife-66547-fig5-data1-v2.xlsx
Intriguingly, in Fgfr3-Atoh1-Ikzf2-DTR P60 mice, we frequently detected stereocilia with a single long bundle, lacking the staircase shape (Figure 5C–C’). Stereocilia with several long bundles were seldom observed (inset in Figure 5C). These rare hair bundle likely belonged to OHC-like cells (or nascent HCs), as such hair bundles were never observed in Slc26a5DTR/+ mice, irrespective of DT treatment (Figure 5A,B). Auditory brain response (ABR) measurement showed that the thresholds at distinct frequencies were markedly higher in Fgfr3-Atoh1-Ikzf2-DTR mice (n = 6, red line in Figure 5D) compared to non-DT-treated Slc26a5DTR/+ mice (n = 3, black line in Figure 5D). Regretfully, no hearing improvement (lowering of threshold) was apparent between Fgfr3-Atoh1-Ikzf2-DTR compared to DT-treated Slc26a5DTR/+ mice (n = 5, blue line in Figure 5D). Notably, we observed IHC loss at P60 (asterisks in Figure 5B,C). This could be a secondary effect of OHC damage, since no IHC death was observed at P42 (Figure 3). Collectively, these results showed that the new OHC-like cells still differed from adult endogenous OHCs in terms of hair-bundle abundance and morphology as well as Prestin expression levels, and were not yet functional. The degree to which OHC-like cells resembled adult endogenous OHCs was investigated next through single-cell RNA-Seq analyses.
Single-cell RNA-Seq reveals genes selectively enriched in adult wild-type OHCs and SCs
To perform single-cell RNA-Seq on adult OHCs and SCs, we manually picked 17 wild-type Tdtomato+ OHCs from Slc26a5CreER/+; Ai9/+ mice at P30 and 16 wild-type Tdtomato+ SCs (primarily PCs and DCs) from Fgfr3-iCreER+; Ai9/+ mice at P60 (Figure 6A). Slc26a5CreER/+ is a knock-in mouse strain with OHC-specific Cre activity (Fang et al., 2012). All cells were identified based on their endogenous Tdtomato fluorescence and were picked and washed thrice under a fluorescence microscope before final placement in PCR tubes. RNA-Seq libraries were then prepared using the Smart-Seq approach (Figure 6A). Manual picking combined with Smart-Seq has been successfully used in previous gene-profiling studies on adult cochlear HCs and SGNs (Li et al., 2020b; Liu et al., 2014b; Shrestha et al., 2018).

OHC-like cells were most akin to ~ P1 wild-type OHCs.

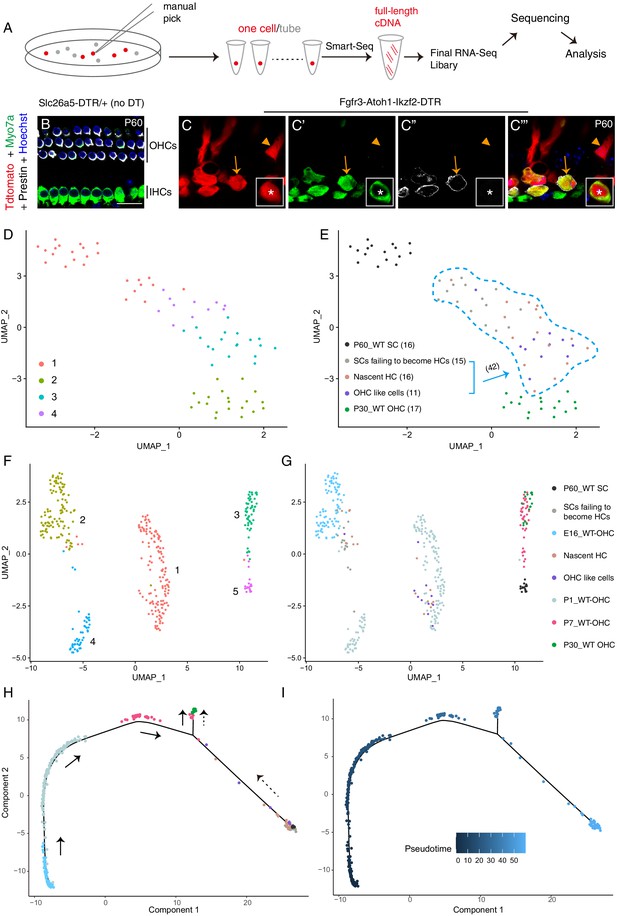

(A) Illustration of the single cell RNA-Seq experimental pipeline. (B–C’’’) Triple labeling against Myo7a (maker for HCs), Prestin, and Tdtomato in cochlear samples from control (B) and Fgfr3-Atoh1-Ikzf2-DTR (C) mice at P60. Arrows: Tdtomato+/Myo7a+/Prestin+ OHC-like cells; arrowheads: Tdtomato+/Myo7a-/Prestin− cell, defined as SCs failing to become HCs; asterisks: nascent HC that was Tdtomato+/Myo7a+/Prestin− (inset in C–C’’’). (D–E) UMAP embedding of RNA-seq data revealed four main clusters (D). The same plot was presented with the five different cell types included in the data labelled separately (E). The 42 Tdtomato+ cells within the light-blue dotted lines (E) originated from the P60 Fgfr3-Atoh1-Ikzf2-DTR mice. When unsupervised clustering was performed over all 42 Tdtomato+ cells, three clusters were identified. (F–G) UMAP analysis of cells in (D–E) as well as wild-type OHCs at E16, P1, and P7 (E16_WT OHCs, P1_WT OHCs, and P7_WT OHCs; further information was presented in Figure 6—figure supplement 5). OHC-like cells were overlapped with P1_WT OHCs. (H–I) Trajectory analysis of all cells in (F–G). Black arrows in (H) represented the developmental trajectory of endogenous OHCs between E16 and P30, whilst the black dotted arrows marked the reprogramming trajectory from endogenous adult SCs to endogenous adult OHCs. Scale bar: 20 μm.
We first compared gene profiles between adult endogenous OHCs and SCs, and identified 1051 and 1982 genes enriched respectively (p<0.001) in adult OHCs and SCs (Figure 6—figure supplement 1A); Supplementary file 1 contained the full list of enriched genes. The list of these adult OHC-enriched genes (OHC genes for short) included previously known highly expressed adult OHC genes, such as Myo7a, Ocm, Slc26a5 (Prestin), Ikzf2, Espn, Tmc1, Cib2, Lhfpl5, Lmo7, Lbh, and Sri (Chessum et al., 2018; Du et al., 2019; Giese et al., 2017; Liu et al., 2014b; Ranum et al., 2019; Xiong et al., 2012; Zheng et al., 2000). Similarly, previously known pan-SC markers, such as Sox2 and Sox10, and two recently identified DC-specific genes, Bace2 and Ceacam16 (Li et al., 2018b; Ranum et al., 2019), were found amongst the adult SC-enriched genes (SC genes for short). Gene Ontology (GO) analysis showed that OHC genes were involved in sensory perception of sound, inner ear morphogenesis and stereocilium organization (Figure 6—figure supplement 1B). OHC genes associated with each GO category were summarized in Supplementary file 2. These results showed that the picked adult endogenous OHCs and SCs were pure and that our single cell RNA-Seq data was of high quality. These differentially enriched genes identified in OHCs and SCs were subsequently used as reference to assess the degree of cell fate conversion of SC-derived nascent HCs and OHC-like cells.
Some unexpected findings from the RNA-Seq data included Myo6 expression levels: although Myo6 protein is known to be enriched in OHCs, Myo6 mRNA was not significantly enriched in adult OHCs, likely because Myo6 mRNA was also detected (albeit at a lower level) in adult SCs. Myo6 mRNA is also known to be present in other non-HC populations (Kolla et al., 2020; Scheffer et al., 2015). Also noteworthy, Myo7a was significantly enriched in adult OHCs (red arrow in Figure 6—figure supplement 1A) and also highly expressed in nascent HCs and OHC-like cells; however, this was not the case in SCs failing to become HCs (Figure 6B–C’’’). This led us to use Myo7a as an early HC marker and as a means of defining general HC fate in the RNA-Seq analysis described below.
OHC-like cells upregulate OHC genes and downregulate SC genes
We next focused on comparing global gene profiles between OHC-like cells, adult endogenous OHCs, and SCs. We manually picked 42 Tdtomato+ cells from Fgfr3-Atoh1-Ikzf2-DTR mice at P60 (Figure 6A) and sorted them into three types: (1) Tdtomato+/Myo7a+/Prestin+ cells (defined as OHC-like cells, arrows in Figure 6C–C’’’; n = 11 cells); (2) Tdtomato+/Myo7a+/Prestin− cells (defined as nascent HCs, asterisks in inset of Figure 6C–C’’’; n = 16); and (3) Tdtomato+/Myo7a-/Prestin− cells (defined as SCs failing to become HCs, arrowheads in Figure 6C–C’’’; n = 15). The proportion of OHC-like cells was 26.2% (11/42), which agreed with the immunostaining results (16.2%–29.0%) (Figure 4H), giving us confidence in the suitability of this criterion. Moreover, expression of Atoh1 and Ikzf2 (arrows in Figure 6—figure supplement 2A) was enriched in all 42 cells, but not in adult endogenous SCs. This also confirmed that Atoh1 and Ikzf2 were permanently overexpressed in the 42 Tdtomato+ cells, regardless of cell fate.
UMAP (uniform manifold approximation and projection) analysis demonstrated that OHC-like cells differed more greatly from adult endogenous P60 SCs (hereafter named as WT_P60 SCs) and were more similar to P30 adult endogenous OHCs (hereafter named as WT_P30 OHCs) than SCs failing to become HCs (Figure 6D,E). Besides Slc26a5 (Prestin) and Myo7a (purple arrows in Figure 6—figure supplement 2A), 1313 genes were expressed at a significantly higher level in OHC-like cells relative to WT_P60 SCs. GO analysis of these 1313 genes revealed that they were associated with functions involving sensory perception of sound (Figure 6—figure supplement 2B), which further supported the notion that OHC-like cells globally behave like HCs. Supplementary file 3 included all genes associated with the GO analysis. Notably, 55.5% (729/1313) of the genes expressed more in OHC-like cells than WT_P60 SCs overlapped with OHC genes, such as Myo7a, Pvalb, Calb1, Cib2, and Lhfpl5 (purple arrows in Figure 6—figure supplement 2A). Conversely, 527 genes were expressed at significantly lower levels in OHC-like cells as compared to WT_P60 SCs, of which 62.8% (331/527) overlapped with SC genes, such as Tuba1b, Gjb2, and Rorb (black arrows in Figure 6—figure supplement 2A). Supplementary file 4 contained the entire list of genes that were differently expressed between OHC-like cells and WT_P60 SCs, as well as the 729 OHC genes that were upregulated, and 331 SC genes that were down-regulated in OHC-like cells. Furthermore, we also included data from nascent HCs and SCs failing to become HCs for completeness and as potential intermediate cell types. In general, the identified genes above were either not or only slightly upregulated or downregulated in SCs failing to become HCs (Figure 6—figure supplement 2A). Together, this suggested that OHC-like cells were on an OHC-lineage differentiation track.
To our surprise, trajectory analysis including the 42 Tdtomato+ cells suggested that OHC-like cells and nascent HCs were closer to each other, relative to SCs failing to become HCs (Figure 6—figure supplement 3A,B). Furthermore, another trajectory analysis confirmed that OHC-like cells and nascent HCs were closer to WT_P30 OHCs, and conversely SCs failing to become HCs were closer to WT_P60 SCs (Figure 6—figure supplement 3C,D). The transcriptomic similarity between OHC-like cells and nascent HCs supported that, despite Prestin expression only being present in OHC-like cells, the general expression patterns of other HC genes might be quite similar. This possibility was partially supported by the finding that not all Prestin+ OHC-like cells expressed the early pan-HC markers, Rbm24, Pvalb, and Calb1, according to both RNA-Seq and immunostaining results (Figure 6—figure supplements 2 and 4). These pan-HC markers are typically expressed earlier than Prestin in endogenous OHCs (Grifone et al., 2018; Li et al., 2018b; Liu et al., 2012a; Wang et al., 2021). Together, our results showed that OHC-like cells/nascent HCs resembled WT_P30 OHCs considerably more than SCs failing to become HCs. Next, we evaluated the differentiation status of the OHC-like cells.
OHC-like cells resemble wild-type neonatal differentiating OHCs
By reanalyzing previously published data from a recent single-cell RNA-Seq studies covering wild-type cochlear OHCs, IHCs, SCs, GER (greater epithelial ridge) cells, and LER (lesser epithelial ridge) cells (Kolla et al., 2020), we could compare OHC-like cell differentiation status at finer granularity. More specifically, we extracted from these data OHCs at three different ages: E16 (n = 87), P1 (n = 170), and P7 (n = 39) (Figure 6—figure supplement 5A). These pooled OHCs were highly heterogeneous, especially at P1, due in part to the basal-to-apical and medial-to-lateral developmental gradient in the cochlear duct, as revealed by trajectory analysis of these OHCs (Figure 6—figure supplement 5B,B'). These E16, P1, and P7 OHCs were pooled with our own OHC-like cells, nascent HCs, SCs failing to become HCs, WT_P30 OHCs, and WT_P60 SCs to form a new dataset. Five main clusters were identified (Figure 6F): cluster 1 included 9/11 OHC-like cells, 11/16 nascent HCs, and the majority of wild-type OHCs at P1 (WT_P1 OHCs) (Figure 6G). Cluster 2 consisted of 2/11 OHC-like cells, 5/16 nascent HCs, 12/15 SCs failing to become HCs, and wild-type OHCs at E16 (WT_E16 OHCs). Majority of wild-type OHCs at P7 (WT_P7 OHCs) and WT_P30 OHCs formed cluster 3, suggesting that P7 OHCs were already well differentiated (Jeng et al., 2020). Cluster 4 contained the remaining fraction of WT_P1 OHCs and 3/15 SCs failing to become HCs, while majority of cells in cluster 5 were WT_P60 SCs. UMAP analysis suggested that OHC-like cells generally resembled WT_P1 OHCs the most. Further support for this came from the presence of Insm1 mRNA and protein in OHC-like cells (Figure 6—figure supplement 2A, and Figure 6—figure supplement 4A–B'''); Insm1 is a gene that is only transiently expressed in differentiating OHCs during late embryonic and perinatal ages (Lorenzen et al., 2015). We speculated that WT_P1 OHCs in cluster 1 originated from basal and middle turns as they more closely resembled WT_P7 and _P30 OHCs (Figure 6), whereas WT_P1 OHCs in cluster 4 that were grouped with the more immature E16 OHCs (Figure 6F,G) originated from apical turns.
Finally, trajectory analysis was applied to all the pooled cells (Figure 6H,I). Interestingly, two distinct tracks were observed: one reflected endogenous OHC development from E16 to P30 (black arrows in Figure 6H); the other tracked the reprogramming process from adult SCs into OHC lineage (dotted arrows in Figure 6H). Notably, in agreement with trajectory analysis described in Figure 6—figure supplement 3, OHC-like cells and nascent HCs were similar and intermingled with each other in both UMAP and trajectory analyses (Figure 6G,H).
Neonatal-specific OHC genes are highly expressed in OHC-like cells
We next took a more focused look at the transcriptomic differences and similarities between OHC-like cells and WT_P1 OHCs. Based on two previous RNA-Seq studies (Kolla et al., 2020; Wiwatpanit et al., 2018), expression of 53 neonatal-specific OHC genes were further analyzed. These have been shown to be significantly enriched in WT_P0/P1 OHCs, but not in adult OHCs. The expression levels of these 53 genes in all 11 OHC-like cells was extracted from our raw data and expressed as transcripts per million (TPM). Those with TPM > 16 were defined as highly expressed genes; this threshold was chosen based on what gene expression level can typically be detected using RNA in situ hybridization with good signal to noise ratio in our hand. Our selection criteria for genes that were highly expressed in OHC-like cells thus were as follows: (1) that the gene’s average TPM across all OHC-like cells was above 16; (2) that more than half of all OHC-like cells expressed this gene with TPM >16. If a gene did not meet either of the criteria, then it was classed as a gene differently expressed between OHC-like cells and WT_P1 OHCs.
Twenty-six of 53 (49.1%) neonatal OHC genes, including Insm1 (red arrow in Figure 6—figure supplement 6A), were found to be highly expressed in OHC-like cells; 21/53 (39.6%) of them, including Bcl11b, Bmp2 and Bmp7, were expressed at low levels in these cells. Notably, Bcl11b is thought to be required for healthy stereocilia development (gray arrow in Figure 6—figure supplement 6A), as development of stereocilia in OHCs are defective in heterozygous Bcl11b± mice (Okumura et al., 2011). Only one of the two criteria were met in 6/53 (11.3%) genes (green arrows in Figure 6—figure supplement 6A). The numerical TPM values of these categories of neonatal OHC genes in OHC-like cells were included in Supplementary file 5. Together, based on the selected 53 OHC genes analyzed, the overall similarity between all the 11 OHC-like cells and neonatal OHCs is ~50%.
As OHC-like cells only highly expressed about half of WT_P1 OHCs characteristic genes, we asked whether there was any overlap with neonatal IHC or vestibular HC-specific genes. Akin to before, based on three previous studies (Burns et al., 2015; Kolla et al., 2020; Wiwatpanit et al., 2018), 49 neonatal IHC and 26 utricle HC characteristic genes were further analyzed (Figure 6—figure supplement 6B). The same two criteria as above were applied to dictate whether a gene was expressed at a high or low level in OHC-like cells. None 0/49 (0%) of neonatal IHC-specific genes were expressed at a high level in OHC-like cells. Among the 26 neonatal utricle HC-specific genes, 4/26 (35.4%) were expressed at high levels in OHC-like cells, including F730043M19Rik, Cfap161, Nme9, and 1700001L19Rik (red arrows in Figure 6—figure supplement 6B). As an internal reference, we also included nine genes, including Slc26a5 and Ocm, that were highly expressed in OHC-like cells (marked by red line in Figure 6—figure supplement 6B). The numerical TPM values of these neonatal IHC and utricle HC-specific genes were included in Supplementary file 6. Taken together all the gene profiling results, we concluded that OHC-like cells resemble neonatal OHCs and not neonatal IHCs or utricle HCs.
OHC-like cells are far less differentiated than adult wild-type OHCs
To complete our transcriptomic survey of OHC-like cells, we compared their expression patterns to mature P30_WT OHCs (Figure 6—figure supplement 7A). In total, 1998 genes were significantly higher in OHC-like cells than in P30_WT OHCs. Of note, 67% (1339/1998) of these were overlapped with SC genes including Fgfr3, Id1, and Id2 (purple arrows in Figure 6—figure supplement 7A and Supplementary file 7), most likely due to the persistent expression of these SC genes that were not able to be downregulated in the converted OHC-like cells. These remaining SC genes likely represented key barriers preventing OHC-like cells from undergoing further maturation.
Conversely, 361 genes were expressed at a significantly lower level in OHC-like cells as compared to WT_P30 OHCs. Notably, 49.6% (179/361) of these were overlapped with OHC-enriched genes, including Slc26a5 (Prestin), Kcna10, and Lmo7 (green arrows in Figure 6—figure supplement 7A). Relevantly, Lmo7 mutant mice have been reported to show abnormalities in HC stereocilia (Du et al., 2019) and Kcna10 mutants exhibit mild auditory dysfunction (Lee et al., 2013). Thus, the relatively low expression of these functional proteins might account in part for the immature status of the new OHC-like cells. Supplementary file 7 contained the complete list of genes differently expressed genes between OHC-like cells and WT_P30 OHCs. GO analysis results showed that genes expressed at higher levels in OHC-like cells were associated with cell adhesion (Figure 6—figure supplement 7B). The complete gene list associated with the GO cell adhesion category could be found in Supplementary file 8.
To conclude, the current differentiation or cell fate conversion status of the OHC-like cells was simply summarized in Figure 7, more manipulations are still needed to further promote maturation of OHC-like cells. Decreasing the remaining SC genes and/or increasing OHC genes represent actionable and promising avenues.

Summary of the differentiation status of the OHC-like cells.

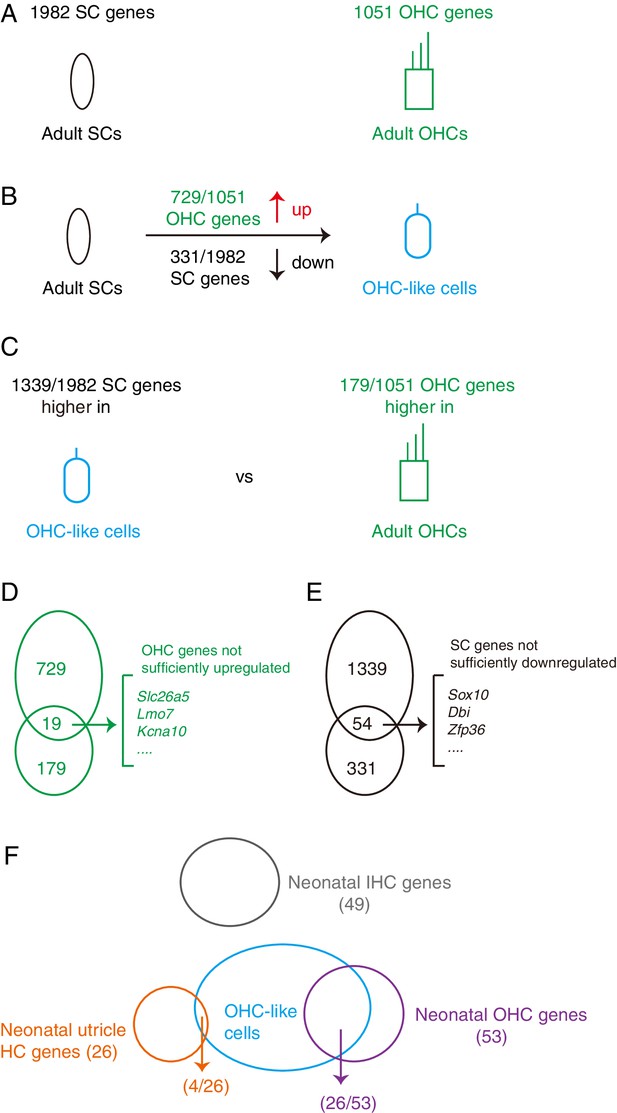

(A) Comparison of transcriptomic profiles revealed 1982 SC and 1,051 OHC differentially expressed genes. (B) Compared to adult SCs, OHC-like cells upregulated 729 OHC genes and downregulated 331 SC genes, thus having become more OHC-like and less SC like. (C) Compared to adult OHCs, OHC-like cells expressed 1339 SC genes at higher levels, and 179 OHC genes at lower levels, showing that OHC status had not yet been achieved. (D) 19 OHC genes intersected between the upregulated 729 OHC genes (as compared to adult SCs) and the under-expressed 179 OHC genes (as compared to adult OHCs), suggesting that although these genes were up-regulated in OHC-like cells, their expression levels were still lower than that expected for adult OHCs. (E) Similar to (D), 54 SC genes overlapped between 1339 and 331 SC genes that were found to be at higher levels than expected for adult OHCs, but at lower levels than expected for adult SCs. These SC genes had thus successfully been downregulated, but not sufficiently so to reach the low levels in adult OHCs. (F) OHC-like cells expressed 26 of the 53 neonatal OHC genes, but only expressed 4 of the 26 neonatal utricle HC genes and did not express any neonatal IHC genes.
Discussion
In summary, the merit of our study lies in the demonstration of effective conversion of adult cochlear SCs (mainly PCs and DCs) into Prestin+ OHC-like cells after OHC damage in vivo. This experimental paradigm is clinically relevant and suggests that Atoh1 and Ikzf2 are candidate therapeutics for OHC regeneration.
Potential roles of Atoh1 and Ikzf2 in cell-fate transition from adult cochlear SCs into OHC-like cells
During normal HC development, Atoh1 is expressed for approximately 1 week, beginning at the basal end of the cochlea and progressively extending to the apex; expression is then down-regulated following the same temporal basal-to-apical sequence. During this period, Atoh1 is reported to be involved in at least three age-dependent processes: (1) specifying general HC fate, (2) maintaining the survival of HC progenitors (short term) and OHCs (long term), and (3) organizing the formation of hair bundles (Bermingham et al., 1999; Cai et al., 2013; Woods et al., 2004). While Atoh1 is sufficient to convert neonatal PCs and DCs into HCs (Liu et al., 2012a), it is insufficient to do so in adults. Ikzf2 alone also cannot convert adult SCs into HCs but the combination both Atoh1 and Ikzf2 is synergistic and can do so in adults. Whether these effects are similar to the synergistic effects between Atoh1 and Pou4f3, which were recently reported during normal cochlear HC development (Yu et al., 2021), will require further investigation.
Ikzf2 is necessary for OHC maturation, and an Ikzf2 point-mutation model, Ikzf2 cello/cello, displays early-onset hearing loss and diminished Prestin expression; dual to this, ectopic Ikzf2 induces Prestin expression in IHCs (Chessum et al., 2018). Whether Prestin is a direct target of Ikzf2 is unclear, but the onset of Ikzf2 expression at neonatal ages and its specific and permanent expression in OHCs suggest that Ikzf2 is a key TF required to specify and maintain the OHC fate and/or repress the IHC fate. Therefore, we speculate that Ikzf2 was responsible for directing nascent HCs into the OHC differentiation track. In accord with this, Ikzf2 alone was able to induce Prestin expression in wild-type IHCs but not adult SCs, likely due to that IHCs are already in the general ‘HC differentiation track’ and thus more are poised to express OHC genes. In contrast to the ability of Atoh1, which takes approximately three weeks to convert SC to HC fate in the neonatal cochlea (Liu et al., 2012a), the combined effects of Atoh1 and Ikzf2 in mediating this cell-fate switch in the adult cochlea occurred within a shorter time window (approximately 12 days). This could be a result of the synergistic actions between Atoh1 and Ikzf2.
Active OHC death promotes transformation from adult SCs into OHC-like cells
In our study, DT treatment led to selective OHC death, which was defined as active OHC death. In opposition to this, OHC death occurred as a side effect of overexpressing Ikzf2 alone or Ikzf2 and Atoh1 concurrently (Figure 2), which we refer to as passive OHC death. While the detailed mechanisms are unclear, passive OHC death has been observed in multiple instances upon: (1) overexpressing Atoh1 in neonatal or juvenile cochlear SCs (Liu et al., 2012a), (2) triggered neonatal SC proliferation (Liu et al., 2012b), and (3) conditional SC damage at postnatal ages (Mellado Lagarde et al., 2013; Mellado Lagarde et al., 2014). Our data showed that only OHC death that was ‘active’ could significantly increase numbers of OHC-like cells upon Atoh1 and Ikzf2 overexpression in adult SCs (Figure 4I).
How to interpret the differential effects of active and passive OHC death? It is known that DT, but not neomycin, induced HC death can trigger Wnt-dependent HC regeneration from SCs in neonatal mice (Hu et al., 2016). This exemplifies that the precise way that HC dies can drastically affect how cochlear SCs respond to HC death. DT treatment causes cell membrane rupture leading to the release of cellular components in the extracellular space. We speculated that SCs overexpressing Atoh1 and Ikzf2 responded favorably to yet unidentified factors released from OHCs during active cell death. Such factors may not be made accessible to SCs upon passive OHC death.
We also conjectured that the timing of OHC active death in relation to the SC cellular status was likely the key. When active OHC death occurred by DT injection, Atoh1 and Ikzf2 had already been overexpressed in adult SCs for 6 days (Figure 4B). This particular temporal coupling may have permitted those adult SCs to respond more favorably to the unidentified factors released from nearby dying OHCs, to ultimately become OHC-like cells. When no active death was induced, and instead OHCs died passively due to secondary effect of ectopic Atoh1 and Ikzf2 expression, it may have been the timing between SC gene induction and OHC death that was unfavorable. Future studies will be needed to determine the main contributing factors dictating conversion efficiency or whether these hypothesis have any ground at all.
Degree of cell fate conversion of the OHC-like cells
By comparing the transcriptomic profiles between adult endogenous OHCs and SCs, we identified 1051 OHC and 1982 SC genes, respectively (Figure 6—figure supplement 1A and Supplementary file 1). We then used the degree of OHC gene upregulation and SC gene downregulation to estimate the extent of cell fate conversion from adult SCs to OHC-like cells (Figure 7A). Promisingly, relative to adult SCs (primarily PCs and DCs), 69.4% (729/1051) of OHC genes were significantly up-regulated in OHC-like cells (Figure 7B). A more limited number of SC genes, 16.7% (331/1982), were significantly down-regulated in OHC-like cells (Figure 7B). It appears that our reprogramming manipulations were more efficient at endowing OHC-like status to SCs, than ‘erasing/making them forget’ their SC status.
To compare the transcriptomic profiles between OHC-like cells and adult endogenous OHCs, we selected endogenous OHCs at P30, but not P60, because OHC-like cells were derived from SCs at P30 and thus their intrinsic age might be ~P30, although the mice were analyzed at P60. Nevertheless, cochlear development is complete by P30, and wild-type OHCs at P30 and P60 are expected to differ minimally. Consistently, it is reported that transcriptomic profiles of adult cochlear SCs at P60 and P120 are indistinguishable from each other (Hoa et al., 2020). Thus, compared to adult endogenous OHCs, 17% (179/1051) of OHC genes were expressed at lower levels in OHC-like cells (Figure 7C). A substantial proportion of SC genes 67.6% (1339/1982) remained expressed at much higher level in OHC-like cells than that in adult endogenous OHCs (Figure 7C). In addition, 19 OHC genes, including Slc26a5, Lmo7, and Kcna10, were not sufficiently up-regulated in OHC-like cells (Figure 7D). Notably, Ocm was not included in the 19 OHC genes, suggesting that Ocm was better upregulated than Slc26a5 in the OHC-like cells. Likewise, 54 SC genes, including Sox10, Dbi, and Zfp36, were not sufficiently downregulated in OHC-like cells (Figure 7E).
In logic accord to only finding moderate transcriptomic similarities between OHC-like cells and adult endogenous OHCs, we identified stronger similarities with neonatal OHCs via different approaches (Figure 7F). Firstly, our integrated UMAP analysis embedded OHC-like cells closest to WT_P1 OHCs. Secondly, we found that OHC-like cells had upregulated 26 of the 53 known characteristic neonatal OHC genes. For instance, Insm1 was upregulated but not Bcl11b (Figure 6—figure supplement 6A). This was consistent with that Insm1 is turned on earlier than Bcl11b during OHC development (Wiwatpanit et al., 2018).
We also investigated how similar OHC-like cells were to neonatal IHCs or utricle HCs. To do this, we first identified genes specifically enriched in neonatal IHCs or utricle HCs (Figure 6—figure supplement 6B) and extracted their expression level in OHC-like cells. We found that neonatal IHC and utricle HC-specific genes were minimally expressed, if at all, in OHC-like cells. In addition, we noted that Cfap161, one of the four neonatal utricle HC genes expressed in OHC-like cells, is recently reported to be expressed in many cells with cilia structure including cochlear HCs via immunostaining assay (Beckers et al., 2021). Such discrepancies may be due to difference in the sensitivity of different techniques used. In addition, the current HC subtype specific genes were selected from three studies, but it is always challengeable and has limitations to compare data from different studies, especially the data are generated by different sequencing methods (Kolla et al., 2020). Nevertheless, more detailed gene profiling studies of different inner ear HCs at various developmental ages are needed to more precisely define some markers of individual HC subtypes.
Despite many OHC genes were significantly upregulated, numerous SC genes were retained in the OHC-like cells. Then, how best to define the cellular status of OHC-like cells? Alternatively, are they more akin to OHCs or new hybrid OHCs/SCs taking a novel differentiation path? In our mind, there is no consensus yet to these questions, but great scope for exploration and discovery. We postulate that transcriptomic assays alone will likely be insufficient to define what constitutes a cell type for our purposes. Macro properties such as anatomical features, especially hair bundle structure in apical surface of HCs, as well as electrophysiological properties, will need to be measured. With that said, the most indisputable proof of an OHC cell state should be hearing recovery after OHC damage. In summary, our data supported that OHC-like cells resemble neonatal OHCs and not neonatal IHCs or utricle HCs.
Potential future approaches to promote more complete differentiation of OHC-like cells
How to further promote differentiation of these OHC-like cells? This is the key question as the ultimate goal is to convert adult cochlear SCs into functional OHCs. To begin with, Atoh1 is only transiently expressed in cochlear OHCs during normal development (Cai et al., 2013; Driver et al., 2013; Matei et al., 2005). However, our model induced permanent Atoh1 expression, potentially hindering maturation of OHC-like cells. Therefore, transient Atoh1 expression combined with permanent Ikzf2 expression may be the focus of future work.
In conjunction, we speculated that combining other candidate genes, together with Atoh1 and Ikzf2, would likely drive OHC-like cells to further mature. Promising candidate genes could include ones necessary for hair bundle organization and growth, as our results highlighted the reduced number and deformity of the stereocilia in OHC-like cells (Figure 5). For instance, the neonatal OHC gene Bcl11b was missing in OHC-like cells (gray arrows in Figure 6—figure supplement 6A) and heterozygous Bcl11b± mice exhibit impaired formation of hair bundles in OHCs (Okumura et al., 2011). Simultaneous expression Atoh1, Ikzf2, and Bcl11b might therefore have higher reprogramming efficiency than Atoh1 and Ikzf2. Encouragingly, OHC-like cells did express multiple MET-channel-related proteins such as Cib2 and Tmc1 (Jia et al., 2020; Li et al., 2019; Pan et al., 2013). This aligned with the previous report that MET-channel assembly does not require normal hair bundle morphology (Cai et al., 2013).
As hair bundles mostly develop after birth, we also hypothesized that genes crucial for hair bundle organization are likely to be differentially expressed between P1 and P14/P30 OHCs. In terms of phenotypic assessment of functional hair bundles, rapid loss-of-function test will be performed following the protocols described in our previous pilot studies (Wang et al., 2021; Zhang et al., 2018). The phenotypes we hope to focus on will include shorter or disorganized OHC hair bundles, and ones with reduced numbers of OHC hair bundles at P14 or P30. Finally, we took note of the many SC genes expressed in OHC-like cells, including Fgfr3, Id1, and Id2 (Supplementary file 7). Fgf signaling is known to be involved in SC fate maintenance (Doetzlhofer et al., 2009; Jacques et al., 2007; Shim et al., 2005). Id gene family is known to repress HC formation by negatively regulating Atoh1 (Jones et al., 2006). Decreasing Fgfr3 and Id1/2 may promote further maturation of OHC-like cells.
In summary, our current study provided a genetic model for OHC damage and subsequent regeneration in adult mouse cochlea. Building on this model and adding further genetic manipulations represent a promising avenue to regenerate functional OHCs.
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Genetic reagent (Mus. musculus) | FVB-Tg(Atoh1-cre/ERT)1Sbk/Mmnc | MMRRC | Stock#:029581-UNC | RRID:MMRRC_029581-UNC |
Genetic reagent (Mus. musculus) | Tg(Fgfr3-icre/ERT2)4-2Wdr | Jackson Lab | Stock#:025809 | RRID:IMSR_JAX:025809 |
Genetic reagent (Mus. musculus) | Ai9 | Jackson Lab | Stock#:007909 | RRID:IMSR_JAX:007909 |
Genetic reagent (Mus. musculus) | Slc26a5CreER/+ | Fang et al., 2012 | PMID:21954035 | |
Genetic reagent (Mus. musculus) | CAG-LSL-Atoh1+ | Liu et al., 2012a | PMID:22573682 | |
Genetic reagent (Mus. musculus) | Rosa26CAG-LSL-Ikzf2/+ | Jackson Lab | Stock#:036272 | Knock-in mouse line that will be available soon |
Genetic reagent (Mus. musculus) | Slc26a5DTR/+ | Jackson Lab | Stock#:036271 | Knock-in mouse line that will be available soon |
Antibody | anti-HA (Rat monoclonal) | Roche | Cat.#:11867423001 | RRID:AB_390918 |
Antibody | anti-Prestin (Goat polyclonal) | Santa Cruz | Cat.#:sc-22692 | RRID:AB_2302038 |
Antibody | anti-Myosin-VI (Rabbit polyclonal) | Proteus Bioscience | Cat.#:25–6791 | RRID:AB_2314836 |
Antibody | anti-Myosin-VIIa (Rabbit polyclonal) | Proteus Bioscience | Cat.#:25–6790 | RRID:AB_10015251 |
Antibody | anti-Insm1 (Guinea pig) | A kind gift from Dr. Shiqi Jia and Dr. Carmen Birchmeier | Jia et al., 2015 | PMID:25828096 |
Antibody | anti-Parvalbumin (Mouse monoclonal) | Sigma-Aldrich | Cat.#:P3088 | RRID:AB_477329 |
Antibody | anti-Rbm24 (Rabbit polyclonal) | Proteintech | Cat.#:18178–1-AP | RRID:AB_2878513 |
Antibody | anti-Calbindin (Rabbit monoclonal) | Sigma-Aldrich | Cat.#:C9848 | RRID:AB_2314067 |
Antibody | anti-vGlut3 (Rabbit polyclonal) | Synaptic System | Cat.#:135,203 | RRID:AB_887886 |
Antibody | anti-Ocm (Rabbit) | Swant | Cat.#:OMG4 | RRID:AB_10000346 |
Antibody | anti-Slc7a14 (Rabbit polyclonal) | Sigma-Aldrich | Cat.#:HPA045929 | RRID:AB_2679501 |
Antibody | anti-Ctbp2(Mouse monoclonal) | BD Biosciences | Cat.#:612,044 | RRID:AB_399431 |
Commercial assay, kit | SMART-Seq HT Kit | Takara | Cat.#:634,437 | For reverse-transcription and cDNA amplification |
Commercial assay, kit | TruePrep DNA Library Prep Kit V2 for Illumina | Vazyme | Cat.#:TD503-02 | For sequencing library construction |
Commercial assay, kit | TruePrep Index Kit V2 for Illumina | Vazyme | Cat.#:TD202 | For sequencing library construction (index) |
Generation of Rosa26CAG-LSL-Ikzf2/+ and Slc26a5DTR/+ knock-in mouse strains using CRISPR/Cas9
Request a detailed protocolThe Rosa26-CAG-Loxp-stop-Loxp-Ikzf2*3xHA-T2A-Tdtomato/+ (Rosa26CAG-LSL-Ikzf2/+) knock-in mouse strain was produced by co-injecting one sgRNA against the Rosa26 locus (5ʹ-actccagtctttctagaaga-3ʹ), donor DNA (Figure 1—figure supplement 1), and Cas9 mRNA into one-cell-stage mouse zygotes. A similar approach was followed to generate the Slc26a5-P2A-DTR/+ (Slc26a5DTR/+) knock-in mouse line. In this case, sgRNA targeting the Slc26a5 (Prestin) locus was used: 5ʹ-CGAGGCATAAAGGCCCTGTA-3ʹ. Information regarding the donor DNA is described in Figure 3—figure supplement 1. F0 mice of both strains were screened for potential successful insertion by performing junction PCR; this was followed by crossing the positive F0 mice with wild-type C57BL/6 mice to assess the germ-line status and to produce stable F1 mice. F1 mice was further confirmed via junction PCR. Moreover, lack of random insertion of donor DNA in the genome of these F1 mice was confirmed using Southern blotting (Figure 1—figure supplement 1D,E and Figure 3—figure supplement 1D,E), which was performed according to our previously published protocol (Li et al., 2018b). Both mouse strains were PCR-genotyped using tail DNA (representative gel images of PCR products were presented in Figure 1—figure supplement 1F and Figure 3—figure supplement 1F). Details regarding primer sequences can be found in Supplementary file 9. All mice were bred and raised in SPF-level animal rooms, and animal procedures were performed according to the guidelines (NA-032–2019) of the IACUC of Institute of Neuroscience (ION), CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences.
Sample processing, histology, and immunofluorescence assays, and cell counting
Request a detailed protocolAdult mice were anesthetized and sacrificed during which hearts were perfused with 1× phosphate-buffered saline (PBS) and fresh 4% paraformaldehyde (PFA) to completely remove blood from the inner ear. Inner ear tissues were then carefully dissected out, re-fixed with fresh 4% PFA overnight at 4°C, and washed thrice with 1× PBS. The tissues were decalcified first with 120 mM EDTA for 2 days at 4°C until they were soft enough for micro-dissection and whole-mount preparation. Immunostaining was then performed with the following primary antibodies: anti-HA (rat, 1:200, 11867423001, Roche, RRID:AB_390918), anti-Prestin (goat, 1:1000, sc-22692, Santa Cruz, RRID:AB_2302038), anti-Myo6 (rabbit, 1:500, 25–6791, Proteus Bioscience, RRID:AB_2314836), anti-Myo7a (rabbit, 1:500, 25–6790, Proteus Bioscience, RRID:AB_10015251), anti-Ocm (rabbit, 1:500, OMG-4, Swant, RRID:AB_10000346), anti-Insm1 (guinea pig, 1:6000; a kind gift from Dr. Shiqi Jia from Jinan University, Guangzhou, China, and Dr. Carmen Birchmeier from Max Delbrück Center for Molecular Medicine, Berlin, Germany) (Jia et al., 2015), anti-Ctbp2 (mouse, 1:500, 612044, BD Bioscience, RRID:AB_399431), anti-Parvalbumin (mouse, 1:500, P3088, Sigma-Aldrich, RRID:AB_477329), anti-Rbm24 (rabbit, 1:500, 18178–1-AP, Proteintech, RRID:AB_2878513), anti-Slc7a14 (rabbit, 1:500, HPA045929, Sigma-Aldrich, RRID:AB_2679501), anti-Calbindin (rabbit, 1:500, C9848, Sigma-Aldrich, RRID:AB_2314067), and anti-vGlut3 (rabbit, 1:500, 135203, Synaptic System, RRID:AB_887886). Cochlear tissues were counterstained with Hoechst 33,342 solution (1:1000, 62249, Thermo Scientific, RRID:AB_2651135) to visualize nuclei, and were mounted with Prolong gold antifade medium (P36930, Thermo Scientific, RRID: SCR_015961). Nikon C2, TiE-A1, and NiE-A1 plus confocal microscopes were used to capture images.
Each whole-mount preparation of individual cochlear duct was divided into three parts and imaged at 10× magnification using a confocal microscope. In each acquired image, a line was drawn passing through the center of the IHCs and OHCs to measure the full length of each cochlear duct. They were then divided into basal, middle, and apical portions of equal length. To assess the extent of OHC death in the Slc26a5DTR/+ model (Figure 3), the ratio of the OHC to IHC numbers was used as a proxy as IHC were not affected by DT treatment. To this end, OHC and IHC numbers within a scanning region (60×, confocal microscopy) were computed. This was repeated for two areas in each cochlear turn and mean number was calculated. To count Prestin+ IHCs in Atoh1-CreER+; Rosa26CAG-LSL-Ikzf2/+ mice (Figure 1D), and Tdtomato+/HA+ cells, OHC-like cells, and nascent HCs in Fgfr3-Atoh1-Ikzf2 and Fgfr3-Atoh1-Ikzf2-DTR mice (Figures 2 and 4), the entire cochlear duct of each mouse was scanned to minimize variation between different replicates (60×, confocal microscope) and cells were counted manually. All cell counting data were presented as means ± SEM. Statistical analyses were performed using one-way ANOVA, followed by a Student’s t-test with Bonferroni correction. All statical analyses were implemented using GraphPad Prism 6.0.
Single-cell RNA sequencing and bioinformatic analysis
Request a detailed protocolSingle-cell RNA sequencing was performed in three different mouse lines; each time the cells of interest were identifiable by Tdtomato expression. Cells originated: (1) from P30 Slc26a5CreER/+; Ai9/+ mice that were injected with tamoxifen at P20 and P21; in this case, Tdtomato+ cells were exclusively OHCs due to selective Cre expression in OHCs (Fang et al., 2012). (2) from P60 Fgfr3-iCreER+; Ai9/+ mice that were administered tamoxifen at P30 and P31; in this instance, Tdtomato+ cells within the cochlear sensory epithelium were SCs (primarily PCs and DCs) according to our previous reports (Liu et al., 2012a; Liu et al., 2012b). (3) from P60 Fgfr3-Atoh1-Ikzf2-DTR mice that were administered tamoxifen at P30 and P31 and then DT at P36. In this case, Tdtomato+ cells within the cochlear sensory epithelium included OHC-like cells, nascent HCs, and SCs failing to become HCs.
The cochlear sensory epithelium from each mouse was dissected out, digested, and single-cell suspensions were prepared according to our previously described protocol (Li et al., 2020b). All the aforementioned Tdtomato+ cells were picked under a fluorescence microscope (M205FA, Leica) as illustraed in Figure 6A. We picked 17 wild-type adult OHCs at P30, 16 wild-type adult SCs at P60, and 42 Tdtomato+ cells from the Fgfr3-Atoh1-Ikzf2-DTR model at P60 (Figure 6D). Once the cells were picked, they were immediately subjected to reverse-transcription and cDNA amplification using a Smart-Seq HT kit (Cat# 634437, Takara). The cDNAs (1 ng each) were tagmented using a TruePrep DNA Library Prep Kit V2 for Illumina (Cat# TD503-02, Vazyme) and a TruePrep Index Kit V2 for Illumina (Cat# TD202, Vazyme). The final libraries were subject to paired-end sequencing on the Illumina Novaseq platform. Each library was sequenced leading to 4 G of raw data.
FastQC (v0.11.9) and trimmomatic (v0.39) were used for quality control of raw sequencing data. High-quality mapping to the mouse reference genome (GRCm38) was achieved for 70–80% of the reads using the Hisat2 (v2.1.0) program with default parameters. Raw counts were calculated using HTSeq (v0.10.0), and gene-expression levels were estimated by using StringTie (v1.3.5) with default parameters. Gene abundances were presented as transcript per million (TPM) values. Differentially expressed genes (DEGs) were analyzed using R package ‘DESeq2’ (p<0.001, absolute value of (log2 fold change) > 2). Based on the identified DEGs, biological process enrichment was evaluated (p<0.001, adjusted using FDR correction) by using DAVID (Database for Annotation, Visualization and Integrated Discovery). Extensive quality checks of the data were carried out throughout the analyses. Detailed information regarding mapping rate to mouse genome, neumbers of detected genes with TPM > 1 and TPM > 10, as well as cell names and their corresponding cell identities could be found in Supplementary file 10. The raw data generated from this single-cell RNA sequencing study is accessibly in the GEO (Gene Expression Omnibus) database under Accession No. GSE161156.
To analyze the previously published RNA-seq data of wild-type OHCs at E16, P1, and P7 in a recent study (Kolla et al., 2020), the Seurat processing pipeline (R package v3.0) was applied. To adequately compare the transcriptomic profiles obtained from 10× genomics and smartseq methods, we first integrated them by using the Seurat functions ‘SCTransform’, ‘FindIntegrationAnchors’ (k.filter = 30), and ‘IntegrateData’. Principal component analysis (PCA) was performed by executing the ‘RunPCA’ function, and the top 20 principal components (PCs) were used for further dimensionality reduction using UMAP (via ‘RunUMAP’). Unsupervised clustering was performed using the ‘FindNeighbors’ and ‘FindClusters’ function (resolution = 0.5 for Figure 6—figure supplement 5A, 0.8 for Figure 6F, or 1.5 for Figure 6D).
Furthermore, E16_WT OHCs were defined as cells in which the expression level of Insm1, Myo6, and Atoh1 were all above zero; P1_WT OHCs were identified as those with above zero expression of Bcl11b, Myo6, Myo7a, and Atoh1. Finally, cells expressing above zero level of Slc26a5 (Prestin), Myo6, Ocm, and Ikzf2 were classified as P7_WT OHCs. Trajectory analysis was performed using Monocle (R package v2.0). Pre-processed Seurat datasets were imported into Monocle. The top 2000 most variable genes identified from the Seurat object were used as data input to Monocle. Cells were ordered along a pseudotime axis by using the ‘orderCells’ function in Monocle. The pseudotime scale in monocle is an arbitrary unit, and it is simulated according to the developmental order (or age/differentiation status) of each cell.
ABR measurement
Request a detailed protocolABR were measured in response to the following sound frequencies: 4 k, 5.6 k, 8 k, 11.3 k, 16 k, 22.6 k, and 32 k Hz, following our previously published (Li et al., 2018b). To assess statistical significance between responses of the same frequency between conditions, Student’s t-tests were performed (Figures 3C and 5D).
Tamoxifen and DT treatment
Request a detailed protocolTamoxifen (Cat# T5648, Sigma-Aldrich) was dissolved in corn oil (Cat# C8267, Sigma-Aldrich) and injected intraperitoneally at 3 mg/40 g body weight (for P0 and P1 mice) or at 9 mg/40 g body weight (for P20 and P21, and P30 and P31 mice). DT (Cat# D0564, Sigma-Aldrich) dissolved in 0.9% NaCl solution was also delivered through intraperitoneal injection, at a dose of 20 ng/g body weight. The mice were sacrificed at P42, P46, or P60.
SEM data collection and analysis
Request a detailed protocolSEM was performed following the protocol reported previously (Parker et al., 2016). Briefly, we made holes at the cochlear apex. Cochlear samples were then washed gently with 0.9% NaCl (Cat#10019318, Sinopharm Chemical Reagent Co, Ltd.) and fixed overnight with 2.5% glutaraldehyde (Cat# G5882, Sigma-Aldrich) at 4°C. On the following day, the cochlear samples were washed thrice with 1× PBS and subsequently decalcified using 10% EDTA (Cat# ST066, Beyotime) for 1 day, then refixed for 1 h with 1% osmium tetroxide (Cat#18451, Ted Pella), and subject to a second fixation with thiocarbohydrazide (Cat#88535, Sigma-Aldrich) for 30 min and further fixed fixation for 1 hr with osmium tetroxide. Next, the cochlear samples were dehydrated using a graded ethanol series (30%, 50%, 75%, 80%, 95%; Cat#10009259, Sinopharm Chemical Reagent Co, Ltd.) at 4°C with each incubation step lasting 30 min. The series was completed by fully dehydrating the samples in 100% ethanol (three times, 30 min for each) at 4°C. The cochlear samples were then dried in a critical point dryer (Model: EM CPD300, Leica), after which whole-mount cochlear samples were prepared under a microscope to ensure that hair bundles were facing upward. Finally, samples were treated with a turbomolecular pumped coater (Model: Q150T ES, Quorum). The prepared samples were then scanned using a field-emission SEM instrument (Model: GeminiSEM 300, ZEISS).
Data availability
Sequencing data have been deposited in GEO under accession codes: GSE161156.
-
NCBI Gene Expression OmnibusID GSE137299. Characterization of cochlear development at the single cell level.
References
-
Onset coding is degraded in auditory nerve fibers from mutant mice lacking synaptic ribbonsThe Journal of Neuroscience 30:7587–7597.https://doi.org/10.1523/JNEUROSCI.0389-10.2010
-
Inducible Cre recombinase activity in mouse cerebellar granule cell precursors and inner ear hair cellsDevelopmental Dynamics 235:2991–2998.https://doi.org/10.1002/dvdy.20948
-
Are TMCs the Mechanotransduction Channels of Vertebrate Hair CellsThe Journal of Neuroscience 36:10921–10926.https://doi.org/10.1523/JNEUROSCI.1148-16.2016
-
Conditional gene expression in the mouse inner ear using Cre-loxPJournal of the Association for Research in Otolaryngology 13:295–322.https://doi.org/10.1007/s10162-012-0324-5
-
Hair cell replacement in adult mouse utricles after targeted ablation of hair cells with diphtheria toxinThe Journal of Neuroscience 32:15093–15105.https://doi.org/10.1523/JNEUROSCI.1709-12.2012
-
Expression patterns of Rbm24 in lens, nasal epithelium, and inner ear during mouse embryonic developmentDevelopmental Dynamics 247:1160–1169.https://doi.org/10.1002/dvdy.24666
-
The genetics of hair cell development and regenerationAnnual Review of Neuroscience 36:361–381.https://doi.org/10.1146/annurev-neuro-062012-170309
-
Diphtheria Toxin-Induced Cell Death Triggers Wnt-Dependent Hair Cell Regeneration in Neonatal MiceThe Journal of Neuroscience 36:9479–9489.https://doi.org/10.1523/JNEUROSCI.2447-15.2016
-
Stem Cells and the Bird Cochlea-Where Is EverybodyCold Spring Harbor Perspectives in Medicine 9:a033183.https://doi.org/10.1101/cshperspect.a033183
-
Hair cell maturation is differentially regulated along the tonotopic axis of the mammalian cochleaThe Journal of Physiology 598:151–170.https://doi.org/10.1113/JP279012
-
Regulation of p27Kip1 by Sox2 maintains quiescence of inner pillar cells in the murine auditory sensory epitheliumThe Journal of Neuroscience 32:10530–10540.https://doi.org/10.1523/JNEUROSCI.0686-12.2012
-
Characterization of transcriptomes of cochlear inner and outer hair cellsThe Journal of Neuroscience 34:11085–11095.https://doi.org/10.1523/JNEUROSCI.1690-14.2014
-
Insm1 promotes neurogenic proliferation in delaminated otic progenitorsMechanisms of Development 138:233–245.https://doi.org/10.1016/j.mod.2015.11.001
-
Smaller inner ear sensory epithelia in Neurog 1 null mice are related to earlier hair cell cycle exitDevelopmental Dynamics 234:633–650.https://doi.org/10.1002/dvdy.20551
-
Development and Patterning of the Cochlea: From Convergent Extension to Planar PolarityCold Spring Harbor Perspectives in Medicine 10:a033266.https://doi.org/10.1101/cshperspect.a033266
-
Light and Electron Microscopy Methods for Examination of Cochlear Morphology in Mouse Models of DeafnessCurrent Protocols in Mouse Biology 6:272–306.https://doi.org/10.1002/cpmo.10
-
Gene Expression by Mouse Inner Ear Hair Cells during DevelopmentThe Journal of Neuroscience 35:6366–6380.https://doi.org/10.1523/JNEUROSCI.5126-14.2015
-
Oncomodulin identifies different hair cell types in the mammalian inner earThe Journal of Comparative Neurology 518:3785–3802.https://doi.org/10.1002/cne.22424
-
Hair cell regeneration in the avian auditory epitheliumThe International Journal of Developmental Biology 51:633–647.https://doi.org/10.1387/ijdb.072408js
-
Oncomodulin, an EF-Hand Ca2+ Buffer, Is Critical for Maintaining Cochlear Function in MiceThe Journal of Neuroscience 36:1631–1635.https://doi.org/10.1523/JNEUROSCI.3311-15.2016
-
Math1 regulates development of the sensory epithelium in the mammalian cochleaNature Neuroscience 7:1310–1318.https://doi.org/10.1038/nn1349
-
Molecular mechanisms of inner ear developmentCold Spring Harbor Perspectives in Biology 4:a008409.https://doi.org/10.1101/cshperspect.a008409
-
Molecular Identity of the Mechanotransduction Channel in Hair Cells: Not Quiet There YetThe Journal of Neuroscience 36:10927–10934.https://doi.org/10.1523/JNEUROSCI.1149-16.2016
Decision letter
-
Doris K WuReviewing Editor; NIDCD, NIH, United States
-
Kathryn Song Eng CheahSenior Editor; The University of Hong Kong, Hong Kong
-
Doris K WuReviewer; NIDCD, NIH, United States
Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.
Acceptance summary:
The transcription factor, Atoh1, is capable of regenerating hair cells in neonatal but not mature mammalian cochleae after hair cell loss. Here, Sun et al. demonstrated that a combination of Atoh1 and a transcription factor important for specifying outer hair cell (OHC) fate, Ikzf2, can convert supporting cells in damaged adult cochleae to form hair cells that exhibit OHC characteristics. This experimental approach is a positive step towards the goal of alleviating hearing loss.
Decision letter after peer review:
Thank you for submitting your article "Dual expression of Atoh1 and Ikzf2 promotes transformation of adult cochlear supporting cells into outer hair cells" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Doris Wu as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kathryn Cheah as the Senior Editor.
Essential revisions:
All three reviewers agreed that the ability of Atoh1 and Ikzf2 to drive supporting cells towards outer hair cell fates are interesting and represent an important milestone in hearing restoration research. We felt the number of samples used in the RNA-seq results were small and could confound the interpretations of the results. Considering additional source material is difficult and time consuming to obtain, advice from experts on how to gain more confidence in the analyses conducted was solicited. Please refer to Reviewer#3's comments for specifics. It is important that the suggestions be followed closely.
Reviewer #1 (Recommendations for the authors):
– IHCs overexpressing Atoh1 and Ikzf2 express Prestin, do they express other OHC properties? Do they lose IHC properties?
– Figure 2, make the shape of arrowhead more asymmetric in F-F" so it will be easier to tell what the authors are pointing at for F and F'.
– Figure 4G would benefit from a z-axis view of OHC-like cell in HC and SC levels.
Reviewer #2 (Recommendations for the authors):
The authors note almost as an aside that inducing Ikzf2 alone in SCs causes a loss of the endogenous OHCs. This non-autonomous effect is not explored or discussed. It makes one wonder why co-expression of Atoh1 with Ikzf2 in this experimental series was inefficient in inducing OHC-like production, since that worked when OHCs were deliberately killed. Is there something different about the different modes of cell killing? Or is something different about the timing of transcription factor expression and OHC expression? This issue should be addressed.
The confocal imaging data in this paper are beautiful and convincing. The characterization of the new mouse strains is extensive, but the authors should be sure to indicate a public repository for their mice, so that others can make use of them.
The P2A-DTR knocked into the Prestin stop codon strain represents a significant advance over the Pou4f3-DTR strain, which kills all HCs, and is often reported to have lethal off-target effects. The description of the characterization of this strain could be improved by adding information whether there are similar off-target effects.
The fact that the OHC-like cells are more like nascent hair cells could be due to the inability to down regulate Atoh1, which is only a transient factor in normal HC development. The authors need to address this possibility.
The scRNA-seq results did not offer a clear path forward. The authors suggest Emx2 as a possible factor to test, but the rationale is not well developed.
Line 120: Please change "and did not display any apparent phenotypes" to something like "and did not display any abnormalities" or "and did not display any abnormal phenotypes". Every genetic condition has a phenotype, which can be normal or abnormal.
Line 126: For clarity "wild-type OHCs" should be changed to "endogenous OHCs" or "pre-existing OHCs".
Line 168: Technically at this point it is not been demonstrated that the system is suitable for expressing Ikzf2 in adult SCs, it would be best to say that the system is suitable for expressing Ikzf2 in Cre-expressing cells.
Line 176: Although expression of tdTom indicates that the first part of the bicistonic transcript was translated, it does not guarantee that the first protein (Atoh1 in this case) is stable. Please provide information on HA expression or if it was already demonstrated in the previous work, just edit this description to clarify that you are sure that Atoh1 is being expressed.
Lines 358-359: Why were the wild type HCs and SCs picked at different ages (P30 vs. P60, respectively)?
Lines 988-989 (Figure 3 legend). This title makes it sound like we are looking at two different means of killing cells, one that is genetic and one that is a drug, when I think what is meant is that DT is the "pharmacologic" agent that triggers killing in the correct genetic background. Please edit to clarify.
Figure 1, Panel D: The legend for this panel does not indicate the type of error bars, nor the statistical test that produced the p-values. Later figures are also lacking the information on the statistical test. If this is the style of the journal, OK, but most readers would like to see the information.
Figure 2, Panel F: The variation should probably be described as not statistically significant, if that is the case.
Figure 4, Panels G: If all of the induced OHC-like cells in a single could be indicated, this would be helpful. Otherwise, it could appear that there is only one induced OHC-like cell in this view.
Figure 4, Panel H: The Y-axis title would be clearer if it were "% SCs transformed to OHC-like".
Figure 6, It is not clear why the color scheme for panel F and G are not the same.
Reviewer #3 (Recommendations for the authors):
1. The authors should perform unsupervised graph-based clustering of the data shown in Figure 6D to see if the cells that are outlined cluster with the OHCs. The analysis may have been performed but needs to be shown in the main figures.
2. Although the three cell types may not segregate cleanly, they do seem to spread out in interesting ways in Figure 6D, with more nascent HCs and "failed " SCs closer to the SC cluster and more OHC-like cells closer to the OHC cluster. This is encouraging and supports their main point. More interestingly, this spread is suggestive of a developmental trajectory, with intermediate cell states. With this in mind, they should perform a trajectory analysis, using a tool such as Monocle or Cell Trails, agnostic to their own assessment of cell type. It is also important to show that this spread is not due to technical heterogeneity, such as the number of genes detected, sequencing depth, or the proportion of mitochondrial genes. The authors should overlay this information on the UMAP plot in Figure 6D to demonstrate whether the spread is caused by technical artifacts.
3. The comparison to published data is informative and seems to have been performed appropriately using new tools in Seurat. It is strange, though, that the "semi-converted" cells overlap with only one of the P1 OHC clusters. The authors should add some more information about what distinguishes those clusters and how they interpret the fact that their cells overlap with one and not the other. These data would also be shown more appropriately as trajectories, again as determined using tools such as Monocle, Cell Trails, or Waterfall. Along these lines, the authors should include all of the data from the Kelley lab, not just the subsets they selected in Figure 6 supplemental Figure 4. The whole point is to place the converting cells within the context of normally developing hair cells, so it is best to include cells at multiple stages in this comparison.
4. The small samples sizes limit what one can conclude about differential gene expression. The problem is that there can be a very high false discovery rate when there are so few cells in each population. It would be better to lower the cut-off to an FDR-adjusted p-value of 0.001 or even lower. This would provide a more accurate view of the nature of differential gene expression for all of the comparisons. It is likely that the numbers of differentially expressed genes (thousands when comparing SCs and HCs and hundreds when comparing semi-converted cells to WT cells) will decrease with a more rigorous cut-off and thus provide a more accurate view of gene expression differences.
5. Along the same lines, rather than repeating the analysis in Figure 6E with other cell types, the authors should simply document the expression of known IHC or vestibular HC enriched genes. Presumably, there isn't a big enough cohort of non-OHC genes (either the number of genes or the level of expression) to drive the converting cells out of the OHC cluster. However, this does not mean that highly relevant genes associated with other hair cell types are not expressed at all. A reasonable list of genes can be compiled from the literature and then shown in a heat map for the three cell types. This is particularly important given that Atoh1 acts across hair cell types and there is a substantial Prestin-negative population. It is important to know if there is some heterogeneity here, in terms of the nature of HC identity taken on.
6. The authors need to soften their discussion of the GO analysis. Many of the terms they mention in the text are not actually statistically significant (i.e. p<0.05) in Figure 6 (Figure supp 1) and Figure 6 (supp 2). Only terms that are significantly enriched should be discussed.
7. I am surprised that only ABR results are reported, when DPOAEs offer a specific measure of OHC function. However, this would not significantly alter conclusions, would just be a nice confirmation.
8. Line 62: "transition" is not the right word to use here. Perhaps the authors mean "transmission"?
9. Line 1072: "compliment" should be "complement".
10. Figure 6- supplement 4: Please explain what the dots labeled 1 and 2 indicate. I found this figure hard to understand. There is also a typo in "apical". There should also be a clearer explanation of what the "pseudotime" scale is (arbitrary units??).
11. Line 537: "or to repress the IHC fate": this doesn't need to be an either/or statement. Many transcription factors both induce one fate and repress another.
12. Line 642: There is an extra "were" in this sentence.
13. Line 643: "whole-amount" should be "whole-mount".
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Dual expression of Atoh1 and Ikzf2 promotes transformation of adult cochlear supporting cells into outer hair cells" for further consideration by eLife. Your revised article has been evaluated by Kathryn Cheah (Senior Editor) and a Reviewing Editor.
All three reviewers thought you have made a good-faith effort in incorporating all the suggestions. However, there are still some outstanding issues from all three reviewers, and the Reviewing Editor has drafted this to help you prepare a revised submission.
This manuscript demonstrated the effectiveness of combined activation of Atoh1 and Ikzf2 in converting adult supporting cells to outer hair cell (OHC)-like cells in a mouse model, in which the OHCs have been selectively ablated with diphtheria toxin. The authors showed that while the number of regenerated hair cells was low and there was no functional recovery based on ABR, these OHC-like cells do express prestin and exhibit a genetic profile that resemble nascent hair cells. This paper will be of great interest to researchers interested in hearing restoration as well as regenerative biology.
Essential revisions:Reviewer #1:
Figure 4 still needs improvement. I thought a z-axis view will help readers to see where the OHC-like cells are located, at the normal HC level as depicted by Figure 4B or they remained at the SC level or both. The added insets of Z axis did not clarify this point. If the OHC-like cells were located at different positions, then better illustrations and quantification are needed.
The diagram in 4B could also be modified to indicate the OHC-like cells came from td-labeled SCs, using hatched black and red colors, for example.
Reviewer #3:
Overall, the authors have done a decent job of incorporating our suggested changes, but the changes do not persuade me that their conversion is as complete as they make it seem. I remain puzzled by the scRNA-seq results, which to me indicate a far from complete conversion that undermines the suggestion that they have even been able to make P1-ish OHCs from adult SCs. For instance, the new hierarchical clustering data in Figure 6 show that 5 cell types form 2 clusters, which tells me that there isn't enough power in the study to make fine distinctions, likely because of the nature of gene expression changes involved. The new trajectories underscore this point, in that the cells that receive Atoh1/Ikzf2 follow their own trajectory and just barely converge with the mature OHCs, not with the P1-ish OHCs. I was glad to see some plots of known IHC genes and one vestibular gene, but really they just show a handful of genes. It would have been much better to show a heat map of ~50 enriched markers for each. I would also be curious to see if the OHC-like cells are like P1 vestibular cells, with the OHC nature driven mostly by expression of Prestin. Also, the new data for oncomodulin expression and synaptic ribbon number are not germane to the argument, as they are shown only for overexpression of Ikzf2 alone in IHC; the heat maps in Figure 6- supplement 6 in fact show that oncomodulin is just barely induced in a handful of OHC-like cells. The discussion contradicts this data and states that the OHC-like cells do express oncomodulin (p. 28, line 19), so this needs to be clarified.
To be clear, I do not think that it is reasonable to expect complete conversion of mature SCs into functional OHCs upon sustained overexpression of Atoh1 and Ikzf2. In the regeneration field, one can learn just as much from incomplete conversions and in fact, that is an important goal since it tells us how far certain combinations can take us while uncovering new roadblocks that we should tackle in the future. The authors made a good attempt to discuss this at the end of the discussion. My request to the authors is to be more restrained in how they present these data. I am not yet convinced that the OHC-like cells are basically like P1 OHCs so much as hybrid HC/SCs that have been able to turn on a few developmentally regulated HC genes and enough prestin to make them cluster with OHCs. I feel that the extent of the conversion needs to be discussed more explicitly, maybe just with a quick summary paragraph outlining how many OHC genes come up, how many SC genes go down, what key genes are missing, plus the extent of similarity to P1 OHCs (how many genes are differentially expressed between P1 OHC and their OHC-like cells and what are those genes?). The authors make some interesting points, such as lack of expression of functionally relevant genes, but still don't provide any meta-analysis that could help others to think about what might be limiting the extent of conversion. I would like to see a more concrete discussion of what the results mean, aside from what we already knew (Atoh1 is good at turning on HC genes and Ikzf2 is pretty good at turning on Prestin).
Finally, all three reviewers thought the manuscript could use some in-depth editing from a trusted colleague who understands the science as well as a master of the English language.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Dual expression of Atoh1 and Ikzf2 promotes transformation of adult cochlear supporting cells into outer hair cells" for further consideration by eLife. Your revised article has been evaluated by Kathryn Cheah (Senior Editor) and a Reviewing Editor.
The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:
Essential revisions:
1) The RNA seq data are acceptable. However, some sentences need clarification.
Line 569, We concluded that OHC-like cells were, based on their characteristic gene profiles, unlike neonatal IHCs or utricle HCs, instead ~50% similar with neonatal OHCs.
This sentence is awkward, and it is not clear whether the approximately 50% meant 50% in similarity between OHC-like cells and neonatal OHCs based on the selected 53 OHC genes analyzed or 50% of the OHC-like cells were more like the neonatal OHCs. Either clarify or simplify. For example: Taken together all the gene profiling results, we concluded that OHC-like cells resemble neonatal OHCs and not neonatal IHCs or utricle HCs.
Similar clarification is needed for the sentence on line 726.
2) The positions of OHC-like cells within the epithelium still need further clarification. Despite the nice video and the added supplemental figure, it remains difficult to distinguish the location of all the OHC-like cells shown in Figure 4G. A simple fix would be to use the blue and gold color arrows in Figure 4G to point out which are the HCs located in the HC layer versus SC layer. The supplemental figure can then be used to illustrate the two different locations of HCs in more detail.
Line 340, In addition, ~82.6% of OHC-like cells (i.e. arrows in Figure 4G') migrated up (toward the HC layer), and the rest remaining in the bottom (SC layer).
Is it necessary to instil the phrase of "migrated up" considering the cellular organization of the epithelium appears to be somewhat disrupted? "Migrated-up" suggests some active process on the part of the OHC-like cells. Consider replacing the sentence with: "In addition, ~82.6% of OHC-like cells were located in the top HC layer (blue arrows in Figure 4G', supple figure), whereas the rest remained in the bottom SC layer (gold arrows in Figure 4G", Supl figure ).
https://doi.org/10.7554/eLife.66547.sa1Author response
Essential revisions:
All three reviewers agreed that the ability of Atoh1 and Ikzf2 to drive supporting cells towards outer hair cell fates are interesting and represent an important milestone in hearing restoration research. We felt the number of samples used in the RNA-seq results were small and could confound the interpretations of the results. Considering additional source material is difficult and time consuming to obtain, advice from experts on how to gain more confidence in the analyses conducted was solicited. Please refer to Reviewer#3's comments for specifics. It is important that the suggestions be followed closely.
Reviewer #1 (Recommendations for the authors):
– IHCs overexpressing Atoh1 and Ikzf2 express Prestin, do they express other OHC properties? Do they lose IHC properties?
We additionally show that IHCs overexpressing Ikzf2 express another OHC specific marker, Oncomodulin (Ocm). Furthermore, to demonstrate what IHC properties are lost, co-staining of Slc7a14 (another IHC marker) and Ctbp2 (a marker of synaptic ribbons) shows that, relative to control IHCs, IHCs overexpressing Ikzf2 lose Slc7a14 expression, have less Ctbp2+ puncta and smaller cell nuclei. Please refer to lines 4-18 on page 8 and the added Figure 1—figure supplement 3.
– Figure 2, make the shape of arrowhead more asymmetric in F-F" so it will be easier to tell what the authors are pointing at for F and F'.
Thanks for this suggestion. We agree that asymmetric labelling is easier to visualize the targeted cell. Please see the updated Figure 2.
– Figure 4G would benefit from a z-axis view of OHC-like cell in HC and SC levels.
We agree that adding a z-axis view can provide more information. Please see the inset images in Figure 4G-G’’’.
Reviewer #2 (Recommendations for the authors):
The authors note almost as an aside that inducing Ikzf2 alone in SCs causes a loss of the endogenous OHCs. This non-autonomous effect is not explored or discussed. It makes one wonder why co-expression of Atoh1 with Ikzf2 in this experimental series was inefficient in inducing OHC-like production, since that worked when OHCs were deliberately killed. Is there something different about the different modes of cell killing? Or is something different about the timing of transcription factor expression and OHC expression? This issue should be addressed.
Thanks for pointing it out. We added a section where we provided our speculations in the discussion part. Please refer to lines 21-22 on page 26, lines 1-22 on page 27, and lines 1-3 on page 28.
The confocal imaging data in this paper are beautiful and convincing. The characterization of the new mouse strains is extensive, but the authors should be sure to indicate a public repository for their mice, so that others can make use of them.
Thanks for the encouraging comments. We have contacted the Jackson Lab in which the Prestin-DTR and Rosa26-LSL-Ikzf2 strains would be deposited. The JAX Stock numbers are: 036271 and 036272, respectively. This information is included in the “key resource table” of the revised manuscript. Please refer to page 32.
The P2A-DTR knocked into the Prestin stop codon strain represents a significant advance over the Pou4f3-DTR strain, which kills all HCs, and is often reported to have lethal off-target effects. The description of the characterization of this strain could be improved by adding information whether there are similar off-target effects.
Besides OHC death and deafness, we do not observe any other apparent defects in Prestin-DTR/+ mice (it is now changed to Slc26a5DTR/+, as requested by the eLife office editor). We have added a sentence describing the minimal off-target effects in Prestin-DTR/+ mice. Please refer to line 1-3 on page 13.
The fact that the OHC-like cells are more like nascent hair cells could be due to the inability to down regulate Atoh1, which is only a transient factor in normal HC development. The authors need to address this possibility.
We agree that permanent expression of Atoh1 is a possible barrier preventing OHC-like cells from maturing. We realize that this issue should be resolved in future, and indeed our lab are in the process of optimizing a genetic approach by which conditional, but transient Atoh1 can be successfully induced in adult SCs. Please refer to lines 21-22 on page 29, and lines 1-5 on page 30.
The scRNA-seq results did not offer a clear path forward. The authors suggest Emx2 as a possible factor to test, but the rationale is not well developed.
We have re-organized the text to explain why we are interested in genes involved in hair bundle organization. Please refer to lines 1-5 on page 31.
Line 120: Please change "and did not display any apparent phenotypes" to something like "and did not display any abnormalities" or "and did not display any abnormal phenotypes". Every genetic condition has a phenotype, which can be normal or abnormal.
We accept the suggestion and choose “and did not display any abnormalities”. Please refer to line 7 on page 6.
Line 126: For clarity "wild-type OHCs" should be changed to "endogenous OHCs" or "pre-existing OHCs".
We have changed “wild-type OHCs" to "endogenous OHCs". Please refer to line 13 on page 6.
Line 168: Technically at this point it is not been demonstrated that the system is suitable for expressing Ikzf2 in adult SCs, it would be best to say that the system is suitable for expressing Ikzf2 in Cre-expressing cells.
We agree with this suggestion and please refer to line 2 on page 9.
Line 176: Although expression of tdTom indicates that the first part of the bicistonic transcript was translated, it does not guarantee that the first protein (Atoh1 in this case) is stable. Please provide information on HA expression or if it was already demonstrated in the previous work, just edit this description to clarify that you are sure that Atoh1 is being expressed.
The efficient Atoh1 expression in CAG-LSL-Atoh1+ has been demonstrated in our previous work (Liu et al., JNS, 2012). We have re-written this sentence and make it clear. Please refer to lines 11-14 on page 9.
Lines 358-359: Why were the wild type HCs and SCs picked at different ages (P30 vs. P60, respectively)?
Thanks for pointing it out. We decide to pick wild type OHCs at P30, because we roughly consider the intrinsic age (counting from reprogramming starts) of the OHC-like cells as P30. In other words, although cochlear samples are analyzed at P60, new OHC-like cells have experienced reprogramming for only 30 days. Therefore, we speculate it is more appropriate to compare transcriptomic profiles between OHC-like cells and P30, rather than P60, wild type OHCs.
Nevertheless, as cochlear development is complete by P30, the transcriptomic profiles of cochlear cells should be stable or minimally changed between P30 and P60. This notion is supported by a recent study of RNA-Seq of adult cochlear SCs at P60 and P120. Please refer to lines 14-17 on page 28.
Lines 988-989 (Figure 3 legend). This title makes it sound like we are looking at two different means of killing cells, one that is genetic and one that is a drug, when I think what is meant is that DT is the "pharmacologic" agent that triggers killing in the correct genetic background. Please edit to clarify.
Thanks for pointing it out. We have updated the title of Figure 3 legend as “Damaging adult OHCs specifically by DT treatment”. Please refer to line 1 on page 50.
Figure 1, Panel D: The legend for this panel does not indicate the type of error bars, nor the statistical test that produced the p-values. Later figures are also lacking the information on the statistical test. If this is the style of the journal, OK, but most readers would like to see the information.
Statistic and error bars information were previously described in method section only. We have added them in Figure legends for better understanding. Please refer to lines 11-12 on page 48, lines 15-16 on page 49, lines 12-13 on page 50, lines 14-15 on page 51, and lines 10-11 on page 52.
Figure 2, Panel F: The variation should probably be described as not statistically significant, if that is the case.
Yes, there was no statistic difference, and we have marked it in the updated Figure 2G.
Figure 4, Panels G: If all of the induced OHC-like cells in a single could be indicated, this would be helpful. Otherwise, it could appear that there is only one induced OHC-like cell in this view.
We have accepted this suggestion. To simplify the Figure 4, all 6 OHC-like cells were labelled with blue and yellow arrows in Figure 4G’’ only, except that the OHC-like cell labelled by blue arrows were highlighted in Figure 4G-G’’’, because it was also visualized in YZ axis (inset), as suggested by reviewer 1.
Figure 4, Panel H: The Y-axis title would be clearer if it were "% SCs transformed to OHC-like".
We have accepted this suggestion.
Figure 6, It is not clear why the color scheme for panel F and G are not the same.
In the updated Figure 6, we mixed 8 different cell populations for unsupervised cell cluster. Panel F show that 5 main clusters are formed, meaning that some of the 8 different cell populations are similar and are classified in the same cluster. Basically, panel G is same as Panel F, except that each of the 8 cell populations are assigned with different colors in the 5 main clusters.
Reviewer #3 (Recommendations for the authors):
1. The authors should perform unsupervised graph-based clustering of the data shown in Figure 6D to see if the cells that are outlined cluster with the OHCs. The analysis may have been performed but needs to be shown in the main figures.
Thanks for pointing it out. The unsupervised graph-based clustering is now included in the updated Figure 6D.
2. Although the three cell types may not segregate cleanly, they do seem to spread out in interesting ways in Figure 6D, with more nascent HCs and "failed " SCs closer to the SC cluster and more OHC-like cells closer to the OHC cluster. This is encouraging and supports their main point. More interestingly, this spread is suggestive of a developmental trajectory, with intermediate cell states. With this in mind, they should perform a trajectory analysis, using a tool such as Monocle or Cell Trails, agnostic to their own assessment of cell type. It is also important to show that this spread is not due to technical heterogeneity, such as the number of genes detected, sequencing depth, or the proportion of mitochondrial genes. The authors should overlay this information on the UMAP plot in Figure 6D to demonstrate whether the spread is caused by technical artifacts.
Thanks for this suggestion. We have performed trajectory analysis via Monocle. Indeed, the OHC-like cells/nascent HCs are also closer to wild type OHC cluster along the developmental trajectory line. Please refer to the added Figure 6—figure supplement 3. Furthermore, we also include the raw reads genome mapping rate, gene detection numbers (TPM>1 and TPM>10) in the Supplementary file 8. Basically, we confirm the technical heterogeneity among our Smartseq library is minimal.
3. The comparison to published data is informative and seems to have been performed appropriately using new tools in Seurat. It is strange, though, that the "semi-converted" cells overlap with only one of the P1 OHC clusters. The authors should add some more information about what distinguishes those clusters and how they interpret the fact that their cells overlap with one and not the other. These data would also be shown more appropriately as trajectories, again as determined using tools such as Monocle, Cell Trails, or Waterfall. Along these lines, the authors should include all of the data from the Kelley lab, not just the subsets they selected in Figure 6 supplemental Figure 4. The whole point is to place the converting cells within the context of normally developing hair cells, so it is best to include cells at multiple stages in this comparison.
We agree with and accept this good suggestion. In the revised manuscript, we pool all OHCs covered by the data from the Kelley lab, with our manually picked cells. Trajectory analysis is performed via Monocle. Consistent with previous analysis, OHC-like cells and nascent cells primarily overlap with only one of the P1 OHC clusters which should be more differentiated OHCs (middle and basal turns) because they are closer to P7 and P30_WT OHCs. Cluster 4 should be P1 OHCs at apical turns which are less differentiated and closer to E16_WT OHCs. Please refer to lines 20-21 on page 22, and lines 12-15 on page 23 and the updated Figure 6.
4. The small samples sizes limit what one can conclude about differential gene expression. The problem is that there can be a very high false discovery rate when there are so few cells in each population. It would be better to lower the cut-off to an FDR-adjusted p-value of 0.001 or even lower. This would provide a more accurate view of the nature of differential gene expression for all of the comparisons. It is likely that the numbers of differentially expressed genes (thousands when comparing SCs and HCs and hundreds when comparing semi-converted cells to WT cells) will decrease with a more rigorous cut-off and thus provide a more accurate view of gene expression differences.
We have switched to use FDR-adjusted p-value of 0.001, as clearly described in method section (lines 5-7 on page 38). Accordingly, the numbers of different genes are decreased, GO analysis and the corresponding figures and excel files containing list of all differently expressed genes are updated.
5. Along the same lines, rather than repeating the analysis in Figure 6E with other cell types, the authors should simply document the expression of known IHC or vestibular HC enriched genes. Presumably, there isn't a big enough cohort of non-OHC genes (either the number of genes or the level of expression) to drive the converting cells out of the OHC cluster. However, this does not mean that highly relevant genes associated with other hair cell types are not expressed at all. A reasonable list of genes can be compiled from the literature and then shown in a heat map for the three cell types. This is particularly important given that Atoh1 acts across hair cell types and there is a substantial Prestin-negative population. It is important to know if there is some heterogeneity here, in terms of the nature of HC identity taken on.
Thanks for this suggestion. We choose several reported OHC, IHC and vestibular HC specific genes and plot their TPM values in all the 11 OHC-like cells. In agreement with our UMAP analysis, OHC specific genes Insm1, Insm2, and St8sia3 are highly expressed in OHC-like cells, however, IHC specific genes Fgf8, Otof, Slc17a8, Slc7a14, Tbx2 and vestibular HC gene Zpld1 are minimally or not expressed in OHC-like cells. Again, it confirms that OHC-like cells do resemble neonatal endogenous OHCs. Please refer to lines 5-15 on page 21 and Figure 6—figure supplement 2C-E.
6. The authors need to soften their discussion of the GO analysis. Many of the terms they mention in the text are not actually statistically significant (i.e. p<0.05) in Figure 6 (Figure supp 1) and Figure 6 (supp 2). Only terms that are significantly enriched should be discussed.
We have updated our analysis standard in the revised manuscript and only discussed the GO analysis of genes that are statistically different (FDR-adjusted p-value of 0.001).
7. I am surprised that only ABR results are reported, when DPOAEs offer a specific measure of OHC function. However, this would not significantly alter conclusions, would just be a nice confirmation.
We agree that DPOAE are more specific for OHC function measurement. We did not include it only because we are not confident yet of our current DPOAE assays in the lab. To validate our DPOAE assay, we will practice more by using mutant mice with OHC specific deficiency (e.g. Prestin -/- mice). Thanks for pointing it out, and we certainly will incorporate DPOAE measurement in our future OHC regeneration studies.
8. Line 62: "transition" is not the right word to use here. Perhaps the authors mean "transmission"?
Thanks for pointing it out. We have changed "transition" to "transmission". Please refer to line 13 on page 3.
9. Line 1072: "compliment" should be "complement".
Sorry for the typo and "compliment" is changed to "complement". Please refer to line 5 on page 54.
10. Figure 6- supplement 4: Please explain what the dots labeled 1 and 2 indicate. I found this figure hard to understand. There is also a typo in "apical". There should also be a clearer explanation of what the "pseudotime" scale is (arbitrary units??).
This figure is updated because all OHCs (from Kelley lab paper) are included and now it is Figure 6- supplement 5. In addition, the previous dots labeled 1 and 2 indicates the developmental bifurcation, but we have removed it in the updated Figure because the bifurcation is apparent. The typo is also corrected. Last, the pseudotime scale is an arbitrary unit, and it is simulated according to the developmental order (or age/differentiation status) of each cell. Please refer to lines 9-11 on page 39.
11. Line 537: "or to repress the IHC fate": this doesn't need to be an either/or statement. Many transcription factors both induce one fate and repress another.
We have changed the “or” to “and”. Please refer to line 10 on page 26.
12. Line 642: There is an extra "were" in this sentence.
Thanks for your careful reading. We have deleted the second “were”.
13. Line 643: "whole-amount" should be "whole-mount".
Thanks, and "whole-amount" is changed to "whole-mount".
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Essential revisions:
Reviewer #1:
Figure 4 still needs improvement. I thought a z-axis view will help readers to see where the OHC-like cells are located, at the normal HC level as depicted by Figure 4B or they remained at the SC level or both. The added insets of Z axis did not clarify this point. If the OHC-like cells were located at different positions, then better illustrations and quantification are needed.
We provided a new Figure 4—figure supplement 1 where confocal XY, YZ, and XZ angles were presented. Furthermore, to better visualize those OHC-like cells at various angles, the same confocal raw data (Figure 4 and Figure 4—figure supplement 1) were subjected to Imaris software and a rich media file was produced. Please refer to lines 12-13 on page 15.
The diagram in 4B could also be modified to indicate the OHC-like cells came from td-labeled SCs, using hatched black and red colors, for example.
Thanks, and we have accepted the suggestion and modified the diagram in Figure 4B. The new OHC-like cells were currently labelled with hatched back and red colors.
Reviewer #3:
Overall, the authors have done a decent job of incorporating our suggested changes, but the changes do not persuade me that their conversion is as complete as they make it seem. I remain puzzled by the scRNA-seq results, which to me indicate a far from complete conversion that undermines the suggestion that they have even been able to make P1-ish OHCs from adult SCs. For instance, the new hierarchical clustering data in Figure 6 show that 5 cell types form 2 clusters, which tells me that there isn't enough power in the study to make fine distinctions, likely because of the nature of gene expression changes involved. The new trajectories underscore this point, in that the cells that receive Atoh1/Ikzf2 follow their own trajectory and just barely converge with the mature OHCs, not with the P1-ish OHCs. I was glad to see some plots of known IHC genes and one vestibular gene, but really, they just show a handful of genes. It would have been much better to show a heat map of ~50 enriched markers for each. I would also be curious to see if the OHC-like cells are like P1 vestibular cells, with the OHC nature driven mostly by expression of Prestin.
Thanks for the encouraging comments. First, our previous analysis criteria/resolution might underestimate the power of the transcriptomic difference among our manual picked cells. Indeed, the 5 cell types in Figure 6E was able to be divided into 4 main clusters (updated Figure 6D), but the key conclusion was the same.
Second, we agreed with the comments about how to describe the OHC-like cells. In the 2nd revised manuscript, we clarified that we did not intend to conclude that OHC-like cells were fully equivalent to P1-OHCs, instead their similarity was ~50%.
Third, following the suggestions, we provided a heatmap where 49 neonatal cochlear IHC and 26 neonatal utricle HC specific genes were selected. The number of IHC specific genes was close to 50, but number of utricle HC specific genes was roughly half. Those genes were selected by overlapping cell type specific genes reported in three different studies (Burns, et al., Nat Commun, 2015, PMID: 26469390; Wiwatpanit, et al., Nature, 2018, PMID: 30305733; Kolla, et al., Nat Commun, 2020, PMID: 32404924). Their different sequencing methods or other bench factors would cause variations. In other words, if one gene is only cell type specific in one or two reports, it was not regarded as IHC or utricle HC specific genes. This standard led to reduced numbers of cell type specific genes, but in our mind would make the analysis more accurate. Please refer to result section “Neonatal specific OHC genes are highly expressed in OHC-like cells” starting from line 14 on page 24.
Notably, we remind the readers that we also feel it is challengeable and has limitations to compare data from different studies, especially the data are generated by different sequencing methods, as the similar comment is alerted (Kolla, et al., Nat Commun, 2020, PMID: 32404924). In other words, the field urgently needs a complete transcriptomic profile produced by smartseq or other full-length cDNA sequencing approaches that covers distinct inner ear HC subtypes at different developmental ages, because adult inner ear HCs are hard to perform via 10x single cell sequencing platform. Given this dataset is available, it is easier and more precise to define what the regenerated HCs are in future studies. Please see text on lines 18-22 on page 32 and line 1 on page 33.
Also, the new data for oncomodulin expression and synaptic ribbon number are not germane to the argument, as they are shown only for overexpression of Ikzf2 alone in IHC; the heat maps in Figure 6- supplement 6 in fact show that oncomodulin is just barely induced in a handful of OHC-like cells. The discussion contradicts this data and states that the OHC-like cells do express oncomodulin (p. 28, line 19), so this needs to be clarified.
To clarify this issue, we double checked the oncomodulin (Ocm) expression level in the 11 OHC-like cells. It seemed low in previous heatmap primarily because the TPM value in the P30_WT OHC was high. In the current revised version, we included the log- transformed transcripts per million (TPM) value of Ocm in each OHC-like cell in the updated Figure 6—figure supplement 6B (heatmap) and the raw TPM value in Supplementary file 6.
Indeed, 7/11 new OHC-like cells expressed high level of Ocm. Consistently, Ocm was not included in the differently expressed genes between OHC-like cells and adult endogenous OHCs (updated Figure 6—figure supplement 7A). We modified Figure 6—figure supplement 7A (previously as Figure 6—figure supplement 6A) to better help readers to more clearly appreciate the differentially expressed SC-or OHC-genes between OHC-like cells and adult OHCs. Please also see text on lines 19-21 on page 31.
To be clear, I do not think that it is reasonable to expect complete conversion of mature SCs into functional OHCs upon sustained overexpression of Atoh1 and Ikzf2. In the regeneration field, one can learn just as much from incomplete conversions and in fact, that is an important goal since it tells us how far certain combinations can take us while uncovering new roadblocks that we should tackle in the future. The authors made a good attempt to discuss this at the end of the discussion. My request to the authors is to be more restrained in how they present these data. I am not yet convinced that the OHC-like cells are basically like P1 OHCs so much as hybrid HC/SCs that have been able to turn on a few developmentally regulated HC genes and enough prestin to make them cluster with OHCs. I feel that the extent of the conversion needs to be discussed more explicitly, maybe just with a quick summary paragraph outlining how many OHC genes come up, how many SC genes go down, what key genes are missing, plus the extent of similarity to P1 OHCs (how many genes are differentially expressed between P1 OHC and their OHC-like cells and what are those genes?).
Thanks and we accepted those suggestions. Thus, we added a section to explicitly discuss the extent of cell fate conversion, similarity between OHC-like cells and P1-OHCs as well as how to define the converted OHC-like cells. Please refer to the section of “degree of cell fate conversion of the OHC-like cells” in the discussion part starting at line 19 on page 30.
In addition, please also refer to the new Figure 7 where we briefly summarized the key information, which included how many OHC genes come up and how many SC genes go down in OHC-like cells, relative to adult SCs and OHCs, plus the ~50% similarity to P1 OHCs, and minimal similarity to neonatal IHCs and utricle HCs. The key missing genes were also summarized in summarized in Supplementary files 6 and 7.
The authors make some interesting points, such as lack of expression of functionally relevant genes, but still don't provide any meta-analysis that could help others to think about what might be limiting the extent of conversion. I would like to see a more concrete discussion of what the results mean, aside from what we already knew (Atoh1 is good at turning on HC genes and Ikzf2 is pretty good at turning on Prestin).
Besides what we have included previously, we have further discussed the barriers that preventing OHC-like cells from undergoing further differentiation. Two main points were added after meta-analysis:
1) Bcl11b was missing in OHC-like cells and Bcl11b is involved in stereocilia development in OHCs. We have speculated that Bcl11b might be one candidate gene to be combined with Atoh1 and Ikzf2 in future. Please refer to text on lines 4-8 on page 34.
2) Fgfr3 and Id1/2 families were expressed much higher in OHC-like cells than in adult endogenous OHC cells. They are involved in either repressing Atoh1 or maintaining SC fate, thus we speculated that further decreasing Fgfr3 and Id1/2 would further promote the conversion extent of OHC-like cells. Please refer to text on lines 3-8 on page 35.
Finally, all three reviewers thought the manuscript could use some in-depth editing from a trusted colleague who understands the science as well as a master of the English language.
I have asked my previous colleague, Ms.Virginia M. S. Rutten (a senior graduate in HHMI-Janelia Research Campus, Ashburn, VA, USA) for assistance in editing the text.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:
Essential revisions:
1) The RNA seq data are acceptable. However, some sentences need clarification.
Line 569, We concluded that OHC-like cells were, based on their characteristic gene profiles, unlike neonatal IHCs or utricle HCs, instead ~50% similar with neonatal OHCs.
This sentence is awkward, and it is not clear whether the approximately 50% meant 50% in similarity between OHC-like cells and neonatal OHCs based on the selected 53 OHC genes analyzed or 50% of the OHC-like cells were more like the neonatal OHCs. Either clarify or simplify. For example: Taken together all the gene profiling results, we concluded that OHC-like cells resemble neonatal OHCs and not neonatal IHCs or utricle HCs.
Similar clarification is needed for the sentence on line 726.
Thanks for pointing this out. The 50% similarity means that, based on the selected 53 OHC genes analyzed, the overall similarity between all the 11 OHC-like cells and neonatal OHCs is ~50%. Please refer to the updated sentences on lines 15-17, page 25.
We also accepted the suggested simplified sentence: “Taken together all the gene profiling results, we concluded that OHC-like cells resemble neonatal OHCs and not neonatal IHCs or utricle HCs”. Please refer to lines 9-11, page 26 and lines 7-8, page 33.
2) The positions of OHC-like cells within the epithelium still need further clarification. Despite the nice video and the added supplemental figure, it remains difficult to distinguish the location of all the OHC-like cells shown in Figure 4G. A simple fix would be to use the blue and gold color arrows in Figure 4G to point out which are the HCs located in the HC layer versus SC layer. The supplemental figure can then be used to illustrate the two different locations of HCs in more detail.
Thanks for this suggestion and we accepted it. Among all the 6 OHC-like cells in the updated Figure 4G-G’’’, 5 of them (blue arrows) are located in the HC layer and one (orange arrow) is in SC layer. The OHC-like cell (blue arrow in Figure 4G’’’) is presented in the orthogonal views (Figure 4—figure supplement 1A-A’’’).
We chose another OHC-like cell that is located in a further deeper layer (SC layer) than the one (orange arrow in Figure 4G’’), and its orthogonal views are presented in Figure 4—figure supplement 1B-B’’’. Comparison between Figure 4—figure supplement 1A-A’’’ and Figure 4—figure supplement 1B-B’’’, in our mind, currently clearly illustrates the different locations of the OHC-like cells.
Line 340, In addition, ~82.6% of OHC-like cells (i.e. arrows in Figure 4G') migrated up (toward the HC layer), and the rest remaining in the bottom (SC layer).
Is it necessary to instill the phrase of "migrated up" considering the cellular organization of the epithelium appears to be somewhat disrupted? "Migrated-up" suggests some active process on the part of the OHC-like cells. Consider replacing the sentence with: "In addition, ~82.6% of OHC-like cells were located in the top HC layer (blue arrows in Figure 4G', supple figure), whereas the rest remained in the bottom SC layer (gold arrows in Figure 4G", Supl figure ).
We accepted the suggestion. Please refer to the suggested sentence in lines 20-22, page 15 and line 1, page 16.
https://doi.org/10.7554/eLife.66547.sa2Article and author information
Author details
Funding
National Natural Science Foundation of China (81771012)
- Zhiyong Liu
Ministry of Science and Technology of the People's Republic of China (2017YFA0103901)
- Zhiyong Liu
Chinese Academy of Sciences (XDB32060100)
- Zhiyong Liu
Shanghai Municipal Bureau of Quality and Technical Supervision (2018SHZDZX05)
- Zhiyong Liu
Shanghai Jiao Tong University (SSMU-ZLCX20180601)
- Zhiyong Liu
Boehringer Ingelheim (DE811138149)
- Zhiyong Liu
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank Drs. Qian Hu, Yu Kong, and Xu Wang from Optical Imaging and EM Facility of the Institute of Neuroscience (ION) for support with the image analysis; Dr. Hui Yang (Principal Investigator at the ION) for sharing the zygote microinjection system used to generate the knockin mice; Ms. Qian Liu (from the Department of Embryology of the ION animal center) for helping us in transplanting zygotes into pseudopregnant female mice; Dr. Shiqi Jia (Jinan University, Guangzhou, China) and Dr. Carmen Birchmeier (Max Delbrück Center for Molecular Medicine, Berlin, Germany) for kindly providing the anti-Insm1 antibody; and Ms.Virginia M S Rutten (HHMI-Janelia Research Campus, Ashburn, VA, USA) for assistance in editing the text.
Ethics
All mice were bred and raised in SPF level animal rooms and animal procedures were performed according to guidelines (NA-032-2019) of the IACUC of Institute of Neuroscience (ION), Chinese Academy of Sciences.
Senior Editor
- Kathryn Song Eng Cheah, The University of Hong Kong, Hong Kong
Reviewing Editor
- Doris K Wu, NIDCD, NIH, United States
Reviewer
- Doris K Wu, NIDCD, NIH, United States
Version history
- Received: January 14, 2021
- Preprint posted: January 21, 2021 (view preprint)
- Accepted: September 2, 2021
- Accepted Manuscript published: September 3, 2021 (version 1)
- Version of Record published: September 14, 2021 (version 2)
Copyright
© 2021, Sun et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 2,245
- Page views
-
- 448
- Downloads
-
- 25
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Chromosomes and Gene Expression
- Developmental Biology
Imaging experiments reveal the complex and dynamic nature of the transcriptional hubs associated with Notch signaling.
-
- Cell Biology
- Developmental Biology
Cylicins are testis-specific proteins, which are exclusively expressed during spermiogenesis. In mice and humans, two Cylicins, the gonosomal X-linked Cylicin 1 (Cylc1/CYLC1) and the autosomal Cylicin 2 (Cylc2/CYLC2) genes, have been identified. Cylicins are cytoskeletal proteins with an overall positive charge due to lysine-rich repeats. While Cylicins have been localized in the acrosomal region of round spermatids, they resemble a major component of the calyx within the perinuclear theca at the posterior part of mature sperm nuclei. However, the role of Cylicins during spermiogenesis has not yet been investigated. Here, we applied CRISPR/Cas9-mediated gene editing in zygotes to establish Cylc1- and Cylc2-deficient mouse lines as a model to study the function of these proteins. Cylc1 deficiency resulted in male subfertility, whereas Cylc2-/-, Cylc1-/yCylc2+/-, and Cylc1-/yCylc2-/- males were infertile. Phenotypical characterization revealed that loss of Cylicins prevents proper calyx assembly during spermiogenesis. This results in decreased epididymal sperm counts, impaired shedding of excess cytoplasm, and severe structural malformations, ultimately resulting in impaired sperm motility. Furthermore, exome sequencing identified an infertile man with a hemizygous variant in CYLC1 and a heterozygous variant in CYLC2, displaying morphological abnormalities of the sperm including the absence of the acrosome. Thus, our study highlights the relevance and importance of Cylicins for spermiogenic remodeling and male fertility in human and mouse, and provides the basis for further studies on unraveling the complex molecular interactions between perinuclear theca proteins required during spermiogenesis.
