Emergence of a smooth interface from growth of a dendritic network against a mechanosensitive contractile material

  1. Medha Sharma
  2. Tao Jiang
  3. Zi Chen Jiang
  4. Carlos E Moguel-Lehmer
  5. Tony JC Harris  Is a corresponding author
  1. Department of Cell and Systems Biology, University of Toronto, Canada
Research Article
  • Cited 0
  • Views 402
  • Annotations
Cite this article as: eLife 2021;10:e66929 doi: 10.7554/eLife.66929

Abstract

Structures and machines require smoothening of raw materials. Self-organized smoothening guides cell and tissue morphogenesis and is relevant to advanced manufacturing. Across the syncytial Drosophila embryo surface, smooth interfaces form between expanding Arp2/3-based actin caps and surrounding actomyosin networks, demarcating the circumferences of nascent dome-like compartments used for pseudocleavage. We found that forming a smooth and circular boundary of the surrounding actomyosin domain requires Arp2/3 in vivo. To dissect the physical basis of this requirement, we reconstituted the interacting networks using node-based models. In simulations of actomyosin networks with local clearances in place of Arp2/3 domains, rough boundaries persisted when myosin contractility was low. With addition of expanding Arp2/3 network domains, myosin domain boundaries failed to smoothen, but accumulated myosin nodes and tension. After incorporating actomyosin mechanosensitivity, Arp2/3 network growth locally induced a surrounding contractile actomyosin ring that smoothened the interface between the cytoskeletal domains, an effect also evident in vivo. In this way, a smooth structure can emerge from the lateral interaction of irregular active materials.

Introduction

Smooth components are integral to the assembly and function of human-made structures and devices. Smooth surfaces dominate our inside and urban environments and are formed by refinement of rough starting materials. In conventional industries, starting materials are smoothened by tools. Smooth structures also convey important functions in living systems, but their formation relies on self-assembly and self-organization. Fuller understanding of these mechanisms will aid advanced manufacturing with smart materials for a broad range of applications; from sensors and data processing, to filters and self-cleaning surfaces, to medical devices and robotics (Begley et al., 2019; Eder et al., 2018; Holmes, 2019; Wang et al., 2020).

Living and synthetic systems face a challenge: how can small and roughly distributed components form large and smooth structures that convey function? One solution is stereospecific self-assembly of components into a structure with mechanical properties that convey smoothness. For example, tubulin subunits assemble microtubules with relatively high rigidity, allowing microtubules to act as smooth tracks for molecular transport through the cell (Hawkins et al., 2010). Individual actin polymers have lower rigidity (Salbreux et al., 2012), but cross-linking by actin-binding proteins can bundle multiple polymers into straight structures that support cell protrusions (Svitkina, 2018). In more complex scenarios, solutions involve an initial step of rough patterning followed by refinement through mechanical self-organization. One example is the establishment of a compartment boundary across an epithelial tissue. In the Drosophila wing imaginal disc, gene expression patterns define the cells of specific compartments, but non-muscle myosin II (myosin hereafter) is then required to pull actin networks into straight cables integrated via cell-cell junctions to form smooth compartment boundaries that define the architecture of the mature wing (Harris, 2018; Wang and Dahmann, 2020). Another example comes from mesenchymal cell migration. Here, a leader cell’s initial path through the extracellular matrix is smoothened by follower cells as reciprocal mechanical effects co-align cellular actomyosin cables with extracellular matrix fibers via focal adhesions (Livne and Geiger, 2016; van Helvert et al., 2018). A purely subcellular example occurs during cytokinesis, when spindle-derived cues roughly organize actomyosin assemblies around the cell equator, and myosin activity then contributes to smoothening of the contractile cytokinetic ring that divides the cell in two (Schwayer et al., 2016). ‘Two-step’ refinement strategies are also relevant to hierarchical design principles important for transcending scales in advanced manufacturing (Begley et al., 2019; Eder et al., 2018; Holmes, 2019; Wang et al., 2020).

In addition to specialized structures, such as junction-associated cables or cytokinetic rings, actin networks also form the cell cortex, a thin, sheet-like material underlying the cell’s plasma membrane (Chugh and Paluch, 2018; Svitkina, 2020). Smooth structures can form across the cell cortex, but the mechanisms involved are not fully understood. Two properties of the cortex are relevant: (i) it can gain an asymmetric distribution across the cell and (ii) it is a composite material. Cortical asymmetry can elicit cortical flow (Munro, 2006), with resulting compressive forces promoting mesoscale alignment of actin filaments perpendicular to the flow (Reymann et al., 2016). The cortex’s composite structure involves distinct actin-based networks: formin-induced networks, with or without myosin, and Arp2/3-induced networks (Chugh and Paluch, 2018; Svitkina, 2020). These networks can be closely interwoven, but signaling events can induce mesoscale cortical domains enriched with a particular network. For example, the budding of a polar body from a much larger oocyte involves induction of an Arp2/3-enriched domain surrounded by a smooth ring of actomyosin (Yi and Li, 2012). The Arp2/3-enriched domain prevents full contraction of the actomyosin ring, and the actomyosin ring delineates the boundary of budding polar body, but how a smooth interface forms between such networks remains unclear.

The cortex of the early Drosophila embryo is patterned into subdomains that engage each other to organize embryo pseudocleavage. Centrosomes provide local spatial cues that induce an Arp2/3-enriched actin cap above each nucleus (Foe et al., 2000; Raff and Glover, 1989; Stevenson et al., 2002; Stevenson et al., 2001; Zallen et al., 2002), and each cap is surrounded by an actomyosin border (Foe et al., 2000). Since the early embryo is a syncytium, the cortical actomyosin network is embryo-wide and becomes embedded with numerous, evenly spaced caps. At the onset of each synchronous mitotic cycle, the caps and borders assemble anew, and expand as cortical domains with rough boundaries (Foe et al., 2000; Zhang et al., 2018). As the caps and borders meet, they form a smooth, circular interface that demarcates the circumference of a nascent dome-like compartment. Each cap grows into a full dome-like compartment that houses the mitotic spindle, and the cap-border interface becomes the basal rim of the dome. The networks grow, meet, form a circular interface, and locally re-shape the cortex within minutes. Associated cortical patterning involves a two-step refinement process. Initial assembly of each domain is induced by signaling of distinct small G proteins (Blake-Hedges and Megraw, 2019; Lv et al., 2021). Subsequently, the interface between the domains seems to be refined through physical mechanisms. For example, with experimental depletion of one network, the other network expands its domain laterally due to an apparent loss of physical restriction (Zhang et al., 2018). Each network also contributes to the structure of the dome-like compartment. The Arp2/3 network is necessary for compartment formation (Stevenson et al., 2002; Zallen et al., 2002), and when myosin levels or activity are experimentally reduced, growth and buckling of the actin cap appears sufficient to form a compartment (Royou et al., 2004; Zhang et al., 2018). With myosin depletion, however, the actin cap grows with an irregular shape, and the dome-like compartment is abnormally lop-sided (Zhang et al., 2018). Thus, lateral engagement of a growing Arp2/3 cap with its surrounding actomyosin border seems required for precise re-shaping of the cell cortex into a dome-like compartment, but physical explanations remain unclear. We sought to understand the interface between these materials. Specifically, we pursued how the initially rough-edged networks interact to increase the smoothness and circularity of their interface. We considered smoothening in relative terms: an increase to the alignment of cytoskeletal elements at the boundary of a network. Functionally, this alignment forms a mesoscale circular structure where the cell surface folds during Drosophila pseudocleavage.

Here, we provide in vivo evidence that Arp2/3 is required for forming a smooth, circular interface between an actin cap and its actomyosin border, and for myosin accumulation at the network-network interface. To study the networks in isolation, we turned to node-based simulations. Individually reconstituted actomyosin and Arp2/3 networks mimicked mesoscale properties reported for each network in vitro. The node-based design of the networks allowed them to be combined in the same simulations, in which they were distributed as segregated domains and were capable of displacing each other laterally. Without simulated Arp2/3 networks, high myosin activity produced smooth, circular boundaries with empty caps, whereas low myosin activity resulted in persistent rough boundaries, mimicking the in vivo effect of Arp3 RNAi. Added Arp2/3 caps displaced the myosin borders, but the resulting interfaces were wavy and non-circular, despite local increases to myosin node density and tension. By encoding a mechanosensitive activation mechanism into the actomyosin network, growth of an Arp2/3 cap induced myosin activations around the interface, an actomyosin ring formed, and a smooth and circular interface emerged. Our findings show how an interface can smoothen from the interaction of roughly distributed active materials in a 2D plane.

Results

Actomyosin and Arp2/3 networks have been individually simulated as continuum or agent-based models (Berro, 2018; Cortes et al., 2018; Mogilner and Manhart, 2016). Our investigation of roughly distributed elements rearranging into a smooth structure required an agent-based approach. We formulated 2D node-based models in which actomyosin network nodes displace each other with the contractile force of myosin, and Arp2/3 network nodes are displaced by the polymerization force of actin (Banerjee et al., 2020; Lecuit et al., 2011). The initial actomyosin network pattern was laid out by distributing myosin nodes across a 2D plane. In local search areas, each node then randomly established a limited number of permanent connections with surrounding nodes. To mimic the thickness of the cell cortex, connections were allowed to cross each other. Myosin nodes affected each other by applying contractile force along their connections, and connections experienced elastic force above their resting length (see Figure 1A for schematics; see Model Formulation for full details and references). Arp2/3 networks were seeded with clusters of actin nucleation points, and a plus end node moved from each of these sites in random directions within the 2D plane. At a specific time, a new actin nucleation point formed halfway along the plus end node’s trajectory, and a new plus end node grew from this site at a 70° angle. Plus end nodes stopped their movement at a specified distance from their coupled actin nucleation points, and were eliminated at later times with a specific probability. Actin nucleation points were only used to initiate plus end node movements, and to determine their trajectories. Plus end nodes affected myosin nodes with polymerization force (see Figure 1F for schematics; see Model Formulation for full details and references). A common node-based construction of the networks facilitated modelling of their lateral interface. Segregation of the networks was maintained at the network-network interface, where the forces of one network’s nodes could displace the nodes of the other based on local force balance (see Model Formulation for full details). Our model is based on relatively simple physical rules applied to individual nodes, and we used it to investigate the emergence of mesoscale structure by simulating, visualizing, and quantifying large networks of nodes. Table 1 provides a full list of model parameters and estimates of in vivo and in vitro equivalencies. Before investigating network-network interactions, we first validated the in silico properties of the actomyosin network alone, the Arp2/3 network alone, and the network-network interface.

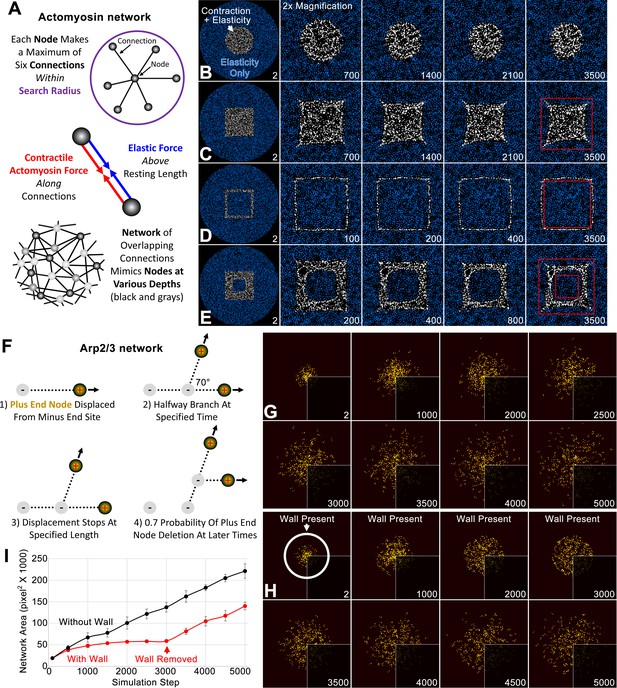

Individual simulations of actomyosin and Arp2/3 networks.

(A) Schematics show major aspects of the node-based actomyosin network: (top) the connections randomly made by one node within a search radius, (middle) the actomyosin and elastic forces along node-node connections, (bottom) the organization of nodes and connections mimicking a broad cortical network with a small thickness. (B–E) Within a large circle of nodes with only elastic connections (blue), node-based contractility is additionally induced in specific patterns (white). Twofold magnifications of the central region show the shape changes of the activated regions over indicated simulation steps (bottom right of each panel). Red squares provide references to detect the shape changes in C-E. In each case, similar results were observed for five simulations with distinct starting conditions. (F) Schematics show major aspects of the node-based Arp2/3 network, focusing on (1) the displacement of one plus end node from a nucleation point (minus end), (2) branching from this connection, (3) halting of the plus end node displacement, and (4) deletion of the plus end node. (G) Growth of plus end nodes (yellow) from a central patch of nucleation points over indicated simulation steps. Bottom right quadrants show the original simulation images and visualization of the other quadrants was enhanced by Gaussian blurring and a brightness and contrast adjustment. (H) The setup and visualization is the same as (G) except a circular wall was in place until simulation step 3000 (the position of the wall is shown at simulation step 2). (I) Network area plotted over simulation steps without a wall (black) and with a wall from the start of the simulation to simulation step 3000 (red). Note the similar area growth rate of both cases after simulation step 3000. Means ± SD shown for four simulations with distinct starting conditions.

Table 1
Parameters used in simulations.
ParameterValueRemark
One simulation step0.1 sEstimated from in vivo cap growth (Jiang and Harris, 2019)
One pixel0.1 micronEstimated from in vivo cap growth (Jiang and Harris, 2019)
Actomyosin network
Myosin node density (Den_m)Varied (0–1)Proportion of total pixels in the actomyosin zone with a myosin node
Myosin node activity (M)Varied (0–1)Relative activities
Search radius for establishing connections with surrounding myosin nodes (Dthres)five pixelsBased on optimal actin filament length for cortical actomyosin contractility (Chugh et al., 2017)
Maximum number of connections with surrounding myosin nodes (MaxNeigh)6Optimized*
Maximum number of myosin nodes per pixel (Nmax)20Optimized*
Coefficient of myosin force (Kmyosin)0.5 nNOrder of magnitude measured for myosin force (Finer et al., 1994)
Coefficient of spring force (Kspring)0.05 nN/nmOrder of magnitude measured for actin elasticity (Kojima et al., 1994)
Node-node connection resting length (lo)VariableMean length of all connections before a simulation starts
Arp2/3 network
Initial nucleation site density (Den_c)0.1 and 0.01Proportion of total pixels in the nucleation zone with a nucleation site
Actin polymerization force coefficient (Kpoly)0.5 nNOrder of magnitude measured for Arp2/3 networks with same area (Bieling et al., 2016)
Age of plus end node when a branch is induced (AgeBr)nine stepsOptimized*
Maximum length between nucleation site and plus end node (Lth)20 pixelsOrdered of magnitude calculated for capped actin filaments (Schafer et al., 1996)
Minimum age of plus end node when its loss becomes possible (Ageth)20 stepsOptimized*
Probability of loss of plus end node at each step (Pdel)0.7Optimized*
Network-network Interface
Radius around a node’s initial position to identify potentially interacting nodes of the other network (SR)five pixelsAssumed
Radius around a node’s target position to determine if nodes of the other network are absent, which allows the move (Vex)two pixelsAssumed
  1. *Optimized in relation to other parameters of the actomyosin or Arp2/3 model (see Model Formulation for details).

    These parameters of the Arp2/3 model were coarsened to account for a plus end node representing only one actin filament whereas a myosin node represents a myosin mini-filament connected to many actin filaments. To increase the impact of each plus end node relative to a myosin node, the initial actin nucleation site density was set on the lower side whereas the polymerization force of a single plus end node was set on the higher side.

  2. See Model Formulation for details.

The actomyosin network model mimics properties of actomyosin networks reported in vitro

Since we sought to understand the emergence of a mesoscale property, a smooth interface between two cortical networks, we validated the simulated actomyosin network by comparing its mesoscale properties with those of an actomyosin network reconstituted in vitro. By inducing myosin motor activity in specific geometric patterns within a larger non-contractile network in vitro, Schuppler et al., 2016 showed that re-shaping of the embedded contractile actomyosin network is influenced by the boundary pattern of its initial activation (Schuppler et al., 2016). As a simple example, an activated circle of actomyosin contracted into a smaller circle. More interestingly, the edges of an activated square became concave, whereas the edges of an activated outline of a square became convex (Schuppler et al., 2016). Remarkably, optogenetic activation of actomyosin in the complex environment of the Drosophila embryo ectoderm had a similar effect: the edges of an activated square became concave as the square contracted (Izquierdo et al., 2018). To test our simulated actomyosin network, we activated myosin node contractility in different shapes embedded within a thick border of nodes that lacked myosin node contractility but retained elastic connections (Figure 1B–E; see Model Formulation for details). Not surprisingly, an activated circle displayed isotropic contraction (Figure 1B). Notably, the sides of an activated solid square became concave (Figure 1C), mimicking both the in vitro (Schuppler et al., 2016) and in vivo studies (Izquierdo et al., 2018). The outer sides of a hollow square with a thin boundary of activation became convex (Figure 1D), mimicking the in vitro behavior (Schuppler et al., 2016). For a hollow square with a thick boundary of activation, the outer sides of the boundary became concave and the inner edges bent in the opposite direction (Figure 1E), as also seen in vitro (Schuppler et al., 2016). In addition to the patterned activation of myosin, these realistic responses also required the entire simulated network to contain elastic connections that prevented excessive stretching of connections between the inner contractile region and the outer non-contractile region.

The Arp2/3 network model mimics properties of Arp2/3 networks reported in vitro

When simulated individually, a centrally induced Arp2/3 network grows centrifugally with an outer perimeter of non-aligned actin plus end nodes (Figure 1G), a behavior resembling initial in vivo growth of an actin cap in the embryo surface plane (e.g. Zhang et al., 2018). Next, we compared the simulated network to an Arp2/3 actin network reconstituted in vitro and grown against a solid object. By combining light and atomic force microscopy, Bieling et al., 2016 found that Arp2/3 network growth against a cantilever lead to an increased density of F-actin plus ends at the interface, without an accumulation of elastic energy (Bieling et al., 2016). We tested our model for these properties by placing a circular wall around a centrifugally growing network. With network growth into the immovable wall, the density of plus end nodes within 20 pixels of the network circumference increased 1.57-fold from the start of the simulation to step 3000 (calculated from four simulations with distinct starting conditions; see images in Figure 1H). For networks growing without a wall, the equivalent value decreased 0.77-fold by simulation step 3000 (see example images in Figure 1G). To test for stored elastic energy, we removed the wall after local accumulation of plus end nodes had occurred. If elastic energy accumulated with compression, then an increased network growth rate upon removal of the load was expected. However, network area growth rates after removal of the wall were indistinguishable from those of networks that never experienced a wall (Figure 1I). Thus, like an in vitro Arp2/3 network (Bieling et al., 2016), when the simulated network grew against a solid object it accumulated plus end numbers at the interface with the object but did not accumulate elastic energy.

Simulation of the network-network interface maintains network segregation and allows the networks to displace each other

To test the mesoscale effects of our internetwork displacement and segregation rules, we distributed myosin nodes as a broad ring and examined behavior of the ring with and without a growing Arp2/3 network at its hollow center. In the absence of a central Arp2/3 network, the ring was re-shaped by myosin activity alone. Without myosin activity (0.0), the broad ring maintained its structure (Figure 2A). With full myosin activity (1.0), the broad ring of dispersed nodes initially constricted into a narrow ring of nodes, and after thinning, the ring constricted centripetally (Figure 2E), a sequence of events consistent with in vitro observations of a myosin network activated in a rectangular shape (Schuppler et al., 2016). A moderate level of myosin activity (0.4) had an intermediate effect (Figure 2C). Adding a growing Arp2/3 network to the center of a broad ring with zero or moderate myosin activity led to centrifugal displacement of myosin nodes and a thinning of the ring, but no ring constriction was observed (Figure 2B,D). As the Arp2/3 network grew, the thinned ring of myosin nodes was displaced outward and displayed diminished circularity that resembled the rough outer edge of the segregated Arp2/3 network. During this displacement, the two networks remained segregated, confirming the effectiveness of the node-based rules, and myosin nodes aggregated at the network-network interface (Figure 2B,D, arrows). With full myosin node activity, the actomyosin ring counteracted the expansion of the central Arp2/3 network (Figure 2F). The ring narrowed and then contracted centripetally, but the central Arp2/3 network restrained its centripetal contraction relative to an actomyosin ring lacking a central Arp2/3 network (Figure 2F). Quantifications of inner clearance area changes across myosin node activities with or with Arp2/3 networks (Figure 2G) further demonstrated that the rules for the network-network interface allowed the two segregated networks to counteract each other’s physical effects. For example, without myosin activity, the inner clearance area was maintained over the simulation, but adding an Arp2/3 network to inner clearance expanded its area (Figure 2G, compare black lines with and without Arp2/3). With full myosin activity, the effect of the Arp2/3 network was counteracted (Figure 2G, compare black and red lines in right graph), but the Arp2/3 network also hindered the contractility of the myosin ring (Figure 2G, compare red lines with and without Arp2/3).

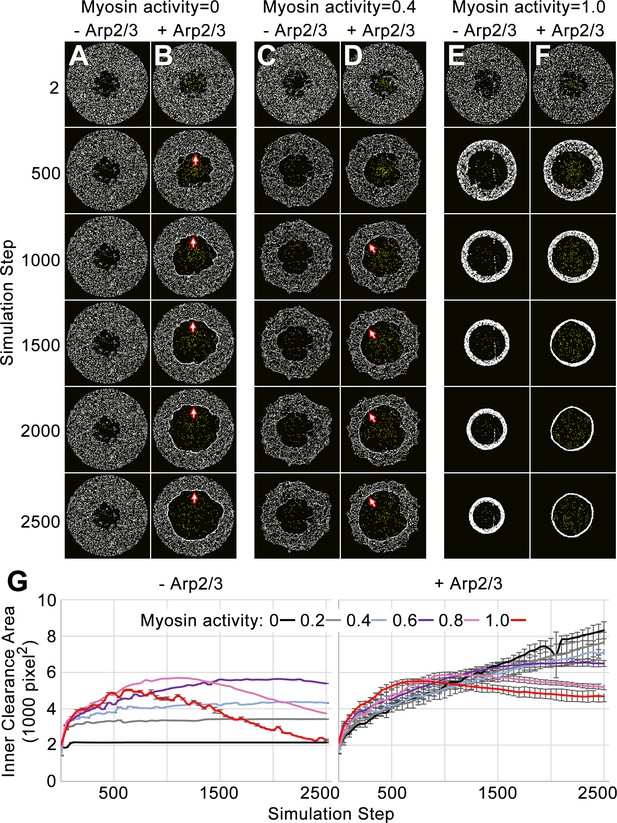

Simulation of the network-network interface allows the networks to displace each other and remain segregated.

(A–F) Actomyosin networks (white) with zero (A–B), moderate (0.4) (C–D), or full (1.0) (E–F) myosin activity. In each case, the initial configuration is a circle with an inner clearance of nodes removed in a rough pattern. Each case is simulated with (B, D, F) or without (A, C, E) an Arp2/3 network grown from a central patch of nucleation points within the inner clearance (Arp2/3 networks shown in yellow). (A) With zero myosin activity, the actomyosin network maintains its shape without an Arp2/3 network. (B) In response to Arp2/3 network growth, the inner area expands and myosin nodes aggregate at the network-network interface (arrows). (E) With full myosin activity (1.0) in the absence of an Arp2/3 network, the thickness of the actomyosin ring first decreases (accompanied by an increase to the inner clearance area and an increased density of myosin nodes in the ring) and then the overall ring constricts (accompanied by a decrease to the inner circle area). (F) With full myosin activity (1.0) in the presence of a growing Arp2/3 network, the actomyosin ring undergoes greater thinning and then the overall constriction of the ring is reduced. (C–D) Simulations of moderately contractile actomyosin networks (0.4 activity) alone or with a growing Arp2/3 network, displayed intermediate behaviors. (G) Quantifications of inner clearance area versus simulation step for actomyosin networks with a range of activities (0–1.0), without Arp2/3 networks (left) or with Arp2/3 networks (right). Means ± SD shown for three simulations with distinct starting conditions. SD values were low without addition of the growing Arp2/3 networks.

A smooth and circular interface between an actin cap and its actomyosin border requires Arp3 in vivo

Genetic analyses of Drosophila embryo cleavage have shown that Arp2/3 is required for displacing actomyosin networks from the cap and that myosin activity is needed for restraining lateral cap growth. These and other data suggest that the two networks physically engage to control each other’s distributions (Zhang et al., 2018). A physical interaction should be evident at the interface between the laterally segregated networks. To investigate the effect of Arp2/3 on myosin organization at this interface, we imaged GFP-tagged myosin heavy chain (Zipper (Zip)-GFP) in embryos depleted of Arp3 by RNAi. In control RNAi embryos during the transition from mitotic cycle 10 to 11, the actomyosin network initially assembled a rough, non-circular interface around each myosin-devoid cap, but within minutes, smooth and circular boundaries formed (Figure 3A; the transition was most obvious for completely new networks formed between sister nuclei, solid black arrows). In contrast, Arp3 RNAi embryos assembled actomyosin networks that failed to form smooth boundaries and instead retained a variable distribution of puncta at the interface with the myosin-devoid cap (Figure 3A, solid red arrows). In control embryos, the formation of a smooth interface was often accompanied by an accumulation of Zip-GFP along the interface (Figure 3A, solid and hollow black arrows), and both demarked the site of initial pseudo-cleavage furrow ingression (Figure 3A, 143s, side view, blue arrowheads). Arp3 RNAi embryos lacked Zip-GFP accumulation at the interface (Figure 3A, solid and hollow red arrows) and furrow ingression failed (Figure 3A, 143s, side view, blue bracket shows a broad band of myosin at the embryo surface). These data suggest that the Arp2/3-based actin network of the cap is required for forming a smooth interface with the actomyosin border, and that smooth interface formation coincides with myosin accumulation and furrow initiation at the interface. Notably, both networks initially have a rough boundary (Zhang et al., 2018; Figure 3A), and the smooth interface seems to arise from their lateral interaction.

Figure 3 with 1 supplement see all

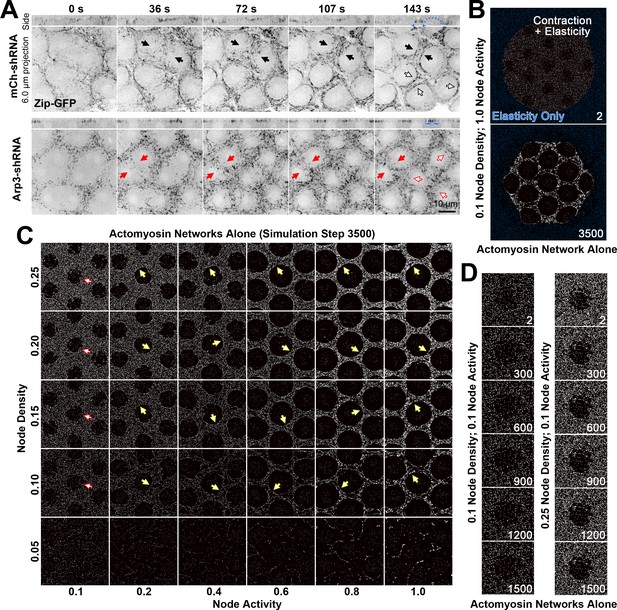

Actomyosin network organization in the absence of Arp2/3 networks in vivo and in silico.

(A) In vivo live imaging of Zip-GFP (myosin) from telophase of cycle 10 to prophase of cycle 11 in control (mCh-shRNA) and Arp3 RNAi (Arp3-shRNA) embryos. In the control embryo, solid black arrows show the rough-to-smooth transitions of myosin network boundaries from 36 s to 143 s. By 143 s, the boundaries display an accumulation of Zip-GFP (solid and hollow black arrows), and doming of the cortex (blue dots) is evident in the side view with myosin accumulations at the base of the dome (blue arrowheads). In the Arp3 RNAi embryo, the boundaries of the myosin network remain rough (red arrows) and fail to accumulate Zip-GFP, which retains a punctate distribution (red solid and hollow arrows). In the side views, the cortex remains flat with broader distributions of Zip-GFP (blue brackets). These observations were made in 15/15 control embryos and 8/9 Arp3 RNAi embryos (additional examples shown in Figure 3—figure supplement 1). (B) An example of the configuration used to simulate the in vivo organization of the actomyosin network. At the start of the simulation, a large circle of myosin nodes with contractility and elasticity (white) is surrounded by a square boundary of myosin nodes with only elasticity (blue). Within the large contractile circle, 13 roughed-edged clearances were laid out at the beginning of the simulation. Simulation step 3500 shows the contracted state of the simulation with high myosin activity. (C) A phase diagram of increasing myosin node densities compared with increasing myosin node activities. The central seven clearances of configurations similar to (B) are shown at simulation step 3500. Note the network fragmentation at node densities of 0.05 (bottom row). Yellow arrows indicate smooth boundary formation at node densities between 0.10 and 0.25 and myosin activities between 0.2 and 1.0. Red arrows indicate rough boundary maintenance at node densities between 0.10 and 0.25 and myosin activity of 0.1. (D) At 0.1 myosin activity, network shapes change initially (step 2–300) but are then maintained. The central clearance of configurations similar to (B) are shown for node densities of 0.1 and 0.25. The observations of (C) and (D) were reproduced in three sets of simulations with distinct starting conditions.

The effect of depleting Arp2/3 in vivo is mimicked by simulations with no Arp2/3 networks and low myosin activity

To address how a smooth boundary forms in vivo, we configured our simulated actomyosin and Arp2/3 networks to resemble their arrangement in the embryo. The embryo cortex is coated with a continuous actomyosin network embedded with evenly distributed Arp2/3-based actin caps (Foe et al., 2000; Zhang et al., 2018; Figure 3A). This organization was simulated by generating a large circle of active myosin nodes with 13 evenly spaced clearances for the growth of 13 Arp2/3 networks (Figure 3B). Within the large circle, the myosin nodes were activatable in addition to their elastic interactions. Outside of the large circle, a border of inactive but elastic myosin nodes was generated to restrain the contraction of the central circle, thereby mimicking the effect of an actomyosin network distributed around the full embryo circumference. To avoid distortions due to the surrounding inactive border, we restricted our quantifications to the central clearance of the 13-clearance array.

To understand the effects of actomyosin alone, we first varied properties of the myosin nodes in the absence of Arp2/3 networks. The density of nodes was varied over a fivefold range, and the activity of nodes was varied over a 10-fold range (Figure 3C). Within each simulation, all nodes had homogenous activity. The lowest density of nodes (0.05; 5% of pixels containing a node) resulted in fragmentation of the network at all myosin activity levels (Figure 3C; bottom row), consistent with in vitro studies (Schuppler et al., 2016). At node densities that retained connectivity (0.1–0.25), higher myosin activities (0.2–1.0) produced smooth and circular boundaries with the clearances (Figure 3C, yellow arrows). This result is consistent with the sufficiency of myosin activity to produce extended, smooth structures in vivo, such as cell junction-associated actomyosin cables (Harris, 2018; Livne and Geiger, 2016) or the cytokinetic ring (Schwayer et al., 2016). In contrast, low myosin activity (0.1) allowed persistence of rough boundaries with the clearances (Figure 3C; red arrows), and displayed modest network rearrangements during early stages of the simulation (Figure 3D). This result resembled the myosin distribution in Arp3 RNAi embryos (Figure 3A). Together, these data suggest that myosin activity is relatively low in the early embryo. Indeed, several inhibitors of myosin activity are required for maintaining proper syncytial architecture of the early Drosophila embryo (Lee and Harris, 2013; Mason et al., 2016; Zhang et al., 2018), and a specific mechanism locally elevates myosin activity for budding and full division of mono-nucleated primordial germ cells from the syncytium (Cinalli and Lehmann, 2013). The simulated myosin networks with enough density for broad connectivity but insufficient activity to form smooth boundaries provided an opportunity to study the effect of adding Arp2/3-based actin caps.

Arp2/3 network growth is insufficient to form a smooth and circular interface with a weakly contractile myosin network

To test the effect of centrifugal cap growth, we induced Arp2/3 network growth from the center of each clearance within weakly contractile actomyosin networks (0.1 activity) with two different myosin node densities (0.1 and 0.2). Compared with the myosin network boundaries formed in the absence of Arp2/3 networks (Figure 3C–D), local smoothness improved but the network-network interface was wavy, and each clearance gained a hexagon-like shape (Figure 4A). Sensitivity analyses showed a failure to form a smooth and circular interface over a wide range of parameter values affecting the myosin network, the Arp2/3 network, and their interface (Figure 4—figure supplements 16). However, Arp2/3 network growth did induce an aggregation of myosin nodes at the interface (Figure 4A, arrows). Also, myosin node connections became substantially longer than their resting length specifically at the interface, and only with Arp2/3 network growth (Figure 4B). In the presence of growing Arp2/3 networks, node-node connections of two or more pixels greater than resting length rose linearly from 0% of all connections at simulation step 0, to 0.48 ± 0.01% at step 500, to 2.05 ± 0.06% at step 2500 (calculated from four simulations with distinct starting distributions, a myosin node density of 0.2, and a myosin node activity of 0.1; p<0.001 comparing steps 500 and 2500). In the absence of growing caps, the percentages remained at <0.003% from simulation steps 0 to 2500. Thus, Arp2/3 network growth aggregated myosin nodes at the interface and increased tension between myosin nodes at the interface. However, it also resulted in a wavy interface and a space-filling effect, suggesting the simulated actomyosin borders were unnaturally deformable.

Figure 4 with 7 supplements see all
Emergence of a smooth interface from growth of an Arp2/3 network against a mechanosensitive actomyosin network.

(A–D) Central views of configurations similar to Figure 3B. (A) Addition of growing Arp2/3 networks (yellow) to the clearances of actomyosin networks with low contractility (myosin nodes in white), led to clearance area increases (compare with Figure 3D) and accumulation of myosin nodes at the network-network interface (arrows), but the interfaces were wavy and the clearances became polygonal. These effects were documented at two myosin node densities (0.10 and 0.20). (B) Detection of myosin node-node distances greater than the resting length by two pixels or more (see color scale). The detections accumulated at the interface between the actomyosin network and growing Arp2/3 networks, and were rare in actomyosin networks without Arp2/3 networks. Shown at simulation step 2500. Representative of four replicates. Shown for myosin node density of 0.2, and also seen for myosin node density of 0.1 (Figure 4—figure supplement 7A). (C) Enrichment of myosin node activity elevations (black) above baseline (pink) at the interface of a mechanosensitive actomyosin network with growing Arp2/3 caps (arrows). The enrichment increased as the Arp2/3 network grew (compared simulation steps 500 to 2500), did not occur in other regions of the actomyosin network, and did not occur in the absence of growing Arp2/3 networks. Shown for myosin node density of 0.2, and also seen for myosin node density of 0.1 (Figure 4—figure supplement 7B). (D) Addition of growing Arp2/3 networks (yellow) to the clearances of actomyosin networks with low contractility and mechanosensitivity (myosin nodes in white), led to clearance area increases, accumulation of myosin nodes at the network-network interface (arrows), and interfaces that were smooth and circular. These effects were documented at two myosin node densities (0.10 and 0.20). Compared with the non-mechanosensitive actomyosin networks of (A), the mechanosensitive networks retained greater separation between clearances as the Arp2/3 networks grew (compare simulation steps 2500 in A and D). (E) Quantifications of the smoothness, circularity and area of the central clearance of simulations indicated. Means ± SD shown for eight simulations with distinct starting conditions. Blue asterisks compare mechanosensitive actomyosin networks plus Arp2/3 networks with non-mechanosensitive actomyosin networks plus Arp2/3 networks. Gray asterisks compare mechanosensitive actomyosin networks plus Arp2/3 networks with mechanosensitive actomyosin networks alone (example images of the latter in Figure 4—figure supplement 7C). Single asterisk; p<0.05: double asterisks; p<0.01.

Local activation of myosin nodes by pushing from plus end nodes leads to a smooth and circular interface

Although proper syncytial structure requires regulators that reduce cortical actomyosin activity (Lee and Harris, 2013; Mason et al., 2016; Zhang et al., 2018), our in vivo imaging revealed an Arp2/3-dependent accumulation of myosin at the smooth and circular interface between each cap and myosin border (Figure 3A, black arrows). Mechanical enhancement of actomyosin activity is evident in vivo (Effler et al., 2006; Fernandez-Gonzalez et al., 2009), and implicated mechanisms include stabilization of the myosin-actin interaction (Kobb et al., 2017; Kovács et al., 2007; Yamashiro et al., 2018), and alignment of actin filaments for optimal myosin activity (Ennomani et al., 2016). Thus, we hypothesized that the pushing forces of a growing cap would stabilize and/or align myosin nodes at the interface, and thereby locally increase myosin contractility within an otherwise weakly contractile network.

To incorporate mechanosensitive elevation of local myosin node activity into the simulation, the activity of a myosin node was increased 6-fold if it was displaced to a pixel already occupied by five or more myosin nodes (see Model Formulation). This approach did not explicitly link myosin node modification to the Arp2/3 networks, as the displacement of a myosin node for any reason could induce the activity elevation. However, comparison of myosin node activity elevation events with and without Arp2/3 networks revealed that the elevations occurred predominantly at interfaces between the actomyosin and Arp2/3 networks (Figure 4C, arrows), and that they required the Arp2/3 network (Figure 4C). These Arp2/3-dependent activations of interface myosin in silico resembled the Arp2/3-dependent accumulations of interface myosin in vivo (Figure 3A).

To test how local, Arp2/3-dependent, myosin node activity elevations affected the interface between the actomyosin and Arp2/3 networks, we compared simulations with and without the activations. Strikingly, the elevations significantly enhanced the smoothness and circularity of the interfaces (Figure 4D), compared to simulations without the elevations (Figure 4A). The areas of the clearances were also reduced. Quantifications of clearance smoothness, circularity, and area showed the importance of a combination of Arp2/3 network growth and mechanosensitivity of the actomyosin network (Figure 4E). Sensitivity analyses showed that the smooth and circular interfaces arose upon inclusion of mechanosensitivity over a wide range of parameter values affecting the myosin network, the Arp2/3 network, and their interface (Figure 4—figure supplements 16). The overall organization of the myosin networks simulated with mechanosensitivity and Arp2/3 network growth (Figure 4D) closely resembled the myosin networks formed in the presence of Arp2/3 actin caps in wild-type embryos (Figure 3A). These analyses suggest that a smooth and circular interface can form from the growth of an Arp2/3 network against a weakly contractile actomyosin network that is mechanosensitive to local activation.

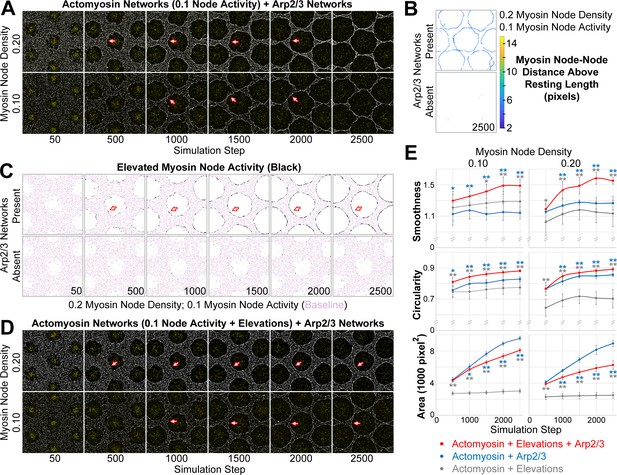

The smooth and circular interface forms with the local induction and contraction of an actomyosin ring

Since smoothening and circularization of the interface coincided with local enrichment of myosin nodes activated by the pushing forces of centrifugal Arp2/3 network growth, we hypothesized that re-shaping of the interface occurred through formation and contraction of an actomyosin ring within an otherwise weakly contractile actomyosin network. To test this idea, we first examined the behavior of an isolated single ring of myosin nodes with uniform activity equal to the activity induced by Arp2/3 network growth in the two-network simulations. The isolated network was initiated as a thick, rough-edged ring of randomly positioned myosin nodes containing a central clearance instead of an Arp2/3 network (similar to the single ring in Figure 2E). Since the movement of a node is directly linked to the net forces applied to it by surrounding nodes, we traced node movements to map forces within the network. Figure 5A traces the movements of myosin nodes at the inner boundary of the rough ring. Consistent with our single ring analyses in Figure 2E, the inner boundary nodes initially moved centrifugally as the ring thinned (Figure 5A), and then moved centripetally as the thin and smooth ring constricted (Figure 5A). To determine the directions of net forces experienced by all individual nodes during the process, we calculated angles of node displacement relative to the circular network’s radii at each node’s position at each simulation step. At the beginning of the simulation, a broad distribution of node displacement angles was observed (Figure 5C), but during the transition from thinning to constricting, the distribution became biased toward 0° and 180° relative to local radii of the circular network (Figure 5D–E). To understand this bimodal distribution, we examined individual node displacements at full temporal and spatial resolution during the final stages of the simulation. Strikingly, nodes mostly displayed back-and-forth displacements closely aligned with the radii (Figure 5B). The angles of these oscillations are partly what would be expected for centripetal normal forces of a contractile circle, but with additional centrifugal counterforces arising from the network’s interconnected nodes. Although the in vivo relevance of these extremely rapid oscillations is unclear, the oriented oscillations provided a signature of contractile actomyosin ring formation in our simulations.

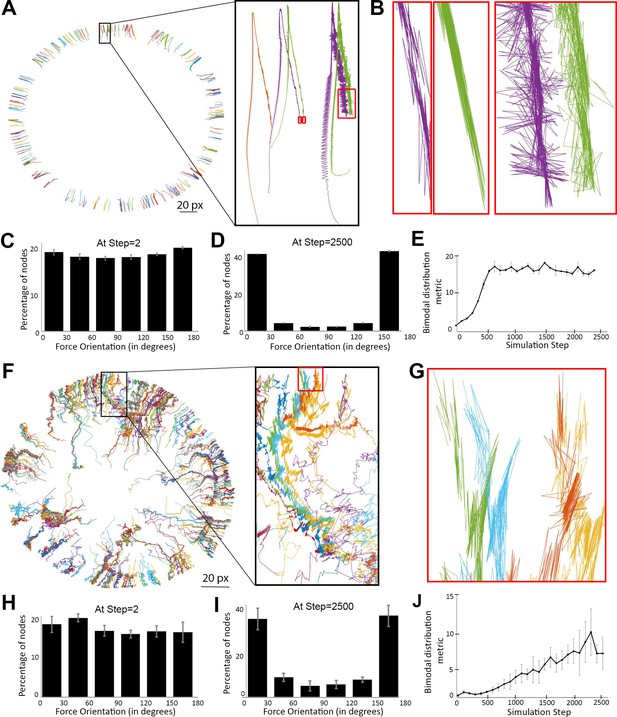

Myosin nodes activated by Arp2/3 network growth behave as a contractile ring during smoothening of the network-network interface.

(A) Tracings of the displacements of individual myosin nodes selected around the inner circumference of a single actomyosin ring that started with a rough configuration, thinned, and constricted over 2500 simulation steps, similar to Figure 2E. Each line is the tracing of one node. The magnified inset (black box) shows the displacement of five nodes. The nodes move from the bottom half of the box to the top of the box as the ring thins, and then move back to the center of the box as the ring constricts. The red boxes indicate the final steps of the simulation. (B) Magnified views of the red boxes in (A) show back-and-forth displacements of the nodes, and that most of these displacements are closely aligned with the local radius of the circle (see circle center in (A)). (C–D) Histograms of node displacement angles relative to local radii of the circle at the beginning of the simulation when an even distribution occurred (C) and at the end of the simulation when the distribution became bimodal with most nodes in close alignment with the radii (D). Means ± SD shown for three simulations with distinct starting configurations. 7200–7400 nodes of the entire rings quantified per simulation. (E) Quantification of the simulations of (C–D) gaining bimodal distributions between steps 0 and 2500 by plotting the number of nodes oriented more parallel with the radii [those with angles of (0–30°) + (150–180°)] divided by the number of nodes oriented more perpendicular to the radii [those with angles of (60–120°)]. (F) Tracings of the displacements of individual activated myosin nodes selected around the boundary of a mechanosensitive actomyosin network at its interface with an expanding Arp2/3 network (similar to the central ring of the two-network analysis in Figure 4D with myosin node density of 0.2). Each line is the tracing of one node before and after elevation of its activity. The magnified inset (black box) shows the displacement of ~12 nodes. The nodes move from the bottom of the box to the top of the box as the network-network interface accumulates activated myosin nodes and smoothens. The red box indicates the final steps of the simulation. (G) Magnified view of the red box in (F) shows back-and-forth displacements of the nodes, and that most of these displacements are closely aligned with the local radius of the circle (see circle center in (F)). (H–I) Histograms of node displacement angles relative to local radii of the circle at the beginning of the simulation when an even distribution occurred (H) and at the end of the simulation when the distribution became bimodal with most nodes in close alignment with the radii (I). Means ± SD shown for three simulations with distinct starting configurations. 186–314 nodes quantified per simulation. (J) Quantification of the simulations of (H–I) gaining bimodal distributions between steps 0 and 2500, calculating the bimodal distribution metric as in (E).

Next, we tested if the myosin nodes activated by Arp2/3 network growth in the two-network simulations displayed this signature of a contractile actomyosin ring. A subset of activated myosin nodes was selected and the positions of individual nodes were traced before and after activity elevation. Arp2/3 network growth displaced the myosin nodes centrifugally throughout the simulation, including stages of elevated myosin node activity and when the network-network interface became smooth and circular (Figure 5F). To map the directions of net forces applied to individual nodes, we determined angles of node displacement relative to radii from the clearance center throughout the simulation. Initially, a broad distribution of local displacement angles occurred (Figure 5H). In contrast, the phase of smoothening and circularization was accompanied by a bimodal distribution dominated by angles near 0° and 180° (Figure 5I–J). Full resolution tracing of nodes during the second phase showed that these angles were due to back-and-forth displacements that mainly had close alignment with local radii but occasionally occurred at other angles (Figure 5G). Overall, we conclude that the mechanical elevation of myosin node activity by the pushing forces of Arp2/3 network growth produces a contractile actomyosin ring around the network-network interface, and that contractility of this ring smoothens and circularizes the interface.

Discussion

With relatively simple design principles, our node-based simulations of actomyosin and Arp2/3 networks individually mimicked the mesoscale behaviors of their respective networks reconstituted in vitro. The node-based structure common to each simulated network allowed straight-forward construction of two-network simulations that combined the actomyosin and Arp2/3 networks as segregated materials able to impact each other laterally through local interactions between their constituent nodes. Our simulations revealed that a myosin network with relatively low contractility is insufficient for generating smooth boundaries, and abnormally persistent rough boundaries mimicked those of myosin networks in embryos depleted of Arp3. In silico, the simple addition of growing Arp2/3 networks resulted in wavy, non-circular interfaces. However, local activation of an otherwise weakly contractile actomyosin network by the pushing forces of Arp2/3 network growth resulted in smooth, circular interfaces resembling those of wild-type embryos. Indicating robustness of the simulations, the effects of Arp2/3 network growth occurred over a substantial range of parameter values affecting the actomyosin network, the Arp2/3 network, and the network-network interface. Arp2/3-induced myosin node activations occurred around the initially rough network-network interface, and the activated myosin nodes locally formed a contractile ring to smoothen and circularize the interface (see schematic model in Figure 6).

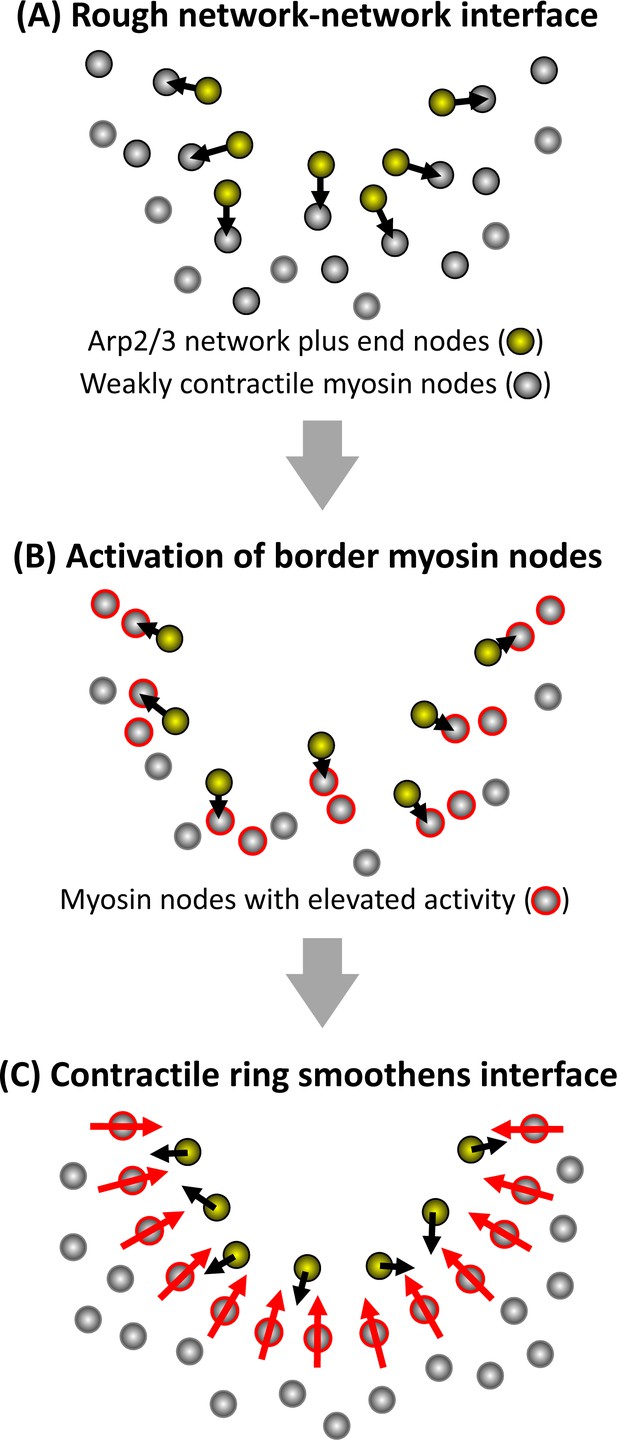

Schematic model of how a smooth interface forms from growth of an Arp2/3 network against a mechanosensitive actomyosin network.

Half of a clearance is shown at three stages of the rough-to-smooth transition of the network-network interface. (A) Arp2/3 network plus end nodes (yellow circles) polymerize to the rough boundary of weakly contractile myosin nodes (gray circles). (B) The plus end nodes apply forces to interface myosin nodes which gain activity (gray circles with red outlines). (C) Activated myosin nodes form a local contractile ring (bottom half of ring shown) which smoothens the network-network interface.

The formation of an extended, smooth interface across a 2D plane is not trivial. Tensile forces can align polymers, but the two ends of the network must be anchored. Since a network can anchor to itself, as in the case of a cytokinetic ring (Schwayer et al., 2016), intra-network anchorage may explain the formation of smooth boundaries within a multiply fenestrated myosin network with high contractility (Figure 3C). However, low contractility networks cannot form smooth boundaries on their own. Low contractility is important for maintaining the syncytial state of the early Drosophila embryo (Lee and Harris, 2013; Mason et al., 2016; Zhang et al., 2018), arrays of podosomes at the base of invasive mammalian cells (Rafiq et al., 2017), and the polar body bud during meiosis II arrest of mouse oocytes (Yi and Li, 2012). Widespread contractility of a synthetic material would also hinder fabrication of a multi-component structure. Our simulations indicate that disruptive effects of widespread contractility can be avoided by the local induction of contractility in one material in response to pushing forces from a neighboring material, and that this induction can produce a contractile ring to smoothen the interface between such materials. In the Drosophila embryo, the smooth and circular interface demarcates where the plasma membrane folds to form a dome-like compartment. Without sufficient growth of the actin cap, the interface remains rough and membrane folding fails (Figure 3A; Stevenson et al., 2002; Zallen et al., 2002). With weakening of the myosin border, the actin cap grows with an irregular shape and the plasma membrane invagination is lop-sided around the cap (Zhang et al., 2018).

Our simulations of network-network interactions at the surface of the early Drosophila embryo show how a smooth and circular structure can emerge from the local interactions of roughly distributed components. This example of refinement by mechanical self-organization is relevant to other cell biological processes, such as mammalian polar body budding (Yi and Li, 2012) and podosome protrusion (van den Dries et al., 2019). It is also relevant to the refinement of smart materials, including nanocomposites and metamaterials, after an initial printing step (Begley et al., 2019; Holmes, 2019). Biological composite materials can exhibit complex behaviors due to their multiple mechanical properties, and are thus top candidates in advanced manufacturing (Eder et al., 2018; Wang et al., 2020). Notably, reconstituted actin networks can be coated with inorganic materials to fabricate specific 3D structures (Galland et al., 2013). Although the in vitro reconstitution of Arp2/3 and actomyosin networks as neighboring domains remains a technical challenge, the patterned induction, mechanical self-organization, and inorganic coating of such composites holds exciting promise. Node-based modelling is also applicable to a range of materials, and could identify various roles for mechanical self-organization in device fabrication.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Genetic reagent
(D. melanogaster)
maternal-GAL4-VP16Mark Peifer
Genetic reagent
(D. melanogaster)
UASp-Arp3-shRNABloomington Drosophila Stock Center (BDSC)BDSC #53972
RRID:BDSC_53972
Genetic reagent
(D. melanogaster)
UASp-mCherry-shRNABDSCBDSC #35785
RRID:BDSC_35785
Genetic reagent
(D. melanogaster)
Zipper-GFPFlytrapBDSC #51564
RRID:BDSC_51564
Software, algorithmMATLABMathWorks
Software, algorithmVolocityQuorum Technologies Inc
Software, algorithmImage JNIH
Software, algorithmExcelMicrosoft
Software, algorithmPowerPointMicrosoft
Software, algorithmPhotoshopAdobe

Model formulation

Request a detailed protocol

MATLAB code is available at: https://github.com/medha7575/sharma-et-al-ELIFE2021  (copy archived at swh:1:rev:7e64a1ebff4e56bc056bb27b0675be09d53fb8f8; Sharma, 2021). Annotated PDFs of the code are provided as Source code 1, 2 and 3.

Node-based models were created for the actomyosin network, the Arp2/3 network, and the interface between the two networks. Nodes change their positions synchronously during each simulation step. We assume a low Reynold’s number, in which viscosity dominates (Purcell, 1977), and thus there is no inertia between steps. Unless otherwise stated, simulation rules were standardized across our analyses.

Simulation of the actomyosin network

Request a detailed protocol

A 2D array of nodes simulated the properties of a contractile actomyosin network (Banerjee et al., 2020; Lecuit et al., 2011; Mangione and Gould, 2019). Each node represents a myosin mini-filament. Interconnecting actin filaments are not explicitly modeled, but would be cross-linked in anti-parallel orientations to allow plus-end directed myosin activity to pull nodes together. Each myosin motor domain binds an actin filament, uses ATP-derived energy to displace the filament, and then dissociates from the filament. Since a mini-filament contains multiple motor domains, this cycle can be repeated by separate motor domains, allowing processive displacement of an actin filament by a myosin mini-filament. The activity of a motor domain can be regulated, and the number of motor domains in a mini-filament can vary. We incorporated these properties into our model by assuming that actin-based connections between nodes are never lost, and that the pulling force between two connected myosin nodes is proportional to the product of an adjustable myosin activity at each node. Considering only two myosin nodes (n1 and n2) with equal myosin activities (M1 and M2), pulling between n1 and n2 would displace both nodes by the same distance toward each other. The force experienced by each node is defined by Kmyosin.M1.M2U^, where the unit vector, U^, defines the direction of pulling force based on the relative positions of n1 and n2, and the coefficient Kmyosin assigns units of force to the myosin activity (Equation 1).

To generate an array of many myosin nodes, the nodes are distributed randomly over a 500 by 500 lattice of pixels. Nodes at the lattice boundary maintain their positions even when a force is applied on them (a fixed boundary condition). Each node is visualized as a single pixel. However, node connection angles, node connection distances, force angles, and node displacements are defined at 1/100th of a pixel. Since the cell cortex is 50–400 nm thick (Chugh and Paluch, 2018; Salbreux et al., 2012; Svitkina, 2020), the positioning of nodes above and below each other in 3D space is represented in the 2D simulation by allowing a maximum of 20 nodes to occupy the same pixel (with no information encoding the third dimension) (see Table 1 for a full list of parameters). Incorporating this allowance avoided jamming of nodes into a non-dynamic state, but to mimic local steric hindrance within the cell cortex the upper limit to the number of nodes per pixel was implemented. If a node attempts to move to a fully occupied pixel, then the move is disallowed and the node maintains its original location leading to a configuration akin to a mini-filament stack (Henson et al., 2017; Hu et al., 2017).

After the myosin nodes are positioned across 2D space they are linked by permanent connections. Each node is randomly connected with a maximum of six other nodes within a search radius of 5 pixels (500 nm). This design is based on myosin mini-filaments (i) having 28–58 motor domains (Billington et al., 2013; Niederman and Pollard, 1975), which would not all be simultaneous bound to actin (discussed above), (ii) displaying motor domains at angles of up to 180° relative to each other (Billington et al., 2013; Laplante et al., 2016; Niederman and Pollard, 1975; Sellers and Kachar, 1990), and (iii) engaging actin filaments with lengths of ~500 nm for optimal contractility of cortical actomyosin networks (Chugh et al., 2017). If a connection is attempted with a saturated neighbor, then the attempt is aborted. If the node density is low, then a node may not maximize its connections in the available search radius. By considering pairwise relationships between nodes instead of modeling actin filaments, node-node pairings can cross each other in the 2D simulation, representing actin filaments crossing each other at different levels of 3D space.

Once an interconnected array of nodes is assembled, myosin activity is triggered to simulate network contraction. The pulling forces from ‘n’ connected neighboring myosin nodes on the ‘mth’ myosin node are determined by:

(1) Fm,myosin=Kmyosini=1n(MmMi)U^mi

where,

Fm,myosin: Net force due to inter-node pulling forces on the ‘mth’ node.

Kmyosin: Coefficient of myosin force.

Mm: Myosin node activity level of the ‘mth’ node.

Mi: Myosin node activity level of the ‘ith’ connected node.

U^mi: Unit vector pointing in the direction of the ith node from the mth node.

In addition, cross-linked actin networks display elastic responses to stretching but not compression (Banerjee et al., 2020; Salbreux et al., 2012). This asymmetric elasticity is incorporated by activating spring-like forces between the myosin nodes in response to stretching, but not to compression. The spring forces on the ‘mth’ myosin node are determined by:

(2) Fm,spring=Kspringi=1n(lilo)U^mi:ifli>loFm,spring=0:otherwise

where,

Fm,spring: Net force due to spring-like forces on the ‘mth’ node.

Kspring: Coefficient of spring force li-lo: Current length of connection – resting length of connection lo: Mean length of all connections before a simulation starts.

U^mi: Unit vector pointing in the direction of the ith node from the mth node.

A damping coefficient, ξ, of 0.1 nN.s.µm−1 (Belmonte et al., 2017; Matsuda et al., 2019) determines the node displacement induced by the calculated net force. The damping coefficient is held constant throughout all simulations in this study. The displacement of the ‘mth’ myosin node is determined by:

(3) Δsm=(Fm,myosin+Fm,spring).Δtξ1

where,

Δsm: Displacement of the ‘mth’ node.

Δt: Time difference (one simulation step).

ξ: Damping coefficient.

Using the pre-existing position and the net displacement of the ‘mth’ myosin node, its new position is calculated after every simulation step by:

(4) NewPosition=OldPosition+Δsm

Simulation of the Arp2/3 network

Request a detailed protocol

Like the actomyosin model, the Arp2/3 network was simulated as a 2D array of nodes. In the Arp2/3 actin model, however, actin plus end nodes move away from stationary nucleation points representing Arp2/3 nucleation sites, and the overall array expands. The filaments themselves are not explicitly modelled. Since the Arp2/3 complex nucleates actin polymerization (Pollard, 2016; Svitkina, 2018) and centrosomes act as spatial landmarks for the induction of Arp2/3-enirched actin caps in Drosophila (Raff and Glover, 1989; Stevenson et al., 2001), an Arp2/3 network is initiated by randomly positioning the nucleation points in a dense inner circle (20 pixel radius with 10% of pixels containing a nucleation point) and a sparse, larger and overlapping circle (50 pixel radius with 1% of pixels containing a nucleation point). The outer circle of sparse nucleation sites is expected from graded diminishment of a centrosome-based signal, and was needed to generate an Arp2/3 network that grew with an irregular shape, as occurs in vivo (Zhang et al., 2018). Actin polymerization is simulated by displacing a plus end node away from its corresponding nucleation point. The nucleation point is only used to define the filament position, length, and angle, in combination with the positional information of the plus end node. The polymerization and associated pushing force is modeled by the plus end node only. At the simulation start, plus end nodes move from their nucleation points in random directions. During the simulation, the nucleation points maintain their position, assuming a stabilizing effect of the larger network.

The polymerization force of a plus end at each simulation step is determined by:

(5) Fpoly=KpolyU^

where,

Kpoly: Actin polymerization force coefficient.

U^: Unit vector pointing in the direction of the plus end node from the nucleation point.

Thus, the plus end node will move to a new position given by:

(6) NewPosition=OldPosition+Δspoly

where,

(7) Δspoly=Fpoly.Δt.ξ1

To form a dendritic network, the Arp2/3 complex nucleates growth of a new actin polymer at a 70° angle relative to a preexisting polymer (Pollard, 2016; Svitkina, 2018). In vitro, branching can occur from either side of the mother filament, anywhere along the mother filament (with a preference toward the barbed end), and the mother and daughter filaments polymerize at the same rate (Amann and Pollard, 2001). To implement branched polymerization from an existing filament, the age of the plus end node is monitored, and after nine simulation steps a new nucleation point is created halfway between the pre-existing nucleation point and the plus end node. From the new nucleation point, a new plus end node extends with an angle of ±70° (randomized) relative to the mother filament and its plus end node. One actin filament is limited to forming one branch.

Two major effects regulate the growth and structure of Arp2/3 networks. Capping of actin plus ends promotes shorter filament lengths that resist buckling and exert more effective pushing forces, whereas depolymerization of older filaments by actin depolymerization factors allows network turnover (Banerjee et al., 2020; Pollard, 2016; Pollard and Borisy, 2003; Svitkina, 2018). To simulate inhibition of polymerization by a capping protein, the polymerization force of a plus end node is set to zero after it extends 20 pixels from its nucleation point. To model actin filament depolymerization, a plus end node is removed with a probability of 0.7 after it exists for 20 simulation steps. After the deletion of a plus end node, the previously coupled nucleation point becomes dormant, but a branch formed between the pair remains in place, can continue growing, and can induce its own branch. By linking depolymerization to the lifetime of a filament, filament turnover occurs even when growth is prevented by an obstruction. At the start of the simulation, it was necessary to randomly assign a range of initial filament lengths and ages to prevent filament capping and removal from occurring in an unnaturally rhythmic way.

The Arp2/3 network simulation is considered to be a broad 2D array with a 50–400 nm thickness in 3D (Chugh and Paluch, 2018; Salbreux et al., 2012; Svitkina, 2020). Like the actomyosin model, this organization is implemented by positioning nodes on an off-lattice model to avoid steric hindrance, with close positioning of two nodes in 2D representing their occupancy of different levels of the same vertical column in 3D. Unlike the actomyosin network, there was no need to create an upper limit to the number of nodes at a pixel because nodes of the Arp2/3 network continually expand away from each other.

Simulation of the network-network interface

Request a detailed protocol

To enable study of the lateral interaction between two segregated cytoskeletal networks, we combined the actomyosin and Arp2/3 networks into a single lattice. Although actomyosin networks and Arp2/3 networks form segregated domains with close neighbor relationships during Drosophila embryo pseudocleavage (Foe et al., 2000; Zhang et al., 2018), mammalian oocytes polar body budding (Yi and Li, 2012), and mammalian cell podosome formation (van den Dries et al., 2019), we are unaware of in vivo or in vitro studies addressing the structural properties of the lateral interface between the neighboring networks. In lieu of experimental data, we reasoned that displacement of a node at the interface would be dictated by a balance of local forces on the node from nodes of its own network and from nodes of the neighboring network. In the two-network model, the constituent actomyosin and Arp2/3 networks have the same individual properties described in the previous sections, but all nodes of each network additionally perform two searches that indicate if a node is in proximity to a network-network interface. If so, the searches trigger mechanisms of internetwork displacement and segregation. Each node searches for nodes of the other network in a five-pixel radius. If a node of the distinct network is detected, then displacement of the searching node is dictated by both the rules of its own network and by effects of the neighboring network (as described in the following paragraphs). However, a potential displacement can be overridden. To maintain the network segregation apparent in vivo (Foe et al., 2000; Mavrakis et al., 2009; Zhang et al., 2018), each node searches a two-pixel radius around its potential displacement position for nodes of the other network. If a node of the other network is detected in this area, then the searching node aborts the move and maintains its position during the simulation step. Although the mechanistic basis of the in vivo network segregation is unclear, we assume involvement of steric hindrance and immiscibility of branched networks and bundled networks.

The displacement of an interface myosin node is determined by the aforementioned rules of the actomyosin network, and additionally by the pushing forces of actin plus end nodes within the five-pixel search radius. The net effect of the nearby plus end nodes on the new position of the myosin node is based upon the degree to which each expected plus end node displacement is directed toward the myosin node. The component of a plus end node polymerization force directed toward the myosin node is determined by ϕ: the angle between the spatial vector joining the plus end node to the myosin node and the displacement vector calculated for the plus end node. If cos(ϕ) < 0, then the plus end node is about to move away from the myosin node, and would not push the myosin node. If cos(ϕ) > 0, then the plus end node displacement is directed toward the myosin node to a certain degree, and the component of the pushing force directed toward the myosin node is determined by cosϕ. The force on the myosin node by the cumulative effects of ‘n’ nearby plus end nodes is calculated by:

(8) Fm,actin=i=1nFpolycos(ϕi):forcos(ϕ)>0Fm,actin=0,otherwise

The new position of the myosin node is determined by forces from both the actomyosin network and the nearby plus end nodes:

(9) Δsm,net=(Fm,actin+Fm,myosin+Fm,spring).Δtξ1NewPosition=OldPosition+Δsm,net

The myosin node moves to the new position, unless a plus end node is within a 2-pixel radius of the position, or if the position has the maximum myosin nodes allowed. If the move is prevented, then the myosin node maintains its old position.

The displacement of an interface actin plus end node is determined by the aforementioned rules of the Arp2/3 network, and by additional forces exerted by myosin nodes within the plus end node’s five-pixel sensing radius. The networks are assumed to lack an interconnection for conveying pulling forces, and thus the myosin nodes can only impact the plus end node through pushing forces associated with myosin node displacement. At each simulation step, the contribution of the myosin-based pushing force to the displacement of the plus end node is based on the anticipated displacement of the myosin node directed toward the plus end node. The forces responsible for the myosin node displacement arise from the pulling and elastic forces between it and its associated myosin nodes. The component of this displacement directed toward the plus end node is determined by ϕ: the angle between the spatial vector joining the myosin node to the plus end node and the displacement vector calculated for the myosin node. If cos(ϕ) < 0 then the myosin node is about to be displaced away from the plus end node, and would thus have no pushing effect on the plus end node. If cos(ϕ) > 0 then the myosin node displacement is directed toward the plus end node to a certain degree, and the component of the pushing force directed toward the plus end node is determined by cosϕ. Considering ‘n’ pixels in the sensing radius of a plus end node have myosin nodes with cos(ϕ) > 0, the forces on the plus end node are summed as:

(10) Fa,myo=i=1nNi.(Fm,myosin+Fm,spring)i.cos(ϕi):forcos(ϕ)>0Fa,myo=0,otherwise

where Ni represents the number of myosin nodes on pixel i.

The new position of the plus end node is determined by both its polymerization force and the forces from nearby myosin nodes:

(11) Δsactin=(Fa,myo+Fpoly).Δtξ1NewPosition=OldPosition+Δsactin

The plus end node moves to the new position, unless a myosin node is within a two-pixel radius of the position. If a myosin node exists in this radius, then the plus end node maintains its old position.

Software

Simulation codes were written and run using MATLAB (MathWorks). Annotated codes are provided (Source code 1, 2 and 3). MATLAB and Image J (NIH) were used for quantifications. Excel (Microsoft) was used for graphing means ± SD, and for determining p values with T-tests of samples with unequal variance and two-tailed distributions. PowerPoint (Microsoft) was used for schematics. Photoshop (Adobe) was used for figure preparation.

Quantifications

Arp2/3 network area

Request a detailed protocol

To quantify the area of growing Arp 2/3 networks with and without a wall (Figure 1I), the outermost plus end nodes of the network were connected manually using the polygon selection tool in Image J, and then the area of the polygon was calculated by Image J.

Inner clearance area

Request a detailed protocol

To quantify inner clearance areas in single ring simulations (Figure 2G), a custom tool script was written in MATLAB. For each simulation step, the tool used a swarm-based approach to detect the boundary of the clearance and then calculated the area of the clearance. Each input image of the myosin nodes was preprocessed by conversion to grayscale, application of a 2x2 pixel median filter, and conversion to binary black and white. The tool then released 180 swarms from a central position and the swarms moved outward along straight trajectories each separated by two degrees (spanning 360 degrees in total). As each swarm moved, it collected pixel intensity values and coordinate values. The boundary pixel was determined as the pixel where the detected intensity became greater than the mean intensity. However, two occasional errors occurred: (i) swarms passed through the region of myosin nodes without encountering a node or (ii) stray myosin nodes were detected. To remove these errors, the data was divided into six 60 degree segments, the median of the clearance boundary distance measurements was calculated for each segment, and detections of the boundary beyond ±5 pixels of the median were then deleted. The detection of the clearance boundary by the swarms was first used to correct a manually estimated center of the clearance. To maximize the accuracy of the clearance area calculation, each clearance boundary was determined 50 times with swarms emanating from randomized central positions in each case. Clearance area was calculated from the detected boundary coordinates using the surveyor's formula (Braden, 1986).

Interface smoothness, circularity and area

Request a detailed protocol

For quantifications of interface properties in the multi-ring simulations (Figure 4E), the boundary of the central clearance of myosin was first manually traced in Image J using the polygon selection tool and the following steps: (1) from a starting boundary myosin node subsequent boundary myosin nodes were traced around the clearance circumference until the starting node was reached again; (2) if two subsequent nodes were the same distance away, the node closer to the clearance center was chosen; and (3) after tracing the full boundary, it was corrected by comparing the tracing with the distribution of boundary myosin nodes at earlier simulation steps. The traced polygon was subjected a two pixel-radius Gaussian blur and was then converted into a binary black and white mask. The area and circularity of the mask was calculated in Image J, with circularity having a maximum value of one. To calculate the smoothness parameter, we first employed the swarms tool to determine the coordinates of the mask boundary using 180 swarms. The swarm-derived data was divided into six segments of 60 degrees each. For each segment, the standard deviation (σ) of the derivatives of the radii was calculated. The derivatives of the radii were calculated by dividing the difference between consecutive swarm radii by half the angle between the two points. Smoothness, S, of the entire boundary of the central clearance was calculated as the inverse of the mean of the standard deviations, σ, over the six segments, as follows:

(12) S=(i=16σi6)-1

The calculated smoothness approaches infinity for perfectly smooth shapes, but the pixelated images generated by MATLAB are not perfectly smooth, and we calculated S close to ~nine from MATLAB-generated circular plots.

Drosophila work

Request a detailed protocol

Animals were maintained under standard conditions. True breeding stocks were maintained at room temperature, 18°C or 25°C on fly food provided by a central University of Toronto kitchen operated by H. Lipshitz. Embryos were collected on plates of apple juice agar (25 g agar, 250 ml store-bought apple juice, 12.5 g store-bought white sugar, 10 ml 10% Tegosept (in ethanol), plus dH2O to 1000 ml) plates at 25°C after 2–3 days of caged adult feeding on dabs of store-bought baker’s yeast with daily plate changes. Adults were caged for embryo collection within 1 week of pupal hatching, and no health issues were noticed. Embryo sexes were not determined and embryo populations with a specific genotype of interest displayed relatively normally distributed phenotypes suggesting no detectable sex contribution.

UAS constructs for Arp3 RNAi (UASp-Arp3-shRNA; Bloomington Drosophila Stock Center (BDSC) #53972) and control RNAi (UASp-mCherry-shRNA; BDSC #35785) were expressed maternally using maternal-GAL4-VP16 (gift of Mark Peifer) and myosin localization was assessed in offspring using a GFP insertion into the zipper (zip) gene locus (Zip-GFP; Flytrap #51564). Standard Drosophila genetics synthesized the maternal genotypes used: maternal-GAL4-VP16 /+; Zip-GFP Trap/UASp-Arp3-shRNA and maternal-GAL4-VP16 /+; Zip-GFP Trap/+; UASp-mCh-shRNA/+.

For live embryo imaging, dechorionated embryos were glued to a coverslip using tape adhesive dissolved in heptane and mounted in halocarbon oil (series 700; Halocarbon Products). The coverslip, with the embryos facing up, was set into the bottom of a glass bottom culture dish with its original coverslip removed. Images were collected with a spinning-disk confocal system (Quorum Technologies Inc) at RT with a 63x Plan Apochromat NA 1.4 objective (Carl Zeiss, Inc), a piezo top plate, an EM CCD camera (Hamamatsu Photonics), and Volocity software (Quorum Technologies Inc). Z stacks had 300 nm step sizes. Images were analyzed with Volocity software and ImageJ (NIH).

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

Decision letter

  1. Karsten Kruse
    Reviewing Editor; University of Geneva, Switzerland
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript presents computer simulations that demonstrate how smooth boundaries can be created between a zone of active expansion and a second zone of active constriction that surrounds it. This work is of interest to scientists working in the field of cytoskeletal organization, mechanobiology, and self-organizing active matter.

Decision letter after peer review:

Thank you for submitting your article "Emergence of a smooth interface from growth of a dendritic network against a mechanosensitive contractile material" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Provide a physical (or mechanistic) explanation for the observed smoothening behavior.

2) Test how sensitive the main results are to initial conditions, and to different parameter values by performing a sensitivity analysis (especially on the wild-type like cases).

3) Describe the model a bit more specifically at the beginning of the result section so the reader has a general sense of how it was implemented.

4) Using physically relevant units in the text and the table would make it easier to follow and potentially more impactful. Or the authors should explain if there is a good reason to keep those non-physical units.

5) Please provide Matlab files at resubmission.

Reviewer #1:

The authors attempt to understand the basis of smoothing interfaces between Arp2/3-based actin networks and actomyosin networks in the syncytial Drosophila embryo during pseudo-cleavage. This is an interesting question in the context of how actin networks are organized. To understand interface smoothing, the authors perform "node-based" simulations of the two actin networks. The simulation methods of the two networks follows previously published methods and are validated through comparisons with previous work. For the interface between these networks, the authors invoke some ad hoc rules that are poorly justified form a physical point of view. It is not clear, how much their results depend on this choice of interfacial dynamics. Whereas the simulation results are quantitatively analyzed, there is essentially no quantification of the experiments, and the comparison between experiment and theory remains qualitative. Eventually, the authors propose a set of ingredients that are sufficient to yield smooth interfaces in their simulations. However, a thorough understanding in terms of the physical mechanism underlying the simulation results remains elusive. For these reasons, in its current state, this works seems of limited use for the community.

Reviewer #2:

In this manuscript, Sharma et al., aim to better understand the mechanical mechanisms underlying the organization of the syncytium, the cortical meshworks of actin and myosin under the surface of the fly embryo during early embryo development. This meshwork is composed of two networks that self-organize into circular caps containing branched actin filaments and surrounded by an acto-myosin constrictive network. Using a model based on nodes that follow simple mechanical rules, the authors demonstrate that one can start with roughly defined zones where each meshwork is defined, and only in certain conditions these zones will become clearly defined with a smooth border as seen in the fly embryo. They show that clear and smooth boundaries appear only when a branched actin meshwork expands in the caps and when there the surrounding acto-myosin network exerts enough contractile forces especially at the interface between both meshworks.

Strengths:

The modeling of the actin and myosin meshworks is performed using phenomelogical rules at a meso-scale, which allow the authors to focus on general mechanical properties of the meshworks and limit the number of free parameters.

The authors nicely demonstrate what mechanisms cannot lead to smooth boundaries and which one can.

The authors systematically compare their simulations with experimental data in wild-type and in knock-down flies that have been published before or that they generate for this study.

Weaknesses:

The parameters are discussed in the text in arbitrary non-physical units (e.g. pixels, steps, etc.). It is sometimes difficult to follow whether the values used are realistic or not. That said the parameter table gives some equivalence but this prevents a smooth read.

Some of the parameters used in all the simulations are set to certain values but those values are often not discussed, and it is unclear to which extent the results of the simulations are sensitive to those parameters.

The code is provided only as a pdf file which prevents the reader to run the simulations themselves.

The authors could test how sensitive their main results are to initial conditions, and to different parameter values by performing a sensitivity analysis (especially on the wild-type like cases).

Please provide Matlab files at resubmission.

Things that could be clarified:

The authors could explain a bit more how the initial rough patterns of Arp2/3 and acto-myosin zones are generated in the embryo. Is it signaling? Could it be self-organized from a random initial organization by the mechanics too?

They could describe the model a bit more specifically at the beginning of the result section so the reader has a general sense of how it was implemented.

Using physically relevant units in the text and the table would make it easier to follow and potentially more impactful. Or the authors should explain if there is a good reason to keep those non-physical units.

https://doi.org/10.7554/eLife.66929.sa1

Author response

Essential revisions:

1) Provide a physical (or mechanistic) explanation for the observed smoothening behavior.

It was important to flesh out the mechanism involved. Our first submission showed that centrifugal expansion of a rough Arp2/3 network against a surrounding and rough actomyosin network is insufficient for forming a smooth interface between them, but that Arp2/3 growth did displace myosin nodes and increase strain between them. Based on mechanosensitive strengthening of actomyosin networks reported in the literature, we allowed myosin nodes to increase their activity with a specific degree of displacement. As a result, myosin nodes gained activity in a ring around the interface of the Arp2/3 network and the surrounding actomyosin network, specifically in response to Arp2/3 network growth, and the interface became smooth and circular. Our assumption/hypothesis was that formation of the smooth and circular interface occurred through contractility of the induced actomyosin ring. However, we agree that we only identified ingredients responsible for forming the smooth and circular interface, and that a physical explanation was lacking. To test the idea that the induced myosin nodes form a contractile ring within an otherwise weakly contractile actomyosin network, we compared simulations of an isolated actomyosin ring with the behaviours of myosin nodes activated by Arp2/3 in an otherwise low contractility network. All nodes of the isolated ring had activity equal to that induced by Arp2/3 in the two-network simulations and were initially arranged as a wide and rough-edged ring. With contractile activity of the nodes, the ring first thinned and smoothened and then the ring constricted centripetally. In the initial rough configuration, the net forces applied to individual nodes occurred at a broad range of angles, but as the ring thinned and constricted, these angles became locally aligned with radii of the contractile ring. We considered this alignment to be a signature of a contractile ring in our simulations. Myosin nodes activated around the circumference of a growing Arp2/3 network displayed a similar signature. Thus, we conclude that the smoothening behaviour is based upon the local induction and activity of a contractile actomyosin ring.

These observations are described in detail in an added Results section (starting at line 350) and shown in added Figure 5. We also added a schematic model as Figure 6 to explain the steps of the smoothening process, and refer to this figure in the first paragraph of the Discussion section (starting at line 410).

2) Test how sensitive the main results are to initial conditions, and to different parameter values by performing a sensitivity analysis (especially on the wild-type like cases).

Sensitivity analyses were also important to add. We performed these analyses to confirm the robustness of our two main findings: (1) that centrifugal expansion of a rough Arp2/3 network against a surrounding and rough actomyosin network is insufficient for forming a smooth interface between them, and (2) that the smoothening occurs through the pushing forces of the Arp2/3 network elevating myosin activity around the interface to form a contractile ring. We conducted these analyses by varying the values of all major parameters of the actomyosin network, the Arp2/3 network, and the network-network interface. Parameters were varied pairwise to create phase diagrams of parameter space. We previously submitted, and continue to include, a phase diagram comparing different values of myosin node activity and myosin node density (Figure 3C). The added phase diagrams investigate all other key parameters in the parameter table (Table 1). These analyses indicate that our two main findings are robust to changes in parameters: (1) Arp2/3 expansion is incapable of inducing a smooth and circular interface with a non-mechanosensitive actomyosin network, except with parameter values producing a network-wide increase to actomyosin contractility, and (2) Arp2/3 expansion induces a smooth and circular interface with a mechanosensitive actomyosin network, except under specific and explainable conditions (e.g. with values that excessively weaken Arp2/3 network growth and would thus elicit insufficient myosin activation).

Please see added Figure 4—figure supplements 1-6 and further explanation in the associated figure legends. Please see references to these figure supplements at lines 296 and 340.

3) Describe the model a bit more specifically at the beginning of the result section so the reader has a general sense of how it was implemented.

We have added more explanation at the beginning of the Results section, starting at line 126, and continue to refer to the Model Formulation section for full details.

4) Using physically relevant units in the text and the table would make it easier to follow and potentially more impactful. Or the authors should explain if there is a good reason to keep those non-physical units.

Our preference is to refer directly to properties of the simulations using units of the simulations. We consider our simulations to be their own experimental system. Our approach ensures that it is described as directly and accurately as possible. This approach also allows our simulation data to be more directly applied to a range of contexts. As acknowledged in the reviews, we do provide Table 1 which contains available equivalencies to in vitro and in vivo parameter values. Previously, we only referred to Table 1 in the Model Formulation section, but we now additionally refer to it at the beginning of the Results section (line 146).

5) Please provide Matlab files at resubmission.

A GitHub link is provided for the MATLAB files, and we continue to provide PDF files with annotated code as supplemental information. Please see line 452.

Reviewer #1:

The authors attempt to understand the basis of smoothing interfaces between Arp2/3-based actin networks and actomyosin networks in the syncytial Drosophila embryo during pseudo-cleavage. This is an interesting question in the context of how actin networks are organized. To understand interface smoothing, the authors perform "node-based" simulations of the two actin networks. The simulation methods of the two networks follows previously published methods and are validated through comparisons with previous work. For the interface between these networks, the authors invoke some ad hoc rules that are poorly justified form a physical point of view. It is not clear, how much their results depend on this choice of interfacial dynamics.

We agree that a lack of understanding of the interface is a limitation of our study, and continue to state this limitation in the paper. However, our rules of node interaction across the interface are relatively simple and based on force balance between nodes directed toward each other because of net forces applied to them. Also, our results were robust to a range of parameter values affecting the interface. Please see added Figure 4—figure supplement 6 and further explanation in the associated figure legend.

Whereas the simulation results are quantitatively analyzed, there is essentially no quantification of the experiments, and the comparison between experiment and theory remains qualitative.

Unfortunately, smoothening was too challenging to consistently quantify in the experimental data due to variable shapes and intensities of myosin-positive structures within images, and variability of overall signal intensity between samples. To show that the control and Arp3 RNAi data were qualitatively reproducible across embryos, we now provide images of six additional embryos of each genotype. These examples also allow additional comparisons with the simulation results.

Please see Figure 3—figure supplement 1.

Eventually, the authors propose a set of ingredients that are sufficient to yield smooth interfaces in their simulations. However, a thorough understanding in terms of the physical mechanism underlying the simulation results remains elusive.

Please see response under “Essential Revisions”, above.

Reviewer #2:

[…]

Some of the parameters used in all the simulations are set to certain values but those values are often not discussed, and it is unclear to which extent the results of the simulations are sensitive to those parameters.

Thank you for this important recommendation. Please see response under “Essential Revisions”, above.

The code is provided only as a pdf file which prevents the reader to run the simulations themselves.

The authors could test how sensitive their main results are to initial conditions, and to different parameter values by performing a sensitivity analysis (especially on the wild-type like cases)

Please provide Matlab files at resubmission.

They have been provided. Please see response under “Essential Revisions”, above.

Things that could be clarified:

The authors could explain a bit more how the initial rough patterns of Arp2/3 and acto-myosin zones are generated in the embryo. Is it signaling? Could it be self-organized from a random initial organization by the mechanics too?

Signaling is important for the initial patterning, but roles for mechanics are unknown. Specifically, Rho small G protein signaling pathways play essential roles in establishing the initial rough patterns of the cytoskeletal networks. Please see added text at lines 74 and 85-86.

They could describe the model a bit more specifically at the beginning of the result section so the reader has a general sense of how it was implemented.

Thank you for this suggestion. Please see revised text between lines 126-140.

Using physically relevant units in the text and the table would make it easier to follow and potentially more impactful. Or the authors should explain if there is a good reason to keep those non-physical units.

Please see response under “Essential Revisions”, above.

https://doi.org/10.7554/eLife.66929.sa2

Article and author information

Author details

  1. Medha Sharma

    Department of Cell and Systems Biology, University of Toronto, Toronto, Canada
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
  2. Tao Jiang

    Department of Cell and Systems Biology, University of Toronto, Toronto, Canada
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  3. Zi Chen Jiang

    Department of Cell and Systems Biology, University of Toronto, Toronto, Canada
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  4. Carlos E Moguel-Lehmer

    Department of Cell and Systems Biology, University of Toronto, Toronto, Canada
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  5. Tony JC Harris

    Department of Cell and Systems Biology, University of Toronto, Toronto, Canada
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    tony.harris@utoronto.ca
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0798-970X

Funding

Natural Sciences and Engineering Research Council of Canada (RGPIN-2016-05617)

  • Tony J C Harris

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Rudi Winklbauer and Rodrigo-Fernandez-Gonzalez for their comments on the manuscript. This work was supported by Natural Sciences and Engineering Research Council of Canada Discovery grant RGPIN-2016–05617 to T Harris. M Sharma received a Connaught International Scholarship from the University of Toronto.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Karsten Kruse, University of Geneva, Switzerland

Publication history

  1. Received: January 26, 2021
  2. Preprint posted: January 28, 2021 (view preprint)
  3. Accepted: August 20, 2021
  4. Accepted Manuscript published: August 23, 2021 (version 1)
  5. Version of Record published: September 1, 2021 (version 2)

Copyright

© 2021, Sharma et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 402
    Page views
  • 77
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Lisa M Strong et al.
    Research Article Updated

    Autophagy is a cellular process that degrades cytoplasmic cargo by engulfing it in a double-membrane vesicle, known as the autophagosome, and delivering it to the lysosome. The ATG12–5–16L1 complex is responsible for conjugating members of the ubiquitin-like ATG8 protein family to phosphatidylethanolamine in the growing autophagosomal membrane, known as the phagophore. ATG12–5–16L1 is recruited to the phagophore by a subset of the phosphatidylinositol 3-phosphate-binding seven-bladedß -propeller WIPI proteins. We determined the crystal structure of WIPI2d in complex with the WIPI2 interacting region (W2IR) of ATG16L1 comprising residues 207–230 at 1.85 Å resolution. The structure shows that the ATG16L1 W2IR adopts an alpha helical conformation and binds in an electropositive and hydrophobic groove between WIPI2 ß-propeller blades 2 and 3. Mutation of residues at the interface reduces or blocks the recruitment of ATG12–5–16 L1 and the conjugation of the ATG8 protein LC3B to synthetic membranes. Interface mutants show a decrease in starvation-induced autophagy. Comparisons across the four human WIPIs suggest that WIPI1 and 2 belong to a W2IR-binding subclass responsible for localizing ATG12–5–16 L1 and driving ATG8 lipidation, whilst WIPI3 and 4 belong to a second W34IR-binding subclass responsible for localizing ATG2, and so directing lipid supply to the nascent phagophore. The structure provides a framework for understanding the regulatory node connecting two central events in autophagy initiation, the action of the autophagic PI 3-kinase complex on the one hand and ATG8 lipidation on the other.

    1. Cell Biology
    Laura Le Pelletier et al.
    Research Article

    Aging is associated with central fat redistribution and insulin resistance. To identify age-related adipose features, we evaluated the senescence and adipogenic potential of adipose-derived-stromal cells (ASCs) from abdominal subcutaneous fat obtained from healthy normal-weight young (<25y) or older women (>60y). Increased cell passages of young-donor ASCs (in vitro aging), resulted in senescence but not oxidative stress. ASC-derived adipocytes presented impaired adipogenesis but no early mitochondrial dysfunction. Conversely, aged-donor ASCs at early passages displayed oxidative stress and mild senescence. ASC-derived adipocytes exhibited oxidative stress, and early mitochondrial dysfunction but adipogenesis was preserved. In vitro aging of aged-donor ASCs resulted in further increased senescence, mitochondrial dysfunction, oxidative stress and severe adipocyte dysfunction. When in vitro aged young-donor ASCs were treated with metformin, no alteration was alleviated. Conversely, metformin treatment of aged-donor ASCs decreased oxidative stress and mitochondrial dysfunction resulting in decreased senescence. Metformin's prevention of oxidative stress and of the resulting senescence improved the cells' adipogenic capacity and insulin sensitivity. This effect was mediated by the activation of AMP-activated-protein-kinase as revealed by its specific inhibition and activation. Overall, aging ASC-derived adipocytes presented impaired adipogenesis and insulin sensitivity. Targeting stress-induced senescence of ASCs with metformin may improve age-related adipose tissue dysfunction.
