Thalamocortical axons control the cytoarchitecture of neocortical layers by area-specific supply of VGF

  1. Haruka Sato  Is a corresponding author
  2. Jun Hatakeyama
  3. Takuji Iwasato
  4. Kimi Araki
  5. Nobuhiko Yamamoto
  6. Kenji Shimamura  Is a corresponding author
  1. Department of Brain Morphogenesis, Institute of Molecular Embryology and Genetics, Kumamoto University, Japan
  2. Laboratory of Mammalian Neural Circuits, National Institute of Genetics, Japan
  3. Division of Developmental Genetics, Institute of Resource Development and Analysis, Kumamoto University, Japan
  4. Laboratory of Cellular and Molecular Neurobiology, Graduate School of Frontier Biosciences, Osaka University, Japan

Abstract

Neuronal abundance and thickness of each cortical layer are specific to each area, but how this fundamental feature arises during development remains poorly understood. While some of area-specific features are controlled by intrinsic cues such as morphogens and transcription factors, the exact influence and mechanisms of action by cues extrinsic to the cortex, in particular the thalamic axons, have not been fully established. Here, we identify a thalamus-derived factor, VGF, which is indispensable for thalamocortical axons to maintain the proper amount of layer 4 neurons in the mouse sensory cortices. This process is prerequisite for further maturation of the primary somatosensory area, such as barrel field formation instructed by a neuronal activity-dependent mechanism. Our results provide an actual case in which highly site-specific axon projection confers further regional complexity upon the target field through locally secreting signaling molecules from axon terminals.

Editor's evaluation

Here Sato and colleagues in the Shimamura lab investigate the role of extrinsic factors in the development of the murine neocortex. They show that factors provided by thalamocortical afferents, namely, VGF, are instructive in the formation of layer 4 neuron populations and thus layer thickness, particularly for the primary somatosensory cortex. This study in vivo, based on VGF knockouts, expands their previous findings in vitro on this process, and adds to our understanding of how cytoarchitectonic differences across cortical areas are established.

https://doi.org/10.7554/eLife.67549.sa0

Introduction

Making differences within a seemingly uniform entity of cells is a fundamental process observed at various situations in development. The molecular mechanisms that underlie those processes are of great interest for not only developmental biologists but also researchers in stem cell biology and regenerative medicine. While a huge variety of systems or mechanisms have been investigated, providing the basic concepts or principles underlying this issue, there must be yet unidentified mechanisms. The adult mammalian neocortex is entirely composed of six layers of neurons, yet the laminar structure is not uniform throughout the neocortex; the thickness and cellular composition of the layers differ among cortical areas (Brodmann, 2006). For instance, in the sensory cortex, layer 4, which is the main recipient layer of sensory information from the thalamus, is thick and dense, whereas it is thinner in the motor area. These features are considered to be crucial for proper functions of the cortical areas, as minute alterations in these constituents have been shown to be associated with cognitive, mental, or psychiatric disorders (Bruining et al., 2015; Reavis et al., 2017; Selten et al., 2018). The developmental mechanisms that regulate the formation of the regionally distinct laminar architecture therefore has long been a major issue in developmental neurobiology.

Previous studies have shown that both mechanisms intrinsic and extrinsic to the cortex play roles in the formation of cortical areas (reviewed in Cadwell et al., 2019). For instance the secretory factors, emanating from the signaling centers, set up the areal pattern of the neocortex, called cortical area map, through regulating the expression of transcription factors in the cortical primordium (Armentano et al., 2007; Bishop et al., 2000; Fukuchi-Shimogori and Grove, 2001; O’Leary and Sahara, 2008). While the extrinsic mechanisms are less understood, especially at the molecular level, laminar differences among cortical regions correlate well with thalamocortical axon (TCA) projection patterns: abundant TCAs project to sensory areas, which exhibit a thick layer 4, whereas only few axons project to the motor area, which has a thin layer 4. This correlation raises the possibility that TCAs may extrinsically regulate the area differences. In fact, roles of TCAs in cortical development have been investigated particularly with respect to neuronal activity-dependent mechanisms; histological and functional features called barrel in the primary somatosensory area (S1) in rodents and ocular dominance column in the primary visual area (V1) of cats and monkeys are instructed by the activity-dependent mechanisms (Penn and Shatz, 1999; Katz and Crowley, 2002; Gaspar and Renier, 2018; Martini et al., 2018). Recent studies demonstrated that TCAs also play instructive roles in the specification of area properties of somatosensory and visual cortices represented by expression of area markers (Chou et al., 2013; Pouchelon et al., 2014; Vue et al., 2013) as well as layer markers, and morphogenesis of cortical neurons (Li et al., 2013; Zhou et al., 2010). Although molecular mechanisms underlying those processes remain uncovered, it was reported that prenatal thalamic neuronal activities and propagation of calcium waves regulate cortical maps prior to sensory processing (Antón-Bolaños et al., 2019; Moreno-Juan et al., 2017). Several studies have also shown that TCA innervation influences neurogenesis in the embryonic cortex. For example, ephrin A5 expressed in TCAs regulates the generation of proper types of cortical progenitor cells and thus neuronal output for cortical layers (Gerstmann et al., 2015). Wnt3 secreted by TCAs controls neuronal differentiation in the cortex at the translational level (Kraushar et al., 2015). However, whether TCAs regulate cytoarchitectural aspects of the cortical layers such as the number of cortical neurons and layer thickness is not clear. Only one study suggested the involvement of TCAs in cortical laminar formation by showing that thalamic ablation by electrolytic lesion led to alterations in the cortical laminar configuration (Windrem and Finlay, 1991). Yet, it is technically difficult to target thalamic nuclei specifically and reproducibly by surgical manipulation, and the molecular mechanisms by which TCAs control cortical laminar organization have not been uncovered.

To identify TCA-derived extrinsic factors, we previously conducted a screening for thalamus-specific genes by comparing expression profiles of the thalamus and the cortex (Sato et al., 2012). As a result, two genes encoding neuritin 1 (NRN1) and VGF nerve growth factor inducible (VGF) were found to be expressed specifically in sensory thalamic nuclei including the ventrobasal nucleus (VB). While their mRNAs are not expressed in the cortex, their proteins are detected in cortical layer 4, suggesting that they are transported to the cortex through TCAs. We further found that NRN1 and VGF promoted survival and dendrite growth of cortical neurons in vitro (Sato et al., 2012). Although these extrinsic factors are likely to contribute to cortical development in vivo, this remains to be validated.

In this study, we investigated the effect of loss of TCAs on neocortical development using transgenic mice, in which thalamic neurons were eliminated postnatally. We employed a diphtheria toxin (DT) receptor (DTR)-mediated cell ablation system combined with a thalamus-specific Cre transgenic mouse line (Arakawa et al., 2014; Buch et al., 2005). As a result, the laminar structure was altered specifically in layer 4, which exhibited marked reduction in the number of neurons in the primary somatosensory cortex. Moreover, TCA-derived factor VGF is necessary for the proper amount of layer 4 neurons in S1 and V1. Interestingly, the barrel organization was impaired in Vgf-knockout mice, despite the presence of TCAs and their activities, suggesting that the VGF-dependent quantity control is crucial for the proper barrel field development in cooperation with the activity-dependent process.

Results

Distinctions in laminar configuration develop postnatally

We first determined when the laminar differences among areas emerge during mouse cortical development by analyzing the expression of RAR-related orphan receptor beta (RORβ), a layer 4 marker, across the cortical areas in a sagittal plane from embryonic to postnatal stages using an anti-RORC antibody (see Materials and methods). At E16 when the production of layer 4 neurons is completed, RORβ expression was high in the anterior and low in the posterior regions (Figure 1—figure supplement 1A, in three mice). RORβ expression then became relatively uniform throughout the cortex, with slight fluctuation in intensity at birth (Figure 1—figure supplement 1A, in three mice). By P7, the staining intensity and thickness of the RORβ-expressing cell layer became greater in the primary somatosensory cortex (S1; Figure 1—figure supplement 1A, in five mice). In a coronal plane, RORβ was expressed in a dorsal low-ventral high gradient from E16 to P0 (Figure 1—figure supplement 1B, in five mice for both stages). By P7, a thick and densely stained domain became evident, which is recognized as posteromedial barrel subfield in S1 (Figure 1—figure supplement 1B, in five mice). This observation was also confirmed quantitatively (Figure 1—figure supplement 1C). These data indicated that area-specific laminar characteristics are formed postnatally.

Next, we asked what mechanisms regulate this transition. As neurogenesis in the cortex is nearly completed at the time of birth (Kwan et al., 2012), it is unlikely that layer 4 neurons are additively generated in S1. Indeed, when EdU was administrated every day from P0 to P4, to label newly generated cells during this period, EdU-labeled cells in layer 4 were all negative for NeuN at P6 (Figure 1—figure supplement 2, in 16 sections from 4 mice), indicating that layer 4 neurons were not newly generated during this period. Thus, we concluded that neurogenesis does not take place to form cortical layers in postnatal stages. On the other hand, after arriving at the cortex during the embryonic stages, TCAs start innervating cortical layer 4 at the postnatal stages, temporally correlating with the development of the laminar configuration (López-Bendito and Molnár, 2003).

Neonatal ablation of TCAs projecting to S1

To explore the role of TCA projection in layer formation, sensory thalamic neurons were ablated using the Cre-inducible DTR mouse system (Buch et al., 2005). A 5HTT-Cre transgenic mouse, in which Cre recombinase activity was detected in sensory thalamic neurons by crossing with an R26-EYFP reporter mouse (Srinivas et al., 2001; Figure 1A, in five mice), was crossed with an R26-DTR mouse (Figure 1B). DT was then administrated at P0, and the brains were analyzed at P5–7. At P5, we observed numerous dying cells, detected by ssDNA staining (data not shown) and accumulation of Iba1-immunoreactive microglial cells, which scavenge dead cells, in the thalamus (Figure 1C, in six sections from six mice), consistent with the previous study (Arakawa et al., 2014). Thalamic cell ablation was further evaluated by immunohistochemistry with an anti-RORC antibody. The VB was dramatically degenerated at P6 (size reduced by 67.2% compared with control), and RORα+β-expressing thalamic neurons were considerably decreased in the VB where Cre expression was the highest among the thalamic nuclei in 5HTT-Cre mice (Figure 1D, E, in seven mice). On the other hand, the size of the dorsal lateral geniculate nucleus (dLGN) was not obviously reduced, and RORα+β-expressing cells were detected (Figure 1D, E, in seven mice). Consequently, the terminals of TCAs were severely diminished in S1 as revealed by 5HTT immunostaining (Figure 1F). Hereafter, we refer to these animals as TCA-ablated mice and animals with DT administration, but without 5HTT-Cre allele, are referred to as control mice.

Figure 1 with 3 supplements see all

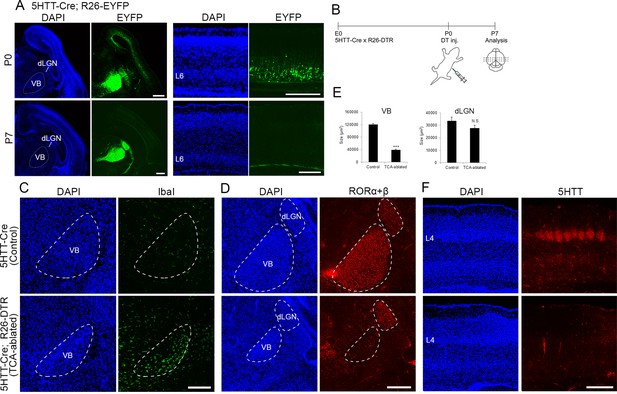

Elimination of thalamocortical axons (TCAs) by toxin-mediated thalamic cell ablation in vivo.

(A) Cre recombinase activities in cross-sections of forebrains of P0 (upper panels) and P7 (lower panels) 5HTT-Cre mice. The 5HTT-Cre line was crossed with the R26-EYFP reporter line to allow detection of Cre activity by EYFP fluorescence. EYFP was the most strongly expressed in the VB nucleus and to a lesser extent in the dLGN in the thalamus at P0 (upper left panels), and also weakly in layer 6 (L6) in the cortex (upper right panels), which was lost by P7 (lower right panels). (B) Experimental scheme for TCA ablation. Neonatal pups from a cross of a 5HTT-Cre mouse with a R26-Diphtheria toxin receptor (DTR) mouse were administrated DT intraperitoneally. Cross-sections of P5 (C) and P6 (D) thalamus stained for Iba1 (C) and RORα+β (D) reveal microglial cells and thalamic nuclei, respectively. Ablation of thalamic neurons was confirmed by loss of RORα+β expression, especially in the VB. DAPI (4',6-diamidino-2-phenylindole)-stained cell nuclei are packed more densely in the smaller VB than in the control. (E) Quantification of the size of VB and dLGN. The area of these nuclei revealed by RORC staining on seven sections from seven mice was measured. The size of VB, but not dLGN was significantly reduced in TCA-ablated mice compared with control mice. Data are presented as µm2 (mean ± standard error of the mean [SEM]): VB, 120,882.2 ± 5582.1 (control), 39,658.6 ± 5672.2 (TCA-ablated), p = 0.0006; dLGN, 33,514.1 ± 3081.1 (control), 27,699.9 ± 2308.1 (TCA-ablated), p = 0.128; Mann–Whitney U test, ***p < 0.001. Seven mice for both control and experiment were used. (F) 5HTT immunohistochemistry of P7 cortices. The amount of TCAs stained for 5HTT was greatly reduced in S1, the target of VB neurons, in the TCA-ablated cortex. Note that the 5HTT-positive barrel structure is completely absent in TCA-ablated mice. dLGN, dorsal lateral geniculate nucleus; L4, layer 4; L6, layer 6; VB, ventrobasal nucleus. Scale bars, 500 µm (A, F), 200 µm (C, D).

To examine further whether TCAs are eliminated or neural connections are altered in TCA-ablated mice, the lipophilic dyes DiA and DiI were injected into two different TCA target areas, S1 and the primary visual cortex (V1), respectively, to label TCAs and thalamic neurons retrogradely (Figure 1—figure supplement 3A, in 12 sections from 6 mice); S1 and V1 are the major target of VB and dLGN, respectively, and the retrogradely labeled neuronal cell bodies could be distinguished easily from diffusely labeled cortical afferents in the thalamus by the fluorescent intensity. In control animals, a large number of DiA-labeled thalamic neurons were detected in the VB and the posterior nucleus (PO) (Figure 1—figure supplement 3B, 12 sections from 6 mice). In contrast, in TCA-ablated mice, the retrogradely labeled VB was markedly reduced in size, but the PO was broadly and intensely labeled (Figure 1—figure supplement 3B, 12 sections from 6 mice). On the other hand, DiI-labeled neurons that project to V1 were found in the dLGN and lateral posterior nucleus (LP) in both control and TCA-ablated mice (Figure 1—figure supplement 3A, B, 12 sections from 6 mice for each). Moreover, the fact that DiA-labeled S1-projecting cells were not detected in the dLGN (Figure 1—figure supplement 3B, 12 sections from 6 mice) and the medial geniculate nucleus (MG) (Figure 1—figure supplement 3C, 12 sections from 6 mice) suggests that TCA rewiring from the dLGN or MG to S1 did not occur in TCA-ablated mice, unlike previously reported findings (Mezzera and López-Bendito, 2016). Thus, S1 in TCA-ablated mice receives very few axonal inputs from the sensory thalamic nuclei including VB, dLGN, and MG.

The number of layer 4 cells in S1 is reduced in TCA-ablated mice

To examine impacts of TCA ablation on the cortical laminar structure, the number of cells in each layer was analyzed in control and TCA-ablated cortex using layer makers. RORC immunostaining revealed that layer 4 of S1 was thinner in TCA-ablated than in control mice, leading to poor demarcation of S1 (Figure 2A, B, in five sections from three mice for each). Quantitative analysis revealed that the number of RORβ-expressing cells was decreased by 33% as compared with control cortex (Figure 2C, 15 sections from 7 mice). However, such reduction in layer 4 cells was not observed in nontarget areas of VB axons, M1 and V1. V1 still received TCA projection from the remaining dLGN neurons in the experimental situation as described above (Figure 2C, V1, eight sections from five mice; M1, five sections from four mice; see Figure 1D, E). Concomitantly, the thickness of the layer abundant in RORβ-expressing cells was significantly reduced in TCA-ablated mice (by 26% compared with control; Figure 2D, 16 sections from 7 mice).

Figure 2 with 3 supplements see all

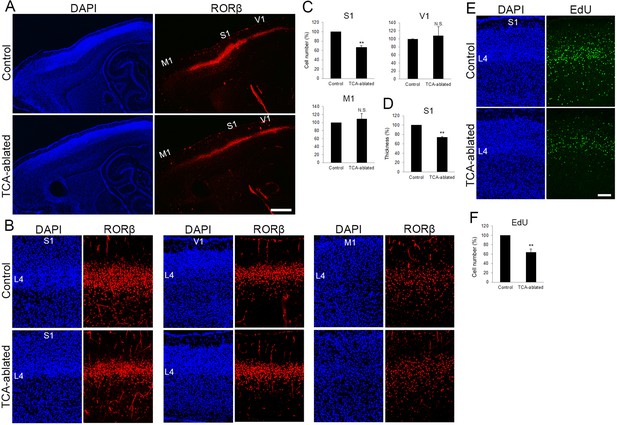

The number of layer 4 neurons is reduced in S1.

(A) Sagittal sections of P7 cortices derived from thalamocortical axon (TCA)-ablated mice stained with RORC antibody. Expression of the layer 4 marker RORβ was declined, specifically in S1, resulting in poorly demarcated borders between adjacent areas. (B) Coronal section of the cortex of a TCA-ablated mouse at P7, showing RORβ-expressing layer 4 (L4) neurons in S1. (C) Quantification of RORβ expression. RORβ-expressing cells within an 850-μm-wide strip of the cortical wall were counted. Note that the number of RORβ-positive cells was less in S1, but was not changed in V1 and M1, in TCA-ablated mice. Data are presented as a percentage of control mice (mean ± standard error of the mean [SEM]): S1, 66.75 ± 3.30%, N = 7 mice, p = 0.0011; V1, 108.28 ± 22.00%, N = 5 mice, p = 0.656; M1, 109.47 ± 12.97%, N = 4 mice, p = 0.878; Mann–Whitney U test, **p < 0.01. The same numbers of control and experimental animals were used. (D) Thickness of RORβ-expressing layer was also reduced in TCA-ablated mice. Data are presented as a percentage of control mice (mean ± SEM): 73.69 ± 1.83%, N = 7 mice, p = 0.0011; Mann–Whitney U test, **p < 0.01. (E) Cross-sections of S1 cortices of control and TCA-ablated mice at P7, showing distribution of EdU-positive cells. EdU was injected at E14.7. (F) Quantification of the results. The number of EdU-positive cells within an 850-μm-wide strip of the cortical wall relative to control is shown as the mean ± SEM: 64.37 ± 6.77%, p = 0.0075; Mann–Whitney U test, **p < 0.01, N = 5 animals for both control and TCA-ablated mice. L4, layer 4; M1, motor area; S1, primary somatosensory area; V1, primary visual area. Scale bars, 500 μm (A), 100 μm (B, E).

To examine whether the reduction of RORβ-expressing cells in TCA-ablated mice is due to a reduction of cells that had been destined for layer 4, we labeled postmitotic neurons by injecting EdU into the mother at E14.3 or E14.7 (see Materials and methods), when most layer 4 neuron progenitors are in S-phase before terminal mitosis. As expected, EdU-positive cells were preferentially distributed in layer 4 at P7 (Figure 2E, in 12 sections from 5 mice). The total number of EdU-positive cells was significantly decreased in TCA-ablated S1 (64% of that in the control; Figure 2E, F, 12 sections from 5 mice for each). The extent of reduction was comparable to that of RORβ-expressing cells (Figure 2C). Although the total number of NeuN-positive neurons in layers 2–5 was not substantially different (Figure 2—figure supplement 1A, C), the number of Cux1-positive upper layer neurons including layer 4 turned out to be slightly decreased in TCA-ablated animals (Figure 2—figure supplement 1B, C). To examine further the cell fate of layer 4-destined cells in TCA-ablated mice, the proportion of EdU-positive cells that express each layer-specific marker was analyzed. The percentage of RORβ-expressing cells was not markedly different between control and TCA-ablated mice (Figure 2—figure supplement 2A, B, 26 sections from 7 mice for each). The proportion of other layer marker-expressing cells (Brn2 for layer 2/3 and Ctip2 for layer 5) to EdU-positive cells were not substantially increased in TCA-ablated mice compared to control mice (Figure 2—figure supplement 2A, B, 15 sections from 5 mice for each condition of Brn2; 14 sections from 4 mice for each condition of Ctip2). In fact, there was no increase in EdU-positive cells in other layers (Figure 2E, Figure 2—figure supplement 2A, 12 sections from 5 mice). Taken together, these results suggest that the absolute number of layer 4 neurons decreased in the TCA-ablated S1, and argue against the possibilities that altered RORβ expression or fate change of layer 4-destined cells to those of other layers is the major cause of the reduction of RORβ-positive cells.

Next, we examined whether cell death is involved in the reduction in layer 4 cells in S1. As 5HTT-Cre is expressed in VB and cortical layer 6 (see Figure 1A), cell death was induced in both regions within several days after DT administration at P0 (Figure 2—figure supplement 2C, D). However, although we used several cell death detection methods (i.e., ssDNA, cleaved caspase 3, Iba1, mRNA of Bax, Bad, and Bak, and DAPI), we could not obtain convincing evidence for significant cell death induction in layer 4 upon TCA ablation (Figure 2—figure supplement 2C, D, 12 sections from 3 mice for P1 control; 8 sections from 2 mice for P1 TCA-ablated; 12 sections from 3 mice for P2; 11 sections from 3 mice for P3; 9 sections from 3 mice for P4 and P5; 13 sections from 4 mice for P6; 16 sections from 4 mice for P7). Given the technical difficulties in detecting dead or dying cells in postnatal brain due to the rapid clearance of dead cells (Gohlke et al., 2004; Wong et al., 2018), it is still possible that cell death is involved in the reduction of layer 4 in TCA-ablated mice.

As Cre recombinase is active not only in the thalamus, but also in cortical layer 6 at P0 (Figure 1A, 10 sections from 5 mice) and the raphe nucleus (data not shown; Arakawa et al., 2014) in 5HTT-Cre mice, we cannot exclude that the layer 4 reduction in 5HTT-Cre; R26-DTR mice is due to ablation of these brain parts rather than the VB in the thalamus. To verify that TCA ablation was indeed responsible for the laminar phenotype of 5HTT-Cre; R26-DTR mice, we ablated VB neurons using a different approach in which a DTR expression plasmid was electroporated into the embryonic dorsal thalamus in utero at E11.5, when VB neurons are generated (Figure 2—figure supplement 3A, B, five sections from five mice). Despite variable transfection efficiency in the thalamus, DT administration at P0 induced massive cell death in the VB (Figure 2—figure supplement 3C, eight sections from four mice) and led to a reduction in cell density in the VB (Figure 2—figure supplement 3D, seven sections from five mice). Moreover, 5HTT-positive axon terminals in the cortex were severely reduced (Figure 2—figure supplement 3E, five sections from three mice), and the number of layer 4 neurons in S1 was decreased (Figure 2—figure supplement 3F, eight sections from five mice for each), reminiscent of the 5HTT-Cre; R26-DTR phenotype (Figure 2B). We also examined whether cell death in layer 6 which occurs in 5HTT-Cre; R26-DTR mice affects layer 4 neurons. The DTR expression plasmid was electroporated to E11.5 cortices when layer 6 neurons are born and DT was administrated at P0. We found reduction of cell number in layer 6, but not in layer 4 (data not shown). Taken together, these results strongly supported the notion that the reduction in layer 4 cells was caused by the loss of TCAs.

Layers 2/3 and 5 are intact in TCA-ablated mice

To examine whether other layers were also affected by TCA ablation, expression of Brn2 (layers 2/3), Ctip2 (layer 5), and Tbr1 (layer 6) was analyzed. The number of Brn2-positive cells was not markedly changed in TCA-ablated cortex (Figure 3A, D, 17 sections from 6 mice for each). Similarly, the number of Ctip2-expressing cells was not greatly affected (Figure 3B, D, 17 sections from 4 mice for each). In contrast, Tbr1-expressing cells were partially reduced in TCA-ablated mice (Figure 3C, D, 10 sections from 4 mice for each), likely due to DT-induced cell death of the layer 6 neurons that express Cre recombinase at P0 as mentioned above (Figure 1A). Indeed, we observed signs of cell death in layer 6 (i.e., ssDNA-positive, accumulation of microglia; Figure 2—figure supplement 2D, data not shown) in the TCA-ablated S1. Collectively, these results supported the specificity of the effects of TCA ablation on cortical layer formation in that the effect was restricted to the target layer of TCA projection.

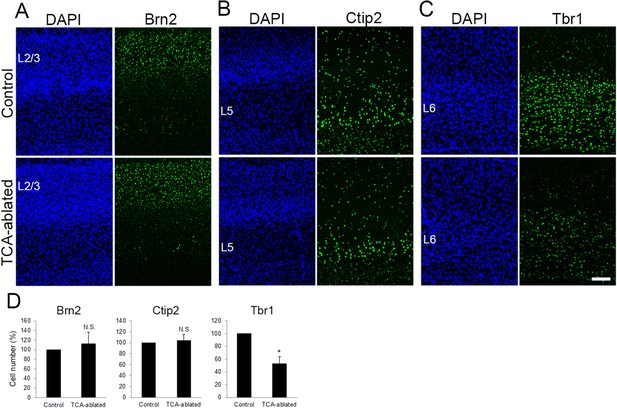

Layers 2/3 and 5 appear intact upon thalamocortical axon (TCA) elimination.

Cross-sections of S1 cortices of TCA-ablated mice at P7 stained for Brn2 (layer 2/3) (A), Ctip2 (layer 5) (B), and Tbr1 (layer 6) (C). Expression of Brn2 and Ctip2 were not markedly changed, whereas Tbr1-positive cells were decreased in TCA-ablated mice. (D) Quantitative analyses of the number of cells of TCA-ablated S1 relative to the control. Cells positive for each marker within an 850-μm-wide strip of the cortical wall were counted. Data are presented as a percentage of control (mean ± standard error of the mean [SEM]): Brn2, 112.70 ± 23.79%, N = 6 animals, p = 0.347; Ctip2, 104.09 ± 11.23%, N = 4 animals, p = 0.878; Tbr1, 52.97 ± 10.47%, N = 4 animals, p = 0.0211; Mann–Whitney U test, *p < 0.05. The same numbers of control and experimental animals were used. L2/3, layers 2 and 3; L5, layer 5; L6, layer 6. Scale bar, 100 μm.

The number of layer 4 neurons is restored by forced expression of VGF in the cortex of TCA-ablated mice

Regarding the molecular basis of TCA-dependent layer 4 formation, we hypothesized that extracellular molecules emanating from TCA terminals are involved. As our previous study showed that NRN1 and VGF which promote cortical cell survival and dendritic growth are localized in TCA terminals (Sato et al., 2012), the expression and action of these molecules were investigated. As expected, the expression of both NRN1 and VGF was lost in the thalamic nuclei and their axon terminals in layer 4 of S1 in TCA-ablated mice (Figure 4A–C; NRN1, two sections from two mice for each; VGF, four sections from four mice for control, five sections from five mice for TCA-ablated). To examine whether these proteins play any role for the number of layer 4 neurons in S1, we overexpressed these factors in layer 4 cells by in utero electroporation prior to TCA ablation (Figure 5A, B, six mice; Figure 5—figure supplement 1A, B, six sections from three mice). As a result, the number of layer 4 cells defined by RORC immunoreactivity was completely restored to the control level in TCA-ablated mice (Figure 5C, D, 11 sections from 6 animals for each). Curiously however, we did not observe an additive increase in layer 4 neurons by overexpression of these factors in the presence of TCA (Figure 5—figure supplement 2B, 11 sections from 6 mice for each). To determine which factor is responsible for the restoration of layer 4 neurons, we further performed in utero electroporation of either NRN1 or VGF into layer 4. Whereas NRN1 overexpression did not restore the reduction of RORC-immunoreactive layer 4 cells (Figure 5E, 18 sections from 5 mice for each), VGF overexpression was capable of rescuing the layer 4 phenotype in TCA-ablated mice (Figure 5E, 18 sections from 5 mice for control, 29 sections from 7 mice for TCA-ablated). Taken together, these results suggested VGF as a TCA-derived factor to maintain the layer 4 neuronal number during postnatal neocortical development.

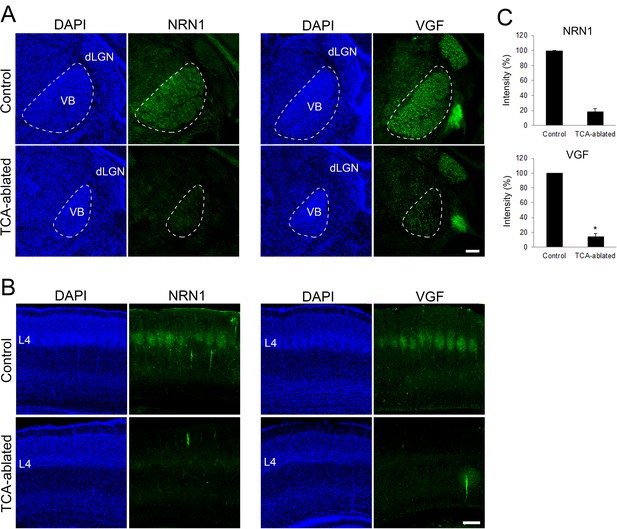

Expression of NRN1 and VGF are lost in the cortex of thalamocortical axon (TCA)-ablated mice.

Coronal sections of thalamus (A) and S1 cortex (B) of control and TCA-ablated mice at P7 immunostained for NRN1 and VGF. Note that NRN1 and VGF are expressed in the VB of control, but not TCA-ablated mice, and that their signals are absent in layer 4 of S1 cortex in TCA-ablated mice. (C) Quantification of the intensity of NRN1- and VGF-immunoreactive signal in the VB. Data are presented as a percentage of control (mean ± standard error of the mean [SEM]): NRN1, 18.35 ± 4.03 %, N = 2 for each; VGF, 13.43 ± 2.85%, N = 4 for control, N = 5 for TCA-ablated mice, p = 0.0151; Mann–Whitney U test, *p < 0.05. dLGN, dorsal lateral geniculate nucleus; L4, layer 4; VB, ventrobasal nucleus. Scale bar, 200 μm.

Figure 5 with 2 supplements see all

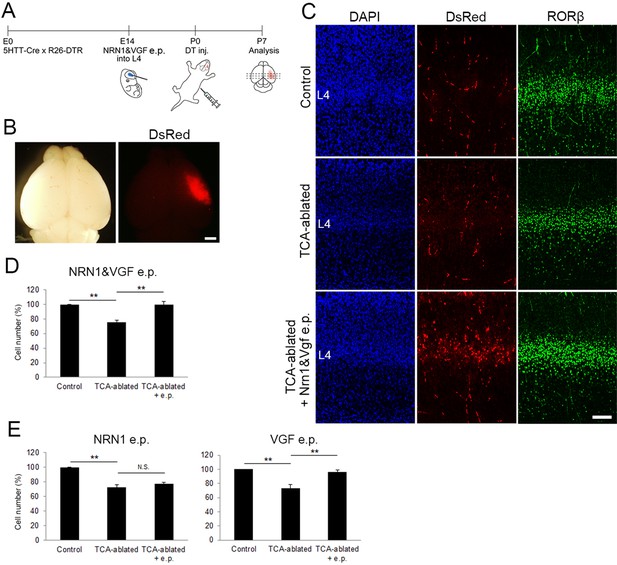

Overexpression of VGF rescues layer 4 formation in thalamocortical axon (TCA)-ablated mice.

(A) Schematic representation of the experimental procedure. (B) P7 electroporated (e.p.) brain showing the DsRed-positive e.p. region in the right hemisphere. (C) Cross-sections of S1 cortices of control, TCA-ablated, and TCA-ablated + e.p. mice stained for DsRed and RORβ. (D) Quantitative analysis of RORβ-expressing cells. Data are presented as a percentage of control (mean ± standard error of the mean [SEM]): TCA-ablated, 75.61 ± 2.87%, p = 0.0028; TCA-ablated + e.p., 99.52 ± 4.54%, p = 0.0022, N = 6 animals for each; Mann–Whitney U test, **p < 0.01. (E) Results of single electroporation of NRN1 or VGF into layer 4 of TCA-ablated mice. The number of RORβ-expressing cells was counted and presented as a percentage of control (mean ± SEM): NRN1 e.p., 72.27 ± 3.68% (TCA-ablated), p = 0.0075, 76.87 ± 2.18% (TCA-ablated +e.p.), p = 0.5476, N = 5 animals for each; VGF e.p., 73.43 ± 4.91% (TCA-ablated, N = 5 animals for control, 7 animals for TCA-ablated), p = 0.0042, 96.2 ± 3.10% (TCA-ablated + e.p., N = 5 animals for control, 7 animals for TCA-ablated), p = 0.0023; Mann–Whitney U test, **p < 0.01. L4, layer 4. Scale bars, 1 mm (B), 100 μm (C).

Genetic inactivation of Vgf results in a reduction in layer 4 neurons in S1

We further addressed whether NRN1 and VGF are in fact necessary for the regulation of layer 4 development in S1 by using CRISPR/Cas9-mediated gene editing (Harms et al., 2014). We designed three single-guide RNAs (sgRNAs) cutting exons of Nrn1 and Vgf to induce frame shifts resulting in failure of protein translation of both NRN1 and VGF. By electroporating the sgRNAs and Cas9 protein into fertilized eggs, mutations were induced in the genomic sequences of Nrn1 and Vgf allele near designed sgRNAs. While we could not obtain double-null mice, probably due to lethality during embryonic or early postnatal stages, single-mutant mice for Nrn1 or Vgf, both of which harbored null mutations, were collected at P8. We confirmed the loss of NRN1 and VGF protein by western blotting (data not shown) and immunohistochemistry (Figure 6A, five sections from five mice; data not shown for NRN1). Immunoreactivity of VGF was completely abolished in the VB in the thalamus, where it is endogenously expressed as described previously (Sato et al., 2012), as well as in layer 4 of S1, where TCAs from the VB terminate. As reported previously (Hahm et al., 1999), the body weight of Vgf−/− mice was significantly lower than that of Vgf+/+ control mice (Figure 7—figure supplement 1B, wild-type, four mice; Vgf−/−, five mice). Although the size of the cortex was slightly larger, gross brain anatomy was not markedly different (Figure 7—figure supplement 1A, B, wild-type, four mice; Vgf−/−, five mice). Importantly, the thalamic structure was not affected: the VB appeared intact in terms of size and cell density (Figure 6B, C, eight sections from eight mice). In addition, TCAs revealed by 5HTT immunohistochemistry were present in layer 4 of S1, similar to the wild-type (Figure 6B, six sections from three mice), indicating that thalamocortical projection was formed properly. The effect of loss of TCA-derived VGF from the cortex was evaluated by RORC immunohistochemistry. The number of the positive cells in layer 4 was markedly reduced in S1 and in V1, but not in M1 (Figure 7A–C, 19 sections from seven wild-type and 23 sections from 9 Vgf−/− mice for S1, 4 sections from three wild-type and 8 sections from 5 Vgf−/− mice for V1, 4 sections from 4 mice for both for M1). Neither layer 2/3 nor layer 5 was affected (Figure 7E–G, 28 sections from seven wild-type and 36 sections from 9 Vgf−/− mice for Brn2, 22 sections from seven wild-type and 31 sections from 9 Vgf−/− mice for Ctip2). In spite of the significant decrease in layer 4 cells, layer thickness was less affected than the case of TCA ablation (91.3%, Figure 7D, four sections from three wild-type and eight sections from five Vgf−/− mice; see Figure 2D). These findings suggested that TCAs regulate two aspects of area-specific layer 4 formation separately, such that layer thickness is controlled by the presence of TCAs, and the number of layer 4 neurons is regulated by TCA-derived VGF.

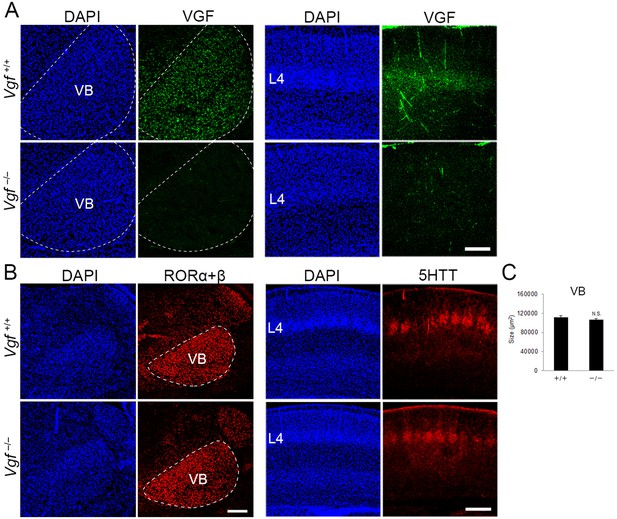

Generation of Vgf-KO mice using the CRISPR/Cas9 system.

Coronal sections of thalamus (left groups) and S1 cortex (right groups) of wild-type and Vgf-deficient mice at P8 stained with anti-VGF (A), -RORC (B), and -5HTT (B) antibodies. (C) Quantification of the size of the VB nucleus: 111,800.71 ± 3366.63 µm2 (wild-type), 106,920 ± 2667.67 µm2 (Vgf-KO), N = 8 mice for both, p = 0.235, Mann–Whitney U test. Note that VGF protein is lost in the VB and cortical layer 4 of Vgf−/− mice, whereas expression of RORα+β in the VB and the presence of 5HTT-positive thalamocortical axon (TCA) terminals in cortical layer 4 were not affected. Scale bars, 200 μm (A and B, left panel), 500 μm (B, right panel).

Figure 7 with 2 supplements see all

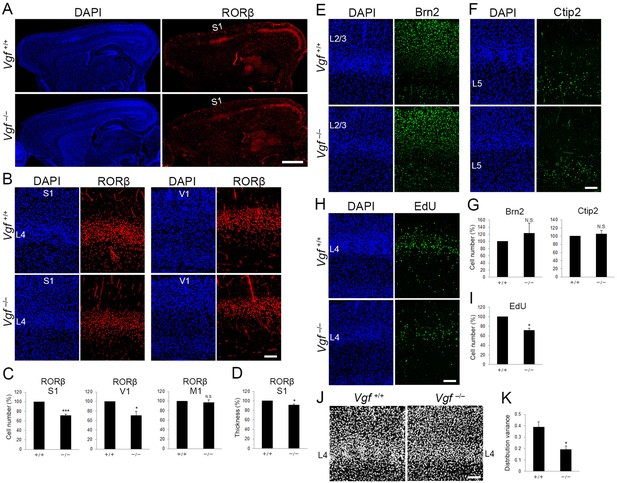

Vgf-deficiency causes a reduction of layer 4 neurons in S1.

(A) RORC immunostaining of sagittal sections of P8 cortices of wild-type and Vgf−/− mice revealed the reduction in layer 4 in the S1 area in the mutant. Coronal sections of P8 cortices of wild-type and Vgf−/− mice stained with anti-RORC (B), anti-Brn2 (E), and anti-Ctip2 (F) antibodies. (C, G) Quantification of the results. Data are presented as a percentage of wild-type control (mean ± standard error of the mean [SEM]): RORβ S1, 70.87 ± 3.18%, N = 7 wild-type and 9 Vgf−/− mice, p = 0.0006; RORβ V1, 70.02 ± 9.36%, N = 3 wild-type and 5 Vgf−/− mice, p = 0.0314; Brn2, 123.18 ± 28.63%, N = 7 wild-type and 9 Vgf−/− mice, p = 0.301; Ctip2, 105.02 ± 9.37%, N = 7 wild-type and 9 Vgf−/− mice, p = 0.740; Mann–Whitney U test, *p < 0.05, ***p < 0.001. (D) Relative thickness of RORβ-expressing layer to the wild-type: 91.34 ± 2.24%, N = 5 Vgf−/− mice, p = 0.0325; Mann–Whitney U test, *p < 0.05. Three wild-type mice were used as the reference. (H) Cross-sections of S1 cortices of wild-type and Vgf−/− mice at P7 stained for EdU. EdU was injected at E14.3. (I) Quantification of the results. The number of EdU-positive cells within an 850-μm-wide strip of the cortical wall relative to control is shown as the mean ± SEM: 71.22 ± 5.06%, N = 4 animals for each, p = 0.0211; Mann–Whitney U test, *p < 0.05. (J) DAPI staining of coronal sections showed barrel structure as uneven and repetitive distribution of cell nuclei in layer 4 of wild-type, but not of Vgf−/− mice. (K) Distribution variance of layer 4 cells as the mean ± SEM: wild-type, 0.390 ± 0.045, N = 4 mice; Vgf−/−, 0.192 ± 0.032, N = 5 mice, p = 0.0159; Mann–Whitney U test, *p < 0.05. L2/3, layers 2 and 3; L4, layer 4; L5, layer 5; S1, primary somatosensory area; V1, primary visual area. Scale bars, 1 mm (A), 100 μm (B, E, F, H, J).

To examine whether the reduction of RORC-immunoreactive layer 4 cells in Vgf−/− mice is caused by reduction of or fate change of layer 4-destined cells, this cohort was labeled by EdU at E14.3 as in the case of TCA-ablated mice (Figure 7H, 16 sections from 4 mice for each). First, the number of EdU-positive cells distributed preferentially in layer 4 was reduced in Vgf−/− mice (Figure 7H, I, 16 sections from 4 mice for each), indicating that layer 4-destined cells were decreased in the absence of VGF. The reduction of layer 4 cells in Vgf−/− mice was not detected at P0 (Figure 7—figure supplement 1C–F, 14 sections from four wild-type and 15 sections from 4 Vgf−/− mice for RORβ, 14 sections from four wild-type and 16 sections from 4 Vgf−/− mice for EdU), indicating that layer 4-destined cells were decreased during postnatal period in Vgf−/− mice. Next, cell fate of the EdU-labeled layer 4-destined cells was analyzed by immunohistochemistry at P7 (Figure 7—figure supplement 1G). The proportion of RORC-immunoreactive cells among the remaining EdU-positive cells in Vgf−/− mice was reduced compared with wild-type, and that of cells expressing Brn2 (layer 2/3) and Ctip2 (layer 5) was not markedly increased (Figure 7—figure supplement 1H, 16 sections from four wild-type and Vgf−/− mice for RORβ, 16 sections from four wild-type and Vgf−/− mice for Brn2, 12 sections from four wild-type and Vgf−/− mice for Ctip2). These results suggest that the number of, but not the fate of layer 4-destined cells was changed in Vgf−/− mice during postnatal period. In contrast to Vgf−/− mice, Nrn1−/− mice exhibited a normal layer 4, such that the neuronal number was comparable to that in control mice (Figure 7—figure supplement 2, seven sections from four mice). Taken together, these results indicated that VGF regulates the neuronal number in layer 4 of S1, and that NRN1 is dispensable for this process.

To validate the significance of this regulation of layer 4 cell number in the further development of S1, the barrel formation, a unique feature observed in S1 in rodent (Kawasaki, 2015), was examined. While 5HTT-positive TCA terminals were distributed in a barrel-like manner (Figure 6B), the characteristic columnar repetitive arrangement of cells in layer 4 was impaired in Vgf-KO, such that cells were more evenly distributed along the tangential plane of layers in the mutant S1 revealed by a quantitative image analysis (Figure 7J, K, wild-type, four sections from four mice; Vgf−/−, five sections from five mice). Consistent with the presence of TCA terminals in Vgf-KO layer 4 (see Figure 6B), expression of Btbd3 in layer 4 neurons, which is known to be dependent on neuronal activities of TCAs (Matsui et al., 2013), was substantially recognized unlike the TCA-ablated cases (Figure 7—figure supplement 1I, J, six sections from three mice). Therefore, the abnormal barrel organization in Vgf-KO is unlikely due to failure of activity-dependent processes, suggesting that the proper neuronal number in layer 4 is prerequisite for this process to operate. Taken together, these results suggested that VGF is essential for maintenance of layer 4 neuronal number and further formation of barrel structure in S1.

Discussion

How the laminar configuration is formed in the developing cortex is one of the fundamental questions in developmental neurobiology, and the underlying molecular mechanisms have not yet been fully elucidated. Here, we investigated the influence of TCAs on cortical laminar formation by ablating TCAs from the thalamic VB in vivo. We found that the number of layer 4 neurons in S1 was decreased in the absence of TCAs during postnatal stages. This was rescued by overexpression of axon-derived secreted protein VGF in cortical layer 4. Furthermore, genetic disruption of Vgf resulted in a reduction of the layer 4 neuronal number. Collectively, these results indicated that TCAs are required for the formation of the area-specific laminar structure by regulating the number of layer 4 neurons through VGF. Our finding that TCA ablation reduced the number of layer 4 neurons by 33%, resulting in poorly distinguishable S1 from neighboring areas, indicates that TCAs play a substantial and major role in specialization of S1 characterized by a thick layer 4. Thus, highly site-specific axon projection, which depends on initial regional patterning of the target fields, in turn contributes to generation of further regional diversity and complexity within the target tissues in a remote fashion.

Our result that RORβ expression was reduced in the absence of TCAs is consistent with the previous studies on Gbx2-KO and Celsr3/Dlx mutant embryos, in which TCAs fail to be formed (Miyashita-Lin et al., 1999; Zhou et al., 2010). However, we did not observe rewiring of TCAs regarding S1 as reported previously (Pouchelon et al., 2014; Mezzera and López-Bendito, 2016), although rewiring from the PO to S1 may have occurred to some extent as the PO was labeled more in several TCA-ablated specimens (see Figure 1—figure supplement 3B). This apparent inconsistency is perhaps due to the timing of TCA elimination. Although we did not compare the exact time course of TCA elimination among these different methods with our own hands, the method we employed provokes an acute ablation of TCAs upon DT administration at postnatal stages (see Figure 2—figure supplement 2D), which is beneficial for the aim of the present study specifically. Likewise, while it was reported that TCAs affect cortical neurogenesis (Dehay et al., 2001; Gerstmann et al., 2015; Kraushar et al., 2015), we have not found an obvious neurogenic abnormality in the TCA-ablated cortices. This could also be attributed to the timing of TCA elimination; TCAs may play the neurogenic role during the earlier stages, possibly upon their arrival at cortex since E15, which coincides with the peak of upper layer neuron production (López-Bendito and Molnár, 2003). Regarding this, we did not detect an obvious neurogenic phenotype in Vgf-KO mice at both P0 (Figure 7—figure supplement 1D and F) and P8 (Figure 7G), suggesting that VGF does not play a critical role in cortical neurogenesis.

While the present findings explain why layer 4 is thick in the somatosensory cortex, it is currently unclear whether the same mechanism accounts for the very thin layer 4 in the motor cortex. It would be interesting to test experimentally whether abnormal projection of TCAs to the motor cortex or artificial supply of TCA-derived factors in the motor cortex would thicken layer 4 and increase the neuronal number. While TCA-ablated mice showed almost no defect on V1, likely due to less cell death in dLGN which innervates V1, Vgf-KO mice exhibited significant reduction in layer 4 neurons in V1. These observations suggest that the regulation of the neuronal number of layer 4 by TCAs via VGF is a common mechanism operating widely in sensory areas.

The exact cellular events that led to the reduction in layer 4 neurons in the TCA-ablated cortex remain to be determined. Although most likely, specific cell death underlies this phenomenon, we could not detect obvious signs of cell death in this process. Previous studies have analyzed cell death in the postnatal cortex in rodents (Ferrer et al., 1992; Gohlke et al., 2004; Spreafico et al., 1995; Thomaidou et al., 1997; Verney et al., 2000), however, cell death in specific layers or areas in relation to the area-specific laminar structure has not been reported. Instead, a relatively uniform distribution of dying cells across layers and areas was reported in these studies. We also examined Bax and Casp3 mutant mice; the laminar configuration across the areas appeared to be normal (HS, KS, unpublished observation). These observations suggest that relatively thinner layer 4 in other areas compared to S1 may not depend on specific cell death, yet it is still possible that it plays a role in the absence of TCAs in S1.

Another possibility for the reduction of layer 4 cells is neuronal migration. It has been reported that mismigration of layer 4-destined neurons to layers 2/3 upon knockdown of Protocadherin 20 resulted in respecification of these neurons to acquire layer 2/3 characteristics, suggesting a positional influence on cortical neuron fate (Oishi et al., 2016). However, we found no evidence that neurons destined to layer 4 migrated to other layers and changed their fate in the TCA-ablated S1 (see Figure 2E, Figure 2—figure supplement 2A). Beside radial migration, neurons in layer 4 might migrate tangentially across areas, resulting in the area-specific laminar features in normal development. Such a process might have been impaired by the loss of TCAs, leading to a failure of accumulation of neurons into layer 4 of S1. To test this possibility, we tracked layer 4 neurons in the frontal cortex using the photo-switchable fluorescent protein kikGR (Nishiyama et al., 2012) in living pups from P0 to P7 by a laser-scanning confocal macroscopy. We did not detect any obvious signs of tangentially migrating layer 4 neurons; the labeled cells were retained within the original area of photoconversion in the motor area (HS and KS, unpublished results). Nevertheless, we might have overlooked cell migration because of limited detection sensitivity. In the future, it may be worth pursuing this possibility using more sophisticated and supersensitive methods recently published, through which the authors successfully observed activity-dependent dynamic dendrite rearrangement during the course of barrel formation in S1 (Mizuno et al., 2014). This method may allow us to observe if layer 4 neurons in S1 disperse into or fail to accumulate from surrounding areas in TCA-ablated mice. Similar technology might also enable us to determine whether layer 4 cells undergo cell death in the absence of TCAs or their actions through VGF.

There are two classical models for the development of cortical areas. One is the protomap model, in which the areal properties are predisposed in the regional identity of the cortical progenitors (Rakic et al., 2009). The other is the protocortex model, in which the cortical primordium is generated essentially homogeneous and is patterned into areas later by cues from the thalamic axons (O’Leary, 1989). In theory, these models are not mutually exclusive (Sur and Rubenstein, 2005), but can be reconciled as serial homology and refinement model recently proposed (Cadwell et al., 2019): cortical area development can be divided into serial three steps: (1) protomap, (2) area-specific maturation, and (3) activity-dependent refinement; processes postulated in the protocortex model are involved in (2) and (3). Previous studies on the roles of TCAs in cortical area development have led to the notion that TCAs indeed regulate areal size and characteristic gene expression in the cortex (Chou et al., 2013; Pouchelon et al., 2014; Vue et al., 2013; Moreno-Juan et al., 2017). Moreover, it has been reported that neural activity from TCAs controls neuronal morphology and barrel formation in a later stage (Li et al., 2013; Narboux-Nême et al., 2012). In this context, our present notion can be regarded as a process in (2) area-specific maturation: VGF released from TCA terminals controls the number of cortical neurons which is indispensable for the interaction between thalamic and layer 4 neurons. Since TCA terminals are sorted in a barrel-like manner in Vgf-KO S1 (Figure 6B), it is likely that the rearrangement or displacement of layer 4 neurons in response to TCAs, the second step of barrel formation (López-Bendito and Molnár, 2003), requires VGF.

Afferent-derived proteins play important roles in neural development. For example, ephrin A5 and Wnt3 from TCAs regulate differentiation of cortical neurons as mentioned above (Gerstmann et al., 2015; Kraushar et al., 2015). In other nervous systems, afferent-derived proteins regulate neurogenesis and synapse formation in their target region (Huang and Kunes, 1998; Sanes and Lichtman, 2001). In this study, we demonstrated that TCA-derived secretory protein VGF is necessary to maintain a sufficiently high neuronal number in cortical layer 4. VGF is widely expressed in the sensory thalamic nuclei, including the VB, dLGN, and MG (Sato et al., 2012), suggesting that this cue is commonly used for higher-order differentiation of sensory cortices. In fact, the number of layer 4 neurons in V1, which is a target of dLGN, was reduced in Vgf-KO mice (Figure 7B and C). Although disruption of NRN1, another TCA-derived secretory protein, did not affect the number of layer 4 neurons, it may play roles in other aspects of layer formation, for example, dendritic growth of spiny stellate neurons, as previously shown in vitro (Sato et al., 2012).

Our finding that a TCA-derived factor contributes to areal differentiation of the cerebral cortex may provide an insight into the generation of diversity in the areal pattern across mammalian species. In general, there is a strong correlation between dependence on particular sensory modality adopted for living environments and the proportional development of the corresponding areas (Krubitzer, 2007). In fact, experimental manipulation of the size of thalamic nuclei resulted in appropriate alteration of the areal pattern (Chou et al., 2013; Vue et al., 2013). Moreover, thalamic calcium wave plays critical roles in coordinating areal size prior to sensory processing (Moreno-Juan et al., 2017). Thus, mammals seem to have acquired coordinated evolution of thalamic sensory modality components and cortical areal characteristics to support their ecological diversity, resulting in the present prosperity worldwide. In this regard, it would be intriguing to explore the roles of the thalamus-derived factors, such as VGF or NRN1, along with the calcium wave mentioned above, in cortical area diversity among mammalian species. It is worth noting that both NRN1 and VGF are induced by neuronal activities in various brain regions including the cortex, thalamus, and hippocampus in later developmental stages and in adults (Corriveau et al., 1999; Harwell et al., 2005; Snyder et al., 1997). Although it is not known how these factors are induced in the thalamus during area formation, it could be a potential link between evolution of a peripheral sensory system and its corresponding cortical area.

Materials and methods

Animals

Time-pregnant ICR mice (SLC Japan) were used for immunohistochemistry, in utero electroporation and EdU administration. The day of vaginal plug detection was designated as embryonic day 0 (E0), and the day of birth as postnatal day 0 (P0). 5HTT-Cre (C57/BL/6J-Tg(Slc6a4-cre)208Ito) mice were previously generated (Arakawa et al., 2014). R26-EYFP (B6.129 × 1-Gt(ROSA)26Sortm1(EYFP)Cos/J) mice were a generous gift from Dr. Constantini (Columbia University, USA) (Srinivas et al., 2001). R26-DTR mice were purchased from The Jackson Laboratory (C57BL/6-Gt(ROSA)26Sortm1(HBEGF)Awai/J). For cell ablation, 40 ng of DT was administrated once into pups of 5HTT-Cre; R26-DTR mice by intraperitoneal injection through the back skin at P0 (Calbiochem, #322326). Embryos and newborn pups of those transgenic, 5HTT-Cre; R26-DTR, Vgf-KO, and Nrn1-KO lines were obtained by conventional crossing as well as through a reproductive method established by the Center for Animal Resources and Development (CARD, Kumamoto University) to efficiently obtain a sufficient number of mice (Takeo and Nakagata, 2015). All experiments were carried out following the Guidelines for Laboratory Animals of Kumamoto University and the Japan Neuroscience Society.

Plasmids

For forced expression of NRN1 and VGF, pCAG-Nrn1-Flag and pCAG-Vgf-Fc, respectively, were used (Sato et al., 2012).

For electroporation-based cell ablation, pCAG-DTR was constructed as follows: a cDNA fragment containing the coding region of human HBEGF (GenBank accession number: BC033097) was obtained from a commercial supplier (clone ID 100067676, DNAFORM). The coding region was first cloned into a pGEM-T Eeasy vector cut with HincII and EcoRV followed by adenine addition and ligation. The coding region was subcloned into the pCAG vector by digesting pGEM-T Easy-DTR and pCAG with EcoRI and ligating them. pCAG-DsRed was coelectroporated with these plasmids to monitor the electroporated regions in collected brains (Zhao et al., 2011).

For in situ hybridization of Btbd3, pFLCI-Btbd3 (a generous gift from Dr. Tomomi Shimogori, RIKEN CBS, Japan) was used.

Staining

Request a detailed protocol

Immunohistochemistry was conducted according to a standard protocol. Briefly, postnatal mouse brains were dissected and fixed with 4% paraformaldehyde (PFA) in phosphate-buffered saline (PBS) at room temperature (RT) for 3 hr and then incubated sequentially with 12.5% and 25% (wt/vol) sucrose-containing PBS (pH 7.4), sequentially. After the brains were frozen at −80°C, coronal sections of 20 or 40 μm were cut with a cryostat and collected in PBS containing 0.1% sodium azide. For staining with anti-RORC and -NRN1 antibodies, sections were mounted on slide glasses and treated with 10 mM sodium citrate buffer (pH 6.0) at 105°C for 10 min or antigen retrieval solution (HistoVT One, Nacalai Tesque) at 70°C for 20 min, respectively. For staining with anti-NeuN and anti-FLAG antibody, M.O.M. Basic Kit (#BMK-2202, Vector) was used to block detection of endogenous IgG. After blocking with PBS containing 5% normal goat/donkey serum and 0.1% Triton X-100 (blocking buffer) at RT for 1 hr, the sections were incubated at 4°C overnight with the following antibodies in the blocking buffer: mouse anti-RORC (1:800; catalog no. PP-H3925-00, Perseus Proteomics; although this antibody recognizes RORα, β and γ, RORγ is not expressed in the postnatal brain, and RORα expression generally overlaps with RORβ but is weak in the cortex [in Allen Brain Atlas]), rabbit anti-GFP (1:800; #A6455, Invitrogen), rabbit anti-Iba1 (1:500; catalog no. 019-19741, Wako), rabbit anti-5HTT (1:10,000; catalog no. 24330, ImmunoStar), goat anti-Brn2 (1:50; catalog no. sc-6029, Santa Cruz), rat anti-Ctip2 (1:200; catalog no. ab18465, Abcam), rabbit anti-Tbr1 (1:500; catalog no. ab31940, Abcam), rabbit anti-RFP (1:1000; catalog no. PM005, MBL), mouse anti-FLAG (1:1000, catalog no. F1804, Sigma-Aldrich), rabbit anti-ssDNA (1:300; catalog no. 18731, MBL), rabbit anti-RORβ (1:5000; catalog no. pAb-RORβHS-100, Diagenode), mouse anti-NeuN (1:400; catalog no. MAB377, Chemicon), rabbit anti-Cux1 (1:100, catalog no. sc-13024, Santa Cruz), rabbit anti-NRN1 (1:50; catalog no. sc-25261, Santa Cruz), and goat anti-VGF (1:50; catalog no. sc-10381, Santa Cruz). After three washes with PBS containing 0.1% Triton X-100 (PBST), the sections were incubated with Alexa 488- or Alexa 594-conjugated secondary antibody (1:500; Thermo Fisher Scientific) at RT for 2 hr. For nonfluorescent detection, sections were incubated with biotinylated secondary antibodies and processed using the ABC histochemical method (VECTASTAIN ABC Kit, Vector). After three washes with PBST, the sections were counterstained with a DAPI solution (1:1000, Wako, Japan) and embedded with a mounting agent (SlowFade Gold antifade reagent, Thermo Fisher Scientific).

For EdU labeling of layer 4 neurons and postnatally generated cells, 5 mg/ml EdU in PBS was intraperitoneally injected into pregnant mutant mice (50 µg/g) at E14.7 (for a normally mated mother) or E14.3 (for a mother with transplanted embryos), and into perinatal ICR mice once a day for 5 days (50 µg/g), respectively. Frozen sections prepared as described above were stained for EdU using a detection kit (Click-iT EdU Imaging Kit, Thermo Fisher Scientific).

In situ hybridization

Request a detailed protocol

In situ hybridization was performed as described previously (Zhong et al., 2004). DIG-labeled RNA probes were used for hybridization. RNA probes were synthesized from pFLCI-Btbd3. To produce linearized templates for the synthesis of riboprobes, plasmid was digested with NcoI. Linearized DNA was purified, and in vitro transcription was carried out (DIG-RNA Synthesis Kit; Roche). Finally, the probes were purified and kept at −80°C. Frozen sections were prepared in the same manner as immunohistochemistry described above. Sections were refixed in 4% PFA in PBS, washed three times in PBS. Prehybridization was carried out at 65°C for 1 hr in hybridization buffer (50% formamide, 5× SSC (saline-sodium citrate), 1% sodium dodecyl sulfate [SDS], 50 μg/ml of heparin, 50 μg/ml of tRNA), followed by hybridization overnight at 65°C in the same buffer containing 2 μg/ml of DIG-labeled RNA probe. After three washes in RNA wash buffer (50% formamide, 5× SSC and 1% SDS) at 60°C, the sections were blocked (blocking regent; Roche) for 1 hr at RT, and then incubated overnight at 4°C with alkaline phosphatase-conjugated anti-DIG antibody (1:1000; Roche). After five washes at RT, the color reaction was carried out at RT or 4°C in NBT/BCIP (Roche) in TBS (Tris-buffered saline). The reaction was terminated by immersing the sections in TE buffer (10 mM Tris–HCl, 1 mM EDTA [ethylenediamine tetraacetic acid], pH 8.0) for 10 min, and the sections were then fixed in 4% PFA in PBS for 15 min. The sections were treated in 70%, 80%, 90%, and 100% ethanol and xylene and then embedded.

In utero electroporation

Request a detailed protocol

In utero electroporation was carried out as described previously (Matsui et al., 2011; Saito and Nakatsuji, 2001; Tabata and Nakajima, 2001) with slight modifications. To exogenously express Nrn1 and Vgf in cortical layer 4, time-pregnant mutant mice of E14.3 were deeply anesthetized with pentobarbital (50 mg/kg). After the abdomen had been cleaned with 70% ethanol, a 3 cm midline laparotomy was performed, and the uterus was exposed. For DNA microinjection, plasmid DNA purified with the Plasmid Maxi-prep Kit (Genopure Plasmid Maxi Kit, Roche) was dissolved in Tris–EDTA buffer. Fast Green solution (0.1%) was added to the plasmid solution at 1:20 (vol/vol) ratio to monitor the injection. Approximately 1–2 μl of a mixture of 3–5 mg/ml pCAG-Nrn1-Flag and/or pCAG-Vgf-Fc and 1 mg/ml pCAG-DsRed was injected into the lateral ventricle with a glass micropipette. The embryos in the uterus were placed in a tweezers-type electrode equipped with two platinum discs of 5 mm in diameter at the tip (CUY650-5, Nepa Gene, Japan). Electronic pulses (30 V, 50 ms) were delivered four times at intervals of 950 ms with an electroporator (NEPA21, Nepa Gene, Japan), and then, the uterine horns were placed back into the abdominal cavity. The abdominal wall and skin were sewed up with surgical sutures, and the embryos were allowed to develop until P7. For electroporation-based cell ablation of thalamic neurons, time-pregnant ICR mice of E11.5 were used and a mixture of 3 mg/ml pCAG-DTR and 1 mg/ml pCAG-DsRed was injected into the third ventricle, followed by application of electric pulses (25 V, 50 ms).

Generation of Nrn1 and Vgf-deficient mice by the CRISPR/Cas9 method

Request a detailed protocol

To delete Nrn1 and Vgf loci, one and two sgRNAs targeting the Nrn1 and Vgf exons, respectively, were designed (Nrn1 sgRNA: AGCATGGCCAACTACCCGCA; Vgf sgRNA: TCACGTTGCCGGCATCCGTC, CGGTACTGTTGCAGGCACTGGACCGT). Fertilized eggs derived from C57BL/6J mice were electroporated with a mixture of sgRNAs and Cas9 protein and transplanted into foster mother mice. Brains were collected from pups at P8 and fixed with 4% PFA in PBS for at RT 3 hr. Before fixation, a piece of cerebellum was dissected. Genomic DNA was extracted from it and Nrn1 and Vgf loci were analyzed by sequencing. For genomic sequencing, DNA fragments including the sgRNA sequences were amplified by PCR using the following primers: Nrn1: 5′-ACCAGGGAACTGAGCCTGAG-3′ and 5′-GGACTCACCTCCCTGCTATC-3′; Vgf: 5′-GGTACCCAGAAGGAGGATTG-3′ and 5′-TTGCTCGGACTGAAATCTCG-3′. Sequencing PCR was performed using the amplified DNA fragments as a template and the primers: Nrn1: 5′-ACCAGGGAACTGAGCCTGAG-3′; Vgf: 5′-GGTACCCAGAAGGAGGATTG-3′ (near sgRNA#1) or 5′-CTCAGCTCTGAGCATAATGG-3′ (near sgRNA#2). Mice harboring a deletion that causes frame shift resulting in translation failure without wild-type sequences nor deletion in multiples of three bases resulting in truncated protein product were designated null mutants.

Lipophilic dye labeling

Request a detailed protocol

For labeling neural connections, P7 mutant mouse brains were fixed with 4% PFA in PBS at RT for 3 hr. A small crystal of DiA and DiI (catalog no. D3883 for DiA and D3911 for DiI, Thermo Fisher Scientific) was inserted into S1 and V1, respectively. Incubated in 4% PFA in PBS at 37°C for 2 weeks after implantation, the brains were cut into 100 µm slices with a vibratome (Leica) and observed by fluorescence microscopy (BX52, Olympus).

Data quantification and statistical analysis

Request a detailed protocol

Marker-positive or EdU-labeled cells were counted in photomicrographs of single focal plane (850 × 850 μm) acquired with a laser scanning confocal microscope (LSM780, Zeiss) with a 10× objective lens. After sections with inappropriate histology or staining were excluded, particles of >13.37 μm2 with signal intensities higher than a given threshold were quantified using a Metamorph software (Molecular Devices). The relative cell number as a percentage of control was determined for each section, then the average value of the collection of sections for each experimental case was calculated. To measure the thickness of the marker-positive layer, the maximum radial distance of the tangential lines, along which more than two positive particles defined as above were distributed, was measured automatically by Metamorph. The relative thickness and standard error of the mean were calculated for each experimental condition. To count the number of ssDNA-positive cells, 995-µm-wide strip of the upper (2–4) and deep (5–6) layers and VB region in photomicrographs acquired with a fluorescent microscope (BX52, Olympus) with a ×4 objective lens were extracted. Particles of >1.49 μm2 with signal intensities higher than a given threshold, were quantified using Metamorph software. To measure the distribution variation of layer 4 cells in the barrel field, the region of 25 µm in height, and 583 µm in width, was extracted from confocal images of the barrel field stained with DAPI. The region was subdivided into 35 (25 × 16.7 µm each) and total intensity was measured for each subdivision with ImageJ. The variation of intensities among 35 subdivisions was calculated for each section. Group means were compared using Mann–Whitney U test with GraphPad PRISM (GraphPad Software), and *p < 0.05 was regarded statistically significant.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (M. musculus)Nrn1GenBankBC035531
Gene (M. musculus)VgfGenBankBC085134
Gene (Homo-sapiens)HBEGFGenBankBC033097
Strain, strain background (Escherichia coli)DH5αOur labCalcium chloride-treated competent cells
Strain, strain background (M. musculus)ICRSLC JapanSlc:ICR
Strain, strain background (M. musculus)C57BL/6JSLC JapanC57BL/6JJmsSlc
Genetic reagent (M. musculus)C57BL/6J-Tg(Slc6a4-cre)208Ito(5HTT-Cre, Sert-Cre, SLC6A4-Cre)RIKEN BRC Arakawa et al., 2014RBRC10598C57BL/6J-Tg(Slc6a4-cre)208Ito
Genetic reagent (M. musculus)ROSA26iDTR(B6-iDTR)The Jackson Laboratory Buch et al., 2005Strain #007900C57BL/6-Gt(ROSA)26Sortm1(HBEGF)Awai/J
Genetic reagent (M. musculus)R26R-EYFPThe Jackson LaboratorySrinivas et al., 2001Strain #006148B6.129 × 1-Gt(ROSA)26Sortm1(EYFP)Cos/J
Genetic reagent (M. musculus)Nrn1-KOThis paperCRISPR-mediated Nrn1 null mice available upon request
Genetic reagent (M. musculus)Vgf-KOThis paperCRISPR-mediated Vgf null mice available upon request
Antibodyanti-RORC (Mouse monoclonal)Perseus ProteomicsCat#: PP-H3925-00IF (1:800)
Antibodyanti-GFP (Rabbit polyclonal)InvitrogenCat#: A6455IF (1:800)
Antibodyanti-Iba1 (Rabbit polyclonal)WakoCat#: 019-19741IF (1:500)
Antibodyanti-Brn2 (Goat polyclonal)Santa CruzCat#: sc-6029IF (1:50)
Antibodyanti-Ctip2 (Rat polyclonal)AbcamCat#: ab18465IF (1:200)
Antibodyanti-Tbr1 (Rabbit polyclonal)AbcamCat#: ab31940IF (1:500)
Antibodyanti-NeuN (Mouse monoclonal)ChemiconCat#: MAB377IF (1:400)
Antibodyanti- Cux1 (Rabbit polyclonal)Santa CruzCat#: sc-13024IF (1:100)
Antibodyanti-RFP (Rabbit polyclonal)MBLCat#: PM005IF (1:1000)
Antibodyanti-FLAG (Mouse monoclonal)Sigma-AldrichCat#: F1804IF (1:1000)
Antibodyanti-ssDNA (Rabbit polyclonal)MBLCat#: 18,731IF (1:300)
Antibodyanti- RORβ (Rabbit polyclonal)DiagenodeCat#: pAb-RORβHS-100IF (1:5000)
Antibodyanti- NRN1 (Rabbit polyclonal)Santa CruzCat#: sc-13 25,261IF (1:50)
Antibodyanti-VGF (Goat polyclonal)Santa CruzCat#: sc-10381IF (1:50)
Antibodyanti-DIG (Sheep polyclonal)RocheCat#: 11093274910ISH (1:1000)
Recombinant DNA reagentpFLCI-Btbd3 (plasmid)Matsui et al., 2011
Recombinant DNA reagentpCAG-DTR (plasmid)This paperHBEGF expression plasmid driven by CAG promoter
Recombinant DNA reagentpCAG-DsRed(plasmid)Zhao et al., 2011
Sequence-based reagentNrn1 sgRNAThis paperSingle-guide RNA targeting Nrn1AGCATGGCCAACTACCCGCA
Sequence-based reagentVgf sgRNA #1This paperSingle-guide RNA targeting VgfTCACGTTGCCGGCATCCGTC
Sequence-based reagentVgf sgRNA #2This paperSingle-guide RNA targeting VgfCGGTACTGTTGCAGGCACTGGACCGT
Sequence-based reagentNrn1_FWThis paperPCR primerACCAGGGAACTGAGCCTGAG
Sequence-based reagentNrn1_RVThis paperPCR primerGGACTCACCTCCCTGCTATC
Sequence-based reagentVgf-FWThis paperPCR primerGGTACCCAGAAGGAGGATTG
Sequence-based reagentVgf-RVThis paperPCR primerTTGCTCGGACTGAAATCTCG
Sequence-based reagentVgf-SeqThis paperSequencing primerCTCAGCTCTGAGCATAATGG
Peptide, recombinant proteinDiphtheria toxinCalbiochemCat#: 322,326
Commercial assay or kitHistoVT OneNacalai TesqueCat#: 06380-05
Commercial assay or kitM.O.M. Basic KitVectorCat#: BMK-2202
Commercial assay or kitVENTASTAIN ABC KitVectorCat#: PK4000
Commercial assay or kitClick-iT EdU Imaging KitThermo Fisher ScientificCat#: C10337
Commercial assay or kitDIG-RNA Synthesis KitRocheCat#: 11175025910
Commercial assay or kitPlasmid Maxi Kit, RocheGenopureCat#: 03143422001
Chemical compound, drugNBT/BCIPRocheCat#: 11681451001ISH (1:50)
Chemical compound, drugDiAThermo Fisher ScientificCat#: D3883
Chemical compound, drugDiIThermo Fisher ScientificCat#: D3911
Software, algorithmMetamorph softwareMolecular Devices
Software, algorithmImageJhttps://imagej.nih.gov/ij/ImageJ v1.52
Software, algorithmGraphPad PrismGraphPad SoftwareGraphPad Prism 5.0
OtherDAPI stainWakoCat#: 340-079711:1000

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files; Source data files have been provided for Figures 1-7 and Figure 1-figure supplement 1, Figure 2-figure supplement 1, 2, Figure 5-figure supplment 2, Figure 7-figure supplement 1, 2.

References

  1. Book
    1. Brodmann K
    (2006)
    Brodmann’s Localisation in the Cerebral Cortex
    Boston, MA: Springer.
    1. Corriveau RA
    2. Shatz CJ
    3. Nedivi E
    (1999)
    Dynamic regulation of cpg15 during activity-dependent synaptic development in the mammalian visual system
    The Journal of Neuroscience 19:7999–8008.

Decision letter

  1. Carol A Mason
    Reviewing Editor; Columbia University, United States
  2. John R Huguenard
    Senior Editor; Stanford University School of Medicine, United States
  3. Zoltan Molnar
    Reviewer; University of Oxford, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Thalamocortical axons control the cytoarchitecture of neocortical layers by area–specific supply of secretory proteins" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Zoltan Molnar (Reviewer #3).

We are sorry to say that, after consultation with the reviewers, we have decided that your work will not be considered further for publication by eLife.

Your study on the role of factors secreted by thalamocortical axons during the establishment of cortical layers of the murine neocortex was viewed with great interest to the editors and reviewers, and is a welcome segue from your previous work that Vgf and Nrn1 deriving from thalamocortical neurons contribute specifically to layer 4 neuron development in vitro. By postnatally ablating thalamocortical projections and studying a Vgf knockout, you further investigate the role of these projections in layer 4 establishment and bring some light to the in vivo role of VGF. As you can see from the Public Reviews, the reviewers found your study to be relevant and important to the question of the role factors derived from the thalamic afferents themselves, after intrinsic factors are at play, in cortical layer development. Nonetheless, they have numerous suggestions in the Recommendations for authors, also below, for amendments and further analyses, especially on the quantification, factor expression, assessment of cell death, and other areal and layer impairments in your in vivo genetic and experimental analyses.

Please note that we aim to publish articles with a single round of revision that under normal circumstances can be accomplished within two months. This means that work that has potential, but in our judgment would need extensive additional work, will not be considered for in–depth review. We do not intend any criticism of the quality of the data or the rigor of the science. We wish you good luck with your work and we hope you will consider eLife for future submissions.

Reviewer #1:

Sato et al. investigated the role of the thalamus–derived factor, VGF, as extrinsic cue that controls layer 4 development in the cortex. They show that this process is necessary for further maturation of the primary somatosensory cortex (S1) and the barrel field formation. To explore the role of thalamocortical axon (TCA) projections in cortical layer formation, the authors developed a mouse model with TCA ablation from the ventrobasal (VB) thalamic nucleus by the administration of diphtheria toxin (DT) from P0. They induced a decrease in the VB nucleus size and the TCAs terminals were also diminished in layer 4 of S1. Sato et al. demonstrated that the number of layer 4 cells in S1 is reduced in TCA–ablated model and to verify that these TCA ablation from the VB was indeed responsible for this laminar phenotype, they used a different approach to specifically ablate only the VB neurons. By performing a technically impressive in utero electroporation at e11.5 in the thalamus with a diphtheria toxin receptor (DTR) expression plasmid and then administered DT at P0, they mimicked the laminar phenotype in the cortex and the results were similar to the TCA–ablated mice. Moreover, they showed that, apparently, the rest of the cortical layers remain intact. Interestingly, the authors demonstrated that VGF and NRN1 as TCA–derived factors play an important role to maintain the layer 4 neuronal number during cortical development by restoring these cell number after the overexpression of these factors in TCA–ablated model in vivo. To further address this question, they induced a genetic inactivation of Vgf by using CRISPR/Cas9–mediated gene editing, and they proved that VGF is necessary for the maintenance of layer 4 neurons number.

The manuscript shows potentially interesting findings but there are some open questions and experiments that should be done to better support the conclusions of the paper. Moreover, some aspects of image acquisition and data analysis need to be clarified.

1) The figures need to be reorganized to achieve a better flow of the manuscript. For example, Figure 1 does not contribute to the story, and it would make more sense to transfer it to supplementary figures. Moreover, the Figure 5—figure supplement 1 could be a principal figure to show the absence of VGF in thalamus and cortex of TCA–ablated mice because this leads to wonder about the role of this gene and justify the following experiments of overexpression and knock–down.

2) In Figure 2—figure supplement 1 the authors show lipophilic dyes tracings assuming that they only labeled TCAs and thalamic neurons retrogradely. However, this is a conceptual mistake because these tracers label indistinctly, retrogradely and anterogradely. They inject the dyes at P7 when corticothalamic axons have already innervated the thalamus and thus presumably, the labelling shown in PO is, at least in part, from S1 layer 5. It would be better to use a L4 specific virus to trace only retrogradely projections. Moreover, they state that the number of labeled cells were similar in TCA–ablation and control mice, however, there is a need to increase the n to support this statement as there is a strong variability in this technique due to the change in labelling related the change in the size of the dyes.

3) There are some affirmations in the manuscript that would need a quantification for support. For example, when the authors state that dLGN was not reduced in TCA–ablated mice would need a quantification. The same in Figure 2A where it is stated that 5HTT–Cre is expressed in dLGN, and in Figure 2D, where the authors show a reduction in the size of the nucleus. Therefore, dLGN size quantifications should be done and it would be interesting to show a slice of 5HTT–Cre;R26–YEFP in V1 layer 4 showing 5HTT–Cre expression at P0–P7.

4) The results for cell death are not convincing, the authors should improve the detection method, for example, they could use caspase 3 in postnatal brains. In Figure 3—figure supplement 1 they only show quantifications in layer 2/3 and layer 4 where there is an increased tendency for cell death, but again the n is too small for some conditions. Additionally, in Figure 3—figure supplement 1C a quantification should be provided for cell death in layer 6. It is very likely that this cell death is due to the expression of Cre recombinase in layer 6 in the TCA–ablated mice. Thus, the results for cell death are not clear enough and some experiments should be repeated and /or conclusions clarify.

5) The authors sometimes underestimate the interpretation of the results. For example, in Figure 4 Tbr1 positive cells (layer 6) are reduced in TCA–ablated mice, and thus indicate that layer 6 is also affected in this mouse. Therefore, this model might not be the best one to investigate how extrinsic cues mechanisms regulate layer 4 development.

6) It would be interesting to explore the neural activity of layer 4 in the somatosensory cortex of Vgf–KO and TCA–ablated mice. Behavioral experiments with environmental enrichment and c–fos immunostaining would demonstrate the laminar functionality of the cortex under these different conditions.

Reviewer #2:

Sato H. and colleagues here investigate the role of extrinsic factors in the development of the murine neocortex. It was previously shown by these authors that thalamocortical neurons, through the expression of Vgf and Nrn1 among others, contribute specifically to layer 4 neurons development in vitro. In the current study, by postnatally ablating thalamocortical projections and studying a Vgf knockout, they further investigate the role of these projections in layer 4 establishment and bring some light to the in vivo role of VGF.

Although this is an interesting study, the novelty is relatively limited as it incrementally builds on previous work from this laboratory as well as previous work from several laboratories directly addressing the effects of ablation of specific thalamic nuclei on cortical neuron identity. In order to increase interest and relevance, several key experiments should be performed.

– It is interesting to see that RORC staining emerges in a rostrocaudal manner from P0 to P7. With the current data, the authors could perhaps assess whether this emergence also occurs in a mediolateral manner. This would help to better describe the emergence of the layer 4 across cortical areas. Moreover, to confirm the statement of layer 4 being thicker in S1, a quantification or a reference to quantification of layer 4 across cortical areas would be required.

– Some of the quantifications and experiments present only 2 cases. The authors should consider at least to increase the number of cases to 3. In addition, considering the number of cases in most of the experiments, the use of parametric statistical analyses is incorrect (not possible to assess dataset normality with less than 30 data points). The authors should switch to non–parametric statistical analyses.

– The use of a Cre–dependent DT strategy to ablate thalamic neurons is interesting to study the role of their projections postnatally. However, it seems important to better analyze the dynamics of their death after DT administration. The authors should try to assess, both thalamic and cortical, cell death from 24h post DT administration up to their analysis time point (P7). It is important to understand the dynamics of cell death in both regions to try to establish a clearer correlation. This could by assessed by performing Caspase3 immunolabelling at P1, P2, P3, P4, P5, P6, and P7 after P0 DT injection both in the thalamus and the cortex. In Figure 5C, it is unclear why there is no Dd–red signal in the control and DTA conditions.

– The authors should consider further describing the impact of this strategy on deep–layer neurons (YFP+ in Figure2A). As they are Cre+ during their developmental time course, DT is most likely going to target them (which could explain the reduced thickness of deep layers when compared to controls). This could be added as supplemental information, but it is important to evaluate the ground state of the neocortex to evaluate the real impact of TCAs.

– For the panels containing thalamic nuclei, it would help to have white dotted lines (as in Figure 2D) around them in all the panels. As an example, it is difficult to determine the MG position in DiA images (Figure 2—figure supplement 1).

– Throughout the paper, the fluctuation of layer 4 number of neurons throughout conditions is assessed by the expression of RORC (example: Figure 3C). In addition, to investigate possible layer 4 fate changes, the authors quantify L2/3 or L5/6 number of cells (with known markers). In order to improve the analysis of layer 4 neurons, instead of using postnatal markers, it would perhaps be interesting to electroporate at E14 to have permanent labelling of this cell population. On the one hand, it would help at first to assess if these specific cells are dying, and on the other, it would better allow the analysis of possible fate changes. This methodology would be complementary to the actual Cre–DTR system, making it optimal for this type of analysis. Another possibility would be to inject birth dating markers embryonically, such as CFSE.

– Regarding Nrn1 and Vgf rescue experiments, it is interesting to see that the absence of TCAs promotes their absence in layer 4. It would be interesting to add whether the over–expression of Nrn1 and Vgf, alone, can maintain "normal" levels of RorC+ cells in layer 4. Moreover, besides analyzing the presence of DsRed (Figure 5C) in double electroporations, it would be interesting to see the presence of the proteins themselves (either by ISH or immunolabelling) as a positive control for the experiment.

– Additionally, it would be interesting to visualize the expression of Vgf and Nrn1 receptors expression by layer 4 cells and their expression dynamics. Is it constantly expressed or there is a critical period for their expression? Can the authors rescue L4 neurons by overexpressing Vgf in L2/3 neurons? This would demonstrate a non–cell–autonomous effect onto L4 neurons.

– In Vgf–/– mutants, there is an increase of Brn2+ and Ctip2+ cells, which could correspond to a fate change of layer 4 cells in absence of Vgf. It would be interesting to electroporate Gfp at E14 to label layer 4 cells and analyze the expression of these markers at P7.

– For Nrn1–/– analysis of layer 4 cell number, there should be a quantification. It is hard to tell from the images alone if there is a difference or not.

Reviewer #3:

The first extrinsic influences that shape the cortical neuroepithelium are secretory factors, emanating from signaling centers adjacent to the telencephalic vesicles. These centers set up the gross areal pattern of the neocortex without any extrinsic signals. While it is clear that there are intrinsic gradients from the beginning of cortical neurogenesis, there are also extrinsic cues that contribute to the differences. The best candidate to deliver the area–specific cues to the cortex is via area–specific thalamocortical projections. These arrive to the cortex very early, at the peak of the cortical neurogenesis and neuronal migration. The impact of thalamic lesions on cortical lamination was demonstrated by Windrem and Finlay, 1991. Moreover, the influence of ephrin A5 on cortical progenitor cells and the effect of secreted Wnt3 on neuronal differentiation has been previously described.

The Sato et al., paper studies two thalamus–derived factors that might mediate some of the area–specific differences to the cortex. The authors used the results of their previous screens to identify secreted molecules that are not produced in the cortex, but delivered to the cortex through the thalamocortical projections. The authors screened for thalamus–specific genes by comparing expression profiles of the thalamus and the cortex (Sato et al., 2012). These screens identified neuritin 1 (NRN1) and VGF nerve growth factor inducible (Vgf) transported to the cortex through TCAs. This study demonstrates that VGF maintains the proper amount of layer 4 neurons in S1.

The study is reported in a logical sequence. First the authors established that birthdates of all cortical layers in various cortical areas are all prenatal. Since all neurons were generated before birth, no NeuN positive birthdated cells were found after postnatal EdU injection and therefore it is unlikely that layer 4 neurons are additively generated in S1. The study also analysed the emergence of RORβ (RAR–related orphan receptor β) expression in the postnatal primary somatosensory cortex.

Then, they performed toxin–mediated ventrobasal complex ablation in vivo. Cre expression was the highest in VB among the thalamic nuclei in 5HTT–Cre mice, therefore the lesion was the greatest there. This reduced the thalamocortical axons that project to primary somatosensory cortex. The ablation triggered accumulation of Iba1–immunoreactive microglial cells in VB. This indicated that these are the regions with dead cells, in the thalamus. After this ablation VB was reduced at P5, and RORα–expressing thalamic neurons were decreased.

The authors examined the possibility that other thalamic neurons project to the S1, but detailed tracing from S1 did not produce backlabeling pattern in the thalamus that would indicate TCA ingrowth from the dLGN or MG to S1. No such re–wiring was observed in the PO VB TCA–ablated mice.

The number of RORβ–expressing cortical cells was decreased to 67% as compared with control cortex. Moreover, the absolute number of layer 4 neurons also decreased in the TCA–ablated S1. This argued against the possibilities of altered RORβ expression or fate change of the layer 4–destined cells to those of other layers. The authors suggested cell death as a possible mechanism for getting these differences. However, all the conventional cell death detection methods (ssDNA, cleaved caspase 3, Iba1, mRNA of Bax, Bad, and Bak, and DAPI), they could not obtain convincing evidence for significant cell death induction in layer 4 upon TCA ablation.

The toxin–mediated ventrobasal complex ablation in vivo is based on cre expression. Since Cre expression was the highest in VB among the thalamic nuclei in 5HTT–Cre mice, this was the region for the greatest damage. Nevertheless, there was additional cre expression in layer 6 and also in the raphe nucleus the authors designed experiments to exclude that the layer 4 reduction in 5HTT–Cre; R26–DTR mice is due to ablation of these brain parts rather than the VB in the thalamus. The authors used DTR expression plasmid that was electroporated into the embryonic dorsal thalamus in utero at E11.5, when VB neurons are generated. The authors demonstrated that the effect was S1 specific. The cortical areas with dLGN and MGN innervation were not affected. Layers 2/3 (revealed with Brn2), layer 5 (revealed with Ctip2) and layer 6 (revealed with Tbr1) appear intact upon TCA elimination suggesting that the effect was specific for layer 4. The number of layer 4 neurons is restored by forced expression of NRN1 and VGF in the cortex of TCA–ablated mice NRN1 and VGF was lost in the thalamic nuclei and their axon terminals in layer 4 of S1 in TCA–ablated mice

The next group of experiments demonstrated that genetic inactivation of Vgf in thalamocortical projection neurons results in a reduction in layer 4 neurons in S1 cortex and that NRN1 is dispensable in this process. The authors used three single–guide RNAs (sgRNAs) cutting exons of Nrn1 and Vgf to induce frame shifts resulting in failure of protein translation of both NRN1 and VGF. They electroporated the sgRNAs and Cas9 protein into fertilized eggs, mutations were induced in the genomic sequences of Nrn1 and Vgf allele near designed sgRNAs. The loss of TCA–derived VGF from the cortex resulted in the significant reduction of RORβ immunoreactive layer 4 cells in S1 and in V1. These observations suggest that the regulation of the neuronal number of layer 4 by TCAs via VGF is a common mechanism operating widely in sensory areas.

VGF released from TCA terminals sets the exact numbers of cortical layer 4 neurons. Then, the activity dependent sorting of thalamocortical afferents will impose the cytoarchitectonic changes that will form the cytoarchitectonic barrels. This interaction between thalamic and layer 4 neurons to form the cytoarchitectonic barrel formation in S1 was significantly impaired in Vgf–KO mice despite the presence of TCAs. The paper convincingly demonstrates that thalamocortical axons play instructive roles in the regulation of layer 4 cell numbers and the specification of area properties of somatosensory and visual cortices.

I consider this study a very important and significant step in our field. This is a direct demonstration of the instructive role of the thalamocortical projections. The major conclusions of the study will have to be supported by additional experiments (cell death – fate change distinction).

Overall, this is an excellent study with important findings.

1. While the authors clearly observed that layer 4 exhibited marked reduction in the number of neurons specifically within the primary somatosensory cortex and they reported no change in the number of layers 2–3, 5 or 6 neurons, I would be still interested in the neuron numbers in the entire depth of the cortex in an arbitrary unit column. "The number of RORβ–expressing cortical cells was decreased to 67% as compared with control cortex. Moreover, the absolute number of layer 4 neurons also decreased in the TCA–ablated S1." This argued against the possibilities of altered RORβ expression or fate change of the layer 4–destined cells to those of another layer. Is the reduction being just because the effect to layer 4?

2. While the study is commenting on the changes within S1, it does not comment on the possibility that the size of S1 changed. It would be good to show the areal extension of the S1 barrel field on flatmounts and compare the representation of the S1 and V1 after all these manipulations. However, it is not essential for the basic conclusions of the study.

3. Formation of the barrels requires two stages. The periphery related sorting of the thalamocortical afferents (revealed with stains for thalamocortical afferents 5HTT or DiI or CO staining) and then, the activity dependent sorting of thalamocortical afferents will impose the cytoarchitectonic changes that will form the cytoarchitectonic barrels (revealed with DAPI, Nissl or NeuN staining) (see Lopez–Bendito and Molnar, 2003). It would be good to clarify which mechanism is affected.

4. The authors suggested cell death in layer 4 as a possible mechanisms for getting these differences. However, all the conventional cell death detection methods (ssDNA, cleaved caspase 3, Iba1, mRNA of Bax, Bad, and Bak, and DAPI), they could not obtain convincing evidence for significant cell death induction in layer 4 upon TCA ablation. Was there any change in microglia distribution in layer 4 after the ablation of the VB thalamic neurons?

Even though the authors justify a possible technical difficulty in detecting dead cells in a dynamic developing system (which I completely agree with and understand), they don't provide a solid explanation for such a great decrease in cell number in layer 4. As the authors describe layer 4 neurons are already generated at the time of ablation, therefore they either die or change their fate. The cell fate change should be better investigated and discussed. Can the loss of 67% of neurons be completely due to cell death?

5. There are numerous studies that demonstrated that six layered cortex can develop relatively normally without thalamic connections (Miyashita–Lin et al., 1999 DOI: 10.1126/science.285.5429.906; Zhou et al., 2010, DOI: https://doi.org/10.1523/JNEUROSCI.6005–09.2010). Did any of these studies suggested reduced layer 4 cell numbers? Do the authors used more sensitive methods for their detection? These issues should be discussed in more detail.

6. The study described that after ablation at P0, VB was significantly reduced by P5. Parallel with this RORα–expressing thalamic neurons were also decreased. The traced from S1 and did not see any signs of TCA rewiring from the dLGN or MG to S1. Why do the authors think that Mezzera and López–Bendito, (2016) had different findings? Is is because of the methods, timing, tracing?

7. The results explain why layer 4 is thick in the somatosensory cortex. However, it is not known whether the same mechanism operates in the motor cortex where there is a very thin layer 4. The authors reduce the possibility of a cell death–based mechanism by examining the Bax and Casp3 mutant mice. In this lone the laminar configuration across the areas appeared to be normal.

Do the authors suggest that the thinner layer 4 in M1 is the result of a different neurogenetic program generating these proportions?

8. Do the authors suspect possible interaction with neurogenesis if the VB is ablated from early embryonic stages? I am not requesting this experiment, just some speculations in the discussion.

In fact, TCA ablation at earlier periods of development is expected to have a greater effect on neurogenesis, as the latter is at its peak and the neuronal output has yet to be imposed. This would be the ideal time window to observe the effect of a TCA–secreted molecule, so it would be interesting to further discuss this possibility.

9. TCAs innervation's influence on cortical neurogenesis has been extensively correlated with the upper layer formation. The time of TCA arrival in the cortex closely matches the peak of upper layer neurogenesis, further supporting this view. It is quite surprising that the authors do not observe any alteration of any nature in the upper layers' analysis (Brn2 immunohistochemistry). Is this expected, or in line with other studies?

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Thalamocortical axons control the cytoarchitecture of neocortical layers by area–specific supply of VGF" for further consideration by eLife. Your revised article has been evaluated by John Huguenard (Senior Editor) and a Reviewing Editor.

The manuscript has been improved, and Reviewers 1 and 2 applaud the very substantial work that you performed to improve the manuscript, with the clarifications and additional experiments you provide. Reviewer 4, who is new, calls it "a nice and important study". However, there are some remaining issues that need to be addressed, as outlined below:

Reviewer 1: In the last two comments, Reviewer 1 specifically asks for:

1. In Figure 2 figure supplement 3 E and G: this reviewer would like to see the same immunohistochemistry as performed in Figure 1 and 2 for 5HTT and Rorb expression. The labels are clearer ("labels" likely means "labeling".)

2. You state that the "the VB appeared intact in terms of shape, size, and cell density" (Figure 6B, 5 sections from 5 mice). Here quantification is requested to support this conclusion, given that there is a clear change in the shape of the VB nucleus.

Reviewer 4 asks a number of questions, the most interesting #2 and #5 regarding differences between primary sensory areas and motor cortex. These and the other comments can be addressed in the Discussion and also in your rebuttal letter, although the experiments that some of these points address would not be necessary to perform at this time.

Reviewer #1:

Overall, the authors have answered the main points of my previous review. However, some aspects of the imaging and data analysis could be further improved. The way of presenting the results is not well refined.

1) In Figure 1C, the VB nucleus shows the same size and shape in control and in the TCA–ablated model, and this is not consistent. I am still not fully convinced about the criteria for nuclei delimitation. It would have been convenient to use common markers for VB and dLGN as for example vGlut2.

2) In Figure 1 figure supplement 3B, the example image for the TCA–ablated is damaged in the nuclei in which the experiment is focused, therefore it should be replaced.

Lines 194–198: "DiI–labeled neurons that project to V1 were found in the dLGN and lateral posterior nucleus (LP) in both control and TCA–ablated mice (Figure 1—figure supplement 3A, B, 12 sections from 6 mice for each), and the ratios of retrogradely labeled cells with DiI in dLGN to those in LP were similar in the two groups." This is in my opinion an overstated statement based on the example that the authors show.

3) In Figure 2 figure supplement 3E and G, I would like to see the same immunohistochemistry as performed in Figure 1 and 2 for 5HTT and Rorb expression. The labels are clearer.

Lines 453–454: "Importantly, the thalamic structure was not affected: the VB appeared intact in terms of shape, size, and cell density (Figure 6B, 5 sections from 5 mice)." In my opinion, quantifications should be provided to support this conclusion. There is a clear change in the shape of the VB nucleus in the Vgf–/– example the authors provide.

Reviewer #3:

As I mentioned in the first round of reviewing, this is an important study linking the area-specific thalamocortical innervation to the differences in cytoarchitecture of the cortex. For me, this can be considered as one of the most important questions of developmental neurobiology - what are the mechanisms to shape the cortex for the area-specific cortical computational functions.

Overall, the authors answered most of the criticisms, or explained why they could not do it for all 3 reviewers.

Their response for all my specific points were to my satisfaction:

1. The authors considered my comment and performed a reasonable attempt to answer it. Response with the new data is fine.

2. The authors performed in situ hybridization of RORβ on flat-mount sections of control and TCA-ablated mice and presented it for the reviewer in Figure 4. This answers my question.

3. The authors observed that TCA terminals are segregated in a barrel-like fashion in VGF-KO S1 revealed by 5HTT staining (Figure 6B), but the cytoarchitectonic pattern formation in layer 4 neuron is affected. This answers my question.

4. Microglia distribution in layer 4 revealed by IbaI immunostaining was not changed in the TCA ablated specimens.

The authors also examined the expression of Brn2 and Ctip2 in addition to RORβ in EdU-labeled samples and showed that none of these cohorts among EdU-labeled cells was altered.

5. As requested the reduction of ROR expression is discussed in previous and the present study with TCA ablation.

6. The differences between Mezzera and López-Bendito, (2016) are discussed and it is speculated that the differences emerge because (i) only the output from thalamus were altered primarily in an acute manner and (ii) timing of cell death matters. I am content with the changes in discussion.

7. The response is reasonable and to my satisfaction.

8. The authors argue that VGF plays a role in maintenance of layer 4 cell number at postnatal stages, but not a neurogenic role at embryonic stages. This argument is reasonable in the light of the results.

9. The authors explain the less impact on upper cortical layer formation is due to the postnatal ablation of TCAs when upper layer neurogenesis is finished. This is reasonable.

Both of my minor technical comments were answered.

Overall, I find the study much improved and I am still very enthusiastic to see it published at eLife.

Reviewer #4 (Recommendations for the authors):

In the manuscript titled " Thalamocortical axons control the cytoarchitecture of neocortical layers by area–specific supply of VGF" by Sato et al., the authors investigated the reasons for the distinct laminar architecture among different cortical areas. They focused on layer 4, which is thicker in the primary sensory cortices but is thinner in the motor cortex. Previous studies had shown that TCAs play instructive roles to regulate area–specific properties in layer 4. In this study, the authors extended their previous study and used a variety of methods, including ablating VB neurons, performing in utero electroporation to overexpress genes in the cortex, and generating KO animals to demonstrate that TCAs secrete VGF to control the number of layer 4 neurons in the sensory cortices.

Overall, it is nicely organized with very interesting findings and the description of their findings was clear. The authors nicely demonstrated that TCA ablation leads to the reduction of layer 4 RORβ–positive cells. The most convincing results were from the Vgf KO mice: while the TCAs are still projecting to S1 and inducing the expression of Btbd3 (suggesting the presence of TCA activities), the layer 4 cell density is greatly reduced in the Vgf KO.

I have few suggestions:

1. In Figure 1—figure supplement 3, strong input from Po was found in the TCA ablated S1 ("in TCA–ablated mice, the retrogradely labeled VB was markedly reduced in size, but the Po was broadly and intensely labeled" (p9)). This agrees with the previous study (Pouchelon, 2014) showing that the genetic ablation of the VB at birth rewired Po projections to S1 layer 4 neurons and that respecified layer 4 neurons. This might be the reason for the reduction of Rorb expression and reduced cell density in layer 4 in the TCA ablated S1. I am wondering if the authors had considered this as one of the reasons for the phenotypes observed. Using additional S1–specific markers (such as MDGA1, as described in Takeuchi, 2007) might be able to clarify this point.

2. As in the introduction, the authors mentioned that the major differences in layer 4 neuron density are between sensory cortices and motor cortex. Did the authors electroporate VGF into layer 4 of the motor cortex or any other cortical areas (such as S2, next to S1) in control animals, or even in L5 or L2/3 in S1? I am wondering whether layer 4 neurons in sensory areas have area–specific responses to VGF (e.g. expression of the receptors).

3. The authors suggested the cell death could be a possible reason for the decrease of layer 4 neuronal number in TCA ablated S1, but it was difficult to show convincing data as it is not easy to detect dying cells. My suggestion is to compare the number of EdU+ cells (EdU injected at E14.3 to label layer 4 neurons), from P0 to P7. This way, one could detect whether layer 4 neuronal number is decreased after TCA ablation.

4. I am puzzled by the result presented in Figure 7—figure supplement–1H, where the authors showed among EdU+ cells in the Vgf mutants, while layer 4 Rorb+ cells are decreased, but others are not changed. They showed ~50% Rorb+, ~35% Brn2+ and ~2% Ctip2+ in wild type and ~30% Rorb+, ~30% Brn2+ and ~2% Ctip2+ in mutants. What other cell types are the rest of EdU+ cells in the mutants?

5. In Figure 7A, it seems like differences in layer 4 neuronal density could still be detected between primary sensory areas and motor cortex in the Vgf KO. It could be informative to compare the relative layer 4 neuronal density in S1 and motor cortex in WT and KO.

6. Do Vgf KO animals show a developmental delay? It would be informative to compare the distribution variance of layer 4 cells at a later time point between WT and KO.

https://doi.org/10.7554/eLife.67549.sa1

Author response

[Editors’ note: The authors appealed the original decision. What follows is the authors’ response to the first round of review.]

Reviewer #1:

Sato et al. investigated the role of the thalamus–derived factor, VGF, as extrinsic cue that controls layer 4 development in the cortex. They show that this process is necessary for further maturation of the primary somatosensory cortex (S1) and the barrel field formation. To explore the role of thalamocortical axon (TCA) projections in cortical layer formation, the authors developed a mouse model with TCA ablation from the ventrobasal (VB) thalamic nucleus by the administration of diphtheria toxin (DT) from P0. They induced a decrease in the VB nucleus size and the TCAs terminals were also diminished in layer 4 of S1. Sato et al. demonstrated that the number of layer 4 cells in S1 is reduced in TCA–ablated model and to verify that these TCA ablation from the VB was indeed responsible for this laminar phenotype, they used a different approach to specifically ablate only the VB neurons. By performing a technically impressive in utero electroporation at e11.5 in the thalamus with a diphtheria toxin receptor (DTR) expression plasmid and then administered DT at P0, they mimicked the laminar phenotype in the cortex and the results were similar to the TCA–ablated mice. Moreover, they showed that, apparently, the rest of the cortical layers remain intact. Interestingly, the authors demonstrated that VGF and NRN1 as TCA–derived factors play an important role to maintain the layer 4 neuronal number during cortical development by restoring these cell number after the overexpression of these factors in TCA–ablated model in vivo. To further address this question, they induced a genetic inactivation of Vgf by using CRISPR/Cas9–mediated gene editing, and they proved that VGF is necessary for the maintenance of layer 4 neurons number.

The manuscript shows potentially interesting findings but there are some open questions and experiments that should be done to better support the conclusions of the paper. Moreover, some aspects of image acquisition and data analysis need to be clarified.

1) The figures need to be reorganized to achieve a better flow of the manuscript. For example, Figure 1 does not contribute to the story, and it would make more sense to transfer it to supplementary figures. Moreover, the Figure 5—figure supplement 1 could be a principal figure to show the absence of VGF in thalamus and cortex of TCA–ablated mice because this leads to wonder about the role of this gene and justify the following experiments of overexpression and knock–down.

We reorganized the figures according to this suggestion. Previous Figure 1 and Figure 5—figure supplement 1 are now Figure 1—figure supplement 1 and Figure 4, respectively. The other figure numbers were adapted accordingly.

2) In Figure 2—figure supplement 1 the authors show lipophilic dyes tracings assuming that they only labeled TCAs and thalamic neurons retrogradely. However, this is a conceptual mistake because these tracers label indistinctly, retrogradely and anterogradely. They inject the dyes at P7 when corticothalamic axons have already innervated the thalamus and thus presumably, the labelling shown in PO is, at least in part, from S1 layer 5. It would be better to use a L4 specific virus to trace only retrogradely projections. Moreover, they state that the number of labeled cells were similar in TCA–ablation and control mice, however, there is a need to increase the n to support this statement as there is a strong variability in this technique due to the change in labelling related the change in the size of the dyes.

Thank you for this criticism. Indeed, our method do not distinguish signals labeled retrogradely or anterogradely, but we still can focus on the distribution of the labeled cell bodies by reducing an intensity threshold, which are mostly retrogradely labeled (anterograde labeling yields less intensive and diffuse signals). Magnified views of VB and PO were added to show retrogradely labeled cell bodies (Figure 1—figure supplement 3B, lower panels). We also described it in Results (P9, L4-6). The number of specimens was increased from 2 to 6 for both control and TCA-ablated mice, and we observed essentially same phenotype.

3) There are some affirmations in the manuscript that would need a quantification for support. For example, when the authors state that dLGN was not reduced in TCA–ablated mice would need a quantification. The same in Figure 2A where it is stated that 5HTT–Cre is expressed in dLGN, and in Figure 2D, where the authors show a reduction in the size of the nucleus. Therefore, dLGN size quantifications should be done and it would be interesting to show a slice of 5HTT–Cre;R26–YEFP in V1 layer 4 showing 5HTT–Cre expression at P0–P7.

We quantified the size of dLGN and VB (Figure 1E). In addition, we examined TCA projection from dLGN to V1 by 5HTT immunohistochemistry in P7 TCAablated mice. Although the staining intensity in V1 was weaker compared with S1, the amount of TCAs was comparable to that of control mice (Author response image 1) . This supports the notion that a substantial amount of dLGN neurons remained in 5HTT-Cre; R26-DTR mice upon DT administration.

Author response image 1
Thalamocortical projection is preserved in V1 of TCAablated mice.

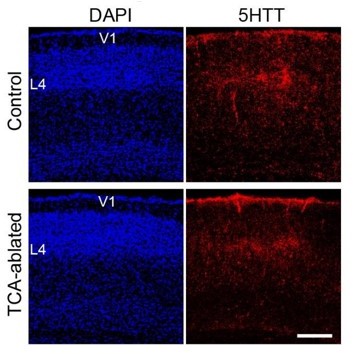

Cross sections of V1 region of P7 control (upper panels) and TCA-ablated (lower panels) mice stained with anti-5HTT antibody. V1, primary visual area; L4, layer 4. Scale bar, 200 µm.

4) The results for cell death are not convincing, the authors should improve the detection method, for example, they could use caspase 3 in postnatal brains. In Figure 3—figure supplement 1 they only show quantifications in layer 2/3 and layer 4 where there is an increased tendency for cell death, but again the n is too small for some conditions. Additionally, in Figure 3—figure supplement 1C a quantification should be provided for cell death in layer 6. It is very likely that this cell death is due to the expression of Cre recombinase in layer 6 in the TCA–ablated mice. Thus, the results for cell death are not clear enough and some experiments should be repeated and /or conclusions clarify.

We did try several cell-death detection methods including caspase 3 (cleaved caspase 3, TUNEL, IbaI, ssDNA and mRNA of Bax, Bad and Bak) as described (P13, L15-22), and found that ssDNA immunostaining was the most sensitive way to detect dying cells in our situations. We now provided ssDNA data with increased N of upper layer (layer 2-4), deep layer (layer 5-6), and VB from P1 to P7 (Figure 2—figure supplement 2D). While induction of cell death was detected in deep layer and VB, we failed to observe increase of the signals in upper layer.

5) The authors sometimes underestimate the interpretation of the results. For example, in Figure 4 Tbr1 positive cells (layer 6) are reduced in TCA–ablated mice, and thus indicate that layer 6 is also affected in this mouse. Therefore, this model might not be the best one to investigate how extrinsic cues mechanisms regulate layer 4 development.

We think that the reduction of Tbr1-positive layer 6 cells is largely due to Cre expression by this population. We provided evidence that reduction of layer 4 neuron is solely due to TCA ablation by electroporating a DTR-expressing plasmid to E11.5 thalamus (Figure 2—figure supplement 3). We also ablated layer 6 neurons by electroporation to E11.5 cortex to see its effect on layer 4. Whereas Tbr1-positive layer 6 neurons were greatly reduced, the number of RORβ-positive layer 4 neurons was not markedly changed (Author response image 2) . We described this in Results (P14, L19-23).

Author response image 2
Postnatal L6 ablation does not affect L4 cell number at P7.

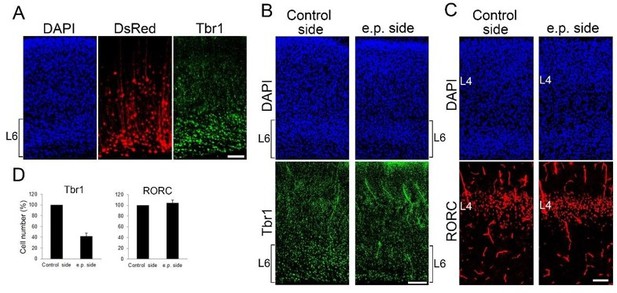

(A-C) Coronal sections of P7 cortices electroporated with DTR and DsRed at E11.5, when layer 6 neurons are produced. Without DT administration, DsRedpositive cells are mainly located in Tbr1-positive layer 6 at P7 (A). Upon DT administration at P0, the number of Tbr1-positive layer 6 cells was markedly reduced on electroporated (e.p.) side compared with control side at P7 (B). The number of RORC-immunoreactive layer 4 cells was not different between the hemispheres (C). (D) Quantification of the results. The number of RORC- and Tbr1-immunoreactive cells is presented as a percentage of control (mean ± SEM): Tbr1, 41.40 ± 6.44%; RORC, 104.25 ± 5.25%, N = 3 for each. L4, layer 4; L6, layer 6. Scale bars, 100 µm.

6) It would be interesting to explore the neural activity of layer 4 in the somatosensory cortex of Vgf–KO and TCA–ablated mice. Behavioral experiments with environmental enrichment and c–fos immunostaining would demonstrate the laminar functionality of the cortex under these different conditions.

Thank you for suggesting an interesting point. We have examined expression of c-Fos by immunostaining at P7 and found that the signal was hardly detected in the neocortex including S1 both in control and TCA-ablated mice, suggesting that the neuronal activity in the cortex is not yet very strong at P7. Since these issues are beyond the scope of the present study, we just would like to show Btbd3 data as evidence for neuronal activity.

Reviewer #2:

Sato H. and colleagues here investigate the role of extrinsic factors in the development of the murine neocortex. It was previously shown by these authors that thalamocortical neurons, through the expression of Vgf and Nrn1 among others, contribute specifically to layer 4 neurons development in vitro. In the current study, by postnatally ablating thalamocortical projections and studying a Vgf knockout, they further investigate the role of these projections in layer 4 establishment and bring some light to the in vivo role of VGF.

Although this is an interesting study, the novelty is relatively limited as it incrementally builds on previous work from this laboratory as well as previous work from several laboratories directly addressing the effects of ablation of specific thalamic nuclei on cortical neuron identity. In order to increase interest and relevance, several key experiments should be performed.

– It is interesting to see that RORC staining emerges in a rostrocaudal manner from P0 to P7. With the current data, the authors could perhaps assess whether this emergence also occurs in a mediolateral manner. This would help to better describe the emergence of the layer 4 across cortical areas. Moreover, to confirm the statement of layer 4 being thicker in S1, a quantification or a reference to quantification of layer 4 across cortical areas would be required.

Thank you for the suggestion. We added a series of coronal sections in Figure 1—figure supplement 1B, showing that RORC immunostaining emerges in a lateral-medial (ventral to dorsal) fashion. Regarding a quantitative assessment, we analyzed the intensity of RORC immunostaining signal in Figure 1—figure supplement 1B to show clear boundaries of S1, especially PMBSF (posteromedial barrel subfield), become evident after P0 by P7. We added it as Figure 1—figure supplement 1C and described it in Results (P7, L4-9).

– Some of the quantifications and experiments present only 2 cases. The authors should consider at least to increase the number of cases to 3. In addition, considering the number of cases in most of the experiments, the use of parametric statistical analyses is incorrect (not possible to assess dataset normality with less than 30 data points). The authors should switch to non–parametric statistical analyses.

Thank you for the criticism and suggestion. We have increased the number of cases more than 3 with two exceptions listed below:

– Figure 4C: NRN1 immunostaining (n=2), because anti-NRN1 antibody (cat# s25261, Santa Cruz) was discontinued.

– Figure 2—figure supplement 2: P1 TCA-ablated mice (n=2), due to shortage of the animal resource.

We re-evaluated cases with < 30 data points using Mann-Whitney U test as a non-parametric statistical analysis. However, because the test needs paired data points more than 3 and 5 or 4 and 4, some experiments did not meet the criteria and could not perform a statistical analysis (Figure 2—figure supplement 2D, P1 to P5; Figure 4C, NRN1).

– The use of a Cre–dependent DT strategy to ablate thalamic neurons is interesting to study the role of their projections postnatally. However, it seems important to better analyze the dynamics of their death after DT administration. The authors should try to assess, both thalamic and cortical, cell death from 24h post DT administration up to their analysis time point (P7). It is important to understand the dynamics of cell death in both regions to try to establish a clearer correlation. This could by assessed by performing Caspase3 immunolabelling at P1, P2, P3, P4, P5, P6, and P7 after P0 DT injection both in the thalamus and the cortex. In Figure 5C, it is unclear why there is no Dd–red signal in the control and DTA conditions.

Thank you for the insightful comment. We provided the time course of the ssDNA data both for the thalamus (VB) and the cortex (L2-4 and L5-6, separately) from P1 to P7 (Figure 2—figure supplement 2D), showing that cell death in VB and L5-6 increased within several days after DT administration. We still could not detect a sign of cell death up-regulation in L2-4. We described it in Results (P13, L13-22). In Figure 5C, the control and TCA-ablated rows represent the non-electroporated side of the animals. We have confirmed that electroporation of Ds-Red only had no effect on L4 (data not shown).

– The authors should consider further describing the impact of this strategy on deep–layer neurons (YFP+ in Figure2A). As they are Cre+ during their developmental time course, DT is most likely going to target them (which could explain the reduced thickness of deep layers when compared to controls). This could be added as supplemental information, but it is important to evaluate the ground state of the neocortex to evaluate the real impact of TCAs.

Thank you for the suggestion. We analyzed cell death in deep layers from P1 to P7 after DT administration at P0. It peaked at P5-6 (Figure 2—figure supplement 2C, D), consistent with Cre activity in layer 6 (Figure 1A). In order to examine effects of cell death in layer 6 on layer 4, we electroporated DTR to the cortex at E11.5 when layer 6 neuron are produced. We found that the number of RORβ+ cells in layer 4 was not reduced significantly despite massive cell death in layer 6 (Author response image 2, Reviewer 1-point 5). Therefore, we conclude that the reduction of layer 4 is most likely due to elimination of TCA rather than cell death in layer 6. We mentioned this in Results (P14, L19-23).

– For the panels containing thalamic nuclei, it would help to have white dotted lines (as in Figure 2D) around them in all the panels. As an example, it is difficult to determine the MG position in DiA images (Figure 2—figure supplement 1).

We encircled the VB and MG in all panels containing thalamic nuclei.

– Throughout the paper, the fluctuation of layer 4 number of neurons throughout conditions is assessed by the expression of RORC (example: Figure 3C). In addition, to investigate possible layer 4 fate changes, the authors quantify L2/3 or L5/6 number of cells (with known markers). In order to improve the analysis of layer 4 neurons, instead of using postnatal markers, it would perhaps be interesting to electroporate at E14 to have permanent labelling of this cell population. On the one hand, it would help at first to assess if these specific cells are dying, and on the other, it would better allow the analysis of possible fate changes. This methodology would be complementary to the actual Cre–DTR system, making it optimal for this type of analysis. Another possibility would be to inject birth dating markers embryonically, such as CFSE.

Thank you for the suggestion. We have tried to label layer 4 neuron both by electroporation and CFSE before the initial submission. However, we concluded that these methods with our hands are not suitable for reliable quantitative statistical analyses, because variability of labeling among the specimens was considerably high. We then examined the possibility of fate change by labeling prospective layer 4 cells by EdU and examined the expression of RORC. The data strongly support that the cells themselves disappeared (Figure 2E, F; Figure 2—figure supplement 2A, B). We further examined Brn2 and Ctip2 expression, however we did not detect significant increase in the percentage of Brn2 or Ctip2-positive cells among EdU-positive cells (Figure 2—figure supplement 2A, B). We described it in Results (P12, L8-P13, L11).

– Regarding Nrn1 and Vgf rescue experiments, it is interesting to see that the absence of TCAs promotes their absence in layer 4. It would be interesting to add whether the over–expression of Nrn1 and Vgf, alone, can maintain "normal" levels of RorC+ cells in layer 4. Moreover, besides analyzing the presence of DsRed (Figure 5C) in double electroporations, it would be interesting to see the presence of the proteins themselves (either by ISH or immunolabelling) as a positive control for the experiment.

We provided expression of VGF and NRN1 in the electroporated specimens (Figure 5—figure supplement 1). We also conducted a solo rescue experiment with VGF or NRN1, and found that VGF but not NRN1 was sufficient to restore the phenotype (Figure 5E). Neither of them affected the number of layer 4 in the presence of TCA (data not shown). We described this in Results (P19, L1-7).

– Additionally, it would be interesting to visualize the expression of Vgf and Nrn1 receptors expression by layer 4 cells and their expression dynamics. Is it constantly expressed or there is a critical period for their expression? Can the authors rescue L4 neurons by overexpressing Vgf in L2/3 neurons? This would demonstrate a non–cell–autonomous effect onto L4 neurons.

It would indeed be interesting, but receptors for VGF and NRN1 are currently unknown. In some specimens for the rescue experiments in which exogenous VGF was expressed in the bottom part of layer 2/3, the layer 4 phenotype was restored, suggesting that VGF acts on layer 4 neurons in a non-cell autonomous fashion.

– In Vgf–/– mutants, there is an increase of Brn2+ and Ctip2+ cells, which could correspond to a fate change of layer 4 cells in absence of Vgf. It would be interesting to electroporate Gfp at E14 to label layer 4 cells and analyze the expression of these markers at P7.

Increase of Brn2+ and Ctip2+ cells in VGF-KO is not statistically significant (Figure 7G). We examined the possibility of fate change in Vgf-KO by EdU labeling at E14.3 which gives global and unbiased labeling of cells born immediately after as we did for the TCA-ablated specimens (Figure 2—figure supplement 2A, B). The result indicated decrease of RORC-positive cell population, but no substantial increase in Brn2- or Ctip2-positive cell populations among EdU-labeled cells (Figure 7—figure supplement 1G, H). Although we cannot rule out the possibility that the fate conversion occurred, our result at least argue against that fate change of layer 4-destined neurons is the major cause of the reduction of RORβ+ cells in layer 4. We explained it in Results (P24, L1-21).

– For Nrn1–/– analysis of layer 4 cell number, there should be a quantification. It is hard to tell from the images alone if there is a difference or not.

We increased the number of cases and added the quantification data to Figures (Figure 7—figure supplement 2B).

Reviewer #3:

[…]

Overall, this is an excellent study with important findings.

1. While the authors clearly observed that layer 4 exhibited marked reduction in the number of neurons specifically within the primary somatosensory cortex and they reported no change in the number of layers 2–3, 5 or 6 neurons, I would be still interested in the neuron numbers in the entire depth of the cortex in an arbitrary unit column. "The number of RORβ–expressing cortical cells was decreased to 67% as compared with control cortex. Moreover, the absolute number of layer 4 neurons also decreased in the TCA–ablated S1." This argued against the possibilities of altered RORβ expression or fate change of the layer 4–destined cells to those of another layer. Is the reduction being just because the effect to layer 4?

We counted pan-neuronal marker NeuN-positive cells in an arbitrary unit column passing through layers 2-5 in S1. Layer 6 was excluded because Cre-positive cells are present and they would die regardless of TCA upon DT administration. NeuN+ cell number was slightly decreased in TCA-ablated mice, although it was not statistically significant (Figure 2—figure supplement 1A, C). It is perhaps due to a sort of dilution such that the decrease in layer 4 cell number was diluted by an overwhelming number of total NeuN-positive cells which include GABAergic neurons as well. Instead, we analyzed the number of Cux1-positive layers 2-4 neurons in S1 and found slight but significant decrease in TCA-ablated mice (Figure 2—figure supplement 1B, C). We described it in Results (P12, L17-20).

2. While the study is commenting on the changes within S1, it does not comment on the possibility that the size of S1 changed. It would be good to show the areal extension of the S1 barrel field on flatmounts and compare the representation of the S1 and V1 after all these manipulations. However, it is not essential for the basic conclusions of the study.

Thank you for pointing out the interesting point. We have tried assessment of the cortical areas with RORβ, Cad6, Cad8, Igfbp4, and Bhlhb5 on flat-mount sections at the plane of layer 4 as well as whole-mount cerebral hemispheres of P7 mice. However, the whole-mounts did not provide informative results. Instead, we conducted in situ hybridization of RORβ on flat-mount sections of control and TCA-ablated mice. Although the barrel pattern disappeared and areal borders became indistinct in TCA-ablated mice, as reported for another TCA-deficient mice (Olig3-Cre-specific Gbx2-cKO; Vue et al., 2013), the size and position of S1 barrel field including PMBSF (posteromedial barrel subfield) and ALBSF (anterolateral barrel subfield) and V1 were apparently similar between them (Author response image 3) . Since the analysis is not thorough enough, we would like to leave this issue out of the present study.

Author response image 3
Area pattern on tangential sections of TCA-ablated mice.

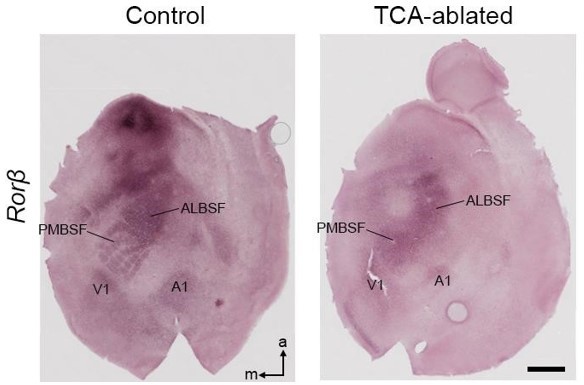

In situ hybridization for Rorβ on flat-mount sections of P7 control and TCAablated mice. PMBSF, posteromedial barrel subfield; ALBSF, anterolateral barrel subfield; V1, primary visual area; A1, primary auditory area; m, medial; a, anterior. Scale bar, 1 mm.

3. Formation of the barrels requires two stages. The periphery related sorting of the thalamocortical afferents (revealed with stains for thalamocortical afferents 5HTT or DiI or CO staining) and then, the activity dependent sorting of thalamocortical afferents will impose the cytoarchitectonic changes that will form the cytoarchitectonic barrels (revealed with DAPI, Nissl or NeuN staining) (see Lopez–Bendito and Molnar, 2003). It would be good to clarify which mechanism is affected.

Thank you for the suggestion. We did observe that TCA terminals are segregated in a barrel-like fashion in VGF-KO S1 revealed by 5HTT staining (please see Figure 6B). Thus, it seems that cytoarchitectonic pattern formation in layer 4 neuron is affected. We added this point to the text (P25, L4-6; P33, L11-14).

4. The authors suggested cell death in layer 4 as a possible mechanisms for getting these differences. However, all the conventional cell death detection methods (ssDNA, cleaved caspase 3, Iba1, mRNA of Bax, Bad, and Bak, and DAPI), they could not obtain convincing evidence for significant cell death induction in layer 4 upon TCA ablation. Was there any change in microglia distribution in layer 4 after the ablation of the VB thalamic neurons?

Even though the authors justify a possible technical difficulty in detecting dead cells in a dynamic developing system (which I completely agree with and understand), they don't provide a solid explanation for such a great decrease in cell number in layer 4. As the authors describe layer 4 neurons are already generated at the time of ablation, therefore they either die or change their fate. The cell fate change should be better investigated and discussed. Can the loss of 67% of neurons be completely due to cell death?

Thank you for the insightful comment. We observed that microglia distribution in layer 4 revealed by IbaI immunostaining was not changed in the TCA ablated specimens. To investigate whether fate change of layer 4 neurons is involved in TCA-ablation phenotype, we examined the expression of Brn2 and Ctip2 in addition to RORβ in EdU-labeled samples (Figure 2—figure supplement 2A, B). None of these cohorts among EdU-labeled cells was substantially altered. Thus, at this moment we at least can conclude that cell fate change is not the major cause of the reduction of layer 4 cells in TCA-ablated mice, although we cannot exclude the possibility of fate conversion of layer 4-destined cells. We mentioned this in the text (P12, L21-P13, L11).

5. There are numerous studies that demonstrated that six layered cortex can develop relatively normally without thalamic connections (Miyashita–Lin et al., 1999 DOI: 10.1126/science.285.5429.906; Zhou et al., 2010, DOI: https://doi.org/10.1523/JNEUROSCI.6005–09.2010). Did any of these studies suggested reduced layer 4 cell numbers? Do the authors used more sensitive methods for their detection? These issues should be discussed in more detail.

Those authors analyzed ROR expression by in situ hybridization. While the number of neurons in each layer was not counted in the previous studies, reduction of ROR expression is consistent with the present study. We mentioned this in Discussion (P29, L19-22).

6. The study described that after ablation at P0, VB was significantly reduced by P5. Parallel with this RORα–expressing thalamic neurons were also decreased. The traced from S1 and did not see any signs of TCA rewiring from the dLGN or MG to S1. Why do the authors think that Mezzera and López–Bendito, (2016) had different findings? Is is because of the methods, timing, tracing?

Thank you for bringing up the important point. We assume that rewiring may occur when inputs to the thalamus have been changed. We speculate that we could not detect rewiring because only the output from thalamus were altered primarily in an acute manner. Also, we think that the timing of cell death matters: Pouchelon et al., (2014) reported that using a DTA-expressing strategy, which should lead to cell death at earlier time point than ours, rewiring from PO to S1 occurred. We described this point in Discussion (P29, L22-P29, L6).

7. The results explain why layer 4 is thick in the somatosensory cortex. However, it is not known whether the same mechanism operates in the motor cortex where there is a very thin layer 4. The authors reduce the possibility of a cell death–based mechanism by examining the Bax and Casp3 mutant mice. In this lone the laminar configuration across the areas appeared to be normal. Do the authors suggest that the thinner layer 4 in M1 is the result of a different neurogenetic program generating these proportions?

In the present study, we have not addressed experimentally why layer 4 in M1 is thin. Yet, the results obtained from Bax- and Casp3-KO mice suggest that it may not depend on cell death, exactly as the reviewer pointed out. At present, we would like just to mention this point in Discussion (P30, L16-21; P31, L1015), but to leave this issue for future studies.

8. Do the authors suspect possible interaction with neurogenesis if the VB is ablated from early embryonic stages? I am not requesting this experiment, just some speculations in the discussion.

In fact, TCA ablation at earlier periods of development is expected to have a greater effect on neurogenesis, as the latter is at its peak and the neuronal output has yet to be imposed. This would be the ideal time window to observe the effect of a TCA–secreted molecule, so it would be interesting to further discuss this possibility.

Thank you for bringing up the important point. Although it is reported that TCAs affect cortical neurogenesis (e.g., Gerstmann et al., 2015; Kraushar at el., 2015), such effect may not be restricted to sensory TCAs. We so far have not found obvious neurogenic abnormality in Vgf-KO cortex at P7 (Figure 7E-G) and also at P0 (Figure 7—figure supplement 1C-F, newly added data). These results suggest that VGF plays a role in maintenance of layer 4 cell number at postnatal stages, but not a neurogenic role at embryonic stages. Although we may be able to eliminate TCAs at the earlier time point, it would be out of scope of the current study (i.e., layer 4 in sensory areas and TCA innervation). We discussed this point in Discussion (P30, L6-15).

9. TCAs innervation's influence on cortical neurogenesis has been extensively correlated with the upper layer formation. The time of TCA arrival in the cortex closely matches the peak of upper layer neurogenesis, further supporting this view. It is quite surprising that the authors do not observe any alteration of any nature in the upper layers' analysis (Brn2 immunohistochemistry). Is this expected, or in line with other studies?

We interpret that the less impact on upper layer formation is due to the postnatal ablation of TCAs when upper layer neurogenesis is almost finished. In that sense, VGF does not appear to play a role in upper layer neurogenesis. We mentioned this point in Discussion (P30, L6-15).

[Editors’ note: what follows is the authors’ response to the second round of review.]

Reviewer #1:

Overall, the authors have answered the main points of my previous review. However, some aspects of the imaging and data analysis could be further improved. The way of presenting the results is not well refined.

1) In Figure 1C, the VB nucleus shows the same size and shape in control and in the TCA–ablated model, and this is not consistent. I am still not fully convinced about the criteria for nuclei delimitation. It would have been convenient to use common markers for VB and dLGN as for example vGlut2.

In Figure 1C, the size of the VB has not yet become markedly reduced, as cell death just started and would proceed rapidly thereafter (please see Figure 2—figure supplement 2D). In fact, the size of the VB is quite fluctuated among the P5 specimens. The VB size was much reduced consistently at P6 or later, as shown in Figure 1D. We replaced Figure 1C with the one with more shrunk VB.

2) In Figure 1 figure supplement 3B, the example image for the TCA–ablated is damaged in the nuclei in which the experiment is focused, therefore it should be replaced.

We replaced the panels with those without damage.

Lines 194–198: "DiI–labeled neurons that project to V1 were found in the dLGN and lateral posterior nucleus (LP) in both control and TCA–ablated mice (Figure 1—figure supplement 3A, B, 12 sections from 6 mice for each), and the ratios of retrogradely labeled cells with DiI in dLGN to those in LP were similar in the two groups." This is in my opinion an overstated statement based on the example that the authors show.

We admit that this particular image does not necessarily support this notion. We removed this statement which it is not essential for the main conclusion.

3) In Figure 2 figure supplement 3E and G, I would like to see the same immunohistochemistry as performed in Figure 1 and 2 for 5HTT and Rorb expression. The labels are clearer.

We performed another immunohistochemistry using the same staining method (fluorescence) so that Figure 2 figure supplement 3E, F appear in a similar way to Figure 1 and 2 (the former F and G are integrated as F).

Lines 453–454: "Importantly, the thalamic structure was not affected: the VB appeared intact in terms of shape, size, and cell density (Figure 6B, 5 sections from 5 mice)." In my opinion, quantifications should be provided to support this conclusion. There is a clear change in the shape of the VB nucleus in the Vgf–/– example the authors provide.

This particular image shows the VB in a different shape perhaps due to a plane of section, but its overall shape was similar between the mutant and wild-type animals. Nonetheless we deleted “shape” from the text and replaced the image of a section in which the VB appears more similar to the control. We measured the area size of the VB in sections where it is represented at the maximum. The result is provided as Figure 6C.

Reviewer #4:

In the manuscript titled " Thalamocortical axons control the cytoarchitecture of neocortical layers by area–specific supply of VGF" by Sato et al., the authors investigated the reasons for the distinct laminar architecture among different cortical areas. They focused on layer 4, which is thicker in the primary sensory cortices but is thinner in the motor cortex. Previous studies had shown that TCAs play instructive roles to regulate area–specific properties in layer 4. In this study, the authors extended their previous study and used a variety of methods, including ablating VB neurons, performing in utero electroporation to overexpress genes in the cortex, and generating KO animals to demonstrate that TCAs secrete VGF to control the number of layer 4 neurons in the sensory cortices.

Overall, it is nicely organized with very interesting findings and the description of their findings was clear. The authors nicely demonstrated that TCA ablation leads to the reduction of layer 4 RORβ–positive cells. The most convincing results were from the Vgf KO mice: while the TCAs are still projecting to S1 and inducing the expression of Btbd3 (suggesting the presence of TCA activities), the layer 4 cell density is greatly reduced in the Vgf KO.

I have few suggestions:

1. In Figure 1—figure supplement 3, strong input from Po was found in the TCA ablated S1 ("in TCA–ablated mice, the retrogradely labeled VB was markedly reduced in size, but the Po was broadly and intensely labeled" (p9)). This agrees with the previous study (Pouchelon, 2014) showing that the genetic ablation of the VB at birth rewired Po projections to S1 layer 4 neurons and that respecified layer 4 neurons. This might be the reason for the reduction of Rorb expression and reduced cell density in layer 4 in the TCA ablated S1. I am wondering if the authors had considered this as one of the reasons for the phenotypes observed. Using additional S1–specific markers (such as MDGA1, as described in Takeuchi, 2007) might be able to clarify this point.

Thank you for an insightful suggestion. While neurons in the VB were eliminated slightly later than the case reported by Pouchelon et al., we observed that the PO was labeled more in some TCA-ablated specimens, suggesting that rewiring from PO to S1 may have occurred to some extent. Although we did not examine whether S1 is respecified to S2 in our case, we would argue that this could not be the primary cause of the phenotype, because overexpression of VGF rescued the phonotype. Moreover, Pouchelon et al. reported that the neuron number in S1 including layer 4 was unchanged, suggesting conversion to S2 does not accompany reduction of layer 4. We mentioned rewiring from PO in Discussion (page 28, line 22-page 29, line 3).

2. As in the introduction, the authors mentioned that the major differences in layer 4 neuron density are between sensory cortices and motor cortex. Did the authors electroporate VGF into layer 4 of the motor cortex or any other cortical areas (such as S2, next to S1) in control animals, or even in L5 or L2/3 in S1? I am wondering whether layer 4 neurons in sensory areas have area–specific responses to VGF (e.g. expression of the receptors).

As we mentioned in Discussion, the present notion does not necessarily explain why layer 4 is thin in motor cortex. Although VGF receptor is currently unidentified, it may not be expressed in the motor cortex or other layers. Given that the exogenous VGF did not show an additive effect in the presence of TCAs in S1 layer 4, we assume that effects on other layers in S1 would be less likely. On the other hand, it appears that VGF exerts its function widely in the sensory areas which exhibit various degree of layer 4 enrichment though, as layer 4 in V1 was also reduced in VGF-KO. Our preliminary trial by which VGF was electroporated in the motor cortex indicated that ROR-β-positive layer 4 was unchanged. Moreover, our observation of Casp3- and Bax-KO mice suggests that cell death may not be involved in the layer 4 formation in the motor cortex. We however would like to leave this issue for the future studies as we wrote in Discussion.

3. The authors suggested the cell death could be a possible reason for the decrease of layer 4 neuronal number in TCA ablated S1, but it was difficult to show convincing data as it is not easy to detect dying cells. My suggestion is to compare the number of EdU+ cells (EdU injected at E14.3 to label layer 4 neurons), from P0 to P7. This way, one could detect whether layer 4 neuronal number is decreased after TCA ablation.

We observed that EdU-labeled cells began to decrease at P4 and were reduced as much as P7 at P6, although the number of cases obtained is too small for statistic evaluation.

4. I am puzzled by the result presented in Figure 7—figure supplement–1H, where the authors showed among EdU+ cells in the Vgf mutants, while layer 4 Rorb+ cells are decreased, but others are not changed. They showed ~50% Rorb+, ~35% Brn2+ and ~2% Ctip2+ in wild type and ~30% Rorb+, ~30% Brn2+ and ~2% Ctip2+ in mutants. What other cell types are the rest of EdU+ cells in the mutants?

Thank you for pointing out an interesting issue. Currently we do not know the identity of those populations, although it is likely that they failed to express those layer markers examined, implicating a role of VGF in fate specification of the cortical neurons.

5. In Figure 7A, it seems like differences in layer 4 neuronal density could still be detected between primary sensory areas and motor cortex in the Vgf KO. It could be informative to compare the relative layer 4 neuronal density in S1 and motor cortex in WT and KO.

Thank you for an interesting suggestion. We added quantification of ROR-β expressing cells in M1 in Figure 7C. M1 was not statistically different between the mutant and wild-type animals. We would like to leave the further issue of motor cortex for the future study as mentioned above.

6. Do Vgf KO animals show a developmental delay? It would be informative to compare the distribution variance of layer 4 cells at a later time point between WT and KO.

Thank you for raising an interesting possibility. We searched for specimens of the adult homozygote to examine this possibility, but we did not have any unfortunately. Since it will take some time to accomplish this, we would be grateful if we may leave this issue at this time.

https://doi.org/10.7554/eLife.67549.sa2

Article and author information

Author details

  1. Haruka Sato

    Department of Brain Morphogenesis, Institute of Molecular Embryology and Genetics, Kumamoto University, Kumamoto, Japan
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Validation, Writing - original draft
    For correspondence
    stharuka@kumamoto-u.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6839-0146
  2. Jun Hatakeyama

    Department of Brain Morphogenesis, Institute of Molecular Embryology and Genetics, Kumamoto University, Kumamoto, Japan
    Contribution
    Formal analysis, Funding acquisition
    Competing interests
    No competing interests declared
  3. Takuji Iwasato

    Laboratory of Mammalian Neural Circuits, National Institute of Genetics, Mishima, Japan
    Contribution
    Resources
    Competing interests
    No competing interests declared
  4. Kimi Araki

    Division of Developmental Genetics, Institute of Resource Development and Analysis, Kumamoto University, Kumamoto, Japan
    Contribution
    Funding acquisition, Methodology, Resources
    Competing interests
    No competing interests declared
  5. Nobuhiko Yamamoto

    Laboratory of Cellular and Molecular Neurobiology, Graduate School of Frontier Biosciences, Osaka University, Osaka, Japan
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared
  6. Kenji Shimamura

    Department of Brain Morphogenesis, Institute of Molecular Embryology and Genetics, Kumamoto University, Kumamoto, Japan
    Contribution
    Conceptualization, Funding acquisition, Investigation, Project administration, Supervision, Validation, Writing - review and editing
    For correspondence
    simamura@kumamoto-u.ac.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7102-6513

Funding

Japan Society for the Promotion of Science (KM101-2587054400)

  • Haruka Sato

Japan Society for the Promotion of Science (KM100-2633200)

  • Haruka Sato

Japan Society for the Promotion of Science (KM101-18K1483900)

  • Haruka Sato

Ministry of Education, Culture, Sports, Science and Technology (JP06J08049)

  • Jun Hatakeyama

Ministry of Education, Culture, Sports, Science and Technology (JP21870030)

  • Jun Hatakeyama

Ministry of Education, Culture, Sports, Science and Technology (JP24790288)

  • Jun Hatakeyama

Ministry of Education, Culture, Sports, Science and Technology (JP15K19011)

  • Jun Hatakeyama

Ministry of Education, Culture, Sports, Science and Technology (JP16H01449)

  • Jun Hatakeyama

Ministry of Education, Culture, Sports, Science and Technology (JP17H05771)

  • Jun Hatakeyama

Ministry of Education, Culture, Sports, Science and Technology (JP16H06276)

  • Kimi Araki

Ministry of Education, Culture, Sports, Science and Technology (18GS0329-01)

  • Kenji Shimamura

Ministry of Education, Culture, Sports, Science and Technology (JP16K07375)

  • Kenji Shimamura

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank J Kusuura for excellent technical support. We are also grateful to Drs T Shimogori and Y Yamaguchi for discussion, reagents, and mutant mice. This work was supported by the Liaison Laboratory Research Promotion Center at IMEG and the Reproductive Technology Team of CARD Mouse Bank at CARD Kumamoto University.

Ethics

This study was performed in strict accordance with the guidelines for laboratory animals of Kumamoto University and the Japan Neuroscience Society. All of the animals were handled according to approved institutional animal care and protocols by the Committee on the Ethics of Animal Experiments of Kumamoto University (Permit Numbers: 27-124, A29-080, 2019-110, 2020-055). All surgery was performed under sodium pentobarbital anesthesia, and every effort was made to minimize suffering.

Senior Editor

  1. John R Huguenard, Stanford University School of Medicine, United States

Reviewing Editor

  1. Carol A Mason, Columbia University, United States

Reviewer

  1. Zoltan Molnar, University of Oxford, United Kingdom

Publication history

  1. Preprint posted: February 14, 2021 (view preprint)
  2. Received: February 15, 2021
  3. Accepted: March 12, 2022
  4. Accepted Manuscript published: March 15, 2022 (version 1)
  5. Version of Record published: March 28, 2022 (version 2)

Copyright

© 2022, Sato et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,291
    Page views
  • 246
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Haruka Sato
  2. Jun Hatakeyama
  3. Takuji Iwasato
  4. Kimi Araki
  5. Nobuhiko Yamamoto
  6. Kenji Shimamura
(2022)
Thalamocortical axons control the cytoarchitecture of neocortical layers by area-specific supply of VGF
eLife 11:e67549.
https://doi.org/10.7554/eLife.67549

Further reading

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Francisco Xavier Galdos, Carissa Lee ... Sean Wu
    Research Article

    During mammalian development, the left and right ventricles arise from early populations of cardiac progenitors known as the first and second heart fields, respectively. While these populations have been extensively studied in non-human model systems, their identification and study in vivo human tissues have been limited due to the ethical and technical limitations of accessing gastrulation stage human embryos. Human induced pluripotent stem cells (hiPSCs) present an exciting alternative for modeling early human embryogenesis due to their well-established ability to differentiate into all embryonic germ layers. Here, we describe the development of a TBX5/MYL2 lineage tracing reporter system that allows for the identification of FHF- progenitors and their descendants including left ventricular cardiomyocytes. Furthermore, using single cell RNA sequencing (scRNA-seq) with oligonucleotide-based sample multiplexing, we extensively profiled differentiating hiPSCs across 12 timepoints in two independent iPSC lines. Surprisingly, our reporter system and scRNA-seq analysis revealed a predominance of FHF differentiation using the small molecule Wnt-based 2D differentiation protocol. We compared this data with existing murine and 3D cardiac organoid scRNA-seq data and confirmed the dominance of left ventricular cardiomyocytes (>90%) in our hiPSC-derived progeny. Together, our work provides the scientific community with a powerful new genetic lineage tracing approach as well as a single cell transcriptomic atlas of hiPSCs undergoing cardiac differentiation.

    1. Developmental Biology
    2. Neuroscience
    Simone Rey, Henrike Ohm ... Christian Klämbt
    Research Article

    Neuronal information conductance often involves the transmission of action potentials. The spreading of action potentials along the axonal process of a neuron is based on three physical parameters: The axial resistance of the axon, the axonal insulation by glial membranes, and the positioning of voltage-gated ion channels. In vertebrates, myelin and channel clustering allow fast saltatory conductance. Here we show that in Drosophila melanogaster voltage-gated sodium and potassium channels, Para and Shal, co-localize and cluster in an area resembling the axon initial segment. The local enrichment of Para but not of Shal localization depends on the presence of peripheral wrapping glial cells. In larvae, relatively low levels of Para channels are needed to allow proper signal transduction and nerves are simply wrapped by glial cells. In adults, the concentration of Para increases and is prominently found at the axon initial segment of motor neurons. Concomitantly, these axon domains are covered by a mesh of glial processes forming a lacunar structure that possibly serves as an ion reservoir. Directly flanking this domain glial processes forming the lacunar area appear to collapse and closely apposed stacks of glial cell processes can be detected, resembling a myelin-like insulation. Thus, Drosophila development may reflect the evolution of myelin which forms in response to increased levels of clustered voltage-gated ion channels.
