A δ-cell subpopulation with a pro-β-cell identity contributes to efficient age-independent recovery in a zebrafish model of diabetes

  1. Claudio Andrés Carril Pardo
  2. Laura Massoz
  3. Marie A Dupont
  4. David Bergemann
  5. Jordane Bourdouxhe
  6. Arnaud Lavergne
  7. Estefania Tarifeño-Saldivia
  8. Christian SM Helker
  9. Didier YR Stainier
  10. Bernard Peers
  11. Marianne M Voz
  12. Isabelle Manfroid  Is a corresponding author
  1. Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Belgium
  2. GIGA-Genomics core facility, University of Liège, Belgium
  3. Gene Expression and Regulation Laboratory, Department of Biochemistry and Molecular Biology, University of Concepción, Chile
  4. Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Germany

Abstract

Restoring damaged β-cells in diabetic patients by harnessing the plasticity of other pancreatic cells raises the questions of the efficiency of the process and of the functionality of the new Insulin-expressing cells. To overcome the weak regenerative capacity of mammals, we used regeneration-prone zebrafish to study β-cells arising following destruction. We show that most new insulin cells differ from the original β-cells as they coexpress Somatostatin and Insulin. These bihormonal cells are abundant, functional and able to normalize glycemia. Their formation in response to β-cell destruction is fast, efficient, and age-independent. Bihormonal cells are transcriptionally close to a subset of δ-cells that we identified in control islets and that are characterized by the expression of somatostatin 1.1 (sst1.1) and by genes essential for glucose-induced Insulin secretion in β-cells such as pdx1, slc2a2 and gck. We observed in vivo the conversion of monohormonal sst1.1-expressing cells to sst1.1+ ins + bihormonal cells following β-cell destruction. Our findings support the conclusion that sst1.1 δ-cells possess a pro-β identity enabling them to contribute to the neogenesis of Insulin-producing cells during regeneration. This work unveils that abundant and functional bihormonal cells benefit to diabetes recovery in zebrafish.

Editor's evaluation

Recently, there has been a growing appreciation for the existence of cellular plasticity in the adult islet. This study probes this phenomenon by exploiting the zebrafish experimental model, which has a much higher adult regeneration capacity than in mammals. A particular novel finding from the study is the identification of a subpopulation of islet delta cells that are similar to beta cells at the transcriptional level and can convert into an insulin/somatostatin co-expressing cell population upon beta cell ablation. The findings will be of particular interest to researchers interested in islet cell biology and pancreatic endocrine cell reprogramming; it will be interesting to explore whether similar delta cell subpopulations exist in mammalian islets to serve as an alternative source of insulin producing cells.

https://doi.org/10.7554/eLife.67576.sa0

Introduction

Insulin-producing β-cells reside in pancreatic islets where they are intermingled with other endocrine cells such as α-cells, secreting glucagon (Gcg), and δ-cells secreting somatostatin (Sst). Elevation of extracellular glucose concentration triggers glucose uptake by β-cells through the glucose transporter GLUT2 (Slc2a2). Glucose is then metabolized to generate ATP which will trigger the closure of the KATP channel formed by Kir6.2 (Kcnj11) and SUR1 (Abcc8), membrane depolarization, Ca2+ influx and release through exocytosis of insulin secretory granules into the blood. In mature β-cells, this process is further amplified by other molecules such as amino acids, fatty acids, hormones (incretins GLP-1, GIP), and neural factors (dopamine, adrenaline…) via the cAMP messenger. Dysfunction of these processes leads to impaired insulin secretion, chronic hyperglycemia, and diabetes. In Type 2 diabetes, chronic glucolipotoxic stress ultimately provokes β-cell failure and death. In Type 1 diabetes, on the other hand, the destruction of β-cells is mediated by autoimmune attack.

Human adult β-cells are quiescent and barely possess the capacity to compensate their destruction through increased proliferation. Alternative mechanisms inferred from studies in mice revealed the striking plasticity of other pancreatic endocrine cell types towards the β-cell phenotype. For example, Ins+ Gcg + bihormonal cells form after acute β-cell destruction mediated by transgenic expression of the diphteria toxin receptor (DTR) in adult mice (Thorel et al., 2010). These cells derive from a small fraction of α-cells that switch on the β-cell markers Pdx1, Nkx6.1 and Ins through direct conversion, leading to restoration of about 10% of the β-cell mass after 10 months. As this process is quite slow and inefficient, adult DTR mice do not survive without injection of insulin during the first months after ablation. In contrast, at juvenile stages, β-cell neogenesis occurs from transdifferentiation of δ-cells (Chera et al., 2014). In this case, δ-cells dedifferentiate, lose Sst expression, replicate and redifferentiate into β-cells. About 23% of the initial β-cell mass has recovered 4 months after ablation emphasising faster and more efficient improvement of glycemia than in adult mice. Very recently, a rare population of pancreatic polypeptide (Ppy)-expressing γ-cells has also been shown to display plasticity and to activate Ins expression in response to β-cell injury (Perez-Frances et al., 2021). Hence, various pancreatic islet cells possess a remarkable plasticity yet the regeneration potential is generally limited in adult mammals.

In contrast to the limited regeneration capacity of adult mammals, zebrafish are notorious for their potent, spontaneous and rapid regeneration of β-cells from larval to adult stages (Curado et al., 2007; Delaspre et al., 2015; Ghaye et al., 2015; Moss et al., 2009; Ninov et al., 2013; Pisharath and Parsons, 2009; Ye et al., 2015). In zebrafish, α-cells transdifferentiate into Ins-expressing cells after β-cell destruction (Ye et al., 2015). On the other hand, unlike mouse models in which regeneration via progenitors or precursors is debated, β-cell neogenesis is well recognised in zebrafish to involve regenerative processes from progenitor-like cells present in the ducts (Delaspre et al., 2015; Ghaye et al., 2015; Ninov et al., 2013). β-cell destruction is accomplished in zebrafish using a chemo-genetic system based on the transgenic expression of the bacterial nitroreductase (NTR) under the control of the ins promoter where cell death is induced by a nitroaromatic prodrug (Bergemann et al., 2018; Curado et al., 2007; Pisharath and Parsons, 2009). In adults, after a huge rise of glycemia within 3 days, the pancreas is replenished with new β-cells in 2–3 weeks which correlates to a return to normoglycemia.

De novo formation of β-cells in order to repair damaged islets constitutes a promising therapeutic perspective for diabetic patients. However, new β-cells could show differences in their number and identity impacting on their activity. For example, the presence in mice of Gcg+ Ins + cells, although apparently functional, should be considered cautiously as inappropriate differentiation of β-cells and impaired maturation or identity are common shortcoming in diabetes (Moin and Butler, 2019 for review).

Using the larval and adult zebrafish as regeneration models, we investigated the identity of regenerated β-cells and discovered that most new ins-expressing cells are Ins + Sst1.1+ bihormonal cells. We identified a specific δ-cell subpopulation distinct from the previously identified zebrafish sst2 δ-cells that is characterized by the expression of sst1.1 and of several important β-cell features. The transcriptomic profile of bihormonal cells is also very close to the sst1.1 δ-cells, making them resemble β/δ hybrids. By in vivo imaging of larvae, we observed the appearance of ins-expressing bihormonal cells from monohormonal sst1.1 δ-cells early after β-cell ablation. We also provide evidence that pancreatic ducts contribute to the pool of bihormonal cells. Furthermore, bihormonal cells are abundant in the regenerated pancreas and able to normalize glycemia after a glucose challenge. Our findings show the importance of bihormonal cells in the spontaneous recovery of diabetic zebrafish.

Results

Most regenerated β-cells in adult zebrafish coexpress Ins and Sst

To characterize the new β-cells after regeneration, we used 6- to 10-month-old Tg(ins:NTR-P2A-mCherry) (Bergemann et al., 2018) adult fish to first ablate β-cells. Basal blood glucose was monitored to evaluate ablation (3 days post treatment, dpt) and regeneration (20 dpt). As expected, fasting basal blood glucose dramatically raised at three dpt compared to CTL fish which reflected efficient ablation (Figure 1A and Figure 1—source data 1). After 20 days, glycemia was impressively improved though still slightly above control values. A preliminary RNAseq experiment on mCherry+ cells isolated from the main islet of Tg(ins:NTR-P2A-mCherry) adult fish 2 months after ablation revealed strong expression of the sst1.1 gene in regenerated β-cells just below ins (Figure 1—source data 3), thereby suggesting that regenerated β-cells are bihormonal. As blood glucose is nearly normalized after 20 days, we characterized these cells at this time point. Immunofluorescence on regenerated 20 dpt islets showed many Ins + cells that also displayed Sst immunolabeling (Figure 1B). In contrast, control islets showed robust staining of the endogenous Ins and Sst hormones without appreciable overlap, thus demarcating monohormonal β- and δ-cells (Figure 1B). We next created a Tg(sst1.1:eGFP) reporter line driving GFP in sst1.1-expressing cells. This transgene was not active in β-cells of control islets (Figure 1—figure supplement 1). Similar to what was observed with the endogenous Sst and Ins proteins, regenerated 20 dpt islets of Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) fish contained many cells coexpressing GFP with mCherry, while GFP and mCherry-labeled distinct cells in control islets (Figure 1C). Strikingly, double positive cells could already be detected 3 days after ablation, although they displayed low levels of mCherry.

Figure 1 with 2 supplements see all

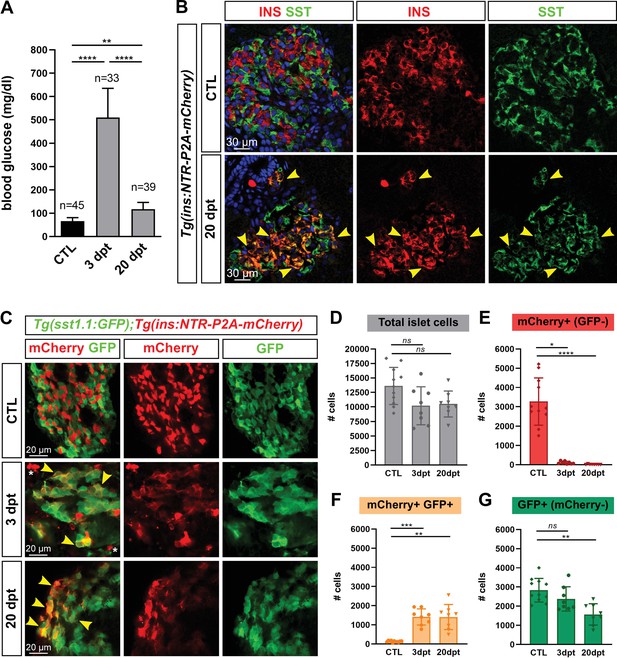

Most new ins + cells after ablation and regeneration in zebrafish are Ins + Sst1.1+ bihormonal cells.

(A) Blood glucose level (mg/ml) of adult Tg(ins:NTR-P2A-mCherry) control fish (CTL, 66 ± 15 mg/dl), 3 days (510 ± 126 mg/dl) and 20 days post treatment (dpt) (117 ± 29 mg/dl) with the NFP prodrug to trigger β-cell ablation. The huge rise of glycemia at three dpt confirms the efficiency of ablation. One-way ANOVA Kruskal-Wallis test (with Dunn’s multiple comparisons); Mean ± SD; **p < 0.005, ****p < 0.0001. (See Figure 1—source data 1). (B) Immunolabeling of β- and δ-cells with anti-INS (red) and anti-SST (green), respectively, on paraffin sections through the main islet of Tg(ins:NTR-P2A-mCherry) adult fish in control condition (CTL) and at 20 dpt. In CTL islet, no appreciable overlap between the two markers can be detected while broad colabeling is observed at 20 dpt and represented by many yellow cells (arrowheads). (C) Whole mount immunodetection of β- and sst1.1+ cells in the main islet of adult Tg(sst1.1:GFP);Tg(ins:NTR-P2A-mCherry) fish by labeling with anti-GFP marking sst1.1-expressing cells and anti-mCherry for β-cells. Both cell types show no or very few overlapping in CTL fish. At 3 and 20 dpt, many double GFP+ mCherry + cells are observed (yellow cells, arrowheads). Bright mCherry+ β-cell debris are detectable at 3 dpt (white asterisk). (D–G) Quantification of the GFP+, mCherry+ (β-cells) and double GFP+ mCherry + cells detected by FACS in the main islets of Tg(sst1.1:GFP);Tg(ins:NTR-P2A-mCherry) CTL fish and following β-cell ablation (3 and 20 dpt), based on fluorescence analysis shown in Figure 1—figure supplement 2. (D) Total islet cell number in CTL, 3 dpt, and 20 dpt islets. (E) CTL islets contain 3277 ± 1220 mCherry+ (GFP-) β-cells. At 3 dpt, ablated β-cells represent 105 ± 70 cells and were even more scarce at 20 dpt (14 cells). (F) Double GFP+ mCherry + bihormonal cells represent 135 ± 45 cells in CTL islets, 1411 ± 421 cells at 3 dpt and 1409 ± 655 cells at 20 dpt. (G) GFP+ (mCherry-) cells represent 2833 ± 615 cells in CTL islets. One-way ANOVA Kruskal-Wallis test (with Dunn’s multiple comparison); ns, not significant, *p < 0.05, **p < 0.005, ***p < 0.0005, ****p < 0.0001; Mean ± SD (See Figure 1—source data 2).

Figure 1—source data 1

Blood glucose values.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig1-data1-v2.pdf
Figure 1—source data 2

Cell quantification values.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig1-data2-v2.pdf
Figure 1—source data 3

Top 20 genes expressed in regenerated β-cells.

mCherry+ cells from the main islet were sorted by FACS from Tg(ins:NTR-P2A-mCherry) adult zebrafish 2months after β-cell ablation and gene expression levels were determined by RNA sequencing (expressed as normalized read counts). The ins gene is the highest expressed gene just above sst1.1. This is the result of one single exploratory replicate.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig1-data3-v2.docx

We next quantified ins+ β-cells, sst1.1+ cells and double ins + sst1.1+ cells by measuring the number of mCherry+, GFP+, and GFP+ mCherry + cells, respectively, in Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish. The main islet was obtained by dissection and the different cell populations were analyzed by FACS (Figure 1D–G, Figure 1—figure supplement 2 and Figure 1—source data 2). At 3 and 20 dpt, we observed a drastic loss of mCherry+ (GFP-) β-cells with a drop to 3.2% of the initial β-cell mass at 3 dpt (Figure 1E). In contrast, a large population of double GFP+ mCherry + cells appeared that represented 43% of the initial β-cell mass (Figure 1F). These cells still persisted at 20 dpt and they made up at this stage 98% of the ins-expressing cells. At 20 dpt, mCherry+ GFP- β-cells still constituted a very minor population. (Figure 1E). After ablation, the amount of GFP+ mCherry cells also decreased (Figure 1G).

In conclusion, these results indicate that ins + sst1.1+ bihormonal cells rapidly appear in the main islet after β-cell ablation in adult fish and persist steadily for at least 20 days. They constitute the vast majority of the new ins-expressing cells following ablation.

Genesis of bihormonal cells also occurs during regeneration in larval stages and is independent of the ablation model

As in mouse the process of bihormonal cells (in that case Gcg+ Ins + ) formation after β-cell ablation is specific to adult stages (Thorel et al., 2010; Chera et al., 2014), we next asked whether Sst1.1+ Ins + bihormonal cells also appear in zebrafish larvae. We therefore performed the ablation in Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) at 3 days post fertilization (dpf) and assessed the expression of ins:mCherry and sst1.1:GFP. Like in adults, bihormonal cells were detected 3 days after ablation (3 dpt, 6 dpf) (Figure 2A–B). We confirmed by in situ hybridization detecting the endogenous mRNAs that these bihormonal cells express sst1.1 together with ins (Figure 2C). This experiment also revealed that they do not coexpress sst2 (Figure 2C).

Figure 2 with 1 supplement see all

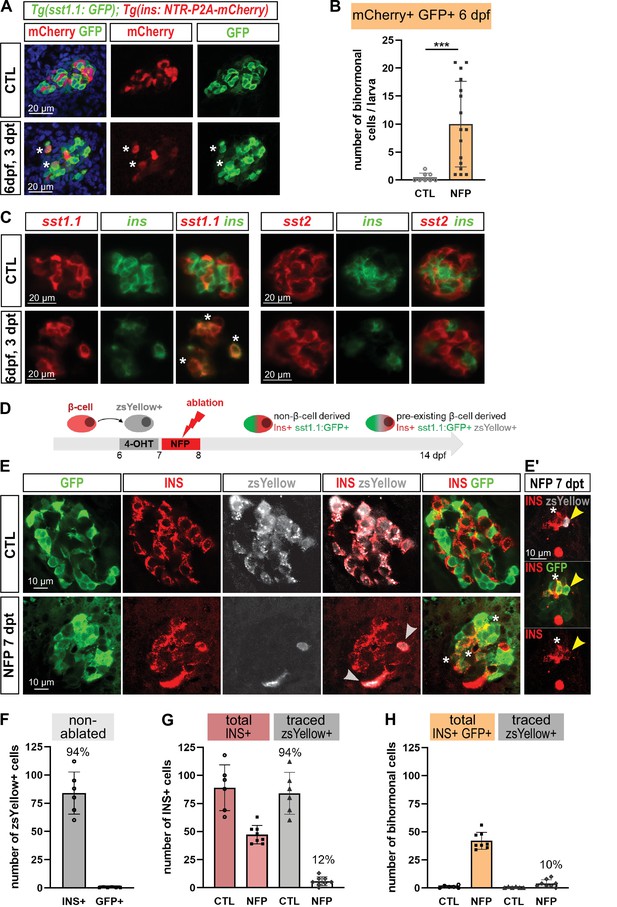

Bihormonal cell formation is age- and ablation model-independent and mostly do not derive from escaping β-cells.

(A) Whole mount immunodetection in six dpf Tg(sst1.1:GFP); Tg(ins:NTR-P2A-mCherry) larvae showing β-cells (mCherry, red), sst1.1-expressing cells (GFP, green) and double positive bihormonal cells (asterisks) in the main islet in control (CTL) and 3 days after NFP-mediated ablation (3 dpt). Representative confocal images (single optical planes). dpf: days post-fertilization. (B) Quantification of bihormonal cells co-labeled by mCherry and GFP based on confocal images of 6 dpf larvae. Unpaired two-tailed t-test (with Welch correction); ***p < 0.001; Mean ± SD. (C) Whole mount fluorescent in situ hybridization performed on 6 dpf Tg(ins:NTR-P2A-mCherry) larvae with an ins antisense RNA probe (green) combined with either a sst1.1 or a sst2 probe (red). NFP-mediated ablation was performed from 3 to 4 dpf. Representative confocal images of the main islet (single optical planes). (D–G) β-cell tracing with Tg(ins:CRE-ERT2); Tg(ubb:loxP-CFP-loxP-zsYellow); Tg(sst1.1:GFP); Tg(ins:NTR-P2A-mCherry) larvae. (D) Experimental design: CRE recombination was performed by treatment with 4-OHT treatment at six dpf to induce the expression of the lineage tracer zsYellow (gray) in β-cells (INS, red). β-cell ablation (NFP) was then performed at seven dpf and the lineage tracer was analysed in the main islet at 14 dpf (7 dpt). (E-E’) Confocal images showing immunodetection of GFP (green), zsYellow (gray), and INS (red) antibodies. After ablation, traced β-cells are evidenced by double zsYellow+ Ins + staining (gray arrowheads) and bihormonal cells by double Ins + GFP + staining (white asterisks). (E’) Close-up showing two bihormonal cells, one zsYellow+ (derived from a pre-existing β-cell) (yellow arrowhead) and one zsYellow- (asterisk). (F–H) Quantification (CTL, n = 6; NFP, n = 8) based on the confocal images. (F) In CTL non-ablated islets, ZsYellow marked efficiently the Ins+ β-cells (84 ± 19 zsYellow+ Ins + cells out of 89 ± 20 total Ins+ β-cells, representing 94% of the total β-cells). ZsYellow was not detected in sst1.1:GFP+ cells, showing a good specificity. (G) 7 days after ablation (NFP), 47.3 ± 8 Ins + cells were detected and 5.8 ± 4 of them (12%) expressed zsYellow. (H) 42 ± 7.5 Ins + cells are also GFP+ bihormonal and 10% of them (4 ± 3 cells) are labeled with zsYellow. Mean ± SD.

Then we questioned if the bihormonal cells can also be induced using another system of β-cell destruction. We chose the Diphteria Toxin chain alpha (DTA) suicide transgene which has previously been used to efficiently ablate β-cells (Ninov et al., 2013). Ablation was achieved in Tg(ins:lox-mCherry-lox-DTA); Tg(ins:CRE-ERT2) larvae by performing a 4-OHT treatment at 7 dpf and the larvae were then analyzed at 16 dpf (Figure 2—figure supplement 1). Similar to our observations with the NTR system, Ins and Sst immunofluorescence revealed many coexpressing cells.

In conclusion, these data demonstrate that there is no specific competent stage for the formation of Ins + Sst1.1+ bihormonal cells in zebrafish. In addition, this process does not depend on the method of ablation.

Most bihormonal cells do not derive from pre-existing β-cells

To explore the possibility that bihormonal cells derive from pre-existing β-cells spared by the ablation, β-cells were traced before ablation using Tg(ins:CRE-ERT2); Tg(ubb:loxP-CFP-loxP-zsYellow); Tg(sst1.1:GFP); Tg(ins:NTR-P2A-mCherry) fish. As bihormonal cells were also observed at six dpf, we used larvae to tackle their origin by CRE-mediated recombination (Hans et al., 2009; Mosimann et al., 2011). We treated the larvae with 4-OHT at six dpf to label the β-cells and performed the ablation the next day (Figure 2D). We found that, 7 days after ablation, only 10% of the bihormonal cells were positive for the zsYellow lineage tracer (Figure 2E–E’ , and H). To ensure that this low level was not due to an inefficient tracing, we checked non-ablated larvae and found that 94% of the β-cells were labeled with zsYellow (Figure 2F–G). In addition, the sst1.1:GFP+ cells were not labeled (Figure 2F). These data demonstrate good efficiency and specificity of the tracing. Based on these observations, we can conclude that some bihormonal cells originate from pre-existing β-cells but the majority arises from non-β origin(s).

ins+ sst1.1+ bihormonal cells share similarities with β- and δ-cells, and possess the basic machinery for glucose responsiveness

In order to characterize the ins + sst1.1+ bihormonal cells after regeneration, we analyzed their transcriptomic profile. To this end, double GFP+ mCherry + cells were isolated by FACS from the main islet of Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish at 20 dpt. Control β-cells (mCherry+ GFP-) were obtained from age-matched, non-ablated, transgenic fish. We compared their RNAseq profiles and identified 887 DE genes with a higher expression in bihormonal cells and 705 DE genes higher in β-cells (Padj <0.05 and above twofold differential expression) (Figure 3A–B and Figure 3—source data 1). In accordance with the weak mCherry fluorescence harbored by GFP+ mCherry + cells as compared to native β-cells, the expression of ins in bihormonal cells was fivefold below its typical level in β-cells (Figure 3C). Also, as expected, the δ-cell hormone sst1.1 was sharply overexpressed in bihormonal cells (209-fold) compared to its basal level in β-cells, and was even the top hormone just above ins (Figure 3C). The other pancreatic hormones known in zebrafish, sst1.2, sst2, gcga, gcgb, and ghrl, were detected at much weaker levels in both ins + populations (Figure 3C). Accordingly, Gcg protein was undetectable in bihormonal cells by immunofluorescence (Figure 3—figure supplement 1). Collectively, these data confirm that bihormonal cells coexpress high levels of two main hormones, ins and sst1.1, at both the mRNA and protein levels.

Figure 3 with 1 supplement see all

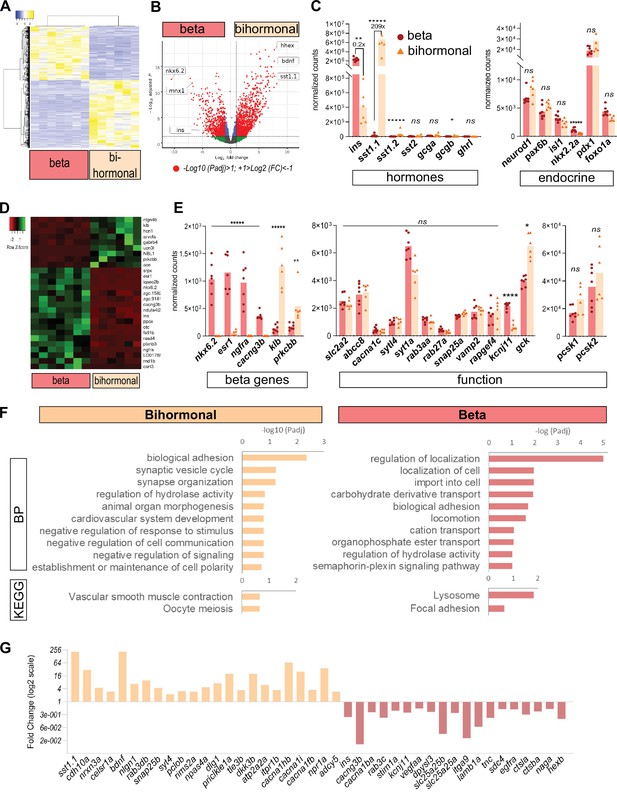

Transcriptomic comparison of bihormonal cells and β-cells.

(A) Heatmap representation of the transcriptomes of 20 dpt bihormonal (six replicates) and β-cells (seven replicates) (significant DE genes). (B) Volcano plot showing the distribution of genes in β-cells without ablation and bihormonal cells. The x-axis represents the log2 of fold change (FC) and the y-axis the log10 of adjusted P value (Padj) provided by DESeq. The red dots highlight the significantly DE genes (Padj <0.05). A full list of significant DE genes is provided in Figure 3—source data 1. (C) Expression values (mean normalized reads) as provided by DESeq of the main hormones and endocrine genes in β-cell and bihormonal cell transcriptomes. sst1.1 and ins are the two highest expressed hormones. Padj are calculated by DESeq. ns: no significant DE between the two conditions, 0.05< P* < 0.005, 0.005< P** < 0.0005, P***** < 0.000005. (D) Heatmap plot showing the direction and amplitude of changes in expression of the β-cell markers between normal β-cells and bihormonal cells (significant DEG only). The 62 β-cell markers are provided in Figure 3—source data 2. (E) Expression values (mean normalized reads) as provided by DESeq of selected β-cell markers and genes important for β-cell function in β-cells and bihormonal cells. Padj are calculated by DESeq. ns: no significant DE between the two conditions, 0.05<* < 0.005, 0.005<** < 0.0005, 0.00005<**** < 0.000005, ***** < 0.000005. (F) Enriched Gene Ontology (GO) terms. Top 10 or Padj (FDR) < 0.25 Biological Processes (BP) and KEGG pathways are shown. The plots represent the enrichment ratio of Biological Processes and KEGG pathways identified with WebGestalt (Liao et al., 2019) using the genes over- and underexpressed in bihormonal cells compared to β-cells obtained with a twofold differential expression and Padj <0.05. All overrepresented Biological Processes and Pathways (< FDR 0.25) are listed in Figure 3—source data 3 (bihormonal cells) and Figure 3—source data 4 (β-cells). (G) Over- and underexpression of selected significantly DE genes from the BP and KEGG pathways identified in β-cells and bihormonal cells (Fold Change, log2 scale).

Figure 3—source data 1

Differentially expressed genes between beta cells and bihormonal cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig3-data1-v2.pdf
Figure 3—source data 2

List of the beta cell markers from Tarifeño-Saldivia et al., 2017.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig3-data2-v2.pdf
Figure 3—source data 3

Gene Ontology analysis of genes overexpressed in bihormonal cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig3-data3-v2.pdf
Figure 3—source data 4

Gene Ontology analysis of genes overexpressed in beta cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig3-data4-v2.pdf
Figure 3—source data 5

Table of the main transcription factors considered in this study, their expression and comparison between zebrafish and mouse/human.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig3-data5-v2.docx

To further characterize these bihormonal cells, we assessed the expression of transcription factors important for β-cell development and identity in zebrafish and mouse/human (see list in Figure 3—source data 5). We first checked the expression of the pan-endocrine genes neurod1, pax6b and isl1 and found similar expression (Figure 3C). We also examined the expression of pdx1, a transcription factor essential for ins expression in β-cells. pdx1 was equally expressed in both native β-cells and post-regeneration GFP+ mCherry + cells. We next evaluated the β-cell identity of bihormonal cells by interrogating the expression of zebrafish β-cell markers. We defined these markers as genes enriched in β-cells ( > 4 fold) versus the other main pancreatic cell types (α-, sst2 δ-cells, acinar and ductal cells) based on previous RNAseq data (Tarifeño-Saldivia et al., 2017; Figure 3—source data 2). This list of β-cell genes includes nkx6.2, a previously identified β-cell marker in zebrafish (Binot et al., 2010; Tarifeño-Saldivia et al., 2017) which is the equivalent of Nkx6.1 in mouse/human β-cells (Figure 3—source data 5). More than half of the 62 ‘β-cell genes’ were expressed at similar levels in both bona fide β-cells and post-regeneration bihormonal cells. In contrast, 27 β-cell genes showed either over- or underexpression (Figure 3D). In particular, 18 β-cell genes were underexpressed in bihormonal cells like, for example, nkx6.2 which was not expressed at all (Figure 3E). We also looked at markers of dedifferentiation and found that the zebrafish pancreatic progenitor markers nkx6.1, sox9b, and ascl1b, were barely expressed in bihormonal cells, like in control β-cells.

When considering key genes for β-cell function and maturation, that is glucose sensing, uptake, Ins maturation and secretion, many were expressed at comparable levels in both cell types, such as notably slc2a2, pcsk1, abcc8, and snap25a (Figure 3E). ucn3l, a marker of mature β-cells in mammals (Blum et al., 2012) and zebrafish (Singh et al., 2017), was overexpressed in bihormonal cells.

Gene Ontology (GO) analysis of the genes overexpressed in bihormonal cells compared to β-cells showed that the top significant biological processes were related to adhesion and neuronal synapses with many genes that are known in β-cells to be important for Insulin processing and exocytosis (Figure 3F–G and Figure 3—source data 3). Other processes included intracellular Calcium and cAMP signaling (Figure 3F–G and Figure 3—source data 3). These data strongly suggest that bihormonal cells, like β-cells, are excitable cells with the capacity to secrete Insulin in response to glucose.

Altogether, these data indicate that bihormonal cells possess the molecular bases of functional mature β-cells such as a glucose-responsiveness and hormone secretion machinery. However, although many β-cell genes are similarly expressed between bihormonal and β-cells, bihormonal cells display a divergent identity such as lack of the zebrafish β-cell marker nkx6.2 and strong expression of sst1.1.

Bihormonal cells constitute the main source of insulin in regenerated zebrafish and restore blood glucose homeostasis

The basal glycemia of regenerated fish is nearly normalized after 20 days, strongly suggesting that bihormonal cells – that represent 98% of the Ins-producing cells – contribute to blood glucose control. To exclude the possibility that glycemia is regulated by a population of genuine monohormonal β-cells regenerated outside the main islet, we analyzed the pancreatic tail. Indeed, zebrafish possess smaller secondary islets scattered in the pancreatic tail in addition to the large main islet located in the head. Similar to the main islets, regenerated 20 dpt secondary islets harbored many bihormonal cells and very scarce monohormonal β-cells (Figure 4A–B and Figure 4—source data 1). Thus, bihormonal cells constitute the predominant source of Ins throughout the whole pancreas.

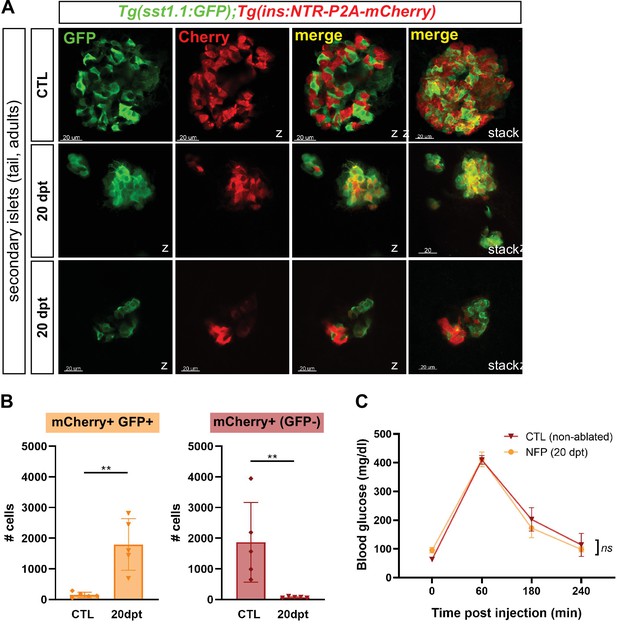

Bihormonal cells are the main source of Insulin in the whole pancreas after regeneration and regulate blood glucose homeostasis.

(A) Whole mount immunofluorescence (GFP and mCherry) on the pancreas of Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult zebrafish showing secondary islets in the pancreatic tail. One representative CTL and two independent 20 dpt samples are shown. Coexpressing cells appear in yellow due to overlapping GFP and mCherry staining. Confocal optical section (Z-planes) and 3D projections (stacks) are shown. (B) Quantification of monohormonal mCherry+ β-cells and GFP+ mCherry + bihormonal cells detected by FACS in the tail of CTL fish and after 20 days regeneration (20 dpt). Mann-Whitney test. p** = 0.0079 in both graphs. Mean ± SD. (See also Figure 4—source data 1). (C) Intraperitoneal glucose tolerance test performed in adult zebrafish. Blood glucose was measured over time in control (non-ablated, DMSO) and NFP-treated (ablated) fish after intraperitoneal injection of 0.5 mg/µl of D-Glucose. 4≤ N ≤ 9 per time point for CTL and NFP. Two-way ANOVA test with Sidak’s multiple comparison test. Mean ± SEM; ns: not significant.

To assess the functionality of adult bihormonal cells, we performed a glucose tolerance test and blood glucose levels were followed after an intraperitoneal injection of D-Glucose. Regenerated fish 20 days after β-cell ablation displayed completely normal glucose tolerance (Figure 4C and Figure 4—source data 2). Together, all these data support the conclusion that the bihormonal cells are responsible for the normalization of glycemia and glucose tolerance in regenerated zebrafish.

sst1.1 δ-cells are distinct from sst2 δ-cells and display similarities with β-cells

Given the expression of sst1.1 in bihormonal cells, we sought to characterize the sst1.1-expressing cells in normal islets without ablation. Previous transcriptomic studies of pancreatic cells detected three Sst genes in normal adult pancreatic islets, sst1.1, sst1.2, and sst2 (Spanjaard et al., 2018; Tarifeño-Saldivia et al., 2017). However, so far, only the sst2 δ-cells, which also express sst1.2, have been fully characterized (Tarifeño-Saldivia et al., 2017). We thus isolated the sst1.1-expressing GFP+ cells from control non-ablated islets of Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish to determine their transcriptome. Close examination of these sst1.1:GFP+ cells by flow cytometry actually distinguished two subpopulations recognised by different levels of GFP fluorescence, GFPlow and GFPhigh (Figure 5—figure supplement 1A). The GFPhigh population represented 35% of all GFP cells. The presence of cells with high and low GFP were also observed in situ by immunofluorescence on fixed whole pancreas (Figure 5A).

Figure 5 with 1 supplement see all

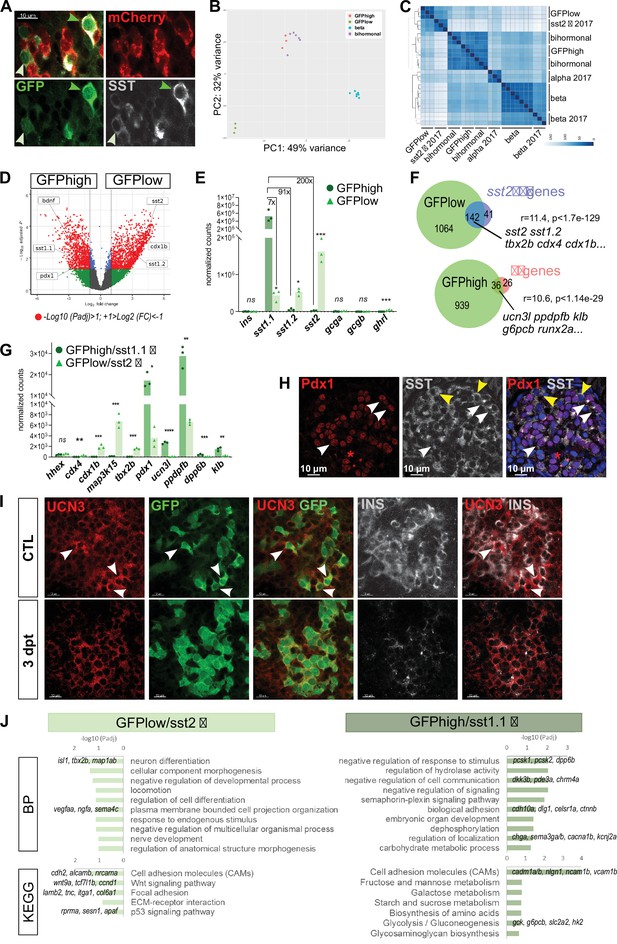

sst1.1 δ-cells (GFPhigh) constitute a δ-cell subpopulation distinct from sst2 δ-cells (GFPlow) that presents similarities with β-cells.

(A) Whole mount immunodetection on t Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) main islets of GFP (green), mCherry (red) and Sst (gray) revealing two levels of GFP expression (green light and dark arrowheads) that parallel the expression level of Sst. These cells are mCherry negative. (B) PCA plot showing the separation between sst1.1:GFPhigh (n = 3), sst1.1:GFPlow (n = 3), bihormonal (n = 6) and β-cells (n = 7) based on their transcriptomic profile. 49% of the variance is explained in PC1. PCA analysis failed to separate bihormonal and sst1.1:GFPhigh cells while separated well β-cells from the sst1.1:GFPlow cells. The sst1.1:GFPhigh/bihormonal cluster located between β-cells and sst1.1:GFPlow cells shows that β-cells are more similar to sst1.1:GFPhigh/bihormonal cells. (C) Heatmap plot showing the clustering of the sst1.1:GFPhigh and sst1.1:GFPlow populations, the bihormonal cells, the β-cells of the present study and the previously published data for β-, α-, and sst2 δ-cells (n = 3) (Tarifeño-Saldivia et al., 2017). In addition to revealing the expected clustering between both RNAseq data from β-cells (Tarifeño-Saldivia et al., 2017) and this study, this plot also shows the clustering of the GFPlow cells together with sst2 δ-cells. (D) Volcano plot showing the distribution of genes expressed in GFPhigh and GFPlow populations. The x-axis represents the log2 of fold change (FC) and the y-axis the log10 of adjusted p value (Padj) provided by DESeq. The list of all DE genes is provided in Figure 5—source data 1. (E) Expression of the main pancreatic hormones in GFPhigh and GFPlow populations (mean normalized reads). Expression is expressed as normalized counts and Padj are calculated by DESeq. ns: no significant DE between the two conditions, 0.05<* < 0.005, 0.0005<*** < 0.00005. (F) Venn diagram showing the overlap between genes overexpressed in GFPlow cells (versus GFPhigh) and sst2 δ-cell markers previously identified, and between genes overexpressed in GFPhigh cells (versus GFPlow cells) and β-cell genes (Figure 5—source data 2). Representation factor and p value calculated by Fisher’s exact test. (G) Expression of selected β- and sst2 δ-cell genes in each replicate of GFPhigh and GFPlow cells. GFPhigh cells distinctly express high levels of sst1.1 and will be referred to as GFPhigh/sst1.1 δ-cells, and GFPlow to GFPlow/sst2 δ-cells. 0.05<* < 0.005, 0.005<** < 0.0005, 0.0005<*** < 0.00005, **** < 0.00001 (H) Confocal images showing immunodetection of Pdx1 (anti-Pdx1, red) and Sst (anti-SST, gray) on paraffin section through the main islet of a non-ablated adult fish showing double Pdx1+ Sst + cells (white arrowheads) and Pdx1- Sst+ cells (yellow arrowheads). Red asterisks highlight Pdx1 single positive cells β-cells. (I) Confocal images showing whole mount immunodetection of Ucn3 (red), GFP (green) and Ins (gray) in CTL and three dpt main islets from Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish. In CTL islets, strong Ucn3 labeling is detected in β-cells as well as in some sst1.1:GFP cells (white arrowheads). After β-cell ablation, Ucn3 is principally expressed in GFP+ cells that also harbor faint Ins staining. (J) Biological Processes (BP) and KEGG pathways overrepresented in GFPhigh/sst1.1 δ-cells (UP) compared to GFPlow cells (DOWN) (Padj<0.25). Gene Ontology (GO) terms were identified by WebGestalt (Liao et al., 2019) using the list of DE genes between GFPhigh/sst1.1 δ-cells and GFPlow/sst2 δ-cells obtained with at least twofold differential expression and Padj <0.05 provided by DESeq. The list of all BP and KEGG pathways below FDR 0.25 is given in Figure 5—source data 4, Figure 5—source data 5.

Figure 5—source data 1

Differential gene expression between sst1.1:GFPhigh and GFPlow cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig5-data1-v2.pdf
Figure 5—source data 2

List of the beta cell markers expressed in sst1.1GFPhigh cells and of the sst2 delta cell markers expressed in GFPlow cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig5-data2-v2.pdf
Figure 5—source data 3

List of the sst1.1:GFPhigh markers defined in this study and updated beta cell markers.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig5-data3-v2.pdf
Figure 5—source data 4

Gene Ontology analysis of genes overexpressed in sst1.1:GFPlow cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig5-data4-v2.pdf
Figure 5—source data 5

Gene Ontology analysis of genes overexpressed in sst1.1:GFPhigh (sst1.1 delta) cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig5-data5-v2.pdf

The transcriptomic profile of the two GFP populations was obtained (Figure 5—figure supplement 1B). Principal Component Analysis (PCA) unveiled that GFPhigh cells are very similar to bihormonal cells (Figure 5B). In addition, they are also more similar to β-cells than GFPlow cells. Clustering analysis of the two GFP populations, the bihormonal cells and the other endocrine cells (a, b, and sst2 δ-cells Tarifeño-Saldivia et al., 2017) also showed that the GFPhigh cells cluster together with bihormonal cells and apart from the GFPlow cells (Figure 5C). Indeed, GFPlow cells were closer to sst2 δ-cells than to the other endocrine subtypes. Comparison of the two GFP populations identified 975 and 1206 DE genes overexpressed in GFPhigh and GFPlow, respectively (FC >2, Padj <0.05) (Figure 5D and Figure 5—source data 1). sst1.1 was by far the predominant Sst gene expressed in GFPhigh cells (Figure 5E). On the opposite, sst2 was predominant in GFPlow cells though these cells also expressed sst1.2 and sst1.1 at lower levels. In addition, while both populations expressed the universal δ-cell marker hhex, other previously identified markers of zebrafish sst2 δ-cells such as cdx4, tbx2b, and map3k15 (Tarifeño-Saldivia et al., 2017) were specific to GFPlow cells (Figure 5F–G). Indeed, more than 75% of the sst2 δ-cell genes (enriched >4 fold based on previous data Tarifeño-Saldivia et al., 2017) were also enriched in GFPlow cells (Figure 5F and Figure 5—source data 2). Ectopic activity of the sst1.1:GFP transgene in the sst2 δ-cells was confirmed by ISH showing sst2 probe signal exclusively in the weakest GFP+ cells (Figure 5—figure supplement 1C). These data show that the GFPlow population contains sst2 δ-cells, while the GFPhigh population consists of a pure and distinct δ-cell population characterized by strong sst1.1 expression. These δ-cells will be named sst1.1 δ-cells hereafter.

Focusing on the sst1.1 δ-cells, we noticed high expression of pdx1 (Figure 5G). In addition to being expressed in all β-cells, Pdx1 in mammals is also expressed in a subset of δ-cells (Piran et al., 2014; Segerstolpe et al., 2016). In zebrafish, pdx1 is expressed in β-cells but not in sst2 δ-cells (Tarifeño-Saldivia et al., 2017). In agreement with the transcriptome of sst1.1 δ-cells, Pdx1 immunolabeling was confirmed in a subset of Sst + cells on paraffin section through the adult main islet (Figure 5H). Next, we investigated the expression of the 62 zebrafish ‘β-cell genes’. Strikingly, most of them (36/62), such as ucn3l, were found enriched in sst1.1 δ-cells (Figure 5F–G and Figure 5—source data 2) while none was preferentially expressed in the GFPlow cells. By immunofluorescence, Ucn3 decorated β-cells in control islets and, additionally, an even more intense staining was detected in a subset of GFPhigh cells. After ablation, the anti-Ucn3 also marked bihormonal cells, confirming our RNAseq data (Figure 5I). Based on these new transcriptomic datasets, we defined the genes selectively enriched ( > 4 fold) in sst1.1 δ-cells versus the other endocrine cell types already available (sst2δ, β and α) and identified 152 specific sst1.1 δ-cell markers, among which bdnf, cdh10a, sox11b, and dkk3b (Figure 5—source data 3). An updated list of 60 markers enriched in β-cells versus sst1.1 δ-cells, α and sst2 δ-cells altogether could also be defined. Our RNAseq data also revealed that dkk3b and ucn3l, previously attributed to β-cells, were even more enriched in sst1.1 δ-cells.

Top GO terms overrepresented in GFPlow/sst2 δ-cells (Figure 5J and Figure 5—source data 4) were related to neuron differentiation, adhesion and Wnt signaling. Top most significant GO terms and pathways in sst1.1 δ-cells (Figure 5J and Figure 5—source data 5) included ‘biological adhesion’ and proprotein convertases important in the secretory pathway such as pcsk1 and pcsk2. Together with gck, g6pcb, slc2a2, and hk2 associated with ‘metabolism of carbohydrates’, these signatures suggest some competence of sst1.1 δ-cells for glucose-responsiveness and hormone secretion.

Overall, these data unveil that sst1.1 δ-cells represent a distinct δ-cell population possessing basic features of β-cells and sensors to integrate Ins signaling, glucose metabolism and carry hormone secretory activity.

Monohormonal sst1.1-expressing cells transcriptionally activate the ins gene following β-cell ablation

The transcriptomic profile of sst1.1 δ-cells suggests that they represent a promising candidate as cellular origin of bihormonal cells. In line with a conversion of sst1.1 δ-cells to bihormonal cells, the number of monohormonal GFPhigh cells was reduced after ablation in adult fish compared to CTL (from 979 cells to 315 at 20 dpt) (Figure 6A, Figure 6—source data 1). To test the hypothesis of a direct conversion of sst1.1 δ-cells, we followed the appearance of bihormonal cells by in vivo time lapse imaging of the main islet in Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) larvae after ablation from 3 to 4 dpf. Figure 6B–B’ show mCherry fluorescence progressively appearing in monohormonal sst1.1:GFP+ cells presenting strong GFP fluorescence, most likely sst1.1 δ-cells. These results indicate the activation of the ins promoter of the ins:mCherry transgene in sst1.1:eGFP cells and suggest that at least some sst1.1 δ-cells directly convert into bihormonal cells immediately after ablation.

Figure 6 with 2 supplements see all

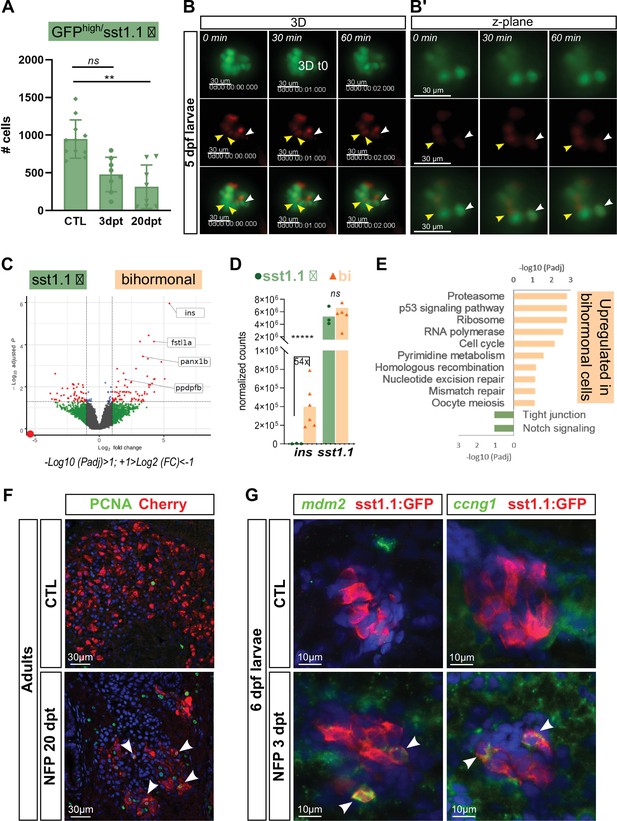

sst1.1 δ-cells convert to Sst1.1+ Ins + bihormonal cells after β-cell destruction and activate cell cycle genes and p53.

(A) Quantification by flow cytometry of GFPhigh/sst1.1 δ-cells before ablation (CTL) and at 3 and 20 dpt showing depletion of sst1.1 δ-cells during regeneration. Cells were isolated from dissected main islets of adult Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry). Mean ± SD; Kruskal-Wallis test; ns: not significant, **p < 0.005 (see also Figure 6—source data 1). (B) In vivo time lapse of the main islet of a four dpf Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) larva following β-cell ablation from 3 to 4 dpf. 3D representation (B) and one z-plane (B’) of the same islet are shown. The arrowheads point at two GFP+ cells (green) that start to express ins:mCherry (red) fluorescence between t0 and t1 (visible in the same z-plane). The white arrowhead points to a strongly fluorescent sst1.1:GFPhigh cell. Images were acquired every 30 min starting from four dpf (96 hpf). (C) Volcano plot showing the significant DE genes over- or underexpressed in 20 dpt bihormonal cells versus CTL GFPhigh/sst1.1 δ-cells (FC >2 < , Padj <0.05). The full list of significant DE genes calculated by DESeq is provided in Figure 6—source data 2. (D) Expression in normalized counts of the sst1.1 and ins genes in CTL GFPhigh/sst1.1 δ-cells and bihormonal cells (bi). Padj are calculated by DESeq. ns: no significant DE between the two conditions, ***** < 0.000005. (E) Top significant KEGG pathways identified among the genes upregulated (in orange) and downregulated (in green) in bihormonal cells compared to CTL GFPhigh/sst1.1 δ-cells. The list of GO terms below FDR 0.25 is given in Figure 6—source data 3, Figure 6—source data 4. (F) Immunofluorescence of PCNA and mCherry on paraffin sections through the main islet of Tg(ins:NTR-P2A-mCherry) adult zebrafish, CTL and regenerated (20 dpt after NFP-mediated ablation), showing PCNA+ nuclei in mCherry+ cells in regenerated islets (confocal images, white arrowheads). (G) Expression of p53 target genes mdm2 and ccng1 mRNA (green) revealed by whole mount in situ hybridization on 6 dpf CTL and ablated Tg(ins:NTR-P2A-mCherry); Tg(sst1.1:GFP) larvae (main islet). Ablation was performed at 3 dpf. Immunodetection of GFP (in red) was revealed following in situ hybridization. White arrowheads point to sst1.1:GFP+ cells expressing mdm2 and ccng1 after ablation.

Figure 6—source data 1

sst1.1 delta cell (GFPhigh) quantification.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig6-data1-v2.pdf
Figure 6—source data 2

Differentially expressed genes between sst1.1 delta and bihormonal cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig6-data2-v2.pdf
Figure 6—source data 3

Gene Ontology analysis of genes overexpessed in bihormonal cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig6-data3-v2.pdf
Figure 6—source data 4

Gene Ontology analysis of genes overexpressed in sst1.1 delta cells.

https://cdn.elifesciences.org/articles/67576/elife-67576-fig6-data4-v2.pdf

Bihormonal cells have a transcriptomic profile very similar to sst1.1 δ−cells but with distinct cell cycle signatures

As the PCA and clustering analyses shown Figure 5B–C revealed that bihormonal and monohormonal GFPhigh/sst1.1 δ-cells are transcriptionally similar, we next directly performed a pairwise comparison of their transcriptome. This analysis revealed a few DE genes, with 293 over- and 180 underexpressed genes in bihormonal cells versus sst1.1 δ-cells (FC twofold, Padj <0.05) (Figure 6C and Figure 6—source data 2), indicating that the identity of bihormonal cells is very close to sst1.1 δ-cells. The ins gene was the top overexpressed gene in bihormonal cells (54-fold) (Figure 6D). Among the 293 overexpressed genes in bihormonal cells, 9 were β-cell markers such as ins and fstl1a and, among the 180 underexpressed genes, 8 were sst1.1 δ-cell markers. Both sst1.1 and hhex were equally expressed, further underscoring that bihormonal cells and sst1.1 δ-cells have a close identity.

GO analyses of the genes overexpressed in bihormonal cells identified ‘ribosome’, ‘proteasome’, ‘p53 signaling pathway’, and ‘cell cycle’ pathways as top enriched pathways (Figure 6E and Figure 6—source data 3 and Figure 6—source data 4). To corroborate the cell cycle signature, we examined Proliferating Cell Nuclear Antigen (PCNA) in the main islet of Tg(ins:NTR-P2A-mCherry) adult fish. In CTL islets, PCNA immunodetection was almost absent. In contrast, it was widely observed in mCherry+ cells at 20 dpt (Figure 6F). As mCherry+ cells are also bihormonal, it can be concluded that PCNA is expressed in bihormonal cells. We also examined Pdx1 as a proxy for β, sst1.1 δ and bihormonal cells (Figure 6—figure supplement 1A). The proportion of PCNA+ Pdx1+ cell was strongly increased in 3 and 20 dpt islets compared to CTL. To assess more specifically DNA replication, we performed a 2-day incorporation of the established marker of DNA synthesis EdU in Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) larvae (Figure 6—figure supplement 1B). Larval sst1.1:GFP+ cells and ins:mCherry+ β-cells displayed basal DNA replication (CTL). In NFP-treated larvae, the few monohormonal β-cells detected 3 days post-ablation rarely incorporated EdU showing that most escaping β-cells do not proliferate after ablation. In contrast, monohormonal GFP+ EdU + cells were observed in similar proportion between control and ablated larvae. Importantly, a significant fraction of bihormonal cells induced by the ablation showed DNA replication (Figure 6—figure supplement 1B).

To assess p53 activity, important for cell cycle checkpoints, we also used larvae to analyze the expression of p53 target genes by in situ hybridization. mdm2 and ccng1 were found induced in a subset of sst1.1:GFP+ cells at 3 dpt (Figure 6G), confirming the activation of the p53 pathway in response to the destruction of β-cells.

Given the activation of the p53 pathway following β-cell ablation, and as p53 is generally activated in response to cellular stress, we investigated the role of common stresses caused by β-cell death like hyperglycemia, oxidative stress and impaired Insulin signaling, in bihormonal cell formation. In particular, we asked whether these signals could induce by themselves the formation of bihormonal cells. However, none of these stresses was sufficient to trigger the formation of bihormonal cells (Figure 6—figure supplement 2).

Together, these results demonstrate that bihormonal cells in regenerating islets express genes involved in cell cycle progression and checkpoints. In line with these findings, our data also show that bihormonal cells and possibly sst1.1 δ-cells engage in proliferation in response to the ablation of β-cells.

Bihormonal cells also arise from pancreatic ducts

In zebrafish, the secondary islets originate from pancreatic duct-associated progenitors in a process initiated during normal larval development (Parsons et al., 2009; Wang et al., 2011). Ducts also contribute to β-cell regeneration in the adult zebrafish, providing new β-cells to the main and secondary islets (Delaspre et al., 2015; Ghaye et al., 2015). The striking observation that the vast majority of new ins-expressing cells are bihormonal in the entire pancreas raises the hypothesis that duct-derived Ins + cells also express Sst1.1. To explore this possibility, we used larvae, a well-established model to study β-cell regeneration from the ducts (Ninov et al., 2013). In this model, destruction of β-cells not only induces their regeneration in the main islet but also activates duct-associated progenitors to produce more β-cells. We first determined the time course of duct-derived β and sst1.1 δ-cell formation during normal development and established that they start to differentiate between 7 and 10 dpf (Figure 7—figure supplement 1). Next, we used the Tg(nkx6.1:eGFP); Tg(ins:NTR-P2A-mCherry) line, where nkx6.1 is a marker of pancreatic ducts and of duct-associated progenitors (Ghaye et al., 2015), to perform the ablation of β-cells at 3 dpf, that is before the normal differentiation of β and sst1.1 δ-cells in the tail. Thus, potential Ins + Sst1.1+ bihormonal cells appearing in the tail after ablation are expected to originate from the ducts and not from secondary β or sst1.1 δ-cells. At 17 dpf, mCherry and Sst immunodetection was analyzed (Figure 7A–B). Double positive bihormonal cells were found in the ductal nkx6.1:GFP+ domain in the tail of regenerating larvae while they were almost absent in CTL ducts (Figure 7B–B’–C and Figure 7—source data 1). These findings support that duct cells give rise to bihormonal cells during regeneration and that they contribute to the overall bihormonal cell mass.

Figure 7 with 1 supplement see all

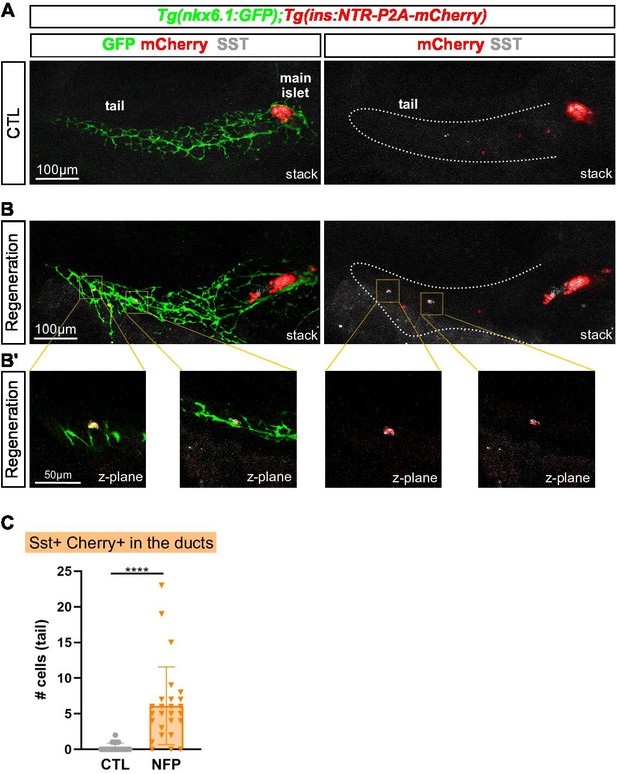

Bihormonal cells can also arise in the pancreatic ducts.

(A–B) Whole mount immunodetection of GFP that highlights the ducts (green), mCherry (red) for β-cells and Sst (gray) on the entire pancreas of Tg(nkx6.1:eGFP); Tg(ins:NTR-P2A-mCherry) larvae at 17 dpf. (A) CTL larvae showing the main islet in the head and a few monohormonal endocrine cells (mCherry+ or Sst+) in the ductal GFP+ domain in the tail. The pancreatic tail is delineated by white dashed lines. (B) After treatment with NFP from 3 to 4 dpf, regenerating larvae display scattered bihormonal cells (red and gray) in the tail along the ducts. Stacks represent 3D projections of confocal images of the whole pancreas. (B’) Close-ups of two individual bihormonal cells in the tail (z-planes showing one unique optical section). (C) Quantification of Sst + mCherry + bihormonal cells based on confocal images. Mann-Whitney test, ****p < 0.0001. (See also Figure 7—source data 1).

Figure 7—source data 1

Bihormonal cell quantification in the tail (larvae).

https://cdn.elifesciences.org/articles/67576/elife-67576-fig7-data1-v2.pdf

Bihormonal cells persist long after β-cell ablation

Finally, we questioned the persistence of bihormonal cells long after ablation and analyzed the main islet from Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish 4 months after ablation. Surprisingly, most Ins + cells still coexpressed GFP as well as high levels of Ucn3 at this stage (Figure 8A), similarly to 20 dpt bihormonal cells. Bihormonal cells still constituted the vast majority of ins-expressing cells in the main islet compared to monohormonal β-cells (Figure 8B–D). This also suggests that they do not represent a transient intermediary population that would ultimately resolve into ins-only β-cells.

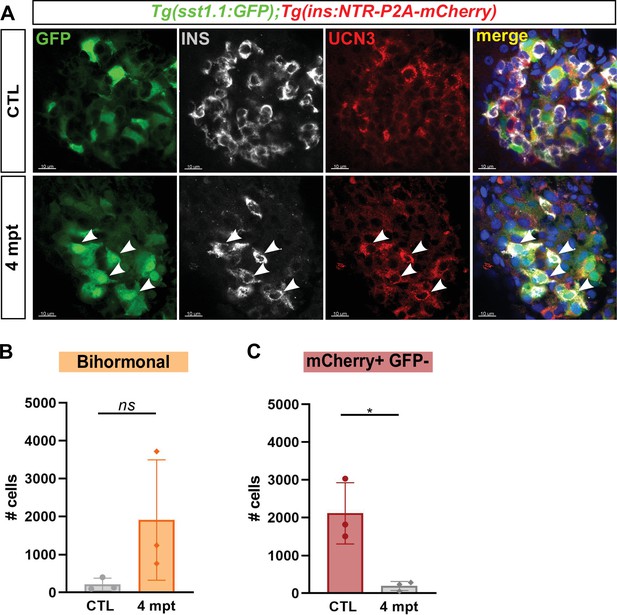

Protracted bihormonal cells 4 months after β-cell ablation.

(A) Whole mount immunodetection of Ucn3 (red), GFP (green), Ins (grey) on the main islet of Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish revealing persistent bihormonal GFP+ Ins + cells still 4 months after ablation. These cells still also express Ucn3 (white arrowheads). (B–D) Quantification by flow cytometry of islet cell populations in CTL and 4 months after ablation. (B) mCherry+ GFP + bihormonal cells. (C) mCherry+ GFP- monohormonal β-cells. Means ± SD; Unpaired t-test with Welch’s correction; *p < 0.05.

Discussion

Pancreatic endocrine cell plasticity and impaired identity has emerged as an important cellular adaptive behavior in response to β-cell stress and death in human and in mammalian diabetic models. Here, we show that, in zebrafish, a large and predominant population of Ins + Sst1.1+ bihormonal cells arise after β-cell destruction, confers glucose responsiveness and restores blood glucose homeostasis. Moreover, contrasting with the age-dependent and limited β-cell neogenesis of mouse models (Chera et al., 2014; Perez-Frances et al., 2021; Thorel et al., 2010), bihormonal cell formation in zebrafish is fast and efficient and occurs all along life.

Our study provides an in-depth characterization of the zebrafish sst1.1 δ-cell subpopulation. The existence of two distinct δ-cell subpopulations corroborates a recent report of two clusters of δ-cells detected by single cell RNAseq, one expressing sst2/sst1.2 and the other sst1.1 (Spanjaard et al., 2018). Although our β-cell lineage tracing experiment in larvae indicates that a subset of bihormonal cells derive from pre-existing β-cells, the majority have a non-β origin. Here, we present evidences that bihormonal cells originate from sst1.1 δ-cells and duct cells. In contrast to sst2 δ-cells which have previously been excluded as a source of new Ins-expressing cells (Ye et al., 2015), our results strongly suggest that sst1.1 δ-cells rapidly adapt to the loss of β-cells and activate ins expression. First, pre-existing sst1.1 δ-cells already express many genes essential for β-cells such as pdx1, ucn3l and the glucose transporter slc2a2 (Glut2). Second, sst1.1 δ-cells and bihormonal cells have a very close transcriptomic profile meaning that only minor changes in sst1.1 δ-cells would generate bihormonal cells. Third, sst1.1 δ-cells express the basic molecular machinery for glucose-sensing, glucose- and calcium-dependent stimulation of Insulin secretion and blood glucose control. Fourth, the appearance of bihormonal cells during regeneration concurs with a reduction of the sst1.1 δ-cell mass. Finally, in vivo imaging revealed the activation of ins expression in sst1.1 δcells early after ablation. All these observations support the conclusion that sst1.1 δ-cells constitute a distinct zebrafish δ-cell population expressing β-cell features enabling them to rapidly reprogram to bihormonal cells by activating ins expression and engender functional surrogate β-cells. Importantly, during the preparation of our manuscript, Singh et al. also identified sst1.1+ ins + δ/β hybrid cells in zebrafish by scRNAseq (Singh et al., 2022). They also proposed the sst1.1 δ-cells as possible cellular origin after β-cell ablation, thereby consolidating our findings. A difference between our two studies, however, is that they detected some hybrid Sst1.1+ Ins + cells in control islets while we could not clearly identify them, probably due to different technical approaches.

The fact that the bihormonal cell population is somewhat larger than the sst1.1 δ-cell population (compare 979 GFPhigh/sst1.1 δ-cells in CTL fish in Figure 6A with ~1400 bihormonal cells post-ablation in Figure 1F) suggests the implication of mechanisms complementary to direct conversion. Indeed, beside sst1.1 δ-cells as cellular origin of bihormonal cells, our findings also point to alternative sources, (i) a β-cell origin from pre-existing cells spared by the ablation and (ii) a ductal origin, at least in larvae. Our results show that a small but significant fraction of bihormonal cells arises from β-cells. We also show that bihormonal cells form in the pancreatic ducts. As ducts are present in the tail as well as in the head, these results suggest a ductal contribution to the global bihormonal cell mass, that is the main and secondary islets. Whether regenerating duct-derived bihormonal cells differentiate via a monohormonal sst1.1 δ-cell transitional state remains to be determined. Moreover, the ducts could help repopulate the sst1.1 δ-cells after conversion. Besides neogenesis, our results suggest that proliferation contributes to the formation and/or maintenance of the pool of bihormonal cells and sst1.1 δ-cells. Notably, we observed evidences of proliferation at an early stage after β-cell ablation, 3 dpt, as illustrated by replicating EdU + bihormonal cells in larvae and broad PCNA expression in adults. Interestingly, the activation of p53 indicates a tight control on proliferation in bihormonal cells. At 20 dpt, the p53 pathway represents the second most enriched signature in bihormonal cells, while PCNA is still widely expressed. To understand this observation, it would be interesting to tackle the dynamics of cell cycle and to perform a detailed analysis of different markers of cell cycle progression and checkpoints in the different cell populations during regeneration.

The identification of bihormonal cells in zebrafish brings the question of the molecular mechanisms underlying this β/δ hybrid identity. In mammals, Pdx1 is essential for β-cell function notably through activation of Ins and of the glucose-sensing machinery genes Slc2a2 and Gck (Ahlgren et al., 1998; Waeber et al., 1996; Watada et al., 1996). Pdx1 is also crucial to promote and maintain β-cell identity as it activates β-cell genes and represses the α-cell program (Ahlgren et al., 1998; Gao et al., 2014). Interestingly, Pdx1, also known as STF1 (Somatostatin Transcription Factor 1), is expressed in a subset of mouse/human δ-cells (Piran et al., 2014; Segerstolpe et al., 2016) and stimulates Sst expression (Leonard et al., 1993). In both murine α and γ-cells, the efficiency of reprogramming to Insulin-expressing cells is potentiated by forced expression of Pdx1 (Cigliola et al., 2018; Perez-Frances et al., 2021). Thus, the expression of pdx1 could underlie the intrinsic competence of sst1.1 δ-cells (or mammalian δ-cells) to induce ins. However, pdx1 expression alone is obviously not sufficient to guarantee ins expression, and other mechanisms consequent to β-cell loss must operate in synergy, such as metabolic changes and epigenetic regulations. In contrast to pdx1, nkx6.2 and mnx1, two genes essential for β-cell development in zebrafish (Binot et al., 2010; Dalgin et al., 2011), are totally absent in bihormonal cells (Figure 3 and Figure 3—source data 1). In mammals, the homologue of nkx6.2 in β-cells is Nkx6.1 (see species-specific expression in Figure 3—source data 5). Both Nkx6.1 and Mnx1 genes in mouse are important to repress non-β endocrine lineage programs (Pan et al., 2015; Schaffer et al., 2013). Together, the robust expression of pdx1 and the lack of mnx1 and nkx6.2 are potential key players in the hybrid β/δ phenotype.

Normal glycemia is nearly recovered after 20 days and regenerated animals display perfectly normal glucose tolerance despite the very low abundance of genuine monohormonal β-cells. Bihormonal cells formed after β-cell destruction are abundant – nearly half the initial β-cell mass – and constitute the vast majority of ins-expressing cells throughout the whole pancreas and hence the main source of Ins. Their capacity to regulate blood glucose levels is corroborated by their transcriptomic profile showing the expression of the machinery required for glucose responsiveness and insulin secretion as illustrated by the glucose transporter Glut2 (slc2a2), the prohormone convertase pcsk1, the KATP subunit SUR1 (abcc8) and several components of the secretory pathway. All these findings are further supported by the observation by Singh et al that β/δ hybrid cells gain glucose responsiveness during regeneration as assessed by in vivo Calcium imaging (Singh et al., 2022). Altogether, we propose that, despite the fact that bihormonal cells are not identical to β-cells, they are the functional units that control glucose homeostasis in regenerated fish, compensate for the absence of monohormonal β-cells and reverse diabetes.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Danio rerio)TgBAC(nkx6.
1:eGFP)ulg004
PMID:26329351ZFIN: ZDB-ALT-160205–1
Genetic reagent (Danio rerio)Tg(ins:NTR-P2A-mCherry)ulg034PMID:29663654ZFIN: ZDB-ALT-171122–9
Genetic reagent (Danio rerio)Tg(sst1.1:eGFP)ulg054This paperSee Zebrafish
husbandry and
generation of
the Tg(sst1.1:eGFP)ulg054
zebrafish line
AntibodyAnti-GFP (chicken polyclonal)Aves LabsGFP-1020(1:500)
AntibodyAnti-Insulin
(guinea pig
polyclonal)
DakoA0564(1:500)
Antibodyanti-mCherry/
dsRed (Living
Colors Polyclonal)
Clontech632,496(1:500)
Antibodyanti-Pan-RCFP
(Living Colors
Polyclonal)
Clontech632,475(1:500)
Antibodyanti-Somatostatin
(rat polyclonal)
InvitrogenMA5-16987(1:300)
Antibodyanti-Somatostatin
(rabbit polyclonal)
DakoA0566(1:300)
Antibodyanti-Glucagon
(mouse monoclonal)
SigmaG2654(1:300)
Antibodyanti-Urocortin 3
(rabbit polyclonal)
Phoenix PharmaceuticalsH-019–29(1:300)
AntibodyAnti-Pdx1
(guinea pig
polyclonal)
From Chris Wright(1:200)
AntibodyPCNASigma-AldrichP8825(1:500)
AntibodyGoat anti-Rat
IgG (H + L) Cross-Adsorbed, Alexa
Fluor 488
InvitrogenA11006(1:750)
AntibodyGoat anti-Chicken
IgY (H + L), Alexa
Fluor 488
InvitrogenA-11039(1:750)
AntibodyGoat anti-Chicken
IgY (H + L), Alexa
Fluor 568
InvitrogenA-11041(1:750)
AntibodyGoat anti-Mouse
IgG (H + L) Cross-Adsorbed Secondary Antibody, Alexa
Fluor 488
InvitrogenA-11001(1:750)
Recombinant DNA reagentp3E-CREERT2This paperplasmid
Recombinant DNA reagentp5E-MCSTol2kit228plasmid
Recombinant DNA reagentp3E-eGFPTol2kit366plasmid
Recombinant DNA reagentpDestTol2p2ATol2kit394plasmid
Recombinant DNA reagentpDONRP2R-P3plasmid
Sequence-based reagentO99This articlePCR primerGGGGACAGCTTTCTTGTACAAAGTGG CTGCTAACCATGTTCATGCCTTC
Recombinant DNA reagentTg(ubb:loxP-
CFP-loxP-zsYellow)
PMID:21623370ZDB-TGCONSTRCT-111115–6
Sequence-based reagentO100This articlePCR primerGGGGACAACTTTGTATAATAAAGTTGTCAAGCTGTGGCAGGGAAACCC
Sequence-based reagentIM217This articlePCR primerttttattaaagtgtttatttggtctcagag
Sequence-based reagentIM256This articlePCR primerAAGAGCACTTCAGATGTCTTCCC
Sequence-based reagentO097This articlePCR primerGTATCTATAGTTGAACATGAAAGCAT
Sequence-based reagentO098This articlePCR primerGGTCACACTGACACAAACAC ACA
Sequence-based reagentpCR8/GW/TOPOInvitrogenK250020
Commercial assay or kitGateway LR
Clonase II
Enzyme mix
Invitrogen11791020
Commercial assay or kitGateway BP
Clonase II
Enzyme mix
Invitrogen11789020
Commercial assay or kitNextera XT
DNA Library kit
IlluminaFC-131–1024
Commercial assay or kitClick-iT EdU Cell Proliferation Kit
for Imaging, Alexa
Fluor 647 dye
InvitrogenC10340
Chemical compound, drug4-HydroxytamoxifenSigma-AldrichH7904
Chemical compound, drugNifurpirinolSigma-Aldrich32,439
Software, algorithmFlowing
Software 2
https://bioscience.fi/services/cell-imaging/flowing-software/RRID:SCR_015781Version 2.5.1
Software, algorithmImarisBitplane(http://www.bitplane.com/imaris/imaris)RRID:SCR_007370Version 9.5
Software, algorithmGraphPad
Prism
GraphPad Prism
(https://graphpad.com)
RRID:SCR_015807Version 8
Software, algorithmDESeq2DESeq2(https://bioconductor.org/packages/release/bioc/html/DESeq2.html)RRID:SCR_015687
Software, algorithmWebGestaltWebGestalt(http://www.webgestalt.org/)RRID:SCR_006786

Zebrafish husbandry and generation of the Tg(sst1.1:eGFP)ulg054 zebrafish line

Request a detailed protocol

Zebrafish wild-type AB were used in all the experiments. TgBAC(nkx6.1:eGFP)ulg004 (Ghaye et al., 2015) and Tg(ins:NTR-P2A-mCherry)ulg034 (Bergemann et al., 2018) were used. Zebrafish were raised in standard conditions at 28 °C. All experiments were carried out in compliance with the European Union and Belgian law and with the approval of the ULiège Ethical Committee for experiments with laboratory animals (approval numbers 14–1662, 16–1872; 19–2083, 21–2353).

To generate the Tg(sst1.1:eGFP)ulg054 zebrafish line, the sst1.1:eGFP transgene has been generated by cloning a 770 pb PCR fragment containing the sst1.1 regulatory regions just upstream the ATG of the sst1.1 ORF (ENSDARG00000040799.4) amplified with primers IM217 and IM256 into the Gateway vector pCR8/GW/TOPO. The promoter was assembled by LR recombination with p5E-MCS and p3E-eGFP into pDestTol2p2A from the Tol2kit (Kwan et al., 2007). Tg(sst1.1:eGFP)ulg054 fish have been generated using the Tol2 mediated transgenesis (Kawakami, 2007). Adult Tg(sst1.1:eGFP)ulg054 fish (abbreviated Tg(sst1.1:eGFP)) were crossed with Tg(ins:NTR-P2A-mCherry)ulg034 to generate a double transgenic line. The insbglob:loxP-mCherry-nls-loxP-DTA construct was created by cloning a loxP-mCherry-nls loxP cassette downstream of the ins promoter beta-globin intron (Ninov et al., 2013). Subsequently, a DTA gene was cloned downstream of the last loxP site via ligation independent cloning (InFusion, Clontech). The Tg(ins.bglob:loxP-NLS-mCherry-loxP-DTA)bns525 line (abbreviated Tg(ins:lox-mCherry-lox-DTA)) was generated using the Tol2 system (Kawakami, 2007). The Tg(ins:CRE-ERT2) has been generated by LR recombination combining p5E-MCS (Kwan et al., 2007), pME-ins and p3E-CREERT2 vectors into pDestTol2p2A from the Tol2kit. pME-ins was obtained by cloning into the pCR8/GW/TOPO a PCR fragment of 897 pb using the primers O097 et O098 and which contains 744 bp of the insulin promoter, the exon 1 (47 bp), the intron 1 (99 bp) and the 7 bp of exon two just upstream of the ATG. p3E-CREERT2 was obtained by BP cloning into the pDONRP2R-P3 the 2200 bp PCR fragment using the primers O99 and O100 and as template the pCREERT2 kindly received from P. Chambon (Feil et al., 1997).

β-Cell ablation

Request a detailed protocol

Nifurpirinol (NFP) (32439, Sigma-Aldrich) stock solution was dissolved at 2.5 mM in DMSO. 4-Hydroxytamoxifen (4-OHT, H7904, Sigma-Aldrich) was dissolved in DMSO as a concentrated solution of 10 mM and kept as single-use aliquots at –80 °C. β-cell ablation in Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) larvae was induced by treatment with 4 µM NFP in E3 egg water. Adult fish were treated in fish water with 2.5 µM NFP. Control treatments consisted of E3 containing 0.16% DMSO. Larvae and adults were treated for 18 hr in the dark.

To induce β-cell ablation with Tg(ins:lox-mCherry-lox-DTA); Tg(ins:CRE-ERT2) line, larvae were treated at 7 dpf with 5 µM 4-OHT at in the dark during 2 × 2 hr with replacement with fresh 4-OHT. Larvae were then washed several times with E3 egg water to eliminate 4-OHT and allowed to regenerate.

β-Cell tracing in larvae

Request a detailed protocol

β-cell labeling was performed in Tg(ins:CRE-ERT2); Tg(ubb:loxP-CFP-loxP-zsYellow); Tg(sst1.1:GFP); Tg(ins:NTR-P2A-mCherry) larvae at 6 dpf by 2 × 2 hr 5 µM 4-OHT before several washes in E3 egg water. At 7 dpf, β-cells were ablated with NFP and larvae were allowed to regenerate until 14 dpf before fixation.

Intraperitoneal glucose tolerance test and blood glucose measurements

Request a detailed protocol

Adult fish were fasted for 24 hr then euthanized with tricaine and the glycemia was immediately measured using the Accu-Chek Aviva glucometer (Roche Diagnostics) with blood collected at the tail.

D-Glucose was dissolved in PBS at 0.5 mg/µl. After anesthesia, adult fish were injected intraperitoneally at 1 mg/g fish weight with tricaïne as described in Eames et al., 2010.

5‐Ethynyl‐2′‐deoxyuridine (EdU) incorporation assay

Request a detailed protocol

Zebrafish larvae were incubated in 4 mM EdU dissolved in fish E3 water for 2 days, with replacement of the solution after 24 hr, the were euthanized in tricaine and fixed in 4% PFA. EdU was detected according to the protocol of Click-iT EdU Cell Proliferation Kit for Imaging, Alexa Fluor 647 (ThermoFisher C10340) and processed for whole mount immunodetection.

Immunodetection of paraffin Sections

Request a detailed protocol

Samples were fixed and processed for immunofluorescence as previously described (Ghaye et al., 2015).

Whole-mount immunodetection

Request a detailed protocol

Larvae were euthanized in tricaine and fixed in 4% PFA at 4 °C for 24 hr before IHC. After depigmentation with 3% H2O2/1% KOH during 15 min, larvae were permeabilized 30 min in PBS/0.5% Triton X-100 and incubated for 2 hr in blocking buffer (4% goat serum/1% BSA/PBS/0.1% Triton X-100). Primary and secondary antibodies were incubated at 4 °C overnight. Adult fish (6–10 months) were euthanized and fixed for 48 hr. Digestive tracts were dissected, dehydrated and stored in 100% methanol at –20 °C. Before IHC, the samples were permeabilized in methanol at room temperature for 30 min, placed 1 hr at –80 °C then back at room temperature. After rehydration in PBS/0.05% Triton X-100, depigmentation was performed for 15 min followed by incubation in blocking buffer containing 4% goat serum /1% BSA/PBS/0.01% Triton X-100. The primary antibodies were incubated for 48 hr on adult samples and overnight on larvae, followed by overnight incubation with the secondary antibodies overnight at 4 °C. Primary antibodies: Anti-Insulin (guinea pig, 1:500, Dako A0564), Living Colors Polyclonal anti-mCherry/dsRed (rabbit, 1:500, Clontech 632496), Living Colors Polyclonal anti-Pan-RCFP (rabbit, 1:500, Clontech 632475), anti-GFP (chicken, 1:1000, Aves lab GFP-1020), anti-Somatostatin (rat, 1:300, Invitrogen MA5-16987), anti-Somatostatin (rabbit, 1:300, Dako, A0566), anti-Glucagon (mouse, 1:300, Sigma G2654), anti-Urocortin 3 (rabbit, 1:300, Phoenix Pharmaceuticals H-019–29), anti-Pdx1 (guinea pig, 1:200, kind gift from Chris Wright, Vanderbilt University), anti-PCNA (clone PC10 Sigma P8825). Secondary antibodies: Alexa Fluor-488,–568, –633 (goat, 1:750, Molecular Probes).

Whole-mount in situ hybridization on embryos

Request a detailed protocol

The sst1.1 and sst2 probes were described in Devos et al., 2002. The ins probe has been described in Milewski et al., 1998. Fluorescent in situ hybridization were performed as described in Tarifeño-Saldivia et al., 2017 on 3 or 6 days post fertilization embryos (dpf). The antisense RNA probes were revealed using tyramide-Cy3 followed by immunodetection of GFP.

Images of immunodetection and in situ hybridization were acquired with a Leica SP5 or a Zeiss LSM880 confocal microscope, and processed with Imaris 9.5 (Bitplane) for visualization.

In vivo imaging

Request a detailed protocol

In vivo imaging was performed with a Lightsheet Zeiss Z1 microscope using a 20 x water immersion objective and 488 nm and 561 nm lasers. Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) larvae were treated from 1 dpf with 1-phenyl 2-thiourea (0.003% (w:v)) to inhibit pigment synthesis. After ablation with NFP from 3 to 4 dpf, larvae were anesthetized, embedded in 0.25% low melting agarose containing and mounted into FEP capillaries. Images were acquired every 30 min and were maintained during the whole experiment at 28° and with 100 ml/L tricaine. Images were converted with Imaris 9.5 (Bitplane) for visualization.

Flow cytometry and FACS

Request a detailed protocol

The zebrafish pancreas contains one main big islet in the head and several smaller secondary islets in the tail. The main islets from 2 to 4 pancreata of Tg(sst1.1:eGFP); Tg(ins:NTR-P2A-mCherry) adult fish (6–10 months old, males and females) were dissected under epifluorescence to eliminate a maximum of non-fluorescent surrounding exocrine tissue, collected and washed in HBSS without Ca2+/Mg2+. Live cell dissociation was performed in Tryple Select 1 x solution (GIBCO) supplemented with 100 U/mL collagenase IV (Life Technologies 17104–019) and 40 µg/mL proteinase K (Invitrogen, 25530031) for 10 min at 28 °C, and stopped with 15% FBS. The GFP+ cells, mCherry+ cell and double GFP+ mCherry + cells were selected according to gates as shown in Figure 1—figure supplement 1 (dashed lines) on FACS Aria III and sorted under purity mode and after exclusion of the doublets. The purity of the sorted cells was confirmed by epifluorescence microscopy (~95 %). Cells (about 1000–5000/fish depending on the cell type) were immediately lysed with 0.5% Triton X-100 containing 2 U/µl RNAse inhibitor and stored at –80 °C. Similar strategy was followed for cell quantification in secondary islets present in the pancreatic tail. The pancreas was dissected excluding the anterior most part containing the main islet and whole posterior tissues were dissociated and analyzed.

Cell quantification in adults by flow cytometry

Request a detailed protocol

The percentage of mCherry+, GFP+ and double mCherry+ GFP + fluorescent cells in the dissociated islets was inferred from flow cytometry experiments in each quadrant delimiting negative and positive fluorescence. FACS plots were generated by FlowJo 10.6.2 and quantifications were performed using Flowing Software 2.5.1.

mRNA sequencing of FACSed cells and bioinformatic analyses

Request a detailed protocol

cDNAs were prepared from lysed cells according to SMART-Seq2.0 (Picelli et al., 2014) for low input RNA sequencing and libraries were prepared with Nextera DNA Library kit (Illumina). Independent biological replicates of each cell type sequenced using Illumina HiSeq2500 and obtained ~20 million 75 bp single-end reads (seven replicates for β-cells, 6 for 20 dpt bihormonal cells, 3 for sst1.1GFPhigh, 3 for sst1.1GFPlow). Reads were mapped and aligned to the zebrafish genome GRCz11 from Ensembl gene annotation version 92 using STAR (Dobin et al., 2013). Gene expression levels were calculated with featureCounts (http://bioinf.wehi.edu.au/featureCounts/) and differential expression determined with DESeq2 (Love et al., 2014). Expression values are given as normalized read counts. Poorly expressed genes with mean normalized expression counts <10 were excluded from the subsequent analyses. DESeq2 uses Wald test for significance with posterior adjustment of P values (Padj) using Benjamini and Hochberg multiple testing. The differentially expressed (DE) genes identified with a Padj cutoff of 0.05 and fold change above two were submitted for GO analysis using WebGestalt tool (Liao et al., 2019).

The genes enriched in β-cells and sst2δ-cells above fourfold were identified using sequences obtained previously (Tarifeño-Saldivia et al., 2017) with prior mapping on the more recent GRCz11 v92 assembly of the zebrafish genome; they thus slightly differ from the gene list previously published (provided in Figure 3—source data 2). Then, new enrichment was updated to take into account the new transcriptomic data obtained for sst1.1δ-cells from Tg(sst1.1:eGFP) and the new β-cells from Tg(ins:NTR-P2A-mCherry) (presented in Figure 3—source data 3).

Statistical Analyses

Request a detailed protocol

Graphs and statistical analyses were performed using GraphPad Prism 8. Data are represented as Mean ± SD except in Figure 4C where Mean ± SEM are shown. The statistical tests are described in the legend of the Figures.

Data availability

RNA sequencing data have been deposited at NCBI GEO.

The following data sets were generated
The following previously published data sets were used
    1. Tarifeño-Saldivia E
    (2017) EBI
    ID PRJEB10140. RNAseq from the pancreatic acinar, alpha, beta and delta cells from zebrafish.

References

Decision letter

  1. Lori Sussel
    Reviewing Editor; University of Colorado Anschutz Medical Campus, United States
  2. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "A δ-cell subpopulation with pro-β cell identity confers efficient age-independent recovery in a zebrafish diabetes model" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Marianne Bronner as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. A major issue is the lack of genetic lineage tracing to support the major conclusion of the study. There is good use of a series of transgenic reporter lines but the main claim of the authors of a rapid conversion of delta cells into insulin/somatostatin bihormonal cells is not supported by lineage tracing experiments, and alternative explanations for the rapid appearance of these bihormonal cells are insufficiently explored. The underlying mechanisms may be unique to zebrafish.

Essential revisions:

1. To unequivocally demonstrate the GFPhigh-sst1.1 cells become the bihormonal cells, the authors will need to perform genetic lineage analysis. Alternatively, they should dampen their conclusions and discuss alternative explanations.

2. Provide functional data on the Sst1.1/insulin bihormonal cells to demonstrate that they are capable of insulin secretion, which is presumed to underlie the recovery from hyperglycemia.

3. For the lineage tracing data using the zsYellow label in conjunction with an inducible beta cell specific Cre driver strain, explain why this experiment was done in developing embryos instead of during the adult stage where they made the original observation of the appearance of bihormonal cells that is associated with normalization of glucose levels.

4. For the studies suggesting bihormonal cells do not arise from pre-existing beta cells, please indicate the stages and timing the experiment was performed.

5. Include the "data not shown"

6. The potential role of the p53 pathway is not convincing and is based on a single experiment. This data should be augmented or perhaps weaken the interpretation.

7. Pdx1 (also known as STF1 for Somatostatin Transcription Factor) is in both beta and delta cells. In addition, there is older literature suggesting that beta and delta cells are in a common lineage, separate from the other islet cell types. This information should be presented in the introduction and much more discussion about the implications of this study's findings in the discussion.

8. The writing could be simplified in the Results section as indicated by reviewer 1 and 2 so that the authors are not over-extrapolating their RNA seq data without other supporting evidence that tests for function or expression at the protein level.

9. Throughout the manuscript, the authors refer to cell specific expression of several factors – which in some cases are either incorrect or represent species differences between zebrafish and mouse/humans (ie. Nkx2.2 is not in mammalian delta cells and therefore is not pan-endocrine; Nkx6.1 is the beta cell TF in mouse/human islets and therefore is not a "progenitor marker"; Foxo1 is in beta and delta cells). It would be extraordinarily useful for the reader to include a table of these factors and indicate their normal (islet cell expression in zebrafish vs mammals).

Reviewer #1 (Recommendations for the authors):

1. For the studies suggesting bihormonal cells do not arise from pre-existing beta cells, please indicate the stages and timing the experiment was performed.

2. The extensive description of the gene expression changes and GO analyses (page 10) is not very useful. It would be more informative to summarize the take away message from these gene expression changes and refer to the figure.

3. To unequivocally demonstrate the GFPhigh-sst1.1 cells become the bihormonal cells, the authors will need to perform genetic lineage analysis. Alternatively, they should dampen their conclusions and discuss the caveats.

4. The potential role of the p53 pathway is not convincing. This data should be augmented or perhaps weaken the interpretation.

5. Pdx1 (also known as STF1 for Somatostatin Transcription Factor) is in both beta and delta cells. In addition, there is older literature suggesting that beta and delta cells are in a common lineage, separate from the other islet cell types. This information should be presented in the introduction and much more discussion about the implications of this study's findings in the discussion.

6. Throughout the manuscript, the authors refer to cell specific expression of several factors – which in some cases may represent species differences between zebrafish and mouse/humans (ie. Nkx2.2 is not in mammalian delta cells and therefore is not pan-endocrine; Nkx6.1 is the beta cell TF in mouse/human islets and therefore is not a "progenitor marker"; Foxo1 is in beta and delta cells). It would be extraordinarily useful for the general audience to include a table of these factors and indicate their normal (islet cell expression in zebrafish vs mammals).

Reviewer #2 (Recommendations for the authors):

The writing could be simplified in certain places especially for paragraphs (e.g., lines 208-222) where they just list the various genes that are differentially expressed in their bihormonal cells vs regular beta cells. It's fine to do so in the discussion to add context about how their findings fit into the big picture goal of the field, but I feel listing gene names and a brief statement of their function in beta cells do nothing for the Results section. It instead makes the authors seem like they are extrapolating too much from their RNA seq characterization without other supporting evidence that tests for function or expression at the protein level.

There is too much conjecture on the basis of gene expression profiles and these conclusions are too strongly worded. There are interesting points made about the involvement of the p53 signaling pathway, but this is based on a single experiment.

The lack of functional data on the Sst1.1/insulin bihormonal cells would have been helpful to demonstrate that they are indeed capable of insulin secretion, which is presumed to underlie the recovery from hyperglycemia.

Lineage tracing of delta cells is absolutely necessary. It is possible that the authors are not seeing rapid conversion, but persistence of dead beta cells.

The manuscript is rather broad in its introduction and at times superficial. As an example: the extensive discussion on hub cells, while an interesting cell type, is just one example of a topic that is not directly related to the topic here.

The positioning of zebrafish as ancestral to mammals is misplaced. Both are contemporary groups of vertebrates that have diverged early in the vertebrate lineage. Observing plasticity in current teleostean species should not be taken to imply that this mechanism was already present in the shared teleost-tetrapod ancestor.

The discussion on which Sst is the functional equivalent of Sst in mammals is speculative and not directly relevant here. It could be addressed by experiments outside the scope of this study.

https://doi.org/10.7554/eLife.67576.sa1

Author response

Essential revisions:

1. To unequivocally demonstrate the GFPhigh-sst1.1 cells become the bihormonal cells, the authors will need to perform genetic lineage analysis. Alternatively, they should dampen their conclusions and discuss alternative explanations.

To unambiguously determine if the bihormonal cells derive from sst1.1 delta cells, we generated sst1.1:CRE-ERT2 fish (using the same promoter as for our sst1.1:GFP). Unfortunately, the 2 independent lines we obtained (2 independent insertions) were both characterized by broad silencing of the CRE transgene and only a small fraction of the sst1.1 cells expressed CRE (checked by CRE mRNA expression by in situ hybridization in embryos). A fortiori, we could barely detect recombined szYellow+ (tracer marker) cells after breeding with our ubb:loxP-CFPStop-loxP-szYellow line and treatment with 4-OHT.

As we could not genetically establish the origin of bihormonal cells, we now dampen our conclusions about the sst1.1 delta-cells and discuss more deeply two alternative cellular sources, the beta cells and ductal cells. Indeed, we agree with Reviewer 2 that the beta cell origin of bihormonal cells cannot be firmly excluded on the basis of our beta cell lineage tracing (see Response to Reviewer 2). Our results rather indicate that a fraction of bihormonal cells arise from pre-existing beta cells. In addition, we provide evidence that bihormonal cells differentiate from duct-associated progenitors. Ducts are a well-established source of progenitors for beta cell regeneration in zebrafish in both larvae and adults (Ninov, 2013; Ghaye 2015, Delaspres 2015). In this revised paper, we dedicate Figure 7 and Figure 7supplement 1 to this aspect.

In addition, we explored the role of proliferation in the formation of bihormonal cells and analysed cell cycle parameters (Figure 6 and Figure 6—figure supplement 1).

These findings also validate the transcriptomic profile of bihormonal cells.

Regarding the cellular origin of bihormonal cells, we would like here to refer to a parallel study by Nikolay Ninov’s group that was submitted in a coordinated manner with ours (Singh et al., bioRxiv, https://doi.org/10.1101/2021.06.24.449704) and entitled “A single-cell atlas of de novo β-cell regeneration reveals the contribution of hybrid β/δ cells to diabetes recovery in zebrafish”. In their work, using ingle cell transcriptomic analyses, they also identified the existence of “hybrid” ins+ sst1.1+ bihormonal cells in the zebrafish pancreas. Although they did not trace the sst1.1, their data also strongly point to the sst1.1 delta cells as one cellular origin of bihormonal cells after beta cell ablation. In addition, they also do not exclude a ductal origin. We discuss their main findings with respect to ours in this revised manuscript.

2. Provide functional data on the Sst1.1/insulin bihormonal cells to demonstrate that they are capable of insulin secretion, which is presumed to underlie the recovery from hyperglycemia.

To assess the secretory capacity of bihormonal cells, one way is to monitor in vivo the intracellular Calcium response in bihormonal cells upon treatment with glucose. This approach has been followed by Singh et al. on zebrafish larvae and they could demonstrate that bihormonal cells formed after ablation in larvae gain glucose responsiveness during regeneration.

Another way to assess the secretory capacity of bihormonal cells would be to measure blood levels of Insulin, or Insulin secreted from cultured islets. However, this cannot be done in zebrafish due to the very low amount of blood, cells and Insulin even in adult fish.

Thus, to address the question of the functionality of bihormonal cells, we opted for a complementary approach, ie a glucose tolerance test in adults. We showed that bihormonal cells represent the vast majority (95-99%) of all Insulin-expressing cells throughout the pancreas (see Figure 1 and new Figure 4), thereby minimizing the possibility that a putative population of pure beta cells (SST negative) would significantly contribute to regulate glycemia. The glucose tolerance test reveals that the regulation of blood glucose in regenerated fish after glucose injection is identical to CTL fish (new Figure 4). These observations strongly support that bihormonal cells are the main sources of Insulin in regenerated fish and that they are responsible for blood glucose homeostasis in the near absence of beta cells.

3. For the lineage tracing data using the zsYellow label in conjunction with an inducible beta cell specific Cre driver strain, explain why this experiment was done in developing embryos instead of during the adult stage where they made the original observation of the appearance of bihormonal cells that is associated with normalization of glucose levels.

Beta cell tracing was performed in larvae for the reason that bihormonal cells are observed at any stage, from embryos, larvae to adults, and that CRE/lox experiments are not efficient in adults. Indeed, we had to consider the prosaic reason that inducible CRE-mediated recombination by 4-OHT is faster and more efficient at young stages (Hans et al., Plos One, 2009; Mosimann et al., Development, 2011, see also Response to Reviewer 2) than at adult stages in which acceptable efficiency is hardly reached. This is now clarified in the manuscript lines 162-164.

4. For the studies suggesting bihormonal cells do not arise from pre-existing beta cells, please indicate the stages and timing the experiment was performed.

We inserted a graphical illustration of the experimental setting in Figure 2D. See also Material and Methods.

5. Include the "data not shown".

These data are now included in the manuscript:

i) A single exploratory replicate of RNAseq transcriptome of regenerated ins:Cherry+ cells (new Figure 1—source data 3) that led to the identification of very high expression of sst1.1 in regenerated Cherry+ cells.

ii) To assess the role of candidate stress agents in bihormonal cell formation, we now include the experiments with treatment with high concentration of glucose, ROS (H2O2) and an inhibitor of Insulin/PI3K signalling, all showing they are not sufficient to induce bihormonal cells or do not affect their formation (Figure 6—figure supplement 2).

6. The potential role of the p53 pathway is not convincing and is based on a single experiment. This data should be augmented or perhaps weaken the interpretation.

To augment the data on p53, we present now validations of the activation in the islet of the p53 pathway by in situ hybridization with ccng1 and mdm2 (shown now in Figure 6G), two established p53 target genes that were identified in our transcriptomes. We also explore the cell cycle signatures.

We decided to remove the experiment with pifithrin alpha. Indeed, using different timely treatments with the p53 inhibitor pifithrin alpha, we obtained two opposite responses: one that confirms the results shown in the first version of the paper (a decrease of bihormonal cells that is moreover paralleled by an increase of sst1.1:GFP cells), the other showing an increase. We think that p53 acts at different levels, possibly in monohormonal sst1.1 delta cells and in bihormonal cells and the understanding of these observations would be the focus of another project.

7. Pdx1 (also known as STF1 for Somatostatin Transcription Factor) is in both beta and delta cells. In addition, there is older literature suggesting that beta and delta cells are in a common lineage, separate from the other islet cell types. This information should be presented in the introduction and much more discussion about the implications of this study's findings in the discussion.

The fact that Pdx1 is expressed in at least a subset of delta cells in mouse and humans is indeed an important piece of information that we now describe in the manuscript lines 284-286 in the Results section and in the Discussion (lines 453455).

Although this observation may have led to speculate on a putative beta-delta common precursor, many studies rather indicate that key factors like Pdx1 but also Mnx1, Nkx6.1, Nkx2.2, Pax4, Pax6… are important to repress non-beta program (delta, alpha, epsilon, PP) and maintain/promote beta program in mature beta cells and/or in endocrine precursors/progenitors during development.

Here, we discuss the case of Pdx1 in beta cells, where it activates/maintains beta cell genes, while repressing the alpha cell program (Ahlgren, Genes and Dev 1998) (Gao et al. Cell Metab 2014) (lines 449 and onwards). In parallel to the expression of Pdx1 in bihormonal cells, we also discuss the case of the lack of the zebrafish equivalent of Nkx6.1, nkx6.2 in bihormonal cells, and of Mnx1 and discuss the impact of on cell identity.

We think that presenting Pdx1 in the Introduction section would anticipate too much on the results, so we chose to refer to Pdx1 in the Results and Discussion sections.

8. The writing could be simplified in the Results section as indicated by reviewer 1 and 2 so that the authors are not over-extrapolating their RNA seq data without other supporting evidence that tests for function or expression at the protein level.

We simplified and shortened the descriptive parts where we cited gene lists and tended to over-interpret the transcriptomic data.

Gene lists and GO analyses are nevertheless accessible in the Figures 3, 5 and 6 and the corresponding Source data.

We also include more experimental validations of the bihormonal transcriptomic data. These include the p53 pathway and the cell cycle signatures (new Figure 6) and the functionality of the bihormonal cells (new Figure 4).

9. Throughout the manuscript, the authors refer to cell specific expression of several factors – which in some cases are either incorrect or represent species differences between zebrafish and mouse/humans (ie. Nkx2.2 is not in mammalian delta cells and therefore is not pan-endocrine; Nkx6.1 is the beta cell TF in mouse/human islets and therefore is not a "progenitor marker"; Foxo1 is in beta and delta cells). It would be extraordinarily useful for the reader to include a table of these factors and indicate their normal islet (cell expression in zebrafish vs mammals).

We are sorry for this “zebrafish deformation”. Indeed, most of these genes display species-specific differences of expression. As suggested, to facilitate the reading of the manuscript, we include a comparative table (mammals/zebrafish) with the important transcription factors mentioned in the Results and Discussion sections (Figure 3—source data 5) and better definition of them in the corresponding text.

We decided to remove the example of nkx2.2 because, though very interesting, it is illustrative of a too speculative description of the first version. Indeed, in contrast to mouse/human Nkx2.2 that is expressed in all endocrine cells except delta, in zebrafish, nkx2.2a is expressed in all adult endocrine cell types including delta sst2 and delta sst1.1. It is, however, about 2x less expressed in bihormonal and sst1.1 delta cells compared to the other cell types. The implications of this lower – not absent – expression in bihormonal cells (and sst1.1 delta) cells in terms of cell identity are impossible to deduce without experimental testing. A potential role in maintaining/establishing a monohormonal phenotype is therefore not straightforward. We also removed foxo1 as its mRNA expression is rather ubiquitous in endocrine cells and hence does not inform on protein regulation such as nuclear localization which we did not assessed. We admit that it is not, per se, an endocrine or beta cell marker.

We explain in the table (Figure 3—source data 5) and lines 203-204 that Nkx6.1

is not expressed in zebrafish beta cells but instead is replaced by Nkx6.2. Zebrafish Nkx6.1 is considered as a progenitor marker in zebrafish, similar to murine Nkx6.1 during embryonic pancreas development (Figure 3—source data 5).

Reviewer #1 (Recommendations for the authors):

1. For the studies suggesting bihormonal cells do not arise from pre-existing beta cells, please indicate the stages and timing the experiment was performed.

See our response to Essential revisions, point 4, and Figure 2D.

2. The extensive description of the gene expression changes and GO analyses (page 10) is not very useful. It would be more informative to summarize the take away message from these gene expression changes and refer to the figure.

These descriptions have been shortened and summarized. See response to Essential revisions point 8.

3. To unequivocally demonstrate the GFPhigh-sst1.1 cells become the bihormonal cells, the authors will need to perform genetic lineage analysis. Alternatively, they should dampen their conclusions and discuss the caveats.

We addressed this issue in the response to Essential Revisions point 1.

4. The potential role of the p53 pathway is not convincing. This data should be augmented or perhaps weaken the interpretation.

See response to Essential revisions, point 6.

5. Pdx1 (also known as STF1 for Somatostatin Transcription Factor) is in both beta and delta cells. In addition, there is older literature suggesting that beta and delta cells are in a common lineage, separate from the other islet cell types. This information should be presented in the introduction and much more discussion about the implications of this study's findings in the discussion.

See response to Essential revisions, point 7.

6. Throughout the manuscript, the authors refer to cell specific expression of several factors – which in some cases may represent species differences between zebrafish and mouse/humans (ie. Nkx2.2 is not in mammalian delta cells and therefore is not pan-endocrine; Nkx6.1 is the beta cell TF in mouse/human islets and therefore is not a "progenitor marker"; Foxo1 is in beta and delta cells). It would be extraordinarily useful for the general audience to include a table of these factors and indicate their normal islet (cell expression in zebrafish vs mammals).

See response to Essential revisions, point 9.

Reviewer #2 (Recommendations for the authors):

The writing could be simplified in certain places especially for paragraphs (e.g., lines 208-222) where they just list the various genes that are differentially expressed in their bihormonal cells vs regular beta cells. It's fine to do so in the discussion to add context about how their findings fit into the big picture goal of the field, but I feel listing gene names and a brief statement of their function in beta cells do nothing for the Results section. It instead makes the authors seem like they are extrapolating too much from their RNA seq characterization without other supporting evidence that tests for function or expression at the protein level.

See response to Essential revisions, point 9.

There is too much conjecture on the basis of gene expression profiles and these conclusions are too strongly worded. There are interesting points made about the involvement of the p53 signaling pathway, but this is based on a single experiment.

We have drastically shortened the previous extrapolations that were simply based on transcriptomic profiles. We also provide now experimental evidences of the functionality of the bihormonal cells and validate the p53 and cell cycle signatures. See also response to Essential Revisions for p53 (point 6).

The lack of functional data on the Sst1.1/insulin bihormonal cells would have been helpful to demonstrate that they are indeed capable of insulin secretion, which is presumed to underlie the recovery from hyperglycemia.

See response to Essential Revisions (point 2).

Lineage tracing of delta cells is absolutely necessary. It is possible that the authors are not seeing rapid conversion, but persistence of dead beta cells.

See our responses hereabove in Essential revisions point 1 and about the beta cell tracing.

The manuscript is rather broad in its introduction and at times superficial. As an example: the extensive discussion on hub cells, while an interesting cell type, is just one example of a topic that is not directly related to the topic here.

We hope we improved this aspect, notably by removing excessively speculative parts and details less directly related to the topic of the paper. For example, we removed the parts on hub cells, the speculation on the SST hormones and the evolution aspect (see the 2 next remarks)

The positioning of zebrafish as ancestral to mammals is misplaced. Both are contemporary groups of vertebrates that have diverged early in the vertebrate lineage. Observing plasticity in current teleostean species should not be taken to imply that this mechanism was already present in the shared teleost-tetrapod ancestor.

Reviewer 2 is right. This part was removed from the revised paper.

The discussion on which Sst is the functional equivalent of Sst in mammals is speculative and not directly relevant here. It could be addressed by experiments outside the scope of this study.

This part was removed from the revised paper.

https://doi.org/10.7554/eLife.67576.sa2

Article and author information

Author details

  1. Claudio Andrés Carril Pardo

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Software, Validation, Visualization, Writing – review and editing
    Contributed equally with
    Laura Massoz and Marie A Dupont
    Competing interests
    No competing interests declared
  2. Laura Massoz

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Validation, Visualization
    Contributed equally with
    Claudio Andrés Carril Pardo and Marie A Dupont
    Competing interests
    No competing interests declared
  3. Marie A Dupont

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Validation, Visualization
    Contributed equally with
    Claudio Andrés Carril Pardo and Laura Massoz
    Competing interests
    No competing interests declared
  4. David Bergemann

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Jordane Bourdouxhe

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Resources, Software, Validation, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
  6. Arnaud Lavergne

    1. Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    2. GIGA-Genomics core facility, University of Liège, Liège, Belgium
    Contribution
    Formal analysis, Resources, Software
    Competing interests
    No competing interests declared
  7. Estefania Tarifeño-Saldivia

    1. Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    2. Gene Expression and Regulation Laboratory, Department of Biochemistry and Molecular Biology, University of Concepción, Concepción, Chile
    Contribution
    Formal analysis, Software, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Christian SM Helker

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Methodology, Resources
    Competing interests
    No competing interests declared
  9. Didier YR Stainier

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Funding acquisition, Resources
    Competing interests
    Senior editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0382-0026
  10. Bernard Peers

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Funding acquisition, Resources, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  11. Marianne M Voz

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Funding acquisition, Investigation, Methodology, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  12. Isabelle Manfroid

    Zebrafish Development and Disease Models laboratory, GIGA-Stem Cells, University of Liège, Liège, Belgium
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Project administration, Resources, Supervision, Validation, Visualization, Writing - original draft, Writing – review and editing
    For correspondence
    Isabelle.Manfroid@uliege.be
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3445-3764

Funding

Chilean National Agency for Research and Development (ANID), Becas Chile (Scholarship)

  • Claudio Andrés Carril Pardo

Belgian National Fund for Scientific Research (FRIA PhD fellowship)

  • Laura Massoz
  • David Bergemann
  • Arnaud Lavergne

National Belgian Funds for Scientific Research (EoS Program)

  • Marie A Dupont
  • Jordane Bourdouxhe

European Regional Development Fund (Biomed Hub Technology Support)

  • Arnaud Lavergne

National Belgian Funds for Scientific Research

  • Bernard Peers
  • Isabelle Manfroid
  • Marianne M Voz

Belgian National Fund for Scientific Research (30826052)

  • Marie A Dupont
  • Jordane Bourdouxhe

Chilean National Agency for Research and Development (ANID), Becas Chile (72170660)

  • Claudio Andrés Carril Pardo

European Regional Development Fund (Biomed Hub Technology Support) (2.2.1/996)

  • Arnaud Lavergne

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank the GIGA technology platforms GIGA-Zebrafish, GIGA-Genomics and GIGA-Imaging. The authors also thanks Chris Wright for providing the Pdx1 antibody.

Ethics

All experiments were carried out in compliance with the European Union and Belgian law and with the approval of the ULiège Ethical Committee for experiments with laboratory animals (approval numbers 14-1662, 16-1872, 19-2083, 21-2353).

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewing Editor

  1. Lori Sussel, University of Colorado Anschutz Medical Campus, United States

Publication history

  1. Received: February 15, 2021
  2. Preprint posted: June 24, 2021 (view preprint)
  3. Accepted: January 20, 2022
  4. Accepted Manuscript published: January 21, 2022 (version 1)
  5. Version of Record published: February 7, 2022 (version 2)

Copyright

© 2022, Carril Pardo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 868
    Page views
  • 193
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Claudio Andrés Carril Pardo
  2. Laura Massoz
  3. Marie A Dupont
  4. David Bergemann
  5. Jordane Bourdouxhe
  6. Arnaud Lavergne
  7. Estefania Tarifeño-Saldivia
  8. Christian SM Helker
  9. Didier YR Stainier
  10. Bernard Peers
  11. Marianne M Voz
  12. Isabelle Manfroid
(2022)
A δ-cell subpopulation with a pro-β-cell identity contributes to efficient age-independent recovery in a zebrafish model of diabetes
eLife 11:e67576.
https://doi.org/10.7554/eLife.67576
  1. Further reading

Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Shawn P Shortill, Mia S Frier ... Elizabeth Conibear
    Research Article Updated

    Membrane trafficking pathways perform important roles in establishing and maintaining the endosomal network. Retrograde protein sorting from the endosome is promoted by conserved SNX-BAR-containing coat complexes including retromer which enrich cargo at tubular microdomains and generate transport carriers. In metazoans, retromer cooperates with VARP, a conserved VPS9-domain GEF, to direct an endosomal recycling pathway. The function of the yeast VARP homolog Vrl1 has been overlooked due to an inactivating mutation found in commonly studied strains. Here, we demonstrate that Vrl1 has features of a SNX-BAR coat protein and forms an obligate complex with Vin1, the paralog of the retromer SNX-BAR protein Vps5. Unique features in the Vin1 N-terminus allow Vrl1 to distinguish it from Vps5, thereby forming a complex that we have named VINE. The VINE complex occupies endosomal tubules and redistributes a conserved mannose 6-phosphate receptor-like protein from endosomes. We also find that membrane recruitment by Vin1 is essential for Vrl1 GEF activity, suggesting that VINE is a multifunctional coat complex that regulates trafficking and signaling events at the endosome.

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Brandt Warecki, Simon William Abraham Titen ... William Sullivan
    Research Article

    Wolbachia, a vertically transmitted endosymbiont infecting many insects, spreads rapidly through uninfected populations by a mechanism known as cytoplasmic incompatibility (CI). In CI, a paternally delivered modification of the sperm leads to chromatin defects and lethality during and after the first mitosis of embryonic development in multiple species. However, whether CI-induced defects in later stage embryos are a consequence of the first division errors or caused by independent defects remains unresolved. To address this question, we focused on ~1/3 of embryos from CI crosses in Drosophila simulans that develop apparently normally through the first and subsequent pre-blastoderm divisions before exhibiting mitotic errors during the mid-blastula transition and gastrulation. We performed single embryo PCR and whole genome sequencing to find a large percentage of these developed CI-derived embryos bypass the first division defect. Using fluorescence in situ hybridization, we find increased chromosome segregation errors in gastrulating CI-derived embryos that had avoided the first division defect. Thus, Wolbachia action in the sperm induces developmentally deferred defects that are not a consequence of the first division errors. Like the immediate defect, the delayed defect is rescued through crosses to infected females. These studies inform current models on the molecular and cellular basis of CI.
