Role of BRCA2 DNA-binding and C-terminal domain in its mobility and conformation in DNA repair

  1. Maarten W Paul
  2. Arshdeep Sidhu
  3. Yongxin Liang
  4. Sarah E van Rossum-Fikkert
  5. Hanny Odijk
  6. Alex N Zelensky
  7. Roland Kanaar
  8. Claire Wyman  Is a corresponding author
  1. Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Netherlands
  2. Department of Radiation Oncology, Erasmus University Medical Center, Netherlands

Abstract

Breast cancer type two susceptibility protein (BRCA2) is an essential protein in genome maintenance, homologous recombination (HR), and replication fork protection. Its function includes multiple interaction partners and requires timely localization to relevant sites in the nucleus. We investigated the importance of the highly conserved DNA-binding domain (DBD) and C-terminal domain (CTD) of BRCA2. We generated BRCA2 variants missing one or both domains in mouse embryonic stem (ES) cells and defined their contribution in HR function and dynamic localization in the nucleus, by single-particle tracking of BRCA2 mobility. Changes in molecular architecture of BRCA2 induced by binding partners of purified BRCA2 were determined by scanning force microscopy. BRCA2 mobility and DNA-damage-induced increase in the immobile fraction were largely unaffected by C-terminal deletions. The purified proteins missing CTD and/or DBD were defective in architectural changes correlating with reduced HR function in cells. These results emphasize BRCA2 activity at sites of damage beyond promoting RAD51 delivery.

Introduction

Breast cancer type two susceptibility protein (BRCA2) is a required component in multi-step genome maintenance processes that are coordinated in time and place. BRCA2 knock-out is lethal in mammalian cells, and a defective BRCA2 causes increased sensitivity to genotoxic agents, defective DNA repair, and reduced homologous recombination (HR) activity (Prakash et al., 2015; Sharan et al., 1997; Yu et al., 2000). One role of BRCA2 common to DNA break repair, DNA crosslink repair, and replication fork protection is delivery of RAD51 to sites where it is needed (Holloman, 2011; Sharan et al., 1997; Yuan et al., 1999). RAD51 is also an essential protein whose biochemical function is to form filaments on single-stranded DNA (ssDNA) capable of performing strand exchange reactions with homologous partners or otherwise protecting the bound DNA (Baumann and West, 1998; Heyer et al., 2010). We consider essential BRCA2 activity to involve at least (1) spatial relocation in the nucleus resulting in accumulation at sites where RAD51 is needed and (2) molecular rearrangement to release or deposit RAD51 on DNA in an active form.

Accumulation of the required proteins at the sites of DNA damage is typically defined as the appearance of foci, high local concentration of proteins, in immunofluorescence experiments. During HR, the formation of RAD51 foci is considered a critical step, and this has recently also been introduced in clinical settings as a test for HR defects in tumors (Naipal et al., 2014). The accumulation of RAD51 into foci depends on functional BRCA2 (Yuan et al., 1999). Several studies have addressed the role of different interactors and domains of BRCA2 in foci formation after DNA-damage induction (Shahid et al., 2014). The presence of Partner and Localizer of BRCA2 (PALB2) and its interaction with the N-terminus of BRCA2 are essential for the localization of BRCA2 and RAD51 to foci (Oliver et al., 2009; Xia et al., 2007; Xia et al., 2006), whereas the loss of interaction affects HR and genome stability in general (Hartford et al., 2016). In chicken DT40 cells, both N-terminal interaction with PALB2 and C-terminal DNA-binding domain (DBD) have a role in focal accumulation of BRCA2; accumulation is fully eliminated if neither domain is present (Al Abo et al., 2014). Additionally, the interaction of the BRCA2 DBD with the small DSS1 protein is required for proper localization of BRCA2 to the nucleus and for BRCA2 and RAD51 focus formation (Gudmundsdottir et al., 2004; Kojic et al., 2005; Li et al., 2006).

Accumulation of BRCA2 and RAD51 in DNA-damage-induced foci necessarily requires a change in their diffusive behavior. Single-particle tracking (SPT) in living mouse embryonic stem (mES) cells revealed that BRCA2 diffuses as multimeric complexes bound to all detectable nuclear RAD51 (Reuter et al., 2014). Individual BRCA2 particles diffuse slowly and are transiently immobile, and this immobility increases in response to DNA-damage induction (Reuter et al., 2014). Although they diffuse together, BRCA2 and RAD51 are separated at sites where they accumulate, as determined by super-resolution microscopy (Sánchez et al., 2017; Whelan et al., 2018). This suggests structural rearrangements of the complex to release RAD51. Purified BRCA2 protein shows remarkable rearrangement by RAD51 and ssDNA (Le et al., 2020; Sánchez et al., 2017; Sidhu et al., 2020). This apparent structural plasticity is a hallmark of proteins with intrinsically disordered regions (Dunker et al., 2005; Gunasekaran et al., 2003; van der Lee et al., 2014), which we hypothesize could be relevant for BRCA2 function in cells.

BRCA2 has many predicted disordered regions, which complicate understanding the functional organization and possible dynamic rearrangement of the reported structured domains. Several crystal structures of small fragments of BRCA2 are available: C-terminal BRCA2-DSS1 complex (Yang et al., 2002) (PDB ID: 1IYJ), N-terminal BRCA2-PALB2 (Oliver et al., 2009) (PDB ID: 3EU7), Brc4 BRCA2-RAD51 (Pellegrini et al., 2002) (PDB ID: 1N0W), BRCA2 phosphopeptide-Plk1 (Ehlén et al., 2020) (PDB ID: 6GY2), Brc8-2 BRCA2-RadA (Lindenburg et al., 2020) (PDB ID: 6HQU), and a BRCA2 peptide residing in exon 12 with the C-terminal armadillo-type domain of HSF2BP (Ghouil et al., 2020). Of these, the largest crystallized segment of BRCA2 is the DBD (736 amino acids), which encompasses the helical domain, tower domain, and the three oligonucleotide/oligosaccharide binding (OB) folds. There are two distinct regions of BRCA2 that bind RAD51 with different consequences (Esashi et al., 2005; Galkin et al., 2005). The eight centrally located BRC repeats bind multiple RAD51 molecules (Jensen et al., 2010). The BRC repeat-RAD51 interactions are important for localizing RAD51 into nuclear foci (Chen et al., 1999) and promoting RAD51 filament nucleation in vitro (Shahid et al., 2014). There is another RAD51-interaction domain at the C-terminus of BRCA2, which is inhibited by cell-cycle-regulated BRCA2 phosphorylation (Esashi et al., 2005). This region, the C-terminal domain (CTD) of BRCA2, which is equivalent to exon 27, has a specific role in protecting replication forks (Feng and Jasin, 2017; Lomonosov et al., 2003; Schlacher et al., 2011). The C-terminal RAD51-binding site is also suggested to stimulate RAD51-mediated recombination and stabilize RAD51 filaments (Esashi et al., 2005) while the DBD in combination with DSS1 is suggested to exchange Replication protein A (RPA) for RAD51 on ssDNA (Yang et al., 2002; Zhao et al., 2015). However, the DBD is not essential for cells to survive (Edwards et al., 2008), and although it is the most conserved part of BRCA2 (Yang et al., 2002), its exact cellular function remains elusive.

It is essential to understand how BRCA2 works to know how the regions of BRCA2, interacting with multiple partners, contribute to its function. Here we consider the influence of DBD and CTD on dynamic activities of BRCA2, DNA-damage-induced changes in diffusion and partner-binding-induced changes in protein conformation. To understand which parts of BRCA2 are responsible for dynamic localization and structural transitions, we correlated the cellular phenotypes, diffusion dynamics, and in vitro structural transitions for BRCA2 variants lacking either the DBD, the CTD, or both. We discovered that the separate domains do not play a significant role in BRCA2’s nuclear localization and diffusion dynamics or RAD51 accumulation but strongly affect protein conformational response to binding partners. The BRCA2 conformational changes correlate with cellular HR activity. Here we discuss the possible importance of BRCA2 for steps in the HR beyond its identified role in RAD51 delivery.

Results

To determine the role of DBD and CTD in DNA-damage repair, BRCA2 mobility, and structural plasticity, we created murine cell lines and purified human BRCA2 protein lacking these domains (Figure 1A). mES lines producing tagged variants of BRCA2 (full-length; ΔDBD, containing an internal deletion of amino acids 2401–3143; ΔCTD, truncated at 3143; and ΔDBDΔCTD, truncated at 2401) were engineered by homozygous modification of the endogenous Brca2 alleles and addition of a HaloTag at the end of the coding sequence (Figure 1B, Figure 1—figure supplement 1). This allowed us to visualize BRCA2 in live or fixed cells (Los et al., 2008) and study the effect of deletions under native expression in the absence of wild-type BRCA2 (Figure 2A, Figure 3). To analyze the role of DBD and CTD in vitro, we purified variants of human BRCA2 protein containing the same deletions (Figure 1A, Figures 4 and 5).

Figure 1 with 3 supplements see all

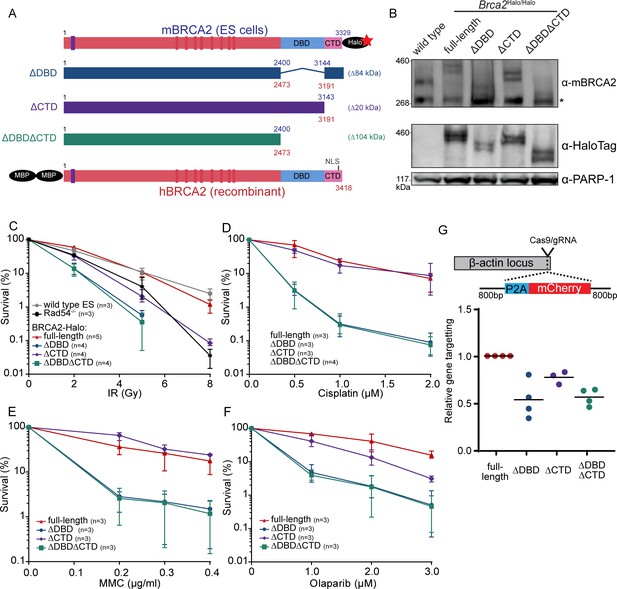

Functional analysis of BRCA2 deletion variants in mouse embryonic stem cells, tagged at the endogenous locus with a HaloTag.

(A) Schematic overview of full-length mouse (top) and human (bottom) BRCA2 proteins, with key domains (DBD, CTD, NLS, BRC1-8: red bars; PALB2-binding: blue bar) and tags indicated. Deletion variants are shown in the middle. Amino acid numbers are shown in blue (mouse) and red (human). Expected molecular weight decrease for the deletion variants is shown on the right. Sequence conservation and alignment between mouse and human BRCA2 DNA-binding domain (DBD) and C-terminal domain (CTD) can be found in Figure 1—figure supplement 3. (B) Immunoblot of total protein extract from mouse embryonic stem (mES) cells probed with indicated antibodies. Asterisk shows a specific band. Validation of the cell lines by genotyping is described in Figure 1—figure supplement 1. Images of the full blots are shown in Figure 1—source data 1. (C–F) Clonogenetic survivals after ionizing radiation (IR), olaparib, mitomycin C (MMC), and cisplatin treatment with the indicated doses. At 8 Gy of IR, the percentage of surviving colonies of the ΔDBD- and ΔDBDΔCTD-Halo was too low to accurately determine the survival. Error bars indicate the range of data points. n numbers in the figure indicate the number of technical replicates executed on different days. Source data and statistics are available in Figure 1—source data 1. (G) CRISPR/Cas9-based homologous recombination assay to assess the homologous recombination proficiency of the different BRCA2 mutants. mES cells were transfected with a plasmid encoding Cas9 and the specific guide RNA (gRNA) and a repair template with the self-cleaving peptide P2A and the mCherry sequence in between two homology arms. Upon proper integration of the donor sequence at the ß-actin locus, the cells expressed mCherry. 96 hr after transfection, cells were sorted and the frequency of mCherry-positive cells was measured (Figure 1—figure supplement 2, Figure 1—source data 1). To correct for the difference in transfection efficiency, a plasmid expressing blue fluorescent protein (BFP2) was co-transfected. The frequency of positive cells in every experimental replicate is normalized against wild-type BRCA2-Halo cells. Every data point indicates a technical replicate (averaged from two transfections). p-values (paired two-sided t-test) compared to full-length for the deletion variants are p = 0.0186 (ΔDBD), p = 0.0291 (ΔCTD), and p = 0.0021 (ΔDBDΔCTD), respectively.

Figure 2 with 1 supplement see all

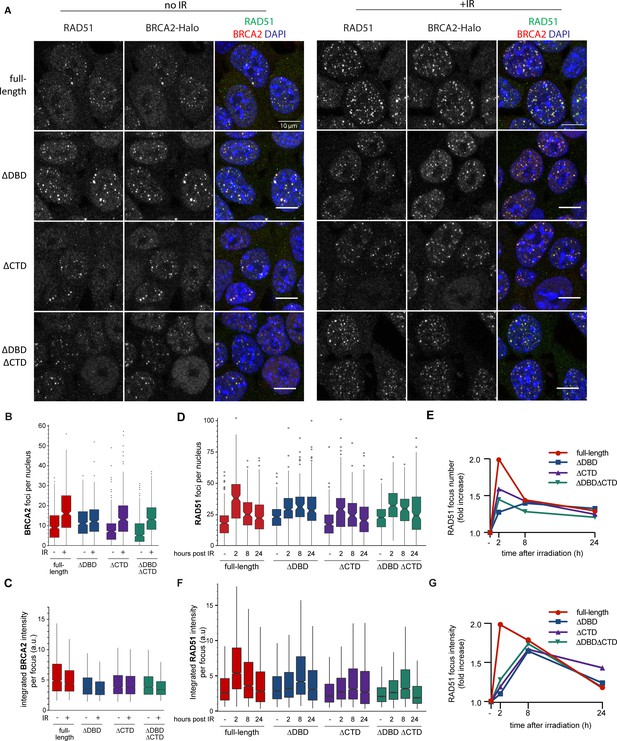

BRCA2 and RAD51 foci quantification.

(A) Representative confocal images (maximum intensity projections) of BRCA2 (red) and RAD51 (green) foci in mouse embryonic stem (mES) cells fixed 2 hr after mock or 2 Gy irradiation, without pre-extraction. Scale bar, 10 µm (full images can be found at Figure 2—source data 2). (B) Quantification of the number of BRCA2-Halo (JF646) foci per nucleus of EdU+ cells irradiated with 2Gy ionizing radiation (IR) in cells without pre-extraction; three technical replicates, at least 250 cells per condition (Figure 2—source data 1). (C) Distribution of integrated BRCA2 intensity per focus. (D) Quantification of the number of RAD51 foci in EdU+ cells irradiated with 2 Gy IR and fixed after indicated number of hours with pre-extraction for RAD51 immunostaining. Example images and percentage of EdU+ cells per condition are shown in Figure 2—figure supplement 1; three technical replicates, at least 100 cells per condition (statistical data available in Figure 2—source data 1). (E) Fold change of foci number with respect to untreated cells. (F) Integrated RAD51 intensity per focus. (G) Fold change in integrated intensity of RAD51 foci relative to untreated cells. Representative images are shown in Figure 1—figure supplement 1. Data plotted per time point can be found in Figure 2—figure supplement 1C,E. In boxplots in (C) and (F), distribution outliers are not shown; source data is available in Figure 2—source data 1.

Figure 2—source data 1

Excel file with exact n numbers and statistical tests of Figure 2B–G and the source data of the foci quantification.

https://cdn.elifesciences.org/articles/67926/elife-67926-fig2-data1-v2.xlsx
Figure 2—source data 2

Original uncropped images from Figure 2A.

Confocal z-projection images.

https://cdn.elifesciences.org/articles/67926/elife-67926-fig2-data2-v2.zip
Figure 3 with 5 supplements see all

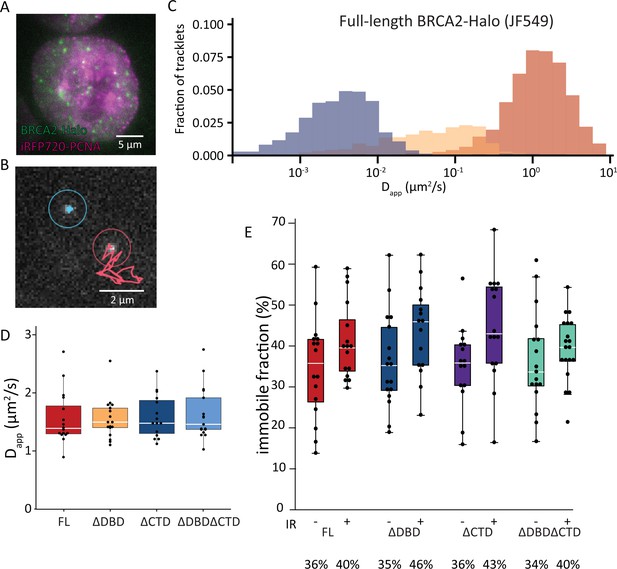

Single-particle tracking of BRCA2-HaloTag reveals immobilization of BRCA2 lacking either DBD or CTD upon DNA damage.

(A) Wide-field image of an S-phase cell visualized with iRFP720-PCNA and BRCA2-HaloTag::JF549. (B) Example of two tracks of BRCA2-Halo showing different diffusive behavior; see also Figure 3—videos 14. (C) Distribution of apparent diffusion coefficients of segmented tracks (tracklets) for immobile (blue), slow (yellow), and fast (red) molecules for full-length BRCA2 in untreated cells; plots for ionizing radiation (IR)-treated cells and other BRCA2 variants are shown in Figure 3—figure supplement 1. (D) Apparent diffusion rate of fast diffusing BRCA2 tracklets for full-length BRCA2 and indicated deletion variants. p-values (two-sided t-test) comparing full-length with deletion variants (ΔDBD, ΔCTD, ΔDBDΔCTD) are, respectively, p = 0.953, p = 0.797, p = 0.593. (E) Immobile fraction estimated by segmentation of tracks by their immobile, slow, or fast mobility (tracklets). Fraction is defined as the percentage of tracklets per cell that are immobile. Cells were imaged between 2 and 4 hr after IR treatment. p-values (two-sided t-test) comparing -/+ IR for different variants (full-length, ΔDBD, ΔCTD, ΔDBDΔCTD) are, respectively, p = 0.08, p = 0.057, p = 0.02, p = 0.4. Merged data from two independent experiments of at least 15 cells and about 10,000 tracks per condition are shown (Figure 3—source data 1). Percentages below the plot indicate the median immobile fraction of tracklets per condition.

Figure 3—source data 1

Excel file with exact n numbers and statistical tests of Figure 3 and the source data of the single-molecule-tracking experiments.

https://cdn.elifesciences.org/articles/67926/elife-67926-fig3-data1-v2.xlsx
Figure 4 with 4 supplements see all

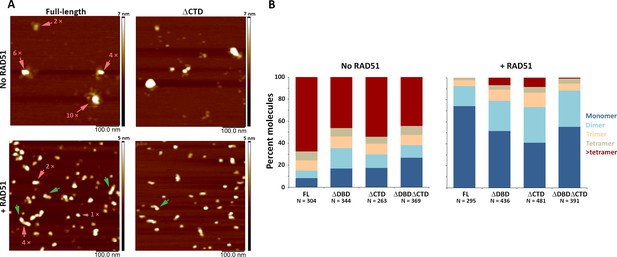

C-terminal region of human BRCA2 contributes to the formation of BRCA2-BRCA2 oligomers.

(A) Representative scanning force microscopy (SFM) height images of full-length and ∆CTD BRCA2 in the presence and absence of RAD51. BRCA2 ΔCTD forms rod-shaped assemblies, like full-length BRCA2, on interaction with RAD51. Rod-like assemblies are indicated by green arrows; pink arrows indicate multimeric assemblies, based on volume analyses. (B) Histograms showing oligomeric distribution of full-length BRCA2 and the C-terminal variants in the presence and absence of RAD51. The deletion of C-terminal region leads to lesser oligomeric forms than full-length BRCA2. All the experiments were performed twice with independent protein preparations, imaging, and analyses. The figure is plotted from one of the duplicate data sets. Both data sets can be found in Figure 4—source data 1.

Figure 4—source data 1

Excel files with the source data of the data in Figure 4B and the replicate experiment.

https://cdn.elifesciences.org/articles/67926/elife-67926-fig4-data1-v2.zip
Figure 5 with 3 supplements see all

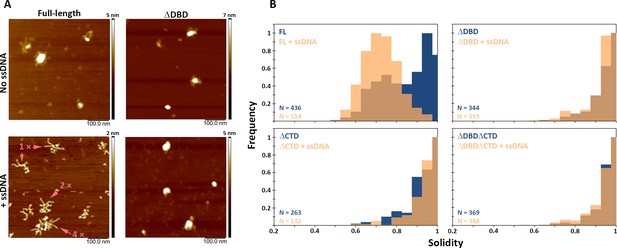

C-terminal region of BRCA2 is essential for conformational rearrangement on interaction with ssDNA.

(A) Representative scanning force microscopy (SFM) height images of full-length BRCA2 and BRCA2 ΔDBD in the presence and absence of single-stranded DNA (ssDNA). Full-length BRCA2 rearranges into extended molecular assemblies on interaction with ssDNA; however, BRCA2 ΔDBD and other C-terminal constructs do not show any conformational change. Pink arrows indicate the oligomeric volume of the particle with respect to the BRCA2 monomer. (B) Distribution of full-length BRCA2 and the C-terminal deletion constructs with respect to their oligomerization and solidity. Full-length BRCA2 rearranges to form extended dimers and tetramers on interaction with ssDNA, whereas the deletion constructs do not show any change in their distribution. All the experiments were performed twice with independent protein preparations, imaging, and analyses. The figure is plotted from one of the duplicate data sets. Both data sets can be found in Figure 5—source data 1.

Figure 5—source data 1

Excel files with the source data of the data in Figure 4B and the replicate experiment.

https://cdn.elifesciences.org/articles/67926/elife-67926-fig5-data1-v2.zip

Loss of BRCA2 DBD and CTD impairs cell survival and gene targeting

Under unperturbed conditions, the generated cell lines did not show obvious defects in their growth rate. To investigate whether the loss of DBD or CTD affected sensitivity of the cells to DNA damage, we performed clonogenic survival assays after treatment with different DNA-damaging agents: double-strand break induction by ionizing radiation (IR), replication disruption by PARP inhibitor - olaparib, and DNA crosslink induction by mitomycin C (MMC) and cisplatin. Loss of CTD caused sensitization to IR (at 5 Gy up to fivefold decrease in surviving fraction, p<0.001), comparable to the effect of deleting the non-essential auxiliary HR protein RAD54 (Essers et al., 1997). In contrast, deletion of DBD further increased sensitization to IR (18-fold decrease in surviving fraction [p<0.001] or 3.6-fold more than in ∆CTD), which was not further exacerbated if CTD was also missing (p<0.001) (Figure 1C). Whereas IR induces double-strand breaks directly, PARP inhibitors prevent repair of single-strand breaks that result in the formation of double-strand breaks. The effects of domain deletion on olaparib sensitivity were similar to their effects on IR sensitivity. Cisplatin and MMC induce interstrand crosslinks, which are resolved by mediation of HR proteins such as BRCA2. Different from the results with IR and olaparib, loss of CTD did not lead to a significant sensitization to cisplatin (p = 0.80) nor MMC (p = 0.11) (Figure 1D–F). Together, these results indicate that the BRCA2 DBD is important for efficient HR-mediated DNA repair while the CTD is less critical for this cellular activity.

To assay homology search and DNA strand exchange functions of HR, we performed a fluorescence-activated cell sorting (FACS)-based gene-targeting assay (Yao et al., 2017), in which Cas9 is used to induce a double-strand break in the β-actin locus that is repaired by a donor plasmid including an mCherry coding sequence (Figure 1G). The absolute gene-targeting frequency of about 5% (Figure 1—figure supplement 2, Figure 1—source data 1) was reduced twofold in BRCA2 ∆DBD (p = 0.0186) and ∆DBD∆CTD (p = 0.0021) cells, while CTD deletion caused an intermediate effect (p = 0.0291). Thus, DNA-damage sensitivity described above correlates with this gene-targeting assay, indicating that BRCA2 DBD is specifically important for HR activity at two-ended DNA breaks.

DBD and CTD affect BRCA2 and RAD51 focus kinetics

A critical initial step of HR in cells involves BRCA2-mediated RAD51 localization to nuclear sites where it is needed, typically observed as foci in cell imaging. We focused on the response of BRCA2 and RAD51 to IR-induced DNA damage because timing of this response in wild-type mES cell lines is well defined, and in contrast to genotoxic chemicals, damage induction is instantaneous and synchronous. We visualized BRCA2 protein with a bright photostable fluorophore via the HaloTag using JF646 HaloTag ligand (Grimm et al., 2015) combined with RAD51 immunofluorescence (Figure 2A). As the DBD of BRCA2 binds DNA in vitro (Yang et al., 2002), it might contribute to BRCA2 localization and/or retention at the sites of damage. However, we observed formation of both spontaneous and IR-induced nuclear BRCA2 and RAD51 foci in all three BRCA2 deletion variants, where BRCA2 and RAD51 foci appeared to overlap to a large extent (Figure 2A).

DBD and CTD affect the amount of RAD51 and BRCA2 at repair sites

Absence of a clear qualitative effect on foci formation was unexpected, so we performed further systematic quantification of fluorescence of BRCA2-Halo-JF646 and RAD51, by immunofluorescence, in fixed cells. Only the CTD deletion affected BRCA2 foci, and in the absence of induced DNA damage (background), there was a reduction in their number compared to full-length BRCA2 (20% reduction, p<0.001) (Figure 2B). Upon irradiation, the number of BRCA2 foci increased in all deletion variants, (p<0.001 for all BRCA2 variants). However, total number of BRCA2 foci appeared lower than full-length after radiation in all deletion variants. The effect of DBD and CTD deletion on the intensity of background BRCA2 foci was much more pronounced (1.5-fold reduction, p<0.001) (Figure 2C). Interestingly, in all cell lines, IR-induced increase in the number of foci was accompanied by a decrease in focus intensity, suggesting that BRCA2 re-localizes from the background to the IR-induced foci, but this effect was suppressed in the deletion variants (only 13% reduction in ∆DBD compared to 26% in cells expressing full-length BRCA2).

We further analyzed RAD51 focus formation and resolution over 24 hr after IR treatment (Figure 2D,E, Figure 2—figure supplement 1). As with BRCA2 foci, the number of RAD51 foci increased in both deletion variants and the control cells (p<0.001 for all BRCA2 variants). Consistent with our previous observations in wild-type ES cells, the number of RAD51 foci peaked 2 hr after IR, then gradually decreased over time reaching near-background levels at 24 hr (Figure 2D,E). For the ∆DBD cells, the number of foci increased but did not decrease over time, remaining high at 24 hr.

The return to background number of foci was suppressed to a lesser extent in ∆CTD and the double mutant. The effect of DBD and CTD deletion on RAD51 focus intensity dynamics was also pronounced. In the control cells, changes in RAD51 foci intensity paralleled changes in their number: peaking at 2 hr, decreasing gradually thereafter (Figure 2F). In all the three deletion variants, focus intensity increase was reduced (1.2-fold increase compared to 2-fold in control) or delayed (peak at 8 hr compared to 2 hr in control) (Figure 2F,G). Taken together, these results show that the deletion mutants of BRCA2 do accumulate RAD51 proteins to IR-induced lesions; however, less RAD51 accumulates and its turnover is supressed.

DBD and CTD are not essential for BRCA2 mobility response to DNA damage

Previously we used SPT to determine the diffusive behavior of BRCA2-GFP and observed a mobile fraction, which diffused slower than expected due to frequent transient interactions, and an immobile fraction, which increased upon induction of DNA damage (Reuter et al., 2014). Interaction between DBD and DNA could be responsible for both restricting the diffusion of the mobile BRCA2 complexes and immobilization upon DNA damage. To test this hypothesis, we performed SPT analysis of BRCA2 deletion variants labeled with JF549 via the HaloTag. The increased photostability and brightness of the JF549 fluorophore compared to green fluorescent protein (GFP) allowed us to follow the mobility for extended periods of time and at an increased frame rate (2000 vs 200 frames, at 33 vs 20 fps, for BRCA2-HaloTag-JF549 and -GFP, respectively). To identify cells in S-phase, we used Proliferating cell nuclear antigen (PCNA) fused with iRFP720 (Figure 3A). We tracked several hundred BRCA2 particles per nucleus where individual tracks appear as mobile or immobile (Figure 3B, Figure 3—videos 1 and 2) and sometimes switch behavior. The diffusive behavior of BRCA2 was quantified using a recently developed deep-learning algorithm to segment tracks into parts (tracklets) with different mobile states (Arts et al., 2019a). An apparent diffusion constant was extracted for each class of segmented tracklets. This revealed different populations of BRCA2 molecules (Figure 3C), one with a low apparent diffusion coefficient between 0.001 and 0.01 µm2/s, which we considered immobile, a second fraction of slow mobile molecules with an apparent diffusion coefficient between 0.01 and 0.1 µm2/s, and a third fraction of mobile molecules with an average diffusion rate of 1.5 µm2/s — consistent with our previous results tracking BRCA2-GFP in mES cells (Reuter et al., 2014). Also, comparable to our previous work, the fraction of immobile molecules, ~34% in untreated cells (Figure 3C), increased to 41% after DNA-damage induction by IR (Figure 3E).

The BRCA2 deletion variants all had a similar apparent diffusion coefficient; mobile molecules diffuse with a rate similar to the full-length protein (Figure 3D, Figure 3—figure supplement 1, Figure 3—videos 3 and 4). The increase in immobile tracklets after IR for the variants BRCA2 ΔDBD and ΔCTD was similar to full-length, indicating that these domains separately are not essential for this change in mobility (Figure 3E). However, the immobile fraction for BRCA2 ΔDBDΔCTD, missing both regions, did not increase after IR as much as the others (3% increase compared to 7–10%; Figure 3D). Thus, either DBD or CTD is sufficient for BRCA2 mobility changes in response to IR but a protein missing both of these domains reduces this response. As deletion of single domains, ΔDBD or ΔCTD, did cause increased sensitivity to DNA-damaging agents (Figure 1), we can conclude that diffusion changes in response to DNA damage were not sufficient to assure cell survival or proper HR activity.

Architectural rearrangement of BRCA2 variants

Our observations so far indicated that BRCA2 function needed for DNA-damage survival and HR includes activities beyond immobility. We considered that HR DNA-damage response requires dynamic interaction between BRCA2 and RAD51 at a scale not evident in our (live) cell imaging. Although BRCA2 and RAD51 diffuse together in the nucleus, they are separated at the sites of DNA damage, requiring a local change in RAD51 and BRCA2 interaction (Reuter et al., 2014; Sánchez et al., 2017). Previously, we have defined distinct architectural changes in full-length BRCA2 upon association with RAD51 and ssDNA as evidence for such a dynamic interaction (Sánchez et al., 2017; Sidhu et al., 2020). To correlate BRCA2 architectural changes with in vivo functions, we purified variants of human BRCA2 and deletion variants analogous to those tested in mES cells (Figure 1A, Figure 4—figure supplement 4). Scanning force microscopy (SFM) imaging revealed that purified BRCA2 exists as a mixture of particles of varying size (multimeric form) and shape (compact to extended). As described in the section below, these features were quantified for all individual proteins/complexes from SFM images by measuring volume and solidity (Sánchez et al., 2017; Sidhu et al., 2020). The architectural plasticity of full-length BRCA2 is evident in the change in distribution of these features upon addition of binding partners, RAD51 or ssDNA oligonucleotides (Sánchez et al., 2017; Sidhu et al., 2020).

CTD and DBD contribute to BRCA2 self-oligomerization

All three BRCA2 deletion variants exist as a distribution of irregular oligomeric molecules as previously observed for the full-length protein (Figure 4A,B and Figure 4—figure supplement 1Sánchez et al., 2017; Sidhu et al., 2020). In the conditions used here, the majority (70%) of full-length BRCA2 was present as assemblies larger than tetramers (Figure 4B, left panel). The C-terminal deletion variants showed reduced oligomerization for all the variants with 46% BRCA2 ΔDBD, 54% BRCA2 ΔCTD, and 44% BRCA2 ΔDBDΔCTD present as assemblies larger than tetramers (Figure 4B, left panel and Figure 4—figure supplement 1). Decrease in large oligomers coincides with an increase in the monomer population from <10% in full-length to ~30% in BRCA2 ΔDBDΔCTD (Figure 4B, left panel), indicating that both DBD and CTD contribute to BRCA2 interactions with itself, at least in the absence of other binding partners.

DBD and CTD are needed for ssDNA- and RAD51-induced architectural rearrangement of BRCA2

Both RAD51 and ssDNA induce notable changes in BRCA2 architecture. Upon incubation with RAD51, full-length BRCA2 assemblies become largely monomeric (74%) and adopt a more regular compact conformation, with 33% having a rod-like shape (major to minor axis ratio >1.5) (Figure 4A,B, Figure 4—figure supplements 1 and 2, and Supplementary file 2). Purified BRCA2 binds six RAD51 monomers in conditions similar to ours (Jensen et al., 2010; Liu et al., 2010). Our volume-based monomer designation refers to one BRCA2 plus RAD51, as the theoretical volume of one BRCA2 and one to six RAD51 molecules falls in the range of BRCA2 monomer (see 'Materials and methods' for a detailed description of volume analysis). All deletion variants also become largely monomeric upon interaction with RAD51, but to a lesser extent than the full-length BRCA2 (40–55% for variants vs 74% for full-length). However, all the variants included about one-third of the complexes as dimers: BRCA2 ΔDBD (28%), BRCA2 ΔCTD (32%), and BRCA2 ΔDBDΔCTD (33%), which was more than the full-length BRCA2 (18%) (Figure 4B,C, right panel). Only BRCA2 ΔCTD-RAD51 formed rod-shaped assemblies similar to full-length BRCA2 (Figure 4B and Supplementary file 2). Removing either DBD, CTD, or both reduced BRCA2 oligomerization and, to a lesser extent, reduced RAD51-induced changes in oligomerization and architecture (Figure 4—figure supplements 1 and 2).

While in the presence of RAD51, BRCA2 forms compact structures, ssDNA induces the opposite, characteristic extended forms of BRCA2 become prevalent (Sánchez et al., 2017; Sidhu et al., 2020Figure 5—figure supplement 3). Full-length BRCA2 is present in oligomeric complexes with extensions, in a bimodal distribution of solidity—a measure of the compactness of the protein complexes—with peaks at 0.75 and 0.95 (Figure 5A and B). Incubation with ssDNA shifts the solidity distribution to a single peak at 0.7 (Figure 5; FL BRCA2 + ssDNA). The BRCA2 C-terminal deletion variants had fewer extended molecules to begin with, as solidity shows a peak distribution around 0.9 for all the three variants; ΔDBD, ΔCTD, and ΔDBDΔCTD (Figure 5 and Supplementary file 2). In striking contrast to the full-length BRCA2, interaction with ssDNA did not change the distribution of oligomers and shape (solidity) for any of the deletion variants (Figure 5, Figure 5—figure supplement 1). Both DBD and CTD have to be present for BRCA2 to undergo the conformational change associated with ssDNA interactions. The effect of the BRCA2 DBD and CTD domain deletions on cellular response to DNA damage (Figures 13) and their effect on the architecture of BRCA2 and its complexes with RAD51 and ssDNA did correlate. The architectural changes we defined here may report on important BRCA2 cellular functions.

Discussion

Here we investigated the role of DBD and CTD on the diffusive behavior and ligand-induced structural plasticity of BRCA2. We correlated these observations with functional consequences of deleting these domains, individually and in combination, in living cells. Our panel of isogenic precision-engineered cell lines allowed us to label endogenously expressed BRCA2 directly via the HaloTag. We found that a substantial reduction in DNA-damage resistance, especially in DBD-deficient cells, was accompanied by only subtle changes in dynamics and localization of BRCA2. In contrast, the ability of purified recombinant BRCA2 to undergo structural rearrangements was strongly affected by DBD or CTD deletions (Table 1, Table 2).

Table 1
Summary of results of the in vivo assays in this study.
Ionizing radiationDNA crosslinksPARPiHRBRCA2 diffusionImmobilizationRAD51 focus formation
Full-length++++++++
ΔDBD-----+++
ΔCTD+/-+-+/-+++
ΔDBDΔCTD-----++/-+
Table 2
Summary of results of the in vitro assays in this study.
MultimerizationConformational change
+ RAD51+ ssDNA
Full-length+++++++
ΔDBD+/-++
ΔCTD+/-+++
ΔDBDΔCTD+/-++-

Despite their adjacent location in the C-terminal part of BRCA2 (and frequent simultaneous loss due to human cancer-predisposing mutations), DBD and CTD are functionally distinct. CTD, although much shorter than the DBD, performs several distinct functions: cell-cycle-controlled phosphorylation-dependent stabilization of RAD51 filament in vitro, replication fork protection from excessive nucleolytic processing, and nuclear import. In mouse BRCA2, an additional nuclear localization signal is present at the N-terminus, but in the human protein, there is no such redundancy, which exaggerates the consequence of even short C-terminal truncations, because these produce human BRCA2 that cannot localize to the nucleus (Sarkisian et al., 2001; Spain et al., 1999). Controlled deletions, including the internal DBD deletion, allowed us to avoid some of the confounding effects complicating previously used mutant or patient cell models.

The DBD is the evolutionarily defining part of BRCA2, conserved from fungi to humans, but its function is less defined than that of other ‘younger’ BRCA2 regions. Information on DBD function focuses on its interaction with an intrinsically disordered acidic protein DSS1. Our findings reinforce the notion that despite its deep phylogenetic roots, the DBD is not what makes BRCA2 essential for general viability of animal cells. Absence of the DBD leads to significant sensitization to DNA interstrand crosslinks, PARP inhibitor, and radiation, not further exacerbated by additional CTD deletion (Figure 1). The role of DSS1 interaction remains puzzling. On the one hand, it is as conserved as the DBD itself, and it was shown to be required for BRCA2 stability and intracellular localization (Li et al., 2006); mutations in DSS1 binding phenocopy BRCA2 deficiency, as does DSS1 depletion (Zhao et al., 2015). But, on the other hand, in fungi, DSS1 is only required for DNA repair when DBD is present (Kojic et al., 2005). Similarly, in human cells, HR could be partially restored in BRCA2-deficient cells by complementation with variants lacking the DBD (Edwards et al., 2008; Siaud et al., 2011). Our results also show that cells expressing BRCA2 ΔDBD retained ~50% of HR activity (Figure 1G). In cells that lack BRCA2 DBD (ΔDBD and ΔDBDΔCTD), we do observe an increased number of RAD51 foci in the untreated condition (p<0.001), which could indicate increased replication-associated DNA damage. This, however, did not affect the growth rate of the cells. We also found that DBD contributes little to the characteristic constrained diffusion we described previously. Binding of the DBD to DNA could explain slow diffusion and frequent immobilization of BRCA2—with a higher frequency after damage induction. But the effect of loss of DBD on diffusive activity was small and comparable to loss of CTD. Therefore, we conclude that the DBD does not have a significant role in this context. In the BRCA2-containing complex, DNA-binding activity could be redundantly supplied by its interactors. For example, several BRCA2-bound RAD51 molecules provide alternative DNA interaction interfaces (Jensen et al., 2010; Reuter et al., 2014; Sánchez et al., 2017). In contrast to the DBD, the CTD is a recent vertebrate addition to BRCA2. In our assays, its deletion resulted in no phenotype (interstrand crosslink survival), intermediate phenotype (radiation and PARPi survival, HR assay, RAD51 focus number), or the same effect as DBD deletion (RAD51 focus intensity). Except for BRCA2 oligomerization (Figure 4B), deleting both domains did not result in an additive effect. It is possible that CTD deletion we created encroaches on or disturbs the structure of the DBD, and (some of) the functional consequences we attribute to the CTD deletion result from collateral damage to the DBD. The strongest argument against this is the clear separation of functions between the domains in the interstrand crosslink survival assays (Figure 1E,F) where CTD deletion has no effect. This finding also suggests that the described fork protection and RAD51 filament stabilization functions of the CTD are not essential for DNA crosslink repair. This is at odds with studies that describe the role of fork protection in crosslink repair and, in particular, with previous findings in ES cells with different CTD-disrupting Brca2 alleles (Atanassov et al., 2005; Donoho et al., 2003; Marple et al., 2006). Details of the genomic engineering strategies could account for the differences: for example, the more widely used Brca2 lex1/lex2 cells are compound heterozygotes, with a larger deletion in one of the alleles (Morimatsu et al., 1998). Another unexpected observation was that CTD deletion blocked structural rearrangements of BRCA2 upon interaction with ssDNA as efficiently as the DBD deletion. One possibility is that N-C terminal interactions that contribute to oligomerization of BRCA2 (Le et al., 2020) also affect BRCA2 structure and thereby influence the BRCA2-ssDNA interaction. Finally, it is interesting to note that BRCA2 ΔCTD cells in our hands are sensitive to IR and PARP inhibitors but are not sensitive to DNA-crosslinking agents (MMC and cisplatin); this could indicate that these structural rearrangements are more relevant in the context of BRCA2’s function in repair in two-ended double-strand breaks than during repair of DNA crosslinks, possibly due to other interacting proteins during crosslink repair.

We observed RAD51 focus formation in cell lines that were, however, deficient in HR at two-ended double-strand breaks. Despite strong sensitization to radio- and chemotherapeutic agents, only careful quantification of the numbers and intensity of RAD51 foci at multiple time points after radiation revealed subtle differences in the deletion variants. The reduced intensity of RAD51 foci in cells lacking DBD and CTD indicates that the repair process is delayed or reduced at some point beyond delivery of RAD51 by BRCA2 to the sites of damage. This suggests that RAD51 foci quantification, although useful to identify more HR-deficient samples than BRCA1/2 mutations, could occasionally return false-positive results for HR function at two-ended breaks. In and of itself, this observation is not surprising as there will be steps important for HR function downstream of RAD51 focus formation. However, in the context of employing the RAD51 focus-formation assay in pre-clinical and clinical settings with the aim to find BRCAness phenotypes, identification of additional HR markers will be of value.

The DBD and CTD of BRCA2 did markedly affect protein architecture and conformational changes in response to binding partners. These domains contributed to oligomerization, when we removed them, and in DBD and CTD deletion variants, the BRCA2 population was less oligomeric. This is in agreement with a recent study where interaction of N- and C-terminal fragments of BRCA2 is indicated to contribute to oligomerization of BRCA2 (Le et al., 2020). However, in our study, the oligomeric forms induced by RAD51 binding remain unchanged, which is likely mediated by the interaction with the intact BRC repeats. The characteristic conformational change of irregular compact particles to the extended architecture of full-length BRCA2 in response to ssDNA was severely impaired in all the investigated deletion variants. Together, the inability of the deletion variants to rearrange in vitro in the presence of ssDNA coupled with impaired HR in vivo suggests that DBD and CTD interactions of BRCA2 are important for optimal BRCA2 activity at the sites of damage. A similar regulatory function is reported for other proteins that interact with BRCA2 such as DSS1, which also affects the conformation of BRCA2 (Le et al., 2020). A recent study confirmed that regulation of oligomerization of BRCA2 is also relevant in cells, and variants of unknown significance with mutations in the DBD that reduce the binding of DSS1 show reduced nuclear localization and appear to increase/reduce oligomerization of BRCA2 (Lee et al., 2021). Altogether, these and our study suggests that regulation of RAD51 by BRCA2 is affected by conformational rearrangement of BRCA2 and is mediated at different levels by self-interaction of BRCA2 and its interaction partners.

Comparing all the molecular endpoints we analyzed (diffusion, foci, architecture), we conclude that although none correlated perfectly with the functional outcomes (survival and recombination assay), the magnitude of the effect on architectural plasticity was the closest reflection. We are only starting to tease apart the relationship between structural plasticity and cellular function. BRCA2 function may depend not so much on the existence of one structural form or another but on the lifetime of specific conformations affected by its interactors and local chromatin organization, parameters that will need to be quantified.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (mouse)Brca2GenbankMGI:109337
Gene (human)BRCA2GenbankHGNC:1101
Cell line (mouse)IB10, subclone of E14 129/OlaHooper et al., 1987IB10, mES
Cell line (mouse)Mouse ES cellsRad54 -/-Tan et al., 1999
Cell line (human)HEK293TAdapted to suspension culture
AntibodyRabbit polyclonal anti-RAD51van Veelen et al., 20052307IF: 1:10 000
AntibodyRabbit polyclonal
Anti-BRCA2
Abcamab27976WB: mouse BRCA2 (1:1000)
AntibodyMouse monoclonal Anti-HaloTagPromegaG9211WB: 1:1000
AntibodyMouse monoclonal anti-PARP-1EnzoBML-SA250-0050WB: 1:1000
AntibodyAnti-rabbit IgG conjugated with CF568Biotium/SigmaCat# SAB4600310IF 1:1000
AntibodyDonkey αRabbit IgG HR PeroxydaseJackson Imm ResCat# 711-035-152WB: 1:2000
AntibodySheep αMouse IgG HR PeroxydaseJackson Imm ResCat# 515-035-003WB: 1:2000
AntibodyMouse monoclonal anti BRCA2CalbiochemOP95WB: full-length, ΔDBD, ΔCTD, ΔDBDΔCTD proteins (1:500)
Recombinant DNA reagentAAV_Actb HR donor plasmidYao et al., 2017; AddgenePlasmid #97317
Recombinant DNA reagentpx459Ran et al., 2013
Recombinant DNA reagentpx459 expressing two gRNAsZelensky et al., 2017Modified from Ran et al., 2013
Recombinant DNA reagentBRCA2-HaloTag donor plasmidThis paperKnock-in construct HaloTag
-F2A-neomycin at mouse BRCA2 C-terminus;
available on request from corresponding author
Recombinant DNA reagentBRCA2 ΔDBD-HaloTagThis paperKnock-in construct HaloTag
-F2A-neomycin at mouse BRCA2 C-terminus resulting in deletion of DBD;
available on request from corresponding author
Recombinant DNA reagentBRCA2 ΔCTD-HaloTagThis paperKnock-in construct HaloTag
-F2A-neomycin at mouse BRCA2 C-terminus resulting in deletion of CTD;
available on request from corresponding author
Recombinant DNA reagentBRCA2 ΔDBDΔCTD-HaloTagThis paperKnock-in construct HaloTag
-F2A-neomycin at mouse BRCA2 C-terminus resulting in deletion of DBD and CTD;
available on request from corresponding author
Recombinant DNA reagentiRFP720-PCNAThis studypMP37 pGb-iRFP720-I-PCNAExpression construct flanked by piggyBac inverted terminal repeats;
available on request from corresponding author
Recombinant DNA reagenthyPBaseYusa et al., 2011Expressing piggyBac transposase
Recombinant DNA reagentphCMV1-2MBP-TEV-fl BRCA2S Kowalczykoski labExpression clone for 293T HEK cells
Recombinant DNA reagentphCMV1-2MBP-TEV-BRCA2 ΔDBDThis studyExpression clone for 293T HEK cells;
available on request from corresponding author
Recombinant DNA reagentphCMV1-2MBP-TEV-BRCA2 ΔCTDThis studyExpression clone for 293T HEK cells;
available on request from corresponding author
Recombinant DNA reagentphCMV1-2MBP-TEV-BRCA2 ΔDBDΔCTDThis studyExpression clone for293T HEK cells;
available on request from corresponding author
DNA oligo90 nt ssDNA oligoIDTSee sequence in 'Materials and methods'
Commercial kitQ5 site directed mutagenesisNEBCat# E0554S
Commercial assay or kitMyTaq Red MixBiolineBIO-25043
Chemical compound, drugJF549 HaloTag-ligandGrimm et al., 2015
Gift from L Lavis
Chemical compound, drugJF646 HaloTag-ligandGrimm et al., 2015
Gift from L Lavis
Chemical compound, drugEdU (5-ethynyl-2’-deoxyuridine)Cat# A10044
Chemical compound, drugAtto488-azideATTO-TEC GmbHCat# AD 488–101
Chemical compound, drugAtto568 azideATTO-TEC GmbHCat# AD 594–101
Chemical compound, drugMMC (mitomycin C)Sigma-AldrichCat# M503
Chemical compound, drugCisplatinSigma-AldrichCat# P4394
Chemical compound, drugOlaparibSelleckchemCat# S1060
ReagentFreeStyle 293 expression mediumGibcoCat# 10319322For growth of 293T HEK cells
ReagentSerum-free hybridoma mediaGibcoCat# 12045084For transfection of 293T HEK cells
Software, algorithmDBD trackingThis paperSoftware for analysis of single-moleucle tracking data
Available at: https://github.com/maartenpaul/DBD_tracking (copy archived at swh:1:rev:19f3a47289830cf5dc139061a89627b6165da804, Paul, 2021)
Software, algorithmDBD fociThis paperScripts for analysis of foci data using CellProfiler
Available at: https://github.com/maartenpaul/DBD_foci/ (copy archived at swh:1:rev:157c7953dbed176a65f2c55db7ad48ebfa7f3f5dPau, 2021)
Software, algorithmSOS PluginReuter et al., 2014http://smal.ws/wp/software/sosplugin/
Software, algorithmDL-MSSArts et al., 2019a Arts et al., 2019bhttps://github.com/ismal/DL-MSS
Software, algorithmCellProfilerCarpenter et al., 2006
Software, algorithmFijiSchindelin et al., 2012
Software, algorithmSFMetricsSánchez and Wyman, 2015http://cluster15.erasmusmc.nl/TIRF-SFM-scripts/

Plasmids for cell experiments

Request a detailed protocol

Plasmids containing gRNAs and spCas9 were derived from px459 (Ran et al., 2013). As described in Zelensky et al., 2017, selected gRNA sequences were incorporated into the px459 vector (Ran et al., 2013) by digestion of the vector with AflIII and XbaI. The resulting two fragmentsArts et al., 2019b (vector backbone and restriction fragment) were separately purified from the gel. The resulting restriction fragment was used as the template for two polymerase chain reactions (PCRs) with overhanging primers containing the required gRNA sequence (see Supplementary file 1). Using Gibson assembly, the two fragments and the digested vector backbone were assembled and transformed in Escherichia coli (DH5 alpha). The correct integration of the gRNA sequence in the isolated plasmid was validated by Sanger sequencing. For incorporation of the two gRNAs into a single plasmid, px459 was modified to contain two U6 promoters and gRNA sequences separated by a short spacer (Zelensky et al., 2017).

The donor template for the C-terminal tagging of BRCA2 with a HaloTag was derived from the plasmid that was used to make BRCA2-GFP knock-in cell lines (Reuter et al., 2014). This plasmid contains 3’ and 5’ homology arms (6.6 and 5.4 kb homology) for integration of the construct at the BRCA2 locus. The GFP sequence was removed by restriction digestion and replaced with the HaloTag sequence by Gibson assembly. The HaloTag sequence was obtained by PCR from pENTR4-HaloTag (gift from Eric Campeau; Addgene #29644). The donor plasmids for the ΔCTD, ΔDBDΔCTD-HaloTag, contain a 6-kb homology arm upstream of the deletion, while the downstream homology arm was identical to the full-length construct (see Figure 1—figure supplement 1). The ΔDBD donor construct was made by introducing the coding sequence from exon 27 of mouse BRCA2, excluding the stop codon in the ΔDBDΔCTD-HaloTag donor construct.

The PiggyBac iRFP720-PCNA construct was generated using Gibson assembly, by inserting the iRFP720 sequence (Shcherbakova and Verkhusha, 2013) and hPCNA sequence (Essers et al., 2005), which includes an additional nuclear localization signal sequence in a PiggyBac vector (Zelensky et al., 2017) containing a CAG promoter and PGK-puro selection cassette. iRFP720 was obtained by PCR from iRFP720-N1 (gift from Vladislav Verkhusha; Addgene #45461).

Cell culture

Request a detailed protocol

Wild-type (IB10, subclone of E14 129/Ola; Hooper et al., 1987) and Rad54-/- mouse ES cells (Essers et al., 1997) were cultured on gelatinized plates (0.1% porcine gelatin (Sigma)). The culture media consisted of 50% Dulbecco's Modified Eagle Medium (DMEM) (high-glucose, ultraglutamine; Lonza), 40% Buffalo rat liver cell-conditioned medium, 10% fetal calf serum (FCS) supplemented with non-essential amino acids, 0.1 mM β-mercaptoethanol, pen/strap, and 1000 U/ml leukemia inhibitory factor (mouse). Cell lines were routinely tested (negative) for mycoplasma contamination.

For imaging, cells were seeded in eight-well glass-bottom dishes (Ibidi), which were coated with 25 µg/ml laminin (Roche) for at least 1 hr. About 30,000 cells in 300 µl medium were plated per well the day before the experiment. Cells treated with IR were irradiated in an Xstrahl RS320 X-Ray generator (195.0 kV and 10.0 mA) at the indicated dose.

Generation of HaloTag knock-in cell lines

Request a detailed protocol

15 µg of circular donor plasmid and 15 µg of px459 containing Cas9 and the indicated gRNA(s) were electroporated into 107 IB10 mouse ES cells. About 24 hr after electroporation, cells were put on a selective medium containing 200 µg/ml G418 (Formedium). Medium was refreshed regularly, at least once every second day, and after 8–10 days, colonies were picked into a gelatin-coated 96-well plate. After 2 days, cells in the 96-well plate were split and part of the cells were incubated in lysis buffer (50 mM KCl, 10 mM Tris-HCl, pH 9, 0.1% Triton X-100, 0.15 µg/ml proteinase K) at 50°C for 1 hr. After inactivation of proteinase K at 95°C for 10 min, cell lysates were diluted and 5 µl was used for genotyping PCR using MyTaq DNA polymerase (Bioline) with indicated DNA primers. Selected (homozygous) clones were expanded and knock-ins were validated by western blot as described in Reuter et al., 2014 on a 5% sodium dodecyl sulphate–polyacrylamide gel electrophoresis (SDS-PAGE) gel using rabbit polyclonal anti-BRCA2 (Abcam, ab27976). Anti-HaloTag (mouse monoclonal; Promega G9211) blot with anti-PARP1 (mouse monoclonal; Enzo BML-SA250-0050) as the loading control (Figure 1B) was run on a NuPAGE 3–8% Tris-acetate gel (Invitrogen). From selected clones, genomic DNA was isolated using phenol extraction and additional genotyping PCRs (Figure 1—figure supplement 1) were done as described above.

Clonogenic survivals

Request a detailed protocol

For clonogenic survivals, between 100 and 15,000 cells were seeded in gelatin-coated six-well plates. The next day about 16 hr later, cells were treated at the indicated doses with IR or the next day incubated for 2 hr with mitomycin C (Sigma-Aldrich; M503) or for 24 hr with olaparib or cisplatin, after which the cell medium was refreshed. 5–7 days after treatment, the cells were stained with Coomassie Brilliant Blue and manually counted.

Homologous recombination assay

Request a detailed protocol

The AAV_Actb HR donor plasmid used for the Cas9-stimulated HR gene-targeting assay was a gift from Hui Yang (Addgene plasmid #97317) and consisted of 800-bp homology arms targeting the β-actin locus with the P2A-mCherry sequence between the homology arms, as described in Yao et al., 2017. The gRNA targeted the same sequence (agtccgcctagaagcacttg) as in the original paper and was cloned into px459 (Ran et al., 2013) as described above for the other Cas9/gRNA constructs.

250,000 cells were seeded in 24-well plates and were directly transfected with Lipofectamine 3000, using manufacturer’s instructions, using 0.5 µg donor, 0.5 µg px459, and 0.1 µg pGB-TagBFP2. 24 hr after transfection, the medium was refreshed. Cells were measured by flow cytometry (BD LSRFortessa) 4 days post transfection to determine the efficiency of homologous integration of the P2A-mCherry sequence. After gating for single live cells, transfected cells were gated based on BFP2 expression and, subsequently, the percentage of mCherry-positive cells was determined (Figure 1—figure supplement 2). We confirmed, by transfection of the donor plasmid without gRNA and Cas9, that positive cells were not due to background expression of the donor plasmid.

Immunofluorescence

Request a detailed protocol

Cells were grown in eight-well glass-bottom dishes (80826; Ibidi) as described above. When indicated, BRCA2-HaloTag cells were incubated with 250 nM JF549 or JF646 HaloTag ligand. Cells were washed with phosphate-buffered saline (PBS) and fixed in 4% paraformaldehyde (PFA) in PBS for 15–20 min. Cells were washed with 0.1% Triton in PBS and blocked in blocking buffer (PBS with 0.5% bovine serum albumin (BSA) and 1.5 g/l glycine). Primary antibodies were diluted in blocking buffer and incubated with the sample for 2 hr at room temperature. Slides were washed in PBS with 0.1% Triton and subsequently incubated with secondary antibodies in blocking buffer for 1 hr at room temperature. Cells were washed in PBS and DNA was labeled by incubation with 4 ′, 6-diamidino-2-phenylindole (DAPI) (0.4 µg/ml).

For RAD51 focus quantification on replicating cells specifically, 15 min before fixation, cells were treated with 20 µM EdU in the medium at 37°C. Cells were washed with PBS, pre-extracted for 1 min (300 mM sucrose, 0.5% Triton X-100, 20 mM 4- (2-hydroxyethyl) -1-piperazineethanesulfonic acid (HEPES) KOH (pH 7.9), 50 mM NaCl, 3 mM MgCl2), washed with PBS, and directly fixed in 4% formaldehyde in PBS. For EdU click-chemistry labeling, cells were washed with 3% BSA in PBS, permeabilized with 0.5% Triton in PBS for 20 min. After another wash with 3% BSA, samples were incubated in home-made click-labeling buffer (50 mM Tris, 4 mM CuSO4, 10 mM ascorbic acid, and 60 µM Atto568 azide (ATTO-TEC GmbH)) for 20 min in the dark. For BRCA2 focus quantification, in replicating cells, Atto488 (ATTO-TEC GmbH) was used instead. Subsequently, immunofluorescence was performed as described above and DNA was stained using DAPI.

Confocal microscopy

Request a detailed protocol

Confocal images were acquired at a Zeiss Elyra PS1 system with an additional confocal scan unit coupled to an Argon laser for 488 nm excitation (Alexa 488) and additional 30 mW 405 nm (DAPI), 10 mW 561 nm (CF568, JF549), and 633 nm (Alexa 647, JF646) lasers. A x63 (NA 1.4; Plan Apochromat DIC) objective was used for imaging. At least three positions per condition were selected based on the DAPI signal, and subsequently, automatic multi-position imaging was performed for every position. Fluorescence-based autofocus was used to find the center of the nuclei. A z-stack of 11 slices with 500 nm axial spacing from the center was acquired, while the lateral pixel size was 132*132 nm.

Foci quantification

Request a detailed protocol

BRCA2 and RAD51 foci were automatically quantified using CellProfiler (Carpenter et al., 2006). The analysis script can be found at https://github.com/maartenpaul/DBD_foci. In short, from maximum projections of the confocal images, nuclei were segmented using a global threshold (minimum cross-entropy) based on the DAPI signal. Subsequently, within the masked image, based on segmented nuclei, RAD51 foci were identified using global threshold (Robust background) method with two standard deviations above background. The integrated intensity of EdU signal per nucleus was also measured and used to determine the EdU-positive cells. Based on the distribution of the integrated intensity of EdU signal per nucleus, a fixed threshold was set at 500 au; cells above this threshold were defined EdU positive. Also, the integrated intensity per focus for BRCA2 and RAD51 was obtained from CellProfiler. Data were exported as CSV files from CellProfiler. R and Rstudio was used to plot the data (example script can be found at the Github repository mentioned above).

Live-cell imaging

Request a detailed protocol

For tracking experiments, cells were labeled with 5 nM JF549-HaloTag ligand for 15–30 min at 37°C in mouse ES imaging medium (FluoroBrite DMEM [ThermoFisher], 10% FCS supplemented with non-essential amino acids, 0.1 mM β-mercaptoethanol, pen/strap, and 1000 U/ml leukemia inhibitory factor). Subsequently, cells were incubated twice for 15 min with a fresh imaging medium, while washing the cells once with PBS in between. Microscopy experiments were performed at a Zeiss Elyra PS complemented with a temperature-controlled stage and objective heating (TokaiHit). Samples were kept at 37°C and 5% CO2 while imaging. For excitation of JF549, a 100 mW 561 nm laser was used. The samples were illuminated with HiLo illumination by using a x100 1.57 NA Korr αPlan Apochromat (Zeiss) TIRF objective. Andor iXon DU897 was used for detection of the fluorescence signal, and from the chip, a region of 256 by 256 pixels (with an effective pixel size of 100*100 nm) was recorded at 31.25 Hz interval (30 ms integration time plus 2 ms image transfer time). EMCCD gain was set at 300. Per cell, a total of 2000 frames were recorded.

Single-molecule tracking analysis

Request a detailed protocol

Recorded images were converted from LSM format (Zeiss) to tiff in Fiji (Schindelin et al., 2012) using the Bioformats plugin and prepared for localization and tracking analysis with the SOS plugin (Reuter et al., 2014; http://smal.ws/wp/software/sosplugin/). To track only molecules within the nucleus, for every movie, a mask was manually drawn around the nucleus of the cell. A fixed intensity threshold was used to identify molecules in individual frames. The localized molecules were linked through the nearest neighbor with a maximum displacement of 1.2 µm and a maximum gap size of 1 frame. Tracks had to be at least five frames long to be processed further.

Subsequently, the track data were imported in R for analysis using a home-build script (https://github.com/maartenpaul/DBD_tracking). Tracks were segmented in tracklets using the ML-MSS software described in Arts et al., 2019a (https://github.com/ismal/DL-MSS), using a 3-state deep-learning prediction model. Apparent diffusion constants for the tracklets were estimated by determining the slope of the MSD(t) curve from all the tracklets that were at least 10 frames in length.

Protein expression and purification

Request a detailed protocol

Full-length BRCA2 construct in pHCMV1 was a generous gift from S Kowalczykowski. Various variants of BRCA2 (BRCA2 ΔDBD, BRCA2 ΔCTD, and BRCA2 ΔDBDΔCTD) (Figure 4A), with two tandem N-terminal maltose-binding protein (MBP) tags, were prepared by Q5 site-directed mutagenesis (NEB) (Figure 4A). Purified plasmids were transfected with 10% (v/v) Polyethyleenimine (PEI) transfection solution in 293T HEK cells, adapted for suspension culture, in FreeStyle 293 Expression Medium (Gibco), at approximately 106 cells/ml. Transfection solution was prepared by adding 1 µg/ml purified DNA and 2 µg/ml linear PEI in Serum-Free Hybridoma Media (Gibco) supplemented with 1% FCS. Transfection solution was incubated for 20 min at room temperature and added to 500 ml of HEK cell suspension growing at 37°C, with shaking at 250 rpm. After 48 hr, at a cell count of about 2 × 106/ml, cells were harvested by centrifugation at 8000 ×g, 4°C, for 15 min. The cell pellet was resuspended in 10 ml ice-cold PBS and frozen in liquid nitrogen. Next, cells were lysed in 200 ml lysis buffer (50 mM HEPES (pH 7.5), 250 mM NaCl, 1 % NP-40, 1 mM ATP, 3 mM MgCl2, 1 mM Pefabloc SC, two tablets of ethylenediaminetetraacetic acid [EDTA]-free protease inhibitor [Roche], and 1 mM dithiothreitol [DTT]) for 15 min at 4°C with shaking. The lysate was centrifuged at 10,000 ×g, 4°C, for 15 min. The supernatant was incubated O/N with 10 ml amylose resin pre-equilibrated in wash buffer (50 mM HEPES (pH 7.5), 250 mM NaCl, 0.5 mM EDTA, 1 mM DTT). Next day, the beads were washed three times with wash buffer by centrifugation at 2000 ×g at 4°C for 5 min and aspiration of the supernatant. The washed resin was incubated with elution buffer (50 mM maltose, 50 mM HEPES [pH 8.2], 250 mM NaCl, 0.5 mM EDTA, 10% glycerol, 1 mM DTT, 1 mM Pefabloc SC) for 15 min at 4°C on a rolling platform. The eluate was collected by passing the slurry through a disposable BioRad column at 4°C. The eluate was loaded on a 1 ml HiTrap-Q column from GE using Q low buffer (50 mM HEPES [pH 8.2], 250 mM NaCl, 0.5 mM EDTA, 10% glycerol, 1 mM DTT, 1 mM phenylmethylsulfonyl fluoride [PMSF]) and eluted with Q high buffer (50 mM HEPES [pH 8.2], 1 M NaCl, 0.5 mM EDTA, 10% glycerol, 1 mM DTT, 1 mM PMSF). Peak elution fractions were checked by western blot using mouse monoclonal anti-BRCA2 (OP95-Calbiochem) as the primary antibody (1:500) and sheep anti-mouse HRP (1:2000) (Jackson ImmunoResearch) as the secondary antibody. Fractions with proteins were aliquoted into single-use aliquots by snap freezing in liquid nitrogen and stored at −80°C. Purity and yield of all the protein preparations was checked by 8% SDS-PAGE analysis; the purified fractions were electrophoresed on the gel and stained with silver stain and Coomassie brilliant blue R-250 (Figure 4—figure supplement 4).

Untagged human RAD51 was expressed and purified as described by Modesti et al., 2007.

SFM sample preparation, imaging, and analyses

Request a detailed protocol

For BRCA2-RAD51 reactions, aliquots of BRCA2 stored at −80°C were thawed and diluted fourfold in 10 mM HEPES, pH 8.0, buffer to subsequently prepare a reaction of 2.5 nM BRCA2 construct in 22 mM HEPES, pH 8.2, 112 mM NaCl, 0.125 mM EDTA, 2.5% glycerol, and 0.25 mM DTT. Samples were incubated at 37°C in the absence or presence of 250 nM RAD51 for 30 min without shaking.

For BRCA2-ssDNA reactions, after dilution as mentioned above, the protein was incubated at 37°C for 30 min with a linear 90-nt ssDNA oligo (3.4 µM in nt) (5’-AF647/AATTCTCATTTTACTTACCGGACGCTATTAGCAGTGGCAGATTGTACTGAGAGTGCACCATATGCGGTGTGAAATACCGCACAGATGCGT-3’). After incubation, 50 µM spermidine was added to the sample.

Samples for SFM imaging were prepared by depositing 20 µl of reaction volume on a freshly cleaved mica (Muscovite mica, V5 quality, EMS) for 2 min, followed by a 2 ml wash using 18 MΩ water and drying in filtered (0.22 µm) air. SFM images were obtained with a Nanoscope IV (Bruker), using tapping mode in air with a silicon probe, NHC-W, with a tip radius <10 nm and a resonance frequency range of 310–372 kHz (Nanosensor; Veeco Instruments, Europe). All images were acquired with a scan size of 2 × 2 µm at 512 × 512 pixels per image at 0.5 Hz. Images were processed using Nanoscope analysis (Bruker) for background flattening. Quantitative analysis of the images was performed as described using SFMetrics software (Sánchez et al., 2017; Sánchez and Wyman, 2015; Sidhu et al., 2020). In volumetric analyses, a comparison of the oligomeric volume of the different regions with RAD51 (56 nm3) showed that the monomer volume of RAD51 is much lower than the threshold volume and, thus, free RAD51 is removed from analysis (Figure 4—figure supplement 1).

The conformation of the molecules was quantified by the parameters of solidity. Solidity measures the irregular shape of the selected molecule by using the ratio of the area of the selected molecule to the area of a convex hull, which completely encloses the molecule. Solidity is presented in a scale of 1–0, where a value of ~1 signifies a globular molecule while a value ~0 represents a highly irregular molecular shape.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1–5.

References

    1. Morimatsu M
    2. Donoho G
    3. Hasty P
    (1998)
    Cells deleted for Brca2 COOH terminus exhibit hypersensitivity to gamma-radiation and premature senescence
    Cancer Research 58:3441–3447.
    1. Yu VP
    2. Koehler M
    3. Steinlein C
    4. Schmid M
    5. Hanakahi LA
    6. van Gool AJ
    7. West SC
    8. Venkitaraman AR
    (2000)
    Gross chromosomal rearrangements and genetic exchange between nonhomologous chromosomes following BRCA2 inactivation
    Genes & Development 14:1400–1406.
    1. Yuan SS
    2. Lee SY
    3. Chen G
    4. Song M
    5. Tomlinson GE
    6. Lee EY
    (1999)
    BRCA2 is required for ionizing radiation-induced assembly of Rad51 complex in vivo
    Cancer Research 59:3547–3551.

Decision letter

  1. Maria Spies
    Reviewing Editor; University of Iowa, United States
  2. Jessica K Tyler
    Senior Editor; Weill Cornell Medicine, United States
  3. Fumiko Esashi
    Reviewer; University of Oxford, United Kingdom
  4. Sarah R Hengel
    Reviewer; University of Pittsburgh School of Medicine, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This work is of interest to readers in the field of genome stability, DNA repair and associated human diseases. The manuscript describes systematic analyses of the crucial DNA repair mediator BRCA2 and its variants lacking the DNA binding domain or RAD51 interacting C-terminal domain, and the conclusions present a conceptual advance as to how BRCA2 promotes DNA repair. The work is a technical tour de force that includes evaluation of the DNA damage response, gene targeting and single particle tracking in mouse embryonic stem cells, as well as biophysical analyses of the human counterparts.

Decision letter after peer review:

Thank you for submitting your article "Role of BRCA2 DNA-binding and C-terminal domain on its mobility and conformation in DNA repair" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Maria Spies as a Reviewing Editor and Jessica Tyler as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Fumiko Esashi (Reviewer #1); Sarah R Hengel (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential Revisions:

The reviewers agree that this is an important, technically challenging and generally expertly executed study. As you will see from the individual reviewers' comments, the following revisions will be required to gain full confidence in the reported claims:

1. Figures 1 and 2 need improvements with biological replicates and statistical tests. The data presented in these figures are promising, although would benefit from three biological replicates.

2. After extensive discussion, all three reviewers had concerns with interpretation of the RAD51 foci data. Figure 2 shows that RAD51 foci formation kinetics is slower in all BRCA2 truncation variants compared to full-length BRCA2 expressing cells. The reviewers felt that the authors somewhat over-interpreted their observations that RAD51 foci are eventually formed in all variants. The observed alteration in the number and intensity of foci at the early time points should be discussed.

3. SDS gels of purified constructs should also be included.

4. There seems to be a discrepancy between the impact of structural changes in CTD truncated BRCA2 (shown in Figures4 and 5) and observed cellular phenotypes (Figure 1. MMC and Cisplatin resistance). The authors should elaborate their discussion on this.

Reviewer #1:

The breast cancer protein 2, BRCA2, is best known for its roles in DNA repair by homologous recombination (HR) and in protecting stalled replication forks. In these processes, BRCA2 is thought to play a primary role in delivering RAD51 to affected ssDNA-containing sites. However, BRCA2 is a large protein of ~400 kDa, mostly composed of disordered structure, and how it acts during HR repair remains not fully understood.

This work tackles this fundamental question and aims to uncover essential functions of the C-terminal region of BRCA2, composed of the ssDNA binding domain (DBD) and RAD51 binding C-terminal domain (CTD). Using mouse embryonic stem (mES) cells in which BRCA2 DBD and/or CTD deletion variants are endogenously expressed as HeloTag fusions, the authors systematically analysed (1) cellular survival upon genotoxic treatments and HR competency, (2) nuclear localisation and (3) diffusion dynamics. The work was further extended to the structural analyses of purified human BRCA2 with analogous deletions, assessing the impact of RAD51 or ssDNA for their conformational changes.

The authors show that, while DBD and CTD are both important for normal cellular survival upon DSB-inducing IR and for HR activity, these deletion variants are capable of forming RAD51 or BRCA2 foci and mobility changes following IR, comparably to full-length BRCA2. Conversely, they found the clear impact of deletion of DBD or CTD in their oligomeric states and structural plasticity.

Together, the authors conclude that the cellular survivals upon IR and HR competency are best reflected by the BRCA2 structure plasticity, rather than RAD51/BRCA2 foci formation or mobility. Accordingly, the authors propose that BRCA2's role in promoting HR is not simply delivering RAD51 to DNA damage sites, but requires its conformational changes. This also raises a caution to the widely used readouts, such as RAD51 foci formation, to infer the functionality of BRCA2. Overall, I feel that their conclusion is justified by the results presented in this manuscript.

The major strength of this work lies in their comprehensive analyses of BRCA2 variants using a wide range of state-of-the-art in vivo and in vitro techniques, allowing straightforward comparison of their impact on cellular function, molecular behaviour and structural changes. The limitations of this study, although minor for the conclusion drawn by this study, are (1) CTD deletion generally confers modest cellular phenotypes compare to DBD deletion and is fully resistant to MMC and cisplatin. It remains unknown why CTD deletion elicits less impact despite its strong impairments in ligand-induced conformational changes; and (2) the molecular behaviours of BRCA2 in mouse ES cells might not be directly translated to these in human somatic cells.

My specific comments on each experimental data are outlined below:

(1) Survival assays of respective mES cell lines show that CTD is important for normal resistance to IR and olaparib, but not for MMC or cisplatin, while DBD is important for all aforementioned treatments. Their analysis of HR competency, inferred by Cas9-induced gene targeting efficiency, revealed that the deletion of DBD, and of CTD to a lesser extent, impact on efficient integration of the reporter, concluding that these domains are important for HR repair of two-ended DSB. These results are robust and convincing.

(2) They then moved onto the analyses of the IR-induced RAD51 and BRCA2 foci formation. Surprisingly, they found that the deletion of DBD or CTD did not drastically affect foci formation, albeit slightly less efficient compared to full-length BRCA2. While the results and trends look promising, the number of samples analysed is somewhat limited (i.e., two or three technical replicates, rather than biological replicates) and the statistic tests have not been conducted.

(3) HeloTag also allowed them to assess the mobility of these BRCA2 variants in mES cells, using single-particle tracking (SPT). Focusing on S-phase cells, they show that the increase of the immobile fraction of BRCA2, detectable at 2-4 hours upon ionising radiation, is not severely affected by the deletion of DBD or CTD. The conclusion was drawn from the datasets from two independent experiments of at least 15 cells and ~10,000 tracks per condition, which, in my opinion, is respectful.

(4) Equivalent human BRCA2 deletion variants were purified from human HEK293 cells and subjected to scanning force microscopy (SFM) imaging. This analysis revealed that, while full-length BRCA2 commonly forms large oligomers of more than four molecules (70%), all the truncation variants showed somewhat reduced capacity to form tetramers or larger oligomers (i.e. ~44-54%). Upon RAD51 incubation, the majority of full-length BRCA2 (74%) became monomeric, while the C-terminal deletion appeared to respond less, with 40-55% becoming monomers and 30% remaining as dimers. The addition of ssDNA made full-length BRCA2 structure extended but elicited no structural impact on the truncated variants. These conclusions were drawn from the analysis of ~260-500 particles per sample, and look to me, credible. It would nevertheless be good to see the quality of purified BRCA2 variants by silver staining or mass-spectrometry to eliminate potential complications associated with other co-purified factors.

Line 61 “remarkable rearrangement by RAD51, ssDNA and ssDNA” – duplication of ssDNA

Line 79 'phosphorylation-dependent, RAD51 interaction domain' – RAD51 interaction with CTD is 'blocked' by the phosphorylation at S3291. The sentence might be misread as 'CTD phosphorylation promotes RAD51 interaction'. Make this clear at least for the first time when it is refereed.

Figure 1 – Colour codes do not always match. For example, in panels A and G, δ-DBD is shown in blue, but in panels C-F, it is shown in purple. It will be easier to read the results if they are shown in consistent colour codes.

Figure 2 – This figure was hardest for me to understand due to three main issues. Firstly, while the manuscript discusses the kinetics of foci formation at any given time point, the results are clustered according to the type of samples (i.e. full-length, dDBD, dCTD and dDBD/dCTD), rather than each time points. Clustering treatment or time point (i.e. with and without IR, or hours post-IR) would make it easier to understand. Secondly, statistic tests had not been conducted, hence it is difficult to assess the conclusions are supported by their results. In fact, the deletion mutants seem to show significant difference from full-length BRCA2 at 2 hour after IR. Finally, as they are assessing the action of BRCA2 in the context of RAD51 recruitment, they could include the quantitative assessment of BRCA2-RAD51 co-localising foci. This can be done by ImageJ co-localisation plugin.

Figures 4 and 5 – These results are well presented in my opinion. The manuscript, however, goes back and forth to explain these datasets, i.e., first explains BRCA2 oligomer formation (page 15), followed by solidity of BRCA2 affected by ssDNA (page 16), then back to BRCA2 oligomer status affected by RAD51 (page 17). It will be more straightforward if the data shown in Figure 4 are explained fully, before moving to the solidity assessment shown in Figure 5.

The beauty of this study is its consistency in the samples analysed. It will be good to include a table, summering the phenotypes and molecular properties of each BRCA2 variants.

Reviewer #2:

In the manuscript by Paul W. Maarten and Sidhu A. et al., the authors surveyed the importance of the DNA binding domain (DBD) and C-terminal domain (CTD) of BRCA2 in response to DNA damaging agents in cells, and the conformations adopted by recombinant constructs. The characterization of these domains are paramount in understanding basic BRCA2 function for novel future exploitation in cancer therapeutics. While the DBD and CTD domain have notable functions in DNA binding, nuclear localization upon DSS1 binding, RPA exchange, and replication fork protection, their role in response to damage and conformational modulation had been unexamined. Studying BRCA2 domain deletion in human cell lines is difficult as human BRCA2 contains a NLS in the C-terminus of the protein. The authors exploit the fact that the murine BRCA2 that has an additional N-terminal nuclear localization sequence to overcome lethality and the study of deletion mutants in human cell lines. Cell survival assays show the DNA binding domain of BRCA2 is most important for cell survival when treated with DNA damaging agents IR, Olaparib, MMC, and Cisplatin. The authors also show this system is functional as they observe the DBD domain is the most important for gene targeting assays that are repaired by homologous recombination. By assessing various DNA damaging agents, the authors highlight the multiple roles of BRCA2 in varying DNA repair processes from DSB repair, BIR, crosslink repair, etc. Interestingly, the C-terminus of BRCA2 does not appear to play a role in to cells when treated with MMC or Cisplatin but plays an important role in mediating self-organization. The authors describe that both the DBD and CTD domains of BRCA2 are important for RAD51 foci formation following IR. Assessing BRCA2 single-particle tracking in live cells, the authors show that the deletion of the DBD and the CTD domain leads to an increased immobile fraction following IR treatment. Using biophysical single molecule analysis, the authors analyzed recombinant BRCA2 DBD , CTD, and double mutants in the presence of ssDNA and interacting protein RAD51. The authors determined these domains are important for BRCA2 self-interactions and BRCA2 conformational rearrangements in the presence of ssDNA supporting in vivo analysis. Biophysical analysis show that the DBD and CTD are important for BRCA2 conformational dynamics that are observed with binding protein RAD51 or DNA substrates.

Strengths:

– These studies exploit a murine cellular system to overcome cellular lethality observed in BRCA2 depletion in human cell lines, which allows them to study the mouse BRCA2 protein and associated domain deletions.

– The authors also utilize bright photostable fluorophore's called JF646 Halo Tag ligand to study BRCA2, the deletion mutants, and RAD51 using live cell imaging. This is a great technical advancement in observing BRCA2 function in vivo.

– The in vivo and in vitro studies both support important roles of the DBD and CTD domain in BRCA2 dynamics.

Weaknesses:

– The importance of the in vivo work with these domains and the findings presented is confounded by a lack of biological replicates and clear presentation of statistical analysis within figures in the manuscript.

– As both domains are important for response to DNA damaging agents (IR, Olaparib, MMC, and Cisplatin) if a function specification could be made to the deletion mutations this would be most valuable to the field. Assaying molecules with varying substrates (Ex-forked substrates, crosslinked substrates, ssDNA substrates containing DNA lesions) or other protein players (DSS1) may aid in teasing out these roles.

– The discussion focuses on DSS1 and the DBD domain, yet the paper lacks any experimental analysis of BRCA2-DSS1. A biophysical analysis with recombinant protein DSS1 may greatly enhance the impact of this work on the field.

– It is unclear if the larger BRCA2 assemblies or the deletion mutants in the manuscript form via an oligomerization mechanisms or a phase separated mechanism. Speculation from authors would be valuable.

1) Figure 1 and 2: It is a standard in the field that cellular experiments presented should have at least three biological replicates for chlonogenic survival assays. Please perform the biological and technical replicates for data presented in Figure 1 and Figure 2.

a. Figure 1:

i. More than two concentrations of (Olaparib) should be assayed in chlonogenic survival to understand the full curve of cellular survival.

ii. Presentation of the statistical analysis directly in the Figure C-F would be helpful in ascertaining importance with a description in the manuscript.

iii. Displaying the chlonogenic data in a non-logarithmic form would be helpful to viewers for comparing the IC50 of survival.

iv. The description of how cellular sensitivities to IR, Olaparib, MMC, and cisplatin relate to repair outcome is lacking. Please describe in more detail how each agent causes damage and the potential outcomes and DNA repair pathways that would be utilized for repair.

b. Figure 2: While the DBD and CTD are not essential for BRCA2 and RAD51 foci formation the data presented in Figure 2E suggest that the DBD plays the most important role. The kinetics of RAD51 foci formation/behavior of the δ DBD shows a different behavior compared to full length BRCA2 and δ CTD.

i. It is unclear if this phenomena is different and could benefit from increased biological replicates and display of error. Statistical analysis for Figures 2B,D,C, and F would be helpful in ascertaining importance.

ii. Moreover, how the authors hypothesize this domain plays a role in RAD51 foci turnover would be helpful as this domain does not directly interact with RAD51 protein.

c. A more mechanistic functional role of these domains can be obtained by single-molecule analysis of BRCA2 and the deletion constructs with varying substrates and BRCA2 binding partners.

i. It is unclear why the CTD is not sensitized to MMC or Cisplatin but previous work in the field has shown a role for this domain in fork protection and crosslink repair (Atanassov et al., etc) as the authors describe in the discussion.

ii. These discrepancies and a mechanism may be discerned by evaluating single-molecule analysis with DSS1 (known DBD interaction partner) and fork substrates with and without crosslinks. Other protein binding partners like DSS1 and p53 etc. may be important for dissecting out function of the studied domains. These revisions should be easily completed by the talented authors within 6 months.

1. For p53: Rajagopalan S. etg al., PNAS 2010 PMID: 20421506

Reviewer #3:

The biochemical and genetic characterization of BRCA2 has been an ongoing challenge in the DNA repair field as the protein is large, prone to degradation, and expressed at low levels in most cell types. While certain features of BRCA2 have been described previously including its ability to bind and load RAD51 onto resected DNA substrates, much remains to be discovered. In this study, the authors combine genetic studies in mouse ES cells with biochemical analysis to examine the spatial dynamics and molecular architecture of BRCA2. Notably, they utilize an innovative approach coupling endogenous tagging of mouse BRCA2 with a HALO tag to monitor BRCA2 movement within live cells by single particle tracking.

I applaud the authors for achieving a highly technical approach to epitope tagging both endogenous BRCA2 alleles in mouse ES cells and combining this strategy with a HALO tag providing additional utility for a variety of cell biological experiments. By analyzing the endogenous alleles, the authors' system provides physiological levels of protein expression as transcription will be driven by the endogenous promoter thus preserving stoichiometric protein interactions within the cell and avoiding artifacts caused by overexpression.

The authors determine the influence of the DNA binding domain (DBD) and c-terminal binding (CTD) on the dynamic activities of BRCA2. They begin by exposing cells containing 3 different deletion mutants ∆DBD, ∆CTD, and the double mutant ∆DBD∆CTD to four different types of DNA damage (IR, PARPi, MMC, and cisplatin). Notably, ∆DBD displays significant impairment in survival in response to all 4 types of DNA damage. The ∆CTD, in contrast, demonstrates less sensitivity to IR and Olaparib, however, complements as well as WT BRCA2 in response to crosslinking agents MMC and cisplatin. My only criticism in this aspect of the work is that it would have been informative to include a truncated BRCA2 (mimic of a patient pathogenic mutation) or null allele to compare to the survival of the ∆DBD and ∆CTD mutants. I realize that these alleles may be inviable but the authors should clearly state if that was indeed the case.

The authors then go on to demonstrate that the ∆DBD and ∆CTD mutants are recruited to sites of IR damage in a similar manner to WT BRCA2 based on number and intensity of foci. I think it would be informative if the authors provided statistical significance for the graphs depicting the quantitation of foci number and intensity as there do appear to be differences between the mutants and the WT protein. There appears to be a delay in the kinetics of recruitment, especially at the 2 hr timepoint, for the mutants compared to WT BRCA2, which could indicate a defect in the recognition of the DNA damage. Only at the 2 hr timepoint following IR are there less RAD51 foci, and of a lesser intensity, in the three deletion mutants compared to WT BRCA2. Another possibility is the results could be interpreted as a defect in RAD51 loading and/or stabilization of the nucleoprotein filament. While immunofluorescence imaging of DNA repair foci have become common practice to measure protein recruitment to damage, it is impossible to know exactly what is happening in these foci with any granularity.

Next, the authors measure BRCA2 movement in the mouse ES cells taking advantage of the HALO tag to track single particles. While technically and visually alluring, it is difficult to extract mechanistic insight from the results. DNA damage induces changes in diffusion leading to BRCA2 molecules with restricted mobility; the authors demonstrated this phenomenon in a prior publication. The deletion mutants appear to have little effect upon BRCA2 mobility.

Finally, the authors utilize scanning force microscopy to analyze binding of the purified human BRCA2 proteins to RAD51 and ssDNA. In the absence of RAD51/ssDNA binding, there is a notable shift in the deletion mutants from oligomeric forms to monomeric compared to full length WT BRCA2. Upon binding to RAD51, there is a dramatic change from multimeric to monomeric forms for the WT BRCA2 (~7% to 74%) with a slight suppression of these changes shown for the deletion mutants. While WT BRCA2 forms extended molecular assemblies upon binding ssDNA, not surprisingly, deletion of the DBD or CTD fail to demonstrate any significant changes in physical architecture. In both situations, the mutant proteins respond to RAD51 and ssDNA in a dampened manner likely due to altered or loss of binding. While the architectural effects of RAD51 and ssDNA binding to BRCA2 are measurable by SFM, it is difficult to reconcile these changes in shape and oligomerization to defects in response to DNA damage and at which specific steps in homologous recombination these physical forms would impact.

Strengths:

1. Generation of mouse ES cells with both endogenous alleles of BRCA2 containing the deletion mutations in addition to a HALO tag is an incredible technical breakthrough and will be a highly valuable reagent for genetic and cell biological studies of mouse BRCA2.

2. The deletion mutants ablating either the DBD or the CTD, or both, is a great genetic approach to understanding the role of these key domains in BRCA2. The response of these mutants (versus WT BRCA2 as a benchmark) to various DNA damage (IR, PARPI, MMC, cisplatin) provides interesting information delineating the roles of these two important domains in BRCA2. For example, the ∆CTD mutant is significantly sensitive to IR and Olaparib, yet complements as well as WT BRCA2 in response to the crosslinking agents MMC and cisplatin.

3. The BRCA2 protein is notoriously difficult to purify and yet the authors succeeded in purifying 4 different forms of the protein for biophysical analysis. While it is difficult to interpret the various forms of BRCA2 by SFM, there are clear differences in the architecture between WT and the three c-terminal mutants. These differences are highlighted upon binding to RAD51 or ssDNA.

Weaknesses:

1. While the separation-of-function result for the CTD deletion in response to crosslinking agents MMC and cisplatin is a novel and compelling result, it would have been informative to compare the survival results and gene targeting assay using a BRCA2 null or mimic of patient mutation (truncating mutation) to see how these 3 mutants stack up against a completely non-functioning BRCA2 allele. Likely, the BRCA2 null alleles are inviable but perhaps a conditional system or truncating allele similar to a patient germline mutation would give a window into response compared to the DBD and CTD deletion mutants.

2. It's not clear in the manuscript what new information we are learning about the mechanisms of BRCA2 in the single particle tracking (SPT) data. The differences in mobility between the mutants and WT BRCA2 seem minimal, but more importantly, it is not immediately clear how these data help us understand the normal cellular functions of BRCA2. No doubt, the technology and innovation to track single particle proteins in the nuclei of cells is impressive, but the authors should clearly explain how we can gain mechanistic insight from the SPT data that is presented in this manuscript.

General Comments:

It is unclear how missing the c-terminal domain (CTD) or the DNA binding domain (DBD) of BRCA2 can be interpreted as having "roles beyond delivering strand exchange protein RAD51" unless a complete biochemical workup of the deletion mutants was performed to detect any alterations in DNA binding, stimulation of RAD51 dependent strand exchange, etc… While interesting and certainly an impressive technical feat, foci imaging and single particle tracking do not provide much information on mechanism (i.e. whether BRCA2 is binding DNA and loading/nucleating RAD51).

The interpretations in the discussion are not overstated, however, I somewhat disagree with the notion that the data, as presented, clarifies the role of BRCA2 beyond its canonical functions of RAD51 loading and nucleation on resected DNA substrates. I would have liked if the authors discussed the idea that it is surprising that mouse ES cells can tolerate complete loss of the DBD, CTD, and loss of both together. Questions that should be addressed in include some of the following: Are proliferation rates compromised compared to WT cells? Are they experiencing replication stress in the absence of any exogenous damage? Further, is there something unique about mouse ES cells that may differentiate BRCA2 behavior that would be expected in somatic human cells?

It is interesting to note that many years ago Ashworth and Taniguchi published back-to-back papers in Nature (2008) describing BRCA2 reversion alleles from in vitro screens of BRCA2 mutant cells selected in cisplatin or PARPi such that some of these reversions resulted in huge deletions of the entire DBD of BRCA2, and yet, they promoted resistance to PARPi. In this context, I would much appreciate if the authors commented on their findings that their constructed DBD deletion is not resistant to PARPi and if they offered some speculation as to why the reversions in those previous studies were.

1. Are the BRCA2 mouse alleles missing the c-terminus (∆CTD) properly localized to the nucleus? The authors do mention that mouse BRCA2 contains an NLS on the N-terminus of the protein but did they check? The human BRCA2 ∆CTD protein would be expected in the cytoplasm as NLS are located at the extreme c-terminus of the protein.

2. In the figure 1A schematic, can the HALO tag graphic be placed on the c-terminus of the three deletion mutants? It might be confusing left only on the full length BRCA2 depiction.

3. Do the three purified human BRCA2 proteins bind DNA substrates in an EMSA experiment? It would be informative to know if binding to certain substrates is diminished or ablated, for example, on ssDNA vs dsDNA vs 3' and 5' tails.

4. A similar question is if the purified mutants are compromised for binding RAD51, and more specifically, binding and stabilizing the RAD51 filament as previously demonstrated for the CTD (Esashi et al. 2005 and 2007, Davies et al. 2007)?

5. In the first paragraph of page 5 (lines 74-86), it would be helpful if the authors discussed briefly the separation-of-function of the BRC repeats in BRCA2 (Carreira et al. 2011, Chatterjee et al. 2016) especially in the context that BRC5-8 seems to operate in a mechanistic manner similar to the CTD in stabilization of the RAD51 filament on ssDNA.

6. Figure 1C-E: please increase size of data labels (boxes, circles, triangles) and lines in the survival curve graphs to make it easier for readers to visualize the results.

7. In the survival assays in Figure 1 C-E, why didn't the authors include a classical BRCA2 pathogenic mutation (or null) to use as a benchmark for comparison to ∆DBD and ∆CTD? Inviable? It would be a very informative comparison if possible.

8. Can the authors comment on the 2 bands in Figure 1B western confirming expression of the HALO tagged mutant alleles in mouse ES cells, is one BRCA2 and the other a degradation product, or is one of the alleles truncated on the N-terminus? Were both alleles completely sequenced in the cells used for the studies?

9. In Figure 2B, the fold induction of BRCA2 foci looks much more pronounced for WT than ∆DBD, but in the text, the authors state "difference in fold increase compared to cells producing full‐length BRCA2 was either small or absent". I don't see statistical analyses in the graph comparing the different samples to see if differences were significant, can the authors provide this?

10. There clearly seems to be more RAD51 foci in undamaged cells in the ∆DBD compared to WT BRCA2 (Figure 2D), can the authors highlight and comment on this?

11. Figure 2E, do RAD51 foci persist at 48 and 72 hrs in the deletion mutants?

12. I would change the title of this section "DBD and CTD are not essential for BRCA2 and RAD51 focus formation" (p. 9) to "The DBD and CTD are not essential for BRCA2 and RAD51 foci formation, however, the kinetics of recruitment are delayed" as quantified in Figure 2EandG.

https://doi.org/10.7554/eLife.67926.sa1

Author response

Essential Revisions:

The reviewers agree that this is an important, technically challenging and generally expertly executed study. As you will see from the individual reviewers' comments, the following revisions will be required to gain full confidence in the reported claims:

1. Figures 1 and 2 need improvements with biological replicates and statistical tests. The data presented in these figures are promising, although would benefit from three biological replicates.

We apologize for not having included sufficient data replicates in our original submission. We have performed additional replicates of the cell survival experiments and foci counting experiments in figures 1D-F and 2B-C. The figures and legends have been revised to include the additional data. Statistical test results are included in the figure legends, main text and Source Data Files accompanied with Figures 1-3. The overall results are the same and the conclusions from them do not change. We agree that this strengthens our work and was a necessary improvement.

2. After extensive discussion, all three reviewers had concerns with interpretation of the RAD51 foci data. Figure 2 shows that RAD51 foci formation kinetics is slower in all BRCA2 truncation variants compared to full-length BRCA2 expressing cells. The reviewers felt that the authors somewhat over-interpreted their observations that RAD51 foci are eventually formed in all variants. The observed alteration in the number and intensity of foci at the early time points should be discussed.

We agree that the foci data is not absolute and in general this type of data is subject to variability from experiment(er) to experiment(er), not least of which is the difficulty of defining a focus (size, intensity, etc.) from different staining and microscopy techniques and different image analysis methods. However, our research group has years of experience analyzing foci of homologous recombination and other repair proteins. From this we observe that changes in foci quantitation (number of foci) within one set of experiments (same reagents/conditions used for cell treated and prepared for analysis) is a robust read out. Our point is that the number of foci does increase after irradiation for all cells lines tested 2 hours after radiation (WT p=6.09E-33; ∆DBD p=9.35E-03; ∆CTD p=1.98E-29; ∆DBD∆CTD p=1.28E-37), whereas in the cell lines lacking DBD it takes longer to reach the maximum number of foci.

The difference in foci number and intensity between the cell lines expressing the different BRCA2 variants is interesting and worthy of discussion. Cells expressing the BRCA2 variants lacking the DBD have more RAD51 foci before treatment compared to cells expressing full length BRCA2. This may reflect the importance of this domain in replication associated functions of BRCA2. Though the cells grow normally with a similar cell cycle profile (Figure 2 -Supplement 1) the role of BRCA2 underpinning replication may be slightly altered in these cell lines. Though we have not yet investigated this further we have added this observation to the discussion page 20, line 368.

3. SDS gels of purified constructs should also be included.

We apologize for this omission. We present coomassie and silver stained gels of our protein preps in Figure 4 – supplement 4. As noted by the reviewers, BRCA2 is difficult to purify and yields are low. Fortunately, only small amounts of protein are needed for SFM imaging. The 2 step purification we employ results in some contaminants in our final preps. From the silver stained gel it is evident that purity of the protein preps is similar and pattern of contaminants is the same in all. We do observe consistent results in the SFM analysis, volume and solidity, for multiple independent preparations of BRCA2, both here and in our previously published work. The vast majority of contaminants present are filtered out from the SFM analysis based on their size compared to the ~450 kD 2XMBP-BRCA2 proteins we are analyzing. Thus we are confident that the analysis represents BRCA2 protein behavior and differences are due to the introduced truncations.

4. There seems to be a discrepancy between the impact of structural changes in CTD truncated BRCA2 (shown in Figures4 and 5) and observed cellular phenotypes (Figure 1. MMC and Cisplatin resistance). The authors should elaborate their discussion on this.

This is an intriguing aspect of our results. We have added discussion of this aspect (Page 22, line 397). We agree that the relationship between our various assays is not simple. This points to complex functions of BRCA2 that are only beginning to be revealed and understood. Because the assays are very different, involving cells with all interacting components available vs. individual isolated proteins, we cannot at this point directly relate the protein structural changes to precise biological functions. However, we do note that the ΔDBDΔCTD and ΔDBD cells lines behave similarly and are both sensitive to MMC and Cis Pt. Purified ΔCTD is deficient in structural response, while the similar variant in cells is not sensitive the DNA crosslinking agent. All deletion variant proteins are defective in response to ssDNA while again the ΔCTD in cells is not overly sensitive to DNA crosslinking agents. Thus, we observe structural transition defects in all c-terminal deletion mutants while only those variants missing the DBD are sensitive in cell assays probing the function of BRCA2 in DNA cross link repair. We and others (Le et al., 2020) observe complex interactions between different parts of BRCA2 with itself (inter = multimerization and intra = conformation molecularly), that can be modulated by binding partners, including DSS1. Although important and interesting, including DSS1 interaction is outside of the scope of our current study. We continue to investigate the structural response of BRCA2, these and other variants, to additional binding partners and hope that these studies will eventually contribute to a clearer connection between protein conformational changes and biological functions.

Reviewer #1:

[…]

The major strength of this work lies in their comprehensive analyses of BRCA2 variants using a wide range of state-of-the-art in vivo and in vitro techniques, allowing straightforward comparison of their impact on cellular function, molecular behaviour and structural changes. The limitations of this study, although minor for the conclusion drawn by this study, are (1) CTD deletion generally confers modest cellular phenotypes compare to DBD deletion and is fully resistant to MMC and cisplatin. It remains unknown why CTD deletion elicits less impact despite its strong impairments in ligand-induced conformational changes;

This intriguing observation is more explicitly discussed as noted above for essential revision 4.

and (2) the molecular behaviours of BRCA2 in mouse ES cells might not be directly translated to these in human somatic cells.

It is of course possible that some aspects of BRCA2 behavior in human somatic cells and mouse ES cells differ. At least for diffusive behavior we have shown in our previous work (Reuter et al., J. Cell Biol. 2014, in manuscript reference list) that BRCA2 behaves the same in HeLa cells as in mouse ES cells.

My specific comments on each experimental data are outlined below:

(1) Survival assays of respective mES cell lines show that CTD is important for normal resistance to IR and olaparib, but not for MMC or cisplatin, while DBD is important for all aforementioned treatments. Their analysis of HR competency, inferred by Cas9-induced gene targeting efficiency, revealed that the deletion of DBD, and of CTD to a lesser extent, impact on efficient integration of the reporter, concluding that these domains are important for HR repair of two-ended DSB. These results are robust and convincing.

(1) Thank you, does not need response.

(2) They then moved onto the analyses of the IR-induced RAD51 and BRCA2 foci formation. Surprisingly, they found that the deletion of DBD or CTD did not drastically affect foci formation, albeit slightly less efficient compared to full-length BRCA2. While the results and trends look promising, the number of samples analysed is somewhat limited (i.e., two or three technical replicates, rather than biological replicates) and the statistic tests have not been conducted.

Statistical tests are in the source data files as indicated in the figure legend.

For all cellular assays independent experiments have been performed at different days with cells at different passage numbers. Within all independent experiments we have included technical replicates (cell survivals: 2 or 3 wells; HR assays: 2 wells; microscopy experiments: at least 3 field of views per condition). To further support our observations, we have generated the single ΔDBD and ΔCTD cell lines and the cell line lacking both domains (ΔDBDΔCTD). Although in the original version of the manuscript we have included the results of statistical tests in the Source Data files, we have included additional information in the text and figure legend where appropriate.

(3) HeloTag also allowed them to assess the mobility of these BRCA2 variants in mES cells, using single-particle tracking (SPT). Focusing on S-phase cells, they show that the increase of the immobile fraction of BRCA2, detectable at 2-4 hours upon ionising radiation, is not severely affected by the deletion of DBD or CTD. The conclusion was drawn from the datasets from two independent experiments of at least 15 cells and ~10,000 tracks per condition, which, in my opinion, is respectful.

(3) Thank you, does not need response.

(4) Equivalent human BRCA2 deletion variants were purified from human HEK293 cells and subjected to scanning force microscopy (SFM) imaging. This analysis revealed that, while full-length BRCA2 commonly forms large oligomers of more than four molecules (70%), all the truncation variants showed somewhat reduced capacity to form tetramers or larger oligomers (i.e. ~44-54%). Upon RAD51 incubation, the majority of full-length BRCA2 (74%) became monomeric, while the C-terminal deletion appeared to respond less, with 40-55% becoming monomers and 30% remaining as dimers. The addition of ssDNA made full-length BRCA2 structure extended but elicited no structural impact on the truncated variants. These conclusions were drawn from the analysis of ~260-500 particles per sample, and look to me, credible. It would nevertheless be good to see the quality of purified BRCA2 variants by silver staining or mass-spectrometry to eliminate potential complications associated with other co-purified factors.

(4) A silver stained gel of the proteins used has been added to supplementary figures (Figure 4 – supplement 4) and this issue is addressed in essential revision number 3.

Line 61 “remarkable rearrangement by RAD51, ssDNA and ssDNA” – duplication of ssDNA.

Line 61 duplicated text has been removed.

Line 79 'phosphorylation-dependent, RAD51 interaction domain' – RAD51 interaction with CTD is 'blocked' by the phosphorylation at S3291. The sentence might be misread as 'CTD phosphorylation promotes RAD51 interaction'. Make this clear at least for the first time when it is refereed.

Line 79 We agree this sentence should be phrased differently. We have adjusted it to this:

“RAD51 interaction domain at the C-terminus of BRCA2 which is inhibited by cell-cycle regulated BRCA2 phosphorylation (Esashi et al., 2005).”

Figure 1 – Colour codes do not always match. For example, in panels A and G, δ-DBD is shown in blue, but in panels C-F, it is shown in purple. It will be easier to read the results if they are shown in consistent colour codes.

Figure 1 color codes have been adjusted in panels C-F for consistency.

Figure 2 – This figure was hardest for me to understand due to three main issues. Firstly, while the manuscript discusses the kinetics of foci formation at any given time point, the results are clustered according to the type of samples (i.e. full-length, dDBD, dCTD and dDBD/dCTD), rather than each time points. Clustering treatment or time point (i.e. with and without IR, or hours post-IR) would make it easier to understand. Secondly, statistic tests had not been conducted, hence it is difficult to assess the conclusions are supported by their results. In fact, the deletion mutants seem to show significant difference from full-length BRCA2 at 2 hour after IR. Finally, as they are assessing the action of BRCA2 in the context of RAD51 recruitment, they could include the quantitative assessment of BRCA2-RAD51 co-localising foci. This can be done by ImageJ co-localisation plugin.

Figure 2 Concerning the choice to cluster results by cell line vs by time point; our focus was to examine the response of each cell line to compare to each other. In our opinion the presentation as in figure 2 shows the pattern of response per cell line best. The reviewer’s suggestion is however also a good way to display differences and we have added this presentation in the supplemental figure (Figure 2 – Supplement 1).

Figures 4 and 5 – These results are well presented in my opinion. The manuscript, however, goes back and forth to explain these datasets, i.e., first explains BRCA2 oligomer formation (page 15), followed by solidity of BRCA2 affected by ssDNA (page 16), then back to BRCA2 oligomer status affected by RAD51 (page 17). It will be more straightforward if the data shown in Figure 4 are explained fully, before moving to the solidity assessment shown in Figure 5.

Figures 4 and 5 We thank the reviewer for the noting that the text does not follow the figures in order of their presentation. Although we had our reasons for this order it is not essential to understanding and can, as pointed out, be confusing. We have re-ordered the text to place all description of results in figure 4 before description of results in figure 5.

The beauty of this study is its consistency in the samples analysed. It will be good to include a table, summering the phenotypes and molecular properties of each BRCA2 variants.

Thank you for this suggestion, we have included a table summarizing the in vivo and in vitro observations in this study (Table 1).

Reviewer #2:

[…]

1) Figure 1 and 2: It is a standard in the field that cellular experiments presented should have at least three biological replicates for chlonogenic survival assays. Please perform the biological and technical replicates for data presented in Figure 1 and Figure 2.

a. Figure 1:

i. More than two concentrations of (Olaparib) should be assayed in chlonogenic survival to understand the full curve of cellular survival.

ii. Presentation of the statistical analysis directly in the Figure C-F would be helpful in ascertaining importance with a description in the manuscript.

iii. Displaying the chlonogenic data in a non-logarithmic form would be helpful to viewers for comparing the IC50 of survival.

iv. The description of how cellular sensitivities to IR, Olaparib, MMC, and cisplatin relate to repair outcome is lacking. Please describe in more detail how each agent causes damage and the potential outcomes and DNA repair pathways that would be utilized for repair.

(a) Figures 1 and 2. Additional replicate experiments have been added as suggested, see also response to essential revisions. We apologize for our mistake leaving off the highest concentration of Olaparib. For consistency we have repeated those experiments n=3 with 3 different doses. The outcome of the experiment was similar and did not alter our conclusions. Statistical analysis can be found in the table in supplemental material (Figure 1 and 2 – Source data files).

In our experience (such assays are standard in our department for more than 30 years) log scales are expected and preferred. Log scale better shows the level of sensitivity of the cell lines in a space efficient way (hope you appreciate humor – https://xkcd.com/1162/).

We have included additional information on BRCA2 function in relation with the different DNA damage response induced by the reagents used (Results, line 117-122).

(b) Address biological replicates. Statistical analysis provided in Figure 1 – Source data file 1 concerning the role of c-terminal DBD in Rad51 turnover, the possibility we favor is that BRCA2 conformational changes are an important aspect of its function and that the absence of the DBD changes this. This concept is the topic of the last paragraph in the discussion and the last sentence of the paragraph before that. It happens all too often that statement in the discussion of an article are referenced as fact and thus incorrectly propagated in the literature. We leave further speculation and inspiration for new experiments up to the readers and discussions among colleagues.

b. Figure 2: While the DBD and CTD are not essential for BRCA2 and RAD51 foci formation the data presented in Figure 2E suggest that the DBD plays the most important role. The kinetics of RAD51 foci formation/behavior of the δ DBD shows a different behavior compared to full length BRCA2 and δ CTD.

i. It is unclear if this phenomena is different and could benefit from increased biological replicates and display of error. Statistical analysis for Figures 2B,D,C, and F would be helpful in ascertaining importance.

ii. Moreover, how the authors hypothesize this domain plays a role in RAD51 foci turnover would be helpful as this domain does not directly interact with RAD51 protein.

c. A more mechanistic functional role of these domains can be obtained by single-molecule analysis of BRCA2 and the deletion constructs with varying substrates and BRCA2 binding partners.

i. It is unclear why the CTD is not sensitized to MMC or Cisplatin but previous work in the field has shown a role for this domain in fork protection and crosslink repair (Atanassov et al., etc) as the authors describe in the discussion.

(i) Concerning the lack of MMC and Cis-Pt sensitivity of ΔCTD. It is indeed correct that several papers in the past have indicated the relevance of the CTD for crosslink repair (Atanassov et al., 2005; Donoho et al., 2003; Marple et al., 2006). As indicated in our discussion (page 21, line 388) the different observations in those study could possibly be accounted for by differences in the BRCA2 alleles and cell types (MEFs) that were used.

ii. These discrepancies and a mechanism may be discerned by evaluating single-molecule analysis with DSS1 (known DBD interaction partner) and fork substrates with and without crosslinks. Other protein binding partners like DSS1 and p53 etc. may be important for dissecting out function of the studied domains. These revisions should be easily completed by the talented authors within 6 months.

(ii) We agree that interaction with DSS1 and possibly other binding partners is of great interest for our and similar work. Independent of the assumptions as to the quality and availability of our laboratory personnel, this is not the focus of our current work and outside the scope. We are happy that the reviewer gains such inspiration from our results. We would in general argue that delaying publication of this, or any well done and presented, work for 6 months or longer does not serve the greater scientific community.

1. For p53: Rajagopalan S. et al., PNAS 2010 PMID: 20421506

Figure 3 has been adapted to clarify the meaning of the data variance presented. The values below the plot were the mean values while in the boxplot median and 25 and 75% of the data are indicated. Median values are now indicated below the plot.

3. The manuscript would benefit from a figure which depicts a model for the function of each domain in BRCA2 and how the findings of these domains lay the foundation for the field.

We believe the reviewer is referring to protein ball – DNA lines sort of cartoons. If that is the case, we strongly disagree. We feel that often these cartoons imply information / interactions / specific functions that are simply not yet known or supported by data. These elements may not be the artists intention or their main point, but they are often interpreted as scientific fact. We think such cartoons should be avoided and if used carefully annotated as to what parts are based on consensus data and what parts are drawn because steps or interactions have to be filled in.

Reviewer #3:

[…]

Strengths:

1. Generation of mouse ES cells with both endogenous alleles of BRCA2 containing the deletion mutations in addition to a HALO tag is an incredible technical breakthrough and will be a highly valuable reagent for genetic and cell biological studies of mouse BRCA2.

1. Concerning comparison of cell sensitivity of our BRCA2 deletion variants and “completely non-functional BRCA2 allele”; This is indeed a good idea and would be interesting to pursue. However, we note that this would require making specific mutations from the human protein in mouse ES cell lines and thus require possibly substantial work determining if they mutations behave the same of differently. Although cell lines expressing (patient derived and other) BRCA2 truncations and deletion variants are described as “completely non-functional” this description does not entirely make sense to us. Cells lacking an essential protein (BRCA2) are, we assume by definition, dead or dying. That some tumor derived cell lines survive with apparently severe BRCA2 defects may attest to their other genetic alterations. A “clean” comparison in mouse ES cells does not exist. For our survivals in mouse ES cells we used a RAD54 deletion cell line as a well characterized comparison as HR defective in response to ionizing radiation. Though not perfect this at least provides a means of comparing sensitivity (Figure 1C) where the two BRCA2 deletion variants are even more sensitive.

2. The deletion mutants ablating either the DBD or the CTD, or both, is a great genetic approach to understanding the role of these key domains in BRCA2. The response of these mutants (versus WT BRCA2 as a benchmark) to various DNA damage (IR, PARPI, MMC, cisplatin) provides interesting information delineating the roles of these two important domains in BRCA2. For example, the ∆CTD mutant is significantly sensitive to IR and Olaparib, yet complements as well as WT BRCA2 in response to the crosslinking agents MMC and cisplatin.

2. Concerning mechanistic importance (insight) from SPT analysis. The function of BRCA2 and other DNA repair proteins logically require them to become localized/temporary immobile at sites of damage where they need to exercise biochemical activities. This is seen as a high local concentration in “foci”. In order to accumulate in this way or simply become localized to do its work a protein has to change its diffusive behavior, either more of the protein moves to / through a place or more of it stay immobile for a longer time. This is what we can quantify by SPT. Here we show that, perhaps contrary to expectations, the in vitro defined DNA binding domain is not required for this immobilization or change in diffusive behavior. This lack of effect could be described as a negative result, however just as important to communicate and valid as if we had detected an effect. We discussed the mechanistic implication and motivation for SPT study of BRCA2 in a previous publication (Reuter et al., JCB, 2014 in the reference list of our current manuscript). There we also explain how the number of proteins that change mobility and the magnitude of their change in mobility is consistent with the expected amount of damage inflicted.

3. The BRCA2 protein is notoriously difficult to purify and yet the authors succeeded in purifying 4 different forms of the protein for biophysical analysis. While it is difficult to interpret the various forms of BRCA2 by SFM, there are clear differences in the architecture between WT and the three c-terminal mutants. These differences are highlighted upon binding to RAD51 or ssDNA.

General Comments:

It is unclear how missing the c-terminal domain (CTD) or the DNA binding domain (DBD) of BRCA2 can be interpreted as having "roles beyond delivering strand exchange protein RAD51" unless a complete biochemical workup of the deletion mutants was performed to detect any alterations in DNA binding, stimulation of RAD51 dependent strand exchange, etc… While interesting and certainly an impressive technical feat, foci imaging and single particle tracking do not provide much information on mechanism (i.e. whether BRCA2 is binding DNA and loading/nucleating RAD51).

The interpretations in the discussion are not overstated, however, I somewhat disagree with the notion that the data, as presented, clarifies the role of BRCA2 beyond its canonical functions of RAD51 loading and nucleation on resected DNA substrates. I would have liked if the authors discussed the idea that it is surprising that mouse ES cells can tolerate complete loss of the DBD, CTD, and loss of both together. Questions that should be addressed in include some of the following: Are proliferation rates compromised compared to WT cells?

We did not observe compromised growth rates compared to WT cells. We have included this observation in the results (page 7, line 110).

Are they experiencing replication stress in the absence of any exogenous damage?

The difference in number of spontaneous RAD51 foci we observe in untreated cells lacking the DBD could be an indication for increased replication-associated DNA damage. This interesting topic is ongoing work of a departmental collaborator and hence is here. We have however highlighted this observation in the discussion (page 20, line 368).

Further, is there something unique about mouse ES cells that may differentiate BRCA2 behavior that would be expected in somatic human cells?

It is interesting to note that many years ago Ashworth and Taniguchi published back-to-back papers in Nature (2008) describing BRCA2 reversion alleles from in vitro screens of BRCA2 mutant cells selected in cisplatin or PARPi such that some of these reversions resulted in huge deletions of the entire DBD of BRCA2, and yet, they promoted resistance to PARPi. In this context, I would much appreciate if the authors commented on their findings that their constructed DBD deletion is not resistant to PARPi and if they offered some speculation as to why the reversions in those previous studies were.

1. Are the BRCA2 mouse alleles missing the c-terminus (∆CTD) properly localized to the nucleus? The authors do mention that mouse BRCA2 contains an NLS on the N-terminus of the protein but did they check? The human BRCA2 ∆CTD protein would be expected in the cytoplasm as NLS are located at the extreme c-terminus of the protein.

As can be appreciate from Figure 2A all variants that we studied localize to the nucleus. Consistent with our observations, others have also observed N-terminal fragments of murine BRCA2 localizing to the nucleus (Sarkisian et al., 2001).

2. In the figure 1A schematic, can the HALO tag graphic be placed on the c-terminus of the three deletion mutants? It might be confusing left only on the full length BRCA2 depiction.

The HaloTag is only indicated for the full length as the deletion mutants are shown for both the in vivo experiments in ES cells as for the in vitro experiments with N-terminally MBP-tagged purified BRCA2. We think it would be more confusing to add all tags and thus need to explain multiple versions as the purpose of the diagrams is to indicate the location of the deletions.

3. Do the three purified human BRCA2 proteins bind DNA substrates in an EMSA experiment? It would be informative to know if binding to certain substrates is diminished or ablated, for example, on ssDNA vs dsDNA vs 3' and 5' tails.

We agree this would be interesting to know but do not know how biologically significant it would be given that we do not see evidence of diminished immobilization, presumably DNA bound, at sites of damage in cells. Nonetheless it is not practical for us to do EMSA’s because our yields of BRCA2 are low in amount and concentration. We would not expect to see a good result in EMSA, in any case we could not do titrations for proper quantification.

4. A similar question is if the purified mutants are compromised for binding RAD51, and more specifically, binding and stabilizing the RAD51 filament as previously demonstrated for the CTD (Esashi et al. 2005 and 2007, Davies et al. 2007)?

5. In the first paragraph of page 5 (lines 74-86), it would be helpful if the authors discussed briefly the separation-of-function of the BRC repeats in BRCA2 (Carreira et al. 2011, Chatterjee et al. 2016) especially in the context that BRC5-8 seems to operate in a mechanistic manner similar to the CTD in stabilization of the RAD51 filament on ssDNA.

The work referred to is indeed quite interesting. There is considerable work (also by our group) on isolated bits of BRCA2, some of it contradictory and in our opinion some of it possibly not representative of domain function in the context of the complete protein. Filament formation and stability are not the addressed in this current work so we choose not to discuss this topic and the associated references.

6. Figure 1C-E: please increase size of data labels (boxes, circles, triangles) and lines in the survival curve graphs to make it easier for readers to visualize the results.

7. In the survival assays in Figure 1 C-E, why didn't the authors include a classical BRCA2 pathogenic mutation (or null) to use as a benchmark for comparison to ∆DBD and ∆CTD? Inviable? It would be a very informative comparison if possible.

BRCA2 null mouse ES cells are not viable and comparison of survival with other cell lines will be difficult. Please see our response to Public Review Weakness above; Concerning comparison of cell sensitivity of our BRCA2 deletion variants and “completely non-functional BRCA2 allele”.

8. Can the authors comment on the 2 bands in Figure 1B western confirming expression of the HALO tagged mutant alleles in mouse ES cells, is one BRCA2 and the other a degradation product, or is one of the alleles truncated on the N-terminus? Were both alleles completely sequenced in the cells used for the studies?

Indeed we observe a double band of BRCA2 which is due to incomplete cleavage of the F2A peptide in the Halo-F2A-neomycin cassette. As can be appreciated from the survival plots that this incomplete cleavage does not appear to affect BRCA2 function as cells expressing the full length protein are not sensitive to IR compared to wild type mouse ES cells. Extensive genotyping of the knock in cell lines can be found in Figure 1 – supplement 1.

9. In Figure 2B, the fold induction of BRCA2 foci looks much more pronounced for WT than ∆DBD, but in the text, the authors state "difference in fold increase compared to cells producing full‐length BRCA2 was either small or absent". I don't see statistical analyses in the graph comparing the different samples to see if differences were significant, can the authors provide this?

Statistics analysis is presented in the supplementary data file and referred to in the figure legends. We agree with the reviewer that the statement is somewhat confusing and rephased:

“Upon irradiation, the number of BRCA2 foci increased in all deletion variants, (p<0.001 for all BRCA2 variants). However total number of BRCA2 foci appeared lower after radiation in all deletion variants.”

10. There clearly seems to be more RAD51 foci in undamaged cells in the ∆DBD compared to WT BRCA2 (Figure 2D), can the authors highlight and comment on this?

As indicated above we have include this observation in our discussion (page 20, line 368).

11. Figure 2E, do RAD51 foci persist at 48 and 72 hrs in the deletion mutants?

We have not tested this, in general ES cells divide every 24 hours so the time points suggested would be difficult to compare. As ∆DBD cells are sensitive to IR the percentage of surviving cells is much smaller that their FL counterparts which will grow to much higher density, this would make it difficult to quantify foci in those nuclei.

12. I would change the title of this section "DBD and CTD are not essential for BRCA2 and RAD51 focus formation" (p. 9) to "The DBD and CTD are not essential for BRCA2 and RAD51 foci formation, however, the kinetics of recruitment are delayed" as quantified in Figure 2E and G.

We appreciate the suggestion to qualify this but find the longer version cumbersome and not as effective as a heading. To better reflect the results in the section we change the heading to: “The DBD and CTD affect BRCA2 and RAD51 focus kinetics”

References

Atanassov, B. S., Barrett, J. C., and Davis, B. J. (2005). Homozygous germ line mutation in exon 27 of murine Brca2 disrupts the Fancd2-Brca2 pathway in the homologous recombination-mediated DNA interstrand cross-links' repair but does not affect meiosis. Genes Chromosomes Cancer, 44(4), 429-437. doi:10.1002/gcc.20255

Donoho, G., Brenneman, M. A., Cui, T. X., Donoviel, D., Vogel, H., Goodwin, E. H., Chen, D. J., and Hasty, P. (2003). Deletion of Brca2 exon 27 causes hypersensitivity to DNA crosslinks, chromosomal instability, and reduced life span in mice. Genes Chromosomes Cancer, 36(4), 317-331. doi:10.1002/gcc.10148

Le, H. P., Ma, X., Vaquero, J., Brinkmeyer, M., Guo, F., Heyer, W. D., and Liu, J. (2020). DSS1 and ssDNA regulate oligomerization of BRCA2. Nucleic Acids Res. doi:10.1093/nar/gkaa555

Marple, T., Kim, T. M., and Hasty, P. (2006). Embryonic stem cells deficient for Brca2 or Blm exhibit divergent genotoxic profiles that support opposing activities during homologous recombination. Mutat Res, 602(1-2), 110-120. doi:10.1016/j.mrfmmm.2006.08.005

Sarkisian, C. J., Master, S. R., Huber, L. J., Ha, S. I., and Chodosh, L. A. (2001). Analysis of murine Brca2 reveals conservation of protein-protein interactions but differences in nuclear localization signals. J Biol Chem, 276(40), 37640-37648. doi:10.1074/jbc.M106281200

https://doi.org/10.7554/eLife.67926.sa2

Article and author information

Author details

  1. Maarten W Paul

    Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Arshdeep Sidhu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7990-6010
  2. Arshdeep Sidhu

    1. Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    2. Department of Radiation Oncology, Erasmus University Medical Center, Rotterdam, Netherlands
    Present address
    Arshdeep Sidhu, Division of Molecular Genetics and Cancer, Nitte University Centre for Science Education and Research, Nitte (Deemed to be University), Mangalore, India
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Maarten W Paul
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2851-1019
  3. Yongxin Liang

    Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Sarah E van Rossum-Fikkert

    1. Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    2. Department of Radiation Oncology, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Resources, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Hanny Odijk

    Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Resources, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Alex N Zelensky

    Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Roland Kanaar

    Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9364-8727
  8. Claire Wyman

    1. Department of Molecular Genetics, Oncode Institute, Erasmus MC Cancer Institute, Erasmus University Medical Center, Rotterdam, Netherlands
    2. Department of Radiation Oncology, Erasmus University Medical Center, Rotterdam, Netherlands
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    c.wyman@erasmusmc.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2549-6893

Funding

Nederlandse Organisatie voor Wetenschappelijk Onderzoek

  • Maarten W Paul

KWF Kankerbestrijding (10436)

  • Arshdeep Sidhu

KWF Kankerbestrijding (11143)

  • Yongxin Liang

Cancer Genomics Centre

  • Alex N Zelensky

Convergence Health & Technology (CHT16)

  • Maarten W Paul

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the Optical Imaging Centre for use and technical assistance with the optical microscopes; Ihor Smal (Erasmus MC) for assistance in single-molecule tracking analysis; Luke Lavis (HHMI Janelia) for providing HaloTag ligands; Niklas Bachmann for assistance in making the BRCA2-Halo ΔCTD cell line. We thank Joyce Lebbink (Erasmus MC) and Nick van der Zon (Erasmus MC) for critically reading the manuscript. We acknowledge the Josephine Nefkens Cancer Program for infrastructural support.

Senior Editor

  1. Jessica K Tyler, Weill Cornell Medicine, United States

Reviewing Editor

  1. Maria Spies, University of Iowa, United States

Reviewers

  1. Fumiko Esashi, University of Oxford, United Kingdom
  2. Sarah R Hengel, University of Pittsburgh School of Medicine, United States

Publication history

  1. Received: February 26, 2021
  2. Preprint posted: March 2, 2021 (view preprint)
  3. Accepted: July 12, 2021
  4. Accepted Manuscript published: July 13, 2021 (version 1)
  5. Version of Record published: July 30, 2021 (version 2)

Copyright

© 2021, Paul et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,925
    Page views
  • 247
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Maarten W Paul
  2. Arshdeep Sidhu
  3. Yongxin Liang
  4. Sarah E van Rossum-Fikkert
  5. Hanny Odijk
  6. Alex N Zelensky
  7. Roland Kanaar
  8. Claire Wyman
(2021)
Role of BRCA2 DNA-binding and C-terminal domain in its mobility and conformation in DNA repair
eLife 10:e67926.
https://doi.org/10.7554/eLife.67926

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Dario Segura-Peña, Oda Hovet ... Nikolina Sekulic
    Research Article Updated

    Aurora B, together with IN-box, the C-terminal part of INCENP, forms an enzymatic complex that ensures faithful cell division. The [Aurora B/IN-box] complex is activated by autophosphorylation in the Aurora B activation loop and in IN-box, but it is not clear how these phosphorylations activate the enzyme. We used a combination of experimental and computational studies to investigate the effects of phosphorylation on the molecular dynamics and structure of [Aurora B/IN-box]. In addition, we generated partially phosphorylated intermediates to analyze the contribution of each phosphorylation independently. We found that the dynamics of Aurora and IN-box are interconnected, and IN-box plays both positive and negative regulatory roles depending on the phosphorylation status of the enzyme complex. Phosphorylation in the activation loop of Aurora B occurs intramolecularly and prepares the enzyme complex for activation, but two phosphorylated sites are synergistically responsible for full enzyme activity.

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Maura Greiser, Mariusz Karbowski ... Liron Boyman
    Research Article

    Mitochondrial ATP production in cardiac ventricular myocytes must be continually adjusted to rapidly replenish the ATP consumed by the working heart. Two systems are known to be critical in this regulation: mitochondrial matrix Ca2+ ([Ca2+]m) and blood flow that is tuned by local ventricular myocyte metabolic signaling. However, these two regulatory systems do not fully account for the physiological range of ATP consumption observed. We report here on the identity, location, and signaling cascade of a third regulatory system -- CO2/bicarbonate. CO2 is generated in the mitochondrial matrix as a metabolic waste product of the oxidation of nutrients that powers ATP production. It is a lipid soluble gas that rapidly permeates the inner mitochondrial membrane (IMM) and produces bicarbonate (HCO3-) in a reaction accelerated by carbonic anhydrase (CA). The bicarbonate level is tracked physiologically by a bicarbonate-activated adenylyl cyclase, soluble adenylyl cyclase (sAC). Using structural Airyscan super-resolution imaging and functional measurements we find that sAC is primarily inside the mitochondria of ventricular myocytes where it generates cAMP when activated by HCO3-. Our data strongly suggest that ATP production in these mitochondria is regulated by this cAMP signaling cascade operating within the inter-membrane space (IMS) by activating local EPAC1 (Exchange Protein directly Activated by cAMP) which turns on Rap1 (Ras-related protein 1). Thus, mitochondrial ATP production is shown to be increased by bicarbonate-triggered sAC signaling through Rap1. Additional evidence is presented indicating that the cAMP signaling itself does not occur directly in the matrix. We also show that this third signaling process involving bicarbonate and sAC activates the cardiac mitochondrial ATP production machinery by working independently of, yet in conjunction with, [Ca2+]m-dependent ATP production to meet the energy needs of cellular activity in both health and disease. We propose that the bicarbonate and calcium signaling arms function in a resonant or complementary manner to match mitochondrial ATP production to the full range of energy consumption in cardiac ventricular myocytes in health and disease.
