Visualizing formation of the active site in the mitochondrial ribosome

  1. Viswanathan Chandrasekaran
  2. Nirupa Desai
  3. Nicholas O Burton
  4. Hanting Yang
  5. Jon Price
  6. Eric A Miska  Is a corresponding author
  7. V Ramakrishnan  Is a corresponding author
  1. MRC Laboratory of Molecular Biology, United Kingdom
  2. Centre for Trophoblast Research, Department of Physiology, Development and Neuroscience, University of Cambridge, United Kingdom
  3. Gurdon Institute, University of Cambridge, United Kingdom
  4. Department of Genetics, University of Cambridge, United Kingdom
  5. Wellcome Sanger Institute, Wellcome Genome Campus, United Kingdom
Research Article
  • Cited 1
  • Views 935
  • Annotations
Cite this article as: eLife 2021;10:e68806 doi: 10.7554/eLife.68806

Abstract

Ribosome assembly is an essential and conserved process that is regulated at each step by specific factors. Using cryo-electron microscopy (cryo-EM), we visualize the formation of the conserved peptidyl transferase center (PTC) of the human mitochondrial ribosome. The conserved GTPase GTPBP7 regulates the correct folding of 16S ribosomal RNA (rRNA) helices and ensures 2ʹ-O-methylation of the PTC base U3039. GTPBP7 binds the RNA methyltransferase NSUN4 and MTERF4, which sequester H68-71 of the 16S rRNA and allow biogenesis factors to access the maturing PTC. Mutations that disrupt binding of their Caenorhabditis elegans orthologs to the large subunit potently activate mitochondrial stress and cause viability, development, and sterility defects. Next-generation RNA sequencing reveals widespread gene expression changes in these mutant animals that are indicative of mitochondrial stress response activation. We also answer the long-standing question of why NSUN4, but not its enzymatic activity, is indispensable for mitochondrial protein synthesis.

Introduction

Mitochondrial ribosomes (mitoribosomes) are essential for the production and maintenance of the electron transport chain machinery. As with all other ribosomes, the biogenesis of mitoribosomes involves a complex series of coordinated steps during which the ribosomal RNA (rRNA) folds, proteins are incorporated and the active site is formed. The process is facilitated by specific biogenesis factors, including GTPases, rRNA modifying enzymes, RNA helicases, ribonucleases, chaperones, and other scaffolding and adaptor proteins (De Silva et al., 2015). Studying this process in molecular detail is clinically important because defective mitoribosome assembly can lead to encephalomyopathy, optic neuropathy, cardiomyopathy, and hereditary spastic paraplegia, among other disorders.

The general principles of ribosome assembly are well-conserved across species, but mitoribosome assembly has diverged in notable ways from, and involves different factors than bacterial 70S ribosomes. Analogous to bacterial and eukaryotic cytosolic ribosomes, mitoribosome assembly also proceeds via a series of quality-control checkpoints and GTP hydrolysis serves as the commitment step to drive the reaction forward (Britton, 2009; Karbstein, 2007). Four GTPases, GTPBP5, 6, 7, and 10 (and perhaps GTPBP8; Maiti et al., 2021) directly bind the 16S rRNA of the 39S mitoribosomal large subunit (mtLSU) to facilitate its maturation (Kotani et al., 2013), but their mechanistic roles and order of action remain poorly understood. Here, we present the cryo-electron microscopy (cryo-EM) structure of the human mtLSU in complex with GTPBP7, an RNA methyltransferase NSUN4 and an RNA scaffolding protein MTERF4, establish the importance of this complex during mitoribosome biogenesis in vivo and decipher the mechanism by which NSUN4·MTERF4·GTPBP7 ensure maturation of the peptidyl transferase center (PTC) of the mitochondrial ribosome.

Results

To trap GTPBP7 and other GTPases that participate in human mitochondrial translation, we included the non-hydrolyzable GTP analog β,γ-methyleneguanosine 5′-triphosphate (GMPPCP) during mitoribosome purification. Single-particle cryo-EM (Figure 1—figure supplement 1, Figure 1—figure supplement 2, Table 1) of these and other mitoribosome-bound complexes (Desai et al., 2020) also yielded a 5% subset of mtLSU intermediates bound to GTPBP7·GMPPCP in a pre-hydrolysis state and arrested at an assembly state equivalent to the 45S (RI50) to 50S transition of the bacterial LSU (Achila et al., 2012; Fahnestock et al., 1973; Seffouh et al., 2019). In this state, the PTC is not completely disordered as it is in PDB 5OOM, an earlier late assembly state (Brown et al., 2017), but key helices in the vicinity are held in an unfolded state.

Table 1
Data collection, processing, refinement, and model statistics.
Data collection
Voltage (kV)300
Pixel size (Å)1.04
DetectorFalcon III
Defocus range (μm)−1.1 to −3.2
Defocus mean (μm)−2.1
Electron dose (e frame−1−2)1.5
Data processing
Independent data collections7
Useable micrographs43,950
Particles picked3,374,367
Final particles66,340
Map sharpening B-factor (Å2)−10
Resolution (Å)3.4
EMPIAR accession codeEMPIAR-10809
EMDB accession codeEMD-13329
PDB accession code7PD3
Model composition
Chains70
Non-hydrogen atoms108,053
Protein residues9276
RNA bases1522
Metals (Mg2+/Zn2+)91/2
LigandsGCP (1), SAM (1)
Refinement
Resolution (Å)3.4
CC (mask)0.70
R.M.S deviations
Bond lengths (Å)0.009
Bond angles (°)1.068
Validation
Molprobity score1.66
Clashscore, all atoms4.97
Rotamers outliers (%)0.01
Cβ outliers (%)0.01
Ramachandran plot
Favored (%)94.17
Allowed (%)5.69
Outliers (%)0.14

Surprisingly, GTPBP7 was bound to a heterodimer of the 5-methyl cytosine (m5C) modifying enzyme, NOP2/Sun RNA methyltransferase 4 (NSUN4) and its binding partner, mitochondrial transcription termination factor 4 (MTERF4) (Cámara et al., 2011; Figure 1). NSUN4, MTERF4, and GTPBP7 bind the inter-subunit interface of the mtLSU in a radial arrangement centered about the peptidyl site (P site) and <30 Å from the PTC (Spåhr et al., 2012). Additionally, the anti-association factors MALSU1·L0R8F8·mt-ACP are also present on these particles to prevent premature SSU joining (Brown et al., 2017; Desai et al., 2020).

Figure 1 with 2 supplements see all

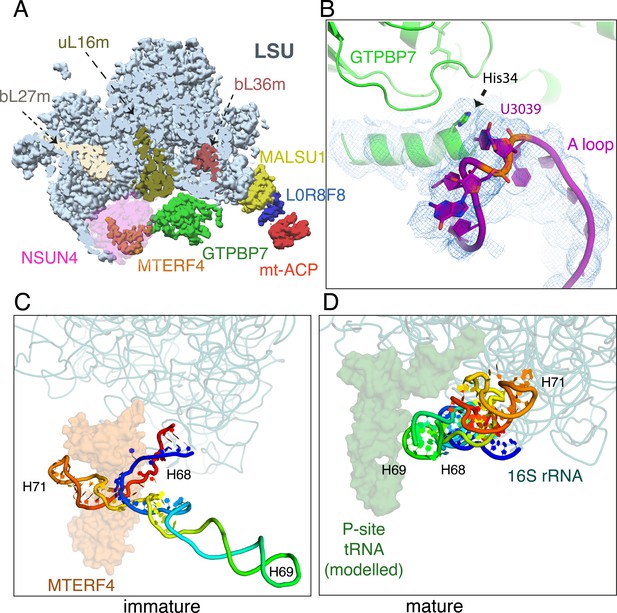

Architecture of the mitoribosomal LSU complexed with NSUN4·MTERF4·GTPBP7·GMPPCP and MALSU1-L0R8F8-mt-ACP.

(A) The inter-subunit interface faces the reader and a cartoon of an elongating mitoribosome is shown in the red box (bottom) to aid orientation. NSUN4 (pink) bound to S-adenosyl methionine (SAM, left inset), GTPBP7 (green) bound to the non-hydrolyzable GTP analog, GMPPCP (top inset) and MTERF4 (orange) interact with the subunit interface of the mtLSU assembly intermediate. The domain IV rRNA helices H68-71 (teal) are unfolded, rendering the aminoacyl, peptidyl, and exit sites incomplete. Also pictured are the anti-association factors MALSU1 (yellow), L0R8F8 (blue), and mt-ACP (red). (B) Map-to-model fits for NSUN4, MTERF4, GTPBP7, and the unfolded rRNA.

The NSUN4 active site contains weak density for the methyl donor S-adenosyl methionine (SAM). Moreover, the cryo-EM density suggests that there is no m5C methylation of 16S rRNA located within ~20 Å of the NSUN4 active site indicating that methyltransferase activity is not involved at the mtLSU assembly checkpoint. Bisulfite sequencing studies across many species have also not revealed any m5C targets on the 16S rRNA, making this an unlikely site of NSUN4 methyltransferase activity (Metodiev et al., 2014).

Our structure represents an intermediate in which the proteins uL16m, bL27m, and bL36m have already bound, but before complete folding of rRNA domain IV helices 68–71 and dissociation of NSUN4, MTERF4, and GTPBP7 by GTP hydrolysis, and subsequent small subunit (mtSSU) joining. The 16S rRNA domain IV helices 68–71 (nucleotides 2542–2637) typically span the A, P, and E sites and pack against the D-loop, and anticodon arms of the P-site tRNA (Figure 2). Here, they are instead held in a partially unfolded state by MTERF4 at a location that would permit biogenesis factors to access to their binding sites, but clash with an incoming SSU (Figure 2C). Subsequent GTP hydrolysis by GTPBP7 would result in dissociation of the GTPase and MTERF4·NSUN4, allowing H68–71 to fold (compare Figure 2C,D).

Figure 2 with 2 supplements see all
Maturation of the mtLSU by NSUN4·MTERF4·GTPBP7.

(A) Incorporation of uL16m (olive), bL27m (wheat) precedes NSUN4 (magenta) binding and before bL36m (brown). NSUN4 is shown translucent for clarity. (B) His34 of helix 1 of GTPBP7 verifies that 2′-O-methylation of A-loop base U3039 by MRM2 has occurred. Immature (C) and mature (D) conformations of domain IV rRNA helices H68–71 (rainbow). H69 would pack against a canonical P-site tRNA when present, and together this region forms the back wall of the A, P, and E sites of the mature 39S. MTERF4 (translucent orange) holds H68–71 in an unfolded conformation to permit assembly factors to access the core of the mtLSU. mtLSU, mitoribosomal large subunit; rRNA, ribosomal RNA.

RbgA, the bacterial homolog of GTPBP7, facilitates the incorporation of the mitoribosomal protein bL36m into the mtLSU (Britton, 2009; Kotani et al., 2013; Figure 2—figure supplement 1). On the other hand, two other ribosomal proteins uL16m and bL27m, whose incorporation in bacteria is also attributed to RbgA, are already present in an earlier assembly intermediate (PDB 5OOM). We suspect that this difference is likely because only two GTPases (ObgE being the other) regulate bacterial 50S assembly while at least four are implicated in ribosome assembly in human mitochondria (Maiti et al., 2021). Remarkably, GTPBP7 binds in the vicinity of 2′-O-methylated bases in the A and P loops of the PTC, which are critical rRNA elements that bind the aminoacyl and peptidyl tRNAs, respectively. Our structure reveals that the A and P loops move toward GTPBP7 and NSUN4, respectively, relative to their positions in the mature 55S (Figure 2—figure supplement 2) and His 34 of helix 1 of GTPBP7 directly contacts the highly conserved U3039 to verify 2′-O-methylation by mitochondrial methyltransferase 2 (MRM2) (Figure 2B; Lee and Bogenhagen, 2014). Given the universal importance of 2′-O-methylation of specific nucleotides in the PTC for translation (Pintard et al., 2002; Rorbach et al., 2014), it is striking that GTPBP7 directly contacts Um3039. In principle, slight rearrangements of helix 1 of GTPBP7 could also ensure G3040 methylation by MRM3. Similarly, G2815 (in the P loop), which is 2′-O-methylated by MRM1 (Lee and Bogenhagen, 2014; Rorbach et al., 2014) is in the vicinity of NSUN4 and GTPBP7 in our structure (Figure 2—figure supplement 2). We propose that GTPBP7 ensures 2′-O-methylation of these residues by coupling GTP hydrolysis and subsequent GTPBP7 egress from the 39S to its interaction with the methylated bases.

GTPBP7, MTERF4, and NSUN4 are highly conserved and their counterparts in Caenorhabditis elegans are MTG-1 (33% identical), MTER-4 (21%), and NSUN-4 (34%), respectively. In C. elegans, the methyltransferase activity of NSUN4 for mitochondrial protein synthesis was shown to be dispensable (Navarro et al., 2021), suggesting that its importance may instead lie in its interaction with the conserved core of the mtLSU. To test the importance of complex formation of the three protein factors with the mtLSU during assembly in vivo, we used C. elegans as a model organism and introduced mutations at locations in the three factors that we predicted would disrupt binding to the mtLSU without affecting expression, mitochondrial targeting or protein folding (Figure 3A, Figure 3—figure supplement 1, Figure 3—figure supplement 2).

Figure 3 with 3 supplements see all

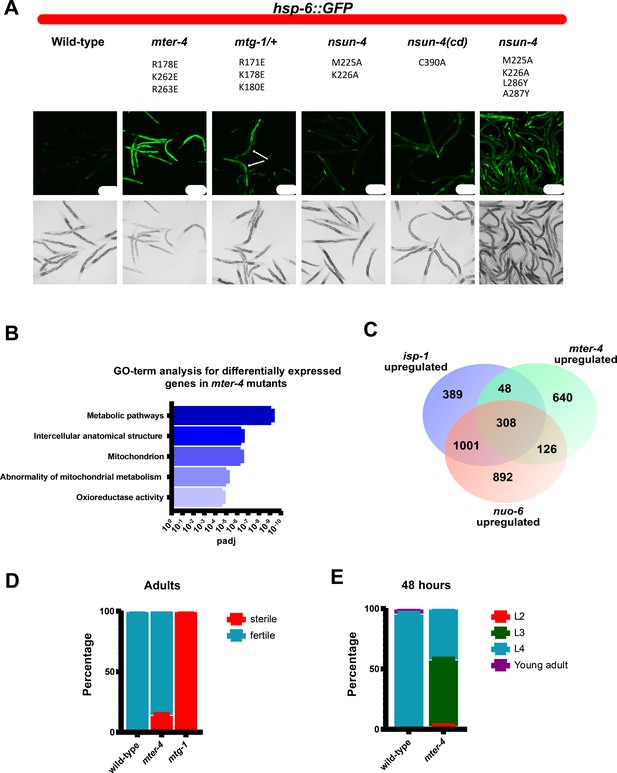

Mutations that disrupt mitoribosomal LSU binding result in activation of the mitochondrial unfolded protein response, delayed development, and decreased fertility.

(A) Representative images of hsp-6::GFP expression in wild-type, mter-4R178E,K262E,K263E, mtg-1R171E,K178E,K180E, nsun-4M225A,K226A, catalytic dead nsun-4C90A, and nsun-4M225A,K226A,L286Y,A287Y mutant animals. The matched wild-type control for nsun-4M225A,K226A,L286Y,A287Y resembles the shown wild-type, and is omitted for simplicity. White arrows in mtg-1 mutants represent homozygous mutant animals based on the absence of umnIs21 reporter expression from balancer chromosome. All animals express the zcIs13 [hsp-6::GFP] reporter which is specifically expressed in response to mitochondrial stress. Animals were grown for 72 hr at 22.5°C. Scale bars=200 µm. (B) Top five GO-terms based on p-value from g:Profiler analysis of genes upregulated greater than 0.5 (log2) in mter-4R178E,K262E,K263E mutants when compared to wild-type animals. (C) Venn diagram comparison of genes upregulated in mter-4R178E,K262E,K263E, isp-1(qmv150), and nuo-6(qm200) mutants. isp-1 and nuo-6 gene expression data from Yee et al., 2014. (D) Fraction of wild-type and mter-4R178E,K262E,K263E mutants sterile at 22.5°C. n=100 animals. (E) Fraction of wild-type and mter-4R178E,K262E,K263E mutants at different developmental stages after 48 hr at 22.5°C. n=200 animals. GO, gene ontology.

Mutations that disrupt mitoribosome binding to MTER-4 (MTER-4R178E,K262E,R263E) and MTG-1 (MTG-1R171E,K178E,K180E; the C. elegans orthologs of MTERF4 and GTPBP7, respectively), led to a substantial increase in the expression of the mitochondrial heat-shock protein HSP-6, consistent with activation of the mitochondrial unfolded protein response (Figure 3A). These findings are similar to the effects observed when mitochondrial ribosomal proteins are knocked down by RNAi (Houtkooper et al., 2013). By contrast, we found that mutations that disrupt the catalytic activity of NSUN-4 did not substantially activate hsp-6 expression (Figure 3A, NSUN-4 cd), nor did mutations that disrupt a weak contact between NSUN-4 and the mitoribosomal protein bL33m, NSUN-4M225A,K226A. These results are consistent with the catalytic activity of NSUN-4 being dispensable for mitochondrial protein synthesis. However, NSUN-4 makes multiple contacts with the mitoribosome and the chosen M225A and K226A substitutions in NSUN-4 were likely insufficient to disrupt its interaction with the mitoribosome. We therefore introduced the additional mutations L286Y and A287Y, resulting in a dramatic mitochondrial stress response (Figure 3A, compare nsun-4M225A,K226A and nsun-4M225A,K226A,L286Y,A287Y). Therefore, disrupting NSUN-4, MTER-4, or MTG-1 binding to the conserved core of the mitoribosome potently activates mitochondrial stress, underscoring their importance during mitoribosome biogenesis.

To test whether these mutations weaken 39S binding and to rule out the possibility that the observed mitochondrial stress phenotypes result from off-pathway consequences such as gene silencing, protein misfolding, or mistargeting, we sought to quantify the total- and ribosome-bound NSUN-4, MTER-4, and MTG-1 levels in mutant strains relative to wild-type worms. Given the absence of antibodies against these proteins, we had to resort to a suitable alternative method of quantification. Tandem mass tag-mass spectrometry (TMT-MS) permits accurate quantification of changes in global protein levels between multiple strains in parallel (Zhang and Elias, 2017). Total protein extracts as well as total ribosomes (cytosolic and mitochondrial) from wild-type, nsun-4M225A,K226A or mter-4R178E,K262E,R263E worms were extracted and labeled in duplicate (yielding a total of 12 samples) using isobaric tags and analyzed by TMT-MS (Figure 3—figure supplement 3, Supplementary file 3).

The data sets were normalized between samples on cytosolic ribosomal protein levels following the reasonable assumption that manipulations to mitochondrial ribosome assembly/recycling factors do not affect cytosolic ribosomal protein levels. The results show that the levels of MTG-1, NSUN-4, and MTER-4, as well as the ribosomal proteins eL13 and mL53, are comparable to wild-type worms (1.05- to 1.57-fold; Supplementary file 3) in both nsun-4M225A,K226A and mter-4R178E,K262E,R263E worms (Figure 3—figure supplement 3, top), arguing against gene silencing, misfolding, or mistargeting of the designed mutants. This conclusion is also supported by the well-folded structures predicted by AlphaFold 2 (Figure 3—figure supplement 2; Jumper et al., 2021).

Mutating the mitoribosome binding surfaces of NSUN-4 or MTER-4 also significantly reduced their levels in the total ribosome fraction (63% and 86%, respectively) in mter-4R178E,K262E,R263E worms. As expected, the reductions were more modest (84% and 98%, respectively) in nsun-4M225A,K226A worms, which harbor more conservative mutations (Figure 3—figure supplement 3, bottom) and therefore also exhibit subtler stress responses (Figure 3A). More dramatic reductions would require all three proteins to be mutated simultaneously in the same strain, which was not done because these individual mutants already cause severe developmental defects, sterility, and poor viability. Taken together, the TMT-MS results confirm that the mitochondrial stress phenotypes are a direct consequence of disrupting the NSUN-4·MTER-4·MTG-1 complex and that these proteins play a crucial checkpoint role during mitoribosome biogenesis.

At the organismal level, destabilizing 39S binding by MTG-1 and MTER-4 resulted in delayed animal development and sterility (Figure 3B,C). Specifically, we found that mter-4 mutants exhibited delayed development and 14% of mutants were sterile (Figure 3B,C). Similarly, we observed a more severe phenotype in mtg-1 mutants and found that 100% of homozygous mtg-1 mutants were sterile (Figure 3B). The severity of the phenotypes of the nsun-4, mter-4, and mtg-1 mtLSU binding mutants underscores the importance of the role of NSUN4/NSUN-4, MTERF4/MTER-4, and GTPBP7/MTG-1 in the mitochondrion. In addition, our results suggest that the effects of disrupting GTPBP7/MTG-1 and MTERF4/MTER-4 interactions with the mitoribosome can be overcome in somatic tissues, potentially by activating the mitochondrial unfolded protein response, as mutant animals can indeed develop to adulthood. Germ cells, however, were particularly sensitive to these mutations, and disruption of mtLSU binding caused sterility. Notably, mutations in mitochondrial translational components, including mitochondrial tRNAs, are known to cause sterility in humans (Demain et al., 2017). We suggest that germ cell sensitivity to disruptions in mitochondrial translation is a conserved phenomenon throughout metazoans and establish a new model to study these effects.

To further confirm the effects of disrupting the interaction of these proteins with the mitoribosome, we performed next-generation RNA sequencing on the viable mter-4 mutants. We identified 3174 differentially expressed genes (DEGs) in mter-4 mutants when compared to wild-type animals (Supplementary file 1). Furthermore, we found that the genes upregulated in mter-4 mutants are enriched for genes associated with mitochondrial dysfunction and substantially overlap with genes that are upregulated in electron transport chain mutants (Yee et al., 2014; Figure 3D,E). These results support our structural data and further suggest that disrupting the interaction of these proteins with the mitoribosome activates the mitochondrial unfolded protein response and disrupts normal mitochondrial function.

Discussion

We have previously reported the cryo-EM structures of two human late-stage mitoribosomal assembly intermediates (Brown et al., 2017). One intermediate (PDB 5OOM) lacks bL36m, contains the anti-association factors MALSU1·L0R8F8·mt-ACP, and awaits folding of ~20% of the 16S rRNA, including the entire PTC. The second intermediate (PDB 5OOL) comprises fully matured 16S rRNA and all ribosomal proteins, but is incompetent for subunit joining because the anti-association factors are still present. Several events must therefore occur around these intermediates, and the order of events can be inferred from the reasonable assumption that assembly proceeds outwards from the core of the mtLSU to the inter-subunit interface (Video 1). (a) bL36m must bind the mtLSU and pack against the folded domain V helices H89–93; (b) the only remaining domain II helices H34–35 must fold; (c) H65–67 of domain IV can also then fold; and finally, (d) H68–71 of domain IV can fold to yield a mature PTC. PTC maturation also includes the universally conserved and essential modifications to incorporate pseudouridine Ψ3067 by RNA pseudouridine synthase (RPUSD4) and 2′-O-methylation at Gm2815, Um3039, and Gm3040 by mitochondrial methyltransferases1-3 (MRM1-3), respectively. These modifications likely happen in concert with the above steps.

Video 1
Proposed events during formation of the mitoribosomal peptidyl transferase centre.

A comprehensive review of GTPases in human mitoribosomal assembly (Maiti et al., 2021) and four studies describing cryo-EM structures of mtLSU late assembly intermediates distinct from ours and from each other (Cheng et al., 2021; Cipullo et al., 2021; Hillen et al., 2021Lenarčič et al., 2021), appeared during manuscript preparation. All five studies, including ours, have trapped MALSU1·L0R8F8·mt-ACP and NSUN4·MTERF4 at the same location on the mtLSU. The studies, however, differ notably in the precise step during assembly, the biogenesis factors recruited, and finally, the GTPase in control. The deleterious consequences of manipulating NSUN4 or MTERF4 binding to the mitoribosome in vivo illustrate the importance of these proteins in mediating not only the exact step during PTC maturation that we have trapped, but also the prior and subsequent steps described in Cheng et al., 2021; Cipullo et al., 2021; Hillen et al., 2021.

When taken together, these cryo-EM structures permit piecing together the order of events during the late-stage maturation of the mtLSU (Figure 4). The anti-association factors MALSU1, L0R8F8, and mt-ACP engage the mtLSU during early assembly of the mtLSU (Brown et al., 2017; Cheng et al., 2021). At this stage, ribosomal proteins bL27m and uL16m have already been incorporated (state I). GTPBP10, MRM3, and DDX28 hold the PTC helices H89–93 and the central protuberance H80–88 in an immature state (Figure 4, state II) (Cheng et al., 2021). Following dissociation of these factors, the central protuberance matures and bL33m and bL35m are incorporated to result in state III (Brown et al., 2017; Cheng et al., 2021).

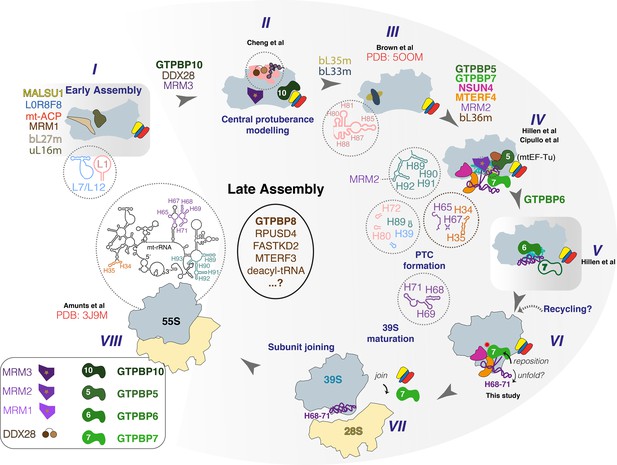

Proposed sequence of events in late-stage mtLSU assembly.

States I–VIII along the human mtLSU late-stage maturation pathway, including recently reported states II (Cheng et al., 2021), III (Brown et al., 2017), IV (Cipullo et al., 2021; Hillen et al., 2021), V (Hillen et al., 2021), VI (this study), and VIII (Amunts et al., 2015). Note that state V was seen only to contain GTPBP6 and GTPBP7 is therefore depicted hollow. mtLSU, mitoribosomal large subunit.

MTERF4 binds to and holds open H68–71 in an unfolded state and recruits NSUN4 to the mtLSU (Cámara et al., 2011). The ribosomal protein bL36m is incorporated, and MRM2 and GTPBP5 also then bind to 2′-O-methylate U3039 in the A loop and assist with H89–93 maturation (state IV) (Cipullo et al., 2021). Curiously, GTPBP7 is also present in state IV, but at a different location than in our structure. The close proximity of helices H34–35 and H65–67 to this location leads us to propose that GTPBP7 binds here to ensure that these helices have folded. GTPBP6, whose binding to the mtLSU is incompatible with the presence of NSUN4 (Hillen et al., 2021), displaces NSUN4 and GTPBP5 and helps to further mature the PTC (state V).

Next, GTPBP7, which was not actually seen in state V (Hillen et al., 2021), dissociates and repositions to the location on the PTC seen in our study (state VI). It then re-recruits NSUN4•MTERF4 and together NSUN4·MTERF4·GTPBP7 unfold H68–71 and check U3039 methylation and proper maturation of the PTC by the actions in the prior states III–V. This hypothesis if correct, would be consistent with (i) the dual roles of GTPBP6 during mitoribosome biogenesis and recycling (Hillen et al., 2021; Lavdovskaia et al., 2020), and (ii) the intriguing idea that not only GTPBP6 (Hillen et al., 2021) and MALSU1·L0R8F8·mt-ACP (Desai et al., 2020), but also NSUN4·MTERF4·GTPBP7 may have dual roles during mitoribosome recycling after termination and perhaps rescue.

This idea is supported by the facts that (i) we trapped our intermediate from Pde12 knockout (KO) cells which are a model for ribosome stalling (and subsequent recycling) (Desai et al., 2020; Pearce et al., 2017), (ii) during mitoribosome recycling, GTPBP6 rearranges the PTC of the 39S to a slightly immature state that could require subsequent checking by GTPBP7 (Hillen et al., 2021; Lavdovskaia et al., 2020), (iii) GTPBP7 is also involved in 39S–28S subunit joining (Kim and Barrientos, 2018; Maiti et al., 2021).

Given that we trapped GTPBP7 using the non-hydrolyzable GMPPCP, GTPBP7 may then dissociate upon GTP hydrolysis, eject NSUN4·MTERF4, thus allowing H68–71 to refold into the PTC and mediate subunit joining to result in a mature 55S (state VIII) (Amunts et al., 2015). How the anti-association factors dissociate prior to subunit joining is not yet known (Kim and Barrientos, 2018; Maiti et al., 2021).

The pathological significance of GTPBP7, MTERF4, and NSUN4 is demonstrated by their association with cardiomyopathy, which is a common feature of mitochondrial diseases. Cardiomyocyte-specific MTERF4 KO mouse models develop mitochondrial cardiomyopathy, and global KO mice are embryonically lethal (Cámara et al., 2011). Variant alleles of MTERF4 have also been documented in a pediatric patient with hypertrophic cardiomyopathy (Maribel et al., 2018). Similarly, GTPBP7 and NSUN4 silencing in human cardiomyocytes (Kim and Barrientos, 2018) and conditional KO mice have been shown to lead to impaired cardiac physiology and progressive cardiomyopathy (Metodiev et al., 2014), respectively.

Our observations of severe mitochondrial defects and activation of the mitochondrial unfolded protein response in mter-4 mutants, but not nsun-4 catalytic dead mutants, suggest that the major function of these proteins is as a checkpoint in mitochondrial ribosome assembly and not in RNA methylation. Consistent with this idea, MTERF4 does not participate during NSUN4-mediated methylation of the decoding center of the mtSSU (Cámara et al., 2011). We have thus shown, using structure-directed mutagenesis in vivo, that while the methyltransferase activity of NSUN4 on the small subunit can be dispensed with without resulting in a strong phenotype, the protein has a more important non-enzymatic function as a biogenesis factor in the final stages of the formation of the PTC and the tRNA binding sites in the large subunit.

The proper folding of the PTC, the universally conserved active site of the ribosome, along with the tRNA binding sites, is one of the crucial steps in the assembly of the large subunit. We conclude that this assembly occurs in multiple steps, moving from one in which the elements of the PTC are in a highly disordered state to one where they are ordered but not yet finally folded into their final structure in the large subunit. This assembly requires several protein factors to act together to yield the mature ribosomal subunit. By coupling cryo-EM analysis of human mitoribosome assembly intermediates with in vitro and in vivo studies in C. elegans, we have identified the physiological importance of three factors in an essential, conserved late-stage mtLSU maturation checkpoint. Although our studies were specifically on mitoribosomes, given the universally conserved nature of the PTC and its importance to the ribosome, we expect that other domains of life will have a similarly complex and orchestrated process requiring multiple factors to facilitate the formation of the active sites of the large ribosomal subunit.

Materials and methods

Cell line

Request a detailed protocol

PDE12−/− HEK293T cells that were used have previously been published (Pearce et al., 2017). Initially, cell growth was adherently at 37°C, 5% CO2, in 10% fetal bovine serum (FBS) supplemented with Dulbecco’s modified Eagle’s medium (DMEM). Subsequently, the cells were adapted to grow in suspension in 1% FBS supplemented Freestyle media at 37°C, 8% CO2.

Purification of native mitoribosomal complexes

Request a detailed protocol

Human mitochondria, and from them native mitoribosomal complexes, were purified from PDE12−/− HEK293T cells as previously described (Desai et al., 2020). Briefly, purified cells were harvested at 106 cells/ml and washed in cold phosphate-buffered saline (PBS). The weighed pellet of cells was resuspended in 6 ml of MIB buffer (50 mM HEPES-KOH pH 7.5, 10 mM KCl, 1.5 mM MgCl2, 1 mM EDTA, 1 mM EGTA, 1 mM DTT, Proteinase Inhibitor; PI, 1 tablet per 50 ml) per gram and SM4 buffer (281 mM sucrose, 844 mM mannitol in MIB buffer) to yield 70 mM sucrose and 210 mM mannitol. The cells were subjected to nitrogen cavitation for 20 min at 500 psi to disrupt the cell membranes and the collected sample was centrifuged two times at 800×g for 15 min and the supernatant was collected. Two additional centrifugation steps at 10,000×g for 15 min were performed and each time, the pellet was resuspended in 0.5 ml of MIBSM buffer (3:1 MIB:SM4) per 1 g of originally weighed pellet. Per 1 g of the original pellet 10U of RNase-free DNase was added and rotated on a roller at 4°C for 20 min. The solution was then pelleted at 10,000×g for 15 min, resuspended in SEM buffer (250 mM sucrose, 20 mM HEPES⋅KOH pH 7.45, and 1 mM EDTA), dounce-homogenized, and layered onto a sucrose step gradient of 60%, 32%, 23%, and 15% sucrose for centrifugation at 99,004×g for 1 hr at 4°C. The collected mitochondrial layer was flash-frozen in liquid nitrogen for storage at −80°C.

To isolate mitoribosomes from the collected mitochondrial fraction, 2 volumes of lysis buffer (25 mM HEPES·KOH pH 7.4, 100 mM KCl, 25 mM Mg(OAc)2, 1.5% β-DDM, 0.15 mg/ml TOCL, 0.5 mM GMPPCP (Sigma-Aldrich), 1 tablet per 50 ml PI, and 2 mM DTT) were added and briefly dounce-homogenized and stirred for 30 min in the cold room. Supernatant was collected after centrifugation at 30,000×g for 30 min and loaded at a ratio of 2.5:1 onto a 1 M sucrose cushion (20 mM HEPES·KOH, pH 7.4, 100 mM KCl, 20 mM Mg(OAc)2, 0.6% β-DDM, 0.06 mg/ml TOCL, 0.25 mM GMPPCP, and 2 mM DTT) and centrifuged at 231,550×g for 60 min at 4°C. The pellet was resuspended (20 mM HEPES·KOH, pH 7.4, 100 mM KCl, 5 mM Mg(OAc)2, 0.3% β-DDM, 0.03 mg/ml TOCL, 0.25 mM GMPPCP, and 2 mM DTT) and the crude mitoribosome fraction was layered onto a 15–30% sucrose gradient and subjected to centrifugation at 4°C for 90 min at 213,626×g. Following sucrose gradient fractionation, the mitoribosomal fractions were pooled and concentrated into final buffer (20 mM HEPES·KOH, pH 7.4, 100 mM KCl, 5 mM Mg(OAc)2, 0.05% β-DDM, 0.005 mg/ml TOCL, 0.25 mM GMPPCP, and 2 mM DTT) before the mitoribosomes were vitrified for cryo-EM.

Grid preparation and data collection

Request a detailed protocol

Quantifoil R2/2 holey carbon grids, covered with homemade amorphous carbon (~50 Å thick) was used with prior glow discharging. Using the Vitrobot Mk IV, 3 μl of our sample was applied to the grids, blotted for 4–6 s, vitrified by plunging into liquid ethane, and stored in liquid nitrogen. Data was collected over seven separate sessions in integrating mode at a magnification of 75,000, pixel size 1.04 Å on the FEI Titan Krios 300 kV electron microscope using the FEI Falcon III detector and EPU software. A total of 46,109 movies were collected using a defocus range from −1.1 to −3.2 at a dose of 1.5 e per frame per Å2 at 1 s exposure (39 frames).

Image processing

Request a detailed protocol

RELION-3.0 and 3.1 (Zivanov et al., 2018) were used to process cryo-EM data as described before (Desai et al., 2020). Resolutions are reported according to the Fourier shell correlation=0.143 criterion (Rosenthal and Henderson, 2003). Movie motion correction was performed using MotionCorr2 (Zheng et al., 2017) and the contrast transfer function was estimated using CTFFIND-4.1 (Rohou and Grigorieff, 2015). 3,374,367 particles were picked from 43,950 micrographs that contained data to better than 6 Å resolution using a 2D reference (Figure 1—figure supplement 1). Micrographs with a CTF figure of merit >0.3 and a maximum resolution better than 5 Å were selected for further processing. Following particle extraction (128-pixel box; 5.0375 Å/pixel) and 2D classification, 3,247,481 particles were retained. The first 3D refinement yielded a 10.2 Å map at Nyquist resolution, using a 60 Å lowpass-filtered reference mitoribosome (EMD-2876) (Amunts et al., 2015). The reported 3D refinements are based on gold-standard estimates. A general 3D classification without alignments separated out mtLSU subclasses consisting of 1,283,454 particles. Following refinement and further 3D classification without alignment, a class of 1,100,599 particles was obtained that had previously unmodeled cryo-EM density at the subunit interface. This class was re-extracted to a pixel size of 1.04 Å and refined to 3.1 Å. Two subsequent rounds of focussed classification with signal subtraction were performed using generous soft masks (with 11-pixel extensions and 7-pixel cosine soft edges) that spanned the P and E sites and L1 stalk and A, P, and E sites, respectively. Following 3D refinement, CTF refinement and Bayesian polishing, the LSU assembly intermediate class was refined to 3.4 Å and post-processed in RELION and also using the highRes training model in deepEMhancer (Sanchez-Garcia et al., 2020).

Model building, refinement, and validation

Request a detailed protocol

PDB 7A5F (Desai et al., 2020) was used as a starting model for model building in Coot v.0.9.3 (Casañal et al., 2020). Real-space refinement and validation were performed using phenix.real_space_refine (Afonine et al., 2018) and the Phenix suite (Adams et al., 2010), respectively. Homology models for MTERF4, NSUN4, and GTPBP7 were generated using trRosetta (Yang et al., 2020) and corrected using AlphaFold 2 (Jumper et al., 2021). The unfolded rRNA helices 68–71 were modeled using RNAcomposer (Biesiada et al., 2016) using secondary structure predictions from RNAfold (Lorenz et al., 2011). Only the backbone coordinates but not the bases were retained for the unstructured regions of H68–71. Comparisons were made with PDB 5OOL and 5OOM (Brown et al., 2017).

Caenorhabditis elegans alleles and strain maintenance

Request a detailed protocol

All strains were grown and maintained at 20°C on NGM agar plates seeded with Escherichia coli HB101 unless otherwise stated. Individual point mutations in mter-4(syb3662, syb3403), mtg-1(syb3641), and nsun-4(syb3514) were generated by SunyBiotech (Fuzhou, China). nsun-4(syb3514) results in an M225A and K226A substitution in NSUN-4, whereas nsun-4(syb3514, syb4263) additionally carries the mutations L286Y and A287Y. mtg-1(syb3641) results in R171E, K178E, and K180E substitutions in MTG-1. mter-4(syb3403) results in an R178E substitution in MTER-4. mter-4(syb3662) results in an K262E and R263E substitution in MTER-4. nsun-4(mj457) results in a C390A catalytic dead conversion in NSUN-4 and was reported previously (Navarro et al., 2021). All mutants were crossed with SJ4100—zcIs13[hsp-6::GFP]—to generate hsp-6 reporter strains. CGC32 - [sC1(s2023) [dpy-1(s2170) umnIs21] III] - was used to balance mtg-1(syb3641) which resulted in sterility.

Caenorhabditis elegans imaging

Request a detailed protocol

Animals were collected as embryos and grown on NGM agar plates seeded with E. coli HB101 at 22.5°C. Adult animals were collected and immobilized in tetramisole and imaged using a Leica DM6 B and a Leica DFC9000 GT camera.

RNA-seq

Request a detailed protocol

Animals were collected as embryos and grown on NGM agar plates seeded with E. coli HB101 at 20°C. Young adults were collected and washed three times in M9 buffer and snap-frozen in liquid nitrogen. Pellets of animal tissue were frozen and thawed five times and then refrozen at −70°C. RNA extraction and sequencing were performed by BGI Genomics (Hong Kong, China). Briefly, RNA was extracted by phenol-chloroform extraction. mRNA molecules were purified from total RNA using oligo(dT)-attached magnetic beads. cDNA was generated using random hexamer-primed reverse transcription. Libraries for paired-end 100 bp DNBSeq were generated and validated on the Agilent Technologies 2100 bioanalyzer.

RNA-seq data analysis

Request a detailed protocol

Raw reads were trimmed for adaptors, low-quality sequences, and short reads with Trimmomatic (version 0.39, parameters: ILLUMINACLIP:TruSeq3-SE.fa:2:30:10 SLIDINGWINDOW:4:20 MINLEN:20) (Bolger et al., 2014). From the trimmed reads, the remaining rRNA was removed with sortmeRNA (version 2.1, default parameters) (Kopylova et al., 2012). Clean reads were then mapped to the C. elegans reference genome (WBCEL235) with HISAT2 (Kim et al., 2019) (version 2.1.0, default parameters) and raw counts for each were produced with HTSeq-count (Anders et al., 2015). Other quality control metrics were obtained with fastQC, Picard Tools, and multiQC (Ewels et al., 2016). Counts were imported into R and differential gene expression analysis was performed with DESeq2 (FDR<0.01, LFC>| 0.5 |) (Love et al., 2014). Gene ontology analysis of DEGs was performed with gProfiler (Raudvere et al., 2019).

Developmental rate and sterility assays

Request a detailed protocol

Animals were collected as embryos and grown on NGM agar plates seeded with E. coli HB101 at 22.5°C. To assay developmental rate 200 animals were scored for their developmental stage at 48 hr. To assay for sterility 100 L4 stage animals were each individually transferred to a new plate. Animals with progeny after 4 days were scored as fertile. Animals with no progeny after 4 days were scored as sterile.

Tandem mass tag-mass spectrometry

Sample preparation

Request a detailed protocol

500 μl of packed wild-type, mter-4(syb3662) and nsun-4(syb3514) adult worms that were grown at 20°C were collected and stored at −80°C. Frozen pellets were thawed in 250 μl of either RNC buffer (50 mM HEPES pH 7.4, 100 mM KOAc, 5 mM Mg(OAc)2, and 1× RNASIN RNAse inhibitor) or denaturing buffer (100 mM HEPES pH 7.6, 8 M urea) for total ribosome and total protein harvesting, respectively. 0.8 g of 0.7 mm diameter zirconia beads were added and the samples lysed in a QIAGEN TissueLyser (30 Hz, 2.5 min) at 4°C. The lysate was clarified by centrifugation at 16,100×g for 30 min at 4°C and the supernatant was either quantified and directly used for TMT-MS (in denaturing buffer) or total ribosomes were isolated by centrifugation at 100,000 rpm at 4°C for 1 hr in a TLA 100.3 rotor through a 20% sucrose cushion in RNC buffer and the ribosome pellet resuspended in denaturing buffer. All samples were analyzed in biological duplicates.

Enzymatic digestion

Request a detailed protocol

Protein samples in denaturing buffer were reduced with DTT and alkylated with iodoacetamide. Samples were then diluted to 4 M urea and digested with Lys-C (Promega). After 4 hr, the samples were further diluted to 1.6 M urea and digested overnight with trypsin (Promega) at 30°C. Digestion was stopped by the addition of formic acid (FA) to a final concentration of 0.5% and the resulting samples were desalted using homemade C18 stage tips (3M Empore) filled with poros R3 (Applied Biosystems) resin. Bound peptides were eluted with 30–80% MeCN/0.5% FA and lyophilized.

Tandem mass tag labeling

Request a detailed protocol

Dried peptide mixtures from each condition were re-suspended in 200 mM Hepes, pH 8.5. TMT 10-plex reagent (Thermo Fisher Scientific), reconstituted according to manufacturer’s instructions, and incubated at 23°C for an hour. The labeling reaction was then terminated by incubation with 5% hydroxylamine for ½ hr. The labeled peptides were pooled into a single sample and acetonitrile was removed by Speed Vac (Savant). Each set of TMT samples was desalted and pH 8 fractionated using the same stage tips method as above. Bound peptides were eluted with a 7.5–60% MeCN gradient in 0.1% triethylamine and fractionated into eight fractions. Eluted fractions were acidified, partially dried down in Speed Vac, and ready for LC-MS/MS.

Mass spectrometry analysis

Request a detailed protocol

The fractionated peptides were analyzed by LC-MS/MS using a fully automated Ultimate 3000 RSLC nano System (Thermo Fisher Scientific) fitted with a 100 μm×2 cm PepMap100 C18 nano trap column and a 75 μm×25 cm, nanoEase M/Z HSS C18 T3 column (Waters). Peptides were separated using a binary gradient consisting of buffer A (2% MeCN, 0.1% formic acid) and buffer B (80% MeCN, 0.1% formic acid). Eluted peptides were introduced directly via a nanospray ion source into an Orbitrap Eclipse Tribrid mass spectrometer (Thermo Fisher Scientific). The mass spectrometer was operated data-dependent mode, performed MS1 scan (m/z=400–1600, resolution 120k) followed by MS2 acquisitions with a resolution of 50k, NCE of 38, and an isolation window set at 0.4 Th. Dynamic exclusion was set for 60 s.

Proteome discoverer

Request a detailed protocol

The acquired MSMS raw files were processed using Proteome Discoverer (version 2.4, Thermo Fisher Scientific). MSMS spectra were searched against C. elegans proteome, UniProt Fasta database (downloaded in 2020), using Sequest search engine. Carbamidomethylation of cysteines, TMT610plex (N-term) and TMT10plex (K) were set as fixed modifications, while methionine oxidation and N-terminal acetylation (protein) were selected as variable modifications. The abundance values of TMT reporter ions were normalized to a set of mitoribosomal or alternatively, cytosolic ribosomal proteins. The output file from Proteome Discoverer, the proteins table was filtered for proteins with FDR of 1% and exported as excel files.

Figure preparation

Request a detailed protocol

Adobe Illustrator 2021, UCSF Chimera (Pettersen et al., 2004), Pymol (Schrödinger, LLC), and Geneious 10.2.6 (https://www.geneious.com) were used for figure preparations.

Statistics and reproducibility

Request a detailed protocol

Sample sizes for experiments involving C. elegans were selected based on similar studies from the literature and all animals from each genotype were selected and analyzed randomly. All replicate numbers listed in figure legends represent biological replicates of independent animals cultured separately, collected separately, and analyzed separately. Fisher’s exact test was used to calculate p-values for Figure 3b and c.

Source data for all graphs can be found in the Statistics Source Data Table (Supplementary file 2).

Data availability

Cryo-EM movies have been deposited to the EMPIAR database (EMPIAR-10809). Coordinates and maps have been deposited to the PDB (7PD3) and EMDB (EMD-13329), respectively. RNA-seq data is available through NCBI GEO using the accession code GSE169089 and as a supplementary item. Further information and material requests may be made to the corresponding authors.

The following data sets were generated
    1. Chandrasekaran V
    2. Desai N
    3. Burton NO
    4. Yang H
    5. Price J
    6. Miska EA
    7. Ramakrishnan V
    (2021) RCSB Protein Data Bank
    ID 7PD3. Structure of the human mitoribosomal large subunit in complex with NSUN4.MTERF4.GTPBP7 and MALSU1.L0R8F8.mt-ACP.
    1. Desai N
    2. Yang H
    3. Chandrasekaran V
    4. Kazi R
    5. Minczuk M
    6. Ramakrishnan V
    (2021) Electron Microscopy Public Image Archive
    ID EMPIAR-10809. Single particle cryo-EM of human mitochondrial ribosomes from Pde12 KO cells.
    1. Chandrasekaran V
    2. Desai N
    3. Burton NO
    4. Yang H
    5. Price J
    6. Miska EA
    7. Ramakrishnan V
    (2021) Electron Microscopy Data Bank
    ID EMDB-13329. Structure of the human mitoribosomal large subunit in complex with NSUN4.MTERF4.GTPBP7 and MALSU1.L0R8F8.mt-ACP.

References

Decision letter

  1. Nikolaus Grigorieff
    Reviewing Editor; University of Massachusetts Medical School, United States
  2. Cynthia Wolberger
    Senior Editor; Johns Hopkins University School of Medicine, United States
  3. Nikolaus Grigorieff
    Reviewer; University of Massachusetts Medical School, United States
  4. Bronwyn A Lucas
    Reviewer; Howard Hughes Medical Institute, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

Ribosomes are among the most complex molecular machines a cell makes. The work by Chandrasekaran et al., contributes to our understanding of the molecular details of mitochondrial ribosome assembly, and how disruptions to this pathway may cause human disease. Using cryo-EM, the authors identified a subpopulation of immature human mitochondrial large ribosomal subunits that interact with assembly factors NSUN4, MTERF4 and GTPBP7. Based on this structure, they introduce mutations in C. elegans orthologs of these assembly factors that are expected to disrupt binding to the large subunit, and they show that these mutants cause sterility and disrupt mitochondrial proteostasis in the mutant animals. They directly correlate the effect of mutating the mitoribosome binding surfaces on the C. elegans orthologs of NSUN-4 and MTER-4 with reduced co-migration with mitoribosomes. The magnitude of reduction in binding correlates well with the mutations and their ability to activate mitochondrial stress.

Decision letter after peer review:

Thank you for submitting your article "Visualising formation of the ribosomal active site in mitochondria" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Nikolaus Grigorieff as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Cynthia Wolberger as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Bronwyn A Lucas (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) The authors found that mutations in the C. elegans orthologs of MTERF4 and GTPBP7 predicted from their model to interrupt the interaction with 16S rRNA cause sterility, mitochondrial proteotoxic stress and, for MTERF4, developmental delays. However, the authors did not confirm that these mutants interrupt the interaction with the LSU and that the mutant proteins were expressed at or above the level of their wild type counterparts. This makes it difficult to determine whether the observed physiological effects were due to loss of this interaction or down-regulation of the proteins. The authors should show that these mutations disrupt binding of MTERF4 and GTPBP7, and that the mutant proteins are produced at or above wild type levels.

2) The loss of mitochondrial proteostasis observed by the authors could have been caused by the mutant proteins themselves being misfolded, mistargeted or aggregated, as has been described for other ribosome binding proteins. These issues should be addressed in the text.

3) The authors should include a figure showing the H. sapiens interaction interfaces from their model indicating the resides that are or are not conserved in the C. elegans orthologs to support their argument of high conservation of these interfaces.

Reviewer #1 (Recommendations for the authors):

Discussion

1. The authors could strengthen their conclusions by discussion the possible artifacts introduced by the purification protocol and using GMPPCP to trap assembly intermediates. Since only about 2% of the collected data ended up in the final reconstruction, it may also be worth briefly discussing what the other 98% of the data represent, and how the authors decided that the selected 2% of the data represent the functional state they were seeking to investigate.

Grid preparation and Data collection

2. Please clarify that data collection was done using the Falcon detector in integrating mode.

Image Processing

3. Please cite Rosenthal and Henderson (2003), instead of Chen et al., (2013), for the FSC = 0.143 resolution threshold.

4. Please provide a reference for MotionCorr2.

5. Please describe how the 43,950 micrographs were selected from the 46,109 collected movies.

6. Please provide a reference for the lowpass-filtered reference mitoribosome used as an initial reference.

Reviewer #2 (Recommendations for the authors):

The authors would benefit from more a more cautious interpretation of their findings and a clearer delineation between description of results and speculation about implications.

Specific recommendations:

1. The authors should consider a more specific and descriptive title and avoid implying that the structure was determined in mitochondria.

2. It is well documented that RBP-RNA interactions can form post-lysis. The authors should include more discussion of the technical limitations of their approach in the interpretation of this structure.

3. Line 123: The authors should show that these mutations disrupt binding.

4. The authors should show that the mutant proteins are produced at or above wt levels.

5. In Figure 2 it is difficult to determine whether U3039 is 2' O methylated from the map as shown.

6. The authors do not show that 2' O methylation of U3039 is necessary for binding of GTPBP7.

7. U3039 and G3040 are listed as XX in the model. The authors note that G3040 was flexible and unable to be modeled. The authors should state why U3039 absent.

8. On lines 102-103 the authors' state that A loop "moves towards GTPBP7". The authors should state what this movement is relative to (an earlier structure? The mature mito-LSU?) and show this in Figure 2—figure supplement 2.

9. Line 114: define highly conserved, comment on the conservation of the interaction interface.

10. The two paragraphs on lines 162-179 should be moved to the discussion.

11. Are the labels for U3039 and G3040 in Figure 2—figure supplement 2 switched? The label "U3039" indicates a purine.

12. The authors should discuss how the interface that contacts the 16S rRNA compares in the related structures from Hillen et al., and Cipullo et al.,. Would the C. elegans Mtg-1 mutants be expected to disrupt this complex too?

13. Figure 3:B and C legends are reversed.

14. Developmental stage of Mtg-1 mutants is not displayed in Figure 3C. If not possible a justification should be provided.

15. The Mtg-1 mutant R178E is inconsistent with the protein sequence given. Are the author's referring to R179? Or K178?

16. The terms "GTPBP7" and "MTG1" are used interchangeably. E.g.: in Figure 2—figure supplement 1, both terms are used.

17. Figure 4: Add the word "proposed" to the figure legend title.

18. Navarro et al., 2020 is listed twice in the references.

Reviewer #3 (Recommendations for the authors):

In the recent past, several high-resolution cryo-EM structures of mitochondrial ribosomes (mitoribosomes) from different species have become available. The process by which these macromolecular complexes of eukaryotic ribosomes, in particular their mitoribosomes, assemble is poorly understood. However, high-resolution structures of maturation intermediates of these protein-rich mitoribosomes have just begun to emerge. The manuscript by Chandrasekaran and coworkers reports cryo-EM structures of human mitochondrial large (39S) ribosomal subunit in late assembly stages, in which the complexes were trapped using a non-hydrolysable analog of GTP. A variety of mitoribosomal complexes were isolated using extensive classification of the very large cryo-EM dataset. The major functional findings derived from the analyses of the 55S monosomal population from the same dataset was published last year by this group. As is usually the case, the mammalian mitoribosomal preparations carry a large pool of dissociated 39S subunit, a detailed analysis of 39S fraction is presented as part of this study. Authors identify six proteins that play specific roles in the 39S assembly process, three of which are positioned near the PTC of the 39S subunit, and apparently are involved in proper late-stage folding of the PTC's component rRNA, essential for the peptidyl transferase activity. In addition, authors correlate their structural findings with genetic and biochemical studies using C. elegans as a model organism. The study will be of interest to researcher working in the fields of translation, mitoribosome assembly, and in understanding the molecular mechanism of diseases associated with defects in mitoribosomal assembly. However, there is a major point that should be addressed, before the manuscript could be accepted for publication.

The comparison of structural work with human 39S subunit assembly intermediates with results of point mutations in C.elegans orthologs of the assembly factors provide a general biological link but lack direct structural correlation or comparison. A figure visualizing the locations (contact sites) of mutated C. elegans amino acids in the corresponding mammalian factors will help in a better understanding of the structural and functional correlations derived in the paper. For example, it could explain how the NSUN4 mutants described in line 133-134 could still be associated with the 39S subunit.

https://doi.org/10.7554/eLife.68806.sa1

Author response

Essential revisions:

1) The authors found that mutations in the C. elegans orthologs of MTERF4 and GTPBP7 predicted from their model to interrupt the interaction with 16S rRNA cause sterility, mitochondrial proteotoxic stress and, for MTERF4, developmental delays. However, the authors did not confirm that these mutants interrupt the interaction with the LSU and that the mutant proteins were expressed at or above the level of their wild type counterparts. This makes it difficult to determine whether the observed physiological effects were due to loss of this interaction or down-regulation of the proteins. The authors should show that these mutations disrupt binding of MTERF4 and GTPBP7, and that the mutant proteins are produced at or above wild type levels.

We agree that quantifying the levels of the mutant proteins is important, but this assay is very difficult to do in the absence of antibodies against the poorly characterized C. elegans orthologs. We have therefore addressed these two questions by performing tandem mass tag-mass spectrometry (TMT-MS) on urea-solubilized total protein extracts to quantify the overall expression levels of MTER-4 and NSUN-4 in the mutant worms relative to wild-type worms. The results (Figure 3 —figure supplement 3) reveal that the mutants are expressed at comparable levels to the wild-type proteins (1.0 – 1.6-fold), indicating that they are not turned over or silenced by cells, a fate that often occurs to misfolded or over-expressed protein variants.

In parallel, we also isolated total ribosomes (cytosolic + mitochondrial) from these worms in non-denaturing, physiological buffer and compared the amounts of MTER-4 and NSUN-4 bound to mitoribosomes. As expected, complexes carrying these mutations associated with mitoribosomes at only 63 – 86% of wild-type levels. Note that more dramatic reductions would require all three proteins to be mutated simultaneously in the same strain, which was not done because these individual mutants already cause severe developmental defects, sterility and poor viability.

Finally, the mutations were designed to disrupt solvent exposed sidechains at the mitoribosome binding interface and are not likely therefore to disrupt protein folding. This fact is again confirmed by AlphaFold 2-predicted structures of these mutants (Figure 3 —figure supplement 2).

2) The loss of mitochondrial proteostasis observed by the authors could have been caused by the mutant proteins themselves being misfolded, mistargeted or aggregated, as has been described for other ribosome binding proteins. These issues should be addressed in the text.

To address this concern, we performed a TMT-MS experiment which clearly demonstrated that this is not the case. We have updated the text to discuss this result.

3) The authors should include a figure showing the H. sapiens interaction interfaces from their model indicating the resides that are or are not conserved in the C. elegans orthologs to support their argument of high conservation of these interfaces.

Agreed. The sequence conservation is now highlighted in Figure 3 —figure supplement 1 and the structural conservation is also shown now in a new figure, Figure 3 —figure supplement 2.

Reviewer #1 (Recommendations for the authors):

Discussion

1. The authors could strengthen their conclusions by discussion the possible artifacts introduced by the purification protocol and using GMPPCP to trap assembly intermediates. Since only about 2% of the collected data ended up in the final reconstruction, it may also be worth briefly discussing what the other 98% of the data represent, and how the authors decided that the selected 2% of the data represent the functional state they were seeking to investigate.

The dataset has been exhaustively classified and the majority of findings from the other 98% of the data are now published (Desai et al., Science 370(6520) pg.1105-1110). GMPPCP is a well-characterized analog of GTP that has been used successfully to trap biologically relevant intermediates in many contexts, including other on-pathway elongation intermediates as in this publication above. It is perhaps possible that 39S assembly intermediates bound to the other GTPases relevant to 39S assembly, such as GTPBP6, are also present at very low abundance in this dataset.

Grid preparation and Data collection

2. Please clarify that data collection was done using the Falcon detector in integrating mode.

This information is now in the Methods section and we have also mentioned this in the revised text.

Image Processing

3. Please cite Rosenthal and Henderson (2003), instead of Chen et al., (2013), for the FSC = 0.143 resolution threshold.

Thank you. Done.

4. Please provide a reference for MotionCorr2.

Done.

5. Please describe how the 43,950 micrographs were selected from the 46,109 collected movies.

The sentence now reads “3,374,367 particles were picked from a subset of 43,950 micrographs that contained data to better than 6 Å resolution using a 2D reference”.

6. Please provide a reference for the lowpass-filtered reference mitoribosome used as an initial reference.

Done. EMD-2876.

Reviewer #2 (Recommendations for the authors):

The authors would benefit from more a more cautious interpretation of their findings and a clearer delineation between description of results and speculation about implications.

Specific recommendations:

1. The authors should consider a more specific and descriptive title and avoid implying that the structure was determined in mitochondria.

The title is now “Visualising formation of the active site in the mitochondrial ribosome”.

2. It is well documented that RBP-RNA interactions can form post-lysis. The authors should include more discussion of the technical limitations of their approach in the interpretation of this structure.

Our in vivo results, including the newly-performed TMT-MS argue strongly against this interpretation. We have updated the text to describe these new results, and their in vivo significance, in more detail.

3. Line 123: The authors should show that these mutations disrupt binding.

We have performed TMT-MS to verify that the mutating residues that mediate mitoribosome binding do reduce their levels in the ribosome fractions. Comparing the newly-added nsun-4M225A,K226A,L286Y,A287Y mutant against the previous nsun-4M225A,K226A mutant reveals that these mutations specifically weaken the conserved binding interface to the 39S and activate mitochondrial stress responses.

4. The authors should show that the mutant proteins are produced at or above wt levels.

The TMT-MS reveals that all three proteins are expressed at between 1 – 1.6-fold higher levels than the wild-type.

5. In Figure 2 it is difficult to determine whether U3039 is 2' O methylated from the map as shown.

We agree. We have replaced the original Figure 2B with an improved version.

6. The authors do not show that 2' O methylation of U3039 is necessary for binding of GTPBP7.

This was never a claim. We suspect that although this is possible, it is more likely that GTP hydrolysis and egress of GTPBP7 is triggered only when the helix containing His34 binds the conformation that Um3039 adopts upon methylation. This explanation would be more consistent with a checkpoint role for GTPBP7 and would allow GTPBP7 to sample the A loop repeatedly until Mrm2 methylates U3039.

7. U3039 and G3040 are listed as XX in the model. The authors note that G3040 was flexible and unable to be modeled. The authors should state why U3039 absent.

This is likely an issue with the specific software used. The PDB deposition server appears to recognize modified bases correctly. We have also now modelled both residues.

8. On lines 102-103 the authors' state that A loop "moves towards GTPBP7". The authors should state what this movement is relative to (an earlier structure? The mature mito-LSU?) and show this in Figure 2—figure supplement 2.

The figure has been updated and the sentence now reads: “Our structure reveals that the A and P loops moves towards GTPBP7 and NSUN4 respectively relative to their positions in the mature 55S (Figure 2—figure supplement 2) and His 34 of helix 1 of GTPBP7 directly contacts the highly conserved U3039 to verify 2’-O-methylation by mitochondrial methyltransferase 2 (MRM2)”.

9. Line 114: define highly conserved, comment on the conservation of the interaction interface.

The % identities of the homologs are now mentioned parenthetically. The interaction interface comprises the universally conserved core of the mitoribosome, and this is now mentioned.

10. The two paragraphs on lines 162-179 should be moved to the discussion.

This is a good idea.

11. Are the labels for U3039 and G3040 in Figure 2—figure supplement 2 switched? The label "U3039" indicates a purine.

Yes, thank you for spotting the error.

12. The authors should discuss how the interface that contacts the 16S rRNA compares in the related structures from Hillen et al., and Cipullo et al., Would the C. elegans Mtg-1 mutants be expected to disrupt this complex too?

We have added the following to the Discussion. Our in vivo analysis is also applicable to Hillen et al., Cipullo et al. and Cheng et al., (2021).

“The deleterious consequences of manipulating NSUN4 and MTERF4 in vivo illustrate the importance of these proteins in mediating not only the exact step during PTC maturation that we have trapped, but also the prior and subsequent steps described in (Cheng et al., 2021; Cipullo et al., 2021; Hillen et al., 2021).”

13. Figure 3:B and C legends are reversed.

Thank you. This is now fixed.

14. Developmental stage of Mtg-1 mutants is not displayed in Figure 3C. If not possible a justification should be provided.

The Mtg-1 mutants are not viable as homozygotes, and the analysis is complicated by the balancing that is done to compensate for this. We therefore simply chose only the mutant with the strongest phenotype (mter-4) to perform this quantification. All data from RNA-seq experiments was performed on young adult animals and this information is now in the Methods section.

15. The Mtg-1 mutant R178E is inconsistent with the protein sequence given. Are the author's referring to R179? Or K178?

K178E. Thank you.

16. The terms "GTPBP7" and "MTG1" are used interchangeably. E.g.: in Figure 2—figure supplement 1, both terms are used.

This is now fixed. We chose to retain the C. elegans nomenclature of MTG-1 and the human name of GTPBP7.

17. Figure 4: Add the word "proposed" to the figure legend title.

We have added the word “proposed”.

18. Navarro et al., 2020 is listed twice in the references.

This is now fixed.

Reviewer #3 (Recommendations for the authors):

In the recent past, several high-resolution cryo-EM structures of mitochondrial ribosomes (mitoribosomes) from different species have become available. The process by which these macromolecular complexes of eukaryotic ribosomes, in particular their mitoribosomes, assemble is poorly understood. However, high-resolution structures of maturation intermediates of these protein-rich mitoribosomes have just begun to emerge. The manuscript by Chandrasekaran and coworkers reports cryo-EM structures of human mitochondrial large (39S) ribosomal subunit in late assembly stages, in which the complexes were trapped using a non-hydrolysable analog of GTP. A variety of mitoribosomal complexes were isolated using extensive classification of the very large cryo-EM dataset. The major functional findings derived from the analyses of the 55S monosomal population from the same dataset was published last year by this group. As is usually the case, the mammalian mitoribosomal preparations carry a large pool of dissociated 39S subunit, a detailed analysis of 39S fraction is presented as part of this study. Authors identify six proteins that play specific roles in the 39S assembly process, three of which are positioned near the peptidyl transferase center (PTC) of the 39S subunit, and apparently are involved in proper late-stage folding of the PTC's component rRNA, essential for the peptidyl transferase activity. In addition, authors correlate their structural findings with genetic and biochemical studies using C. elegans as a model organism. The study will be of interest to researcher working in the fields of translation, mitoribosome assembly, and in understanding the molecular mechanism of diseases associated with defects in mitoribosomal assembly. However, there is a major point that should be addressed, before the manuscript could be accepted for publication.

The comparison of structural work with human 39S subunit assembly intermediates with results of point mutations in C.elegans orthologs of the assembly factors provide a general biological link but lack direct structural correlation or comparison. A figure visualizing the locations (contact sites) of mutated C. elegans amino acids in the corresponding mammalian factors will help in a better understanding of the structural and functional correlations derived in the paper. For example, it could explain how the NSUN4 mutants described in line 133-134 could still be associated with the 39S subunit.

We have now added a figure (Figure 3—figure supplement 2) to illustrate the mutations. The newly added NSUN4M225A,K226A,L286Y,A287Y mutant weakens mitoribosome binding better than does NSUN4M225A,K226A and also activates mitochondrial stress more potently.

https://doi.org/10.7554/eLife.68806.sa2

Article and author information

Author details

  1. Viswanathan Chandrasekaran

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Nirupa Desai and Nicholas O Burton
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0871-4740
  2. Nirupa Desai

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Viswanathan Chandrasekaran and Nicholas O Burton
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6046-653X
  3. Nicholas O Burton

    1. Centre for Trophoblast Research, Department of Physiology, Development and Neuroscience, University of Cambridge, Cambridge, United Kingdom
    2. Gurdon Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Viswanathan Chandrasekaran and Nirupa Desai
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5495-3988
  4. Hanting Yang

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Data curation, Funding acquisition, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3383-2204
  5. Jon Price

    1. Gurdon Institute, University of Cambridge, Cambridge, United Kingdom
    2. Department of Genetics, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6554-5667
  6. Eric A Miska

    1. Gurdon Institute, University of Cambridge, Cambridge, United Kingdom
    2. Department of Genetics, University of Cambridge, Cambridge, United Kingdom
    3. Wellcome Sanger Institute, Wellcome Genome Campus, Cambridge, United Kingdom
    Contribution
    Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    eam29@cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4450-576X
  7. V Ramakrishnan

    MRC Laboratory of Molecular Biology, Cambridge, United Kingdom
    Contribution
    Resources, Supervision, Funding acquisition, Project administration, Writing - review and editing
    For correspondence
    ramak@mrc-lmb.cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4699-2194

Funding

Medical Research Council (MC_U105184332)

  • V Ramakrishnan

Wellcome Trust (WT096570)

  • V Ramakrishnan

Agouron Institute

  • V Ramakrishnan

Louis-Jeantet Foundation

  • V Ramakrishnan

Cancer Research UK (C13474/A18583)

  • Eric A Miska

Wellcome Trust (219475/Z/19/Z)

  • Eric A Miska

Cancer Research UK (C6946/A14492)

  • Eric A Miska

Wellcome Trust (092096/Z/10/Z)

  • Eric A Miska

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Jake Grimmett and Toby Darling for advice, data storage, and high-performance computing; Michal Minczuk for providing the experimental cell line; Sew-Yeu Peak-Chew for TMT-mass spectrometric analysis; the Ramakrishnan lab members for useful discussions and reagents and Archana Yerra for discussions and writing support and Alan Brown for critical reading of the manuscript. The authors acknowledge the MRC Laboratory of Molecular Biology Electron Microscopy Facility for access and support of electron microscopy, sample preparation, and data collection. This work was supported by the UK Medical Research Council MC_U105184332, a Wellcome Trust Senior Investigator award (WT096570), the Agouron Institute, and the Louis-Jeantet Foundation to VR, and Cancer Research UK (C13474/A18583, C6946/A14492) and the Wellcome Trust (219475/Z/19/Z, 092096/Z/10/Z) to EAM ND is funded by a Wellcome Trust Clinical PhD Fellowship (110301/Z/15/Z). NB is funded by a Next Generation Research Fellowship at the Centre for Trophoblast Research. HY is funded by an EMBO Long-term Fellowship (EMBO ALTF 806–2018).

Senior Editor

  1. Cynthia Wolberger, Johns Hopkins University School of Medicine, United States

Reviewing Editor

  1. Nikolaus Grigorieff, University of Massachusetts Medical School, United States

Reviewers

  1. Nikolaus Grigorieff, University of Massachusetts Medical School, United States
  2. Bronwyn A Lucas, Howard Hughes Medical Institute, United States

Publication history

  1. Preprint posted: March 20, 2021 (view preprint)
  2. Received: March 25, 2021
  3. Accepted: August 18, 2021
  4. Version of Record published: October 5, 2021 (version 1)

Copyright

© 2021, Chandrasekaran et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 935
    Page views
  • 87
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Maria Carmela Filomena et al.
    Research Article Updated

    Myopalladin (MYPN) is a striated muscle-specific immunoglobulin domain-containing protein located in the sarcomeric Z-line and I-band. MYPN gene mutations are causative for dilated (DCM), hypertrophic, and restrictive cardiomyopathy. In a yeast two-hybrid screening, MYPN was found to bind to titin in the Z-line, which was confirmed by microscale thermophoresis. Cardiac analyses of MYPN knockout (MKO) mice showed the development of mild cardiac dilation and systolic dysfunction, associated with decreased myofibrillar isometric tension generation and increased resting tension at longer sarcomere lengths. MKO mice exhibited a normal hypertrophic response to transaortic constriction (TAC), but rapidly developed severe cardiac dilation and systolic dysfunction, associated with fibrosis, increased fetal gene expression, higher intercalated disc fold amplitude, decreased calsequestrin-2 protein levels, and increased desmoplakin and SORBS2 protein levels. Cardiomyocyte analyses showed delayed Ca2+ release and reuptake in unstressed MKO mice as well as reduced Ca2+ spark amplitude post-TAC, suggesting that altered Ca2+ handling may contribute to the development of DCM in MKO mice.

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Ginto George et al.
    Research Advance

    Sequential mannose trimming of N-glycan, from M9 to M8B and then to oligosaccharides exposing the a1,6-linked mannosyl residue (M7A, M6 and M5), facilitates endoplasmic reticulum-associated degradation of misfolded glycoproteins (gpERAD). We previously showed that EDEM2 stably disulfide-bonded to the thioredoxin domain-containing protein TXNDC11 is responsible for the first step (George et al., 2020). Here, we show that EDEM3 and EDEM1 are responsible for the second step. Incubation of pyridylamine-labeled M8B with purified EDEM3 alone produced M7 (M7A and M7C), M6 and M5. EDEM1 showed a similar tendency, although much lower amounts of M6 and M5 were produced. Thus, EDEM3 is a major a1,2-mannosidase for the second step from M8B. Both EDEM3 and EDEM1 trimmed M8B from a glycoprotein efficiently. Our confirmation of the Golgi localization of MAN1B indicates that no other a1,2-mannosidase is required for gpERAD. Accordingly, we have established the entire route of oligosaccharide processing and the enzymes responsible.
