Functional characterization of a ‘plant-like’ HYL1 homolog in the cnidarian Nematostella vectensis indicates a conserved involvement in microRNA biogenesis

  1. Abhinandan M Tripathi
  2. Yael Admoni
  3. Arie Fridrich
  4. Magda Lewandowska
  5. Joachim M Surm
  6. Reuven Aharoni
  7. Yehu Moran  Is a corresponding author
  1. Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Israel

Abstract

While the biogenesis of microRNAs (miRNAs) in both animals and plants depends on the RNase III Dicer, its partner proteins are considered distinct for each kingdom. Nevertheless, recent discovery of homologs of Hyponastic Leaves1 (HYL1), a ‘plant-specific’ Dicer partner, in the metazoan phylum Cnidaria, challenges the view that miRNAs evolved convergently in animals and plants. Here, we show that the HYL1 homolog Hyl1-like a (Hyl1La) is crucial for development and miRNA biogenesis in the cnidarian model Nematostella vectensis. Inhibition of Hyl1La by morpholinos resulted in metamorphosis arrest in Nematostella embryos and a significant reduction in levels of most miRNAs. Further, meta-analysis of morphants of miRNA biogenesis components, like Dicer1, shows clustering of their miRNA profiles with Hyl1La morphants. Strikingly, immunoprecipitation of Hyl1La followed by quantitative PCR revealed that in contrast to the plant HYL1, Hyl1La interacts only with precursor miRNAs and not with primary miRNAs. This was complemented by an in vitro binding assay of Hyl1La to synthetic precursor miRNA. Altogether, these results suggest that the last common ancestor of animals and plants carried a HYL1 homolog that took essential part in miRNA biogenesis and indicate early emergence of the miRNA system before plants and animals separated.

Editor's evaluation

This paper will be of importance for researchers in the field of RNA biology and evolutionary biology. It provides a new perspective on the origins of the miRNA pathways, and proposes a common origin of plant and animal miRNA pathways. The main conclusions of the paper are well supported.

https://doi.org/10.7554/eLife.69464.sa0

eLife digest

In both animals and plants, small molecules known as micro ribonucleic acids (or miRNAs for short) control the amount of proteins cells make from instructions encoded in their DNA. Cells make mature miRNA molecules by cutting and modifying newly-made RNA molecules in two stages.

Some of the components animals and plants utilize to make and use miRNAs are similar, but most are completely different. For example, in plants an enzyme known as Dicer cuts newly made RNAs into mature miRNAs with the help of a protein called HYL1, whereas humans and other animals do not have HYL1 and Dicer works with alternative partner proteins, instead. Therefore, it is generally believed that miRNAs evolved separately in animals and plants after they split from a common ancestor around 1.6 billion years ago.

Recent studies on sea anemones and other primitive animals challenge this idea. Proteins similar to HYL1 in plants have been discovered in sea anemones and sponges, and sea anemone miRNAs show several similarities to plant miRNAs including their mode of action. However, it is not clear whether these HYL1-like proteins work in the same way as their plant counterparts.

Here, Tripathi, Admoni et al. investigated the role of the HYL1-like protein in sea anemones. The experiments found that this protein was essential for the sea anemones to make miRNAs and to grow and develop properly. Unlike HYL1 in plants – which is involved in both stages of processing newly-made miRNAs into mature miRNAs – the sea anemone HYL1-like protein only helped in the second stage to make mature miRNAs from intermediate molecules known as precursor miRNAs.

These findings demonstrate that some of the components plants use to make miRNAs also perform similar roles in sea anemones. This suggests that the miRNA system evolved before the ancestors of plants and animals separated from each other. Questions for future studies will include investigating how plants and animals evolved different miRNA machinery, and why sponges and jellyfish have HYL1-like proteins, whereas humans and other more complex animals do not.

Introduction

MicroRNAs (miRNAs) are 21–24 nucleotides-long small RNAs that are known to be involved in post-transcriptional gene regulation and play important roles in both plant and animal development (Alvarez-Garcia and Miska, 2005; Bråte et al., 2018; Voinnet, 2009). The miRNA is transcribed by RNA polymerase II into a long primary transcript, which is further processed into a miRNA precursor and finally chopped into ~22 nucleotide miRNA/miRNA* duplex (Bartel, 2004; Bartel, 2018; Voinnet, 2009). The processing of miRNA varies between plants and animals (Moran et al., 2017). In animals, the biogenesis of miRNAs is compartmentalized as the processing occurs in both the nucleus and cytoplasm. Within the nucleus, the RNase type III Drosha and its partner Pasha (also called DGCR8) constitute a microprocessor complex (Han et al., 2004b; Kim et al., 2009). This complex acts on primary miRNA (pri-miRNA) transcripts and processes them into precursor miRNA (pre-miRNA). The pre-miRNA is then transported by Exportin 5 into the cytoplasm where they get further processed into the mature miRNA by the RNase type III Dicer with the help of other double-stranded RNA binding proteins such as loquacious (Loqs), transactivation response element RNA-binding protein (TRBP), and protein activator of the interferon-induced protein kinase (PACT) (Han et al., 2004b; Redfern et al., 2013; Saito et al., 2005). Contrastingly, in plants both pri-miRNA and pre-miRNA are processed into mature miRNA by a single RNase type III, called DICER-LIKE1 (DCL1) assisted by its partner the double-stranded RNA-binding motif (DSRM)-containing protein, Hyponastic Leaves1 (HYL1) within the nucleus (Han et al., 2004a; Voinnet, 2009). In both plants and animals, the mature miRNA duplex interacts with Argonaute proteins (AGOs) and forms the RNA-induced silencing complex (RISC) in the cytoplasm. The RISC commences miRNA guided cleavage or translational inhibition of complementary targets genes (Kim et al., 2009).

The metazoan lineages of Bilateria and its sister group Cnidaria separated more than 600 million years ago. While Bilateria include the vast majority of animals, Cnidaria include sea anemones, corals, hydroids, and jellyfish. The phylogenetic position of cnidarians makes them an important comparative group for inferring animal evolution. In a previous study, we identified different components of miRNA biogenesis machinery in Cnidaria and observed that most bilaterian components have cnidarian homologs. However, cnidarians lack homologs of classical bilaterian Dicer protein partners such as PACT, Loqs, or TRBP (Moran et al., 2013). Interestingly two homologs of HYL1 called Hyl1-Like-a (NveHyl1La) and Hyl1-Like-b (NveHyl1Lb) were identified in the sea anemone Nematostella vectensis (Moran et al., 2013). Apart from this, it was also found that cnidarian miRNAs possess several interesting features that are common to their counterparts in plants: cnidarian miRNAs and their targets show perfect complementarity and frequently regulate their targets by messenger RNA (mRNA) cleavage (Moran et al., 2014). Recently, some other common features with plants were identified in Nematostella, including methylation of miRNAs by HEN1 (Modepalli et al., 2018), a feature rarely found in animals and the origin of miRNAs from inverted duplication of their target genes (Fridrich et al., 2020), a feature previously considered specific to plant miRNAs.

In addition to the presence of HYL1 homologs in Cnidaria, homologs are also present in other non-bilaterian animals such as sponges (Amphimedon queenslandica) and in ctenophores (Mnemiopsis leidyi) (Figure 1; Moran et al., 2013). However, we could not detect HYL1 homologs in Placozoa (Trichoplax adhaerens) (Figure 1A). Additionally, we also could not find any homologs in bilaterian animals and in unicellular organism like Fungi and Ichthyosporea. However, deep phylogenetic study of DSRM proteins showed that those of protozoans and fungi are phylogenetically closer to the DSRM proteins of plants (Dias et al., 2017). These results suggested that the HYL1-like proteins were already present in the common ancestor of plants and animals and during evolution have been lost in Bilateria and Ichthyosporea. These sequence-based observations led us to experimentally test the function of a HYL1 homolog of Nematostella, which could provide better insight into the evolution and origin of the miRNA biogenesis pathway. Our results show that Hyl1La is essential for the development of Nematostella and miRNA biogenesis, suggesting a common evolutionary history of miRNA biogenesis in plants and animals.

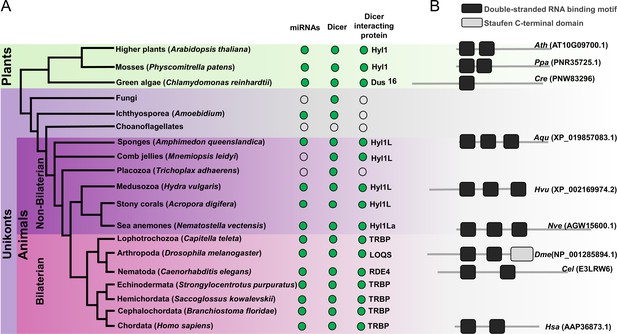

Schematic representation of a phylogenetic tree of Eukaryotes at the phylum level.

(A) Phylogenetic tree representing the presence (green circles) and absence (open circles) of microRNAs (miRNAs), Dicer, and Dicer interacting proteins in different plant and animal phyla. The names of representatives of different phyla are given in brackets. The names of Dicer interacting proteins are given near the green circles. (B) Domain structure of different Dicer interacting proteins predicted by using the Pfam (https://pfam.xfam.org/). NCBI gene ID is shown in brackets.

Results

Hyl1La plays an essential role in Nematostella development

Mutants of miRNA biogenesis pathway components exhibit severe developmental defects in both plants and animals (Alvarez-Garcia and Miska, 2005; Schauer et al., 2002). The HYL1 protein is known to play an essential role in the growth and development of the model plant Arabidopsis thaliana by regulating miRNA biogenesis (Achkar et al., 2018; Han et al., 2004a). Similarly, in mice, TRBP mutants show multiple developmental abnormities and a reduction in miRNA accumulation (Koscianska et al., 2011; Zhong et al., 1999). The Hyl1La gene of Nematostella contains 11 exons and 10 introns predicted to code for a protein containing three DSRM domains (Figures 1B and 2A). Unlike its paralog Hyl1Lb that is specific to stinging cells and carries additional protein domains, Hyl1La expression is ubiquitously distributed throughout Nematostella tissues and shares its domain structure with other cnidarian HYL1 homologs (Moran et al., 2013). Thus, we decided to focus our analysis on this gene. To decipher the function of Hyl1La in Nematostella, we designed two different splicing morpholinos (MOs) (Hyl1La SI MO1 and Hyl1La SI MO2) to knockdown by mis-splicing the gene at two different intron-exons junctions. Additionally, the gene was also targeted for inhibition by using a translation-blocking MO (Hyl1La TB MO) which binds on the 5′ UTR and sterically blocks translation (Figure 2A). We injected each of the three MOs into Nematostella zygotes in parallel with a control MO designed to bind to no target in the sea anemone genome. The effect of SI MOs was validated by PCR followed by cloning and sequencing which revealed intron retention in both cases (Figure 2—figure supplement 1—source data 1, Supplementary file 1). All the injected animals were studied until 9 days post-fertilization (dpf). We observed that more than 80% of the animals injected with control MO developed normally and metamorphosed into primary polyps. In contrast, the animals injected with any of the three Hyl1La MOs showed developmental abnormalities, where more than 90% of the animals did not settle and metamorphosed into primary polyps until 9 dpf (Figure 2B–D and F). The developmental abnormalities observed here were grossly similar to those observed in Nematostella morphants of other miRNA processing components such as HEN1, Dicer1, AGO1, and AGO2 knockdown animals (Fridrich et al., 2020; Modepalli et al., 2018; Figure 2E). These results indicate that Hyl1La plays an essential role in Nematostella development, possibly by regulating the processing and expression of miRNAs.

Figure 2 with 1 supplement see all

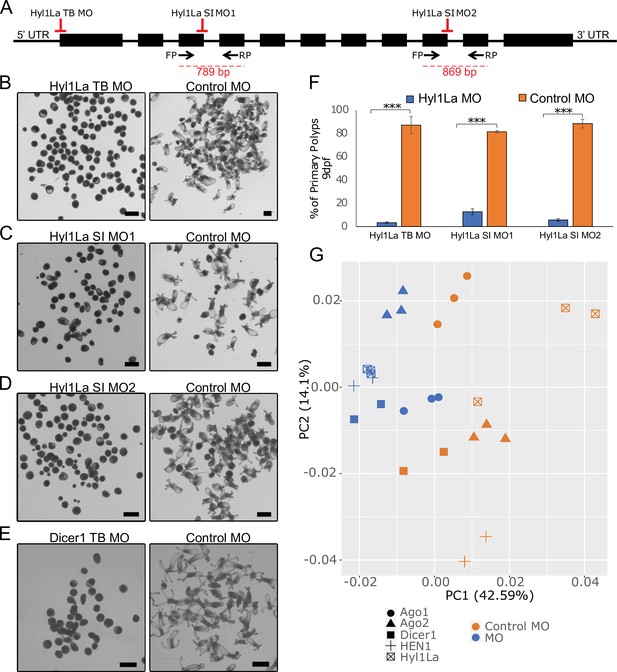

Developmental defects in different morphants of Hyl1-like a (Hyl1La).

(A) Schematic representation of the Hyl1La gene showing the intron-exon junction as defined by comparing the transcript (NCBI Accession KF192067.1) to the Nematostella vectensis genome. The positions targeted by different morpholinos used in the study are shown by red symbols. The black arrows represent the position of primers designed for the validation of splicing morpholino and the product size is indicated below. (B–D) Images of 9 days post-fertilization (dpf) animals showing similar developmental defects in different morphants. (E) Images of 10 dpf Dicer1 morphants showing similar developmental defects to Hyl1La morphants. Scale bars are 500 µm. (F) Bar chart representing percentage of developed and undeveloped animals for each of the morphants. More than 80% of Hyl1La-depleted animals did not develop into the primary polyp stage after 9 dpf. Data was taken in triplicates, in each n = 200, ***p < 0.001 (Student’s t-test). (G) Principal component analysis (PCA) plot of the miRNA expression following the knockdown of miRNA biogenesis components: Hyl1La, HEN1, Dicer2, AGO1, and AGO2. Morphants are in blue and control in orange, different symbols represent different miRNA biogenesis components and their respective controls from the same experiment.

Hyl1La regulates the miRNA biogenesis

The above observed metamorphosis arrest suggested the possible involvement of Hyl1La in miRNA biogenesis, as mutants defective in their miRNA biogenesis exhibit abnormal development in both animals and plants (Achkar et al., 2018; Zhong et al., 1999). HYL1 in Arabidopsis interacts with the stem region of miRNA precursors by using its DSRM domains and works with DCL1 synergistically (Song et al., 2007; Wu et al., 2007). Although the Dicer homolog alone is capable of processing the precursor into a mature miRNA, the presence of HYL1 is essential as it enhances the efficiency and in some cases the accuracy of miRNA biogenesis in plants (Dong et al., 2008; Szarzynska et al., 2009). To assay the possible role of Hyl1La on miRNA expression in Nematostella, we performed small RNA sequencing of animals, injected with Hyl1La SI MO1 and with control MO. The analysis of read length distribution showed that the small RNA reads that lied between the size of miRNAs (20–24 nt) were higher (p < 0.01, Student’s t-test) in control as compared to knockdown embryos (Figure 3A). Further, we analyzed the miRNA expression by using miRProf (Stocks et al., 2012) and normalized the miRNA reads in transcripts per million (TPM) (Supplementary file 2). For the miRNA quantification we used the most recent Nematostella miRNA datasets that were obtained by AGO immunoprecipitation (IP) (Fridrich et al., 2020). The expression of normalized miRNA reads was compared between control and Hyl1La SI MO1. About 54% of the total identified miRNAs showed downregulation of more than twofold in Hyl1La SI MO1-injected animals as compared to the control (Figure 3B). Further, a significant reduction in overall miRNA abundance was observed in the knockdown morphants (p < 0.00001, Wilcoxon signed-rank test) (Figure 3C). The expression variation caused by the action of other two MOs (Hyl1La SI MO2 and Hyl1La TB) was also assayed by quantitative stem-loop PCR of five miRNAs (Figure 3D and Figure 3—figure supplement 1). Significant downregulation of three miRNAs: miR2022-3p, miR2025-3p, and miR2026-5p was detected in all three MOs (with the exception of miR-2026–5p with SI MO1), which supported the small RNA sequencing results. In contrast, two miRNAs, miR2027-5p and miR2028-5p, either showed upregulation or were not significantly affected by the Hyl1La knockdown. Previous studies have also shown that these two miRNAs may respond differently to other miRNAs in HEN1 and Dicer1 knockdown morphants of Nematostella (Modepalli et al., 2018). This might be relevant to other miRNAs that did not show downregulation and suggest differences in their biogenesis. Further, we also checked for the processing accuracy of all the identified miRNAs by mapping them onto their respective precursors. The analysis did not reveal any aberrant processing. These results suggest that like its homolog in plants, Hyl1La in Nematostella might be involved in enhancement of Dicer efficiency and is not involved in size selection.

Figure 3 with 2 supplements see all

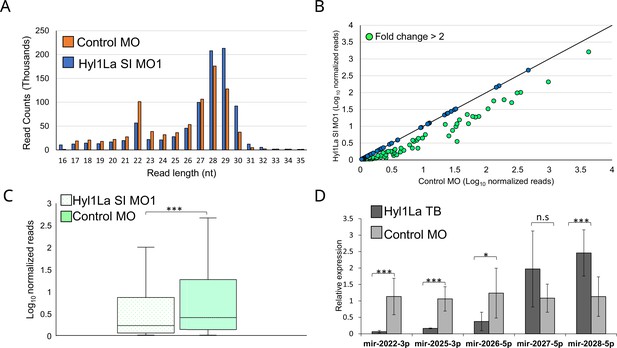

Hyl1-like a (Hyl1La) morphants show reduced expression of microRNAs (miRNAs).

(A) Average read length distribution of small RNA reads after adapter removal. (B) Scatter plot representing normalized read counts of miRNAs in control and treated animals. Each dot represents the average expression of an individual miRNA. The miRNAs showing a depletion greater than twofold are indicated in green. The axes are scaled to Log10 of normalized read counts. The data represents the mean of three independent biological replicates. (C) Box plot showing the average abundance of miRNA read counts in Hyl1La SI MO1 and control MO. A significant reduction of miRNA read counts is noted in Hyl1La SI MO1 (p < 0.0001, Wilcoxon signed-rank test). The data represents the mean of three independent biological replicates ± SD. (D) Bar plot showing the expression of miR-2022, miR-2025, miR-2026, miR-2027, and miR-2028 as quantified using stem-loop PCR in translation-blocking (TB) and control morpholino. The data represents the mean of three independent biological replicates ± SD. ***p < 0.001, **p ≤ 0.01, *p ≤ 0.05 (Student’s t-test), n.s. (not significant).

To further explore the effect Hyl1La knockdown has on the expression of mature miRNAs in Nematostella, we performed a meta-analysis comparing the effect of knocking down previously characterized miRNA biogenesis components such as HEN1, Dicer1, AGO1, and AGO2 (Fridrich et al., 2020; Modepalli et al., 2018; Figure 2G and Supplementary file 3). Using principal component analysis (PCA), we see that broadly the expression of mature miRNAs following the knockdown of Hyl1La behaves similarly to other characterized miRNA processing components. This is evident with Hyl1La morphants clustering with all miRNA biogenesis components compared to control, particularly with HEN1 and Dicer1. We also observe that both AGO1 and AGO2 are the most distant among the miRNA biogenesis components, which is consistent with their function of loading and therefore affecting a particular subset of miRNAs (Fridrich et al., 2020), while Hyl1La, HEN1, and Dicer1 affect the majority of the same miRNA in the same manner.

Next, we explored the effect of Hyl1La MO on other categories of small RNAs (siRNA and piRNA) reported in Nematostella (Modepalli et al., 2018; Praher et al., 2017). The expression of normalized reads of siRNA and piRNAs were compared between control and Hyl1La MO-injected animals. Significant (p < 0.00001, Wilcoxon signed-rank test) down- and upregulation of siRNAs and piRNAs, respectively, were observed in Hyl1La MO-depleted animals (Figure 3—figure supplement 2A-D). In case of siRNAs the difference was very mild as only 9% (46 out of 469) of siRNAs showed downregulation of more than twofold in Hyl1La MO-injected animals (Figure 3—figure supplement 2A). Contrastingly, most of the piRNAs showed upregulation in Hyl1La-depleted animals wherein 36% (91 out of 251) of piRNAs showed upregulation of more than twofold (Figure 3—figure supplement 2C). In addition, the size distribution of reads shows upregulation (p < 0.05, Student’s t-test) of sizes that correspond to piRNAs (28–30 nt) (Figure 3A). Overall small RNA analysis showed that Hyl1La depletion has strong effect on miRNA expression, while mild and opposite effect on siRNA and piRNA expression, respectively.

To further support our results obtained with MOs, we attempted to knock down this gene by using short-hairpin RNAs (shRNAs), a method previously established in Nematostella (Karabulut et al., 2019) that worked well in our lab for other genes (Lewandowska et al., 2021). We designed three different shRNAs from three different regions of Hyl1La gene (Hyl1La shRNA1, Hyl1La shRNA2, and Hyl1La shRNA3) (Figure 4A–C) and injected them into Nematostella zygotes. In parallel we also used a control shRNA with no target in Nematostella genome that was previously used as control for similar experiments (He et al., 2018; Karabulut et al., 2019). To assess the effect of these shRNAs on Hyl1La expression, we performed qRT-PCR from 3-day-old injected animals. Unexpectedly, we did not find any difference in Hyl1La expression (Figure 4D). Additionally, we also assessed the phenotype, but we could not identify any phenotypic difference either. Next, we employed stem-loop PCR to test whether small RNAs are generated from an injected shRNA and indeed the small RNAs were produced as expected (Figure 4E). This result indicates that the small RNAs derived from the shRNAs were not able to downregulate Hyl1La.

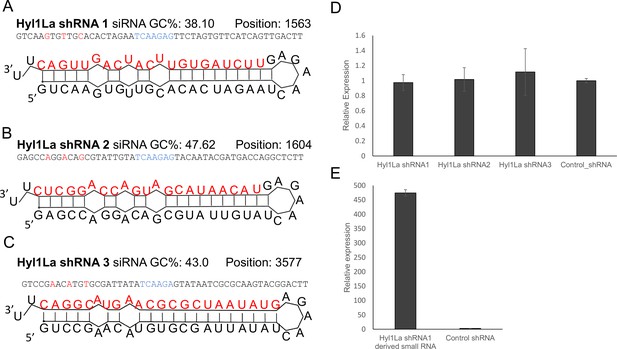

Structure of short-hairpin RNA (shRNA) precursors and their effect on Hyl1-like a (Hyl1La) expression.

(A–C) Structure of different shRNAs designed from different positions of Hyl1La gene along with GC content and their position are shown. In the shRNA sequence, the red color shows the nucleotides edited for mismatch and blue color represents loop region. The red colored nucleotides on precursor’s structure indicate the small RNA derived from the shRNAs. (D) Real-time quantification of Hyl1La from animals injected with different shRNAs relative to control. The data represents the mean of three independent biological replicates ± SD. (E) Quantification of small RNAs produced from Hyl1La shRNA1. The quantification was performed by using stem-loop qRT-PCR.

Hyl1La interacts with pre-miRNAs but not with pri-miRNAs

The above observed reduction in miRNA expression indicates the possible involvement of Hyl1La in miRNA biogenesis. Being a DSRM-containing protein, it could interact with either pri-miRNA, pre-miRNA, or with both. Hence to test if Hyl1La interacts with pre- and/or pri-miRNA, we conducted an IP assay by injecting a plasmid carrying a cassette encoding an N-terminal 3 × FLAG-tagged full-length Hyl1La (‘FLAG-Hyl1La’) followed by a 3′-memOrange2 separated by a P2A self-cleaving peptide (Figure 5A; Kim et al., 2011; Shaner et al., 2008). The expression of the FLAG-Hyl1La cassette was confirmed by visualizing the animals under fluorescence microscope (Figure 5B) and by using anti-FLAG western blot (Figure 5—figure supplement 1—source data 1; Figure 5—figure supplement 1—source data 2). Further, RNA immunoprecipitation (RIP) with anti-FLAG antibody was performed (Figure 5—source data 1 and Figure 5—source data 2) in three different biological replicates followed by qPCR analysis. Interestingly, we observed that there was very poor enrichment of pri-miRNA (Ct-values >30, sometimes undetected) as compared to pre-miRNA (Supplementary file 4 and Figure 5—figure supplement 1B, C; Figure 5—figure supplement 1—source data 3 and Figure 5—figure supplement 1—source data 4). Due to the very high Ct values measured for pri-miRNA, we were not able to compare the levels of pri-miRNAs bound with IgG and accurately compare them to FLAG-Hyl1La. Interestingly, when we compared the enrichment of pre-miRNAs, we found that six out of eight were significantly enriched in FLAG-Hyl1La IP in comparison to IgG, with miR-2023 showing a trend similar to other miRNAs but not reaching significance (Figure 5D and Figure 5—figure supplement 1—source data 3 and Figure 5—figure supplement 1—source data 4). Expectedly, miR-2029 showed no enrichment in anti-FLAG samples. This miRNA might be processed independently of Hyl1La since it is also not significantly decreased following Hyl1La and Dicer1 knockdowns (Modepalli et al., 2018). Taken together, these results showed that Hyl1La interacts with pre-miRNA but not with pri-miRNA.

Figure 5 with 4 supplements see all

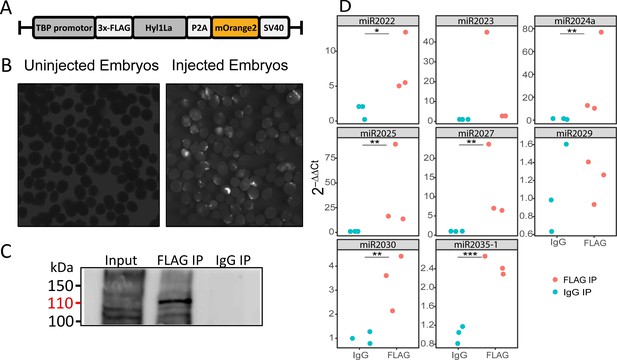

RNA immunoprecipitation (RIP) and qRT-PCR.

(A) Schematic representation of the FLAG-Hyl1-like a (Hyl1La) construct with a TBP promoter, a self-cleaving P2A sequence, a memOrange2 gene, and the polyadenylation signal SV40. (B) The plasmid-injected and -uninjected embryos were visualized under a florescence microscope after 2 days. The injected embryos were showing the expression of memOrange2 (right side). (C) Immunoprecipitation (IP) of 3 × FLAG-Hyl1La with mouse anti-FLAG antibody or whole mouse IgG by using Protein G Magnetic Beads. The input and IP samples were subjected to Western blot with mouse anti-FLAG antibody. The red arrow (110 kDa) indicates the 3 × FLAG-Hyl1La (Figure 5—source data 1 and Figure 5—source data 2). (D) pre-miRNA expression of eight different miRNAs were measured using the qRT-PCR. The Y-axis represents the 2-ΔΔCt values of three independent biological replicates. ***p < 0.001, **p ≤ 0.01, *p ≤ 0.05 (Student’s t-test).

Figure 5—source data 1

Related to Figure 5C – Western blot of FLAG-Hyl1-like a (Hyl1La) after immunoprecipitation.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig5-data1-v2.zip
Figure 5—source data 2

Related to Figure 5C – Figure includes the image of Western Blot Protein Ladder used as a size ruler.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig5-data2-v2.zip

Next, we generated libraries from FLAG-Hyl1La immunoprecipitated samples and analyzed the expression of additional longer (>100 bp) transcripts (Figure 5—figure supplement 4 and Supplementary file 5). We observed no significant enrichment for pri-miRNA, mRNA, non-coding RNA (rRNA, snoRNA, and tRNA) and repetitive elements. These results suggest that Hyl1La specifically binds pre-miRNAs. To further validate Hyl1La affinity to pre-miRNAs, we tested Hyl1La binding to pre-miRNAs via in vitro binding assay. We generated synthetic pre-miRNAs based on the pre-miR-2022 backbone with the mature miRNA sequence changed so it will not target Nematostella genes. As a control we used a shuffled version of the same pre-miRNA that does not create a hairpin secondary structure (Figure 6A–B). Both pre-miRNAs were labeled with biotin at their 3' end and incubated with protein lysates from FLAG-Hyl1La expressing animals in three biological replicates. Western blot conducted with anti-FLAG antibodies revealed Hyl1La binding the pre-miRNA with significantly higher efficiency than the shuffled sequence (Figure 6C, D; Figure 6—source data 1; Figure 6—source data 2; Figure 6—source data 3; Figure 6—source data 4; Figure 6—source data 5; Figure 6—source data 6 and Supplementary file 6), thus supporting the specific affinity of Hyl1La to miRNA precursors.

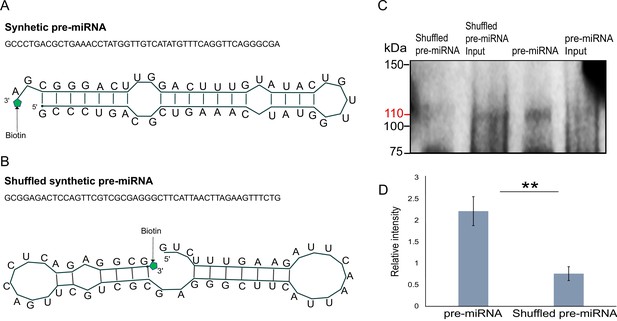

In vitro binding assay.

(A) The sequence and secondary structure of biotin-labeled synthetic pre-microRNA (miRNA) used for in vitro binding assay. (B) The sequence and secondary structure of biotin-labeled shuffled synthetic pre-miRNA used as negative control for in vitro binding assay. (C) Pull-down of biotin-labeled synthetic pre-miRNA and shuffled pre-miRNA negative control using streptavidin magnetic beads. The pull-down samples were subjected to Western blot with mouse anti-FLAG antibody (Figure 6—source data 1; Figure 6—source data 2; Figure 6—source data 3; Figure 6—source data 4; Figure 6—source data 5; Figure 6—source data 6). (D) Relative intensity of Western blot bands with mouse anti-FLAG antibody, showing pull-down of biotin-labeled synthetic pre-miRNA and shuffled pre-miRNA negative control. Error bars correspond to standard deviation among replicates (n = 3). **p ≤ 0.01 (Student’s t-test).

Figure 6—source data 1

Related to Figure 6C – Western blot of biotin pull-down with anti-FLAG antibody – replicate1.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig6-data1-v2.zip
Figure 6—source data 2

Related to Figure 6C – Figure includes the image of Western Blot Protein Ladder used as a size ruler – replicate1.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig6-data2-v2.zip
Figure 6—source data 3

Related to Figure 6C – Western blot of biotin pull-down with anti-FLAG antibody – replicate2.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig6-data3-v2.zip
Figure 6—source data 4

Related to Figure 6C – Figure includes the image of Western Blot Protein Ladder used as a size ruler – replicate2.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig6-data4-v2.zip
Figure 6—source data 5

Related to Figure 6C – Western blot of biotin pull-down with anti-FLAG antibody – replicate3.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig6-data5-v2.zip
Figure 6—source data 6

Related to Figure 6C – Figure includes the image of Western Blot Protein Ladder used as a size ruler – replicate3.

https://cdn.elifesciences.org/articles/69464/elife-69464-fig6-data6-v2.zip

Discussion

Altogether the absence of animal-like Dicer partner proteins such as TRBP or PACT and presence of a functional homolog of HYL1 (Hyl1La) in Nematostella indicated that a Hyl1-like protein might have been present in the last common ancestor of plants and animals. Apart from Nematostella, the presence of HYL1 homologs in additional members of Cnidaria and other non-bilaterian metazoan groups such as sponges (Figure 1A) further strengthens the notion of common ancestry of the miRNA systems of plants and animals. Further, while the cleavage mode of action and nearly perfect target binding could have evolved convergently in plants and cnidarians (Moran et al., 2014), the involvement in miRNA biogenesis of the Hyl1L in Cnidaria and its plant homolog HYL1 is far less likely to be the result of parallel evolution. This is because the former might be driven by functional constraints or advantage in cleaving miRNA targets whereas the latter would require the independent recruitment of the same protein into the same system. Thus, our results call into question the hypothesis that miRNAs evolved convergently in plants and animals from an ancestral RNAi system (Axtell et al., 2011; Tarver et al., 2012). To the best of our knowledge, our study provides the first demonstration that an elaborate miRNA biogenesis pathway might have existed in the common ancestor of plants and animals. However, it is also important to note that the presence of HYL1-like proteins by itself cannot be considered a definitive hallmark for the existence of miRNAs in non-bilaterian animals or their relatives. For example, a homolog of HYL1 exists in the ctenophore M. leidyi, but this species does not produce miRNAs (Figure 1A; Maxwell et al., 2012). Moreover, several unicellular relatives of animals contain miRNAs, but no homologs of HYL1 (Bråte et al., 2018). Thus, this pathway might demonstrate in various lineages compositional flexibility as well as high loss rates (reviewed in Moran et al., 2017). Recently, it was found in Chlamydomonas (a unicellular green algae) that DUS16, which is a DSRM protein, and the RNase III DCL3 were efficient enough for miRNA processing (Yamasaki et al., 2016). Further, various fungal groups also exhibit the presence of Dicer and plant-like DSRM proteins and lack animal-like accessory proteins, such as Drosha and Pasha (Dang et al., 2011; Dias et al., 2017). Contrastingly, DCL3 of Chlamydomonas exhibits some structural features that are reminiscent of metazoan Drosha (Valli et al., 2016). These observations suggest that the common ancestor of all these groups might have harbored only a single Dicer/Drosha-like RNase III enzyme assisted by a DSRM protein resembling the ones found in plants (HYL1-like).

We unexpectedly found that in contrast to plant HYL1 proteins, which interacts with both pri- and pre-miRNA, Hyl1La in Nematostella interacts only with pre-miRNA and not with pri-miRNA (Figure 5D). Our sequencing data strengthens the specificity of the pre-miRNA binding by showing no enrichment for additional longer RNA molecules (Figure 5—figure supplement 4A). Further supporting the specific binding of Hyl1La to pre-miRNAs is the in vitro binding assay to a synthetic pre-miRNA compared to the shuffled sequence with a different secondary structure (Figure 6D). A plausible explanation to this finding might be that Nematostella already possesses miRNA biogenesis machinery like the Drosha-Pasha microprocessor (Moran et al., 2013) that is known to interact only with pri-miRNAs and crop them into the pre-miRNAs (Kim et al., 2009). Another surprising finding in this study is that we were able to knock down the Hyl1La by using the MO only and not by shRNA microinjection, despite the processing of the shRNA (Figure 4D–E). A possible explanation for this contrasting result between MO and shRNA probably lies between the different mode of action of these two molecules. In contrast to MOs that do not use the cellular machinery, shRNA requires the miRNA/RNAi machinery for their production as well as in target recognition and inhibition. Thus, our combined results suggest that Hyl1La might have an additional effect on biogenesis steps that are downstream to the cleavage by Dicer such as loading of small RNAs into AGO, the protein at the heart of the RISC (Hutvagner and Simard, 2008). Under such a condition the shRNA-derived small RNA would be unable to load onto RISC and hence could not cleave the Hyl1La, rendering its expression unaffected. Further, in such a scenario after injection with the shRNAs, the system might reach a balance point that is very close to the normal Hyl1La levels. Alternatively, it is possible that the three shRNAs are ineffective due to lack of accessibility of the three distinct target sites on the Hyl1La transcript to the RISC loaded with the shRNA-derived small RNAs for reasons such as secondary structure or binding by other proteins that restrict the RISC accessibility. However, we find this explanation less likely because the three shRNAs target distinct parts of this relatively long transcript.

During small RNA analysis, we expectedly observed a strong reduction in miRNA expression but in parallel a mild reduction in siRNA expression was also observed in Hyl1La-depleted animals (Figure 3 and Figure 3—figure supplement 2A-B). This might be due to involvement of Hyl1La in siRNA biogenesis pathway in Nematostella. Similar observation was also reported in Arabidopsis where different members of the DRB protein family, which includes HYL1, are known to be involved in biogenesis of different siRNAs and hinder their expression (Curtin et al., 2008; Raja et al., 2014). For example, a HYL1 (DRB1) mutant of Arabidopsis exhibits severe defects in miRNA expression but also has a partial effect on tasiRNA (a plant-specific category of siRNAs) expression (Tagami et al., 2009). Further, DRB2 and DRB4 were shown to inhibit small RNA expression produced by RNA polymerase IV (Pélissier et al., 2011). In addition to miRNAs and siRNAs, an opposite trend in piRNA expression was also observed as most of the piRNAs were upregulated in Hyl1La-depleted animals (Figure 3A and Figure 3—figure supplement 2C-D). We propose this might be due to the fact that depletion of Hyl1La-dependent miRNAs provided a void in the sequencing libraries that in turn made more reads available for piRNAs.

Finally, here we report that Hyl1La plays an important role in miRNA biogenesis in Nematostella, a representative of Cnidaria which is the sister group of Bilateria. However, the functional importance of Hyl1La in Nematostella identified here raises another interesting evolutionary question of what led to the replacement of Hyl1La by other DSRM proteins like TRBP, Loqs, or PACT in bilaterian animals during evolution (Figure 1A). Interestingly, both Loqs in flies and TRBP in mammals enable processing of some miRNA precursors into different mature miRNAs and by this significantly increase their variability and targeted sequences (Fukunaga et al., 2012; Lee and Doudna, 2012). Such variability is currently unknown in plants or cnidarians. It is intriguing to consider the possibility that this ability of the bilaterian proteins to increase small RNA variability was advantageous over Hyl1-like proteins and led to the loss of the latter in bilaterian lineages.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene
(Nematostella vectensis)
Hyl1LaGenBankKF192067
Strain, strain background
(Nematostella vectensis)
Lab strain, Rhode River, MDLab strainSea anemone species
Strain, strain background
(Escherichia coli)
NEB 5-alpha Competent E. coli (High Efficiency) (DH5α)New England BiolabsC2987IChemically competent cells
AntibodyMonoclonal mouse anti-FLAG M2 antibody
(Mouse monoclonal)
Sigma-AldrichF1804-50UGIP (5 µg per test)
WB (1:500)
AntibodyPeroxidase-AffiniPure Goat Anti-Mouse IgG
(Goat polyclonal)
Jackson ImmunoResearch115-035-146WB (1:10,000)
Recombinant DNA reagentpER242 (plasmid)Admoni et al., 2020Used as backbone
Sequence-based reagentPCR PrimersIntegrated DNA TechnologiesIn this paperSee Materials and methods and Supplementary file 7
Sequence-based reagentDNA template of shRNAIntegrated DNA TechnologiesIn this paperSee Materials and methods
Sequence-based reagentMorpholinoGene ToolsIn this paperSee Materials and methods
Chemical compound, drugTrizolThermo (Ambion)15596026
Chemical compound, drugTryptoneMerck Millipore61930505001730For bacterial media
Chemical compound, drugYeast extract purified for MicrobiologyMerck Millipore61931105001730For bacterial media
Chemical compound, drugAgar purified for MicrobiologyMerck Millipore61939005001730For bacterial media
Chemical compound, drugAmpicillinROTHK029.1For bacterial media
Chemical compound, drugDextran Alexa Fluor 488Thermo (Molecular Probes)D22910
Chemical compound, drugRed sea saltRed seaFor Nematostella vectensis growth
Chemical compound, drugL-CysteineMerck Millipore1028380100
Chemical compound, drugTween20Sigma-AldrichP9416-100ML
Chemical compound, drugNP40Sigma-AldrichNP40S-100ML
Chemical compound, drugSkim milkBD232100
Chemical compound, drugBovine serum albumin (fraction V)MP160069
Chemical compound, drugTris-glycine-SDS bufferBio-Rad1610772For SDS-PAGE
Chemical compound, drugTotal mouse IgGSigma-AldrichI5381-1MGIP (5 µg per test)
Commercial Assay, kitSuperScript III Reverse TranscriptaseThermo (Invitrogen)18080044
Commercial Assay, kitiScript cDNA Synthesis KitBio-Rad1708891
Commercial Assay, kitFast SYBR Green Master MixThermo (ABI)AB-4385612
Commercial Assay, kitQ5 High-Fidelity DNA PolymeraseNew England BiolabsM0493S
Commercial Assay, kitAmpliScribe T7-Flash Transcription KitLucigenASF3507
Commercial Assay, kitQuick-RNA MiniprepZymo ResearchR1054
Commercial Assay, kitNucleoSpin Gel and PCR Clean-upMacherey-NagelMAN-740609.50
Commercial Assay, kitNEBuilder HiFi DNA Assembly Master MixNew England BiolabsE2621S
Commercial Assay, kitCloneJet cloning kitThermo (Fermentas)K1231
Commercial Assay, kitHiSpeed Plasmid Midi KitQiagen12643
Commercial Assay, kitPureLink Quick Plasmid Miniprep KitThermo (Invitrogen)K210010
Commercial Assay, kitNextSeq 500/550v2 Kits (75 cycles)IlluminaFC-404–2005
Commercial Assay, kitNEBNext Multiplex Small RNA Library Prep Set for Illumina (1-12) – 24 rxnsNew England BiolabsNEB-E7300S
Commercial Assay, kitPierce RNA 3' End Biotinylation KitThermo Fisher Scientific20160
Commercial Assay, kitOvation SoLo RNA-seq systems kitTecan Genomics0500–32
Commercial Assay, kitSureBeads Protein G Magnetic BeadsBio-Rad1614023For IP
Commercial Assay, kitStreptavidin Magnetic BeadsNew England BiolabsS1420SFor pull-down
Commercial Assay, kitRNase Inhibitor, MurineNew England BiolabsM0314L
Commercial Assay, kitcOmplete ULTRA Tablets, Mini, EASYpack Protease Inhibitor CocktailRoche05892970001
Commercial Assay, kitProtease Inhibitor Cocktail Set III, EDTA-FreeMerck-Millipore539134–1ML
Commercial Assay, kit4–15% Mini-PROTEAN TGX Precast Protein GelsBio-Rad4561083For Western blot
Commercial Assay, kitTrans-Blot Turbo Mini 0.2 µm PVDF Transfer PacksBio-Rad1704156For Western blot
Software, algorithmmiRDeep2doi:10.1093/nar/gkr688 (2012)Small RNA analysis
Software, algorithmThe UEA small RNA Workbenchdoi:10.1093/bioinformatics/bts311Small RNA analysis
Software, algorithmTrimmomatic (v3.4)doi:10.1093/bioinformatics/btu170.
Epub 2014 Apr 1
Total RNA analysis
Software, algorithmSTAR (v2.7.9)doi:10.1093/bioinformatics/bts635Total RNA analysis
Software, algorithmRSEMdoi:10.1186/1471-2105-12-323Total RNA analysis
Software, algorithmshRNA designdoi:10.1016/j.ydbio.2019.01.005https://www.invivogen.com/sirnawizard/index
Software, algorithmProtein Domain Searchhttps://pfam.xfam.org/search#tabview=t
Software, algorithmHomologs searchhttps://blast.ncbi.nlm.nih.gov/Blast.cgi/Proteins

Animal culture and microinjection

Request a detailed protocol

Nematostella were grown in 16‰ artificial salt water (ASW) at 18°C in a dark culture room. The growing animals were fed with freshly hatched Artemia salina nauplii three times a week. Induction of spawning was performed as previously described (Genikhovich and Technau, 2009): the mature male and female animals were induced to produce eggs and sperm by placing them in an incubator for 8 hr under constant white light and heat (25°C). After induction, the tanks were further kept at 18°C (in the culture room) for 2 hr to allow the release of egg packages and sperm. Further, the egg packages were fertilized for 30 min by placing the packages inside the male tanks. The quality of egg packages was checked under the stereomicroscope and egg packages of round shape and homogenous size were processed further for dejellying using 3% of L-cysteine in 16‰ ASW pH 7.2 (titrated with 10 M NaOH). The selected egg packages were kept in the cysteine solution for 15 min while rotated by hand. The eggs were washed using 16‰ ASW in tissue culture plates. These clean eggs (zygotes) were further used for microinjection. For microinjection 1 mM stock solutions of both MO and shRNA were prepared by dissolving them into nuclease-free water. The toxicity of MOs as well as shRNA was optimized by injecting different concentrations into the animals along with the control-injected animals. Concentrations resulting in toxicity of less than 30% of the animals (estimated morphologically in the 2 days following the injection) were considered suitable for injection. All MOs used in this study were designed and synthesized by Gene Tools, LLC (Philomath, OR, USA). The same control MO was used in all experiments.

  • Hyl1La TB MO (Translation Blocking) GGCCGCCATTTCTTAGAGAAGTTCA

  • Hyl1La SI MO1 (Splicing inhibition) AGAAACAGACTTGTACCTTTTTGTA

  • Hyl1La SI MO2 (Splicing inhibition) CTTGTTGTAGTCTAAGCCTTACCAT

  • Dicer1 TB MO (Translation Blocking) ATTCCTCTTCGTCACTTGACATCTT

  • Control MO (Standard control MO) CCTCTTACCTCAGTTACAATTTATA

We found that the optimum concentrations were 300, 900, and 450 µM for the Hyl1La TB, Hyl1La SI MO1, and Hyl1La SI MO2, respectively. Dicer1 TB MO was injected at the concentration of 805 µM. For all the three shRNAs, 600 ng/µl concentration was found to be suitable. Similar concentration of control MO was used for microinjection in parallel with Hyl1La MOs. In every shift, we injected 600 zygotes (300 control MO and 300 Hyl1La MO) by mixing the injected material with dextran Alexa Fluor 488 (Thermo Fisher Scientific, Waltham, MA, USA) which was used as a fluorescent tracer while injection was carried under magnification by a TS-100F fluorescent microscope (Nikon). The injected zygotes were kept at 22°C for further growth. The morphology of the animals was observed for up to 9 days after which the number of settled and unsettled animals were counted and documented under SMZ-18 fluorescent stereomicroscope (Nikon). Animals injected with Dicer1 MO were observed and documented after 10 days. For RNA extraction microinjected zygotes were flash-frozen in liquid nitrogen after 3 days of growth and stored at –80°C until RNA extraction. All the MO and shRNA injection experiments were performed in three independent biological replicates with three distinct animals’ batches. Dicer1 MO injection was performed in one replicate to repeat an experiment with published results (Modepalli et al., 2018).

Small RNA sequencing and analysis

Request a detailed protocol

The RNA was isolated using Trizol (Thermo Fisher Scientific) from 3-day-old animals. Small RNA sequencing was performed for only Hyl1La SI MO1 and control MO-injected animals. The small RNA library was prepared using NEBNext Multiplex Small RNA Library Prep Illumina kit (New England Biolabs, Ipswich, MA, USA) with some modifications (Plotnikova et al., 2019). In brief, small RNAs were isolated (18–30 nt) from 1 µg of total RNA using 15% urea-PAGE (Bio-Rad, Hercules, CA, USA) followed by overnight precipitation using 0.3% NaCl. The size-selected small RNAs were further precipitated using ice-cold ethanol (2.5 × volume) and 1 µl of GlycoBlue (Thermo Fisher Scientific) by centrifugation at 21130 × g. The pellet was dissolved in 7.5 µl nuclease-free water and used further for adapter ligation. The ligated products were subjected to 14 cycles of PCR amplification using adapter specific primers. The PCR product was run on 2% agarose gel followed by staining with GelRed (Biotium, Fremont, CA, USA). The band size between 137 and 149 nt was selected and purified using Gel Extraction Kit (Macherey-Nagel, Düren, Germany). The quality of the purified product (sRNA-seq libraries) was checked by using TapeStation system (Agilent, Santa Clara, CA, USA). The libraries having a dominant peak at the size range of 137–149 nt were sequenced by NextSeq500 (Illumina) in single-end mode.

The small RNA data was analyzed using miRProf (Stocks et al., 2012) with the following parameters: two mismatches allowed, minimum abundance of 1 for miRNA and 5 for piRNA and siRNA, allowed overhang and not grouping mature and star strands. For miRNA, piRNA, and siRNA analysis, we mapped the small RNA sequences after adapter removal on the relevant previously reported sets of Nematostella small RNAs (Fridrich et al., 2020; Modepalli et al., 2018; Praher et al., 2017). The small RNA expression was normalized in TPM by using only the transcripts that mapped on the reference genome. For read length distribution and scattered plot we used the average of expression obtained from the three biological replicates. For mapping onto the genome and miRNA precursor for identification of aberrant processing of miRNA, miRDeep2 (Friedländer et al., 2012) was used.

Meta-analysis was performed to compare the pattern of miRNA expression following the knockdown of miRNA biogenesis components. Raw reads from small RNA-seq experiments involving the knockdown of various miRNA biogenesis components (Hyl1La, Dicer1, HEN1, AGO1, and AGO2) were downloaded from the NCBI Sequence Read Archive (Fridrich et al., 2020; Modepalli et al., 2018). Raw reads were trimmed using Cutadapt (v3.4) (Martin, 2011) and sequences shorter than 18 nt were discarded. Filtered reads were mapped to the Nematostella genome using Bowtie (v1.3.1) (Langmead et al., 2009) and miRNA loci quantified using featureCounts (v2.0.0)(Liao et al., 2014) from previously characterized coordinates. Due to differences in developmental stages and library preparation, reads were normalized between morphants and their respective control samples. PCA was then performed using these normalized values using ggplot2 in R (v4.1.0).

Total RNA sequencing and analysis

Request a detailed protocol

To generate total RNA libraries from immunoprecipitated samples, RNA was extracted with 1 ml Trizol (Thermo Fisher Scientific) and purified following the manufacturer’s protocol. To increase the yield, we added 1 µl of RNA-grade glycogen (Roche, Basel, Switzerland) into the isopropanol during the precipitation step and conducted two rounds of 75% ice-cold ethanol washes. RNA pellets were dissolved with 8 µl low-EDTA TE buffer (Thermo Fisher Scientific) and diluted with 0.1% Tween-20 (Sigma-Aldrich, Saint Louis, MO, USA). The samples were prepared for sequencing using Ovation SoLo RNA-seq systems kit (Tecan Genomics, Redwood City, USA) according to the manufacturer’s protocol with the exclusion of the AnyDeplete stage. The samples were amplified for 13, 14, and 16 cycles using uniquely barcoded adaptors provided in the kit. The quality and size distribution of the produced libraries was checked using TapeStation system (Agilent). The pooled libraries were run on NextSeq500 (Illumina) in the concentration of 1.1 pM.

Raw reads were processed by Trimmomatic (v3.4), using the following parameters (HEADCROP:9 LEADING:3 TRAILING:3 SLIDINGWINDOW:4:20 MINLEN:36) (Bolger et al., 2014). High-quality reads retained were mapped to the Nematostella genome (JGI.Nemve1) using STAR (v2.7.9) (Dobin et al., 2013) and de-duplexed using NuDup (https://github.com/tecangenomics/nudup; software by Tecan Genomics, Bruns, 2022). Transcript abundances were estimated to previously characterized coding (Schwaiger et al., 2014) and non-coding RNA (Fridrich et al., 2020; Modepalli et al., 2018) using RSEM (v1.3) (Li and Dewey, 2011) and cross-sample normalized using TMM (Robinson and Oshlack, 2010).

Synthesis of shRNA

Request a detailed protocol

Potential shRNA precursors for Hyl1La gene were predicted using the shRNA prediction tools (https://www.invivogen.com/sirnawizard/index.php) (Karabulut et al., 2019). Three precursors from three different regions were further chosen, all having GC content of more than 35%. Further, we also added to the sequence a T7 promotor and three different mismatches at nucleotide positions 10, 13, and 16 to create bulges in the precursors (Figure 4A–C). All these modified precursors were reverse complemented and synthesized at the DNA level by Integrated DNA Technologies, Inc (IDT, Coralville, IA, USA). The DNA templates and reverse primer were mixed (1:1) and denatured at 98 °C for 5 min and cooled to 24 °C. Further, this mixture was mixed with the components of AmpliScribe T7-Flash Transcription Kit (Lucigen, Middleton, WI, USA) and incubated for 8 hr at room temperature. The in vitro transcribed product was further purified using Quick-RNA Miniprep (Zymo Research, Irvine, CA, USA). The quality and size of the precursor was checked on agarose gel and its concentration was measured using Qubit RNA BR (Broad Range) Assay Kit with the Qubit Fluorometer (Thermo Fisher Scientific). The concentration ranged from 1500 to 2000 ng/µl.

Reverse transcription-quantitative PCR

Request a detailed protocol

For the quantification of Hyl1La transcripts from shRNA-injected animals and for checking the splicing inhibition (Hyl1La SI MO-injected animals), cDNA was prepared from 500 ng of total RNA using the iScript cDNA Synthesis Kit (Bio-Rad). For the quantification of miRNAs and shRNA, we designed the stem-loop primers for five different miRNAs and shRNA (Chen et al., 2005). For cDNA preparation, 100 ng of total RNA was reverse transcribed using the SuperScript III Reverse Transcriptase (Thermo Fisher Scientific). The specificity of the miRNA primers was determined by using end point PCR (Varkonyi-Gasic et al., 2007). For this, we used 2 µl of cDNA as template, miRNAs-specific forward primer and stem-loop-specific reverse primer and run the PCR at 94°C for 2 min, followed by 35 cycles of 94°C for 15 s and 60°C for 1 min. For analyzing differential expression, we ran qRT-PCR with 5sRNA as an internal control. For amplification of pre-miR-2029, pre-miR-2030, and pre-miR-2035–1, we used 1.5 µl of cDNA. For all the real-time experiments, we used Fast SYBR Green Master Mix (Thermo Fisher Scientific) and samples were run on StepOnePlus Real-Time PCR System (Thermo Fisher Scientific). All the real-time experiments were performed in three independent biological replicates and two technical replicates and data was analyzed using 2-ΔΔCt method (Livak and Schmittgen, 2001). All the primers are listed in Supplementary file 7.

Cloning and sequencing of Hyl1La SI MO-injected animals

Request a detailed protocol

To validate the effect of splicing MO, we designed the primers pairs spanning the introns lying on the boundary of exons. PCR of the Hyl1La was done using Q5 High-Fidelity DNA Polymerase (New England Biolabs). The PCR products were run on the gel and the expected-sized PCR product was purified with a kit. Then the purified PCR products were ligated into the pJet2.1 vector (Thermo Fisher Scientific) and transformed into the Escherichia coli DH5α strain (NEB5α, New England Biolabs). The plasmids were purified by a PureLink miniprep kit (Thermo Fisher Scientific) and outsourced for Sanger sequencing (HyLabs, Israel).

Plasmid generation

Request a detailed protocol

Two gBlock synthetic DNA fragments (IDT) at the lengths of 1.6 and 1.7 kb corresponding to Hyl1La fragments with a 3 × FLAG tag and 20 bp overlaps were ordered and used for generating the expression cassette. These fragments were PCR-amplified by Q5 Hot Start High-Fidelity DNA Polymerase (New England Biolabs), visualized on 1% agarose gel and purified by NucleoSpin Gel and PCR Clean-up (Macherey-Nagel). Gibson assembly was performed with the NEBuilder HiFi DNA Assembly Master Mix (New England Biolabs) following the manufacturer’s protocol. The resulting product was further subcloned by restriction digestion with AscI and SalI into a pER242 vector having a TBP promoter previously proved to drive ubiquitous expression in Nematostella (Admoni et al., 2020), memOrange2, and SV40 polyadenylation signal (Figure 5A). The transformation was performed in E. coli DH5α strain (New England Biolabs). The plasmid was purified by HiSpeed Plasmid Midi Kit (Qiagen, Hilden, Germany) and sequenced by the Sanger method (HyLabs, Israel); 100 ng/µl of purified plasmid was injected into the fertilized Nematostella embryo and visualized after 2 days under an SMZ18 stereomicroscope equipped with a DS-Qi2 camera (Nikon, Tokyo, Japan).

Hyl1La IP

Request a detailed protocol

One-hundred µl of protein G SureBeads magnetic beads (Bio-Rad) were washed five times with 1 × PBS (phosphate-buffered saline). Five µg of monoclonal mouse anti-FLAG M2 antibody (Sigma-Aldrich) or total mouse IgG (Sigma-Aldrich) were added to the washed beads and incubated overnight at 4°C on a rotating shaker. Three thousand zygotes were injected with the plasmid containing 3 × FLAG-Hyl1La among which ~2000 animals survived after 2 days and were used for protein extraction. Protein was extracted in lysis buffer with the following composition: 25 mM Tris-HCl (pH 7.4), 150 mM KCl, 25 mM EDTA, 0.5% NP-40, 1 mM DTT, Protease inhibitor cOmplete ULTRA tablets (Roche, Germany) and Protease Inhibitor Cocktail Set III, EDTA-Free (Merck Millipore, Burlington, MA, USA). Murine RNase inhibitor (New England Biolabs) was used in RNA processing buffer. The RNase and protease inhibitors were added fresh just before use. For protein extraction, the frozen animals were mechanically homogenized in 1 ml lysis buffer and incubated for rotation at 4°C. After 2 hr the samples were centrifuged at 16000 × g for 15 min at 4°C and supernatant was collected. Then, 100 µl of protein G magnetic beads were washed thrice with 1 ml 1 × PBS, once with lysis buffer and then mixed with the protein lysate. The tube volume was maintained to 1.2 ml using the lysis buffer containing RNase inhibitor and incubated at 4°C on a rotating shaker (Intelli-Mixer ELMI, Newbury Park, CA, USA), for 1 hr. After 1 hr, the pre-cleared lysate was collected and added to the antibody-bound beads that were preincubated with the antibody overnight. These samples were incubated for 2 hr in rotation at 4°C. After incubation, the beads were collected by using a magnetic stand and washed six times with lysis buffer containing RNase inhibitor and one time with PBS with RNAse inhibitor. For Western blot 40 µl SDS sample buffer (New England Biolabs) were added to the beads and heated at 100°C for 8 min and placed on ice for 1 min. The samples were then centrifuged for 1 min at 16,000 × g at 4°C, and the supernatant was collected.

For RNA extraction, the beads were mixed with 1 ml Trizol (Thermo Fisher Scientific) and purified following the manufacturer’s protocol. We added 1 µl of RNA-grade glycogen (Roche, Switzerland) into the isopropanol during the precipitation step. The isolated RNA was treated with Turbo DNAse (Thermo Fisher Scientific) for 30 min at 37°C, purified with RNA Clean & Concentrator-5 kit (Zymo Research), eluted in 8 µl and used for cDNA preparation.

Primer designing for pre- and pri-miRNA quantification

Request a detailed protocol

The pre-miRNA primer pairs were designed from stable stem region of precursors (Figure 5—figure supplement 2) as described previously (Schmittgen et al., 2008). The pre-miRNA sequence was obtained from our recently published data (Fridrich et al., 2020). The primer pairs for pri-miRNA were designed so they will anneal at least 10 nucleotides away from the pre-miRNA primers (Figure 5—figure supplement 3). These probable pri-miRNA sequences flanking the pre-miRNA were obtained from the Nematostella genome browser (https://simrbase.stowers.org/).

Biotin-labeled synthetic pre-miRNA generation

Request a detailed protocol

Synthetic pre-miRNA for in vitro binding assay was designed based on miR-2022 backbone, with the mature and star stands changed to target an mCherry synthetic gene, which is not found in the Nematostella genome. To generate a control sequence, the original sequence was shuffled and non-hairpin secondary structure was validated with RNAfold web server (Lorenz et al., 2011). The reverse complement DNA templates were ordered from IDT (USA) and transcribed using the AmpliScribe T7-Flash Transcription kit protocol (Lucigen). The DNase-treated products were cleaned with Quick-RNA MiniPrep Kit (Zymo Research), then validated on agarose gel and concentration was measured with Epoch Microplate Spectrophotometer (BioTek Instruments, Inc, USA). Next, 790 ng of the products were biotinylated with Pierce RNA 3' End Biotinylation Kit (Thermo Fisher Scientific). After ligation of 15 hr, products were cleaned according to the manufacturer’s protocol and pellets were dissolved with 12.5 µl nuclease-free water. A second cleaning step was conducted with Quick-RNA MiniPrep Kit (Zymo Research). Products were eluted with 16 µl nuclease-free water and concentration was measured with NanoDrop (Thermo Fisher Scientific).

In vitro binding assay

Request a detailed protocol

In vitro binding assay was performed according to a previously described method (Lewandowska et al., 2021). In brief, 4000 zygotes were injected with the plasmid containing 3 × FLAG-Hyl1La, from which ~3000 survived after 2 days. Embryos were flash-frozen with liquid nitrogen and stored in –80°C. Next, animals were mechanically homogenized in the following lysis buffer: 50 mM Tris-HCl (pH 7.4), 150 mM KCl, 0.5% NP-40, 10% glycerol, Protease inhibitor cOmplete ULTRA tablets (Roche, Switzerland), Protease Inhibitor Cocktail Set III, EDTA-Free (Merck Millipore), and Murine RNase inhibitor (New England Biolabs). Protease and RNase inhibitors were added fresh just before use. Lysed animals were incubated and supernatants were collected as described before. Next, the lysate was pre-cleared as follows: 100 µl of streptavidin magnetic beads (New England Biolabs) were washed in 1 ml of 1 × PBS for three times and the FLAG-tagged Hyl1La lysate was added to the washed beads. Lysis buffer was added to make up 1.3 ml and samples were incubated at 4°C rotation for 1 hr. After the incubation, the pre-cleared lysates were collected and mixed with the biotin-labeled pre-miRNA or biotin-labeled shuffled pre-miRNA as negative control in the final concentration of 8.23 ng/ml and ATP (New England Biolabs) in the final concentration of 0.5 mM. Samples were incubated for 1 hr in rotation at room temperature. Simultaneously, 100 µl of fresh streptavidin magnetic beads were washed as described before and blocked with 3-day-old wild-type lysate for 1 hr at 4°C. Biotin-labeled precursors containing lysates were added to the blocked beads and incubated for 2 hr in rotation at 4°C for biotin-labeled pre-miRNA pull-down. Sixty µl was taken from each lysate before addition to the beads as input sample. After the incubation, the lysates were discarded and the beads were washed three times with 500 µl of the following wash buffer: 50 mM Tris-HCl (pH 7.4), Protease inhibitor cOmplete ULTRA tablets, Protease Inhibitor Cocktail Set III, EDTA-Free and Murine RNase inhibitor. Subsequently, 40 µl of filtered double-distilled water and 20 or 30 µl of Blue Protein Loading Dye (New England Biolabs) were added to the beads or the inputs, respectively. The samples were heated and centrifuged as described before and the supernatant was collected for Western blot. Intensities of Western bands were determined by using the ImageStudio software (LI-COR Biosciences, Lincoln, NE, USA). Enrichment of pre-miRNA pull-down compared to shuffled pre-miRNA pull-down was determined by the ratio of the band to the background intensity.

Quantification and statistical analysis

Request a detailed protocol

For phenotypic analysis, we performed Student’s t-test between the number of developed and undeveloped animals. To test differences in size distribution of small RNA sequencing reads, Student’s t-test (paired two-tailed) was performed between control and Hyl1La SI MO1 samples. For statistical analysis of qRT-PCR data, Student’s t-test (one-tailed assuming equal variance) was performed on ΔCt values between different biological replicates. For in vitro binding assay analysis, Student’s t-test (paired two-tailed) was performed on the ratio of the bands to background intensity. To check overall significant difference between the miRNA expression levels, Wilcoxon signed-rank test was done. The Student’s t-test was conducted in Microsoft Excel while Wilcoxon signed-rank test was done using socscistatistics (https://www.socscistatistics.com/tests/signedranks/default.aspx).

Data availability

RNA sequencing data are available at NCBI-SRA under BioProject ID PRJNA630340.

The following data sets were generated
    1. Tripathi AM
    2. Admoni Y
    3. Fridrich A
    4. Lewandowska M
    5. Surm JM
    6. Aharoni R
    7. Moran Y
    (2022) NCBI BioProject
    ID PRJNA630340. Functional characterization of a plant-like HYL1 homolog in the cnidarian Nematostella vectensis indicates a conserved involvement in microRNA biogenesis.

References

    1. Tarver JE
    2. Donoghue PCJ
    3. Peterson KJ
    (2012) Do miRNAs have a deep evolutionary history
    BioEssays : News and Reviews in Molecular, Cellular and Developmental Biology 34:857–866.
    https://doi.org/10.1002/bies.201200055

Decision letter

  1. René Ketting
    Reviewing Editor; IMB Mainz, Germany
  2. Detlef Weigel
    Senior Editor; Max Planck Institute for Biology, Tübingen, Germany
  3. Rene F Ketting
    Reviewer; Institute of Molecular Biology, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Functional characterization of a "plant-like" HYL1 homolog in the cnidarian Nematostella vectensis indicates a conserved involvement in microRNA biogenesis" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Rene F Ketting as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Reviewing Editor and Detlef Weigel as the Senior Editor.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) As pre-discussed, a strengthening of the claim that Hyl1La specifically binds miRNA precursors is needed. If a CLIP experiment is not feasible, a qPCR approach testing more miRNA precursors, but more importantly, non-related transcripts would also be acceptable. We would see testing of 10-12 mRNAs, 10-12 structured RNAs (for instance tRNAs) and a similar number of additional miRNA precursors as an appropriate alternative.

2) The small RNA analysis needs to be extended to also include piRNAs and siRNAs.

Reviewer #1:

This work addresses the function of a Hyl1 homolog of Nematostella in miRNA production. Hyl1 is a protein that was identified in plants, where it stimulates the processing of miRNAs. In animals, Hyl1 is not found, and other RNA binding proteins are in place to help processing of miRNAs by Drosha and Dicer. Linking Hyl1 in Nematostella to miRNA production would support the idea that in the last common ancestor of plants and animals a miRNA-like processing was in place. This contrasts the dominating view that plant and animal miRNA pathways have convergently evolved and would justify a revised view on how plant and animal miRNA pathways have evolved.

To test this, Hyl1La (the Nematostella Hyl1) was knocked down with morpholino oligos (MOs), and the resulting animals were probed for developmental defects and miRNA production. In both defects were observed. Animal development was delayed, and miRNA production dropped. Using RNA-IP-qPCR experiments the authors also address whether Hyl1La binds primary miRNAs or pre-miRNAs, two different maturation steps in the animal miRNA processing pathway. While pri-miRNAs were hardly detected in the IPs, pre-miRNAs were enriched, indicating that Hyl1La binds the intermediate miRNA processing stage, in between Drosha and Dicer cleavages.

The authors also attempt knock-down of Hyl1La by shRNAs but were not successful. This lack of success is hypothesized to relate to a potential role of Hyl1La in shRNA function.

The paper is rather short, but it makes the point that Hyl1La is needed for miRNA production, and as such brings an important piece of data to the discussion on miRNA pathway evolution in plants and animals. Nematostella is also not a model in which extensive manipulations of gene function are easily done, limiting what the authors can realistically do.

Parts of the paper are, however, not completely clear and in one case not consistent with the data that is shown:

– In Figure 3-supplement 1 two additional MOs are tested for knock-down. In the text a translation blocking MO is mentioned (TB) but this does not appear in this figure. It is also not clear if the same control MO is used for this figure compared to Figure 3. And finally, the text states that in this experiment mir-2026-5p was consistent down regulated, but MO1 does not show a significant effect in the figure.

– The authors do not discuss the miRNAs that are not affected.

– The authors mention that Hyl1 in plants is required for accuracy (page 4), but later (page 5) they write "The analysis (of Hyl1La, red) did not reveal any aberrant processing. These results further suggested that like its homolog in plants, Hyl1La in Nematostella…//…is not involved in size selection." These statements appear to be contradictory, assuming that with 'accuracy' miRNA processing sites are implied. This issue also surfaces in the discussion.

Finally, the developmental defects are not linked to miRNA defects directly, but they do phenocopy knock-down phenotypes of other miRNA pathway components, such as Dicer.

In order to see the similarity of the MO knockdown of Hyl1La it would be good to do a knockdown of Dicer in parallel and compare the phenotypes. Also, the phenotypes shown are at a very zoomed-out level, and some more detail, or more informative images would be helpful.

Please include scale bars for all the imaging.

More importantly, the authors propose a role for binding pre-miRNA, and it would be good to substantiate that more.

One thing that could be interesting, and should be relatively straight forward, is to look at the subcellular localization of Hyl1La. One would expect a cytoplasmic localization if it acts with Dicer.

Maybe cytoplasmic lysate can process pre-miRNAs, and this may be impaired in extracts from knock-down animals. This depends on whether this is feasible in terms of amount of material; I cannot judge that, but I can see that may be difficult.

Third, a Northern blot may help to detect accumulating pre-miRNAs in the knock-down animals (with Dicer knockdown as a control).

In the discussion the authors dedicate a paragraph to basically a failed experiment: the shRNA knockdown. The model behind that discussion is interesting, but should be tested in my opinion: are the established shRNA knockdowns (that are cited) affected by MO knockdown of Dicer (positive control) and Hyl1La?

Reviewer #2:

The authors aimed to dissect the miRNA-processing capacity of Nv Hyl1La. The strength of the study is based on the observed developmental defects accompanied by molecular data upon Hyl1La KO. Information about the miRNA target genes that are affected by the Hyl1La-KO are missing as well as biochemical properties of Hyl1La. Working with non-traditional model organisms is challenging but provide a powerful resource for identifying new molecular pathways or revise current perceptions of regulatory mechanisms (i.e., miRNA processing). Cnidaria resemble plant-like miRNA-processing propensities, which have been eluted to in previous studies of the group.

Strength:

– Description of organismal defects upon Hyl1La depletion.

– Successful Hyl1La knockdown by using morpholinos but not shRNAs.

– sRNAseq on Hyl1La knockdown (vs. wild-type).

– Mechanistic information about Hyl1La’s miRNA processing capacity showing that Hyl1La processes pre- but not pri-miRNA (using RIP on FLAG-tagged Hyl1La followed by RT-qPCR)

Weaknesses:

– What are the expression levels of Hyl1Lb upon Hyl1La KD? The authors state that Hyl1Lb is cell-type specifically expressed, which suggests that the role of Hyl1Lb is negligible in this context. That can be easily checked by qPCR using gene-specific primers and would confirm that there are no compensatory effects (e.g., an unexpected gene activation of Hyl1Lb upon Hyl1La KD).

– Missing explanation why only a few miRNAs were detectable in Nv by using sRNAseq. Is this a technical (e.g., low input material, missing step to demethylate 3'ends of Nv sRNAs) or biological (e.g., primitive miRNA machinery with only a few genes that would give rise to miRNAs) issue?

– More comprehensive analysis of the sRNAseq data is required. Information is missing regarding the RNA type to which the entire sRNA population maps. That would explain the shift of sRNA population from 22nt to 28-30nt (Figure 3A) and also why some sRNAs remain unaffected by the Hyl1La-KD (Figure 3B – those on the regression line), e.g. these larger sRNAs could be tRNA or rRNA fragments that are processed in a Hyl1La-independent manner.

– Statements about the comparisons regarding plant HYL1 processing needs to be corrected. E.g. Wu et al. 2007 (doi.org/10.1105/tpc.106.048637) stated that AtHYL1 is involved in pre-miRNA processing.

Reviewer #3:

– A summary of what the authors were trying to achieve.

In this manuscript the authors attempt to understand the function of a protein, HYL1, in nematostella. This protein is interesting because HYL1 is known to be involved in miRNA biogenesis in plants, but is absent from most animals (and all bilatarians). The authors wanted to know whether it was involved in miRNA biogenesis in nematostella, as this would shed important light on the evolution of miRNA biogenesis. They investigate the phenotypic consequences of gene knockdown and then attempt to link these to changes in the small RNA profile, and on the basis of their findings argue for a role for HYL1 in miRNA biogenesis in nematostella.

– An account of the major strengths and weaknesses of the methods and results.

The authors use knockdown to reduce HYL1 and show that there is an embryonic lethality phenotype. This suggests importance of the protein in development. These experiments are done with several different knockdown methods, thus meaning that off-target effects are unlikely. Nevertheless, these experiments would be cleaner with deletion of the gene, which presumably is not possible currently in this organism.

The embryonic lethality phenotype is clearly in favour of an important role for this protein. However, it precludes the authors' examining potential functions for HYL1 in adult physiology, which would be interesting and would also be helpful in demonstrating that the role of HYL1 in miRNA biogenesis is direct.

The authors use small RNA sequencing to investigate whether small RNAs are perturbed.

They focus on miRNAs and show that there is a reduction in miRNA levels. This is convincing. However, the authors do not (i) link this to changes in gene expression which might be potentially responsible for the developmental phenotype. (ii) make any analysis of other types of small RNAs.

I would argue that both points are important for the authors' case that HYL1 is a miRNA processing factor that was present in the last eukaryotic common ancestor. It may be that HYL1 is a general DCR partner protein in nematostella and has thus evolved its function in miRNA biogenesis convergently. Furthermore, crucially, the strong developmental phenotype means that changes in miRNAs are possibly secondary to a different function, for example general RNA binding (see below) or a function in endogenous siRNA biogenesis separate from miRNA biogenesis.

The authors experiments that demonstrate binding of the HYL1 to pre-miRNA are useful in that they show HYL1 binds to its hypothesized substrate on the basis of extrapolation from Arabidopsis. However, the authors do not rule out the possibility that HYL1 is a generalized RNA binding protein- this could be tested by some kind of CLIP-seq experiment to assess in an unbiased way the RNA that HYL1 binds to.

– An appraisal of whether the authors achieved their aims, and whether the results support their conclusions.

The authors have certainly demonstrated that miRNAs are affected when HYL1 is removed, but they have not unambiguously determined that HYL1 is directly involved in miRNA processing. Additionally, they have not linked the developmental phenotype to the miRNA processing defects, which means that there is a possibility that the miRNA affects are secondary to another effect of HYL1 on development that alters the miRNA profile profoundly (as many strong developmental perturbations are likely to do).

– A discussion of the likely impact of the work on the field, and the utility of the methods and data to the community.

The demonstration that HYL1 in nematostella is a genuine and specific miRNA processing factor would be really important in redefining how we think of miRNA evolution. It would also be a really striking example of how many mechanisms present in the common ancestor of eukaryotes have been lost in many different lineages. It would therefore be worth this study going a little further to demonstrate that the processing function is direct and specific for miRNAs.

1) Direct demonstration that HYL1 processes miRNAs.

I think that this would be a really important aspect to try to improve in the current manuscript and have two possible suggested experiments:

i) If, instead of knocking down early in development leading to lethality, the authors could introduce knockdown morpholinos later, it might be possible to circumvent the lethality as the developmental problems will be avoided. Then the authors could examine miRNA precursors and mature miRNAs by deep sequencing in organisms over a timecourse of knockdown and potentially without such severe phenotypic effects. They could then be more confident that the influence of HYL1 on miRNA levels is direct.

I appreciate that this may not be technically possible- I am not familiar with the experimental system.

ii) CIPseq against HYL1 to assess in an unbiased way the RNAs that bind- present experiments used qPCR to test presence of miRNA precursors in the IP but this does not rule out the possibility that HYL1 is a general RNA binding protein- there may be other targets that are not directly investigated. Since the authors have already got IP-qPCR to work this should be relatively straightforward to implement. However, the authors should of course not use standard small RNA library preparations from IP RNA because the species will be too long- they should simply use everything and send for a traditional non-polyA total RNAseq. A mock IP without the anti-HYL1 antibody would be important as a control to assess enrichment. This experiment would be a tremendous addition to the paper.

2) A clear link between miRNA dysfunction and developmental phenotype.

This would be a complementary way to try to demonstrate that the effect of HYL1 knockdown on development is through miRNAs. If the authors perform RNAseq over a timecourse of normal and HYL1 knockdown development, they could compare the two to find genes that are differentially expressed. These genes might be miRNA targets, and this could be associated using bioinformatic analysis to test whether the changes are consistent with the alterations in miRNAs observed upon HYL1 knockdown.

3) Another important thing to look at is to examine whether endogenous small RNAs are affected by the knockdown. The authors' model that this is a specific miRNA processing factor would indicate that other classes of small RNAs, including piRNAs and endosiRNAs, will be unaffected or minimally affected. The authors have already generated small RNA sequencing data so this would be straightforward to test.

– Recommendations for improving the writing and presentation.

I'm not sure that the authors should make the bold claim of common evolutionary history of plant and animal miRNA biogenesis in the introduction and abstract. I fully agree that this is an exciting implication, but the paper so far has not demonstrated this- if they were to do some of the experiments above perhaps this would be justified but otherwise it should be placed in the discussion but not elsewhere.

https://doi.org/10.7554/eLife.69464.sa1

Author response

Essential revisions:

1) As pre-discussed, a strengthening of the claim that Hyl1La specifically binds miRNA precursors is needed. If a CLIP experiment is not feasible, a qPCR approach testing more miRNA precursors, but more importantly, non-related transcripts would also be acceptable. We would see testing of 10-12 mRNAs, 10-12 structured RNAs (for instance tRNAs) and a similar number of additional miRNA precursors as an appropriate alternative.

Following the request, we have added qPCR results of three additional miRNA precursors (Figure 5). We understand that this might look like a limited response in light of the reviewers' request for 10-12 miRNA precursors; unfortunately, due to low levels of expression of most miRNAs at the planula life stage in combination with low RNA amounts in immunoprecipitation samples and predicted precursor sequences, we managed to amplify at reasonable levels (i.e., Ct value in the accepted range) only three additional miRNA precursors. miR-2030 and miR-2035-1 show significantly higher expression in Hyl1La immunoprecipitated samples compared to IgG control. In contrast, miR-2029 does not show a significant difference. This can be explained by the expression of miR-2029 in Hyl1La depleted animals that suggests it might not be dependent on Hyl1La for its biogenesis. This notion is further supported by previous results from our lab suggest that miR-2029 responds differently compared to other miRNAs to Dicer1 knockdown in Nematostella (Modepalli et al., 2018, PLOS Genet., 14(8): e1007590), which could point to difference in its biogenesis pathway.

In addition to the three miRNA precursors we managed to test, we attempted to amplify miR-2028, miR-2040b, miR-100 and miR-9414 but were unsuccessful.

We also added RNA sequencing information from immunoprecipitated samples that shows no enrichment for rRNA, mRNA ncRNA and repeat elements in the anti-FLAG samples compared to the IgG control samples (Figure 5 —figure supplement 4A). These results further support the specificity of Hyl1La to miRNA precursors. Unfortunately, due to size distribution limitations of the kit at the heart of this method (SoLo by Tecan; selected for its suitability for ultra-low starting material) it could not cover pre-miRNAs (Figure 5 —figure supplement 4B).

In an additional experiment, we show specific binding of Hyl1La to pre-miRNA by in vitro binding assay (Figure 6). We used miR-2022 backbone to generate a synthetic pre-miRNA that mimics with high similarity the structure of an endogenous pre-miRNA. The targeted sequence was altered to not match any Nematostella genes but mCherry sequence instead. As negative control we used a shuffled version of the synthetic pre-miRNA that does not generate a hairpin secondary structure. Both pre-miRNAs were biotinylated at their 3' end and incubated with lysate containing the Hyl1La-FLAG tagged protein that was over-expressed in injected animals. Pull-down with streptavidin beads followed by Western blot revealed that Hyl1La binds the pre-miRNA hairpin with significantly higher efficiency than the shuffled sequence (Figure 6 C-D), hence supporting the previous results that Hyl1La binds pre-miRNAs in Nematostella in a specific manner.

2) The small RNA analysis needs to be extended to also include piRNAs and siRNAs.

We extended that small RNA analysis to include piRNAs and siRNAs (Figure3 —figure supplement 2). We observed a mild downregulation of siRNAs with 9% of the siRNAs downregulated more than two-fold in HYL1La MO injected animals. piRNAs showed upregulation in Hyl1La depleted animals with 36% of piRNAs upregulated more than two-fold. The effect of Hyl1La depletion on siRNAs could be explained by the involvement of Hyl1La in the siRNA biogenesis pathway in Nematostella. Similar effects of double-stranded RNA binding proteins knockdown on siRNAs levels were reported in Arabidopsis (Curtin et al., 2008, FEBS Letters, 582(18): 2753-60; Raja et al., 2014, Journal of Virology, 88(5): 2611-22). Regarding the upregulation of piRNAs, that could be a result of a sequencing void caused by the depletion of miRNAs and siRNAs, which left more space for piRNAs clustering and representation in the libraries.

Reviewer #1:

This work addresses the function of a Hyl1 homolog of Nematostella in miRNA production. Hyl1 is a protein that was identified in plants, where it stimulates the processing of miRNAs. In animals, Hyl1 is not found, and other RNA binding proteins are in place to help processing of miRNAs by Drosha and Dicer. Linking Hyl1 in Nematostella to miRNA production would support the idea that in the last common ancestor of plants and animals a miRNA-like processing was in place. This contrasts the dominating view that plant and animal miRNA pathways have convergently evolved and would justify a revised view on how plant and animal miRNA pathways have evolved.

To test this, Hyl1La (the Nematostella Hyl1) was knocked down with morpholino oligos (MOs), and the resulting animals were probed for developmental defects and miRNA production. In both defects were observed. Animal development was delayed, and miRNA production dropped. Using RNA-IP-qPCR experiments the authors also address whether Hyl1La binds primary miRNAs or pre-miRNAs, two different maturation steps in the animal miRNA processing pathway. While pri-miRNAs were hardly detected in the IPs, pre-miRNAs were enriched, indicating that Hyl1La binds the intermediate miRNA processing stage, in between Drosha and Dicer cleavages.

The authors also attempt knock-down of Hyl1La by shRNAs but were not successful. This lack of success is hypothesized to relate to a potential role of Hyl1La in shRNA function.

The paper is rather short, but it makes the point that Hyl1La is needed for miRNA production, and as such brings an important piece of data to the discussion on miRNA pathway evolution in plants and animals. Nematostella is also not a model in which extensive manipulations of gene function are easily done, limiting what the authors can realistically do.

Parts of the paper are, however, not completely clear and in one case not consistent with the data that is shown:

– In Figure 3-supplement 1 two additional MOs are tested for knock-down. In the text a translation blocking MO is mentioned (TB) but this does not appear in this figure. It is also not clear if the same control MO is used for this figure compared to Figure 3. And finally, the text states that in this experiment mir-2026-5p was consistent down regulated, but MO1 does not show a significant effect in the figure.

The translation blocking (TB) MO knockdown effect on miRNAs is shown in Figure 3 panel D. The two additional MOs tests appear in Figure 3 – supplement 1 as the reviewer mentioned, and the figure legends describe it appropriately. The Control MO we used was the same for all experiments. We added a clarification for this point in the Materials and methods section (Lines 329-330). Regarding miR-2026 we edited the text (Line 150) following the reviewer's comment.

– The authors do not discuss the miRNAs that are not affected.

We expanded the discussion on the miRNAs that are not affected in lines 154-155.

– The authors mention that Hyl1 in plants is required for accuracy (page 4), but later (page 5) they write "The analysis (of Hyl1La, red) did not reveal any aberrant processing. These results further suggested that like its homolog in plants, Hyl1La in Nematostella…//…is not involved in size selection." These statements appear to be contradictory, assuming that with 'accuracy' miRNA processing sites are implied. This issue also surfaces in the discussion.

We thank the reviewer for the comment. We edited the text in lines 133-135 and added a reference (Szarzynska et al., 2009, Nucleic Acids Res. 37(9)) to emphasize that miRNAs in plants mostly show downregulation following Hyl1 knockdown and only a few of them show aberrant processing.

Finally, the developmental defects are not linked to miRNA defects directly, but they do phenocopy knock-down phenotypes of other miRNA pathway components, such as Dicer.

We agree with the reviewer and believe we conveyed this idea in the text (lines 123-125).

In order to see the similarity of the MO knockdown of Hyl1La it would be good to do a knockdown of Dicer in parallel and compare the phenotypes. Also, the phenotypes shown are at a very zoomed-out level, and some more detail, or more informative images would be helpful.

Following the reviewer's request, we performed knockdown of Dicer1 via Morpholino microinjection and documented the phenotype at 10 days post injection. The microscopy pictures were added to Figure 2. The observed phenotype is similar to what is seen in Hyl1La depleted animals, which do not undergo metamorphosis. In addition, the phenotype is similar to previous knockdown experiments of Dicer1 that were performed by our lab members and previously published (Modepalli et al., 2018, PLOS Genet. 14(8): e1007590).

Moreover, we added a principal component analysis (PCA) describing a meta-analysis comparing the knockdown effect of other miRNA biogenesis components on miRNA profiles (Figure 2G). We show that Hyl1La morphants cluster with Dicer1 and HEN1 morphants, suggesting they have a similar effect on a similar subset of miRNAs. In accordance with this result, AGO1 and AGO2 morphants are the most distant from the other components, which is consistent with their function in loading instead of processing miRNAs. The results from this analysis further support the role of Hyl1La in miRNA biogenesis in a similar manner to Dicer1 and HEN1. Sequencing data from the different knockdown experiments were taken from Modepalli et al., 2018, PLOS Genetics 14(8): e1007590 and Fridrich et al., 2020, Nature Communications, 11(1), 1-12. Notably, the clustering occurs despite the fact the libraries in the different studies were generated with different kits and protocols.

Please include scale bars for all the imaging.

Scale bars were added.

More importantly, the authors propose a role for binding pre-miRNA, and it would be good to substantiate that more.

One thing that could be interesting, and should be relatively straight forward, is to look at the subcellular localization of Hyl1La. One would expect a cytoplasmic localization if it acts with Dicer.

Maybe cytoplasmic lysate can process pre-miRNAs, and this may be impaired in extracts from knock-down animals. This depends on whether this is feasible in terms of amount of material; I cannot judge that, but I can see that may be difficult.

We thank the reviewer for the comment. Please see above our reply to essential revisions section 1. Looking at the subcellular localization is an interesting idea, however, use of this method is currently unavailable in Nematostella and we believe that it is beyond the scope of this paper. Testing the processing of pre-miRNAs by cytoplasmatic lysate would indeed be challenging due to limitations in the number of injected animals.

Third, a Northern blot may help to detect accumulating pre-miRNAs in the knock-down animals (with Dicer knockdown as a control).

Limited amount of pre-miRNA in planulae make the suggested experiment very challenging and we believe it is not mandatory to perform in order to support our claims.

In the discussion the authors dedicate a paragraph to basically a failed experiment: the shRNA knockdown. The model behind that discussion is interesting, but should be tested in my opinion: are the established shRNA knockdowns (that are cited) affected by MO knockdown of Dicer (positive control) and Hyl1La?

We thank the reviewer for the suggestion. Unfortunately, such an experiment would be difficult to perform. First, Dicer and Hyl1La are both maternally deposited in Nematostella. Second, MO injection might trigger immune response as was shown for several bilaterian species such as fish and frogs and this might increase Argonaute activity.

Reviewer #2:

The authors aimed to dissect the miRNA-processing capacity of Nv Hyl1La. The strength of the study is based on the observed developmental defects accompanied by molecular data upon Hyl1La KO. Information about the miRNA target genes that are affected by the Hyl1La-KO are missing as well as biochemical properties of Hyl1La. Working with non-traditional model organisms is challenging but provide a powerful resource for identifying new molecular pathways or revise current perceptions of regulatory mechanisms (i.e., miRNA processing). Cnidaria resemble plant-like miRNA-processing propensities, which have been eluted to in previous studies of the group.

Strength:

– Description of organismal defects upon Hyl1La depletion.

– Successful Hyl1La knockdown by using morpholinos but not shRNAs.

– sRNAseq on Hyl1La knockdown (vs. wild-type).

– Mechanistic information about Hyl1La’s miRNA processing capacity showing that Hyl1La processes pre- but not pri-miRNA (using RIP on FLAG-tagged Hyl1La followed by RT-qPCR)

Weaknesses:

– What are the expression levels of Hyl1Lb upon Hyl1La KD? The authors state that Hyl1Lb is cell-type specifically expressed, which suggests that the role of Hyl1Lb is negligible in this context. That can be easily checked by qPCR using gene-specific primers and would confirm that there are no compensatory effects (e.g., an unexpected gene activation of Hyl1Lb upon Hyl1La KD).

Hyl1Lb is expressed in nematocytes and not throughout the planulae like Hyl1La (Moran et al., 2013, Molecular Biology and Evolution, 30(12): 2541-52). Hence, we believe it is not relevant to test for compensatory effect by it. In addition, since we confirmed through sequencing that most miRNA levels are significantly decreased upon Hyl1La knockdown, it is most likely that there is no compensation by Hyl1Lb for the depletion of Hyl1La.

– Missing explanation why only a few miRNAs were detectable in Nv by using sRNAseq. Is this a technical (e.g., low input material, missing step to demethylate 3'ends of Nv sRNAs) or biological (e.g., primitive miRNA machinery with only a few genes that would give rise to miRNAs) issue?

The topic of miRNA expression in the early stages of Nematostella life cycle has been thoroughly studied before (Grimson et al., 2008, Nature 455: 1193–1197; Moran et al., 2014, Genome Research, 24(4): 651-663; Modepalli et al., 2018, PLOS Genetics 14(8): e1007590). miRNA expression is difficult to identify without first performing Ago immunoprecipitation (Fridrich et al., 2020, Nature communications, 11(1): 1-12), while the class of piRNAs is very abundant. In addition, the miRNAs that are expressed at this stage are at low levels (Moran et al., 2014, Genome Research, 24(4): 651-663; Modepalli et al., 2018, PLOS Genetics 14(8): e1007590).

– More comprehensive analysis of the sRNAseq data is required. Information is missing regarding the RNA type to which the entire sRNA population maps. That would explain the shift of sRNA population from 22nt to 28-30nt (Figure 3A) and also why some sRNAs remain unaffected by the Hyl1La-KD (Figure 3B – those on the regression line), e.g. these larger sRNAs could be tRNA or rRNA fragments that are processed in a Hyl1La-independent manner.

Following the reviewer's comment, we added analysis of piRNAs (28-30 nt), which is described in section 2 of the essential revisions. piRNAs are highly abundant in Nematostella and can be found in somatic cells in early developmental stages (Praher et al., 2017, RNA Biology, 14(12): 1727-1741). Regarding unaffected sRNAs, as mentioned in section 1 of our reply to the essential revisions and in the paper, some miRNAs such as miR-2029 might be Dicer1- and Hyl1La-independent in their biogenesis process.

– Statements about the comparisons regarding plant HYL1 processing needs to be corrected. E.g. Wu et al. 2007 (doi.org/10.1105/tpc.106.048637) stated that AtHYL1 is involved in pre-miRNA processing.

We are not sure we understand what the reviewer means exactly in their comment. We do not imply in the paper that AtHYL1 is not involved in the processing of pre-miRNAs. To the best of our knowledge, HYL1 in plants is involved both in cropping of pri-miRNAs and dicing of pre-miRNAs. We made sure again that this is the message we deliver in our manuscript, and we added the reference mentioned by the reviewer.

Reviewer #3:

[…]

1) Direct demonstration that HYL1 processes miRNAs.

I think that this would be a really important aspect to try to improve in the current manuscript and have two possible suggested experiments:

i) If, instead of knocking down early in development leading to lethality, the authors could introduce knockdown morpholinos later, it might be possible to circumvent the lethality as the developmental problems will be avoided. Then the authors could examine miRNA precursors and mature miRNAs by deep sequencing in organisms over a timecourse of knockdown and potentially without such severe phenotypic effects. They could then be more confident that the influence of HYL1 on miRNA levels is direct.

I appreciate that this may not be technically possible- I am not familiar with the experimental system.

ii) CIPseq against HYL1 to assess in an unbiased way the RNAs that bind- present experiments used qPCR to test presence of miRNA precursors in the IP but this does not rule out the possibility that HYL1 is a general RNA binding protein- there may be other targets that are not directly investigated. Since the authors have already got IP-qPCR to work this should be relatively straightforward to implement. However, the authors should of course not use standard small RNA library preparations from IP RNA because the species will be too long- they should simply use everything and send for a traditional non-polyA total RNAseq. A mock IP without the anti-HYL1 antibody would be important as a control to assess enrichment. This experiment would be a tremendous addition to the paper.

We understand the reviewer's request for a direct demonstration that Hyl1La processes miRNAs. We added sequencing results from Hyl1La IP samples that show no enrichment for other RNA molecules (Figure 5 – supplement 4) (see reply to essential revisions section 1). We also conducted an in vitro binding assay to show Hyl1La specific binding to pre-miRNA structures (Figure 6). In addition, our meta-analysis of miRNA profiles following knockdown of other miRNA biogenesis components shows clustering of Hyl1La morphants with Dicer1 and HEN1, which suggests they are involved in miRNA biogenesis in a similar manner. Together with our previous results and the new qPCR results for additional miRNAs we believe that we have a set of findings that support the notion that Hyl1La is involved in miRNA biogenesis in Nematostella. Regarding the suggestion to perform Hyl1La knockdown in adults, unfortunately it is currently technically impossible in Nematostella as there is no efficient method of delivery into adult Nematostella tissues.

2) A clear link between miRNA dysfunction and developmental phenotype.

This would be a complementary way to try to demonstrate that the effect of HYL1 knockdown on development is through miRNAs. If the authors perform RNAseq over a timecourse of normal and HYL1 knockdown development, they could compare the two to find genes that are differentially expressed. These genes might be miRNA targets, and this could be associated using bioinformatic analysis to test whether the changes are consistent with the alterations in miRNAs observed upon HYL1 knockdown.

We thank the reviewer for the comment. In previous publications we show that we tried to test the expression of miRNA targets following Argonaute knockdowns and got a complex picture (Fridrich et al., 2020, Nature communications, 11(1): 1-12). In that set of experiments targets did not show expected behavior and other genes were affected. Notably, this is likely due to the fact that some miRNA targets in Nematostella are transcription factors such as Hox D and Six3/6 which were shown to play pivotal roles in Nematostella development (He et al. 2018 Science 361(6409): 1377-1380 Sinigaglia et al. 2013 PLOS Biology 11(2):e1001488.), hence regulating a complex network of downstream developmental effects. Therefore, the picture we get with such an experiment is not clear enough to show the direct effect of miRNA depletion on their targets. In addition, an experiment such as described will require enormous amounts of work we believe it is beyond the scope of this paper.

3) Another important thing to look at is to examine whether endogenous small RNAs are affected by the knockdown. The authors' model that this is a specific miRNA processing factor would indicate that other classes of small RNAs, including piRNAs and endosiRNAs, will be unaffected or minimally affected. The authors have already generated small RNA sequencing data so this would be straightforward to test.

Following this request, we extended the small RNA analysis to include piRNAs and siRNAs (please see reply to essential revisions section 2)

– Recommendations for improving the writing and presentation.

I'm not sure that the authors should make the bold claim of common evolutionary history of plant and animal miRNA biogenesis in the introduction and abstract. I fully agree that this is an exciting implication, but the paper so far has not demonstrated this- if they were to do some of the experiments above perhaps this would be justified but otherwise it should be placed in the discussion but not elsewhere.

After carefully comparing our claims to the claims made by others in the miRNA field promoting the opposite view and the available evidence they use, we respectfully disagree regarding this point made by the reviewer. We believe that we are cautious enough in our claims about the homology and role of Hyl1La in Nematostella and that the presentation of our study is balanced in its current form.

https://doi.org/10.7554/eLife.69464.sa2

Article and author information

Author details

  1. Abhinandan M Tripathi

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft
    Contributed equally with
    Yael Admoni
    Competing interests
    No competing interests declared
  2. Yael Admoni

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing – original draft
    Contributed equally with
    Abhinandan M Tripathi
    Competing interests
    No competing interests declared
  3. Arie Fridrich

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Formal analysis, Investigation, Validation, Visualization, Writing – review and editing
    Contributed equally with
    Magda Lewandowska and Joachim M Surm
    Competing interests
    No competing interests declared
  4. Magda Lewandowska

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Formal analysis, Investigation, Validation, Visualization, Writing – review and editing
    Contributed equally with
    Arie Fridrich and Joachim M Surm
    Competing interests
    No competing interests declared
  5. Joachim M Surm

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Writing – review and editing
    Contributed equally with
    Arie Fridrich and Magda Lewandowska
    Competing interests
    No competing interests declared
  6. Reuven Aharoni

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
  7. Yehu Moran

    Department of Ecology, Evolution and Behavior, Alexander Silberman Institute of Life Sciences, Faculty of Science, The Hebrew University of Jerusalem, Jerusalem, Israel
    Contribution
    Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Writing – original draft
    For correspondence
    yehu.moran@mail.huji.ac.il
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9928-9294

Funding

H2020 European Research Council (637456)

  • Yehu Moran

H2020 European Research Council (863809)

  • Yehu Moran

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank Dr Michal Bronstein and Mrs Adi Turjeman of the Centre for Genomic Technologies (The Hebrew University) for their help with sequencing.

Senior Editor

  1. Detlef Weigel, Max Planck Institute for Biology, Tübingen, Germany

Reviewing Editor

  1. René Ketting, IMB Mainz, Germany

Reviewer

  1. Rene F Ketting, Institute of Molecular Biology, Germany

Publication history

  1. Preprint posted: May 31, 2020 (view preprint)
  2. Received: April 15, 2021
  3. Accepted: March 14, 2022
  4. Accepted Manuscript published: March 15, 2022 (version 1)
  5. Version of Record published: May 12, 2022 (version 2)

Copyright

© 2022, Tripathi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 987
    Page views
  • 135
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Abhinandan M Tripathi
  2. Yael Admoni
  3. Arie Fridrich
  4. Magda Lewandowska
  5. Joachim M Surm
  6. Reuven Aharoni
  7. Yehu Moran
(2022)
Functional characterization of a ‘plant-like’ HYL1 homolog in the cnidarian Nematostella vectensis indicates a conserved involvement in microRNA biogenesis
eLife 11:e69464.
https://doi.org/10.7554/eLife.69464

Further reading

    1. Ecology
    2. Evolutionary Biology
    Dakota E McCoy, Benjamin Goulet-Scott ... John Kartesz
    Tools and Resources

    Sustainable cities depend on urban forests. City trees-pillars of urban forests - improve our health, clean the air, store CO2, and cool local temperatures. Comparatively less is known about city tree communities as ecosystems, particularly regarding spatial composition, species diversity, tree health, and the abundance of introduced species. Here, we assembled and standardized a new dataset of N=5,660,237 trees from 63 of the largest US cities with detailed information on location, health, species, and whether a species is introduced or naturally occurring (i.e., 'native'). We further designed new tools to analyze spatial clustering and the abundance of introduced species. We show that trees significantly cluster by species in 98% of cities, potentially increasing pest vulnerability (even in species-diverse cities). Further, introduced species significantly homogenize tree communities across cities, while naturally occurring trees (i.e., 'native' trees) comprise 0.51%-87.3% (median=45.6%) of city tree populations. Introduced species are more common in drier cities, and climate also shapes tree species diversity across urban forests. Parks have greater tree species diversity than urban settings. Compared to past work which focused on canopy cover and species richness, we show the importance of analyzing spatial composition and introduced species in urban ecosystems (and we develop new tools and datasets to do so). Future work could analyze city trees and socio-demographic variables or bird, insect, and plant diversity (e.g., from citizen-science initiatives). With these tools, we may evaluate existing city trees in new, nuanced ways and design future plantings to maximize resistance to pests and climate change. We depend on city trees.

    1. Evolutionary Biology
    2. Genetics and Genomics
    Laura Katharine Hayward, Guy Sella
    Research Article

    Polygenic adaptation is thought to be ubiquitous, yet remains poorly understood. Here, we model this process analytically, in the plausible setting of a highly polygenic, quantitative trait that experiences a sudden shift in the fitness optimum. We show how the mean phenotype changes over time, depending on the effect sizes of loci that contribute to variance in the trait, and characterize the allele dynamics at these loci. Notably, we describe the two phases of the allele dynamics: The first is a rapid phase, in which directional selection introduces small frequency differences between alleles whose effects are aligned with or opposed to the shift, ultimately leading to small differences in their probability of fixation during a second, longer phase, governed by stabilizing selection. As we discuss, key results should hold in more general settings, and have important implications for efforts to identify the genetic basis of adaptation in humans and other species.
