A coupled mechano-biochemical model for cell polarity guided anisotropic root growth

  1. Marco Marconi
  2. Marcal Gallemi
  3. Eva Benkova
  4. Krzysztof Wabnik  Is a corresponding author
  1. Centro de Biotecnología y Genómica de Plantas, Universidad Politécnica de Madrid (UPM)—Instituto Nacional de Investigación y Tecnología Agraria y Alimentaria (INIA), Spain
  2. Institute of Science and Technology (IST), Austria

Abstract

Plants develop new organs to adjust their bodies to dynamic changes in the environment. How independent organs achieve anisotropic shapes and polarities is poorly understood. To address this question, we constructed a mechano-biochemical model for Arabidopsis root meristem growth that integrates biologically plausible principles. Computer model simulations demonstrate how differential growth of neighboring tissues results in the initial symmetry-breaking leading to anisotropic root growth. Furthermore, the root growth feeds back on a polar transport network of the growth regulator auxin. Model, predictions are in close agreement with in vivo patterns of anisotropic growth, auxin distribution, and cell polarity, as well as several root phenotypes caused by chemical, mechanical, or genetic perturbations. Our study demonstrates that the combination of tissue mechanics and polar auxin transport organizes anisotropic root growth and cell polarities during organ outgrowth. Therefore, a mobile auxin signal transported through immobile cells drives polarity and growth mechanics to coordinate complex organ development.

Editor's evaluation

The authors have created the first detailed model combining the mechanics of root growth with the dynamic regulation of auxin transport and patterning. Their novel model is capable of explaining the anisotropic longitudinal growth of plant roots and the complicated patterns of polarized auxin transport underlying auxin patterning.

https://doi.org/10.7554/eLife.72132.sa0

Introduction

Plants are remarkable organisms because they can successively produce new organs from stem cell reservoirs, and adapt to the dynamic changes in the environment. For example, Arabidopsis thaliana roots show coordinated growth involving local interactions between adjacent non-mobile cells to sustain the optimal exploration of soil-derived resources (O’Brien et al., 2016), and to provide water and mineral absorption as well as stability on the ground (Chapman et al., 2012). The root elongates along the principal direction of growth (referred to as the anisotropy) during the late stages of embryogenesis but the mechanisms underlying the emergence of root growth anisotropy are poorly understood (Bou Daher et al., 2018).

Root maturates following a sequence of asymmetric cell divisions and cell expansion that involves the growth regulator auxin (Adamowski and Friml, 2015). Auxin is transported in a directional (polar) manner (Wisniewska et al., 2006) that requires the polar subcellular localization of the PIN-FORMED (PIN) auxin efflux carriers (Adamowski and Friml, 2015; Benková et al., 2003). Subsequently, auxin controls cell elongation through weakening or stiffening of the cell walls depending on threshold concentrations (Barbez et al., 2017; Majda and Robert, 2018).

In general, cell growth is associated with changes in cytoskeleton components, such as cortical microtubules (CMTs), actin, and cell wall elements (Adamowski et al., 2019; Siegrist and Doe, 2007). Among those, CMTs integrate mechanical stresses (Hamant et al., 2019; Hamant and Haswell, 2017) into dynamic cytoskeleton rearrangements, constraining the directional trafficking of membrane proteins, small signaling molecules, and cell wall building components (Adamowski et al., 2019; Siegrist and Doe, 2007).

This complexity of root growth mechanisms has long attracted theoreticians on the quest to identify its underlying principles. In the last decade, several computational models of root development yielded important insights into auxin-dependent growth and zonation of mature roots (Morales-Tapia and Cruz-Ramírez, 2016; Rutten and Ten Tusscher, 2019; Wabnik et al., 2011). Yet, these models typically incorporate pre-defined patterns of polar auxin flow on idealized geometries (e.g. cell grids)(Band et al., 2014; Grieneisen et al., 2007; Mähönen et al., 2014; Mironova et al., 2010; Wabnik et al., 2013) and rarely integrate growth mechanics (De Vos et al., 2014; Fozard et al., 2013; Jensen and Fozard, 2015). The major challenge is, however, to identify the elusive mechanisms that generate initial symmetry breaking, leading to anisotropic root growth and the establishment of a sophisticated polar auxin transport network. Despite numerous experimental and modeling studies, this issue remains largely unaddressed.

A comprehensive approach to tackle these challenges should accommodate both biochemical and biomechanical aspects of early organ growth at cellular resolution, but so far this has represented a major challenge in both plant and animal modeling fields (Delile et al., 2017; Fletcher et al., 2014; Heisler et al., 2010).

Here, we address the problem of anisotropic root growth and cell polarity patterning using an advanced computer modeling strategy that combines growth mechanics with biochemical transport at single-cell resolution. Our model is based on a set of biologically plausible principles and is capable of recapitulating the establishment of root meristem anisotropic elongation through auxin-dependent root growth, tissue biomechanics, and polar auxin transport network from the small population of non-polar differentiated cells.

Results

Anisotropic root growth results from the differential expansion of neighboring tissues

Plant embryogenesis follows the fertilization of the egg, and successive formation of the zygote (Park and Harada, 2008). Initially, the zygote contracts transiently to later elongate, setting the embryonic axis within a few hours; after several cell divisions, the aerial and root parts are already clearly distinguishable (Kimata et al., 2016). The stem cell niche is initiated during the ‘heart’ developmental stage (ten Hove et al., 2015).

Therefore, we chose this stage for the construction of the computer model of the root meristem as it provides an ideal starting point for the entire organ establishment, assuming uniform growth and non-polar distribution of auxin transporters and a set of differentiated cells. By digitizing the confocal microscopy images of the heart-stage of A. thaliana embryo, we build 2D cellular meshes with MorphoGraphX (Barbier de Reuille et al., 2015; Figure 1—figure supplement 1). To model the pure growth mechanics at a single-cell resolution, we used these meshes at the start of each simulation. We implemented the organ growth framework based on Position-based Dynamics (PBD), a modeling technique adapted from computer graphics (Müller et al., 2007; Marconi and Wabnik, 2021a; Marconi and Wabnik, 2021b, Figure 1—figure supplement 2A). PBD approximates physical forces using a set of growth constraints (Müller et al., 2007). These constraints reproduce internal turgor pressure, viscoelastic behavior of plant cell walls, and mechanical deformation (strain) (Figure 1—figure supplement 2B; see Materials and methods section for PBD details). Because these constraints are sequentially projected over the vertices of the 2D meshes by directly updating the position of vertices, the PBD method avoids the slow numerical time integration step used in classical force-based methods (Müller et al., 2007). Thus PBD is faster and more stable than other physically based approaches such as mass-spring systems (Müller et al., 2007) or finite element methods (FEM)(Bidhendi and Geitmann, 2018; Fayant et al., 2010), and therefore ideally suited for complex organ modeling at cellular resolutions. This numerical stability of PBD is critical when dealing with growing entities and expanding complexities. Another important advantage of using PBD is that this method can be explicitly defined on a single-cell or even subcellular level which remains a major challenge for continuous mechanics FEM-based approaches (Boudon et al., 2015).

We explored through mechanical model simulations the potential mechanisms of anisotropic root growth which have remained unknown until now. Recent studies suggest that differential cell growth produced by mechanical interactions may regulate organogenesis independently from genetic control, and potentially feedback on it. Some examples include Arabidopsis trichomes emerging from sepals (Hervieux et al., 2017) or the tomato shoot apical meristem (Kierzkowski et al., 2012). Interestingly, in the hypocotyl, the CMT array is transversely oriented to the hypocotyl growth axis during the elongation phase and longitudinally oriented when elongation stops (Le et al., 2005). Despite these observations, we still lack a mechanistic understanding of CMTs, actin, and cell wall component together regulate anisotropy which limits detailed modeling of individual components of the cytoskeleton network. Modeling each of these components separately would require the integration of a large number of biological properties, most of which are poorly understood. To avoid additional complexities, we decided to approximate the outcome of processes involved in cytoskeleton dynamics by an abstract ‘anisotropy factor’ (AF). In the model, the AF denotes the tendency of the cell to grow anisotropically and can be reoriented through the action of external stimuli or forces. Explicitly, the AF reorientation follows cell deformation, creating a feedback mechanism that further reinforces the anisotropic growth (see Materials and methods for more details, Position-based dynamics implementation).

We then hypothesized that perhaps differential growth of tissues at the root-shoot interface (RSI) during late embryogenesis could potentially trigger initial symmetry breaking, leading to anisotropic root growth (Figure 1A–B). To test this hypothesis, we performed model simulations first by assuming uniform growth of root and RSI (Figure 1A, Figure 1—video 1). In this scenario, we could only observe the strong isotropic growth at the basal part of the embryo (BPE) (Figure 1A). Anisotropy-generating elements such as CMTs are typically perpendicular to the maximal growth direction (Hamant et al., 2019), yet, the lack of any mechanical growth restriction leads to isotropic deformation. In contrast, faster growth of the BPE compared to the adjacent embryonic tissues yields a strong anisotropic expansion (Figure 1B and Figure 1—video 1). The plausible explanation for this is that a slowly growing RSI prevents the expansion of the faster-growing BPE in the radial direction; the BPE gradually enlarges longitudinally, generating deformation (strain). Then, this deformation feeds back on the BPE growth, creating the desired anisotropy. We tested these model predictions by quantifying the growth increase over 6 hr in radicle and hypocotyl of young seedlings using time-lapse confocal microscopy imaging (Figure 1C; Zhu et al., 2019). Indeed, the emerging root radicle grew ~4 x faster than the adjacent hypocotyl (Figure 1D) in the initial outgrowth phase which further supports our model.

Figure 1 with 5 supplements see all

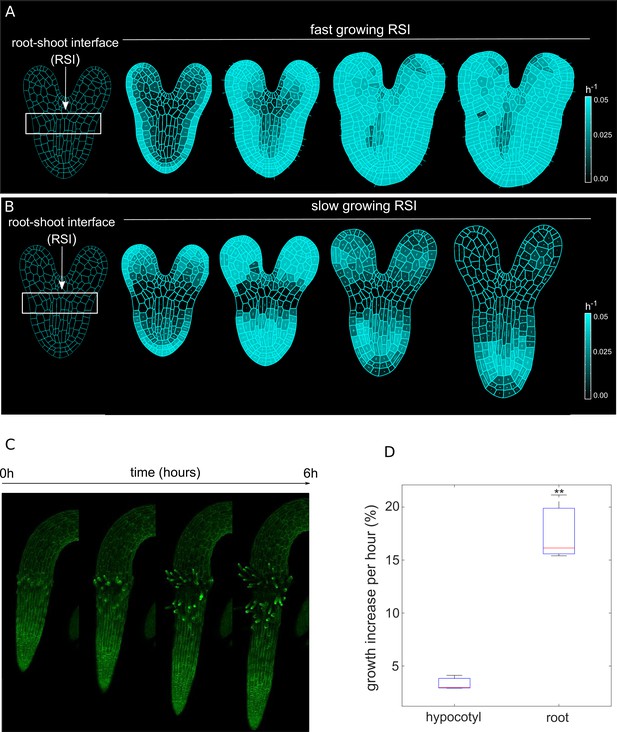

Differential cell growth at the RSI produces the emergent anisotropic expansion of the root.

(A, B) Simulated root growth mechanics with uniform growth rates at the RSI (A). The RSI and the root are allowed to grow at the same rate, producing an isotropic growth pattern. (B) Simulated root outgrowth by assuming differential growth rate at the RSI. The root grows anisotropically since the growing cell deformation causes the gradual AF stabilization orthogonal to this deformation. All the cells are allowed to grow at the same rate (purely mechanical model). Simulations have been run for 300 time steps. The white lines represent the principal directions of growth. (C) Screenshots from time-lapse imaging of growing radicle with PIP-GFP plasma membrane marker (Zhu et al., 2019) for a total time of 6 hr (six time points). (D) Size increase per hour (in %) for adjacent organs radicle (root) and hypocotyl quantified from the time-lapse confocal imaging of three independent plants (n = 3). **p-value = 0.0015 a one-way ANOVA with post-hoc Tukey’s HSD.

To further confirm that growth anisotropy indeed emerges from differential growth rates, and not from an existing conflict of growth direction, we quantified the degree of cellular anisotropy in both scenarios and found that anisotropy forms gradually without predominant growth conflicts, but is rather dictated by differential growth at the RSI (Figure 1—figure supplement 3). Finally, we tested the robustness of the model by relaxing the differential growth assumption during the late outgrowth stimulation (Figure 1—figure supplement 4). After a short period of growth after which the anisotropy is established, the organ is still capable of maintaining anisotropic elongation even if differential growth at the RSI is abolished (Figure 1—figure supplement 4). This result further strengthens the notion that the differential growth between adjacent tissues is, in principle, sufficient to generate root growth anisotropy.

In summary, model simulations and experiments jointly suggest that anisotropic root growth results from differential growth rates of neighboring tissues. This oriented growth further restricts root elongation, primarily along the longitudinal axis.

Organ growth patterns arise through the interplay between anisotropic growth and polar auxin flow

Our purely mechanical growth model suggests that differential growth at the RSI could trigger anisotropic root growth (Figure 1). In A. thaliana root, cellular auxin levels play a key role in regulating growth, and auxin levels can be tuned through intercellular transport, involving auxin influx and efflux carriers (Adamowski and Friml, 2015). While auxin influx carriers of the AUX/LAX family are typically uniformly distributed around the cell membranes (Kleine-Vehn and Friml, 2008), PIN auxin efflux carriers show polar subcellular localization in the root that directs the auxin flow rootward or shootward (Wisniewska et al., 2006). Also, PIN proteins are prominent markers of cell polarity that continuously recycle between the plasma membrane and endosomal compartments (Kleine-Vehn et al., 2011). The mechanisms underlying PIN trafficking are still poorly understood, however, chemical treatments of actin, microtubules, and cell wall components with disruptive agents suggest the involvement of these cytoskeleton components in the regulation of PIN polar trafficking (Baskin, 2005; Kleine-Vehn et al., 2008; Feraru et al., 2011).

The coexistence of growth polarity and dominant PIN localization in many roots cells suggests that growth anisotropy and PIN polarity may be mechanistically entangled as previously shown for the shoot apical meristem (Heisler et al., 2010). Because tissue mechanics control growth anisotropy it is plausible to conceive possible feedback on PIN polarity that modulates deposition of the cell wall and cytoskeleton components (Braybrook and Peaucelle, 2013; Feraru et al., 2011; Heisler et al., 2010). Based on these experimental observations, we thought of a scenario where the AF restricts the axis along which PINs are delivered. This would recreate the correlation between anisotropic growth and PIN localization, but it would not determine the preferential direction (rootward, shootward, or lateral) of auxin flow. Therefore, to define the actual direction of auxin movement in our model other mechanisms of likely biochemical nature are required.

Auxin modulates the trafficking of PIN proteins in a feedback-dependent manner by a yet unknown molecular mechanism (Adamowski and Friml, 2015; Narasimhan et al., 2021). Several theories for the establishment of PIN polarities have been proposed, i.e. through sensing the net auxin flux through the cell (Feugier and Iwasa, 2006; Mitchison, 1997; Rolland-Lagan and Prusinkiewicz, 2005; Stoma et al., 2008), auxin concentrations (Jönsson et al., 2006; Merks et al., 2007; Smith et al., 2006; Wabnik et al., 2010), the auxin gradient inside the cell (Kramer, 2009) or their combination (Cieslak et al., 2015). We tested scenarios of the auxin effect on its PIN-mediated transport using two scenarios that were integrated into the mechanical growth model (Figure 1) and are compatible with recent experimental observations (Narasimhan et al., 2021).

In the first scenario, cells would sense auxin flux through the membrane (also called ‘with-the-flux model’)(Feugier and Iwasa, 2006; Mitchison, 1997; Rolland-Lagan and Prusinkiewicz, 2005; Stoma et al., 2008) and adjust PIN allocation to the plasma membrane in a positive feedback-dependent manner (Figure 2—figure supplement 1A, B). Despite that, the exact molecular mechanism behind auxin flux sensing is to be demonstrated and it may involve membrane-associated protein kinases (Hajný et al., 2020; Marhava et al., 2018; Michniewicz et al., 2007). Therefore, we explored a second scenario for PIN polarization that we named ‘regulator-polarizer’ (Figure 2—figure supplement 1C, D). The regulator-polarizer model implements a potential mechanism behind auxin flux sensing (Feugier and Iwasa, 2006; Mitchison, 1997; Rolland-Lagan and Prusinkiewicz, 2005; Stoma et al., 2008). Briefly, a putative regulator (i.e. a general phosphatase [Michniewicz et al., 2007]) detects auxin passing through a plasma membrane, it becomes activated and freely diffuses in the plasma membrane. This regulator inhibits a polarizer (e.g. a dedicated protein kinase that phosphorylates PIN Hajný et al., 2020; Michniewicz et al., 2007) that in turn activates PINs. Therefore, at the side where the concentration of regulator is high enough to overcome the polarizer, no PINs are recruited.

Our model combines exo- or endocytosis and lateral diffusion of PIN proteins into one general trafficking term, which is a crude simplification required to reduce model complexities (see Materials and methods for more details, Auxin transport module description). However, to incorporate quantitative data in the model, PIN recruitment parameters were fitted to the experimentally derived kinetics of PIN trafficking after cell division (Figure 2K; Glanc et al., 2018). Currently, we do not distinguish in our model between different PIN families (Sauer and Kleine-Vehn, 2019), instead, all PINs are distributed according to one of the two PIN polarization scenarios (Figure 2—figure supplement 1). The only exception to this general rule is that PINs in the columella are distributed uniformly among membrane sections, to reproduce the observed PIN3 distribution (Friml et al., 2002). Given that maximal PINs abundance threshold is the same for all cell types, the fact that columella cells redistribute PINs over the totality of the membrane and not to a specific polar section causes lower overall PINs levels when compared to experimental observations (Blilou et al., 2005). Other assumptions of our model are the uniform distribution of AUX/LAX carriers (Swarup et al., 2001) in all cell types, and the omission of other transporters such as ABCB transporters (Cho and Cho, 2013).

Figure 2 with 9 supplements see all

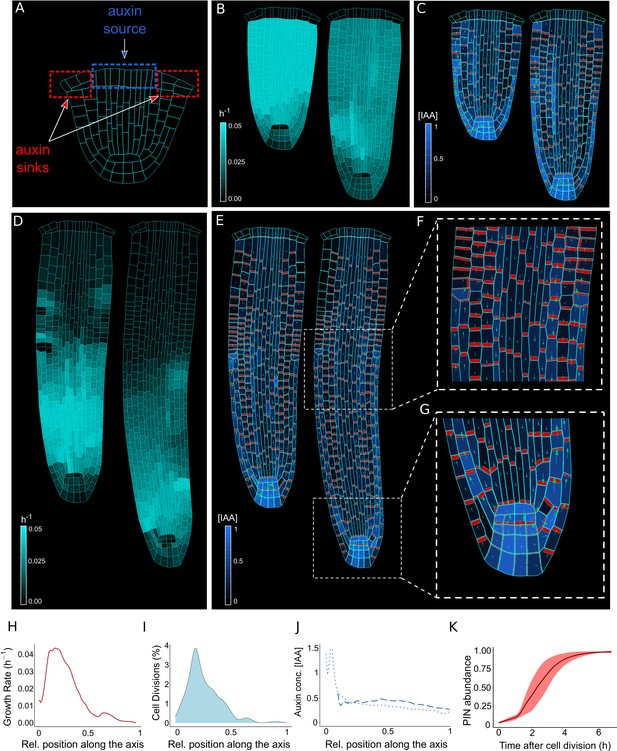

The model reproduces realistic root meristem geometry, auxin distribution, and PINs polar localizations using auxin flux scenario.

(A) Initial embryonic set point. Locations of auxin influx (auxin source, blue) and evacuation (auxin sinks, red) from the embryo are shown. (B, D) Model simulations predict a time evolution of cell growth rates (bright cyan color) and principal growth directions (white lines). Ongoing cell division events are marked by black regions. (C, E) Dynamics of auxin distribution (blue color), auxin flow direction (arrows,) and PIN localizations (red). (F, G) Zoom on basal meristem (F) and root apical meristem (G). The model correctly reproduces very detailed PINs localizations including bipolar PIN2 localization in the cortex (F). (H–J) Profiles of average values of interest across all cell files along the longitudinal axis. (H) Growth rate profile along the root axis. The fastest-growing region is located in the apical meristem as observed experimentally (Bassel et al., 2014). (I) Cell division frequencies along the root axis. The majority of cell divisions occur in the apical meristem. (J) Auxin concentration in the vascular tissues (dashed blue line) and auxin concentration in the non-vascular tissues (external tissues and the root tip, dotted blue line) along the root axis. Most of the auxin is concentrated in the root tip as observed in experiments (Overvoorde et al., 2010). Time-lapse profile of PINs re-localization on the membranes after cell division event. PINs re-localization is completed in approximately 5–6 hr after cell division (Glanc et al., 2018). All simulations have been run until 1500 time steps were reached.

Previous modeling attempts combined auxin transport with tissue mechanics to explain a unidirectional PIN polarity pattern associated with the shoot apical meristem but operated on static non-growing templates (Heisler et al., 2010). However, such models have never been applied to root development, in particular in an organ growth context. We combined the biomechanical model (Figure 1) and the polar auxin transport component into a coherent mechanistic framework (Figure 2—figure supplement 2, Figure 2—figure supplement 3), and tested whether this framework is capable of generating the complex PIN polarity network and sustained anisotropic root growth.

Computer model simulations track the growth of the basal part of the embryo (immature root) connected to the aerial segment of the plant embryo (Figure 2A). Auxin is introduced into the vascular tissues and exits through the epidermis (Figure 2A, Figure 2—figure supplement 2B), allowing auxin recycling between the emerging root and the rest of the embryo. This assumption is necessary to recreate a continuous flow of auxin inside the root as observed experimentally (Möller and Weijers, 2009). The amount of auxin produced by the source cells does not increase during the simulation; therefore the smaller initial roots contain higher auxin concentrations compared to longer more mature roots, to account for potential hormone dilatation effects in later developmental stages. As the internal turgor pressure balances the cell walls stiffness, auxin at low-to-intermediate concentrations can disrupt this balance by reducing the stiffness of the cell walls, thereby promoting cell wall elongation (Majda and Robert, 2018; Figure 2B, Figure 2—figure supplement 2C). The cell growth rate is regulated by homogenous intracellular auxin concentrations by relaxing the stiffness of the entire cell wall. Auxin however does not directly affect cell growth anisotropy, which is instead determined by growth mechanics (Figure 1).

Cell division follows a simple but effective rule: each cell possesses a maximum area attribute so that when a cell reaches a certain threshold it divides into two daughter cells (Figure 2—figure supplement 2D). The maximum area is specific for each cell type, so that cell size is maintained consistently for each cell lineage. The orientation of cell division is by default anticlinal and occurs along a division vector passing through the cell centroid and parallel to the AF (Figure 2—figure supplement 2D). The time scales of the Quiescent Center (QC) and columella cell growth are very long and these cells divide infrequently (Kumpf and Nowack, 2015). To simplify assumptions in our model, neither QC nor columella cells grow or divide.

Time-lapse model simulations predicted the anisotropic auxin-dependent root growth (Figure 2B and D) with a growth rate peak located in the apical root meristem (Figure 2H) in close agreement with experimental observations(see Figure 2 in Bassel et al., 2014). Furthermore, growth anisotropy (Figure 2D and Figure 2—figure supplement 4) and associated cell division patterns (Figure 2I) correlate with the predicted auxin distributions (Figure 2C, E and J), producing auxin-guided anisotropic growth and polar pattern of PIN localization (Figure 2G, Figure 2—figure supplement 5G, Figure 2—videos 1 and 2), in both PIN polarization scenarios (Figure 2—figure supplement 2E). The predicted auxin maximum forms close to the QC (Figure 2G and J) and represents the equilibrium between auxin reaching the root tip from the vascular tissues and auxin leaving the root tip to the outermost tissues. Previous evidence showed that this position of auxin maximum is necessary for the correct organization of the meristem (Petersson et al., 2009).

Nevertheless, to maintain a correct shape of the root tip additional assumptions were necessary to regulate the cells belonging to the stem cell niche, which are known to follow alternative division rules (Fisher and Sozzani, 2016), cortex/endodermis initial daughter(CEID) cells and the epidermis/lateral root cap initials divide periclinal and alternatively anticlinal/periclinal, as previously described (Choi and Lim, 2016). We tested the importance of this experimentally-supported assumption by demonstrating that in its absence the model produced an incorrect pattern of cell divisions in ground tissues and altered root morphology (Figure 2—figure supplement 6).

Our combined mechano-biochemical model was able to reproduce a complex PIN polarization network from an initially non-polar scenario (Figure 2E–G, Figure 2—figure supplement 5E-G and Figure 2—videos 1 and 2). This dynamic network includes rootward PIN localization in vascular tissues and shootward localization in the outermost epidermis that closely follow experimentally observed patterns (see Figure 1 in Blilou et al., 2005 and Figure 2 in Tanaka et al., 2006).

The model predicts that PIN polarity patterns emerge from mechanical constraints, auxin flow, and auxin-mediated growth – likely the elements of the same feedback mechanism. To further illustrate this entanglement between mechanics and biochemical components, we tested the importance of AF for PIN trafficking (Figure 2—figure supplement 7). We simulated an alternative model version in which AF was completely removed from the factors regulating PIN trafficking (since the beginning of the simulation). For both the ‘auxin flux (Figure 2—figure supplement 7A, B) and the ‘regulator-polarizer’ (Figure 2—figure supplement 7C, D) scenarios, the absence of mechanical constraints regulating PIN localization results in incorrect auxin/PIN distribution, with the disappearance of the auxin maximum and a general lack of PIN polarity. This important finding suggests a strong involvement of mechanical deformation in the root cell polarity patterning mechanisms.

Another intriguing emergent property of the model was the bidirectional (shootward and rootward) ‘bipolar’ localization of PIN proteins in the cortex tissues (Figure 2F and Figure 2—figure supplement 5F) in the transition region that is marked by the termination of lateral root cap (LRC). This ‘bipolar’ PIN localization in the cortex has been previously observed in experiments close to the transition zone (Ötvös et al., 2021; Sauer et al., 2006). Yet, the function of this phenomenon remains largely unknown. Model simulations suggest that the bipolar cortex PIN localization is likely the result of the conflict between the shootward auxin flow from LRC/epidermis and the rootward auxin flow in the vascular tissues (Figure 2F and Figure 2—figure supplement 5F). However, we observed a subtle difference between the ‘auxin-flux’ (Figure 2F) and the ‘regulator-polarizer’ (Figure 2—figure supplement 5F) scenarios regarding the PIN lateralization pattern. The likely explanation for these small differences is that the ‘auxin-flux’ scenario allocates PINs based on global flux patterns whereas the ‘regulator-polarizer’ scenario depends on local auxin concentrations at a given membrane segment.

Taken together, computer simulations indicate a plausible mechano-biochemical model that accounts for auxin-dependent anisotropic root growth and PIN polarity establishment.

Shoot-independent root growth requires auxin reflux, local auxin production, and balance in auxin levels

Our model simulations reconstitute the complex PIN polarity network in the simulated root growth (Figure 2F–G, Figure 2—figure supplement 5F-G), suggesting the presence of lateral auxin transport from the external tissues (epidermis and LRC) into the cortex and the stele (Figure 2E, Figure 2—figure supplement 5E). This ‘bipolar’ PIN localization (Figure 2F, Figure 2—figure supplement 5F) could drive polar auxin redistribution towards inner tissues, that is consistent with the phenomenon described as the reflux loop (Benková et al., 2003; Grieneisen et al., 2007; Paponov et al., 2005). Although not covered by our model, this lateral auxin transport between the epidermis and cortex might be further enhanced by plasmodesmata-dependent diffusion (Mellor et al., 2020). Yet, it is a directionality of transport mediated by PINs that is critical for the growth coordination of adjacent epidermis and cortex tissues (Ötvös et al., 2021). How this reflux phenomenon would operate on realistic tissue geometries constrained by growth mechanics remains, however, unclear.

To further investigate the importance of a dynamic PIN localization network for the sustained growth of the root, we performed model simulations by artificially preventing lateral auxin transport (Figure 3A and B). We found that a negligible amount of auxin enters the cortex, but no lateral auxin influx originated from the epidermis. Additionally, the bipolar PIN localization was absent in these ‘no-reflux’ simulations (Figure 3C and Figure 3—video 1) compared to the reference model (Figure 3D and Figure 3—video 1). This finding confirms the importance of PIN-mediated lateral transport for auxin redistribution in inner root tissues. However, the lack of auxin recycling in the meristem does not seem to significantly reduce root growth rates as long as auxin is supplied from the shoot (Figure 3E). Therefore, to investigate the role of shoot-derived auxin source in the root growth, we artificially separated the root from the rest of the plant by removing the shoot-derived auxin source (Figure 3A–B, bottom panel). In this simulation where there was neither reflux nor bipolar PIN localization, root growth could not be sustained over a prolonged time and the auxin inside the root eventually disappeared (Figure 3E). On contrary, the reflux scenario allows for the maintenance of auxin levels over a prolonged period even without the shoot-derived auxin source being removed. Root growth can be further strengthened by incorporating auxin biosynthesis in the QC cells (Stepanova et al., 2008), which in theory could sustain root growth almost indefinitely (Figure 3E–F).

Figure 3 with 1 supplement see all

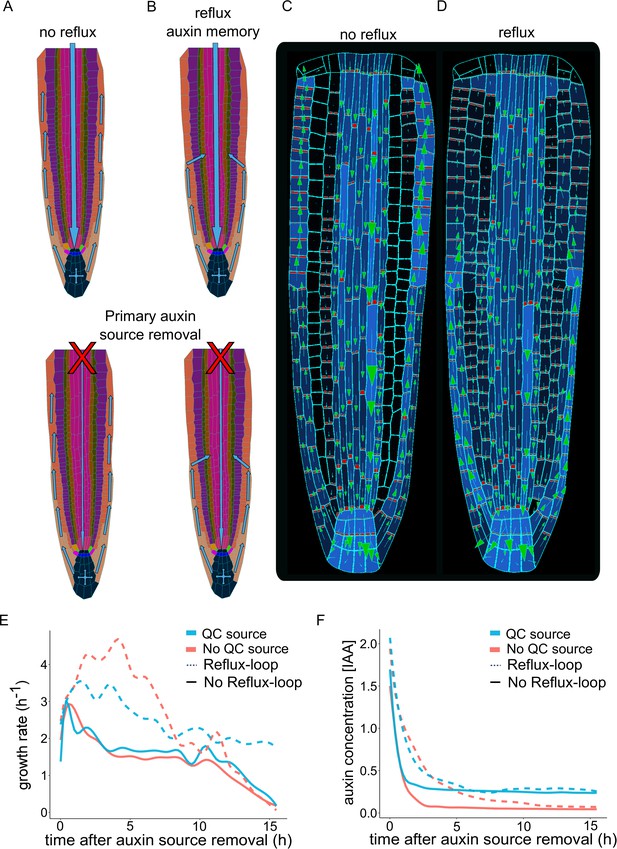

Independent root growth requires auxin reflux and local auxin production.

(A–D) Schematics (A and B) and model simulations (C and D) with the disabled auxin reflux-loop (A, C) or wild-type-like scenario with self-emerging reflux (B, D). Only the in reflux scenario auxin moves from the epidermis back into the vascular tissues sustaining the long-term root growth. (E) Growth rate profiles of model simulations after primary auxin source removal, in four different scenarios. The plot shows the total root growth rate over time. In the absence of an auxin reflux-loop, the root is unable to sustain growth for a long period (solid lines) even if a secondary auxin source in the root tip was introduced (solid blue line). On the contrary, the presence of an auxin reflux-loop sustains the root growth for prolonged periods (dotted lines), further augmented by the presence of a secondary auxin source in the root tip (dotted blue line). (F) Auxin concentration profiles of model simulations after primary auxin source removal. The plots show the average radial auxin concentration among the root cells. In the absence of an auxin reflux-loop, the average auxin concentration in the root quickly drops to zero (solid red line). Alternatively, the presence of an auxin reflux-loop allows the root to maintain an auxin reserve for prolonged periods (dotted blue line). The presence of a secondary auxin source in the root tip preserves an auxin reservoir and sustains root growth in the long term (blue lines). The model simulations have been run for 1000 time steps.

These results together indicate that the presence of an auxin reflux loop mediated by bidirectional PIN transport and diffusion in the cortex/epidermis is capable to sustain root growth for prolonged periods.

Keeping the correct balance in auxin levels might also be important to sustain root growth mechanics. To test how alterations in auxin levels alone would impact root growth dynamics, we successively simulated a series of external auxin applications for 6 hr by increasing the overall auxin content of the root (Figure 4A–B and Figure 4—video 1). Model simulations show the sequential inhibition and reinstatement of root growth after cyclic auxin removal (Figure 4C). A similar trend was observed for a shorter period of stimulation (Figure 4—figure supplement 1). Notably, these model predictions replicate the experimentally observed temporal inhibition of root growth by external auxin applications (see Figure 1f in Fendrych et al., 2018).

Figure 4 with 2 supplements see all

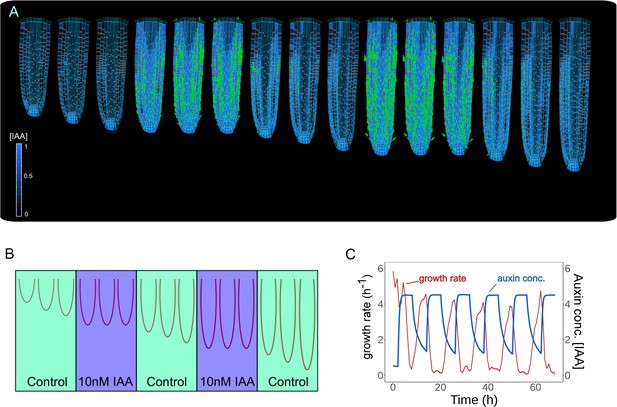

Model predictions reproduce reversible inhibition of root growth by externally applied auxin.

(A) Successive application of external auxin in model simulations according to a predefined cycle. Root growth is inhibited by the introduction of high amounts of auxin and subsequently restored after the external application is stopped as seen in experiments (Fendrych et al., 2018). (B) Schematic of the in silico experiment. To simulate auxin treatment as described in Fendrych et al., 2018, we introduced external auxin inside the root (by inducing excessive auxin synthesis at individual cell level) at predefined time points to inhibit root growth and subsequently removed to allow root growth re-establishment. (C) Time-lapse profile of root growth rate (red line) and average cell auxin concentrations (blue line). The cycles of external auxin applications inhibit and restore root growth, respectively. The simulation has been run for 1500 time steps.

Our analysis indicates that our root model can correctly recapitulate experimentally observed modulation of root growth response to externally applied auxin. Also, our model suggests that the balance in auxin content maintained by the network of PIN polarity is critical for the sustained growth of the root meristem.

Model simulations reproduce experimentally observed phenotypes of auxin-mediated growth and mechanical perturbations

Our analysis indicates that the mechano-biochemical framework for root meristem growth could be potentially used to test dynamic perturbations of root growth, such as genetic alterations and mechanical manipulations, guiding the further design of wet-lab experiments. To test the predictive power of our model we investigated how alterations of auxin transport parameters could perturb patterning dynamics and whether these predictions would match experimental observations.

PIN2 is an important auxin efflux carrier expressed in the most external root tissues: cortex, epidermis, and lateral root cap (Adamowski and Friml, 2015), and steers root gravitropic responses (Rahman et al., 2010). PIN2 loss-of-function results in defective gravitropic response largely because of disrupted auxin transport dynamics (Dhonukshe et al., 2010). To test whether our model could predict the alterations of auxin distribution observed in pin2 mutants, we performed computer simulations by reducing PIN expression rate in the epidermis, cortex, and lateral root cap (Figure 5A–B and Figure 5—video 1). The reduced levels of PINs in these outermost tissues resulted in auxin accumulation in the lateral root cap on both sides of the root (Figure 5B), which was absent in the wild-type simulations (Figure 5A). These predictions mimic experimental observations of pin2 knockdown mutant (see Figure 2f in Liu et al., 2018). Similarly, the reduced expression of PIN-dependent transport in the inner vascular tissues in our model predicts the alteration of auxin distribution and growth defects (Figure 5—figure supplement 1A and Figure 5—video 2). This prediction could reflect the scenario of reduced levels of vascular PINs (PIN knockdown) as opposed to the full knockout which is lethal (Vieten et al., 2005). Finally, we tested how a general knockdown of auxin cellular influx would impact root growth. Severely reducing auxin cellular influx (by 90 % reduction of AUX/LAX expression) led to lower auxin content, reduced sensitivity to auxin, and thereby slow root growth (Figure 5—figure supplement 1B and Figure 5—video 3) as previously suggested (Inoue et al., 2016; Liu et al., 2018).

Figure 5 with 10 supplements see all

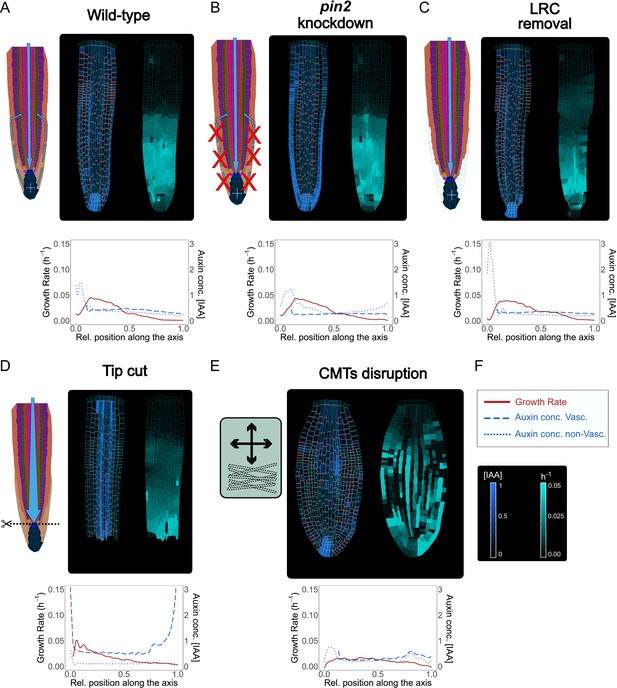

Model simulations recapitulate experimentally observed phenotypes through genetic, pharmacological, and mechanical perturbations.

(A) Reference model simulation of the wild-type scenario. The figure displays a schematic representation of the auxin flow inside the root (left picture), cell growth rate (right picture). The bottom graph shows the profiles of auxin concentration in the vascular tissues (dashed blue line), auxin concentration in the non-vascular tissues (dotted blue line,) and growth rate (red line) along the root axis. (B) Model simulation of the pin2 knockdown mutant. In silico pin2 mutant shows strongly reduced PINs expression in the lateral root cap, epiderm, is, and cortex. Note that acropetal auxin flow is severely affected and auxin tends to accumulate in the lateral tissues as observed in experiments (Dhonukshe et al., 2010). (C) Mechanical removal of lateral root cap resulted in the strong accumulation of auxin inside the root tip, largely because auxin cannot flow anymore shootward through outermost tissues whereas growth rate was not significantly affected. (D) Simulation of root tip cutting. Removing the root tip results in a general increase of auxin level in the central vascular tissues, as a consequence of the disappearance of acropetal auxin flow. PINs localization in the external tissues is also affected due to the loss of incoming auxin flow. (E) Simulated CMTs disruption (i.e. oryzalin treatment or similar) on root growth and polarity. CMTs disruption was simulated by inducing a fast degradation of the anisotropy factor. Cells lose polarity and growth anisotropy, causing the root to expand and bulge radially as observed in experiments (Baskin et al., 1994). Notice that the top cell row is considered to be a static attachment of the root to the substrate and therefore its growth is not affected during the simulation. (F) Legend and scale bars of auxin concentration and cell growth rate. ‘Auxin conc. Vasc.’ indicates auxin concentration in the vascular central tissues (the vascular cells and the pericycle), while ‘Auxin conc. non-Vasc.’ indicates auxin concentration in the remaining external tissues and the root tip. The simulations have been run for 1500 time steps.

Next, we tested how local mechanical disruptions of QC, root tip, and LRC would alter the model outcome, and whether this outcome agrees with experimental observations. The QC is a small group of cells (four to seven in the A. thaliana root) located in the middle of the root apical meristem (Doerner, 1998). The QC divides infrequently and grows at an extremely low rate (Nawy et al., 2005). The QC is known to be the source of signals that inhibits differentiation of the surrounding stem cells (van den Berg et al., 1997). QC cells define the correct location of the stem cell niche but also behave as independent cells by self-renewing and replenishing initials that have been displaced from their position (Kidner et al., 2000). QC laser ablation is not lethal for the root as a new QC and stem niche are quickly reestablished a few cells above the wound in correlation with increased auxin accumulation (Sabatini et al., 2003). We replicated the same experiment in silico by removing the two QC cells from the model during a simulation (Figure 5—figure supplement 1C and Figure 5—video 4). Compared to the wild-type simulations (Figure 5A), the typical auxin accumulation in the root tip is depleted, and auxin reflux in the LRC was significantly reduced, while most of the auxin coming from the shoot tends to concentrate in the cells above the ablation, exactly as observed in experiments (see Figure 5 in Reddy et al., 2007). Similarly, removal of the LRC led to sharp auxin accumulation in the root tip (Figure 5C and Figure 5—video 5), largely matching empirical data (Tsugeki and Fedoroff, 1999).

A. thaliana roots can survive not only after QC ablation but even after the complete excision of the root tip, as the plant can regenerate a new root tip including a complete new root apical meristem (Efroni et al., 2016). Since the stem cell niche is lost with excision, the regeneration process relies on other pluripotent dormant cell types available in the remaining stump (Sugimoto et al., 2010). We tested if we could replicate this experiment by removing the entirety of the root tip during the simulation (Figure 5D and Figure 5—video 6). Compared to QC ablation (Figure 5—figure supplement 1C and Figure 5—video 4), the removal of the root tip displays an even more radical effect on auxin patterning dynamics (Figure 5D and Figure 5—video 6). Auxin signal was strongly increased in the vascular tissues and auxin reflux in the lateral tissues was absent; again, model predictions closely match experimentally observed patterns (see Figure 1 in Matosevich et al., 2020).

Additionally, we explored whether simulated chemical perturbation of core mechanics would reproduce the experimentally observed root phenotypes. CMTs organization can be modulated by chemical treatments which cause microtubules depolymerization and stimulate the radial expansion of roots (Baskin et al., 1994). We simulated CMTs disruption by implementing a gradual reduction of the AF during root growth (Figure 5E and Figure 5—video 7). The simulated root displays a marked radial swelling, more evident in the center of the meristem and much less pronounced in the root tip (Figure 5E). Several cells divide irregularly, and the organ loses its anisotropic shape. As a consequence of this, PINs polarities become more irregular, and asymmetric auxin distribution is eventually lost (Figure 5E). Also, we tested the model robustness concerning cellular geometry and key model parameters that control PIN polarity and auxin effect on cell growth rates. Choosing alternative staring geometries (Nieuwland et al., 2016; Scheres et al., 1994) has no visible impact on root anisotropy, auxin distribution, and PIN patterns in the simulations (Figure 5—figure supplement 2A, B). Similarly, we found our model predictions to be generally robust for a plausible range of parameter values (Figure 5—figure supplement 3A, B).

These results demonstrate that our model can reproduce various root meristem phenotypes including several auxin transport mutants, and mechanical or chemical manipulations of root tissue geometry. Thus, our model could provide a useful tool for guiding wet-lab experimental designs.

Discussion

Computer models have become a powerful tool for wet-lab scientists to quickly explore possible mechanisms and theories underlying organ growth patterns and thus to guide and design effective experimental strategies. To date, computer models of root development have been instrumental in understanding root maturation and zonation through biochemical processes integrated over non-growing (Band et al., 2014; Rutten and Ten Tusscher, 2019) or idealized templates (Grieneisen et al., 2007). However, little to no attempts were made to couple mechanisms of cell polarity establishment and realistic tissue biomechanics at single-cell resolution to mechanistically understand how root growth and cell polarities are established from small populations of differentiated cells.

Here, we took advantage of an efficient modeling technique called Position-Based Dynamics (Müller et al., 2007) to resolve biomechanics of root growth at single-cell resolution, while simultaneously incorporating biochemical reactions that guide auxin production, distribution, and polar transport across tissues. Our mechanistic cell-based model successfully reproduces important elements of the root meristem morphology including cell polarity organization, auxin distribution, and sustained anisotropic root growth. In this framework, root growth patterns result from local cell growth activities and direct cell-to-cell communication mediated by auxin without the need for global regulators or polarizers. Furthermore, our model demonstrates that auxin influx from the LRC and subsequent ‘bipolar’ PINs localization in the cortical tissues may be important elements for sustained auxin-dependent root growth.

In particular, we found that PIN polarity depends on the auxin flow entering the cell but also on mechanical constraints, and a plausible molecular mechanism for PIN polarization based on a putative kinase/phosphatase regulation was proposed (Hajný et al., 2020; Michniewicz et al., 2007; Weller et al., 2017). We further show that our model can be extended to address many aspects of root development and organogenesis including root cells ablation, root response after chemical treatment, and genetic mutations. As the quantitative model predictions largely reproduce experimental observations, our model could be a useful tool to predict the phenotypes of various mutants and test the effects of perturbations such as chemical treatments, gene knockdown, or mechanical alterations, guiding further the effective design of wet-lab experiments. In the future, our model could be expanded to address additional mechanisms of root zonation (Ivanov and Dubrovsky, 2013), stem cells differentiation (Sabatini et al., 2003), lateral root initiation (Perianez-Rodriguez et al., 2021), and auxin flux through plasmodesmata (Mellor et al., 2020). These results support the robustness of the model and allow the possibility for modular extensions of the current framework to account for further complexities; for instance, the action of other hormones and postembryonic regulatory mechanisms like gravitropism and phototropism. Furthermore, this type of model framework can be employed to model other plant organs at cellular resolution as both auxin and mechanics are important general aspects of organogenesis in plants.

Nevertheless, the current framework relies on several simplifications and assumptions; we specified ad-hoc rules for cell division in the stem cell niche patterning, we simplified the combined action of cytoskeleton components such CMTs, actin, and cell wall composition, and chose an initial root tip organization. Future improvements of the current model should focus on the regulation of cell differentiation, auxin-control of stem cell niche maintenance, detailed protein trafficking, tissue-specific expression of auxin transporters, root zonation, and tropism by integrating new experimental insights. An important aspect missing in the current model is rapid cell elongation; this would require the implementation of dynamic tissue remeshing and the preservation of mechano-chemical information.

Taken together, our study highlights the general design principles underlying root growth organization determined by local interactions between directional transport of auxin, auxin-dependent cell elongation, cell polarization, and biomechanical stimuli, and presents a step forward toward quantitative subcellular models of plant organogenesis which could serve as a next-stage platform to develop novel traits of high socio-economic importance.

Materials and methods

Cellular mesh segmentation and processing

Request a detailed protocol

The process of segmentation of microscopy images with MorphoGraphX is broken into several steps:

  • The microscope images of an A. thaliana embryo without the aerial parts contain black background and color cell borders with high contrast

  • Images are loaded as the MorphoGraphX Image Stack structures.

  • “The Mesh-Creation-Mesh Cutting Surface” process is executed inside the MorphoGraphX framework to create an initial mesh of the root.

  • The initial mesh is subdivided several times to increase the detail level.

  • Cell borders are projected over the mesh to mark individual cells.

  • Stack of images is then segmented using the standard MorphoGraphX pipeline (Barbier de Reuille et al., 2015).

  • Mesh was converted into cells with Tools-Cell Maker-Mesh 2D-Tools-Polygonize Triangles. "Max Length" parameter was set to zero.

  • A final meshed model was smoothed for irregularities and artifacts and scaled appropriately.

General model description

Request a detailed protocol

The root model was created using MorphoDynamX, the second generation of the MorphoGraphX software (Barbier de Reuille et al., 2015). This modeling framework is based on an advanced data structure called Cell Complexes (Karwowski and Prusinkiewicz, 2004; Prusinkiewicz and Lane, 2013) that expands the previous methodology called Vertex-Vertex complexes (Federl and Prusinkiewicz, 1999) to model subdividing geometries in two and three dimensions. MorphoDynamX provides the user interface and API interface to the Cell Complexes. Cells are represented as triangulated polygons obtained through the segmentation and mesh processing pipeline described in(Cellular mesh segmentation and processing). Cells are composed of vertices, edges, and faces. Each of these three base elements (vertices [0 dimension], edges [one dimension], and faces [two dimensions]) has its biological interpretation and possesses different attributes and properties that allow the model to run and produce dynamically growing organ structures. Perimeter edges represent the cell membrane while internal edges mimic the cell cytoskeleton (i.e. actin, CMTs). These edges store both mechanical and biochemical attributes.

To create a continuous flow and recycling of auxin inside the root we assumed that the cells at the very top of the mesh are considered either sources or sinks; the central row of cells represent the source coming from the aerial side of the embryo, while the most external epidermal cells act as sinks by moving auxin from the root back to the embryo (Möller and Weijers, 2009). The mechanics of root growth are implemented using Position-Based Dynamics (PBD) (Müller et al., 2007) (see Position-based dynamics implementation). PBD simulates physical phenomena such as material deformation, fluids, fractures, or material rigidness (Müller et al., 2007). PBD allows overcoming the typical limitations of force-based models by directly updating positions of vertices based on a set of biologically sound constraints. Whereas chemical processes are numerically solved using the Euler integration method (Butcher, 2007).

Time-lapse confocal imaging of young seedlings

Request a detailed protocol

Confocal laser-scanning micrographs of 35 S::PIP2-GFP transgenic lines were obtained as published elsewhere(Zhu, Q. et al, 2019). Briefly, seeds were stratified for 3 days, seed coat was removed and peeled embryos were imaged using a vertical Zeiss LSM700 microscope with a 488 nm argon laser line for excitation of GFP fluorescence. Emissions were detected between 505 and 580 nm with the pinhole at 1 Airy unit, using a 20 x air objective. Images were taken every 20 min and Z-stack maximal projections were done using ImageJ software.

Computer model assumptions

Request a detailed protocol

The root of A. thaliana is made of several radially organized layers of morphologically similar cells that can be distinguished in radial and longitudinal sections (Dolan et al., 1993; Scheres et al., 1994). The central vascular tissue is composed of a bundle of thin and elongated cells surrounded by the pericycle - a cylindrical sheath protecting the stele. The pericycle is also the origin of emerging lateral organs (Lavenus et al., 2013; Péret et al., 2009). The central cylinder (stele) is enclosed by three adjacent tissues endodermis, cortex, and epidermis. The gravity-sensing columella is located at the very tip of the root and is composed of four layers of differentiated cells (Kumpf and Nowack, 2015). The meristem of the mature root is covered by the lateral root cap which protects the meristem and is periodically shed and replaced by new emerging layers (Di Mambro et al., 2019; Kumar and Iyer-Pascuzzi, 2020). Finally, the root tip stores a group composed of undifferentiated stem cells that divide asymmetrically and replenish the upper sections of individual tissues (Stahl and Simon, 2009). Therefore, this precise spatial-temporal arrangement of tissues in the root requires the coordination of cell polarity, anisotropic growth, and asymmetric cell divisions.

Auxin-driven root growth of A. thaliana has been intensively studied in the last years, and it is known to be one of the major players in root development (Ljung, 2013). Auxin distributes along the root through a tightly controlled mechanism and its disruption results in organ growth failure (Truman et al., 2010). Auxin synthesis and homeostasis are thought to be the other major contributor to cell elongation (Velasquez et al., 2016). The main source of auxin during globular root embryogenesis comes from the shoot and tends to accumulate in vascular tissue, root tip, and epidermis (Robert et al., 2015; Smit and Weijers, 2015). Some aspects of auxin transport by PIN efflux carriers are well understood, but the mechanisms connecting polar transport and auxin effect on root growth remain puzzling (Adamowski and Friml, 2015; Habets and Offringa, 2014).

Based on known characteristics of A. thaliana root, we integrate the following biological assumptions in our models:

  • The root is composed of cells categorized into different lineages: QC, Columella Initial, Columella, Epidermal/LRC initial, Cortex/Endodermis Initial (CEI), Cortex/Endodermis Initial daughter (CEID), Lateral Root Cap (LRC), Epidermis, Endodermis, Cortex, Pericycle, and Vascular (Benfey et al., 2010; Nawy et al., 2005).

  • Cell expansion is described according to the acid-growth hypothesis (Rayle and Cleland, 1992). Cells are under constant osmotic pressure, and their expansion is prevented by a stiff cell wall with viscoelastic properties. Cells can be considered as incompressible objects. Cell walls possess a strong extensional stiffness at very low or negligible auxin concentration (but also at very high auxin concentration) which prevents cell expansion. Auxin (indole-3-acetic acid, IAA), induces acidification of the cell wall activating a range of enzymatic reactions which modifies the extensibility of plant cell walls, allowing the cell expansion (Cosgrove, 2000; Hager et al., 1991).

  • The mechanical deformation of the cell walls controls the reorientation of the anisotropy factor (AF) and consequently restricts growth along the perpendicular axis to that deformation, creating feedback-dependent reinforcement of anisotropic cell elongation (see Anisotropy factor (AF) and cell polarity). This process can be summarized in the following diagram:

Process diagram.
  • It is a simplification in the model and could be replaced in the future with tensile stresses. It has been shown that microtubules are often perpendicular to the maximal cell walls strain and they usually align parallel to predicted maximal tensile stress direction, and the latter is considered to be the best predictor for microtubules reorientation (Hamant et al., 2019). Microtubules in turn direct microfibrils deposition which restricts cell expansion in a determined direction producing anisotropic growth (Bou Daher et al., 2018).

  • Cell division occurs according to cell polarity or cell type specification (Figure 2—figure supplement 2D).

  • Auxin flows into the root from the aerial section of the embryo through the vascular tissues (Petrásek and Friml, 2009). Auxin can also be locally produced in the root apical meristem (Kerk et al., 2000; Stepanova et al., 2008).

  • Auxin diffuses inside cells and all over the intercellular space. Auxin is also actively transported by auxin influx and efflux carriers (Hosek et al., 2012). Auxin exchange between cells is not direct but it occurs through the intercellular space which is not visually displayed but still considered during computations. Auxin induces PINs and AUX/LAX protein expression (Zwiewka et al., 2019). PINs are subsequently delivered to the cell membranes according to mechanical constraints(AF), and one of the two polarization scenarios auxin-flux or regulator-polarizer, respectively.

All model components are presented in a comprehensive model diagram (Figure 2—figure supplement 2 and Figure 2—figure supplement 3). Optimal parameters values were chosen by testing over a large plausible range of values for each parameter using high-throughput simulations on a computing cluster. Parameters description and values are listed in Table 1. Non-linearities of higher order used in some formulas simulate a threshold memory and signal amplification effects (increased sensitivity) that would result from multi-cascade signaling events: that is kinases and phosphatases such as MAPK (O’Shaughnessy et al., 2011).

Table 1
Model parameters.
ParameterDescriptionValueUnit
Mechanical model component
RAFAF reorientation rate0.02h–1
DAFAF degradation rate0.01h–1
Auxin transport model component
bIAAbasal auxin production rate0*nM/h
DIIAAauxin diffusion rate in the intercellular space1μm2/h
dIAAbbasal auxin degradation rate0.0125, Perianez-Rodriguez et al., 2021nM/h
dIAAMaxmaximum auxin degradation rate coefficient0.125h–1
KIAAMaxcoefficient for half-max auxin degradation5nM
KAUX1coefficient of auxin importing rate by AUX/LAX1μm/h
KPINcoefficient of auxin export rate by PIN1.4, Mironova et al., 2010μm/h
bAUX1AUX/LAX basal expression1nM/h
AUX1exprauxin-induced AUX/LAX maximal expression30nM/h
AUX1Kauxin-induced AUX/LAX half-max expression0.01nM
AUX1trAUX/LAX trafficking rate1h–1
AUX1Maxmaximum concentration of AUX/LAX2nM
AUX1MaxMemmaximum concentration of AUX/LAX on membrane sections15nM
dAUX1AUX/LAX degradation rate0.08h–1
bPINPIN basal expression0.2, Mironova et al., 2010nM/h
PINexprauxin-induced PIN maximal expression50nM/h
PINKauxin-induced PIN half-max expression0.05nM
PINtrPIN trafficking rate1h–1
PINMaxmaximum PIN concentration inside the cell2nM
PINMaxMemthe maximum concentration of PIN on membrane sections15nM
dPINPIN degradation rate0.08, Mironova et al., 2010h–1
dPINmaxmaximum PIN degradation rate on membranes0.8h–1
kAFcoefficient for AF orientation contribution to PIN sensitivity-
kPcoefficient for auxin flow contribution to PIN sensitivity3-
kAFPcoefficient for interaction AF orientation+ auxin flow contribution to PIN sensitivity3-
kGcoefficient for cell geometry contribution to PIN sensitivity3-
Kafhalf-max AF orientation contribution to PIN sensitivity0.5-
Kgeomhalf-max cell geometry contribution to PIN sensitivity0.5-
PIN polarization parameters
Kfluxauxin-flux half-max contribution on PIN sensitivity0.1 nM μm
bREGregulator basal expression10nM/h
bPOLpolarizer basal expression10nM/h
dPOLregulator decay rate0.08h–1
dREGpolarizer decay rate0.08h–1
Kregtrregulator base trafficking rate1h–1
Kpoltrpolarizer base trafficking rate0.01h–1
Dregregulator diffusion rate1μm2/h
Dpolpolarizer diffusion rate0.1μm2/h
KdispPOLpolarizer displacement rate10h–1
KregIAAregulator auxin-induced half-max trafficking rate0.01nM
KpolIAApolarizer auxin-induced half-max trafficking rate0.01nM
KregGradTregulator max trafficking rate activation by auxin gradient1nM/h
KregGradKregulator auxin gradient-induced half-max trafficking rate1nM
KpolIPhalf-max value of polarizer contribution on PIN sensitivity0.1nM
Auxin-dependent root growth parameters
kEMaxcell wall maximum stiffness1-
K1auxinhalf-max cell wall relaxation coefficient by auxin0.05nM
K2auxinhalf-max cell wall stiffening coefficient by auxin3nM
  1. *

    auxin basal expression is set to zero for the default wild type model. However, when local production in the QC is necessary, the value is set to 10.

  2. this parameter is set to 0 in the default model and included in the formulas only for completeness.

Anisotropy factor (AF) and cell polarity

Request a detailed protocol

The processes that define cell polarity in plants are not well understood (Dettmer and Friml, 2011), and are considered to be different from those in animals. Plant cells display clear polarity patterns when observed to grow anisotropically or by targeting proteins to specific regions in the cell membranes such as PIN proteins (Yang, 2008). Apart from PIN protein (Wisniewska et al., 2006), several other prominent cell polarity markers have been identified in plants, such as putative regulators of cell division orientation BASL (Pillitteri et al., 2011) and SOSEKI (Yoshida et al., 2019). So far, the only well-characterized regulators of PIN trafficking are the AGCVIII kinases and PP2A phosphatases (Barbosa et al., 2018), components of the phosphorylation on/off switch aimed at the central hydrophilic loop of PINs (Michniewicz et al., 2007). Cell polarity may be also influenced by a mechanical stimulus, nutrient availability, and pathogen responses (Adamowski and Friml, 2015).

Root cells present a clear apical-basal (shootward-rootward) polarity, which allows them to target hormones and other signaling molecules in specific directions (Kleine-Vehn and Friml, 2008). Almost all cell types in A. thaliana root display clear anisotropic geometries (Baskin, 2005) while microtubules orientation may correlate with PIN protein subcellular localizations (Heisler et al., 2010). It has been recently shown that external stress can affect internal microtubules organization and therefore guide the anisotropy and orientation of CMT arrays (Hamant et al., 2019). During root swelling the cells are growing isotropically but also undergo stretching in a direction determined by their geometry and their position inside the organ. In line with these observations, the AF aligns perpendicular to the cell wall deformation, hence enforcing anisotropic cell growth (Hamant et al., 2008).

Key model assumptions regarding mechanics of cell growth and polarity are listed below:

  1. The anisotropy factor (AF) is internally represented as a vector perpendicular to the longest principal growth axis. The length of the AF vector can range from 0 to 1 indicating the degree of induced anisotropy.

  2. AF reorientation is triggered only if a certain wall deformation threshold is reached.

  3. After cell division daughter cells initially inherit the AF configuration from the mother cell.

  4. AF reorientation is defined by the following formula:

    (1) dAFcelldt=AFcell+RAFimu(AFcell)|((u(AFcell)u(memi))ϵmemi)|dAFAFcell

    where, AFcell is the AF vector inside the cell; RAF is AF reorientation rate; m is the total number of membrane sections; u(AFcell) is the unit vector parallel to the AF vector; umemi is the unit vector parallel to membrane section memi; ϵmemi is the deformation rate (strain) of membrane section memi; dAF is AF decay rate. The dot “.” symbol indicates the dot product between vectors.

Auxin transport module description

Request a detailed protocol

Previously proposed models of auxin polar transport can be divided into two main classes: flux-based and concentration-based models (van Berkel et al., 2013; Wabnik et al., 2011). Briefly, flux-based canalization models assume that PIN proteins polarize according to the direction of auxin flux (Alim and Frey, 2010; Feugier et al., 2005; Feugier and Iwasa, 2006; Fujita and Mochizuki, 2006; Mitchison, 1997; Stoma et al., 2008). In concentration-based models, the cell can detect auxin concentrations of a surrounding environment and increase PIN transport either against the gradient (Jönsson et al., 2006; Merks et al., 2007; Newell et al., 2008; Smith et al., 2006) or with the gradient (Kramer, 2009; Wabnik et al., 2010). Despite relying on different formulations, both types of models assume auxin feedback on PIN polarity which can recreate some aspects of auxin-related patterning observed in plant development. An alternative model was proposed by Heisler et al., 2010. The authors suggested a correlation between PINs polarity and the alignment of cortical microtubules, indicative that the cell wall stress could be involved in determining PIN localizations. Interestingly, a more recent study (Narasimhan et al., 2021) showed that auxin exhibits a PIN2-specific positive effect on endocytosis, indicating a potential role for auxin in blocking PIN protein recruitment.

However, we primarily focused on the auxin-flux model and its molecular realization in this study. In our model, both PINs and AUX/LAX expressions are induced by the presence of auxin inside the cell (Vieten et al., 2005). Similarly, PIN trafficking is positively or negatively regulated by auxin depending on one of two scenarios (Auxin-flux module description and Regulator-Polarizer module description sections). Auxin is exported by PINs from the cell into an intercellular space where it can be imported by AUX1 that is uniformly distributed on the membranes. The set of model assumptions and components for auxin transport is listed below:

  1. The cell membrane is represented by a two-dimensional polygon. Each edge of the polygon denotes a section of the cell wall/membrane (mem). Each membrane section stores mechanical and biochemical attributes, such as PIN and AUX/LAX levels, intercellular auxin concentration, and AF orientation. Note that amounts of auxin and transporters are given in concentrations; the number of molecules divided by the area of the cell or the intercellular space. For example,IAAcell=moleculesofIAAareaofthecell.

  2. Auxin is imported by AUX/LAX from the intercellular space and exported in a polar manner from cells by PINs with the support of the PGP1/ABC transporter family (Geisler and Murphy, 2006). However, we do not include the PGP1/ABC transporters in the current model, therefore active auxin transport is expressed by the combined action of PIN and AUX/LAX carriers:

    (2) Imem=KAUX1AUX1memIAAmemLmem
    (3) Emem=KPINPINmemIAAcellLmem
    (4) dIAAmemdt=in(EmemImem)celliimDIIAAIAAmemIAAmemiLmem+LmemiDIAA(IAAcell)dIAA(IAAmem)
    (5) dIAAcelldt=bIAA+imImem-Ememcelli+DIAAIAAcell-dIAAIAAcell

    where, IAAmem is the auxin imported into the cell through a specific membrane section mem; KAUX1 is the auxin import rate of AUX/LAX; AUX1mem is the amount of AUX/LAX protein localized on membrane section mem, IAAmem is the intercellular auxin available in the membrane section mem. Emem is the auxin exported from the cell into the intercellular space through a specific membrane section mem; KPIN is the auxin export rate of PIN; PINmem is the amount of PIN protein localized on membrane section mem, IAAcell is the concentration of auxin inside the cell; Lmem is the length of membrane section mem. IAAmem is the intercellular auxin in the membrane section mem; IAAmemi is the amount of intercellular auxin of a cell neighbor; celli is a cell sharing the current membrane section mem; memi is a membrane section neighboring the current membrane section mem; DIIAA is the auxin diffusion rate in the intercellular space; Lmem is the length of membrane section mem; Lmemi is the length of the neighboring membrane section memi; dIAA is the auxin degradation in the current membrane section mem. IAAcell is the auxin concentration inside the cell; bIAA is the auxin basal production rate; DIAA(IAAcell) is the net auxin diffusive import into the cell; dIAA(IAAcell) is the auxin degradation for the current cell.

  3. Auxin can diffuse passively into cells from the intercellular space (Petrásek and Friml, 2009) according to the formula:

    (6) DIAAIAAcell=imPIAAIAAmemi-IAAcellLmemi

    where, DIAAIAAcell is the net auxin diffusive import between the cell and the surrounding intercellular space; m is the total number of membrane sections; PIAA is membrane permeability; IAAmemi is the intercellular auxin in the membrane section memi; IAAcell is the auxin concentration inside the cell; Lmemi is the length of membrane section memi.

  4. Auxin decay follows the combined effect of conjugation and oxidation (Ljung, 2013), at a constant rate in our model. If auxin inside the cell or a membrane section mem reaches a high auxin concentration threshold, auxin degradation is increased to balance the total auxin concentration. This is necessary to preclude excessive auxin levels that would retard root growth (Fendrych et al., 2018):

    (7) dIAA(IAAcell/mem)=dIAAb+(dIAAMaxdIAAb)IAAcell/mem4KIAAMax4+IAAcell/mem4

    where, dIAAIAAcell/mem is the auxin degraded inside a cell or in the intercellular space; dIAAb is the basal auxin degradation rate; dIAAMax is the maximum auxin degradation rate; IAAcell/mem is the current auxin concentration inside the cell or in the membrane section mem, respectively; KIAAMax is the coefficient for half-max auxin degradation.

  5. Auxin regulates the amount of the auxin carriers (Heisler et al., 2005; Vieten et al., 2005), by increasing PINs and AUX/LAX expression:

    (8) dAUX1celldt=bAUX1+AUX1ExprIAAcell2AUX1K2+IAAcell2AUX1cellAUX1trdAUX1AUX1cell
    (9) dPINcelldt=bPIN+PINExprIAAcell2PINK2+IAAcell2-PINcellPINtr-dPINPINcell

    where, AUX1cell is the cytoplasmic AUX/LAX pool; bAUX1 is AUX/LAX basal expression; AUX1Expr is the auxin-induced AUX/LAX maximal expression; AUX1K is the auxin-induced AUX/LAX half-max expression; IAAcell is the auxin concentration inside the cell; AUX1tr is AUX/LAX trafficking rate; dAUX1 is AUX/LAX degradation rate. AUX/LAX expression is limited by the maximum concentration AUX1Max (see Table 1). PINcell is the cytoplasmic PIN pool; bPIN is the PIN basal expression; PINexpr is the auxin-induced maximal PIN expression; PINK is the auxin-induced PIN half-max expression coefficient; IAAcell is the auxin concentration inside the cell; PINtr is PIN trafficking rate; dPIN is PIN degradation rate. PIN expression is limited by the maximum concentration PINMax (see Table 1).

  6. Auxin modulates the subcellular localization of PIN proteins in a feedback-dependent manner (Sauer et al., 2006). AUX/LAX is redistributed evenly among the membrane sections, while PINs are redistributed depending on the ‘PIN sensitivity’ of each membrane section:

    (10) dAUX1memdt=AUX1cellAUX1trLmemimLmemi-dAUX1AUX1mem
    (11) dPINmemdt=PINcellPINtrPinSmem-dPINmemPINmem
    (12) dPINmem=dPIN+dPINmax-dPIN11+IAAcell

    where, AUX1mem are the AUX/LAX in the membrane section mem; AUX1cell is the concentration of AUX/LAX in the cytoplasm; AUX1tr is AUX/LAX trafficking rate; m is the total number of membrane sections; Lmem is the length of membrane section mem; the element LmemimLmemi therefore indicates the fraction of cytoplasmic AUX/LAX trafficked to the membrane section mem; dAUX1 is AUX/LAX degradation rate. AUX/LAX trafficking is disabled when the membrane section is saturated AUX1Maxmem (see Table 1). PINmem is the PIN proteins on membrane section mem; PINcell is the concentration of PIN in the cytoplasm; PINtr is PIN trafficking rate; PinSmem is the PINs sensitivity of membrane section mem, which determines the fraction of cytoplasmic PINs that are trafficked to membrane section mem; dPINmem is PIN degradation dynamic formula on the membranes, described in Equation 12. PIN trafficking is disabled when the membrane section is saturated PINMaxmem (see Table 1). dPINmem is PIN degradation dynamic formula on the membranes; dPIN is PIN base degradation rate (same as cytoplasmic degradation); dPINmax is the maximum PIN degradation on the membranes; IAAcell is the current auxin concentration inside the cell; PIN degradation in the membrane is enhanced when auxin in the cell is low, to facilitate rapid PIN polarity reestablishment.

  7. PINs are trafficked to the membranes according to a specific criterion; namely, each membrane section mem possesses an instrumental ‘PIN sensitivity’ property, which regulates the propensity of that membrane section to incorporate additional PINs. This property is a phenomenological parameter for more low-level processes involved in PIN trafficking, such as PINs phosphorylation and endocytosis. PIN sensitivity of each membrane varies between 0 and 1 and the total PIN sensitivity of all membranes sections sum up to 1. PIN sensitivity is the linear combination of auxin flow (defined either by auxin flux or auxin concentrations), growth anisotropy (defined by AF), and lesser extent the cell geometry (Elliott and Kirchhelle, 2020). Columella cells are the only exception to this rule; in the columella, PINs are always trafficked uniformly among membrane sections to reflect the observed PIN3 distribution (Friml et al., 2002). PIN sensitivity of a given membrane section mem is defined as:

    (13) PinSmem=expPinSRmemimexpPinSRmemi
    (14) PinSRmem=kAFIAFmem+kPIPmem+kAFP(IAFmem+IPmem)+kGIGmem
    (15) IAFmem=AFcellUAFmem4UAFmem4+Kaf4;UAFmem=uAFcellnmem
    IGmem=uaxisMaxnmem1-axisMinaxisMax41-axisMinaxisMax4+Kgeom4

    where, PIN sensitivity of membrane section mem is obtained by applying the soft-max function over all the raw PIN sensitivities PinSRmemi calculated for each membrane section of the cell. The soft-max function was used to normalize the total sum of PIN sensitivities to 1. IAFmem is the AF contribution to PIN sensitivity of membrane section mem (see the Equation 15); kAF is the weight of AF contribution to PIN sensitivity; IPmem is the auxin flow contribution to PIN sensitivity of membrane section mem (this parameter depends on auxin-flux and regulator-polarizer models, see sections 1.7 and 1.8); kP is the coefficient of auxin flow contribution to PIN sensitivity; kAFP is the coefficient of combined action of the AF and auxin flow to PIN sensitivity; IGmem is the contribution of cell geometry to PIN sensitivity of membrane section mem (see the Equation 16); kG is the coefficient of the contribution of cell geometry to PIN sensitivity. IAFmem describes AF impact on PIN sensitivity of membrane section mem. AFcell is the AF vector for the cell (defined in Equation. 1); UAFmem is the normalized effect of AF on membrane section mem; uAFcell is the unit vector parallel to the AF vector; nmem is the unit vector orthogonal to membrane section mem. Kaf half-max constant of AF effect on membrane PIN sensitivity. IGmem denotes the impact of cell geometry on PIN sensitivity of membrane section mem; nmem is the unit vector orthogonal to membrane section mem; axisMax and axisMin are the longest and the shortest cell principal axis, respectively; uaxisMax is the unit vector parallel to the longest cell axis; Kgeom is the half-max coefficient of cell geometry contribution to PIN sensitivity. The dot ‘.’ symbol indicates the dot product between vectors.

As discussed before, the PIN sensitivity of a specific membrane section depends on whether the auxin flux or regulator-polarizer method is used (see sections 1.7 and 1.8). Either of these two scenarios determines the IPmem term in Equation (14).

Auxin-flux module description

Request a detailed protocol

Flux-based computer models of auxin transport were first introduced by Mitchison, 1997. A general mechanism is that cells sense the auxin flux and based on that information cells increase their auxin transport capacity in the flux direction. This mechanism reproduces canalized auxin transport patterns during leaf vein formation (Rolland-Lagan and Prusinkiewicz, 2005). Flux-based models assume the existence of cellular flux-sensing components that have not been yet experimentally identified. Using the auxin-flux model, cells recognize the net vector of auxin flow and redirect PINs accordingly. Specifically, the auxin-flux vector of a cell is defined as:

(16) FLUXcell =imu( centroid cell  midpoint mem i)(Imem iEmem i)

where, m is the total number of membrane sections; centroidcell is the centroid of the cell, midpointmemi is the midpoint of membrane section mem; u(centroidcell,midpointmemi) is the unit vector parallel to the vector connecting the two previous elements; Imemi-Ememi indicates the net amount of auxin crossing the membrane section mem.

Given the auxin-flux vector of a cell, the contribution of auxin flow to PIN sensitivity of a membrane section mem is obtained by projecting the auxin flux over the membrane section mem:

(17) IPmem=Fmem4Fmem4+Kflux4;Fmem=(FLUXcelln(mem))Lmem

here, IPmem is the (unitless) auxin flow contribution to PIN sensitivity of a membrane section mem; Fmem is the effect of the auxin flux on membrane section mem ;Kflux is the flux sensing constant; FLUXcell is the auxin flux vector; n(mem) is the unit vector orthogonal to the membranes section mem and Lmem is the length of the membrane section mem. The dot “.” symbol indicates the dot product between vectors.

Regulator-polarizer module description

Request a detailed protocol

Cell polarization has been investigated both on the theoretical ground (Gierer and Meinhardt, 1972; Jilkine and Edelstein-Keshet, 2011; Meinhardt and Gierer, 2000) and designed synthetic circuits (Chau et al., 2012; Rappel and Edelstein-Keshet, 2017). We propose a mechanistic realization of auxin flux sensing by combining the interaction between four molecules: PIN, auxin, a polarizer, and a regulator. The polarizer is a molecule that promotes the sorting of PINs to the membrane section where it is most abundant (i.e. a specific kinase that phosphorylates PIN). The regulator is a molecule that is activated by auxin and inhibits polarizer abundance on the membranes (i.e. antagonizing phosphatase). Auxin presence in a membranes section promotes regulator trafficking, which in turn reduces the presence of the polarizer in that region. Free diffusion of the regulator over the surface of the cell results in the clustering of the polarizer on the opposite side of the cell where it promotes PIN trafficking by tuning the auxin contribution parameter IPmem (see Equation. 14).

(18) Gradmem=Imem-Emem+imImemi-Ememidistancemem,memi1000Acell
  • Auxin import across the plasma membrane is detected by the cell to promote regulator binding to the membrane. Specifically, the auxin influx-efflux ratio for each specific membrane section is used to determine the trafficking of the regulator:

where Gradmem is the auxin influx-efflux ratio specific to membrane section mem; Imem-Emem indicates the net amount of auxin crossing the membrane section mem; distancemem,memi is the distance of membrane section memi from our reference membrane section mem, calculated as the Euclidean distance between the two sections midpoints; Acell is the area of the cell. The metric is further normalized dividing by the cell area and amplified by an amplification factor of 1000.

  • Regulator and polarizer are expressed and degraded at a constant rate in the cytoplasm. The trafficking of regulator and polarizer to the membranes is promoted by intracellular auxin:

dREGcelldt=bREG-REGcellKregtr+KregGradTGradmem4Gradmem4+KregGradK4IAAcell2IAAcell2+KregIAA2

(19) -dREGREGcell
(20) dPOLcelldt=bPOLPOLcellKpoltrIAAcell2IAAcell2+KpolIAA2dPOLPOLcell

where, REGcell and POLcell are the regulator and polarizer concentrations inside the cell, respectively; bREG and bPOL are the regulator and polarizer basal production rate, respectively; Kregtr and Kpoltr are the regulator and polarizer trafficking rates; KregGradT and KregGradK are regulator maximum trafficking rate and trafficking constant, respectively; Gradmem is auxin influx-efflux ratio for each specific membrane section mem; IAAcell is the amount of auxin inside the cell; KregIAA and KpolIAA are regulator and polarizer trafficking constants, respectively; dREG and dPOL are the regulator and polarizer degradation rates.

(21) dREGmemdt=REGcell(Kregtr+KregGradTGradmem4Gradmem4+KregGradK4)LmemimLmemiIAAcell2IAAcell2+KregIAA2+D(REGmemdREGREGmem)
(22) dPOLmemdt=POLcellKpoltrLmemimLmemIAAcell2IAAcell2+KpolIAA2+D(POLmem)+G(POLmem)dPOLPOLmem
  • The changes of regulator and polarizer species present on a specific membrane section mem are defined by the following equations:

where, REGmem and POLmem the regulator and polarizer in the membrane section mem. Kregtr and Kpoltr are the regulator and polarizer trafficking rates, respectively; REGcell and POLcell are cytoplasmic pools; KregIAA and KpolIAA are the regulator and polarizer trafficking constants; Lmem is the length of the membrane section mem; IAAcell is the concentration of auxin inside the cell; D(REGmem) and D(POLmem) diffusion terms for regulator and polarizer, respectively; G(POLmem) is the net fraction of polarizer displaced by the regulator in the membrane section mem.

(23) D(REGmem)=DREGimem±1(REGmemiREGmem)
(24) D(POLmem)=DPOLimem±1(POLmemiPOLmem)
  • Regulator and polarizer diffuse along the cell membrane according to the following equations:

where, DREG and DPOL are the regulator and polarizer diffusion rates, respectively; REGmem and POLmem are the regulator and polarizer in the membrane section mem, respectively; The polarizer is displaced by the presence of regulator molecules toward the zone where the concentration of the regulator is the lowest. To simulate this process, we apply the model of stochastic recruitment of molecules to the membrane sections (Chau et al., 2012): in a membrane section mem, a fixed batch of a polarizer is reserved for the displacement; then one of the adjacent membrane segments is selected randomly; if the adjacent segment contains less regulator than the current segment, the batch of a polarizer is moved to that neighboring segment. Polarizer displacement can be written as:

(25) G(POLmem)=KdispPOLif(REGmem+i>REGmemthenPOLmem+ielse0i=random(1,+1)

where G(POLmem), is the amount of polarizer displaced by the regulator and KdispPOL is the polarizer displacement rate.

(26) IPmem=POLmem4POLmem4+KpolIP4
  • Given the calculated amount of polarizer in a given membrane segment, the auxin flow contribution term IPmem to PIN sensitivity (see Equation. 14) becomes:

where, KpolIP is the half-max constant.

Cell growth description

Request a detailed protocol

The classical morphogen gradient model dictates that the cell fate is regulated by the positional information encoded in different morphogen levels at different positions across tissue (Wolpert, 1969). However, in an expanding system, cells are displaced quickly enough along the tissue experiencing different effective morphogens concentrations that depend on their current distance for the morphogens source(s). Moreover, cell growth dilutes morphogens concentration and thus modulates the morphogen effect on cell signaling. Our model addresses these issues by monitoring the combined effect of cell growth and auxin concentration on root development. The root growth component includes the following assumptions:

  1. Cells expand according to the chemiosmotic theory of auxin transport (Rayle and Cleland, 1992). Cells are under constant turgor pressure which is resisted by the elastic effect of cell walls. In the model, the osmotic pressure is simulated by a PBD constraint described in Position-based dynamics implementation.

  2. Increasing auxin concentration induces the relaxation of the cell walls allowing cell expansion under turgor pressure. On the contrary, high auxin levels disable cell walls relaxation (Fendrych et al., 2018). The relationship connecting cell walls stiffness and auxin is expressed by the following formula:

    (27) kEwall =kEMax (K1IAA4IAAcell 4+K1IAA4+IAAcell 4IAAcell 4+K2IAA4)

    kEwallis the extensional stiffness of the cell wall; kEMax is the maximum stiffness a cell wall can achieve; K1IAA is the auxin-induced cell wall relaxation coefficient; K2IAA is the auxin-induced cell wall stiffening coefficient; IAAcell is the auxin concentration inside the cell.

  3. Cell growth is directionally constrained by the action of cellulose microfibrils that control anisotropic growth (Baskin, 2005). In the model, the action of cellulose microfibrils is simulated by the AF, which results from the action of a specific strain-based constraint (see Position-based dynamics implementation). For a given cell, the PBD strain constrains the stiffness of the membrane/wall segment depending on the alignment between the AF vector and this membrane/cell wall segment.

  4. Cell division occurs when a certain area threshold is reached. The cell division plane passes through the centroid of the cell polygon and is parallel to the AF vector. There are however exceptions to this general rule, which are justified by experimental observation:

    1. Cortical/Endodermis Initials Daughters (CEID) cells always divide along the AF vector, to generate one cell of the same type and one CEID cell (Miyashima and Nakajima, 2011; Mylona et al., 2002).

    2. Cortical/Endodermis Initials Daughters (CEID) divide asymmetrically to generate one endodermal cell and one cortical cell (Miyashima and Nakajima, 2011; Mylona et al., 2002).

    3. Epidermis/Lateral Root Cap initials alternatively divide either orthogonal and parallel to AF vector to produce lateral root cap cells or epidermal cells, respectively (Kumpf and Nowack, 2015).

    4. Quiescent cells remain fixed (Rovere et al., 2016), and therefore we assume that these cells never grow or divide.

    5. Columella initials divide asymmetrically to generate one cell of the same type and one columella cell (Scheres et al., 2002). Columella cells are considered to be differentiated (Kumpf and Nowack, 2015).

    6. Vascular initials divide asymmetrically to generate one cell of the same type and one vascular cell (Baum et al., 2002).

Position-based dynamics implementation

Request a detailed protocol

The typical approach to simulate dynamic growing systems in biology is based on force-based calculations (Nealen et al., 2006). Tissues are usually represented as triangulated meshes made of connected vertices and forces are accumulated on these vertices following specific biological criteria such as internal turgor pressure, anisotropic expansion, or gravity. Vertex acceleration is later derived from these forces and vertex masses according to Newton’s second law. A time integration scheme is then used to first compute the velocities from the accelerations and then the final positions from the velocities. Classical integration methods are usually unstable or very computationally expensive, resulting in either unmanageable or extremely inefficient simulations. Therefore, instead of a forced-based system, we decided to implement the mechanical growth of Arabidopsis thaliana root using Position-Based Dynamics (PBD) (Müller et al., 2007). PBD is a recent method used to simulate physical phenomena such as cloth, deformation, fluids, fractures, material rigidness (Müller et al., 2007). PBD omits the velocity layer and instead computes the future positions of vertices based on mechanical constraints that restrict the system dynamics. The main PBD loop is summarized in the following diagram:

Position-based dynamics algorithm.

The generic algorithm for PBD is described as following is pseudo-code:

// The algorithm assumes that each vertex in the model possesses the following
// attributes: velocity, position and mass.
// Vertices velocities are updated by applying the external forces (according to
// Newton’s law) and it proposes new positions for each vertex.
for Vertex v in Vertices {
      v.previous_position = v.position;
      v.velocity += dt * (v.forces / v.mass);
      v.position += dt * v.velocity;
}

// The iterative solver applies the constraints to the proposed vertices
// positions, adjusting them such that they satisfy the constraints.
for i in iterations
      project_constraints(contraints, vertices);

// Finally, adjust vertices velocity based on the new adjusted positionsfor Vertex v in Vertices
      v.velocity = (v.position – v.previous_position) / dt;

To provide a simple example of PBD constraint, consider the typical mass-spring system where two masses (usually represented by mesh vertices) are connected by an elastic spring. The elasticity of the spring applies a force on the masses which induces acceleration and velocity. In the PBD formulation, the same is achieved by projecting the distance constraint: C(p1, p2) = |p1 – p2| - d; p1 and p2 are the vertices positions and d is the spring resting length. The resulting corrections ∆pi are subsequently weighted according to the inverse masses wi = 1/mi. Finally, to account for the non-linear effect of the stiffness correction and to make it independent from the number of algorithm iterations, the stiffness correction is multiplied by k’ = 1 – (1 – k)1/n, as described in section 3.3 of the original paper (Müller et al., 2007). PBD has been implemented in our model framework based on the original method described in Müller et al., 2007.

The current model integrates distance, shape, strain, bending as well as pressure constraints (Figure 1—figure supplement 2A,B):

  1. The distance constraint controls the distance between connected vertices (Müller et al., 2007). This constraint simulates the elastic and plastic behavior of cell walls. Cell edges can be either internal to the cell (representing the internal cytoskeleton and pectin matrix) or on the border (representing the cell walls). Edges have different stiffness for extension and compression. Cells are generally regarded as incompressible objects and therefore maximum compression stiffness is considered. Internal edges are meant to represent the cell pectin matrix and implemented as a viscoelastic material. Border edges represent the cell walls and are very stiff to prevent cell swelling from turgor pressure but can be relaxed in an auxin-dependent manner.

  2. The shape constraint (Müller et al., 2007) simulates the mechanical forces involved in the preservation of the cytoskeleton. The shape constraint prevents cell deformation and collapses under external forces while allowing cell growth under internal pressure.

  3. The strain constraint reproduces anisotropic growth (Müller et al., 2014). This constraint is applied on mesh triangles restricting wall deformation along the AF vector.

  4. The pressure constraint (Müller et al., 2007) mimics the osmotic pressure inside the cell. This constraint allows isotropic cell expansion, which can be opposed by cell wall stiffness and restricted by the strain constraint (depending on the AF vector). This constraint also implements a time-dependent version of Position-Based Dynamics, called XPBD (Macklin et al., 2016).

  5. The bending constraint prevents cell walls angle to drift too far away from the resting condition (Müller et al., 2007), hence avoiding cell collapse at the cytoskeleton resting state.

Additional parameters sensitivity analysis

Request a detailed protocol

Our model was put to the test by varying two important parameters using high through model simulations on a computing cluster.

PINs trafficking to a specific membrane section of the cell is determined by the joint interaction between auxin flow and the AF. Briefly, the AF restricts PINs poles, whereas auxin flow discriminates between the cell poles. Parameter kP regulates the strength of auxin flow contribution to PIN trafficking (Equation. 14). We varied this parameter (the default value in the wild-type simulation was set to 3) over a range of values (Figure 5—figure supplement 3A). In most cases, models were robust, unless this parameter was set to zero (kP = 0). In this scenario, auxin distribution is notably reduced compared to the wild-type situation (kP = 3), and auxin barely reaches tissues far from the QC (after refluxing back from the tip). Also, internal tissues that are usually replenished through lateralization are almost deprived of auxin (cortex and endodermis) (Figure 5—figure supplement 3A). On the contrary, by setting higher values (kP ≥ 5) the predicted auxin flow was much stronger (Figure 5—figure supplement 3A) and the auxin-reflux loop induced by auxin lateralization from the epidermis into the cortex was increased, creating zones of auxin accumulation in the reflux region, as well as higher auxin accumulation in the pericycle (Figure 5—figure supplement 3A). These findings indicate the important role of auxin flow in PIN polarity determination, local auxin distribution, and therefore root growth.

Auxin induces cell wall relaxation according to Equation (27). The relationship between auxin and cell stiffness is regulated by K1auxin, - the auxin-induced cell wall relaxation coefficient. This parameter regulates wall stiffness response to changes in local auxin concentrations. Therefore, we simulated root growth by setting the coefficient K1auxin (the default value in the wild-type simulation is 0.05) over a range of parameter values (Figure 5—figure supplement 3B). The model was able to reproduce correct root growth patterns, demonstrating the general robustness of the model against the selection of this parameter (Figure 5—figure supplement 3B). Low values of K1auxin do not seem to produce any visible alternations of the default root growth configuration, while much higher values reduce root growth (Figure 5—figure supplement 3B). Future modifications of our model could account for mechanistic components regulating this term, such as auxin-regulated enzymatic processes involved in the cell wall relaxation.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. The source data for Figure 1D, Figure 2H-K, Figure 2-figure supplement 4, Figure 2-figure supplement 5H-K, Figure 3E,F, Figure 4C, Figure 4-figure supplement 1, Figure 5A-E and Figure 5-figure supplement 1A-C are provided in corresponding source data files. The computer model code and PBD implementation can be found here: https://github.com/PDLABCBGP/ROOTMODEL-PBD (copy archived at swh:1:rev:3251ec9fb61c1d726b2960195e15f74fe2dd9249). We received a copy of MorphoDynamX from Dr. Richard S. Smith, JIC, UK. To request MorphoDynamX source code please contact Dr. Smith directly via email Richard.Smith@jic.ac.uk.

References

  1. Conference
    1. Federl P
    2. Prusinkiewicz P
    (1999) 1999 Proceedings Computer Graphics International
    Virtual laboratory: an interactive software environment for computer graphics.
    https://doi.org/10.1109/CGI.1999.777921
    1. Müller M
    2. Heidelberger B
    3. Hennix M
    4. Ratcliff J
    (2007) Position based dynamics
    Journal of Visual Communication and Image Representation 18:109–118.
    https://doi.org/10.1016/j.jvcir.2007.01.005
  2. Conference
    1. Müller M
    2. Chentanez N
    3. Kim TY
    4. Macklin M
    (2014)
    SCA 2014
    Strain based dynamics. pp. 149–157.
    1. Mylona P
    2. Linstead P
    3. Martienssen R
    4. Dolan L
    (2002)
    SCHIZORIZA controls an asymmetric cell division and restricts epidermal identity in the Arabidopsis root
    Development 129:4327–4334.

Decision letter

  1. Kirsten HWJ ten Tusscher
    Reviewing Editor; IBB, Department of Biology, Faculty of Science, Utrecht University, Utrecht, Netherlands
  2. Detlef Weigel
    Senior Editor; Max Planck Institute for Developmental Biology, Germany
  3. Victoria Mironova
    Reviewer

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "A coupled mechano-biochemical framework for root meristem morphogenesis" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Detlef Weigel as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Victoria Mironova (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

While all 3 reviewers highly value the novel biochemical-mechanical modeling framework developed and its use for studying plant root development and beyond, they all 3 raised major concerns regarding the claims that are made, the biological correctness of some of the model assumptions, and the clarity and transparancy with which modeling assumptions and limitations are being discussed.

Essential revisions:

1) The authors are required to more extensively discuss modeling details, assumptions and limitations. PDB methodology, how cytoskeleton and how PIN polarisation are modeled should get more attention in the main text. Also, the PIN patterning that is claimed to arise in a self-organized manner is clearly driven by the imposed auxin sources and sinks. Similarly, growth anisotropy derives from the growth asymmetry imposed, so it is not self-organized but has a clear directional source of information. This matters should be discussed explicitly.

2) In line with the above, the authors should tone down their conclusions regarding the self-organized nature of the patterning they observe, and make explicit what inputs are needed to get the patterning they observe. This requires adjustment of the title.

3) The authors should carefully check the biological correctness of the assumptions. As one reviewer pointed out the assumed relationships between microtubules, trafficking and PIN polarity are incorrect.

Reviewer #1 (Recommendations for the authors):

1. line 47 on first mention of growth anisotropy it should be explained what exactly is meant for readers not familiar with the subject.

2. Lines 67-70: The authors couple symmetry breaking and anisotropic growth with polar auxin transport. It should be clarified to what extent the experimental evidence supports this coupling and to what extent it is an assumption.

3. Line 97 a bit more explanation of what PBD does would be nice, remains rather vague/abstract here. i.e. what do the constraints do, is there some Hamiltonian incorporating these constraints that should be minimized? Something else?

4. It should be clarified whether simulations shown in Figure 1A and B contain auxin dynamics (I suppose not?) or only include tissue mechanics. Also, the authors should adjust the depiction of CMT orientation, even at 400% zoom the arrows drawn now are unfortunately hardly visible. Finally, here and for all later simulations it should be clarified in the legend for how long simulations were run.

5. Figure 1D: on the y-axis it states "growth increase per hour", what exactly is meant here

a growth rate increase, or a size increase? Please clarify.

6. CTM should read CMT at line 138/146/150?

7. Presumably at some point also the hypocotyl growth speed will increase. Is the model capable of sustaining root growth anisotropy if after an initial period of growth rate differences between radicle and adjoining tissue the adjoining tissue starts to grow at a similar speed? How does this depend on auxin dynamics?

8. Around line 145 a short mention of the relevance of intramembrane PIN diffusion and PIN internalization would be in place; anisotropic delivery of proteins only results in anisotropic patterns if diffusion is limited and/or proteins are continuously internalized and redeposited, a matter on which the last author has previously done excellent work.

9. Starting at lines 154 the authors compare two methods for auxin-driven PIN polarization. However, the second method, the so-called regulator polarizer mechanism, functions essentially the same as the first, the with-the-flux method, in that both promote PIN deposition at the location of highest auxin flux. The authors should explain why they compare these two PIN polarization mechanisms, what are their essential differences (i.e. why do the mechanisms give different results predominantly for lateral PIN orientations) , and why they did not investigate another frequently investigated PIN polarization mechanism generally referred to as up-the-gradient polarization. The way it is presented now is confusing, as less technical readers may get the wrong impression that it is with the flux and up the gradient type mechanisms that are compared.

Secondly, as the authors state, the regulator-polarizer mechanism is essentially a Turing-type reaction diffusion patterning mechanism within the cell, which typically have a characteristic parameter dependent wavelength. How does such a characteristic wavelength impact the potential of this mechanism to correctly polarize cells of different sizes as occur in the modeled root tip?

10. The authors state they implement an apolar AUX/LAX pattern for cells, however it is unclear whether this pattern is applied for all cells or only for particular cell types, as has often been the case in other studies. Please clarify.

11. Also, in light of different modeling approaches in the field, the authors should clarify in their main text if their model allows for a single intracellular and intrawall auxin concentration or rather allows for intracellular and intrawall concentration gradients. Additionally they should clarify in the main text whether it is intra or extracellular auxin concentrations governing cell growth. Finally, if it is a single intracellular auxin concentration that governs growth, does this not imply that auxin and PIN patterning merely impact growth rate of cells and not growth anisotropy? Please clarify.

12. The article claims to explain the self-organized growth and patterning of the plant root tip. However in the model the authors impose an auxin source in the middle vascular files and an auxin sink in the topmost outer cell files, thus quite a bit of auxin-related prepatterning is superimposed. Indeed, in a sense the polarity of auxin transport outside the modeled root tip domain was superimposed and the modeled domain should merely align accordingly, rather then truly self-organize its PIN patterning. The authors should adress this issue more explicitly.

The authors could test whether imposing either only vascular influx or top epidermal sinks or only a transient signal would suffice to induce correct PIN patterning (I presume that in Figure 3 the auxin source is only removed after the PIN pattern was established, not from the beginning onwards) ? Even more important, the authors should test to what extent mechanical feedback is necessary for the observed PIN patterning given the imposed auxin source and sink locations and auxin-PIN feedback mechanisms (of course in these simulations PIN membrane delivery should be made independent from CMT orientation). Finally, in cells with lateral inwards PIN, is CMT organization also less longitudinally and more diagonally or even transversally oriented, and if so how does this arise from tissue growth mechanics? Please clarify.

13. line 206, please specify which type/subset of parameters could be fitted based on these data.

14. line 210, please specify the nature of the peak (i.e. a peak of what).

15. For Figure 2H-K please clarify whether the shown 1D profiles are for a specific cell file, or rather an average across all cell files for that particular position along the longitudinal axis.

16. Line 214 please consider reformulating "eventually reproducing the non-trivial shape of the root". The model reproduces growth direction anisotropy and PIN and auxin patterning, yet as far as I can judge does not provide an explanation for the wedge shape of the root tip, or the precise organization of the SCN and the differentially oriented divisions occurring there or the precise number of cell files present in the root tip.

17. Line 238 Please clarify the "plausible range of parameter values" statement. Over what range were parameters varied, which parameters?

18. Line 239 please consider reformulating "prediction" into "emergent property", as the phenomenon has long been known it can hardly be seen as a model prediction, at the same time that it automatically arises from the model as an emergent property does deserve more attention.

Also, the authors could possibly test the explanation they offer for the bidirectional auxin flow in the cortex by artificially manipulating epidermis/lateral root cap auxin flow and seeing how this affects cortical PIN patterning.

19. In Figure 3C it appears as if -compared to Figure 3D- PIN proteins are not or hardly present on the membrane. Please clarify and explicitly discuss this matter in the text.

20. Auxin levels in Figure 2C/E-G and Figure 5A in particularly the vasculature seem much lower than in Figure 3C/D. Please clarify?

21. In Figure 3E and F, where in the root are growth rate or auxin concentration measured. Please clarify in figure legend.

22. Figure 5D, the cartoon to the left suggests that in the root tip cut experiment only downward PIN mediated auxin flow occurs, please clarify if this is an emergent result from the root tip cut or rather that PIN2 mediated flow has been abolished.

23. Figure 5E, please clarify whether the narrowness of the root at the top is a result of imposed mechanical boundary conditions.

24. Line 354 Please replace predict with reproduce.

25. In the discussion the authors should be a bit more modest in their statements on the models ability to reassemble key root properties given the importance of superimposed mechanical asymmetries, auxin sources and sinks as discussed earlier.

26. The authors should describe in the main text in a bit more detail how exactly does auxin translate into cellular growth rate and how does this ensure stable, coordinated growth across cell files. In a previous study it was shown that since auxin levels differ significantly across cell files (e.g. much higher in vasculature than in neighboring cell files), problems in coordinated cell growth may occur (https://pubmed.ncbi.nlm.nih.gov/25358093/). Why is that not happening here. Please explain.

27. In the discussion authors mention possible uses of the model such as studying tropisms. However the latter requires incorporating an elongation zone in which cells undergo rapid and extreme cell elongation. It seems that the current model only incorporates slow cytoplasmic cell growth and division occurring in the meristem, would the used model formalism be capable of describing rapid cell elongation? Would the model formalism be capable of simulating the growth asymmetries occurring in root tropisms?

28. The simulation code is made available to reviewers, Will the code be made publicly available upon publication?

29. Equation 4 and descriptions thereof: would it not make more sense to denote this as apoplastic rather than membrane auxin levels (although I realize apoplast and membrane are a single entity in the model formalism). Also the subscript in the first term should not read cell i but membrane/apoplast i I believe.

30. Equation 7, the authors state that auxin decay rate increases beyond a certain threshold auxin level, they should add on what experimental data this is based.

31. Equations 8 and 9: what do the terms AUX1_cell*AUX1_tr and PIN_cell*PIN_tr mean? Only later clear it is about trafficking, explain at first occurrence please.

32. The model contains quite a lot of non-linear interactions, with particularly for the flux and regulator-polarizer model powers of 4, the authors should clarify if model outcomes critically depend on these strong non-linearities.

General comment: English grammar is quite poor, requires correction.

Reviewer #2 (Recommendations for the authors):

Some points would require attention:

1) Misconception on the role of cytoplasmic microtubules: "CTMs restrict the deposition of various protein cargoes on the plasma membrane, typically along the maximal growth direction (maximal strain) (Adamowski et al., 2019; Nieuwland et al., 2016; Siegrist and Doe, 2007; Yang, 2008). It is plausible that PIN protein allocation (and/or other cargoes) at the plasma membrane might be restricted by CTMs." I have a problem with this claim. In Heisler 2010, it was shown that PIN1 remains polarly localized when microtubules are depolymerized. How does that fit with this model? Wouldn't it make more sense to involve the link between CESA and PIN1 (Feraru), or membrane tension and vesicle trafficking (Nakayama 2012, Heisler 2010)? I think the authors rather want to say that mechanical stress is vectorial in essence, and thus could guide both growth anisotropy and growth direction. However:

(i) at cellular scale, it is difficult to envision a mechanism that would be sensitive enough to respond to small differences in stress (this was assumed in Heisler 2010, but it remains a weak point of that study). This is however well described in animal system (membrane tension promotes exocytosis and inhibits endocytosis, see Asnacios and Hamant 2012).

(ii) mechanical stress would not explain the initial differences in growth rates in any case.

I thus agree with the authors that polarity must involve extra cues of biochemical nature, possibly working in synergy with stress. But the rationale should be better explained. In particular, in the model description "CMTs and auxin flux/concentration are the main contributors to PINs localization" is unlikely to be true since PIN localization primarily depends on actin filaments (see e.g. Geldner 2001). Rather, CMTs, as proxy of stress direction, match PIN localization. I believe that the authors would be better off with a model in which instead of cytoplasmic microtubules, actin filaments are modeled (i.e. the MFcell vector). This would not change much in terms of simulations, but it would be more accurate (actin filaments are also believed to align with tensile stress, see e.g. Goodbody and Lloyd 1990).

2) Symmetry breaking event: The idea that the radicle behaves like a trichome in sepals (in Hervieux 2017) is appealing. Maybe I would make the comparison with trichomes more obvious, because it is probably easier to grasp the idea in the case of the trichome (i.e. that a fast growing zone generates mechanical shielding (circumferential CMTs in adjacent cells) and thus anisotropic growth of the radicle). However, figure 1A,B only shows simulation, and figure 1 does not show CMT orientation. So the wording should be checked. For instance "In this scenario, we could only observe the strong isotropic growth of the root radicle without a specific orientation of CMTs (Figure 1A) » does not match with what is shown on Figure 1A. More importantly, the authors should provide evidence of CMT orientation before and during radicle outgrowth to support their claim (this could be down on fixed tissues, or with existing, even published, data). Last the authors, should also discuss growth anisotropy and growth direction (not only growth rate) to show that the CMT orientation emerges from a conflict of growth rate, and not from a conflict of growth direction (see e.g. Rebocho and Coen). This is necessary especially because the authors claim that "anisotropic growth of the root emerges from initially uniform isotropic cell expansion", hence growth anisotropy needs to be quantified. This should be an easy fix since all the relevant data are present on the video files.

3) radicle vs. root: The transition between the initial symmetry breaking event and the anisotropic growth of the root is a bit problematic to me: we are not looking at the same cells/stage anymore. It's almost as if there were two papers in one. I'm wondering whether the Heisler model could be tested at the early stages of radicle emergence, i.e. assuming that differential growth prescribes maximal membrane tension around the emerging radicle, wouldn't PIN polarize towards the radicle (assuming PIN is recruited on the most tensed membrane, because tension traps it there)? This would at least provide a link between the two parts of this study. Furthermore, this would allow the authors to test how robust (or more likely, how "unrobust") is a 100% stress-derived PIN polarity model for root growth, leading to the exploration of alternative hypothesis (phosphatase model).

4) Robustness of the model: The phosphatase model with the addition of the stem cell division rule can reproduce observed PIN patterns. This is a nice hypothesis, but without experimental support for it (i.e. PP2A phosphatases are certainly involved, and there is experimental support for that, but it is still unclear how central their role is). The simulations show that this hypothesis is plausible, but one could probably envision many other mechanisms. Thus, in absence of molecular support for the hypothesis, the central question is that of robustness. Given the number of parameters in the model, one could likely find a parameter space in which the model is robust. The robustness of the model is tested with different embryo geometry and "in a plausible range of parameter values". This part should be expanded. In particular, for which values is the model not robust anymore? The multiple tests at the end of the result section provide support for the robustness of the model. I would conclude that the model is robust only at the end of the results, and not before those tests.

Reviewer #3 (Recommendations for the authors):

Great study! In my opinion, it just requires some polishing and restructuring.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A coupled mechano-biochemical model for root meristem morphogenesis" for further consideration by eLife. Your revised article has been evaluated by Detlef Weigel (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

All three reviewers are somewhat disappointed by the changes made by the authors. While a major revision was called for the authors seemed to have mostly made the easiest textual changes rather than going into certain biological details, or answered certain reviewer comments while not making corresponding changes in the text. English language and grammar are still not of high quality and at places very poor and limiting understandability.

We therefore ask for another round of revision in which you address all remaining issues, particularly the points raised with regards to biological details.

Reviewer 1:

Title/Abstract/Discussion

Although no claim of self-organization is made within the title, also the word morphogenesis or the statement that their model explains root shape is overselling what the authors can explain with their model. The model in its current form explains only the elongated shape of the root from the initial mechanical symmetry breaking and auxin patterning, but not its specific wedge shape nor the specific switching between division patterns close to the QC that sets up the different tissue layers. I suggest to replace morphogenesis/shape with (polarity) patterning or something in that direction. Discussion line 434/435: please remove that the model explains tissue patterning, as it does not as the authors describe themselves that they need certain rules to get the cell division patterns and hence the organization of tissue types right near the QC.

Response to comments:

– Author answer to point 27 by this reviewer: the authors should write their answer also explicitly in the discussion: that the model requires extension in terms of adding remeshing before it is suited for studying tropisms

– Author answer to point 30 raised by this reviewer: also write this explicitly in methods

– The authors now show that mechanics/AF is necessary for correct PIN and auxin patterning. First, it is not entirely clear whether mechanics were removed from these simulations (Figure 2 Suppl 7 from the start or after initially running the full model). Please clarify. Second, this nice result deserves some more attention, discussing how mechanics define the axis and PIN dynamics the polarity in the text!

Reviewer 2:

Rather than going into the particularities of mechanics, PIN delivery, and the roles of different parts of the cytoskeleton in this, as suggested by the reviewer, the authors have simply rephrased matters into a generic "anisotropy factor". I suggest that at least some effort into discussing the underlying biology in more depth is undertaken.

Reviewer 3:

It is recommended that the authors have another look at the points raised earlier and address these appropriately. As an example in their current response they indicate that simulation is a complete PIN KO (which would be embryonically lethal) yet in the paper it still states pin1 mutant. Also no appropriate response to and explicit incorporation of into manuscript of the fact that in the model columella PIN levels are predicted to be much lower than observed experimentally is given. Etc. It’s a nice model, so there is no reason to hide limitations, all models have them.

https://doi.org/10.7554/eLife.72132.sa1

Author response

Essential revisions:

1) The authors are required to more extensively discuss modeling details, assumptions and limitations. PDB methodology, how cytoskeleton and how PIN polarisation are modeled should get more attention in the main text. Also, the PIN patterning that is claimed to arise in a self-organized manner is clearly driven by the imposed auxin sources and sinks. Similarly, growth anisotropy derives from the growth asymmetry imposed, so it is not self-organized but has a clear directional source of information. This matters should be discussed explicitly.

We thank all three Reviewers and Editors for their hard work and valuable inputs that definitely helped to improve the manuscript. In the revised version we elaborate more on model elements as well as we explain necessity of having source or sinks as auxin has to come from somewhere (it is known to be produces in the shoot) and then the leaves the root cycling back to the shoot- all these is experimentally observed. Therefore all models include sort of boundary conditions to mimic connection to the rest of the organisms. Polarity is not driven by source or sinks but local mechanisms that act at the level of each individual cell (flux or concentration).

Sources and sinks are introduced only to connect flow from the root to the rest of the plant. However, as suggested we intended to weaken the claim of self-organization.

2) In line with the above, the authors should tone down their conclusions regarding the self-organized nature of the patterning they observe, and make explicit what inputs are needed to get the patterning they observe. This requires adjustment of the title.

See response above. Title does not tell anything about self-organization. Perhaps reviewer mentioned the abstract which has been revised accordingly. We use the word emergence when appropriate.

3) The authors should carefully check the biological correctness of the assumptions. As one reviewer pointed out the assumed relationships between microtubules, trafficking and PIN polarity are incorrect.

We carefully revised the description of assumptions to be as close as possible to observations.

Reviewer #1 (Recommendations for the authors):

1. Line 47 on first mention of growth anisotropy it should be explained what exactly is meant for readers not familiar with the subject.

This issue has been amended in the revised version (Line: 46).

2. Lines 67-70: The authors couple symmetry breaking and anisotropic growth with polar auxin transport. It should be clarified to what extent the experimental evidence supports this coupling and to what extent it is an assumption.

Experimental observations suggest that growth anisotropy aligns with preferential PIN polarization in the root. As anisotropy is controlled by mechanics of underlying tissues this is likely to feedback on PIN polarity (as mechanics constrains deposition of cell wall and membrane components Heisler et al., 2010, Feraru et al. 2012, Braybrook et al., 2013). This bio-mechanical coupling is a key hypothesis addressed in this study yet it is fairly grounded based on in vivo observations.

3. Line 97 a bit more explanation of what PBD does would be nice, remains rather vague/abstract here. i.e. what do the constraints do, is there some Hamiltonian incorporating these constraints that should be minimized? Something else?

We provided expanded description of pros and cons of PBD in the revised manuscript (Lines: 96-112). The PBD constraints are sequentially projected over the vertices of the mesh by updating their position in a Gauss-Seidel-based fashion.

4. It should be clarified whether simulations shown in Figure 1A and B contain auxin dynamics (I suppose not?) or only include tissue mechanics.

This has been clarified in revised manuscript (Lines: 128-130) and figure legend has been adapted to provide explanation for principle growth directions.

Also, the authors should adjust the depiction of CMT orientation, even at 400% zoom the arrows drawn now are unfortunately hardly visible. Finally, here and for all later simulations it should be clarified in the legend for how long simulations were run.

Actually, the lines represent the principal direction of growth, we apologize that we did not specify that in the legend and we thank reviewer for spotting this issue. The PDF version send in the submission due to conversion had lower quality figures. We provide high resolution figures with revised version of the manuscript.

5. Figure 1D: on the y-axis it states "growth increase per hour", what exactly is meant here a growth rate increase, or a size increase? Please clarify.

Yes it is size increase over time. This has been clarified.

6. CTM should read CMT at line 138/146/150?

We thank reviewer for spotting this issue, it has been amended.

7. Presumably at some point also the hypocotyl growth speed will increase. Is the model capable of sustaining root growth anisotropy if after an initial period of growth rate differences between radicle and adjoining tissue the adjoining tissue starts to grow at a similar speed? How does this depend on auxin dynamics?

We tested in new (Figure 1—figure supplement 4) and root growth is robust in this scenario. Anisotropy of the organ is conserved even after the differential growth between tissues is removed.

8. Around line 145 a short mention of the relevance of intramembrane PIN diffusion and PIN internalization would be in place; anisotropic delivery of proteins only results in anisotropic patterns if diffusion is limited and/or proteins are continuously internalized and redeposited, a matter on which the last author has previously done excellent work.

Current model does not explicitly include exo- or endocytosis or lateral diffusion of proteins in the membrane. This was simplified in the current framework to reduce number of variables and unknown parameters. Revised manuscript clarifies these assumptions (Lines: 200-205).

9. Starting at lines 154 the authors compare two methods for auxin-driven PIN polarization. However, the second method, the so-called regulator polarizer mechanism, functions essentially the same as the first, the with-the-flux method, in that both promote PIN deposition at the location of highest auxin flux. The authors should explain why they compare these two PIN polarization mechanisms, what are their essential differences (i.e. why do the mechanisms give different results predominantly for lateral PIN orientations), and why they did not investigate another frequently investigated PIN polarization mechanism generally referred to as up-the-gradient polarization. The way it is presented now is confusing, as less technical readers may get the wrong impression that it is with the flux and up the gradient type mechanisms that are compared.

Secondly, as the authors state, the regulator-polarizer mechanism is essentially a Turing-type reaction diffusion patterning mechanism within the cell, which typically have a characteristic parameter dependent wavelength. How does such a characteristic wavelength impact the potential of this mechanism to correctly polarize cells of different sizes as occur in the modeled root tip?

We argue that regulator-polarizer model mimics a plausible molecular flux sensor that has been so far elusive. Kinases and phosphatase affecting auxin transport were identified and could be a part of this mechanism (Lines: 432-435). We made loose comparison to reaction-diffusion model because it is locally activated and inhibited on larger distances. The wavelength here could be individual cell but in fact it is not the classical reaction-diffusion system therefore this comparison is rather loose. We therefore removed a confusing sentence from the manuscript. We discuss the different effect of the two mechanisms on PIN lateralization in Lines: 283-288. As for up-thegradient model we did not use it because it would result in incorrect polarization aligned towards auxin sources (see Author response image 1 same color coding as in main figures of manuscript).

Author response image 1

10. The authors state they implement an apolar AUX/LAX pattern for cells, however it is unclear whether this pattern is applied for all cells or only for particular cell types, as has often been the case in other studies. Please clarify.

Thank you for pointing this. We have now clarified this issue (Lines: 200-205).

11. Also, in light of different modeling approaches in the field, the authors should clarify in their main text if their model allows for a single intracellular and intrawall auxin concentration or rather allows for intracellular and intrawall concentration gradients. Additionally they should clarify in the main text whether it is intra or extracellular auxin concentrations governing cell growth. Finally, if it is a single intracellular auxin concentration that governs growth, does this not imply that auxin and PIN patterning merely impact growth rate of cells and not growth anisotropy? Please clarify.

Again we thank Reviewer for spotting this confusion. We clarified these issues in the revised manuscript. Intracellular auxin drives cell growth and auxin and PINs do not regulate anisotropy (mechanics does), though they contribute to final shape of root and thus impact on mechanics (Lines: 190-195, 226-230 and 267-274).

12. The article claims to explain the self-organized growth and patterning of the plant root tip. However in the model the authors impose an auxin source in the middle vascular files and an auxin sink in the topmost outer cell files, thus quite a bit of auxin-related prepatterning is superimposed. Indeed, in a sense the polarity of auxin transport outside the modeled root tip domain was superimposed and the modeled domain should merely align accordingly, rather then truly self-organize its PIN patterning. The authors should adress this issue more explicitly.

Most plant organ models include some sort of boundary conditions to mimic connection to the rest of the organisms (Mahonen et al., 2014; Grieneisen et al., 2007, Band et al., 2012). In fact, root is connected to hypocotyl and auxin must flow in and flow out to reflect this natural phenomena. Therefore, we believe this assumption is biologically sound and necessary to retain continuity of the model section (Lines: 214222 and 497-503). Furthermore, cell polarity is not established by source or sinks but local mechanisms that act at the level of each individual cell that interpret incoming signals (i.e. flux). Without that local interpretation cells are blind as these cells do not sense global gradients; everything is locally perceived. However, as suggested by Reviewer we had weaken the claim of entirely self-organizing phenomena in the manuscript.

The authors could test whether imposing either only vascular influx or top epidermal sinks or only a transient signal would suffice to induce correct PIN patterning (I presume that in Figure 3 the auxin source is only removed after the PIN pattern was established, not from the beginning onwards) ? Even more important, the authors should test to what extent mechanical feedback is necessary for the observed PIN patterning given the imposed auxin source and sink locations and auxin-PIN feedback mechanisms (of course in these simulations PIN membrane delivery should be made independent from CMT orientation). Finally, in cells with lateral inwards PIN, is CMT organization also less longitudinally and more diagonally or even transversally oriented, and if so how does this arise from tissue growth mechanics? Please clarify.

Both components are necessary. Mechanics constrains where PINs can be deposited whereas auxin defines which side is preferred (either flux or regulator-based) and controls the rate of cell growth. When we remove mechanics feedback growth on PIN polarity is less robust (as auxin only defines growth rates and final PIN localization) , see new Figure 2 —figure supplement 7. Results of severely perturbed mechanics are presented in Figure 5E. We added clarification in the revised manuscript (Lines: 267274).

13. Line 206, please specify which type/subset of parameters could be fitted based on these data.

This has been adjusted (Lines: 238-242). PIN deposition rate was fitted to experimental data.

14. Line 210, please specify the nature of the peak (i.e. a peak of what).

It is the peak of growth rate, this has been corrected.

15. For Figure 2H-K please clarify whether the shown 1D profiles are for a specific cell file, or rather an average across all cell files for that particular position along the longitudinal axis.

It is an average across all cell files along the longitudinal axis. It has been amended in revised figure legends.

16. Line 214 please consider reformulating "eventually reproducing the non-trivial shape of the root". The model reproduces growth direction anisotropy and PIN and auxin patterning, yet as far as I can judge does not provide an explanation for the wedge shape of the root tip, or the precise organization of the SCN and the differentially oriented divisions occurring there or the precise number of cell files present in the root tip.

We have revised the manuscript to express that matter more clearly (Lines: 248-255).

17. Line 238 Please clarify the "plausible range of parameter values" statement. Over what range were parameters varied, which parameters?

The exact parameters values are provided in the legend of Figure 5—figure supplement 3. Typically were tested in range of the order of magnitude or more.

18. Line 239 please consider reformulating "prediction" into "emergent property", as the phenomenon has long been known it can hardly be seen as a model prediction, at the same time that it automatically arises from the model as an emergent property does deserve more attention.

Also, the authors could possibly test the explanation they offer for the bidirectional auxin flow in the cortex by artificially manipulating epidermis/lateral root cap auxin flow and seeing how this affects cortical PIN patterning.

Adapted as suggested. We apologize for the confusion but this has been already presented in Figure 3 as we artificially removed lateralization and test its effects in combination with auxin source in QC for growth dynamics.

19. In Figure 3C it appears as if -compared to Figure 3D- PIN proteins are not or hardly present on the membrane. Please clarify and explicitly discuss this matter in the text.

In no reflux scenario we artificially manipulated auxin flow from LRC and epidermis. Therefore, in this scenario no auxin goes to the cortex this affects PIN expression levels as they depend on auxin concentrations. The visibility of PINs has been improved in high quality figures submitted in the revision.

20. Auxin levels in Figure 2C/E-G and Figure 5A in particularly the vasculature seem much lower than in Figure 3C/D. Please clarify?

This is because when the root is shorter there is more auxin, as the auxin source is always the same (in top vascular cells), the root at the beginning displays a higher concentration of auxin, and progressively loses it, we have clarified this issue in the revised manuscript (Lines: 215-222).

21. In Figure 3E and F, where in the root are growth rate or auxin concentration measured. Please clarify in figure legend.

It has been specified in Figure 3 legend in the revised version.

22. Figure 5D, the cartoon to the left suggests that in the root tip cut experiment only downward PIN mediated auxin flow occurs, please clarify if this is an emergent result from the root tip cut or rather that PIN2 mediated flow has been abolished.

It is an emergent property. This has been clarified in the Figure 5 legend.

23. Figure 5E, please clarify whether the narrowness of the root at the top is a result of imposed mechanical boundary conditions.

Yes it is attached to the rest of the plant we clarify that assumption in the revised Figure 5 legend.

24. Line 354 Please replace predict with reproduce.

Amended.

25. In the discussion the authors should be a bit more modest in their statements on the models ability to reassemble key root properties given the importance of superimposed mechanical asymmetries, auxin sources and sinks as discussed earlier.

As suggested we have weaken our claims of entire self-organization (see comments above).

26. The authors should describe in the main text in a bit more detail how exactly does auxin translate into cellular growth rate and how does this ensure stable, coordinated growth across cell files. In a previous study it was shown that since auxin levels differ significantly across cell files (e.g. much higher in vasculature than in neighboring cell files), problems in coordinated cell growth may occur (https://pubmed.ncbi.nlm.nih.gov/25358093/). Why is that not happening here. Please explain.

We thank reviewer for raising this matter. Now, we have explained what relation between auxin levels and growth rates is (Lines: 226-230). As for indicated study it has different inner working (for instance cells seems to slide against each other) and therefore it is difficult to compare with our approach. In our model cells share the common wall with their neighbors (as in real plant tissues) and therefore cell sliding is impossible. Moreover, cells are considered as almost incompressible objects (as they are filled with water). This is mimicked in our model by the internal meshing of the cell with provide resistance to compression and shearing thanks to the action of the distance constraint. This feature is described in point 1 of the suppl section: Position-based dynamics implementation. To conclude, we have never seen that problem in our simulations as biomechanics layer always compensates for overgrowing cells.

27. In the discussion authors mention possible uses of the model such as studying tropisms. However the latter requires incorporating an elongation zone in which cells undergo rapid and extreme cell elongation. It seems that the current model only incorporates slow cytoplasmic cell growth and division occurring in the meristem, would the used model formalism be capable of describing rapid cell elongation? Would the model formalism be capable of simulating the growth asymmetries occuring in root tropisms?

Although outside of scope of this study, we are exploring those possibilities in current framework. The current implementation of model will require the addition of new feature in order to allow the modelling of the elongation zone. Most notably, it would be necessary to dynamically remeshing the elongating cells in order to avoid the appearance of extremely thin and long triangles, which would definitely cause some numerical trouble to the system solution. Therefore, the extension of the current model to incorporate alternative biological processes such as rapid cell elongation are feasible but it requires the implementation of new computational procedures and thus it a matter of ongoing research.

28. The simulation code is made available to reviewers, Will the code be made publicly available upon publication?

Yes the code will be available to public upon publication.

29. Equation 4 and descriptions thereof: would it not make more sense to denote this as apoplastic rather than membrane auxin levels (although I realize apoplast and membrane are a single entity in the model formalism). Also the subscript in the first term should not read cell i but membrane/apoplast i I believe.

In fact, we formulated the amount of auxin exchanged between the intercellular space and the neighboring cells which follows the proposed description.

30. Equation 7, the authors state that auxin decay rate increases beyond a certain threshold auxin level, they should add on what experimental data this is based.

Currently, it’s just an assumption of the model intended to sustain maximal auxin levels below a certain limit (the saturation/plateau term). Although, it is known that excessive auxin levels are toxic to plants and retard their growth. Therefore it is plausible auxin homeostasis is tightly regulated to hold auxin levels in check.

31. Equations 8 and 9: what do the terms AUX1_cell*AUX1_tr and PIN_cell*PIN_tr mean? Only later clear it is about trafficking, explain at first occurrence please.

We apologize for the confusion. It is the amount of protein trafficked from the cytoplasm to the membranes; we clarify that issue in revised formulas.

32. The model contains quite a lot of non-linear interactions, with particularly for the flux and regulator-polarizer model powers of 4, the authors should clarify if model outcomes critically depend on these strong non-linearities.

Nonlinearities of higher order are used to allow thresholding effect similar to hysteresis, so polarization state can be temporally memorized. High nonlinearities assure amplification effect(increased sensitivity) which could results from multi-cascade signaling events: i.e. kinases and phosphatases such as MAPK (O'Shaughnessy et al., 2011, Cell doi.org/10.1016/j.cell.2010.12.014).

General comment: English grammar is quite poor, requires correction.

We further improved the overall readability of the manuscript.

Reviewer #2 (Recommendations for the authors):

Some points would require attention:

1) Misconception on the role of cytoplasmic microtubules: "CTMs restrict the deposition of various protein cargoes on the plasma membrane, typically along the maximal growth direction (maximal strain) (Adamowski et al., 2019; Nieuwland et al., 2016; Siegrist and Doe, 2007; Yang, 2008). It is plausible that PIN protein allocation (and/or other cargoes) at the plasma membrane might be restricted by CTMs." I have a problem with this claim. In Heisler 2010, it was shown that PIN1 remains polarly localized when microtubules are depolymerized. How does that fit with this model? Wouldn't it make more sense to involve the link between CESA and PIN1 (Feraru), or membrane tension and vesicle trafficking (Nakayama 2012, Heisler 2010)? I think the authors rather want to say that mechanical stress is vectorial in essence, and thus could guide both growth anisotropy and growth direction. However:

(i) at cellular scale, it is difficult to envision a mechanism that would be sensitive enough to respond to small differences in stress (this was assumed in Heisler 2010, but it remains a weak point of that study). This is however well described in animal system (membrane tension promotes exocytosis and inhibits endocytosis, see Asnacios and Hamant 2012).

(ii) mechanical stress would not explain the initial differences in growth rates in any case.

I thus agree with the authors that polarity must involve extra cues of biochemical nature, possibly working in synergy with stress. But the rationale should be better explained. In particular, in the model description "CMTs and auxin flux/concentration are the main contributors to PINs localization" is unlikely to be true since PIN localization primarily depends on actin filaments (see e.g. Geldner 2001). Rather, CMTs, as proxy of stress direction, match PIN localization. I believe that the authors would be better off with a model in which instead of cytoplasmic microtubules, actin filaments are modeled (i.e. the MFcell vector). This would not change much in terms of simulations, but it would be more accurate (actin filaments are also believed to align with tensile stress, see e.g. Goodbody and Lloyd 1990).

Yes we agree it is quite more complicated how PIN dynamics is regulated. Indeed neither CMTs nor Actin filaments inhibitors alone does not tend to perturb PIN localization dramatically. To open possibilities for either, we have now introduced the anisotropy factor (AF) along the manuscript which combines the action of CMTs, actin and cell wall component deposition for clarification as description of mechanical impact on PIN polarization (Lines: 166-172, 571-580).

2) Symmetry breaking event: The idea that the radicle behaves like a trichome in sepals (in Hervieux 2017) is appealing. Maybe I would make the comparison with trichomes more obvious, because it is probably easier to grasp the idea in the case of the trichome (i.e. that a fast growing zone generates mechanical shielding (circumferential CMTs in adjacent cells) and thus anisotropic growth of the radicle). However, figure 1A,B only shows simulation, and figure 1 does not show CMT orientation. So the wording should be checked. For instance "In this scenario, we could only observe the strong isotropic growth of the root radicle without a specific orientation of CMTs (Figure 1A) » does not match with what is shown on Figure 1A.

We thank Reviewer for rising this issue. We follow the suggestion and include indication of similarity to trichome (Lines: 114-118). We does not show microtubule orientation but principal growth direction instead (clarified in figure legends). As suggested we refer now to anisotropy factor (which could be combine action of CMTs, actin and cell wall components) that impacts on PIN polarization and growth mechanics.

More importantly, the authors should provide evidence of CMT orientation before and during radicle outgrowth to support their claim (this could be down on fixed tissues, or with existing, even published, data).

This mention been included in the revised manuscript (Lines: 120-126).

Last the authors, should also discuss growth anisotropy and growth direction (not only growth rate) to show that the CMT orientation emerges from a conflict of growth rate, and not from a conflict of growth direction (see e.g. Rebocho and Coen). This is necessary especially because the authors claim that "anisotropic growth of the root emerges from initially uniform isotropic cell expansion", hence growth anisotropy needs to be quantified. This should be an easy fix since all the relevant data are present on the video files.

To demonstrate further that it is growth rates rather than conflicts that drive symmetry breaking, we run additional simulations and results are presented in new Figure 1— figure supplement 3 and 4 (Lines: 143-146).

3) radicle vs. root: The transition between the initial symmetry breaking event and the anisotropic growth of the root is a bit problematic to me: we are not looking at the same cells/stage anymore. It's almost as if there were two papers in one. I'm wondering whether the Heisler model could be tested at the early stages of radicle emergence, i.e. assuming that differential growth prescribes maximal membrane tension around the emerging radicle, wouldn't PIN polarize towards the radicle (assuming PIN is recruited on the most tensed membrane, because tension traps it there)? This would at least provide a link between the two parts of this study. Furthermore, this would allow the authors to test how robust (or more likely, how "unrobust") is a 100% stress-derived PIN polarity model for root growth, leading to the exploration of alternative hypothesis (phosphatase model).

We are unsure what the reviewer meant by two different papers. We simulate radicle emergence from “late embryonic stage”. We provide continuous simulations where mechanics only restricts PINs to the axis of growth but does not tell where PINs will be finally deposited this is done through flux sensing. Therefore, it is very unlikely up-thegradient model would polarize PINS away from auxin source (see simulation presented in Author response image 2 (color coding as in main figures of manuscript)). We clarify this issue in revised manuscript (Lines: 166-172).

Author response image 2

4) Robustness of the model: The phosphatase model with the addition of the stem cell division rule can reproduce observed PIN patterns. This is a nice hypothesis, but without experimental support for it (i.e. PP2A phosphatases are certainly involved, and there is experimental support for that, but it is still unclear how central their role is). The simulations show that this hypothesis is plausible, but one could probably envision many other mechanisms. Thus, in absence of molecular support for the hypothesis, the central question is that of robustness. Given the number of parameters in the model, one could likely find a parameter space in which the model is robust. The robustness of the model is tested with different embryo geometry and "in a plausible range of parameter values". This part should be expanded. In particular, for which values is the model not robust anymore? The multiple tests at the end of the result section provide support for the robustness of the model. I would conclude that the model is robust only at the end of the results, and not before those tests.

In revised version we moved the summary of robustness to the last part of the manuscript (Lines: 400-406) and exact parameter values tested are presented in figure legends (Figure 5 – figure suppl. 3). Since this model is already quite complex we had to adapt the PBD framework to run on supercomputing cluster to generate results in this manuscript which was a non-trivial and difficult task.

Reviewer #3 (Recommendations for the authors):

Great study! In my opinion, it just requires some polishing and restructuring.

We thank Reviewer for showing enthusiasm and again for all suggestions that helped in improving this manuscript.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

We therefore ask for another round of revision in which you address all remaining issues, particularly the points raised with regards to biological details.

Reviewer 1:

Title/Abstract/Discussion

Although no claim of self-organization is made within the title, also the word morphogenesis or the statement that their model explains root shape is overselling what the authors can explain with their model. The model in its current form explains only the elongated shape of the root from the initial mechanical symmetry breaking and auxin patterning, but not its specific wedge shape nor the specific switching between division patterns close to the QC that sets up the different tissue layers. I suggest to replace morphogenesis/shape with (polarity) patterning or something in that direction.

We thank the reviewer for these suggestions. To address these issues, we did the following:

– The title was modified to “A coupled mechano-biochemical model for cell polarity guided anisotropic root growth”.

– The abstract has been modified by substituting “morphogenesis” with a more generic “growth”, and “polar patterning”.

– We clearly distinguish between emergent properties of the model (cell polarity, anisotropy, PIN localization, and auxin distribution) and model assumptions/simplifications. Some major changes were done to the manuscript and method sections to further clarify any misunderstanding and confusion (i.e., see Discussion, Method sections, abstract (Lines 25-28), Line 72, Lines 104106, 112-124, 142-151, 163-180, 207-221, 234-238, 250-253, 280-290, among others).

We discuss model limitations and suggest further work to improve these bottlenecks (see revised Discussion).

Discussion line 434/435: please remove that the model explains tissue patterning, as it does not as the authors describe themselves that they need certain rules to get the cell division patterns and hence the organization of tissue types right near the QC.

Amended, Lines 443-447.

Response to comments:– Author answer to point 27 by this reviewer: the authors should write their answer also explicitly in the discussion: that the model requires extension in terms of adding remeshing before it is suited for studying tropisms.

This has been explained in detail in the revised Discussion, Lines 468-476, together with a description of the model’s limitations and shortcomings.

– Author answer to point 30 raised by this reviewer: also write this explicitly in methods.

This has been explained in the Method section Auxin transport module description Lines 722-726.

– The authors now show that mechanics/AF is necessary for correct PIN and auxin patterning. First, it is not entirely clear whether mechanics were removed from these simulations (Figure 2 Suppl 7 from the start or after initially running the full model). Please clarify. Second, this nice result deserves some more attention, discussing how mechanics define the axis and PIN dynamics the polarity in the text!

We thank the reviewer for pointing this out. This AF effect on PIN trafficking was removed at the start of each simulation. We also provide discussion on that matter, suggesting an important role of growth mechanics in cell polarity maintenance see Lines 280-290 and Figure 2—figure supplement 7 legend.

Reviewer 2:

Rather than going into the particularities of mechanics, PIN delivery, and the roles of different parts of the cytoskeleton in this, as suggested by the reviewer, the authors have simply rephrased matters into a generic "anisotropy factor". I suggest that at least some effort into discussing the underlying biology in more depth is undertaken.

We thank the reviewer for this suggestion.

In the substantially revised manuscript and methods, we provide the reasoning underlying AF introduction as the output of still poorly understood cytoskeleton shaping processes (Lines 112-124) and we also present a scheme to explain how AF feeds back on growth mechanics for clarification (see Method section Position-based dynamics implementation, Lines 582-596). We made this simplification to reduce already complex models, otherwise, we would just increase the number of unknown parameters. When appropriate we point out model simplifications and suggest further expansion of the model once more experimental data become available (see i.e., Discussion Lines 468-476).

Similarly, we tend to avoid overcomplication of the model by including specific processes leading to PIN trafficking such as endo and exocytosis membrane diffusion or CMT/actin dynamics (see explanation Lines 163-180, and 207-221). The general idea is to demonstrate minimal design principles that lead to cell polarization, anisotropic growth, and auxin transport patterning.

Reviewer 3:

It is recommended that the authors have another look at the points raised earlier and address these appropriately. As an example in their current response they indicate that simulation is a complete PIN KO (which would be embryonically lethal) yet in the paper it still states pin1 mutant. Also no appropriate response to and explicit incorporation of into manuscript of the fact that in the model columella PIN levels are predicted to be much lower than observed experimentally is given. Etc. It s a nice model, so there is no reason to hide limitations, all models have them.

We thank the reviewer for pointing this issue. In the revised version, we clarified assumptions and simplifications that we made in our models, also presenting a plan to improve them in the next versions of these models (See Discussion). Major changes have been made to the overall manuscript and Method sections which we believe address all remaining issues.

As suggested, we point out the difference between model predictions and experiments regarding columella and explain why we observe these differences (see Lines 214221).

Results of model simulations are presented as they are and open for possible alternative interpretations. Furthermore, method sections have been improved to increase further the clarity. We do point out assumptions and shortcomings of our models and leave a space for further model improvement. We also must agree no models are perfect – there are and will be a simplification of real complexities that we observe in nature. Yet we believe models as the ones presented here will be very useful to understand the principles behind nature’s complexity and more importantly make predictions to aid in experimental design.

Regarding the PIN1 issue, we replace notation for more generic “vascular PINs” see (Lines 373-377 and Figure 5—figure supplement 1A). It is important to mention that all simulated mutants reflect the reduction of PINs (knockdown) as opposed to full knockouts. Nevertheless, if this issue remains confusing, we are open to remove “vascular PIN” simulations from the manuscript.

https://doi.org/10.7554/eLife.72132.sa2

Article and author information

Author details

  1. Marco Marconi

    Centro de Biotecnología y Genómica de Plantas, Universidad Politécnica de Madrid (UPM)—Instituto Nacional de Investigación y Tecnología Agraria y Alimentaria (INIA), Pozuelo de Alarcón, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, MM designed the computer model and analysed data and wrote the manuscript, Methodology, Resources, Software, Validation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3457-1384
  2. Marcal Gallemi

    Institute of Science and Technology (IST), Klosterneuburg, Austria
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  3. Eva Benkova

    Institute of Science and Technology (IST), Klosterneuburg, Austria
    Contribution
    Funding acquisition, Resources, Supervision
    Competing interests
    No competing interests declared
  4. Krzysztof Wabnik

    Centro de Biotecnología y Genómica de Plantas, Universidad Politécnica de Madrid (UPM)—Instituto Nacional de Investigación y Tecnología Agraria y Alimentaria (INIA), Pozuelo de Alarcón, Spain
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Project administration, Resources, Supervision, Writing - original draft, Writing - review and editing
    For correspondence
    k.wabnik@upm.es
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7263-0560

Funding

Comunidad de Madrid (2017-T1/BIO-5654)

  • Krzysztof Wabnik

Ministerio de Ciencia, Innovación y Universidades (PGC2018-093387-A-I00)

  • Krzysztof Wabnik

Ministerio de Ciencia, Innovación y Universidades (SEV-2016-0672 (2017-2021))

  • Marco Marconi
  • Krzysztof Wabnik

Oregon State University (IC1022IPC03)

  • Marcal Gallemi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful Richard Smith, Anne-Lise Routier, Crisanto Gutierrez and Juergen Kleine-Vehn for providing critical comments on the manuscript. Funding: This work was supported by the Programa de Atraccion de Talento 2017 (Comunidad de Madrid, 2017-T1/BIO-5654 to KW), Severo Ochoa (SO) Programme for Centres of Excellence in R&D from the Agencia Estatal de Investigacion of Spain (grant SEV-2016–0672 (2017–2021) to KW via the CBGP). In the frame of SEV-2016–0672 funding MM is supported with a postdoctoral contract. KW was supported by Programa Estatal de Generacion del Conocimiento y Fortalecimiento Cientıfico y Tecnologico del Sistema de I + D + I 2019 (PGC2018-093387-A-I00) from MICIU (to KW). MG is recipient of an IST Interdisciplinary Project (IC1022IPC03).

Senior Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Reviewing Editor

  1. Kirsten HWJ ten Tusscher, IBB, Department of Biology, Faculty of Science, Utrecht University, Utrecht, Netherlands

Reviewer

  1. Victoria Mironova

Publication history

  1. Preprint posted: January 28, 2021 (view preprint)
  2. Received: July 12, 2021
  3. Accepted: October 26, 2021
  4. Accepted Manuscript published: November 1, 2021 (version 1)
  5. Version of Record published: December 24, 2021 (version 2)

Copyright

© 2021, Marconi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,647
    Page views
  • 247
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Marco Marconi
  2. Marcal Gallemi
  3. Eva Benkova
  4. Krzysztof Wabnik
(2021)
A coupled mechano-biochemical model for cell polarity guided anisotropic root growth
eLife 10:e72132.
https://doi.org/10.7554/eLife.72132

Further reading

    1. Cancer Biology
    2. Computational and Systems Biology
    Gökçe Senger et al.
    Research Article Updated

    Aneuploidy, a state of chromosome imbalance, is a hallmark of human tumors, but its role in cancer still remains to be fully elucidated. To understand the consequences of whole-chromosome-level aneuploidies on the proteome, we integrated aneuploidy, transcriptomic, and proteomic data from hundreds of The Cancer Genome Atlas/Clinical Proteomic Tumor Analysis Consortium tumor samples. We found a surprisingly large number of expression changes happened on other, non-aneuploid chromosomes. Moreover, we identified an association between those changes and co-complex members of proteins from aneuploid chromosomes. This co-abundance association is tightly regulated for aggregation-prone aneuploid proteins and those involved in a smaller number of complexes. On the other hand, we observed that complexes of the cellular core machinery are under functional selection to maintain their stoichiometric balance in aneuploid tumors. Ultimately, we provide evidence that those compensatory and functional maintenance mechanisms are established through post-translational control, and that the degree of success of a tumor to deal with aneuploidy-induced stoichiometric imbalance impacts the activation of cellular protein degradation programs and patient survival.

    1. Computational and Systems Biology
    2. Neuroscience
    Roshan Prakash Rane et al.
    Research Article

    Alcohol misuse during adolescence (AAM) has been associated with disruptive development of adolescent brains. In this longitudinal machine learning (ML) study, we could predict AAM significantly from brain structure (T1-weighted imaging and DTI) with accuracies of 73 - 78% in the IMAGEN dataset (n ~1182). Our results not only show that structural differences in brain can predict AAM, but also suggests that such differences might precede AAM behavior in the data. We predicted ten phenotypes of AAM at age 22 using brain MRI features at ages 14, 19, and 22. Binge drinking was found to be the most predictable phenotype. The most informative brain features were located in the ventricular CSF, and in white matter tracts of the corpus callosum, internal capsule, and brain stem. In the cortex, they were spread across the occipital, frontal, and temporal lobes and in the cingulate cortex. We also experimented with four different ML models and several confound control techniques. Support Vector Machine (SVM) with rbf kernel and Gradient Boosting consistently performed better than the linear models, linear SVM and Logistic Regression. Our study also demonstrates how the choice of the predicted phenotype, ML model, and confound correction technique are all crucial decisions in an explorative ML study analyzing psychiatric disorders with small effect sizes such as AAM.
