Covalent inhibition of endoplasmic reticulum chaperone GRP78 disconnects the transduction of ER stress signals to inflammation and lipid accumulation in diet-induced obese mice

  1. Dan Luo
  2. Ni Fan
  3. Xiuying Zhang
  4. Fung Yin Ngo
  5. Jia Zhao
  6. Wei Zhao
  7. Ming Huang
  8. Ding Li
  9. Yu Wang
  10. Jianhui Rong  Is a corresponding author
  1. School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, China
  2. Department of Pharmacology and Pharmacy, Li Ka Shing Faculty of Medicine, University of Hong Kong, China
  3. Colleage of Chemistry and Pharmacy, College of Chemistry & Pharmacy, Northwest A&F University, China

Abstract

Targeting endoplasmic reticulum (ER) stress, inflammation, and metabolic dysfunctions may halt the pathogenesis of obesity and thereby reduce the prevalence of diabetes, cardiovascular disesases, and cancers. The present study was designed to elucidate the mechnaisms by which plant-derived celastrol ameliorated inflammation and lipid accumulation in obesity. The mouse model of diet-induced obesity was induced by feeding high-fat diet for 3 months and subsequently intervented with celastrol for 21 days. Hepatic and adipose tissues were analyzed for lipid accumulation, macrophage activation, and biomarker expression. As result, celastrol effectively reduced body weight, suppressed ER stress, inflammation, and lipogenesis while promoted hepatic lipolysis. RNA-sequencing revealed that celastrol-loaded nanomicelles restored the expression of 49 genes that regulate ER stress, inflammation, and lipid metabolism. On the other hand, celastrol-PEG4-alkyne was synthesized for identifying celastrol-bound proteins in RAW264.7 macrophages. ER chaperone GRP78 (78 kDa glucose-regulated protein) was identified by proteomics approach for celastrol binding to the residue Cys41. Upon binding and conjugation, celastrol diminished the chaperone activity of GRP78 by 130-fold and reduced ER stress in palmitate-challenged cells, while celastrol analog lacking quinone methide failed to exhibit antiobesity effects. Thus, covalent GRP78 inhibition may induce the reprograming of ER signaling, inflammation, and metabolism against diet-induced obesity.

Editor's evaluation

This paper is of interest to a broad audience of cell biologists, pharmacologists and researchers who work in metabolic diseases. The work provides substantial new insights into the mechanism of action for a plant derived pentacyclic triterpene called celastrol elastrol, in effectively reducing the high fat diet induced tissue hypertrophy in mouse liver and adipose. A series of compelling experiments depict the site of covalent inhibition of the ER stress sensor GRP78 as essential for the beneficial effects in-vivo, supporting the main conclusions.

https://doi.org/10.7554/eLife.72182.sa0

Introduction

Dysregulation of cross-talks between endoplasmic reticulum (ER) stress, inflammation, and metabolic pathways hallmark the pathogenesis of obesity, diabetes, atherosclerosis, hypertension, and acute myocardial infarction (Van Gaal et al., 2006; Rocha and Libby, 2009; Flegal et al., 2010). The 78 kDa glucose-regulated protein (GRP78) is an integral ER stress sensor and holds inositol-requiring enzyme 1 (IRE1), protein kinase R-like ER kinase (PERK), and activating transcription factor 6 (ATF6) in the ER lumen to prevent the activation of corresponding downstream substrates under the physiological conditions (Szegezdi et al., 2006; Cnop et al., 2012). Upon the challenge by stress stimuli, however, unfolded or misfolded proteins are overwhelmingly accumulated in ER compartment, disrupt the complexes of GRP78 with IRE1, PERK, and ATF6, and ultimately induce unfolded protein response (Cnop et al., 2012). Obesity and high-fat diet (HFD) not only induce persistent ER stress, leptin resistance, and insulin resistance via activating protein kinase JNK and inducing the phosphorylation of insulin receptor substrate 1 (Ozcan et al., 2004; Ozcan et al., 2009), but also promote the generation of unfolded or misfolded proteins and the activation of proinflammatory signaling pathways (Hotamisligil, 2010; Pagliassotti et al., 2016). On the other hand, hyperactive ER stress drives the proinflammatory M1 polarization of adipose tissue macrophages and exacerbates inflammation and metabolic dysfunctions in obesity (Bujisic and Martinon, 2017; Shan et al., 2017). Importantly, GRP78 is essential for the differentiation of preadipocytes into adipocytes, indicating a critical role in the control of fat contents in body (Zhu et al., 2013). The activation of ER stress pathways (e.g., PERK and eIF2α) inversely induces the upregulation of GRP78 expression (Ozcan et al., 2004; Shan et al., 2017). Thus, GRP78 may be an important molecular target for the development of new therapies against obesity, type 2 diabetes, atherosclerosis, hypertension, and acute myocardial infarction.

Pentacyclic triterpene celastrol as a major bioactive compound from the plant Tripterygium wilfordii Hook.f. was recently identified as the best antiobesity drug candidate without evident toxicity at the dose of 100 μg kg−1 d−1 (Liu et al., 2015). Several recent studies suggest that celastrol may induce rapid weight loss through several mechanisms as follows: (1) To enhance leptin activity and reduce food intake in obese mice (Greenhill, 2015; Liu et al., 2015); (2) To improve insulin sensitivity via inhibiting NF-κB pathway and control the progression of obesity via enhancing antioxidant capacity and lipid metabolism (Kim et al., 2013; Wang et al., 2014); (3) To activate HSF1–PGC1α transcriptional axis and elicit beneficial metabolic changes against obesity (Ma et al., 2015). However, the primary molecular targets have not been well defined for celastrol to bind covalently or noncovalently. At the cell level, celastrol could effectively suppress proinflammatory M1 macrophage polarization and enhance anti-inflammatory M2 macrophage polarization (Luo et al., 2017). These results strongly promoted effort to development novel celastrol-based antiobesity drugs. Nevertheless, the pharmacological potential of celastrol is largely limited by its strong hydrophobicity and poor bioavailability. We recently attempted to load celastrol into PEG-PCL nanomicelles to yield Nano-celastrol (Zhao et al., 2019). Indeed, Nano-celastrol exhibited highly competitive antiobesity effects and less gastrointestinal retention. These results strongly facilitated the pharmaceutical application of celastrol.

The aim of the present study is to discover the protein targets for celastrol and determine the impact of covalent celastrol–protein conjugation on ER stress in diet-induced obesity. We synthesized celastrol-PEG4-alkyne bearing an alkyne (–C≡C–) group as a molecular probe for the affinity isolation of celastrol-bound proteins. We further determined the in vitro and in vivo effects of celastrol on ER stress, inflammation, and lipid metabolism.

Results

Celastrol diminished lipid accumulation in diet-induced obesity

To examine the effects of celastrol on lipid metabolism, we visualized the morphology of adipocytes and the profiles of fatty acids in livers and adipose tissues from diet-induced obese mice. Firstly, liver tissues and adipose tissues were examined by hematoxylin and eosin (H&E) staining. As shown in Figure 1A, B, celastrol effectively ameliorated adipose hypertrophy and lipid accumulation in both livers and epididymal fat pads. Secondly, the compositions of fatty acids in liver and adipose tissues were profiled by gas chromatography–mass spectrometry (GC–MS) technology. Figure 1C, D shows the GC–MS chromatograms of lipid extracts from the livers and adipose tissues of three treatment groups. Based on the quantitative analysis in Figure 1E, F, HFD elevated the contents of several polyunsaturated fatty acids (e.g., C16:1, trans-C18:1, cis-C18:1, C18:2, C18:3, cis-C20:2, cis-C20:3) whereas celastrol ameliorated HFD-induced elevations of specific fatty acids in liver (Figure 1C, E). By contrast, HFD decreased the contents of long chain polyunsaturated fatty acids eicosoids (e.g., cis-C20:1, cis-C20:3, cis-C22:6) in epididymal fat pads while celastrol showed little activity (Figure 1D, F). The results showed that celastrol could diminish lipid accumulation in diet-induced obesity.

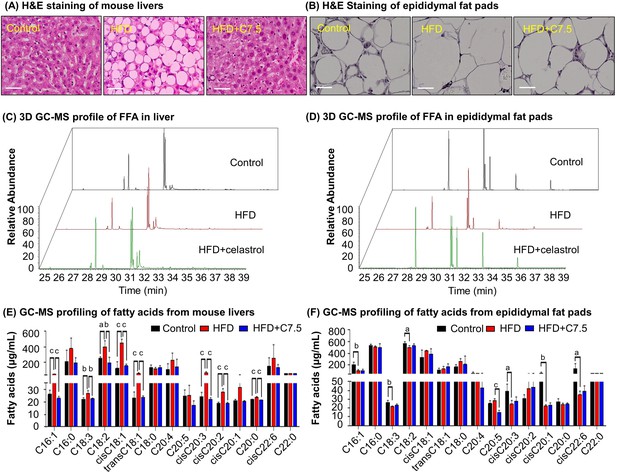

Celastrol ameliorates adipose hypertrophy and lipid metabolism.

(A, B) Hematoxylin and eosin (H&E) staining of mouse hepatic tissues and epididymal fat pads. After 21-day treatment with vehicle or celastrol, the livers and epididymal fat pads were recovered from four groups of C57/BL6 mice (i.e., Control, HFD, HFD + C5, HFD + C7.5) and stained with H&E stain. Representative images were shown. Scale bar represented 34 μm in length. (C, D) 3D gas chromatography–mass spectrometry (GC–MS) chromatograms of free fatty acids from murine livers and epididymal fat pads. After 21-day treatment with vehicle or celastrol, livers and epididymal fat pads were recovered from four groups of C57/BL6 mice (i.e., Control, HFD, HFD + C5, HFD + C7.5) for fatty acids extraction and GC–MS profiling. (E, F) GC–MS profiling of fatty acids from murine livers and epididymal fat pads. Free and conjugated fatty acids were profiled by GC–MS. Total amounts of individual fatty acids were quantified. The results were presented as mean ± standard deviation (SD) of three independent experiments. a, p < 0.05; b, p < 0.01; c, p < 0.001.

Celastrol inhibited lipogenesis while promoted lipolysis and thermogenesis

To investigate how celastrol regulates lipid metabolism, we employed quantitative real-time PCR (qRT-PCR) technique to determine the expression of the representative biomarkers in lipogenesis, lipolysis, and thermogenesis. As shown in Figure 2A, HFD upregulated the expression of adipogenic genes (e.g., Pparg, Cebpa, Fabp4) and adipocyte-secreted hormones (e.g., Retn, Cfd) while suppressed the lipolytic genes (e.g., Cpt1, Cat, Aco) and thermogenic gene Ucp2 in liver. After the treatment at the dose of 7.5 mg kg−1 d−1 for 7 days, celastrol effectively downregulated the expression of the adipocyte-secreted hormones (e.g., Retn, Cfd), restored the lipolytic genes (e.g., Cpt1, Cat) and thermogenic gene Ucp2, and decreased the expression of the selected adipogenic genes (e.g., Pparg, Cebpa, Fabp4) to the levels below control. After the animals were treated with celastrol at the doses of 5.0 and 7.5 mg kg−1 d−1 for 21 days, the levels of these biomarkers in liver and adipose tissues were determined by qRT-PCR technique. As shown in Figure 2B, celastrol effectively decreased the upregulation of the lipogenic genes (e.g., Pparg, Cebpa, Fabp4) and adipocyte-secreted hormones (e.g., Lepa, Retn, Cfd) in livers against HFD stimulation. By contrast, celastrol upregulated the lipolytic genes (e.g., Cpt1, Cat, Aco) and thermogenic gene Ucp2 in liver in a dose-dependent manner whereas HFD did not show any effects. As shown in Figure 2C, in adipose tissues, celastrol at the dose of 7.5 mg kg−1 d−1 attenuated the upregulation of the selected lipogenic genes and adipocyte-secreted hormones against HFD stimulation. On the other hand, both HFD and celastrol did not show much effects on the expression of the selected lipolytic and thermogenic genes. These results indicated that celastrol inhibited lipogenesis while promoted lipolysis and thermogenesis.

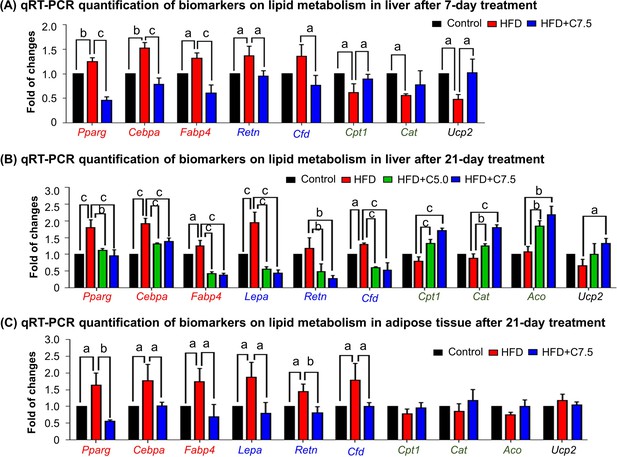

Celastrol restores the expression of the biomarkers in lipid metabolism in livers and epididymal adipose tissues.

(A) One-week effects of celastrol on the biomarkers of lipid metabolism in liver tissues. After 7-day treatment, total RNAs were extracted from livers and analyzed by quantitative real-time PCR (qRT-PCR) technique using Qiagen QuantiTect SYBR Green PCR Kit and specific DNA primers. N = 3. (B) Three-week effects of celastrol on the biomarkers in lipid metabolism in liver tissues. After 21-day treatment, total RNAs were extracted from livers and analyzed by qRT-PCR technique using Qiagen QuantiTect SYBR Green PCR Kit and specific DNA primers. N = 3. (C) Three-week effects of celastrol the biomarkers in lipid metabolism in epididymal adipose tissues. After 21-day treatment, total RNAs were extracted from epididymal adipose tissues and analyzed by qRT-PCR technique using Qiagen QuantiTect SYBR Green PCR Kit and specific DNA primers. N = 3. HFD, HFD only; C5.0, celastrol (5 mg kg−1 d−1); C7.5, celastrol (7.5 mg kg−1 d−1); a, p < 0.05; b, p < 0.01; c, p < 0.001.

Celastrol suppressed ER stress signaling in livers and adipose tissues

To validate the in vivo effects of celastrol on the ER stress signaling pathway, firstly, we employed immunofluorescence staining to examine the expression of biomarker GRP78 in hepatic and adipose tissue macrophages from diet-induced obese mice. Mouse liver and epididymal fat pads were recovered from three groups of animals (i.e., Control, HFD, HFD + Celastrol [7.5 mg kg−1 d−1]), and stained with antibodies against GRP78, whereas macrophages were identified with antibody against biomarker CD68 and the cell nuclei were stained with DAPI. As shown in Figure 3A, B, macrophage infiltration and GRP78 expression were greatly enhanced in liver and adipose tissues in obese mice, whereas celastrol treatment effectively inhibited macrophage infiltration and reduced the protein level of GRP78 in macrophages. Secondly, we determined the expression of GRP78 and related ER stress signaling proteins in livers and epididymal fat pads by Western blotting. As shown in Figure 3C–F, HFD profoundly increased the protein levels of GRP78, ATF6, and p-eIF2α in livers and epididymal fat pads from obese mice. Celastrol at the dose of 7.5 mg kg−1 d−1 markedly decreased the protein levels of GRP78, ATF6, and p-eIF2α. These results demonstrated that celastrol effectively suppressed the ER stress signaling pathway in livers and epididymal fat pads.

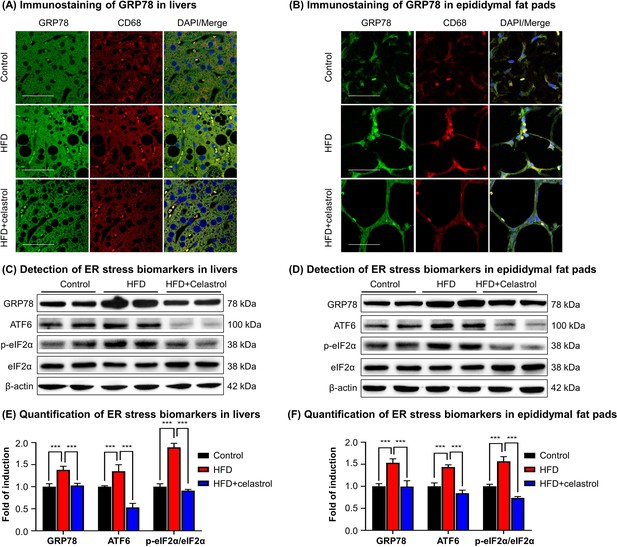

Celastrol suppresses endoplasmic reticulum (ER) stress signaling in livers and epididymal adipose tissues.

(A) Immunostaining of GRP78 in livers. After 21-day treatment, mouse livers were recovered and stained with antibodies against GRP78 and CD68, whereas 2-(4-Amidinophenyl)-6-indolecarbamidine dihydrochloride (DAPI) was used to stain cell nuclei. The sections were imaged under a Zeiss LSM 780 confocal microscope. Representative images were shown. Scale bar, 50 μm. (B) Immunosatining of GRP78 in epididymal adipose tissues. After 21-day treatment, mouse epididymal fat pads were recovered and stained with antibodies against GRP78 and CD68, whereas DAPI was used to stain cell nuclei. The sections were imaged under a Zeiss LSM 780 confocal microscope. Representative images were shown. Scale bar, 50 μm. (C) Detection of ER stress biomarkers in livers. After 21-day treatment, mouse livers were recovered and analyzed for the expression of ER stress biomarkers by Western blot analysis. Representative blots were shown. (D) Detection of ER stress biomarkers in epididymal fat pads. After 21-day treatment, epididymal fat pads were recovered and analyzed for the expression of ER stress biomarkers by Western blot analysis. Representative blots were shown. (E) Quantification of ER stress biomarkers in livers. The blots (n = 4) for ER stress biomarkers in livers were quantified by a densitometric method. (F) Quantification of ER stress biomarkers in epididymal fat pads. The blots (n = 4) for ER stress biomarkers in epididymal fat pads were quantified by a densitometric method. ***p < 0.001.

RNA-seq transcriptome profiling confirms the effects of celastrol on inflammation, ER stress, and lipid accumulation in liver

To discover the effects of celastrol on hepatic inflammation, ER stress, and lipid metabolism, we determined the effects of Nano-celastrol on the transcriptomic profile in mouse liver by next-generation RNA-seq technology. Based on the expression values and fold of change, a total of 49 differentially expressed genes (DEGs) were initially identified in the livers from the untreated control, HFD, and HFD+ Nano-celastrol groups. As shown in Figure 4A, 49 DEGs were compared by hierarchical clustering while the effects of HFD and celastrol on gene expression were presented in a heatmap. HFD upregulated nine DEGs including Apoa4, Apoc2, Thrsp while Nano-celastrol suppressed the upregulation of these nine genes and even downregulated three genes (i.e., Bhmt, Car3, Mup18) in HFD-treated mice. By contrast, HFD downregulated 21 DEGs (e.g., Cyp4a14, Mup7, Mup14, Mup15) while Nano-celastrol increased the expression of the selected genes to a certain extent and even upregulated four genes (i.e., Hamp, Mt2, Igfbp2, Serpina1e) in HFD-treated mice. Among the other 19 genes, Nano-celastrol significantly upregulated four DEGs (i.e., Lrg1, Fgl1, Mt1, Apom) and downregulated Scd1 although HFD showed little effect on these genes. Secondly, functional enrichment analysis of DEGs was performed by functional annotation tool DAVID bioinformatics resource 6.8 (https://david.ncifcrf.gov/). As shown in Figure 4B, Nano-celastrol significantly affected 6 KEGG pathways, 14 biological processes, and 5 molecular function groups. Interestingly, these functional groups mainly deal with retinal metabolism, lipid metabolism, fatty acid oxidation, cholesterol efflux, glucose metabolism, stress response, inflammatory response, oxidative stress, detoxification, PPAR pathway, kinase pathways, complement, and coagulation cascade. Thirdly, these DEGs were analyzed for protein–protein interaction networks by online STRING tool (https://string-db.org/). As shown in Figure 4C, Nano-celastrol considerably affected 4 networks of gene products including 10 DEGs for Network-1 (Cyp1a2, Cyp2a12, Cyp3a25, Cyp4a10, Cyp4a14, Cyp2c44, Mdh1, Pck1, Ugt2b5, Aldh1a1); 8 DEGs for Network-2 (Apoa4, Apoc2, Apom, C3, C8a, Creg1, Itih3, Itih4); 3 DEGs for Network-3 (Acat1, Ehhadh, Hsd17b10), and 2 DEGs for Network-4 (Mt1, Mt2). RNA-seq transcriptome profiling confirmed the effects of celastrol on inflammation, ER stress, and lipid accumulation in liver.

RNA-seq transcriptome profiling of celastrol-regulated genes.

(A) Hierarchical cluster analysis of celastrol-regulated differentially expressed genes (DEGs) in high-fat diet (HFD)-induced obese mice. Expression values are determined by next-generation RNA-seq technology on Illumina HiSeq2500 platform (https://www.genomics.cn/). Data were presented as the expression values (log2 fold change) of the genes in HFD group and HFD + Nano-celastrol group relative to that in Control group. Increases in log2 fold of change are indicated in red hues while decreases are in blue hues. (B) Functional enrichment analysis of celastrol-regulated DEGs. Celastrol-regulated DEGs were classified into different functional groups in terms of molecular function, biological process, and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway using online DAVID v6.8. The number of genes related to each term was shown next to the bar. (C) Protein–protein interaction networks of the DEGs. Protein–protein interactions were analyzed by online STRING tool. The interaction networks involving DEGs were represented in different colors and lines using Cytoscape.

Celastrol ameliorated ER stress in palmitate-challenged macrophages

To verify the effects of celastrol on ER stress, we pretreated RAW264.7 macrophages with celastrol at the concentrations of 0.25, 0.5, 0.75, and 1 μM for 8 hr and incubated with fatty acid palmitate (400 μM) for another 16 hr to induce ER stress. Subsequently, the cellular proteins were extracted and analyzed by Western blotting for the expression of ER stress biomarkers (i.e., GRP78, IRE1α, ATF6, eIF2α, phospho-eIF2α, CHOP, and XBP1). As shown in Figure 5A, B, plamitate not only elevated the expressions of ER stress biomarkers (i.e., GRP78, IRE1α, ATF6, CHOP, and XBP1) but also induced the phosphorylation of eIF2α. Interestingly, celastrol effectively inhibited the expressions of GRP78, IRE1α, ATF6, CHOP, and XBP1, and attenuated the phosphorylation of eIF2α in a concentration-dependent manner.

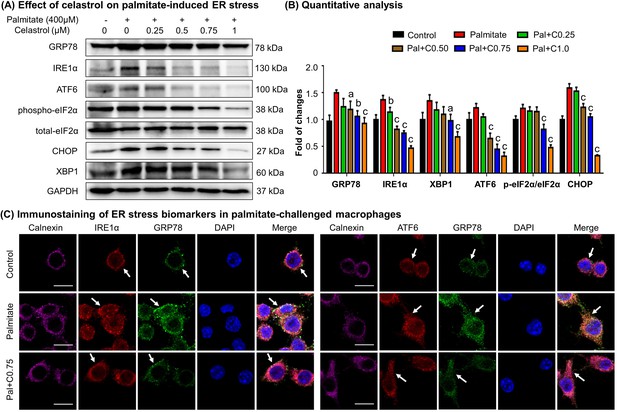

Celastrol attenuates palmitate-induced endoplasmic reticulum (ER) stress in RAW264.7 macrophages.

(A) Western blot analysis for the effects of celastrol on the ER stress biomarkers in palmitate-challenged RAW264.7 cells. RAW264.7 cells were treated with celastrol for 8 hr and subsequently with palmitate for another 16 hr. The cellular proteins were analyzed by Western blotting with specific antibodies. Representative blots were shown. (B) Quantitative analysis for the expression levels of ER stress biomarkers. The blots (n = 3) were quantified by a densitometric method. C0.25, celastrol (0.25 μM); C0.5, celastrol (0.5 μM); C0.75, celastrol (0.75 μM); C1.0, celastrol (1 μM); a, p < 0.05; b, p < 0.01; c, p < 0.001. (C) Colocalization of GRP78, IRE1α, and ATF6 in palmitate-challenged RAW264.7 cells. After the pretreatment with celastrol for 8 hr and subsequently with palmitate for another 16 hr, the cells were stained with antibodies against GRP78, IRE1α, ATF6, and calnexin, whereas DAPI was used to stain the cell nuclei. The cells were imaged under a Zeiss LSM 780 confocal microscope. Representative images were shown. C0.75, celastrol (0.75 μM); palmitate (400 μM). Scale bar, 10 μm.

To validate the inhibitory effects of celastrol on ER stress, we detected the cellular levels of GRP78, IRE1α, ATF6, and calnexin by immunofluorescence staining. Following the pretreatment with 0.75 μM celastrol for 8 hr and coincubation with palmitate for another 16 hr, RAW264.7 cells were stained with antibodies against GRP78, IRE1α, and ATF6, whereas calnexin was detected as a membrane marker of ER. As shown in Figure 5C, palmitate markedly increased the expression of GRP78, IRE1α, and ATF6, while celastrol restored the expression of these proteins to the control levels. Moreover, palmitate caused the dissociation of GRP78 from ER membrane senors IRE1 and ATF6, whereas celastrol maintained the colocalization of GRP78 with IRE1 and ATF6 in ER compartment. Taken together, these results indicated that celastrol ameliorated ER stress in palmitate-challenged macrophages.

Identification of celasrol–GRP78 conjugate

To discover the molecular targets of celastrol, we synthesized a new celastrol-PEG4-alkyne bearing an alkyne (–C≡C–) group as a small molecular probe. As shown in Figure 6A, following drug treatment, the celastrol-bound proteins were biotinylated through Click chemistry ‘azide-alkyne cycloaddition’, and separated by affinity enrichment with streptavidin-coated magnetic beads. As shown in Figure 6B, ER chaperone GRP78 was identified as a major celastrol-bound protein by mass spectrometry (MS) and verified by Western blotting with anti-GRP78 antibody. The binding of celastrol to GRP78 was characterized by peptide mapping and virtual simulation with AutoDock Vina in PyRx-virtual screen tool package. For peptide mapping, celastrol was incubated with recombinant mouse GRP78, digested with trypsin and analyzed by liquid Chromatography with tandem mass spectrometry (LC–MS/MS) technology. As shown in Figure 6C, celastrol covalently bound to Cys41 in the peptide with the sequence of GSEEDKKEDVGTVVGIDLGTTYSC41VGVFK. As shown in Figure 6D, molecular docking also supports that celastrol binds to the Cys41-containing binding site in GRP78 structure with the binding energy of −8.1 kcal mol−1 and the inhibition constant of 1.55 μM. Therefore, GRP78 was confirmed to be a major celastrol-bound protein.

Celastrol forms covalent conjugate with endoplasmic reticulum (ER) chaperone GRP78.

(A) Click chemistry biotinylation and affinity isolation of celastrol-bound proteins. Following 24-hr treatment with celastrol-PEG4-alkyne, the cellular proteins were isolated from RAW264.7 cells and biotinylated with Azide-PEG3-Biotin under Click chemistry conditions. The biotinylated proteins were purified by binding to streptavidin-coated magnetic beads. (B) Western blot verification of celastrol-bound proteins. After Click chemistry biotinylation and affinity isolation, celastrol-bound proteins were resolved by 10% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE) and visualized by immunoblotting with anti-GRP78 antibody. CL: cell lysate; FT: flow-through; W1: first wash; W2: second wash; W3: third wash; W4: fourth wash; E: elution. (C) Mapping of celastrol-binding site in GRP78. Recombinant mouse GRP78 was prepared from DE3 E. coli cells and incubated with celastrol in 50 mM sodium bicarbonate (NaHCO3) buffer containing 10% DMSO. After resolution by Clear-Native-PAGE and Coomassie blue staining, celastrol–GRP78 conjugate was digested with trypsin and analyzed by LC/MS/MS technology. (D) Molecular simulation of celastrol–GRP78 interactions. Celastrol was docked into the crystal structure of GRP78 (PDB ID: 3LDP) using Autodock vina in PyRx 0.8 (http://pyrx.sourceforge.net/downloads).

Celastrol attenuated the binding of peptide to GRP78

To clarify the effects of celastrol on the chaperone activity of GRP78, we employed surface plasmon resonance (SPR) binding analysis technology to determine the binding of synthetic GRP78-targeting peptide ‘WDLAWMFRLPVG’ to GRP78 on Biacore X100 SPR analyzer. The affinity was determined by steady-state analysis while Kd values were estimated using Biacore X100 Evaluation Software. Biotinylated GRP78 was initially immobilized onto streptavidin-coated Sensor Chip SA, and synthetic peptide at a wide range of concentrations was subsequently pumped into the system. As shown in Figure 7A, the synthetic peptide binds to GRP78 with Kd value of 17.7 nM. As shown in Figure 7B, in contrast, when GRP78-coated Sensor Chip was saturated by 10 μM celastrol prior to the binding of GRP78-targeting peptide, the peptide exhibited Kd value of 2.23 μM. These results proved that celastrol could attenuate the binding of peptide to GRP78.

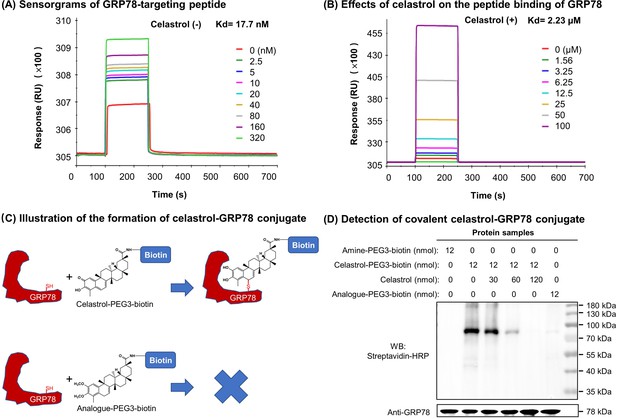

Covalent binding of celastrol attenuated the chaperone activity of GRP78 toward peptide.

(A) Validation of peptide binding to GRP78. After the immobilization of biotinylated GRP78 to the streptavidin-coated Sensor Chip SA, GRP78-targeting peptide (WDLAWMFRLPVG) was pumped into the Biacore X100 SPR system for evaluating the peptide binding to GRP78 under steady-state condition. After four runs, the average Kd value was calculated by Biacore X100 Evaluation Software. Representative sensorgram was shown. (B) Effects of celastrol on peptide binding to GRP78. After the saturation with 10 μM celastrol, GRP78-targeting peptide (WDLAWMFRLPVG) (n = 4) was pumped into the Biacore X100 SPR system for calculating the average Kd value for peptide binding to GRP78. Representative sensorgram was shown. (C) Scheme illustrating the formation of covalent celastrol–GRP78 conjugate. The cysteine of GRP78 reacts with quinone methide moiety of celastrol whereas the analog lacking quinone methide structure fails to form covalent conjugate with GRP78. (D) Detection of covalent celastrol–GRP78 conjugate. Following the incubation of recombinant GRP78 with celastrol-PEG3-biotin or analog-PEG3-biotin, the reaction mixtures were analyzed by Western blotting with streptavidin–HRP or anti-GRP78 antibody.

Figure 7—source data 1

Data for Figure 7A, B.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig7-data1-v1.xlsx
Figure 7—source data 2

Original immunoblots and figure with the uncropped blots with the relevant bands labelled.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig7-data2-v1.zip
Figure 7—source data 3

Data for the structures, HRMS spectrum, 1H NMR spectrum, and 13C NMR spectrum of celastrol analog.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig7-data3-v1.pptx
Figure 7—source data 4

Synthesis route of celastrol analog and data for the structures, HRMS spectrum, 1H NMR spectrum, and 13C NMR spectrum of intermediates.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig7-data4-v1.pptx
Figure 7—source data 5

Data for the structures, HRMS spectrum, 1H NMR spectrum, and 13C NMR spectrum of celastrol-PEG3-biotin.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig7-data5-v1.pptx
Figure 7—source data 6

Data for the structures, HRMS spectrum, 1H NMR spectrum, and 13C NMR spectrum of analog-PEG3-biotin.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig7-data6-v1.pptx

Quinone methide is required to form covalent celastrol–GRP78 conjugate

To determine the involvement of quinone methide in covalent conjugation, celastrol was reduced by NaBH4 and protected by O-methylation to yield celastrol analog (Figure 7C), which lacks the chemically reactive quinone methide moiety. When recombinant GRP78 was incubated with excessive celastrol-PEG3-biotin, celastrol analog-PEG3-biotin, or amine-PEG3-biotin, celastrol-PEG3-biotin was readily attached to GRP78 whereas neither of celastrol analog-PEG3-biotin or amine-PEG3-biotin was detectable in Western blot analysis (Figure 7D). Free celastrol effectively competed with celastrol-PEG3-biotin for covalent conjugation in a concentration-dependent manner while biotinylation was completely blocked by celastrol at 10-fold excess of molar concentration. On the other hand, the covalent celastrol–GRP78 conjugates in RAW264.7 macrophages were visualized by reacting with a highly reactive probe AFDye555-picolyl azide under Click chemistry conditions as described (Uttamapinant et al., 2012). Upon the formation of covalent celastrol–GRP78 conjugate, celastrol-PEG4-alkyne could react with AFDye555-picolyl azide through ‘alkyne-azide cycloadduction’. As shown in Figure 8, the celastrol-PEG4-alkyne-treated cells showed strong red fluorescence whereas the celastrol-treated cells did not show any red fluorescence. Importantly, the fluorescence label of celastrol-PEG4-alkyne appeared to be well colocalized with GRP78 and calnexin. All these results supported the importance of quinone methide in the formation of covalent celastrol–GRP78 conjugate.

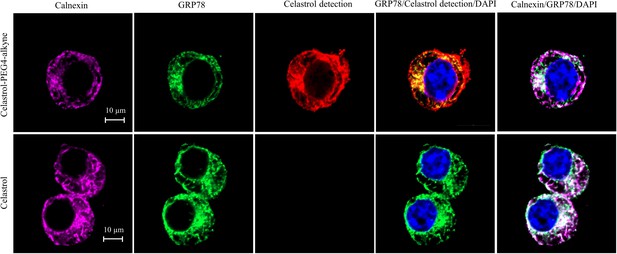

Intracellular colocalization of celastrol labeling and GRP78.

Following the challenge with palmitate, RAW264.7 cells were treated with celastrol or celastrol-PEG4-alkyne, washed, fixed, reacted with fluorescence dye AFDye555-picolyl azide. The cells were immunostained with antibodies against GRP78 and calnexin, fluorescent secondary antibodies whereas DAPI was used to stain the cell nuclei. The cells were imaged under a Zeiss LSM 780 confocal microscope. Representative images were shown. Scale bar, 10 μm.

Figure 8—source data 1

Original immunofluorescence staining result of RAW264.7 cells treated with celastrol-PEG4-alkyne.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig8-data1-v1.zip
Figure 8—source data 2

Original immunofluorescence staining result of RAW264.7 cells treated with celastrol.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig8-data2-v1.zip
Figure 8—source data 3

Data for the structures, HRMS spectrum, 1H NMR spectrum, and 13C NMR spectrum of celastrol-PEG4-alkyne.

https://cdn.elifesciences.org/articles/72182/elife-72182-fig8-data3-v1.pptx

Quinone methide is required to induce weight loss in diet-induced obese mice

To clarify the importance of covalent GRP78 inhibition in antiobesity effects, the diet-induced obese mice were treated with either celastrol or celastrol analog at the dose of 5 mg kg−1 d−1 via oral gavage for consecutive 21 days. Based on the measurement of body and body fat contents as shown in Figure 9A–D, celastrol effectively reduced the body weight and fat mass while recovered the loss of lean mass in HFD-induced obesity. In contrast, celastrol analog lacking quinone methide moiety failed to ameliorate weight gain, fat accumulation, and lean mass loss. Furthermore, the ipGTT and ITT results in Figure 9E, F shows that celastrol analog could no longer ameliorate glucose tolerance and insulin tolerance compared with celastrol. These results proved the critical role of quinone methide in the induction of weight loss in diet-induced obese mice.

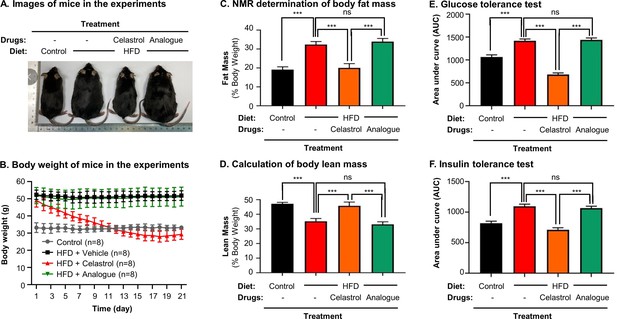

Quinone methide is essential to induce weight loss, reduce fat mass, and restore glucose tolerance and insulin tolerance in diet-induced obese C57BL/6N mice.

(A) Images of experimental mice. Diet-induced obese mice were treated with celastrol or analog at the dose of 5.0 mg kg−1 d−1 for 21 days, whereas control mice were fed with normal diet. Experimental mice were imaged at day 21. (B) Measurement of body weight. Body weight was daily measured (n = 8). (C) NMR determination of fat contents. After 21-day treatment, fat contents in living mice were analyzed by Bruker minispec NMR analyzer. (D) Calculation of body lean mass. Lean mass was calculated from NMR determination of body fat mass as described in (C). Body weight was daily measured. (E) Glucose tolerance test (GTT). After glucose injection, blood glucose levels were measured and plotted against time. The area under curve (AUC) for each group was calculated. (F) Insulin tolerance test (ITT). After insulin injection, blood glucose levels were measured and plotted against time. The AUC for each group was calculated. ***p < 0.001; ns, not significant.

Discussion

Pharmacological modulation of ER stress is a potential therapeutic strategy to treat various metabolic disorders (Cao and Kaufman, 2013). Chaperone protein GRP78 is essential to regulate ER stress, inflammation, and lipid metabolism since genetic knockout of GRP78 abolishes the growth, differentiation, and maturation of preadipocytes (Zhu et al., 2013). By contrast, several small molecule GRP78 inhibitors were recently developed for restoring ER homeostasis, especially, KP1339/IT-139 was evaluated for anticancer activity in a phase I clinical trial (Schoenhacker-Alte et al., 2017; Chen et al., 2018; Gurusinghe et al., 2018). Other purported GRP78 inhibitors such as Verrucocidin also ameliorate ER stress through different mechanisms other than direct binding to GRP78 (Thomas et al., 2013). Currently, little is known about the potential of covalent GRP78 inhibition in the regulation of ER stress. Here, we determined whether celastrol could ameliorate ER stress, inflammation, and metabolic dysfunctions in diet-induced obesity via covalent modification of chaperone GRP78.

HFD is well known to induce the deposition of lipids and alter the composition of fatty acids in liver, adipose tissues, and other organs (Cameron-Smith et al., 2003; Oosterveer et al., 2009; Zhao et al., 2019). Based on transcriptomic profiling and biochemical analysis, HFD upregulated several lipogenic genes for producing fatty acids (Acc, Fas, Scd1, Elovl6) and triglycerides (Dgat, Gpat), elongase for synthesizing long chain fatty acids such as n-3 and n-6 polyunsaturated fatty acids, and Srebp1c and Pgc1b for lipid uptake (Oosterveer et al., 2009). Our group and others have recently demonstrated that celastrol effectively reduces adipose hypertrophy in mouse and rats models of HFD-induced obesity (Wang et al., 2014; Zhang et al., 2017; Zhao et al., 2019). In the present study, firstly, H&E staining confirmed that celastrol ameliorated adipose hypertrophy and reduced lipid accumulation in liver and epididymal adipose tissues (Figure 1A, B). Secondly, GC–MS technology was employed to profile fatty acids in liver and adipose tissues from Control, HFD and HFD + Celastrol groups. Based on the quantitative analysis in Figure 1E, F, celastrol ameliorated HFD-induced elevations of various polyunsaturated fatty acids (e.g., C16:1, trans-C18:1, cis-C18:1, C18:2, C18:3, cis-C20:2, cis-C20:3) in liver but showed little activity against HFD-impaired production of long chain polyunsaturated fatty acids eicosoids (e.g., cis-C20:1, cis-C20:3, cis-C22:6) in epididymal fat pads. These results suggest that celastrol may mainly act on the metabolism of fatty acids in liver. Thirdly, qRT-PCR technique was employed to determine the key biomarkers for adipogensis, hormone secretion and energy expenditure. The key findings include: (1) celastrol could effectively antagonize HFD-induced upregulation of adipogenic genes (e.g., Pparg, Cebpa, Fabp4) and adipocyte-secreted hormones (e.g., Lepa, Retn, Cfd) in livers shortly after 7-day treatment; (2) celastrol markedly elevated the expression of lipolytic genes (e.g., Cpt1, Cat, Aco) and thermogenic gene Ucp2 in a dose-dependent manner (Figure 2A, B); (3) celastrol mainly suppressed HFD-induced upregulation of adipogenic genes (e.g., Pparg, Cebpa, Fabp4) and adipocyte-secreted hormones (e.g., Lepa, Retn, Cfd) in epididymal fat pads (Figure 2C). These results suggest that celastrol mainly reprograms the biosynthesis and degradation of fatty acids in liver while inhibits fatty acid biosynthesis and hormone secretion. To facilitate safe control of body weight, we recently prepared Nano-celastrol by entrapping celastrol in PEG-PCL nanomicelles for the treatment of diet-induced obesity (Zhao et al., 2019). In the present study, we further identified 49 DEGs in the livers from mice in Control, HFD, and HFD + Nano-celastrol groups by next-generation RNA- sequencing technology (Figure 4A). Indeed, Figure 4B classified these DEGs into the functional groups of retinol metabolism (i.e., Aldh1a1, Cyp4a10, Cyp1a2, Cyp2a12, Cyp2c44, Cyp3a25, Cyp4a14, Retsat, Ugt2b5), lipid biosynthesis (e.g., Apoc2, C3, Cyp1a2, Cyp4a10, Cyp4a14, Ehhadh, Elovl5, Pck1, Scd1, Thrsp), oxidative stress (e.g., Aldh1a1, Creg1, Cyp1a2, Cyp2a12, Cyp3a25, Cyp4a10, Cyp4a14, Ehhadh, Hsd17b10, Mdh1, Retsat, Scd1), lipid degradation (i.e., Acat1, Cyp4a10, Cyp4a14, Ehhadh), glucose metabolism (i.e., Mup1, Mup11, Mup12, Mup18, Mup20), cholesterol efflux (i.e., Apoa4, Apoc2, Apom), and inflammatory response (e.g., C3, C8a, Serpina1e) although some DEGs might be involved in several other biological processes and pathways. By using online software STRING, functional enrichment analysis (Figure 4C) revealed four protein–protein interaction networks: (1) lipid and glucose metabolism (i.e., Mdh1, Pck1, Aldh1a1, Cyp1a2, Cyp2a12, Cyp2c44, Cyp3a25, Cyp4a10, Cyp4a14, Ugt2b5); (2) apolipoprotein metabolism and inflammatory response (i.e., Apoa4, Apoc2, Apom, Ltih3, Ltih4, Serpina1e, C3, Creg1, C8a); (3) mitochondrial energy homeostasis (i.e., Acat1, Enhadh, Hsd17b10); (4) adipose tissue energy homeostasis (Mt1, Mt2). Thus, RNA-seq profiling basically confirmed the potential of celastrol in the regulation of oxidative stress, lipid accumulation, and inflammatory response in the liver. The genes encoding ER stress signaling proteins were not selected probably due to the cutoff of >2.0-fold.

On the other hand, free fatty acids induce ER stress and inflammatory response in macrophages and adipose tissues via TLR-mediated mechanisms (Han and Kaufman, 2016). ER stress in turn orchestrates unfolded protein response, inflammation, metabolic dysfunctions, and insulin resistance in obesity and diabetes (Ozcan et al., 2004; Hummasti and Hotamisligil, 2010). ER chaperone protein GRP78 is integral to the celluluar sensing of fatty acid-induced ER stress and inflammatory stimuli and the regulation of lipid uptake, adipogenesis, lipolysis, glucose metabolism, cholesterol efflux, inflammatory response, and immune response (Zhu et al., 2013). GRP78 and CHOP modulate macrophage apoptosis and control the progression of bleomycin-induced pulmonary fibrosis (Ayaub et al., 2016). The activation of ER stress sensor IRE1α exacebates obesity-associated inflammation (Shan et al., 2017). However, celastrol could reduce ER stress via reducing the protein level of p-PERK/PERK in hypothalamus of diet-induced obese mice (Liu et al., 2015). In the present study, the effects of celastrol on the ER stress signaling pathway were examined in the in vitro and in vivo systems. Firstly, livers and epididymal fat pads were collected from experimental mice and examined by immunofluorescence staining and Western blotting. As results, Figure 3A, B shows that HFD upregulated GRP78 expression in macrophages whereas celstrol restored the expression level of GRP78. On the other hand, Western blot analysis in Figure 3C, D confirmed that HFD upregulated the expression GRP78, ATF6, and p-eIF2α in livers and epididymal fat pads. Celstrol not only restored the expression level of GRP78 but also reduced the levels of ATF6 and p-eIF2α in livers and epididymal fat pads. Secondly, RAW264.7 macrophages were treated by fatty acid palmitate to induce ER stress. Following celastrol treatment, we subsequently employed Western blotting and fluorescence immunostaining to determine the expression levels of ER stress biomarkers. As result, celastrol not only reduced the levels of GRP78, IRE1α, ATF6, CHOP, and XBP1, but also inhibited palmitate-stimulated eIF2α phosphorylation in a concentration-dependent manner (Figure 5A, B). Based on the immunostaining results (Figure 5C), celastrol decreased the signal intensity of GRP78, ATF6, and IRE1α and preserved the colocalization of GRP78 with ATF6 and IRE1α in the ER compartment. These results indicate that celastrol could effectively suppress the ER stress signaling pathway in the hepatic and adipose tissues.

Celastrol bears a chemically reactive quinone methide moiety and thereby tends to form covalent conjugate with certain proteins such as HIV-Tat, IKKalpha, and beta kinases, Cdc37 and HSF although such covalent attachment appears to be reversible (Salminen et al., 2010; Narayan et al., 2011; Zhang et al., 2018). However, it is critical to identify protein targets with convincing association to ER signaling, anti-inflammatory, and metabolic reprogramming. In the present study, a novel celastrol-PEG4-alkyne bearing an alkyne (–C≡C–) group was firstly synthesized as a small molecule probe through the in-house synthetic procedure (Cheng et al., 2020). Secondly, RAW264.7 macrophages were treated with celastrol-PEG4-alkyne and lysed. The cellular proteins were biotinylated via Click chemistry ‘azide-alkyne cycloaddition’ and separated by affinity enrichment onto streptavidin-coated magnetic beads (Figure 6A). The protein fractions were resolved by 10% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE) and identified by MALDI-MS technology. The major protein band was identified to be GRP78 and subsequently verified by Western blotting using specific antibody (Figure 6B). Thirdly, recombinant mouse GRP78 protein was prepared in E. coli BL21 cells and incubated with celastrol. Following trypsin digestion, peptides were mapped by LC–MS/MS analysis. Peptide mapping revealed a celstrol-bound peptide with the sequence of GSEEDKKEDVGTVVGIDLGTTYSC41VGVFK (Figure 6C). This experiment suggests that celastrol interacts with GRP78 by covalent attachment to Cys41. Fourthly, the binding of celastrol to GRP78 was simulated by molecular docking. Interestingly, celastrol binds to the Cys41-containing region in GRP78 structure with binding energy of −8.1 kcal mol−1 and inhibition constant of 1.55 μM (Figure 6D). Fifthly, a recently identified peptide WDLAWMFRLPVG was synthesized to examine the effects of celstrol on the chaperone activity of GRP78 as described (Arap et al., 2004). Biacore X100 SPR system was employed to evaluate whether celastrol could alter the binding of peptide WDLAWMFRLPVG to GRP78 on the Sensor Chip. Indeed, celastrol attenuated the chaperone activity of GRP78 since the average Kd value of peptide binding was increased from 17.7 nM to 2.23 μM (Figure 7A, B). Sixthly, two new celastrol derivatives were prepared to explore the importance of quinone methide moiety for celastrol to bind to GRP78 (Figure 7C). Celastrol-PEG3-biotin was readily detected in association with GRP78 although the binding could be blocked by excess celastrol. By contrast, analog-PEG3-biotin failed to bind to GRP78 due to the lack of quinone methide moiety (Figure 7D). Seventhly, the present study addressed whether the formation of celastrol–GRP78 conjugate could be colocalized with the intracellular GRP78 (Figure 8). The cells were treated with celastrol-PEG4-alkyne and subsequently labeled with fluorescence dye AFDye555-picolyl azide whereas GRP78 and another ER biomarker calnexin were detected by immunostaining. As result, the fluorescence of celastrol-PEG4-alkyne labeling was well colocalized with GRP78, and, to a large extent, ER biomarker calnexin. Last but not least, the present study determined whether quinone methide moirty was essential for antiobesity effects (Figure 9). Celastrol was reduced by NaBH4 and protected by O-methylation to yield celastrol analog. Unlike celastrol, such analog became totally inactive to induce weight loss, reduce fat mass and ameliorate glucose tolerance and insulin tolorance in diet-induced obese mice as assessed by previous described procedure (Luo et al., 2017; Zhao et al., 2019). These results suggest that the unique quinone methide moiety is critical for celastrol to ameliorate ER stress, inflammation, and lipid accumulation via covalent inhibition of GRP78.

In summary, the present study demonstrated that celastrol ameliorated adipose hypertrophy and reduced lipid accumulation in liver and adipose tissues of diet-induced obese mice. Celastrol might induce rapid reduction of body weight through suppressing lipid uptake, lipogenesis and increasing lipolysis and thermogenesis. As depicted in Figure 10, the key finding from the present study was that celastrol covalently inhibited the chaperone activity of GRP78 and could disconnect the transduction of ER stress signals to downstream inflammatory response and lipid metabolism. Therefore, the covalent inhibition of GRP78 is a novel antiobesity mechanism for reprograming the signaling networks that control inflammation, lipid accumulation, ER stress in liver and adipose tissues. Celastrol may be an important lead compound for the development of new selective and irreversible GRP78 inhibitors to treat obesity, diabetes, and related cardiovascular diseases.

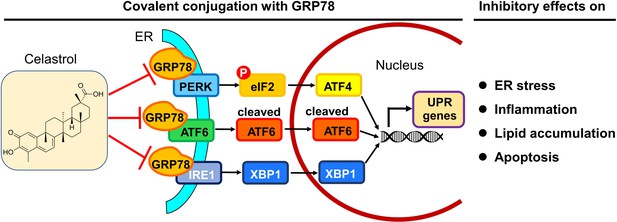

Potential mechanisms underlying the activities of celastrol against endoplasmic reticulum (ER) stress, inflammation, and lipid accumulations.

The in vitro and in vivo results from the present study suggest that celastrol covalently inhibits the chaperone activity of GRP78 and disconnects the transduction of ER stress signals to downstream inflammatory response and lipid metabolism toward rapid weight loss.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-GRP78 (rabbit polyclonal)AbcamCat. #: ab21685WB (1:1000)IF (1:500)
AntibodyAnti-IRE1α (rabbit monoclonal)Cell Signaling TechnologyCat. #: 3294WB (1:1000)
AntibodyAnti-XBP1 (rabbit polyclonal)AbcamCat. #: ab37152WB (1:1000)
AntibodyAnti-Calnexin (goat polyclonal)AbcamCat. #: ab192439IF (1:500)
AntibodyAnti-ATF-6 (rabbit monoclonal)Cell Signaling TechnologyCat. #: 65,880WB (1:1000)
AntibodyAnti-Phospho-eIF2α (rabbit monoclonal)Cell Signaling TechnologyCat. #: 3398WB (1:1000)
AntibodyAnti-eIF2α (rabbit monoclonal)Cell Signaling TechnologyCat. #: 5324WB (1:1000)
AntibodyAnti-GAPDH (rabbit monoclonal)Cell Signaling TechnologyCat. #: 2118WB (1:1000)
AntibodyAnti-β-actin (rabbit polyclonal)Thermo Fisher ScientificCat. #: PA1-183WB (1:1000)
AntibodyAnti-GRP78 (mouse monoclonal)AbcamCat. #: ab212054IF (1:500)
AntibodyAnti-CD68 (rabbit polyclonal)AbcamCat. #: ab125212IF (1:500)
AntibodyAnti-rabbit IgG (H + L) Alexa Fluor 594 (goat polyclonal)Thermo Fisher ScientificCat. #: A-11012IF (1:500)
AntibodyAnti-mouse IgG (H + L) Alexa Fluor 488 (goat polyclonal)Thermo Fisher ScientificCat. #: A-11001IF (1:500)
AntibodyAnti-goat IgG H&L Alexa Fluor 647 (donkey polyclonal)AbcamCat. #: ab150131IF (1:500)
AntibodyAnti-rabbit HRP-conjugated IgG secondary antibody (goat polyclonal)Sigma-AldrichCat. #: A0545WB (1:10,000)
Chemical compound, drugCelastrolNanjing Spring and Autumn Biological Engineering Co., LtdPurity >98% (HPLC)
Chemical compound, drugLipopolysaccharides from Escherichia coli O111:B4Sigma-AldrichCat #: L4391LPS
Chemical compound, drugSodium palmitateSigma-AldrichCat #: P9767
Chemical compound, drugBiotin-PEG3-amineHunan Huateng Pharmaceutical CompanyCat#: 11,025
Chemical compound, drugAlkyne-PEG4-amineHunan Huateng Pharmaceutical CompanyCat#: 10,749
Cell line (Mus musculus)RAW264.7 cellsATCCTIB-71Authenticated (STR profiling) and mycoplasma test (absent) (Genetic Testing Biotechnology Corporation, Suzhou, China)
Commercial assay or kitTRIzol ReagentThermo Fisher ScientificCat. #: 15596026
Commercial assay or kitRevertAid first-strand cDNA synthesis kitThermo Fisher ScientificCat. #: K1622
Commercial assay or kitSYBR Green mixQIAGENCat. #: 204,056
Sequence-based reagentMm_Cfd_1_SGQIAGENCat. #: QT00250495Cfd
Sequence-based reagentMm_Fabp4_1_SGQIAGENCat. #: QT00091532Fabp4
Sequence-based reagentMm_Cebpa_1_SGQIAGENCat. #: QT00311731Cebpa
Sequence-based reagentMm_Cpt1a_1_SGQIAGENCat. #: QT00106820Cpt1
Sequence-based reagentMm_Lep_1_SGQIAGENCat. #: QT00164360Lepa
Sequence-based reagentMm_Pparg_1_SGQIAGENCat. #: QT00100296Pparg
Sequence-based reagentMm_Retn_1_SGQIAGENCat. #: QT00093450Retn
Sequence-based reagentMm_Ucp2_1_SGQIAGENCat. #: QT00138943Ucp2
Sequence-based reagentMm_Crat_1_SGQIAGENCat. #: QT00111405Cat
Sequence-based reagentMm_Acox1_1_SGQIAGENCat. #:QT00174342Aco
Sequence-based reagentMm_Gapdh_3_SGQIAGEN Cat. #: QT01658692Gapdh
Strain, strain background (Escherichia coli)BL21(DE3)Thermo Fisher ScientificCat. #: EC0114Competent cells
Recombinant DNA reagentpET-28aSigma-AldrichCat. #: 69,864
Recombinant DNA reagentpET28a-GRP78 plasmidThis manuscriptSee Materials and methods
Software, algorithmPrismGraphPadhttps://www.graphpad.com/scientific-software/prism/
Software, algorithmNIH Image JNIHhttp://imagej.net/ImageJ2

Chemical synthesis of celastrol derivatives

Request a detailed protocol

Celastrol with the purity of over 98% (high-performance liquid chromatography, HPLC) was purchased from Nanjing Spring and Autumn Biological Engineering Co, Ltd. (Nanjing, China). Biotin-PEG3-amine and Alkyne-PEG4-amine were purchased from Hunan Huateng Pharmaceutical Company (Changsha, Hunan, China). The solvents and reagents including 4-methoxybenzyl chloride (PMB-Cl), iodomethane (CH3I), (benzotriazol-1-yloxy)tris(dimethylamino)phosphonium hexafluorophosphate (BOP), sodium bicarbonate (NaHCO3), potassium carbonate (K2CO3), sodium borohydride (NaBH4), dimethylformamide (DMF), methanol (MeOH), chloroform, dichloromethane (DCM), trifluoroacetic acid (TFA), and triethylamine (TEA) were purchased from Sigma-Aldrich (St Louis, MO, USA). The solvents for extraction and silica gel column chromatography were purchased from RCI Labscan Limited (Bangkok, Thailand) or Duksan Pure Chemicals Company (Ansan, South Korea). All solvents and reagents were used without further preparation unless otherwise indicated. The NMR 1H and 13C spectra were recorded on Bruker AVANCE III HD 400 MHz spectrometer. The chemical shifts were reported in ppm relative to the internal standard signal. The peak splitting patterns were described as follows: s = singlet, d = doublet, t = triplet, q = quartet, m = multiplet, while the coupling constant, J, was reported in Hertz unit (Hz). The molecular mass was determined on AB SCIEX X500R Q-TOF mass spectrometer in positive ion mode or negative ion mode. The purity of the products was determined by HPLC analysis on a reversed phase ACE Excel C18 column (2 μm particle size, 100 × 2.1 mm, Advanced Chromatography Technologies Ltd., Scotland) under the control of UltiMate 3000 UPLC system (Thermo Fisher Scientific, USA) equipped with quaternary pump, autosampler, thermostat column compartment, and diode array detection system. The products were generally prepared at the purity of ≥95% based on the integration of UV spectra at 254 nm.

Celastrol analog (2,3-dimethoxydihydrocelastrol) was synthesized from celastrol through several steps of chemical reaction and purified by silica gel column chromatography in the solvents of PE/EA (6:1). Yield: 325 mg, 0.68 mmol, 81.9%. 1H NMR (400 MHz, Chloroform-d) δ 6.65 (s, 1H), 5.64 (s, 1H), 3.71 (s, 3H), 3.63 (s, 3H), 3.15 (dd, J = 20.8, 6.0 Hz, 1H), 2.89 (d, J = 20.8 Hz, 1H), 2.32 (d, J = 15.4 Hz, 1H), 2.04 (s, 3H), 2.00–1.88 (m, 4H), 1.71 (ddd, J = 32.6, 16.0, 10.2 Hz, 2H), 1.57–1.46 (m, 2H), 1.48–1.37 (m, 3H), 1.30 (d, J = 15.9 Hz, 2H), 1.21 (s, 3H), 1.11 (s, 3H), 1.07 (s, 3H), 0.95 (s, 3H), 0.79 (d, J = 14.8 Hz, 1H), 0.62 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 181.69, 150.62, 149.22, 144.89, 144.38, 127.63, 125.61, 117.47, 106.08, 60.20, 55.63, 44.24, 43.63, 40.09, 37.45, 37.10, 36.74, 34.67, 34.37, 33.87, 32.71, 31.39, 30.54, 30.41, 30.10, 29.71, 28.77, 27.72, 22.74, 18.32, 11.55. HRMS (m/z): [M−H] calcd. for C31H43O4, 479.3161; found, 479.3164.

Celastrol-PEG3-biotin (N-(2-(2-(2-((5-(2-oxohexahydro-1H-thieno[3,4]-dimidazol-4-yl) pentanamido) ethoxy) ethoxy) ethoxy) ethyl) celastrol-20-carboxamide) was prepared by direct conjugation of celastrol with biotin-PEG3-amine in DMF in the presence of BOP and TEA as previously described (Cheng et al., 2020). The product was purified by silica gel column chromatography in the solvents of DCM/MeOH (50:1 to 10:1). Yield: 122 mg, 0.14 mmol, 60.5%. 1H NMR (400 MHz, Chloroform-d) δ 7.94–7.58 (m, 1H), 7.46–7.28 (m, 1H), 7.01 (d, J = 6.6 Hz, 1H), 6.51 (dd, J = 12.3, 6.4 Hz, 2H), 6.32 (d, J = 7.2 Hz, 1H), 6.01–5.71 (m, 1H), 4.46 (dd, J = 8.0, 4.8 Hz, 1H), 4.27 (dd, J = 8.0, 4.7 Hz, 1H), 3.62–3.50 (m, 10H), 3.42 (d, J = 13.2 Hz, 6H), 3.33–3.25 (m, 2H), 3.09 (q, J = 7.3 Hz, 2H), 2.89–2.67 (m, 2H), 2.41 (d, J = 15.3 Hz, 1H), 2.19 (d, J = 6.2 Hz, 6H), 2.01 (t, J = 12.2 Hz, 2H), 1.89–1.77 (m, 3H), 1.67–1.60 (m, 4H), 1.55 (d, J = 7.6 Hz, 2H), 1.48 (q, J = 7.8, 6.2 Hz, 3H), 1.41 (s, 3H), 1.32 (t, J = 7.3 Hz, 2H), 1.23 (s, 3H), 1.12 (s, 3H), 1.08 (s, 3H), 0.60 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 178.41, 178.29, 173.78, 170.80, 164.99, 164.23, 146.15, 134.54, 127.38, 119.55, 118.17, 117.58, 77.36, 70.43, 70.13, 69.74, 61.96, 60.35, 55.69, 50.72, 46.00, 45.18, 44.46, 43.15, 40.35, 39.46, 39.38, 39.23, 38.30, 36.45, 35.96, 35.06, 33.86, 33.64, 31.73, 31.19, 30.85, 30.09, 29.48, 28.75, 28.32, 28.15, 25.71, 21.80, 18.43, 10.40, 8.73. HRMS (m/z): [M+H]+ calcd. for C47H71N4O8S, 851.4993; found, 851.3923.

Analog-PEG3-biotin (N-(2-(2-(2-((5-(2-oxohexahydro-1H-thieno[3,4]-dimidazol-4-yl)pentanamido)ethoxy)ethoxy)ethoxy)ethyl)2,3-dimethoxydihydrocelastrol-20-carboxamide) was prepared by direct conjugation of celastrol with biotin-PEG3-amine in DMF in the presence of BOP and TEA as previously described (Cheng et al., 2020). The product was purified by silica gel column chromatography in the solvents of DCM/MeOH (50:1 to 15:1). Yield: 132 mg, 0.15 mmol, 60.0%. 1H NMR (400 MHz, Chloroform-d) δ 6.86–6.82 (m, 1H), 6.75 (s, 1H), 6.66 (d, J = 36.0 Hz, 1H), 6.37 (t, J = 5.4 Hz, 1H), 5.74 (dd, J = 6.3, 2.1 Hz, 1H), 4.46 (dd, J = 7.9, 4.7 Hz, 1H), 4.27 (dd, J = 7.9, 4.7 Hz, 1H), 3.83 (s, 3H), 3.74 (s, 3H), 3.60–3.49 (m, 13H), 3.49–3.37 (m, 6H), 3.32–3.26 (m, 2H), 3.10 (d, J = 7.0 Hz, 1H), 2.99 (dd, J = 20.8, 1.9 Hz, 1H), 2.85 (dd, J = 12.8, 4.8 Hz, 1H), 2.71 (d, J = 12.7 Hz, 1H), 2.52 (t, J = 10.4 Hz, 1H), 2.20 (t, J = 7.4 Hz, 3H), 2.14 (s, 3H), 2.08–2.03 (m, 2H), 1.89 (d, J = 14.7 Hz, 2H), 1.81–1.75 (m, 1H), 1.70–1.62 (m, 4H), 1.46–1.35 (m, 4H), 1.30 (s, 3H), 1.24 (d, J = 3.4 Hz, 1H), 1.20 (s, 3H), 1.13 (s, 3H), 1.08 (s, 3H), 0.96 (d, J = 13.6 Hz, 1H), 0.67 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 178.22, 173.57, 164.18, 150.94, 149.69, 144.79, 144.73, 127.77, 125.54, 117.60, 106.20, 77.36, 70.47, 70.40, 70.14, 70.12, 70.04, 69.74, 61.88, 60.43, 60.35, 55.90, 55.71, 53.56, 44.43, 43.82, 40.52, 39.24, 37.51, 37.27, 36.95, 35.99, 35.03, 34.56, 34.06, 34.00, 31.70, 30.98, 30.76, 30.23, 30.06, 29.00, 28.32, 28.18, 27.97, 25.75, 23.04, 18.45, 11.95. HRMS (m/z): [M+H]+ calcd. for C49H77N4O8S, 881.5462; found, 881.5408.

Celastrol-PEG4-alkyne (N-(2-(2-(2-((2-propynyloxy) ethoxy) ethoxy) ethoxy) ethyl) celastrol-20-carboxamide) was generated by direct conjugation of celastrol with alkyne-PEG4-amine in DMF in the presence of BOP and TEA as previously described (Cheng et al., 2020). The product was purified by silica gel column chromatography in the solvents of DCM/MeOH (50:1 to 10:1). Yield: 180 mg, 0.27 mmol, 61.6%. 1H NMR (400 MHz, Chloroform-d) δ 6.99 (d, J = 7.1 Hz, 1H), 6.48 (s, 1H), 6.37 (t, J = 5.4 Hz, 1H), 6.31 (d, J = 7.2 Hz, 1H), 4.17 (d, J = 2.4 Hz, 2H), 3.70–3.61 (m, 9H), 3.58 (d, J = 4.6 Hz, 2H), 3.53 (dt, J = 4.6, 2.9 Hz, 2H), 3.46–3.41 (m, 2H), 3.29 (q, J = 5.1 Hz, 2H), 2.46–2.40 (m, 2H), 2.18 (s, 3H), 2.13–2.07 (m, 1H), 1.98 (t, J = 13.4 Hz, 2H), 1.89–1.80 (m, 3H), 1.68–1.59 (m, 3H), 1.55–1.49 (m, 2H), 1.40 (s, 3H), 1.22 (s, 3H), 1.12 (s, 3H), 1.09 (s, 3H), 1.01–0.95 (m, 1H), 0.91–0.79 (m, 1H), 0.60 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 178.35, 178.00, 170.53, 164.87, 146.07, 134.26, 127.40, 119.54, 118.09, 117.21, 79.61, 77.36, 74.77, 70.61, 70.50, 70.42, 70.13, 69.71, 69.08, 58.46, 45.14, 44.45, 43.09, 40.34, 39.42, 39.22, 38.26, 36.44, 35.02, 33.80, 33.61, 31.70, 31.14, 30.86, 30.10, 29.44, 28.74, 21.80, 18.36, 10.34. HRMS (m/z): [M+H] + calcd. for C40H58NO7, 664.4213; found, 664.4166.

Animal husbandry and drug treatment

Request a detailed protocol

Protocols for animal experiments were approved by the Committee on the Use of Live Animals in Teaching and Research (CULATR No. 3755-15), University of Hong Kong. Obesity was induced in male C57BL/6N mice (age, 3–4 weeks; body weight, 11–13 g) by feeding on 60 kcal% HFD (Research Diets, Inc, New Brunswick, NJ, USA) for 12 weeks before the experiments. Control mice were maintained on chow diet (13.5% from fat calories) (Lab Diet, Inc, St. Louis, MO, USA). Animals were housed under 12 hr of light and 12 hr dark cycle with unrestricted access to food and water at Laboratory Animal Unit, University of Hong Kong. Celastrol was dissolved in saline containing 5% DMSO and 1% Tween-20 prior to administration. For drug treatment, mice were daily administrated with 5 or 7.5 mg kg−1 d−1 celastrol or celastrol analog via oral gavage for 21 consecutive days. Control mice and HFD mice received vehicle administration similarly by oral gavage. The body weight of mice was daily measured.

Hematoxylin and eosin (H&E) staining

Request a detailed protocol

Following drug treatment, the tissues were examined by H&E staining as previously described (Cheng et al., 2015). In brief, the livers and epididymal adipose tissues were collected from diet-induced obese mice after 21-day treatment with celastrol. Tissues were fixed in 10% formalin in phosphate buffer at room temperature for at least 72 hr. After sequential dehydration with 30%, 50%, 70%, 95%, 100% ethanol and xylene, the tissues were embedded in paraffin and dissected into 5 μm tissue sections. Sections were then subjected to H&E staining and examined under light microscope.

Cell culture and drug treatment

Request a detailed protocol

Murine macrophage cell line RAW264.7 cells were obtained from the American Type Culture Collection (Manassas, VA, USA). The cells were cultured in Dulbecco’s modified Eagle medium supplemented with 10% fetal bovine serum, and 1% penicillin/streptomycin (Invitrogen, CA, USA) at 37°C in a humidified incubator containing 5% CO2. Binding of palmitate to bovine serum albumin (BSA) was carried out by a modified method as previously reported (Lu et al., 2013). Briefly, sodium palmitate was dissolved in 50% phosphate-buffered saline (PBS) and 50% ethanol to make a 100 mM stock solution. Fatty acid-free BSA was dissolved in PBS to make a solution with a concentration of 10 mg ml−1. The solutions were filtered through 0.2 μm filters, mixed well to contain 50 mM palmitate, and subjected to two rounds of 10 min incubation at 55°C toward a clear solution for use.

GC–MS analysis of fatty acids

Request a detailed protocol

Following celastrol administration, fatty acids were recovered from livers and epididymal fat pads and quantified as previously described (Quehenberger et al., 2011). Briefly, livers (50 mg) and epididymal adipose tissues (50 mg) were homogenized with stainless beads using Tissuelyzer. Organic extraction mixture containing 533 μl chloroform and 267 μl MeOH was added into 200 μl of tissue lysates (4:1, vol/vol) and then incubated on roller at 4°C overnight. After centrifuging at 3000 rpm for 20 min, the lower organic (chloroform/MeOH) fraction was collected. In order to detect free fatty acid, 100 μl of organic fraction was taken to undergo methylation without saponification. The solution was firstly dried under nitrogen (N2) gas and then dissolved in 500 μl of 5% HCl–MeOH solution (wt/vol). After overnight incubation at 50°C, the methylated lipids were extracted three times with 500 μl of isooctane. After dried under nitrogen gas, the extracts were dissolved in 50 μl hexane. In order to detect conjugated fatty acids, 100 μl of organic fraction was subjected to evaporation by nitrogen gas flow and saponification in 500 μl of MeOH–KOH solution at 80°C overnight. At the end of saponification, 50 μl of concentrated HCl was added to adjust pH value to below 5.0. The lipids were extracted three times with 500 μl of hexane, dried by nitrogen gas flow, and methylated in 500 μl of 5% HCl–MeOH solution (wt/vol) at 50°C overnight. The methylated lipids were extracted three times with 500 μl of isooctane, dried under nitrogen gas and dissolved in 50 μl of hexane. Following 1:10 dilution, the samples were analyzed on TRACE 1300 GC-MS system (Thermo Fisher Scientific, MA, USA) equipped with AI1310 autosampler and Thermo TG-5MS column (length, 30 m; internal diameter, 0.25 mm; film, 0.25 μm) (Thermo Fisher Scientific, MA, USA). The analysis employed several internal standards as follows: methyl palmitoleate (C16:1); methyl palmitate (C16:0); methyl γ-linolenate (C18:3); methyl linoleate (C18:2); methyl cis-9-oleic methyl ester (cisC18:1); trans nine elaidic methyl ester (transC18:1); methyl stearate (C18:0); 5,8,11,14-eicosatetraenoic acid methyl ester (C20:4); 5,8,11,14,17-eicosapentaenoic acid methyl ester (C20:5); cis-8,11,14-eicosatrienoic acid methyl ester (cisC20:3); cis-11,14-eicosadienoic acid methyl ester (cisC20:2); cis-11-eicosenoic acid methyl ester (cisC20:1); methyl arachidate (C20:0); cis-4,7,10,13,16,19-docosahexaenoic acid (cisC22:6); and methyl docosanoate (C22:0).

qRT-PCR determination of mRNA expression

Request a detailed protocol

The expression of biomarker mRNAs was determined by qRT-PCR technique as described (Cheng et al., 2015). Briefly, the total RNAs were isolated from fresh liver tissues and epididymal adipose tissues using TRIzol reagent (Invitrogen, CA, USA), and converted to the corresponding cDNAs using RevertAid first-strand cDNA synthesis kit (Thermo Fisher, Waltham, MA, USA). qRT--PCR was performed with specific primers from QIAGEN (Valencia, CA, USA) and detection reagent SYBR Green mix (QIAGEN, Valencia, CA, USA). Gene-specific PCR products were subjected to melting curve analysis and quantified by the 2−ΔΔCt method whereas Gapdh mRNA was determined as the internal control. The QIAGEN primers were listed as follows: Cfd (Mm_Cfd_1_SG; QT00250495), Fabp4 (Mm_Fabp4_1_SG; QT00091532), Cebpa (Mm_Cebpa_1_SG; QT00311731), Cpt1 (Mm_Cpt1a_1_SG; QT00106820), Lepa (Mm_Lep_1_SG; QT00164360), Pparg (Mm_Pparg_1_SG; QT00100296), Retn (Mm_Retn_1_SG; QT00093450), Ucp2 (Mm_Ucp2_1_SG; QT00138943), Cat (Mm_Crat_1_SG; QT00111405), Aco (Mm_Acox1_1_SG; QT00174342), and Gapdh (Mm_Gapdh_3_SG; QT01658692).

RNA-seq identification of DEGs

Request a detailed protocol

The next-generation RNA-sequencing technology was employed to determine the effects of Nano-celastrol on HFD-disrupted mRNA expression as previously described (Trapnell et al., 2012). In brief, 5 mg of liver tissues were collected from three different mice in each group and homogenized in TRIzol reagent (Thermo Fisher Scientific, Waltham, MA, USA) for the preparation of the total RNAs according to the manufacturer’s instruction. The RNA quality was assessed using the Agilent 2100 Bioanalyzer (Agilent technologies, Santa Clara, CA, USA). The ribosome-depleted RNAs and polyA-enriched RNAs were prepared using TruSeq RNA sample prep kit (Illumina, San Diego, CA, USA) and subsequently converted to cDNA libraries with random hexamer primers. The library quality was assessed using the Agilent 2100 Bioanalyzer and quantified by library quantification kit (Illumina, San Diego, CA, USA). RNA-sequencing was performed on Illumina HiSeq2500 platform in BGI Hong Kong (https://www.genomics.cn/). RNA-seq data were aligned to the mouse (mm10) reference genome using STAR aligner (http://code.google.com/p/rna-star/). Differentially expressed genes were selected by DESeq2 (https://bioconductor.org/packages/release/bioc/html/DESeq2.html) using three biological replicates with a nominal significance threshold of p < 0.05 and fold change ≥2. Heatmaps of RNA-seq data were generated using a web-enabled heatmapper (http://heatmapper.ca/). Functional enrichment analysis of DEGs was performed online DAVID 6.8 (https://david.ncifcrf.gov/). Significantly enriched molecular function, biological process, and KEGG pathway of different DEG were selected. The number of genes related to each term was shown next to the bar. Protein–-protein interactions of the DEGs were analyzed by online STRING tool (https://string-db.org/). The molecular networks for DEGs were represented in different colors and lines using Cytoscope 3.7.2 (https://cytoscape.org/).

Isolation of celastrol-labeled proteins

Request a detailed protocol

Following the treatment with celastrol-PEG4-alkyne, the cellular proteins were subjected to Click chemistry biotinylation and proteomic identification as previously described (Yang et al., 2015). In brief, RAW264.7 cells were treated with 10 μM celastrol-PEG4-alkyne for 24 hr and lysed with RIPA buffer while iodoacetamide was supplemented to block free cysteine residues in the proteins. The cellular proteins were biotinylated with biotin-azide under Click chemistry conditions (sodium ascorbate, CuSO4, and triazole ligand) to allow ‘azide-alkyne cycloaddition’ to occur. Biotin-labeled proteins were purified by affinity isolation on streptavidin-coated superparamagnetic beads and identified on ABI4800 MALDI TOF/TOF Analyzer (Applied Biosystems, Foster City, CA) through technical support for proteomics from Center of Genomic Sciences, University of Hong Kong.

Proteomic identification of celastrol-bound peptides

Request a detailed protocol

Full length mouse GRP78 cDNA was cloned by RT-PCR technique using forward primer: 5′-GTCAGGATCCGAGGAGGACAAGAAGGA-3′, reverse primer: 5′-GTCACTCGAGCTACAACTCATCTTTTTCA-3′, and inserted into pET-28a bacterial expression vector after cleavage with restriction enzyme XhoI and BamHI. Competent E. coli BL21(DE3) cells were chemically transformed with pET28a-GRP78 plasmid DNA and induced to produce GRP78 protein by 0.2 mM IPTG at 37°C for 4 hr. 6xHis tagged GRP78 was purified by HisTrap HP column (GE Hearlthcare, Uppsala, Sweden) and HiTrap Q HP (GE Healthcare, Uppsala, Sweden). The fractions containing GRP78 protein were combined and concentrated by centrifuging through 30 kDa Amicon ultra-15 centrifugal filter units (EMD Millipore, Billerica, MA, USA). A solution of GRP78 protein was prepared at the concentration of 6 mg ml−1 in 50 mM NaHCO3 buffer for the binding experiments.

The binding of celastrol to GRP78 was examined at the molar ratio of approximately 1:100 for GRP78 versus celastrol. In brief, 10 µg of purified GRP78 protein was dissolved in 18 µl of 50 mM NaHCO3 buffer and incubated with 6 µg of celastrol in 2 µl DMSO at 4℃ overnight and 37℃ for 2 hr. The protein complex was resolved by Clear-Native-PAGE (CN-PAGE) and visualized by staining with Coomassie blue. The corresponding protein band was excised as 1 mm pieces. For in-gel digestion, the gel pieces were dehydrated with 50 µl acetonitrile for 15 min and denaturated in 100 µl of 8 M urea at room temperature for 1 hr. After the removal of liquid, the gel residues were washed three times with destaining buffer (25 mM ammonium bicarbonate, 50% [vol/vol] acetonitrile) at 37°C for 1 hr and subsequently dehydrated by incubating in 50 µl acetonitrile. The protein complex was digested with sequencing grade trypsin at the enzyme:substrate ratio of 1:50 (wt/wt) in 25 mM NH4HCO3 buffer at 37°C for 18 hr. After desalting with ZipTip C18 tips (Merck Millipore, Billerica, MA, USA), the peptides were dried by lyophilization and resuspended in 3% acetonitrile in 0.1% formic acid.

For LC–MS/MS analysis, peptides were separated on an integrated sparytip column (100 μm i.d.×20 cm) packed with 1.9 μm/120 Å ReproSil-Pur C18 resins (Dr. Maisch GmbH, Germany). The column was eluted with a linear gradient of solvent A (0.1% formic acid in millipore water) and solvent B (0.1% formic acid in acetonitrile) at the flow rate of 250 nl/min as follows: 3–7% B at 0–2 min, 7–22% B at 2–52 min, 22–35% B at 52–62 min, 35–90% B at 62–64 min, 90% B at 64–84 min. Eluted peptides were analyzed with an Orbitrap Fusion mass spectrometer coupled with an Easy-nLC 1000 (Thermo Fisher Scientific, Waltham, MA, USA). Mass spectrometer was operated in positive polarity mode with capillary temperature of 320°C. Full MS survey scan resolution was set to 120,000 with an automatic gain control (AGC) target value of 2 × 105, maximum ion injection time (IT) of 100 ms, and for a scan range of 350–2000 m/z. The MS/MS spectra were acquired in data-dependent mode with a 3 s Top Speed method. Spectra were obtained at 15,000 MS2 resolution with AGC target of 5 × 104 and maximum ion injection time (IT) of 40 ms, 1.6 m/z isolation width. Raw mass spectrometry data was processed using Proteome Discover (Thermo Fisher Scientific, Waltham, MA, USA). Raw data was searched against our mouse recombinant GRP78 sequence data. Trypsin/P was specified as a cleavage enzyme allowing up to two missing cleavages. The mass error was set to 10 ppm for precursor ions and 0.02 Da for fragment ions.

Molecular simulation of celastrol–GRP78 interactions

Request a detailed protocol

The crystal structure of human GRP78 (PDB ID: 3LDP) was downloaded from RCSB PDB website (https://www.rcsb.org/). The ligand molecule celastrol (PubChem ID: 122724) was obtained from the PubChem website (https://pubchem.ncbi.nlm.nih.gov/). The protein–ligand docking analysis was carried out by virtual screening software Autodock vina in PyRx 0.8 (https://pyrx.sourceforge.io/) as previously described (Cheng et al., 2020). All water molecules were removed from GRP78 protein structure prior to docking. Celstrol molecule was introduced into a 37 × 37 × 35 grid box crossing the protein structure of GRP78, automatically revealing the binding site in the protein. The docking results were analyzed and visualized by PyMOL (https://www.pymol.org/2/) and LigPlus (https://www.ebi.ac.uk/thornton-srv/software/LigPlus/).

Western blot analysis

Request a detailed protocol

The protein levels of specific biomarkers were analyzed by Western blot analysis as previously described (Cheng et al., 2015; Zhao et al., 2017). The total proteins from liver tissues and epididymal fat pads were extracted in cold RIPA buffer containing protein inhibitor cocktail from Sigma-Aldrich (St. Louis, MO, USA). In brief, 30 μg of the protein samples were resolved by 10% SDS- and subsequently transferred to polyvinylidene difluoride (PVDF) membrane. Following 4 hr incubation in 5% nonfat milk powder or BSA, the membranes were probed with primary antibodies against specific biomarkers overnight. The bound antibodies were detected with a goat anti-rabbit IgG-HRP conjugate. The blots were visualized by enhanced chemiluminescence (ECL) detection reagents (GE Healthcare, Uppsala, Sweden), and imaged under a BioRad GelDoc imaging system (Hercules, CA, USA). The gel images were analyzed by NIH ImageJ software (http://imagej.net/ImageJ2).

Immunofluorescence staining

Request a detailed protocol

The expression of specific biomarkers in livers and epididymal adipose tissues was examined by immunofluorescence staining as previously described (Luo et al., 2017; Zhao et al., 2019). In brief, livers and epididymal adipose tissue sections were firstly revitalized in retrieval buffer (pH 6.0), then permeabilized with 0.5% Triton X-100 for 30 min and blocked with 5% normal goat serum in PBS for 2 hr at room temperature. Section slides were then probed with specific primary antibodies at 4°C overnight. After three washes with PBS, the slides were incubated with the fluorescent secondary antibodies (e.g., Alexa Fluor 594-conjugated goat anti-rabbit IgG secondary antibody or Alexa Fluor 488-conjugated goat anti-mouse IgG secondary antibody) for 2 hr at room temperature. The cell nuclei were stained with DAPI. For immunofluorescence staining of the cellular proteins, the cells were sequentially permeabilized, blocked with 5% BSA in PBS and probed with primary antibodies at 4°C overnight. After washes with PBS, cells were incubated with the fluorescent secondary antibodies (e.g., Alexa Fluor 568-conjugated goat anti-rabbit IgG secondary antibody, Alexa Fluor 488-conjugated goat anti-mouse IgG secondary antibody, and Alexa Fluor 647-conjugated donkey anti-goat IgG secondary antibody). The cell nuclei were stained with DAPI. After the removal of excessive fluorescence reagents, the liver and adipose tissues or the cells were imaged on a Zeiss LSM 780 confocal microscope (Carl-Zeiss, Jena, Germany).

Evaluation of GRP78 chaperone activity by SPR technology

Request a detailed protocol

Recombinant 6xHis-tagged human GRP78 protein (Abcam, Cambridge, UK) was biotinylated with EZ-Link Sulfo-NHS-Biotin (Thermo Fisher Scientific, MA, USA) according to the manufacturer’s instructions. The biotinylated GRP78 was captured onto a streptavidin-coated Sensor Chip SA (GE Healthcare, NJ, USA) for analyzing the binding of a synthetic GRP78-targeting peptide WDLAWMFRLPVG (GL Biochem Ltd, Shanghai, China) in Biacore X100 SPR system (GE Healthcare, NJ, USA). The system was firstly equilibrated with the running buffer (10 mM 4-(2-Hydroxyethyl)piperazine-1-ethanesulfonic acid (HEPES), 150 mM NaCl, 3 mM ethylenediaminetetraacetic acid (EDTA), 0.005% Tween-20, pH 7.4). The binding of peptide WDLAWMFRLPVG was analyzed at the concentrations from 2.5 nM to 320 μM. In practical, the peptide in the running buffer was loaded to the system at 25°C and a flow rate of 30 μl min−1. When 10 μM celastrol was present, the peptide was analyzed at the concentrations from 1.56 to 100 μM. The association phase was set for 180 s, whereas the dissociation phase was set for 300 s. The sensor chip was cleaned by running regeneration buffer (10 mM glycine–HCl, pH 2.2) for 60 s before each new cycle. The affinity was determined by steady-state analysis while the estimation of Kd values was followed the 1:1 binding model with Biacore X100 Evaluation Software.

Characterization of covalent celastrol–GRP78 conjugate

Request a detailed protocol

Recombinant 6xHis-tagged mouse GRP78 was expressed in E. coli BL21 cells and purified on a HisTrap HP Nickel column (GE healthcare, Uppsala, Sweden). Twenty micrograms (0.3 nmol) of recombinant GRP78 was dissolved in 18 µl of 50 mM NaHCO3 buffer and incubated with excessive celastrol-PEG3-biotin, celastrol, or celastrol analog-PEG3-biotin at 4℃ overnight. The reaction mixtures were precipitated by adding cold acetone and centrifued at 13,000 rpm for 15 min. The protein pellets were dissolved in 50 mM Tris buffer (pH 7.6) containing 500 mM NaCl and 1% Triton-100. An aliquote (5 µg) of protein mixtures was resolved by native SDS–PAGE and subsequently transferred to a PVDF membrane. Following overnight incubation in 5% BSA, the membranes were probed with HRP-conjugated streptavidin (1:10,000) overnight. The blots were visualized by ECL detection reagents under a BioRad Gel Doc imaging system. The GRP78 was detected with anti-GRP78 antibody as index of protein loading.

Detection of intracellular covalent celastrol–GRP78 conjugate

Request a detailed protocol

The formation of covalent celastrol–GRP78 conjugate was examined in RAW264.7 macrophages as previously described (Uttamapinant et al., 2012). Briefly, RAW264.7 cells were sequentially treated with 400 μM palmitate for 16 hr, and 1 µM celastrol-PEG4-alkyne or celastrol for another 2 hr. The cells were fixed with 4% formaldehyde in PBS (pH 7.4), permeabilized with 0.5% Triton X-100 in PBS for 30 min. Click chemistry reaction was performed by the incubation in the dark with 10 µM AFDye555-picolyl azide, 8 mM CuSO4, 8 mM BTTAA, and 500 mM sodium ascorbate in PBS at room temperature for 0.5 hr. After washing with PBS for three times and blocking with 5% BSA, the cells were subjected to immunostaining for GRP78 and calnexin with specific primary antibodies and fluorescent secondary antibodies. The cell nuclei were stained with DAPI. The cells were washed with PBS for three times and imaged under a Zeiss LSM 900 confocal microscopy (Carl-Zeiss, Jena, Germany).

NMR determination of fat mass

Request a detailed protocol

The body fat contents of mice were assessed by a benchtop Bruker minispec LF90 TD-NMR analyzer from Bruker Optics Inc (Billerica, MA, USA) essentially as previously described (Luo et al., 2017). In brief, the diet-induced obese mice were treated with celastrol and celastrol analog at the dose of 5 mg kg−1 d−1 via oral gavage for consecutive 21 days. For the determination of fat mass, the benchtop minispec instrument was firstly calibrated using Bruker standards. Mice were weighted and subsequently placed into the instrument for noninvasive determination.

Assays of glucose tolerance and insulin sensitivity

Request a detailed protocol

Glucose tolerance and insulin sensitivity were assayed as described (Luo et al., 2017). For ipGTT, mice were fasted for 16 hr (18:00 p.m. to 10:00 a.m.) and then received d-glucose at the dose of 1 gkg−1. Blood samples were collected from mouse tail vein at 0, 15, 30, 60, 90, and 120 min, and measured for blood glucose levels using glucose test paper. For ITT, mice were starved for 6 hr (10:00 a.m. to 16:00 p.m.) and then received insulin at the dose of 0.75 IU kg−1. Blood samples were collected from mouse tail vein at 0, 15, 30, 60, 90, and 120 min, and measured for blood glucose levels using glucose test paper.

Statistical analysis

Request a detailed protocol

The results were presented as mean ± standard deviation (SD). The differences between two groups were analyzed by one-way analysis of variance with Dunnett’s post hoc test using GraphPad Prism software (La Jolla, CA, USA). The p value of less than 0.05 was considered as statistically significant.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided.

References

Decision letter

  1. Ilse S Daehn
    Reviewing Editor; Icahn School of Medicine at Mount Sinai, United States
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States
  3. Ming-Yuen Lee
    Reviewer

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Covalent inhibition of endoplasmic reticulum chaperone GRP78 disconnects the transduction of ER stress signals to inflammation and lipid accumulation in diet-induced obese mice" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Mone Zaidi as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Ming-Yuen Lee (Reviewer #1).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

We list here two new experiments and suggestion points for the discussion that we think are essential to support the claims made. These are:

1) Information regarding the cytotoxicity associated with celestrol is needed. This information is important and was requested by all the reviewers.

2) Reduced GRP78 expression is only shown by immunofluorescence staining in resident macrophage cells of mice liver and adipose tissues by the celastrol treatment. As suggested by Reviewer 2, isolation of macrophages from tissues can be performed in order to quantify protein or mRNA levels.

3) Expand the discussion of other potential effects of celastrol, given that the effects are not likely to be exclusive to the modulation of ER stress.

4) Revise the nomenclature of genes and proteins.

Reviewer #1 (Recommendations for the authors):

Overall, this manuscript was clearly written and presented enough data to support the conclusion. The authors should address the following issues to enhance the quality of manuscript for publication in eLife.

Specific issues:

1. The authors should indicate the herbal source for celastrol.

2. The authors should provide more details for the toxicity of celastrol.

3. The authors mentioned that celastrol might target several signaling pathways. It would be important to provide the rationale for the identification of covalent conjugates for celastrol.

4. The authors should explain why RNA-sequencing was performed using Nano-celastrol-treated mice.

5. Figure 8, the images should be clearly labelled with celastrol-PEG4-alkyne or celastrol in the incubation with the cells.

6. Figure 8, the labeling of celastrol-PEG4-alkyne appeared to be more extensive than the immunostaining of GRP78. The authors should discuss the binding of celastrol to other cellular proteins.

Reviewer #2 (Recommendations for the authors):

1. Figure 1 and Figure 2. These results can be further strengthened by including the protein and/or mRNA expression of the upstream and downstream regulators of ER stress. This will ensure that the pathway under study is engaged in the experimental model and that it is being modulated by celastrol.

2. Figure 3. At least, a quantification of Figure 3 showing the changes in the relative number of immune cell infiltration and their respective GRP78 expression should be added.

3. Figure 4. Authors should discuss why the major regulators of canonical ER stress pathway are not in the list of differentially expressed genes.

4. Figure 5. Explaining the results depicted in figure 5C, authors mention that celastrol has led to a decrease in the protein levels of IRE1, ATF6 and GRP78 in the ER of macrophage cells, which is evident. But the data does not support their claim that GRP78 localization is affected by celastrol treatment. What is evident in the images is the level of GRP78. One obvious reason is relatively small size of RAW 264.7 macrophage cells. As a proof of concept, one possibility is to use giant mammalian cells like U2OS or H9C2 which are better suited for subcellular compartment studies.

5. An important experiment that the authors should consider is to show that how much of the effect of celastrol is through GRP78? Anti-inflammatory and lipolytic effects of celastrol should be studied after a genetic or siRNA mediated knock down of GRP78 under conditions of lipotoxicity and celastrol treatment.

6. Figure 5. Line 194- In the Results section describing Figure 5, authors write "As shown in Figure 5C, palmitate significantly increased the expression of GRP78, 195 IRE1α, ATF6, … " while no description of significance calculation is shown in the figure legend neither any graphs showing the results for that.

7. Figure 4 legend, line no. 1051 – HDF should be HFD.

8. Figure 9 – is there any cytotoxicity associated with celestrol? Authors should state the number of mice died in each group and if any was excluded from the final analysis.

9. Figure 5B – authors should include a description of the abbreviation used here in the figure legend. What does CL, FT, W1, W2, W3, W4 and E mean?

10. One suggestion is to add a one to two sentence short summary at the end of each result section. This will help to better understand the findings that have been presented.

11. Authors have relied on macrophage cells to show the binding and localization of celastrol with GRP78. This should also be reflected in the title of the manuscript.

12. A graphical abstract highlighting important findings of the study will help to gain more appreciation.

13. Labelling for molecular weight should be added to the western blot images, at least to the source data.

Reviewer #3 (Recommendations for the authors):

Page 7, Lines 112-114, 116-118, 122-125:

All the lines are describing the regulations of different genes expression in the disease model, but the formatted symbols included are all corresponding to the protein of the respective genes such as in line 112 "adipogenic genes (e.g., PPAR-γ, C/EBP-α, aP2)", PPAR-γ refer to the protein and it is better to change it to Pparg to avoid misunderstanding.

Page 17, Lines 303-304, 306-309:

It is describing the gene expression again but all the symbols are corresponding the respective proteins and should be in italics.

Page 52, Figure 2, (A)(B)(C):

The figures are describing the fold changes of gene expression of different tissues after treatment but all the symbols in the figure are referring the proteins not the gene symbols

Page 52, Lines 1031, 1032:

In line 1031," in epididymal adipose tissues." But in line 1032 "total RNAs were extracted from liver" which is confusing and the source of RNA extracted is unclear.

Page 55, Figure 5 (A):

It is describing the effect of celastrol on ER stress in RAW264.7 macrophages. Maybe it is better to show that the concentrations used for celastrol doesn't induce any cytotoxicity in RAW264.7 after incubation for 8 hours.

Page 56, Figure 6 (B):

It is better to have some explanation on the annotations of the symbols on graph and tell the audience what kind of samples load in each lane.

Page 59, Figure 9 (E)(F):

It is better to also include the graph of IPGTT and ITT tests with the blood glucose level plot against time instead of showing the Area under curve data.

https://doi.org/10.7554/eLife.72182.sa1

Author response

Essential revisions:

Reviewer #1 (Recommendations for the authors):

Overall, this manuscript was clearly written and presented enough data to support the conclusion. The authors should address the following issues to enhance the quality of manuscript for publication in eLife.

Specific issues:

1. The authors should indicate the herbal source for celastrol.

Thank you very much for your suggestion. We have indicated the herbal source for celastrol in the lines 66-67 and the commercial source in Methods. For the present study, we purchased celastrol with the purity of over 98% (HPLC) from Nanjing Spring and Autumn Biological Engineering Co., Ltd. (Nanjing, China).

2. The authors should provide more details for the toxicity of celastrol.

Thank you very much for your suggestion. We fully agree with the reviewer on the importance of addressing the toxicity of celastrol. Firstly, we have previously determined the effect of celastrol on liver by evaluating the levels of serum AST and ALT in DIO mice following the treatment with celastrol at the dose of 5mg/kg/day p.o. for 21 days. As shown in Author response image 1, celastrol at 5 mg/kg/day effectively suppressed the HFD-induced hepatotoxicity and did not exert further toxicity to the DIO mice.

Author response image 1

Secondly, we examined the effects of celastrol on tissue integrity in the major organs and animal behaviors following 21-day treatment. As shown in the results of hematoxylin and eosin (HandE) staining, celastrol at the dose of 7.5 mg/kg/day, p.o. for 21 days did not alter on the integrity of the major mouse organs including the liver, heart, spleen and kidney (Scale bar: 100μm) nor showed any sign of intoxication.

Thirdly, Liu et al. previously evaluated the long-term toxicity of celastrol and did not find evident toxic effect in wild-type mice after i.p. administration of 100 μg/kg/day for 195 and 216 days (Liu J et al. Cell, 2015 May 21; 161(5):999-1011). However, celastrol is a highly hydrophobic drug and may be accumulated in the gastrointestinal tract. High gastrointestinal retention may affect the integrity of gastrointestinal tract. We have developed nanoparticle delivery system to resolve the gastrointestinal retention of celastrol (Zhao J et al., J Control Release. 2019 Sep 28;310:188-197).

3. The authors mentioned that celastrol might target several signaling pathways. It would be important to provide the rationale for the identification of covalent conjugates for celastrol.

Thank you very much for your suggestion. Many previous studies have suggested that celastrol could regulate different signaling pathways (Kannaiyan R, et al. Molecular targets of celastrol derived from Thunder of God Vine: potential role in the treatment of inflammatory disorders and cancer. Cancer Lett. 2011 Apr 1;303(1):9-20; Chen SR et al. A Mechanistic Overview of Triptolide and Celastrol, Natural Products from Tripterygium wilfordii Hook F. Front Pharmacol. 2018 Feb 14;9:104). However, most of celastrol-targeting signaling pathways appear to be the downstream signaling pathways while little is known about the primary molecular targets. Celastrol bears a unique chemically reactive quinone methide and may likely bind to proteins via covalent conjugation. Along the effort to identify the primary target proteins, we designed N-propargyl celastrol amide as a small molecule probe for affinity pulldown of celastrol-modified proteins. We are pleased to report our success in the identification of GRP78 as a major primary target for celastrol.

4. The authors should explain why RNA-sequencing was performed using Nano-celastrol-treated mice.

Thank you very much for your question. We have been working on two pharmacological aspects, bioavailability and molecular mechanisms, towards the development of clinically useful celastrol preparations. As mentioned in the manuscript, our previous study reported the preparation of Nano-celastrol by entrapping celastrol in PEG-PCL nanomicelles for safe control of body weight (Zhao et al. 2019). Nano-celastrol showed competitive efficacy and less gastrointestinal retention relative to free celastrol. As for transcriptomic profiles, a previous study reported the global transcriptional response at genes and enhancers to the natural medicinal compound celastrol (Dukler N, et al. Nascent RNA sequencing reveals a dynamic global transcriptional response at genes and enhancers to the natural medicinal compound celastrol. Genome Res. 2017 Nov;27(11):1816-1829). Thus, we performed RNA-sequencing to profile the transcriptional response to Nano-celastrol in mice. Indeed, our RNA-Seq profiling revealed the effects of Nano-celastrol on the biomarkers of ER stress, inflammation, lipolysis, lipogenesis and thermogenesis. Importantly, such information well supported the conclusion in the present manuscript.

5. Figure 8, the images should be clearly labelled with celastrol-PEG4-alkyne or celastrol in the incubation with the cells.

Thanks for your suggestion. We have properly labelled the images in Figure 8.

6. Figure 8, the labeling of celastrol-PEG4-alkyne appeared to be more extensive than the immunostaining of GRP78. The authors should discuss the binding of celastrol to other cellular proteins.

Thanks for your comments. The extensive labelling with celastrol-PEG4-alkyne may be attributed to three factors: (1) the different brightness and sensitivities of green and red fluorophores, (2) non-specific binding and (3) actual binding of celastrol-PEG4-alkyne to other minor proteins. We have updated such discussion in the revised manuscript.

Reviewer #2 (Recommendations for the authors):

1. Figure 1 and Figure 2. These results can be further strengthened by including the protein and/or mRNA expression of the upstream and downstream regulators of ER stress. This will ensure that the pathway under study is engaged in the experimental model and that it is being modulated by celastrol.

Thank you very much for your suggestion. We fully agree with the reviewer on the importance to determine the protein and/or mRNA expression of the upstream and downstream regulators of ER stress. We performed new experiments and determined the effects of celastrol on the expression of GRP78 and related ER stress signaling proteins in livers and epididymal fat pads by Western blotting. We have added the new results into the revised Figure 3.

2. Figure 3. At least, a quantification of Figure 3 showing the changes in the relative number of immune cell infiltration and their respective GRP78 expression should be added.

Thank you very much. We highly respect you for your comments. We are aware of the technical inaccuracy in the quantification of the fluorescence signals in tissues, especially for enumerating cells. We performed new experiments to analyze the protein levels of GRP78 and related ER stress signaling biomarkers in livers and epididymal fat pads by Western blotting. The blots were quantified by a densitometric method. Thus, we included the new results in the revised Figure 3.

3. Figure 4. Authors should discuss why the major regulators of canonical ER stress pathway are not in the list of differentially expressed genes.

Thank you very much for your question. Based on standard bioinformatics analysis, the list of differentially expressed genes recruited the genes with the change of > 2-fold. On the other hand, the major regulators of canonical ER stress pathway are mainly the sensors for ER stress. The minimal changes of ER stress regulators may result in the sufficient effects on the biomarkers of inflammation, lipolysis, lipogenesis and thermogenesis.

4. Figure 5. Explaining the results depicted in figure 5C, authors mention that celastrol has led to a decrease in the protein levels of IRE1, ATF6 and GRP78 in the ER of macrophage cells, which is evident. But the data does not support their claim that GRP78 localization is affected by celastrol treatment. What is evident in the images is the level of GRP78. One obvious reason is relatively small size of RAW 264.7 macrophage cells. As a proof of concept, one possibility is to use giant mammalian cells like U2OS or H9C2 which are better suited for subcellular compartment studies.

Thank you very much for your comments. We fully agree with the reviewer on the expression and localization of GRP78 in macrophages. Macrophages are the major cell type for handling the dietary lipids, especially in the transformation into foam cells, and thereby frequently used as the cell model for studying inflammation and lipid metabolism. As for the broad distribution, GRP78 may be localized in the ER compartment as its primary localization or transported to the cell surface under stress (Arap MA et al. Cell surface expression of the stress response chaperone GRP78 enables tumor targeting by circulating ligands. Cancer Cell. 2004 Sep;6(3):275-84). Per your suggestion, it would be interesting to study the effects of fatty acids on the expression and localization of GRP78 in giant mammalian cells like U2OS or H9C2 in a separated study. Indeed, we have published several papers with H9C2 in the context of myocardial infarction.

5. An important experiment that the authors should consider is to show that how much of the effect of celastrol is through GRP78? Anti-inflammatory and lipolytic effects of celastrol should be studied after a genetic or siRNA mediated knock down of GRP78 under conditions of lipotoxicity and celastrol treatment.

Thanks for your comments. The present study was designed to identify the celastrol-modified proteins. Indeed, we successfully identified GRP78 as a major target protein for celastrol and proved that celastrol could attenuate the chaperone activity of GRP78. Based on careful literature review, it has been well-established that ER stress promotes lipogenesis and inflammation (Kim JY et al. ER Stress Drives Lipogenesis and Steatohepatitis via Caspase-2 Activation of S1P. Cell. 2018 Sep 20;175(1):133-145.e15; Lee JS et al. Pharmacological ER stress promotes hepatic lipogenesis and lipid droplet formation. Am J Transl Res. 2012;4(1):102-13. Epub 2012 Jan 6). The present study demonstrated that celastrol suppressed the expression of ER stress mediators, inflammatory and lipogenic genes while promoted lipolytic and thermogenic genes. Collectively, it is reasonable to propose an important role for the formation of celastrol-GRP78 conjugate. Again, we highly appreciate the reviewer for your constructive suggestions. Indeed, we designed another study to further examine the anti-inflammatory and lipolytic effects of celastrol and celastrol derivatives using different technologies including AAV-mediated knockdown of GRP78 in cell models and animal models.

6. Figure 5. Line 194- In the Results section describing Figure 5, authors write "As shown in Figure 5C, palmitate significantly increased the expression of GRP78, 195 IRE1α, ATF6, … " while no description of significance calculation is shown in the figure legend neither any graphs showing the results for that.

Thank you very much for your comments. The images in Figure 5C visually showed that palmitate markedly increased the expression of GRP78, IRE1α, ATF6. Per your suggestion, we rephrased the statement in the revised.

7. Figure 4 legend, line no. 1051 – HDF should be HFD.

Thank you very much for your comments. We corrected the typos in the text.

8. Figure 9 – is there any cytotoxicity associated with celestrol? Authors should state the number of mice died in each group and if any was excluded from the final analysis.

See response to reviewer 1, point 2.

9. Figure 5B – authors should include a description of the abbreviation used here in the figure legend. What does CL, FT, W1, W2, W3, W4 and E mean?

Thank you very much for your question. Per your suggestion, these abbreviations have been added in the figure legend for you to review. Briefly, CL: Cell lysate; FT: Flow-through; W1: First wash; W2: Second wash; W3: Third wash; W4: Fourth wash; E: Elution.

10. One suggestion is to add a one to two sentence short summary at the end of each result section. This will help to better understand the findings that have been presented.

Thank you very much for your suggestion. We have added short summary at the end of each result section.

11. Authors have relied on macrophage cells to show the binding and localization of celastrol with GRP78. This should also be reflected in the title of the manuscript.

Thank you very much for your suggestion. GRP78 is an abundant and ubiquitous protein and governs a common ER stress signaling pathway. In view of the role of macrophages in the metabolism of lipids, we selected macrophages as cell model to demonstrate a general pharmacological phenomenon. Moreover, animal experiments showed overall response to HFD and celastrol treatment. Therefore, it may be better to keep the current title.

12. A graphical abstract highlighting important findings of the study will help to gain more appreciation.

Thank you very much for your comments. Per your suggestion, we have added the graphical summary with highlights as a new Figure 10 into the revised manuscript for you to review.

13. Labelling for molecular weight should be added to the western blot images, at least to the source data.

Thank you very much for your comments. We have added the molecular weight of proteins to the Western blot images in Figure 3 and Figure 5 for you to review.

Reviewer #3 (Recommendations for the authors):

Page 7, Lines 112-114, 116-118, 122-125:

All the lines are describing the regulations of different genes expression in the disease model, but the formatted symbols included are all corresponding to the protein of the respective genes such as in line 112 "adipogenic genes (e.g., PPAR-γ, C/EBP-α, aP2)", PPAR-γ refer to the protein and it is better to change it to Pparg to avoid misunderstanding.

Thank you very much for your suggestion. We have corrected the symbols of different genes accordingly.

Page 17, Lines 303-304, 306-309:

It is describing the gene expression again but all the symbols are corresponding the respective proteins and should be in italics.

Thank you very much for your suggestion. We have corrected the symbols of different genes accordingly.

Page 52, Figure 2, (A)(B)(C):

The figures are describing the fold changes of gene expression of different tissues after treatment but all the symbols in the figure are referring the proteins not the gene symbols

Thank you very much for your suggestion. We have corrected the symbols of different genes accordingly in Figure 2.

Page 52, Lines 1031, 1032:

In line 1031," in epididymal adipose tissues." But in line 1032 "total RNAs were extracted from liver" which is confusing and the source of RNA extracted is unclear.

Thank you very much for your suggestion. We have corrected the source of RNA extracted into epididymal adipose tissues in the figure legend.

Page 55, Figure 5 (A):

It is describing the effect of celastrol on ER stress in RAW264.7 macrophages. Maybe it is better to show that the concentrations used for celastrol doesn't induce any cytotoxicity in RAW264.7 after incubation for 8 hours.

Thank you very much for your comments. Our previous study has already evaluated the effect of celastrol on the cell viability in RAW264.7 cells over a period of 48 h (Luo D et al. Natural product celastrol suppressed macrophage M1 polarization against inflammation in diet-induced obese mice via regulating Nrf2/HO-1, MAP kinase and NF-κB pathways. Aging (Albany NY). 2017 Oct 16;9(10):2069-2082). We found that celastrol could exhibit detectable cytotoxicity when the concentration was raised up to 1.25 μM (p < 0.01). Celastrol eventually exhibited the IC50 value of 1.69 μM against the growth of RAW264.7 cells. We thereby treated RAW264.7 cells with celastrol at the concentrations below 1.25 μM for other experiments. Therefore, 1μM of celastrol wouldn't induce any cytotoxicity in RAW264.7 after incubation for 8 hours. Please refer to Author response image 2.

Author response image 2

Page 56, Figure 6 (B):

It is better to have some explanation on the annotations of the symbols on graph and tell the audience what kind of samples load in each lane.

Thank you very much for your comments. The abbreviations have been explained in the figure legend for you to review. Briefly, CL: Cell lysate; FT: Flow-through; W1: First wash, W2: Second wash; W3: Third wash; W4: Fourth wash; E: Elution.

Page 59, Figure 9 (E)(F):

It is better to also include the graph of IPGTT and ITT tests with the blood glucose level plot against time instead of showing the Area under curve data.

Thank you very much for your comments. We included the quantitative analysis as a part of Figure 9 due to the consideration of easy understanding, visual tidiness and consistent format. To facilitate your review, we have made the graph of IPGTT and ITT tests with the blood glucose level plot against time in Author response image 3.

Author response image 3
https://doi.org/10.7554/eLife.72182.sa2

Article and author information

Author details

  1. Dan Luo

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Conceptualization, Data curation, Investigation, Methodology, Writing – original draft
    Contributed equally with
    Ni Fan
    Competing interests
    No competing interests declared
  2. Ni Fan

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing – original draft, Writing - review and editing
    Contributed equally with
    Dan Luo
    Competing interests
    No competing interests declared
  3. Xiuying Zhang

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Fung Yin Ngo

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  5. Jia Zhao

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  6. Wei Zhao

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  7. Ming Huang

    Department of Pharmacology and Pharmacy, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Ding Li

    Colleage of Chemistry and Pharmacy, College of Chemistry & Pharmacy, Northwest A&F University, Shaanxi, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Yu Wang

    Department of Pharmacology and Pharmacy, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  10. Jianhui Rong

    School of Chinese Medicine, Li Ka Shing Faculty of Medicine, University of Hong Kong, Hong Kong, China
    Contribution
    Conceptualization, Project administration, Supervision, Writing - review and editing
    For correspondence
    jrong@hku.hk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3545-2811

Funding

Research Grants Council, University Grants Committee (17146216)

  • Jianhui Rong

National Natural Science Foundation of China (21778046)

  • Jianhui Rong

University of Hong Kong (201611159156)

  • Jianhui Rong

Research Grants Council, University Grants Committee (17100317)

  • Jianhui Rong

Research Grants Council, University Grants Committee (17119619)

  • Jianhui Rong

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors are grateful to Ms. Lin Lin from SUSTech Core Research Facilities of Southern University of Science and Technology (Shenzhen, China) for her technical assistance in proteomic identification. The authors are grateful to Mr. Zhao Chenliang from Hong Kong Baptist University for his help in recording NMR 1H and 13C spectra of compounds. This work was supported by General Research Fund (GRF) grants (17146216, 17100317, 17119619) from the Research Grants Council of Hong Kong, the National Natural Science Foundation of China (21778046), and the Seed Funding Programme for Basic Research (201611159156) from the University of Hong Kong.

Ethics

Protocols for animal experiments were approved by the Committee on the Use of Live Animals in Teaching and Research (CULATR No. 3755-15), University of Hong Kong.

Senior Editor

  1. Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Reviewing Editor

  1. Ilse S Daehn, Icahn School of Medicine at Mount Sinai, United States

Reviewer

  1. Ming-Yuen Lee

Publication history

  1. Received: July 14, 2021
  2. Preprint posted: August 20, 2021 (view preprint)
  3. Accepted: January 12, 2022
  4. Version of Record published: February 9, 2022 (version 1)

Copyright

© 2022, Luo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 941
    Page views
  • 195
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Dan Luo
  2. Ni Fan
  3. Xiuying Zhang
  4. Fung Yin Ngo
  5. Jia Zhao
  6. Wei Zhao
  7. Ming Huang
  8. Ding Li
  9. Yu Wang
  10. Jianhui Rong
(2022)
Covalent inhibition of endoplasmic reticulum chaperone GRP78 disconnects the transduction of ER stress signals to inflammation and lipid accumulation in diet-induced obese mice
eLife 11:e72182.
https://doi.org/10.7554/eLife.72182

Further reading

    1. Biochemistry and Chemical Biology
    Meiling Wu, Anda Zhao ... Dongyun Shi
    Research Article

    Antioxidant intervention is considered to inhibit reactive oxygen species (ROS) and alleviates hyperglycemia. Paradoxically, moderate exercise can produce ROS to improve diabetes. The exact redox mechanism of these two different approaches remains largely unclear. Here, by comparing exercise and antioxidants intervention on type 2 diabetic rats, we found moderate exercise upregulated compensatory antioxidant capability and reached a higher level of redox balance in the liver. In contrast, antioxidant intervention achieved a low-level redox balance by inhibiting oxidative stress. Both of these two interventions could promote glucose catabolism and inhibit gluconeogenesis through activation of hepatic AMPK signaling, therefore ameliorating diabetes. During exercise, different levels of ROS generated by exercise have differential regulations on the activity and expression of hepatic AMPK. Moderate exercise-derived ROS promoted hepatic AMPK glutathionylation activation. However, excessive exercise increased oxidative damage and inhibited the activity and expression of AMPK. Overall, our results illustrate that both exercise and antioxidant intervention improve blood glucose in diabetes by promoting redox balance, despite different levels of redox balance. These results indicate that the AMPK signaling activation, combined with oxidative damage markers, could act as a sensitive biomarker, reflecting the threshold of redox balance defining effective treatment in diabetes. These findings provide theoretical evidence for the precise treatment of diabetes by antioxidants and exercise.

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Edmundo G Vides, Ayan Adhikari ... Suzanne R Pfeffer
    Research Advance

    Activating mutations in the Leucine Rich Repeat Kinase 2 (LRRK2) cause Parkinson's disease and previously we showed that activated LRRK2 phosphorylates a subset of Rab GTPases (Steger et al., 2017). Moreover, Golgi-associated Rab29 can recruit LRRK2 to the surface of the Golgi and activate it there for both auto- and Rab substrate phosphorylation. Here we define the precise Rab29 binding region of the LRRK2 Armadillo domain between residues 360-450 and show that this domain, termed 'Site #1', can also bind additional LRRK2 substrates, Rab8A and Rab10. Moreover, we identify a distinct, N-terminal, higher affinity interaction interface between LRRK2 phosphorylated Rab8 and Rab10 termed 'Site #2', that can retain LRRK2 on membranes in cells to catalyze multiple, subsequent phosphorylation events. Kinase inhibitor washout experiments demonstrate that rapid recovery of kinase activity in cells depends on the ability of LRRK2 to associate with phosphorylated Rab proteins, and phosphorylated Rab8A stimulates LRRK2 phosphorylation of Rab10 in vitro. Reconstitution of purified LRRK2 recruitment onto planar lipid bilayers decorated with Rab10 protein demonstrates cooperative association of only active LRRK2 with phospho-Rab10-containing membrane surfaces. These experiments reveal a feed-forward pathway that provides spatial control and membrane activation of LRRK2 kinase activity.
