External validation of a mobile clinical decision support system for diarrhea etiology prediction in children: A multicenter study in Bangladesh and Mali

  1. Stephanie Chow Garbern  Is a corresponding author
  2. Eric J Nelson
  3. Sabiha Nasrin
  4. Adama Mamby Keita
  5. Ben J Brintz
  6. Monique Gainey
  7. Henry Badji
  8. Dilruba Nasrin
  9. Joel Howard
  10. Mami Taniuchi
  11. James A Platts-Mills
  12. Karen L Kotloff
  13. Rashidul Haque
  14. Adam C Levine
  15. Samba O Sow
  16. Nur Haque Alam
  17. Daniel T Leung  Is a corresponding author
  1. Department of Emergency Medicine, Alpert Medical School, Brown University, United States
  2. Department of Pediatrics, and Environmental and Global Health, Emerging Pathogens Institute, University of Florida, United States
  3. International Centre for Diarrhoeal Disease Research, Bangladesh
  4. Centre for Vaccine Development, Mali
  5. Division of Epidemiology, University of Utah, United States
  6. Rhode Island Hospital, United States
  7. Center for Vaccine Development and Global Health, University of Maryland School of Medicine, United States
  8. Department of Pediatrics, University of Kentucky Medical School, United States
  9. Division of Infectious Diseases and International Health, University of Virginia, United States
  10. Department of Pediatrics, University of Maryland, United States
  11. Division of Infectious Diseases, University of Utah School of Medicine, United States

Abstract

Background:

Diarrheal illness is a leading cause of antibiotic use for children in low- and middle-income countries. Determination of diarrhea etiology at the point-of-care without reliance on laboratory testing has the potential to reduce inappropriate antibiotic use.

Methods:

This prospective observational study aimed to develop and externally validate the accuracy of a mobile software application (‘App’) for the prediction of viral-only etiology of acute diarrhea in children 0–59 months in Bangladesh and Mali. The App used a previously derived and internally validated model consisting of patient-specific (‘present patient’) clinical variables (age, blood in stool, vomiting, breastfeeding status, and mid-upper arm circumference) as well as location-specific viral diarrhea seasonality curves. The performance of additional models using the ‘present patient’ data combined with other external data sources including location-specific climate, data, recent patient data, and historical population-based prevalence were also evaluated in secondary analysis. Diarrhea etiology was determined with TaqMan Array Card using episode-specific attributable fraction (AFe) >0.5.

Results:

Of 302 children with acute diarrhea enrolled, 199 had etiologies above the AFe threshold. Viral-only pathogens were detected in 22% of patients in Mali and 63% in Bangladesh. Rotavirus was the most common pathogen detected (16% Mali; 60% Bangladesh). The present patient+ viral seasonality model had an AUC of 0.754 (0.665–0.843) for the sites combined, with calibration-in-the-large α = −0.393 (−0.455––0.331) and calibration slope β = 1.287 (1.207–1.367). By site, the present patient+ recent patient model performed best in Mali with an AUC of 0.783 (0.705–0.86); the present patient+ viral seasonality model performed best in Bangladesh with AUC 0.710 (0.595–0.825).

Conclusions:

The App accurately identified children with high likelihood of viral-only diarrhea etiology. Further studies to evaluate the App’s potential use in diagnostic and antimicrobial stewardship are underway.

Funding:

Funding for this study was provided through grants from the Bill and Melinda GatesFoundation (OPP1198876) and the National Institute of Allergy and Infectious Diseases (R01AI135114). Several investigators were also partially supported by a grant from the National Institute of Diabetes and Digestive and Kidney Diseases (R01DK116163). This investigation was also supported by the University of Utah Population Health Research (PHR) Foundation, with funding in part from the National Center for Advancing Translational Sciences of the National Institutes of Health under Award Number UL1TR002538. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. The funders had no role in the study design, data collection, data analysis, interpretation of data, or in the writing or decision to submit the manuscript for publication.

eLife digest

Diarrhea is one of the most common illnesses among children worldwide. In low- and middle-income countries with limited health care resources, it can be deadly. Diarrhea can be caused by infections with viruses or bacteria. Antibiotics can treat bacterial infections, but they are not effective against viral infections.

It can often be difficult to determine the cause of diarrhea. As a result, many clinicians just prescribe antibiotics. However, since diarrhea in young children is often due to viral infections, prescribing unnecessary antibiotics can cause children to have side effects without any benefit. Excessive use of antibiotics also contributes to the development of bacteria that are resistant to antibiotics, making infections harder to treat.

Scientists are working to develop mobile health tools or ‘apps’ that may help clinicians identify the cause of diarrhea. Using computer algorithms to analyze information about the patient and seasonal infection patterns, the apps predict whether a bacterial or viral infection is the likely culprit. These tools may be particularly useful in low- or middle-income country settings, where clinicians have limited access to testing for bacteria or viruses.

Garbern, Nelson et al. previously built an app to help distinguish cases of viral diarrhea in children in Mali and Bangladesh. Now, the researchers have put their app to the test in the real-world in a new group of patients to verify it works. In the experiments, nurses in Mali and Bangladesh used the app to predict whether a child with diarrhea had a viral or non-viral infection. The children’s stool was then tested for viral or bacterial DNA to confirm whether the prediction was correct. The experiments showed the app accurately identified viral cases of diarrhea.

The experiments also showed that customizing the app to local conditions may further improve its accuracy. For example, a version of the app that factored in seasonal virus transmission performed the best in Bangladesh, while a version that factored in data from recent patients in the past few weeks performed the best in Mali. Garbern and Nelson et al. are now testing whether their app could help reduce unnecessary use of antibiotics in children with diarrhea. If it does, it may help minimize antibiotic resistance and ensure more children get appropriate diarrhea care.

Introduction

Diarrheal diseases remain a leading cause of morbidity and mortality in children younger than five years worldwide, with approximately one billion episodes and 500,000 deaths annually. James et al., 2018; Troeger et al., 2018. While a significant problem in all countries, the greatest burden of pediatric diarrhea exists in low- and middle-income countries (LMICs), primarily in South Asia and sub-Saharan Africa. Troeger et al., 2018. Although the majority of diarrhea episodes are self-limiting and the mainstay of diarrhea treatment is rehydration, clinicians must also make decisions regarding appropriate use of diagnostics and for antibiotic prescribing. Guidelines from the World Health Organization (WHO) recommend against antibiotic use for the treatment of pediatric diarrhea, except for specific presentations of diarrhea such as suspicion of Vibrio cholerae (V. cholerae) with severe dehydration, blood in stool, or concurrent illness such as severe malnutrition World Health Organization, 2005a. For the majority of diarrhea etiologies, antibiotics are not recommended, particularly for viral causes of diarrhea in which antibiotics have no benefit. Bruzzese et al., 2018. Viral pathogens such as rotavirus, sapovirus, and adenovirus, are among the top causes of diarrhea in young children in LMICs, as shown in two large multi-center studies from LMICs, the Global Enteric Multicenter Study (GEMS) and the Malnutrition and Enteric Disease (MAL-ED) study Kotloff et al., 2013; Platts-Mills et al., 2018.

Laboratory testing by culture or molecular assays are often impractical when treating children with diarrhea in the majority of LMIC clinical settings due to time and resource constraints Bebell and Muiru, 2014. As a result, clinicians often make decisions regarding antibiotic use based on non-evidence-based assumptions or broad syndromic guidelines Kotloff, 2017. Unfortunately, physician judgment has been shown to poorly predict etiology and need for antibiotics in diarrheal infections. For example, patients presenting to Kenyan hospitals with diarrhea showed that syndrome-based guidelines for Shigella infection led to the failure to diagnose shigellosis in nearly 90% of cases Pavlinac et al., 2016. Accurate and cost-effective tools to better determine diarrhea etiology at the point-of-care without relying on laboratory tests are greatly needed to reduce antibiotic overuse while conserving scarce healthcare resources.

Electronic clinical decision support systems (CDSS) incorporating prediction models may offer a solution to the challenges of determining diarrhea etiology in low-resource settings. CDSSs have been used in high-income country (HIC) settings to improve the accuracy of diagnosis and reduce costs by avoiding unnecessary diagnostic tests at the point-of-care Bright et al., 2012. CDSSs, especially as mHealth applications on smartphone mobile devices, hold great potential for implementing sophisticated clinical prediction models that would otherwise be impossible for providers to calculate manually. These tools can also enable flexibility by clinician choice or automation to optimize the clinical algorithm based on epidemiologic and clinical factors dominant in a given location. Despite opportunities to improve clinical care in a cost-aware mindset, there remains a paucity of data on the use of CDSS for infectious disease etiology determination and to support appropriate antibiotic use in LMICs Tuon et al., 2017.

Our team previously derived and internally validated a series of clinical prediction models using data from GEMS, integrating characteristics of the present patient’s diarrhea episode (patient-specific factors including age, blood in stool, vomiting, breastfeeding status, and mid-upper arm circumference) with external data sources (such as characteristics of recent patients, historical prevalence, climate, and seasonal patterns of viral diarrhea ‘viral seasonality’) in a modular approach Brintz et al., 2021. The best-performing model, which used ‘present patient’+ location-specific viral seasonality data, had an internally validated area under the receiver-operating characteristic curve (AUC) of 0.83 Brintz et al., 2021. The objective of this study was to prospectively externally validate the models for the prediction of viral-only etiology of diarrhea in children aged 0–59 months in Bangladesh and Mali and demonstrate a proof-of concept for the incorporation of the primary model (‘present patient’+ location-specific viral seasonality) into a mobile CDSS software application (‘App’) for use in LMIC settings with high diarrheal disease burden.

Materials and methods

Study design and setting

Request a detailed protocol

A prospective, observational cohort study was conducted in Dhaka, Bangladesh and Bamako, Mali. Enrollment was conducted in Bangladesh at the Dhaka Hospital of the International Center for Diarrhoeal Disease Research, Bangladesh (icddr,b) rehydration (short stay) unit and in Mali at the Centres de Santé de Référence (CSREF) and the Centres de Santé Communautaires (CSCOM) in Commune V and VI in Bamako, Mali. These locations were selected because of their geographic proximity to GEMS study sites from which the clinical prediction models were trained, without using the same sites. Participants were enrolled in Bangladesh during November and December 2019 and Mali during January and February 2020. The Dhaka Hospital of the icddr,b provides free clinical services to the population of the capital city of Dhaka, Bangladesh and surrounding rural districts and cares for over 100,000 patients with acute diarrhea each year. The CSREF and CSCOM of communes V and VI in Mali serve a catchment area of 2 million people. CSCOM provides basic care such as family planning, vaccination and outpatients visits, while patients with severe illness are referred to the CSREF where there is capacity for hospital admission for medical conditions and for basic and intermediate surgeries.

Study participants and inclusion/exclusion criteria

Request a detailed protocol

Patients under five years of age (0–59 months) with symptoms of acute diarrhea were eligible for enrollment. Acute diarrhea was defined as three or more loose stools per day for less than seven days. Patients were excluded using the following criteria: no parent or primary caretaker available for consent, diarrhea lasting seven days or longer, fewer than three loose stools in the prior 24 hr, or having a diagnosis of severe pneumonia, severe sepsis, meningitis, or other condition aside from gastroenteritis.

Staff training and oversight

Request a detailed protocol

General practice nurses were hired specifically to collect data at both study sites, and study nurses had no other patient care responsibilities during the study period. Nurses received training in study procedures under the guidance of the research investigators. Training topics included: screening procedures, obtaining informed consent, collecting clinical data and laboratory procedures. Study nurses also received practical hands-on training regarding the use of the App to ensure all nurses were comfortable with entering data and using the devices during clinical workflow.

Data sources and processing, model development and internal validation

‘Modular’ clinical prediction models for the outcome of viral etiology of pediatric diarrhea were previously derived and internally validated with full details previously published by Brintz et al in 2021 Brintz et al., 2021; Brintz et al., 2020. Briefly, a series of five models predicting viral etiology were independently developed based on the hypothesis that including location-specific ‘external’ data sources (i.e. characteristics such as recent patients or climate data in addition to the present patient’s characteristics), may improve predictive performance. This study team’s prior work described the development of these predictive models that integrates multiple sources of data in a principled statistical framework using a ‘post-test odds formulation’. This method incorporates observed prior knowledge of a prediction, typically using prior known location-specific prevalence (e.g. historical prevalence of viral diarrhea in Mali), as pre-test odds and then updates the pre-test odds using a single model or series of models based on current data. It also enables electronic real-time updating and flexibility in a ‘modular’ fashion, such that the component models can be flexibly included or excluded according to data availability, an important consideration for LMIC settings in which prior epidemiologic data may be unavailable. The post-test odds formulation combines the likelihood ratios derived from these independent models along with pre-test odds into a single prediction. In order to externally validate the predictions from the post-test odds, we processed the data from this study to match the variables used in previously trained models as closely as possible. Table 1 shows the terminology used to refer to each model and the features included in each model.

Table 1
Model terminology definitions and descriptions.
Model nameDescription and features included
Present patientRandom forest variable importance screening was used to screen variables for fitting a logistic regression model from the GEMS data including only five clinical variables (selected from candidate variables which would be accessible to clinicians at the point-of-care) Brintz et al., 2021. The five variables include: age, blood in stool (yes/no), vomiting (yes/no), breastfeeding status (yes/no), and mid-upper arm circumference (MUAC; as measured in cm)
Viral seasonalityThis model included the standardized seasonal sine and cosine curves modeling the country-specific seasonal patterns of viral diarrhea
ClimateThis model included rain and temperature averages using a two-week aggregation of the five nearest National Oceanic and Atmospheric Administration (NOAA)-affiliated weather stations to the hospital sites.
Historical patient (Pre-test odds)Pre-test odds were generated using historical rates of viral diarrhea by site and date using data from the GEMS study.
Recent patient (Pre-test odds)Pre-test odds were generated using data from patients in the prior four weeks.

The derived models used clinical, historical, anthropometric and microbiologic data from the GEMS study, a large case-control study conducted at seven sites in Asia and Africa (The Gambia, Kenya, Mali, Mozambique, Bangladesh, India, and Pakistan) which enrolled 22,568 children under 5 years, including 9439 children with moderate/severe diarrhea and 13,129 controls Kotloff et al., 2013. Demographics, predictors and viral-only outcome data from the development datasets from GEMS in Bangladesh and Mali are shown in Supplementary file 1. Additional location-specific sources of data used for model development included local climate (i.e. weather) data, and site-specific viral diarrhea seasonality modeled using sine and cosine curves (‘viral seasonality’). Pre-test odds were generated using epidemiologic data based on historical prevalence from the same study site (‘historical patient’) and from the past 4 weeks (‘recent patient’) at the same study site.

More specifically, local weather data proximate to each site’s health centers was obtained using the National Oceanic and Atmospheric Administration (NOAA) Integrated Surface Database. Climate model features include rain and temperature averages based on a 2-week aggregation of the inverse-distance weighted average of the nearest five NOAA-affiliated weather stations to the hospital sites. Weather stations at a distance of greater than 200 km were excluded. Standardized seasonal sine and cosine curves with a periodicity of 1 year,sin(2πt365.25) and cos(2πt365.25), where t is based on the date, were used to model the location-specific seasonal patterns of viral etiology of diarrhea Brintz et al., 2021. The seasonal sine and cosine values as well as temperature and rain averages (climate) were calculated for the dates in this study as described previously Brintz et al., 2021.

Technology development

Request a detailed protocol

Software architecture platform and user interface concepts for the App were derived from two prior related studies Khan et al., 2020; Haque et al., 2017. The design herein was intended to demonstrate a ‘live’ proof-of-concept that the models could be successfully configured as a CDSS on a mobile device for high-volume clinical settings in an LMIC. The App was configured in English (Bangladesh) and French (Mali). On the input page, clinical variables were restricted to those required for the App (Figure 1). Text was favored over symbology to increase clarity based on prior experience. Computations were initiated locally on the device after pressing ‘calculate’. On the output page, the patient code and randomized calculation code were used to enable joining the digital record to the paper case report form. The design objective was to identify weaknesses in the UI for data entry using paper data entry as the reference standard, and address weaknesses after the study. The code-base was allowed to be iterated once at the transition between the Bangladesh and Mali phases of the study to address engineering challenges exposed during ‘live’ deployment. The probability of a viral-alone etiology was provided, and the probabilities by model type were accessible via a drop-down menu. Data were encrypted for security on the device and upon transfer to a HIPAA compliant server. The code bases consisted of Python (server), Java (web portal interface), Android operating system, and TensorFlor Lite (TFLite) on the Android device. TFLite is an open-source cross-platform deep-learning framework. TFLite converts pre-trained models from Python in TensorFlow to a format that is optimized for speed to run models and store data on mobile devices. Therefore, all calculations were performed on-device (locally on the smartphone) and allowed App use irrespective of internet connectivity. Calculated probabilities were displayed near instantaneously (within 1 s). The App deployed a single primary model (present patient+ viral seasonality as described above) which used data collected at the point-of-care and input by the clinician user, and viral seasonality curves; climate and recent patient data sources were not included because they did not add to the AUC at the GEMS study sites. The models were not re-trained on the server after deployment for this validation study in order to align with standards of clinical practice for AI-enabled clinical decision support currently being set by Boards of Medical Informatics; according to these standards, validated models derived using machine learning should not be subsequently iterated without validation AMIA, 2021 For future iterations of the software that use models that require near real-time data input (e.g. climate data, recent patient data), the local database on the device was programmed to automatically fetch climate data and recent patient data (no PHI) from the server if the server was available. The device would also check the server for updated data on a scheduled basis (hourly) and if needed, manually fetch data when desired by the user.

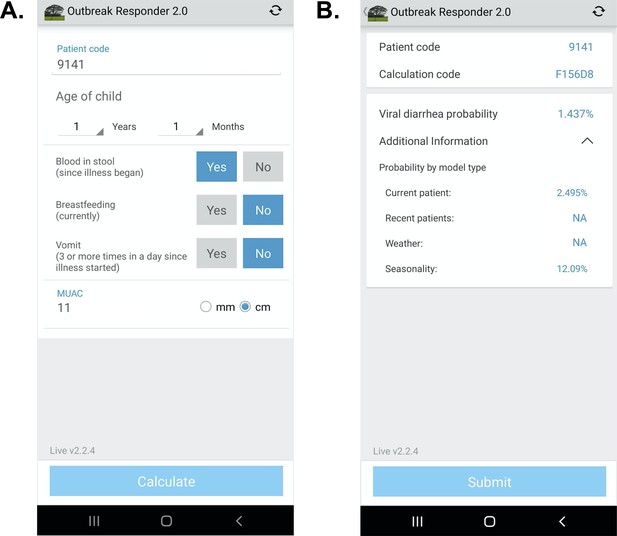

App user interface.

(A) Input page after application launch.( B) Output page with an example showing calculated probability of viral-only diarrhea. The ‘^’ symbol represents an open accordion menu with the component probabilities. ‘Current patient’ refers to the present patient model. ‘Weather’ (climate) and ‘recent patients’ (pre-test odds) were not active in this configuration.

Study procedures

Request a detailed protocol

In Bangladesh, due to the high volume of potentially eligible patients presenting daily to icddr,b Dhaka Hospital, study staff randomly selected participants for enrollment on arrival 9am-5pm Sunday to Thursday. Random selection was accomplished using a black pouch filled with white and blue marbles in a preset ratio. Study nurses drew a marble each time a patient presented to the rehydration unit. If a blue marble was pulled, the patient was screened for inclusion and exclusion criteria as described above. After each marble was pulled, it was returned to the bag and shaken. An average of approximately eight patients were enrolled per working day which allowed for high-quality data collection and integrity of all study protocols to be maintained. In Mali, a consecutive sample of patients presenting with acute diarrhea were enrolled. After initial assessment by the facility doctor, children with acute diarrhea were referred to the study team for screening. Study staff were located in the intake area and potential participants’ information was recorded in a screening log. All patients presenting with diarrhea were assessed for eligibility. After screening, research staff provided the parent or guardian with information about the purpose of the study, risks and benefits in Bangla (Bangladesh) and Bambara (Mali) language. Research staff then obtained written consent if the parent or guardian agreed to participate on behalf of the child. In cases where the parent or guardian was illiterate, the consent form was marked with a thumbprint for signature, based on standards for informed consent at icddr,b and CVD-Mali. In these cases, a witness (other than study staff) also signed the consent form. If a child arrived without a parent or guardian in attendance, they were not considered for enrollment in the study.

After enrollment, study staff collected demographic, historical and clinical information from the parent or guardian. All information was collected on a paper case report form (CRF). The ‘present patient’ clinical variables were entered into the App on a mobile device (Bangladesh: Samsung Galaxy A51; Mali: Samsung Galaxy Note 10) by two different study nurses independently to ensure reliability; variables were age in months for 0–23 months and in years for 2–4 years, blood in stool since illness began, history of vomiting (three or more times a day since illness started), breastfeeding status (‘currently’), and mid-upper arm circumference (MUAC). During data collection, study investigators noted that nearly all participants in Bangladesh had reported ‘yes’ to the question regarding history of vomiting. Given vomiting was not expected in all patients especially those with non-viral diarrhea etiology, it was determined after speaking with the study nurses that the phrasing of the question sometimes led patients to respond ‘yes’ if there had been regurgitation with feeding or ORS administration, rather than actual vomiting. The question format was then revised for the remainder of the study enrollment in Bangladesh, and prior to any patient enrollment in Mali, to clarify the definition of vomiting. The App calculated the probabilities specific to each data source (present patient, recent patient, historical patient, climate, and viral seasonality). The model deployed on the App used the present patient and location-specific viral seasonality components along with the location-specific viral diarrhea alone prevalence from GEMS as pre-test odds.

The App results were not used for clinical decision-making to allow first for the external validation and second to iterate the software in response to engineering challenges exposed from ‘live deployment’. All patients were treated according to standard local clinical protocols, and the clinicians caring for patients were blinded to any study data collected in order to prevent any undue influence in clinical care. Study procedures were not allowed to delay any immediately necessary patient care, such as the placement of an intravenous line or delivery of intravenous fluid to the patient. As the primary outcome was determined only after all clinical enrollment and procedures concluded and laboratory analysis was not linked to predictors, all assessments of predictors and the outcome were blinded.

Sample collection and laboratory procedures

Request a detailed protocol

The first available stool specimen after enrollment of the participant was collected. Study participation concluded after a stool sample was obtained. Nurses were unaware of the etiology of diarrhea at the time of clinical assessment as microbiological testing was conducted only after the study period concluded. Stool samples were collected in a sterile plastic container and then transferred to two separated 2 mL cryovials – one vial with 1 mL stool only and one vial for storage in 70% ethanol (Bangladesh) or 95% ethanol (Mali). Samples were stored at –20°C or –80°C freezer for processing. At the conclusion of the study, samples were thawed, underwent bead beating and nucleic acid extraction using the QIAamp Fast DNA Stool Mini Kit. Total Nucleic acid was mixed with PCR buffer and enzyme and loaded onto custom multiplex TaqMan Array Cards (TAC) containing compartmentalized probe-based quantitative real-time PCR (qPCR) assays for 32 pathogens at the icddr,b or CVD-Mali laboratories (see Supplementary file 2 for full list of pathogen targets).

Assignment of diarrhea etiology

Request a detailed protocol

The outcome (dependent) variable was defined as the presence or absence of viral-only etiology. Diarrheal etiology was determined for each patient using qPCR attribution models developed previously by Liu et al., 2016 Viral-only diarrhea was defined as a diarrhea episode with at least one viral pathogen with an episode-specific attributable fraction (AFe) threshold of ≥0.5 and no bacterial or parasitic pathogens with an AFe ≥0.5. This clinically relevant outcome measure was selected because patients with viral-only diarrhea should not receive antibiotics. Other etiologies were defined as having a majority attribution of diarrhea episode by at least one other non-viral pathogen. Patients without an attributable pathogen (unknown final etiology for diarrheal episode) were excluded from this analysis since the cause of the diarrheal episode could not be definitively determined. However, prior studies by this research team have shown that these cases have a similar distribution of viral predictions using a model with presenting patient information as those cases with known etiologies and this study had similar results Brintz et al., 2020.

Data analysis

Request a detailed protocol

For the primary analysis, MUAC measurements collected by the two study nurses were averaged. Patients were considered to have ‘bloody stool’ only if report from both nurses agreed on bloody stool. For children older than 2 years, age in months was rounded down to the nearest year in months (i.e. 42 months was rounded to 36 months) to match the user interface on the software. Using clinical information gathered from the data sources (present patient, recent patient, historical patient, climate, viral seasonality), predictions using post-test odds formulation with the developed models were made. The primary model deployed in the App, selected based on the best-performing model from the derivation and internal validation, used the present patient data and viral seasonality components.

Model performance for the prediction of viral-only diarrhea was calculated using AUC for each model to evaluate discrimination; calibration was assessed using calibration-in-the-large and calibration slope Steyerberg and Vergouwe, 2014. The target for calibration slope is 1, where < 1 suggests predictions are too extreme and >1 suggests predictions are too moderate. The target for calibration intercept is 0, where negative values suggest overestimation and positive values suggest underestimation Van Calster et al., 2019. We estimated the calibration coefficients by regressing predicted values versus the observed proportion of viral cases, calculated using the observed proportion of viral cases within 0.05 plus or minus the predicted probability. For the primary analysis, data from the time period using the original vomiting question in Bangladesh was excluded; however, site specific results incorporate all Bangladesh data for the purpose of highlighting the potential impact of misunderstanding of the required App input questions in real-world scenarios. The reliability of the predictor data entered independently by the two study nurses was assessed using Cohen’s kappa coefficient (κ) which is a calculation of inter-observer agreement for categorical data.

Secondary analysis

Request a detailed protocol

The performance of additional models integrating other available components was assessed in post-hoc secondary analysis for comparison. These alternate models included the following components: (1) ‘present patient’ data only (2) ‘present patient’+ climate data (climate) (3) ‘present patient’+ historical prevalence pre-test odds (historical) (4) ‘present patient’+ recent patient pre-test odds (recent) as described in Table 1.

For all analyses, a two-tailed p value of 0.05 was considered statistically significant. R (R Foundation for Statistical Computing, Vienna, Austria) were used for all analyses. Standard guidelines from the transparent reporting of a multivariable prediction model for individual diagnosis (TRIPOD) Checklist for Prediction Model Validation were used. The de-identified dataset is available online in Supplementary file 5.

Sample size calculation

Request a detailed protocol

The previously derived clinical prediction model had an internally validated AUC of 0.83 Brintz et al., 2021. In order to ensure that the confidence intervals around the estimates in the validation study would not cross 0.75 (generally considered to be a marker of adequate accuracy for a clinical prediction model) a margin of error around the AUC of 0.08 was required. Using the approximate variance estimate for AUC from the literature, and assuming a prevalence of a viral only etiology of approximately 30% in our sample, a sample size of 300 patients (150 patients per site) was required.

Results

Participant characteristics

A total of 302 patients were recruited from the two study sites with 152 patients in Bangladesh and 150 patients in Mali. All patients except two in Bangladesh had a stool sample collected for TAC testing, for a total of 300 patients with TAC results (Figure 2). Diarrhea etiology was assigned for a total of 199 patients (66%; 130 in Bangladesh and 69 in Mali) for inclusion in the final analysis (Table 2). The median [IQR] age of included patients was 12 months; there was a predominance of male patients at both study sites (61.8% overall) with 59.2% in Bangladesh and 66.7% in Mali. Sociodemographic and clinical characteristics of the study participants are shown in Table 2. In Bangladesh, 73 participants were asked about vomiting history using the original question format and 57 using the revised question format. Antibiotic use prior to health facility presentation was common with 66% of participants in Bangladesh reporting antibiotic use for the current illness (most commonly azithromycin, ciprofloxacin, and metronidazole alone or in combination) and 13.1% of participants Mali (most commonly cotrimoxazole, amoxicillin, metronidazole).

Study Flow Diagram.
Table 2
Clinical characteristics of study population.
Diarrhea etiology assignedNo diarrhea etiology assigned
Overall n(%)N = 199Bangladesh n(%)N = 130Mali n(%)N = 69Overall n(%)N = 101Bangladesh n(%)N = 20Mali n(%)N = 81
Age (median, IQR), months12 (8)12 (9)11 (8)8 (7)11.5 (7)8 (7)
Sex
Male123 (61.8)77 (59.2)46 (66.7)63 (62.4)11 (55)52 (64.2)
Female76 (38.2)53 (40.8)23 (33.3)38 (37.6)9 (45)29 (35.8)
Diarrhea Duration (median, IQR), days2 (2)3 (1)0.6 (0.3)1.5 (2.3)3 (1.3)0.7 (0.1)
# Episodes of Diarrhea Past 24 hours (median, IQR)12 (9.5)15 (8)5 (3)6 (4)15 (3.5)5 (3)
Bloody Stool Reported
Yes7 (3.5)2 (1.5)5 (7.2)3 (3)0 (0)3 (3.7)
No192 (96.5)128 (98.5)64 (92.8)98 (97)20 (100)78 (96.3)
Fever Reported
Yes163 (81.9)119 (91.5)44 (63.8)66 (65.3)18 (90)48 (59.3)
No36 (18.1)11 (8.5)25 (36.2)35 (34.7)2 (10)33 (40.7)
Vomiting Reported**
Yes (original question format)73 (36.7)73 (56.2)12 (11.9)12 (60)
Yes (revised question format)81 (40.7)45 (34.6)36 (52.2)21 (20.8)5 (25)16 (19.8)
No45 (22.6)12 (9.2)33 (47.8)68 (67.3)3 (15)65 (80.2)
Breastfeeding
Yes (Partial or Exclusive)155 (77.9)99 (76.2)56 (81.2)89 (88.1)19 (95)70 (86.4)
No44 (22.1)31 (23.8)13 (18.8)12 (11.9)1 (5)11 (13.6)
MUAC (median, IQR), cm13.55 (1.4)13.45 (1.3)13.8 (1.5)13.35 (1.8)13.375 (2.2)13.35 (1.9)
Prior Medications Taken
Yes124 (62.3)109 (83.8)15 (21.7)34 (33.7)17 (85)17 (21)
No75 (37.7)21 (16.2)54 (78.3)67 (66.3)3 (15)64 (79)
Years of Mother’s Education8 (6)8 (5)4 (9)6 (10)8 (4.75)5 (10)
Years of Father’s Education8 (6)8 (5)6 (9)6 (10)10 (4.8)4 (10)
People living at home (median, IQR)6 (4)5 (2)9 (12)9 (10)6 (6)10 (9)
Abbreviations: IQR, interquartile range; cm, centimeter; MUAC, mid-upper arm circumference** Vomiting question was asked in two different formats at the Bangladesh site

Diarrhea etiology

Viral-only etiologies of diarrhea were the predominant cause of illness among patients with assigned etiology overall (42%) although viral-only etiologies were more common in Bangladesh (63%) compared to Mali (22.0%). Rotavirus was the most common viral pathogen detected in both study sites (38% overall) while the rate was higher in Bangladesh (60%) compared to Mali (16%). Other viral causes (e.g. adenovirus, astrovirus, norovirus) were less common in both sites. Diarrhea etiology was unable to be assigned in a substantial proportion of the patients in Mali (54%) compared to Bangladesh (13.3%). The prevalence of the various pathogens detected are listed in Table 3.

Table 3
Pathogens detected with TaqMan array card by study site.
BangladeshN = 150MaliN = 150
Pathogenn (%)Pathogenn (%)
No Etiology Assigned20 (13)No Etiology Assigned81 (54)
Viral-Only Pathogens94 (63)Viral-Only Pathogens33 (22)
Rotavirus90 (60)Rotavirus24 (16)
Adenovirus 40/411 (0.6)Norovirus GII5 (3.3)
Astrovirus2 (1.3)Astrovirus2 (1.3)
Adenovirus & Astrovirus1 (0.6)Astrovirus & Rotavirus2 (1.3)
Bacterial-Only Pathogens9 (6)Bacterial-Only Pathogens24 (16)
Vibrio cholerae3 (2)Shigella / EIEC13 (8.7)
Shigella / Enteroinvasive E. coli (EIEC)1 (0.6)Shiga-toxin Enterotoxigenic E. coli4 (2.7)
Campylobacter jejuni / coli1 (0.6)Campylobacter jejuni / coli2 (1.3)
Multiple Bacterial Pathogens4 (2.7)Salmonella2 (1.3)
Multiple Bacterial Pathogens3 (2)
Parasitic Pathogens1 (0.6)Parasitic Pathogens5 (3.3)
Cryptosporidium1 (0.6)Cryptosporidium4 (2.7)
Entamoeba histolytica1 (0.6)
Mixed Pathogens26 (17)Mixed Pathogens7 (4.7)
Viral+ Bacteria24 (16)Viral+ Bacteria7 (4.7)
Viral+ Bacterial + Parasitic2 (1.3)

Clinical prediction models performance: primary and secondary models

When applied to both sites, the primary model which included present patient+ viral seasonality component performed better than secondary models at discriminating a viral-only etiology from all other known etiologies with an AUC of 0.754 (95% CI 0.665–0.843) (Table 4). However, this same model was not well calibrated with an estimate of calibration-in-the-large of α = −0.393 (95% CI -0.455–-0.331) and a calibration slope of β = 1.287 (95% CI 1.207, 1.367). The present patient+ historical patient model having low discrimination AUC 0.702 (95%CI 0.603–0.800) was the best calibrated with estimates of 0.036 (−0.031–0.102) and 1.063 (0.943–1.184) for α and β, respectively. Combinations of more than two components including the present patient information reduced the discriminatory performance of the model, likely due the positive correlation between components.

Table 4
Model performance using AUC (95% confidence interval), calibration-in-the-large (α), calibration slope (β) for each model considered at both sites.

Each row after ‘Present patient’ includes the Present patient component.

Auc (95% CI)αβ
Present patient0.744 (0.651–0.836)–0.212 (−0.264–-0.16)1.250 (1.171–1.329)
Viral seasonality0.754 (0.665–0.843)–0.393 (−0.455–-0.331)1.287 (1.207–1.367)
Climate0.680 (0.583–0.778)–0.115 (−0.191–-0.038)0.940 (0.840–1.039)
Historical patient0.702 (0.603–0.800)0.036 (−0.031–0.102)1.063 (0.943–1.184)
Recent patient0.737 (0.671–0.793)–0.253 (−0.287–-0.22)1.165 (1.12–1.21)

When looking at the sites individually, the present patient+ recent patient model performed best in Mali with an AUC of 0.783 (95% CI 0.705–0.86) while the primary model with the present patient+ viral seasonality component data performed best in Bangladesh with an AUC of 0.71 (95% CI 0.595–0.825) (Table 5). When the dates where the vomiting question was asked incorrectly are included in the analysis, all models performed less well with the viral seasonality and climate models performing best in Bangladesh with an AUC of 0.610 (95% CI: 0.523–0.697) and 0.621 (95% CI: 0.510–0.732), respectively (Table 5).

Table 5
AUC (95% confidence interval) for each model by site.

Each row after ‘Present patient’ includes the Present patient component. The last column includes Bangladesh data in which the vomiting question was asked incorrectly.

MaliBangladeshBangladesh (no date restriction)
Present patient0.763 (0.681–0.844)0.692 (0.572–0.812)0.607 (0.521–0.693)
Viral seasonality0.742 (0.659–0.825)0.71 (0.595–0.825)0.61 (0.523–0.697)
Climate0.701 (0.577–0.825)0.607 (0.427–0.788)0.621 (0.510–0.732)
Historical patient0.741 (0.658–0.824)0.646 (0.516–0.775)0.592 (0.505–0.86)
Recent patient0.783 (0.705–0.86)0.625 (0.5–0.75)0.61 (0.526–0.694)

While the aim of the study was not to provide a binary classification decision but rather a continuous predicted risk of viral etiology, the numbers of false positives and false negatives (i.e, bacteria/protozoal etiologies misidentified as viral and vice versa) at various viral probability thresholds for ‘present patient’ and the ‘present patient+ viral seasonality’ models are shown in Figure 3. Notably, the ‘present patient+ viral seasonality’ model tended to have fewer false negatives while the ‘present patient’ model fewer false positives at various thresholds. However, the sensitivity and specificity of the ‘present patient’ and ‘present patient+ viral seasonality’ models were similar (Figure 3).

Sensitivity and specificity of the ‘present patient’ and ‘present patient+ viral seasonality’ models (left) and numbers of false positives and false negatives (i.e, bacteria/protozoal etiologies misidentified as viral and vice versa) at various viral probability thresholds (right).

Reliability of software use

The agreement between the two study nurses’ independent assessments of the required predictor variables and estimated viral-only etiology risk calculated by the App for each nurse’s assessment was evaluated and showed excellent reliability and agreement between the nurses; results are shown in Supplementary file 3. Data from the App were recorded through the cellular network to a database as well as on the paper CRF. To monitor integrity of the data transfer to the App database from a technical perspective, data were compared between the two records. The agreement between the App database and study nurse’s paper CRF are shown in Supplementary file 4 and Figure 4—figure supplement 1. The Bangladesh study exposed that one field (‘breastfeeding’) did not sync successfully which was addressed at the midpoint between the Bangladesh and Mali study phases. The Mali study used an updated software version (v2.2.5); the reliability and agreement between the App prediction of viral etiology with the post-hoc predictions are shown in Figure 4.

Figure 4 with 1 supplement see all
Congruence between the Application prediction of a patient’s viral etiology with the post-hoc prediction after adjusting for changing model development.

Data shown are from the Mali study period alone because the software was updated between the Bangladesh and Mali study periods in response to engineering limitations.

Discussion

This prospective, clinical study provides an external validation of a mobile CDSS for the prediction of diarrhea etiology in children under five years old. Combining the strengths of prediction models generated through a Bayesian approach, the novelty of etiological prediction, and the accessibility gained by incorporation into software on a mobile device, this study represents an important advancement in translational research to build evidence-based tools to improving care in resource-limited settings. Incorporating the internally and now externally validated etiology prediction tool as a component of CDSS for diarrheal diseases could have broad scalable impact, including the potential for reducing inappropriate antibiotic use.

Despite recommendations from the WHO discouraging antibiotic use for the majority of presentations of pediatric diarrhea, multiple studies from LMICs have shown that antibiotic overuse and inappropriate antibiotic prescribing remains widespread with up to 50–80% of children with diarrhea under five receiving antibiotics Bebell and Muiru, 2014; Ahmed et al., 2009; De et al., 2016; Fink et al., 2020; Tsige et al., 2020. While antibiotic use is widespread in HICs and LMICs, antibiotic overuse is particularly challenging in LMICs for a multitude of reasons including: widespread availability and unregulated sale of antibiotics, long-standing patient expectations for antibiotics, low public health knowledge of AMR, and limited diagnostic testing capacity Bebell and Muiru, 2014; Vila and Pal, 2010; Okeke et al., 2005; World Health Organization, 2017; Klein et al., 2018. A 2020 re-analysis of results from the GEMS study also estimated that there were approximately 12.6 inappropriate-treated diarrhea cases for each appropriately-treated case, with viruses (rotavirus, adenovirus, sapovirus) among the leading antibiotic-treated etiologies Lewnard et al., 2020. Tools such as the App created for this study may provide clinicians with much-needed evidence to better identify patients with viral-only diarrhea and increase their confidence in following guidelines when antibiotic use is not indicated.

Used for a broad variety of applications in HICs, CDSSs have been beneficial for patient and health systems outcomes alike; CDSSs have been shown to improve antibiotic stewardship and reduce inappropriate prescription of antibiotics, reduce the use of high-cost computed tomography (CT) studies in emergency department patients, and improve glucose control in patients with diabetes, among many other examples Sintchenko et al., 2008; Bookman et al., 2017; Carracedo-Martinez et al., 2019. In the United States, a randomized controlled trial in rural communities in Utah and Idaho showed that an antibiotic stewardship CDSS run on a mobile device reduced overall antimicrobial use and improved appropriateness of antibiotic selection for respiratory tract infections Samore et al., 2005. While a lack of research persists regarding CDSSs in LMICs, their use has risen recently due to the increasingly ubiquitous use of smartphones globally. Mobile CDSSs have been successfully used to improve hypertension control in India, and have been developed for neonatal care in Ghana, Kenya, and Uganda Watson et al., 2019; Anchala et al., 2015; Muhindo et al., 2021; Bucher et al., 2021; Amoakoh et al., 2017; Bilal et al., 2018. In Bangladesh, electronic CDSSs have also been shown to improve WHO diarrhea guideline adherence including reducing non-indicated antibiotic use by 28.5% in children under five Khan et al., 2020.

While prior studies of CDSS targeting antibiotic use have focused on improving adherence to guidelines, our prediction tool provides the clinician with an estimation of viral diarrhea etiology. Such information recognizes the expertise of the end-user and augments the available information that is used in the decision-making process for antibiotic use, potentially improving trust in the tool. In addition, entry of a select few clinical variables that can be easily collected at the point-of-care into the prediction tool may enhance clinician awareness of the relevance of such factors and further increase confidence in the use of the tool. A 2021 pre-implementation workshop among health professionals in Burkina Faso aimed at developing a CDSS for appropriate antimicrobial use in West Africa found that although the tool was expected to reduce antibiotic use, the lack of epidemiologic and microbiological data and limited availability of diagnostic tests were cited as anticipated barriers to use Peiffer-Smadja et al., 2020. Our App provides this additional information taking local epidemiologic data into account which may increase provider buy-in toward antibiotic stewardship efforts. Our study also provides an approach by which similar models could be developed for other infectious syndromes such as respiratory and febrile illness.

A unique aspect of this study was the use of a modular approach to clinical prediction models. In this validation study, the App deployed a primary model of present patient+ viral seasonality data based on the best performing model in internal validation studies. However, the great strength of the modular approach is that it allows for customization according to data availability and local diarrhea epidemiology. In this validation study, we found that the model performance varied depending on the study site. To that end, when possible, a trial period would be prudent prior to implementation of the App to determine which model has the best performance for the selected site. In the present study, we found that the best performing models at each site had a discriminatory performance, as assessed by AUC, of 0.783 (0.705–0.86) in Mali and 0.710 (0.595–0.825) in Bangladesh. These levels of performance are comparable to that achieved in external validation of one of the most commonly-used prediction models for etiology of infection, the Centor score for streptococcal pharyngitis, which achieved an AUC of 0.72 in two separate external validation studies Wigton et al., 1986; Fine et al., 2012. Current WHO IMCI guidelines recommend use of antibiotics only for cases with bloody diarrhea or suspicion for cholera with severe dehydration, which account for less than 10% of children with diarrhea worldwide Nelson et al., 2011; World Health Organization, 2005b. In the majority of cases where antibiotics are not indicated, even a prediction rule with moderate performance would help to reduce inappropriate antibiotic use. While setting a high viral probability threshold would ensure that non-viral cases are not missed, such a threshold may not be as important if the implementation of this prediction rule is limited to children who do not qualify for antibiotics based on WHO recommendations.

Importantly, all data collection for the App was conducted by nurses, the majority of whom had never used a mobile CDSS for clinical use previously. Nurses were able to confidently use the smartphone after a relatively brief training period and enter all necessary data into the tool without difficulty in high-volume clinical settings. While the ease of use or exact time required to enter data into the App was not formally assessed in this validation study, from direct observation nurses were able to enter all required data and obtained calculated outputs within several minutes per patient. Given this time required is similar to that spent with patients during routine clinical care, we believe the App would have high clinical utility in the busy clinical settings for which it was designed. Although the calculations for the primary model deployed on the app were performed on-device, data was transmitted successfully from the App to the Cloud server, from an engineering standpoint this indicates that using real-time data sources is feasible. Additionally, the excellent reliability and agreement between nurses as well as between the App and the paper CRF reference demonstrate that accurate data collection is highly feasible in these clinical settings. Formal evaluation of the usability of the App including an assessment of user experience and metrics such as time required for data entry and for display of calculated outputs using real-time data sources are also needed.

Lastly, given the substantial drop in AUC when the vomiting question was asked incorrectly, a trial period to ensure precise understanding of the App’s questions among the target population is recommended. These findings underscore the challenges of implementing mHealth tools in diverse contexts, and the importance of ensuring cross-cultural understanding of questions by clinician and patient end-users in real-world scenarios.

Limitations

Our findings have several limitations. The study was conducted at study sites located in close proximity to sites from which the prediction model data were trained on. The prediction models may not therefore be generalizable to other locations, sites that have poor epidemiologic data on diarrhea etiologies, or locations that have initiated new vaccination campaigns (e.g. rotavirus). Rotavirus vaccination has not yet been introduced in Bangladesh, although a cluster randomized trial was conducted in rural Matlab in 2008–2011, and rotavirus vaccine introduction into the routine immunization program has been planned; thus, we do not expect any effect of the vaccine on the present study results for the Bangladesh study site. However, in Mali, rotavirus vaccination was introduced into the routine immunization program in 2014, as of 2019 official coverage rate was 63% in infants 12–23 months Zaman et al., 2017; Rota Council, 2021; Mali, 2019. We recognize that the App may not perform as well in places where the rotavirus vaccine has been introduced given the change in viral diarrhea epidemiology in the years since the data were collected from which the models were trained. However, there remain many countries without access to the rotavirus vaccine, notably in Asia where only a few countries have introduced the vaccine nationally or sub-nationally Rota Council, 2021. For this reason, the App may be most useful in these settings. Interestingly, the models performed better at the Mali study site compared to Bangladesh despite fairly high coverage rates of rotavirus vaccine with subsequently much lower rates of rotavirus detected on TAC PCR. These findings may indicate that the clinical features associated with viral diarrhea may be pathogen-independent, and that seasonal variations in viral diarrhea may still be relevant even when overall rates of rotavirus are substantially lower than in prior time periods. Lastly, as the rotavirus vaccine is planned to be introduced in an increasing number of countries globally, we also recognize that the model may need to be updated to account for changes in epidemiology as rotavirus vaccine is increasingly introduced and rotavirus becomes a less prominent cause of viral diarrhea.

Another limitation is that approximately one-third of patients enrolled in this study did not have diarrhea etiology assigned using the predefined threshold AFe >0.5 from the TAC testing data. The much higher rate of diarrhea etiology assignment in Bangladesh compared to Mali may be partially attributable to the study being conducted during the annual rotavirus season in Bangladesh (typically November to February each year) with rotavirus strongly associated with diarrhea and therefore easier to attribute Dey et al., 2020. However, the predominance of rotavirus may limit the generalizability of this study’s findings. Additionally, given the known seasonal cycles of viral diarrhea infections, ideally, at least one full annual cycle of data would have been collected at each study site to account for seasonal variations in diarrhea epidemiology. However, funding and resource limitations, and the prioritization of including two diverse study sites precluded a longer duration of study enrollment. Notably, the occurrence of a large seasonal rotavirus peak during the data collection period in Bangladesh may be a reason why the models performed sub-optimally at this site in comparison to Mali. We believe that, had resources been available for a longer duration of study enrollment that accounted for greater seasonal variability, our models would have shown better performance characteristics than in the present analysis. Studies to further validate these models using additional study sites with different seasonal cycles of viral diarrhea over at minimum one full annual cycle are recommended. Changes over time in the epidemiology of diarrhea at the study sites as well as the internal validation being conducted in a very large dataset ( > 20,000 patients) from the GEMS study compared to this study with 300 patients over a short period during a surge of rotavirus likely also contributed to the drop in AUC between the internal validation and external validation.

Lastly, there is currently no existing gold standard for threshold of AFe that should be used to assign etiology and the threshold of 0.5 was set a priori based on expert consultation; however, the effect of using this cut-off has not yet been explored. A lower AFe threshold may still indicate likely etiology of diarrhea. Notably, there were no norovirus infections detected using these pre-determined thresholds. This may have been due to the particularly high prevalence of other pathogens especially rotavirus in Bangladesh during this time period, the previously documented lower prevalence of norovirus in Bangladesh in November-January compared to other months, as well as the relatively short period of participant enrollment, although using a different AFe cutoff may have detected possible cases of norovirus Satter et al., 2021 .

Conclusion

Despite these limitations, we have externally validated, in a prospective multicenter study, a smartphone-based clinical decision-support system that dynamically implements clinical prediction models based on real-time data streams. A clinical trial led by this study team is currently underway to evaluate the impact of this tool on antibiotic prescribing behaviors, and further research is needed to better understand how these tools could be best adapted for use by practicing clinicians in busy LMIC settings.

Data availability

The de-identified dataset is included as Supplementary File 5 and has been deposited on Dryad. The modeling code and additional files needed to run the code are deposited on GitHub at https://github.com/LeungLab/DiaPR_Phase1, (copy archived at swh:1:rev:de136bd1a5d61cb2c98865277e292fbf76d18fff).

The following data sets were generated
    1. Leung D
    (2021) Dryad Digital Repository
    Data from: Diarrhea Etiology Prediction Validation Dataset - Bangladesh and Mali.
    https://doi.org/10.5061/dryad.0rxwdbs19

References

Decision letter

  1. Joshua T Schiffer
    Reviewing Editor; Fred Hutchinson Cancer Research Center, United States
  2. David M Serwadda
    Senior Editor; Makerere University School of Public Health, Uganda
  3. Sanjat Kanjilal
    Reviewer; Harvard Medical School and Harvard Pilgrim Health Care Institute, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "External Validation of a Mobile Clinical Decision Support System for Diarrhea Etiology Prediction in Children: A Multicenter Study in Bangladesh and Mali" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and David Serwadda as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Sanjat Kanjilal (Reviewer #1).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Please address the relative lack of seasonality in the data used for model validation in both cohorts.

2) Please discuss how operational components may impact the performance characteristics of the decision making tools.

3) Please discuss how frequently which the mode missed bacterial or protozoal infections.

4) Please limit jargon and provide definitions for all terms listed by Reviewer 2. The mechanistic and statistical explanations for α and β in the methods are also insufficient to interpret the results, particularly for the generalist reader. Please provide a lengthier and clearer explanation of the calibration procedure.

5) Please discuss the potential impact of the rotavirus vaccine on observed study outcomes.

Reviewer #1:

Garbern and Nelson et al., performed an external validation of clinical decision support system (CDSS) for prediction of a viral etiology for kids presenting with diarrhea in low and middle income countries, that is deployable on a mobile app. The prediction model is derived from data accrued in the Global Enteric Multicenter Study (GEMS), which completed in 2011 and defined etiologies and factors associated with pediatric diarrhea across 7 countries. The original GEMS samples were re-analyzed by a different group of investigators using a multiplex gastroenteritis syndromic panel to establish the 'ground truth' data upon which a random forest model was trained (Liu, Lancet, 2016). A simpler 5 feature logistic regression model was chosen using the variable weights assigned by the random forest and included only factors that would be obtainable by practitioners in real time. The final model utilized patient-intrinsic features as well as a viral seasonality model that they combined into a single prediction using a pre-determined cutoff (attributable fraction > 0.5) validated in previous work and by expert opinion. The study had a 'lead in' period where adjustments were made to the CDSS to adjust for real-world deployment and then they collected data from 2 referral centers, the first in Dhaka, Bangladesh and the second in Bamako, Mali.

The results of this external validation study show that model performance dropped relative to the internal validation (AUC 0.83) at both sites and were just at the arbitrary AUC cutoff of 0.75 for acceptable model accuracy, though with suboptimal calibration.

Strengths

Most antibiotic use in the setting of pediatric gastroenteritis is unnecessary. The impact of the CDSS for management of pediatric diarrhea in the literature appears mixed, with some studies showing increased antibiotic use and others showing decreased. This highlights the critical need for a rigorous prospective multicenter RCT to evaluate the utility of a point of care CDSS for optimal decision making around pediatric gastroenteritis. The results of the current study are an important stepping stone to that objective. The establishment of ground truth using a multiplex PCR assay provides for a more sensitive and (possibly) more specific reference by which to compare model outputs relative to traditional culture, EIA and uniplex PCR methods used in GEMS. Additionally, the use of a mobile app with a simple UI maximizes the number of staff members that will be able to utilize the CDSS. Finally, the use of an interpretable model that incorporates local data is an excellent design choice for improving trust and uptake.

Weaknesses

It is not entirely clear that the data support the claim that the model passed external validation. While the point estimate for the overall model was just above the AUC cutoff of 0.75, the 95% CIs were (0.67 – 0.84). Furthermore, most of the site specific models has an AUC estimate below 0.75 and this was consistent across various model sets. It is important to note that being below an arbitrary AUC cutoff of 0.75 does not necessarily indicate the model will not perform well in practice.

The operational component is important when interpreting results of CDSS validation studies. In this study the key personnel were general practice nurses / study nurses who enrolled no more than 8 children per day and had no other responsibilities. In actual deployment, one could imagine staff members would likely have other duties in addition to managing kids presenting with acute diarrhea and would need to triage more than 8 per day, depending on the season. This may lead to over-estimation of the CDSS's utility in higher volume / higher acuity settings, perhaps due to entry error or time constraints. The results of the ongoing RCT evaluating this platform will be critical for assessing real-world utility.

From what I could tell, models features are parameterized on a cloud based server and variable weights are then downloaded on to the mobile phone app. I understand the CDSS recommendations were not reported to treating clinicians but were they generated in real time (ie as soon as the staff entered the data)?. How long did it take for results to appear? Would consider describing this a little more clearly. I'm also curious to know how often the model was re-trained on the server (if at all)? Not critical to overall hypothesis but important to think about when trying to develop the infrastructure to deploy this approach in other settings.

Were the study nurses who entered data into the app the same ones who entered the data into the CRF? If so, may be hard to differentiate the App's ease of use and accuracy since there will be correlation in symptom documentation.

The change in the design of the application halfway through the first phase in Bangladesh means that data accrued prior to the change are not relevant to the evaluation of the CDSS' external validity or generalizability. I would consider dropping the '(no date restriction)' analyses from the results.

Unclear what is being referred to with regards to "these independent models" (line 337 – 338). Also, from what I could tell, the prediction model combines 3 separate prediction models in a Bayesian analysis. Why could all features not be included in a single Bayesian model? This is not my area of expertise, but I did not understand the rationale here.

There was significant heterogeneity between the sites in terms of the percentage without a viral etiology and the distribution of organisms. As noted in the limitations section, this may be partially explained by differences in rotavirus seasonality. However, model accuracy seemed paradoxically better in Mali where almost 50% of children did not have an etiology determined. Is this presumably due to better discrimination in cases where bacterial infection is more likely? On a more general note, a deeper (or more explicit) discussion of the factors that could explain the drop in AUC between the internal and external validation studies would be helpful.

Different model sets performed best at the different sites. Might this suggest utility in incorporating a trial period to establish which model has the best performance for a given locale? Might be a better approach than using a single model architecture globally.

Table 4: Should the first row be called 'Patient-Intrinsic Only' to be consistent with Table 3? Also as noted above, would consider dropping the 'no date restriction' results.

Line 490: Probably semantics but the actual model being deployed is a 5 feature logistic regression which was derived from a random forest built on a small but highly curated dataset. This isn't typically what most people think of as machine learning, though technically both fit under the definition.

The time frame for the study is 2 months at each site, ie within one season. It would be helpful to see how well the validation performs across multiple seasons but understand completely the disruptions brought on by the COVID-19 pandemic.

Reviewer #2:

A potentially interesting study of 199/302 children <5yo with etiologically defined acute (ie 1-7d) diarrhea in November-December 2019 in Bangladesh and in January-February,2020 in Mali, of whom 22% in Mali and 63% in Bangladesh had only viral etiologies identified, and who could reasonably accurately be predicted to have viral-only diarrhea, using a mobile App. The vast majority of viral etiologies were rotaviral (90/94 in Bangladesh; 24/33 in Mali). However, several concerns and comments include:

1. The ill-explained jargon throughout makes the paper difficult to follow. For example, clearer explanations are especially needed for the "patient intrinsic,"historical patient," recent patient and even viral seasonality and climate models used. Another example is "pre-test odds model" and "viral seasonality model" mentioned in the abstract as their major conclusion without any explanation. So what, then is the take-away message or importance of that (especially given several major limitations noted below)?

2. A glaring gap is the lack of any comment about rotavirus vaccine impact in these populations and for any relevant generalizations made.

3. Were the 73 patients with 'overcalling' of vomiting excluded from all analyses, as this certainly skews any prediction models?

4. It is difficult to believe that there were no norovirus infections in this season in Bangladesh, can this be at least commented upon?

5. The major limitation of only 2 month study periods at each site for highly seasonal pathogen incidences needs comment and explanation.

6. What were the frequencies of antimicrobial use in these study children?

7. The converse hypothesis of potentially treatable bacterial infections (with a single dose of azithromycin for example) or even protozoa such as Giardia, should be examined and mentioned. For example, how many patients were misidentified as 'viral' when they had bacterial or protozoal infections?

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "External Validation of a Mobile Clinical Decision Support System for Diarrhea Etiology Prediction in Children: A Multicenter Study in Bangladesh and Mali" for further consideration by eLife. Your revised article has been evaluated by David Serwadda (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1) The new Figure 3 could be more clearly presented with a) larger font, b) better labeling (unclear if viral seasonality is seasonality alone or present patient + viral seasonality as in the legend as in the table: I would suggest including all 3), c) inclusion of proportions rather than absolute numbers in the table

2) I am not sure that the App accurately identified viral-only etiology for diarrhea as stated in the abstract. It misclassifies a decent number of cases. To this end, a paragraph is needed in the discussion to impart whether the tool is in fact sufficient for clinical use. I would argue that it is not, based on a relatively low AUC (reasonably high numbers of false negatives and positives). I would suggest that the authors speculate on what additional features could raise the AUC to a level sufficient for use by the bedside.

https://doi.org/10.7554/eLife.72294.sa1

Author response

Essential revisions:

(1) Please address the relative lack of seasonality in the data used for model validation in both cohorts.

Thank you for bringing up this excellent point. As the reviewers point out, given the known seasonal cycles of viral diarrhea infections, ideally, at least one full annual cycle of data would have been collected at each study site to account for seasonal variations in diarrhea epidemiology. However, funding and resource limitations, and the prioritization of including two diverse study sites precluded a longer duration of study enrollment. To discuss these considerations and the potential impact on our findings, we have added the following to the Discussion:

“Additionally, given the known seasonal cycles of viral diarrhea infections, ideally, at least one full annual cycle of data would have been collected at each study site to account for seasonal variations in diarrhea epidemiology. However, funding and resource limitations, and the prioritization of including two diverse study sites precluded a longer duration of study enrollment. Notably, the occurrence of a large seasonal rotavirus peak during the data collection period in Bangladesh may be a reason why the models performed sub-optimally at this site in comparison to Mali. We believe that, had resources been available for a longer duration of study enrollment that accounted for greater seasonal variability, our models would have shown better performance characteristics than in the present analysis. Studies to further validate these models using additional study sites with different seasonal cycles of viral diarrhea over at minimum one full annual cycle are recommended.”

(2) Please discuss how operational components may impact the performance characteristics of the decision making tools.

Thank you for these important suggestions, further details describing how operational components may have impacted the performance of the tool have been added to the following sections.

In Methods, we have clarified that for the purpose of this study all calculations for the primary model deployed on the App were performed on-device (i.e., not on the Cloud server) and models were not re-trained. However, future iterations of the App would be able to use near real-time data input depending on data availability and internet connectivity. We have added:

"All calculations were performed on-device (locally on the smartphone) and allowed App use irrespective of internet connectivity. Calculated probabilities were displayed near instantaneously (within 1 second). The App deployed a single primary model (present patient + viral seasonality as described above) which used data collected at the point-of-care and input by the clinician user, and viral seasonality curves; climate and recent patient data sources were not used in this study because they did not add to the AUC at the GEMS study sites. The models were not re-trained on the server after deployment for this validation study in order to align with standards of clinical practice for AI-enabled clinical decision support currently being set by Boards of Medical Informatics; according to these standards, validated models derived using machine learning should not be subsequently iterated without validation. However, for future iterations of the software that use models requiring near real-time data input (e.g., climate data, recent patient data), the mobile device could access the server if internet connectivity and the necessary data sources were available, and if not available, use data stored locally on the device that is obtained from scheduled backend downloads with the server using the most recent data available.”

As mentioned by Reviewer 1 (“Weaknesses”) an important consideration for the future utility and uptake of this App is the time required to effectively use the app in real-world clinical scenarios. We have added discussion regarding several important operational considerations and recommendations for formal evaluations of usability in future research. We have added to the Discussion:

“Importantly, all data collection for the App was conducted by nurses, the majority of whom had never used a mobile CDSS for clinical use previously. Nurses were able to confidently use the smartphone after a relatively brief training period and enter all necessary data into the tool without difficulty in high-volume clinical settings. While the ease of use or exact time required to enter data into the App was not formally assessed in this validation study, from direct observation nurses were able to enter all required data and obtained calculated outputs within several minutes per patient. Given this time required is similar to that spent with patients during routine clinical care, we believe the App would have high clinical utility in the busy clinical settings for which it was designed. Although the calculations for the primary model deployed on the app were performed on-device, data was transmitted successfully from the App to the Cloud server, from an engineering standpoint this indicates that using real-time data sources is feasible. Additionally, the excellent reliability and agreement between nurses as well as between the App and the paper CRF reference demonstrate that accurate data collection is highly feasible in these clinical settings. Formal evaluation of the usability of the App including an assessment of user experience and metrics such as time required for data entry and for display of calculated outputs using real-time data sources are also needed.”

(3) Please discuss how frequently which the mode missed bacterial or protozoal infections.

Thank you for this suggestion. We have clarified that the aim of the study was not to provide a binary classification decision but rather a continuous predicted risk of viral etiology. However, to illustrate the frequency of misidentified bacterial/protozoal infections, a new figure (Figure 3) has been created showing the number of missed bacterial / protozoal infections using different viral probability cutoffs as suggested by the reviewer.

In Results, we have added:

“While the aim of the study was not to provide a binary classification decision but rather a continuous predicted risk of viral etiology, the numbers of false positives and false negatives at various probability thresholds are shown in Figure 3. Notably, viral seasonality tends to have fewer false negatives while the present patient only model tends to have fewer false positives at various thresholds. Additionally, the sensitivity and specificity of the “present patient” and “present patient” + viral seasonality models were similar (Figure 3).”

(4) Please limit jargon and provide definitions for all terms listed by Reviewer 2. The mechanistic and statistical explanations for α and β in the methods are also insufficient to interpret the results, particularly for the generalist reader. Please provide a lengthier and clearer explanation of the calibration procedure.

Thank you for making these important points, to better clarify terminology and methods, major revisions have been made to the Methods section as below.

The definitions for the terminology used to describe the various models have been clarified and clearly delineated in a new Table 1 entitled, “Model Terminology Definitions and Description”.

We have also greatly expanded our descriptions of model development and the “modular” approach from our prior work published by Brintz et al., (2021) in eLife, to orient unfamiliar readers to the background model development needed to contextualize the present study. This section has been significantly revised.

More detailed explanations of the terms “pre-test odds” and “post-test odds” have been added:

“This study team’s prior work described the development of these predictive models that integrates multiple sources of data in a principled statistical framework using a ‘post-test odds formulation.’ This method incorporates observed prior knowledge of a prediction, typically using prior known location-specific prevalence (e.g., historical prevalence of viral diarrhea in Mali), as pre-test odds and then updates the pre-test odds using a single model or series of models based on current data. It also enables electronic real-time updating and flexibility in a “modular” fashion, such that the component models can be flexibly included or excluded according to data availability, an important consideration for LMIC settings in which prior epidemiologic data may be unavailable. The post-test odds formulation combines the likelihood ratios derived from these independent models along with pre-test odds into a single prediction. In order to externally validate the predictions from the post-test odds, we processed the data from this study to match the variables used in previously trained models as closely as possible.”

Lastly, the description of the calibration procedure used to calculate the calibration slope and intercept has expanded in the Methods section, “Calibration was assessed using calibration-in-the-large and calibration slope. The target for calibration slope is 1, where <1 suggests predictions are too extreme and >1 suggests predictions are too moderate. The target for calibration intercept is 0, where negative values suggest overestimation and positive values suggest underestimation.19 We estimated the calibration coefficients by regressing predicted values versus the observed proportion of viral cases, calculated using the observed proportion of viral cases within 0.05 plus or minus the predicted probability” (citation Van Calster, B., McLernon, D.J., van Smeden, M. et al., Calibration: the Achilles heel of predictive analytics. BMC Med 17, 230 (2019). https://doi.org/10.1186/s12916-019-1466-7).

(5) Please discuss the potential impact of the rotavirus vaccine on observed study outcomes.

Thank you for this excellent point. An in-depth discussion of the potential impact of rotavirus vaccine on the model’s current (and future) performance has been added to a new Limitations section. We have clarified that the rotavirus vaccine has not yet been introduced in Bangladesh and therefore do not expect any impact on our results for the Bangladesh study site. However, in Mali, the rotavirus vaccine was introduced in 2014 with most recent available estimated coverage rates from 2019 of 63% among infants 12-23 months. Interestingly, the models performed better at the Mali study site compared to Bangladesh despite fairly high coverage rates of rotavirus vaccine with subsequently much lower rates of rotavirus detected on TAC PCR. These findings may indicate that the clinical features associated with viral diarrhea may be pathogen-independent, and that seasonal variations in viral diarrhea may still be relevant even when overall rates of rotavirus are substantially lower than in prior time periods.

We have added the following to the Limitations section:

“Rotavirus vaccination has not yet been introduced in Bangladesh although a cluster randomized trial was conducted in rural Matlab in 2008-2011, and rotavirus vaccine introduction into the routine immunization program has been planned; thus, we do not expect any effect of the vaccine on the present study results for the Bangladesh study site. However, in Mali, rotavirus vaccination was introduced into the routine immunization program in 2014, as of 2019 official coverage rate was 63% in infants 12-23 months.40–42 We recognize that the App may not perform as well in places where the rotavirus vaccine has been introduced given the change in viral diarrhea epidemiology in the years since the data were collected from which the models were trained. However, there remain many countries without access to the rotavirus vaccine, notably in Asia where only a few countries have introduced the vaccine nationally or sub-nationally.41 For this reason, the App may be most useful in these settings. Interestingly, the models performed better at the Mali study site compared to Bangladesh despite fairly high coverage rates of rotavirus vaccine with subsequently much lower rates of rotavirus detected on TAC PCR. These findings may indicate that the clinical features associated with viral diarrhea may be pathogen-independent, and that seasonal variations in viral diarrhea may still be relevant even when overall rates of rotavirus are substantially lower than in prior time periods. Lastly, as the rotavirus vaccine is planned to be introduced in an increasing number of countries globally, we also recognize that the model may need to be updated to account for changes in epidemiology as rotavirus vaccine is increasingly introduced and rotavirus becomes a less prominent cause of viral diarrhea.”

Reviewer #1:

[…]

From what I could tell, models features are parameterized on a cloud based server and variable weights are then downloaded on to the mobile phone app. I understand the CDSS recommendations were not reported to treating clinicians but were they generated in real time (ie as soon as the staff entered the data)?. How long did it take for results to appear? Would consider describing this a little more clearly. I'm also curious to know how often the model was re-trained on the server (if at all)? Not critical to overall hypothesis but important to think about when trying to develop the infrastructure to deploy this approach in other settings.

Thank you for these important points. As mentioned above, we have clarified that for the purpose of this study all calculations for the primary model deployed on the App were performed on-device (i.e., not on the Cloud server) and models were not re-trained. To directly address this comment we have added:

“All calculations were performed on-device (locally on the smartphone) and allowed App use irrespective of internet connectivity. Calculated probabilities were displayed near instantaneously (within 1 second). The App deployed a single primary model (present patient + viral seasonality as described above) which used data collected at the point-of-care and input by the clinician user, and viral seasonality curves; climate and recent patient data sources were not used in this study because they did not add to the AUC at the GEMS study sites. The models were not re-trained on the server after deployment for this validation study in order to align with standards of clinical practice for AI-enabled clinical decision support currently being set by Boards of Medical Informatics; according to these standards, validated models derived using machine learning should not be subsequently iterated without validation. However, for future iterations of the software that use models requiring near real-time data input (e.g., climate data, recent patient data), the mobile device could access the server if internet connectivity and the necessary data sources were available, and if not available, use data stored locally on the device that is obtained from scheduled backend downloads with the server using the most recent data available.”

Were the study nurses who entered data into the app the same ones who entered the data into the CRF? If so, may be hard to differentiate the App's ease of use and accuracy since there will be correlation in symptom documentation.

We have clarified that the study nurses who entered data into the app were the same as those who entered data on the case report forms (CRFs). The purpose of evaluating this correlation was less to examine the usability of the app (which would need to be studied formally using ‘think aloud’ methods or qualitative research evaluating user experience for instance) but rather to ensure from an engineering standpoint that successful data input and transmission from the user (the study nurse) to the phone and to the server (which would be required for future implementation of the App if using real-time data sources) was feasible.

The change in the design of the application halfway through the first phase in Bangladesh means that data accrued prior to the change are not relevant to the evaluation of the CDSS' external validity or generalizability. I would consider dropping the '(no date restriction)' analyses from the results.

We thank the reviewer for this suggestion, however after consideration, we believe that presenting all the results (i.e., with and without date restriction) are important for the reader to understand. As mentioned by the reviewer, the primary analysis includes only the data collected when the vomiting question asked correctly, as this is how the App is intended to be used. However, the results presented demonstrating a substantial drop in the AUC may be valuable to the reader, for comparison and to highlight the potential impact of misunderstanding of the App questions in real-world scenarios. This is also important to underscore the challenges of implementing mHealth apps in diverse contexts, and the need for clarity in how questions are understood by end-users.

We have added the following to Discussion:

“Additionally, given the substantial drop in AUC when the vomiting question was asked incorrectly, a trial period to ensure precise understanding of the App’s questions among the target population would also be prudent. These findings underscore the challenges of implementing mHealth tools in diverse contexts, and the importance of ensuring cross-cultural understanding of questions by clinician and patient end-users in real-world scenarios.”

Unclear what is being referred to with regards to "these independent models" (line 337 – 338). Also, from what I could tell, the prediction model combines 3 separate prediction models in a Bayesian analysis. Why could all features not be included in a single Bayesian model? This is not my area of expertise, but I did not understand the rationale here.

Thank you for bringing up this important point for clarification. We agree the model descriptions and “modular” approach were insufficiently described in our initial submission, and as described above have made major revisions to our Methods section describing the models (see response to Essential Revisions #4). We clarify the reason not all features were included in a single model was to allow for a “modular” design that is customizable based on the availability of data. In many LMICs, data such as viral seasonality curves, historical patient data or weather/climate data may be unavailable. This flexible design thus allows users to customize the most appropriate model to their unique context and target population. The line referenced, “these independent models” has therefore been removed.

There was significant heterogeneity between the sites in terms of the percentage without a viral etiology and the distribution of organisms. As noted in the limitations section, this may be partially explained by differences in rotavirus seasonality. However, model accuracy seemed paradoxically better in Mali where almost 50% of children did not have an etiology determined. Is this presumably due to better discrimination in cases where bacterial infection is more likely? On a more general note, a deeper (or more explicit) discussion of the factors that could explain the drop in AUC between the internal and external validation studies would be helpful.

Thank you for these astute observations, we agree with the reviewer and likewise suspect that a primary reason for the discrepancy in attributable pathogens between the two study sites was due to the very high prevalence of rotavirus (which may be easier to attribute using AFe) during the study enrollment period due to an outbreak in the Bangladesh population at the time. We have added to the Limitations section:

“The higher proportion of non-viral pathogens in Mali may have enabled better discrimination between viral and non-viral pathogens leading to better model performance at the Mali study site.”

We have added additional description to Limitations regarding the drop in AUC between internal and external validation as suggested:

“Changes over time in the epidemiology of diarrhea at the study sites as well as the internal validation being conducted in a very large dataset (>20,000 patients) from the GEMS study compared to this study with 300 patients over a short time period during a surge of rotavirus likely also contributed to the drop in AUC between the internal validation and external validation.”

Different model sets performed best at the different sites. Might this suggest utility in incorporating a trial period to establish which model has the best performance for a given locale? Might be a better approach than using a single model architecture globally.

Thank you for this excellent suggestion. We agree that a trial period would be advisable prior to implementation of the app to determine which model has the best performance for the selected site. This approach also takes advantage of the “modular” component of the models in which different versions of the model can be selected and tailored to obtain the best performance and based on data availability. This has been added to the Discussion:

“A unique aspect of this study was the use of a modular approach to clinical prediction models. In this validation study, the version of the App deployed used a primary model of present patient + viral seasonality data based on the best performing model in internal validation studies. However, the great strength of the modular approach is that it allows for customization according to data availability and local diarrhea epidemiology. In this validation study, we found that the model performance varied depending on the study site. To that end, when possible, a trial period would be prudent prior to implementation of the App to determine which model has the best performance for the selected site.”

Table 4: Should the first row be called 'Patient-Intrinsic Only' to be consistent with Table 3? Also as noted above, would consider dropping the 'no date restriction' results.

The table referenced (now named Table 5) has been revised. Of note, the “Patient-Intrinsic” model has been renamed as “Present Patient” model.

Line 490: Probably semantics but the actual model being deployed is a 5 feature logistic regression which was derived from a random forest built on a small but highly curated dataset. This isn't typically what most people think of as machine learning, though technically both fit under the definition.

Thank you for suggesting this clarification. We have replaced the term “machine learning” with “a Bayesian approach.”

The time frame for the study is 2 months at each site, ie within one season. It would be helpful to see how well the validation performs across multiple seasons but understand completely the disruptions brought on by the COVID-19 pandemic.

As described above, ideally, at least one full annual cycle of data would have been collected at each study site to account for seasonal variations in diarrhea epidemiology. However, funding and resource limitations of this pilot study, and the prioritization of including two diverse study sites precluded a longer duration of study enrollment. We agree and recommend that the models should be validated across multiple seasons in future studies.

Reviewer #2:

A potentially interesting study of 199/302 children <5yo with etiologically defined acute (ie 1-7d) diarrhea in November-December 2019 in Bangladesh and in January-February,2020 in Mali, of whom 22% in Mali and 63% in Bangladesh had only viral etiologies identified, and who could reasonably accurately be predicted to have viral-only diarrhea, using a mobile App. The vast majority of viral etiologies were rotaviral (90/94 in Bangladesh; 24/33 in Mali). However, several concerns and comments include:

1. The ill-explained jargon throughout makes the paper difficult to follow. For example, clearer explanations are especially needed for the "patient intrinsic,"historical patient," recent patient and even viral seasonality and climate models used. Another example is "pre-test odds model" and "viral seasonality model" mentioned in the abstract as their major conclusion without any explanation. So what, then is the take-away message or importance of that (especially given several major limitations noted below)?

We appreciate these important suggestions. As further detailed above, definitions for model terminology have been explicitly stated in a new table (Table 1) and the Methods section majorly revised (see response to Essential Revisions #4). Additionally, for clarity and to better align this paper’s terminology with the initial model development paper (Brintz et al., 2021) published in eLife, we have also changed the term “patient intrinsic” to “present patient” as was used in the initial paper. Lastly, the methods section of the abstract has been revised to clarify the terms referenced in the abstract’s Results section as suggested.

2. A glaring gap is the lack of any comment about rotavirus vaccine impact in these populations and for any relevant generalizations made.

Thank you for this important point, as described above in response to Essential Revisions #5, an in-depth discussion of the potential impact of rotavirus vaccine on the model performance has been added to Limitations.

3. Were the 73 patients with 'overcalling' of vomiting excluded from all analyses, as this certainly skews any prediction models?

Thank you for raising this question, we have clarified that the 73 patients with “overcalling” of vomiting (i.e., when the question was misunderstood to include regurgitation after feeding) were excluded from the primary analysis. However, in secondary analysis presented in Table 5 (no date restriction) the data in which the question was asked incorrectly has been included for comparison and to highlight the potential impact of misunderstanding of the required App input questions in real-world scenarios.

4. It is difficult to believe that there were no norovirus infections in this season in Bangladesh, can this be at least commented upon?

Thank you for this astute observation. We have added our hypotheses on possible reasons why there were no norovirus infections detected in Limitations:

“Notably, there were no norovirus infections detected using these pre-determined thresholds. This may have been due to the particularly high prevalence of other pathogens especially rotavirus in Bangladesh during this time period, the previously documented lower prevalence of norovirus in Bangladesh in November-January compared to other months, as well as the relatively short period of participant enrollment, although using a different AFe cutoff may have detected possible cases of norovirus.”

5. The major limitation of only 2 month study periods at each site for highly seasonal pathogen incidences needs comment and explanation.

Thank you for bringing up this important point. As described above, funding and resource limitations of this pilot study, and the prioritization of including two diverse study sites precluded a longer duration of study enrollment. Further comment and explanations as listed above (see response to Essential Revisions #1) have been added to the Discussion section.

6. What were the frequencies of antimicrobial use in these study children?

Data on reported prior antibiotic use have been added to the Results section:

“Antibiotic use prior to health facility presentation was common with 66% of participants in Bangladesh reporting antibiotic use for the current illness (most commonly azithromycin, ciprofloxacin, and metronidazole alone or in combination) and 13.1% of participants Mali (most commonly cotrimoxazole, amoxicillin, metronidazole).”

7. The converse hypothesis of potentially treatable bacterial infections (with a single dose of azithromycin for example) or even protozoa such as Giardia, should be examined and mentioned. For example, how many patients were misidentified as 'viral' when they had bacterial or protozoal infections?

Thank you for making this important point. As above, we have added a new figure (Figure 3) showing the frequency of misidentified bacterial/protozoal infections using different viral probability cutoffs as suggested by the reviewer.

In Results, we have added:

“While the aim of the study was not to provide a binary classification decision but rather a calculated predicted risk of viral etiology, the numbers of false positives and false negatives at various probability thresholds are shown in Figure 3. Notably, viral seasonality tends to have less false negatives while the present patient only model tends to have less false positives at various thresholds. Additionally, the sensitivity and specificity of the “present patient” and “present patient” + viral seasonality models were similar (Figure 3).”

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1) The new Figure 3 could be more clearly presented with a) larger font, b) better labeling (unclear if viral seasonality is seasonality alone or present patient + viral seasonality as in the legend as in the table: I would suggest including all 3), c) inclusion of proportions rather than absolute numbers in the table

Figure 3 has been updated and revised as requested with font size and labels adjusted and proportions listed in addition to absolute numbers.

2) I am not sure that the App accurately identified viral-only etiology for diarrhea as stated in the abstract. It misclassifies a decent number of cases. To this end, a paragraph is needed in the discussion to impart whether the tool is in fact sufficient for clinical use. I would argue that it is not, based on a relatively low AUC (reasonably high numbers of false negatives and positives). I would suggest that the authors speculate on what additional features could raise the AUC to a level sufficient for use by the bedside.

Thank you for bringing up this important point, however we argue that despite a modest AUC, there is still great potential clinical utility of our tool which has a similar AUC to that of one of the most widely used clinical prediction models for an infectious disease (Centor score which had an AUC of 0.72 in two external validation studies). Additionally, given that according to WHO guidelines, the majority of diarrhea cases do not warrant antibiotics, even a prediction rule with moderate performance would help to reduce inappropriate antibiotic use in settings where unguided antibiotic use is widespread. We have added a paragraph to the Discussion section (lines 607-617) explaining our justification that the tool will have clinical utility for these reasons.

https://doi.org/10.7554/eLife.72294.sa2

Article and author information

Author details

  1. Stephanie Chow Garbern

    Department of Emergency Medicine, Alpert Medical School, Brown University, Providence, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Project administration, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Eric J Nelson
    For correspondence
    sgarbern@brown.edu
    Competing interests
    received consultancy fees from the University of Utah, in relation to project "Development of clinical decision tools for management of diarrhea of children in high and low resource settings" (R01AI135114, PI: Leung), and from Department of Defense Naval Medical Logistics Command, for the Austere Environments Consortium for Enhanced Sepsis Outcomes: An Observational Study of Sepsis (N62645-14-2-0001). The author has no other competing interests to declare
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0919-2841
  2. Eric J Nelson

    Department of Pediatrics, and Environmental and Global Health, Emerging Pathogens Institute, University of Florida, Gainesville, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Stephanie Chow Garbern
    Competing interests
    is associated with a patent on data collection components in the 'Outbreak Responder' (Patent Publication Number 2020/0082921), of which the original 'Rehydration Calculator' was a component. These components are not included in the software referenced and published herein. Has no financial interest in the 'Rehydration Calculator' herein or the original 'Outbreak Responder' software
  3. Sabiha Nasrin

    International Centre for Diarrhoeal Disease Research, Dhaka, Bangladesh
    Contribution
    Data curation, Investigation, Project administration, Writing – review and editing
    Competing interests
    No competing interests declared
  4. Adama Mamby Keita

    Centre for Vaccine Development, Bamako, Mali
    Contribution
    Data curation, Investigation, Project administration, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Ben J Brintz

    Division of Epidemiology, University of Utah, Salt Lake City, United States
    Contribution
    Data curation, Formal analysis, Methodology, Software, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4695-0290
  6. Monique Gainey

    Rhode Island Hospital, Providence, United States
    Contribution
    Investigation, Project administration, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2860-9104
  7. Henry Badji

    Centre for Vaccine Development, Bamako, Mali
    Contribution
    Investigation, Project administration, Writing – review and editing
    Competing interests
    No competing interests declared
  8. Dilruba Nasrin

    Center for Vaccine Development and Global Health, University of Maryland School of Medicine, Baltimore, United States
    Contribution
    Resources, Writing – review and editing
    Competing interests
    received travel funding for training and monitoring data collection in Mali. The author has no other competing interests to declare
  9. Joel Howard

    Department of Pediatrics, University of Kentucky Medical School, Lexington, United States
    Contribution
    Conceptualization, Writing – review and editing
    Competing interests
    No competing interests declared
  10. Mami Taniuchi

    Division of Infectious Diseases and International Health, University of Virginia, Charlottesville, United States
    Contribution
    Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  11. James A Platts-Mills

    Division of Infectious Diseases and International Health, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Methodology, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  12. Karen L Kotloff

    Department of Pediatrics, University of Maryland, Baltimore, United States
    Contribution
    Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  13. Rashidul Haque

    International Centre for Diarrhoeal Disease Research, Dhaka, Bangladesh
    Contribution
    Investigation, Resources, Writing – review and editing
    Competing interests
    No competing interests declared
  14. Adam C Levine

    Department of Emergency Medicine, Alpert Medical School, Brown University, Providence, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Writing – review and editing
    Competing interests
    received consultancy fees from the University of Utah, in relation to project "Development of clinical decision tools for management of diarrhea of children in high and low resource settings" (R01AI135114, PI: Leung). The author has no other competing interests to declare
  15. Samba O Sow

    Centre for Vaccine Development, Bamako, Mali
    Contribution
    Conceptualization, Investigation, Project administration, Resources, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  16. Nur Haque Alam

    International Centre for Diarrhoeal Disease Research, Dhaka, Bangladesh
    Contribution
    Conceptualization, Investigation, Project administration, Resources, Supervision, Validation, Writing – review and editing
    Competing interests
    No competing interests declared
  17. Daniel T Leung

    Division of Infectious Diseases, University of Utah School of Medicine, Salt Lake City, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    daniel.leung@utah.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8401-0801

Funding

Bill and Melinda Gates Foundation (OPP1198876)

  • Daniel T Leung

National Institute of Allergy and Infectious Diseases (R01AI135114)

  • Daniel T Leung

National Institute of Diabetes and Digestive and Kidney Diseases (R01DK116163)

  • Adam C Levine
  • Monique Gainey

National Center for Advancing Translational Sciences (UL1TR002538)

  • Ben J Brintz

National Institutes of Health (R21TW010182)

  • Eric J Nelson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank all study participants and the study staff of the icddr,b Dhaka Hospital and the health centers of Commune V and VI in Mali for their help and support. The authors also thank the development team at BeeHyv Software Solutions Pvt. Ltd. (Wilmington, DE; Hyderabad, India) who were instrumental in building the digital clinical decision support software used in this study. Funding for this study was provided through grants from the Bill and Melinda Gates Foundation (OPP1198876) and the National Institute of Allergy and Infectious Diseases (R01AI135114). Several investigators were also partially supported by a grant from the National Institute of Diabetes and Digestive and Kidney Diseases (R01DK116163). This investigation was also supported by the University of Utah Population Health Research (PHR) Foundation, with funding in part from the National Center for Advancing Translational Sciences of the National Institutes of Health under Award Number UL1TR002538. The software architecture from which the App was constructed was supported by the National Institutes of Health [DP5OD019893; R21TW010182] to EJN. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. The funders had no role in the study design, data collection, data analysis, interpretation of data, or in the writing or decision to submit the manuscript for publication.

Ethics

Human subjects: Informed consent was obtained from all study participants as described in Materials and Methods. Ethical approval was obtained from the icddr,b Ethical Review Committee (PR-19095), the University of Sciences, Techniques, and Technologies of Bamako Ethics Committee (2019-153), and the University of Utah Institutional Review Board (IRB_00121790).

Senior Editor

  1. David M Serwadda, Makerere University School of Public Health, Uganda

Reviewing Editor

  1. Joshua T Schiffer, Fred Hutchinson Cancer Research Center, United States

Reviewer

  1. Sanjat Kanjilal, Harvard Medical School and Harvard Pilgrim Health Care Institute, United States

Publication history

  1. Received: July 18, 2021
  2. Preprint posted: August 1, 2021 (view preprint)
  3. Accepted: February 5, 2022
  4. Accepted Manuscript published: February 9, 2022 (version 1)
  5. Version of Record published: March 8, 2022 (version 2)

Copyright

© 2022, Garbern et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 501
    Page views
  • 86
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Stephanie Chow Garbern
  2. Eric J Nelson
  3. Sabiha Nasrin
  4. Adama Mamby Keita
  5. Ben J Brintz
  6. Monique Gainey
  7. Henry Badji
  8. Dilruba Nasrin
  9. Joel Howard
  10. Mami Taniuchi
  11. James A Platts-Mills
  12. Karen L Kotloff
  13. Rashidul Haque
  14. Adam C Levine
  15. Samba O Sow
  16. Nur Haque Alam
  17. Daniel T Leung
(2022)
External validation of a mobile clinical decision support system for diarrhea etiology prediction in children: A multicenter study in Bangladesh and Mali
eLife 11:e72294.
https://doi.org/10.7554/eLife.72294

Further reading

    1. Epidemiology and Global Health
    2. Medicine
    David Robert Grimes
    Tools and Resources

    There is increasing awareness throughout biomedical science that many results do not withstand the trials of repeat investigation. The growing abundance of medical literature has only increased the urgent need for tools to gauge the robustness and trustworthiness of published science. Dichotomous outcome designs are vital in randomized clinical trials, cohort studies, and observational data for ascertaining differences between experimental and control arms. It has however been shown with tools like the fragility index (FI) that many ostensibly impactful results fail to materialise when even small numbers of patients or subjects in either the control or experimental arms are recoded from event to non-event. Critics of this metric counter that there is no objective means to determine a meaningful FI. As currently used, FI is not multi-dimensional and is computationally expensive. In this work a conceptually similar geometrical approach is introduced, the ellipse of insignificance (EOI). This method yields precise deterministic values for the degree of manipulation or miscoding that can be tolerated simultaneously in both control and experimental arms, allowing for the derivation of objective measures of experimental robustness. More than this, the tool is intimately connected with sensitivity and specificity of the event / non-event tests, and is readily combined with knowledge of test parameters to reject unsound results. The method is outlined here, with illustrative clinical examples.

    1. Epidemiology and Global Health
    Max T Eyre, Fábio N Souza ... Federico Costa
    Research Article

    Background: Zoonotic spillover from animal reservoirs is responsible for a significant global public health burden, but the processes that promote spillover events are poorly understood in complex urban settings. Endemic transmission of Leptospira, the agent of leptospirosis, in marginalised urban communities occurs through human exposure to an environment contaminated by bacteria shed in the urine of the rat reservoir. However, it is unclear to what extent transmission is driven by variation in the distribution of rats or by the dispersal of bacteria in rainwater runoff and overflow from open sewer systems.

    Methods: We conducted an eco-epidemiological study in a high-risk community in Salvador, Brazil, by prospectively following a cohort of 1,401 residents to ascertain serological evidence for leptospiral infections. A concurrent rat ecology study was used to collect information on the fine-scale spatial distribution of ‘rattiness’, our proxy for rat abundance and exposure of interest. We developed and applied a novel geostatistical framework for joint spatial modelling of multiple indices of disease reservoir abundance and human infection risk.

    Results: The estimated infection rate was 51.4 (95%CI 40.4, 64.2) infections per 1,000 follow-up events. Infection risk increased with age until 30 years of age and was 37 associated with male gender. Rattiness was positively associated with infection risk for residents across the entire study area, but this effect was stronger in higher elevation areas (OR 3.27 95%CI 1.68, 19.07) than in lower elevation areas (OR 1.14 95%CI 1.05, 1.53).

    Conclusions: These findings suggest that, while frequent flooding events may disperse bacteria in regions of low elevation, environmental risk in higher elevation areas is more localised and directly driven by the distribution of local rat populations. The modelling framework developed may have broad applications in delineating complex animal-environment-human interactions during zoonotic spillover and identifying opportunities for public health intervention.

    Funding: This work was supported by the Oswaldo Cruz Foundation and Secretariat of Health Surveillance, Brazilian Ministry of Health, the National Institutes of Health of the United States (grant numbers F31 AI114245, R01 AI052473, U01 AI088752, R01 TW009504 and R25 TW009338); the Wellcome Trust (102330/Z/13/Z), and by the Fundação de Amparo à Pesquisa do Estado da Bahia (FAPESB/JCB0020/2016). MTE was supported by a Medical Research UK doctorate studentship. FBS participated in this study under a FAPESB doctorate scholarship.
