Analysis of combinatorial chemokine receptor expression dynamics using multi-receptor reporter mice

  1. Laura Medina-Ruiz  Is a corresponding author
  2. Robin Bartolini
  3. Gillian J Wilson
  4. Douglas P Dyer
  5. Francesca Vidler
  6. Catherine E Hughes
  7. Fabian Schuette
  8. Samantha Love
  9. Marieke Pingen
  10. Alan James Hayes
  11. Jun Fu
  12. Adrian Francis Stewart
  13. Gerard J Graham  Is a corresponding author
  1. Chemokine Research Group, Institute of Infection, Immunity and Inflammation, College of Medical, Veterinary and Life Sciences, University of Glasgow, United Kingdom
  2. Center for Molecular and Cellular Bioengineering, Biotechnology Center, Technische Universität Dresden, Germany
  3. Shandong University–Helmholtz Institute of Biotechnology, State Key Laboratory of Microbial Technology, School of Life Science, Shandong University, China
  4. Max-Planck-Institute for Cell Biology and Genetics, Germany

Abstract

Inflammatory chemokines and their receptors are central to the development of inflammatory/immune pathologies. The apparent complexity of this system, coupled with lack of appropriate in vivo models, has limited our understanding of how chemokines orchestrate inflammatory responses and has hampered attempts at targeting this system in inflammatory disease. Novel approaches are therefore needed to provide crucial biological, and therapeutic, insights into the chemokine-chemokine receptor family. Here, we report the generation of transgenic multi-chemokine receptor reporter mice in which spectrally distinct fluorescent reporters mark expression of CCRs 1, 2, 3, and 5, key receptors for myeloid cell recruitment in inflammation. Analysis of these animals has allowed us to define, for the first time, individual and combinatorial receptor expression patterns on myeloid cells in resting and inflamed conditions. Our results demonstrate that chemokine receptor expression is highly specific, and more selective than previously anticipated.

Editor's evaluation

The manuscript describes the potential of unique multi-chemokine receptor reporter mice to track CCR expression dynamics in myeloid cells in steady state and inflammatory conditions which may overcome some existing limitations to finding accurate antibodies for these receptors. This paper will be of broad interest to investigators studying the role of chemokines and their receptors in animal models of human disease. The conclusions of the authors are generally well-supported by the data and provide novel and important insights into the hierarchy of chemokine receptor expression during the recruitment of myeloid cells to sites of inflammation.

https://doi.org/10.7554/eLife.72418.sa0

Introduction

Chemokines, and their receptors, are primary regulators of in vivo leukocyte migration and central orchestrators of innate and adaptive immune responses (Griffith et al., 2014; Rot and von Andrian, 2004). Chemokines are defined by a conserved cysteine motif and subdivided into CC, CXC, CX3C, and XC subfamilies according to the specific configuration of this motif (Bachelerie et al., 2014; Rot and von Andrian, 2004). Chemokines signal through seven-transmembrane spanning G protein-coupled receptors expressed by immune and inflammatory cells (Bachelerie et al., 2014; Rot and von Andrian, 2004), and these receptors are named according to the subfamily of chemokines with which they interact (CCR, CXCR, XCR, and CX3CR).

Chemokines and their receptors can be functionally classified as either homeostatic or inflammatory according to the in vivo contexts in which they function (Mantovani, 1999; Zlotnik and Yoshie, 2000). Inflammatory chemokines and their receptors mediate leukocyte recruitment to inflamed, damaged, or infected sites and are prominent contributors to a large number of autoimmune and inflammatory diseases (Viola and Luster, 2008). Chemokine receptors therefore represent important therapeutic targets (Proudfoot et al., 2015). However, to date, only two chemokine receptor antagonists have been approved for therapeutic use (Plerixafor, targeting CXCR4, and Maraviroc, targeting CCR5), and no antagonists have yet been approved for treating immune/inflammatory disease (Bachelerie et al., 2014). There are a number of explanations for this failure (Schall and Proudfoot, 2011), prominent amongst which is the fact that inflammatory chemokine and chemokine receptor biology is highly complex. For example, multiple chemokines are simultaneously expressed at inflamed sites and these interact in a complex, and poorly understood, manner with different inflammatory chemokine receptors (Bachelerie et al., 2014). To complicate matters further, reports in the literature indicate that distinct leukocyte subsets simultaneously express multiple chemokine receptors (Bachelerie et al., 2014; Griffith et al., 2014). As a result of this complexity it is currently difficult to precisely define in vivo roles for inflammatory chemokine receptors and we therefore lack a clear understanding of their integrated involvement in the orchestration of the inflammatory response.

The current study focuses on four inflammatory CC chemokine receptors (iCCRs) (Dyer et al., 2019): CCR1, CCR2, CCR3, and CCR5, which exemplify the ligand-receptor interaction complexity noted above. Collectively, these receptors direct non-neutrophilic myeloid cell trafficking at rest and during inflammation (Pease, 2011; Shi and Pamer, 2011) and are key players in inflammatory diseases. However, the resting and inflamed expression of these receptors on individual leukocyte populations has not been clearly defined. In addition, their individual roles in leukocyte mobilisation, recruitment, and intra-tissue dynamics are still unclear. The use of knockout mice to study their function has been confused by partial phenotypes and conflicting results (Bennett et al., 2007; Humbles et al., 2002; Ma et al., 2002; Pope et al., 2005; Rottman et al., 2000; Tran et al., 2000), leading to suggestions of redundancy in their function. There is therefore a pressing need to develop powerful novel tools to precisely define the temporo-spatial patterns of expression of these receptors at rest and during inflammation and in so doing to precisely delineate their roles in the physiological and pathological inflammatory response.

Here, we report the generation of an iCCR reporter (iCCR-REP) mouse strain expressing spectrally distinct fluorescent reporters for CCR1, CCR2, CCR3, and CCR5. We have used these mice to provide, for the first time, a comprehensive analysis of iCCR expression on bone marrow (BM), peripheral blood, and tissue-resident myeloid cells at rest and during inflammatory responses. In contrast to published data, our analysis indicates selective receptor expression in individual cell types, in resting and acute inflammatory contexts and suggests little, if any, redundancy in function. We propose that these mice represent a transformational addition to the suite of mouse models available for analysing inflammatory chemokine receptor function in vivo and that they will be instrumental in helping to deconvolute the complexity of the chemokine-driven inflammatory response in a variety of pathological contexts.

Results

Generation of iCCR-reporter mice

The inflammatory Ccr genes are organised in a single 170 kb genomic cluster, which contains no other genes and which is highly conserved among mammals (Nomiyama et al., 2011) and located on mouse chromosome 9. To produce the iCCR-reporter (iCCR-REP) mice, we generated a recombineered version of a bacterial artificial chromosome (BAC) encompassing the cluster (inflammatory Ccr gene-REP cluster), in which the coding sequence of each of the inflammatory Ccr genes was replaced with sequences encoding spectrally distinct fluorescent proteins. The reporters used in this study [mTagBFP2 (Subach et al., 2011), Clover, mRuby2 (Lam et al., 2012), and iRFP682 (Shcherbakova and Verkhusha, 2013)] were selected on the basis of their discrete excitation and emission spectra (Figure 1A). Using counterselection recombineering (Wang et al., 2014), Ccr1 was replaced with Clover, Ccr2 with mRuby2, Ccr3 with mTagBFP2, and Ccr5 with iRFP682 (Figure 1Bi and ii). Transgenic iCCR-REP mice were generated by pro-nuclear injection of the inflammatory Ccr gene-REP BAC (Figure 1Biii). Using targeted locus amplification (TLA) (de Vree et al., 2014), the inflammatory Ccr gene-REP cluster was located to chromosome 16:82389380–82392016 (Figure 1Ci), where 5–8 copies of the BAC were inserted in a head-tail manner. Insertion of the inflammatory Ccr gene-REP clusters lead to the deletion of a 2.5 kb genomic region that contained no coding or regulatory sequences (Figure 1Cii).

Figure 1 with 3 supplements see all
Generation of the reporter mice.

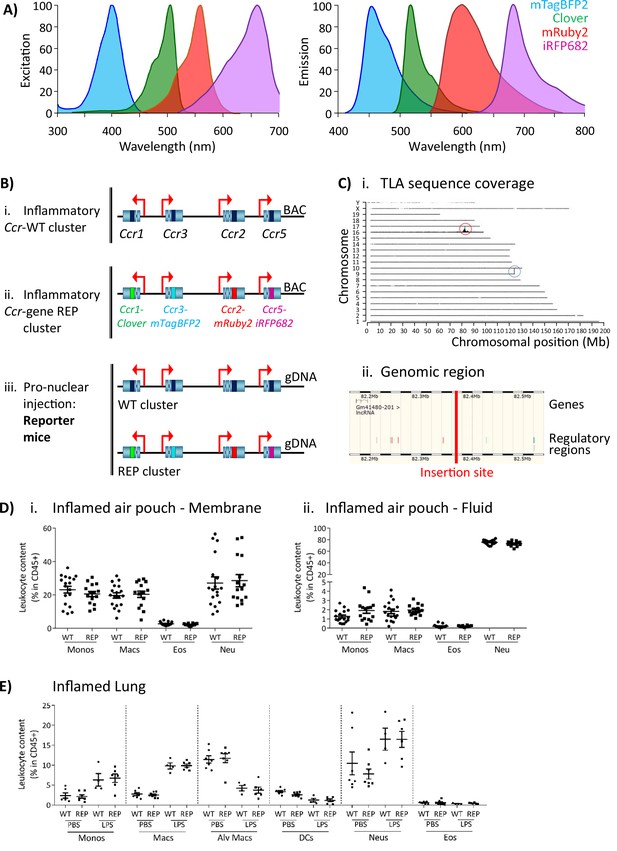

(A) Reporters were selected for this study based on their discrete excitation and emission spectra. (B) (i) The inflammatory Ccr genes were targeted in a bacterial artificial chromosome (BAC). (ii) The coding sequence of each inflammatory Ccr was replaced with a different fluorescent reporter (ii). (iii) Pro-nuclear injection was then used to generate the transgenic reporter mice. (C) (i) The inflammatory Ccr gene-REP cluster inserted into chromosome 16 (red circle), as determined by targeted locus amplification (TLA). The blue circle represents the endogenous locus. (ii) The insertion site does not contain any other genes or regulatory regions. (D) Leukocyte counts determined by flow cytometry in the inflamed air-pouch. Data are shown for (i) the membrane that surrounds the air-pouch and for (ii) the lavage fluid. (E) Leukocyte counts determined by flow cytometry in PBS- or LPS-treted lungs. Data on D and E are shown as mean ± SEM and are compiled from at least two separate experiments. Normally distributed data were analysed using unpaired t-test with or without Welch’s correction, according to their standard deviations. Not normally distributed data were analysed using Mann-Whitney or Kolmogorov-Smirnov, according to their standard deviations. Each data point represents a measurement from a single mouse (N=15-18 in D; N=4-6 in E). Abbreviations are: Monos, monocytes; Macs, macrophages; Neu, neutrophils; Eos, eosinophils; DCs, dendritic cells; Alv macs, alveolar macrophages. See also Figure 1—figure supplement 3.

Thus, using recombineering, we have generated transgenic (iCCR-REP) mice expressing spectrally distinct reporters for each of the iCCRs.

The iCCR-REP mice maintain the original inflammatory Ccr gene cluster on chromosome 9. To confirm that the transgene does not interfere with normal iCCR-dependent myeloid cell recruitment, we examined myeloid cell population sizes in different tissues by flow cytometry (gating strategies: Figure 1—figure supplements 1 and 2). Analysis of resting mice demonstrated that the myeloid cell content in these tissues was indistinguishable between iCCR-REP and wild type (WT) animals for all populations analysed (Figure 1—figure supplement 3). Next, we tested for possible effects of the transgene on myeloid cell recruitment to inflamed sites. To this end we used two different models. First, we used the air-pouch model of inflammation, involving the generation of an air cavity under the dorsal skin of the mouse and the injection of carrageenan into the cavity to induce inflammation. In line with the results obtained from resting tissues, analysis of the myeloid cell content in the membrane surrounding the inflamed air-pouch, as well as in the fluid collected from the inflamed cavity, showed no differences between iCCR-REP and WT animals (Figure 1D). We also analysed cellular content in inflamed lungs of mice that received an intranasal dose of PBS (control) or lipopolysaccharide (LPS). The data generated demonstrate a reduction in the relative percentage of monocytes, macrophages, and neutrophils in the LPS-treated lungs, along with an expected reduction in relative percentages of alveolar macrophages and dendritic cells (Figure 1E). In keeping with previous reports (Righetti et al., 2018), eosinophils were not recruited to the lung in response to acute LPS. Again, no differences were observed between iCCR-REP and WT animals in the relative percentage of any of the populations measured in either control, or LPS-treated, lungs.

Together, these data demonstrate that iCCR-REP mice have normal iCCR-dependent myeloid cell recruitment/migration dynamics at rest and under inflammatory conditions.

iCCR-reporter expression accurately replicates iCCR surface presentation

To confirm that reporter expression faithfully recapitulates iCCR surface presentation, we compared iCCR antibody binding and iCCR reporter expression by flow cytometry (gating strategies: Figure 1—figure supplements 1A and 2B). As shown in Figure 2A, the majority of splenic Ly6Chi monocytes from resting WT mice displayed anti-CCR2 antibody staining and essentially all mRuby2/CCR2 expressing Ly6Chi monocytes in iCCR-REP mice were co-positive for CCR2 antibody staining. Background autofluorescence was undetectable in WT or iCCR-deficient (iCCR-def) mice (these mice are homozygous for a deletion encompassing the entire iCCR locus; Dyer et al., 2019) although we routinely detected non-specific antibody staining on iCCR-def cells. Similar results were obtained when analysing splenic SiglecF+ eosinophils for expression of mTagBFP2/CCR3. Splenic iCCR-REP eosinophils expressing mTagBFP2 simultaneously displayed surface CCR3 antibody staining (Figure 2B). CCR1 and CCR5 were difficult to detect in splenocytes and were therefore analysed in the kidney in which tissue both reporters were expressed on CD11b+F480+ macrophages. iCCR-REP macrophages expressing iRFP682 simultaneously showed surface CCR5 antibody staining (Figure 2C) and low-level non-specific antibody staining was observed on iCCR-def cells. Clover/CCR1 was detected on kidney CD11b+F480+ macrophages of iCCR-REP mice (Figure 2Di and ii). However, in our hands, no commercially available antibodies were able to detect CCR1 on any tissues analysed. For that reason, we used RNAscope to confirm expression of CCR1 on kidney cells. As shown in Figure 2Diii and iv, CCR1 transcripts were clearly detectable on WT and iCCR-REP, but not iCCR-def kidney sections.

Inflammatory CC chemokine receptor (iCCR) reporter expression accurately mirrors iCCR surface presentation.

(A) (i) Flow cytometric analysis of CCR2 antibody binding and mRuby2 expression in spleen Ly6Chi monocytes at rest. (ii) Quantification of the percentage of Ly6Chi monocytes binding CCR2 antibody and expressing mRuby2. (B) (i) Flow cytometric analysis of CCR3 antibody binding and mTagBFP2 expression in spleen SiglecF+ eosinophils at rest. (ii) Quantification of the percentage of SiglecF+ eosinophils binding CCR3 antibody and expressing mTagBFP2. (C) (i) Flow cytometric analysis of CCR5 antibody binding and iRFP682 expression in kidney CD11b+F4/80+ macrophages at rest. (ii) Quantification of the percentage of CD11b+F4/80+ macrophages binding CCR5 antibody and expressing iRFP682. (D) (i) Flow cytometric analysis of Clover expression in kidney CD11b+F4/80+ macrophages at rest. (ii) Quantification of the percentage of CD11b+F4/80+ macrophages expressing Clover. (iii) Brightfield images of resting kidneys showing CCR1 mRNA molecules detected by RNAscope analysis in the form of red precipitate dots (arrows). (iv) CCR1 mRNA molecule counts per field of view. Data information: data on Aii, Bii, Cii, Dii, and Div are shown as mean ± SD and are compiled from at least two separate experiments (N=4-7 in A, B and C: N=2-3 in D).

Thus, these data confirm that expression of the reporters in the iCCR-REP mice faithfully reflects iCCR expression and surface presentation. These mice, therefore, represent a unique, and validated, resource to examine individual and combinatorial iCCR expression in leukocytes.

BM and circulating leukocytes express specific iCCRs

Next, we used flow cytometric analysis to examine iCCR expression in the iCCR-REP mice with WT littermates as controls for background autofluorescence. We first determined iCCR reporter expression in myeloid cells from resting BM and blood. Cell suspensions were prepared from both compartments and stained with leukocyte subset-specific antibodies (gating strategies: Figure 1—figure supplement 1B). We initially assessed iCCR reporter expression in Ly6Chi monocytes. As expected, and in agreement with previous reports (Geissmann et al., 2003; Saederup et al., 2010), the majority of Ly6Chi monocytes were positive for mRuby2/CCR2, in BM and in blood. mTagBFP2/CCR3 and iRFP682/CCR5 were not detected on monocytes. However, Clover/CCR1 was seen on a small number of Ly6Chi monocytes, representing approximately 3% of the population (Figure 3Ai-iv). Interestingly, in all cases, Clover was co-expressed with mRuby2 (Figure 3Av-vii).

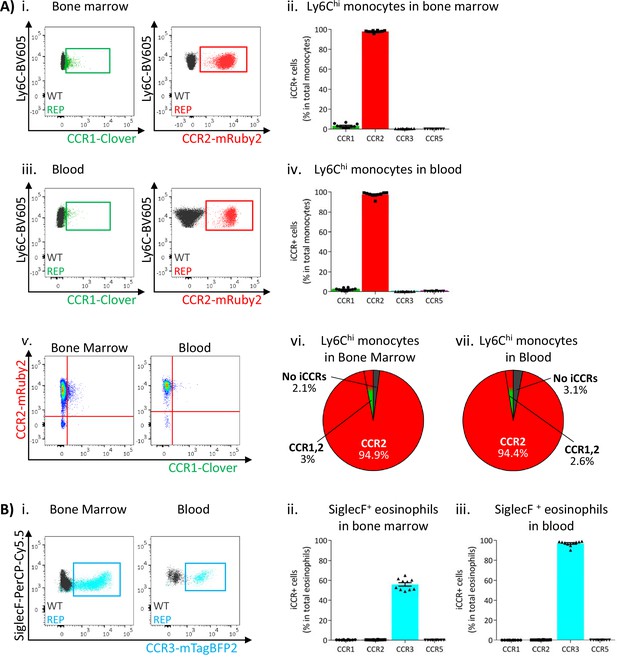

Inflammatory CC chemokine receptor (iCCR) expression in bone marrow and blood leukocytes at rest.

(A) Flow cytometric analysis of Clover/CCR1 and mRuby2/CCR2 expression in (i) bone marrow and (iii) circulating Ly6Chi monocytes. Quantification of the percentage of Ly6Chi monocytes expressing the fluorescent reporters in (ii) bone marrow and (iv) blood. (v) Flow cytometric analysis of Clover/CCR1 and mRuby2/CCR2 co-expression in bone marrow and circulating Ly6Chi monocytes. Distribution of Clover and mRuby2 in (vi) bone marrow and (vii) circulating Ly6Chi monocytes. (B) (i) Flow cytometric analysis of mTagBFP2/CCR3 expression in bone marrow and circulating SiglecF+ eosinophils. Quantification of the percentage of SiglecF+ eosinophils expressing the iCCR reporters in (ii) bone marrow and (iii) blood. Data on A–B are compiled from at least three separate experiments. Data on Aii, Aiv, Bii, and Biii are shown as mean ± SEM (N=10). Each data point represents a measurement from a single mouse. Blots in Ai, Aiii, and Bi are combinatorial blots showing reporter expression in iCCR-REP and wild type (WT) (control for background autofluorescence) mice.

SiglecF+ eosinophils exclusively expressed mTagBFP2/CCR3 (Figure 3Bi) from the reporter cluster. However, only approximately 50% of the population expressed this reporter in the BM (Figure 3Bii), while levels increased as cells entered the circulation, where the majority of eosinophils now expressed mTagBFP2 (Figure 3Biii). We did not detect expression of any of the iCCR reporters in resting Ly6G+ neutrophils (data not shown).

Thus, the iCCR-REP mice demonstrate that, with the exception of a small population of monocytic cells, individual iCCRs display selective association with discrete myeloid lineages in BM and peripheral blood.

iCCR expression in resting tissues

Expression of the iCCR reporters was next assessed in resident myeloid cell populations of resting lungs and kidneys (gating strategies: Figure 1—figure supplement 2). The majority of Ly6Chi monocytes from resting lungs expressed mRuby2/CCR2, with only a very small fraction co-expressing Clover/CCR1 or iRFP682/CCR5 (Figure 4Ai–iii and Figure 4—figure supplement 1). In contrast, a high proportion of the monocyte-derived CD11b+F480+MHCIILo interstitial macrophages (IMs) (IMs defined as in Chakarov et al., 2019; Gibbings et al., 2017; Schyns et al., 2019) expressed Clover/CCR1 and iRFP682/CCR5, with only a small fraction expressing mRuby2/CCR2 (Figure 4Bi-iv). Interestingly, in this case, Clover/CCR1 and iRFP682/CCR5 are mainly expressed independently of mRuby2/CCR2 (Figure 4Bv and Figure 4—figure supplement 1), suggesting that macrophages downregulate CCR2 and induce CCR1 and CCR5 as they differentiate from infiltrating monocytes. In line with these findings, we observed that the mean fluorescence intensity (MFI) of mRuby2 in CCR2+ IMs was lower than that in mRuby2/CCR2+ monocytes (Figure 4Bvi). This confirms that the CCR2 downregulation does not simply reflect reduction in the number of macrophages expressing the receptor but also reduced expression.

Figure 4 with 4 supplements see all
Inflammatory CC chemokine receptor (iCCR) expression in resting lung.

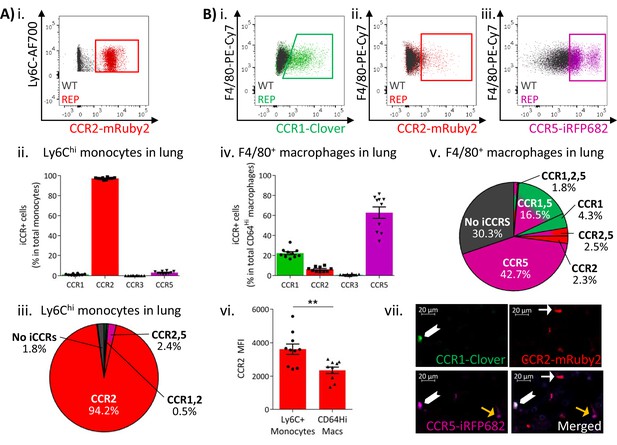

(A) (i) Flow cytometric analysis of mRuby2/CCR2 expression in Ly6Chi monocytes. (ii) Quantification of the percentage of Ly6Chi monocytes expressing the iCCR reporters. (iii) Distribution of the iCCR reporters in Ly6Chi monocytes. (B) Flow cytometric analysis of (i) Clover/CCR1, (ii) mRuby2/CCR2, and (iii) iRFP682/CCR5 expression in F4/80+ macrophages. (iv) Quantification of the percentage of F4/80+ macrophages expressing the iCCR reporters. (v) Distribution of the iCCR reporters in F4/80+ macrophages. (vi) mRuby2/CCR2 mean fluorescence intensity from Ly6Chi monocytes and F4/80+ macrophages. (vii) Lung leukocytes expressing CCR2 exclusively (white arrow), CCR1 and CCR5 (chevron) or CCR5 exclusively (yellow arrow). Data in A–B are compiled from at least two separate experiments. Data on Aii, Biv, Bvi are shown as mean ± SEM (N=10). Each data point represents a measurement from a single mouse. Blots in Ai, Bi, Bii, and Biii are combinatorial blots showing reporter expression in iCCR-REP and wild type (WT) (control for background autofluorescence) mice. Data on Bvi were analysed using unpaired t-test. **p<0.01. See also Figure 4—figure supplement 2 and , Figure 4—figure supplement 4.

Similar results were obtained from resting kidneys. Again, Ly6Chi monocytes expressed almost exclusively mRuby2/CCR2, with only some co-expressing Clover/CCR1 or iRFP682/CCR5 (Figure 5Ai–iii and Figure 5—figure supplement 1). However, monocyte-derived CD11b+F480+ macrophages (Puranik et al., 2018) mainly expressed Clover/CCR1 and iRFP682/CCR5, with only a small fraction retaining mRuby2/CCR2 expression (Figure 5Bi–v and Figure 5—figure supplement 1). Consistent with the observations in lung, the mRuby2/CCR2+ macrophages expressed lower mRuby2/CCR2 levels than Ly6Chi monocytes as confirmed by the lower MFI for mRuby2 in this population (Figure 5Bvi). Together, these results suggest that this iCCR reporter expression pattern is consistent across different tissues under resting conditions.

Figure 5 with 2 supplements see all
Inflammatory CC chemokine receptor (iCCR) expression in resting kidney.

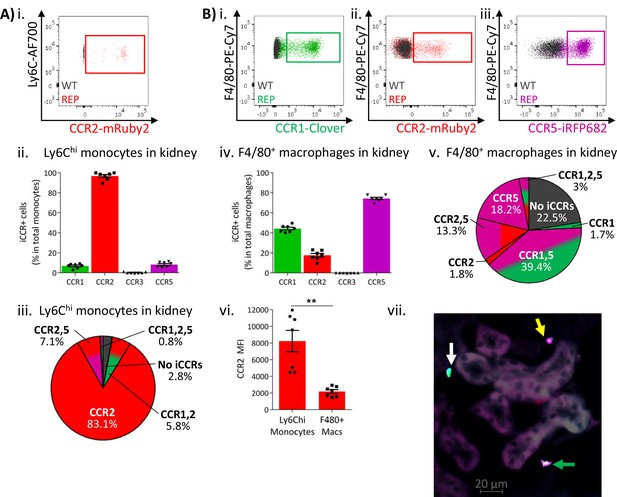

(A) (i) Flow cytometric analysis of mRuby2/CCR2 expression in Ly6Chi monocytes. (ii) Quantification of the percentage of Ly6Chi monocytes expressing the iCCR reporters. (iii) Distribution of the iCCR reporters in Ly6Chi monocytes. (B) Flow cytometric analysis of (i) Clover/CCR1, (ii) mRuby2/CCR2, and (iii) iRFP682/CCR5 expression on F4/80+ macrophages. (iv) Quantification of the percentage of F4/80+ macrophages expressing the iCCR reporters. (v) Distribution of the iCCR reporters in F4/80+ macrophages. (vi) mRuby2/CCR2 mean fluorescence intensity from Ly6Chi monocytes and F4/80+ macrophages. (vii) Kidney leukocytes expressing CCR1 exclusively (white arrow), CCR5 exclusively (yellow arrow) or CCR1 and CCR5 (green arrow). Data in A–B are compiled from at least two separate experiments. Data on Cii, Civ, and Cvi are shown as mean ± SEM (N=7). Each data point represents a measurement from a single mouse. Blots in Ai, Bi, Bii, and Biii are combinatorial blots showing reporter expression in iCCR-REP and wild type (WT) (control for background autofluorescence) mice. Data on Bvi were analysed using unpaired t-test with Welch’s correction. **p<0.01. See also Figure 5—figure supplement 1 and Figure 5—figure supplement 2.

We next assessed iCCR reporter expression in lung CD11b+F480+MHCIIHi IMs (Chakarov et al., 2019). As shown in Figure 4—figure supplement 2, F480LoMHCIIHi IMs expressed reporters for CCRs 1, 2, and 5 (Figure 4—figure supplement 2Ai-iv). F480+MHCIIHi IMs expressed iRFP682/CCR5, but Clover/CCR1+ and mRuby2/CCR2+ cells were less abundant (Figure 4—figure supplement 2Bi-iv). This pattern is similar to that of MHCIILo IMs, suggesting that F480+MHCIIHi IMs also downregulate CCR2 as they differentiate from F480LoMHCIIHi IMs. In line with this, co-expression of Clover/CCR1 or iRFP682/CCR5 with mRuby2/CCR2 was more apparent in F480LoMHCIIHi than in F480+MHCIIHi IMs (Figure 4—figure supplement 2Ci-iv).

To further confirm this pattern, we generated GM-CSF-derived macrophages and DCs from BM of iCCR-REP mice. As shown in Figure 4—figure supplement 2, and in line with previous findings, freshly extracted BM Ly6Chi monocytes expressed mRuby2/CCR2 almost exclusively, with only a small fraction co-expressing Clover/CCR1 (Figure 4—figure supplement 2D). After 2 days in culture with GM-CSF, Ly6Chi monocytes retain expression of mRuby2/CCR2 but induce Clover/CCR1 and iRFP682/CCR5, with approximately 40% of the cells co-expressing all three reporters (Figure 4—figure supplement 2D). At this time point, CD11c+ precursors are already detectable in cultures. These precursors express Clover/CCR1 and iRFP682/CCR5 to a higher extent than observed in Ly6Chi monocytes, with 65% of the population co-expressing reporters for CCRs 1, 2, and 5 (Figure 4—figure supplement 2D). By day 9 in culture, fully mature CD11c+/MHCII++ monocyte-derived dendritic cells (moDCs) express mainly Clover/CCR1 and iRFP682/CCR5, which are now detected independently from mRuby2/CCR2 in over 50% of the cells (Figure 4—figure supplement 2D). Finally, we tested the monocyte downregulation of mRuby2/CCR2 and macrophage upregulation of Clover/CCR1 and iRFP682/CCR5 in vivo. To this end (Figure 4—figure supplement 3A and B), we adoptively transferred mRuby2/CCR2+ve monocytes (which are -ve for iRFP682/CCR5, and only a small fraction expresses Clover/CCR1) from the reporter mice into WT air-pouches. We then reclaimed cells 3 days later and examined macrophages for reporter expression by flow cytometry. As shown in Figure 4—figure supplement 3, and in contrast to the adoptively transferred precursor monocytes, the progeny macrophages now express substantial levels of Clover/CCR1 and iRFP682/CCR5 reporters. This experiment further reinforces the notion that CCR2+ve monocytes progressively express CCR1 and CCR5 as they differentiate to macrophages.

At rest, lung eosinophils only expressed mTagBFP2/CCR3 (Figure 4—figure supplement 2Di-ii), whereas alveolar macrophages did not express any of the iCCR reporters (data not shown). We did not detect expression of any of the iCCR reporters in lung or kidney neutrophils (data not shown).

Thus, these data demonstrate that, whilst classical monocytes (in contrast to nonclassical monocytes) predominantly express CCR2, they downregulate this receptor and upregulate CCR1 and CCR5 as they differentiate. In keeping with the observations from blood and BM, eosinophils within tissues are positive only for CCR3.

iCCR expressing cells can be directly visualised in tissues

The above analyses focused on flow cytometric evaluation of iCCR-REP expression. However, we next determined whether these mice are also appropriate for direct visualisation and localisation of iCCR-reporter expressing cells within tissues. As shown in Figure 4—figure supplement 4, fluorescence imaging of a section from resting spleen revealed easily identifiable cells expressing each of the four reporters. In addition, combinatorial iCCR reporter expression was detected on individual cells as shown in Figure 4Bvii. Here, we highlight lung cells expressing only mRuby2/CCR2 as well as cells that are co-expressing Clover/CCR1 with iRFP682/CCR5. Finally, the imaging approaches are applicable to numerous tissues and, as shown in Figure 5Bvii, iCCR-REP mice can be used to identify leukocyte populations expressing individual and combinatorial patterns of iCCR expression in the resting kidney (note that this image has been enhanced, using SPARCA software, to remove excessive autofluorescence from the renal tubules. The original image is shown in Figure 5—figure supplement 2).

In addition to static imaging, the iCCR-REP mice can be used for real-time imaging of reporter expression in living tissues. As shown in the movie in Video 1, real-time in vivo imaging of the mouse mammary gland demonstrates the ability of the mice to be used to examine the dynamics of leukocyte movement within a tissue.

Video 1
Real-time in vivo imaging of iCCR reporters in resting mammary gland.

iCCR expression in BM and circulation under inflammatory conditions

To determine myeloid cell iCCR reporter expression under inflamed conditions, we first used the air-pouch model (Figure 6A). iCCR reporter expression in BM and blood was assessed 48 hr after the induction of inflammation (gating strategies: Figure 1—figure supplement 1B). Similar to resting conditions, the majority of Ly6Chi monocytes expressed mRuby2/CCR2 and a fraction expressed Clover/CCR1 (Figure 6Bi–ii and 6Biv–v). However, the fraction of Ly6Chi monocytes expressing Clover/CCR1 was higher than in resting mice. Approximately 20% of Ly6Chi monocytes expressed Clover/CCR1 in the BM of inflamed mice, representing a sixfold increase compared to resting conditions (Figure 6Biii). Similarly, in blood, approximately 11% of Ly6Chi monocytes expressed Clover/CCR1, representing a fivefold increase compared with resting conditions (Figure 6Bvi). Interestingly, in this inflamed context, we also detected, for the first time, expression of Clover/CCR1 independently of mRuby2/CCR2 on monocytes, although in most cases both iCCR reporters are co-expressed (Figure 6Ci–iii). BM and blood eosinophils showed similar iCCR reporter expression to that observed under resting conditions. Only mTagBFP2/CCR3 was detected, with approximately 50% of eosinophils expressing it in the BM and 85% in the circulation (Figure 6D).

Inflammatory CC chemokine receptor (iCCR) expression in acutely inflamed bone marrow and blood leukocytes.

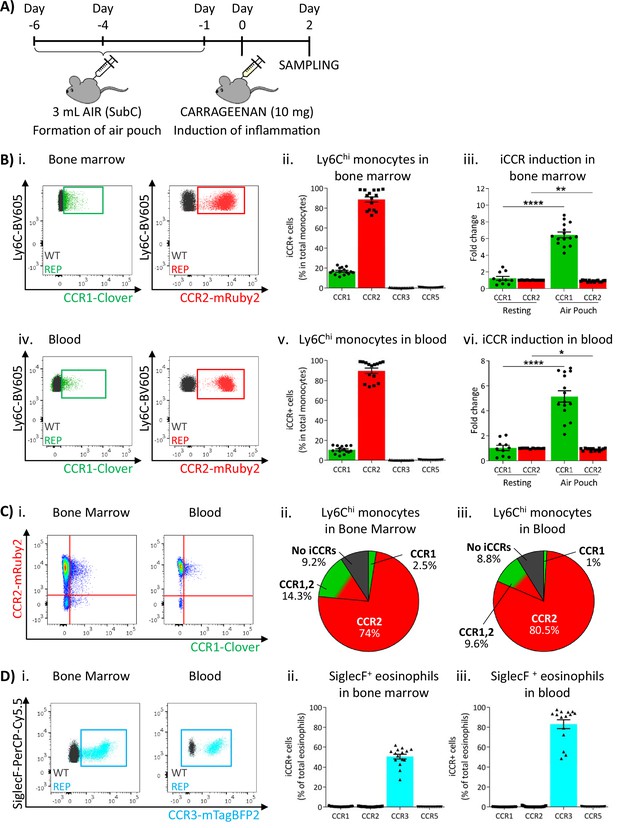

(A) Schematic of the procedure used to induce acute inflammation using the air-pouch model. (B) Flow cytometric analysis of Clover/CCR1 and mRuby2/CCR2 expression in (i) bone marrow and (iv) circulating Ly6Chi monocytes. Quantification of the percentage of (ii) bone marrow and (v) circulating Ly6Chi monocytes expressing the iCCR reporters. Quantification of the fold change increase in CCR1 and CCR2 expression by (iii) bone marrow and (vi) circulating Ly6Chi monocytes after induction of inflammation. (C) (i) Flow cytometric analysis and distribution of Clover/CCR1 and mRuby2/CCR2 in (ii) bone marrow and (iii) circulating Ly6Chi monocytes in the air-pouch model. (D) (i) Flow cytometric analysis of mTagBFP2/CCR3 expression in bone marrow and circulating SiglecF+ eosinophils. Quantification of the percentage of SiglecF+ eosinophils expressing the iCCR reporters in (ii) bone marrow and (iii) blood. Data on Bii, Biii, Bv, Bvi, Dii, and Diii are shown as mean ± SEM (N=10 for resting mice or N=15 for carrageenan-treated mice) and are compiled from at least three separate experiments. Each data point represents a measurement from a single mouse. Blots in Bi, Biv, and Di are combinatorial blots showing reporter expression in iCCR-REP and wild type (WT) (control for background autofluorescence) mice. Normally distributed data on Biii and Bvi were analysed using unpaired t-test with or without Welch’s correction, according to their standard deviations. Not normally distributed data were analysed using Mann-Whitney or Kolmogorov-Smirnov, according to the standard deviations. *p<0.05; **p<0.01; ****p<0.0001.

These results suggested that sustained inflammation leads to enhanced CCR1 expression on BM and circulating monocytes. We therefore used a different model to test this hypothesis. We have previously seen (data not shown) that Clover/CCR1 expression can be upregulated following in vitro interferon gamma (IFNγ) treatment of cells (data not shown). We therefore implanted IFNγ-loaded subcutaneous osmotic pumps (or PBS control) in iCCR-REP mice providing continuous IFNγ release into the circulation (Figure 7A). After 7 days, BM and blood monocytes were analysed to determine expression of Clover/CCR1. As shown in Figure 7Bi–ii, we observed a sixfold increase in the number of Clover/CCR1 expressing monocytes in BM after IFNγ treatment. Notably, this was not reflected in a similar increase in Clover/CCR1 MFI (Figure 7Biii). Similarly, in peripheral blood, a trend towards increased Clover/CCR1+ monocytes was observed (Figure 7Biv and v), although this was not statistically significant and again no difference in MFI was seen (Figure 7Bvi). In all cases, Clover/CCR1 was co-expressed with mRuby2/CCR2 in this model (Figure 7C).

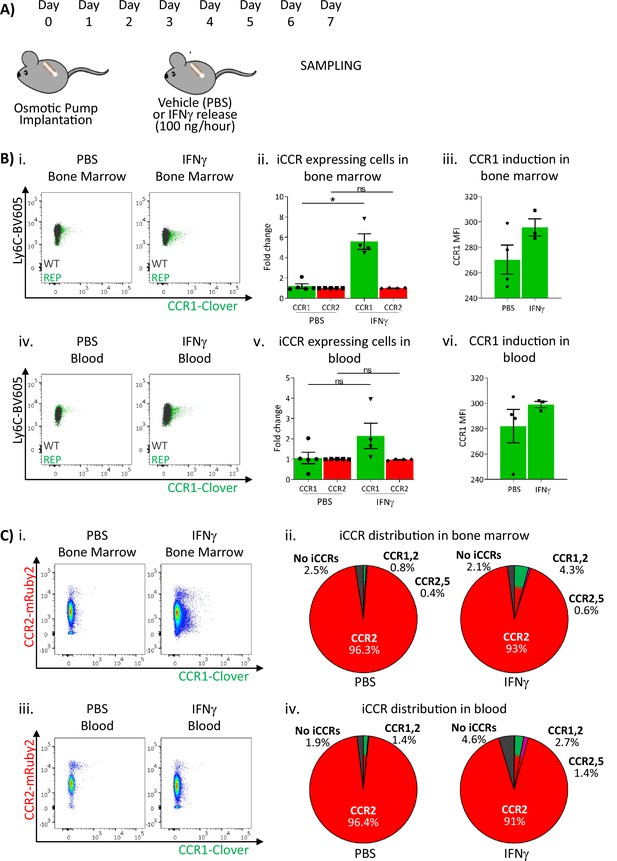

Inflammatory CC chemokine receptor (iCCR) expression in bone marrow and blood under sustained inflammation.

(A) Schematic of the procedure used to induce sustained inflammation using interferon gamma (IFNγ) release from osmotic pumps. (B) Flow cytometric analysis of Clover/CCR1 expression in (i) bone marrow and (iv) circulating Ly6Chi monocytes. Quantification of the fold change increase in CCR1+ and CCR2+ cells in (ii) bone marrow and (v) circulating Ly6Chi monocytes after the induction of sustained inflammation. Mean fluorescence intensity of Clover/CCR1 expression in (iii) bone marrow and (vi) circulating CCR1+ Ly6 Chi monocytes. (C) Flow cytometric analysis and distribution of Clover/CCR1 and mRuby2/CCR2 in (i and ii) bone marrow and (iii and iv) circulating Ly6Chi monocytes. Data on B–C are compiled from at least two separate experiments. Data on Bii, Biii, Bv, and Bvi are shown as mean ± SEM (N=3-5). Each data point represents a measurement from a single mouse. Plots in Bi and Biv are combinatorial plots showing reporter expression in iCCR REP and wild type (WT) (control for background autofluorescence) mice. Normally distributed data were analysed using unpaired t-test with or without Welch’s correction, according to their standard deviations. Not normally distributed data were analysed using Mann-Whitney or Kolmogorov-Smirnov, according to the standard deviations. *p<0.05; ns, not significant.

Together, these results confirm that inflammation is associated with the accumulation of Clover/CCR1+ monocytes in BM and circulating monocytes.

iCCR expression in inflamed tissues: the air-pouch model

We next analysed myeloid cell iCCR reporter expression in the inflamed air-pouch. We first examined the membrane that surrounds the inflamed cavity (gating strategies: Figure 1—figure supplement 1C). Recently infiltrated Ly6Chi monocytes and CD11b+F480+ macrophages retain expression of mRuby2/CCR2 (Figure 8A and Figure 8—figure supplement 1), indicative of the rapid turnover of this population under inflammatory conditions. Approximately 20% of Ly6Chi monocytes expressed Clover/CCR1 (Figure 8Aii), whereas expression of this receptor was much lower (Figures 4 and 5) in intra-tissue monocytes under resting conditions. Note that for mRuby2/CCR2 and mTagBFP2/CCR3, a bimodal level of fluorescent reporter expression is seen in these figures. This is an artefact of the fixation required for air-pouch membrane analysis and is not seen with unfixed cells (Figure 8—figure supplement 1). The lower intensity MFI population is the artefactual one. Notably, this figure also demonstrates that iRFP682/CCR5 is also affected by fixation in a way that is not seen on analysis of unfixed cells. Clover/CCR1 expression was further increased as Ly6Chi monocytes differentiated into CD11b+F480+ macrophages, with approximately 40% of this population now expressing the receptor (Figure 8Aiii and iv). These data, together with the induction of Clover/CCR1 in inflamed BM and blood monocytes, suggest a role for this receptor in monocyte recruitment and macrophage migration in this inflammation model. In contrast, iRFP682/CCR5 expression was confined to a small fraction of the monocyte and macrophage populations (Figure 8A), whereas its expression was abundant on resting tissue macrophages (Figures 4 and 5). This suggests a less significant contribution of CCR5 to monocyte and macrophage motility in the air-pouch model.

Figure 8 with 2 supplements see all
Inflammatory CC chemokine receptor (iCCR) expression in inflamed tissues: the air-pouch model.

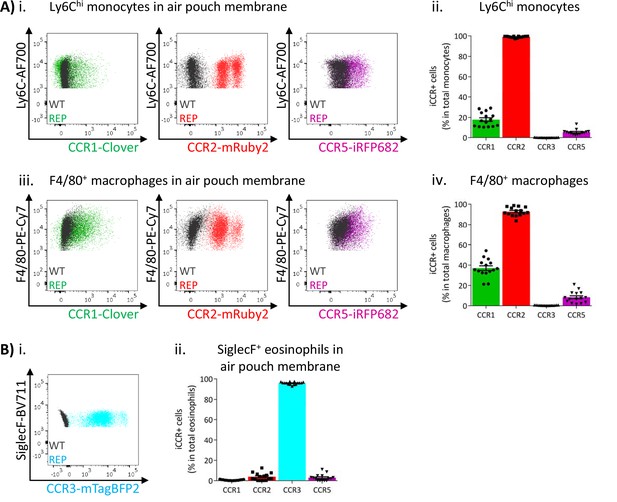

(A) Flow cytometric analysis of Clover/CCR1, mRuby2/CCR2, and iRFP682/CCR5 expression in (i) Ly6Chi monocytes and (iii) F4/80+ macrophages isolated from the inflamed air-pouch. Quantification of iCCR reporter expression in (ii) Ly6Chi monocytes and (iv) F4/80+ macrophages. (B) (i) Flow cytometric analysis of mTagBFP2/CCR3 expression in SiglecF+ eosinophils isolated from the inflamed air-pouch. (ii) Quantification of iCCR reporter expression in SiglecF+ eosinophils. Data on Aii, Aiv, and Bii are shown as mean ± SEM (N=15) and are compiled from at least three separate experiments. Each data point represents a measurement from a single mouse. Blots in Ai, Aiii, and Bi are combinatorial blots showing reporter expression in iCCR-REP and wild type (WT) (control for background autofluorescence) mice.

As shown in Figure 8B, eosinophils in the air-pouch retain exclusive expression of mTagBFP2/CCR3, confirming the importance of this receptor for eosinophil recruitment to inflamed sites. We did not detect expression of any iCCR reporter in neutrophils (data not shown).

Analysis of NK cells and lymphoid subsets (Figure 8—figure supplement 2), in the air-pouch, indicated expression of both mRuby2/CCR2 and iRFP682/CCR5 by CD11b+ and CD11b- NK cells. In addition, mRuby2/CCR2, and low-level iRFP682/CCR5, expression was detected on NKT cells and mRuby2/CCR2 was the only one of the reporters to be detected on either αβ or γδ T cells in this model. In a separate study, looking at the tumour microenvironment, we have detected iRFP682/CCR5 on T cells (data not shown). We have not, so far, detected Clover/CCR1 on any T cell populations.

iCCR expression in inflamed tissues: the intranasal LPS model

To determine if the pattern of iCCR reporter expression detected in the air-pouch model was also seen in a more relevant inflammatory model, we next used an LPS model of lung inflammation. Here, LPS (or vehicle) was administered intranasally to iCCR-REP mice or WT littermates (Figure 9Ai). Forty-eight hours later, inflamed lungs were dissected and myeloid cell content examined (gating strategies: Figure 1—figure supplement 2A). Fluorescence imaging of lung sections from PBS and LPS-treated iCCR-REP mice (Figure 9—figure supplement 1) demonstrates sparse reporter expression in control lungs but widespread expression of the reporters, especially Clover/CCR1, mRuby2/CCR2, and iRFP682/CCR5. In keeping with our previous results showing lack of eosinophil recruitment in response to acute LPS, very little expression of the CCR3 reporter mTagBFP2 was seen. Infiltration of Ly6Chi monocytes and CD11b+F480+ IMs into inflamed lung was confirmed by flow cytometry (Figure 9Aii). Consistent with the findings from the air-pouch model, Ly6Chi monocytes and CD11b+F480+ IMs both retain expression of mRuby2/CCR2, indicative of their recent infiltration into the inflamed lung (Figure 9Aiii-iv). Similarly, 23% of the lung monocyte population expressed Clover/CCR1 after LPS treatment, compared to only 3.5% of monocytes in vehicle-treated mice (Figure 9Aiii). This level of expression is maintained in mature CD11b+F480+ IMs from LPS-treated lungs (Figure 9Aiv, B and C and Figure 9—figure supplement 2), confirming the rapid induction of CCR1 in infiltrated Ly6Chi monocytes. Finally, also consistent with observations in the air-pouch model, iRFP682/CCR5 was detected in only 7.5% of Ly6Chi monocytes and 12% of CD11b+F480+ IMs after LPS administration, whereas 65% of CD11b+F480+ IMs expressed it in the vehicle-treated lungs (Figure 9Aiii-iv, B and C). These data suggest that resident CCR5+ IMs are rapidly replaced with CCR1+ IMs after induction of inflammation and indicate a less significant contribution of CCR5 to monocyte and macrophage recruitment and migration in the early stages of the inflammatory response to LPS.

Figure 9 with 2 supplements see all
Inflammatory CC chemokine receptor (iCCR) expression in inflamed tissues: the intranasal lipopolysaccharide (LPS) model.

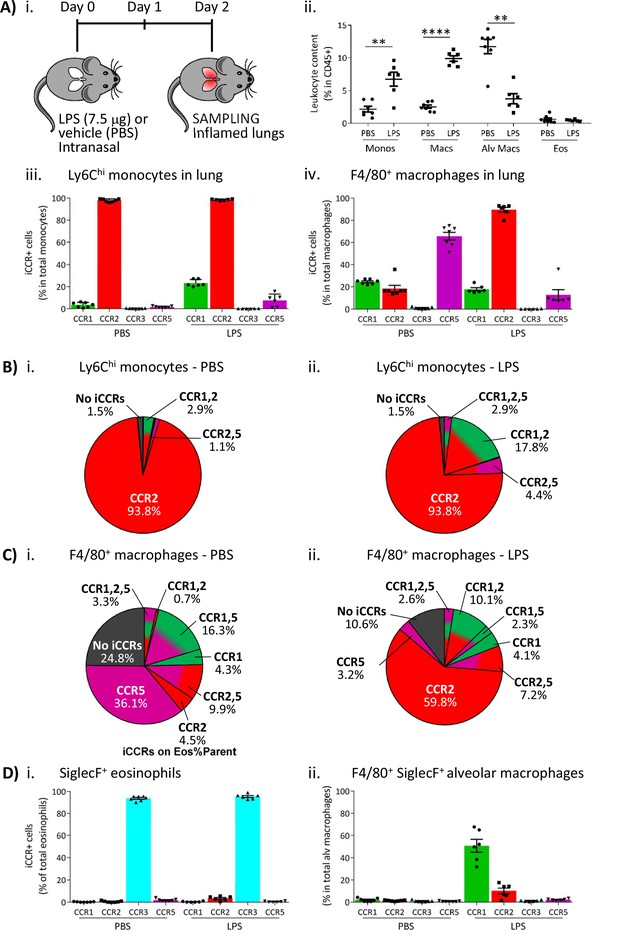

(A) (i) Schematic of the procedure used to induce acute lung inflammation using intranasal administration of LPS. (ii) Quantification of monocyte, macrophage, alveolar macrophage, and eosinophil levels in inflamed lungs. Quantification of iCCR reporter expression in (iii) Ly6Chi monocytes and (iv) F4/80+ macrophages isolated from lungs of vehicle (PBS) and LPS-treated mice. (B) Distribution of Clover/CCR1, mRuby2/CCR2, and iRFP682/CCR5 on Ly6Chi monocytes isolated from lungs of (i) vehicle (PBS) and (ii) LPS-treated mice. (C) Distribution of Clover/CCR1, mRuby2/CCR2, and iRFP682/CCR5 on F4/80+ macrophages isolated from lungs of (i) vehicle (PBS) and (ii) LPS-treated mice. (D) Quantification of iCCR reporter expression on (i) SiglecF+ eosinophils and (ii) SiglecF+ F4/80+ alveolar macrophages isolated from lungs of vehicle and LPS-treated mice. Data in A–D are compiled from at least two separate experiments. Data on Aii, Aiii, Aiv, Di, and Dii are shown as mean ± SEM (N=7 for vehicle-treated mice or N=6 for LPS-treated mice). Each data point represents a measurement from a single mouse. Data on Aii were analysed using unpaired t-test, with the exception of alveolar macrophage, which was analysed using Mann-Whitney test. **p<0.01; ****p<0.0001. Abbreviations are: Monos, monocytes; Macs, macrophages; Alv Macs, alveolar macrophages; Eos, eosinophils.

We also evaluated iCCR expression on SiglecF+ eosinophils and SiglecF+F480+ alveolar macrophages after LPS inoculation. As discussed above, eosinophils are not recruited into the lung in acute models of LPS exposure. However, all detected eosinophils in control and LPS inflamed lungs showed exclusive expression of mTagBFP2/CCR3 (Figure 9Di). Alveolar macrophages do not express any iCCR reporter after vehicle treatment (resting conditions). However, after LPS administration, 50% of the population shows expression of Clover/CCR1 (Figure 9Dii), suggesting that this receptor is also important for their intra-tissue function under inflammatory conditions. We did not detect expression of iCCR reporters in neutrophils from inflamed lungs (data not shown).

Discussion

The iCCRs are responsible for the mobilisation, recruitment, and intra-tissue dynamics of all non-neutrophilic myeloid cell subsets as well as some lymphoid subsets. Analysis of their in vivo expression dynamics has been hampered by the difficulties associated with generating combinatorial reporter mice using individual reporter strains (Hirai et al., 2014; Luckow et al., 2009; Saederup et al., 2010), due to their genomic proximity and the incompatibility of the reporters used in these strains. We now report the generation, and analysis, of transgenic mice expressing spectrally distinct fluorescent reporters for each of the four iCCRs. To our knowledge, this is the first mouse model allowing simultaneous, and combinatorial, analysis of four different fluorescent reporters for the study of specific protein expression, and provides a template for the generation of similar reporter mice covering other functionally linked genomic loci.

The iCCR-REP mice are viable, display normal leukocyte numbers, and thus there appear to be no deleterious effects of the BAC transgene. With any reporter mouse model there is the concern that expression of the reporter molecule may not accurately reflect the expression of the actual protein being assessed. This can be a consequence of posttranscriptional events or a disconnect between the half-lives of the reporters and of the molecules being studied. However, we have gone to some lengths to demonstrate close correlation between reporter expression and chemokine receptor protein expression where possible. Specifically, we demonstrate that reporter expression accurately reflects surface iCCR presentation and that expression changes under different inflammatory conditions and as monocytes differentiate. Previously, antibodies have been widely used to study iCCR expression. However, our results (using appropriate iCCR-/- mice as controls) demonstrate that these antibodies show background non-specific staining due to the high degree of homology between different iCCRs. Lack of such controls has frequently been a problem in previous antibody-based analyses. Also in our hands, and as described by others (Hirai et al., 2014), commercially available antibodies for CCR1 do not bind efficiently to the receptor. In addition, when looking at cells isolated from enzyme digested tissues, the external portions of chemokine receptors are frequently cleaved by the enzymes, preventing antibody-dependent detection. In contrast, our iCCR-REP mice display highly specific expression of the reporters, representing a powerful tool for the flow cytometric, and imaging-based, analysis of in vivo iCCR expression.

Importantly, the analysis of the iCCR-REP mice has allowed us, for the first time, to unequivocally establish iCCR expression patterns on myeloid cells at rest and during inflammatory responses. In contrast to previous reports of multiple receptor expression by individual leukocyte subtypes (Haringman et al., 2006; Tacke et al., 2007; Weber et al., 2000), our data indicate that iCCR expression on individual cell subsets in resting mice is selective. Thus, most Ly6Chi monocytes in BM and blood exclusively express CCR2, with only a minor fraction of these cells co-expressing CCR1 and CCR2. Eosinophils only express CCR3. Tissue-resident macrophages downregulate CCR2 and express CCR1 and high levels of CCR5 either alone or in combination. This suggests a hierarchical relationship in which monocytes use CCR2 to egress from BM and infiltrate resting tissues but upregulate CCR1 and CCR5 upon differentiation to macrophages or moDCs. This model was further confirmed by our in vitro studies using GM-CSF BM-derived moDCs. While Ly6Chi monocytes freshly isolated from BM expressed almost exclusively CCR2, culture in GM-CSF containing media induced gradual upregulation of CCR1 and CCR5. After 9 days in culture, monocytes were fully differentiated into moDCs and expressed high levels of CCR5. This finding was reinforced by our in vivo studies using adoptive transfer of CCR2+ve monocytes into inflamed air-pouches. We propose that CCR1 and CCR5 are predominantly involved in intra-tissue migration and not recruitment from the circulation.

Under inflammatory conditions, BM and circulating Ly6Chi monocytes still express CCR2. However, the fraction co-expressing CCR1 increases. We reasoned that this may be a consequence of elevated systemic inflammatory cytokines and indeed sustained increase in systemic IFNγ levels recapitulated this phenotype. As the iCCRs, and other chemokine receptors, are transcriptionally regulated in response to a variety of cytokines, this raises the possibility that report of multiple chemokine receptor expression by inflammatory cells in patients with immune and inflammatory disorders is not a reflection of homeostasis but a response to the systemically inflamed environment in these patients. We speculate that this may provide alternative options for leukocyte recruitment from the periphery to inflamed sites and contribute to the failure of specific receptor-targeting therapeutics in inflammatory disease. This hypothesis is supported by our previous findings showing that, in the absence of CCR2, a small proportion of Ly6Chi monocytes can still infiltrate into inflamed tissues (Dyer et al., 2019).

After infiltration into the inflamed site, Ly6Chi monocytes still express CCR2 and eosinophils CCR3. Recently infiltrated Ly6Chi monocytes also rapidly increase CCR1 expression, which is maintained after differentiation into F480+ macrophages. This suggests that, in an inflamed context, CCR1 has a pivotal role in directing intra-tissue migration of monocytes and macrophages towards the focus of inflammation and supports the hypothesis that circulating monocytes co-expressing CCR1 and CCR2 might have a recruitment advantage over CCR2-only monocytes. This is further supported by the fact that alveolar macrophages in lung also upregulate CCR1 expression under inflamed conditions, whereas this population does not express any of the iCCRs under resting conditions.

Interestingly, our analyses show that CCR5 is preferentially expressed by macrophages in resting tissues, whereas CCR1 is strongly associated with macrophages recently recruited to inflamed tissues. This could be explained by a hierarchical model of iCCR expression, where BM and circulating Ly6Chi monocytes express CCR2 but, immediately after extravasation, they downregulate CCR2 and upregulate CCR1 as they differentiate into F480+ macrophages. CCR1 would direct macrophages in the early stages of intra-tissue migration. Finally, F480+ macrophages would induce expression of CCR5 and slowly downregulate CCR1 as they fully differentiate into mature macrophages. This model would explain the absence of macrophages expressing exclusively CCR1 in resting tissues, whereas a large proportion of them are CCR1+CCR5+ or CCR5+ only. Alternatively, CCR1 and CCR5 might be expressed in response to different inflammatory stimuli or have different functions in the inflamed tissue. We used carrageenan and LPS to induce inflammation in our study, both signalling through toll-like receptor 4 (Myers et al., 2019; Solov’eva et al., 2013). This could explain their similar responses, mediated by CCR1+ macrophages. However, CCR5 has been reported to be essential for macrophage recruitment to virus-infected tissues (Glass et al., 2005), raising the possibility that alternative inflammatory stimuli could trigger differential responses.

Finally, we failed to detect expression of any of the iCCRs in neutrophils either at rest or during inflammation. We analysed three different founder lines for the iCCR-REP mice and obtained identical results with all of them. This contrasts with previous reports (Fujimura et al., 2015; Gao et al., 1997; Gerard et al., 1997) indicating roles for CCR1 in neutrophil recruitment, but is supported by our findings with iCCR-deficient mice, that show that absence of these chemokine receptors does not lead to deficiencies in neutrophil recruitment to resting or inflamed tissues (Dyer et al., 2019). It is possible that differences in inflammatory models used in the various studies, or animal housing arrangements, may have contributed to this apparent disagreement with the literature.

In addition to their use in identifying patterns of iCCR expression in select leukocyte subsets by flow cytometry, these mice can also be used to directly examine iCCR expression in tissue sections, and in living tissues in real time. Importantly, the reporters in these mice are compatible with further use of up to three additional reporters typically associated with the recently developed CODEX technology (Black et al., 2021). This will allow investigators to assign phenotypes to iCCR-expressing cells in tissue sections. Clearly the use of four fluorescence channels, to detect the reporters, limits the ability to precisely define cell phenotypes in in vivo real-time imaging but this can be, to some extent, alleviated by adoptive transfer of isolated reporter-expressing leukocyte subpopulations.

In summary, therefore, our analyses indicate that the previous belief that individual inflammatory leukocytes express multiple iCCRs (Haringman et al., 2006; Tacke et al., 2007; Weber et al., 2000) is probably wrong and that iCCR expression is more specific (summarised in Figure 10) than previously believed. For example, it was previously reported that monocytes simultaneously express CCR1, CCR2, and CCR5 but our data indicate that, at least for classical monocytes, they are almost exclusively singly positive for CCR2 amongst the iCCRs. Overall our data suggest non-redundant roles for the iCCRs in leukocyte cell trafficking at rest and in acute inflammation. We propose that the iCCR-REP mice represent a transformational technical advance permitting in-depth analysis of receptor expression in a range of resting and pathological conditions that will shed important light on chemokine receptor biology and potentially inform future rational drug design.

Proposed model for the contribution of the inflammatory CC chemokine receptors (iCCRs) to leukocyte migration.

Materials and methods

Mouse generation and maintenance

The iCCR-REP mice were generated in collaboration with Taconic Biosciences. First, the inflammatory Ccr genes were targeted in a BAC using counterselection recombineering as previously described (Wang et al., 2014) in order to replace the coding sequence of each one of the inflammatory Ccr genes with the sequence coding for a different fluorescent reporter. Then, the iCCR-REP cluster was incorporated into the mouse genome using pro-nuclear injection, thus generating transgenic iCCR-REP mice. The presence of the iCCR-REP cluster in these animals was confirmed by PCR using primers specific for the iCCR reporters (Table 1A). Quantification of the number of copies of the iCCR-REP cluster inserted into the mouse genome was done by QPCR with the primers listed in Table 1B, using the TBP gene as a reference, because it sits outside of the iCCR cluster and remained unaltered in the process. Finally, the iCCR-REP cluster was localised to chromosome 16:82389380–82392016 using TLA as described elsewhere (de Vree et al., 2014). iCCR-def mice were generated in-house (Dyer et al., 2019) and CCR5-def mice were a kind gift from Dr Takanori Kitamura, University of Edinburgh. All animal strains were generated and maintained on a C57BL/6 background and were bred in a specific pathogen-free environment in the animal facility of the Beatson Institute for Cancer Research (Glasgow). Routine genotyping of all animals was done by PCR of ear samples (Transnetyx). All experiments were done on animals 10–12 weeks of age, using congenic WT animals derived from heterozygous crosses as controls. All experiments were carried out under the auspices of a UK Home Office Project License and were approved by the local Ethical Review Committee.

Table 1
Primers used in the study.
A. Detection of the iCCR reporters
iRFP682 QPCR1GTCACCCCAGACCTCAATCC
iRFP682 QPCR2AACGATCAATCCCCACAGTC
mRuby2 RT FTGGGAAAGAGTTACGAGATACGA
mRuby2 RT RAACGAGACAGCCATCCTCAA
Clover QPCR1AACGGCATCAAGGCTAACTTC
Clover QPCR2GGGTGTTCTGCTGGTAGTGG
mTagBFP2 QPCR1ACCGTGGACAACCATCACTT
mTagBFP2 QPCR2CCTCGACCACCTTGATTCTC
B. Quantification of iCCR-REP cluster insertion
CCR1prom QPCR1TCAACTCAACTCCATCCAACC
CCR1prom QPCR2CTGTCTTTCCTCTCTGCTCCA
BAC-CPN1 Stan1CAGCTAGCCCCCAGGTGACA
BAC-CPN1 Stan2AGTCTTTCTTTCCTGCGTTGTATG
BAC-CPN1 QPCR1GATAAAGGGAAGCAGACACCAG
BAC-CPN1 QPCR2CAGCAGGGAGGAAAGAAGAGT
BAC-CPN2 Stan1AGTCTTTCTTTCCTGCGTTGTATG
BAC-CPN2 Stan2AAAACCAGACAGGATAGATAACTG
BAC-CPN2 QPCR1AGGGGTGGAAGCCTATCTCTAC
BAC-CPN2 QPCR2TGGCAGCATTTACAGGGTCT
BAC-CPN3 Stan1GGATGGGAGGGAATTTGGAGAAGA
BAC-CPN3 Stan2GCTTTGTGAAGGCCGAGGTCTAA
BAC-CPN3 QPCR1CCCCATCCATAACACAAACC
BAC-CPN3 QPCR2CAAAATGAGCACCTCCCTTC
CCR2exon Stan1AGGGAGAGCAGAAGGCTAA
CCR2exon Stan2CCCAGGAAGAGGTTGAGAGA
CCR2exon QPCR1TGTGGGACAGAGGAAGTGG
CCR2exon QPCR2GGAGGCAGAAAATAGCAGCA
CCR5exon Stan1ACCCATTGAGGAAACAGCAA
CCR5exon Stan2CTTCTGAGGGGCACAACAAC
CCR5exon QPCR1TTTGTTCCTGCCTTCAGACC
CCR5exon QPCR2TTGGTGCTCTTTCCTCATCTC
TBP Stan1GAGTTGCTTGCTCTGTGCTG
TBP Stan2ATACTGGGAAGGCGGAATGT
TBP QPCR1TGCTGTTGGTGATTGTTGGT
TBP QPCR2AACTGGCTTGTGTGGGAAAG

Resting tissue isolation

Resting mice were sacrificed and tissues extracted for flow cytometry or RNA analysis.

Blood was extracted from the vena cava and mixed with 100 μL of 0.5 M EDTA (Thermo Fisher Scientific) prior to red blood cell lysis using an ACK lysis solution (Thermo Fisher Scientific) as per manufacturer’s instructions. Leukocyte content was then used for further analysis. Immediately after blood isolation, mice were perfused using 20 mL of PBS (Thermo Fisher Scientific) containing 2 mM EDTA (Thermo Fisher Scientific).

BM was then extracted from the femur and tibia of the mice, red blood cells lysed as described above, and leukocyte content used in downstream analyses.

Spleen, lungs, and kidneys were isolated from perfused animals and incubated overnight (O/N) in RNAlater stabilisation solution (Thermo Fisher Scientific) for RNA analysis. Alternatively, these tissues were processed for antibody staining and flow cytometry analysis. Dissected spleens were filtered through 70 μm nylon mesh membranes, washed with PBS, and red blood cells lysed as described above, prior to antibody staining. Lungs were cut into small pieces and digested in 5 mL of RPMI containing DNase I (100 μg/mL, Roche), Dispase II (800 μg /mL, Roche), and Collagenase P (200 μg/mL, Roche) for 90 min at 37°C. Kidneys were cut into small pieces and digested in 4 mL of PBS containing calcium and magnesium, HEPES (20 mM, VWR), collagenase I (1.8 mg/mL, Sigma-Aldrich), collagenase XI (156 μg/mL, Sigma-Aldrich), and Hyaluronidase (158 μg/mL, Sigma-Aldrich) for 20 min at 37°C. After digestion, enzymes were deactivated using 20 μL of foetal bovine serum (FBS) and lung and kidney cell suspensions were filtered through 70 μm nylon mesh membranes, washed with PBS, and stained for flow cytometry analysis.

Air-pouch model

The air-pouch model of inflammation was used as previously described (Dyer et al., 2019). In brief, 3 mL of sterile air were injected under the dorsal skin on three occasions over a period of 6 days to induce the formation of a subcutaneous air cavity. One mL of sterile carrageenan (1% (w/v) in PBS, Sigma-Aldrich) was inoculated into the cavity to induce inflammation 24 hr after the last air injection. Forty-eight hours later, mice were culled, and blood and BM samples were collected as detailed above. The cavity was flushed with 3 mL of PBS containing 2 mM EDTA and 2% (v/v) FBS and the lavage fluid was collected, washed with PBS, and stained for flow cytometry analysis. The membrane surrounding the air-pouch was then isolated and digested in 1 mL of Hanks buffered saline solution (Thermo Fisher Scientific) containing 0.44 Wünsch units of Liberase (Roche) for 1 hr at 37°C and 1000 rpm shaking. After digestion, Liberase was neutralised using 20 μL of FBS and cell suspensions were filtered through 70 μm nylon mesh membranes, washed with PBS, and stained for flow cytometry analysis.

For the transfer of REP monocytes into the inflamed air-pouch, 8.5 × 105 mRuby2/CCR2+ monocytes isolated from resting BM were injected into the air-pouch of WT animals. Mice were culled 72 hr later and air-pouch tissues were collected for leukocyte analysis as described above.

LPS model of lung inflammation

For the induction of lung inflammation using Escherichia coli LPS, mice were anaesthetised using inhaled isoflurane (4% (v/v) isoflurane and 2 L O2/min) and 30 μL of LPS (250 μg/mL, Sigma-Aldrich) or vehicle PBS were administered intranasally. Forty-eight hours later, mice were culled, perfused, and lungs were isolated for flow cytometry analysis as detailed above.

Implantation of IFNγ-loaded subcutaneous osmotic pumps

Mice were anaesthetised using inhaled isoflurane (2% (v/v) isoflurane and 2 L O2/min) and maintained under these conditions during the surgical procedure. A small pocket was generated under the dorsal skin, where IFNγ- (100 ng/μL) or vehicle PBS-loaded osmotic pumps (Alzet osmotic pumps, model 2001; Charles River) were implanted. Infusion of IFNγ (100 ng/hr) or PBS was maintained for 7 days. After this time, animals were sacrificed and BM and blood were extracted for flow cytometry analysis as described above.

Flow cytometry

Tissue lysates were prepared as described above and stained for 20 min at 4°C with 100 μL of fixable viability stain (eBioscience). Cells were then washed in FACS buffer (PBS containing 2 mM EDTA and 2% (v/v) FBS) and stained for 20 min at 4°C with 50 μL of antibody cocktail containing subset-specific antibodies (Table 2) diluted in Brilliant Stain Buffer (BD Biosciences). Cells were washed in FACS buffer and fixed for 20 min at 4°C in 100 μL of Fixation Buffer (BioLegend).

Table 2
Antibodies used in the study.
AntibodyCloneSourceWorking dilution
Anti-mouse CD4530-F11eBioscience1/100
Anti-mouse CD11bM1/70eBioscience1/100
Anti-mouse SiglecFE50-2440BD Bioscience1/100
Anti-mouse F4/80BM8eBioscience1/100
Anti-mouse CD64X54-5/7.1BD Bioscience1/100
Anti-mouse Ly6CHK1.4BioLegend1/100
Anti-mouse CD11cHL3BD Bioscience1/100
Anti-mouse MHCIIM5/114.15.2BioLegend1/100
Anti-mouse Ly6G1A8BD Bioscience1/100
Anti-mouse CD19eBio1D3 (1D3)eBioscience1/100
Anti-mouse CCR2SA203G11BioLegend1/50
Anti-mouse CCR3J073E5BioLegend1/50
Anti-mouse CCR5HM-CCR5 (7A4)eBioscience1/50

Stained samples were analysed on a BD LSRFortessa flow cytometer (BD Biosciences) and data analysis was performed using FlowJo software (FlowJo).

For the isolation of REP monocytes from BM for transfer experiments, cells were isolated and stained as described above. After staining, cells were analysed on a FACS Aria sorter (BD Biosciences) and resuspended in GM-CSF containing media ready for injection into the inflamed air-pouch.

Generation of BM-derived moDCs

BM cells were isolated as described above and 107 cells were resuspended in 10 mL of RPMI-1640 (Sigma) supplemented with FBS (10% v/v), L-glutamine (1% v/v), 50 μM β-mercaptoethanol, primocin, and 20 ng/mL of murine recombinant GM-CSF (Peprotech). Cells were transferred to tissue culture-treated Petri dishes. At days 2 and 9, the medium was collected, centrifuged at 300 g for 5 min, and pelleted cells were analysed for the expression of iCCR reporters by flow cytometry. Monocytes and moDCs were identified on the basis of Ly6C, F480, CD11c, and MHCII expression (monocytes were CD11c- F480+ Ly6Chi; moDC precursors were F480+ CD11c+ Ly6C-; mature moDCs were CD11c+ MHCIIhi).

RNAscope for the detection of CCR1 mRNA

Kidneys were isolated from resting mice after PBS perfusion and fixed O/N in 20 mL of 10% Neutral Buffered Formalin (Leica). Fixed kidneys were paraffin-embedded using a Shandon Citadel 1000 tissue processor (Thermo Fisher Scientific) and stored at room temperature (RT) until used. The day prior to CCR1 mRNA analysis, kidneys were wax-embedded and sliced into 6 μm sections onto SuperFrost Plus adhesion slides (Thermo Fisher Scientific). Slides were air-dried O/N at RT and, the following day, CCR1 mRNA was detected using an RNAscope target probe specific for the gene with the RNAscope 2.5 HD Reagent Kit-RED (Advanced Cell Diagnostics). Manufacturer’s instructions were followed, with minor modifications. Specifically, kidney sections were incubated in the RNAscope Target Retrieval Reagent for 18 min and were treated with the RNAscope Protease Plus Reagent for 35 min. Images were acquired on an Evos FL Auto 2 microscope (Thermo Fisher Scientific).

Imaging

Lungs, spleens, and kidneys were isolated from resting mice after PBS perfusion. They were immersed in 4 mL of 4% paraformaldehyde (VWR), incubated at RT for 1 hr, and finally incubated O/N at 4°C to achieve full fixation. Tissues were then immersed in increasing concentrations of sucrose (10%, 20%, and 30% (w/v) in PBS; Fisher Chemicals) for 18–24 hr in each solution. Finally, tissues were frozen in O.C.T. embedding media (Tissue-Tek) and stored at –80°C; 48–24 hr prior to sectioning, tissues were transferred to –20°C. After –20°C incubation, tissues were sliced into 8 μm sections onto SuperFrost Plus adhesion slides and transferred to –20°C again until processed for imaging.

The day of imaging, tissue sections were incubated at 60°C for 10 min and washed twice in PBS for 5 min. Slides were then incubated for 20 min in 0.1 M glycine (VWR) with mild shaking to reduce background autofluorescence. After glycine incubation, sections were washed five times with PBS for 5 min and then immersed in cold water until mounted using 10 μL of Mowiol mounting medium. Tissues were imaged using an Axio Imager M2 microscope (Zeiss) or a spinning disk Axio Observer Z1 confocal microscope (Zeiss).

High background autofluorescence in Figure 5Bvii was removed using proprietary image clearing software. Sparca (https://www.sparca.com), headquartered in London, is a bio-inspired mixed signal processing company working in the medical, scientific, and electronic consumable space. For this project, Sparca applied a number of proprietary image signal processing algorithms which allowed the identification of the main particles of interest and the minimisation of the background. Furthermore, another set of algorithms was applied to bring to light some of the cells which were not fully visible to the naked eye in the original image.

Live cell imaging was carried out using a spinning disc confocal microscope (Zeiss) with a heated stage, at 37°C, 5% CO2. Live mammary glands were visualised in glass bottom dishes (Nunc, Thermo), in PBS containing 5% FBS (Sigma).

Quantification and statistical analysis

All analyses were performed using the Prism software package (GraphPad). Normally distributed data were analysed using unpaired t-test with or without Welch’s correction, according to their standard deviations. Not normally distributed data were analysed using Mann-Whitney or Kolmogorov-Smirnov, according to their standard deviations. In all analysis, p=0.05 was considered the limit for statistical significance.

Data availability

Data relating to this study are available on Dryad (https://doi.org/10.5061/dryad.3r2280gjs). Mouse lines generated in this study will be available, on request, from the corresponding author.

The following data sets were generated
    1. Graham GJ
    2. Medina-Ruiz L
    3. Bartolini R
    4. Wilson G
    5. Dyer D
    6. Vidler F
    7. Hughes C
    8. Schuette F
    9. Love S
    10. Pingen M
    11. Hayes A
    12. Fu J
    13. Stewart F
    (2022) Dryad Digital Repository
    Data for ELIfe paper entitled 'Analysis of combinatorial chemokine receptor expression dynamics using multi-receptor reporter mice.
    https://doi.org/10.5061/dryad.3r2280gjs

References

Decision letter

  1. Florent Ginhoux
    Reviewing Editor; Agency for Science Technology and Research, Singapore
  2. Satyajit Rath
    Senior Editor; Indian Institute of Science Education and Research (IISER), India
  3. Donald N Cook
    Reviewer; NIH/NIEHS, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for sending your article entitled "Analysis of combinatorial chemokine receptor expression dynamics using multi-receptor reporter mice" for peer review at eLife. Your article is being evaluated by 2 peer reviewers, and the evaluation is being overseen by a Reviewing Editor and Satyajit Rath as the Senior Editor.

We all recognized that the mouse model is very interesting but its unique advantages have not been adequately demonstrated and not leveraged for unique insights. Thus, we would like to evaluate a plan of action to demonstrate its unique advantages, with rigorous and detailed data, before a final decision can be made.

It is important for the authors to demonstrate that the novel reporter mice allow studies of chemokine receptor expression during cell recruitment that could not reasonably be done without their novel strain. This would require properly controlled studies (including imaging studies), presentation of MFI and/or cell numbers (not just percentages of positive cells). Indeed, imaging approach is the true interest of the mouse and this was not harnessed. No quantification was provided, and the images are not convincing, lot of autofluorescence in the kidney for instance.

It would also be good to examine cell types besides myeloid cells. For each of their models, the authors should indicate which cell types are actually recruited to the sites of inflammation (ie no significant changes from steady state), and if MFI of receptor expression correlates with the recruitment. If important cell types are not recruited, the authors should at least acknowledge the limitations of the models they have chosen.

All chemokine receptors except CCR1 can be monitored using antibodies by flow, so relying on fluorescent reporter is likely less informative than the actual protein expression. We share this problem that the authors claim they are tracking CKR expression while in fact they follow reporters. It is very different regarding the conclusions made in the manuscript.

Provide absolute number quantification vs % to support conclusions made.

Variation in MFI can maybe be added when discussing about the level of CKR expression.

Reviewer #1 (Recommendations for the authors):

The manuscript introduces a new transgenic mouse strain with a combination of four CC-chemokine receptor fluorescent reporters. This tool represents a very nice approach to study the complexity of inflammatory chemokine receptor network in the orchestration of leukocyte mobilization and interaction. Monitoring CCR expression is challenging due to important non-specific staining, cross reactivity or even absence of functional antibody. Fluorescent reporter mice are indeed very fruitful tools to track cells by imaging or flow cytometry albeit one has to keep in mind that they reflect mostly mRNA expression which physiological expression is often impacted by genomic modifications, hence the true relationship between fluorescent reporter expression and the actual protein needs accurate attention to draw functional conclusions. The present manuscript does not evaluate sufficiently these limitations and tend to overinterpretation.

The main innovation of the strain relies on its potential for imaging studies. It is the first opportunity to map iCCR+ cell distribution in order to provide insights in the organization of the iCCR network but this aspect is unfortunately barely exploited and the few provided images do not support the model. The image in the spleen is very nice but what is the information generated from it? As the authors support the originality of their transgene to study the dynamic of iCCR expression, one could have expected to study the pattern of iCCR+ cell distribution in steady state vs inflammatory condition. Flow analysis could have been performed using specific antibody (controlled with the iCCR-def mouse) with indeed the exception of CCR1. If it is important to generate a reporter for Ccr1, the paper does not harness the added-value of the other reporters.

More specific points

The authors focus their analysis on myeloid cells exclusively and address the relative expression of the fluorescent reporters on the gated subsets.

As the mouse lack of previous validation, it is important to better characterize the system. The authors should deeply analyse all the leukocyte expressing the different fluo. For instance, in the Ccr2-RFP model, NK, T cell and Treg do express the RFP. One could expect CCR1 and CCR5 reporters to be expressed as well in lymphocytes, and what would be the relative proportion of fluorescent monocyte and macrophage among all. This is particularly important to apprehend the imaging part.

The provided images lack of quantification and control for specificity. Considering that other cells than monocyte and macrophages might express the fluorescent reporters, it is unclear what the image really show.

Renal tubules are very auto fluorescent and seems to be the main source of signal in Figure 5Bvii.

The authors correlate fluorescent reporter to the CK receptor expression using specific anti-CCR2, anti-CCR3 and anti-CCR5 on splenic cells to justify their conclusion of Figure 2. This claim needs reconsideration as the authors show only in the spleen, only on selected populations (Mo for CCR2, eosinophils for CCR3 and kidney Mac for CCR5) and only at steady state. Moreover, this claim is extended to CCR1 reporter for which protein expression cannot be validated.

The receptor /reporter correlation analysis already show that the reporter MFI does not strictly correlate with the antibody labeling MFI. However, the authors make assumptions all along the manuscript that they can track the dynamic of CKR expression and draw mostly their conclusion based on the percentage of iCCR+ cells. The graphical abstract suggests that the CKR expressions per cell are modified in inflammatory conditions but does not reflect the change in cell frequency as supported by the data.

Overall more extensive characterization of this correlation in the different cell subsets for each receptor, tissues and experimental conditions need to be provided and the conclusions need to be redrawn accurately all across the manuscript.

Beyond the points raised in the public review that need to be addressed I have a set of specific recommendations below:

In the lung the gating strategy does not allow to capture non-classical monocytes which are more abundant than Ly6Chigh Mo and interstitial macrophages at steady state. Adding a CD43 staining would address that. This is a limit for the LPS model.

Non-classical Mo should be expected to express CCR5 (from human studies at least). Is it confirmed by the multiple reporter mouse?

All across the manuscript the authors need to refer to the reporter expression and not the CCR protein whenever they use the fluorescence.

Changes in % of iCCR+ cells do not reflect any down or upregulation of the receptor. For instance, line 336, the authors evaluate a 6-fold increase in CCR1 expression after IFNγ treatment. It seems that the frequency of Clover+ cells is increased which does not necessarily reflect increased CCR1 expression but accumulation of Clover+ cells or reduction of Clover- cells. Comparative MFI on iCCR+ subset in the different conditions along with the % of iCCR+ cells might reflect at least, change in the activation state of the cell. All statements regarding CCR expression should be carefully considered in the manuscript.

Naming F4/80+ macrophages in the lung is unclear as AM are excluded from the analysis. The authors could consider using F4/80+ interstitial macrophage for clarification.

It appears that bimodal level of fluorescent reporter expression can be detected sometimes (CCR5, CCR1 in lung mac, CCR2 in Mo from air pouch membrane, CCR3 in air pouch eosinophils). It suggests that the authors deal with distinct subsets of cells which are considered as one. This need clarification

CCR2 MFI in kidney and lung Mo is bimodal (Figure 4-5Bvi). can the author explain why?

Dot plots showing co-expression of the reporters (as shown only FigS4Ci, ii) along with the pie charts would be more convincing and visual for the reader rather than the individual expression in all figures. Moreover, it will more clearly show potential spectral overlap between the different reporters.

The assumption that Monocytes downregulate Ccr2 and upregulate Ccr5 and Ccr1 upon mac differentiation in vitro is fair. But this conclusion cannot be extended to the in vivo data as proposed. Adoptive transfer experiment of purified Mo should be performed to confirm this claim.

Reviewer #2 (Recommendations for the authors):

Medina-Ruiz and colleagues have generated a transgenic mouse line that should prove helpful in unraveling the complex biology of chemokines and their receptors. Previous studies in this area have been hampered by the high background seen with antibodies against chemokine receptors, particularly CCR1. The mouse line generated by the authors contains a bacterial artificial chromosome (BAC) in which the coding regions of four inflammatory chemokine receptors were replaced by coding regions of different fluorescent reporters. Importantly, the authors show that the reporters for the various chemokine receptors accurately mimic results generated using antibodies against those same receptors. The genetic approach is elegant, and the BAC transgenic mouse line will be very useful to investigators seeking to understand chemokine biology in different settings. In the current manuscript, the authors characterize their novel mouse strain in two different models of inflammation: the air pouch model, and an inhaled LPS-induced model of pulmonary inflammation. Analysis of the transgenic mouse strain in these two models has revealed novel information regarding the spatio-temporal expression of these receptors during inflammation. For example, the authors show that monocytes express CCR2, but as these cells differentiate into macrophages, they tend to lose CCR2 expression and instead begin to express CCR1 and/or CCR5. The latter receptor appears to be dominant in resting macrophages at steady state. The study therefore provides critical insight into the hierarchical relationship of chemokine receptor expression during the initiation and resolution of inflammation.

The paper is very well written, the experiments appear to have been performed well, and the authors' claims and conclusions regarding chemokine receptor display are largely justified by their data. However, some caution is warranted regarding conclusions about recruitment of certain cell types. For example, although the authors show that CCR3 is the only receptor expressed on circulating eosinophils, these cells are not recruited in significant numbers to the air pouch or lungs of LPS-treated mice. Also, because numbers of these cells at steady state are presented in a different figure, it is difficult to assess 'recruitment' of eosinophils in these models. Other chemokine receptors, including CCR5, have been reported to be expressed on eosinophils and direct chemotaxis of these cells. Thus, it will be helpful to know if other receptors besides CCR3 are expressed on eosinophils in animal models of asthma or atopic dermatitis, where these cells are a major component of the inflammatory response.

The authors do a good job of evaluating chemokine reporter expression in lung interstitial macrophages, which express the markers CD11b and F4/80. However, their analysis of conventional dendritic cells (cDC) is limited. cDCs are critically important cells for generating adaptive immune responses, and in the lung comprise two major populations, DC1 and DC2. Going forward, it will be interesting to know which chemokine receptors are expressed in these cell types, and when. Nonetheless, establishment of this important mouse cell line is an important step towards an improved understanding of how hierarchical expression of different inflammatory chemokine receptors function to recruit DCs (and their precursors) in models of human disease.

Macrophages and DCs in the lung share many surface molecules but they can be distinguished by display of molecules such as F4/80 and CD88. On lines 264-265, the authors state that, "co-expression of CCR1 or CCR5 with CCR2 was more apparent in F480LoMHCIIHi than in F480MHCIIHi + IMs (Figure S4Ci-iv). I have two questions. First, in the latter cells, was the "+" supposed to refer to F4/80 levels? The authors seem to have accidentally left out the superscripted indicator of expression for that marker. Second, why do the authors call the F480loMHChi cells 'interstitial macrophages', rather than conventional (c)DCs, specifically DC2? The data could be interpreted to mean that cDC2s maintain CCR2 longer than do macrophages, which would be an interesting observation.

There is no mention of lung CD103+ DCs (DC1), which can efficiently cross-present antigens to naïve T cells and have an important role is activation of CD8+ T cells. In addition to their display of CD103, DC1 can also be distinguished from DC2 by relatively low levels of CD11b. Thus, they can be identified as CD11chiMHCII hiCD103+CD11blow cells. However, I understand if the authors feel that this more detailed study is beyond the scope of the current paper.

https://doi.org/10.7554/eLife.72418.sa1

Author response

Reviewer #1 (Recommendations for the authors):

The manuscript introduces a new transgenic mouse strain with a combination of four CC-chemokine receptor fluorescent reporters. This tool represents a very nice approach to study the complexity of inflammatory chemokine receptor network in the orchestration of leukocyte mobilization and interaction. Monitoring CCR expression is challenging due to important non-specific staining, cross reactivity or even absence of functional antibody. Fluorescent reporter mice are indeed very fruitful tools to track cells by imaging or flow cytometry albeit one has to keep in mind that they reflect mostly mRNA expression which physiological expression is often impacted by genomic modifications, hence the true relationship between fluorescent reporter expression and the actual protein needs accurate attention to draw functional conclusions. The present manuscript does not evaluate sufficiently these limitations and tend to overinterpretation.

The reviewer is of course right that reporters generally reflect transcription and that their ability to properly report protein expression is affected by numerous factors including reporter half-life and potential post-transcriptional modification events. We are indeed aware of the limitations of the use of reporter strains. However, we have gone to some lengths to show that, in the current mouse model, reporter expression faithfully recapitulates iCCR surface presentation. We demonstrate this in vivo (Figure 2 of our manuscript) and further show that reporter expression is dynamic, changing, for example, as monocytes differentiate (Figures 3-5 of the manuscript and new Figure 4—figure supplements 2 and 3) or under different inflammatory conditions (Figures 6-9 of the manuscript). Some of these issues are dealt with in more detail below. In addition, we have now included a further, more critical, discussion of the limitations of our model (pages 15-16 of the revised manuscript) and hope that this is an appropriate way to address the reviewer’s concern.

The main innovation of the strain relies on its potential for imaging studies. It is the first opportunity to map iCCR+ cell distribution in order to provide insights in the organization of the iCCR network but this aspect is unfortunately barely exploited and the few provided images do not support the model. The image in the spleen is very nice but what is the information generated from it?

The reviewer is correct that the spleen image on its own, whilst useful, provides limited information on what specific cell types express the receptors. However, by using the recently described CODEX technology it will be relatively simple to incorporate additional phenotypic markers to identify individual cell types expressing the receptors. We have now included a discussion of this point on page 18 of the revised manuscript and hope that this is sufficient. If, however, the reviewer feels that some CODEX-based co-staining for cell phenotype is essential to prove the utility of the mice for fluorescent imaging, we will certainly try to do this although lab and animal access is still severely limited and this may therefore take some time.

As the authors support the originality of their transgene to study the dynamic of iCCR expression, one could have expected to study the pattern of iCCR+ cell distribution in steady state vs inflammatory condition.

We thank reviewer for this comment and whilst we have presented substantial data on the use of flow cytometry in this regard, we have now included fluorescent images of resting and inflamed lung tissues which we hope will address this concern (Figure 9—figure supplement 1 and pages 13-14 of the revised manuscript).

Flow analysis could have been performed using specific antibody (controlled with the iCCR-def mouse) with indeed the exception of CCR1. If it is important to generate a reporter for Ccr1, the paper does not harness the added-value of the other reporters.

We apologise if we have misinterpreted the reviewer’s comments. However, we do indeed provide such information in Figure 2 of the revised manuscript (see below for a further discussion of this point). We presume that here the reviewer is referring to the comparison of the reporters and the antibodies in detecting receptor expression in models of inflammation and in a variety of resting tissues. There are a number of reasons why our reporter mice represent added value compared to the use of a CCR1 reporter alongside antibodies:

i) Many of the protocols used for tissue separation and cell isolation rely on enzymatic or mechanical disaggregation of tissues, which ultimately damages the structure of the iCCRs on the cell surface, destroying the epitopes detected by the antibodies. In this way, antibodies that detect, for example, CCR3 very efficiently on tissues like blood or air pouch fluid (which do not require enzymatic treatments prior to antibody staining), fail to detect it on tissues which require enzymatic digestion to release leukocytes. This issue is discussed on pages 15-16 of the revised manuscript.

ii) Another general problem with anti-CCR antibodies is lack of specificity. The CCRs (and in particular CCRs 1, 2, 3 and 5) have a high degree of homology, leading to non-specific binding of the antibodies, as we show in Figure 2 (particularly, Figure 2C). Such non-specific binding, obvious when antibody binding is assessed using iCCR KO mice, is frequently not properly controlled for and leads to false positive detection when the antibody is tested using only isotype or FMO (fluorescence minus one) controls. We have now included a short addition to the Discussion section (page 15 of the revised manuscript) of the manuscript addressing this issue. Importantly, we have done extensive analysis of these iCCR detection antibodies which is probably outside the scope of the current manuscript, but we would be very happy to share this information with the reviewer if that would be useful.

iii) Finally in terms of added value, and in contrast to the use of antibodies, these reporter mice can be used to study the real-time in vivo dynamics of receptor expression on either resident, or adoptively transferred, cells. We have now included a video from real-time imaging of receptor expression on leukocytes in the living mammary gland (Video 1 and discussed on page 11 of the revised manuscript). We hope that this further illustrates the added experimental value of the multi-receptor reporter mice.

More specific points

The authors focus their analysis on myeloid cells exclusively and address the relative expression of the fluorescent reporters on the gated subsets.

As the mouse lack of previous validation, it is important to better characterize the system. The authors should deeply analyse all the leukocyte expressing the different fluo.

As the reviewer points out, it was our express intention to demonstrate the utility of this reporter mouse strain by focusing on myeloid cells and we hope that the data presented adequately achieve this aim. However, we have analysed expression on other cell types including lymphoid cells and now present data relating to reporter expression on subsets of lymphoid cells in new Figure 8—figure supplement 2 and these data are described on page 13 of the revised manuscript.

For instance, in the Ccr2-RFP model, NK, T cell and Treg do express the RFP. One could expect CCR1 and CCR5 reporters to be expressed as well in lymphocytes, and what would be the relative proportion of fluorescent monocyte and macrophage among all. This is particularly important to apprehend the imaging part.

As shown in new Figure 8—figure supplement 2 (and discussed on page 13 of the revised manuscript), we do indeed see strong CCR2 and CCR5 expression on NK cells and CCR2 expression on T cells in the air pouch model. We also see CCR5 expression on T cells in the tumour microenvironment and have mentioned this in the text on page 13 of the revised manuscript. We have never seen CCR1 expression on T cells and again, this is mentioned on page 13 of the revised manuscript.

The provided images lack of quantification and control for specificity. Considering that other cells than monocyte and macrophages might express the fluorescent reporters, it is unclear what the image really show.

As discussed above, and as mentioned on page 18 of the revised manuscript, using the reporter mice along with the recently developed CODEX technology will allow cell phenotype to be defined.

Renal tubules are very auto fluorescent and seems to be the main source of signal in Figure 5Bvii.

The renal tubules are indeed very autofluorescent and we apologise for the poor quality of this image. We have now used software to reduce the background autofluorescence and present this new image in revised Figure 5Bvii. For transparency we have also included the original image as new Figure 5—figure supplement 2 in the revised manuscript and discussed the use of the software on pages 11 and 25-26 of the revised manuscript. We hope that this enhanced image addresses the reviewer’s concern.

The authors correlate fluorescent reporter to the CK receptor expression using specific anti-CCR2, anti-CCR3 and anti-CCR5 on splenic cells to justify their conclusion of Figure 2. This claim needs reconsideration as the authors show only in the spleen, only on selected populations (Mo for CCR2, eosinophils for CCR3 and kidney Mac for CCR5) and only at steady state. Moreover, this claim is extended to CCR1 reporter for which protein expression cannot be validated.

The purpose of these experiments was to show, in exemplar cell types, that the antibodies faithfully recapitulate receptor expression. Cells chosen were selected on the basis of their known expression of the tested receptors. CCR2 and CCR3 are easily detectable in the spleen but CCR1 and CCR5 are not. These were therefore studied in kidney macrophages on which these receptors are expressed. For CCR1 our correlation is with cells expressing CCR1 transcript as revealed by in situ hybridisation. We have improved the wording of this section (pages 6-7) to clarify this point and hope that it is now acceptable to the reviewer.

The receptor /reporter correlation analysis already show that the reporter MFI does not strictly correlate with the antibody labeling MFI.

We hope that we have not misunderstood the point being made here by the reviewer. Basically, there is no reason to assume that the MFIs from the antibody and the reporters will be the same as they are on different fluorochromes. If what the reviewer means is that the MFI for the reporters doesn’t increase proportionately to antibody binding, then we would respectfully disagree and point out that it does increase proportionately and to a higher level (which is one of the advantages of using the reporters).

However, the authors make assumptions all along the manuscript that they can track the dynamic of CKR expression and draw mostly their conclusion based on the percentage of iCCR+ cells. The graphical abstract suggests that the CKR expressions per cell are modified in inflammatory conditions but does not reflect the change in cell frequency as supported by the data.

The reviewer is correct and throughout the manuscript we have referred to % iCCR reporter expressing cells and this indeed can be used to track dynamics of receptor expression but is limited in that we have not presented data on expression per cell. We have now added additional information on the MFI values in Figure 7 and MFIs are also present in terms of flow cytometry co-expression plots in Figure 4—figure supplement 1; Figure 5—figure supplement 1; Figure 8—figure supplement 1 and Figure 9—figure supplement 2. We hope that these additions are sufficient to address the reviewer’s concerns.

Overall more extensive characterization of this correlation in the different cell subsets for each receptor, tissues and experimental conditions need to be provided and the conclusions need to be redrawn accurately all across the manuscript.

Beyond the points raised in the public review that need to be addressed I have a set of specific recommendations below:

In the lung the gating strategy does not allow to capture non-classical monocytes which are more abundant than Ly6Chigh Mo and interstitial macrophages at steady state. Adding a CD43 staining would address that.

The reviewer is indeed correct that we have not evaluated expression on non-classical monocytes. We have now done this and include these data as Figure 4—figure supplement 4 in the revised manuscript and they are discussed on pages 10 and 14. These data show that, in contrast to the largely restricted expression of CCR2 on classical monocytes, these nonclassical monocytes express combinations of CCR1, CCR2 and CCR5.

This is a limit for the LPS model.

Non-classical Mo should be expected to express CCR5 (from human studies at least). Is it confirmed by the multiple reporter mouse?

Please see the comment above

All across the manuscript the authors need to refer to the reporter expression and not the CCR protein whenever they use the fluorescence.

We fully agree with the reviewer and apologise for our carelessness in the original manuscript. We have altered this throughout.

Changes in % of iCCR+ cells do not reflect any down or upregulation of the receptor. For instance, line 336, the authors evaluate a 6-fold increase in CCR1 expression after IFNγ treatment. It seems that the frequency of Clover+ cells is increased which does not necessarily reflect increased CCR1 expression but accumulation of Clover+ cells or reduction of Clover- cells. Comparative MFI on iCCR+ subset in the different conditions along with the % of iCCR+ cells might reflect at least, change in the activation state of the cell. All statements regarding CCR expression should be carefully considered in the manuscript.

The reviewer makes an important point here. As discussed, we have now included MFI data for Figure 7 of the revised manuscript. These data demonstrate increased numbers of cells expressing Clover/CCR1, but not a significant increase in MFI (discussed on page 12 of the revised manuscript). We hope that inclusion of these data will satisfy the reviewer’s concerns.

Naming F4/80+ macrophages in the lung is unclear as AM are excluded from the analysis. The authors could consider using F4/80+ interstitial macrophage for clarification.

We have now added the word “interstitial” to the manuscript to avoid confusion and thank reviewer for this useful comment.

It appears that bimodal level of fluorescent reporter expression can be detected sometimes (CCR5, CCR1 in lung mac, CCR2 in Mo from air pouch membrane, CCR3 in air pouch eosinophils). It suggests that the authors deal with distinct subsets of cells which are considered as one. This need clarification

CCR2 MFI in kidney and lung Mo is bimodal (Figure 4-5Bvi). can the author explain why?

The reviewer is completely correct that we see this bimodal reporter expression for some reporters although this is really only for CCR2 and CCR3 reporters. This however is a fixation artefact (the lower intensity MFI is the artefactual one) and we have now highlighted this on page 12 of the revised manuscript. We apologise for not being clear on this issue in the original manuscript.

Dot plots showing co-expression of the reporters (as shown only FigS4Ci, ii) along with the pie charts would be more convincing and visual for the reader rather than the individual expression in all figures. Moreover, it will more clearly show potential spectral overlap between the different reporters.

We have now presented these data in Figure 4—figure supplement 1; Figure 5—figure supplement 1; Figure 8—figure supplement 1 and Figure 9—figure supplement 2 and they are discussed at appropriate points in the revised manuscript.

The assumption that Monocytes downregulate Ccr2 and upregulate Ccr5 and Ccr1 upon mac differentiation in vitro is fair. But this conclusion cannot be extended to the in vivo data as proposed. Adoptive transfer experiment of purified Mo should be performed to confirm this claim.

We have now included data from adoptively transferred CCR2+ monocytes showing that, in an inflammatory environment, they differentiate to macrophages that now express CCR1 and CCR5. These data are presented as Figure 4—figure supplement 3 and discussed on pages 9-10 and 16 of the revised manuscript.

Reviewer #2 (Recommendations for the authors):

[…]

Macrophages and DCs in the lung share many surface molecules but they can be distinguished by display of molecules such as F4/80 and CD88. On lines 264-265, the authors state that, "co-expression of CCR1 or CCR5 with CCR2 was more apparent in F480LoMHCIIHi than in F480MHCIIHi + IMs (Figure S4Ci-iv). I have two questions. First, in the latter cells, was the "+" supposed to refer to F4/80 levels? The authors seem to have accidentally left out the superscripted indicator of expression for that marker.

We thank the reviewer for pointing this out and, yes, the “+” refers to F480. We apologise for this carelessness and have now corrected this in the revised manuscript.

Second, why do the authors call the F480loMHChi cells 'interstitial macrophages', rather than conventional (c)DCs, specifically DC2? The data could be interpreted to mean that cDC2s maintain CCR2 longer than do macrophages, which would be an interesting observation.

We fully understand the reviewer’s concern here and the potential fine line between macrophages and dendritic cells. The macrophage nomenclature that we have used is based on a number of recent publications (Chakarov et al., 2019, Schyns et al., 2019 and Gibbings et al., 2017) in which these cells are classified as MHCII hi interstitial macs. We have now clarified this on page 8 of the revised manuscript.

Gibbings et al., 2017 DOI: 10.1165/rcmb.2016-0361OC

Chakarov et al., 2019 DOI: 10.1126/science.aau0964

Schyns et al., 2019 DOI: 10.1038/s41467-019-11843-0

There is no mention of lung CD103+ DCs (DC1), which can efficiently cross-present antigens to naïve T cells and have an important role is activation of CD8+ T cells. In addition to their display of CD103, DC1 can also be distinguished from DC2 by relatively low levels of CD11b. Thus, they can be identified as CD11chiMHCII hiCD103+CD11blow cells. However, I understand if the authors feel that this more detailed study is beyond the scope of the current paper.

We thank reviewer for this comment. The manuscript was designed to use exemplar cell types to demonstrate the utility of the reporter mouse strain and, as mentioned in response to comments from reviewer 1, we did not intend to include comprehensive leukocyte profiling. We are grateful for the reviewer’s understanding of the fact that this may be beyond the scope of current paper. We hope that the reviewer is happy with us not including these data in the revised manuscript.
