1. Neuroscience

Respiratory alkalosis provokes spike-wave discharges in seizure-prone rats

  1. Kathryn A Salvati  Is a corresponding author
  2. George MPR Souza
  3. Adam C Lu
  4. Matthew L Ritger
  5. Patrice Guyenet
  6. Stephen B Abbott
  7. Mark P Beenhakker  Is a corresponding author
  1. Department of Pharmacology, University of Virginia, United States
  2. Neuroscience Graduate Program, University of Virginia, United States
https://doi.org/10.7554/eLife.72898
Share this article
Cite this article
  1. Kathryn A Salvati
  2. George MPR Souza
  3. Adam C Lu
  4. Matthew L Ritger
  5. Patrice Guyenet
  6. Stephen B Abbott
  7. Mark P Beenhakker
(2022)
Respiratory alkalosis provokes spike-wave discharges in seizure-prone rats
eLife 11:e72898.
https://doi.org/10.7554/eLife.72898
  2. Download BibTeX
  3. Download .RIS

Abstract

Hyperventilation reliably provokes seizures in patients diagnosed with absence epilepsy. Despite this predictable patient response, the mechanisms that enable hyperventilation to powerfully activate absence seizure-generating circuits remain entirely unknown. By utilizing gas exchange manipulations and optogenetics in the WAG/Rij rat, an established rodent model of absence epilepsy, we demonstrate that absence seizures are highly sensitive to arterial carbon dioxide, suggesting that seizure-generating circuits are sensitive to pH. Moreover, hyperventilation consistently activated neurons within the intralaminar nuclei of the thalamus, a structure implicated in seizure generation. We show that intralaminar thalamus also contains pH-sensitive neurons. Collectively, these observations suggest that hyperventilation activates pH-sensitive neurons of the intralaminar nuclei to provoke absence seizures.

Editor's evaluation

The study evaluates the long debated question of how respiration affects seizure susceptibility. The authors use a rigorous approach to manipulate the gases breathed in by seizure prone rats while monitoring their respiration, electroencephalographic activity, blood pH and gas levels. They show that changes in pH caused by hyperventilation drive spike-wave seizures, that optogenetically driving hyperventilation induced spike-wave seizures by changing pH, and that intralaminar nuclei in the thalamus contain neurons that are activated during hyperventilation and are pH sensitive.

https://doi.org/10.7554/eLife.72898.sa0

Introduction

Epilepsy is a common neurological disorder characterized by recurrent and spontaneous seizures. Yet, accumulating evidence indicates that seizures are not necessarily unpredictable events (Amengual-Gual et al., 2019; Bartolini and Sander, 2019; Baud et al., 2018; Ferlisi and Shorvon, 2014). Several factors affect seizure occurrence, including metabolism (Lusardi et al., 2015; Masino et al., 2012; Masino and Rho, 2012; Masino and Rho, 2019), sleep (Bazil, 2019; Fountain et al., 1998; Malow et al., 1999; Nobili et al., 2001), catamenia (Herzog et al., 2014; Joshi and Kapur, 2019; Reddy et al., 2001), light (Padmanaban et al., 2019), and circadian rhythm (Amengual-Gual et al., 2019; Debski et al., 2020; Smyk and van Luijtelaar, 2020; Stirling et al., 2021). In extreme cases, stimuli immediately provoke seizures, a condition known as reflex epilepsy (Kasteleijn-Nolst Trenité, 2012; Koepp et al., 2016). The mechanisms that render certain seizure-generating networks susceptible to external factors remain unknown.

A highly reliable seizure trigger associated with childhood absence epilepsy is hyperventilation. Between 87% and 100% of all children diagnosed with the common genetic generalized epilepsy produce spike-wave seizures upon voluntary hyperventilation (Hughes, 2009; Ma et al., 2011; Sadleir et al., 2009). Indeed, hyperventilation serves as a powerful tool for diagnosing this childhood epilepsy (Adams and Lueders, 1981; Holowach et al., 1962; Sadleir et al., 2006; Watemberg et al., 2015). Remarkably, as no single genetic etiology drives absence epilepsy (Chen et al., 2013; Crunelli and Leresche, 2002; Helbig, 2015; Koeleman, 2018; Robinson et al., 2002; Xie et al., 2019), hyperventilation appears to recruit fundamental seizure-generating mechanisms shared virtually by all patients.

Exhalation of CO2 during hyperventilation causes hypocapnia, a state of decreased arterial CO2 partial pressure (PaCO2), and respiratory alkalosis, a state of elevated arterial pH (Laffey and Kavanagh, 2002). Hyperventilation also causes rapid arterial vasoconstriction (Raichle and Plum, 1972) and increased cardiac output (Donevan et al., 1962). Recent work demonstrates that inspiration of 5% CO2 blunts hyperventilation-provoked spike-wave seizures in humans (Yang et al., 2014). Collectively, these observations suggest that respiratory alkalosis serves as the primary trigger for hyperventilation-provoked absence seizures.

Spike-wave seizures associated with absence epilepsy arise from hypersynchronous neural activity patterns within interconnected circuits between the thalamus and the cortex (Avoli, 2012; Beenhakker and Huguenard, 2009; Huguenard and McCormick, 2007; McCafferty et al., 2018; McCormick and Contreras, 2001; Meeren et al., 2002). The crux of the prevailing model describing absence seizure generation includes an initiating bout of synchronous activity within the somatosensory cortex that recruits rhythmically active circuits in the thalamus (Meeren et al., 2002; Sarrigiannis et al., 2018). With widespread connectivity to the cortex, the thalamus then rapidly generalizes spike-wave seizures to other brain structures. The extent to which thalamocortical circuits respond to shifts in pH during hyperventilation-induced respiratory alkalosis is unknown.

Herein, we test the hypothesis that respiratory alkalosis regulates the occurrence of spike-wave seizures. We demonstrate that hyperventilation-provoked absence seizures observed in humans can be mimicked in an established rodent model, the WAG/Rij rat (Coenen and van Luijtelaar, 2003; Coenen et al., 1992; Russo et al., 2016; van Luijtelaar and Coenen, 1986). We first show that hyperventilation induced with hypoxia reliably evokes respiratory alkalosis and increases spike-wave seizure count in the WAG/Rij rat. When supplemented with 5% CO2 to offset respiratory alkalosis, hypoxia did not increase spike-wave seizure count. Moreover, hypercapnia alone (high PaCO2) reduced spike-wave seizure count despite a robust increase in respiration rate. We also show that optogenetic stimulation of brainstem respiratory centers to produce respiratory alkalosis during normoxia induces CO2-sensitive spike-wave seizures. Collectively, these results identify respiratory alkalosis as the primary seizure trigger in absence epilepsy following hyperventilation. Finally, we show that structures of the intralaminar thalamic nuclei are both (1) activated during respiratory alkalosis and (2) pH sensitive. Thus, our data demonstrate that respiratory alkalosis provokes spike-wave seizures and shine a spotlight on the poorly understood intralaminar thalamus in the pathophysiology of spike-wave seizures.

Results

Hypoxia triggers spike-wave seizures in the WAG/Rij rat

We first set out to determine if an accepted rat model of absence epilepsy, the WAG/Rij rat, recapitulates hyperventilation-provoked absence seizures, as observed in humans. We combined whole-body plethysmography and electrocorticography/electromyography (ECoG/EMG) recordings in awake WAG/Rij rats to assess respiration and spike-wave seizure occurrence while exposing animals to different gas mixtures of O2, CO2, and N2 (Figure 1A and B). We only considered spike-wave seizures that persisted for a minimum of 2 s and occurred concomitantly with behavioral arrest in the animal. Spike-wave seizures are distinguishable from non-REM sleep based on the appearance of 5–8 Hz frequency harmonics in the power spectrogram (see Figure 1B, expanded trace).

Figure 1
Download asset Open asset

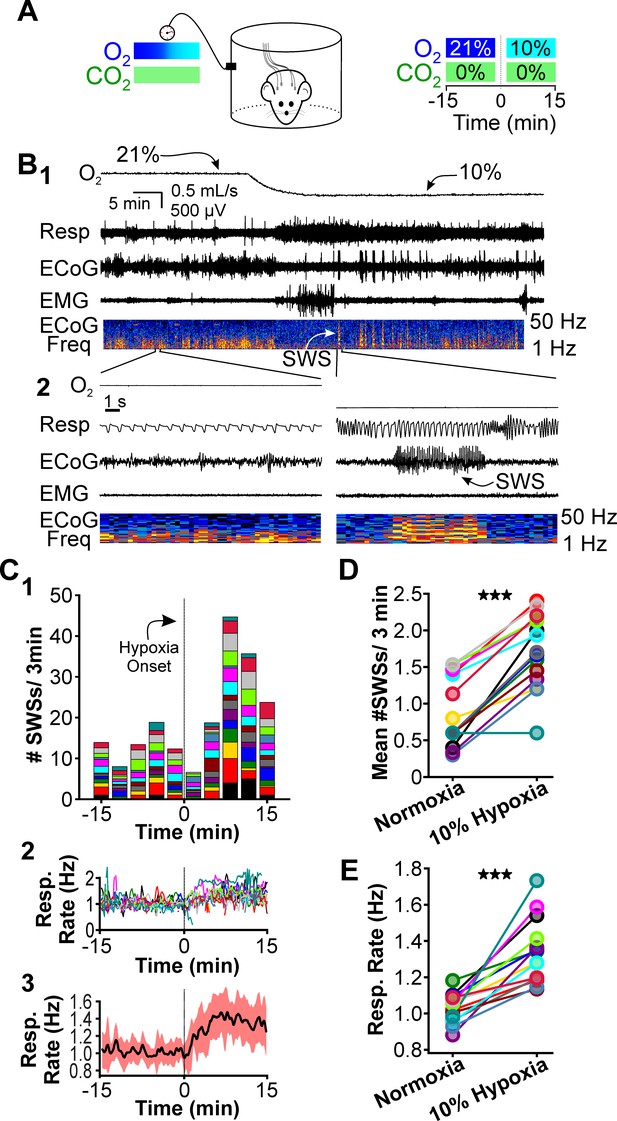

Hypoxia provokes hyperventilation-associated spike-wave seizures (SWS) in WAG/Rij rats.

(A) Experimental approach. Left: plethysmography chambers recorded ventilation and electrocorticography/electromyography (ECoG/EMG) signals in rats exposed to normoxia (i.e. 21% O2) and hypoxia (i.e. 10% O2). Right: example gas exchange protocol used to generate the peristimulus time histogram in panel C. SWS count was measured during the 15 min before and after gas exchange at t = 0 min. (B) Representative recordings during transition from normoxia to hypoxia. (1) From top to bottom: chamber O2, respiration, ECoG, EMG, and ECoG power spectrogram. White arrow points to SWS. (2) Bottom: expanded view B1. Spectrogram reveals 5–8 Hz frequency harmonics associated with SWS. (C) SWS and respiration quantification. (1) Stacked histogram illustrating SWS count for each animal before and after the onset of hypoxia; each color is a different rat. Arrow points to gas exchange at t = 0 min. (2) Corresponding respiratory rate for each animal shown in panel C1. (3) Mean respiratory rate for all animals. (D) Mean SWS count per bin and (E) respiratory rate before and after gas exchange. See for Tables 1–4 detailed statistics. ***p < 0.001.

We first compared respiration and ECoG/EMG activity in rats exposed to atmospheric conditions (i.e. normoxia: 21% O2; 0% CO2; 79% N2) and hypoxia (10% O2; 0% CO2; 90% N2). Hypoxia reliably stimulates rapid breathing, blood alkalosis, and hypocapnia in rats (Basting et al., 2015; Souza et al., 2019). We cycled rats between 40 min epochs of normoxia and 20 min epochs of hypoxia. O2 levels were measured from the outflow of the plethysmography chamber for confirmation of gas exchange (Figure 1B, top). Hypoxia evoked a robust increase in respiratory rate (Figure 1B, expanded) and reliably provoked seizures. A peristimulus time histogram (PSTH) aligned to the onset of gas exchange shows spike-wave seizure counts during the 15 min immediately before and during hypoxia (Figure 1C1); the PSTH shows the contribution of each rat in stacked histogram format. Respiratory rates confirmed that hypoxia increased ventilation (Figure 1C2,3). To quantify the effect of hypoxia on seizures, we calculated the mean spike-wave seizure count across all bins for each rat. Relative to normoxia, spike-wave seizure count during hypoxia was nearly twofold higher (p = 4.5 × 10–7, n = 15; Figure 1D, Table 1) and respiratory rate increased by 30% (p = 1.6 × 10–5, n = 15; Figure 1E, Table 2). Whereas the duration of individual spike-wave seizures was not altered by hypoxia (normoxia: 5.3 ± 0.4 s; hypoxia: 5.8 ± 0.4 s; p = 0.56, n = 15, Table 3), the frequency of individual events was lower (normoxia: 7.6 ± 0.12 Hz; hypoxia: 5.8 ± 0.4 Hz; p = 4.7 × 10–5, n = 15, Table 4).

Table 1
Spike-wave seizure count.
FigureComparisonBin count(mean ± S.E.)np Value
1DNormoxia0.89 ± 0.12154.5 × 10–7
Hypoxia1.73 ± 0.13
3CNormoxia0.99 ± 0.1891.76 × 10–6
Hypoxia1.82 ± 0.14
3FNormoxia1.09 ± 0.2290.18
Hypoxia + CO20.84 ± 0.13
4CNormoxia1.36 ± 0.1780.0028
Normoxia + CO20.95 ± 0.10
5DNormoxia1.17 ± 0.38100.002
Normoxia + Photostim.2.27 ± 0.63
5GNormoxia1.04 ± 0.3260.86
Normoxia + Photostim.+ CO21.01 ± 0.30
Table 2
Respiratory rate.
FigureComparisonResp. rate (Hz)(mean ± S.E.)np Value
1ENormoxia1.03 ± 0.02151.67 × 10–5
Hypoxia1.33 ± 0.05
3DNormoxia1.00 ± 0.0296.59 × 10–4
Hypoxia1.28 ± 0.05
3GNormoxia1.06 ± 0.0392.71 × 10–4
Hypoxia + CO21.88 ± 0.15
4DNormoxia0.99 ± 0.0393.78 × 10–5
Normoxia + CO21.78 ± 0.10
5ENormoxia1.02 ± 0.03100.019
Normoxia + Photostim.1.24 ± 0.08
5HNormoxia1.01 ± 0.0360.031
Normoxia + Photostim.+ CO21.84 ± 0.08
Table 3
Spike-wave seizure duration.
FigureComparisonDuration (s)(mean ± S.E.)np Value
1DNormoxia5.3 ± 0.4150.56
Hypoxia5.8 ± 0.4
3CNormoxia5.5 ± 0.590.26
Hypoxia6.3 ± 0.5
3FNormoxia5.5 ± 0.690.006
Hypoxia + CO27.5 ± 1.0
4CNormoxia5.6 ± 0.480.22
Normoxia + CO26.2 ± 0.4
5DNormoxia4.3 ± 0.6100.51
Normoxia + Photostim.4.6 ± 0.5
5GNormoxia6.8 ± 1.060.88
Normoxia + Photostim.+ CO26.9 ± 1.0
Table 4
Spike-wave seizure frequency.
FigureComparisonFrequency (Hz)(mean ± S.E.)np Value
1DNormoxia7.6 ± 0.1154.7 × 10–5
Hypoxia5.8 ± 0.4
3CNormoxia7.7 ± 0.290.014
Hypoxia6.3 ± 0.5
3FNormoxia7.8 ± 0.190.18
Hypoxia + CO27.5 ± 1.0
4CNormoxia6.1 ± 1.080.28
Normoxia + CO26.2 ± 0.0
5DNormoxia7.5 ± 0.2102.2 × 10–4
Normoxia + Photostim.4.6 ± 0.5
5GNormoxia7.9 ± 0.260.33
Normoxia + Photostim.+ CO26.9 ± 1.0

Recent work shows that spike-wave seizures commonly occur in several rat strains, including those that are generally not considered epileptic (Taylor et al., 2017; Taylor et al., 2019). While between 62% (Vergnes et al., 1982) and 84% (Robinson and Gilmore, 1980) of Wistar rats do not have seizures, we nonetheless tested whether hypoxia can unmask seizure-generating potential in this strain, as Wistar and WAG/Rij rats share the same genetic background (Festing, 1979). In normoxia, seizures were absent in all four Wistar rats we tested, consistent with the infrequent spike-wave seizure occurrence reported for this strain. Relative to normoxia in Wistar rats, hypoxia induced hyperventilation, hypocapnia, and blood alkalization but did not provoke spike-wave seizures (Figure 2; see Table 5). Instead, hypoxia primarily triggered arousal in Wistar rats, as revealed in EEG spectrograms by the reduction in sleep-related frequencies. Therefore, we hypothesize that hypoxia-provoked spike-wave seizures are unique to seizure-prone rodent models, just as hyperventilation does not provoke absence seizures in otherwise healthy humans.

Figure 2
Download asset Open asset

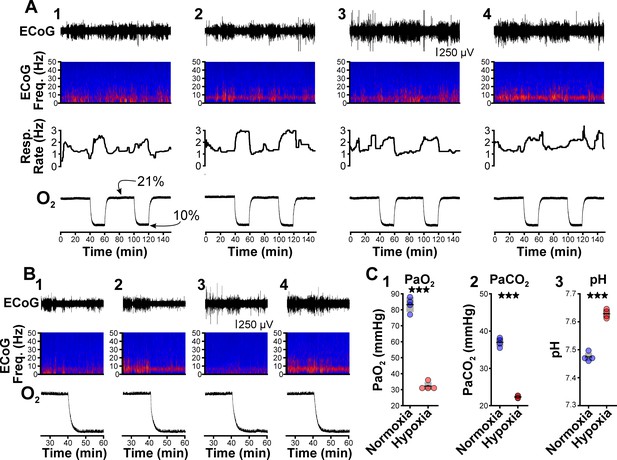

Hypoxia does not provoke hyperventilation-associated spike-wave seizures (SWS) in Wistar rats.

(A) Plethysmography chambers recorded ventilation and electrocorticography/electromyography (ECoG/EMG) signals in four Wistar rats exposed to normoxia (i.e. 21% O2) and hypoxia (i.e. 10% O2). Panels 1–4 include responses from four Wistar rats, respectively, and show from top to bottom: ECoG, ECoG power spectrogram, respiratory rate, and chamber O2. During the 2.5 hr recording session, rats were challenged twice with hypoxia. No SWS were observed during either normoxia or hypoxia. (B) Expanded views of the first transition from normoxia to hypoxia shown in panel A. Increased low frequency power during normoxia in some rats (e.g. panel B2) represents sleep. Hypoxia in Wistar rats generally increased arousal. (C) Arterial measurements in the same rats show that hypoxia challenges produced a predictable drop in arterial (1) O2 and (2) CO2, as well as (3) alkalosis. See Table 5 for detailed statistics. ***p < 0.001.

Table 5
Arterial measurements in Wistar rats.
FigureParameterComparisonValuenp Value
2C1PaO2Normoxia83.25 ± 2.3240.0002
Hypoxia32.25 ± 1.25
2C2PaCO2Normoxia37.0 ± 0.5946.6 × 10–5
Hypoxia22.33 ± 0.16
2C3pHNormoxia7.47 ± 0.0144.5 × 10–5
Hypoxia7.63 ± 0.01

CO2 suppresses spike-wave seizures

Hyperventilation promotes hypocapnia, a state of low PaCO2. As dissolved CO2 is acidic, hyperventilation-triggered hypocapnia is also associated with respiratory alkalosis. To test the hypothesis that hypocapnia specifically provokes seizures, we next determined whether supplemental CO2 (5%) blunts the spike-wave seizure-provoking effects of hypoxia. We performed ECoG/plethysmography experiments as before but alternated between two test trials: hypoxia and hypoxia/hypercapnia (10% O2, 5% CO2; 85% N2). Test trials were interleaved with 40 min periods of normoxia to allow blood gases to return to baseline levels (Figure 3A). As before, hypoxia increased spike-wave seizure count by nearly twofold (p = 1.76 × 10–6, n = 9; Figure 3B1 and C, Table 1) and increased respiratory rate by 27% (p = 6.59 × 10–4, n = 9; Figure 3B3 and D, Table 2). Also as before, the duration of individual spike-wave seizures was not altered by hypoxia (normoxia: 5.5 ± 0.5 s; hypoxia: 6.3 ± 0.5 s; p = 0.26, n = 9, Table 3), but the frequency of individual events was lower (normoxia: 7.7 ± 0.2 Hz; hypoxia: 6.3 ± 0.5 Hz; p = 0.014, n = 9, Table 4). In the same rats, supplementing hypoxia with 5% CO2 suppressed the spike-wave seizure response insofar that hypoxia/hypercapnia did not change spike-wave seizure count relative to normoxia (p = 0.18, n = 9; Figure 3E1 and F, Table 1) despite a predictable and robust elevation in respiratory rate (p = 2.71 × 10–4, n = 9; Figure 3E2, and G, Table 2). Relative to normoxia, the duration of individual spike-wave seizures was elevated during hypoxia/hypercapnia (normoxia: 5.5 ± 0.6 s; hypoxia/hypercapnia: 7.5 ± 1.0 s; p = 0.006, n = 9), but the frequency of individual spike-wave seizures was unchanged (normoxia: 7.8 ± 0.1 Hz; hypoxia/hypercapnia: 7.5 ± 1.0 Hz; p = 0.77, n = 9, Table 4).

Figure 3
Download asset Open asset

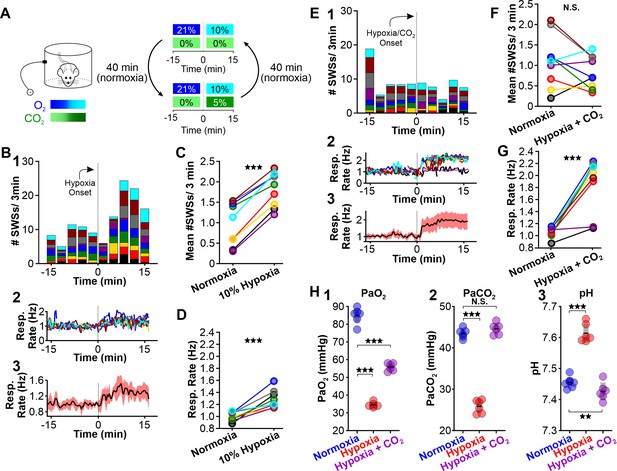

CO2 suppresses hypoxia-provoked spike-wave seizures (SWS).

(A) Experimental approach. Plethysmography chambers recorded ventilation and ECoG/EMG signals in WAG/Rij rats exposed to normoxia (i.e. 21% O2) and then alternately challenged with hypoxia (i.e. 10% O2) or hypoxia + CO2 (i.e. 10% O2, 5% CO2). (B–D) Hypoxia challenge. (B) SWS and respiration quantification. (1) Stacked histogram illustrating SWS count for each animal before and after the onset of hypoxia. (2) Corresponding respiratory rate for each animal shown in panel B1. (3) Mean respiratory rate for all animals. (C) Mean SWS count per bin and (D) respiratory rate before and after hypoxia exchange. (E–G) Hypoxia + CO2 challenge. (E) SWS and respiration quantification. (1) Stacked histogram illustrating SWS count for each animal before and after the onset of hypoxia + CO2. (2) Corresponding respiratory rate for each animal shown in panel E1. (3) Mean respiratory rate for all animals. (F) MeanSWS count per bin and (G) respiratory rate before and after hypoxia + CO2 exchange. (H) Arterial measurements show that hypoxia produced a predictable drop in arterial (1) O2 and (2) CO2, as well as (3) respiratory alkalosis (as in Wistar rats). Supplementing the chamber with 5% CO2 normalizes arterial CO2 and pH. Elevated arterial O2 during hypoxia + CO2 relative to hypoxia reflects a powerful inhalation response during the former condition (c.f. panels D and G). See Tables 1, 2 and 6 for detailed statistics. **p < 0.01, ***p < 0.001.

In a separate cohort of rats, we collected arterial blood samples to measure blood PaCO2, PaO2, and pH during normoxia, hypoxia, and hypoxia/hypercapnia (see Table 6). We observed a considerable change in PaO2 [F (1.056, 5.281) = 406.4, p = 3.0 × 10–6], PaCO2 [F (1.641, 8.203) = 338.9, p = 1.9 × 10–8] and pH [F (1.938, 9.688) = 606, p = 7.2 × 10–11] values among the three conditions. Hypoxia decreased PaCO2 (p = 2.1 × 10–6 n = 6; Figure 3H2, Table 6) and concomitantly alkalized the blood (p = 7.0 × 10–6, n = 6; Figure 3H3, Table 6). We also observed a decrease in PaO2 (p = 6.0 × 10–6, n = 6; Figure 3H1, Table 6). Supplemental CO2 returned blood pH (p = 0.008, n = 6; Figure 3H3, Table 6) and PaCO2 (p = 0.42, n = 6; Figure 3H2, Table 6) to normoxia levels. However, heightened respiratory rate in supplemental CO2 raised PaO2 (p = 00013, n = 6; Figure 3H1, Table 6). Collectively, these data support the hypothesis that blood pH powerfully regulates spike-wave seizure activity.

Table 6
Arterial measurements in WAG/Rij rats.
FigureParameterComparisonValuenp Value
3H1PaO2Normoxia84.93 ± 1.8266.0 × 10–6
Hypoxia34.50 ± 0.56
Normoxia84.93 ± 0.0260.000134
Hypoxia +CO255.83 ± 0.87
3H2PaCO2Normoxia43.48 ± 0.4762.1 × 10–6
Hypoxia25.83 ± 0.65
NormoxiaHypoxia +CO243.48 ± 0.4760.42
44.60 ± 0.55
3H3pHNormoxia7.45 ± 0.0167.0 × 10–6
Hypoxia7.61 ± 0.01
Normoxia7.45 ± 0.0160.008
Hypoxia +CO27.43 ± 0.01
4E1PaO2Normoxia84.93 ± 1.8260.00019
5% CO234.50 ± 0.56
4E2PaCO2Normoxia43.48 ± 0.4760.022
5% CO225.83 ± 0.65
4E3pHNormoxia7.45 ± 0.0160.00063
5% CO27.42 ± 0.01

Next, we tested whether supplementing normoxia with 5% CO2 is sufficient to reduce spike-wave seizure counts. Respiration during high CO2 causes hypercapnia, a condition that increases blood PaCO2 and acidifies the blood (Eldridge et al., 1984). As with hypoxia, hypercapnia also triggers hyperventilation (Guyenet et al., 2019). We performed ECoG/plethysmography experiments in rats that cycled through trials of normoxia and hypercapnia (21% O2; 5% CO2; 74% N2) and compared the mean number of seizures observed during the two conditions. Relative to normoxia, the number of spike-wave seizures was lower during 5% CO2 (p = 0.0028, n = 8; Figure 4B1, C, Table 1); hypercapnia also induced a powerful respiratory response (p = 3.78 × 10–5, n = 8; Figure 4B2,3 and 4D, Table 2). Hypercapnia neither changed the duration (normoxia: 5.6 ± 0.4 s; hypercapnia: 6.2 ± 0.4 s; p = 0.22, n = 8, Table 3) nor the frequency (normoxia: 6.1 ± 1.0 Hz; hypercapnia: 6.2 ± 0.4 Hz; p = 0.28, n = 8, Table 4) of individual spike-wave seizures. Blood gas measurements revealed that 5% hypercapnia increased PaCO2 (p = 0.022, n = 6; Figure 4E2) and slightly acidified blood pH (p = 0.00063, n = 6; Figure 4E3, Table 6). These results provide further support for the hypothesis that the neural circuits that produce spike-wave seizures are CO2 sensitive, and thus pH sensitive. Moreover, the results demonstrate that neither the mechanics of elevated ventilation nor increased arousal, is sufficient to provoke spike-wave seizures.

Figure 4
Download asset Open asset

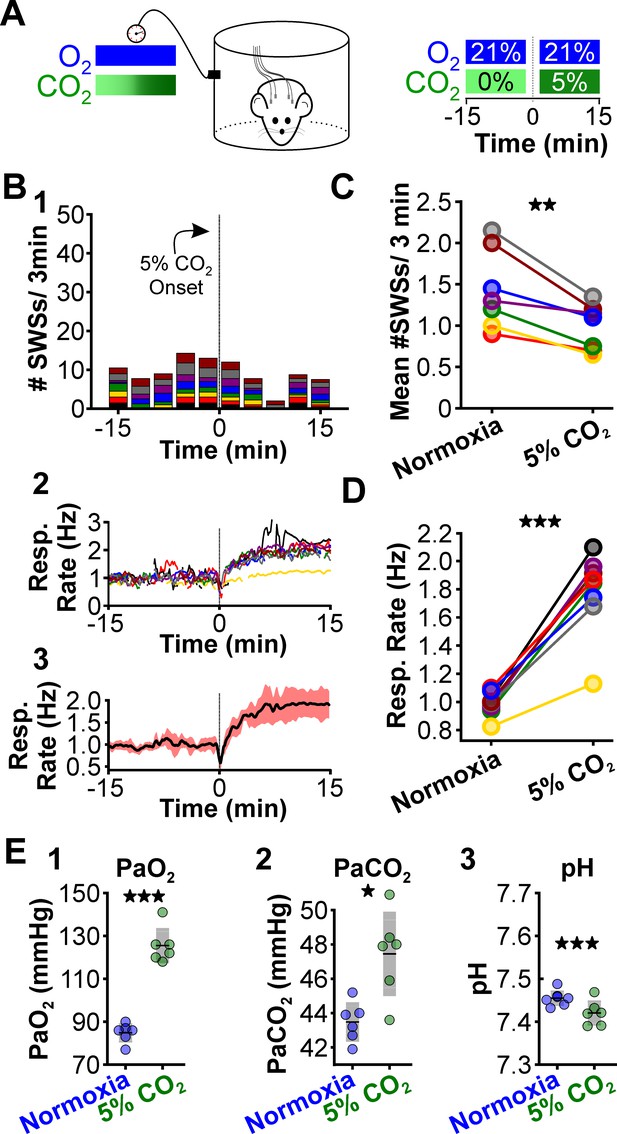

CO2 suppresses spontaneous spike-wave seizures (SWS).

(A) Experimental approach. Plethysmography chambers recorded ventilation and electrocorticography/electromyography signals in WAG/Rij rats exposed to normoxia (i.e. 21% O2) and hypercapnia (i.e. 21% O2, 5% CO2). (B) SWS and respiratory quantification. (1) Stacked histogram illustrating SWS count for each animal before and after the onset of hypercapnia. (2) Corresponding respiratory rate for each animal shown in panel B1. (3) Mean respiratory rate for all animals. (C) Mean SWS count per bin and (D) respiratory rate before and after hypercapnia exchange. (E) Arterial measurements in the same rats show that hypercapnia produced a predictable increase in arterial (1) O2 and (2) CO2, as well as (3) respiratory acidosis. Increase arterial O2 reflects robust ventilatory response during hypercapnia. See Tables 1, 2 and 6 for detailed statistics. *p < 0.05, **p < 0.01, ***p < 0.001.

Optogenetic stimulation of the retrotrapezoid nucleus provokes spike-wave seizures

In addition to inducing hyperventilation and hypocapnia, hypoxia also lowers PaO2 (see Figure 3H1), an effect that stimulates the carotid body, the principal peripheral chemoreceptor that initiates hyperventilation during hypoxic conditions (Lindsey et al., 2018; López-Barneo et al., 2016; Semenza and Prabhakar, 2018). Carotid body activity recruits neurons of the nucleus tractus solitarius that then excite neurons of the central respiratory pattern generator to drive a respiratory response (Guyenet, 2014; López-Barneo et al., 2016). To evaluate the capacity of hyperventilation to provoke seizures in the absence of hypoxia (and, therefore, in the absence of carotid body activation), we utilized an alternative approach to induce hyperventilation. Under physiological conditions, chemosensitive neurons of the retrotrapezoid nucleus (RTN), a brainstem respiratory center, are activated during an increase in PaCO2 and a consequent drop in arterial pH (Guyenet et al., 2016; Guyenet et al., 2019; Guyenet and Bayliss, 2015) that then stimulate respiration. Optogenetic activation of RTN neurons in normoxia is sufficient to evoke a powerful hyperventilatory response that alkalizes the blood (Abbott et al., 2011; Souza et al., 2020). Importantly, PaO2 remains stable (or is slightly elevated) during optogenetically induced respiration. Therefore, hyperventilation evoked by optogenetic RTN activation during normoxia both (1) promotes respiratory alkalosis without hypoxia and (2) is a more clinically relevant approximation of voluntary hyperventilation than hypoxia-induced hyperventilation.

We selectively transduced RTN neurons of WAG/Rij rats with a lentiviral approach using the PRSX8 promoter to drive channelrhodopsin expression (Abbott et al., 2009; Hwang et al., 2001; Lonergan et al., 2005; Figure 5A and B). Once channelrhodopsin was expressed, we challenged rats with two test trials: RTN photostimulation during normoxia and RTN photostimulation during hypercapnia (Figure 5C); in a subset of animals, we cycled rats between the two conditions. In both trials, laser stimulation was delivered with trains of stimuli. During each train, the laser was pulsed at 20 Hz (10 ms pulse) for 2 s. The laser was then off for 2 s (i.e. intertrain interval = 2 s, see Figure 5C). This train stimulus was repeated for 15 min. Laser stimulation during normoxia provoked spike-wave seizures (p = 0.002, n = 10; Figure 5D, E1, and F, Table 1) and also increased ventilation (p = 0.019, n = 10; Figure 5E2,3, and 5G). Laser stimulation during normoxia did not alter the duration of individual spike-wave seizures (normoxia: 4.3 ± 0.6 s; normoxia-laser: 4.6 ± 0.5 s; p = 0.51, n = 10, Table 3). By contrast, the frequency of individual spike-wave seizures was lower during laser stimulation, relative to normoxia-alone (normoxia: 7.5 ± 0.2 Hz; normoxia-laser: 4.6 ± 0.5 Hz; p = 2.2 × 10–4, n = 10, Table 4). Laser stimulation during hypercapnia in the same animals did not alter spike-wave seizure count (p = 0.86, n = 6; Figure 5H1 and I, Table 1), despite the induction of a strong hyperventilatory response (p = 0.031, n = 6; Figure 5H2,3, and 5J, Table 2). We observed no difference in duration (normoxia: 6.8 ± 1.0 s; hypercapnia-laser: 6.9 ± 1.0 s; p = 0.88, n = 6, Table 3) or frequency (normoxia: 7.9 ± 0.2 Hz; hypercapnia-laser: 6.9 ± 1.0 Hz; p = 0.33, n = 6, Table 4) of individual spike-wave seizures during normoxia versus hypercapnia coupled with laser stimulation. In sum, these results support the hypothesis that respiratory alkalosis is necessary to provoke seizures during hyperventilation and excludes carotid body activation as a contributing factor.

Figure 5
Download asset Open asset

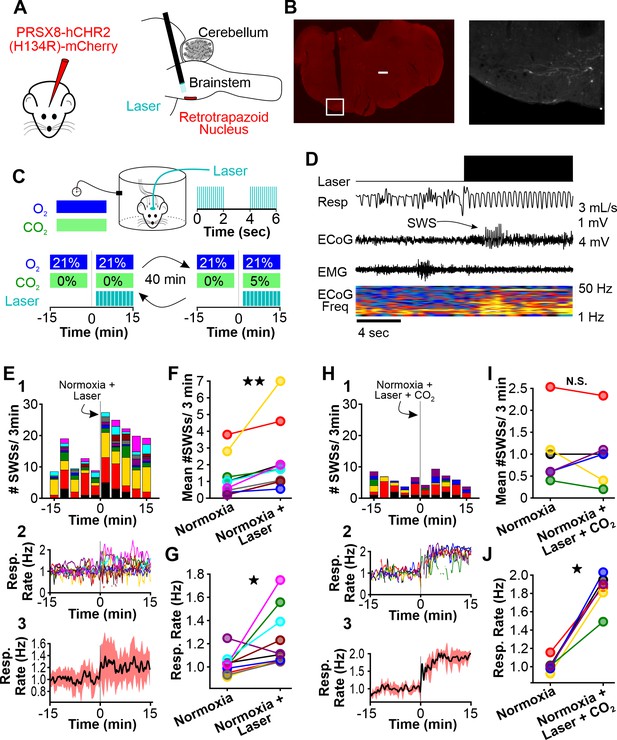

Normoxic hyperventilation provokes CO2-sensitive spike-wave seizures (SWS).

(A) Channelrhodopsin was virally delivered to the retrotrapezoid nucleus (RTN). The fiber optic cable was implanted during the surgery. After 3 weeks, photostimulation of the RTN induced hyperventilation. (B) After experimentation, opsin expression and fiber optic placement was verified. Representative image of mCherry-positive cells in the RTN. Large notch in slice is from optical fiber. Box on left image is enlarged on right image. Scale bar = 500 µm. (C) Experimental approach. Plethysmography chambers recorded ventilation and electrocorticography/electromyography signals in WAG/Rij rats exposed to normoxia (i.e. 21% O2) and normoxia + CO2 (i.e. 10% O2, 5% CO2). Channelrhodopsin-mediated photostimulation of the RTN was used to increase ventilation. (D) Example of ventilatory response and SWS during normoxic RTN photostimulation. (E–G) RTN photostimulation during normoxia. (E) SWS and respiration quantification. (1) Stacked histogram illustrating SWS count for each animal before and after normoxia photostimulation onset. (2) Corresponding respiratory rate for each animal shown in panel C1. (3) Mean respiratory rate for all animals. (F) Mean SWS count per bin and (G) respiration rate before and after normoxia photostimulation onset. (H–J) RTN photostimulation during hypercapnia (i.e. 21% O2, 5% CO2). (H) SWS and respiratory quantification. (1) Stacked histogram illustrating SWS count for each animal before and after hypercapnic photostimulation onset. (2) Corresponding respiratory rate for each animal shown in panel F1. (3) Mean respiratory rate for all animals. (I) Mean SWS count per bin and (J) respiratory rate before and after hypercapnic photostimulation onset. See Tables 1, 2 and 6 for detailed statistics. *p < 0.05, **p < 0.01, not significant (n.s.).

Hypoxia-induced hyperventilation activates neurons of the intralaminar thalamus

Thus far, our results demonstrated that respiratory alkalosis (i.e. hyperventilation that promotes a net decrease in PaCO2) provokes spike-wave seizures in the WAG/Rij rat. Next, we sought to identify brain structures activated during respiratory alkalosis that may contribute to spike-wave seizure provocation. We used the neuronal activity marker cFos to identify such structures in WAG/Rij rats. To isolate activation specifically associated with respiratory alkalosis, we first administered ethosuximide (200 mg/kg, i.p.) to suppress spike-wave seizures; respiration and ECoG/EMG signals confirmed ventilatory responses and spike-wave seizure suppression. Ethosuximide-injected rats were exposed to either hypoxia, normoxia, or hypoxia/hypercapnia for 30 min and then transcardially perfused 90 min later. Brains were harvested and evaluated for cFos immunoreactivity. Surprisingly, in rats exposed to hypoxia we observed heightened immunoreactivity in the intralaminar nuclei, a group of higher-order thalamic nuclei that, unlike first-order thalamic nuclei, do not receive peripheral sensory information (Saalmann, 2014; Figure 6A and B). Indeed, cFos immunoreactivity was largely absent from first-order thalamic nuclei and cortex, and was blunted in rats treated with normoxia and hypoxia/hypercapnia (Figure 6B). Importantly, the latter condition elevates respiration but normalizes arterial pH (see Figure 3G and H). Immunoreactivity quantification revealed that the number of cFos-positive cells within the intralaminar thalamic nuclei was highest following hypoxia [ANOVA: F (2, 6) = 31.59, p = 0.00019, Figure 6C, Table 7].

Figure 6
Download asset Open asset

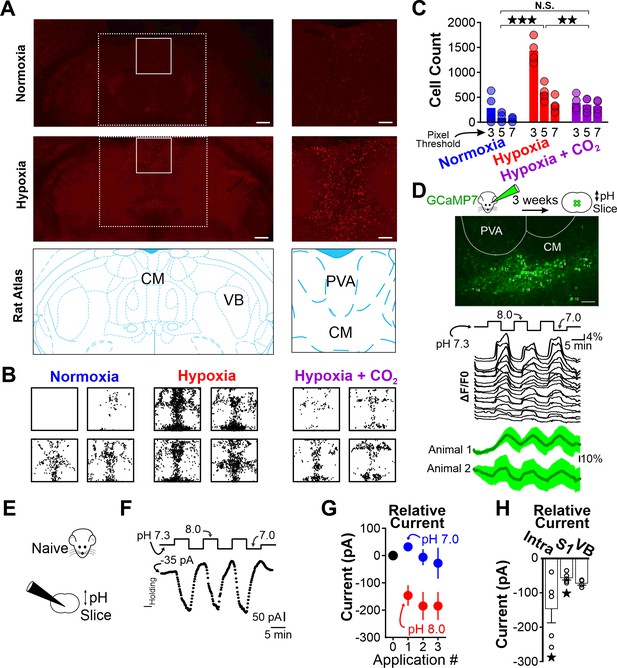

Hypoxia-induced hyperventilation activates intralaminar thalamic neurons.

(A) cFos immunohistochemistry in horizontal sections of the WAG/Rij rat. Dashed lines highlight the medial region of the thalamus containing the intralaminar nuclei. Solid lines demarcate regions containing elevated cFos expression and are expanded on right. Top images are collected from a rat exposed to 30 min of normoxia. Middle images are collected from a rat exposed to 30 min of hypoxia. Bottom images are taken from Paxinos and Watson, 2007 and show the structural landmarks in the top and middle images. The central median nucleus (intralaminar thalamus) and ventrobasal complex (VB, first-order thalamus) are labeled. (B) cFos density plots show immunoreactivity in each of four rats exposed to either normoxia, hypoxia, or hypoxia + CO2. Each black dot represents a cFos-positive cell, as identified with ImageJ (see Methods). Plots are aligned to expanded views in panel A. (C) Quantification of cFos labeled cells at different ImageJ thresholding values. (D) GCaMP7 was stereotaxically delivered to the intralaminar nuclei. Later, fluorescence changes were measured during extracellular alkaline challenges in acute slices containing the intralaminar nuclei. Individual ROIs show fluorescence changes during alkalosis (black traces). Mean responses from two animals are shown in green. The lag in response reflects the duration required for a complete solution exchange. (E) pH sensitivity of intralaminar neurons was also evaluated using electrophysiological measurements in acute brain slices. (F) Voltage-clamped intralaminar neurons (Vhold = –50 mV) were exposed to control (pH 7.3), alkaline (pH 8.0), and acidic (pH 7.0) conditions. Inward currents were evoked during alkaline conditions. (G) Population intralaminar neuron response to alkaline conditions (n = 5). (H) Alkaline-evoked inward currents were largest in the intralaminar neurons (−146 ± 41.1 pA, n = 5), relative to similar measurements in neurons of the somatosensory cortex (S1, −59.1 ± 7.3 pA, n = 5) or thalamus (VB, ventrobasal nucleus, −68.1 ± 3.5 pA, n = 4). Inward currents during alkaline conditions (pH 8.0) in both intralaminar and S1 neurons were significantly larger, relative to their respective currents measured at a baseline pH of 7.3. Currents are presented as baseline-subtracted. **p < 0.01, ***p < 0.001. See Table 7 for detailed statistics. Scale bars are 500 µm (left) and 100 µm (right).

Table 7
cFos-positive cells in WAG/Rij rats.
FigureThresholdComparisonCounts(mean ± S.E.)np Value
6C3Normoxia282 ± 148.241.5 × 10–7
Hypoxia1370 ± 137
Normoxia282 ± 148.240.55
Hypoxia+ CO2385.5 ± 78.7
HypoxiaHypoxia+ CO21370 ± 137385.5 ± 78.744.3 × 10–7
5Normoxia112.3 ± 57.140.0005
Hypoxia595.3 ± 85.0
Normoxia112.3 ± 57.140.045
Hypoxia+ CO2348 ± 68.9
HypoxiaHypoxia+ CO2595.3 ± 85.0348 ± 68.940.061
7Normoxia57.3 ± 29.240.021
Hypoxia349 ± 75.0
Normoxia57.3 ± 29.240.036
Hypoxia+ CO2319.5 ± 63.1
HypoxiaHypoxia+ CO2349 ± 75.0319.5 ± 63.140.95
 
 Holding currents (pA)NP value
6HIntraBaseline pH 7.3pH 8.09.9 ± 11.1–136.6 ± 17.550.016
S1Baseline pH 7.3pH 8.04.2 ± 5.363.3 ± 8.450.008
VBBaseline pH 7.3pH 8.06.5 ± 19.4–61.6 ± 27.440.057

As heightened cFos immunoreactivity was observed primarily following hypoxia that results in pronounced respiratory alkalosis, we next tested the hypothesis that neurons of the intralaminar nuclei are pH sensitive. We stereotaxically delivered the pan-neuronal expressing GCaMP7s (pGP-AAV-syn-jGCaMP7s-WPRE) to the intralaminar nuclei and harvested acute brain sections 3 weeks later (Figure 6D). Recording fluorescence changes in brain sections revealed that extracellular alkalosis quickly and reversibly activated neurons of the intralaminar nuclei (Figure 6D). An electrophysiological evaluation of pH sensitivity using voltage-clamp recordings (Vhold = –50 mV) showed that alkaline bathing solutions evoke inward currents in intralaminar neurons (Figure 6F and G, Table 7), suggesting that excitatory ion channels and/or receptors were activated. Interestingly, alkaline-induced inward currents appeared blunted in other structures implicated in spike-wave seizure generation, such as somatosensory thalamus and cortex (Figure 6H). These results are consistent with previous reports of blunted, macroscopic pH sensitivity in the somatosensory thalamus (Meuth et al., 2006). Collectively, these results support the hypothesis that respiratory alkalosis activates pH-sensitive neurons of the intralaminar thalamic nuclei in the WAG/Rij rat.

Discussion

Hyperventilation-provoked seizures associated with absence epilepsy were first formally described in 1928 by Lennox, 1928 and despite the clinical ubiquity of utilizing hyperventilation to diagnose the common form of childhood epilepsy, no animal studies have attempted to resolve the physiological events that enable hyperventilation to reliably provoke spike-wave seizures. To resolve events and relevant brain structures recruited during this phenomenon, we first utilized the WAG/Rij rat to establish a rodent model that mimics hyperventilation-provoked spike-wave seizures in humans. With this model, we show that hyperventilation only provokes spike-wave seizures in seizure-prone, not generally seizure-free, rats. We then show that supplemental CO2, by mitigating respiratory alkalosis, suppresses spike-wave seizures triggered by hyperventilation during either hypoxia or direct activation of brainstem respiratory centers. Moreover, supplemental CO2, by producing respiratory acidosis, suppresses spontaneous spike-wave seizures (i.e. those occurring during normoxia) despite a compensatory increase in respiratory rate. These data demonstrate that spike-wave seizures are yoked to arterial CO2/pH. Finally, we demonstrate that respiratory alkalosis activates neurons of the intralaminar thalamic nuclei, also in a CO2-dependent manner; activation of these neurons is also pH sensitive. With these observations, we propose a working model wherein respiratory alkalosis activates pH-sensitive neurons of the intralaminar nuclei that in turn engage seizure-generating neural circuits to produce spike-wave seizures (Figure 7).

Figure 7
Download asset Open asset

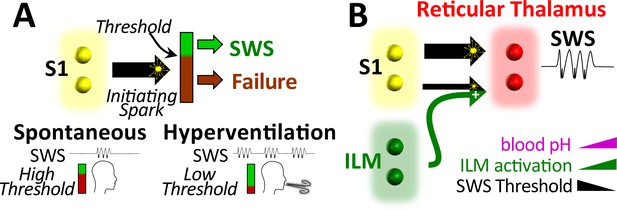

Working model.

(A) Spike-wave seizures (SWS) only occur if initiating activity from S1 somatosensory cortex successfully overcomes a threshold, consistent with the cortical focus theory (Meeren et al., 2002). Hyperventilation-associated alkalosis reduces SWS threshold. (B) S1 initiating activity is proposed to overcome a seizure node formed by circuits in reticular thalamus to generate an SWS (Paz and Huguenard, 2015). We propose that hyperventilation-evoked respiratory alkalosis activates the intralaminar nuclei to reduce the threshold for S1 activity required to evoke an SWS. Thalamic pH sensitivity.

Cortical EEG patterns evoked by hyperventilation

Hyperventilation produces stereotypical EEG patterns in both healthy children and children with absence epilepsy (Barker et al., 2012). In healthy children, hyperventilation can evoke an EEG pattern known as hyperventilation-induced, high-amplitude rhythmic slowing (HIHARS) that is often associated with altered awareness (Barker et al., 2012; Lum et al., 2002). Electrographically, HIHARS is distinct from spike-wave seizures insofar the EEG lacks epilepsy-associated spikes and resembles slow-wave sleep. Nonetheless, age-dependence and behavioral similarities between HIHARS and absence seizures exist (Lum et al., 2002; Mattozzi et al., 2021), thereby supporting the hypothesis that HIHARS and spike-wave seizures borrow from overlapping neural circuit mechanisms (Mattozzi et al., 2021). Indeed, while HIHARS and spike-wave seizures are clearly distinct EEG patterns, human spike-wave seizures observed during hyperventilation are subtly different from those occurring spontaneously (Sadleir et al., 2008), perhaps a reflection of the contribution of EEG-slowing circuitry to spike-wave seizures; while largely similar, we also found some differences in WAG/Rij spike-wave seizure frequency during some manipulations.

When viewed alongside work performed in the 1960s by Sherwin, 1965; Sherwin, 1967, our results support the hypothesis that hyperventilation-provoked spike-wave seizures and HIHARs share common circuits. Sherwin demonstrated that hyperventilation evokes HIHARS in cats (Sherwin, 1965), and that the stereotyped EEG pattern requires an intact central lateral nucleus of the thalamus (Sherwin, 1967). Together with the central medial (CM) and paracentral thalamic nuclei, the central lateral nucleus belongs to the anterior group of the intralaminar nuclei (Saalmann, 2014), the location of cFos immunoreactivity associated with respiratory alkalosis and pH sensitivity (Figure 6). Indeed, at the time Sherwin postulated that the intralaminar nuclei of the thalamus are both chemoreceptive and capable of engaging widespread cortical activity (Sherwin, 1967). We now postulate that these nuclei are also instrumental for provoking spike-wave seizures during hyperventilation.

Thalamocortical circuit involvement in spike-wave seizures

Decades of work have culminated in a canonical model wherein interconnected circuits between the cortex and thalamus support the initiation and maintenance of generalized spike-wave seizures (Avoli, 2012; Beenhakker and Huguenard, 2009; Huguenard and McCormick, 2007; McCafferty et al., 2018; McCormick and Contreras, 2001; Meeren et al., 2002). By recording from multiple sites in the WAG/Rij rat, Meeren et al. (Meeren et al., 2002) concluded that the peri-oral region of somatosensory cortex provides the bout of hypersynchronous activity that initiates a spike-wave seizure. This activity then rapidly recruits additional somatosensory cortices and the lateral dorsal thalamus, a higher-order thalamic nucleus involved in spatial learning and memory (Bezdudnaya and Keller, 2008). Finally, first-order thalamic nuclei that encode somatosensory information (i.e. the ventrobasal complex) are recruited. This stereotyped succession of events occurs within the first 500 ms of the spike-wave seizure, after which the temporal relationships among cortical and thalamic structures are more unpredictable (Meeren et al., 2002). Additional studies support the hypothesis that cortical hyperactivity initiates spike-wave seizures (Pinault, 2003; Pinault et al., 1998) and have motivated what is generally referred to as the cortical focus theory for spike-wave seizure initiation (Meeren et al., 2005).

While resolving how seizures initiate and propagate through brain structures is of critical importance, such an understanding does not necessarily address the mechanisms that drive the highly rhythmic and hypersynchronous activity associated with ongoing spike-wave seizures. Extensive work on acute brain slice preparations clearly demonstrates that circuits between first-order thalamic nuclei and the reticular thalamic nucleus are sufficient to sustain rhythmic network activities, including those comparable to absence seizures (Bal et al., 1995; Bal and McCormick, 1993; McCormick and Contreras, 2001; Krosigk von et al., 1993). In this model, feedforward inhibition provided by reticular neurons evokes robust, hypersynchronous post-inhibitory rebound bursts among thalamocortical neurons that then relay activity back to reticular thalamus and to cortex. Reticular neuron-mediated feedforward inhibition of thalamocortical neurons, coupled with reciprocal excitation from thalamocortical neurons to reticular neurons, forms the basis of a rhythmogenic circuit that is proposed to maintain spike-wave seizures. While this model very likely accounts for rhythmicity in the acute brain slice preparation, it is becoming less clear how first-order thalamocortical neurons actively contribute to the maintenance of spike-wave seizures recorded in vivo (Huguenard, 2019; McCafferty et al., 2018). Moreover, most current models of spike-wave initiation and maintenance neglect the potential contribution of the intralaminar nuclei to seizure initiation and maintenance despite several observations to the contrary.

In an effort to resolve structures capable of evoking spike-wave seizures, Jasper and colleagues electrically stimulated several thalamic nuclei in cats while recording EEG. By doing so in both lightly anesthetized (Jasper and Droogleever-Fortuyn, 1947) and unanesthetized (Hunter and Jasper, 1949) animals, the authors concluded that stimulation of the anterior intralaminar nuclei (i.e. central lateral, central medial, and paracentral nuclei) was sufficient to evoke spike-wave seizures that outlasted the stimulus; stimulation also produced behavioral repertoires associated with absence seizures. However, stimulation of first-order thalamic nuclei did not evoke spike-wave seizures, nor did it evoke seizure-like behaviors. Consistent with these observations, lesions to the intralaminar nuclei abolish pharmacologically induced spike-wave seizures in Sprague-Dawley rats (Banerjee and Snead, 1994); seizures persist following lesions to first-order nuclei. More recently, an EEG-fMRI study in human patients also implicates the intralaminar nuclei in the initiation of spontaneous spike-wave seizures (Tyvaert et al., 2009). Regrettably, (Meeren et al., 2002) did not include intralaminar thalamic recordings during their study of spike-wave seizure propagation in the WAG/Rij rat. Nonetheless, proposing the hypothesis that the intralaminar nuclei, not cortical structures, initiate spike-wave seizures, including those occurring spontaneously (i.e. not during hyperventilation), seems premature. Indeed, the possibility that activation of cortically projecting intralaminar neurons during hyperventilation recruits cortical structures to, in turn, initiate spike-wave seizures is equally plausible. In this model, respiratory alkalosis activates intralaminar neurons that, in turn, directly recruit spike-wave seizure initiation sites in the cortex. Alternatively, activated intralaminar neurons may increase the excitability of the reticular thalamic nucleus, a highly interconnected thalamic hub (Swanson et al., 2019), thereby lowering the threshold required for cortical input to spark a spike-wave seizure (see Figure 7). In support of this latter model, (Purpura and Cohen, 1962) demonstrated that electrical stimulation of the intralaminar nuclei evokes robust excitatory and inhibitory responses in the ventral thalamic nuclei.

First-order thalamic neurons express several pH-sensitive ion channels and receptors. TASK-1 and TASK-3, two TWIK-related acid-sensitive potassium channels, with the hyperpolarization-activated cyclic nucleotide–gated (HCN) ion channel, collectively play a critical role in stabilizing the resting membrane potential of first-order thalamic neurons (Meuth et al., 2003; Meuth et al., 2006). When activated, TASK channels hyperpolarize the membrane potential of thalamocortical neurons. In contrast, HCN channels depolarize thalamocortical neuron membrane potential. As extracellular acidification inhibits the activity of both channels, the opposing actions of TASK and HCN channels are simultaneously downregulated to yield no net effect on thalamocortical neuron membrane potential (Meuth et al., 2006), thereby stabilizing the membrane potential during acidic conditions. While not yet directly tested, the opposing actions of TASK and HCN channels also presumably stabilize thalamocortical membrane potential during alkaline conditions. Thus, while first-order thalamocortical neurons express pH-sensitive ion channels, these neurons are presumed to maintain stable membrane potentials during extracellular pH fluctuations. If true, then first-order thalamic nuclei are unlikely to support an active role in initiating hyperventilation-provoked spike-wave seizures. The extent to which higher-order thalamic nuclei express TASK and HCH channels remains unknown.

Importantly, intralaminar neurons recruited during hyperventilation-mediated alkalosis may not reflect intrinsic pH sensitivity. Instead, activation of intralaminar neurons during alkalosis may result from increased excitatory synaptic input. Intralaminar neurons receive significant, monosynaptic excitation from the midbrain reticular formation (Ropert and Steriade, 1981; Steriade and Glenn, 1982); first-order thalamic nuclei only do so negligibly (Edwards and de Olmos, 1976). Several reticular nuclei are critically important for respiration (Guyenet and Bayliss, 2015; Smith et al., 2013) and therefore provide clear rationale for testing the hypothesis that reticular-mediated excitation of the intralaminar nuclei drives hyperventilation-associated cFos expression (Figure 6). Notably, cFos expression was only observed during respiratory alkalosis (i.e. hypoxia) and not during hyperventilation associated with a normalized arterial pH (i.e. hypoxia-hypercapnia; c.f. Figures 3H and 6B). Thus, if reticular-mediated excitation of intralaminar neurons plays a role in hyperventilation-provoked spike-wave seizures, then it does so only during conditions of respiratory alkalosis. Finally, the possibility that the synaptic terminals of intralaminar-projecting afferents are pH sensitive also warrants examination. Notably, solute carrier family transporters shuttle H+ and HCO3+ across neuronal membranes and are proposed to regulate seizures, including spike-wave seizures (Cox et al., 1997; Sander et al., 2002; Sinning and Hübner, 2013). Alkaline conditions enhance excitatory synaptic transmission, an effect attributed to Slc4a8, an Na+-driven Cl-/bicarbonate exchanger (Sinning et al., 2011; Sinning and Hübner, 2013), that is expressed in the presynaptic terminals of excitatory neurons, including those in the thalamus (Lein et al., 2007). Thus, the enhancement of synaptic excitation onto intralaminar neurons remains a plausible mechanism to explain the large excitatory currents activated by alkalinization, as observed in Figure 6. The intralaminar nuclei appear particularly well suited to transduce alkalization into spike-wave seizures as pH sensitivity within these structures appears heightened relative to other nodes within the spike-wave seizure-generating circuitry (see Figure 6H).

Conclusion

In aggregate, our data support the hypothesis that spike-wave seizures are yoked to arterial pH. The observation that respiratory alkalosis activates intralaminar thalamic neurons, and that such neurons are activated by alkaline conditions, reignites a 70-year-old hypothesis wherein intralaminar neurons actively participate in the initiation and maintenance of spike-wave seizures.

Materials and methods

Study Design

Request a detailed protocol

The goal of this study was to parameterize the effect of blood gases on spike-wave seizures. To do so, we adapted a clinically observed human phenomenon in absence epilepsy patients to a rodent model of spike-wave seizures. We demonstrate that spike-wave seizure occurrence correlates with rising or falling values of PaCO2 and pH. Significantly, we show that neurons of the midline thalamus become activated after brief exposure to low PaCO2 conditions. We propose that activity among pH-sensitive neurons in the thalamus, responsive to hyperventilation-induced hypocapnia, triggers spike-wave seizures. All physiology and ECoG/EMG recordings were performed in freely behaving WAG/Rij or Wistar rats. To reduce the number of animals, rats were exposed to multiple conditions. Experimenters were blinded to the condition for all respiration and ECoG/EMG data analysis. Group and sample size were indicated in the results section.

Animals

All procedures conformed to the National Institutes of Health Guide for Care and Use of Laboratory Animals and were approved by the University of Virginia Animal Care and Use Committee (Charlottesville, VA, USA). Unless otherwise stated, animals were housed at 23–25°C under an artificial 12 hr light-dark cycle with food and water ad libitum. A colony of Wistar Albino Glaxo/from Rijswik (WAG/Rij rats) were kindly provided by Dr. Edward Bertram, University of Virginia and maintained in the animal facilities at The University of Virginia Medical Center. Male Wistar IGS Rats were purchased from Charles River (Strain Code: #003). Plethysmography, EEG, blood gas measurements, and c-Fos immunohistochemistry experiments were performed in 100+-day old WAG/Rij and Wistar rats as these ages correspond to when spike-wave seizures become robust in the WAG/Rij rat. Male and female rats were used in all experiments – no noticeable differences were observed. Of note, only male rats were used in optogenetic manipulations, as female rats were less likely to recover from surgery.

Animal preparation

Request a detailed protocol

All surgical procedures were conducted under aseptic conditions. Body temperature was maintained at 37°C. Animals were anesthetized with 1–3% isoflurane or a mixture of ketamine (75 mg/kg), xylazine (5 mg/kg), and acepromazine (1 mg/kg) administered intra-muscularly. Depth of anesthesia was monitored by lack of reflex response to a firm toe and tail pinch. Additional anesthetic was administered during surgery (25% of original dose) if warranted. All surgeries, except the arterial catheter implantation, were performed on a stereotaxic frame (David Kopf Instruments, Tujunga, CA, USA). Post-operative antibiotic (ampicillin, 125 mg/kg) and analgesia (ketoprofen, 3–5 mg/kg, subcutaneously) were administered and as needed for 3 days. Animals recovered for 1–4 weeks before experimentation.

Electrocorticogram (ECoG) and electromyography (EMG) electrode implantation

Request a detailed protocol

Commercially available rat recording devices were purchased from Plastics One (Roanoke, VA, USA). Recording electrodes were fabricated by soldering insulated stainless-steel wire (A-M system, Sequim, WA, USA) to stainless-steel screws (Plastics One) and gold pins (Plastics One). On the day of surgery, a small longitudinal incision was made along the scalp. Small burr holes were drilled in the skill and ECoG recording electrodes were implanted bilaterally in the cortex. Reference electrodes were placed in the cerebellum. A twisted looped stainless-steel wire was sutured to the superficial neck muscles for EMG recordings. The recording device was secured to the skull with dental cement and incisions were closed with absorbable sutures and/or steel clips.

PRSX-8 lentivirus preparation

Request a detailed protocol

The lentivirus, PRSX8-hCHR2(H134R)-mCherry, was designed and prepared as described previously (Abbott et al., 2009). Lentivirus vectors were produced by the Salk Institute Viral Vector Core. The titer for the PRSX8-hCHR2(H134R)-mCherry lentivirus was diluted to a working concentration of 1.5 × 1010 TU/mL. The same batch of virus was used for all experiments included in this study.

Virus injection and fiber optic ferrule implantation

Request a detailed protocol

Borosilicate glass pipettes were pulled to an external tip diameter of 25 μm and backfilled with the lentivirus, PRSX8-hCHR2(H134R)-mCherry. Unilateral virus injections in the RTN were made under electrophysiological guidance of the antidromic potential of the facial nucleus (see Abbott et al., 2009; Souza et al., 2018). A total of 400 nL was delivered at three rostro caudal sites separated by 200 or 300 μm in the RTN. Illumination of the RTN was performed by placing a 200-μm-diameter fiber optic (Thor Labs, #BFL37-200; Newton, NJ, USA) and ferrule (Thor Labs, #CFX128-10) vertically through the cerebellum between 300 and 1000 μm dorsal to RTN ChR2-expressing neurons. These animals were also implanted with ECoG/EMG recording electrodes, as detailed above. All hardware was secured to the skill with dental cement. Animals recovered for 4 weeks, as this provided sufficient time for lentivirus expression in the RTN. Virus injection location was verified post-hoc. Only animals that responded to optical stimulation, demonstrated by an increase in respiratory frequency, were included in the results.

Physiology experiments in freely behaving rats

Request a detailed protocol

All experiments were performed during the dark cycle (hours 0–4) at ambient room temperature of 27–28°C. Rats were habituated to experimental conditions for a minimum of 4 hr, 1–2 days before experiment start. On the day of recordings, rats were briefly anesthetized with 3% isoflurane for <5 min to connect the ECoG/EMG recording head stage to a recording cable and, when necessary, to connect the fiber optic ferrule to a fiber optic cord (multimode 200 μm core, 0.39 nA) attached to a 473 nm blue laser (CrystaLaser model BC-273–060 M, Reno, NV, USA). Laser power was set to 14 mW measured at the junction between the connecting fiber and the rat. Rats were then placed immediately into a whole-body plethysmography chamber (5 L, EMKA Technologies, Falls Church, VA, USA). Recordings began after 1 hr of habituation. The plethysmography chamber was continuously perfused with room air or protocols cycling through specific gas mixtures of O2, N2, and CO2 (total flow: 1.5 L/min). Mass flow controllers, operated by a custom-written Python script, regulated gas exchange. Respiratory flow was recorded with a differential pressure transducer. The respiratory signal was filtered and amplified at 0.1–100 Hz, X 500 (EMKA Technologies). Respiratory signals were digitized at 200 Hz (CED Instruments, Power1401, Cambridge, England). ECoG and EMG signals were amplified (X1000, Harvard Apparatus, Holliston, MA, USA; Model 1700 Differential Amplifier, A-M Systems), bandpass filtered (ECoG: 0.1–100 Hz; EMG: 100–300 Hz), and digitized at 200 Hz. Respiratory flow, ECoG/EMG recordings, O2 flow, and the laser pulse protocol were captured using Spike2, 7.03 software (CED Instruments).

Spike-wave seizures were manually identified by blinded individuals. Once identified, custom Matlab scripts identified the true onset and offset of each spike-wave seizure by locating the time point of the first and last peak of the seizure (as defined by sections of the recording that were 2.5 times the pre-seizure RMS baseline); seizure duration was defined as the duration between the first and last peak. Seizure frequency was quantified by computing a fast Fourier transform (FFT) on the event. Spike-wave seizure occurrence before and during specific conditions is shown as a peri-stimulus time histogram aligned at time = 0 at gas exchange onset or laser-on for optogenetic stimulations. Spike-wave seizure counts were quantified in three bins beginning ±15 min of gas exchange or laser onset. Total spike-wave seizure counts were obtained by summing the number of spike-wave seizures between –15 and 0 min (control) and 0 and +15 min (manipulation). Respiratory frequency (fR, in breaths/minute) was derived from the respiration trace. The respiration trace was divided into individual windows, each 10 s in duration, and an FFT was computed on each discrete window. The respiratory rate for each window was defined by the FFT frequency with the maximal power density. Once derived for each window, we then applied a 30 s moving average to smooth the trace. RTN neurons were optically stimulated with 10 ms pulses delivered at 20 Hz for 2 s, followed by 2 s rest. This stimulation protocol was repeated for 20 min.

Femoral artery catheterization, blood gases and pH measurements

Request a detailed protocol

Arterial blood samples for blood gas measurements through an arterial catheter during physiological experiments. One day prior to the experiments, rats anesthetized with isoflurane (2% in pure O2) and a polyethylene catheter (P-10 to P-50, Clay Adams, Parsippany, NJ, USA) was introduced into the femoral artery by a small skin incision toward the abdominal aorta. The catheter was then tunneled under the skin and exteriorized between the scapulae with two inches of exposed tubing anchored with a suture. On the day of the experiment, animals were briefly anesthetized with 1–2% isoflurane to attach tubing for blood collection before placement into the plethysmography recording chamber. Arterial blood gases and pH were measured using a hand-held iStat configured with CG8+ cartridges (Abbott Instruments, Lake Bluff, USA).

cFos histology

Request a detailed protocol

After exposing WAG/Rij rats to 30 min of hypoxia (10% O2; 90% N2) or hypoxia/hypercapnia (10% O2; 5% CO2; 75% N2) rats were deeply anesthetized and perfused transcardially with 4% paraformaldehyde (pH 7.4). Brains were removed and post-fixed for 12–16 hr at 4°C. 40 μm horizontal sections of the thalamus (D/V depth –5.3 to 6.0 mm) were obtained using a Leica VT 1000 S microtome (Leica Biostystems, Buffalo Grove, IL, USA) and collected in 0.1 M phosphate buffer (PB) with 0.1% sodium azide (Millipore-Sigma, St. Louis, MO, USA). Sections were then transferred to a 0.1 M PB solution containing 20% sucrose for 1 hr, snap-frozen and transferred to 0.1% sodium borohydride for 15 min. Slices were washed 2× in phosphate buffered saline (PBS). All blocking and antibody solutions were prepared in an incubation buffer of 0.1% sodium azide, 0.5% Triton X-100%, and 2% normal goat serum. Sections were blocked for 4 hr at room temperature or overnight at 4°C in incubation buffer. Sections were washed 3× with PBS between primary and secondary antibody solutions. Primary antibody solutions containing rabbit anti-cFos (1:2000; Cell Signaling Technology Cat# 2250, RRID: AB_2247211, Danvers, MA, USA) and biotin (1:200, Jackson ImmunoResearch, West Grove, PA; RRID: AB_2340595) were prepared in incubation buffer and incubated overnight at 4°C. Sections were then incubated overnight in secondary antibody solutions containing donkey strepavidin-Cy3 (1:1000, Jackson ImmunoResearch; RRID: AB_2337244). Immunohistochemical controls were run in parallel on spare sections by omitting the primary antisera and/or the secondary antisera. Sections from each well were mounted and air-dried overnight. Slides were cover-slipped with VectaShield (VectorLabs, Burlingame, CA) with the addition of a DAPI counterstain. All images were captured with a Z1 Axioimager (Zeiss Microscopy, Thornwood, NY, USA) with computer-driven stage (Neurolucida, software version 10; MicroBrightfield, Inc, Colchester, VT, USA). Immunological sections were examined with a 10× objective under epifluorescence (Cy3). All sections were captured with similar exposure settings. Images were stored in TIFF format and imported into ImageJ (NIH). Images were adjusted for brightness and contrast to reflect the true rendering as much as possible. To count cFos-positive cells, we utilized the particle analysis tools in ImageJ, and applied a pixel area threshold of varying stringency (0–7px2). Repeated measures ANOVAs for each treatment and threshold were used for statistical analyses.

Calcium imaging

Request a detailed protocol

pGP-AAV-syn-jGCaMP7s-WPRE (Addgene #104487-AAV9) was stereotaxically delivered to the central median thalamic nucleus in P20-30 rats with sterile microliter calibrated glass pipettes. A picospritzer (Picospritzer III, Parker Hannifin) was used to deliver 100–200 nl of virus. Three weeks later, animals were sacrificed and their brains harvested for acute brain slice preparation. Animals were deeply anesthetized with pentobarbital and then transcardially perfused with an ice-cold protective recovery solution containing the following (in mm): 92 NMDG, 26 NaHCO3, 25 glucose, 20 HEPES, 10 MgSO4, 5 Na-ascorbate, 3 Na-pyruvate, 2.5 KCl, 2 thiourea, 1.25 NaH2PO4, 0.5 CaCl2, titrated to a pH of 7.3–7.4 with HCl (Ting et al., 2014). Horizontal slices (250 μm) containing the intralaminar thalamic nuclei were cut in ice-cold protective recovery solution using a vibratome (VT1200, Leica Biosystems) and then transferred to protective recovery solution maintained at 32–34°C for 12 min. Brain slices were kept in room temperature artificial cerebrospinal fluid (ACSF) containing (in mm): 3 KCl, 140 NaCl, 10 HEPES, 10 Glucose, 2 MgCl2, 2 CaCl2. The solution was bubbled with 100% O2 and the pH was set by adding varied amounts of KOH. Fluorescence signals were measured with a spinning disk confocal microscope outfitted with an sCMOS camera (ORCA-Flash4.0, Hamamatsu, Bridgewater, NJ, USA).

Voltage-clamp recordings

Request a detailed protocol

Brain slices were prepared as described above for calcium imaging experiments; similar ACSF solutions were also used. Thalamic neurons were visualized using a Zeiss Axio Examiner.A1 microscope (Zeiss Microscopy, Thornwood, NY, USA) and an sCMOS camera (ORCA-Flash4.0, Hamamatsu). Recording pipettes were pulled on a P1000 puller (Sutter Instruments) from thin-walled borosilicate capillary glass (Sutter Instruments, Novato, CA, USA). Pipettes (2–3 MΩ tip resistance) were filled with (in mM) 100 K-gluconate, 9 MgCl2, 13 KCl, 0.07 CaCl2, 10 HEPES, 10 EGTA, 2 Na2ATP, 0.5 NaGTP, pH adjusted to 7.3 with KOH, and osmolality adjusted to 275 mOsm. Recordings were performed in the whole cell patch clamp configuration. Data were acquired in pClamp software (Molecular Devices, San Jose, CA, USA) using a Multiclamp 700B amplifier (Molecular Devices), low-pass filtered at 2 kHz, and digitized at 10 kHz (Digidata 1,440 A, Molecular Devices). Access resistance was monitored by repeatedly applying a –5 mV hyperpolarizing voltage step and converting the resultant capacitive transient response into resistance (Ulrich and Huguenard, 1997). A good recording consisted of an access resistance less than 20 MΩ that changed by less than 20% over the course of the recording; recordings that did not meet these criteria were discarded.

Data analysis and statistics

Request a detailed protocol

Statistical analyses were performed in GraphPad Prism v7 (San Diego, CA, USA). All data were tested for normality before additional statistical testing. Statistical details, including sample size, are found in the results section and corresponding supplemental tables. Either parametric or non-parametric statistical analyses were performed. A significance level was set at 0.05. Data are expressed as mean ± SEM. Data have been deposited at https://doi.org/10.5061/dryad.zcrjdfncm and custom scripts are available at https://github.com/blabuva/eLife-2022-11-e72898 (Beenhakker, 2022; copy archived at swh:1:rev:182cf0b04ecc861aee0dacd271504fa8be7c7516).

Data availability

All data generated or analysed during this study are included in the manuscript and corresponding data tables. We have also deposited our raw datasets for each figure with Dryad at the following URL: https://doi.org/10.5061/dryad.zcrjdfncm.

The following data sets were generated
    1. Beenhakker MP
    (2022) Dryad Digital Repository
    Data from: Respiratory alkalosis provokes spike-wave discharges in seizure-prone rats.
    https://doi.org/10.5061/dryad.zcrjdfncm

References

  27. Book
    1. Festing MFW
    (1979) Inbred Strains of Rats
    In: Festing MFW, editors. Inbred Strains in Biomedical Research. Macmillan Education UK. pp. 267–296.
    https://doi.org/10.1007/978-1-349-03816-9_14
    1. Masino SA
    2. Rho JM
    (2012)
    Jasper’s Basic Mechanisms of the Epilepsies [Internet]
    Mechanisms of Ketogenic Diet Action, Jasper’s Basic Mechanisms of the Epilepsies [Internet], 4th ed, National Center for Biotechnology Information.
  69. Book
    1. Paxinos G.
    2. Watson C.
    (2007)
    The Rat Brain In Sterotaxic Coordinates (6th ed)
    Elsevier.

Decision letter

  1. Joseph G Gleeson
    Reviewing Editor; Howard Hughes Medical Institute, The Rockefeller University, United States
  2. Laura L Colgin
    Senior Editor; University of Texas at Austin, United States
  3. Chris G Dulla
    Reviewer; Tufts University School of Medicine, United States
  4. William Nobis
    Reviewer; Vanderbilt, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Respiratory Alkalosis Provokes Spike-Wave Discharges in Seizure- Prone Rats" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by Joseph Gleeson as Reviewing Editor and Laura Colgin as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Chris G Dulla (Reviewer #1); William Nobis (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Readers will want to have a better appreciation for the Quantification of spike-wave seizure properties (duration, frequency components), providing post-hoc confirmation of viral targeting of the RTN.

2) The abstract should contain more information about the experiments utilizing channelrhodopsin to manipulate neural activity, and how this information was interpreted. As of now, the data could missed by many readers.

3) Readers will want some clarification to interpret the correlation between pH and electrical activity of intralaminar neurons.

4) More insight could be offered into the circuit mechanisms by which intralaminar neurons initiate or predispose circuits to generating spike-wave seizures.

5) Addressing the issue of whether intralaminar thalamus neurons are pH sensitive with further controls.

Reviewer #1:

– The conclusions of the optogenetic stimulation of RTN would be strengthened by showing post-hoc validation of the viral targeting in a spatially specific manner. Can the authors confirm that those experiments accurately targeted the RTN and not other regions more broadly?

– Do the manipulations (decreased O2, decreased 02/elevated C02, elevated C02 in normoxia, optogenetic stimulation of RTN) alter the duration or frequency components of SWSs? Or are the seizures identical across conditions, but their incidence is changed?

– The alignment of the pH manipulations and changes in GCaMP DF/F in Figure 6D are not clear. It appears that changes in DF/F are not time locked to changes in pH? Is that correct? If so what accounts for this time lag?

– Why is the change in respiration rate during optogenetic stimulation of the intralaminar thalamus so variable when stimulated during normoxia (Figure 5E) but so robust and uniform when done in high C02 (Figure 5H). Is this because the relationship between breathing rate the pH is different in different conditions or is it due to variability in targeting of the RTN?

– A better description of the cFos thresholding quantification should be included. It is not clear what was done there. A clearer description (visually in the figure and/or in the text) of the statistical comparisons made for each condition/threshold should also be included. This could be added as a supplemental figure if it make the presentation easier.

– The discussion would be strengthened by considering how increased input from intralaminar thalamic neurons trigger SWS. The authors nicely consider how intralaminar thalamic neuron activity may arise from increased excitatory input, but there is not much consideration of how increased output from intralaminar thalamic neurons feed into canonical SWS circuitry (nRT, VB, cortex).

Reviewer #2:

Salvati et al., sought to investigate the means by which hyperventilation can provoke generalized spike-wave discharges and seizures in a susceptible rat model. Hyperventilation is long established and used clinically to induce seizures in childhood absence epilepsy patients and has been thought to be related to the respiratory alkalosis induced by the event and in particular this pH enhancing thalamocortical synchronicity, but this had yet to be mechanistically worked out. The authors build on recent studies to perform an elegant set of experiments that implicate the respiratory alkalosis and arterial CO2 itself in the generation of seizures. They further establish that the intralaminar thalamic region may be in-part mediating this seizure activity.

The use of the optogenetically driven hyperventilation and respiratory alkalosis in normoxic conditions was a particularly strong experimental approach.

Overall, the authors conclusions are mostly supported by the data, but there remain some aspects of the methodology and data analysis that would better support the case.

There is a well-balanced discussion that does a good job of delineating the limits of the conclusions they are able to firmly establish by this work, however, it is somewhat disappointing that more of the mechanistic studies they suggest were not performed which limits the full impact of the work.

1) Regarding the optogenetic experiments, there are a few methodological clarifications and controls that need addressing, otherwise this is a powerful approach to isolate the effect of hyperventilation on spike waves and seizure induction.

2) The evaluation of the intralaminar thalamus activation by hypoxia-induced hyperventilation is exciting but the data does not yet support that these neurons are pH sensitive, rather they are activated in the context of changes in arterial CO2, and at times in the manuscript this is not well clarified. Alkaline pH can be a general neuronal activator, and further controls and comparisons to other thalamic regions would strengthen the results presented.

3) Finally, by not addressing experimentally key aspects of the hypothesis – that intralaminar thalamic activation driven by respiratory alkalosis drives SWS – the broader impact of this manuscript is limited.

Recommendations for the authors

Related to point 1 above:

– It would be helpful to see viral expression and cannula placement to determine if hyperventilation and SWS induction was truly due to activation of RTN neurons. The C1 region, amongst other medullary regions, are in close proximity to the RTN.

– There seems to be a disconnect in SWS generation and the level of hyperventilation reached – see 5D and 5E – some of the animals with the highest increase in SWS had a minimal change in respiratory rate. Do individual animals have a varying pH change related to hyperventilation (perhaps looking at respiratory rate change and pH and arterial CO2 in the animals from figure 3 would be illustrative) or is there another explanation that could be suggested?

– It's stated that only animals that responded to optical stimulation with an increase in respiratory frequency were included in the analysis shown in Figure 5. Did you determine a reason why some animals did not respond – such as poor viral targeting, expression or poor cannula targeting? it would be illuminative to provide the numbers for those that had accurate targeting but no response to optical stimulation. Also, it appears that one animal that had a decrease in respiratory frequency (the dark purple Figure 5E) was included in the analysis despite the exclusion criteria listed.

Regarding point 2 above:

– Did you quantify cfos activation in other thalamic regions of interest such as the reticular nucleus, was the intralaminar region the only region with significant activation?

– As for the calcium imaging, the sample imaging does not provide enough anatomical context for orientation. Also, as alkaline pH can be a general neuronal activator and we might expect results similar to what was obtained looking at a number of brain regions. To make the case that the intralaminar nucleus is particularly or selectively activated requires a control comparison. Perhaps the VB thalamus as it is relevant to the potential mechanisms and anatomically adjacent.

– Was cfos activation driven by RTN opto stimulation evaluated?

The discussion nicely discusses the current extant literature and the context of this study as well as the limitations of this manuscript.

It would enhance the impact of the study if some of these points were addressed experimentally, as currently while the manuscript very elegantly and nicely supports that respiratory alkalosis from hyperventilation drives seizure induction, the critical nature and the role of the intralaminar thalamus is less supported – is it truly necessary for the generation of spike wave discharges. Also whether it has a direct or more indirect – potentiated by other inputs – role in chemosensation is not clear.

– Patch-clamp electrophysiology of intralaminar neurons could readily determine if there is any intrinsic pH sensitivity of these neurons, looking for a change in firing due to changes in pH. Answering the question of whether this is presynaptically (maybe from reticular nuclei input) could also be addressed by looking at changes in spontaneous transmission.

– Following electrophysiologic studies up with evaluation of expression of pH sensitive ion channels/receptors would be important as noted in your discussion.

– It would be interesting to cfos expression in response to respiratory alkalosis in reticular regions and the dorsal raphe – which may be more chemosensitive and project to the intralaminar nucleus.

– While this may be beyond the scope of the manuscript, optogenetic activation of the intralaminar nucleus to produce spike wave discharges and seizures, and also doing this in the context of hypoxia-induced hyperventilation or rescue with excessive CO2 would be very powerful and more fully evaluate the model in Figure 7.

https://doi.org/10.7554/eLife.72898.sa1

Author response

Essential revisions:

1) Readers will want to have a better appreciation for the Quantification of spike-wave seizure properties (duration, frequency components), providing post-hoc confirmation of viral targeting of the RTN.

We agree that providing a more quantitative description of spike-wave seizure properties is warranted. We now include these details in our revised manuscript. Interestingly, the duration of individual spike-wave seizures observed before and during the various forms of induced hyperventilation are nearly always the same (except during hypoxia/hypercapnia). The frequencies of individual seizures before and during hyperventilation are also generally similar, although during hypoxia/optogenetic stimulation we did find that seizures are ~20% slower; hypercapnia did not alter seizure frequency. Currently, we can only speculate that any seizure slowing might reflect mechanisms that also contribute to hyperventilation-induced high amplitude, rhythmic slowing (HIHARS) observed in healthy patients.

Unfortunately, very few human studies have systematically compared features of spontaneous versus hyperventilation-induced spike-wave seizures. However, we did find one 2008 study published in Epilepsia (Sadleir et al., 2008, Epilepsia 49(12):2100-7). Therein, the authors evaluate spike-wave seizures that occur during various behavioral states, as well as during hyperventilation, and conclude that subtle differences exist. For example, in humans, hyperventilation-induced spike-wave seizures are slightly longer in duration than those occurring spontaneously. However, differences in spike-wave seizures observed across the patient population are generally larger than those observed during different behavioral states in a single patient. As the study did not specifically address frequency differences, we reached out to the first author of the study, Dr. Lynette Sadleir. She provided two chapters from her PhD thesis wherein she describes slight frequency differences in spontaneous versus hyperventilation-induced seizures: seizures induced by hyperventilation are slower. That said, in our email exchange, Dr. Sadleir mentions that:

“In a nut shell we found that absence seizures in HV do have some differences both electrographically and clinically as you can see in our analysis. Having said that, they are more similar electrographically than they are different.”

Our current study in rats supports this statement.

The conclusion that spontaneous and hyperventilation-induced seizures are generally similar further inform our model regarding respiratory alkalosis and spike-wave seizures. We speculate that spontaneous and hyperventilation-provoked spike-wave seizures share similar neural circuits. Thus, we hypothesize that the primary role played by respiratory alkalosis is to provoke an existing circuit that also generates spontaneous spike-wave seizures; once set in motion, either spontaneously or by alkalosis, the circuit simply executes a series of events that result in a generally, highly stereotyped spike-wave seizure. We are quite excited at this possibility as it suggests that resolving how alkalosis reliably and robustly provokes seizures will inform mechanisms that are also relevant for spontaneous spike-wave seizures.

We also agree that including post-hoc confirmation of RTN targeting is important. We verified expression of channelrhodopsin and fiber placement in the RTN after each experiment. Regrettably, however, we did not include these data in the original manuscript. We agree, most readers would appreciate post-hoc confirmation and we have now included a representative image in Figure 5B. Thanks for the suggestion.

2) The abstract should contain more information about the experiments utilizing channelrhodopsin to manipulate neural activity, and how this information was interpreted. As of now, the data could missed by many readers.

Thanks for this suggestion – we now include this information in the abstract.

3) Readers will want some clarification to interpret the correlation between pH and electrical activity of intralaminar neurons.

We now include this clarification in the discussion (see Lines 406). Moreover, the inclusion of new electrophysiological experiments that more directly evaluate the correlation between pH and intralaminar activity will likely make this point more clearly.

4) More insight could be offered into the circuit mechanisms by which intralaminar neurons initiate or predispose circuits to generating spike-wave seizures.

We now include this clarification in the discussion (see Line 363).

5) Addressing the issue of whether intralaminar thalamus neurons are pH sensitive with further controls.

We agree with this comment. We now include supportive data derived from electrophysiological recordings of individual intralaminar neurons (Figure 6F-H). Consistent with our calcium imaging results, patch-clamp recordings during pH manipulations demonstrate that extracellular alkalosis generates inward (i.e., depolarizing) currents in intralaminar neurons. These inward currents are associated with a decreased membrane resistance, suggesting that alkalosis opens ion channels expressed by intralaminar neurons. Indeed, we have preliminary data that further indicates that alkalosis largely activates glutamatergic currents in intralaminar neurons (see Author response image 1). We are not keen to include these data in the current manuscript because (1) they remain preliminary, and (2) require substantial investigation to identify their source. We do, however, include data showing that intralaminar neurons appear more pH-sensitive than other proposed spike-wave seizure-generating nodes (i.e., somatosensory cortex and somatosensory thalamus, see Figure 6H). We believe these data further support the hypothesis that intralaminar neurons play an important role in the generation of alkalosis-provoked (and perhaps spontaneous) spike-wave seizures. We include some of these points in the discussion (see Line 406). Regrettably, we acknowledge that our sample size for these new patch clamp recordings is relatively low. Unfortunately, such recordings are difficult to obtain as many pups from WAG/Rij litters are hydrocephalic and are not viable. We can perform more recordings, but are concerned with how much more time we will need to generate more data for these panels – we hope the reviewers understand.

Author response image 1
Download asset Open asset
Glutamate receptor blockade reduces alkalization-induced inward currents evoked in intralaminar neurons.

A. Representative voltage-clamp recordings of intralaminar neuron during bath application of control (pH 7.3) and alkaline (pH 8.0) conditions. The gray symbols represent a control neuron. Green symbols represent a neuron undergoing pH manipulations during application of kynurenic acid, a glutamate receptor blocker. The red symbols represent a neuron undergoing pH manipulations during application of TTX. B. Population response. Control, n = 4. Kynurenic acid, n = 4. TTX, n = 5.

Reviewer #1:

– The conclusions of the optogenetic stimulation of RTN would be strengthened by showing post-hoc validation of the viral targeting in a spatially specific manner. Can the authors confirm that those experiments accurately targeted the RTN and not other regions more broadly?

Thank you for the suggestion. We have now included a representative image of channelrhodopsin expression in the RTN of an experimental animal (Figure 5B).

– Do the manipulations (decreased O2, decreased 02/elevated C02, elevated C02 in normoxia, optogenetic stimulation of RTN) alter the duration or frequency components of SWSs? Or are the seizures identical across conditions, but their incidence is changed?

This is a great question, as it gets at whether SWSs provoked by hyperventilation are similar to those occurring spontaneously. We have now included these measures in the revised manuscript. By and large, seizure duration is identical across conditions. In a few cases, spike-wave seizures were slower during the manipulations. These findings are summarized in Tables 2 and 3. It remains too early to understand what mechanisms drive any differences with spike-wave seizure properties. That said, parallels can be found with human spike-wave seizures (Sadleir et al., 2008, Epilepsia 49(12):2100-7). Thanks for suggesting that we look into it.

– The alignment of the pH manipulations and changes in GCaMP DF/F in Figure 6D are not clear. It appears that changes in DF/F are not time locked to changes in pH? Is that correct? If so what accounts for this time lag?

Correct, the change in DF/F lags behind the indicated solution change. This lag is also evident in our patch clamp recordings. The duration required for the new solution to fill the perfusion tubes and the recording chamber generally takes 1-2 minutes in our experiments and accounts for the lag. We now address this apparent delayed response in the legend of figure 6.

– Why is the change in respiration rate during optogenetic stimulation of the intralaminar thalamus so variable when stimulated during normoxia (Figure 5E) but so robust and uniform when done in high C02 (Figure 5H). Is this because the relationship between breathing rate the pH is different in different conditions or is it due to variability in targeting of the RTN?

The effects of CO2 and hypoxia on respiration are always very reliable and robust. The reviewer is correct to point out that optogenetically-induced hyperventilation is more variable. (Although we assume the reviewer is referring to optogenetic stimulation of the retrotrapezoid nucleus, not the intralaminar nucleus; we did not optogenetically manipulate the latter structure). We hypothesize that the variability partly reflects differences in channelrhodopsin expression and/or fiber optic placement. Thus, while all animals respond to laser stimulation with hyperventilation, we speculate that the more robust responders represent animals with high opsin expression and ideal fiber optic placement; as the RTN is a very small, deep structure, fiber optic placement can be tricky. That said, post-hoc analyses confirmed that all animals had sufficient opsin expression and fiber placement. However, in the end, it’s difficult to know if the number of laser-activated RTN neurons was equivalent across all animals. We suspect that this number was somewhat variable across animals and, therefore, results in a variable hyperventilation response.

– A better description of the cFos thresholding quantification should be included. It is not clear what was done there. A clearer description (visually in the figure and/or in the text) of the statistical comparisons made for each condition/threshold should also be included. This could be added as a supplemental figure if it make the presentation easier.

Yes, regrettably, we did not include a better description of our thresholding procedure. We now include a clearer description in the Methods (Line 571).

– The discussion would be strengthened by considering how increased input from intralaminar thalamic neurons trigger SWS. The authors nicely consider how intralaminar thalamic neuron activity may arise from increased excitatory input, but there is not much consideration of how increased output from intralaminar thalamic neurons feed into canonical SWS circuitry (nRT, VB, cortex).

Great question – we’ve thought quite a bit about this. In the end, we currently don’t know but experiments are ongoing to attempt this very question. We are happy to speculate in the discussion (Line 363).

Reviewer #2:

– It would be helpful to see viral expression and cannula placement to determine if hyperventilation and SWS induction was truly due to activation of RTN neurons. The C1 region, amongst other medullary regions, are in close proximity to the RTN.

Thanks for the suggestion. We performed post-hoc analyses of opsin expression and fiber placement. We now include a representative image in Figure 5B. The reviewer is correct to point out that our virus, using the transcription factor Phox2b, does indeed target C1 and RTN neurons. It is possible to differentiate these populations using transgenic approaches (see Souza et al., 2020. J.Neuro.), however, we do not have a current seizure model bred into a Th-Cre background. We agree that future studies using the Gria4 and Th-Cre mice would allow us to differentiate the contribution of each population to hyperventilation-induced SWSs. As the reviewer suggests, these are important experiments to pursue.

– There seems to be a disconnect in SWS generation and the level of hyperventilation reached – see 5D and 5E – some of the animals with the highest increase in SWS had a minimal change in respiratory rate. Do individual animals have a varying pH change related to hyperventilation (perhaps looking at respiratory rate change and pH and arterial CO2 in the animals from figure 3 would be illustrative) or is there another explanation that could be suggested?

The reviewer brings up a fair point. We suspect that the apparent disconnect largely reflects the high variability in SWS expression in these animals. Indeed, quantifying spontaneous seizures in these animals is vexing. By contrast, the blood measurements are less variable and therefore likely don’t explain the variable seizure response. Thus, we speculate that overlaid on top of our hyperventilation manipulations is a generally highly variable seizure occurrence that can sometimes result in an apparent mismatch between seizure count and respiration rate.

By way of a silly analogy, imagine one is tasked to pick up marbles from a cup while sitting in the back seat of a car driving on a highway at night. In the control condition, you must do so in the dark. In the experimental condition, you can use a flashlight. Most individuals will pick up more marbles in the experimental condition, thereby supporting the hypothesis that light helps individuals pick up marbles.

Now imagine performing the same experiment on a dirt road wherein unpredictable bumps make the marble picking task more difficult. In some cases, we suspect that the features of the bumpy road will override the utility of a flashlight, causing an individual to sometimes pick fewer marbles in the light.

While silly, this is how we think about the apparent disconnects between SWS generation and hyperventilation. Sometimes the vexing and unpredictable spontaneous seizure occurrence will override the effects of hyperventilation.

– It's stated that only animals that responded to optical stimulation with an increase in respiratory frequency were included in the analysis shown in Figure 5. Did you determine a reason why some animals did not respond – such as poor viral targeting, expression or poor cannula targeting? it would be illuminative to provide the numbers for those that had accurate targeting but no response to optical stimulation. Also, it appears that one animal that had a decrease in respiratory frequency (the dark purple Figure 5E) was included in the analysis despite the exclusion criteria listed.

Yes, this is true. While only one of our experimental animals did not consistently respond to laser stimulation with hyperventilation, this animal did so because of virus injection/fiber placement. We included the purple animal in our study because the animal did demonstrate a moderate response to optogenetic activation during pre-experimental testing. That said, the reviewer brings up a fair point about the purple animal. The apparent decrease in rate likely reflects our approach to quantifying respiration in Figure 5G (old 5E): we simply calculated the mean frequency per bin before and during stimulation. We feel that this is the least complicated, most objective way to quantify rates.

As shown in the binned respiration rates below for a subset of animals in 5E, optogenetic stimulation increased rate for most animals (Author response image 2) . However, the purple animal in question exhibited a transient increase in rate from 12 to 4 minutes prior to optogenetic simulation, thereby driving a higher, pre-stimulation mean. We suspect that this transient increase contributes to the apparent disconnect in the purple animal. If the reviewer feels that we should omit this animal, then we are happy to do so.

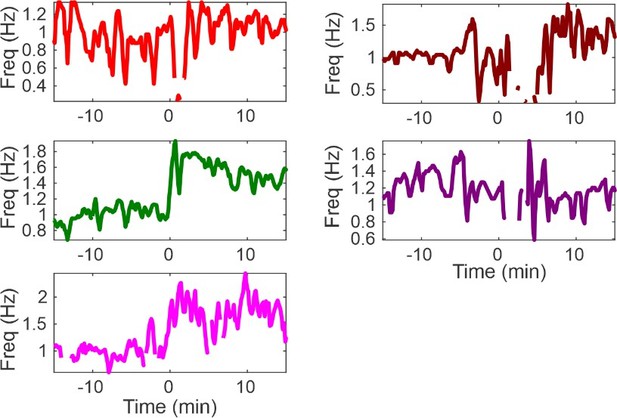

Author response image 2
Download asset Open asset
Respiratory measurements in a subset of animals shown in Figure 5G.

In all but one animal (purple), optogenetic stimulation clearly increased respiration rate. Unfortunately, an unsteady baseline rate can explain the apparent decrease in rate in the purple animal.

– Did you quantify cfos activation in other thalamic regions of interest such as the reticular nucleus, was the intralaminar region the only region with significant activation?

We primarily focused our attention on those regions enriched cFos expression. The reviewer’s astute comment is warranted and may be motivated by the role the thalamic reticular nucleus plays in SWS generation. We did not see much cFos enrichment in the reticular nucleus, an observation we suspect is the result of first injecting the animals with ethosuximide to inhibit seizure production. While we describe this experimental strategy in the main text, we now include it again in the legend of the figure.

– As for the calcium imaging, the sample imaging does not provide enough anatomical context for orientation. Also, as alkaline pH can be a general neuronal activator and we might expect results similar to what was obtained looking at a number of brain regions. To make the case that the intralaminar nucleus is particularly or selectively activated requires a control comparison. Perhaps the VB thalamus as it is relevant to the potential mechanisms and anatomically adjacent.

The reviewer is correct to point out the limitations of the data we originally presented. We now include additional data using electrophysiology to support the hypothesis that intralaminar neurons are pH sensitive. Consistent with our calcium imaging results, our patch clamp data demonstrate that alkaline conditions evoke inward currents in intralaminar neurons (Figure 6F-G). Comparable recordings and manipulations in somatosensory cortex (S1) and VB thalamus show that these other SWS circuit nodes are less sensitive to alkaline conditions (Figure 6H). Indeed, these data support an older report wherein VB neuron sensitivity to alkaline conditions was measured (Meuth et al., 2006, J Physiol). Interestingly, Meuth et al., show that VB neurons express ion channels that are pH sensitive, but the aggregate response to alkalization is minimal as the ion channel activities cancel each other out. In fact, the authors conclude that VB thalamus is quite resistant to pH changes. We now highlight this work in the Discussion.

– Was cfos activation driven by RTN opto stimulation evaluated?

Regrettably, we did not look. Instead, we have opted for more direct measurements of neuronal activation, but this work is ongoing. In brief, we have recently translated our model of hyperventilation-provoked SWS to mouse model (Gria4). As in our rats, hyperventilation provokes a robust increase in SWSs in the Gria4 mouse. With this model, we now have many more transgenic tools at our disposal. For example, we have crossed the Gria4 mouse with a GCaMP-expressing mouse so that we can measure activity changes in real time. We are also performing silicone probe recordings of several thalamic regions so that we can measure activity in response to hypoxia and optogenetic hyperventilation. These data remain preliminary. But yes, we wholeheartedly agree with the premise of the reviewer’s question. Upon finalizing this project, however, we opted to translate our model to a more tractable system and hope to address this and other questions in our follow up study.

The discussion nicely discusses the current extant literature and the context of this study as well as the limitations of this manuscript.

It would enhance the impact of the study if some of these points were addressed experimentally, as currently while the manuscript very elegantly and nicely supports that respiratory alkalosis from hyperventilation drives seizure induction, the critical nature and the role of the intralaminar thalamus is less supported – is it truly necessary for the generation of spike wave discharges. Also whether it has a direct or more indirect – potentiated by other inputs – role in chemosensation is not clear.

– Patch-clamp electrophysiology of intralaminar neurons could readily determine if there is any intrinsic pH sensitivity of these neurons, looking for a change in firing due to changes in pH. Answering the question of whether this is presynaptically (maybe from reticular nuclei input) could also be addressed by looking at changes in spontaneous transmission.

We have now included patch clamp data from intralaminar neurons, as well as somatosensory and VB neurons. Our included data show that intralaminar neurons appear to have heightened pH sensitivity, relative to cortical and VB neurons. We also have preliminary data that addresses the reviewer’s comment regarding changes in synaptic excitability. In brief, our data suggest that alkaline-mediated activation of intralaminar neurons involves the activation of glutamatergic inputs. The robust, alkaline-evoked inward currents in intralaminar neurons are significantly attenuated when bathing the slice in kynurenic acid (Rebuttal Figure 2). We are keenly interested in resolving the source of such excitation and are currently pursuing leads. That said, we feel that a comprehensive study of such inputs is likely beyond the scope of the current study. We hope that the reviewer understands that we aim to present such data in a follow-up study.

– Following electrophysiologic studies up with evaluation of expression of pH sensitive ion channels/receptors would be important as noted in your discussion.

We completely agree and are currently performing experiments to resolve this important point.

– It would be interesting to cfos expression in response to respiratory alkalosis in reticular regions and the dorsal raphe – which may be more chemosensitive and project to the intralaminar nucleus.

We 100% agree. We are keenly interested in this point and hope that utilizing the clear advantage of mouse genetics, we have positioned ourselves to address this and other questions using more refined techniques. Our primary excitement of the current manuscript is that establishes the basic features necessary to evoke SWS with hyperventilation using a well-established model of absence epilepsy. That said, in moving forward, we feel that addressing the important mechanistic questions is best suited in the mouse. In short, we completely agree with all of these reviewer’s comments, and we appreciate their interest. We feel that we have possibly opened the door to some very interesting follow up experiments – and now we can begin to address these and other important questions with follow up studies.

– While this may be beyond the scope of the manuscript, optogenetic activation of the intralaminar nucleus to produce spike wave discharges and seizures, and also doing this in the context of hypoxia-induced hyperventilation or rescue with excessive CO2 would be very powerful and more fully evaluate the model in Figure 7.

We agree completely. We are pursuing this and other experiments in our Gria4 mouse model. We hope that the reviewer understands that while we 100% agree with the comment, we are still in the midst of addressing this and other questions in a much more tractable mouse system.

https://doi.org/10.7554/eLife.72898.sa2

Article and author information

Author details

  1. Kathryn A Salvati

    1. Department of Pharmacology, University of Virginia, Charlottesville, United States
    2. Neuroscience Graduate Program, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing – original draft
    For correspondence
    kathryn.salvati@ucsf.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9557-9259

  2. George MPR Souza

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Data curation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  3. Adam C Lu

    1. Department of Pharmacology, University of Virginia, Charlottesville, United States
    2. Neuroscience Graduate Program, University of Virginia, Charlottesville, United States
    Contribution
    Data curation, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared

  4. Matthew L Ritger

    1. Department of Pharmacology, University of Virginia, Charlottesville, United States
    2. Neuroscience Graduate Program, University of Virginia, Charlottesville, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared

  5. Patrice Guyenet

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Writing – review and editing
    Competing interests
    No competing interests declared

  6. Stephen B Abbott

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Investigation, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1244-3637

  7. Mark P Beenhakker

    Department of Pharmacology, University of Virginia, Charlottesville, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Project administration, Resources, Supervision, Writing – review and editing
    For correspondence
    markbeen@virginia.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4541-0201

Funding

National Institute of Neurological Disorders and Stroke (R01NS099586)

  • Mark P Beenhakker

National Institute of Neurological Disorders and Stroke (R56NS099586)

  • Mark P Beenhakker

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

All procedures conformed to the National Institutes of Health Guide for Care and Use of Laboratory Animals and were approved by the University of Virginia Animal Care and Use Committee (protocol #3892).

Senior Editor

  1. Laura L Colgin, University of Texas at Austin, United States

Reviewing Editor

  1. Joseph G Gleeson, Howard Hughes Medical Institute, The Rockefeller University, United States

Reviewers

  1. Chris G Dulla, Tufts University School of Medicine, United States
  2. William Nobis, Vanderbilt, United States

Version history

  1. Received: August 8, 2021
  2. Preprint posted: August 15, 2021 (view preprint)
  3. Accepted: January 3, 2022
  4. Accepted Manuscript published: January 4, 2022 (version 1)
  5. Version of Record published: February 21, 2022 (version 2)

Copyright

© 2022, Salvati et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,087
    Page views
  • 155
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Kathryn A Salvati
  2. George MPR Souza
  3. Adam C Lu
  4. Matthew L Ritger
  5. Patrice Guyenet
  6. Stephen B Abbott
  7. Mark P Beenhakker
(2022)
Respiratory alkalosis provokes spike-wave discharges in seizure-prone rats
eLife 11:e72898.
https://doi.org/10.7554/eLife.72898

Categories and tags

Research organism

Further reading

    1. Neuroscience

    Event-related modulation of alpha rhythm explains the auditory P300-evoked response in EEG

    Alina Studenova, Carina Forster ... Vadim Nikulin
    Research Article

    Evoked responses and oscillations represent two major electrophysiological phenomena in the human brain yet the link between them remains rather obscure. Here we show how most frequently studied EEG signals: the P300-evoked response and alpha oscillations (8–12 Hz) can be linked with the baseline-shift mechanism. This mechanism states that oscillations generate evoked responses if oscillations have a non-zero mean and their amplitude is modulated by the stimulus. Therefore, the following predictions should hold: (1) the temporal evolution of P300 and alpha amplitude is similar, (2) spatial localisations of the P300 and alpha amplitude modulation overlap, (3) oscillations are non-zero mean, (4) P300 and alpha amplitude correlate with cognitive scores in a similar fashion. To validate these predictions, we analysed the data set of elderly participants (N=2230, 60–82 years old), using (a) resting-state EEG recordings to quantify the mean of oscillations, (b) the event-related data, to extract parameters of P300 and alpha rhythm amplitude envelope. We showed that P300 is indeed linked to alpha rhythm, according to all four predictions. Our results provide an unifying view on the interdependency of evoked responses and neuronal oscillations and suggest that P300, at least partly, is generated by the modulation of alpha oscillations.

    1. Neuroscience

    Catecholaminergic neuromodulation and selective attention jointly shape perceptual decision-making

    Stijn A Nuiten, Jan Willem de Gee ... Simon van Gaal
    Research Article

    Perceptual decisions about sensory input are influenced by fluctuations in ongoing neural activity, most prominently driven by attention and neuromodulator systems. It is currently unknown if neuromodulator activity and attention differentially modulate perceptual decision-making and/or whether neuromodulatory systems in fact control attentional processes. To investigate the effects of two distinct neuromodulatory systems and spatial attention on perceptual decisions, we pharmacologically elevated cholinergic (through donepezil) and catecholaminergic (through atomoxetine) levels in humans performing a visuo-spatial attention task, while we measured electroencephalography (EEG). Both attention and catecholaminergic enhancement improved decision-making at the behavioral and algorithmic level, as reflected in increased perceptual sensitivity and the modulation of the drift rate parameter derived from drift diffusion modeling. Univariate analyses of EEG data time-locked to the attentional cue, the target stimulus, and the motor response further revealed that attention and catecholaminergic enhancement both modulated pre-stimulus cortical excitability, cue- and stimulus-evoked sensory activity, as well as parietal evidence accumulation signals. Interestingly, we observed both similar, unique, and interactive effects of attention and catecholaminergic neuromodulation on these behavioral, algorithmic, and neural markers of the decision-making process. Thereby, this study reveals an intricate relationship between attentional and catecholaminergic systems and advances our understanding about how these systems jointly shape various stages of perceptual decision-making.

    1. Neuroscience

    Two human brain systems micro-structurally associated with obesity

    Manfred G Kitzbichler, Daniel Martins ... Neil A Harrison
    Research Article Updated

    The relationship between obesity and human brain structure is incompletely understood. Using diffusion-weighted MRI from ∼30,000 UK Biobank participants, we test the hypothesis that obesity (waist-to-hip ratio, WHR) is associated with regional differences in two micro-structural MRI metrics: isotropic volume fraction (ISOVF), an index of free water, and intra-cellular volume fraction (ICVF), an index of neurite density. We observed significant associations with obesity in two coupled but distinct brain systems: a prefrontal/temporal/striatal system associated with ISOVF and a medial temporal/occipital/striatal system associated with ICVF. The ISOVF~WHR system colocated with expression of genes enriched for innate immune functions, decreased glial density, and high mu opioid (MOR) and other neurotransmitter receptor density. Conversely, the ICVF~WHR system co-located with expression of genes enriched for G-protein coupled receptors and decreased density of MOR and other receptors. To test whether these distinct brain phenotypes might differ in terms of their underlying shared genetics or relationship to maps of the inflammatory marker C-reactive Protein (CRP), we estimated the genetic correlations between WHR and ISOVF (rg = 0.026, P = 0.36) and ICVF (rg = 0.112, P < 9×10−4) as well as comparing correlations between WHR maps and equivalent CRP maps for ISOVF and ICVF (P<0.05). These correlational results are consistent with a two-way mechanistic model whereby genetically determined differences in neurite density in the medial temporal system may contribute to obesity, whereas water content in the prefrontal system could reflect a consequence of obesity mediated by innate immune system activation.
