m6A modifications regulate intestinal immunity and rotavirus infection

  1. Anmin Wang
  2. Wanyiin Tao
  3. Jiyu Tong
  4. Juanzi Gao
  5. Jinghao Wang
  6. Gaopeng Hou
  7. Chen Qian
  8. Guorong Zhang
  9. Runzhi Li
  10. Decai Wang
  11. Xingxing Ren
  12. Kaiguang Zhang
  13. Siyuan Ding
  14. Richard A Flavell
  15. Huabing Li
  16. Wen Pan  Is a corresponding author
  17. Shu Zhu  Is a corresponding author
  1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, China
  2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, China
  3. Shanghai Institute of Immunology, Department of Microbiology and Immunology, Shanghai Jiao Tong University School of Medicine (SJTU-SM), China
  4. Department of Molecular Microbiology, Washington University School of Medicine in St. Louis, United States
  5. Department of Immunobiology, Yale University School of Medicine, United States
  6. Howard Hughes Medical Institute, Yale University School of Medicine, United States
  7. School of Data Science, University of Science and Technology of China, China
  8. Institute of Health and Medicine, Hefei Comprehensive National Science Center, Hefei, China, China

Abstract

N6-methyladenosine (m6A) is an abundant mRNA modification and affects many biological processes. However, how m6A levels are regulated during physiological or pathological processes such as virus infections, and the in vivo function of m6A in the intestinal immune defense against virus infections are largely unknown. Here, we uncover a novel antiviral function of m6A modification during rotavirus (RV) infection in small bowel intestinal epithelial cells (IECs). We found that rotavirus infection induced global m6A modifications on mRNA transcripts by down-regulating the m6a eraser ALKBH5. Mice lacking the m6A writer enzymes METTL3 in IECs (Mettl3ΔIEC) were resistant to RV infection and showed increased expression of interferons (IFNs) and IFN-stimulated genes (ISGs). Using RNA-sequencing and m6A RNA immuno-precipitation (RIP)-sequencing, we identified IRF7, a master regulator of IFN responses, as one of the primary m6A targets during virus infection. In the absence of METTL3, IECs showed increased Irf7 mRNA stability and enhanced type I and III IFN expression. Deficiency in IRF7 attenuated the elevated expression of IFNs and ISGs and restored susceptibility to RV infection in Mettl3ΔIEC mice. Moreover, the global m6A modification on mRNA transcripts declined with age in mice, with a significant drop from 2 weeks to 3 weeks post birth, which likely has broad implications for the development of intestinal immune system against enteric viruses early in life. Collectively, we demonstrated a novel host m6A-IRF7-IFN antiviral signaling cascade that restricts rotavirus infection in vivo.

Editor's evaluation

This study clearly shows that m6A modification on mRNA regulates immune responses in the intestine during rotavirus infection. The authors further show the mechanisms how m6A modification is regulated in the intestine. Thus, this study provides important insights into the regulation of anti-viral immunity in the intestine.

https://doi.org/10.7554/eLife.73628.sa0

Introduction

N6-methyladenosine (m6A) is the most abundant internal mRNA modification and modulates diverse cellular functions through m6A-related writers, erasers, and readers (Roundtree et al., 2017; Xu et al., 2021; Chelmicki et al., 2021). The m6A modification directly recruits m6A-specific proteins of the YT521-B homology (YTH) domain family (Roundtree et al., 2017). These proteins mediate the m6A-dependent regulation of pre-mRNA processing, microRNA processing, translation initiation, and mRNA decay (Roundtree et al., 2017). In recent works, m6A modifications has been identified in the genomes of RNA viruses and the transcripts of DNA viruses with either a pro-viral or anti-viral role (Tsai et al., 2018; Li et al., 2017; Hesser et al., 2018; Imam et al., 2018; Ye et al., 2017). Furthermore, m6A RNA modification-mediated down-regulation of the α-ketoglutarate dehydrogenase (KGDH)-itaconate pathway inhibits viral replication independent of the innate immune response (Liu, 2019). According to Gao et al., 2020, m6A modification preserves the self-recognition of endogenous transcripts. Deletion of the m6A writer Mettl3 decreases the m6A modifications in endogenous retrovirus (ERV) transcripts. The accumulation of ERVs activates pattern recognition receptors (e.g. RIG-I) pathways, resulting in a detrimental interferon response in livers of fetal mice (Gao et al., 2020).

The m6A modification of the enterovirus 71 (EV71) RNA genome is important for viral propagation, and EV71 infection increases the expression of m6A writers in vitro (Hao et al., 2019). m6A methyltransferase METTL3 knockdown reduces whereas m6A demethylase FTO knockdown increases EV71 replication (Hao et al., 2019). In addition, human cytomegalovirus can upregulate the expression of m6A-related proteins (Rubio et al., 2018; Winkler et al., 2019). Despite the knowledges about m6A regulation and function during viral infection revealed by these in vitro studies, the regulation of m6A modifications and the specific role of m6A in the antiviral response in vivo, especially in the gastrointestinal tract, remains unclear.

Rotavirus (RV), a member of the family Reoviridae, is a nonenveloped icosahedral-structured virus with 11 segments of double-stranded RNA. Children under the age of five are at high risk of rotavirus infection, which causes severe diarrhea, dehydration, and death (Crawford et al., 2017). Rotaviruses encode multiple viral proteins to inhibit innate immune responses by degrading interferon regulatory factors (IRFs) and mitochondrial antiviral-signaling protein (MAVS), thus facilitating efficient virus infection and replication (Ding et al., 2018; Barro and Patton, 2007). The timely induction of an IFN response is key to the host successful control of invading viruses, including RV (Honda et al., 2005; Lin et al., 2016; Pott et al., 2011). Here, we found rotavirus infection induced global m6A modifications on mRNA transcripts by down-regulating the m6A eraser ALKBH5. Mice lacking the m6A writer enzymes METTL3 in IECs (Mettl3ΔIEC) were resistant to RV infection. We identified IRF7, a master regulator of IFN responses (Honda et al., 2005), as one of the primary m6A targets during virus infection. In the absence of METTL3, IECs showed increased Irf7 mRNA stability and enhanced type I and III IFN expression. Deficiency in IRF7 attenuated the elevated expression of IFNs and ISGs and restored susceptibility to RV infection in Mettl3ΔIEC mice. Collectively, we identified a novel regulation and function of m6A modifications in an enteric viral infection model in vivo.

Results

The regulation and function of mRNA m6A modifications during RV infection

RV infections primarily take place in children under the age of five in humans and in neonatal mice younger than 2 weeks old (Crawford et al., 2017; Du et al., 2017). Intriguingly, total RNA m6A modifications in the mouse ileal tissues, revealed by a m6A dot blot and mass spectrum (MS) analysis, significantly declined from 2 weeks to 3 weeks post birth (Figure 1a, b and c), which caused by increased Alkbh5 expression (Figure 1d, Figure 1—figure supplement 1a and Figure 1—figure supplement 1b) and development of microbiota might be involved (Figure 1—figure supplement 2). Indeed, overexpression of Alkbh5 in mouse IEC cell line caused decreased m6A level (Figure 1—figure supplement 1c), supporting the role of Alkbh5 in regulating global m6A levels in intestine. These data indicating a potential link between the resistance to RV infection and the decline of m6A modification during early life development.

Figure 1 with 4 supplements see all

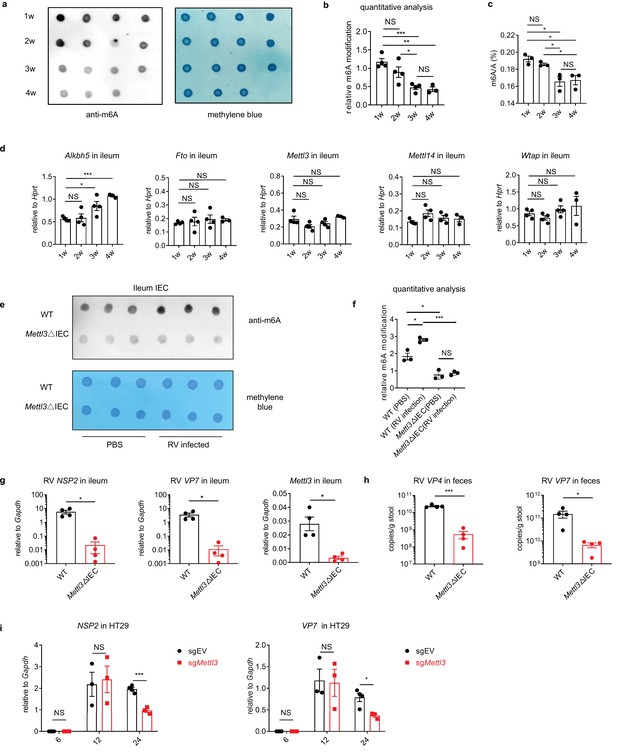

Rotavirus infection increases global m6A modifications, and METTL3 deficiency in IECs results in increased resistance to rotavirus infection.

(a) m6A dot blot analysis of total RNA in ileum tissues from mice with different ages. Methylene blue (MB) staining was the loading control. (b) Quantitative analysis of (a) (mean ± SEM), statistical significance was determined by Student’s t-test (**p < 0.005, ***p < 0.001, NS., not significant). The quantitative m6A signals were normalized to quantitative MB staining signals. (c) mass spectrum (MS) analysis of m6A level in ileum tissue from mice with different ages. (mean ± SEM), Statistical significance was determined by Student’s t-test (*p < 0.05, NS., not significant). (d) qPCR analysis of indicated genes in ileum tissues from mice with different ages (mean ± SEM). Statistical significance was determined by Student’s t-tests between groups (*p < 0.05, ***p < 0.001, NS., not significant). (e) WT and Mettl3ΔIEC mice were infected by rotavirus EW strain at 8 days post birth. m6A dot blot analysis of total RNA in ileum IEC at 2 dpi. Methylene blue (MB) staining was the loading control. (f) Quantitative analysis of (e) (mean ± SEM). Statistical significance was determined by Student’s t-test (*p < 0.05, ***p < 0.001, NS., not significant). The quantitative m6A signals were normalized to quantitative MB staining signals. (g–h) Mettl3ΔIEC mice and littermate controls were infected by rotavirus EW strain at 8 days post birth. qPCR analysis of RV viral loads in ileum tissue (g) or fecal samples (h) from Mettl3ΔIEC mice and littermate controls at 4 days post infection (dpi) (littermate WT n = 4, Mettl3ΔIEC n = 4, mean ± SEM). Statistical significance was determined by Student’s t-tests between genotypes (*p < 0.05). (i) qPCR analysis of indicated genes in Rhesus rotavirus (RRV)-infected HT-29 cells transduced with Mettl3 sgRNA or control sgRNA, at indicated hours post infection (hpi) (mean ± SEM), statistical significance was determined by Student’s t-test (*p < 0.05, ***p < 0.001, NS., not significant). Experiments in (a, d-f, and i) are repeated twice, (g and h) are repeated four times.

Besides, the global m6A RNA modification levels increased in the ileum tissue of suckling mice post RV murine strain EW infection (Figure 1e and f and Figure 1—figure supplement 3). As a control, the m6A modification can barely detected in IECs deficiency with m6A writer METTL3 (Mettl3fl/flVil1Cre, Mettl3ΔIEC) (Figure 1e and f). Thus, we hypothesize that RV may induce an enriched cellular m6A modification environment and a weakened innate immune response to facilitate virus replication. To investigate the in vivo role of m6A in the anti-RV immunity, we infected Mettl3ΔIEC mice and wild-type (WT) littermates with RV EW strain. The viral RNA load in Mettl3ΔIEC mice ileum tissue was significantly lower than that in the WT mice (Figure 1g and Figure 1—figure supplement 4). Fecal virus shedding was also significantly lower in Mettl3ΔIEC mice (Figure 1h). Genetic knockdown of METTL3 in HT-29 cells, a human colonic epithelial cell line, by CRISPR-mediated gene silencing, also led to reduced RV replication (Figure 1i), further highlighting the resistance phenotype to RV infection by METTL3 deficiency.

METTL3 deficiency in IECs results in decreased m6A deposition on Irf7, and increased interferon responses

To dissect the underlying mechanism, we performed RNA-sequencing using the IECs from METTL3-deficient mice and littermate controls at steady state. Most of the differentially expressed genes in METTL3-deficient IECs vs WT IECs were enriched in the pathways of ‘defense response to virus’, ‘response to interferon-beta’, and ‘positive regulation of innate immune response’ by gene ontology analysis (Figure 2a). Heatmap also showed that a panel of interferon stimulate genes (ISGs) are upregulated in METTL3-deficient IECs compared to WT IECs (Figure 2b). To map potential m6A modification sites on mRNAs of these differential expressed genes in IECs, we conducted m6A RIP-sequencing based on a previously reported protocol (Li et al., 2017). Metagene plots showed the m6A peak is enriched near the stop codon and 3’-UTR region, which is consistent with previously studies (Xuan et al., 2018; Dominissini et al., 2012; Figure 2—figure supplement 1b). We found that m6A modified one of the master regulators of IFNs, Irf7 (Figure 2c), which played a key role in the network of these differential expressed genes in METTL3-deficient IECs compared to WT IECs, analyzed by STRING (Figure 2d). Of note, Irf7 was the only IRFs that highly expressed in METTL3-deficient IECs, and Irf7 was the prominently highest expressed Irf in IECs (Figure 2e), indicating Irf7 might be one of the key genes that are modulated by m6A modifications. We also validated our results by m6A RIP-qPCR to examine m6A modification sites in Irf7 mRNA based on our RIP-sequencing data in METTL3 knock-down MODE-K cells and predicted results from the database (http://rna.sysy.edu.cn) (Figure 2—figure supplement 1a, Figure 2—figure supplement 1c and Figure 2—figure supplement 1d). It should be noted that our m6A-RIP-seq were performed at steady state. We did not identified previous reported Ifns (Rubio et al., 2018; Winkler et al., 2019), possibly due to the low expression level of Ifns in IECs at steady state.

Figure 2 with 5 supplements see all

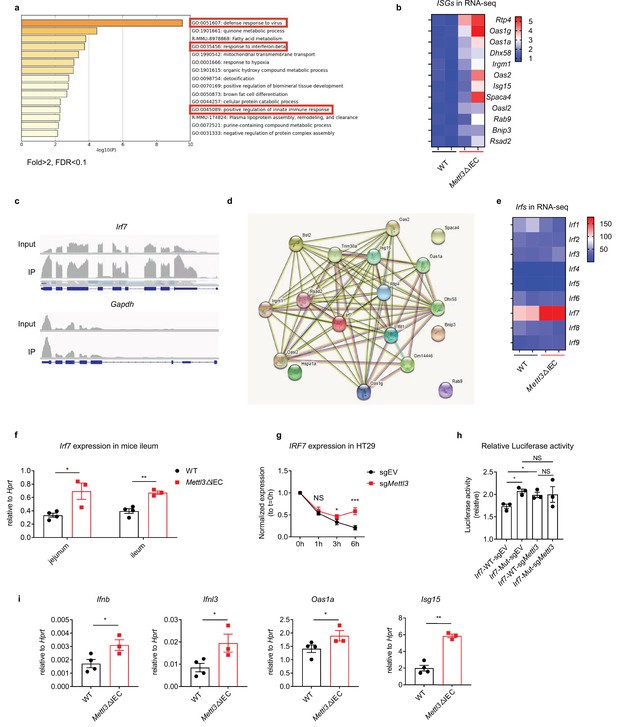

METTL3 deficiency in IECs results in decreased m6A deposition on Irf7, and increased interferon responses.

(a) Gene ontology (GO) analysis of differentially expressed genes in IECs from Mettl3ΔIEC mice vs IECs from littermate WT mice. (b) Heat map of a subset of upregulated ISGs in IECs from Mettl3ΔIEC mice vs IECs from littermate WT mice, as revealed by RNA-seq (normalized data). (c) m6A-RIP-seq analysis of Irf7 and Gapdh mRNA in the ileum of WT mice. (d) Gene regulation network of a subset of up-regulated genes including IRF7. (e) Heat map of Interferon regulatory factors (Irfs) in IECs from Mettl3ΔIEC mice vs IECs from littermate WT mice, as revealed by RNA-seq (RPKM). (f) Mettl3ΔIEC mice and littermate controls were infected by EW at 8 days post birth. qPCR analysis of the Irf7 expression in ileum and jejunum from Mettl3ΔIEC mice and littermate control at 2 dpi (littermate WT n = 4, Mettl3ΔIEC mice n = 3, mean ± SEM). Statistical significance was determined by Student’s t-test (*p < 0.05, **p < 0.005). (g) q-PCR analysis of Irf7 mRNA in METTL3 knockdown HT-29 cells or control cells in indicated time points post actinomycin D treatment (n = 3, mean ± SEM). Statistical significance was determined by Student’s t-test (*p < 0.05, ***p < 0.001, NS., not significant). (h) Relative luciferase activity of sgEV and sgMettl3 HEK293T cells transfected with pmirGLO-Irf7-3’UTR (Irf7-WT) or pmirGLO-Irf7-3’UTR containing mutated m6A modification sites (Irf7-MUT). The firefly luciferase activity was normalized to Renilla luciferase activity (n = 3, mean ± SEM). Statistical significance was determined by Student’s t-tests between groups (*p < 0.05, NS., not significant). (i) Mettl3ΔIEC mice and littermate control and were infected by EW at 8 days post birth. qPCR analysis of selected IFNs and ISGs in ileum tissue at two dpi (littermate WT, n = 4, Mettl3ΔIEC mice, n = 3, mean ± SEM). Statistical significance was determined by Student’s t-tests between genotypes (*p < 0.05, **p < 0.005). Experiments in (f, h and i) are repeated three times, (g) are repeated twice.

IRF7 is a known master regulator of Type I interferon and Type III interferon-dependent immune responses in respond to virus infection (Barro and Patton, 2007; Honda et al., 2005; Ciancanelli et al., 2016). We reasoned that loss of m6A modification on Irf7 mRNA is responsible for the increased IFN response and subsequent resistance to RV infection. Thus, we first validated the regulation of Irf7 mRNA levels by m6A in mice and in cells. We found an increase of Irf7 mRNA in ileum tissue of Mettl3ΔIEC mice compared to that in WT littermate control mice (Figure 2f). Consistently, the expression of IRF7 mRNA was also higher in METTL3 knockdown HT-29 and METTL3 knockout rhesus monkey MA104 cells, suggesting that the regulation of IRF7/Irf7 expression by m6A is likely conserved across species (Figure 2—figure supplement 2, Figure 2—figure supplement 3). Furthermore, genetic knockdown of METTL3 in human or mice IEC cell lines also led to increased IRF7/Irf7 expression and IFN/Ifn responses (Figure 2—figure supplement 1f, Figure 2—figure supplement 2). As m6A is known to regulate the mRNA decay, we next sought to determine whether the stability of IRF7 mRNA is regulated by m6A. We used actinomycin D to block the de novo RNA synthesis in HT-29 cells to assess the RNA degradation by METTL3 knockdown. The IRF7 mRNA degraded significantly slower in METTL3-knockdown HT-29 cells than the control cell line (Figure 2g, Figure 2—figure supplement 2b).

To directly evaluate the role of m6A in modulating the stability of Irf7 mRNA, luciferase reporter assays were conducted. In comparison with wild-type Irf7-3’UTR (Irf7-WT) constructs, the ectopically expressed constructs harboring m6A mutant Irf7-3’UTR (Irf7-MUT) showed significantly increased luciferase activity (Figure 2h, Figure 2—figure supplement 1e). Further, mutation of m6A modification sites can directly increase the expression of Irf7 and enhance the antiviral function of Irf7 in MEF cells (Figure 2—figure supplement 4a and Figure 2—figure supplement 4b). These results suggest that the upregulation of Irf7 mRNA level in Mettl3ΔIEC mice is caused by the loss of m6A modification mediated mRNA decay. To evaluate the potential influence of m6A on Irf7 transcriptional targets, we also measured the expressions of IFNs and ISGs in rotavirus infected ileum tissue from Mettl3ΔIEC mice and littermate WT mice. We found the transcriptional targets of Irf7, were all upregulated in Mettl3ΔIEC mice (Figure 2i). Furthermore, we found that the mRNAs of Irf7 and its transcriptional targets ISGs increased in the ileum of the mice from 1 to 4 weeks, with a dramatic upregulation from 2 to 3 weeks (Figure 2—figure supplement 5), which was concomitant with the decrease of global m6A modifications (Figure 1a and b and Figure 1—figure supplement 1a). These results demonstrated that METTL3 deficiency in IECs results in decreased m6A deposition on Irf7, and increased interferon response.

IRF7 deficiency attenuated the increased interferon response and resistance to RV infection in Mettl3ΔIEC mice

To determine whether Irf7 plays a key role in the resistance phenotype to RV infection in METTL3-deficient mice in IECs, we crossed Irf7−/− mice to Mettl3ΔIEC mice. Following RV oral gavage, the expression of IFNs and ISGs in ileum from Irf7−/−Mettl3ΔIEC mice were significantly lower than those from Mettl3ΔIEC mice at 2dpi (Figure 3a–c), and unlike the increased expression of IFNs and ISGs in Mettl3ΔIEC mice vs littermate WT controls, by deficiency of IRF7, the expression of IFNs and ISGs in ileum from Irf7−/−Mettl3ΔIEC mice were not significantly different from those from Irf7−/− mice (Figure 3a–c), suggesting that Irf7 mediates the increased expression of IFNs and ISGs in Mettl3ΔIEC mice.

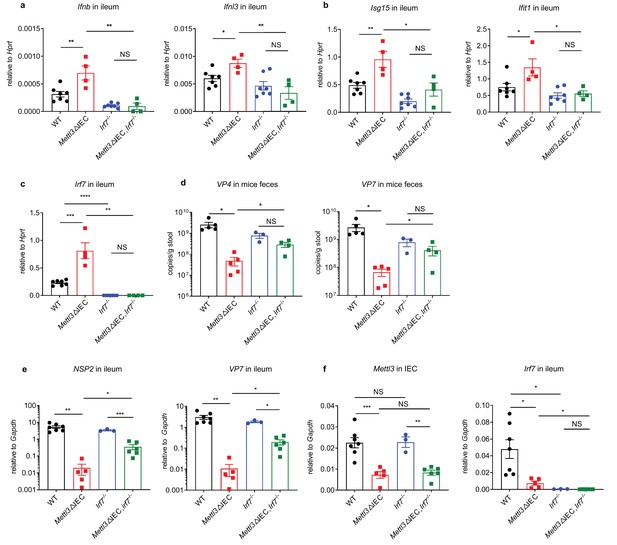

IRF7 deficiency attenuated the increased interferon response and resistance to rotavirus infection in Mettl3ΔIEC mice.

(a–c) WT control mice, Mettl3ΔIEC mice, Irf7-/- mice and Mettl3ΔIEC Irf7-/- mice are all littermates. They were infected by RV EW at 8 days post birth. qPCR analysis of selected IFNs (a), ISGs (b), or Irf7 (c) expression in ileum from indicated groups of mice at two dpi (littermate WT n = 7, Mettl3ΔIEC n = 5, Irf7-/- n = 3, Mettl3ΔIEC Irf7-/- n = 6, mean ± SEM). Statistical significance was determined by Student’s t-tests between genotypes (*p < 0.05, **p < 0.005, ***p < 0.001, ****p < 0.0001, NS., not significant). (d) qPCR analysis of fecal rotaviral shedding in indicated groups of mice at four dpi (littermate WT n = 5, Mettl3ΔIEC n = 5, Irf7-/- n = 3, Mettl3ΔIEC Irf7-/- n = 4, mean ± SEM). Statistical significance was determined by Student’s t-tests between genotypes (*p < 0.05, **p < 0.005, NS., not significant). (e–f) qPCR analysis of RV proteins expression (e) or Mettl3 and Irf7 (f) in ileum from indicated groups of mice at four dpi (littermate WT n = 7, Mettl3ΔIEC n = 5, Irf7-/- n = 3, Mettl3ΔIEC Irf7-/- n = 6, mean ± SEM). Statistical significance was determined by Student’s t-tests between genotypes and (*p < 0.05, **p < 0.005, ***p < 0.001, NS., not significant). Experiments in (a–f) are repeated twice.

Moreover, the Irf7−/−Mettl3ΔIEC mice showed significantly higher viral loads in ileum tissue and higher fecal shedding of RV Mettl3ΔIEC (Figure 3d–f). Similarly, unlike the much lower fecal viral shedding in Mettl3ΔIEC mice vs littermate WT controls, by deficiency of IRF7, the fecal viral shedding in Irf7−/−Mettl3ΔIEC mice were not significantly different from those in Irf7−/− mice (Figure 3d), suggesting that Irf7 mediates the resistant phenotype of rotavirus infection measured by fecal viral shedding in Mettl3ΔIEC mice. Notably, the viral proteins expression difference in ileum from Irf7−/−Mettl3ΔIEC mice vs that from Irf7−/− mice (9.7-fold lower for NSP2 and 9.3-fold lower for VP7), was much lower than the viral proteins expression difference in ileum from Mettl3ΔIEC mice vs that from littermate mice (267.1-fold lower for NSP2 and 283.4-fold lower for VP7) (Figure 3e), suggesting that besides the contribution of Irf7 to the resistant phenotype of rotavirus infection in IECs from Mettl3ΔIEC mice, other pathways (e.g. m6A modifications in RV RNA) may also play roles. Therefore, IRF7 is an important mediator of the increased IFNs and ISGs expression in Mettl3ΔIEC mice and genetic deletion of IRF7 restored the resistant phenotype of Mettl3ΔIEC mice to RV infection.

Rotavirus suppresses ALKBH5 expression through NSP1 to evade immune defense

We next sought to determine how RV regulates the m6A modifications in IECs. We first measured whether RV infection regulates the m6A-related writer and eraser proteins in the intestine. The protein levels of the methyltransferases METTL3 and METTL14 and demethylase FTO were not affected by RV infection in ileum tissue (Figure 4a and b). In contrast, the protein level of demethylase ALKBH5 was significantly down-regulated by RV infection in the ileum (Figure 4a and b). To determine whether ALKBH5 play a role in anti-RV infection since it’s suppressed during RV infection, we generated the IEC-specific deletion of ALKBH5 in mice (Alkbh5fl/fl Vil1Cre, Alkbh5ΔIEC). The depletion of ALKBH5 in IECs did not affected the anti-RV immune response (Figure 4c), the viral shedding in the feces (Figure 4d), or the viral protein expression in the ileum (Figure 4e), likely due to the suppressed ALKBH5 expression in ileum tissue of WT mice infected by RV.

Figure 4 with 4 supplements see all

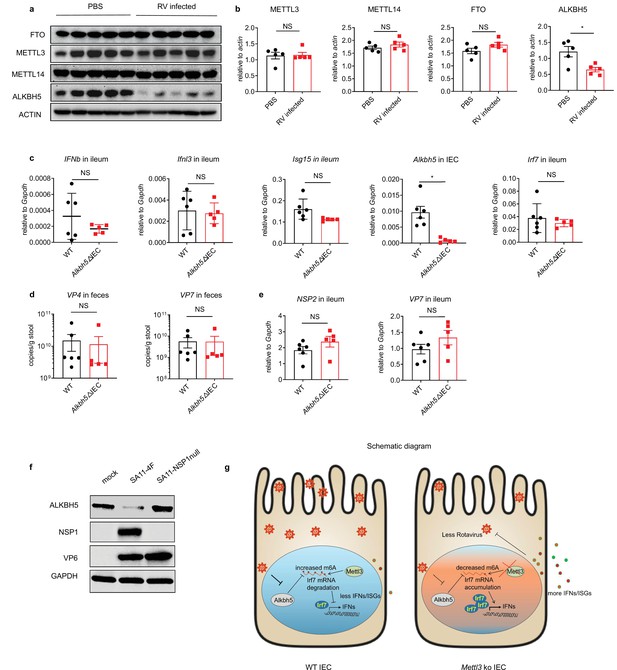

Rotavirus suppresses ALKBH5 expression through NSP1 to evade immune defense.

(a) WT mice were infected by RV EW at 8 days post birth. Immunoblotting with antibodies target ALKBH5, FTO, METTL14 and METTL3 in ileum tissue from mice infected with RV EW at two dpi or treated with PBS. (b) Quantitative analysis of (a) (mean ± SEM), Statistical significance was determined by Student’s t-test (*p < 0.05). (c–e) Alkbh5ΔIEC mice and littermate controls were infected by RV EW at 8 days post birth. qPCR analysis of indicated genes expression in ileum (c), viral shedding in feces (d), and viral proteins expression in ileum (e), from Alkbh5ΔIEC mice or littermate controls at 4 days post infection (littermate WT n = 6, Alkbh5ΔIEC n = 5, mean ± SEM). Statistical significance was determined by Student’s t-tests between genotypes (*p < 0.05, NS., not significant). (f) Immunoblotting with antibodies target ALKBH5, NSP1, VP6 and GAPDH in HEK293 cells infected by SA11-4F and SA11-NSP1null (MOI = 1) for 24 hr. (g) Graphical abstract illustrating the functions and molecular mechanisms of m6A modifications on Irf7 in anti-RV infection. Experiments in (a–e) are repeated three time, (f) are repeated twice.

We next asked whether there is redundancy between m6A eraser ALKBH5 and FTO. We first checked the expression of Alkbh5/ALKBH5 and Fto/FTO in our RNA-seq data in mouse IECs, and also a previous reported RNA-seq data in human intestinal enteroid (Saxena et al., 2017). We found the Alkbh5/ALKBH5 expression is much higher than Fto/FTO in intestine (Figure 4—figure supplement 1a). We did qPCR analysis in mouse epithelial cell line MODE-K and showed the similar results (Figure 4—figure supplement 1a). Furthermore, we knock down METTL3, ALKBH5 and FTO in MODE-K cell. Through dot blot assay, we found ALKBH5 but not FTO is the dominant m6A eraser in IECs (Figure 4—figure supplement 1). Furthermore, overexpressing of recombinant ALKBH5 increased the IFN/ISGs response and inhibit RRV infection in mouse IEC MODE-K cells (Figure 4—figure supplement 2), suggesting re-expression of ALKBH5 might overcome the immune evasion of RV.

Non-structural protein 1 (NSP1) is a well-established RV-encoded innate immune antagonist that are showed to degrade IRF3 and β-Trcp (Barro and Patton, 2005; Ding et al., 2016). To test the potential role of NSP1 in AlKBH5 inhibition, we used the recently developed reverse genetics system and rescued recombinant WT RV SA11 strain and a mutant virus that does not express NSP1 (NSP1-null) (Kanai et al., 2017). We infected HEK293 cells with WT and NSP1-null RVs, only WT RV reduced ALKBH5 protein levels (Figure 4f), suggesting that the down-regulation of ALKBH5 expression by RV is NSP1-dependent. These results suggest that RV might evades the antiviral immune response via downregulation of ALKBH5 expression by NSP1.

Discussion

Previous studies reported that m6A modifications on mRNA in mice embryonic fibroblasts or normal human dermal fibroblasts negatively regulate the IFN response by accelerating the mRNA degradation of type I IFNs (Rubio et al., 2018; Winkler et al., 2019). However, these studies were mainly conducted in vitro, leaving the relationship between m6A and IFN pathway in vivo an unexplored territory. Since type I and type III IFNs play a critical role in the antiviral immune response in the GI tract (Pott et al., 2011), we used an RV infection model, in which IECs are specifically infected, as well as conditional knockout mice with IECs-specific depletion of m6A writer METTL3 or m6A eraser ALKBH5, to study the role of m6A modification in regulating IFN response towards rotavirus in IECs. Using RNA-seq and m6A-seq techniques, we identified IRF7, a key transcription factor upstream of IFNs and ISGs, as one of the m6A modified targets during RV infection, and is essential to mediate the elevated anti-rotavirus immune response by METTL3 deficiency. These results identify Irf7 as an important m6A target, and characterize, for the first time, the regulation of IFN response during RV infection in intestine, enabling a better understanding of how m6A modifications on mRNA regulate antiviral innate immune responses.

In addition to directly regulating target genes that involved in innate immune pathways, m6A modification is also known to affect viral gene expression, replication, and generation of progeny virions (Roundtree et al., 2017; Brocard et al., 2017). Some viral RNA genomes are modified by m6A, such as simian virus 40 (Tsai et al., 2018; Lavi and Shatkin, 1975), influenza A virus (Krug et al., 1976), adenovirus (Sommer et al., 1976), avian sarcoma virus (Dimock and Stoltzfus, 1977), Rous Sarcoma virus (Kane and Beemon, 1985), hepatitis C virus (Gokhale et al., 2016) and Zika virus (Lichinchi et al., 2016). Through our m6A-RIP-qPCR, Rotavirus RNA was also found to have m6A modification (Figure 4—figure supplement 3). Of note, genetic deletion of METTL3 in monkey kidney MA104 cell line, which has limited IFN responses (Sánchez-Tacuba et al., 2020), also led to reduced RV replication (Figure 2—figure supplement 3). Further, IRF7 deficiency didn’t fully restore the suppressed rotaviral infection in Mettl3ΔIEC mice (Figure 3e). These results suggest that besides the contribution of Irf7 to the resistant phenotype of rotavirus infection in IECs from Mettl3ΔIEC mice, other pathways (e.g. m6A modifications in RV RNA) may also play roles. The detailed mechanisms warrant further investigations in the future.

Intriguingly, m6A modifications were shown to maintain the genomic stability of mice embryonic stem cells by promoting the degradation of endogenous retrovirus (ERV) mRNA, or by regulating ERV heterochromatin and inhibiting its transcription (Xu et al., 2021; Chelmicki et al., 2021). The absence of m6A results in the formation of abnormal endogenous dsRNA, which causes an aberrant immune response and necrosis in the hematopoietic system (Gao et al., 2020). In the intestine, through immunostaining with J2 antibody, we detected the increase of dsRNA levels in IECs of Mettl3ΔIEC mice compare to the littermate WT mice (Figure 4—figure supplement 4). In consistency, the aforementioned RNA-seq data showed that the expression of a set of ISGs including Irf7 was significantly upregulated in Mettl3 KO IECs. Our data suggest a dual activation model in steady state that in the absence of METTL3, the increase of dsRNA will induce the IFN responses, and the increased stability of Irf7 mRNA, which serves as a key transcription factor of IFN and ISG expression, will amplify this process. Furthermore, m6A modification of viral RNA genomes affect the activation of innate sensor-mediated signaling (Chen et al., 2021; Kim et al., 2020). Decreased m6A modification on RV genomes may activate innate sensors directly and induce higher IFN response, which will also be amplified by increase of Irf7 mRNA stability.

Although m6A is involved in many important biological processes, the regulation of m6A modifications remain poorly understood. Here, we found RV infection down-regulates the level of m6A eraser ALKBH5 to induce m6A modifications, in an NSP1 dependent manner. The precise mechanism remains to be examined. As a result, ALKBH5 deficiency in IECs results in normal susceptibility to RV infection. In addition, the global m6A modification on mRNA transcripts declines by ages in the intestine, with a significant drop from 2 to 3 weeks post birth, which implicate the drop of RV infectivity in adult mice vs neonatal mice. The dual regulation of m6A levels during RV infection and development provide new insights into the choice of either RV or the host on regulation of m6A modification to achieve either immune evasion or immune surveillance, respectively.

In conclusion, our work shed light into a novel role of m6A modifications in RV infection in vivo, and reported a tissue specific regulation of m6A during RV infection or development (Figure 4g). Future studies on tissue-specific regulation of m6A modification by viral infections in other tissues and organs (e.g. lung, liver) will be of interest.

Materials and methods

Mice

METTL3 conditional knockout mice were generated by inserting two loxp sites into the intron after the first exon and the intron before the last exon of Mettl3 using CRISPR/cas9-based genome-editing system as previously described (Li et al., 2017). ALKBH5 conditional knockout mice were generated by inserting two loxp sites into the introns flanking the first exon of Alkbh5 using CRISPR/cas9-based genome-editing system as previously described (Zhou, 2021). Genotyping of Mettl3fl/fl mice, Alkbh5fl/fl mice, Vil1Cre mice (The Jackson Laboratory, Stock No: 021504), and Irf7-/- mice (RIKEN BRC, RBRC01420) were confirmed by PCR using primers as list below:

Mettl3fl/fl mice

Request a detailed protocol
  • Mettl3-L1+: CCCAACAGAGAAACGGTGAG

  • Mettl3-L2-: GGGTTCAACTGTCCAGCATC

Vil1Cre mice

Request a detailed protocol
  • Vil1Cre-182/150 F: GCCTTCTCCTCTAGGCTCGT

  • Vil1Cre-182-R: TATAGGGCAGAGCTGGAGGA

  • Vil1Cre-150-R: AGGCAAATTTTGGTGTACGG

Irf7-/- mice

Request a detailed protocol
  • RBRC01420-Irf7-WT-F: GTGGTACCCAGTCCTGCCCTCTTTATAATCT

  • RBRC01420-Irf7-Mut-F: TCGTGCTTTACGGTATCGCCGCTCCCGATTC

  • RBRC01420-Irf7-R: AGTAGATCCAAGCTCCCGGCTAAGTTCGTAC

Alkbh5fl/fl mice

Request a detailed protocol
  • Alkbh5-L1+: GCACAGTGGAGCACATCATG

  • Alkbh5-L2-: CAGAGGGCAAGCAACCACAC

The sex-, age-, and background-matched littermates of the knockout or conditional knockout mice were used as the controls in the present study. All mice were on the C57BL/6 background. Mice were maintained in SPF conditions under a strict 12 hr light cycle (lights on at 08:00 and off at 20:00). All animal studies were performed according to approved protocols by the Ethics Committee at the University of Science and Technology of China (USTCACUC202101016).

Cell culture

Request a detailed protocol

The MA104 cell line was obtained from the Cell Resource Center, Peking Union Medical College (which is the headquarter of National Infrastructure of Cell Line Resource). HEK293T (ATCC CRL-3216), HT-29 (ATCC HTB-38D) were obtained from the American Type Culture Collection (ATCC). MODE-K cell were obtained from Shanghai HonSun Biological Technology Co., Ltd.

The identity of these cell lines were authenticated with STR profiling (FBI, CODIS). All these cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) (Hyclone) supplemented with 10% fetal bovine serum (FBS) (Clark); All cells were cultured at 37 °C in 5% CO2. All cells were tested for eliminating the possibility of mycoplasma contamination.

Poly(I:C) transfection

Request a detailed protocol

Poly(I:C) (OKA, A55994) was transfected at a concentration of 2 μg/ml using Lipofectamine 3,000 (Invitrogen) according to the manufacturer’s protocol. Cells were analyzed at indicated hours.

Plasmids and SgRNAs

Request a detailed protocol
  • pSIN-mAlkbh5-3xflag and pLVX-mAlkbh5-puro was constructed by cloning mouse Alkbh5 CDS into pSIN-3xflag and pLVX-puro plasmid.

  • pLVX-mIrf7-wt-puro was constructed by cloning mouse Irf7 CDS and 3’UTR into pLVX-puro.

  • pLVX-mIrf7-Mut-puro was constructed by cloning mutated mouse Irf7 CDS and 3’UTR into pLVX-puro. (The potential m6A modification sites (1400 A, 2213 A, 2693 A, 2927 A, 3446 A, 3475 A, 3491 A, 3590 A and 3620 A of mice Irf7(NC_000073)) were predicted on SRAMP website. The A to G mutation in these sites did not change the amino acids).

All gene silencing was done using a CRISPR–cas9 system, with lentiCRISPR v2 plasmid (Addgene no. 52961). The following sgRNAs were cloned downstream of the U6 promoter:

  • Human, rhesus and mouse METTL3/Mettl3: GGACACGTGGAGCTCTATCC;

  • Mouse Alkbh5: CCTCGTAGTCGCTGCGCTCG;

  • Mouse Fto: GAAGCGCGTCCAGACCGCGG;

Lentiviruses were generated by co-transfection of lentiCRISPR v2 constructs and packaging plasmids (psPAX2, Addgene no. 12,260 and pMD2.G, Addgene no. 12259), using PEI DNA transfection reagent (Shanghai maokang biotechnology), into HEK293T cells, according to the manufacturer’s instructions. At 48 hr post transfection, supernatants were collected and filtered through a 0.22 μm polyvinylidene fluoride filter (Millex). To induce gene silencing, cells were transduced with lentivirus expressing sgRNA and were puromycin selected (2 μg/ml) for 4–5 days. The depletion of target proteins was confirmed by immunoblot analysis.

Virus infections

Request a detailed protocol

Rhesus and simian RV strains, including RRV (Rhesus), SA11-4F (simian), SA11-NSP1null (simian) were propagated in MA104 cells as previously described (Ding et al., 2016). Viruses were activated by trypsin (5 μg/ml) at 37 °C for 30 min prior to infection. Cells were washed with PBS three times and incubated with RV at different MOIs at 37 °C for 1 hr. After removal of RV inoculum, cells were washed with PBS, cultured in serum-free medium (SFM) and harvested for qPCR and western blot analysis at indicated time points.

EW stock virus was prepared by infecting 5-day-old C57BL/6 J mice, and harvesting crude centrifugation-clarified intestinal homogenate as previously described (Ding et al., 2018).

For all rotavirus infection except indicated elsewhere, 8-day-old wild-type mice, or genetically deficient mice were orally inoculated by gavage with RV EW virus as previously described (Ding et al., 2018). Mice were sacrificed, stool and small intestinal tissue were collected at indicated time points post infection. Viral loads in intestinal tissues and feces were detected by RT–qPCR.

Quantitative analysis of m6A level

Request a detailed protocol

The m6A analysis by LC-MS/MS was performed by Metware Biotechnology Co., Ltd (Wuhan, China). In brief, 1 µg purified RNA was digested into single nucleosides with 1 U nuclease P1 (Takara) and 1 U rSAP (Takara) and incubated at 37 °C. The digested RNA was injected into a LC-MS/MS which includes the ultra-performance liquid chromatography with a C18 column. The positive ion multiple reaction-monitoring (MRM) mode was adopted to detect m6A abundance. m6A levels were calculated from the standard curve which was generated from pure nucleoside standards.

RT-qPCR

For cells and tissues, total RNA was extracted with TRNzol Universal reagent (Tiangen) in accordance with the manufacturer’s instructions. Real-time PCR was performed using SYBR Premix Ex Taq II (Tli RNaseH Plus) (Takara) and complementary DNA was synthesized with a PrimeScript RT reagent Kit with gDNA Eraser (Takara). The target genes were normalized to the housekeeping gene (Gapdh, HPRT) shown as 2−ΔCt. The used primers are as follows:

Primers detect mouse genes

Request a detailed protocol
  • Mettl3-F: ATTGAGAGACTGTCCCCTGG

  • Mettl3-R: AGCTTTGTAAGGAAGTGCGT

  • Mettl14-F: AGACGCCTTCATCTCTTTGG

  • Mettl14-R: AGCCTCTCGATTT CCTCTGT

  • Fto-F: CTGAGGAAGGAGTGGCATG

  • Fto-R: TCTCCACCTAAGACTTGTGC

  • Alkbh5-F: ACAAGATTAGATGCACCGCG

  • Alkbh5-R: TGTCCATTTCCAGGATCCGG

  • Wtap-F: GTTATGGCACGGGATGAGTT

  • Wtap-R: ATCTCCTGCTCTTTGGTTGC

  • Gapdh-F: TGAGGCCGGTGCTGAGTATGTCG

  • Gapdh-R: CCACAGTCTTCTGGGTGGCAGTG

  • Hprt-F: ACCTCTCGAAGTGTTGGATACAGG

  • Hprt-R: CTTGCGCTCATCTTAGGCTTTG

  • Irf7-F: ATGCACAGATCTTCAAGGCCTGGGC

  • Irf7-R: GTGCTGTGGAGTGCACAGCGGAAGT

  • Isg15-F: GGTGTCCGTGACTAACTCCAT

  • Isg15-R: TGGAAAGGGTAAGACCGTCCT

  • Oas1a-F: GCCTGATCCCAGAATCTATGC

  • Oas1a-R: GAGCAACTCTAGGGCGTACTG

  • Ifnb-F: TCCGAGCAGAGATCTTCAGGAA

  • Ifnb-R: TGCAACCACCACTCATTCTGAG

  • Ifnl3-F: AGCTGCAGGCCTTCAAAAAG

  • Ifnl3-R: TGGGAGTGAATGTGGCTCAG

  • Ifit1-F: GAACCCATTGGGGATGCACAACCT

  • Ifit1-R: CTTGTCCAGGTAGATCTGGGCTTCT

Primers detect human genes

Request a detailed protocol
  • GAPDH-F: ATGACATCAAGAAGGTGGTG

  • GAPDH-R: CATACCAGGAAATGAGCTTG

  • IRF7-F: CGAGACGAAACTTCCCGTCC

  • IRF7-R: GCTGATCTCTCCAAGGAGCC

  • IFNL3-F: TAAGAGGGCCAAAGATGCCTT

  • IFNL3-R: CTGGTCCAAGACATCCCCC

  • CXCL10-F: TGGCATTCAAGGAGTACCTC

  • CXCL10-R: TTGTAGCAATGATCTCAACACG

  • IFIT1-F: CAACCATGAGTACAAATGGTG

  • IFIT1-R: CTCACATTTGCTTGGTTGTC

Primers detect rhesus genes

Request a detailed protocol
  • Rhesus-GAPDH-F: ATGACATCAAGAAGGTGGTG

  • Rhesus-GAPDH-R: CATACCAGGAAATGAGCTTG

  • Rhesus-IFIT1-F: CAACCATGAGTACAAATGGTG

  • Rhesus-IFIT1-R: CTCACACTTGCTTGGTTGTC

  • Rhesus-IRF7-F: GTTCGGAGAGTGGCTCCTTG

  • Rhesus-IRF7-R: TCACCTCCTCTGCTGCTAGG

  • Rhesus-IFNL1-F: ACTCATACGGGACCTGACAT

  • Rhesus-IFNL1-R: GGATTCGGGGTGGGTTGAC

  • Rhesus-IFNb-F: GAGGAAATTAAGCAGCCGCAG

  • Rhesus-IFNb-R: ATTAGCAAGGAAGTTCTCCACA

Primers detect virus genes

Request a detailed protocol
  • Rotavirus EW-NSP2-F: GAGAATGTTCAAGACGTACTCCA

  • Rotavirus EW-NSP2-R: CTGTCATGGTGGTTTCAATTTC

  • Rotavirus EW-VP4-F: TGGCAAAGTCAATGGCAACG

  • Rotavirus EW-VP4-R: CCGAGACACTGAGGAAGCTG

  • Rotavirus EW-VP7-F: TCAACCGGAGACATTTCTGA

  • Rotavirus EW-VP7-R: TTGCGATAACGTGTCTTTCC

  • RRV VP7-F: ACGGCAACATTTGAAGAAGTC

  • RRV VP7-R: TGCAAGTAGCAGTTGTAACATC

  • RRV NSP2-F: GAGAATCATCAGGACGTGCTT

  • RRV NSP2-R: CGGTGGCAGTTGTTTCAAT

  • RRV NSP5-F: CTGCTTCAAACGACCCACTCAC

  • RRV NSP5-R: TGAATCCATAGACACGCC

m6A Dot blot assay

Request a detailed protocol

Total RNA was isolated from mice ileum using TRNzol Universal Reagent (Tiangen, Lot#U8825) according to the manufacturer’s instructions. RNA samples were quantified using UV spectrophotometry and denatured at 95 °C for 3 min. The m6A-dot-blot was performed according to a published work (Shen et al., 2016). In brief, the primary rabbit anti-m6A antibody (1:5000, Synaptic System, #202003) or the primary rabbit anti-m6A antibody (1:1000, Sigma-Aldrich, ABE572-I-100UG) was applied to the Amersham Hybond-N+ membrane (GE Healthcare, USA) containing RNA samples. Dot blots were visualized by the imaging system after incubation with secondary antibody HRP-conjugated Goat anti-rabbit IgG (Beyotime, A0208).

Western blot

Request a detailed protocol

Briefly, cells and tissue were lysed with RIPA buffer (Beyotime Biotechnology) supplemented with PMSF (Beyotime Biotechnology) and protease inhibitor cocktail (Roche). METTL3 (abcam, ab195352, 1:2000), METTL14 (sigma, HPA038002, 1:2000), ALKBH5 (sigma, HPA007196, 1:2000), FTO (abcam, ab92821), NSP1 and VP6 (gift from Harry B. Greenberg lab), GAPDH (proteintech), TUBULIN (proteintech), beta-ACTIN (proteintech), Phospho-IRF-7 (Ser437/438) (D6M2I) (CST), Phospho-TBK1/NAK (Ser172) (D52C2) (CST), TBK1/NAK (D1B4) (CST), and IRF-7 (D8V1J) (CST) antibodies were used in accordance with the manufacturer’s instructions. After incubation with the primary antibody overnight, the blotted PVDF membranes (Immobilon, IPVH00010) were incubated with goat anti-rabbit IgG-HRP (Beyotime, A0208) or goat anti-mouse IgG-HRP (Beyotime, A0216) and exposed with BIO-RAD ChemiDocTM Imaging System for a proper exposure period.

RNA degradation assay

Request a detailed protocol

The stability of targeted mRNA was assessed as previously described (Li et al., 2017). In brief, METTL3 knock down HT-29 and control cell were plated on 24-well plate. Actinomycin-D (MCE, HY17559) was added to a final concentration of 5 μM, and cells were harvested by indicated time points after actinomycin-D treatment. The RNA samples are processed and qPCR was used to measure the mRNA transcripts, all data were normalized to that of t = 0 time point.

Dual-luciferase assay

Request a detailed protocol

pmirGLO (Firefly luciferase, hRluc) vector of the Dual-luciferase Reporter assay system (Promega, E1910) was used to determine the function of m6A modification within the 3’UTR of Irf7 transcripts. The potential m6A modification sites (3446 A, 3475 A, 3491 A, 3590 A, and 3620 A of mice Irf7(NC_000073)) were predicted on SRAMP website. The mutants harbor the A to G mutations at these sites. The assay was performed according to the manufacture’s instruction of Promega Dual-Luciferase Reporter Assay System(E1910): Briefly, 300 ng of pmirGLO vector containing Irf7-3’UTR or m6A-mutant Irf7-3’UTR were transfected into HEK293T cells in triplicate wells. The relative luciferase activity was accessed 36 hr post-transfection.

Isolation of IECs in the Intestine

Request a detailed protocol

Small intestines were excised and flushed thoroughly three times with PBS. They were turned inside out and cut into ~1 cm sections then transferred into RPMI with 2 mM EDTA, and shaken for 15 min at 37 °C. Supernatants were collected through a 100-mm cell strainer to get single-cell suspensions. Cells were collected as the IEC fraction which contains both epithelial cells (~90%) and lymphocytes (IEL, ~ 10%). Single-cell suspension was used for further analysis.

RNA-Seq

Request a detailed protocol

IECs from Mettl3ΔIEC mice as well as the wild-type littermate control mice were isolated as described in previous section. Total RNAs were extracted with TRNzol universal RNA Reagen kits. Berrygenomics (Beijing, China) processed the total RNA and constructed the mRNA libraries, and subject them to standard illumine sequencing on Novaseq 6,000 system, and obtained >40 million Pair-end 150 reads for each sample. Raw RNA-sequencing reads were aligned to the mouse genome (mm10, GRCm38) with STAR (v2.5.3a). Gene expression levels and differential analysis was performed with edgeR(v3.29.2). Genes were considered significantly differentially expressed if showing ≥1.5 fold change and FDR < 0.05. Gene set analysis was performed and enriched pathways were obtained through online bioinformatics tools (metascape) and GSEA (v4.0.3). Pathway plot were gene-rated with R package ‘ggplot2’ (Li et al., 2017).

m6A RNA-IP-qPCR and m6A RNA-IP-Seq

m6A RNA-IP-Seq was carried out according to a previously published protocol (Li et al., 2017). In brief, total cellular RNA extracted from WT C57 mice IEC was fragmented by ZnCl2 followed by ethanol precipitation. Fragmented RNA was incubated with an anti-m6A antibody (Sigma Aldrich ABE572-I) or IgG IP Grade Rabbit polyclonal antibody (abcam, lot: 934197). The eluted RNA and input were subjected to high-throughput sequencing using standard protocols (Illumina, San Diego, CA, USA) or processed as described in ‘RT-qPCR’ section, except that the data were normalized to the input samples. The m6A RIP-Seq data were analyzed as described previously (Li et al., 2017).

  • RIP-Ptpn4-F: CCTCCCATCCCGGTCTCCACC

  • RIP-Ptpn4-R: GGCTGCCCATCTTCAGGGGT

  • RIP-Rps14-F: ACCTGGAGCCCAGTCAGCCC

  • RIP-Rps14-R: CACAGACGGCGACCACGACG

  • RIP-Tlr3-F: TGCTCAGGAGGGTGGCCCTT

  • RIP-Tlr3-R: CGGGGTTTGCGCGTTTCCAG

  • m6A-Irf7-F1: GACAGCAGCAGTCTCGGCTT

  • m6A-Irf7-R1: ACCCAGGTCCATGAGGAAGT

  • m6A-Irf7-F2: GGCAAGACTTGTCAGCAGGG

  • m6A-Irf7-R2: TAGACAAGCACAAGCCGAGAC

m6A sites on RV-EW RNA were predicted on http: //www.cuilab.cn/sramp website, and m6A-RIP-qPCR primer were designed on NCBI primer blast according to the predicted m6A sites.

m6A-RIP-qPCR primer

Request a detailed protocol
  • RIP-EW-VP1-F: ACGAAATGCTTGTTGCTATGAGT

  • RIP-EW-VP1-R: AACCTGTCCGTCAACCATTC

  • RIP-EW-VP2-F: GGCCAGAACAGGCTAAACAAC

  • RIP-EW-VP2-R: CGCAGTTCTCTTTCGCCATTT

  • RIP-EW-VP3-F: CGATGACAGCACAAAAGTCGG

  • RIP-EW-VP3-R: CGTGTCTCTTGCGAAGTC

  • RIP-EW-VP4-F: TCAGCAGACGGTTGAGACTG

  • RIP-EW-VP4-R: GGCTGAGATGTCATCGAAGTT

  • RIP-EW-NSP1-F: CCTCACATCTCTGCTACATGAACT

  • RIP-EW-NSP1-R: TGCTGGTTGGACATGGAATGA

  • RIP-EW-VP6-F: CTGCACTTTTCCCAAATGCTCA

  • RIP-EW-VP6-R: GAGTCAATTCTAAGTGTCAGTCCG

  • RIP-EW-NSP3-F: CTTGACGTGGAGCAGCAAC

  • RIP-EW-NSP3-R: AATGTTTCAATGTCGTCCAACG

  • RIP-EW-NSP2-F: TCCACCACTCTAAAGAACTACTGC

  • RIP-EW-NSP2-R: TCCGCTGTCATGGTGGTTTC

  • RIP-EW-VP7-F: TCGGAACTTGCAGACTTGAT

  • RIP-EW-VP7-R: GCTTCGTCTGTTTGCTGGTA

  • RIP-EW-NSP4-F: TGCACTGACTGTTCTATTTACGA

  • RIP-EW-NSP4-R: GGGAAGTTCGCATTGCTAGT

  • RIP-EW-NSP5/6-F: GGACACCGCAAGGTCAAAAA

  • RIP-EW-NSP5/6-R: TCGTCTGAGTCTGATTCTGCTT

J2 immunofluorescent staining

Request a detailed protocol

IECs from Mettl3ΔIEC mice as well as from the wild-type littermate control mice were isolated as described in previous section. Isolated IEC were centrifuged onto glass slides and fixed with 4% Paraformaldehyde for 30 min at room temperature. Subsequently, permeabilized and blocked with PBS containing 0.1% Triton-X-100% and 5% bovine serum albumin for 1 hr at room temperature. Double-stranded RNA (dsRNA) was labeled by a mouse monoclonal antibody J2 (Scisons) for 2 hr at room temperature, followed by incubation with anti-mouse IgG Alexa Fluor 594-conjugated antibody (Invitrogen) for 1 hr, and cells nuclei were visualized with 4,6-diamidino-2-phenylindole (DAPI, Invitrogen). All fluorescence images were analyzed via confocal imaging using Zeiss LSM880.

Statistical analysis

Request a detailed protocol

Statistical analysis was performed with the GraphPad Prism 8.0 (GraphPad, Inc, USA). Experiments were independently repeated for indicated times listed in the figure legend. Representative data was exhibited as the means ± SEM. Quantitative data was compared using Student’s t test. In addition, correlational analysis of gene expression was conducted with linear regression. p-values for every result were labeled on figures, and p < 0.05 was reckoned as statistically significant (*p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001, NS., not significant).

Data availability

RNA sequencing data are available from the SRA database with accession numbers PRJNA713535. All data generated or analysed during this study are included in the manuscript and supporting file; source data files are in Dryad. Source data contain the numerical data used to generate the figures.

The following data sets were generated
    1. Wang A
    (2022) Dryad Digital Repository
    Data from: m6A modifications regulate intestinal immunity and rotavirus infection.
    https://doi.org/10.5061/dryad.p2ngf1vr8
    1. Wang A
    (2022) NCBI Sequence Read Archive
    ID PRJNA713535. m6A modifications regulate intestinal immunity and rotavirus infection.

References

Decision letter

  1. Kiyoshi Takeda
    Reviewing Editor; Osaka University, Japan
  2. Tadatsugu Taniguchi
    Senior Editor; Institute of Industrial Science, The University of Tokyo, Japan

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "m6A modifications regulate intestinal immunity and rotavirus infection" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Tadatsugu Taniguchi as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) The m6A dot blot used in Figure 1 is not a good measurement system of total m6A modification levels, because the antibody used here also detects other RNA modification, m6Am (PMID: 31676230). Therefore, it is unclear if the increase of m6A dot blot intensity is due to the increase of m6A in RNAs mediated by METTL3 in IECs. The authors should investigate the m6A levels in IECs, not BMDMs, under METTL3 deficiency. Ideally, this analysis should be done using mass spectrometry.

2) The authors show that Alkbh5 expression is increased when the mice grow up to 3 weeks old. However, the ALKBH5 protein expression changes are missing.

3) The decline in m6A levels during early life development is quite interesting. (Line 110).

– It is not clear if the subtle increase in Alkbh5 mRNA leads to the change in global m6A levels. The authors can use ALKBH5-deficient mouse cells to confirm this point.

– Is this related to microbiota changes during the same period of life (PMID: 32165618)?

4) The authors should describe the overall phenotype of IEC-specific METTL3-deficient mice at the steady state. It is important to clarify if the augmented expression of ISG upon METTL3 deficiency is dependent on rotavirus infection. Also, the authors should describe any detectable abnormalities or changes without stimulation.

5) The finding that Irf7 is targeted by METTL3 is not convincing.

– The authors performed MeRIP-seq and -qPCR experiments only using RNAs from wild-type IECs not from METTL3-deficient cells. It is necessary to show that the modification levels on Irf7 mRNA is indeed reduced upon METTL3 deficiency.

– It is unclear if MeRIP-seq is properly performed or not, because there is no quality checking figure shown. For instance, the authors can generate metagene plots or gene logos of m6A modified sites to see if there is any consistency with previous reports.

– In Figure 2h, the authors should show that the change in luciferase activity between wild-type and mutant Irf7-3'UTR reporters is dependent on METTL3 activity by performing METTL3 knockdown or knockout. The authors should also describe how they mutagenize the sequences for clarification.

– In Figures 2F and 3C, they showed that Irf7 is upregulated in METTL3-deficient IECs while in Figure 3F, Irf7 is conversely downregulated in METTL3-deficient IECs. This is apparently contradictory to each other.

– As the authors mention in their discussion, m6A modification of RV RNA, endogenous retroviral elements, and IFN transcripts can all contribute to the decreased anti-viral response conferred by this modification. Can the authors provide stronger evidence ruling out these possibilities? IRF7 is an ISG itself and could mediate these other mechanisms.

6) It is unclear if the augmented expression of IRF7 per se upregulates IFN and ISG expression. Since IRF7 exerts its transcriptional activity upon phosphorylation, the authors should examine IRF7 phosphorylation and total protein levels in METTL3-deficient IECs.

7) In Figure 3, the authors utilized METTL3 and IRF7 deficient mice to show the contribution of METTL3-mediated IRF7 regulation in rotavirus infection.

– If IRF7 is totally abrogated, IFN production should be greatly impaired as shown in Figure 3A. Thus, it is not surprising to see that the IFN response is diminished. The authors can use heterozygous IRF7 deficient mice instead to check if upregulation of IRF7 under METTL3 deficiency is critical to control rotavirus infection.

– IRF7 deficient mice did not show increased susceptibility to RV, which is against previous publications (PMID: 30934842, PMID: 17301153). Can the authors explain why? One possibility is that the RV used here also shares the same NSP1 activity as SA11-4F NSP1 to directly target IRF7 for degradation (PMID: 17301153).

8) Given no effect of ALKBH5 knockout on rotavirus infection as shown in Figure 4, it is questionable if ALKBH5 has a profound role in the regulation of m6A in IECs.

– The authors should determine if m6A modification levels are increased in IECs under ALKBH5 deficiency.

– Is it possible that the other m6A eraser FTO has a redundant role? Would it be possible to use in vitro experiments to show that overexpressing ALKBH5 overcomes this immune evasion mechanism?

Reviewer #1 (Recommendations for the authors):

1) There are four listed corresponding authors in line 5, but two of them are not listed in line 29.

Reviewer #2 (Recommendations for the authors):

This manuscript sets out to determine the previously uncharacterized relationship between rotavirus (RV) infection and m6A modification during intestinal infection by using a collection of both in vivo and in vitro models. The authors found m6A modification inversely correlates with resistance to RV. The increased resistance to RV is due to elevated anti-viral IFN responses in a host with diminished m6A. They investigate mechanism by RNA-Seq and m6A-RIP-Seq and identified IRF7 as the proposed major mediator of this anti-viral response in the m6A deficient setting. During RV infection, the virus up-regulates m6A modifications to limit the IFN response, potentially targeting m6A eraser ALKBH5 for degradation by viral NSP1 protease.

The primary finding of this manuscript is novel and intriguing, as it broadens the role of this important type of RNA modification. However, there are concerns as to whether the mechanistic conclusions are sufficiently supported, and the manuscript may benefit from adding depth to certain aspects of the study prior to publication. These are detailed below.

Specific concerns:

1. Given the central role of IRF7 in the interferon response, it is perhaps not surprising that removing IRF7 reverses the resistance to RV displayed by Mettl3 mutant mice. As the authors mention in their discussion, m6A modification of RV RNA, endogenous retroviral elements, and IFN transcripts can all contribute to the decreased anti-viral response conferred by this modification. Can the authors provide stronger evidence ruling out these possibilities? IRF7 is an ISG itself and could mediate these other mechanisms.

2. The authors suggest the reason knocking out the eraser ALKBH5 has no effect is because it is downregulated by RV NSP1. Is it possible that the other m6A eraser FTO has a redundant role? Would it be possible to use in vitro experiments to show that overexpressing ALKBH5 overcomes this immune evasion mechanism?

3. The decline in m6A levels during early life development is quite interesting and may represent a missed opportunity to broaden the impact of this manuscript. Is this related to microbiota changes during the same period of life (PMID: 32165618)?

4. In the text line 143-144, "the 5' UTR and 3' UTR of Irf7 in ileum IECs (Figure 2d)", do they mean Figure 2c?

5. In figure 2, it would be helpful to confirm that changes are reflected at the protein level, especially demonstrating an epithelial-specific increase in IRF7.

6. In Figure 3 Irf7-/- mice did not show increased susceptibility to RV, which is against previous publications (PMID: 30934842, PMID: 17301153). Can the authors explain why? One possibility is that the RV used here also shares the same NSP1 activity as SA11-4F NSP1 to directly target IRF7 for degradation (PMID: 17301153).

7. In Figure 3f right panel, Irf7 expression in Mettl3△IEC is lower than WT, which contradicts the data in Figure 2e, f. Figure 3f is not quoted anywhere in the manuscript.

https://doi.org/10.7554/eLife.73628.sa1

Author response

Essential revisions:

1) The m6A dot blot used in Figure 1 is not a good measurement system of total m6A modification levels, because the antibody used here also detects other RNA modification, m6Am (PMID: 31676230). Therefore, it is unclear if the increase of m6A dot blot intensity is due to the increase of m6A in RNAs mediated by METTL3 in IECs. The authors should investigate the m6A levels in IECs, not BMDMs, under METTL3 deficiency. Ideally, this analysis should be done using mass spectrometry.

We thank the reviewer for raising a critical point. We have tried several methods to avoid the potential non-specific detection of the previous antibody (Synaptic System, #202003) we used, which was reported to detect m6Am as well.

1. We have included Dot Blot data for m6A modification in Mettl3△IEC and WT IECs during RV infection by using another m6A antibody (Anti-N6-methyladenosine (m6A), Sigma-Aldrich, Cat. No. ABE572-I). (see Figure 1d, 1e)

2. We have included mass spectrometry data for m6A modification in IECs during development (see Figure 1c) or RV infection (see Figure 1—figure supplement 3a).

These data suggested m6A modifications in IECs are indeed regulated during the development or RV infection. We have included the descriptions in the text (Page 4, Line 110-126).

2) The authors show that Alkbh5 expression is increased when the mice grow up to 3 weeks old. However, the ALKBH5 protein expression changes are missing.

We thank the reviewer for raising this point. We have included the protein expression of ALKBH5 in intestine during the development (see Figure 1—figure supplement 1). The ALKBH5 protein levels are increased in the intestine along with the age (Figure 1—figure supplement 1a, Figure 1—figure supplement 1b), which is consistent to the changes of mRNA levels of Alkbh5 during the development (Figure 1d).

3) The decline in m6A levels during early life development is quite interesting. (Line 110).

– It is not clear if the subtle increase in Alkbh5 mRNA leads to the change in global m6A levels. The authors can use ALKBH5-deficient mouse cells to confirm this point.

– Is this related to microbiota changes during the same period of life (PMID: 32165618)?

4) The authors should describe the overall phenotype of IEC-specific METTL3-deficient mice at the steady state. It is important to clarify if the augmented expression of ISG upon METTL3 deficiency is dependent on rotavirus infection. Also, the authors should describe any detectable abnormalities or changes without stimulation.

We actually collaborated another group and found there is a defect in intestinal stem cells in IEC-specific METTL3-deficient mice. However, as RV normally infected IECs in the villi but not in the crypt, and stem cells are not the major producers of IFN/ISGs (Sue E. Crawford et al., Nature reviews disease primers, 2017). The defect in intestinal stem cells will less likely affect the RV infection phenotype. As it is another story that are under review, we tend to not include this part of the data in our manuscript. Moreover, we have crossed Irf7−/− mice to Mettl3ΔIEC mice and verified Irf7 mediated induction of ISGs is critical for the anti-viral phenotype in Mettl3ΔIEC mice.

Our bulk RNA-seq data in IECs showed the augmented expression of ISGs upon METTL3 deficiency in steady state (Figure 2a). We also found an augmented ISG expression in intestine of METTL3-deficient mice in steady state or early infection of RV (2d) by qPCR. However, as the RV loads in METTL3-deficient mice during the late infection stage are significantly lower than WT mice, thus the inducible ISGs expressions are consequently lower in intestine of METTL3-deficient mice than WT mice in day 4 post infection (Figure 3f).

5) The finding that Irf7 is targeted by METTL3 is not convincing.

– The authors performed MeRIP-seq and -qPCR experiments only using RNAs from wild-type IECs not from METTL3-deficient cells. It is necessary to show that the modification levels on Irf7 mRNA is indeed reduced upon METTL3 deficiency.

– It is unclear if MeRIP-seq is properly performed or not, because there is no quality checking figure shown. For instance, the authors can generate metagene plots or gene logos of m6A modified sites to see if there is any consistency with previous reports.

– In Figure 2h, the authors should show that the change in luciferase activity between wild-type and mutant Irf7-3'UTR reporters is dependent on METTL3 activity by performing METTL3 knockdown or knockout. The authors should also describe how they mutagenize the sequences for clarification.

– In Figures 2F and 3C, they showed that Irf7 is upregulated in METTL3-deficient IECs while in Figure 3F, Irf7 is conversely downregulated in METTL3-deficient IECs. This is apparently contradictory to each other.

We appreciate the valuable suggestion provided by the reviewer to improve our manuscript.

We have done RIP-qPCR in METTL3 knock-down and WT MODE-K cells to verify the m6A modification on Irf7 mRNA, the modification levels on Irf7 mRNA is indeed reduced upon METTL3 deficiency (see Figure 2—figure supplement 1c, Figure 2—figure supplement 1d). We have added the description of the experiment in the manuscript (Page 6, Line 158-162).

We have performed metagene plots as suggested. As shown in Figure 2—figure supplement 1b, the m6A peak is enriched near the stop codon and 3’UTR region, which is consistent with previously study (Supporting Figure 1). We have added the description in the manuscript (Page 5, Line 149-151).

We have performed the luciferase assay in WT and METTL3 knock-down 293t cell, and found increased luciferase activity in mutant Irf7-3'UTR reporters is dependent on METTL3 activity (see Figure 2h, Figure 2—figure supplement 1e). We have added the description of the experiment into the manuscript (Page 19, Line 563-569).

IRF7 is an ISG. The expression of IRF7 is controlled by both PAMP (such as virus component)-induced transcription and post-transcriptional regulation like m6A modification mediated mRNA decay. In steady state or early stage (2d) of rotavirus infection, there is no virus or the viral loads is comparable in both Mettl3△IEC mice and WT mice, thus, IRF7 expression is mainly regulated by m6A and is higher in IECs from Mettl3△IEC mice in comparison with that from WT mice. However, as the RV loads in Mettl3△IEC mice during the late infection stage are significantly lower than WT mice, in this case, IRF7 expression is mainly regulated by the PAMP from virus, thus the inducible IRF7 expressions is consequently lower in intestine of Mettl3△IEC than WT mice in day 4 post infection (Figure 3f).

– As the authors mention in their discussion, m6A modification of RV RNA, endogenous retroviral elements, and IFN transcripts can all contribute to the decreased anti-viral response conferred by this modification. Can the authors provide stronger evidence ruling out these possibilities? IRF7 is an ISG itself and could mediate these other mechanisms.

6) It is unclear if the augmented expression of IRF7 per se upregulates IFN and ISG expression. Since IRF7 exerts its transcriptional activity upon phosphorylation, the authors should examine IRF7 phosphorylation and total protein levels in METTL3-deficient IECs.

We have provided the phosphorylation and total protein levels of IRF7 and TBK1 in MODE-K cells treated with poly I:C. Both total IRF7 and phosphorylated IRF7 are upregulated in METTL3 knock down cells compare to control cells (see Figure 2—figure supplement 1f). However, Both total TBK1 and phosphorylated TBK1 remain unchanged (Figure 2—figure supplement 1f), suggesting the augmented ISGs are less likely due to the activation of the upstream signal of IFN.

7) In Figure 3, the authors utilized METTL3 and IRF7 deficient mice to show the contribution of METTL3-mediated IRF7 regulation in rotavirus infection.

– If IRF7 is totally abrogated, IFN production should be greatly impaired as shown in Figure 3A. Thus, it is not surprising to see that the IFN response is diminished. The authors can use heterozygous IRF7 deficient mice instead to check if upregulation of IRF7 under METTL3 deficiency is critical to control rotavirus infection.

We thank the reviewer for pointing out an important issue. However, we checked the IRF7 expression levels in IECs from Irf7+/+, Irf7+/- and Irf7-/- mice and found that there is no difference between IRF7 levels in IECs from Irf7+/- mice and that in IECs from Irf7+/+ mice. Thus, it is not feasible to use heterozygous IRF7 deficient mice to test the idea (Supporting Figure 2).

6) Given no effect of ALKBH5 knockout on rotavirus infection as shown in Figure 4, it is questionable if ALKBH5 has a profound role in the regulation of m6A in IECs.

– The authors should determine if m6A modification levels are increased in IECs under ALKBH5 deficiency.

We performed the m6A dot blot assay to detect m6A modification levels in ALKBH5-knock down MODE-K cells and we do find an increase of m6A modification level under ALKBH5 deficiency (see Figure 4—figure supplement 1). No effect of ALKBH5 knockout on rotavirus infection actually puzzled us as well before (Figure4c, 4d and 4e), until we found RV infection down-regulated ALKBH5 expression in the intestine of WT mice (Figure4a).

Reviewer #1 (Recommendations for the authors):

1) There are four listed corresponding authors in line 5, but two of them are not listed in line 29.

We apologize for the possible confusion. According to the contribution made by each author, we have negotiated and selected two as corresponding authors.

Reviewer #2 (Recommendations for the authors):

This manuscript sets out to determine the previously uncharacterized relationship between rotavirus (RV) infection and m6A modification during intestinal infection by using a collection of both in vivo and in vitro models. The authors found m6A modification inversely correlates with resistance to RV. The increased resistance to RV is due to elevated anti-viral IFN responses in a host with diminished m6A. They investigate mechanism by RNA-Seq and m6A-RIP-Seq and identified IRF7 as the proposed major mediator of this anti-viral response in the m6A deficient setting. During RV infection, the virus up-regulates m6A modifications to limit the IFN response, potentially targeting m6A eraser ALKBH5 for degradation by viral NSP1 protease.

The primary finding of this manuscript is novel and intriguing, as it broadens the role of this important type of RNA modification. However, there are concerns as to whether the mechanistic conclusions are sufficiently supported, and the manuscript may benefit from adding depth to certain aspects of the study prior to publication. These are detailed below.

We appreciate the supportive comments and the valuable suggestion of new experiments provided by the reviewer to improve our manuscript. We believe that the new data included in the revised manuscript further validate and support our claim.

Specific concerns:

1. Given the central role of IRF7 in the interferon response, it is perhaps not surprising that removing IRF7 reverses the resistance to RV displayed by Mettl3 mutant mice. As the authors mention in their discussion, m6A modification of RV RNA, endogenous retroviral elements, and IFN transcripts can all contribute to the decreased anti-viral response conferred by this modification. Can the authors provide stronger evidence ruling out these possibilities? IRF7 is an ISG itself and could mediate these other mechanisms.

We thank the reviewer for raising an important point. We constructed plasmids pLVX-Irf7-WT (Irf7-WT) or pLVX-Irf7-Mut containing mutated m6A modification sites (Irf7-MUT) and transduced it into Irf7-/- MEF cells. We found that Irf7 without m6A modification led to increased expression of Irf7 and ISGs (Figure 2—figure supplement 4a and 4b), and enhanced antiviral responses in MEF cells (Figure 2—figure supplement 4a). These data cannot completely exclude other mechanisms but further highlighted the involvement of m6A modification on Irf7 in the resistance phenotype to virus infection by METTL3 deficiency.

2. The authors suggest the reason knocking out the eraser ALKBH5 has no effect is because it is downregulated by RV NSP1. Is it possible that the other m6A eraser FTO has a redundant role? Would it be possible to use in vitro experiments to show that overexpressing ALKBH5 overcomes this immune evasion mechanism?

We thank the reviewer for the comments. We checked the expression of Alkbh5/ALKBH5 and Fto/FTO in our RNA-seq data in mouse IECs, and also a previous reported RNA-seq data in human intestinal enteroid (Kapil Saxena, et al., PNAS. 2017). We found the Alkbh5/ALKBH5 expression is much higher than Fto/FTO in intestine (Figure 4—figure supplement 1a). We did qPCR analysis in mouse epithelial cell line MODE-K and showed the similar results (Figure 4—figure supplement 1a). Furthermore, we knock down METTL3, ALKBH5 and FTO in MODE-K cell. Through dot blot assay, we found ALKBH5 but not FTO is the dominant m6A eraser in IECs (Figure 4—figure supplement 1).

Then we transduced plasmid encoding ALKBH5 or control plasmid in MODE-K cell and infected these cells with RRV. Indeed, we found the overexpression of ALKBH5 reinforced the protein level of ALKBH5, increase the IFN/ISGs expression and inhibit RRV infection in MODE-K cell (Figure 4—figure supplement 2), indicating overexpressing ALKBH5 overcomes the immune evasion mechanism mediated by RV.

3. The decline in m6A levels during early life development is quite interesting and may represent a missed opportunity to broaden the impact of this manuscript. Is this related to microbiota changes during the same period of life (PMID: 32165618)?

We thank the reviewer for the positive comment. To address the question whether the decline in m6A modifications is related to microbiota development during early life development, we examined the m6A modifications in ileum tissue from germ free mice at 1 week or 3 weeks of age. There is no difference between these two groups, which indicated microbiota changes may contribute to the decline in m6A levels during early life development (Figure 1—figure supplement 2).

4. In the text line 143-144, "the 5' UTR and 3' UTR of Irf7 in ileum IECs (Figure 2d)", do they mean Figure 2c?

We thank the reviewer for pointing this out, we have corrected it in the manuscript.

5. In figure 2, it would be helpful to confirm that changes are reflected at the protein level, especially demonstrating an epithelial-specific increase in IRF7.

We have provided the phosphorylation and total protein levels of IRF7 and TBK1 in intestinal epithelial MODE-K cells treated with poly I:C. Both total IRF7 and phosphorylated IRF7 are upregulated in METTL3 knock down cells compare to control cells (see Figure 2—figure supplement 1f). However, Both total TBK1 and phosphorylated TBK1 remain unchanged (Figure 2—figure supplement 1f), suggesting the augmented ISGs are less likely due to the activation of the upstream signal of IFN.

6. In Figure 3 Irf7-/- mice did not show increased susceptibility to RV, which is against previous publications (PMID: 30934842, PMID: 17301153). Can the authors explain why? One possibility is that the RV used here also shares the same NSP1 activity as SA11-4F NSP1 to directly target IRF7 for degradation (PMID: 17301153).

We thank the reviewer for raising a interesting point. We have reported that RV RNA methyl- and guanylyl-transferase (VP3) can degrade MAVS, an adaptor upstream of IRF7, to evade the host immune response towards RV in a host-range-restricted manner (Siyuan Ding et al., eLife, 2018). In the study (Siyuan Ding et al., eLife, 2018), we showed Mavs-/- also did not show increased susceptibility to RV, which is the same we observed in Irf7-/- mice in this manuscript (Wang et. al). Thus, we hypothesize that the rotavirus EW strain can degrade MAVS and thus inhibit the MAVS/IFN/IRF7 signaling in mice, which led to no enhanced susceptibility to RV in either Mavs-/- or Irf7-/- mice.

7. In Figure 3f right panel, Irf7 expression in Mettl3△IEC is lower than WT, which contradicts the data in Figure 2e, f. Figure 3f is not quoted anywhere in the manuscript.

IRF7 is an ISG. The expression of IRF7 is controlled by both PAMP (such as virus component)-induced transcription and post-transcriptional regulation like m6A modification mediated mRNA decay. In steady state or early stage (2d) of rotavirus infection, there is no virus or the viral loads is comparable in both Mettl3△IEC mice and WT mice, thus, IRF7 expression is mainly regulated by m6A and is higher in IECs from Mettl3△IEC mice in comparison with that from WT mice. However, as the RV loads in Mettl3△IEC mice during the late infection stage are significantly lower than WT mice, in this case, IRF7 expression is mainly regulated by the PAMP from virus, thus the inducible IRF7 expressions is consequently lower in intestine of Mettl3△IEC than WT mice in day 4 post infection (Figure 3f).

Figure 3f showed the expression of Mettl3 or Irf7 to indicate the successful knockouts of the genes. We have quoted in the manuscript (Page 8, line 220).

https://doi.org/10.7554/eLife.73628.sa2

Article and author information

Author details

  1. Anmin Wang

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2239-9051
  2. Wanyiin Tao

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  3. Jiyu Tong

    Shanghai Institute of Immunology, Department of Microbiology and Immunology, Shanghai Jiao Tong University School of Medicine (SJTU-SM), Shanghai, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Juanzi Gao

    Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Jinghao Wang

    Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Gaopeng Hou

    Department of Molecular Microbiology, Washington University School of Medicine in St. Louis, St. Louis, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  7. Chen Qian

    Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Guorong Zhang

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Runzhi Li

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  10. Decai Wang

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. Xingxing Ren

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  12. Kaiguang Zhang

    Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  13. Siyuan Ding

    Department of Molecular Microbiology, Washington University School of Medicine in St. Louis, St. Louis, United States
    Contribution
    Writing – review and editing
    Competing interests
    No competing interests declared
  14. Richard A Flavell

    1. Department of Immunobiology, Yale University School of Medicine, New Haven, United States
    2. Howard Hughes Medical Institute, Yale University School of Medicine, New Haven, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4461-0778
  15. Huabing Li

    Shanghai Institute of Immunology, Department of Microbiology and Immunology, Shanghai Jiao Tong University School of Medicine (SJTU-SM), Shanghai, China
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared
  16. Wen Pan

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    Contribution
    Investigation
    For correspondence
    wenpan@ustc.edu.cn
    Competing interests
    No competing interests declared
  17. Shu Zhu

    1. Department of Digestive Disease, The First Affiliated Hospital of University of Science and Technology of China, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    2. Institute of Immunology, the Chinese Academy of Sciences Key Laboratory of Innate Immunity and Chronic Disease, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, China
    3. School of Data Science, University of Science and Technology of China, Hefei, China
    4. Institute of Health and Medicine, Hefei Comprehensive National Science Center, Hefei, China, Hefei, China
    Contribution
    Conceptualization, Project administration, Resources, Writing – review and editing
    For correspondence
    zhushu@ustc.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8163-0869

Funding

Chinese Academy of Sciences (Strategic Priority Research Program (XDB29030101))

  • Shu Zhu

National Key Research and Development Program of China (2018YFA0508000)

  • Shu Zhu

National Natural Science Foundation of China (81822021)

  • Shu Zhu

National Natural Science Foundation of China (91842105)

  • Shu Zhu

National Natural Science Foundation of China (31770990)

  • Shu Zhu

National Natural Science Foundation of China (82061148013)

  • Shu Zhu

National Natural Science Foundation of China (81821001)

  • Shu Zhu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Hongdi Ma, Taidou Hu, Kaixin He, Yinglei Wang, Ji Hu, Anlei Wang, and Meng Guo for technical help and helpful discussion. This work was supported by grants from the Strategic Priority Research Program of the Chinese Academy of Sciences (XDB29030101)(SZ), the National Key R&D Program of China (2018YFA0508000)(SZ), and National Natural Science Foundation of China (81822021, 91842105, 31770990, 82061148013, 81821001)(SZ).

Ethics

All animal studies were performed according to approved protocols by the Ethics Committee at the University of Science and Technology of China (USTCACUC202101016).

Senior Editor

  1. Tadatsugu Taniguchi, Institute of Industrial Science, The University of Tokyo, Japan

Reviewing Editor

  1. Kiyoshi Takeda, Osaka University, Japan

Publication history

  1. Received: September 6, 2021
  2. Preprint posted: September 17, 2021 (view preprint)
  3. Accepted: January 28, 2022
  4. Accepted Manuscript published: January 31, 2022 (version 1)
  5. Version of Record published: February 21, 2022 (version 2)

Copyright

© 2022, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 592
    Page views
  • 153
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Anmin Wang
  2. Wanyiin Tao
  3. Jiyu Tong
  4. Juanzi Gao
  5. Jinghao Wang
  6. Gaopeng Hou
  7. Chen Qian
  8. Guorong Zhang
  9. Runzhi Li
  10. Decai Wang
  11. Xingxing Ren
  12. Kaiguang Zhang
  13. Siyuan Ding
  14. Richard A Flavell
  15. Huabing Li
  16. Wen Pan
  17. Shu Zhu
(2022)
m6A modifications regulate intestinal immunity and rotavirus infection
eLife 11:e73628.
https://doi.org/10.7554/eLife.73628

Further reading

    1. Immunology and Inflammation
    Magdalena Shumanska, Ivan Bogeski
    Insight

    The oxidative state of a critical cysteine residue determines the enzymatic activity of a phosphatase involved in T-cell immune responses.

    1. Immunology and Inflammation
    2. Structural Biology and Molecular Biophysics
    Malcolm JW Sim et al.
    Research Article

    Dimorphic amino acids at positions 77 and 80 delineate HLA-C allotypes into two groups, C1 and C2, which associate with disease through interactions with C1 and C2-specific natural killer cell receptors. How the C1/C2 dimorphism affects T cell recognition is unknown. Using HLA-C allotypes that differ only by the C1/C2-defining residues, we found that KRAS-G12D neoantigen-specific T cell receptors (TCR) discriminated between C1 and C2 presenting the same KRAS-G12D peptides. Structural and functional experiments, and immunopeptidomics analysis revealed that Ser77 in C1 and Asn77 in C2 influence amino acid preference near the peptide C-terminus (pW), including the pW-1 position, in which C1 favors small and C2 prefers large residues. This resulted in weaker TCR affinity for KRAS-G12D-bound C2-HLA-C despite conserved TCR contacts. Thus, the C1/C2 dimorphism on its own impacts peptide presentation and HLA-C restricted T cell responses, with implications in disease, including adoptive T cell therapy targeting KRAS-G12D-induced cancers.
