When subjected to anti-FLAG western blot analysis, we noticed that lysates of HEK293 eukaryotic cells infected with wild-type C. trachomatis overexpressing IncV-3xFLAG displayed a doublet consisting of a 50 and 60 kDa band (Figure 1A, middle lane, 293+Ct). By contrast, IncV-3xFLAG ectopically expressed in HEK293 cells had an apparent molecular weight that was shifted toward the 60 kDa band of the doublet (Figure 1A, left lane, 293), while IncV-3xFLAG expressed in E. coli had an apparent molecular weight equivalent to the 50 kDa band of the doublet (Figure 1A, right lane, Ec). This result led us to hypothesize that IncV is post-translationally modified by a host factor.

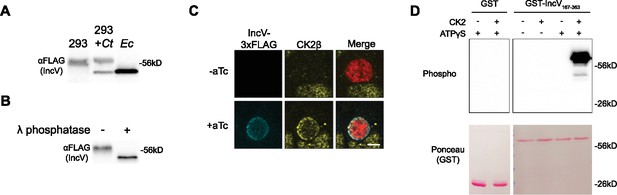

Figure 1 with 1 supplement see all

Download asset Open asset

Figure 1—source data 1

Uncropped, labeled blots for Figure 1A.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data1-v1.psd

Download elife-74535-fig1-data1-v1.psd

Figure 1—source data 2

Uncropped, labeled blots for Figure 1B.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data2-v1.psd

Download elife-74535-fig1-data2-v1.psd

Figure 1—source data 3

Uncropped, labelled blots for Figure 1D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data3-v1.psd

Download elife-74535-fig1-data3-v1.psd

Figure 1—source data 4

Raw data for FLAG blot in Figure 1A.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data4-v1.tif

Download elife-74535-fig1-data4-v1.tif

Figure 1—source data 5

Raw data for FLAG blot in Figure 1B.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data5-v1.tif

Download elife-74535-fig1-data5-v1.tif

Figure 1—source data 6

Raw data for thiophosphate blot 1 in Figure 1D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data6-v1.tif

Download elife-74535-fig1-data6-v1.tif

Figure 1—source data 7

Raw data for thiophosphate blot 2 in Figure 1D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data7-v1.tif

Download elife-74535-fig1-data7-v1.tif

Figure 1—source data 8

Raw data for Ponceau S blot 1 in Figure 1D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data8-v1.tif

Download elife-74535-fig1-data8-v1.tif

Figure 1—source data 9

Raw data for Ponceau S blot 2 in Figure 1D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig1-data9-v1.tif

Download elife-74535-fig1-data9-v1.tif

To determine if phosphorylation could account for the increase in the apparent molecular weight of IncV, we performed a phosphatase assay. IncV-3xFLAG was immunoprecipitated, using anti-FLAG-conjugated Sepharose beads, from lysates of HEK293 cells infected with C. trachomatis expressing IncV-3xFLAG. Following the release of IncV-3xFLAG from the beads by FLAG peptide competition, the eluate was treated with lambda (λ) phosphatase or phosphatase buffer alone, and subsequently subjected to anti-FLAG western blot analysis (Figure 1B). In the absence of λ phosphatase, the apparent molecular weight of IncV-3xFLAG was approximately 60 kDa (Figure 1B, left lane). Upon phosphatase treatment, we observed a decrease in the apparent molecular weight of IncV-3xFLAG to approximately 50 kDa, similar to what was observed when IncV-3xFLAG was expressed in E. coli (Figure 1B, right lane). Altogether, these results demonstrate that overexpressed IncV is phosphorylated by a host cell kinase.

We next focused on identifying the host cell kinase(s) responsible for phosphorylating IncV. All three subunits of Protein Kinase CK2 were identified as potential interacting partners of IncV in an Inc-human interactome (Mirrashidi et al., 2015). To determine if CK2 associated with IncV at ER-Inclusion MCS, HeLa cells transfected with YFP-CK2α or YFP-CK2β constructs and infected with C. trachomatis wild-type expressing mCherry under a constitutive promoter and IncV-3xFLAG under the anhydrotetracycline (aTc)-inducible promoter were analyzed by confocal immunofluorescence microscopy (Figure 1—figure supplement 1). In the absence of IncV-3xFLAG expression, YFP-CK2α and YFP-CK2β were undetectable at the inclusion (Figure 1—figure supplement 1A, B, −aTc). However, upon overexpression of IncV-3xFLAG, YFP-CK2α, and YFP-CK2β was recruited to the inclusion membrane and colocalized with IncV (Figure 1—figure supplement 1A, B, +aTc). To confirm that this phenotype was not the result of overexpression of the CK2 subunits, we used antibodies that recognized the endogenous CK2β subunit and showed that endogenous CK2β colocalized with IncV at the inclusion, when IncV-3xFLAG expression was induced (Figure 1C). Altogether, these results demonstrate that CK2 is a novel component of ER-Inclusion MCS that is recruited to the inclusion in an IncV-dependent manner.

Having established that IncV is phosphorylated and that CK2 localizes to ER-Inclusion MCS in an IncV-dependent manner, we next tested if CK2 phosphorylates IncV. We performed an in vitro kinase assay using recombinant CK2 and the cytosolic domain of IncV (amino acids 167–363 of IncV) fused to GST (GST-IncV_167–363) or GST alone, purified from E. coli. To detect phosphorylation, we used ATPγS, which can be utilized by kinases to thiophosphorylate a substrate, followed by an alkylation reaction of the thiol group to generate an epitope that is detected using an antibody that recognizes thiophosphate esters (Allen et al., 2007). When GST alone was provided as a substrate, there was no detectable phosphorylation, regardless of the presence of CK2 and ATPγS (Figure 1D, lanes 1 and 2). A similar result was observed with GST-IncV_167–363 in the absence of CK2 and/or ATPγS (Figure 1D, lanes 3–5). However, in the presence of both ATPγS and CK2, GST-IncV_167–363 was phosphorylated (Figure 1D, lane 6). Altogether, these results demonstrate that CK2 directly phosphorylates IncV in vitro.

We have previously reported an IncV–VAP interaction in vitro upon incubation of IncV_167–363 with the cytosolic MSP domain of VAP (GST-VAP_MSP) purified from E. coli (Stanhope et al., 2017). However, this interaction was only detected when IncV_167–363 was produced in eukaryotic cells, which, based on the above results, led us to hypothesize that IncV phosphorylation is required for the IncV–VAP interaction. We assessed the role of phosphorylation in the IncV–VAP interaction by performing lambda (λ) phosphatase dephosphorylation of IncV coupled with a GST-VAP_MSP pull-down assay (Figure 2A). IncV-3xFLAG was immunoprecipitated from lysates of HEK293 cells using anti-FLAG-conjugated Sepharose beads, released from the beads using FLAG peptide competition, and treated with λ phosphatase or buffer alone. Treated and untreated IncV-3xFLAG samples were then incubated with GST-VAP_MSP or GST alone bound to glutathione Sepharose beads. The protein-bound beads were subjected to western blot analysis using an anti-FLAG antibody (Figure 2B). Untreated IncV-3xFLAG was pulled down by GST-VAP_MSP but not by GST alone, demonstrating a specific interaction between IncV and VAP (Figure 2B, lanes 1–3). However, when the eluate containing IncV-3xFLAG was treated with λ phosphatase prior to incubation with GST-VAP_MSP, the two proteins failed to interact (Figure 2B, lane 4), indicating that phosphorylation of IncV is necessary for the IncV–VAP interaction in vitro.

Figure 2

Download asset Open asset

Figure 2—source data 1

Quantification of blot densities for Figure 2.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data1-v1.xlsx

Download elife-74535-fig2-data1-v1.xlsx

Figure 2—source data 2

Uncropped, labeled blots for Figure 2B.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data2-v1.psd

Download elife-74535-fig2-data2-v1.psd

Figure 2—source data 3

Uncropped, labelled blots for Figure 2D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data3-v1.psd

Download elife-74535-fig2-data3-v1.psd

Figure 2—source data 4

Raw data for FLAG blot in Figure 2B.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data4-v1.tif

Download elife-74535-fig2-data4-v1.tif

Figure 2—source data 5

Raw data for Ponceau S blot in Figure 2B.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data5-v1.tif

Download elife-74535-fig2-data5-v1.tif

Figure 2—source data 6

Raw data for MBP blot in Figure 2D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data6-v1.tif

Download elife-74535-fig2-data6-v1.tif

Figure 2—source data 7

Raw data for Ponceau S blot in Figure 2D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig2-data7-v1.tif

Download elife-74535-fig2-data7-v1.tif

We next determined if IncV phosphorylation by CK2 was sufficient to promote the IncV–VAP interaction in an in vitro binding assay (Figure 2C). MBP-tagged VAP_MSP (MBP-VAP_MSP) and GST-IncV_167–363 were expressed separately in E. coli and purified using amylose resin and glutathione Sepharose beads, respectively. GST-IncV_167–363 was left attached to glutathione Sepharose beads and was phosphorylated by incubation with recombinant CK2 and ATP before being combined with purified MBP-VAP_MSP. GST-IncV_167–363 was pulled down and the samples were subjected to western blot using anti-MBP antibodies (Figure 2D). Neither the beads alone, nor GST alone pulled down MBP-VAP_MSP, regardless of whether CK2 and ATP were present or not (Figure 2D, lanes 1–4). In the absence of CK2 and ATP, we observed minimal binding of MBP-VAP_MSP to GST-IncV_167–363 (Figure 2D, lane 5). However, when GST-IncV_167–363 was treated with CK2 and ATP prior to GST-pull-down, MBP-VAP_MSP and GST-IncV_167-363 co-immuno-precipitated, indicating that phosphorylation of IncV by CK2 is sufficient to promote the IncV–VAP interaction in vitro (Figure 2D, lane 6). Altogether, these results demonstrate that IncV phosphorylation is necessary and sufficient for the IncV–VAP interaction in vitro.

We next determined the contribution of CK2 to IncV phosphorylation and the subsequent assembly of the IncV–VAP tether at the inclusion. We first used a genetic approach to deplete CK2β. Because CK2 is essential (Buchou et al., 2003; Zhang et al., 2004), we favored a gene silencing approach over a CRISPR-based knockout approach. HeLa cells treated with individual siRNA duplexes targeting CSNK2B (A, B, C, or D), or a pool of all four siRNA duplexes (pool), were infected with a previously characterized incV mutant strain of C. trachomatis (Stanhope et al., 2017; Weber et al., 2017), expressing IncV_WT-3xFLAG from an aTc-inducible promoter. The cells were lysed and subjected to western blot analysis. The efficacy of CSNK2B knockdown was confirmed by western blot, demonstrating that, in siRNA treated cells, CK2β protein levels ranged from 9.3% to 53.3% compared to control cells (Figure 3A, middle blot). As shown in Figure 1A, in control cells, IncV_WT-3xFLAG appeared as a doublet (Figure 3A, top blot, left lane, ooo and o). In contrast, depletion of CK2β led to the appearance of additional bands of intermediate apparent molecular weight (Figure 3A, top and middle blots, pool, A, B, C, D lanes, oo). A line scan analysis of the control sample revealed two peaks corresponding to the top band, corresponding to hyperphosphorylated IncV (Figure 3B, black line, left peak, ooo) and to the bottom band, corresponding to unphosphorylated IncV (Figure 3B, black line, right peak, o). A similar analysis of the banding pattern of IncV upon CK2β depletion, with the pooled or individual siRNA duplexes, revealed the appearance of intermediate peaks between the top and bottom bands, suggesting the formation of hypophosphorylated species of IncV (Figure 3B, middle peaks, oo). These results provided a first indication that CK2 mediates IncV phosphorylation during infection. However, none of the siRNA duplex treatments led to a complete dephosphorylation of IncV, which could be due to the incomplete knockdown of CK2β (Figure 3A, middle blot).

Figure 3 with 3 supplements see all

Download asset Open asset

Figure 3—source data 1

Quantification of blot densities, line scan analysis, and IncV-associated CFP-VAP for Figure 3.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data1-v1.xlsx

Download elife-74535-fig3-data1-v1.xlsx

Figure 3—source data 2

Uncropped, labeled blots for Figure 3A.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data2-v1.psd

Download elife-74535-fig3-data2-v1.psd

Figure 3—source data 3

Uncropped, labelled blots for Figure 3C.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data3-v1.psd

Download elife-74535-fig3-data3-v1.psd

Figure 3—source data 4

Raw data for FLAG blot in Figure 3A.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data4-v1.tif

Download elife-74535-fig3-data4-v1.tif

Figure 3—source data 5

Raw data for CK2 blot in Figure 3A.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data5-v1.tif

Download elife-74535-fig3-data5-v1.tif

Figure 3—source data 6

Raw data for GAPDH blot in Figure 3A.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data6-v1.tif

Download elife-74535-fig3-data6-v1.tif

Figure 3—source data 7

Raw data for FLAG blot in Figure 3C.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data7-v1.tif

Download elife-74535-fig3-data7-v1.tif

Figure 3—source data 8

Raw data for mCherry blot in Figure 3C.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data8-v1.tif

Download elife-74535-fig3-data8-v1.tif

Figure 3—source data 9

Raw data for Actin blot in Figure 3C.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig3-data9-v1.tif

Download elife-74535-fig3-data9-v1.tif

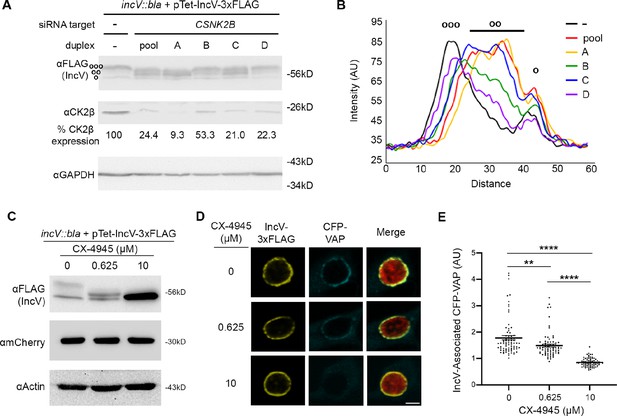

To complement the genetic approach described above, we conducted a pharmacological approach using the CK2-specific inhibitor CX-4945 (Rusin et al., 2017). HeLa cells infected with a C. trachomatis incV mutant expressing IncV_WT-3xFLAG under the control of the aTc-inducible promoter were treated with increasing concentrations of CX-4945 (0, 0.625, and 10 μM) at 18 hours post infection (h pi), prior to the induction of IncV_WT-3xFLAG expression at 20 h pi. This experimental setup allowed for CK2 inhibition, prior to IncV_WT-3xFLAG synthesis, translocation, insertion into the inclusion membrane and exposure to the host cell cytosol. The cells were lysed 24 h pi and subjected to western blot analysis to determine the effect of CK2 inhibition on the apparent molecular weight of IncV. The apparent molecular weight of IncV decreased in a dose-dependent manner (Figure 3C, top blot), leading to an apparent molecular weight corresponding to unphosphorylated IncV at the 10 μM concentration. These results demonstrate that CK2 activity is essential for IncV phosphorylation during infection.

We next determined whether inhibition of CK2 kinase activity affected the IncV-dependent VAP recruitment to the inclusion and, therefore, the assembly of the IncV–VAP tether. We used the same experimental setup as above, except that the cells expressed CFP-VAP. At 24 h pi, the cells were fixed, immunostained with anti-FLAG antibody, and processed for confocal microscopy. Qualitative and quantitative assessment of the micrographs indicated that CX-4945 did not interfere with IncV translocation and insertion into the inclusion membrane (Figure 3D and Figure 3—figure supplement 1). The quantification method is illustrated in Figure 3—figure supplement 2. As previously observed (Stanhope et al., 2017), IncV_WT-3xFLAG overexpression correlated with a strong CFP-VAP association with the inclusion (Figure 3D, top panels). In comparison, pretreatment of the cells with 10 µM of CX-4945 abolished VAP recruitment to the inclusion (Figure 3D, bottom panels). Quantification of the CFP-VAP signal associated with IncV at the inclusion membrane confirmed the qualitative analysis and also revealed an intermediate phenotype for cells treated with 0.625 µM of CX-4945 (Figure 3D, E). To rule out any off-target effect of CX-4945, we tested an independent CK2-specific inhibitor, GO289 (Borgo et al., 2021). As observed with CX-4945, GO289-mediated CK2 inhibition led to the dose-dependent dephosphorylation of IncV (Figure 3—figure supplement 3A) and a significant reduction in the percentage of inclusions associated with VAP (Figure 3—figure supplement 3B, C). Altogether, these results demonstrate that phosphorylation of IncV by CK2 is required for the IncV-dependent VAP recruitment to the inclusion.

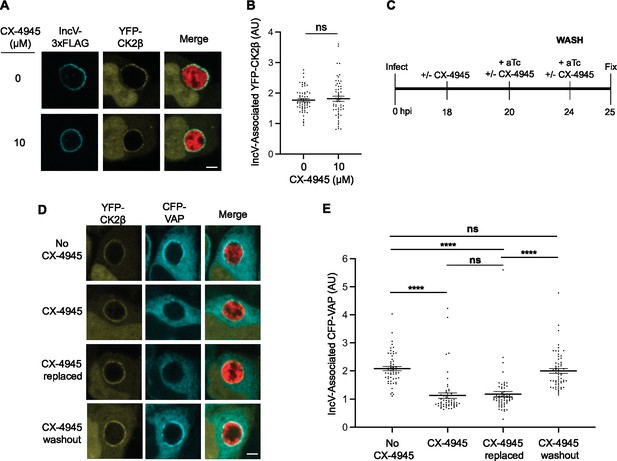

To further investigate the sequence of events leading to the CK2- and IncV phosphorylation-dependent VAP recruitment to the inclusion, we first determined if CK2 kinase activity was required for CK2 recruitment to the inclusion. HeLa cells expressing YFP-CK2β were infected with the C. trachomatis incV mutant expressing IncV_WT-3xFLAG. 10 µM CX-4945 was added, or not, at 18 h pi, and IncV expression was induced at 20 h pi by addition of aTc, as described in Figure 3D, E. At 24 h pi, the cells were fixed, immunostained with anti-FLAG antibody, and processed for confocal microscopy. Qualitative and quantitative assessment of the micrographs indicated that CX-4945 did not interfere with CK2 association with the inclusion (Figure 4A, B). Thus, CK2 kinase activity is dispensable for the IncV-dependent CK2 localization to the inclusion.

Figure 4 with 1 supplement see all

Download asset Open asset

Figure 4—source data 1

Quantification of IncV-associated YFP-CK2β and IncV-associated CFP-VAP for Figure 4.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig4-data1-v1.xlsx

Download elife-74535-fig4-data1-v1.xlsx

Altogether, our results suggest that CK2 is recruited first and that VAP recruitment only occurs once CK2 phosphorylates IncV. To test this model, we determined if reversing CK2 inhibition, after CK2 had been recruited to the inclusion, would restore VAP association with the inclusion (Figure 4C). HeLa cells expressing YFP-CK2β and CFP-VAP, and infected with the C. trachomatis incV mutant expressing IncV_WT-3xFLAG, were treated with CX-4945 at 18 h pi. incV expression was induced at 20 h pi by addition of aTc, in the presence of CX-4945. At 24 h pi, the cells were washed and incubated with media containing either aTc and CX-4945 (CX-4945 replaced) or aTc only (CX-4945 washout) for an additional hour (25 h pi). Samples where CX-4945 was omitted and collected at 25 h pi (No CX-4945), and samples processed in the presence of CX-4945 and collected at 24 h pi prior to the wash (CX-4945) were used as controls. None of the treatment prevented IncV localization to the inclusion (Figure 4—figure supplement 1). Qualitative and quantitative assessment of the micrographs confirmed that, as observed before, CX-4945 had no effect on CK2 association with the inclusion but strongly prevented VAP recruitment (Figure 4D, E, compare CX-4945 to No CX-4945). A similar result was observed when the media was replenished with CX-4945 after the wash (Figure 4D, E, compare CX-4945 replaced to CX-4945). In comparison, CX-4945 washout post CK2 association with the inclusion, led to a robust VAP recruitment to the inclusion, similar to the one observed in the absence of CX-4945 (Figure 4D, E, compare CX-4945 washout to No CX-4945). Altogether, these results indicate that the IncV-dependent CK2 association with the inclusion does not require CK2 kinase activity and precedes VAP recruitment, which requires an active CK2 kinase.

To gain further mechanistic insight about the CK2–IncV–VAP interplay, and its role in ER-Inclusion MCS formation, we next determined which domain of IncV was important for the recruitment of CK2 to the inclusion by generating a series of C-terminal truncated IncV constructs (Figure 5A). These constructs, as well as the full-length IncV (FL, 1–363), were cloned under the aTc-inducible promoter and expressed from the C. trachomatis incV mutant strain. All IncV constructs similarly localized to the inclusion membrane (Figure 5—figure supplement 1A). HeLa cells expressing YFP-CK2β were infected with each of the complemented strains, and the ability of the truncated versions of IncV to recruit YFP-CK2β to the inclusion was assessed by confocal microscopy. Qualitative and quantitative analysis revealed that, compared to full-length IncV_FL-3xFLAG, IncV_1–341-3xFLAG was no longer capable of recruiting YFP-CK2β to the inclusion, whereas IncV_1–356-3xFLAG was moderately affected (Figure 5—figure supplement 2A, B). Additionally, strains expressing IncV_1–341-3xFLAG also exhibited a significant reduction in IncV-associated VAP compared to IncV_FL- or IncV_1–356-3xFLAG (Figure 5—figure supplement 2C, D). Altogether, these results demonstrate that a C-terminal region of IncV, between amino acids 342 and 356, is required for the IncV-dependent CK2 recruitment to the inclusion and subsequent VAP association with the inclusion.

Figure 5 with 4 supplements see all

Download asset Open asset

Figure 5—source data 1

Quantification of IncV-associated YFP-CK2β and IncV-associated CFP-VAP for Figure 5.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig5-data1-v1.xlsx

Download elife-74535-fig5-data1-v1.xlsx

Figure 5—source data 2

Uncropped, labeled blots for Figure 5F.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig5-data2-v1.psd

Download elife-74535-fig5-data2-v1.psd

Figure 5—source data 3

Raw data for FLAG and mCherry blots in Figure 5F.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig5-data3-v1.tif

Download elife-74535-fig5-data3-v1.tif

Figure 5—source data 4

Raw data for Actin blot in Figure 5F.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig5-data4-v1.tif

Download elife-74535-fig5-data4-v1.tif

Figure 5—source data 5

Quantification of percentage of inclusion membrane associated with host ER for Figure 5H.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig5-data5-v1.xlsx

Download elife-74535-fig5-data5-v1.xlsx

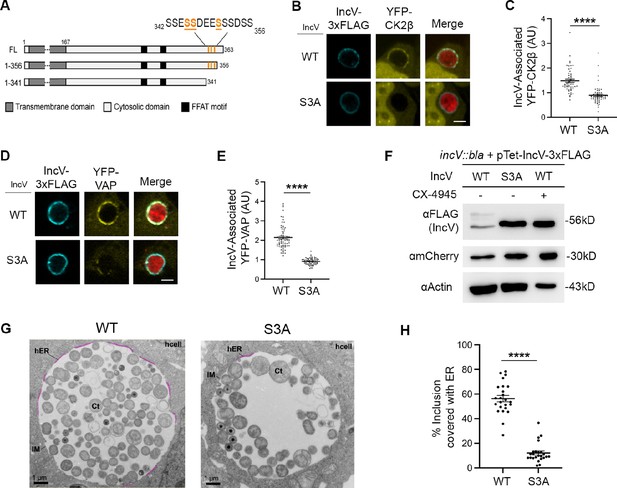

The primary amino acid structure of the IncV domain necessary for CK2 recruitment (₃₄₂SSESSDEESSSDSS₃₅₆) contains seven CK2 recognition motifs (S/T-x-x-D/E/pS/pY) (Litchfield, 2003; Figure 5A). Three of them do not require priming by phosphorylation of the fourth serine or tyrosine residue and could result in the direct CK2-dependent phosphorylation of IncV on serine residues S₃₄₅, S₃₄₆, and S₃₅₀, hereby facilitating the assembly of the IncV–VAP tether. To test this hypothesis, all three serine residues were substituted for unphosphorylatable alanine residues (IncV_{S345A-S346A-S350A} referred to as IncV_S3A). HeLa cells expressing YFP-CK2β or YFP-VAP were infected with C. trachomatis incV mutant strains expressing IncV_WT- or IncV_S3A-3xFLAG. The cells were fixed at 24 h pi, immunostained with anti-FLAG antibody, and analyzed by confocal immunofluorescence microscopy. IncV_WT- and IncV_S3A-3xFLAG displayed similar inclusion localization (Figure 5—figure supplement 1B). However, qualitative and quantitative analysis revealed that in comparison to IncV_WT-3xFLAG, IncV_S3A-3xFLAG expression resulted in a significant decrease in both CK2β and VAP recruitment to the inclusion (Figure 5B–E). Altogether, these results indicate that serine residues S₃₄₅, S₃₄₆, and S₃₅₀ located in a C-terminal motif of IncV, are critical for CK2 and VAP recruitment to the inclusion.

To determine if IncV_S3A failed to recruit VAP to the inclusion because of a lack of IncV phosphorylation, we assessed IncV_S3A apparent molecular weight by western blot analysis of lysates from HeLa cells infected with a C. trachomatis incV mutant expressing IncV_WT- or IncV_S3A-3xFLAG. Compared to IncV_WT-3xFLAG, which as previously observed ran as a doublet corresponding to both phosphorylated and unphosphorylated species of IncV (Figure 5F, lane 1), the apparent molecular weight of IncV_S3A-3xFLAG (Figure 5F, lane 2), was identical to that of unphosphorylated IncV_WT-3xFLAG upon treatment with the CK2 inhibitor CX-4945 (Figure 5F, lane 3). These results indicated that IncV_S3A is unphosphorylated.

To more directly demonstrate that, in absence of IncV hyperphosphorylation, the lack of VAP association with the inclusion membrane correlates with a defect in ER-Inclusion MCS formation, cells infected with a C. trachomatis incV mutant expressing IncV_WT- or IncV_S3A-3xFLAG were processed for electron microscopy. Qualitative assessment of the micrographs revealed that the integrity of the inclusion membrane and ER-Inclusion MCS were preserved in both conditions, based on the intermembrane distance of 10–20 nm between the ER tubules and the inclusion membrane, and on the presence of ribosomes on the cytosolic face of the ER tubules (Figure 5—figure supplement 3A, B). However, 61.9% (39/63) of the S3A inclusion sections displayed no ER in association with the inclusion membrane, compared to only 6.6% (4/61) of the WT inclusion sections. Additionally, quantification of the proportion of inclusion membrane associated with the ER indicated a significant reduction of ER-Inclusion MCS formation upon IncV_S3A expression, compared to IncV_WT (Figure 5G, H and Figure 5—figure supplement 3C, D). We note that some levels of ER-Inclusion MCS are expected with IncV_S3A because of redundant tethering mechanism(s) (Stanhope et al., 2017). Altogether, these results indicate that the CK2-dependent phosphorylation of IncV controls assembly of the IncV–VAP tether and ER-Inclusion MCS formation.

Finally, we determined if phosphorylation of S₃₄₅, S₃₄₆, and S₃₅₀ was sufficient to mediate the in vitro IncV–VAP interaction observed upon CK2 phosphorylation of IncV (Figure 1D), by substituting S₃₄₅, S₃₄₆, and S₃₅₀ for phosphomimetic aspartic acid residues. The corresponding IncV construct, referred to as IncV_S3D, was purified from E. coli and tested for VAP binding in vitro. IncV_S3D did not result in a significant increase in VAP binding compared to IncV_WT (Figure 5—figure supplement 4). While we cannot exclude that the phosphomimetic mutations failed to mimic phosphorylation, these results indicated that, although critical for CK2 recruitment, IncV hyperphosphorylation status, and assembly of the IncV–VAP tether at the ER-inclusion MCS, phosphorylation of S₃₄₅, S₃₄₆, and S₃₅₀ alone is not sufficient to promote VAP binding in vitro, suggesting that additional IncV phosphorylation sites are required to promote optimal interaction between IncV and VAP.

We have previously shown that IncV displays one noncanonical (₂₆₂S¹F²H³T⁴P⁵P⁶N⁷₂₆₈) and one canonical FFAT motif (₂₈₆E¹Y²M³D⁴A⁵L⁶E⁷₂₉₂) (Figure 6A; Stanhope et al., 2017). In agreement with position 2 of a FFAT motif being a phenylalanine or a tyrosine residue critical for VAP–FFAT interactions (Kawano et al., 2006; Loewen et al., 2003), we had shown that alanine substitution of residue in position 2 of each motif, individually (IncV_F263A or IncV_Y287A) and in combination (IncV_F263A/Y287A), led to a partial and full reduction of the IncV–VAP interaction, respectively, indicating that both FFAT motifs cooperate for VAP binding (Stanhope et al., 2017). Recently, Di Mattia et al. identified a new class of FFAT motifs referred to as phospho-FFAT motifs in which the acidic residue in position 4 is replaced by a phosphorylatable residue, such as serine or threonine (Di Mattia et al., 2020). The presence of a phosphorylatable threonine residue in position 4 of the noncanonical FFAT motif of IncV (T₂₆₅) (Figure 6A) suggests that, as proposed by Di Mattia et al., the noncanonical FFAT of IncV could be a phospho-FFAT motif. To test this hypothesis, T₂₆₅ was substituted for an alanine residue either individually (IncV_T265A), or in combination with alanine mutation of the tyrosine residue in position two of the canonical FFAT (IncV_T265A/Y287A). In parallel, a phosphomimetic mutation was generated by substituting both T₂₆₅ to an aspartic acid residue and the proline residue at position 266 (P₂₆₆) to an alanine residue, as described by Di Mattia et al., 2020, either individually (IncV_T265D/P266A) or in combination with a mutation in the canonical FFAT (IncV_{T265D/P266A/Y287A}). HeLa cells expressing YFP-VAP were infected with the incV mutant strain of C. trachomatis expressing IncV_T265A-, IncV_T265A/Y287A-, IncV_T265D/P266A-, or IncV_{T265D/P266A/Y287A}-3xFLAG. Cells infected with incV mutant strains expressing IncV_WT-, IncV_Y287A-, or IncV_F263A/Y287A-3xFLAG were included as controls. The cells were fixed at 24 h pi and immunostained with anti-FLAG antibody, followed by qualitative and quantitative analysis of confocal immunofluorescence microscopy images (Figure 6B, C). Although a few of the IncV constructs displayed statistically significant decreases in inclusion localization (Figure 6—figure supplement 1A), the reduction was minor, leaving a substantial amount of IncV on the inclusion membrane (84–89% of the WT on average) and most likely accounts for very little, if any, to the phenotypes described throughout our study. As previously observed (Stanhope et al., 2017), IncV_WT exhibited a strong association of YFP-VAP with the inclusion membrane, while IncV_Y287A and IncV_F263A/Y287A exhibited a significant partial and full loss of inclusion-associated YFP-VAP, respectively (Figure 6B, C). Similarly, IncV_T265A and IncV_T265A/Y287A exhibited partial and complete loss of VAP association with the inclusion, respectively (Figure 6B, C) indicating that substitution of T₂₆₅ to a nonphosphorylatable residue impacted the ability of the noncanonical FFAT motif to mediate the VAP–FFAT interaction. On the contrary, IncV_T265D/P266A resulted in VAP inclusion association similar to IncV_WT, indicating that phosphomimetic mutation of IncV noncanonical FFAT resulted in optimal VAP binding during infection. However, IncV_{T265D/P266A/Y287A} did not result in the expected intermediate VAP recruitment observed with IncV_Y287A, suggesting that the T265D/P266A mutation of the noncanonical FFAT was not sufficient to rescue VAP binding in the background of an inactivated canonical FFAT.

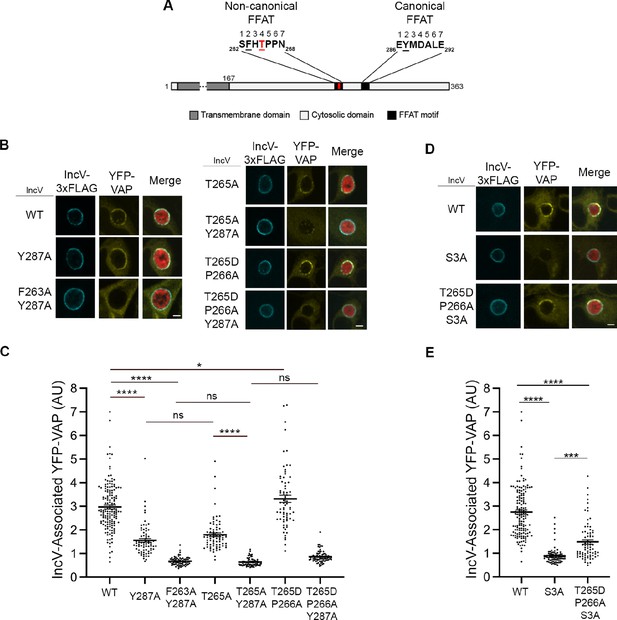

Figure 6 with 3 supplements see all

Download asset Open asset

Figure 6—source data 1

Quantification of IncV-associated YFP-VAP for Figure 6.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig6-data1-v1.xlsx

Download elife-74535-fig6-data1-v1.xlsx

We next investigated if phosphomimetic mutation of T₂₆₅ of the IncV noncanonical FFAT (IncV_T265D/P266A) was sufficient to promote the IncV–VAP interaction in vitro. GST-IncV_T265D/P266A failed to interact with MBP-VAP_MSP in our vitro assay (Figure 6—figure supplement 2), suggesting that phosphorylation of T₂₆₅ is not sufficient for full VAP binding under these conditions.

To further investigate if the noncanonical FFAT of IncV could function as a phospho-FFAT motif, we used a VAP_K50L mutant. The K50L mutation resides in the MSP domain of VAP and has been shown to specifically affect VAP binding to phospho-FFAT motifs, but not to canonical FFAT (Di Mattia et al., 2020). Using a similar experimental setup as in Figure 6B, C, we investigated the ability of YFP-VAP_K50L to associate with inclusions harboring bacteria expressing IncV_WT-, IncV_Y287A-, or IncV_T265A-3xFLAG (Figure 6—figure supplement 3). Cells expressing YFP-VAP_WT and infected with bacteria expressing IncV_WT- or IncV_F263A/Y287A-3xFLAG were used as positive and negative controls, respectively. In comparison to these controls, IncV_WT led to an intermediate recruitment of VAP_K50L to the inclusion, presumably due to binding to the canonical FFAT only, which was supported by the inability of IncV_Y287A to recruit VAP_K50L. IncV_T265A also led to an intermediate recruitment of VAP_K50L to the inclusion, which was attributed to binding to the canonical FFAT. However, IncV_T265A displayed decreased efficiency in VAP recruitment compared to IncV_WT, suggesting that in the context of IncV, VAP_K50L may have low residual affinity to the noncanonical FFAT containing a phosphomimetic mutation of T₂₆₅, and/or reduced activity toward the canonical FFAT.

Although T₂₆₅ cannot be phosphorylated by CK2, given the CK2-dependent role of S₃₄₅, S₃₄₆ and S₃₅₀ in controlling the global level of phosphorylation of IncV, we investigated if CK2 could indirectly affect phosphorylation of T₂₆₅, by testing the ability of the T₂₆₅ phosphomimetic mutation to bypass the need for CK2 for VAP recruitment to the inclusion. We generated an IncV_{T265D/P266A/S3A} construct and quantified VAP recruitment to inclusions harboring bacteria expressing IncV_{T265D/P266A/S3A}-3xFLAG (Figure 6D, E). IncV_WT- and IncV_S3A-3xFLAG were used as positive and negative controls, respectively. IncV_{T265D/P266A/S3A} inclusion localization was not affected (Figure 6—figure supplement 1B) and led to a partial rescue of VAP recruitment to the inclusion, compared to the controls (Figure 6D, E). These results indicate that CK2 and S₃₄₅, S₃₄₆, and S₃₅₀ play an indirect role in the phosphorylation of T₂₆₅ in the IncV noncanonical FFAT motif.

Altogether, because of inconclusive results with the VAP_K50L mutant, it remains unclear if IncV noncanonical FFAT acts as a phospho-FFAT. However, the above results indicate that phosphorylation of T₂₆₅ of IncV noncanonical FFAT is indirectly controlled by CK2 and contributes, but is not sufficient, to mediate the IncV–VAP interaction, suggesting that additional residues must be phosphorylated to ensure full IncV–VAP interaction.

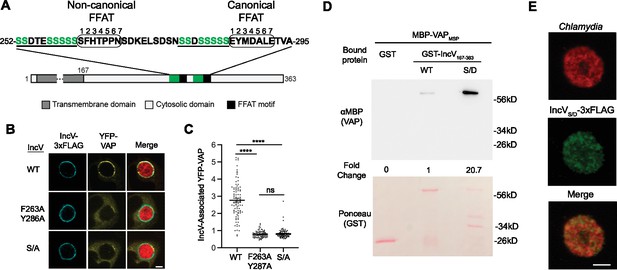

In addition to the seven amino acid core of the FFAT motif, VAP–FFAT-mediated interactions also rely on the presence of acidic residues upstream of the core sequence, referred to as the acidic tract. It allows for the initial electrostatic interaction with VAP by interacting with the electropositive charge of the MSP domain before the FFAT core motif locks into its dedicated groove (Furuita et al., 2010). We noted that, instead of typical acidic residues, the primary amino acid structures upstream of the IncV FFAT motifs are highly enriched in phosphorylatable serine residues (Figure 7A). We hypothesized that, if phosphorylated, these serine residues could serve as an acidic tract and facilitate the IncV–VAP interaction. To test this hypothesis, the 10 residues directly upstream of the noncanonical FFAT motif and the eight residues directly upstream of the canonical FFAT motif were mutated to alanine residues (referred to as IncV_S/A). The ability of IncV_S/A-3xFLAG to recruit VAP to the inclusion was assessed. HeLa cells expressing YFP-VAP were infected with C. trachomatis incV mutant strains expressing either IncV_WT-, IncV_F263A/Y287A-, or IncV_S/A-3xFLAG under an aTc-inducible promoter. The cells were fixed at 24 h pi and analyzed by confocal immunofluorescence microscopy (Figure 7B). All IncV constructs were equally localized to the inclusion membrane (Figure 7—figure supplement 1). Qualitative and quantitative analysis revealed that expression of IncV_S/A-3xFLAG resulted in a significant decrease in YFP-VAP recruitment to the inclusion as observed with IncV_F263A/Y287A-3xFLAG and compared to IncV_WT-3xFLAG (Figure 7B, C). To determine if this decrease in VAP recruitment was due to a lack of CK2 recruitment, the ability of these strains to recruit YFP-CK2β to the inclusion was assessed by confocal microscopy (Figure 7—figure supplement 2). All three strains recruited CK2 to the inclusion, indicating that the lack of VAP recruitment upon expression of IncV_S/A was not due to a lack of CK2 recruitment.

Figure 7 with 2 supplements see all

Download asset Open asset

Figure 7—source data 1

Quantification of IncV-associated YFP-VAP and blot densities for Figure 7.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig7-data1-v1.xlsx

Download elife-74535-fig7-data1-v1.xlsx

Figure 7—source data 2

Uncropped, labeled blots for Figure 7D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig7-data2-v1.psd

Download elife-74535-fig7-data2-v1.psd

Figure 7—source data 3

Raw data for MBP blot in Figure 7D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig7-data3-v1.tif

Download elife-74535-fig7-data3-v1.tif

Figure 7—source data 4

Raw data for Ponceau S blot in Figure 7D.

https://cdn.elifesciences.org/articles/74535/elife-74535-fig7-data4-v1.tif

Download elife-74535-fig7-data4-v1.tif

We next determined if phosphomimetic mutation of the serine-rich tracts of IncV to aspartic acid residues (referred to as IncV_S/D) was sufficient to rescue the ability of the cytosolic domain of IncV expressed in E. coli to interact with the MSP domain of VAP in our VAP binding in vitro assay. As observed before, there was minimal binding of VAP_MSP to IncV_WT (Figure 7D, lane 2). However, we observed a 20-fold increase in VAP_MSP binding to IncV_S/D compared to IncV_WT (Figure 7D, lane 3), indicating that phosphomimetic mutation of the serine-rich tracts is sufficient to promote the IncV–VAP interaction in vitro. Altogether, these results indicate that instead of typical acidic tracts, phosphorylated serine-rich tracts located upstream of IncV FFAT motifs are both necessary and sufficient for promoting the IncV–VAP interaction.

In order to confirm the role of IncV serine-rich tracts in promoting the IncV–VAP interaction during infection, we assessed the ability of IncV_S/D-3xFLAG to recruit VAP to the inclusion when expressed from an incV mutant strain of C. trachomatis. In comparison to IncV_WT and all other mutated alleles used in this study, IncV_S/D-3xFLAG remained trapped within the bacteria and did not localize to the inclusion membrane (Figure 7E). These results suggest that phosphorylatable serine residues may have been selected over acidic residues to allow proper Type III translocation of IncV to the inclusion membrane.

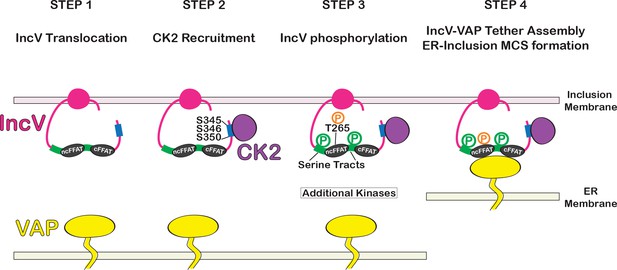

Based on our results, we propose the following model of assembly of the IncV–VAP tether leading to ER-Inclusion MCS formation during Chlamydia infection (Figure 8). Unphosphorylated IncV is translocated across the inclusion membrane by the T3SS. Upon insertion into the inclusion membrane and exposure to the cytosol (Figure 8, Step 1), IncV recruits the host kinase CK2 through a C-terminal domain containing three serine residues (S₃₄₅, S₃₄₆, and S₃₅₀) that are part of CK2 recognition sites (Figure 8, Step 2). As a consequence, IncV becomes hyperphosphorylated, including phosphorylation of T₂₆₅ of the noncanonical FFAT and serine tracts directly upstream of the FFAT motifs (Figure 8, Step 3). These phosphorylation events lead to IncV interaction with VAP, tether assembly, and ER-Inclusion MCS formation (Figure 8, Step 4). Our data are consistent with CK2 playing a central role in initiating IncV hyperphosphorylation (Figure 8, Step 2), however, additional kinases must contribute, especially for phosphorylation of T₂₆₅ (Figure 8, Step 3). Importantly, the post-translocation phosphorylation of IncV ensures optimal VAP binding while preserving proper T3SS-mediated translocation of IncV to the inclusion membrane. Although this model was in part inferred from overexpression studies, it constitutes a framework to guide futures studies to further dissect the complex phosphorylation events leading to the assembly of the endogenous IncV–VAP tether. Below we discuss our results in the context of emerging regulatory mechanisms of cellular MCS assembly and highlight conserved and pathogen-specific mechanisms.

Figure 8

Download asset Open asset

Few kinases phosphorylating VAP-dependent tethers have been identified (Kors et al., 2022; Xu et al., 2020) and how they associate with MCS to phosphorylate their target has not been explored. Here, we show that IncV recruits CK2 to ER-Inclusion MCS through interaction with its C-terminal domain, a mandatory step for IncV hyperphosphorylation. Three serine residues (S₃₄₅, S₃₄₆, and S₃₅₀) that match the CK2 recognition motifs (S-x-x-D/E) located in a C-terminal domain of IncV are essential for CK2 recruitment to the inclusion, and IncV phosphorylation.

However, while CK2 was required for ER-Inclusion MCS formation during infection, and sufficient for IncV–VAP interaction in vitro, the introduction of phosphomimetic mutations at S₃₄₅, S₃₄₆, and S₃₅₀ was not sufficient to promote the IncV–VAP interaction in vitro. While it is possible that the phosphomimetic mutations failed to mimic phosphorylation, it is more likely that additional phosphorylation sites exist. Kinase-substrate recognition is a complex process that goes beyond the simple recognition of a consensus sequence and can involve docking sites away from the phosphorylation sites (Miller and Turk, 2018). The cytosolic domain of IncV contains a large number of additional potential CK2 recognition sites. Among those, two serine residues, S₂₅₃ and S₂₈₃, located in the serine tracts upstream of the noncanonical FFAT and the canonical FFAT, respectively, are direct CK2 targets. Additionally, serine residues S₂₅₇, S₂₅₈, and S₂₅₉ (serine tract upstream of the noncanonical FFAT), and S₂₇₈, S₂₈₁, S₂₈₂, and S₂₈₄ (serine tract upstream of the canonical FFAT) can be phosphorylated upon priming the serine or tyrosine residue at the last position of the CK2 recognition motif (S/T-x-x-D/E/pS/pY). We therefore propose that alanine substitution of S₃₄₅, S₃₄₆, and S₃₅₀ eliminates an essential docking site for subsequent CK2-mediated phosphorylation of distal residues in the cytosolic domain of IncV, including the serine tracts next to the FFAT motifs (see below). Further investigation of the IncV-dependent recruitment of CK2 to ER-Inclusion MCS could offer some insights into kinase targeting to cellular MCS. Moreover, since intracellular pathogens often mimic cellular processes, our study may have identified CK2 as a regulator of cellular MCS.

Phospho-null mutation of T₂₆₅ was detrimental to the IncV-dependent recruitment of VAP to the inclusion. Conversely, phosphomimetic mutation of T₂₆₅, in the context of an intact canonical-FFAT, resulted in efficient VAP association with the inclusion. These results are similar to those obtained with the phospho-FFAT motif-containing proteins STARD3 and VPS13D (Di Mattia et al., 2020; Guillén-Samander et al., 2021), and could therefore, suggest that, as previously proposed by Di Mattia et al., the noncanonical FFAT of IncV, via phosphorylation of T₂₆₅, is acting as a phospho-FFAT to mediate direct IncV–VAP interaction. However, in the absence of phospho-proteomic data demonstrating phosphorylation of T₂₆₅, and inconclusive and discrepant results discussed below, further investigation is required to validate that IncV noncanonical FFAT is a phospho-FFAT. First, in the context of a mutated canonical FFAT motif, phosphomimetic of T₂₆₅ was unable to confer the anticipated partial rescue of VAP recruitment to the inclusion. The T265D/P266A phosphomimetic mutation was based on STARD3, where the proline residue directly downstream of the threonine residue had to be mutated to an alanine to introduce flexibility in the amino acid chain and allow for the aspartic acid to act as a phosphomimetic (Di Mattia et al., 2020). This approach was successful to rescue VAP binding to VAP interacting proteins containing only a single phospho-FFAT motif, like STARD3 and VPS13D (Di Mattia et al., 2020; Guillén-Samander et al., 2021), and to IncV containing an additional wild-type canonical FFAT, but it may not be optimal for IncV in the context of a mutated canonical FFAT motif, perhaps because of the tertiary structure of the protein. Second, in the context of IncV, the VAP_K50L mutation led to partially inconclusive results, which could be due to low residual binding of VAP_K50L to IncV noncanonical FFAT motif and/or an overall reduced activity toward the canonical FFAT. Further characterization of the VAP_K50L mutant, especially in the context of proteins containing both a phosho-FFAT and a canonical FFAT, could settle these possibilities. Third, in vitro, the phosphomimetic mutation of T₂₆₅ was not sufficient to promote VAP binding, suggesting that phosphorylation of T₂₆₅ is not required in this setting. This conclusion is in line with the fact that, in vitro, CK2 phosphorylated IncV interacts with VAP, despite the fact that T₂₆₅ is not a CK2 target and is therefore presumably not phosphorylated in this particular experiment. Collectively, these results suggest that in vitro CK2 phosphorylation of IncV may result in suboptimal binding to VAP, which could be further increased during infection by phosphorylation of T₂₆₅. It is also possible that the dynamics of IncV–VAP interaction are different in vitro, compared to infection conditions, and that phosphorylation of T₂₆₅ is not needed in this context. Alternatively, it is possible that phosphorylation of T₂₆₅ is necessary in vivo for something other than VAP binding, such as the recruitment or activation of CK2, a step that may be bypassed in vitro given the high amount of CK2. Similarly, the positive in vitro interaction between IncV_S/D and VAP, in the absence of T₂₆₅ phosphorylation, could indicate either suboptimal in vitro binding that could be strengthened in vivo by phosphorylation of T₂₆₅, or a function independent of VAP binding and leading to phosphorylation of the serine tracts. The latter would be consistent with the partial bypass of the need for CK2 for VAP association with the inclusion upon phosphomimetic mutation of T₂₆₅. This result also suggests that phosphorylation of T₂₆₅ is dependent on, and temporally downstream of, CK2 binding to S₃₄₅, S₃₄₆, and S₃₅₀ in the C-terminal of IncV, potentially by allowing the recruitment of the yet to be identified kinase responsible for phosphorylating T₂₆₅.

The presence of a phospho-FFAT in IncV would add to the growing list of proteins that interact with VAP via a phospho-FFAT. These include STARD3 at ER–endosome contacts, the potassium channel Kv.2 at ER–PM contacts in neurons, Miga at ERMCS, and VPS13D at ER–mitochondria MCS (Di Mattia et al., 2020; Guillén-Samander et al., 2021; Johnson et al., 2018; Xu et al., 2020). Moreover, although not recognized as such at the time, a putative phospho-FFAT in the norovirus protein NS2 is essential for interaction with VAP and viral replication (McCune et al., 2017), indicating that this mechanism of interaction with VAP might also be conserved amongst pathogens.

In the context of the STARD3-dependent formation of ER–endosome contacts, the presence of a single phospho-FFAT is proposed to act as a molecular switch to regulate contact formation (Di Mattia et al., 2020). In the case of proteins that contains a combination of a canonical FFAT and a phospho-FFAT, such as PTPIP51, an ER–mitochondria contact protein (Di Mattia et al., 2020) and potentially IncV, it is unclear how a most likely constitutive canonical FFAT and a regulated FFAT motif cooperate, if one is dominant over the other, and how advantageous such a combination is with respect with MCS regulation. In the case of IncV, one could speculate that the canonical FFAT motif allows for a baseline level of VAP recruitment to the inclusion and MCS formation while a phospho-FFAT could increase VAP recruitment beyond this baseline.

In eukaryotic FFAT motifs, a number of negative charges upstream of the FFAT motif are proposed to facilitate the initial interaction with the MSP domain of VAP (Furuita et al., 2010). This negatively charged surface is conferred by acidic residues, but phosphorylated residues have been implicated in a few instances. The phosphorylation, by an unknown kinase, of a single serine residue six amino acids upstream of the CERT FFAT motif (S₃₁₅) enhances the CERT–VAP interaction (Kumagai et al., 2014). Similarly, the phosphorylation of three serine residues directly upstream of the FFAT-like motif of ACBD5 promotes VAP binding and peroxisome–ER contacts formation (Kors et al., 2022). We note that two of these serine residues (S₂₅₉ and S₂₆₁) are putative CK2 targets, so it would be interesting to determine if CK2 also plays a role in assembly of the ACBD5-VAP tether. Another example are six serine residues, spread over 21 residues upstream of the core FFAT motif of Miga, shown to facilitate the Miga–VAP interaction (Xu et al., 2020). At least two kinases CKI and CaMKII were required for Miga phosphorylation; however, other kinases are likely involved (Xu et al., 2020). In the case of IncV, the mimicry of an acidic track via phosphorylatable residues seems to be brought to the extreme, since the eight to ten amino acid stretch directly preceding each FFAT motif include 80–87% of serine residues, the remaining residues being acidic. Except for OSBP2/ORP4, which contains six acidic residues (including a phosphorylatable threonine), most acidic tracts contain few acidic residues directly upstream of the core of the FFAT motif (Neefjes and Cabukusta, 2021). IncV is the first example of a FFAT motif-containing protein that displays serine tracts in place of acidic tracts. If built into the available FFAT motif identification algorithms, this feature could potentially reveal additional cellular VAP interacting proteins (Di Mattia et al., 2020; Murphy and Levine, 2016).

During coevolution with the mammalian host, obligate intracellular bacteria such as Chlamydia have evolved to take advantage of and manipulate cellular machinery. One mechanism is via molecular mimicry, in which the pathogen mimics features that are uniquely present in host proteins (Mondino et al., 2020). In the case of IncV and acidic tracks in FFAT motifs, however, one could wonder why evolution would converge toward a mechanism relying on phosphorylation by host cell kinases, as opposed to simply selecting for genetically encoded acidic residues. In the case of Chlamydia Inc proteins, it is possible that tracks of aspartic acid or glutamic acid residues would create an excess of negative charges that may interfere with Type III secretion. In support of this notion, we found that Chlamydia IncV is no longer properly translocated to the inclusion membrane when the serine tracts are mutated to aspartic acid residues, and instead remains trapped within the bacteria. Our results support the notion that the recruitment of CK2 to the inclusion supports the assembly of the IncV–VAP tether. In addition, we cannot exclude the possibility that the recruitment of a phosphatase to ER-Inclusion MCS may contribute to the disassembly of IncV–VAP tethers, as shown for the calcineurin-dependent disassembly of Kv.2-VAP ER–PM contacts in neurons (Park et al., 2006). A combination of host cell kinases and phosphatases could thus regulate the dynamics of ER-Inclusion contact sites during the Chlamydia developmental cycle.

HeLa cells (ATCC CCL-2) and HEK293 cells (ATCC CRL-1573) were maintained in DMEM high glucose (Gibco) containing 10% heat-inactivated fetal bovine serum (Gibco) at 37°C and 5% CO₂. C. trachomatis Lymphogranuloma venereum, Type II (ATCC L2/434/Bu VR-902B) was propagated in HeLa cells as previously described (Derré et al., 2007). The incV::bla mutant strain of C. trachomatis (also known as CT005::bla) was obtained from Ted Hackstadt (NIH, Rocky Mountain Laboratories) (Weber et al., 2017). All cell lines and Chlamydia strains are routinely tested for mycoplasma contamination.

Inserts were generated by PCR using the primers (IDT) and templates listed in Supplementary file 1, and the Herculase DNA polymerase (Stratagene). The inserts were cloned as described below using restriction enzymes (NEB) and T4 DNA ligase (NEB).

The IncV-3xFLAG construct cloned in the pCMV-IE-N2-3xFLAG vector was previously described (Stanhope et al., 2017). The YFP-CK2α and YFP-CK2β plasmids were kind gifts from Claude Cochet and Odile Filhol-Cochet (Institut Albert Bonniot Departement Reponse et Dy-namique Cellulaires) and were previously characterized (Filhol et al., 2003). The pCFP-VAP and pYFP-VAP plasmids were constructed by cloning the VAPA open reading frame (ORF) into pCMV-N1-CFP and pCMV-N1-YFP, respectively, using AgeI and HindIII restriction sites. The pYFP-VAP_K50L plasmid was constructed by cloning the VAPA ORF encoding the K50L mutation (generated my overlapping PCR), into pCMV-N1-YFP using AgeI and HindIII restriction sites.

The GST-VAP_MSP plasmid was previously described (Stanhope et al., 2017). MBP-VAP_MSP was constructed by cloning the MSP domain of VAPA using NotI and BamHI into pMAL. The GST-IncV_167-363 fusion constructs WT, S3D, S/D, or T265D/P266A were generated by cloning a DNA fragment encoding amino acids 167–363 of IncV with the indicated mutations into the BamHI and XhoI restriction sites of pGEX-KG.

All the constructs to express the various IncV-3xFLAG constructs (1–356, 1–341, S3A, T265A, T265A/Y287A, T265D/P266A, T265D/P266A/Y287A, T265D/P266A/S3A, S/A, and S/D) from the aTc-inducible promoter were generated by overlapping PCR and cloned into KpnI and NotI of the p2TK2_Spec-SW2 mCh(Gro) vector (Cortina et al., 2019). The Tet-IncV_FL, Tet-IncV_F263A/Y287A, and Tet-IncV_Y287A constructs were previously described (Stanhope et al., 2017).

Wild-type C. trachomatis or an incV mutant (incV::bla) were transformed using our previously described calcium-based Chlamydia transformation procedure (Cortina et al., 2019).

Cells were transfected with mammalian construct DNA according to the manufacturer’s instructions with X-tremeGENE 9 DNA Transfection Reagent (Roche).

Cells were either directly lysed in 2× Laemmli buffer with 10 mM DTT(Dithiothreitol) or IncV was purified as described in the immunoprecipitation and protein purification sections then suspended in a final concentration of 1× Laemmli buffer with 10 mM DTT. Protein samples were separated using Sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE).

After SDS/PAGE, proteins were transferred onto nitrocellulose membranes (GE Healthsciences). Prior to blocking, membranes were stained with Ponceau S in 5% acetic acid and washed in dH₂O. Membranes were incubated for 1 hr with shaking at room temperature in blocking buffer (5% skim milk in 1× phosphate-buffered saline [PBS] with 0.05% Tween). Membranes were then incubated with primary and secondary (horseradish peroxidase [HRP]-conjugated) antibodies diluted in blocking buffer overnight at 4°C and 1 hr at room temperature, respectively, with shaking. ECL Standard western blotting detection reagents (Amersham) were used to detect HRP-conjugated secondary antibodies on a BioRad ChemiDoc imaging system. CK2β was detected using secondary antibodies conjugated to Alexa Fluor 800 on Li-Cor Odyssey imaging system.

The following antibodies were used for immunofluorescence microscopy (IF) and immunoblotting (WB): mouse monoclonal anti-FLAG [1:1000 (IF); 1:10,000 (WB); Sigma], rabbit polyclonal anti-CK2β [1:200 (IF); 1:1000 (WB); Bethyl Antibodies]; rabbit polyclonal anti-thiophosphate ester antibody [1:2000 (WB); Abcam], rabbit polyclonal anti-MBP [1:10,000 (WB); NEB], rabbit polyclonal anti-GAPDH [1:10,000 (WB)], rabbit polyclonal anti-mCherry [1:2,000 (WB); BioVision], rabbit polyclonal anti-actin [1:10,000 (WB); Sigma], HRP-conjugated goat anti-rabbit IgG [1:10,000 (WB); Jackson], HRP-conjugated goat anti-mouse IgG [1:10,000 (WB); Jackson], Alexa Fluor 514-, 800-, or Pacific Blue-conjugated goat anti-mouse IgG [1:500 (IF); 1:10,000 (WB); Molecular Probes].

800,000 HEK293 cells were seeded into one well of a 6-well plate (Falcon) and infected the following day with C. trachomatis at a multiplicity of infection (MOI) of 5. 8 h pi, media containing 2 ng/ml aTc was added to the infected cells for 16 hr. Twenty-four hours postinfection, culture media was removed from the cells and 500 μl of lysis buffer (20 mM Tris pH 7.5, 150 mM NaCl, 2 mM EDTA (Ethylenediaminetetraacetic acid), 1% Triton X-100, protease inhibitor mixture EDTA-free [Roche]) was added per well. Cells were lysed for 20 min at 4°C with rotation. Lysates were centrifuged at 16,000 × g for 10 min at 4°C to pellet nuclei and unlysed cells. Cleared lysates were incubated with 10 μl of anti-FLAG M2 affinity beads (Sigma) for 2 hr at 4°C with rotation. The beads were washed with lysis buffer three times. Proteins were eluted with 50 μl of 100 μg/ml 3xFLAG peptide (Sigma) in 1× Tris-buffered saline (TBS). For cells transfected with pCMV-IE-N2-IncV-3xFLAG, cells were not infected, and the remainder of the protocol remained the same starting with removal of media and lysing.

Immunoprecipitation was performed as described above with the following changes: The beads were washed with 1× TBS three times and proteins were eluted with 55 μl of 100 μg/ml 3xFLAG peptide (Sigma) in 1× TBS. 20 μl of eluate was combined with 2.5 μl of 10 mM MnCl₂, 2.5 μl of 10× PMP buffer (NEB), and 400 units of lambda (λ) phosphatase (NEB) for 24 hr at 4°C. The assay was halted by adding 5 μl of 6× Laemmli buffer with 10 mM DTT. Samples were boiled and 10 μl of sample was then used in SDS–PAGE.

HeLa cells were seeded onto glass coverslips and transfected with YFP-CK2 (α or β), CFP-VAP, YFP-VAP, or YFP-VAP_K50L the following day. Twenty-four hours post-transfection, cells were infected with the indicated strain of C. trachomatis at a MOI of 1. Twenty-four hours postinfection, media containing 20 ng/ml aTc (final concentration) was added for 4 hr to induce expression of IncV-3xFLAG.

HeLa cells seeded on glass coverslips and infected with C. trachomatis were fixed 24 hr postinfection with 4% paraformaldehyde in 1× PBS for 20 min at room temperature then washed with 1× PBS three times. The coverslips were sequentially incubated with primary and secondary antibodies in 0.1% Triton X-100 in 1× PBS for 1 hr at room temperature. For coverslips stained with anti-CK2β, antibodies were diluted in 0.5% Triton X-100% and 5% bovine serum albumin (BSA) in 1× PBS. Coverslips were washed with 1× PBS three times then mounted with glycerol containing DABCO and Tris pH 8.0. Confocal images were obtained using an Andor iXon ULTRA 888BV EMCCD camera and a Yokogawa CSU-W1 Confocal Scanner Unit attached to a Leica DMi8 microscope. 1 μm thick Z slices covering the entirety of the cell were captured. Image analysis was performed using the Imaris software. All the micrographs within a given figure panels are at the same scale.

Quantification was performed using the Imaris imaging software. A step-by-step illustration of the quantification method is presented in Figure 3—figure supplement 2. Quantification of the IncV-3xFLAG associated with the inclusion was performed to ensure there was no defect in inclusion localization (Figure 3—figure supplement 2A). The sum of the voxels corresponding to the IncV-3xFLAG signal above the threshold set by the signal within the cytosol was calculated for IncV-3xFLAG and mCherry. Objects were edited such that IncV-3xFLAG colocalizing with the mCherry bacteria was removed. The IncV-3xFLAG volume was normalized to its corresponding inclusion volume to determine the inclusion association of IncV in arbitrary units [au]. The association of a given marker was then determined as follow (Figure 3—figure supplement 2B, YFP-VAP is shown as an example). Within the three-dimensional (3D) object generated from the raw signal of IncV-3xFLAG at the inclusion membrane, the mean intensity of the marker of interest was calculated and normalized to the mean intensity of the marker of interest within the cytosol surrounding the inclusion (average of 10 small 3D spheres) to determine the inclusion association of the marker of interest in au. A similar approach is used in Figure 4E, except that the mean intensity of CFP-VAP was determined within 3D objects generated from the raw signal of the YFP-CK2 at the inclusion and normalized to the CFP-VAP mean intensity in the cytosol.

Each experiment was performed in triplicate with at least 20–30 inclusions analyzed per condition per replicate. Unless specified, data from three independent replicates are combined into a single graph. Each point on the graph represents a single inclusion with the average value and SEM shown. Student’s t-tests or one-way ANOVA with multiple comparisons was performed.

Expression of GST, GST-VAP_MSP, GST-IncV_167-363, GST-IncV_167-363 S/D, or MBP-VAP_MSP was induced for 2 hr by the addition of isopropyl-β-ᴅ-thiogalactopyranoside (0.1 mM, final concentration) to a 10 ml culture of E. coli BL21-λDE3 at OD 0.8. Bacterial pellets were stored at −80°C. Frozen pellets were thawed and resuspended in 800 μl sonication buffer (20 mM Tris pH 7.5, 300 mM NaCl, 2 mM EDTA, 1 mM MgCl₂, 1% Triton X-100, 1 mM DTT, 1 mM PMSF (phenylmethylsulfonyl fluoride)). The samples were sonicated using five 5-s pulses at 40% power then centrifuged at 13,000 × g for 10 min at 4°C. 40 μ of glutathione Sepharose beads (GE) for GST-tagged constructs and 40 μl of Amylose resin for MBP-tagged constructs were washed three times with sonication buffer then added to the cleared lysate and incubated for 2 hr at 4°C with rotation. The beads were washed three times in TBS.

Protein-bound glutathione Sepharose beads were resuspended in 1× NEBuffer for Protein Kinases supplemented with 1 mM ATPγS and 10 units of CK2 (NEB) and incubated at 30°C for 45 min. P-nitrobenzyl mesylate (PNBM) was added to the kinase reaction at a final concentration of 2.4 mM for 2 hr at room temperature in the dark. The PNBM alkylation reaction was quenched by adding an equal volume of 2× Laemmli buffer. Proteins were separated using SDS–PAGE on a 12% acrylamide gel then transferred to a nitrocellulose membrane. The membrane was stained with Ponceau S in 5% acetic acid to detect total protein then washed in dH₂O. The membrane was then probed with anti-thiophosphate ester antibodies to detect phosphorylated proteins which were detected with HRP-conjugated secondary antibodies.

First, GST, GST-IncV_167-363, GST-IncV_167-363 S/D, and MBP-VAP_MSP were purified as described in protein purification. MBP-VAP_MSP was eluted from amylose resin using 100 μl 1× TBS supplemented with 10 mM maltose monohydrate. GST, GST-IncV_167-363, or GST-IncV_167-363 S/D attached to glutathione beads were washed three times in sonication buffer. 500 μl of sonication buffer containing 1.25 μg MBP-VAP_MSP was added to each tube with GST beads and binding was allowed to occur overnight at 4°C with rotation. Following overnight binding, beads were washed three times in 1× TBS. After the final wash, all liquid was removed from the beads which were then suspended in 20 μl 2× Laemmli buffer. The entire sample was separated by SDS–PAGE, proteins transferred to a nitrocellulose membrane which was stained with Ponceau S to detect the GST construct then probed with anti-MBP to detect MBP-VAP_MSP.

First, the phosphatase assay was performed with the following changes: 1,000,000 HEK293 cells stably transfected with pCMV-IE-N2-IncV-3xFLAG were seeded per 6 well. Six wells were lysed in 500 μl lysis buffer each and lysates from two wells were combined. 10 μl of anti-FLAG beads were added per 1000 μl cleared lysate for 2 hr at 4°C with rotation. All beads were combined after the first wash, and proteins were eluted in 150 μl elution buffer (130 μl eluate collected).

Next, GST and GST-VAP_MSP were purified as described in protein purification. Per phosphatase assay tube: 1.5 μg of GST or GST-VAP_MSP attached to beads (determined empirically by comparison of Coomassie stained gel to BSA standard curve) was suspended in 500 μl lysis buffer then added to tubes containing the IncV-3xFLAG-containing eluate (±phosphatase treatment). Binding was allowed to occur overnight at 4°C with rotation.

To confirm that IncV dephosphorylation was successful, a set of control tubes were incubated with beads alone (no GST construct) in lysis buffer to mimic experimental conditions.

Twenty-four hours after binding, beads were washed three times in 1× TBS. After the final wash, all liquid was removed from the beads which were then suspended in 20 μl 2× Laemmli buffer. The entire sample was separated by SDS–PAGE, proteins transferred to a nitrocellulose membrane which was stained with Ponceau S to detect the GST construct then probed with anti-FLAG to detect IncV-3xFLAG.

First, GST, GST-IncV_167-363, and MBP-VAP_MSP were purified as described in protein purification. MBP-VAP_MSP was eluted from amylose resin using 100 μl 1× TBS supplemented with 10 mM maltose monohydrate. 1.5 μg of GST or GST-IncV_167-363 attached to glutathione beads (determined empirically by comparison of Coomassie stained gel to BSA standard curve) or beads alone was suspended in 1× NEBuffer for Protein Kinases with 200 μM ATP (Thermo) and 100 units of CK2 (NEB) at 30°C for 45 min. Beads were washed three times in sonication buffer. 1.25 μg MBP-VAP_MSP suspended in 500 μl sonication buffer was added to each tube with beads and binding was allowed to occur overnight at 4°C with rotation. Twenty-four hours after binding, beads were washed three times in 1× TBS. After the final wash, all liquid was removed from the beads which were then suspended in 20 μl 2× Laemmli buffer. The entire sample was separated by SDS–PAGE, proteins transferred to a nitrocellulose membrane which was stained with Ponceau S to detect the GST construct then probed with anti-MBP to detect MBP-VAP_MSP.

Immunoblots and Ponceau S staining were quantified using the ImageJ software (NIH). The immunoblot band intensity was normalized to the Ponceau S band intensity and the fold change determined relative to wild-type or untreated conditions.

CK2 was depleted from cells using a pool of four siRNA duplexes or each duplex individually that was transfected with Dhamafect 1 transfection reagents. On day 0, one volume of 200 nM siRNA in siRNA buffer was incubated with one volume of 5 μl/ml of Dharmafect 1 transfection reagent in DMEM high glucose in a well for 20 min at room temperature. Two volumes of DMEM High Glucose supplemented with 20% fetal bovine serum and 200,000 HeLa cells per ml were added to the well. Cells were incubated at 37°C with 5% CO₂ for 3 days. The total volume for one 96 well was 120 μl. The CSNK2B target sequence for each individual siRNA duplex was: A, CAACCAGAGUGACCUGAUU; B, GACAAGCUCUAGACAUGAU; C, CAGCCGAGAUGCUUUAUGG; D, GCUCUACGGUUUCAAGAUC. The efficacy of the knock down was quantified using the ImageJ software (NIH). The CK2 band intensity was normalized to the GAPDH band intensity and the knockdown efficacy was determined relative to the mock condition.

CK2 was inactivated using the CK2-specific inhibitor CX-4945 (0308, Advanced Chemblocks) or GO289 (17586, AOBIOUS), as described in the result sections.

HeLa cells were infected with a strain of C. trachomatis expressing IncV_WT or IncV_S3A-3xFLAG under the control of the aTc-inducible promoter. Twenty hours postinfection cells were incubated in the presence of 20 ng/ml of aTc. Twenty-four hours postinfection, the samples were fixed in 2.5% glutaraldehyde in 0.1 M cacodylate buffer (pH 7.4) for 60 min at RT. After fixation, cells were scraped off and pelleted, as described previously (Fölsch et al., 2001). Ultrathin sections of infected cells were stained with osmium tetraoxide before examination with Hitachi 7600 EM under 80 kV equipped with a dual AMT CCD camera system. Quantitative measurement of length for the inclusion membrane and host ER elements attached to this membrane was performed using ImageJ on 24 representative electron micrographs at low magnification to ensure the entire inclusion fit into the field of view.

The funders had no role in study design, data collection, and interpretation, or the decision to submit the work for publication.

We thank Ted Hackstadt (NIH-Rocky Mountain Laboratories) and Mary Weber (University of Iowa) for the incV::bla strain; Claude Cochet and Odile Filhol-Cochet (Institut Albert Bonniot Département Réponse et Dynamique Cellulaires) for the YFP-CK2 constructs; David Brautigan (University of Virginia) for the CX-4945 inhibitor; the excellent technical staff of the Electron Microscopy Core Facility at the Johns Hopkins University School of Medicine Microscopy Facility; and Hervé Agaisse and members of the Derré and Agaisse laboratories (University of Virginia) for providing feedback on the project and the manuscript.

All genetic manipulations and containment work were approved by the UVA Biosafety Committee and are in compliance with the section III-D-1-a of the National Institutes of Health guidelines for research involving recombinant DNA molecules.

1. Received: October 8, 2021
2. Preprint posted: October 21, 2021 (view preprint)
3. Accepted: June 24, 2022
4. Version of Record published: July 15, 2022 (version 1)

© 2022, Ende, Murray et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
