Structural basis of malaria transmission blockade by a monoclonal antibody to gamete fusogen HAP2

  1. Juan Feng
  2. Xianchi Dong
  3. Adam DeCosta
  4. Yang Su
  5. Fiona Angrisano
  6. Katarzyna A Sala
  7. Andrew M Blagborough
  8. Chafen Lu  Is a corresponding author
  9. Timothy A Springer  Is a corresponding author
  1. Program in Cellular and Molecular Medicine, Boston Children's Hospital, United States
  2. School of Life Sciences, Nanjing University, China
  3. Burnet Institute, Australia
  4. Department of Pathology, University of Cambridge, United Kingdom
  5. Boston Children's Hospital, United States

Abstract

HAP2 is a transmembrane gamete fusogen found in multiple eukaryotic kingdoms and is structurally homologous to viral class II fusogens. Studies in Plasmodium have suggested that HAP2 is an attractive target for vaccines that block transmission of malaria. HAP2 has three extracellular domains, arranged in the order D2, D1, and D3. Here, we report monoclonal antibodies against the D3 fragment of Plasmodium berghei HAP2 and crystal structures of D3 in complex with Fab fragments of two of these antibodies, one of which blocks fertilization of Plasmodium berghei in vitro and transmission of malaria in mosquitoes. We also show how this Fab binds the complete HAP2 ectodomain with electron microscopy. The two antibodies cross-react with HAP2 among multiple plasmodial species. Our characterization of the Plasmodium D3 structure, HAP2 ectodomain architecture, and mechanism of inhibition provide insights for the development of a vaccine to block malaria transmission.

Editor's evaluation

This study describes the generation of monoclonal antibodies targeting the fusogen HAP2 from the malaria parasite that is required for parasite transmission to mosquitoes. Using structural approaches in combination with biophysical methods, the authors provide insights into the differences in transmission blocking potencies for different monoclonal antibodies, which may inform the design of HAP2 as a potential vaccine candidate.

https://doi.org/10.7554/eLife.74707.sa0

Introduction

HAP2, a gamete fusogen required for fertilization, is found in eukaryotic plant, metazoan, and protozoan kingdoms (Clark, 2018). Crystal structures are known of HAP2 from the unicellular green alga, Chlamydomonas reinhardti; a model plant, Arabidopsis thaliana; and a protozoan parasite, Trypanosoma cruzi (Fédry et al., 2017; Feng et al., 2018; Fedry et al., 2018; Baquero et al., 2019). HAP2 can form a trimeric structure that is structurally homologous to the fusion state of viral class II fusion proteins. These fusogens have three extracellular domains, arranged in the order D2, D1, and D3, a disordered stem region, a single-pass transmembrane domain, and a cytoplasmic domain, and are expressed on the plasma membrane of male gametes or the envelope of viruses (Figure 1).

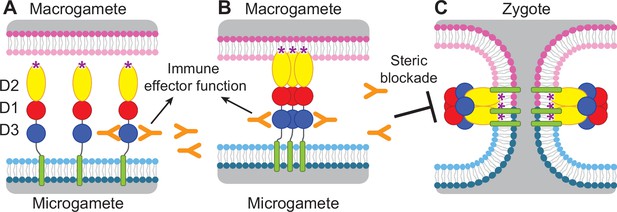

Diagram of HAP2 pre-fusion monomer, trimerization and membrane fusion.

The model is based on postfusion structures of HAP2 referenced in the text, their similarity to postfusion structures of viral class II proteins, models for the conversion of prefusion to postfusion class II fusion proteins (Kielian and Rey, 2006), and work showing that D1 and D2 are sufficient for trimer formation (Liao et al., 2010), which suggests that the last step may be concerted foldback of D3 over D1 and D2 and fusion of the macrogamete and microgamete plasma membranes. (A) pre-fusion monomer on the surface of male gametes, (B) extended trimeric intermediate, and (C) post-fusion trimer and fusion of gamete membranes. Domains are colored. Fusion loops at the tip of D2 are shown as ‘*’. Antibodies to D3, shown as Y shapes, may agglutinate microgametes, trigger antibody Fc-dependent effector functions, or neutralize HAP2 function by interfering with trimer formation and gamete membrane fusion.

HAP2 is required for fertilization in Plasmodium parasites (Hirai et al., 2008; Liu et al., 2008) and is thus an attractive target for vaccines that block transmission of malaria. Gamete fertilization takes place in the mosquito midgut in a blood meal taken from an infected individual. Blocking fertilization prevents transmission to the individual from which the mosquito takes its second, final blood meal. Plasmodium gametes emerge from infected erythrocytes well before digestion of the blood meal; specific antibodies present in the blood meal will react with and can agglutinate or otherwise neutralize gametes (Angrisano et al., 2017; Blagborough and Sinden, 2009; Qiu et al., 2020; Graves et al., 1985). HAP2 is present on male gametes (microgametes) and has hydrophobic fusion loops at the tip of D2 that insert into the plasma membrane of the female macrogamete and trigger trimerization and structural rearrangements of HAP2 to the fusion state, which mediates membrane fusion and merging of the cytoplasm of the two gametes through a fusion pore (Kielian and Rey, 2006; Figure 1). To mediate fusion, D3 of HAP2 folds over an inner trimeric core composed of D1 and D2 (Figure 1). We reasoned that antibodies to D3 of HAP2 that blocked the interface formed with D1 and D2 in the fusion state might block fusion, as has been demonstrated with viral fusogens (Austin et al., 2012; Zhao et al., 2016; Li et al., 2018). Thus, we hypothesized that HAP2 D3 antibody taken up in a blood meal could inhibit fertilization and infection of the mosquito and subsequent transmission to humans (Delves et al., 2018; Figure 1).

Immunization of mice with HAP2 fragments or putative HAP2 fusion loop peptides has proved the concept that antibodies to different domains of HAP2 can, to different extents, block transmission of Plasmodium berghei or P. vivax, species that infect rodents and humans, respectively (Angrisano et al., 2017; Blagborough and Sinden, 2009; Qiu et al., 2020). However, we are far from having an optimized HAP2 immunogen. Furthermore, the high-sequence divergence of HAP2 in Plasmodium species from structurally characterized HAP2 in other phyla emphasizes the importance of Plasmodium HAP2 structures for rational vaccine design. Here, to advance a vaccine that would block malaria transmission, we have expressed a D3 fragment of P. berghei HAP2, raised monoclonal antibodies, crystallized D3 in complex with Fab fragments of two antibodies, and examined Fab complexes with the complete HAP2 ectodomain (D1-D3) by negative stain electron microscopy (EM). Furthermore, we show that one of these antibodies potently blocks gamete fertilization and transmission and thus for the first time that a monoclonal antibody to HAP2 can block transmission. We define the advantages, as well as the limitations, of using the D3 domain of HAP2 as an immunogen for transmission blockade. Moreover, the two structurally characterized antibodies have cross-reactivity with HAP2s among multiple plasmodial species that can cause malaria in humans. The insights into Plasmodium D3 structure, HAP2 ectodomain architecture, and mechanism of inhibition are important steps toward the development of a vaccine to block malaria transmission.

Results

P. berghei HAP2 D3 elicits antibodies that cross react with human malaria pathogens

Apicomplexans such as Plasmodium are eukaryotes that have extracellular proteins that are disulfide-linked and glycosylated; therefore, we produced HAP2 proteins in insect and mammalian cells which are competent for such modifications. C-mannosylation and O-glycosylation in Plasmodium have been verified; however, while Plasmodium species have been suggested to have unusually short N-glycans, N-glycosylation has yet to be verified with any specific protein (Bushkin et al., 2010; Macedo de et al., 2010; Bandini et al., 2019; Swearingen et al., 2016; Swearingen et al., 2019). To elicit antibodies, we expressed in Drosophila S2 cells a P. berghei HAP2 D3 construct (residues 477–621, containing four putative N-glycosylation sites) containing a C-terminal His tag. After Ni-affinity chromatography, the material was nearly homogenous, as shown by SDS-PAGE and Coomassie blue staining (Figure 2A, lane 1). Shaving the N-glycans with endoglycosidase D (Endo D) followed by gel filtration decreased size and heterogeneity in SDS-PAGE and confirmed N-glycosylation of D3 (Figure 2A, lane 2).

Figure 2 with 3 supplements see all

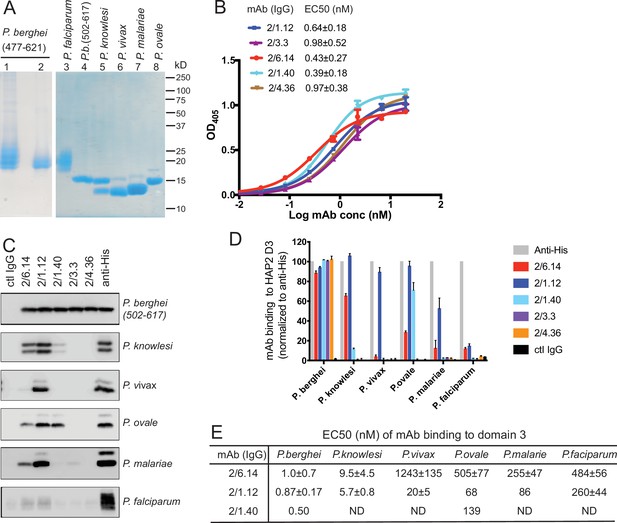

Cross-reactivity of HAP2 D3 mAbs among Plasmodium species.

(A) Reducing SDS 12.5% PAGE of purified HAP2 D3 stained with Coomassie blue. Lanes 1 and 2: P. berghei HAP2 D3 (aa 477–621) purified by Ni-NTA (lane 1) and then treated with Endo D and purified by gel filtration (lane 2). Lanes 3–8: Purified HAP2 D3 fragments from Plasmodium species treated with Endo D or from P. berghei (aa 502–617) with N-linked sites removed by mutation. (B) Titration of antibody binding to Endo D-treated P. berghei HAP2 D3 (aa 477–621) by ELISA. Sigmoidal curve fits show one representative experiment with mean ± difference from the mean of duplicates; EC50 values show mean ± SD of three experiments. (C) Cross-species reactivity of HAP2 D3 mAbs by immunoprecipitation. Purified D3 proteins shown in (A) (2 µg each) were subjected to immunoprecipitation with the indicated mAbs, anti-His 1/5.13, or control IgG (8 µg each). Immunocomplexes were analyzed by reducing 12.5% SDS-PAGE and Western blot using rabbit polyclonal antibodies to the C-terminal His tag of D3. (D) Quantitation of results from (C) and a repeat experiment. Intensities of bands were quantitated and data normalized to anti-His. Results shown are averages of the two experiments ± difference from the mean. (E) EC50 measurements of HAP2 D3 binding to immobilized mAbs by ELISA. Purified D3 proteins shown in (A), lanes 3–8, were used. Sigmoidal curve fitting of D3 titration (Figure 2—figure supplement 3) and EC50 used GraphPad Prism 7 software. EC50 shown are mean ± difference from means of two experiments, each experiment with triplicates. ND, Not determined.

To produce monoclonal antibodies (mAbs), mice were immunized with the glycan-shaved D3. Antibodies elicited to the shaved protein, which contains one N-glycan residue at each N-glycosylation site, would be expected to react with D3 without being influenced by its glycosylation status. Five IgG mAbs reacted with the immunogen with nanomolar EC50 values in ELISA (Figure 2B). Surface plasmon resonance (SPR) showed that Fabs of two mAbs, 2/6.14 and 2/1.12, bind with affinities of 5–10 nM (Figure 2—figure supplement 1). The antibodies also immunoprecipitated a shorter D3 (502–617) with all putative N-glycosylation sites mutated out (Figure 2C, top panel). Immunoprecipitation was comparable to the His-tag antibody, showing that the epitopes of the 5 mAbs resided within residues 502–617 and were unaffected by N-glycosylation. One antibody (1/5.13) that reacted with the C-terminal His tag and is comparable in specificity and sensitivity to commercial His tag antibodies is described in Materials and methods (Figure 2—figure supplement 2).

HAP2 D3 was also expressed and shaved with Endo D from Plasmodium species that can infect humans: P. knowlesi, P. vivax, P. malariae, P. ovale, and P. falciparum (Figure 2A). As their D3 domains share 60–70% amino acid sequence identity with P. berghei, we tested cross-reactivity with the mAbs to P. berghei D3 using immunoprecipitation (Figure 2C). We quantified immunoprecipitation (Figure 2D) and also measured cross-reactivity using ELISA (Figure 2E and Figure 2—figure supplement 3). mAbs 2/6.14 and 2/1.12 were especially efficient at recognizing D3 from multiple species (Figure 2C). mAb 2/6.14 pulled down about 70%, 30%, and 20% of P. knowlesi, P. ovale, and P. malariae D3, respectively, and mAb 2/1.12 was even more reactive, pulling down 60–100% of D3 from all species except P. falciparum D3 (Figure 2C and D). In contrast, mAb 2/1.40 showed strong reactivity to P. ovale, but not to D3 of other species, while mAbs 2/3.3 and 2/4.36 were highly specific for P. berghei (Figure 2C and D). mAbs 2/6.14 and 2/1.12 bound all species of D3 tested, as shown by ELISA EC50 values in the 1–1000 nM range (Figure 2E and Figure 2—figure supplement 3). Strong binding of P. knowlesi D3 to both 2/6.14 and 2/1.12 was observed with EC50 of <10 nM.

Antibody reactivity with gametes and blockade of fertilization in vitro and in vivo

Two individual assays with gametes, immunofluorescent staining with mAbs and ookinete conversion, were carried out in vitro. The change of environment from the bloodstream to the mosquito midgut triggers the development of gametocytes in infected erythrocytes into mature, highly motile ‘male’ microgametes and more sessile ‘female’ macrogametes and gamete emergence from erythrocytes. These events can be mimicked in vitro by reducing the temperature or pH and adding xanthurenic acid to the medium (ookinete medium). Each male gametocyte gives rise to eight microgametes, which look like a number of waving cilia as they emerge from the infected erythrocyte; this process is thus termed ‘exflagellation’.

Reactivity of mAbs to native HAP2 in P. berghei microgametes was determined using cultured, infected erythrocytes undergoing exflagellation. After cultures were fixed, gametes adsorbed to slides were incubated with mouse D3 mAb and rabbit anti-alpha-tubulin followed by staining with fluorochrome-conjugated secondary antibodies specific for mouse and rabbit IgG and DAPI. Anti-tubulin and DAPI were used to identify microgametes by their highly elongated microtubule cytoskeletons and nuclei. All 5 D3 mAbs specifically stained P. berghei microgametes (Figure 3A).

Figure 3 with 1 supplement see all

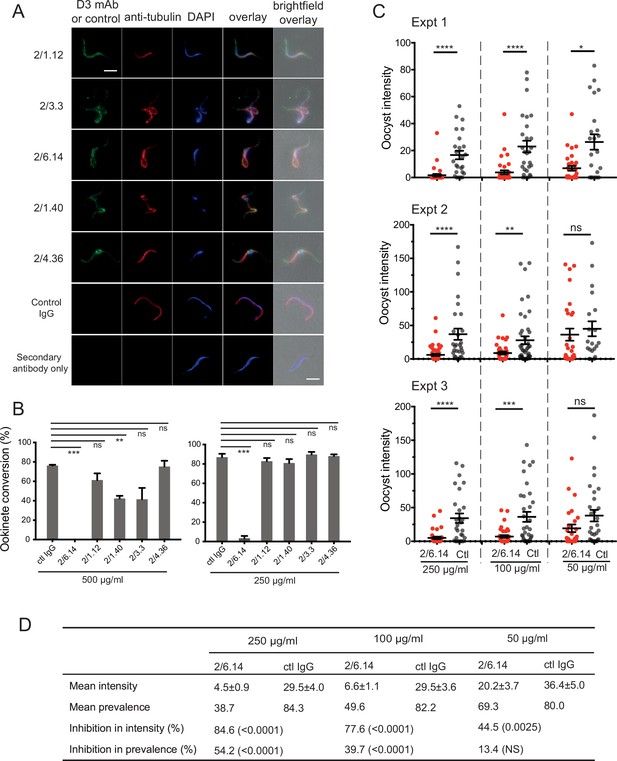

Immunofluorescent staining and inhibition of P.

berghei fertilizaton by mAbs. (A) Immunofluorescent staining of microgametes from P. berghei. Fixed microgametes were stained with mouse D3 mAbs or control IgG, rabbit anti-α-tubulin, secondary Alexa Fluor-488 anti-mouse IgG and Alexa Fluor-594 anti-rabbit IgG, DAPI, and imaged with epifluorescence. Scale bars = 5 µm. (B) Fertilization in vitro measured as macrogamete conversion to ookinetes (% ookinetes/(ookinetes + macrogametes)) in the presence of indicated antibodies. Results are mean ± SEM of three independent experiments, analyzed by paired t test: *** p < 0.001, **p < 0.01, ns, non-significant p > 0.05. Total number of macrogametes + ookinetes in all three experiments are from right to left at 500 µg/ml: 139, 177, 147,104, 199 and 129, and at 250 µg/ml: 222, 120, 270, 410, 275, and 306. (C) ( and D) Mosquitoes were allowed to feed on antibody or control IgG diluted in infected mouse blood placed in membrane feeders; results are shown from three independent experiments. (C) Oocyst intensities (oocysts per mosquito) are shown as filled circles with means as horizontal bars ± SEM. ****p < 0.0001, ***p = 0.0001–0.001, **p = 0.001–0.01, *p = 0.01–0.05, ns p > 0.05 by Mann-Whitney test. (D) Summary of intensity and prevalence (% of infected mosquitoes) with SEM from all three experiments. Prevalence and N values are shown in Figure 3—figure supplement 1. Inhibition (%) was calculated relative to negative control IgG at the same concentrations. The significance of inhibition is shown in parentheses for intensity (Mann-Whitney test) and prevalence (Fisher’s exact test).

We next tested the ability of the D3 mAbs to inhibit P. berghei microgametes from fertilizing macrogametes and forming ookinetes in vitro. Mouse blood infected with P. berghei gametocytes was mixed with D3 mAbs or control mouse IgG diluted in ookinete medium. After 24 hr, ookinetes and unfertilized female gametocytes were identified by their morphology and staining with a fluorescent antibody, counted, and ookinete conversion rates were calculated. Only a single microgamete is required to fertilize a macrogamete, and each ookinete observed comprises a successful fertilization event. In control IgG, conversion rates were ~80% (Figure 3B). Strikingly, mAb 2/6.14 at 500 µg/ml completely inhibited ookinete conversion and at 250 µg/ml inhibited by 96% (p < 0.001). In contrast, none of the other mAbs inhibited by >50%, although mAb 2/1.40 showed significant inhibition at 500 µg/ml but not at 250 µg/ml (Figure 3B).

We then tested mAb 2/6.14 for its ability to block transmission in vivo in mosquitoes. Female Anopheles stephensi mosquitoes were allowed to feed through membranes on blood from P. berghei infected mice mixed with mAb 2/6.14 or control IgG. After 14 days, mosquito midguts were dissected and oocysts/midgut were counted, that is, oocyst intensity was determined. Oocyst intensity was significantly reduced by mAb 2/6.14, particularly at 250 and 100 µg/ml (Figure 3C). We also measured the prevalence of infection among the fed mosquitoes, i.e. the % of mosquitoes with at least one oocyst. Prevalence was significantly reduced by mAb 2/6.14 at both 250 and 100 µg/ml (Figure 3—figure supplement 1). Summing the results over all mosquitos in the three independent experiments showed significant inhibition of intensity at all three mAb 2/6.14 concentrations, significant inhibition of prevalence at 250 and 100 µg/ml of mAb 2/6.14, dose-dependent reduction of both measures over the three antibody concentrations, and a reduction of intensity by 85% at 250 µg/ml (Figure 3D). Overall, the results show that all five antibodies react with microgametes, that mAb 2/6.14 exhibits potent ability to block P. berghei fertilization in vitro and in vivo, and thus that purified HAP2 D3 has potential as a transmission-blocking vaccine.

Structural characterization of P. berghei HAP2 and complexes of D3 with Fabs

To obtain structural insights relevant to rational development of a transmission-blocking vaccine, we obtained crystal structures of the P. berghei HAP2 D3 502–617 fragment with its three N-linked sites mutated out in complex with Fab fragments. Diffraction data was collected and refined to resolutions of 2.8 and 2.1 Å with Rfree of 29% and 23% for complexes with the transmission-blocking Fab 2/6.14 and cross-reactive Fab 2/1.12, respectively (Table 1). Each structure has two independent D3-Fab complexes in the asymmetric unit, giving us four examples of D3. The two Fab fragments bind to opposite faces of D3 (Figure 4A and B).

Table 1
Statistics of X-ray diffraction and structure refinement of PbHAP2 domain 3 (D3) complexed with 2/6.14 Fab or 2/1.12 Fab.
D3-2/6.14 FabD3-2/1.12 Fab
Data collection statistics
Space groupP222P21
α, β, γ, °90, 90, 9090, 95.8, 90
Unit cell (a, b, c), Å78.3, 122.6, 168.543.9, 187.1, 74.4
Resolution range (Å)50.0–2.80 (2.87-2.80)*50.0–2.10 (2.15–2.10)
Completeness (%)99.3 (99.5)98.4 (96.9)
Number unique reflections40,741 (2,938)68,138 (4,935)
Redundancy3.8 (4.0)3.6 (3.7)
Rmerge (%)5.7 (70.2)8.3 (153)
I/σ(I)12.8 (2.2)8.42 (0.52)
CC½ (%) 99.8 (90.9)99.7 (10.9)
Wavelength (Å)1.03321.0332
Refinement statistics
Rwork (%) §25.3 (33.7)18.97 (37.3)
Rfree (%)29.2 (34.8)23.27 (40.5)
Bond RMSD (Å)0.0030.003
Angle RMSD (°)0.5480.603
Ramachandran plot (Favored/allowed/outlier)91.5/7.6/0.995.93/4.07/0.1
Number of atoms
 Protein10,3108,183
 Ligand2254
 Water18353
B factor
 Protein128.672.7
 Ligand112.8112.9
 Water138.064.9
Molprobity percentile
 (Clash/Geometry)98/9799/97
 PDB7LR3 7LR4
  1. *

    The numbers in parentheses refer to the highest resolution shell.

  2. Rmerge = Σh Σi |Ii(h) -< I(h)> | / ΣhΣi Ii(h), where Ii(h) and< I(h)> are the ith and mean measurement of the intensity of reflection h.

  3. Pearson’s correlation coefficient between average intensities of random half-datasets for each unique reflection (Karplus and Diederichs, 2012).

  4. §

    Rfactor = Σh||Fobs (h)|-|Fcalc (h)|| / Σh|Fobs (h)|, where Fobs (h) and F calc (h) are the observed and calculated structure factors, respectively. No I/σ(I) cutoff was applied.

  5. Calculated with MolProbity (Davis et al., 2007).

Figure 4 with 2 supplements see all

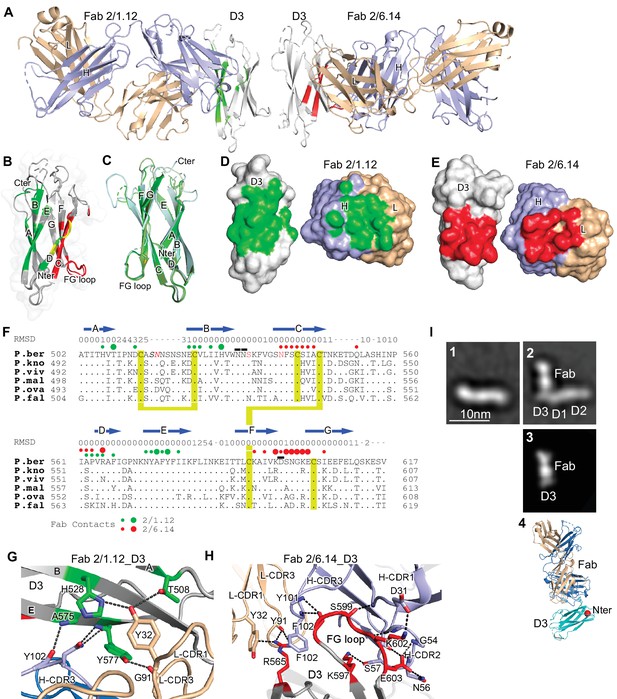

Structures of HAP2 D3 in complex with 2/6.14 Fab or 2/1.12 Fab.

(A) Overview of D3-2/1.12 Fab (left) and D3-2/6.14 Fab complexes (right). (B) Cartoon representation of D3 with residues colored that contact Fab 2/1.12 (green), Fab 2/6.14 (red) or both Fabs (yellow). (C) Cartoon representations of three independent molecules in the two crystals, excluding the one molecule with multiple conformations. Each molecule is colored in a different variation of green. Dashes symbolize loops with missing density. (D) and (E) Solvent accessible surfaces of complexes are shown in open book views in which the Fab and D3 components are rotated apart like two facing pages in an open book. In B, D and E, atoms in D3 and Fabs within 5 Å of one another are colored green (Fab 2/1.12 complex) or red (Fab 2/6.14 complex) and are otherwise white (D3), light blue (Fab H chain), or wheat (Fab L chain). (F) Structural and sequence conservation of D3 and its 2/1.12 and 2/6.14 epitopes. Top line: β-strands shown as arrows. Second line: RMSD of Cα atom position (Å) among the two independent Fab 2/1.12 - D3 complexes and the Fab 2/6.14-D3 complex with a single conformation, calculated after structure alignment by RaptorX (Wang et al., 2013). A dash shows positions where residues were defined in only 0 or 1 of the three structures. Third line: Filled circles show Fab contacts (green for 2/1.12 Fab and red for Fab 2/6.14); residues that mediate major interactions ( > 10 Å2 of buried solvent accessible surface area or H-bonds) or minor interactions ( < 10 Å2 buried solvent accessible surface) are shown with large or small circles, respectively. Remaining lines show D3 sequence in P. berghei, P. knowlesi, P. vivax, P. malariae, P. ovale, and P. falciparum with identities to P. berghei shown as dots. P. berghei residues in red are wild-type and were mutated to remove N-linked sites. Residues in italics were not visualized in any of the three structures. P. berghei residues with sidechains mentioned in the text that stabilize hydrogen bonds in the B-C and F-G loops are overlined. Cysteines are highlighted in yellow and connected when disulfide-linked. (G) and (H). Details of D3 interactions with the 2/1.12 Fab (G) and 2/6.14 Fab (H). D3 is silver, Fab H and L chains are light blue and wheat, respectively, and residues with major interactions with Fabs as defined in (F) have carbons colored green (G) or red (H). Dashes show hydrogen bond and pi-cation interactions. (I) The most populated negative stain EM class averages of the HAP2 ectodomain (residues 43–617) alone (panel 1, 1,128 particles) and in complex with the 2/6.14 Fab (panel 2, 379 particles). Panel 3 shows the best correlating projection from the complex crystal structure. Panel 4 shows a ribbon diagram of the crystal structure in the same orientation. D3 colored cyan, Fab H and L chains colored light blue and wheat, respectively, and N-terminal of D3 shown as a red sphere.

D3 contains seven β-strands labeled A to E that are arranged into two β-sheets containing the ABE and DCFG β-strands (Figure 4B and C). These β-sheets associate through hydrophobic faces to form a β-sandwich. The way in which the sequence folds into this arrangement classifies it as a fibronectin type III (Fn3) domain. The D3 β-strands connect to one another through loops at each end of the domain. The A-B, C-D, and F-G loops link adjacent β-strands within a sheet and the B-C, D-E, and E-F loops link the two sheets.

Comparisons among the four examples of D3 show markedly different conformations for the loops at the C-terminal end of D3, which abut the polypeptide segment that connects to the plasma membrane (Figure 4C). Quantitation of flexibility in these loops, A-B, C-D, and E-F, shows high root mean square deviation (RMSD) values or lack of comparison because of residues missing in density (dashes, Figure 4F). In contrast, the loops at the N-terminal end that abut D1 show very similar conformations in all independent crystallographic examples. These loops, B-C, D-E, and F-G, show low RMSD values (Figure 4F), consistent with the presence of several backbone-backbone or sidechain-backbone hydrogen bonds that stabilize each loop. Three sidechains that support the hydrogen bond networks in these loops, Asn-531 and Asn-532 in the B-C loop and Asp-598 in the F-G loop (overlined in Figure 4F), are invariant in the 6 Plasmodia species.

The two antibodies bind largely to opposite faces of D3, with 2/1.12 binding primarily to the ABE sheet and 2/6.14 binding primarily to the DCFG sheet (Fab contacts are colored in green and red, respectively in Figure 4B). The overall shapes of the contact surfaces are shown in open book views in which the Fab and D3 are rotated apart like two facing pages in an open book (Figure 4D and E). In each Fab, both the heavy and light chain variable domains contribute significantly to the contact with D3. The sidechains with major contacts ( > 10 Å2 of buried solvent accessible surface area or H-bonds) are shown as large colored circles over the alignment in Figure 4F and shown in stick in Figure 4G and H.

Although the 2/1.12 Fab primarily engages the ABE β-sheet, it extends over the edge of this sheet to also contact the D strand, where it overlaps with the 2/6.14 epitope (Figure 4B and F). Fab 2/1.12 has the most contact with four residues in β-strands A, B, and E of D3 (Figure 4G). The sidechains of Thr-508 from D3 β-strand A and His-528 from strand B form hydrogen bonds with the sidechain of Tyr-32 from light chain complementarity-determining region 1 (L-CDR1). In adjacent interactions, Tyr-577 in β-strand E forms a sidechain hydrogen bond to the backbone of Gly-91 in L-CDR3 while the Tyr-577 backbone hydrogen bonds to the sidechain of Asn-104 in H-CDR3. Another close contact and backbone-backbone hydrogen bond between D3 E β-strand residue Ala-575 and H-CDR3 residue Tyr-102 further strengthens interaction (Figure 4G). All four of these major epitope residues are invariant among the species examined here (Figure 4F), correlating with excellent cross-reactivity of mAb 2/1.12.

Although mAb 2/6.14 contacts residues in each β-strand of the D3 DCFG β-sheet, the major contacts are formed by Arg-565 in strand D and six residues in the F-G loop (Figure 4F and H). The F-G loop forms a large bulge on the D3 surface that fits into a cavity in the Fab centered between the three H chain CDR loops (Figure 4E). The Arg-565 sidechain forms bidentate hydrogen bonds to the backbone of Tyr-91 in L-CDR3 and a cation-pi interaction with Tyr-32 in L-CDR1. All three Fab H chain CDR loops surround the D3 F-G loop with each CDR forming at least one of a total of four mainchain-mainchain hydrogen bonds. A network of two sidechain-sidechain and two sidechain-backbone hydrogen bonds forms around FG loop residue Glu-603 and H-CDR2 residue Asn-56. Hydrogen bonds between Lys-597 and Ser-57 of H-CDR2 and salt bridge between Lys-602 and Asp-31 of H-CDR1 further extend the interaction with the F-G loop (Figure 4H).

D3 contains six cysteine residues, all of which are conserved among Plasmodium species; however, only four of these form disulfide bonds (Figures 4F and 5A). Cys-513 in the A-B loop forms a short-range disulfide to Cys-523 in the B strand that likely stabilizes the residues between Cys-513 and the beginning of the B strand, which are highly polar and mostly disordered. Cys-546 in the C strand and Cys-592 in the F strand form a long-range disulfide bond to bridge these two adjacent β-strands in the middle of the DCFG β-sheet. Two D3 cysteines are free. Free cysteines buried in hydrophobic regions are occasionally present in extracellular proteins. Cys-542 is well buried in the hydrophobic core. Cys-604 is exposed in D3-Fab complexes but in the full ectodomain may be buried by residues at the interface between D1 and D3, including residues N-terminal to D3 residue 502, which were not present in the crystallization construct (Figure 5A and B).

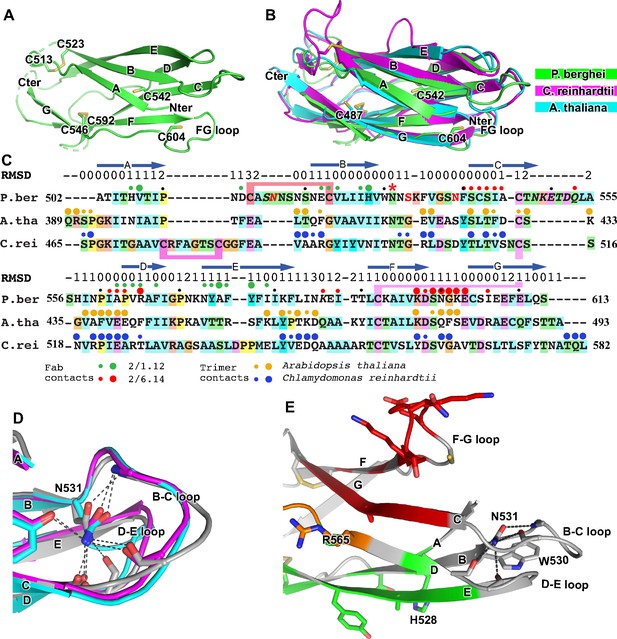

Structural conservation of D3 of HAP2 across phyla.

(A) P. berghei HAP2 D3 from the Fab 2/1.12 complex showing the disulfide-bonded and free cysteines. (B) Superimposition of HAP2 D3 from the P. berghei 2/6.14 Fab complex and trimeric fusion states of Chlamydomonas reinhardtii (pdb ID:6DBS) and Arabidopsis thaliana (pdb ID: 5ow3). Structures were aligned using RaptorX (Wang et al., 2013). (C) Structure-based sequence alignment from the superimposition shown in (B). β-strands and RMSD (Å) of Cα atom positions are shown above the sequences. Green and red filled circles above the P. berghei sequence show Fab 2/1.12 and Fab 2/6.14 contacts, respectively as defined in Figure 4F legend. In the P. berghei sequence, the three residues in red mark residues that were mutated to remove N-linked sites. Orange and blue filled large and small circles above Arabidopsis thaliana and Chlamydomonas reinhardtii sequences mark residues buried in trimer contacts with >10 Ų burial or a hydrogen bond or <10 Ų, respectively. Solvent accessible surface area burial was calculated with PISA (Krissinel and Henrick, 2007). (D) Asn-531, present in an N-glycosylation sequon in the P. berghei sequence, forms stabilizing hydrogen bonds to the backbones of the B-C and D-E loops, a function that is conserved in HAP2 in other phyla. The color code is the same as in panel B, except P. berghei is in silver. (E) Asn-531 locates near mAb epitopes. Asn-531 and sidechains or backbones to which it hydrogen bonds are shown in stick. Residues with major or minor contacts with Fabs as defined in Figure 4F legend are shown with both backbone and sidechain, or backbone only, respectively, and colored according to the Figure 4F legend and the key. Residues in both epitopes are in orange.

HAP2 D3 in P. berghei is only 9% and 18% identical in sequence to C. reinhardtii and A. thaliana HAP2 D3, respectively; however, their three-dimensional structures are highly conserved (Figure 5B). Their seven β-strands superimpose with very low RMSD (Figure 5C). The long-range disulfide bond that connects the C and F strands is also conserved (Figure 5C). Both C. reinhardtii and P. berghei but not A. thaliana have long insertions in their A-B loops and a disulfide bond that may help to stabilize these long loops, which orient quite differently (Figure 5B,C).

There is little variation in the orientation and length of the BC, DE and FG loops at the N-terminal end of D3. These loops are stabilized by an Asn in the BC loop, an Asp in the FG loop, and the hydrogen bonds they make. Asn-531 in P. berghei (asterisked in Figure 5C), forms hydrogen bonds to both the BC and DE loops near the D1 junction (Figure 5D and E). Invariance in the other two species, despite the evolutionary distance between the unicellular algae, the plant, and protozoan parasite, is of particular interest because Asn-531 is in an N-glycosylation NX(S/T) sequon in P. berghei but its equivalents in the other species are not (Figure 5C). The two other species are known to be N-glycosylated but Plasmodium species are not. In D3 constructs mutated to remove N-linked sites, the N was left unchanged because it was much more conserved than the (S/T) position in other Plasmodium species. The B, D, and E strands that connect in these loops all contribute residues important in the mAb 2/1.12 epitope (Figure 5E).

To better understand the P. berghei HAP2 ectodomain and its binding to 2/6.14 Fab, we obtained negative stain EM images and subjected ~2000 particles to iterative alignment and classification. The P. berghei HAP2 ectodomain is rod-like with three or four oval densities arranged linearly along the rod (Figure 4I panel 1 and Figure 4—figure supplement 1). The 2/6.14 Fab - ectodomain complex is L-shaped (Figure 4I panel 2). Similar results were obtained for complexes with ectodomains with residues 43–617 and 61–611 (Figure 4—figure supplement 1). The two globules with stronger density correspond to the Fab, which has two domains per globule. The globules with weaker density correspond to the HAP2 ectodomain. Fab 2/6.14 binds essentially perpendicularly to one end of the HAP2 rod, in agreement with the crystal structure showing that the Fab binds to the side of D3 (Figure 4A). The crystal structure of the 2/6.14 Fab-D3 complex cross-correlated well with the entire ectodomain Fab complex (Figure 4I panel 3), and the ribbon cartoon in the same orientation had its N-terminus facing D1 as expected (Figure 4I panel 4).

Differences in antibody reactivity with D3 and the ectodomain

Because of their differences in blocking transmission, we wondered whether mAbs differed in reactivity with the HAP2 ectodomain. Yields of monomeric ectodomain were lower than for D3 as described in Methods; nonetheless, gel filtration yielded a sharp peak (Figure 6A). The peak primarily contained a band at 75 kDa, in agreement with the expected size of the ectodomain; furthermore, its C-terminus was present as shown by detection of the C-terminal His-tag by western blotting (Figure 6B). Treatment with Endo D reduced the size of the ectodomain to ~71 kDa (Figure 6B).

Figure 6 with 1 supplement see all

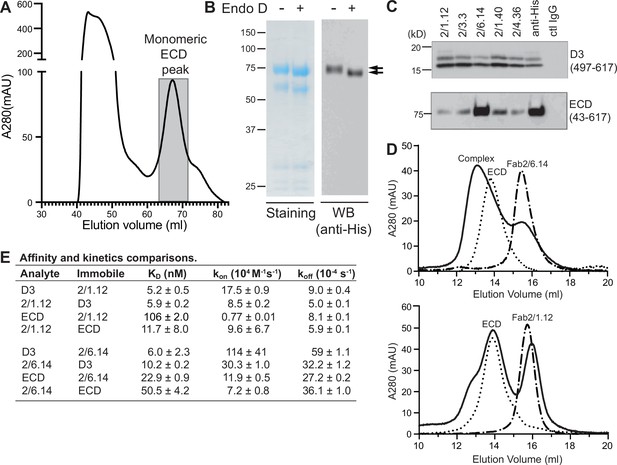

Antibody binding to the HAP2 ectodomain.

(A) Gel filtration profile of Ni-NTA affinity-purified ectodomain (residues 43–617) on a Hiload 16/600 Superdex 200 column. (B) Reducing SDS 7.5% PAGE and Coomassie blue staining and Western blot (WB) of the peak eluted at 67.2 mL (shaded in A). Aliquots were treated with or without Endo D to remove N-linked glycans. Arrows indicate ectodomain bands before and after Endo D treatment. The HAP2 ectodomain contains 11 putative N-glycosylation sites; however, Endo D treatment reduced the mass by only ~3 kD. It is unknown how many sites are N-glycosylated and whether all sites are accessible to Endo D. (C) Immunoprecipitation. Reactivity of D3 mAbs to HAP2 ectodomain (bottom) in comparison to D3 (top). Two µg purified ectodomain from (A), without Endo D treatment, was subjected to immunoprecipitation with the indicated D3 mAbs, anti-His mAb 1/5.13 or control IgG. D3 (497–617, containing three putative N-glycosylation sites) was immunoprecipitated from culture supernatants of S2 transfectants. Multiple D3 bands are different glycoforms. (D) Analysis of formation of PbHAP2 ectodomain complex with 2/6.14 Fab (top) and 2/1.12 Fab (bottom) by gel filtration. Ectodomain and Fab 2/6.14 or Fab 2/1.12 were mixed in 20 mM Tris-HCl pH 8.0, 500 mM NaCl at 1:1 molar ratios and incubated at 4 °C for 1 hr. Mixtures was then subjected to gel filtration on a Superdex 200 10/300 GL column in the same buffer. Elution profiles of the mixture, ectodomain or Fabs are shown as solid, dotted, or dashed lines, respectively. (E) KD values (koff/kon) and kinetic values measured by surface plasmon resonance. Values are mean ± difference of the means from two independent experiments. D3 contained residues 502–617 with N516T, S533N and N539Q mutations and the ectodomain (ECD) contained residues 43–617 without Endo D treatment.

Presence of D3 epitopes in the ectodomain was tested by immunoprecipitation. Immunoprecipitation of the ectodomain, and D3 as a control, was detected using western blotting of the His tag (Figure 6C). mAb 2/6.14 was fully reactive with the ectodomain as shown by immunoprecipitation comparable to that with the His-tag antibody. In contrast and surprisingly, the other four mAbs were only partially reactive with the ectodomain, although they reacted with D3 comparably to mAb 2/6.14.

These differences were followed up by further comparisons that focused on mAbs 2/6.14 and 2/1.12. Calculations of affinity and dissociation constants assume fully active material; if only a fraction is active then the apparent affinity is lower. In SPR, only the concentration of the analyte enters into affinity calculations. Therefore, we compared affinities measured for the two Fabs using them either as analyte or immobilized on the chip (Figure 6E and Figure 2—figure supplement 1). For Fab 2/1.12, the ratio of KD values for D3 (analyte/immobile) was 5.2/5.9 = 0.88 ± 0.09 (Figure 6E). In contrast, these values for the ectodomain were 106/11.7 = 9.1 ± 6.2. Thus, the ectodomain appears to be only 0.88/9.1 = 9% ± 6% active in binding to Fab 2/1.12. Comparable KD value ratios for Fab 2/6.14 were 6.0/10.2 = 0.59 ± 0.23 for D3 and 22.9/50.5 = 0.45 ± 0.04 for the ectodomain. Thus, the ectodomain appears to be 0.59/0.45 = 130% ± 52% active in binding mAb 2/6.14, within error of the expected value of 100%, while Fab 2/1.12 binding to the ectodomain was far below the expected value.

We also assessed epitope content of the ectodomain by mixing it with equimolar concentrations of Fab and separating the complexes from components in gel filtration. Gel filtration of the mixtures was compared to that of the same concentrations of unmixed components (Figure 6D). With Fab 2/6.14, much of the ectodomain was shifted to higher molecular weight and the Fab fragment was substantially depleted. With Fab 2/1.12 in contrast, only a small portion of the ectodomain was shifted to a higher molecular weight shoulder and there was little or no depletion of the Fab.

We further measured affinity with bio-layer interferometry (BLI) and complex formation with an independent preparation of the ectodomain. mAb IgG were immobilized on anti-mouse Fc capture sensors. HAP2 D3 bound well to both mAbs 2/6.14 and 2/1.12. In contrast, HAP2 ectodomain bound to mAb 2/6.14 but not to mAb 2/1.12 (Figure 6—figure supplement 1). In conclusion, mAb 2/6.14 binds well to both D3 and the ectodomain, whereas mAb 2/1.12 and three other antibodies bind well to the D3 immunogen but bind poorly to or do not recognize the ectodomain.

Discussion

We have generated a mAb to HAP2 D3 that blocks Plasmodium ookinete formation in vitro and in vivo and have determined a crystal structure of its complex with D3 that reveals the epitope to which the neutralizing mAb binds. Furthermore, we found that a subset of D3 mAbs were not fully reactive with the HAP2 ectodomain and that these antibodies were ineffective in preventing ookinete conversion. These findings have important implications for choice of future HAP2 immunogens. Previously, in the absence of structural knowledge, a large number of P. berghei HAP2 cDNA clones beginning and ending in different positions were tested in E. coli. Only one sequence, residues 355–609, was found to be expressed well; fortunately, it yielded an immunogen that elicited polyclonal antisera that inhibited gamete fertilization in vitro and reduced transmission in vivo (Blagborough and Sinden, 2009). This sequence contained about half of D2, a small portion of D1, and all D3 except for the last four residues of strand G. Recently, polyclonal antibodies to the putative fusion loops of D2 of Plasmodium berghei HAP2 also showed efficacy in blocking fertilization (Angrisano et al., 2017). The same laboratory and procedures were used for these studies, so the results are directly comparable, except for the use of a polyclonal antibody in the previous and monoclonal antibody in the current study. Surprisingly, mAb 2/6.14 to D3 is at least fivefold more effective than that affinity-purified polyclonal antibody, as 100 µg/ml reduced oocyst intensity by 78%, whereas 500 µg/ml affinity-purified polyclonal antibodies to the fusion loop reduced intensity by 61%. Recently, residues 231–459 of P. vivax HAP2 were also tested. It contains ~30% of D1 and ~60% of D2 and, as expected from lack of a complete domain, had to be recovered from inclusion bodies in insect cells (Qiu et al., 2020). This material elicited antibodies that inhibited transmission, but the results cannot be directly compared. The present study is the first time that a defined domain from HAP2 has been used in immunization, that a monoclonal antibody has been found to be effective in blocking transmission, and that a Plasmodium species HAP2 structure has been reported. Thereby, this study advances the rational development of transmission-blocking malaria vaccines.

HAP2 is highly conserved, both within and between Plasmodium species. In P. falciparum, 199 isolates in PlasmoDB (https://www.plasmodb.org, release 54) evaluated have identical D3 amino acid sequences and only a few polymorphisms are present in D1 and D2 of HAP2 ectodomain in two or more isolates (R99E, n = 2; N184S, n = 14; D185Y/E, n = 11/7 and D455N, n = 47). The high-sequence identity of gamete antigens contrasts to malaria vaccine antigens expressed by sporozoites such as TRAP and the C-terminal region of CSP used in the RTS,S vaccine and those expressed by blood stage parasites such as MSP1 and AMA1, which have high levels of polymorphisms and have proven to be challenging for vaccine antigen design (Neafsey et al., 2015; Takala et al., 2009; Barry and Arnott, 2014; Ouattara et al., 2015). Compared to CSP and TRAP, HAP2 is also highly conserved among species; for example, P. berghei HAP2 is 60–70% identical in D3 to the five species we examined that are capable of infecting humans.

We structurally characterized HAP2 D3 in complex with two Fab fragments that bound to opposite faces of D3, on the β-sheets that form its β-sandwich domain. Conservation or variation among residues in these interfaces among Plasmodium species provides insights into which residues are important in their epitopes. The four residues most important for mAb 2/1.12 binding were identical among all six species examined, explaining the wide cross-reactivity of this mAb. Although the D3 F-G loop was central in the 2/6.14 epitope, many of its contacts were between backbone atoms. The sidechain with the most contacts was Arg-565 in the D strand. All three interactions by the Arg-565 sidechain would be abolished by the Asn substitution in P. vivax and P. falciparum (Figure 4F), which had the lowest affinity.

Thus far, structural information on HAP2 has been on its post-fusion, trimeric form or on isolated domains (Fédry et al., 2017; Feng et al., 2018; Fedry et al., 2018; Baquero et al., 2019). The rod-like, linear conformation of the HAP2 ectodomain and its monomeric state has not previously been seen for HAP2. Its resemblance to the linear conformation of pre-fusion states of structurally homologous class II viral fusogens suggests that this linear conformation of the HAP2 ectodomain corresponds to its pre-fusion state. The pre-fusion state is preferred over the post-fusion state as the target for transmission blocking antibodies, because antibodies that bind to the pre-fusion state not only can act earlier but can also sterically block the interfaces required for trimer formation and the fold-back of D3 onto D1 and D2 (Figure 1).

In addition to immunological mechanisms for blocking gamete fertilization in the mosquito blood meal (Graves et al., 1985), mAb 2/6.14 might also block conformational changes required for conversion of the monomeric pre-fusion state of HAP2 to the trimeric post-fusion state (Figure 1), especially reorientation of D3 to fold over D1 and D2 in the trimer, which is required for fusion (Figure 1). Direct blocking of fusion has been demonstrated with antibodies to D3 of viral type II fusion proteins that are structurally homologous to HAP2 (Austin et al., 2012; Zhao et al., 2016; Li et al., 2018).

To test this idea, we superimposed D3 from P. berghei HAP2 on D3 from the trimeric fusion conformation of HAP2 in other species (Figure 5B). The C. reinhardtii and A. thaliana D3 structures superimpose well, despite only 8% and 17% identity with P. berghei HAP2 D3, respectively. This identity is too low for immunological crossreactivity. Superposition showed that the F-G loop recognized by mAb 2/6.14 is buried in D3 interfaces in the postfusion state trimer. The mAb 2/1.12 epitope also substantially overlaps with the D3 postfusion state trimer interfaces in the C strand. Moreover, both antibody epitopes overlap in the D strand with sites buried in the postfusion conformation. The incompatibility of Fab binding and conformational change to the postfusion state is shown by burial of the Fabs in superpositions on one monomer in a postfusion trimer of C. reinhardtii HAP2 (Figure 4—figure supplement 2). Thus, binding of either of these mAbs to D3 would block folding back of D3 in the fusion state (Figure 1C).

Unfortunately, we can only speculate on why mAb 2/6.14 and not mAb 2/1.12 blocked conversion of macrogametes to ookinetes. mAb 2/6.14 is differentiated from the other 4 mAbs studied here by its ability to completely react with the monomeric HAP2 ectodomain. Although all five mAbs reacted with D3 with nanomolar EC50 values by ELISA and pulled down similar amounts of isolated D3 by immunoprecipitation, only mAb 2/6.14 fully immunoprecipitated the ectodomain. SPR measurements further showed that the affinity of mAb 2/1.12 was substantially lower for the ectodomain than for D3, but only when the ectodomain was used as analyte and not when immobilized on the chip, suggesting that only ~10% of the ectodomain was active in binding to mAb 2/1.12. Gel filtration showed that the ectodomain complexed well with mAb 2/6.14, whereas only a minor fraction of the ectodomain complexed with mAb 2/1.12. Thus, three independent methods show that only a minor fraction of the HAP2 ectodomain reacts with mAb 2/1.12, and one of these methods, immunoprecipitation, showed that the other three mAbs behaved like mAb 2/1.12. While all 5 mAbs gave clear-cut staining of P. berghei microgametes, the microgametes had been fixed in 4% paraformaldehyde and incubated overnight in this solution, which denatures many proteins, prior to staining. Among many possible explanations for this discrepancy, perhaps mAb 2/1.12 recognizes an epitope that is available in D3 but is masked or destabilized by association with D1 and D2 in the HAP2 ectodomain, and this inhibition by D1 and D2 is relieved by partial denaturation during fixation by paraformaldehyde.

The scope of this study was to investigate the effectiveness of HAP2 D3 as an immunogen for transmission-blocking malaria vaccines. Nonetheless, our study also provides some useful guideposts for future use of the HAP2 ectodomain in transmission-blocking vaccines. Most eukaryotic extracellular proteins are highly dependent on N-glycosylation for stability and expression; however, lack of N-glycosylation sites in D3 appeared to have little or no effect on expression yield, which favors the hypothesis that N-glycans are not added to HAP2. Unfortunately, efficiently expressing eukaryotic extracellular proteins with complex multi-domain structures, multiple disulfide bonds, and no N-glycosylation requires refolding from E. coli, which is highly challenging. Therefore, the best approach for successfully expressing the HAP2 ectodomain may be to use eukaryotic hosts and to mutationally remove N-glycosylation sequons, as was done here for D3 but not for the ectodomain.

In conclusion, we find that D3 of HAP2 can elicit antibodies that block transmission of malaria. Furthermore, we have obtained a mAb that blocks transmission, determined the first structure of a fragment of HAP2 in Plasmodium, and determined the structure of HAP2 of D3 in Plasmodium in complex with antibodies that either block or do not block transmission. We have confirmed the principle that HAP2 D3 can elicit transmission-blocking antibodies. On the other hand, we have also identified limitations of D3 as an immunogen because some antibodies to D3 did not react well with the HAP2 ectodomain. We also outline a possible strategy for obtaining improved expression and more native folding of the HAP2 ectodomain as an alternative immunogen for transmission-blocking immunity. This proposed approach is validated by our EM studies showing we can isolate a monomeric, pre-fusion state of the HAP2 ectodomain. Furthermore, stabilizing the pre-fusion state of HAP2, as successfully done for the respiratory syncytial virus fusion protein (McLellan et al., 2013) and SARS-CoV-2 spike protein (Hsieh et al., 2020), may not only increase expression but also efficacy in inducing neutralizing antibodies.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Drosophila)EXpreS2 transfection reagentExpreS2ion
Biotechnologies
Catalog NO: 95-055-075https://expressionsystems.com/product/expres2-tr-transfection-reagent/
Cell line
(Drosophila)
Drosophila melanogaster
Schneider S2
ExpreS2 cellsExpreS2ion Biotechnologies
Transfected construct
(Drosophila)
ET15S2 vectorFeng et al., 2018ExpreS2ion BiotechnologiesModified from the
pExpreS2-2 vector, Includes
N-terminal secretion signal from Hspa5
and
C-terminal
His8 tag
Cell line
(Homo-sapiens)
Expi293F cellsThermo Fisher ScientificCatalog NO: A14527
Transfected construct
(Expi293F cells)
pD2529-CAG vectorThis paperAtum, Newark, CA
Strain, strain background (M. musculus)CB6F1The Jackson
Laboratory
CB6F1 mice were immunized with
the glycan-shaved D3 protein
Strain, strain background (P. berghei)P. bergheiThis paperP. berghei – WT strain ANKA 2.34Strain maintained
in Dr. Andrew Blagborough lab
Strain, strain background (Mosquitoes)Female Anopheles stephensiThis paperSDA 500 strainStrain maintained
in Dr. Andrew Blagborough lab
Gene(P. berghei)P. berghei HAP2 ectodomainUniProtQ4YCF6.1All constructs were
codon-optimized
for mammalian cells
Gene(P. falciparum)HAP2 D3(aa:479–626)NCBIXP_001347424.1All constructs were codon-optimized
for mammalian cells
Gene(P. knowlesi)HAP2 D3(aa:492–607)NCBIXP_002258781.1All constructs were codon-optimized
for mammalian cells
Gene(P.vivax)HAP2 D3(aa:492–608)GenBankSGX77070.1All constructs were codon-optimized
for mammalian cells
Gene(P. malariae)HAP2 D3(aa:498–613)GenBankSCN12177.1All constructs were codon-optimized
for mammalian cells
Gene(P. ovale)HAP2 D3(aa:493–608)GenBankSBS88209.1All constructs were codon-optimized
for mammalian cells
AntibodyAnti-His (Rabbit polyclonal)Cell SignalingCatalog
NO:2,365 S
(0.4 µg/ml)
AntibodyRabbit anti-alpha tubulin (Rabbit polyclonal)AbcamCatalog NO:AB18251(1:1000)
AntibodyGoat anti-Mouse IgG (H + L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 488 (Goat polyclonal)Molecular
Probes/
ThermoFisher
Catalog NO:
A-11001
(25 µg/ml)
AntibodyGoat anti-Rabbit IgG (H + L)
Cross-Adsorbed Secondary Antibody, Alexa Fluor 594 (Goat polyclonal)
Molecular
Probes/
ThermoFisher
Catalog NO:A-11012(25 µg/ml)
Software,
algorithm
XDShttps://strucbio.biologie.uni-konstanz.de/xdswiki/index.php/XdsDiffraction data was processed with XDS
Software,
algorithm
Phenixhttps://www.phenix-online.org/The structure was
solved by molecular replacement with
Phaser in the
Phenix suite
Software,
algorithm
CCP4http://www.ccp4.ac.uk/Refinement

Study design

Request a detailed protocol

This study was designed to provide insights for developing a vaccine to block or reduce malaria transmission. This objective was addressed first by generating monoclonal antibodies against the D3 fragment of Plasmodium berghei HAP2. CB6F1 mice were immunized with the glycan-shaved D3 protein. All in vitro characterization of binding properties was carried out after a detailed antibodies screening as described in Methods. We next tested the ability of the D3 mAbs to inhibit P. berghei microgametes from fertilizing macrogametes and forming ookinetes in vitro. The results showed that all five antibodies reacted with microgametes, and that mAb 2/6.14 was outstanding for its ability to block P. berghei fertilization in vitro. Therefore, we decided to test mAb 2/6.14 for its ability to block transmission in vivo in mosquitoes. For in vivo characterization of the ability of mAb 2/6.14 to reduce malaria transmission, female Anopheles stephensi mosquitoes were randomized to group feed through membranes on blood from P. berghei infected mice mixed with mAb 2/6.14 or control IgG. After 14 days, the number of oocyst of infected mosquitoes was counted to evaluate the ability of mAb 2/6.14 to inhibit transmission.

Ethical statement for animal studies

Request a detailed protocol

Mouse immunization was conducted in accordance with and was approved by Boston Children’s Hospital Institutional Animal Care and Use Committee (IACUC) under protocol #14-06-2731. Animals were cared in compliance with the U.S. Department of Agriculture (USDA) Animal Welfare Act (AWA) and the Public Health Service (PHS) Policy on Humane Care and Use of Laboratory Animals.

Immunization and Plasmodium berghei infection procedures were performed in accordance with the UK Animals (Scientific Procedures) Act (PPL 70/8788) and were AWERB approved. The Office of Laboratory Animal Welfare Assurance covers all Public Health Service supported activities involving live vertebrates in the United States (no. A5634-01).

HAP2 constructs, expression, and protein purification

Request a detailed protocol

P. berghei HAP2 amino acid sequence numbering is from RefSeq accession XP_022713330.1. D3 constructs utilized residues 477–621, 497–617, or 502–617 with a C-terminal His tag; only the 502–617 construct contained N516T, S533N and N539Q mutations to abolish N-glycosylation. HAP2 D3 construct sequence ranges and accessions in other species were P. falciparum, 479–626, XP_001347424.1; P. knowlesi, 492–607, XP_002258781.1; P. vivax, 492–608, SGX77070.1; P. malariae, 498–613, SCN12177.1; and P. ovale, 493–608, SBS88209.1. These D3 constructs were expressed either transiently in Expi293F cells using pD2529-CAG vector (Atum, Newark, CA), or in the case of the P. berghei HAP2 D3 477–621 construct and ectodomain 61–611 and 43–617 constructs, and the P. falciparum D3 479–626 construct in Drosophila Schneider S2 cells, were expressed exactly as described previously (Feng et al., 2018). All constructs were codon-optimized for mammalian cells. UniProt accession Q4YCF6.1, which was used for P. berghei HAP2 ectodomain construct codon optimization, was retrospectively discovered to be deleted for S206, which locates to the βd-strand of D2.2 in the alignment to Chlamydomonas reinhardti HAP2, at the opposite end of the ectodomain from D3. All other eight HAP2 accessions recovered from the nonredundant protein database with NCBI BLAST in 2020, including at least seven distinct P. berghei strains including ANKA, are identical to one another and differ from the Q4YCF6.1 sequence only at residue S206 and the signal sequence. This error has been reported to help@uniprot.org. Our recent experience is that, among hundreds of sequences of human and mouse extracellular proteins of similar length, ~ 10% of UniProt but not RefSeq accessions have similar errors.

For purification, HAP2 fragments in 1 L of culture supernatant were adjusted to 1 mM NiCl2 in D3 buffer (20 mM Tris, pH 8 and 300 mM NaCl) or ectodomain buffer (20 mM Tris, pH 8.5, 500 mM NaCl) and applied to 10 ml Ni-NTA-Agarose (Qiagen) columns. After washing with 15 mM imidazole in D3 or ectodomain buffer, the protein was eluted with 300 mM imidazole in the same buffers. Fragments were then subjected to gel filtration chromatography using Superdex 75 (GE life Sciences) in D3 or ectodomain buffer, concentrated, and frozen at –80 °C. Purification of P. berghei D3477–621 construct expressed stably in S2 cells was similar, except after the Ni-NTA step it was concentrated (1 mg/ml in 0.2 ml) and shaved with endoglycosidase D (10 µl, 100 unit) (New England BioLabs) for 16 hrs at 4 °C prior to gel filtration. Final yield was 22 mg/L culture supernatant. Yields for transiently expressed D3 constructs were ~5–8 mg/L culture supernatant. Ectodomain yields were ~0.2–0.3 mg/L culture supernatant.

Monoclonal antibodies

Request a detailed protocol

CB6F1 mice (Charles River, Wilmington, MA) were immunized intraperitoneally with 20 μg of N-glycan shaved P. berghei HAP2 D3 (residues 477–621) in PBS and complete Freund’s adjuvant (Sigma) and 3 weeks later with the same material in incomplete Freund’s adjuvant (Sigma). Mice were boosted both intravenously and intraperitoneally 2 weeks later with 20 μg of the same antigen in PBS. Three days later, splenocytes were fused with the murine myeloma P3 × 63Ag8.653 (CRL 1580, ATCC, Rockville, MD) as described (Springer, 1980). Hybridomas supernatants were screened by ELISA in microtiter wells coated with the immunogen. Hybridomas that produced IgG mAbs were subcloned. Five produced antibodies specific for P. berghei HAP2 D3 and are characterized in Results. mAb 1/5.13 was found to be specific to the His-tag. It reacts with proteins with C-terminal His tags, but not with N-terminal His tags. It is fully active in ELISA, western blot and immunoprecipitation and has sensitivity comparable to the THE His Tag Antibody (GenScript) in ELISA and western blot (Figure 2—figure supplement 2).

For antibody purification, hybridoma cells were adapted to and expanded in serum free medium containing 1:2 vol/vol Cell MAB medium (Life Technologies) and HyClone CDM4MAB medium (GE Life Sciences). IgG was purified using protein G affinity chromatography (Invitrogen).

Heavy and light chain V region cDNA sequences of mAbs 2/6.14 and 2/1.12 were determined by Syd Labs (Natick, MA). The mAbs each have γ1 heavy and κ light chains and unique V regions as shown by BLAST searches. A somatic mutation in the 2/6.14 VL domain that introduced an N-glycosylation site into the framework region was reversed with an N74S mutation (mature protein numbering) in recombinantly expressed Fab and IgG. Fab or intact H chains used g-Blocks encoding the murine κ chain secretion signal peptide, VH and γ1 CH1 domain, with or without hinge, CH2 and CH3 domains, followed by a Gly-Ser linker and 6xHis tag, that were assembled in EcoRV-linearized pVRC8400 vector (Barouch et al., 2005) using NEBuilder HiFi DNA reagents and protocol (New England BioLabs). κ light chains used g-Blocks encoding the murine κ chain secretion signal peptide, VL domain, and CL domain that were similarly assembled with SapI-linearized pD2529-CAG vector (Atum, Newark, CA).

Fabs and IgGs were expressed in Expi293F cells co-transfected with H and L chain constructs in 2:1 ratios. Fab fragments were purified from culture supernatant by Ni-NTA affinity purification followed by Superdex 200 gel filtration chromatography. IgG was purified by protein G affinity chromatography. 2/6.14 IgG purified from Expi293F and hybridoma cell supernatants bound to P. berghei HAP2 D3 in ELISA with comparable EC50 values.

Enzyme-linked immunosorbent assay (ELISA)

Request a detailed protocol

96-well ELISA plates (Costar) were coated overnight at 4 °C with 50 µl of purified, His-tagged HAP2 D3 at 5 µg/ml in 50 mM sodium carbonate buffer, pH 9.5 and blocked with 3% BSA for 90 min at 37 °C. 50 µl of diluted hybridoma supernatants or purified mAbs in triplicate were incubated for 2 hrs at 37 °C. After three washes, 50 µl of 1:10,000 diluted HRP-conjugated goat-anti-mouse IgG (H + L) (Abcam) was added. After 1 hr at room temperature and four washes, peroxidase substrate (Life Technologies) was added and after 10 min plates were read at 405 nM on an Emax plate reader (Molecular Devices). As a control, hybridoma medium or mAb dilution buffer (1% BSA in PBS) was substituted in the antibody binding step. For measuring binding of His-tagged D3 to immobilized mAbs, ELISA plates were coated with 5 µg/ml mAb, and HRP-anti-His (Penta-His Ab, Qiagen) was used in the detection step. Titration curve fitting and EC50 measurements used the sigmoidal, 4 parameter logistic equation in GraphPad Prism 7.

Surface plasmon resonance (SPR)

Request a detailed protocol

Purified HAP D3 (residues 502–617 with N516T, S533N and N539Q mutations) or ectodomain (residues 43–617) fragments or Fabs 2/1.12 or 2/6.14 were either used as analytes or amine immobilized on a CM5 chip in a Biacore 3000 (GE Healthcare) according to the manufacturer’s instructions. For immobilization, protein was diluted to 5 μg/ml in 0.15 M NaCl, 20 mM Hepes pH 7.4, and injected at 10 μL/min. The surface was regenerated with a 10- to 60 s pulse of 18 mM HCl at the end of each cycle to restore resonance units to baseline. Kinetics and affinity analysis were performed with SPR evaluation software version 4.0.1 (GE Healthcare). A 1:1 Langmuir binding model, with or without a conformational change model, was applied for experimental data fitting, and kinetic parameters were fit globally to sensorgrams at different analyte concentrations.

Bio-layer interferometry (BLI)

Request a detailed protocol

Bio-layer interferometry (Wallner et al., 2013) experiments were performed on a ForteBio Octet RED384 instrument using anti-mouse Fc capture (AMC, 18–5090) sensors. The reaction was measured on a 384-well plate (working volume of 25 µL) in 20 mM Tris-HCl, pH7.5, 150 mM NaCl, 0.01%BSA, 0.02% Tween 20 (Assay buffer). Biosensors were hydrated in assay buffer for 10 min before starting the measurements. Each biosensor was sequentially moved through five wells with different components: (1) Assay buffer for 1 min in baseline equilibration step; (2) 5 µg/ml (33.3 nM) 2/6.14 or 2/1.12 IgG for 3 min for immobilization of the antibodies onto the biosensor; (3) Assay buffer for 3 min for another baseline equilibration; (4) indicated concentrations of PbHAP2 ectodomain (aa:43–617) or PbD3(aa: 477–621) for 10 min for the association phase measurement; and (5) Assay buffer for 10 min for the dissociation phase measurement. Each biosensor has a corresponding assay buffer reference sensor that went through the same five steps. Kinetics and affinity analysis were performed with Octet RED384 Data Analysis 11.0. A 1:1 Langmuir binding model was applied for experimental data fitting, and kinetic parameters were fit globally to different analyte concentrations for each IgG and HAP2 combination, with kon and koff as shared fitting parameters and maximum response (Rmax) as individual fitting parameter.

Immunoprecipitation and western blot

Request a detailed protocol

Culture supernatants or purified HAP2 D3 and ectodomain fragments diluted in TBS (25 mM Tris, pH 8, 300 mM NaCl) containing 0.5% BSA were incubated with mAbs or control non-binding IgG overnight at 4 °C. Immunocomplexes were pulled down with protein G beads by incubation at 4 °C for 2 hr with rotation. Beads were washed 3 times with 1 ml TBS and bound proteins eluted in 1 x Laemmli sample buffer containing 5% β-mercaptoethanol and subjected to reducing SDS-polyacrylamide gel electrophoresis. Blots were probed with polyclonal rabbit anti-His (0.4 µg/ml, Cell Signaling), followed by incubation with HRP-conjugated goat-anti-rabbit (GE Healthcare) and chemiluminescence imaging using LAS-4000 system (Fuji Film). Quantitation of protein bands used ImageJ software.

Assays with P. berghei Gametes

Request a detailed protocol

For immunofluorescent staining of microgametes, tail blood (10 μl) from a mouse with high gametocytaemia was mixed with 10 μl of ookinete medium (RPMI1640 containing 25 mM HEPES, 20% FCS, 100 μM xanthurenic acid pH 7.4) to stimulate emergence of male gametes (exflagellation), which was monitored microscopically as described (Sebastian et al., 2012). Exflagellating gametocytes were fixed in solution for 15 min by diluting formalin to 4% paraformaldehyde, then added to poly-L-lysine-coated slides and incubated at 4 °C overnight. For staining, mAbs or control mouse IgG UPC10 (M7769, Sigma Aldrich) (2 µg in 4 µl of 3% BSA/PBS) were added to washed slides; rabbit anti-alpha tubulin (Abcam AB18251) was at 1:1000 dilution. Following washes, Alexa Fluor-488 anti-mouse IgG and Alexa Fluor-594 anti-rabbit IgG secondary antibodies (Molecular Probes) were added at 25 µg/ml before mounting in VectaShield with DAPI (Vector Laboratories). Fluorescence images were obtained using an epifluorescence 100 x objective on a Nikon Eclipse Ti microscope. Image handling used Adobe Photoshop CC.

In vitro ookinete conversion was assayed as described (Angrisano et al., 2017; Blagborough et al., 2013). Briefly, infected mouse blood containing P. berghei (strain ANKA 2.34) female and male gametocytes (20 µl) was mixed with ookinete medium (100 µl) containing HAP2 D3 antibodies or control IgG (500 and 250 µg/ml final concentration) and incubated at 19 °C. After 24 hr, cultures were incubated with Cy3-conjugated Pbs28 mAb 13.1, which stains both ookinetes and unfertilized macrogametes (Winger et al., 1988), for 20 min on ice. Larger, elongated, banana-shaped ookinetes were distinguished from smaller, round macrogametes and counted by fluorescence microscopy. Conversion rates were calculated as % ookinetes /(macrogametes + ookinetes). Inhibition of ookinete conversion was expressed as the percentage reduction in ookinete conversion with respect to the negative control IgG at the same concentration.

In vivo transmission-blocking activity of HAP2 antibodies was assayed using standard membrane feeding assay (SMFA) as described (Blagborough et al., 2013). Briefly, heparinized P. berghei infected blood containing gametocytes was mixed with HAP2 antibodies or negative control IgG. Female Anopheles stephensi (SDA 500 strain) were starved for 24 hr and then fed on the mixtures using membrane feeders ( > 50 mosquitoes per each blood-antibody feed). Twenty-four hr later, unfed mosquitoes were removed. Mosquitoes were maintained on 8% (w/v) fructose, 0.05% (w/v) p-aminobenzoic acid at 19–22°C and 50–80% relative humidity. Day 14 post-feeding, mosquito midguts were dissected, and oocyst numbers per midgut in each mosquito was determined by phase contrast microscopy. Reductions in oocyst intensity (number of oocysts/midgut) and prevalence (number of infected over total mosquitoes fed) in the presence of an HAP2 antibody were calculated with respect to the negative control IgG present at the same concentration in the feeds.

Crystallization and structure determination

Request a detailed protocol

The P. berghei D3 (502–617) construct with N516T, S533N and N539Q mutations to abolish N-glycosylation was used for crystallization. D3 and Fab were mixed in 1:1.3 molar ratios and complexes were isolated by gel filtration. Complexes were crystallized at 20 °C by hanging-drop vapor diffusion with equal volumes of complex and well solution. The Fab 2/1.12 complex (4.5 mg/ml) was crystallized with 0.2 M ammonium sulfate, 25% PEG 3350, 0.1 M Bis-Tris pH5.5. The 2/6.14 Fab complex (7.5 mg/ml) was crystallized with 0.3 M proline, 22% PEG 1500, 0.1 M HEPES pH7.5; crystals were dehydrated by soaking in solutions that had the starting concentrations of components in the protein and reservoir solutions while raising the concentration of PEG 1500% to 31% in 3% steps. Crystals of Fab 2/1.12-D3 and Fab 2/6.14-D3 were cryo-protected with reservoir solution containing 15% glycerol or 15% ethylene glycerol, respectively, in 2 steps of 5% and 10% increase and plunged in liquid nitrogen. Data were collected at 100 K on GM/CA beamline 23-IDB at the Advanced Photon Source (Argonne National Laboratory) and processed with XDS (Kabsch, 2001). Structures were refined with PHENIX, built with Coot (Emsley and Cowtan, 2004) and validated with MolProbity (Davis et al., 2007). Figures were made with PyMol.

The 2/1.12 Fab-D3 complex structure was solved by molecular replacement in the Phenix suite (Adams et al., 2010) using a Fab search model (PDB ID 2A6D). The 2/6.14 Fab-D3 complex structure was solved by molecular replacement using D3 from the 2/1.12 Fab complex, the H chain of PDB ID 1IGC, and the L chain of PDB ID 5AZ2. Each crystal structure has two complexes in the asymmetric unit.

During model building and refinement of the 2/6.14 Fab complex, the Fab constant domains of one complex had good density, but the variable domains and D3 had broad but continuous density that was difficult to trace. In contrast, all domains of the other complex were easily traced. Furthermore, refinement remained stuck. Alternative space groups including those with lower symmetry or use of twin rules provided no improvement. We then realized that in the troublesome D3-Fab complex in the asymmetric unit, two alternative conformations were present for D3, VH, and VL, whereas CH1 and CL had a single conformation. The transition between dual and single conformations occurred at the elbows between VH and CH1 and between VL and CL; that is the two conformations differed in elbow angle. In further refinement, the data cutoff was changed from 2.4 to 2.8 Å, and we largely treated each of the dual conformations of D3, VH1, and VL as rigid bodies based on their structure in the single conformation of the other D3-Fab complex.

The alternate conformations allow the VL domain in chain B and the D3 domain in chain C to pack against alternate conformation symmetry mates in different complexes along adjacent edges of the unit cell. Symmetry mates with the B conformation severely clash, while those with the distinct conformations A and B have good lattice contacts. In contrast, symmetry mates with conformation A are too far apart to provide stabilizing lattice contacts. Thus, clashes in one conformation together with a lack of stabilizing lattice contacts in the other conformation may have driven the formation of a crystal lattice with dual conformations of VL, VH, and D3 in one of two Fab-D3 complexes in the asymmetric unit.

Negative stain electron microscopy

Request a detailed protocol

Each P. berghei HAP2 ectodomain construct (residues 43–617 or 61–611), with or without Fab at a molar ratio of 1:1.3, was subjected to Superdex 200 gel filtration in 20 mM Tris-HCl, pH8, 500 mM NaCl. Peak fractions were adsorbed to glow-discharged carbon-coated copper grids, washed with deionized water, and stained with freshly prepared 0.75% uranyl formate. Images were acquired with an FEI Tecnai-T12 transmission electron microscope at 120 kV and a nominal magnification of 52,000×. About two thousand particles were picked interactively and subjected to 2D alignment, classification and averaging using RELION-2.1 (Zivanov et al., 2018). Selected EM class averages were masked and cross-correlated using EMAN2 (Ludtke et al., 1999) with 2D projections generated at 2° intervals from the 2/6.14 Fab-D3 complex crystal structure filtered to 25 Å.

Cell lines

Request a detailed protocol

Expi293F cells and Drosophila Schneider S2 cells were used to express proteins. Expi293F cells were purchased from Thermo Fisher Scientific. The S2 cells were obtained from ExpreS2ion Biotechnologies. All cells tested negative for mycoplasma.

Data availability

Protein database accession IDs are 7LR3 for 2/6.14-Pb HAP2 D3 complex and 7LR4 for 2/1.12-Pb HAP2 D3 complex. Correspondence and requests for materials should be addressed to CL and TAS.

The following data sets were generated
    1. Feng J
    2. Dong XC
    3. Springer TA
    4. Lu CF
    (2021) RCSB Protein Data Bank
    ID 7LR3. Complex of Fab 2/6.14 with domain 3 of P. berghei HAP2.
    1. Feng J
    2. Dong XC
    3. Springer TA
    4. Lu CF
    (2021) RCSB Protein Data Bank
    ID 7LR4. Complex of Fab 2/1.12 with domain 3 of P. berghei HAP2.

References

    1. Emsley P
    2. Cowtan K
    (2004) Coot: model-building tools for molecular graphics
    Acta Crystallographica. Section D, Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  1. Book
    1. Kabsch W
    (2001) F, Crystallography of Biological Macromolecules
    In: Rossmann MG, Arnold E, editors. In International Tables for Crystallography. Dordrecht: Kluwer Academic Publishers. pp. 730–734.
    https://doi.org/10.1107/97809553602060000001

Decision letter

  1. Olivier Silvie
    Reviewing Editor; Sorbonne Université, UPMC Univ Paris 06, INSERM, CNRS, France
  2. Dominique Soldati-Favre
    Senior Editor; University of Geneva, Switzerland
  3. Wai-Hong Tham
    Reviewer; University of Melbourne, Australia

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Structural basis of malaria transmission blockade by a monoclonal antibody to gamete fusogen HAP2" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Dominique Soldati-Favre as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Wai-Hong Tham (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

All three reviewers agree that this is an interesting and important study, and that the work is very well conducted and presented. They also identified a number of points, as detailed below in the recommendations to the authors, which could be addressed in the text to strengthen and/or clarify the manuscript, without the need for additional experiments. Specifically, the reasons for discrepancy between binding to the recombinant ectodomain versus the native protein on gametes for the non-neutralizing mAbs could be discussed in more details. It could be due either to how the parasites are treated or due to the state of the ectodomain, as suggested by the observation that a fraction of the protein binds with good affinity, while a larger fraction doesn't.

Reviewer #1:

This is an interesting study describing the generation of monoclonal antibodies against the HAP2 protein from P. berghei, and providing functional and structural insights in antibody-mediated inhibition of parasite transmission. HAP2 is an evolutionary conserved gamete fusogen and a known transmission-blocking vaccine target. Here the authors produced recombinant forms of the D3 domain of P. berghei HAP2 protein and generated five monoclonal antibodies that recognize the recombinant protein as well as the native protein in P. berghei gametes. One of the antibody inhibits HAP2 function, as shown by reduced ookinete production in vitro and reduced parasite transmission to mosquitoes. The antibodies show some degree of cross-reactivity towards HAP2 from other Plasmodium species, except P. falciparum. The authors resolved the structure of the D3 domain bound to two of the antibodies, including the one with neutralization potential. The structure of the PbHAP2 D3 domain appears similar to known HAP2 structures from other organisms. The data reveal that the two antibodies recognize distinct epitopes on the protein. Strikingly, only the neutralizing mAb can recognize the full-length HAP2 domain.

Strengths

– This work provides novel antibodies against HAP2 from the malaria parasite, and the first structural data for a Plasmodium HAP2 protein.

– Some degree of cross-reactivity was observed with HAP2 from other Plasmodium species, providing potentially interesting tools to study HAP2 function.

– The antibodies vary in their neutralization potential, which may be useful to investigate the mechanisms of transmission blocking.

Limitations

– The work was performed with a rodent species (P. berghei). Although the antibodies cross-react, at least in part, with HAP2 from other species, they do not recognize P. falciparum protein, which limits direct translation of the conclusions to the deadliest human malaria parasite.

– The only inhibitory mAb is the one that recognizes the full-length protein, so it is not clear to which extent the D3 domain represents an attractive target as compared to other domains of the protein. It is not clear how the data will inform vaccine design targeting HAP2.

– The fact that all five antibodies recognize the native protein in gametes yet only one mAb efficiently recognizes the full-length recombinant ectodomain is puzzling.

– The authors propose a model of action of the blocking antibody, but the mechanisms of neutralization are not addressed in the current manuscript.

I am not an expert in structural biology so I cannot evaluate the quality of the structural data.

– The authors propose a model of action of the blocking antibody in Figure 1, yet the mechanisms of neutralization are not addressed in the current manuscript. In particular, what is the evidence that the 2/6.14 mAb can exert Fc-dependent immune effector functions in the mosquito? Also, at which step does this antibody block gamete fusion? According to the model in Figure 1, one would expect that binding of male and female gametes would not be affected by the antibody. This could be tested experimentally.

– It is not clear how the data will inform vaccine design targeting HAP2. Only the 2/6.14 mAb shows neutralization potential, and strikingly it is also the only one that efficiently recognizes the full-length protein, so it is not clear to which extent the D3 domain represents an attractive target as compared to other domains of the protein.

– The fact that all five antibodies recognize the native protein in gametes yet only one mAb efficiently recognizes the full-length recombinant ectodomain is puzzling. The authors discuss that prolonged fixation is responsible for alteration of the protein in the IFA. They should test shorter fixation conditions, or test binding of the antibodies without fixation, to analyze whether the mAbs bind to the gamete surface, as would be expected at least for mAb 2/6.14 based on the functional data.

– Could structural modelling provide possible explanations for the differential cross-reactivity of the PbHAP2 mAbs against HAP2 from other species, especially P. falciparum?

– The data show that the mAb 2/1.12 does not inhibit ookinete conversion in vitro (Figure 3B) but can it block transmission to mosquitoes?

Reviewer #2:

HAP2 is a protein required by the sexual stages of the malaria parasite to fuse and to complete fertilisation. It is therefore thought to be a transmission-blocking vaccine candidate. If a mosquito takes up antibodies which target HAP2 with the blood-meal, then they can prevent parasite gamete fusion in the mosquito midgut and can block transmission. This manuscript explores whether the D3 domain of HAP2 may be a valuable transmission blocking immunogen.

Based on analogy to viral fusogens, the authors decided to focus on domain D3 of HAP2, as antibodies against the equivalent domain of viral fusion proteins are effective against viral fusogens. Plasmodium berghei HAP2 D3 domain was used to raised monoclonal antibodies. These were structurally characterised and were tested for their ability to prevent transmission of malaria parasites in a P. berghei mouse malaria model.

To begin, the authors produced the D3 domain of 6 different Plasmodium species in insect cells, carefully ensuring correct expression and removal of glycans. They immunised mice wih the P. berghei protein and generated a panel of monoclonal antibodies. As the D3 domains from different species show 60-70% sequence identity, they assessed cross reactivity, showing two of the mAbs to pull down D3 domain from most Plasmodium species. While this is a nice result, it was disappointing that the worst cross-reactivity was with the D3 domain from the most-deadly P. falciparum species.

They next tested the effect of their mAbs. All five selected mAbs could label in vitro differentiated gametocytes. The mAbs were then tested in a transmission blocking assay, in which they were added to P. berghei parasites in mouse blood, which was fed to mosquitos. One mAb, 2/6.14 was found to block ookinete formation in the mosquitoes. While this mAbs showed efficacy, it is less effective than the 45.1 mAb which binds to the gametocyte surface protein Pfs48/45. While the authors 2/6.14 mAb is 44.5% effective at 50μg/ml, 45.1 shows 100% transmission blocking at 14μg/ml. Nevertheless, this is, to my knowledge, the best HAP2-targeting mAb to date.

The authors next determine structures of two antibodies – the most transmission blocking, 2/6.14 and the other cross-reactive antibody 2/1.12. These antibodies bind to different surface of the D3 domain. To understand why one is transmission blocking while the other is not, the authors then tested the binding of the panel of nAbs to full HAP2 ectodomain, containing all three domains. Here they find that only 2/6.14 interacts with the full ectodomain to an appreciable degree, perhaps explaining its ability to block transmission.

Finally, the authors model their D3:mAb structure onto a model of the post-fusion conformation of HAP2. They find that the mAb is incompatible with the adoption of this conformation. Could this block membrane fusion and account for the effect of the antibody in transmission blocking?

This study tests the hypothesis that the D3 domain of HAP2 acts can raise transmission-blocking antibodies and reveals the molecular determinants of binding of their best antibody. The manuscript is well conducted, careful and balanced. As to whether the D3 domain of HAP2 will make a great transmission blocking vaccine candidate, I would say that the jury is still out. The best antibody generated in this work is effective, but less so that those which target the transmission-blocking vaccine candidate Pfs48/45. It will be useful to see other studies in which D3 of Plasmodium falciparum HAP2 is used as a vaccine candidate and to see the efficacy of a larger panel of antibodies.

In the introduction, where the authors write "To mediate fusion, D3 of HAP2 folds over an inner trimeric core composed of D1 and D2 (Figure 1).", is this a proposal or model? If it has been proved, please cite the paper. If not, please indicate that this is a proposal.

In Figure 4A there is no structure shown for the two complexes – only opened up structures. This seemed strange and not intuitive. Could the structures of the complexes also be shown? Without this, it is very hard to understand how the two epitopes relate to each other from what is shown.

The authors also do not show the sulphate ions which they see in one of the structures. These ions appear to link the epitope and the antibody. How do they know that these are sulphate ions and are they likely to be physiologically relevant?

It would be good to move Figure S6 into the main manuscript as it helps explain develop a model for how the antibody works.

The number of clashes and RSRZ outliers are high for a 2.1Å structure for 7LR4. For 7LR3 the number of RSRZ outliers and Ramachandran outliers are both high. These structures appear to require more work in refinement.

Reviewer #3:

This was a great paper to read and straight-forward to review. All results are clearly stated without hyperbole and supported by their claims. We particularly appreciated that the authors also looked at the other HAP2 present in Plasmodium species for cross-reactive antibodies, examined the phenotype of the monoclonal antibodies using IFA, fertilization and transmission blocking, and used both X-ray crystallography and negative stain EM to provide structural insights into the mechanisms of inhibition (or lack of). It was also very useful to have experimental data showing that while one of the antibodies 2/1.12 could recognize D3 alone, it did not have the same level of recognition of the ectodomain. The Discussion covers this observation in an insightful way. The manuscript stands without further experiments.

https://doi.org/10.7554/eLife.74707.sa1

Author response

Essential revisions:

All three reviewers agree that this is an interesting and important study, and that the work is very well conducted and presented. They also identified a number of points, as detailed below in the recommendations to the authors, which could be addressed in the text to strengthen and/or clarify the manuscript, without the need for additional experiments. Specifically, the reasons for discrepancy between binding to the recombinant ectodomain versus the native protein on gametes for the non-neutralizing mAbs could be discussed in more details. It could be due either to how the parasites are treated or due to the state of the ectodomain, as suggested by the observation that a fraction of the protein binds with good affinity, while a larger fraction doesn't.

We have banged our collective heads against the wall trying to come up with a clear explanation (the PI's head is the most damaged) and cannot. All we can do is speculate. We do two things in Discussion. Instead of asking the question about why the discrepancy is present at the end of one paragraph, which may lead readers to expect an answer in the next paragraph, we delete that question and start the next paragraph by saying that we all we can do is speculate and offer one possibility at the end of that paragraph.

Reviewer #2:

[…]

In the introduction, where the authors write "To mediate fusion, D3 of HAP2 folds over an inner trimeric core composed of D1 and D2 (Figure 1).", is this a proposal or model? If it has been proved, please cite the paper. If not, please indicate that this is a proposal.

The whole conformational change was cited (a review) in the previous sentence.

In Figure 4A there is no structure shown for the two complexes – only opened up structures. This seemed strange and not intuitive. Could the structures of the complexes also be shown? Without this, it is very hard to understand how the two epitopes relate to each other from what is shown.

Thanks for pointing that out, we have added the two complex structures in the Figure 4A.

The authors also do not show the sulphate ions which they see in one of the structures. These ions appear to link the epitope and the antibody. How do they know that these are sulphate ions and are they likely to be physiologically relevant?

"The Fab 2/1.12 complex (4.5 mg/ml) was crystallized with 0.2 M ammonium sulfate, 25% PEG 3350, 0.1 M Bis-Tris pH5.5." These ions are highly unlikely to be physiologically relevant.

It would be good to move Figure S6 into the main manuscript as it helps explain develop a model for how the antibody works.

We do not know how the antibody works- It could work through blocking conformational change or it could simply opsonize the gametes for phagocytosis or it could agglutinate them.

The number of clashes and RSRZ outliers are high for a 2.1Å structure for 7LR4. For 7LR3 the number of RSRZ outliers and Ramachandran outliers are both high. These structures appear to require more work in refinement.

My groups prides itself in refinement. We are one of the few groups that reports MolProbity statistics in our crystal statistics tables. These show that our structures are in the 97-99th percentiles of all structures in the pdb of similar resolutions for clashes and geometry (which includes Ramachandran outliers). Thus the quality of our refinement is outstanding. Our style of refinement (and we usually push resolution more than others, because we do not throw out useful data, as recommended by Diedrichs and Karplus) tends to give high RSRZ outliers. We tend to build the mainchain through weak but continuous density and we do not truncate sidechains. This takes more care in refinement, provides a more useful model for biologists, but also gives higher RSRZ outliers. Additionally, the 7LR3 complex was difficult to refine as explained in Methods:

"During model building and refinement of the 2/6.14 Fab complex, the Fab constant domains of one complex had good density, but the variable domains and D3 had broad but continuous density that was difficult to trace. In contrast, all domains of the other complex were easily traced. Furthermore, refinement remained stuck. Alternative space groups including those with lower symmetry or use of twin rules provided no improvement. We then realized that in the troublesome D3-Fab complex in the asymmetric unit, two alternative conformations were present for D3, VH, and VL, whereas CH1 and CL had a single conformation. The transition between dual and single conformations occurred at the elbows between VH and CH1 and between VL and CL; i.e. the two conformations differed in elbow angle. In further refinement, the resolution cutoff was changed from 2.4 to 2.8 Å, and we largely treated each of the dual conformations of D3, VH1, and VL as rigid bodies based on their structure in the single conformation of the other D3-Fab complex."

https://doi.org/10.7554/eLife.74707.sa2

Article and author information

Author details

  1. Juan Feng

    Program in Cellular and Molecular Medicine, Boston Children's Hospital, Boston, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Validation, Writing - original draft
    Competing interests
    No competing interests declared
  2. Xianchi Dong

    School of Life Sciences, Nanjing University, Nanjing, China
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  3. Adam DeCosta

    Program in Cellular and Molecular Medicine, Boston Children's Hospital, Boston, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Yang Su

    Program in Cellular and Molecular Medicine, Boston Children's Hospital, Boston, United States
    Contribution
    Data curation
    Competing interests
    No competing interests declared
  5. Fiona Angrisano

    Burnet Institute, Melbourne, Australia
    Contribution
    Writing – review and editing, Investigation
    Competing interests
    No competing interests declared
  6. Katarzyna A Sala

    Department of Pathology, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Andrew M Blagborough

    Department of Pathology, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Writing – review and editing, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5257-8475
  8. Chafen Lu

    Boston Children's Hospital, Boston, United States
    Contribution
    Investigation, Supervision, Writing – review and editing, Conceptualization
    For correspondence
    lu@crystal.harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3954-4836
  9. Timothy A Springer

    Program in Cellular and Molecular Medicine, Boston Children's Hospital, Boston, United States
    Contribution
    Conceptualization, Funding acquisition, Project administration, Supervision, Writing – review and editing
    For correspondence
    springer@crystal.harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6627-2904

Funding

National Institutes of Health (R01AI95686)

  • Chafen Lu
  • Timothy A Springer

Boston Children's Hospital (Kidder Fund)

  • Timothy A Springer

Medical Research Council (MR/N00227X/1)

  • Andrew M Blagborough

Isaac Newton Trust

  • Andrew M Blagborough

Alborada Trust

  • Andrew M Blagborough

Wellcome Trust

  • Andrew M Blagborough

University of Cambridge

  • Andrew M Blagborough

Global Health Innovative Technology Fund

  • Andrew M Blagborough

Rosetrees Trust

  • Andrew M Blagborough

Royal Society

  • Andrew M Blagborough

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Margaret Nielsen for illustrations. We thank Kelly L Arnett from Center for Macromolecular Interactions of Harvard Medical school for training and consultation on Bio-layer interferometry measurement. This work was supported by NIH grant 5R01AI95686 (TAS and CL) the Kidder Fund from Boston Children’s Hospital (TAS), Medical Research Council grant MR/N00227X/1, Isaac Newton Trust, Alborada Fund, Wellcome Trust ISSF, University of Cambridge JRG Scheme, GHIT, Rosetrees Trust and the Royal Society (AMB).

Senior Editor

  1. Dominique Soldati-Favre, University of Geneva, Switzerland

Reviewing Editor

  1. Olivier Silvie, Sorbonne Université, UPMC Univ Paris 06, INSERM, CNRS, France

Reviewer

  1. Wai-Hong Tham, University of Melbourne, Australia

Publication history

  1. Received: October 14, 2021
  2. Accepted: December 3, 2021
  3. Accepted Manuscript published: December 23, 2021 (version 1)
  4. Version of Record published: February 1, 2022 (version 2)
  5. Version of Record updated: February 7, 2022 (version 3)

Copyright

© 2021, Feng et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 538
    Page views
  • 162
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Juan Feng
  2. Xianchi Dong
  3. Adam DeCosta
  4. Yang Su
  5. Fiona Angrisano
  6. Katarzyna A Sala
  7. Andrew M Blagborough
  8. Chafen Lu
  9. Timothy A Springer
(2021)
Structural basis of malaria transmission blockade by a monoclonal antibody to gamete fusogen HAP2
eLife 10:e74707.
https://doi.org/10.7554/eLife.74707

Further reading

    1. Genetics and Genomics
    2. Microbiology and Infectious Disease
    Liselot Dewachter et al.
    Research Article Updated

    Antibiotic resistance in the important opportunistic human pathogen Streptococcus pneumoniae is on the rise. This is particularly problematic in the case of the β-lactam antibiotic amoxicillin, which is the first-line therapy. It is therefore crucial to uncover targets that would kill or resensitize amoxicillin-resistant pneumococci. To do so, we developed a genome-wide, single-cell based, gene silencing screen using CRISPR interference called sCRilecs-seq (subsets of CRISPR interference libraries extracted by fluorescence activated cell sorting coupled to next generation sequencing). Since amoxicillin affects growth and division, sCRilecs-seq was used to identify targets that are responsible for maintaining proper cell size. Our screen revealed that downregulation of the mevalonate pathway leads to extensive cell elongation. Further investigation into this phenotype indicates that it is caused by a reduced availability of cell wall precursors at the site of cell wall synthesis due to a limitation in the production of undecaprenyl phosphate (Und-P), the lipid carrier that is responsible for transporting these precursors across the cell membrane. The data suggest that, whereas peptidoglycan synthesis continues even with reduced Und-P levels, cell constriction is specifically halted. We successfully exploited this knowledge to create a combination treatment strategy where the FDA-approved drug clomiphene, an inhibitor of Und-P synthesis, is paired up with amoxicillin. Our results show that clomiphene potentiates the antimicrobial activity of amoxicillin and that combination therapy resensitizes amoxicillin-resistant S. pneumoniae. These findings could provide a starting point to develop a solution for the increasing amount of hard-to-treat amoxicillin-resistant pneumococcal infections.

    1. Evolutionary Biology
    2. Microbiology and Infectious Disease
    Pramod K Jangir et al.
    Research Article

    Bacterial pathogens show high levels of chromosomal genetic diversity, but the influence of this diversity on the evolution of antibiotic resistance by plasmid acquisition remains unclear. Here, we address this problem in the context of colistin, a ‘last line of defence’ antibiotic. Using experimental evolution, we show that a plasmid carrying the MCR-1 colistin resistance gene dramatically increases the ability of Escherichia coli to evolve high-level colistin resistance by acquiring mutations in lpxC, an essential chromosomal gene involved in lipopolysaccharide biosynthesis. Crucially, lpxC mutations increase colistin resistance in the presence of the MCR-1 gene, but decrease the resistance of wild-type cells, revealing positive sign epistasis for antibiotic resistance between the chromosomal mutations and a mobile resistance gene. Analysis of public genomic datasets shows that lpxC polymorphisms are common in pathogenic E. coli, including those carrying MCR-1, highlighting the clinical relevance of this interaction. Importantly, lpxC diversity is high in pathogenic E. coli from regions with no history of MCR-1 acquisition, suggesting that pre-existing lpxC polymorphisms potentiated the evolution of high-level colistin resistance by MCR-1 acquisition. More broadly, these findings highlight the importance of standing genetic variation and plasmid/chromosomal interactions in the evolutionary dynamics of antibiotic resistance.
