Somite morphogenesis is required for axial blood vessel formation during zebrafish embryogenesis

  1. Eric Paulissen
  2. Nicholas J Palmisano
  3. Joshua S Waxman
  4. Benjamin L Martin  Is a corresponding author
  1. Department of Biochemistry and Cell Biology, Stony Brook University, United States
  2. Molecular Cardiovascular Biology Division and Heart Institute, Cincinnati Children's Hospital Medical Center, United States
  3. Department of Pediatrics, University of Cincinnati College of Medicine, United States

Abstract

Angioblasts that form the major axial blood vessels of the dorsal aorta and cardinal vein migrate toward the embryonic midline from distant lateral positions. Little is known about what controls the precise timing of angioblast migration and their final destination at the midline. Using zebrafish, we found that midline angioblast migration requires neighboring tissue rearrangements generated by somite morphogenesis. The somitic shape changes cause the adjacent notochord to separate from the underlying endoderm, creating a ventral midline cavity that provides a physical space for the angioblasts to migrate into. The anterior to posterior progression of midline angioblast migration is facilitated by retinoic acid-induced anterior to posterior somite maturation and the subsequent progressive opening of the ventral midline cavity. Our work demonstrates a critical role for somite morphogenesis in organizing surrounding tissues to facilitate notochord positioning and angioblast migration, which is ultimately responsible for creating a functional cardiovascular system.

Editor's evaluation

This article elegantly combines in vivo imaging and cell transplantation studies in zebrafish embryos to reveal how somite morphogenesis impacts early blood vessel formation. The study provides evidence that retinoic acid-driven somite remodeling generates a midline cavity that is critical to the recruitment and coalescence of angioblast blood vessel precursors at the midline. This work provides important new insights into how angioblast migration and blood vessel formation are coordinated by the timely rearrangement of surrounding tissues during embryonic development.

https://doi.org/10.7554/eLife.74821.sa0

Introduction

Early organismal development relies on a variety of tissues that collectively organize into a functional body plan. In the trunk of the vertebrate embryo, many tissues are differentiating at once and often interact with one another to influence their definitive structure (McMillen and Holley, 2015). The axial (notochord), paraxial (somites), and lateral (angioblasts and other tissues) mesoderm begins to be specified during gastrulation, and new cells are added to these tissues from posteriorly localized progenitor cells as they expand after gastrulation (Kimelman, 2016; Martin, 2016; Martin and Kimelman, 2012; Row et al., 2016). By the end of embryogenesis, the notochord is a prominent midline tissue of the trunk and provides structural support to the body and signals that pattern adjacent tissues (Balmer et al., 2016; Glickman et al., 2003; Kimmel et al., 1995). Pairs of somites flank either side of the notochord and give rise to tissues that include the skeletal muscle, tendons, and bone (Tani et al., 2020). Ventral to the notochord and between the somites, the axial vasculature structures of the dorsal aorta and posterior cardinal vein distribute blood throughout the embryo (Hogan and Bautch, 2004; Isogai et al., 2001).

During somitogenesis, newly formed somites undergo a maturation event in which they change their morphology from a cuboidal shape to a chevron shape and extend in the dorsal-ventral axis (Kimmel et al., 1995; Tlili et al., 2019). Many cellular rearrangements and mechanical stresses contribute to making the final definitive somite shape (Hollway et al., 2007; Leal et al., 2014; Tlili et al., 2019; Yin and Solnica-Krezel, 2007; Yin et al., 2018; Youn and Malacinski, 1981). At the same time that somites are changing shape, endothelial progenitors called angioblasts arise in the lateral plate mesoderm and migrate to the midline of the embryo to form the axial vasculature (Jin et al., 2005). Interestingly, angioblast migration and new somite formation occur in an anterior to posterior progression, with a wave of angioblast migration happening slightly after the wave of somitogenesis (Jin et al., 2005; Kohli et al., 2013; Yabe and Takada, 2016). Despite these two events occurring in close temporal and physical proximity to one another, it is not clear how they influence one another during this developmental stage. While some evidence has shown a relationship between somites and blood vessel patterning, much of this research focused on angiogenic sprouting or arterial-venous specification, well after angioblast migration and somitogenesis is completed (Lawson et al., 2002; Shaw et al., 2006; Therapontos and Vargesson, 2010; Torres-Vázquez et al., 2004).

Loss-of-function mutation of the notochord specifying gene noto results in nonautonomous migration defects of angioblasts as they move to the midline (Fouquet et al., 1997; Helker et al., 2015). In the absence of noto, the notochord adopts a somitic fate (Fouquet et al., 1997; Talbot et al., 1995). The requirement of notochord specification for angioblast migration suggested that the notochord may act to attract angioblasts to the midline. This model was further explored when a notochord-derived secreted factor named apela (also known as toddler/elabela) was discovered (Chng et al., 2013; Freyer et al., 2017; Helker et al., 2015; Pauli et al., 2014). This small peptide is expressed in the notochord and when mutated caused angioblast migration defects. However, apela loss of function also causes defects in mesoderm and endoderm formation prior to notochord and angioblast specification via gastrulation defects (Freyer et al., 2017; Norris et al., 2017; Pauli et al., 2014). Similarly, noto loss of function causes morphological changes that could interfere with angioblast migration, including a broad expansion of somite tissue near the developing blood vessels (Halpern et al., 1995). Thus, although it appears that mutations that affect notochord development can disrupt angioblast migration, the exact mechanism of this effect is not clear.

As new somites form during body axis extension, they secrete all-trans retinoic acid (RA). RA is a metabolic derivative of vitamin A, and a series of alcohol and aldehyde dehydrogenases convert vitamin A into RA in specific locations of the embryo including newly formed somites (Duester, 2008). RA acts as a morphogen with broad roles during vertebrate embryogenesis. Some of these include the development of the limb, skeleton, hindbrain, and heart (Emoto et al., 2005; Heine et al., 1986; Lohnes et al., 1994; Mendelsohn et al., 1994; Niederreither et al., 2001; Sandell et al., 2007). Although involved in many processes, RA has a particular influence over the maturation of mesoderm and somitic tissue (Hamade et al., 2006; Janesick et al., 2018; Janesick et al., 2014; Li et al., 2015). While RA is notably involved in ensuring the bilateral symmetry of the somites, it is ultimately dispensable for axis elongation in the zebrafish (Berenguer et al., 2018; Bernheim and Meilhac, 2020; Hamade et al., 2006; Kumar and Duester, 2014). Based on the timing of somite-derived RA signaling activity relative to when angioblasts migrate to the midline, we speculated it may be involved in midline angioblast migration.

Here, we show that RA-mediated somite maturation is required for the proper formation of the axial vasculature through a nonautonomous role in inducing morphological changes in surrounding tissues. A process we call notochord-endoderm separation (NES) occurs prior to angioblast migration, wherein the dorsal translocation of the notochord during development leads to its separation from the endoderm along the dorsal-ventral axis to generate a transient cavity we refer to as the ventral midline cavity (VMC). The angioblasts migrate toward and eventually into the VMC after NES. The induction of NES and the VMC is somite maturation dependent, and a delay or failure in NES can cause systemic angioblast migration defects. This evidence places somite maturation as a critical event that is required for NES and the development of the axial vasculature.

Results

Retinoic acid promotes convergence of angioblasts to the midline and the formation of the axial vasculature

To determine if RA signaling impacts angioblast migration, we made time-lapse videos of tg(kdrl:GFP) embryos, which express GFP in angioblasts (Jin et al., 2005). Embryos were mounted at the 10-somite stage and their migration was observed over a 3 hr time period. Wild-type angioblasts migrated to the midline in a manner consistent with previously described research (Figure 1A, Video 1; Helker et al., 2015; Jin et al., 2005; Kohli et al., 2013). To determine what effect the loss of RA would have on the migrating angioblasts, we generated aldh1a2 mutants with the tg(kdrl:GFP) angioblast reporter in the background. Time-lapse imaging of these embryos shows defects in angioblast migration to the midline (Figure 1B, Video 2), which was also confirmed by in situ hybridization (Figure 1—figure supplement 1). Three other methods of disrupting RA signaling caused the same phenotype. Loss of RA by treatment with N,N-diethylaminobenzaldehyde (DEAB) (an inhibitor of the Aldh family, including Aldh1a2; Morgan et al., 2015), the small-molecule retinoic acid receptor (RAR) alpha and gamma inhibitor (BMS453), or expression of a dominant negative RARa using the Tg(hsp70l:eGFP-dnHsa.RARA) transgenic line (hereafter referred to as HS:dnRAR) all caused midline migration defects (Brilli Skvarca et al., 2019; Figure 1—figure supplement 1A–E). Angioblasts in these embryos show delayed migration with disorganized anterior to posterior processivity. To determine if addition of RA accelerated angioblast migration as well as anterior to posterior processivity, we compared the angioblast migration patterns of 10-somite stage tg(kdrl:GFP) embryos treated with either DMSO (vehicle) or 0.1 μM RA at the tailbud stage (Figure 1C and D, respectively). Angioblasts in the DMSO-treated embryos migrate normally, but the angioblasts treated with RA had prematurely initiated migration and arrived earlier to the midline during development (Figure 1C and D, respectively, Video 3). To determine the rate at which angioblasts reach the midline, we quantified the percentage of GFP fluorescence at the midline in relation to the total amount of fluorescence for the both wild-type and aldh1a2-/-. We defined angioblast fluorescence as reaching the midline if they are settled beneath the notochord. The aldh1a2-/- embryos show very low percentage fluorescence at the midline, relative to total fluorescence, compared to wild-type embryos 4 hr after observation, when angioblast migration is largely complete (Figure 1E, Figure 1—source data 1). On the other hand, fluorescence was higher at the midline in embryos treated with RA than in DMSO-treated control embryos (Figure 1F, Figure 1—source data 2). This shows that RA is necessary and sufficient for promoting angioblast migration to the midline. To determine at which stage RA is needed for angioblasts to migrate to the midline, we administered DEAB at different stages of development. Inhibition of RA at tailbud stage caused the angioblast migration defect, but treatment at the five-somite stage resulted in normal migration (Figure 1H and I, respectively), thus establishing the critical developmental window for RA signaling regulation of midline angioblast migration.

Figure 1 with 1 supplement see all

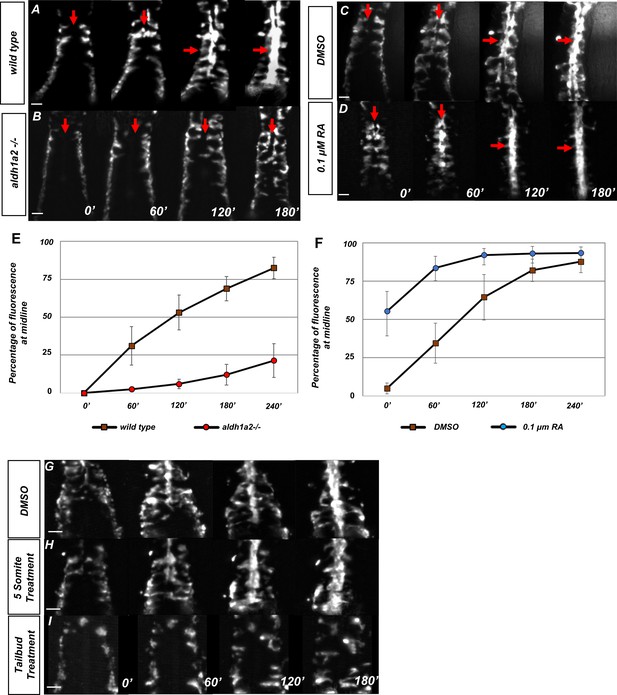

Retinoic acid (RA) is required prior to segmentation for angioblast migration.

(A–D) Dorsal view of tg(kdrl:eGFP) embryos with representative images taken every 60 min over the course of 180 min, in (A) untreated (N = 12, see Video 1), (B) aldh1a2-/- mutants (N = 12, see Video 2), (C) DMSO-treated (N = 10), or (D) 0.1 µM RA-treated embryos (N = 8, see Video 3). The anterior of the embryo is at the top, and red arrows indicate the midline. (E, F) Graph of fluorescence intensity as angioblasts arrive at the midline for (E) wild-type and aldh1a2-/- and for (F) DMSO and 0.1 μM RA. Y-axis indicates the percentage of fluorescent intensity at midline relative to the fluorescence intensity of whole embryo. Time is measured on the X-axis. N = 8 for all conditions, error bars indicate standard deviation. (G–I) Time-lapse images of tg(kdrl:eGFP) embryos treated with either (G) DMSO vehicle (n = 10) or (H) 20 μM DEAB at the five-somite stage (n = 6), and (I) 20 μM DEAB at tailbud stage (n = 14). Scale bars, 50 µm.

Figure 1—source data 1

Wild-type and aldh1a2 -/- midline fluorescence percentages.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig1-data1-v2.csv
Figure 1—source data 2

DMSO and RA treatment midline fluorescence percentages.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig1-data2-v2.csv
Video 1
Time-lapse fluorescent imaging of tg(kdrl:eGFP) embryo at the 10-somite stage.tg(kdrl:eGFP) marks angioblasts as they migrate to the midline.

Angioblasts display the anterior posterior processivity while coalescing at the midline. Frame rate = 1 image/5 min. Run time = 235 min.

Video 2
Time-lapse fluorescent imaging of tg(kdrl:eGFP), aldh1a2-/- embryo at the 10-somite stage.tg(kdrl:eGFP) marks angioblasts as they migrate to the midline.

Angioblasts lose anterior to posterior processivity and show disrupted migration. Frame rate = 1 image/5 min. Run time = 235 min.

Video 3
Time-lapse fluorescent imaging of a 10-somite stage tg(kdrl:eGFP) embryo with addition of 0.1 μM retinoic acid (RA) at the tailbud stage.

tg(kdrl:eGFP) marks angioblasts as they migrate to the midline. Angioblasts accelerate their processivity toward the midline. Frame rate = 1 image/5 min. Run time = 235 min.

Retinoic acid is required cell-nonautonomously for angioblast migration

To determine if RA functions cell-autonomously to induce angioblast migration, we utilized the transgenic zebrafish line Tg(hsp70l:id3-2A-NLS-KikGR), which carries a heat shock-inducible construct that overexpresses id3 after a temperature shift (Row et al., 2018). We previously showed that overexpression of id3 from this line can cause transplanted cells from a donor embryo to faithfully adopt an endothelial fate in a wild-type host embryo (Row et al., 2018). We utilized this by crossing Tg(hsp70l:id3-2A-NLS-KikGR), hereafter referred to as HS:id3, to HS:dnRAR, to generate donor embryos wherein transplanted cells would be targeted to the endothelium and express dominant negative retinoic acid receptors (RARA). Cells positive for both transgenic constructs were transplanted into tg(kdrl:eGFP) host embryos, and these cells exhibited normal migration to the midline (Figure 2A, Video 4). In addition, we utilized an RA reporter line, tg(RDBD,5XUAS:GFP), to determine which tissues were subject to RA signaling (Mandal et al., 2013). We performed immunohistochemistry against GFP and the transcription factor Etv2, which labels the angioblasts (Figure 2B; Sumanas et al., 2005). The GFP expression indicates tissues that have been exposed to RA. These tissues included the adaxial region of the somites, the notochord, and epidermis (Figure 2B, white arrow, white arrowhead, and gold arrow, respectively). The primitive angioblasts, labeled with anti-Etv2 staining, do not overlap with GFP staining (Figure 2B, red arrows). Together, these results indicate that angioblasts are not receiving an RA signal and do not require RA signaling for migration when surrounded by a wild-type environment.

Figure 2 with 1 supplement see all
Retinoic acid (RA) signaling is not present in the endothelium and is required in the somites for angioblast migration.

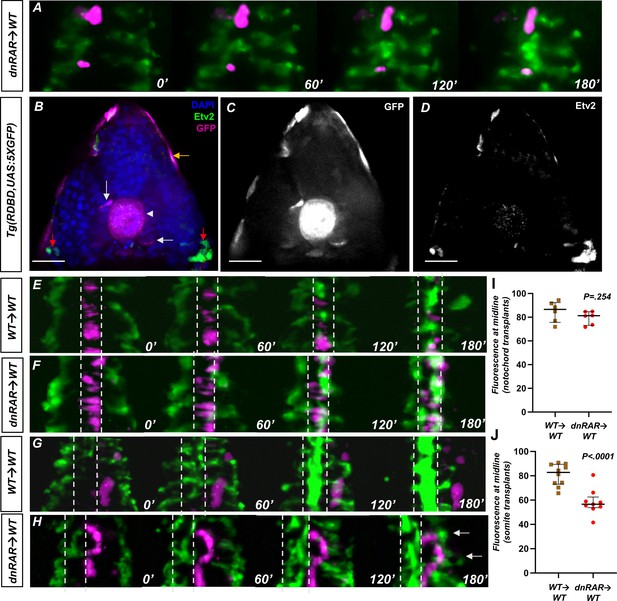

(A) Representative images of a time-lapse of tg(HS:dnRAR), tg(HS:id3) cells transplanted into a wild-type embryo. Cells labeled in magenta indicate migrating cells. These cells migrate along with the host angioblasts labeled by tg(kdrl:gfp), indicating normal migration patterns in the absence of cell-autonomous RA-depletion conditions (n = 3) (see Video 4). (B) DAPI-stained section of the 13-somite stage tg(RDBD,5XUAS:GFP) embryo, immunostained for GFP and Etv2 (n = 12). GFP signal is present in the adaxial region of the somite, the notochord, and the epidermis (white arrow, white arrowhead, and gold arrows, respectively). The red arrows indicate areas of Etv2 staining. (C) GFP channel of image in (B). (D) Etv2 channel of image in (B). Note the lack of overlap between Etv2 staining and GFP staining. (E) Representative images of a time-lapse of wild-type cells transplanted into a wild-type notochord. (F) Representative images of a time-lapse of tg(HS:dnRAR) cells transplanted into a wild-type notochord. (G) Representative images of a time-lapse of wild-type cells transplanted into a wild-type somite. (H) Representative images of a time-lapse of tg(HS:dnRAR) cells transplanted into a wild-type somite. White arrows indicate angioblast migration defects. (I) Quantification of midline fluorescence, as a percentage of total, for notochord transplants at 180′. The difference for wild-type and tg(HS:dnRAR) was not statistically significant (p=0.254). (J) Quantification of midline fluorescence, as a percentage of total, for somite transplants at 180′. The difference for wild-type and tg(HS:dnRAR) was statistically significant (p<0.0001). Scale bars, 50 µm.

Figure 2—source data 1

Fluorescence percentage at midline for somite targeted transplants.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig2-data1-v2.csv
Figure 2—source data 2

Fluorescence percentage at midline for notochord targeted transplants.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig2-data2-v2.csv
Video 4
Time-lapse fluorescent imaging of HS:id3, HS;dnRAR cells in a tg(kdrl:eGFP) host.

Cells expressing HS:id3, HS;dnRAR migrate to the midline along with angioblasts in a tg(kdrl:eGFP) host. Cells with dnRAR migrate faithfully with angioblasts. Frame rate = 1 image/5 min. Run time = 180 min.

We investigated which tissue was responsible for the angioblast migration defect based on the observed activity of the reporter. Given its proximity to the midline, we chose to test whether the notochord or somitic mesoderm contributed to the defect. To test notochord contribution, we transplanted cells from a wild-type donor to a tg(kdrl:eGFP) host embryo to target the midline progenitors (Row et al., 2016). Host embryos with wild-type cells transplanted to the notochord displayed normal angioblast migration to the midline (Figure 2E). Similarly, transplants of tg(HS:dnRAR) cells into the notochord showed normal midline angioblast migration (Figure 2F). In addition, in situ hybridizations against a known notochord-secreted angioblast chemoattractant apela, as well as the receptors aplnra and aplnrb, show little change in RA-depleted conditions (Figure 2—figure supplement 1A–F). This indicates that the lack of RA signaling in notochord cells is not causing the angioblast migration defects. We then transplanted cells to target the somitic mesoderm. Wild-type cells transplanted into the somitic mesoderm showed normal angioblast migration to the midline (Figure 2G). However, when we transplanted tg(HS:dnRAR) cells into the somitic mesoderm, angioblasts showed migratory defects in the region of the host embryo in which they were transplanted (Figure 2H). Quantification of fluorescence percentage at the midline, in the chimeric regions of the notochord, showed no statistically significant difference compared to controls (Figure 2I, Figure 2—source data 1). However, quantification of fluorescence percentage in the chimeric regions of the somites showed statistical significance between wild-type and tg(HS:dnRAR) (Figure 2J, Figure 2—source data 2). This indicates that the somites are the principal tissue required for RA signaling-mediated midline angioblast migration.

The somitic mesoderm is required for angioblast migration to the midline

To follow up the somite and notochord-targeted transplant results, we examined midline angioblast migration in embryos where these tissues are absent. Previous studies have investigated genes linking the notochord to angioblast migration. Mutants of the genes noto and apela were found to be notochord-specific genes required for proper angioblast migration (Cleaver and Krieg, 1998; Fouquet et al., 1997; Helker et al., 2015). The noto gene induces notochord, and the notochord in turn secretes Apela, which attracts the angioblasts to the midline. Noto is required for the formation of the notochord, and in the absence of Noto, the midline cells adopt a somitic fate (Talbot et al., 1995).

However, it is not clear if midline convergence was delayed or absent in notochord-less embryos. In noto mutants, some angioblasts reach the midline at later developmental stages and resolve into a single blood vessel (Fouquet et al., 1997). We injected a noto morpholino that faithfully phenocopies the noto mutant into tg(kdrl:GFP) embryos (Ouyang et al., 2009). Control morphant embryos show normal angioblast migration (Figure 3A), whereas noto morphants show slowed angioblast migration (Figure 3B). However, midline convergence still occurs in both conditions (Figure 3C). This implies that the notochord is ultimately dispensable for the formation of the VMC and midline positioning of angioblasts.

Figure 3 with 1 supplement see all

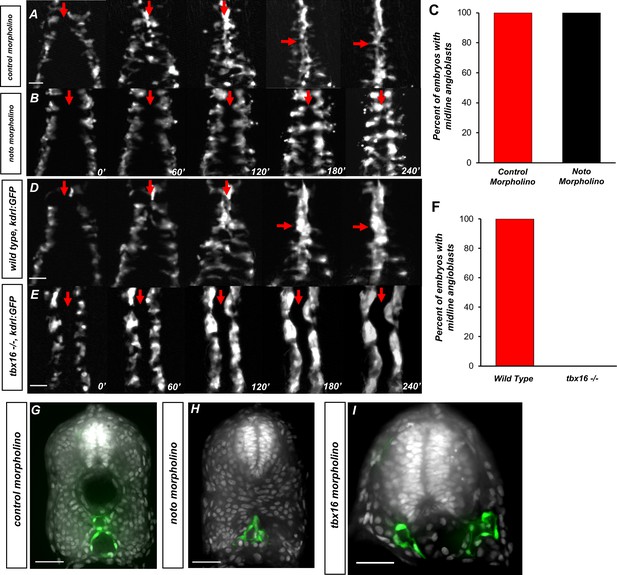

The somitic mesoderm, not the notochord, is required for midline convergence of angioblasts.

(A) Time-lapse imaging of tg(kdrl:eGFP) embryos injected with control morpholino over a 240′ period. (B) tg(kdrl:eGFP) embryos injected with noto morpholino over a 240′ period. Red arrows indicate the midline. (C) Graph of embryos with midline angioblasts in noto and control morphants after 240′. N = 15 for both conditions (D) Time-lapse imaging of wild-type, tg(kdrl:eGFP) embryos over a 240′ period. (E) Time-lapse imaging of tbx16-/-, tg(kdrl:eGFP) embryos over a 240′ period. Red arrows indicate the midline. (F) Graph of embryos with midline angioblasts in wild-type and tbx16-/- after 240′. N = 18 for both conditions. (G) Section of wild-type, tg(kdrl:eGFP) embryos over a 240′ period. (H) Section of 24 hpf tg(kdrl:eGFP) embryos injected noto morpholino and stained with DAPI. (I) Section of 24 hpf tg(kdrl:eGFP) embryos injected tbx16 morpholino. Blood vessels are labeled in green and nuclei labeled in gray. Scale bars, 50 µm.

Having ruled out the role of notochord tissue, we next investigated whether the somitic mesoderm is required for NES and the formation of the VMC. Previous studies have shown that the t-box transcription factor tbx16 is required for proper somite formation (Amacher et al., 2002; Goto et al., 2017; Griffin et al., 1998; Kimmel et al., 1989; Manning and Kimelman, 2015; Row et al., 2011). In the absence of Tbx16, cells that would normally join the paraxial mesoderm fail to do so, causing a deficiency in the trunk somitic mesoderm, but leaving the endothelium intact (Thompson et al., 1998). We utilized tbx16 mutants to determine whether the lack of somites caused angioblast migration defects, similar to RA loss of function. We examined midline angioblast migration in tbx16 mutant embryos with the tg(kdrl:GFP) transgene in the background. In wild-type sibling embryos, angioblast migration progresses normally to the midline (Figure 3D). However, in tbx16-/- embryos, angioblast migration does not occur, and they remain in their positions in the lateral plate (Figure 3E). Fluorescence quantification indicated that angioblasts never reach the midline in any embryo (Figure 3F). To determine the effect of either notochord or somite loss on the definitive vasculature, we performed transverse sections of tg(kdrl:GFP) embryos injected with control, noto, and tbx16 morpholinos and stained with DAPI. Control morpholino showed normal formation of the dorsal aorta and common cardinal vein (Figure 3G). Embryos injected with noto morpholino have angioblasts located at the midline that appear to have resolved into one blood vessel structure (Figure 3H). Embryos injected with tbx16 morpholinos, however, show two distinct vessels located on either side of the notochord (Figure 3I). This is confirmed by in situ hybridization of the respective arterial and venous markers cldn5b and dab2 in wild-type and tbx16-/- embryos (Figure 3—figure supplement 1A–D). This indicates that the somites are critical for angioblast convergence at the midline, while the notochord is ultimately dispensable.

Retinoic acid induces a dorsal translocation of the notochord away from the underlying endoderm

Given the nonautonomous midline angioblast migration defects in RA loss-of-function embryos, we examined if RA manipulation altered the normal development of non-angioblast midline tissues. We utilized embryos labeled with a cell surface marker, tg(ubb:lck-mNG) (Adikes et al., 2020), and found the relative location of notochord at the midline changes based on RA activity. To measure this, embryos were treated with either DMSO, DEAB, or RA at the tailbud stage. The embryos were then fixed, deyolked, and imaged in the trunk at roughly the fifth somite (Figure 4A–C). The relative location of the notochord in DMSO-treated embryos was in close proximity to the ventral underlying endoderm at the 12-somite stage, but that distance increased by the 15-somite stage (Figure 4A). In DEAB-treated embryos, the notochord remains ventrally localized at both the 12-somite stage and 15-somite stage (Figure 4B). When the same experiment was done with embryos exposed to exogenous RA, the notochord was prematurely dorsally localized at the 12-somite stage and extended even further by the 15-somite stage (Figure 4C).

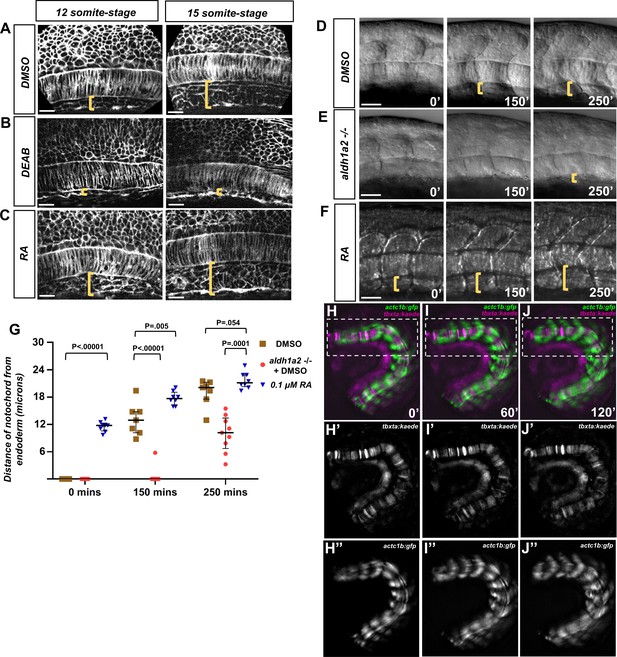

Retinoic acid (RA) signaling promotes dorsal translocation of the notochord.

(A–C) Fluorescent images of fixed (A) DMSO-treated, (B), DEAD-treated, and (C) RA-treated tg(ubb:lck-mNG) embryo trunks at the 12- and 15-somite stage. Yellow brackets indicate the distance between the notochord and underlying yolk cell. (D–F) DIC time-lapse images of the notochord and zebrafish trunk. Focal planes of the notochord and somites were overlaid to show the relative location to one another. Yellow brackets indicate the distance of the ventral notochord to the ventral-most portion of the embryo in (D) DMSO-treated embryos, (E) aldh1a2-/- embryos treated with DMSO, or (F) 0.1 μM RA-treated embryos. (G) Quantification of dorsal translocation of notochord from the ventral tissue. Black lines indicate the median and interquartile range. Wild-type are indicated by brown squares, while aldh1a2-/- and 0.1 μM RA embryos are shown by red circles and blue triangles, respectively. At t = 0, DMSO vs. RA is p<0.00001. At 150′, DMSO is p<0.00001 and p=0.005 vs. aldh1a2-/- and RA treatment, respectively. At 250′, DMSO is p=0.0001 and 0.054 vs. aldh1a2-/- and RA treatment, respectively. (H–J) Time-lapse image of a trunk explant from tg(actc1b:gfp), tg(tbxta:kaede) embryo at (H) 0′, (I) 60′, and (J) 120′. (H’–J’) Time-lapse image of explant showing tg(tbxta:kaede) only. (H’’–J’’) Time-lapse image of explant showing tg(actc1b:gfp) only. Time-lapse shows the notochord adjacent the yolk at time 0′, but moves dorsally from the yolk at time 120′. Scale bars, 25 µm.

Figure 4—source data 1

Distances of notochord to endoderm after RA manipulation.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig4-data1-v2.csv

We then determined the dynamics of the notochord displacement in real time. Using DIC images, we were able to overlay the lateral trunk with the notochord. We then observed the notochord displacement in a 250′ time-lapse for DMSO-treated wild-type, aldh1a2-/- with DMSO, and exogenous RA (Figure 4D–F, respectively). We quantified this data by measuring the distance of the ventral aspect of the notochord to the yolk cells of the embryo (yellow brackets). We found that aldh1a2-/- embryos showed delayed dorsal displacement relative to DMSO in both the timing of dorsal movement and the magnitude of that movement (Figure 4G, Figure 4—source data 1).

Previous work showed that as somites mature they extend in both the dorsal and ventral axis (Tlili et al., 2019), and based on this we hypothesized that this extension was concurrent with the dorsal translocation of the notochord. However, we wanted to rule out the effect of forces on the anterior-most and posterior-most regions of the notochord. The notochord is a rigid structure that is anchored in the tailbud near the notochord primordia and extends into the head mesoderm medial to the otic vesicle (Kimmel et al., 1995). To eliminate the contribution other tissues could have on NES, we generated trunk explants from embryos containing both tg(actc1b:gfp) and tg(tbxta:kaede) transgenes that contained roughly 10 somites of the embryo. The 10-somite stage embryos were sectioned near the somite borders of the 1st and 10th somite. We performed live imaging of these trunk explants, focusing on the immature somites of the posterior region (white boxes) (Figure 4H–J, Video 5). In order to better visualize the notochord, we separated the tg(actc1b:gfp) and tg(tbxta:kaede) signals into separate channels. This distinguished the notochord reporter tg(tbxta:kaede) (Figure 4H’–J’) from the somite reporter tg(actc1b:gfp) (Figure 4H”–J”). The notochord reporter showed clear dorsal movement away from the autofluorescent yolk (Figure 4H’–J’). The somites also showed the corresponding expansion along the dorsal-ventral axis (Figure 4H”–J”). Together, this data indicates that the proper development of the midline is both RA-dependent and requires only factors localized to the trunk of the embryo.

Video 5
Time-lapse fluorescent imaging of tg(tbxta:kaedae), tg(actc1b:gfp) trunk explant.

Trunk explant shows notochord displacement away from ventral-most portion of somites. Frame rate = 1 image/15 min. Run time = 285 min.

Notochord-endoderm separation facilitates the midline convergence of angioblasts

We speculated that RA-dependent changes at the midline could be the cause of the angioblast migration defect. In order to test this, we generated a heat shock-inducible transgenic reporter of F-actin, tg(hsp70l:lifeact-mScarlet), which labels filamentous actin throughout the embryo and allows visualization of all cells (Riedl et al., 2008). We hereafter refer to tg(hsp70l:lifeact-mScarlet) as tg(HS:lifeact). We then crossed this reporter to the tg(kdrl:eGFP) line to label the angioblasts. We treated embryos with either DMSO (Figure 5A–C), exogenous RA (Figure 5D and E), or DEAB (Figure 5F–I). Embryos were sectioned at the region of the fifth somite (Figure 5A–I). Embryos that were treated with DMSO showed normal midline angioblast migration patterns from the 12-somite stage, 15-somite stage, and 18-somite stage (Figure 5A–C). As angioblasts approach the midline, a gap appears between notochord/hypochord and the underlying endoderm (Figure 5A). This gap is acellular as a 15 μm max projection shows an absence of both nuclei and F-actin labeling (Figure 5—figure supplement 1A–C). This gap is filled by angioblasts by the 15-somite stage, separating the notochord from the endoderm (Figure 5B). We call the process of dorsal translocation of the notochord the notochord-endoderm separation (NES). The transient opening that forms from NES is referred to as the ventral midline cavity (VMC). As angioblast migration continues, additional angioblasts occupy the VMC until the 18-somite stage when angioblast migration is largely complete for the fifth somite region of the trunk (Figure 5C).

Figure 5 with 1 supplement see all

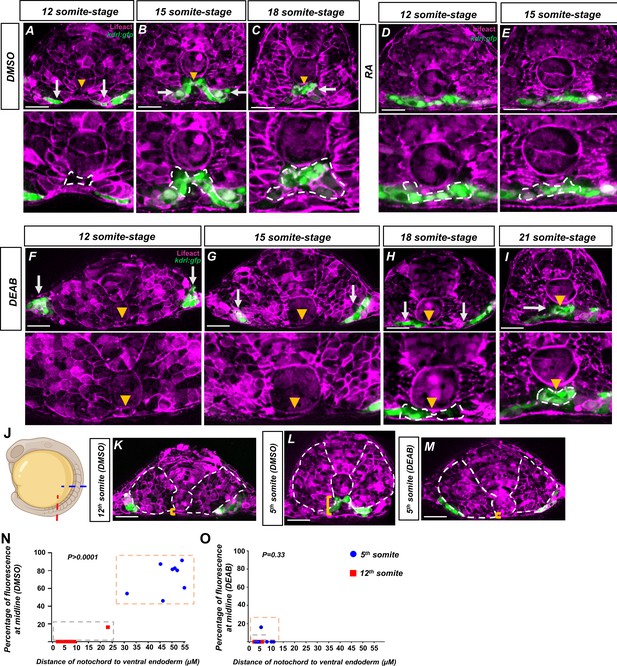

Retinoic acid (RA) mediates a notochord-endoderm separation required for terminal angioblast migration.

(A–I) Embryos generated by crossing tg(HS:lifeact) to tg(kdrl:eGFP) to label both actin and angioblasts. Yellow arrowheads indicate the midline while white arrows indicate angioblasts. A magnified image includes a white dashed line to indicate notochord-endoderm separation. (A–C) DMSO-treated embryos sectioned at the fifth somite during the (A) 12-somite stage (n = 8), (B) 15-somite stage (N = 8), and (C) 18-somite stage (N = 6). (D, E) 0.1 μM RA-treated embryos sectioned at the fifth somite during the (D) 12-somite stage (N = 8) and (E) 15-somite stage (n = 8). (F–I) 20 μM DEAB-treated embryos sectioned at the fifth somite during the (F) 12-somite stage (N = 7), (G) 15-somite stage (N = 8), (H) 18-somite stage (N = 6), and (I) 21-somite stage (N = 6). (J–L) 15-somite stage embryos generated by crossing tg(HS:lifeact) to tg(Kdrl:eGFP). White dashed lines indicate outline of somites while yellow brackets indicate distance of notochord to ventral endoderm. (J) Schematic showing the sectioned region for experiments in (K–O). Red line indicates sectioning at 5th somite, and the blue line indicates sectioning at the 12th somite. (K) A DMSO embryo sectioned at the 12th somite. Note the lack of midline angioblasts and small distance between the notochord and the ventral endoderm. (L) A DMSO-treated embryo sectioned at the fifth somite. Note the angioblasts at the midline and larger distance from the notochord to the ventral endoderm. (M) A DEAB embryo sectioned at the fifth somite. Note the lack of midline angioblasts and small distance between the notochord and the ventral endoderm. (N) A two-variable graph showing the percentage of angioblast fluorescence at the midline compared to the distance between the notochord and the ventral endoderm. Blue dots indicate DMSO-treated, 15-somite stage embryos sectioned at the 5th somite, and red squares are the same embryos sectioned at the 12th somite (N = 8). (O) A two-variable graph showing the percentage of angioblast fluorescence at the midline compared to the distance between the notochord and the ventral endoderm. Blue dots indicate DEAB-treated, 15-somite stage embryos sectioned at the 5th somite, and red squares are the same embryos sectioned at the 12th somite (N = 8). Scale bars, 50 µm.

Figure 5—source data 1

Fluorescence percentage at midline for DMSO treated embryos at 5th and 12th somite.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig5-data1-v2.csv
Figure 5—source data 2

Fluorescence percentage at midline for DEAB treated embryos at 5th and 12th somite.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig5-data2-v2.csv

To determine if activation of RA is sufficient to accelerate angioblast migration and NES concurrently, we treated embryos with exogenous RA and sectioned them at the 12-somite and 15-somite stage. Embryos sectioned at the 12-somite stage showed premature angioblast migration to the midline and NES, indicating that angioblast migration and NES are responsive to exogenous RA signal (Figure 5D). Angioblasts continue to be at the midline at the 15-somite stage (Figure 5E). The 18-somite stage embryos were not available as posterior elongation discontinued in prolonged RA exposure, as previously shown (Martin and Kimelman, 2010). To determine whether angioblast migration and NES were attenuated in RA-depletion conditions, embryos were treated with DEAB and sectioned at the 12-somite, 15-somite, 18-somite, and 21-somite stages (Figure 5F–I, respectively). At the 12-somite stage, the angioblasts are localized in the lateral plate mesoderm (Figure 5F). Focusing on the midline of the embryo, we observe that the notochord remains flush against the endoderm with no visible VMC or NES (Figure 5G). At the 15-somite stage, we observe some midline movement of the angioblasts; however, the notochord remains flush against the endoderm and no angioblasts have been able to reach the midline (Figure 5G). During the 18-somite stage, a small VMC has formed between the notochord and endoderm. The leading angioblasts have partially migrated into this VMC; however, the bulk of the angioblasts still reside outside of the midline (Figure 5H). By the 21-somite stage, the angioblasts have largely resolved to the midline, although with some angioblasts still residing outside the midline (Figure 5I).

Given the pronounced delays in NES formation for anterior regions in RA-depleted embryos, we suspected that NES was a consequence of the known processive somite maturation that begins in the anterior regions and progresses posteriorly (Stern and Piatkowska, 2015). We sectioned 15-somite stage tg(HS:lifeact), tg(kdrl:eGFP) embryos in the anterior and posterior regions corresponding to the 5th and 12th somite (Figure 5J). In more immature 12th somite, angioblasts reside in their lateral regions and NES is not pronounced (white dashed lines outline the somites, and yellow brackets show the distance from the notochord to the ventral endoderm) (Figure 5K). In the fifth somite of the same embryo, angioblasts reside at the midline and NES is very pronounced, indicating that NES occurs anterior to posteriorly (Figure 5L). The lack of angioblasts at the 12th somite, and low NES, is similar to the DEAB-treated embryos sectioned at the more mature 5th somite position (Figure 5M).

To quantify how the dorsal translocation of the notochord was correlated with angioblasts arriving to the midline, we created a two-variable graph to measure both the distance of the notochord to the ventral endoderm and the percentage of angioblasts arriving at the midline for a given somite. For this analysis, we used 15-somite stage embryos sectioned at the 5th somite and 12th somite. We expect that immature somites in the posterior would have little midline migration of angioblasts and the anterior, with more mature somites, would have significant midline migration. We measured the distance in microns on the x-axis and the percentage of midline angioblasts on the y-axis (Figure 5N and O). In DMSO-treated embryos, embryos sectioned at the fifth somite grouped together, showing both significant notochord-endoderm distance and angioblasts residing at the midline (Figure 5N, blue dots in the orange box, Figure 5—source data 1). Embryos sectioned at the 12th somite show short notochord-endoderm distance and little angioblast migration towards the midline (Figure 5N, red squares in gray box). When comparing angioblast migration, the 5th somite and 12th somite regions were significantly different (p>0.0001). The corresponding sectioning of DEAB-treated embryos shows a difference compared to wild-type in the fifth somite region. Embryos sectioned at the fifth somite have a small distance from the notochord to endoderm, as well as no angioblast migration to the midline (Figure 5O, blue dots in orange box, Figure 5—source data 2). Interestingly, the notochord-endoderm distance/migration percentage ratio strongly resembled the more immature somites. The angioblast migration percentage was not statistically significant between the 5th and 12th somite in RA-depletion conditions (p=0.33). This indicates that the midline exists in a more immature state in RA-depleted conditions, and the more mature state provides space in which the angioblasts can migrate into.

Retinoic acid induces changes in the definitive vasculature

Pharmacological inhibition of RA signaling has previously been shown to effect the zebrafish vasculature, notably causing a smaller than normal dorsal aorta (Pillay et al., 2016). To confirm this effect in the aldh1a2-/- mutant, we sectioned 24 hpf tg(kdrl:GFP) and aldh1a2-/- embryos, stained the sections with DAPI, and imaged them using spinning disk confocal microscopy (Figure 6A and B). Images show that the dorsal aorta and posterior cardinal vein in wild-type embryos are roughly equivalent in size (Figure 6A, white arrows). However, in the aldh1a2-/- embryos, the size of the dorsal aorta is reduced but remained lumenized (Figure 6B, white arrows). We confirmed this observation by in situ hybridization of the arterial marker cldn5b and the venous marker dab2, which showed similar effects (Figure 6—figure supplement 1A–D; Casie Chetty et al., 2017). To determine if this trend extended beyond the 24 hpf developmental stage, we imaged the trunk of 5 dpf tg(kdrl:GFP) embryos along with tg(kdrl:GFP), aldh1a2-/- siblings (Figure 6C and D). The tg(kdrl:GFP) embryos alone showed no vascular defects and normal dorsal aorta and posterior cardinal vein (Figure 6C, white arrow and yellow arrowhead, respectively). However, the vasculature of the aldh1a2-/- siblings shows a large reduction of the size of the dorsal aorta (Figure 6D, white arrow). In addition, it appears that the posterior cardinal vein of aldh1a2-/-increased in size compared to its sibling (Figure 6D, yellow arrowhead). To determine if the size change was the result of a reduced cell number in the DA in response to RA loss, we utilized the transgenic line tg(kdrl:nls-GFP), which labels the nucleus of endothelial cells to count the number of cells in each blood vessel over a 225 μM horizontal section of a 24 hpf zebrafish embryo. Embryos were treated with either DMSO or with DEAB to inhibit RA. We see reduced cell number in the DEAB-treated artery versus the DMSO-treated artery (Figure 6E, Figure 6—source data 1). This corresponds to an increase in the number of cells in the veins during DEAB treatment compared to DMSO. While we cannot definitively say that the migration defects caused the arterial reduction, it indicates that RA is required for the proper formation of the definitive vasculature.

Figure 6 with 1 supplement see all

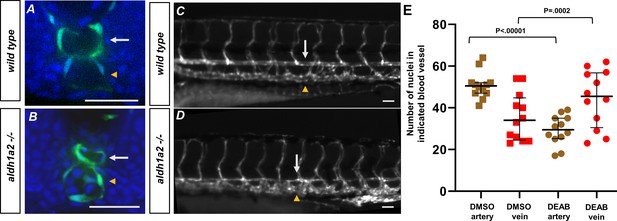

Retinoic acid loss contributes to changes in the definitive vasculature, resulting in large veins and small arteries.

(A, B) A 24 hpf tg(kdrl:eGFP) embryo labeled with DAPI. (A) Wild-type embryos show lumenized blood vessels and normal-sized dorsal aorta. (B) Labeled aldh1a2-/-, tg(kdrl:eGFP) sibling shows small lumenized dorsal aorta with large posterior cardinal vein. (C) A 5 dpf tg(kdrl:eGFP) embryo. White arrows indicate the dorsal aorta, and yellow arrowheads indicate the cardinal vein. (D) A 5 dpf tg(kdrl:eGFP), aldh1a2-/- embryo. White arrows indicate reduced size of dorsal aorta. (E) Quantification of DMSO (n = 12) or 20 μM DEAB (n = 12)-treated tg(kdrl:nls-eGFP) embryos. Nuclei were counted in each structure over a 225 μM long transverse section of the zebrafish trunk. Two-tailed p-values for the unpaired t-test of wild-type vs. 20 μM DEAB-treated embryos are <0.00001 and 0.0002 for arteries and veins, respectively. Scale bars, 50 µm.

Figure 6—source data 1

Nuclei count in dorsal aorta and cardinal vein.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig6-data1-v2.csv

Retinoic acid-induced somite morphogenesis facilitates notochord-endoderm separation and facilitates midline angioblast migration

While NES and midline formation were shown to be highly correlated, we previously showed that cell-autonomous RA depletion within the somite caused angioblast migration defects. Therefore, we sought to determine if RA depletion within the somites caused morphological changes that compromised NES and angioblast migration to the midline. During normal development, newly born somites initially lay flat and extend farther in the medial-lateral axis, demonstrated by a section of 15-somite stage embryo at the 12th somite (Figure 7A, white dashed lines; Tlili et al., 2019). However, as somites mature, they will narrow in the medial-lateral axis and extend in the dorsal-ventral axis, as demonstrated by a section of the fifth somite of a 15-somite stage embryo (Figure 7B, white dashed line; Tlili et al., 2019). We therefore sought to determine if somite maturation could be affected cell-autonomously in RA-depletion conditions. We therefore transplanted either wild-type or HS:dnRAR cells into tg(ubb:lck-mNG) embryos. Embryos were then sectioned at roughly the fifth somite region for 12-somite stage embryos (Figure 7C and D). Embryos that were transplanted with wild-type cells showed little difference with the contralateral somite in terms of shape and maturation (Figure 7C, white dashed lines). However, embryos transplanted with HS:dnRAR cells showed a defect in the somite containing donor cells, with the somite extending farther in the medial-lateral axis while the contralateral somite extends farther in the dorsal-ventral axis (Figure 7D, white dashed lines). To illustrate this effect across multiple experimental embryos, we show overlapping shapes of chimeric wild-type somites, the chimeric HS:dnRAR somites, and the contralateral somites from HS:dnRAR chimeras (Figure 7E). The overlapping images show a consistent trend of a shallow dorsal-ventral axis in the chimeric HS:dnRAR somites compared to the wild-type somites. Interestingly, when analyzing NES and angioblast migration in chimeric embryos, we can see regional openings and advanced migration of angioblasts in the contralateral somites compared to the somites containing HS:dnRAR cells (Figure 7—figure supplement 1B and D). Together, this indicates that RA is required cell-autonomously for somite maturation and dorsal-ventral extension.

Figure 7 with 2 supplements see all

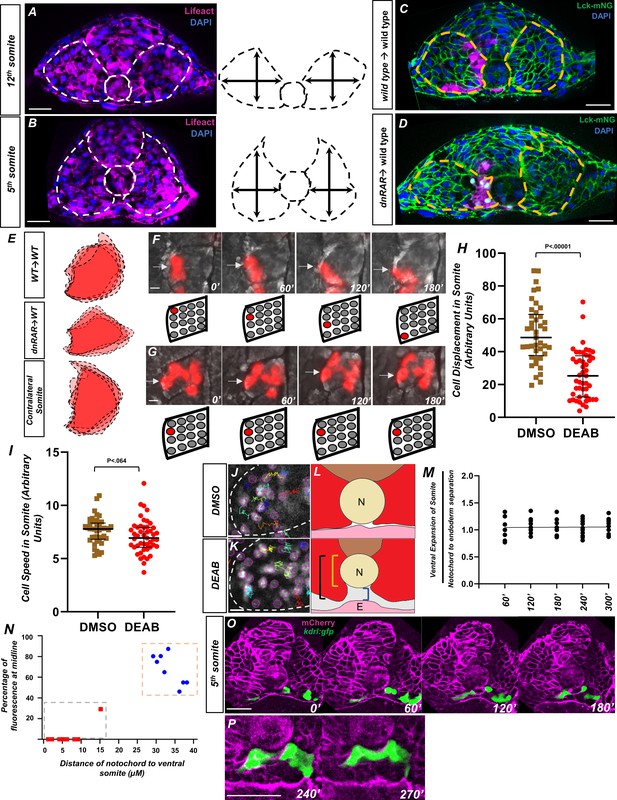

Retinoic acid controls intrasomitic cellular movements and somite shape changes that contribute to angioblast convergence to the midline.

(A) Image and schematic of newly born 12th somite using tg(HS:lifeact), tg(kdrl:eGFP) embryo as reference. Dashed lines indicate the somite and notochord. (B) Schematic of more mature fifth somite (at the 12-somite stage) of tg(HS:lifeact), tg(kdrl:eGFP) embryo as reference. Dashed lines indicate somite and notochord. (C) Transplant of rhodamine dextran-labeled wild-type cells into tg(ubb:lck-mNG). Dashed lines indicate somite shape. (D) Transplant of tg(HS:dnRAR) cells into tg(ubb:lck-mNG). Dashed lines indicate somite shape. Note the immature shape of the somite containing transplanted cells. (E) Overlapping somite shapes of either WT→WT, tg(HS:dnRAR)→WT, or the contralateral somite tg(HS:dnRAR)→WT. (F, G) Time-lapse images of transplanted rhodamine dextran-labeled cells in DMSO and DEAB embryos at 12-somite stage. (F) DMSO-treated embryos over 180′. White arrows indicate labeled cells. (G) 20 μM DEAB-treated embryos over 180′. Scale bars, 50 μm. Retinoic acid-depleted embryos show little cellular movement during somite development. (H) Quantification of nuclei displacement in the second somite of DMSO and DEAB embryos over a 4 hr time period. Displacement is defined as the distance between the beginning location and end location of the nuclei within the somite 2. (I) Quantification of speed in somite 2, defined as average units over 4 hr in 10 min increments. (J) Sample of tracks from DMSO-treated tg(hsp70l:CAAX-mCherry-2A-NLS-KikGR) embryos. (K) Sample tracks of DEAB-treated tg(hsp70l:CAAX-mCherry-2A-NLS-KikGR) embryos. Tracks sort from red to blue, with red being the highest displacement. Scale bars, 20 µm (L) Diagram of ventral somite expansion and notochord to endoderm separation. Ventral somite expansion is calculated by ventral somite length (black bracket) – the notochord diameter (yellow bracket). Notochord/endoderm separation is shown in the blue bracket. (M) Quantification of the ventral expansion of the somite over notochord/endoderm separation in wild-type embryos. The linear regression indicated by the black line, where slope = 0.002, shows ventral somite expansion correlates with notochord/endoderm separation. (N) A two-variable graph showing the percentage of angioblast fluorescence at the midline compared to the distance of ventral somite expansion beneath the notochord. Blue dots indicate DMSO-treated, 15-somite stage embryos sectioned at the 5th somite, and red squares are the same embryos sectioned at the 12th somite (N = 8). Scale bars, 50 µm. (O) Live section of mCherry-CAAX-injected tg(kdrl:eGFP) embryos over 120′. Yellow arrowheads indicate the midline while white arrows indicate angioblasts. (P) Same live section as in (N), except at 240′ focused at the midline. Note the separation of the hypochord and endoderm prior to midline fusion of angioblasts. Scale bars, 50 µm.

Figure 7—source data 1

Displacement of nuclei within the somite.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig7-data1-v2.csv
Figure 7—source data 2

Speed of nuclei within the somite.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig7-data2-v2.csv
Figure 7—source data 3

The ratio of ventral expansion of the somite over NES.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig7-data3-v2.csv
Figure 7—source data 4

The percentage of midline fluorescence in relation to ventral somite expansion.The percentage of midline fluorescence in relation to ventral somite expansion.The percentage of midline fluorescence in relation to ventral somite expansion.

https://cdn.elifesciences.org/articles/74821/elife-74821-fig7-data4-v2.csv

We speculate that the failure of somites to mature was the result of reduced cell movements within the somite. To confirm this, mosaically labeled cells were generated by transplanting rhodamine dextran-labeled cells from a wild-type donor into a wild-type host. The embryos were treated with either DMSO or DEAB and time-lapse imaged over the course of 4 hr (Figure 7F and G, respectively). Cells in the DMSO-treated embryos showed broad movements consistent with that of somite rotation, where cells located in the anterior of the somite will translocate to the posterior of the somite (Hollway et al., 2007; Figure 7F, white arrows). However, cells in the DEAB-treated embryos show little intratissue displacement and cells largely remained static (Figure 7G, white arrows). To quantify this, we utilized tg(hsp70l:CAAX-mCherry-2A-NLS-KikGR) embryos to observe cell movement across the entirety of the somite. Embryos were heat shocked during shield stage and subsequently treated with either DMSO or DEAB and their somites were time-lapse imaged for 4 hr. Using Fiji Trackmate software (Tinevez et al., 2017), we quantified the displacement and speed of cell movements within the second somite (Figure 7H and I, Figure 7—source data 1 and Figure 7—source data 2). Cells in the DMSO-treated embryos showed significant amounts of displacement throughout the somite ( Figure 7H, Figure 7—source data 1). However, the DEAB cells showed less displacement over time (Figure 7H). Quantification of speed in the same manner showed no statistically significant difference between DMSO and DEAB treatment (Figure 7I, Figure 7—source data 2). A sample of somite cell tracks shows little directional movement in loss of RA conditions compared to DMSO, indicating that cells are not moving in a manner consistent with reshaping of the somite, as well as suggesting a role for RA signaling in somite rotation (Figure 7J and K, Videos 6 and 7, respectively). The Cxcr4a/Cxcl12a signaling axis has been shown to be responsible for controlling cell movements in the somite. In situ hybridization for cxcr4a shows a loss of expression in RA-depletion conditions and gain of expression in RA-addition conditions (Hollway et al., 2007; Figure 7—figure supplement 2D and E).

Video 6
Time-lapse confocal fluorescent imaging of an HS:mCherry-CAAX-p2a-NLS-kikume embryo in DMSO treatment.

HS:mCherry-CAAX-p2a-NLS-kikume marks nuclei within the somite. Sample tracks ranging from red (most displacement) to blue (least displacement) show broad movement within the somite. Frame rate = 1 image/5 min. Run time = 240 min.

Video 7
Time-lapse confocal fluorescent imaging of an HS:mCherry-CAAX-p2a-NLS-kikume embryo in DEAB treatment.

HS:mCherry-CAAX-p2a-NLS-kikume marks nuclei within the somite. Sample tracks ranging from red (most displacement) to blue (least displacement) show little directional movement in 20 μM DEAB treatment conditions. Frame rate = 1 image/5 min. Run time = 240 min.

We speculated that the ventral expansion of the somite that occurs during somite cell rearrangement and maturation was responsible for NES. At the 10-somite stage, embryos have their notochord adjacent to the endoderm and level to ventral-most edge of the somite (Figure 7L). As the embryo develops, the somite expands ventrally (black bracket). As the ventral distance of the somite extends relative to the dorsal part of the notochord (yellow bracket), it induces space that the angioblasts occupy (blue brackets). Starting from the 10-somite stage, we measured the distance of ventral expansion relative to the distance between the notochord and the endoderm every hour for 4 hr. A simple linear regression of the data, indicated by the black line, shows a slope of 0.002 and y-intercept of 1.04 (Figure 7M, Figure 7—source data 3). The flat slope indicates little variance across time, and the y-intercept near 1 indicates that NES is equivalent to ventral expansion of the somite. The 1:1 correlation of ventral somite expansion and notochord displacement, as well as the tbx16 loss-of-function NES defect, provides strong evidence that somite morphogenesis is critical for NES.

To further verify the relationship between somite ventral expansion and angioblast migration, we also created a two-variable graph to measure both the relative distance of the notochord to the ventral somite along the dorsal-ventral axis and the percentage of angioblasts arriving at the midline for a given somite. For this analysis, we used 15-somite stage embryos sectioned at the 5th somite and 12th somite (Figure 7N, Figure 7—source data 4). Embryos sectioned at the 12th somite show little notochord-ventral somite distance and little angioblast migration toward the midline (Figure 7N, red squares in gray box). Embryos sectioned at the fifth somite have greater distance from the notochord to ventral somite along the dorsal-ventral axis, as well as significant angioblast migration to the midline (Figure 7N, blue dots in orange box, Figure 7—source data 4). This corresponds to migration with data seen previously for NES distance, indicating that these processes are tightly correlated.

Finally, we investigated a methodology to track all cellular movements within an embryo to co-visualize somite morphogenesis along with angioblast migration and NES. We used a live explant method to monitor migration in a transverse section view. Live tg(kdrl:GFP) embryos, injected with mCherry-CAAX mRNA, were sectioned at the 10-somite stage at the fourth somite and mounted to observe a transverse section of the trunk. We were able to observe migrating angioblasts, as well as somite morphogenesis and midline NES in the explant (Figure 7O and P, Video 8). At the 180′ timepoint, angioblasts were not at the midline and the hypochord remained flush with the endoderm (Figure 7O, Video 8). At this timepoint, the somites have begun to narrow in the medial-lateral axis. By the 240′ stage, the hypochord is separated away from the endoderm (Figure 7P), and shortly after this, the angioblasts are able to complete their migration to the midline by the 270′ timepoint (Figure 7P). Similar to the results seen in fixed sections, live explants of embryos treated with DEAB show angioblast migration defects and lack of NES (Video 9).

Video 8
Time-lapse fluorescent video of mCherry-CAAX mRNA-injected tg(kdrl:eGFP) explant at the 10-somite stage.

tg(kdrl:eGFP) marks angioblasts as they migrate to the midline, and mCherry-CAAX marks the cell surfaces. A trunk explant, imaged around the fifth somite, shows normal migration of the angioblasts to the midline. Frame rate = 1 image/5 min. Run time = 280 min.

Video 9
Time-lapse fluorescent video of mCherry-CAAX mRNA-injected tg(kdrl:eGFP) explant at the 10-somite stage, treated with 20 μM DEAB.

tg(kdrl:eGFP) marks angioblasts as they migrate to the midline. The trunk explant shows angioblast migration defects seen in fixed DEAB sections. Frame rate = 1 image/5 min. Run time = 175 min.

Discussion

Here, we established a cell-nonautonomous angioblast migration model wherein shape changes in the somitic mesoderm create a physical space for angioblasts to migrate into and develop into the axial vasculature. The emergence of the transient VMC is a necessary requirement for contralateral angioblasts to complete their migration and coalesce at the midline. We observed a defect in somitic mesoderm development in RA-depletion conditions, which delayed somite maturation, intrasomite cellular movement, and significantly impeded NES. Conversely, we found that addition of RA accelerated somite maturation and NES, along with angioblast migration. We were able to confirm that the somitic mesoderm was required for angioblast migration by examining tbx16 mutants, which have a lack of somites caused by EMT defects (Goto et al., 2017; Ho and Kane, 1990; Manning and Kimelman, 2015; Row et al., 2011). Loss of function of tbx16 prevented angioblast migration completely and resulted in bifurcated blood vessel formation. These changes in vascular morphology indicate that the somitic mesoderm is a requirement for angioblast migration to the midline. It is notable that in amniotes, such as the mouse and quail, the dorsal aorta and cardinal vein are initially bifurcated in a similar manner to zebrafish tbx16 mutants prior to fusion at the midline (Drake and Fleming, 2000; Pardanaud et al., 1996; Pardanaud et al., 1987). It is possible that evolutionary differences in the somitic mesoderm between teleosts and amniotes could play a role in the differences in vascular development.

Very little is known about the process of NES. Our observations indicate that its initiation correlates very closely with angioblast migration, with angioblasts migrating into the VMC seemingly as soon as it appears in both wild-type and RA-depletion conditions. Given that these blood vessels become lumenized and need to achieve a sufficient volume for blood transport, it is plausible that they require morphological changes within the ventral part of the embryo to accommodate for their size. Delays in somite maturation prevent angioblasts from reaching the midline in a normal developmental time frame. It is possible that the consequences of this migration defect result in the malformed blood vessel structure in RA-depleted embryos, which have small arteries and larger veins. Prior work showed that the most lateral angioblasts, which migrate later than more medial angioblasts, preferentially adopt a venous fate over an arterial one (Kohli et al., 2013). This implies that somite maturation is a key factor in determining the proper distribution of endothelial progenitors to the arteries and veins by essentially timing angioblast migration and altering cell fate decision patterns. However, we cannot definitively determine if this is solely from angioblast migration defects.

We found that the formation of the VMC does not necessarily require the notochord tissue itself. In noto morphants, which causes the notochord to adopt a somitic fate, there is still a ventral cavity and angioblasts are able to arrive at the midline. This implies that the notochord is ultimately dispensable for the completion of angioblast migration, even though its loss can produce migration defects (Helker et al., 2015; Sumoy et al., 1997). The migratory defects could be the result of reduced notochord-secreted factors such as apela, which greatly reduce but do not completely abolish migration (Helker et al., 2015). Another factor could be that signals from the notochord, such as Hedgehog, influence somite development, which in turn facilitates angioblast migration (Blagden et al., 1997; Hinits et al., 2009; Yin et al., 2018). While the fate of the midline tissue does not need to be notochord for NES to occur, it is likely that mechanical coupling between the somites and midline tissue is required such that somite morphogenesis drives the separation of the midline mesoderm away from the underlying endoderm. In noto loss of function, the somitic tissue that forms at the midline in place of notochord is continuous with the flanking somites. In wild-type embryos, there is evidence of mechanical interactions of the somite and notochord during convergent extension, which are required for the remodeling of the adaxial cells, the medial most cells in the somite (Yin and Solnica-Krezel, 2007).

The phenotypes observed in both the somites and endothelium after loss of RA signaling are not the result of a simple deficit of mesoderm. RA signaling loss of function affects somite maturation and morphogenesis, but does not prevent them from forming, and yet the migration of the angioblasts is still disrupted. The direct transcriptional targets of RA signaling that induce somite maturation are unknown, but it is clear that RA signaling controls the timing and progress of somite shape changes as they mature. Cell-autonomous effects of RA depletion on the somites, coupled with angioblast migration defects in RA-depleted somites, indicate that RA directly controls somite shape changes that facilitate migration. The fact that somites can adopt mature shapes in explants, even in the absence of adjacent somites, indicates this control is local to individual somites. It is also noteworthy that loss of RA signaling activity in a relatively few number of adaxially localized cells in our chimeric somites was sufficient to cause somite shape and angioblast migration defects. This implies that the somite cells most medial to the midline could be the population required for the ventral expansion of the somite and NES. It is not clear if NES is required for the initiation of angioblast migration as some midline-directed cellular movement occurs in DEAB-treated embryos before NES is visibly seen. It is possible that the somite itself could facilitate the angioblasts’ movement to the midline or simply provide an opening through which angioblasts can reach the midline. The fact that angioblasts reside adjacent to the notochord in tbx16 mutants, but do not migrate beneath them, implies that angioblasts are not sufficient to drive NES or their coalescence at the midline. It is likely that ventral expansions of the somite drive the notochord away from the endoderm. Together, this indicates that somitic maturation requires tight spatial and temporal control to facilitate the concomitant development of the endothelium.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-Etv2 (rabbit polyclonal)KerafastCat# ES1004; RRID:AB_2904554IH (1:500)
AntibodyAnti-GFP (mouse monoclonal)Thermo FisherCat# A11120; RRID:AB_221568IH (1:500)
AntibodySecondary antibody, Alexa Fluor 488 (goat polyclonal)Thermo FisherCat# A11008; RRID:AB_143165IH (1:1000)
AntibodySecondary antibody, Alexa Fluor 568 (goat polyclonal)Thermo FisherCat# A11004; RRID:AB_2534072IH (1:1000)
AntibodyAnti-Digoxigenin-AP, Fab fragments (sheep polyclonal)RocheCat# 11093274910; RRID: AB_514497ISH (1:5000)
Chemical compound, drug4-Nitro blue tetrazolium chloride, solutionRocheCat# 11383213001
Chemical compound, drug5-Bromo-4-chloro-3-indolyl phosphate p-toluidineRocheCat# 11383221001
Chemical compound, drugDIG RNA Labeling MixRocheCat# 11277073910
Peptide, recombinant proteinSP6 RNA polymeraseNEBCat# M0207S
Peptide, recombinant proteinT7 RNA polymeraseNEBCat# M0251S
Chemical compound, drugTricaine-S (MS-222)PentairCat# TRS1
Chemical compound, drugDAPISigmaCat# D9542
Chemical compound, drug4-Diethylamino benzaldehyde (DEAB)SigmaCat# D86256
Chemical compound, drugBMS453Cayman ChemicalCAS# 166977-43-1
Chemical compound, drugAll-trans retinoic acidSigmaCat# R2625
OtherTetramethylrhodamine dextran, 10,000 MW, lysine fixableInvitrogenCat# D1817
OtherAlexa Fluor 647 Dextran, 10,000 MW, Anionic, FixableInvitrogenCat# D22914
OtherModified Barth’s Saline (1×), liquid, without Ficoll 400SigmaCat# 32160801
Strain, strain background (Danio rerio)Wild-type Tupfel long-fin/ABN/AN/AWild-type progeny of Tupfel long-fin and AB
Strain, strain background (D. rerio)aldh1a2i26Begemann et al., 2001ZFIN ID: ZDB-FISH-150901-19358; RRID:ZFIN_ZDB-ALT-000412-8
Strain, strain background (D. rerio)aldh1a2i26, tg(kdrl:eGFP) s843Begemann et al., 2001; Jin et al., 2005RRID:ZFIN_ZDB-ALT-000412-8; RRID: ZFIN_ZDB-GENO-170216-13
Strain, strain background (D. rerio)tg(hsp70l:id3-2A-NLS-KikGR) sbu105Row et al., 2018ZFIN ID: ZDB-ALT-190306-81; RRID:ZFIN_ZDB-ALT-190306-81
Strain, strain background (D. rerio)tg(hsp70l:eGFP-dnHsa.RARA) ci1008Brilli Skvarca et al., 2019ZFIN ID: ZDB-TGCONSTRCT-190925-6; RRID:ZFIN_ZDB-ALT-190925-15
Strain, strain background (D. rerio)tg(kdrl:NLS-eGFP)ubs1Blum et al., 2008ZFIN ID: ZDB-TGCONSTRCT-081105-1; RRID:ZFIN_ZDB-GENO-081105-1
Strain, strain background (D. rerio)tg(kdrl:eGFP) s843Jin et al., 2005RRID:ZFIN_ZDB-GENO-170216-13
Strain, strain background (D. rerio)tg(hsp70l:CAAX-mCherry-2A-NLS-KikGR) sbu104Goto et al., 2017ZFIN ID: ZDB-ALT-170829-4;RRID:ZFIN_ ZDB-ALT-170829-4
Strain, strain background (D. rerio)tg(β-actin:GDBD-RLBD) ci1001, Tg(5XUAS:eGFP)nkwasgfp1aMandal et al., 2013ZFIN ID: ZDB-FISH-150901-11429; RRID:ZFIN_ZDB-GENO-131107-12
Strain, strain background (D. rerio)tbx16b104, tg(kdrl:eGFP) s843Kimmel et al., 1989; Jin et al., 2005RRID:ZFIN_ZDB-ALT-980224-16; RRID: ZFIN_ZDB-GENO-170216-13
Strain, strain background (D. rerio)tg(actc1b:gfp) zf13tgichi et al., 1997ZFIN ID: ZDBTGCONSTRCT-070117-83; RRID:ZFIN_ZDB-GENO-070830-2
Strain, strain background (D. rerio)tg(tbxta:kaedae) sbu102Row et al., 2016ZFIN ID: ZDB-TGCONSTRCT-160321-5; RRID:ZFIN_ZDB-TGCONSTRCT-160321-5
Strain, strain background (D. rerio)tg(hsp70l:lifeact-mScarlet) sbu110This paperN/ATransgenic zebrafish line with heat shock-inducible Lifeact
Sequence-based reagentMorpholino: MO-NotoOuyang et al., 2009ZFIN ID: ZDB-MRPHLNO-100514-1GGGAATCTGCATGGCGTCTGTTTAG
Sequence-based reagentMorpholino: MO1-tbx16Row et al., 2011ZFIN ID: ZDB-MRPHLNO-051107-1AGCCTGCATTATTTAGCCTTCTCTA
Sequence-based reagentMorpholino: MO2-tbx16:Row et al., 2011ZFIN ID: ZDB-MRPHLNO-051107-2GATGTCCTCTAAAAGAAAATGTCAG
Sequence-based reagentRiboprobe: etv2Sumanas et al., 2005N/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: cldn5bThis paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: cxcr4aThis paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: cxcl12aThis paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: dab2This paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: apelaThis paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: aplnraThis paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentRiboprobe: aplnrbThis paperN/AAnti-sense riboprobe synthesized using DIG-labeled nucleotides
Sequence-based reagentPrimer: cldn5b forwardThis paperN/AGCAGGCTTGTTTGTTCTGATTC
Sequence-based reagentPrimer: cldn5b reverseThis paperN/ACACAAACAAGTGGGTCGCTG
Sequence-based reagentPrimer: apela forwardThis paperN/ACCATCCCTCAGAGGACAGAG
Sequence-based reagentPrimer: apela reverseThis paperN/ACATGTTTGGCAGCAGTAGGA
Sequence-based reagentPrimer: aplnra forwardThis paperN/AATGGAGCCAACGCCGGAAT
Sequence-based reagentPrimer: aplnra reverseThis paperN/ATCACACTTTGGTGGCCAGC
Sequence-based reagentPrimer: aplnrb forwardThis paperN/AATGAATGCCATGGACAACAT
Sequence-based reagentPrimer: aplnrb reverseThis paperN/ATCACACCTTCGTAGCCAGC
Sequence-based reagentPrimer: cxcr4a forwardThis paperN/ACTGAAGGAGCTGGAGAAGTC
Sequence-based reagentPrimer: cxcr4a reverseThis paperN/AGCATGTTCATAGTCCAAGGTG
Sequence-based reagentPrimer: cxcr12a forwardThis paperN/AGCGGATCTCTTCTTCACACTGC
Sequence-based reagentPrimer: cxcr12a reverseThis paperN/ATTACACACGCTCTGATCGGTC
Sequence-based reagentPrimer: dab2 forwardThis paperN/ACTCCTTCATTGCTCGTGATGTC
Sequence-based reagentPrimer: dab2 reverseThis paperN/AGCCCTGGTTCAGGTTTCTGG
Sequence-based reagentPrimer: lifeact-mScarlet forwardThis paperN/ACAAGCTACTTGTTCTTTTTGCAGGA
TCCATGGGCGTGGCCGACTTG
Sequence-based reagentPrimer: lifeact-mScarlet reverseThis paperN/ATTCGTGGCTCCAGAGAATCGATTC
ACTTGTACAGCTCGTCCATGC
Recombinant DNA reagentPlasmid: PCRII-cldn5bThis paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: PCRII-apelaThis paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: PCRII-aplnraThis paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: PCRII-aplnrbThis paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: PCRII-cxcr4aThis paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: PCRII-cxcr12aThis paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: PCRII-dab2This paperN/ARecombinant vector used for riboprobe synthesis
Recombinant DNA reagentPlasmid: hsp70l:lifeact-mscarletThis paperpNJP002Plasmid used to generate tg(hsp70l:lifeact-mscarlet)
Software, algorithmImageJ/FijiNIH-public domainhttps://imagej.nih.gov/ij/download.html; RRID:SCR_003070
Software, algorithmImarisBitplanehttps://www.bitplane.comhttps://www.bitplane.com; RRID:SCR_007370
Software, algorithmExcelMicrosofthttps://www.microsoft.com/en-us/microsoft-365/excel; RRID:SCR_016137
Software, algorithmGraphPad Prism 8.4.2GraphPadhttp://www.graphpad.com/; RRID:SCR_002798

Resource availability

Lead contact

Request a detailed protocol

Further information and requests for resources and reagents should be directed to and will be fulfilled by the llead contact, Benjamin L. Martin (benjamin.martin@stonybrook.edu).

Materials availability

Request a detailed protocol

The fish line generated in this study is available upon request until availability is made at the Zebrafish International Resource Center.

Generation of the tg(hsp70l:lifeact-mScarlet) transgenic line

Request a detailed protocol

This transgenic line was generated using the plasmid pNJP002 (hsp70l:lifeact-mScarlet) and tol2 transgenesis (Kawakami, 2004; Kikuta and Kawakami, 2009). pNJP002 was generated using PCR amplification paired with Gibson Assembly cloning. A restriction digest was performed on a tol2-hsp70 plasmid (Row et al., 2016) using the restriction enzymes BamHI-HF and ClaI (NEB bio labs). PCR amplification of plasmid hCCR4 (lifeact-mScarlet) was performed using forward primer CAAGCTACTTGTTCTTTTTGCAGGATCCATGGGCGTGGCCGACTTG and reverse primer TTCGTGGCTCCAGAGAATCGATTCACTTGTACAGCTCGTCCATGC. Gibson Assembly (NEBbuilder HiFi DNA Assembly, NEB bio labs) was performed on restriction-digested hCCR2 and PCR-amplified lifeact-mScarlet to generate plasmid pNJP002. The tg(hsp70l:lifeact-mScarlet) sbu110 line was generated by injecting 25 pg of pNJP002 with 25 pg of tol2 mRNA using methods described previously (Row et al., 2016).

In situ hybridization and immunohistochemistry

Request a detailed protocol

Whole-mount in situ hybridization was performed as previously described (Griffin et al., 1995). An antisense RNA probe was synthesized as previously described for etv2 (Sumanas et al., 2005). The cldn5b, cxcr4a, apela, aplnra, aplnrb, cxcl12a, and dab2 DIG probes were generated by taq polymerase-generated PCR fragments integrated into a pCRII vector using the Topo-TA Cloning kit (Thermo Fisher). Immunohistochemistry was performed by fixing embryos overnight in 4% paraformaldehyde (Sigma) dissolved in phosphate-buffered saline (PBS) containing 0.1% Tween-20 (PBST) at 4°C. Permeabilization was performed by the placing the embryos in PBS containing 2% Triton X-100 (Sigma) for 1 hr with agitation. Embryos were washed 3× with PBST and blocked in a blocking solution (PBST, 10% goat serum, 1% BSA) for 2 hr at room temperature. Primary antibodies, Etv2 Rabbit Polyclonal and GFP mouse monoclonal, were diluted to 1:500 in blocking solution and incubated overnight at 4°C. Embryos were washed 5× with PBST for 20 min each wash. Embryos were then incubated in blocking solution for 2 hr, and then incubated in the secondary antibodies Alexa Fluor 488 and Alexa Fluor 568 diluted 1:1000 in blocking solution at 4°C overnight. DAPI stains were done in a 10 µg/mL dilution in PBST for at least 1 hr with agitation.

Histological analysis

Request a detailed protocol

Sections were fixed overnight in 4% paraformaldehyde (Sigma) dissolved in PBS containing at 4°C. Nuclei labeling was done for whole embryos in a 10 µg/mL dilution of DAPI in PBST for at least 1 hr with agitation. Sections, after fixation and DAPI staining, were done in PBST with a 0.15 mm microknife (Fine Science Tools) at the indicated somite location for embryos up to 24 hpf. At 24 hpf or older, embryos were sectioned at approximately the seventh somite. Sections were mounted in 1% agarose in PBS in a 35-mm glass-bottom dish with uncoated #1.5 coverslip and 20 mm glass diameter (MatTek).

Microinjections

Request a detailed protocol

A mix of two tbx16 morpholinos (MO1: AGCCTGCATTATTTAGCCTTCTCTA [1.5 ng] and MO2: GATGTCCTCTAAAAGAAAATGTCAG [0.75 ng]) were prepared as previously reported and injected into tg(kdrl:GFP) embryos (Row et al., 2016). 2.5 ng of control morpholino and noto morpholino were injected into tg(kdrl:GFP) embryos (Ouyang et al., 2009). 200 ng of mCherry-CAAX mRNA was injected into tg(kdrl:GFP) embryos. A 0.2% dilution of Alexa Fluor 647 Dextran (Invitrogen), or a 2% dilution rhodamine dextran (Invitrogen), was used for indicated injections.

Microscopy and imaging

Request a detailed protocol

DIC and fluorescent time-lapse images of wild-type, noto morphants, aldh1a2 mutants, tbx16 mutants, and drug-treated embryos were performed using a Leica DMI6000B inverted microscope. Wild-type and control embryos were siblings of the morphants and mutants. Live embryos were mounted in 1% low-melt agarose in embryo media containing 1× tricaine (25× stock 0.4 g/L; Pentair,TRS1) in a 35-mm glass-bottom dish with uncoated #1.5 coverslip and 20 mm glass diameter (MatTek). In situ hybridization experiments were imaged using a M165FC microscope (Leica) equipped with an Infinity 3 camera (Lumenera). Embryos were mounted in either horizontal or flat-mounted configuration in 70% glycerol on glass slides.

Fluorescent images of control, tbx16, and noto morphant (Figure 3) cross sections were imaged on a custom-assembled spinning disk confocal microscope consisting of an automated Zeiss frame, a Yokogawa CSU-10 spinning disk, a Ludl stage controlled by a Ludl MAC6000, and an ASI filter turret mated to a Photometrics Prime 95B camera. All other cross sections, including explants, were performed on a custom-assembled spinning disk confocal microscope consisting of a Zeiss Imager A.2 frame, a Borealis-modified Yokogawa CSU-10 spinning disk, ASI 150 µM piezo stage controlled by an MS2000, and ASI filter wheel, and a Hamamatsu ImageEM x2 EMCCD camera (Hamamatsu C9100-23B). These microscopes were controlled with Metamorph microscope control software (V7.10.2.240, Molecular Devices), and laser power levels were set in Vortran’s Stradus VersaLase 8 software. Images were processed in Fiji.

Drug treatments

Request a detailed protocol

RA was depleted in embryos using DEAB and BMS453. Stock concentrations of 20 mM DEAB in DMSO were diluted to working concentrations of 20 µM in embryo media. Stock concentrations of 2 mM BMS453 in DMSO were diluted to working concentrations of 2 µM in embryo media. Treatments were done on shield stage embryos unless otherwise noted. All-trans RA was used to activate the RA pathway. Stock concentrations of all-trans RA were diluted from 1 mM stock to 0.1 µM working concentrations in embryo media. All treatments for all-trans RA were performed in tailbud stage.

Generation of explants for imaging

Request a detailed protocol

Transgenic or mutant embryos were grown to the 10-somite stage and then transferred to Modified Barth’s Saline (MBS) (Sigma). In this medium, embryos were anesthetized with 1× Tricaine (25× stock 0.4 g/L; Pentair, TRS1) and had their chorions manually removed by forceps. The embryos were then sectioned with a 0.15 mm microknife (Fine Science Tools). Excess yolk was removed with the microknife, leaving some yolk to prevent injury to the endoderm, and the embryo was then transferred to 35-mm glass-bottom dish (MatTek) with a fire polished pipette. 1.3% low gelling temperature agarose in MBS was heated to 40°C and placed over the embryo in the proper orientation. The agarose was allowed to solidify, and the explant was time-lapsed using fluorescent and DIC microscopy.

Quantification and statistical analysis

Request a detailed protocol

When determining the fluorescence of angioblasts at the midline of the embryo, we utilized the integrated density feature of Fiji software for image analysis. We calculated the corrected total fluorescence of the area at the midline and of the whole embryo using the notochord as a reference for the midline. Corrected total fluorescence for the midline was calculated as (mean gray value of midline × area of midline) – (mean gray value of background × area of midline). Corrected total fluorescence for the embryo was calculated as (mean gray value of embryo × area of embryo) – (mean gray value of background × area of embryo). Percentages for fluorescent intensity were calculated as (corrected total fluorescence at the midline)/(corrected total fluorescence of the whole embryo). Tracks for cells were made using the Trackmate plug-in for Fiji (Tinevez et al., 2017). We utilized a Laplacian of Gaussian detector and a Simple LAP Tracker to generate the tracks and analysis. p-Values for indicated figures were generated using two-tailed unpaired Student’s t-tests. Graphs were generated using GraphPad Prism 8.4.2 for dot plots, and Excel for line graphs. The black lines indicate the median and interquartile ranges, and were generated using the Prism software. Simple linear regression was also determined using GraphPad software.

Data availability

Data generated or analysed during this study are included in the manuscript and supporting files.

References

Decision letter

  1. Shane P Herbert
    Reviewing Editor; University of Manchester, United Kingdom
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Somite morphogenesis is required for axial blood vessel formation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.

Comments to the Authors:

We are sorry to say that, after consultation with the reviewers, we have decided that your work will not be considered further for publication by eLife.

The common feeling of the three reviewers is that the manuscript is potentially interesting, suggesting a previously unappreciated role of somite tissue remodeling in axial blood vessel formation. However, the present version is too preliminary and does not identify the mechanisms by which retinoic acid may drive somite remodeling, cavity opening and angioblast migration. Moreover, the assumption that manipulation of somite morphogenesis specifically impacts axial vessel formation by opening a ventral midline cavity, rather than previously detailed roles for the somite in axial vessel formation, is not adequately supported by the data. The reviewers believe that extensive additional work would be required to meet these criticisms, which is beyond what is possible to complete in a standard manuscript revision period.

We hope you find the full reviews attached below helpful.

Reviewer #1:

The work of Paulissen et al. presents a new model for early development of the vertebrate vasculature. Using live imaging microscopy in the zebrafish model, Paulissen and colleagues propose that formation of the first axial blood vessels in zebrafish embryos is dependent upon retinoic acid (RA)-mediated remodeling of surrounding somite tissue, which creates a "ventral midline cavity" that facilitates recruitment of angioblasts to the midline. Whereas others have demonstrated that notochord-derived cues (such as Apela) direct angioblasts to the midline, Paulissen et al. provide evidence that the notochord is overall dispensable for axial vessel formation. Alternatively, they propose that migration of angioblasts to the midline is dependent upon RA-driven somite remodeling, which triggers separation of the notochord and endoderm to create the midline cavity that facilitates angioblast recruitment. In support of this concept, Paulissen et al. use genetic and chemical manipulations of RA signaling to demonstrate that (a) angioblast migration to the midline is dependent on RA, (b) RA regulates somite shape and formation of a ventral midline cavity, and (c) angioblasts populate this cavity as they coalesce at the midline. However, the precise mechanisms by which RA drives somite remodeling remain unclear. More importantly, the work lacks experimental evidence confirming that RA-mediated midline cavity formation is itself is a driver for recruitment of angioblasts. Hence, whilst this study proposes an exciting new model for axial vessel formation, conclusions that RA-mediated somite remodeling drives this process need further clarification. In particular:

1) How does RA drive expansion of a ventral midline cavity?

A number of key questions remain regarding the role of RA in somite remodeling and cavity formation. For example, which RA-responsive tissue drives ventral midline cavity expansion? Indeed, only the notochord, adaxial cells and epidermis appear RA-responsive at these stages (Figure 3) – but not the somite cells that exhibit movement defects in the absence of RA in Figure 7. In Figure 4, transplantation of dnRAR-expressing cells indicates that angioblasts do not require RA signaling for midline migration. Similar experiments defining the role of notochord and/or adaxial or somite tissue in cavity formation would at least shed light on the cell-cell interactions driving cavity formation. For example, can transplanted WT notochord, adaxial or somite tissue recover local angioblast migration in RA signaling deficient mutants. Moreover, such experiment would also be critical to defining the tissue to target in experiments described below.

2) Is formation of a ventral midline cavity required for angioblast migration?

Paulissen et al. provide evidence that formation of a cavity at the midline is dependent on RA signaling, but it still remains unclear if the defects in angioblast migration observed in the absence of RA signaling are directly due to failure of midline cavity formation or are a consequence of disruption to other RA-dependent processes. For example, mosaic experiments using a mix of transplanted WT cells of the relevant cell type (which has yet to be defined – please see point 1 above) in RA-deficient mutant embryos to induce local recovery of cavity formation (or vice versa to disrupt local cavity formation), would determine if angioblasts can only populate regions at the midline where the ventral cavity forms. Without such direct testing of this core hypothesis, evidence that midline cavity formation directly impacts angioblast migration remains only correlative, and strong statements in the text, such as "The emergence of the VMC is a necessary requirement for endothelial progenitors to both migrate into and develop into functioning blood vessels", lack sufficient experimental support.

In addition to experiments suggested above, several other experimental improvements would significantly strengthen the manuscript:

1) Overall, the live imaging data would greatly benefit from higher spatial resolution and robust quantification. For example, live imaging data of notochord-endoderm separation presented in Figure 4 are of poor resolution and are difficult to interpret. These analyses would benefit from post-acquisition conversion to transverse movie sections to directly observe cavity formation and enable direct quantification of cavity size. Likewise, live-imaging of angioblast migration would be strengthened by better spatial resolution and consistent quantification (for example, quantification is absent in Figure 3, 5 and 6), as well as analysis over longer time periods to determine to what extent loss of RA signaling truly blocks angioblast migration, or if this is a slight temporal delay. Importantly, comments in the text such as "Angioblasts in these embryos show no clear anterior to posterior migration patterns and are often disorganized in their directionality" need to be strengthened by appropriate quantification.

2) The author's core hypothesis is that somite morphogenesis creates a midline cavity that is required for recruitment of angioblasts to the midline. Yet, this the study lacks live imaging evidence that this cavity opens prior to angioblast midline coalescence. Experiments in Figure 5 that monitor angioblast migration in tissue slices do not show the midline cavity. As such, further live imaging studies using a membrane label to pinpoint the forming cavity (such as the author's HS:mcherry-caax line) should be performed to provide convincing evidence that cavity formation occurs prior angioblast arrival.

3) Likewise, it would be important to test if angioblasts can still reach the midline in the absence of a midline cavity. For example, angioblast migration defects in aldh1a2 mutants clearly recover later in development, as axial vessels still form (Figure 2). It would be important to determine if the midline cavity needs to be open for this recovery, or if angioblasts can still reach the midline in its absence – which may question the overall importance of cavity formation.

4) As angioblast phenotypes observed upon disruption of RA signaling are near-identical to those described Apela mutants (Helker et al., eLife, 2015), it is important to determine that notochord expression of Apela is unaffected by disruption of RA signaling – i.e., that angioblast migration defects are not simply due to loss of notochord Apela expression. This is especially important considering that the notochord is the most RA-responsive tissue at the timepoints investigated (Figure 3).

5) Caution should be exercised when interpreting results in tbx16 mutants that lack somite tissue, as this will perturb expression of many somite-derived cues that impact angioblast behavior. As such, disruption of angioblast migration cannot be solely attributed to a lack of midline cavity formation in tbx16 mutants and text comments, such as "This indicates that the somatic mesoderm is required for NES and formation of the VMC, which in turn is necessary for the angioblasts to reach the midline", need to be toned down to accurately reflect the data.

6) Labelling of Figure 7I, J and K do not match the figure legend and text discussion of the figure.

Reviewer #2:

In this article, the authors present a study of midline angioblast migration in zebrafish that requires surrounding tissue rearrangement controlled by somite morphogenesis. This study reveals the role of retinoic acid in the anterior to the posterior progression of midline angioblast migration and how this impacts the opening of the ventral midline cavity. The morphogenetic questions that the authors tackle are interesting ones. The submissions main data set is the description of morphological defects that occur during vascular formation induced by somite maturation and RA signalling. However, this is a study is lacking in resolution and imaging quality to support it assumptions and is somewhat lacking in depth of insight mechanistically into the processes understudy. Furthermore, the somite's influence on the vasculature has, to a degree, been previously detailed. Also, the two separate sections appear to be in essence two different stories that both probably each need more mechanistic insight to be standalone studies.

There are essentially two separate issues dealt with in this submission. The first part of this study proposes the role of retinoic acid in the convergence of angioblast to the midline and the vasculature formation and they suggest retinoic acid induces angioblast migration cell non-autonomously.

The second part of this study proposes the somite maturation as a critical event that is required for Notochord- Endoderm separation and development of the axial vasculature.

General Comments.

The morphogenetic question that the authors tackle is an interesting one. The submissions main data set is the description of morphological defects that occur to vascular formation during somite maturation and RA signalling. However, this is a study is lacking in resolution and imaging quality to support it assumptions and is somewhat lacking in depth of insight mechanistically into the processes understudy. Furthermore, the somite's influence on the vasculature has, to a degree, been previously detailed. Also, the two separate sections appear to be in essence two different stories that both probably each need more mechanistic insight to be standalone studies.

Specific Comments

1) In "Figure 1" the quality of the images are poor and very difficult to discern what is actually happening at cellular resolution.

2) What is the reason to choose the 10 somite stages to study migration?

3) It is mentioned (page 5) DEAB is used at different stages of development, however, just 2 stages (tailbud and 5 somite stage) have shown, are there any changes in other time points of development?

4)It is mentioned Aldh1a2 -/- shows a large reduction in the size of DA and increases the size of the posterior cardinal vein, the results and images are not that convincing (looks like collapse structure), High-resolution sections, Antibody staining with different arterial markers/ qPCR or in situ hybridization in specific genes might support the results.

5) Figure 4, is there any possibility to get the better quality of the images (H-M)?

6)Figure 4: N-P Is there any quantification approach to calculate the size of movement dorsally from the yolk?

7) Figure 6: A/ B/ E/F in black and white is not clear, maybe needs both black and white and color ones beside each other, also needs to be in high resolution with an arrow to mention the area of interest. The title of figure legend: "Genes which affect angioblast migration also affect somitic mesoderm and ventral cavity formation" needs more experiments to prove this as in situ hybridization OR qPCR of various genes.

8. The somites are a source of both endothelial progenitor cells themselves (a fact ignored in this study) as well as signals that regulate them. How are these two observations/properties reconciled in your model. How are they explained in the defects observed?

Reviewer #3:

This manuscript, 'Somite morphogenesis is required for axial blood vessel formation' by Paulissen, et al., aims to elucidate novel mechanisms linking somatogenesis to midline migration of angioblasts for axial blood vessel formation. The work is clearly explained and nicely presented, but the studies lack some depth that would increase the impact of this work. Of note, there are previous zebrafish studies/mutants that have been published that demonstrate that abnormal somite formation/cellular delamination leads to mis-patterned vasculature that are not cited or discussed within this current study: (DOI: 10.1002/dvdy.20814, doi.org/10.1101/2020.05.14.096305, DOI:10.1002/dvdy.22410, doi.org/10.1038/s41467-020-16515-y, doi.org/10.1186/1471-213X-10-96, and so on…). Because of this, it is unclear that this work presents the conceptual advancement that it purports, though it is still a well-executed study that adds to this literature. Given the limitations presented above, and the data specific critiques presented below, I cannot recommend publication of this manuscript in its current form.

Concerns:

1. The predominate concern of this reviewer is the concept that the somites are 'required' for axial blood vessel formation. In short, it seems from this work that what is 'required' is space for the cells to move and form tubes, i.e., that the somites move out of the way to allow expansion of cells from the LPM to form the axial vasculature. It was unclear if the authors were suggesting there were additional guidance cues required and produced by the somites, but this did not seem to be the argument. In this case, the conclusions seem very overstated.

2. In several instances data that seems like it would not share a control is plotted on the same graph and represented by the same control data. This should be fixed (examples: Figure 1E, Figure 4G).

3. Figure 2- the authors aim to understand the role of RA signaling in global architecture of the axial vessels. They use an aldh1a2-/- mutant to do so. The initial axial vessel phenotypes are shown at 5dpf, well after these vessels are formed. So, it is impossible to interpret if the small aorta is a primary or secondary defect to loss of aldh1a2. Further, the authors show lumenization at 25hpf, which drastically predates the 5dpf phenotype described. In short, this does not conclusively prove that the DA is still open and not collapsed at 5dpf. The presence/absence of nuclei making up the DA and CV also does not prove that angioblasts preferentially went to the CV versus the DA as the authors also did not assess things such as proliferation to determine if cells are dividing at the same rate in the mutant vs. WT siblings. Without live imaging across a broad timescale and proliferation analysis, this data is over interpreted.

4. The aldh1a2-/- mutants show slower dorsal movement of the notochord than WT siblings. It is unclear why the images in Figure 4H-M are of a chemical treatment instead of the mutants quantified in panel G. Additionally, does exogenous RA rescue the mutant phenotype? This would increase the confidence that the treatments are specific and targeted and strengthen the argument that RA is guiding this dorsal movement phenotype.

5. Do the noto MO treated embryos form both a DA and CV? From the cross sections, it looks as if only one axial vessel is present.

6. Supplemental Movie 4- The transplanted magenta cells don't seem to extend processes like the other cells surrounding them. Are these magenta cells actively or passively moving with the green cells? While they do reach the midline, it's not clear that they are actively 'leading' themselves there. Please clarify, as this is critical for the interpretation of the autonomous/ non-autonomous need for RA signaling in angioblasts. What proportion of these transplanted cells ultimately target to the endothelial lineage? Are there cells in the surrounding tissue that also carry these markers that are not angioblasts?

7. If the tbx16 mutants don't have a functional somatic mesoderm, how and where do the angioblasts arise from? Isn't the LMP derived from the somatic mesoderm? Do the authors know if the same number of angioblasts are present? Are they specified correctly to begin with? The interpretation of this experiment should be clarified as it's unclear if cells that can be termed 'angioblasts' remain present and raises a potential alternate interpretation of this data. Additional studies/clarity needs to be added to address this point.

8. Figure 7I-K: Perhaps these sections aren't representative? It looks like there is separation in J- the DEAB treated. Or are these images mislabeled?

9. Could the authors clarify this point: "Cells in DMSO treated embryos showed significant amounts of displacement throughout the somite (Figure 7C). However, the DEAB cells showed less displacement over time (Figure 7C). Quantification of speed in the same manner showed no statistically significant difference between DMSO and DEAB treatment (Figure 7D)."

How is this possible? If the cells move less distance over time, shouldn't that equate to a change in speed? Additionally, the tracks in E,F are not visible. Please adapt these images.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Somite morphogenesis is required for axial blood vessel formation" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

Essential revisions:

Both reviewers agree that an additional transplantation experiment is required to support claims that the ventral midline cavity is itself required for angioblast accumulation at the midline. This experiment requires repetition of transplantation experiments from Figure 7C and D alongside angioblast staining (for Etv2, as in Figure 2B) to allow direct quantification of cavity size and angioblast accumulation at perturbed and unperturbed sites within individual embryos. This would provide stronger evidence that cavity opening itself impacts angioblast accumulation, as well as provide evidence to explain why transplantation of dnRAR-expressing somite tissue disrupts midline accumulation of angioblasts from the right, but not the left side of the embryo in Figure 2H.

Reviewer #1:

Following the previous submission of this work for publication in eLife, Paulissen et al. now present a significant revision to their study that includes new experimental data, analyses and interpretation. In this re-submission, the authors reveal that retinoic acid (RA) drives angioblast accumulation at the zebrafish embryo midline to form axial blood vessels. Supported by new transplantation and imaging data, they find that RA signaling in the somite acts to drive midline angioblast migration, and that RA drives remodeling of the somite, promotes separation of the notochord and endoderm, and forms a midline cavity. Observations that the opening of this cavity occurs concomitant with arrival of angioblasts leads the authors to propose that progressive somite-mediated opening of this ventral midline cavity is important for midline angioblast accumulation. In response to comments from the reviewers, new data has been included in this re-submission that addresses most of my previous concerns. However, there are still several key points that are not adequately addressed and that should be tackled with further experiments before acceptance for publication.

1) A previous concern was that it is unclear if the ventral midline cavity is itself required for angioblast accumulation at the midline (as proposed by the authors) or, alternatively, that other RA-dependent signals released by the somite are responsible. Observations of concomitant cavity opening and arrival of angioblasts at the midline are suggestive, but not conclusive evidence that cavity opening is required for angioblast accumulation. Repetition of transplantation experiments from Figure 7C and D alongside angioblast staining (for Etv2, as in Figure 2B) would allow direct quantification of cavity size and angioblast accumulation at perturbed and unperturbed sites within individual embryos. Further quantification of cavity size and angioblast accumulation in this experimental condition would provide stronger evidence that local manipulation of ventral midline cavity size has a predictable impact local angioblast migration.

2) New data presented in Figure 2H raise further questions about the role of ventral midline cavity opening in angioblast midline accumulation. In this experiment, transplantation of dnRAR-expressing somite tissue disrupts midline accumulation of angioblasts from the right, but not the left side of the embryo. If the delay to angioblasts accumulation from the right is entirely due to a disruption in ventral midline cavity opening, wouldn't it be assumed that angioblasts access from the left would also be disrupted? The experiments requested in comment 1 would be key to resolve this point upon quantification of the relationship between local cavity size and angioblast accumulation.

3) Separation of the notochord and endoderm are proposed to generate an empty cavity that allows access of angioblasts to the midline. This point needs to be further clarified upon co-staining of transverse sections of Lifeact embryos over time (as in Figure 5) with DAPI, or another nuclear label, to conclusively determine that this cavity is acellular, and where and when it opens up.

Reviewer #2:

The authors have addressed the majority of my concerns. The paper has been improved with the inclusion of new data.

https://doi.org/10.7554/eLife.74821.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

The work of Paulissen et al. presents a new model for early development of the vertebrate vasculature. Using live imaging microscopy in the zebrafish model, Paulissen and colleagues propose that formation of the first axial blood vessels in zebrafish embryos is dependent upon retinoic acid (RA)-mediated remodeling of surrounding somite tissue, which creates a "ventral midline cavity" that facilitates recruitment of angioblasts to the midline. Whereas others have demonstrated that notochord-derived cues (such as Apela) direct angioblasts to the midline, Paulissen et al. provide evidence that the notochord is overall dispensable for axial vessel formation. Alternatively, they propose that migration of angioblasts to the midline is dependent upon RA-driven somite remodeling, which triggers separation of the notochord and endoderm to create the midline cavity that facilitates angioblast recruitment. In support of this concept, Paulissen et al. use genetic and chemical manipulations of RA signaling to demonstrate that (a) angioblast migration to the midline is dependent on RA, (b) RA regulates somite shape and formation of a ventral midline cavity, and (c) angioblasts populate this cavity as they coalesce at the midline. However, the precise mechanisms by which RA drives somite remodeling remain unclear. More importantly, the work lacks experimental evidence confirming that RA-mediated midline cavity formation is itself is a driver for recruitment of angioblasts. Hence, whilst this study proposes an exciting new model for axial vessel formation, conclusions that RA-mediated somite remodeling drives this process need further clarification. In particular:

1) How does RA drive expansion of a ventral midline cavity?

A number of key questions remain regarding the role of RA in somite remodeling and cavity formation. For example, which RA-responsive tissue drives ventral midline cavity expansion? Indeed, only the notochord, adaxial cells and epidermis appear RA-responsive at these stages (Figure 3) – but not the somite cells that exhibit movement defects in the absence of RA in Figure 7. In Figure 4, transplantation of dnRAR-expressing cells indicates that angioblasts do not require RA signaling for midline migration. Similar experiments defining the role of notochord and/or adaxial or somite tissue in cavity formation would at least shed light on the cell-cell interactions driving cavity formation. For example, can transplanted WT notochord, adaxial or somite tissue recover local angioblast migration in RA signaling deficient mutants. Moreover, such experiment would also be critical to defining the tissue to target in experiments described below.

We agree that determining the RA-responsive tissue would strengthen our claims. We performed transplantations of dnRAR expressing cells into the notochord and somites of host angioblast reporter embryos. Transplants of HS:dnRAR cells into the somites showed significant angioblast migration defects, which was not seen in transplants to the angioblast or notochord tissue populations (Figure 2E-2J). This result indicates that the somites are the tissues required for RA mediated midline angioblast migration.

2) Is formation of a ventral midline cavity required for angioblast migration?

Paulissen et al. provide evidence that formation of a cavity at the midline is dependent on RA signaling, but it still remains unclear if the defects in angioblast migration observed in the absence of RA signaling are directly due to failure of midline cavity formation or are a consequence of disruption to other RA-dependent processes. For example, mosaic experiments using a mix of transplanted WT cells of the relevant cell type (which has yet to be defined – please see point 1 above) in RA-deficient mutant embryos to induce local recovery of cavity formation (or vice versa to disrupt local cavity formation), would determine if angioblasts can only populate regions at the midline where the ventral cavity forms. Without such direct testing of this core hypothesis, evidence that midline cavity formation directly impacts angioblast migration remains only correlative, and strong statements in the text, such as "The emergence of the VMC is a necessary requirement for endothelial progenitors to both migrate into and develop into functioning blood vessels", lack sufficient experimental support.

We found that VMC formation likely does not initiate angioblast migration to the midline, as we present new data showing some angioblast migration toward the midline can occur before VMC formation (Figure 5G). However, we added additional evidence that midline convergence beneath the notochord cannot occur without NES (Figure 5N, 5O, supplemental movie 8). We updated this view with the following statements “The emergence of the transient VMC is a necessary requirement for contralateral angioblasts to complete their migration and coalesce at the midline.”

In addition to experiments suggested above, several other experimental improvements would significantly strengthen the manuscript:

1) Overall, the live imaging data would greatly benefit from higher spatial resolution and robust quantification. For example, live imaging data of notochord-endoderm separation presented in Figure 4 are of poor resolution and are difficult to interpret. These analyses would benefit from post-acquisition conversion to transverse movie sections to directly observe cavity formation and enable direct quantification of cavity size. Likewise, live-imaging of angioblast migration would be strengthened by better spatial resolution and consistent quantification (for example, quantification is absent in Figure 3, 5 and 6), as well as analysis over longer time periods to determine to what extent loss of RA signaling truly blocks angioblast migration, or if this is a slight temporal delay. Importantly, comments in the text such as "Angioblasts in these embryos show no clear anterior to posterior migration patterns and are often disorganized in their directionality" need to be strengthened by appropriate quantification.

For the reviewer’s first point, we address the difficulty in interpreting notochord translocation in the embryo. To better observe the dorsal translocation of the notochord and NES, we utilized a cell-surface marker transgenic line tg(ubb:lck-mNG) to label all cells in the embryo. Using this, we can more accurately visualize notochord translocation (Figure 4A-4C). We saw a similar event, which we were able to quantify, in Figure 4D-4F. To the latter point, we used a new transgenic line, Tg(hsp70l:lifeact-mScarlet), to perform sections at more developmental time points and were able to capture the formation of the VMC (Figure 5A), as well as NES and angioblast migration recovery in RA depletion conditions (Figure 5F-5I). We also were able to perform a novel transverse section explant method to observe angioblast migration to the midline at high resolution, and were able to observe a transient VMC that forms immediately prior to the arrival of angioblasts at the midline and the completion of migration (Supplemental Movie 8).

2) The author's core hypothesis is that somite morphogenesis creates a midline cavity that is required for recruitment of angioblasts to the midline. Yet, this the study lacks live imaging evidence that this cavity opens prior to angioblast midline coalescence. Experiments in Figure 5 that monitor angioblast migration in tissue slices do not show the midline cavity. As such, further live imaging studies using a membrane label to pinpoint the forming cavity (such as the author's HS:mcherry-caax line) should be performed to provide convincing evidence that cavity formation occurs prior angioblast arrival.

We agree that while NES was presumed based on previous data, we had not captured it at high resolution in our manuscript. Using a new transgenic line, Tg(hsp70l:lifeact-mScarlet), we performed sections at more developmental time points and were able to capture the formation of the VMC (Figure 5A). We also were able to perform a novel explant method to observe migrating angioblasts in transverse sections, and were able to determine that a transient VMC forms immediately prior to the completion of migration (Figure 7N, Supplemental Movie 8).

3) Likewise, it would be important to test if angioblasts can still reach the midline in the absence of a midline cavity. For example, angioblast migration defects in aldh1a2 mutants clearly recover later in development, as axial vessels still form (Figure 2). It would be important to determine if the midline cavity needs to be open for this recovery, or if angioblasts can still reach the midline in its absence – which may question the overall importance of cavity formation.

We performed serial sections at later developmental timepoints in DEAB treated embryos and found that the VMC formed later in development, and angioblasts arrived there as it opened (Figure 5H). This indicates that recovery is dependent on VMC formation.

4) As angioblast phenotypes observed upon disruption of RA signaling are near-identical to those described Apela mutants (Helker et al., eLife, 2015), it is important to determine that notochord expression of Apela is unaffected by disruption of RA signaling – i.e., that angioblast migration defects are not simply due to loss of notochord Apela expression. This is especially important considering that the notochord is the most RA-responsive tissue at the timepoints investigated (Figure 3).

We analyzed the Apela/Aplnra/Aplnrb axis via in-situ hybridization and found it is not affected by the loss of RA (Figure Supplement 2).

5) Caution should be exercised when interpreting results in tbx16 mutants that lack somite tissue, as this will perturb expression of many somite-derived cues that impact angioblast behavior. As such, disruption of angioblast migration cannot be solely attributed to a lack of midline cavity formation in tbx16 mutants and text comments, such as "This indicates that the somatic mesoderm is required for NES and formation of the VMC, which in turn is necessary for the angioblasts to reach the midline", need to be toned down to accurately reflect the data.

We clarified out data to better reflect the relative importance of the somitic mesoderm and notochord while avoiding direct comparisons to NES solely from the tbx16 data. The conclusions are changed as follows, “Embryos injected with noto morpholino have angioblasts located at the midline that appear to have resolved into one blood vessel structure (Figure 3H). Embryos injected with tbx16 morpholinos, however, show two distinct vessels located on either side of the notochord (Figure 3I). This indicates that the somites are critical for angioblast convergence at the midline, while the notochord is ultimately dispensable.”

6) Labelling of Figure 7I, J and K do not match the figure legend and text discussion of the figure.

This data was replaced with higher resolution data (Figure 5).

Reviewer #2:

[…]

Specific Comments

1) In "Figure 1" the quality of the images are poor and very difficult to discern what is actually happening at cellular resolution.

While we appreciate this concern, the images in Figure 1 were not meant to show cellular resolution of individual angioblasts, but rather the migration of the collective population of angioblasts. We feel this better illustrates the scope of the angioblast migration defects across the zebrafish trunk. While we improved the clarity of these images, we also now provide images showing defects at the cellular resolution which can now be found in Figure 5 and Supplemental Movies 8 and 9.

2) What is the reason to choose the 10 somite stages to study migration?

Angioblast migration to form the earliest blood vessels initiates at this developmental time point.

3) It is mentioned (page 5) DEAB is used at different stages of development, however, just 2 stages (tailbud and 5 somite stage) have shown, are there any changes in other time points of development?

We chose these stages to determine the critical point in which RA is required for migration. The developmental time period between tailbud and 5-somite stage is small, roughly 2.5 hours of development at standard conditions. We feel that subdividing that time period further would not add significantly to the understanding of the process.

4)It is mentioned Aldh1a2 -/- shows a large reduction in the size of DA and increases the size of the posterior cardinal vein, the results and images are not that convincing (looks like collapse structure), High-resolution sections, Antibody staining with different arterial markers/ qPCR or in situ hybridization in specific genes might support the results.

While it is difficult to say for certain if the smaller DA was the direct result of the angioblast migration defect, this hypothesis is derived from studies that show slower migrating angioblasts preferentially join the cardinal vein (Kohli et al., 2013). We clarified this point in the text, “While we cannot definitively say the migration defects themselves caused the arterial reduction, it indicates that RA is required for the proper formation of the definitive vasculature.”

5) Figure 4, is there any possibility to get the better quality of the images (H-M)?

We replaced these images with more detailed images that better show the midline defect and lack of dorsal notochord movement (Figure 4A-4F).

6)Figure 4: N-P Is there any quantification approach to calculate the size of movement dorsally from the yolk?

We were able to define this data as shown Figure 4G, quantifying how dorsal translocation of the notochord changes in response to RA modulation.

7) Figure 6: A/ B/ E/F in black and white is not clear, maybe needs both black and white and color ones beside each other, also needs to be in high resolution with an arrow to mention the area of interest. The title of figure legend: "Genes which affect angioblast migration also affect somitic mesoderm and ventral cavity formation" needs more experiments to prove this as in situ hybridization OR qPCR of various genes.

We clarified the data presented with the new title, “The somitic mesoderm, not the notochord, is required for midline convergence of angioblasts.” to better reflect the figure contents. We replaced images with clearer images and added arrows to indicate the midline area of interest.

8. The somites are a source of both endothelial progenitor cells themselves (a fact ignored in this study) as well as signals that regulate them. How are these two observations/properties reconciled in your model. How are they explained in the defects observed?

Somite derived endothelial cells can be a source, but only a very small contribution (Ambler et al.,2001). As well, the tbx16 mutants have been shown to preserve endothelial cells in the absence of somitic tissue (Thompson et al., 1998). It has also been established that the lateral plate mesoderm is a prominent source of angioblasts (Prummel et al., 2020).

Reviewer #3:

This manuscript, 'Somite morphogenesis is required for axial blood vessel formation' by Paulissen, et al., aims to elucidate novel mechanisms linking somatogenesis to midline migration of angioblasts for axial blood vessel formation. The work is clearly explained and nicely presented, but the studies lack some depth that would increase the impact of this work. Of note, there are previous zebrafish studies/mutants that have been published that demonstrate that abnormal somite formation/cellular delamination leads to mis-patterned vasculature that are not cited or discussed within this current study: (DOI: 10.1002/dvdy.20814, doi.org/10.1101/2020.05.14.096305, DOI:10.1002/dvdy.22410, doi.org/10.1038/s41467-020-16515-y, doi.org/10.1186/1471-213X-10-96, and so on…). Because of this, it is unclear that this work presents the conceptual advancement that it purports, though it is still a well-executed study that adds to this literature. Given the limitations presented above, and the data specific critiques presented below, I cannot recommend publication of this manuscript in its current form.

We understand that somites have been shown to have some effect on the definitive vasculature. However, none have focused on midline angioblast migration, nor the role of somite morphogenesis, specifically, on the formation of the midline vasculature. We reflect on this with the following text, “While some evidence has shown somite-related defects on blood vessel patterning, much of this research focused on angiogenic sprouting or defects in arterial-venous specification, well after angioblast migration and somitogenesis is completed (Lawson et al., 2002; Shaw et al., 2006; Therapontos and Vargesson, 2010; Torres-Vázquez et al., 2004).

Concerns:

1. The predominate concern of this reviewer is the concept that the somites are 'required' for axial blood vessel formation. In short, it seems from this work that what is 'required' is space for the cells to move and form tubes, i.e., that the somites move out of the way to allow expansion of cells from the LPM to form the axial vasculature. It was unclear if the authors were suggesting there were additional guidance cues required and produced by the somites, but this did not seem to be the argument. In this case, the conclusions seem very overstated.

We now show in Figure Supplement 2 that known angioblast migration cues are unaffected. Additional evidence shows that Notochord translocation (NES) and formation of the VMC are required for the completion of angioblast migration (Figure 4 and 5). Data in figures 3 and 7 also show that lack of somites, or lack of proper morphogenesis of somites (caused by loss of RA signaling), causes a failure of VMC formation. Together the data support a model in which the morphogenesis of the somites induces the VMC, which is in turn required for the angioblasts to reach the midline.

2. In several instances data that seems like it would not share a control is plotted on the same graph and represented by the same control data. This should be fixed (examples: Figure 1E, Figure 4G).

We have separated the graphs and added the proper controls to each graph (Figure 1E, and 1F). We clarified our controls in Figure 4G to demonstrate that all embryos were imaged in the same conditions.

3. Figure 2- the authors aim to understand the role of RA signaling in global architecture of the axial vessels. They use an aldh1a2-/- mutant to do so. The initial axial vessel phenotypes are shown at 5dpf, well after these vessels are formed. So, it is impossible to interpret if the small aorta is a primary or secondary defect to loss of aldh1a2. Further, the authors show lumenization at 25hpf, which drastically predates the 5dpf phenotype described. In short, this does not conclusively prove that the DA is still open and not collapsed at 5dpf. The presence/absence of nuclei making up the DA and CV also does not prove that angioblasts preferentially went to the CV versus the DA as the authors also did not assess things such as proliferation to determine if cells are dividing at the same rate in the mutant vs. WT siblings. Without live imaging across a broad timescale and proliferation analysis, this data is over interpreted.

As indicated above, we agree that it is difficult to say for certain if the smaller DA was the direct result of the angioblast migration defect, although that hypothesis is derived from studies that show slower migrating angioblasts preferentially join the cardinal vein (Kohli et al., 2013). We clarified this point in the text, “While we cannot definitively say the migration defects themselves caused the arterial reduction, it indicates that RA is required for the proper formation of the definitive vasculature.”

4. The aldh1a2-/- mutants show slower dorsal movement of the notochord than WT siblings. It is unclear why the images in Figure 4H-M are of a chemical treatment instead of the mutants quantified in panel G. Additionally, does exogenous RA rescue the mutant phenotype? This would increase the confidence that the treatments are specific and targeted and strengthen the argument that RA is guiding this dorsal movement phenotype.

The data quantified in Figure 4G were different images than shown in 4H-4M. We have provided images of that data to illustrate how the Figure 4G data was quantified (Figure 4D-4F). In response to the second point, the aldh1a2-/- mutant targets the dehydrogenase directly responsible for RA production, and we confirmed the specificity of the angioblast migration defect by observing the same phenotype in three additional methods of inhibiting RA signaling (2 pharmacological and one genetic, Figure S1). Additionally, exogenous RA is shown to cause the opposite phenotype of loss of RA (Figure 4C and 4F).

5. Do the noto MO treated embryos form both a DA and CV? From the cross sections, it looks as if only one axial vessel is present.

It was shown previously that noto loss of function results in a single, disorganized blood vessel. This is reflected in the new statement “In noto mutants, it was observed that some angioblasts had reached the midline at later developmental stages, and resolve into a single blood vessel (Fouquet et al., 1997).”

6. Supplemental Movie 4- The transplanted magenta cells don't seem to extend processes like the other cells surrounding them. Are these magenta cells actively or passively moving with the green cells? While they do reach the midline, it's not clear that they are actively 'leading' themselves there. Please clarify, as this is critical for the interpretation of the autonomous/ non-autonomous need for RA signaling in angioblasts. What proportion of these transplanted cells ultimately target to the endothelial lineage? Are there cells in the surrounding tissue that also carry these markers that are not angioblasts?

The cells transplanted in supplemental movie 4 are entirely targeted toward the angioblasts. We utilized a technique to drive cells into the angioblast progenitor pool by excluding them from the somitic mesoderm (Row et al., 2018). Based on new data in which we have targeted dnRAR cells to the somites, which causes the angioblast migration defect, we feel that we have provided strong evidence that RA signaling in somitic mesoderm is affecting angioblast migration rather than cell autonomous effects in angioblasts (Figure 2H).

7. If the tbx16 mutants don't have a functional somatic mesoderm, how and where do the angioblasts arise from? Isn't the LMP derived from the somatic mesoderm? Do the authors know if the same number of angioblasts are present? Are they specified correctly to begin with? The interpretation of this experiment should be clarified as it's unclear if cells that can be termed 'angioblasts' remain present and raises a potential alternate interpretation of this data. Additional studies/clarity needs to be added to address this point.

It has been shown previously that tbx16 mutants have endothelial progenitors (Thompson et al., 1998). Additionally, it has been established that the lateral plate mesoderm is an abundant source of angioblasts (Prummel et al., 2020).

8. Figure 7I-K: Perhaps these sections aren't representative? It looks like there is separation in J- the DEAB treated. Or are these images mislabeled?

This data has been removed in lieu of higher resolution data (Figure 5).

9. Could the authors clarify this point: "Cells in DMSO treated embryos showed significant amounts of displacement throughout the somite (Figure 7C). However, the DEAB cells showed less displacement over time (Figure 7C). Quantification of speed in the same manner showed no statistically significant difference between DMSO and DEAB treatment (Figure 7D)."

How is this possible? If the cells move less distance over time, shouldn't that equate to a change in speed? Additionally, the tracks in E,F are not visible. Please adapt these images.

We have added new images with better image tracks (Figure 7I-J). We note that displacement is not the equivalent to total distance travelled, as directionless movement leads many cells to end in roughly the same position as they begin.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Essential revisions:

Both reviewers agree that an additional transplantation experiment is required to support claims that the ventral midline cavity is itself required for angioblast accumulation at the midline. This experiment requires repetition of transplantation experiments from Figure 7C and D alongside angioblast staining (for Etv2, as in Figure 2B) to allow direct quantification of cavity size and angioblast accumulation at perturbed and unperturbed sites within individual embryos. This would provide stronger evidence that cavity opening itself impacts angioblast accumulation, as well as provide evidence to explain why transplantation of dnRAR-expressing somite tissue disrupts midline accumulation of angioblasts from the right, but not the left side of the embryo in Figure 2H.

This experiment was performed as suggested using either control wild-type donor cells or dnRAR expressing donor cells transplanted into host embryos with either a ubiquitous mNeonGreen plasma membrane transgene, or host embryos with ubiquitous Lifeact-mScarlet + kdrl:GFP angioblast reporter transgenes. We selected embryos where transplanted cells were localized to somites on one side of the embryo and not the other, to observe a direct comparison between somites on either side in transverse sections. In both types of host embryos, the ventral midline cavity does not open on the side of the embryo where dnRAR cells are located within the somite, but does begin to open on the side where donor cells are absent from the somite. The kdrl:GFP fluorescence indicates this partial opening on the side without transplanted cells facilitates angioblast migration to the midline, whereas angioblasts remain in a more lateral position on the side with dnRAR cells. Control experiments using wild-type donor cells showed no difference in ventral midline cavity opening or angioblast migration on the side with transplanted cells and the side without. These new results are presented in Figure 7 —figure supplement 1.

Reviewer #1:

Separation of the notochord and endoderm are proposed to generate an empty cavity that allows access of angioblasts to the midline. This point needs to be further clarified upon co-staining of transverse sections of Lifeact embryos over time (as in Figure 5) with DAPI, or another nuclear label, to conclusively determine that this cavity is acellular, and where and when it opens up.

To show that the ventral midline cavity is acellular, we examined a transverse section image Z-stack of an embryo containing both the ubiquitous Lifeact-mScarlet and the angioblast reporter kdrl:GFP transgenes, and stained with DAPI. A maximum projection of a 15 μm image stack at a time-point immediately preceding angioblast arrival at the midline shows that the ventral midline cavity is devoid of Lifeact and DAPI fluorescence, indicating that it is an acellular cavity. This new result is presented in Figure 5 —figure supplement 1.
