Transcriptional regulation of cyclophilin D by BMP/Smad signaling and its role in osteogenic differentiation

  1. Rubens Sautchuk
  2. Brianna H Kalicharan
  3. Katherine Escalera-Rivera
  4. Jennifer H Jonason
  5. George A Porter
  6. Hani A Awad
  7. Roman A Eliseev  Is a corresponding author
  1. Center for Musculoskeletal Research, University of Rochester, United States
  2. Department of Pathology, University of Rochester, United States
  3. Department of Pediatrics, Division of Cardiology, University of Rochester, United States
  4. Department of Biomedical Engineering, University of Rochester, United States
  5. Department of Pharmacology & Physiology, University of Rochester, United States

Abstract

Cyclophilin D (CypD) promotes opening of the mitochondrial permeability transition pore (MPTP) which plays a key role in both cell physiology and pathology. It is, therefore, beneficial for cells to tightly regulate CypD and MPTP but little is known about such regulation. We have reported before that CypD is downregulated and MPTP deactivated during differentiation in various tissues. Herein, we identify BMP/Smad signaling, a major driver of differentiation, as a transcriptional regulator of the CypD gene, Ppif. Using osteogenic induction of mesenchymal lineage cells as a BMP/Smad activation-dependent differentiation model, we show that CypD is in fact transcriptionally repressed during this process. The importance of such CypD downregulation is evidenced by the negative effect of CypD ‘rescue’ via gain-of-function on osteogenesis both in vitro and in a mouse model. In sum, we characterized BMP/Smad signaling as a regulator of CypD expression and elucidated the role of CypD downregulation during cell differentiation.

Editor's evaluation

This study provides evidence of cyclophilin-D transcriptional regulation of osteoblast differentiation and offers new insights into the underlying mechanisms identifying BMP/Smad signaling as a major mediator. The study has significant relevance and implication to bone health and offers a strong foundation for future work to decipher its unique role in different cells of the mesenchymal lineage and relevance to various bone-related diseases.

https://doi.org/10.7554/eLife.75023.sa0

Introduction

The mitochondrial permeability transition pore (MPTP) is a non-selective high-conductance channel within the inner mitochondrial membrane (IMM). MPTP opening leads to the increased permeability of the IMM and entry of solutes up to 1.5 kDa of molecular mass, that is, mitochondrial permeability transition (Bernardi et al., 2015). Although the MPTP molecular identity remains debatable, the ATP synthase converges as a potential locus. The consequences of MPTP opening span from physiological events such as regulation of synthasome assembly, oxidative phosphorylation (OxPhos), membrane potential (Δψm), ROS-induced ROS release, Ca2+ homeostasis, and epigenetic regulation (Feissner et al., 2009; Bernardi and von Stockum, 2012; Beutner et al., 2017; Boyman et al., 2019) to pathophysiological processes associated with sustained pore opening, including mitochondrial dysfunction, mtDNA release, inflammation, and cell death. Such pathophysiological processes are observed in cancer, aging, injury, and degenerative diseases (Du and Yan, 2010; Giang et al., 2013; Alavian et al., 2014; Bernardi et al., 2015; Warne et al., 2016; Rottenberg and Hoek, 2017). Among some important physiological events under MPTP control is OxPhos since MPTP opening leads to IMM depolarization, proton motive force dissipation, and ATP production decrease. For differentiating cells switching from a glycolytic pathway to higher OxPhos activity, MPTP opening can be particularly detrimental by impairing lineage commitment, differentiation, and functioning of differentiated cells (Eliseev et al., 2007; Hom et al., 2011; Lingan et al., 2017). Currently, several MPTP opening effectors have been described, but the mitochondrial matrix protein cyclophilin D (CypD) remains the only genetically proven opener of the MPTP (Briston et al., 2019).

Encoded by the nuclear gene PPIF, CypD is a chaperone protein – peptidyl-prolyl cis-trans isomerase F – thought to be involved in protein folding. However, very few reports demonstrate such an activity of CypD (Porter and Beutner, 2018). Regarded as the master regulator of MPTP, CypD is imported into mitochondria where it can actively bind to the mitochondrial ATP synthase, decreasing the threshold for pore opening and increasing opening probability. The exact molecular mechanism by which CypD regulates the MPTP and mitochondrial function remains unclear. A range of post-translation modifications, such as acetylation and phosphorylation, is known to exert regulatory properties on CypD activity, and consequently on MPTP opening (Gutiérrez-Aguilar and Baines, 2015; Porter and Beutner, 2018; Amanakis and Murphy, 2020). Additionally, it has been shown that CypD also functions as a scaffold protein, being able to cluster various structural and signaling molecules together to modify mitochondrial physiology and bioenergetic response (Eliseev et al., 2009; Porter and Beutner, 2018). Although several aspects affecting CypD physiological regulation and its interplay with mitochondrial activity have been elucidated, how the CypD gene is transcriptionally regulated has yet to be described.

CypD expression and activity are cell-specific (Laker et al., 2016) and can be regulated during differentiation. As cells become more active and increase their oxygen consumption, higher ROS levels are produced partially due to an increase in the electron flow within the respiratory chain (Turrens, 1997; Barja, 1999; Dröse and Brandt, 2012; Suski et al., 2018). Higher ROS levels due to OxPhos activation can lead to deleterious effects including opening of the MPTP and consequently blunting of mitochondrial function (Carraro and Bernardi, 2016). To inhibit MPTP opening, it is beneficial for differentiating cells moving toward a higher OxPhos usage, to downregulate CypD expression and/or activity to be better protected against oxidative stress and support OxPhos. Such an inhibition due to downregulation of CypD has been reported during neuronal and cardiomyocyte differentiation (Eliseev et al., 2007; Hom et al., 2011; Lingan et al., 2017). Conversely, induced pluripotent stem cell reprograming is accompanied by a metabolic shift from OxPhos to glycolysis and not surprisingly, by transient MPTP opening and CypD expression upregulation (Ying et al., 2018).

The bone morphogenic protein (BMP) signaling pathway is an important driver of cell differentiation and maturation. BMPs are shown to regulate early processes from embryogenesis and development to adult tissue homeostasis. BMPs are not bone exclusive, the ubiquitous expression of BMP underscores its importance for organogenesis and maintenance in several tissues, such as neurological, ophthalmic, cardiovascular, pulmonary, gastrointestinal, urinary, and musculoskeletal systems (Wang et al., 2014; Nickel and Mueller, 2019). Upon BMP receptor activation and trans-phosphorylation, receptor regulated Smads (R-Smads) such as Smad1/5/8 are recruited and phosphorylated. Phospho-Smad1/5/8 binds to Smad4 forming a heterodimeric complex which is subsequently translocated into the nucleus to activate or repress the expression of its target genes. Osteogenesis and osteoblast (OB) differentiation are controlled at least in part via BMP/Smad canonical signaling. During osteogenic differentiation, activation of the transcription factor Runx2 is mediated by the BMP/Smad signaling pathway initiating a cascade of downstream osteogenic marker genes expression (Bianco and Robey, 2015). Our lab and others have demonstrated that bone marrow stromal (a.k.a. mesenchymal stem) cells (BMSCs) shift their bioenergetic profile toward OxPhos during OB differentiation (Shum et al., 2016a; Feigenson et al., 2017; Colaianni et al., 2018; Shares et al., 2018; Yu et al., 2019; Smith and Eliseev, 2021). Since OB function involves bone matrix deposition, an energy-consuming process highly dependent on mitochondrial bioenergetics and OxPhos activity, we hypothesized that MPTP inhibition via CypD transcriptional downregulation is mediated by BMP/Smad signaling and required to sustain OxPhos function and support osteogenic differentiation.

Results

BMP/Smad signaling is a transcriptional repressor of Ppif gene

To determine potential mechanisms involved in CypD regulation on a transcriptional level, we performed an in silico analysis of the CypD gene, Ppif, promoter for transcription factor (TF)-binding sites using PROMO online platform (Messeguer et al., 2002). We found multiple BMP-dependent Smad-binding elements (SBEs) in the 1.1 kb 5’ upstream region of both human PPIF and mouse Ppif genes (Figure 1A). BMP/Smad signaling pathway is an important driver of differentiation in various lineages including osteogenic lineage. Therefore, to test if BMP/Smad signaling regulates CypD gene transcription, we transfected mouse osteogenic bone marrow-derived and mesodermal origin ST2 cells, or calvaria-derived and neural crest-origin MC3T3-e1 cells with pCMV-Smad1 expression vector. The efficiency of Smad1 transfection was confirmed by real-time RT-qPCR. We observed that CypD mRNA was downregulated after Smad1 overexpression, whereas osteogenic marker Runx2, a readout of BMP/Smad activity, was upregulated (Figure 1B–C).

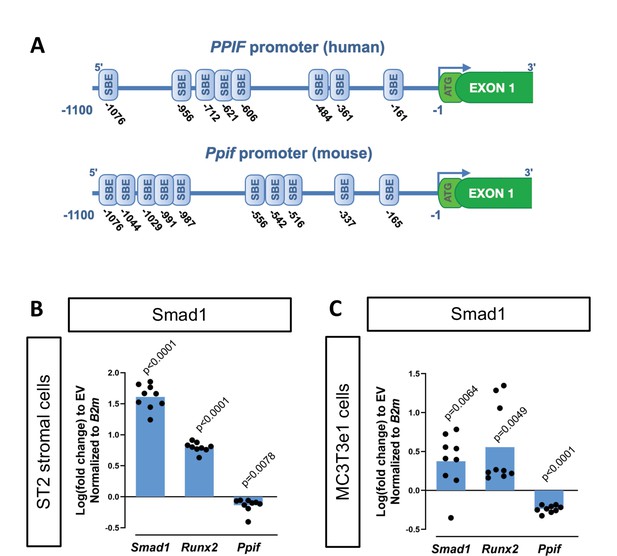

Cyclophilin D (CypD) gene, Ppif, promoter contains multiple Smad-binding elements (SBEs) and Smad1 overexpression leads to downregulation of CypD.

(A) Several SBEs were found on both human (PPIF) and mouse (Ppif) CypD gene promoter. ST2 or MC3T3e1 cells were transfected with pCMV-Smad1 vector or empty vector (EV) control. (B) and (C) Real-time RT-PCR data demonstrating the efficiency of Smad1 transfection and that Smad1 overexpression upregulated Runx2 and downregulated Ppif mRNA expression. Plot shows the actual data points (biological replicates), calculated means and p value vs. EV controls determined by an unpaired t-test.

To confirm interaction of BMP-dependent Smad1 with the Ppif promoter, we performed chromatin immunoprecipitation (ChIP) DNA-binding assay using nuclear fractions from ST2 cells supplemented with BMP2 or vehicle control for 24 hr. PCR analysis of the reversed cross-linked protein-DNA immunoprecipitate complexes was done (Figure 2A) using primers to amplify the distal region within the Ppif promoter containing multiple SBEs (Figure 2B). Smad1-Ppif interaction was found to be present at low levels in the vehicle-treated control cells. This finding is consistent with the fact that intrinsic levels of BMP activity are present even in undifferentiated osteogenic cells. Importantly, BMP2 treatment significantly induced Smad1-Ppif interaction. Band density quantification revealed 2.5-fold increase of Smad1-Ppif interaction in the BMP2-treated samples (Figure 2C). These results demonstrate that Smad1 binds the CypD gene (Ppif) promoter in BMP-dependent manner.

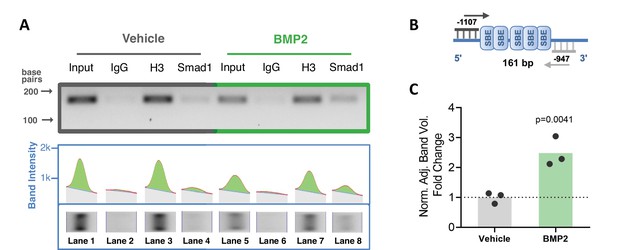

Smad1 binds Ppif promoter and bone morphogenic protein (BMP) signaling promotes Smad1 interaction with Ppif promoter.

Chromatin immunoprecipitation (ChIP) assay of nuclear fractions from ST2 cells incubated either in the presence of 50 ng/ml BMP2 for 24 hr, or vehicle. (A) PCR analysis of the ChIP assay was performed using primers to amplify the distal Smad-binding elements (SBE)-containing region within the Ppif promoter (B) .Positive control histone H3 signal showing that proper DNA fragmentation was achieved (A). (C) Band density quantification for Smad1 immunoprecipitation in both conditions was adjusted by background subtraction and normalized to total DNA input. Unspecific signal from IgG band was also subtracted from Smad1-specific signal. Plot shows the actual data points representing the mean of two technical replicates from three independent experiments, calculated means and p value determined by an unpaired t-test.

Figure 2—source data 1

Chromatin immunoprecipitation (ChIP) assay of nuclear fractions from ST2 cells incubated either in the presence of 50 ng/ml bone morphogenic protein 2 (BMP2) for 24 hr, or vehicle.

PCR analysis of the ChIP assay was performed using primers to amplify the distal Smad-binding elements (SBE)-containing region within the Ppif promoter or the positive control Intron2 primers. Original gel image showing three independent experiments and an extra replicate.

https://cdn.elifesciences.org/articles/75023/elife-75023-fig2-data1-v2.zip
Figure 2—source data 2

PCR analysis of the ChIP assay for Smad binding of Ppif promoter.

PCR analysis of the ChIP assay was performed using primers to amplify the distal Smad-binding elements (SBE)-containing region within the Ppif promoter or the positive control Intron2 primers. Labeled gel image. Input: total DNA; IgG: negative control; H3: positive control; Smad1: Smad1 antibody.

https://cdn.elifesciences.org/articles/75023/elife-75023-fig2-data2-v2.zip

To characterize the functionality of the SBEs found within the Ppif promoter, we subcloned the 1.1 kb mouse Ppif promoter into the pGL4.10 luciferase reporter construct (Figure 3A). We then co-transfected ST2 cells with the above promoter-reporter construct and either pCMV-Smad1 or pCMV empty vector (EV) and analyzed the luciferase signal. Figure 3C shows that Smad1 significantly decreased the luciferase signal from the 1.1 kb Ppif-luc promoter-reporter. Furthermore, a promoter bashing approach was used and five other various length promoter constructs were generated (Figure 3—figure supplement 1A): –0.37 to –0.1 kb, or –0.62 to –0.45 kb, or –1.1 to –0.95 kb, or –0.62 to –0.1 kb, or –1.1 to –0.45 kb deletion mutants that correspond to a cluster of the two most proximal (P), three middle (M), five most distal (D), five middle + proximal (M+P), and eight distal + middle (D+M) SBEs, respectively. We co-transfected ST2 cells with the above promoter-reporter constructs and either pCMV-Smad1 or pCMV-EV and analyzed the luciferase signal for all our constructs. Middle and distal regions did not show any luciferase signal difference when compared to EV-transfected cells, whereas proximal, M+P, and D+M rescued Ppif activity (Figure 3—figure supplement 1B). Thus, only the full-length 1.1 kb Ppif-luc reporter showed Ppif activity repression upon Smad1 transfection (Figure 3C). Knowing that the full-length Ppif promoter is the actual region controlling the gene activity and that Smads work by forming oligomeric structures binding various regions of the promoter (Massagué et al., 2005; Wang et al., 2014), we considered the data using the 1.1 kb Ppif-luc reporter as the most relevant. Of note, in all these experiments, activation of Smad1 signaling following transfection was confirmed by the increase in the activity of 12xSBE, a BMP/Smad signaling luciferase reporter (Figure 3B). In sum, our data indicate that BMP/Smad signaling is a transcriptional repressor of CypD.

Figure 3 with 1 supplement see all

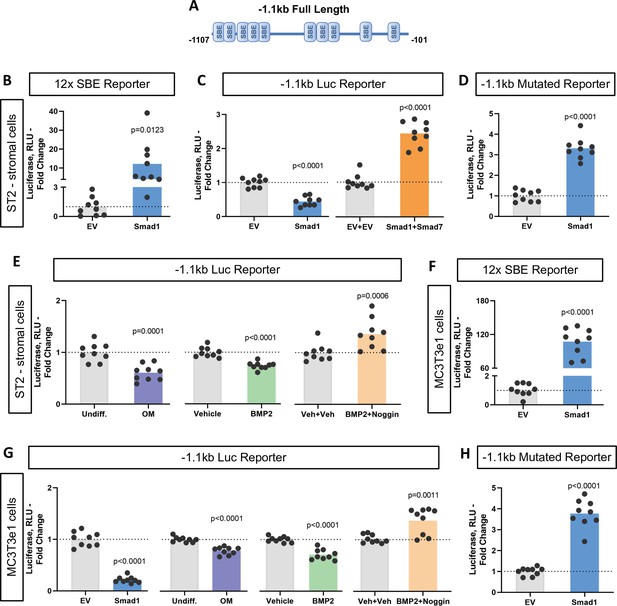

Bone morphogenic protein (BMP)-dependent Smad1 transcriptionally represses Ppif promoter activity.

Dual luciferase reporter assay was performed on either ST2 or MC3T3e1 cells 48 hr after luciferase (Luc) reporter transfection. (A) Diagram: 1.1 kb full-length Ppif promoter region containing several Smad-binding elements (SBEs) was cloned into the pGL4.10 vector. (B) and (F) pCMV-Smad1 co-transfection highly activated the BMP/Smad signaling reporter 12xSBE. (C) pCMV-Smad1 co-transfected with the 1.1 kb Ppif full-length luc reporter downregulated the luciferase signal. Inhibitory Smad7 rescued Ppif promoter activity. (D) and (H) pCMV-Smad1 co-transfected with the 1.1 kb SBE-mutated Ppif full-length luc reporter rescued luciferase signal. (E) Osteogenic media or 50 ng/ml BMP2 was used to activate BMP/Smad signaling. The BMP inhibitor, Noggin, rescued Ppif promoter activity. (G) MC3T3e1 cells showed similar effects on Ppif promoter activity after BMP/Smad signaling activation. Plot shows the actual data points (biological replicates), calculated means and p value vs. EV controls determined by an unpaired t-test.

To further delineate the role of BMP/Smad signaling in Ppif repression, we used the inhibitory Smad7 which rescued Ppif promoter activity in Smad1-transfected cells (Figure 3C). Smad7 competitively inhibits the interaction of R-Smads to the cytoplasmic domain of their respective cell receptors, therefore preventing R-Smad recruitment and phosphorylation, and consequently nuclear translocation. Binding specificity was confirmed using a 1.1 kb Ppif-luc reporter designed to introduce point mutations in the SBEs and therefore, prevent R-Smads binding. The 1.1 kb mutated Ppif-luc reporter co-transfected with pCMV-Smad1 rescued Ppif promoter activity (Figure 3D). This result was similar to the conditions meant to inhibit BMP/Smad signaling (Figure 3—figure supplement 1C), confirming the specificity of SBEs in the Ppif promoter. Additionally, cells transfected with the 1.1 kb Ppif-luc reporter were either treated with BMP2 with or without the BMP inhibitor Noggin or induced in osteogenic media and assayed for luciferase signal. A dose-response assay revealed that BMP2 at 50 ng induced the highest suppression level of Ppif activity (Figure 3—figure supplement 1D). BMP2 and osteogenic media downregulated the luciferase signal, whereas Noggin rescued Ppif activity (Figure 3E). These results were also confirmed in MC3T3e1 cells (Figure 3F–H). However, the mouse myogenic C2C12 cell line showed opposite effects under BMP-dependent Smad activation (Figure 3—figure supplement 1F). These findings show that PPIF activity is also regulated by Smad-dependent signaling in myogenic cells but suggest that the direction of PPIF regulation is tissue specific. Taken together, these data support our hypothesis that BMP/Smad signaling transcriptionally represses Ppif promoter activity in osteogenic cells regardless of their embryonic origin and consequently downregulates CypD expression during osteogenic differentiation.

Decreased CypD expression and MPTP activity during osteogenic differentiation

BMP/Smad signaling is a major driver of differentiation. It is particularly important for osteogenic lineage. During osteogenic differentiation, cell energy metabolism shifts toward OxPhos as was shown by us and others (Shum et al., 2016a; Feigenson et al., 2017; Colaianni et al., 2018; Shares et al., 2018; Yu et al., 2019; Smith and Eliseev, 2021). Since a higher OxPhos activity, as seen in differentiated OBs, is described to produce more ROS (Barja, 1999; Dröse and Brandt, 2012; Suski et al., 2018; Turrens, 1997; Figure 4—figure supplement 1A), potentially leading to oxidative stress and higher probability of the MPTP opening, it is beneficial for actively respiring cells such as OBs to decrease MPTP activity, for example, by downregulating CypD. We therefore measured CypD expression and MPTP activity in several osteogenic cell types. Figure 4 shows that primary BMSCs isolated from mouse long bones, mouse bone marrow-derived osteogenic cell line ST2, and mouse calvaria-derived osteogenic cell line MC3T3-e1 underwent OB differentiation confirmed by alkaline phosphate and alizarin red staining (Figure 4A–B) and upregulation of osteogenic markers Alp and Bglap.(Figure 4C–E). In accordance with our hypothesis, osteogenic differentiation was accompanied by downregulation of CypD gene, Ppif, mRNA expression in all these cell types (Figure 4C–E). To confirm that this effect is not species-specific, we analyzed human BMSC RNAseq dataset from our previous publication (Shum et al., 2016a) and observed downregulation of CypD gene, PPIF, mRNA expression in osteoinduced cells when compared to undifferentiated cells (Figure 4—figure supplement 1B). Protein content of CypD correspondingly decreased during OB differentiation as measured with western blot (Figure 4—figure supplement 2). We then measured MPTP activity using calcein-cobalt assay and flow cytometry (Figure 4F). In this assay, cells are incubated with calcein-AM in the presence of CoCl2 which quenches cytosolic but not mitochondrial calcein unless mitochondria are permeabilized due to MPTP opening. The increase in the calcein signal indicates higher resistance to MPTP opening and decreased pore activity (Petronilli et al., 1999). The assay showed that calcein signal increased at day 14 of OB differentiation when compared to day 0 indicating lower MPTP activity (Figure 4F). No changes were detected in the total mitochondrial mass during OB differentiation as labeled by nonyl acridine orange (Figure 4G), therefore confirming that calcein signal increase is in fact caused by a lower pore activity and not by an increased mitochondrial compartment. This is consistent with our previous report showing that mitochondrial mass and mtDNA do not increase during OB differentiation (Shum et al., 2016a; Shares et al., 2018). Altogether, these data indicate that CypD expression is downregulated and MPTP activity is decreased during osteogenic differentiation.

Figure 4 with 2 supplements see all

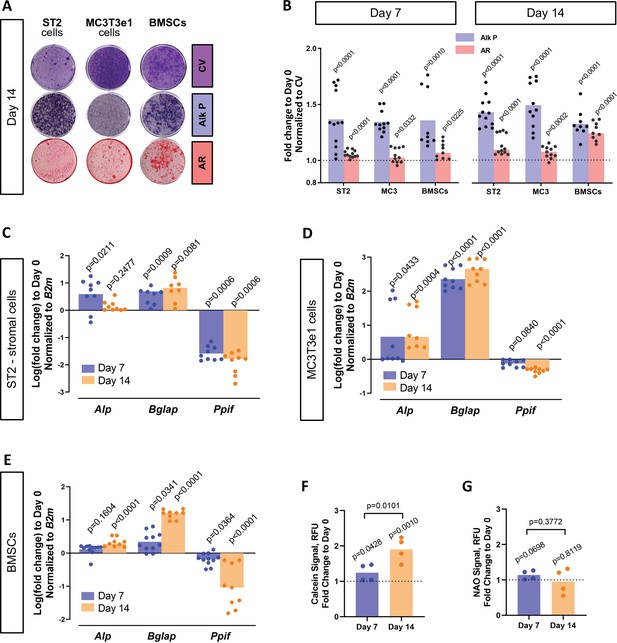

Cyclophilin D (CypD) expression and mitochondrial permeability transition pore (MPTP) activity are downregulated during osteogenic differentiation.

ST2 stromal cells, MC3T3e1, or mouse bone marrow stromal cells (BMSCs) were cultured in osteogenic media; RNA collected, and staining done at day 0, day 7, and day 14. (A) Staining representative image at day 14 for crystal violet (CV) a proxy of total cell content, alkaline phosphatase (Alk P), and alizarin red (AR). (B) Staining quantification confirming osteogenic commitment. (C), (D), and (E) Real-time RT-PCR data: osteogenic markers (Alp and Bglap) are upregulated, whereas Ppif mRNA expression is downregulated. (F) BMSCs subjected to calcein-cobalt assay showed decreased MPTP activity upon osteogenic differentiation. (G) BMSCs stained with nonyl acridine orange (NAO) show no difference in mitochondrial mass. Plot shows the actual data points (biological replicates), calculated means, and p value vs. D0 determined by an unpaired t-test.

Smad-mediated regulatory effect on CypD is independent from osteogenic signaling downstream of Smad1

Osteogenic differentiation is a complex process that involves coordination and crosstalk of several signaling pathways. BMP/Smad signaling is a potent driver of osteogenic differentiation in BMSCs. Once the BMP response is activated, other signaling molecules can influence Smad activity and osteogenic differentiation. For instance, after Smad1-Smad4 complex nuclear translocation, its dephosphorylation is accompanied by the dissociation of the complex and export to the cytoplasm. Smad4 is then believed to interact with β-catenin and TCF/LEF1 forming a TF activation complex, now under the control of Wnt signaling. Additionally, we found TCF/LEF1 regulatory elements in the 1.1 kb Ppif promoter region (Figure 5—figure supplement 1A). To determine the role of Wnt signaling in Ppif regulation, we transfected the 1.1 kb Ppif-luc reporter in ST2 cells and performed a dose-response assay using recombinant Wnt3a. Even Wnt3a concentrations of 25 ng and above, previously reported to activate OB differentiation and mitochondrial function in osteogenic cells (Smith and Eliseev, 2021), showed no effect on Ppif activity (Figure 5—figure supplement 1B). We also investigated the role of BMP/Smad signaling in CypD gene, Ppif, repression in a cell line where osteogenic signaling downstream of BMP/Smad is arrested. We previously reported that the human osteosarcoma (OS) cell line 143b cannot undergo osteogenic differentiation due to Runx2 proteasomal degradation (Shapovalov et al., 2010). Even though Runx2 mRNA expression is upregulated in osteoinduced 143b-OS cells, the osteogenic pathway cascade is blocked by this post-translational regulation. We confirmed the 143b-OS cells’ inability to fully differentiate upon BMP2 osteogenic induction by comparing their mRNA expression of osteoblastic differentiation markers to that of human non-cancerous osteoblastic cell line, hFOB (Figure 5A). While hFOB cells upregulate ALP, IBSP, and BGLAP, 143b cells fail to upregulate these osteogenic markers. As seen in the ST2 and MC3T3e1 cell lines, pCMV-Smad1 transfection led to downregulation of CypD mRNA expression in 143b-OS cells (Figure 5B) and decreased Ppif promoter activity when co-transfected with the full-length 1.1 kb Ppif-luc reporter (Figure 5C). Altogether, our data strongly indicate that BMP/Smad signaling exerts inhibitory effect on the Ppif gene as a direct transcriptional repressor and not as an indirect result of osteogenic differentiation (Figure 5D).

Figure 5 with 1 supplement see all

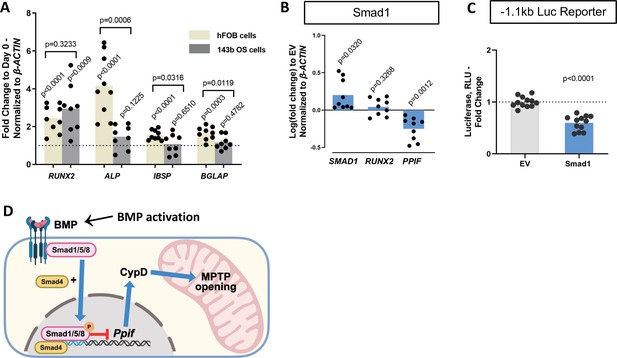

Smad1-mediated CypD/Ppif repression is not dependent on signaling downstream of BMP/Smad.

Immortalized human osteoblastic cells (hFOB) or osteosarcoma cells (143b) were treated with 50 ng BMP2 for 5 days to induce osteogenic differentiation. BMP2 induced early (RUNX2) but not late (IBSP, BGLAP) OB markers in 143b-OS cells, reflecting differentiation-arrested phenotype. (B) Real-time RT-PCR data demonstrating the efficiency of Smad1 transfection and that Smad1 overexpression downregulated Ppif mRNA expression in 143b cells. (C) pCMV-Smad1 co-transfected with the –1.1 kb Ppif full-length luc reporter downregulated the luciferase signal. (D) Schematic representation of our summary of results. To maintain bone marrow stromal cell (BMSC) commitment to the osteogenic lineage, closure of the mitochondrial permeability transition pore (MPTP) is required, which is achieved by CypD downregulation through Smad1 transcriptional repression of Ppif gene. Plots show the actual data points (biological replicates), calculated means, and p value vs. D0 (A) or empty vector (EV) controls (B) determined by an unpaired t-test. BMP, bone morphogenic protein; CypD, cyclophilin D.

Downregulation of CypD is important for osteogenic differentiation

We previously reported that CypD knock-out (KO) mice, a loss-of-function (LOF) model of the MPTP, present with higher BMSC OxPhos function and osteogenic potential (Shum et al., 2016b). Moreover, RNAseq transcriptome analysis showed that CypD KO BMSCs present pro-osteogenic gene signatures (Shares et al., 2020). However, it has not yet been established that CypD downregulation is absolutely necessary for OB differentiation. To address this question, we studied the effect of CypD re-expression and CypD/MPTP gain-of-function (GOF) on OB differentiation. It is known that acetylation of CypD at K166 increases CypD activity and MPTP opening and can be mimicked by K166Q mutation (Alkalaeva et al., 2009; Porter and Beutner, 2018). We therefore used the pCMV6-caPpif vector that expresses constitutively active CypD (caCypD) K166Q mutant tagged with c-Myc and DDK-Flag peptides to stably transfect MC3T3e1 cells. Expression of caCypD mutant was confirmed by western blot (Figure 6A). Cells expressing caCypD showed impaired osteogenic differentiation as evidenced by lower expression of OB marker genes, Runx2, Alp, and Bglap, at both days 7 and 14 in osteogenic media (Figure 6B).

Figure 6 with 1 supplement see all

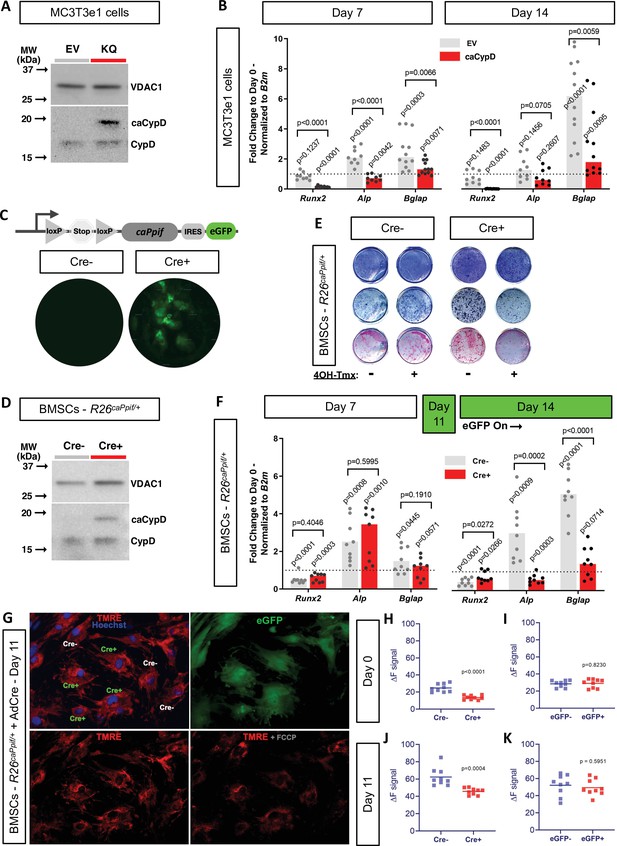

Cyclophilin D (CypD) re-expression and gain-of-function impair osteogenic differentiation and mitochondrial function.

MC3T3e1 were stably transfected cells with pCMV6-caPpif vector to express constitutively active CypD K166Q mutant and thus achieve CypD gain-of-function (GOF). Bone marrow stromal cells (BMSCs) from either osteoblast (OB)-specific, inducible 2.3 kb Col1CreERt2;R26caPpif/+ mice or R26caPpif/+ mice were cultured in osteogenic media for 11–14 days. (A) Representative western blot of stably transfected MC3T3e1 cells (EV: pCMV6-empty vector; KQ: pCMV6- caPpif vector; VDAC1: loading control; caCypD: mutant CypD; CypD: endogenous CypD). (B) and (F) Real-time RT-PCR data of osteogenic markers: CypD GOF MC3T3 cells and OB-specific, inducible 2.3 kb Col1CreERt2;R26caPpif/+ BMSCs were incapable to complete OB differentiation. (C) Diagram showing the caPpif mouse transgene construct. Images show eGFP signal in cell culture confirming recombination induced in vitro. (D) Representative western blot of BMSCs from 2.3 kb Col1CreERt2;R26caPpif/+ mice. (E) Staining representative image at day 14 for crystal violet, alkaline phosphatase, and alizarin red: CypD GOF (tamoxifen-induced Cre+) BMSCs showed decreased OB activity and mineralization capacity. (G) Representative images from R26caPpif/+ BMSCs infected with adeno-Cre virus, culture in osteogenic media during 11 days. (H) and (J) Osteoinduced R26caPpif/+ BMSCs infected with adeno-Cre collected at day 0 or day 11 showed decreased TMRE ΔF signal for infected (Cre+) cells compared to non-infected (Cre-) cells. (I) and (K) Osteoinduced R26caPpif/+ BMSCs infected with adeno-eGFP collected at day 0 or day 11 showed no difference in TMRE ΔF signal between infected (Cre+) and non-infected (Cre-) cells. Plot shows the actual data points (biological replicates), calculated means, and p value vs. D0 (B, F) or Cre- (H–K) controls determined by an unpaired t-test.

Figure 6—source data 1

Original western blot image of stably transfected MC3T3e1 cells probed for cyclophilin D (CypD).

https://cdn.elifesciences.org/articles/75023/elife-75023-fig6-data1-v2.zip
Figure 6—source data 2

Labeled western blot image of stably transfected MC3T3e1 cells probed for cyclophilin D (CypD) (EV: pCMV6-empty vector; KQ: pCMV6-caPpif vector; caCypD: mutant CypD; CypD: endogenous CypD).

https://cdn.elifesciences.org/articles/75023/elife-75023-fig6-data2-v2.zip
Figure 6—source data 3

Original western blot image of stably transfected MC3T3e1 cells probed for VDAC1.

https://cdn.elifesciences.org/articles/75023/elife-75023-fig6-data3-v2.zip
Figure 6—source data 4

Labeled western blot image of stably transfected MC3T3e1 cells probed for VDAC1 (EV: pCMV6-empty vector; KQ: pCMV6-caPpif vector; VDAC1: loading control).

https://cdn.elifesciences.org/articles/75023/elife-75023-fig6-data4-v2.zip
Figure 6—source data 5

Bone marrow stromal cells (BMSCs) from either osteoblast (OB)-specific, inducible 2.3 kb Col1CreERt2;R26caPpif/+ mice or R26caPpif/+ mice were cultured in osteogenic media for 11–14 days.

(A) Original western blot image of BMSCs from 2.3 kb Col1CreERt2;R26caPpif/+ mice.

https://cdn.elifesciences.org/articles/75023/elife-75023-fig6-data5-v2.zip
Figure 6—source data 6

Bone marrow stromal cells (BMSCs) from either osteoblast (OB)-specific, inducible 2.3 kb Col1CreERt2;R26caPpif/+ mice or R26caPpif/+ mice were cultured in osteogenic media for 11–14 days.

(A) Labeled western blot image of BMSCs from 2.3 kb Col1CreERt2;R26caPpif/+ mice (VDAC1: loading control; caCypD: mutant CypD; CypD: endogenous CypD).

https://cdn.elifesciences.org/articles/75023/elife-75023-fig6-data6-v2.zip

As mentioned above, CypD LOF mouse models were created before and in our hands demonstrated the beneficial effects of CypD deletion on bone (Shum et al., 2016b; Shares et al., 2020; Laura et al., 2020). However, CypD GOF mouse model was not previously created except for one model that is no longer available (Baines et al., 2005). We therefore designed a tissue-specific knock-in mouse model of CypD GOF that expresses the above caCypD mutant in the presence of Cre recombinase. Briefly, caPpif cDNA encoding CypD K166Q mutant preceded by the floxed ‘Stop’ codon and followed by an IRES sequence and eGFP cDNA was inserted into the Rosa26 locus (C57Bl/6 background). This new mouse line was named R26caPpif. The presence of this transgene was confirmed with genotyping (Figure 6—figure supplement 1). To achieve OB-specific caCypD expression, we crossed these mice with tamoxifen-inducible 2.3 kb Col1CreERt2 mice (final cross is Col1CreERt2/+; R26caPpif/+). BMSCs were isolated from these skeletally mature 3-month-old male mice, expanded and induced to differentiate in osteogenic media. Addition of 4’-OH-tamoxifen to osteoinduced BMSCs prompted recombination at day 11 (Figure 6C), coinciding with Col1a1 expression time-point during the course of OB differentiation induced in vitro (Safadi et al., 2009). Translation of caCypD mutant was confirmed by western blot (Figure 6D). Cells were harvested at day 14 of osteoinduction and analyzed. Osteoinduced caCypD-expressing cells presented with decreased osteogenic differentiation and OB markers when compared to control cells (Figure 6E and F). To evaluate the mitochondrial function in the CypD GOF model, we collected BMSCs from R26caPpif mice and induced recombination through adeno-Cre viral infection. Adeno-eGFP infection was used as negative control for caCypD expression. Transduced BMSCs were induced in osteogenic media for 11 days, stained with the nuclear stain, Hoechst, and the Δψm-dependent stain, TMRE. FCCP, a protonophore, was used as a negative control for TMRE staining (Figure 6G). CypD overexpression clearly decreased TMRE signal, and therefore mitochondrial function and OxPhos capacity in infected, eGFP-expressing Cre+, cells compared to non-infected, Cre-, cells in both BMSCs at day 0 and OBs at day 11 (Figure 6H and J). Adeno-eGFP showed no important effects on TMRE signal demonstrating that virus infection itself is not the driver of mitochondrial function change (Figure 6I and K). Altogether, our results indicate that CypD GOF disrupts mitochondrial function and impairs OB differentiation and thus, downregulation of CypD is an important part of osteogenic program.

CypD re-expression and GOF reverse the beneficial effects of CypD deletion on bone phenotype in aged mice

To determine the physiological relevance of PPIF downregulation driven by BMP/Smad signaling during osteogenesis, we analyzed publicly available RNAseq datasets on bone aging (Ambrosi et al., 2021) and on fracture (Coates et al., 2019) and found inverse correlation between BMP signaling and Ppif expression (Figure 7—figure supplement 1A). In particular, downregulation of markers of BMP/Smad signaling was accompanied by significant upregulation of CypD gene, Ppif, in aged mouse bones (top left table). On the other hand, upregulation of BMP/Smad signaling during active phase of bone formation (day 14 post-fracture) in mouse fracture callus was accompanied by significant downregulation of Ppif (top right table). We also found that in conditions leading to pathological calcification such as osteoarthritis and osteophyte formation (Dunn et al., 2016) and cardiac valve calcification (Huang et al., 2019) and associated with upregulated BMP/Smad signaling, PPIF expression is decreased (bottom tables).

To further prove the relationship between BMP/Smad signaling and CypD expression, we analyzed bone samples from 3- and 18-month-old mice. These samples were collected before for our previously published work on bone aging (Shum et al., 2016a). BMP/Smad signaling is known to be downregulated in aged bone. Using immunofluorescence (IF), we indeed detected decreased levels of BMP2 in bones of aged mice when compared to young mice. Consistent with our hypothesis, levels of CypD correspondingly increased (Figure 7—figure supplement 1B, C). In addition, we used bone fracture samples from our previously published work (Shares et al., 2020) and performed IF for BMP2 and CypD. Consistent with the published RNAseq dataset described above (Figure 7—figure supplement 1A, top right table), BMP2 signal was significantly increased in the callus at day 14 post-fracture when compared to the unfractured bone. This increase likely reflects active bone forming and callus ossification stage. The observed increase in BMP2 signal was accompanied by significant decrease in CypD signal (Figure 7—figure supplement 1D, E). Therefore, previously published transcriptomic data and our own studies indicate inverse correlation between BMP signaling and CypD expression.

Higher MPTP activity and CypD expression are shown to be present in aging (Sun et al., 2016; Rottenberg and Hoek, 2017; Farr and Almeida, 2018). Additionally, CypD/MPTP upregulation is involved in several pathophysiological conditions, including premature aging and degenerative diseases (Bernardi et al., 2015). Conversely, CypD deletion produces protective effects against several degenerative processes, including bone loss in aged mice (Shum et al., 2016a). To confirm our in vitro results and obtain further insight into the CypD/MPTP regulation of bone cell function, we investigated the effects of CypD re-expression and GOF in vivo. For this, we used a viral delivery of the above caCypD K166Q mutant (caPpif) in a mouse model where CypD was initially deleted. In our experimental design, OB-specific CypD deletion (2.3 kb Col1CreERt2;Ppiff/f) was induced beginning at 2 months of age. These mice were aged to 22 months while maintaining CypD deletion with bimonthly tamoxifen boosts (Figure 7A). Cre- mice (Ppiff/f) were also injected with tamoxifen and used as controls. To rescue CypD expression and achieve CypD GOF, we designed a CRE-DIO (Saunders et al., 2012) viral system carrying caPpif and eGFP cDNA. The CRE-DIO system allows expression of the gene of interest only in Cre+ cells in the animal, therefore providing specificity. The AAV2-CRE-DIO-caPpif -eGFP vector (AAV-DIO, Figure 7B) was introduced via intra-bone marrow injection in the tibiae of the above mice. Contralateral tibiae were injected with sterile phosphate buffered saline (PBS) solution as an intra-mouse control. Two months after the viral infection and recombination, eGFP signal confirming a successful CypD re-expression was present in the AAV-DIO-injected tibiae of Cre+ but not Cre- mice (Figure 7C and Figure 7—figure supplement 2A). CypD re-expression and GOF also led to decreased OB function in vivo as confirmed by decreased osteocalcin IF (Figure 7D), recapitulating the results we have observed in vitro (Figure 6E and F). Since OB function is described to partially regulate osteoclast formation, recruitment and maturation, we analyzed osteoclast activity by tartrate-resistant acid phosphatase (TRAP) staining (Figure 7E) and found no differences between the AAV-DIO-injected tibiae of Cre+ and Cre- mice. An important observation in this experimental design is that OB-specific CypD deletion is in fact protecting against bone loss in aging, corroborating our previous results when we investigated the effects of CypD global deletion in mice (Shum et al., 2016b). For instance, biomechanical testing showed increased torsional rigidity in control tibiae of Cre+ (Ppif-/-) mice when compared to Cre- (Ppif+/+) mice (Figure 7H), indicative of an increased bone strength. Bone volume fraction measured with micro-computed tomography (μCT), a strong predictor of bone strength (Nazarian et al., 2008), provided further evidence that OB-specific CypD deletion effectively protects against bone degeneration in aging (Figure 7G). Although bones with AAV-DIO-delivered CypD re-expression showed decreased cortical thickness and torsional rigidity when compared to their respective contralateral PBS-injected tibiae (Figure 7F and H), we further analyzed our data using data normalization. In both Cre- and Cre+ mice, AAV-DIO-injected tibiae were normalized to the contralateral PBS-injected limb to account for unspecific differences in bone phenotype between animals, differences caused by CypD deletion among experimental and control mice, and unforeseen effects of virus infection. Normalized data showed a significant decrease in cortical thickness in the virus-infected Cre+ mice (Figure 7I) and a decrease in tibial bone volume fraction in these mice which did not reach statistical significance (Figure 7J). These changes were sufficient to decrease tibial biomechanical properties and increase bone fragility in virus-injected bones from Cre+ mice when compared to Cre- mice (Figure 7K–M). Since bone homeostasis is achieved by the interplay of distinct tissues and cell populations such as BMSCs, OBs, osteoclasts, myeloid, lymphoid, endothelial, sensory, and myogenic cells, as expected, some bone morphological parameters are not affected by CypD/MPTP manipulation targeted in OBs (Figure 7—figure supplement 2B-S). Nonetheless, our aggregated data present strong evidence that OB-specific CypD re-expression and GOF detrimentally affect OB function and it is sufficient to impair bone phenotype in aging.

Figure 7 with 3 supplements see all

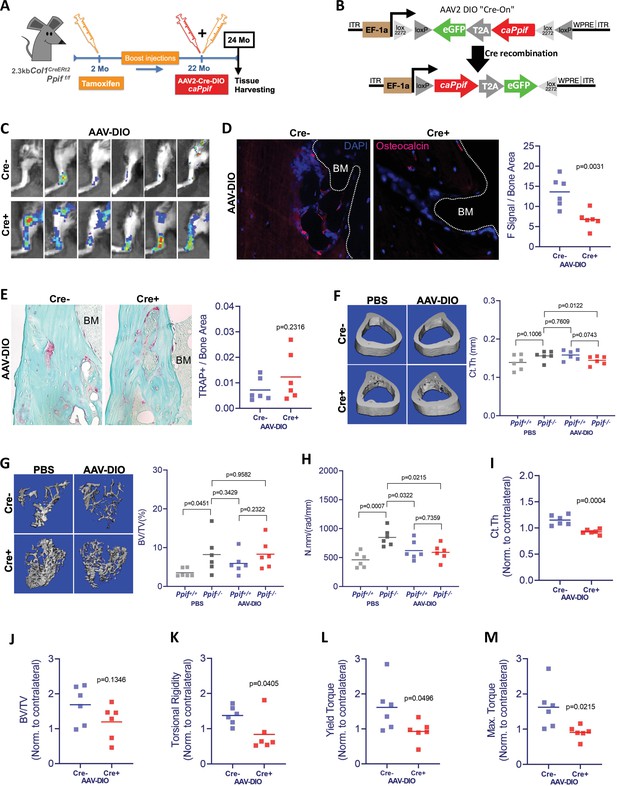

Cyclophilin D (CypD) re-expression and gain-of-function in vivo decreases bone mechanical properties.

(A) Experimental design: CypD deletion was induced in 2-month-old OB-specific inducible (2.3 kb Col1CreERt2;Ppiff/f) CypD loss-of-function (LOF) mice. Virus intra-bone marrow injection performed in the right tibia at 22 months. (B) Diagram showing the AAV2-Cre-DIO-caPpif-eGFP construct. The gene of interest is inserted in the vector in antisense orientation and is flanked by double floxed sites. In cells expressing Cre recombinase, the gene of interest and eGFP reporter are flipped and ‘turned-on’. (C) eGFP signal captured by IVIS in vivo confirming the successful viral infection and recombination in the tibia of Cre+ mice 2 months after intra-bone marrow injection; CypD re-expression decreased osteocalcin immunofluorescence signal (D) but it did not change osteoclast activity measured by tartrate-resistant acid phosphatase (TRAP) staining (E) (BM: bone marrow). Bone volumes and biomechanical properties of CypD deletion and CypD re-expressing bones were measured by micro-computed tomography (μCT) and a torsion test, respectively. CypD conditional deletion did not affect cortical thickness (F) however, it showed protective effect against trabecular bone volume loss in aging (G) and improved torsional rigidity (H) (PBS: Ppif+/+ X Ppif-/-). For analysis of bones with AAV-DIO-delivered CypD re-expression, data was normalized to the contralateral PBS-injected limb to account for differences in bone phenotype between animals. Cre+ mice showed decreased bone volumetric parameters and mechanical properties when compared to Cre- mice. (I) Cortical thickness (Ct Th). (J) Bone over total volume (BV/TV). (K) Torsional rigidity. (L) Yield torque. (M) Maximum torque. Plots show the actual data points from six independent mice per group, calculated means, and p value determined by an unpaired t-test. Paired t-test was used when left and right tibia from the same mouse were compared. Specimens' genotype guide: PBS_Ppif+/+: wild type; PBS_Ppif-/-: CypD conditional KO; AAV-DIO_Ppif+/+: wild type caCypD rescue; AAV-DIO_Ppif-/-: CypD conditional KO caCypD rescue.

Discussion

Cellular differentiation usually challenges cells with significantly increased energetic demands when compared to the undifferentiated state. Fully differentiated cardiomyocytes and neuronal cells are characterized by a higher demand of energy and therefore an elevated mitochondrial activity when compared to their undifferentiated pairs. Such energetic shift requires OxPhos activation which relies on a higher Δψm and proton motive force, fueled by increased electron flow in the electron transport chain. There is mounting evidence that an important part of the above-mentioned bioenergetic switch is a closure of the MPTP. As cells become more active, OxPhos activation leads to increases in ROS, byproducts of active respiration. ROS can then trigger MPTP opening, leading to loss of integrity of the IMM and of OxPhos function and ultimately prompting mitochondrial dysfunction, inflammation, and catabolic pathways (Fayaz et al., 2015; Carraro and Bernardi, 2016). Although the energetic state of mitochondria can be regulated through several pathways, CypD is an important indirect regulator of OxPhos and the key opener of MPTP (Alavian et al., 2014; Beutner et al., 2017; Porter and Beutner, 2018). MPTP closure is beneficial for OxPhos activity, desensitizing mitochondria to higher ROS levels, and preserving mitochondrial membrane integrity.

CypD is regarded as the master regulator of MPTP, and a range of post-translation modifications have been described to exert regulatory properties on CypD activity and, consequently, on MPTP opening. However, how CypD expression is transcriptionally regulated has never been described. We found through an in silico analysis that PPIF promoter has multiple SBEs in the 1.1 kb 5’ upstream region of both human PPIF and mouse Ppif gene. Smads are TFs downstream of the BMP signaling pathway and since OB differentiation is controlled at least in part via BMP/Smad signaling, we hypothesized that in the case of Ppif, Smads are inhibitory TFs. BMPs are a group of cytokines belonging to the transforming growth factor-β superfamily of proteins, which among other functions, induce stem cell differentiation. The BMP canonical pathway is Smad dependent, which upon phosphorylation and Smad4 binding, forms a heterodimeric complex. The complex translocates into the nucleus and activates or represses expression of a variety of genes (Wang et al., 2014; Nickel and Mueller, 2019). As expected, our DNA-protein binding ChIP analysis revealed stronger Smad1-Ppif interaction when ST2 cells were supplemented with BMP2 for 24 hr compared to vehicle control-treated cells. Although Smad1-Ppif interaction was found to be present at lower levels in the non-BMP-treated ST2 cells, this finding is consistent with the fact that intrinsic levels of BMP activity are present in undifferentiated osteogenic cells. Since we have shown that pCMV-Smad1 transfection in ST2 and MC3T3e1 cells downregulated CypD mRNA expression, our results demonstrate that increased Smad1 interaction with CypD gene (Ppif) promoter leads to Ppif transcriptional repression. The specificity and functionality of BMP/Smad signaling in Ppif transcriptional repression was further confirmed using a Ppif-luc reporter with point mutations in the SBEs and delineated using the functional 1.1 kb Ppif-luc reporter with or without BMP/Smad inhibitors. However, the crosstalk between BMP and Wnt signaling could indirectly repress Ppif activity by other means than just Smad1-Ppif binding. Our in silico analysis revealed a potential TCF/LEF1 binding site within the Ppif promoter which was shown to have no effect on Ppif regulation. However, Runx2 is a downstream target of BMP/Smad signaling known to regulate several genes responsible for growth control and differentiation. Other TFs downstream Runx2 activation could also directly/indirectly exert regulatory function on Ppif transcription. Therefore, we investigated the role of BMP/Smad signaling in CypD downregulation and Ppif repression in 143b-OS cells, where osteogenic signaling downstream of BMP/Smad is arrested. Confirmatory results for 143b-OS cells strongly indicate that BMP/Smad signaling is in fact a direct transcriptional repressor of PPIF and is sufficient to repress PPIF without any additional downstream differentiation signals.

To our knowledge, this is the first evidence for TF-mediated regulation of PPIF transcription. Although our main focus was on osteogenic cells, our findings can be potentially extrapolated and studied in other cell types. 143b-OS cells’ results indicate that Smad-mediated CypD downregulation/Ppif repression is not exclusive to osteogenic differentiation. As previously discussed, BMP is ubiquitously expressed and described to induce cellular differentiation and maturation in various tissues. Accordingly, some cells induced by BMP/Smad signaling reprogram their metabolic profile to a higher energetic state during differentiation and are shown to decrease CypD mRNA expression and/or activity, such as cardiomyocytes and neuronal cells. We previously reported that BMP2 induction stimulates mitochondrial OxPhos during OB differentiation and that such activation is at least partially driven by a metabolic signaling (Smith and Eliseev, 2021). Myocardial differentiation from cardiac progenitors is regulated by BMP/Smad signaling. BMP2/4 conditional KO impairs myocardial differentiation by drastically reducing sarcomeric myosin (Wang et al., 2014). In neuronal cells, BMP signaling is pivotal for cellular fate specification in both neurogenesis and astrogliogenesis by regulating transcriptional activity (Bond et al., 2012). Several BMP ligands, including BMP2, are described to regulate central nervous system development and patterning. Therefore, it is logical to suggest that CypD downregulation mediated by BMP-dependent, R-Smad (Smad1, -5, -8) transcriptional repression of Ppif gene can be present in other tissues during development and maintenance. However, we found that mouse myogenic C2C12 cells upregulate Ppif activity when Smad-dependent BMP signaling is activated, suggesting that the effect direction of Smads on PPIF regulation is tissue-specific. This bi-directional effect of Smads on gene regulation is well described. Smads can either act as promoter repressors or activators in a gene-specific manner (Massagué et al., 2005). The tissue-specific effect of Smad1 on Ppif can be explained, for instance, by the fact that cell/tissue specification is driven by selective methylation of promoter regions which changes chromatin accessibility (Atlasi and Stunnenberg, 2017). Such modification can either completely repress promoter activity or alter its regulatory mechanism. We showed that Ppif promoter bashing using different promoter regions (P, M+P, or D+M) led to promoter activation instead of repression in osteogenic ST2 cells overexpressing Smad1. This effect is similar to the effect observed in myogenic C2C12 cells using the full-length Ppif reporter. It remains to be determined which SBE combinations are accessible in C2C12 cells and how it would impact the recruitment of Smads and co-factors. The role of CypD expression is not well studied in myogenic program but RNAseq studies revealed no changes in CypD expression during myoblast differentiation (Zeng et al., 2016). Interestingly, BMP signaling is suppressed during myogenic differentiation showing marked upregulation of Noggin expression (Ono et al., 2011). In fact, Noggin or Wnt3a administration stimulates myogenic differentiation presenting synergic effect when combined (Shang et al., 2007; Terada et al., 2013). Conversely, addition of BMP ligands to C2C12 cells is shown to suppress myogenic differentiation but BMPs are necessary for muscle hypertrophy (Borok et al., 2020). Clearly, a fine-tuning of BMP regulation is required in muscle tissue. Since Smad1 transfection increased Ppif activity in myogenic cells, we can speculate that constitutive activation of R-Smads is more associated with inflammatory and catabolic pathways in muscle tissue. Not surprisingly, BMP hyperactivation is described to be associated with impaired muscle regeneration (Borok et al., 2020).

The effects of CypD on cell functioning have been studied for over 35 years. First, CypD was exclusively attributed to regulate cell death, however later studies provided further understanding of CypD function within mitochondria and its importance for cell physiology and bioenergetic response. The CypD KO mouse model has been vastly applied to study the effect of MPTP downregulation in vivo. CypD deletion is shown to present a protective phenotype against aging in several tissue-specific mouse models. Additionally, CypD ablation in mice also resulted in diminished disease progression for some pathologies, such as reperfusion injury of the heart and brain, axonopathy, and other neurodegenerative and demyelinating diseases (Baines et al., 2005; Schinzel et al., 2005; Giorgio et al., 2010; Halestrap and Richardson, 2015; Ahier et al., 2018; Gauba et al., 2019). In contrast, CypD overexpression or overactivation is related to the onset and progression of several pathological states, either during development or in aging. Cardiomyocytes unable of downregulating CypD during embryonic development can cause congenital heart defects, secondary to defects in MPTP activity and myocyte differentiation (Hom et al., 2011; Lingan et al., 2017). The progression of Alzheimer’s disease is accelerated by higher CypD levels and MPTP activity, leading to further mitochondrial stress and neuronal exhaustion (Alavian et al., 2014; Gauba et al., 2019). Collagen VI myopathies are well described and established pathologies where CypD overexpression plays a major role, and as expected, treatment with CypD inhibitors can reverse the disease (Giorgio et al., 2010; Zulian et al., 2014).

In bone tissue, we have shown that BMSCs from CypD KO mice have higher osteogenic potential and OxPhos activity. Moreover, mice with CypD ablation presented with less osteoporosis burden, stronger bones in aging, and improved fracture healing (Shum et al., 2016b; Shares et al., 2020). OB function involves bone matrix deposition, an energy-consuming process, which according to our and others’ data, is highly dependent on mitochondrial bioenergetics. In fact, our lab and others have demonstrated that BMSCs shift their bioenergetic profile toward OxPhos during OB differentiation (Shum et al., 2016a; Feigenson et al., 2017; Colaianni et al., 2018; Shares et al., 2018; Yu et al., 2019; Smith and Eliseev, 2021). Not surprisingly, we recently reported that higher OxPhos in BMSCs correlates with better spinal fusion outcomes in both human patients and in a mouse model (Laura et al., 2020). Taken together, the evidence collected in other groups’ studies, our previous studies, and the present study points that OxPhos is activated while MPTP is inhibited via CypD downregulation during OB differentiation. Our data corroborate reports of CypD downregulation and MPTP closure during neuronal differentiation in developing rat brains, as well as during cardiomyocyte differentiation in developing mouse hearts (Eliseev et al., 2007; Hom et al., 2011; Lingan et al., 2017). However, the importance of CypD/MPTP downregulation for OB differentiation and bone maintenance was not totally clear. In this study, we used a CypD/MPTP GOF model that stably expressed caCypD K166Q mutant (caPpif) in either MC3T3-e1 cell line or in primary cells from a novel OB-specific CypD GOF mouse model. Acetylation of CypD at K166 position increases CypD activity and MPTP opening and can be mimicked by K166Q mutation (Alkalaeva et al., 2009; Porter and Beutner, 2018). The development of this mouse model allowed us to investigate the importance of CypD downregulation during osteogenic differentiation in primary mouse cells. Both MC3T3e1 cells and BMSCs showed decreased osteogenic markers, impaired OB differentiation and function at the time caCypD was expressed (from D0 in caCypD-transfected MC3T3e1 cells, and from D11 in osteoinduced BMSCs from CypD GOF mouse). In our in vivo model, CypD re-expression and GOF reversed the beneficial effects of CypD deletion on bone phenotype in aged mice. We have shown that CypD KO mice are protected against bone loss in aging, and present stronger bones when compared to wild type control littermate mice (Shum et al., 2016b). Additionally, we found that bones from aged mice present higher CypD levels when compared to young mice. CypD re-insertion in OBs in mice with OB-specific CypD deletion by tibial intra-bone marrow viral infection, delivering the caPpif transgene, rescued bone mechanical properties observed in aging. Our data suggests that OB-specific CypD/MPTP overactivation in vivo is related to a weaker bone phenotype as seen in advanced bone loss and osteoporosis. This result goes along with studies showing that CypD/MPTP upregulation is present in several tissues during aging and as discussed, such upregulation plays a role in the onset and progression of several degenerative pathologies. However, a limitation in our in vivo model is the fact that we have not analyzed vertebral bones, which are more relevant in the context of osteoporosis.

During de novo bone formation in fracture repair, we observed CypD downregulation coincident with upregulation in BMP2. This finding may provide explanation for our previously published report where we found no effects of CypD conditional deletion in Prx1-expressing osteoprogenitors. Since in young mice with functional BMP signaling, CypD is downregulated during fracture repair, the effect of any additional bone-specific CypD downregulation may be blunted. Delayed fracture repair is associated with aging when BMP signaling is low. Therefore, we can interconnect our previous and current data on PPIF regulation summarized in Figure 7—figure supplement 3 and conclude that such regulation process is crucial for bone homeostasis and repair.

Overall, our findings establish BMP/Smad signaling as a transcriptional regulator of PPIF expression playing an important role in bone physiology and pathology. We provided evidence that CypD downregulation led by BMP signaling is important during osteogenic differentiation and that the increase in CypD expression in OBs during aging can be detrimental to bone phenotype and strength. Even though aged skeleton is characterized by a very low turnover rate, CypD overexpression for a total period of only 2 months was sufficient to decrease bone mechanical properties. These results highlight the importance of CypD regulation for a proper bone maintenance and positions CypD as a potential target for bone health. Additionally, RNAseq data from pathological ossification/calcification conditions, such as osteoarthritis and osteophyte formation (Dunn et al., 2016) and cardiac valve calcification (Huang et al., 2019), suggested the inverse correlation between BMP signaling and CypD expression in these pathologies. Therefore, the BMP/Smad-Ppif axis is also relevant for these pathological conditions and can be aimed as a potential therapeutic target as well. In fact, there are plenty of evidence showing that CypD can be therapeutically targeted to treat some pathological conditions. Studies in the heart and brain have shown that CypD inhibitors can protect against injury after reperfusion in animal models (Halestrap and Richardson, 2015; Warne et al., 2016). However, the lack of target validation and better understanding of CypD regulatory pathway has contributed to failed Phase III clinical trials (Nighoghossian et al., 2015; Ong et al., 2017; Briston et al., 2019). Therefore, our findings can be applied to develop new strategies to regulate CypD expression, and the similar strategy can be used to other fields of mitochondrial-mediated human pathologies characterized by CypD/MPTP deregulated activity.

Materials and methods

Mouse strains

Request a detailed protocol

R26caPpif with C57Bl/6 genetic background, CypD GOF, mice were generated by the combined effort of our lab and Dr George Porter’s lab in the University of Rochester Gene Targeting and Transgenic Core Facility. We used the CTV vector (CAG-STOP-eGFP-ROSA targeting vector, Addgene) described by Dr Changchun Xiao (a modification from the original vector in the Klaus Rajewsky lab) to knock in the transgene caPpif construct encoding constitutively active CypD K166Q mutant, in embryonic stem (ES) cells. In brief, caPpif cDNA containing Myc-DDT(Flag) tag on its N-terminal was cloned into the CTV vector containing NeoSTOP cassette flanked by loxP sites. This vector also contains IRES-eGFP for easy detection of a transgene expression. This vector was designed for CypD GOF while inserted at Rosa26 locus. Transformed ES cells were injected into the blastocysts to produce chimeric mice followed by breeding the chimeras to germline transmitted offspring containing the knock-in caPpif gene. After the creation of first transgenic hemizygous mouse littermates R26caPpif/+, the colony was expanded and later bred in house with OB-specific tamoxifen-inducible Col1CreERt2 mice, 2.3 kb variant (final cross is Col1CreERt2/+;R26caPpif/+). 2.3 kb Col1CreERt2 mice were a kind gift from Dr Ackert-Bicknell (formerly of University of Rochester, originated in the Karsenty Lab at Columbia University Department of Genetics). Ppif floxed (Ppiff/f) mice were acquired from Jackson Laboratories (originated in the Korsmeyer lab at Dana Farber Cancer Institute, RRID: IMSR_JAX:005737) and bred in house with 2.3 kb Col1CreERt2 mice to allow OB-specific CypD deletion. C57BL/6J mouse strain was obtained from the Jackson Laboratory (RRID: IMSR_JAX:000664) and bred in house. All mice were housed at 23°C on a 12 hr light/dark cycle with free access to water and PicoLab Rodent Diet 20 (LabDiet #5053, St Louis, MO). Mice were in group housing when applicable based on weaning. Testing naïve mice with an average weight of 28 g were used for experiments. The assessments of animal studies were performed in a blinded and coded manner.

Isolation of BMSCs

Request a detailed protocol

Primary bone marrow cells were harvested from femurs and tibiae bone marrow from Col1CreERt2/+;R26caPpif/+ and Cre-negative control littermates or from C57BL/6J mice. Cells were plated at a density of 20 × 106 per 10 cm dish in physiological ‘low’ glucose (5 mM) DMEM (LG-DMEM) supplemented with 1 mM L-glutamine, 10% fetal bovine serum (FBS), 1% penicillin-streptomycin, and incubated at 37°C, 5% CO2, and physiologically relevant at 5% O2. BMSCs were selected by plastic adherence, and detached from plates using 0.25% trypsin/1 mM EDTA treatment, as previously described (Shum et al., 2016a).

Mouse cell lines

Request a detailed protocol

Mouse long bone-derived ST2 cells were a gift from Dr Clifford Rosen (Maine Medical Center). C2C12 mouse myogenic cells were from ATCC and provided by Dr Calvin Cole (University of Rochester). Mouse calvarial bone-derived MC3T3-E1 cells were acquired from ATCC. Cells were expanded in sterile conditions and maintained in a 37°C incubator at 5% CO2 in low glucose αMEM media (Gibco A10490-01) containing 1 mM L-glutamine, ribonucleosides (0.01 g/L each), deoxyribonucleosides (0.01 g/L each), no ascorbic acid, 10% FBS (Gibco 10437-028) heat inactivated for 30 min at 55°C, and 1% pennicillin/streptomycin (Gibco 15140-122). Cells were maintained at passage numbers <20 as recommended by the supplier and from previous handling experience. Cells have been authenticated by their osteogenic (ST2 and MC3T3-E1) or myogenic (C2C12) differentiation potential. They are mycoplasma-free.

Human osteoblastic cell line

Request a detailed protocol

hFOB cells were purchased from ATCC and expanded in DMEM supplemented with 1 mM L-glutamine, 10% FBS, 1% penicillin-streptomycin, and incubated at 37°C and 5% CO2. We used passage number between 3 and 7 for our experiments (Shapovalov et al., 2010; Giang et al., 2013).

Human OS cells

Request a detailed protocol

143b human OS cells were acquired from ATCC (Manassas, VA). Cells were expanded in sterile conditions and maintained in a 37°C incubator at 5% CO2 in DMEM supplemented with 1 mM L-glutamine, 10% FBS, and 1% penicillin-streptomycin.

Osteoinduction

Request a detailed protocol

Cells were osteoinduced at confluency in their appropriate media either supplemented with 50 μg/mL ascorbate (TCI A2521) and 2.5 mM β-glycerolphosphate (USB Corp Cleveland, OH) for 7 and 14 days, or 50 ng/mL BMP2 (R&D Systems 355-BM-050/CF) for 5 days. OB differentiation was assessed by alkaline phosphatase (Thermo NBT/BCIP 1-step 34042) and alizarin red staining. Crystal violet stain (Sigma C3886) was used at 0.5% to determine total cell count as previously described (Shares et al., 2018).

Real-time RT-qPCR

Request a detailed protocol

Total RNA was isolated using the RNeasy kit (Qiagen 74106) and reverse transcribed into cDNA using the qScript cDNA synthesis kit (Quanta 95048-500). cDNA was subjected to real-time RT-PCR. The primer pairs used for genes of interest are outlined in Key resources table. Real-time RT-PCR was performed in the RotorGene system (Qiagen) using SYBR Green (Quanta 95072-012). Alp and Bglap gene expression was used to confirm osteogenic differentiation.

MPTP opening calcein-cobalt assay

Request a detailed protocol

To assess the MPTP activity, mitochondrial membrane integrity was measured using a method of calcein quenching by cobalt as described by Petronilli et al. in 1999. The assay is based on the fact that calcein accumulated in the cytosol is quenched after co-loading with cobalt, whereas calcein accumulated in mitochondria is not accessible to cobalt and therefore not quenched unless mitochondrial membranes are permeabilized. Cells were incubated with 1 μM calcein-AM (acetoxymethyl ester) in the presence of 1 mM cobalt chloride for 30 min at 37°C, washed, lifted from plates using a cell lifter, resuspended in PBS solution, and assayed using the BD Biosciences LSRII flow cytometer. Ionomycin at 1 μM was used as negative control in a set of calcein/cobalt-loaded cells to dissipate calcein signal.

Mitochondrial mass assay

Request a detailed protocol

Cells were stained with nonyl acridine orange (NAO) (Invitrogen A1372) at 100 nM, a fluorescent probe that labels cardiolipin present primarily in mitochondrial membranes (Beutner et al., 2014), for 15 min at 37°C. Stained cells were then lifted from plates with cell lifter, washed, and resuspended in PBS. NAO signal was detected in BD Biosciences LSRII flow cytometer.

Mitochondrial functional assay

Request a detailed protocol

7 × 104 BMSCs from R26caPpif/+ (CypD GOF) mice were plated on laminin-coated 25 mm round glass coverslips and infected with Ad5-CMV-Cre or Ad5-CMV-eGFP virus at 500 MOI. Forty-eight hrs after infection, BMSCs were induced in osteogenic media. At day 0 or day 11 of osteoinduction, cells were stained with the nuclear staining Hoechst 33343 (Molecular Probes H 1339) at 0.5 μM, and the Δψm-dependent dye TMRE (Invitrogen T669) at 20 nM. FCCP (Abcam ab120081) at 0.5 μM was used as a negative control. Cells were imaged using inverted fluorescence microscope (Axioscope) and TMRE fluorescence signal was quantified using ImageJ. ΔF signal is given by the difference of TMRE signal measured immediately before and 30 s after FCCP addition.

Western blot

Request a detailed protocol

Cells were lysed in a lysis buffer containing protease inhibitors and subjected to 4–12% sodium dodecyl sulfate polyacrylamide gel electrophoresis followed by transfer to polyvinylidene difluoride membranes and blocking in 5% dry milk reconstituted in PBST (PBS supplemented with Tween 20 at 0.05%), as previously described (Shum et al., 2016a). All antibodies were diluted in 2.5% dry milk in PBST. For CypD detection, blots were probed with monoclonal CypD antibody (RRID: AB_478283) diluted 1:1000 and HRP-conjugated goat anti-mouse antibody diluted 1:3000. To verify equal loading, blots were re-probed with either β-actin (RRID: AB_476697) or VDAC1 (RRID: AB_632587) antibody diluted 1:2000 and HRP-conjugated goat anti-mouse antibody diluted 1:5000. CypD and β-actin signals were developed with West Pico Substrate. Band densitometry was measured with Image Lab Software. CypD signal was normalized to β-actin.

Tibial intra-bone marrow AAV2(serotype 2)-Cre-DIO-caPpif -eGFP infection

Request a detailed protocol

Transgene caPpif construct was cloned into the Double-floxed Inverted Orientation (DIO) Cre-On vector pAAV-Ef1a-DIO-eGFP-WPRE-pA (Addgene plasmid # 37084; http://www.addgene.org/37084/; RRID:Addgene_37084 – gift from Bernardo Sabatini – Saunders et al., 2012). DIO vector was cloned using the AscI and NheI restriction site, and transgene introduced through transgene-specific primers and PCR amplification. The AscI site was N-Terminal and the NheI site C-Terminal with respect to the transgene. Cloning and sequence confirmation was performed. Cloned vectors were amplified with recombination deficient bacteria (OneShot Stbl3, Invitrogen) and tested functionally for Cre-On expression by calcium phosphate transfection (Invitrogen) into HEK 293 cells constitutively expressing Cre. The AAV particles (AAV2-Cre-DIO-caPpif-eGFP) were produced at the University of North Carolina Viral Core Facility.

Col1CreERt2/+;Ppiff/f and Cre-negative Ppiff/f littermate mice were anesthetized using 100 mg/kg ketamine and 10 mg/kg xylazine IP at a rate of 0.1 mL per 10 g of body weight. Hair was shaved around the joint area and 70% alcohol and iodine were used to clean the area. A 1 mL syringe with a 26 G (3/8 length) needle was inserted into the intra-bone marrow tibial space by gentle twisting and pressuring at the top of the tibiae (proximal epiphyses) in the knee joint. The hole created by the 26 G needle was expanded by lateral and whirling movements. The 26 G needle was removed and a Hamilton syringe with a 22 S needle gauge (Z15364-8, 100 μL Hamilton, Gastight 1800, needle Gauge 22S) was inserted into the expanded hole created by the 26 G needle. Ten microliters of viral solution (1.8 × 1013 viral particles/mL AAV2-Cre-DIO-caPpif -eGFP) was slowly injected by free hand into the marrow space of the tibiae (injection technique and viral load adapted from [Selenica et al., 2016]). Contralateral tibiae were injected with 10 μL of sterile PBS solution as an intra-mouse control. Immediately after the viral injection, 100 μL of 3 mg/mL tamoxifen was intra-peritoneally injected 5 days in a row to induce Cre activation. eGFP signal confirming viral infection and subsequently OB recombination was captured by in vivo image system IVIS 30 and 60 days post-infection.

In Vivo Imaging System

Request a detailed protocol

Under isoflurane anesthesia, lower limbs from virus-infected mice were shaved and imaged for eGFP signal using In Vivo Imaging System (IVIS) Spectrum (Caliper Life Sciences). A negative control mouse, which received only PBS intra-bone marrow injection on both tibiae, was used to subtract non-specific eGFP signal arising from bone autofluorescence.

Bone μCT following euthanasia, virus and PBS-injected tibiae were isolated and cleaned of excess soft tissue. Tibiae were stored at −80°C prior to μCT. Bones were imaged using high-resolution acquisition (10.5 μm voxel size) with the VivaCT 40 tomograph (Scanco Medical). Scanco analysis software was utilized for volume quantification.

Biomechanical torsion testing immediately following μCT scanning, tibiae were subjected to biomechanical testing. The ends of the tibiae were cemented (Bosworth Company) in aluminum tube holders and tested using an EnduraTec TestBench system (Bose Corporation, Eden Prairie, MN). The tibiae were tested in torsion until failure at a rate of 1°/s. The torque data were plotted against rotational deformation to determine maximum torque and torsional rigidity. Data from virus-injected tibiae were normalized to the contralateral PBS-injected (intra-mouse control) tibiae data.

Histology

Request a detailed protocol

After biomechanical testing, tibiae bones were NBF-fixed and processed for histology via decalcification in Webb-Jee 14% EDTA solution for 1 week followed by paraffin embedding. Sections were cut to 5 μm in three levels of each sample, and then stained with either TRAP or IF.

Immunofluorescence

Request a detailed protocol

NBF-fixed tibiae were processed as above. IF was carried out using a primary anti-osteocalcin antibody (RRID:AB_10540992) diluted 1:400 or anti-GFP antibody (RRID:AB_303395) diluted 1:500, followed by incubation with anti-rabbit IgG secondary antibody conjugated with Alexa Fluor647 (RRID:AB_2722623) diluted 1:2000 or with anti-rabbit IgG secondary antibody conjugated with Alexa Fluor488 (RRID:AB_2630356), respectively. Anti-BMP2 antibody (RRID:AB_2243574) and anti-CypD antibody (RRID:AB_10864110), both diluted 1:500, were incubated simultaneously, followed by incubation with anti-rabbit IgG secondary antibody conjugated with Alexa Fluor647 (RRID:AB_2722623) and anti-mouse IgG secondary antibody conjugated with Alexa Fluor488 (RRID:AB_2576208), both diluted 1:2000. The primary antibody solution was composed of PBS, 0.1% Tween-20%, and 5% Goat Serum. Prior incubation at 65°C in 10 mM sodium citrate (pH 6.0) for 3 hr was performed for antigen retrieval. Fluoroshield Mounting Medium with DAPI (ab104139) was used to counterstain and coverslip IF-slides.

Histomorphometry

Request a detailed protocol

TRAP or IF-stained slides were scanned in an Olympus VSL20 whole slide imager at 40× magnification and evaluated with VisioPharm automated histomorphometry software. TRAP-stained slides were analyzed to measure the TRAP-positive area relative to total bone area in the tibiae shaft. IF-stained slides probed for osteocalcin were analyzed to measure the fluorescence signal intensity relative to total bone area of tibiae shaft. Three different levels were counted per mouse and averaged.

ChIP assay

Request a detailed protocol

ChIP assay was performed using SimpleChIP Enzymatic Chromatin IP Kit – Magnetic Beads (Cell Signaling Technology, Inc, Danvers, MA) according to the manufacturer’s instructions. Briefly, cells were fixed, and DNA cross-linked with formaldehyde and homogenized. Nuclei were pelleted and chromatin was digested enzymatically, sonicated and immunoprecipitated with either anti-Smad1 antibody (RRID:AB_628261), or negative control immunoglobulin G, or positive control histone H3 antibody using protein G magnetic beads. Chromatin was eluted from immunoprecipitate complexes and cross-links reversed with NaCl and proteinase K. After purification, DNA was amplified by a PCR using primers to amplify the distal SBE region (−1107––947) within the Ppif promoter. Band density quantification for Smad1 immunoprecipitation in both conditions was adjusted by background subtraction and normalized to total DNA input. Unspecific signal from IgG band was also subtracted from Smad1-specific signal.

Cloning of Ppif promoter into luciferase reporter and reporter activity assay

Request a detailed protocol

Mouse Ppif promoter fragments containing the –1.1 to –0.1 kb, or –0.37 to –0.1 kb, or –0.62 to –0.45 kb, or –1.1 to –0.95 kb, or –0.62 to –0.1 kb, or –1.1 to –0.45 kb region were PCR amplified from purified C3H/HeJ mouse DNA. Primers were designed to introduce CTCGAG XhoI 5′ and AAGCTT HindIII 3′ flanking sequences. For Ppif promoter mutagenesis, point mutations for each SBE found in the 1.1 kb Ppif promoter region were designed to substitute either a cytosine or guanine for an adenosine nucleotide in the sense strand, and therefore a complementary thymine base in the antisense strand. CTCGAG XhoI 5′ and AAGCTT HindIII 3′ flanking sequences were also introduced in the 1.1 kb mutated Ppif promoter, and a synthetic sequence fragment was ordered from IDT (IDT, gBlocks Gene Fragments). The fragments were then subcloned into the XhoI 3’/HindIII 5' site of the promoterless pGL4.10 luciferase reporter vector. The correct insert orientation of the resulting promoter reporters was verified by sequencing. To evaluate promoter activities, the constructed Ppif-Luc reporters were transfected into ST2, MC3T3e1, C2C12, or 143b-OS cells at 0.8 μg per well in 12-well plates. The promotorless renilla luciferase vector pRL (Promega, Madison, WI) was co-transfected at 50 ng per well as a reference. Smad1 activity was further activated with either 0.8 μg/mL pCMV-Smad1 co-transfection, 50 ng/mL BMP2, or osteogenic media induction. The role of BMP/Smad was delineated by co-transfecting inhibitory Smad7 using 0.8 μg/mL pCMV-Smad7 vector, or using BMP inhibitor, Noggin (R&D systems 1967-NG-025/CF) at 0.1 µg/mL. Wnt signaling role in Ppif promoter activity was assessed using Wnt3a (R&D systems 5036-WN-010) addition in the media. Firefly and renilla luciferase activities were measured using an Optocomp 1 luminometer and a Dual Luciferase Reporter Assay System (Promega) according to the manufacturer’s protocol. The firefly luciferase signal was normalized to renilla luciferase signal and expressed as relative luminescence units fold change to pCMV empty vector control.

Statistics

A power analysis on normalized biomechanical data was performed since it showed the highest variance. It was determined that some quantitative outcomes would require six mice per group. We set the significance level at 5% (α=0.05) and Type II error (β) to ≤20%. For statistical analysis, we compared the difference of two simple groups independently, therefore an unpaired t-test was used when the frequency distribution of the differences between the two groups fitted a normal distribution. When left and right tibiae from the same animal was compared, we used a paired t-test. Although we analyzed independent variables and therefore independent hypothesis in the multi-group graphs (Ppiff/f: Cre+ or Cre- × AAV-DIO or PBS), we performed ordinary one-way ANOVA using Dunnett’s multiple comparisons test with a single pooled variance to further validate our statistical findings significance. Since no differences in significance were found, we maintained our t-test results.

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Mus musculus)Ppif promoter
(–1110…–1 bp)
NCBINM_005729.3
Gene (Homo sapiens)PPIF promoter
(–1110…–1 bp)
NCBINC_000080.6
Strain, strain background (Mus musculus, male)C57BL6/JJackson LaboratoriesRRID: IMSR_JAX:000664
Genetic reagent (Mus musculus, male)R26caPpifThis paperGlobal CypD GOF or caPpif mouse
(C57Bl/6 background)
Genetic reagent (Mus musculus, male)2.3 kb Col1CreERt2;R26caPpif/+This paperCol1-specific CypD GOF or caPpif mouse (C57Bl/6 background)
Genetic reagent (Mus musculus, male)(Ppiff/f)
Ppif tm1Mmos/J, C57Bl/6
Jackson LaboratoriesRRID: IMSR_JAX:005737Originated in the Korsmeyer lab at Dana Farber Cancer Institute
Cell line (Mus musculus)ST2DMSZRRID:CVCL_2205Gift from Dr Clifford Rosen (Maine Medical Center)
Cell line (Mus musculus)MC3T3-E1 subclone 14ATCCRRID:CVCL_5437
Cell line (Mus musculus)C2C12ATCCRRID:CVCL_0188Gift from Dr Calvin Cole (University of Rochester)
Cell line (Homo sapiens)hFOB 1.19ATCCRRID:CVCL_3708
Cell line (Homo sapiens)143bATCCRRID:CVCL_2270
Transfected construct (Mus musculus)pCMV6-caPpifOrigeneMR202183Plasmid construct to transfect and express caCypD
Transfected construct (Enterobacteria phage P1)Ad5-CMV-CreVector BiolabsNo:1045Viral particle construct to transfect and express Cre recombinase
Transfected construct (Aequorea Victoria)Ad5-CMV-eGFPVector BiolabsNo:1060Viral particle construct to transfect and express eGFP
Transfected construct (Mus musculus)AAV2-Cre-DIO-caPpif-eGFPUNC GTC Vector Core#AV8154Viral particle construct to transfect and express caCypD in vivo
Biological sample (Mus musculus)Primary BMSCs from C57BL6/J miceJackson LaboratoriesFreshly isolated from Mus musculus
Biological sample (Mus musculus)Primary BMSCs from R26caPpif/+ miceThis paperFreshly isolated from Mus musculus
AntibodyAnti-CypD (mouse monoclonal) a.k.a Cyclophilin FAbcamRRID: AB_10864110WB (1:1000)
IF (1:400)
AntibodyAnti-β-actin (mouse monoclonal)AbcamRRID: AB_476697(1:2000)
AntibodyAnti-VDAC1 (mouse monoclonal)Santa Cruz BiotechnologyRRID: AB_632587(1:2000)
AntibodyGoat anti-mouse (goat polyclonal, HRP conjugate)AbcamRRID: AB_478283(1:3000) to (1:5000)
AntibodyAnti-osteocalcin (rabbit polyclonal)Enzo Life SciencesRRID: AB_10540992(1:400)
AntibodyAnti-GFP (rabbit polyclonal)AbcamRRID: AB_303395(1:500)
AntibodyAnti-BMP2 (rabbit polyclonal)AbcamRRID: AB_2243574(1:500)
AntibodyGoat anti-rabbit IgG (goat polyclonal, Alexa Fluor647 conjugate)AbcamRRID: AB_2722623(1:2000)
AntibodyGoat anti-rabbit IgG (goat polyclonal, Alexa Fluor488 conjugate)AbcamRRID: AB_2630356(1:2000)
AntibodyAnti-Smad1 (mouse monoclonal)Santa Cruz BiotechnologyRRID: AB_628261(1:2000)
Recombinant DNA reagentpCMV5-Smad1
(plasmid)
Addgene#14045
Recombinant DNA reagentpCMV5-Smad7
(plasmid)
Addgene#11733
Recombinant DNA reagentpCMV6-empty backbone
(plasmid)
OrigenePS100001
Recombinant DNA reagentpGL4.10
(plasmid)
PromegaPR-E6651
Recombinant DNA reagentpRL
(plasmid)
PromegaPR-E2241
Recombinant DNA reagentXhoI
(restriction enzyme)
New England BioLabsR0146S
Recombinant DNA reagentHindIII
(DNA ligase)
New England BioLabsR3104S
Recombinant DNA reagentT4
(restriction enzyme)
New England BioLabsM0202S
Recombinant DNA reagentCAG-STOP-eGFP-ROSA26TV
(plasmid)
Addgene# 15912Plasmid construct for gene knock-in engineering
Recombinant DNA reagentcaPpifBochaton et al., 2015caCypD construct (CypD GOF)
Recombinant DNA reagentpAAV-Ef1a-DIO-eGFP-WPRE-pA
(plasmid)
Addgene# 37084Plasmid construct to create recombinant AAV
Sequence-based reagentB2m_FwdIDTRT q-PCR primerAATGGGAAGCCGAACATAC
Sequence-based reagentB2m_RevIDTRT q-PCR primerCCATACTGGCATGCTTAACT
Sequence-based reagentSmad1_FwdIDTRT q-PCR primerGACAAGTTTATTTTCCTTTACAGGTCC
Sequence-based reagentSmad1_RevIDTRT q-PCR primerCCACACACGGCAGTAAATG
Sequence-based reagentRunx2_FwdIDTRT q-PCR primerCCGGGAATGATGAGAACTAC
Sequence-based reagentRunx2_RevIDTRT q-PCR primerCCGTCCACTGTCACTTTAATA
Sequence-based reagentPpif_FwdIDTRT q-PCR primerCATGTACCC GAACAGAAC
Sequence-based reagentPpif_RevIDTRT q-PCR primerCATGTACCC GAACAGAAC
Sequence-based reagentAlp_FwdIDTRT q-PCR primerCATGTACCC GAACAGAAC
Sequence-based reagentAlp_RevIDTRT q-PCR primerGGGCTCAAA GAGACCTAAGA
Sequence-based reagentBglap_FwdIDTRT q-PCR primerGACCTCACAGATGCCAAG
Sequence-based reagentBglap_RevIDTRT q-PCR primerCAAGCCATACTGGTCTGATAG
Sequence-based reagentGAPDH_FwdIDTRT q-PCR primerGAGTCAACGGATTTGGTCGT
Sequence-based reagentGAPDH_RevIDTRT q-PCR primerGACAAGCTTCCCGTTCTCAG
Sequence-based reagentRUNX2_FwdIDTRT q-PCR primerTCCGGAATGCCTCTGCTGTTATGA
Sequence-based reagentRUNX2_RevIDTRT q-PCR primerACTGAGGCGGTCAGAGAACAAACT
Sequence-based reagentALP_FwdIDTRT q-PCR primerTGCAGTACGAGCTGAACAGGAACA
Sequence-based reagentALP_RevIDTRT q-PCR primerTCCACCAAATGTGAAGACGTGGGA
Sequence-based reagentIBSP_FwdIDTRT q-PCR primerAACGAACAAGGCATAAACGGCACC
Sequence-based reagentIBSP_RevIDTRT q-PCR primerCCCACCATTTGGAGAGGTTGTTGT
Sequence-based reagentBGLAP_FwdIDTRT q-PCR primerCCCTCACACTCCTCGCCCTATT
Sequence-based reagentBGLAP_RevIDTRT q-PCR primerATAGGCCTCCTGAAAGCCGATGT
Sequence-based reagentSMAD1_FwdIDTRT q-PCR primerGACAAGTTTATTTTCCTTTACCCGTCC
Sequence-based reagentSMAD1_RevIDTRT q-PCR primerCCACACAGGGCAGTAAAT
Sequence-based reagentPPIF_FwdIDTRT q-PCR primerGCCGCAACACAAACGGTTCTC
Sequence-based reagentPPIF_RevIDTRT q-PCR primerCCCGTCATCTCCTTCCTTCAATTCTC
Sequence-based reagentDistal SBE_Fwd
(CTCGAG XhoI 5′ flanking sequence)
This paper (IDT)PCR cloning primerAAGACTCGAGTGGAGATTCCCCGCTAT
Sequence-based reagentDistal SBE_Rev (AAGCTT HindIII 3′ flanking sequence)This paper (IDT)PCR cloning primerGGTAATTTCTCATCGCTTCCTTGAAGCTTAAGA
Sequence-based reagentMiddle SBE_Fwd (CTCGAG XhoI 5′ flanking sequence)This paper (IDT)PCR cloning primerAAGACTCGAGATTCCAGGGGGTGTAAATCTA
Sequence-based reagentMiddle SBE_Rev (AAGCTT HindIII 3′ flanking sequence)This paper (IDT)PCR cloning primerAGGATCTGGTCTCTAGAAGCAAAAAAGCTTAAGA
Sequence-based reagentProximal SBE_Fwd (CTCGAG XhoI 5′ flanking sequence)This paper (IDT)PCR cloning primerAAGACTCGAGTTCTGTTATCTCTCCCTTTCTG
Sequence-based reagentProximal SBE_Rev (AAGCTT HindIII 3′ flanking sequence)This paper (IDT)PCR cloning primerAAGCCAGCCGACCAATAAAAAGCTTAAGA
Sequence-based reagentCre_FwdIDTPCR primerCCTGGAAAATGCTTCTGTCCGTTTGCC
Sequence-based reagentCre_RevIDTPCR primerGAGTTGATAGCTGGCTGGTGGCAGAT
Sequence-based reagentcaCypD (TetIRES)_FwdIDTPCR primerAATGGCTCTCCTCAAGCG
Sequence-based reagentcaCypD (TetGFP)_RevIDTPCR primerGCGGATCTTGAAGTTCACCTTGATGCCGT
Peptide, recombinant proteinBMP2R&D Systems355-BM-050/CF
Peptide, recombinant proteinWnt3aR&D Systems5036-WN-010
Peptide, recombinant proteinNogginR&D Systems1967 NG-025/CF
Commercial assay or kitSimpleChIP Enzymatic Chromatin IP Kit (Magnetic Beads)Cell Signaling Technology#9003
Commercial assay or kitDual Luciferase Reporter Assay SystemPromegaE1960
Chemical compound, drugL-Ascorbic Acid 2-Phosphate Sesquimagnesium SaltTCI AmericaTCI A2521
Chemical compound, drugAlkaline phosphatase substrateThermo Fisher340421-Step NBT/BCIP Substrate Solution
Chemical compound, drugCalcein-AMBD Biosciences354216
Chemical compound, drugCobalt chlorideSigma-Aldrich232696
Chemical compound, drugIonomycinInvitrogen124222
Chemical compound, drugNAOInvitrogenA1372
Chemical compound, drugHoechst 33343Molecular ProbesH 1339
Chemical compound, drugTMREInvitrogenT669
Chemical compound, drugFCCPAbcamAb120081
Chemical compound, drugTamoxifenSigma-AldrichT5648
Chemical compound, drug4-OH-tamoxifenSigma-AldrichH7904

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

    1. Bianco P
    2. Robey PG
    (2015) Skeletal stem cells
    Development (Cambridge, England) 142:1023–1027.
    https://doi.org/10.1242/dev.102210
  1. Book
    1. Safadi FF
    2. Barbe MF
    3. Abdelmagid SM
    4. Rico MC
    5. Aswad RA
    6. Litvin J
    7. Popoff SN
    (2009)
    Bone Structure, Development and Bone Biology
    In: Khurana JS, editors. A Part of Springer Science+Business Media, LLC 2009 Bone Pathology. Humana Press. pp. 1–50.

Decision letter

  1. Yousef Abu-Amer
    Reviewing Editor; Washington University School of Medicine, United States
  2. Mone Zaidi
    Senior Editor; Icahn School of Medicine at Mount Sinai, United States
  3. Narayan Avadhani
    Reviewer; University of Pennsylvania, United States

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Transcriptional regulation of cyclophilin D by BMP/SMAD signaling and its role in osteogenic differentiation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Mone Zaidi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Narayan Avadhani (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) Other pathways are important regulators of bone formation. It would be interesting to know if cyclophilin D is regulated by Wnt signaling, or if the regulation is BMP exclusive. Additionally, do the Ppif knock down or use of Smad inhibitor affect only the osteoblastic pathway or other skeletal-muscular pathways?

2) Previous published work by the authors demonstrated that loss of cyclophilin D on Prx1+ cells did not have an effect on bone cell function and on bone mass in the limb skeleton while global deletion of cyclophilin D had strong negative consequences on bone mass and fracture healing. These findings are not easily compatible with the authors contention that BMP signaling in bone forming cells regulates mitochondrial activity, as most if not all bone forming cells arise from Prx1+ progenitors. It would be helpful if the authors could provide a stronger explanation for these disparities.

3) Figure 2: rigor and presentation of data are marginal. Specificity of the binding should be tested using SBE-mutant vectors. Data should be normalized to input in both vehicle and BMP2 treated conditions.

4) Figure 3: Although the Luc reporter assay is important to demonstrate functionality, an appropriate negative control (mutant) derived from the 1.1 kb Ppif construct (does not bind Ppif) is needed.

5) Figure 4: The data describing Mt integrity are not very informative and should be supplemented with mitochondrial function assays.

Reviewer #1 (Recommendations for the authors):

General Comments:

1. The study focuses on BMP signaling and dismisses other osteogenic pathways such as WNT and β-catenin signaling. It would be very informative and would significantly enhance the study if the authors determine if the CypD mechanism is BMP-specific or not.

2. Osteogenesis and mitochondrial activity vastly change during bone diseases linked to obesity, aging, etc. It would be very exciting to determine the role of CypD in a disease/aging setting to highlight the relevance of the proposed mechanism and its potential utility as a therapeutic tool. This would constitute a major advance.

Specific comments:

3. Introduction: there are several redundant statements that hinder flow and should be streamlined.

4. The hypothesis is scantily articulated. All cells undergo OxPhos bioenergetic shift to facilitate differentiation. In fact, a generic argument can be made for other pathways that regulate OB differentiation. Nevertheless, the study does very little to address the hypothesis that "MTPTP inhibition via CypD transcriptional downregulation is required to sustain OxPhos function". The concept requires revision and better articulation

Results:

5. Figure 2: rigor and presentation of data are marginal. Specificity of the binding should be tested using SBE-mutant vectors. Data should be normalized to input in both vehicle and BMP2 treated conditions.

6. Figure 3: Although the Luc reporter assay is important to demonstrate functionality, an appropriate negative control (mutant) derived from the 1.1 kb Ppif construct (does not bind Ppif) is needed.

7. Figure 4: The data describing Mt integrity are not very informative and should be supplemented with mitochondrial function assays.

8. Figure 6: the CypD GOF experiments (caCypD) corroborate previous findings in terms of osteogenesis and as such offer marginal information. At minimum, OxPhos and other Mt functional properties should be characterized in the GOF model. Furthermore, cyclosporin A is a well-known CypD inhibitor which can be used to validate this system. Despite these confirmatory findings, it remains unclear how this information advances current knowledge, which is judged as incremental (please refer to general comments).

In sum, the study requires major revision including additional experiments avoiding confirmatory data. The general role of CypD in osteogenesis is already known, yet its utility in pathologic bone loss and additional insights in its transcriptional regulation if developed further, to address novel aspects, would fill important knowledge gaps and elevate significance of this research.

Reviewer #2 (Recommendations for the authors):

General comments: The authors propose a novel hypothesis about the regulation of cell function by BMP signaling and here use bone cells as a model system to test this hypothesis. While data obtained from individual experiments are convincing, overall, several conclusions require additional data or clarification and there are some missed opportunities to strengthen the manuscript.

Specific comments:

1. Previous published work by the authors demonstrated that loss of cyclophilin D on Prx1+ cells did not have an effect on bone cell function and on bone mass in the limb skeleton while global deletion of cyclophilin D had strong negative consequences on bone mass and fracture healing. These findings are not easily compatible with the authors contention that BMP signaling in bone forming cells regulates mitochondrial activity, as most if not all bone forming cells arise from Prx1+ progenitors. It would be helpful if the authors could provide a stronger explanation for these disparities.

2. BMP activity in bone is known to decline with age, consistent with the idea that reduced BMP signaling may be a cause of age-related bone loss. The authors have an opportunity to directly examine BMP signaling in the aging skeleton and determine if reduced signaling correlated with mitochondrial pore opening and loss of bone cell function.

3. The disease FOP is a gain of function of BMP signaling. The authors might consider examining the mouse model of FOP to see if there is a change in the mitochondrial physiology/pore opening in this disease.

4. Other pathways are important regulators of bone formation. It would be interesting to know if cyclophilin D is regulated by Wnt signaling, or if the regulation is BMP exclusive.

Reviewer #3 (Recommendations for the authors):

This is a relatively well done study which uses promoter analysis for transcription factor (Smad) binding using mutational analysis of promoter-reporter constructs and ChIP analysis. They use mouse ST2 and MC3T3-e1 cells for in vitro studies and confirm most of these in vitro findings using CypD null mice. In general, this manuscript should be acceptable for publication in eLife.

The main concern is that the studies may not address the wide enormity of this pathway with multiple BMPs and Smads affecting an array of physiological process. For example, do the Ppif knock down or use of Smad inhibitor affect only the osteoblastic pathway or other skeletal-muscular pathways? The second point is that the transcription pathway is active in a basal level suggesting that there may be some dose-effect in the modulation of different physiological pathway. The authors do not address this issue.

Most of the reagents are commercially available and this is not an issue.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Transcriptional regulation of cyclophilin D by BMP/SMAD signaling and its role in osteogenic differentiation" for further consideration by eLife. Your revised article has been evaluated by Mone Zaidi (Senior Editor) and a Reviewing Editor.

The manuscript has been modestly improved but there are some important remaining issues that need to be addressed, as outlined below. These concerns must be addressed experimentally before the manuscript can be considered further.

Reviewer #2 (Recommendations for the authors):

The authors have not satisfactorily addressed my major concerns, reiterated below:

Prior publications by the authors reported that global deletion of cypD resulted in no obvious skeletal phenotype until mice began to age when wt mice lost bone mass and cypD null mice did not undergo age related bone loss. Next they reported that global loss of cypD enhanced fracture repair in older mice. They later published that loss of cypD in Prx1+ cells did not positively affect bone function stating "lineage deletion of cypD is not sufficient to improve fracture repair," and that it was the systemic loss of cypD that affected the skelton. These data raise 3 issues:

a) In mice, Prx1+ cells make up the majority of cells forming the fracture callus and new bone, making it difficult to understand what osteolineage-specific effects are regulated by cypD.

b) Fracture repair cannot occur in the absence of BMP signaling in Prx1+ cells; if BMP signaling is an important physiological regulator of cypD in osteolineage cells, there should be a relationship between the loss of BMP signaling and loss of cypD in this population.

c) Without addressing the in vivo models suggested (FOP, aging,) and demonstrating that changes in BMP signaling in vivo in a physiologically relevant model result in changes in cypD in osteolineage cells, the study does not reach a level of physiological significance.

Since the authors have utilized a variety of mouse models and have not reported the complete phenotype of any, I suggest including a table that clearly delineates and compares the specific skeletal manifestations of cypD genetic deletion, cypD pharmacological deletion, and lineage-specific cypD deletion. Bone mass, bone strength and ability to repair fractures should be included as well as levels of BMP signaling in the skeletal tissues that demonstrate a phenotype.

https://doi.org/10.7554/eLife.75023.sa1

Author response

Essential revisions:

1) Other pathways are important regulators of bone formation. It would be interesting to know if cyclophilin D is regulated by Wnt signaling, or if the regulation is BMP exclusive. Additionally, do the Ppif knock down or use of Smad inhibitor affect only the osteoblastic pathway or other skeletal-muscular pathways?

We have added experiments using the Wnt signaling activator Wnt3a (Supplementary Figure S4) and C2C12 myogenic cells (Supplementary Figure S1E, F), and further discussed the results in the Discussion section.

2) Previous published work by the authors demonstrated that loss of cyclophilin D on Prx1+ cells did not have an effect on bone cell function and on bone mass in the limb skeleton while global deletion of cyclophilin D had strong negative consequences on bone mass and fracture healing. These findings are not easily compatible with the authors contention that BMP signaling in bone forming cells regulates mitochondrial activity, as most if not all bone forming cells arise from Prx1+ progenitors. It would be helpful if the authors could provide a stronger explanation for these disparities.

Global CypD deletion actually led to positive effects on bone phenotype in either aging(1) and bone fracture healing(2). Accordingly, we demonstrated in Figure 7 that Col1-conditional CypD deletion is also protective against bone loss and fragility in aging. Both models, previous and current, studied CypD deletion effects in aging focusing on bone maintenance and have no correlation to a bone repair model, a totally different process. Prx1-conditional CypD deletion showed no effects in bone fracture healing(2) which is a model beyond the scope of this manuscript. Fracture repair involves several other signaling pathways and active function of several other cell types, as example of a vast list of cells from hematopoietic origin and mostly important, the transition of Prx1 progenitors cells to chondrocytes(3) and chondrocyte trans-differentiation into osteoblasts, which do not occur in the process of bone maintenance.

3) Figure 2: rigor and presentation of data are marginal. Specificity of the binding should be tested using SBE-mutant vectors. Data should be normalized to input in both vehicle and BMP2 treated conditions.

ChIP assay is meant to characterize DNA-protein interactions in the native chromatin(4, 5). Binding specificity in a ChIP assay is controlled by using properly washing protocol to remove non-specifically bound chromatin, negative control such as IgG antibody, and the PCR reaction carried by primers designed to flank a stretch of the region of interest(4, 5). We agree that specificity must be further checked, so we addressed this issue using mutant vectors in the Luc-reporter assay (Item #4). ChIP data (Figure 2C) were in fact normalized to total DNA input as previously described in the figure legend. We briefly rearranged the legend text to make it clearer and also included the normalization info in the methods section.

4) Figure 3: Although the Luc reporter assay is important to demonstrate functionality, an appropriate negative control (mutant) derived from the 1.1 kb Ppif construct (does not bind Ppif) is needed.

We have included a mutated 1.1kb Ppif construct in the luc-reporter data (Figure 3D, H). The Ppif reporter mutagenesis luc-signal is also directly compared to other means used to prevent Smad1 binding (Supplementary Figure 1C).

5) Figure 4: The data describing Mt integrity are not very informative and should be supplemented with mitochondrial function assays.

There are several papers describing mitochondrial function in both undifferentiated osteprogenitors and differentiated osteoblasts, including publications from our group(1, 6-8). Pore activity assay is used in Figure 4 to demonstrate and confirm that CypD downregulation is accompanied by a decreased MPTP activity in a dose response manner during osteogenic differentiation. To include more informative data, we compared mitochondrial function in either BMSCs and osteoblasts to their respective pairs overexpressing CypD (Figure 6G-K).

Reviewer #1 (Recommendations for the authors):

General Comments:

1. The study focuses on BMP signaling and dismisses other osteogenic pathways such as WNT and β-catenin signaling. It would be very informative and would significantly enhance the study if the authors determine if the CypD mechanism is BMP-specific or not.

Wnt activation effect on Ppif activity is now included in Supplementary Figure S4.

2. Osteogenesis and mitochondrial activity vastly change during bone diseases linked to obesity, aging, etc. It would be very exciting to determine the role of CypD in a disease/aging setting to highlight the relevance of the proposed mechanism and its potential utility as a therapeutic tool. This would constitute a major advance.

CypD expression and MPTP activity are described to be upregulated in aging(9-11). Here, we showed that rescuing CypD expression in vivo also rescues the bone phenotype observed in aging. Definitely, a future direction is to further study how CypD regulation affects bone aging in more detail and how to take advantage of CypD regulatory mechanism as a therapeutic intervention.

Specific comments:

3. Introduction: there are several redundant statements that hinder flow and should be streamlined.

We believe this manuscript could be interesting to a very diverse audience therefore, an expanded background information might be needed.

4. The hypothesis is scantily articulated. All cells undergo OxPhos bioenergetic shift to facilitate differentiation. In fact, a generic argument can be made for other pathways that regulate OB differentiation. Nevertheless, the study does very little to address the hypothesis that "MTPTP inhibition via CypD transcriptional downregulation is required to sustain OxPhos function". The concept requires revision and better articulation

Actually, some cells undergoing differentiation do not necessarily shift to a higher OxPhos usage. Although OxPhos is needed for cell proliferation to sustain nucleotide synthesis and biomass accrual(12), the maturation and terminal differentiation of some cells can lead to no changes or even a decrease in total OxPhos usage when compared to their progenitor cells, as example of endothelial cells(13) and some cells from hematopoietic lineage(14). In the present study, we demonstrate that Smad1 represses Ppif activity, on the other hand CypD overexpression impairs osteoblast function, blunts ETC flown (Figure 6G-K) and therefore OxPhos function. We also have previously shown that BMP signaling pathway activates OxPhos in osteogenic cells(8), when all these data are combined with other’s groups studies from current literature (as discussed in the discussion session), they present reasonable evidence to sustain our hypothesis.

Results:

5. Figure 2: rigor and presentation of data are marginal. Specificity of the binding should be tested using SBE-mutant vectors. Data should be normalized to input in both vehicle and BMP2 treated conditions.

See item #3

6. Figure 3: Although the Luc reporter assay is important to demonstrate functionality, an appropriate negative control (mutant) derived from the 1.1 kb Ppif construct (does not bind Ppif) is needed.

See item #4

7. Figure 4: The data describing Mt integrity are not very informative and should be supplemented with mitochondrial function assays.

See item #5

8. Figure 6: the CypD GOF experiments (caCypD) corroborate previous findings in terms of osteogenesis and as such offer marginal information. At minimum, OxPhos and other Mt functional properties should be characterized in the GOF model. Furthermore, cyclosporin A is a well-known CypD inhibitor which can be used to validate this system. Despite these confirmatory findings, it remains unclear how this information advances current knowledge, which is judged as incremental (please refer to general comments).

This study presents for the first time a model for CypD GOF in osteogenic cells in vitro and in vivo. Assuming that CypD overexpression would show opposite effects to a CypD loss-of-function model is tempting, but it is not necessarily true. CypD expression is tissue and cell specific not only in terms of CypD levels but also regarding the effects of CypD on cell function(15). Contrary to what we showed in this study using osteogenic cells and other studies in cardiomyocytes and neuron cells, some other cell types require higher levels of CypD expression for proper functioning. Additionally, some cells and conditions present very low sensitivity to CypD increased expression, meaning that even higher levels of CypD do not exert any effect after a determined threshold(16), or can even be protective against apoptotic pathways conferring augmented cell survival(17). Therefore this study is instrumental in demonstrating that CypD overexpression is in fact detrimental for osteogenic lineage, on top of characterizing the role of R-Smads in CypD transcriptional regulation. Even though CsA is vastly studied as an inhibitor of CypD, it lacks specificity affecting other signaling pathways important for osteogenic lineage, its mechanism of action is not totally understood(18, 19), and it would be impossible to determine the cell-autonomous effect of CypD regulation on osteoblasts in vivo. Not surprisingly, CsA use in clinical trials as CypD inhibitor is mostly inconclusive, and presents several failed Phase III clinical trials, as addressed in the Discussion section.

In sum, the study requires major revision including additional experiments avoiding confirmatory data. The general role of CypD in osteogenesis is already known, yet its utility in pathologic bone loss and additional insights in its transcriptional regulation if developed further, to address novel aspects, would fill important knowledge gaps and elevate significance of this research.

Reviewer #2 (Recommendations for the authors):

General comments: The authors propose a novel hypothesis about the regulation of cell function by BMP signaling and here use bone cells as a model system to test this hypothesis. While data obtained from individual experiments are convincing, overall, several conclusions require additional data or clarification and there are some missed opportunities to strengthen the manuscript.

Specific comments:

1. Previous published work by the authors demonstrated that loss of cyclophilin D on Prx1+ cells did not have an effect on bone cell function and on bone mass in the limb skeleton while global deletion of cyclophilin D had strong negative consequences on bone mass and fracture healing. These findings are not easily compatible with the authors contention that BMP signaling in bone forming cells regulates mitochondrial activity, as most if not all bone forming cells arise from Prx1+ progenitors. It would be helpful if the authors could provide a stronger explanation for these disparities.

See item #2

2. BMP activity in bone is known to decline with age, consistent with the idea that reduced BMP signaling may be a cause of age-related bone loss. The authors have an opportunity to directly examine BMP signaling in the aging skeleton and determine if reduced signaling correlated with mitochondrial pore opening and loss of bone cell function.

It is a very interesting suggestion for a future study

3. The disease FOP is a gain of function of BMP signaling. The authors might consider examining the mouse model of FOP to see if there is a change in the mitochondrial physiology/pore opening in this disease.

It is a very interesting suggestion as a future direction as well.

4. Other pathways are important regulators of bone formation. It would be interesting to know if cyclophilin D is regulated by Wnt signaling, or if the regulation is BMP exclusive.

See item #1

Reviewer #3 (Recommendations for the authors):

This is a relatively well done study which uses promoter analysis for transcription factor (Smad) binding using mutational analysis of promoter-reporter constructs and ChIP analysis. They use mouse ST2 and MC3T3-e1 cells for in vitro studies and confirm most of these in vitro findings using CypD null mice. In general, this manuscript should be acceptable for publication in eLife.

The main concern is that the studies may not address the wide enormity of this pathway with multiple BMPs and Smads affecting an array of physiological process. For example, do the Ppif knock down or use of Smad inhibitor affect only the osteoblastic pathway or other skeletal-muscular pathways? The second point is that the transcription pathway is active in a basal level suggesting that there may be some dose-effect in the modulation of different physiological pathway. The authors do not address this issue.

See item #1. We included a dose-response assay to assess the effect of different concentrations of BMP2 on Ppif activity. We agree that there is an enormity of multiple BMP ligands and Smad interactions that can play a role in transcriptional regulation. But, we believe we took a solid step in unrevealing that BMP/Smad1-dependent is a repressor of Ppif activity in osteogenic cells. We are also confident that this study can encourage others to further explore other pathways, interactions, and cell types in the transcriptional regulation of CypD.

Most of the reagents are commercially available and this is not an issue.

References

1. Shum LC, White NS, Nadtochiy SM, Bentley KL, Brookes PS, Jonason JH, et al. Cyclophilin D Knock-Out Mice Show Enhanced Resistance to Osteoporosis and to Metabolic Changes Observed in Aging Bone. PLoS One. 2016;11(5):e0155709.

2. Shares BH, Smith CO, Sheu TJ, Sautchuk R, Jr., Schilling K, Shum LC, et al. Inhibition of the mitochondrial permeability transition improves bone fracture repair. Bone. 2020;137:115391.

3. Baker CE, Moore-Lotridge SN, Hysong AA, Posey SL, Robinette JP, Blum DM, et al. Bone Fracture Acute Phase Response-A Unifying Theory of Fracture Repair: Clinical and Scientific Implications. Clin Rev Bone Miner Metab. 2018;16(4):142-58.

4. Das PM, Ramachandran K, vanWert J, Singal R. Chromatin immunoprecipitation assay. Biotechniques. 2004;37(6):961-9.

5. Yamakawa T, Itakura K. Chromatin Immunoprecipitation Assay Using Micrococcal Nucleases in Mammalian Cells. J Vis Exp. 2019(147).

6. Shum LC, White NS, Mills BN, Bentley KL, Eliseev RA. Energy Metabolism in Mesenchymal Stem Cells During Osteogenic Differentiation. Stem Cells Dev. 2016;25(2):114-22.

7. Shares BH, Busch M, White N, Shum L, Eliseev RA. Active mitochondria support osteogenic differentiation by stimulating β-catenin acetylation. J Biol Chem. 2018;293(41):16019-27.

8. Smith CO, Eliseev RA. Energy Metabolism During Osteogenic Differentiation: The Role of Akt. Stem Cells Dev. 2021;30(3):149-62.

9. Barja G. Mitochondrial oxygen radical generation and leak: sites of production in states 4 and 3, organ specificity, and relation to aging and longevity. J Bioenerg Biomembr. 1999;31(4):347-66.

10. Sun N, Youle RJ, Finkel T. The Mitochondrial Basis of Aging. Mol Cell. 2016;61(5):654-66.

11. Rottenberg H, Hoek JB. The path from mitochondrial ROS to aging runs through the mitochondrial permeability transition pore. Aging Cell. 2017;16(5):943-55.

12. Zhu J, Thompson CB. Metabolic regulation of cell growth and proliferation. Nat Rev Mol Cell Biol. 2019;20(7):436-50.

13. Peng H, Wang X, Du J, Cui Q, Huang Y, Jin H. Metabolic Reprogramming of Vascular Endothelial Cells: Basic Research and Clinical Applications. Front Cell Dev Biol. 2021;9:626047.

14. Loftus RM, Finlay DK. Immunometabolism: Cellular Metabolism Turns Immune Regulator. J Biol Chem. 2016;291(1):1-10.

15. Laker RC, Taddeo EP, Akhtar YN, Zhang M, Hoehn KL, Yan Z. The Mitochondrial Permeability Transition Pore Regulator Cyclophilin D Exhibits Tissue-Specific Control of Metabolic Homeostasis. PLoS One. 2016;11(12):e0167910.

16. Bernardi P, Rasola A, Forte M, Lippe G. The Mitochondrial Permeability Transition Pore: Channel Formation by F-ATP Synthase, Integration in Signal Transduction, and Role in Pathophysiology. Physiol Rev. 2015;95(4):1111-55.

17. Eliseev RA, Malecki J, Lester T, Zhang Y, Humphrey J, Gunter TE. Cyclophilin D interacts with Bcl2 and exerts an anti-apoptotic effect. J Biol Chem. 2009;284(15):9692-9.

18. Zulian A, Rizzo E, Schiavone M, Palma E, Tagliavini F, Blaauw B, et al. NIM811, a cyclophilin inhibitor without immunosuppressive activity, is beneficial in collagen VI congenital muscular dystrophy models. Hum Mol Genet. 2014;23(20):5353-63.

19. Sileikyte J, Forte M. Shutting down the pore: The search for small molecule inhibitors of the mitochondrial permeability transition. Biochim Biophys Acta. 2016;1857(8):1197-202.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Reviewer #2 (Recommendations for the authors):

The authors have not satisfactorily addressed my major concerns, reiterated below:

Prior publications by the authors reported that global deletion of cypD resulted in no obvious skeletal phenotype until mice began to age when wt mice lost bone mass and cypD null mice did not undergo age related bone loss. Next they reported that global loss of cypD enhanced fracture repair in older mice. They later published that loss of cypD in Prx1+ cells did not positively affect bone function stating "lineage deletion of cypD is not sufficient to improve fracture repair," and that it was the systemic loss of cypD that affected the skelton. These data raise 3 issues:

a) In mice, Prx1+ cells make up the majority of cells forming the fracture callus and new bone, making it difficult to understand what osteolineage-specific effects are regulated by cypD.

Indeed, it is important to connect our new data with previous findings and we do not think there is a discrepancy. In the current manuscript we are not focusing on fracture repair and not using Prx1-Cre driver. Fracture repair involving endochondral ossification and multiple interactions is mechanistically different from bone maintenance and aging which is our focus here. We believe that our current data on bone aging in Col1-Cre-driven CypD deletion in fact complement our prior work with global CypD deletion. We have observed similar results here. Moreover, CypD gain-of-function in osteoblasts using AAV-Cre-DIO vector, reversed the anti-aging effect of CypD deletion confirming the role of CypD in osteolineage aging.

With regards to Prx1, it indeed labeled a lot of cells in the fracture callus as we showed in our ’20 Bone publication. A possible reason why CypD deletion from Prx1+ cells did not stimulate repair is as follows: we are presenting new data on fracture showing that BMP2 levels are upregulated while CypD expression is downregulated during fracture repair (Figure 7 —figure supplement 1D, E). Publicly available gene expression data sets on fracture repair show similar findings (Figure 7 —figure supplement 1A, top right table). These findings may explain why we found no effects of CypD conditional deletion in Prx1-expressing osteoprogenitors. Since in young mice with functional BMP signaling, CypD is downregulated during fracture repair, the effect of any additional bone-specific CypD downregulation may be blunted.

b) Fracture repair cannot occur in the absence of BMP signaling in Prx1+ cells; if BMP signaling is an important physiological regulator of cypD in osteolineage cells, there should be a relationship between the loss of BMP signaling and loss of cypD in this population.

Here again we would like to refrain from adding a detailed discussion of our previous data using fracture and Prx1-Cre for the reasons stated above in our response (a). However, we appreciate the point about the relationship between changes in BMP signaling and CypD expression. This can definitely make our work stronger and more significant. We, therefore, analyzed available data on fracture and on bone aging and found inverse correlation between BMP signaling and CypD expression.

For example, Ambrosi et al., (Nature. 2021, 597: 256–262. Data deposited at GSE166441) performed RNAseq of young and aged bones and found (Figure 7 —figure supplement 1A, top left table) that BMP-dependent Smad1 was decreased while CypD gene, Ppif, increased in aged bone. On the other hand, Coates et al., studied changes in fracture callus gene expression (Bone 127 (2019) 577–591, Data deposited at GSE152677). Analysis of their data showed that on Day 14 post fracture and when compared to the unfractured bone, BMP-dependent Smad 1 increased while Ppif decreased (Figure 7 —figure supplement 1A, top right table). In conditions leading to pathological calcification such as osteoarthritis and osteophyte formation (Dunn, Soul et al., 2016) and cardiac valve calcification (Huang, Xu et al., 2019) and associated with upregulated BMP/Smad signaling, PPIF expression is decreased (Figure 7 —figure supplement 1A, bottom tables).

We also analyzed bone samples from 3 and 18 month old mice that were collected in our previous work. Immunofluorescent staining of bones from these mice showed decreased levels of BMP2 with correspondingly increased levels of CypD in bones of aged mice when compared to young mice (Figure 7 —figure supplement 1B, C). We also used bone fracture samples from our previous work and performed immunofluorescence for BMP2 and CypD. Consistent with the published RNAseq data set described above, BMP2 signal significantly increased while CypD signal significantly decreased in the callus at Day 14 post fracture when compared to the unfractured bone (Figure 7 —figure supplement 1D, E). This increase likely reflects active bone forming and callus ossification stage. These new data were added to the Results section (page 11) and discussed in the Discussion section (page 19).

Overall, previously published transcriptomic data and our own studies indicate inverse correlation between BMP signaling and CypD expression.

c) Without addressing the in vivo models suggested (FOP, aging,) and demonstrating that changes in BMP signaling in vivo in a physiologically relevant model result in changes in cypD in osteolineage cells, the study does not reach a level of physiological significance.

This is an excellent comment and we are, in fact, planning to further elucidate the connection between BMP signaling, CypD, and CypD-dependent mitochondrial integrity in our future work. This will involve mouse models of gain- and loss-of-function of BMP signaling in osteolineage cells. We believe that the significance of the current work is several fold: (1) we have demonstrated for the first time that BMP signaling acts as a transcriptional regulator of CypD; (2) we have shown the ‘pro-aging’ role of CypD in osteolineage cells in vitro and in vivo; and (3) our data and previously published data sets strongly indicate inverse relationship between BMP signaling and CypD expression.

Since the authors have utilized a variety of mouse models and have not reported the complete phenotype of any, I suggest including a table that clearly delineates and compares the specific skeletal manifestations of cypD genetic deletion, cypD pharmacological deletion, and lineage-specific cypD deletion. Bone mass, bone strength and ability to repair fractures should be included as well as levels of BMP signaling in the skeletal tissues that demonstrate a phenotype.

We indeed do not have all the suggested skeletal data and what we have was published as separate works. For instance, our 2016 PLoS One paper (doi.org/10.1371/journal.pone.0155709) has data on the effect of global CypD KO on bone maintenance in aging with micro-CT and biomechanical assays. Our 2020 Bone paper (doi.org/10.1016/j.bone.2020.115391) has data on the effect of global CypD KO, systemic CypD inhibitor, or Prx1-Cre driven CypD cKO on fracture repair (micro-CT, biomechanical, etc). We are including a summary of our findings in a Table (Figure 7—figure supplement 3), while detailed data are presented in the listed publications.

https://doi.org/10.7554/eLife.75023.sa2

Article and author information

Author details

  1. Rubens Sautchuk

    Center for Musculoskeletal Research, University of Rochester, Rochester, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0302-7562
  2. Brianna H Kalicharan

    Center for Musculoskeletal Research, University of Rochester, Rochester, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Visualization
    Competing interests
    No competing interests declared
  3. Katherine Escalera-Rivera

    Center for Musculoskeletal Research, University of Rochester, Rochester, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Visualization
    Competing interests
    No competing interests declared
  4. Jennifer H Jonason

    1. Center for Musculoskeletal Research, University of Rochester, Rochester, United States
    2. Department of Pathology, University of Rochester, Rochester, United States
    Contribution
    Conceptualization, Data curation, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  5. George A Porter

    Department of Pediatrics, Division of Cardiology, University of Rochester, Rochester, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  6. Hani A Awad

    1. Center for Musculoskeletal Research, University of Rochester, Rochester, United States
    2. Department of Biomedical Engineering, University of Rochester, Rochester, United States
    Contribution
    Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2197-2610
  7. Roman A Eliseev

    1. Center for Musculoskeletal Research, University of Rochester, Rochester, United States
    2. Department of Pathology, University of Rochester, Rochester, United States
    3. Department of Pharmacology & Physiology, University of Rochester, Rochester, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    For correspondence
    roman_eliseev@urmc.rochester.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6783-7388

Funding

National Institute of Dental and Craniofacial Research (R90-DE022529)

  • Rubens Sautchuk

National Institute of Arthritis and Musculoskeletal and Skin Diseases (R21 AR070928)

  • Jennifer H Jonason
  • Roman A Eliseev

National Institute of Arthritis and Musculoskeletal and Skin Diseases (R01 AR070613)

  • Hani A Awad

National Institute of Arthritis and Musculoskeletal and Skin Diseases (R01 AR072601)

  • Roman A Eliseev

National Institute of Arthritis and Musculoskeletal and Skin Diseases (P30 AR069655)

  • Rubens Sautchuk
  • Brianna H Kalicharan
  • Katherine Escalera-Rivera
  • Jennifer H Jonason
  • Hani A Awad
  • Roman A Eliseev

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Funding was provided by the National Institute of Health grants R01 AR072601 to RAE, R21 AR070928 to RAE and JHJ, R01 AR070613 to HA, P30 AR069655 to the Center for Musculoskeletal Research, and Ruth L Kirschstein National Research Service Award from NIH Institutional Research Training Grant R90-DE022529-11 Training Program in Oral Science (TPOS) to RSJ.

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocol (#2012-043) of the University of Rochester. All surgery was performed under anesthesia, and every effort was made to minimize suffering.

Senior Editor

  1. Mone Zaidi, Icahn School of Medicine at Mount Sinai, United States

Reviewing Editor

  1. Yousef Abu-Amer, Washington University School of Medicine, United States

Reviewer

  1. Narayan Avadhani, University of Pennsylvania, United States

Publication history

  1. Received: October 26, 2021
  2. Preprint posted: November 2, 2021 (view preprint)
  3. Accepted: May 27, 2022
  4. Accepted Manuscript published: May 30, 2022 (version 1)
  5. Version of Record published: June 13, 2022 (version 2)

Copyright

© 2022, Sautchuk et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 439
    Page views
  • 136
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Rubens Sautchuk
  2. Brianna H Kalicharan
  3. Katherine Escalera-Rivera
  4. Jennifer H Jonason
  5. George A Porter
  6. Hani A Awad
  7. Roman A Eliseev
(2022)
Transcriptional regulation of cyclophilin D by BMP/Smad signaling and its role in osteogenic differentiation
eLife 11:e75023.
https://doi.org/10.7554/eLife.75023
  1. Further reading

Further reading

    1. Cell Biology
    2. Stem Cells and Regenerative Medicine
    Huachao Huang, Yinshan Fang ... Jianwen Que
    Research Article

    Viral infection often causes severe damage to the lungs, leading to the appearance of ectopic basal cells (EBCs) and tuft cells in the lung parenchyma. Thus far the roles of these ectopic epithelial cells in alveolar regeneration remain controversial. Here, we confirm that the ectopic tuft cells are originated from EBCs in mouse models and COVID-19 lungs. The differentiation of tuft cells from EBCs is promoted by Wnt inhibition while suppressed by Notch inhibition. Although progenitor functions have been suggested in other organs, pulmonary tuft cells don't proliferate or give rise to other cell lineages. Consistent with previous reports, Trp63CreERT2 and KRT5-CreERT2 labeled ectopic EBCs do not exhibit alveolar regeneration potential. Intriguingly, when tamoxifen was administrated post viral infection, Trp63CreERT2 but not KRT5-CreERT2 labels islands of alveolar epithelial cells that are negative for EBC biomarkers. Furthermore, germline deletion of Trpm5 significantly increases the contribution of Trp63CreERT2 labeled cells to the alveolar epithelium. Although Trpm5 is known to regulate tuft cell development, complete ablation of tuft cell production fails to improve alveolar regeneration in Pou2f3-/- mice, implying that Trpm5 promotes alveolar epithelial regeneration through a mechanism independent of tuft cells.

    1. Developmental Biology
    2. Stem Cells and Regenerative Medicine
    Xin Li, Noor Singh ... Kacy Lynn Gordon
    Research Advance

    The Caenorhabditis elegans adult hermaphrodite germline is surrounded by a thin tube formed by somatic sheath cells that support germ cells as they mature from the stem-like mitotic state through meiosis, gametogenesis, and ovulation. Recently, we discovered that the distal Sh1 sheath cells associate with mitotic germ cells as they exit the niche Gordon et al., 2020. Here, we report that these sheath-associated germ cells differentiate first in animals with temperature-sensitive mutations affecting germ cell state, and stem-like germ cells are maintained distal to the Sh1 boundary. We analyze several markers of the distal sheath, which is best visualized with endogenously tagged membrane proteins, as overexpressed fluorescent proteins fail to localize to distal membrane processes and can cause gonad morphology defects. However, such reagents with highly variable expression can be used to determine the relative positions of the two Sh1 cells, one of which often extends further distal than the other.
