Endogenous Syngap1 alpha splice forms promote cognitive function and seizure protection

  1. Murat Kilinc
  2. Vineet Arora
  3. Thomas K Creson
  4. Camilo Rojas
  5. Aliza A Le
  6. Julie Lauterborn
  7. Brent Wilkinson
  8. Nicolas Hartel
  9. Nicholas Graham
  10. Adrian Reich
  11. Gemma Gou
  12. Yoichi Araki
  13. Àlex Bayés
  14. Marcelo Coba
  15. Gary Lynch
  16. Courtney A Miller
  17. Gavin Rumbaugh  Is a corresponding author
  1. Graduate School of Chemical and Biological Sciences, The Scripps Research Institute, United States
  2. Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, United States
  3. Department of Anatomy and Neurobiology, The University of California, United States
  4. Zilkha Neurogenetic Institute, Keck School of Medicine, University of Southern California, United States
  5. Mork Family Department of Chemical Engineering and Materials Science, University of Southern California, United States
  6. Bioinformatics and Statistics Core, The Scripps Research Institute, United States
  7. Molecular Physiology of the Synapse Laboratory, Institut d'Investigació Biomèdica Sant Pau, Spain
  8. Universitat Autònoma de Barcelona, Spain
  9. Department of Neuroscience, Johns Hopkins School of Medicine, United States

Abstract

Loss-of-function variants in SYNGAP1 cause a developmental encephalopathy defined by cognitive impairment, autistic features, and epilepsy. SYNGAP1 splicing leads to expression of distinct functional protein isoforms. Splicing imparts multiple cellular functions of SynGAP proteins through coding of distinct C-terminal motifs. However, it remains unknown how these different splice sequences function in vivo to regulate neuronal function and behavior. Reduced expression of SynGAP-α1/2 C-terminal splice variants in mice caused severe phenotypes, including reduced survival, impaired learning, and reduced seizure latency. In contrast, upregulation of α1/2 expression improved learning and increased seizure latency. Mice expressing α1-specific mutations, which disrupted SynGAP cellular functions without altering protein expression, promoted seizure, disrupted synapse plasticity, and impaired learning. These findings demonstrate that endogenous SynGAP isoforms with α1/2 spliced sequences promote cognitive function and impart seizure protection. Regulation of SynGAP-αexpression or function may be a viable therapeutic strategy to broadly improve cognitive function and mitigate seizure.

Editor's evaluation

This study used three different mouse lines with altered expression of splice variants of SynGAP1 and reports that SynGAP1-α variants are more important than the SynGAP1-β variants for the regulation of cognitive function and seizure protection in mice. Given the well-known importance of the SYNGAP1 mutations in the pathophysiology of neurodevelopmental disorders, and the key regulatory roles of SynGAP1 for excitatory synaptic functions, these results provide timely and comprehensive data supporting the in vivo functions of individual SynGAP1 splice variants, including the α-1/2 variants, and suggests the therapeutic potential of increasing specific SynGAP1-α variants.

https://doi.org/10.7554/eLife.75707.sa0

Introduction

Pathogenic variation in SYNGAP1, the gene encoding SynGAP proteins, is a leading cause of sporadic neurodevelopmental disorders (NDDs) defined by impaired cognitive function, seizure, autistic features, and challenging behaviors (Deciphering Developmental Disorders Study, 2015; Deciphering Developmental Disorders Study, 2017; Hamdan et al., 2009; Vlaskamp et al., 2019; Parker et al., 2015; Mignot et al., 2016; Iossifov et al., 2014; Satterstrom et al., 2020). De novo loss-of-function variants leading to SYNGAP1 haploinsufficiency cause a genetically defined developmental encephalopathy (ICD-10 code: F78.A1) that overlaps substantially with diagnoses of generalized epilepsy, global developmental delay, intellectual disability, and autism (Vlaskamp et al., 2019; Parker et al., 2015; Mignot et al., 2016; Holder et al., 1993; Weldon et al., 2018). SYNGAP1 is completely intolerant of loss-of-function (LOF) variants (Llamosas et al., 2020). Thus, the presence of a clear LOF variant in a patient will lead to the diagnosis of a SYNGAP1-mediated developmental encephalopathy. The range of neuropsychiatric disorders causally linked to SYNGAP1 pathogenicity, combined with the complete penetrance of LOF variants in humans, demonstrate the crucial role that this gene plays in the development and function of neural circuits that promote cognitive abilities, behavioral adaptations, and balanced excitability.

SynGAP proteins have diverse cellular functions (Llamosas et al., 2020; Kilinc et al., 2018; Gamache et al., 2020). The best characterized of these is the regulation of excitatory synapse structure and function located on forebrain glutamatergic projection neurons. In these synapses, SynGAP is predominately localized within the postsynaptic density (PSD), where it exists in protein complexes with synapse-associated-protein (SAP) families (Kim et al., 1998; Chen et al., 1998). Within these complexes, SynGAP proteins regulate signaling through NMDARs, where they constrain the activity of various small GTPases through non-canonical activity of a RasGAP domain (Kilinc et al., 2018; Gamache et al., 2020). This regulation of GTPase activity is required for excitatory synapse plasticity (Ozkan et al., 2014; Araki et al., 2015). Reduced expression of SynGAP in both human and rodent neurons causes enhanced excitatory synapse function during early brain development and is a process thought to impair cognitive functioning (Llamosas et al., 2020; Clement et al., 2012; Clement et al., 2013). SynGAP also regulates dendritic arborization. Reduced SynGAP protein expression impairs the development of dendritic arborization in neurons derived from both rodent and human tissues (Llamosas et al., 2020; Aceti et al., 2015; Michaelson et al., 2018), which disrupts the function and excitability of neural networks from both species. While reduced SynGAP expression enhances postsynaptic function regardless of glutamatergic projection neuron subtype, this same perturbation has an unpredictable impact on dendritic arborization, with some neurons undergoing precocious dendritic morphogenesis (Llamosas et al., 2020; Aceti et al., 2015), while others displaying stunted morphogenesis (Michaelson et al., 2018). This is an example of pleiotropy, where Syngap1 gene products have unique functions depending on the neuronal subtype, or possibly within distinct subcellular compartments of the same type of neuron.

How SynGAP performs diverse cellular functions remains unclear. One potential mechanism is through alternative splicing. Indeed, the last three exons of Syngap1 undergo alternative splicing (Araki et al., 2020; Gou et al., 2020; McMahon et al., 2012), which results in four distinct C-termini (a1, a2, b, g). These SynGAP C-terminal protein isoforms are expressed in both rodents and humans, and they are spatially and temporally regulated across mammalian brain development (Araki et al., 2020; Gou et al., 2020). Moreover, protein motifs present within these differentially expressed C-termini impart SynGAP with distinct cellular functions, with α-derived motifs shown to regulate post-synapse structure and function (Rumbaugh et al., 2006; Vazquez et al., 2004), while the β-derived sequences linked to in vitro dendritic morphogenesis (Araki et al., 2020). Absolute abundances of C-terminal isoforms are unclear, though estimates of relative expression of each have been made in adult mice (Araki et al., 2020), with α1 and α2 each contributing ~40%, β contributing ~15%, and γ contributing ~5%. Syngap1 heterozygous null mice, which model the genetic impact of SYNGAP1 haploinsufficiency in humans, express a robust endophenotype characterized by increased horizontal activity, poor learning/memory, and seizure (Kilinc et al., 2018; Ozkan et al., 2014; Clement et al., 2012; Komiyama et al., 2002; Sullivan et al., 2020). Currently, it remains unknown to what extent endogenous in vivo expression of alternatively spliced isoforms contribute to systems-level endophenotypes expressed in animal models.

Results

The last three exons of Syngap1 undergo alternative splicing (Figure 1A), which results in four distinct C-termini (Figure 1B). Exon 19 is spliced into two reading frames (e19b/e19a) (Figure 1C). Because e19b lacks a stop codon, coding sequences from e20 and e21 are also included in mature transcripts. This leads to expression ofα1, α2, or γ C-terminal isoforms (Figure 1C–D). γ isoforms arise from inclusion e20, while α1 and α2 arise from the absence of e20, but inclusion of e21. e21 itself has two reading frames, with one leading to expression of α1 while the other codes for α2 (Figure 1E). SynGAP-β arises from splicing of e19 into the ‘a’ reading frame, which contains an internal stop codon (Figure 1C). To address how expression or function of isoforms contribute to cognitive function, behavior, and seizure latency, we created three distinct mouse lines, each with targeted modifications within the final three exons of the Syngap1 gene. Each line expressed a unique signature with respect to C-terminal SynGAP protein variant expression or function. For example, in the Syngap1td/td line, αisoform expression was disrupted while β forms were upregulated (Figure 1F–G). In contrast, Syngap1β*/β* mice were opposite with respect to expression of α and β isoforms, with the former upregulated and the later disrupted (Figure 1H). Finally, the Syngap1PBM/PBM line, which expressed point mutations that selectively disrupted an essential function of SynGAP-α1 (Figure 1I), was useful for determining to what extent phenotypes in the other two lines may have been driven by upregulated or downregulated isoforms.

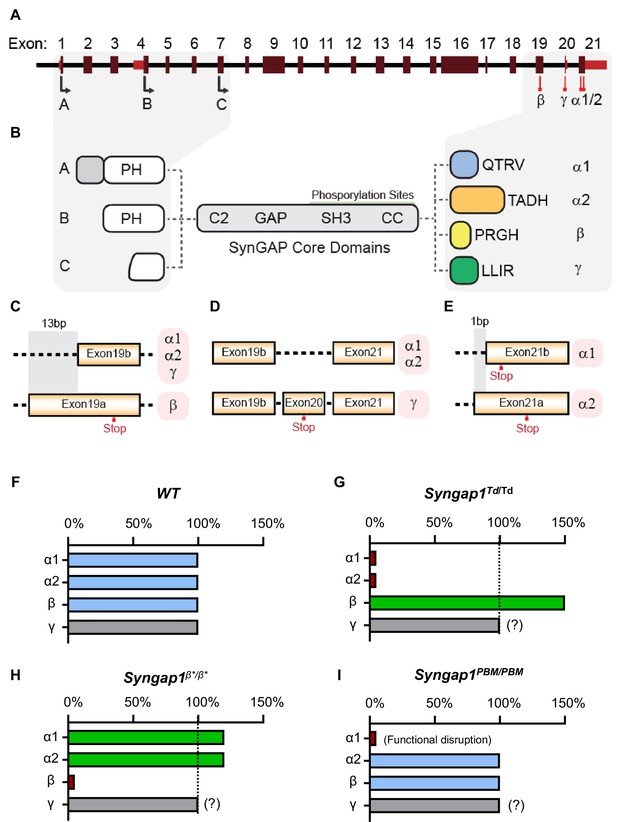

Schematic of Syngap1 alternative splicing and summary of isoform expression in three new Syngap1 mutant mouse lines.

(A) Map showing alternative use of exons in N- and C-terminal isoforms. N-terminal variants are constituted via use of different start codons in exon1, 4 or 7. Exon4 is present only in B-SynGAP. C-terminal isoforms originate from use of different splice acceptors in exon 19 and 21. SynGAP-α1 contains a type-1 PDZ ligand (QTRV). Structure/function relationships of α2, β, γ isoforms remain largely unknown. (B) Schematics of SynGAP isoforms and protein domains. α and β isoforms include full Pleckstrin Homology (PH) domain. In C-SynGAP, this domain is truncated. Core regions common to all isoforms include C2, GAP (GTPase Activating Protein), Src Homology 3 (SH3)-binding, and coiled-coil (CC) domains. Multiple phosphorylation sites are present downstream of the GAP domain. (C–E) Schematics describing C-terminal splicing events producing distinct isoforms. (F–I) Summary of Wt and three new Syngap1 mutant mouse lines each with distinct targeted alleles that disrupt the function or expression of SynGAP C-terminal isoforms. Bars represent expression levels of each C-terminal protein isoform relative to each Wt littermate control. Primary data for expression levels can be found in subsequent figures.

Reduced α1/2 C-terminal isoform expression is associated with enhanced seizure latency and cognitive impairment

We previously reported the generation of a Syngap1 mouse line with an insertion of an IRES-TdTomato (IRES-TD) cassette within the 3’-UTR to facilitate endogenous reporting of active Syngap1 mRNA translation in cells (Spicer et al., 2018). The cassette was placed within the last Syngap1 exon (e21) between the stop codons of α1 and α2 coding sequences (Figure 1E; Figure 2A). Our prior study reported neuronal expression of fluorescent protein and normal total SynGAP (t-SynGAP) protein expression as measured by antibodies that recognize all splice forms. Due to our interest in understanding how in vivo expression of C-terminal variants impacts brain systems and behavior, we performed an in-depth characterization of behavioral phenotypes and SynGAP isoform expression in IRES-TD mice. Heterozygous (Syngap1+/td) breeding of IRES-TD animals resulted in offspring of expected mendelian ratios (Figure 2B). However, while all WT (Syngap1+/+) mice survived during the 100-day observation period, significant post-weaning death occurred in IRES-TD mice, with approximately two-thirds of homozygous mice (Syngap1td/td) failing to survive past PND 50 (Figure 2B). It is well established that complete loss of t-SynGAP protein stemming from homozygous inclusion of null alleles leads to early postnatal death (Komiyama et al., 2002; Kim et al., 2003). However, ~ 50% t-SynGAP expression, like that occurring in heterozygous KO mice (Figure 2—figure supplement 1A), has no impact on survival (Komiyama et al., 2002; Kim et al., 2003). Given the unexpectedly poor survival of Syngap1td/td animals, we thoroughly examined SynGAP C-terminal isoform protein expression in this line. At PND21, when all three genotypes are abundant (Figure 2B), t-SynGAP protein in mouse cortex homogenate was reduced in Syngap1+/td and Syngap1td/td mice compared to WT controls (Figure 2C; Source data1). Reduced t-SynGAP levels appeared to be largely driven by near-complete disruption of α1/2 protein expression from the targeted allele. Reduced α isoform expression coincided with increased protein levels of β-containing C-terminal isoforms. Even with β compensation, Syngap1td/td mice expressed only ~50% of t-SynGAP at PND21. Whole exome sequencing was carried out in each genotype. Differential gene expression (DGE) analysis revealed only a single mRNA, Syngap1, was abnormally expressed (Supplementary file 1). There was a ~ 25% reduction in mRNA levels in both Syngap1+/td and Syngap1td/td mice (Figure 2—figure supplement 1B). While the IRES-TD cassette destabilized a proportion of Syngap1 mRNAs, the similarity in mRNA levels from both Syngap1+/td and Syngap1td/td samples indicated that other mechanisms must also contribute to reduced protein expression of α1/2 isoforms. Indeed, a recent study identified 3’UTR-dependent regulation of α isoform protein expression (Yokoi et al., 2017), suggesting that the IRES-TD cassette is also disrupting translation of these C-terminal variants. We next addressed expression of SynGAP isoforms in adulthood. In this additional experiment, only Syngap1+/+ and Syngap1+/td mice were used because of limited survival and poor health of homozygous mice in the post-weaning period (Figure 2B). The general pattern of abnormal SynGAP levels persisted into adulthood, with both α isoforms reduced by ~50% compared to WT levels, while β isoforms were significantly enhanced (Figure 2—figure supplement 1C). However, the effect on t-SynGAP was less pronounced in older animals and did not rise to significance. This finding highlights the importance of measuring the expression of individual isoforms in addition to total levels of SynGAP protein in samples derived from animal or cellular models.

Figure 2 with 1 supplement see all

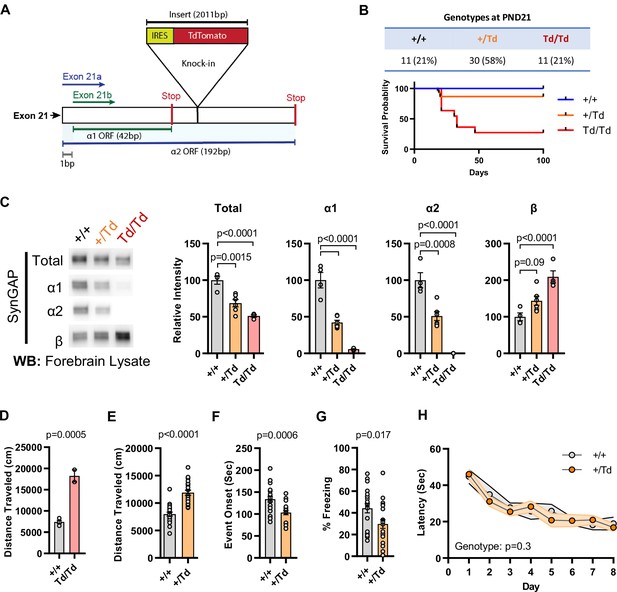

Design and characterization of Syngap1 IRES-TdTomato knock-in mice.

(A) IRES-TdTomato insertion site in relation to α1 and α2 open-reading frames. (B) Genotype ratios and survival probability following heterozygous breeding. (C) Representative western blots showing expression levels of total SynGAP and individual isoforms. Quantification of forebrain expression levels measured by western blot analysis. Relative intensity of bands normalized to total protein signal. Only α1 signal is significantly changed. ANOVA with Tukey’s multiple comparisons test, F(2, 14) = 24.86, n = 5, p < 0.0001 (D) Quantification of total distance traveled in open field test in adult WT or Td/Td mice. Unpaired t-test t(4)=10.42. Note that very few homozygous Td/Td mouse survived through adulthood. (E) Quantification of total distance traveled in open field test in adult WT or +/Td mice. Unpaired t-test t(18)=9.007 (F) Latency of event onset was measured as the time taken to 1st clonus (seizure onset). Unpaired t-test: t(18)=2.588. (G) Percent freezing in remote contextual fear memory paradigm. Unpaired t-test: t(41)=2.49 (H) Plots demonstrating latency to find platform across days in Morris Water Maze training. Linear mixed model for repeated measures. n = 9–12, +/+ vs + /Td, p = 0.3.

Figure 2—source data 1

Representative blots and total protein profiles.

https://cdn.elifesciences.org/articles/75707/elife-75707-fig2-data1-v2.pdf

Syngap1 heterozygous KO mice, which have 50% reduction of t-SynGAP and 50% reduction of all isoforms (Figure 2—figure supplement 1—source data 1), have normal post-weaning survival rates (Komiyama et al., 2002; Kim et al., 2003). However, survival data from Syngap1td/td mice above, which also expressed a ~ 50% reduction of t-SynGAP, but loss of α isoform expression (Figure 2C; Figure 1G), suggest that expression of these isoforms is required for survival. α isoforms are highly enriched in brain (Araki et al., 2020), suggesting that reduced survival stems from altered brain function. Therefore, we next sought to understand how reduced α1/2 expression (but in the context of β compensation) impacted behaviors known to be sensitive to reduced t-SynGAP expression in mice. We obtained minimal data from adult Syngap1td/td mice because they exhibit poor health and survival in the post-weaning period. However, two animals were successfully tested in the open field, and they exhibited very high levels of horizontal activity (Figure 2D). A more thorough characterization of behavior was carried out in adult Syngap1+/td mice, which have significantly reduced α isoforms, enhanced β expression, but relatively normal t-SynGAP levels (Figure 2—figure supplement 1A). Syngap1+/td mice exhibited significantly elevated open-field activity, seized more quickly in response to flurothyl, and froze less during remote contextual fear memory recall (Figure 2E–G). These phenotypes are all present in conventional Syngap1+/- +/- (Ozkan et al., 2014; Clement et al., 2012; Aceti et al., 2015; Creson et al., 2019), which again express ~50% reduction of all isoforms (Figure 2—figure supplement 1A). In contrast, Morris water maze acquisition, which is impaired in Syngap1+/- +/- (Komiyama et al., 2002; Kim et al., 2003), was unchanged in Syngap1+/td mice (Figure 2H). Thus, certain behaviors, including horizontal activity, freezing in response to conditioned fear, and behavioral seizure, are sensitive to reduced levels of α isoforms, but not necessarily to t-SynGAP levels. Moreover, ~ 50% loss of α1/α2 isoforms appear sufficient to disrupt long-term memory (Figure 2G), but insufficient to disrupt spatial learning (Figure 2H).

Enhanced α1/2 C-terminal isoform expression is associated with seizure protection and improved cognitive function

The results in IRES-TD mice suggested that certain core Syngap1-sensitive behavioral phenotypes are caused, at least in part, by reduced α1/2 isoform expression. If α isoforms directly contribute to behavioral phenotypes in mice, then increasing their expression may drive phenotypes in the opposite direction. To test this idea, we created a new mouse line designed to upregulate SynGAP-α expression in vivo. This line, called Syngap1β*/β*, contained a point mutation that prevented use of the e19a spliced reading frame (Figure 3A–B), the mechanism leading to expression of the SynGAP-β C-terminal variant (Figure 1C). This design was expected to force all mRNAs to use the e19b reading frame, leading to an increase in α variants (and loss of β expression). This line appeared healthy, bred normally, and resulting offspring were of expected Mendelian ratios. The CRISPR-engineered point mutation had the predicted impact on SynGAP isoform expression. While there was no change in t-SynGAP expression, there was a copy-number-dependent decrease in β expression, and a modest, but significant, increase in α2 expression in neonatal mice and α1 in young adult mice (Figure 3C; Figure 1H; Figure 3—source data 1). These animals were then evaluated in behavioral paradigms sensitive to Syngap1 haploinsufficiency. Homozygous Syngap1β*/β* mice exhibited significantly less horizontal activity in the open field (Figure 3D), and also took longer to express behavioral evidence of seizure (Figure 3E). Further, they expressed no change in freezing levels during remote contextual memory recall (Figure 3F). Unexpectedly, homozygous β* mice exhibited improved learning in the Morris water maze (Figure 3G), with normal memory expression during the probe test. Thus, a significant increase in α isoform expression (in the presence of nearly absent β; Figure 1H) protected against seizure and improved behavioral measures associated with cognitive function, such as learning during spatial navigation.

Figure 3 with 1 supplement see all

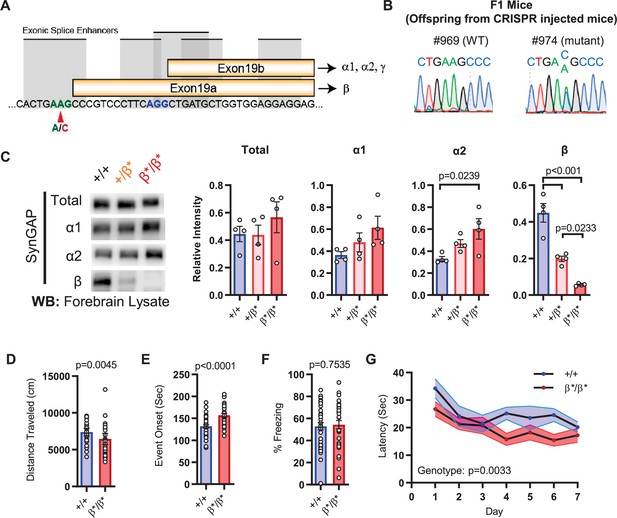

Design and characterization of Syngap1β* knock-in mice.

(A) Alternative use of exon19 in distinct splicing events. Exon19 can be spliced into 2 frames shifted by 13 bp. Use of early splice acceptor (green) results in a frameshift and expresses β isoform. Use of the late splice acceptor (blue) allows expression of all other SynGAP C-terminal variants. To specifically disrupt SynGAP-β, a point mutation (A to C) was introduced to the early splice acceptor (indicated with red arrow). (B) Sequence trace of Syngap1β*/+ mice obtained via crossing F0 founders to wild-type mice. Mutation site exhibits equal levels of A and C signal in sequence trace indicating heterozygosity. (C) Representative western blots showing expression levels of total SynGAP and individual isoforms at PND7. Relative intensity of bands normalized to total protein signal. ANOVA with Tukey’s multiple comparisons test. Total: F(2, 9) = 0.7427, p = 0.5029. α1: F(2, 9) = 2.391, p = 0.147. α2: F(2, 9) = 5.333, p = 0.0297. β: F(2, 9) = 42.53, p < 000.1(D) Quantification of total distance traveled in OFT. +/+ (n = 36), β/β (n = 32); Mann-Whitney U = 346, p = 0.0045. (E) Seizure threshold was measured as the time taken to reach three separate events of 1st clonus (event onset) during the procedure. Unpaired t-test t(66)=4.237. (F) Percent freezing in remote contextual fear memory paradigm. % Freezing: t(66)=0.3153. (G) Plots demonstrating latency to find platform across days in Morris Water Maze training session. Statistical significance was determined by using linear mixed model for repeated measures. Genotype: F(1, 15) = 12.22, p = 0.0033.

Figure 3—source data 1

Representative blots and total protein profiles.

https://cdn.elifesciences.org/articles/75707/elife-75707-fig3-data1-v2.pdf

Given the observation of seizure protection and improved learning in Syngap1β*/β* mice, we were curious if the impact of the β allele was penetrant in a Syngap1 heterozygous (Syngap1+/-) background. This is important given that Syngap1 heterozygous mice, which model genetic impacts of SYNGAP1 haploinsufficiency in humans, have seizures and significant cognitive impairments. To test this idea, we crossed Syngap1+/β* and Syngap1−/+ + , which yielded offspring with four distinct genotypes: Syngap1+/+, Syngap1+/β*, Syngap1−/+, Syngap1−/β* (Figure 4A). We first measured t-SynGAP protein in each of the four genotypes. In general terms, offspring from this cross expressed changes in SynGAP protein levels that were predicted by the known impact of each allele. For example, the effect of the Syngap1 null allele (by comparing Syngap1+/+ to Syngap1-/+ samples) was to cause a significant reduction in t-SynGAP, and each of the measured C-terminal isoforms compared to Syngap1+/+ (WT) animals (; Figure 4—figure supplement 1—source data 1). The effect of the Syngap1β* allele was to increase both α1 and α2 expression, and decrease β expression, whether the Syngap1 null allele was present or absent, and these effects were also present at two developmental time points (Figure 4B–C, Figure 4—figure supplement 1). Given these results, we next performed behavioral analyses on all four genotypes. Results on behavioral endophenotypes were consistent with changes in SynGAP protein. For example, the Syngap1 null allele impaired performance in each of the three behavioral tests performed. Comparing Syngap1+/+ to Syngap1-/+ animals revealed an increase in horizontal distance in the open field, faster time to seizure, and reduced freezing during remote contextual fear recall (Figure 4D–F; two-way ANOVA; null (-) allele, p < 0.05). These results replicate many past studies demonstrating the sensitivity of these behaviors to Syngap1 haploinsufficiency in mice (Kilinc et al., 2018; Clement et al., 2012; Aceti et al., 2015; Michaelson et al., 2018; Komiyama et al., 2002; Creson et al., 2019; Guo et al., 2009). Interestingly, for both open field and seizure threshold tests, the presence of β* allele significantly improved measures in both WT (Syngap1+/+) and Syngap1 heterozygous (Syngap1-/+) backgrounds (Figure 4D–E; two-way ANOVA; β* allele, p < 0.01; interaction of null and β alleles, p > 0.5). These findings were consistent with behavioral results from homozygous β* mice in the prior study (Figure 3F–G) and demonstrated that these two behavioral tests are sensitive to the presence of a single β* allele. Also consistent with the prior study in Syngap1β*/β* mice, the β* allele had no impact on freezing during remote contextual fear recall in either WT or Syngap1 heterozygous backgrounds (Figure 4F). Thus, the β* allele partially rescued phenotypes caused by Syngap1 heterozygosity.

Figure 4 with 1 supplement see all

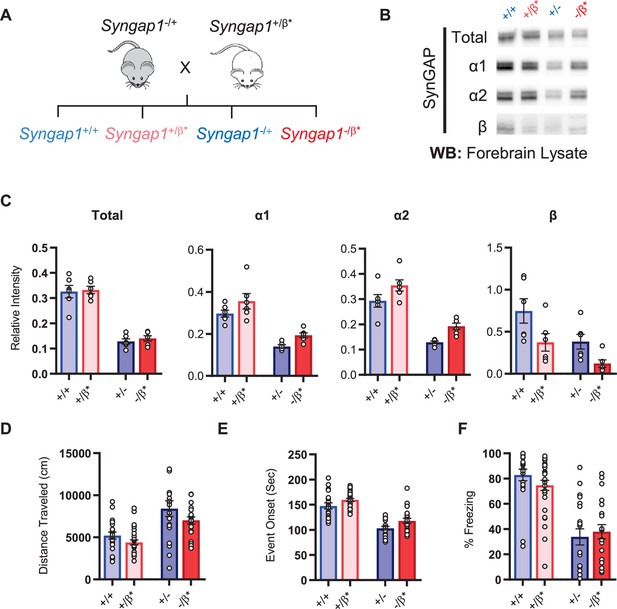

Characterization of offspring derived from Syngap1+/- and Syngap1β*/+ cross-breeding.

(A) Breeding scheme for offspring genotypes for Syngap1 +/-and Syngap1+/β* lines. (B) Representative western blots showing expression levels of total SynGAP and individual isoforms at PND7 for all genotypes. (C) Quantification of B. Two-way ANOVA with Tukey’s multiple comparison test. Total: (-) allele F(1, 20) = 146.3, p < 0.0001; β* allele F(1, 20) = 0.3344, p = 0.5696. Allelic Interaction F(1, 20) = 0.03191, p = 0.8600. α1: (-) allele F(1, 20) = 56.01, p < 0.0001; β* allele F(1, 20) = 7.009, p = 0.0155; Allelic Interaction F(1, 20) = 0.02397, p = 0.8785. α2: (-) allele F(1, 20) = 81.79, p < 0.0001; β* allele F(1, 20) = 11.92, p = 0.0025; Allelic Interaction F(1, 20) = 0.0044, p = 0.9479. β: (-) allele F(1, 20) = 9.149, p = 0.0067; β* allele F(1, 20) = 9.676, p = 0.0055; Allelic Interaction F(1, 20) = 0.3027, p = 0.5883. (D) Quantification of total distance traveled in open field test. Two-way ANOVA with Tukey’s multiple comparison test. (-) allele F(1, 86) = 28.85, p < 0.0001; β* allele F(1, 86) = 4.132, p = 0.0452; Allelic Interaction F(1, 86) = 0.2951, p = 0.5884 (E) Latency of event onset was measured as the time taken to 1st clonus (seizure onset). Two-way ANOVA with Tukey’s multiple comparison test. (-) allele F(1, 82) = 91.71, p < 0.0001; β* allele F(1, 82) = 8.967, p = 0.0036; Allelic Interaction F(1, 82) = 0.07333, p = 0.7872 (F) Percent freezing in remote contextual fear memory paradigm. Two-way ANOVA with Tukey’s multiple comparison test. (-) allele F(1, 86) = 69.37, p < 0.0001; β* allele F(1, 86) = 0.1544, p = 0.6953; Allelic Interaction F(1, 86) = 1.392, p = 0.2414.

Figure 4—source data 1

Representative blots and total protein profiles.

https://cdn.elifesciences.org/articles/75707/elife-75707-fig4-data1-v2.pdf

Alpha1 C-terminal isoform function is required for cognitive function and seizure protection

The results obtained from Syngap1 IRES-TD and β* mouse lines indicated that a respective decrease, or increase, in α1/2 isoform expression impaired, or improved, behavioral phenotypes known to be sensitive to Syngap1 heterozygosity. However, it is also possible that compensatory changes in β expression underlies these phenotypes. This alternative is unlikely, given that α and β expression is anticorrelated in both mouse lines. Thus, for β to drive phenotypes, its expression would need to be both anti-cognitive and pro-seizure, which is inconsistent with isoform expression patterns in Syngap1-/+ mice (Figure 2—figure supplement 1A), where all protein variants are reduced by half. To directly test the hypothesis that behavioral phenotypes are sensitive to the presence of α isoforms, we attempted to create a third mouse line with point mutations that selectively impacted α isoforms, with minimal effect to SynGAP-β. We took advantage of a known molecular function exclusive to SynGAP-α1. This C-terminal variant is the only isoform that expresses a PDZ-binding motif (PBM). Importantly, cell-based studies have shown that the α1-exclusive PBM imparts unique cellular functions to this isoform (Araki et al., 2015; Zeng et al., 2016), such as the ability to become enriched at the post-synaptic density through liquid-liquid phase separation (LLPS). Past studies have shown that mutating the PBM disrupts the ability of SynGAP to regulate synapse structural and functional properties (Rumbaugh et al., 2006; Vazquez et al., 2004), including glutamatergic synapse transmission and dendritic spine size. Before this mouse could be engineered, we had to first identify PBM-disrupting point mutations within the α1 coding sequence that were silent within the open reading frames of the remaining C-terminal isoforms. In silico predictions and prior studies (Rumbaugh et al., 2006; Zeng et al., 2016) suggested that a double point mutation within the α1 PBM could meet these requirements (Figure 5A–B). To test this prediction, we introduced these point mutations into a cDNA that encoded the PBM and then tested how this impacted PDZ binding. Using an established cell-based assay that reports PDZ binding between the SynGAP PBM and PSD95 (Zeng et al., 2016), we found that these point mutations had a large effect on SynGAP-PDZ binding. When expressed individually in HeLa cells, PSD95-tRFP localized to the cytoplasm, while a SynGAP fragment containing the coiled-coil domain and α1 C-tail (EGFP-CCα1) was enriched in the nucleus (Figure 5C–E). The co-expression of these two proteins led to SynGAP localization into the cytoplasm. However, this shift in localization did not occur when PBM point mutations were present (Figure 5D–E), indicating that the selected amino acid substitutions severely impaired binding to the PDZ domains. Moreover, co-immunoprecipitation in heterologous cells indicated that the point mutations in the PBM disrupted the direct association of full-length SynGAP-α1 with PSD95 (Figure 5—figure supplement 1—source data 1). Finally, these point mutations also reduced synaptic enrichment of exogenously expressed SynGAP-α1 fragments in cultured forebrain neurons (Figure 5—figure supplement 1C-E).

Figure 5 with 1 supplement see all

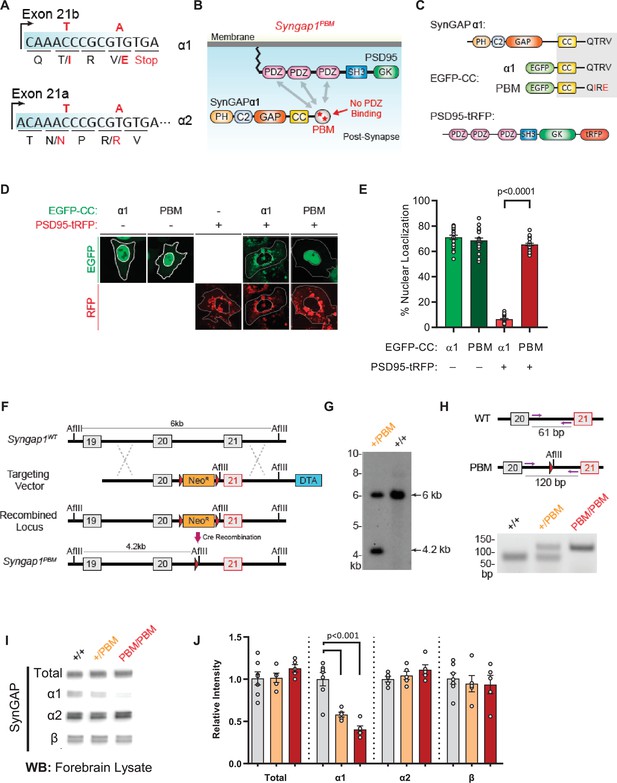

Validation of SynGAP PDZ binding motif (PBM) mutations and construction of the Syngap1PBM mouse line.

(A) Schematic diagram for exon map and alternative use of Exon21 in Syngap1 gene. Exon21b encodes for α1 isoform. Exon 21 a encodes for α2 isoform. Point mutations indicated in red alter exon 21b coding sequence without influencing exon21a open reading frame. (B) Schematics of SynGAPα1 and PSD95 domain structure and the location of point mutations. (C) Illustrations of constructs expressed in HeLa cells to study PDZ-dependent interaction between SynGAP and PSD95. EGFP-CC constructs are homologous to SynGAPα1 C-terminus. (D) Co-localization of EGFP-CCα1 and PSD95-tRFP in HeLa Cells. Representative images showing subcellular localizations of WT or PDZ-binding mutant (PBM) EGFP-CCα1 and PSD95-tRFP in HeLa cells when expressed individually or together. (E) Quantification of (D). Nuclear localization is calculated as the ratio of EGFP signal colocalized with DAPI vs total EGFP intensity in within an individual cell. ANOVA with Tukey’s multiple comparisons test, F(3, 96) = 531.4. p < 0.0001 (F) Schematics of the targeting strategy. The targeting vector was spanning Exon20 and 21. The vector included point mutations in Exon21, a neomycin resistance selection cassette flanked by Cre recombination sites and diphtheria toxin selection cassette (DTA). (G) Southern blot analysis showing the genomic DNA of the tested heterozygous mice compared to C57BL/6 J wild-type DNA. The AflII digested DNAs were blotted on nylon membrane and hybridized with external 5' probe spanning exon19. (H) PCR based genotyping strategy. Primers flanking leftover LoxP site yields 61 bp product in WT and 120 bp product in mutated allele. (I) Representative western blots showing expression levels of total SynGAP and individual isoforms in forebrain lysates. (J) Quantification of I. Relative intensity of bands normalized to total protein signal. Only α1 signal is significantly changed. ANOVA with Tukey’s multiple comparisons test, F(2, 14) = 24.86, n = 5.

Based on this evidence, we introduced the PBM-disrupting point mutations into the final exon of the mouse Syngap1 gene through homologous recombination (Figure 5A and F–H). Both heterozygous and homozygous PBM mutant animals (hereafter Syngap1+/PBM or Syngap1PBM/PBM) were viable, appeared healthy, and had no obvious dysmorphic features. We observed Mendelian ratios after interbreeding Syngap1+/PBM animals (Figure 5—figure supplement 1F), demonstrating that disrupting the PBM had no impact on survival. Western blot analysis of forebrain homogenates isolated from Syngap1+/PBM or Syngap1PBM/PBM mutant animals demonstrated no difference in t-SynGAP protein levels using antibodies that detect all SynGAP splice variants (Figure 5—source data 1I-J). Moreover, using isoform-selective antibodies (Araki et al., 2020; Gou et al., 2019), we observed normal expression of SynGAP-β and SynGAP-α2 isoforms (Figure 5I–J). A reduced signal of ~60% was observed in samples probed with α1-specific antibodies. However, we also observed a similarly reduced signal in heterologous cells expressing a cDNA encoding the mutant PBM (Figure 5—figure supplement 1—source data 1), indicating that these antibodies have reduced affinity for the mutated α1 motif. Together, these data strongly suggest that the α1 variant is expressed normally in Syngap1PBM/PBM animals. This interpretation was supported by RNA-seq data, where normal levels of mRNA containing the α1 reading frame were observed in brain samples (Figure 5—figure supplement 1J). These data, combined with the observation of no change in total SynGAP protein expression in Syngap1PBM/PBM samples (Figure 5I–J), strongly support the conclusion that the PBM-disrupting point mutations do not change the expression levels of the major SynGAP C-terminal splice variants, including those containing the PBM. Thus, this animal model is suitable for understanding the putative biological functions mediated by α1-specific splicing.

Given the disruption to SynGAP-α1 PBM, we sought to understand how altering this functional motif impacted previously defined features of SynGAP at excitatory postsynapses. α1 is believed to be anchored within the PSD in part through PBM binding to PDZ domain containing proteins. However, SynGAP molecules multimerize in vivo and it is currently unknown to what extent this feature contributes to homo- vs. hetero-multimerization. Thus, it is unclear how a functional disruption to one isoform generally impacts native SynGAP complexes at synapses. This is important given that C-terminal isoforms have distinct functions within excitatory neurons (Araki et al., 2020). t-SynGAP levels were reduced in unstimulated PSD fractions prepared from either adult hippocampal homogenates or primary neurons from Syngap1PBM/PBM mice (). Importantly, a corresponding increase in t-SynGAP was observed in the triton-soluble synaptosomal fraction, further supporting the observation of reduced t-SynGAP levels in the PSD. PSD abundance of SynGAP-β and α2 isoforms were not significantly different in PBM mice compared to WT littermates (Figure 6A), which suggested that α1 may exist in distinct biochemical complexes compared to other C-terminal isoforms (i.e. homomeric SynGAP-α1 complexes). Unfortunately, this could not be tested directly in these samples due to reduced affinity of α1-specific antibodies in Syngap1PBM/PBM mice (Figure 5—figure supplement 1H). Therefore, we performed an additional experiment to address the potential existence of isoform-specific biochemical complexes. This required culturing neurons, inducing chemical LTP (cLTP), and then measuring how the stimulus impacted PSD abundance of total SynGAP and C-terminal isoforms. First, we found that a typical cLTP paradigm drove extrusion of total SynGAP from the PSD of WT mice (Figure 6—figure supplement 1—source data 1), while a weak cLTP stimulation did not (Figure 6—figure supplement 1B), which are findings consistent with past studies that defined SynGAP dynamics within biochemical fractions or subcellular compartments (Araki et al., 2015; Araki et al., 2020). In contrast, weak cLTP was capable of driving a reduction in total SynGAP from PSDs in Syngap1PBM/PBM mice (Figure 6—figure supplement 1B). Immunoblotting with isoform-specific antibodies in the weak cLTP condition provided insight into the differential behavior of total SynGAP in PSDs from WT vs. PBM mice. For example, weak cLTP was sufficient to drive reduced PSD abundance for both α2 and β isoforms in both WT and PBM neurons (Figure 6—figure supplement 1B). However, α1 PSD abundance was unchanged in WT mice after weak cLTP, demonstrating that this isoform, when intact, exhibits distinct properties in response to synaptic NMDAR activation. Replicating this approach in PBM neurons revealed that this distinct feature of α1 was due to the existence of an intact PBM motif (Figure 6—figure supplement 1B). These data indicate that reduced PSD abundance of t-SynGAP in Syngap1PBM/PBM mice is driven by altered biochemical features and dynamics of α1. The other isoforms appear minimally impacted by the PBM mutation. Based on this model, spontaneous activity within Syngap1PBM/PBM neurons may drive reduced SynGAP PSD abundance, presumably by reducing the stimulus threshold required to drive α1 out of this compartment. To test this, we measured SynGAP PSD abundance and ERK1/2 signaling in WT and PBM neurons with and without activity blockers (Figure 6B). Acute blockade of synaptic activity normalized SynGAP levels in the PSD and ERK1/2 signaling (Figure 6B). Similar treatments also normalized enrichment of SynGAP in dendritic spines and surface expression of GluA1 in neurons derived from Syngap1PBM/PBM mice (Figure 6C and D). These results indicate that endogenous PBM binding of the α1 isoform regulates an activity-dependent process within excitatory synapses.

Figure 6 with 1 supplement see all

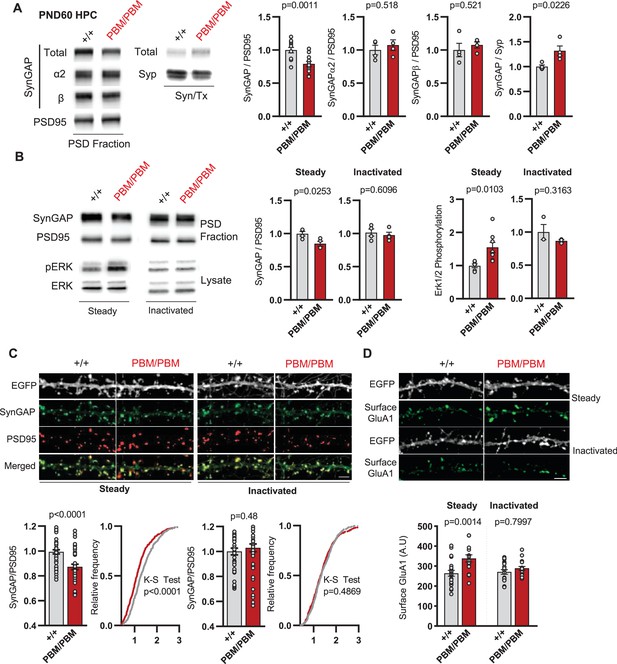

SynGAP synapse localization in Syngap1PBM mouse line.

(A) Western blots showing relative distribution of SynGAP in PSD and Syn/Tx fractions from adult hippocampi. Quantification of western blots probing SynGAP (total, α2, β), Synaptophysin and PSD95. For PSD fractions PSD95 and for Syn/Tx fractions Synaptophysin (Syp) were used as loading control. PSD fractions, Total SynGAP t(22)=3.733, p = 0.0011 n = 12 (3 technical replicates for each sample), SynGAPα2 t(6)=0.6855, p = 0.518, SynGAPβ t(6)=0.6813, p = 0.521. Syn/TX fractions Total SynGAP: t(6)=3.049, p = 0.0226, n = 4. Each sample represents hippocampi pooled from 2 mice. (B) Western blots showing relative enrichment of (i) SynGAP and PSD95 in PSD fractions isolated from DIV18-21 cultures, (ii) phospho and total-ERK1/2 levels in whole cell lysates in steady or inactivated state. Synaptic enrichment of SynGAP in (i) steady-state: Unpaired t-test, t(12)=3.040 p = 0.0103. (ii) inactivated state: Unpaired t-test, t(6)=0.5385 p = 0.6096. Erk1/2 phosphorylation is calculated as ratio of phospho- Erk1/2 to total-Erk1/2 in homogenates. Erk1/2 phosphorylation in (i) steady-state: Unpaired t-test, t(6)=2.961 p = 0.0253. (ii) inactivated state: Unpaired t-test, t(4)=1.144 p = 0.3163(C) Synaptic enrichment of total SynGAP in WT and PBM mutants in steady or inactivated state. Levels of SynGAP relative to PSD95 signal in dendritic spines. Left, bar graphs demonstrate mean enrichment in an individual dendritic segment. Steady-state: t(90)=4.393 p < 0.0001. Inactivated: t(78)=0.6982 p = 0.48. Cumulative distribution of SynGAP to PSD95 ratios in individual synapses. Kolmogorov-Smirnov test, Steady-state: p < 0.0001, Inactivated: p = 0.4869. (D) Surface GluA1 expression in primary forebrain cultures in steady or inactivated state. Quantification of mean surface GluA1 levels coincident with PSD95 puncta. Two-way ANOVA with Tukey’s multiple comparisons test. Interaction: F(1,74)=4.112, p = 0.0462, Genotype: F(1,74)=11.09, p = 0.0014. Treatment: F(1,74)=2.329, p = 0.1313. Each n represents an average of 25–30 spines from a dendritic segment belonging to distinct neurons.

Blocking synaptic activity in Syngap1PBM/PBM neurons prevented alterations in SynGAP levels at postsynapses (Figure 6A–D). This suggested that the PBM regulates SynGAP-specific functions in excitatory synapses, such as activity-dependent extrusion of α1 from the PSD. However, SynGAP-α1 undergoes LLPS and this mechanism is thought to facilitate the organization of the PSD (Zeng et al., 2016). Thus, disrupted SynGAP post-synaptic levels could also be attributable to altered structural organization of the PSD. To determine if the PBM contributes to the organization of macromolecular complexes within excitatory synapses, we immunoprecipitated PSD95 from neurons obtained from either WT or Syngap1PBM/PBM mutant neurons. These neurons were treated with APV to avoid the confounds of elevated NMDAR signaling. These samples were then analyzed by mass spectrometry to determine how disrupting SynGAP-PDZ binding impacted the composition of PSD95 macromolecular complexes. In general, we found only minor differences in the abundance of proteins that comprise PSD95 complexes when comparing samples from each genotype (Figure 7—source data 1A). Only 1 out of ~161 proteins (from 133 distinct genes) known to be present within PSD95 complexes (Li et al., 2017) met our threshold for significance, although there were modest changes in proteins with structurally homologous PBMs (Type-1 PDZ ligands), such as Iqseq2 and Dlgap3 (Figure 7B). However, the vast majority of related PBM-containing proteins were not different in mutant neurons, including NMDAR subunits and TARPs (Figure 7C). Consistent with the mass spectrometry analysis, immunoblot analyses found no changes in TARPs or LRRTM2 in isolated PSDs from Syngap1PBM/PBM mice (Figure 7—source data 2). Although PDZ binding was disrupted, SynGAP protein levels were also unchanged within PSD95 complexes, a result consistent with PSD and synapse localization measurements in APV-treated neurons derived from Syngap1PBM/PBM mice (Figure 6B–C). These results indicate that SynGAP interacts with PSD95 in a non-PDZ-dependent manner. In support of this interpretation, there is significant overlap between the interactomes of PSD95 (Li et al., 2017) and SynGAP (Wilkinson et al., 2017) macromolecular complexes (Figure 7H). Thus, within intact postsynapses, SynGAP and PSD95 interact, as part of a macromolecular complex, through binding to common protein intermediaries. Together, these data suggest that SynGAP PBM binding to PDZ domains is not a major factor promoting the organization of PSD95 macromolecular complexes or the PSD. Rather, the PBM appears to regulate SynGAP-specific mechanisms that control signaling through NMDARs.

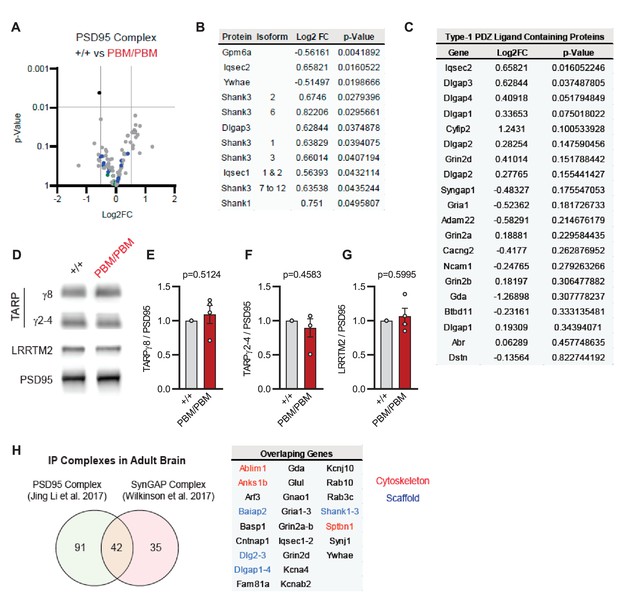

Characterization of native PSD95 complexes from Syngap1PBM animals.

(A) Volcano plot demonstrating the label-free quantitative mass-spectrometry profile of the logarithmic difference in protein levels in the immunoprecipitated PSD95 complexes derived from DIV21 +/+ and PBM/PBM cultures in inactivated state. Only Gpm6a (shown in black) was significantly altered beyond p > 0.001 cutoff. Blue dots represent proteins with type 1 PDZ-ligands. Green dots represent DLG family proteins. p Values were calculated via t-test for each protein. Samples were derived from individual cultures (4 per genotype) which are immunoprecipitated separately. Log2FC was calculated as ratio of PBM/PBM over +/+. (B) List of proteins that are differentially expressed beyond p > 0.05 cutoff. Note that Iqseq2 and Dlgap3 are PDZ-binding proteins. (C) Mass-spectrometry profile of type-1 PDZ binding motif containing proteins in immunoprecipitated PSD95 complex in +/+ vs PBM/PBM inactivated cultures. (D) Western blots showing relative expression of TARPs and Lrrtm2 in PSD fractions from adult hippocampi in +/+ vs PBM/PBM. (E–G) Quantifications of (D). (E) TARPg8 t(6)=0.6961, P = 0.5124. (F) TARPg2-4 t(6)=0.7924, p = 0.4583 (G) Lrrtm2 t(6)=0.5542, p = 0.5995. Each sample represents hippocampi pooled from 2 mice. (H) Comparison of PSD95 and SynGAP IP complexes as reported by Li et al., 2017 and Wilkinson et al., 2017. Note that PSD95 and SynGAP complexes share diverse range of components involving cytoskeletal and scaffolding proteins.

Given that altering the SynGAP PBM disrupts signaling through NMDARs, we hypothesized that hippocampal CA1 LTP would be disrupted in Syngap1PBM/PBM mice. The within-train facilitation of responses across the seven theta bursts used to induce LTP did not differ between genotypes (Figure 8A), indicating that standard measures of induction, including NMDAR channel activation, were not impacted by PBM mutations. However, short-term plasticity (STP; Figure 8C and D) and LTP (Figure 8B and E) were both reduced in Syngap1PBM/PBM mice. The ratio of LTP/STP was no different between genotypes (Figure 8F). Blocking NMDAR channel function is known to disrupt both STP and LTP (Volianskis et al., 2013). However, a key measure of NMDA channel function was normal in PBM mutant mice (Figure 8A). Thus, these data are consistent with the idea that disrupting SynGAP-PDZ binding impairs signaling normally induced downstream of synaptic NMDAR activation. Synaptic plasticity, such as LTP, is thought to contribute importantly to multiple forms of learning and memory. As such, we next measured performance of WT and Syngap1PBM/PBM mice in a variety of learning and memory paradigms that have previously shown sensitivity in Syngap1 mouse models, including IRES-TD and β* lines. Behavioral analysis in this line revealed a significant increase in horizontal locomotion in the open-field test (Figure 8G), a significantly reduced seizure threshold (Figure 8H), and significantly reduced freezing during retrieval of a remote contextual fear memory (Figure 8I). Moreover, we also observed impaired acquisition during Morris water maze learning (Figure 8J). Together, these behavioral data indicate that the PBM within SynGAP-α1 splice forms is critical for learning and memory, as well as protecting against seizure.

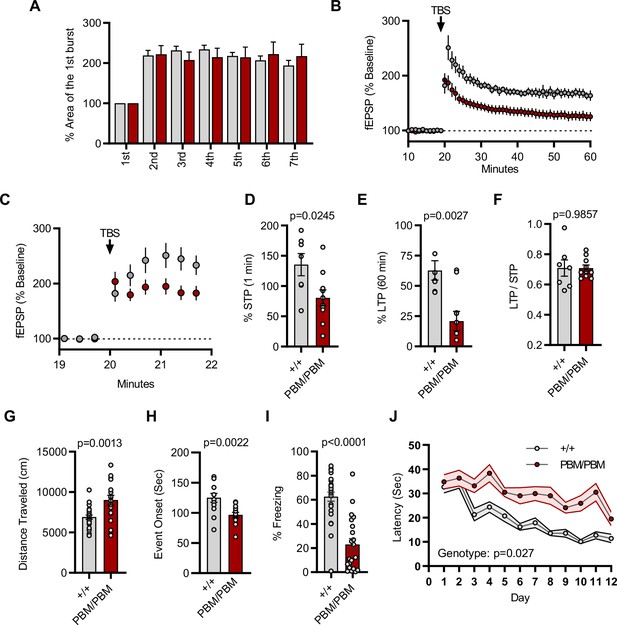

Plasticity and behavior deficits in the Syngap1PBM mouse line.

(A) Facilitation of burst responses was calculated by expressing the area of the composite fEPSP corresponding to the 2nd theta burst within each train as a fraction of the 1st burst response. No statistically significant difference was found between genotypes (wildtypes are shown in gray and PBM/PBM are in red). (B) Magnitude of long-term potentiation (LTP) following delivery of a single train of five theta bursts. The slope of the fEPSP was normalized to the mean value for a 20 min baseline period; shown are group means and standard errors. (C) Percent fEPSP during and immediately after the LTP induction. Note that homozygous mutants reach to peak potential immediately following TBS. (D) Bar graph shows % potentiation in 1 min after stimulus. t(15)=2.499, p = 0.0245. (E) Bar graph shows % potentiation in 60 min after stimulus. t(15)=3.594, p = 0.0027. (F) LTP to STP ratio of individual slices. Note that the level of LTP is proportional to the degree of acute potentiation (1 min after stimulus). t(15)=0.01818, p = 0.9857. (G) Quantification of total distance traveled in OFT. t(45)=3.427, p = 0.0013. (H) Seizure threshold was measured as the time taken to reach three separate events of 1st clonus (event onset) during the procedure. Unpaired t-test t(25)=3.420 p = 0.0022. (I) Percent freezing in remote contextual fear memory paradigm. % Freezing: t(45)=6.463, p < 0.0001. (J) Plots demonstrating latency to find platform across days in Morris Water Maze training session. Statistical significance was determined by using linear mixed model for repeated measures. n = 14, +/+ vs PBM/PBM, p = 0.027.

Alpha1/2 C-terminal isoform expression or function predicts changes in excitatory synapse function

Behavioral results from IRES-TD and PBM mice were consistent with each other, and also consistent with a reduction in all SynGAP isoforms occurring in Syngap1 conventional heterozygous null mice. These three mouse lines share a common molecular feature – reduced expression or function of SynGAP-α1 isoforms (Figure 1F–I; Supplementary file 1). Prior studies have shown that exogenously expressed SynGAP-α1 is a negative regulator of excitatory synapse function (Rumbaugh et al., 2006; Wang et al., 2013). Thus, we hypothesized that IRES-TD and PBM mouse lines would express elevated excitatory synapse function, while Syngap1β*/β* mice, which have enhanced α1 expression, would express reduced synapse function. To test this idea, we performed whole-cell voltage clamp recordings in acute somatosensory cortex slices derived from all three of these lines because these neurons have been shown to be sensitive to Syngap1 heterozygosity in ex vivo slice preparations (Michaelson et al., 2018). PBM mice exhibited a modest increase in mEPSCs amplitude and a more substantial increase in mEPSC frequency, two measures consistent with enhanced postsynaptic function (Figure 9A–C). We also observed increased excitatory synapse function (both mEPSC amplitude and frequency distributions) in IRES-TD mice (Figure 9D–F). The sample size for PBM mEPSC analysis is somewhat underpowered, although these significant effects agree with independent mEPSC observations from the IRES-TD mice. Moreover, effects on mEPSC amplitude in L2/3 SSC neurons observed in both lines are similar to what has been reported previously in Syngap1+/- +/- (Michaelson et al., 2018). In contrast, Syngap1β*/β* mice, which have significantly elevated α1/α2 expression, expressed reduced mEPSC amplitude and frequency measurements relative to littermate control slices (Figure 9G–I), a phenotype consistent with SynGAP-α1 overexpression in excitatory neurons (Rumbaugh et al., 2006; Wang et al., 2013).

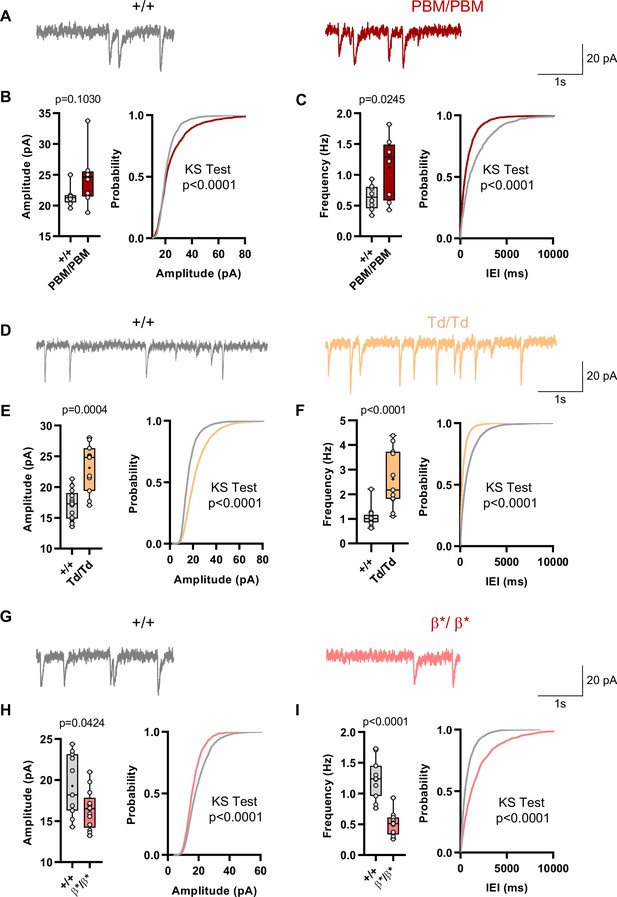

Analysis of excitatory synapse function in Syngap1PBM, Syngap1β*, and Syngap1td mouse lines.

(A) Representative mEPSCs traces from L2/3 SSC in +/+ vs PBM/PBM (B) Scatter plots and cumulative histograms showing trend towards increase but no significant difference in Amplitudes of mEPSCs +/+ vs PBM/PBM (C) Scatter plots and cumulative histograms showing significant increase in frequency of mEPSCs +/+ vs PBM/PBM. Unpaired t test: p = 0.0245, n = 8 for each genotype. (D) Representative mEPSCs traces from L2/3 SSC in +/+ vs Td/Td. (E) Scatter plots and cumulative histograms showing significantly increased amplitudes of mEPSCs in +/+ vs Td/Td. Unpaired t test: p = 0.0004, n = 17 cells for +/+, n = 11 cells for Td/Td mice. (F) Scatter plots and cumulative histograms showing significant increase in frequency of mEPSCs in +/+ vs Td/Td. Unpaired t test: p < 0.0001, n = 17 cells for +/+, n = 11 cells for Td/Td mice. (G) Representative mEPSCs traces from L2/3 SSC in +/+ vs β*/β*. (H) Scatter plots and cumulative histograms showing significantly decreased amplitudes of mEPSCs in L2/3 SSC for +/+ vs β*/β*. Unpaired t test: p = 0.0424, n = 11 cells for +/+, n = 13 cells for β*/β*. (I) Scatter plots and cumulative histograms showing significant decrease in frequency of mEPSCs in +/+ vs β*/β*. Unpaired t test: p < 0.0001, n = 11 cells for +/+, n = 13 cells for β*/β*.

Discussion

In this study, we created three distinct mouse lines, each regulating the expression or function of SynGAP protein isoforms (Figure 1F–I), without appreciable change in total SynGAP expression levels. A summary of all measured phenotypes in these lines can be found in Supplementary file 1. The overall conclusion from this study is that α-containing SynGAP isoforms promote cognitive functions that support learning/memory, while also protecting against seizure. It is important to understand the relationship between SynGAP isoform function and systems-level manifestations of the different isoforms, such as behavioral expression related to cognitive function and seizure. It has been shown previously that Syngap1 C-terminal splicing imparts distinct cellular functions of SynGAP proteins (Araki et al., 2020; McMahon et al., 2012; Rumbaugh et al., 2006; Vazquez et al., 2004). Thus, targeting endogenous isoform expression in animal models presents an opportunity to determine to what extent distinct cellular functions of SynGAP could contribute to various intermediate phenotypes present in Syngap1 mouse models. Given that SYNGAP1 is a well-established NDD gene and LOF mutations are highly penetrant in the human population (Deciphering Developmental Disorders Study, 2015; Deciphering Developmental Disorders Study, 2017; Hamdan et al., 2009; Parker et al., 2015; Mignot et al., 2016; Satterstrom et al., 2020; Hamdan et al., 2011; Berryer et al., 2013), studying these relationships have the potential to provide much needed insight into the neurobiology underlying human cognitive and behavioral disorders that first manifest during development. Second, there is increasing interest in targeted treatments for patients with SYNGAP1 disorders due to the penetrance of LOF variants, the relatively homogenous manifestations of the disorder (e.g. cognitive impairment and epilepsy), and the growing number of patients identified with this disorder (Lim et al., 2020). Restoring SynGAP protein expression in brain cells is the most logical targeted treatment for this disorder because most known patients have de novo variants that cause genetic haploinsufficiency (Holder et al., 1993). The most logical therapeutic approach would be to reactivate native expression of the endogenous gene. However, the findings from this study indicate that targeted therapies for SYNGAP1 disorders that enhance expression of α isoforms may be sufficient to provide a benefit to patients. Indeed, only a modest upregulation of α1/2 expression within a Syngap1 heterozygous background was sufficient to improve behavioral deficits commonly observed in that mouse line (Figure 4). Third, the discovery that SynGAP-α1/2 expression/function is pro-cognitive and provides protection from seizure suggests that these isoforms, and the cellular mechanisms that they regulate, could be harnessed to intervene in idiopathic cognitive and excitability disorders, such as neurodegenerative disorders and/or epilepsies with unknown etiology.

Several lines of evidence from this study support the conclusion that SynGAP-α isoform expression or function promotes cognition and seizure protection. IRES-TD and PBM mouse lines each had similar learning/memory and seizure threshold phenotypes, with both mouse lines exhibiting impaired phenotypes related to these two types of behavioral analyses. Indeed, these two mouse lines also shared a common molecular perturbation - reduced expression or function of alpha isoform(s). For example, IRES-TD homozygous mice lacked expression of both α1 and α2 isoforms and these animals exhibited severe phenotypes, including reduced post-weaning survival and dramatically elevated horizontal activity in the open field. Additional phenotypes were also present in heterozygous IRES-TD mice, which underwent more comprehensive testing because of better survival in the post-weaning period. These additional phenotypes included reduced seizure threshold and impaired freezing during a remote contextual fear expression test. PBM homozygous mice had normal expression of SynGAP protein, but lacked a functional domain present exclusively in α1 isoforms, a type-1 PDZ-binding domain. PBM homozygous mice shared phenotypes with IRES-TD mice, including impaired remote contextual fear expression, elevated horizontal activity in the open field, and a reduced seizure threshold. These mice also expressed impaired learning during Morris water maze acquisition. Importantly, these behavioral phenotypes are well established in Syngap1 heterozygous mice (Ozkan et al., 2014; Clement et al., 2012; Aceti et al., 2015; Creson et al., 2019; Guo et al., 2009), indicating that SynGAP protein loss-of-function underlies these abnormalities. Thus, it reasonable to speculate that α isoform LOF is one potential mechanism underlying these behavioral abnormalities. Dysregulation of excitatory synapse function in cortical circuits is one of many possible cellular mechanisms underlying common phenotypes in IRES-TD and PBM mutant mice lines. Whole cell electrophysiology experiments from developing cortical neurons in situ from each line revealed evidence of elevated excitatory synapse strength during the known Syngap1 mouse critical period. Indeed, elevated excitatory synapse strength in developing forebrain glutamatergic neurons is a major cellular outcome present in Syngap1 heterozygous knockout mice (Ozkan et al., 2014; Clement et al., 2012; Clement et al., 2013; Michaelson et al., 2018). Moreover, elevated excitatory synapse strength is consistent with impaired cognitive function and reduced seizure threshold.

Studies in the Syngap1β* line also support this interpretation. These mice were devoid of SynGAP-β protein expression, yet we did not observe cellular or behavioral phenotypes consistent with Syngap1 heterozygosity. Rather surprisingly, mice lacking SynGAP-β expression had intermediate phenotypes that opposed what was commonly observed in Syngap1 heterozygous KO mice (and shared by IRES-TD/PBM lines). For example, β* mice exhibited improved spatial learning in the Morris water maze, reduced horizontal activity in the open field, and an elevated seizure threshold (evidence of seizure protection). These phenotypes were modest in effect size, but highly significant. These phenotypes were reproducible because open field and seizure phenotypes were also present in a separate series of experiments performed in the Syngap1 heterozygous background. This demonstrates that the impact of the β* allele is penetrant even when expression of isoforms is reduced by half compared to WT mice. As a result, the β* allele partially rescued open field and seizure phenotypes present in Syngap1+/- +/-. For impaired β expression to drive phenotypes, expression of this isoform would be anticorrelated with cognitive function and seizure protection. Put another way, reduced β expression would need to enhance phenotypes and increased expression of these isoforms would need to disrupt them. This outcome is unlikely given that it is inconsistent with phenotypes observed in Syngap1+/- +/-, which have reduced expression of all isoforms, including SynGAP-β.

Phenotypes in β* mice are likely driven by significantly elevated SynGAP-α expression rather than reduced SynGAP-β. Electrophysiological studies in these mice revealed reduced excitatory neuron synaptic strength, a finding consistent with exogenously elevated SynGAP-α1 expression (Rumbaugh et al., 2006; Wang et al., 2013). Moreover, these synapse-level results are consistent with seizure protection observed in β* mice. Phenotypes in PBM mice also support this hypothesis. This model does not have altered t-SynGAP expression, or a change in β expression. Yet, the behavioral- and synapse-level phenotypes are consistent with those observed in IRES-TD and Syngap1+/- +/-. The observation that α isoforms promote cognitive function and seizure protection are consistent with known molecular functions of these isoforms, at least with respect to regulation of synapse strength and resultant impacts on neural circuit function. For example, α1 imparts SynGAP with the ability to undergo liquid-liquid phase transitions (Zeng et al., 2016). This biophysical process is associated with regulation of Ras signaling in dendritic spines required for AMPA receptor trafficking that supports use-dependent synapse plasticity (Araki et al., 2015; Araki et al., 2020). Input-specific plasticity is crucial during development to sculpt the assembly of neural circuits (Zhang and Poo, 2001), while also being important in mature circuits to promote experience-dependent changes in already-established circuitry (Lynch et al., 2007).

Syngap1 is a potent regulator of forebrain glutamatergic neuron biology and that many phenotypes observed in models of Syngap1 regulation have origins in these excitatory neurons. Single cell transcriptomics data from adult mice indicate that Syngap1 is principally expressed in glutamatergic neurons in the cortex and hippocampus rather than GABAergic interneurons (Figure 10). Single-cell mRNA expression data agree with experimental evidence of SynGAP protein expression in rodent neurons. For example, SynGAP protein expression is enriched in glutamatergic neurons (Kim et al., 1998; Rumbaugh et al., 2006; Kim et al., 2003), with relatively high levels in upper lamina of isocortex (Butko et al., 2013). Other studies show that SynGAP protein is absent from several types of forebrain GABAergic neurons, but was expressed in a subpopulation of morphologically distinct inhibitory cells (Zhang et al., 1999). Expression data agree with prior experimental observations from electrophysiological and behavioral measurements in mice where Syngap1 expression was conditionally regulated in distinct neuronal subtypes. Commonly observed and robust phenotypes observed in Syngap1 heterozygous null mice (Guo et al., 2009; Muhia et al., 2010) were phenocopied in animals where Syngap1 heterozygosity was restricted to excitatory neurons in the forebrain (Ozkan et al., 2014). Moreover, major electrophysiological and behavioral phenotypes in Syngap1 heterozygous mice were also rescued when gene expression was restored in in this same population (Ozkan et al., 2014). In contrast, only minor phenotypes emerged in mice when Syngap1 expression was disrupted in GABAergic neurons. A separate group reported similar results. In that study, most Syngap1 heterozygous mouse behavioral phenotypes were insensitive to selective disruption within a GABAergic neuron population, although one behavioral measure of cognition was mildly affected (Berryer et al., 2016).

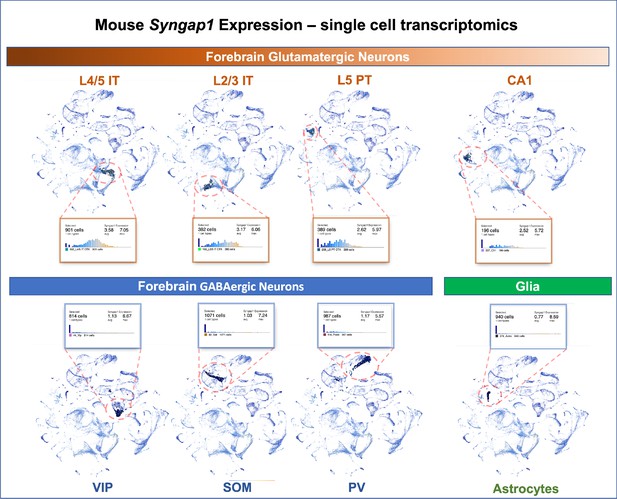

Single-cell mRNA expression of Syngap1 in mouse cortex and hippocampus.

Allen Brain Map single cell transcriptomics database was mined and summarize to note expression data for Syngap1 in representative cell types in mouse cortex and hippocampus. Original data can be found using the following URL - https://celltypes.brain-map.org/rnaseq/mouse_ctx-hpf_smart-seq?selectedVisualization=Scatter+Plot&colorByFeature=Gene+Expression&colorByFeatureValue=Syngap1.

Alpha isoforms, and α1 in particular, exhibit enrichment in dendritic spine synapses (Gou et al., 2020). As a result, baseline synaptic phenotypes related to Syngap1 gene expression appear dominated by the ability of both α1 and α2 isoforms to suppress excitatory synapse function. Studies from several research groups have shown that SynGAP-α1 is a negative regulator of excitatory synapse structure and function (Araki et al., 2015; Araki et al., 2020; Rumbaugh et al., 2006; Vazquez et al., 2004; Wang et al., 2013). In contrast, the role of α2 isoform protein function on excitatory synapse structure/function is less clear. One study suggested that α2 has an opposing function relative to α1 within excitatory synapses, with the former acting as an enhancer, rather than a suppresser, of excitatory synapse function (McMahon et al., 2012). However, a more recent study demonstrated that α2 has a similar, albeit less robust ability to suppress AMPA receptor content within dendritic spines (Araki et al., 2020), indicating that it too can act as a negative regulator of synapse function. Our results here support the view that both α1 and α2 can act as suppressors of excitatory synapse function. In our studies, α1 and α2 were both co-regulated in the IRES-TD and β* lines, with both isoforms downregulated in the former and upregulated in the latter. In both mouse lines, baseline excitatory synapse strength was inversely proportional to expression levels of α1/2 isoforms. If α1 and α2 had opposing functions at the synapse level, then co-regulation of both isoforms would be expected to lead to no significant differences in synapse function. As a result, we hypothesize that improvements in spatial learning and protection from seizure in β* mice arise through changes in excitatory synapse biology mediated by α isoforms. Thus, in-depth study of α isoform biology at both the cell biological and neural systems levels may reveal molecular and cellular approaches to improve cognition and mitigate uncontrolled excitability.

It is important to note that our interpretation that β* mouse phenotypes are most likely driven by changes in αisoforms does not preclude a fundamental role of β in sculpting neural systems, or that reduced expression of this isoform in Syngap1+/- +/- has no role in disease pathobiology. Rather, our results highlight the importance of endogenous α isoforms in regulating excitatory synapse function and associated behavioral outcomes. What is known about the function of other C-terminal protein variants, such as β and γ? A recent study suggested that β and γ isoforms lack the ability to regulate excitatory synapse function, further strengthening the idea that α isoforms account for Syngap1-dependent regulation of excitatory synapse function (Araki et al., 2020). However, Syngap1 is known to regulate additional cellular process beyond regulation of excitatory synapse function, such as dendritic morphogenesis and patterning in vivo (Clement et al., 2012; Aceti et al., 2015; Michaelson et al., 2018). Evidence suggests that all isoforms can regulate dendritic morphogenesis in vitro, although SynGAP-β was shown to be a stronger regulator of this process relative to the other C-terminal isoforms (Araki et al., 2020). In vivo, β was found to be expressed earlier in development and to be less enriched in the postsynaptic density compared to other variants (Gou et al., 2020). Thus, β is well positioned to regulate non-synapse related neuronal processes. Future studies will be required to elucidate the specific cellular functions of non-alpha isoforms and how they contribute to the development of neural function and behavior. Given the complexities of Syngap1 regulation on dendritic morphogenesis (Aceti et al., 2015; Michaelson et al., 2018), and the direct linkage between dendritic morphogenesis and circuit function in cortex in Syngap1 mutant animals (Michaelson et al., 2018), future studies on the function of individual isoforms would ideally be carried out in vivo in developing animals.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Biological sample (Mus musculus)Mouse primary forebrain neuronsThis study18–21 days in vitro
Biological sample (Mus musculus)Cortical and hippocampal tissueMultiple strains (this study)Male and female
Strain, strain background (Mus musculus)IRES-TDSpicer et al., 2018C57BL/6 J background
Strain, strain background (Mus musculus)Beta KO (β*)This studyC57BL/6 J background
Strain, strain background (Mus musculus)PBMThis studyC57BL/6 J background
Cell line (Homo sapiens)HeLaFarzan Lab (Scripps Research)
Cell line (Homo sapiens)H293TKissil Lab (Scripps Research)
Genetic reagent (Rattus norvegicus)PSD95-tRFPAddgene#52,671Plasmid
Genetic reagent (Mus musculus)EGFP-CCα1This studyPlasmid
Genetic reagent (Mus musculus)EGFP-CCPBMThis studyPlasmid
Genetic reagent (Mus musculus)EGFP-SynGAPα1This studyPlasmid
Genetic reagent (Mus musculus)EGFP-SynGAPα1PBMThis studyPlasmid
AntibodyRabbit polyclonal antibodyThermoPA1-046Anti-total SynGAP(1:1000)
AntibodyRabbit polyclonal antibodyMillipore06–900Anti-SynGAPα1(1:1000)
AntibodyRabbit monoclonal antibodyAbcamab77235Anti-SynGAPα2(1:1000)
AntibodyRabbit polyclonal antibodyAraki et al., 2020 Huganir Lab (JHU)Anti-SynGAPβ (1:1000)
AntibodyMouse monoclonal antibodyThermoMA1-045Anti-PSD95(1:2000)
AntibodyRabbit polyclonal antibodyNovusNB300-653Anti-Synaptophysin(1:1000)
AntibodyMouse monoclonal antibodyCST9,106Anti-phosphoERK(1:1000)
AntibodyMouse monoclonal antibodyCST4,696Anti-ERK(1:1000)
AntibodyMouse monoclonal antibodyMilliporeMAB2263Anti-GluA1 N-term.(1:500)
AntibodyRabbit polyclonal antibodyMilliporeAb9876Anti-TARP(1:500)
AntibodyRabbit polyclonal antibodyThermo PiercePA521097Anti-LRRTM2(1:1000)
Sequence-based reagentIRES-TD Genotyping Primer FwIDTAGATCCACCAGGCCCTGAA
Sequence-based reagentIRES-TD Genotyping Primer RevIDTGTCTTGAACTCCACCAGGTAGTG
Sequence-based reagentPBM Genotyping Primer FwIDTCTGGTTCAAAGGCTCCTGGTA
Sequence-based reagentPBM Genotyping Primer RevIDTCTGTTTGTTTCTCACCTCCAGGAA
OtherCamKII.CreAddgene105558-AAV9Adeno-associated virus (AAV)
OtherCAG.Flex.EGFPAddgene28304-PHPeBAdeno-associated virus (AAV)
Commercial assay or kitPierce BCA Protein Assay KitPierce23,225
Chemical compound, drugD-AP5Tocris0106
Chemical compound, drugBicucullineTocris0109
Chemical compound, drugTetrodotoxinTocris1,069
Chemical compound, drugGlycineTocris0219
Chemical compound, drugStrychnineSigmaS7001-25G
Software, algorithmPrism 8Graphpad
Software, algorithmImageJ(Fiji)NIH

Animals

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All the animals were handled according to approved institutional animal care and use committee (IACUC) protocols of The Scripps Research Institute.

Syngap1PBM and Syngap1Td mice were constructed in collaboration with genOway (France). The targeting vector was electroporated into ES cells derived from the inner cell mass of 3.5 days old C57BL/6 N embryos. Cells were then subjected to negative and/or positive selection(s) before the presence of the correct recombination event was validated by PCR and Southern blot. ES cell clones with verified mutations were injected into blastocysts which were implanted into pseudo-pregnant females to obtain chimeras. Chimeric mice were bred with C57BL/6 Cre-deleter mice to excise the Neomycin selection cassette and to generate heterozygous mice carrying the Neo-excised knock-in allele. Progeny were genotyped by PCR. The recombinase-mediated excision event was further validated by Southern blot using 5’ external probes. Knock-in lines were maintained on C57BL/6 J background and bred for 3 generations prior to experimental use. Syngap1 PBM animals were genotyped using the following primers, which amplified the locus spanning the LoxP site: Fwd: 5’-ctggttcaaaggctcctggta-3’ Rev: 5’- ctgtttgtttctcacctccaggaa-3’. This combination yielded a 61 bp product in WT and 120 bp product in knock-in alleles. Syngap1Td line were genotyped using the primers amplifying the locus including the TdTomato cassette: Fwd: 5’-AGATCCACCAGGCCCTGAA-3’ Rev: 5’- GTCTTGAACTCCACCAGGTAGTG-3’.

Syngap1-β* mice were constructed in collaboration with the Scripps Research Genetics core facility. To selectively disrupt SynGAP-β expression, exon19a splice acceptor site ‘AAG’ was mutated into ‘ACG’. To introduce the point mutation, purified CRISPR/Cas9 protein combined with gRNA and donor DNA was injected to ~100 zygotes and implanted into surrogate mice. A 200 bp PAGE purified ss-oligo repair template centering the CRISPR cut site was used as donor DNA. Recombination events were detected by PCR and Sanger sequencing of the DNA isolated from tails of F0 potential founders. This process identified 2 chimeric mice with evidence of the targeted nucleotide variants. Chimeras were then bred with C57BL6/J and resultant heterozygous F1 mice were used to start the colony. Because CRISPR carries a risk of off-target genomic effects, prior to any downstream experiments, this line was further crossed into C57BL6/J for >3 generations.

Transcriptomics

Request a detailed protocol

PND7 mice forebrains (Cortex + hippocampus) were immediately removed and stored in RNALater (Thermo, AM7020). mRNA was isolated with RNeasy mini kit (74104, Qiagen). RNA integrity was measured using Agilent 2,100 Bioanalyzer (RIN value ≥ 9.2 for each sample). Library preparation and sequencing on the Illumina NextSeq 500 were performed by the Scripps Florida Genomics Core. De-multiplexed and quality filtered raw reads (fastq) were trimmed (adaptor sequences) using Flexbar 2.4 and aligned to the reference genome using TopHat version 2.0.9 (Trapnell et al., 2009). HT seqcount version 0.6.1 was used to generate gene counts and differential gene expression analysis was performed using Deseq2 (Anders and Huber, 2010). DeSeq2 identified differentially expressed genes (DEGs) with a cutoff of 1.5-fold change and an adjusted p-value of less than 0.05. Paired end reads mapped to the first 30 bases of Exon21 was used to determine the ratio of Exon21a (results in SynGAP-α2) vs Exon21b (results in SynGAP-α1) splicing events.

Cell culture

Cell lines

Request a detailed protocol

HeLa Cells (Kind gift of Michael Farzan) and HEK293T Cells (Kind gift of Joseph Kissil) were cultured in DMEM media containing 10% fetal bovine serum and penicillin/streptomycin. Cell lines were originally obtained from ATCC (Manassas, VA) and were mycoplasma free.

Primary forebrain cultures

Request a detailed protocol

Dissociated forebrain cultures were prepared from newborn WT and homozygous littermates of the PBM line as previously described (Beaudoin et al., 2012). Briefly, forebrains were isolated and incubated with a digestion solution containing papain for 25 min at 37 °C. Tissues were washed and triturated in Neurobasal medium containing 5% FBS. Cells were plated on poly-D-lysine at a density of 1000 cells per mm2. Cultures were maintained in Neurobasal A media (Invitrogen) supplemented with B-27 (Invitrogen) and Glutamax (Invitrogen). At DIV4 cells were treated with FuDR to prevent glial expansion. The cells were sparsely labeled by administration of AAVs (CamKII.Cre, 104vg/ml, Addgene # 105558-AAV9 and CAG.Flex.EGFP, 108vg/ml, Addgene #28304-PHPeB) at DIV 9–10 and processed for experiments 10–11 days later.

In situ colocalization assay

Request a detailed protocol

HeLa cells were plated on glass coverslips and transfected with PSD95-tRFP (Plasmid #52671, Addgene) and/or EGFP-tagged SynGAP C-terminal constructs EGFP-CCα1 or EGFP-CCPBM plasmids (made in house) were co-transfected into HeLa cells using lipofectamine 2000 according to manufacturer instructions. Cells were then fixed with 4% PFA and washed multiple times with PBS prior to mounting with Prolong Gold with DAPI (P36931, Thermo). Confocal stacks spanning entire cells were obtained using UPlanSApo 100 × 1.4 NA oil-immersion objective mounted on Olympus FV1000 laser-scanning confocal microscope using Nyquist criteria for digital imaging. Maximum intensity projections were used for the analysis. Nuclei of cells were defined by DAPI staining, and the EGFP-CC nuclear localization was calculated as the EGFP (colocalized with nucleus) / EGFP (within entire cell perimeter).

PSD95-SynGAP co-IP assay

Request a detailed protocol

PSD95-tRFP (Plasmid #52671, Addgene) and/or full length EGFP-SynGAPα1/PBM (made in house) plasmids were transfected in HEK293T cells using Lipofectamine 2000. Cells were homogenized with Pierce IP Lysis buffer (87787, Thermo) containing protease & phosphatase inhibitors. Lysates were then incubated for 2 hr at RT with 1.5 mg Dynabeads (10,004D, Thermo) functionalized with 10 µg of anti-PSD95 (Thermo, MA1-045) or IgG control (ab18415, Abcam). After extensive washing, immunoprecipitated proteins were eluted with Leammeli buffer at 70 °C for 10 min with agitation. Eluted proteins were detected via western blot using PSD-95 (Thermo, MA1-045) and SynGAP (D20C7, CST) antibodies.10% of the input and 20% of IP elute were used for each sample.

In vitro treatments

Request a detailed protocol

To silence neuronal activity and block NMDAR signaling, cultures were treated for 3 hr with 1 μm TTX and 200 μm APV. To induce chemical LTP, Cells were thoroughly washed and perfused with basal ECS (143 mM NaCl, 5 mM KCl, 10 mM HEPES (pH 7.42), 10 mM Glucose, 2 mM CaCl2, 1 mM MgCl2, 0.5 μM TTX, 1 μM Strychnine, and 20 μM Bicuculline) for 10 min. Then magnesium-free ECS containing 200 μM Glycine (or 10 μM Glycine for weak cLTP) was applied for 10 min. Cells were then washed with and incubated in basal ECS for additional 10 min prior to downstream application.

Subcellular fractionation

From tissue

Request a detailed protocol

Frozen hippocampi or cortex were homogenized using a Teflon-glass homogenizer in ice-cold isotonic solution (320 mM sucrose, 50 mM Tris pH 7.4, phosphatase & protease inhibitors). The homogenate was then centrifuged at 1000 g for 10 min at 4 °C. The supernatant (S1) was centrifuged at 21,000 g for 30 min. The pellet (P2) was resuspended in isotonic buffer and layered on top of a discontinuous sucrose density gradient (0.8 M, 1.0 M or 1.2 M sucrose in 50 mM Tris pH 7.4, + inhibitors) and centrifuged at 82,500 g for 2 hr at 4 °C. The interface of 1.0 M and 1.2 M sucrose was collected as a synaptosomal fraction. Synaptosomes were diluted using 50 mM Tris pH7.4 ( + inhibitors) to bring the sucrose concentration to 320 mM. The diluted synaptosomes were then pelleted by centrifugation at 21,000 g for 30 min at 4 °C. The synaptosome pellet was then resuspended in 50 mM Tris pH 7.4 and then mixed with an equal part 2% Triton-X ( + inhibitors). This mixture was incubated at 4 °C with rotation for 10 min followed by centrifugation at 21,000xg for 20 min to obtain a supernatant (Syn/Tx) and a pellet (PSD).

From primary culture

Request a detailed protocol

Cultured neurons (DIV 18–21), were homogenized by passage through 22 G needle 10 times in ice-cold isotonic buffer (320 mM sucrose, 50 mM Tris, protease & phosphatase inhibitor mix). Homogenates were centrifuged at 1000 × g for 10 min at 4 °C. The supernatant (S1) was centrifuged at 15,000 × g for 20 min at 4 °C to obtain the crude membrane (P2 fraction). The P2 pellet was resuspended with ice-cold hypotonic buffer (50 mM Tris, protease and phosphatase inhibitor mix) and was incubated for 30 min at 4 °C. Then the sample was centrifuged 21,000 x g for 30 min to obtain synaptic plasma membrane (SPM) fraction. SPM is reconstituted in hypotonic buffer then equal volume of hypotonic buffer with 2% Triton-X was added and the mixture was incubated 15 min on ice. Lysates were centrifuged at 21,000 g for 30 min at 4 °C to obtain a soluble fraction (Syn/Tx) and a pellet (PSD), which was resuspended in 50 mM Tris containing 0.5% SDS. To completely solubilize PSD fraction, we have briefly sonicated and heated samples to 95 °C for 5 min.

Immunoblotting

Request a detailed protocol

Protein lysates were extracted from the hippocampi or cortices of adult mice and dissected in ice-cold PBS containing Phosphatase Inhibitor Cocktails 2 and 3 (Sigma-Aldrich, St. Louis, MO) and Mini-Complete Protease Inhibitor Cocktail (Roche Diagnostics) and immediately homogenized in RIPA buffer (Cell Signaling Technology, Danvers, MA), and stored at −80 °C. Sample protein concentrations were measured (Pierce BCA Protein Assay Kit, Thermo Scientific, Rockford, IL), and volumes were adjusted to normalize microgram per microliter protein content. For phospho-protein analysis, in vitro cultures were directly lysed with laemmeli sample buffer, sonicated and centrifuged to minimize DNA contamination. 10 μg of protein per sample were loaded and separated by SDS-PAGE on 4–15% gradient stain-free tris-glycine gels (Mini Protean TGX, BioRad, Hercules, CA), transferred to low fluorescence PVDF membranes (45 μm) with the Trans-Blot Turbo System (BioRad). Membranes were blocked with 5% powdered milk (BSA for phospho-proteins) in TBST and probed overnight at 4 °C with the following primary antibodies: Pan-SynGAP (Thermo, PA1-046), SynGAP-α1 (Millipore, 06–900), SynGAP-α2 (abcam, ab77235), SynGAP-β(Kind gift of Rick Huganir), PSD-95 (Thermo, MA1-045), Synaptophysin (Novus, NB300-653), pERK (CST, 9106), ERK (CST, 4696), GluA1 (Millipore, MAB2263), TARP (Millipore, Ab9876), LRRTM2 (Thermo Pierce, PA521097).

Immunocytochemistry

Request a detailed protocol

For SynGAP – PSD95 colocalization, neurons were fixed in 4% PFA, 4% sucrose for 5 min at RT and treated with MetOH for 15 min at –20 °C. The cells were then washed with PBS and permeabilized in PBS 0.2% TritonX-100 for 10 min. Samples were then blocked for 1 hr and probed for SynGAP (D20C7, CST) and PSD95 (MA1-045, Abcam) overnight. After PBS washes, samples were probed with appropriate secondary antibodies for 1 hr in the dark at room temperature. The coverslips were then washed, mounted (Prolong Glass) and cured. Confocal stacks were obtained. For analysis, maximum intensity Z projection was obtained from each confocal image. Individual synapses were traced as PSD95 positive puncta selected using an arbitrary threshold which was kept constant across all images. Mean SynGAP and PSD95 signals were measured from individual synapses. For surface GluA1 staining, neurons were immediately fixed in ice-cold pH 7.2 4% PFA, 4% sucrose for 20 min on ice. Then, samples were washed three times with ice-cold PBS and blocked for 1 hr min in PBS containing 10% NGS. Cells were then incubated overnight with a primary antibody targeting the extracellular N terminus of GluA1 (MAB2263, Millipore) and then washed with 10% goat serum twice to remove excess primary antibody. After PBS washes, Alexa dye–conjugated secondary antibodies were added for 1 hr in the dark at room temperature. The coverslips were then washed, mounted (Prolong Glass) and cured. Surface GluA1 levels were measured from manually traced individual dendritic spines from maximum intensity Z projection images using EGFP channel (cell fill). All confocal stacks were obtained for 6–12 individual fields from multiple coverslips per culture with UPlanSApo 100 × 1.4 NA oil-immersion objective mounted on Olympus FV1000 laser-scanning confocal microscope using Nyquist criteria for digital imaging. Forty to 80 μm stretches of secondary dendrites in neurons with pyramidal morphology were imaged.

PSD95 immunoprecipitation and mass spectrometry

Request a detailed protocol

Harvested neurons were lysed in DOC lysis buffer (50 mM Tris (pH 9), 30 mM NaF, 5 mM sodium orthovanadate, 20 mM β-glycerol phosphate, 20 µM ZnCl2, Roche complete, and 1% sodium deoxycholate). The lysate was then centrifuged at 35,000 RPM for 30 min at 4 °C and lysate containing 1 mg of protein was incubated with 2 µg Psd95 antibody (Neuromab, catalog # 75–048) at 4 °C overnight with rotation. The following day, IPs were incubated with Dynabeads protein G (Thermo Fisher Scientific, catalog # 10,004D) for 2 hours at 4 °C. IPs were then washed three times with IP wash buffer (25 mM Tris (pH 7.4), 150 mM NaCl, 1 mM EDTA, and 1% Triton X-100). Dynabeads were re-suspended in 2 X LDS sample buffer and incubated at 95 °C for 15 min for elution. The eluate was incubated with DTT at a final concentration of 1 mM at 56 °C for 1 hr followed by a 45-min room temperature incubation with Iodoacetamide at a final concentration of 20 mM.

Samples were loaded onto 4–12% Bis-Tris gels and separated at 135 V for 1.5 hr. Gels were stained with InstantBlue (Expedeon, catalog # 1SB1L) to visualize bands. The heavy and light chains of Immunoglobulin were manually removed. Gels were then destained using 25% ethanol overnight. Gel lanes were cut, individual gel slices were placed into 96 well plates for destaining, and peptide digestion was completed at 37 °C overnight. Peptides were extracted with acetonitrile, dried down, and then desalted using stage tips. All LC-MS experiments were performed on a nanoscale UHPLC system (EASY-nLC1200, Thermo Scientific) connected to an Q Exactive Plus hybrid quadrupole-Orbitrap mass spectrometer equipped with a nanoelectrospray source (Thermo Scientific). Samples were resuspended in 10 μL of Buffer A (0.1% FA) and 2 μL were injected. Peptides were separated by a reversed-phase analytical column (PepMap RSLC C18, 2 μm, 100 Å, 75 μm X 25 cm) (Thermo Scientific). Flow rate was set to 300 nl/min at a gradient starting with 3% buffer B (0.1% FA, 80% acetonitrile) to 38% B in 110 min, then ramped to 75% B in 1 min, then ramped to 85% B over 10 min and held at 85%B for 9 min. Peptides separated by the column were ionized at 2.0 kV in the positive ion mode. MS1 survey scans for DDA were acquired at resolution of 70 k from 350 to 1800 m/z, with maximum injection time of 100ms and AGC target of 1e6. MS/MS fragmentation of the 10 most abundant ions were analyzed at a resolution of 17.5 k, AGC target 5e4, maximum injection time 65ms, and an NCE of 26. Dynamic exclusion was set to 30 s and ions with charge 1 and >6 were excluded. The maximum pressure was set to 1180 bar and column temperature was constant at 50 °C. Proteome Discoverer 2.2 (Thermo Fisher Scientific) was used to process MS data and analyzed using Sequest HT against Uniprot mouse databases combined with its decoy database. With respect to analysis settings, the mass tolerance was set 10 parts per million for precursor ions and 0.02 daltons for fragment ions, no more than two missed cleavage sites were allowed, static modification was set as cysteine carbamidomethylation, and oxidation of methionine was set as a dynamic modification. False discovery rates (FDRs) were automatically calculated by the Percolator node of Proteome Discoverer with a peptide and protein FDR cutoff of 0.01. Label-free quantification was performed using Minora node in Proteome Discoverer. Abundances of identified PSD95 interacting proteins in WT and mutant neurons were compared using relative abundances such that proteins with a fold change in abundance ratio of >2.0 or < 0.5 were considered to be differentially associated to PSD95.

Hippocampal LTP and extracellular recordings

Request a detailed protocol

Acute transverse hippocampal slices (350 µm) were prepared using a Leica Vibroslicer (VT 1000 S), as described previously (Babayan et al., 2012). Slices were cut into ice cold, high magnesium artificial cerebrospinal fluid (aCSF) solution containing in mM: 124 NaCl, 3 KCl, 1.25 KH2PO4, 5 MgSO4, 26 NaHCO3, and 10 dextrose. Slices were then transferred to an interface recording chamber maintained at 31°C ± 1°C, oxygenated in 95% O2 / 5% CO2 and constantly perfused (60–80 ml/hr) with recording aCSF (in mM: 124 NaCl, 3 KCl, 1.25 KH2PO4, 1.5 MgSO4, 2.5 CaCl2, 26 NaHCO3, and 10 dextrose). Slices equilibrated in the chamber for approximately 2 hr before experimental use. Field excitatory postsynaptic potentials (fEPSPs) were recorded from CA1b stratum radiatum using a single glass pipette filled with 2 M NaCl (2–3 MΩ). Bipolar nicrome stimulating electrodes (65 µm diameter, A-M Systems) were positioned at two sites (CA1a and CA1c) in the apical Schaffer collateral-commissural projections to provide activation of separate converging pathways of CA1b pyramidal cells. Pulses were administered in an alternating fashion to the two electrodes at 0.05 Hz using a current that elicited a 50% maximal population spike-free response. After establishing a 10–20 min stable baseline, long-term potentiation (LTP) was induced in the experimental pathway by delivering 7 ‘theta’ bursts, with each burst consisting of four pulses at 100 Hz and the bursts themselves separated by 200 ms (i.e. theta burst stimulation or TBS). The stimulation intensity was not increased during TBS. The control pathway received baseline stimulation (0.05 Hz) to monitor the health of the slice. The fEPSP slope was measured at 10%–90% fall of the slope and all values pre- and post- TBS were normalized to mean values for the last 10 min of baseline recording. Baseline measures for all groups included paired-pulse facilitation and input/output curves. Recordings were digitized at 20 kHz using an AC amplifier (A-M Systems, Model 1700) and collected using NAC 2.0 Neurodata Acquisition System (Theta Burst Corporation).

Ex vivo whole-cell electrophysiology

Request a detailed protocol

Acute coronal slices (350 μm) were prepared from 10 to 14 days old mice for 3 mouse lines. Ice-cold cutting solution was used for slice preparation and contained the following (in mM): 119 NaCl, 2.5 KCl, 1.3 MgSO4, 2.5 CaCl2, 1 NaH2PO4, 11 D-glucose and 26.3 NaHCO3, pH 7.4, 300–310 mOsm bubbled with 95%CO2 and 5%O2. The slices were then warmed to 37 °C for an hour approximately in standard artificial cerebrospinal fluid (aCSF), composed of (mM): 125 NaCl, 2.5 KCl, 24 NaHCO3, 2 CaCl2, 1.25 NaH2PO4, 2 MgSO4, and 10 D-Glucose, and equilibrated with 95% O2 and 5% CO2 (pH 7.4, ~ 300 mOsm). Following this, slices were maintained in bubbled aCSF at room temperature until transferred to a submerged-type recording chamber (Warner Instruments, Hamden, CT). All experiments were performed at 32 °C ± 2 (perfusion rate of 2–3 mL/min). Whole-cell patch clamp experiments were conducted from visually identified L2/3 neurons using infrared DIC optics. L2/3 excitatory cells were identified by their soma shape and their location ~150 uM below the L1-L2 boundary. Regular spiking was confirmed in current clamp and miniature excitatory postsynaptic current (mEPSC) were recorded from identified cells for 5 sweeps each lasting a minute, using the following internal solution (in mM): 120 CsCl, 10 K-HEPES, 10 EGTA, 5 QX314-Br, 4 Mg-ATP, 0.3 Na-GTP, 4 MgCl2 (pH 7.3, 290–295 mOsm). Perfusion solution aCSF was supplemented with 100 µM picrotoxin and 1 µM TTX. Cells with access resistance >20 MΩ or were unstable ( > 20% change) were discarded from further analysis. Recordings were made using borosilicate glass pipettes (3–6 MΩ; 0.6 mm inner diameter; 1.2 mm outer diameter; Harvard Apparatus). All signals were amplified using Multiclamp 700B (Molecular Devices, Sunnyvale, CA), filtered at 4 KHz, digitized (10 KHz), and stored on a personal computer for off-line analysis. Analog to digital conversion was performed using the Digidata 1,440 A system (Molecular Devices). Data acquisition and analyses were performed using pClamp 11.2software package (Clampex and Clampfit programs; Molecular Devices) and minianalysis (Synaptosoft). The events were considered mini-EPSCs if the peak of an event was >5 pA.

Behavior

At weaning, four mice were randomly allocated to one cage with respect to genotype with males and females being housed separately. Randomization of cage allocation was restricted in that, as much as possible, mice from the same litter were placed in different cages so that no single litter was overrepresented in any single experiment. Cages utilized for behaviors contained cardboard pyramidal-shaped huts with two square openings on opposing sides of the hut for the purposes of environmental enrichment and to assist with transfers from home cages to behavioral apparatuses. All mice were handled for several minutes on three consecutive days prior to commencement of behavioral testing. Tails were marked for easy identification and access from home cages during testing. Experimenters were blind to mouse genotype while conducting all tests.

Flurothyl-induced seizures

Request a detailed protocol

Flurothyl-induced seizure studies were performed based on prior studies with some modifications (Ozkan et al., 2014; Clement et al., 2012; Dravid et al., 2007). Briefly, experiments were conducted in a chemical fume hood. Mice were brought to the experimental area at least 1 hr before testing. To elicit seizures, individual mice were placed in a closed 2.4 L Plexiglas chamber and exposed to 99% Bis (2,2,2-triflurothyl) ether (Catalog# 287571, Sigma-Aldrich, St. Louis, MO). The flurothyl compound was infused onto a filter paper pad, suspended at the top of the Plexiglas chamber through a 16 G hypodermic needle and tube connected to a 1 ml BD glass syringe fixed to an infusion pump (KD Scientific, Holliston, MA, USA, Model: 780101) at a rate of 0.25 ml/min. The infusion was terminated after the onset of a hind limb extension that usually resulted in death. Cervical dislocation was performed subsequently to ensure death of the animal. Seizure threshold was measured as latency (s) from the beginning of the flurothyl infusion to the beginning of the first myoclonic jerk.

Morris water maze

Request a detailed protocol

Mice were run in a standard comprehensive Morris water maze paradigm including a cue test with a visual platform and an acquisition protocol with a hidden platform. All phases of the paradigm were run in a dedicated water maze room in the Scripps Florida Mouse Behavior Core. A water maze system including a plastic white opaque pool (Cat# ENV-594M-W, Med Associates), measuring ~122 cm diameter at the water surface, supported by a stand (ENV-593M-C) and equipped with a floor insert (ENV-595M-FL) covering a submerged heater was utilized for all water maze experimentation. An adjustable textured platform (17.8 cm diameter, ENV-596M) was placed atop the floor insert in one of two different quadrants, depending on the specific phase of the paradigm (NW quadrant for initial training and probe test and SE quadrant for reversal training and probe tests), for mice to escape the water. Water temperatures were controlled to 22.5°C ± 0.5 °C using a built-in heater and monitored with a digital temperature probe. This water temperature motivated the mice to escape the water without eliciting hypothermic conditions. The tank was emptied, cleaned and refilled once every three days to avoid unsafe accumulation of bacteria. Water was made opaque by the addition of a white opaque non-toxic paint (Crayola) forcing mice to utilize extra-maze cues when locating the hidden platform (0.5 cm beneath the surface of the water). These spatial cues (large black cardboard circle, star, square, white X on black background) were placed on the walls of the room at different distances from the pool. The pool edge was demarcated with directional units (W, N, E, S) to aid assignment of invisible platform ‘quadrants’ to the pool arena outlined by the video tracking system. Various strip lights were positioned on the walls near the ceiling to allow for a moderate level of lighting (200 lux), enough for the mice to see the extra-maze cues adequately without eliciting undue anxiety. Thirty minutes prior to commencement of daily trials, the lights and heater were turned on, and mouse home cages were placed on heating pads on a rack in the water maze room to provide a warm place for the mice between trials. Cage nestlets were replaced with strips of paper towels to better facilitate drying after trials. Mice were monitored during trials for signs of distress and swimming competence. None of the mice tested had swimming issues, and floating was discouraged with gentle nudges. Mice received four trials per day during cue and acquisition phases and one trial per day for probe trials. Three cages (12 mice) were run at a time such that ITIs for each day lasted about 20 min with trial duration lasting until the mouse found the platform or a maximum of 60 s. Each trial commenced when the mouse was automatically detected in the pool by the tracking system (Ethovision, Noldus). Each mouse was lowered into the pool facing its edge at one of the four directional units (W, N, E, S) in a clockwise manner, with the first of the four trials starting closest to the platform (‘NW quadrant’), which was positioned in the central area of the quadrant dictated by the tracking system. This same series of daily trial commencements were followed for all mice for each of the cue tests, acquisition protocol, and reversal protocol. If the mouse did not locate the platform in 60 s, the experimenter’s hand guided them to the platform. Because the mice are eager to escape the water, the mice quickly learned to follow hand direction to the platform, minimizing physical manipulation of the animals during the trials. Mice were allowed 15 s on the platform at the end of each trial before being picked up, dried with absorbent wipes, and placed back into their warmed home cage.

On the first day of testing, mice were given a cue test with the platform positioned just above the surface of the water and a metal blue flag placed upon it for easy visual location of the platform. This test allows for detection of individual visual and swimming-related motor deficits and allows the mice to habituate to the task (climbing on the platform to escape the water). The platform was placed in a different location for each of the four trials with spatial cues removed by encirclement of the pool with a white plastic curtain.

On the next day, acquisition trials began with the hidden platform remaining in the same location (“NW quadrant”) for all trials/days and the curtain drawn back for visibility of the spatial cues. Several measures (distances to platform) and criteria to reach the platform (approximately 90% success rate, approximately 20 s latency to find platform) during the acquisition phases were recorded and achieved before mice were deemed to have learned the task. The performances of the four trials were averaged for each animal per day until criteria were met.

Open-field test

Request a detailed protocol

Naive mice were individually introduced into one of eight adjacent open-field arenas for 30 min and allowed to explore. Open field arenas consisted of custom made clear acrylic boxes (43 × 43 × 32 h cm) with opaque white acrylic siding surrounding each box 45 × 45 × 21.5 h cm to prevent distractions from activities in adjacent boxes. Activity was monitored with two CCTV cameras (Panasonic WV-BP334) feeding into a computer equipped with Ethovision XT 11.5 for data acquisition and analyses. A white noise generator (2325–0144, San Diego Instruments) was set at 65 dB to mask external noises and provide a constant noise level. Fluorescent linear strip lights placed on each of the four walls of the behavioral room adjacent to the ceiling provided a lower lighting (200 lux) environment than ceiling lighting to encourage exploration.

Contextual fear conditioning

Request a detailed protocol

A dedicated fear conditioning room in the TSRI Florida Mouse Behavior Core contains four fear conditioning devices that can be used in parallel. Each apparatus was an acrylic chamber measuring approximately 30 × 30 cm (modified Phenotyper chambers, Noldus, Leesburg, VA). The top of the chamber is covered with a unit that includes a camera and infrared lighting arrays (Noldus, Ethovision XT 11.5, Leesburg, VA) for monitoring of the mice. The bottom of the chamber is a grid floor that receives an electric shock from a shock scrambler that is calibrated to 0.40 mA prior to experiments. The front of the chamber has a sliding door that allows for easy access to the mouse. The chamber is enclosed in a sound-attenuating cubicle (Med Associates) equipped with a small fan for ventilation. Black circular, rectangular and white/black diagonal patterned cues were placed outside each chamber on the inside walls of the cubicles for contextual enhancement. A strip light attached to the ceilings of the cubicles provided illumination. A white noise generator (~65 dB) was turned on and faced toward the corner of the room between the cubicles. The fear conditioning paradigm consisted of two phases, training, followed by testing 1 and 26, or 30 d thereafter. The 4.5 min training phase consisted of 2.5 min of uninterrupted exploration. Two shocks (0.40 mA, 2 s) were delivered, one at 2 min 28 s, the other at 3 min and 28 s from the beginning of the trial. During testing, mice were placed into their designated chambers and allowed to roam freely for 5 min. Immobility durations (s) and activity (distances moved (cm)) during training and testing were obtained automatically from videos generated by Ethovision software. Activity suppression ratio levels were calculated: 0–2 min activity during testing/0–2 min activity during training +testing.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting file; Source Data files have been provided for western blots and mass spec experiments.

References

    1. Holder JL
    2. Hamdan FF
    3. Michaud JL
    (1993)
    GeneReviews
    SYNGAP1-Related Intellectual Disability, GeneReviews, University of Washington.
    1. Kim JH
    2. Lee H-K
    3. Takamiya K
    4. Huganir RL
    (2003)
    The role of synaptic GTPase-activating protein in neuronal development and synaptic plasticity
    The Journal of Neuroscience 23:1119–1124.
    1. Zhang W
    2. Vazquez L
    3. Apperson M
    4. Kennedy MB
    (1999)
    Citron binds to PSD-95 at glutamatergic synapses on inhibitory neurons in the hippocampus
    The Journal of Neuroscience 19:96–108.

Decision letter

  1. Gary L Westbrook
    Senior and Reviewing Editor; Oregon Health and Science University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "SynGAP C-terminal splicing enables isoform-specific tuning of NMDA receptor signaling linked to cognitive function" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Gary Westbrook as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Shigeo Okabe (Reviewer #3).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

Although the reviewers find your manuscript novel and comprehensive, they think that additional experiments are required to fully support the main conclusions. We realize that the current corona situation makes it very difficult to perform additional experiments in the near future. However, if you decide to address the review comments with additional experiments when able, we are willing to consider a resubmission of the manuscript.

Reviewer #1:

This study reports the role of the PBM (PDZ-binding motif) of SynGAP in the regulation of synaptic structure, signaling, and transmission. Moreover, this study shows that the SynGAP PBM is important for setting the threshold for the dispersal of SynGAP induced by NMDAR activation. In addition, the deletion of PBM suppresses STP and LTP and impairs spatial learning, contextual fear memory, spontaneous alteration without affecting anxiety-related behavior.

SynGAP is known to interact with PSD-95 in the postsynaptic density (PSD), but the function of this interaction has remained unclear. This study addresses this question using a mouse genetic approach and various in vitro and in vivo experiments. In addition, the results are of high quality and largely convincing. I think this is an important contribution to the understanding of SynGAP functions as well as the roles of the PBMs and their interactions with synaptic PDZ proteins.

1. The deletion of the SynGAP PBM leads to suppressed STP and LTP. I am wondering whether LTD and mGluR-LTD are also impacted because LTP and LTD are known to interfere with each other, and altered synaptic signaling might also affect LTD and mGluR-LTD, which may also affect neuronal functions.

2. The roles of the SynGAP PBM on unitary functions of excitatory synapses remain largely unclear, which can easily be addressed by measuring mEPSCs at mutant hippocampal synapses. The increased spine diameter and surface GluA1 levels in Figure 2A suggests this possibility.

Reviewer #2:

In this study, Kilinc et al. investigate the function of the SynGAP1 PDZ-binding motif, present in the α1 isoform, by characterizing a novel mouse model with PBM inactivating mutations. As expected, the PBM mutations in SynGAP1 abolish its interaction with PSD-95, whilst maintaining wild-type levels of the protein. Neurons from Syngap1PBM/PBM mice have reduced SynGAP1 content in dendritic spines and in PSD fractions and exhibit a range of synaptic and excitability phenotypes strikingly reminiscent of neurons from Syngap1 knockout mice. Interestingly, many of the synaptic phenotypes are rescued by NMDA receptor blockade, suggesting that NMDAR-dependent signalling causes part of the dysfunction in these neurons. In addition to altering PSD composition, neurons with the mutant SynGAP1 isoforms have altered LTP and are proposed to have a reduced threshold for NMDAR-dependent signalling. Together these phenotypes cause deficits in behaviours affecting learning and memory, similar to full Syngap1 knockouts, revealing the importance of the PBM in cognitive function.

This manuscript is very well written and logically presented, addressing fundamental questions about SYNGAP1, a critically important gene in human neurodevelopment disorders and synaptic structure and function. However, despite the clear synaptic and behavioural phenotypes in the mouse model, it is still somewhat unclear how dysfunction of the α1 isoform causes these disturbances. If further experiments can solidify the proposed this mechanism, I would highly recommend this work for publication in eLife.

1) One of the central posits in this manuscript is that mutation of the PBM causes increased Syngap1 mobility and lowers the threshold for NMDA receptor-dependent signalling. However, the evidence for this appears to be insufficient, relying mostly on a single experiment (Figure 3D-J). Further work to bolster these results would be highly valuable, given that discovering the function of the PBM is one of central the aims of this paper.

- The increased SynGAP1 mobility in PBM deficient neurons and after wcLTP is suggested by a reduced abundance in the PSD fraction, but this is an indirect measure. Other experiments should be designed to conclusively show this. For instance, fluorescence recovery after photobleaching (FRAP) can be used to directly measure the mobility of GFP-tagged proteins in dendritic spines. Alternatively, the wcLTP protocol could be used in cultured neurons to measure the dispersion of syngap1 out of dendritic spines or PSD95 puncta by immunostaining, similar to Figure 2 Supplement 1A-B. This experiment may even be improved by using α1-specific antibody for immunostaining if this is possible.

- The experiments showing that PBM mutations lowers the threshold for NMDA receptor-dependent signalling should also be strengthened. Can these experiments be replicated with a different NMDA-dependent stimulus? Does 10uM glycine have a functional effect on PBM mutant neurons? I.e. Is there a change in spine size, surface GluA1 levels or electrophysiological properties?

2) It is difficult to appreciate how important the α1 isoform is without knowing how abundant it is compared to other isoforms in the brain. Can the authors show the relative expression of each isoform at the mRNA and/or protein level?

3) The mobility of the SynGAP1 protein appears to be a critical to its function. However, a comprehensive discussion on why SynGAP1 localization is altered after NMDAR activation, and how defects in this process leads to the observed synaptic phenotypes is lacking in the discussion. In addition, how does the movement of SynGAP1 out of the PSD affect downstream GTPase signalling? What is the proposed mechanism for how the blockade of NMDA receptors rescues the localization and synaptic phenotypes in neurons from Syngap1PBM/PBM mice? All of these themes are brought up in the paper but are not sufficiently discussed and detailed.

Reviewer #3:

This manuscript by Kilinc et al. reports the plasticity-related function of SynGAP C-terminal domain in SynGAP alpha1 isoform by generating a genetically modified mouse line containing critical point mutations in the exon 21b, which disrupt the interaction between SynGAP alpha1 isoform and PSD-95. The specific alterations in the C-terminal domain induced impairment of LTP in the hippocampus and also memory-related tasks. Experiments in cultured neurons provided additional cell biological insights into the regulation of synaptic plasticity by the SynGAP alpha1 C-terminal domain. This reviewer positively evaluates the authors' findings that link the specific splice variant of SynGAP to synaptic function and memory-related circuit function. However, several points should be corrected and improved in a future manuscript.

1. The authors found increased sensitivity to weak glycine-dependent NMDAR activation in PBM/PBM neurons, which resulted in the phosphorylation of GluA1. This finding is seemingly inconsistent with the slice electrophysiology data of reduced short-term and long-term potentiation. To link these two experiments, it will be helpful to check the response of acute slices to weak stimulation (weak stimulation can induce more responses in PBM/PBM slices?) and also evaluate the level of SynGAP in PSD fraction after strong glycine-dependent NMDAR activation (less GluA1 phosphorylation in PBM/PBM neurons in culture?).

2. The underlying hypothesis of using strong and weak cLTP induction is that the difference in glycine concentration induces a different level of increase in AMPAR surface expression in culture. The validity of this hypothesis is not tested in this manuscript. Another possibility is that lower glycine concentration induces different types of plasticity, such as LTD, which is known to be easier to induce in cultured neurons. Additional information about the level of surface GluA1 or its phosphorylation between two glycine concentrations will support the hypothesis.

3. The basic synaptic transmission is enhanced in the perforant path-dentate gyrus granule cell synapses (Figure 2B). Still, the responses to the burst responses in the Schaffer-collateral-CA1 pyramidal neurons synapses were similar between genotypes (Figure 4A). It is desirable to show the input-output relationship in the Schaffer-collateral-CA1 pyramidal neurons synapses to test the presence of any alterations in the synaptic efficacy at the basal level.

4. The authors propose that the "mobility" of the SynGAP-PBM mutant is enhanced, but no direct evidence for the alterations in the mobility is presented. It is more neutral to describe the result as "a reduced affinity" to the PSD. Otherwise, additional experiments for the measurement of protein mobility will be required.

5. In Figure Supplement 1, the authors evaluated the specificity of the 06-900 antibody to the alpha1 isoform. A similar evaluation of two additional antibodies for alpha2 and β used in Figure 3 will be informative.

6. In some cases, the difference between wild type and PBM/PBM mice is moderate, with p-values more than 0.01 (Figure 2F, H, Figure 3F). It is advisable to perform a power analysis to estimate the adequate sample size required for these experiments. It is also informative to show the confidence interval instead of the p-value. (See eLife 2019;8:e48175 and eNeuro. 2019 Aug 1;6(4).)

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for re-submitting your article "Endogenous Syngap1 Α Splice Forms Promote Cognitive Function and Seizure Protection" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Gary Westbrook as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers were supportive of your work and have discussed their reviews with one another. The Senior Editor has drafted a summary to help you prepare a revised submission. The points listed under essential revisions were extracted from the full reviews and require a response.

Essential revisions:

1. One of the key messages of this manuscript is the amount of α isoforms, but not the total amount of SynGAP, is critical in multiple behavioral phenotypes in mutant mice. In order to discuss the importance of isoforms, essential information is a relative abundance of each isoform in both wild-type and mutant mice. Throughout this manuscript, the comparisons within isoforms were performed, but no information about relative abundance between isoforms was provided. It is also unclear there are any differences in the relative abundance of isoforms in different brain regions studied in this manuscript, including the forebrain, hippocampus, and somatosensory cortex. The estimate of relative abundance should be provided, or any technical difficulty in this estimation should be explained.

2. If alpha1 is the only isoform expressed in the brain, the interpretation of introducing PSD95-nonbinding mutant is straightforward, but in the presence of other isoforms, dominant-negative effects of PBM mutant should be considered. It is possible that PBM mutant complexed with different isoforms impair localization or function of other isoforms, leading to an effect similar to the reduction of total SynGAP protein. Clarification of this point by additional experimental data is necessary.

3. Figure 9A-C. The sample size (n = 8) for mEPSC measurements in the PBM/PBM mice seems small to draw a safe conclusion, and thus should be increased, or the authors should explicitly state the limits associated with interpretation of this sample size.

4. It is unclear why the authors selected Morris water maze as the second behavioral test, which is not designed to evaluate long-lasting memory. The rationale behind selecting two distinct memory-related behavioral tests, remote contextual memory test and water maze-based training performance, should be explained.

5. The phenotype in the Morris water maze is difficult to interpret. SynGAP heterozygote mice show impairment, but IRES-TD mice showed no change. This is inconsistent with other behavioral tests. Β* mice showed improvement in the training session, but the 24 h probe test did not show a difference. It is difficult to connect the data with the result of contextual fear memory. This point should be discussed.

6. While Synap1 is expressed mainly in excitatory neurons, it would be useful if the authors included some single-cell transcriptomic data from the literature and public databases (like Allen Brain Atlas) and discussion on the relative distribution of Syngap1 in neuronal cell types in the cortex.

7. Syngap1 is a GAP for both Ras and Rap GTPases, which have opposite effects on dendrites and synapses. The authors assessed Ras activity through p-ERK/ERK Western blots. It would be useful if they also blot with P-BRaf/BRaf to assess Rap activity. Knowing their relative activity would help further interpret the data.

8. A table with all mutants and phenotypes could help the readers.Reviewer #1:

This study reports that different splice variants of SynGAP1 differentially regulate cognitive function and seizure protection in mice. The authors used three different mouse lines and systematically analyzed the expression patterns of different SynGAP1 splice variants in the brain and their impacts on cognitive function and seizure protection. The authors also analyzed excitatory synaptic transmission and synaptic plasticity in these mice and attempted proteomic analyses to better understand the underlying mechanisms. The overall conclusion of the study is that the SynGAP1-α variants are more important than the SynGAP1-β variants for the regulation of cognitive function and seizure protection in mice.

1. Figure 9A-C. The n numbers (n = 8) for mEPSC measurements in the PBM/PBM mice seem to be small to draw a safe conclusion, and thus should be increased.Reviewer #2:

Murat Kilinc et al. studied behavioral phenotypes of three Syngap1 mutant mice in order to identify the roles of distinct SYNGAP C-terminal variants. The first mutant mouse (IRES-TD mouse) with insertion of IRES-TDtomato cassette in the last exon (exon21) showed elevated open field activity, reduced time in the induction of seizure by flurothyl, less freezing behavior in remote contextual fear memory recall, and increase in frequency and amplitude of mEPSCs in L2/3 somatosensory neurons. In addition, IRES-TD mice showed a reduction in total SynGAP protein, alpha1, and alpha2 isoforms and increased β isoform in the forebrain. The second mutant mouse (β* mouse) with a mutation in the early splice acceptor of exon19 showed a slight reduction in open field activity, increase in time for seizure induction, no change in freezing behavior in remote contextual memory recall, and decrease in frequency and amplitude of mEPSCs in L2/3 somatosensory neurons. Β* mice showed no change in total SynGAP protein, a modest increase in alpha2, and a reduction in β in the forebrain. The third mutant mouse (PBM mouse) has point mutations in exon21 for disrupting the function of the PDZ-binding motif (PBM) of SynGAP to interact with PSD95. This mutant showed elevated open field activity, reduced time in the induction of seizure, less freezing behavior in remote contextual memory recall, and increased frequency and amplitude of mEPSCs in L2/3 somatosensory neurons. PBM mice showed no change in total SynGAP, alpha2, and β proteins but reduced immunoblot signal of alpha1 in the forebrain. This reduced immunoblot signal was proposed to be related to less sensitivity of the alpha1 specific antibody to the mutated isoform. By thorough behavioral and physiological analyses of three independent mutant mouse lines, the authors conclude that the level of α isoforms, rather than the total SynGAP, is critical in several neural circuit functions related to cognition and seizure protections. Previous studies revealed multiple roles of SynGAP in neural circuit development and activity-dependent regulations. This new study provides important information about the isoform-specific functions of SynGAP, especially the critical role of α isoform content for proper synapse and circuit activity.

The results obtained from multiple mutant mouse lines support the key claims of the paper. Still, there are several points that may require more experimental data or otherwise changing the interpretation of the data.

1. One of the key messages of this manuscript is the amount of α isoforms, but not the total amount of SynGAP, is critical in multiple behavioral phenotypes in mutant mice. In order to discuss the importance of isoforms, essential information is a relative abundance of each isoform in both wild-type and mutant mice. Throughout this manuscript, the comparisons within isoforms were performed, but no information about relative abundance between isoforms was provided. It is also unclear there are any differences in the relative abundance of isoforms in different brain regions studied in this manuscript, including the forebrain, hippocampus, and somatosensory cortex. The estimate of relative abundance should be provided, or any technical difficulty in this estimation should be explained.

2. The phenotypic similarity between IRES-TD mice and PBM mutant mice suggests critical roles of α isoforms in multiple behavioral phenotypes. However, the effect of PBM mutant still needs to be carefully evaluated. If alpha1 is the only isoform expressed in the brain, the interpretation of introducing PSD95-nonbinding mutant is straightforward, but in the presence of other isoforms, dominant-negative effects of PBM mutant should be considered. It is possible that PBM mutant complexed with different isoforms impair localization or function of other isoforms, leading to an effect similar to the reduction of total SynGAP protein. Clarification of this point by additional experimental data is necessary. For example, in Figure 6A, did the PSD fraction from the PBM mutant contain a similar amount of alpha2 and β isoforms? Also, in Figure 7, native PSD95 complexes from Syngap1PBM mutants were characterized. In the PSD95 complexes, was the amount of other SynGAP isoforms unchanged?

3. The authors selected remote contextual fear conditioning coupled with protein analysis in the forebrain. This selection may be based on the motivation of finding deficits in forebrain-related long-lasting memory in mutant mice. It is unclear why the authors selected Morris water maze as the second behavioral test, which is not designed to evaluate long-lasting memory. The rationale behind selecting two distinct memory-related behavioral tests, remote contextual memory test and water maze-based training performance, should be explained. In addition, the phenotype in the Morris water maze was difficult to interpret. SynGAP heterozygote mice show impairment, but IRES-TD mice showed no change. This is inconsistent with other behavioral tests. Β* mice showed improvement in the training session, but the 24 h probe test did not show a difference. It is difficult to connect the data with the result of contextual fear memory. This point should be discussed.

Line 235 Figure 4F shows a large variety in data distribution, and it is not possible to say that β mutant had "no impact" on feezing behavior.

Line 321 The rationale for NMDAR signaling suppression should be stated clearly. in vivo, there is no NMDAR signaling inhibition, and the condition without APV should be closer to the physiological situation.

Line 330 The reason why TARPs and LRRTM2 are analyzed here should be stated.

Line 386 The sentence "In this study, we created three distinct mouse lines" is not consistent with the sentence in Line 119 "We previously reported the generation of a Syngap1 mouse line with an insertion of an IRES TDtomato (IRES-TD) cassette within the 3'-UTR to facilitate endogenous reporting of active Syngap1 mRNA translation in cells [29]."

Line 388 The sentence "without appreciable change in total GynGAP expression levels" is not consistent with the sentence in Line 137 "t-SynGAP protein in mouse cortex homogenate was reduced in Syngap1+/td and Syngap1td/td mice compared to WT controls (Figure 2C)."Reviewer #3 (Recommendations for the authors):

SYNGAP1 is one of the most prominent risk genes for a number of neurodevelopmental disorders, including autism, intellectual disability, epilepsy and schizophrenia. However, its biological roles are still being uncovered. One aspect of this complexity is the role of its many splice variants. In this manuscript, the authors have created and analyzed several genetically modified mouse lines in which they altered the expression levels, and protein interaction sites in a subset of the isoforms of the Syngap1 protein. They then performed an extensive analysis of the mRNA and protein levels of all isoforms, behavioral and physiological phenotypes in mice, assessed seizure susceptibility, and examined cellular and molecular alterations in synapses in these mutant mice. They found that reduced expression of the α forms was damaging, while their increased expression was protective in mice.

This work is likely to be very impactful on the field, because it makes an important step forward in clarifying the roles of specific splice variants in physiological and behavioral processes relevant for neurodevelopmental disorders. One important implication of this work could be that increasing the expression of the α form using genetic tools, such as gene therapy, could have beneficial therapeutic effects in human patients.

The experiments were designed and performed at the highest standards of quality. Data were interpreted carefully. The conclusions of the study are convincing. I only have a few suggestions that can help further facilitate the interpretation of the current data:

- While Synap1 is expressed mainly in excitatory neurons, it would be useful if the authors included some single-cell transcriptomic data from the literature and public databases (like Allen Brain Atlas) and discussion on the relative distribution of Syngap1 in neuronal cell types in the cortex.

- Syngap1 is a GAP for both Ras and Rap, GTPases which have opposite effects on dendrites and synapses. The authors assessed Ras activity through p-ERK/ERK Western blots. It would be useful if they could also blot with P-BRaf/BRaf to assess Rap activity. Knowing their relative activity could help further interpret the data.

- I wonder if high mortality in Td/Td mice is due to spontaneous seizures.

- It would help to include a table summarizing all mutant mice and phenotypes.

https://doi.org/10.7554/eLife.75707.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

This study reports the role of the PBM (PDZ-binding motif) of SynGAP in the regulation of synaptic structure, signaling, and transmission. Moreover, this study shows that the SynGAP PBM is important for setting the threshold for the dispersal of SynGAP induced by NMDAR activation. In addition, the deletion of PBM suppresses STP and LTP and impairs spatial learning, contextual fear memory, spontaneous alteration without affecting anxiety-related behavior.

SynGAP is known to interact with PSD-95 in the postsynaptic density (PSD), but the function of this interaction has remained unclear. This study addresses this question using a mouse genetic approach and various in vitro and in vivo experiments. In addition, the results are of high quality and largely convincing. I think this is an important contribution to the understanding of SynGAP functions as well as the roles of the PBMs and their interactions with synaptic PDZ proteins.

Thank you for the positive comments on the impact and quality of the original manuscript.

1. The deletion of the SynGAP PBM leads to suppressed STP and LTP. I am wondering whether LTD and mGluR-LTD are also impacted because LTP and LTD are known to interfere with each other, and altered synaptic signaling might also affect LTD and mGluR-LTD, which may also affect neuronal functions.

The role of SynGAP on electrically induced LTP versus LTD has been largely resolved. Many labs, including ours, find that SynGAP is required for input specific LTP but not LTD (the one exception is mGLUR-dependent LTD in hippocampal synapses, though this is chemically induced). This assertion is best illustrated by one of our recent papers demonstrating that spike-timing-dependent plasticity in cortical pyramidal neurons from Syngap1 mice is biased toward LTD no matter the sequence of pre- post- activity (Llamosas et al., PNAS, 2021).

2. The roles of the SynGAP PBM on unitary functions of excitatory synapses remain largely unclear, which can easily be addressed by measuring mEPSCs at mutant hippocampal synapses. The increased spine diameter and surface GluA1 levels in Figure 2A suggests this possibility.

Unitary synapse analysis was performed in all three mouse lines – see new figure 9.

Reviewer #2:

In this study, Kilinc et al. investigate the function of the SynGAP1 PDZ-binding motif, present in the α1 isoform, by characterizing a novel mouse model with PBM inactivating mutations. As expected, the PBM mutations in SynGAP1 abolish its interaction with PSD-95, whilst maintaining wild-type levels of the protein. Neurons from Syngap1PBM/PBM mice have reduced SynGAP1 content in dendritic spines and in PSD fractions and exhibit a range of synaptic and excitability phenotypes strikingly reminiscent of neurons from Syngap1 knockout mice. Interestingly, many of the synaptic phenotypes are rescued by NMDA receptor blockade, suggesting that NMDAR-dependent signalling causes part of the dysfunction in these neurons. In addition to altering PSD composition, neurons with the mutant SynGAP1 isoforms have altered LTP and are proposed to have a reduced threshold for NMDAR-dependent signalling. Together these phenotypes cause deficits in behaviours affecting learning and memory, similar to full Syngap1 knockouts, revealing the importance of the PBM in cognitive function.

This manuscript is very well written and logically presented, addressing fundamental questions about SYNGAP1, a critically important gene in human neurodevelopment disorders and synaptic structure and function. However, despite the clear synaptic and behavioural phenotypes in the mouse model, it is still somewhat unclear how dysfunction of the α1 isoform causes these disturbances. If further experiments can solidify the proposed this mechanism, I would highly recommend this work for publication in eLife.

1) One of the central posits in this manuscript is that mutation of the PBM causes increased Syngap1 mobility and lowers the threshold for NMDA receptor-dependent signalling. However, the evidence for this appears to be insufficient, relying mostly on a single experiment (Figure 3D-J). Further work to bolster these results would be highly valuable, given that discovering the function of the PBM is one of central the aims of this paper.

The new focus of the manuscript is to determine if and how endogenous SynGAP isoforms contribute to synaptic and behavioral impairments rather than how the PBM specifically regulates SynGAP functions. The new focus is now possible given the existence of two new mouse lines that inversely regulate α and β isoforms. We find that endogenous α isoforms bidirectionally regulate synapse function and behavior, and loss of their expression can account for many phenotypes present in Syngap1 mouse models. Indeed, genetically increasing expression of α isoforms can rescue intermediate phenotypes expressed in Syngap1 heterozygous mice.

2) It is difficult to appreciate how important the α1 isoform is without knowing how abundant it is compared to other isoforms in the brain. Can the authors show the relative expression of each isoform at the mRNA and/or protein level?

This has been addressed in two recent manuscripts (Araki et al., 2020; Gou et al. 2020), which suggest that each isoform is roughly equivalent in the brain – 1/3 each of alpha1/2, β, γ isoforms (though there are some differences in abundance during postnatal development). Our data support the view that these isoforms are relatively equally expressed. For example, genetic switch of β for α isoforms (B* mouse line – no change in total SynGAP protein) results in 20-30% increase in abundance of A1/A2 isoforms (Figures 3 and 4).

3) The mobility of the SynGAP1 protein appears to be a critical to its function. However, a comprehensive discussion on why SynGAP1 localization is altered after NMDAR activation, and how defects in this process leads to the observed synaptic phenotypes is lacking in the discussion. In addition, how does the movement of SynGAP1 out of the PSD affect downstream GTPase signalling? What is the proposed mechanism for how the blockade of NMDA receptors rescues the localization and synaptic phenotypes in neurons from Syngap1PBM/PBM mice? All of these themes are brought up in the paper but are not sufficiently discussed and detailed.

This has been addressed in two recent manuscripts (Araki et al., 2020; Gou et al. 2020), which suggest that each isoform is roughly equivalent in the brain – 1/3 each of alpha1/2, β, γ isoforms (though there are some differences in abundance during postnatal development). Our data support the view that these isoforms are relatively equally expressed. For example, genetic switch of β for α isoforms (B* mouse line – no change in total SynGAP protein) results in 20-30% increase in abundance of A1/A2 isoforms (Figures 3 and 4).

Reviewer #3:

This manuscript by Kilinc et al. reports the plasticity-related function of SynGAP C-terminal domain in SynGAP alpha1 isoform by generating a genetically modified mouse line containing critical point mutations in the exon 21b, which disrupt the interaction between SynGAP alpha1 isoform and PSD-95. The specific alterations in the C-terminal domain induced impairment of LTP in the hippocampus and also memory-related tasks. Experiments in cultured neurons provided additional cell biological insights into the regulation of synaptic plasticity by the SynGAP alpha1 C-terminal domain. This reviewer positively evaluates the authors' findings that link the specific splice variant of SynGAP to synaptic function and memory-related circuit function. However, several points should be corrected and improved in a future manuscript.

Thank you for the positive statement.

1. The authors found increased sensitivity to weak glycine-dependent NMDAR activation in PBM/PBM neurons, which resulted in the phosphorylation of GluA1. This finding is seemingly inconsistent with the slice electrophysiology data of reduced short-term and long-term potentiation. To link these two experiments, it will be helpful to check the response of acute slices to weak stimulation (weak stimulation can induce more responses in PBM/PBM slices?) and also evaluate the level of SynGAP in PSD fraction after strong glycine-dependent NMDAR activation (less GluA1 phosphorylation in PBM/PBM neurons in culture?).

Based on the availably of the two new mouse lines and the recent publication of the Araki, Huganir et al. 2020 paper in eLife, the focus of the manuscript has moved away from “mobility of the isoforms” and toward how endogenous expression of these isoforms contributes to Syngap1 phenotypes. As a result, these chemical LTP studies on cultured neurons are no longer present in the revised study.

2. The underlying hypothesis of using strong and weak cLTP induction is that the difference in glycine concentration induces a different level of increase in AMPAR surface expression in culture. The validity of this hypothesis is not tested in this manuscript. Another possibility is that lower glycine concentration induces different types of plasticity, such as LTD, which is known to be easier to induce in cultured neurons. Additional information about the level of surface GluA1 or its phosphorylation between two glycine concentrations will support the hypothesis.

See point #1.

3. The basic synaptic transmission is enhanced in the perforant path-dentate gyrus granule cell synapses (Figure 2B). Still, the responses to the burst responses in the Schaffer-collateral-CA1 pyramidal neurons synapses were similar between genotypes (Figure 4A). It is desirable to show the input-output relationship in the Schaffer-collateral-CA1 pyramidal neurons synapses to test the presence of any alterations in the synaptic efficacy at the basal level.

In the revised study, basal synapse efficacy was directly addressed in all three mouse lines from the same type of neurons (L2/3 somatosensory neurons) from ex vivo slices. Please see figure 9 in the revised manuscript.

4. The authors propose that the "mobility" of the SynGAP-PBM mutant is enhanced, but no direct evidence for the alterations in the mobility is presented. It is more neutral to describe the result as "a reduced affinity" to the PSD. Otherwise, additional experiments for the measurement of protein mobility will be required.

We agree. We have adopted this suggested terminology in the revised manuscript where appropriate.

5. In Figure Supplement 1, the authors evaluated the specificity of the 06-900 antibody to the alpha1 isoform. A similar evaluation of two additional antibodies for alpha2 and β used in Figure 3 will be informative.

We are not sure as to how inclusion of this experiment would change any of our interpretations of expression within the PBM mouse. The A2 and Β antibodies have been shown to be selective for their respective C-terminal motifs. Moreover, total SynGAP expression in homogenates was not changed in the PBM mouse line.

6. In some cases, the difference between wild type and PBM/PBM mice is moderate, with p-values more than 0.01 (Figure 2F, H, Figure 3F). It is advisable to perform a power analysis to estimate the adequate sample size required for these experiments. It is also informative to show the confidence interval instead of the p-value. (See eLife 2019;8:e48175 and eNeuro. 2019 Aug 1;6(4).)

We appreciate this concept and thank you for bringing it up. Many of these experiments dealt with mobility of different isoforms in response to chemical LTP. These experiments were removed from the revised study given the new focus on endogenous expression of Α versus Β isoforms on Syngap1-related phenotypes in animals.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Essential revisions:

1. One of the key messages of this manuscript is the amount of α isoforms, but not the total amount of SynGAP, is critical in multiple behavioral phenotypes in mutant mice. In order to discuss the importance of isoforms, essential information is a relative abundance of each isoform in both wild-type and mutant mice. Throughout this manuscript, the comparisons within isoforms were performed, but no information about relative abundance between isoforms was provided. It is also unclear there are any differences in the relative abundance of isoforms in different brain regions studied in this manuscript, including the forebrain, hippocampus, and somatosensory cortex. The estimate of relative abundance should be provided, or any technical difficulty in this estimation should be explained.

We thank the reviewers for this comment. To account for differences in epitope to antibody affinity, true absolute quantification of different isoform would require mass spectrometry-based approach such as SureQuant. A recent publication (Araki et al., 2020) carefully assessed expression of SynGAP isoforms in multiple brain regions in wild-type mice. Using custom antibodies, the authors probed for individual isoforms across development and estimated that SynGAP-α1 constitutes 35.0 ± 0.9% of total SynGAP in adult forebrain (SynGAP-α2, 44.9 ± 1.5%; SynGAP-β, 15.7 ± 0.8%; SynGAP-γ, 4.3 ± 0.3%).

Our internal data is consistent with these published findings, which also suggest that SynGAP-α1 and SynGAP-α2 are the most abundant in adult forebrain. In Figure 2, we show that reduction in α1 and α2 coincides with a reduction in total SynGAP despite a large increase observed for SynGAP-β in +/Td mice. Similarly, in Figure 3 we observe an increasing trend for total SynGAP which coincides with an increase in α1 and α2 signal while SynGAP-β expression is eliminated in β*/β* mouse.

The published estimates of C-terminal isoform abundance are included in the revised introduction.

2. If alpha1 is the only isoform expressed in the brain, the interpretation of introducing PSD95-nonbinding mutant is straightforward, but in the presence of other isoforms, dominant-negative effects of PBM mutant should be considered. It is possible that PBM mutant complexed with different isoforms impair localization or function of other isoforms, leading to an effect similar to the reduction of total SynGAP protein. Clarification of this point by additional experimental data is necessary.

In the revised Results section for Figure 6, we include new data that addresses the concern of heterodimerization of SynGAP isoforms and possible dominant negative effects of a1 isoforms with PBM mutations. These new data can be found in two places: (1) new panels in Figure 6; (2) a new supplemental figure (Figure 6 – supplement).

First, we include additional panels in Figure 6 that include isoform-specific expression in the PSDs of WT and PBM mice. These new data demonstrate that there is no change in relative abundance of a2 and b isoforms in the PSDs from whole hippocampus taken from PBM mice. The original figure only included PSD levels using a pan-SynGAP antibody. The original data indicated that there was less total SynGAP (using a pan-isoform antibody) in the PSD from PBM mouse hippocampi. The newly included panels extend these results by including isoform abundance data (revised Figure 6A – two additional panels). These new data indicate that the reduction in total SynGAP PSD levels is driven by reduced a1 levels because a2 and b abundance did not change in these same samples (and trended toward an increase). While we did not blot for g isoforms, it is very low expressed relative to the others (see point 1 above), indicating that changes to this isoform would not be sufficient to drive the reduction in total SynGAP from PSDs. We did not blot for a1 directly in these experiments because the mutated PBM reduces affinity for a1 antibodies. These data suggest that a1 may act independently from the other C-terminal variants in the PSD.

Experiments in Supplemental Figure 6 were designed to more directly address the possibility that mutated a1 in PBM mice influenced other isoforms in the PSD, perhaps through hetero-multimerization of SynGAP isoforms. This experiment was also designed to mitigate reduced a1-antibody affinity caused by PBM mutations. We performed weak and strong chemical LTP (cLTP) paradigms in cultured primary neurons from WT and PBM mice. Strong cLTP drives extrusion of total SynGAP (measured with pan-antibody) from the PSD(Figure S6A), which accompanies increases in synapse signaling and insertion of AMPARs (Araki et al., 2020). However, we found that weak cLTP does not extrude SynGAP (Figure S6B), which is consistent with past studies (Araki et al., 2020). In contrast, weak cLTP stimulations were capable of driving reduction in total SynGAP from PSDs in PBM mice. Blotting with isoform-specific antibodies in the weak cLTP studies provided insight into the differential behavior of total SynGAP in PSDs from WT mice compared to PBM mice. To arrive at these measurements, we compared relative expression of SynGAP proteins in the PSD in control and weak cLTP conditions within different wells of the same cultured neuron plates (either WT or PBM mice). Thus, the reduced affinity of a1 antibodies in this experiment is not an issue. In WT neurons, weak cLTP was sufficient to drive reduced PSD abundance for both a2 and b isoforms. However, a1 expression was unchanged, demonstrating that this isoform exhibits distinct behavior within biochemical fractions in response to synaptic NMDAR activation. Replicating this approach in PBM neurons revealed that the distinct biochemical behavior of a1 relative to the other isoforms was due to the existence of an intact PBM motif. Indeed, disrupting the PBM resulted in a1 behaving similar to the other isoforms during weak cLTP. As a result, these data suggest that the reduction in total SynGAP in WT PSDs that occurs in response to strong cLTP can be explained through dynamics of a1. A reasonable biochemical explanation for this difference can be attributed to decreased potential mobility of a1 homomers due to increased basal affinity for binding partners with PDZ domains. Presumably, this reduced basal affinity for binding partners in the PSD is lost because of PBM mutagenesis. Thus, PBM mutagenesis removes a unique biochemical property a1 isoforms, which has functional consequences for neuronal function and behavior (Figures 6, 8, and 9). Moreover, the significant reduction in a2 and b in WT PSDs after weak cLTP does not drive changes in total SynGAP levels likely because a1 is substantially enriched in the PSD relative to the other isoforms (Gou et al., 2020).

Together, these data add substantially to our understanding of how different SynGAP isoforms behave in the PSD in response to NMDAR signaling. This is evidence supporting the idea that SynGAP C-terminal isoforms can behave independently of each within the PSD in response to NMDAR activation. These new data suggest that mutant a1 is not acting as a dominant negative through sequestering the other isoforms. Rather, it suggests that a1 is largely in complex with itself within the PSD and responds differently to NMDAR activation compared to the other isoforms. Further work will be required to fully establish the nature and composition of SynGAP isoform complexes and how they respond to biological stimuli.

3. Figure 9A-C. The sample size (n = 8) for mEPSC measurements in the PBM/PBM mice seems small to draw a safe conclusion, and thus should be increased, or the authors should explicitly state the limits associated with interpretation of this sample size.

Collectively, our data demonstrate that PBM mutations drive a form of Syngap1 loss-of-function. Analysis of mEPSCs from various cortical and hippocampal excitatory neurons with reduced Syngap1 gene expression demonstrate increased excitatory synapse strength, particularly in development. Thus, increased excitatory synapse strength in developing cortical neurons with a disrupted a1 PBM is generally consistent with Syngap1 loss of function. N=8 is on the low side for mEPSC analysis but not critically low, and the results obtained in this experiment in PBM mice (Figure 9) are consistent with increased AMPAR dendritic spine surface expression and reduced synapse and PSD expression of SynGAP protein in neurons from the same mouse line (Figure 6). In the revised Results section for Figure 9, we include a cautionary note that the sample size for this ePhys experiment is on the low side.

4. It is unclear why the authors selected Morris water maze as the second behavioral test, which is not designed to evaluate long-lasting memory. The rationale behind selecting two distinct memory-related behavioral tests, remote contextual memory test and water maze-based training performance, should be explained.

We included these two paradigms in order to assess learning and memory mechanisms known to be sensitive to Syngap1 gene function. MWM learning results from plasticity in the hippocampus and entorhinal cortex driven by new associations connecting location of the hidden platforms to visual cues surrounding the maze. Learning can be evaluated through assessment of the acquisition curves. Memory can be independently evaluated from learning through inclusion of a probe test. Syngap1 heterozygous null mice exhibit deficits in MWM acquisition (i.e., poor spatial learning), which has been affirmed in three past studies from three different groups using three distinct strains of Syngap1 heterozygous null mice (Komiyama et al., 2002; Kim et al., 2003; Muhia et al., 2010). In each of these past studies, there was no impact of Syngap1 heterozygosity on the probe test, demonstrating no “spatial memory deficits” in this strain. Thus, MWM acquisition (i.e., spatial learning) is highly sensitive to Syngap1 expression, which means that this paradigm can be used to assess how Syngap1 gene function impacts hippocampal/cortical-associated learning mechanisms.

In contrast, remote contextual memory (RCM) in Syngap1 mice is a test of long-term memory rather than learning. This paradigm drives a learned association between the training context and an aversive footshock. Retrieval of the memory is tested 30 days after training – the “remote period”. During this 30-day period, information originally encoded in the hippocampus and amygdala is slowly integrated into cortical circuits for long-term storage. Past studies in Syngap1 heterozygous null mice have repeatedly shown that there is no phenotype 1 day after training (regular long-term memory; Guo et al., 2008; Muhia et al., 2010; Creson et al., 2019), but phenotypes emerge selectively when memory is retrieved 30 days later (remote memory; Creson et al., 2019). Thus, this task can reveal how Syngap1 gene function contributes to long-term memory mechanisms resulting from systems consolidation mechanisms. As a result, by including these two behavioral paradigms, we were able to broaden our survey of how individual isoforms impact both learning and memory mechanisms.

5. The phenotype in the Morris water maze is difficult to interpret. SynGAP heterozygote mice show impairment, but IRES-TD mice showed no change. This is inconsistent with other behavioral tests. Β* mice showed improvement in the training session, but the 24 h probe test did not show a difference. It is difficult to connect the data with the result of contextual fear memory. This point should be discussed.

IRES-TD mice run in the MWM were heterozygous for the targeted allele. Thus, they only had ~50% reduction of a1/2 isoforms and ~0-25% reduction in total SynGAP protein (Figures 2 and 2S). This drove some phenotypes but others were unaffected (such as MWM). This suggests that MWM is sensitive to loss of total SynGAP protein. We could not test Td/Td mice because they died shortly after weaning, but we suspect based on the totality of all the data in the three lines (and Syngap1 het nulls), MWM would be affected in Td/Td mice if we were able to test them. b* mice do show improved acquisition rates but no change in the probe test, which is consistent with improved (faster acquisition of) spatial learning but normal memory. We hypothesize that this may be due to increase in a1/a2 expression in these mice. It is conceivable that improvements in spatial learning are sensitive modest increases in α isoform expression, even though modest decreases in the same isoforms do not drive impairments. This is quite an exciting result because a1 expression could serve as a platform for understanding molecular and cellular mechanisms that improve cognitive functions in the forebrain. Indeed, we are currently planning a new project that will directly test this hypothesis – we are creating a series of conditional, inducible SynGAP-isoform mice that can be crossed to Syngap1 Het null mice. These planned studies are beyond the scope of the current study.

Regarding RCM, as mentioned above in Point #4, this paradigm drives unique forms of learning and memory and therefore may have different sensitivities to Syngap1 isoform expression relative to MWM. As a result, it is reasonable for distinct Syngap1 lines to have different learning/memory phenotypes. These differences suggest that SynGAP isoforms function in different cell types across the forebrain to support various neural mechanisms for learning/memory.

Aspects of Point#5 are now included in the revised Results section for Figure 2.

6. While Synap1 is expressed mainly in excitatory neurons, it would be useful if the authors included some single-cell transcriptomic data from the literature and public databases (like Allen Brain Atlas) and discussion on the relative distribution of Syngap1 in neuronal cell types in the cortex.

Thank you for this comment. We spent considerable time mining the Allen Brain single cell sequencing data for Syngap1. These efforts led to a new figure (Figure 10) in the revised manuscript. In the revised manuscript, we discussed these new data in the context of prior studies that addressed SynGAP expression/function in excitatory versus inhibitory neurons. Briefly, we found that Syngap1 expression is several-fold higher, on average, in glutamatergic versus GABAeric neurons in cortex + hippocampus mouse data sets. There was even less transcript detected in non-neuronal cells. Within the glutamatergic populations, the highest expression was in more superficial cortical neurons (L5a, L4, L2/3 IT neurons). There was slightly less expression in large output channel neurons, such as L5 PT neurons and CA1 neurons. These scRNA-seq data agree with experimental evidence of SynGAP protein expression in rodent neurons. Roger Tsien’s group reported that SynGAP protein expression was enriched in upper lamina of cortex and this pattern was consistent with high protein levels in excitatory synapses. Mary Kennedy’s group demonstrated that SynGAP protein was absent in several types of GABAergic neurons, but was expressed in a subpopulation of morphologically distinct inhibitory neurons. The scRNA-seq data also agree with prior experimental observations from electrophysiological and behavioral measurements in mice. Commonly observed and robust phenotypes observed in conventional Syngap1 null mice were phenocopied in mice where Syngap1 null heterozygosity was restricted to excitatory neurons in the forebrain (EMX1 population; Ozkan et al., 2014). Moreover, major electrophysiological and behavioral phenotypes in Syngap1 heterozygous mice were rescued when gene expression was restored in in the EMX1 population (Ozkan et al., 2014). In contrast, our group observed minor phenotypes in mice when Syngap1 expression was disrupted in GABAergic neurons (GAD2 population; Ozkan et al., 2014). Another group found similar results. In that study, most Syngap1 Heterozygous null mouse phenotypes were insensitive to selective disruption in a GABAergic neuron population, though one behavioral measure of cognition was mildly affected (Berryer et al., 2016).

7. Syngap1 is a GAP for both Ras and Rap GTPases, which have opposite effects on dendrites and synapses. The authors assessed Ras activity through p-ERK/ERK Western blots. It would be useful if they also blot with P-BRaf/BRaf to assess Rap activity. Knowing their relative activity would help further interpret the data.

We appreciate the comment and agree that these experiments would be enlightening. However, we believe that this level of analysis is beyond the scope of the present study. We have ongoing projects in the lab that are exploring potential dichotomy of SynGAP function on synapses and dendritic morphogenesis, with the hypothesis that SynGAP may regulate distinct GTPases within sub-cellular compartments to drive differential effects on synapses relative to dendrites. This study extends to different types of glutamatergic neurons (distinct lamina and brain areas in vivo). The potential differences in SynGAP function across distinct sub-cellular regions could be enabled through alternatively spliced sequences. As a result, we do plan on performing these experiments, but they would be part of new study to be disclosed in a future manuscript.

8. A table with all mutants and phenotypes could help the readers.

At the suggestion of the reviewers, we have created a comprehensive table (Table 1) that presents protein expression, ePhys, and behavioral results for all lines tested.

https://doi.org/10.7554/eLife.75707.sa2

Article and author information

Author details

  1. Murat Kilinc

    1. Graduate School of Chemical and Biological Sciences, The Scripps Research Institute, Jupiter, United States
    2. Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    Conceptualization, Data curation, Investigation, Methodology, Validation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0928-7573
  2. Vineet Arora

    Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    Formal analysis, Investigation, Methodology, Visualization
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7856-0401
  3. Thomas K Creson

    Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    Investigation, Methodology, Supervision
    Competing interests
    No competing interests declared
  4. Camilo Rojas

    Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Visualization
    Competing interests
    No competing interests declared
  5. Aliza A Le

    Department of Anatomy and Neurobiology, The University of California, Irvine, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Julie Lauterborn

    Department of Anatomy and Neurobiology, The University of California, Irvine, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Brent Wilkinson

    Zilkha Neurogenetic Institute, Keck School of Medicine, University of Southern California, Los Angeles, United States
    Contribution
    Conceptualization, Data curation, Formal analysis
    Competing interests
    No competing interests declared
  8. Nicolas Hartel

    Mork Family Department of Chemical Engineering and Materials Science, University of Southern California, Los Angeles, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  9. Nicholas Graham

    Mork Family Department of Chemical Engineering and Materials Science, University of Southern California, Los Angeles, United States
    Contribution
    Data curation, Investigation, Visualization
    Competing interests
    No competing interests declared
  10. Adrian Reich

    Bioinformatics and Statistics Core, The Scripps Research Institute, Jupiter, United States
    Contribution
    Methodology, Visualization
    Competing interests
    No competing interests declared
  11. Gemma Gou

    1. Molecular Physiology of the Synapse Laboratory, Institut d'Investigació Biomèdica Sant Pau, Barcelona, Spain
    2. Universitat Autònoma de Barcelona, Bellaterra, Spain
    Contribution
    Formal analysis
    Competing interests
    No competing interests declared
  12. Yoichi Araki

    Department of Neuroscience, Johns Hopkins School of Medicine, Baltimore, United States
    Contribution
    Resources, Validation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3455-9377
  13. Àlex Bayés

    Molecular Physiology of the Synapse Laboratory, Institut d'Investigació Biomèdica Sant Pau, Barcelona, Spain
    Contribution
    Formal analysis, Investigation, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5265-6306
  14. Marcelo Coba

    Zilkha Neurogenetic Institute, Keck School of Medicine, University of Southern California, Los Angeles, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Project administration, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
  15. Gary Lynch

    Department of Anatomy and Neurobiology, The University of California, Irvine, United States
    Contribution
    Formal analysis, Investigation, Methodology, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  16. Courtney A Miller

    1. Graduate School of Chemical and Biological Sciences, The Scripps Research Institute, Jupiter, United States
    2. Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    Writing - review and editing
    Competing interests
    No competing interests declared
  17. Gavin Rumbaugh

    1. Graduate School of Chemical and Biological Sciences, The Scripps Research Institute, Jupiter, United States
    2. Departments of Neuroscience and Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Project administration, Supervision, Writing - original draft
    For correspondence
    gavin@scripps.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6360-3894

Funding

National Institute of Mental Health (MH096847)

  • Gavin Rumbaugh

Autism Speaks (10646)

  • Murat Kilinc

National Institute of Mental Health (MH108408)

  • Gavin Rumbaugh

National Institute of Child Health and Human Development (HD089491)

  • Gary Lynch

Eunice Kennedy Shriver National Institute of Child Health and Human Development (HD089491)

  • Gary Lynch

Ministerio de Ciencia, Innovación y Universidades (IEDI-2017-00822)

  • Àlex Bayés

National Institute for Neurological Disorders and Stroke (NS064079)

  • Gavin Rumbaugh

National Institute for Drug Abuse (DA034116)

  • Courtney A Miller

National Institute for Drug Abuse (DA036376)

  • Courtney A Miller

Ministerio de Ciencia, Innovación y Universidades (AGAUR SGR14-297)

  • Àlex Bayés

Ministerio de Ciencia, Innovación y Universidades (2017 SGR 1776)

  • Àlex Bayés

Spanish Ministerio de Educación (BES-2013-063720)

  • Gemma Gou

Leon and Friends Charitable Foundation

  • Vineet Arora

National Institute of Mental Health (MH108408)

  • Gavin Rumbaugh

National Institute of Mental Health (MH115005)

  • Marcelo Coba

National Institute of Mental Health (MH113949)

  • Marcelo Coba

National Institute of Mental Health (MH105400)

  • Courtney A Miller

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported in part by NIH grants from the National Institute of Mental Health (MH096847 and MH108408 to G.R., MH115005 and MH113949 to M.P.C, and MH105400 to C.A.M.), the National Institute for Neurological Disorders and Stroke (NS064079 to G.R.), the Eunice Kennedy Shriver National Institute of Child Health and Human Development (HD089491 to G.L.), the National Institute for Drug Abuse (DA034116 and DA036376 to C.A.M.), the Spanish Ministerio de Ciencia, Innovación y Universidades RTI2018-097037-B-I00 MINECO/MCI/AEI/FEDER, EU, Award AC17/00005 by ISCIII through AES2017 and within the NEURON framework, Ramón y Cajal Fellowship (RYC-2011–08391 p), IEDI-2017–00822 and AGAUR SGR14-297 and 2017 SGR 1776 (to A.B.). M.K. was supported by Autism Speaks Weatherstone Pre-Doctoral fellowship (10646). G.G. was supported by a predoctoral fellowship from the Spanish Ministerio de Educación (BES-2013–063720). V.A. was supported by a training fellowship from the Leon and Friends Charitable Foundation.

Ethics

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#15-037 and #15-038) of Scripps Florida.

Senior and Reviewing Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Publication history

  1. Received: November 19, 2021
  2. Preprint posted: December 9, 2021 (view preprint)
  3. Accepted: April 8, 2022
  4. Accepted Manuscript published: April 8, 2022 (version 1)
  5. Version of Record published: May 3, 2022 (version 2)

Copyright

© 2022, Kilinc et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 876
    Page views
  • 191
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Murat Kilinc
  2. Vineet Arora
  3. Thomas K Creson
  4. Camilo Rojas
  5. Aliza A Le
  6. Julie Lauterborn
  7. Brent Wilkinson
  8. Nicolas Hartel
  9. Nicholas Graham
  10. Adrian Reich
  11. Gemma Gou
  12. Yoichi Araki
  13. Àlex Bayés
  14. Marcelo Coba
  15. Gary Lynch
  16. Courtney A Miller
  17. Gavin Rumbaugh
(2022)
Endogenous Syngap1 alpha splice forms promote cognitive function and seizure protection
eLife 11:e75707.
https://doi.org/10.7554/eLife.75707

Further reading

    1. Neuroscience
    Nikoloz Sirmpilatze et al.
    Research Article

    During deep anesthesia, the electroencephalographic (EEG) signal of the brain alternates between bursts of activity and periods of relative silence (suppressions). The origin of burst-suppression and its distribution across the brain remain matters of debate. In this work, we used functional magnetic resonance imaging (fMRI) to map the brain areas involved in anesthesia-induced burst-suppression across four mammalian species: humans, long-tailed macaques, common marmosets, and rats. At first, we determined the fMRI signatures of burst-suppression in human EEG-fMRI data. Applying this method to animal fMRI datasets, we found distinct burst-suppression signatures in all species. The burst-suppression maps revealed a marked inter-species difference: in rats, the entire neocortex engaged in burst-suppression, while in primates most sensory areas were excluded—predominantly the primary visual cortex. We anticipate that the identified species-specific fMRI signatures and whole-brain maps will guide future targeted studies investigating the cellular and molecular mechanisms of burst-suppression in unconscious states.

    1. Neuroscience
    Maria Ribeiro, Miguel Castelo-Branco
    Research Article

    In humans, ageing is characterized by decreased brain signal variability and increased behavioral variability. To understand how reduced brain variability segregates with increased behavioral variability, we investigated the association between reaction time variability, evoked brain responses and ongoing brain signal dynamics, in young (N=36) and older adults (N=39). We studied the electroencephalogram (EEG) and pupil size fluctuations to characterize the cortical and arousal responses elicited by a cued go/no-go task. Evoked responses were strongly modulated by slow (<2 Hz) fluctuations of the ongoing signals, which presented reduced power in the older participants. Although variability of the evoked responses was lower in the older participants, once we adjusted for the effect of the ongoing signal fluctuations, evoked responses were equally variable in both groups. Moreover, the modulation of the evoked responses caused by the ongoing signal fluctuations had no impact on reaction time, thereby explaining why although ongoing brain signal variability is decreased in older individuals, behavioral variability is not. Finally, we showed that adjusting for the effect of the ongoing signal was critical to unmask the link between neural responses and behavior as well as the link between task-related evoked EEG and pupil responses.
