Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters

  1. Chengcheng Fan
  2. Douglas C Rees  Is a corresponding author
  1. Division of Chemistry and Chemical Engineering, Howard Hughes Medical Institute, California Institute of Technology, United States

Abstract

The ATP binding cassette (ABC) transporter of mitochondria (Atm) from Arabidopsis thaliana (AtAtm3) has been implicated in the maturation of cytosolic iron-sulfur proteins and heavy metal detoxification, plausibly by exporting glutathione derivatives. Using single-particle cryo-electron microscopy, we have determined four structures of AtAtm3 in three different conformational states: two inward-facing conformations (with and without bound oxidized glutathione [GSSG]), together with closed and outward-facing states stabilized by MgADP-VO4. These structures not only provide a structural framework for defining the alternating access transport cycle, but also reveal the paucity of cysteine residues in the glutathione binding site that could potentially form inhibitory mixed disulfides with GSSG. Despite extensive efforts, we were unable to prepare the ternary complex of AtAtm3 containing both GSSG and MgATP. A survey of structurally characterized type IV ABC transporters that includes AtAtm3 establishes that while nucleotides are found associated with all conformational states, they are effectively required to stabilize occluded, closed, and outward-facing conformations. In contrast, transport substrates have only been observed associated with inward-facing conformations. The absence of structures with dimerized nucleotide binding domains containing both nucleotide and transport substrate suggests that this form of the ternary complex exists only transiently during the transport cycle.

Editor's evaluation

Mitochondrial glutathione is an important line of defence against free radical production. The ATP binding cassette (ABC) transporter Atm3 exports oxidized glutathione out of the mitochondria to help maintain a suitable reducing environment. In this study, the authors have biochemically characterized Atm3 and determined four cryo-EM structures exhibiting three different conformational states, revealing new insights into the transport mechanism. This well-executed study will be of broad interest to the membrane biology and transport communities.

https://doi.org/10.7554/eLife.76140.sa0

Introduction

The ATP binding cassette (ABC) transporter of mitochondria (Atm) family plays a vital (Leighton and Schatz, 1995), but enigmatic, role broadly related to transition metal homeostasis in eukaryotes (Lill et al., 2014). The best characterized member is Saccharomyces cerevisiae Atm1 (ScAtm1) present in the inner membrane of mitochondria (Leighton and Schatz, 1995) and required for the formation of cytosolic iron-sulfur cluster containing proteins (Kispal et al., 1999). Defects in ScAtm1 lead to an overaccumulation of iron in the mitochondria (Kispal et al., 1997). Atm1 is proposed to transport a sulfur containing intermediate (Kispal et al., 1999) that may also include iron (Pandey et al., 2019). It is also likely to transport a similar sulfur containing species from the mitochondria that is required for the cytoplasmic thiolation of tRNA (Pandey et al., 2018). While the precise substrate that is transported remains unknown, derivatives of glutathione have been implicated based on their ability to stimulate the ATPase activity of Atm1 (Kuhnke et al., 2006).

Structures for Atm family members are currently available for ScAtm1 (Srinivasan et al., 2014), the bacterial homolog NaAtm1 from Novosphingobium aromaticivorans (Lee et al., 2014) and human ABCB6 (Wang et al., 2020); the pairwise sequence identities between these homologous transporters range from 40% to 46%. These proteins occur as homodimers of half-transporters, where each half-transporter contains a transmembrane domain (TMD) followed by the canonical nucleotide binding domain (NBD) that defines the ABC transporter family. Each TMD consists of six transmembrane helices (TMs) that exhibit the exporter type I fold first observed for Sav1866 (Dawson and Locher, 2006); a recent re-classification now identifies this group as type IV ABC transporters (Thomas et al., 2020). The translocation of substrates across the membrane proceeds through an alternating access mechanism involving the ATP-dependent interconversion between inward- and outward-facing conformational states. Among the Atm1 family, these conformations have been most extensively characterized for NaAtm1 and include the occluded and closed states that provide a structural framework for the unidirectional transport cycle (Fan et al., 2020). Structures of ScAtm1 with reduced glutathione (GSH) (Srinivasan et al., 2014), and of NaAtm1 complexed with reduced (GSH), oxidized (GSSG), and metallated (GS-Hg-SG) (Lee et al., 2014), have defined the general substrate binding site in the TMD for the transport substrates.

Plants have been found to have large numbers of transporters (Hwang et al., 2016), including Arabidopsis with three Atm orthologues, AtAtm1, AtAtm2, and AtAtm3 (Chen et al., 2007). Of these, AtAtm3 (also known as ABCB25) rescues the ScAtm1 phenotype (Chen et al., 2007), and has been shown to be associated with maturation of cytosolic iron-sulfur proteins (Kushnir et al., 2001), confer resistance to heavy metals such as cadmium and lead (Kim et al., 2006), and participate in the formation of molybdenum-cofactor containing enzymes (Bernard et al., 2009; Teschner et al., 2010). Unlike yeast, defects in AtAtm3 are not associated with iron accumulation in mitochondria (Bernard et al., 2009). While the physiological substrate is unknown, AtAtm3 has been shown to transport GSSG and glutathione polysulfide, with the persulfidated species perhaps relevant to cytosolic iron-sulfur cluster assembly (Schaedler et al., 2014). The ability of AtAtm3 to export GSSG has been implicated in helping stabilize against excessive glutathione oxidation in the mitochondria and thereby serving to maintain a suitable reduction potential (Marty et al., 2019).

To help address the functional role(s) of Atm transporters, we have determined structures of AtAtm3 in multiple conformational states by single-particle cryo-electron microscopy (cryoEM). These structures not only provide a structural framework for defining the alternating access transport cycle, but they also illuminate an unappreciated feature of the glutathione binding site, namely the paucity of cysteine residues that could potentially form inhibitory mixed disulfides during the transport cycle. A survey of structurally characterized members of the type IV family of ABC transporters, including the Atm1 family, establishes that nucleotides are effectively required for the stabilization of the occluded, closed, and outward-facing conformations. In contrast to the nucleotide states, transport substrates and related inhibitors have only been observed associated with inward-facing conformational states. The absence of structures with dimerized NBDs containing both nucleotide and transport substrate suggests that this form of the ternary complex exists only transiently during the transport cycle.

Results

AtAtm3 contains an N-terminal mitochondrial targeting sequence that directs the translated protein to the mitochondria, where it is cleaved following delivery to the inner membrane. Since this targeting sequence consists of ~80 residues and is anticipated to be poorly ordered, we generated three different N-terminal truncation mutants of AtAtm3 through deletion of 60, 70, or 80 residues to identify the best-behaved construct. Together with the wild-type construct, these three variants were heterologously overexpressed in Escherichia coli. The construct with the 80 amino acids deletion showed the highest expression level and proportionally less aggregation by size exclusion chromatography (Figure 1—figure supplement 1) and hence was used for further functional and structural studies.

ATPase activities

Using the 80-residue truncation construct, AtAtm3 was purified in the detergent n-dodecyl-β-D-maltoside (DDM) and reconstituted into nanodiscs formed from the membrane scaffolding protein (MSP) 1D1 and the lipid 1-palmitoyl-2-oleoyl-glycero-3-phosphocholine (POPC). The ATPase activity of this construct was measured as a function of MgATP concentration in the absence and presence of either 2.5 mM GSSG or 10 mM GSH, which approximate their physiological concentrations in E. coli (Bennett et al., 2009). The rate of ATP hydrolysis was determined by measuring phosphate release using a molybdate-based colorimetric ATPase activity assay (Chifflet et al., 1988). The basal ATPase activity, measured in the absence of glutathione derivatives, was significantly higher in detergent than in nanodiscs (104 vs. 7.7 nmol/min/mg, respectively; Figure 1ab), while the apparent Kms for MgATP were within a factor of two (~0.16 and 0.08 mM, respectively). The ATPase activity of AtAtm3 is stimulated by both 2.5 mM GSSG and 10 mM GSH, but the extent of stimulation depends strongly on the solubilization conditions. In nanodiscs, the ATPase rates increase to 32 and 39 nmol/min/mg with 2.5 mM GSSG and 10 mM GSH, respectively, for an overall increase of 4–5× above the basal rate. The ATPase rates for AtAtm3 in DDM also increase with GSSG and GSH, to 117 and 154 nmol/min/mg, respectively. Because of the higher basal ATPase rate in detergent, however, the stimulation effect is significantly less pronounced, corresponding to only an ~50% increase for GSSG stimulation. Little change is observed for the Kms of MgATP between the presence and absence of glutathione derivatives for either detergent solubilized or nanodisc reconstituted AtAtm3 (Figure 1).

Figure 1 with 1 supplement see all

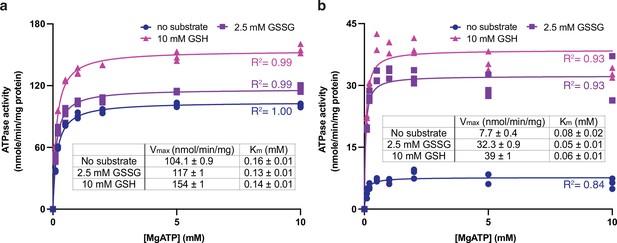

ATPase activities of AtAtm3.

ATPase activities measured in (a) the detergent n-dodecyl-β-D-maltoside (DDM) and (b) nanodiscs formed by membrane scaffolding proteins (MSP) and the lipid 1-palmitoyl-2-oleoyl-glycero-3-phosphocholine (POPC). The ATPase activities were measured in the absence of substrate (●), at 2.5 mM GSSG (■) and 10 mM GSH (▲). The corresponding values of Vmax and Km in different substrate conditions derived from fitting to the Michaelis-Menten equations are indicated. Each condition was measured three times with the individual data points displayed.

Inward-facing, nucleotide-free conformational states

To map out the transport cycle, we attempted to capture AtAtm3 in distinct liganded conformational states using single-particle cryoEM. We first determined the structure of AtAtm3 reconstituted in nanodiscs at 3.4 Å resolution in the absence of either nucleotide or transport substrate (Figure 2a and Figure 2—figure supplement 1). This structure revealed an inward-facing conformation for AtAtm3 similar to those observed for the inward-facing conformations for ScAtm1 (PDB ID: 4myc) and NaAtm1 (PDB ID: 6vqu) with overall alignment root mean square deviations (rmsds) for the dimer of 2.6 Å (Figure 2—figure supplement 2a, b) and 2.1 Å (Figure 2), respectively, and half-transporter alignment rmsds of 2.3 and 2.0 Å (Figure 2—figure supplement 2c), respectively. The primary distinction between these structures is the presence of an approximately 20 amino acid loop between TM1 and TM2 of AtAtm3 that would be positioned in the intermembrane space and is absent from the structures of ABCB7 (Jumper et al., 2021; Varadi et al., 2022), ABCB6 (Song et al., 2021), ScAtm1 (Srinivasan et al., 2014), and NaAtm1 (Lee et al., 2014; Figure 2—figure supplement 3). While the functional relevance of this loop in AtAtm3 is not known, structural characterization of PglK, a lipid-linked oligosaccharide flippase, revealed a comparably positioned external helix between TM1 and TM2 that was implicated in substrate flipping (Perez et al., 2015), suggestive that the corresponding loop could also have a functional or structural role in AtAtm3.

Figure 2 with 8 supplements see all

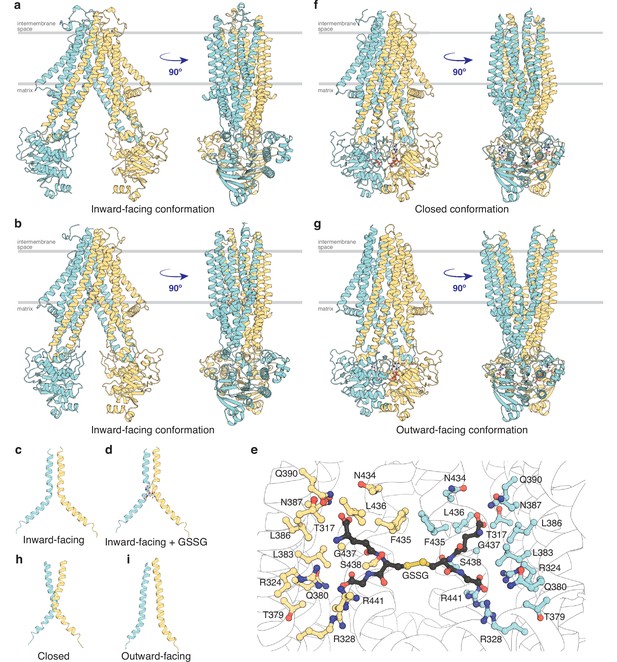

Structures of AtAtm3.

(a) Inward-facing conformation in the apo state. (b) Inward-facing conformation with oxidized glutathione (GSSG) bound. (c) TM6s (residues 416–460) in the inward-facing conformation. (d) TM6s in the GSSG-bound inward-facing conformation. The location of GSSG is indicated. (e) Residues important in stabilizing GSSG binding site, identified by PDBePISA (Krissinel and Henrick, 2007). (f) Closed conformation with MgADP-VO4 bound. (g) Outward-facing conformation with MgADP-VO4 bound. (h) TM6s in the closed conformation. (i) TM6s in the outward-facing conformation.

To further look at substrate binding, we determined a 3.6 Å resolution single-particle cryoEM structure of AtAtm3 purified in DDM with bound GSSG (Figure 2b and Figure 2—figure supplement 4). Although the overall resolution of the reconstruction was moderate (Figure 2—figure supplement 4d), we were able to model the GSSG molecule into the density map. In this structure, AtAtm3 adopts an inward-facing conformation, with an overall alignment rmsd to the ligand-free inward-facing structure of 2.9 Å (Figure 2—figure supplement 5a) and a corresponding half-transporter alignment rmsd of 1.6 Å (Figure 2—figure supplement 5b). The main difference between the two structures is the extent of NBD dimer separation (Figure 2—figure supplement 5a), where the GSSG-bound structure presents a more closed NBD dimer relative to the substrate-free structure. As previously noted with NaAtm1 (Fan et al., 2020), the TM6s in these inward-facing structures of AtAtm3 adopt a kinked conformation including residues 429–438 (Figure 2cd). This opens the backbone hydrogen bonding interactions to create the binding site for GSSG (Figure 2e) with binding pocket residues identified by PDBePISA (Krissinel and Henrick, 2007). The binding mode of GSSG in this AtAtm3 inward-facing conformation is similar to that observed in the inward-facing structure of the GSSG-bound NaAtm1 (Lee et al., 2014).

MgADP-VO4 stabilized closed and outward-facing conformational states

MgADP-VO4 has been found to be a potent inhibitor of multiple ATPases through formation of a stable species resembling an intermediate state during ATP hydrolysis (Crans et al., 2004; Davies and Hol, 2004). We determined two structures of AtAtm3 stabilized with MgADP-VO4, one in the closed conformation with AtAtm3 reconstituted in nanodiscs at 3.9 Å resolution (Figure 2f and Figure 2—figure supplement 6) and the other in the outward-facing conformation with AtAtm3 in DDM at 3.8 Å resolution (Figure 2g and Figure 2—figure supplement 7). These two structures share an overall alignment rmsd of 1.7 Å with the primary difference being a change in separation of the TMs surrounding the translocation pathway on the side of the transporter facing the intermembrane space (Figure 2—figure supplement 8). As a result of these changes in the TMDs, access to the intermembrane space is either blocked in the closed conformation (Figure 2f) or is open in the outward-facing conformation (Figure 2g). The changes in the TMDs are reflected in the conformations of TM6, which in the closed structure presents a kinked conformation (Figure 2h), in contrast to the straight conformation in the outward-facing structure that has the backbone hydrogen bonding interaction restored in the helices (Figure 2i). Further, the loops between TM1 and TM2 that are characteristics of the AtAtm3 transporter are better ordered in the closed conformation than in the outward-facing conformation (Figure 2fg and Figure 2—figure supplements 6 and 7). In contrast to the variation in the TMDs, the dimerized NBDs are virtually identical in these two structures with an overall alignment rmsd of 0.8 Å (Figure 2fg and Figure 2—figure supplement 8).

Discussion

The plant mitochondrial Atm3 transporter has been implicated in a diverse set of functions associated with transition metal homeostasis that are reflective of the roles that have been described for the broader Atm1 transporter family. To provide a general framework for addressing the detailed function of this transporter in plants, we have structurally and functionally characterized Atm3 from Arabidopsis thaliana. We first identified a construct of AtAtm3 with the mitochondrial targeting sequence deleted that expressed well in E. coli (Figure 1—figure supplement 1). Following purification, the ATPase activities of AtAtm3 were measured in both detergent and MSP nanodiscs as a function of MgATP concentrations (Figure 1). Overall, the ATPase rate measured in detergent is about fivefold greater than that measured in nanodiscs, perhaps indicative of a more tightly coupled ATPase activity in a membrane-like environment. Both GSH and GSSG stimulate the ATPase activity by increasing Vmax, with little change observed in the Km for MgATP. The ability of GSSG to stimulate the ATPase activity of AtAtm3 agrees with previous reports (Schaedler et al., 2014), while the stimulation we observe with 10 mM GSH differs from the lack of stimulation noted in that work with 1.7 and 3.3 mM GSH. This discrepancy may reflect the higher GSH concentration utilized in the present studies, as well as differences in other experimental conditions including the use of a Lactococcus lactis expression system and ∆60 N-terminal truncation by Schaedler et al., 2014, compared to the E. coli expression system and the ∆80 N-terminal truncation employed in the present work.

ABC transporters are typically envisioned as utilizing an ‘alternating access’ mechanism, in which the substrate binding site transitions between inward- and outward-facing conformations coupled to the binding and hydrolysis of ATP. In an idealized two-state model, ABC transporters only adopt these two limiting conformations, but structural characterizations of ABC transporters in the presence of nucleotides and substrate analogs have identified a variety of intermediates, including occluded (with a ligand binding cavity exhibiting little or no access to either side of the membrane) and closed (no ligand binding cavity) conformations. The most extensive analysis of the conformational states of an Atm1-type exporter has been detailed for NaAtm1 and assigned to various states in the transport cycle (Fan et al., 2020; Lee et al., 2014). In the present work, we have determined four structures of AtAtm3 in three different conformational states by single-particle cryoEM: two inward-facing conformations (with and without bound GSSG) (Figure 2ab), together with closed and outward-facing states stabilized by MgADP-VO4 (Figure 2fg). The parallels between the structurally characterized conformations of AtAtm3 and NaAtm1 support the idea that these conformational states are relevant to the transport cycle, and not simply an artifact of the specific conditions used to prepare each sample. The conformations observed for AtAtm3 and NaAtm1 do not completely correspond, however; most notably, the outward-facing conformation observed for AtAtm3 had not been previously observed with NaAtm1 (Fan et al., 2020; Lee et al., 2014), while the occluded conformations found with NaAtm1 were not observed for AtAtm3.

The closed conformation stabilized by MgADP-VO4 has been observed for both NaAtm1 (Fan et al., 2020) and AtAtm3. In comparing the closed and the outward-facing conformations of AtAtm3, the arrangements of the NBDs are superimposable, with the major differences between the two conformational states involving the local conformation of TM6s. In the closed conformation, the TM6s adopt a kinked conformation at residues 438–441 that eliminates the substrate binding cavity, whereas the TM6s in the outward-facing conformation present straight TM6s (Figure 2hi). The TM6 helical kink in the closed conformation is adjacent to, but distinct from, the helical kink present at residues 429–438 in the inward-facing conformation. By eliminating the substrate binding cavity, the presence of the closed conformation in a post-ATP hydrolysis state enforces unidirectionality of the transport process by precluding the uptake of substrate from the outside. We note that MgADP-VO4 was observed to stabilize two different conformational states for AtAtm3, the closed state in nanodiscs and the outward-facing conformation in detergent (Figure 2fg). The stabilization of multiple conformations of AtAtm3 with MgADP-VO4 contrasts with our previous observations on NaAtm1, where only the closed conformation was observed (Fan et al., 2020). The underlying basis for these differences is not known but may reflect differences in the conformational stabilization of the membrane spanning regions between detergents and nanodiscs. Structural differences between detergents and nanodiscs have been previously reported for MsbA under MgADP-VO4 stabilizing conditions (Mi et al., 2017; Ward et al., 2007), and in the functional analysis of other membrane proteins (Hänelt et al., 2013).

In contrast to differences in the structures of the TMDs between the closed and outward-facing conformations, the TMDs in the inward-facing conformation structures of AtAtm3 are similar. The primary differences between the two structures of inward-facing conformations of AtAtm3 are in the relative positioning of the NBDs which are more widely separated in the apo structure relative to the GSSG-bound structure. Similar substrate-induced NBD movements have been previously observed in MRP1 (Johnson and Chen, 2017) and ABCB1 (Barbieri et al., 2021).

The conformational changes in the TMDs underlying the transport cycle are associated with changes in the extent of kinking of TM6 and the positioning of TM4-TM5 relative to the core formed by the remaining four TMs. As noted for NaAtm1, we observed kinked TM6s in the inward-facing and closed state of AtAtm3 (Figure 2cdh), but not the outward-facing conformation (Figure 2i). These conformational changes lead to changes in the volume of the central cavity forming the glutathione binding site. Using the program CastP (Tian et al., 2018) with a probe radius of 2.5 Å, the cavity volumes of the inward-facing apo and GSSG-bound structures were measured to be ~6500 Å3 (Figure 3a) and ~4300 Å3 (Figure 3b), respectively, while the closed conformation exhibits a cavity volume of ~300 Å3 (Figure 3c), and the outward-facing conformation has a cavity volume of ~5700 Å3 (Figure 3d). We also measured the accessible solvent areas (ASA) of the key residues forming the binding site for GSSG in the different conformational states using Areaimol in CCP4 (Winn et al., 2011); the ASA of the inward-facing, inward-facing with GSSG bound, closed, and outward-facing structures are ~1500, ~1100, ~900, and ~1300 Å2, which are also highly correlated with the cavity volume calculations. Most of the binding pocket residues remain exposed in all conformations with a few having large relative changes than others (Figure 3—figure supplement 1). Further, the cavity volume measurements are comparable to those calculated for NaAtm1 (Fan et al., 2020). The similarities in conformational states between NaAtm1 and AtAtm3 indicate these transporters follow the same basic mechanism, in which straightening of TM6s in the transition from inward to outward conformation leads to the release of substrate to the opposite side of the membrane. Following substrate release, the transporter resets to the inward-facing conformation through the closed conformation adopted after ATP hydrolysis; the decreased size of the substrate binding cavity helps enforce substrate release and unidirectionality of substrate transport.

Figure 3 with 1 supplement see all

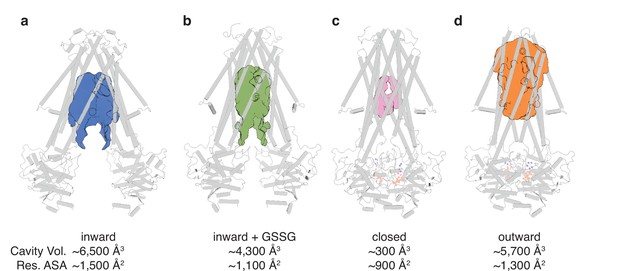

Binding cavity analysis.

(a) Central cavity of the apo inward-facing conformation. (b) Central cavity of the inward-facing conformation with oxidized glutathione (GSSG) bound. (c) Closed conformation with a restricted cavity observed. (d) Central cavity of the outward-facing conformation. Cavity volumes were measured by CastP (Tian et al., 2018) using a probe radius of 2.5 Å. AtAtm3 is shown as a gray cartoon representation, while cavities are depicted as color surfaces. The accessible solvent areas (ASA) of the key residues in the GSSG binding pockets of different structures were calculated by Areaimol in CCP4 (Winn et al., 2011).

The binding pocket for GSSG identified in this work primarily consists of residues from TM5 and TM6, with additional contributions from residues in TM3 and TM4 (Figure 4—figure supplement 1). The GSSG binding site for AtAtm3 largely overlaps with that identified previously for NaAtm1 (Lee et al., 2014) and for the binding of reduced GSH to ScAtm1 (Srinivasan et al., 2014). Inspection of a sequence alignment of Atm1 homologs (Figure 4—figure supplement 1) reveals that those residues forming the glutathione binding site are largely conserved, particularly if they are involved in polar interactions. A striking feature is the stretch of residues from P432 to R441 in the middle of TM6 (AtAtm3 sequence numbering) with sequence PLNFLGSVYR with a high degree of sequence conservation. P432 is associated with the TM6 kink in inward-facing conformations that permits formation of hydrogen bonds between exposed peptide groups with GSSG (Lee et al., 2014); as TM6 straightens in the occluded and outward-facing conformations, these peptide groups are no longer available to bind the transport substrate (Fan et al., 2020). A sequence alignment of the structurally characterized AtAtm3, NaAtm1, ScAtm1, and human ABCB7 and ABCB6 transporters establishes that residues in the binding pockets are conserved, including T317, R324, R328, N387, Q390, L433, G437, and R441 (Figure 4—figure supplement 1). The conservation of binding pocket residues as calculated by the program ConSurf (Landau et al., 2005) is illustrated in Figure 4 suggests that the substrates for these transporters may share common features, such as the glutathione backbone. Positions such where sequence variability is evident, such as residue 435 (Figure 4b and Figure 4—figure supplement 1), may reflect the binding of distinct GSSG derivatives by different eukaryotic and prokaryotic homologs.

Figure 4 with 1 supplement see all

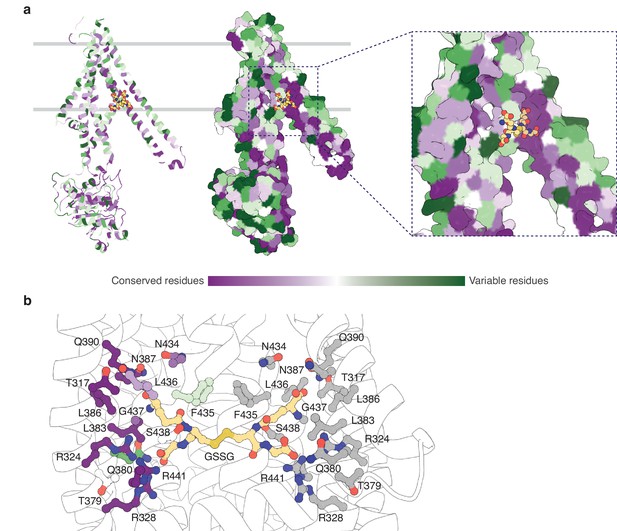

Substrate binding site conservation.

(a) Sequence conservation of AtAtm3, NaAtm1, ScAtm1, human ABCB7, and human ABCB6 calculated by ConSurf (Landau et al., 2005) plotted on a cartoon and surface representations of a half-transporter of AtAtm3 in the GSSG-bound inward-facing conformation. Oxidized glutathione (GSSG) is shown in spheres. (b) Conservation of key residues in the GSSG binding pocket. Residues in one chain colored based on the conservation and residues in the second chain are colored in gray. All residues and GSSG are shown in ball and sticks.

An important property of disulfide containing compounds such as GSSG is that they can undergo disulfide – thiol exchange with free -SH groups (Creighton, 1984; Nagy, 2013). This reactivity creates potential challenges for proteins such as AtAtm3 since reaction of a disulfide containing ligand such as GSSG with the thiol-containing side chain of cysteine could lead to formation of the mixed disulfide, thereby covalently connecting glutathione to the protein and releasing reduced GSH. Formation of the covalently linked mixed disulfide would be expected to restrict the access of exogenous ligands to the substrate binding cavity and hence would inhibit transport. For membrane proteins, cysteine residues are present in TMs with a frequency of about 1% (Baeza-Delgado et al., 2013). Although no cysteines residues are present in the AtAtm3 binding pocket, we analyzed additional Atm3 homologs from plants. For this analysis, we used the NCBI blastp server (Altschul et al., 1997) and selected 410 sequences with a sequence identity of 50–100% and query coverage of 80–100% with AtAtm3. Within the six TMs, the overall presence of cysteines was found to be ~0.4%. In this alignment, no cysteines were found in residues forming the glutathione binding cavity (Figure 5); more strikingly, no cysteine residues were found at any position of TM6 for these homologs (Figure 5f). Cysteines that are present in the TMs are either distant from the binding site, such as position 405 in TM5 of AtAtm3 (Figure 5eg) or if they are closer to the binding site, are positioned on the opposite side of the TMs, such as positions 149, 215, 290, and 307 (Figure 5abcd). The observed exclusion of cysteines from the glutathione binding site (Figure 5g) could consequently be the result of a selection against this residue to prevent the formation of inhibitory mixed disulfides during the transport cycle.

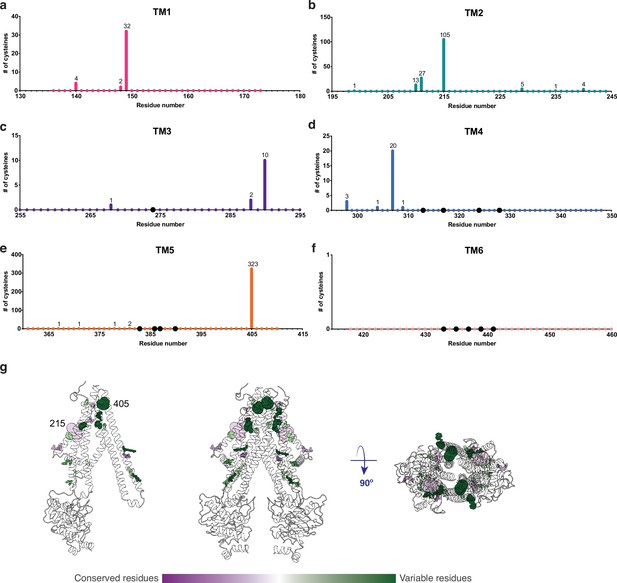

Cysteine residues found in transmembrane helices in an alignment of 410 AtAtm3 homologs.

(a–f) Residues are numbered based on the AtAtm3 sequence. Small colored dots represent different residue positions, while the larger black dots indicate residues observed to interact with glutathione in the NaAtm1 and AtAtm3 structures. The numbers above a given residue indicate the number of sequences in the alignment with a cysteine at that position; unlabeled positions denote positions where no cysteines were observed in the alignment. (g) Transmembrane cysteine residues in the inward-facing conformation of AtAtm3. All positions with cysteine counts are shown in spheres. AtAtm3 residues at positions that have 1–10 counts of cysteines are depicted with small spheres, residues at positions that have 11–100 counts of cysteines are depicted with medium sized spheres, and residues at positions with 101 and greater counts of cysteines are depicted with large spheres. The spheres are colored based on the Consurf coloring used in Figure 4. The distance between the Cα’s of two 215 residues is 37 Å, and the distance between the Cα’s of two 405 residues is 25 Å.

As a general strategy to stabilize ABC transporters in distinct conformational states, different nucleotides or transport substrates are mixed with the transporter. The expectation is that a particular set of ligands will stabilize a specific conformational state, and so we were surprised to have captured with MgADP-VO4 both a closed conformation in MSP nanodiscs and an outward-facing conformation in detergent. Given the similarities in the NBDs between these two structures, the distinctive arrangements of the TMDs between the closed and outward-facing conformations presumably arise from differences in the TMD environment provided by MSP nanodiscs and DDM, respectively. Furthermore, this phenomenon of obtaining different conformational states with MgADP-VO4 is not unprecedented, however, since previously determined structures of MgADP-VO4 stabilized ABC exporters include NaAtm1 in the closed conformation (Fan et al., 2020), Thermus thermophilus TmrAB in the occluded and outward-facing conformations (Hofmann et al., 2019), and E. coli MsbA in the closed conformation (Mi et al., 2017).

Despite extensive efforts, we were unable to prepare the ternary complex of AtAmt3 with both bound GSSG and MgATP. To assess more generally the relationship between the conformational states of ABC exporters and the presence or absence of nucleotide and transport substrate, we systematically compared the conformations of 80 half-transporters from the available structures of type IV ABC transporters (Supplementary file 2). To guide this analysis, the structures were mapped onto a one-dimensional conformational axis using principal component analysis (PCA; see Materials and methods). The PCA has the advantage for this purpose of separating all structures along a single axis such that transporters with similar structures will generally be positioned more closely together. Since only the dominant component is used, however, this analysis simplifies the conformational richness of ABC transporters. We note that the PCA does not provide a unique measure of the conformational state, and in particular, alternative metrics could be employed such as measuring distances between particular pairs of residues. A comparison is presented in Figure 6—figure supplement 1 comparing the dominant PCA component to alternative distance measures; these are generally anti-correlated, with the interesting exception of the distance between a pair of residues positioned in the outer facing (intermembrane space) that, not surprisingly, does a much better job of discriminating between outward conformations than the PCA, while less sensitive to differences between inward conformations. As the quantitative value of the principal component was utilized in this analysis only to separate structures along a single conformational analysis (Figure 6), we utilized the PCA for that purpose in this analysis.

Figure 6 with 1 supplement see all

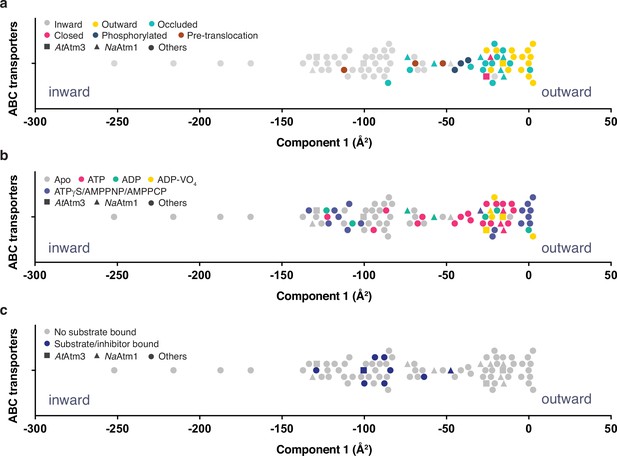

Principal component analysis (PCA) of type IV ATP binding cassette (ABC) exporters.

(a) One-dimensional plot of component 1, colored according to the conformational states assigned in the original publications. The plot is oriented with the most inward and most outward conformations to the left and right, respectively. (b) One-dimensional plot of component 1 with inward-facing to outward-facing structures, colored by their nucleotide states. (c) One-dimensional plot of component 1 with inward-facing to outward-facing structures, colored by their substrate states. Each marker (square (■), triangle (▲), circle (●)) represents a unique half-transporter structure. Squares (■) represent structures of AtAtm3, triangles (▲) represent structures of NaAtm1, and circles (●) represent structures for other ABC transporters.

The principal component is dominated by the conformational state of the TMDs, which represents ~62% of total conformational change from the inward-facing to the outward-facing conformation. The distribution of component 1 of the PCA is shown in Figure 6 with the most extreme inward-facing conformations to the left and the outward-facing conformations to the right. To validate this approach, we color coded each structure according to their published conformational state (Figure 6a). It is evident that outward-facing conformations occur on the right-handed side of the figure with component 1 values between –25 and 0 Å2, while occluded, closed, and inward-facing conformations cluster around −25,–25, and –100 Å2, respectively. Hence, the magnitude of the principal component does capture the expected trends in conformational state, with increasing values corresponding to a progression from inward-facing to outward-facing conformations. The correspondence is not exact, however, since assigned conformational states overlap, which could reflect either limitations of the PCA and/or inconsistent assignments of conformational states between different structures. We further note that some conformational states have a very wide distribution, particularly the inward-facing conformations, with several structures exhibiting widely separated subunits (with values for component 1 below –150 Å2).

Using the PCA, we could relate protein conformation to binding of nucleotides (Figure 6b) and substrates/inhibitors (Figure 6c). This analysis establishes that occluded and outward-facing conformations are largely nucleotide bound with either ATP or an ATP analog, but there are exceptions, most notably the original ADP-bound structure of Sav1866 in the outward facing conformation (Dawson and Locher, 2006; a similar Sav1866 structure was subsequently solved with bound AMPPNP; Dawson and Locher, 2007). Inward-facing conformations are observed in both nucleotide-free and nucleotide-bound forms (Figure 6b). Only the MgADP-VO4-bound structures are exclusively found to occupy a small conformational space in the closed/outward-facing region. In contrast to the binding of nucleotides to all conformational states of these transporters, a distinct pattern is observed for the binding of transport substrates where the transporter invariably adopts the inward-facing conformation (Figure 6c). Intriguingly, no structures with associated (dimerized) NBDs to date have been published that contain both nucleotide and transport substrate, suggesting that this ternary complex exists only transiently during the transport cycle. As this is a key intermediate for understanding how the binding of transport substrate stimulates the ATPase activity, characterization of the ternary complex represents an outstanding gap in the mechanistic characterization of ABC exporters.

Materials and methods

Cloning, expression, and purification

Request a detailed protocol

A pET-21a (+) plasmid containing the full-length A. thaliana Atm3 (AtAtm3) gene with a C-terminal 6x-His tag was purchased from Genscript (Genscript, Piscataway, NJ). Mutagenesis reactions generating the N-terminal 60, 70, and 80 amino acids deletion mutants were carried out with the Q5 mutagenesis kit (New England Biolabs, Ipswich, MA). All AtAtm3 constructs were overexpressed in E. coli BL21-gold (DE3) cells (Agilent Technologies, Santa Clara, CA) using ZYM-5052 autoinduction media as described previously (Fan et al., 2020). Cells were harvested by centrifugation and stored at –80°C.

For purification, frozen cell pellets were resuspended in lysis buffer containing 100 mM NaCl, 20 mM Tris, pH 7.5, 40 mM imidazole, pH 7.5, 10 mM MgCl2, and 5 mM β-mercaptoethanol (BME) in the presence of lysozyme, DNase, and cOmplete protease inhibitor tablet (Roche, Basel, Switzerland). The resuspended cells were lysed with an M-110L pneumatic microfluidizer (Microfluidics, Cambridge, MA). Unlysed cells and cell debris were removed by centrifugation at ~20,000 × g for 30 min at 4°C. The membrane fraction containing AtAtm3 was collected by ultracentrifugation at ~113,000 × g for an hour at 4°C. The membrane fraction was then resuspended in buffer containing 100 mM NaCl, 20 mM Tris, pH 7.5, 40 mM imidazole, pH 7.5, and 5 mM BME and further solubilized by stirring with the addition of 1% DDM (Anatrace, Holland, OH) for an hour at 4°C. The DDM solubilized membrane was ultracentrifuged at ~113,000 × g for 45 min at 4°C to remove any unsolubilized material. The supernatant was loaded onto a prewashed NiNTA column. NiNTA wash buffer contained 100 mM NaCl, 20 mM Tris, pH 7.5, 50 mM imidazole, pH 7.5, 5 mM BME, and 0.02% DDM, while the elution buffer contained the same components, but with 380 mM imidazole. The eluent was subjected to size exclusion chromatography using HiLoad 16/60 Superdex 200 (GE Healthcare, Chicago, IL) with buffer containing 100 mM NaCl, 20 mM Tris, pH 7.5, 5 mM BME, and 0.02% DDM. Peak fractions were collected and concentrated to ~10 mg/ml using Amicon concentrators (Millipore, Danvers, MA).

ATPase activity assay

Request a detailed protocol

ATPase assays were carried out as described previously for both the detergent purified and the reconstituted nanodisc samples at 25°C (Fan et al., 2020) using a molybdate-based colorimetric assay (Chifflet et al., 1988).

Nanodisc reconstitution

Request a detailed protocol

For the AtAtm3 structures in nanodiscs, the reconstitution was performed following the previously described protocol (Fan et al., 2020). The reconstitution was done with a 1:4:130 molar ratio of AtAtm3: MSP1D1: POPC (Avanti Polar Lipids, Alabaster, AL). After overnight incubation at 4 °C, the samples were subjected to size exclusion chromatography with a Superdex 200 Increase 10/300 column (GE Healthcare, Chicago, IL). The peak fractions were directly used for grid preparation with the reconstituted samples at ~0.5 mg/ml. For the structure of AtAtm3 with GSSG bound in the inward-facing conformation, the detergent purified protein was incubated with 10 mM GSSG, pH 7.5 at 4 °C for an hour with AtAtm3 at 4 mg/ml before freezing grids.

Grid preparation

Request a detailed protocol

For the AtAtm3 structure with MgADP-VO4 bound in the outward-facing conformation, the detergent purified protein was incubated with 4 mM ATP, pH 7.5, 4 mM MgCl2, and 4 mM VO43- with protein at 5 mg/ml at 4 °C overnight before freezing grids. For all grids, 3 μL of protein solution was applied to freshly glow-discharged UltrAuFoil 2/2 200 mesh grids (apo inward-facing conformation and closed conformation, both in nanodiscs) and UltrAuFoil 1.2/1.3 300 mesh grids (Electron Microscopy Sciences, Hatfield, PA) (GSSG-bound inward-facing conformation and outward-facing conformation, both in detergent) and blotted for 4–5 s with a blot force of 0% and 100% humidity at room temperature using the VitroBot Mark IV (Thermo Fisher, Waltham, MA).

Single-particle cryoEM data collection, processing, and refinement

Request a detailed protocol

Datasets for the inward-facing conformations in apo and GSSG-bound states, and the outward-facing conformation with MgADP-VO4 bound were collected with a Gatan K3 direct electron detector (Gatan, Pleasanton, CA) on a 300 keV Titan Krios (Thermo Fisher, Waltham, MA) in the super-resolution mode using SerialEM at the Caltech CryoEM facility. These datasets were collected using a defocus range between –1.5 and –3.0 μm and a total dosage of 60 e-2. The dataset for the closed conformation with MgADP-VO4 bound was collected with a Falcon 4 direction electron detector (Thermo Fisher, Waltham, MA) on a 300 keV Titan Krios (Thermo Fisher, Waltham, MA) in the super-resolution mode using EPU (Thermo Fisher, Waltham, MA) at the Stanford-SLAC Cryo-EM Center (S2C2) with a defocus range between –1.5 and –2.1 μm and a total dosage of ~48 e-2.

Detailed processing workflows of all single-particle cryoEM datasets are included in Figure 1—figure supplement 1, Figure 2—figure supplement 4 , Figure 2—figure supplements 6 and 7. with data collection, refinement, and validation statistics presented in Supplementary file 1. Datasets for the inward-facing conformation in apo and GSSG-bound states, and the outward-facing conformation with MgADP-VO4 bound were motion corrected with the patch motion correction in cryoSPARC 2 (Punjani et al., 2017), while the dataset for the closed conformation with MgADP-VO4 bound was motion corrected with motioncor2 (Zheng et al., 2017). The subsequent processing of all datasets was performed in a similar fashion. The contrast transfer function (CTF) parameters were estimated with patch CTF estimation in cryoSPARC 2 (Punjani et al., 2017). Particles were picked with blob picker using a particle diameter of 80–160 Å and then extracted. Rounds of two-dimensional and three-dimensional classifications were performed, leaving 157,762, 259,020, 140,569, and 103,161 particles for the inward-facing apo, inward-facing GSSG bound, closed, and outward-facing conformations, respectively. The final reconstructions were refined with homogeneous, non-uniform, and local refinements in cryoSPARC 2 with C2 symmetry (Punjani et al., 2017). The masks used in local refinements were generated in Chimera (Pettersen et al., 2004).

The initial model of the AtAtm3 inward-facing conformation in apo state was obtained using the inward-facing occluded structure of NaAtm1 (PDB ID: 6pam) as a starting model (Fan et al., 2020). The model fitting was carried out with phenix.dock_in_map (Liebschner et al., 2019). That apo inward-facing conformation model of AtAtm3 was subsequently used as the starting model for the inward-facing GSSG-bound structure. The previous NaAtm1 closed conformation structure (PDB: 6par) was used as the starting model for both the closed and the outward-facing conformations. Model building and ligand fitting were carried out manually in Coot (Emsley et al., 2010) and the structures were refined with phenix.real_space_refine (Liebschner et al., 2019).

Structure superposition

Request a detailed protocol

Structure superpositions for calculating the rmsds between different structures were performed with the SSM option in Coot (Emsley et al., 2010).

Principal component analysis

Request a detailed protocol

The objective of our PCA was to distribute structures along a single conformational axis to correlate the binding of nucleotides and transported ligands to the conformational state of type IV ABC transporters that include AtAtm3 and related Atm1 transporters (Thomas et al., 2020). For this purpose, we first identified 10 polypeptide stretches containing 7–21 residues at equivalent positions in 80 structurally characterized type IV half-transporters (Supplementary file 2), including residues from the TMD and from the NBD. In this sequence selection process, a single half-transporter was used for homodimeric transporters, and both half-transporters were used for heterodimeric transporters, whether encoded by two different half-transporter peptides or on a single peptide. The coordinates of Cα positions for the selected residues were extracted and aligned to that of the outward-facing conformation of Sav1866 (PDB ID: 2hyd) based on the Cα coordinates in TM3 and TM6, which were previously found to provide a useful reference frame for studying conformational changes (Lee et al., 2014). AtAtm3 residues used in alignment: 140–160, 225–245, 255–275, 322–342, 362–382, 423–443, 504–513, 517–524, 618–632, and 681–688. NaAtm1 residues used in alignment: 36–56, 107–127, 137–157, 204–224, 244–264, 305–325, 386–395, 399–406, 500–514, and 563–570.

The PCA was performed using the ‘essential dynamics’ algorithm (Amadei et al., 1993). The full transporter was used in these calculations with the outward-facing state of Sav1866 (PDB ID: 2hyd) serving as the reference state. The first component captured 62% of the overall conformational variation among these structures, and so the eigenvalues corresponding to this component were used to order the different structures along a single axis (Figure 6). In general, the conformational states assigned to each structure parallel those obtained from the PCA; differences likely reflect the absence of standardized definitions for assigning the conformational states of ABC transporters as well as the limitations of this PCA, particularly the use of only the dominant eigenvector. A comparison of the PCA to alternative metrics based on the conformationally sensitive distances between specific pairs of residues is illustrated in Figure 6—figure supplement 1, with corresponding distances tabulated in Supplementary file 2.

Data availability

The atomic coordinates for inward-facing, inward-facing with GSSG bound, closed and outward-facing conformations were separately deposited in the Protein Data Bank (PDB) and the Electron Microscopy Data Bank (EMDB) with accession codes: PDB 7N58, 7N59, 7N5A and 7N5B; EMDB EMD-24182, EMD-24183, EMD-24184 and EMD-24185. The plasmids encoding full-length AtAtm3 and the AtAtm3 with N-terminal 80 residue deletion were deposited in Addgene with Addgene ID 172321 and 173045, respectively. The raw data for ATPase assays presented in Figure 1 are provided in Source Data 1, while the essdyn.f Fortran source code used for the PCA analysis is provided as Source Code 1.

The following data sets were generated
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) RCSB Protein Data Bank
    ID 7N58. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) RCSB Protein Data Bank
    ID 7N59. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) RCSB Protein Data Bank
    ID 7N5A. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) RCSB Protein Data Bank
    ID 7N5B. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) Electron Microscopy Data Bank
    ID EMD-24182. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) Electron Microscopy Data Bank
    ID EMD-24183. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) Electron Microscopy Data Bank
    ID EMD-24184. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.
    1. Fan C
    2. Rees DC
    3. Drew D
    (2022) Electron Microscopy Data Bank
    ID EMD-24185. Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters.

References

    1. Creighton TE
    (1984)
    Disulfide bond formation in proteins
    Methods Enzymology 107:305–329.
    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of Coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Leighton J
    2. Schatz G
    (1995)
    An ABC transporter in the mitochondrial inner membrane is required for normal growth of yeast
    The EMBO Journal 14:188–195.

Decision letter

  1. David Drew
    Reviewing Editor; Stockholm University, Sweden
  2. Kenton J Swartz
    Senior Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  3. David Drew
    Reviewer; Stockholm University, Sweden
  4. Markus A Seeger
    Reviewer

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Glutathione binding to the plant AtAtm3 transporter and implications for the conformational coupling of ABC transporters" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including David Drew as Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Kenton Swartz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Markus A. Seeger (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) We think that the closed conformation of Atm3 should be stressed further as it's only recently that a closed conformation was observed. This paper is another chance to announce/emphasize the existence of the closed conformation and the mechanistic conclusions that can be reached from it.

2) Please clarify the advantage of using principle component analysis (PC1) as compared to simply measuring distances between residues at strategic positions e.g. between coupling helices, at the extracellular gate and (to distinguish between closed and occluded) at the kinking prolines in TM6. One disadvantage with only PC1 is that one loses information on local changes described by PC2 etc. For example, we would assume that an inter-TM6 distance measurement is able to distinguish outward-occluded from closed; this being the most important advantage over the principal component analysis, but PC1 fails to distinguish outward-facing/outward-occluded and closed states here (as evident from Figure 6a). Some further discussion on this point is warranted and perhaps useful to clarify for those not familiar with using this statistical approach to clustering different conformational states.

3) The authors state in the abstract that "The absence of structures containing both nucleotide and transport substrate suggests that this ternary complex exists only transiently during the transport cycle." This provokes the question as to whether cryo-EM analyses were carried out in the presence of ATP and GSSG, i.e. under hydrolysis conditions and in the presence of the substrate? It is well established that outward-facing trapped ABC exporters (via vanadate trapping or EtoQ mutations at the Walker B motif) do not bind substrates (e.g. see MRP1 and ABCB1), hence it is not at all surprising that ATP-vanadate trapped AtAtm3 had no GSSG bound. However, the ternary complex may have been captured under hydrolysis conditions.

4) In Figure 1, the ATPase activities of AtAtm3 are quite different in detergent and membrane environment, with more than 10-fold decrease in basal activity from detergent to POPC containing nanodiscs. Please clarify if you think that the detergent ATPase signal is an over-estimate (e.g., due to increased dynamics without lipids present) or the nanodisc is an underestimate due to using POPC lipids rather than those found in the mitochondria membrane, e.g., requirement for cardiolipin? In one of the papers you cited, Schaedler et. al, 2014, ATM3's activity is not stimulated by GSH versus in your data, 10mM GSH strongly stimulated AtAtm3. How would you explain this discrepancy?

5) There are a couple of structural studies on Atm transporters available to date and the authors showed some structural comparisons in Figure S3 and S5. However, it is still not clear exactly what are new structural insights gained with these structures. It could be helpful to compare the substrate binding sites side-by-side or include a cartoon representation of different functional states in different systems. The authors brought readers attention to "a ~20 amino acid loop between TM1 and TM2 of AtAtm3 that would be positioned in the intermembrane space and is absent from the structures of ScAtm1 and NaAtm1". Does this loop have any proposed functional roles? Is it present in other Atm or ABC transporters?

6) The cysteine-exclusion hypothesis of Atm3 is interesting, but lacks experimental validation. Please provide some additional experimental data to support this (e.g., is a mixed disulfide formed between GSH and cysteine(s) introduced into binding site based on locations in structural homologues) and/or appropriately tone down the statement to more closely reflect the presented data.

Reviewer #1 (Recommendations for the authors):

The cysteine-exclusion of Atm3 would benefit from some additional experimental analysis, such as the introduction of cysteine residues as found in the closest structural homologues harbouring cysteines and their impact on oxidised glutathione export.

Reviewer #2 (Recommendations for the authors):

1) If this work is looked at in the larger context of type I ABC exporters (and in particular in the structure series of NaAtm1 published by the same authors in 2020 in PNAS), one burning question comes to my mind: How universal and generally relevant is what the authors call the closed conformation? In Fan et al., PNAS, 2020, the Rees lab for the first time (at least to the best of my knowledge) described a closed conformation for NaAtm1. The closed conformation has the NBDs fully dimerized/closed and the extracellular gate is closed, but in contrast to the more often observed outward-occluded conformation (first mentioning by Beis lab for McjD and ever since seen several times), there is no occluded cavity, but TM6-kinking results in a collapse of the internal cavity (thus called closed conformation). The major punch-line of the NaAtm1 story was that NaAtm1 assumes an outward-occluded conformation in the presence of non-hydrolysable AMP-PNP (pre-hydrolysis state), but a closed conformation in the presence of ATP-vanadate (post-hydrolysis state), suggesting a pumping/expelling mechanism that is dependent driven by ATP hydrolysis. Currently, the structural differentiation of AMP-PNP-bound versus ATP-vanadate bound state in light of the cavity collapse has only been described for NaAtm1 thus far, but not for any other type I ABC exporter. In line with the findings for NaAtm1, the authors describe in this paper the ATP-vanadate bound structure of AtAtm3 to assume again the closed conformation with kinked TMH6 and collapsed internal cavity (though, a small internal cavity still seems to exist according to Figure 3c). The obvious question (which does not appear to be mentioned in the paper) is whether the authors have attempted to obtain the AMP-PNP bound structure of AtAtm3 and if so, whether the outward-occluded conformation featuring an internal cavity was seen the way it was observed for NaAtm1?

Overall, I feel there is still limited appreciation in the ABC transporter field for the interesting and unique closed conformation, likely owing to the fact that the discovery of the first closed conformation is comparatively recent. This paper is another chance to announce/emphasize the existence of the closed conformation. Ideally, this is addressed by further structures (though that's only a reasonable request if it is straight-forward to achieve). Alternative possibilities are biochemical experiments (e.g. cross-linking, or DEER).

2) To stick to the "conformation business", I wonder whether the principal component analysis is superior to analyses simply measuring distances between residues at strategic positions (e.g. between coupling helices, at the extracellular gate and (to distinguish between closed and occluded) at the kinking prolines in TM6. Such distance measurements together with cavity determinations are in my view sufficient to distinguish between the relevant conformations and are more intuitive to grasp (see also PMID: 33098660).

In particular the distance between the coupling helices informs about NBD separation/completeness of NBD closure, hence allowing to differentiate between inward-facing/inward-occluded states (or the special case of the unlock return state of TmrAB) and outward-facing, outward-occluded and (as relevant here) the closed conformation. The closed conformation seems to correspond to an outward-occluded conformation when it comes the degree of intracellular/extracellular gate closure, but does not feature an enclosed cavity. I would assume that an inter-TM6 distance measurement is able to distinguish outward-occluded from closed; this being the most important advantage over the principal component analysis, which fails to distinguish outward-facing/outward-occluded and closed (as evident from Figure 6a). And finally, the degree of extracellular gate opening is of general interest when analysing different conformations with fully closed NBDs.

Unless I have overlooked something (which is well possible), I would consider such simple distance measurements as more informative than the principal component analysis.

3) The authors state in the abstract that "The absence of structures containing both nucleotide and transport substrate suggests that this ternary complex exists only transiently during the transport cycle." This provokes the question whether cryo-EM analyses were carried out in the presence of ATP and GSSG, i.e. under hydrolysis conditions and in the presence of the substrate. It is well established in the field that outward-facing trapped ABC exporters (via vanadate trapping or EtoQ mutations at the Walker B motif) do not bind substrates (e.g. see MRP1 and ABCB1), hence it is not at all surprising that ATP-vanadate trapped AtAtm3 had no GSSG bound. However, the ternary complex may have been captured under hydrolysis conditions.

Reviewer #3 (Recommendations for the authors):

1) In Figure 3, it could be helpful to label the functional states in panels in a, b, c, d, f, g, h. If the distances between 2 NBDs can be measured and labeled in panel a and b (apo and GSSG bound form), it would be more helpful for the non-ABC transporter audience to visualize the conformational change globally.

2) In Figure 6, the color codes in the legend do not match with those on the graph.

3) In Figure S4, there are 2 high-resolution reconstructions of AtAtm3 in an inward-facing conformation with GSSG bound (3.57A and 3.68A respectively), are they different structurally?

https://doi.org/10.7554/eLife.76140.sa1

Author response

Essential revisions:

1) We think that the closed conformation of Atm3 should be stressed further as it's only recently that a closed conformation was observed. This paper is another chance to announce/emphasize the existence of the closed conformation and the mechanistic conclusions that can be reached from it.

Thank you for this comment. We have amplified our discussion of the closed conformation on page 10. We also included a statement in the abstract of the different conformational states we observed for AtAtm3, including the closed conformation.

2) Please clarify the advantage of using principle component analysis (PC1) as compared to simply measuring distances between residues at strategic positions e.g. between coupling helices, at the extracellular gate and (to distinguish between closed and occluded) at the kinking prolines in TM6. One disadvantage with only PC1 is that one loses information on local changes described by PC2 etc. For example, we would assume that an inter-TM6 distance measurement is able to distinguish outward-occluded from closed; this being the most important advantage over the principal component analysis, but PC1 fails to distinguish outward-facing/outward-occluded and closed states here (as evident from Figure 6a). Some further discussion on this point is warranted and perhaps useful to clarify for those not familiar with using this statistical approach to clustering different conformational states.

We utilized principal component analysis (PCA) to project the transporter structures onto a single conformational axis to distribute these structures so that similar structures will generally be positioned more closely together. Of course, since only the dominant component is used, this analysis simplifies the conformational richness of ABC transporters. We agree that the principal component is neither a completely accurate nor unique measure of conformational similarity, and in particular, alternative metrics could be employed such as measuring distances between particular pairs of residues. A comparison is presented in “Figure 6 supplement 1” comparing the dominant component to several alternative distance measures; these are generally anti-correlated, with the interesting exception of the distances between a pair of residues in the outer loops that, not surprisingly, do a much better job of discriminating between outward conformations than the PCA, while being less sensitive to differences between inward conformations. As the quantitative value of the principal component was only utilized in this analysis to separate structures along a single conformational analysis (Figure 6), we felt it was appropriate to use the PCA for that purpose in this analysis. This has been noted on page 14 of the text.

3) The authors state in the abstract that "The absence of structures containing both nucleotide and transport substrate suggests that this ternary complex exists only transiently during the transport cycle." This provokes the question as to whether cryo-EM analyses were carried out in the presence of ATP and GSSG, i.e. under hydrolysis conditions and in the presence of the substrate? It is well established that outward-facing trapped ABC exporters (via vanadate trapping or EtoQ mutations at the Walker B motif) do not bind substrates (e.g. see MRP1 and ABCB1), hence it is not at all surprising that ATP-vanadate trapped AtAtm3 had no GSSG bound. However, the ternary complex may have been captured under hydrolysis conditions.

We did try to capture this particular structure under turnover conditions in the presence of MgATP and the substrate GSSG, but unfortunately, we only observed the inward-facing conformation in these samples.

4) In Figure 1, the ATPase activities of AtAtm3 are quite different in detergent and membrane environment, with more than 10-fold decrease in basal activity from detergent to POPC containing nanodiscs. Please clarify if you think that the detergent ATPase signal is an over-estimate (e.g., due to increased dynamics without lipids present) or the nanodisc is an underestimate due to using POPC lipids rather than those found in the mitochondria membrane, e.g., requirement for cardiolipin? In one of the papers you cited, Schaedler et. al, 2014, ATM3's activity is not stimulated by GSH versus in your data, 10mM GSH strongly stimulated AtAtm3. How would you explain this discrepancy?

In our experience, the ATPase rates of ABC transporters are highly dependent on the precise solubilization conditions, particularly for detergents as some detergents/detergent combinations are stimulatory, while others are inhibitory. In addition, the POPC used in the nanodiscs might not be the best substitute of the natural lipids that are found in the mitochondrial membrane. Given the variability that has been observed in ATPase activities for different solubilization conditions, we do not know which condition more likely reflects the true physiological activity. (As an aside, we would have thought that basal ATPase rate should be zero in the absence of transported substrate to avoid uncoupled (and presumably wasteful) ATPase activity, but this has been rarely reported).

The Schaedler paper used GSH at two concentrations, 1.7 and 3.3 mM, to test the stimulation of ATPase activity. In our study, we used 10 mM GSSG for the ATPase activity assay to be consistent with our previous studies on NaAtm1. This discrepancy presumably reflects concentration differences utilized in these studies, and other experimental conditions including the nature of the protein construct. Different expression systems were used in the two studies, Schaedler et al., employed L. lactis, while we used E. coli; it is possible that different lipids co-purified with the proteins that could influence the ATPase activity. In addition, we used a truncation with an 80 residue deletion, while Schaedler et al., utilized a 60-residue truncation; our initial characterization of various constructs showed that the 80-residue deletion had a higher ATPase activity, although we did not characterize these differences in detail – certainly not for publication. While both studies used AtAtm3 solubilized in DDM, it is possible that there are still differences in the solubilization conditions reflecting the precise way in which detergents are introduced. We have added a sentence on page 9 noting this discrepancy in the GSH stimulation results, without ascribing a particular mechanism.

5) There are a couple of structural studies on Atm transporters available to date and the authors showed some structural comparisons in Figure S3 and S5. However, it is still not clear exactly what are new structural insights gained with these structures. It could be helpful to compare the substrate binding sites side-by-side or include a cartoon representation of different functional states in different systems. The authors brought readers attention to "a ~20 amino acid loop between TM1 and TM2 of AtAtm3 that would be positioned in the intermembrane space and is absent from the structures of ScAtm1 and NaAtm1". Does this loop have any proposed functional roles? Is it present in other Atm or ABC transporters?

We included a new figure, “Figure 2 supplement 3”, comparing different homologs, AtAtm3, human ABCB7 (an Alphafold model), human ABCB6, yeast Atm1 and prokaryotic Atm1. Among these five structures, only AtAtm3 presents a loop between TM1 and TM2. A quick protein sequence blast in PubMed showed the presence of this loop in many other plant atm transporters. This long loop has not been observed in other structure we know so far, but an external helix was observed for PglK, a lipid-linked oligosaccharide flippase, and this loop has been implicated in substrate interaction (Perez et al., Nature 524, 433 (2015); doi: 10.1038/nature14953)

6) The cysteine-exclusion hypothesis of Atm3 is interesting, but lacks experimental validation. Please provide some additional experimental data to support this (e.g., is a mixed disulfide formed between GSH and cysteine(s) introduced into binding site based on locations in structural homologues) and/or appropriately tone down the statement to more closely reflect the presented data.

We agree this would be an important test of our hypothesis. We did introduce cysteine mutations in NaAtm1 at position M317, M320 and the double mutations in TM6 to test this model. Unfortunately, there was no expression of any of these mutants. We recognize that a negative result like this can have many explanations, and that testing other residues would be appropriate (including in AtAtm3). At the time we were doing these studies, we were working under Covid restrictions and rather than testing additional residues, we focused on trapping additional conformational states.

Our apologies for the over-inflated claims about the mixed disulfides– we tried hard to appropriately describe our analysis, recognizing that this was based on inferences from sequence and structural comparisons (no cysteines in the glutathione binding site), but not from a direct test. We have reworded the abstract and page 13 to try to more accurately reflect the presented data.

Reviewer #1 (Recommendations for the authors):

The cysteine-exclusion of Atm3 would benefit from some additional experimental analysis, such as the introduction of cysteine residues as found in the closest structural homologues harbouring cysteines and their impact on oxidised glutathione export.

Please see our response to essential revision 6.

Reviewer #2 (Recommendations for the authors):

1) If this work is looked at in the larger context of type I ABC exporters (and in particular in the structure series of NaAtm1 published by the same authors in 2020 in PNAS), one burning question comes to my mind: How universal and generally relevant is what the authors call the closed conformation? In Fan et al., PNAS, 2020, the Rees lab for the first time (at least to the best of my knowledge) described a closed conformation for NaAtm1. The closed conformation has the NBDs fully dimerized/closed and the extracellular gate is closed, but in contrast to the more often observed outward-occluded conformation (first mentioning by Beis lab for McjD and ever since seen several times), there is no occluded cavity, but TM6-kinking results in a collapse of the internal cavity (thus called closed conformation). The major punch-line of the NaAtm1 story was that NaAtm1 assumes an outward-occluded conformation in the presence of non-hydrolysable AMP-PNP (pre-hydrolysis state), but a closed conformation in the presence of ATP-vanadate (post-hydrolysis state), suggesting a pumping/expelling mechanism that is dependent driven by ATP hydrolysis. Currently, the structural differentiation of AMP-PNP-bound versus ATP-vanadate bound state in light of the cavity collapse has only been described for NaAtm1 thus far, but not for any other type I ABC exporter. In line with the findings for NaAtm1, the authors describe in this paper the ATP-vanadate bound structure of AtAtm3 to assume again the closed conformation with kinked TMH6 and collapsed internal cavity (though, a small internal cavity still seems to exist according to Figure 3c). The obvious question (which does not appear to be mentioned in the paper) is whether the authors have attempted to obtain the AMP-PNP bound structure of AtAtm3 and if so, whether the outward-occluded conformation featuring an internal cavity was seen the way it was observed for NaAtm1?

Overall, I feel there is still limited appreciation in the ABC transporter field for the interesting and unique closed conformation, likely owing to the fact that the discovery of the first closed conformation is comparatively recent. This paper is another chance to announce/emphasize the existence of the closed conformation. Ideally, this is addressed by further structures (though that's only a reasonable request if it is straight-forward to achieve). Alternative possibilities are biochemical experiments (e.g. cross-linking, or DEER).

Thank you – we have discussed this situation in our response to essential revision 1.

2) To stick to the "conformation business", I wonder whether the principal component analysis is superior to analyses simply measuring distances between residues at strategic positions (e.g. between coupling helices, at the extracellular gate and (to distinguish between closed and occluded) at the kinking prolines in TM6. Such distance measurements together with cavity determinations are in my view sufficient to distinguish between the relevant conformations and are more intuitive to grasp (see also PMID: 33098660).

In particular the distance between the coupling helices informs about NBD separation/completeness of NBD closure, hence allowing to differentiate between inward-facing/inward-occluded states (or the special case of the unlock return state of TmrAB) and outward-facing, outward-occluded and (as relevant here) the closed conformation. The closed conformation seems to correspond to an outward-occluded conformation when it comes the degree of intracellular/extracellular gate closure, but does not feature an enclosed cavity. I would assume that an inter-TM6 distance measurement is able to distinguish outward-occluded from closed; this being the most important advantage over the principal component analysis, which fails to distinguish outward-facing/outward-occluded and closed (as evident from Figure 6a). And finally, the degree of extracellular gate opening is of general interest when analysing different conformations with fully closed NBDs.

Unless I have overlooked something (which is well possible), I would consider such simple distance measurements as more informative than the principal component analysis.

Our motivation was to provide a single parameter that could be used to project transporter structures onto a single conformational axis. The principal component of the PCA provides this descriptor, but we agree that this is not a unique description of the protein conformation. We have explored the use of several alternative metrics based on distances between pairs of residues – some are highly (anti-) correlated with the PCA analysis, while others (like the distance between residues in the outer loops) better discriminate between outward facing conformations, but at the expense of inward-facing conformations. For the purposes of our qualitative analysis, that did not seem to be a critical distinction. Please see additional comments in our response to essential revision 2.

3) The authors state in the abstract that "The absence of structures containing both nucleotide and transport substrate suggests that this ternary complex exists only transiently during the transport cycle." This provokes the question whether cryo-EM analyses were carried out in the presence of ATP and GSSG, i.e. under hydrolysis conditions and in the presence of the substrate. It is well established in the field that outward-facing trapped ABC exporters (via vanadate trapping or EtoQ mutations at the Walker B motif) do not bind substrates (e.g. see MRP1 and ABCB1), hence it is not at all surprising that ATP-vanadate trapped AtAtm3 had no GSSG bound. However, the ternary complex may have been captured under hydrolysis conditions.

Please see our response to essential revision 3.

Reviewer #3 (Recommendations for the authors):

1) In Figure 3, it could be helpful to label the functional states in panels in a, b, c, d, f, g, h. If the distances between 2 NBDs can be measured and labeled in panel a and b (apo and GSSG bound form), it would be more helpful for the non-ABC transporter audience to visualize the conformational change globally.

Thank you – please see our response to essential revision.

2) In Figure 6, the color codes in the legend do not match with those on the graph.

Thank you – please seen our response to essential revision.

3) In Figure S4, there are 2 high-resolution reconstructions of AtAtm3 in an inward-facing conformation with GSSG bound (3.57A and 3.68A respectively), are they different structurally?

Thank you – please seen our response to essential revision.

https://doi.org/10.7554/eLife.76140.sa2
