Single molecule analysis of CENP-A chromatin by high-speed atomic force microscopy
Abstract
Chromatin accessibility is modulated in a variety of ways to create open and closed chromatin states, both of which are critical for eukaryotic gene regulation. At the single molecule level, how accessibility is regulated of the chromatin fiber composed of canonical or variant nucleosomes is a fundamental question in the field. Here, we developed a single-molecule tracking method where we could analyze thousands of canonical H3 and centromeric variant nucleosomes imaged by high-speed atomic force microscopy. This approach allowed us to investigate how changes in nucleosome dynamics in vitro inform us about transcriptional potential in vivo. By high-speed atomic force microscopy, we tracked chromatin dynamics in real time and determined the mean square displacement and diffusion constant for the variant centromeric CENP-A nucleosome. Furthermore, we found that an essential kinetochore protein CENP-C reduces the diffusion constant and mobility of centromeric nucleosomes along the chromatin fiber. We subsequently interrogated how CENP-C modulates CENP-A chromatin dynamics in vivo. Overexpressing CENP-C resulted in reduced centromeric transcription and impaired loading of new CENP-A molecules. From these data, we speculate that factors altering nucleosome mobility in vitro, also correspondingly alter transcription in vivo. Subsequently, we propose a model in which variant nucleosomes encode their own diffusion kinetics and mobility, and where binding partners can suppress or enhance nucleosome mobility.
Editor's evaluation
This is an interesting paper that describes the validation of high speed AFM as a tool for measuring the dynamics of individual nucleosomes in vitro. After validating the methodology the authors go on to apply the method to nucleosomes containing the centromere-specific histone variant CENP-A, and they show that addition of the CENP-A binding factor CENP-C radically alters the mobility of centromeric nucleosomes.
https://doi.org/10.7554/eLife.86709.sa0Introduction
Regulating physical access to DNA is central to both gene expression, genome topology, and genome integrity across eukaryotes. Decades of data strongly suggest that more physically accessible chromatin is also more transcriptionally permissive (Klemm et al., 2019; Maeshima et al., 2019 landmark papers from Weintraub and Groudine, 1976; Wu et al., 1979). In contrast, compacted chromatin or heterochromatin has been correlated with transcriptional restriction (Allshire and Madhani, 2018; Flamm et al., 1969; Janssen et al., 2018; Schultz, 1936). These chromatin states are dynamic and subject to tight regulation. Chromatin-binding proteins dictate many of these dynamics in part driven by the presence and deposition of specific post-translational modifications (PTMs) of nucleosomes (Chung et al., 2023; Rothbart and Strahl, 2014; Taverna et al., 2007; Tolsma and Hansen, 2019). For instance, HP1 binds to H3K9me2/3 nucleosomes (Bannister et al., 2001; Nakayama et al., 2001; Lachner et al., 2001; Sanulli et al., 2019), ultimately resulting in transcriptionally repressive chromatin (Bannister et al., 2001; Escobar et al., 2021; Hwang et al., 2001; Nakayama et al., 2001; Lachner et al., 2001). Interestingly, upon binding of HP1 to H3K9me3 nucleosomes, these nucleosomes’ internal residues become more exposed to hydrogen/deuterium exchange (Sanulli et al., 2019). This seminal finding suggests that chromatin-binding proteins not only serve as a recruitment platform for other binding proteins but can rapidly alter the physical properties of individual nucleosomes. The logical extension of this concept is examining how altering innate physical properties of nucleosomes modulates the local chromatin state’s structure and function.
To study how nucleosome dynamics is altered by chromatin binding factors, single molecule techniques have been developed, ranging from groundbreaking in vitro techniques such as optical and magnetic tweezers (Bustamante et al., 2021; Chien and van Noort, 2009; Killian et al., 2018; Neuman and Nagy, 2008) and in vivo single molecule tracking (Iida et al., 2022; Izeddin et al., 2014; Mueller et al., 2013; Shen et al., 2017; van Staalduinen et al., 2023; Wang et al., 2021). The former two techniques rely on precisely designed DNA sequences and constructs to guarantee precise measurements. By manipulating an optical trap or magnetic tweezer, tension and torsion forces can be exerted on the associated DNA molecule, which in turn alters the forces exerted on nucleosomes (Bustamante et al., 2021; Chien and van Noort, 2009; Killian et al., 2018; Neuman and Nagy, 2008). In contrast, single molecule tracking in cells is made possible by photostable fluorophores covalently bound to a target protein. These tagged proteins are introduced into cells at low concentration to allow the tracking of single molecules, with limited control where the tagged proteins will go (Iida et al., 2022; Mueller et al., 2013; Shen et al., 2017; Wang et al., 2021). Both systems are powerful and have distinct advantages, ranging from bp-precision of nucleosome sliding, folding-unfolding dynamics to determining residency time of transcription factors. However, a gap exists connecting these two technical approaches, namely assessing, and quantifying the dynamics of individual nucleosomes and correlating them with global chromatin dynamics. High-speed atomic force microscopy (HS-AFM) has the capability to span this gap. It is an in vitro based technique that permits real time tracking of single molecules in the context of interacting macromolecular complexes (e.g. myosin tracking on actin filaments, Ando, 2018; chromatin techniques reviewed in Melters and Dalal, 2021). By imaging nucleosome arrays in buffer over time, it is possible not just to track, but also quantify the motions of individual nucleosomes within an array.
In addition to PTMs, the chromatin landscape is also marked by the local enrichment of histone variants (Buschbeck and Hake, 2017; Jamge et al., 2023; Martire and Banaszynski, 2020; Melters et al., 2015), such as the centromere-specific H3 histone variant CENP-A/CENH3. CENP-A nucleosomes recruit several centromeric proteins (Walstein et al., 2021; Mendiburo et al., 2011; Régnier et al., 2005), including CENP-C. CENP-C in turn functions as the blueprint for the formation of the kinetochore (Cheeseman et al., 2006; DeLuca and Musacchio, 2012; Hara et al., 2023; Walstein et al., 2021; Przewloka et al., 2007; Weir et al., 2016; Yatskevich et al., 2023). Recently, we reported that the central domain of CENP-C (CENP-CCD) induces loss of CENP-A nucleosomal elasticity in silico and in vitro (Melters et al., 2019). This finding correlates with decreased hydrogen/deuterium exchange of CENP-A nucleosomes when bound by CENP-CCD (Falk et al., 2016; Falk et al., 2015; Guo et al., 2017). Interestingly, CENP-C knock-down resulted in downregulation of centromeric transcription (Bury et al., 2020), whereas CENP-C overexpression resulted in reduced RNA polymerase 2 (RNAP2) levels at the centromere and clustering of centromeric chromatin (Melters et al., 2019). We were curious about how CENP-A alone, and in combination with CENP-C mechanistically impacts centromeric chromatin fiber mobility. To address this question, we employed HS-AFM to track thousands of canonical or centromeric nucleosomes in arrays in real time. We report that HS-AFM imaging is free of tip-induced artifacts and CENP-A chromatin responds predictably to various control conditions. Next, we find that the essential kinetochore protein CENP-C, which is CENP-A chromatin’s closest binding partner, directly impacts nucleosome mobility and, surprisingly, also chromatin fiber motion in vitro. These data represent a technological advance in imaging and analyzing chromatin dynamics by HS-AFM. We extended these findings in vivo using immunofluorescence imaging and biochemical approaches, reporting that overexpressing CENP-C alters centromeric chromatin transcription and the ability to load new CENP-A molecules. Cumulatively, these data support the notion that local transcriptional competency depends on innate properties and local homeostasis of histone variants within the chromatin fiber in vivo.
Results
We are interested in understanding how nucleosomes ‘behave’ in biologically relevant conditions. Elegant single-molecule techniques have enabled us to understand details about the movement of transcription factors inside the nucleus (Iida et al., 2022; Mueller et al., 2013; Shen et al., 2017; Wang et al., 2021) and how torsion and pulling/pushing forces influence nucleosomes (Bustamante et al., 2021; Chien and van Noort, 2009; Killian et al., 2018; Neuman and Nagy, 2008). Although the behavior of a single trajectory might be stochastic, the statistical behavior from many trajectories may reveal additional physical properties, such as diffusion and folding-unfolding dynamics.
By directly observing topographic characteristics and dynamics of chromatin using HS-AFM, we were able to assess the motions of individual nucleosomes in real-time (Figure 1). This emerging single-molecule technique is powerful, and shares similarities with live cell imaging (Ashwin et al., 2019; Specht et al., 2017), magnetic tweezers, and optical tweezers (Bustamante et al., 2021; Chien and van Noort, 2009; Killian et al., 2018; Neuman and Nagy, 2008). Whereas, live cell imaging and single-molecule force spectroscopy methods rely on fluorophore-tags and tethering, HS-AFM can be done on both unmodified and modified protein all while requiring minimal sample preparation (Ando, 2018).

Schematic of experimental configurations for HS-AFM nucleosome measurements and analysis of extracted single particle trajectories Sample preparation: CENP-A nucleosomes were in vitro reconstituted and imaged by HS-AFM in fluid.
By HS-AFM, we can track nucleosome motion, corresponding to both nucleosomes sliding along the DNA and chromatin fiber moving. Data acquisition: HS-AFM videos were obtained at a framerate of 0.5 Hz (2 s per frame) for a minimum of 20 s and up to 120 s. Using MATLAB, we extracted nucleosome trajectories, which were subsequently corrected for drift. Analysis: trajectories were analyzed to extract several mobility and diffusion-related parameters to determine both potential tip-scanning artifacts and to characterize nucleosome dynamics.
Recently, we showed by HS-AFM that, at a qualitative level, H3 nucleosomes are mobile and make intermittent contact with other H3 nucleosomes (Melters and Dalal, 2021). Here, we set out to quantify the dynamics of individual nucleosomes in the context of chromatin. This means that we observed and quantified global nucleosome movement on mica surface, which can be one-dimenstional motion of nucleosome sliding along DNA events and two-dimensional whole chromatin fiber movements (Figure 1). Nucleosomes that move away from the mica surface into the buffer solution could not be tracked. We predict that these global nucleosome motions reflect the complex dynamics nucleosomes display in the nucleus (Ide et al., 2022). To assay CENP-A chromatin, we reconstituted CENP-A nucleosomes on a~3.5 kbp plasmid containing four copies of α-satellite repeats or a~8.5 kbp plasmid containing three copies of the PCAT2 lncRNA gene. After verifying successful in vitro chromatin reconstitution (Figure 1—figure supplement 1, Figure 1—figure supplement 1—source data 1 and 2), we imaged CENP-A chromatin using the Cypher VRS system (see Materials and methods for details). Videos were obtained at one second per frame. When the AFM tip scans the mica surface, it first goes from the top to the bottom, followed by from the bottom to the top. To avoid discontinuous scanning of the same regions of the mica surface, we limited our analysis to every other frame, resulting in an effective scanning rate of two seconds per frame. Next, the videos were converted to TIFF sequences. Using MATLAB’s single particle tracking MatlabTrack package, we obtained a total of 6052 individual nucleosome trajectories from 13 different samples (see Materials and methods for details). To obtain significant mean square displacement (MSD) values, individual trajectories needed to be of sufficient duration. Therefore, we selected individual trajectories that were at least 20 s, with a maximum of 120 s (10–60 points). In addition, we wanted to make sure that we were tracking the same nucleosomes, so we estimated the maximum single step size at twice the nucleosome width or 24 nm. Furthermore, we were also careful about potential nucleosomes sticking to the mica surface, which led us to reject trajectories with an average R-step size (the displacement between two successive images) smaller than 1 nm and a maximum R range smaller than 8 nm. Next, we corrected each video for drift (Figure 1—figure supplement 2). Finally, we analyzed 3835 trajectories to obtain the step angle, step size, mean square displacement (MSD), and diffusion constant of individual nucleosomes (Figure 1).
HS-AFM imaging is free of tip-induced artifacts
AFM is a topographical imaging technique that creates a sub-nanometer scale topological map of biological samples. A common concern is that the AFM tip may alter the sample during scanning, as the AFM tip moves in a zig-zag manner across the sample, potentially moving biological material in its path. To determine whether there is indeed a tip effect, we performed several controls. We reasoned that if the AFM tip altered samples during scanning, it would create a distinctive signature in single particle trajectories. We imaged CENP-A chromatin under multiple conditions (Figure 2—videos 1–6). First, we assessed the angle between successive steps of the nucleosomes (Figure 2A). If there was tip-induced drift, there would be a bias in the distribution of angles. We did not observe a bias in the angle distributions (Figure 2B; Figure 2—figure supplement 1A, Figure 2—source data 1). Second, we looked at the diffusion constants over the x-axis alone or the y-axis alone (Figure 2C) in the absence or presence of 1-(3-aminopropyl) silane (APS). APS functionalizes the mica surface with positively charged amino groups, binding nucleic acid molecules under physiological conditions, allowing for the ability to image in air, in fluid, as well as perform force spectroscopy (Lyubchenko et al., 2014; McAllister et al., 2005; Melters et al., 2019; Melters and Dalal, 2021; Rakshit et al., 2020; Shlyakhtenko et al., 2003). We predicted that adding an excess of APS (333 nM APS is 2 x APS) would lower the diffusion constant compared to not adding APS (no APS). Indeed, we measured a lower diffusion constant for 2 x APS than no APS (Figure 2D, Figure 2—source data 1 and 2). If there were a tip effect, we reasoned there would be a difference in the diffusion constants between the x-axis and y-axis, which are parallel and perpendicular to the direction of tip scanning, respectively. We did not observe a bias in the diffusion constants between the two axes (Figure 2D; Figure 2—figure supplement 1B, Figure 2—source data 1 and 2). Third, to test for the potential impact of prolonged imaging on manipulation of trajectories, we assessed the step size distribution over time. We did not observe a significant effect of the video length on the step size (Figure 2—figure supplement 2, Figure 2—source data 1 and 2), indicating that extended imaging did not alter the trajectory dynamics. We are therefore confident that HS-AFM does not introduce a tip effect on chromatin and that drift is adequately corrected.

No AFM tip-motion effect was observed.
If the AFM tip were to displace the sample during scanning, it should result in a motion bias in the direction of scanning that can be detected. (A) Schematic representation of how angle between successive steps within a trajectory is determined and representative angle distribution graphs for no bias or bias. (B) All angles for successive steps of all trajectories of five control conditions (low salt, high salt, no APS, 2 x APS, and Tween-20) show no sign of bias (Figure 2—figure supplement 1A). (C) Every step has an x and y coordinate. By obtaining the diffusion constant for each axis separately, motion bias between the x and y axis can be discerned, which is an indication of bias introduced by the AFM tip. (D) The diffusion constants for the x and y axis for CENP-A nucleosomes in low or high salt conditions show differences between imaging conditions, but not within each condition (Figure 2—figure supplement 1B). The error bars represent the standard error.
-
Figure 2—source data 1
Trajectory statistics for all tracked nucleosomes.
X and Y coordinates, distance between two steps, accumulated distance per trajectory, and angle between two steps are reported.
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig2-data1-v1.zip
-
Figure 2—source data 2
Basic statistics for all tracked nucleosomes.
This includes diffusion constant (nm2·s–1), MSD slope (nm2), average MSD slope (nm2), average step size (nm), maximum R-step (nm), and R-step range (nm).
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig2-data2-v1.zip
Salt and APS concentrations impact chromatin dynamics in an anticipated manner
Next, we set out to determine how different buffer conditions impact CENP-A chromatin dynamics. Different salt concentrations are known to impact chromatin compaction and dynamics (Allahverdi et al., 2015; Brasch et al., 1971; Yager et al., 1989; Yager and van Holde, 1984). At lower salt concentrations (below 50 mM NaCl), nucleosomes are stabilized, whereas at higher salt concentrations (above 100 mM NaCl) nucleosomes become unstable. Here, we tested the effect of low salt concentrations (5 mM NaCl) versus high salt concentration (150 mM NaCl) on nucleosome dynamics by HS-AFM. For each condition we tracked 124 and 161 nucleosome trajectories, respectively (Table 1, Figure 3—videos 1 and 2). As expected, the MSD curve for high salt had a larger slope than for low salt (Figure 3A, Figure 3—figure supplement 1A, Figure 3—source data 1 and 2). This is reflected in the diffusion constant, which was 1.2±0.2 nm2·s–1 for low salt and 4.1±0.3 nm2·s–1 for high salt (Figure 3B, Figure 3—figure supplement 1B, Figure 3—source data 1 and 2).

Salt and APS concentration predictably impacts CENP-A nucleosome mobility in vitro.
(A) The average mean square displacement is shown with standard error as a function of the time interval for CENP-A nucleosome arrays in the following buffers: low salt (green; 5 mM NaCl), high salt (blue, 150 mM NaCl), no APS (yellow), twofold APS (red), 0.01% Tween-20 (pink), and PCAT2 DNA (brown). (B) The diffusion constants obtained from the MSD curves. The error bars represent the standard error. (C) Schematic representation of mobile or immobile (or paused) single particle trajectories. (D) The single step x-axis displacement of CENP-A nucleosomes in low salt conditions. The blue line represents a single Gaussian fit whereas the red line represents a double Gaussian fit. The latter provided a better fit to all the data for both the x- and y-step distributions for all conditions (see Figure 3—figure supplement 5). (E) The fraction of single steps corresponding to D1 (narrower) Gaussian distribution or D2 (wider) Gaussian distributions from the double Gaussian fitting. The D1 Gaussian distribution corresponds to a smaller diffusion constant and may represent immobile or paused nucleosomes, whereas D2 corresponds to a larger diffusion constant representing mobile nucleosomes. The data were obtained from two independent technical replicates per condition.
-
Figure 3—source data 1
Trajectory statistics for all tracked nucleosomes.
X and Y coordinates, distance between two steps, accumulated distance per trajectory, and angle between two steps are reported.
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig3-data1-v1.zip
-
Figure 3—source data 2
Basic statistics for all tracked nucleosomes.
This includes diffusion constant (nm2·s–1), MSD slope (nm2), average MSD slope (nm2), average step size (nm), maximum R-step (nm), and R-step range (nm).
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig3-data2-v1.zip
Quantifications of HS-AFM videos.
Either CENP-A or H3 nucleosomes were in vitro reconstituted on plasmid DNA and imaged in fluid in the presence or absence of either 2.2-fold excess CENP-CCD or 0.2-fold excess of H1.5. n, number of nucleosome trajectories tracked. For each condition, at least three independent replicates were performed.
Sample | n | Number of steps | Average Diffusion constant (nm2/s) | Average step size (nm) | Maximum R-step (nm) | R-step range (nm2) |
---|---|---|---|---|---|---|
CENP-A nucleosomes | 498 | 13,989 | 2.3±0.2 | 4.2±0.1 | 11.2±0.2 | 23.2±0.6 |
+1 x CENP-CCD | 368 | 7790 | 2.1±0.1 | 3.1±0.2 | 12.6±0.4 | 23.7±0.7 |
+2 x CENP-CCD | 310 | 9063 | 0.78±0.06 | 2.8±0.1 | 8.0±0.2 | 14.3±0.4 |
+4 x CENP-CCD | 166 | 7034 | 0.61±0.05 | 2.3±0.2 | 8.6±0.4 | 15.4±0.7 |
CENP-A controls | ||||||
Low salt | 124 | 3783 | 1.2±0.2 | 2.8±0.1 | 9.6±0.4 | 18.3±0.9 |
High salt | 161 | 4887 | 4.1±0.3 | 5.5±0.2 | 14.6±0.4 | 40±2 |
No APS | 244 | 5186 | 7.5±0.5 | 6.0±2.0 | 15.9±0.4 | 43±2 |
2 x APS | 120 | 2520 | 2.5±0.3 | 3.8±0.2 | 11.4±0.5 | 21±1 |
Tween-20 | 587 | 16,126 | 5.9±0.2 | 6.0±0.1 | 14.7±0.2 | 43±1 |
PCAT2 DNA | 710 | 15,497 | 5.7±0.4 | 5.8±0.2 | 16.0±0.2 | 33.7±0.6 |
H3 controls | ||||||
H3 nucleosomes | 66 | 1109 | 2.5±0.3 | 4.2±0.2 | 9.9±0.5 | 19±1 |
+H1.5 | 391 | 8492 | 3.2±0.3 | 4.7±0.1 | 12.3±0.3 | 26.9±0.8 |
H3 mononucleosome | 90 | 1344 | 9.3±0.9 | 7.9±0.3 | 17.4±0.5 | 47±2 |
To better understand the step dynamics, we first assessed the average single-frame step size and found that the average step size of CENP-A nucleosomes for high salt is double the length of that of low salt (5.5±0.2 nm vs 2.8±0.1 nm, respectively, Table 1, Figure 3—figure supplement 1C, Figure 3—source data 2). Furthermore, we calculated the R-step. The R-step is the single-frame displacement in the plane of the trajectory and is defined as the square root of the sum of the squares of the displacement in the x and y directions. The maximum R-step was only slightly different between the low and high salt conditions (9.6±0.4 nm vs 14.5±0.4 nm, respectively, Table 1, Figure 3—figure supplement 1D, Figure 3—source data 2). When we looked at the total range of a trajectory by calculating the R-step range, we observed a much larger variance in the distribution for the high salt compared to the low salt (40±2 nm2 vs 18.3±0.9 nm2, respectively, Table 1, Figure 2—figure supplement 1E, Figure 3—source data 2). These results are in line with how salt concentration is known to impact chromatin dynamics (Allahverdi et al., 2015; Brasch et al., 1971; Yager et al., 1989; Yager and van Holde, 1984).
Next, we plotted the distributions of single step displacements in the x-axis and y-axis and fitted them to a single Gaussian distribution, which is expected for a diffusive process. Although the x- and y- single-step distributions were poorly fit by single Gaussian distributions (D0), they were well-fit by a sum of two Gaussian distributions (D1 and D2) (Figure 3D, Figure 3—figure supplements 2 and 3, Figure 3—source data 1 and 2). The relative fraction of the two Gaussian distributions differed between low and high salt conditions (Figure 3E, Figure 3—figure supplements 2 and 3, Figure 3—source data 1 and 2). These data indicate that there are two distinct populations of nucleosomes in both low- and high-salt conditions. The D1 Gaussian population represents slower diffusing nucleosomes, potentially reflecting transient pausing, whereas the D2 Gaussian population represents faster diffusing nucleosomes. As AFM can only detect samples that are on the mica surface, one concern might be that nucleosomes stick to the surface. To test for this possibility, we first manually verified whether individual nucleosomes could switch from what appears to be the smaller D1 diffusion constant to the larger D2 diffusion constant or vice versa. Indeed, we found a myriad of such examples across different conditions (Figure 3—figure supplement 4A). This was further reflected by the broad range of individual step sizes of each particle trajectory (Figure 3—figure supplement 4B, Figure 3—source data 1). Second, we tested whether the slower diffusing nucleosomes correspond to ‘sticking’ nucleosomes. To do this, we analyzed the rejected ‘stuck’ nucleosome trajectories with an average R-step of less than 1 nm and an R-step range of less than 8 nm. Next, we compared the effective diffusion constant of these ‘stuck’ nucleosomes for each video with the smaller diffusion constant obtained from the fit of a sum of two Gaussians. With the exception of the 2 x APS and low-salt conditions, we found that the effective diffusion constant of the ‘stuck’ nucleosome trajectories was significantly smaller than that of the smaller diffusion constant from the fit of a sum of two Gaussians (Figure 3—figure supplement 5, Figure 3—figure supplement 5—source data 1). In other words, these data would exclude the possibility of nucleosomes being ‘stuck’ to the mica surface.
Furthermore, the average step distribution (Figure 3—figure supplement 1C), maximum R-step (Figure 3—figure supplement 1D) and R-step range (Figure 3—figure supplement 1E) display a continuum of data points, instead of a bimodal distribution. Altogether, our data suggests that individual nucleosomes may have the capacity to move back and forth between the D1 and the D2 Gaussian distributions, indicating the possibility of switching between two diffusive modes.
Next, we expanded our analyses of the HS-AFM videos of the no APS and 2 x APS conditions (Figure 3—videos 3 and 4) to obtain the MSDs, and Gaussian fitting of the single step distributions. As APS functionalization positively charges the mica surface on which chromatin is deposited, we predicted that CENP-A nucleosomes trajectories would display faster dynamics in the no APS condition vs 2 x APS condition. Indeed, the slope of the MSD curve of in the absence of APS was larger compared to 2 x APS (Figure 3A, Figure 3—figure supplement 1A). The average diffusion constant was also higher in the absence of APS (7.5±0.5 nm2·s–1) than 2 x APS (2.5±0.3 nm2·s–1, Figure 3B, Table 1, Figure 3—figure supplement 1B, Figure 3—source data 2). A similar pattern was observed for the average step size (6.0±2.0 nm vs 3.8±0.2 nm, respectively), maximum R-step (15.9±0.4 nm vs 11.4±0.5 nm, respectively), and R-step variance (43±2 nm2 vs 21±1 nm2, respectively, Table 1, Figure 3—figure supplement 1C–E, Figure 3—source data 2), with higher values for no APS than 2 x APS. The single-step displacement distributions were well-fit by a sum of two Gaussians (Figure 3—figure supplements 2 and 3).
As an additional control, we used a very low concentration of Tween-20 (0.01%), a polysorbate surfactant that both stabilizes proteins and reduces non-specific hydrophobic interactions with the surface. We were interested to learn whether CENP-A chromatin in the presence of Tween-20 would display either more restricted nucleosomes mobility due to protein stabilization, or less restricted nucleosome mobility due to reduced non-specific interactions. HS-AFM videos of CENP-A chromatin in physiological buffer (0.5 x PBS, 2 mM MgCl2) with 0.01% Tween-20 displayed the most amount of drift (Figure 3—video 5). After drift correction and filtering, we analyzed 587 trajectories to obtain single step distributions, MSD curves, and diffusion constants. We found that CENP-A chromatin in the presence of Tween-20 behaved more like no APS and high salt conditions with a steep MSD curve, a very broad distribution of average step sizes, and a large R-step range distribution (Figure 3, Figure 3—figure supplements 1–3, Figure 3—source data 1 and 2). We interpret this to mean that Tween-20 in the context of imaging CENP-A chromatin by HS-AFM primarily reduces non-specific hydrophobic interactions resulting in less restricted nucleosome mobility.
Furthermore, we wondered if our 3.5 kbp plasmid, which contains four copies of human centromere-derived α-satellite DNA, might induce nucleosome phasing or positioning (Luger et al., 1997; Stormberg and Lyubchenko, 2022). Therefore, we in vitro reconstituted CENP-A nucleosomes on an 8.5 kbp plasmid containing the lncRNA PCAT2 gene. In human cancer cell lines, ectopic CENP-A can be found at the PCAT2 locus, whereas, PCAT2 DNA is not known to position nucleosomes, in contrast to α-satellite DNA or the Widom 601-sequence (Lowary and Widom, 1998; Luger et al., 1997; Stormberg and Lyubchenko, 2022; Thåström et al., 1999). We observed an MSD curve similar to the high salt conditions (Figure 3A, Figure 3—video 6, Figure 3—source data 1 and 2), with an average diffusion constant of 5.7±0.4 nm2·s–1 (Figure 3B, Table 1, Figure 3—source data 1 and 2). A similar pattern was observed for the average step size (5.8±0.2 nm), maximum R-step (16.0±0.2 nm), and R-step variance (33.7±0.6 nm2, Table 1, Figure 3—figure supplement 1C-E, Figure 3—source data 2). The single step displacement distributions were well-fit by a sum of two Gaussians (Figure 3—figure supplement 2, Figure 3—source data 1 and 2). Overall, it appears that CENP-A nucleosomes reconstituted on the 8.5 kbp plasmid without known positioning sequences behaves similar to CENP-A nucleosomes reconstituted on 3.5 kbp plasmid with known positioning sequences, thereby suggesting that nucleosome mobility measured in these experiments may be independent of DNA sequence specificity.
When we analyzed previously published HS-AFM videos of H3 chromatin with or without linker histone H1.5 (Melters and Dalal, 2021) as well as H3 mononucleosomes, we observed a bias in both the angle between successive steps and Gaussian fitting of single step displacements (Figure 3—figure supplements 6 and 7, Figure 3—videos 7–9, Figure 3—source data 1 and 2). These data provide evidence that bias in HS-AFM trajectories is a possibility and that it can be detected. Furthermore, there was no difference in fitting either a single or double Gaussian distributions for H3 mononucleosomes (Figure 3—figure supplement 7F). Mononucleosomes are not associated with other nucleosomes and a priori mononucleosomes cannot display whole chromatin fiber motions, allowing mononucleosomes to move freely independent of the DNA strand. We observed that the diffusion constant of mononucleosomes is about threefold larger than that of chromatin arrays (Table 1) and 10- to 185-fold larger than the D1 diffusion constants observed under various conditions (Figure 3—figure supplements 2 and 7). In addition, the R-step range of mononucleosomes is roughly twofold larger than chromatin arrays (Table 1). Therefore, the latter observations imply that the unconstrained motion of mononucleosomes results in a single Gaussian distribution of step displacements.
Altogether, when we analyzed HS-AFM videos, CENP-A chromatin responded to varying salt and APS concentrations in agreement with previous reports (Allahverdi et al., 2015; Brasch et al., 1971; Lyubchenko et al., 2014; Shlyakhtenko et al., 2003; Yager et al., 1989; Yager and van Holde, 1984). Low salt and 2 x APS concentrations reduced CENP-A nucleosome mobility, whereas high salt and no APS concentrations increased CENP-A nucleosome mobility (Figure 3—figure supplement 8). For the remainder of the HS-AFM experiments, we used near physiological relevant salt concentrations (67.5 mM NaCl, 2 mM MgCl2) and standardized APS concentrations (167 nM [Lyubchenko et al., 2014]).
CENP-CCD represses CENP-A nucleosome mobility in vitro
Previously, we showed that a central domain fragment of CENP-C (Figure 4A) rigidified CENP-A nucleosomes and induced CENP-A nucleosome clustering (Melters et al., 2019). Based on these observations, we hypothesized that CENP-CCD would reduce CENP-A nucleosome mobility. To test this hypothesis, we imaged CENP-A chromatin by HS-AFM under near physiological conditions. Subsequently, nucleosome tracks were extracted in either the absence (Figure 4B, Figure 4—figure supplements 1–3, Figure 4—video 1, Figure 4—source data 1 and 2) or presence of 1, 2, or 4 CENP-CCD molecules (1 x, 2 x, or 4 x, respectively) per CENP-A nucleosome (Figure 4C, Figure 4—figure supplements 1–3, Figure 4—videos 2–4, Figure 4—source data 1 and 2). From at least 3 experiments per sample, we obtained 498, 368, 310, and 166 trajectories, respectively (Table 1). First, we verified that there were no motion artifacts associated with the tip scanning (Figure 4—figure supplement 1). Next, we calculated the MSD of CENP-A nucleosomes alone or in the presence of 1 x, 2 x, or 4 x CENP-CCD and found that individual MSD curves of CENP-A nucleosomes were broadly distributed (Figure 4D, Figure 4—figure supplement 2A, B), with an average MSD curve that reached a plateau after ~25 s (Figure 4—figure supplement 2A), implying confined motion (Kapanidis et al., 2018; Zhong and Wang, 2020).

CENP-CCD restrict CENP-A nucleosome mobility in vitro (A) Schematic representation of human CENP-C (943 amino acids: CENP-C, NCBI Gene ID: 1060).
The central domain of CENP-C (CENP-CCD), which directly binds to CENP-A nucleosomes, was added at a ratio of 1, 2, or 4 fragments per CENP-A nucleosome (1 x, 2 x, or 4 x CENP-CCD, respectively). (B) CENP-A nucleosome arrays were tracked in fluid for up to 120 s by HS-AFM at 1 frame every 2 s. A representative still frame is shown as well as the trajectories over time. (C) CENP-A nucleosome arrays were tracked in the presence of 1 x, 2 x, or 4 x CENP-CCD. A representative still frame is shown as well as the trajectories over time. (D) The average mean square displacement is shown with standard error as a function of the time interval. CENP-A nucleosomes alone are in red. CENP-A nucleosomes with 1 x CENP-CCD is in yellow, 2 x CENP-CCD is in blue, and 4 x CENP-CCD is in black. (E) The diffusion constants obtained from the MSD curves. The line and bar graphs represent three independent technical replicates. The error bars represent the standard error.
-
Figure 4—source data 1
Trajectory statistics for all tracked nucleosomes.
X and Y coordinates, distance between two steps, accumulated distance per trajectory, and angle between two steps are reported.
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig4-data1-v1.zip
-
Figure 4—source data 2
Basic statistics for all tracked nucleosomes.
This includes diffusion constant (nm2·s–1), MSD slope (nm2), average MSD slope (nm2), average step size (nm), maximum R-step (nm), and R-step range (nm).
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig4-data2-v1.zip
When CENP-CCD was added at either 2 x or 4 x molar excess to CENP-A nucleosomes, CENP-A nucleosome mobility was strongly restricted (Figure 4D, Figure 4—figure supplement 2A, Figure 4—videos 2–4, Figure 4—source data 1 and 2). Indeed, the MSD curve was much lower for 2 x and 4 x CENP-CCD compared to CENP-A alone, and the 2 x and 4 x CENP-CCD MSD curve maintained a shallow slope (Figure 4D, Figure 4—figure supplement 2A). In contrast, the 1 x CENP-CCD MSD curve was similar to CENP-A alone (Figure 4D, Figure 4—figure supplement 2B, Figure 4—source data 1 and 2). The diffusion constant of CENP-A alone was 2.3±0.2 nm2·s–1, whereas the addition of 2 x and 4 x CENP-CCD reduced the diffusion constant 2.9-fold to 0.78±0.06 nm2·s–1 and 3.8-fold to 0.61±0.05 nm2·s–1, respectively (Table 1, Figure 4E, Figure 4—figure supplement 2B, Figure 4—source data 1 and 2). This difference is reflected in the smaller single frame step size when CENP-CCD is added to CENP-A chromatin compared to CENP-A chromatin alone (Figure 4—figure supplement 2C, Figure 4—source data 2). The maximum R-step and R-step range were also larger for CENP-A nucleosomes without CENP-CCD (Figure 4—figure supplement 2D, E, Figure 4—source data 2). Next, we fitted the single step displacement distributions with Gaussian distributions and found that a sum of two Gaussian distributions provided better fits (Figure 4—figure supplement 3, Figure 4—source data 1 and 2). Overall, by HS-AFM we observed that CENP-CCD restricts CENP-A nucleosome mobility in a switch-like manner. We hypothesized that this switch, as we recently observed (Melters et al., 2019), could be the mechanism by which overexpression of CENP-C in living cells results in CENP-A chromatin clustering.
Excess CENP-C suppresses centromeric RNAP2 levels and centromeric transcription in vivo
Next, we asked what the functional consequences are of CENP-C on CENP-A chromatin, beyond the formation of kinetochores (Cheeseman et al., 2006; Walstein et al., 2021; Mendiburo et al., 2011; Régnier et al., 2005). Previously, we showed that overexpressing CENP-C in HeLa cells resulted in increased clustering of centromeric chromatin and loss of centromeric RNAP2 (Melters et al., 2019). These results, combined with our ‘decrease of motion’ observations above, suggest that centromeric non-coding α-satellite transcription might be impaired in the background of CENP-C overexpression. To examine this facet of CENP-C:CENP-A homeostasis, we overexpressed CENP-C in HeLa cells to assess if centromeric transcription is altered.
First, we measured the effects of CENP-C overexpression on the level of RNAP2 on CENP-A chromatin. We overexpressed CENP-C 2.8-fold (Figure 5—figure supplement 1; Figure 5—figure supplement 1—source data 1 and 2) in HeLa cells for 72 hr and subsequently purified CENP-A chromatin associated with CENP-C by CENP-C native ChIP (nChIP), and the unbound CENP-A chromatin was pulled-down by sequential ACA nChIP. We found that RNAP2 levels were reduced upon CENP-C overexpression (Figure 5A, Figure 5—figure supplement 1, Figure 5—figure supplement 1—source data 1 and 2). In addition, we observed that, upon CENP-C overexpression, total CENP-A levels were also reduced (Figure 5B, Figure 5—figure supplement 1, Figure 5—figure supplement 1—source data 1 and 2). Previously (Melters et al., 2019), we showed that the addition of CENP-CCD or overexpression of CENP-C results in compaction of CENP-A chromatin. We therefore wondered if CENP-C overexpression impacted centromeric transcription. By quantitative PCR, we observed a ~60% reduction in α-satellite transcripts in cells overexpressing CENP-C (Figure 5C, Figure 5—source data 1).

CENP-C overexpression suppressed α-satellite expression and centromeric RNAP2 occupancy.
(A) Quantification of RNAP2 levels pulled down with either CENP-C or sequential ACA nChIP. (B) Quantification of CENP-A levels that pulled down with either CENP-C or sequential ACA nChIP. (C) Quantification of consensus α-satellite transcription in mock-transfected (WT) and CENP-C overexpression (CENP-COE) (two-sided t-test; significance was determined at p<0.05). The bar graphs represent three independent technical replicates, and the error bars represent standard deviations.
-
Figure 5—source data 1
Quantification of RT-PCR of α-satellite transcripts for Figure 5C.
- https://cdn.elifesciences.org/articles/86709/elife-86709-fig5-data1-v1.zip
These results indicate that CENP-A levels are reduced and that centromeric transcription is indeed impaired upon CENP-C overexpression. Previous reports showed that new CENP-A loading is transcriptionally regulated (Jansen et al., 2007; Quénet and Dalal, 2014). Therefore, we hypothesized that CENP-C overexpression leads to defective de novo CENP-A loading.
CENP-C overexpression limits de novo CENP-A loading
To test this hypothesis, we turned to the well-established SNAP-tagged CENP-A system combined with quench pulse-chase immunofluorescence (Bodor et al., 2012). Using this system in cells synchronized to mid-G1, one can distinguish between older CENP-A (TMR-block) and newly incorporated CENP-A (TMR-Star; Figure 6A and B). Strikingly, in an CENP-C overexpression background, we observed a 1.3-fold reduction of de novo incorporation of CENP-A (Figure 6C and D, Figure 6—figure supplement 1—source data 1).

New CENP-A loading impaired upon CENP-C overexpression.
(A) Schematic of experimental design. (B) Colocalized immunofluorescent signals for CENP-A and TMR-Star are collected and the intensity of both foci is measured as well as the background neighboring the foci to determine the ratio of the TMR-star signal over total CENP-A signal. (C) De novo CENP-A incorporation was assessed by quench pulse-chase immunofluorescence. After old CENP-A was quenched with TMR-block, newly loaded CENP-A was stained with TMR-Star and foci intensity was measured over total CENP-A foci intensity. Inset is a ×2 magnification of the dotted box in each respective image. (D) Quantification of de novo CENP-A loading by measuring the ratio of TMR-Star signal over total CENP-A signal (one-way ANOVA; significance was determined at p<0.05, n=number of cells analyzed). The box plots represent three independent technical replicates.
Thus, the functional consequences of CENP-C overexpression are suppression of α-satellite transcription (Figure 5C) and subsequent impairment of new CENP-A loading (Figure 6C and D).
Discussion
Here, we demonstrate that HS-AFM is a reliable technique for studying single nucleosome dynamics by directly visualizing their motion in real time. Importantly, we show that the AFM tip scanning motion does not generate observable artifacts in nucleosome dynamics (Figure 2, Figure 2—figure supplements 1 and 2). Various critical scanning conditions were tested to assess their impact on CENP-A chromatin dynamics. Salt is a well-known factor that can either stabilize or destabilize chromatin (Allahverdi et al., 2015; Brasch et al., 1971; Lyubchenko et al., 2014; Shlyakhtenko et al., 2003; Yager et al., 1989; Yager and van Holde, 1984). Case in point, salt dialysis is a common method for in vitro nucleosome reconstitution (Cruz-Becerra and Kadonaga, 2021; Peterson, 2008; Walkiewicz et al., 2014). Indeed, low salt restricted CENP-A nucleosome motion, whereas high salt did the opposite (Figure 3, Figure 3—figure supplements 1–3). In AFM studies, APS is used to functionalize the mica surface with positive charges facilitating the interaction of DNA or chromatin with the mica surface. Not functionalizing the mica surface resulted in more mobile CENP-A nucleosomes, whereas 2 x APS functionalized mica resulted in increased levels of immobile CENP-A nucleosomes (Figure 3, Figure 3—figure supplements 1–3). Furthermore, we used a plasmid containing a non-nucleosome positioning sequence PCAT2 (Figure 3, Figure 3—figure supplements 1–3). Interestingly, the diffusion constant for CENP-A nucleosomes reconstituted on PCAT2 containing plasmid was higher than that of CENP-A nucleosomes reconstituted on α-satellite containing plasmid imaged under the same conditions (Table 1).There are various parameters that could account for this difference in diffusion constant. Only 20% of the α-satellite containing plasmid is comprised of nucleosome positioning sequences. Although it cannot be excluded, it is unlikely that the nucleosome positioning sequence reduces the global diffusion constants. Alternatively, the two plasmids differed substantially in length (8.5 kbp PCAT2 plasmid versus 3.5 kbp α-satellite plasmid). This means that PCAT2 plasmid possibly contained a much larger number of nucleosomes, potentially impacting local nucleosome density and thus chromatin compaction. The potential role of nucleosome crowding on nucleosome mobility should be investigated. In addition, H3 mononucleosomes were the only nucleosomes for which the single-frame step size distribution was well-fit by a single Gaussian (Figure 3—figure supplement 7F), this is in stark contrast with CENP-A chromatin, for which the step size distribution is well-fit by the sum of two Gaussians (Figure 3—figure supplement 2, Figure 4—figure supplement 2). This implies that nucleosome arrays might drive the two mobility states we observed. Looking more closely at individual tracks, we noticed that nucleosomes can switch between the D1 and D2 state (Figure 3—figure supplement 3). The slower D1 diffusion constant did not appear to simply reflect nucleosomes being stuck to the mica surface (Figure 3—figure supplement 5). It will be interesting to learn what precisely causes the two Gaussian distributions, including whether oncohistones (Nacev et al., 2019), PTMs, or nucleosome binding factors (Zhou et al., 2019) can alter the relative probability of the two Gaussian distributions. Altogether, these data provide evidence that CENP-A nucleosomes respond to various control conditions in a predictable manner, but also that their dynamics are complex and include at least two mobility states.
CENP-C modulates both CENP-A nucleosome accessibility (Ali-Ahmad et al., 2019; Ariyoshi et al., 2021; Falk et al., 2016; Falk et al., 2015; Guo et al., 2017) and its elasticity (Melters et al., 2019). Here, we show that CENP-CCD regulates CENP-A nucleosomes mobility in a switch-like manner (Figure 4, Figure 4—figure supplements 1–3). This might imply that CENP-C compacts CENP-A chromatin once a critical mass is reached. The data presented here correlates with CENP-CCD rigidification of CENP-A nucleosomes (Melters et al., 2019). Additionally, we show that in vivo, CENP-C overexpression results in reduced levels of centromeric RNAP2 (Melters et al., 2019), impaired centromeric transcription (Figure 5C), and subsequent decreased loading of new CENP-A at the centromere (Figure 6). These findings combined provide evidence for a speculative link between the physical properties of nucleosomes, their mobility along DNA, and how these material properties might regulate chromatin accessibility and transcriptional potential.
In the nucleus, nucleosomes move in different dimensions, either in a single dimension along the DNA strand, or three dimensions where the DNA strand moves and the nucleosomes follow as passengers (Babokhov et al., 2020; Ide et al., 2022; Melters and Dalal, 2021). In addition, various events, ranging from transcription to DNA repair and replication, involve chromatin remodeling (Nodelman and Bowman, 2021; Zaret, 2020). Several in vivo studies have utilized tagged H2B combined with high-resolution live cell imaging to probe nucleosome dynamics. Nucleosomes within heterochromatin were less dynamic compared to euchromatin regions (Ashwin et al., 2019; Maeshima et al., 2023; Nozaki et al., 2017; Ricci et al., 2015), transcriptional inhibition diminished constraints of local chromatin movements (Nagashima et al., 2019), and local levels of H1 correlated with reduced nucleosome dynamics (Gómez-García et al., 2021). Indeed, chromatin-associated H1-eGFP mobility was two orders of magnitude smaller than free H1-eGFP (Bernas et al., 2014; Wachsmuth et al., 2016). ATP-driven effects also impact DNA motion (Bhattacharya et al., 2006; Levi et al., 2005). Tagging DNA is an effective method to test how mobile chromosome loci are in vivo. Using fluorescence recovery spectroscopy, GFP-tagged loci in CHO cells showed a slow and fast diffusion coefficient of 0.24·10–3 and 3.13·10–3 µm2·s–1 (Levi et al., 2005) and TetO tagged-DNA DHJH loci in B cells had a diffusion coefficient of ~2.0·103 µm2·s0.5 (Lucas et al., 2014). The change in diffusion coefficient of VHDH loci is interpreted to results in a fourfold increase in interaction frequency (Lucas et al., 2014). In these cases, specific loci were tagged and tracked, but the behavior of individual nucleosomes within these domains remain unaccounted for. Therefore, in parallel, studies using optical tweezers probed the one dimensional diffusive behavior of nucleosomes (Chen et al., 2019; Rudnizky et al., 2019). A recent study using optical tweezers showed that the diffusion constant of H3 mononucleosomes sliding along a DNA strand is ~1.3 bp2·s–1 (~0.15 nm2·s–1; Rudnizky et al., 2019). This value is roughly similar to the D1 diffusion constants we observed (Figure 3—figure supplements 2 and 7, Figure 4—figure supplements 1 and 2), implying that the D1 diffusion constant might reflect sliding nucleosomes. Binding of transcription factors to nucleosomal DNA biases nucleosome motion, potentially through manipulation of the folding and unfolding of nucleosomal DNA around the nucleosome core particle (Donovan et al., 2023; Rudnizky et al., 2019). Here, we show that CENP-A nucleosomes have an average diffusion constant of 2.3±0.2 nm2·s–1 and their single-step distribution was well-fit by a sum of two Gaussian distributions (Figure 4, Figure 4—figure supplement 2). When CENP-CCD was added at a two- or fourfold molar ratio to CENP-A nucleosomes, we observed a diffusion constant that is about three times lower than CENP-A nucleosomes alone (0.78±0.06 nm2·s–1 and 0.61±0.05 nm2·s–1, respectively). This difference in diffusion constants for nucleosomes between the Rudnizky study (~0.15 nm2·s–1, [Rudnizky et al., 2019]) and our results (0.61–2.3 nm2·s–1) could be due to technical differences of their experimental set-up compared to our experimental approach (optical tweezers vs HS-AFM). We used nucleosome arrays which permit both one-dimensional (nucleosome sliding) and two-dimensional motions (whole chromatin fiber movement) of nucleosomes compared to mononucleosomes that were fixed to polystyrene beads, which only permit one-dimensional motion (Rudnizky et al., 2019). In contrast, single molecule tracking in cultured cells captures nucleosome dynamics within the nucleus (Iida et al., 2022; Kimura and Cook, 2001; Morisaki et al., 2014; Wagh et al., 2023), but requires fluorophore-tags. Fluorophore-tags are photosensitive (Jradi and Lavis, 2019) and have the potential of altering the function of the protein it is bound to Maheshwari et al., 2015; Ravi et al., 2010. Calculated diffusion constants for H2B-eGFP range from 0.0019 µm2·s–1 to 7.3 µm2·s–1 (Bhattacharya et al., 2006; Mazza et al., 2012) and 0.03 µm2·s–1 to 1.39 µm2·s–1 for HALO-H2B (Lovely et al., 2020; Ranjan et al., 2020). These in vivo H2B diffusion constants are several orders of magnitudes larger than we observed (0.61–2.3 nm2·s–1). This could be due to the many activities within the nucleus of a living cell compared to the steady-state nature of an in vitro experiment. As such, the potential of single molecule analysis by HS-AFM to contribute to elegant studies in the field is exciting, as it can link single-molecule force spectroscopy analysis to in vivo single molecule tracking experiments.
Looking at another histone variant nucleosome, the diffusion constant of H2A.Z nucleosomes is larger than H3 nucleosomes (Rudnizky et al., 2019), which correlates with the transcriptional buffering function of H2A.Z (Chen et al., 2019; Giaimo et al., 2019). A logical prediction from our results would be that transcription through CENP-A chromatin would be more efficient compared to H3 chromatin. Indeed, a recent single-molecule study showed that CENP-A creates an open chromatin structure (Nagpal and Fierz, 2022). We found that proteins that exert their activity by binding to the outer surface of nucleosomes, rather than changing the internal constituents of nucleosomes, have the opposite effect on transcription. CENP-CCD rigidifies CENP-A nucleosomes (Melters et al., 2019), and CENP-CCD-CENP-A nucleosomes have a significantly reduced diffusion constant compared to CENP-A nucleosomes alone (Table 1). In vivo, overexpression of CENP-C resulted in decreased centromeric transcription (Figure 6). Thus, this study significantly extends the existing paradigm that suggests nucleosome dynamics are highly tunable, with a surprising twist – tuners can dampen or exaggerate nucleosome motion, which correlates with higher order chromatin folding and accessibility.
Taking these and prior findings in context, our data suggest a model where chromatin effector partners modify the material properties of histone variant nucleosomes at the local level, supporting the formation of functional nucleosome clutches (Portillo-Ledesma et al., 2021; Ricci et al., 2015; Figure 7). Here, we specifically probed CENP-A chromatin and based on our results we propose the following working model. CENP-A nucleosomes recruit CENP-C to form a kinetochore-promoting CENP-A chromatin clutch (Kale et al., 2023). CENP-C functions as the template for the recruitment of additional kinetochore proteins (Klare et al., 2015; Yatskevich et al., 2023). When CENP-C binds, CENP-A nucleosomes become rigidified (Melters et al., 2019) and restrict CENP-A nucleosomes mobility (Figure 4). This unique clutch facilitates the recruitment of other inner kinetochore components by locally immobilizing CENP-A chromatin (Yatskevich et al., 2023). Yet, to load new CENP-A molecules, transcription must happen (Arunkumar and Melters, 2020; Quénet and Dalal, 2014). The repressive chromatin state that CENP-C induces (Figure 5) contradicts this functional necessity. One speculative manner in which cells can work around the juxtaposition of the dual functions of CENP-A chromatin is by maintaining a pool of free centromeric CENP-A nucleosomes (Figure 7). Indeed, ChIP-seq and FISH data have established that centromeric CENP-C levels are lower compared to CENP-A levels (Henikoff et al., 2015; Kyriacou and Heun, 2018). We propose that unbound elastic and mobile CENP-A chromatin clutches create an intrinsically accessible chromatin state, allowing for the recruitment of transcriptional machinery that maintains centromeric CENP-A levels to facilitate both opposing functions (Figure 7). Succinctly, the epigenetic fate of a locus may be tightly, possibly causally, linked to the mechanical state of the chromatin fiber; concomitantly, the reinstatement of an epigenetic signature by de novo loading of a particular variant, reinforces the mechanical state of the fiber.

Clutch model for CENP-C restricted motion of CENP-A chromatin.
Under wildtype conditions, we propose that CENP-A chromatin not bound by CENP-C (yellow box) forms a chromatin clutch and is readily accessible to the transcriptional machinery, because of the intrinsic material properties of CENP-A nucleosomes. In contrast, when CENP-C or CENP-C complexes bind CENP-A nucleosomes, a unique clutch of CENP-A chromatin is formed restricting sliding of CENP-A nucleosomes. This coincides with CENP-CCD altering the material properties, and quenching the mobility, of CENP-A chromatin. Less mobile CENP-A nucleosomes restrict progression of the transcriptional machinery and subsequent loading of new CENP-A molecules.
In summary, we report the MSDs and diffusion constants for CENP-A nucleosomes under a variety of conditions, and we show that single-step distributions are well-fit by the sum of two Gaussians. This implies that nucleosomes exist in at least two distinct mobility states. CENP-CCD modulates centromeric chromatin by restricting the motions of CENP-A nucleosomes. As we observed a switch-like behavior of restricting CENP-A nucleosome motions, instead of a linear dose-response, we speculate that CENP-C limits CENP-A mobility once a critical concentration is reached. In vivo, we observed diminished transcriptional competence when CENP-C is overexpressed, resulting in suppression of de novo CENP-A loading. These results strongly imply that there is a mechanistic link between modulating the material properties of nucleosomes and chromatin accessibility. Nucleosome dynamics play an important role in genome compaction and regulating DNA access by DNA binding factors. These dynamics are driven by only a few interactions between the interfaces of DNA and nucleosomes (Fierz and Poirier, 2019; Polach and Widom, 1995; Widom, 1998). An exciting line of investigation is to examine how at the nanoscale level the interaction between CENP-A nucleosomes and CENP-C protein co-evolved to repress CENP-A’s mobile and elastic nature. It will also be crucial to examine how CENP-A:CENP-C homeostasis, along with those of other key inner kinetochore proteins such as CENP-N, T, S, X, and W regulate centromeric transcription and thereby de novo assembly of CENP-A to maintain the epigenetic identity of centromeres in other species. At a more global scale, it will be exciting to ask how different H1 variants modulate the chromatin fiber at the local level to promote or limit transcriptional competency, and how H1 variants dictate the mechanical motions of individual nucleosomes within the local 10 nm chromatin fiber.
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Cell line (Homo sapiens) | HeLa (cervical carcinoma, Adult) | ATCC | CCL-2 | |
Antibody | Anti-CENP-A (Mouse monoclonal) | Abcam | Cat. #: ab13939, RRID: AB_300766 | IF(1:1000) |
Antibody | Anti-CENP-A (rabbit monoclonal) | Abcam | Cat. #: ab45694 | WB (1:3000) |
Antibody | Anti-CENP-C (guinea pig polyclonal) | MBL International | Cat. #: PD030, RRID: AB_10693556 | nChIP (5 µL), WB (1:1000) |
Antibody | Anti-CENP-C (rabbit polyclonal) | Santa Cruz | Cat. #: sc-22789 | WB (1:500) |
Antibody | Anti-H2A (rabbit polyclonal) | Abcam | Cat. #: ab18255, RRID: AB_470265 | WB (1:1000) |
Antibody | Anti-CENP-A (rabit polyclonal) | This paper | nChIP (3 µL per test) | |
Antibody | ACA serum (human, polyclonal) | BBI Solutions | SG140-2 | nChIP (5 µL per test) |
Recombinant DNA reagent | GFP-CENP-C (plasmid) | Gift from Stephan Diekmann | pGFP-CENP-C (KAN) | |
Recombinant DNA reagent | SNAP-CENP-A (plasmid) | This paper | SNAP version of pCh-C-CENP-A (AMP) | |
Recombinant DNA reagent | PCAT2 (plasmid) | Arunkumar et al., 2022 | ||
Recombinant DNA reagent | 4 x α-satellite (plasmid) | Quénet and Dalal, 2014 | ||
Sequence-based reagent | Centromeric α-satellite_F | Quénet and Dalal, 2014 | PCR primers | CATCACAAAGAAGTTTCTGAGAATGCTTC |
Sequence-based reagent | Centromeric α-satellite_R | Quénet and Dalal, 2014 | PCR primers | TGCATTCAACTCACAGAGTTGAACCTTCC |
Sequence-based reagent | GAPDH_F | Quénet and Dalal, 2014 | PCR primers | GCGGTTCCGCACATCCCGGTAT |
Sequence-based reagent | GAPDH_R | Quénet and Dalal, 2014 | PCR primers | CCCCACGTCGCAGCTTGCCTA |
Peptide, recombinant protein | CENP-A/H4 tetramer | EpiCypher | Cat. #: 16–010 | |
Peptide, recombinant protein | H2A/H2B dimer | EpiCypher | Cat. #: 15–0311 | |
Peptide, recombinant protein | H3/H4 tetramer | EpiCypher | Cat. #: 16–0008 | |
Commercial assay or kit | TMR-Block | New England Biolabs | Cat. #: S9106S | |
Commercial assay or kit | TMR-Star | New England Biolabs | Cat. #: S9105S | |
Commercial assay or kit | NeonTM Transfection System 100 µL kit | ThermoFisher Scientific | Cat. #: MPK10025 | |
Software, algorithm | R | https://www.r-project.org/ | RRID:SCR_002865 | |
Software, algorithm | Gwyddion | http://gwyddion.net/ | RRID: SCR_015583 | |
Software, algorithm | NIH ImageJ | https://imagej.net/software/fiji/ | RRID: SCR_003070 | |
Software, algorithm | ggplot2 | https://cran.r-project.org/web/packages/ggplot2/index.html | RRID: SCR_014601 | |
Software, algorithm | CRaQ | http://facilities.igc.gulbenkian.pt/microscopy/microscopy-macros.php | ||
Software, algorithm | Adobe Photostop | https://www.adobe.com/products/photoshop.html | RRID: SCR_014199 | |
Software, algorithm | MATLAB | https://www.mathworks.com/products/matlab.html | RRID: SCR_001622 | |
Software, algorithm | MatLabTrack | https://sourceforge.net/projects/single-molecule-tracking/ | ||
Other | Vectashield with DAPI | Vector Laboratories | H-1200 | Stain nuclei |
In vitro reconstitution
Request a detailed protocolIn vitro reconstitution of CENP-A (CENP-A/H4 cat#16–010 and H2A/H2B cat#15–0311, EpiCypher, Research Triangle Park, NC) and H3 (H3/H4 cat#16–0008 and H2A/H2B cat#15–0311, EpiCypher Research Triangle Park, NC) nucleosomes were in vitro reconstituted on either 3.5 kbp plasmid containing four copies of α-satellite DNA or a 8.5 kbp plasmid containing 3 copies of PCAT2 lncRNA gene performed as previously described (Dimitriadis et al., 2010; Walkiewicz et al., 2014). For quality purposes, an aliquot of each sample was imaged by AFM in non-contact tapping mode, before moving on to high-speed AFM.
High-speed AFM
Request a detailed protocolIn vitro reconstituted CENP-A and H3 chromatin with the addition of CENP-CCD (Melters et al., 2019) or H1.5 (Melters and Dalal, 2021), respectively was imaged with the Cypher VRS (Oxford Instruments, Asylum Research, Santa Barbara, CA) using ultra-small silicon cantilevers (BL-AC10DS with nominal resonances of ~1500 kHz, stiffness of ~0.1 N/m) in non-contact-mode. The V1-grade mica on top of the scanning pilar was peeled and functionalized with 167 nM APS, before 10 µL of sample was added. The sample was incubated for 15–20 minutes before initializing scanning to obtain a density of ~400 nucleosome/µm2. The sample was imaged at a speed of 268.82 Hz (frame rate = 1 Hz or one frame per second) and a resolution of 512x256 points and lines for an area of 400x400 nm (CENP-A and CENP-A +CENP CCD samples with a nucleosome density of ~300 nucleosomes/µm2, respectively), 300x300 nm (H3 +H1.5 sample with a nucleosome density of ~200 nucleosomes/µm2), and 250x250 nm (H3 sample with a nucleosome density of ~200 nucleosomes/µm2). As the AFM tip moves from the top of the scan area to the bottom, before moving back up again. This cycle repeats itself. This means that the relative tip location on the scan area between successive images do not perfectly correspond in time. To avoid getting inaccurate tracking data, we limited our analysis to only every other scanned image to guarantee that the relative tip position between two successive analyzed images. Videos were saved in mp4 format, converted to TIFF sequences using Photoshop (Adobe), prepared for single molecule tracking in ImageJ (Fuji), and tracked with MATLAB’s MatlabTrack v6.0 package. Obtained nucleosome tracks that were shorter than 10 frames and had single steps exceeding 24 nm or nucleosome tracks with average R-step less than 1 nm and a maximum R-range less than 8 nm were excluded from the analysis. Using ggplot2 package in R (version 4.2.1), drift was visualized and calculated for each individual video and any observed drift was corrected and verified. The remaining nucleosome tracks were subsequently analyzed to obtain the mean square displacement curves, diffusion constant, angle between successive frames, single frame step sizes, the maximum R-step, and R-step range. The R-step is the single-frame displacement in the plane. It is defined as the square root of the sum of the squares of the displacement in the x and y direction [R-step = ]. The results were visualized using the ggplot2 package in R (version 4.2.1). The diffusion constant for each nucleosome sample was estimated from the initial two points of each MSD (Vestergaard et al., 2014). The mean and standard error of the mean are reported as the diffusion constant and uncertainty for each nucleosome sample. The mean diffusion constant is identical to the diffusion constant derived from the first two points of the average MSD curves for each nucleosome sample. To test whether the smaller D1 diffusion constant is indistinguishable from ‘stuck’ or rejected particle trajectories, we compared the x-axis and y-axis diffusion constants of the ‘stuck’ particle trajectories to the D1 diffusion constant. We fitted the rejected steps in the x- and y- directions to a single Gaussian distribution and obtained the diffusion constant from the standard deviation of the fitted Gaussian. The effective diffusion constants of the ‘stuck’ trajectories were compared to the smaller D1 diffusion constant. We used the F-test to compare the Gaussian variances to determine the probability that the smaller D1 diffusion constant is consistent with the ‘stuck’ particle trajectories. The diffusion constants and step analyses were performed in a double-blind manner.
Native chromatin immunoprecipitation and western blotting
Request a detailed protocolHeLa cells (CCL-2 from AATC; tested negative for mycoplasma contamination) were grown in DMEM (Invitrogen/ThermoFisher Cat #11965) supplemented with 10% FBS and 1 X penicillin and streptomycin cocktail. nChIP experiments were performed without fixation. After cells were grown to ~80% confluency, they were harvested as described (Bui et al., 2017; Bui et al., 2012). For best results, the pellet obtained for chromatin was spun-down during the nuclei extraction protocol (Walkiewicz et al., 2014) and was broken up with a single gentle tap. Nuclei were digested for 6 minutes with 0.25 U MNase/mL (Sigma-Aldrich cat #N3755-500UN) and supplemented with 1.5 mM CaCl2. Following quenching (10 mM EGTA), nuclei pellets were spun down, and chromatin was extracted gently, overnight in an end-over-end rotator, in low salt solution (0.5 x PBS; 0.1 mM EGTA; protease inhibitor cocktail (Roche cat #05056489001)). nChIP chromatin bound to Protein G Sepharose beads (GE Healthcare cat #17-0618-02) were gently washed twice with ice cold 0.5 x PBS and spun down for 1 min at 4 °C at 800 rpm. Following the first nChIP, the unbound fraction was used for the sequential nChIP. Western analyses were done using LiCor’s Odyssey CLx scanner and Image Studio v2.0.
Quantitative PCR
Request a detailed protocolα-satellite expression levels in HeLa cells that were either mock transfected or transfected GFP-CENP-C (generous gift from Stephan Diekmann) using the Neon Transfection System 100 µL kit (Cat. #: MPK10025, Thermo Fisher Scientific, Waltham, MA) per instructions (McNulty et al., 2017; Quénet and Dalal, 2014). RNA was extracted, quantified by UV-spectroscopy, and equal quantities were retro-transcribed using Superscript III First-Strand Synthesis kit as described above. Complementary DNA (cDNA) samples were prepared using the iQ SYBR Green supermix (#170–8880; Biorad) following manufacturer’s protocol. Control reactions without cDNA were performed to rule out non-specific amplification. The quantitative PCR was run on ‘Step one plus Real time PCR’ system (Applied Biosystem, Grand Island, NY). Primer sequences are:
The comparative cycle threshold (CT) method was used to analyze the expression level of α-satellite transcripts. CT values were normalized against the average CT value of the housekeeping gene GAPDH. Relative fold differences (2−ΔΔCT) are indicated in Figure 5C.
Quench pulse-chase immunofluorescence
Request a detailed protocolTo quantify de novo assembled CENP-A particles, we transfected HeLa cells with SNAP-tagged CENP-A under a CMV promoter in combination with either empty vector or GFP-CENP-C (generous gift from Stephan Diekmann) using the Neon Transfection System 100 µL kit (Cat. #: MPK10025, Thermo Fisher Scientific, Waltham, MA) per instructions. The quench pulse-chase experiment was performed according to Bodor et al., 2012. In short, following transfection, cells were synchronized with double thymidine block. At the first release TMR-block (S9106S, New England Biolabs, Ipswich, MA) was added per manufactures instruction and incubated for 30 min at 37 °C, followed by three washes with cell culture media. At the second release TMR-Star (S9105S, New England Biolabs, Ipswich, MA) was added per manufactures instructions and incubated for 30 min at 37 °C, followed by three washes with cell culture media. Fourteen hours after adding TMR-Star, cells were fixed with 1% paraformaldehyde in PEM (80 mM K-PIPES pH 6.8, 5 mM EGTA pH 7.0, 2 mM MgCl2) for 10 min at RT. Next, cells were washed three times with ice cold PEM. To extract soluble proteins, cells were incubated with 0.5% Triton-X in CSK (10 mM K-PIPES pH 6.8, 100 mM NaCl, 300 mM sucrose, 3 mM MgCl2, 1 mM EGTA) for 5 min at 4 °C. The cells were rinsed with PEM and fixed for a second time with 4% PFA in PEM for 20 min at 4 °C. Next, the cells were washed three times with PEM. Next, the cells were incubated in blocking solution (1 X PBS, 3% BSA, 5% normal goat serum) for 1 hr at RT. CENP-A antibody (ab13979 1:1000) was added for 1 hr at RT, followed by three washes with 1 X PBS-T and a 10 min incubation with blocking solution at RT. Anti-mouse secondary (Alexa-488 1:1000) was added for 1 hr at RT, followed by three 1 X PBS-T and two 1 X PBS washes. Following air-drying, cells were mounted with Vectashield with DAPI (H-1200, Vector Laboratories, Burlingame, CA) and the coverslips were sealed with nail polish. Images were collected using a DeltaVision RT system fitted with a CoolSnap charged-coupled device camera and mounted on an Olympus IX70. Deconvolved IF images were processed using ImageJ. From up to 22 nuclei, colocalizing CENP-A and TMR-Star foci signal were collected, as well as directly neighboring regions using the CRaQ ImageJ macro (Bodor et al., 2012). Background signal intensity was subtracted from corresponding CENP-A and TMR-Star signal intensity before the ratio CENP-A/TMR-Star was determined using the CRaQ ImageJ macro (Bodor et al., 2012). Samples were imaged in a double-blind manner. Graphs were prepared using the ggplot2 package for R (version 4.2.1).
Quantification and statistical analyses
Request a detailed protocolSignificant differences for western blot quantification and nucleosome track measurements from HS-AFM analyses were performed using either paired or two-sided t-test, F-test, or one-way ANOVA as described in the Figure legends. Significance was determined at p<0.05.
Data availability
All data generated and analyzed during this study are included in the manuscript and supporting files; Source data files have been provided for Figures 1-6 and accompanied Figure 1-6 - figure supplements. Entire western blot shown in Figure 1 - figure supplement 1 - source data 1 and Figure 5 - figure supplement 1 - source data 1 are included.
References
-
Ten principles of heterochromatin formation and functionNature Reviews. Molecular Cell Biology 19:229–244.https://doi.org/10.1038/nrm.2017.119
-
High-speed atomic force microscopy and its future prospectsBiophysical Reviews 10:285–292.https://doi.org/10.1007/s12551-017-0356-5
-
Local chromatin motion and transcriptionJournal of Molecular Biology 432:694–700.https://doi.org/10.1016/j.jmb.2019.10.018
-
Spatial heterogeneity of dynamics of H1 linker histoneEuropean Biophysics Journal 43:287–300.https://doi.org/10.1007/s00249-014-0962-0
-
Current Protocols in Cell BiologyAnalysis of protein turnover by quantitative SNAP-based pulse-chase imaging, Current Protocols in Cell Biology, United states, John Wiley and Sons, 10.1002/0471143030.cb0808s55, 23129118.
-
Internal modifications in the CENP-A nucleosome modulate centromeric dynamicsEpigenetics & Chromatin 10:17.https://doi.org/10.1186/s13072-017-0124-6
-
Variants of core histones and their roles in cell fate decisions, development and cancerNature Reviews. Molecular Cell Biology 18:299–314.https://doi.org/10.1038/nrm.2016.166
-
Optical tweezers in single-molecule biophysicsNature Reviews. Methods Primers 1:25.https://doi.org/10.1038/s43586-021-00021-6
-
10 years of tension on chromatin: results from single molecule force spectroscopyCurrent Pharmaceutical Biotechnology 10:474–485.https://doi.org/10.2174/138920109788922128
-
Single-chromosome dynamics reveals locus-dependent dynamics and chromosome territory orientationJournal of Cell Science 136:jcs260137.https://doi.org/10.1242/jcs.260137
-
Structural organization of the kinetochore-microtubule interfaceCurrent Opinion in Cell Biology 24:48–56.https://doi.org/10.1016/j.ceb.2011.11.003
-
Parental nucleosome segregation and the inheritance of cellular identityNature Reviews. Genetics 22:379–392.https://doi.org/10.1038/s41576-020-00312-w
-
CENP-C directs A structural transition of CENP-A nucleosomes mainly through sliding of DNA gyresNature Structural & Molecular Biology 23:204–208.https://doi.org/10.1038/nsmb.3175
-
Biophysics of chromatin dynamicsAnnual Review of Biophysics 48:321–345.https://doi.org/10.1146/annurev-biophys-070317-032847
-
Some properties of the single strands isolated from the DNA of the nuclear satellite of the mouse (Mus musculus)Journal of Molecular Biology 40:423–443.https://doi.org/10.1016/0022-2836(69)90163-6
-
The histone variant H2A.Z in gene regulationEpigenetics & Chromatin 12:37.https://doi.org/10.1186/s13072-019-0274-9
-
Centromere/kinetochore is assembled through CENP-C oligomerizationMolecular Cell 83:2188–2205.https://doi.org/10.1016/j.molcel.2023.05.023
-
Propagation of centromeric chromatin requires exit from mitosisThe Journal of Cell Biology 176:795–805.https://doi.org/10.1083/jcb.200701066
-
Heterochromatin: guardian of the genomeAnnual Review of Cell and Developmental Biology 34:265–288.https://doi.org/10.1146/annurev-cellbio-100617-062653
-
Chemistry of photosensitive fluorophores for single-molecule localization microscopyACS Chemical Biology 14:1077–1090.https://doi.org/10.1021/acschembio.9b00197
-
The CENP-A nucleosome: where and when it happens during the inner kinetochore’s assemblyTrends in Biochemical Sciences S0968-0004(23)00176-7.https://doi.org/10.1016/j.tibs.2023.07.010
-
Understanding protein mobility in Bacteria by tracking single moleculesJournal of Molecular Biology 430:4443–4455.https://doi.org/10.1016/j.jmb.2018.05.002
-
Kinetics of core histones in living human cells: little exchange of H3 and H4 and some rapid exchange of H2BThe Journal of Cell Biology 153:1341–1353.https://doi.org/10.1083/jcb.153.7.1341
-
Chromatin accessibility and the regulatory epigenomeNature Reviews Genetics 20:207–220.https://doi.org/10.1038/s41576-018-0089-8
-
New DNA sequence rules for high affinity binding to histone octamer and sequence-directed nucleosome positioningJournal of Molecular Biology 276:19–42.https://doi.org/10.1006/jmbi.1997.1494
-
BookVisualization of DNA and protein–DNA complexes with atomic force microscopy inIn: Kuo J, editors. Electron Microscopy: Methods and Protocols. Totowa, NJ: Humana Press. pp. 367–384.https://doi.org/10.1007/978-1-62703-776-1
-
Dynamic chromatin organization without the 30-nm fiberCurrent Opinion in Cell Biology 58:95–104.https://doi.org/10.1016/j.ceb.2019.02.003
-
Is euchromatin really open in the cell? Trends in Cell BiologyTrends Cell Biol pp. S0962–S8924.https://doi.org/10.1016/j.tcb.2023.05.007
-
The roles of histone variants in fine-tuning chromatin organization and functionNature Reviews. Molecular Cell Biology 21:522–541.https://doi.org/10.1038/s41580-020-0262-8
-
A benchmark for chromatin binding measurements in live cellsNucleic Acids Research 40:e119.https://doi.org/10.1093/nar/gks701
-
Protein interactions and misfolding analyzed by AFM force spectroscopyJournal of Molecular Biology 354:1028–1042.https://doi.org/10.1016/j.jmb.2005.10.012
-
Nano-Surveillance: tracking individual molecules in a Sea of ChromatinJournal of Molecular Biology 433:166720.https://doi.org/10.1016/j.jmb.2020.11.019
-
Quantifying transcription factor kinetics: at work or at play?Critical Reviews in Biochemistry and Molecular Biology 48:492–514.https://doi.org/10.3109/10409238.2013.833891
-
Single nucleosome imaging reveals loose genome chromatin networks via active RNA polymerase IIThe Journal of Cell Biology 218:1511–1530.https://doi.org/10.1083/jcb.201811090
-
Biophysics of Chromatin RemodelingAnnual Review of Biophysics 50:73–93.https://doi.org/10.1146/annurev-biophys-082520-080201
-
Mechanism of protein access to specific DNA sequences in Chromatin: a dynamic equilibrium model for Gene RegulationJournal of Molecular Biology 254:130–149.https://doi.org/10.1006/jmbi.1995.0606
-
Nucleosome clutches are regulated by Chromatin internal parametersJournal of Molecular Biology 433:166701.https://doi.org/10.1016/j.jmb.2020.11.001
-
CENP-A is required for accurate chromosome segregation and sustained kinetochore association of BubR1Molecular and Cellular Biology 25:3967–3981.https://doi.org/10.1128/MCB.25.10.3967-3981.2005
-
Interpreting the language of histone and DNA modificationsBiochimica et Biophysica Acta (BBA) - Gene Regulatory Mechanisms 1839:627–643.https://doi.org/10.1016/j.bbagrm.2014.03.001
-
Single particle tracking: from Theory to Biophysical ApplicationsChemical Reviews 117:7331–7376.https://doi.org/10.1021/acs.chemrev.6b00815
-
A critical and comparative review of Fluorescent Tools for live-cell imagingAnnual Review of Physiology 79:93–117.https://doi.org/10.1146/annurev-physiol-022516-034055
-
The sequence dependent Nanoscale structure of CENP-A NucleosomesInternational Journal of Molecular Sciences 23:11385.https://doi.org/10.3390/ijms231911385
-
How chromatin-binding modules interpret histone modifications: lessons from professional pocket pickersNature Structural & Molecular Biology 14:1025–1040.https://doi.org/10.1038/nsmb1338
-
Sequence motifs and free energies of selected natural and non-natural nucleosome positioning DNA sequencesJournal of Molecular Biology 288:213–229.https://doi.org/10.1006/jmbi.1999.2686
-
Post-translational modifications and chromatin dynamicsEssays in Biochemistry 63:89–96.https://doi.org/10.1042/EBC20180067
-
Structure, dynamics, and function of chromatin in vitroAnnual Review of Biophysics and Biomolecular Structure 27:285–327.https://doi.org/10.1146/annurev.biophys.27.1.285
-
Dynamics and equilibria of nucleosomes at elevated ionic strengthThe Journal of Biological Chemistry 259:4212–4222.
-
Salt-induced release of DNA from nucleosome core particlesBiochemistry 28:2271–2281.https://doi.org/10.1021/bi00431a045
-
Conserved and divergent mechanisms of inner kinetochore assembly onto centromeric chromatinCurrent Opinion in Structural Biology 81:102638.https://doi.org/10.1016/j.sbi.2023.102638
-
Pioneer transcription factors initiating Gene Network changesAnnual Review of Genetics 54:367–385.https://doi.org/10.1146/annurev-genet-030220-015007
-
Three-Dimensional single particle tracking and its applications in confined environmentsAnnual Review of Analytical Chemistry 13:381–403.https://doi.org/10.1146/annurev-anchem-091819-100409
-
Nucleosome structure and dynamics are coming of ageNature Structural & Molecular Biology 26:3–13.https://doi.org/10.1038/s41594-018-0166-x
Decision letter
-
Jerry L WorkmanReviewing Editor; Stowers Institute for Medical Research, United States
-
Kevin StruhlSenior Editor; Harvard Medical School, United States
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Decision letter after peer review:
[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]
Thank you for submitting the paper "Mobility of nucleosomes is regulated by their binding partners" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The reviewers have opted to remain anonymous.
While the reviewers agreed that the work was potentially interesting they had significant concerns with the conclusions of the manuscript. We are sorry to say that, after consultation with the reviewers, we have decided that this work will not be considered further for publication by eLife.
Specifically, overall the study seems somewhat incremental over previously published work. The reviewers felt that characterization of the nucleosome arrays and what is happening to them on the stage was lacking. Do the DNA binding proteins affect interactions of nucleosomes with the stage? It is difficult to interpret the results without this information. In addition, the H1 binding experiments were poorly controlled and should not be included in the manuscript.
Reviewer #1 (Recommendations for the authors):
1. I applaud the authors for applying a novel technique to address the fundamental issue of nucleosome mobility. However, this is a relatively short study that is somewhat incremental from previously published work. For example: "Previously we published HSAFM movies of H3 chromatin and H3 chromatin with linker histone variant H1.5 (Melters and Dalal, 2021). Similar as described above, we tracked individual H3 nucleosomes in real-time without (Figure 2A, Supplemental movie 3, Source data 1) and with H1.5 Figure 2B;" Also see: "Previously we showed that overexpressing CENP-C in HeLa cells resulted in increased clustering of centromeric chromatin and loss of centromeric RNAP2 levels (Melters et al., 2019)…To examine this facet of CENP-C: CENP-A homeostasis, we overexpressed CENP-C to assess if the centromeric transcription is altered" "First, we recapitulated the effects of CENP-C overexpression on the levels of RNAP2 on CENPA chromatin" It appears that some of the data in the manuscript are a repeat of published work or at most an incremental advance.
2. The histone H1 experiments should be removed from the manuscript as they are poorly controlled. There is a long history of reported artifactual and preternatural effects of adding H1 to DNA and nucleosomes. Without evidence that H1 is binding the DNA properly and forming chromatosomes the data cannot be interpreted. Moreover, the fact that the H1 to nucleosome ratio used is 0.2:1 suggest that at most only 1 in 5 nucleosomes could be properly bound by H1and measuring the movement of the entire population is not justified. As noted by the authors the data is very heterogeneous suggesting multiple forms of nucleosomes may be present. And again even this data may be a repeat or incremental (see comment 1).
Overall the manuscript would be improved by focusing on CENP-C and CENP-A nucleosomes for which the most data is available and not make sweeping conclusions about all nucleosome binding proteins (see title).
Reviewer #2 (Recommendations for the authors):
1) If the authors want to discuss nucleosome accessibility based on nucleosome mobility, they need to perform additional experiments that would bring explicit data on nucleosome accessibility.
2) To rule out the possibility that reduced mobility upon CENP-CCD or H1.5 addition may be due to the increased interaction between the protein complexes and the surface, other proteins that are known to have no apparent interaction with chromatin (for example, BSA), or proteins that are known to increase chromatin mobility, should be also tested using HS-AFM as controls. Furthermore, to link the in vitro observation to in vivo results, CENP-Cs with the same construct should be used.
3) The title can be more informative. Since this study is basically on CENP-C and CENP-A nucleosomes, the authors could try to include these key words in the title too.
4) The authors should provide a description (or maybe a figure) of the structural domains of CENP-C in the introduction.
5) Figure 2C: The standard error bars of MSD for H3 and H3+H1.5 overlap, which does not indicate a statistically significant difference. The diffusion constants also show no statistically dominant difference. Therefore, we cannot assume that the conclusion "linker H1.5 protein restricts H3 nucleosome mobility" is entirely supported by experimental data.
6) The authors should include in the manuscript gel pictures of the reconstituted polynucleosomes used in this study to show the quality of the reconstitution.
7) It is unclear how much CENP-CCD and H1.5 are bound to polynucleosomes. The authors should report the percentage of bound CENP-CCD and H1.5, for example by performing EMSA and then gel quantification. The authors could include a section where they compare the structures of the polynucleosomes with CENP-CCD or H1.5 compared to polynucleosomes without CENP-CCD or H1.5. Is there a difference in the compaction of the structures?
[Editors’ note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Single Molecule Analysis of CENP-A Chromatin by High-Speed Atomic Force Microscopy" for further consideration by eLife. Your revised article has been evaluated by Kevin Struhl (Senior Editor) and a Reviewing Editor.
The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:
Essential revision:
1) please comment on whether the use of α satellite repeat DNA influences the results as opposed to other DNA with no nucleosome positioning preference.
2) What causes the two Gaussian distributions of nucleosomes? This is a potentially interesting result that is not pursued or explained.
3) The authors hint that they are showing potential functions of CENP-C beyond forming kinetochores by over-expressing CENP-C. Are these physiologically relevant or over-expression artifacts?
4) In the authors' description of the experimental workflow they mention that each movie is corrected for drift and they refer readers to Supplemental Figure 2. I would suggest that the legend of supplemental figure 2 be revised to include a brief description of how the drift correction is done, and perhaps add a bit more detail regarding this correction to the Methods section. Also, on page 12 the authors note that "… with Tween-20 displayed the most amount of drift". When the authors introduce the concept of correcting for drift I assumed that they were referring to instrument drift, but I am not certain how to instrument drift would be impacted by Tween-20. Can the authors please clarify?
5) Page 9: "We reasoned that if the AFM tip altered samples during scanning, it would create a distinctive signature in single particle trajectories." For the non-AFM audience, could the authors provide just half a sentence explaining what the data might have looked like if there were systematic issues with the tip altering the sample?
6) The observation of two D1 values (based on the sum of two Gaussian fits) is interesting. Pausing during diffusing seems like a reasonable explanation. I have two questions related to this point. First, is it possible to collect reaction trajectories that are long enough to conclusively say whether any given nucleosome transitions between D1 and D2? Second, is it possible to do a simple computational simulation of 1D diffusion and include pausing within the simulation to verify that the data would yield an apparent sum of two D values?
7) Page 14: The authors state that there is a 4-fold reduction in the diffusion constant with the addition of CENP-C(CD). I think the value is 2.9-fold.
8) How much is CENP-C over-expressed compared to normal expression levels?
9) Have nucleosome diffusion coefficients been reported from smFRET measurements, and if so, how do they compare to the values reported here?
10) Regarding the diffusion measurements themselves: If a nucleosome moves in 1D relative to a DNA strand then the authors "score" this behavior as 1D diffusion and the data is used towards calculating a diffusion coefficient. But, if the DNA moves relative to the nucleosome, then this would not be "scored" as diffusion because it could not be observed in the measurements, correct? If this is true, do the D1 values actually represent apparent values that reflect a lower bound for the actual diffusion coefficients?
11) Nucleosome tracking: Since this paper has a heavy emphasis on methodology, further details on tracking will be helpful. Since the surface is somewhat crowded and the DNA strings are not always clearly observed (based on supplementary movies), how do the authors know if the tracked structure is histone or nucleosome (and within that classification – mono, di, or multi nucleosome)? It is unclear if the quality of the images allows for these distinctions, and nucleosomes in each of these sub-populations are expected to have different dynamics. Did the authors use height or a feature from the surface topography as a criterion for selecting particles for analysis?
(b) It would be helpful to have higher-resolution images of a dilute CENP-A sample acquired at a lower speed than the current 2s/frame to show the composition and features of the nucleosome arrays at higher resolution. It is unclear from the air AFM images shown in Supplement Figure 1B if the sample is largely individual nucleosome strings or a cluster of strings.
12) Please induce height scale with all images in the paper
13) Experiments with CENP-A and CENP-C: The images in Figure 4B are difficult to interpret as the structures do not look homogeneous. Are these nucleosome clusters of different sizes (if yes, how are nucleosomes tracked in these samples?) Again, a higher-resolution image of the sample at a low scan rate will clarify the composition of the sample. How do we know if the changes to dynamics are not due to changes in the surface from the non-specific binding of the CENP-C fragment? One or two controls would be helpful here: (i) a dose-dependent effect of CENP-A nucleosome dynamics at 2-3 different CENP-C concentrations and/or (ii) the addition of a CENP-C mutant that does not bind CENP-A
14) Nucleosome mobility: The authors imply in several places that the observed dynamics have contributions from nucleosome sliding on DNA. For example, in the abstract, the authors state: "CENP-C reduces… along the chromatin fiber"; Pg. 6 "CENP-C, …directly impacts nucleosome mobility and, surprisingly, also chromatin fiber motion in vitro"; Pg. 18 "These findings suggest that physical properties of DNA dictate mobility along DNA"). In response to reviewers, the authors state, "it is tantalizing to hypothesize that the two Gaussian fittings reflect both 1D sliding and 3D chromatin motion". Without direct evidence, the dual Gaussian can arise from any number of reasons (such as collisions, surface adhesion, etc.) and is heavily influenced by the surface.
15) Comment on biological aspects and implications of the study: While the authors indicate that they have reduced the focus on biological implications, a significant section of the paper is still dedicated to it (the final three figures and a large fraction of the discussion). Connecting the mobility of nucleosomes on a mica surface to chromatin accessibility is a big leap (example in the abstract: "changes which alter chromatin accessibility in vitro…."). This is because it is not established from these data how much of the mobility is due to nucleosomes diffusing on the surface (which is heavily influenced by surface properties and buffer conditions, as the authors clearly demonstrate) versus nucleosomes sliding on DNA and altering the access of proteins to different DNA regions. Without direct observation of nucleosome sliding on DNA (which I think is future work and not reasonable to expect here), the biological implications of observed mobility changes in vitro are highly speculative and should be stated as such.
16) The statement that "excess CENP-C suppresses centromeric chromatin accessibility and transcription in vivo" is not well supported by the data presented in this paper. ChIP reports on chromatin occupancy, but not directly on changes in chromatin accessibility and transcription. Please modify the statement.
147 For the western blot in Supplementary Figure 12, there are no loading controls. Can the authors please perform the western blot again and this time include loading controls?
18) Can you please include information on how the error bar was calculated in Figure 2D, Figure 3B, and Figure 4F?
19) Drift correction: were any spots excluded from a correction? In supplementary fig-2, a few spots appear unchanged (x,y ~ 400,30; 10,300; 180,300 etc). These may simply be how the data shifts post drift correction, but if some data was excluded from correction, please include more methodological details.
https://doi.org/10.7554/eLife.86709.sa1Author response
[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]
Reviewer #1 (Recommendations for the authors):
1. I applaud the authors for applying a novel technique to address the fundamental issue of nucleosome mobility. However, this is a relatively short study that is somewhat incremental from previously published work. For example: "Previously we published HSAFM movies of H3 chromatin and H3 chromatin with linker histone variant H1.5 (Melters and Dalal, 2021). Similar as described above, we tracked individual H3 nucleosomes in real-time without (Figure 2A, Supplemental movie 3, Source data 1) and with H1.5 Figure 2B;" Also see: "Previously we showed that overexpressing CENP-C in HeLa cells resulted in increased clustering of centromeric chromatin and loss of centromeric RNAP2 levels (Melters et al., 2019)…To examine this facet of CENP-C: CENP-A homeostasis, we overexpressed CENP-C to assess if the centromeric transcription is altered" "First, we recapitulated the effects of CENP-C overexpression on the levels of RNAP2 on CENPA chromatin" It appears that some of the data in the manuscript are a repeat of published work or at most an incremental advance.
We thank the reviewer for appreciating the application of HS-AFM in studying nucleosome mobility. We also thank the reviewer for helping us refocus our attention in this manuscript. We refocused our attention on performing and optimizing the many control experiments required to establish hsAFM as a robust quotative tool to measure nucleosome dynamics. To end, we also improved the implementation of the single particle tracking software and extended our downstream analyses.
2. The histone H1 experiments should be removed from the manuscript as they are poorly controlled. There is a long history of reported artifactual and preternatural effects of adding H1 to DNA and nucleosomes. Without evidence that H1 is binding the DNA properly and forming chromatosomes the data cannot be interpreted. Moreover, the fact that the H1 to nucleosome ratio used is 0.2:1 suggest that at most only 1 in 5 nucleosomes could be properly bound by H1and measuring the movement of the entire population is not justified. As noted by the authors the data is very heterogeneous suggesting multiple forms of nucleosomes may be present. And again even this data may be a repeat or incremental (see comment 1).
We thank the reviewer for noting this limitation and we agree with the reviewer. Therefore, we have redirected our focus away from describing H3 and H3+H1.5 as an example of how chromatin compaction factors impact nucleosome mobility and limit our analysis of the H3 and H3+H1.5 data to demonstrate bias in nucleosome tracking data (Supplemental Figures S7 and S8). In addition, we show that mononucleosome and chromatin fiber single-frame step distributions are distinct (see Supplemental Figures S7 and S8). More details about the updated manuscript can be found above.
Overall the manuscript would be improved by focusing on CENP-C and CENP-A nucleosomes for which the most data is available and not make sweeping conclusions about all nucleosome binding proteins (see title).
We thank the reviewer for this suggestion and indeed, we have significantly revised the manuscript to not only focus on CENP-A nucleosomes but especially focus on the technical aspects of using HS-AFM in imaging chromatin by performing various controls as described above in detail.
Reviewer #2 (Recommendations for the authors):
1) If the authors want to discuss nucleosome accessibility based on nucleosome mobility, they need to perform additional experiments that would bring explicit data on nucleosome accessibility.
We thank the reviewer for this important suggestion, and we can confirm that we are following up on this. A detailed analysis of nucleosome accessibility will be explored in a followup manuscript. For this manuscript, we refocused to the establishment of HS-AFM as a tool to study nucleosome mobility, as described above.
2) To rule out the possibility that reduced mobility upon CENP-CCD or H1.5 addition may be due to the increased interaction between the protein complexes and the surface, other proteins that are known to have no apparent interaction with chromatin (for example, BSA), or proteins that are known to increase chromatin mobility, should be also tested using HS-AFM as controls. Furthermore, to link the in vitro observation to in vivo results, CENP-Cs with the same construct should be used.
We thank the reviewer for this very insightful comment. We have expanded our study to address various conditions that could impact chromatin mobility and dynamics, ranging from salt concentration, APS concentrations, and Tween-20, as described above in detail.
3) The title can be more informative. Since this study is basically on CENP-C and CENP-A nucleosomes, the authors could try to include these key words in the title too.
We agree that the title needed to be more informative. Therefore, we have not only updated the manuscript, but we have also updated the title to reflect the theme of the manuscript more accurately.
4) The authors should provide a description (or maybe a figure) of the structural domains of CENP-C in the introduction.
We thank the reviewer for suggestion. We have altered the focus of the manuscript away from focusing on the effects of CENP-C on CENP-A chromatin to stringently testing CENP-A chromatin under various conditions by HS-AFM. We therefore thought it would not be in line with the current flow of the manuscript to describe the structural domains of CENP-C extensively in the introduction.
5) Figure 2C: The standard error bars of MSD for H3 and H3+H1.5 overlap, which does not indicate a statistically significant difference. The diffusion constants also show no statistically dominant difference. Therefore, we cannot assume that the conclusion "linker H1.5 protein restricts H3 nucleosome mobility" is entirely supported by experimental data.
We have redone the analysis for both the CENP-A, CENP-A+CENP-C^CD, H3, and H3+H1.5 based on more tracked particles. These extended data led us to reanalyze all data and revise our interpretations accordingly. We no longer make global statements but restrict our conclusions to the data presented in this manuscript.
6) The authors should include in the manuscript gel pictures of the reconstituted polynucleosomes used in this study to show the quality of the reconstitution.
We thank the reviewer for this suggestion. We added supplemental Figure S1 which has an image of a gel showing the purity of histones; an AFM image showing in vitro reconstituted nucleosomes confirming reconstituted polynucleosomes; a MNase ladder showing digested chromatin confirming reconstituted polynucleosomes; and AFM nucleosome measurements confirming the expected nucleosomal dimensions. All these data confirm the quality of the chromatin reconstitution.
7) It is unclear how much CENP-CCD and H1.5 are bound to polynucleosomes. The authors should report the percentage of bound CENP-CCD and H1.5, for example by performing EMSA and then gel quantification. The authors could include a section where they compare the structures of the polynucleosomes with CENP-CCD or H1.5 compared to polynucleosomes without CENP-CCD or H1.5. Is there a difference in the compaction of the structures?
We thank the reviewer for this question. Previous work has established how much CENP-C^CD binds to CENP-A nucleosomes. Specifically, in Falk et al. 2015, Falk et al. 2016, Guo et al. 2017, Melters et al. 2019, and Ali-Ahmed et al. 2019. We used the same CENP-A nucleosome to CENP-C^CD ratio of 1: 2.2 as established and subsequently used in these studies.
We are very excited to study how H1.5 might or might not interact with CENP-A chromatin. Indeed, this is an ongoing study in the lab that we will publish in a manuscript that is preparation. In short, we see CENP-A chromatin compaction by H1.5. We are working out the details how this mechanistically happens and if there is competition between CENP-C^CD and H1.5.
[Editors’ note: further revisions were suggested prior to acceptance, as described below.]
The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:
Essential revision:
1) Please comment on whether the use of α satellite repeat DNA influences the results as opposed to other DNA with no nucleosome positioning preference.
We thank the reviewer for this important question. We are aware that DNA sequence can influence nucleosome dynamics, including nucleosome positioning. Indeed, α-satellite DNA can position nucleosomes well, leading it to be used in the now-iconic crystal structure solved by Luger et al. In our study we used a 3.5 kbp plasmid contains 4 copies of a-satellite DNA, which make up less than 20% of the plasmid. The majority of the plasmid lacks nucleosome positioning sequences. Therefore, we accepted the reviewer’s suggestion to expand our study to also include a plasmid that lacks any known nucleosome positioning sequence. We used a 8.5 kbp plasmid that contains a copy of the PCAT2 gene, which is a lncRNA gene near the MYC gene on the human 8q24 locus. In cancers, CENP-A can go to ectopic loci, and the PCAT2 locus is one such known ectopic sites (Athwal et al. 2015, Nye et al. 2018, Ganesan et al. 2022). When we compared the MSD curves and diffusion constants of CENP-A nucleosomes reconstituted on the PCAT2 plasmid to other controls conditions, we observed that CENP-A nucleosomes have a similar MSD curve and diffusion constant as the high salt control condition (updated Figure 3 and Figure 3 —figure supplement 1-3). We found a higher diffusion constant and MSD curve for CENP-A nucleosome on PCAT2 plasmid versus a-satellite plasmid. One possibility is that DNA sequence indeed can influence nucleosome mobility. Another possibility is that the length difference between the two plasmids influences nucleosome mobility. We will work out these details in follow-up experiments more carefully comparing the effect of various positioning sequences- the senior author of this ms performed her PhD working on this exact issue with Arnie Stein and Minou Bina in the 2000s; so it is certainly of deep interest to the Dalal lab.
2) What causes the two Gaussian distributions of nucleosomes? This is a potentially interesting result that is not pursued or explained.
We agree with the reviewer. The precise cause of the two Gaussian distribution is not fully clear to us. As a first step, we elaborated on this interesting finding by addressing whether the smaller D1 diffusion constant could simply arise from nucleosome “sticking” to the mica surface. For this, we compared the diffusion constant of nucleosome trajectories that were rejected for being potentially “stuck” with the smaller D1 diffusion constant. Trajectories were rejected if their average R step was less than 1 nm and their maximum R range was less than 8 nm. Next, we fitted the “stuck” steps in the x and y diffusion constant, as described in Figure 2C, D and Figure 2 —figure supplement 1B. The effective diffusion constant of the “stuck” trajectories were compared with the smaller D1 diffusion constant. We used the F-test to compare the gaussian variances to determine the probability that the smaller diffusion constant is consistent with the “stuck” nucleosomes. With the exception of the 2x APS and low salt condition, the diffusion constants were significantly different. These results are not consistent with the smaller D1 diffusion constant being the same as the “stuck” trajectories (see new Figure 3 —figure supplement 5). We are therefore more confident that the D1 and D2 Gaussian distributions represent two distinct mobility states. Further work will be necessary to understand the cause of the two states, and is slated for a follow up study.
3) The authors hint that they are showing potential functions of CENP-C beyond forming kinetochores by over-expressing CENP-C. Are these physiologically relevant or over-expression artifacts?

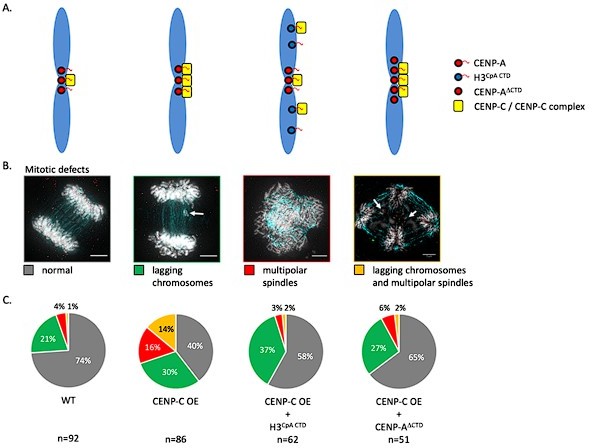

We thank the reviewer for this question. CENP-C overexpression is not a common event in cells. In fact, in tumors it was found that CENP-C expression is not commonly altered, whereas the expression of other centromeric and kinetochore proteins is (Zhang et al. 2016 Nat Comm). In a follow-up study we will elaborate on this in more detail. In a preview, we will show (see Author response image 1) that overexpression of CENP-C leads to extensive mitotic defects that can be rescued by co-expressing with mutant histone variants that function as a sink for excess CENP-C (H3CpA CTD) or a mutant histone variant that cannot bind CENP-C (CENP-A∆CTD).
4) In the authors' description of the experimental workflow they mention that each movie is corrected for drift and they refer readers to Supplemental Figure 2. I would suggest that the legend of supplemental figure 2 be revised to include a brief description of how the drift correction is done, and perhaps add a bit more detail regarding this correction to the Methods section. Also, on page 12 the authors note that "… with Tween-20 displayed the most amount of drift". When the authors introduce the concept of correcting for drift I assumed that they were referring to instrument drift, but I am not certain how to instrument drift would be impacted by Tween-20. Can the authors please clarify?
We have updated Figure 1 —figure supplement 2 to more clearly show how we corrected for sample drift. In short as shown in Figure 1 —figure supplement 2A, for each movie we visualized the raw tracks. Some of the tracks appear to be immobile. These tracts were rejected for further analysis if they had an average R step smaller than 1nm and a maximum R range of smaller than 8 nm. These immobile tracts display a classic pattern of drift where over time the tract would move in the exact same direction as other immobile tracts. By taking the first and last position of several immobile particles, divided by the number of steps, the correction per step was calculated. Next, we verified the correction by visualizing the steps as we did when we determined the drift. In Figure 1 —figure supplement 2B, we show four examples of drift correction, but please note that this was done for each movie individually.
5) Page 9: "We reasoned that if the AFM tip altered samples during scanning, it would create a distinctive signature in single particle trajectories." For the non-AFM audience, could the authors provide just half a sentence explaining what the data might have looked like if there were systematic issues with the tip altering the sample?
We agree with the reviewer that such a statement would make it more obvious to the non-AFM audience. As such, we have updated the text on page 9.
6) The observation of two D1 values (based on the sum of two Gaussian fits) is interesting. Pausing during diffusing seems like a reasonable explanation. I have two questions related to this point. First, is it possible to collect reaction trajectories that are long enough to conclusively say whether any given nucleosome transitions between D1 and D2? Second, is it possible to do a simple computational simulation of 1D diffusion and include pausing within the simulation to verify that the data would yield an apparent sum of two D values?
We thank the reviewer for these insightful questions! (1) We have collected nucleosome trajectories that show what appears to be transitions from D1 to D2 states and vice versa. We show a collage of these trajectories in Figure 3 —figure supplement 4A. Additionally, when we looked at the single step size distribution for each trajectory, we observed that there is a very broad range of step sizes, indicating that it is plausible that individual nucleosomes transition between D1 and D2 states (Figure 3 —figure supplement 4B). (2) Instead of developing and running a simulation, we performed a test to determine if the smaller D1 diffusion constant could be the result of “sticking” nucleosomes. In our response to Point 2, we elaborate in detail how we performed this analysis. Finally, we will try to understand the origin of the two mobility populations in a follow-up study.
7) Page 14: The authors state that there is a 4-fold reduction in the diffusion constant with the addition of CENP-C(CD). I think the value is 2.9-fold.
We thank the reviewer for catching this error, which has been corrected.
8) How much is CENP-C over-expressed compared to normal expression levels?
Based on Western blot data (Source Data 6), CENP-C was modestly over-expressed by 2.8-fold from normal. We have updated the text to reflect the level of overexpression.
9) Have nucleosome diffusion coefficients been reported from smFRET measurements, and if so, how do they compare to the values reported here?
As far as we are aware and have found in the literature, smFRET has not been used for determining nucleosome diffusion coefficients. Beat Fierz’s group has done beautiful work using smFRET to study nucleosome array dynamics, but his work has not determined the diffusion coefficients. On the other hands, other imaging-based technologies have been deployed to determine the diffusion coefficient of molecules, such as FCS. We have updated the Discussion section to include the comparison of our results with published work.
10) Regarding the diffusion measurements themselves: If a nucleosome moves in 1D relative to a DNA strand then the authors "score" this behavior as 1D diffusion and the data is used towards calculating a diffusion coefficient. But, if the DNA moves relative to the nucleosome, then this would not be "scored" as diffusion because it could not be observed in the measurements, correct? If this is true, do the D1 values actually represent apparent values that reflect a lower bound for the actual diffusion coefficients?
We thank the reviewer for this important question. Under ideal conditions, we would be able to track nucleosomes along the DNA (1D motion), as well as the chromatin fiber as a whole (2D motion). As the reviewer can appreciate in the movies, DNA frequently moves out of focus (away from the mica surface), making continuous tracking difficult. This is akin to a particle moving out of focus in live cell imaging, or because DNA moves too fast to be captured during scanning process. This latter is aggerated in movies where we scanned at higher resolution, at the cost of scanning speed (see images in response to Comment 11b). There is an upgrade available for the HS-AFM machine that can scan at higher speed with greater resolution, which might provide the technical tools to gain spatiotemporal resolution to observe different diffusion patterns in greater detail.
11) Nucleosome tracking: Since this paper has a heavy emphasis on methodology, further details on tracking will be helpful. Since the surface is somewhat crowded and the DNA strings are not always clearly observed (based on supplementary movies), how do the authors know if the tracked structure is histone or nucleosome (and within that classification – mono, di, or multi nucleosome)? It is unclear if the quality of the images allows for these distinctions, and nucleosomes in each of these sub-populations are expected to have different dynamics. Did the authors use height or a feature from the surface topography as a criterion for selecting particles for analysis?
(b) It would be helpful to have higher-resolution images of a dilute CENP-A sample acquired at a lower speed than the current 2s/frame to show the composition and features of the nucleosome arrays at higher resolution. It is unclear from the air AFM images shown in Supplement Figure 1B if the sample is largely individual nucleosome strings or a cluster of strings.
We thank the reviewer for these questions. (a) Particles were identified as nucleosomes if their diameter was 10-12 nm. Histone H2A/H2B dimers and CENP-A/H4 tetramers are much smaller (see Author response image 2) and were not tracked. Post-analysis, we did a spot check to verify the presence of entry and exit DNA strands from the tracked particles, as these were not always visible in all frames as the reviewer accurately pointed out. We have updated the methods section, as well as the Results section to more clearly explain how nucleosomes were identified.

An example of a failed in vitro reconstitution imaged by conventional in air AFM, where only a few nucleosomes (red arrow) are formed.
CENP-A/H4 tetramers (green arrow) can be easily distinguished from H2A/H2B dimers (pink arrows). In all cases, a nucleosome is much larger in diameter and height than either CENP-A/H4 tetramer or H2A/H2B dimers.
(b) We have also imaged CENP-A chromatin at the highest resolution that the Cypher VRS permits, which is 744 x 1024 points & lines. As you can see from the screenshots of HS-AFM Videos (Author response image 3), there is a marginal increase in observed resolution. The mica and sampels were prepared similar as in the main experiment and the sample was imaged using the same parameters, with the only exeption being resolution. The same 400x400 nm area was first scanned at the highest resolution and subsequently at the settings used in the rest of the manuscript. The topological resolution did not improve noticeable under the highest resolution conditions compared to the settings used in the manuscript. Temporal resolution was unfortunatly lost.

A side-by-side comparison of the same region that was imaged at two different resolutions and consequently, speeds.
The left image was scanned at the maximum resolution of 744 x 1024 lines & points at 1 frame per 4 seconds. The right image was scanned at 512 x 256 lines & points at 1 frame per second.
12) Please induce height scale with all images in the paper
We have added height scale bars next to all AFM images.
13) Experiments with CENP-A and CENP-C: The images in Figure 4B are difficult to interpret as the structures do not look homogeneous. Are these nucleosome clusters of different sizes (if yes, how are nucleosomes tracked in these samples?) Again, a higher-resolution image of the sample at a low scan rate will clarify the composition of the sample. How do we know if the changes to dynamics are not due to changes in the surface from the non-specific binding of the CENP-C fragment? One or two controls would be helpful here: (i) a dose-dependent effect of CENP-A nucleosome dynamics at 2-3 different CENP-C concentrations and/or (ii) the addition of a CENP-C mutant that does not bind CENP-A
We thank the reviewer for this suggestion. How we distinguish nucleosomes from CENP-A/H4 tetramers from H2A/H2B dimers, please see response to Point 11. To address whether CENP-C modulates CENP-A nucleosomes in a dose-dependent manner, we performed additional HS-AFM movies of CENP-A chromatin adding 1x and 4x levels of CENP-CCD. In other words, we added in total either 1, 2, or 4 CENP-CCD molecules per CENP-A nucleosome (1x, 2x, or 4x CENP-CCD). By adding two concentration levels for CENP-CCD, we observed that 1x CENP-CCD has no effect on CENP-A nucleosome MSD curves (updated Figure 4D) and the diffusion constant (updated Figure 4E), whereas 4x CENP-CCD MSD curves (updated Figure 4D) and diffusion constant (updated Figure 4E) was very similar to 2x CENP-CCD. To further clarify the experimental set-up, we included a graphical representation of the CENP-C protein, which fragment was used (central domain), and at what molar concentration (updated Figure 4A). Furthermore, we updated Figure 3 —figure supplement 1-3 and the text, both in the Results section, discussion, and material and methods. We interpret these results to mean that CENP-CCD regulates CENP-A nucleosome motions not like a rheostat, but instead more like a switch. The consequence of this would be that CENP-A nucleosome motions will only stop once a critical mass of CENP-CCD is bound to CENP-A chromatin.
14) Nucleosome mobility: The authors imply in several places that the observed dynamics have contributions from nucleosome sliding on DNA. For example, in the abstract, the authors state: "CENP-C reduces… along the chromatin fiber"; Pg. 6 "CENP-C, …directly impacts nucleosome mobility and, surprisingly, also chromatin fiber motion in vitro"; Pg. 18 "These findings suggest that physical properties of DNA dictate mobility along DNA"). In response to reviewers, the authors state, "it is tantalizing to hypothesize that the two Gaussian fittings reflect both 1D sliding and 3D chromatin motion". Without direct evidence, the dual Gaussian can arise from any number of reasons (such as collisions, surface adhesion, etc.) and is heavily influenced by the surface.
We agree with the reviewer that various conditions may influence the behavior of nucleosomes and nucleosome arrays. For that reason, we tested several conditions, ranging from salt concentrations, how sticky the mica surface is (APS concentration), and Tween-20 to modify the non-specific hydrophobic interactions. In all tested conditions, which may represent the largest data set of nucleosomes observed by HS-AFM, we observed that the sum of two Gaussians best fitted the single step distribution (see Figure 3D and Figure 3 —figure supplement 2). That said, we don’t fully understand the precise source of the diffusion constants derived from the sum of two Gaussians. Excitingly, a recent paper from our department colleagues in Gordon Hager’s lab (Wagh et al. 2023 Sci Adv) independently performed single particle tracking analysis of H2B-HALO in vivo, also report two distinct mobility states. We have included this study in the discussion. Furthermore, we performed an additional control as described in our response to Point 2. Finally, in a follow-up study, we will delve into the origin of the two Gaussians.
15) Comment on biological aspects and implications of the study: While the authors indicate that they have reduced the focus on biological implications, a significant section of the paper is still dedicated to it (the final three figures and a large fraction of the discussion). Connecting the mobility of nucleosomes on a mica surface to chromatin accessibility is a big leap (example in the abstract: "changes which alter chromatin accessibility in vitro…."). This is because it is not established from these data how much of the mobility is due to nucleosomes diffusing on the surface (which is heavily influenced by surface properties and buffer conditions, as the authors clearly demonstrate) versus nucleosomes sliding on DNA and altering the access of proteins to different DNA regions. Without direct observation of nucleosome sliding on DNA (which I think is future work and not reasonable to expect here), the biological implications of observed mobility changes in vitro are highly speculative and should be stated as such.
We thank the reviewer for pointing out the speculative nature of extrapolating HS-AFM data to in vivo events. We accept the advice to tone down our excitement about what is happening in vivo. We have updated the manuscript accordingly in both the abstract, introduction, results, and discussion.
16) The statement that "excess CENP-C suppresses centromeric chromatin accessibility and transcription in vivo" is not well supported by the data presented in this paper. ChIP reports on chromatin occupancy, but not directly on changes in chromatin accessibility and transcription. Please modify the statement.
We have modified the statement to represent the data more accurately: “Excess CENP-C suppresses centromeric RNAP2 levels and centromeric transcription in vivo".
17) For the western blot in Supplementary Figure 12, there are no loading controls. Can the authors please perform the western blot again and this time include loading controls?
We apologize for this oversight. We have added H2A as a loading control to Figure 5 —figure supplement 1 and updated the Figure 5 - figure supplement 1 - source data 1 as well.
18) Can you please include information on how the error bar was calculated in Figure 2D, Figure 3B, and Figure 4F?
The error bar in Figures 2D, 3B, and 4F represent the standard error, as reported in the methods section. For clarity, we have updated the figure legends.
19) Drift correction: were any spots excluded from a correction? In supplementary fig-2, a few spots appear unchanged (x,y ~ 400,30; 10,300; 180,300 etc). These may simply be how the data shifts post drift correction, but if some data was excluded from correction, please include more methodological details.
We thank the reviewer for this comment and please note our response to Point 4. When drift correction was performed, all data points within that movie were corrected. The amount of correction was determined in a movie-specific manner.
https://doi.org/10.7554/eLife.86709.sa2Article and author information
Author details
Funding
National Institutes of Health (Intramural Research)
- Daniël P Melters
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank Drs. Tom Misteli and Sam John, and members of the CSEM laboratory for critical comments and suggestions. We thank Drs. Ankita Saha and Craig Mizzen (deceased, University of Illinois, Urbana-Champaign) for the gift of recombinant H1.5 protein and Stephan Diekmann for the gift of GFP-CENP-C plasmid. We thank Dr. Will Heinz (NCI, CCR, OMAL) for kindly letting us use his custom set-up for HS-AFM and Dr. David Ball (NCI, CCR, OMC) for kindly providing help using MATLAB. We thank the reviewers for very useful feedback. This work was supported by the intramural research fund of the Center for Cancer Research at the National Cancer Institute/NIH (D.P.M., R.S.B., T.R., and Y.D.) and National Heart, Lung, and Blood Institute (K.C.N.).
Senior Editor
- Kevin Struhl, Harvard Medical School, United States
Reviewing Editor
- Jerry L Workman, Stowers Institute for Medical Research, United States
Version history
- Preprint posted: January 4, 2022 (view preprint)
- Received: February 3, 2023
- Accepted: September 1, 2023
- Version of Record published: September 20, 2023 (version 1)
Copyright
This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.
Metrics
-
- 724
- Page views
-
- 70
- Downloads
-
- 0
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Chromosomes and Gene Expression
- Genetics and Genomics
Spermatogenesis in the Drosophila male germline proceeds through a unique transcriptional program controlled both by germline-specific transcription factors and by testis-specific versions of core transcriptional machinery. This program includes the activation of genes on the heterochromatic Y chromosome, and reduced transcription from the X chromosome, but how expression from these sex chromosomes is regulated has not been defined. To resolve this, we profiled active chromatin features in the testes from wildtype and meiotic arrest mutants and integrate this with single-cell gene expression data from the Fly Cell Atlas. These data assign the timing of promoter activation for genes with germline-enriched expression throughout spermatogenesis, and general alterations of promoter regulation in germline cells. By profiling both active RNA polymerase II and histone modifications in isolated spermatocytes, we detail widespread patterns associated with regulation of the sex chromosomes. Our results demonstrate that the X chromosome is not enriched for silencing histone modifications, implying that sex chromosome inactivation does not occur in the Drosophila male germline. Instead, a lack of dosage compensation in spermatocytes accounts for the reduced expression from this chromosome. Finally, profiling uncovers dramatic ubiquitinylation of histone H2A and lysine-16 acetylation of histone H4 across the Y chromosome in spermatocytes that may contribute to the activation of this heterochromatic chromosome.
-
- Chromosomes and Gene Expression
- Developmental Biology
Imaging experiments reveal the complex and dynamic nature of the transcriptional hubs associated with Notch signaling.
