The full-length BEND2 protein is dispensable for spermatogenesis but required for setting the ovarian reserve in mice

  1. Yan Huang
  2. Nina Bucevic
  3. Carmen Coves
  4. Natalia Felipe-Medina
  5. Marina Marcet-Ortega
  6. Nikoleta Nikou
  7. Cristina Madrid-Sandín
  8. Maria López-Panadés
  9. Carolina Buza
  10. Neus Ferrer Miralles
  11. Antoni Iborra
  12. Anna Pujol
  13. Alberto M Pendás
  14. Ignasi Roig  Is a corresponding author
  1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Spain
  2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Spain
  3. Molecular Mechanisms Program, Centro de Investigación del Cáncer and Instituto de Biología Molecular y Celular del Cáncer (CSIC-Universidad de Salamanca), Spain
  4. Institut de Biotecnologia i de Biomedicina, Universitat Autònoma de Barcelona, Spain
  5. Centro de Investigación Biomédica en Red de Bioingeniería, Biomateriales y Nanomedicina, Instituto de Salud Carlos III, Spain
  6. Departament de Genètica i de Microbiologia, Universitat Autònoma de Barcelona, Spain
  7. Servei de Cultius Cel·lulars, Producció d'Anticossos i Citometria, Universitat Autònoma de Barcelona, Spain
  8. Transgenic Animal Unit, Center of Animal Biotechnology and Gene Therapy, Universitat Autònoma de Barcelona, Spain
https://doi.org/10.7554/eLife.96052.4
Share this article
Cite this article
  1. Yan Huang
  2. Nina Bucevic
  3. Carmen Coves
  4. Natalia Felipe-Medina
  5. Marina Marcet-Ortega
  6. Nikoleta Nikou
  7. Cristina Madrid-Sandín
  8. Maria López-Panadés
  9. Carolina Buza
  10. Neus Ferrer Miralles
  11. Antoni Iborra
  12. Anna Pujol
  13. Alberto M Pendás
  14. Ignasi Roig
(2025)
The full-length BEND2 protein is dispensable for spermatogenesis but required for setting the ovarian reserve in mice
eLife 13:RP96052.
https://doi.org/10.7554/eLife.96052.4
  2. Download BibTeX
  3. Download .RIS

eLife Assessment

This study provides valuable information on a novel gene that regulates meiotic progression in both male and female meiosis. The evidence supporting the conclusions of the authors is solid. This study will be of interest to developmental and reproductive biologists.

https://doi.org/10.7554/eLife.96052.4.sa0

Abstract

Infertility affects up to 12% of couples globally, with genetic factors contributing to nearly half of the cases. Advances in genomic technologies have led to the discovery of genes like Bend2, which play a crucial role in gametogenesis. In the testis, Bend2 expresses two protein isoforms: full-length and a smaller one. Ablation of both proteins results in an arrested spermatogenesis. Because the Bend2 locus is on the X chromosome, and the Bend2-/y mutants are sterile, BEND2’s role in oogenesis remained elusive. In this study, we employed a novel Bend2 mutation that blocks the expression of the full-length BEND2 protein but allows the expression of the smaller BEND2 isoform. Interestingly, this mutation does not confer male sterility and mildly affects spermatogenesis. Thus, it allowed us to study the role of BEND2 in oogenesis. Our findings demonstrate that full-length BEND2 is dispensable for male fertility, and its ablation leads to a reduced establishment of the ovarian reserve. These results reveal a critical role for full-length BEND2 in oogenesis and provide insights into the mechanisms underlying the establishment of the ovarian reserve. Furthermore, these findings hold relevance for the diagnostic landscape of human infertility.

Introduction

Infertility is a complex and multifaceted issue affecting approximately 8–12% of couples worldwide, with genetic factors playing a significant role in up to 50% of cases (Ding and Schimenti, 2021). The intricate process of human reproduction involves a delicate interplay of numerous genes and biological pathways, making the genetic landscape of infertility both diverse and challenging to unravel.

Advancements in genomic technologies and high-throughput sequencing have facilitated the identification of novel genes implicated in reproductive processes. Among these discoveries, Bend2 has recently emerged as a novel gene involved in mammalian gametogenesis (Malcher et al., 2022). BEND2 is a member of the BEN domain-containing protein family, whose members play diverse roles in cellular processes such as transcriptional regulation, chromatin remodeling, and protein-protein interactions (Abhiman et al., 2008).

Mouse models have been instrumental in identifying novel genes involved in mammalian fertility. This approach has significantly expanded our understanding of the genetic factors underlying reproductive processes in both males and females (Garretson et al., 2023). A recent study reported that BEND2 is required to complete spermatogenesis since it is a crucial regulator of mammalian meiosis in spermatocytes (Ma et al., 2022). Click or tap here to enter text. BEND2 is specifically expressed in spermatogenic cells shortly before and during the prophase of meiosis I. In the testis, Bend2 expresses two protein isoforms: full-length, named p140, and smaller one, p80. BEND2 is essential for the transition from zygonema to pachynema, as its knockout in male mice arrests meiosis at this stage. Its absence leads to disrupted synapsis and induced non-homologous chromosomal pairing. BEND2 interacts with multiple chromatin-associated proteins, including components of transcription-repressor complexes. Additionally, BEND2 regulates chromatin accessibility and modifies H3K4me3, influencing the overall chromatin state during spermatogenesis. These functions collectively establish BEND2 as a key regulator of meiosis, gene expression, and chromatin state in mouse male germ cells. Nonetheless, its role in oogenesis remains unexplored since the Bend2 locus is on the X chromosome, and mutant males are sterile.

In this study, we aimed to elucidate the role of Bend2 in oogenesis using a novel mutation of Bend2 that does not confer male sterility. Using this novel Bend2 mutation, we have investigated the effects of full-length BEND2 ablation on meiosis, oocyte quality, and follicular dynamics. Furthermore, as this mutation does not cause male infertility, it allowed us to investigate the role of BEND2 in mammalian meiosis in more detail. Our findings contribute to expanding our understanding of the genetic factors influencing mammalian fertility and provide potential avenues for diagnosing genetic determinants of human infertility.

Results

BEND2 is highly expressed in spermatogenic nuclei before meiosis initiation and during early meiotic prophase I, independent of meiotic recombination

Taking advantage of several unannotated transcripts detected in 14 dpp wild-type mouse testis from our previous RNA sequencing analysis (Marcet-Ortega and Roig, 2016), we found a novel splice variant of the then annotated Gm15262 gene, which is an X-linked gene containing two BEN domains (Figure 1A). This variant is specifically expressed in mouse testes and fetal ovaries containing germ cells undergoing meiotic prophase I and shows a nuclear localization at the heterochromatin of spermatocytes when the GFP-tagged splice variant is electroporated to the testes of young mice (Figure 1—figure supplement 1A–B). Thus, we hypothesize that this gene could be essential for spermatocyte and oocyte development. Based on sequence homology, we named this Gm15262 gene as the mouse homolog of the human Bend2, and thus, we renamed it Bend2, as also proposed by others recently (Ma et al., 2022).

Figure 1 with 1 supplement see all
Download asset Open asset

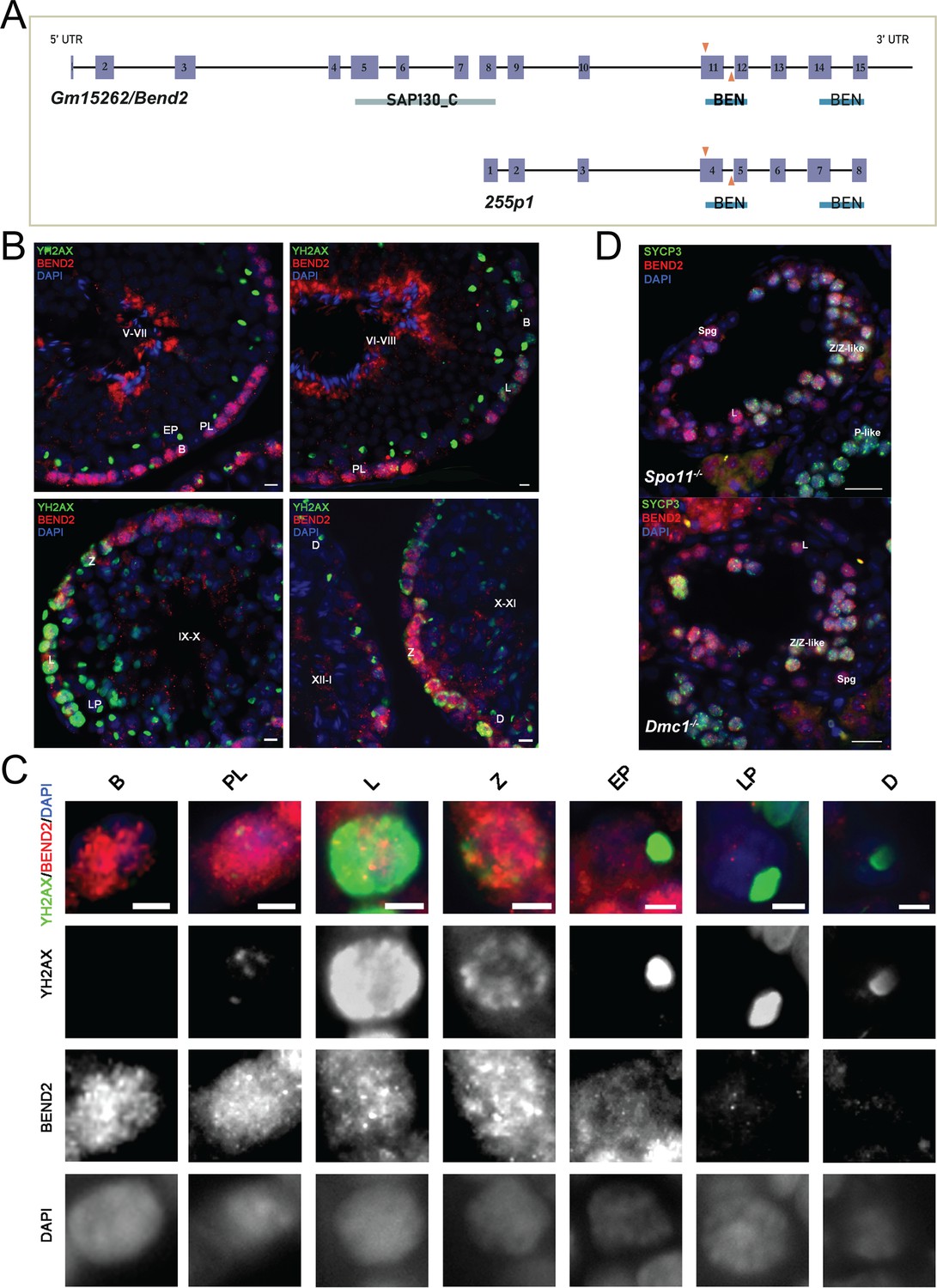

Expression of BEND2 during spermatogenesis.

(A) Schematic representation of mouse Gm15262/Bend2 and its novel splice variant 255 p1. The exons are shown as purple boxes. The predicted domains are labeled below the exons. SAP130_C: C-terminal domain of histone deacetylase complex subunit SAP130; BEN: BEN domain. A pair of gRNAs (orange arrows) target exon 11 of Bend2 within the first BEN domain to generate the Bend2D11 mutation by CRISPR/Cas9. The in-house BEND2 antibody is generated using full-length 255P1 sequence as immunogen. (B) BEND2 localization in wild-type mouse testis. Staging of the seminiferous epithelium is based on the localization of spermatocytes (indicated by the expression and localization of YH2AX (green)) and spermatids (indicated by DAPI). The tubule stage is shown in uppercase Roman numerals. Scale bar, 20 µm. (C) Magnification of BEND2-positive cells from testis sections. Expression of BEND2 was characterized in cells along spermatogenesis from spermatogonia to late diplotene spermatocyte. Scale bar, 10 µm. (D) BEND2 localization in SPO11- and DMC1-deficient testis. In these cases, SYCP3 (green) was used to identify spermatocytes. Scale bar, 50 µm. Spg: spermatogonia; B: B-type spermatogonia; PL: pre-leptotene spermatocyte; L: leptotene spermatocyte; Z: zygotene spermatocyte; Z-like: zygotene-like spermatocyte; EP: early pachytene spermatocyte; LP: late pachytene spermatocyte; P-like: pachytene-like spermatocyte; D: diplotene spermatocyte.

We generated a polyclonal antibody against BEND2 using the novel splice variant of Bend2 as an immunogen (see validation in Figure 2). To examine BEND2 expression during spermatogenesis, we immunostained PFA-fixed testis sections against BEND2 and the DNA damage marker γH2AX to allow the identification of spermatocytes. BEND2 was abundantly detected in the nuclei of the peripheral cells of tubules from stage V until XII-I (Figure 1B). This nuclear staining first appeared in spermatogonia before DSBs were generated. BEND2 staining was highly present in spermatocytes from pre-leptotene when meiosis initiates and persisted until early pachytene. In late pachytene and diplotene cells, little BEND2 remained in the nuclei of spermatocytes (Figure 1C). Notably, this expression pattern of BEND2 is reminiscent of the one reported before (Ma et al., 2022).

Figure 2
Download asset Open asset

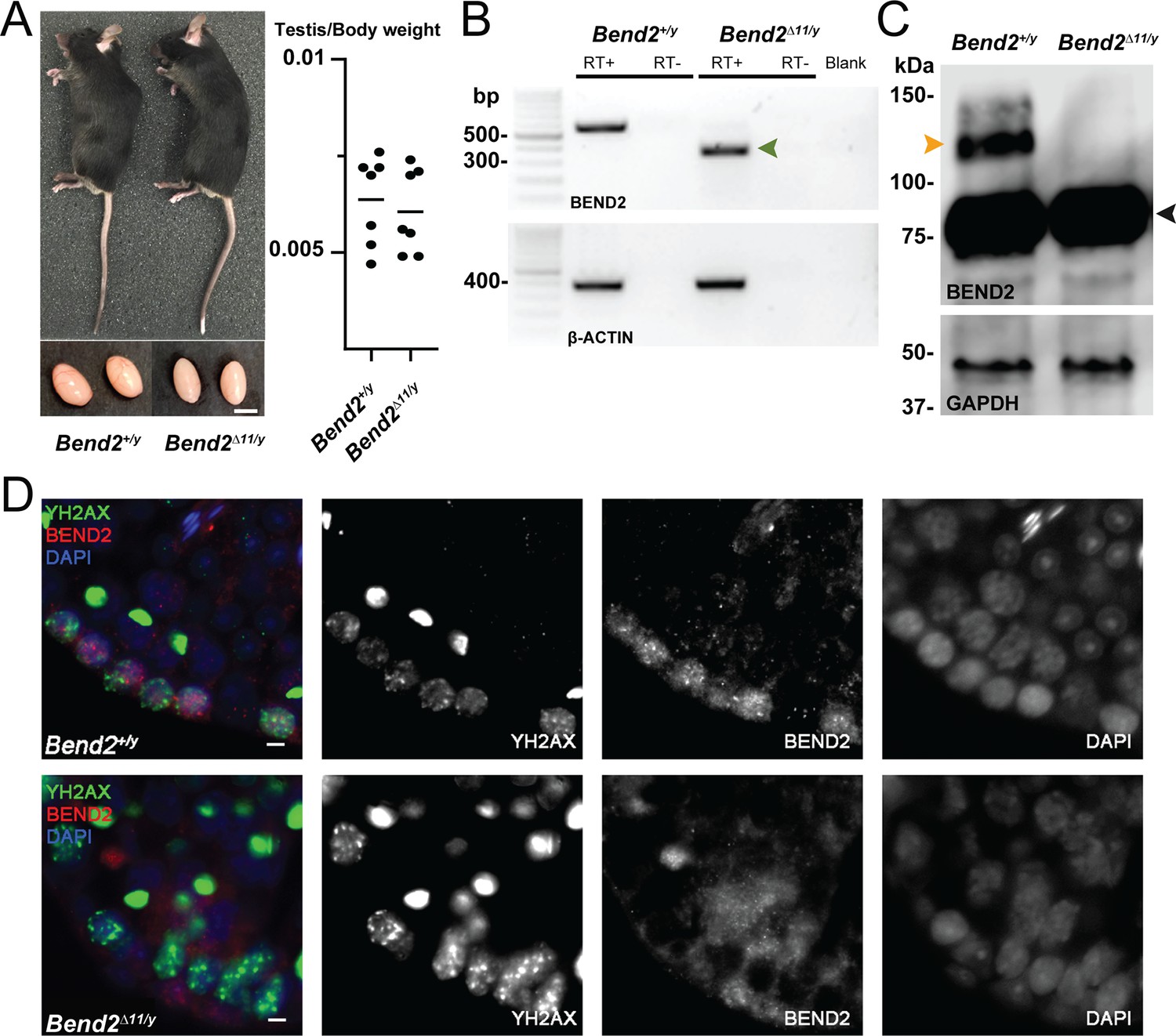

Disruption of BEND2 in Bend2D11/y mice.

(A) Mouse appearance and testis size. Scale bar, 5 mm. (B) Bend2 expression in testis by RT-PCR. The expected size of the wild-type (WT) allele was 576 bp. Sanger sequencing results showed that the amplified DNA in the mutated allele (372 bp, green arrowhead) was from an mRNA that resulted from skipping exon 11 of Bend2. (C) Detection of BEND2 by WB from testis protein extracts. The orange arrowhead indicates the full-length BEND2 protein band. An extra protein band ~75 kDa (black arrowhead) was also detected in both wild-type and mutant testes. (D) Detection of BEND2 by IF. Testis sections were treated with antigen retrieval using Tris-EDTA buffer before staining against BEND2 (red) and SYCP3 (green). The BEND2 staining observed in the Bend2 mutants closely resembles background staining (not shown), suggesting that the cytoplasmic signal might be nonspecific. Scale bar, 10 µm.

Figure 2—source data 1

Source images for Figure 2B.

https://cdn.elifesciences.org/articles/96052/elife-96052-fig2-data1-v1.zip
Figure 2—source data 2

Source images for Figure 2B.

https://cdn.elifesciences.org/articles/96052/elife-96052-fig2-data2-v1.zip

Furthermore, to reveal if the localization of BEND2 in germ cells could have originated as a response to critical events of the meiotic prophase, we examined BEND2 expression in testis sections from recombination-defective mice lacking SPO11. In SPO11-deficient testis, where no DSBs are formed at the onset of meiosis, spermatocytes cannot initiate meiotic recombination, thereby failing to synapse and entering apoptosis (Barchi et al., 2005; Baudat et al., 2000; Pacheco et al., 2015). Interestingly, we found BEND2 was extensively present in nuclei of spermatogonia, leptotene, zygotene, and zygotene-like spermatocytes, as in wild-type mice (Figure 1D). Very occasionally, a few BEND2 signals could be observed in some SPO11-deficient spermatocytes, presumably at a more advanced pachytene-like stage. This is consistent with its reduced expression after early pachytene in wild-type mice. Similarly, BEND2 expression was not altered in Dmc1 mutant spermatocytes (Figure 1D), which cannot complete meiotic recombination (Barchi et al., 2005; Pittman et al., 1998). Altogether, these results indicate that although BEND2 is highly expressed during early meiotic prophase I when meiotic recombination initiates and progresses, its expression starts as early as in spermatogonia before meiosis begins and is independent of either DSB formation or completion of recombination.

We also examined BEND2 expression in 16 dpc fetal ovary sections by IF and found it localizing at nuclei of some zygotene stage oocytes (Figure 1—figure supplement 1C). However, due to scarce samples and technical obstacles, we could not characterize BEND2 expression in oocytes at earlier stages from 12 to 14 dpc ovary sections.

Full-length BEND2 deficiency causes increased apoptosis and persistent unrepaired DSBs in spermatocytes

To address the germ cell functions of BEND2 in mice, we generated BEND2-deficient mice by CRISPR/Cas9. Part of exon 11 of Bend2 was targeted to be removed to disrupt the first BEN domain (Figure 1A). Bend2Δ11/y mice developed into adults without apparent differences in general physical appearance compared to their littermates. Male Bend2D11/y mice were fertile. The size and weight of Bend2D11/y testes were comparable to that of wild-type testes (Figure 2A and Supplementary file 1). Similarly to Ma et al., 2022, using our BEND2 antibody, we detected two BEND2-related proteins in wild-type testes by WB: one was ~130 kDa, and another was ~75 kDa (Figure 2C). Although the predicted size of full-length BEND2 is 80.9 kDa, based on previous reports (Ma et al., 2022), the 130 kDa protein corresponds to the full-length BEND2, which displays a slower electrophoretic mobility due to its unusual sequence/structure. The 75 kDa protein corresponds to a smaller version of BEND2 lacking the N-terminus, p80 (Ma et al., 2022). Interestingly, we did not detect any BEND2 protein in wild-type testes of 48.3 kDa, which would be expected from the novel transcript 255p1 we identified.

We were unable to detect the full-length BEND2 in Bend2D11/y mouse testis extracts by WB (Figure 2C). The staining of BEND2 observed in wild-type cells was not present in mutant cells (Figure 2D). However, the p80 BEND2-related protein was still present in Bend2D11/y mutant testes (Figure 2C). Moreover, an alternative Bend2 transcript skipping exon 11 was detected in Bend2D11/y testis by RT-PCR and sequencing (Figure 2B).

We attempted to test if this exon 11-skipped transcript was also present in wild-type mouse testis by RT-PCR and if it represented the p80 BEND2-related protein detected in both wild-type and Bend2D11/y testis by immunoprecipitation (IP) coupled to peptide mass fingerprinting analysis. Unfortunately, only the full-length Bend2-202 transcript was consistently amplified in our RT-PCR analysis, and our in-house BEND2 antibody did not give satisfactory IP results (Data was not shown). Overall, these results suggest that the full-length BEND2 was successfully eliminated from mutant mouse testis. Also, the p80 BEND2 protein, likely corresponding to an exon 11, skipped transcript, is present and might be functional in our mutant testis, based on the observed phenotype (see below).

Histological analysis of Bend2D11/y testes revealed the presence of cells at all the stages of spermatogenesis (Figure 3A). However, a significant increase in apoptotic cells was detected in Bend2D11/y testes via TUNEL assays (p<0.0001 t-test, Figure 3B–C). Further staging analysis showed that Bend2D11/y mice presented a comparable number of apoptotic spermatocytes (66.8 ± 9.7%, mean ± SD, N=4) than wild-type mice (52.5 ± 9.5%, mean ± SD, N=4, p>0.05 One-Way ANOVA, Figure 3D). Therefore, the full-length BEND2 might be dispensable for completing spermatogenesis, and its absence only caused a slight defect in spermatogenesis.

Figure 3
Download asset Open asset

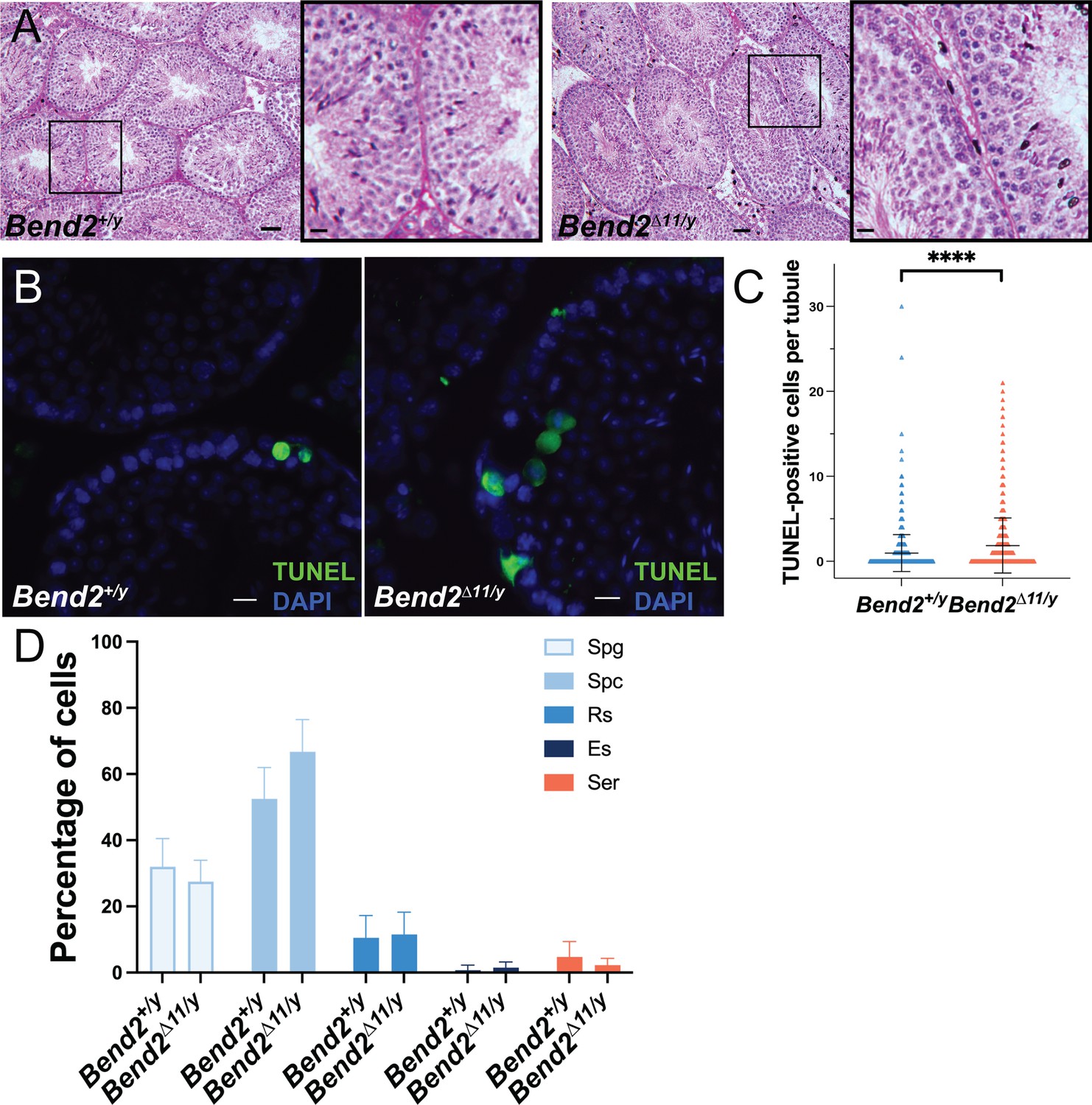

The full-length BEND2 is dispensable to complete spermatogenesis in mice.

(A) Representative PAS-H stained mouse testis sections. The square in the left image shows the zoomed images on the right. Scale bar on the right images, 20 µm. (B) Apoptosis detection on testis sections by TUNEL assay. Scale bar, 20 µm. (C) Quantification of TUNEL-positive cells. The horizontal lines represent the mean ± SD. N=1,125 for Bend2+/y; N=1195 for Bend2D11/y, ****p<0.0001 t-test. (D) Classification of TUNEL-positive cells. The columns and error lines indicate the mean ± SD. N=4, p>0.05 One-Way ANOVA.

To further explore the causes of the increased apoptosis in BEND2–deficient testes, we assessed chromosome synapsis and meiotic recombination progress in spermatocytes by IF. In wild-type spermatocytes, SYCP3 began to form each developing chromosome axis at leptotene. At zygotene, synapsis is initiated as SYCP1 appears at the synapsed region of the homologs. At pachytene, synapsis was completed as SYCP3 and SYCP1 completely colocalized. At diplotene, SCs disassembled, and SYCP1 was lost from separated SYCP3-labelled axes, but homologous chromosomes remained held together by chiasmata.

Synapsis progressed similarly to wild-type spermatocytes in Bend2D11/y spermatocytes (Figure 4A). However, the fraction of diplotene spermatocytes was significantly increased (p=0.019, One-Way ANOVA). Additionally, the fraction of pachytene spermatocytes (48.6 ± 6.8%, mean ± SD, N=4) seemed to decrease in Bend2D11/y mice, compared to wild-type mice (57.3 ± 4.5%, mean ± SD, N=4, p=0.078 One-Way ANOVA). This accumulation of Bend2D11/y spermatocytes at the diplotene stage could be explained if there was a later block of the meiotic progression or if Bend2D11/y spermatocytes might exit pachytene faster than wild-type spermatocytes. Taken together, these results demonstrated that in the absence of the full-length BEND2, spermatocytes could complete synapsis and progress through meiotic prophase but following a slightly altered timeline.

Figure 4 with 2 supplements see all
Download asset Open asset

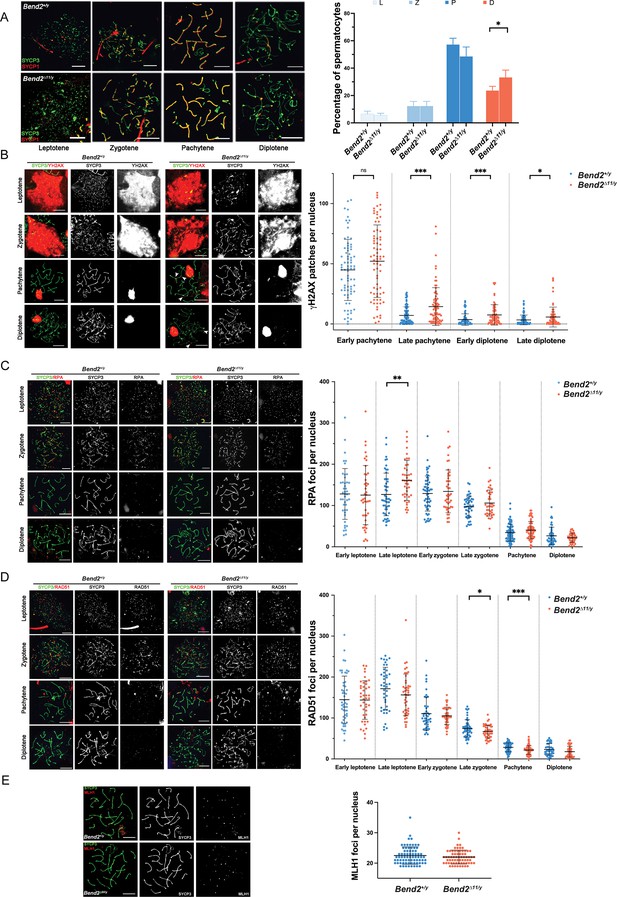

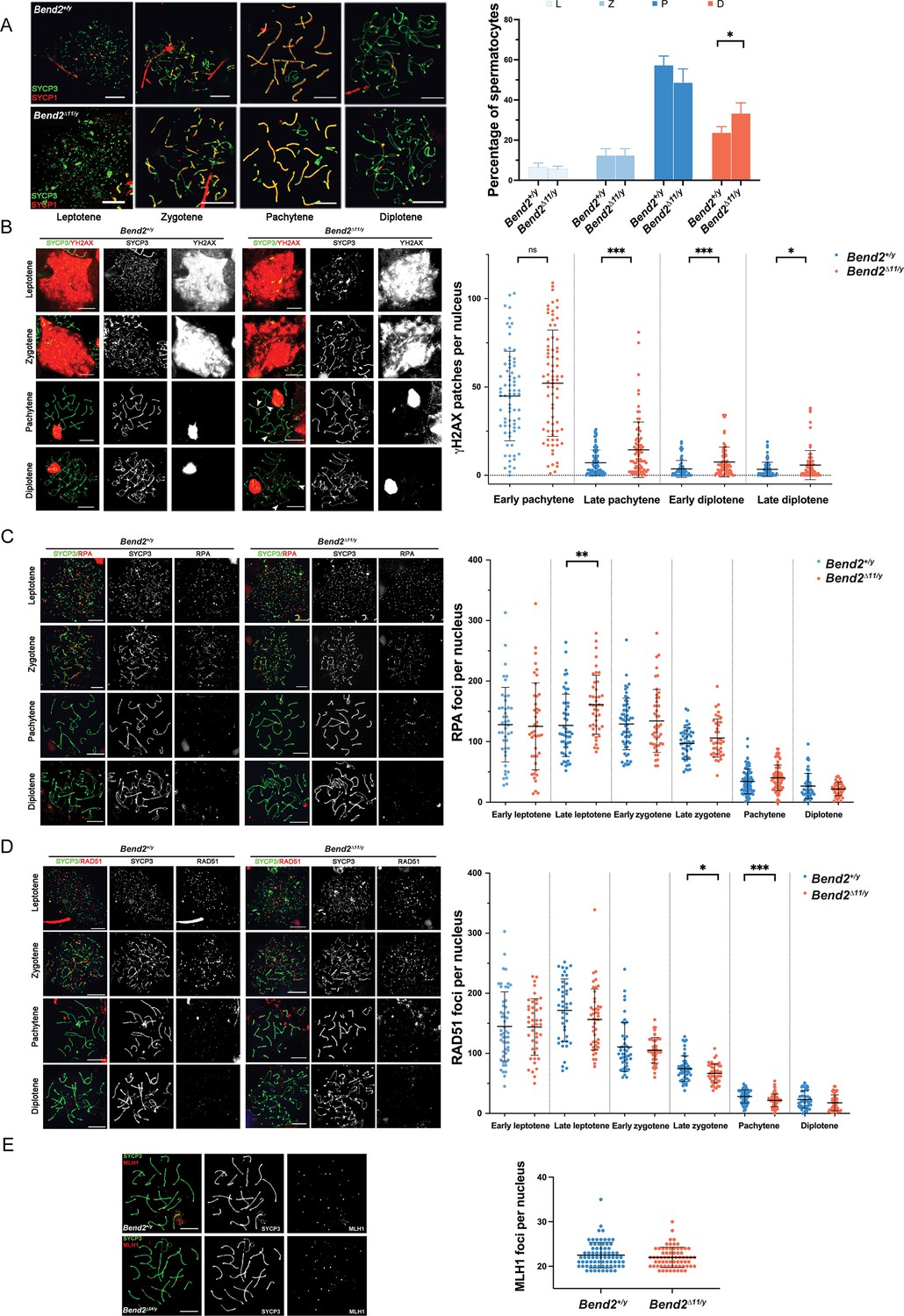

Bend2D11/y males display minor recombination defects.

(A) Chromosomal synapsis in spermatocytes. Representative images of SYCP3 and SYCP1 staining in spermatocyte nuclei from the stages shown (left). Meiotic prophase staging of spermatocytes (right). L: leptotene, Z: zygotene, P: pachytene, D: diplotene. The columns and lines indicate the mean and SD. N=4, *p=0.019 One-Way ANOVA. (B) Examination of DSBs in Bend2D11/y spermatocytes. Representative images of YH2AX staining in spermatocyte nuclei along meiotic prophase (left). Increased YH2AX signals are detected during late prophase in Bend2D11/y spermatocyte (white arrowhead). Quantification of YH2AX patches in spermatocyte nuclei per sub-stages (right). The patches were counted manually using the same method for every pair of control and mutant mice. From left to right, N=76/74, 86/83, 73/75, and 78/81, ***p=0.0001 (late pachytene) and 0.0007 (early diplotene), *p=0.0222 t-test. Analysis of replication protein A (RPA) (C) and RAD51 (D) foci counts in control and Bend2D11/y spermatocytes. RPA and RAD51 foci were counted using ImageJ with the same method for every Bend2+/y and Bend2D11/y mice pair. From left to right, N=44/43, 51/43, 59/46, 45/39, 81/77, and 48/43, **p=0.0015 for RPA quantification; N=52/43, 42/46, 44/46, 51/45, 77/73, and 45/49, *p=0.0428 and ***p=0.0002 for RAD51 quantification; t-test. (C) Examination of CO formation in Bend2D11/y spermatocytes. Representative images of MLH1 in control and mutant spermatocyte nuclei (left). Quantification of MLH1 foci in spermatocyte nuclei (right). Only spermatocytes containing ≥19 MLH1 foci/nucleus were counted. N=74 for Bend2+/y and 68 for Bend2D11/y, p>0.05 Mann-Whitney test. The horizontal lines represent mean ± SD (B–E). Scale bar, 10 µm.

During early meiosis, recombination initiates with SPO11-mediated DSB formation, leading to the phosphorylation of the histone H2AX by ATM and thus triggering a series of DSB repair responses in the meiotic prophase (Huang and Roig, 2023). In wild-type mice, ϒH2AX progressively disappeared from the autosomes while DSBs were repaired as prophase progressed. By pachytene, most ϒH2AX was associated with the sex body. Few ϒH2AX patches could be observed on the autosomes from late pachytene, presumably corresponding to unrepaired DSBs (Figure 4B).

Interestingly, a marked increase in the number of ϒH2AX patches was detected from early pachytene until late diplotene in Bend2D11/y spermatocytes, indicating a possible delay in DSB repair (Figure 4B). Alternatively, the same results could be observed if more DSBs were formed during prophase in Bend2D11/y spermatocytes.

Once DSBs are resected, replication protein A (RPA) transiently binds to the nascent ssDNA overhangs, promoting the assembly of the recombinases RAD51 and DMC1 at DSB sites (Moens et al., 2002). RAD51 and DMC1 replace RPA and form nucleoprotein filaments with the ssDNA, directing homology search and strand invasion to proceed along the DSB repair pathway (Brown and Bishop, 2015; Hinch et al., 2020).

In wild-type spermatocytes, the number of RPA foci peaked around early zygotene and progressively diminished as recombination proceeded; on the other hand, there were many RAD51 foci since leptotene, and the number started to decline from early zygotene (Figure 4C–D), consistent with previous studies (Moens et al., 2002; Pacheco et al., 2015). In Bend2D11/y males, the spermatocytes had similar initial RPA and RAD51 foci numbers, suggesting that DSB formation was not affected by the loss of BEND2 (Figure 4C–D). However, Bend2D11/y cells tended to accumulate more RPA foci and lose RAD51 foci as they progressed along the meiotic prophase. The differences became significant for RPA at late leptotene (p=0.0015 t-test, Figure 4C) and RAD51 at late zygotene and pachytene (p=0.0428 and 0.0002, respectively t-test, Figure 4D), indicating a subtle defect in the replacement of RPA by RAD51.

Because of meiotic recombination, at least one crossover per bivalent is generated to ensure accurate chromosome segregation at the first meiotic division (Zickler and Kleckner, 1999). We examined MLH1 foci, which become apparent at mid-late pachytene and mark most crossover-designated sites (Anderson et al., 1999). We did not detect significant differences in the number of MLH1 foci in Bend2D11/y spermatocytes (22.0 ± 2.3, mean ± SD, N=68) compared to wild-type cells (22.5 ± 2.9, mean ± SD, N=74, p=0.2543, t-test, Figure 4E), suggesting that BEND2 deficiency did not affect crossover formation in spermatocytes.

Homologous recombination is the principal DSB repair pathway in meiosis responding to SPO11-dependent DSBs. But in late spermatocytes (late pachytene and diplotene), other DSB repair pathways, such as non-homologous end joining (NHEJ) or inter-sister homologous recombination (IS-HR), take over (Ahmed et al., 2010; Enguita-Marruedo et al., 2019; Goedecke et al., 1999). Moreover, during pachytene, new DSBs could be formed by SPO11-independent mechanisms (Carofiglio et al., 2013). Therefore, the increased presence of ϒH2AX patches observed in Bend2 mutant mice might be explained by the inactivation of these alternative DSB repair pathways during the late meiotic prophase or an increase of SPO11-independent DSBs during pachytene.

To gain insight into these hypotheses, we studied if the NHEJ pathway activity is reduced during meiosis in Bend2D11/y mice by examining the localization and expression of its constitutive protein, Ku70, on testes sections. As anticipated, Ku70 was observed as a patch-like signal on sex bodies in pachytene and diplotene spermatocytes. A punctuated signal, marking presumably DSB sites in the nucleus, was seen in cells of all spermatogenesis stages besides round and elongated spermatids (Figure 4—figure supplement 1A). The number of Ku70 foci colocalizing with SYCP3 in spermatocytes in pachytene and diplotene stages was similar between control and mutant samples (Figure 4—figure supplement 1B). No differences were observed in the proportion of tubules expressing Ku70 either. These results were further confirmed with Western blot analysis (Figure 4—figure supplement 1C–D), thus suggesting that Bend2 depletion does not affect NHEJ activation.

BEND2 deficiency leads to LINE-1 retrotransposon suppression

The formation of SPO11-independent DSBs during meiotic prophase has been linked to the LINE-1 retrotransposon activation (Carofiglio et al., 2013; Malki et al., 2014; Soper et al., 2008). To evaluate if the LINE-1 activity was increased in Bend2 mutant mice, we examined LINE1 expression in mouse testes by IF and WB.

As expected, the most prominent LINE-1 staining localized to the cytoplasm of leptotene, zygotene, and pachytene spermatocytes (Figure 4—figure supplement 2A). The signal intensity varied greatly between seminiferous tubules of the same sample in both wild-type and mutant animals. In Bend2D11/y mice, spermatocytes showed similar signal intensity compared to control mice. Contrary to the expected, a statistically significant lower number of LINE-1 positive tubules was observed in mutant mice. An average of 2.8% and 0.5% positive tubules was observed in control and Bend2D11/y mice, respectively (p=0.02, t-test) (Figure 4—figure supplement 2B). Western blot analysis validated the lower LINE-1 protein expression in Bend2D11/y testes sections (Figure 4—figure supplement 1B). Indeed, a significant decrease in LINE-1 protein levels was found in Bend2D11/y mice (p=0.0469, t-test, Figure 4—figure supplement 2C), thus confirming the IF results. Defects in the demethylation efficiency of LINE-1 in Bend2 mutant mice during the prophase may explain these results. On the other hand, the signal intensity was equal in wild-type and mutant mice, suggesting that some tubules successfully complete LINE-1 demethylation, thus resulting in normal LINE-1 expression.

BEND2 deficiency results in a reduced ovarian reserve

A more robust phenotype was observed in females when BEND2 was disrupted compared to males. Female Bend2D11/D11 mice were fertile. However, the litter size was significantly smaller than that in wild-type females (Figure 5A), and noticeably smaller ovaries were present in mutant females (Figure 5B).

Figure 5 with 2 supplements see all
Download asset Open asset

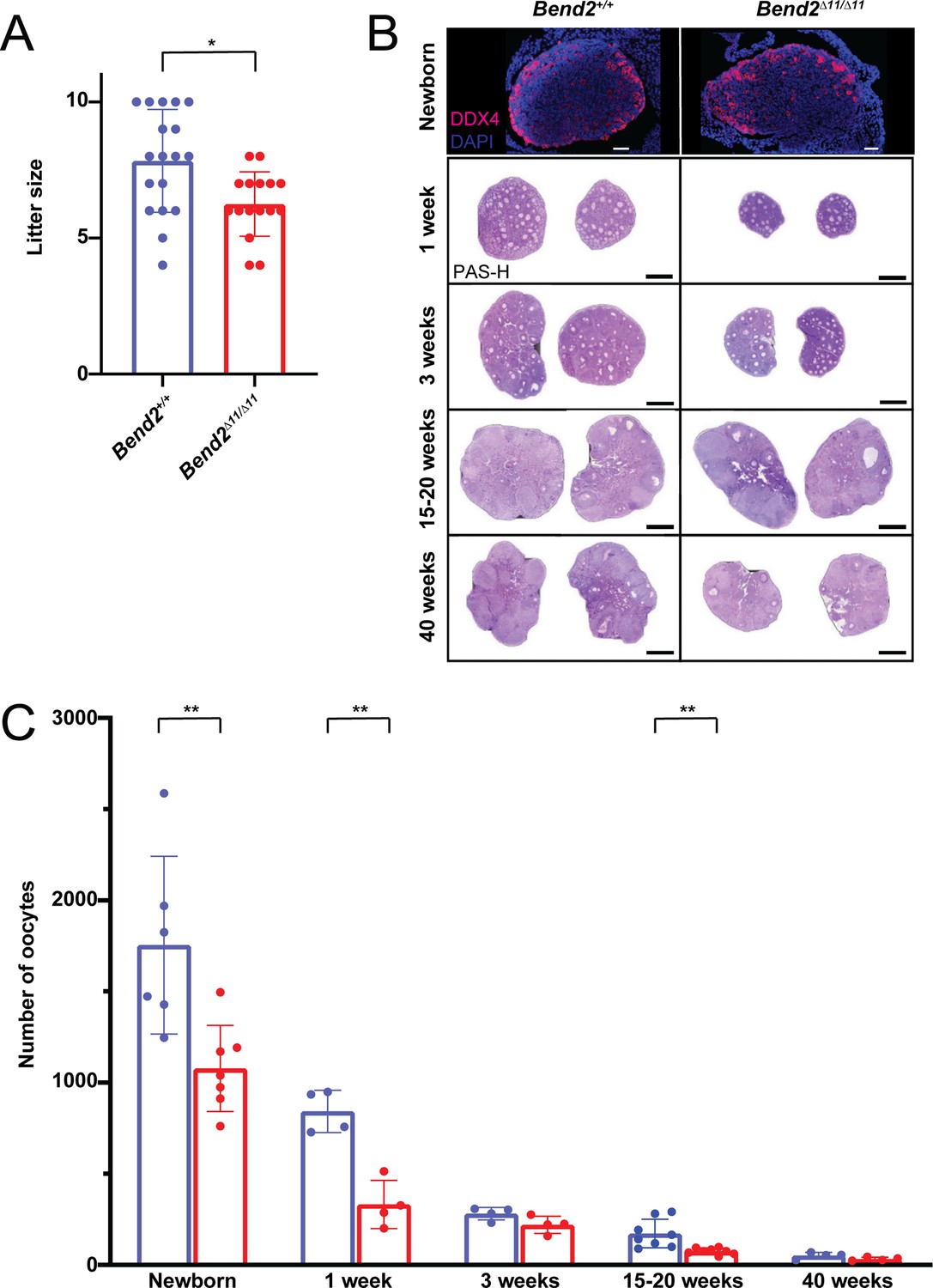

Oogenesis is altered in Bend2 mutant females.

(A) Fertility evaluation of Bend2D11/D11 females. Two-month-old Bend2D11/D11 females were crossed with wild-type males for 5 months; litter size data of four animals per genotype were collected for analysis. *p=0.0069, t-test. (B) DDX4-stained and Periodic Acid Schiff-Hematoxylin (PAS-H) stained histological ovary sections from females at different ages. Scale bars, 50 µm for Immunofluorescent images and 0.5 mm for the PAS-H stained ones. (C) Quantification of the number of oocytes found in the analyzed ovaries of newborn, one, three, 15–20, and 40 weeks old mice. The columns and lines indicate the mean and SD. **p=0.0075, 0.0012, and 0.0040; t-test.

To investigate if the loss of BEND2 affected oogenesis, a more detailed histological analysis of whole ovaries was performed in young (1-week-old), adolescent (3-weeks-old), adult (15–20-weeks-old), and aged (40-weeks-old) Bend2D11/D11 and Bend2+/+ mice. At 1 week, Bend2D11/D11 females exhibited a significantly reduced number of oocytes (p=0.0012, t-test; Figure 5C), mainly due to a reduced number of primordial follicles (p=0.0007, t-test; Figure 5—figure supplement 1A). Growing follicles were found at all stages, with no statistically significant differences between Bend2D11/D11 and control mice (Figure 5—figure supplement 1A). This tendency continued in prepubertal 3-week-old animals. At this stage, Bend2 mutant ovaries seemed to contain fewer oocytes (p=0.0834, t-test; Figure 5C) and primordial follicles (p=0.0704, t-test; Figure 5—figure supplement 1B). At an adult stage of 15–20 weeks, the mutant ovaries presented significantly fewer oocytes (p=0.0040, t-test; Figure 5C), again due to a reduction in the number of primordial follicles (p=0.0024, t-test; Figure 5—figure supplement 1C). Interestingly, at this stage, we also noticed a significant reduction in the number of antral follicles in mutant mice (p<0.0001, t-test; Figure 5—figure supplement 1C), which could partly explain the reduced fertility of these females. Finally, at 40 weeks, there tended to be fewer oocytes and primordial follicles in Bend2D11/D11 ovaries than in Bend2+/+ ovaries (p=0.1171 and p=0.1383, t-test; Figure 5—figure supplement 1D). These results suggest a reduction in the oocyte pool established at birth and the possible occurrence of premature ovarian insufficiency in Bend2 mutant females.

To certify that BEND2 was required to establish the ovarian reserve, we counted the oocyte population present in newborn Bend2+/+ and Bend2D11/D11 mutant mice by staining ovarian sections with the germ-cell marker DDX4 (Figure 5B). Bend2 mutant ovaries contained almost 40% fewer oocytes than control ovaries (p=0.0037, t-test; Figure 5C), evidencing that the absence of the full-length BEND2 resulted in a reduced ovarian reserve.

Mutant Bend2 oocytes show persistent unrepaired DSBs and impaired crossover formation

To address the cause of this reduced ovarian reserve, we first analyze the expression of LINE-1, which has been associated with increased perinatal oocyte death in mice (Malki et al., 2019). However, we found a similar percentage of oocytes expressing LINE-1 in Bend2+/+ and Bend2D11/D11 ovarian sections (20.2±0.6; 16.8±2.3, mean ± SEM; p=0.1851, t-test; Figure 5—figure supplement 2). These data suggest that the reduction in the number of oocytes present in Bend2 mutant mice might not be related to an increased expression of LINE-1.

Next, we examined if errors during the meiotic prophase could be responsible for the observed reduced ovarian reserve in Bend2D11/D11 mice. Thus, we studied chromosome synapsis and meiotic recombination progress in fetal oocytes by IF. In wild-type ovaries, most oocytes at 18 dpc were at the pachytene stage, a small fraction was still at the zygotene stage, and a minority at the leptotene stage. At 1 dpp, almost all oocytes were at the pachytene and diplotene stages (Figure 6A). In Bend2D11/D11 ovaries, zygotene, and pachytene oocytes undergoing normal synapsis and diplotene oocytes undergoing desynapsis were observed at 18 dpc and 1 dpp (Figure 6A).

Figure 6
Download asset Open asset

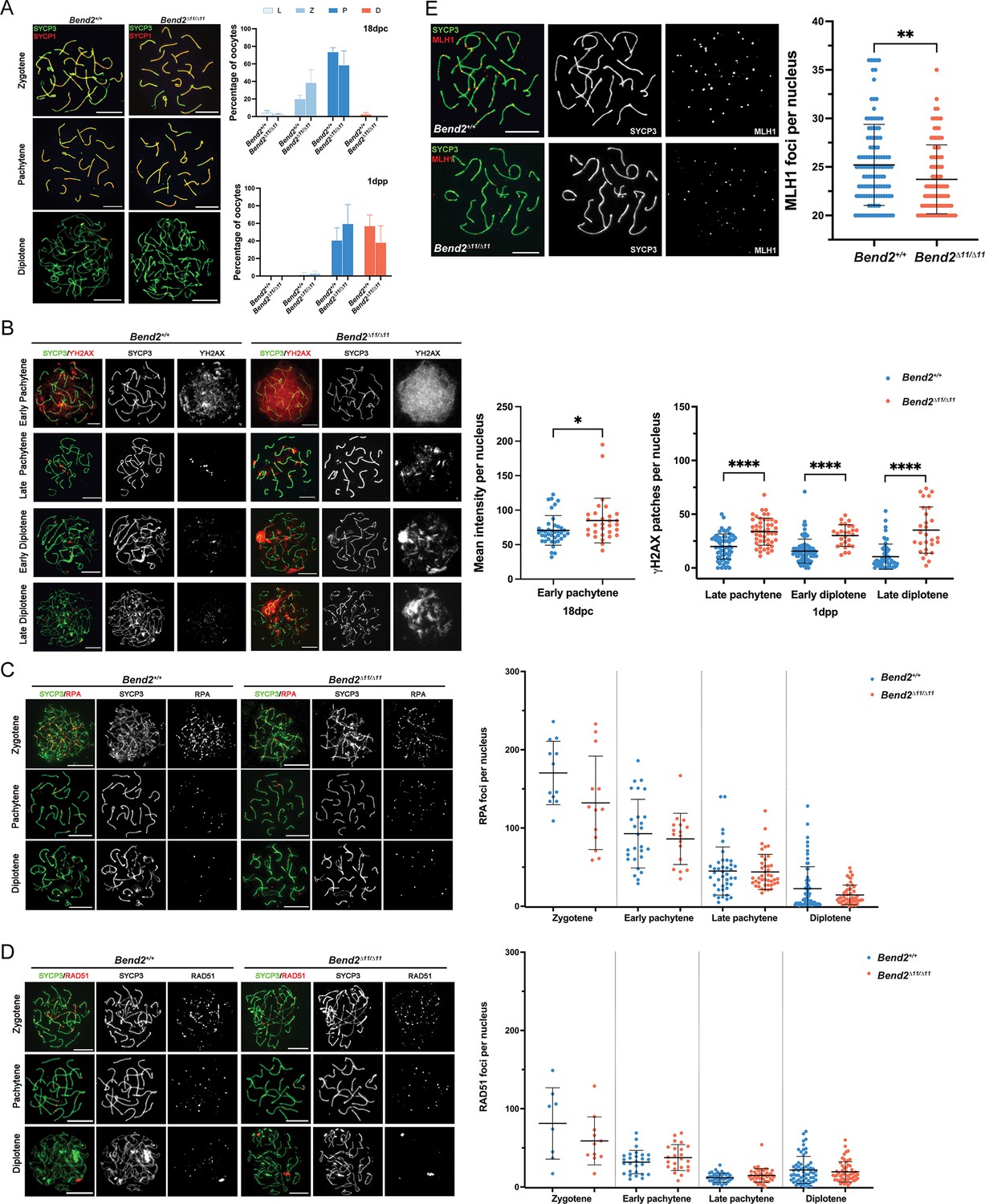

Synapsis and recombination in Bend2D11/D11 females.

(A) Chromosomal synapsis in oocytes. Representative images of SYCP3 and SYCP1 staining in 18 dpc and 1 dpp oocyte nuclei are shown (left). Meiotic prophase staging of 18 dpc and 1 dpp oocytes (right). L: leptotene, Z: zygotene, P: pachytene, D: diplotene. The columns and lines indicate the mean and SD. The number of animals analyzed per genotype, 2 for 18 dpc and 3 for 1 dpp. p>0.5 for all the comparisons One-Way ANOVA. (B) Examination of DSBs in Bend2D11/D11 oocytes. Representative images of ϒH2AX staining in 18 dpc and 1 dpp oocyte nuclei at the pachytene and diplotene stage (left). Quantification of ϒH2AX patches in oocyte nuclei at sub-stages (right). The mean intensity of ϒH2AX staining in 18 dpc oocyte nuclei was measured by Image J. The patches of ϒH2AX in 1 dpp oocyte nuclei were counted manually. The horizontal lines represent the mean ± SD. From left to right, the number of analyzed nuclei per genotype: 40/30, 64/48, 81/27, and 57/28. *p=0.0288, ****p<0.0001 t-test. (C) Analysis of replication protein A (RPA) (C) and RAD5 (D) foci in control and Bend2D11/D11 oocytes. Representative images of RPA staining in 18 dpc and 1 dpp oocyte nuclei from zygotene to diplotene stage (left). Quantification of RPA foci present in oocyte nuclei at sub-stages (right). Zygotene and early pachytene nuclei analyzed were from 18 dpc ovaries, and late pachytene and diplotene nuclei analyzed were from 1 dpp ovaries. Foci were counted manually. The horizontal lines represent the mean ± SD. From left to right, number of analyzed nuclei: 12/13, 27/17, 41/42, and 65/49 for RPA, and 8/11, 27/23, 38/46, and 62/55 for RAD51. p>0.5 for all the comparisons t-test. (E) Examination of CO formation in control and Bend2D11/D11 oocytes. Representative images of MLH1 in 1 dpp oocyte nuclei (left). Quantification of MLH1 foci in 1 dpp oocyte nuclei (right). Only oocytes containing ≥20 MLH1 foci/nucleus were counted. The horizontal lines represent the mean ± SD. N=120 for Bend2+/+, 95 for Bend2D11/D11; **p=0.0057 Mann-Whitney test. Scale bar, 10 µm.

Consistent with the observation in Bend2 mutant males, we also found increased levels of ϒH2AX in late prophase Bend2D11/D11 oocytes (Figure 6B). In wild-type females, ϒH2AX patches could be detected along axes in most pachytene oocytes and many diplotene oocytes (Figure 6B). This is different from wild-type males, in which ϒH2AX can only be detected as very few patches in late pachytene cells and is almost undetectable in most diplotene cells (Figure 4B), presumably because synapsis progresses faster than recombination in females than in males (Roig et al., 2004).

In Bend2D11/D11 oocytes, higher levels of ϒH2AX were observed at all stages analyzed (early pachytene, late pachytene, and diplotene, Figure 6B). Many early pachytene Bend2D11/D11 oocytes exhibited an overall intense ϒH2AX signal reminiscent of wild-type zygotene cells (Figure 6B). To quantitatively compare these differences, we measured the ϒH2AX signal intensity in early pachytene oocytes and counted the ϒH2AX patches in late pachytene and diplotene oocytes. As expected, a significant increase of ϒH2AX was present in Bend2D11/D11 oocytes at all the tested stages (p=0.0288 for early pachytene; p<0.0001 for late pachytene, early diplotene and late diplotene, t-test, Figure 6B). Thus, like in Bend2 mutant males, DSB repair was impaired, or more DSBs were formed in Bend2D11/D11 females.

In females, no differences in the number of RPA and RAD51 foci were found between wild-type and Bend2D11/D11 oocytes, apart from a slight decrease in RPA foci in Bend2D11/D11 oocytes (Figure 6C) and a slight increase in RAD51 foci in pachytene Bend2D11/D11 oocytes (Figure 6D). These results suggest that the increased presence of ϒH2AX in Bend2D11/D11 oocytes may not be related to defective meiotic recombination but to other causes, like meiotic silencing of unsynapsed chromosomes (MSUC) or alternative DNA repair pathways.

Interestingly, the number of MLH1 foci in late prophase oocytes was significantly lower in Bend2D11/D11 females than in control females (p=0.006 for Bend2D11/D11, t-test, Figure 6E). Thus, we concluded that the depletion of BEND2 caused a reduced crossover formation in oocytes, probably partly causing the reduced litter size in Bend2 mutant females.

Finally, to check if these alterations affected Bend2D11/D11 oocyte quality, we performed ovarian stimulation on 7-month-old Bend2+/D11 and Bend2D11/D11 mice. On average, we obtained a similar number of oocytes from the ovarian stimulation in control and mutant mice (10.7±4.1 vs 10.0±1.2; mean ± SEM; p=0.8852, t-test; Table 1). Remarkably, the ability of Bend2D11/D11 mutant oocytes to be fertilized and develop into the blastocyst stage did not seem to be compromised (Table 1), suggesting that the absence of the full-length BEND2 did not compromise oocyte quality, at least to be fertilized and develop up to the blastocyst stage.

Table 1
Bend2D11/D11 oocytes fertilize and develop into blastocyst stage similar to control oocytes.
GroupGenotype# mouseAge (months)# oocyte# 2 cell embryoFertilization (%)Blastocyst (%)
ControlBend2+/D113710.7±7.27.7±3.878.0±19.523.3±25.2
MutantBend2D11/D113710.0±2.08.3±3.282.7±20.546.8±12.2

Discussion

In mammals, the establishment and gradual depletion of the ovarian reserve defines a finite female reproductive life span. In this study, we demonstrated that BEND2, a new player in meiosis (Ma et al., 2022), is essential for the primordial follicle pool setup. The depletion of the full-length BEND2 causes severe defects in female oogenesis with a decreased ovarian reserve and subfertility. However, these defects may not be directly related to meiotic recombination progression or synapsis, although a high level of unrepaired DSBs persists during late meiotic prophase. We also showed that BEND2 has a role in regulating LINE-1 retrotransposon activity in spermatocytes. Our work expands our knowledge of the genetic factors influencing the ovarian reserve, potentially benefiting the genetic diagnosis of human infertility.

BEND2 has two C-terminal BEN domains, marked by α-helical structure, and is conserved in a range of metazoan and viral proteins. BEN domain is suggested to mediate protein–DNA and protein-protein interactions during chromatin organization and transcription (Abhiman et al., 2008). So far, only a few BEN domain-containing proteins have been described. All of their functions are linked to transcriptional repression regardless of whether the proteins contain other characterized domains, including mammalian BANP/SMAR1, NAC1, BEND3 and RBB and Drosophila mod(mdg4), BEND1, and BEND5 (Dai et al., 2015; Dai et al., 2013; Gerasimova et al., 1995; Kaul-Ghanekar et al., 2004; Korutla et al., 2007; Korutla et al., 2005; Nègre et al., 2010; Rampalli et al., 2005; Sathyan et al., 2011; Xuan et al., 2013). BEND1, BEND5, and RBB are revealed to bind DNA through sequence-specific recognition (Dai et al., 2015; Dai et al., 2013; Xuan et al., 2013), and BEND3 specifically binds heterochromatin (Sathyan et al., 2011). Additionally, several human BEND2 fusion proteins have been identified in tumors, and the activation of BEND2 is suggested to promote oncogenic activity (Burford et al., 2018; Scarpa et al., 2017; Sturm et al., 2016; Williamson et al., 2019). These data suggest that BEND2 might have a role in regulating chromatin and transcriptional gene expression. A recent study showed that BEND2 is a crucial regulator of meiosis gene expression and chromatin state during mouse spermatogenesis (Ma et al., 2022).

In the study of Ma et al., 2022, two BEND2-related proteins (p140 and p80) were found in mouse testis, using an antibody against a short polypeptide from the C-terminus of BEND2. They demonstrated that p140 is the full-length version of BEND2, displaying slower electrophoretic mobility due to its unusual sequence/structure at the N-terminus. They also reported that BEND2 was expressed in the nuclei of spermatogenic cells around meiosis initiation. Similarly, using our antibody against the whole C-terminus of the protein, we also found two BEND2-related proteins expressed in mouse testis and a highly consistent expression pattern of BEND2 during spermatogenesis. These two proteins likely correspond to full-length and smaller isoform from Ma et al., 2022.

Ma et al., 2022 disrupted Bend2 by deleting exons 12 and 13, which resulted in the loss of both the full-length (p140) and the smaller isoform (p80) of BEND2. In their study, Bend2 mutant mice were sterile and exhibited severe meiotic recombination and synapsis defects. In contrast, our study targeted exon 11, specifically ablating the full-length p140 isoform while preserving the expression of the smaller p80 isoform in the testis. Interestingly, Bend2Δ11/y mutant males remain fertile, with essentially normal meiotic recombination and synapsis, suggesting that the full-length BEND2 (p140) is not essential for the repair of SPO11-induced double-strand breaks or for synapsis during meiosis.

This observation strongly implies that p80 is sufficient to fulfill the essential roles of BEND2 in meiosis and spermatogenesis. The preserved fertility and proper progression of meiosis in our Bend2Δ11/y mutants suggest that the smaller p80 isoform is the primary driver of BEND2’s function in these processes. Conversely, the sterility and severe meiotic defects observed in the study by Ma et al. can be attributed to the loss of p80 and p140. These findings highlight a functional redundancy or compensatory mechanism provided by p80 that allows meiosis and spermatogenesis to proceed effectively in the absence of the full-length isoform.

Thus, we propose that p80 is the indispensable isoform of BEND2 required for meiotic progression. Its presence in our model likely prevents the spermatogenesis arrest seen in the Ma et al. study. This hypothesis provides a compelling explanation for why our Bend2Δ11/y males exhibit a less severe phenotype and remain fertile despite the absence of full-length BEND2. These results underscore the importance of considering isoform-specific functions when investigating the roles of multi-isoform genes in complex biological processes like meiosis and gametogenesis.

In our study, one common defect in mutant spermatocytes and oocytes was a significant increase in unrepaired DSBs during late prophase. Examination of the chromosomal dynamics and meiotic recombination demonstrated that the full-length BEND2 is not essential for SPO11-induced DSB repair. Since all meiotic recombination markers studied, apart from gH2AX, were mostly indistinguishable in mutant and control cells, we hypothesized that the observed unrepaired DSBs might be SPO11-independent and further explored the LINE-1 retrotransposon activation, which is known to cause DSBs during meiosis (Soper et al., 2008; Carofiglio et al., 2013; Malki et al., 2014) and it has been implicated in the regulation of the ovarian reserve (Martínez-Marchal et al., 2020; Tharp et al., 2020). Unexpectedly, we found a significant reduction in LINE-1 expression levels in mutant testis and although it was not statistically significant, mutant oocytes seemed to have a similar trend.

Repetitive transposon elements, including LINE-1, occupy almost half of the human genome and are extremely important for genome evolution (Wang, 2017). Transposon-mediated insertional mutagenesis was linked to a multitude of genetic diseases. Even though LINE-1 is active mainly during the genome-wide demethylation, transient DNA demethylation occurring at the onset of meiosis was found to trigger a persisting LINE-1 expression until mid-pachytene (Soper et al., 2008). Silencing of LINE-1 retrotransposons is achieved with multiple mechanisms such as DNA methylation, histone modifications, and piRNAs (piwi-interacting RNAs) (Di Giacomo et al., 2013). Ma et al., 2022 described that in Bend2 KO male mice, there is an up-regulation of PIWIL2 expression at the onset of meiosis. PIWIL2 belongs to the PIWI subfamily of proteins that bind to piRNAs, which are required for several biological processes, including silencing retrotransposons during meiosis (Di Giacomo et al., 2013). Thus, it is likely that Bend2 depletion caused an up-regulation of the piRNA pathway, resulting in lower LINE-1 expression in our mouse mutant spermatocytes.

Alternatively, as BEND2 was found to bind to repetitive sequences (Ma et al., 2022), it could interact directly with LINE-1 to promote its expression. The lower LINE-1 expression might result straightforwardly from less binding of BEND2. Finally, Bend2 mutation could affect chromatin state and higher-order structures (Ma et al., 2022), which could alter LINE-1 expression and hinder DNA repair. Further studies focusing on the regulation of PIWIL2 by BEND2 will clarify these aspects of the phenotype.

Due to the sterility of hemizygous mutant males, female homozygous mutants can't be produced in the study of Ma et al., 2022. So, our female mutant model facilitates further exploration of BEND2’s roles in oogenesis.

Interestingly, our mutant females Bend2D11/D11 exhibited a more severe phenotype with a reduced ovarian reserve and subfertility, which had not been described before. Mouse females establish the pool of primordial follicles around birth. As folliculogenesis begins, the pool is gradually depleted throughout reproductive life (Hunter, 2017). By examining the dynamics of the oocyte pool in female mice at different ages, we showed that compared to wild-type females, BEND2-deficient females have a significantly smaller ovarian reserve. As a result, fewer follicles develop during folliculogenesis from pre-puberty throughout adulthood. Consistent with these, BEND2-deficient females produced reduced litter size, which indicates subfertility. Interestingly, our mutant oocyte quality analysis suggests that mature oocytes from mutant females are equally competent to develop into a blastocyst as control ones. These data suggest that the subfertility observed in Bend2 mutants may be due to errors in later developmental stages, such as implantation or organogenesis.

Thus, BEND2, apart from its roles in male meiosis (Ma et al., 2022), is also required to establish the ovarian reserve during oogenesis. The full-length BEND2 may take on this role in females. However, future investigation of BEND2 expression in fetal ovaries is necessary to validate this. Genes discovered to have disease-causing roles in mouse models often offer a panel of strong candidate genes for screening human infertility factors (Huang and Roig, 2023; Riera-Escamilla et al., 2019). Our data shows that the depletion of BEND2 may lead to premature ovarian insufficiency (POI), which is also a significant cause of female infertility in humans, and its underlying genetic causes are mainly unknown (Rossetti et al., 2017). Thus, identifying BEND2’s requirement for normal oogenesis is also important to recognizing the genetic determinants of human POI.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (M. musculus)Bend2EnsemblENSMUSG00000108981Gm15262
Genetic reagent (M. musculus)Bend2D11/D11 or Bend2D11/yThis paperAvailable from the authors upon request
Dr. Ignasi Roig
Ignasi.Roig@uab.cat
Sequence-based reagentgRNA 1-antisenseThis paper
(Sigma)		gRNAAGTAGCAGGCTGCATAAGT GGG
Sequence-based reagentgRNA 2-senseThis paper
(Sigma)		gRNAAGACCAGCCTTATTGACCA TGG
Strain, strain background (Escherichia coli)5-alpha competent E. coli cellsNew England Biolabs.C2987Hcompetent cells
Strain, strain background (Escherichia coli)E. coli BL21(DE3)NCBI469008competent cells
Cell line (H. sapiens)HEK 293TCellosaurusCVCL_0063Cell line maintained in SCAC, Institut de Biotecnologia i de Biomedicina
Antibodyanti-BEND2 RbThis paperIF(1:100), WB (3.2 μg/ml)
Available from the authors upon request
Dr. Ignasi Roig
Ignasi.Roig@uab.cat
Antibodyanti-Ku70 RbAbcamab92450IF (1:100)
WB (1:2000)
Antibodyanti-GAPDH RbAbcamab37168WB (1:2000)
Antibodyanti- SYCP3 Ms or RbAbcamab97672 or ab15093IF (1:200)
Antibodyanti- SYCP1 RbAbcamab15090IF (1:200)
Antibodyanti-phospho-Histone H2A.X MsMillipore05–636IF (1:400)
Antibodyanti-MLH1 MsBD Biosciences51-1327GRIF (1:50)
AntibodyRPA32 (4E4) RatCell Signalling2208 SIF (1:100)
Antibodyanti-RAD51 (ab-1) RbMilliporePC130IF (1:100)
Antibodyanti-GFP RbThermo Fisher ScientificA-11122IF (1:200)
Antibodyanti-LINE1 ORF1p RbAbcamab216324IF (1:100)
WB (1:2000)
Antibodyanti-rabbit HPRBio-Rad170–6515WB (1:5000)
Recombinant DNA reagentpEGFP-C1ClontechCatalog:6084–1
Recombinant DNA reagentpEGFP-N1ClontechCatalog:6085–1
Recombinant DNA reagentThis paperAvailable from the authors upon request
Dr. Ignasi Roig
Ignasi.Roig@uab.cat
Recombinant DNA reagentpEGFP-N1-BEND2This paperAvailable from the authors upon request
Dr. Ignasi Roig
Ignasi.Roig@uab.cat
Recombinant DNA reagentpET-28a (+)-TEVThis paperDr. Neus Ferrer Miralles
Institut de Biotecnologia i de Biomedicina,
Sequence-based reagentforwardThis paperPCR primersBEND2 genotyping;
TTGCCAGTGGGGTATTACGA
Sequence-based reagentreverseThis paperPCR primersBEND2 genotyping;
CAGGGCATTTGCACCCCATGCC
Sequence-based reagentforwardThis paperPCR primersBEND2 female genotyping;
TTTGCTCCACTGTTTCACGC
Sequence-based reagentreverseThis paperPCR primersBEND2 female genotyping;
TCCCTTTAAACTGCCAACAACA
Sequence-based reagent255P1 forwardThis paperPCR primers255P1 Gene specific primers for RT-PCR;
TAGGGACCAAGAACCTGCTG
Sequence-based reagentreverseThis paperPCR primers255P1 Gene specific primers for RT-PCR; TCCTGAAGCCACTGAGAAGG
Sequence-based reagentforwardThis paperPCR primersβ-actin for RT-PCR;
AGGTCTTTACGGATGTCAACG
Sequence-based reagentreverseThis paperPCR primersβ-actin primers for RT-PCR; ATCTACGAGGGCTATGCTCTC
Sequence-based reagentforwardThis paperPCR primersBEND2 cloning primer; agaaATGCCAGGAAAAACTGAAG
Sequence-based reagentreverseThis paperPCR primersBEND2 cloning primer; TTAAGCTATTGCATTCCTTGGG for pEGFP-C1 vector;gAGCTATTGCATTCCTTGGGC for pEGFP-N1 vectors
Peptide, recombinant proteinHis-tagged BEND2 proteinThis paperAvailable from the authors upon request
Dr. Ignasi Roig
Ignasi.Roig@uab.cat
Commercial assay or kitjetPEI DNA transfection reagentPolyplus Transfection101–40 N
Commercial assay or kitHisTrap HP columnCytiva29051021 or 17524801
Commercial assay or kitTUNEL reaction mixtureRoche Diagnostics11684795910Figure 3
Software, algorithmImage JImage JRRID:SCR_003070
Software, algorithmGraphPad Prism 8GraphPadRRID:SCR_002798
Software, algorithmAdobe PhotoshopAdobeRRID:SCR_014199
OtherDAPI stainInvitrogenD13060.1 µg/ml
OtherVectashield antifade mounting mediumVector LaboratoriesH1000

Mice

Bend2 mutant mice were generated by using the CRISPR/Cas9 system. A pair of gRNAs with minimum off-target and maximum on-target activity were designed and selected to specifically target sequences that encode essential protein domains of the Bend2 gene using CRISPR DESIGN TOOLS (Millipore Sigma) (gRNA1-antisense: AGTAGCAGGCTGCATAAGT GGG; gRNA2-sense: AGACCAGCCTTATTGACCA TGG). SgRNAs were synthesized by Sigma and microinjected with Cas9 protein into the pronucleus of C57BL/6JOlaHsd zygotes. Edited founders were identified by PCR with primers flanking the targeted region and HincII digest. PCR products were further purified and determined by Sanger sequencing. Five out of 17 F0 mice were identified to carry desired mutations, including two homozygous males and three heterozygous females. Each of them was crossed with wild-type C57BL/6JOlaHsd to eliminate possible off-target mutations to generate pure heterozygotes. Female heterozygotes (Bend2+/D11) were crossed with wild-type males (Bend2+/y) to obtain wild-type females (Bend2+/+), heterozygous females (Bend2+/D11), wild-type male (Bend2+/y), and mutant males (Bend2D11/y) offsprings. Female heterozygotes (Bend2+/D11) were crossed with mutant males (Bend2D11/y) to obtain mutant females (Bend2D11/D11), heterozygous females (Bend2+/D11), wild-type males (Bend2+/y) and mutant males (Bend2+/y). Mice from at least F2 generation were analyzed for their phenotyping. All experiments used at least three animals from each genotype (unless mentioned in the text). Mutant males were compared with their wild-type littermates. Testes from 2 to 6-months-old mice were collected and processed for adult mice. Female mutants were compared to wild-type mice from other litters of the same age and from animals of closely related parents.

For genotyping, genomic DNA was extracted from mouse tails by overnight incubation at 56℃ in lysis buffer (0.1 M Tris-HCl pH 8.5–9, 0.2 M NaCl, 0.2% SDS, 5 mM EDTA, and 0.4 mg/ml proteinase K), followed by precipitation with isopropanol and washes in cold 70% ethanol and subjected to PCR using NZYTaq II 2 x Green Master Mix employing primer pair (forward: TTGCCAGTGGGGTATTACGA, and reverse: CTGGAAGGCAGGAAGTTTAACA). For female genotyping, the identified possible homozygous BEND2 females were subjected to an extra PCR using the primer pair (forward: TTTGCTCCACTGTTTCACGC, and reverse: TCCCTTTAAACTGCCAACAACA) to confirm the homozygosity.

The experiments performed in this study complied with EU regulations and were approved by the Ethics Committee of the UAB and the Catalan Government (5322-CEEA-UAB).

Ovarian stimulation and in vitro fertilization

Request a detailed protocol

Intra-peritoneal injection of 15 IU pregnant mare’s serum gonadotrophin per female was administered to three Bend2+/D11 and three Bend2D11/D11 7-month-old mice. After 49.5 hr, 10 IU human chorionic gonadotrophin (hCG) per female was injected and 13.5 hr later mice were sacrificed. Oviducts of treated females were dissected under stereo-microscope and cumulus masses were released into a drop of fertilization medium (0.25 mM GSH in HTF medium). Oocytes released from each female mice were counted. Time of ovulation was counted as 0.5 dpc.

For in vitro fertilization, fresh sperm from a proven fertile, C57BL/6 N wild-type male of 4 months of age were used and poured into a dish containing oocytes in fertilization medium. After 3 hr of fertilization, oocytes were washed and O/N cultured in HTF medium. Assessment of fertilized, unfertilized oocytes was done under stereo-microscope. From 2 cell-stage until blastocysts, embryos were cultured in KSOM medium.

Total RNA purification and RT-PCR

Request a detailed protocol

Total RNA was purified from mouse tissues using the RNeasy Plus Mini Kit (Qiagen) and then transcribed into cDNA using the iScript cDNA Synthesis Kit (Bio-Rad), following the manufacturer’s instructions. cDNA was amplified using NZYTaq II 2 x Green Master Mix with gene-specific primers (255P1 forward: TAGGGACCAAGAACCTGCTG, and reverse: TCCTGAAGCCACTGAGAAGG) and β-actin primers (forward: AGGTCTTTACGGATGTCAACG, and reverse: ATCTACGAGGGCTATGCTCTC) as control. A minus Reverse Transcription control (RT-) containing all the reaction components except the reverse transcriptase was included for testing for contaminating DNA.

Gene cloning and transfection

Request a detailed protocol

cDNA from wild-type mouse testis was subject to PCR using Phusion High-Fidelity DNA Polymerase (Thermo Fisher Scientific) with a pair of specific primers (forward: agaaATGCCAGGAAAAACTGAAG, and reverse: TTAAGCTATTGCATTCCTTGGG for pEGFP-C1 vector and gAGCTATTGCATTCCTTGGGC for pEGFP-N1 vectors) targeting at both ends of the coding sequence to amplify the full-length of 255p1 (Bend2 novel splice variant). DNA purified from PCR reaction mix was phosphorylated and inserted into dephosphorylated pEGFP-C1 and pEGFP-N1 vectors. Plasmids were transformed to 5-alpha competent E. coli cells (NEB) and identified by colony PCR followed by Sanger sequencing.

pEGFP-C1-BEND2 or pEGFP-N1-BEND2 were transfected into the human embryonic kidney cell line (HEK 293T, obtained from the Cell Culture, Antibody Production and Cytometry Service (SCAC) from UAB, its identity was confirmed by STR profiling and were mycoplasma negative) by using jetPEI DNA transfection reagent (Polyplus Transfection) and into 16–18 dpp wild-type live mouse testis by electroporation (Shibuya et al., 2014). Mice were sacrificed 24–72 hr post-electroporation and used for experiments.

Antibody generation

Request a detailed protocol

To generate in-house BEND2 polyclonal antibody, the full-length of 255p1 (Bend2 novel splice variant) was amplified from pEGFP-C1-BEND2 and cloned into modified bacterial expression vector pET-28a (+)-TEV. The recombinant His-tagged BEND2 protein was expressed in E. coli BL21(DE3) competent cells by IPTG induction and then purified by affinity chromatography using HisTrap HP column (Cytiva). Purified His-tagged BEND2 protein was treated with TEV protease, followed by another affinity purification, to remove the His-tag. His-tag removed BEND2 protein was used to immunize rabbits. After immunization, the immune response was checked by ELISA. Antibodies were purified from rabbit serum by affinity chromatography using Affi-Prep protein A resin cartridge (Bio-Rad).

Western blot

Request a detailed protocol

Total protein was extracted from mouse testis using RIPA lysis buffer (50 mM Tris pH 8, 1% Triton X-100, 0.1% SD, 150 mM NaCl, 1 mM EDTA, 0.5% Sodium Deoxycholate, 10 mM NaF, 1x Protease Inhibitor). Testis tissue was disrupted and homogenized thoroughly with a pestle in RIPA lysis buffer, followed by 10 min incubation at 95℃. Each lysate sample’s protein concentration was determined using Pierce BCA Protein Assay Kit (Thermo Scientific). 50 μg of total protein was loaded per well, and samples were separated by TGX-PAGE gel electrophoresis in Tris-Glycine-SDS buffer. Proteins were transferred to PVDF membranes (Bio-Rad) by wet electroblotting in Tris/glycine buffer. Membranes were blocked in 5% non-fat milk in PBS for 2 h at room temperature, followed by incubation of primary antibody diluted in blocking buffer overnight at 4 °C. The next day, after three washes of PBST (PBS containing 0.05% Tween-20), membranes were incubated in anti-rabbit HPR conjugate antibody (1:5000, 170–6515, Bio-Rad) in PBS for 1 hr at room temperature. ECL substrate (Bio-Rad) was used for chemiluminescent detection. Imaging was performed on ChemiDoc Touch Imaging system (Bio-Rad), and images were analyzed by Imagelab software (Bio-Rad). Primary antibodies used in WB: anti-BEND2 Rb (in-house, 3.2 μg/ml), anti-Ku70 Rb (abcam, 1:2000), anti-LINE1 ORF1p Rb (abcam, 1:2000), and anti-GAPDH Rb (abcam, 1:2000).

Nuclei spreading and immunofluorescence

Request a detailed protocol

Spermatocyte nuclei spreading was prepared using frozen testes. Protocol was adapted from Liebe et al., 2004: briefly, a small portion of testis was cut and minced thoroughly by a sterile blade in cold PBS (pH 7.4) containing 1x protease inhibitor, PI (Roche Diagnostics) on a petri dish; cell mixture was transferred to a sterile Eppendorf and sat for 15 min to sediment; 25 µl of supernatant cell suspension was spread onto a glass slide and incubated with 80 µl of 1% Lipsol containing 1x PI, for 15–20 min, followed by fixation in 150 µl of the PFA fixative solution (1% Paraformaldehyde pH 9.2–9.4, 15% Triton X-100, 1 x PI) for 2 hr at room temperature in a closed humid chamber. Oocyte nuclei spreading was prepared from fresh fetal and perinatal ovaries. Briefly, one pair of ovaries were dissected from each female under a stereomicroscope (Nikon SMZ-1); ovaries were first incubated in 500 µl of M2 medium (Sigma-Aldrich) containing 2.5 mg/ml collagenase (Sigma-Aldrich) for 30 min at 37℃, and then incubated in 500 µl of hypotonic buffer (30 mM Tris-HCl pH 8.2, 50 mM Sucrose, 17 mM Sodium Citrate, 5 mM EDTA, 0.5 mM DTT, 1 x PI) for 30 min at room temperature; finally, single-cell suspension was prepared by disaggregating ovaries in 100 mM sucrose by pipetting under the stereo microscope. Each 10 µl of the cell suspension was spread onto a glass slide, followed by fixation in 40 µl of the PFA fixative solution (1% PFA, 5 mM Sodium Borate, 0.15% Triton X-100, 3 mM DTT, 1 x PI, pH 9.2) for 2 hr at room temperature in a closed humid chamber. Slides were dried under a fume hood and then washed in 0.4% Photoflo (Kodak) solution four times.

For immunofluorescence staining, slides of spermatocyte or oocyte nuclei spreading were blocked in freshly made blocking solution (0.2% BSA, 0.2% gelatin, 0.05% Tween-20 in PBS) at room temperature, followed by incubation of primary antibody diluted in blocking solution in a humid chamber overnight at 4℃; the next day, slides were washed four times in blocking solution, and incubated in secondary antibody diluted in blocking solution in a humid chamber for 1 hr at 37℃, followed by another four washes in blocking solutions. Drained slides were mounted with 0.1 µg/ml DAPI in Vectashield antifade mounting medium and analyzed with an epifluorescence microscope (Zeiss Axioskop). Primary antibodies used for IF: anti-SYCP3 Ms or Rb (abcam, 1:200), anti-SYCP1 Rb (abcam, 1:200), anti-phospho-Histone H2A.X Ms (Millipore, 1:400), anti-MLH1 Ms (BD Biosciences, 1:50), RPA32 (4E4) Rat (cell signaling, 1:100), anti-RAD51 (ab-1) Rb (Millipore, 1:100), and anti-GFP Rb (Thermo Fisher Scientific, 1:200).

PAS-Hematoxylin, immunohistochemical, and TUNEL staining

Request a detailed protocol

Fresh mouse tissues were fixed overnight at 4℃ with freshly made 4% PFA (0.4 g paraformaldehyde dissolved in 10 ml PBS, pH 7.4) for immunohistochemical (IHC)/TUNEL assay or with Bouin’s fixative for the use of PAS (Periodic Acid Schiff) staining. After fixation, tissues were washed in PBS, dehydrated in a series of ethanol with increasing concentration, cleared by histoclear and infiltrated by paraffin in sequence; embedded tissues were cut into thin slices (6–7 µm for testes; 4 µm for ovaries) using a microtome, which were mounted on poly-L-lysine coated slides and dry overnight at 37℃. Before any staining procedures, slides were deparaffinized in xylene and a series of ethanol with decreasing concentration in sequence and rehydrated in distilled water.

For IHC, an antigen retrieval step was performed to expose the epitopes masked by PFA fixation: incubating the slides in sodium citrate buffer (10 mM Sodium citrate, 0.05% Tween 20, pH 6.0) or Tris-EDTA buffer (10 mM Tris, 1 mM EDTA, 0.05% Tween 20, pH 9.0) for 30 min at 95–100° C. Subsequently, an immunofluorescence was performed as described above and the used primary antibodies were anti-DDX4 (Abcam, 1:100) and anti-LINE-1 (Abcam, 1:100).

For TUNEL assay, tissue section samples were permeabilized in 0.5% Triton X-100 in PBS for 15 min followed by two washes in PBS, incubated in background reducing solution (Dako), followed by a rinse in PBS, incubated in TUNEL reaction mixture (10% TdT enzyme solution, Roche Diagnostics) for 1 hr at 37℃ in a humid chamber, followed by three washes in PBS. Slides were mounted with 15 µl DAPI (0.1 µg/ml in Vectashield antifade mounting medium) and analyzed with an epifluorescence microscope (Zeiss Axioskop).

For PAS-Hematoxylin (PAS-H) staining, tissue sections were oxidized by 1% Periodic Acid solution for 10 min, followed by two washes in distilled water, stained by Schiff’s reagent for 30 min in darkness, followed by two washes in sulfurous water (10% Potassium metabisulfite, 0.1 M HCl in Milli-Q water) and two washes in distilled water; counterstained in Mayer’s Hematoxylin for 1 min and rinsed in running tap water; dehydrated in a series of ethanal with increasing concentrations and xylene in sequence; mounted with DPX mounting medium and analyzed with an optical microscope. Images were captured using a Zeiss Axioskop microscope.

Follicle count and classification

Request a detailed protocol

The whole ovaries were sectioned for follicle quantification in newborn, young, adolescent, and adult mice. Eight consecutive sections were mounted on each slide. Every third section was counted per slide to avoid counting follicles more than once. Five alternate slides per animal were counted (both ovaries). Follicles were only counted if the nucleus of the oocyte was visible. They were classified as primordial if they contained one single layer of plane squamous granulosa cells or as primary if they displayed one layer of cuboidal granulosa cells. Furthermore, follicles containing both plane and cuboidal cells were classified based on the predominant granulosa cell morphology. Follicles were classified as secondary if they showed more than one layer of cuboidal granulosa cells with no visible antrum. All follicles displaying an antral cavity of any size were classified as antral. Counting and classification were performed under a bright-field Zeiss Axioskop microscope.

Image processing, analysis, and statistical analysis

Request a detailed protocol

All the images were processed by Adobe Photoshop. Fluorescence intensity was quantified by ImageJ; fluorescence signals were counted manually or by ImageJ. Data analysis and statistical inference were performed using GraphPad Prism 8 software. The sample size was determined based on our previous experience analyzing other mutant phenotypes and the variability observed within each type of analysis (Marcet-Ortega et al., 2017Martínez-Marchal et al., 2020; Pacheco et al., 2018; Roig et al., 2010; Ruth et al., 2021). Statistical methods and p-values are presented in each graph or in the main text or figure legends. Statistical significances were determined using t-tests for normally distributed or Mann-Whitney U-tests for non-normally distributed continuous data. One-way ANOVA test was used for analysis of homogeneity of variances. For all tests, statistical significance was considered for p<0.05.

Data availability

All the data analyzed in this study are available within the manuscript and its supporting materials.

References

  28. Book
    1. Marcet-Ortega M
    2. Roig I
    (2016)
    Surveillance Mechanisms in Mammalian Meiosis
    Universitat Autònoma de Barcelona.
    1. Ruth KS
    2. Day FR
    3. Hussain J
    4. Martínez-Marchal A
    5. Aiken CE
    6. Azad A
    7. Thompson DJ
    8. Knoblochova L
    9. Abe H
    10. Tarry-Adkins JL
    11. Gonzalez JM
    12. Fontanillas P
    13. Claringbould A
    14. Bakker OB
    15. Sulem P
    16. Walters RG
    17. Terao C
    18. Turon S
    19. Horikoshi M
    20. Lin K
    21. Onland-Moret NC
    22. Sankar A
    23. Hertz EPT
    24. Timshel PN
    25. Shukla V
    26. Borup R
    27. Olsen KW
    28. Aguilera P
    29. Ferrer-Roda M
    30. Huang Y
    31. Stankovic S
    32. Timmers P
    33. Ahearn TU
    34. Alizadeh BZ
    35. Naderi E
    36. Andrulis IL
    37. Arnold AM
    38. Aronson KJ
    39. Augustinsson A
    40. Bandinelli S
    41. Barbieri CM
    42. Beaumont RN
    43. Becher H
    44. Beckmann MW
    45. Benonisdottir S
    46. Bergmann S
    47. Bochud M
    48. Boerwinkle E
    49. Bojesen SE
    50. Bolla MK
    51. Boomsma DI
    52. Bowker N
    53. Brody JA
    54. Broer L
    55. Buring JE
    56. Campbell A
    57. Campbell H
    58. Castelao JE
    59. Catamo E
    60. Chanock SJ
    61. Chenevix-Trench G
    62. Ciullo M
    63. Corre T
    64. Couch FJ
    65. Cox A
    66. Crisponi L
    67. Cross SS
    68. Cucca F
    69. Czene K
    70. Smith GD
    71. de Geus E
    72. de Mutsert R
    73. De Vivo I
    74. Demerath EW
    75. Dennis J
    76. Dunning AM
    77. Dwek M
    78. Eriksson M
    79. Esko T
    80. Fasching PA
    81. Faul JD
    82. Ferrucci L
    83. Franceschini N
    84. Frayling TM
    85. Gago-Dominguez M
    86. Mezzavilla M
    87. García-Closas M
    88. Gieger C
    89. Giles GG
    90. Grallert H
    91. Gudbjartsson DF
    92. Gudnason V
    93. Guénel P
    94. Haiman CA
    95. Håkansson N
    96. Hall P
    97. Hayward C
    98. He C
    99. He W
    100. Heiss G
    101. Høffding MK
    102. Hopper JL
    103. Hottenga JJ
    104. Hu F
    105. Hunter D
    106. Ikram MA
    107. Jackson RD
    108. Joaquim MDR
    109. John EM
    110. Joshi PK
    111. Karasik D
    112. Kardia SLR
    113. Kartsonaki C
    114. Karlsson R
    115. Kitahara CM
    116. Kolcic I
    117. Kooperberg C
    118. Kraft P
    119. Kurian AW
    120. Kutalik Z
    121. La Bianca M
    122. LaChance G
    123. Langenberg C
    124. Launer LJ
    125. Laven JSE
    126. Lawlor DA
    127. Le Marchand L
    128. Li J
    129. Lindblom A
    130. Lindstrom S
    131. Lindstrom T
    132. Linet M
    133. Liu Y
    134. Liu S
    135. Luan J
    136. Mägi R
    137. Magnusson PKE
    138. Mangino M
    139. Mannermaa A
    140. Marco B
    141. Marten J
    142. Martin NG
    143. Mbarek H
    144. McKnight B
    145. Medland SE
    146. Meisinger C
    147. Meitinger T
    148. Menni C
    149. Metspalu A
    150. Milani L
    151. Milne RL
    152. Montgomery GW
    153. Mook-Kanamori DO
    154. Mulas A
    155. Mulligan AM
    156. Murray A
    157. Nalls MA
    158. Newman A
    159. Noordam R
    160. Nutile T
    161. Nyholt DR
    162. Olshan AF
    163. Olsson H
    164. Painter JN
    165. Patel AV
    166. Pedersen NL
    167. Perjakova N
    168. Peters A
    169. Peters U
    170. Pharoah PDP
    171. Polasek O
    172. Porcu E
    173. Psaty BM
    174. Rahman I
    175. Rennert G
    176. Rennert HS
    177. Ridker PM
    178. Ring SM
    179. Robino A
    180. Rose LM
    181. Rosendaal FR
    182. Rossouw J
    183. Rudan I
    184. Rueedi R
    185. Ruggiero D
    186. Sala CF
    187. Saloustros E
    188. Sandler DP
    189. Sanna S
    190. Sawyer EJ
    191. Sarnowski C
    192. Schlessinger D
    193. Schmidt MK
    194. Schoemaker MJ
    195. Schraut KE
    196. Scott C
    197. Shekari S
    198. Shrikhande A
    199. Smith AV
    200. Smith BH
    201. Smith JA
    202. Sorice R
    203. Southey MC
    204. Spector TD
    205. Spinelli JJ
    206. Stampfer M
    207. Stöckl D
    208. van Meurs JBJ
    209. Strauch K
    210. Styrkarsdottir U
    211. Swerdlow AJ
    212. Tanaka T
    213. Teras LR
    214. Teumer A
    215. Þorsteinsdottir U
    216. Timpson NJ
    217. Toniolo D
    218. Traglia M
    219. Troester MA
    220. Truong T
    221. Tyrrell J
    222. Uitterlinden AG
    223. Ulivi S
    224. Vachon CM
    225. Vitart V
    226. Völker U
    227. Vollenweider P
    228. Völzke H
    229. Wang Q
    230. Wareham NJ
    231. Weinberg CR
    232. Weir DR
    233. Wilcox AN
    234. van Dijk KW
    235. Willemsen G
    236. Wilson JF
    237. Wolffenbuttel BHR
    238. Wolk A
    239. Wood AR
    240. Zhao W
    241. Zygmunt M
    242. Chen Z
    243. Li L
    244. Franke L
    245. Burgess S
    246. Deelen P
    247. Pers TH
    248. Grøndahl ML
    249. Andersen CY
    250. Pujol A
    251. Lopez-Contreras AJ
    252. Daniel JA
    253. Stefansson K
    254. Chang-Claude J
    255. van der Schouw YT
    256. Lunetta KL
    257. Chasman DI
    258. Easton DF
    259. Visser JA
    260. Ozanne SE
    261. Namekawa SH
    262. Solc P
    263. Murabito JM
    264. Ong KK
    265. Hoffmann ER
    266. Murray A
    267. Roig I
    268. Perry JRB
    269. Biobank-based Integrative Omics Study Consortium
    270. eQTLGen Consortium
    271. Biobank Japan Project
    272. China Kadoorie Biobank Collaborative Group
    273. kConFab Investigators
    274. LifeLines Cohort Study
    275. InterAct consortium
    276. 23andMe Research Team
    (2021) Genetic insights into biological mechanisms governing human ovarian ageing
    Nature 596:393–397.
    https://doi.org/10.1038/s41586-021-03779-7

Article and author information

Author details

  1. Yan Huang

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing – original draft, Writing – review and editing
    Competing interests
    No competing interests declared

  2. Nina Bucevic

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared

  3. Carmen Coves

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared

  4. Natalia Felipe-Medina

    Molecular Mechanisms Program, Centro de Investigación del Cáncer and Instituto de Biología Molecular y Celular del Cáncer (CSIC-Universidad de Salamanca), Salamanca, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared

  5. Marina Marcet-Ortega

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5756-1373

  6. Nikoleta Nikou

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4579-0849

  7. Cristina Madrid-Sandín

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  8. Maria López-Panadés

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  9. Carolina Buza

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  10. Neus Ferrer Miralles

    1. Institut de Biotecnologia i de Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallés, Spain
    2. Centro de Investigación Biomédica en Red de Bioingeniería, Biomateriales y Nanomedicina, Instituto de Salud Carlos III, Cerdanyola del Vallès, Spain
    3. Departament de Genètica i de Microbiologia, Universitat Autònoma de Barcelona, Cerdanyola del Vallés, Spain
    Contribution
    Conceptualization, Validation, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  11. Antoni Iborra

    Servei de Cultius Cel·lulars, Producció d'Anticossos i Citometria, Universitat Autònoma de Barcelona, Cerdanyola del Vallés, Spain
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  12. Anna Pujol

    Transgenic Animal Unit, Center of Animal Biotechnology and Gene Therapy, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared

  13. Alberto M Pendás

    Molecular Mechanisms Program, Centro de Investigación del Cáncer and Instituto de Biología Molecular y Celular del Cáncer (CSIC-Universidad de Salamanca), Salamanca, Spain
    Contribution
    Conceptualization, Supervision, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9264-3721

  14. Ignasi Roig

    1. Genome Integrity and Instability Group, Institut de Biotecnologia i Biomedicina, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    2. Department of Cell Biology, Physiology, and Immunology, Cytology and Histology Unit, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Spain
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    ignasi.roig@uab.cat
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0313-3581

Funding

Ministerio de Ciencia, Innovación y Universidades (PID2019-107082RB-I00)

  • Ignasi Roig

Ministerio de Ciencia, Innovación y Universidades (PID2022-138905OB-I00)

  • Ignasi Roig

Ministerio de Ciencia, Innovación y Universidades (PID2020-120326RB-I00)

  • Alberto M Pendás

Fundació la Marató de TV3 (677/U/2021)

  • Ignasi Roig

China Scholarship Council (201607040048)

  • Yan Huang

Ministerio de Ciencia, Innovación y Universidades (FPU19/02885)

  • Cristina Madrid-Sandín

Ministerio de Ciencia, Innovación y Universidades (PRE2020-094355)

  • Nikoleta Nikou

Ministerio de Ciencia, Innovación y Universidades (PREP2022-000758)

  • Carolina Buza

Agència de Gestió d'Ajuts Universitaris i de Recerca (2023 FISDU 00058)

  • Maria López-Panadés

Junta de Castilla y León (CSI017P23)

  • Alberto M Pendás

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by Spanish Ministerio de Ciencia, Innovación e Universidades grants (I.R: PID 2019-107082RB-I00, PID2022-138905OB-I00; A.M.P.: PID2020–120326RB-I00), Junta de Castilla y León grants (A.M.P.: CSI017P23 and CSI017P23), and a grant from La Fundació Marató de TV3 (I.R.: 677 /U/2021). Yan Huang is a recipient of a fellowship from the China Scholarship Council (201607040048). Cristina Madrid-Sandín is the recipient of an FPU fellowship from the Spanish Ministerio de Ciencia, Innovación e Universidades (FPU19/02885). Nikoleta Nikou and Carolina Buza-Tarna are supported by an FPI fellowship from the Spanish Ministerio de Ciencia, Innovación e Universidades (PRE2020-094355 and PREP2022-000758, respectively). Maria López-Panadés is supported by a FI-SDUR fellowship from the Catalan Government (2023 FISDU 00058). Moreover, we would like to acknowledge the rest of the members of the Roig Lab for their support, comments, and discussions about the project.

Ethics

The experiments performed in this study complied with EU regulations and were approved by the Ethics Committee of the UAB and the Catalan Government (5322-CEEA-UAB).

Version history

  1. Sent for peer review:
  2. Preprint posted:
  3. Reviewed Preprint version 1:
  4. Reviewed Preprint version 2:
  5. Reviewed Preprint version 3:
  6. Version of Record published:

Cite all versions

You can cite all versions using the DOI https://doi.org/10.7554/eLife.96052. This DOI represents all versions, and will always resolve to the latest one.

Copyright

© 2024, Huang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,282
    views
  • 25
    downloads
  • 1
    citation

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Citations by DOI

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Yan Huang
  2. Nina Bucevic
  3. Carmen Coves
  4. Natalia Felipe-Medina
  5. Marina Marcet-Ortega
  6. Nikoleta Nikou
  7. Cristina Madrid-Sandín
  8. Maria López-Panadés
  9. Carolina Buza
  10. Neus Ferrer Miralles
  11. Antoni Iborra
  12. Anna Pujol
  13. Alberto M Pendás
  14. Ignasi Roig
(2025)
The full-length BEND2 protein is dispensable for spermatogenesis but required for setting the ovarian reserve in mice
eLife 13:RP96052.
https://doi.org/10.7554/eLife.96052.4

Share this article

https://doi.org/10.7554/eLife.96052

Categories and tags

Research organism
