When DNA was first recognised to be a double helix, it was clear that this structure could easily explain how DNA could be replicated. Each strand was made of bases—represented by the letters ‘A’, ‘C’, ‘G’ and ‘T’—and the two strands were held together by bonds between pairs of bases, one from each strand. Moreover, ‘A’ always paired with ‘T’, and ‘C’ always paired with ‘G’. Therefore, if the two strands were separated, each could be used as a template to guide the synthesis of a new complementary strand and thus create two copies of the original double-stranded molecule. One of the first steps in this replication process involves a ring-shaped complex of six proteins, called an MCM helicase, separating the two strands.

To prepare for DNA replication, two MCM helicase rings wrap around the double-stranded DNA. Then, after the helicase has been activated, the bonds between the DNA base pairs break, and the two rings separate with one ring encircling each DNA strand. However, the details of the interactions between the helicase and the DNA during these events are not fully understood.

Now Froelich, Kang et al. have solved the three-dimensional structure of an MCM helicase ring—taken from a microbe originally found at deep ocean vents—on its own and also when bound to a short piece of single-stranded DNA. The helicase ring becomes more oval when the DNA binds to it. Moreover, rather than passing straight through the ring, the DNA wraps part of the way around the inside of the ring.

Specific amino acids—the building blocks of proteins—on the inside of the ring interact with the single-stranded DNA, and these amino acids are also found in MCM proteins in many other organisms. Furthermore, swapping these amino acids for different amino acids significantly reduced the ability of the ring to bind to single-stranded DNA, but its ability to bind to double-stranded DNA was only slightly affected. Engineering similar changes into the ring complexes of yeast cells was lethal, and the mutant complexes were less able to be loaded onto the DNA, or to be activated and separate the two strands ready for replication.

These insights into how helicases are loaded onto double-stranded DNA, and select one DNA strand to encircle, have improved our understanding of how DNA replication is initiated: a process that is vital for living things.

Mcm proteins were first identified in yeast when mutations in their genes were defective for minichromosome maintenance (Maiorano et al., 2006). In eukaryotic cells, six related Mcm proteins (Mcm2-7) form a ring-shaped heterohexamer, the Mcm2-7 complex. Hexameric MCM rings act as the replicative DNA helicase (Bochman and Schwacha, 2008; Ilves et al., 2010), encircling the leading strand DNA template at the replication fork (Fu et al., 2011). Replication forks are established in a cell-cycle-regulated manner at specific regions of DNA called replication origins (Bell and Dutta, 2002). Mcm2-7 complexes are loaded onto double-stranded DNA at each replication origin by the Origin Recognition Complex (ORC), Cdc6, and Cdt1 (Remus and Diffley, 2009). Because replication origins are located far from the DNA ends, loading of Mcm2-7 hexamers such that they encircle double-stranded DNA requires opening of the Mcm2-7 ring. A ‘gate’ between the Mcm2 and Mcm5 subunits has been identified and is the likely site of ring opening and closing (Bochman and Schwacha, 2007, 2008; Costa et al., 2011). After helicase loading, the two Mcm2-7 complexes encircle double-stranded DNA (dsDNA) as a head-to-head double hexamer (Evrin et al., 2009; Remus et al., 2009) that is inactive as a helicase.

Helicase activation requires substantial remodeling of the initially loaded Mcm2-7 double hexamer. The Dbf4-dependent Cdc7 kinase (DDK) and cyclin-dependent kinases (CDKs) drive recruitment of two Mcm2-7 activating proteins, Cdc45 and the tetrameric GINS complex (Labib, 2010). These proteins together stimulate the Mcm2-7 ATPase and helicase (Ilves et al., 2010) and with Mcm2-7 form the active replicative DNA helicase, the CMG complex (Cdc45-Mcm2-7-GINS) (Moyer et al., 2006; Bochman and Schwacha, 2008; Ilves et al., 2010). The initially loaded double-hexamer has the capacity to passively slide over dsDNA (Evrin et al., 2009; Remus et al., 2009), suggesting MCM DNA interactions are not fixed at this stage. Upon activation, the two Mcm2-7 helicases translocate independently (Yardimci et al., 2010) in a 3′→5′ direction on the single-stranded leading strand DNA template (Fu et al., 2011). This transformation necessitates two structural changes in the initially loaded double-hexamer that are poorly understood: (i) the double-hexamer interface must be broken to allow independent replisome movement; (ii) the dsDNA at the origin must be melted and the lagging strand DNA template excluded from the central channel of each MCM hexamer. How Mcm2-7 retains one strand in its central channel while excluding the other during this transition is unknown.

Each Mcm subunit contains three domains. The N-terminal domain (MCM_N) possesses an OB (oligonucleotide/oligosaccharide binding)-fold and usually a zinc-binding motif (Fletcher et al., 2003). This domain mediates the head-to-head interaction of the two hexamers (Gomez-Llorente et al., 2005; Evrin et al., 2009; Remus et al., 2009). The second domain contains a conserved ATPase AAA+ fold (Neuwald et al., 1999), which binds and hydrolyzes ATP at subunit interfaces around the hexameric ring (Schwacha and Bell, 2001; Davey et al., 2003) and is required for DNA unwinding (Bochman and Schwacha, 2008; Ilves et al., 2010). A short domain at the C-terminus includes a helix-turn-helix fold (Aravind and Koonin, 1999), one of which (Mcm6) interacts with Cdt1 (Wei et al., 2010). MCM hexamers demonstrate a two-tiered ring architecture in electron microscopy studies with an N-terminal domain tier and an ATPase domain tier (Chong et al., 2000; Pape et al., 2003; Gomez-Llorente et al., 2005; Costa et al., 2006; Bochman and Schwacha, 2007; Remus et al., 2009; Costa et al., 2011). The MCM complexes of several archaeal organisms consist of six identical subunits and have provided powerful models to investigate the atomic details of MCM structure. Crystal structures have identified a consistent hexameric arrangement for MCM_N of Methanothermobacter thermautotrophicus (Mt) (Fletcher et al., 2003) and Sulfolobus solfataricus (Sso) (Liu et al., 2008) that correspond to the smaller tier observed by electron microscopy (Remus et al., 2009; Costa et al., 2011). Although no atomic structure has been determined for the complete archaeal or eukaryotic Mcm hexamer, hypothetical atomic models for full-length archaeal MCM hexamers have been generated by superimposition of six copies of a monomeric crystal structure of nearly full-length MCM onto the hexameric structure of MtMCM_N (Brewster et al., 2008; Bae et al., 2009).

Despite a growing understanding of the overall structure of the MCM complex, its multiple interactions with DNA during helicase loading, activation and elongation remain mysterious. Atomic structures of MCM bound to DNA have not been reported. Given the different forms of DNA that are bound to the MCM complex during the steps of the initiation pathway, the MCM proteins must transition between different DNA interactions during this process. To investigate the interactions after origin melting and how the MCM hexamer selectively encircles the leading strand template, we determined the crystal structure of the MCM_N hexamer of Pyrococcus furiosus bound to ssDNA. We present an analysis of this the structure and biochemical and genetic characterizations of archaeal and S. cerevisiae proteins with mutations in the identified ssDNA binding region. These findings reveal two residues on the surface of the MCM OB-fold that are critical for MCM DNA-binding and contribute to multiple Mcm2-7 functions during replication initiation. Our findings support a model in which the identified MCM-ssDNA interactions contribute to the selection of the leading strand DNA template during helicase activation.

To elucidate how MCM interacts with ssDNA, we determined the crystal structure of the N-terminal domain of the Pyrococcus furiosus MCM (PfMCM_N) protein in complex with homopolymeric (dT)₃₀ ssDNA (Table 1).

MCM-ssDNA molecular architecture

The asymmetric unit of the crystal of PfMCM_N:ssDNA contains two independent hexamers, each bound to ssDNA (Figure 1, Figure 1—figure supplements 1,2; Video 1). The subunits are referred to as A through F (hexamer 1) and G through L (hexamer 2). Like SsoMCM_N (Pucci et al., 2007; Liu et al., 2008), PfMCM_N elutes as a monomer by size-exclusion chromatography (data not shown) but adopts a hexameric arrangement in the crystal structure. The structure is similar to those of MtMCM_N (Fletcher et al., 2003) and SsoMCM_N (Liu et al., 2008) with three subdomains (Figure 1—figure supplement 3): a largely helical subdomain A; a Zn-binding subdomain B; and an OB-fold subdomain C. The central pore of the PfMCM_N hexameric ring is oval-shaped with a variable diameter around the ring reflecting a significant deviation from pure sixfold symmetry. The RMSD of the C-subdomain Cα-positions from the sixfold permutation is 3.03 Å and 1.45 Å for hexamers 1 and 2, respectively. In contrast, PfMCM_N without DNA bound is highly symmetric and shows minimal RMSD from sixfold symmetry (Figure 1—figure supplements 4–6, RMSD = 0.33 Å), indicating that DNA induces asymmetry in the MCM ring. The narrowest diameter of the channel is at the β-turn of the C-subdomain (Figure 1—figure supplement 3), consistent with previous structures of MCM_N (Fletcher et al., 2003; Liu et al., 2008).

Figure 1 with 7 supplements see all

Download asset Open asset

Video 1

Download asset

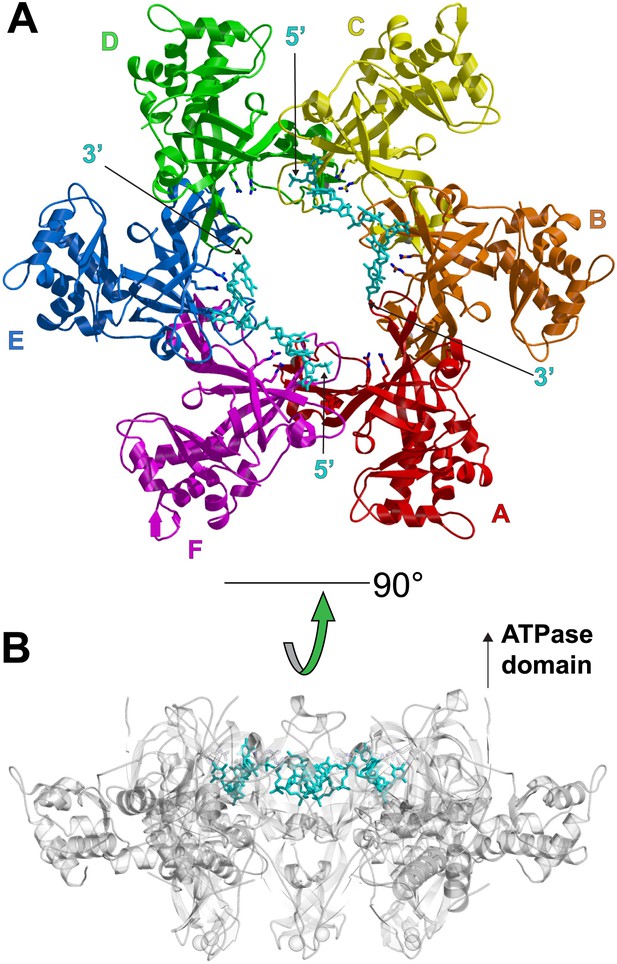

The ssDNA binds inside the central channel of the hexameric ring in an intriguing configuration. The ssDNA circles the interior of the PfMCM_N ring in a plane perpendicular to the central channel (Figure 1, Figure 1—figure supplement 1). This is in contrast to the ssDNA passing through the central channel, as observed in the structures of the nucleic acid complexes of the motor domains of the hexameric helicases E1 (Enemark and Joshua-Tor, 2006), Rho (Thomsen and Berger, 2009), and DnaB (Itsathitphaisarn et al., 2012). This distinction suggests that the newly identified MCM-ssDNA interactions might serve a function distinct from motor-driven helicase and translocase activities. The ssDNA binds to the MCM_N OB-fold subdomain C at a region consistent with that of the prototype OB-fold protein SSB, but the ssDNA is oriented approximately perpendicular to that seen in SSB-ssDNA structures (Figure 1—figure supplement 7, Raghunathan et al., 2000; Chan et al., 2009). The ssDNA does not progress towards a specific end of the channel; therefore, the ssDNA does not have an assignable entry or exit direction from the ring. Instead, the ssDNA has a defined polarity relative to the MCM ring. When viewed from the C-terminal side of the complex (as shown in Figure 1A), the 5′ to 3′ direction of the bound ssDNA proceeds clockwise around the channel. This polarity is observed for both ssDNAs in each hexamer of the asymmetric unit.

The structure reveals that the individual MCM subunits do not all simultaneously participate in ssDNA binding. In each hexamer, the bound nucleotides are not continuous but are separated into two stretches. Overall, two 7-mer stretches are observed in hexamer 1, and 11-mer and 4-mer stretches are observed in hexamer 2. The subunits that interact with DNA use a consistent binding mode with four nucleotides per subunit (Figure 1, Figure 2, Figure 2—figure supplement 1). The fourth nucleotide from the 5′-end of this binding mode is visible in the cases where it spans binding at adjacent subunits, but it is often disordered at the 3′-end of a ssDNA stretch. The four nucleotide per subunit binding increment contrasts with the motor domains of other hexameric helicases that bind either one (E1, Enemark and Joshua-Tor, 2006; Rho, Thomsen and Berger, 2009) or two (DnaB, Itsathitphaisarn et al., 2012) nucleotides per subunit and indicates that 24 nucleotides can bind if all the subunits simultaneously engage the ssDNA. The absence of ssDNA binding at some subunits is not due to insufficient DNA length because a 30-mer oligonucleotide was used for crystallization. The discontinuous DNA could result from the hexamer binding two separate 30-mer strands simultaneously or from the hexamer tightly binding one 30-mer ssDNA strand at two regions with the intervening nucleotides binding either weakly or not at all. We consider the latter to be more likely because binding of two parts of the same strand is anticipated to be cooperative.

Figure 2 with 1 supplement see all

Download asset Open asset

The capacity of a subunit to bind ssDNA is determined by intersubunit distance (Figure 1, Figure 2, Figure 2—figure supplement 1). To compare the distance between different subunit pairs, we measured the distance between the R201 Cα atom of one subunit and the E127 Cα atom of the counterclockwise subunit as viewed in Figure 1 (Magenta arrow, Figure 2). DNA-binding is consistently observed at the first subunit if this distance is less than 7.5 Å, and it is not observed if this distance exceeds 8.4 Å. The interface between subunits J and K shows an intermediate (7.6 Å) distance, and the electron density between F202 (subunit J) and E127 (subunit K) is much weaker than at the interfaces where DNA has been modeled (Figure 2—figure supplement 1). The correlation of ssDNA binding with intersubunit configuration is conceptually similar to multi-subunit ATPase sites where different intersubunit configurations determine the ability to bind or hydrolyze ATP (Abrahams et al., 1994; Enemark and Joshua-Tor, 2008). In MCM_N, changes to the intersubunit configuration dictate binding to ssDNA.

Conserved residues on the OB-fold bind ssDNA

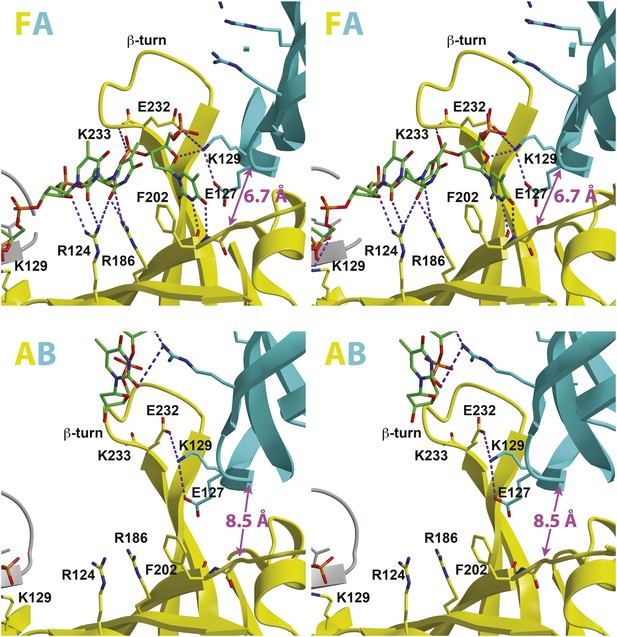

The most significant interactions between PfMCM_N and ssDNA involve two adjacent arginines, R124 and R186, that project from the β-barrel of the OB-fold towards the ring interior (Figures 1 and 2). These residues interact with oxygen atoms of the sugars and bases of the ssDNA (Figure 2) and are highly conserved in other MCM proteins (Figure 3). We refer to this conserved region as the MCM Single-Stranded DNA Binding motif (MSSB). Interestingly, one thymidine base projects towards the β-barrel of the OB-fold (Figure 2) and makes two hydrogen bonds to main-chain atoms of one strand of the β-barrel. This base also sits at the subunit interface, between the side-chains of phenylalanine 202 of one subunit and glutamic acid 127 of the adjacent subunit. The β-turn residues R234 and K236 do not interact with ssDNA in the structure. The DNA-binding consists predominantly of interactions with the sugars and bases rather than the backbone phosphates. In contrast, the hexameric helicases E1 (Enemark and Joshua-Tor, 2006); Rho (Thomsen and Berger, 2009); and DnaB (Itsathitphaisarn et al., 2012) bind nucleic acid mainly through interactions with backbone phosphates.

Figure 3

Download asset Open asset

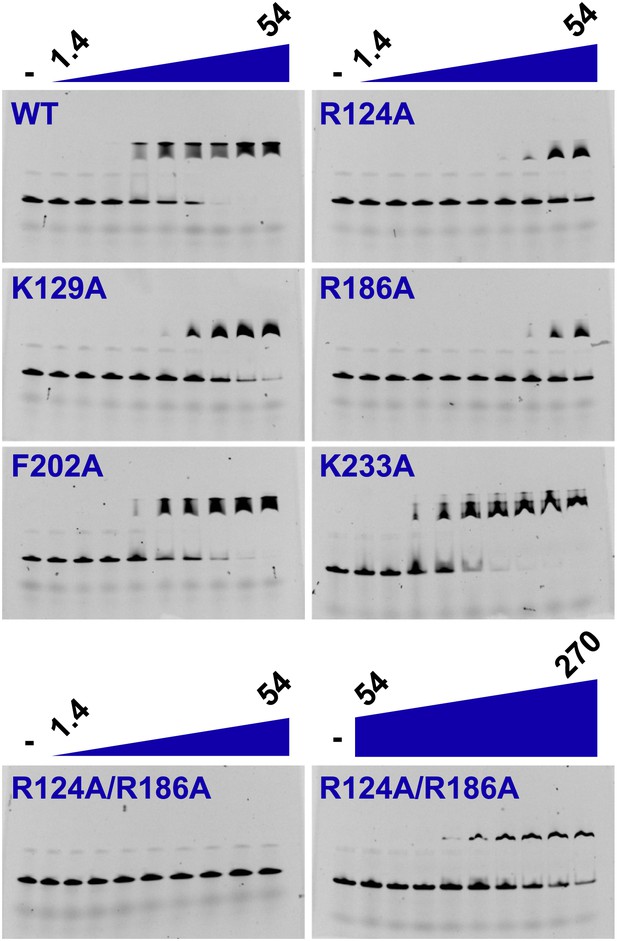

We investigated the role of the identified residues in MCM DNA binding using mutational analysis and electrophoretic mobility shift assays. As expected, wild-type PfMCM_N binds single-stranded (Figure 4, K_half = 6.8 μM) and double-stranded (Figure 4—figure supplement 1, K_half = 7.0 μM) oligonucleotides. The arginine residues R124 and R186 make the most significant ssDNA interactions in the structure. R124A and R186A mutants each show a significant decrease in ssDNA binding (7- and 6-fold reduction, respectively). Simultaneous mutation of both arginines showed even stronger defects (25-fold reduction), with no detectable ssDNA binding unless the protein concentration was increased dramatically (Figure 4). The K129A mutant is modestly defective in binding ssDNA (fourfold reduction, Figure 4). The individual R124A, R186A, and K129A mutants bind dsDNA with comparable affinity to wild-type (Figure 4—figure supplement 1). The R124A/R186A double mutant shows only modest defects in dsDNA binding (threefold reduction). Alanine mutants of other less-conserved residues did not significantly impair ssDNA- or dsDNA-binding. For example, consistent with the involvement of its main chain amide rather than its side chain in ssDNA binding, the β-turn K233A mutant does not significantly impair ssDNA binding. Similarly, the F202 side-chain interacts with a thymidine base, but it is offset from an ideal stacking interaction (Figure 2). The corresponding F202A mutant is not impaired in ssDNA binding and is not conserved as aromatic in other Mcm proteins (Figure 3).

Figure 4 with 1 supplement see all

Download asset Open asset

Corresponding yeast MCM2-7 mutants are defective in vivo

In S. cerevisiae (Sc), the PfMCM R124 and R186 amino acids within the MSSB motif are both conserved as arginine or lysine in Mcm4, Mcm6 and Mcm7 whereas Mcm2, Mcm3 and Mcm5 show a positively charged residue at only one of the two sites (Figure 3). To test the role of the MSSB motif in S. cerevisiae DNA replication, we constructed double-alanine mutants in ScMCM4 (mcm4-R334A/K398A = mcm4D), ScMCM6 (mcm6-R296A/R360A = mcm6D) and ScMCM7 (mcm7-R247A/K314A = mcm7D) as these subunits showed the most similarity to PfMCM in the MSSB.

We tested the ability of these mutations to replace the corresponding wild-type Mcm subunit in S. cerevisiae cells. When present as the only mutant Mcm subunit in the cell, mutations in the ScMCM4, ScMCM6 or ScMCM7 MSSB complemented deletion of the corresponding gene (Figure 5A, Figure 5—figure supplement 1). Because the DNA binding defects observed for the mutant PfMCM complexes altered all six subunits, we tested the ability of pairwise combinations of the ScMCM MSSB mutations to function in place of their wild-type counterparts. In contrast to the single mutations, all three double-mutant combinations did not support cell division. The dramatic phenotypic difference between the double and single mutations may be due to a requirement for two adjacent subunits to create a productive ssDNA interaction. Because the Mcm4, 6 and 7 subunits are adjacent to one another in the Mcm2-7 complex, each pairwise combination would be expected to interrupt at least three possible subunit pairs for binding (e.g., the Mcm4/6 double mutant would interfere with Mcm2/6, Mcm6/4 and Mcm4/7 subunit pairs for ssDNA binding).

Figure 5 with 2 supplements see all

Download asset Open asset

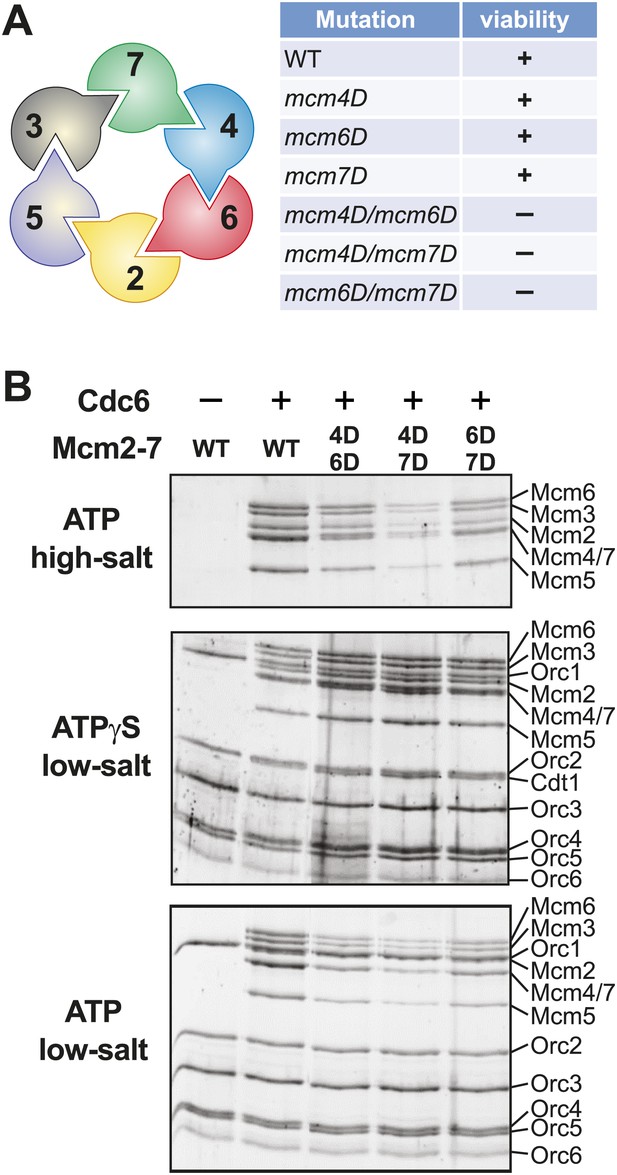

S. cerevisiae MCM2-7 mutants exhibit helicase loading and replication initiation defects

To define further the molecular defects of the mutant S. cerevisiae Mcm2-7 complexes, we purified Mcm2-7 complexes containing the lethal double mutants (Mcm4D/6D, Mcm4D/7D and Mcm6D/7D) along with the associated Cdt1 protein. We also purified the Mcm4/6/7 triple mutant (Mcm4D/6D/7D) with associated Cdt1. After purification, all of the mutant complexes showed similar subunit composition and migration in gel filtration columns as wild-type Mcm2-7/Cdt1 (Figure 5—figure supplement 2). Thus, these mutations do not inhibit the initial assembly of the Mcm2-7/Cdt1 complex.

We tested each of the mutant complexes for their ability to be loaded onto origin DNA using a reconstituted helicase-loading assay (Evrin et al., 2009; Remus et al., 2009; Figure 5B). To ensure that all of the Mcm2-7 hexamers retained on the DNA were loaded, we washed the final DNA-associated proteins with high salt. This treatment removes all of the helicase loading proteins (ORC, Cdc6 and Cdt1) from the DNA but leaves loaded Mcm2-7 complexes (Figure 5B, top panel) (Randell et al., 2006). Wild-type protein showed robust, Cdc6-dependent loading onto origin DNA. In contrast, each of the double mutant Mcm2-7 complexes showed reduced Mcm2-7 loading. The Mcm4D/6D and Mcm6D/7D complexes showed only modest defects (less than ∼ two-fold, Figure 5—figure supplement 2). The Mcm4D/7D complex showed a stronger defect (∼10-fold), and the Mcm4/6/7 triple mutant showed the most severe defect in helicase loading (∼20-fold reduction, Figure 5—figure supplement 2).

To establish at what step in the helicase loading process these defects occurred, we studied the initial recruitment of the complexes to origin DNA. To this end, we replaced ATP with the poorly hydrolyzable ATP-γS in the assay. In the presence of ATPγS, all of the proteins required for helicase loading are recruited to the origin, but no loading occurs (Randell et al., 2006). Under these conditions, we observed a similar pattern of Mcm2-7/Cdt1 and ORC association for wild-type and the mutant Mcm2-7 complexes (Figure 5B, middle panel, Figure 5—figure supplement 2). Thus, mutating two or three MSSB motifs did not alter the initial recruitment of the Mcm2-7/Cdt1 complex to the origin DNA. We also examined the DNA-associated proteins when ATP-containing reactions were washed with low-salt (Figure 5B, bottom panel, Figure 5—figure supplement 2), a condition that retains helicase-loading proteins on DNA. Under these conditions, the mutant complexes showed a similar pattern of reduced Mcm2-7 DNA association as seen for the high-salt wash experiments. Cdt1 was not retained on the DNA under these conditions for mutant Mcm2-7 complexes, indicating that the MSSB mutations did not interfere with the release of Cdt1 from the Mcm2-7 complex during loading. Together, these data indicate that the loading defect for these Mcm2-7 mutants occurs after their initial recruitment to origin DNA but before the establishment of the ORC-independent association of Mcm2-7 with origin DNA.

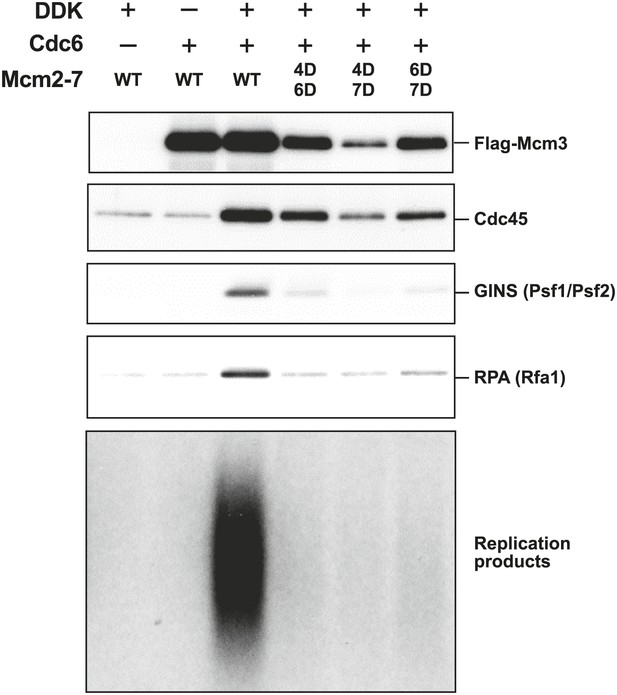

We looked for additional replication initiation defects for the Mcm2-7 mutants that showed detectable loading using a modified in vitro replication assay that recapitulates origin-dependent DNA replication initiation and elongation (Heller et al., 2011). In contrast to our original studies, helicase loading in these assays was performed using purified proteins. In addition to measuring new DNA synthesis, we monitored association of Mcm2-7, the helicase activation proteins Cdc45 and GINS and the ssDNA binding protein, RPA, with the origin DNA during the reaction. The analysis of protein associations provided insights into the step during replication initiation during which the mutant Mcm2-7 complexes fail. Consistent with their inability to support cell growth, none of the mutant complexes supported significant DNA synthesis (Figure 6). Analysis of FLAG-Mcm3 DNA association showed that, as in the loading assays, the Mcm4D/6D and Mcm6D/7D complexes are retained on the DNA more strongly than the Mcm4D/7D complex. Cdc45 association mirrored the level of FLAG-Mcm3 association with the DNA, suggesting Cdc45 recruitment is independent of the MSSB (Figure 6—figure supplement 1). In contrast, all of the Mcm2-7 double mutants showed similarly strong defects (≥10-fold) in both GINS and RPA DNA association. In the case of Mcm4D/7D mutant, the DNA replication, GINS and RPA DNA association defects are consistent with its helicase-loading defect. In contrast, for Mcm4D/6D and Mcm6D/7D, the extent of helicase loading and Cdc45 DNA association is distinct from the much larger losses in GINS and RPA DNA association and DNA replication (Figure 6—figure supplement 1). These data strongly suggest that an inability to recruit or maintain GINS and/or RPA is responsible for the replication defects exhibited by these mutants. Because RPA DNA binding is a readout for ssDNA formation and GINS is required to activate the Mcm2-7 helicase, both of these defects indicate that the Mcm4/6 and Mcm6/7 MSSB mutants are defective for helicase activation.

Figure 6 with 1 supplement see all

Download asset Open asset

Here we show how the PfMCM N-terminal domain interacts with single-stranded DNA and identify a critical set of interacting residues that we define as the MSSB. These residues are important for binding ssDNA and, to a lesser extent, dsDNA. A DNA-binding role for positively charged residues in this region is consistent with previous mutational analysis of SsoMCM showing that K129A (equivalent to PfMCM R124) displays very little binding to ssDNA, blunt duplex DNA, and bubble-DNA substrates (Pucci et al., 2004). Although a positive residue equivalent to PfMCM R186 is not conserved in SsoMCM, mutation of an adjacent residue, K194A also displays very little binding to these DNA substrates (Pucci et al., 2004). As previously noted in overall sequence comparisons (Pucci et al., 2004), residues in the MSSB motif are conserved in specific families in eukaryotic Mcm2-7. Importantly, we show that conserved residues within this motif are critical for S. cerevisiae cell division and multiple Mcm2-7 functions during replication initiation.

Biochemical analysis of the S. cerevisiae mutant complexes reveals multiple defects during replication initiation. Two mutant complexes (Mcm4D/7D and Mcm4D/6D/7D) show strong defects in Mcm2-7 loading. This is unexpected because Mcm2-7 proteins are loaded around dsDNA and there is no evidence for ssDNA at this stage of replication (Evrin et al., 2009; Remus et al., 2009). It is possible that one or more MSSB motifs interact with dsDNA prior to ssDNA formation at the origin and that these interactions stabilize loaded Mcm2-7. This would be consistent with the dsDNA binding defects observed for the PfMCM_N R124A/R186A double mutant (Figure 4—figure supplement 1) and also the (R124-equivalent) K129A mutant of SsoMCM. Alternatively, elimination of positive charges in the central channel could alter the opening and closing of the Mcm2-7 ring. The abundance of positive charges in the Mcm2-7 ring could predispose the ring to remain open prior to DNA binding. Encircling dsDNA could neutralize the repulsion and favor ring closing. It is possible that a reduction in positive charge in the mutant complexes leads to the Mcm2-7 ring spending more time in the closed state, inhibiting entry of the dsDNA during loading. Analogously, the reduced positive charge of the MSSB mutants could destabilize ring closure around dsDNA during loading. Consistent with this model, the Mcm2-7 complex appears as a cracked-ring in solution (Costa et al., 2011). As we observe, both scenarios predict that the strongest loading defects would be observed for the Mcm4D/6D/7D mutant that eliminates the greatest number of positive charges. Among the double mutants, the strongest loading defect is observed when the Mcm4 and Mcm7 subunits are mutated, which are across from the Mcm2/5 gate and could influence opening and closing more than other subunits.

Several lines of evidence suggest that the MCM-ssDNA interactions that we have identified have a role during dsDNA melting. First, the MCM-ssDNA interactions identified in our structure predominantly involve the sugars and bases of the ssDNA, ideally suited to bind and shield one strand from its complement during melting. Also consistent with a role in dsDNA melting, the Mcm2-7 MSSB mutant complexes showed strong defects in events linked to helicase activation. The MSSB mutations did not alter Cdc45 recruitment, consistent with the observation that this event can occur in G1 phase prior to ssDNA formation (Aparicio et al., 1999; Heller et al., 2011; Tanaka et al., 2011). In contrast, the levels of GINS and RPA DNA association by each of the MSSB mutant complexes were strongly defective. The defect in RPA DNA binding is almost certainly due to reduced ssDNA generation by the mutant complexes. The reduction in DNA-associated GINS could be the result of a defect in recruitment or retention of GINS. Unlike Cdc45, GINS recruitment does not occur until entry into S phase (Kanemaki et al., 2003; Takayama et al., 2003) and, therefore, could require ssDNA formation. Alternatively, it is possible that the defect in ssDNA binding prevents the CMG complex from attaining a particular DNA binding state and this destabilizes GINS binding.

Interactions between the MSSB and ssDNA could also occur during elongation. Consistent with a role for the MSSB in unwinding, the SsoMCM K129A mutant (PfMCM R124 equivalent) is defective for helicase activity (Pucci et al., 2004). Although the MCM ATPase domain alone is sufficient to produce unwinding activity in SsoMCM (Barry et al., 2007; Pucci et al., 2007) and in Aeropyrum pernix MCM (Atanassova and Grainge, 2008), unwinding displays greater processivity in the presence of the N-terminal domain for SsoMCM (Barry et al., 2007). Thus, although the N-terminal domain and the residues of the MSSB are not intrinsically required to produce an unwinding activity, the N-terminal domain can regulate and enhance MCM unwinding activity (Barry et al., 2007). The positively charged residues of the MSSB could help maintain a closed MCM ring as described above for loading, and thus contribute to the enhanced processivity afforded by the N-terminal domain. It is also possible that ssDNA binding by the MSSB has a more direct impact on DNA unwinding. For example, the directional ssDNA:MSSB interactions observed here could influence the polarity of unwinding either during initiation (see below) or elongation. To permit the ssDNA:MCM_N interactions that we observe, the ssDNA would need to alter its trajectory as it passes through the MCM central channel. Alternatively, the MSSB could bind ssDNA differently during unwinding. An interesting possibility is that during elongation the MCM OB-fold binds ssDNA similar to the OB-fold prototype SSB (Raghunathan et al., 2000; Chan et al., 2009). This mode of binding would place the ssDNA approximately parallel to the central channel (Figure 1—figure supplement 7), a position consistent with the expected ssDNA trajectory during unwinding. Different modes of interaction between the MSSB and ssDNA could be modulated by the AAA+ domain of MCM and a conserved ‘allosteric communication loop’ (ACL, Sakakibara et al., 2008, Barry et al., 2009) that projects from the N-terminal domain towards the anticipated position of the ATPase domain. The ACL directly follows the β-strand that contains the second positively charged MSSB residue (PfMCM residue R186) and thus could couple the MSSB to the ATPase domains.

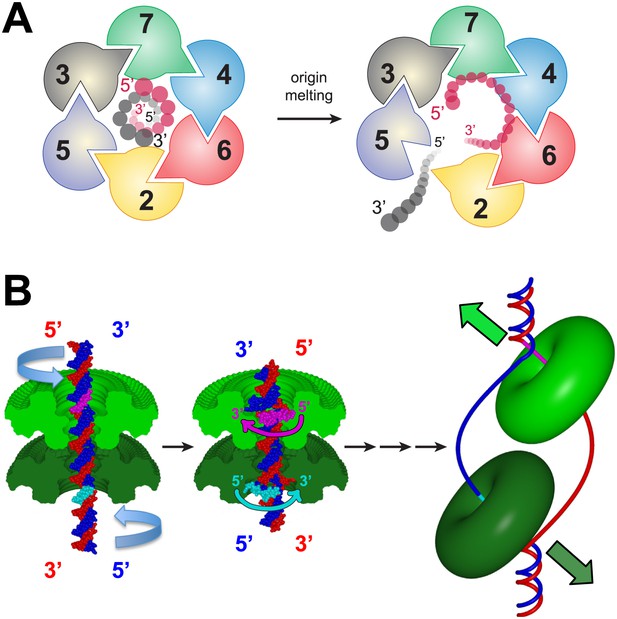

The polarity of ssDNA bound to MCM_N observed in our structure has important implications for the transition between MCM dsDNA and ssDNA binding. In the view shown in Figure 7A, the AAA+ motors are located above the MCM_N domain, and the corresponding Mcm2-7 subunits occur clockwise in the order Mcm5, 3, 7, 4, 6, 2. Given that the Mcm2-7 complex is initially loaded around dsDNA, only one of the two strands of dsDNA can easily attain the 5′→3′ coplanar clockwise configuration observed in our structure: the DNA strand that passes from the C- to N-terminus of the MCM complex in a 5′→3′ direction (Figure 7A). Intriguingly, this strand corresponds to the leading strand DNA template that is encircled by the MCM complex during translocation/DNA unwinding. For the opposite strand to interact with the MCM_N with the observed polarity, it would either need to pass through the other strand or dramatically re-orient. Thus, if ssDNA is formed within the MCM ring during origin melting (see below), our structure predicts that MCM_N would preferentially bind to the translocating strand (i.e., the leading strand DNA template). Consistent with this model, the 3′→5′ helicase polarity of SsoMCM is only observed when the N-terminal domain is present, implicating this domain in substrate selection (Barry et al., 2007).

Figure 7

Download asset Open asset

The MCM helicase is conceptually similar to the Rho hexameric helicase because both possess an N-terminal OB-fold linked to a C-terminal ATPase. This analogy further supports a role for the MCM OB-fold during helicase activation prior to unwinding. The crystal structure of Rho with RNA bound at the OB-fold (Skordalakes and Berger, 2003) suggests that 70–80 nucleotides of RNA would adopt a circular path around the ring (Skordalakes and Berger, 2003) that is roughly perpendicular to the hexameric channel. This arrangement is conceptually similar to our PfMCM_N:ssDNA structure. The Rho OB-fold is believed to bind RNA and facilitate encircling of single-stranded RNA during ring closure by the ATPase domains (Skordalakes and Berger, 2003), a prerequisite for establishing an activated helicase. Subsequently, the proposed unwinding mechanism for Rho exclusively involves distinct interactions between the ATPase motor domain and RNA (Thomsen and Berger, 2009). The MCM N-terminal domain may also function to enable the ATPase domains to select and encircle one strand of DNA during ring closure. A key difference between MCM and Rho is that the Rho helicase ring is loaded on a species that is already single-stranded, whereas the MCM hexamer is first loaded onto double-stranded DNA that must somehow be converted to single-stranded DNA (Evrin et al., 2009; Remus et al., 2009).

Combining the features of eukaryotic MCMs with our new structural information, we suggest the following model for MSSB function during helicase activation. After helicase loading, we propose that DNA melting is initiated by activating the ATPase domains of the double-hexamer to pump dsDNA from the C-terminal lobe side towards the double-hexamer interface (Figure 7B; Video 2). This is consistent with the known direction of MCM DNA translocation (McGeoch et al., 2005) as well as observations that Mcm complexes can translocate on dsDNA (Kaplan et al., 2003). As additional nucleotides of DNA are forced to occupy the same distance along the DNA helical axis, a B-form structure can no longer be maintained. We predict that the DNA strands would be forced apart at the site where the diameter of the MCM central channel is largest. Intriguingly, the MSSB is on the surface of the largest diameter of the MCM_N central channel (Figure 1—figure supplement 3), putting the MSSB in a prime position to bind the leading strand ssDNA upon DNA melting. The channel diameter elsewhere in the MCM_N is too narrow to permit B-form DNA strands to separate. Such melting activity requires that the two hexamers are anchored to one another because the two hexamers would otherwise simply translocate away from one another without melting the DNA. Further dsDNA pumping after the volume around the MSSB has been filled would require the MCM ring to open and allow the unbound lagging strand DNA template to exit (Figure 7A). The presumed exit site would be through the Mcm2/5 gate (Bochman and Schwacha, 2007; Costa et al., 2011). Intriguingly, Mcm2 and Mcm5 are the only two subunits that lack a conserved positive residue at the PfMCM R124 position, reducing ssDNA affinity and potentially facilitating strand exit. Following strand exit and extrusion of additional lengths of ssDNA, ring closure would poise each isolated hexamer to unwind DNA using a strand exclusion mechanism (Fu et al., 2011). The event that would drive double hexamer separation is unclear but could be facilitated by the change from encircling dsDNA to ssDNA, binding of additional factors (e.g., Mcm10) or modification of the helicase. A definitive test for this model awaits the development of assays that directly monitor the events of origin DNA melting and strand exclusion. Nevertheless, our studies provide structural and biochemical evidence that the MSSB is a critical ssDNA binding domain that functions during helicase loading and activation and provide initial insights into how ssDNA binding by MCM complex could facilitate selection of one strand during helicase activation.

Video 2

Download asset
