The long non-coding RNA Dali is an epigenetic regulator of neural differentiation

Research Article
  • Cited 63
  • Views 4,180
  • Annotations
Cite this article as: eLife 2014;3:e04530 doi: 10.7554/eLife.04530

Abstract

Many intergenic long noncoding RNA (lncRNA) loci regulate the expression of adjacent protein coding genes. Less clear is whether intergenic lncRNAs commonly regulate transcription by modulating chromatin at genomically distant loci. Here, we report both genomically local and distal RNA-dependent roles of Dali, a conserved central nervous system expressed intergenic lncRNA. Dali is transcribed downstream of the Pou3f3 transcription factor gene and its depletion disrupts the differentiation of neuroblastoma cells. Locally, Dali transcript regulates transcription of the Pou3f3 locus. Distally, it preferentially targets active promoters and regulates expression of neural differentiation genes, in part through physical association with the POU3F3 protein. Dali interacts with the DNMT1 DNA methyltransferase in mouse and human and regulates DNA methylation status of CpG island-associated promoters in trans. These results demonstrate, for the first time, that a single intergenic lncRNA controls the activity and methylation of genomically distal regulatory elements to modulate large-scale transcriptional programmes.

https://doi.org/10.7554/eLife.04530.001

eLife digest

Traditionally genes are considered to contain all the instructions necessary to build proteins. For these instructions to be followed they need to be ‘transcribed’ into molecules called messenger RNA, which are then ‘translated’ to form the protein. Messenger RNAs are not the only type of RNA molecule made in a cell; long non-coding RNAs (or lncRNAs), for example, are transcribed but never translated into proteins. Instead, some lncRNAs control the expression of nearby genes and some alter how the DNA is packaged within the cell.

Several lncRNAs have been found to control their neighbouring genes, but it is unclear how many of these molecules can also regulate genes that are much further away, even on other chromosomes. One lncRNA called Dali is made in cells of the nervous system of mammals. In the genome, the gene for Dali is situated next to a gene called Pou3f3, which encodes a protein that contributes to the growth and development of nerves and the kidneys.

Chalei et al. have now shown that artificially reducing the amount of the Dali lncRNA restricts the development of mouse cells called N2A cells, which are commonly used to study the development of nerve cells. Reducing Dali lncRNA levels in these cells caused Pou3f3 messenger RNA levels to also decrease, which demonstrates that Dali is a lncRNA that controls its neighbouring gene. The levels of many other genes were also changed when Dali levels were reduced, including many genes that are needed to grow working nerve cells.

Chalei et al. also showed that the Dali lncRNA binds to 1427 different regions of the genome of N2A cells, most often near to the start of active genes; Dali could be carried to these sites by the POU3F3 protein. The DNA sequences with which the Dali lncRNA binds were all different. Chalei et al. found that Dali also binds to an enzyme, called DNMT1, that chemically modifies DNA to change how it is packaged into a cell, and they predict that this enzyme helps Dali to find its binding sites. Furthermore, when Dali lncRNA levels were artificially reduced, the chemical modifications that affect the packaging of DNA in the cell—and hence the expression of genes encoded by this DNA—were changed for several genes. Some of these genes were located far away from the gene that encodes Dali, indicating that this lncRNA can regulate the packaging and expression of distant genes.

Many genes that are regulated by Dali are also regulated by the POU3F3 protein; this suggests that the lncRNA might work together with this protein to affect the expression of some genes. Further work is now needed to uncover how many other lncRNAs act away from their sites of synthesis, and how many also form complexes with DNA-binding and DNA-modifying proteins.

https://doi.org/10.7554/eLife.04530.002

Introduction

A growing number of nuclear localised long noncoding RNAs (lncRNA, ≥ 200 nt) are known to regulate gene transcription and chromatin organisation (reviewed in (Vance and Ponting, 2014)). Many of these transcripts appear to act near to their site of synthesis to regulate the expression of genes locally on the same chromosome (cis-acting). Cis-acting lncRNA regulatory mechanisms have been described in detail for a number of enhancer associated nuclear lncRNAs, as well as lncRNAs involved in the processes of genomic imprinting and X chromosome inactivation (Tian et al., 2010; Melo et al., 2013; Monnier et al., 2013; Mousavi et al., 2013; Santoro et al., 2013; Vallot et al., 2013). Some cis-acting lncRNAs bind to DNA methyltransferase (DNMT) proteins and regulate genomic DNA methylation levels specifically at their sites of transcription (Mohammad et al., 2010; Di Ruscio et al., 2013).

Trans-acting lncRNAs that regulate gene expression across multiple chromosomes and on either allele have been documented less frequently. The ability of such lncRNAs to exert widespread effects on gene expression in trans is poorly understood, in large part because direct transcriptional targets for only very few of these transcripts have thus far been identified (Chu et al., 2011; Ng et al., 2013; Simon et al., 2011; Vance et al., 2014). Moreover, it is not clear whether these transcripts commonly act directly, or within ribonucleoprotein complexes, and how they might modify their target genes’ regulatory landscape such as by regulating their DNA methylation profiles.

Many thousand mammalian intergenic lncRNAs have now been identified. Not all lncRNA transcript models will be functional, however. Single exon models, in particular, can be artefacts arising from genomic DNA contaminating sequencing libraries, and transcripts that are expressed at average levels lower than one copy per cell are less likely to confer function. Highly and broadly expressed, and bona fide monoexonic intergenic lncRNAs, such as Neat1 and Malat1/Neat2, however, appear not to have essential roles because their knockout mouse models are viable and fertile (Eissmann et al., 2012; Zhang et al., 2012). Transcript sequences and levels are thus not reliable predictors of mechanism. Instead, the significant temporal and spatial co-expression of genomically adjacent intergenic lncRNA and transcription factor genes might suggest that such lncRNAs commonly modulate transcriptional programmes that are initiated by these transcription factors (Ponjavic et al., 2009). Indeed, several intergenic lncRNAs have well-documented cis-acting regulatory roles (Wang et al., 2011; Zhang et al., 2012; Berghoff et al., 2013).

Spatiotemporal co-expression of intergenic lncRNA and transcription factor genes is most pronounced during the development of the mouse central nervous system (CNS) (Ponjavic et al., 2009). To investigate the mechanistic basis of this physical linkage we chose to study a 3.5-kb, CNS-expressed, monoexonic, intergenic lncRNA termed Dali (DNMT1-Associated Long Intergenic), owing to its conservation of sequence and transcription across therian mammals and its genomic proximity to a transcription factor gene, Pou3f3 (also known as Brn1 or Oct8), which encodes a class III POU family transcription factor. Dali is transcribed in the sense orientation, relative to Pou3f3, from a locus 50 kb downstream of Pou3f3 within the flank of an extended genomic region (Figure 1A) that is characterised by near pervasive transcription in neuronal lineages (Ramos et al., 2013). Sauvageau et al. recently generated mouse knockout models for two of these intergenic lncRNA loci, linc-Brn1a, and linc-Brn1b (Figure 1A). Genomic deletion of the linc-Brn1b locus resulted in significant (∼50%) down-regulation of the upstream Pou3f3 gene, and linc-Brn1b-/- mice exhibited abnormalities of cortical lamination and barrel cortex organization (Sauvageau et al., 2013). These abnormalities may derive from loss of the linc-Brn1b RNA transcript, or from the deletion of DNA functional elements (Bassett et al., 2014). The Dali locus is more distally located and does not overlap previously described lncRNA loci or regulatory elements (Figure 1A).

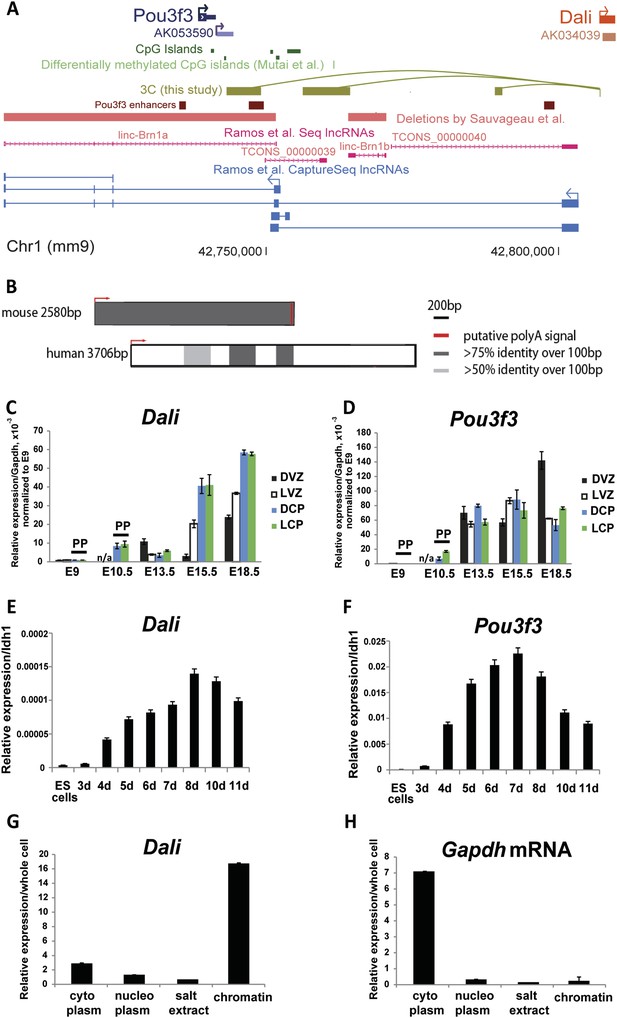

Figure 1 with 2 supplements see all
Conservation and expression within the Dali and Pou3f3 loci.

(A) Schematic illustration of the mouse Pou3f3 genomic region showing coding and non-coding transcripts, enhancer elements from Vista Enhancer Browser (Visel et al., 2007), CpG islands, and published genomic deletions (Sauvageau et al., 2013). (B) Conservation and relative sizes of Dali transcripts in mouse and human confirmed by RACE. (C) Dali and (D) Pou3f3 are co-expressed temporally and spatially in the developing mouse brain. DVZ: Dorsal ventricular zone; LVZ: Lateral ventricular zone; DCP: Dorsal cortical plate; LCP: Lateral cortical plate; PP: pre-plate. The levels of Dali, Pou3f3 were measured by qRT-PCR. Results are normalised to Gapdh and presented relative to expression in E9.0 sample (set arbitrarily to 1). Mean ± s.e., n = 3 (technical replicates). (E and F) Similarly to Pou3f3, Dali is up-regulated during neuronal differentiation of mouse ES cells. Neuronal differentiation of mouse ES cells was induced using RA. The levels of Dali and Pou3f3 were measured by qRT-PCR. Results are presented relative to an Idh1 reference gene which does not change significantly during differentiation. Mean ± s.e., n = 3. (G and H) Dali is a chromatin associated transcript. The relative amounts of Dali (G) and a control mRNA (Gapdh) (H) in the indicated fractions were measured by qRT-PCR. Mean values ± s.e. of three independent experiments.

https://doi.org/10.7554/eLife.04530.003

Pou3f3 is a single exon gene whose protein binds to DNA in a sequence-specific manner. Pou3f3 contributes to both neuronal and kidney development by regulating the proliferation and differentiation of progenitor cells (Nakai et al., 2003). Mouse mutants with homozygous loss of Pou3f3 die of renal failure within 36 hr post partum (Nakai et al., 2003), with severe defects of the hippocampus and forebrain among others (McEvilly et al., 2002). In the developing neocortex, Pou3f3 is expressed in late neuronal precursors and in migrating neurons and, together with its closely related paralogue Pou3f2, is required in ventricular zone progenitors for deep-to-upper layer fate transition, sustained neurogenesis and cell migration (Dominguez et al., 2013).

Our experiments show that Dali is required for the normal differentiation of neural cells in culture. Furthermore, our results indicate that Dali functions by modulating the expression of its neighbouring Pou3f3 gene, as well as by interacting with the POU3F3 protein, and by directly binding and regulating the expression of genes involved in the neuronal differentiation programme in trans. Unexpectedly, Dali associates with the DNMT1 DNA methyltransferase and reduction of Dali levels increases DNA methylation at a subset of Dali-bound and -regulated promoters in trans. Our data therefore provide the first evidence that a lncRNA transcript can regulate multiple genes situated away from its site of synthesis by binding to promoter-proximal regulatory elements and altering their DNA methylation status in trans.

Results

Conserved Dali genomic organisation and transcription

Full-length mouse Dali is approximately 500 nt (2.6 kb) longer than a previously identified AK034039 cDNA cloned from the telencephalon (Figure 1—figure supplement 1A). Its locus, downstream of the Pou3f3 gene, contains mammalian conserved sequence both just upstream of its transcriptional start site, which presumably contributes to this locus’ promoter, and within its transcribed sequence. A positionally equivalent and sequence-similar human DALI (∼3.7 kb) transcript was identified by RT-PCR and RACE in human foetal brain (Figure 1B; Figure 1—figure supplement 1B,C). Transcriptional evidence also exists for the orthologous locus in rat embryonic, as well as heart and kidney, samples (data not shown).

Dali is a chromatin-associated transcript that is co-expressed with Pou3f3 in neural cell lineages

ENCODE data indicate that both mouse and human Dali loci have the properties of a weak (or poised) enhancer in both brain and kidney tissues (Figure 1—figure supplement 1D,E). Consistent with this, Dali was most highly expressed in the adult brain and kidney, two of the three tissues displaying highest Pou3f3 expression, when profiled across a panel of adult mouse organs (Figure 1—figure supplement 1F,G). In adult mouse (P56), Dali and Pou3f3 were expressed in all three regions of adult neurogenesis, the sub-ventricular zone (SVZ), olfactory bulb (OB), and dentate gyrus (DG) (Figure 1—figure supplement 1I) (Reviewed in Ming and Song, 2011). Dali was also co-expressed with Pou3f3 temporally and spatially in the developing mouse embryonic brain (Figure 1C,D). Both transcripts were up-regulated with the first appearance of cortical neurons (E10.5), and increased in expression further as the ratio between neurons and progenitors grew (Figure 1C,D). Furthermore, both Dali and Pou3f3 transcripts were undetectable in self-renewing mouse E14 embryonic stem (ES) cells, but after 3 days of retinoic acid (RA)-induced differentiation, a stage corresponding to the cell cycle exit of neuronal progenitors and their differentiation into neurons, these transcripts were rapidly up-regulated, their levels subsequently peaking at days 7 (Pou3f3) and 8 (Dali) (Figure 1E,F).

Mouse neuroblastoma N2A cells, which are frequently used as a neuronal progenitor-like cell type and an in vitro model of neuronal differentiation (Tremblay et al., 2010), express both Dali (at a population-average level of 2 copies per cell (Figure 1—figure supplement 1K)) and Pou3f3. When first detected in neuronal-progenitor-dominated areas of the developing brain (E10.5), Dali is expressed at a level at least two orders of magnitude higher than in N2A cells (Figure 1—figure supplement 1H). However, in N2A cells treated with RA for 72 hr, Dali is up-regulated approximately 4.5-fold, similar to the up-regulation observed in embryonic cortical plate (both dorsal and lateral) between days E10.5 to E18.5 (Figure 1—figure supplement 1H). Therefore, despite Dali expression level differences in N2A cells and the in vivo system, N2A cells represent an appropriate model system in which to study Dali function. Furthermore, Dali, but not a control mRNA (Gapdh), was highly enriched in the nucleus of N2A cells, most abundantly in the chromatin fraction (Figure 1G,H). Taken together, the data suggest that Dali may be involved in regulating nuclear function during neuronal development, potentially in coordination with Pou3f3.

Dali regulates neural differentiation of N2A cells

We next investigated whether Dali regulates neural differentiation by generating three independent stable Dali knockdown N2A cell lines each showing approximately 50–70% reduction of Dali transcript levels and inducing neural differentiation using RA (Figure 2A). Compared to a stable non-targeting control line, fewer differentiated cells of Dali knockdown lines developed neurites. Those that did exhibited shorter neurites, often with multiple short outgrowths emanating from the same cell, compared to one or two long neurites developed by differentiated control cells (Figure 2B,C) indicating that Dali is required for normal differentiation of N2A cells.

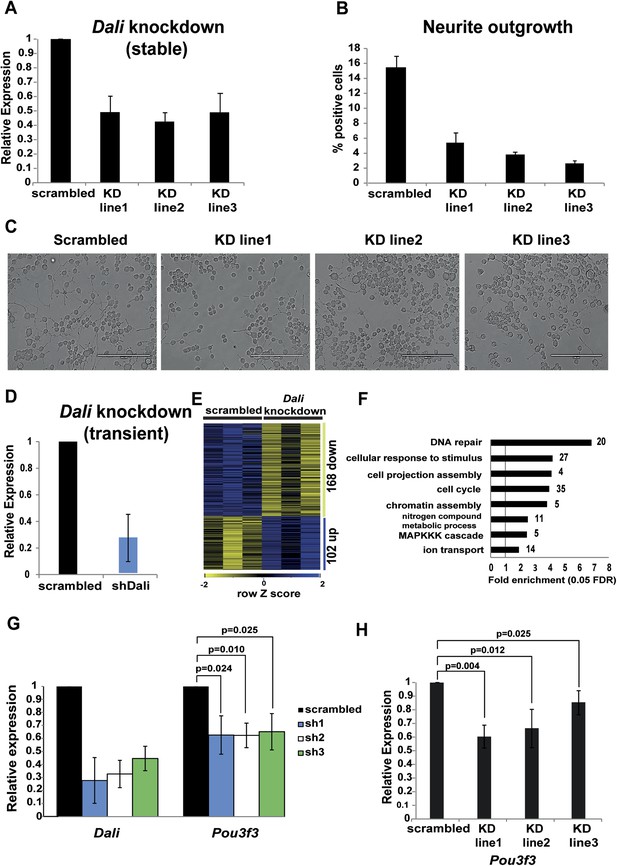

Figure 2 with 1 supplement see all
Dali plays a role in regulating genes in neuronal cells.

(A) qRT-PCR analysis validates reduced levels of Dali in three clonal Dali knockdown cell lines compared to a control line. Mean values ± s.e., n = 3. (B) Reduced neurite outgrowth in RA-differentiated Dali knockdown cells. Cells were imaged using bright field microscopy. Cells with ≥1 neurites of length greater than twice the cell body diameter were scored as positive. Average values ± s.e., n = 3. 500-600 cells were counted in each case across at least three non-overlapping fields. (C) Representative images of control and stable Dali knockdown cells differentiated with RA for 72 hr. Scale bar = 200 μm. (D) N2A cells were transfected with either a non-targeting control (scrambled) or a Dali targeting shRNA expression vector (shDali) for 72 hr. Mean values ± s.e., n = 3. (E) Transient Dali knockdown induces statistically significant changes in the expression of 270 genes in N2A cells (10% FDR) (Supplementary file 2). (F) Gene Ontology (GO) categories significantly enriched among Dali regulated genes (5% FDR, hypergeometric test, Benjamini and Hochberg correction; Supplementary file 2). (G) Decreased Pou3f3 expression upon Dali knockdown. Normalised using Gapdh, shown relative to a non-targeting control (set at 1). Mean values ± s.e., n = 3, one tailed t-Test, unequal variance. (H) Reduced Pou3f3 levels in stable Dali knockdown cells (see panel A). qRT-PCR results were normalised using Gapdh and presented relative to expression in control cells (set arbitrarily to 1). Mean values ± s.e., n = 3, one tailed t-Test, unequal variance.

https://doi.org/10.7554/eLife.04530.006

Dali regulates neural gene expression

To investigate the molecular function of Dali, we performed microarray analysis to profile the transcriptome of N2A cells in which Dali transcript levels had been depleted by ∼70% using transient transfection of a specific Dali targeting shRNA expression vector (Figure 2D; shRNA and RT-qPCR oligo sequences and positions can be found in Supplementary file 1). Dali knockdown resulted in statistically significant changes in expression levels for 270 genes (False Discovery Rate [FDR] < 10%) compared to a non-targeting control (Supplementary file 2; Figure 2E). 14 of 15 of these genes were also determined as being differentially expressed, with similar fold changes, using RT-qPCR and two additional independent shRNA expression constructs targeting Dali (Figure 2—figure supplement 1C). Gene expression changes we observed using microarrays were thus unlikely to be dominated by off-target effects of the shRNA used. Gene Ontology (GO) analysis revealed that Dali-regulated genes were significantly enriched in cell cycle, DNA repair, cellular response to stimulus, and cell projection assembly functions (Figure 2F and Supplementary file 2; Benjamini-Hochberg corrected p ≤ 0.05). Taken together, these expression and loss of function studies suggest that Dali acts as a pro-differentiation factor in neural development.

Dali and Pou3f3 share transcriptional targets

To investigate whether Dali knockdown affects expression of the adjacent Pou3f3 gene, we reduced its levels by transient transfection of three different shRNA constructs in N2A cells. After 72 hr, reduction of Dali levels by an average of 60–70% was found to reduce Pou3f3 transcript levels by approximately 40% (Figure 2G). Three independent stable Dali knockdown clones in which Dali levels were reduced by 50–60% (Figure 2A) also showed ∼15–40% lower Pou3f3 levels (Figure 2H). This suggests that the Dali transcript positively regulates Pou3f3 expression in an RNA-dependent manner. The genome-wide transcriptional response to Dali knockdown thus could be explained, in part, by its effect on Pou3f3.

Levels of another transcript, AK011913, expressed downstream of Pou3f3 (Figure 1A) were reduced by approximately 55% upon Dali knockdown (Figure 2—figure supplement 1A). Reduction of AK011913 levels by approximately 60% using shRNAs resulted in Dali and Pou3f3 levels decreasing by 73% and 82%, respectively (Figure 2—figure supplement 1B). Linc-Brn1a, a lncRNA upstream of and sharing a bi-directional promoter with Pou3f3, was up-regulated by approximately 90% upon AK011913 depletion (Figure 2—figure supplement 1B). This is reminiscent of the down-regulation of Pou3f3 and up-regulation of lincBrn-1a following knockdown of another lncRNA downstream of Pou3f3, lincBrn-1b (Figure 1A) (Sauvageau et al., 2013). Together with previous reports, our data show the opposing regulatory influences of lncRNAs transcribed up- and downstream of Pou3f3 on its expression. Non-coding transcripts expressed from the extended Pou3f3 locus thus contribute to a complex network of regulatory interactions.

Furthermore, Chromatin Conformation Capture (3C) showed that the Dali promoter contacted three regions across the Pou3f3 locus (Figure 1A) in ES derived neuronal precursors (Figure 1—figure supplement 2) : 1) an enhancer element sequence lying upstream of Pou3f3 within the linc-Brn1a locus, 2) a region overlapping the 3′ UTR of Pou3f3 and full-length AK53590 (which are both regulated by Dali), as well as parts of TCONS_00000039 and linc-Brn1b, including a differentially methylated region reported to be important in regulating Pou3f3 expression (Mutai et al., 2009), and 3) a region lying within another non-coding locus (TCONS_00000040) (Ramos et al., 2013). Neither Dali nor Pou3f3 appears to play a role in initiating these DNA looping interactions because these contacts were present in E14 ES cells where neither is expressed (Figure 1—figure supplement 2B). Nevertheless, the Dali locus appears to contribute to an extended structurally and transcriptionally complex region centred on the Pou3f3 gene.

To examine to what extent the transcriptional response to Dali knockdown can be explained by its effect on Pou3f3, we reduced the level of Pou3f3 transcript in N2A cells by 35% using transient transfection of a Pou3f3 targeting shRNA vector (Figure 3A) and using microarrays observed statistically significant expression changes in 1041 genes (FDR <10%; Figure 3B). Dali transcript levels do not change upon Pou3f3 depletion (Figure 3A). Genes differentially expressed after Pou3f3 knockdown were enriched in categories related to cell division and cell cycle (Figure 3C). The intersection between the sets of genes differentially expressed in Dali or in Pou3f3 knockdown cells was 6.2-fold greater than expected by chance (p-value < 2.2 × 10−16), and represented 31% of all genes differentially expressed in Dali knockdown cells (Figure 3D). Approximately equal numbers of genes shared between the two datasets were down- (43 genes) or up-regulated (41 genes) in both experiments (Supplementary file 3). A strong correlation was observed between the fold-change values of differentially expressed genes in Dali and Pou3f3 knockdown experiments (R = 0.74; Figure 3E). Genes that were significantly differentially expressed only when Dali was depleted were enriched in chromatin assembly and MAPKKK signalling functions, whilst genes that were differentially expressed only when Pou3f3 transcripts were depleted were preferentially involved in dendrite development and axon guidance (Figure 3F). Cell cycle, DNA repair, and cellular response to stimulus genes were regulated by Dali in both Pou3f3-dependent and -independent manners. We conclude that Dali and Pou3f3 interact, either genetically or molecularly, to regulate a subset of common targets involved in neural differentiation, and that Dali also likely possesses Pou3f3-independent transcriptional regulatory functions.

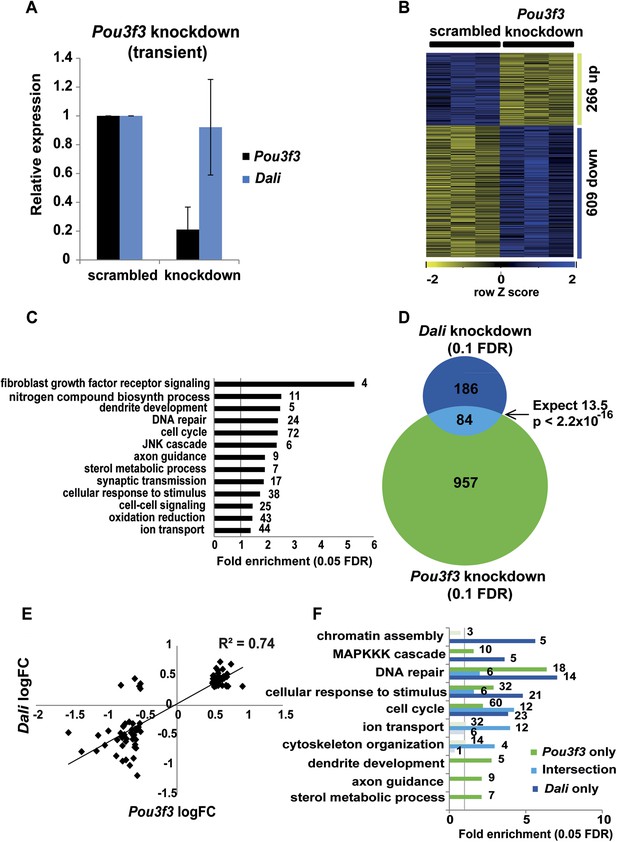

Dali regulates transcription in both Pou3f3-dependent and -independent manners.

(A) N2A cells were transfected with either a non-targeting control (scrambled) or a Pou3f3 targeting shRNA expression vector (knockdown). Pou3f3 and Dali levels were measured by qRT-PCR 72 hr post- transfection. Mean values ± s.e., n = 3. (B) Pou3f3 knockdown resulted in statistically significant changes in the expression of 1041 genes in N2A cells ((10% FDR, Supplementary file 3). (C) GO-analysis of genes differentially expressed upon Pou3f3 analysis (5% FDR, hypergeometric test, Benjamini and Hochberg correction; Supplementary file 3). (D) Intersection of Pou3f3 and Dali targets shows a significant (Fisher’s exact test) overlap approximately 6.2 times as large as expected by chance alone. (E) Target genes common between Dali and Pou3f3 show correlated expression, with the nearly all being positively or negatively regulated by both factors (R = 0.74; Supplementary file 3). (F) Enrichments of Gene Ontology categories of Pou3f3-dependent or -independent Dali targets.

https://doi.org/10.7554/eLife.04530.008

Dali regulates gene expression programmes during neural differentiation of N2A cells

To further investigate the role of Dali in neuronal differentiation we profiled the transcriptomes of proliferating or RA differentiated control and Dali stable knockdown N2A cell lines. In proliferating cells, 733 genes were differentially expressed between Dali knockdown and control cells (Figure 4A), including many genes with functions related to neuronal differentiation, apoptosis, neuronal function (Figure 4B). RA-mediated neuronal differentiation induced expression changes in 958 genes in control cells and 1016 genes in Dali knockdown cells (Figure 4—figure supplement 1A,B). Based on GO category annotations, differentiation of control or Dali knockdown cells was broadly similar, and was associated with altered expression of cell cycle, cell differentiation, energy metabolism, and neuron projection (Figure 4—figure supplement 1C,D). However, 804 genes were differentially expressed between terminally differentiated control and Dali knockdown cells (Figure 4C), of which 376 genes (46.8%) also differed in expression between Dali knockdown and control cells prior to their differentiation (Figure 4E). The 428 genes that were significantly altered in expression only between stable Dali and control differentiated cells were enriched in functional categories relating to sterol biosynthesis, energy metabolism, cell cycle, response to chemical stimulus, cell cycle, adhesion and small GTPase signalling (Figure 4D). All 11 (of 34 known) sterol biosynthesis genes were down-regulated in Dali knockdown cells. This observation is consistent with the impaired neurite outgrowth of stable Dali knockdown cells because neuritogenesis and neurite outgrowth critically rely on membrane biosynthesis, and therefore, on expression of sterol biosynthesis genes (Paoletti et al., 2011).

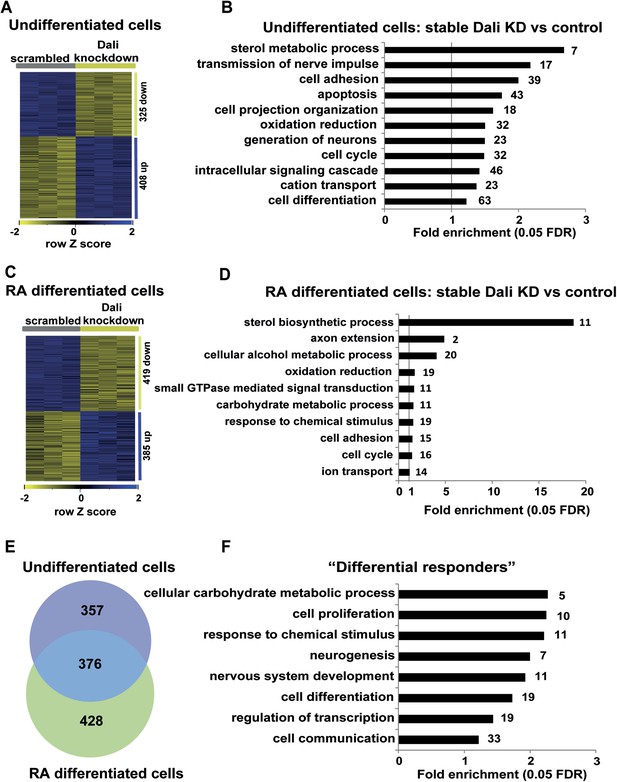

Figure 4 with 1 supplement see all
Gene expression analysis of stable Dali knockdown cells.

(A) Stable Dali knockdown resulted in statistically significant changes in the expression of 747 genes in N2A cells (1.3-fold, 5% FDR, Supplementary file 4). 332 genes were up-regulated, 415 down-regulated. (B) GO-analysis of genes differentially expressed upon stable Dali depletion (5% FDR, hypergeometric test, Benjamini and Hochberg correction). (C) Stable Dali knockdown and control cells were differentiated with retinoic acid for 72 hr. 825 genes were differentially expressed between differentiated knockdown and control lines ((≥1.3-fold, 5% FDR, Supplementary file 4). 436 genes were up-regulated, 389 down-regulated. (D) GO-analysis of genes differentially expressed only between differentiated stable Dali knockdown and control cells (5% FDR, hypergeometric test, Benjamini and Hochberg correction). (E) Intersection of gene sets differentially expressed between stable Dali knockdown and control cells prior to (undifferentiated) and after retinoic acid addition (differentiated). (F) GO-analysis of genes responding to retinoic acid treatment differently between stable Dali knockdown and control cells (5% FDR, hypergeometric test, Benjamini and Hochberg correction). ‘Differential responder’ genes were identified using multifactorial analysis of the stable Dali knockdown arrays using limma (Smyth, 2004).

https://doi.org/10.7554/eLife.04530.009

In addition, several key neuronal differentiation genes, for example Nrcam, Dscam, Dlx1 and Pax3, were differentially expressed between Dali knockdown and control cells both prior to and after differentiation. Furthermore, multifactorial analysis of RA-induced gene expression changes in control and stable Dali knockdown cells showed that 174 genes responded to RA differently depending on the presence or knockdown of Dali (FDR 5%; Supplementary file 4). These were significantly enriched in categories relating to neuronal development (Figure 4F), including pro-differentiation factors such as the inhibitor of Wnt signaling Dkk1 (Cajanek et al., 2009) and Wnt receptor Fzd5 (Kemp et al., 2007).

In summary, compared to control cells, stable Dali knockdown cells exhibit contrasting alterations in gene expression programmes before and after RA-induced differentiation. In both cases, these programmes are enriched in functional categories related to neural differentiation and function, consistent with the proposed role for Dali in neural development.

Dali preferentially binds to active promoters in trans

We next sought to identify and characterise genes that are both bound and regulated by Dali. To do so, we determined the genome-wide binding profile of Dali in N2A cells using Capture Hybridisation Analysis of RNA Targets (CHART)-Seq (Simon et al., 2011; Simon, 2013) (Figure 5—figure supplement 1A–C). We discovered 1427 focal Dali-associated regions genome-wide (Figure 5A,B; Supplementary file 5), of which all nine selected loci were validated by CHART-qPCR in an independent experiment (Figure 5—figure supplement 1D).

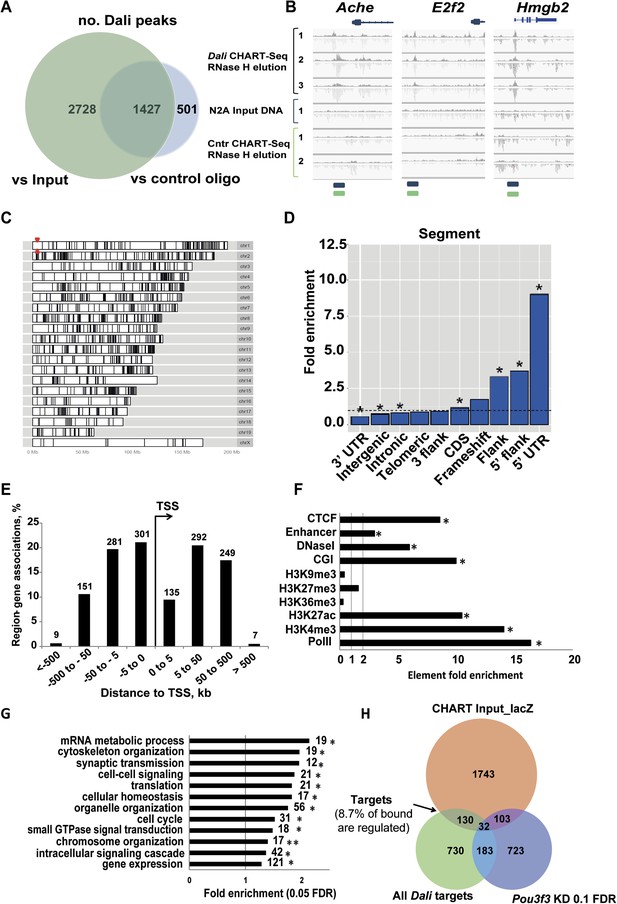

Figure 5 with 1 supplement see all
CHART-Seq analysis of Dali genomic binding sites.

(A) Peaks were called against control CHART-seq experiments and input DNA. We consider only the 1427 peaks common to both comparisons (Supplementary File 5). (B) Sequencing of Dali bound DNA reveals focal peaks, including those at the promoter of Ache, E2f2, and Hmgb2. (C and D) Dali peaks are broadly distributed across the mouse genome (C) but are particularly enriched in 5′ UTRs and gene promoters (D). Red arrowheads in (C) mark the Dali locus. (E) A third of Dali peaks are situated within 5 kb of a TSS. (F) Dali-bound loci are enriched in active chromatin marks (H3K4me3, H3K27ac, PolII), DNase I hypersensitivity regions, enhancers and CpG islands annotations (CGI), and CTCF-bound regions, while being depleted of gene body marks (H3K36me3) and repressive chromatin marks (H3K9me3 and H3K27me3). (G) Representative categories from GO analysis of genes associated with Dali binding sites (within 1 Mb) include gene expression, cell cycle, signalling, synaptic transmission and cytoskeleton organization among others. Categories marked with an asterisk (*) are significantly enriched also among genes associated with peaks within 10 kb of a TSS, with two asterisks (**)—among genes with peaks within 100 kb (Supplementary File 5). (H) The intersection of genes proximal (<1 Mb) to Dali peaks, regulated by Dali and changing expression upon Pou3f3 (10% FDR) knockdown identifies those both bound and regulated by Dali, as well as genes regulated by both Dali and Pou3f3 and directly bound by Dali.

https://doi.org/10.7554/eLife.04530.011

Dali binding sites were typically limited to less than 1 kb in length (Figure 5—figure supplement 1E) and were distributed across the genome with no apparent chromosomal biases other than a depletion on the X chromosome which may reflect the inactivation of one X chromosome copy in these female N2A cells (Figure 5C). These sites were preferentially located at the 5′ end of protein coding genes (Figure 5D): 30.5% of peaks were within 5 kb of a transcriptional start site (TSS) (Figure 5E). Dali bound sequences were significantly enriched for H3K4me3, H3K4me1 and H3K27ac modified histones and PolII occupancy, and were depleted for repressive histone marks (Figure 5F). This suggests that Dali preferentially associates with regions of active chromatin. GO category enrichment analysis showed that genes associated with Dali peaks contribute to processes related to neuronal differentiation (cell cycle), neuronal projection development (cytoskeleton organization and small GTPase mediated signal transduction), neuronal function (synaptic transmission), and more general cellular processes, such as gene expression, intracellular signalling, and cellular homeostasis (Figure 5G). 150 genes (8.6% of all Dali bound genes) regulated by Dali contained Dali binding sites within their regulatory regions (Figure 5H) and presumably represent direct transcriptional targets.

Dali interacts with chromatin modifying proteins

To investigate the mechanisms of its genomic targeting, we next performed computational analysis of Dali bound sequences. We discovered that Dali binding sites do not exhibit significant sequence complementarity with the Dali transcript (Figure 5—figure supplement 1F, see Methods), and are not likely to form RNA-DNA:DNA triplex structures (Figure 5—figure supplement 1G), suggesting that Dali does not bind DNA directly. We therefore speculated that Dali may be targeted to the genome indirectly thorough RNA-protein interactions. To identify proteins that interact directly with Dali, we performed a pull down assay in which in vitro transcribed and 5′ end-biotinylated Dali was incubated with nuclear extract prepared from day 4 RA-differentiated ES cells. We identified, using mass spectrometry, 50 proteins that associated with Dali, but not with antisense Dali or a size-matched unrelated control transcript (Supplementary File 7). Direct interactions between the endogenous Dali transcript and four of these candidate binding proteins, the DNA methyltransferase DNMT1, the BRG1 core component of the SWI/SNF family chromatin remodelling BAF complex, and the P66beta, and SIN3A transcriptional co-factors, were subsequently validated using UV-crosslinked RNA Immunoprecipitation (UV-RIP) in N2A cells (Figure 6A,B). Human DALI was also found, using UV-RIP, to interact with human DNMT1, yet not with BRG1, in human neuroblastoma SH-SY5Y cells (Figure 6B). Consequently, in further experiments, we focused on the evolutionarily conserved DNMT1 interaction.

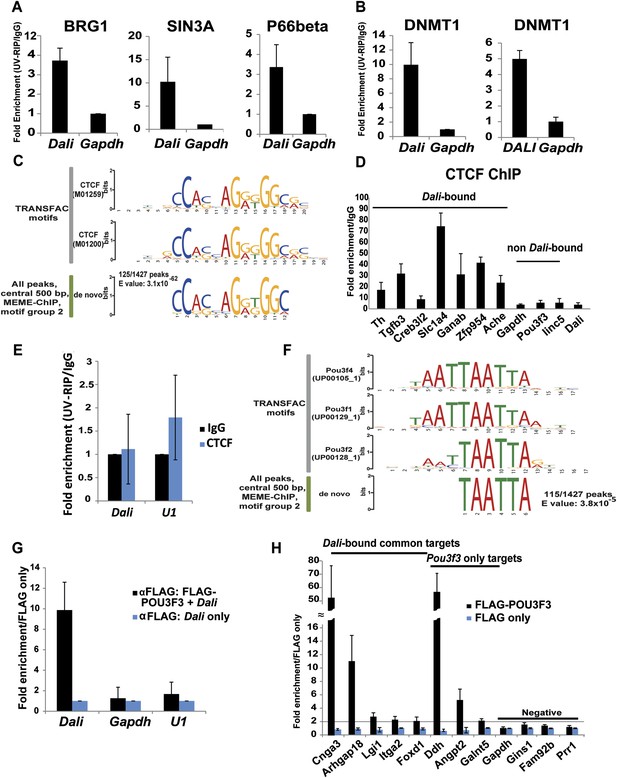

Dali associates with chromatin and transcriptional regulatory proteins.

Dali interacts with BRG1, SIN3A, and P66beta in mouse N2A cells (A) and DNMT1 in mouse N2A and human SH-SY5Y cells (B). Nuclear extracts prepared from UV cross-linked cells were immuno-precipitated using either anti-DNMT1 or control IgG antibodies. Associated RNAs were purified and the levels of Dali and control Gapdh mRNA were quantified using qRT-PCR. Results are expressed as fold enrichment relative to an isotype IgG control antibody. Mean value ± s.e., n = 3. (C) De novo discovery of a near-perfect match to a CTCF motif in 125/1427 (8.8%) Dali CHART-Seq peaks. (D) Dali co-occupies several locations shared with CTCF. Control regions are not predicted to be bound by CTCF and are not bound by Dali. ChIP assays were performed in N2A cells using either an antibody against CTCF or an isotype specific control. The indicated DNA fragments were amplified using qPCR. Fold enrichment was calculated as 2-ΔΔCt (IP/IgG). Mean value ± s.e., n = 3. (E) Dali does not directly interact with CTCF protein in mouse N2A cells. Nuclear extracts were prepared from UV cross-linked cells and immuno-precipitated using either anti-CTCF or control IgG antibodies. Associated RNAs were purified and the levels of Dali and control U1 snoRNA were detected in each UV-RIP using qRT-PCR. Results are expressed as fold enrichment relative to an isotype IgG control antibody. Results are presented as mean value ± s.e. of three independent experiments. (F) De novo discovery of a motif for POU III family transcription factors (which includes POU3F3) in 115/1427 (8.1%) Dali CHART-Seq peaks. (G) UV-RIP in N2A cells: FLAG-tagged POU3F3 protein directly interacts with Dali. Mean value ± s.e., n = 3. (H) ChIP-qPCR in N2A cells: POU3F3 occupies a subset of loci bound by Dali and regulated by both Pou3f3 and Dali. Loci associated with known (Dali-independent) Pou3f3 targets were used as positive control, while loci not regulated by either Pou3f3 or Dali and not bound by Dali were used as negative control. Mean value ± s.e., n = 3.

https://doi.org/10.7554/eLife.04530.013

Interestingly, 9 of 58 human transcription factors reported by Hervouet et al. as interacting with the DNMT1 protein (Hervouet et al., 2010), including CTCF, but also AP-2, C-ets-1, LRH1, PARP, PAX6, STAT1, YY1, and Sp1, were found to have binding site motifs that were significantly enriched within our stringent Dali bound CHART-seq peaks (Supplementary File 6). Motifs for none of 42 transcription factors that do not interact with DNMT1 but interact with DNMT3a and/or DNMT3b (Hervouet et al., 2010) were enriched in these peaks (Supplementary File 6). In particular, using a de novo motif discovery approach, we found a highly-enriched CTCF-binding site-like motif in 125 out of 1427 Dali peaks (9%; MEME E-value = 3.1 × 10−62; Figure 6C) (Supplementary File 7). This result was concordant with the greater than expected overlap between Dali-associated regions and known CTCF binding sites in neuronal tissues (Figure 5F) (Shen et al., 2012). Using Chromatin Immunoprecipitation and qPCR (ChIP-qPCR) in N2A cells, we confirmed the CTCF-enrichment of previously-known CTCF-binding sites within 7 Dali-bound and regulated promoters, but not at four control regions (Figure 6D). However, despite CTCF and Dali thus occupying a subset of shared genomic binding sites, UV-RIP provided no evidence of a direct physical interaction (Figure 6E). Consequently, Dali and CTCF may be non-interacting molecular subunits of a larger ribonucleoprotein complex, or alternatively they might independently bind adjacent sequence, or compete for binding to the same region. Taken together, the data suggest that Dali is recruited to chromatin via indirect interactions with several DNA-binding proteins through its direct association with DNMT1.

Depletion of Dali leads to DNA methylation changes at bound and regulated promoters

Increasing numbers of lncRNAs have been shown to direct DNA methylation changes at their sites of synthesis (Mohammad et al., 2010; Di Ruscio et al., 2013). The direct interaction of Dali with DNMT1, however, suggests that it may be able to regulate DNMT1-mediated CpG methylation at CpG island-associated promoters of Dali-bound and -regulated genes in trans. To investigate this, we performed Combined Bisulfite Restriction Analysis (COBRA) (Xiong and Laird, 1997) in parallel at 10 different CpG islands. Selection of these regions was on the basis that they each contained several COBRA-compatible restriction enzyme sites and could be efficiently amplified from bisulfite-converted template. COBRA demonstrated that five of these regions (corresponding to four genes) exhibited altered restriction profiles indicative of altered DNA methylation status after Dali depletion depletion (Figure 7—figure supplement 1). The inability of COBRA to detect changes at all sites may indicate that the DNA methylation status of the remaining regions did not change upon Dali depletion or that changes that occurred were undetected due to technical limitations of the assay.

Bisulfite sequencing demonstrating that the Dlgap5, Hmgb2, and Nos1 promoters each display increased CpG methylation in two independent stable Dali knockdown lines compared to control further confirmed these results (Figure 7A). Importantly, these data show that methylation changes occur within the core of these CpG islands and are not limited to their shores. Although other unidentified factors are also likely to play a role, our results are consistent with Dali (or a Dali:POU3F3 complex) acting in trans, as part of a multi-subunit ribonucleoprotein complex, to reduce DNMT1-mediated CpG methylation at a subset of bound and regulated gene promoters away from its site of transcription.

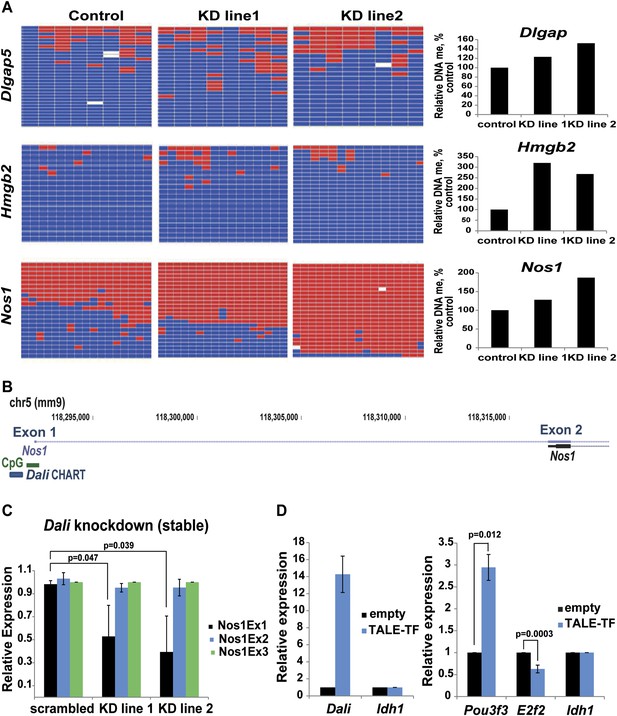

Figure 7 with 1 supplement see all
Dali modulates DNA methylation at bound and regulated promoters.

(A) DNA methylation status of three CGI-associated promoters bound and regulated by Dali was assessed using bisulfite sequencing in control and two stable Dali knockdown lines. DNA methylation levels were found to be increased in knockdown lines. The degree of increase was correlated with the degree of Dali knockdown (see Figure 7—figure supplement 1). (B) Nos1 gene has two clusters of alternative TSSs (Exon 1 and Exon 2). The upstream neuronal tissue-specific cluster (Exon 1) is associated with a CpG island and is bound by Dali. (C) Down-regulation of Nos1 observed in stable Dali knockdown lines can be explained by reduced initiation from the Dali-bound TSS (Exon 1), as the ratio between Exon1 and an internal Exon 3 is diminished, while the ratio between Exon 2 and Exon 3 is not changed. Mean values ± s.e, n = 3, one tailed t-Test, unequal variance. (D) Dali transcript regulates Pou3f3 locally and E2f2 distally in ES mouse cells. Dali is expressed from its endogenous locus in non-expressing mouse E14 ES cells using custom-designed TALE-TF (left). De novo induction of the endogenous Dali locus is sufficient to up-regulate the neighbouring Pou3f3 gene and down-regulate the distally located E2f2 gene (right). Mean value ± s.e., n = 3.

https://doi.org/10.7554/eLife.04530.014

One of these genes, Nos1, has multiple alternative promoters falling into two distinct regions (for simplicity referred to here as Exon 1 and Exon 2) whose differentiated use is proposed to fine-tune its expression in response to various physiological and developmental stimuli (Bros et al., 2006). Only the 5′-most region contains a CpG island and is bound by Dali (Figure 7B). By measuring expression levels of the three 5′-most Nos1 exons in stable Dali knockdown and control lines we observed that the expression level of the 5′ most Dali-bound Exon 1 was reduced, relative to that for Exon 3, when Dali was depleted, whereas the expression ratio between Exons 2 and 3 was unaffected (Figure 7C). The preferential use of the 5′ most CpG site could reflect a secondary effect of Dali knockdown. Nevertheless, the observation that this site is bound by Dali transcript suggests that Dali may function by promoting the preferential use of a distantly located (and more rarely used) alternative promoter potentially through its effect on promoter-associated CpG island methylation.

Dali and POU3F3 protein form a trans-acting transcriptional regulatory complex

A recognisable binding motif for POU III family transcription factors, such as POU3F3, was present in 115 out of 1427 Dali CHART-Seq peaks (8.0%; E-value = 3.8 × 10−5; Figure 6F). This finding, together with Dali and Pou3f3 regulating a set of common genes (Figure 3D) and Dali occupying regulatory regions within 135 (13%) of Pou3f3 targets (Figure 5H), suggested that Dali and POU3F3 protein may interact physically. Indeed, we observed direct RNA-protein interactions between over-expressed FLAG-tagged POU3F3 and co-transfected Dali, using UV-RIP in N2A cells (Figure 6G). Using ChIP-qPCR, we then determined that at least five genes that were regulated by both Dali and Pou3f3 contained regions that were bound both by Dali and by POU3F3 protein (Figure 6H). These results provide further mechanistic insights into Dali's mode of action and indicate that Dali and POU3F3 form a complex that binds to and regulates a subset of genes in trans in N2A cells.

Induction of the endogenous Dali transcript in mouse ES cells regulates Pou3f3 locally and E2f2 distally

Finally, we tested whether de novo expressed Dali transcript can act as a transcriptional regulator in order to further substantiate the observation that Dali functions as a novel regulator of both local and distal gene expression. To achieve this, we induced Dali expression from its endogenous locus in E14 mouse ES cells, which do not express Dali or Pou3f3 to detectable levels, using transient transfection of an artificial Transcription Activator-Like effector (TALE) transcription factor. After 72 hr, up-regulation of Dali transcript was shown to significantly increase Pou3f3 expression (Figure 7D). Dali expression from its own locus is thus sufficient to induce the expression of its genomically neighbouring Pou3f3 gene (Figure 7D). We next investigated the expression levels of E2f2, a gene that we found to be negatively regulated by Dali using shRNA mediated knockdown (Supplementary file 2), and found that Dali up-regulation reduced E2f2 transcript levels by approximately 40% (Figure 7D). Taken together, these results indicate that Dali can regulate both local and distal target genes when its expression is induced from its endogenous locus.

Discussion

The ability of nuclear localised lncRNAs to act in trans at distal genomic locations to regulate gene expression programs has been poorly understood. This is in large part because the direct transcriptional targets of only a small number of such transcripts (for example, Paupar (mouse), HOTAIR, NEAT1, TERC, RMST (all human), and rox2 (Drosophila)) have been identified thus far (Chu et al., 2011; Simon et al., 2011; Ng et al., 2013; Vance et al., 2014). Consequently, it has been unclear how these transcripts are targeted to distal functional elements and whether thereafter they alter chromatin structure in situ.

In this study we found evidence that the intergenic lncRNA Dali acts both locally to regulate the expression of its nearest protein-coding gene, Pou3f3, and distally to regulate both Pou3f3-dependent and -independent target genes in an RNA-dependent manner. 8.8% (150) of all genes whose expression altered following Dali depletion were associated with Dali binding sites within 1 Mb (although 30% of peaks reside within 5 kb of a TSS, see Figure 5E) and, therefore, are likely to represent direct regulatory targets. This proportion lies within the range of functional sites observed for transcription factors (Cusanovich et al., 2014). Our results are consistent with a model in which mouse or human Dali is recruited to chromatin indirectly via RNA-protein interactions with both sequence-specific transcription factor proteins, such as POU3F3 which is encoded by its neighbouring gene, or non-sequence specific DNA binding cofactors including DNMT1, which in turn may interact with sequence-specific DNA-binding proteins. In this model, Pou3f3-dependent target genes are regulated by Dali both indirectly, via its transcriptional regulatory effect on the Pou3f3 gene, and directly via its physical interaction with the POU3F3 protein and their co-occupancy at regulatory regions of target genes.

Our data show that both human and mouse Dali associate with DNMT1 and that depletion of Dali levels increases CpG methylation at Dali bound and regulated promoters in trans. Whilst a growing body of literature has implicated lncRNAs, such as Kcnq1ot1 and ecCEBPA (Mohammad et al., 2010; Di Ruscio et al., 2013), in modulating CpG methylation in a DNMT1-dependent manner at their sites of synthesis, our findings represent the first evidence that an intergenic lncRNA can regulate DNA methylation in trans at distal genomic locations away from its site of transcription.

Our findings suggest that Dali inhibits DNA methylation at a subset of bound and regulated regions, presumably deposited by the DNMT1 DNA methyltransferase, to which it binds. DNMT1 binds structured RNA with higher affinity than its DNA substrate (Di Ruscio et al., 2013). It is thus possible that Dali competes for binding to DNMT1 with either protein co-factors such as UHRF1, which loads and orients the enzyme on the DNA substrate (Inomata et al., 2008), or its DNA substrate. Targeting of DNMT1 to specific loci is believed to be mediated by DNMT1-interacting transcription factors. 58 transcriptional factors have been reported as DNMT1 interactors (Hervouet et al., 2010), of which 9 have enriched sequence motifs in Dali CHART-Seq peaks. We thus propose a model in which such transcription factors promote the sequence-specificity of Dali-modulated DNA methylation changes. The genomic co-localisation of DNMT1 and transcription factors using ChIP remains unknown owing to the poor performance of the available anti-DNMT1 antibodies in this application.

We have shown that Dali regulates genes involved in neural development and function and its depletion disrupts terminal stages of neuronal differentiation, more particularly neurite outgrowth development. Dali RNA binds to and up-regulates the promoters or promoter-proximal regions of key pro-differentiation factors, such as E2f2 (Persengiev et al., 2001), Fam5b (Terashima et al., 2010), Sparc (Bhoopathi et al., 2011) and Dkk1 (Cajanek et al., 2009) (Watanabe et al., 2005), as well as binding and negatively regulating genes such as Kif2c and Kif11 which are known to block neurite outgrowth (Laketa et al., 2007; Myers and Baas, 2007; Nadar et al., 2012). Therefore, Dali works as a pro-differentiation factor in neural development by regulating the balance between proliferation and differentiation, as well as processes associated with terminal neuronal differentiation.

Cis- or trans-acting modes of action have been proposed for a growing number of lncRNAs (Fatica and Bozzoni, 2014). Dali is unusual in acting in a transcript-dependent manner to perform both local and distal gene regulatory roles like another such lncRNA, Paupar (Vance et al., 2014). Dali is transcribed in the vicinity of a neuronal transcription factor Pou3f3. Both Dali and Paupar lncRNAs are CNS-expressed and evolutionarily constrained transcripts that are co-expressed with their neighbouring transcription factor genes both spatially and temporally. Moreover, both lncRNAs interact directly with the protein product of their neighbouring genes, POU3F3 and PAX6, respectively, to regulate a large set of targets in trans. These observations, together with the preferential genomic location of intergenic lncRNA loci adjacent to transcription factor genes (Ponjavic et al., 2009) imply that lncRNAs may commonly interact with the product of genomically adjacent transcription factor genes to act in trans on distal genes.

Materials and methods

Plasmid construction

Request a detailed protocol

We used the Whitehead Institute siRNA selection program to design shRNAs that target multiple regions of Dali or Pou3f3. To minimise the possibility of off-target effects, we compared candidate sequences against the NCBI RefSeq database and removed those with ≥15 bases in the anti-sense strand that matched a database entry. We then cloned the double stranded DNA oligonucleotides containing sense-loop-antisense targeting sequences downstream of the U6 promoter in pBS-U6-CMVeGFP (Sarker et al., 2005) by linker ligation. The Dali expression plasmid was constructed by PCR amplifying the full length Dali sequence as an EcoRI-XhoI fragment from mouse N2A cell genomic DNA and inserting it into pcDNA3. The FLAG-tagged Pou3f3 expression plasmid was constructed by excising the full length Pou3f3 ORF from Pou3f3 (NM_008900) mouse cDNA clone in pCMV Entry vector (Cambridge Biosciences, UK) and inserting it into the multiple cloning site (MCS) of the N-terminal pFLAG-CMV-6a vector (Sigma–Aldrich, UK) between EcoRI and EcoRV sites. The sequences of all oligonucleotides used for cloning are shown in Supplementary file 1.

Dali and Pou3f3 knockdown

Request a detailed protocol

Cells were plated at a density of approximately 2 × 105 cells per well in a six well plate. 16–24 hr later cells were transfected with 1.5 μg shRNA expression construct using FuGENE 6 (Promega, UK) following the manufacturer's instructions. Total RNA was extracted from the cells 48–72 hr later using TRIzol-chloroform extraction method. For stable transfections, N2A cells were co-transfected with the pBSU6-shRNA expression vector and pTK-Hyg (Clontech, Mountain View, CA) at a 5:1 ratio. 72 hr post-transfection 200 μg/ml Hygromycin B was added to the cells to select individual drug resistant clones that were later isolated and expanded under selective conditions. Dali expression in individual clones was measured by qRT-PCR.

qRT-PCR and RACE

Request a detailed protocol

Reverse transcription was performed using the QuantiTect Reverse Transcription Kit (Qiagen, Netherlands). SYBR Green quantitative PCR was performed using a Step One Plus Real-Time PCR System (Applied Biosystems, UK). For RACE, GeneRacer Kit (Invitrogen, UK) was used according to the manufacturer's instructions. Human foetal brain RNA was purchased from Promega. Primers are listed in Supplementary file 1.

Cell culture

Request a detailed protocol

Mouse N2A neuroblastoma and E14 ES cells were cultured as described in (Vance et al., 2014). The N2A cell line was chosen because it has been used extensively as a model to study neural differentiation in vitro (Shea et al., 1985). Human neuroblastoma (SH-SY5Y) cells were grown in DMEM/F12 medium supplemented with 10% FBS, 1% penicillin-streptomycin, and 1% L-glutamine at 37°C in a humidified atmosphere with 5% CO2. Biochemical fractionation, ChIP and UV-RIP experiments was performed exactly as described in Vance et al. (2014). The following antibodies were used: anti-DNMT1 (ab87656; Abcam, UK), anti-BRG1 (ab4081; Abcam), anti-P66beta (ab76924; Abcam), anti-SIN3A (Active Motif, Belgium, 39,865), anti-CTCF (Abcam, 70,303), anti-rabbit IgG control antibodies (Millipore, Billerica, MA) and mouse monoclonal anti-FLAG M2 beads (Sigma–Aldrich) for FLAG-tagged POU3F3 experiments.

Animal work

Request a detailed protocol

All animal experiments were conducted in accordance to schedule one UK Home Office guidelines (Scientific Procedures Act, 1986). C57BL/6J, postnatal day P56 male and pregnant females were killed by cervical dislocation; whole brains were dissected in ice-cold phosphate-buffered saline (PBS) from adult (n = 2), and intrauterine stages E9 (n = 6), E10.5 (n = 6), E13.5 (n = 6), E15.5 (n = 6) and E18.5 (n = 6) mice. Brains were embedded in 5% agarose (low melting, Bioline) and sectioned using a vibrating microtome (Leica, VT1000S) into 200 μm coronal sections using a chilled solution of 1:1 mixture of RNAlater (Ambion) and PBS. Regions of interest (adult: dentate gyrus, subventricular zone and olfactory bulb; embryos: preplate, proliferative compartmenst combining ventricular and subventricular zones, and cortical plate from lateral and dorsal tiers) were dissected from individual sections using 27 gauge needles under visual guidance, using transillumination on a dissecting microscope (MZFLIII, Leica, Switzerland). Dissected samples were rinsed in RNAse free PBS/RNAlater 1:1, submerged in ice-cold RNAlater kept for 24 hr at 4°C and stored at −80°C in RNAlater until processing.

Transcriptomic analysis

Request a detailed protocol

Total RNA was isolated using the Qiagen Mini RNeasy kit according to the manufacturers' instructions. RNA integrity was assessed on a BioAnalyzer (Agilent Technologies, UK). 200 ng RNA was used to produce labelled sense single stranded DNA (ssDNA) for hybridization with the Ambion WT Expression Kit, the Affymetrix WT Terminal Labelling and Controls Kit and the Affymetrix Hybridization, Wash, and Stain Kit following the manufacturer’s instructions. Sense ssDNA was fragmented and the distribution of fragment lengths was assessed on a BioAnalyzer. Next, fragmented ssDNA was labelled and hybridized to the Affymetrix GeneChip Mouse Gene 1.0 ST Array (Affymetrix, UK). Arrays were processed on an Affymetrix GeneChip Fluidics Station 450 and Scanner 3000.

CEL files were analysed using the Limma, oligo, and genefilter R Bioconductor packages (Smyth, 2004; Carvalho and Irizarry, 2010). Arrays were RMA background corrected and quantile normalised. Summary expression values were calculated at the gene level. Genes whose expression changed upon Dali and Pou3f3 knockdown, as well as upon retinoic acid induced differentiation of control and stable Dali knockdown cells, were filtered to remove genes showing little variation in expression (variance cut off of 0.5) before the identification of significant changes. In every case, the Limma Ebayes algorithm was used to identify differential expression between three knockdown and three control samples (biological replicates). 1.3-fold change cutoff was applied in every case. GOToolbox was used to perform Gene Ontology analyses ((Martin et al., 2004); http://genome.crg.es/GOToolBox/). Representative significantly enriched categories were selected from a hypergeometric test with a Benjamini-Hochberg corrected p-value threshold of 0.05.

CHART

Request a detailed protocol

CHART Enrichment and RNase H Mapping experiments were performed as described in (Simon, 2013). We designed 10 biotinylated DNA capture (C)-oligos: 5 oligos complementary to the most accessible regions of Dali, as determined by RNase H mapping, and 5 oligos targeting the most evolutionarily conserved regions of the transcript (Figure 5A). These oligos were used as two cocktails of 5 oligos, and as a pool of all 10. As controls, we used an oligo designed to target the antisense Dali sequence (absent from the N2A transcriptome). Additionally we require peaks to not overlap with those identified in an analogous CHART-sequence experiment using the E. coli lacZ sequence (GSE52571) (Vance et al., 2014). Compared to controls, all three cocktails of Dali oligos showed significant enrichment of the Dali transcript (10-fold compared to lacZ), but no enrichment of the abundant mRNA Gapdh (Figure 5B). Without any prior information about Dali genomic binding, we considered its endogenous site of synthesis to assess the enrichment of transcript-associated DNA loci. Specific enrichment of Dali at its locus was observed as expected (Figure 5—figure supplement 1).

CHART extract was prepared from approximately 3 × 108 N2A cells per pull down and hybridized overnight with 810 pmol biotinylated oligonucleotide cocktail (Supplementary File 1) at room temperature with rotation. 250 μl MyOneC1 streptavidin beads (Invitrogen) were used to capture the complexes overnight at room temperature with rotation. After extensive washes, bound material was eluted using RNase H (New England Biolabs (NEB), UK) for 30 min at room temperature. Samples were treated with Proteinase K and cross-links were reversed. RNA was purified from 1/5 total sample volume using the QIAGEN miRNeasy kit. DNA was prepared from the remaining sample using the phenol:chloroform:isoamyl alcohol extraction and ethanol precipitation method. DNA was further sheared to an average fragment size of 150–300 bp using a Bioruptor (Diagenode, Belgium) and sequenced on an Illumina HiSeq (50 bp paired end).

Computational analysis of CHART-seq data

Request a detailed protocol

CHART-seq was performed with three independent pull down samples (using two independent cocktails of 5 C-oligos, and one cocktail containing all 10 C-oligos) and sequenced simultaneously with a matched input sample. 50 bp, paired-end reads were mapped to the mouse genome (mm9) using bowtie with the options ‘–m1 –v2 –best–strata–a’. For each Dali sample, peaks were called against the matched N2A input sample (4208 peaks) and CHART-seq peaks previously analogously identified in N2A cells using two lacZ controls (1928 peaks) (Vance et al., 2014). Peak calls were made using the MACS2 algorithm ((Zhang et al., 2008); https://github.com/taoliu/MACS/blob/master/README) with the options ‘–mfold 10 30 –gsize = 2.39e9 –qvalue = 0.01’ using the CGAT pipeline ‘pipeline_mapping.py’ (https://github.com/CGATOxford/cgat). Peak calls were then filtered such that only peak calls with a −log10 q value >5 were retained (FDR 0.001%).

We discovered 1427 Dali-associated regions genome-wide called against both input and lacZ control samples (Figure 5A; Supplementary file 5).

Characterisation of Dali binding sites

Request a detailed protocol

The chromosomal distribution of Dali peaks was visualised using the R Bioconductor package ‘ggbio’ (Yin et al., 2012). Genome territory enrichments analysis was performed using the Genome Association Tester (GAT; (Heger et al., 2013)). 10,000 simulations were performed using a mappability filtered workspace and an isochore file partitioning the genome into eight bins based on regional GC content. For the chromosomal enrichment analyses, chromosomal territories were proportionally assigned to a single virtual meta-chromosome before using GAT to test for GC and mappability corrected enrichments as above. Gene Ontology categories enriched for Dali binding were identified by intersecting regulatory regions for known coding genes with Dali binding sites. Regulatory regions for genes were defined following the GREAT definition (McLean et al., 2010) as a basal domain surrounding the TSS (from −5 kb to +1 kb) and extending domains upstream and downstream to the nearest gene's basal domain or to a maximum distance of 1 Mb. Enrichments were identified using GOToolbox.

Dali peaks were characterised using DNase I hypersensitivity (HS) data generated by the Stamatoyannopoulos lab at the University of Washington and chromatin features identified by the Ren lab at the Ludwig Institute for Cancer Research ((Shen et al., 2012); ENCODE Project Consortium, 2012). Enrichments of DNase I HS and chromatin features overlapping Dali peaks were assessed using GAT to control for mappability and regional GC content as above.

Complementarity between Dali sequence and binding locations was assessed using the EMBOSS Water algorithm (Rice et al., 2000) which performs Smith-Waterman alignment with a range of gap opening and extension penalties. RNA-DNA:DNA triplex formation was assessed using the Triplexator search software suit (Buske et al., 2012). The MEME-ChIP (Machanick and Bailey, 2011) algorithm was used to perform de novo motif discovery analysis by examining the unmasked DNA sequence of the central regions of peak locations. MEME-ChIP was run with the options ‘-meme-mod zoops -meme-minw 5 -meme-maxw 30–meme-nmotifs 50’ using a custom background file prepared from regions flanking the peak locations using the command ‘fasta-get-markov -m 2’. Enrichment of known vertebrate transcription factor binding sites from the TRANSFAC Professional database (Matys et al., 2006) was assessed using the AME algorithm (McLeay and Bailey, 2010) with the options ‘–method fisher–length-correct’ using the sequence and background file prepared for MEME-ChIP analysis.

3C

Request a detailed protocol

E14 ES cells or day 4 ES-derived neuronal were cross-linked with 2% formaldehyde. Nuclei were prepared and permeabilized with 0.3% SDS in 1.2× restriction buffer (NEB3 for BglII) for 1 hr at 37°C. Then, SDS was sequestered by adding 1.8% Triton X-100. 1 × 106 nuclei (∼15 μg of chromatin) were digested with 400 units of BglII restriction enzyme overnight, and the enzyme was inactivated. Nuclei were diluted in 1.15× T4 DNA ligation buffer (NEB), and SDS sequestered by adding 1% Triton X-100. The digested chromatin was ligated using 100 Weiss units of T4 DNA ligase for 4 hr at 16°C and treated with Proteinase K to reverse cross-links. Samples were further treated with RNase A, and DNA was phenol-chloroform extracted and ethanol precipitated.

A RP23-92N4 (CHORI; BACPAC) Bacterial Artificial Chromosome (BAC) clone covering the Pou3f3-Dali locus was treated as above and used as a control template for the 3C assay. Ligation products of 3C and BAC samples were quantified by qPCR. PCR reactions consisted of 300 ng 3C sample, 0.2 μM test primers and a primer corresponding to Dali promoter and 1× SYBR Green PCR Mastermix (Life Technologies, UK). All reactions were performed in triplicate. The mean threshold cycle (Ct) value was calculated and used to calculate relative amounts of PCR products. To normalise for different primer efficiencies, interaction frequencies were calculated by dividing the amount of PCR product obtained from the 3C sample by the amount of DNA obtained from control BAC DNA. Interaction frequencies were also normalised to Gapdh internal controls prepared from genomic DNA in the same manner as the BAC clone sample. All primers used are listed in Supplementary file 1.

COBRA

Request a detailed protocol

We used COBRA to study 9 out of 44 CpG island-containing promoters bound by Dali and associated with genes differentially expressed between stable Dali knockdown and control cell lines prior to or subsequent to the RA-induced differentiation. 80–350 ng of genomic DNA was bisulfite-treated using EZ DNA Methylation Gold kit according to the manufacturer's instruction and used for PCR amplification. Primers for amplifying bisulfite converted template DNA were designed using MethPrimer software accessible at http://www.urogene.org/methprimer/ (Li and Dahiya, 2002). PCR products were on-column purified with QIAquick PCR Purification Kit. 250 ng to 1 μg of purified products were incubated with appropriate COBRA-compatible (BstUI (NEB), MspI (NEB), TaqI (Thermo Scientific), HpyCH4IV (NEB)) or control (Hsp92II (Promega), BfaI (NEB)) restriction enzymes overnight. Restriction products were analysed on 3% low melting point agarose gels.

TALE-mediated up-regulation

Request a detailed protocol

Target regions were selected and TAL effector constructs were designed using software, tools, and information found on the TAL Effector Nucleotide Targeter 2.0 website accessible from https://tale-nt.cac.cornell.edu/. Construction of custom TALE-TFs designed to target promoter-proximal region of Dali to up-regulate transcription from the locus was performed as described by Sanjana et al. (2012). The TALE-TF was designed to target the following region lying upstream of the TSS of Dali: chr1 (mm9): 42807019-42807038 ("TGTCCCTTGTCCACATATCT"). The TAL domain sequence used was as follows: NH NG HD HD HD NG NG NH NG HD HD NI HD NI NG NI NG.

Data deposition

Request a detailed protocol

Microarray and CHART-Seq data have been deposited in the GEO database under accession number GSE62035 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE62035).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    Current protocols in molecular biology
    1. MD Simon
    2. Ausubel
    (2013)
    Current protocols in molecular biology, Chapter 21, Unit 21 25.
  48. 48
  49. 49
    Linear models and empirical bayes methods for assessing differential expression in microarray experiments
    1. GK Smyth
    (2004)
    Statistical applications in genetics and molecular biology, 3, Article3.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
    VISTA Enhancer Browser–a database of tissue-specific human enhancers
    1. A Visel
    2. S Minovitsky
    3. I Dubchak
    4. LA Pennacchio
    (2007)
    D88–D92, Nucleic Acids Res, 35, Database issue, 10.1093/nar/gkl822.
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Thomas R Gingeras
    Reviewing Editor; Cold Spring Harbor Laboratory, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled "The DNMT1 associated lncRNA Dali is an epigenetic regulator of neural differentiation" for consideration at eLife. Your article has been favorably evaluated by Detlef Weigel (Senior editor) and 2 reviewers, one of whom is a member of our Board of Reviewing Editors. The Reviewing editor and the other reviewer discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

Your work focuses on the functional roles of the lncRNA Dali and its regulation not only of its neighboring transcription factor gene Pou3f3, but importantly also at distal sites through the methylation of these sites. The topic of the functional roles of lncRNAs is of keen interest and most importantly the mechanism of how these roles are achieved is of critical importance. Thus, this manuscript is both timely and important. However, there are several issues that the authors should make clearer for the readers in order for an audience to understand the messages being communicated and to provide a clear and supportable set of conclusions. These issues are:

1) Several places in the manuscript the authors' interpretation of their data results in a set of specific conclusions about mechanisms or cause and effect relationships that are not the only explanation or conclusion. Importantly, there is no acknowledgement of other interpretations or explanations of why other interpretations cannot be concluded. For example, while the suggestion of recruitment of Dali via a complex of DNA binding proteins that include CTCF is an interesting hypothesis, this collection of data can be interpreted by alternative mechanisms such as the coincident binding of CTCF (due to CTCF genome-wide and abundant binding).

2) What was the basis of choosing 10 Dali binding sites? What changes, if any occur, at the other 5 sites? Given that half of the results obtained are consistent with the model of Dali or Dali:Pou3f3 complex acting in trans to reduce DNMT1 methylation, there appears to be the likelihood that the mechanism may minimally involve a more complex set of interactions. This should be acknowledged.

3) “…we performed Combined Bisulfite Restriction Analysis (COBRA) (Xiong and Laird, 1997) in parallel at 10 different CpG islands and demonstrated that five of these regions (corresponding to 4 genes) exhibited altered restriction profiles indicative of altered DNA methylation status after Dali depletion […] These results are consistent with Dali (or a Dali:POU3F3 complex, see below) acting in trans to reduce DNMT1-mediated CpG methylation at a subset of bound and regulated gene promoters away from its site of transcription”: this is speculation since the effect on the use of the 5' most CpG site could be achieved through a secondary effect of the Dali KD.

4) Figure 2E (heat map); are these the results of all 3 KDs or only1? Given the results seen in Figure 2E what data indicates that some or most of these expression changes are not explained by "off-target" effects by the sequences used in the KDs?

https://doi.org/10.7554/eLife.04530.023

Author response

1) Several places in the manuscript the authors' interpretation of their data results in a set of specific conclusions about mechanisms or cause and effect relationships that are not the only explanation or conclusion. Importantly, there is no acknowledgement of other interpretations or explanations of why other interpretations cannot be concluded. For example, while the suggestion of recruitment of Dali via a complex of DNA binding proteins that include CTCF is an interesting hypothesis, this collection of data can be interpreted by alternative mechanisms such as the coincident binding of CTCF (due to CTCF genome-wide and abundant binding).

We have now edited the main text to include additional explanations that are also consistent with the data as suggested by the reviewers. This specific example now states that Dali and CTCF “might independently bind adjacent sequence, or compete for binding to the same region”.

2) What was the basis of choosing 10 Dali binding sites? What changes, if any occur, at the other 5 sites? Given that half of the results obtained are consistent with the model of Dali or Dali:Pou3f3 complex acting in trans to reduce DNMT1 methylation, there appears to be the likelihood that the mechanism may minimally involve a more complex set of interactions. This should be acknowledged.

We selected these 10 Dali binding sites to maximise the likelihood of detecting DNA methylation changes using COBRA. We ensured that each region contained several COBRA-compatible restriction enzyme sites and could be efficiently amplified from bisulfite-converted template.

We also now indicate that the failure to detect changes at all regions tested could reflect either that the DNA methylation status of the remaining regions did not change upon Dali depletion or that those changes that occurred were undetected due to technical limitations of the COBRA assay.

We agree with the reviewers that Dali mediated DNA methylation changes in trans may minimally involve a more complex set of interactions that are in addition to Dali, POU3F3 and DNMT1. This is acknowledged in the revised manuscript as suggested. We now state: “Although other unidentified factors are also likely to play a role, our results are consistent with Dali (or a Dali:POU3F3 complex) acting in trans, as part of a multi-subunit ribonucleoprotein complex, to reduce DNMT1-mediated CpG methylation at a subset of bound and regulated gene promoters away from its site of transcription.”

3) “…we performed Combined Bisulfite Restriction Analysis (COBRA) (Xiong and Laird, 1997) in parallel at 10 different CpG islands and demonstrated that five of these regions (corresponding to 4 genes) exhibited altered restriction profiles indicative of altered DNA methylation status after Dali depletion […] These results are consistent with Dali (or a Dali:POU3F3 complex, see below) acting in trans to reduce DNMT1-mediated CpG methylation at a subset of bound and regulated gene promoters away from its site of transcription”: this is speculation since the effect on the use of the 5' most CpG site could be achieved through a secondary effect of the Dali KD.

Thank you. We now have added: “The preferential use of the 5́’ most CpG site could reflect a secondary effect of Dali knockdown. Nevertheless, the observation that this site is bound by Dali transcript suggests that Dali may function by promoting the preferential use of a distantly located (and more rarely used) alternative promoter potentially through its effect on promoter-associated CpG island methylation.”

4) Figure 2E (heat map); are these the results of all 3 KDs or only1? Given the results seen in Figure 2E what data indicates that some or most of these expression changes are not explained by "off-target" effects by the sequences used in the KDs?

The data in Figure 2E were generated from three independent Dali knockdowns. To assess whether these expression changes are likely to be explained by ‘off-target’ effects we used two further shRNA expression constructs targeting different regions of the Dali transcript to deplete Dali expression and validated expression changes in 14 out of 15 Dali targets identified in the microarray. These results are shown in Figure 2-figure supplement 1 panel C and in the modified text.

https://doi.org/10.7554/eLife.04530.024

Article and author information

Author details

  1. Vladislava Chalei

    MRC Functional Genomics Unit, Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    VC, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  2. Stephen N Sansom

    1. MRC Functional Genomics Unit, Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    2. Computational Genomics Analysis and Training Programme, University of Oxford, Oxford, United Kingdom
    Contribution
    SNS, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  3. Lesheng Kong

    MRC Functional Genomics Unit, Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    LK, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  4. Sheena Lee

    Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    SL, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  5. Juan F Montiel

    MRC Functional Genomics Unit, Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    JFM, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8919-4662
  6. Keith W Vance

    MRC Functional Genomics Unit, Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Present address
    Department of Biology and Biochemistry, University of Bath, Bath, United Kingdom
    Contribution
    KWV, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Contributed equally with
    Chris P Ponting
    For correspondence
    k.w.vance@bath.ac.uk
    Competing interests
    No competing interests declared.
  7. Chris P Ponting

    MRC Functional Genomics Unit, Department of Physiology, Anatomy and Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    CPP, Conception and design, Drafting or revising the article
    Contributed equally with
    Keith W Vance
    For correspondence
    Chris.Ponting@dpag.ox.ac.uk
    Competing interests
    CPP: Senior editor, eLife.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0202-7816

Funding

European Research Council (ERC) (249869, DARCGENs)

  • Vladislava Chalei
  • Lesheng Kong
  • Keith W Vance

Medical Research Council (MRC)

  • Stephen N Sansom
  • Chris P Ponting

The Darwin Trust of Edinburgh (Postgraduate Scholarship)

  • Vladislava Chalei

European Commission (EC) (Human Brain Project)

  • Juan F Montiel

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the High-Throughput Genomics Group at the Wellcome Trust Centre for Human Genetics for the generation of the sequencing data and OXION for use of their microarray facility. This project has been funded by the European Research Council (Project Reference 249869, DARCGENs; KWV, VC, LK), the Medical Research Council (CPP, SNS; and MRC Hub Grant G0900747 91070 for Sequencing) and the Wellcome Trust (Grant Reference 090532/Z/09/Z for Sequencing). VC is a recipient of The Darwin Trust of Edinburgh Postgraduate research Scholarship.

Ethics

Animal experimentation: All animal experiments were conducted in accordance to schedule one UK Home Office guidelines (Scientific Procedures Act, 1986).

Reviewing Editor

  1. Thomas R Gingeras, Cold Spring Harbor Laboratory, United States

Publication history

  1. Received: August 28, 2014
  2. Accepted: November 21, 2014
  3. Accepted Manuscript published: November 21, 2014 (version 1)
  4. Version of Record published: December 16, 2014 (version 2)

Copyright

© 2014, Chalei et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,180
    Page views
  • 579
    Downloads
  • 63
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Shannon N Mostyn et al.
    Research Article
    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Evgenia Afanasieva et al.
    Research Article
