DAPK interacts with Patronin and the microtubule cytoskeleton in epidermal development and wound repair

  1. Marian Chuang
  2. Tiffany I Hsiao
  3. Amy Tong
  4. Suhong Xu
  5. Andrew D Chisholm  Is a corresponding author
  1. University of California, San Diego, United States
Research Article
  • Cited 11
  • Views 1,494
  • Annotations
Cite this article as: eLife 2016;5:e15833 doi: 10.7554/eLife.15833

Abstract

Epidermal barrier epithelia form a first line of defense against the environment, protecting animals against infection and repairing physical damage. In C. elegans, death-associated protein kinase (DAPK-1) regulates epidermal morphogenesis, innate immunity and wound repair. Combining genetic suppressor screens and pharmacological tests, we find that DAPK-1 maintains epidermal tissue integrity through regulation of the microtubule (MT) cytoskeleton. dapk-1 epidermal phenotypes are suppressed by treatment with microtubule-destabilizing drugs and mimicked or enhanced by microtubule-stabilizing drugs. Loss of function in ptrn-1, the C. elegans member of the Patronin/Nezha/CAMSAP family of MT minus-end binding proteins, suppresses dapk-1 epidermal and innate immunity phenotypes. Over-expression of the MT-binding CKK domain of PTRN-1 triggers epidermal and immunity defects resembling those of dapk-1 mutants, and PTRN-1 localization is regulated by DAPK-1. DAPK-1 and PTRN-1 physically interact in co-immunoprecipitation experiments, and DAPK-1 itself undergoes MT-dependent transport. Our results uncover an unexpected interdependence of DAPK-1 and the microtubule cytoskeleton in maintenance of epidermal integrity.

https://doi.org/10.7554/eLife.15833.001

Introduction

Death-associated protein kinase 1 (DAPK1) and its related calcium-regulated serine/threonine kinases play a wide variety of roles in cell death and tumor suppression (Bialik and Kimchi, 2006). Mammalian DAPK1 has been implicated in stress responses (Tu et al., 2010), antiviral immunity (Zhang et al.), and in IL-1ß-associated inflammatory diseases (Chakilam et al., 2013; Chuang et al., 2011). In addition, DAPK1 can act as a checkpoint in the macrophage inflammation program (Mukhopadhyay et al., 2008) and as a negative regulator of T-cell receptor-mediated activation of NFκB (Chuang et al., 2008).

In the nematode C. elegans the sole DAPK family member, DAPK-1, plays roles in autophagy and in excitotoxic neuronal death (Del Rosario et al., 2015; Kang and Avery, 2010). DAPK-1 also regulates epidermal development and wound repair, independently of known cell death programs. The nematode epidermis is a barrier epithelium that forms the first line of defense against environmental stresses, such as pathogens and physical damage (Engelmann and Pujol, 2010). Mutations in dapk-1 result in progressive degeneration of the epidermis, cuticle hypertrophy, and constitutive activation of epidermal innate immune responses via a p38 MAPK cascade (Tong et al., 2009). Such dapk-1 mutants behave as if they are constitutively wounded even without injury, and when wounded exhibit faster wound repair (Xu and Chisholm, 2011). How DAPK-1 regulates these multiple aspects of epidermal maintenance and wound repair is not yet understood.

Here we took a genetic approach to understanding DAPK-1’s functions in the epidermis. We identified genetic suppressors and enhancers of dapk-1 morphological defects, revealing novel roles for microtubule (MT) regulators in the mature epidermis. Genetic and pharmacological manipulations suggest aberrant dapk-1 function causes excessive MT stabilization, resulting in morphological defects. dapk-1 epidermal defects can be suppressed by loss of function in the MT minus end binding protein PTRN-1 and by pharmacological destabilization of MTs. Moreover, overexpression of the MT-binding domain of PTRN-1 is sufficient to induce dapk-1-like epidermal defects. Our data suggest DAPK-1 destabilizes epidermal MTs by inhibiting the function of PTRN-1. We further show for the first time that DAPK-1 itself undergoes MT-dependent transport. Our findings reveal an unexpected interplay between DAPK-1, the epithelial MT cytoskeleton, and epidermal morphology and wound repair.

Results

dapk-1 epidermal morphological defects can be suppressed or enhanced by loss of function in microtubule regulators

To identify new dapk-1 interactors, we screened for genetic suppressors of dapk-1 epidermal phenotypes. All dapk-1 mutants display epidermal morphological (Mor) defects, with penetrance varying depending on the allele (Figure 1A, Figure 1—figure supplement 1A) (Tong et al., 2009). The Mor phenotype reflects a progressive accumulation of the cuticle and degeneration of the underlying epidermis at the extreme anterior and posterior, as well as the dorsal midline. dapk-1(ju4), which causes a missense alteration S179L in the DAPK-1 kinase domain, causes 100% of animals to display this aberrant morphology. We mutagenized dapk-1(ju4) animals and screened for suppression of the Mor phenotype (see Methods). We identified multiple extragenic suppressors of dapk-1(ju4), two of which are described here. One suppressor, ju698, causes a nonsense mutation in ptrn-1, which encodes the C. elegans member of the Patronin/CAMSAP/Nezha family of MT minus end binding proteins. A null allele ptrn-1(lt1) suppressed dapk-1(ju4) phenotypes to the same extent as ptrn-1(ju698) (Figure 1B; Figure 1—figure supplement 1C). Suppression of dapk-1(ju4) by ptrn-1(0) was rescued by a single-copy insertion (Mos-SCI) ptrn-1(+) transgene and by transgenes expressing PTRN-1 under the control of the dpy-7 promoter, specific to the larval epidermis, indicating that loss of PTRN-1 function in the larval epidermis is required for suppression of the dapk-1(ju4) phenotype.

Figure 1 with 1 supplement see all

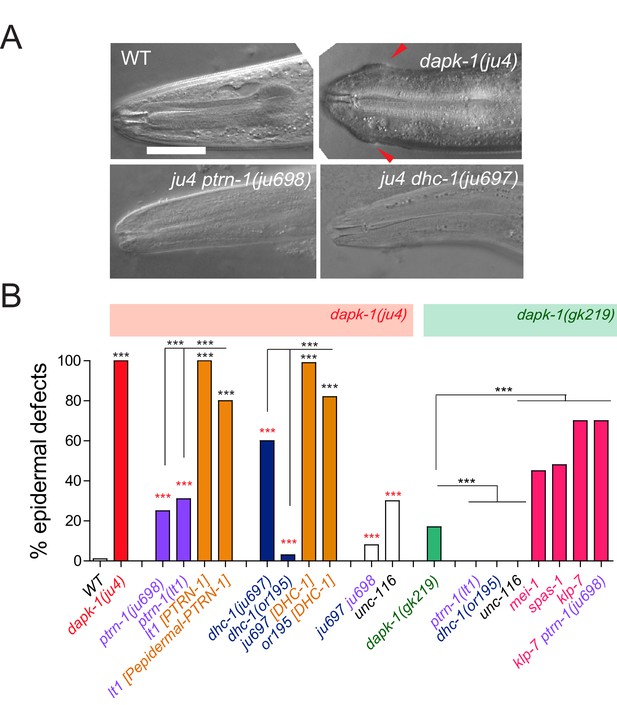

dapk-1 epidermal phenotypes are modified by mutations in cytoskeletal regulating genes.

(A) Anterior epidermal morphology of wild type adult and aberrant morphology (Mor phenotype, red arrowhead) of dapk-1(ju4) animals; suppression by ptrn-1(ju698) and dhc-1(ju697). DIC images; scale bar, 10 μm. Anterior is to the left and dorsal up. (B) Loss of function in ptrn-1 or dhc-1 suppresses the anterior epidermal morphology defects of dapk-1(ju4) and dapk-1(gk219). Mor penetrance at 20°C; N>100 per genotype. Fisher’s exact test; ***p<0.001. Black stars in B are comparisons to WT; red stars are comparisons to dapk-1(ju4)

https://doi.org/10.7554/eLife.15833.002

Our screen also identified a mutation in the dynein heavy chain, dhc-1(ju697), which results in a missense change G2537S in the fifth P-loop of DHC-1. Complete loss of function in dhc-1 causes lethality (Gonczy et al., 1999); an independent loss-of-function allele dhc-1(or195ts) fully suppressed dapk-1(ju4) morphological defects at 20°C (Figure 1B; Figure 1—figure supplement 1C). This suppression was rescued by a DHC-1::GFP single-copy insertion transgene (Figure 1B). PTRN-1 and other CAMSAP proteins interact with MT minus ends (Goodwin and Vale, 2010; Jiang et al., 2014), and dynein is critical for MT minus-end dependent transport and MT organization. We found that dhc-1(or195) or dhc-1(or195); ptrn-1(0) caused more complete suppression of dapk-1(ju4) phenotypes than did ptrn-1(0), suggesting DHC-1 might affect additional pathways required for dapk-1 function.

We also isolated two intragenic suppressors, ju1143 and ju1145, which result in nonsense mutations (Q608stop and R48stop) in dapk-1(ju4) (Figure 1—figure supplement 1B). These mutations reduce the penetrance of dapk-1(ju4) Mor phenotypes from 100% to 40% and 30% respectively, and resemble the dapk-1(gk219) deletion allele and other newly generated deletions of the dapk-1 locus (Figure 1—figure supplement 1B,D). Although dapk-1(ju4) phenotypes are recessive, the identification of such intragenic suppressors suggests ju4 causes a gain of function (see Discussion). Both ptrn-1(lt1) and dhc-1(or195) completely suppressed dapk-1(gk219) morphological phenotypes (Figure 1B), suggesting loss of function in PTRN-1 or DHC-1 bypasses the requirement for DAPK-1.

Based on our identification of two MT-interacting proteins in our suppressor screen we tested additional MT-associated factors, as well as orthologs of genes known to interact with DAPK1 or CAMSAPs (Table 1). Partial loss of function in unc-116, which encodes a kinesin-1 plus-end directed motor, suppressed dapk-1(ju4) morphological defects. DAPK family members have previously been implicated in MT stability, promoting function of the MT-associated protein tau via the Pin1 prolyl isomerase or the MARK kinase (Kim et al., 2014; Wu et al., 2011). However, loss of function in orthologs of these genes (ptl-1, pinn-1, par-1) did not modify dapk-1(ju4) phenotypes (Table 1), suggesting DAPK-1 regulates epidermal MTs via a novel mechanism.

Table 1

Suppressors and enhancers of dapk-1 morphological defects.

https://doi.org/10.7554/eLife.15833.004
GeneAlleles and sequence changeMammalian orthologs
A. Suppressors (forward screen)
ptrn-1ju698CAMSAP/Patronin
*lt1
tm5597
dhc-1ju697Dynein heavy chain
*or195ts
dapk-1ju1143(intragenic)
ju1145
B. Suppressors (candidates)
unc-116e2310Kinesin-1
sma-1e30Beta-heavy spectrin
C. Enhancers
klp-7tm2143Kinesin-13
mei-1or642tsp60 katanin
spas-1tm683Spastin
cat-4tm773GTP cyclohydrolase I
F47G4.5ok2667p80 katanin
D. No interaction
ebp-1tm1357Plus-end binding protein
ebp-2gk756Plus-end binding protein
ccpp-1ok1821Cytosolic Carboxypeptidase
ccpp-6ok382Cytosolic Carboxypeptidase
mcrs-1tm3681Microspherule Protein 1
efa-6tm3124EFA6
ttll-5tm3360Tubulin tyrosine ligase-like
ttll-11tm4059Tubulin tyrosine ligase-like
ttll-12tm4957Tubulin tyrosine ligase-like
unc-70e524β-Spectrin
dylt-2gk762Dynein light chain
dnc-1or404tsp150 dynactin
nud-1ok552NDE1/NDEL1
nud-2ok949NDE1/NDEL1
unc-14e57kinesin-1 adaptor
tbg-1t1465γ-tubulin
ptl-1ok621tau
pinn-1tm2235Pin1
par-1zu310tsMARK
  1. Suppressors indicated * were tested for suppression of dapk-1(ju4) and dapk-1(gk219). Enhancers were tested with dapk-1(gk219). Genes in section D were mostly tested for interaction with dapk-1(ju4). dapk-1 tbg-1 double mutants were extremely sick, and a stable strain could not be obtained; n > 100 animals scored per genotype.

CAMSAPs are thought to promote MT stability in part by protecting minus ends from the MT depolymerizing enzyme kinesin-13 (Goodwin and Vale, 2010). Consistent with this model, loss of function in klp-7/kinesin-13 strongly enhanced morphological defects of dapk-1(gk219), both in ptrn-1(+) and in ptrn-1(0) backgrounds (Figure 1B). Partial loss of function of the MT severing enzymes MEI-1/p60 katanin or SPAS-1/Spastin also enhanced dapk-1(gk219) Mor phenotypes. None of these mutants conferred morphological defects in a dapk-1(+) background (Figure 1—figure supplement 1D). These analyses suggest that aberrant dapk-1 function causes epidermal integrity to be sensitized to MT stability. dapk-1(ju4) defects were not suppressed by loss of function in several other genes implicated in MT dynamics (Table 1), suggesting a specific subset of MT regulators can affect epidermal morphogenesis.

PTRN-1/Patronin is required for the upregulated epidermal innate immune responses and accelerated wound repair in dapk-1(ju4) mutants

In C. elegans sterile wounding or fungal infection induces expression of antimicrobial peptides (AMPs) in the epidermis (Couillault et al., 2004; Pujol et al., 2008). dapk-1(ju4) animals constitutively express high levels of AMPs such as nlp-29 and nlp-30, and this hyperactive epidermal immune response is genetically separable from dapk-1(ju4) epidermal morphological defects (Tong et al., 2009). To address whether the extragenic suppressors or enhancers of dapk-1 morphological defects also interacted with the innate immune response, we examined nlp-29 expression in dhc-1(or195) and unc-116(e2310). Neither mutant suppressed the elevated innate immune response in dapk-1(ju4) (Figure 2A; Figure 2—figure supplement 1B), as measured using a Pnlp-29-GFP transcriptional reporter. In contrast, ptrn-1(0) fully suppressed the elevated immune response of dapk-1(ju4) (Figure 2A,B). Among all suppressors tested, only PTRN-1 interacted with DAPK-1 in epidermal morphology and in innate immunity. Given the unique and specific genetic interactions of ptrn-1 and dapk-1, we focused our analysis on PTRN-1.

Figure 2 with 1 supplement see all

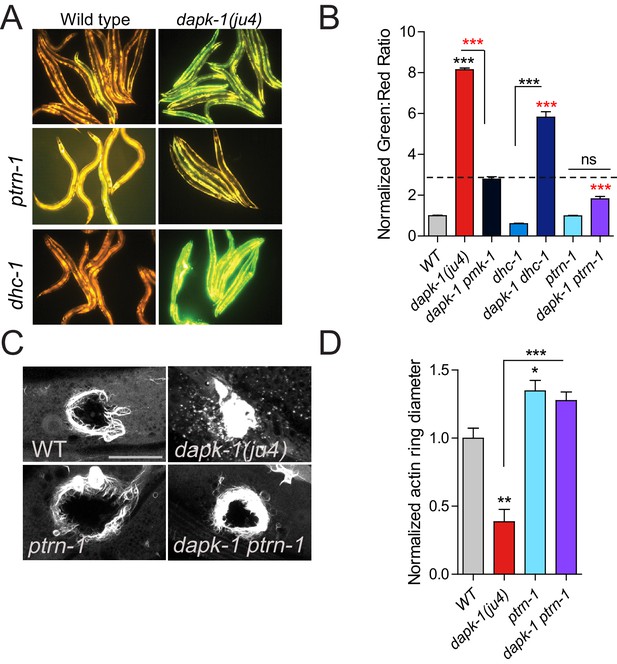

ptrn-1 suppresses dapk-1(ju4) innate immune and wound repair phenotypes.

(Adapk-1(ju4) animals display an elevated expression of the antimicrobial peptide nlp-29 (Pnlp-29-GFP, frIs7); this is suppressed by ptrn-1(0), whereas dhc-1(or195) and other mutations do not suppress (see also Figure 2—figure supplement 1A). Day 1 adults. (B) Quantitation of fluorescence intensity ratio (Green:Red, normalized to WT = 1) of animals in A, using the COPAS Biosort. N>100. Fisher’s exact test; ***p<0.001. pmk-1 is a MAPK required for activation of nlp-29 transcription; pmk-1 mutants serve as a negative control. (C) ptrn-1(0) suppresses the accelerated actin ring closure in dapk-1(ju4) mutants after needle wounding. The wound-triggered actin ring is visualized using Pcol-19-GFP::moesin (juIs352); scale, 10 µm. (D) Quantitation of actin ring diameter, mean ± SEM. One-way ANOVA and Dunn’s post-test; *p<0.05; **p<0.01; ***p<0.001.

https://doi.org/10.7554/eLife.15833.005

DAPK-1 acts in the epidermis to maintain epidermal morphology (Tong et al., 2009). Although epidermal development is overtly normal in ptrn-1(0) mutants, PTRN-1 acts redundantly with γ-tubulin and the ninein-like protein NOCA-1 to assemble noncentrosomal MT arrays essential for epidermal development (Wang et al., 2015). However, loss of function in γ-tubulin/TBG-1 did not suppress dapk-1(ju4) epidermal defects (Table 1), suggesting DAPK-1 specifically interacts with the PTRN-1 pathway.

dapk-1 mutants also display accelerated epidermal wound closure, manifested by the rate of closure of actin rings that form around puncture wounds (Xu and Chisholm, 2011). We found that ptrn-1 mutations suppressed this accelerated wound closure to wild type rates (Figure 2C,D, Figure 2—figure supplement 1C,D). Moreover, ptrn-1(0) single mutants displayed significantly delayed wound closure compared to the wild type. Thus, DAPK-1 and PTRN-1 play antagonistic roles in epidermal development and in wound repair.

Pharmacological modulation of MT stability can suppress or enhance dapk-1 morphological defects

Because the dapk-1 epidermal phenotypes are suppressed by loss of function in a MT stabilizing factor (Patronin/ptrn-1) and enhanced by loss of function in MT destabilizing factors (Kinesin-13/klp-7, Katanin/mei-1, Spastin/spas-1) we hypothesized that epidermal defects in dapk-1 mutants might result from excessive stabilization of epidermal MTs. We therefore tested whether drugs that depolymerize MTs (colchicine, nocodazole) or stabilize MTs (paclitaxel) could modify epidermal Mor defects. Some experiments used cat-4 mutants, which are defective in biopterin synthesis and display leaky cuticles and hypersensitivity to drugs (Loer et al., 2015).

Colchicine treatment significantly suppressed the epidermal morphology defects of dapk-1(gk219) animals (Figure 3A). cat-4 itself strongly enhanced dapk-1(gk219), suggesting that dapk-1 is also sensitized to defects in cuticle integrity (Figure 3—figure supplement 1A). The morphological defects of dapk-1(gk219) cat-4 animals were suppressed by colchicine in a dose-dependent manner, and high concentrations of colchicine (5 mM) significantly suppressed dapk-1(ju4) phenotypes (Figure 3—figure supplement 1A). Conversely, treatment with the MT stabilizing drug paclitaxel enhanced dapk-1(gk219) morphological defects, consistent with Mor phenotypes in dapk-1(ju4) mutants being caused by hyper-stabilized MTs (Figure 3A). Indeed, paclitaxel treatment of wild type animals could induce dapk-1-like epidermal defects, albeit at very low penetrance (Figure 3A,B).

Figure 3 with 1 supplement see all
dapk-1 epidermal morphology defects are mimicked or enhanced by MT stabilization and suppressed by MT depolymerization.

(A) MT stabilization by paclitaxel treatment induces dapk-1-like morphological defects in the wild type and in ptrn-1(0) mutants, and enhances the morphological defects of dapk-1(gk219). Colchicine treatment suppresses dapk-1(gk219) morphological defects. Statistics: Fisher’s exact test; ***p<0.001; n > 100 animals per condition. (B) DIC images of epidermal defects in representative wild type and ptrn-1(0) animals after paclitaxel treatment. (C) Confocal images of epidermal MT architecture in the heads of WT and dapk-1(ju4) L2 and L4 larvae (Pdpy-7-GFP::TBB-2, ltSi570). Yellow bracket indicates lateral epidermal ridge, red brackets mark dorsoventral epidermis overlying muscles. dapk-1(ju4) L4 animals display bundling of MTs in the lateral epidermis (yellow arrowhead) and disorganized circumferential MTs (white arrowhead). (D) Effects of MT drugs on epidermal MT organization (ltSi570) in heads of L4 animals. Treatment with colchicine causes loss of circumferential MT bundles (yellow asterisks). Treatment with low concentrations of paclitaxel (5 µM) causes circumferential bundles to be brighter and straighter than in wild type (blue arrow); higher concentrations of paclitaxel (15 µM) induce overt MT bundling (yellow arrow), crossing of circumferential MTs (green arrow), and dapk-1-like morphological defects (red arrowhead). All scale bars, 10 µm. (E) Treatment with 15 µM paclitaxel significantly increases the anisotropy of MT bundles in the lateral epidermis. Statistics, Kruskal-Wallis and Dunn’s post test; *p<0.05, ***p<0.001; N>8 animals.

https://doi.org/10.7554/eLife.15833.007

ptrn-1(0) mutants display overtly normal epidermal morphology, but were six times more sensitive to the effects of paclitaxel compared to WT animals (Figure 3A,B). Paclitaxel also induced morphological defects in dapk-1(gk219) ptrn-1(0) double mutants (Figure 3—figure supplement 1A), although not to the same extent as in dapk-1(gk219) single mutants (Figure 3A). dhc-1(or195) single mutants were also hypersensitive to paclitaxel, compared to wild type (Figure 3—figure supplement 1A), possibly reflecting increased free tubulin concentration in these mutants. Taken together, these data are consistent with the model that dapk-1 mutants display excessively stabilized MTs that cause aberrant epidermal morphology.

We also asked whether pharmacological manipulation of MTs affected the epidermal innate immune response. At high concentrations of colchicine we noted significant suppression of dapk-1(ju4) innate immune responses. Conversely, 5 μM paclitaxel induced Pnlp-29-GFP expression in 40% of ptrn-1(0) mutants, including in animals not displaying strong Mor phenotype (Figure 3—figure supplement 1B), while higher concentrations of paclitaxel (15 μM) could induce Pnlp-29-GFP in a subset of WT animals. Thus, destabilization of epidermal MTs can reverse the upregulation of epidermal innate immune responses in dapk-1 mutants, while hyper-stabilization of MTs is sufficient to induce the innate immune response, possibly by compromising epidermal integrity.

dapk-1 mutants display aberrant MTs resembling those of paclitaxel-stabilized animals

The above analyses suggest dapk-1 mutants might display excessively stabilized MTs. We therefore analyzed epidermal MT architecture using the tubulin marker TBB-2::GFP (see Materials and methods; Figure 4—figure supplement 1A). In the lateral hyp7 epidermal syncytium MTs form a dense meshwork mostly oriented along the anteroposterior axis. In contrast, the dorsoventral compartment of hyp7, overlying body wall muscles, contains parallel circumferential MT bundles spaced 1–1.5 μm apart (Figure 3C; Figure 4—figure supplement 1B,C; Figure 4E). These arrays extend from the lateral epidermis to the dorsal or ventral midlines.

Figure 4 with 1 supplement see all

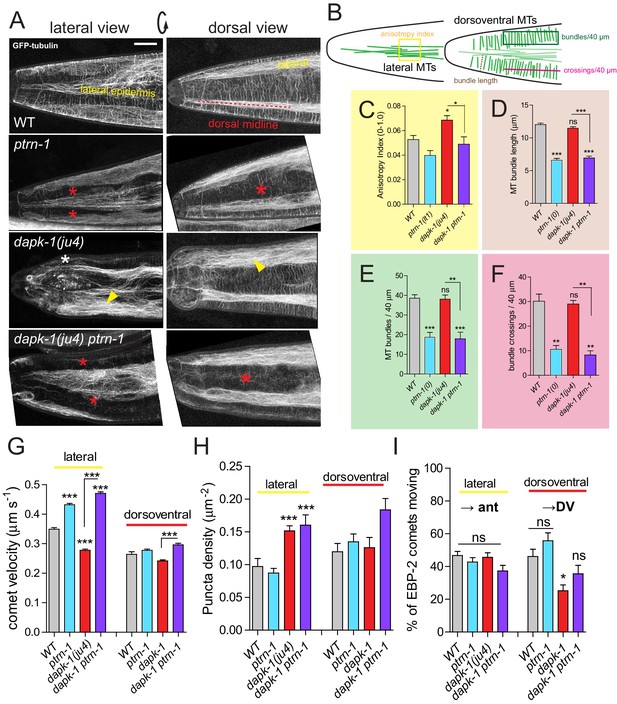

dapk-1 defects in epidermal MT architecture are suppressed by ptrn-1.

(A) ptrn-1(0) and dapk-1(ju4) display distinct effects on epidermal MT organization; MTs visualized in young adults (Pcol-19-GFP::TBB-2, juSi239). Left column, lateral views of the head; right column, dorsal view. ptrn-1(0) mutant adults display fewer circumferential MT bundles in the dorsoventral epidermis (red asterisks). dapk-1(ju4) mutants display increased bundling in the lateral epidermis (yellow arrowhead), quantified by anisotropy index in panel C. dapk-1(ju4) ptrn-1(0) double mutants display normal MT bundling in the lateral epidermis and reduced dorsoventral MTs (red asterisks). Mor phenotype, white asterisk. Scale, 10 µm. (B) Cartoon of MT organization in the C. elegans lateral and dorsoventral epidermis; colored boxes indicate ROIs used for quantitation of MT parameters in panels C–F. (C) dapk-1(ju4) animals display elevated MT bundle anisotropy in the lateral epidermis, which is suppressed by ptrn-1(0). (D–F) MT bundle length, density and crossing frequency in the dorsoventral epidermis is reduced in ptrn-1(0) and in dapk-1(ju4) ptrn-1(0) double mutants. N>8 animals per genotype. Bars show mean ± SEM. Kruskal-Wallis and Dunn’s post test; *p<0.05; **p<0.01; ***p<0.001. (G–I) Quantitation of epidermal EBP-2::GFP comet dynamics in the lateral and dorsoventral epidermis. N>10 animals per genotype.

https://doi.org/10.7554/eLife.15833.009

Chronic treatment with colchicine caused breakage and loss of circumferential MT bundles in the dorsoventral epidermis (Figure 3D); in the lateral compartment, MTs became sparse and less bundled than in the WT. Conversely, paclitaxel treatment caused circumferential MT bundles to be straighter and thicker (Figure 3D,E). At high paclitaxel concentrations (15 μM), circumferential MT bundles became disorganized and lateral MT bundles were thicker (Figure 3D,E). Thus, MT stabilization by paclitaxel results in MTs becoming straighter and more bundled.

We then examined MTs in dapk-1(ju4) mutants, focusing on the anterior epidermis, where dapk-1 morphological defects begin. In early (L2) larvae the MT architecture of dapk-1(ju4) animals appeared normal (Figure 3C; Figure 4—figure supplement 1B,C). By the late larval (L4) stage a region devoid of MTs appeared in the anterior lateral epidermis of dapk-1(ju4) animals (Figure 3C, asterisk), apparently due to local degeneration of the epidermis and cuticle overgrowth (Tong et al., 2009). Nearby circumferential MT bundles were disorganized (Figure 3C, white arrowheads), however most circumferential MT bundles appeared normal (Figure 4—figure supplement 1B,C), suggesting the local MT defects might be a secondary consequence of the epidermal degeneration. In dapk-1(ju4) adults MT bundles were spaced normally (Figure 4E,F) but were thinner (Figure 4—figure supplement 1C). In the lateral epidermis of dapk-1(ju4) animals MT bundles were straighter and more bundled than in wild type (Figure 4A, yellow arrowheads), resembling those of paclitaxel-treated animals. We used FibrilTool to measure the anisotropy (directional dependence) of lateral MT bundles (see Methods) and found that dapk-1(ju4) mutants displayed increased MT bundle anisotropy compared to wild type (Figure 4C). The MT defects of dapk-1(gk219) mutants were very similar to those of dapk-1(ju4) (Figure 4—figure supplement 1D–H). The similarities between the dapk-1 mutant phenotypes and the effects of paclitaxel treatment suggest DAPK-1 normally destabilizes epidermal MTs.

We next asked whether loss of function in PTRN-1 affected the disorganization of MT architecture in dapk-1(ju4). ptrn-1(0) mutant larvae have slightly fewer circumferential MT bundles (Wang et al., 2015). We found that ptrn-1(0) adults displayed a significant loss of circumferential MT bundles (~50% of WT; Figure 4A,E,F); remaining bundles were shorter than in the wild type (Figure 4D). Lateral MT bundles in ptrn-1(0) adults displayed normal anisotropy (Figure 4C). In dapk-1(ju4) ptrn-1(0) double mutants the number and length of circumferential MT bundles resembled that of ptrn-1(0) mutants (Figure 4D–F). However ptrn-1(0) suppressed the increased anisotropy of lateral MTs in dapk-1(ju4) to wild type levels (Figure 4C). These results indicate that antagonistic interactions between PTRN-1 and DAPK-1 balance MT architecture in the epidermis.

We next assessed the effects of dapk-1 mutants on epidermal MT dynamics using the MT plus end marker EBP-2::GFP (EBP-GFP for brevity). EBP-GFP binds to growing MT plus ends and in vivo forms moving comets whose movement can be quantified by kymograph analysis (see Methods). We found that MT plus ends in the wild type adult epidermis were highly dynamic, with 0.09 ± 0.015 comets/μm2 in the lateral epidermis, and slightly more (0.12 ± 0.015 comets/μm2) in the dorsoventral epidermis (Videos 1,2). The overall density of comets in ptrn-1(0) animals was similar to that in wild type (Figure 4H), as previously reported for larvae (Wang et al., 2015). By contrast, dapk-1(ju4) mutants, as well as dapk-1(ju4) ptrn-1(0) double mutants, had significantly more comets in the lateral epidermis than in WT or ptrn-1(0) (Videos 3,4). In wild type adults, EBP-GFP comets grew at 0.35 ± 0.006 μm/s in the lateral epidermis, and 0.26 ± 0.01 μm/s in the dorsoventral epidermis, comparable to growth rates in the larval epidermis (Wang et al., 2015). MT growth rates in the lateral epidermis were significantly reduced in dapk-1(ju4) mutants, and increased in ptrn-1(0) single and in dapk-1(ju4) ptrn-1(0) mutants (Figure 4G). dapk-1(ju4) mutants thus display more slow-growing MT plus ends in the lateral epidermis, consistent with a partial stabilization of MT dynamics.

Video 1
EBP-GFP dynamics in adult lateral epidermis (Pcol-19).
https://doi.org/10.7554/eLife.15833.011
Video 2
EBP-GFP dynamics in adult dorsoventral epidermis.
https://doi.org/10.7554/eLife.15833.012
Video 3
EBP-GFP dynamics in adult lateral epidermis, dapk-1(ju4) background.
https://doi.org/10.7554/eLife.15833.013
Video 4
EBP-GFP dynamics in adult dorsoventral epidermis, dapk-1(ju4) background.
https://doi.org/10.7554/eLife.15833.014

Finally, we analyzed the directionality of plus-end growth. In the lateral epidermis most EBP-GFP comets grew anteriorly or posteriorly, without a strong bias in directionality. Similarly, in the dorsoventral epidermis equal numbers of EBP-GFP comets grew towards or away from lateral epidermal ridges (Figure 4I). EBP-GFP comet directionality was normal in ptrn-1(0) mutant and dapk-1(ju4) ptrn-1(0) backgrounds. However, dapk-1(ju4) mutants displayed a significant bias in comet directionality in the dorsoventral epidermis, such that fewer comets grew away from the lateral epidermis. Thus, in dapk-1 mutants growing MTs are more confined to the lateral epidermis and less likely to extend into the dorsoventral epidermis.

Over-expression of the PTRN-1 CKK domain induces dapk-1-like morphology defects

To understand how PTRN-1 might regulate epidermal MTs in the dapk-1 mutant we tested individual PTRN-1 domains. Like other CAMSAP proteins, PTRN-1 has three conserved regions: an N-terminal calponin homology (CH) domain, of unknown function; a central coiled-coil (CC) domain, known to interact with cytoskeleton associated proteins, and a C-terminal MT-binding CKK domain specific to CAMSAPs (Figure 5A). We expressed GFP-tagged fragments of PTRN-1 in the larval epidermis of dapk-1(ju4) ptrn-1(0) mutants as multicopy transgenes using the dpy-7 promoter. As shown above, expression of full-length PTRN-1 rescued the ptrn-1(0) suppression phenotypes (Figure 1B). Expression of the CKK domain alone also restored the dapk-1 epidermal morphology phenotype in dapk-1(ju4) ptrn-1(0) double mutants, whereas constructs lacking the CKK domain could not rescue, suggesting the CKK domain is required for PTRN-1 function (Figure 5B). However, constructs containing the CKK domain and either the CC or CH domain (i.e. ΔCH or ΔCC respectively) had significantly weaker rescuing activity compared to the CKK domain alone (Figure 5B). These observations suggest that the CKK domain is critical for PTRN-1 function in the epidermis and is inhibited by the CH or CC domains.

Figure 5 with 1 supplement see all

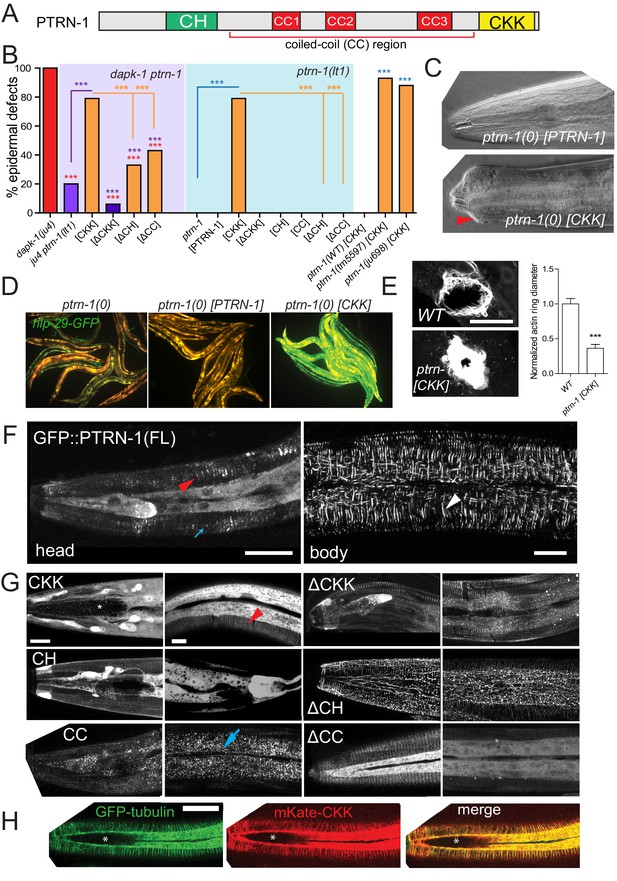

The CKK domain of PTRN-1 is required and sufficient to cause dapk-1-like defects in epidermal morphology.

(A) PTRN-1 domain organization. (B) Quantitation of epidermal defects in animals expressing different fragments of GFP::PTRN-1. N>100. Fisher’s exact test; ***p<0.001. (C) Representative DIC images of heads of animals expressing full length PTRN-1 or the CKK domain alone (dpy-7 promoter, juEx6697 and juEx6695), in ptrn-1(lt1). (D) Over-expression of the CKK domain is sufficient to induce Pnlp-29-GFP expression in ptrn-1(0) mutants (frIs7; juEx7385) and (E) speed up wound closure (juIs352; juEx6825). N>15, t-test; ***p<0.001. (F) Localization of full length GFP::PTRN-1 in the larval epidermis (juEx6697). White arrowhead points to a thick filament in the midbody lateral epidermis. PTRN-1 also localizes to puncta (blue arrow) and thin filaments (red arrowhead). All scale bars, 10 µm. (G) Localization of GFP-tagged PTRN-1 fragments in larval epidermis. (H) Colocalization of PTRN-1 CKK domain and MTs in anterior larval epidermis. Genotype: ptrn-1(lt1); juEx6825 (Pdpy-7-mKate2::CKK); ltSi570 (Pdpy-7-GFP::TBB-2). Asterisk indicates region devoid of MTs.

https://doi.org/10.7554/eLife.15833.015

Strikingly, expression of the CKK domain alone in ptrn-1(0) mutants caused highly penetrant Mor phenotypes, resembling those of dapk-1(ju4) (Figure 5B,C). This is in contrast to transgenic animals expressing full-length PTRN-1, which do not display such phenotypes. The CKK domain acts cell autonomously in the epidermis, as a pan-neuronal expression of the CKK domain in ptrn-1(0) mutants did not induce Mor phenotypes (not shown). Paralleling our rescue analysis, transgenes expressing the CKK domain and the CH or CC domains did not cause epidermal defects in ptrn-1(0) animals. Moreover, expression of the CKK domain only caused aberrant development in a ptrn-1(0) background and not in a wild type background (Figure 5B), suggesting that CKK domain activity is inhibited by endogenous PTRN-1. In addition, expression of the CKK domain in ptrn-1(0) mutants induced Pnlp-29-GFP expression, similar to that seen in dapk-1(ju4) mutants (Figure 5D), and accelerated wound closure (Figure 5E). These data are consistent with DAPK-1 and PTRN-1 acting antagonistically in epidermal development, and suggest that DAPK-1 might specifically inhibit the activity of the PTRN-1 CKK domain.

Localization of PTRN-1 along MTs, mediated by its CKK domain, correlates with defective epidermal morphogenesis

In other CAMSAP proteins the CKK domain binds MTs (Baines et al., 2009), whereas the CC domain confers minus-end targeting (Goodwin and Vale, 2010). We therefore investigated whether PTRN-1 localization correlated with its effects on epidermal morphology. Full-length GFP::PTRN-1 localized to puncta and to short filaments that were either thin (0.22 ± 0.01 μm wide) or thick (0.38 ± 0.01 μm) (Figure 5F); the latter co-localized with MTs (Figure 5—figure supplement 1E). In contrast, the CKK domain localized to longer thin filaments (Figure 5G; Figure 5—figure supplement 1C) and co-localized with MTs (Figure 5H). GFP::PTRN-1(ΔCKK) was almost completely punctate (Figure 5G). Taken together, the CKK domain is critical for localization along MTs, and MT localization is necessary but insufficient to trigger aberrant epidermal morphology (Table 2).

Table 2

PTRN-1 Structure-function analysis.

https://doi.org/10.7554/eLife.15833.017
LocalizationFunction
Protein
Fragment
PunctaThick filamentsThin filamentsRestore MorInduce MorCo-loc with MTs
Full lengthxxxyesnoyes
CH---nonono
CCx--nonoyes
CKK--xyesyesyes
ΔCKKx--nonoyes
ΔCHxx-yesnoND
ΔCC--xyesnoND
ΔCHCC1?x-NDnoND
ΔCHCC1CC2--xNDslightlyND
ΔCC2?x*xNDnoND
ΔCC3x--NDnoND
  1. Notes: *: Thick filaments present, but fewer compared to PTRN-1 full length or ΔCH. ?: unclear. ND: Not Determined.

The PTRN-1 CH domain did not confer subcellular localization, whereas fragments lacking the CH domain localized to filaments and puncta, resembling full length PTRN-1 (Figure 5G, Table 2). The PTRN-1 CC domain localized primarily to puncta, whereas constructs lacking this domain (ΔCC) did not form puncta or thick filaments (Figure 5G). Further dissections suggest the coiled-coil subregions of the CC domain have distinct roles such that CC1 and CC2 promote localization to puncta and thick filaments (Figure 5A; Figure 5—figure supplement 1A) and inhibit the CKK domain’s ability to induce epidermal morphology defects (Figure 5—figure supplement 1B).

We hypothesized that the expression of the CKK domain in the absence of other PTRN-1 domains causes excessive MT stabilization and aberrant epidermal development. Both full-length PTRN-1 and CKK domain transgenes restored circumferential MTs to ptrn-1(0) mutants (Figure 5—figure supplement 1D). However, expression of the CKK domain in a ptrn-1(0) background caused circumferential MT bundles to be straighter than in wild type, resembling the effects of paclitaxel treatment (Figure 4—figure supplement 1D). ptrn-1(0) mutants expressing full-length PTRN-1 did not display straighter MT bundles or Mor phenotypes (Figure 5—figure supplement 1D). Thus the MT-stabilizing effects of the CKK domain can induce aberrant epidermal development, and are normally inhibited by other PTRN-1 domains.

dapk-1 mutants display increased PTRN-1 in the epidermis

The above observations suggest that in dapk-1(ju4) mutants, PTRN-1’s MT stabilization activity, mediated by its CKK domain, might be aberrantly active. We therefore assessed whether PTRN-1 localization or expression was altered in dapk-1(ju4) mutants. In the wild type, PTRN-1::GFP formed thick filaments or puncta in the anterior lateral epidermis, and sparse filaments in the body epidermis (Figure 6A). By contrast, in dapk-1(ju4) adults, PTRN-1::GFP formed twice as many thick filaments in the head (Figure 6B–E). The increased number of PTRN-1 filaments could reflect increased PTRN-1 expression in dapk-1(ju4), as multicopy GFP::PTRN-1 transgenes (Figure 5F) also displayed more filaments compared to those seen from a single-copy transgene. However, immunoblotting suggested overall PTRN-1 protein levels were lower in dapk-1(ju4) mutants compared to WT (Figure 6—figure supplement 1A).

Figure 6 with 1 supplement see all

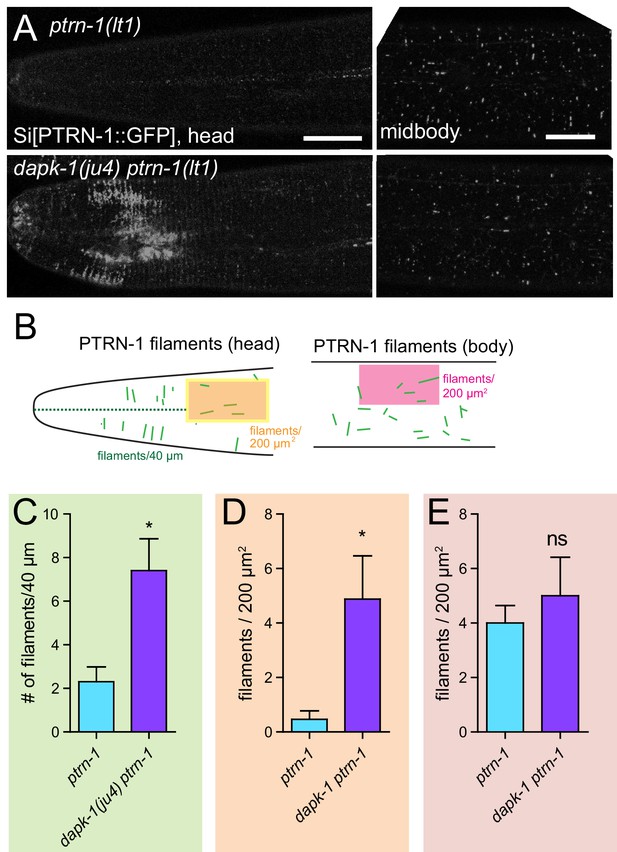

dapk-1(ju4) mutants display aberrant PTRN-1 localization.

(A) Localization of PTRN-1::GFP expressed from single-copy insertion in L4 stage anterior epidermis (left) and midbody lateral epidermis (right); transgene Pdpy-7-PTRN-1::GFP, ltSi541, in ptrn-1(0) or dapk-1(ju4) ptrn-1(0) background. Scale bars, 10 µm. (B) Schematic showing ROIs analyzed in the anterior epidermis. (C–E) Quantitation of PTRN-1 localization in ROIs indicated in B. Experiments performed at 25°C. N>8 animals per genotype. Bars indicate mean ± SEM. Student’s t-test; *p<0.05.

https://doi.org/10.7554/eLife.15833.018

Increased PTRN-1 filaments in dapk-1 mutants might be secondary to an increase in MT number or stability. Consistent with this, paclitaxel treatment in ptrn-1(0) and dapk-1(ju4) ptrn-1(0) double mutants caused increased GFP::PTRN-1 filament formation (Figure 6—figure supplement 1B,C). The increased association of PTRN-1 with MTs in dapk-1(ju4) could reflect a positive feedback loop whereby stabilized MTs recruit more PTRN-1, resulting in further MT stabilization.

To address how DAPK-1 might regulate PTRN-1 we examined whether DAPK-1 was capable of physical association with PTRN-1. Using co-immunoprecipitation in transfected HEK293T cells we found that PTRN-1 can be pulled down with DAPK-1 (Figure 6—figure supplement 1D), suggesting DAPK-1 and PTRN-1 might interact directly or as part of a complex.

DAPK-1 undergoes directional MT-dependent transport in the epidermis

Our genetic and pharmacological analysis of the dapk-1 mutant defect in epidermal morphology suggests DAPK-1 might inhibit MT stability, possibly via negative regulation of PTRN-1 itself. DAPK-1 might act directly or indirectly on PTRN-1. Although DAPK family members have been shown to localize to the cytoskeleton, the subcellular location of DAPK relative to MTs or PTRN-1 has not been examined. To further address whether DAPK-1 might affect PTRN-1 or MTs directly, we examined the localization of functional GFP::DAPK-1. Unexpectedly, GFP::DAPK-1 formed discrete puncta that underwent rapid, directed movement within the larval or adult epidermis (dpy-7 promoter, Figure 7A–D, Video 5; col-19 promoter, Videos 6, 7). In the lateral epidermis GFP::DAPK-1 puncta moved along the anteroposterior body axis, occasionally reversing direction (Figure 7C). In contrast, puncta in the dorsoventral epidermis exhibited a bias in movement away from the lateral epidermis (Figure 7B,D). GFP::DAPK-1 puncta also aggregated at the edges of the epidermal ridges along the body (Figure 7A), as well as in the anterior epidermis, where morphological defects were prominent (Figure 7—figure supplement 1A).

Figure 7 with 1 supplement see all

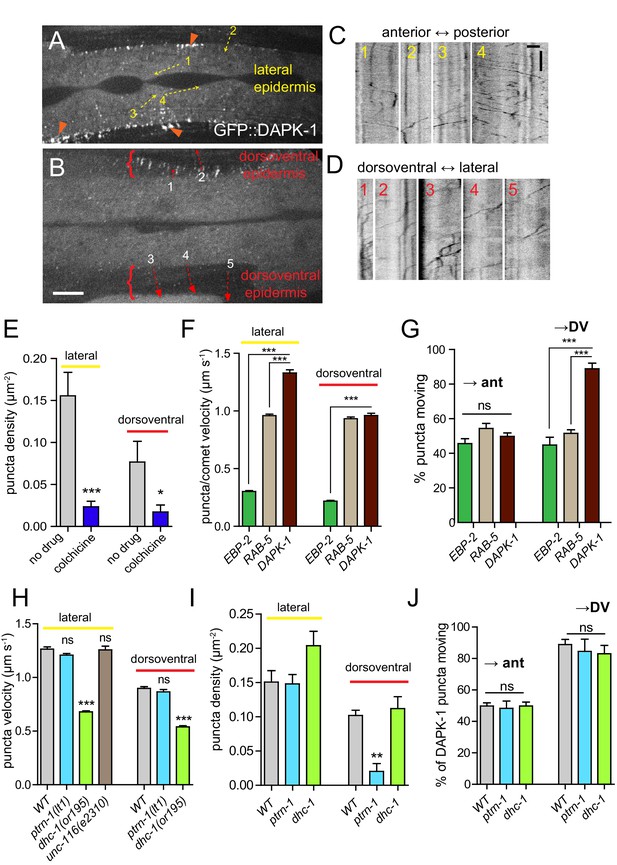

DAPK-1 undergoes MT-dependent transport in the epidermis.

(A,B) Representative images of GFP::DAPK-1 puncta in the larval epidermis (Pdpy-7-GFP::DAPK-1, juEx1774), showing lateral and dorsoventral regions, respectively. Dotted arrows indicate line scans used to generate kymographs in C,D. Orange arrowheads indicate clusters of GFP::DAPK-1 puncta at the boundary of the dorsoventral epidermis. Scale bars, 10 µm. (C) Kymographs of puncta in lateral epidermis (movie frame in A); inverted grayscale; x axis scale, 10 µm; y axis scale, 10 s. (D) Kymographs of puncta in dorsoventral epidermis (movie frame in B). (E) Density of motile GFP::DAPK-1 puncta in adult anterior lateral epidermis, with or without colchicine treatment (cat-4; Pcol-19-GFP::DAPK-1 juEx4781). N>20. (F) GFP::DAPK-1 puncta move faster than RAB-5 puncta or EBP-2 comets in the lateral epidermis (Pcol-19-GFP::DAPK-1, juEx4781). n>100. Bar charts show mean ± SEM. Statistics, Kruskal-Wallis test and Dunn’s post-test; *p<0.1, ***p<0.001. (G) Directionality of puncta or comet motion. Approximately equal numbers of RAB-5 puncta and EBP-2 comets move in each direction; only DAPK-1 displays a significant bias in the dorsoventral epidermis. (H) Reduced dynein/dhc-1 function slows GFP::DAPK-1 puncta; loss of ptrn-1 or mutation in unc-116/kinesin-1 has no effect; n>100. I. ptrn-1(0) mutants have reduced DAPK-1 puncta in the dorsoventral epidermis. J. DAPK-1 puncta directionality is unaffected in ptrn-1(0) or dhc-1 mutants.

https://doi.org/10.7554/eLife.15833.020
Video 5
GFP::DAPK-1 dynamics in larval epidermis.

Lateral seam cells are in the center of the movie.

https://doi.org/10.7554/eLife.15833.022
Video 6
GFP::DAPK-1 dynamics in adult lateral epidermis.

Lateral seam is in center.

https://doi.org/10.7554/eLife.15833.023
Video 7
GFP::DAPK-1 dynamics in adult dorsoventral epidermis.

Dorsal midline is at bottom of movie.

https://doi.org/10.7554/eLife.15833.024

As the pattern of GFP::DAPK-1 dynamics was reminiscent of the arrangement of the MT cytoskeleton, we assessed whether GFP::DAPK-1 dynamics were MT-dependent. In the lateral epidermis GFP::DAPK-1 puncta moved at 1.33 ± 0.028 µm/s; GFP::DAPK-1 movement in the dorsoventral epidermis was slightly slower (Table 3). Colchicine treatment severely reduced the number of moving GFP::DAPK-1 puncta (Figure 7E); movement of the remaining puncta was slightly slowed (Figure 7—figure supplement 1B). GFP::DAPK-1 puncta moved ~5 times faster than EBP-2::GFP comets (Figure 7F; Table 3). Moreover, in contrast to the unidirectional movement of GFP::DAPK-1 away from epidermal ridges plus-end growth occurred in both directions in the dorsoventral epidermis (Figure 7G). We infer that GFP::DAPK-1 dynamics reflect MT-based transport.

Table 3

Dynamics parameters in the epidermis.

https://doi.org/10.7554/eLife.15833.025
Type of DynamicsTransgeneVelocity (mean ± SEM) μm s−1Directionality
LateralDorso-ventralLateralDorso-ventral
MT plus-end growthPcol-19-EBP-2::GFP0.30 ± 0.000.22 ± 0.007A→P
P→A
Lat→DV
DV→Lat
Early endosome transportPdpy-7-GFP::RAB-50.96 ± 0.0140.93 ± 0.014A→P
P→A
Lat→DV
DV→Lat
DAPK-1Pdpy-7-GFP::DAPK-11.33 ± 0.0280.96 ± 0.021A→P
P→A
Lat→DV
DAPK-1Pcol-19-GFP::DAPK-11.26 ± 0.020.90 ± 0.017A→P
P→A
Lat→DV
  1. Notes: A→P: Anterior to Posterior. P→A: vice versa. Lat→DV: Lateral to dorsoventral epidermis. DV→Lat: vice versa.

MT-dependent transport within the mature C. elegans epidermis has not been previously characterized. To understand whether other cellular components are transported within the epidermis we examined an early endosome marker, GFP::RAB-5, as endocytosis has been implicated in innate immune responses (Dierking et al., 2011). GFP::RAB-5 formed motile puncta that were smaller and slower-moving than those of GFP::DAPK-1, and moved in both directions in the dorsoventral epidermis (Video 8; Figure 7F,G), suggesting GFP::DAPK-1 dynamics are distinct from endosomal transport.

Video 8
Pdpy-7-GFP::RAB-5 dynamics.
https://doi.org/10.7554/eLife.15833.026

We asked whether DAPK-1’s transport correlated with its functions in epidermal morphology. DAPK-1, like mammalian DAPK, contains an N-terminal kinase domain, a Calcium/Calmodulin binding domain, a set of ankyrin repeats, a P-loop, a cytoskeleton-interacting domain and a C-terminal death domain (Shiloh et al., 2013) (Figure 1—figure supplement 1A). Constructs lacking any one of these domains, or containing a K57A point mutation predicted to abolish kinase activity (Deiss et al., 1995), were unable to rescue dapk-1(ju4) nor did they induce dapk-1-like phenotypes (Figure 7—figure supplement 1C, Table 4). Uniquely, constructs lacking the kinase domain (ΔKinase) strongly enhanced the Mor phenotype of a partial loss of function allele dapk-1(ju469) (Figure 7—figure supplement 1C), and caused lethality in a ju4 mutant background (Table 4). The enhancement of dapk-1 phenotypes suggests DAPK-1(ΔKinase) inhibits DAPK-1 in a dominant-negative manner and may also inhibit parallel pathways.

Table 4

DAPK-1 structure-function analysis.

https://doi.org/10.7554/eLife.15833.027
Protein FragmentPuncta?Motile?Rescues Mor*Induces MorEnhances MorLethal in dapk-1(ju4)
Full Lengthyesyesyesnonono
Δ Kinaseyesyesnonoyesyes
Δ Kinase + CaM Bind Domain (BD)yesyesnonoyesyes
Δ Cytoskeletal BDnononononono
Δ Death Domain + C terminusnononononono
Kinase onlysomenononoNDND
CaM BD onlynonononoNDND
Ankyrin Domain onlysomenonononono
Cytoskeletal BD onlysomenonononono
Mid + DD + Ctnononononono
S179L dapk-1(ju4)yesyesnoyesyesyes
K57A (kinase dead)yesyesnononono
  1. Notes: *: In dapk-1(ju4). : In WT background. : In dapk-1(ju469).

We examined the localization and dynamics of these truncated proteins. Both GFP::DAPK-1(ΔKinase) and GFP::DAPK-1(S179L) formed dynamic puncta that moved at normal or slightly slower velocities (Table 4; Figure 7—figure supplement 1B). Conversely GFP::DAPK-1 lacking either the cytoskeletal binding domain or the death domain did not form puncta (Figure 7—figure supplement 1A). No single domain was sufficient for the formation of motile puncta (Table 4). However, the kinase domain, ankyrin domain, and cytoskeleton-binding domain by themselves occasionally formed stationary puncta (Figure 7—figure supplement 1A). In summary, multiple non-kinase domains are required for formation of motile DAPK-1 puncta; formation of motile puncta could be necessary but not sufficient for DAPK-1 function.

We next asked whether DAPK-1 transport required motor proteins identified as dapk-1 suppressors. The velocity of DAPK-1 puncta did not change in unc-116/kinesin-1 mutants, but decreased two-fold in dhc-1(or195) mutants (Figure 7H). ptrn-1(0) mutants had fewer moving DAPK-1 puncta in the dorsoventral epidermis, consistent with their reduced numbers of circumferential MTs (Figure 7I); the velocity of the remaining GFP::DAPK-1 puncta was normal. Neither ptrn-1(0) nor dhc-1 mutants affected the directional bias of GFP::DAPK-1 transport (Figure 7J).

Discussion

C. elegans DAPK-1 acts as a negative regulator of epidermal maintenance and wound responses, through previously unknown mechanisms (Tong et al., 2009). Here, we identify a role for DAPK-1 in regulating the stability or the dynamics of the MT cytoskeleton. The MT minus end factor PTRN-1 is closely linked to DAPK-1 function. Moreover, DAPK-1 itself is transported along MTs, indicating a complex relationship between DAPK-1 and MT dynamics in epidermal growth and repair.

Normal and mutant functions of DAPK-1

We screened for suppression of morphological defects of the dapk-1(ju4) allele, which results in a missense S179L alteration in the peptide-binding ledge of the DAPK-1 kinase domain. This allele, unlike dapk-1(gk219) or deletions of the dapk-1 locus, causes fully penetrant morphological phenotypes. Our identification of stop codon mutations as intragenic revertants, as well as the finding that transgenic expression of S179L DAPK-1 induces Mor phenotypes, suggests dapk-1(ju4) is a gain of function mutation.

How the S179L change causes a gain of function remains to be determined. One hypothesis for why dapk-1(ju4) has a more penetrant effect on epidermal morphology than the complete loss of dapk-1 function is that the S179L change alters the phosphorylation specificity of DAPK-1. Like mammalian DAPK family members, DAPK-1 likely has many phosphorylation targets, some of which may affect epidermal morphology. One clue to the effect of S179L on protein function comes from our structure function study. Truncated versions of mammalian DAPK1 can have dominant-negative behavior (Cohen et al., 1997, 1999; Lin et al., 2007). In our assays, DAPK-1(Δkinase) strongly enhanced, but did not induce, dapk-1 phenotypes, while DAPK-1(kinase dead) did neither. Thus, DAPK-1(S179L) is unlikely to be kinase-dead, but may have an aberrantly regulated kinase activity. Inappropriate activity of DAPK-1 targets in dapk-1(ju4) mutants may account for the stronger morphological defects in this genetic background.

Our pharmacological data suggest DAPK-1’s normal function is to restrain epidermal MT stabilization. Our suppressor screen and tests of candidate genes suggests a specific interaction between ptrn-1 and dapk-1; thus, DAPK-1 may be regulating epidermal MT stability at least partially through PTRN-1. In addition, we identified dhc-1 and other cytoskeletal associated proteins that specifically modify dapk-1 morphological phenotypes; such genes may act downstream of DAPK-1.

Upregulation of the epidermal innate immune response observed in dapk-1(ju4) is genetically separable from epidermal morphology defects (Tong et al., 2009) (Figure 2A,B). Our analysis using MT drugs shows that the concentrations of drugs sufficient to suppress or induce morphological defects are insufficient to suppress or induce innate immune responses, consistent with previous observations (Zhang et al., 2015). Thus, epidermal morphology is more sensitive to MT disruption than is the innate immune response, and MT stabilization may affect innate immune responses indirectly via effects on epidermal integrity.

PTRN-1’s function in epidermal development and the MT cytoskeleton

The Patronin/CAMSAP family of MT minus end-binding proteins has become the focus of intense investigation in several organisms (Akhmanova and Hoogenraad, 2015). The sole C. elegans member of this family, PTRN-1, is dispensable for epidermal development in part due to a parallel pathway involving γ-tubulin and the Ninein-related protein NOCA-1 (Wang et al., 2015). ptrn-1(0) single mutant larvae show grossly wild-type epidermal MT plus-end dynamics and have slightly fewer circumferential MT bundles in the epidermis (Wang et al., 2015), a phenotype that worsens in adults (this work). Thus during postembryonic development the epidermis becomes more dependent on PTRN-1 and on noncentrosomal MT arrays. Although ptrn-1 is largely dispensable for epidermal morphology, its requirement becomes evident in wound repair in adults, paralleling the role of PTRN-1 in adult axon regeneration in C. elegans (Chuang et al., 2014). The requirement for PTRN-1 in repair but not in development may reflect the prominent role of noncentrosomal MT arrays in mature neurons and epithelia.

The MT-binding PTRN-1 CKK domain is not only sufficient to rescue ptrn-1(0) suppression phenotypes, but can induce epidermal defects when overexpressed. Depending on the particular CAMSAP family member, the CKK domain can target MT minus ends, or can bind along the lattice (Goodwin and Vale, 2010; Jiang et al., 2014). In C. elegans PTRN-1 requires the CKK domain to localize to MTs in neurons and muscles (Richardson et al., 2014), and the CKK domain can stabilize neuronal MTs (Chuang et al., 2014), consistent with MT stability being a determinant of epidermal morphology.

Little is known about how CKK domain activity is regulated, but our data suggest DAPK-1 might directly or indirectly inhibit CKK activity; moreover, the CH or CC domains of PTRN-1 appear to inhibit CKK activity. As the CC domain of PTRN-1 appears to target to minus ends, a possible mechanism is that in the absence of the CC domain, ectopic association of the CKK domain along the MT lattice (long thin filaments) results in aberrant MT stabilization. DAPK-1 might inhibit the activity of the CKK domain indirectly via the CC or CH domains (Figure 8).

Model for DAPK-1-mediated regulation of epidermal MTs via PTRN-1.
https://doi.org/10.7554/eLife.15833.028

DAPK-1 and MT-dependent transport in the epidermis

To our knowledge, DAPK family members have not been previously shown to undergo MT-dependent transport. Many questions remain concerning the mechanism of DAPK-1 transport; here we speculate on the possible function of DAPK-1 motility in the C. elegans epidermis, and why aberrant DAPK-1 function should trigger altered epidermal morphology.

In the C. elegans epidermis the MT cytoskeleton is required for cell shape changes (Priess and Hirsh, 1986; Quintin et al., 2016) and for nuclear migrations (Starr, 2011). Epidermal MTs are critical for larval development: noncentrosomal arrays of the larval epidermis require PTRN-1 and the NOCA-1/γ-tubulin pathway (Wang et al., 2015). In contrast, PTRN-1 is required non-redundantly for dapk-1 epidermal defects, suggesting that in this context PTRN-1 and NOCA-1 pathways are not equivalent.

A key question is why MT stabilization should cause progressive cuticle hypertrophy in specific regions of the epidermis. We speculate that the architecture of the epidermis may make it increasingly dependent on intracellular transport as it grows during larval development and adult life. Epidermal nuclei are confined to lateral and ventral ridges. The squamified dorsoventral epidermis is a barrier to diffusion. Thus, as in neuronal axons, extensive intracellular transport may be required to supply distant regions of the cell with cellular constituents. DAPK-1 may maintain MT dynamics required for active transport of materials to the remoter areas of the epidermis. Furthermore, our data show that the loss of dapk-1 function has a stronger effect on MT architecture in the lateral epidermis compared to the dorsoventral epidermis, perhaps due to differences in the local MTOCs or PTRN-1 in these different compartments. Cell type-specific differences in CAMSAP function have been recently been reported in Drosophila. The spectraplakin Shot and Drosophila CAMSAP Patronin co-localize, maintain MT arrays, and act to generate cell polarity; however, in the oocyte, Shot and PTRN-1 appear to act in the same pathway (Nashchekin et al., 2016), whereas in follicular epithelial cells they appear to act in parallel (Khanal et al., 2016). Possibly, PTRN-1 or non-centrosomal MTOCs in the lateral epidermis are more dependent on DAPK-1 function than in the dorsoventral epidermis.

In conclusion, we have revealed an unexpected regulatory interaction between DAPK-1 kinase and the MT cytoskeleton in epidermal development and wound responses. Many questions remain to be explored, especially whether PTRN-1 or other MT-associated proteins are direct substrates of DAPK-1. More broadly, the mechanisms and roles of intracellular transport within the epidermis could be a model for intracellular transport in other syncytial tissues.

Materials and methods

C. elegans genetics

Request a detailed protocol

Strains were maintained at 20–22.5°C on NGM agar plates with E. coli OP50, unless otherwise indicated. Epidermal morphology defects (Mor phenotypes) were scored in animals grown at 20°C unless stated otherwise. Strains were constructed using standard procedures, and were genotyped by PCR or sequencing. Previously described mutations include: dapk-1(ju4, gk219, ju469), ptrn-1(tm5597, lt1). New dapk-1 suppressor mutations and additional candidate genes tested are listed in Table 1. New transgenic strains are listed in Supplemental file 1A. Representative extrachromosomal arrays are listed. dapk-1 CRISPR deletions were generated by injecting 27 µM circular RNAs (crRNA) CACCATTAACATTCTCTCTC and ATACGAACGCATAATAA, dpy-10 crRNA as a co-injection marker, tracrRNA, and purified Cas9 protein (QB3 MacroLab, UC Berkeley), following published methods (Paix et al., 2015).

Molecular biology

Request a detailed protocol

New plasmids were made by Gateway cloning or by Gibson isothermal assembly. Site directed mutagenesis of the dapk-1 cDNA used Gibson assembly. Mutant versions of ptrn-1 cDNAs have been described (Chuang et al., 2014). New plasmids are listed in Supplemental file 1B.

dapk-1 suppressor screens, mapping, and whole genome sequencing

Request a detailed protocol

We mutagenized dapk-1(ju4) animals with 47 mM EMS using standard protocols and screened the F2 progeny (~5000 haploid genomes) for suppression of Mor phenotypes. dapk-1(ju4) suppressors were outcrossed once prior to extraction of genomic DNA and whole genome sequencing (BGI Americas). Sequence data were processed and analyzed using MAQgene (ju697, ju698) or a Galaxy workflow, comparing datasets to each other and to the wild type reference sequence in WS220. We used SNP mapping to locate suppressor ju698 to a 2.2 Mb interval within which we identified a stop codon mutation in ptrn-1. We mapped ju697 to chromosome I, where we identified a missense alteration in dhc-1.

Microtubule drug treatment

Request a detailed protocol

Solutions of drugs in M9 were pipetted onto small NGM agar plates (final concentrations 1–5 mM colchicine, 5–15 μM paclitaxel, all from Sigma-Aldrich, St Louis, MO). Plates were dried for 24 hr, then seeded with E. coli OP50. Two days later, the embryos were plated and allowed to develop at 20°C. Three days later, young adult animals were scored for epidermal defects or assayed for antimicrobial reporter gene expression. To visualize MTs after drug treatment, L4 animals were anesthetized in 0.5 mM levamisole and 2 μM paclitaxel or 2 mM colchicine solution for 2 hr before imaging.

Wounding assay

Request a detailed protocol

Needle wounding and actin ring quantitation were performed as described (Xu and Chisholm, 2011).

Imaging and analysis of epidermal protein dynamics

Request a detailed protocol

We found that GFP::TBB-2, EBP-2::GFP, and GFP::DAPK-1 dynamics were inhibited by several anesthetics used to immobilize C. elegans for imaging, including muscimol, 1-phenoxy-2-propanol, and levamisole. GFP::DAPK-1 dynamics were also highly sensitive to physical stress; for example, immobilization in 10% agarose and 0.05 μm beads (Kim et al., 2013) immediately blocked dynamics. For the analyses reported here we immobilized animals in 0.5 mM levamisole solution for 50 min, then imaged dynamics in the next 30 min.

We imaged subcellular dynamics using a custom-built microscope (Solamere Technologies) with a Yokogawa CSU-X spinning disk confocal head, a Photometrics Cascade II EM-CCD camera, and a Zeiss NA 1.46 objective. Images were acquired at 4.2 Hz, with exposure time 114 ms at 1000 x magnification, for 100 or 200 frames. We generated kymographs using Metamorph software and determined particle velocity by manual measurement of track angles. We manually counted moving puncta or comets in a 10 frame window, using a 200 μm2 region of interest (ROI) in the lateral epidermis or a 300 μm2 ROI in the dorsoventral epidermis.

Western blotting and co-immunoprecipitation

Request a detailed protocol

Worm protein samples were prepared by boiling 10 μl pellets of mixed-stage worms in SDS-mercaptoethanol solution. We detected PTRN-1 using antibody OD208A (Wang et al., 2015); we used the anti-actin antibody ACTN05 (Abcam, Cambridge, MA, C4) as a loading control. We used HRP-linked anti-rabbit IgG NA934V and anti-mouse NXA931 as secondary antibodies (GE Healthcare Lifesciences) at 1:1000 dilution in TBS, and added SuperSignal West Pico Chemiluminescent substrate (Thermo Fisher Scientific, Waltham, MA). The blot result was replicated once.

To test co-immunoprecipitation, a 1:1 ratio of tagged DAPK-1 and PTRN-1 were co-transfected using Lipofectamine 2000 (Invitrogen) into HEK293 cells growing on poly-D-Lysine-coated plates (Sigma-Aldrich) in Opti-MEM (Thermo Fisher Scientific). After two days, cells were collected in cold PBS and lysed in lysis buffer (50 mM Tris-Cl pH 7.4, 150 mM NaCl, 1% NP40, 0.5 mM EDTA, 3 mM MgCl2) for 30 min at 4°C. M2-FLAG conjugated magnetic beads (Sigma) were used for IP, and mouse anti FLAG (F1807, Sigma, 1:1000) and anti HA (HA-7, Sigma, 1:5000) antibodies were used for western blotting. The co-IP was repeated twice.

Analysis of antimicrobial peptide reporter expression

Request a detailed protocol

For visual comparisons of Pnlp-29-GFP/Pcol-12-dsRed (frIs7) expression we took images on a Zeiss compound microscope using a GFP long-pass filter set. To quantify Pnlp-29-GFP (frIs7) expression levels we used the COPAS C. elegans BIOSORT (Union Biometrica, Holliston MA) at the Troemel lab (UCSD). We calculated the ratio of green fluorescence to the internal control Pcol-12-dsRed.

Imaging and quantitation of epidermal MT and PTRN-1 distribution

Request a detailed protocol

Quantitation of MT bundles (Pcol-19-GFP::TBB-2, juSi239): (1) We calculated the anisotropy index using the ImageJ plug-in FibrilTool (Boudaoud et al., 2014) analyzing a rectangular ROI of 100 μm2 in the anterior lateral epidermis. (2) We measured MT bundle length by drawing a line scan along a circumferential MT, from the edge of the lateral epidermis or the dorsal or ventral midline, to the end of the bundle. MT bundles detached from the epidermal ridges were not measured. (3) We counted MT bundles in a 40 μm ROI along the lateral epidermis along the anteroposterior axis. (4) We counted MT bundles crossing a 40 μm line in the dorsoventral region, including bundles not attached to the lateral or dorsoventral networks. For parameters 2–4 the ROI begins 40 μm behind the nose tip and extends 40 μm posteriorly. Schematics of ROIs are in Figure 4B.

Quantitation of GFP::PTRN-1 filaments (Pdpy-7-GFP::PTRN-1, ltSi541): (1) Number of filaments in the dorsoventral regions of the head were counted in an ROI extending 40 μm from the nose tip (Figure 6B). (2) Filaments in the lateral head epidermis were counted in a 200 μm2 ROI, beginning 40 μm behind the nose. (3) Filaments were counted in the anterior lateral epidermis in a 200 μm2 ROI. A line of GFP > 1 μm was considered a filament. We did not examine the defective region to avoid quantifying changes in localization secondary to the aberrant epidermal morphology.

Statistics

All statistical analyses were performed with GraphPad Prism.

References

    1. Engelmann I
    2. Pujol N
    (2010) Innate immunity in C. elegans
    Advances in Experimental Medicine and Biology 708:105–121.
    https://doi.org/10.1007/978-1-4419-8059-5_6

Decision letter

  1. Didier YR Stainier
    Reviewing Editor; Max Planck Institute for Heart and Lung Research, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "DAPK interacts with Patronin and the microtubule cytoskeleton in epidermal development and wound repair" for consideration by eLife. Your article has been favorably evaluated by Fiona Watt as the Senior Editor and four reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. We hope you will be able to submit the revised version within two months, so please let us know if you have any questions first.

Summary:

In this report, Chuang et al. explore the role of the death associated protein DAPK-1, a structurally unique 160-kD calmodulin dependent serine-threonine kinase that has been implicated in a range of processes in mammals, using C. elegans epidermal cells as a model. Through a suppressor screen, they uncover that DAPK-1 functions through the microtubule cytoskeleton and more specifically the minus end binding protein patronin. The authors present rigorous genetic and pharmacological evidence suggesting that the epidermal defects associated with aberrant DAPK-1 function are due to hyperstabilization of the microtubule cytoskeleton caused by misregulation of patronin.

Essential revisions:

Both the ju4 (gain of function) and gk219 (loss of function) alleles are rescued by mutations in patronin and dhc. The interchangeable use of these alleles (and their ability to act similarly) is not well explained. Does the deletion mutant have the same microtubule morphology defects as the gof? It is necessary to fill in the gaps in experiments using gk219 for all experiments, as the nature of this allele is understood.

Of course, if you have data on physical interaction between DAPK and Patronin, these would greatly help the paper.

https://doi.org/10.7554/eLife.15833.030

Author response

Both the ju4 (gain of function) and gk219 (loss of function) alleles are rescued by mutations in patronin and dhc. The interchangeable use of these alleles (and their ability to act similarly) is not well explained. Does the deletion mutant have the same microtubule morphology defects as the gof? It is necessary to fill in the gaps in experiments using gk219 for all experiments, as the nature of this allele is understood.

We use two different alleles, ju4, which displays 100% penetrance of the Mor phenotype and is easiest to score, and gk219, which has partial penetrance, allowing us to survey for enhancement as well as suppression of the phenotype. We believe gk219 represents the null phenotype of dapk-1, as explained below. The ju4 missense alteration is a gain of function that appears to have dominant-negative activity, as the phenotypes overall resembles a more penetrant version of the null phenotype.

As requested, we have repeated some key experiments with the gk219 allele. We examined MT arrays in gk219 and in gk219 ptrn-1 mutants, and show the data in Figure 4—figure supplement 1. In summary, changes in MT arrays in these mutants are not significantly different from ju4 and ju4 ptrn-1 mutants. We had previously performed pharmacological tests on gk219, as shown in Figure 3 and Figure 3—figure supplement 1, and found colchicine can suppress the Mor phenotype in both dapk-1 alleles. We now have also added the wound closure data on gk219 and gk219 ptrn-1 mutants. Overall, the morphological, cytoskeletal and wound healing defects of gk219 mutants are either similar to or slightly weaker than those of dapk-1(ju4).

In addition, to address the nature of the dapk-1(gk219) deletion allele, we used CRISPR/Cas9 to generate deletions of the entire dapk-1 transcription unit (23 kb) (Figure 1—figure supplement 1B). Three such deletions tested resemble gk219 in penetrance of morphological defects, consistent with gk219 causing complete loss of function.

We explored the nature of the dapk-1(ju4) mutation by structure-function analysis, as shown in Figure 7—figure supplement 1 and in Table 3. None of the truncations tested, nor kinase dead DAPK-1, mimics the effects of dapk-1(ju4)/DAPK-1(S179L). We speculate that the S179L alters how the DAPK-1 kinase interacts with substrates and have expanded our discussion of this point (subsection “Normal and mutant functions of DAPK-1”).

Of course, if you have data on physical interaction between DAPK and Patronin, these would greatly help the paper.

To address this point we have now performed co-immunoprecipitation experiments in HEK293T cells. As shown in Figure 6—figure supplement 1D, after immunoprecipitation of Flag-DAPK-1 we were able to detect HA-PTRN-1 (2 replicates), indicating these proteins can associate with each other.

https://doi.org/10.7554/eLife.15833.031

Article and author information

Author details

  1. Marian Chuang

    Section of Cell and Developmental Biology, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    MC, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  2. Tiffany I Hsiao

    Section of Cell and Developmental Biology, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    TIH, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Amy Tong

    Section of Cell and Developmental Biology, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    AT, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Suhong Xu

    Section of Cell and Developmental Biology, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Present address
    School of Medicine, Zhejiang University, Hangzhou, China
    Contribution
    SX, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Andrew D Chisholm

    Section of Cell and Developmental Biology, Division of Biological Sciences, University of California, San Diego, San Diego, United States
    Contribution
    ADC, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    chisholm@ucsd.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5091-0537

Funding

National Institute of General Medical Sciences (T32 GM007240)

  • Marian Chuang

National Institute of General Medical Sciences (R01 GM054657)

  • Amy Tong
  • Suhong Xu
  • Andrew D Chisholm

Junior Thousand Talents Program of China

  • Suhong Xu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank our lab members for advice and discussion, Yishi Jin and Nathalie Pujol for comments on the manuscript, and the Caenorhabditis Genetics Center (CGC) and the Mitani lab for strains. We thank Shaohe Wang and Karen Oegema for discussions and reagents, Kirthi Reddy and Emily Troemel for use of their COPAS worm sorter, and Abby Dernburg for advice on CRISPR/Cas9 methods. We thank Salvatore Cherra for developing the Galaxy workflow, and Laura Toy for generating dapk-1 CRISPR alleles. MC was supported by the UCSD Cellular and Molecular Genetics Training Grant (NIH T32 GM007240) and by the UCSD Frontiers of Innovation Scholars Program. This work was supported by NIH R01 GM054657 to ADC.

Reviewing Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Publication history

  1. Received: March 7, 2016
  2. Accepted: September 22, 2016
  3. Accepted Manuscript published: September 23, 2016 (version 1)
  4. Version of Record published: October 6, 2016 (version 2)

Copyright

© 2016, Chuang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,494
    Page views
  • 413
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Maarten W Paul et al.
    Research Article Updated

    Breast cancer type two susceptibility protein (BRCA2) is an essential protein in genome maintenance, homologous recombination (HR), and replication fork protection. Its function includes multiple interaction partners and requires timely localization to relevant sites in the nucleus. We investigated the importance of the highly conserved DNA-binding domain (DBD) and C-terminal domain (CTD) of BRCA2. We generated BRCA2 variants missing one or both domains in mouse embryonic stem (ES) cells and defined their contribution in HR function and dynamic localization in the nucleus, by single-particle tracking of BRCA2 mobility. Changes in molecular architecture of BRCA2 induced by binding partners of purified BRCA2 were determined by scanning force microscopy. BRCA2 mobility and DNA-damage-induced increase in the immobile fraction were largely unaffected by C-terminal deletions. The purified proteins missing CTD and/or DBD were defective in architectural changes correlating with reduced HR function in cells. These results emphasize BRCA2 activity at sites of damage beyond promoting RAD51 delivery.

    1. Cell Biology
    Alberto T Gatta et al.
    Research Article Updated

    Through membrane sealing and disassembly of spindle microtubules, the Endosomal Sorting Complex Required for Transport-III (ESCRT-III) machinery has emerged as a key player in the regeneration of a sealed nuclear envelope (NE) during mitotic exit, and in the repair of this organelle during interphase rupture. ESCRT-III assembly at the NE occurs transiently during mitotic (M) exit and is initiated when CHMP7, an ER-localised ESCRT-II/ESCRT-III hybrid protein, interacts with the Inner Nuclear Membrane (INM) protein LEM2. Whilst classical nucleocytoplasmic transport mechanisms have been proposed to separate LEM2 and CHMP7 during interphase, it is unclear how CHMP7 assembly is suppressed in mitosis when NE and ER identities are mixed. Here, we use live cell imaging and protein biochemistry to examine the biology of these proteins during M-exit. Firstly, we show that CHMP7 plays an important role in the dissolution of LEM2 clusters that form at the NE during M-exit. Secondly, we show that CDK1 phosphorylates CHMP7 upon M-entry at Ser3 and Ser441 and that this phosphorylation reduces CHMP7’s interaction with LEM2, limiting its assembly during M-phase. We show that spatiotemporal differences in the dephosphorylation of CHMP7 license its assembly at the NE during telophase, but restrict its assembly on the ER at this time. Without CDK1 phosphorylation, CHMP7 undergoes inappropriate assembly in the peripheral ER during M-exit, capturing LEM2 and downstream ESCRT-III components. Lastly, we establish that a microtubule network is dispensable for ESCRT-III assembly at the reforming nuclear envelope. These data identify a key cell-cycle control programme allowing ESCRT-III-dependent nuclear regeneration.
