CTCF and cohesin regulate chromatin loop stability with distinct dynamics

  1. Anders S Hansen
  2. Iryna Pustova
  3. Claudia Cattoglio
  4. Robert Tjian  Is a corresponding author
  5. Xavier Darzacq  Is a corresponding author
  1. University of California, Berkeley, United States
  2. Howard Hughes Medical Institute, University of California, Berkeley, United States
Research Article
  • Cited 88
  • Views 8,772
  • Annotations
Cite this article as: eLife 2017;6:e25776 doi: 10.7554/eLife.25776

Abstract

Folding of mammalian genomes into spatial domains is critical for gene regulation. The insulator protein CTCF and cohesin control domain location by folding domains into loop structures, which are widely thought to be stable. Combining genomic and biochemical approaches we show that CTCF and cohesin co-occupy the same sites and physically interact as a biochemically stable complex. However, using single-molecule imaging we find that CTCF binds chromatin much more dynamically than cohesin (~1–2 min vs. ~22 min residence time). Moreover, after unbinding, CTCF quickly rebinds another cognate site unlike cohesin for which the search process is long (~1 min vs. ~33 min). Thus, CTCF and cohesin form a rapidly exchanging 'dynamic complex' rather than a typical stable complex. Since CTCF and cohesin are required for loop domain formation, our results suggest that chromatin loops are dynamic and frequently break and reform throughout the cell cycle.

https://doi.org/10.7554/eLife.25776.001

eLife digest

A human cell contains about 2 meters of DNA tightly packed in a compartment called the nucleus. Within the space inside the nucleus, different parts of the DNA fold into distinct bundles known as domains. These domains are important for organising the genome and are crucial for regulating gene expression, by stimulating specific DNA segments to activate certain genes. Previous research has shown that DNA segments within the same domain frequently interact, whereas DNA segments in different domains rarely do.

The domains are often folded into loops that are held together by a ring-shaped protein complex called cohesin, while another protein called CTCF positions cohesin and thereby sets the boundaries between the domains. Some mutations are known to disrupt these boundaries, which allows certain DNA segments to activate the wrong genes. This can lead to cancer or cause defects when embryos are developing. However, we do not currently understand how these domains are formed or maintained. In particular, it was unclear whether these loop domains are stable or dynamic structures.

Hansen et al. addressed these questions in embryonic stem cells from mice and human cancer cells. It was found that cohesin and CTCF form a complex that binds to the DNA and likely holds the loops together. In further experiments, single molecules of cohesin and CTCF were tracked inside cells using super-resolution microscopy. The results showed that CTCF and cohesin bind to DNA with different dynamics: CTCF binds the DNA for about a minute, whereas cohesin binds the DNA for about 20–25 minutes. Once CTCF detaches from DNA, it quickly rebinds DNA at another site, but cohesin takes much longer. These observations suggest that rather than remaining static, chromatin domains are held together by a dynamic protein complex, with a molecular composition that exchanges over time. This results suggests that DNA loop domains, which were generally assumed to be very stable anchor points, are in fact highly dynamic structures that frequently fall apart and reform.

The next challenge will be to understand how the dynamic nature of these loop domains contribute to gene regulation. This may, one day, enable us to manipulate the domains to correct faulty folding of DNA in cancer and other diseases.

https://doi.org/10.7554/eLife.25776.002

Introduction

Mammalian interphase genomes are functionally compartmentalized into topologically associating domains (TADs) spanning hundreds of kilobases. TADs are defined by frequent chromatin interactions within themselves and they are insulated from adjacent TADs (Dekker and Mirny, 2016; Dixon et al., 2012; Hu et al., 2015; Merkenschlager and Nora, 2016; Nora et al., 2012; Wang et al., 2016). Most TAD or domain boundaries are strongly enriched for CTCF (Figure 1A), an 11-zinc finger DNA-binding protein (Ghirlando and Felsenfeld, 2016), and cohesin (Figure 1B), a ring-shaped multi-protein complex composed of Smc1, Smc3, Rad21 and SA1/2 that is thought to topologically entrap DNA (Ivanov and Nasmyth, 2005; Skibbens, 2016). The subset of TADs which are folded into loops are referred to as loop domains and tend to be demarcated by convergent CTCF-binding sites (Rao et al., 2014). Targeted deletions of CTCF-binding sites demonstrate that CTCF causally determines loop domain boundaries (Guo et al., 2015; Sanborn et al., 2015; de Wit et al., 2015). Moreover, disruption of loop domain boundaries by deletion or silencing of CTCF-binding sites allows abnormal contact between previously separated enhancers and promoters, which can induce aberrant gene activation leading to cancer (Flavahan et al., 2016; Hnisz et al., 2016a) or developmental defects (Lupiáñez et al., 2015). Finally, genetically engineered depletion of both CTCF (Nora et al., 2017) and cohesin (Schwarzer et al., 2016) causes most loops to disappear. Yet, despite much progress in characterizing TADs and loop domains, how they are formed and maintained remains unclear. Since CTCF and cohesin causally control domain organization, here we investigated their dynamics and nuclear organization using single-molecule imaging in live cells.

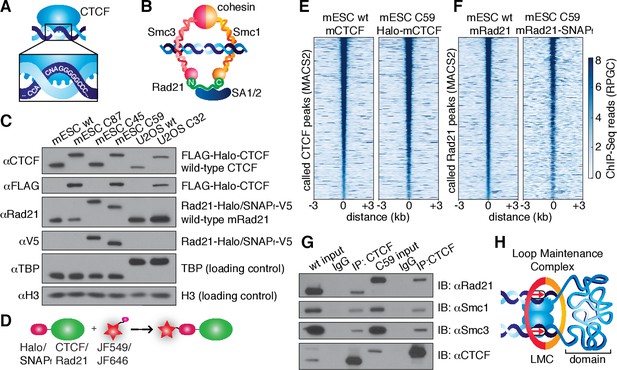

Figure 1 with 5 supplements see all
CTCF and cohesin can be endogenously tagged and form a complex.

(A) Sketch of CTCF and its consensus DNA-binding sequence. (B) Sketch of cohesin, with subunits labeled, topologically entrapping DNA. (C) Western blot of mESC and U2OS wild-type (wt) and knock-in cell lines demonstrating homozygous insertions. (D) Sketch of covalent dye-conjugation for Halo or SNAPf-Tag. (E) CTCF ChIP-Seq read count (Reads Per Genomic Content) for wild-type and C59 plotted at MAC2-called wt-CTCF peak regions centered around the peak. (F) Rad21 ChIP-Seq read count (Reads Per Genomic Content) for wild-type and C59 plotted at MACS2-called wt-Rad21 peak regions. (G) Co-IP. CTCF was immunoprecipitated and we immunoblotted for cohesin subunits Rad21, Smc1 and Smc3. (H) Sketch of a loop maintenance complex (LMC) composed of CTCF and cohesin holding together a spatial domain as a loop.

https://doi.org/10.7554/eLife.25776.003

Results

CTCF and cohesin form a loop maintenance complex

In order to image CTCF and cohesin without altering their endogenous expression levels, we used CRISPR/Cas9-mediated genome editing to homozygously tag Ctcf and Rad21 with HaloTag in mouse embryonic stem (mES) cells (Figure 1C, clones C87 and C45). We also generated a double Halo-mCTCF/mRad21-SNAPf knock-in mESC line (Figure 1C, C59) as well as a Halo-hCTCF knock-in human U2OS cell line (Figure 1C, C32). Halo- and SNAPf-Tags can be covalently conjugated with bright cell-permeable small molecule dyes suitable for single-molecule imaging (Figure 1D; Figure 1—figure supplement 1; Grimm et al., 2015). To examine the effect of tagging CTCF and Rad21, which are both essential proteins, we performed control experiments in the doubly tagged mESC line (C59), and observed no effect on mESC pluripotency in a teratoma assay (Figure 1—figure supplement 2), expression of key stem cell genes (Figure 1—figure supplement 3A) or tagged protein abundance (Figure 1—figure supplement 3B). Next, to further validate our endogenous tagging approach, we performed chromatin immunoprecipitation followed by DNA sequencing (ChIP-Seq) using antibodies against CTCF and Rad21 in both wild-type (wt) and the double knock-in C59 line. We compared ChIP-Seq enrichment for both wt and C59 at called wt peaks and observed similar enrichment (Figure 1E–F). Notably, 97% of the 33,434 called Rad21 peaks co-localize with one of the 68,077 called CTCF peaks (Figure 1—figure supplements 45; Supplementary file 1), suggesting an intrinsic link between CTCF and cohesin and largely confirming previous reports of ~70–90% overlap (Parelho et al., 2008; Wendt et al., 2008). However, chromatin co-occupancy by ChIP-seq at the same sites does not necessarily mean that CTCF and Rad21 bind simultaneously. Thus, to determine whether CTCF and cohesin physically interact, we performed co-immunoprecipitation (co-IP) studies. CTCF IP pulled down cohesin subunits Rad21, Smc1 and Smc3 in both wt and C59 mES cells (Figure 1G), demonstrating a physical interaction between CTCF and cohesin, which is not affected by endogenous tagging.

Together, our ChIP-Seq co-localization (97% of Rad21 peaks overlap with a CTCF peak) and co-IP interaction studies suggest that CTCF and cohesin form a complex on chromatin. The Hi-C study with the highest resolution found ~10,000 loops in human GM12878 cells using very conservative and stringent loop calling and found these loops to be largely conserved between cell types and between mouse and human (Rao et al., 2014). Since each loop is anchored by at least two CTCF/cohesin ChIP-Seq-called sites, but often by clusters of CTCF/cohesin sites, we estimate (see Appendix 1 for a full discussion) that at least one-third of cognate-bound CTCF molecules and the majority of chromatin-bound G1 cohesin molecules are involved in chromatin looping. Integrating these results with the recent demonstrations (Nora et al., 2017; Schwarzer et al., 2016) that CTCF and cohesin are causally required for chromatin looping, we refer to the subpopulation of CTCF and cohesin involved in looping as a ‘loop maintenance complex’ (LMC; Figure 1H).

CTCF and cohesin bind chromatin with very different dynamics

To investigate the dynamics of the LMC, we measured the residence time of CTCF and cohesin on chromatin. First, we used highly inclined and laminated optical sheet illumination (Tokunaga et al., 2008) (Figure 2A) and single-molecule tracking (SMT) to follow single Halo-CTCF molecules in live cells. By using long exposure times (500 ms), to ‘motion-blur’ fast moving molecules into the background (Chen et al., 2014), we could visualize and track individual stable CTCF-binding events (Figure 2B; Video 1). We recorded thousands of binding event trajectories and calculated their survival probability. A double-exponential function, corresponding to specific and non-specific DNA binding (Chen et al., 2014), was necessary to fit the Halo-CTCF survival curve (Figure 2C). After correcting for photo-bleaching (Figure 2—figure supplement 1A), we estimated an average residence time (RT) of ~1 min for CTCF in mES cells and a slightly longer RT in U2OS cells (Figure 2D). DNA-binding defective CTCF mutants or Halo-3xNLS alone interacted very transiently with chromatin (RT ~1 s; Figure 2D). The measured RT did not depend on the dye or exposure time (Figure 2—figure supplement 1B). We note that a CTCF RT of ~1 min is a genomic average and that some binding sites likely exhibit a slightly longer or shorter mean residence time. We also note that there is likely an oversampling of binding events at CTCF-binding sites showing the strongest ChIP-Seq enrichment (Figure 1E), which tend to be the sites involved in looping (Merkenschlager and Nora, 2016). To cross-validate these results using an orthogonal technique, we performed fluorescence recovery after photo-bleaching (FRAP) on Halo-CTCF and quantified the dynamics of recovery (Figure 2—figure supplement 2A–B). Both Halo-CTCF in mES cells (Figure 2E) and Halo-hCTCF in U2OS cells (Figure 2—figure supplement 2C) exhibited FRAP recoveries consistent with a RT ~1 min, but fitting the FRAP curves with a reaction-dominant model suggested a RT of 3–4 min (Figure 2—figure supplement 2D). Whereas our SMT measurements are limited by photobleaching, estimating RTs from FRAP modeling is more indirect and tends to significantly overestimate the RT of transcription factors (Mazza et al., 2012) and is also affected by anomalous diffusion. Therefore, we interpret 1 min as a lower bound and 4 min as an upper bound for CTCF’s RT in mESCs, but expect the true RT to be closer to 1 min than 4 min.

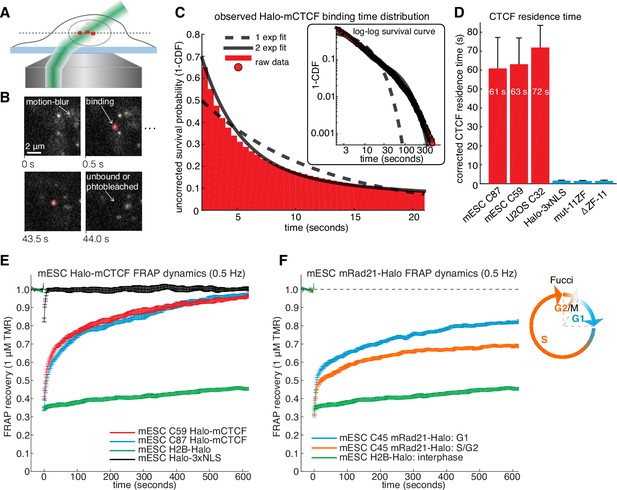

Figure 2 with 4 supplements see all
CTCF and cohesin have very different residence times on chromatin.

(A) Sketch illustrating HiLo (highly inclined and laminated optical sheet illumination) (Tokunaga et al., 2008). (B) Example images showing single Halo-mCTCF molecules labeled with JF549 binding chromatin in a live mES cell. (C) A plot of the uncorrected survival probability of single Halo-mCTCF molecules and one- and two-exponential fits. Right inset: a log-log survival curve. (D) Photobleaching-corrected residence times for Halo-CTCF, Halo-3xNLS and a zinc-finger (11 His→Arg point-mutations) mutant or entire deletion of the zinc-finger domain. Error bars show standard deviation between replicates. For each replicate, we recorded movies from ~6 cells and calculated the average residence time using H2B-Halo for photobleaching correction. Each movie lasted 20 min with continuous low-intensity 561 nm excitation and 500 ms camera integration time. Cells were labeled with 1–100 pM JF549. (E) FRAP recovery curves for Halo-mCTCF, H2B-Halo and Halo-3xNLS in mES cells labeled with 1 μM Halo-TMR. (F) FRAP recovery curves for mRad21-Halo and H2B-Halo in mES cells labeled with 1 μM Halo-TMR. Right: sketch of Fucci cell-cycle phase reporter (Sakaue-Sawano et al., 2008; Sladitschek and Neveu, 2015). We modified the system to contain mCitrine-hGem(aa1-110) and SCFP3A-hCdt(aa30-120) to avoid overlap in the red region of the electromagnetic spectrum. Each FRAP curve shows mean recovery from >15 cells from ≥3 replicates and error bars show the standard error.

https://doi.org/10.7554/eLife.25776.009
Video 1
Single-molecule tracking of Halo-mCTCF in mESCs at 2 Hz.

Related to Figure 2. Using long 500 ms camera integration causes most diffusing molecules to ‘motion-blur’ into the background. Laser: 561 nm. Dye: JF549. One pixel: 160 nm.

https://doi.org/10.7554/eLife.25776.014

Our results differ considerably from a previous CTCF FRAP study using over-expressed transgenes, which reported rapid 80% recovery in 20 s (Nakahashi et al., 2013). However, when we used similar transiently over-expressed Halo-CTCF instead of endogenous knock-in cells, we also observed similarly rapid recovery (Figure 2—figure supplement 2B), suggesting that over-expression of target proteins can result in artefactual measurements. This finding underscores the importance of studying endogenously tagged and functional proteins. Thus, although CTCF (RT ~1–2 min) binds chromatin much more stably than most sequence-specific transcription factors (RT ~2–15 s) (Chen et al., 2014; Mazza et al., 2012), its binding is still highly dynamic.

We next investigated the cell-cycle dependent cohesin binding dynamics (Gerlich et al., 2006). In addition to its role in holding together chromatin loops, cohesin mediates sister chromatid cohesion from replication in S-phase to mitosis. Thus, since TAD demarcation is strongest in G1 before S-phase (Naumova et al., 2013), we reasoned that cohesin dynamics in G1 should predominantly reflect the chromatin looping function of cohesin. To control for the cell-cycle, we deployed the Fucci system (Sakaue-Sawano et al., 2008) to distinguish G1 from S/G2-phase using fluorescent reporters in the C45 and C59 mESC lines (Figure 2—figure supplements 3A and 4). We then performed FRAP on mRad21-Halo (Figure 2F) and mRad21-SNAPf (Figure 2—figure supplement 3B). We observed significantly faster mRad21 recovery in G1 than in S/G2-phase consistent with Gerlich et al. (2006), but nevertheless much slower recovery than CTCF and CTCF showed the same recovery in G1 and S/G2 (Figure 2—figure supplement 2E). The slow mRad21 turnover precluded SMT experiments. Model-fitting of the G1 mRad21 FRAP curves (Figure 2—figure supplement 3C) revealed an RT ~22 min. Previous cohesin FRAP studies have reported differing RTs (Gerlich et al., 2006; Huis in 't Veld et al., 2014) and as was seen for CTCF, over-expressed mRad21-Halo also showed much faster recovery than endogenous mRad21-Halo (Figure 2—figure supplement 3D). Although we cannot completely exclude a very small population (<5%) of CTCF or cohesin molecules with a somewhat shorter or longer RT, these RTs reflect chromatin-bound CTCF/cohesin. Since at least one-third of CTCF and the majority of G1 cohesin molecules bound to chromatin mediate looping (see Appendix 1 for estimate), we are confident that these RTs hold for most CTCF/cohesin molecules involved in looping.

Overall, while kinetic modeling of FRAP curves should be interpreted with some caution (Mazza et al., 2012), these results, nevertheless, demonstrate a surprisingly large (~10–20x) difference in RTs between CTCF and cohesin, which is difficult to reconcile with the notion of a biochemically stable LMC assembled on chromatin. However, although CTCF and cohesin do not form a stable complex on chromatin, it is still possible that CTCF and cohesin form a stable complex in solution when not bound to DNA.

CTCF and cohesin exhibit distinct nuclear search mechanisms

To investigate this possibility, we analyzed how CTCF and cohesin each explore the nucleus. Tracking fast-diffusing molecules has been a major challenge. To overcome this issue, we took advantage of bright new dyes (Grimm et al., 2016) and developed stroboscopic (Elf et al., 2007) photo-activation (Manley et al., 2008) single-molecule tracking (paSMT; Figure 3—figure supplement 1A), which makes tracking unambiguous (Materials and methods). We tracked individual Halo-mCTCF molecules at ~225 Hz and plotted the displacements between frames (Figure 3A). Most Halo-mCTCF molecules exhibited displacements similar to our localization error (~35 nm; Materials and methods) indicating chromatin association, whereas a DNA-binding defective CTCF mutant exhibited primarily long displacements consistent with free diffusion (Figure 3B; Videos 23). To characterize the nuclear search mechanism, we performed kinetic modeling of the measured displacements (Figure 3—figure supplement 1B; Materials and methods; Mazza et al., 2012) and found that in mES cells, ~49% of CTCF is bound to cognate sites, ~19% is non-specifically associated with chromatin (e.g. 1D sliding or hopping) and ~32% is in free 3D diffusion (Table 1). Thus, after dissociation from a cognate site, CTCF searches for ~66 s on average before binding the next cognate site: ~65% of the total nuclear search is random 3D diffusion (~41 s on average), whereas ~35% (~25 s on average) consists of intermittent non-specific chromatin association (e.g. 1D sliding; Table 1; note this search time is based on a CTCF RT of ~1 min). The nuclear search mechanism of CTCF in human U2OS cells was similar albeit slightly less efficient (Table 1; Figure 3—figure supplement 1F). We note that CTCF’s search mechanism, with similar amounts of 3D diffusion and 1D sliding, is close to optimal according to the theory of facilitated diffusion (Mirny et al., 2009).

Table 1

Nuclear search mechanism parameters.Table 1 lists key parameters for the nuclear search mechanism inferred from model fitting of the displacements in Figure 3 and the residence times in Figure 2.

https://doi.org/10.7554/eLife.25776.015
Fraction bound (specific)Fraction bound (nonspecific)Free 3D diffusion fractionApparent DFREE (μm2/s)τSEARCH (total)Fraction of τSEARCH in free 3D diffusionFraction of τSEARCH in non-specific chromatin association
mESC C59 Halo-mCTCF48.9%19.1%32.0%2.565.9 s41.3 s24.6 s
mESC C87 Halo-mCTCF49.3%19.1%31.6%2.362.6 s39.0 s23.6 s
U2OS C32 Halo-hCTCF39.8%17.7%42.5%2.5102.8 s71.9 s30.9 s
mESC C45 mRad21-Halo: G139.8%13.7%46.5%1.533.0 min25.5 min7.5 min
mESC C45 mRad21-Halo: S/G249.8%13.7%36.5%1.5n/an/an/a

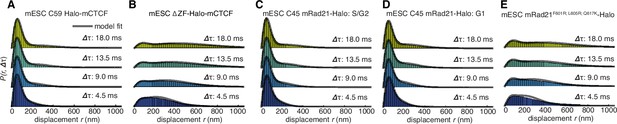

Figure 3 with 1 supplement see all
Dynamics of CTCF and cohesin’s nuclear search mechanism.

Single-molecule displacements from ~225 Hz stroboscopic (single 1 ms 633 nm laser pulse per camera integration event) paSMT experiments over multiple time scales for (A) C59 Halo-mCTCF, (B) a Halo-mCTCF mutant with the zinc-finger domain deleted, C45 mRad21-Halo in S/G2 phase (C) and G1 phase (D) and (E) a Rad21 mutant that cannot form cohesin complexes. Kinetic model fits (three fitted parameters) to raw displacement histograms are shown as black lines. All calculated and fitted parameters are listed in Table 1. Displacement histograms were obtained by merging data from at least 24 cells from at least three replicates.

https://doi.org/10.7554/eLife.25776.016
Video 2
Single-molecule tracking of Halo-mCTCF in mESCs at 225 Hz.

Related to Figure 3. Stroboscopic (1 ms of 633 nm) paSMT allows tracking of fast-diffusing molecules. Lasers: 405 and 633 nm. Dye: PA-JF646. One pixel: 160 nm.

https://doi.org/10.7554/eLife.25776.018
Video 3
Single-molecule tracking of ΔZF-Halo-mCTCF in transiently transfected mESCs at 225 Hz.

Related to Figure 3. Stroboscopic (1 ms of 633 nm) paSMT allows tracking of fast-diffusing molecules. Lasers: 405 and 633 nm. Dye: PA-JF646. One pixel: 160 nm.

https://doi.org/10.7554/eLife.25776.019

Similar analysis of mRad21-Halo in G1 and S/G2 (Figure 3C–D) revealed that cohesin complexes diffuse rather slowly compared to CTCF (Table 1) and that roughly half of cohesins are topologically engaged with chromatin (G1: ~40%; S/G2: ~50%) compared to ~13% in non-specific, non-topological chromatin association and the remainder in 3D diffusion (G1: ~47%; S/G2: ~37%). Conversely, a Rad21 mutant (Haering et al., 2004) unable to form cohesin complexes displayed rapid diffusion and little chromatin association (Figure 3E). Like this Rad21 mutant, overexpressed wild-type mRad21-Halo also showed negligible chromatin association (Figure 3—figure supplement 1E) again underscoring the importance of studying endogenously tagged proteins at physiological concentrations. Importantly, this also shows that essentially all endogenously expressed mRad21-Halo proteins are incorporated into cohesin complexes. Topological association and dissociation of cohesin is regulated by a complex interplay of co-factors such as Nipbl, Sororin and Wapl (Skibbens, 2016). If we, nevertheless, apply a simple two-state model to analyze cohesin dynamics (Materials and methods), we estimate an average search time of ~33 min in between topological engagements of chromatin in G1, with ~77% of the total search time spent in 3D diffusion (~26 min) compared to ~23% in non-specific chromatin association (7 min). Thus, for each specific topological cohesin chromatin binding-unbinding cycle in G1, CTCF binds and unbinds its cognate sites ~20–30 times. These results are certainly not consistent with a model wherein CTCF and cohesin form a stable LMC. Moreover, since CTCF diffuses much faster than cohesin (Table 1), it also seems unlikely that CTCF and cohesin form stable complexes in solution.

CTCF and cohesin co-localize in cells and show a clustered nuclear organization

To resolve these apparently paradoxical findings, we investigated the nuclear organization of CTCF and cohesin simultaneously in the same nucleus. We labeled Halo-mCTCF and mRad21-SNAPf in C59 mES cells with the spectrally distinct dyes JF646 and JF549 (Grimm et al., 2015), respectively, and performed two-color direct stochastic optical reconstruction microscopy (dSTORM) super-resolution imaging in formaldehyde-fixed cells (Figure 4A). We localized individual CTCF and Rad21 molecules with a precision of ~20 nm, less than half the size of the cohesin ring. We observe significant clustering of both CTCF and Rad21 and a large fraction of these clusters overlap (Figure 4A and Figure 4—figure supplement 1A–C). We next confirmed clustering using photo-activation localization microscopy (PALM) and found that both CTCF and Rad21 predominantly form small clusters (Figure 4B and Figure 4—figure supplement 1; mean cluster radius ~30–40 nm). To determine whether individual CTCF and cohesin molecules co-localize, we calculated the pair cross correlation, C(r) (Stone and Veatch, 2015). C(r) quantifies spatial co-dependence as a function of length, r, and C(r)=1 for all r under complete spatial randomness (CSR). CTCF and cohesin exhibited significant co-localization (C(r)>1) at very short distances in mES cells (Figure 4C). Conversely, CTCF and cohesin were nearly independent at length scales beyond the diffraction limit, emphasizing the importance of super-resolution approaches. A mES cell line co-expressing histone H2B-SNAPf and Halo proteins imaged under the same dSTORM conditions showed no pair cross-correlation (Figure 4C), thereby ruling out technical artifacts. Thus, our two-color dSTORM results provide compelling evidence that a large fraction of CTCF and cohesin molecules indeed co-localize at the single-molecule level inside the nucleus consistent with the LMC model and reveals a clustered nuclear organization.

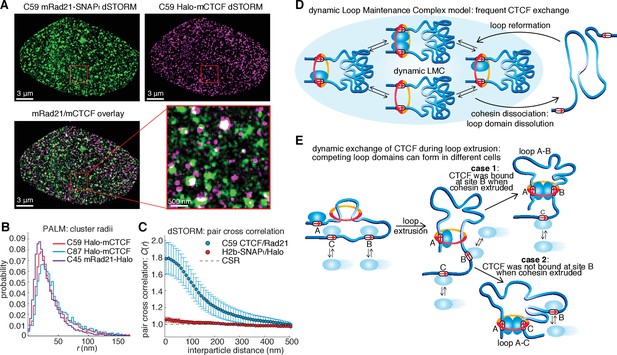

Figure 4 with 1 supplement see all
Models of CTCF/cohesin mediated chromatin loop dynamics.

(A) Two-color dSTORM of C59 mESCs with mRad21-SNAPf labeled with 500 nM JF549 (green) and Halo-mCTCF labeled with 500 nM JF646 (magenta). High-intensity co-localization is shown as white. Low-intensity co-localization is not visible. Zoom-in on red 3 μm square. Note, the SNAP dye cp-JF549 shows slight artefactual labeling of the nuclear envelope, which was removed during image rendering. (B) Cluster radii distributions for CTCF (C87 and C59) and Rad21 (C45) from single-color PALM experiments using PA-JF549 dyes. (C) Pair cross correlation of C59 and mESC H2B-SNAPf co-expressing Halo-only. Error bars are standard error from 12 to 18 dSTORM-imaged cells over three replicates. (D) Sketch illustrating the concept of a dynamic loop maintenance complex (LMC) composed of CTCF and cohesin with frequent CTCF exchange and slow, rare cohesin dissociation, which causes loop deformation and topological re-orientation of chromatin. (E) Sketch illustrating how dynamic CTCF exchange during loop extrusion of cohesin may explain alternative loop formations when two competing convergent sites (B and C) for another site A) exist.

https://doi.org/10.7554/eLife.25776.020

Discussion

Chromatin loop domains are widely believed to be very stable structures (Andrey et al., 2017; Ghirlando and Felsenfeld, 2016; Hnisz et al., 2016b) held together by a LMC composed of two CTCFs and cohesin (whether cohesin acts as a single ring or as a pair of rings remains a matter of debate [Skibbens, 2016]). While our in vitro biochemical (Figure 1G) and co-localization (Figure 4A–C) experiments do demonstrate complex formation between CTCF and cohesin, our SMT experiments paradoxically reveal this complex to be highly transient and dynamic (Figures 23). To reconcile these observations, we therefore propose a ‘dynamic LMC’ model. Consistent with previous studies, CTCF mainly functions to position cohesin at loop boundaries, whereas cohesin physically holds together the two chromatin strands. However, in the ‘dynamic LMC’ model, while cohesin holds together a given chromatin loop, different CTCF molecules are frequently alighting and departing in a dynamic exchange thus giving rise to a ‘transient protein complex’ with a molecular stoichiometry that cycles over time (Figure 4D). Since topological chromatin association of cohesin is infrequent (~33 min in G1), dissociation of cohesin (~22 min) likely causes the loop to fall apart (Figure 4D). Even if the CTCF and cohesin co-clusters that we observe (Figure 4A–C; Figure 4—figure supplement 1) are LMC clusters that hold together loop domains, their lifetimes are unlikely to be more than 1–2 hr. Thus, our results suggest that chromatin loops are continuously formed and dissolved throughout a typical 14–24 hr mammalian cell cycle.

Our results suggesting that loops are dynamic also provide experimental support for theoretical polymer simulation studies, which found that only dynamic, but not static, loop structures can reproduce experimentally observed chromatin interaction frequencies (Benedetti et al., 2014; Fudenberg et al., 2016; Giorgetti et al., 2014; Sanborn et al., 2015). We note that our quantitative characterization of CTCF and cohesin dynamics could be useful for parameterizing future polymer models. While our results indicate that loops are highly dynamic, the question of how they are formed remains. An attractive but not yet verified recent model suggests that loops are formed by cohesin-mediated loop extrusion (Fudenberg et al., 2016; Sanborn et al., 2015), whereby cohesin extrudes a loop by sliding on DNA (Davidson et al., 2016; Lengronne et al., 2004; Nasmyth, 2001; Stigler et al., 2016) until it encounters two convergent and bound CTCF sites (Figure 4E). Our imaging experiments (Figures 23) cannot readily distinguish cohesin stably bound at loop anchors from cohesin in the process of extrusion and thus our measured residence time of ~22 min reflects the average total duration of both. In the context of the loop extrusion model, our results suggest a mechanism for boundary permeability through dynamic and stochastic CTCF occupancy at cognate CTCF sites, which may explain the formation of competing loop domains (Figure 4E). This would also explain why DNA-FISH measurements show that most loops are only present in a subset of cells at any given time (Sanborn et al., 2015; Williamson et al., 2014). Finally, the highly dynamic view of frequently breaking and forming chromatin loops presented here may also facilitate dynamic long-distance enhancer-promoter scanning of DNA in cis, which may be important for temporally efficient regulation of gene expression.

Materials and methods

Cell culture, stable cell line construction and dye labeling

Request a detailed protocol

JM8.N4 mouse embryonic stem cells (Pettitt et al., 2009) (Research Resource Identifier: RRID:CVCL_J962; obtained from the KOMP Repository at UC Davis) were grown on plates pre-coated with a 0.1% autoclaved gelatin solution (Sigma-Aldrich, St. Louis, MO, G9391) under feeder-free condition in knock-out DMEM with 15% FBS and LIF (full recipe: 500 mL knockout DMEM (ThermoFisher, Waltham, MA, #10829018), 6 mL MEM NEAA (ThermoFisher #11140050), 6 mL GlutaMax (ThermoFisher #35050061), 5 mL Penicillin-streptomycin (ThermoFisher #15140122), 4.6 μL 2-mercapoethanol (Sigma-Aldrich M3148), 90 mL fetal bovine serum (HyClone, Logan, UT, FBS SH30910.03 lot #AXJ47554)) and LIF. mES cells were fed by replacing half the medium with fresh medium daily and passaged every 2 days by trypsinization. Human U2OS osteosarcoma cells (Research Resource Identifier: RRID:CVCL_0042; a gift from David Spector’s lab, Cold Spring Harbor Laboratory) were grown in low-glucose DMEM with 10% FBS (full recipe: 500 mL DMEM (ThermoFisher #10567014), 50 mL fetal bovine serum (HyClone FBS SH30910.03 lot #AXJ47554) and 5 mL Penicillin-streptomycin (ThermoFisher #15140122)) and were passaged every 2–4 days before reaching confluency. For live-cell imaging, the medium was identical except DMEM without phenol red was used (ThermoFisher #31053028). Both mouse ES and human U2OS cells were grown in a Sanyo copper alloy IncuSafe humidified incubator (MCO-18AIC(UV)) at 37°C/5.5% CO2.

For all single-molecule experiments (both live and fixed), cells we grown overnight on 25 mm circular no 1.5H cover glasses (Marienfeld, Germany, High-Precision 0117650). Prior to all experiments, the cover glasses were plasma-cleaned and then stored in isopropanol until use. For U2OS cell lines, cells were grown directly on the cover glasses and for mouse ES cells, the cover glasses were coated with Corning Matrigel matrix (Corning #354277; purchased from ThermoFisher #08-774-552) according to manufacturer’s instructions just prior to cell plating. After overnight growth, cells were labeled with the relevant Halo- or SNAP-dye at the indicated concentration for 15 min (Halo) or 30 min (SNAP) and washed twice (one wash: medium removed; PBS wash; replenished with fresh medium). At the end of the final wash, the medium was changed to phenol red-free medium keeping all other aspects of the medium the same.

For FRAP experiment, cell preparation was identical except cells where grown on glass-bottom (thickness #1.5) 35 mm dishes (MatTek, Ashland, MA, P35G-1.5–14 C), either directly (U2OS) or Matrigel coated (mESC).

Mouse ES cell lines stably expressing H2B-Halo, H2B-SNAPf, Fucci reporters or Halo-3xNLS were generated using PiggyBac transposition and drug selection. Briefly, the relevant gene (e.g. H2B-Halo) was cloned into a PiggyBac vector co-expressing a drug resistance gene (G418 or Puromycin) and this vector was then co-transfected together with a SuperPiggyBac transposase vector into the relevant mouse ES cell line using Lipofectamine 3000 according to manufacturer’s instructions (2 μg expression vector and 1 μg PiggyBac transposase vector per well in a 6-well plate). The following day, selection was then started by adding 1 mg/mL G418 or 5 μg/mL puromycin. An untransfected cell line was selected in parallel and selection was judged to be complete once no live cells were left in the untransfected cell line. For human U2OS cells, stable cell lines were generated by random integration by transfecting the relevant expression vector with drug selection without using the PiggyBac system. Selection was performed in the same way as for mouse ES cells.

CRISPR/Cas9-mediated genome editing

Request a detailed protocol

Knock-in cell lines were created roughly according to published procedures (Ran et al., 2013), but exploiting the HaloTag and SNAPf-Tag to FACS for edited cells. The SNAPf-Tag is an optimized version of the SNAP-Tag, and we purchased a plasmid encoding this gene from NEB (NEB, Ipswich, MA, #N9183S). We transfected both U2OS and mES cells using Lipofectamine 3000 (ThermoFisher L3000015) according to manufacturer’s protocol, co-transfecting a Cas9 and a repair plasmid (2 μg repair vector and 1 μg Cas9 vector per well in a 6-well plate; 1:2 w/w). The Cas9 plasmid was slightly modified from that distributed from the Zhang lab (Ran et al., 2013): 3xFLAG-SV40NLS-pSpCas9 was expressed from a CBh promoter; the sgRNA was expressed from a U6 promoter; and mVenus was expressed from a PGK promoter. For the repair vector, we modified a pUC57 plasmid to contain the tag of interest (e.g. Halo or SNAPf) flanked by ~500 bp of genomic homology sequence on either side. For N-terminal FLAG-Halo-tagging of mouse Ctcf and human CTCF, we introduced synonymous mutations (mCTCF: first nine codons after ATG; hCTCF: first 12 codons after ATG), where possible, to prevent the Cas9-sgRNA complex from cutting the repair vector. For C-terminal tagging of mouse Rad21 with SNAPf-V5, this was not possible. Instead, we designed sgRNAs that overlapped with the STOP codon and, thus, that would not cut the repair vector. For Halo-hCTCF and Halo-mCTCF, we used a TEV linker sequence (EDLYFQS) to link the Halo protein to CTCF; for mRad21, we used the Sheff and Thorn linker (GDGAGLIN) (Sheff and Thorn, 2004).

In each case, we designed three or four sgRNAs using the Zhang lab CRISPR design tool (http://tools.genome-engineering.org), cloned them into the Cas9 plasmid and co-transfected each sgRNA-plasmid with the repair vector individually. 18–24 hr later, we then pooled cells transfected with each of the sgRNAs individually and FACS-sorted for YFP (mVenus) positive, successfully transfected cells. YFP-sorted cells were then grown for 4–12 days, labeled with 500 nM Halo-TMR (Halo-Tag knock-ins) or 500 nM SNAP-JF646 (SNAPf-Tag knock-in) and the cell population with significantly higher fluorescence than similarly labeled wild-type cells, FACS-selected and plated at very low density (~0.1 cells per mm2; mES cells) or sorted individually into 96-well plates (U2OS cells). Clones were then expanded and genotyped by PCR using a three-primer PCR (genomic primers external to the homology sequence and an internal Halo or SNAPf primer). Successfully edited clones were further verified by PCR with multiple primer combinations, Sanger sequencing and Western blotting. We isolated ~6–10 homozygous knock-in clones for each line. The clones chosen for further study all showed similar tagged protein levels to the endogenous untagged protein in wild-type controls.

Sequences for primers and sgRNAs are given in Supplementary file 2. All plasmids used in this study, including for genome-editing and transient transfections, are available upon request.

Teratoma assays

Request a detailed protocol

To verify that genome-edited mES cell lines remain pluripotent, we performed teratoma assays and compared wild-type and C59 FLAG-Halo-mCTCF; mRad21-SNAPf-V5 knock-in cells. Briefly, 350,000 cells were injected into the kidney capsule and testis of two 8-week-old Fox Chase SCID-beige male mice (Charles River). Tumors were harvested 27 or 33 days post-injection, fixed with 10% formalin overnight, embedded in paraffin and cut into 5 μm sections and haematoxylin and eosin staining performed. Teratoma assays were performed by Applied Stem Cell, Inc (Milpitas, CA).

Pathogen testing and cell line authentication

Request a detailed protocol

Wild-type and double FLAG-Halo-mCTCF / mRad21-SNAPf-V5 knock-in mouse ES cell line clone 59 were pathogen tested using the IMPACT II test, which was performed by IDEXX BioResearch (Westbrook, ME). Both the wild-type and C59 cell line were negative for all pathogens including Ectromelia, EDIM, LCMV, LDEV, MAV1, MAV2, mCMV, MHV, MNV, MPV, MVM, Mycoplasma pulmonis, Mycoplasma sp., Polyoma, PVM, REO3, Sendai, and TMEV. U2OS cell lines were pathogen tested for mycoplasma using a PCR-based assay as described (Young et al., 2010) (wild-type U2OS) and pathogen tested for mycoplasma using an imaging assay (DAPI staining; C32 knock-in cell line). Both were negative for mycoplasma. Both mouse ES cells and human U2OS cells were authenticated by whole-genome sequencing and morphology (U2OS morphology was compared to U2OS cells obtained from ATCC). The wild-type and C32 FLAG-Halo-hCTCF knock-in cell lines were further authenticated using Short Tandem Repeat (STR) profiling (performed by Dr. Alison N. Killilea at the UC Berkeley Cell Culture Facility) against the following loci: THO1, D5S818, D13S317, D7S820, D16S539, CSF1PO, AMEL, vWA and TPOX. Both the wild-type and C32 U2OS cell lines showed a 100% match with U2OS.

Single-molecule imaging

Request a detailed protocol

All single-molecule imaging experiments (live-cell residence time measurements, live-cell paSMT at 225 Hz, fixed-cell PALM and fixed-cell dSTORM) were conducted on a custom-built Nikon (Nikon Instruments Inc., Melville, NY) TI microscope equipped with a 100x/NA 1.49 oil-immersion TIRF objective (Nikon apochromat CFI Apo TIRF 100x Oil), EM-CCD camera (Andor, Concord, MA, iXon Ultra 897), a perfect focusing system to correct for axial drift and motorized laser illumination (Ti-TIRF, Nikon), which allows an incident angle adjustment to achieve highly inclined and laminated optical sheet illumination (Tokunaga et al., 2008). The incubation chamber maintained a humidified 37°C atmosphere with 5% CO2 and the objective was similarly heated to 37°C for live-cell experiments. Excitation was achieved using the following laser lines: 561 nm (1 W, Genesis Coherent, Santa Clara, CA) for JF549/PA-JF549 and TMR dyes; 633 nm (1 W, Genesis Coherent) for JF646/PA-JF646 dyes; 405 nm (140 mW, OBIS, Coherent) for all photo-activation experiments. The excitation lasers were modulated by an acousto-optic Tunable Filter (AA Opto-Electronic, France, AOTFnC-VIS-TN) and triggered with the camera TTL exposure output signal. The laser light is coupled into the microscope by an optical fiber and then reflected using a multi-band dichroic (405 nm/488 nm/561 nm/633 nm quad-band, Semrock, Rochester, NY) and then focused in the back focal plane of the objective. Fluorescence emission light was filtered using a single band-pass filter placed in front of the camera using the following filters: TMR and JF549/PA-JF549: Semrock 593/40 nm band-pass filter; JF646/PA-JF646: Semrock 676/37 nm bandpass filter. The microscope, cameras, and hardware were controlled through the NIS-Elements software (Nikon).

For simultaneous two-color experiments (dSTORM and PALM experiments), a custom-built setup using two cameras (both Andor iXon Ultra 897 EM-CCD) was used. Cameras were synchronized using a National Instruments (Austin, TX) DAQ board (NI-DAQ PCI-6723). A single-edge dichroic beamsplitter (Di02-R635−25 × 36, Semrock) was used to separate two ranges of wavelengths of emission fluorescence. A 676/37 nm band-pass filter (FF01-676/37-25, Semrock) was placed in front of the first camera and 593/40 nm bandpass filter (FF01-593/40-25, Semrock) in front of the second camera.

In ‘slow-tracking’ experiments, to measure residence times, long exposure times (300 ms, 500 ms or 800 ms) and low constant illumination laser intensities (to minimize photobleaching) were used. The camera settings were as follows: normal mode; vertical shift speed: 3.3 μs; ROI: variable. Generally, each experiment lasted 20 min per cell corresponding to 4000 frames with a 300 ms exposure time, 2400 frames with a 500 ms exposure time and 1500 frames with an exposure time of 800 ms. We recorded 20 min movies from ~6 cells per cell line or condition per day as well as 6 H2B-Halo cells for the photobleaching correction on the same day and all data presented are from at least three independent experiments conducted on different days.

In ‘fast-tracking’ stroboscopic paSMT experiments at ~225 Hz, both the main excitation laser (633 nm for PA-JF646 or 561 nm for PA-JF549) and the photo-activation laser (405 nm) were pulsed. Each frame consisted of a 4-ms camera exposure time followed by a ~447 μs camera ‘dead’ time. The main excitation laser (633 nm) was pulsed for 1 ms starting at the beginning for the 4 ms camera exposure time. The photo-activation laser (405 nm) was pulsed during the ~447 μs camera ‘dead’ time, to minimize fluorescent background signal. This sequence was verified using an oscilloscope. The camera settings were as follows: frame transfer mode; vertical shift speed: 0.9 μs; ROI: height 90 pixels, width variable. Each cell was imaged for 20,000 frames corresponding to ~1.5 min. The photo-activation laser power was optimized to keep an average molecule density of ~0.5 localizations per frame, corresponding to ~10,000 localization per cell per movie on average. Maintaining a very low density of molecules is necessary to avoid tracking errors. The main excitation laser was used at maximal power. We recorded movies for eight cells per cell line or condition per day, and all data presented are from at least three independent experiments conducted corresponding to at least 24 cells and at least 100,000 localizations.

In PALM experiments, continuous illumination was used for both the main excitation laser (633 nm for PA-JF646 or 561 nm for PA-JF549) and the photo-activation laser (405 nm). However, the intensity of the 405 nm laser was gradually increased over the course of the illumination sequence to image all molecules and at the same time avoid too many molecules being activated at any given frame. The following camera settings were used: 25 ms exposure time; frame transfer mode; vertical shift speed: 0.9 μs; ROI: variable. In total, 40,000–60,000 frames were recorded for each cell (~20–25 min), which was sufficient to image and bleach all labeled molecules. After overnight growth on 25 mm plasma-cleaned coverslips and dye labeling and washings, cells were fixed in 4% PFA in PBS for 20 min at 37°C, washed with PBS and then imaged in PBS with 0.01% (w/v) NaN3 on the same day. All PALM images were acquired at room temperature. All analyses presented contain data from at least 20 cells imaged in at least three independent experiments conducted on different days.

For two-color dSTORM experiments, cell preparation was similar to PALM. After overnight growth on 25 mm plasma-cleaned coverslips and dye labeling and washings, cells were fixed in 4% PFA in PBS for 20 min at 37°C and washed with PBS. We then added 100 nm fluorescent Tetraspeck beads (diluted 1:1000 in PBS; T7279 ThermoFisher Scientific), allowed the beads to settle and washed three times with PBS. The coverslips were then stored in PBS with 0.01% (w/v) NaN3 until imaged later on the same day. C59 Halo-mCTCF / mRad21-SNAPf mouse ES cells were labeled with 500 nM Halo-JF646 and 500 nM cp-JF549. mES cells stably expressing H2B-SNAPf were transfected with a plasmid encoding Halo (only; without being fused to anything) and a GFP-NLS protein used for nuclear demarcation. These cells were similarly labeled. Just before imaging, a STORM imaging buffer (very similar to [Boettiger et al., 2016]) was made by mixing 400 μL 50 mM NaCl, 200 mM Tris pH 7.9 with 150 μL 50% glucose solution (w/v), 15 μL GLOX solution, 7.5 μL COT solution and 50 μL MEA solution. The GLOX solution was made by mixing 100 μL 50 mM NaCl, 200 mM Tris pH 7.9 with 7 mg Glucose Oxidase (Sigma-Aldrich) and 25 μL catalase (16 mg/mL). This solution was made the day before imaging. COT solution was made by dissolving 20.8 mg of Cyclooctatetraene (Sigma-Aldrich 138924–1g) in 1 mL DMSO. COT solution aliquots were stored at −20°C and a fresh aliquot used each time. MEA solution was made by dissolving 77 mg cysteamine (Sigma-Aldrich) in 1 mL water. A few drops of 1 M HCl were added to dissolve the cysteamine. STORM imaging buffer was added to the coverslip with fixed cells, the imaging chamber sealed with parafilm and then immediately loaded on the microscope. Both JF549 and JF646 could be converted into a rapidly blinking state in STORM buffer upon high-intensity laser illumination. For each cell, we exposed cells to high-power 405 nm, 561 nm and 633 nm excitation for ~5–10 s. We then acquired 50,000 frames of simultaneous two-color images with constant low-intensity 405 nm excitation and high-intensity 561 nm and 633 nm excitation using 25 ms exposure time on both EM-CCD cameras (Andor iXon Ultra 897). Before imaging, we aligned the two cameras using fluorescent beads (100 nm TetraSpeck beads; T7279 ThermoFisher Scientific) to a registration offset below 50 nm. Before imaging each cell, we imaged a cell-adjacent bead. Similarly, after imaging each cell we also imaged a different cell-adjacent bead (1000 frames at 25 ms each time). We then used the mean offset from the bead measurements before and after imaging a cell for two-color registration for that cell. We estimate a chromatic shift registration error of ~10 nm. The pair cross correlation data presented are from around ~12–18 cells measured on 3 different days. All PALM and dSTORM experiments on fixed cells were conducted at room temperature to minimize drift.

Analysis of single-molecule images

Request a detailed protocol

All single-molecule imaging data were processed using a custom-written MATLAB implementation of the MTT algorithm (Sergé et al., 2008). A GUI of this implementation, SLIMfast (Normanno et al., 2015), is available at https://elifesciences.org/content/5/e22280/supp-material1 (Teves et al., 2016). Briefly, single molecules are localized using bi-dimensional Gaussian fitting (approximating the microscope PSF) subject to a generalized log-likelihood ratio test with a ‘localization error’ threshold (in the range of 10−6-10−7), with the option of allowing deflation to detect molecules partially obscured by others. Tracking, that is connecting localizations between consecutive frames, was limited by setting a maximal expected diffusion constant, and takes the trajectory history into account as well as allowing for gaps due to blinking or missed localizations.

For analysis of ‘slow-tracking’ experiments, to measure residence times, the following algorithm parameters were used: Localization error: 10−7; deflation loops: 1; Blinking (frames): 2; maximum number of competitors: 1; maximal expected diffusion constant (μm2/s): 0.1.

For analysis of ‘fast-tracking’ stroboscopic paSMT experiments at ~225 Hz, the following algorithm parameters were used: Localization error: 10-6.25; deflation loops: 0; Blinking (frames): 1; maximum number of competitors: 3; maximal expected diffusion constant (μm2/s): 20.

For analysis of PALM experiments, the following algorithm parameters were used: Localization error: 10−6; deflation loops: 0; Blinking (frames): 1; maximum number of competitors: 3; maximal expected diffusion constant (μm2/s): 0.05.

For analysis of dSTORM experiments, we used the same algorithm parameters as for PALM analysis for both color channels.

All subsequent analyses of trajectories were performed using custom-written code in MATLAB as described in detail in the following sections.

Kinetic modeling of fast 225 Hz SMT data

Request a detailed protocol

To extract kinetic information from fast stroboscopic paSMT at approximately 225 Hz, we developed and fit a mathematical model to the jump length or displacement distributions. Our approach is largely inspired by an elegant modeling approach previously introduced by Mazza et al. (Mazza et al., 2012), but with a number of significant differences and modifications that we will highlight below.

The evolution over time of a concentration of particles located at the origin as a Dirac delta function and which follows free diffusion in two dimensions with a diffusion constant D can be described by a propagator (also known as Green’s function). Properly normalized, the probability of a particle starting at the origin ending up at a location r=(x,y) after a time delay, Δτ, is then given by:

P(r,Δτ)=Nr2DΔτer24DΔτ

Here, N is a normalization constant with units of length. In practice, we compare this distribution to binned data. Thus, in practice, we integrate this distribution over a small histogram bin window, Δr, to obtain a normalized distribution to compare to the empirically measured distribution. For simplicity, we therefore leave out this normalization constant of subsequent expressions.

Furthermore, in practice, we are unable to determine the precise localization of a single molecule. Instead, it is associated with a certain localization error, σ, which under our stroboscopic paSMT conditions is approximately 35 nm. Correcting for localization errors is important because it will otherwise appear as if molecules move further between frames than they actually did. Thus, we obtain the following expression for the jump length distribution taking localization error, σ, into account (Matsuoka et al., 2009):

P(r,Δτ)=r2(DΔτ+σ2)er24(DΔτ+σ2)

DNA-binding molecules such as CTCF can generally exist in either a bound or a freely diffusing state. The bound state exhibits very short jump lengths (presumably due to slow chromatin diffusion) and has an associated diffusion constant, DBOUND, whereas the freely diffusing population tends to exhibit much longer jump lengths and has its own associated diffusion constant, DFREE. Next, we assume that binding to chromatin and unbinding from chromatin are both first-order processes with rate constants kON and kOFF. We denote kON with a ‘*' because it is really a pseudo first-order process since it depends on the concentration of free binding sites: kON=[BSFREE]kON. Thus, the steady-state jump length distribution of a population of molecules that can exist in either their bound or free state is then given by:

P(r,Δτ)=FBOUNDr2(DBOUNDΔτ+σ2)er24(DBOUNDΔτ+σ2)+(1FBOUND)r2(DFREEΔτ+σ2)er24(DFREEΔτ+σ2)

where FBOUND is the fraction of the population that is bound to chromatin and, FFREE=1FBOUND, is the fraction of the population that is exhibiting free 3D diffusion. These fractions are related to the first-order rate constants:

FBOUND=kONkON+kOFF
FFREE=(1FBOUND)=kOFFkON+kOFF

These expressions assume that molecules do not change between their bound and free states during the time delay between frames, Δτ. Previous studies have derived analytical expressions to account for this (Mazza et al., 2012; Yeung et al., 2007). However, implementing these expressions numerically greatly slows down fitting the model to the raw jump length distributions. Accounting for state-changes between the free and bound states was necessary in the previous study by Mazza et al. (2012) because relatively long exposure times (40 ms or 25 Hz) and lag times, Δτ, (up to 800 ms) were considered. In this study, we are imaging at a much higher frame-rate (4.4477 ms exposure or ~225 Hz) and only consider much shorter lag times, Δτ, (up to seven jumps, i.e. 31.5 ms). Thus, in our case, the probability of observing a state-change is much lower. Moreover, the residence time of CTCF (~60–75 s) is much longer than the residence time of p53 (~1.8 s) (Mazza et al., 2012). Thus, we can calculate the probability that a bound CTCF molecule unbinds during the longest lag times considered (Δτ = 31.5 ms) as:

PSWITCH=1ekOFFΔτ7105

Thus, accounting for state changes during the lag time, Δτ, makes a negligible difference for CTCF. Even if we consider short-lived non-specific interactions, the probability of a state-change is still negligible with our short lag times.

Single-molecule tracking (SMT) is heavily biased toward bound molecules and against freely diffusing molecules for two major reasons. First, almost all single-molecule localization algorithms, including the MTT-algorithm (Sergé et al., 2008) used here, achieve sub-diffraction limit resolution (super-resolution) by treating individual fluorophores as point-source emitters, which generate blurred images that are described by the Point-Spread Function (PSF) of the microscope. Two-dimensional Gaussian modeling of the PSF allows extraction of the particle centroid with sub-pixel resolution. In SMT experiments, this works well for bound molecules, which exhibit negligible movement during the laser exposure time. However, fast moving molecules will tend to ‘motion-blur’ because they can move several pixels during the long exposure times typically used in SMT experiments. ‘Motion-blurred’ particles will thus spread their photons over multiple pixels in the direction of their movement. Therefore, they tend to be missed by most PSF-fitting localization algorithms, which results in a large bias toward bound molecules and a general bias against fast-moving molecules. This means that the bound fraction will be overestimated. To minimize this bias against fast-moving molecules, we use stroboscopic illumination where although we have a time delay of Δτ = 4.4477 ms, we only laser-illuminate the sample for 1 ms per frame. For a molecule like CTCF where the freely diffusing population has an apparent DFREE ~2.5 μm2/s, we can calculate the fraction of the population which moves more than a certain length during the 1 ms laser illumination time. Using our imaging setup (pixel size: 160 nm), less than ~0.0036% (~3.6 molecules per 100,000 molecules) of the free CTCF population move more than two pixels during the 1 ms laser exposure time. Thus, while we cannot eliminate all bias against moving molecules, our fast stroboscopic SMT methods greatly reduce bias against fast-moving molecules compared to previous approaches.

Second, fast-moving molecules are likely to move out of the focal plane or axial detection window (Δz) during 2D image acquisition. Even though we consider short lag times Δτ ~4.5–31.5 ms, this is still long enough for a large fraction of the free population to be lost. As a consequence, bound molecules tend to have much longer trajectories than do free molecules. Again, this means that we are oversampling the bound population and undersampling the free population. To correct for this, we consider the probability that a freely diffusing molecule with diffusion constant, DFREE, will move out of the axial detection window, Δz, during a lag time, Δτ. This problem has also been previously considered by Kues and Kubitscheck (Kues and Kubitscheck, 2002). If we consider the extreme case of a population of molecules equally distributed one-dimensionally along an axis, z, with an absorbing boundary at ZMAX=ΔZ/2 and ZMIN=ΔZ/2, the fraction of molecules remaining at lag time, Δτ, is given by:

PLEFT(Δτ)=1ΔzΔz/2Δz/2{1n=0(1)n[erfc((2n+1)Δz2z4DFREEΔτ)+erfc((2n+1)Δz2+z4DFREEΔτ)]}dz

However, this expression significantly overestimates how many freely diffusing molecules are lost since it assumes absorbing boundaries – any molecules that comes into contact with the boundary at ± Δz/2 are permanently lost. In reality, there is a significant probability that a molecule, which has briefly contacted or exceeded the boundary, re-enters the axial detection window, Δz, during a lag time, Δτ. Moreover, since we allow trajectory gaps of one during in our tracking algorithm (i.e. a molecule present in frame n and n+2 can still be tracked even if it was not localized in frame n+1), we must consider the probability that a lost molecule re-enters the axial detection window during twice the lag time, 2Δτ. This results in the somewhat counter-intuitive effect, which was also noted by Kues and Kubitscheck, that the decay rate depends on the microscope frame rate – in other words, the fraction lost depends on how often one ‘looks’. One approach (Mazza et al., 2012) of accounting for this is to use a corrected axial detection window larger than the true axial detection window: ΔzCORR>Δz.

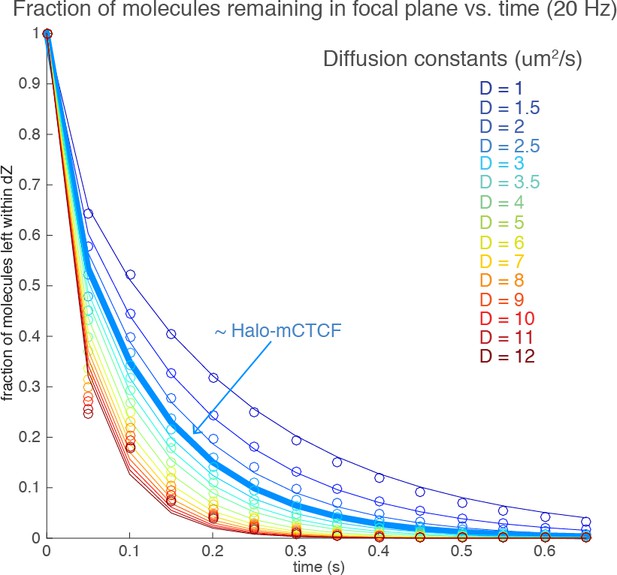

To find the corrected axial detection window, we first measured the true empirical axial detection window, Δz. We labeled C59 Halo-mCTCF mouse embryonic stem cells and C32 Halo-hCTCF human U2OS cells grown on plasma-cleaned 25 mm #1.5 cover glasses with JF646 at a low enough density to clearly observe single molecules and fixed them in 4% PFA in PBS for 20 min. We then collected an extensive z-stack throughout the nucleus with a range of 6 μm and a step size of 20 nm (301 frames) and imaged single molecules at a signal-to-background ratio comparable to the one used during our fast 225 Hz paSMT experiments. We tracked molecules using the MTT algorithm (Sergé et al., 2008) and the same parameters used for our paSMT experiments. We then analyzed the survival curve, corrected for photobleaching, of single JF646-labeled Halo-CTCF molecules as a function of the step size and found the axial detection window to be approximately Δz ≈ 700 nm and highly similar in U2OS and mES cells under HiLo-illumination (Tokunaga et al., 2008).

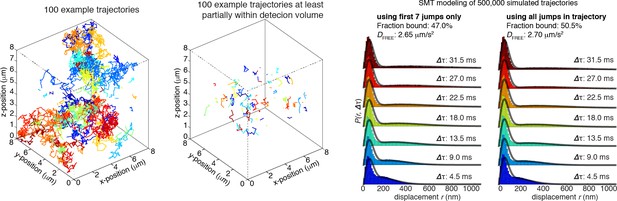

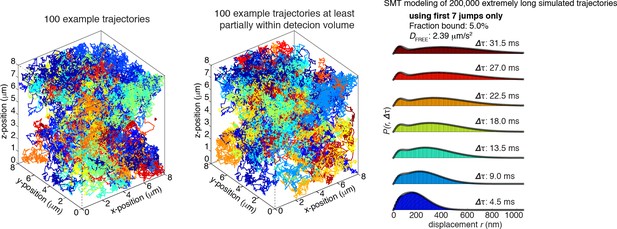

Next, we performed Monte Carlo simulations following the Euler-Maruyama scheme. For a given diffusion constant, D, we randomly distributed 50,000 molecules one-dimensionally along the z-axis from ZMIN=Δz/2 = −350 nm to ZMAX=Δz/2 = 350 nm, where Δz ≈ 700 nm. Next, using a time-step of Δτ = 4.4477 ms, we simulated one-dimensional Brownian diffusion along the z-axis by randomly picking Gaussian-distributed numbers from a normal distribution with parameters: μ=0; σ=2DΔτ using the function normrnd in MATLAB. For time gaps from 1 Δτ to 15 Δτ, we then calculated the fraction of molecules that were lost, allowing for one missing frame as in our tracking algorithm. We repeated these simulations for particles with diffusion constants in the range of D = 1 μm2/s to D = 12 μm2/s to generate a comprehensive dataset over a range of biologically plausible diffusion constants. We then performed least-squares fitting of this dataset to the equation for PLEFT(Δτ) using a corrected ΔzCORR:

ΔzCORR=Δz+aD+b

The simulated data were well fit using this corrected axial detection window, and we found the following best-first parameters: a = 0.15716 s-1/2; b = 0.20811 μm. Practically, we evaluated the equation for PLEFT(Δτ) using numerical integration in MATLAB and aborted the infinite sum once the absolute value of another iteration fell below 10−12. We performed non-linear least-squares fitting in MATLAB by stochastically generating random parameter guesses for a and b as a starting point for the least-squares fitting routine lsqcurvefit and iterating using multiple random input guesses to avoid local minima.

Having derived an analytical expression for the probability of a free molecule being lost due to axial diffusion during the imaging time, we can now thus write down the final equations used for fitting the raw jump length distributions:

P(r,Δτ)=FBOUNDr2(DBOUNDΔτ+σ2)er24(DBOUNDΔτ+σ2)+ZCORR(Δτ)(1FBOUND)r2(DFREEΔτ+σ2)er24(DFREEΔτ+σ2)

where:

ZCORR(Δτ)=1ΔzΔz/2Δz/2{1n=0(1)n[erfc((2n+1)Δz2z4DFREEΔτ)+erfc((2n+1)Δz2+z4DFREEΔτ)]}dz

and:

Δz=0.700 μm+ 0.15716 s1/2D+0.20811 μm

In practical terms, we consider the jump length or displacement distributions for timepoints 1 to 8, corresponding to seven jumps with delays from 1Δτ to 7Δτ (i.e. this includes 6 jumps of 1Δτ, 5 jumps of 2Δτ, and so on). Thus, the probability of seeing a free molecule present in the first frame is higher in the second frame than in the seventh frame according the ZCORR equation above. While we have many trajectories that are much longer than eight localizations, we refrain from using the entire trajectories since almost all very long trajectories (e.g.>100 localizations) are highly biased toward bound molecules. While the above ZCORR equation should in principle correct for this, at long time lags the probability of still seeing a moving molecule approaches zero and thus small errors in the ZCORR equation, which is an approximation, is likely to strongly affect the estimation of the bound fraction.

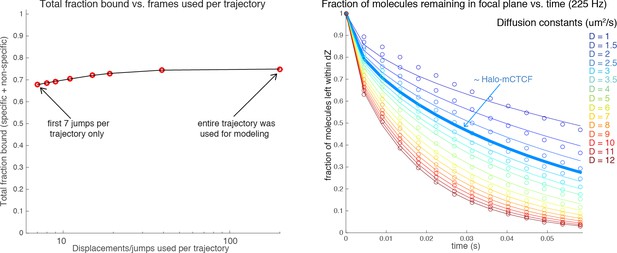

We note that a question arises of whether to use the entire trajectory or not. One bias against moving molecules is that frequently, freely diffusing molecules will translocate through the axial detection window, Δz, yielding only a single detectable localization and thus no jumps to be counted. Conversely, one bias against bound molecules, is that moving molecules can re-enter the axial detection window multiple times resulting in the same molecule appearing as multiple distinct trajectories and thus being over-counted. Clearly, the extent of the bias will depend on the photobleaching rate – in the limit of no photobleaching, a single freely diffusing molecule could yield a very high number of different trajectories, leading to large over-counting of the free population. However, in practice, under our stroboscopic paSMT conditions, the average dye lifetime is quite short. We note that dye disappearance is both due to photobleaching and blinking, but note that blinking should not affect estimates of the fraction bound. The actual mean number of frames depends on the fraction bound and diffusion constant – proteins with slow diffusion constants and a high bound fraction stay in the axial detection volume for longer and thus yield longer trajectories. Accordingly, for Halo-mCTCF, the mean number of frames per trajectory is ~3–4, whereas for Halo-3xNLS it is less than two, even though the photobleaching rate is the same. We took two approaches to test whether the fraction of the trajectory that is included in the modeling would strongly affect the fraction bound estimate: analysis of our raw data and Monte Carlo simulations according to the Euler-Maruyama scheme. First, in the case of our raw data, the difference between using only the first seven jumps and using the entire trajectory only affects the fraction bound estimate by a few percentage points, suggesting that it makes a minor difference under conditions where photobleaching and blinking results in relatively short trajectories. Second, we performed Monte Carlo simulations following the Euler-Maruyama scheme and with the following assumptions: 50% of molecules are bound and the free diffusion constant is 2.5 μm2/s; the axial detection volume is 700 nm and the laser excitation beam under highly inclined and laminated optical sheet illumination (HiLo) illuminates ~4 μm (Tokunaga et al., 2008), corresponding to half the nucleus (nuclear diameter: 8 μm); molecules within the HiLo sheet photobleach with a constant rate (thus molecules can photobleach outside of the detection slice as in our experiments); the 2D localization error is 35 nm and the timestep is 4.5 ms; since the vast majority of trajectories lasts no more than tens of milliseconds, but both the CTCF unbinding rate (~1 min) and re-binding rate (~1 min) are much slower, we ignore changes in state (bound vs. free) during the trajectory lifetime; Brownian motion was simulated for 500,000 trajectories in three dimensions enclosed within the nucleus by picking random numbers in each dimension from a normal distribution defined as: N(0,2DΔτ). Our simulations showed that our paSMT modeling approach could accurately infer both the free diffusion constant (slight overestimate of D, but error less than 5%) and the fraction bound and that using the entire trajectory leads to a very small overestimate of the bound fraction (one percentage point) and that using the first seven jumps only leads a small underestimate of the bound fraction (~3 percentage points) under conditions where the mean trajectory length (~3) was similar to the mean trajectory length for Halo-mCTCF in mESCs under our experimental conditions. However, under conditions with negligible photobleaching and extremely long trajectories of a mean length of ~100 frames, using only the first seven jumps leads to a serious underestimate of the bound fraction. We note that it is not experimentally realistic to obtain trajectories of this length with currently available dyes and microscope modalities and thus not relevant in this case, but we nevertheless note that generalizing the approach to trajectories of any length is an interesting future direction. Finally, because of the numerous other biases against free molecules noted above, we only use the first seven jumps and ignore all subsequent jumps in longer trajectories for our model fitting in this case.

We then fit the above equation for,  P(r,Δτ), to the raw jump lengths distributions for time gaps of 1Δτ to 7Δτ corresponding to 4.5 ms to 31.5 ms. Although we show the fit function to the probability density, that is histograms (Figure 3A–E), since this is more intuitive, this introduces binning artifacts (bin: 10 nm). Thus, for quantitative analysis, we instead fit the model to the cumulative distribution function (CDF) calculated from the data. The model has three fit parameters, DBOUND, DFREE and FBOUND, and is fit to the combined jump length CDFs (from 1Δτ to 7Δτ) using least squares fitting. We constrain DBOUND to a range of [0.0005, 0.08] μm2/s, but note that slight errors in the estimation of the localization error would make it appear as if the bound molecules move faster or slower than they actually do. FBOUND is of course constrained to a range of [0, 1] and we only constrain DFREE to be greater than 0.15 μm2/s. We randomly generated initial parameter guesses for DBOUND, DFREE and FBOUND and then fit the model to the seven CDFs through non-linear least squares minimization implemented in MATLAB through the function lsqcurvefit. We then repeat this for multiple iterations of random initial parameter guesses and record the best-fit parameters. Thus, from the kinetic modeling, we obtain DBOUND, DFREE and FBOUND, from which we can also calculate FFREE=1FBOUND. We note that although the previous study on p53 by Mazza et al. (2012) required two freely diffusive states and one bound state to fit the jump length distributions, in our case a single free diffusion state and one bound state were sufficient to accurately fit the raw jump length distributions. Thus, we did not consider the possibility of additional diffusive states.

Inferring parameters related to the CTCF and Rad21 target search mechanism

Request a detailed protocol

Next, we sought to further extend our knowledge of the nuclear target search mechanism in vivo using the parameters inferred from our kinetic modeling of the fast paSMT data as well as our residence time measurements. First, we illustrate the approach using CTCF as an example. We will continue with the steady-state two-state model (bound or free) introduced above, but further distinguish specific and non-specific binding. From the kinetic model fitting above, we determine the total bound fractions for CTCF to be: mESC C59 Halo-mCTCF, 68.0 ± 3.3%; mESC C87 Halo-mCTCF, 68.4 ± 2.1%; U2OS C32 Halo-hCTCF, 58.9 ± 2.0%. However, this total bound fraction contains both CTCF molecules bound specifically to their cognate binding sites and non-specific interactions. For example, sliding on DNA would be indistinguishable from stable binding to a cognate site under our paSMT conditions (localization error ~35 nm). We estimate the fraction that is non-specifically bound using a mutant CTCF, 11ZF-mut-Halo-mCTCF, where we have introduced mutations into the DNA-binding domain. This mutant contains a His-to-Arg mutation in each of the 11 zinc-finger domains. Since the mutant, by design, is unable to interact specifically with chromatin through its zinc-finger domains, we reason that this mutant interacts only non-specifically. From our kinetic model fitting of the 11ZF-mut-Halo-mCTCF jump length histograms, we estimate the bound fraction for this mutant to be 19.1 ± 4.1% in mouse ES cells and 17.7% in human U2OS cells. Thus, the specifically bound fraction can be calculated according to:

FBOUND, specific=FBOUND, totalFBOUND, nonspecific

Using the numbers above, we then obtain the following estimates for the specifically bound fraction: mESC C59 Halo-mCTCF, 48.9%; mESC C87 Halo-mCTCF, 49.3%; U2OS C32 Halo-hCTCF, 41.2%. We note that this estimation is associated with definitional uncertainty as well measurement uncertainty. It is difficult to define exactly what a non-specific interaction is, but it likely involves transient binding and/or sliding on DNA. It is also difficult to define precisely for how long a molecule has to associate with DNA for that to be reasonably counted as a non-specific interaction. Nevertheless, if we operationally define non-specific interaction here as an interaction present after mutation of the DNA-binding domain, we can proceed with investigating the target search mechanism.

Next, we would like to determine the average time it takes a single CTCF protein to find another specific binding site. In the following, we will use ‘s’ and ‘ns’, as abbreviations for specific and non-specific, respectively. The pseudo-first-order rate constant for specific binding sites, kON,s, is related to the fraction bound by:

FBOUND,S=kON,skON,s+kOFF,skON,s=FBOUND,skOFF,s1FBOUND,s

We determined the off-rate for a specific interaction in our residence time measurements (Figure 2). Thus, from the previously determined values of FBOUND,s and kOFF,s, we can calculate kON,s. kON,s is an interesting constant because it is directly related to the average search time for a specific CTCF-binding site:

τsearch,s=1kON,s=1FBOUND,sFBOUND,skOFF,s

When we plug in the previously determined values of FBOUND,s and kOFF,s, we thus obtain total search times of: mESC C59 Halo-mCTCF,~65.9 s; mESC C87 Halo-mCTCF,~62.6 s; U2OS C32 Halo-hCTCF,~102.8 s. We note that the search times depend sensitively on kOFF,s, such that if a CTCF residence time of ~4 min is used instead, the search time also increases to around 4 min in mES cells and to ~5.7 min in U2OS cells. Regardless of the total search time, CTCF molecules spend roughly 50% of their time searching for binding sites in mES cells and roughly 60% of their time searching for binding sites in human U2OS cells. This search time contains intermittent periods of free 3D diffusion interrupted by brief non-specific binding or sliding interactions on chromatin. For example, for mESC C59 Halo-mCTCF, 51.1% of the total time is spent searching - 19.1% of the total time is spent in 1D sliding on DNA or transient interactions and 32.0% of the total time is spent on free 3D diffusion. Since we know the average search time to be ~65.9 s, we can thus calculate that during this average search time, ~41.3 s are spent in free 3D diffusion and ~24.6 s are spent in non-specific DNA interactions such as sliding. Thus, for mESC C59 Halo-mCTCF roughly 37% of the total search time is spent in non-specific DNA interactions and roughly 63% of the time is spent on free 3D diffusion. Similar analysis of C32 Halo-hCTCF in human cells show that 58.8% of the total time is spent searching, with 17.7% of the total time in non-specific chromatin association (e.g. 1D sliding) and 41.1% of the total time in free 3D diffusion. Thus, with an average search time of ~102.8 s, human Halo-hCTCF spends on average ~30.9 s on non-specific chromatin association and ~71.9 s on free 3D diffusion.

We can apply the same approach to cohesin as measured by following mRad21 in mES cells. We note that the above approach assumes a single bound state and a single free state. This is certainly too simplistic in S/G2, since our FRAP experiments suggest that the chromatin residence time of cohesin involved in sister chromatid cohesion is likely much longer than the cohesin involved in chromatin looping. Moreover, it is far from clear that the ON-rate, that is topological loading of cohesin onto chromatin, would be similar for cohesin involved in chromatin looping and in sister chromatid cohesion. Thus, we restrict our analysis to G1. Even then, we stress that this analysis assumes that all topologically engaged G1 cohesin has the same ON- and OFF-rates. We estimated the G1 cohesin residence time to be 19.51 min (C45 mRad21-Halo) and 24.16 min (C59 mRad21-SNAPf). In the following, we will use the mean: 21.8 min. Using stroboscopic paSMT, we estimated the G1 total fraction bound of cohesin to be 53.5 ± 4.1% and the non-specifically bound fraction to be 13.7 ± 3.1% using a mutant (F601R, L605R, Q617K) that is reported to be unable to form cohesin complexes (Haering et al., 2004). Thus, 39.8% of cohesin is topologically bound to chromatin, 13.7% non-specifically associated with chromatin and 46.5% in free 3D diffusion in G1-phase of the cell cycle. Non-specific chromatin association may include non-productive topological loading attempts. This yields a search time of ~33.0 min of which around 7.51 min is spent on non-specific chromatin association (e.g. sliding) and 25.49 min is spent on free 3D diffusion. We note that this description of the cohesin search mechanism is somewhat simplified since assisted topological loading is a bit more complicated than finding a cognate-binding site for a typical sequence-specific transcription factor. Rather, it is likely that the cohesin search mechanism is regulated by other protein interaction partners and by post-translational modifications (Skibbens, 2016). Nevertheless, even if topological loading involves multiple steps, the process can be described as a single first-order reaction if there is a single rate-limiting step.

Residence time measurements from SMT

Request a detailed protocol

To extract residence times from SMT data recoded at long exposure time, we took a hybrid approach related to that of Chen et al. (2014) and Mazza et al. (2012). Briefly, we took advantage of long exposure times (300 ms, 500 ms or 800 ms) as previously described (Chen et al., 2014): this causes freely-diffusing molecules to motion-blur into the background such that they are generally missed by our detection algorithm (Sergé et al., 2008). We then recorded the trajectory length of each ‘bound’ molecule and used these to generate a survival curve (1-CDF). However, as previously reported there are multiple contributions to this survival curve beyond specific binding, which is what we are interested in, such as non-specific binding (Chen et al., 2014) and slow-diffusing molecules (Mazza et al., 2012). Beyond these two, localization errors can cause both false-positive and false-negative detections. False negative detections especially occur for molecules close to being out-of-focus. This can cause a single long trajectory to appear as many short ones. Thus, we performed double-exponential fitting (corresponding to specific and non-specific binding) using:

P(t)=Aeknst+Bekst

where kns corresponds to the unbinding rate for non-specific binding and ks corresponds to the unbinding rate constant for specific binding. We note that the first rate constant, kns, is likely to be contaminated by localization errors (e.g. from molecules close to being out-of-focus) and experimental noise and we therefore caution against over interpreting it. To filter out contributions from tracking errors and slow-diffusing molecules, we applied an objective threshold as previously described to consider only particles tracked for at least Nmin frames (Mazza et al., 2012). To determine Nmin, we plotted the inferred residence time as a function of Nmin and observed convergence to a single value after ~2.5 s (i.e. 8 frames at 300 ms exposure time, 5 frames at 500 ms exposure time, 3 frames at 800 ms exposure time; Figure 2—figure supplement 1A). We thus used this threshold to determine the value of ks. The measured ks, however, reflects both unbinding from chromatin as well as photobleaching etc.:

ks=ks,true+kbias

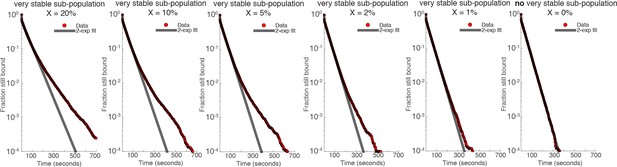

Photobleaching clearly needs to be corrected for. But several other factors also contributed faster apparent unbinding. Among these were axial cell drift, lateral cell drift, fluctuating background and others. Axial cell drift can cause a single molecule to move gradually out-of-focus, which appears as unbinding. We also observe significant lateral cell drift, especially for mES cells due to cell movement, which can appear as unbinding if particle movement exceeds the threshold. Drift is especially an issue for molecules exhibiting relatively stable binding such as CTCF, where we occasionally, but very rarely, observe single molecules for around 10 min under constant laser illumination. To correct for all these factors including photobleaching, we reasoned that, if we assume that all these processes are Poisson processes, then the sum of independent Poissons is also a Poisson. If we further assume that these processes will affect H2B-Halo to the same extent as CTCF (i.e. photobleaching depends only on the dye used and the laser intensity; axial chromatin or cell drift is the same for Halo-CTCF cells as for H2B-Halo cells), then we can measure an apparent unbinding rate for H2B-Halo and use this as kbias. This analysis assumes that any apparent unbinding of H2B will be due to photobleaching or drift etc., which is consistent with our FRAP data. However, we note that although H2B molecules are no doubt occasionally evicted from chromatin (e.g. during chromatin remodeling), as long as the rate is much smaller than the unbinding rate of CTCF, this makes a negligible contribution. Thus, to estimate kbias, we repeated the experiments on mES or U2OS cells stably expressing H2B-Halo and estimated kbias as the slow component from double-exponential fitting as described above. We always performed the H2B-Halo control experiment on the same day as the other experiments. Having measured kbias, we then calculated the residence time as

τs=1ks,true

We note that the above analysis assumes that the unbinding rate for all CTCF sites is identical, which is clearly an approximation, although the ability of the model to fit the data suggests it is a reasonable approximation. However, this analysis would miss a very small CTCF fraction (<3%) showing different residence times. So the above-calculated residence time should be interpreted as an average residence time, which holds for most CTCF sites, but may not hold for all.

PALM – data processing and clustering analysis

Request a detailed protocol

We extracted single-molecule x,y coordinates from single-color PALM images using the following pipeline. We took advantage of the high photostability of the PA-JF549 and PA-JF646 dyes to increase localization accuracy and to perform drift correction. Similar fiducial marker independent drift-correction algorithms have been described previously (Elmokadem and Yu, 2015; Wang et al., 2014). At the laser intensity used and an exposure time of 25 ms, each JF549/JF646 molecule lasted ~5–10 frames on average before photobleaching. Thus, after localizing molecules in each frame and tracking them between frames, we obtaining several estimates of the true x,y coordinates for each molecule, which improves the localization precision. Moreover, since each frame contained 5–10 molecules on average this allowed us to perform drift correction by tracking the average drift of particles over time after binning to average out noise in individual localizations.

For spatial clustering analysis, we segmented the nucleus by convolving the PSF with the single-molecule localizations and then blurring the image using iterative Gaussian smoothing followed by thresholding or by manual polygon segmentation. We then divided the nucleus into partially overlapping 3 μm squares and performed clustering analysis on these squares using a recently reported Bayesian algorithm (Rubin-Delanchy et al., 2015). We used the same prior as published (Rubin-Delanchy et al., 2015) and performed cluster identification and characterized clusters according to their cluster radius and fraction of molecules in clusters as described (Rubin-Delanchy et al., 2015).

A major concern in clustering analysis of PALM images is photo-blinking, where a dye turns off for some frames and the re-appears. Since we track single molecules across frames and allow for gaps of 1 frame, most molecules that exhibit multiple appearances will be collapsed into a single localization. However, it is not possible to unambiguously distinguish two different co-localizing molecules that appear many frames apart, from a single molecule that exhibits a long photo-blink. Thus, to investigate to what extent the apparent clustering that we observe is due to uncorrected photo-blinking we took the following approaches.

First, we compared our Halo-CTCF and Rad21-Halo PALM reconstructions to H2B-Halo and Halo-3xNLS. While there is no known protein whose nuclear organization perfectly exhibits complete spatial randomness, we reasoned that Halo-3xNLS should exhibit a relatively uniform distribution. Thus, by using the same dye and imaging conditions as for CTCF and Rad21, we treat the level of clustering observed for Halo-3xNLS as being largely due to blinking, and thus generate a ‘blinking floor’. Since both CTCF and Rad21 exhibits much higher clustering than Halo-3xNLS (Figure 4—figure supplement 1C), we conclude that most of the observed clustering is not due to photo-blinking. We note that both the H2B-Halo and Halo-3xNLS transgenes are expressed at very high levels. Thus, we empirically adjusted the PA-JF549 concentration so as to get similar numbers of localizations as for CTCF, so as to exclude any bias coming from the number of molecules.

Second, in mES cells CTCF and H2B exhibit comparable levels of clustering, but Ripley’s L(r)-r curves are qualitatively different, with H2B showing clustering at larger length scales. This further suggests that our PALM approach is measuring real clustering and that the relatively small clusters observed for CTCF and Rad21 are not merely photo-blinking artefacts.

Third, we performed two-color labeling and imaging to unambiguously distinguish true clusters from photo-blinking. We labeled Halo-hCTCF in C32 U2OS cells with approximately equimolar concentrations of PA-JF549 and PA-JF646 dyes and performed two-color PALM. Since each Halo-Tag can only bind one dye, any cluster composed of N molecules should under ideal circumstances exhibit a binomial distribution of JF549 and JF646 molecules. That is, the probability of a cluster composed of N CTCF molecules having k JF549-conjugated CTCF molecules should follow:

P(XJF549=k)=(Nk)pJF549k(1pJF549)Nk

where

pJF549=NJF549NJF549+NJF646

is the fraction of all dye-labeled nuclear CTCF molecules that was labeled with JF549. Conversely, consider the other extreme case where all clusters are exclusively due to photo-blinking artifacts. In this extreme scenario, all apparent clusters should be exclusively composed of JF549-conjugated CTCF molecules or exclusively composed of JF646-conjugated CTCF molecules. If we plot the probability density function for the fraction of JF549-labeled molecules in clusters, the idealized case should show a binomial distribution with a peak at pJF549. On the other hand, the extreme ‘photo-blinking only’ case should show a probability density function for the fraction of JF549-labeled molecules in clusters with peaks at 0 and 1 and nothing in between, corresponding to exclusive JF549 and exclusive JF646 clusters. Thus, to apply this analysis, we merged all JF549 and JF646 localizations and applied the Bayesian cluster identification algorithm to the merged dataset. We then analyzed all the called clusters that were composed of at least 10 detections. We consider only these clusters since for very small clusters the probability of finding clusters exclusively in one color is significant even in the ideal binomial case. In a given nucleus, hundreds of clusters fulfilled this criterion (>10 detections). To robustly compare this to the ideal binomial case, for each cluster of size N, we generated binomial random clusters using binornd in MATLAB. Finally, we compared the distribution of cluster compositions for the observed clusters and the binomial random clusters in Figure 4—figure supplement 1E. Since each nucleus had a slightly different fraction of molecules labeled with JF549 and JF646, we only show the distribution for a single nucleus. As can be seen, the deviation from the binomial case is small. Essentially, all clusters at this size contain molecules of both colors demonstrating that clustering is not exclusively a photo-blinking artifact. Thus, although some clustering is clearly due to photo-blinking, the majority of clusters are composed of multiple distinct molecules. To summarize the results for multiple cells, we also calculated the Kullback-Leibler divergence between the expected binomial and observed distributions for each cell. The mean Kullback-Leibler divergence was ~0.3 bits further demonstrating that most clusters are not a photo-blinking artifact. Finally, we note that a recent paper demonstrates that PA-JF549 shows limited photo-blinking (Grimm et al., 2016).

Two-color dSTORM – data processing and pair cross correlation analysis

Request a detailed protocol

We processed two-color dSTORM data essentially identically to PALM data. After chromatic registration, blinking-correction and drift-correction using the same approach as for PALM analysis, nuclei were manually segmented using polygon segmentation based on a rough image generated by convolving the PSF with the single-molecule localizations and then blurring the image. We note that SNAP-tag dye-labeling is somewhat less specific than HaloTag labeling (Figure 1—figure supplement 1) – in particular, when we label wild-type cells that do not express a SNAP-tag protein with cp-JF549 (or any other SNAP dye) we observe enrichment along the nuclear envelope that does not disappear even after extensive washings. Labeling inside the nucleus, however, appears to be specific with cp-JF549, but less so with SNAP-TMR (compare Figure 1—figure supplement 1B and C). To avoid this affecting our dSTORM analysis, we segmented out the nuclear envelope during segmentation of the nucleus. Images (such as Figure 4A) were generated by binning single-molecule localizations into square pixel-bins of 10 nm and then false-color rendering JF549 localizations in green and JF646 localizations in magenta, such that saturating co-localization appears white. We note that co-localization of two single molecules are therefore not visible in these rendered images. Only overlap of clusters with saturating brightness appear white. Thus, most co-localizing CTCF and Rad21 molecules are not visible in Figure 4A. Thus, as a much more quantitative analysis we performed pair cross correlation analysis. Like pair correlation analysis, which quantifies the spatial interaction of proteins with themselves (i.e. clustering), pair cross correlation analysis quantifies spatial interactions between two different proteins. Thus, C(r) quantifies enrichment between two different proteins as a function of interparticle distance, r. When the two proteins are independent (Complete Spatial Randomness (CSR)), C(r)=1 for all r. We calculate C(r) using the whole nucleus and edge-correction as previously described (Stone and Veatch, 2015) using bins of 10 nm. The main way in which pair cross correlation can cause false-positive pair cross correlation is through fluorophore bleedthrough during simultaneous two-color imaging. E.g. if 561 nm excited J549 molecules emit enough far-red photons to be detected in the JF646 channel, this would result in high, but false-positive, pair cross correlation at small r. To rule out bleedthrough and any other bias, we also imaged a mES cell line stably expressing H2B-SNAPf transfected with a plasmid encoding a free Halo protein. We expect no significant co-localization between these proteins beyond mild exclusion from certain nuclear regions (e.g. nucleolar regions). In agreement, their experimentally observed pair cross correlation was not significantly different from CSR at any r. Since these cells were imaged under the same conditions as C59 Halo-mCTCF/mRad21-SNAPf, this rules out the possibility that the observed pair cross correlation at small r between CTCF and cohesin is due to fluorophore bleedthrough or any other technical artifact.

Antibodies

Antibodies were as follows: ChromPure rabbit and mouse normal IgG from Jackson ImmunoResearch (West Grove, PA); anti-CTCF for Western Blot (WB) from Millipore (Temecula, CA) (EMD 07–729), for ChIP and Co-IP from Abcam (ab128873); anti-Rad21 for WB and ChIP from Abcam (Cambridge, MA) (ab154769), for CoIP from Millipore (EMD 05–908); anti-SMC1 and anti-SMC3 from Bethyl (Montgomery, TX) (A300-055A, A300-060A); anti-FLAG from Sigma-Aldrich (F7425); anti-TBP, anti-H3, and anti-V5 from Abcam (ab51841, ab1791, ab9116).

Chromatin immunoprecipitation (ChIP) and ChIP-seq libraries

Request a detailed protocol

ChIP assays in wild-type and double CTCF/Rad21 knock-in (clone C59) mouse JM8.N4 mES cells were performed essentially as described (Testa et al., 2005) with minor modifications. Cells were cross-linked for 5 min at room temperature with 1% formaldehyde-containing medium; cross-linking was stopped by PBS-glycine (0.125 M final). Cells were washed twice with ice-cold PBS, scraped, centrifuged for 10 min at 4000 rpm, resuspended in cell lysis buffer (5 mM PIPES, pH 8.0, 85 mM KCl, and 0.5% NP-40, 1 ml/15 cm plate) and incubated for 10 min on ice. During the incubation, the lysates were repeatedly pipetted up and down every 5 min. Lysates were then centrifuged for 10 min at 4000 rpm. Nuclear pellets were resuspended in six volumes of sonication buffer (50 mM Tris-HCl, pH 8.1, 10 mM EDTA, 0.1% SDS), incubated on ice for 10 min, and sonicated to obtain DNA fragments below 2000 bp in length (Covaris (Woburn, MA) S220 sonicator, 20% Duty factor, 200 cycles/burst, 100 peak incident power, 50 cycles of 30’ on and 30’ off). Sonicated lysates were cleared by centrifugation and 400–1600 μg of chromatin was diluted in RIPA buffer (10 mM Tris-HCl, pH 8.0, 1 mM EDTA, 0.5 mM EGTA, 1% Triton X-100, 0.1% SDS, 0.1% Na-deoxycholate, 140 mM NaCl) to a final concentration of 0.8 μg/μl, precleared with Protein A sepharose (GE Healthcare, Pittsburgh, PA) for 2 hr at 4°C and immunoprecipitated overnight with 8–16 μg of normal rabbit IgGs, anti-Rad21 or anti-CTCF antibodies. About 15% of the precleared chromatin was saved as input. Immunoprecipitated DNA was purified with the Qiagen (Germantown, MD) QIAquick PCR Purification Kit, eluted in 60 μl of water and analyzed by qPCR together with 2% of the input chromatin prior to ChIP-seq library preparation (SYBR Select Master Mix for CFX, ThermoFisher, see Supplementary file 2 for primer sequences).

ChIP-seq libraries were prepared independently from two ChIP biological replicates using the Illumina (San Diego, CA) TruSeq DNA sample preparation kit according to manufacturer instructions with few modifications. We used 100 ng of ChIP input DNA (as measured by Fragment analyzer) and 50 μl of immunoprecipitated DNA as a starting material; Illumina adapters were diluted 1:50, and library samples were enriched through 18 cycles of PCR amplification. We assessed library quality and fragment size by qPCR and Fragment analyzer, and when necessary we performed an additional size selection step on agarose gel after PCR amplification to enrich for fragments between 150 and 500 bp. We sequenced four to eight multiplexed libraries per lane on the Illumina HiSeq4000 sequencing platform (single end-reads, 50 bp long) at the Vincent J. Coates Genomics Sequencing Laboratory at UC Berkeley, supported by NIH S10 OD018174 Instrumentation Grant.

ChIP-seq analysis

Request a detailed protocol

Input, IgG, Rad21 and CTCF ChIP-seq raw reads from wild type and knock-in ESCs from two biological replicates (18 libraries total, see Supplementary file 1) were quality-checked with FastQC and aligned onto the mouse genome (mm10 assembly) using Bowtie (Langmead et al., 2009), allowing for two mismatches (-n 2) and no multiple alignments (-m 1). Enriched regions were visualized on the mm10 genome with the Integrative Genomics Viewer (IGV) (Robinson et al., 2011; Thorvaldsdóttir et al., 2013), after creating tiled data files from alignment files (igvtools count -w 50 -e 200). Peaks were called with MACS2 (--nomodel --extsize 250) (Zhang et al., 2008) combining inputs from the two replicates as a control, first for each biological replicate separately, and then, after having verified that results were highly reproducible, for the merged replicates (Supplementary file 1). Coverage and overlap between ChIP-seq peaks across samples and with previously published CTCF and Rad21 datasets were computed through Galaxy (Blankenberg et al., 2010; Giardine et al., 2005; Goecks et al., 2010), requiring a minimum 1 bp overlap between peak intervals (Supplementary file 1).

To create heatmaps, we used deepTools (version 2.4.1) (Ramírez et al., 2016). We first ran bamCoverage (--binSize 50 --normalizeTo1 × 2150570000 extendReads 250 --ignoreDuplicates -of bigwig) and normalized read numbers of WT and C59 IgG, CTCF and Rad21 merged replicates to 1x sequencing depth, obtaining read coverage per 50 bp bins across the whole genome (bigWig files). We then used the bigWig files to compute read numbers across 6 kb centered on either WT CTCF or WT Rad21 peak summits as called by MACS2 (computeMatrix reference-point --referencePoint=TSS --upstream 3000 --downstream 3000 --missingDataAsZero --sortRegions=no). We sorted the output matrices by decreasing WT enrichment, calculated as the total number of reads within a MACS2 called ChIP-seq peak. Finally, heatmaps were created with the plotHeatmap tool (--averageTypeSummaryPlot=mean --colorMap='Blues' --sortRegions=no).

RT-qPCR analysis

Request a detailed protocol

Total RNA was purified from cell pellets using RNeasy Plus Mini kit (Qiagen) and quantified by Nanodrop. For RT-qPCR, 1 μg of total RNA was retrotranscribed to cDNA with oligo(dT) primers (Ambion, Life Technologies, ThermoFisher) and Superscript III (Invitrogen, ThermoFisher). 2 μl of 1:40 cDNA dilutions were used for quantitative PCR (qPCR) with SYBR Select Master Mix for CFX (Applied Biosystems, ThermoFisher) on a BIO-RAD CFX Real-time PCR system (see Supplementary file 2 for primer sequences).

Western blot and co-immunoprecipitation (Co-IP) assays

Request a detailed protocol

Cells were collected by scraping from plates in ice-cold phosphate-buffered saline (PBS), pelleted, and flash-frozen in liquid nitrogen.

For Western blot analysis, cell pellets where thawed on ice, resuspended to 1 mL/10 cm plate of low-salt lysis buffer (0.1 M NaCl, 25 mM HEPES, 1 mM MgCl2, 0.2 mM EDTA, 0.5% NP-40 and protease inhibitors), with 125 U/mL of benzonase (Novagen, EMD Millipore), passed through a 25G needle, rocked at 4°C for 1 hr and a NaCl solution was added to reach a final concentration of 0.2 M. Lysates were then rocked at 4°C for 30 min and centrifuged at maximum speed at 4°C. Supernatants were quantified by Bradford. Between 15 and 60 μg of proteins were loaded onto 9% Bis-Tris SDS-PAGE gel, transferred onto nitrocellulose membrane (Amershan Protran 0.45 um NC, GE Healthcare) for 2 hr at 100V, blocked in TBS-Tween with 10% milk for at least 1 hr at room temperature and blotted overnight at 4°C with primary antibodies in TBS-T with 5% milk. HRP-conjugated secondary antibodies were diluted 1:5000 in TBS-T with 5% milk and incubated at room temperature for an hour.

For Co-IP experiments, cell pellets where thawed on ice, resuspended to 1 ml/10 cm plate of cell lysis buffer (5 mM PIPES pH 8.0, 85 mM KCl, 0.5% NP-40 and protease inhibitors), and incubated on ice for 10 min. Nuclei were pelleted in a tabletop centrifuge at 4°C, at 4000 rpm for 10 min, and resuspended to 0.5 mL/10 cm plate of low salt lysis buffer with benzonase as above. For each sample, 1 mg of proteins was diluted in 1 mL of Co-IP buffer (0.2 M NaCl, 25 mM Hepes, 1 mM MgCl2, 0.2 mM EDTA, 0.5% NP-40 and protease inhibitors), pre-cleared for 2 hr at 4°C with protein-G-sepharose beads (GE Healthcare Life Sciences) before overnight immunoprecipitation with 4 μg of either normal serum IgGs or specific antibodies as listed above. Some pre-cleared lysate was kept at 4°C overnight as input. Protein-G-sepharose beads precleared overnight in CoIP buffer with 0.5% BSA were then added to the samples and incubated at 4°C for 2 hr. After extensive washes in Co-IP buffer, proteins were eluted from the beads by boiling for 5 min in 2X SDS-loading buffer and analyzed by SDS-PAGE and Western blot.

Datasets and accession numbers

Request a detailed protocol

The ChIP-seq data discussed in this publication have been deposited in NCBI's Gene Expression Omnibus (Edgar et al., 2002) and are accessible through GEO Series accession number GSE90994. We compared our ChIP-seq to previous ChIP-Seq studies of Rad21 and CTCF: (Handoko et al., 2011; Nitzsche et al., 2011; Shen et al., 2012) and GSE29218.

Fluorescence recovery after photobleaching (FRAP) imaging

Request a detailed protocol

FRAP was performed on an inverted Zeiss (Germany) LSM 710 AxioObserver confocal microscope equipped with a motorized stage, a full incubation chamber maintaining 37°C/5% CO2, a heated stage, an X-Cite 120 illumination source as well as several laser lines (only the 561 nm laser was used here). Images were acquired on a 40x Plan NeoFluar NA1.3 oil-immersion objective at a zoom corresponding to a 100 nm x 100 nm pixel size and the microscope controlled using the Zeiss Zen software. In most FRAP experiments, except where otherwise noted, 300 frames were acquired at either one frame per second allowing 20 frames to be acquired before the bleach pulse to accurately estimate baseline fluorescence or 330 frames at one frame per 2 s again allowing 20 frames to be acquired before the bleach pulse. A circular bleach spot (r = 10 pixels) was chosen in a region of homogenous fluorescence at a position at least 1 μm from nuclear or nucleolar boundaries. The spot was bleached using maximal laser intensity and pixel dwell time corresponding to a total bleach time of ~1 s. We note that because the bleach duration was relatively long compared to the timescale of molecular diffusion, it is not possible to accurately estimate the bound and free fractions from our FRAP curves.

We generally collected data from 6 to 10 cells per cell line per condition per day, and all presented data are from at least three independent replicates on different days. To quantify and drift-correct the FRAP movies (cell movement is an issue, especially for mES cells), we custom-wrote a pipeline in MATLAB. Briefly, we manually identify the bleach spot. The nucleus is automatically identified by thresholding images after Gaussian smoothing and hole-filling (to avoid the bleach spot as being identified as not belonging to the nucleus). We use an exponentially decaying (from 100% to ~85% of initial over one movie) threshold to account for whole-nucleus photobleaching during the time-lapse acquisition. Next, we quantify the bleach spot signal as the mean intensity of a slightly smaller circle (r = 0.6 μm), which is more robust to lateral drift. The FRAP signal is corrected for photobleaching using the measured reduction in total nuclear fluorescence (~15% over 300–330 frames at the low laser intensity used after bleaching) and internally normalized to its mean value during the 20 frames before bleaching. We correct for drift by manually updating a drift vector quantifying cell movement during the experiment. Finally, drift- and photobleaching corrected FRAP curves from each single cell were averaged to generate a mean FRAP recovery. We used the mean FRAP recovery in all figures and for model-fitting.

Model selection is a crucial step in FRAP experiments and has been studied extensively (Mueller et al., 2008, 2010; Sprague et al., 2004). A full FRAP model considers both diffusion, the shape of the bleach spot and reactions (e.g. binding and unbinding). However, Sprague et al. identified circumstances under which simpler models are applicable (Sprague et al., 2004). Importantly, minimizing the number of fitted parameters is desirable because FRAP modeling tends to otherwise be prone to overfitting. Sprague et al. showed that when:

kONw2DFREE1andkOFFkON1

Then a ‘reaction dominant’ FRAP model is most appropriate (w is the radius of the bleach spot). In the case of the second condition, for CTCF in both mES and U2OS cells, kOFFkON. Likewise, for mRad21-Halo in mESCs kOFFkON. Thus, the second condition suggests a reaction dominant model. For the first condition, we find:

Halo-mCTCF in mESCs: kONw2DFREE=0.015s1(0.6 μm)22.5 μm2s1=0.00221

mRad21 in mESCs (G1 phase): kONw2DFREE=0.0005s1(0.6 μm)21.5 μm2s1=0.000121

Thus, both CTCF and Rad21 lie within the reaction dominant parameter space and a reaction-dominant FRAP model is therefore the most appropriate choice. As has been demonstrated previously (Sprague et al., 2004), in the reaction-dominant parameter range, the FRAP recovery depends only on kOFF and we fit the FRAP recoveries to the reaction-dominant model below:

FRAP(t)=1AekatBekbt

After model-fitting (Figure 2—figure supplements 2D and 3C), we used the slower off rate to estimate the residence time according to τs=1koff.

In FRAP modeling, an important question is whether or not it is justifiable to ignore diffusion (as the above model does) and the radial shape of the bleach spot. Mueller et al. previously showed that ignoring diffusion can lead to serious errors for typical transcription factors which show rapid FRAP recovery (in the seconds to tens of seconds range) (Mueller et al., 2008). To test whether diffusion must be taken into account we plotted the radial shape of the bleach spot as a function of time. In general, if recovery is due to binding, the recovery should be mostly uniform across the bleach area, since all binding sites are equally likely to be sampled. If on the other hand diffusion dominates the recovery, the outer edges of the circle will recover first and the center of the circle last, since unbleached molecules are diffusing in from the outside. As can be seen (Figure 2—figure supplement 3E), the radial profile of the bleach spot is flat and thus diffusion can be ignored in the FRAP modeling. We note that in previous studies on typical transcription factors, complete or near-complete FRAP recovery was generally observed in the 10–20 s range and here diffusion is critical (Mazza et al., 2012; Mueller et al., 2008; Sprague et al., 2004). But in the case of CTCF and cohesin, FRAP recovery is about two orders of magnitude slower, and thus, it is not surprising that diffusion can be ignored. Finally, Mueller et al. modeled the shape of the bleach spot as a Gaussian (Mueller et al., 2008), but showed that if the flat part of the bleach spot is used instead, equivalent results are obtained. Thus, in our case, we bleach a circle with a 1 μm radius but use a circle with a 0.6 μm radius to calculate the FRAP recovery, which is in the uniform area of the radial bleach profile. In addition to being equivalent to the full Gaussian description of the radial bleach profile, it has the advantage of being much more robust to cell drift, which is extensive for mES cells over the 11 min that most of our FRAP experiments last.

Finally, it came to our attention that during extended FRAP experiments (in the multi hour range), incomplete washout of Halo- or SNAP-dye can lead to artifactual FRAP recovery (Rhodes et al., 2017). This is most likely through dye binding to new protein produced after the bleach pulse. This can be corrected for by adding an excess of ‘dark’ Halo- or SNAP-ligand, such that any newly synthesized protein binds the dark ligand. However, this is unlikely to contribute significantly to FRAP recoveries on the minute timescale since we estimate that only around 1% of the total protein is replenished during our longest FRAP experiments. Consistently, we could not detect a difference in FRAP recovery after adding excess dark ligand (Figure 2—figure supplement 3F). We conclude that our FRAP experiments were not affected by this.

Appendix 1

Estimation of the fraction of CTCF and cohesin molecules involved in looping

Since both CTCF and cohesin have functions beyond regulating chromatin looping, an important question is which fraction of chromatin-bound CTCF and cohesin sites are involved in chromatin looping. Conventionally, the number of occupied binding sites are assessed using ChIP-Seq and identified as peaks significantly above a background threshold. Experimentally, a spectrum of binding enrichments is always observed and peak calling involves a somewhat arbitrary discretization step. Using MACS2 (Zhang et al., 2008) and standard parameters (Materials and methods), we call 68,077 CTCF ChIP-Seq peaks in wild-type mESCs and a similar number in Halo-mCTCF knock-in cells (C59; see Supplementary file 1 for full details). Likewise, for cohesin we observe 33,434 ChIP-Seq peaks of which 97% of the peaks overlap with a CTCF peaks. Thus, the cohesin peaks appear to be a subset of CTCF peaks and there appears to be significant cohesin binding at many other CTCF peaks, albeit below the peak-calling threshold.

What fraction of CTCF/cohesin sites are involved in looping? As for calling peaks using ChIP-Seq data, loops are also generally called by thresholding Hi-C data and appear as corner-peaks in the Hi-C interaction matrix. Different groups have used different thresholds and Hi-C data at different resolutions and accordingly have reported different numbers of loops (Jin et al., 2013; Rao et al., 2014; Sanyal et al., 2012). The highest resolution Hi-C data published to date is from Rao et al. and they report ~10,000 loops using a very stringent and conservative loop-calling algorithm in GM12878 cells (Rao et al., 2014). The same group called substantially fewer loops in other cell lines sequenced at a lower sequencing depth (lower resolution Hi-C). However, using a method called Aggregate Peak Analysis (APA), which allows Hi-C maps at different resolutions to be compared, Rao et al. found that the fewer loops were due to the lower sequencing depth rather than an absence of loops in these cell lines. In fact, they found that loops were largely conserved between different cell lines and between human and mouse cells. Thus, it seems like the ability to call loops depends on sequencing depth and thus, it seems likely that in the future when even higher resolution Hi-C data may be available, the number of high-confidence loops will significantly exceed 10,000. According to Rao et al., almost all Hi-C loops are anchored by both CTCF and cohesin. Thus, a lower bound estimate would be that ~20,000 CTCF and Cohesin ChIP-Seq sites anchor loops. However, as also pointed out by Rao et al. and clearly illustrated in Figure 2 of an informative recent review by Merkenschlager and Nora (Merkenschlager and Nora, 2016), many loops appear to be anchored by clusters of CTCF/cohesin binding sites. Thus, since multiple CTCF and cohesin ChIP-Seq sites can anchor the same loop, 20,000 seems to be too low a bound. If we further take into account that future Hi-C studies, which achieve even greater resolution, will likely call even more loops, it seems reasonably conservative to take ~25,000 CTCF and cohesin ChIP-Seq peaks as the number of peaks involved in looping. While this is clearly a rough and somewhat speculative estimate, if we compare this to the MACS2-called ChIP-seq peaks we find that ~25,000/68,077 or ~37% of CTCF ChIP-Seq called binding sites and ~25,000/33,434 or ~75% of cohesin ChIP-Seq called binding sites are involved in chromatin looping. In the main text of the manuscript, we refer to this as around one-third of CTCF sites and as a majority of cohesin sites. We also note that within the extrusion model, a significant fraction of cohesin molecules that are topologically engaged on chromatin may be actively travelling across the chromosome (i.e. ‘extruding’) and this fraction is unlikely to be picked up by any ChIP-Seq peak-calling analysis. This fraction would appear indistinguishable from cohesin molecules bound at specific loop boundaries in our FRAP analysis. Nevertheless, among cohesin molecules that remain at a specific location for an extended period, i.e. the fraction likely to result in ChIP-Seq peaks, the majority appears around loop boundaries.

For CTCF sites, we would also like to note that the CTCF sites involved in looping tend to be the ones with the highest ChIP-Seq enrichment (Merkenschlager and Nora, 2016). The ChIP-Seq enrichment should be approximately proportional to the fraction of time the binding site is occupied. Thus, the CTCF sites that make up loop anchors are likely bound a higher fraction of the time than other CTCF sites. This is important, because the probability of observing CTCF binding to a particular site in our imaging experiments should also scale with the fractional occupancy of this site. Thus, in our single-molecule tracking experiments (Figure 2A–D), we are over-sampling precisely the CTCF binding events at loop anchors. Thus, most likely, of the binding events that we observe in Figure 2A–D,>37% are involved in looping. Further support for this interpretation, comes from the observation that overexpressing CTCF greatly increases the rate of FRAP recovery (Figure 2—figure supplement 2B: black curve vs. red and blue curves). The simplest explanation for this over-expression artefact is that when the abundance of CTCF substantially increases, many CTCF molecules now start binding ‘poor’ CTCF sites on chromatin and accordingly the apparent residence time is decreased. For these reasons, we believe that our estimate that around one-third of CTCF sites are involved in looping is a very conservative estimate and we believe that this is a lower bound.

In the case of cohesin, cohesin clearly has many other functions besides looping such as sister chromatids cohesion and DNA repair through homologous recombination. However, most of these functions only exist from S-phase to division during the cell cycle. Thus, our estimate that a majority of cohesin molecules are involved in chromatin looping apply to G1-phase, where sister chromatid cohesion and homologous recombination does not occur.

Moreover, we note that both ChIP-Seq and Hi-C and the other 3C variants (e.g. 4C and 5C) all provides snapshots of large cell populations. Thus, a ChIP-Seq peak and a Hi-C loop shows that a binding site is occupied and that a loop exists, in a fraction of cells, but it is extremely difficult to estimate how big this fraction is from these techniques. And even with DNA FISH measurements, it can be difficult to ascertain precisely the frequency with which a loop occurs in a cells (Fudenberg and Imakaev, 2016). A very recent paper used single-cell Hi-C to estimate that loops form in 62.1% of mouse ES cells (Stevens et al., 2017). This is a somewhat higher estimate than what most DNA-FISH studies find. Nevertheless, if we assume that the fractional occupancy of CTCF sites is significantly less than 62.1%, which is likely the case (but cannot be determined with knowing the absolute number of CTCF molecules per cell), this would also imply that a much higher fraction than 37% of CTCF binding sites is involved in looping. However, because we do not yet have good data on the fractional binding site occupancy and on the exact number and frequency of loops, it is difficult to say with certainty what fraction of CTCF molecules are truly involved in looping.

Finally, we note that if loops are formed by a cohesin-mediated extrusion mechanism (Fudenberg et al., 2016; Sanborn et al., 2015), many cohesin molecules will be actively extruding loop and thus involved in looping, but not actually show up in ChIP-Seq as a peak. This is because for the extrusion model to work, cohesin has to extrude quite quickly along chromatin and thus its occupancy is effectively ‘spread out’ and will not show up in a ChIP-Seq experiment as a peak and thus will not be called. This may be one reason, why we find more CTCF ChIP-Seq peaks than cohesin peaks. Thus, it is very plausible that more cohesin than CTCF molecules will be chromatin associated even though fewer cohesin ChIP-Seq peaks are called.

References

  1. 1
    Characterization of hundreds of regulatory landscapes in developing limbs reveals two regimes of chromatin folding
    1. G Andrey
    2. R Schöpflin
    3. I Jerković
    4. V Heinrich
    5. DM Ibrahim
    6. C Paliou
    7. M Hochradel
    8. B Timmermann
    9. S Haas
    10. M Vingron
    11. S Mundlos
    (2017)
    Genome Research, 27, 10.1101/gr.213066.116, 27923844.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81

Decision letter

  1. David Sherratt
    Reviewing Editor; University of Oxford, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "CTCF and Cohesin Regulate Chromatin Loop Stability with Distinct Dynamics" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing editors, and the evaluation has been overseen by Kevin Struhl as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Lothar Schermelleh (Reviewer #2).

Your manuscript has been assessed by three reviewers and the consensus is that the material is potentially suitable for publication in eLife. Nevertheless, there are a number of significant and minor issues that you should take into account in revising your manuscript and we propose you undertake some further experimentation and analysis. Below, the overall view, comments and concerns are listed.

The work provides a thorough and extensive study of the in vivo dynamics and differential binding kinetics of CTCF and Cohesin to chromosomes in mouse ES and human U2OS cells using advanced single molecule and FRAP imaging as well as complementary CoIP and ChIP-seq experiments. The experimental approaches (ranging from the tagging of the endogenous proteins by CRISPR/Cas9 to the careful modelling of single molecule experiments) and quantitative analyses are of highest standard, and the technical execution, data quality and strength of the conclusions in this manuscript are sound for the most part; nevertheless, see below.

This work presents compelling evidence for the dynamic nature of "loop maintenance complexes" required to stabilize topological chromatin domains in interphase. By providing novel high quality quantitative data (resolving some inconsistencies in previous literature), the work contributes significantly to the understanding of how cohesin and CTCF cooperatively organize chromatin topology. The authors show that the kleisin [Rad21] subunit of cohesin [a surrogate for cohesin complexes] displays significantly longer binding to DNA (timescale of ~30 min) than CTCF (timescale of ~1 min), leading to the hypothesis that cohesin and CTCF form dynamic LMC complexes in which the CTCF molecules exchange rapidly. Furthermore, the authors show that also the search strategies of the two chromatin binders are different with CTCF rapidly identifying its target-sites, and cohesin binding about 30 times more infrequently. It is proposed [and this is not novel] that cohesin's ability to maintain two duplex segments within its proteinaceous ring has a key role in structuring the loops at CTCF binding sites [thereby forming TADs]

Major comments

1) Binding kinetics of Cohesin/CTCF at loop sites

The long-lived binding of CTCF [~1 min] and cohesin [~20 min] extracted by FRAP and SMT are averaged over both "loop-sites" and other chromosomal regions. Therefore, there is the possibility that only a small fraction of the observed CTCF-bound population is engaged in stable binding at chromatin loops. Furthermore, stably-bound cohesins may be present at both CTCF-bound sites and at other positions on chromosomes. Relevant to this point, comparison of the ChIP-seq data with published HiC data (Appendix 1) seem to indicate that cohesin binding sites are mostly on loops, while for CTCF about 30% of the ChiP seq peaks are found in loops. As the authors point out these calculations are rather rough because calling ChiP peaks depends on the selection of thresholds. Further it is not clear how SMT data and ChIP relate: would all the measured residence times from few seconds to several minutes show-up as a peak in the ChIP data, or only the most stable ones? With these uncertainties, it is hard to understand what is the sub-population of single CTCF molecules that is potentially engaged with cohesin at loop sites [and vice versa]. Is it possible that only a small fraction of very-long lived CTCF binding events are those involved in chromatin looping? If the authors think that they can exclude this possibility from their current data, they should discuss this issue more incisively. Otherwise, to provide definitive evidence that CTCF molecules engaged in LMCs are transiently interacting with chromatin the authors could compare CTCF binding at regions enriched and devoid of cohesin (Ideally by single molecule imaging on CTCF followed by PALM on cohesin on the same cell).

2) Modelling of SMT data

The method devised by the authors to quantify bound fractions is a nice and justified simplification of a previously described mathematical model to extract bound fractions from distribution of displacements, based on acquiring movies at a very fast time rate (>200Hz) during SMT. Nevertheless, one reviewer has serious concerns on the choice of limiting the analysis to the first 7 displacements of each track, even for molecules residing in the observation slice much longer, since this could result in a severe underestimation of the bound fraction. In this reviewer's opinion, Monte-Carlo simulations showing that this is not the case are needed. The reviewer explains their concern with a simplified example: consider the situation in which we have 20 molecules in one nucleus and a bound fraction of 50%. By definition this mean that at each frame half of the detected molecules will belong to "bound segments" and half to free ones. Let's also consider an observation slice that spans 1/10 of the thickness of the nucleus, so that per-frame there will be one molecule free and one molecule bound. Now as it is unlikely that a molecule will diffuse out of the detection volume with the very fast tracking rate between one frame and the next (probability to diffuse out roughly equal to e^(-deltaZ^2/4*D*δ_t)), but it gets more likely as deltaT time increases. The correction for the observation volume accounts for this, being a small correction when deltaT is small, and getting bigger and bigger for longer deltaTs. Conversely, discarding the segments of the tracks after the 7th one, is a hard threshold that similarly affects data at short intervals and data at long intervals. At the shorter time-interval, if we consider, for example an acquisition of 100 frames, the bound track will always be the same (as residence times are very long in the experimental situation of the paper), and therefore will contribute to the histogram of displacements with just 7 jumps (all the others are discarded). For the free molecules, instead the situation will be radically different. Each of them will be visible for a certain number of frames that on their diffusion coefficient, and then get out of the observation volume. The point is that when a molecule gets out of focus, it will be substituted – on average – by another one, that will be counted as a new one (each still contributing 7 displacements). By a back of the envelope calculation, if each free molecule stays within the detection volume for n frames on average, we would count a number of displacements associated to the free molecules equal to: min(n-1, 7)x(100/n).

For example, for the case in which n = 7, we would count 84 displacements associated to the free molecules, compared to the 7 jumps associated to the bound molecule. Therefore the estimated bound fraction would be roughly (7/(7+84)) = 8%, strongly underestimated compared to the 50% that we have imposed at the beginning of this calculation. This problem should not be there, instead, if bound and free molecules last for the same amount of time within the observation volume, but, I guess that this is not the case in the experimental settings, otherwise no correction for the limited thickness of the detection volume would be necessary.

Furthermore, the estimation of the bound fraction and the estimation of the residence times are performed on two very different timescales (4.5-30 ms vs. >3s). It would be nice if the authors could exclude the presence of a fast dissociating population (in the gap between the two measurements), that might affect the calculation of the search times. Maybe by showing that the bound fraction does not change when acquiring data at a slower frame time (in the 50-200 ms range)?

3) FRAP and modelling of FRAP.

The details of the choice of the model for FRAP data are lacking. A double exponential assumes that diffusion is much faster than the unbinding process and the acquisition rate, and therefore does not contribute to recovery. This assumption needs to be tested/justified.

While it seems reasonable that most of the molecules will have diffused out from the bleach region in the time between two acquisitions (75%-80% given the diffusion coefficients reported by the authors), diffusion might still contribute to the first time-points of the recovery curve. The authors might test for the role of diffusion by plotting the evolution of the bleach profile over time, which should not broaden, if the assumption of the negligible role of diffusion is correct. Also, the estimations for CTCF residence time are quite different for SMT and FRAP (1 min vs. 3-4 min): the authors indicate that this might be due to multiple binding and unbinding events during the recovery. I have some doubts that in this case a multi-exponent fitting of the recovery curve is the most appropriate model. More importantly this interpretation is unlikely as the SMT data seem to indicate that the molecules spend about 60s between two stable binding events, and of these about 30s are spent diffusing freely in the nucleus. In these 30s the molecule should diffuse far away from the bleaching region, so it is unclear how the multiple binding events could significantly contribute to the recovery. One possibility is anomalous diffusion, that would constrain the spread of CTCF molecules after unbinding. Do the authors have any evidence from the SMT data for anomalous behavior of free CTCF molecules? Could relabelling by free dye during recovery [as reported by others] impact on the interpretation of the FRAP?

4) Two color dSTORM analysis

(Subsection “CTCF and cohesin co-localize in cells and show a clustered nuclear organization”, Figure 4 and Figure 4—figure supplement 1).

The two-color dSTORM image (Figure 4A) shows more Rad21 (localization) signals than CTCF signals. This seems not in line with the ChIP-seq. peak numbers (68.000 CTCF, 33.400 Rad21, 97% overlap of Rad21 peaks with CTCF) that would lead to expect this to be the other way round. The authors should offer an explanation for this apparent inconsistency.

Furthermore, there seems to be a prominent enrichment of Rad21 along the nuclear envelope, which I have not been aware from other paper describing the nuclear distribution of cohesin using conventional imaging. Hence it may be useful to compare the dSTORM images with widefield deconvolution or confocal images of the same cell line(s).

For the additional clustering analyses (Figure 4—figure supplement 1) the authors use a 2D PALM localization approach. With the depth of the optical slice being around 700 nm, could this have potential effects on the clustering analyses? How should the clustering be interpreted? Do the clusters coincide with the co-localizing regions in the dSTORM images? Are the clusters equivalent to the LMCs, whereas non-clustering molecules are rather belonging to the free fraction? If 25% of CTCF or 35% of Rad21 molecules are in clusters, then only a subset of LMCs are in clusters, right? Then again, if 15% NLS-Halo is found in clusters, how relevant is the slight increase cluster fraction for CTCF and Rad21? Subsection “CTCF and cohesin exhibit distinct nuclear search mechanisms” and Table 1: In the text 3 fractions are distinguished (bound to cognate site; non-specifically associated with chromatin; free 3D diffusion), whereas in the table only two fractions are distinguished (bound total vs. bound specific). Why not listing the 3 fractions as in the text, to avoid confusion? Could the "non-specific binding" or "1D sliding" not also explained by corralled or anomalous diffusion? Does the Rad21-HaloTag kinetic data imply that Rad21 (and other Cohesin subunits) are predominantly present as either free (searching) or bound complexes, but not as single proteins?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "CTCF and Cohesin Regulate Chromatin Loop Stability with Distinct Dynamics" for further consideration at eLife. Your revised article has been favorably evaluated by Kevin Struhl (Senior editor), a Reviewing editor, and one reviewer.

The manuscript has been substantially improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Below, we append, the reviewer's comments, that we invite you to respond to, and which will help you make your final revisions.

Reviewer #3:

In the revised version of the manuscript, Hansen et al. have made substantial efforts to answer the questions raised, by performing computer simulations and restating parts of the text. I am a little disappointed that despite some additional "wet" experiments were requested, the authors did not perform any. Nevertheless their arguments against my criticism are now more convincing, and I support publication in eLife.

The authors performed computer simulations to prove that limiting the population of the distribution of displacements to the first 7 frames of each track, however I see some problems with these simulations.

For the paper purpose, my suggestion would be to drop the description of these simulations from the text: they have a better argument, given by the fact that whether they analyze their experimental data by looking at all of the jumps, or only at the first 7 they essentially obtain the same results.

https://doi.org/10.7554/eLife.25776.037

Author response

Major comments

1) Binding kinetics of Cohesin/CTCF at loop sites

The long-lived binding of CTCF [~1 min] and cohesin [~20 min] extracted by FRAP and SMT are averaged over both "loop-sites" and other chromosomal regions. Therefore, there is the possibility that only a small fraction of the observed CTCF-bound population is engaged in stable binding at chromatin loops. Furthermore, stably-bound cohesins may be present at both CTCF-bound sites and at other positions on chromosomes. Relevant to this point, comparison of the ChIP-seq data with published HiC data (Appendix 1) seem to indicate that cohesin binding sites are mostly on loops, while for CTCF about 30% of the ChiP seq peaks are found in loops. As the authors point out these calculations are rather rough because calling ChiP peaks depends on the selection of thresholds. Further it is not clear how SMT data and ChIP relate: would all the measured residence times from few seconds to several minutes show-up as a peak in the ChIP data, or only the most stable ones? With these uncertainties, it is hard to understand what is the sub-population of single CTCF molecules that is potentially engaged with cohesin at loop sites [and vice versa]. Is it possible that only a small fraction of very-long lived CTCF binding events are those involved in chromatin looping? If the authors think that they can exclude this possibility from their current data, they should discuss this issue more incisively. Otherwise, to provide definitive evidence that CTCF molecules engaged in LMCs are transiently interacting with chromatin the authors could compare CTCF binding at regions enriched and devoid of cohesin (Ideally by single molecule imaging on CTCF followed by PALM on cohesin on the same cell).

This is a very important issue and the reviewers raise multiple points and we have attempted to address all of these points. First, based on available data, we can rule out that the loop-involved CTCF population is a tiny subpopulation. Second, we performed Monte Carlo simulations of CTCF binding and show that our SMT approach is quite sensitive to even very small subpopulations.

Regarding the first point, we do not believe that a very long-lived but tiny subset of “looping CTCF” events is escaping our notice. Here are our arguments for why this is the case:

  1. In our SMT/FRAP experiments (Figure 2), we can readily distinguish specific binding from non-specific binding and we report a CTCF binding time of ~1-2 min at specific cognate binding sites.

  2. Transient binding at non-specific, non-cognate sites will not lead to sufficient enrichment to be called as a peak in ChIP-seq.

  3. Thus, the longer (~1-2 min) binding events in our imaging experiments correspond to binding to cognate sites and it is these binding sites that show up in ChIP-seq experiments.

  4. ChIP-seq enrichment should be proportional to the fraction of time the binding site is occupied.

  5. Likewise, the probability of seeing binding to a particular cognate site should also scale with the fraction of time it is occupied and thus its ChIP-seq enrichment.

  6. Therefore, in our imaging experiments, we are predominantly sampling the binding events at the cognate CTCF sites with the strongest enrichment.

  7. Thus, out of the 68,077 called CTCF ChIP-seq sites, we are predominantly seeing binding at the subset with the highest ChIP-seq enrichment.

  8. Around ~25,000/68,077 (Appendix 1) CTCF binding sites are involved in looping.

  9. The CTCF sites involved in looping tend to be the ones with the highest enrichment in ChIP-seq (Fudenberg et al., 2016; Merkenschlager and Nora, 2016).

  10. Therefore, our imaging experiments oversamples precisely the CTCF binding events involved in looping.

  11. Cognate CTCF sites with ChIP-seq peaks are not always occupied; at present, we do not know precisely the fractional occupancy but we estimate it to be in the 15-50% range (~60-200k molecules of CTCF per cell (from PALM estimate); 50% of CTCF bound to cognate sites, i.e. 30-100k; 3 haploid genomes in average cell (mid-S phase), i.e. ~204k sites;).

  12. A very recent single-cell Hi-C paper (Steven et al., 2017, 3D structures of individual mammalian genomes studied by single-cell Hi-C, Nature, 2017) found that contacts between CTCF/cohesin loop boundaries occur in 62.1% of mES cells.

  13. These numbers (15-50% fractional occupancy of average ChIP-seq site, but 62.1% contacts between loops boundaries) provide additional evidence that loop boundary sites (62%) are bound more often than average sites (15-50%).

  14. While some uncertainty is unavoidable, this would suggest that extremely conservatively ~1/3, but more likely >50% of all observed CTCF binding events occurred at loop boundaries.

Based on this argument, we exclude that only a tiny fraction of the observed CTCF binding events are actually involved in looping. Regardless, since we see essentially full mCTCF FRAP recovery in 11 min, we can say that even the most stable CTCF binding events are shorter than cohesin binding, thus it is impossible for loops to be stably held together by CTCF.

Secondly, we wanted to determine how small a sub-population of very stable binding we would be able to detect in our SMT imaging. We performed Monte Carlo simulations of CTCF binding using the Gillespie algorithm and the following assumptions:

  • Photobleaching is a Poisson process with a rate constant of 1/120 s.

  • Non-specific binding is a Poisson process with a residence time of 1 s and 30% of all events are non-specific.

  • A very stable subpopulation binds as a Poisson process with a residence time of 10 min and X% of all events are in this very stable pool.

  • Specific binding is a Poisson process with a residence time of 1 min and 100% – 30% – X% of all events are specific.

We then simulated CTCF binding for 100,000 binding events using the Gillespie algorithm and plotted the 2-exponential fit (same as in manuscript) as a function of X, the fraction of very stable events. The results are shown in Author response image 1:

As can clearly be seen, the presence of a very stable subpopulation causes the 2-exponential fit to fail. Even with a tiny sub-population of 2% with residence time of 10 min instead of 1 min, the double-exponential fit totally fails (we do least-squares fitting here as in the manuscript). Only at around 1% or less, do the very stable subpopulation result in a reasonable fit like we saw experimentally.

Thus, our Gillespie simulations suggest that our detection limit is about 1%. Based on the ChIP-seq/Hi-C comparison, at the very least ~35% of binding events are involved in looping. Thus, comparing these numbers (35-fold difference), we believe we can exclude the possibility that loops are maintained by a tiny sub-population of CTCF that is escaping detection in our SMT experiments (Figure 2).

We have therefore discussed this matter more incisively as suggested by the reviewers. We have updated and re-written our Discussion and we have changed the main text several places. We now say that:

“We note that a CTCF RT of ~1 min is a genomic average and that some binding sites likely exhibit a slightly longer or shorter mean residence time. We also note that we are likely oversampling binding events at the CTCF binding sites with the strongest ChIP-seq enrichment (Figure 1E), which tends to be the sites involved in looping (Merkenschlager and Nora, 2016).”

“Although we cannot completely exclude a very small population (<5%) of CTCF or cohesin molecules with a somewhat shorter or longer RT, these RTs reflect chromatin-bound CTCF/cohesin. Since at least one-third of CTCF and the majority of G1 cohesin molecules bound to chromatin mediate looping (see Appendix 1 for estimate), we are confident that these RTs hold for most CTCF/cohesin molecules involved in looping.”

Regarding the 2-color SMT-followed-by-PALM experiment, it is a very challenging experiment due to significant cell drift and chromatin movement on the minute time-scale and beyond the scope of this paper.

2) Modelling of SMT data

The method devised by the authors to quantify bound fractions is a nice and justified simplification of a previously described mathematical model to extract bound fractions from distribution of displacements, based on acquiring movies at a very fast time rate (>200Hz) during SMT. Nevertheless, one reviewer has serious concerns on the choice of limiting the analysis to the first 7 displacements of each track, even for molecules residing in the observation slice much longer, since this could result in a severe underestimation of the bound fraction. In this reviewer's opinion, Monte-Carlo simulations showing that this is not the case are needed. The reviewer explains their concern with a simplified example: consider the situation in which we have 20 molecules in one nucleus and a bound fraction of 50%. By definition this mean that at each frame half of the detected molecules will belong to "bound segments" and half to free ones. Let's also consider an observation slice that spans 1/10 of the thickness of the nucleus, so that per-frame there will be one molecule free and one molecule bound. Now as it is unlikely that a molecule will diffuse out of the detection volume with the very fast tracking rate between one frame and the next (probability to diffuse out roughly equal to e^(-deltaZ^2/4*D*δ_t)), but it gets more likely as deltaT time increases. The correction for the observation volume accounts for this, being a small correction when deltaT is small, and getting bigger and bigger for longer deltaTs. Conversely, discarding the segments of the tracks after the 7th one, is a hard threshold that similarly affects data at short intervals and data at long intervals. At the shorter time-interval, if we consider, for example an acquisition of 100 frames, the bound track will always be the same (as residence times are very long in the experimental situation of the paper), and therefore will contribute to the histogram of displacements with just 7 jumps (all the others are discarded). For the free molecules, instead the situation will be radically different. Each of them will be visible for a certain number of frames that on their diffusion coefficient, and then get out of the observation volume. The point is that when a molecule gets out of focus, it will be substituted – on average – by another one, that will be counted as a new one (each still contributing 7 displacements). By a back of the envelope calculation, if each free molecule stays within the detection volume for n frames on average, we would count a number of displacements associated to the free molecules equal to: min(n-1, 7)x(100/n).

For example, for the case in which n = 7, we would count 84 displacements associated to the free molecules, compared to the 7 jumps associated to the bound molecule. Therefore the estimated bound fraction would be roughly (7/(7+84)) = 8%, strongly underestimated compared to the 50% that we have imposed at the beginning of this calculation. This problem should not be there, instead, if bound and free molecules last for the same amount of time within the observation volume, but, I guess that this is not the case in the experimental settings, otherwise no correction for the limited thickness of the detection volume would be necessary.

The reviewer raises an important point and we agree with the underlying problem that with infinitely photostable dyes, freely diffusing molecules outside the focal plane will be able to diffuse into focus and potentially lead to over-counting of the free fraction. We provide two answers: one “practical” using our raw data, and one “ideal” following the thought-example where photobleaching is very rare.

First, practically, it turns out that there is a very small effect of limiting the analysis to the first 7 displacements of each track on the estimated bound fraction. This is because the lifetime of the JF646 dye is very short under our fast-tracking conditions where we use high laser powers (in addition to photobleaching, we see significant blinking; after all, the principle of dSTORM is that high excitation power forces molecules into a blinking state; blinking does not bias towards either bound or free molecules). For example, the mean trajectory length for U2OS Halo-3xNLS is only 1.97 frames and the mean trajectory length for mESC C87 Halo-mCTCF is only 3.34 frames (due to differences in bound fractions and diffusion constants). Thus, in practice, the molecules that move out of focus generally bleach before they can re-appear (note that the axial HiLo-illumination slice is ~4µm, such that molecules can bleach outside of the axial detection window).

To show that there is no major bias because of photobleaching/blinking, we will use mESC C87 Halo-mCTCF 225 Hz SMT as an example. We took the full dataset (44 different cells across 5 different replicates; 20,000 frames per cell; 574,641 displacements in total). We then applied our SMT model to calculate the total fraction bound (specific+non-specific) as a function of the fraction of trajectories that were included ranging from the first 7 jumps to the entirety of all trajectories (a minor clarification: when we say the first 7 jumps, this includes 6 jumps of 1△τ, 5 jumps of 2△τ, and so on; we have now added this to the Materials and methods). As can be seen from the left plot in Author response image 2, the effect is relatively minor (going from 68% to 75%).

However, in addition to the bias towards free molecules identified by the reviewer, there is another compensatory bias against free molecules. Namely, with molecules diffusing around the nucleus there will be frequent cases where the free molecule will enter the detection volume for a single frame and then diffuse out and bleach out-of-focus. These molecules are never counted, because in the absence of a jump/displacement (tracked for 2 consecutive frames), there is no contribution to the displacement histogram. As shown in the plot on the right in Author response image 2 (Monte Carlo simulations of axial Brownian diffusion in and out of our detection volume), even for a slow-diffusing molecule like CTCF with D ~ 2.5 µm2/s, around 20% of all molecules move out-of-focus before the second localization and thus are not counted. Thus, in the practical case of our data where the lifetime of each dye is short, there is no major bias coming from our modeling approach, although we do acknowledge the presence of two mutually compensatory small biases.

Second, although there is clearly at most a very small bias present in the practical case of our data, we also wanted to thoroughly consider the “ideal” case or thought excercise considered by the reviewer. As the reviewer suggested, we performed extensive Monte Carlo simulations following the Euler-Maruyama scheme to assess if there could be any bias coming from free molecules being over-counted due to continuous re-appearance. For simplicity, we will continue with the numbers provided by the reviewer (e.g. 50% bound) and for unspecified numbers use what we find for CTCF in mESCs. Thus, we will assume the following:

  • 50% of molecules are bound and 50% are in free 3D diffusion.

  • The free diffusion constant is the same as for Halo-mCTCF: 2.5 µm2/s.

  • For simplicity, we assume the nucleus is approximately a cube with a side length of 8 µm. This assumption gives us an mESC nuclear volume very similar to that calculated for an mES nucleus as an ellipsoid (Chen et al., 2014). For purposes of our calculations, a cuboid nucleus greatly simplifies our simulations. The particles have to remain within this cube.

  • We assume the laser excitation beam thickness is 4 µm under highly inclined and laminated optical sheet illumination which we used for single-molecule tracking. This number is based on Tokunaga et al., 2008. Thus, since the nucleus is modeled as a cube with a diameter of 8 µm, half the nucleus is being illuminated. For simplicity, we model the excitation beam as a step-function with uniform photobleaching probability.

  • We assume that molecules photobleach with a first-order rate constant of λ.

  • We will use our experimentally determined axial detection volume of 700 nm (so just below 1/10 of the nucleus like the reviewer suggested).

  • The 2D localization error is 35 nm as in our experiments. Accordingly, the 1D localization error is 25 nm.

  • The time between frames, Δτ, is 4.5 ms as in our experiments.

  • Since the rate of unbinding (~1 min) and the rate of re-binding (~1 min) for CTCF is negligible at a 4.5 ms frame rate, we assume molecules never shift between the free and bound states (in practice, that they photobleach before they can shift).

We then simulate Brownian diffusion for 500,000 trajectories in each of the 3 dimensions by picking random numbers in each dimension from a normal distribution: N~(0, σ), where the mean is zero and σ=2DΔτ. The plots in Author response image 3 show example 3D trajectories. We convert the part of all the 3D trajectories inside the detection volume into 2D trajectories and then we apply our SMT modeling approach to infer DFREE and the fraction bound. The mean trajectory length was 3 frames similar to our experimental data. As can be seen, there is actually very low bias and using the entire trajectory (50.5% bound) or just the first 7 jumps (47% bound) give very similar results:

100 randomly chosen trajectories are shown on the right. Note that the trajectories outside the HiLo-excitation range are quite long because in this region there is no photobleaching. Conversely, in the second plot, in which only trajectories that spend at least one frame in the axial detection volume (3.65 µm to 4.35 µm) are shown, most trajectories are quite short (mean: 3 frames) because of the high rate of photobleaching. Thus, at high photobleaching rates like in our experimental data, these Monte Carlo simulations confirm that there is minimal bias from our SMT modeling approach in the estimation of both the fraction bound and the free diffusion constant.

Nevertheless, these simulations suggest that using the entire trajectory yields a smaller error (+0.5%) than using the first 7 jumps only (-3%). However, these simulations neglect another substantial bias against moving molecules. Experimentally, the more the molecules move, the more their photons are spread out, even under 1 ms stroboscopic illumination. Thus, the most mobile molecules have a lower signal-to-noise and fit less well to the 2-dimensional Gaussian PSF function that we use in our localization algorithm. The bound molecules conversely do not move and generally have a better signal-to-noise. It is very challenging to estimate how big the bias is from this, since it is difficult to model all experimental noise sources, but we expect it to be at least a couple of percentage points. Thus, although the approach suggested by the reviewer works slightly better for simulated data, because of this large bias against free molecules in the real data, we prefer to use the first 7 jumps only in our analysis of the experimental data. We also note that we included paSMT and modeling on Halo-3xNLS (overwhelmingly free) and H2b-Halo (overwhelmingly bound) as controls in Figure 3—figure supplement 1. These show the expected distributions (overwhelmingly free and overwhelmingly bound, respectively) and thus help verify, with orthogonal experimental controls, that there is no major bias coming from our approach.

Finally, we considered an ideal case with extremely photostable dyes (mean trajectory length: 100 frames). We note that this case is totally unrealistic given currently available dyes and microscope modalities and that we are about 2 orders of magnitude from this case even with state-of-the-art Janelia Fluor dyes today. In this experimentally unrealistic case, the reviewer is correct and our SMT modeling approach leads to a very serious undercounting of bound molecules (estimated fraction bound: 5%; actual fraction bound: 50%). As is also clear from the plots in Author response image 4, the trajectories that appear in the axial detection volume are now extremely long.

In summary, while there is clearly no significant bias from our SMT modeling approach using our experimental data, we are working on a full generalization of our modeling approach to include dyes of variable stability and we agree that this is an important future direction, since dyes are improving quite rapidly. However, since this is not relevant to the present study, we will leave this for a future technical report. We have updated our discussion of the SMT modeling approach in the Materials and methods to include this important caveat and make clear that our modeling approach applies only to dyes with significant photobleaching.

Furthermore, the estimation of the bound fraction and the estimation of the residence times are performed on two very different timescales (4.5-30 ms vs. >3s). It would be nice if the authors could exclude the presence of a fast dissociating population (in the gap between the two measurements), that might affect the calculation of the search times. Maybe by showing that the bound fraction does not change when acquiring data at a slower frame time (in the 50-200 ms range)?

There are three populations: freely diffusing molecules; non-specifically bound CTCFs (fast dissociation) and specifically bound CTCFs (slow dissociation). Ideally, we would be able to image all three populations in the same experiment, but unfortunately this is not possible. In the fast-tracking experiments (Figure 3), we distinguish between freely diffusing molecules and the total bound fraction. In the slow-tracking experiments (Figure 2C-D), we image only the bound population and distinguish between specifically bound population (slow component of the double-exponential) and the non-specifically bound population (fast component of the double-exponential). To see the stably bound population we need to use slow frame rates and low laser intensity (the fastest we imaged at was 300 ms; see Figure 2—figure supplement 1B). In the 50-200 ms range which the reviewer suggested, it is not possible to capture the freely-diffusing population. To illustrate why, we did Monte Carlo simulations. We populate a 700 nm thick axial slice and randomly distribute molecules along this slice. We then simulate Brownian diffusion and calculate the fraction of molecules that remain within the focal plane for a biologically plausible range of diffusion constants (D = 1-12 µm2/s). The results are shown in Author response image 5:

The dots correspond to simulation results and the lines correspond to a functional fit (similar to our Z-correction term). We allowed for 1 gap in the tracking and used a frame rate of 50 ms.

As can be seen, even for a slow-diffusing protein like CTCF with D ~ 2.5 µm2/s, most molecules leave the focal plane very quickly which leads to a huge undercounting of freely diffusing molecules. Thus, at the slower frame times of 50-200 ms there is too large a bias against freely diffusing molecules to allow accurate quantification. Moreover, tracking becomes extremely challenging, since molecules can easily travel across the whole nucleus in the 50-200 ms time range.

Finally, we note that although estimating the bound fraction from FRAP experiments is less quantitative (since there is significant diffusion in-and-out of the bleach spot during the long time it takes to bleach a circular spot), our FRAP experiments are in pretty good agreement with our SMT estimates. Consider for example Figure 2—figure supplement 3B, showing FRAP for mRad21-SNAPf. Assuming full photobleaching (but not the appearance thereof due to diffusion into the spot during the slow bleach), after the initial recovery due to non-specific binding, there is ~50% bound molecules in S/G2 and ~40% in G1, which is in quantitative agreement with our SMT measurements (Table 1).

3) FRAP and modelling of FRAP.

The details of the choice of the model for FRAP data are lacking. A double exponential assumes that diffusion is much faster than the unbinding process and the acquisition rate, and therefore does not contribute to recovery. This assumption needs to be tested/justified.

While it seems reasonable that most of the molecules will have diffused out from the bleach region in the time between two acquisitions (75%-80% given the diffusion coefficients reported by the authors), diffusion might still contribute to the first time-points of the recovery curve. The authors might test for the role of diffusion by plotting the evolution of the bleach profile over time, which should not broaden, if the assumption of the negligible role of diffusion is correct. Also, the estimations for CTCF residence time are quite different for SMT and FRAP (1 min vs. 3-4 min): the authors indicate that this might be due to multiple binding and unbinding events during the recovery. I have some doubts that in this case a multi-exponent fitting of the recovery curve is the most appropriate model. More importantly this interpretation is unlikely as the SMT data seem to indicate that the molecules spend about 60s between two stable binding events, and of these about 30s are spent diffusing freely in the nucleus. In these 30s the molecule should diffuse far away from the bleaching region, so it is unclear how the multiple binding events could significantly contribute to the recovery. One possibility is anomalous diffusion, that would constrain the spread of CTCF molecules after unbinding. Do the authors have any evidence from the SMT data for anomalous behavior of free CTCF molecules? Could relabelling by free dye during recovery [as reported by others] impact on the interpretation of the FRAP?

We agree that our FRAP modeling section in the Materials and methods was too brief and we have now completely re-written the section and significantly extended it. We now motivate our choice of FRAP model based on the theoretical work by Sprague et al., 2004, that devised rules for the appropriate choice of FRAP model based on where one is in parameter space (Sprague et al., 2004). As is clear from both the reviewer’s calculations and Figure 3D in Sprague et al. we are in the “reaction dominant” parameter regime (kON*w2DFREE1, where w is the radius of the circular bleach spot and kOFFkON*1) and can thus ignore diffusion. In our quantification of FRAP recovery we consider a circle of radius 0.6 µm and as is clear from Figure 2—figure supplement 3E showing the radial bleach spot profile for Halo-mCTCF, mRad21-Halo and H2b-Halo this area is not significantly affected by diffusion (diffusion would cause recovery from the edges first, whereas binding will lead to mostly radially uniform recovery). For reference, compare these radial bleach profiles to Figure 2C-H in Mueller et al. (Mueller, Wach and McNally, 2008). As is clear, the examples in Mueller et al. show a case where diffusion cannot be ignored, but the flat radial profiles below 0.6 µm even for the first frame after the bleach (0 s; dark blue) in our case demonstrates that diffusion does not affect our FRAP recoveries.

Regarding “multiple binding and unbinding events”, we are sorry if the main text was unclear. We were not referring to the discrepancy. What we meant is that 1 residence time (RT) is not sufficient for full FRAP recovery, but that multiple binding and unbinding events are necessary for full FRAP recovery (we have noticed that some people confuse the RT with the time for full FRAP recovery). But we agree that our phrasing was poor and we have changed it in the main text.

Regarding anomalous diffusion, the reviewer is indeed correct that both CTCF and Rad21 exhibit anomalous diffusion. We suspect that clustering combined with anomalous diffusion may account for the discrepancy between our SMT RT estimate (1 min) and our FRAP estimates (3-4 min). But since we cannot say for sure at this stage, we prefer not to speculate too much in the main text. Moreover, previous studies have demonstrated that slight changes in the FRAP protocol and modeling assumptions (Mueller et al., 2008; Mazza et al., 2012) can significantly affect the RT estimate. Thus, we view FRAP-inferred RTs as rough estimates.

Finally, the reviewer points out that re-labeling by free dye could contribute to artifactual recovery. In fact, while this paper was under review at eLife, James Rhodes and Kim Nasmyth (Rhodes and Nasmyth, personal communication) also contacted us to inform us that they see re-labeling by free dye affecting their FRAP. They suggested a simple control experiment to test for this: add an excess of “dark” SNAP or Halo ligand to outcompete any re-labelling by low amounts of free dye that were not fully washed out. To test if this would have affected our FRAP studies, we repeated our FRAP experiments and compared FRAP recoveries of mESCs expressing H2B-SNAPf labeled with either 500 nM cp-SNAP-JF549 only followed by washings (red) or 500 nM cp-SNAP-JF549 followed by washings and then re-labelled with 500 nM “dark” SNAP-block (NEB #S9106S) (black), which remains in excess at 500 nM during the live-cell FRAP experiment. As is clear from Figure 2—figure supplement 3F, there was no effect on our FRAP studies from re-labeling.

This is perhaps not surprising when you consider the timescales. In 11 min (our FRAP duration), ~1% new protein should be synthesized (11 min / 15 h; cell cycle time ~ 15 h). Thus, even if all newly synthesized proteins were immediately re-labeled, at most, this would contribute a 1% effect and due to cell drift and experimental noise, our total experimental error sources exceed 1% and thus we would not be able to detect such as small effect.

In conclusion, we acknowledge that our FRAP section in the Materials and methods was too brief and sparse and we thank the reviewers for pointing this out. We believe the current version comprehensively addresses all the issues raised by the reviewers.

4) Two color dSTORM analysis

(Subsection “CTCF and cohesin co-localize in cells and show a clustered nuclear organization”, Figure 4 and Figure 4—figure supplement 1).

The two-color dSTORM image (Figure 4A) shows more Rad21 (localization) signals than CTCF signals. This seems not in line with the ChIP-seq. peak numbers (68.000 CTCF, 33.400 Rad21, 97% overlap of Rad21 peaks with CTCF) that would lead to expect this to be the other way round. The authors should offer an explanation for this apparent inconsistency.

When assessing ChIP-seq it is important to keep in mind the very different binding modes of CTCF and cohesin and that the ChIP-assay strongly favors CTCF over cohesin. CTCF is a sequence-specific binding protein with 11 zinc-finger domains, which is an unusually large DNA binding domain (most transcription factors have 2-4 zinc-fingers). Consequently, CTCF binds DNA directly at specific sequences with an unusually large DNA binding protein surface, thus providing an extensive protein surface to directly formaldehyde-crosslink to the DNA, which is necessary for ChIP-seq enrichment. Cohesin on the other hand is a large multiprotein complex (~50 nm) that topologically embraces DNA. Thus, there are likely no direct protein-DNA contacts in the case of cohesin. Moreover, the vast majority of the cohesin ring is composed of Smc1 and Smc3 – only a small fraction of the ring is made up of Rad21. Thus, protein-DNA crosslinking is almost certainly much, much more efficient for CTCF than for Rad21. More importantly, if the extrusion model holds, the vast majority of DNA-associated cohesin molecules are extruding along DNA at most times at quite high rates (perhaps even ~40-50 kb/min according to Wang, Brandao, Le, Laub, Rudner, Science, 2017). Thus, cohesin is largely spread out along the chromosomal DNA instead of being enriched at specific locations. ChIP-seq peaks are only called for regions where there is a high enrichment at a short sequence. Thus, it is perfectly possible for there to be many more DNA-associated cohesin molecules, yet fewer cohesin ChIP-seq peaks than CTCF peaks and we believe this to be the case.

Furthermore, there seems to be a prominent enrichment of Rad21 along the nuclear envelope, which I have not been aware from other paper describing the nuclear distribution of cohesin using conventional imaging. Hence it may be useful to compare the dSTORM images with widefield deconvolution or confocal images of the same cell line(s).

We thank the reviewer for spotting this. The reviewer is absolutely correct that Rad21 should not be enriched at the nuclear envelope and the appearance of this is a dye-labeling artifact. Whereas the labeling of HaloTag is extremely specific and essentially without any background, labeling of the SNAP-Tag is somewhat less specific. To demonstrate this, we performed an extensive series of dye-labeling and flow cytometry experiments that are shown in the new Figure 1—figure supplement 1. While using cp-JF549 instead of SNAP-TMR sold by NEB does substantially increase specificity (Figure 1—figure supplement 1B vs. 1C), there is still some artefactual labeling of the nuclear envelope for the SNAP-dyes (we know this from labeling cells that do not express any SNAP-tag proteins). This does not affect any of our results (e.g. when we do FRAP on mRad21-SNAPf, the bleach spot is never at the nuclear envelope), but it does lead to this confusing impression from Figure 4A. We thank the reviewer for pointing this out and we have re-plotted Figure 4A from the raw data (list of single-molecule localizations) but excluded the nuclear envelope to avoid giving this false impression. We now state explicitly that there is this dye-labeling artifact in the dSTORM Materials and methods to make this limitation clear.

For the additional clustering analyses (Figure 4—figure supplement 1) the authors use a 2D PALM localization approach. With the depth of the optical slice being around 700 nm, could this have potential effects on the clustering analyses? How should the clustering be interpreted? Do the clusters coincide with the co-localizing regions in the dSTORM images? Are the clusters equivalent to the LMCs, whereas non-clustering molecules are rather belonging to the free fraction? If 25% of CTCF or 35% of Rad21 molecules are in clusters, then only a subset of LMCs are in clusters, right? Then again, if 15% NLS-Halo is found in clusters, how relevant is the slight increase cluster fraction for CTCF and Rad21?

The reviewers raise several important points here regarding what the functional roles of clusters are and if there could be technical artifacts.

Regarding the function of the clusters: given that there is an intriguing overlap of CTCF and cohesin clusters, it is very tempting to speculate that some of these clusters are composed of LMCs (we now state explicitly that the clusters overlap in the dSTORM images). However, it is technically extremely challenging to demonstrate unambiguously that the clusters hold together loops – we don’t know of any convincing way of showing this with currently available methods. Thus, we deliberately avoided making strong claims regarding the function of the clusters. We just report their existence and that they tend to be small (~30-40 nm radius). Regarding the biological relevance of there being 15-35% of molecules in clusters, we suspect that this is likely to be functionally important, but without being able to assign a clear function to the clusters, this is difficult to say at this stage. We nevertheless appreciate the questions the reviewers raise regarding their function and we hope to follow up on this in future studies, but those studies are beyond the scope of this manuscript.

Regarding the technical questions: we are confident in the existence of the clusters and we have gone well above-and-beyond the standards of the PALM/STORM field to confirm their existence. First, we use start-of-the-art and statistically rigorous Bayesian approaches to call clusters, instead of simple thresholding approaches which are difficult to assess in a statistically rigorous manner (Figure 4—figure supplement 1A-B). Second, we show that most clusters are not a photoblinking artifact – we label the same cell with two spectrally distinct dyes and observe that most clusters contain close to a binomial distribution of dyes (Figure 4—figure supplement 1E). To our knowledge, this is the strongest possible evidence for clustering available and we can think of no other way of explaining Figure 4—figure supplement 1E other than the existence of clusters. Third, we use “negative controls”. Since the single-molecule nuclear organization field is still in its infancy, there is not a well-known protein with a truly random nuclear organization. In lieu of this, we use Halo-3xNLS as a negative control. The reviewer is correct that we see some clustering for Halo-3xNLS (~15%), but as is evident from Figure 4—figure supplement 1C, the error bars are small and the increase in clustering for CTCF and Rad21 is highly statistically significant.

Nevertheless, we acknowledge two limitations of the current approach. First, our current imaging is in 2D. In the future, we plan to follow up with 3D-PALM using adaptive optics to achieve a sufficient axial resolution. Second, our 2-color dSTORM was performed in unsynchronized interphase cells. In the future, we will follow up with cell-cycle synchronized experiments to avoid potentially confounding cohesin clusters coming from molecules mediating sister-chromatid cohesion.

Thus, in summary, we deliberately refrained from making strong claims about clustering although we have shown that CTCF and cohesin form clusters using two different imaging modalities (PALM and dSTORM), and we have performed two different control experiments to demonstrate that they are not an artifact (Halo-3xNLS negative control and 2-color dye experiment) and we have used the most statistically rigorous available approaches to calling clusters (Figure 4—figure supplement 1A-B).

Subsection “CTCF and cohesin exhibit distinct nuclear search mechanisms” and Table 1: In the text 3 fractions are distinguished (bound to cognate site; non-specifically associated with chromatin; free 3D diffusion), whereas in the table only two fractions are distinguished (bound total vs. bound specific). Why not listing the 3 fractions as in the text, to avoid confusion? Could the "non-specific binding" or "1D sliding" not also explained by corralled or anomalous diffusion? Does the Rad21-HaloTag kinetic data imply that Rad21 (and other Cohesin subunits) are predominantly present as either free (searching) or bound complexes, but not as single proteins?

We thank the reviewer for this suggestion – we agree that listing the three fractions (specifically bound, non-specifically bound, free 3D diffusion) separately is simpler and have changed Table 1 accordingly. We do see anomalous diffusion and plan to explore this further in future studies – however, the anomalous diffusion we see appears to hold on all spatiotemporal scales (suggesting perhaps a compact exploration mechanism – we will explore this further in the future) and thus, the anomalous diffusion holds for displacements on the hundreds of nm scale (and thus will be counted in the free 3D diffusion fraction). “1D sliding” and “non-specific binding” would appear as displacements below our localization error and thus would not be counted in the free 3D fraction. Therefore, the anomalous diffusion that we do observe cannot explain the 1D sliding. However, we do not know what the exact nature of the “non-specific binding” is and it is by its very nature extremely difficult to study inside cells. We therefore prefer not to make strong statements about it.

Finally, our SMT data does in fact indicate that essentially all mRad21-Halo is incorporated into the cohesin complex – we know this because, when we consider the Rad21 mutant (F601R, L605R, Q617K; Figure 3E) that cannot form cohesin complexes or even when we over-express wt Rad21 (Figure 3—figure supplement 1E), we see much faster diffusion. This suggests that “monomeric” Rad21-Halo has a much faster diffusion constant (~4 µm2/s) than Rad21-Halo incorporated into cohesin complexes (~1.5 µm2/s). We thank the reviewer for pointing this out – it is an important point – and we now state this in the manuscript.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Reviewer #3:

In the revised version of the manuscript, Hansen et al. have made substantial efforts to answer the questions raised, by performing computer simulations and restating parts of the text. I am a little disappointed that despite some additional "wet" experiments were requested, the authors did not perform any. Nevertheless their arguments against my criticism are now more convincing, and I support publication in eLife.

We thank the reviewer for supporting publication in eLife. We would like to clarify, that we actually did perform new “wet” experiments during the revision: Figure 1—figure supplement 1 is a completely new figure based on dye labeling and flow cytometry experiments we performed to address parts of the reviewer’s important observation of non-specific nuclear membrane staining by SNAP dyes in Figure 4A of our original submission. Moreover, Figure 2—figure supplement 3F shows new FRAP experiments that we did to address the reviewer’s concern of “re-binding” of unwashed dye during FRAP imaging, which was also recently reported on BioRxiv (Rhodes & Nasmyth, BioRxiv: http://www.biorxiv.org/content/early/2017/04/04/124107; we now cite this preprint in the methods). We believe these experiments have strengthened the manuscript.

The authors performed computer simulations to prove that limiting the population of the distribution of displacements to the first 7 frames of each track, however I see some problems with these simulations.

For the paper purpose, my suggestion would be to drop the description of these simulations from the text: they have a better argument, given by the fact that whether they analyze their experimental data by looking at all of the jumps, or only at the first 7 they essentially obtain the same results.

Although the reviewer’s logic and calculations are correct, their perceived problem with the simulations is based on an incorrect assumption. Thus, we maintain that our simulations are correct. In fact, we very much appreciate the reviewer pushing us to do these simulations to further validate our approach. Consequently, the paSMT modeling has now been validated by both simulations and biological controls (such as H2B-Halo and Halo-3xNLS) within the context of our experimental regime of photobleaching. Thus, since the simulations are correct and confirm our approach, we would like to keep them in the methods as this seems to be the most straightforward and comprehensive approach that also strengthens the manuscript.

https://doi.org/10.7554/eLife.25776.038

Article and author information

Author details

  1. Anders S Hansen

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Li Ka Shing Center for Biomedical and Health Sciences, University of California, Berkeley, Berkeley, United States
    3. CIRM Center of Excellence, University of California, Berkeley, Berkeley, United States
    4. Howard Hughes Medical Institute, University of California, Berkeley, Berkeley, United States
    Contribution
    ASH, Conceptualization; design of experiments; Performed genome-editing of cell lines, conducted all imaging experiments, developed mathematical models, wrote code and analyzed the data; Writing-original draft; Writing-review and editing
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7540-7858
  2. Iryna Pustova

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Li Ka Shing Center for Biomedical and Health Sciences, University of California, Berkeley, Berkeley, United States
    3. CIRM Center of Excellence, University of California, Berkeley, Berkeley, United States
    4. Howard Hughes Medical Institute, University of California, Berkeley, Berkeley, United States
    Contribution
    IP, Performed co-IP, ChIP-Seq and cell line characterization
    Competing interests
    No competing interests declared.
  3. Claudia Cattoglio

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Li Ka Shing Center for Biomedical and Health Sciences, University of California, Berkeley, Berkeley, United States
    3. CIRM Center of Excellence, University of California, Berkeley, Berkeley, United States
    4. Howard Hughes Medical Institute, University of California, Berkeley, Berkeley, United States
    Contribution
    CC, Performed co-IP, ChIP-Seq and cell line characterization. Writing-review and editing
    Competing interests
    No competing interests declared.
  4. Robert Tjian

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Li Ka Shing Center for Biomedical and Health Sciences, University of California, Berkeley, Berkeley, United States
    3. CIRM Center of Excellence, University of California, Berkeley, Berkeley, United States
    4. Howard Hughes Medical Institute, University of California, Berkeley, Berkeley, United States
    Contribution
    RT, Conceptualization; Supervision; Writing-review and editing
    For correspondence
    jmlim@berkeley.edu
    Competing interests
    RT: President of the Howard Hughes Medical Institute (2009-present), one of the three founding funders of eLife, and a member of eLife's Board of Directors.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0539-8217
  5. Xavier Darzacq

    1. Department of Molecular and Cell Biology, University of California, Berkeley, Berkeley, United States
    2. Li Ka Shing Center for Biomedical and Health Sciences, University of California, Berkeley, Berkeley, United States
    3. CIRM Center of Excellence, University of California, Berkeley, Berkeley, United States
    Contribution
    XD, Conceptualization; Supervision; Writing-review and editing
    For correspondence
    darzacq@berkeley.edu
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2537-8395

Funding

Siebel Stem Cell Institute

  • Anders S Hansen

Howard Hughes Medical Institute (003061)

  • Robert Tjian

California Institute of Regenerative Medicine (LA1-08013)

  • Xavier Darzacq

National Institutes of Health (UO1-EB021236)

  • Xavier Darzacq

National Institutes of Health (U54-DK107980)

  • Xavier Darzacq

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Luke Lavis for generously providing JF dyes, Gina M Dailey for extensive assistance with cloning, Astou Tangara for microscopy assembly and maintenance, and Dr. Kartoosh Heydari at the Li Ka Shing Facility for flow cytometry assistance. We thank Sheila Teves and other members of the Tjian and Darzacq labs, Douglas Koshland, Miriam Huntley, James Rhodes and Kim Nasmyth, and Leonid Mirny and other 4D Nucleome consortium members for insightful comments on the manuscript. This work was performed in part at the CRL Molecular Imaging Center, supported by the Gordon and Betty Moore Foundation. This work used the Vincent J Coates Genomics Sequencing Laboratory at UC Berkeley, supported by NIH S10 Instrumentation Grants 10RR029668 and S10RR027303. ASH is a postdoctoral fellow of the Siebel Stem Cell Institute. This work was supported by NIH grants UO1-EB021236 and U54-DK107980 (XD), the California Institute of Regenerative Medicine grant LA1-08013 (XD), and by the Howard Hughes Medical Institute (003061, RT). ChIP-Seq data has been deposited at NCBI GEO under accession code GSE90994. A preprint describing this work was first available on BioRxiv December 2016: http://www.biorxiv.org/content/early/2016/12/13/093476

Reviewing Editor

  1. David Sherratt, University of Oxford, United Kingdom

Publication history

  1. Received: February 6, 2017
  2. Accepted: April 30, 2017
  3. Accepted Manuscript published: May 3, 2017 (version 1)
  4. Version of Record published: May 26, 2017 (version 2)

Copyright

© 2017, Hansen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 8,772
    Page views
  • 2,000
    Downloads
  • 88
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Gregory M Martin et al.
    Research Article Updated
    1. Developmental Biology
    2. Structural Biology and Molecular Biophysics
    Chen Qiu et al.
    Research Advance Updated
