The gating cycle of a K+ channel at atomic resolution

  1. Luis G Cuello  Is a corresponding author
  2. D Marien Cortes
  3. Eduardo Perozo  Is a corresponding author
  1. Texas Tech University Health Sciences Center, United States
  2. The University of Chicago, United States

Abstract

C-type inactivation in potassium channels helps fine-tune long-term channel activity through conformational changes at the selectivity filter. Here, through the use of cross-linked constitutively open constructs, we determined the structures of KcsA’s mutants that stabilize the selectivity filter in its conductive (E71A, at 2.25 Å) and deep C-type inactivated (Y82A at 2.4 Å) conformations. These structural snapshots represent KcsA’s transient open-conductive (O/O) and the stable open deep C-type inactivated states (O/I), respectively. The present structures provide an unprecedented view of the selectivity filter backbone in its collapsed deep C-type inactivated conformation, highlighting the close interactions with structural waters and the local allosteric interactions that couple activation and inactivation gating. Together with the structures associated with the closed-inactivated state (C/I) and in the well-known closed conductive state (C/O), this work recapitulates, at atomic resolution, the key conformational changes of a potassium channel pore domain as it progresses along its gating cycle.

https://doi.org/10.7554/eLife.28032.001

Introduction

The simplest description of the gating cycle in the pore domain of a K+ channel requires at least four distinct kinetic states (Ostmeyer et al., 2013; Panyi and Deutsch, 2006; Yellen, 1998). At rest, the pore domain’s activation gate formed by the inner helix bundle is closed (C) while the selectivity filter is presumably conductive (O). We define this conformation as the C/O state. When an activating stimulus drives the opening of the channel’s inner helix bundle gate, the selective flow of K+ can be sustained for hundredths of milliseconds through the open (O/O) state. However, as a consequence of allosteric coupling between the inner gate and the pore helix near the selectivity filter (Cuello et al., 2010a; Pan et al., 2011), opening of the activation gate in many channels leads to a series of structural changes at the selectivity filter that renders it non-conductive (the O/I state), a process known as C-type inactivation (Hoshi et al., 1991; Liu et al., 1996; López-Barneo et al., 1993). Once the activating stimulus has ceased, the channel’s activation gate returns to the closed conformation and the channel transiently occupies the closed-inactivated (C/I) state with the selectivity filter inactivated. Ultimately, allosteric interactions with the activation gate reset the selectivity filter back to its conductive conformation (C/O), completing the gating cycle (Figure 1a).

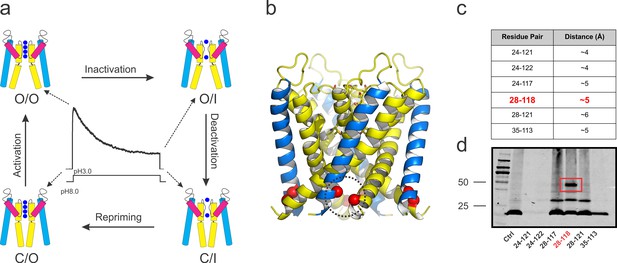

KcsA’s kinetic cycle and the biochemical strategy to trap of KcsA open gating intermediates.

(a) pH-dependent macroscopic current recorded from asolectin liposomes containing KcsA wild type, surrounded by cartoon representations of the structural equivalents for the gating intermediates. KcsA’s gating cycle comprises at least four distinct kinetic states defined by gating intermediates in which the selectivity filter is conductive (O) or collapsed (I) and the activation gate is open (O) or closed (C). Transitions between these kinetic states define four different gating processes: C/O→O/O, that is, activation; O/O→O/I, that is, C-type inactivation; O/I→C/I, that is, deactivation and C/I→C/O, that is, repriming or recovery from C-type inactivation. (b) side views of KcsA’s O/I low-resolution structure (PDB, 3F5W) displaying the region of the channel that was tested for inter-subunit disulfide-bond formation (red spheres). (c) table indicating all the putative residue-pairs tested for cysteine-bridge formation. In red, the pair 28–118 spontaneously formed disulfide-bonds. (d) A western blot showing that the residue pair 28–118 formed a covalently linked tetramer upon introduction of cysteine residues at those positions (the samples were heated in the absence of a reducing agent, non-reducing conditions).

https://doi.org/10.7554/eLife.28032.002

The high-resolution structures of KcsA in high and low K+ concentrations have been known for a number of years from crystals of KcsA-Fab complexes (Zhou et al., 2001a). These structures have been suggested to correspond to the putative C/O (high K+) and C/I (low K+) states (Zhou et al., 2001b). Previously, it was determined the structures for KcsA in a putatively partially open-inactivated and in its fully-open and deep-inactivated states at modest resolution by crystallizing a constitutively open mutant (KcsA-OM) displaying different degrees of openings at the activation gate (Cuello et al., 2010b). This strategy allowed to propose a set of structural and ion occupancy changes in the selectivity filter associated with KcsA inactivation gating. The observed changes involve an initial constriction of the permeation pathway at G77, between K+ binding sites S2 and S3 at the selectivity filter. This change is accompanied by a concomitant reduction in ion occupancy in S2 and it was proposed represents an early non-conductive state (I1). As the inner helical bundle gate opens further, there is additional narrowing of the selectivity filter at G77, causing the collapse of the permeation pathway and the loss of K+ at both, S2 and S3 binding sites, which likely represents a deep C-type inactivated state of KcsA or I2 (Cuello et al., 2010b). The existence of a deep C-type inactivated conformation of KcsA’s selectivity filter (I2 state) is supported by solution and solid state Nuclear Magnetic Resonance spectroscopy experiments (Ader et al., 2009; Ader et al., 2008; Bhate et al., 2010; Imai et al., 2010; Wylie et al., 2014) and 2DIR measurements (Kratochvil et al., 2016). However, at ~3.2 Å resolution, the original O/I (Cuello et al., 2010b) structure does not provide information on the position of the carbonyl groups responsible for ion coordination (Zhou et al., 2001b).

Further analyses of these structures revealed that most of the degradation in overall resolution was likely due to conformational heterogeneity at the activation gate formed by the inner helix bundle (Cuello et al., 2010b). In an attempt to increase the resolution of pore domain states where the inner helix bundle gate is open, a set of cysteine-bridges between adjacent subunits was engineered, using the lower resolution structure of KcsA-OM as a template (Cuello et al., 2010b). This experimental approach, combined with targeted mutations known to affect the stability of the C-type inactivated conformation (Cordero-Morales et al., 2006), allowed the structural determination of KcsA in its ‘transient’ open-conductive (O/O, mutant E71A) and deep C-type inactivated (O/I, mutant Y82A) conformations at near atomic resolutions (2.25 Å and 2.4 Å, respectively).

Results

Trapping KcsA with its activation gate in the open conformation

Using the open-inactivated structure of KcsA (PDB = 3F5W) (Cuello et al., 2010b) as a reference (Figure 1b), six cysteine pairs were tested between the N-terminal side of the transmembrane segment 1 (TM1) and the C-terminal end of TM2 (Figure 1c) for disulfide-bond formation in SDS gels (Figure 1d). While a number of cysteine pairs were formed under oxidizing conditions, cysteine-pair 28–118 (between adjacent subunits) spontaneously formed a covalently linked tetramer, which presumably has trapped-open KcsA’s activation gate (Locked-open KcsA). This double-cysteine mutant, while displaying similar overall biochemical properties to those of wild type KcsA (Figure 2a) is also resistant to high temperatures, as indicated by thermal denaturation experiments (Figure 2b). Single-channel activity recorded on liposomes containing Locked-open KcsA (in symmetrical 200mM-K+) exhibited low steady-state open probability and large single-channel conductance (~200 pS) (Figure 2c), as expected from channels mostly populating the O/I state. With Rb+ as charge carrier, open probability increases and the single-channel conductance is reduced (~23 pS) (Figure 2d). These changes are the result of ion-specific interactions at the selectivity filter (Lockless et al., 2007; Morais-Cabral et al., 2001; Zhou et al., 2001a) and suggest that indeed, most of the gating transitions obtained in these steady-state single-channel recordings derive from conformational transitions at the selectivity filter.

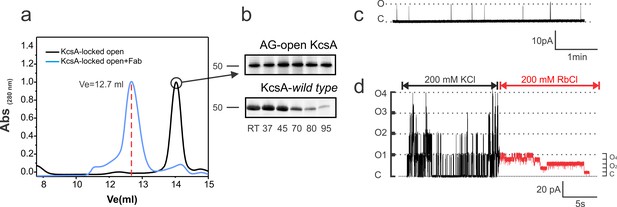

Biochemical and functional characterization of the Locked-open KcsA.

(a) Hydrodynamic properties of the disulfide-bonded KcsA-OM (Locked-open KcsA) were assessed by analytical size exclusion chromatography in a Superdex HR200 column. The chromatogram shows, in black, the elution volume for the chymotrypsin truncated Locked-open KcsA and in blue, in complex with a Fab fragment (Ve = 12.7 ml) required for crystallization trials. (b) Since the Locked-open-KcsA is covalently linked by disulfide bonds, its tetrameric state is remarkably resistant to high temperature (upper panel), when compared to KcsA wild type (lower panel). Melting experiments were conducted for 30 min at the temperature indicated in the absence of a reducing agent. (c) A representative single-channel trace of the Locked-open KcsA channel in 200 mM KCl, displays a very low-open probability, which agrees with it being an open and C-type inactivated channel. (d) An excised multi-channel patch of the Locked-open KcsA displays the characteristic low-open probability mode and large single- channel conductance when K+ was the permeant ion, 200 mM KCl (Black). After rapidly switching the bath solution to Rb+ as the permeant ion, 200 mM RbCl (Red), the channel switches to a high-open probability mode and small single-channel conductance.

https://doi.org/10.7554/eLife.28032.003

Locked-open KcsA and mutations that modulate C-type inactivation

It was shown earlier that mutations nearby KcsA-selectivity filter can either eliminate (E71A) or strengthen (Y82A) C-type inactivation gating (Figure 3a, b and c). Hence, these mutants were used to bias the Locked-open KcsA gating behavior by incorporating mutations proven to modulate C-type inactivation gating in KcsA. As predicted, the E71A mutant on the Locked-open channel background displayed a pH-independent high-open probability single- channel activity (Figure 3d and e), albeit showing discernible subconductance states (attributed to an incomplete cross-linking of the activation gate). Nevertheless, the E71A Locked-open seems to effectively sample the O/O state. Conversely, the Y82A mutant on the Locked-open channel background exhibited a pH-independent low-open probability single- channel activity (Figure 3d and e) and presumably is sampling the O/I state. These results provided an experimental path towards the crystallization of KcsA’s O/O and O/I states at improved resolutions.

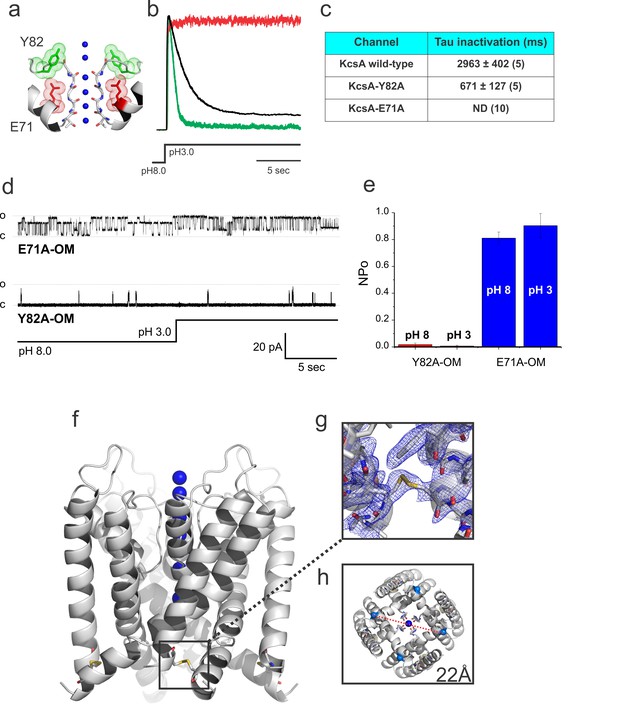

Crystal structure of the Locked-open KcsA.

(a) A cartoon representation of KcsA’s selectivity filter indicating mutated positions used in this study that either accelerates (Y82A in green) or removes (E71A in red) C-type inactivation. (b) Representative macroscopic currents recorded in symmetric 200 mM KCl during a pH fast-switching experiment for: the wild type channel (black), the fast-inactivating mutant Y82A (green) and the non-inactivating E71A mutant (red). (c) Tau for inactivation of KcsA wild type, Y82A and E71A mutants after a pH jump experiment (reported values are an average of the number (n) of independent observations indicated in parenthesis). (d) Representative 30 s. single-channel recordings of the Locked-open E71A (upper trace) and Y82A (lower trace) mutants, the pH of the bath solution was switched from 8 to 3 after 15 s. of recording by using a fast perfusion system. (e) The number of channel x open probability (NPo) of the Locked-open channel, as predicted, was pH insensitive but high for the E71A (~0.8–0.9) and low for the Y82A mutants (~0.015–0.04) Reported values are means ±SEM of 3 independent experiments. (f) A cartoon representation of the Locked-open KcsA X-ray structure highlighting the location of the inter-subunit disulfide bond between introduced cysteine residues at position 28 and 118 (g) 2Fo-Fc electron-density map (cyan, contoured at 1.0σ) of the Locked-open KcsA validating the formation of the 28cys-118cys disulfide bond. (h) An intracellular view displaying an activation gate opening of 22 Å (measured between Threonine 112 α-carbons on diagonal subunits).

https://doi.org/10.7554/eLife.28032.004

Atomic-resolution structure of KcsA open and conductive

Incorporating the non-inactivating mutation E71A on the Locked-open-KcsA scaffold would lead to an efficient sampling of the elusive O/O state (Cordero-Morales et al., 2006) (Figure 3a, d and e). Indeed, crystals of the Locked-open-KcsA E71A mutant diffracted to 2.25 Å Bragg spacings, and the structure was solved by molecular replacement with Rwork = 0.186 and Rfree = 0.213, PDB = 5VK6 (Table 1). The O/O state electron-density map validated the inter-subunit disulfide bond between positions 28 and 118 (Figure 3f and g). In the O/O state the activation gate spans 22 Å in diameter (Cα-Cα distance at Thr 112) (Figure 3h), in agreement with the more physiologically relevant open conformation found in the full-length structures of KcsA and Kv1.2 channels (Uysal et al., 2011; Long et al., 2005).

Table 1
Crystallographic table and refinement statistics.
https://doi.org/10.7554/eLife.28032.005
StatisticE71A-OMY82A-OMY82A-F103A closed
Data Collection
Space GroupI4I4I4
Cell Dimension
a = b, c (Å)156.54, 74.61156.19, 74.17155.73, 76.225
α=β=γ (°)909090
Resolution (Å)24.75–2.25 (2.33–2.25)36.82–2.37 (2.45–2.37)42.91–2.25 (2.33–2.25)
Rmerge0.052 (0.38)0.059 (0.46)0.079 (0.26)
I/σI29.3 (3.9)29.53 (2.9)15.8 (2.9)
Completeness (%)95.11 (99.70)99.76 (99.24)98.43 (91.97)
Redundancy4.6 (5.0)4.5 (4.4)4.5 (4.4)
Refinement
No. reflections42598 (4255)36377 (3605)42773 (3985)
Rwork0.186 (0.228)0.194 (0.239)0.174 (0.219)
Rfree0.213 (0.262)0.226 (0.265)0.203 (0.234)
No. atoms408840544386
Protein393939264036
Ligand/ion736
Waters10184218
Other ligands484447
Protein residues529528535
Bond lengths (Å)0.0030.0030.01
Bond angles (°)0.640.651.02
Wilson B-factor50.0551.1030.63
Average B-Factor, Å269.0967.9439.39
Protein69.2268.0838.93
Ligands79.4276.4149.72
Water59.2675.0545.37
Ramachandran Favored (%)97.3595.9797
Ramachandran outliers (%)0.190.380.19
  1. *Highest resolution shell is show in parenthesis.

    Data sets were collected from a single crystal.

As expected, in the O/O state the selectivity filter shows 4 K+ ions in the canonical 1,3 and 2,4 configurations (Figure 4a), together with three more K+ ions, two at the extracellular entrance and one inside the channel’s central cavity (Figure 4b). This is in agreement with most predictions suggesting that the O/O and C/O-state conformations should be similar around the selectivity filter. At the present resolution, there were identified four water molecules coordinating the K+ ion in the central cavity, consistent with the coordination of a partially dehydrated ion about to enter the selectivity filter (Figure 4b and c). Superimposing the selectivity filter structures of KcsA C/O and O/O states (Figure 4d) confirms the conformational equivalence of these structures within 0.26 Å RMSD (for selectivity filter atoms). Furthermore, although the activation gate is open, the overall organization of the eight oxygen atoms surrounding each K+ ion is similar in the C/O and O/O states.

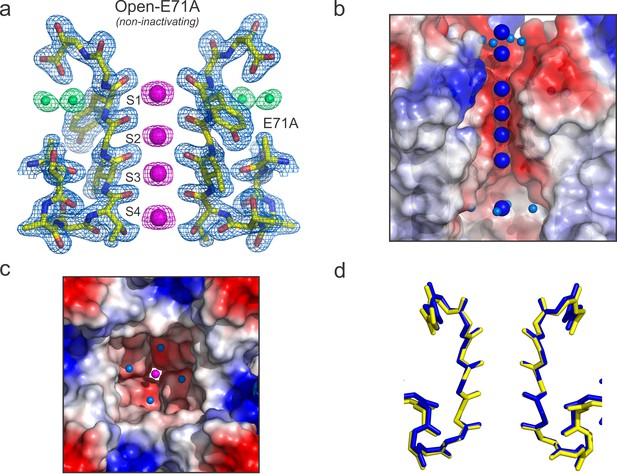

High-resolution structure of the open and conductive state of KcsA.

(a) X-ray structure of the Locked-open KcsA E71A mutant, determined @ 2.25 Å resolution. Displayed is the 2Fo-Fc electron-density map (light-blue mesh contoured at 2.5σ) for the selectivity filter residues 70–80 from two diagonally symmetric subunits, colored in yellow with oxygen atoms in red; for the K+ ions within the filter (magenta mesh contoured at 2.6σ) and for two water molecules located behind the channel’s selectivity filter that are occupying the vacancy created by the glutamate to alanine substitution (green mesh contoured @ 3σ). (b) Side view of a surface representation of KcsA O/O state (Locked-open-E71A mutant) highlighting the K+ ions within the channel pore. At the extracellular side two K+ ions are observed, one of them (the most internal) is partially dehydrated and coordinated by four water molecules. Similar to the closed KcsA structure (1K4C), the O/O state also contains a K+ ion within the channel central cavity but in contrast to the closed state in which is coordinated by eight water molecules, the ion is partially dehydrated and tetra-coordinated. (c) Intracellular view of the KcsA O/O state showing a K+ ion, inside the channel central cavity, partially dehydrated and coordinated by four water molecules (d) Structural alignment of the selectivity filters of the Locked-open KcsA E71A mutant (PDB 5VK6) in blue and the closed-KcsA in yellow (PDB 1K4C). The atomic deviation between the peptide backbones of the two filters (r.m.s.d.) is 0.19 Å.

https://doi.org/10.7554/eLife.28032.006

Despite these similarities, some interesting differences were found between the C/O and O/O states, when we compare the B-factors of the selectivity filter in the C/O and O/O states (Figure 5). However, to make a relevant B-factor comparison between different structures they need to share similar resolutions (Balendiran et al., 2014). To that end, a new structure for KcsA’s closed state was solved by molecular replacement at the same nominal resolution (2.25 Å) of the Locked-open E71A mutant using similar parameters during the refinement process. The normalized B-factors of the pore helix residues (Cα) in the O/O and the C/O states were very similar and displayed similar periodic behavior but largely digress from each other within the selectivity filter residues (Figure 5). These experimental observations strongly suggest that the strength of the interaction of the carbonyl groups from the peptide backbone and the K+ ions within KcsA’s selectivity filter could be different for the C/O and the O/O states.

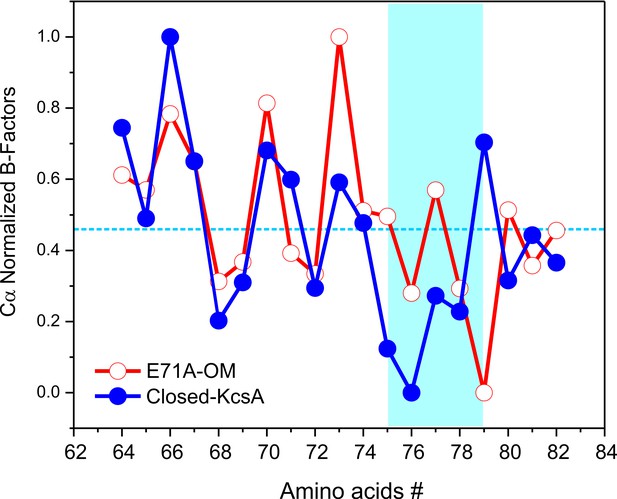

Crystallographic normalized B-factors for KcsA pore helix and selectivity filter alpha-carbons (Cα).

Changes of the normalized crystallographic B-factors of KcsA’s pore helix and selectivity filter residues (signature sequence) during activation gating are best represented by: (a) KcsA closed-primed-to-conduct or C/O state structure (new structure solved at the same resolution and using the same parameters during refining than for the O/O state structure) and KcsA open-conductive or O/O state structure (PDB 5VK6).

https://doi.org/10.7554/eLife.28032.007

Interestingly, significant changes in ion selectivity during activation gating have been measured in voltage-gated K+ channels (Zheng and Sigworth, 1997). Additionally, it has been suggested that the selectivity filter structures of the closed and open states in K+ channels should differ slightly depending on the conformation in the filter as the inner gate opens (Chapman and VanDongen, 2005; Chapman et al., 1997; Zheng and Sigworth, 1997; Zheng and Sigworth, 1998).

Clearly, the structure of the Locked-open KcsA-E71A mutant represents a snapshot of the pore domain of a K+ channel only transiently available during normal gating cycle operation. KcsA’s O/O state is therefore likely to adopt a filter conformation similar to that found in the present Locked-open KcsA E71A structure. However, while this experimental manipulation led to a structure with an activation gate open and a conductive selectivity filter, this is only a condition biased by disulfide bonds and is unlikely to reflect potential conformational dynamic changes as a consequence of ion fluxes and/or the presence of a membrane potential.

Atomic-resolution structure of KcsA open and deep C-type inactivated

In most K+ channels the O/O conformation is metastable, as it eventually transitions into the O/I or C-type inactivated state. To further bias the selectivity filter into this conformation it was engineered onto the Locked-open KcsA scaffold a mutant which exhibits an increased rate and steady-state level of C-type inactivation(Cordero-Morales et al., 2006; López-Barneo et al., 1993). In KcsA, mutant Y82A (equivalent mutation to T449A in Shaker) also leads to an augmented rate and degree of C-type inactivation (Cordero-Morales et al., 2006) (Figure 3a, green trace), which it could be interpreted as favoring entry into a deep C-type inactivated state (a collapsed selectivity filter). Crystals of the O/I-state diffracted ~2.4 Å and its structure was solved by molecular replacement (Rwork = 0.194 and Rfree = 0.226) PDB = 5 VKE (Figure 6a). This represents the highest resolution structure of KcsA’s O/I state available, offering a unique perspective on the interactions between the selectivity filter backbone, permeant ions, and structural waters that stabilize its deep collapsed state.

Figure 6 with 1 supplement see all

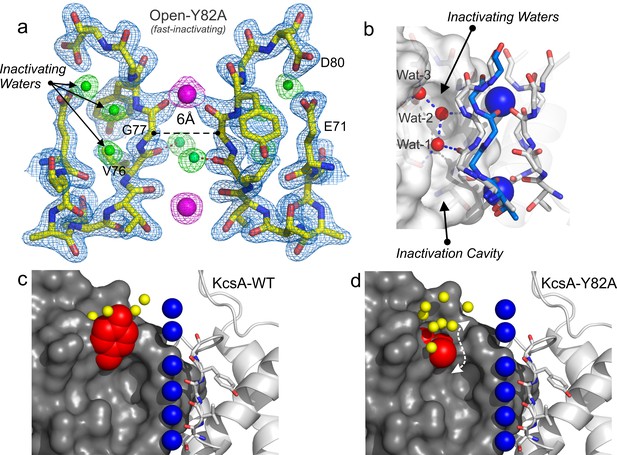

Structure of KcsA open and deep C-type inactivated.

(a) X-ray crystal structure of the Locked-open open and fast inactivating Y82A mutant @ 2.37 Å resolution (PDB 5VKE). Shown is the 2Fo-Fc electron-density map for the selectivity filter residues 71–80 from two diagonally symmetric subunits, colored in yellow with oxygen atoms in red (light-blue mesh contoured at 2.6σ); for the two remaining ions in the filter (magenta mesh contoured at 3σ) and for three water molecules, ‘inactivating waters’, located inside a cavity behind KcsA filter (green mesh contoured at 3σ). The Cα-Cα distance at position Gly 77 measured from diagonal subunits is 6 Å, narrowing KcsA’s filter ~2 Å. (b) Selectivity filters of the closed-KcsA (PDB 1K4C) colored in blue and oxygen atoms in red as a reference and of the Locked-open KcsA fast-inactivating Y82A mutant (PDB 5VKE) colored in white and oxygen atoms in red. The peptide backbone carbonyl groups from the Locked-open KcsA Y82A mutant flips away from the channel’s axis of symmetry moving sideways into a cavity, (b) ‘inactivation cavity’, which is located behind the channel’s filter of a neighboring subunit. This network of water molecules holds the filter in the inactive or flipped conformation. (c) Cartoon representation of KcsA wild type (PDB 1K4C), colored in white with oxygen atoms in red, as a reference and on the left a surface representation of a neighboring subunit in which the entryway of the inactivation cavity is guarded by Tyr 82 (in red), which is positioned to putatively regulate the rate and the extent of C-type inactivation by steric regulation and or/hydrophobic effect of the diffusion of water molecules (yellow spheres) into the ‘inactivation cavity’. (d) X-ray crystal structure of the Y82A mutant in the closed state @ 2.25 Å resolution. Substitution of the bulky and hydrophobic tyrosine at position 82 by alanine not only eliminates the steric limitation of water flow into the inactivation cavity (dashed arrow) but it solvates the entryway of the cavity, as denoted by the large number of crystallographic water molecules identified at this region of the structure (yellow spheres).

https://doi.org/10.7554/eLife.28032.008

In the O/I-state, the selectivity filter contains 2 K+ ions tightly coordinated at positions 1 and 4, with ion vacancies at positions 2 and 3 (Figure 6a). The backbone carbonyl of Val-76 flips out of the axis of symmetry, obliterating the S2 and S3 K+ binding sites, as this transition directly affects K+ coordination by backbone carbonyls at the center of selectivity filter. This seems to represent an insurmountable energetic barrier to ion movement along KcsA-selectivity filter (Cuello et al., 2010b). Interestingly, Val-76 carbonyls can be seen forming hydrogen bonds with newly resolved structural waters behind KcsA’s selectivity filter (Figure 6a). These appear to be a feature of the collapsed filter conformation and should be considered when analyzing the energetics of C-type inactivation onset and repriming. Moreover, as originally reported at lower resolution (and also observed in the low [K+] KcsA structure), the O/I-state pore is collapsed at the Gly-77 (Figure 6a), where the inter-subunit Cα diameter is reduced from 8 to 6 Å. This change originates from the rotational freedom of Gly-77 α-carbons, and represents an additional steric barrier to the movement of K+ ions along the selectivity filter (Cuello et al., 2010a). Contrary to what is seen in the C/O or O/O states, the O/I-state displays a minor change in the pitch of the last turn of the pore helix (~0.5 Å shorter, [Figure 6—figure supplement 1]) (Cuello et al., 2010a), creating an expansion of the S3 and S4 K+ binding sites. This selectivity filter is structurally reminiscent to selectivity filters in both, a constitutively open-inactivated mutant (Cuello et al., 2010a) or in the KcsA closed structure at low K+ concentration (Ader et al., 2008; Bhate and McDermott, 2012; Wylie et al., 2014; Zhou et al., 2001b).

At the higher resolution of the Locked-open-Y82A structure, a novel network of water molecules appears behind KcsA’s selectivity filter. These three ‘inactivating waters’ were predicted on computational grounds (Ostmeyer et al., 2013) and appear to stabilize the O/I conformation (Figure 6a and b). Val-76 C = O has moved away from the axis of symmetry and is hydrogen-bonded to one of the inactivating water molecules (wat-1), which resides in an ‘inactivation cavity’ behind KcsA’s selectivity filter (Figure 6b). Wat-1 is in turn hydrogen-bonded to wat-2 and wat-3 and to other chemical groups of the selectivity filter, from bottom to top: Glu-71 carbonyl, Val-76 carbonyl in a neighboring subunit, Gly-77 amide nitrogen, Glu-71 and Asp-80 side chains (Figure 6b).

Diffusion of ‘inactivating waters’ determines the rate of C-type inactivation gating

The existence of these inactivating water in KcsA’s deep C-type inactivated state is highlighted by both, the arrangement of hydrogen-bonds formed with the backbone carbonyls in the selectivity filter and their absence in the conductive state of the filter (Zhou et al., 2001b). Consequently, water access to the inactivation cavity becomes a critical factor controlling the rate and magnitude of this process. In this mechanism, water molecules would diffuse into the inactivation cavity by a conduit formed by the apposition of two neighboring subunits. The entrance to this conduit (Figure 6c) is guarded by Tyr-82 (Thr-449 in Shaker). This position, at the external mouth of the filter has been shown to regulate C-type inactivation gating in a variety of K+ channels (Cordero-Morales et al., 2006; López-Barneo et al., 1993). For instance, replacing Tyr 82 in KcsA with Alanine accelerates C-type inactivation gating (Cordero-Morales et al., 2006; López-Barneo et al., 1993), while in Shaker T449Y slows down this process. These experimental observations suggest that this position could work as a gatekeeper, regulating the diffusion of water molecules into the inactivation cavity. Thus, a reduction in the volume and/or hydrophobicity of this amino acid side chain would maximize the diffusion of water molecules into the inactivation cavity, increasing the rate and the magnitude of C-type inactivation. In order to address this possibility, the crystal structure of the closed Y82A mutant was solved at 2.25 Å resolution, PDB = 5 VKH, (Rwork = 0.1749 and Rfree = 0.2037). As expected, a smaller and less hydrophobic amino acid at this position not only creates a septum or a channel that communicates the extracellular milieu and the ‘inactivation cavity’, possibly enhancing the diffusion of water molecules into it, but also allows the solvation of the inactivation cavity entryway, as evidenced by the additional crystallographic water molecules detected at this region (Figure 6d). Interestingly, it has been shown computationally and experimentally that recovery from C-type inactivation is in fact, dependent on the occupancy of this buried waters into the ‘inactivation cavity’ and that as predicted, changing the water activity at the extracellular part of the channel slows down KcsA’s inactivation kinetics (Ostmeyer et al., 2013).

Finally, the central cavity of the O/I state holds a density, putatively modeled as a K+ ion, since the crystallization solution contains at least 300 mM KCl. However, even at the present resolution no discernible waters were observed coordinating the ion inside the cavity, as it was the case in the O/O state. However, a large number of crystallographic water molecules were found likely associated with the changes in surface polarity or H-bond availability of the central cavity in the C-type inactivated conformation (Figure 7).

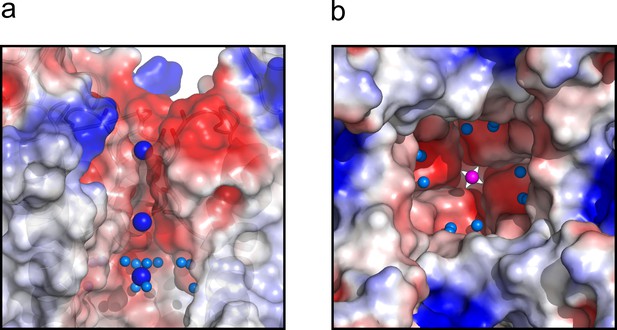

The central cavity of the KcsA O/I state.

(a) A side view of a surface representation of KcsA O/I state or Locked-open KcsA Y82A mutant crystal structure. KcsA O/I state seems to hold a K+ ion (blue sphere) with no discernible coordinating water molecules surrounding it. (b) An intracellular view of the central cavity displays a large number of crystallographic water molecules (cyan spheres) by comparison to the cavity of the O/O state or Locked-open KcsA E71A mutant.

https://doi.org/10.7554/eLife.28032.010

Discussion

In KcsA, once the activation gate opens, C-type inactivation is initiated by the loss of K+ coordination at the S2 binding site due to the narrowing of the permeation pathway at Gly 77 (Cuello et al., 2010b) (Figure 6a). Further constricting the selectivity filter at Gly 77 causes structural changes that eventually leads to a collapsed, deep C-type inactivated conformation of the filter with the loss of S2 and S3 K+ coordination sites. This mechanism of C-type inactivation has found support from a variety of spectroscopic and computational studies carried out in KcsA (Ader et al., 2009; Ader et al., 2008; Bhate and McDermott, 2012; Bhate et al., 2010; Imai et al., 2010; Ostmeyer et al., 2013; Wylie et al., 2014; Kratochvil et al., 2016). However, recent studies based on crystal structures of refolded semisynthetic closed-KcsA containing unnatural amino acids, have suggested that the collapsed structure of the selectivity filter might not represent the deep C-type-inactivated conformation in KcsA (Devaraneni et al., 2013).

The atomic-resolution crystal structures of KcsA’s O/O and O/I states strongly suggest otherwise, since the well-established non-inactivating E71A mutant (Cordero-Morales et al., 2006) prevented the collapse of the selectivity filter. This finding indicates that KcsA in the deep C-type inactivated state has a collapsed selectivity filter, as previously suggested (Cuello et al., 2010a). Additionally, the existence of time dependent-conductance changes in a D-Ala semisynthetic construct cannot be used as evidence against the structural correlation between the collapsed conformation of the filter and the process of KcsA’s inactivation. Not only do these studies vastly underestimate the intrinsic conformational dynamics of the selectivity filter, but recent 2DIR data points towards a more complex conformational landscape for the selectivity filter that might include additional non-conductive conformations (Kratochvil et al., 2016). Indeed, recent computational analyses suggest that the D-Alanine ‘rigidized’ selectivity filter could relax to a partially constricted conformation, with the D-Ala side chains at position 77 occluding the permeation pathway (Li et al., 2017). Therefore, it is possible that the 77D-Ala selectivity filter displayed a time-dependent lack of activity due to alternative constricted conformations of KcsA’s filter.

Furthermore, these experimental results, together with a number of recent reports in KcsA and other channels (Ader et al., 2009; Ben-Abu et al., 2009; Imai et al., 2010; Panyi and Deutsch, 2006; Peters et al., 2013) have demonstrated that the key driving force behind KcsA’s inactivation is an allosteric coupling between their activation gate and the selectivity filter. This strongly suggests that to properly study the structural changes associated with C-type inactivation at the selectivity filter of K+ channels, a channel must be trapped with its activation gate open, since the structural integrity of a conductive selectivity filter is influenced by a number of parameters, most importantly, the conformation of the activation gate due to their structural coupling. This coupling ultimately will strongly influence the energetics of interaction between permeant ions and the channel’s selectivity filter as well as the pKa of activation and deactivation gating. These observations underlie a novel hysteretic gating behavior in KcsA (Tilegenova et al., 2017). Additionally, the non-inactivating Locked-open-KcsA-E71A mutant structure is consistent with the collapsed filter hypothesis of C-type inactivation, since the open state displayed a non-collapsed selectivity filter in this inactivation-deficient mutant.

Recapitulating existing data with the present high-resolution structures, KcsA’s C-type inactivation can be explained by the following minimal mechanistic model (Figure 8—figure supplement 1). Upon activation gating (C/O-to-O/O transition) KcsA’s inner bundle gate opens, expands its diameter to ~22 Å and allowing the diffusion of hydrated K+ ions into the channel central cavity. Once in the cavity, a K+ ion sheds off water molecules (Figure 4b) immediately before entering a selectivity filter that has undergone subtle but distinctive structural changes. The O/O is a transient kinetic state that conducts K+ ions for hundredths of milliseconds. But a strong allosteric coupling between KcsA’s and the selectivity filter (Phe 103 clashes with I100, Thr 74 and 75 from the signature sequence) deforms the pore helix and as a consequence the selectivity filter undergoes compensatory structural changes (Pan et al., 2011; Cuello et al., 2010a). These changes involve (1) flipping of the selectivity filter backbone C = O, which triggers the consecutive loss of the second and third K+ binding sites as a function of the channel’s activation gate opening and (2) in the absence of the second and third K+ binding sites the selectivity filter collapses. A KcsA kinetic intermediate that has loss as much as one K+ binding site at the selectivity filter is considered an inactivated state (I1) (Figure 8, Figure 8—figure supplement 1), which can dramatically reduce the unitary conductance of the channel(Morais-Cabral et al., 2001). This sequence of events underlies C-type inactivation gating in KcsA and likely in other Kv channels (O/O to O/I transition). A network of water molecules that resides in a cavity behind KcsA’s selectivity filter stabilizes its collapsed conformation; diffusion of water molecules into the inactivation cavity determines the rate and magnitude of C-type inactivation. Once the stimulus is terminated, the activation gate closes (O/I to C/I transition) although the selectivity filter remains collapsed for a short period of time, likely defined by the exit rate of water molecules from the inactivation cavity (Ostmeyer et al., 2013). Finally, the selectivity filter resets to the conductive conformation (C/I to C/O transition) completing the KcsA kinetic cycle (Figure 8—figure supplement 1.

Figure 8 with 1 supplement see all

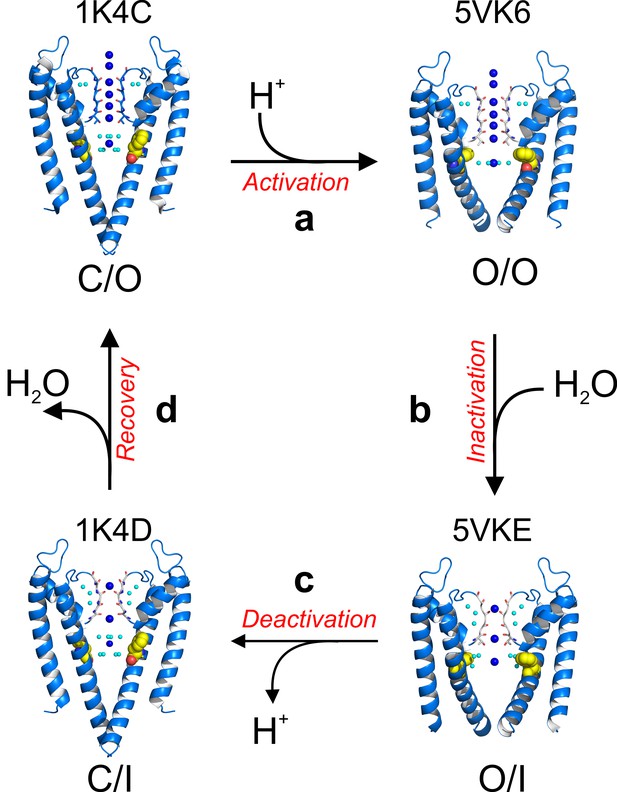

A structure-driven kinetic cycle for KcsA gating.

The simplest KcsA kinetic cycle contains at least four distinct states, closed and prime-to-conduct (C/O), open and conductive (O/O), open and C-type inactivated (O/I) and closed and C-type inactivated (C/I). KcsA resting state (C/O) is best represented by the structure of its closed state in high-potassium concentration (PDB 1K4C). (a) Upon proton activation, the channel undergoes conformational changes at its activation gate, increasing its diameter to 22 Å, which allows K+ ions to flow down their electrochemical gradient for about 200 ms, just before the onset of C-type inactivation. The Locked-open KcsA E71A mutant (PDB 5VK6) likely represents this short-lived open and conductive state (O/O). (b) A strong allosteric coupling between KcsA’s activation gate and its filter determines the duration of its O/O state. Opening of the channel activation gate is communicated to the filter by mechanical deformation that propagates along a network of interacting amino-acid residues along the second membrane-spanning segment. Among many, Phe 103 undergoes conformational changes (yellow spheres) that make it clash with Thr 75 on the channel’s pore helix, triggering a series of structural rearrangement at the channel’s filter that yield a pore with two consecutive ion vacancies and collapsed or deep C-type inactivated. The Locked-open KcsA Y82A mutant structure (PDB 5VKE) recapitulates the most important features of KcsA’s O/I state. (c) Decreasing intracellular proton concentration triggers KcsA deactivation gating, which involves structural rearrangements that close the channel’s activation gate. For a brief period of time, KcsA exists with a collapsed filter and its activation gate closed. The structural model that best describes KcsA’s C/I state is the closed structure in low K+ concentration (PDB 1K4D). (d) Once the KcsA activation gate is closed, the filter remains collapsed for an undetermined period of time, though computational calculations have suggested that the exit of the ‘inactivating waters’ from the ‘inactivation cavity’ determines the recovery rate of the channel’s filter.

https://doi.org/10.7554/eLife.28032.011

Trapping KcsA in its open conformation has allowed the development of an atomic description of its O/O and O/I kinetic states. These two new kinetic intermediate snapshots complement, at high resolution, the existing structures for the C/O (high K+-structure) and the C/I (low K+-structure) conformations (Zhou et al., 2001a) and highlight a network of water molecules behind the channel’s selectivity filter that stabilizes its collapsed conformation (Figure 6a and b). The structural description of this gating cycle stresses diffusion of water molecules into the inactivation cavity as a key determinant of the rate and magnitude of KcsA’s C-type inactivation.

Finally, a recent Cryo-EM structural study of the human Ether-à-go-go-Related K+ channel (hERG) suggested that the structural changes at the selectivity filter associated with C-type inactivation are subtle and might be different from those reported for KcsA (Wang and MacKinnon, 2017). Given hERG distinctive inactivation process, it is not surprising that the structure-function correlation underlying hERG inactivation is unique and different from the one displayed by KcsA and other voltage-gated K+ channels (Cuello et al., 2010a).

Materials and methods

KcsA expression, purification and crystallization

Request a detailed protocol

KcsA (The Locked-open and closed conformations) cloned in the pQE70 expression vector were transformed in freshly-made XL10-gold competent cells by heat shock method. Cell cultures harvesting the plasmid to express the desired KcsA mutant were grown overnight at 37°C in the presence of 2% glucose and 0.4 mg/ml ampicillin. Next day, the overnight culture was diluted 100 times in 1 liter of LB media supplemented with 0.4 mg/ml and 0.2% glucose and grown at 37°C. Once the cells have reached an O.D. of 0.6, the cultures were cooled down to for 2 hr. Next, 10 mM BaCl2, 0.4 mg/ml ampicillin and 0.4 mM IPTG were added to induce protein production at 29°C for ~18 hr (Cuello et al., 2010b). Next day, cells expressing KcsA were collected by centrifugation and resuspended in a buffer of the following composition: 50 mM Tris-Cl, pH 7.5, 150 mM KCl, 170 ug/ml phenylmethylsulfonyl fluoride (Buffer A). The cell suspension was disrupted by passing them three times through an ice-cold Emulsiflex C3. The broken cell suspension was spun down at 100,000 g for 1 hr and after discarding the supernatant, the cell membrane pellet was resuspended in buffer A and stored and −80°C.

A KcsA containing membrane preparation was solubilized with 20 mM dodecyl-maltoside for 2 hr, the insoluble material was spun down at 100,000 g and the supernatant was loaded into a pre-packed cobalt resin column. Next, the column was washed with 10 column volumes (CV) of buffer A, 10 mM imidazole and 1 mM DDM. Finally, KcsA was eluted with buffer A, 1 mM DDM and 400 mM imidazole. Chymotrypsin-cut KcsA was complexed with an antibody fragment used for crystallization purposes and purified in 5 mM DM. Crystal trials were set up by the sitting-drop method in 24–27% PEG400 (v/v), 50 mM magnesium acetate, 50 mM sodium acetate (pH 5.4–6.0) at 20°C (Cuello et al., 2010b).

Patch-clamp studies

Request a detailed protocol

Locked-open KcsA and the closed channel containing single point mutations that enhance or eliminate C-type inactivation gating were reconstituted in Asolectin liposomes. In brief, channels were reconstituted at a 1 to 100 for macroscopic currents or 1 to 5000 protein-to-lipid ratio for single-channel recordings, in Asolectin liposomes made in the following buffer: 200 mM KCl and 5 mM MOPS-buffer at pH 7.0 (buffer B) and incubated overnight with bio-beads from Bio-Rad. Next day, KcsA containing proteoliposomes were harvested by ultracentrifugation at 100,000 g for 1 hr. Then, the pellet was resuspended in 60 μL of buffer B and three drops of this proteoliposomes suspension were placed on a microscope glass slides and dehydrated overnight inside a desiccation chamber. Next day, the dried drops were rehydrated with 20 μl at 4°C overnight. Normally, the samples were rehydrated for ~24 hr yielding giant liposomes appropriate for patch-clamp experiments. KcsA channel activity was recorded in symmetrical 5 mM MOPS at pH 4.0 in the presence of 200 mM KCl or RbCl. KcsA currents were recorded with a patch-clamp amplifier Axopatch 200 B, and currents were sampled at 40 kHz with an analogue filter set to 10 kHz. Patch pipettes, after fire polishing, displayed a resistance of 2.0 MΩ (they were filled with 200 mM KCl and 5 mM MOPS-buffer at pH 4.0). Data Analysis: to calculate the Tau for inactivation a single exponential curve was fitted to the data, and the reported values are the mean ±SEM of 5 to 10 independent experiments. To estimate the nominal open probability of the Locked-open E71A and Y82A mutants, steady-state single-channel recordings at pH 8 or 3 were measured. The open probability was calculated from Gaussian fits to the peaks of all point histograms of the single-channel recording at each measured pH.

Crystallographic analysis

Request a detailed protocol

Crystallographic data were collected at the beamlines 23ID (GMCA) and Beamline 14-ID-B at the Advance Photon Source (Argonne) and at the beamline 14–1 at the Stanford Synchrotron Radiation Laboratory (SSRL) and processed with HKL2000 (Otwinowski and Minor, 1997). The phase of all KcsA structures was obtained by molecular replacement using as a search model, the antibody fragment bound to the KcsA-OM (PDB = 35FW). A structural model for the locked-open KcsA was built from scratch using Coot (Emsley and Cowtan, 2004) for modeling followed by iterative cycles of refinement using Phenix (Adams et al., 2010). For the B-factors analysis a new structure for KcsA in the closed state was solved in house at the same resolution and using the same parameters during the refinement process of the Locked-open E71A mutant. The figures on this paper were made using Pymol (https://pymol.org) and the statistical analysis was done in Origin (OriginLab).

References

    1. Emsley P
    2. Cowtan K
    (2004) Coot: model-building tools for molecular graphics
    Acta Crystallographica Section D Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
    1. López-Barneo J
    2. Hoshi T
    3. Heinemann SH
    4. Aldrich RW
    (1993)
    Effects of external cations and mutations in the pore region on C-type inactivation of Shaker potassium channels
    Receptors & Channels 1:61–71.

Decision letter

  1. Kenton J Swartz
    Reviewing Editor; National Institutes of Health, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The gating cycle of a K+ channel at atomic resolution" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom, Kenton J Swartz (Reviewer #2), is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Richard Aldrich as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Roderick MacKinnon (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript addresses conformational states that underlie gating in the KcsA K+ channel. This channel opens transiently following steps in pH from 8 to 3 and then inactivates (some would say desensitizes) partly. Activation is associated with opening of an inner helix gate and inactivation as shown here seems associated with conformational changes at the selectivity filter. This conclusion is supported by demonstration that KcsA with a trapped open inner helix gate (using disulfide bridges) still gates. Mutations near the selectivity filter that increase or decrease inactivation favor different conformations in the setting of the trapped open inner helix gate. The same lab determined similar structures at an earlier date but these are at higher resolution. The higher resolution was achieved through the disulfide bridges, which limited heterogeneity. This study makes a compelling case for two distinct gates in KcsA that are both important for gating in KcsA. The following are requested revisions for improving the manuscript.

Essential revisions:

1) Unless we are mistaken, the functional characterization of the Y82A and E71A mutants was not done in the background of the disulfide bonded OM. This is not trivial to do because presumably these constructs would not be responsive to low pH because the lower pH controlled gate is locked open. However, it would be nice to know that they are not responsive to low pH and then to see single channel recording similar to those in Figure 2C, D that are provided for the OM alone. It would be nice to see that the E71A-OM has a high Po and that the Y82A-OM has a low Po, etc. Also, the functional data that are provided for E71A and Y82A in Figure 3B and the OM in Figure 2C, D are all single observations and the authors should provide population data.

2) In subsection “Trapping KcsA with its activation gate in the open conformation” of the manuscript, the authors refer to thermal denaturation experiments in Figure 2B, but no wild-type KcsA control is presented in the ms nor is a result for WT KcsA cited from the literature; this should be addressed. It's probably also worth noting in the text that the 28-118 disulfide bond is formed between residues in adjacent KcsA subunits. The authors should therefore note whether the sample buffer in Figure 2B contained DTT and/or β-mercaptoethanol, or if reducing agents were present during heating of the sample (no experimental details are provided).

3) We are skeptical about the discussion of B factors (subsection “Atomic resolution structure of KcsA open and conductive” paragraph three). How did the B factors compare in the 2 structures outside the selectivity filter? More importantly, one structure has a mutation in a residue surrounding the filter (E71A) and the other does not. Because such a mutation could affect the filter, we would hesitate to give too much interpretation to their B factor differences. Moreover, it's probably not appropriate to directly compare B-factors from at two different resolutions (2.0 Å for the 1K4C structure, 2.25 Å for the 5VK6 structure), in which the structures may have been refined using different parameterization. In addition, the B-factors plotted in Figure 5 appear to include those of both main chain and side chain atoms. Because B-factors for side chain atoms may be less well-defined and more subject to bias than main chain atoms, it would likely be more useful to limit the comparison to main chain atoms only. To further minimize bias in the comparisons, both data sets would need to be truncated to the same resolution (and probably same redundancy) and then re-refined, and then the authors will need to provide a strong rationale for the statistical distribution of the B-factors and provide some error estimates of these values to justify their argument. In some previous work, investigators have justified using a normalization of the B-factors, so this may be a valid approach.

4) The authors state that water exchange is a key determinant in the rate and magnitude of inactivation. This could be true but the evidence is not very strong. Does changing the activity of bulk water alter inactivation, as one would predict on the basis of this assertion? The authors should provide additional experimental support for this conclusion.

5) Subsection “Atomic resolution structure of KcsA open and deep C-type inactivated” and further in the Discussion: historically, the name C-type inactivation was given to the process of inactivation in Shaker K channels following removal of the N-terminal inactivation peptide. How do we know that the process of inactivation in KcsA (or desensitization following opening after a pH step) is the same as inactivation following voltage dependent gate opening in Shaker? We think it would be fine to motivate this work with previous studies on C-type inactivation in Shaker or other K channels, but at the end of the day this body of work is about KcsA and the authors should restrict their implications on mechanism to that protein and be more circumspect throughout.

6) Related to point 3, the discussion contained a large section opposing another study of inactivation based on D-alanine mutations that would seem to prevent the inactivated conformational change observed here. The authors state in the Discussion: "Indeed, recent computational analyses of a D-Alanine "rigidized" selectivity filter demonstrated that the selectivity filter is able to relax to a partially constricted conformation, with the D-Ala side chains at position 77 occluding the permeation pathway (Li et al., 2017). Therefore, the 77D-Ala substitution does not lead to a rigid selectivity filter, and crucially, does not preclude the transition to a constricted conformation for the selectivity filter." This argument supposes the correctness or accuracy of the computational studies. Perhaps more importantly, don't you think it is possible that inactivation in the selectivity filter, or its inability to conduct, might be associated with a number of different filter conformations (i.e. not all inactivated filters/states look the same)?

7) What is the distinction between a C-type inactivated state and a deep C-type inactivated state? Please explain the difference.

8) Subsection “Atomic resolution structure of KcsA open and deep C-type inactivated”: "Crystals of the O/I-state diffracted ~ 2.4 A with good refinement statistics, Rwork = 0.1948 and Rfree = 0.2267 and its structure was solved by molecular replacement…" Crystals do not diffract with good or bad refinement statistics. You mean the model exhibited those residuals when compared to the data. In addition, the crystallographic data table (table 1) is incomplete. The mean Rmerge values for each data set are conspicuously high. Many investigators have switched to Rpim or CC1/2 as an indicator of overall data quality, but these are not provided. In addition, the value of i/sigma appears to only correspond to the high-resolution shell, and the overall i/sigma is not provided. Finally, the redundancy appears to only correspond to overall redundancy, and not high-resolution shell. Without a completed data table, it is difficult for the reader to independently evaluate the X-ray data quality or make comparisons among the data sets analyzed in this manuscript. For the refinement statistics, the authors list the "Wilson B-factor", which is estimated from the experimental data. The authors should instead provide the mean b-factors for atoms in each model; these are usually provided separately for the protein, water, and ligand atoms.

9) In the Discussion, the authors summarize their findings as if they have completed a mathematical proof: "Taking together existing data with the present high resolution structures we can recapitulate the process of C-type inactivation in the framework of a mechanistic model (Figure 8 and Figure 8—figure supplement 1)". Would it not be better to say, “on the basis of data presented we propose the following…” After all, we all know how tricky it can be to figure out what is really happening in these molecules!

https://doi.org/10.7554/eLife.28032.015

Author response

Essential revisions:

1) Unless we are mistaken, the functional characterization of the Y82A and E71A mutants was not done in the background of the disulfide bonded OM. This is not trivial to do because presumably these constructs would not be responsive to low pH because the lower pH controlled gate is locked open. However, it would be nice to know that they are not responsive to low pH and then to see single channel recording similar to those in Figure 2C, D that are provided for the OM alone. It would be nice to see that the E71A-OM has a high Po and that the Y82A-OM has a low Po, etc. Also, the functional data that are provided for E71A and Y82A in Figure 3B and the OM in Figure 2C, D are all single observations and the authors should provide population data.

The reviewers are correct. Originally, we considered that sampling the behavior of the pH-activated channel would provide a close sampling of the gating transitions at the selectivity filter in either of the mutants. And while we still stand by that assessment, we do agree that formally, these electrophysiological measurements should be carried out on disulfide-cross-linked OM backgrounds (even if it is more difficult). Single channel traces are now shown in Figure 3D, with Figure 3E depicting overall Open Probability behavior for the population active in the patch (NPo). As expected, when the inner bundle gate is crosslinked, single channel activity becomes pH independent, and solely defined by the mutation at the selectivity filter/pore helix.

2) In subsection “Trapping KcsA with its activation gate in the open conformation” of the manuscript, the authors refer to thermal denaturation experiments in Figure 2B, but no wild-type KcsA control is presented in the ms nor is a result for WT KcsA cited from the literature; this should be addressed. It's probably also worth noting in the text that the 28-118 disulfide bond is formed between residues in adjacent KcsA subunits. The authors should therefore note whether the sample buffer in Figure 2B contained DTT and/or β-mercaptoethanol, or if reducing agents were present during heating of the sample (no experimental details are provided).

Thermal denaturation assays have been performed in our lab to assess overall stability of KcsA mutants for many years (first described in Cortes & Perozo, Biochemistry 36(33):10343-52 (1997). We followed the same protocol here. We now include the control experiment in Figure 2B, state that disulfide bonds are indeed inter-subunit (legend, figure 3), and include the methodological details of the experiment (Materials and methods section).

3) We are skeptical about the discussion of B factors (subsection “Atomic resolution structure of KcsA open and conductive” paragraph three). How did the B factors compare in the 2 structures outside the selectivity filter? More importantly, one structure has a mutation in a residue surrounding the filter (E71A) and the other does not. Because such a mutation could affect the filter, we would hesitate to give too much interpretation to their B factor differences. Moreover, it's probably not appropriate to directly compare B-factors from at two different resolutions (2.0 Å for the 1K4C structure, 2.25 Å for the 5VK6 structure), in which the structures may have been refined using different parameterization. In addition, the B-factors plotted in Figure 5 appear to include those of both main chain and side chain atoms. Because B-factors for side chain atoms may be less well-defined and more subject to bias than main chain atoms, it would likely be more useful to limit the comparison to main chain atoms only. To further minimize bias in the comparisons, both data sets would need to be truncated to the same resolution (and probably same redundancy) and then re-refined, and then the authors will need to provide a strong rationale for the statistical distribution of the B-factors and provide some error estimates of these values to justify their argument. In some previous work, investigators have justified using a normalization of the B-factors, so this may be a valid approach.

This is an important point brought by the reviewers. Formally, an approach to compare Debye-Weller B temperature factors in structures of different resolutions (and hence B factors) has been to artificially increase the overall values of the highest resolution structure. However, these comparisons are always limited by the worst-resolution data of the pair. Alternative, one could subtract the average B factor for a common stretch of residues in each case and compare, not the actual B factor values, but its variance (see Cordero-Morales et al., 2006). We have indeed followed the reviewer’s suggestions and carried out a de novo solution of wild-type KcsA, refined in house with the same parameters used during the refinement of the Locked-open E71A, at equivalent resolutions. This dataset was then used to redo the B-Factor analysis, but now with the normalized B-factors of the α carbons of amino acids of the selectivity filter. This newly generated comparison, between closed and open KcsA is shown in a new Figure 5.

4) The authors state that water exchange is a key determinant in the rate and magnitude of inactivation. This could be true but the evidence is not very strong. Does changing the activity of bulk water alter inactivation, as one would predict on the basis of this assertion? The authors should provide additional experimental support for this conclusion.

We have already carried out an earlier set of experiments to test this issue experimentally (in addition to extensive molecular dynamics simulations) see Ostmeyer et al., 2013. In this publication, we showed that reducing the occupancy of the buried water molecules at the filter (by imposing a high osmotic stress) accelerates the rate of recovery, as measured from the recovery rate of inactivation in the presence of a high concentration osmolyte solution (2M sucrose). The experiment provides strong, and direct experimental evidence supporting the hypothesis that water access to cavities behind the selectivity filter is a key driver of the kinetics on inactivation and inactivation repriming in KcsA. See Figures 4 B and C from Ostmeyer et al.

5) Subsection “Atomic resolution structure of KcsA open and deep C-type inactivated” and further in the Discussion: historically, the name C-type inactivation was given to the process of inactivation in Shaker K channels following removal of the N-terminal inactivation peptide. How do we know that the process of inactivation in KcsA (or desensitization following opening after a pH step) is the same as inactivation following voltage dependent gate opening in Shaker? We think it would be fine to motivate this work with previous studies on C-type inactivation in Shaker or other K channels, but at the end of the day this body of work is about KcsA and the authors should restrict their implications on mechanism to that protein and be more circumspect throughout.

We have to disagree with this assessment. First of all, others and we have demonstrated that the time-dependent reduction in open probability observed in KcsA is not due to a “desensitization” process, which would somehow affect the pH-dependence of the channel but to the existence of a second gate at KcsA’s selectivity filter (an inactivation gate). This is not a controversial point (see Cordero-Morales et al., 2006).

However, regarding nomenclature, perhaps this is an issue of semantics: while it is indeed correct that C-type inactivation was detected (and defined) in voltage dependent K+ channels as the time dependent reduction in ion current still present in the absence of fast N-type inactivation, there is ample evidence over the past 20+ years that point to the functional equivalence between the KcsA inactivation gating and that seen in voltage dependent K+ channels. The details differ, of course, but there are many common observations that strongly suggest, at the very least, a “kinship” between these evolutionarily related channels:

– Inactivation in KcsA displays the same kinetic relations (transition into and out of C-type inactivated state under a two-pulse protocol);

– Same external dependence of inactivation kinetics on external K+ concentrations;

– Same behavior with conductive and non-conductive ions: Rb+, plus Tl+, NH4+ Cs+ (unpublished);

– Equivalent mutations that enhance C-type inactivation in eukaryotes do lock in the pinched filter conformation in KcsA;

– Mutations that inhibit C-type inactivation in eukaryotes lead to conductive filter conformations in KcsA.

We argue that the mechanism of inactivation in KcsA is at least related to those present in more complex eukaryotic channels. We all look for commonalities among evolutionarily related systems, but the jury is definitely out on whether there will be a “standard” C-type inactivation mechanism or different “classes” of it, depending on the pore domain. Our work points to the initiation of inactivation in KcsA as the loss of a potassium ion at the second binding site, accompanied by changes in pore diameter neat Glycine 77. This would lead to increase in the energy barrier for K+ translocation between biding sites. Still, there might be other ways to add a (relatively) subtle energy barrier to inhibit K+ flow, so that in some instances the Kv channel’s filter might not need to adopt the same pinched conformation to inactivate (as might be the case in the I1 conformation of KcsA). Ultimately, the observation of a similarly pinched filter in a eukaryotic pore domain (something that so far has not been observed) might help settle the score toward a “common mechanism”. Consequently, we have “toned down” the direct equivalence between eukaryotic C-type inactivation and KcsA inactivation and addressed the present results and interpretation within the context of the KcsA results and mechanism.

6) Related to point 3, the discussion contained a large section opposing another study of inactivation based on D-alanine mutations that would seem to prevent the inactivated conformational change observed here. The authors state in the Discussion: "Indeed, recent computational analyses of a D-Alanine "rigidized" selectivity filter demonstrated that the selectivity filter is able to relax to a partially constricted conformation, with the D-Ala side chains at position 77 occluding the permeation pathway (Li et al., 2017). Therefore, the 77D-Ala substitution does not lead to a rigid selectivity filter, and crucially, does not preclude the transition to a constricted conformation for the selectivity filter." This argument supposes the correctness or accuracy of the computational studies. Perhaps more importantly, don't you think it is possible that inactivation in the selectivity filter, or its inability to conduct, might be associated with a number of different filter conformations (i.e. not all inactivated filters/states look the same)?

The argument is clearly supported by the computational calculations, but it is not necessarily dependent on their accuracy. We make the case that simply, the complexity of behavior of the unnatural substitutions at the selectivity filter makes it impossible to univocally conclude that “the constricted conformation of the selectivity filter is not the C-type inactivated state” even when some reduction in open probability is observed in the presumably rigid D-Ala mutation.

We buttress our argument, not only with solid computational work (allowing molecular explorations that are very difficult to evaluate experimentally), but also from recent 2D infrared experiments done by us (and in collaboration with, among others, F Valiyaveetil). In this work, we provide extensive evidence for the complexity of conformations (as coupled vibrational modes) at the selectivity filter and its dependence on the state of the intracellular gate (see, Kratochvil HT et al. JACS 139(26):8837-8845 (2017)). Our findings indicate that changes in the intracellular gate are linked to changes in the selectivity filter conformational heterogeneity that are distinct to those triggered by K+ depletion. The existence of previously undetected conformational subensembles appear to underlie changes in ion affinity at the selectivity filter and suggest that this complexity does not disappear (just changes) in the presence of unnatural amino acids. More recent computational work (Li et al., now in press) provides strong evidence for an alternative pinched state (nonconductive) in the D-Ala KcsA mutant. We have reworked this section to provide a more inclusive set of interpretations to the inactivation process when D-Ala is part of the selectivity filter.

7) What is the distinction between a C-type inactivated state and a deep C-type inactivated state? Please explain the difference.

We defined the deep C-type inactivated state as that reached after steady state once the inner bundle gate opens (t →∞). With this definition, we can have a better equivalent to the determined crystal structures, while making a distinction with other (presumably non-conductive) states observed when the inner bundle gate is not fully open (see Cuello et al., 2010).

8) Subsection “Atomic resolution structure of KcsA open and deep C-type inactivated”: "Crystals of the O/I-state diffracted ~ 2.4 A with good refinement statistics, Rwork = 0.1948 and Rfree = 0.2267 and its structure was solved by molecular replacement…" Crystals do not diffract with good or bad refinement statistics. You mean the model exhibited those residuals when compared to the data. In addition, the crystallographic data table (table 1) is incomplete. The mean Rmerge values for each data set are conspicuously high. Many investigators have switched to Rpim or CC1/2 as an indicator of overall data quality, but these are not provided. In addition, the value of i/sigma appears to only correspond to the high-resolution shell, and the overall i/sigma is not provided. Finally, the redundancy appears to only correspond to overall redundancy, and not high-resolution shell. Without a completed data table, it is difficult for the reader to independently evaluate the X-ray data quality or make comparisons among the data sets analyzed in this manuscript. For the refinement statistics, the authors list the "Wilson B-factor", which is estimated from the experimental data. The authors should instead provide the mean b-factors for atoms in each model; these are usually provided separately for the protein, water, and ligand atoms.

Agreed. The crystallographic tables are now fully populated and reformatted according to the reviewer’s suggestions.

9) In the Discussion, the authors summarize their findings as if they have completed a mathematical proof: "Taking together existing data with the present high resolution structures we can recapitulate the process of C-type inactivation in the framework of a mechanistic model (Figure 8 and Figure 8—figure supplement 1)". Would it not be better to say, “on the basis of data presented we propose the following…” After all, we all know how tricky it can be to figure out what is really happening in these molecules!

Fair enough! We have changed the text to be less deterministic and allow for the complexities of a still not fully understood process. Our explanations have been constrained to implications and interpretation relevant to KcsA inactivation while considering the possibility that our findings might apply to other Kv channels.

https://doi.org/10.7554/eLife.28032.016
