N-glycosylation in the protease domain of trypsin-like serine proteases mediates calnexin-assisted protein folding

  1. Hao Wang
  2. Shuo Li
  3. Juejin Wang
  4. Shenghan Chen
  5. Xue-Long Sun
  6. Qingyu Wu  Is a corresponding author
  1. Cleveland Clinic, United States
  2. Cleveland State University, United States
  3. State Key Laboratory of Radiation Medicine and Prevention, Soochow University, China
Research Article
  • Cited 8
  • Views 1,339
  • Annotations
Cite this article as: eLife 2018;7:e35672 doi: 10.7554/eLife.35672

Abstract

Trypsin-like serine proteases are essential in physiological processes. Studies have shown that N-glycans are important for serine protease expression and secretion, but the underlying mechanisms are poorly understood. Here, we report a common mechanism of N-glycosylation in the protease domains of corin, enteropeptidase and prothrombin in calnexin-mediated glycoprotein folding and extracellular expression. This mechanism, which is independent of calreticulin and operates in a domain-autonomous manner, involves two steps: direct calnexin binding to target proteins and subsequent calnexin binding to monoglucosylated N-glycans. Elimination of N-glycosylation sites in the protease domains of corin, enteropeptidase and prothrombin inhibits corin and enteropeptidase cell surface expression and prothrombin secretion in transfected HEK293 cells. Similarly, knocking down calnexin expression in cultured cardiomyocytes and hepatocytes reduced corin cell surface expression and prothrombin secretion, respectively. Our results suggest that this may be a general mechanism in the trypsin-like serine proteases with N-glycosylation sites in their protease domains.

https://doi.org/10.7554/eLife.35672.001

Introduction

In the human genome, ~2% of the genes encode proteases, among which trypsin-like serine proteases are a major group (Overall and Blobel, 2007). Most of the trypsin-like serine proteases act extracellularly to participate in physiological processes, including embryonic development, food digestion, blood coagulation and hormone processing (López-Otín and Hunter, 2010; Neurath, 1984; Overall and Blobel, 2007; Perona and Craik, 1995; Stroud, 1974). Dysregulated serine protease expression and activity contribute to major health problems such as cardiovascular disease, cancer metastasis, inflammation, and neurological disease (Craik et al., 2011; Gohara and Di Cera, 2011).

N-glycosylation is a common post-translational modification in proteins (Eklund and Freeze, 2005; Patterson, 2005; Varki, 1993). About two thirds of the predicted human proteins contain N-glycosylation sites (Apweiler et al., 1999). Consistently, most of the trypsin superfamily members are N-glycosylated proteins (Bolt et al., 2007; Jiang et al., 2014; Liao et al., 2007; Miyake et al., 2010; Wu and Suttie, 1999). Many N-glycosylation sites in these serine proteases, especially those in the protease domain, are highly conserved; that is, a specific N-glycosylation site in a protease is conserved not only in the homologs of different species, but also at the same location in other members of the protease superfamily. Such conservation indicates the functional importance. Indeed, N-glycosylation has been shown to regulate the extracellular expression, secretion and activation of trypsin-like serine proteases, although the underlying mechanisms are not elucidated (Bolt et al., 2007; Gladysheva et al., 2008; Jiang et al., 2014; Lai et al., 2015; Liao et al., 2007; Miyake et al., 2010; Wu and Suttie, 1999). It is unclear if N-glycans at the conserved sites have a general role in the biosynthesis of the trypsin-like serine proteases.

Corin is a trypsin-like serine protease that activates natriuretic peptides (Cui et al., 2012; Li et al., 2017; Yan et al., 2000). It consists of a cytoplasmic tail, a transmembrane domain and an extracellular region with multiple protein modules and a C-terminal protease domain (Hooper et al., 2000; Yan et al., 1999). In cells, corin is made as a zymogen and activated on the cell surface by proprotein convertase subtilisin/kexin-6 (PCSK6) (Chen et al., 2015; 2018). CORIN and PCSK6 variants that impair corin cell surface expression and zymogen activation have been identified in patients with hypertensive diseases (Chen et al., 2015; Cui et al., 2012; Dong et al., 2013; 2014; Dries et al., 2005; Zhang et al., 2014; 2017).

Human corin has 19 N-glycosylation sites in its extracellular region (Yan et al., 1999). We and others have shown that N-glycosylation is critical for corin cell surface expression and zymogen activation (Gladysheva et al., 2008; Liao et al., 2007; Wang et al., 2015). Abolishing N-glycosylation sites at Asn80 and Asn231 in the pro-peptide region increased corin shedding on the cell surface, whereas abolishing N-glycosylation site at Asn1022 (N1022), the only N-glycosylation site in the protease domain of human corin, reduced the cell surface expression (Wang et al., 2015). To date, how N-glycosylation at N1022 regulates corin cell surface expression remains unknown.

In this study, we made membrane-bound and soluble forms of corin with or without the N1022 N-glycosylation site and analyzed the mutant proteins in transfected cells. We also did proteomic analysis to identify intracellular proteins interacting with corin. We verified our findings in enteropeptidase (also called enterokinase, EK), a transmembrane serine protease, and prothrombin, a secreted serine protease. We found that N-glycosylation in the protease domain of corin, EK and prothrombin has a common role in regulating the extracellular expression of these proteases, which involves calnexin-assisted protein folding and ER exiting.

Results

Glycosylation at N1022 promotes cell surface expression of corin zymogen

N1022 is a conserved glycosylation site in the corin protease domain (Figure 1A, Figure 1—figure supplement 1 and Figure 1—figure supplement 2). Abolishing this site impairs corin cell surface expression and zymogen activation (Wang et al., 2015). To test if the effect is related to zymogen activation, we analyzed corin mutants lacking the activation site (R801A) with or without the N1022 glycosylation site (Figure 1A). In western blotting of transfected cell lysates, levels of corin zymogen bands (~160–200 kDa) were similar in corin WT and mutants N1022Q, R801A, and R801A/N1022Q (Figure 1B, left). In corin WT, the cleaved protease domain fragment (Corin-p) migrated as an ~40 kDa band under reducing conditions. In the N1022Q mutant, the Corin-p band was lighter and migrated faster, due to the lack of N1022 glycosylation and poor zymogen activation (Wang et al., 2015). As expected, no Corin-p band was detected in mutants R801A and R801/N1022Q lacking the activation site. In biotin-labeled cell surface proteins (Figure 1B, right), levels of corin bands in the N1022Q mutant were 43 ± 9% of that in WT (p=0.002) and levels in the R801A/N1022Q mutant were 41 ± 8% of that in R801A (p=0.027). The total intensity of WT bands (Corin and Corin-p) was similar to that of R801A (Corin band only). The results indicate that lacking N1022 glycosylation reduces corin cell surface expression with or without the activation cleavage at R801.

Figure 1 with 2 supplements see all

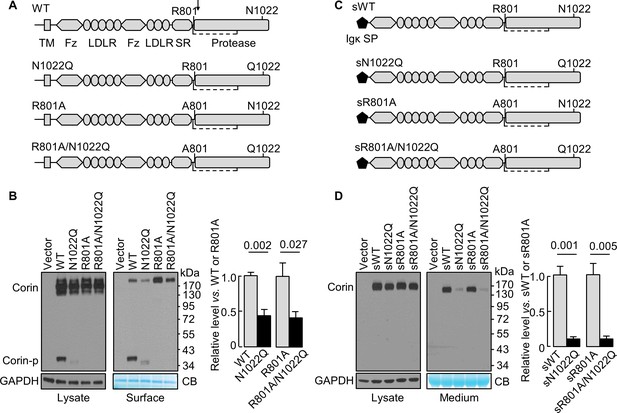

N-glycosylation at N1022 in single-chain and soluble corin.

(A) Illustration of human corin WT and mutants with or without R801 activation site and N1022 N-glycosylation site. TM: transmembrane; Fz: frizzled; LDLR: LDL receptor; SR: scavenger receptor. An arrow indicates the PCSK6-mediated activation cleavage site at Arg801 (R801). A disulfide bond linking the pro-peptide region and the protease domain is indicated by a dashed line. (B) Western blotting, under reducing conditions, of corin proteins in lysates (left) or on the cell surface (right) from HEK293 cells. Corin zymogen bands (Corin) and the cleaved protease domain fragment (Corin-p) are indicated. Levels of GAPDH in cell lysates and a Coomassie Blue (CB)-stained non-specific protein in biotin-labeled cell surface proteins were used to assess amounts of proteins in each sample. Relative corin levels on the cell surface are estimated by densitometric analysis of western blots. Data are means ± S.E. from four independent experiments. p-Values are shown in the bar graph. (C) Illustration of soluble corin (sWT) and mutants, in which the cytoplasmic and transmembrane domains were replaced by the Igκ signal peptide (SP). (D) Western blotting of soluble corin in lysates (left) and medium (right) from HEK293 cells. Levels of GAPDH in cell lysates and a Coomassie Blue (CB)-stained non-specific protein in the conditioned media were used to assess amounts of proteins in each sample. Relative levels of the secreted corin in the medium were estimated by densitometric analysis of Western blots. Data are means ± S.E. from three independent experiments. p-Values are shown in the bar graph.

https://doi.org/10.7554/eLife.35672.002

Glycosylation at N1022 promotes soluble corin secretion

The cytoplasmic tail was shown to regulate corin intracellular trafficking (Li et al., 2015; Qi et al., 2011; Zhang et al., 2014). To test if the cytoplasmic and the transmembrane domains are necessary for the N-glycan-mediated corin expression, we tested soluble corin mutants with the Igκ signal peptide with or without mutations at R801 and N1022 (Figure 1C). In western blotting of transfected cell lysates, sWT and the mutants sN1022Q, sR801A and sR801A/N1022Q appeared as single bands at similar levels (Figure 1D, left). In the medium (Figure 1D, right), levels of sWT and sR801A were similar, whereas levels of sN1022Q and sR801A/N1022Q were 11 ± 2 and 9 ± 4% of sWT and sR801A, respectively, indicating that glycosylation at N1022 promotes soluble corin secretion.

Glycosylation at N1022 promotes corin exiting from the ER

In Western blotting of lysates from cycloheximide (CHX)-treated cells, levels of WT and the N1022Q mutant decreased over time (Figure 2A,B). After 8 hr of CHX treatment, the levels were 7 ± 2% for WT and 32 ± 3% for N1022Q with calculated half-lives of 3.8 ± 0.4 and 6.1 ± 0.3 hr, respectively (p=0.003), indicating that abolishing N1022 glycosylation did not reduce corin protein stability but impaired intracellular trafficking. We digested the proteins with glycosidase Endo H, which removes high-mannose and hybrid N-glycans on proteins in the ER or early Golgi. On western blots, the ratio of Endo H-sensitive vs. resistant corin bands was higher in the N1022Q mutant than WT after CHX treatment for 4 hr (Figure 2C), indicating that the N1022Q mutant was retained in the ER or early Golgi.

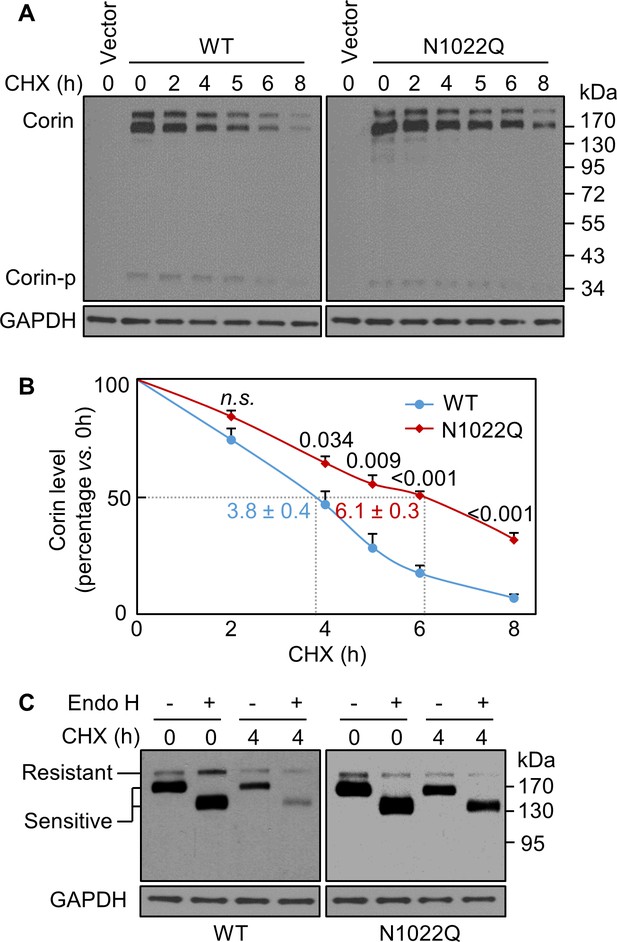

Analysis of intracellular corin by CHX-based protein chase and Endo H digestion.

(A) Western blotting of corin in HEK293 cells treated without (0) or with CHX over time (h). (B) Percentages of corin WT and the mutant N1022Q levels, with corresponding levels at 0 hr being 100%, were estimated by densitometric analysis of Western blots. In addition to corin zymogen bands (Corin), a weak Corin-p band was detected, which likely represented activated corin on the cell surface. Data are means ± S.E. from four independent experiments. P values vs. WT at the same time point are shown. n.s.: not significant. The half-lives in h for WT (blue) and N1022Q (red) are indicated. (C) Endo H digestion of proteins from HEK293 cells without (0) or with CHX treatment for 4 hr. Corin proteins without (-) or with (+) Endo H digestion were analyzed by western blotting. Endo H-sensitive and resistant bands are indicated.

https://doi.org/10.7554/eLife.35672.005

We then co-stained corin and protein disulfide isomerase (PDI) in the cells. Without CHX treatment, WT or N1022Q corin and PDI staining mostly overlapped (Figure 3A) with similar Pearson’s correlation coefficients (0.49 ± 0.04 and 0.48 ± 0.06, respectively) (Figure 3B). After CHX treatment for 4 hr, there was little corin staining in the WT corin-expressing cells, whereas corin staining was strong in the N1022Q-expressing cells (Figure 3A, corin (red) vs. PDI (green) ratio in two bottom right panels) with Pearson’s correlation coefficients of 0.15 ± 0.06 and 0.35 ± 0.05, respectively (p=0.020) (Figure 3B). In co-staining studies for corin and TGN46, a Golgi marker, WT and N1022Q corin had similar distribution patterns with or without CHX treatment (Figure 3C,D). These results are consistent with findings from the Endo H experiment, indicating that abolishing N1022 glycosylation prevents corin from exiting the ER.

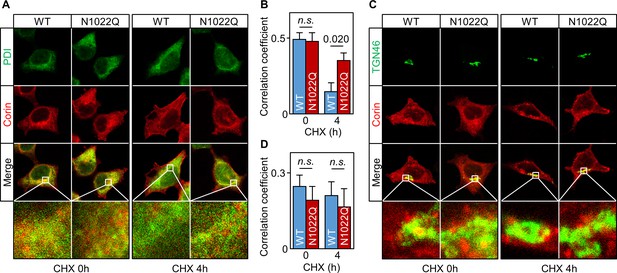

Intracellular distribution of corin WT and the N1022Q mutant.

(A) Co-staining of corin and PDI in HEK293 cells expressing WT corin and the N1022Q mutant without (0) or with CHX treatment for 4 hr. (B) Correlation of red (corin) and green (PDI) colors within individual cells was analyzed by Pearson’s correlation coefficient. p-Value is shown. n.s.: not significant. (C) Co-staining of corin and TGN46 (green) in HEK293 cells expressing WT corin and the N1022 mutant without (0) or with CHX treatment for 4 hr. (D) Correlation of red (corin) and TGN46 (green) colors within individual cells was analyzed by Pearson’s correlation coefficient. Data are means ± S.E. from five independent experiments.

https://doi.org/10.7554/eLife.35672.006

Increased N1022Q binding to calnexin and BiP

To identify proteins that interact differentially with corin WT and the N1022Q mutant, we treated the cells with dithiobis succinimidyl propionate (DSP), a protein cross-linker, and did proteomic analysis in samples co-immunoprecipitated with corin. A total of 387 proteins were detected (Supplementary file 1). Among the proteins with ≥2 fold differences between WT and N1022Q were calnexin and BiP (binding immunoglobulin protein) (Supplementary file 2), two ER proteins in glycoprotein folding and quality control (Hebert et al., 1995; Helenius and Aebi, 2001). Calnexin and BiP levels were 2.1- and 2.0-fold higher, respectively, in N1022Q-derived samples than those in WT (Supplementary file 2). In contrast, the ratio for calreticulin, another ER chaperone in glycoprotein folding (Hebert et al., 1995; Helenius and Aebi, 2001), was 0.88-fold, whereas the ratios for PDI family members A3 and A4 were 1.24- and 1.67-fold, respectively (Supplementary file 1).

To show direct interactions between corin and calnexin or BiP, we immunoprecipitated corin in WT- and N1022Q-expressing cells and analyzed co-precipitated proteins by western blotting. Calnexin and BiP levels from N1022Q-expressing cells were 137 ± 9 and 562 ± 82%, respectively, of those from WT (Figure 4A–C). In contrast, levels of calreticulin, HSP70 and HSP90 (two ER chaperones), and PDI were all similar between WT and N1022Q (Figure 4A,D). In controls, similar levels between WT and N1022Q were found in V5 pull-down samples and total cell lysates (Figure 4A). These results indicate that abolishing N1022 glycosylation increases direct corin binding to calnexin and BiP.

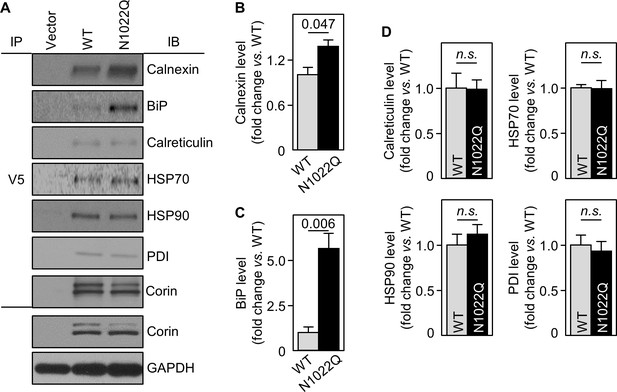

Interactions between corin and ER chaperones.

(A) Corin proteins in HEK293 cells expressing WT corin and the N1022Q mutant were immunoprecipitated (IP) with an anti-V5 antibody that recognizes the C-terminal V5 tag in corin. Chaperones that co-precipitated with corin were analyzed by immunoblotting (IB, top six panels). Corin in V5 pull-down samples was verified. Corin and GAPDH in the cell lysates were analyzed as additional controls (bottom two panels). Relative levels of calnexin (B), BiP (C), calreticulin, HSP70, HSP90 and PDI (D) were estimated by densitometric analysis of western blots. Data are means ± S.E. from three independent experiments. p-Values are shown in bar graphs. n.s.: not significant.

https://doi.org/10.7554/eLife.35672.007

Effects of glucosidase inhibition on corin binding to calnexin and BiP

In calnexin-assisted glycoprotein folding (Caramelo and Parodi, 2008; Helenius and Aebi, 2001), triglucosylated oligosaccharides on nascent proteins are trimmed by α-glucosidases I and II to monoglucosylated oligosaccharides, allowing calnexin binding to N-glycans to assist protein folding (Figure 5A). Calnexin may bind directly to target proteins via protein-protein interactions, but the functional significance is unclear (Helenius and Aebi, 2001; Ihara et al., 1999). BiP retains poorly folded proteins in the ER (Figure 5A). We treated the cells expressing WT corin and N1022Q with 1-deoxynojirimycin (DNJ), which inhibits glucosidase I and II (Saunier et al., 1982) (Figure 5A). Without DNJ treatment, calnexin and BiP levels in N1022Q-derived samples were 131 ± 7 and 473 ± 19%, respectively, of WT (Figure 5B–D). With DNJ treatment, calnexin and BiP levels increased and became similar between the cells expressing WT and the N1022Q mutant (Figure 5B–D), indicating that inhibiting glucosidase activities blocked calnexin binding to N-glycans at N1022 and other N-glycosylation sites on corin and impaired calnexin-assisted folding, resulting in increased direct corin binding to calnexin and BiP.

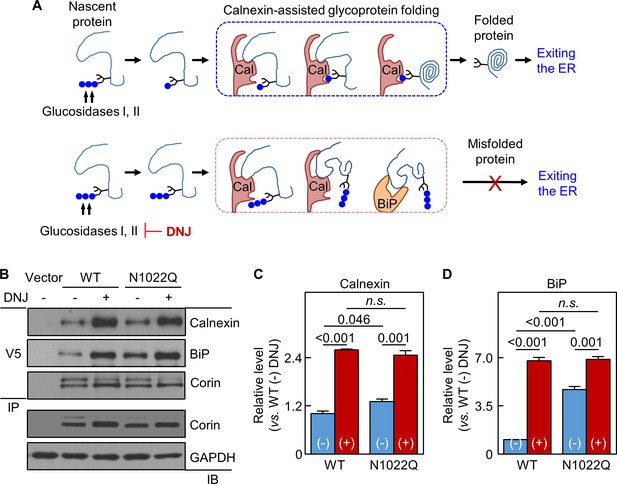

Analysis of calnexin interaction.

(A) A model of calnexin-assisted glycoprotein folding. Cal: calnexin; blue dots: glucose residues. DNJ inhibits glucosidases I and II. (B) Co-immunoprecipitation (IP) and western blotting (IB) of corin associated calnexin and BiP in HEK293 cells expressing WT corin or the N1022Q mutant without (-) or with (+) DNJ treatment (top two panels). Corin in V5 pull-down samples was verified (third panel). Corin and GAPDH in the lysates were also verified (bottom two panels). Relative calnexin (C) and BiP (D) levels were estimated by densitometric analysis of western blots. Data are means ± S.E. from three independent experiments. p-Values are shown in bar graphs. n.s.: not significant.

https://doi.org/10.7554/eLife.35672.008

Effect of N-glycosylation on cell surface expression of chimeric proteins

We next made a chimeric protein (CorinEK4N), in which the corin protease domain was replaced by the EK protease domain with four N-glycosylation sites (Figure 6A), and additional mutants without the four glycosylation sites (CorinEK4Q) and with (CorinEK4Q/N) a new glycosylation site corresponding to N1022 in corin (Figure 6A). On Western blots, CorinEK4N had two major bands (~190 and~220 kDa) (Figure 6B). The ~220 kDa band (open arrowhead) was on the cell surface and removable by trypsin before the cells were lysed, whereas the ~190 kDa band (top black arrowhead) was intracellular and resistant to trypsin. In CorinEK4Q, levels of the cell surface protein were 31 ± 5% of CorinEK4N (Figure 6B). In CorinEK4Q/N, the level was lower than that in CorinEK4N (49 ± 8%), but higher than that in CorinEK4Q (Figure 6B). To exclude the possibility that low levels of the cell surface chimeric proteins were due to increased shedding, we examined the shed proteins in the medium. Levels of CorinEK4Q and CorinEK4Q/N were 8 ± 1 and 29 ± 4%, respectively, of that in CorinEK4N (Figure 6C). These results indicate that the function of N-glycans in the protease domain in promoting cell surface expression is not unique to corin.

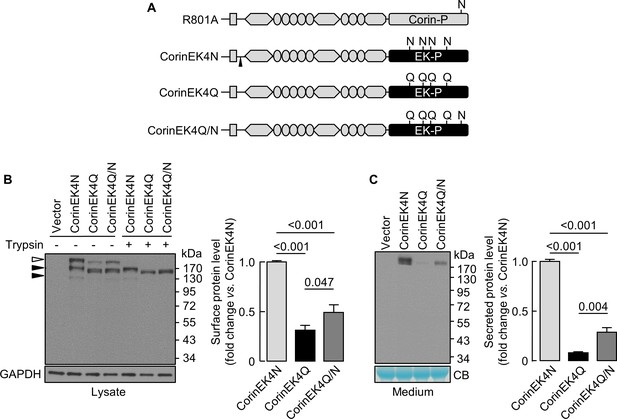

Analysis of N-glycosylation in the protease domain of corin-EK chimeras.

(A) In CorinEK4N, the corin protease domain (Corin-P) was replaced by the EK protease domain (EK-P). The ADAM10-mediated shedding site is indicated by an arrowhead. In CorinEK4Q, all four N-glycosylation sites in the EK protease domain were mutated by Gln (Q) residues. In CorinEK4Q/N, a new N-glycosylation site corresponding to N1022 in corin was added to CorinEK4Q. (B) Western blotting of CorinEK4N, CorinEK4Q and CorinEK4Q/N in transfected cells treated without (-) or with (+) trypsin before the cells were lysed. GAPDH levels in cell lysates were used to assess amounts of proteins in each sample. (C) Western blotting of shed corin fragments the in medium. Corin levels on the cell surface (B) and in the medium (C) were estimated by densitometric analysis of western blots. In (C), levels of a Coomassie Blue (CB)-stained non-specific protein were used to assess amounts of proteins in each sample. Data are means ± S.E. from at least three independent experiments. p-Values are shown in bar graphs.

https://doi.org/10.7554/eLife.35672.009

N-glycosylation in EK and prothrombin protease domains

We next studied EK (Kitamoto et al., 1994), a transmembrane serine protease, and prothrombin (Wu et al., 1991), a secreted serine protease. We made EK mutant (EK-4Q) and prothrombin mutant (PT-N416Q) without N-glycosylation sites in the protease domains (Figure 7A,B). On western blots (Figure 7C,D), EK-4Q and PT-N416Q bands migrated faster than those in EK-WT and PT-WT. Levels of trypsin-removable EK-4Q band on the cell surface, which migrated much closer to the intracellular band due to the loss of 4 N-glycosylation sites, were 14 ± 1% of EK-WT (Figure 7C). Levels of PT-WT and PT-N416Q in cell lysates were similar, but the level of PT-N416Q in the medium was 56 ± 30% of PT-WT (Figure 7D). These results indicate that N-glycans in the protease domain are important for EK cell surface expression or prothrombin secretion.

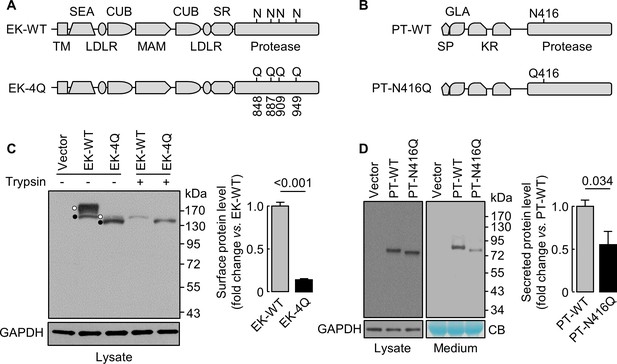

Analysis of N-glycosylation sites in the protease domain of EK and prothrombin.

(A) Illustration of EK WT and the mutant lacking the indicated N-glycosylation sites (EK-4Q). EK domains include transmembrane (TM), SEA, LDLR, CUB, MAM, scavenger receptor (SR) and protease domains. (B) Illustration of prothrombin WT and the PT-N416Q mutant lacking the N-glycosylation site in the protease domain. Prothrombin domains include signal peptide (SP), Gla (GLA), kringle (KR) and protease domains. (C) Western blotting of EK-WT and EK-4Q in HEK293 cells without (-) or with (+) trypsin treatment before the cells were lysed. The cell surface (trypsin-sensitive; white dots) and intracellular (trypsin-resistant; black dots) bands are indicated. Relative levels of surface EK bands in EK-WT and EK-4Q were estimated by densitometric analysis of western blots. Data are means ± S.E. from four independent experiments. p-Value is shown. (D) Western blotting of PT-WT and PT-N416Q in cell lysates (left) and the medium (right) from HEK293 cells. Relative levels of PT-WT and PT-N416Q in the medium were estimated by densitometric analysis of western blots. Levels of GAPDH in cell lysates and a Coomassie Blue (CB)-stained non-specific protein in the conditioned medium were used to assess protein amounts in each sample. Data are means ± S.E. from four independent experiments. p-Value is shown.

https://doi.org/10.7554/eLife.35672.010

N-glycans in EK and prothrombin protease domains interact with calnexin and BiP

In co-immunoprecipitation and western blotting, calnexin levels in EK-4Q- and PT-N416Q-expressing cells were 165 ± 12 and 171 ± 8%, respectively, of those in respective WT controls (Figure 8A,B). BiP levels were also higher in EK-4Q- and PT-N416Q-expressing cells (Figure 8A,B). In contrast, calreticulin levels were similar in EK-4Q and PT-N416Q compared with corresponding WT controls. In other controls, EK and PT levels in V5 pull-down samples were similar between the WTs and mutants (Figure 8A,B). In DNJ inhibition studies (Figure 8C,D), calnexin and BiP levels increased in all samples. There were no significant differences in calnexin and BiP levels between the DNJ-treated cells expressing ET-WT and EK-4Q or PT-WT and PT-N416Q. These results indicate a general function of N-glycans in the protease domain in trypsin-like proteases in calnexin-assisted protein folding.

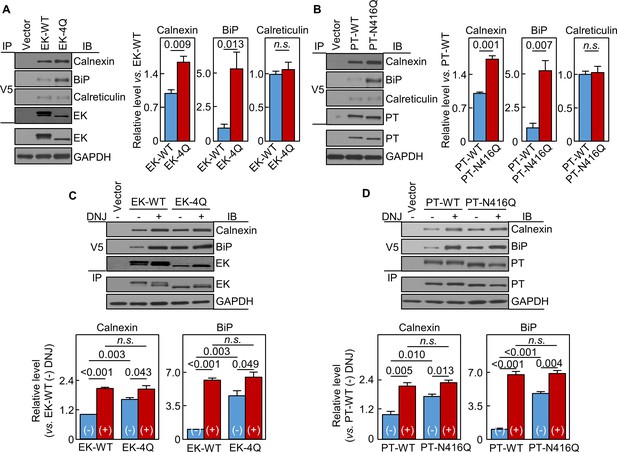

Interactions of EK and prothrombin with chaperones.

Co-immunoprecipitation (IP) and Western blotting (IB) of EK-WT and EK-4Q (A) or PT-WT and PT-N416Q (B) binding to calnexin, BiP and calreticulin (top three panels). EK (A) and PT (B) proteins in V5 pull-down samples were verified. EK, PT and GAPDH in cell lysates were also verified by western blotting (bottom two panels). Relative levels of calnexin, BiP and calreticulin associated with EK-WT and EK-4Q (A) or PT-WT and PT-N416Q (B) were estimated by densitometric analysis of Western blots. Data are means ± S.E. from three and four independent experiments, respectively. p-Values are shown in bar graphs. IP and IB analysis of EK-WT and EK-4Q (C) or PT-WT and PT-N416Q (D) binding to calnexin and BiP in the cells without (-) or with (+) DNJ treatment (top two panels). EK (A) and PT (B) proteins in V5 pull-down samples were verified. EK, PT and GAPDH proteins in cell lysates were also verified. Relative calnexin and BiP levels associated with EK-WT and EK-4Q (C) or PT-WT and PT-N416Q (D) were estimated by densitometric analysis of Western blots. Data are means ± S.E. from three independent experiments. p-Values are shown in bar graphs.

https://doi.org/10.7554/eLife.35672.011

Effects of DNJ treatment and calnexin knockdown in cardiomyocytes and hepatocytes

We verified our findings in murine HL-1 cardiomyocytes and human HepG2 hepatocytes expressing endogenous corin and prothrombin, respectively. In DNJ-treated HL-1 cells, cell surface corin levels were 26 ± 10% of untreated controls, as estimated by western blotting and densitometry (Figure 9A). In DNJ-treated HepG2 cells, prothrombin levels in lysates were similar to untreated controls, whereas the level in the conditioned medium was ~53% of untreated control medium, as measured by ELISA (Figure 9B). We next knocked down calnexin expression in HL-1 and HepG2 cells using siRNAs targeting murine and human calnexin genes, respectively. Reduced calnexin protein levels in those cells were verified by western blotting (Figure 9C,D). Western blotting and ELISA analyses showed reduced levels of cell surface corin and prothrombin in the conditioned medium, respectively, in HL-1 and HepG2 cells, in which calnexin expression was knocked down (Figure 9C,D).

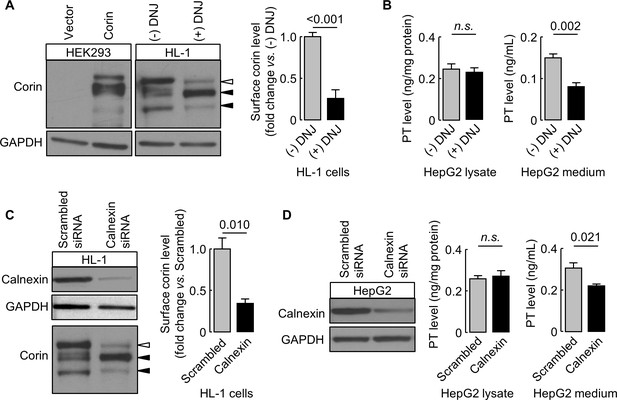

Effects of DNJ treatment and calnexin knockdown.

HL-1 (A) and HepG2 (B) cells were cultured without (-) or with (+) DNJ. Recombinant human corin expression in transfected HEK293 cells were included as a control (A, left). Corin cell surface expression (A) and prothrombin expression in cell lysates and secretion in the medium (B) were analyzed by western blotting and ELISA, respectively. Levels of corin cell surface band (open arrowhead) were estimated by densitometric analysis of western blots. Data are means ± S.E. from four independent experiments. p-Values are shown in bar graphs. To knockdown calnexin expression, HL-1 (C) and HepG2 (D) cells were transfected with calnexin-targeting or control scrambled siRNAs. Calnexin expression levels in the transfected cells were verified by western blotting. Corin cell surface expression (C) and prothrombin expression in cell lysates and secretion in the medium (D) were analyzed by western blotting and ELISA, respectively. Data are means ± S.E. from three independent experiments. p-Values are shown in bar graphs. n.s.: not significant.

https://doi.org/10.7554/eLife.35672.012

Discussion

N-glycosylation is important in protein expression and function (Dalziel et al., 2014; Hart and Copeland, 2010; Moremen et al., 2012). Previously, N-glycosylation at N1022 was found to be critical for corin cell surface expression, but the underlying mechanism was unknown (Wang et al., 2015). In this study, we found that N-glycosylation at this site was important for corin folding and trafficking in the ER. In proteomic analysis, we identified calnexin and BiP, two ER proteins that bound preferably to the N1022Q mutant.

Calnexin acts in glycoprotein folding (Caramelo and Parodi, 2008; Helenius and Aebi, 2001). Unlike in heat-shock chaperone-mediated protein folding, which involves direct protein-protein binding, calnexin binds to monoglucosylated oligosaccharides on glycoproteins after triglucosylated N-glycans are trimmed by glucosidases I and II. Calnexin also binds to target proteins via direct hydrophobic interactions (Brockmeier and Williams, 2006). Such interactions alone, however, are insufficient for glycoprotein folding. We found increased binding of the N1022Q mutant to calnexin and BiP, indicating that N-glycans at N1022 on corin is important for calnexin-assisted protein folding and ER exiting. The results led to a working model, in which calnexin first binds to nascent corin through direct protein-protein interactions. Subsequent binding of calnexin to monoglucosylated N-glycans on corin, at N1022 and other N-glycosylation sites, facilitates corin folding. The resultant conformational change in corin disrupts the interaction with calnexin, allowing corin to exit the ER. Consistent with this model, we showed that the treatment of DNJ, a glucosidase inhibitor, increased the binding of the N1022Q mutant and WT corin to calnexin and BiP to similar levels. The results support the importance of N-glycan-calnexin interactions in corin folding and ER exiting. Moreover, the results indicate that N-glycans at other N-glycosylation sites on corin are also involved in the calnexin interaction.

Human corin contains 19 N-glycosylation sites (Wang et al., 2015; Yan et al., 1999). Among them, N1022 is the only site in the protease domain. Our findings indicate that N-glycosylation in the protease domain is critical for calnexin-assisted folding. In trypsin-like serine proteases, N-glycosylation sites in the protease domain are common. Previously, N-glycosylation in the protease domain of factor VII (FVII) was shown to promote FVII secretion in COS-7 and CHO cells (Bolt et al., 2007). Abolishing the N-glycosylation site in the protease domain of chymotrypsin C reduced the secretion in HEK293 cells (Bence and Sahin-Tóth, 2011). Conversely, overexpression of a mutant chymotrypsin C lacking the N-glycosylation in the protease domain caused ER stress in cancer cells (Bence and Sahin-Tóth, 2011). These data suggest that N-glycosylation in the protease domain of trypsin-like serine proteases has a general role in calnexin binding and protein folding. Consistent with this hypothesis, DNJ treatment and calnexin knockdown decreased corin cell surface expression and prothrombin secretion in cardiomyocytes and hepatocytes, respectively. Moreover, elimination of N-glycosylation sites in the protease domain of EK or prothrombin increased EK and prothrombin binding to calnexin and BiP and decreased EK cell surface expression or prothrombin secretion in HEK293 cells. These results show that in corin, EK and prothrombin, which have distinct protein domain structures and physiological functions, N-glycosylation in their protease domains has a common function in calnexin-assisted folding and extracellular expression. Possibly, this is a general mechanism in most, if not all, trypsin-like serine proteases that have N-glycosylation sites in their protease domains.

Calreticulin is a soluble calnexin homologous in the ER and acts as a key partner in the calnexin-calreticulin cycle (Caramelo and Parodi, 2008; Ellgaard and Helenius, 2001; Helenius and Aebi, 2001). Like calnexin, calreticulin binds to monoglucosylated oligosaccharides on glycoproteins. In a previous study, inhibition of glucosidase II increased calreticulin binding to cruzipain, a protozoan cysteine protease (Labriola et al., 1999). In our study, we found increased binding of N1022Q corin, EK-4Q and PT-N416Q mutants to calnexin but not calreticulin, indicating that calnexin is the primary ER chaperone that interacts with N-glycans in the protease domain of these proteases. If both calnexin and calreticulin recognize similar monoglucosylated N-glycans, how do these proteins distinguish their glycoprotein substrates? Unlike calreticulin, calnexin has a transmembrane domain anchoring calnexin on the ER membrane (Dalziel et al., 2014; Ellgaard and Frickel, 2003). In most trypsin-like serine proteases, the protease domain is C-terminal. Possibly, the membrane-bound calnexin is more accessible to the N-glycans in the C-terminal protease domain, which comes last from the translocon on the ER membrane in protein synthesis. This may explain that despite the 18 N-glycosylation sites in the pro-peptide of corin, N-glycosylation at N1022 in the protease domain is required for optimal corin folding and ER exiting. Consistently, N-glycosylation in the protease domain of the CorinEK4N mutant promotes the cell surface expression of the chimeric protein. These results indicate that N-glycans in the protease domain regulate calnexin-assisted folding in a domain-autonomous and calreticulin-independent manner.

The importance of N-glycans in glycoprotein folding varies depending on proteins and cell types (Helenius and Aebi, 2001). In the trypsin-like protease superfamily, not all members are N-glycosylated. Some members have N-glycosylation sites in the pro-peptide but not in the protease domain. It is attempting to postulate that N-glycosylation in the protease domain offers an advantage in protein folding efficiency and hence protein production. The requirement of N-glycosylation in a particular protease may depend on its expression level and specific cell environments. More studies are needed to test the folding efficiencies between the trypsin-like proteases with and without N-glycosylation sites in their protease domains in different cells. As trypsin-like proteases are used as biologics to treat human diseases (Craik et al., 2011), creation of new N-glycosylation sites may also be a strategy to increase the production of recombinant proteases in vitro.

In summary, we identify a common mechanism of N-glycosylation in the protease domains of corin, EK and prothrombin in calnexin-mediated folding and ER exiting. This process is calreticulin-independent, operates in a domain-autonomous manner, and involves two steps: direct calnexin binding to the target protein and subsequent calnexin binding to monoglucosylated N-glycans. Our findings suggest that this may be a general mechanism in the trypsin-like proteases with N-glycosylation sites in their protease domains. Naturally-occurring mutations disrupting such N-glycosylation sites may impair the expression and function of the trypsin-like serine proteases.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Homo sapiens)CorinNCBINM_006587.3
Gene (H. sapiens)Prothrombin, PTNCBINM_002772.2
Gene (H. sapiens)Enteropeptidase, EKNCBINM_000506.4
Genetic reagent
(H. sapiens)
Calnexin (siRNA kit)OrigeneSR300576
Genetic reagent
(Mus musculus)
Calnexin (siRNA kit)OrigeneSR417891
Cell line
(H. sapiens)
HEK293ATCCCRL-1573STR profiling, no mycoplasma
contamination
Cell line
(M. musculus)
HL-1PMID: 21518754,
EMD Millipore: SCC065
From Dr. William ClaycombNo mycoplasma contamination
Cell line
(H. sapiens)
HepG2ATCCHB-8065STR profiling, no mycoplasma
contamination
Transfected construct
(H. sapiens)
Corin plasmidPMID: 14559895
Transfected construct
(H. sapiens)
sCorin plasmidThis paper
Transfected construct
(H. sapiens)
CorinEK plasmidThis paper
Transfected construct
(H. sapiens)
EK plasmidThis paper
Transfected construct
(H. sapiens)
PT plasmidThis paper
AntibodyAnti-V5Thermo FisherR96025
AntibodyAnti-V5-HRPThermo FisherR96125
AntibodyAnti-GAPDHEMD MilliporeMAB374
AntibodyAnti-PDIAbcamab3672Immunostaining
AntibodyAnti-TGN46Abcamab50595
AntibodyAnti-Igg (mouse)-Alexa-594Thermo FisherA-21203
AntibodyAnti-Igg (rabbit)-Alexa-488Thermo FisherA-11008
AntibodyAnti-calnexin (human)Cell Signaling2679T
AntibodyAnti-BiPCell Signaling3177T
AntibodyAnti-calreticulinCell Signaling12238S
AntibodyAnti-HSP70Cell Signaling4872T
AntibodyAnti-HSP90Cell Signaling4877T
AntibodyAnti-PDICell Signaling3501TWestern blotting
AntibodyAnti-Igg (mouse)-HRPKPL474–1806
AntibodyAnti-Igg (rabbit)-HRPKPL474–1516
AntibodyAnti-calnexin (mouse)Abcamab75125
AntibodyAnti-corin (mouse)HomemadePMID: 26259032
Recombinant DNA
reagent
pSecTag/FRT/V5-His
Expression kit (vector)
Thermo FisherK602501
Recombinant DNA
reagent
pcDNA 3.1/V5-His
Expression kit (vector)
Thermo FisherK480001
Commercial assay
or kit
ELISA kit (prothrombin)Abcamab108909
Chemical compound,
drug
1-deoxynojirimycin, DNJAlfa AesarJ62602-MC

Plasmid constructs

Request a detailed protocol

The plasmids expressing corin WT and the mutants N1022Q and R801A were described (Knappe et al., 2003; Wang et al., 2015). Human corin, EK and prothrombin cDNAs were amplified and inserted into pSecTag/FRT/V5-His or pcDNA 3.1/V5-His plasmids (Thermo Fisher) (Supplementary file 3) encoding a C-terminal V5 tag. Additional plasmids expressing mutant corin, EK and prothrombin were made by QuikChange II Site-Directed Mutagenesis Kit (Agilent Technologies).

Cell transfection

View detailed protocol

HEK293 cells (ATCC, CRL-1573, authenticated by STR DNA profiling, no mycoplasma contamination) were grown in DMEM with 10% fetal bovine serum at 37°C in humidified incubators. At 70–80% of confluency, the cells in six-well plates were transfected with the plasmids using Fugene reagents (Promega). To make stable cells expressing recombinant proteins, the transfected cells were cultured with G418 (400 μg/mL, Teknova). After ~2 w, G418-resistant cells were selected and analyzed by western blotting.

Western blotting

Request a detailed protocol

Recombinant proteins on the cell surface or in the conditioned media and lysates from the transfected cells were immunoprecipitated with an anti-V5 antibody (Thermo Fisher, R96025) and protein A-Sepharose (Thermo Fisher) for western blotting, as described previously (Wang et al., 2015). Antibodies used were against V5 (Thermo Fisher, R96125), BiP (Cell Signaling, 3177T), calnexin (Cell Signaling, 2679T), calreticulin (Cell Signaling, 12238S), HSP70 (Cell Signaling, 4872T), HSP90 (Cell Signaling, 4877T) and PDI (Cell Signaling, 3501T). Horseradish peroxidase-labeled secondary antibodies were used (KPL, 474–1806; 474–1516). As a protein loading control for cell lysates, western blots were re-probed with an anti-GAPDH antibody (EMD Millipore, MAB374). As loading controls for cell surface proteins or proteins from conditioned media, eluted biotin-labeled cell surface proteins or total proteins in the conditioned medium were separated by SDS-PAGE followed with Coomassie Blue staining. Levels of prominent non-specific bands were used to assess similar protein amounts in each sample.

CHX-based protein chase assay

Request a detailed protocol

HEK293 cells expressing corin WT or the N1022Q mutant in six-well plates were incubated with or without CHX (Sigma; 100 μg/mL). The cells were lysed at different time points for western blotting, as described above.

Endo H digestion

Request a detailed protocol

Glycosidase Endo H was used to analyze N-glycans on corin in HEK293 cells. The cell lysates were incubated with Endo H (500 U, New England BioLabs) in 50 mM sodium acetate at 37°C for 1–2 hr. The Endo H-treated proteins were analyzed by Western blotting.

Immunostaining

Request a detailed protocol

HEK293 cells expressing corin were treated with CHX for 4 hr, fixed with 3% paraformaldehyde, permeabilized with 0.2% Triton X-100, and imminostained with antibodies against V5 (1:1000), PDI (1:200, Abcam, ab3672) or TGN46 (1:200, Abcam, ab50595) and Alexa Fluor-594 or 488-labeled secondary antibody (1:1000, Thermo Fisher, A-21203; A-11008). In controls, the primary antibody was replaced by mouse (Thermo Fisher, MA110419) or rabbit (Sigma, I5006) IgG. The stained cells were examined under a confocal microscope (Leica DM2500) and images were analyzed by ImageJ software.

Protein cross-linking and proteomic analysis

View detailed protocol

HEK293 cells expressing corin were incubated with dithiobis succinimidyl propionate (DSP) (0.8 mg/mL; Thermo Fisher) at 4°C for 30 min. The reaction was stopped with 0.2 M glycine. Cell lysates were analyzed by immunoprecipitation and SDS-PAGE. Proteins on silver-stained gels were analyzed by liquid chromatography-mass spectrum at the Cleveland Clinic Proteomics Core to identify proteins interacting differentially with corin WT and the N1022Q mutant.

Glucosidase inhibition

View detailed protocol

Murine HL-1 cardiomyocytes were a generous gift from Dr. William Claycomb (Louisiana State University Medical Center, New Orleans; no established authentication method for this murine cell line, no mycoplasma contamination), as described previously (Wang et al., 2008). Human HepG2 cells were from ATCC (HB-8065, authenticated by STR DNA profiling, no mycoplasma contamination). HL-1, HepG2 and HEK293 cells expressing corin were incubated with 1-deoxynojirimycin (DNJ) (2 mM, Alfa Aesar), which inhibits glucosidases, at 37°C for 24–48 hr. Corin proteins in HL-1 and transfected HEK293 cells were analyzed by western blotting using an antibody against mouse and human endogenous corin (Chen et al., 2015). Prothrombin expression in HepG2 cell lysates and the conditioned medium was analyzed by ELISA (Abcam, ab108909).

Trypsin digestion

Request a detailed protocol

To digest cell surface proteins, HEK293 cells expressing corin or EK were incubated with trypsin (0.05%, AMRESCO) at 37°C for 10 min. After washing, cell lysates were prepared for western blotting.

Effects of calnexin knockdown

Request a detailed protocol

To examine effects of calnexin knockdown on corin expression in HL-1 and prothrombin expression in HepG2 cells, siRNAs targeting murine and human calnexin genes (Origene, SR417891 and SR300576) and corresponding scrambled control siRNAs (Origene) were transfected using Lipofectamine reagents (Thermo Fisher). After 24–48 hr, the cells were collected. Calnexin, corin and prothrombin proteins were analyzed, as described above.

Statistical analysis

Request a detailed protocol

The sample size estimation was based on previous studies and pilot experiments. The Student’s t test was used to compare two groups with Prism (Graphpad). ANOVA followed by Tukey’s post hoc analysis was used to compare three or more groups. A p-value of < 0.05 was considered to be statistically significant.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
    Inhibition of N-linked complex oligosaccharide formation by 1-deoxynojirimycin, an inhibitor of processing glucosidases
    1. B Saunier
    2. RD Kilker
    3. JS Tkacz
    4. A Quaroni
    5. A Herscovics
    (1982)
    The Journal of Biological Chemistry 257:14155–14161.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50

Decision letter

  1. Charles S Craik
    Reviewing Editor; University of California, San Francisco, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for choosing to send your work entitled "N-glycosylation in the protease domain of trypsin-like serine proteases mediates calnexin-assisted protein folding" for consideration at eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor, Charles Craik and a Senior Editor, Michael Marletta. The reviewers have discussed the reviews with one another and Charles Craik has drafted this decision to help you prepare a revised submission.

The current work provides new evidence that protease domain N-glycosylation in the trypsin-like serine proteases corin, enteropeptidase and prothrombin is essential for extracellular protease expression and that elimination of protease domain N-glycosylation sites results in endoplasmic reticulum retention through the protein-protein interactions with the chaperone calnexin. The N-glycosylation-mediated folding and trafficking mechanism findings for this important class of enzymes are novel and interesting, experiments are carried out in a thorough, careful manner and the manuscript is well written with helpful, informative schematics that guide the reader through the experimental section.

The manuscript is in principle within the scope of eLife's interest/mission. The reviewers raise valid points and a summary of our assessment follows:

Appropriate controls for the immunoblots and the pull down experiments:

Many of the conclusions in the article are based on subtle differences in protein expression levels as determined by semi-quantitative methods such as immunoblotting and immunocytochemistry. It is therefore important to include loading controls for all immunoblots as well as controls for the amount of protease immunoprecipitated for the V5 pull-downs as outlined by reviewer 1.

Endogenous expression experiments:

The experimental results presented in the manuscript are in heterologous expression systems using recombinantly expressed enzymes. Showing physiological relevance with endogenous protein would increase the biological significance of the findings. As described by reviewer 2, knock-down experiments with siRNA silencing to specifically target calnexin and/or BiP in cell lines that express one or two of the endogenously proteases under study is one approach that could address this concern. A complementary experiment would be DNJ treatment of cell lines expressing endogenous enzymes.

Editorial comments:

The authors are urged to provide greater clarity, particularly for the non-expert on why there is increased binding to N1022Q in the presence of DNJ and why PDI A3 and A4, which also showed enrichment in the N1022Q group proteomics studies were not pursued as pointed out by reviewer 3.

Furthermore, does DNJ increase calnexin (or calreticulin) binding of proteins other than trypsin fold serine proteases or is this is an effect specific to trypsin-fold serine proteases?

Reviewer 1:

This study reports new evidence that protease domain N-glycosylation in the serine proteases corin, EK and prothrombin is essential for extracellular protease expression and that elimination of protease domain N-glycosylation sites results in ER retention through the protein-protein interactions with the chaperone calnexin. The manuscript is well written and points towards new important functions for glycosylation of serine protease domains. Publication of the study is recommended with some corrections and additions.

In general, loading controls for Western blots showing the total amount of protein loaded for each sample in is missing in most of the figures (Figure 1B, D, Figure 2A, C, Figure 6B, C and Figure 7C, D), which makes it difficult to conclude anything with certainty. A Western blot showing the expression level for a housekeeping gene (β-actin, GAPDH or similar) is needed for all blots. Furthermore, when using densiometry tools for quantification, the correct method is normalizing the amount of protein of interest (e.g. corin) to the loading control (e.g. GAPDH), to ensure that the difference in intensity is not due to variation in the amount of total protein loaded.

In Figure 2A and B, the authors conclude that N1022 glycosylation promotes ER trafficking. These data are obtained by quantifying the protein expression levels as determined by the semi-quantitative method Western blotting followed by quantification using densiometric analysis on what appears to be two separate membranes, one for WT and one for N1022Q, which makes it difficult to compare. Although these are commonly used techniques in cell biology it is not a quantitative method and the intensity of the band is not necessarily linear for the protein concentrations detected in Figure 2A. Furthermore, a loading control is needed, as mentioned above. As impaired trafficking of the N1022Q mutant is one of the main conclusions from this study it would be nice to see this observation supported by other more quantitative techniques such as ELISA or similar.

In Figure 2C, the authors conclude that N1022Q mutant is retained in the ER or early Golgi as compared to the WT based on Endo H sensitivity. Again Western blot analysis is used to quantify the amount of protein. The baseline protein expression of the N1022Q mutant appears higher than for the WT (Figure 2C, compare lanes 1 for WT blot with N1022Q blot). Upon deglycosylation at timepoint 0 we see a down-switch in molecular weight for both WT and N1022Q, and the band intensity is comparable for + Endo H and –Endo H. In contrast, at timepoint 4 hours after CHX treatment, there is an inconsistency between the band intensity for WT -Endo H and WT +Endo H? The Endo H treatment should only affect the size of the protein, not the expression level (equivalent levels for N1022Q after 4h CHX – and + Endo H)? Again, a loading control for the blot is needed as mentioned in the first point.

In Figure 3, the authors write that corin N1022Q staining was "strong" compared to "little corin staining" in WT corin expressing cells after 4 h CHX treatment based on ICC analysis. This observation is not evident from the images shown in Figure 4A and B? Looking at Figure 3 there is still (equivalent levels?) corin in the WT (3rd column, 2nd row Figure 3A, red staining) as compared to N1022Q (4th column, 2nd row, Figure 3A, red staining)? It is also difficult to see the difference in overlap with the ER marker PDI and the WT versus the N1022Q as suggested by the authors.

In Figure 4 the authors immunoprecipitate corin by a C-terminal V5 tag and find an increased level of the ER proteins calnexin and BIP in the N1022Q pull down as compared to WT corin pull down. In all previous figures comparing expression levels of N1022Q to WT it looks like there is more N1022Q in the lysate. It would be nice to see the amount of corin precipitated by the V5 tag for both the WT and the N1022Q mutant to rule out that the increased level of calnexin and BiP interaction in the N1022Q pull down is not due to more of the N1022Q protein precipitated as compared to WT.

In Figure 5B a similar issue is found, as described above. It is not evident that the total amount of precipitated corin for the V5 pull down is comparable for WT and N1022Q. A Western blot of V5 immunoprecipitated corin is needed.

In Figure 8 it is similarly important to show the amount of precipitated protease for both EK and prothrombin (PT) in the respective V5 pulldowns to exclude that the difference in calnexin and BiP levels is not due to varying levels of the protease in the samples.

In summary, the study is extensive, systematic and reveals a potential new role for serine protease domain glycosylation in calnexin assisted protein folding and extracellular expression. However, most of the conclusions in the article are based on subtle differences in protein expression levels as determined by semi-quantitative methods such as Western blotting and immunocytochemistry. It is therefore crucial for publication to include loading controls for all Western blots as well as controls for the amount of protease immunoprecipitated for the V5 pull-downs.

Reviewer 2:

In the manuscript by Wang et al., with the title "N-glycosylation in the protease domain of trypsin-like serine proteases mediates calnexinassisted protein folding and extracellular expression" the authors set out to determine how N-glycosylation regulates the extracellular expression, secretion and activation of trypsin-like serine proteases. They report the identification of a common mechanism of N-glycosylation in the protease domains of corin, enteropeptidase and prothrombin in calnexin-mediated glycoprotein folding and extracellular expression. A substantial amount of data is included in the study and experiments are carried out in a thorough manner. The findings are novel and interesting to a wide audience; including scientists interested in basic biology of proteases as well as scientists focusing on post-translational modification of proteins and cellular trafficking.

It is convincingly demonstrated that glycosylation at N1022 promotes corin exiting from the ER. Furthermore, increased N1022Q mutant corin binding to calnexin and BiP is shown. To demonstrate a functional role of calnexin and BiP for corin trafficking, cells were treated with DNJ, a glucosidase inhibitor. This experiment was performed based on the knowledge that in calnexin-assisted glycoprotein folding, triglucosylated oligosaccharides on nascent proteins are trimmed by α-glucosidases I and II to monoglucosylated oligosaccharides, allowing calnexin binding to N-glycans to assist protein folding. DNJ treatment indeed blocked calnexin binding to N-glycans on corin and impaired calnexin-assisted folding, resulting in increased direct corin binding to calnexin and BiP.

1) While the DNJ experiments are informative, it cannot be conclusively established that calnexin and BiP are the essential players in corin glycoprotein folding and transport. The inclusion of selective silencing of calnexin and/or BiP by RNAi would provide valuable data and further substantiate their importance.

2) All experiments are carried out in HEK293 cells using recombinant versions of serine proteases. The biological relevance is therefore unclear. Inclusion of data using cells expression endogenous protease(s) in combination with DNJ treatment and/or RNAi-mediated silencing of calnexin and BiP would greatly enhance the impact of the findings described here.

In conclusion, the manuscript by Wang et al. is thorough and experiments are carried out in a careful manner. The findings are novel and interesting. A knock-down experiment to specifically target calnexin and/or BiP in cell lines that express one or two of the endogenously proteases under study (one or two different cell lines) would significantly enhance the biological relevance of this new exciting N-glycosylation-mediated folding and trafficking mechanism. These experiments would be expected to be manageable, relatively straight forward, and possible to carry out within a reasonable time-frame.

Reviewer 3:

This is well designed and executed study that adds to our understanding of the role of protease domain glycosylation of trypsin fold serine proteases. The results are clean and well interpreted. The manuscript has a good structure and the cartoons in the figures are very helpful to follow the experimental section. There are a couple of questions that need to be properly addressed and are also listed below.

1) Figure 5B shows that DNJ increases calnexin and BiP binding to corin WT and to N1022Q (similar results for EK and prothrombin in later figures). I don't quite understand why there is increased binding to N1022Q in the presence of DNJ, since the N1022-attached glycan (which is absent in the mutant) seems to be the main driver for folding and export. Since the N1022Q mutant has no glycan attached at this position and, therefore, no glucose residues to begin with, it is not clearly understood (by me) why glucosidase I/II inhibition of the N1022Q mutant by DNJ would lead to even more unfolded (and retained) corin in the ER. Since in this case (N1022Q mutant) DNJ inhibits glycosylation at other sites (possibly 18 if I'm correct) the increased calnexin binding seems to be related to impaired trimming of some of these other glycan attachments. How then is the N1022 so important by itself? Maybe I have misunderstood this, but I urge the authors to work on improving the clarity on this section. In addition, the authors may comment in the Discussion as to whether DNJ increases calnexin (or calreticulin) binding of proteins other than trypsin fold serine proteases or whether this is an effect specific to trypsin fold serine proteases (any literature on this?).

2) Based on the proteomics results the authors have focused on calnexin and BiP, even though there are many other hits that came out of this experiment. A potentially relevant binding hit seems to be the PDI A3 and A4, which also showed enrichment in the N1022Q group (Table 1). Any reason why this was not pursued?

https://doi.org/10.7554/eLife.35672.018

Author response

[…] The manuscript is in principle within the scope of eLife's interest/mission. The reviewers raise valid points and a summary of our assessment follows:

Appropriate controls for the immunoblots and the pull down experiments:

Many of the conclusions in the article are based on subtle differences in protein expression levels as determined by semi-quantitative methods such as immunoblotting and immunocytochemistry. It is therefore important to include loading controls for all immunoblots as well as controls for the amount of protease immunoprecipitated for the V5 pull-downs as outlined by reviewer 1.

Loading controls in all immunoblots and controls for the V5 pull-downs have been included. Please see our responses to reviewer 1.

Endogenous expression experiments:

The experimental results presented in the manuscript are in heterologous expression systems using recombinantly expressed enzymes. Showing physiological relevance with endogenous protein would increase the biological significance of the findings. As described by reviewer 2, knock-down experiments with siRNA silencing to specifically target calnexin and/or BiP in cell lines that express one or two of the endogenously proteases under study is one approach that could address this concern. A complementary experiment would be DNJ treatment of cell lines expressing endogenous enzymes.

The DNJ and siRNA silencing experiments have been performed in HL-1 cardiomyocytes and HepG2 hepatocytes, in which endogenous corin and prothrombin are expressed, respectively. The data, which are consistent with the results from HEK293 cells, have been included in new Figure 9. Please see our responses to reviewer 2.

Editorial comments:

The authors are urged to provide greater clarity, particularly for the non-expert on why there is increased binding to N1022Q in the presence of DNJ and why PDI A3 and A4, which also showed enrichment in the N1022Q group proteomics studies were not pursued as pointed out by reviewer 3.

Human corin has 19 N-glycosylation sites. In the absence of DNJ, increased binding to calnexin and BiP in the N1022Q mutant, compared to WT corin, indicates the importance of N-glycans at N1022. In the presence of DNJ, all N-glycan-calnexin interactions are expected to be inhibited. Increased binding of N1022Q to calnexin, in the presence of DNJ, indicates that N-glycans at other N-glycosylation sites on corin are also involved in the calnexin interaction. We have revised the Discussion to clarify this point (second paragraph).

In our proteomic studies, we chose 2-fold as the cut-off value for differential binding proteins. We provided this information in the footnote of Supplementary file 2. The N1022Q vs. WT ratios for PDI A3 and A4 were 1.24- and 1.67-fold, respectively, which were below the cut-off value.

However, we do appreciate the Editor and reviewer’s comments. In this revision, we have included the cut-off information in the Results (subsection “Increased N1022Q binding to calnexin and BiP”, first paragraph). We also performed new pull-down experiments using an anti-total PDI antibody (Cell Signaling, 3501T), which showed similar PDI binding between WT corin and N1022Q. The results are included in the revised Figure 4A and D, and the text (see the aforementioned subsection, last).

Furthermore, does DNJ increase calnexin (or calreticulin) binding of proteins other than trypsin fold serine proteases or is this is an effect specific to trypsin-fold serine proteases?

DNJ is a glucosidase inhibitor. As calnexin and calreticulin are involved in the folding process of many glycoproteins, we do not expect the effect of DNJ to be specific to trypsin-like serine proteases. Surprisingly, only limited studies have been published in this area. In our PubMed search, we found only one report, in which DNJ treatment increased calreticulin binding to cruzipain, a protozoa cysteine protease (Labriola et al., 1999). We did not find any papers reporting increased calnexin binding to trypsin-like serine proteases or other proteins in the presence of DNJ. In the revised Discussion, we have cited the Labriola paper (fourth paragraph).

Reviewer 1:

[…] In general, loading controls for Western blots showing the total amount of protein loaded for each sample in is missing in most of the figures (Figure 1B, D, Figure 2A, C, Figure 6B, C and Figure 7C, D), which makes it difficult to conclude anything with certainty. A Western blot showing the expression level for a housekeeping gene (β-actin, GAPDH or similar) is needed for all blots.

The GAPDH controls were done in all our original Western blotting experiments. Some of them were not included in the original figures. These controls now have been added to Figure 1B and D, Figure 2A and C, Figure 6B and Figure 7C and D. For Western blots with cell membrane and secreted proteins, we have included Coomassie Blue-stained non-specific protein bands as controls for protein loading (Figure 1B, right, Figure 1D, right, Figure 6C and Figure 7D, right).

Furthermore, when using densiometry tools for quantification, the correct method is normalizing the amount of protein of interest (e.g. corin) to the loading control (e.g. GAPDH), to ensure that the difference in intensity is not due to variation in the amount of total protein loaded.

In our analyses to estimate protein cell surface expression and secretion, levels of recombinant cell surface proteins or secreted proteins were normalized to the total recombinant protein in cell lysates. Loading controls were also verified to ensure proper equal loading.

In Figure 2A and B, the authors conclude that N1022 glycosylation promotes ER trafficking. These data are obtained by quantifying the protein expression levels as determined by the semi-quantitative method Western blotting followed by quantification using densiometric analysis on what appears to be two separate membranes, one for WT and one for N1022Q, which makes it difficult to compare.

In this study, protein levels were normalized to the control sample at 0h from the same experiment and on the same blot. We have revised Figure 2 legend to clarify this.

Although these are commonly used techniques in cell biology it is not a quantitative method and the intensity of the band is not necessarily linear for the protein concentrations detected in Figure 2A. Furthermore, a loading control is needed, as mentioned above. As impaired trafficking of the N1022Q mutant is one of the main conclusions from this study it would be nice to see this observation supported by other more quantitative techniques such as ELISA or similar.

The GAPDH controls have been included in new Figure 2A. The conclusion of impaired trafficking is also supported by immunostaining (Figure 3) and increased calnexin and BiP binding (Figures 4 and 5). We have revised the Results to reflect this point (subsection “Glycosylation at N1022 promotes corin exiting from the ER”, last paragraph).

In Figure 2C, the authors conclude that N1022Q mutant is retained in the ER or early Golgi as compared to the WT based on Endo H sensitivity. Again Western blot analysis is used to quantify the amount of protein. The baseline protein expression of the N1022Q mutant appears higher than for the WT (Figure 2C, compare lanes 1 for WT blot with N1022Q blot). Upon deglycosylation at timepoint 0 we see a down-switch in molecular weight for both WT and N1022Q, and the band intensity is comparable for + Endo H and -Endo H. In contrast, at timepoint 4 hours after CHX treatment, there is an inconsistency between the band intensity for WT -Endo H and WT +Endo H? The Endo H treatment should only affect the size of the protein, not the expression level (equivalent levels for N1022Q after 4h CHX – and + Endo H)? Again, a loading control for the blot is needed as mentioned in the first point.

The GAPDH controls have been added to Figure 2C. Indeed, comparing bands in WT and N1022Q with and without Endo H treatment is less desired. A better way is to compare the ratio of Endo H-sensitive vs. resistant bands within the same lane. Such analysis led to the same conclusion. We have revised the description in the Results (subsection “Glycosylation at N1022 promotes corin exiting from the ER”, first paragraph).

In Figure 3, the authors write that corin N1022Q staining was "strong" compared to "little corin staining" in WT corin expressing cells after 4 h CHX treatment based on ICC analysis. This observation is not evident from the images shown in Figure 4A and B? Looking at Figure 3 there is still (equivalent levels?) corin in the WT (3rd column, 2nd row Figure 3A, red staining) as compared to N1022Q (4th column, 2nd row, Figure 3A, red staining)? It is also difficult to see the difference in overlap with the ER marker PDI and the WT versus the N1022Q as suggested by the authors.

In Figure 3, images in difference columns were from different cells. To ensure the visibility, photo exposure times may not be the same. Thus, images in different columns are not meant to be compared each other. In our analysis, we compared the intensity of corin (red) vs. PDI (green) staining in the same images, i.e. in the same individual cells. This should be clear when one looks at two bottom right panels in Figure 3A. We have revised the Results (subsection “Glycosylation at N1022 promotes corin exiting from the ER”, last paragraph) and Figure 3 legend, to reflect this point.

In Figure 4 the authors immunoprecipitate corin by a C-terminal V5 tag and find an increased level of the ER proteins calnexin and BiP in the N1022Q pull down as compared to WT corin pull down. In all previous figures comparing expression levels of N1022Q to WT it looks like there is more N1022Q in the lysate. It would be nice to see the amount of corin precipitated by the V5 tag for both the WT and the N1022Q mutant to rule out that the increased level of calnexin and BiP interaction in the N1022Q pull down is not due to more of the N1022Q protein precipitated as compared to wt.

In Figure 5B a similar issue is found, as described above. It is not evident that the total amount of precipitated corin for the V5 pull down is comparable for WT and N1022Q. A Western blot of V5 immunoprecipitated corin is needed.

We value the reviewer’s suggestion. In revised Figures 4A and 5B, corin proteins in V5-pull down samples are shown.

In Figure 8 it is similarly important to show the amount of precipitated protease for both EK and prothrombin (PT) in the respective V5 pulldowns to exclude that the difference in calnexin and BiP levels is not due to varying levels of the protease in the samples.

EK and PT were verified in the V5 pull-down samples and have been included in revised Figure 8.

Reviewer 2:

[…] 1) While the DNJ experiments are informative, it cannot be conclusively established that calnexin and BiP are the essential players in corin glycoprotein folding and transport. The inclusion of selective silencing of calnexin and/or BiP by RNAi would provide valuable data and further substantiate their importance.

We have performed new DNJ and siRNA experiments in HL-1 cardiomyocytes and HepG2 hepatocytes. The results are consistent with the findings from HEK293 cells. The new data are included in new Figure 9.

2) All experiments are carried out in HEK293 cells using recombinant versions of serine proteases. The biological relevance is therefore unclear. Inclusion of data using cells expression endogenous protease(s) in combination with DNJ treatment and/or RNAi-mediated silencing of calnexin and BiP would greatly enhance the impact of the findings described here.

As indicated above, the suggested experiments have been done in HL-1 and HepG2 cells and the results are shown in new Figure 9.

Reviewer 3:

…1) Figure 5B shows that DNJ increases calnexin and BiP binding to corin WT and to N1022Q (similar results for EK and prothrombin in later figures). I don't quite understand why there is increased binding to N1022Q in the presence of DNJ, since the N1022-attached glycan (which is absent in the mutant) seems to be the main driver for folding and export. Since the N1022Q mutant has no glycan attached at this position and, therefore, no glucose residues to begin with, it is not clearly understood (by me) why glucosidase I/II inhibition of the N1022Q mutant by DNJ would lead to even more unfolded (and retained) corin in the ER. Since in this case (N1022Q mutant) DNJ inhibits glycosylation at other sites (possibly 18 if I'm correct) the increased calnexin binding seems to be related to impaired trimming of some of these other glycan attachments. How then is the N1022 so important by itself? Maybe I have misunderstood this, but I urge the authors to work on improving the clarity on this section. In addition, the authors may comment in the Discussion as to whether DNJ increases calnexin (or calreticulin) binding of proteins other than trypsin fold serine proteases or whether this is an effect specific to trypsin-fold serine proteases (any literature on this?).

As described above in our replies to the Editorial comments, human corin has 19 N-glycosylation sites. In the absence of DNJ, increased binding to calnexin and BiP in the N1022Q mutant, compared to WT corin, indicates the importance of N-glycans at N1022. In the presence of DNJ, all N-glycan-calnexin interactions are expected to be inhibited. Increased binding of N1022Q to calnexin, in the presence of DNJ, indicates that N-glycans at other N-glycosylation sites on corin are also involved in the calnexin interaction. We have revised the Discussion to clarify this point (second paragraph).

Also described above, in our PubMed search we found only one report, in which DNJ treatment increased calreticulin binding to cruzipain, a protozoa cysteine protease (Labriola et al., 1999). We did not find any papers reporting increased calnexin binding to trypsin-like serine proteases or other proteins in the presence of DNJ. In the revised Discussion, we have cited the Labriola paper (fourth paragraph).

2) Based on the proteomics results the authors have focused on calnexin and BiP, even though there are many other hits that came out of this experiment. A potentially relevant binding hit seems to be the PDI A3 and A4, which also showed enrichment in the N1022Q group (Table 1). Any reason why this was not pursued?

As indicated above in our replies to Editorial comments, we chose 2-fold as the cutoff value for differential binding proteins in our proteomic studies. We provided this info in the footnote of Supplementary file 2. The N1022Q vs. WT ratios for PDI A3 and A4 were 1.24- and 1.67-fold, respectively, which were below the cut-off value. However, we do appreciate the Editor and reviewer’s comments. In this revision, we have included the cut-off information in the Results (subsection “Increased N1022Q binding to calnexin and BiP”, first paragraph). We also performed new pull-down experiments using an anti-total PDI antibody (Cell Signaling, 3501T), which showed similar PDI binding between WT corin and N1022Q. The results are included in the revised Figure 4A and D.

https://doi.org/10.7554/eLife.35672.019

Article and author information

Author details

  1. Hao Wang

    1. Molecular Cardiology, Cleveland Clinic, Cleveland, United States
    2. Department of Chemistry, Cleveland State University, Cleveland, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6881-9977
  2. Shuo Li

    Molecular Cardiology, Cleveland Clinic, Cleveland, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Juejin Wang

    Molecular Cardiology, Cleveland Clinic, Cleveland, United States
    Present address
    Department of Physiology, Nanjing Medical University, Nanjing, China
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Shenghan Chen

    Molecular Cardiology, Cleveland Clinic, Cleveland, United States
    Present address
    Human Aging Research Institute, School of Life Sciences, Nanchang University, Nanchang, China
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Xue-Long Sun

    1. Molecular Cardiology, Cleveland Clinic, Cleveland, United States
    2. Department of Chemistry, Cleveland State University, Cleveland, United States
    3. Chemical and Biomedical Engineering, Cleveland State University, Cleveland, United States
    4. Center for Gene Regulation of Health and Disease, Cleveland State University, Cleveland, United States
    Contribution
    Supervision, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6483-1709
  6. Qingyu Wu

    1. Molecular Cardiology, Cleveland Clinic, Cleveland, United States
    2. Department of Chemistry, Cleveland State University, Cleveland, United States
    3. Cyrus Tang Hematology Center, State Key Laboratory of Radiation Medicine and Prevention, Soochow University, Suzhou, China
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Writing—original draft, Writing—review and editing
    For correspondence
    wuq@ccf.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0561-9315

Funding

National Institutes of Health (HL126697)

  • Qingyu Wu

The National Science Foundation of China (91639116)

  • Qingyu Wu

The National Science Foundation of China (81671485)

  • Qingyu Wu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Belinda Willard for proteomic analysis and Dr. J Evan Sadler (Washington University) for EK plasmid. This work was supported by grants from the NIH (HL126697), the National Science Foundation of China (91639116, 81671485) and Priority Academic Program Development of Jiangsu Higher Education Institutions. The Orbitrap Elite instrument used by the Proteomic Core at the Lerner Research Institute of the Cleveland Clinic was purchased via an NIH shared instrument grant (1S10RR031537-01).

Reviewing Editor

  1. Charles S Craik, University of California, San Francisco, United States

Publication history

  1. Received: February 5, 2018
  2. Accepted: June 8, 2018
  3. Accepted Manuscript published: June 11, 2018 (version 1)
  4. Version of Record published: June 27, 2018 (version 2)
  5. Version of Record updated: June 28, 2018 (version 3)

Copyright

© 2018, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,339
    Page views
  • 231
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Genetics and Genomics
    Bo Lu et al.
    Short Report Updated

    Tn5-mediated transposition of double-strand DNA has been widely utilized in various high-throughput sequencing applications. Here, we report that the Tn5 transposase is also capable of direct tagmentation of RNA/DNA hybrids in vitro. As a proof-of-concept application, we utilized this activity to replace the traditional library construction procedure of RNA sequencing, which contains many laborious and time-consuming processes. Results of Transposase-assisted RNA/DNA hybrids Co-tagmEntation (termed ‘TRACE-seq’) are compared to traditional RNA-seq methods in terms of detected gene number, gene body coverage, gene expression measurement, library complexity, and differential expression analysis. At the meantime, TRACE-seq enables a cost-effective one-tube library construction protocol and hence is more rapid (within 6 hr) and convenient. We expect this tagmentation activity on RNA/DNA hybrids to have broad potentials on RNA biology and chromatin research.

    1. Biochemistry and Chemical Biology
    2. Neuroscience
    Nami Kitajima et al.
    Research Article Updated

    Adenosine 5’ triphosphate (ATP) is a ubiquitous extracellular signaling messenger. Here, we describe a method for in-vivo imaging of extracellular ATP with high spatiotemporal resolution. We prepared a comprehensive set of cysteine-substitution mutants of ATP-binding protein, Bacillus FoF1-ATP synthase ε subunit, labeled with small-molecule fluorophores at the introduced cysteine residue. Screening revealed that the Cy3-labeled glutamine-105 mutant (Q105C-Cy3; designated ATPOS) shows a large fluorescence change in the presence of ATP, with submicromolar affinity, pH-independence, and high selectivity for ATP over ATP metabolites and other nucleotides. To enable in-vivo validation, we introduced BoNT/C-Hc for binding to neuronal plasma membrane and Alexa Fluor 488 for ratiometric measurement. The resulting ATPOS complex binds to neurons in cerebral cortex of living mice, and clearly visualized a concentrically propagating wave of extracellular ATP release in response to electrical stimulation. ATPOS should be useful to probe the extracellular ATP dynamics of diverse biological processes in vivo.
