Chimeric antigen receptors that trigger phagocytosis

  1. Meghan A Morrissey
  2. Adam P Williamson
  3. Adriana M Steinbach
  4. Edward W Roberts
  5. Nadja Kern
  6. Mark B Headley
  7. Ronald D Vale  Is a corresponding author
  1. University of California, San Francisco, United States
Short Report
  • Cited 20
  • Views 7,426
  • Annotations
Cite this article as: eLife 2018;7:e36688 doi: 10.7554/eLife.36688

Abstract

Chimeric antigen receptors (CARs) are synthetic receptors that reprogram T cells to kill cancer. The success of CAR-T cell therapies highlights the promise of programmed immunity and suggests that applying CAR strategies to other immune cell lineages may be beneficial. Here, we engineered a family of Chimeric Antigen Receptors for Phagocytosis (CAR-Ps) that direct macrophages to engulf specific targets, including cancer cells. CAR-Ps consist of an extracellular antibody fragment, which can be modified to direct CAR-P activity towards specific antigens. By screening a panel of engulfment receptor intracellular domains, we found that the cytosolic domains from Megf10 and FcRɣ robustly triggered engulfment independently of their native extracellular domain. We show that CAR-Ps drive specific engulfment of antigen-coated synthetic particles and whole human cancer cells. Addition of a tandem PI3K recruitment domain increased cancer cell engulfment. Finally, we show that CAR-P expressing murine macrophages reduce cancer cell number in co-culture by over 40%.

https://doi.org/10.7554/eLife.36688.001

eLife digest

Our immune system constantly patrols our body, looking to eliminate cancerous cells and harmful microbes. It can spot these threats because it recognizes certain signals at the surface of dangerous cells. However, cancer cells often find ways to ‘hide’ from our immune system.

Chimeric antigen receptors, or CARs, are receptors designed in a laboratory to attach to specific proteins that are found on a cancer cell. These receptors tell immune cells, such as T cells, to attack cancers. T cells that carry CARs are already used to treat people with blood cancers. Yet, these immune cells are not good at penetrating a solid tumor to kill the cells inside, which limits their use.

Macrophages are a group of immune cells that can make their way inside tumors and travel to cancers that the rest of the immune system cannot reach. They defend our body by ‘swallowing’ harmful cells. Would it then be possible to use CARs to program macrophages to ‘eat’ cancer cells?

Morrissey, Williamson et al. created a new type of CARs, named CAR-P, and introduced it in macrophages. These cells were then able to recognize and attack beads covered in proteins found on cancer cells. The modified macrophages could also limit the growth of live cancer cells in a dish by ‘biting’ and even ‘eating’ them. While these results are promising in the laboratory, the next step is to test whether these reprogrammed macrophages can recognize and fight cancers in living animals.

https://doi.org/10.7554/eLife.36688.002

Introduction

Chimeric antigen receptors (CARs) are synthetic transmembrane receptors that redirect T cell activity towards clinically relevant targets (reviewed in [Lim et al., 2017; Fesnak et al., 2016]). The CAR-T receptor contains an extracellular single chain antibody fragment (scFv) that recognizes known tumor antigens, and intracellular signaling domains from the T Cell Receptor (TCR) and costimulatory molecules that trigger T cell activation (Fesnak et al., 2016; Kochenderfer et al., 2009). CAR-T cells recognizing CD19, a marker expressed at high levels on the surface of B cells and B cell-derived malignancies, have been used successfully to target hematological malignancies with 70–90% of patients showing measurable improvement (Lim et al., 2017; Engel et al., 1995; Haso et al., 2013). The success of CAR-T suggests that programming immune cells to target cancer might be a broadly applicable approach.

Macrophages are critical effectors of the innate immune system, responsible for engulfing debris and pathogens. Harnessing macrophages to combat tumor growth is of longstanding interest (Alvey and Discher, 2017; Lee et al., 2016). Macrophages are uniquely capable of penetrating solid tumors, while other immune cells, like T cells, are physically excluded or inactivated (Lim et al., 2017; Lee et al., 2016). This suggests that engineered macrophages may augment existing T cell-based therapies. Early efforts transferring healthy macrophages into cancer patients failed to inhibit tumor growth, suggesting that macrophages require additional signals to direct their activity towards tumors (Lacerna et al., 1988; Andreesen et al., 1990). Antibody blockade of CD47, a negative regulator of phagocytosis, reduced tumor burden, indicating that shifting the balance in favor of macrophage activation and engulfment is a promising therapeutic avenue (Majeti et al., 2009; Chao et al., 2010; Jaiswal et al., 2009; Tseng et al., 2013). Here, we report a family of chimeric antigen receptors that activate phagocytosis of cancer cells based on recognition of defined cell surface markers, resulting in significantly reduced cancer cell growth.

Results

To program engulfment towards a target antigen, we created a CAR strategy using the CAR-T design as a guide (Fesnak et al., 2016). We call this new class of synthetic receptors Chimeric Antigen Receptors for Phagocytosis (CAR-Ps). The CAR-P molecules contain the extracellular single-chain antibody variable fragment (scFv) recognizing the B cell antigen CD19 (ɑCD19) and the CD8 transmembrane domain present in the ɑCD19 CAR-T (Fesnak et al., 2016; Kochenderfer et al., 2009). To identify cytoplasmic domains capable of promoting phagocytosis, we screened a library of known murine phagocytic receptors: Megf10 (Figure 1a), the common ɣ subunit of Fc receptors (FcRɣ), Bai1, and MerTK (Penberthy and Ravichandran, 2016). FcR triggers engulfment of antibody-bound particles, while the other receptors recognize apoptotic corpses (Freeman and Grinstein, 2014; Penberthy and Ravichandran, 2016). We also made a receptor containing an extracellular ɑCD19 antibody fragment and a cytoplasmic GFP, but no signaling domain, to test whether adhesion mediated by the ɑCD19 antibody fragment is sufficient to induce engulfment (Figure 1a; CAR-PGFP).

Figure 1 with 2 supplements see all

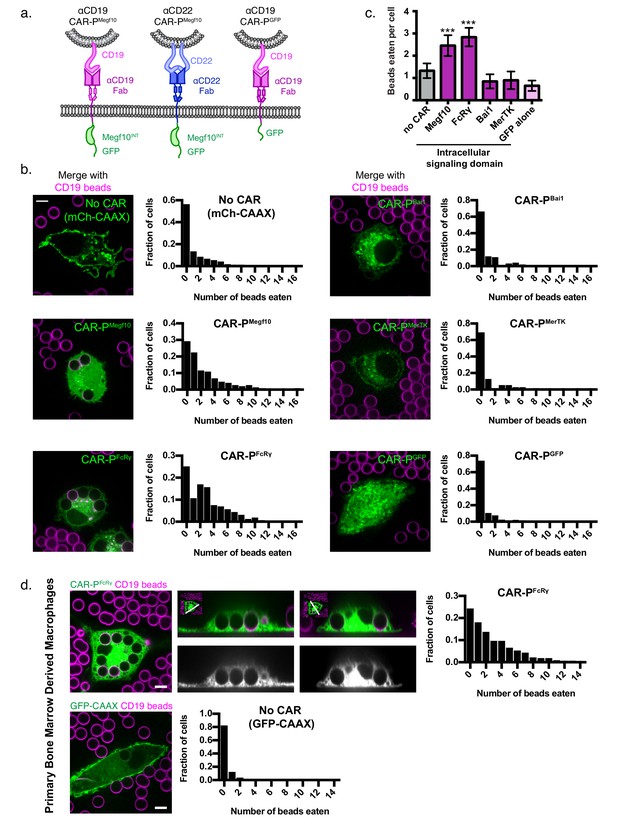

Identification of intracellular signaling region for CAR-P.

(A) Schematics show the structure of CAR-P constructs. An ɑCD19 (purple) or ɑCD22 (blue, center) scFv directs CAR specificity. Intracellular signaling domains from Megf10 or the indicated engulfment receptor (green) activate engulfment. CAR-PGFP contains only GFP and no intracellular signaling domains (right). All constructs include a transmembrane domain from CD8 and a C-terminal GFP. (B) J774A.1 macrophages expressing ɑCD19 CAR-P with the indicated intracellular signaling domain (green) engulf 5 µm silica beads covered with a supported lipid bilayer containing His-tagged CD19 extracellular domain. The beads were visualized with atto390-labeled lipid incorporated into the supported lipid bilayer (magenta). Cells infected with the cell membrane marker, mCherry-CAAX, were used as a control (no CAR, top left). To the right of each image is a histogram depicting the frequency of cells engulfing the indicated number of beads. The average number of beads eaten per cell is quantified in (C). (D) Bone marrow derived macrophages were infected with CAR-PFcRɣ or GFP-CAAX (green, left and center top; grey, center bottom) and incubated with CD19 beads (magenta) for 45 min. Images show an x-y plane through the center of the engulfed beads (left), or a cross section (center) of the z plane indicated in the inset panel (white line). The histogram depicts the number of cells engulfing the indicated number of beads. The scale bar indicates 5 µm and n = 78–163 cells per condition, collected during three separate experiments. Error bars denote 95% confidence intervals and *** indicates p<0.0001 compared to mCherry-CAAX control by Kruskal-Wallis test with Dunn’s multiple comparison correction.

https://doi.org/10.7554/eLife.36688.003

To assay our library of CAR-Ps, we introduced each CAR-P into J774A.1 murine macrophages by lentiviral infection. As an engulfment target, we used 5 µm diameter silica beads coated with a supported lipid bilayer. A His8-tagged extracellular domain of CD19 was bound to a NiNTA-lipid incorporated into the supported lipid bilayers. Macrophages expressing a CAR-P with the Megf10 (CAR-PMegf10) or FcRɣ (CAR-PFcRɣ) intracellular domain promoted significant engulfment of CD19 beads compared to macrophages with no CAR (Figure 1b,c, Figure 1—video 1). Macrophages expressing CAR-PBai1, CAR-PMerTK, and the adhesion-only CAR-PGFP did not bind the CD19 beads even though these CAR-Ps are present at the cell surface (Figure 1b,c, Figure 1—figure supplement 1). To confirm that the CAR-P was a viable strategy for redirecting primary macrophages, we expressed the CAR-PFcRɣ in primary murine bone marrow derived macrophages and found that these transfected primary cells also were able to trigger engulfment of CD19 beads (Figure 1d).

Next we asked if the CAR-P strategy could target a different antigen. Because CAR-PMegf10 performed well in our initial screen (Figure 1a), we developed ɑCD22 CAR-PMegf10 using a previously developed ɑCD22 antibody fragment (Xiao et al., 2009; Haso et al., 2013). Consistent with our results using ɑCD19-based CARs, ɑCD22 CAR-PMegf10 promoted engulfment of CD22 beads (Figure 2a). To confirm antigen specificity of CAR-P, we incubated ɑCD19 CAR-PMegf10 macrophages with CD22 beads, and ɑCD22 CAR-PMegf10 macrophages with CD19 beads. CD19 beads were not eaten by ɑCD22 CAR-PMegf10 macrophages, and CD22 beads were not eaten by ɑCD19 CAR-PMegf10 macrophages (Figure 2a). These data indicate that CAR-PMegf10 specifically triggers engulfment in response to the target ligand and that the CAR-P strategy is able to target multiple cancer antigens.

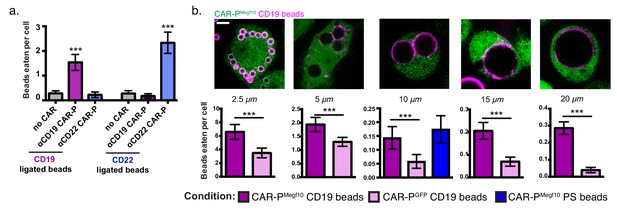

CAR-P expression drives specific engulfment of diverse beads.

(A) Macrophages infected with the ɑCD19 (purple) or ɑCD22 (blue) CAR-PMegf10 or mCherry-CAAX control were fed 5 µm beads ligated with either CD19 (left) or CD22 (right). Engulfment is quantified as the mean beads eaten per cell. The fraction of phagocytic cells is as follows: 31/144 GFP-CAAX cells engulfed CD19 beads, 87/149 ɑCD19 CAR-PMegf10 engulfed CD19 beads, 20/142 ɑCD22 CAR-PMegf10 engulfed CD19 beads, 28/140 GFP-CAAX cells engulfed CD22 beads, 18/151 ɑCD19 CAR-PMegf10 engulfed CD22 beads, 103/148 ɑCD22 CAR-PMegf10 engulfed CD22 beads (pooled data was collected during three separate experiments). Error bars denote 95% confidence intervals and *** indicates p<0.0001 compared to mCherry-CAAX control by Kruskal-Wallis test with Dunn’s multiple comparison correction. (B) J774A.1 macrophages expressing the ɑCD19 CAR-PMegf10 (green) were fed beads of various sizes (magenta, diameter of bead indicated below image). The beads were covered in a supported lipid bilayer ligated to His-tagged CD19 extracellular domain and the number of beads engulfed per cell is reported below each image (magenta bars indicate CAR-PMegf10 macrophages and pink bars indicate CAR-PGFP). The ɑCD19 CAR-PMegf10 macrophages were also incubated with 10 µm beads coated in phosphatidylserine (PS) and ICAM-1 (blue bar in graph, 51/390 cells engulfed a bead). The fraction of cells engulfing a CD19 bead is as follows: 135/169 CAR-PMegf10 and 134/187 CAR-PGFP cells engulfed 2.5 um bead, 126/395 CAR-PMegf10 and 112/499 CAR-PGFP cells engulfed a 5 um bead, 48/377 CAR-PMegf10 and 21/378 CAR-PGFP cells engulfed a 10 um bead, 120/706 CAR-PMegf10 and 45/675 CAR-PGFP cells engulfed a 15 um bead, 194/760 CAR-PMegf10 and 23/587 CAR-PGFP cells engulfed a 20 um bead (data is pooled from at least three separate experiments). Error bars denote 95% confidence intervals of the mean. *** indicates p<0.0001 respectively by Mann-Whitney test. All scale bars represent 5 µm.

https://doi.org/10.7554/eLife.36688.006

To further define the capabilities of the CAR-P, we assessed the capacity of CAR-P-expressing macrophages to engulf variably sized targets. We found that CAR-PMegf10 was able to trigger specific engulfment of beads ranging from 2.5 µm to 20 µm in diameter, with higher specificity above background engulfment being demonstrated for the larger beads (Figure 2b). The high background in this assay is due to heterogeneity in the bilayers on beads purchased from a different manufacturer (Corpuscular) than previous assays. For the 10 µm bead condition, we also tested the phagocytic efficiency of beads containing the endogenous Megf10 ligand, phosphatidylserine. We found that CAR-PMegf10 macrophages engulfed CD19 beads and beads containing 10% phosphatidylserine and the adhesion molecule ICAM-1 at a similar frequency (Figure 2b). This indicates that the CAR-P is comparably efficient to the endogenous system.

To determine if the CAR-PMegf10 initiates active signaling at the synapse between the macrophage and target, we stained for phosphotyrosine. Macrophages expressing CAR-PMegf10 exhibited an increase in phosphotyrosine at the synapse, while macrophages expressing CAR-PGFP did not show this enrichment (Figure 3a). Consistent with previous reports, we found that F-actin also was enriched at the cell bead synapse (Figure 3—figure supplement 1). This result suggests that CAR-PMegf10 initiates engulfment through a localized signaling cascade involving tyrosine phosphorylation.

Figure 3 with 1 supplement see all

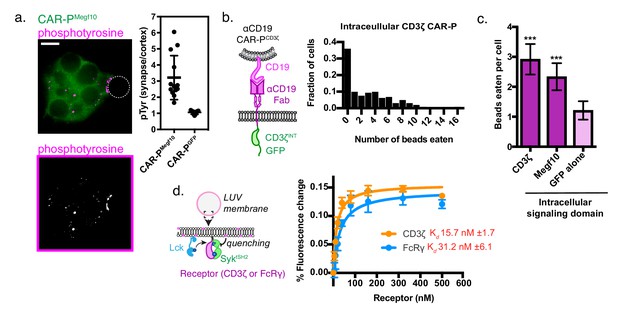

A phosphorylated ITAM at the cell-target synapse drives engulfment.

(A) Macrophages expressing ɑCD19 CAR-PMegf10 (green, top) or ɑCD19 CAR-PGFP were incubated with CD19-ligated beads (position indicated with dotted line), fixed and stained for phosphotyrosine (magenta, top; greyscale, bottom). The fold enrichment of phosphotyrosine at the cell-bead synapse compared to the cell cortex is graphed on the right (n ≥ 11; each dot represents one cell-bead synapse; lines represent the mean ±one standard deviation). (B) Schematic shows the structure of CAR-P constructs in the plot at right. An αCD19 (purple) scFv directs CAR specificity. The intracellular signaling domains from CD3ζ activate engulfment. On the right is a histogram depicting the fraction of macrophages engulfing the indicated number of CD19-coated beads. (C) Comparison showing the average number of beads eaten per cell in J774A.1 macrophages expressing αCD19 CAR-Ps with the indicated intracellular signaling domain. 5 μm silica beads covered with a supported lipid bilayer containing His-tagged CD19 extracellular domain were used as an engulfment target (n = 156–167 cells per condition collected during three separate experiments). Error bars denote 95% confidence intervals and *** indicates p<0.0001 compared to CAR-PGFP control by Kruskal-Wallis test with Dunn’s multiple comparison in correction. (D) Model of the liposome-based fluorescence quenching assay used to determine affinity between the Syk tSH2 domains and the receptor tails of CD3ζ and FcRɣ, two intracellular signaling domains that promote engulfment. Binding between the Syk tSH2 reporter (Syk tSH2), green, and a receptor tail, purple, was detected by rhodamine quenching of BG505 dye on the reporter (see Materials and methods). Kd was determined by assessing mean fluorescence quenching for the last 20 timepoints collected ~45 min after ATP addition over a receptor titration from 0 to 500 nM. Each point represents the mean ± SD from three independent experiments. Kd ± SE was calculated by nonlinear fit assuming one site specific binding.

https://doi.org/10.7554/eLife.36688.007

Both successful CAR-P intracellular domains (from FcRɣ and Megf10) have cytosolic Immunoreceptor Tyrosine-based Activation Motifs (ITAMs) that are phosphorylated by Src family kinases. Based on this observation, we hypothesized that the expression of an alternate ITAM-containing receptor might initiate phagocytosis when expressed in macrophages. The CD3ζ subunit of the T cell receptor contains three ITAM motifs. To test if the CD3ζ chain was able to activate phagocytic signaling, we transduced macrophages with the first generation CAR-T (Figure 3b). The CAR-T was able to trigger engulfment of CD19 beads to a comparable extent as CAR-PMegf10 (Figure 3c). In T cells, phosphorylated ITAMs in CD3ζ bind to tandem SH2 domains (tSH2) in the kinase ZAP70. Zap70 is not expressed in macrophages, but Syk, a phagocytic signaling effector and tSH2 domain containing protein, is expressed at high levels (Andreu et al., 2017). Previous work suggested that Syk kinase can also bind to the CD3ζ ITAMs (Bu et al., 1995), indicating that the CAR-T may promote engulfment through a similar mechanism as CAR-PFcRɣ. To quantitatively compare the interaction between SyktSH2 and CD3ζ or FcRɣ in a membrane proximal system recapitulating physiological geometry, we a used liposome-based assay (Figure 3d [Hui and Vale, 2014]). In this system, His10-CD3ζ and His10-Lck (the kinase that phosphorylates CD3ζ) are bound to a liposome via NiNTA-lipids and the binding of labeled tandem SH2 domains to phosphorylated CD3ζ was measured using fluorescence quenching. Our results show that Syk-tSH2 binds the CD3ζ and FcRɣ with comparable affinity (~15 nM and ~30 nM respectively, Figure 3d). Collectively, these results demonstrate that the TCR CD3ζ chain can promote phagocytosis in a CAR-P, likely through the recruitment of Syk kinase.

We next sought to program engulfment towards a cellular target. We incubated the CAR-PMegf10 and CAR-PFcRɣ macrophages with cancerous Raji B cells that express high levels of endogenous CD19. Strikingly, the majority of CAR-P-expressing macrophages internalized bites of the target cell (Figure 4a, Figure 4—video 1, 78% of CAR-PMegf10 and 85% of CAR-PFcRɣ macrophages internalized bites within 90 min). The biting phenotype resembles trogocytosis, or nibbling of live cells, which has been reported previously in immune cells (Joly and Hudrisier, 2003). This process was dependent on the ITAM-bearing intracellular signaling domain, as removing the signaling domain (CAR-PGFP) dramatically reduced trogocytosis (Figure 4a). Enrichment of phosphotyrosine at the cell-cell synapse further supports active signaling initiating trogocytosis (Figure 4—figure supplement 1). The CAR-P module also was able to induce trogocytosis in non-professional phagocytes, human NIH 3T3 fibroblast cells (Figure 4—figure supplement 2). This suggests that the CAR-P can promote cancer antigen-dependent engulfment by both professional and non-professional phagocytes.

Figure 4 with 7 supplements see all

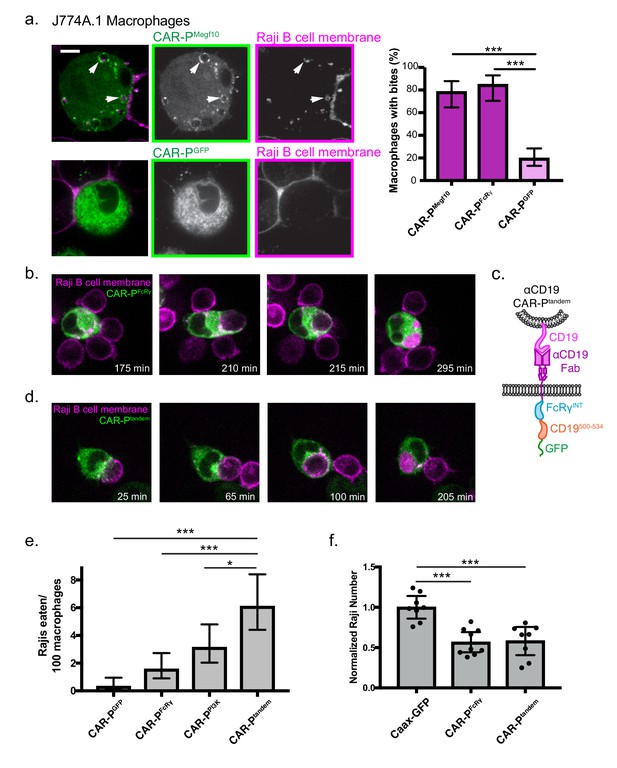

CAR-P promotes trogocytosis and whole cell eating.

(A) J774A.1 macrophages expressing the ɑCD19 CAR-PMegf10 (top panel, green in merge, left; greyscale, center) engulf pieces of CD19 +Raji B cells (labeled with mCherry-CAAX; magenta in merge, left; greyscale, right). The corresponding control ɑCD19 CAR-PGFP-infected cells are shown below. Arrows point to pieces of ingested Raji B cell. The proportion of CAR-P expressing macrophages internalizing one or more bite within 90 min is quantified on the right. Bites are defined as a fully internalized mCherry-positive vesicle >1 µm in diameter; n = 46 CAR-PMegf10 macrophages, n = 39 CAR-PFcRɣ macrophages and 102 CAR-PGFP macrophages acquired during three separate experiments. (B) Time course of a J774A.1 macrophage expressing CAR-PFcRɣ (green) internalizing a whole Raji B cell labeled with mCherry-CAAX (magenta). These images correspond to frames from Figure 4—video 2. (C) Schematic shows the structure of CAR-Ptandem construct, combining the intracellular signaling domain from FcRɣ and the p85 recruitment domain from CD19. (D) Time course of a J774A.1 macrophage expressing CAR-Ptandem (green) internalizing a whole Raji B cell labeled with mCherry-CAAX (magenta). These images correspond to frames from Figure 4—video 3. (E) Macrophages and Raji B cells were incubated together at a 1:2 macrophage:Raji ratio, and the number of whole Raji B cells eaten per 100 macrophages during 4–8 hr of imaging is graphed. Graph depicts pooled data from four independent experiments; n = 921 CAR-PGFP, n = 762 CAR-PFcRɣ, n = 638 CAR-PPI3K, n = 555 CAR-Ptandem cells. Sample sizes were selected for their ability to detect a 5% difference between samples with 95% confidence. (F) 10,000 macrophages and 20,000 Raji B cells were incubated together for 44 hr. The number of Rajis was then quantified by FACS. 2–3 technical replicates were acquired each day on three separate days. The number of Rajis in each replicate was normalized to the average number present in the GFP-CAAX macrophage wells on that day. * indicates p<0.01, *** indicates p<0.0001 by two-tailed Fisher Exact Test (a and e) or by Ordinary one way ANOVA with Dunnet’s correction for multiple comparisons (f); error bars denote 95% confidence intervals.

https://doi.org/10.7554/eLife.36688.009

We next focused on engineering strategies to engulf whole human cancer cells. We observed that macrophages expressing the CAR-PMegf10 or CAR-PFcRɣ were capable of engulfing whole Raji B cells (2 cancer cells eaten per 100 macrophages in a 4–8 hr window for both CAR-PMegf10 or CAR-PFcRɣ, Figure 4b,e, Figure 4—video 2). Whole cell engulfment was infrequent but trogocytosis was robust, suggesting that productive macrophage target interactions were frequently insufficient to trigger whole cell engulfment. To determine if whole cell eating could be enhanced by further opsonization of CD19, we opsonized Raji B cells with a mouse IgG2a anti-CD19 antibody. While addition of this antibody did not trigger additional whole cell internalization, blockade of the ‘don’t eat me’ signal CD47 using the mouse IgG1 anti-human B6H12 clone resulted in a 2.5 fold increase of whole cell eating of opsonized Raji B cells (Figure 4—figure supplement 3). Both endogenous FcR recognition of the anti-CD47 antibody and blockade of CD47 signaling may contribute to this effect.

To develop a receptor to enhance whole cell eating, we hypothesized that combining signaling motifs in a tandem array might increase the frequency of whole cell engulfment by specifically recruiting effectors required for the engulfment of large targets. Previous work demonstrated that PI3K signaling is important for internalization of large targets (Schlam et al., 2015). To increase PI3K recruitment to the CAR-P, we fused the portion of the CD19 cytoplasmic domain (amino acids 500 to 534) that recruits the p85 subunit of PI3K to the CAR-PFcRɣ creating a ‘tandem’ CAR (CAR-Ptandem, Figure 4c) (Tuveson et al., 1993; Brooks et al., 2004). A CAR-P containing the p85 recruitment motif alone (CAR-PPI3K) was able to induce some whole cell engulfment, comparable to the CAR-PFcRɣ (Figure 4e). Expression of CAR-Ptandem tripled the ability of macrophages to ingest whole cells compared to CAR-PGFP (6 cancer cells eaten per 100 macrophages, Figure 4d,e, Figure 4—video 3). These data indicate that assembling an array of motifs designed to recruit distinct phagocytic effectors can increase CAR-P activity towards whole cells.

To determine if the combination of whole cell eating and trogocytosis was sufficient to drive a noticeable reduction in cancer cell number, we incubated CAR-P macrophages with Raji B cells for two days. After 44 hr of co-culture, we found that CAR-P macrophages significantly reduced the number of Raji cells (Figure 4f). Although the CAR-Ptandem was much more efficient at whole cell eating, the CAR-PFcRɣ performed nearly as well at eliminating Rajis. Importantly, our assay does not distinguish between whole cell engulfment or death following trogocytosis, so it is possible both CAR-P activities are contributing to Raji death rates. Overall, these data suggest that the CAR-P is a successful strategy for directing macrophages towards cancer targets, and can initiate whole cell eating and trogocytosis leading to cancer cell elimination.

In summary, we engineered phagocytes that recognize and ingest targets through specific antibody-mediated interactions. This strategy can be directed towards multiple extracellular ligands (CD19 and CD22) and can be used with several intracellular signaling domains that contain ITAM motifs (Megf10, FcRɣ, and CD3ζ). Previous work has suggested that spatial segregation between Src-family kinases and an inhibitory phosphatase, driven by receptor ligation, is sufficient to trigger signaling by the T cell receptor (Davis and van der Merwe, 2006; James and Vale, 2012) and FcR (Freeman et al., 2016). The CAR-Ps that we have developed may similarly convert receptor-ligand binding into receptor phosphorylation of ITAM domains through partitioning of kinases and phosphatases at the membrane-membrane interface.

Further development of CAR-Ps could be useful on several therapeutic fronts. Targeting of tumor cells by macrophages has been suggested to cause tumor cell killing (Jaiswal et al., 2009; Majeti et al., 2009; Chao et al., 2010; Jadus et al., 1996), either through directly engulfing cancer cells or by stimulating antigen presentation and a T cell-mediated response (Liu et al., 2015; Tseng et al., 2013). Inhibition of the CD47-SIRPA ‘Don’t eat me’ signaling pathway has also been shown to result in engulfment of cancer cells (Chen et al., 2017; Gardai et al., 2005; Jaiswal et al., 2009; Majeti et al., 2009; Chao et al., 2010). A recent study suggests that CD47 inhibition is most effective when combined with a positive signal to promote target engulfment, which raises the possibility of combining CAR-P expression with CD47 or SIRPA inhibition for an additive effect (Alvey et al., 2017).

Although we were able to increase whole cell engulfment by recruiting the activating subunit of PI3K to the phagocytic synapse, the engulfment of larger 20 micron beads was more frequent than the engulfment of whole cells. We hypothesize that this is due to differing physical properties of the engulfment target. Specifically, increased target stiffness has been shown to promote engulfment, suggesting that manipulating the physical properties of the engulfment target could also be a potential strategy for increasing CAR-P efficiency (Beningo and Wang, 2002; Cross et al., 2007).

While the CAR-P can engulf whole, viable cancer cells, the ingestion of a piece of the target cell is more common. Trogocytosis, or nibbling of living cells, has also been described in immune cells (Harshyne et al., 2003; Harshyne et al., 2001; Kao et al., 2006; Joly and Hudrisier, 2003; Batista et al., 2001) and brain-eating amoebae (Ralston et al., 2014). In vivo studies also have shown that endogenous dendritic cell populations ingest bites of live tumor cells, contributing to presentation of cancer neo-antigen (Harshyne et al., 2001; Harshyne et al., 2003). Although we were able to use the CAR-P to induce trogocytosis in dendritic cells, we were not able to detect robust cross presentation of the model antigen ovalbumin (Figure 4—figure supplement 4). Thus, although using CAR-Ps to enhance cross presentation of cancer antigen is an intriguing future avenue, such a strategy would likely require more optimization of the dendritic cell subset employed or the CAR-P receptor itself.

Overall, our study demonstrates that the CAR approach is transferrable to biological processes beyond T cell activation and that the expression of an engineered receptor in phagocytic cells is sufficient to promote specific engulfment and elimination of cancer cells.

Materials and methods

Key resources table
Reagent type
(species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Cell line
(Mus musculus)
J774A.1 MacrophagesUCSF Cell Culture
Facility
Cell line
(Homo sapiens)
Raji B CellsOtherObtained from M. McManus,
UCSF
Cell line
(Mus musculus)
3t3 FibroblastsUCSF Cell Culture
Facility
Cell line
(Mus musculus)
C57BL/6JPMID: 21356739Bone Marrow Derived
Macrophages (BMDM)
Cell line
(Mus musculus)
C57BL/6JPMID: 7489412Bone Marrow derived
Dendritic Cells (BMDC)
Cell line
(Homo sapiens)
HEK293T cellsUCSF Cell Culture
Facility
Lentivirus production
Genetic Reagent
(Mus musculus)
OTIPMID: 8287475E. Roberts/M. Krummel Lab UCSF
Recombinant
DNA reagent
CD19-mMegf10 CARthis paperSignal peptide: aa 1–21 CD8
(Uniprot Q96QR6_HUMAN)
Extracellular antibody sequence: V-L
chain: aa 23–130 anti-CD19
CAR (Genbank AMZ04819) -- GS linker:
ggtggcggtggctcgggcggtggtgggtcgggt
ggcggcggatct -- V-H chain: aa 148–267
anti-CD19 CAR (Genbank AMZ04819)
Stalk/Transmembrane: aa 138–206 CD8
(Uniprot Q96QR6_HUMAN)
Cytosolic sequence: aa 879–1147 Mouse
Megf10 (Uniprot Q6DIB5 (MEG10_MOUSE))
Fluorophore: mGFP
Recombinant
DNA reagent
CD19-FcGamma CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot
Q96QR6_HUMAN) Extracellular antibody
sequence: V-L chain: aa 23–130
anti-CD19 CAR (Genbank AMZ04819) -- GS
linker: ggtggcggtggctcgggcggtggtgggtcgg
gtggcggcggatct -- V-H chain: aa 148–267
anti-CD19 CAR (Genbank AMZ04819)
Stalk/Transmembrane: aa 138–206 CD8 (Uniprot
Q96QR6_HUMAN) Cytosolic sequence: aa
19–86 Mouse Fc ERG precursor (Uniprot
P20491 (FCERG_MOUSE)) Fluorophore: mGFP
Recombinant
DNA reagent
CD19-empty CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot
Q96QR6_HUMAN) Extracellular antibody
sequence: V-L chain: aa 23–130
anti-CD19 CAR (Genbank AMZ04819) -- GS
linker: ggtggcggtggctcgggcggtggtgggtcggg
tggcggcggatct -- V-H chain: aa 148–267
anti-CD19 CAR (Genbank AMZ04819)
Stalk/Transmembrane: aa 138–206 CD8 (Uniprot
Q96QR6_HUMAN) Cytosolic sequence:
basic linker NHRNRRR (nucleotide AACCACAGG
AACCGAAGACGT) Fluorophore: mGFP
Recombinant
DNA reagent
CD22-Megf10 CARthis paperSignal peptide: aa 1–21 CSF2R (Uniprot P15509
(CSF2R_HUMAN)) Extracellular antibody
sequence: aa 22–258 of translated JP
2016502512-A/1: M971 Chimeric Antigen
(Genbank HZ530416.1) Stalk/Transmembrane:
aa 138–206 CD8 (Uniprot Q96QR6_
HUMAN) Cytosolic sequence: aa 879–1147
Mouse Megf10 (Uniprot Q6DIB5 (MEG10_
MOUSE)) Fluorophore: mGFP
Recombinant
DNA reagent
CD22-empty CARthis paperSignal peptide: aa 1–21 CSF2R (Uniprot P15509
(CSF2R_HUMAN)) Extracellular antibody
sequence: aa 22–258 of translated JP
2016502512-A/1: M971 Chimeric Antigen
(Genbank HZ530416.1) Stalk/Transmembrane:
aa 138–206 CD8 (Uniprot Q96QR6_HUMAN)
Cytosolic sequence: basic linker NHRNRRR
(nucleotide AACCACAGGAACCGAAGACGT)
Fluorophore: mGFP
Recombinant
DNA reagent
CD19-MerTK CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot Q96QR6
_HUMAN) Extracellular antibody sequence:
V-L chain: aa 23–130 anti-CD19
CAR (Genbank AMZ04819) -- GS linker: ggtg
gcggtggctcgggcggtggtgggtcgggtggcggcggatct --
V-H chain: aa 148–267 anti-CD19 CAR
(Genbank AMZ04819) Stalk/Transmembrane: aa
138–206 CD8 (Uniprot Q96QR6_HUMAN)
Cytosolic sequence: aa 519–994 Mouse MerTK
(Uniprot Q60805 (MERTK_MOUSE))
Fluorophore: mGFP
Recombinant
DNA reagent
CD19-Bai1 CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot
Q96QR6_HUMAN)Extracellular antibody
sequence: V-L chain:aa 23–130 anti-CD19
CAR (Genbank AMZ04819)-- GS linker:
 ggtggcggtggctcgggcggtggtgggtcgggtggcgg
cggatct -- V-H chain: aa 148–267 anti-CD19
CAR (GenbankAMZ04819) Stalk/Transmembrane:
aa 138–206 CD8 (UniprotQ96QR6_HUMAN)
Cytosolic sequence: aa1188–1582 Mouse
Bai1 (Uniprot Q3UHD1 (BAI1_MOUSE))
Fluorophore: mGFP
Recombinant
DNA reagent
CD19-CD3zeta CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot Q96QR6_
HUMAN) Extracellular antibody sequence:
V-L chain: aa 23–130 anti-CD19 CAR
(Genbank AMZ04819) -- GS linker: ggtggcggtggctcg
ggcggtggtgggtcgggtggcggcggatct -- V-H chain:
aa 148–267 anti-CD19 CAR (Genbank
AMZ04819) Stalk/Transmembrane: aa 138–206 CD8
(Uniprot Q96QR6_HUMAN) Cytosolic sequence:
aa 52–164, Human TCR CD3 zeta chain
(Uniprot P20963) Fluorophore: sfGFP
Recombinant
DNA reagent
CD19-PI3K CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot Q96QR6
_HUMAN) Extracellular antibody sequence:
V-L chain: aa 23–130 anti-CD19 CAR
(Genbank AMZ04819) -- GS linker: ggtggcggtggct
cgggcggtggtgggtcgggtggcggcggatct -- V-H chain:
aa 148–267 anti-CD19 CAR (Genbank
AMZ04819) Stalk/Transmembrane: aa 138–206 CD8
(Uniprot Q96QR6_HUMAN) Cytosolic
sequence: aa 500–534 Mouse CD19 (Uniprot
CD19_MOUSE) Fluorophore: mCherry
Recombinant
DNA reagent
CD19 tandem CARthis paperSignal peptide: aa 1–21 CD8 (Uniprot Q96QR6_
HUMAN) Extracellular antibody sequence: V-L
chain: aa 23–130 anti-CD19 CAR
(Genbank AMZ04819) -- GS linker: ggtggcggtggctc
gggcggtggtgggtcgggtggcggcggatct -- V-H chain:
aa 148–267 anti-CD19 CAR (Genbank
AMZ04819) Stalk/Transmembrane: aa 138–206 CD8
(Uniprot Q96QR6_HUMAN) Cytosolic sequence:
aa 500–534 Mouse CD19 (Uniprot CD19
_MOUSE) fused to aa 19–86 Mouse Fc ERG
precursor (FCERG_MOUSE) Fluorophore: mGFP
Recombinant
DNA reagent
GFP-CaaXthis papereGFP fused to a c terminal
CaaX targeting sequence: aaaatgtccaaggatggta
agaaaaagaagaagaagtcaaaaaccaagtgtgttatcatg
Recombinant
DNA reagent
mCherry-CaaXthis papermCherry fused to a c terminal
CaaX targeting sequence: aaaatgtccaaggatggt
aagaaaaagaagaagaagtcaaaaaccaagtgtgttatcatg
Recombinant
DNA reagent
OVA/p2a/mCherry-CaaXthis paperCytoplasmic Ovalbumin (UNIPROT:
SERPINB14)/p2 a site: GGAAGCGGAGCTACTAA
CTTCAGCCTGCTGAAGCAGGCTGGAGA
CGTGGAGGAGAACCCTGGACCT/followed by
mCherry fused to a c terminal CaaX targeting
sequence: aaaatgtccaaggatggtaagaaaaagaag
aagaagtcaaaaaccaagtgtgttatcatg
Peptide,
recombinant protein
His10-CD3 zetaHui and Vale (2014)
PMID: 24463463
aa 52–164, Human TCR CD3 zeta chain
(Uniprot CD3Z_HUMAN) fused to Hisx10 tag
Peptide,
recombinant protein
His10-FcRɣthis paperaa 45–85, Human FcRɣ (Uniprot FCERG
_HUMAN) fused to Hisx10 tag
Peptide,
recombinant protein
SNAP-Syk tSH2this paperaa 1–262, Mouse Syk (Uniprot KSYK_MOUSE)
with N-term SNAP tag
Peptide,
recombinant protein
His10-Lck Y505FHui and Vale (2014)
PMID: 24463463
full length Human Lck with inhibitory Tyr 505
mutated to Phe (Uniprot LCK_HUMAN) fused
to Hisx10 tag
Antibodyanti phospho-TyrosineSanta CruzPY201:100 IF primary
Antibodyanti mouse IgG coupled to
Alexa Fluor 647
Thermo/LifetechA212361:200 IF secondary
Antibodyanti mouse CD11c coupled
to APC
BioLegend117313FACS
Antibodyanti mouse F4/80 coupled
to APC/Cy7
BioLegend123117FACS
OtherDMEMGibco11965–092
OtherPen-Strep-GlutamineCorning30–009 Cl
OtherFetal Bovine Serum (FBS)Atlanta BiologicalsS1150H
OtherRPMIGibco11875–093
OtherHEPESGibco1530080
Other2-MercaptoethanolSigmaM6250-100mL
Commercial
assay or kit
MycoAlert Mycoplasma
Testing Kit
LonzaLT07-318
Recombinant
DNA reagent
pMD2.G lentiviral
plasmid
otherAddgene 12259D. Stainier, Max Planck; VSV-G envelope
Recombinant
DNA reagent
pCMV-dR8.91otherCurrent Addgene
8455
Recombinant
DNA reagent
pHRSIN-CSGWotherAs cited James and Vale (2012),
PMID: 22763440
OtherLipofectamine LTXInvitrogen15338–100Lentivirus production
OtherLipofectamineInvitrogen18324–012Added to spin infections
to improve transduction
OtherHamilton Gastight
Syringes
Hamilton8 1100
OtherPOPCAvanti850457
OtherNi2+-DGS-NTAAvanti790404
OtherPEG5000-PEAvanti880230
Otheratto390 DOPEATTO-TEC GmbHAD 390–161
OtherPBS (Tissue Culture Grade)Gibco20012050
OtherBioruptor PicoDiagenodeUsed for producing SUVs
Other5 um silica microspheresBangsSS05N
Peptide,
recombinant protein
CD19-His8Sino Biological11880H08H50
Peptide,
recombinant protein
CD22-His8Sino Biological11958H08H50
Other2.5 um silica microspheres
(size titration)
CorpuscularC-SIO-2.5
Other5 um silica microspheres
(size titration)
CorpuscularC-SIO-5
Other10 um silica microspheres
(size titration)
CorpuscularC-SIO-10
Other15 um silica microspheres
(size titration)
CorpuscularC-SIO-15
Other20 um silica microspheres
(size titration)
CorpuscularC-SIO-20
OtherLow retention tubes
for microsphere cleaning
Eppendorf22431081
OtherMatriPlateBrooksMGB096-1-2-LG-L
Peptide,
recombinant protein
M-CSFPeprotech315–02
OtherIMDMThermo12440079
OtherRetronectinClontechT100A
Commercial
assay or kit
CD8 + T cell
purification kit
Stemcell19853
OthereFluor670
proliferation dye
Thermo65-0840-85
Chemical
compound, drug
phRSIN-CSGWSigmaL4516
OtherFluorobrite DMEMGibcoA1896701
OtherDMEM minus phenol
red
GibcoA14430-01
OtherRhodamine PEAvanti810150C
OtherDOPSAvanti840035C
OtherSNAP-Cell 505-StarNEBS9103S
OtherPD MiniTrap G-25 columnGE Healthcare28-9225-29 AB
Other6.4% Paraformaldehyde
solution
Electron Microscopy
Sciences
50980495
Chemical
compound, drug
AlexaFluor 647 PhalloidinThermo/Molecular ProbesA22284
Software,
algorithm
ImageJNIH
Software,
algorithm
IllustratorAdobeCC, CS6
Software,
algorithm
PhotoshopAdobeCC, CS6
Software,
algorithm
Fijihttps://fiji.sc/
Software,
algorithm
PrismGraphPad7
Antibodyanti human CD19
(mouse antibody)
OriGeneTA506240 Clone
OTI2F6
IgG2a mouse monoclonal antibody
Antibodyanti human CD47
(mouse antibody)
BD556044 Clone
B6H12
IgG1 mouse monoclonal antibody
Antibodyanti Ovalbumin
(rabbit antibody)
PiercePA1-196IgG rabbit polyclonal antibody

Constructs and antibodies

Request a detailed protocol

Detailed information for all constructs can be found in the Key resources table. This file includes the following information for all receptors developed in this study: signal peptide, extracellular antibody fragment, stalk/transmembrane domain, and cytosolic tail including appropriate accession numbers. Antibodies used in this study are described in Supplemental Excel File 1, ‘Antibodies’ tab.

Cell culture

Request a detailed protocol

J774A.1 macrophages and NIH 3T3 fibroblasts were obtained from the UCSF cell culture facility and cultured in DMEM (Gibco, Catalog #11965–092) supplemented with 1 x Pen-Strep-Glutamine (Corning, Catalog #30–009 Cl) and 10% fetal bovine serum (FBS) (Atlanta Biologicals, Catalog #S11150H). Raji B cells were obtained from J. Blau (McManus lab, UCSF) and cultured in RPMI (Gibco, Catalog #11875–093) supplemented with 1 x Pen-Strep-Glutamine (Corning, Catalog #30–009 Cl), 10% FBS (Atlanta Biologicals, Catalog #S11150H), 10 mM HEPES (Gibco, Catalog #1530080), and 5 µM 2-Mercaptoethanol (Sigma, Catalog #M6250-100mL). All cell lines used in this study were tested for Mycoplasma at least once per month using the Lonza MycoAlert Detection Kit (Lonza, Catalog# LT07-318) and control set (Lonza, Catalog #LT07-518).

Lentivirus production and infection

Request a detailed protocol

Lentiviral infection was used to stably express CAR-P constructs in all cell types. Lentivirus was produced by HEK293T cells transfected with pMD2.G (a gift from Didier Tronon, Addgene plasmid # 12259 containing the VSV-G envelope protein), pCMV-dR8.91 (since replaced by second generation compatible pCMV-dR8.2, Addgene plasmid #8455), and a lentiviral backbone vector containing the construct of interest (derived from pHRSIN-CSGW) using lipofectamine LTX (Invitrogen, Catalog # 15338–100). The media on the HEK293T cells was replaced with fresh media 8–16 hr post transfection to remove transfection reagent. At 50–72 hr post-transfection, the lentiviral media was filtered with a 0.45 µm filter and concentrated by centrifugation at 8000 x g for 4 hr or overnight. The concentrated supernatant was applied directly to ~0.5×106 NIH 3T3 cells in 2 ml of fresh media. For J77A4.1 macrophages and Raji B cells, the concentrated supernatant was mixed with 2 mls of media and 2 µg lipofectamine (Invitrogen, Catalog # 18324–012) and added to the cells. The cells were spun at 2200 x g for 45 min at 37°C. Cells were analyzed a minimum of 72 hr later.

Preparation of CD19 and CD22 5 µm silica beads

Request a detailed protocol

Chloroform-suspended lipids were mixed in the following molar ratio using clean glasstight Hamilton syringes (Hamilton, Catalog #8 1100): 97% POPC (Avanti, Catalog # 850457), 2% Ni2+-DGS-NTA (Avanti, Catalog # 790404), 0.5% PEG5000-PE (Avanti, Catalog # 880230, and 0.5% atto390-DOPE (ATTO-TEC GmbH, Catalog # AD 390–161). Lipid mixes were dried under argon and desiccated overnight under foil. Dried lipids were resuspended in 1 ml tissue-culture grade PBS, pH7.2 (Gibco, Catalog # 20012050), and stored under argon gas. Small unilamellar vesicles were formed by five freeze-thaw cycles followed by 2 × 5 min of bath sonication (Bioruptor Pico, Diagenode), and cleared by ultracentrifugation (TLA120.1 rotor, 35,000 rpm / 53,227 x g, 35 min, 4°C) or by 33 freeze thaw cycles. Lipid mixes were used immediately for form bilayers or shock frozen in liquid nitrogen and stored under argon at −80°C. To form bilayers on silica beads, 6 × 108 5 µm silica microspheres (10% solids, Bangs Labs, Catalog # SS05N) were washed 2x in water, and 2x in PBS by sequential suspension in water and spinning at 800 rcf, followed by decanting. Cleaned beads were resuspended in 150 µl tissue-culture grade PBS, pH7.2 (Gibco, Catalog # 20012050) and briefly vortexed. 30 µl cleared SUVs prepared as above as a 10 mM stock were added to bead suspension for a 2 mM final SUV concentration. Beads were vortexed for 10 s, covered in foil, and rotated for 30 min at room temperature to form bilayers. Bilayer-coated beads were washed 3x in PBS by sequential centrifugation at 800 rcf and decanting. Beads were resuspended in PBS + 0.1% w/v BSA for blocking for 15 min rotating at room temperature under foil. 10 nM final concentration of CD19his8 (Sino Biological, Catalog # 11880H08H50) or CD22his8 (Sino Biological, Catalog # 11958H08H50) protein were added to blocked beads and proteins were allowed to bind during a 45 min incubation rotating under foil at room temperature. Beads were washed 3x in PBS + 0.1% w/v BSA by sequential centrifugation at 300 rcf and decanting. Beads were resuspended in 120 µl PBS + 0.1% w/v BSA.

Preparation of CD19 silica beads over a range of diameters

Request a detailed protocol

Prior building bilayers on Silica beads ranging from 2.5 µm-20 µm in diameter (Microspheres-Nanospheres, Catalog# C-SIO-2.5, 5, 10, 15, 20), beads were RCA cleaned as follows: beads were pelleted at 2000 x g in low retention tubes (Eppendorf, Catalog #022431081) and resuspended in acetone. Resuspended beads were sonicated for 60 min in a bath sonicator. Rinse and sonication were repeated in ethanol. Finally, rinse and sonication were repeated in water. Beads were then washed 2x in water to remove all traces of ethanol and left in a small volume after decanting. All further steps were performed in a 70–80°C water bath prepared in a fume hood. Proper Personal Protective Equipment (PPE) was worn throughout the RCA cleaning protocol. Washed beads were added to 3 ml of hot 1.5 M KOH in a clean glass vial suspended in the water bath described above. 1 ml 30% H2O2 to bead solution and allowed to react for 10 min. Washed beads were cooled on ice, pelleted at 2000xg and rinsed 5x in ultrapure water. Used cleaning solution was saved for disposal by Environmental Health and Safety (EH and S). Cleaned beads were resuspended in 240 µl tissue-culture grade PBS, pH7.2 (Gibco, Catalog # 20012050) and briefly vortexed. The lipid mix used in this assay differed slightly from above. Here a mix of 93.5% POPC (Avanti, Catalog # 850457), 5% Ni2+-DGS-NTA (Avanti, Catalog # 790404), 1% PEG5000-PE (Avanti, Catalog # 880230, and 0.5% atto390-DOPE (ATTO-TEC GmbH, Catalog # AD 390–161. Bilayers were built and proteins coupled as described above. The concentration of CD19 was scaled appropriately to account for the increased surface area of the larger beads.

Bead engulfment assay

Request a detailed protocol

12 to 16 hr prior to imaging, 2.5 × 104 J774A.1 macrophages expressing the appropriate CAR-P or control construct were plated in a 96-well glass bottom MatriPlate (Brooks, Catalog # MGB096-1-2-LG-L). To assess engulfment, 0.5 × 106 CD19 or CD22-ligated beads were added to each well. Engulfment was allowed to proceed for 45 min at 37°C incubator with CO2. Cells were then imaged as described below.

Bites assay – J774A.1 macrophages, dendritic cells and NIH 3T3 fibroblasts

Request a detailed protocol

On the day of imaging 0.5 × 106 NIH 3T3 fibroblasts, dendritic cells or macrophages and 1.5 million Raji B cells were combined in a 1.5 ml eppendorf tube and pelleted by centrifugation (800 rpm / 68 x g) for 5 min at room temperature. Culture media was decanted to ~100 µl volume and cells were gently resuspended, and allowed to interact in the small volume for 60 min in a 37°C incubator with CO2. After incubation cells and beads were diluted to a final volume of 1000 µl and 300 µl of this co-culture plated for imaging in a 96-well glass bottom MatriPlate (Brooks, Catalog # MGB096-1-2-LG-L), and imaged as described below.

Eating assay read by FACS – J774A.1 macrophages and Raji B cells

Request a detailed protocol

20,000 J774A.1 macrophages were plated into 96-well glass bottom MatriPlate (Brooks, Catalog # MGB096-1-2-LG-L) in a final volume of 300 µl complete DMEM (Gibco, Catalog #11965–092) supplemented with 1 x Pen-Strep-Glutamine (Corning, Catalog #30–009 Cl) and 10% fetal bovine serum (FBS) (Atlanta Biologicals, Catalog #S11150H). 52 hr prior to reading the assay macrophages were stimulated with 500 ng/ml LPS (Sigma, Catalog # L4516). 44 hr prior to imaging LPS was removed by three sequential gentle washes. After LPS removal 10,000 Rajis expressing mCherry-CAAX were added to the well containing stimulated macrophages. The co-culture was incubated for 44 hr in a 37°C tissue culture incubator with 5% CO2. After 44 hr, the remaining number of Raji B cells remaining was analyzed by FACS as follows: 10,000 counting beads were added to the well immediately prior to reading and the cell-counting bead mixture was harvested by pipetting up and down 8x with a p200 pipet. The assay was read on an LSRII (BD Biosciences) and Rajis were identified by the presence of mCherry fluorescence.

Primary cell transduction and differentiation

Request a detailed protocol

Bone marrow derived macrophages (BMDMs) were produced as previously described (Weischenfeldt and Porse, 2008), except that L-929 conditioned media was replaced with purified 25 ng/ml M-CSF (Peprotech, Catalog # 315–02). The BMDMs were lentivirally infected with concentrated lentivirus after 5 days of differentiation. Differentiation was confirmed by F4/80 staining on day seven and found to be >95% efficient for each replicate. Phagocytosis was measured on day nine in imaging media lacking M-CSF.

To produce CAR-P expressing dendritic cells, bone marrow-derived hematopoietic stem cells were lentivirally infected immediately after harvest by spinning with concentrated lentivirus in GMCSF-containing media (IMDM supplemented with 10% FBS and PSG) on retronectin (Clontech, Catalog # T100A)-coated plates at 2200 x g for 45 min at 37°C. Dendritic cells were produced as previously described (Mayordomo et al., 1995) by culturing bone marrow cells for 8–11 days with GMCSF. IL-4 was added 2–3 days before use. Efficient differentiation into CD11c + dendritic cells was verified by FACS, revealing ≥95% APC-CD11c + cells (Biolegend, Catalog #N418).

Antigen cross-presentation assay

Request a detailed protocol

The ability of CAR-P to stimulate OTI T cell proliferation was tested using the co-culture assay shown as a schematic in Figure 4—figure supplement 4 and described previously (Roberts et al., 2016). 10,000 CAR-P transduced CD11c + dendritic cells transduced and differentiated as above were plated in U bottom 96 well dishes (Falcon, Catalog #353077) and stimulated with 1 ug/ml LPS. 12 hr after LPS stimulation, 40,000 Raji B cells expressing soluble cytosolic ovalbumin (Raji B-OVA) were added to the culture. 24 hr after Raji B-OVA cell addition, 50,000 OTI CD8 + T cells isolated from lymph nodes of OTI TCR transgenic mice using a CD8 +T cell purification kit (Stemcell, Catalog #19853) and labeled with e670 proliferation dye (Thermo, Catalog #65-0840-85) were added. 72 hr after OTI addition the percent of OTI cells divided was measured by eFluor670 signal using flow cytometry.

Confocal imaging

Request a detailed protocol

All imaging in this study was performed using a spinning disk confocal microscope with environmental control (Nikon Ti-Eclipse inverted microscope with a Yokogawa spinning disk unit). For bead internalization assays, images were acquired using a 40 × 0.95 N/A air objective and unbiased live image acquisition was performed using the High Content Screening (HCS) Site Generator plugin in µManager3. Other images were acquired using either a 100 × 1.49 N/A oil immersion objective. All images were acquired using an Andor iXon EM-CCD camera. The open source µManager software package was used to control the microscope and acquire all images3.

Quantification of whole cell internalization

Request a detailed protocol

20,000 J774A.1 macrophages were plated into 96-well glass bottom MatriPlate (Brooks, Catalog # MGB096-1-2-LG-L). Four hours prior to imaging, the macrophages were stimulated with 500 ng/ml LPS (Sigma, Catalog # L4516). Immediately prior to imaging the LPS-containing media was replaced with Fluobrite DMEM (ThermoFisher Scientific, Catalog # A1896701) containing 10% FBS. 40,000 Raji cells were added to the macrophages and the co-culture was imaged at 5 min intervals for 12 hr. For the antibody experiments, macrophages were washed into DMEM minus phenol red (A14430-01) containing 10% FBS just prior to addition of 40,000 Raji cells. Where indicated antibody was added to a final concentration of 20 µg/ml immediately after Raji cell addition and prior to imaging to limit antibody internalization. Because cells moved in and out of the field of view, we selected the cells present after 8 hr of imaging and quantified their B cell eating if they could be followed for four hours or more. Time-lapse analysis was essential to ensure that the B cell appeared viable prior to engulfment by the macrophage. Engulfment of B cells with an apoptotic morphology was not counted as a whole cell eating event.

Quantification of bites internalization

Request a detailed protocol

During live cell image acquisition GFP-positive J774A.1 macrophages or NIH 3T3 cells were selected by the presence of GFP signal. A full z-stack comprising the entire cell was captured using 1 µm steps. All z sections were then manually inspected for internalized Raji B cell material. Cells containing one or more bites of fully internalized Raji B cell material >1 µm in diameter were scored as positive.

Liposome FRET assay

Request a detailed protocol

Experiments were carried out as previously described2. Briefly, proteins were purified using a bacterial expression system. All protein components (1 mg/ml BSA, 100 nM tSH2-Syk SNAP-505, 0 to 500 nM His10-CD3ζ or His10-FcRɣ intracellular chain, and 7.2 nM His10-Lck Y505F) were mixed into kinase buffer (50 mM HEPES-NaOH pH 6.8, 150 mM NaCl, 10 mM MgCl2, and 1 mM TCEP). Liposomes prepared at the following molar ratios: 74.5% POPC (Avanti, Catalog # 850457C), 10% DOGS-NTA (Nickel) (Avanti, Catalog # 790404C, 0.5% Rhodamine PE (Avanti, Catalog # 810150C), and 15% DOPS (Avanti, Catalog # 840035C) were added and the mixture was incubated for 40–60 min at room temperature, during which the SNAP-505 fluorescence was monitored at 8 s intervals with 504 nm excitation and 540 nm emission. 1 mM ATP was then injected to trigger Lck mediated phosphorylation of CD3ζ or FcRɣ. Injection was followed by 5 s of automatic shaking of the plate, and the fluorescence was further monitored at 8 s intervals for at least 1 hr. Data were normalized by setting the average fluorescence value of the last 10 data points before ATP addition as 100% and background fluorescence as 0%. The final extent of fluorescence quenching (% fluorescence change) at each concentration of receptor was determined using the average of the last 20 data points after ensuring fully equilibrated binding. Nine reactions containing increasing concentrations of CD3ζ and nine reactions containing increasing concentrations of FcRɣ were run in parallel. The final % fluorescence change was plotted against FcRɣ or CD3ζ concentration. The apparent dissociation constants (Kd) of tSH2-Syk to FcRɣ and CD3ζ were calculated by fitting the data with Graphpad Prism 6.0, using the ‘one site specific binding’ model.

Protein expression, purification, and labeling

Request a detailed protocol

The intracellular portion of the FcR γ-chain (aa 45–85, Human FcRɣ, Uniprot FCERG_HUMAN) was cloned into a modified pET28a vector containing a His10 upstream to the multiple cloning site using BamHI and EcoRI. The intracellular portion of CD3ζ (aa 52–164, Human CD3ζ, Uniprot CD3Z_HUMAN) was also cloned into the His10 modified pET28a vector. A Lys-Cys-Lys-Lys sequence, originally present for fluorescent labeling, is also present between His10 and CD3ζ in this construct. SNAP-tSH2Syk (aa 1–262) was cloned into a pGEX6 vector using BamHI and EcoRI. His10-CD3ζ, His10-FcR γ-chain, and GST-SNAP-tSH2Syk were bacterially expressed in BL21 (DE3) RIPL strain of Escherichia coli as described previously2. His10-Lck Y505F was expressed in SF9 cells using the Bac-to-Bac baculovirus system as described previously2. All cells were lysed in an Avestin Emulsiflex system. His10 proteins were purified by using Ni-NTA agarose (Qiagen, Catalog # 30230) and GST-SNAP-tSH2Syk was purified by using glutathione-Sepharose beads (GE Healthcare, Catalog # 17075601) as described previously2. Soluble SNAP-tSH2 Syk was generated by cleaving the GST moiety via the PreScission Protease at 4°C overnight. All proteins were subjected to gel-filtration chromatography using a Superdex 200 10/300 GL column (GE Healthcare, Catalog # 17517501) in HEPES-buffered saline (HBS) containing 50 mM HEPES-NaOH (pH 6.8 for His10-CD3ζ, His10-FcR γ-chain, and GST-SNAP-tSH2Syk and pH 7.4 for His10-Lck Y505F), 150 mM NaCl, 5% glycerol, and 1 mM TCEP. The monomer fractions were pooled, frozen in liquid nitrogen and stored at −80°C. All gel-filtered proteins were quantified by SDS-PAGE and Coomassie staining, using BSA as a standard. To prepare fluorescently labeled tSH2 Syk, 10 uM SNAP-tSH2 Syk was incubated at a 1:2 ratio with SNAP-Cell 505-Star (NEB, Catalog # S9103S) overnight at 4°C and run over a PD MiniTrap G-25 (GE Healthcare, Catalog # 28-9225-29 AB) column to eliminate excess dye.

Phosphotyrosine and phalloidin staining

Request a detailed protocol

To fix and stain preparations described above in bead and bites assays for quantifying enrichment of phosphotyrosine staining, half the media (~150 µl) was gently removed from the imaging well and replaced with 150 µl 6.4% paraformaldehyde solution (prepared from 32% stock, Electron Microscopy Sciences, Catalog # 50980495) in tissue culture grade PBS, pH7.2 (Gibco, Catalog # 20012050). Cells were fixed for 15 min in a 37°C incubator with CO2. After fixation cells were washed 2x with PBS and permeabilized/blocked for 60 min at room temperature in freshly prepared, filter sterilized PBS + 5% FBS+0.1% w/v saponin (PFS solution). After permeabilization, cells were washed 2 × 3 min with PFS solution. Following block, cells were incubated with 1:100 dilution of mouse anti-phosphotyrosine (pTyr) antibody to stain pan-pTyr (Santa Cruz, Catalog # PY20) diluted in PFS solution in the dark for 60 min at room temperature then washed 3 × 5 min in PFS solution. Washed cells were incubated with a 1:500 dilution of goat anti-mouse Alexa Fluor 647 antibody (Thermo/Molecular Probes, Catalog # A21236) in PFS solution in the dark for 60 min at room temperature. Wells were then washed 3 × 5 min in PFS solution. Cells were covered in 200 µl PBS. If not imaged immediately samples were wrapped in parafilm and foil and stored at 4°C prior to microscopy. Phosphotyrosine enrichment at the synapse was calculated by dividing the mean Alexa Fluor 647 signal of a 5 pixel linescan at the synapse with bead or cell by a 5 pixel linescan on the cortex. For phalloidin staining, cells were fixed with 4% PFA for 15 min at room temperature, blocked and permeabilized with 5% BSA in TBS with 0.5% triton X overnight, and incubated with AlexaFluor 647 Phalloidin (Thermo/Molecular Probes, Catalog # A22284) for 20 min. Cells were then washed with PBS, imaged and quantified using the method described above. Each data point represents a single cell, and the graphs reflect pooled results from three biological replicates.

Ovalbumin antibody staining

Request a detailed protocol

To fix and stain preparations described above for ovalbumin staining, half the media (~150 µl) was gently removed from the imaging well and replaced with 150 µl 8% paraformaldehyde solution (prepared from 32% stock, Electron Microscopy Sciences, Catalog # 50980495) in tissue culture grade PBS, pH7.2 (Gibco, Catalog # 20012050). Cells were fixed for 10 min in a 37°C incubator with CO2. After fixation cells were washed 2x with PBS and permeabilized/blocked for 60 min at room temperature in freshly prepared, filter sterilized PBS + 0.1% w/v casein +0.1% w/v saponin (PCS solution). After permeabilization, cells were washed 1 × 3 min with PCS solution and blocked for 1 hr at room temperature in PCS. Following block, cells were incubated with 1:100 dilution of rabbit anti-ovalbumin (OVA) antibody to stain OVA (Thermo/Pierce, Catalog # PA1-196) diluted in PCS solution overnight at 4°C. Washed cells were incubated with a 1:200 dilution of goat anti-rabbit Alexa Fluor 647 antibody (Thermo/Molecular Probes, Catalog # A21235) and 3.3 nM 488 phallodin (dissolved at 6.6 µM in methanol) in PCS solution in the dark for 60 min at room temperature. Wells were then washed 3 × 5 min in PCS solution. Cells were covered in 200 µl PBS and immediately imaged. Ovalbumin signal was quantified as the corrected total cell fluorescence (CTCF). CTCF = Integrated Density – Area of Selected Cell * Mean Fluorescence of 3 Background Readings. Each data point represents a single cell, and the graphs reflect pooled results from three biological replicates.

Image processing and analysis

Request a detailed protocol

All image quantification was done on raw, unedited images. All images in figures were first analyzed in ImageJ, where a single Z-slice at the center of the cell was extracted. The image intensities were scaled to enhance contrast and cropped in Photoshop. For movies, background was subtracted in Fiji using a rolling ball radius of 50 μm and bleach corrected using the Histogram Matching plug in.

Statistics

All statistical analysis was performed in Prism 6.0 (GraphPad, Inc.). The statistical test used is indicated in each figure legend. Error bars throughout the paper denote 95% confidence intervals of the mean. *** indicates p<0.0001; ** indicates p<0.001 and * indicates p<0.01.

References

  1. 1
  2. 2
  3. 3
    Adoptive transfer of tumor cytotoxic macrophages generated in vitro from circulating blood monocytes: a new approach to Cancer immunotherapy
    1. R Andreesen
    2. C Scheibenbogen
    3. W Brugger
    4. S Krause
    5. HG Meerpohl
    6. HG Leser
    7. H Engler
    8. GW Löhr
    (1990)
    Cancer Research 50:7450–7456.
  4. 4
  5. 5
  6. 6
    Fc-receptor-mediated phagocytosis is regulated by mechanical properties of the target
    1. KA Beningo
    2. YL Wang
    (2002)
    Journal of Cell Science 115:849–856.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Macrophages can recognize and kill tumor cells bearing the membrane isoform of macrophage colony-stimulating factor
    1. MR Jadus
    2. MC Irwin
    3. MR Irwin
    4. RD Horansky
    5. S Sekhon
    6. KA Pepper
    7. DB Kohn
    8. HT Wepsic
    (1996)
    Blood 87:5232–5241.
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42

Decision letter

  1. Jonathan A Cooper
    Reviewing Editor; Fred Hutchinson Cancer Research Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Chimeric antigen receptors that trigger phagocytosis" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Jonathan Cooper as the Senior/Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Dennis Discher (Reviewer #1); Adam Hoppe (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript describes engineering of chimeric receptors that when expressed in macrophages can enable target recognition of the CD19 or CD22 antigens and mediate phagocytosis and trogocytosis. The study works as a proof of principle showing a new effector function (phagocytosis) for chimeric antigen receptors in a new cell type (macrophages). Given the strong interest in cell-based immunotherapies such as chimeric antigen receptor-T cells this work will likely be of broad interest to the readership of eLife.

Essential revisions:

1) The work is timely as it suggests a connection between adoptive transfer therapies using engineered immune cells (such as CAR-T therapy) and immunotherapy approaches using macrophages (as cited studies using blockade of the CD47-SIRPalpha axis). However, whether such a connection can be realized remains unclear as only macrophage cell lines were engineered and phagocytosis assays were all conducted in vitro. A possible route forward is suggested by the engineering of CAR-P bone marrow-derived dendritic cells in Figure 4—figure supplement 4, but bone marrow-derived macrophages or other primary sourced MPS cells should be considered. It should be relatively easy for the authors to obtain such cell types, engineer them, and test them.

2) The phagocytic response to B-cell targets appears relatively weak (e.g. 2-6 macrophage having internalized B-cells) and seems to strongly favor a trogocytic response (nearly 100% of the macrophages having internalized B-cell membrane). Perhaps this is unique to the cell lines (macrophages and B-cells) used in the study, but it raises the question how of how similar would these results be to ADCP mediated by IgG2a (murine) or IgG1 (human) anti-CD19 antibodies under the same conditions? To this end, the authors should compare the CAR-P response to that stimulated by antibody-opsonized particles and/or cell. CD19-coated particles should be treated with anti-CD19 antibodies and incubated with cells for phagocytosis. While the specificity of CAR-Ps could be advantageous, true specificity for the CAR-P target is unlikely since Fc-receptor mediated pathways remain in place. For example, in the authors' system, CD22-coated particles would likely be phagocytosed by anti-CD19 CAR-P cells in the presence of an anti-CD22 antibody.

3) (Optional) The work would be more impactful if the authors demonstrated successful phagocytosis with different CAR extracellular domains that target antigens on solid tumors. As stated in the Introduction, macrophages might offer the benefit of trafficking into solid tumors better than T cells, yet the examples in this manuscript are the standard B cell targets CD19 and CD22. Adding such studies would be beneficial, but may be best left for a follow up paper.

https://doi.org/10.7554/eLife.36688.021

Author response

Essential revisions:

1) The work is timely as it suggests a connection between adoptive transfer therapies using engineered immune cells (such as CAR-T therapy) and immunotherapy approaches using macrophages (as cited studies using blockade of the CD47-SIRPalpha axis). However, whether such a connection can be realized remains unclear as only macrophage cell lines were engineered and phagocytosis assays were all conducted in vitro. A possible route forward is suggested by the engineering of CAR-P bone marrow-derived dendritic cells in Figure 4—figure supplement 4, but bone marrow-derived macrophages or other primary sourced MPS cells should be considered. It should be relatively easy for the authors to obtain such cell types, engineer them, and test them.

We agree that expressing CAR-P in primary cells such as Bone Marrow Derived Macrophages is an essential step towards a possible therapeutic option. At the suggestion of the reviewers, we expressed the CAR-PFcRɣ in murine Bone Marrow Derived Macrophages (BMDMs). The BMDMs robustly engulfed CD19 beads and these data are now included in Figure 1. We feel that the discovery that CAR-P is transferrable to primary cells is a key new addition to the paper and we thank the reviewers for their suggestion to pursue this experiment.

2) The phagocytic response to B-cell targets appears relatively weak (e.g. 2-6 macrophage having internalized B-cells) and seems to strongly favor a trogocytic response (nearly 100% of the macrophages having internalized B-cell membrane). Perhaps this is unique to the cell lines (macrophages and B-cells) used in the study, but it raises the question how of how similar would these results be to ADCP mediated by IgG2a (murine) or IgG1 (human) anti-CD19 antibodies under the same conditions? To this end, the authors should compare the CAR-P response to that stimulated by antibody-opsonized particles and/or cell. CD19-coated particles should be treated with anti-CD19 antibodies and incubated with cells for phagocytosis. While the specificity of CAR-Ps could be advantageous, true specificity for the CAR-P target is unlikely since Fc-receptor mediated pathways remain in place. For example, in the authors' system, CD22-coated particles would likely be phagocytosed by anti-CD19 CAR-P cells in the presence of an anti-CD22 antibody.

We also agree that this is a key question, and have now included data to address this point. When we performed the bead size analysis presented in Figure 2B, we also included 10 µm beads coated in phosphatidylserine, the ligand for the endogenous Megf10, as a positive control. The phosphatidylserine beads also contained an integrin ligand, ICAM-1, to the beads to promote adhesion. We found that CAR-P macrophages internalized CD19-coated beads and phosphatidylserine beads to a similar degree. This data has been added to Figure 2B.

To address the reviewers’ question about whether opsonizing whole Raji cells with anti-CD19 antibodies would enhance whole cell eating we added a mouse anti-human CD19 IgG2a at a final concentration of 20 µg/ml. We found that this did not enhance whole cell internalization, indicating that the CAR-P system is not less efficient than the endogenous IgG system (Figure 4—figure supplement 3).

3) (Optional) The work would be more impactful if the authors demonstrated successful phagocytosis with different CAR extracellular domains that target antigens on solid tumors. As stated in the Introduction, macrophages might offer the benefit of trafficking into solid tumors better than T cells, yet the examples in this manuscript are the standard B cell targets CD19 and CD22. Adding such studies would be beneficial, but may be best left for a follow up paper.

We agree that targeting CAR-P towards solid tumors is an exciting future avenue of research. However, because of the time required to develop and characterize new CARs and assay platforms we consider these experiments beyond the scope of the current work.

https://doi.org/10.7554/eLife.36688.022

Article and author information

Author details

  1. Meghan A Morrissey

    1. Department of Cellular and Molecular Pharmacology, University of California, San Francisco, San Francisco, United States
    2. Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Adam P Williamson
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0531-4864
  2. Adam P Williamson

    1. Department of Cellular and Molecular Pharmacology, University of California, San Francisco, San Francisco, United States
    2. Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Meghan A Morrissey
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8905-5646
  3. Adriana M Steinbach

    1. Department of Cellular and Molecular Pharmacology, University of California, San Francisco, San Francisco, United States
    2. Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Edward W Roberts

    Department of Pathology, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Nadja Kern

    1. Department of Cellular and Molecular Pharmacology, University of California, San Francisco, San Francisco, United States
    2. Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Mark B Headley

    Department of Pathology, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared
  7. Ronald D Vale

    1. Department of Cellular and Molecular Pharmacology, University of California, San Francisco, San Francisco, United States
    2. Howard Hughes Medical Institute, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing—review and editing
    For correspondence
    Ron.Vale@ucsf.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3460-2758

Funding

National Institute of General Medical Sciences (F32GM120990)

  • Meghan A Morrissey

Cancer Research Institute (Irvington Postdoctoral Fellowship)

  • Adam P Williamson

Howard Hughes Medical Institute

  • Ronald Vale

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank J Reiter and E Yu for providing mouse long bones as a source for hematopoetic stem cells. We thank K McKinley and X Su for critical feedback on this manuscript. MAM was supported by the National Institute of General Medical Sciences of the National Institutes of Health under award number F32GM120990. APW was supported by a CRI Irvington Postdoctoral Fellowship. This work was funded by the Howard Hughes Medical Institute.

Ethics

Animal experimentation: All mice were maintained under specific pathogen-free conditions and treated in accordance with the regulatory standards of the NIH and American Association of Laboratory Animal Care standards, and are consistent with the UCSF Institution of Animal Care and Use Committee (IACUC approval: AN170208-01I).

Reviewing Editor

  1. Jonathan A Cooper, Fred Hutchinson Cancer Research Center, United States

Publication history

  1. Received: March 14, 2018
  2. Accepted: May 26, 2018
  3. Accepted Manuscript published: June 4, 2018 (version 1)
  4. Accepted Manuscript updated: June 7, 2018 (version 2)
  5. Version of Record published: June 19, 2018 (version 3)

Copyright

© 2018, Morrissey et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 7,426
    Page views
  • 1,273
    Downloads
  • 20
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
