Junction Mapper is a novel computer vision tool to decipher cell–cell contact phenotypes

  1. Helena Brezovjakova
  2. Chris Tomlinson
  3. Noor Mohd Naim
  4. Pamela Swiatlowska
  5. Jennifer C Erasmus
  6. Stephan Huveneers
  7. Julia Gorelik
  8. Susann Bruche  Is a corresponding author
  9. Vania MM Braga  Is a corresponding author
  1. National Heart and Lung Institute, National Institutes of Health, United Kingdom
  2. Imperial College London, United Kingdom
  3. Amsterdam UMC, University of Amsterdam, Netherlands
Tools and Resources
  • Cited 2
  • Views 2,225
  • Annotations
Cite this article as: eLife 2019;8:e45413 doi: 10.7554/eLife.45413

Abstract

Stable cell–cell contacts underpin tissue architecture and organization. Quantification of junctions of mammalian epithelia requires laborious manual measurements that are a major roadblock for mechanistic studies. We designed Junction Mapper as an open access, semi-automated software that defines the status of adhesiveness via the simultaneous measurement of pre-defined parameters at cell–cell contacts. It identifies contacting interfaces and corners with minimal user input and quantifies length, area and intensity of junction markers. Its ability to measure fragmented junctions is unique. Importantly, junctions that considerably deviate from the contiguous staining and straight contact phenotype seen in epithelia are also successfully quantified (i.e. cardiomyocytes or endothelia). Distinct phenotypes of junction disruption can be clearly differentiated among various oncogenes, depletion of actin regulators or stimulation with other agents. Junction Mapper is thus a powerful, unbiased and highly applicable software for profiling cell–cell adhesion phenotypes and facilitate studies on junction dynamics in health and disease.

Introduction

Tight contacts with neighbours to form a cohesive sheet of cells is a fundamental property of multicellular organisms and underpins organ development and function. Conversely, signalling pathways necessary to maintain junctions are often targeted by pathogens and underlie key mechanisms of diseases of the vasculature, heart and different epithelial organs.

Attachment to neighbouring cells has a distinct configuration in different cell types and is dynamically remodelled in homeostasis and diseases. In epithelial tissues, the characteristic cell–cell adhesion site appears as a straight and tense or stiff junction, represented by an apparent contiguous, adjoining staining of E-cadherin receptors (the epithelia-specific cadherin protein). Following stimuli such as growth factor treatment or oncogene expression in epithelial cells, the dynamic nature of cell–cell contacts is manifested in a variety of ways: disturbances in the configuration of the contacting interface between cells, fragmentation of cadherin staining or thinning out of the distribution of receptors from contacting cell borders (Braga et al., 2000; Erasmus et al., 2016; Frasa et al., 2010; Lozano et al., 2008; Nola et al., 2011).

However, a linear junction appearance does not apply to other cell types that also require strong cell–cell attachment. Intercalated discs, specialised junctions in cardiomyocytes, sustain considerable mechanical stress with heart beating (Ehler, 2016; Vermij et al., 2017). Extensive remodelling of the intercalated discs composition (Estigoy et al., 2009) and architecture is observed in cardiac `aging (Sessions and Engler, 2016; Tribulova et al., 2015), diabetes-induced cardiopathies (Adeghate and Singh, 2014), arrythmogenic cardiomyopathies (Calore et al., 2015) and cardiac hypertrophy and failure (Lyon et al., 2015). During vascular homeostasis, endothelial cell–cell contacts may have a similar appearance as epithelial junctions (Dejana and Orsenigo, 2013; Malinova and Huveneers, 2018). Upon stimulation with inflammatory agonists (Radeva and Waschke, 2018), endothelial contacts undergo adjustments to increase permeability, changing from a linear to a zig-zag configuration and the appearance of gaps between cells (Malinova and Huveneers, 2018). Collectively, the above data demonstrate that distinct patterns of junctions are stimulus-dependent and reflect the specific destabilization (or strengthening) of cadherin receptors at contact sites in various cell types.

Despite the extensive scientific progress in our understanding of how cell–cell contacts are modulated, how these distinct phenotypes of junction modulation are fully attained is still unclear. A major road block to furthering mechanistic studies on junction regulation is the restricted capability and efficiency of the quantitative image analysis currently available. Existing imaging platforms (i.e. Cell Profiler) (Carpenter et al., 2006; McQuin et al., 2018) are fantastic resources for cell biologists. For Drosophila or nematode epithelia, several software are available for quantification of morphogenesis that robustly detect cell boundaries during morphogenesis (i.e. during dorsal closure or germ band extension) (Curran et al., 2017; Sumi et al., 2018). In contrast, for mammalian epithelial cells, available systems are not always suitable for the precise delineation of cell borders and the output of current pipelines is mostly morphometric parameters (i.e. cell size, shape, number or texture) (Campbell et al., 2017; McQuin et al., 2018; Yin et al., 2013). Cell–cell borders of mammalian cells are particularly difficult to detect because of cytoplasmic noise, irregular shapes (Held et al., 2011) and variable junction phenotypes, particularly when junctions are severely disrupted. This hitherto prevents an objective approach to analyse regulation of cell–cell contacts of mammalian cells and tissues.

Nevertheless, previous computer vision studies of mammalian junctions report the automated quantification of a single heterotypic junction (e.g. tumour-immune cell contact or host-pathogen contact) (Graus et al., 2014; Merouane et al., 2015), morphometry of mammary gland spheroids (Härmä et al., 2014) or dynamics of VE-cadherin contacts during cell rearrangements in angiogenesis (Bentley et al., 2014). Disruption of cell–cell contacts has been assessed in high-throughput manner by coupling junction segmentation with cell tracker and endothelia stimulation (Seebach et al., 2015), cadherin intensity at junctions (Erasmus et al., 2016) or indirectly, by increased inter-nuclear distance as cells scatter (Loerke et al., 2012).

Notwithstanding these successful studies, available methodology does not enable quantification of distinct patterns of organization of receptors or junction morphometry that are readily identified by the human eye. In addition, manual methods available for junction quantification rely on intensity levels and thresholding, which are not appropriate to detect junction attributes such as alterations in shape, length, fragmentation or continuity of cell–cell contacts. Non-intensity-based attributes of junctions are usually defined visually and/or painstakingly analysed via laborious user-dependent quantification of individual junctions. For example, the switch between a straight to undulated cell–cell contact occurs without apparent changes in receptors levels at contact sites (Otani et al., 2006). In this case, rather than alterations of receptor levels at junctions, it involves impaired signalling of the small GTPase Cdc42 to modulate the amount of contraction, making cell–cell contacts less stiff and tense (Oda et al., 2014; Otani et al., 2006).

To address the above issues, we developed a semi-automated pipeline, Junction Mapper, which can fully capture the distinct patterns of junction perturbation by diverse stimuli in various cell types. It can efficiently (i) identify cell boundaries and cell–cell corners, (ii) describe phenotypes of junction architecture and (iii) quantify parameters that reflect the distribution and organization of junctional markers along the contacting interface. To broaden the software suitability to different models, we validate the robustness of the Junction Mapper software in endothelial cells and cardiomyocytes that show distinct receptor organization and architecture when compared to epithelial cells. The repertoire of parameters distinguishes subtle differences of junction disruption and provides a fingerprint for each stimulus, with insights into modes of action and how efficient and functional junctions are.

We envisage that the analytical capabilities of Junction Mapper will be invaluable for the scientific community to perform quantitative image analysis in mechanistic and translational studies of cell–cell contacts. Most importantly, the generation of tools to facilitate unbiased phenotype identification will be a major step forward to understand how junction dynamics are modulated in homeostasis and pathologies of different tissues.

Results

In normal epithelia, a junction between neighbouring cells usually appears as a straight, taut line, with E-cadherin receptors uniformly distributed along the contacting interface (Figure 1A). Junctions are delimited by corners between three or more cells, where a specialised type of contacts are formed (tricellular junctions) (Figure 1A). Distinct stimuli disrupt the above junction architecture in different ways, from minor reduction in levels to complete removal of adhesion receptors from contacting cells (Figure 1B). Concomitant with changes in levels, junction configuration and architecture are also compromised, which are not always captured by intensity measurements.

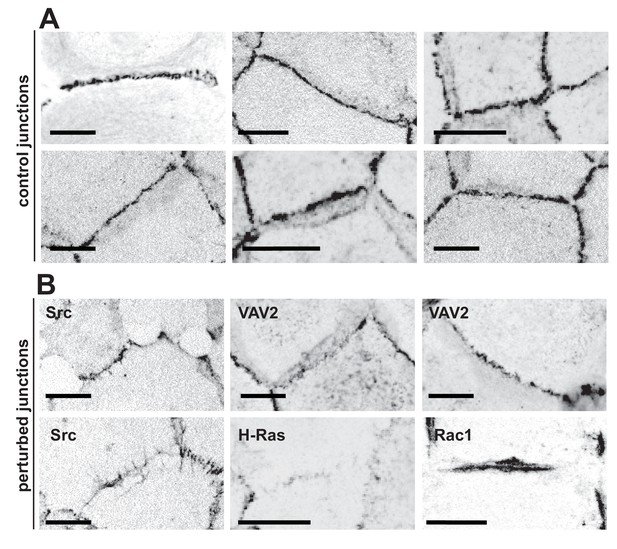

Appearance of normal and perturbed junctions.

(A) Representative images of junctions from normal epithelial cells, which are characterized by cell–cell contacts between neighbouring cells appearing as a straight line, with E-cadherin receptors uniformly distributed along the contacting interface. Junctions are delimited by corners between three or more cells, where a specialised type of contact is formed (tricellular junctions). (B) Distinct stimuli disrupt the above junction architecture in different ways, from minor reduction in levels to complete removal of adhesion receptors from contacting cells. Concomitant with changes in receptor levels, junction configuration and architecture are also compromised, alterations which are not always captured by intensity measurements. Scale bars = 10 μM.

We designed and validated a semi-automated system (Figure 2), Junction Mapper, that builds from our quantitative analysis of images from RNAi screens (Erasmus et al., 2016). Our previous software defines an E-cadherin mask to calculate the intensity specifically around junctions as a percentage of thresholded area of the whole original image. The E-cadherin mask is also used to subtract an ROI from an image of a distinct marker (i.e. F-actin), so that mostly the signal localized at contacts is considered. Junction Mapper implements novel quantification tools (corners, length and area) and a variety of novel primary and secondary parameters expressed per individual junction.

Figure 2 with 2 supplements see all

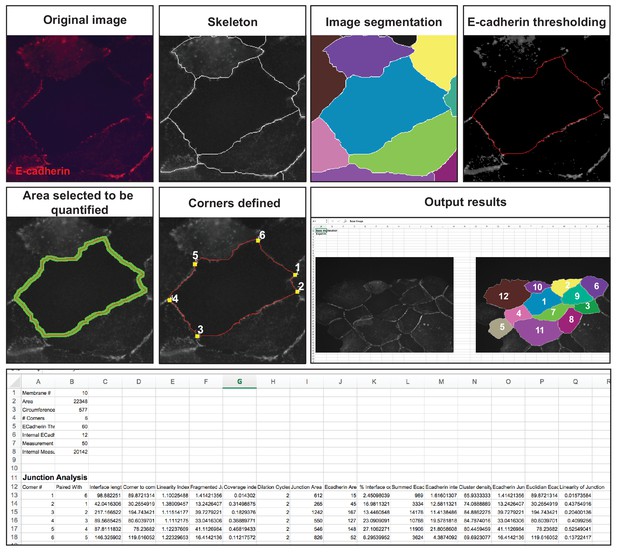

Junction Mapper – overview of quantification process.

The original grey scale image stained for a junctional marker (E-cadherin) is uploaded in the program, which identifies the edge map of each cell semi-automatically to define the cell boundaries onto which measurements are made (skeleton, one pixel wide). This is superimposed onto the images to allow correction of missing boundaries and small errors interactively by the user. The image is then segmented to identify each cell to be quantified. A threshold is set to remove non-specific staining, and the skeleton is dilated (pixels) to select the area to be quantified that includes all staining at cell–cell contacts. Finally, cell corners are defined automatically or manually. Thresholded images are then quantified using the dilated mask and results are shown in Excel files as individual measurements of specific junctions as defined by the pairing of two different corners. Detailed steps are described in Figure 2—figure supplement 1 and Appendix 1.

The main advantage of Junction Mapper is to efficiently segment junctions in a variety of cell types and of different junction patterns, from linear to fragmented or disrupted contacts. The software detects the contacting interface between two cells and obtains a skeletonized edge map (summarised stepwise in Figure 2—figure supplement 1; see Materials and methods). Although semi-automated, users can adjust the outline manually by removing incorrect or adding missing lines, with subsequent refinement of the line location and geometry by the software algorithm (detailed in Appendix 1). A dilation step is applied (user controlled) to define the area to be quantified around the skeletonized map (Figure 2—figure supplement 1). To identify individual junctions for further quantification, the software then automatically identifies each cell–cell corner (i.e. point of contact between three or more cells, see its mathematical definition in Appendix 1). The number and location of corners in each cell can also be manually adjusted by the user (Appendix 1).

Images obtained at different resolutions can be used for analyses in Junction Mapper (Supplementary file 1). However, the highest quality images possible should be used, as resolution may impact the ability to detect individual clusters of the junction marker. For defining the automated skeletonized edge of each image, a suitable signal-to-noise ratio is necessary to ensure enough contrast to differentiate staining at junctions from the cytoplasm (Figure 2—figure supplement 2). The higher the Peak Signal to Noise ratio, the easier it is for the program to automatically delineate the cell outline skeleton. For efficient skeleton definition the ratio should be above 22 dB (Figure 2—figure supplement 2). Using the automated skeleton as a start point, the user can refine the cell outline map by manually drawing or removing lines to close any gaps or correct deviations, particularly in cells with reduced staining at cell–cell contacts (Figure 2—figure supplement 1 to 2). The higher the fragmentation of junctions in the image, the more user input is necessary to define the final skeleton outline for quantification.

User-controlled threshold selection is done by inspection of the image with a slider component on the software interface (Appendix 1). Thresholding aims to reduce background without removing pixels from contact areas. The skeleton obtained is then projected onto the original thresholded image to segment the area of interest and proceed with quantification of each junction for up to two different junctional markers per image (see below). The measurement of the different parameters is performed simultaneously and automatically, in an unbiased manner (Figure 2). The output per junction is produced as an Excel file that contains the selected image, skeleton and the quantification of pre-designed measurements and parameters (see below).

Primary parameters and validation

We envisage that different phenotypes of junction perturbation may require a distinct set of parameters to appropriately capture the disruption features (Figure 1). Towards this goal, we propose a variety of parameters to be used as bona fide readouts and measure information that is based on intensity, area and length of the interface and cell–cell contact (Figure 3A; Appendix 2). The following concepts are defined and used herein. Interface is the contacting membrane between two neighbouring cells and delimited by cell–cell corners. A cell–cell contact or junction is the region of the interface covered by adhesion receptors (e.g. cadherin staining). Junctions may or may not extend to the whole of the interface (corner-to-corner), and can appear fragmented or dotted (Figure 1, Figure 3A). Area is the dilated region around the skeleton and is set to encompass the width of a junctional marker staining (which can vary in thickness). Contour is the length measurement of the outline of the skeleton between defined points (interface or junction). Finally, the straight-line length is defined as the shortest distance (Euclidian distance) between corners that form the boundaries of one junction or interface.

Figure 3 with 2 supplements see all
Junction Mapper – parameters.

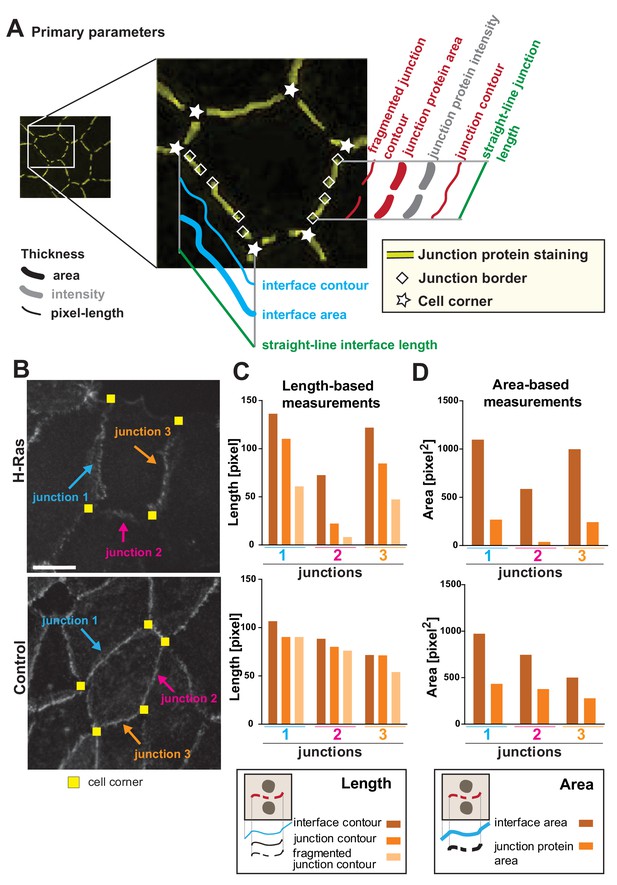

(A) Diagram highlighting the concepts that underpin the primary parameters measured by the software. An image of a cell with a hypothetical disruption of E-cadherin at cell–cell contacts is shown: stars mark the corners delimiting each contacting interface, and rhombus shapes mark the edges of each fragment of cadherin staining that we define as junctions. In each cell, measurements are made to assess the properties of each interface (corner-to-corner) and each junction (may be adjoining or disrupted in multiple fragments): the hypothetical length (straight line interface length or Euclidian distance between two points), the contour (connection of brightest pixels along the curvature of the staining/interface) and area (defined dilated region around cell–cell borders). Intensity is also measured within the dilated area. (B-D) The primary parameters were validated to assess measurements were as predicted from their definition. Selected junctions from cells expressing activated H-Ras or controls (B) were quantified for length-based measurements (C, contours of interface, junction or fragmented junctions) or area-based measurements (D, areas of interface or junction). Diagrams at the bottom of graphs in C and D show the measurements performed. Coloured arrows point to selected junctions quantified. Each contacting interface is delimited by corners visualized by yellow squares. Scale bar = 10 μm. Detailed steps are described in Appendix 2.

Primary parameters obtain the basic metrics (area, contour and straight-line length) of each interface and junction selected in the monolayer (Figure 3A, Appendix 2). A key innovation of the Junction Mapper is its ability to quantify junction marker staining that is not contiguous and that does not extend to both corners. New parameters assess area or contour occupied by fragments of the junctional staining (Fragmented Junction Contour and Junction Area). To validate the length-based measurements, individual contacts disrupted by H-Ras expression were quantified and, as predicted, decreasing values for the contour of the interface, junction or fragmented junction were revealed for each assessed junction (Figure 3B–C). Although measurements of contacts of control cells also decline between these three parameters, they did not decline to the same extent as the ones of junctions from expressing cells (Figure 3C). The area-based measurements Interface Area and Junction Area of the same junctions followed similar pattern (Figure 3D). We envisage that the primary parameters are useful to show extension or retraction of the contacting interface/junctions, increased fragmentation of the staining of junction marker or fluctuations of global staining intensity at cell–cell contacts.

We next assessed the impact of user-defined settings (dilation and threshold) on the primary parameters. The variable dilation settings define areas for quantification and permits the user to account for different thickness of the staining at cell–cell contacts, wavy or undulated junctions. Increasing the dilated area did not affect the length of contacting interface or fragmented junction (Figure 3—figure supplement 1A–C), but positively correlated with E-cadherin intensity and area (Figure 3—figure supplement 1D). Similarly, larger dilation values better captured the amount of VE-cadherin present in endothelial junctions as they acquire a zig-zag conformation after thrombin stimulation (Figure 3—figure supplement 1E–F,H). A trade-off is necessary between the amount of dilation and thresholding, so that the contribution of cytoplasmic staining is minimized with larger dilation values.

The effect of thresholding was tested using the same images (Figure 3—figure supplement 2A–B,E–F). Of note is that the precise outline of VE-cadherin zig-zag staining was not recognized by the edge map produced (red line, Figure 3—figure supplement 2E–F). Increasing the threshold applied to the original images decreased the measured cadherin area and intensity (Figure 3—figure supplement 2D, H) and the length of junction fragments was severely reduced (Figure 3—figure supplement 2C,G; see definition in Appendix 2). The interface contour values were not affected by thresholding, as the interface is delimited by corners and independent of intensity values (Figure 3—figure supplement 2C,G). Taken together, we concluded that the primary parameters measure the length and area of various features as predicted and are selectively modulated by user-controlled settings in accordance to their definition (Appendix 1).

Secondary parameters

The availability of a repertoire of parameters is a unique advantage of the software for mapping distinct phenotypes. Secondary parameters (Scheme 1, Appendix 2) are derived from the primary metrics above and aim to normalise the measurements to the size of each junction or contacting interface (length or area). The Linearity Index measures how straight an interface between two cells is, as proposed by Takeichi and colleagues (Otani et al., 2006). Coverage Index is a length measurement of the percentage of the interface length that is covered by the junction marker staining and has been previously used manually in the lab (Lozano et al., 2008). Three different parameters quantify the distribution of a junctional marker along the interface. First, Interface Occupancy, measures the area occupied by the marker within the Interface Area of each junction. Second, Junction Protein Intensity per Interface area calculates the fluorescence intensity within the Interface Area. Finally, Cluster Density is the junction protein intensity level within the area delimited by its staining (i.e. Fragmented Junction Area, which considers any fragmentation of the staining; additional parameters are described in Appendix 2). We predict that the secondary parameters are more useful to compare the accumulation or removal of specific markers, their density and relative changes when comparing across different samples.

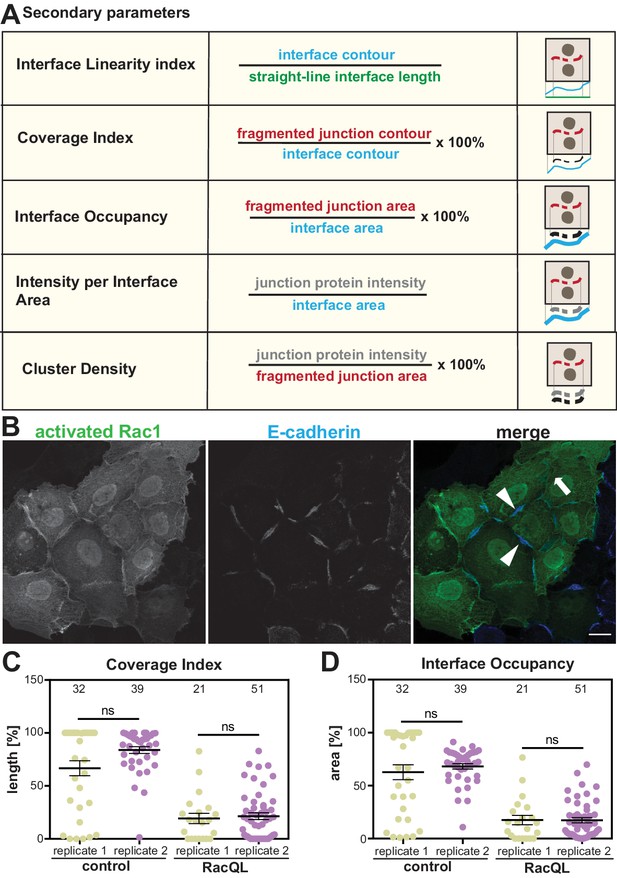

Secondary parameters.

(A) Novel parameters were defined to normalise the quantifications with respect to the area or length of contacts. The secondary parameters assess the configuration of the contacting interface (Interface Linearity Index), how much the staining of a junction marker occupies the interface length (Coverage Index) or area (Interface Occupancy). The distribution of junction marker is measured in two ways: their intensity levels within the area occupied by the junction fragments (Cluster Density) or the contacting interface (E-cadherin intensity at interface area). Detailed information of the calculation of parameters is described in Appendix 2. (B-D) Reproducibility of quantification by Junction Mapper in independent biological replicates. (B) Keratinocytes expressing activated Rac1 (green) or controls (non-expressing cells) were stained for E-cadherin (blue). (C-D) Images obtained from two independent biological replicates (replicate 1 and replicate 2) were processed to obtain the secondary parameters Coverage Index (C) or Interface Occupancy (D). Numbers at the top inside graphs show the number of junctions quantified in each sample from two biological replicates (N = 2); ns, non-significant. Arrowheads point to residual E-cadherin staining; thick arrow shows lack of cadherin staining. Scale bar = 20 μM.

The Coverage Index parameter calculated by Junction Mapper was validated by manual quantification using FIJI on cells expressing active Rac1 (Supplementary file 2A-B). The manual quantification used straight-line measurements (Lozano et al., 2008), rather than the more precise contour measurement by Junction Mapper (Scheme 1). Using either quantification, manual or Junction Mapper, a significant statistical difference was observed between values of control and Rac1-expressing cells (Supplementary file 2C). Lower values were obtained with the manual quantification method as predicted when using straight-lines for measurement. However, when controls values were compared between the two methods, no statistical difference was obtained (Supplementary file 2C).

Thus, the parameters give results as expected from previous manual methods. In addition, the reproducibility of secondary parameters was assessed in independent biological replicates by the same user. Across biological replicates of cells overexpressing active Rac1, the absolute values obtained for each sample were slightly different (Scheme 1B-D). However, the overall result is the same between replicates: a reduction of Coverage Index and Interface Occupancy of E-cadherin at junctions from Rac1 expressing cells (Scheme 1B-D). Comparison of control values between biological replicates (or between Rac1 expressing cells) was not statistically different.

User-bias validation

The robustness of Junction Mapper with respect to user bias was tested by: (i) defining the skeleton and corners and (ii) quantifying the same samples by different users. First, the quality control of skeleton and corners is subjective (Supplementary file 3A-B). Confluent epithelial monolayers with clearly defined junctions and corners produced less output variability from different users than images with disrupted contacts (Supplementary file 3A-D). We found that a particular hot spot for differences was the identification of cell corners in disrupted contacts, where corners are often not covered by cadherin staining (Supplementary file 3B). Second, pair-wise comparison of primary parameters of matched epithelial junctions obtained independently by two users showed significant differences (Supplementary file 3C-D).

However, when secondary parameters were calculated, the profiles obtained by the two users were similar, aside the absolute values being different (Supplementary file 3E-F, see also Figure 7—figure supplement 1). This can be explained by the fact that the user-dependent variability partially auto-correct itself, as values are normalised to the interface and junction area or length which are non-reciprocally impacted by user bias. For example, a larger dilation setting will generate a larger junction area containing a higher number of E-cadherin pixels; when cluster density is calculated (E-cadherin intensity/fragmented junction area), the ratio will not differ extensively between different users.

We conclude that, in addition to the impact of dilation and thresholding settings, Junction Mapper results are impacted by user influence on the cell edge map. This influence is stronger in cell images with disrupted cell–cell contacts, where higher frequency of inaccurate corner and skeleton detection occurs. Hence more manual edge correction is required the more robust secondary parameter measurements should be considered. Furthermore, absolute comparisons can not be made between experiments. Instead, normalization of secondary parameters to controls in each replicate will facilitate comparisons.

Distinct oncogenes trigger different patterns of junction disruption in epithelia

We addressed whether Junction Mapper parameters could identify distinct features and patterns of junction disruption by different stimuli. We tested images of epithelial cells transfected with oncogenic Rac (H-RasG12V; Figure 4A), constitutively activated Rac1 (RacQ61L) or activated Src (SrcY527F; Figure 4—figure supplement 1). Previous visual analysis indicated that perturbation of cell–cell contacts occurs more efficiently between two RacQ61L-expressing neighbouring keratinocytes (Braga et al., 1997; Lozano et al., 2008). To validate this quantitatively, junctions were classified into two groups (i) between two expressing cells (ee) and (ii) between one expressing and one non-expressing cell (en). Control junctions from the same image were quantified from cells without oncogenic H-Ras expression. Measurements of the primary parameters (Figure 3) confirmed that junction contour and area were more severely disrupted when two neighbouring cells contained exogenous H-RasG12V (Figure 4D–E). The interface of mosaic contacts shared by expressing and non-expressing cells (en) were not significantly different from controls (Figure 4B,C,F).

Figure 4 with 1 supplement see all

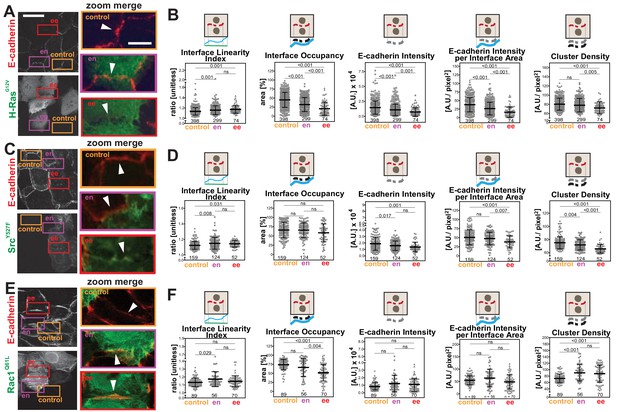

Primary parameters quantification of H-Ras-dependent junction perturbation.

(A) Human normal keratinocytes were transfected with pRK5-myc-H-RasG12V, fixed and stained with anti-E-cadherin and anti-myc antibodies. Images are shown of E-cadherin staining and myc staining as a marker of transfected cells. Coloured rectangles mark areas shown as a zoom on the left of the images and highlight control junctions (orange), junctions between expressing and non-expressing cells (en, purple) or between two transfected cells (ee, red). Arrowheads point to E-cadherin staining. (B-F) Quantification of the primary parameters using Junction Mapper. Graphs are plotted showing values of each parameter (Y axis) versus different junction types (X-axis). The parameter name is at the top of each graph and a diagram representing the quantification is shown on the left of its corresponding graph. Data is from one experiment (technical replicate) and the number of junctions analysed for each condition is found at the bottom of the graphs, below each scatter box plot. Statistical analysis was performed using One-way ANOVA, followed by Games-Howell post-hoc test. Non-significant (ns) and significant p-values (<0.05) are placed inside graphs. Scale bar = 20 μM or 10 μM (zoom images).

The interface between cells containing oncogenic H-Ras (ee) was significantly longer and larger than control cells (Interface Contour and Interface Area, Figure 4B,C). Irrespective of the longer contacting interface, the contour and the area of E-cadherin stained fragments were considerably altered upon expression of H-RasG12V (Fragmented Junction Contour and E-cadherin Area, Figure 4D,E). Finally, the length between cell–cell corners was significantly longer between controls and two adjacent transfected cells (Straight-line Interface Length, Figure 4F). Based on the quantification of the primary parameters, oncogenic H-Ras expression induces a longer contacting interface between cells and a progressive fragmentation of E-cadherin staining.

The primary parameter measurements following expression of activated Rac1Q61L or SrcY527F (Figure 4—figure supplement 1) showed distinct alteration profiles when compared between each other and to activated H-Ras (Figure 4). For example, active Src expression did not promote elongation of the contacting interface or an increase in interface area (Figure 4—figure supplement 1H–I), while active Rac1 did not induce fragmentation of cadherin staining (Figure 4—figure supplement 1D–E). The above data may indicate that distinct subsets of parameters can differentiate alterations by different stimuli, thereby providing a unique disruption profile (Figure 5). While data are from one technical replicate only, the high number of junctions quantified per sample is still sufficient to indicate significant differences among groups (Supplementary file 1). However, further experimentation is required to confirm the patterns observed.

Distinct profiles of junction disruption by oncogenes.

Human normal keratinocytes were transfected with pRK5-myc-H-RasG12V (A), pEGFP-SrcY527F (C) or pRK5-myc-Rac1Q61L (E). Cells were fixed and stained with anti-E-cadherin and, for (A) and (E), anti-myc antibodies. Images are shown of E-cadherin and transfected cells (anti-myc or GFP). Coloured rectangles mark areas shown as a zoom on the left of the images and highlight control junctions (orange), junctions between expressing and non-expressing cells (en, purple) or between two transfected cells (ee, red). Arrowheads point to E-cadherin staining. (B, D, F) Quantification of different parameters obtained with Junction Mapper. Graphs are plotted to show values of each parameter (Y-axis) versus different junction types (X-axis) for H-RasG12V (B), SrcY527F (D) and Rac1Q61L (F). The parameter name and a diagram representing the quantification are shown on top of each graph. Technical (H-Ras, Rac1) or biological replicates (Src, N = 2) were analysed. Number of junctions quantified in each condition is shown at the bottom of the graphs, below each scatter box plot. Statistical analysis was performed using One-way ANOVA, followed by Games-Howell post-hoc test. Non-significant (ns) and significant p-values (<0.05) are placed inside graphs. Scale bar = 20 μM or 10 μM (zoom images).

The secondary parameters (Scheme 1) were designed so that the distribution of a junctional marker is normalised to the area or length of the interface or junction between neighbouring cells. Although Intensity is a primary parameter, it was also included here for comparison with other published studies. The patterns of the secondary parameters Interface Occupancy and Cadherin Intensity at Interface Area essentially followed the corresponding primary parameters E-cadherin Area and E-Cadherin Intensity (Figures 4 and 5). Yet, the differences between groups are more apparent in the secondary parameters: data are less scattered with fewer outliers when compared to primary parameters (Figure 5).

We decided to focus on junctions that were shared by two transfected cells (ee), where phenotypes are clearer (Frasa et al., 2010; Lozano et al., 2008). Upon transfection of activated forms of H-Ras, Src or Rac1, a progressive disappearance of E-cadherin from the interface between cells was observed in different patterns (Figure 5A,C,E). When compared to controls, the undulation of the interface was increased among cells expressing H-RasG12V or SrcY527F (higher Interface Linearity Index, Figure 5B,D), but remained unchanged for Rac1Q61L-perturbed junctions (ee, Figure 5F). These data indicate that, as E-cadherin is removed from junctions, the interface between H-RasG12V and SrcY527F expressing cells becomes less tensile. The percentage of the interface area occupied by E-cadherin receptors was decreased in all samples (Interface Occupancy, Figure 5B,F), but did not reach significance in Src-expressing cells (Figure 5D).

The intensity levels of cadherin at junctions was significantly reduced following transfection of activated H-Ras or Src when measured as raw values (E-cadherin Intensity) or corrected per contacting area between two cells (E-cadherin Intensity per Interface Area) (Figure 5B,D). In contrast, after active Rac1 expression, neither parameter was significantly changed. Consistent with the distinct phenotype of junction perturbation seen in Rac1Q61L-transfected cells, the density of cadherin clusters was decreased in H-RasG12V and SrcY527F, but slightly augmented in RacQ61L.

These data are summarized as a diagram in Scheme 2. We concluded that Junction Mapper quantification can capture the various phenotypes of junction perturbation and collectively define a specific profile for each oncogene. Our preliminary observations suggest that activated Rac1 does not significantly reduce the overall levels of E-cadherin at junctions, since receptor intensity at the interface area is not reduced. Rather, Rac1 activation progressively redistributes receptors at the junction (reduced Interface Occupancy and higher Cluster Density), maintaining straight, linear junctions. In contrast, activated H-Ras or Src disrupt junctions via fragmentation and removal of E-cadherin consistently throughout the contacting interface (decreased in Interface Occupancy and Cluster Density), with concomitant undulation of cell–cell contacts (i.e. reduced tension or stiffness at junctions).

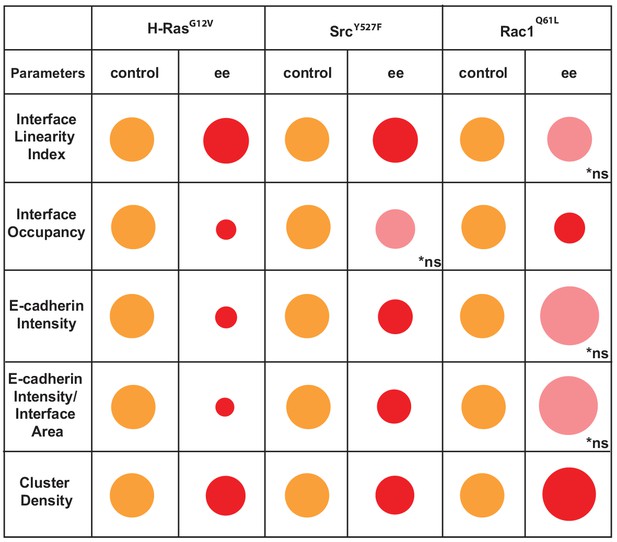

Overview of different profiles of junction disruption caused by expression of oncogenic Ras, Src or Rac1.

Different parameters are normalised to controls (junctions from non-expressing cells) arbitrarily set as 100 (orange colour). Values are represented as circles of proportional sizes for junctions between two expressing cells (red colour). Non-significant values are shown in pink colour (ns).

Dynamic range of the measurements of cell–cell contact phenotypes

Disassembly of junctions by oncogenes is a severe phenotype, often leading to complete dissolution of contacts. However, other stimuli (i.e. differentiation, protein depletion, growth factor or drug treatment) may induce a milder phenotype that is not easily quantified. We asked whether the Junction Mapper could efficiently detect small changes in E-cadherin levels or distribution under different conditions (Figure 6). Datasets were obtained where the role of actin-regulatory proteins in junction formation was investigated in normal keratinocytes (Erasmus et al., 2016). Depletion of CIP4 (a regulator of cadherin trafficking) (Leibfried et al., 2008; Rolland et al., 2014), VAV2 (an exchange factor for Rho, Rac2 and Cdc42) (Vigil et al., 2010) or EEF1A (an actin bundling protein) (Mateyak and Kinzy, 2010) results in modest, but significant fluctuations in E-cadherin at junctions (20%–30%) using a thresholding method (Erasmus et al., 2016).

Junction Mapper reliably quantifies mild phenotypes.

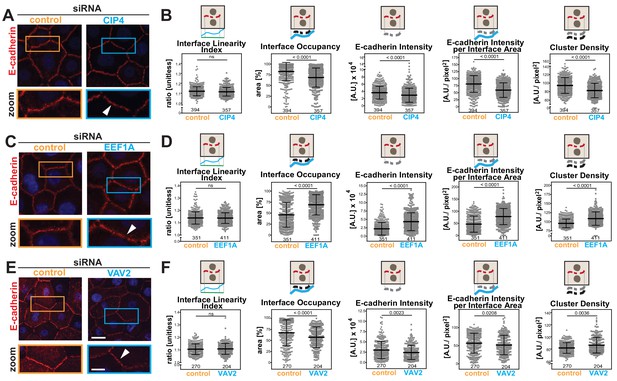

(A) Human normal keratinocytes were depleted of different cytoskeleton-associated proteins using siRNA against CIP4 (A), EEF1A (C) or VAV2 (E). Cells were fixed and stained for E-cadherin, and images acquired for control (non-targeting oligos) and depleted cells. Areas marked by coloured rectangles are shown as a zoom underneath the images. Arrowheads point to E-cadherin staining. (B, D, F) Quantification of different parameters obtained with Junction Mapper. Graphs are plotted with values on the Y-axis and control and siRNA samples on the X-axis for CIP4 (B), EEF1A (D) and VAV2 (F). The parameter name and a diagram representing the quantification are shown on top of each graph. Junctions analysed in each condition were obtained from technical replicates and numbers assessed is shown at the bottom of the graphs, below each scatter box plots. Statistical analysis was performed using Mann-Whitney U-test. Non-significant (ns) and significant p-values (<0.05) are placed inside graphs. Scale bar = 20 μM or 10 μM (zoom images).

When analysed with Junction Mapper, CIP4, VAV2 or EEF1A siRNA did not interfere with the linearity of the contacting interface (Figure 6B,D,F), in line with the appearance of normal, linear junctions. Consistent with our previous findings (Erasmus et al., 2016), a small decrease in E-cadherin intensity was observed in both CIP4- and VAV2-depleted cells (Figure 6B,F), while EEF1A siRNA promoted the unusual phenotype of higher levels of cadherin receptors (Figure 6D). These distinct patterns were also seen when E-cadherin intensity and area were normalized to the interface area (Intensity per Interface Area and Interface Occupancy, respectively). Strikingly, despite the similar reduction in E-cadherin intensity levels following VAV2 and CIP4 depletion, receptors were removed in different ways from junctions. The clusters of cadherin receptors were less dense with lower levels of CIP4, while upon VAV2 siRNA, the density of the clusters slightly increased (Cluster density, Figure 6B,F).

Thus, the discrete changes in junctions result from reduced cadherin levels throughout the contacting interface by lower density of receptor clusters (CIP4 RNAi) or localised E-cadherin removal and redistribution into denser clusters (VAV2 RNAi; Figure 6B,F). In contrast, EEF1A depletion augmented E-cadherin Intensity and Cluster Density along the interface. Taken together, these data highlight the ability of the Junction Mapper to detect phenotypes reproducibly and with good dynamic range. Scheme 3 summarizes the changes and distinct profiles detected by Junction Mapper in our validation experiments.

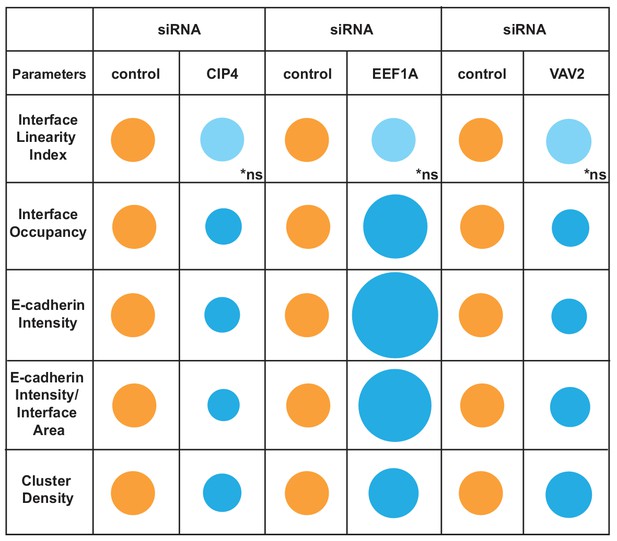

Overview of different profiles of junction disruption following depletion of CIP4, EEF1A or VAV2.

Different parameters are normalised to controls (junctions from cells treated with non-targeting oligos) arbitrarily set as 100 (orange colour). Values are represented as circles of proportional sizes for targeting siRNA-treated samples (blue colour) relative to controls. Non-significant values are shown in light blue colour (ns).

Endothelial junctions and cardiomyocyte intercalated discs

We next asked whether the software would be applicable to endothelial cells and cardiomyocytes that can have junctions differently shaped when compared with epithelial contacts. Both types of junctions are considerably more fragmented than epithelial contacts, and thus it was not clear whether the parameters quantified by the Junction Mapper would be suitable.

Thrombin is a serine protease that stimulates protease-activated receptor (PAR) in endothelial cells to increase vascular permeability in inflammation and injury (Figure 7A) (Kumar et al., 2009). Visually, the junctions of endothelial cells treated with thrombin are quite distinct (Malinova and Huveneers, 2018), but so far it has not been possible to evaluate differences quantitatively. There were no significant changes in the Interface Linearity Index (Figure 7A,B), consistent with the limitation of Junction Mapper to skeletonize zig-zagged junctions and thus measure their length (Figure 3—figure supplement 2E–F).

Figure 7 with 1 supplement see all
Quantification of endothelial junction alterations triggered by thrombin stimulation.

(A) HUVEC were treated with thrombin for 10 min, fixed and stained for VE-cadherin as a marker of endothelial contacts. Inverted images and a zoom are shown. Arrowheads show VE-cadherin staining. (B-F) Quantification of different parameters obtained with Junction Mapper. Graphs are plotted with values on the Y-axis and samples (control or thrombin-treated) on the X-axis. The parameter name is shown on top of each graph and a diagram representing the quantification on the left of each graph. Number of junctions analysed in each condition is shown at the bottom of the graphs, below each scatter box plots. Junctions were obtained from biological replicates (N = 2). Statistical analysis was performed using Mann-Whitney U-test. Non-significant (ns) and significant p-values (<0.05) are placed inside graphs. Scale bar = 20 μM or 10 μM (zoom images).

However, with appropriate dilation values (Supplementary file 1, Figure 3—figure supplement 1), alterations were detected for area-based measurements. In thrombin-treated cells, VE-cadherin distribution along the interface area (Interface Occupancy), intensity of VE-cadherin staining and normalised intensity per contacting interface were substantially higher (Figure 7C–E). The density of VE-cadherin clusters was also enhanced upon treatment with thrombin (Figure 7F), implying that a higher number of receptors is recruited per contact area. Of note is that the analysis of stimulated endothelial cells, with their typical junction morphology and gaps, was strongly influenced by the user-controlled settings (Figure 7—figure supplement 1A–C). Yet, although raw values of each junction varied with different user settings, the overall trend and conclusion remained the same (Figure 7—figure supplement 1D–F), consistent with our previous comparative analyses (Supplementary files 23).

Rat neonatal cardiomyocytes were treated with phenylephrine (PE) as a model to induce hypertrophy (Miragoli et al., 2011; Simpson, 1985). Cells were co-stained with β-catenin as a junctional marker and connexin 43 (Figure 8A), a protein found in gap junctions, a structure necessary for synchronization of cardiomyocyte beating. The appearance of both markers at junctions was considerably fragmented (dotted appearance; Figure 8A), suggesting that parameters that consider the staining area would be the most appropriate.

Hypertrophic stimulus of cardiomyocytes promotes distinct responses of Connexin 43 and β-catenin at intercalated discs.

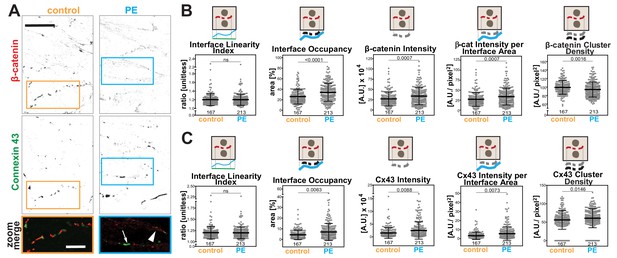

(A) Rat neonatal cardiomyocytes were stimulated with phenylephrine for 48 hr and stained with anti-β-catenin or anti-connexin 43 antibodies. Inverted images for each marker and a zoom of merged staining are shown. The arrowhead points to β-catenin staining and the arrow shows connexin 43 clusters. (B-C) Images were processed with Junction Mapper and quantification of selected parameters is shown here for β-catenin (B) or connexin 43 (C). Diagrams on top of each graph summarize how each parameter was measured. Values were obtained from one technical replicate. Number of junctions analysed in each condition is shown below each scatter box plot. Statistical analysis was performed using Mann-Whitney U-test. Non-significant (ns) and significant p-values (<0.05) are placed inside graphs. Scale bar = 10 μM.

The software used the skeleton and dilated area of β-catenin as a mask as described by Erasmus et al. (2016) to segment the area where connexin 43 was localised. The Interface Linearity Index of β-catenin (Figure 8B) or connexin 43 (Figure 8C) was not significantly altered upon induction of hypertrophy in cellulo. Instead, hypertrophy stimulation promoted higher Interface Occupancy and higher levels of β-catenin and connexin 43 at junctions (raw intensity or corrected by the interface area; Figure 8B,C). However, the density of β-catenin clusters was significantly reduced, while connexin 43 density was augmented in PE-treated cells, in a small but significant manner. Thus, the two markers are modulated differently by hypertrophy stimulation in cellulo. Increased levels of β-catenin are achieved by less dense clusters spread along the interface, while connexin 43 molecules are clustered more densely, suggesting localised stimulation of gap junction formation. These data demonstrate the use of Junction Mapper for multiple cell types and its power to correlate the distribution of different proteins at cell–cell junctions. The data from cardiomyocytes and endothelial cells are summarized in Scheme 4. A heuristic approach on how to define the user-dependent settings and the parameters to use for these cell types are described in Supplementary file 4.

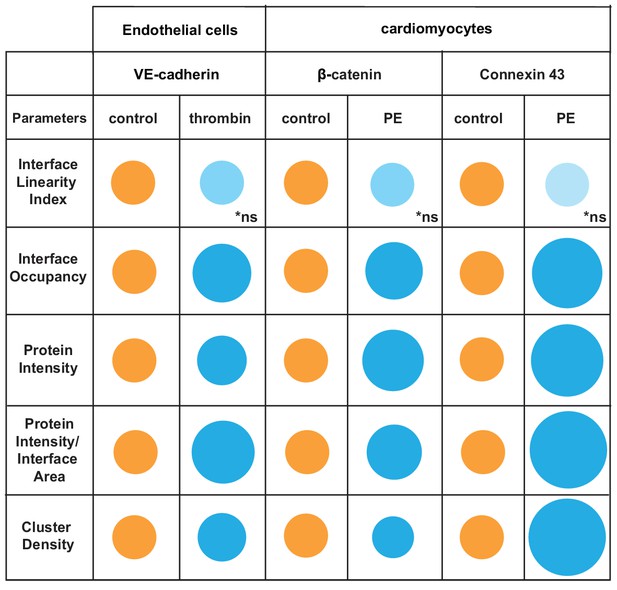

Overview of distinct changes of cell–cell adhesion in thrombin-stimulated endothelial cells or hypertrophic cardiomyocytes.

Endothelial cells (HUVEC) were treated with thrombin and cardiomyocytes stimulated with phenylephrine (PE) to induce permeability or hypertrophy, respectively. Parameters are normalised to controls (junctions from untreated cells) arbitrarily set as 100 (orange colour). Values are represented as circles of proportional sizes for junctions from stimulated cells (blue colour). Non-significant values are shown in light blue colour (ns).

Discussion

Junction configuration and adhesion receptor organization at contact sites are maintained via a complex interplay of distinct cytoskeletal filaments and associated regulatory proteins, with an exquisite regulation by diverse pathways and cellular contractility. At cell–cell contact sites, the challenge remains to translate the regulation of junctional components into functional and appropriately shaped cell–cell contacts. Junction Mapper facilitates the profiling of cell–cell contact behaviour with a variety of novel parameters in a fast, robust and reliable manner. Collectively, the parameter repertoire indicates how effective cell–cell adhesion is, identifies altered patterns of receptor distribution and guides experimental design to unravel the underlying molecular mechanisms.

Junction Mapper provides a semi-automated computer vision solution with broad applicability. The most innovative aspects of Junction Mapper are, first, the measurement of receptor density and occupancy, via the normalization of the junction marker intensity, length and area to the available contacting interface and cell–cell contact area. Second, the automatic quantification of fragmented staining at a junction, which has not been feasible previously and, third, the correlation of the parameters from two junctional markers along the same junction. Underpinning the above aspects is the ability of Junction Mapper to detect cell borders and corners when considerable disruption is observed. Machine learning algorithms certainly have the potential to improve and automate segmentation success, especially of highly fragmented contacts. However, the availability of training image datasets with boundaries manually-generated is still a bottleneck (Häring et al., 2018). One possible use of the software is therefore the generation of precise cell outline skeletons that can be used to train machine-learning algorithms in the future.

While semi-automation has been implemented during the image processing by Junction Mapper, user contribution is necessary and essential to perform the quality control of skeleton outline, corner positioning and setting up the dilation and threshold levels in a given dataset. User bias is particularly relevant in images with very disrupted and irregular junctions, and absolute values are not suitable for comparison across experiments in some cases. However, user bias can be minimized. Analysis of biological replicates or independent analysis by different users show that (i) the secondary parameters are more robust against user bias and (ii) obtained results are similar across replicates when comparing control and treated samples.

The software can detect both major and minor changes at junctions in different experiments. Unexpected and distinct profiles emerge from junction disruption by oncogenes that potently remove E-cadherin from contacts. The junctional defects caused by H-RasG12V or SrcY527F illustrate the novel parameters that measure junction fragmentation and the specific density of E-cadherin in remaining fragments. In contrast, the perturbation profile induced by expression of Rac1Q61L is not appropriately quantified by intensity alone and may be better assessed by ‘Interface Occupancy’, ‘Coverage Index’ and ‘Cluster Density’. Among the repertoire of pre-defined parameters, we find that a subset is highly likely to assess the features of a particular junction phenotype. Phenotypes not yet analysed could present additional possibilities to improve the Junction Mapper repertoire in future studies.

Junction Mapper analysis confirms mild phenotypes previously observed with manual, threshold-based quantifications of whole images (Erasmus et al., 2016), that indicate either an increase (EEF1A siRNA) or a decrease (CIP4 or VAV2 siRNA) in the intensity levels of E-cadherin. In addition, new Junction Mapper parameters uncover distinct features, that is that EEF1A depleted cells have higher E-cadherin occupancy and augmented cluster density when compared to controls. The profiling with new parameters underscores the potential of Junction Mapper to differentiate among distinct, subtle modes of junction perturbation. Yet, the conceptual significance of such alterations remains to be consolidated in future experiments and with additional biological replicates.

The plasticity of endothelial junctions is well established (Radeva and Waschke, 2018), but their unique responses to different stimuli have been challenging to quantify (Häring et al., 2018). The remarkable zig-zag pattern of thrombin-stimulated endothelial junctions correlates with increased vascular permeability (Malinova and Huveneers, 2018) but it is not recognized by the automated skeleton definition. Using area-based parameters, we find that the contacting interface is occupied more efficiently, with higher density of VE-cadherin receptors at endothelial junctions upon thrombin treatment. Thus, it seems that the increased levels of VE-cadherin at junctions may promote stronger endothelial adhesion, which is relevant to sustain elevated intracellular tension and contractility induced by thrombin stimulation. These results are consistent with the role of mechanical tension in receptor modulation and integrity of multicellular tissues (Liu et al., 2010), and merit further experimentation.

Because of the fragmented and undulated nature of cardiomyocyte contacts (Ehler, 2016; Vermij et al., 2017), quantitative imaging tools specifically designed for intercalated discs have not been available or systematically used. At steady state, our data show that, in control cardiomyocytes, intercalated discs have clusters of cadherin receptors that are far apart. Hypertrophic stimulus in cellulo (neonatal rat cardiomyocytes) potently increases the levels of β-catenin at contacting interfaces, consistent with what was reported in hamster and human hypertrophic hearts (Masuelli et al., 2003). Connexin 43 is a major connexin isoform found in cardiomyocytes and its total protein and mRNA levels are augmented by hypertrophic signals in cellulo (i.e. phenylephrine) (Salameh et al., 2008; Stanbouly et al., 2008) or in human hearts with compensated left-ventricular hypertrophy by pressure-overloading (Kostin et al., 2004). The initial profiling analysis with Junction Mapper suggest that the formation of gap junctions is enhanced after hypertrophy stimulation in cellulo, confirming the broadening of intercalated disc area and higher number of GAP junctions in compensated hypertrophic hearts of human patients (Kostin et al., 2004). Although hypertrophic stimulus increases both β-catenin and connexin 43 levels at intercalated discs, these markers are regulated in distinct ways. The β-catenin cluster density is decreased leading to a more contiguous distribution, while connexin 43 is localised in clusters of higher density.

Clearly, further investigation is necessary to ascertain the profiling and biological significance of the phenotypes observed in different models. The quantification of very fragmented and zig-zagged junctions such as those in endothelia and cardiomyocytes is a challenge that Junction Mapper has begun to address, but improvements in future computation studies are welcomed. The complexity of these junctions also requires more user input to quality control the definition of the skeleton and corners. In addition, the ability of Junction Mapper to quantify junctions in a stratified epithelium, where the added complexity of multiple epithelial cell layers provides an additional challenge, remains to be tested.

We foresee the potential of Junction Mapper in distinct research areas, due to its innovative and in-depth approach to quantify cell–cell contacts. The detailed fine mapping of junction properties forms a basis to distinguish between disassembly mechanisms and infer cellular processes such as intracellular trafficking, receptor clustering or modulation of contraction at junctions. As multiple cellular processes contribute to junction stability, the fingerprinting of junction phenotypes after different stimuli is a powerful tool in pathway inference and guides rescue and translational experiments. Despite its limitations, Junction Mapper’s broad dynamic range, repertoire of novel parameters and applicability to quantify junctions in various cell types will have a significant impact on studies in numerous model systems.

Source data

Numerical data used to prepare graphs in each figure. Data for each graph are listed in separate sheets in the Excel files. Explanations can be found in the first sheet of each Excel file.

Materials and methods

Key resources table
Reagent TypeDesignationReferenceRRIDCatalogue number
Antibodyβ-catenin (rabbit polyclonal)Thermo-FischerRRID:AB_88035Cat# 71–2700
AntibodyConnexin 43MilliporeRRID:AB_11210474Cat# MAB3067
Antibodyanti-mycSigmaRRID:AB_439695Cat# B7554
AntibodyE-cadherin (HECD1)own hybridoma stock
AntibodyVE-cadherin (clone 75)BioSciencesRRID:AB_2276073Cat# 610252
Recombinant DNA reagentpEGFP- Src Y527Factivated Srcgift Prof M Frame
Recombinant DNA reagentpRK5-myc H-Ras G12Vactivated H-Ras(Braga et al., 2000)
Recombinant DNA reagentpRK5myc- Rac1 Q61Lactivated Rac1RRID:Addgene_12983(Lamarche et al., 1996)
Sequence based reagentsiRNA duplexesCIP4, VAV2 and EEF1A(Erasmus et al., 2016)
SoftwareImageJhttp://fiji.scRRID:SCR_002285
SoftwareGraphPad Prismhttps://graphpad.comRRID:SCR_002798
SoftwareAdobe Illustratorhttp://www.adobe.com/products/illustrator.htmlRRID:SCR_010279
SoftwareAdobe Photoshophttps://www.adobe.com/products/photoshop.htmlRRID:SCR_014199
SoftwareRstudiohttp://www.rstudio.com/RRID:SCR_000432

Cell culture and treatment

Request a detailed protocol

Primary keratinocytes were grown as described elsewhere (Braga et al., 1997). Cells were transfected with activated Src (pEGFP-SrcY527F, 1 μg/ml for 8 hr) or constitutively active GTPases Ras (pRK5myc-RasG12V, 0.5 μg/ml for 8 hr) or Rac1 (pRK5myc-Rac1Q61L, 0.5 μg/ml, overnight) using JetPrime (Polyplus). For RNAi experiments, normal keratinocytes were seeded in standard calcium medium as above (containing 1.8 mM CaCl2), transferred to low calcium medium (0.1 mM CaCl2 and foetal calf serum depleted from divalent cations) and grown until confluence (Braga et al., 1997). For replicate validation, cells were treated with non-targeting oligos, and then transfected with pRK5myc-Rac1Q61L. RNAi transfection was performed with oligonucleotide duplexes (at 50 nM) to deplete EEF1A (72 hr), VAV2 or CIP4 (48 hr) using Interferin (Polyplus) or Metafectene transfection reagents (Biontex Laboratories GmbH) (Erasmus et al., 2016).

Pooled Human Umbilical Vein Endothelial Cells (HUVEC) from different donors (Lonza) were cultured in EBM-2 culture medium supplemented with EGM-2 bullet kit (Lonza). Human plasma derived thrombin (used at 0.2 U/ml, 10 min) and fibronectin were purchased from Sigma-Aldrich. For staining, cells were plated on coverslips coated with 3 μg/ml fibronectin.

Neonatal rat cardiomyocytes were freshly isolated from 1- to 3 day old Sprague-Dawley rats, using Neonatal Heart Dissociation Kit and the protocol provided by the company (www.miltenyibiotec.com/protocols, Miltenyi Biotec). Cells were plated on 13 mm laminin-coated glass cover slips and cultured in 199 Medium (M199, Sigma) supplemented with 10% neonatal calf serum (NCS, Biosera), 1% Vitamin B12 (Sigma), 1% L-Glutamine (Sigma), 0.5% antibiotics. On the day after plating, cardiomyocyte cultures were exposed to 10 μM phenylephrine for 48 hr to induce hypertrophy (Miragoli et al., 2011).

Immunostaining and microscopy

Request a detailed protocol

Normal keratinocytes were fixed for 10 min with 3% paraformaldehyde and permeabilized with 0.1% Triton X-100 and blocked with 10% FCS for 10 min and stained as described (Braga et al., 1997). Cells were stained with anti-E-cadherin antibodies (mouse monoclonal HECD1) and anti-myc (mouse monoclonal 9E10, Sigma-Aldrich Cat# B7554, AB_439695 from RRID https://scicrunch.org/resources). DNA was labelled with DAPI (Sigma, 1:3000). Secondary antibodies were bought from Jackson ImmunoResearch. After treatment, control and hypertrophy-induced neonatal rat cardiomyocytes were fixed and stained with antibodies against β-catenin (rabbit polyclonal 1:50, Thermo-Fischer Cat# 71–2700, RRID:AB_88035) and connexin43 (mouse monoclonal 1:1000, Millipore Cat# MAB3067, RRID:AB_11210474).

A summary of the types of images used for different experiments, type of replicate and user-defined parameters is found in Supplementary file 1. Briefly, images were acquired on a Leica DM IRBE confocal (keratinocytes), Zeiss inverted LSM-780 (cardiomyocytes) or LSM-510 (keratinocytes) laser-scanning confocal (Carl Zeiss) using a 63x/1.4 Plan Apochromat objective or with an Olympus Provis BX51 microscope coupled to a SPOT RT monochrome camera using Simple PCI software (Hamamatsu, Japan; keratinocytes).

Endothelial cells (HUVEC) were fixed for 15 min in 4% paraformaldehyde, permeabilized with 0.4% Triton X-100 for 15 min and blocked in 2% BSA for 1 hr. Mouse monoclonal anti-VE-cadherin (clone 75, BD Biosciences Cat# 610252, RRID:AB_2276073) antibody and secondary fluorescence antibody (Molecular Probes) incubations were performed in 2% BSA for 1 hr. Coverslips were mounted in Mowiol/DABCO solution. Coverslips were imaged using an inverted wide-field microscope (NIKON Eclipse Ti) equipped with a 60 × 1.49 N.A. Apo TIRF (oil) objective and Luca-R EMCCD camera (Andor).

Software development

Request a detailed protocol

Junction Mapper is an open access, standalone and downloadable software developed in Java. The Junction Mapper code has been deposited in GitHub (license GNU GENERAL PUBLIC LICENSE; https://github.com/ImperialCollegeLondon/Junction_Mapper; copy archived at https://github.com/elifesciences-publications/Junction_Mapper) and the software, instructions and its documentation can be downloaded from https://dataman.bioinformatics.ic.ac.uk/junction_mapper. The software uses algorithms that are mostly available open access, with some added innovation (i.e. fragmented length calculation). The novelty of Junction Mapper lays in the integration of distinct measurements, calculations of new parameters and consolidation of all parameters in a single system. In addition to junction measurements, we also developed a ‘Nucleus Tool’ to quantify the inter-nuclei distances of scattering epithelial cells – this tool will be described elsewhere.

The parameters and software to quantify junction phenotypes were built on the concept of our prior segmentation image analysis (Erasmus et al., 2016) based on intensity thresholding and whole image output obtained for the epithelial monolayer. Briefly, the labelling with a junctional marker (i.e. cadherin or a generic ‘junction marker 1’) is used to delineate the borders between cells and to form a mask to extract only the pixels found at contact sites for quantification. The mask can then be used to segment additional co-stained proteins that localise at junctions.

We address the bottlenecks in quantification of phenotypes that are not measurable by intensity only. Segmentation of images was performed to delineate where cell–cell contacts are (cell skeleton) and identify the corners between three or more contacting epithelial cells (see Figure 2—figure supplement 1 and 2). The cell skeleton is calculated in the following way. The original grey scale image of the ‘junction marker 1’ edges is interactively edited using blurring and sharpening filters to emboss the edges using the program GUI. The image is then binarized using an averaging filter (of the target pixel local neighbourhood) alongside a threshold and this binary image of cell edges is then super-imposed upon the original cell image stained for the junctional marker. Super-imposition of the skeleton and grey-scale image allows cell boundaries of each cell to be fine-tuned or re-adjusted automatically using dilation, skeletonisation and maximum intensity within a neighbourhood algorithm. Edges can also be drawn on and removed from the image manually during this interactive process. The result is well-characterised edges that correspond to the real cell boundaries with a minimal amount of effort from the user. It has so far proved very hard to obtain reliable cell boundaries on a wide range of images and conditions without an interactive element. The program is designed to make this task as quick and efficient as possible. The image skeleton can then be dilated by the user (1 to 9 pixels, depending on image amplification and junction width) to set the area that fully contains the junctional marker staining. Corners between contacting cells are automatically identified and can be added or corrected manually. For junctions that are severely perturbed, providing a labelling for the whole cell facilitates the positioning of its corners and skeleton.

These spatial demarcations (skeleton, corners and area) are then used to calculate the primary parameters as described below (Figure S2). A minimal threshold is applied to avoid losing any signal at the cell–cell interface. The length and area of (i) contacting membrane between cells (Interface Contour (unit pixels) and Interface area (unit pixels2), respectively) was calculated using the skeleton between two neighbouring corners on the cell outline. The length and area of the specific staining of a junctional marker (Junction Contour (unit pixels) and Junction Area (unit pixels2), respectively) were measured between the outermost above-threshold pixels of the staining observed along the contacting interface.

To evaluate distinct perturbations of junctions, primary parameters calculated the sum of the length of individual staining fragments of the junctional marker along the interface between cells (Fragmented Junction Contour, unit pixels). The Euclidian distance between corners was used to calculate the length of an optimal, straight interface between two cells (Straight-line Interface Length, unit pixels). For estimation of the optimal junction length, the parameter Straight-line Junction Length is derived from the Euclidian distance between the outermost above-threshold pixels of the staining of a junctional marker, which may or may not coincide with the distance between the corners. Additional primary parameters quantify more specifically the junctional marker: ‘junction marker 1’ Area (number of above the threshold pixels within dilated edge area, in pixels2) and ‘junction marker 1’ Intensity (within the dilated edge area, in arbitrary units or A.U.).

Secondary parameters were derived to assess different phenotypes of perturbed contacts by normalizing measurements per length or area of each junction or contacting interface (Figure S3). First, the software calculates how straight an interface or junction is using two parameters: (i) Interface Linearity Index (ratio between Interface Contour and Straight-line Interface Length, unitless) and (ii) Junctional Linearity index (ratio between Junction Contour and Straight-line Junction Length, unitless). Second, to estimate the proportion of the interface between cells that is covered by adhesion receptors, two parameters are calculated: (i) a length-based parameter, Coverage Index (ratio between Fragmented Junction Contour and Interface Contour, unit %) and (ii) an area-based parameter, Interface Occupancy (ratio between Junctional area and Interface area, unit %). The latter would be more appropriate to account for variable thickness of the junctional marker staining. Third, secondary parameters that address the specific distribution of junctional markers between neighbouring cells are: ‘junction marker 1’ intensity per interface area (ratio between ‘junction marker 1’ Intensity and Interface Area, unit A.U./pixel2) and Cluster Density (ratio between ‘junction marker 1’ and Junction area, unit A.U./pixel2).

Software validation

Request a detailed protocol

Validation of the length and area measurements of the interface, junctions and fragmented junctions was performed on selected junctions. The impact of user-controlled settings (dilation and thresholding) was tested by increasing the dilation or thresholding values during the analyses and comparing the effects on primary parameters of selected junctions. The coverage index was validated manually using FIJI and the active Rac1 expressing data set, on the same junctions quantified by Junction Mapper. The manual calculation (Lozano et al., 2008) has been traditionally done using the Euclidian distance (straight-line length) rather than the more precise contours measured by Junction Mapper. To estimate the impact of different users subjectivity on the data obtained with Junction Mapper, a random subset of images from three different data sets (siCIP4, H-Ras, endothelial cells) was analysed independently by a separate user without knowledge of the settings used for analysis by user A. Each user independently set up the corners, skeleton corrections, dilation and thresholding.

For estimation of signal to noise ratio required for the skeleton recognition by Junction Mapper, random noise was added to the original (high quality) image using Fiji (Gaussian (normally) distributed with a mean of zero and standard deviation of 25; https://imagejdocu.tudor.lu/gui/process/noise) (Ferreira and Rasband, 2012). The quality of images was then estimated using the peak signal-to-noise ratio (PSNR) expressed in decibels (dB). The PSNR was calculated with the SNR Fiji plugin (Sage and Unser, 2003) by comparing original image to the images with added noise to the junction marker channel, since only this channel was used to create the skeleton. A heuristics approach on how to optimize analyses with Junction Mapper can be found in Supplementary file 4.

Image analysis – quality control and exclusions

Request a detailed protocol

Junction Mapper quantifies images in a variety of formats and resolutions. A summary of the image dataset and user-controlled values used in each experiment can be found in Supplementary file 1. Images obtained from different experiments were subjected to quality control before quantification: junctions were excluded if they have blurry areas, artefacts or large gaps between cells. Regions were also excluded that contained (i) junctions of cells overlapping or on top of each other (different focal plane) (ii) multinucleated cells (iii) cells that were not fully surrounded by neighbours (i.e. at the border of the image or epithelial colony), (iv) junctions of cells overexpressing high levels of protein. As values are obtained per junction and a junction is shared by two cells, duplicated measurements of junctions are removed from the dataset.

For expression of different oncogenes, junctions were classified as those between (i) control cells (between two non-transfected cells), (ii) between two expressing cells (ee) or (iii) junctions shared by one expressing and a non-expressing cell (en). For the analyses of endothelial cells - junctions in blurry parts of the picture, with artefacts or large gaps between junctions and junctions at the border of a endothelial colony were excluded. For cardiomyocytes, the same criteria were applied as for endothelial cells and the parts of the image where the staining seemed very scattered and chaotic, with no clear trace of a junction were also excluded.

Statistical analysis

Request a detailed protocol

Normality test was performed in each dataset using Kolmogorov-Smirnov normality test and Shapiro-Wilk test. Data from SrcY527F, H-RasG12V and Rac1Q61L experiments were analysed using ANOVA with the Games-Howell post-hoc test from the ‘userfriendlyscience’ in RStudio. Despite the data being non-parametric, the large number of junctions in each sample (>100 junctions) allows for the use of ANOVA with Games-Howell post-hoc test, which corrects for unequal sample sizes and variances between groups and for data with non-parametric distribution. Significance was set at p<0.05. Data with a single treatment group and control group (this includes siRNA experiments in epithelial cells, cardiomyocytes and endothelial cells) were non-parametric and hence were analysed using the Mann-Whitney U-test in GraphPad PRISM. Pair-wise comparison was analysed with Wilcoxon matched paired test. The summary of the types of data used and statistical analyses can be found in the Supplementary files 1 and 4, respectively.

When biological replicates were analysed, it was first checked if the profile of the data was consistent across replicates, and then data was pooled. A total of 4080 junctions were quantified across different experiments (expression, siRNA or stimulus) and cell types using different batches of cells. An average of 227 junctions for each sample were analysed in parallel. The precise number of junctions quantified in each sample is written inside each graph. All numerical source data for each figure can be found in supplementary files online.

Graphs were obtained using GraphPad Prism. Images were processed using FIJI (Schindelin et al., 2012), Adobe Photoshop and Adobe Illustrator.

Appendix 1

Junction Mapper: user notes and algorithm definitions

Introduction

Junction Mapper is a semi-automated software application for analysing data from images of cells in close proximity to each other in monolayers. The software can be obtained as described below:

The focus of Junction Mapper is to measure the morphology of cell boundaries, define single junctions and quantify the length, area and intensity of the staining of different proteins localised at cell-cell contacts. The output are various unique parameters that assess the contacting interface between cells and up to two junctional markers. Here we describe the operational mode of the software and how the different steps and parameters are calculated computationally.

Image Loading

Junction mapper is suitable for analysis of cell images that have the following properties:

  • The system will load single images;

  • several images can be opened in the program at the same time in individual analysis tabs

  • the tiff format is the most optimal highest image quality

  • The images can have up to three channels that correspond to the following features;

    • Junction marker 1 – used to set up the cell boundaries and measurements

    • Junction marker 2 – additional marker that can be measured.

    • Cell nuclei (optional)

Upon loading an image, the user is asked to define the channels in the tiff image where the three expected image analysis components are located (Junction 1 Channel, Junction 2 Channel and Nucleus). These can be defined in Junction Mapper for images stained with any combination of fluorescent conjugates. Users may add notes to their analysis in the text box below the channel dropdown menus. These will appear with output materials.

Appendix 1—figure 1
Screenshot of allocation of image channels to selected analyses components for processing.

Data Output

When Junction Mapper is started by the user, an output directory for the analysis data is automatically created as a subdirectory of the directory location where Junction Mapper was started from. This directory is named in the following format <dd > _<mm > _<yyyy > _hhmm, so if Junction Mapper was started on 12th April 2019 at 09:18 the output directory created would be called; 2019_04_12_0918. Data is saved by Junction Mapper when the ‘Save Edge Map’ or ‘Save as Spreadsheet’ controls are used.

General Operation

Once the cell image is loaded, the user should see the corresponding image (example below). There are six tabs:

  • four of which contain the original composite image and the three split channels, respectively, and

  • two tool tabs (Junction 1 Tool and Nucleus Tool). These two tool tabs operate independently of one another.

Appendix 1—figure 2

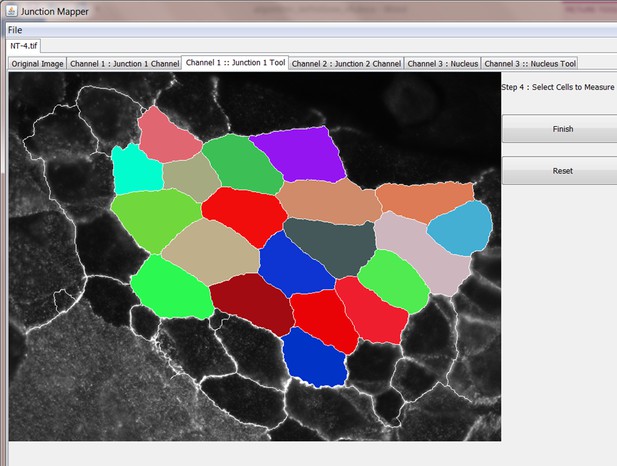

Screenshot showing loaded merged image and corresponding tabs for analyses.

Junction 1 Tool

This tool is used to first generate an edge map reflecting the cell junction outline and then to measure distinct parameters at the cell boundary using the Junction one and the Junction 2 channel of the original image. To use the Junction one tool, select the appropriate tab in the image. In order to obtain the edge map and use it to calculate the junction parameters, a number of steps are performed via the Junction one tool as outlined below:

  • Step 1: Edge Detection

  • Step 2: Produce Binary Edge Map

  • Step 3: Finesse the edge map

  • Step 4: Select cells to be analysed

  • Step 5: Select Individual Cell to Analyse

  • Step 6: Define corners of cell

  • Step 7: Measure different parameters at cell-cell contacts

Step 1: Edge detection

In order to get meaningful results from Junction Mapper, it is very important to construct an accurate representation of the cell boundary. Cell images can be taken with varied magnifications and image quality. Junction Mapper is sufficiently flexible to perform well on many different image types. The first step is to emboss the edges of the cells by using the tools on the panel. There are three filters on the right side panel:

  • Gaussian - blurs cell edges

  • Median - makes edges more uniform and removes spot noise

  • Sharpen - makes edges stand out more

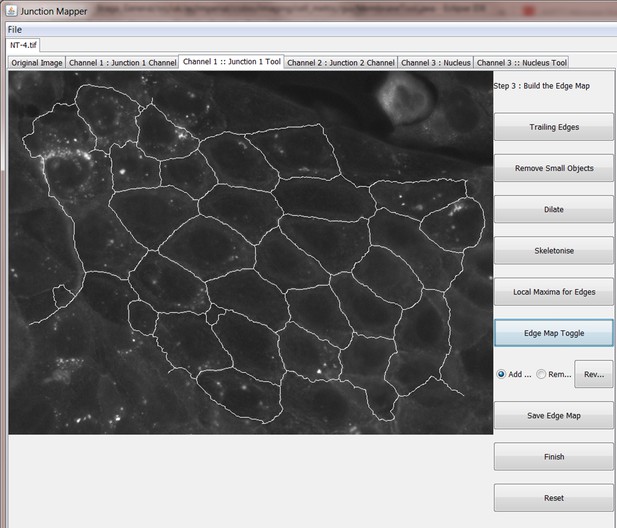

Appendix 1—figure 3
Screenshot of the edge detection function main menu.
Step 2: Produce Binary Edge Map

The Grey Scale Dilate function can be used to fill any holes in the cell edge detected. The number of repetitions of these filters and the order and combinations that they are applied in is user-controlled and should be guided by the resultant image itself, which is displayed after every operation. Once the edges are well defined, the user should select the Apply Adaptive Threshold, which will binarize the image. The C value and filter size parameters to this operation are chosen from a dialog box that appears when this control is selected. The C value chosen depends on the quality and contrast of the image (higher contrast, higher C value), whilst the size of the filter selected should be slightly bigger than half of the average edge width in pixels. The result of the Apply Adaptive Threshold function is a binary image that is used as the basis to build the edge map. Existing edge maps saved previously can also be loaded into the system at this stage.

Control nameAlgorithm used
GaussianImage is convolved with a 5 × 5 Gaussian kernel with values:
{{1,4,7,4,1},{4,16,26,16,4},{7,26,41,26,7},{4,16,26,16,4},{1,4,7,4,1}};
Median FilterMedian Filter applied to image with a 5 × 5 kernel
Sharpen FilterImage is convolved with a 3 × 3 sharpening filter, kernel has values:
{{−1,–1,−1},{−1,12,–1},{−1,–1,−1}}
Grey Scale DilatePerforms a grey scale dilation operation on the edge image in a 3 × 3 neighbourhood by replacing the target pixel with the largest grey
scale value in the local neighbourhood
Adaptive ThresholdBinarizes the grey scale edge image by using an adaptive thresholding technique. The user chooses a C value (range [0:50]) and a filter size from the set:
{‘3 × 3’, ‘5 × 5’, ‘7 × 7’, ‘9 × 9’, ‘11 × 11’, ‘21 × 21’, ‘35 × 35’, ‘51 × 51’,‘75 × 75’,‘99 × 99’}
The size of the window should be large enough to contain pixels of the structure being detected and background pixels. A window of the chosen filter size then
calculates the average pixel intensity in the window for every pixel in the image and adds the chosen C value to it. If the target pixel original grey scale value is
equal to or exceeds this value (average window intensity value + C value), then the target pixel value in the resultant binary image is set to one otherwise it is set to 0.
ResetReturns to step 1 ‘Isolate edges’
Appendix 1—figure 4
Screen shot of how to apply the Adaptive Threshold in images.
Step 3: Finesse the Edge Map

At the beginning of this stage we have a binary image loosely corresponding to edges in the image that needs to be turned into an accurate edge map for further processing. The first step is usually to dilate the image two or three times (to join the detected edges) and then skeletonise (to create a single pixel wide edge). Trailing Edges and Remove Small Objects can be used to removed imperfections and misalignments in the binary image. The user should then check the accuracy of the edge map by using the Edge Map Toggle function to see how closely the map follows the edges in the original image. This function rotates the background on which the skeleton is drawn between blank, Junction one channel and Junction two channel allowing the user to assess the accuracy of the skeleton produced. Minor adjustments can be made by using the Local Maxima for Edges function and then Dilating (to join edges) and Skeletonise the result to get a single pixel wide edge. The Local Maxima for Edges can be used to move the edge to the brightest grey scale values in the vicinity of the current edge, based on the grey scale values in the original grey scale Junction one image. The local neighbourhood of the original Edge image is inspected around each skeleton pixel location and a ‘1’ binary value assigned to the maxima in this window. This operation can be performed on decreasing neighbourhood sizes in conjunction with the dilate and skeletonize functions to build a more accurate edge map. Edges can also be manually added or removed by the user by selecting the Add or Remove check buttons and clicking on the image itself. Click left to add a point and then click again to add a line between the points. This can be repeated to rapidly create an edge. Click with the right-hand button to stop the edges being added. Some of the functions will only work when the binary image is displayed (dilate, local maxima). When the edge map corresponds to the edges of the cells in the image (cells to be measured) click the Finish button. Completed edge maps can be saved at this stage for future use (Save Edge Map).

Appendix 1—figure 5
Screen shot of how to create the edge map or skeleton setting up cell boundaries.
Control nameAlgorithm used
Trailing EdgesRemoves trailing edges from the image. This uses a bespoke algorithm written by the author and uses the binary edge map as input. First, the image is scanned to locate edge pixels that have only one neighbour and adds these to a list.
Then, for each point in the list;
1. Remove the pixel from the target image
2. Check the neighbourhood for connected pixels, if there is only one connected neighbour add it to the list.
This has the effect of removing trailing edge fragments from the edge map image.
Remove Small ObjectsRemoves pixel connected objects from the binary image that are smaller than a user selected threshold. User can choose from the set:
{‘10’,‘20’,‘30’,‘40’,‘50’,‘100’,‘150’,‘200’,‘250’,‘300’,‘350’,
‘400’,‘450’,‘500’}
Objects smaller than the selected threshold will be removed from the image.
DilateStandard binary image dilation algorithm
SkeletoniseSkeletonises image by using an adaption of the algorithm proposed in Arcelli et al. (1975). The masks proposed in the paper are applied in (simulated) parallel fashion to image pixels until the resultant image reaches idempotence.
Local Maxima for EdgesAlongside dilation and erosion, this operation is used to align the single pixel-wide edges to the junction on the original grey scale image (junction marker 1) more closely. It uses the original grey scale image and the single pixel-width edge map as inputs. The user is asked to select the neighbourhood size from the set:
{‘3’,‘5’,‘7’,‘9’,‘11’,‘15’,‘21’,‘25’}
For each pixel in the binary edge map that is set to a 1, the neighbourhood around that pixel is inspected in the original grey scale edge junction marker one image. The location of pixel with maximum grey scale value in the neighbourhood of inspected pixel in junction marker one image is set to a ‘1’ in the resultant binary image. It can be performed on gradually reducing neighbourhood sizes.
Edge Map ToggleRotates the background image that the binary edge map image is projected onto.
Either shows just a binary image, the Junction one channel or the Junction two channel. This control will rotate through the options in turn.
Add Straight LineA tool to draw straight lines on the edge map image using the mouse. Select by clicking the appropriate radio button and then click left mouse button on the image at the line start point and click again with the left button at the line end point. The line will be displayed on the image.
Multiple straight lines can be added by multiple mouse clicks that uses the last point as the line start point. Edges can be traced quickly using this feature. Turn off the tool by clicking the right mouse button and move to a different location.
Remove EdgeA tool to erase parts of the edge map using the mouse. Select the appropriate radio button on the interface and move the mouse over the edge fragments that are to be removed.
ResetReturns to step 1 ‘Isolate edges’
Step 4: Select cells to be analysed

The cells to be analysed are selected in this stage by clicking inside the cell body (the edge map for each selected cells must have closed edges for this to work). Each cell is labelled with a random colour and a unique number (in this image). At this stage, a model is made of the cell and its contour by the software. When all the cells to be analysed have been identified the Finish button should be pressed.

Appendix 1—figure 6
Screenshot demonstrating manual selection of all cells to be analysed by Junction Mapper.
StepAlgorithm used
Region GrowingUsers select the cells to be measured by clicking on them with the mouse. Using the mouse click point as a seed, a region growing algorithm uses the edge map as its boundaries and identifies the pixels contained within the cell body.
ResetReturns to step 1 ‘Isolate edges’
Step 5: Select Individual Cell to Analyse

Each cell is automatically numbered. The cells are presented to the user and the user can choose which cell to analyse by clicking anywhere inside its boundary.

Appendix 1—figure 7
Screenshot of the automatic labelling of each cell to be analysed.
StepAlgorithm used
Select CellUser selects a cell to measure by clicking in its interior
ResetReturns to step 1 ‘Isolate edges’
Step 6: Define Corners of Cell

At this step, the corners of a cell are defined for analysis. Pulling the top slider (Epsilon Value for Corner Detection) to the right will cause corners to appear in suggested places on the cell boundary as numbered yellow squares. The user can keep none, all or some of these corners. Existing corners can be removed by right clicking in the yellow square, new corners can be added by left clicking on the cell boundary position. The area to measure the junction marker 1 (used to make the edge map) is altered by using the Number of dilations slider: it sets by how many pixels the cell edge will be dilated on either side to form the area to be analysed. When this slider is changed, the area of the interface around the edge is projected onto the image in green with the edge represented as red contour line through the centre of the green area. Global thresholds for the measurements to be done in junction marker one image and junction marker two image can be set by the bottom two sliders. Only pixels with an intensity above the thresholds set for these channels are used in the calculation of some parameters (see definitions below). The Switch Background button changes the background image onto which the binary edge map and corner image is projected for the cell. The Measure button quantifies the parameters for the selected cell.

Appendix 1—figure 8
Screenshot of the menu to define cell corners automatically and manually.
Control nameAlgorithm used
Corner DetectionThe algorithm used is based on the Douglas Peucker method defined in Poiker and Douglas (2011). The user sets the epsilon value required using a slider and the corners appear in the image as defined by the algorithm. Raising the epsilon value decreases the number of corners that the algorithm adds to the image. Corners can also be manually added (left mouse click on cell edge) or removed (right mouse click on corner) from the image.
Number of Dilations applied to EdgeThis refers to the number of standard binary image dilations
applied to the single pixel cell edge and creates the area will be measured. The area measured for the ‘junction marker 1’ and ‘junction marker 2’ by Junction Mapper can be altered using a slider control, the default value being 2.
Junction marker 1 ThresholdA global threshold applied to the ‘junction marker 1’ image over which pixels will be considered for inclusion in the resultant parameter calculations.
Measurement ThresholdA global threshold applied to the Junction two channel over which pixels will be considered for inclusion in the resultant parameter calculations.
Switch BackgroundThere are three options: (i) just an edge map projected on to the ‘junction marker 1’ image, (ii) the edge map projected onto the Junction two channel or (iii) the edge map plus the ‘junction marker 1’ measurement area (the dilated edge) projected onto the ‘junction marker 1’ channel. Using this control will rotate through the options in turn.
MeasureThis button will perform the cell boundary measurements detailed elsewhere. Note that this operation does not save the measurements.
ReturnReturns to step 5 ‘Measure each cell’
Step 7: Measure different parameters at cell-cell contacts

A visual representation of the measured area can be displayed edge by edge by using the Show Edge button. The resultant measurements and parameters calculated are saved by pressing the Save as Spreadsheet button. The data is saved as *.xls spreadsheet file in the output directory described earlier in this document. Along with the spreadsheet, several other files are saved in the output directory including image files and pdf documents containing the images produced. To return to the map of selected cells (shown in step 6), press the Back to Cell State button. Another cell can then be selected for processing in the same way. This step should be repeated until all cells have been measured.

Appendix 1—figure 9
Screenshot of the menu to perform the measurements.
Control nameAlgorithm used
Show edgeShows the edges measured individually (i.e. each contacting interface) projected onto the channel one image. Edge is displayed in red, whilst the ‘junction marker 1’ area measured is displayed in green. Pixels in the ‘junction marker 1’ channel that exceed the chosen threshold but are outside of the ‘junction marker 1’ area are displayed in orange and they are not computed in the parameters.
Save spreadsheetSaves the junction parameters calculations in a spreadsheet for the selected cell along with corresponding reference images and a pdf document. The thresholded pixels outside the dilated area are also measured and recorded
as Internal junction marker one area or Internal junction marker two area above
the table of junction parameters in the spreadsheet.
Back to Cell StateReturns to previous step so that another cell can be selected for measurement
ReturnReturns to step 5 ‘Measure each cell’

The image below shows the spreadsheet produced by the process described here. Both the Junction marker one image and Junction marker two images are analysed simultaneously. The parameters calculated for each cell-cell contact are defined in the next section.

Appendix 1—figure 10
Representative image of the output of Junction Mapper as an excel file.

Parameter Definitions and Formulae

This section defines the mathematical formulae to calculate the primary parameters for each edge identified in a cell. Secondary parameters are calculated by normalizing values with respect to the length or area of an interface or cell-cell contacts as outlined in the Suppl Figure 4. These measurements are output to the Excel spreadsheet as defined above.

#NameUnitsDescriptionMathematical formula
1Interface Contour
[pixels]Distance between two corners of the defined cell edge
LE=i=1n(xixi+1)2+(yiyi+1)2
Where LE is the interface contour length,
p(xi,yi) is an edge pixel from an ordered list of edge pixels with cornerpixel1(x1,y1) and cornerpixel2(xn+1,yn+1)
2Straight-line Interface Length
[pixels]Straight line distance between two corner points
LS=(x1x2)2+(y1y2)2
Ls is the straight-line interface length where p(x1,y1) is the first corner pixel on the cell edge p(x2,y2) is the last corner pixel on the cell edge
3Fragmented Junction Contour
[pixels]Sum of stained fragments along the single pixel edge
LF=j=1n(xjxj+1)2+(yjyj+1)2
Where LF is the fragmented junction contour length as the sum of the contour length of each junction fragment, p(xj,yj) is an edge pixel from an ordered list of edge pixels with p(x1,y1) being the first pixel on the cell edge fulfilling I(p(xj,yj)) > ΘI AND p(xn+1,yn+1) being the last pixel on the cell edge fulfilling I(p(xj,yj)) > ΘI, where
ΘI is the a priori defined intensity threshold, and
I(p(xj,yj)) being the intensity of a given pixel
Fragments must be at least two pixels
4Dilation Cycles[unitless]Number of cycles used to dilate the defined edgeNumber of times the binary image dilate algorithm is used to expand the defined edge. Essentially one dilation cycle changes a line of pixel width one to a line of pixel width 3. Two dilation cycles make the line five pixels-wide, etc.
5Interface Area
[pixels2]Area in pixels of the dilated edge area between two cornersAE=i=1o(Ap)l
Where AE is the interface area as the sum of pixel area Ap of all pixels in the dilated edge area and where
Ap is the pixel area with Ap = 1px*1px = 1px2 and
o is the number of pixels in the interface area
6Junction marker 1 Area
[pixels2]Area covered by junction marker staining within the interface areaAFT=k=1m(Ap)k
Where AFT is the junction marker area as the sum of pixel area AP of all pixels fulfilling the conditions
p(xk,yk) Є AE, AND
I(p(xk,yk)) > ΘI and where
AP is the pixel area with AP = 1px*1px = 1px2 and
m is the number of pixels in the fragmented interface area AFT
7Junction marker 1 Intensity
[A.U.]Sum of cadherin (junctional protein) Intensity within the interface area.

IFT=k=1mIk
Where, IFT is the junction marker intensity as the sum of intensities Ik of all pixels fulfilling the conditions
1) p(xk,yk) Є AE, AND
2) I(p(xk,yk)) > ΘI with m being the number of pixels in the fragmented interface area AFT
8Junction Contour
[pixels]Sum of pixel distances between the first and last junction marker pixels along the interface contour
Lj=j=1n(xjxj+1)2+(yjyj+1)2
Where LJ is the junction contour length and p(xj,yj) is an edge pixel from an ordered list of edge pixels with p(x1,y1) being the first pixel on the cell edge fulfilling I(p(xk,yk)) > ΘI AND p(xn+1,yn+1) being the last pixel on the cell edge fulfilling I(p(xk,yk)) > ΘI
9Straight-line Junction Length
[pixels]Euclidian distance from first to the last pixel of junction marker one on the interface contourLJS=(x1x2)2+(y1y2)2

LJS is the straight-line junction length where p(x1,y1) is the first pixel on the edge fulfilling I(p(x1,y1)) > ΘI and p(x2,y2) is the last pixel on the edge fulfilling I(p(x2,y2) > ΘI
ΘI is the a priori defined intensity threshold, and
I(p(xj,yj)) being the intensity of a given pixel

Nucleus Tool

The nucleus tool allows users to count nucleus in an image and to measure the distance between them, which can be used to infer distance between neighbouring cells. This tool is useful as an indirect measurement of cell scattering. Three steps are performed via the Nucleus Tool tab and outlined below:

  • Step 1: Adaptive Thresholding

  • Step 2: Tidy Nucleus Image

  • Step 3: Measure Distance between Neighbouring Cells

Step 1: Adaptive Thresholding

The first step is to binarize the image via Apply Adaptive Threshold.

Appendix 1—figure 11
Table describing the parameters measured by Junction Mapper: diagram, units, definition and mathematical calculations.
Control nameAlgorithm used
 Adaptive ThresholdBinarizes the grey scale nuclei image by using an adaptive thresholding technique.
The user chooses a C value (range [0:50]) and a filter size from the set:
{‘3 × 3’, ‘5 × 5’, ‘7 × 7’, ‘9 × 9’, ‘11 × 11’, ‘21 × 21’, ‘35 × 35’, ‘51 × 51’,‘75 × 75’,‘99 × 99’}
The size of the window should be large enough to contain pixels of the structure
being detected and background pixels. A window of the chosen filter size then calculates
the average pixel intensity in the window for every pixel in the image and adds the chosen C
value to it. If the target pixel original grey scale value is equal to or exceeds this value
(average window intensity value + C value), then the target pixel value in the resultant binary image is set to one otherwise it is set to 0.
Step 2: Tidy Nucleus Image

The adaptive thresholding stage creates a binary image similar to the one shown below. Holes in the nuclei can be closed by dilation (Dilate) and nuclei can be returned to their original size by the erosion operation (Erode). Any object that touches the boundary of the image (Remove Edge Objects) and any small background objects (Remove Small Objects) can be removed from the image by clicking on them. Click on the Remove Individual Cells check button to allow exclusion of selected objects by clicking on the corresponding outline. Finally, the remaining cells can be counted and labelled by pressing Count Cells.

Appendix 1—figure 12

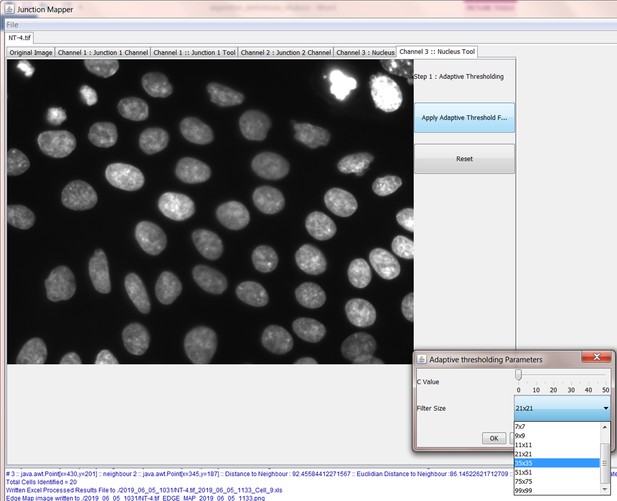

Screenshot of Nucleus Tool and the adaptive thresholding parameter setting.
Control nameAlgorithm used
ErodeStandard single cycle binary image erosion.
DilateStandard single cycle binary image dilation. When used in conjunction with erosion can be used to remove holes inside binary objects.
Remove Edge ObjectsRemoves any object that touches the boundary of the image.
Remove Small ObjectsRemoves pixel connected objects from the binary image that are smaller than a user selected threshold. User can choose from the set:
{‘10’,‘20’,‘30’,‘40’,‘50’,‘100’,‘150’,‘200’,‘250’,‘300’,‘350’,‘400’,‘450’,‘500’}
Objects smaller than the selected threshold will be removed from the image
Remove Individual CellsRemoves objects from the image that the user selects by clicking on them.
Count CellsCounts the nuclei in the image, assuming each cell has one nucleus.
Step 3: Measure Distance between Neighbouring Nuclei

The inter nuclei distances can be measured and output to a spreadsheet in this step – i.e. the Euclidian distance from the centre of a nucleus to the centre of a neighbouring nucleus. The number of neighbouring cells that are measured can be set using the control ‘Set # Cells’. The cells to be measured are selected by the user by clicking on them and they appear in the list on the interface below. Cells can be removed from the list by clicking on them again. Once the cells to be measured have been selected, the distances can be saved in an Excel file (Save as Spreadsheet).

Appendix 1—figure 13
Screenshot showing the removal of small objects to identify nuclei in image.
Control nameAlgorithm used
Set # CellsSets the number of nuclei from neighbouring cells that the distance will be measured for. Item needs to be selected in the pulldown menu.
Select CellUser can select and deselect cells to be measured by clicking on them with the mouse. A list of currently selected cells is displayed on the interface.
Save as SpreadsheetSelected nucleus measurements are calculated and output to a spreadsheet.
The central point in a nucleus is calculated as;
(max(x)-min(x))+min(x), (max(y)-min(y))+min(y)
Where x and y are the coordinates of pixels in a nucleus. We assume that nucleus shapes are roughly symmetrical. Distances calculated are the
Euclidian distance from the respective nucleus centres.
Appendix 1—figure 14
Screenshot showing how internuclear distances are measured by the Nucleus Tool.

Appendix 2

A - Junction Mapper

Appendix 2—figure 1
Screen shot of the Junction Mapper programme showing the edge channel, define cell edge (skeleton), corner assigned and the dilated area of one junction.

B - Primary parameters

#NameUnitsDescriptionDetails
1Interface Contour
[pixels]Distance between two corners of the defined cell edgeAlgorithm walks along the defined edge from corner to corner and sums the pixel to pixel distance. This is measured by the Euclidian distance between neighbouring pixels along the edge (as diagonally connected pixels distance = approx. 1.4, whilst straight connected pixels = 1). The red line on the image represents the defined cell edge.
2Straight-line Interface Length


[pixels]Straight line distance between two corner pointsEuclidian distance between the two corner pixels defined for the edge. The corner pixels are the last pixels at either end of the red line on the image.

3Fragmented Junction Contour

[pixels]

Sum of stained fragments along the single pixel edgeSum of pixel to pixel distance measured by Euclidian distance between neighbouring pixels along the defined cell edge where the staining intensity exceeds the threshold set. The distance in between individual fragments is NOT calculated. Isolated single above threshold pixels are not included in this measurement.
4Dilation Cycles[unitless]Number of cycles used to dilate the defined edgeNumber of times the binary image dilate algorithm is used to expand the defined edge. Essentially one dilate cycle changes a single pixel line to a three pixels-wide line. Two dilation cycles make the line five pixels-wide, etc.
5Interface Area
[pixels2]Area in pixels of the dilated edge area between two cornersNumber of pixels within the dilated edge area defined by two consecutive corners. The dilated area is represented by the green area on the image. Pixels on the red line are also included in this area.
6Junction marker 1 Area

[pixels2]
Area covered by cadherin staining (junctional protein) within the interface areaTotal number of pixels within the interface area defined in 5 where the junction marker 1 staining has intensities exceeding the threshold set.
7Junction marker 1 Intensity


[A.U.]Sum of cadherin (junctional protein) Intensity within the interface area.Sum of junction marker 1 intensities in the interface area defined in 6. This measurement only applies to pixels in which marker intensity is above the selected threshold. Pixels below the threshold are set to zero.
8Junction Contour


[pixels]Sum of pixel to pixel distances between the first and last cadherin (junctional protein) pixels along the interface contourSum of pixel to pixel distance measured by Euclidian distance between junction marker 1 pixels along the interface contour defined in 1. Distance is measured between the first and last above-threshold pixel, but in between these points all pixels (above and below threshold) are considered; i.e. the distance in-between junction marker 1 fragments (gaps) is also included.
9Straight-line Junction Length

[pixels]Euclidian distance from first to the last pixel of junction marker 1 on the interface contourEuclidian distance between the first pixel of Junction marker 1 above threshold encountered along the interface contour defined in 1 and the last junction marker 1 pixel above threshold on the edge defined in 1.

C - Secondary parameters

#NameUnitsDescriptionDetails
10Interface Linearity Index


Ratio [unitless]Ratio of ‘Interface Contour’ to ‘Straight-line Interface Length’Measurement 1 / Measurement 2
11Coverage Index

[%]Ratio of ‘Fragmented Junction Contour’ to ‘Interface Contour’Measurement 3 / Measurement 1
12Interface Occupancy

[%]Ratio of Junction marker 1 Area to Interface AreaMeasurement 6 / Measurement 5
13Junction marker 1 Intensity per Interface Area


[A.U./pixel2]Ratio of ‘Junction marker 1 Intensity’ to ‘Interface Area’Measurement 7 / Measurement 5
14Cluster Density

[A.U./pixel2]Ratio of ‘Junction marker 1 Intensity’ to ‘Junction marker 1 Area’.Measurement 7 / Measurement 6
15Junction Linearity Index

Ratio
[unitless]
Ratio of ‘Junction contour’ and ‘Straight-line junction length’



Measurement 8 / Measurement 9

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    ImageJ User Guide - IJ 1
    1. T Ferreira
    2. WS Rasband
    (2012)
    ImageJ User Guide - IJ 1, 46, https://imagej.net/docs/guide/user-guide.pdf.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    New aspects of pathogenesis of atrial fibrillation: remodelling of intercalated discs
    1. N Tribulova
    2. T Egan Benova
    3. B Szeiffova Bacova
    4. C Viczenczova
    5. M Barancik
    (2015)
    Journal of Physiology and Pharmacology 66:625–634.
  49. 49
  50. 50
  51. 51

Decision letter

  1. Valerie Horsley
    Reviewing Editor; Yale University, United States
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Carien M Niessen
    Reviewer; University of Cologne, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript provides a novel tool to quantify different parameters of mammalian intercellular junctions, and as such, is aptly called junction mapper. As pointed out by the authors in the Introduction of the manuscript quantification of different mammalian junctional parameters is often rather time consuming as for many programs finding borders and, often, correcting borders, can until now mostly be done manually. This tool will be useful to researchers in many fields for quantifying cell junctions.

Decision letter after peer review:

[Editors’ note: the authors were asked to provide a plan for revisions before the editors issued a final decision, this was subsequently approved by the editors. What follows is the editors’ letter requesting such plan.]

Thank you for sending your article entitled "Junction Mapper: quantitative analysis to decipher cell-cell contact phenotypes" for peer review at eLife. Your article is being evaluated by three peer reviewers, and the evaluation is being overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor.

Given the list of essential revisions, including new experiments, the editors and reviewers invite you to respond within the next two weeks with an action plan and timetable for the completion of the additional work. We plan to share your responses with the reviewers and then issue a binding recommendation.

While the reviewers recognized the benefits of the tool to analyze junctions, the reviewers felt that the manuscript lacked details regarding the algorithm testing and methods. Furthermore, the reviewers also would like to see whether this tool can be used on mammalian junctions to rigorously test whether this will be broadly used by the field of epithelial junction biologists.

Reviewer #1:

This very nice manuscript provides a novel tool to quantify different parameters of mammalian intercellular junctions, and as such, is aptly called junction mapper. As pointed out by the authors in the Introduction of the manuscript quantification of different mammalian junctional parameters is often rather time consuming as for many programs finding borders and, often, correcting borders, can until now mostly be done manually. Automated analysis is not trivial and in general requires a strong background in image bioinformatics/analysis or access to a core facility that provides such analysis. The exciting point of the work presented here is that this program provides a general and very accessible platform to quantify junctions in a semi-automatic manner to obtain multiple parameters. Moreover, proper detection of fragmented junctions is an even more complex problem which the authors have apparently solved. The program provides reasonable output parameters and the detection quality and sophistication of junctional staining appears to be outstanding judged by the data presented on both epithelial junctions as well as the already much harder endothelial junctions. Finally, the experiments that were performed convincingly demonstrate the applicability of the program and its sensitivity of detecting minor and specific alterations. Taken together, this manuscript provides convincing and exciting evidence that junction mapper is a great open software to quantitatively analyze junctions, and that allows laboratories not specialized in junctional imaging to also more precisely analyze and assess junctional phenotypes.

I have two comments that need to be addressed:

1) The last author is a well-known specialist on keratinocytes, which in vivo and in culture form multi-layered epithelia upon prolonged induction of differentiation. Although the authors have used keratinocytes, it seems they only used early time points after differentiation when these cells did not form multilayers yet. The multi-layering provides an extra complexity to the proper quantification of junctions. Can the program deal with this complexity? If so, would be very nice to include an example. If not, please also more stringently then discuss the limitations of the program.

2) One important point does need to be clarified. It is not exactly clear from the figures, legends or Materials and methods how the statistics were done. The authors name all the appropriate tests but it is not clear e.g. whether means of technical replicates or the collective number of junctions were used for statistical test. Clearly, the high number of junctions that can be analyzed here is an advantage. However, the variance between experiments is not shown and it is not clear whether the statistics take that into account.

Reviewer #2:

1) This manuscript describes a novel semiautomated software, 'Junction Mapper,' for analyzing cell junctions on parameters such as defining the junctional interphase, intensity, and length. Currently, analyzing cell junctions is often done manually which can be time consuming and laborious, even when using automated software, it is usually tailored to a specific cell type or unable to automatically distinguish nuances of perturbed or fragmented junctions. The authors evaluate their software's performance in several cell types, and in multiple conditions to evaluate its ability to detect a range of phenotypes (from severe to mild). This manuscript presents a new tool that address these significant problems and has the potential to be widely applied. However there are numerous flaws and oversights in this presentation that significantly dampen my enthusiasm. There is also a lack of rigor in evaluating the algorithms as presented which makes it difficult to assess the utility of the software thereby raising a major concern.

2) First, the availability of the software and test data sets is not clear. Nor is the computing language or platform that the software is written in. This is a major oversight. Second, the microscopy needs to be fully described. There are not scale bars on images. Are these max intensity projections, single confocal slices, widefield images, deconvovled? What is the resolution? The quality of the input will impact the ability of the algorithms to function and this needs to be defined.

3) How do different user selected parameters impact the output from the program? Since the skeleton can be manually adjusted, does the specific skeleton have an impact on the results? These factors need to be considered and quantified for their impact on the final measurements.

4) Input parameters need to be discussed – dilation and threshold level are important parameters to disclose for each analyzed data set. How do these impact final measurements?

5) The process of interactive editing, blurring, and sharpening is not shown nor well described. Is this process done manually on every image? Can it be automated for a data set? Seeing these steps, including when manual adjustment is required would be helpful. The reader has no feel for how often user intervention is required (every cell, every image, every border?).

Reviewer #3:

The manuscript describes the development of software for quantifying the phenotype of cell-cell contacts from high resolution images. The authors have been able to produce an impressive data set with the tool. However, the new tool is not validated sufficiently, and the methods are not adequately described. This is particularly important, as by the studying design, the biological ramifications of the analysis were not probed.

1) In the Introduction (third paragraph), the authors make the claim that the software developed for analysis of Drosophilia or nematode epithelia are not applicable to mammalian cells. Image analysis algorithm performance are typically based of the nature of the structures to be analyzed and the quality of data. There is no reason for these parameters to be fundamentally different in all mammalian cells. If the authors, are trying to say that tools for analysis of epithelial cells may not be directly applicable to other cells types or in all possible treatments (points made later), they should be more explicit here. Also, the (Held et al., 2011) does not describe the analysis of cell-cell contacts and does not seem to support the authors point.

2) The development of a new algorithm for image analysis is typically associated with several key endeavors. First is validation. Validation must be performed on data where the ground truth is known. For a "first-of-kind" algorithm this is often associated done with simulated data or data that was analyzed by hand. By this standard definition, the Junction Mapper is not validated. This must be corrected for the manuscript to be considered for publication. It seems that the data shown in Figure 6 may be appropriate for this task, as the data was previously analyzed by hand? This reviewer notes that citations within the manuscript are validated in this manner (i.e. Held et al., 2011). Also, the section in the Materials and methods described "Software validation" actually discusses exclusion criteria and naming procedures.

3) Additionally, there is typically an analysis of when the algorithm begins to fail. This is often done in terms of data with varying signal to noise. The limitations of this of the Junction Mapper are not tested. While it would be preferred that a formal analysis of the performance of the algorithm be performed, at a minimum image quality (which is often reported as signal to noise ratios) requirements (or at least typical image characteristics) should be provided so that users know the criteria for the suitability of the algorithm are met being attempting to use it.

4) The Materials and methods also lack sufficient detail. According to the manuscript, the Junction Mapper is a novel stand alone software. This means specific algorithms for background estimation, skeletonization, segmentation, and parameter calculation were used. Precise definitions (including formulae) or citations to the utilized algorithms need to be provided. Also, formulae describing how the parameters were calculated need to be added. Also, how corners were identified needs to be explained in greater detail. If corners are manually detected, then it is improper to state the Junction Mapper detected them. Additionally, are all junctions analyzed at once or individually? If different segmentation parameters are used on different junctions, are the results actually directly comparable? This reviewer also notes that the required details are not available in the often-cited previous work of Erasmus et al., 2016. This is understandable as that was a highly biological study, but that reference should not be used to described methodological details.

5) In several places the authors make claims that junctions that are straighter are more tensed. This is not true, as the junctions could also be stiffer, and therefore deform less. As no measurements of junctional tension were made, these statements should be removed.

6) The algorithm seems to assume constant width for the junctions. This will likely lead to substantial errors in area estimations. Have the authors given thought to this issue? Are the errors inconsequential? Can the algorithm be readily updated to avoid this artefact?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Junction Mapper is a novel computer vision tool to decipher cell-cell contact phenotypes" for further consideration at eLife. Your revised article has been favorably evaluated by Anna Akhmanova as the Senior Editor, a Reviewing Editor, and three reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

Reviewer #1:

The authors took a lot of effort to address the points that were raised by the reviewers. I do not have the proper expertise to judge whether the authors have sufficiently addressed the points of reviewers 2 and 3.

1) In response to point 2, the authors now describe which statistical tests are used and clarify for which figure panels they used biological or technical replicates. The authors now state that the statistics and the tests used are in Supplementary file 5. Unfortunately, I was unable to find Supplementary file 5 in the present submission, making it impossible whether the statistics were done properly. Importantly, the authors still do not clearly state in the legends and/or Materials and methods the number of replicates on which the data shown are based on. Throughout the manuscript, each measured junction is called a sample and the number of analyzed junctions are now provided in the figures. However, for the statistics the authors should provide information on the number of replicates, meaning number of independent experiments or biological samples, in the figure or legend to clearly show that differences and significance levels are due to the high number of junctions but not because of experimental variation.

2) For siRNA experiments the section on statistical analysis says that only one control and knockdown group was analyzed. If this is not a misunderstanding, then even high number of analyzed junctions from one experiment do not allow strong conclusions as experimental variation upon knockdown of CIP4, EEFA1A or VAV2 has not been assessed. For physiological relevant conclusions one would expect a set of at least 3 independent experiments. I do understand that the authors want to test their very interesting tool for which they provide many different experimental tests. However, the authors should then acknowledge and tune down mechanistic conclusions. For experiments concerning HUVEC cells, there is no information on the number of biological replicates on which the data are based.

3) Thus, at present the way the data are presented now, provides nice evidence that the program allows for quantification of high number of junctions to potentially detect small differences. If the authors want to use the experiments shown in the manuscript to validate the usefulness as well as limits of the software, this approach with limited number of repetitions seems valid but then this has to be made more clearly throughout the manuscript. Not all of the data sets are sufficiently comprehensive to univocally demonstrate a biological relevant junctional outcome upon treatment or knockdown and this should be acknowledged. Having said this, I feel if the authors were able to address the concerns of reviewer 2 and 3, they should be provided the opportunity to properly address and include in the manuscript the comments above.

Reviewer #2:

Overall this tool has the potential to be useful for researchers, and the authors have now included many more rigorous definition of the method and treatments of the parameters both in definition and in comparison of data processed in different ways. This strengthens the manuscript. However, I am still not sure this is sufficient to fully describe the bounds of the junction mapper approach.

1) Most scientific conclusions as presented come from comparisons of values in control/disrupted. When looking at effects of user inputs the graphs are shown for each treatments individually but what are the changes with different thresholds/dilations between treatments (i.e. Figure 3—figure supplements 2 and 3)? Would different biological conclusions be drawn if you push the dilation or threshold "too far"?

2) Authors point out a central issue and why this analysis is challenging – If there is no staining at a cell corner then where the program or user places the junction is arbitrary. Without a second marker of plasma membrane rather than junction this will always be an issue these measurements regardless of what automated algorithm is deployed or with user definition.

3) The authors show secondary characteristics are more robust to error in corner selection and that individual users get same direction of changes but not same absolute values, which does show the value added here. This should be emphasized in the Discussion.

4) For the noise quantification, there should be a metric for measurement accuracy, or deviation from the ground truth. Guidance for user on minimum S/N needed for robust quantification. There is also no information on type of noise added (shot noise, dependent on pixel intensity is dominant noise in most microscopy images and is recommended here). The goal would be for a user to know if a junction has sufficient S/N to be analyzed.

5) This leads me to the quantification of the type "ee" boarders in the H-RasG12V overexpressing cells. There appears to be greatly reduced e-cad staining at the boarders (it is difficult to see by eye any in the examples shown). In this case, how are the interfaces defined? Does this lower signal to noise negatively impact the program? How confident should we feel about comparing images with different S/N levels?

Reviewer #3:

The manuscript is greatly improved and nearly ready for publication.

https://doi.org/10.7554/eLife.45413.sa1

Author response

[Editors’ notes: the authors’ response after being formally invited to submit a revised submission follows.]

Reviewer #1:

[…] I have two comments that need to be addressed:

1) The last author is a well-known specialist on keratinocytes, which in vivo and in culture form multi-layered epithelia upon prolonged induction of differentiation. Although the authors have used keratinocytes, it seems they only used early time points after differentiation when these cells did not form multilayers yet. The multi-layering provides an extra complexity to the proper quantification of junctions. Can the program deal with this complexity? If so, would be very nice to include an example. If not, please also more stringently then discuss the limitations of the program.

There could be adaptations to quantify en face confocal Z-sections of a stratified epithelia. However, the complexity of stratified epithelium images (en face or transversal sections (see Figure 3A from Sevilla et al., 2007) means that a potential analysis using Junction Mapper will not be meaningful. For example, it will be very much dependent on the angle of the section, variations in cell sizes and the amount of incomplete outlines of individual cells, which makes comparison across samples difficult. It also remains to be tested whether Junction Mapper can quantify junctions in pseudo-stratified epithelia. This information and limitations were added to the Discussion.

2) One important point does need to be clarified. It is not exactly clear from the figures, legends or Materials and methods how the statistics were done. The authors name all the appropriate tests but it is not clear e.g. whether means of technical replicates or the collective number of junctions were used for statistical test. Clearly, the high number of junctions that can be analyzed here is an advantage. However, the variance between experiments is not shown and it is not clear whether the statistics take that into account.

Apologies for the oversight and unclear text. The results are mostly from technical replicates: 5-10 images were analysed per sample and all junctions from cells in each image were quantified (except those excluded by the quality control criteria). Each point on graphs represents a measurement from one junction. The numbers ('n =') cited include all junctions analyzed (pooled from all available images of a given sample). For some experiments (Src expression and endothelial cells), biological replicates were analysed separately. If the pattern of the parameters were similar across biological replicates, the data was pooled all together and shown in the graph. A new supplementary table contains the statistics performed and where appropriate, the variance (Supplementary file 5). Clarifications on which data are from a technical or biological replicate were added in Supplementary file 1 and in the figure legends.

Reviewer #2:

[…]

1) This manuscript presents a new tool that address these significant problems and has the potential to be widely applied. However there are numerous flaws and oversights in this presentation that significantly dampen my enthusiasm. There is also a lack of rigor in evaluating the algorithms as presented which makes it difficult to assess the utility of the software thereby raising a major concern.

We thank the reviewer for the valid points made. The parameter explanations and methodology could have been made clearer and further validation presented. We have now provided extensive validation of the program in several supplementary figures, main figures and tables (please see those outlined below).

2) First, the availability of the software and test data sets is not clear. Nor is the computing language or platform that the software is written in. This is a major oversight. Second, the microscopy needs to be fully described. There are not scale bars on images. Are these max intensity projections, single confocal slices, widefield images, deconvovled? What is the resolution? The quality of the input will impact the ability of the algorithms to function and this needs to be defined.

The reviewer has a point and we are sorry for the oversight. The test data sets are from our own labs, unpublished data and from published papers; i.e. from Erasmus et al., 2016 – these are referred to in the text. The software was developed using Java and is available as an open access standalone, downloadable format (information added in the subsection “Software development”). A new supplementary table containing detailed information of the acquisition of images for each dataset was added (Supplementary file 1). Explanations of what critically affects the analyses and the limitations of the software were written in the Materials and methods and Results(please see also point 3, 4 below and reviewer 3 points 2, 3, 4 and 6).

3) How do different user selected parameters impact the output from the program? Since the skeleton can be manually adjusted, does the specific skeleton have an impact on the results? These factors need to be considered and quantified for their impact on the final measurements.

The user can control four distinct steps. The first two (skeleton and corner identification) are done automatically but can be revised by the user. While it is important that the skeleton overlays the junctional marker staining, there is some tolerance on the precision of skeleton outline, because there is a dilation step to define the ROI.

The other two user-controlled settings are to choose the dilation value (to encompass the whole width of the staining along the skeleton) and the thresholding levels (to keep noise in the cytoplasm at a minimum, without information loss at junctions). These settings are kept constant for all images of a given experiment. Explanations are added to the text to clarify the relevance of the user-defined settings (Results and in “Figure 2—figure supplement 2”).

4) Input parameters need to be discussed – dilation and threshold level are important parameters to disclose for each analyzed data set. How do these impact final measurements?

Thanks for the suggestion. In the revised manuscript, two new supplementary figures (Figure 3—figure supplement 1 to 2) demonstrate the effects of varying dilation and thresholding on the primary parameters (length and intensity). A supplementary table was added with the information of how each sample was analysed (dilation and thresholding settings; Supplementary file 1).

5) The process of interactive editing, blurring, and sharpening is not shown nor well described. Is this process done manually on every image? Can it be automated for a data set? Seeing these steps, including when manual adjustment is required would be helpful. The reader has no feel for how often user intervention is required (every cell, every image, every border?).

We agree with the reviewer. The process is done in each image because of image-to-image variability and the extent of junction disruption when stimulated. We addressed the concerns in two ways: (i) a new supplementary figure shows the precise steps to obtain the skeleton and corners (Figure 2—figure supplement 2) and (ii) instructions on how the software operates are included in a custom-made video downloadable package of Junction Mapper from a dedicated website.

Reviewer #3:

[…]

1) In the Introduction (third paragraph), the authors make the claim that the software developed for analysis of Drosophilia or nematode epithelia are not applicable to mammalian cells. Image analysis algorithm performance are typically based of the nature of the structures to be analyzed and the quality of data. There is no reason for these parameters to be fundamentally different in all mammalian cells. If the authors, are trying to say that tools for analysis of epithelial cells may not be directly applicable to other cells types or in all possible treatments (points made later), they should be more explicit here.

This is a misunderstanding. What the referred paragraph is meant to say is that algorithms that work fine to identify cell borders (i.e. skeleton) in Drosophila or C. elegans epithelia struggle to perform well in mammalian epithelia. This is because mammalian junctions are thinner, more irregular and have higher signal to noise ratio than those of in vivo images of invertebrate epithelia. The Junction Mapper parameters (novel and established) are universal and are applicable to epithelia from different organisms, cell types and following different treatments.

Also, the (Held, et al., 2011) does not describe the analysis of cell-cell contacts and does not seem to support the authors point.

Apologies, this reference is incorrect as it refers to different ways to identify cells in a monolayer.

2) The development of a new algorithm for image analysis is typically associated with several key endeavors. First is validation. Validation must be performed on data where the ground truth is known. For a "first-of-kind" algorithm this is often associated done with simulated data or data that was analyzed by hand. By this standard definition, the Junction Mapper is not validated. This must be corrected for the manuscript to be considered for publication. It seems that the data shown in Figure 6 may be appropriate for this task, as the data was previously analyzed by hand? This reviewer notes that citations within the manuscript are validated in this manner (i.e. Held et al., 2011). Also, the section in the Materials and methods described "Software validation" actually discusses exclusion criteria and naming procedures.

The reviewer is correct. Many of the parameters are novel and have not been used previously. Unfortunately, data shown in Figure 6 has been quantified by another thresholding method, using the intensity of the whole image as output (i.e. all cells in the image).[2] The raw data obtained is thus not comparable, as the results are from the intensity of all junctions in the whole image corrected for the total image area.[2] The raw data from Junction Mapper output measure values per junction corrected for its respective interface area. Nevertheless, in an experiment, when the percentage of rescue is computed with either our previous and current method, similar results are obtained: a mild reduction of E-cadherin intensity at junctions compared to controls after depletion of TRIP10 or VAV2 (20-30%) while EEF1A shows a 50% increase in E-cadherin intensity at junctions (Figure 6).[2] We provided validation in several ways and revised the text accordingly:

- Length-based and area-based parameters are measured as predicted, i.e. with increasing shorter values for the interface, junctions and fragmented junction staining (new Figure 3B).

- Dilation manipulation interferes with area-based measurements, but not length-based parameters Figure 3—figure supplement 2).

- Increasing levels of thresholding interferes with intensity and pixel area as well as the length of fragments of junction markers (Figure 3—figure supplement 3).

- The validation of the secondary parameter Coverage Index by manual quantification as described in our previous paper (i.e. Supplementary file 2).[3]

- Comparison of quantification by an independent user (new Supplementary file 3 and Figure 7—figure supplement 1; please see points 3, 4 and 6 below).

3) Additionally, there is typically an analysis of when the algorithm begins to fail. This is often done in terms of data with varying signal to noise. The limitations of this of the Junction Mapper are not tested. While it would be preferred that a formal analysis of the performance of the algorithm be performed, at a minimum image quality (which is often reported as signal to noise ratios) requirements (or at least typical image characteristics) should be provided so that users know the criteria for the suitability of the algorithm are met being attempting to use it.

We thank the reviewer for the suggestion. Additional explanations were added in the Results and a new supplementary figure provide validation of signal-to-noise ratios (new Figure 2—figure supplement 3).

4) The Materials and methods also lack sufficient detail. According to the manuscript, the Junction Mapper is a novel stand alone software. This means specific algorithms for background estimation, skeletonization, segmentation, and parameter calculation were used. Precise definitions (including formulae) or citations to the utilized algorithms need to be provided. Also, formulae describing how the parameters were calculated need to be added. Also, how corners were identified needs to be explained in greater detail. If corners are manually detected, then it is improper to state the Junction Mapper detected them.

The software uses algorithms that are mostly available open access, with some added innovation. The novelty of the Junction Mapper is in the integration of distinct measurements, calculations of new parameters and consolidation of all parameters in a single system. The mathematical definitions of the parameters, the innovation of the automatic corner setting, its correction by users and the calculation of fragmented regions of contacts are now described in a more comprehensive explanation of the software (new Figure 2—figure supplement 2). This information was added to the Materials and methods section.

Additionally, are all junctions analyzed at once or individually? If different segmentation parameters are used on different junctions, are the results actually directly comparable?

Once the skeleton, corners and dilation are set, all junctions in the ROI are quantified simultaneously at a click, and all measurements and parameters exported to an excel file automatically. For results to be comparable, images from an experiment with various treatments would need to be analysed with the same conditions (dilation, thresholding, etc). This information was added to the revised text (Results) and in new Figure 2—figure supplement 2.

This reviewer also notes that the required details are not available in the often-cited previous work of Erasmus et al., 2016. This is understandable as that was a highly biological study, but that reference should not be used to described methodological details.

The reviewer has a point and it needs to be better clarified in the text. The work on Erasmus et al. defines the obtention of the E-cadherin mask as a tool to calculate the intensity specifically around junctions as% thresholded area of the whole image. It also defines the Ecadherin mask to subtract an ROI on an image of a distinct marker (i.e. F-actin), so that only the signal localized at contacts is considered. Junction Mapper builds from this work and improves with novel quantification tools (corners, length and area), calculation of fragments at junctions and a variety of novel primary and secondary parameters. These points were clarified in the text (Results and Materials and methods).

5) In several places the authors make claims that junctions that are straighter are more tensed. This is not true, as the junctions could also be stiffer, and therefore deform less. As no measurements of junctional tension were made, these statements should be removed.

Thanks for point out this over-interpretation – we have indeed shown no data to support either case (tension or stiffness). The reviewer is correct that junctions could also be stiffer. However, the statement is based on numerous papers that: (i) using laser ablation show a striking recoil of junctions, which is abolished by different treatments to inhibit Rho pathway [4], (ii) show weaker, undulated contacts upon enhancing signalling from Cdc42 GTPase [1], (iii) measurement of tension at junctions with biosensors[5] and (iv) the wiggly morphology of junctions observed in tumour cells versus in vivo in epithelial tissues. The text was revised throughout as requested.

6) The algorithm seems to assume constant width for the junctions. This will likely lead to substantial errors in area estimations. Have the authors given thought to this issue? Are the errors inconsequential? Can the algorithm be readily updated to avoid this artefact?

This is a misunderstanding. The variable width of staining at junctions can be fully captured by the dilation step (user defined) and will depend on the amplification of the image. The dilation steps increase the numbers of pixels at each side of the skeleton line (range 0 to 9 pixels) and determines automatically the area in which quantification will be done (ROI). The influence of varying the dilation for different parameters is now shown in new Figure 3—figure supplement 2. The dilation value is manually set up and kept constant for each dataset (i.e. H-Ras, Rac1, etc). We provided the dilation values in new Supplementary file 1 along with the details for final thresholding and image dataset characteristics).

References:

1) Otani, T., et al., Cdc42 GEF Tuba regulates the junctional configuration of simple epithelial cells. J. Cell Biol., 2006. 175(1): p. 135-146.

2) Erasmus, J.C., et al., Defining functional interactions during biogenesis of epithelial junctions. Nature Commun., 2016. 7: p. 13542.

3) Lozano, E., et al., PAK is required for the disruption of E-cadherin adhesion by the small GTPase Rac. J. Cell Sci., 2008. 121(Pt 7): p. 933-938.

4) Priya, R., et al., Feedback regulation through myosin II confers robustness on RhoA signalling at E-cadherin junctions. Nature Cell Biol., 2015. 17: p. 1282-1293.

5) Acharya, B.R., et al., Mammalian Diaphanous 1 Mediates a Pathway for E-cadherin to Stabilize Epithelial Barriers through Junctional Contractility. Cell Rep., 2017. 18(12): p. 2854-2867.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Reviewer #1:

[…]

1) In response to point 2, the authors now describe which statistical tests are used and clarify for which figure panels they used biological or technical replicates. The authors now state that the statistics and the tests used are in Supplementary file 5. Unfortunately, I was unable to find Supplementary file 5 in the present submission, making it impossible whether the statistics were done properly. Importantly, the authors still do not clearly state in the legends and/or Materials and methods the number of replicates on which the data shown are based on. Throughout the manuscript, each measured junction is called a sample and the number of analyzed junctions are now provided in the figures. However, for the statistics the authors should provide information on the number of replicates, meaning number of independent experiments or biological samples, in the figure or legend to clearly show that differences and significance levels are due to the high number of junctions but not because of experimental variation.

The information was present in the legends but we acknowledge that it was not very clear. We now revised each relevant figure legend and state whether the data are technical or biological replicates. We changed the legends to state “number of junctions” instead of “number of samples”. The text was also modified to clarify the significance due to the high number of junctions (subsection “Distinct oncogenes trigger different patterns of junction disruption in epithelia”) and revised the correct citations to supplementary materials to be fully compliant with eLife requirements.

2) For siRNA experiments the section on statistical analysis says that only one control and knockdown group was analyzed. If this is not a misunderstanding, then even high number of analyzed junctions from one experiment do not allow strong conclusions as experimental variation upon knockdown of CIP4, EEFA1A or VAV2 has not been assessed. For physiological relevant conclusions one would expect a set of at least 3 independent experiments. I do understand that the authors want to test their very interesting tool for which they provide many different experimental tests. However, the authors should then acknowledge and tune down mechanistic conclusions. For experiments concerning HUVEC cells, there is no information on the number of biological replicates on which the data are based.

We thank the reviewer for the suggestion and we endeavour to eliminate any over-interpretation. We are acutely aware that the above distinction should be made very clear to the readers, and are happy to clarify further. While there were caution notes in the text, we have revised the text to explain this point better, tone down the conclusions and extensively altered the Discussion section to focus more on Junction Mapper properties, advantages and caveats.

3) Thus, at present the way the data are presented now, provides nice evidence that the program allows for quantification of high number of junctions to potentially detect small differences. If the authors want to use the experiments shown in the manuscript to validate the usefulness as well as limits of the software, this approach with limited number of repetitions seems valid but then this has to be made more clearly throughout the manuscript. Not all of the data sets are sufficiently comprehensive to univocally demonstrate a biological relevant junctional outcome upon treatment or knockdown and this should be acknowledged. Having said this, I feel if the authors were able to address the concerns of reviewer 2 and 3, they should be provided the opportunity to properly address and include in the manuscript the comments above.

Please see our reply to point 2 above and to the other reviewers below.

Reviewer #2:

[…]

1) Most scientific conclusions as presented come from comparisons of values in control/disrupted. When looking at effects of user inputs the graphs are shown for each treatments individually but what are the changes with different thresholds/dilations between treatments (i.e. Figure 3—figure supplements 2 and 3)? Would different biological conclusions be drawn if you push the dilation or threshold "too far"?

We understand the reviewer point. In the analysis, we keep the threshold at a minimum to avoid loss of signal at junctions (subsection “Software development”, fourth paragraph). Very high thresholding levels are clearly not appropriate for the analyses, as too much signal is lost (i.e. threshold 100-150, Figure 3—figure supplement 3). Similarly, very high dilation settings may not detect any further increase in measurement values in stimulated samples, but not in controls, in some (Figure 3—figure supplement 2A-D), but not all experiments (Figure 3—figure supplement 2E-H).

As shown in our validation experiments, different users, using distinct dilation and thresholding settings obtain different absolute values for the parameters using Junction Mapper (Figure 7—figure supplement 1; Supplementary file 3). However, the conclusions are statistically similar when compared with controls quantified under the same conditions. As the settings are applied to both control and treated images, we expect that the results are not changed overall. Higher threshold levels will remove intensity at junctions and cytoplasm in both control and treated groups. Conversely, we expect that by increasing dilation much wider than the junctional staining, the background or noise will be computed as junctional signals for all samples (control and treated).

2) Authors point out a central issue and why this analysis is challenging – If there is no staining at a cell corner then where the program or user places the junction is arbitrary. Without a second marker of plasma membrane rather than junction this will always be an issue these measurements regardless of what automated algorithm is deployed or with user definition.

The reviewer is correct: a membrane or cell marker is very helpful to guide corner positioning. This can be done using cytoskeletal staining (i.e. F-actin) or a marker that labels the whole cell; i.e. Cell Mask. The above point is stressed in the third paragraph of the subsection “Software development”.

3) The authors show secondary characteristics are more robust to error in corner selection and that individual users get same direction of changes but not same absolute values, which does show the value added here. This should be emphasized in the Discussion.

Thanks for the suggestion – this information is now discussed in the subsection “User-bias validation” and in the first paragraph of the Discussion.

4) For the noise quantification, there should be a metric for measurement accuracy, or deviation from the ground truth. Guidance for user on minimum S/N needed for robust quantification. There is also no information on type of noise added (shot noise, dependent on pixel intensity is dominant noise in most microscopy images and is recommended here). The goal would be for a user to know if a junction has sufficient S/N to be analyzed.

We thank the reviewer for the recommendation. We performed the determination of peak signal to noise ratio (PSNR) in the original images compared to those where noise was artificially added using FIJI. Our quantification showed that a PSNR above 21.72dB +/- 0.67 is optimal and generally measured in the original images (cardiomyocytes and keratinocyte samples). Reducing the PSNR values to below 16.00dB (epithelia) or 18.00dB (cardiomyocytes) severely compromises the performance of the software. This information is now added to the subsection “Software validation” and in the Results. The PSNR values were added to each modified image (original and modified, Figure 2—figure supplement 3).

5) This leads me to the quantification of the type "ee" boarders in the H-RasG12V overexpressing cells. There appears to be greatly reduced e-cad staining at the boarders (it is difficult to see by eye any in the examples shown). In this case, how are the interfaces defined? Does this lower signal to noise negatively impact the program? How confident should we feel about comparing images with different S/N levels?

As stated in point 2 above, for severely perturbed junctions, the junctional remains, staining of neighbouring cells and with a second marker are helpful to delineate the borders. The visualization is also much better in the computer screen. Of note is that we find that samples that are severely disrupted are not easily rescued, as the perturbation goes too far. The experimental design is best when the expression/stimulus is carefully optimized to significantly disrupt in a quantifiable manner, but not completely abolish the junctional staining. The potential of the Junctional Mapper software is to be able to analyse high numbers of junctions and then obtain the sample variability in a statistically significant manner.

https://doi.org/10.7554/eLife.45413.sa2

Article and author information

Author details

  1. Helena Brezovjakova

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Writing - original draft, Performed the formal analyses, software validation and visualization of the data
    Contributed equally with
    Chris Tomlinson
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3554-6084
  2. Chris Tomlinson

    Bioinformatics Data Science Group, Faculty of Medicine, Imperial College London, London, United Kingdom
    Contribution
    Software, Supervision, Validation, Methodology, Writing - original draft, Designed the software and computational solutions, Produced the instructions video and website
    Contributed equally with
    Helena Brezovjakova
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8634-6111
  3. Noor Mohd Naim

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Present address
    PAPRSB Institute of Health Sciences, Universiti Brunei, Darussalam, Brunei
    Contribution
    Data curation, Investigation, Methodology, Provided resources (image datasets)
    Competing interests
    No competing interests declared
  4. Pamela Swiatlowska

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Contribution
    Formal analysis, Validation, Visualization, Methodology, Writing - original draft, provided resources (image datasets)
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3705-7495
  5. Jennifer C Erasmus

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Contribution
    Data curation, Supervision, Investigation, Visualization, Methodology, Writing - original draft, provided resources (image datasets) and software validation
    Competing interests
    No competing interests declared
  6. Stephan Huveneers

    Department Medical Biochemistry, Amsterdam Cardiovascular Sciences, Amsterdam UMC, University of Amsterdam, Amsterdam, Netherlands
    Contribution
    Resources, Data curation, Validation, Writing - original draft, Writing - review and editing, Provided datasets
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1091-475X
  7. Julia Gorelik

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Project administration, Writing - review and editing, Provided datasets
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1148-9158
  8. Susann Bruche

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Present address
    Department of Anatomy, Physiology and Genetics, Oxford University, Oxford, United Kingdom
    Contribution
    Conceptualization, Software, Supervision, Investigation, Visualization, Methodology, Writing - review and editing, provided resources (image datasets) and software validation
    For correspondence
    susann.bruche@dpag.ox.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5814-7166
  9. Vania MM Braga

    National Heart and Lung Institute, National Institutes of Health, London, United Kingdom
    Contribution
    Conceptualization, Software, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    v.braga@imperial.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0546-7163

Funding

Medical Research Council (MR/M026310/1)

  • Vania MM Braga

Biotechnology and Biological Sciences Research Council (BB/M022617/1)

  • Vania MM Braga

Cancer Research UK (C1282/A11980)

  • Vania MM Braga

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (VIDI 016.156.327)

  • Stephan Huveneers

Prime Minister's Office, Brunei Darussalam (JPLL/A/4:A[2010]/J1(703))

  • Noor Mohd Naim

National Institutes of Health (1R01HL141855-01)

  • Julia Gorelik

British Heart Foundation (RG/17/13/33173)

  • Julia Gorelik

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors declare no competing interests. We acknowledge generous funding by Medical Research Council (MR/M026310/1, SB), Cancer Research UK (C1282/A11980, JE), BBSRC (BB/M022617/1, JE), National Institutes of Health Grant (1R01HL141855-01, JG), BHF (RG/17/13/33173, JG), Brunei Government Studentship (NM-N) and NHLI Foundation Studentship (MS). Netherlands Organization of Scientific Research (VIDI 016.156.327, SH). The Facility for Imaging by Light Microscopy (FILM) at Imperial College London is part supported by funding from the Wellcome Trust (grant 104931/Z/14/Z) and BBSRC (grant BB/L015129/1).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Valerie Horsley, Yale University, United States

Reviewer

  1. Carien M Niessen, University of Cologne, Germany

Publication history

  1. Received: January 23, 2019
  2. Accepted: December 2, 2019
  3. Accepted Manuscript published: December 3, 2019 (version 1)
  4. Version of Record published: February 21, 2020 (version 2)

Copyright

© 2019, Brezovjakova et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,225
    Page views
  • 365
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    Chun-Chun Cheng et al.
    Research Article Updated

    Cancer testis antigens (CTAs) are proteins whose expression is normally restricted to the testis but anomalously activated in human cancer. In sperm, a number of CTAs support energy generation, however, whether they contribute to tumor metabolism is not understood. We describe human COX6B2, a component of cytochrome c oxidase (complex IV). COX6B2 is expressed in human lung adenocarcinoma (LUAD) and expression correlates with reduced survival time. COX6B2, but not its somatic isoform COX6B1, enhances activity of complex IV, increasing oxidative phosphorylation (OXPHOS) and NAD+ generation. Consequently, COX6B2-expressing cancer cells display a proliferative advantage, particularly in low oxygen. Conversely, depletion of COX6B2 attenuates OXPHOS and collapses mitochondrial membrane potential leading to cell death or senescence. COX6B2 is both necessary and sufficient for growth of human tumor xenografts in mice. Our findings reveal a previously unappreciated, tumor-specific metabolic pathway hijacked from one of the most ATP-intensive processes in the animal kingdom: sperm motility.

    1. Cancer Biology
    2. Chromosomes and Gene Expression
    Pieter A Roelofs et al.
    Research Article Updated

    APOBEC3B (A3B)-catalyzed DNA cytosine deamination contributes to the overall mutational landscape in breast cancer. Molecular mechanisms responsible for A3B upregulation in cancer are poorly understood. Here we show that a single E2F cis-element mediates repression in normal cells and that expression is activated by its mutational disruption in a reporter construct or the endogenous A3B gene. The same E2F site is required for A3B induction by polyomavirus T antigen indicating a shared molecular mechanism. Proteomic and biochemical experiments demonstrate the binding of wildtype but not mutant E2F promoters by repressive PRC1.6/E2F6 and DREAM/E2F4 complexes. Knockdown and overexpression studies confirm the involvement of these repressive complexes in regulating A3B expression. Altogether, these studies demonstrate that A3B expression is suppressed in normal cells by repressive E2F complexes and that viral or mutational disruption of this regulatory network triggers overexpression in breast cancer and provides fuel for tumor evolution.
