A contractile injection system stimulates tubeworm metamorphosis by translocating a proteinaceous effector

  1. Charles F Ericson
  2. Fabian Eisenstein
  3. João M Medeiros
  4. Kyle E Malter
  5. Giselle S Cavalcanti
  6. Robert W Zeller
  7. Dianne K Newman
  8. Martin Pilhofer  Is a corresponding author
  9. Nicholas J Shikuma  Is a corresponding author
  1. San Diego State University, United States
  2. Institute of Molecular Biology and Biophysics, Eidgenössische Technische Hochschule, Switzerland
  3. California Institute of Technology, United States
https://doi.org/10.7554/eLife.46845
Share this article
Cite this article
  1. Charles F Ericson
  2. Fabian Eisenstein
  3. João M Medeiros
  4. Kyle E Malter
  5. Giselle S Cavalcanti
  6. Robert W Zeller
  7. Dianne K Newman
  8. Martin Pilhofer
  9. Nicholas J Shikuma
(2019)
A contractile injection system stimulates tubeworm metamorphosis by translocating a proteinaceous effector
eLife 8:e46845.
https://doi.org/10.7554/eLife.46845
  2. Download BibTeX
  3. Download .RIS

Abstract

The swimming larvae of many marine animals identify a location on the sea floor to undergo metamorphosis based on the presence of specific bacteria. Although this microbe–animal interaction is critical for the life cycles of diverse marine animals, what types of biochemical cues from bacteria that induce metamorphosis has been a mystery. Metamorphosis of larvae of the tubeworm Hydroides elegans is induced by arrays of phage tail-like contractile injection systems, which are released by the bacterium Pseudoalteromonas luteoviolacea. Here we identify the novel effector protein Mif1. By cryo-electron tomography imaging and functional assays, we observe Mif1 as cargo inside the tube lumen of the contractile injection system and show that the mif1 gene is required for inducing metamorphosis. Purified Mif1 is sufficient for triggering metamorphosis when electroporated into tubeworm larvae. Our results indicate that the delivery of protein effectors by contractile injection systems may orchestrate microbe–animal interactions in diverse contexts.

https://doi.org/10.7554/eLife.46845.001

eLife digest

Many marine animals, including corals and tubeworms, begin life as larvae swimming in open water before transforming into adults that anchor themselves to the seabed. These transformations, known as metamorphoses, are often triggered by certain types of bacteria that form friendly relationships (or “symbioses”) with the animals.

One such symbiosis forms between a bacterium called Pseudoalteromonas luteoviolacea and a tubeworm known as Hydroides elegans. Previous studies have shown that P. luteoviolacea produces syringe-like structures known as Metamorphosis Associated Contractile structures (or MACs for short) that are responsible for stimulating metamorphosis in the tubeworm larvae. Some viruses that infect bacteria use similar structures to inject molecules into their host cells. However, it was not clear whether MACs were also able to inject molecules into cells.

Here, Ericson, Eisenstein et al. used a technique called cryo-electron tomography combined with genetic and biochemical approaches to study how the MACs of P. luteoviolacea trigger metamorphosis in tubeworms. The experiments identified a protein in the bacteria named Mif1 that was required for the tubeworms to transform. The bacteria loaded Mif1 into the tube of the MAC structure and then injected it into the tubeworms. Further experiments showed that inserting Mif1 alone into tubeworms was sufficient to activate metamorphosis.

Mif1 is the first protein from bacteria to be shown to activate metamorphosis, but it is likely that many more remain to be discovered. Since other marine animals also form symbioses with bacteria, understanding how Mif1 and other similar proteins work may inform efforts to restore coral reefs and other fragile ecosystems, and increase the production of oysters and other shellfish. Furthermore, MACs and related structures may have the potential to be developed into biotechnology tools that deliver drugs and other molecules directly into animal cells.

https://doi.org/10.7554/eLife.46845.002

Introduction

Bacteria can have profound effects on the normal development of diverse animal taxa (McFall-Ngai et al., 2013). One of the most pervasive examples of bacteria stimulating development is the induction of animal metamorphosis by bacteria (Hadfield, 2011). During these interactions in marine environments, surface-bound bacteria often serve as environmental triggers that induce mobile animal larvae to settle on a surface and undergo metamorphosis. Although the stimulation of metamorphosis by bacteria is critical for diverse animal-mediated processes such as coral reef formation (Webster et al., 2004; Whalan and Webster, 2014), the recruitment of stocks for marine fisheries (Dworjanyn and Pirozzi, 2008; Yu et al., 2010) and the fouling of submerged surfaces like the hulls of ships (i.e. biofouling) (Khandeparker et al., 2006; Nedved and Hadfield, 2008), we know little about the mechanisms that govern this microbe–animal interaction.

Despite the fact that the link between bacteria and animal metamorphosis was first discovered in the 1930s (Zobell and Allen, 1935), few bacterial products have been described that stimulate this developmental transition. To date, identified bacterial cues can all be classified as small molecules. Two examples are the small bacterial metabolite tetrabromopyrrole, which induces partial or complete metamorphosis of corals (Sneed et al., 2014; Tebben et al., 2011) and the polar molecule histamine from algae or associated microbes, which induces urchin metamorphosis (Swanson et al., 2007). To our knowledge, however, no proteinaceous bacterial cues have yet been identified that stimulate animal metamorphosis.

To investigate how bacteria induce animal metamorphosis, we have previously studied the interaction between the tubeworm Hydroides elegans (hereafter Hydroides) and the bacterium Pseudoalteromonas luteoviolacea (Hadfield et al., 1994; Huang and Hadfield, 2003; Nedved and Hadfield, 2008; Shikuma et al., 2016). We found that P. luteoviolacea produces arrays of Metamorphosis Associated Contractile structures (MACs) that induce the metamorphosis of Hydroides larvae (Huang et al., 2012; Shikuma et al., 2014). MACs are an example of a Contractile Injection System (CIS); macromolecular machines that are specialized to puncture membranes and often deliver proteinaceous effectors into target cells (Brackmann et al., 2017; Taylor et al., 2018). Like other CISs, MACs are evolutionarily related to the contractile tails of bacteriophages (bacterial viruses) and are composed of an inner tube protein (homologous to gp19 from phage T4 and Hcp from type six secretion systems) surrounded by a contractile sheath, a tail-spike, and a baseplate complex (Shikuma et al., 2014). The conserved mechanism is driven by contraction of the sheath, which propels the inner tube/spike into the target cell.

Different ways of loading effectors onto a CIS have been suggested. Translocation mechanisms of effectors via the spike complex of a CIS have been well characterized (Quentin et al., 2018; Shneider et al., 2013). The presence of an alternative pathway of loading effectors into the inner tube lumen has been speculated but is only poorly understood. For example, an amorphous density inside the inner tube of the Antifeeding prophage (Afp) was attributed to either the toxin payload or a tape-measuring protein (Heymann et al., 2013). Other classes of effectors were found to interact with the inner tube protein (Hcp) and are likely released post-firing by tube dissociation in the target cytoplasm (Sana et al., 2016; Silverman et al., 2013).

In this study, we set out to identify a potential metamorphosis-inducing effector that MACs inject into Hydroides larvae, as well as the loading of such an effector into MACs. We show that a previously identified genomic region in P. luteoviolacea (Shikuma et al., 2016) encodes a bacterial protein that localizes to the inner tube lumen of the MAC structure and is necessary for inducing the metamorphosis of Hydroides larvae. Our results identify a proteinaceous effector stimulating animal metamorphosis and provide a direct visualization of an effector in the tube lumen of an assembled CIS.

Results

Two bacterial genes are responsible for densities within the inner tube lumen of MACs and are involved in metamorphosis induction

We previously identified a genomic locus in P. luteoviolacea encoding six genes (gene numbers JF50_12590, JF50_12595, JF50_12600, JF50_12605, JF50_12610 and JF50_12615) that was essential for inducing the larvae of Hydroides to undergo metamorphosis (Shikuma et al., 2016). Here we analyzed biofilms of strains with in-frame deletions of each of the six genes and tested their ability to induce Hydroides metamorphosis. The ΔJF50_12605 and ΔJF50_12615 mutants exhibited a reduced ability to induce metamorphosis (less than 20%, Figure 1A), while mutation of the other four genes had no observable effect. When JF50_12605 and JF50_12615 were replaced back into their native chromosomal loci, metamorphosis induction was restored (Figure 1B). We confirmed the effect of MACs on Hydroides metamorphosis by producing cell-free MAC array preparations. While larvae exposed to MACs from a ∆JF50_12615 mutant did not induce metamorphosis (even at high concentrations), MACs from a ∆JF50_12605 mutant induced metamorphosis when added at higher doses (Figure 1—figure supplement 1A/B). Our results suggest that JF50_12615 was essential for the induction of metamorphosis, while JF50_12605 contributed but was dispensable. Based on our results here and below, we name the protein encoded by JF50_12615 as ‘Mif1’ for Metamorphosis-Inducing Factor 1.

Figure 1 with 4 supplements see all
Download asset Open asset
Two bacterial genes are important for inducing Hydroides metamorphosis and deletions of these genes produce MACs with an ‘empty’ phenotype.

(A) Metamorphosis (%) assay of Hydroides larvae in response to biofilms of P. luteoviolacea wildtype (WT) and different gene deletion strains. Deletion of JF50_12605 or mif1 (JF50_12615) showed a significant loss in the ability to induce metamorphosis when compared to wildtype. (B) Restoration of JF50_12605 and mif1 (JF50_12615) into their native chromosomal loci restored function. Graphs in (A/B) show an average of biological replicates, where each point represents one biological replicate. *p-value≤0.05, ns = not significant. (C–E) Representative cryotomographic images of the ‘filled’ phenotype from wildtype MACs (C), and ‘empty’ phenotype from ΔJF50_12605 (D), and Δmif1 (E) MACs. Scale bar, 100 nm. (F/G) Shown are representative MAC structures (on left; taken from C/E) and their density plots. The wildtype ‘filled’ phenotype shows a relatively homogeneous density profile across the diameter of the MAC. The Δmif1 ‘empty’ phenotype shows a low-density region in the center of the MAC. (H) Shown is the fraction of empty structures for different deletion mutants as observed by cryoET imaging. Note that the ‘empty’ phenotype correlates with the inability to induce metamorphosis (A).

https://doi.org/10.7554/eLife.46845.003

To search for structural differences between MACs from wildtype P. luteoviolacea and the specific gene deletion mutants, we employed cryo-electron tomography (cryoET) imaging. Deletion of the full JF50_12590–JF50_12615 locus (Figure 1—figure supplement 2), or each of the six genes individually (Figure 1—figure supplement 3), did not impair the formation of ordered arrays of MACs, featuring both extended and contracted conformations. Upon detailed analyses, we observed that extended MACs from both ΔJF50_12605 and Δmif1 strains exhibited a central lumen with very low density. By contrast, MACs from wildtype and the other deletion mutants possessed a density distribution that was homogeneous and a lumen was not discernable (Figure 1C–G and Figure 1—figure supplement 3). We refer to these structural phenotypes as ‘empty’ and ‘filled’ respectively. Strikingly, quantitative analyses showed that the empty phenotype in ΔJF50_12605 and Δmif1 MACs correlated with the inability to induce metamorphosis (Figure 1A/H). The replacement of mif1 and JF50_12605 back into their native chromosomal loci reverted the empty phenotype back to filled (Figure 1—figure supplement 4).

The density within the MAC tube lumen represents a cargo protein

To investigate whether the structural differences between wildtype and Δmif1/ΔJF50_12605 MACs represented potential cargo, we performed sub-tomogram averaging of the extended sheath-tube complex (resolution estimation in Figure 2—figure supplement 1). The resulting MAC structures for both wildtype and Δmif1 revealed densities corresponding to the sheath and the inner tube (Figure 2A–F), similar to the structures of homologous CISs (Jiang et al., 2019). While the Δmif1 structure lacked any discernible density inside the ~4 nm-wide tube lumen (Figure 2E,F), the wildtype structure exhibited repeating packets of density inside the tube (Figure 2A–D), suggesting the presence of a potential cargo. The densities in the tube lumen reinforced less strongly compared to the sheath-tube complex, which could be caused by one or a combination of the following factors: 1) during averaging, the alignment of the cargo was affected by the strong densities from the sheath-tube, 2) the cargo was not structured or flexible, and/or 3) the cargo was present at a sub-stoichiometric amount compared to tube subunits or tube-rings. In any case, it is likely that the packet-like shape of the cargo density was caused by alignment artifacts. This is supported by a difference map between the wildtype and ∆mif1 structure, which shows a continuous density filling the inner tube lumen (Figure 2G,H). It is important to note, however, that the cargo and tube densities were separated by a low-density region (arrowheads in Figure 2B). Furthermore, any expelled tubes from triggered MACs always showed an ‘empty’ phenotype in cryotomography images (Figure 2—figure supplement 2). These results together could indicate weak or entirely absent interactions between cargo and tube, possibly facilitating rapid release of the cargo from the tube upon contraction.

Figure 2 with 2 supplements see all
Download asset Open asset

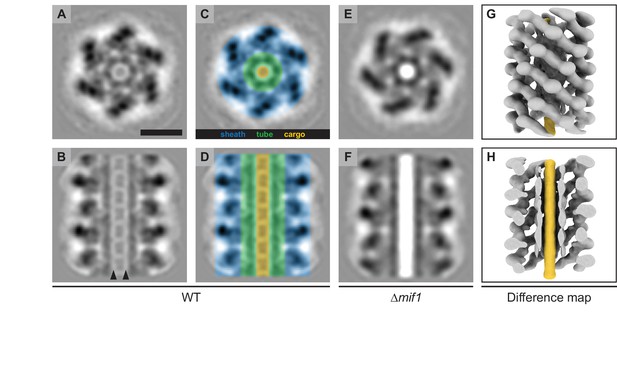

MACs from a ∆mif1 mutant lack electron density in the tube lumen.

(A–F) Cross sectional (A/C/E) and longitudinal (B/D/F) slices through subtomogram averages of the MAC sheath-tube complex from wildtype (WT; A–D) and ∆mif1 (E–F). The hexameric sheath and tube modules could be clearly discerned (indicated in C/D). The inner tube lumen displayed clear differences in density between WT and ∆mif1. The wildtype tube lumen was filled with densities that likely represent cargo (A-D, indicated in yellow), which was not present in the ∆mif1 lumen (E/F). Note the low-density region that separates the tube and cargo (indicated by arrowheads in B). (G/H) Shown are isosurfaces of the ∆mif1 structure (gray) and of a difference map (yellow; calculated from the wildtype and ∆mif1 structure), highlighting the additional density in the wildtype tube lumen. Scale bar, 10 nm.

https://doi.org/10.7554/eLife.46845.008

To test whether JF50_12605 and/or Mif1 were present within the MAC complex and represented the cargo within the tube lumen, we performed protein identification by mass spectrometry of purified MACs. In two independent experiments, we detected Mif1 but not JF50_12605 in wildtype MAC samples (Figure 3A). MACs from the ΔJF50_12605 mutant exhibited considerably fewer spectral counts for the Mif1 protein. These results are consistent with the ‘empty’ phenotype observed by cryoET imaging of the ΔJF50_12605 strain (Figure 1D and Figure 1—figure supplement 3E). To further corroborate the association of Mif1 with MAC arrays, we tagged Mif1 with a FLAG-tag in its native chromosomal locus in three different locations. After purifying MACs, we detected Mif1 strongly associated with MACs from two Mif1-FLAG-tagged strains and one at a reduced level by dot-blot and an anti-FLAG antibody (Figure 3B).

Figure 3
Download asset Open asset
Mif1 is present in MAC complexes and JF50_12605 is required for Mif1’s association with the MAC complex.

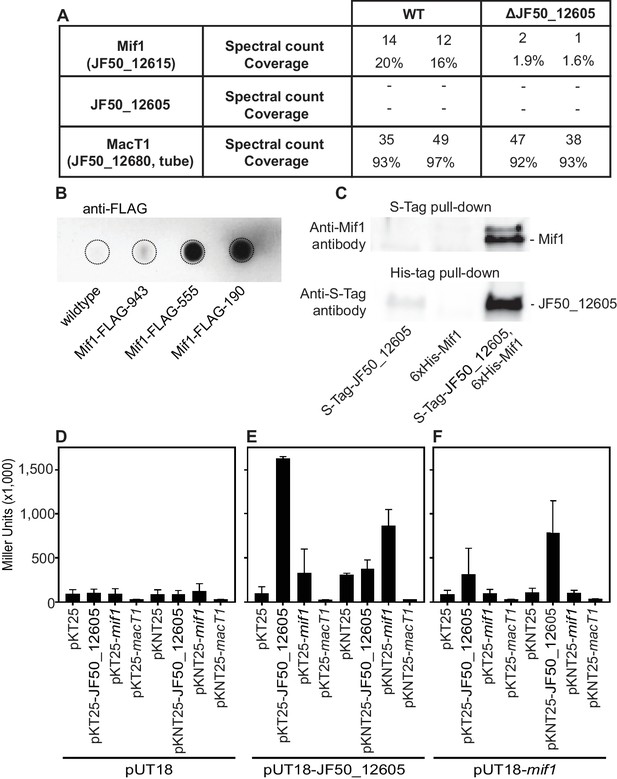

(A) Mass spectrometry of wildtype MAC arrays detected Mif1 but not JF50_12605. Spectral counts for Mif1 were low for MACs purified from the ∆JF50_12605 mutant, indicating a possible chaperone-like function for JF50_12605. (B) Dot blot of purified MACs from wildtype or strains with Mif1 tagged at amino acid positions 943 [C-terminus] (Mif1-FLAG-943), 555 (Mif1-FLAG-555), and 190 (Mif1-FLAG-190) were probed with anti-FLAG antibody. The signal indicates association of Mif1 with MAC arrays. (C) Co-expression, reciprocal pull-down and western blotting of S-tagged JF50_12605 and 6xHis-tagged Mif1 indicate an interaction between both proteins. Strains in which only one component was tagged were used as controls. (D–F) Quantification of bacterial two-hybrid experiments were used to analyze possible interactions between JF50_12605, Mif1 and tube (MacT1) proteins. Briefly, the two fragments of CyaA (T18/T25) were fused to the respective target proteins with the CyaA activity only being restored by interaction between target proteins. JF50_12605 showed a strong interaction with itself and with Mif1.

https://doi.org/10.7554/eLife.46845.011

Because JF50_12605 is important for localizing Mif1 within the MAC complex, we analyzed protein–protein interactions between JF50_12605 and Mif1. To this end, we performed a reciprocal pull down of S-tagged JF50_12605 and 6xHis-tagged Mif1. We detected JF50_12605 when pulling down Mif1 by nickel chromatography, and we detected Mif1 when pulling down JF50_12605 with S-tag antibodies (Figure 3C). To determine whether Mif1 or JF50_12605 associated with other components of the MAC complex, we utilized a bacterial two-hybrid system based on the interaction-mediated reconstruction of a cyclic AMP (cAMP) signaling cascade (Karimova et al., 2000). When JF50_12605, Mif1 and MacT1 (JF50_12680, tube) were screened for interactions, we found a significant interaction between JF50_12605 and Mif1 as well as JF50_12605 with itself (Figure 3D–F). However, neither JF50_12605, nor Mif1 interacted with MacT1 (JF50_12680, tube). Together, these data indicate that Mif1 is present within the MAC structure and represents the densities seen in the tube lumen, while JF50_12605 might act as a chaperone that helps to localize Mif1 inside the MAC tube. Mif1, however, could also associate with MACs independently of JF50_12605 in an inefficient manner. This is shown by 1) the residual presence of Mif1 in MACs from a ∆JF50_12605 mutant as detected by mass spectrometry (Figure 3A), and 2) the fact that high concentrations of a cell-free ∆JF50_12605 MAC extract can induce metamorphosis (Figure 1—figure supplement 1).

Purified and electroporated Mif1 protein induces tubeworm metamorphosis

Because our results suggested that Mif1 was loaded into the MAC tube lumen, we next tested whether Mif1 was sufficient for stimulating metamorphosis when delivered to Hydroides larvae. We therefore purified N-terminally His-tagged Mif1 by nickel chromatography (Figure 4A) and verified its identity by western blot with a Mif1-specific antibody (Figure 4B). As controls, we purified JF50_12605 and GFP under the same conditions. Mif1 protein provided exogenously to competent larvae of Hydroides at concentrations of up to 250 ng/µl did not stimulate metamorphosis (Figure 4—figure supplement 1). We reasoned, however, that the Mif1 protein might require intracellular delivery into host cells to initiate metamorphosis of Hydroides. To this end, we utilized a custom electroporator that was previously successfully used for other marine invertebrates (Zeller, 2018; Zeller et al., 2006). Successful translocation of protein was confirmed by anti-GFP western blotting of larval lysate after electroporation (Figure 4—figure supplement 2). When we delivered Mif1 into competent Hydroides larvae, a significant percentage of the larvae underwent metamorphosis (Figure 4C). In contrast, neither JF50_12605 nor GFP stimulated metamorphosis when electroporated under the same conditions. Our results suggest that Mif1 was sufficient to stimulate Hydroides metamorphosis when delivered by electroporation.

Figure 4 with 2 supplements see all
Download asset Open asset
Mif1 is sufficient for stimulating metamorphosis when delivered by electroporation.

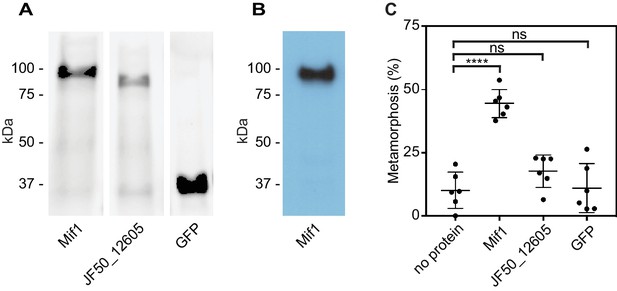

(A) Shown is an SDS page gel of purified Mif1, JF50_12605 and GFP. (B) Western blot of purified Mif1 protein probed with a C-terminal anti-Mif1 peptide antibody confirms Mif1 identity. (C) Metamorphosis (%) of Hydroides larvae 24 hr after electroporation with purified Mif1, JF50_12605 or GFP protein, shows induction of metamorphosis by electroporated Mif1. Graph shows an average of biological replicates, where each point represents one biological replicate. ****p-value≤0.0001 by t-test, ns = not significant.

https://doi.org/10.7554/eLife.46845.012

Discussion

In conclusion, our data indicate that the bacterium P. luteoviolacea induces metamorphosis of animal larvae by delivering the effector protein Mif1 via the tube lumen of an extracellular contractile injection system (MACs). These insights are significant for different fields of research as discussed below.

First, previously reported bacterial cues for animal metamorphosis are all classified as small molecules (Sneed et al., 2014; Swanson et al., 2007; Tebben et al., 2011). The identification of a protein (Mif1) that stimulates tubeworm metamorphosis requires us to expand the scope of possible biomolecules and mechanisms by which bacteria stimulate animal development. Our findings suggest that rather than MACs stimulating metamorphosis solely by physical puncturing and depolarization of larval membranes, the delivered Mif1 protein could have an enzymatic activity. This challenges previous hypotheses on metamorphosis induction (Carpizo-Ituarte and Hadfield, 1998; Yool et al., 1986), however, it would be in line with many studies on other eukaryote-targeting CIS effectors with enzymatic activities (Jiang et al., 2016; Ma and Mekalanos, 2010; Vlisidou et al., 2019). Future investigations will shed light on the molecular mechanism by which Mif1 triggers animal metamorphosis, which is a challenging task, given that Mif1 does not feature any recognizable conserved protein domains.

Second, our results directly showed the previously hypothesized possibility of effector delivery via the tube lumen of a CIS (Heymann et al., 2013; Sana et al., 2016; Shneider et al., 2013; Silverman et al., 2013). Interestingly, the comparison of MACs with a different class of CIS, namely the Type Six Secretion System (T6SS), reveals significant differences. The T6SS effectors that are thought to be delivered by the T6SS tube lumen show protein–protein interactions between the T6SS effector and the T6SS tube protein (Hcp) (Sana et al., 2016; Silverman et al., 2013). By contrast, we did not detect such interactions between Mif1 and MAC tube protein. One possible explanation could be that the biophysical characteristics of the T6SS tube and the MAC tube are different. While the T6SS tube is inherently unstable and disassembles soon after contraction (Szwedziak and Pilhofer, 2019), inner tubes of MACs and other extracellular CISs (and contractile phages) can be readily detected by electron microscopy and therefore seem to be much more stable. Given our observation that expelled MAC tubes were always empty (e.g. Figure 2—figure supplement 2), this poses the question of how the effectors exit such a stable tube after contraction. We hypothesize that this could be the very reason for weak or entirely absent interactions between Mif1 and MAC tube, as well as for the low-density region that was seen in subtomogram averages separating Mif1 and MAC tube (Figure 2B). Another mechanistic consequence of low affinity between Mif1 and tube could be the requirement of an assembly factor, that is JF50_12605, that allows for efficient targeting of Mif1 to the tube.

Third, our insights into MAC function could be significant to re-engineer the system for future medical and biotechnological applications. As micron-scale, syringe-like structures, MACs have potential for being developed as delivery systems targeting eukaryotic cells. Extracellular CISs such as MACs are of particular interest, because they are released from the producing bacterial cell and autonomously bind to the target cell’s surface. Extracellular CISs that target bacterial pathogens are already under development as narrow host-range antimicrobial agents (Scholl, 2017). The identification of effectors carried by MACs provides the basis for loading MACs with a cargo of choice. We recently reported a second effector that MACs deliver to eukaryotic cells (Rocchi et al., 2019), expanding the number of MAC effectors that could be engineered. Intriguingly, a cryotomogram of the ∆pne1 (JF50_12610) mutant shows that the tube has a filled phenotype (Figure 1—figure supplement 3). The filled phenotype suggests that Pne1 is not found within the inner tube, but instead could be loaded in a different location (e.g. spike) within the MACs complex. Understanding tube lumen-delivered effectors could be particularly helpful, based on the potential of a higher payload per CIS, as compared to spike-bound effectors.

Fourth, the identification of Mif1 and its delivery mechanism will facilitate the investigation of how bacterial factors trigger animal signaling systems, leading to metamorphosis. This could have potential practical applications for preventing biofouling, improving aquaculture husbandry, restoring degraded ecosystems like coral reefs, and as a biotechnology platform.

The fact that bacteria are known to stimulate metamorphosis in every major group of animals alive today (Hadfield, 2011), combined with the detection of MAC-like gene clusters in microbes from diverse environments including the ocean, terrestrial environments and even the human gut (Böck et al., 2017; Jiang et al., 2019), underscores the huge diversity of bacterium–animal interactions that remains to be explored.

Materials and methods

Metamorphosis assays

Request a detailed protocol

Bioassays were conducted with specimens of Hydroides elegans obtained from Quivira Basin, San Diego, California. Embryos were obtained and maintained as previously described (Nedved and Hadfield, 2008; Shikuma et al., 2016). Competent larvae were exposed to biofilms of P. luteoviolacea wild type, as a positive control, to P. luteoviolacea mutants, and to P. luteoviolacea strains unable to produce MAC structures (∆macB), as well as to artificial seawater (-). The percent of larvae that underwent metamorphosis was scored 24 hr after the induction of metamorphosis. Metamorphosis was scored visually by observing the number of individuals that formed branchial radioles, and a primary and secondary tube. Four biological replicates of approximately 30 larvae each were performed for each treatment on three separate occasions with larvae spawned from different adults.

Bacterial strains, plasmid construction and culture conditions

Request a detailed protocol

All bacterial strains, plasmids and primer sequences used are listed in the supplemental Tables 1 and 2. All deletion and fusion strains were created according to previously published protocols (Rocchi et al., 2019; Shikuma et al., 2016; Shikuma et al., 2014). Plasmid insert sequences were verified by DNA sequencing. Deletion and insert strains were confirmed by PCR. All E. coli strains were grown in Lysogeny-Broth (LB) media at 37°C shaking at 200 revolutions per minute (RPM). All P. luteoviolacea cultures were grown in seawater tryptone (SWT) media (35.9 g/l Instant Ocean, 2.5 g/l tryptone, 1.5 g/l yeast extract, 1.5 ml/l glycerol) at 25°C shaking at 200 RPM. Media that contained antibiotics were at a concentration of 100 mg/ml unless otherwise stated.

Table 1
Strains and plasmids used in this work.
https://doi.org/10.7554/eLife.46845.015
Strain no.GenotypeSource or reference
Strain
NJS5HI1 StrRP. luteoviolacea HI1, StrR(Huang et al., 2012)
NJS23∆macBP. luteoviolacea HI1, StrR∆macB(Shikuma et al., 2014)
NJS235∆JF50_12590-F50_12615P. luteoviolacea HI1, StrR ∆R4(Shikuma et al., 2016)
NJS289∆JF50_12590P. luteoviolacea HI1, StrR∆JF50_12590This Study
NJS287∆JF50_12595P. luteoviolacea HI1, StrR∆JF50_12595This Study
NJS285∆JF50_12600P. luteoviolacea HI1, StrR∆JF50_12600This Study
NJS283∆JF50_12605P. luteoviolacea HI1, StrR∆JF50_12605This Study
NJS281∆JF50_12610P. luteoviolacea HI1, StrR∆JF50_12610This Study
NJS279∆JF50_12615P. luteoviolacea HI1, StrR∆JF50_12615This Study
NJS294∆JF50_12605::12605P. luteoviolacea HI1, StrR∆JF50_12605::JF50_12605This Study
NJS295∆JF50_12615::12615P. luteoviolacea HI1, StrR∆JF50_12615::JF50_12615This Study
Plasmid
pNJS007pCVD443AmpR, KmR, sacB, pGP704 derivative(Huang et al., 2012)
pNJS266pCVD443_∆12590pCVD443::∆12590 AmpR, KmRThis Study
pNJS265pCVD443_∆12595pCVD443::∆12595 AmpR, KmRThis Study
pNJS264pCVD443_∆12600pCVD443::∆12600 AmpR, KmRThis Study
pNJS263pCVD443_∆12605pCVD443::∆12605 AmpR, KmRThis Study
pNJS262pCVD443_∆12610pCVD443::∆12610 AmpR, KmRThis Study
pNJS261pCVD443_∆12615pCVD443::∆12615 AmpR, KmRThis Study
pNJS256pCVD443_12590–615 complementAmpR, KmR(Shikuma et al., 2016)
pNJS282pCVD443_12605 complementAmpR, KmRThis Study
pNJS074pCVD443_∆12585AmpR, KmRThis Study
pNJS267pUT18AmpR(Karimova et al., 2000)
pNJS268pUT18CAmpR(Karimova et al., 2000)
pNJS269pKT25KmR(Karimova et al., 2000)
pNJS270pKNT25KmR(Karimova et al., 2000)
pNJS283pUT18_12605AmpRThis Study
pNJS299pUT18_12615AmpRThis Study
pNJS527pUT18_12680AmpRThis Study
pNJS284pKT25_12605KmRThis Study
pNJS285pKT25_12615KmRThis Study
pNJS529pKT25_12680KmRThis Study
pNJS286pKNT25_12605KmRThis Study
pNJS300pKNT25_12615KmRThis Study
pNJS530pKNT25_12680KmRThis Study
pNJS393pET15b_12605AmpRThis Study
pNJS395pET15b_12615AmpRThis Study
pNJS397pET15b_GFPAmpRThis Study
Table 2
Primers used in this work.
https://doi.org/10.7554/eLife.46845.016
PrimerSequence
1556_dATGATGGGTTAAAAAGGATCGATCCTCTAGATTGGAGCAATAAACGGGTTC
1556_dBGTTCATAATTAAACTGCGATCGCAGCCATAAGGCCTCCTTGATA
1556_dCTATCAAGGAGGCCTTATGGCTGCGATCGCAGTTTAATTATGAAC
1556_dDTTTTGAGACACAACGTGAATTCAAAGGGAGAGCTCCGCTTTGGGTACTGGCTTTA
1556_intFCCGAGCAAACGTTATCACAA
1556_intRTCAGCGCTCTCATTATGTGC
1555_dATGATGGGTTAAAAAGGATCGATCCTCTAGACCGAGCAAACGTTATCACAA
1555_dBCCTTGCATGAGGTTAAGAAAGTTTGACGTACCCTTCAGCCATATT
1555_dCAATATGGCTGAAGGGTACGTCAAACTTTCTTAACCTCATGCAAGG
1555_dDTTTTGAGACACAACGTGAATTCAAAGGGAGAGCTCGATGCGGTAACGGTTGTTCT
1555_intFAGCGATTGATGCTGAACAAA
1555_intRACCATCGCATAACCCGTAAC
1554_dATGATGGGTTAAAAAGGATCGATCCTCTAGATACGCCGTCCAGTTAGGACT
1554_dBGTTTGTTAACGTCACGGCAGCTGCATTGCCATTTAAACTCC
1554_dCGGAGTTTAAATGGCAATGCAGCTGCCGTGACGTTAACAAAC
1554_dDTTTTGAGACACAACGTGAATTCAAAGGGAGAGCTCATTGATTGGAAGCGCGATAG
1554_intFTTTATGAGGCACCAACGACA
1554_intRGCCTGTGCCGTTTTATCTGT
1553_dATGATGGGTTAAAAAGGATCGATCCTCTAGAGGCGATCAGTGGAGTGAAGT
1553_dBAATACTTCTTGCTCAGCCCCGCGTGCTTCTTCTGTCATGT
1553_dCACATGACAGAAGAAGCACGCGGGGCTGAGCAAGAAGTATT
1553_dDTTTTGAGACACAACGTGAATTCAAAGGGAGAGCTCTCAGAACCAGCAGTCTCACG
1553_intFCGGGCCTAGAAATCACTCAA
1553_intRTCGACGTCAAATCAGTCGAG
1552_dATGATGGGTTAAAAAGGATCGATCCTCTAGAGAGAGCAAGAAGTGGCGAGT
1552_dBTAGCCTTTTAGTGCCGCTTTTGAGGCGTCCATATCTGACA
1552_dCTGTCAGATATGGACGCCTCAAAAGCGGCACTAAAAGGCTA
1552_dDTTTTGAGACACAACGTGAATTCAAAGGGAGAGCTCTGCTGACCAAGCAGATTGAC
1552_intFGGGCAATTGTTGTGGATTTT
1552_intRTGATCCCAAACCACTTGTGA
1551_dATGATGGGTTAAAAAGGATCGATCCTCTAGAGACTGCTGGTTCTGATTCGAT
1551_dBAACAGATCATTACATTAAAATGAGCCTCTGTTCTTGTTGTTGCATTTCA
1551_dCTGAAATGCAACAACAAGAACAGAGGCTCATTTTAATGTAATGATCTGTT
1551_dDTTTTGAGACACAACGTGAATTCAAAGGGAGAGCTCCTTCTCCATTTTCGCCTTTG
1551_intFCGTTTTCAGTGACCATCACG
1551_intRCGGTGGGCAAAAAGGTATAA
pUT18_605_F1CAGCTATGACCATGATTACGCCAAGCTTGCATGCCATGACAGAAGAAGCACGCGAAAAAA
pUT18_605_R1CTGGCGGCTGAATTCGAGCTCGGTACCCGGGGATCATTCACAAGTGCTAATTGATAAAAT
pUT18_615_F1CAGCTATGACCATGATTACGCCAAGCTTGCATGCCATGCAACAACAAGAACAGGAGCAAG
pUT18_615_R1CTGGCGGCTGAATTCGAGCTCGGTACCCGGGGATCCATTAAAATGAGCCTTTCTTTTTCA
pUT18_680_FCATGATTACGCCAAGCTTGCATGCCATGGCTACTACTAAAGCAGATATCG
pUT18_680_RAATTCGAGCTCGGTACCCGGGGATCATGGAACTCAATCTTGATGTCATCT
pKT_605_F1CCGATTACCTGGCGCGCACGCGGCGGGCTGCAGGGATGACAGAAGAAGCACGCGAAAAAA
pKT_605_R1AACGACGGCCGAATTCTTAGTTACTTAGGTACCCGCTAATTCACAAGTGCTAATTGATAA
pKT_615_F1CCGATTACCTGGCGCGCACGCGGCGGGCTGCAGGGATGCAACAACAAGAACAGGAGCAAG
pKT_615_R1AACGACGGCCGAATTCTTAGTTACTTAGGTACCCGTTACATTAAAATGAGCCTTTCTTTT
pKT_680_F1CCTGGCGCGCACGCGGCGGGCTGCAATGGCTACTACTAAAGCAGATATCG
pKT_680_R1GCCGAATTCTTAGTTACTTAGGTACTTAATGGAACTCAATCTTGATGTCA
pKNT_605_F1CAGCTATGACCATGATTACGCCAAGCTTGCATGCCATGACAGAAGAAGCACGCGAAAAAA
pKNT_605_R1TGATGCGATTGCTGCATGGTCATTGAATTCGAGCTATTCACAAGTGCTAATTGATAAAAT
pKNT_615_F1CAGCTATGACCATGATTACGCCAAGCTTGCATGCCATGCAACAACAAGAACAGGAGCAAG
pKNT_615_R1TGATGCGATTGCTGCATGGTCATTGAATTCGAGCTCATTAAAATGAGCCTTTCTTTTTCA
pKNT_615_F2CATGATTACGCCAAGCTTGCATGCCATGCAACAACAAGAACAGGAGCAAG
pKNT25-680_FCATGATTACGCCAAGCTTGCATGCCATGGCTACTACTAAAGCAGATATCG
pKNT25-680_RGCTGCATGGTCATTGAATTCGAGCTATGGAACTCAATCTTGATGTCATCT
pET15b_605_F1TGCCGCGCGGCAGCCATATGATGACAGAAGAAGCACGCG
pET15b_605_R1GCTTTGTTAGCAGCCGGATCCCTAATTCACAAGTGCTAATT

Gentle MAC extraction

Request a detailed protocol

P. luteoviolacea was grown in 50 ml SWT media in 250 ml flasks at 30 °C for 6 hr or overnight (12–14 h). Cells were centrifuged for 30 min at 4000 g and 4 °C and resuspended in 5 ml cold extraction buffer (20 mM Tris, pH 7.5, 1M NaCl). Cultures were centrifuged for 30 min at 4000 g and 4 °C and the supernatant was isolated and centrifuged for 30 min at 7000 g and 4 °C. The pellet was resuspended in 20–100 µl cold extraction buffer and stored at 4°C for further use.

Plunge freezing of MACs

Request a detailed protocol

Plunge freezing was performed as implemented in Weiss et al. (2017). In essence, gentle MAC extractions were seeded with 10 nm BSA-coated colloidal gold particles (1:4 v/v, Sigma) and 4 μl of the mixture was applied to a glow-discharged holey-carbon copper EM grid (R2/1, Quantifoil). The grid was backside blotted in a Vitrobot (FEI Company) by using a Teflon sheet on the front pad, and plunge-frozen in a liquid ethane-propane mixture (37%/63%) cooled by a liquid nitrogen bath. Frozen grids were stored in liquid nitrogen.

Cryo-electron tomography

Request a detailed protocol

The gentle MAC extractions were imaged by cryo-electron tomography (cryoET) (Weiss et al., 2017). Images were recorded on a Titan Krios TEM (FEI) equipped with a Quantum LS imaging filter operated at a 20 eV slit width and K2 Summit (Gatan). Pixel sizes at specimen level ranged from 2.14 Å to 2.72 Å. Tilt series were collected using a bidirectional tilt-scheme from −30° to +60° and −32° to −60° in 2° increments. Total dose was ~90 e-/Å2 and defocus was kept at −5 to −6 µm. Some tilt series were recorded in focus using a Volta phase plate (Danev et al., 2014). Tilt series were acquired using SerialEM (Mastronarde, 2005) and reconstructed and segmented using the IMOD program suite (Kremer et al., 1996). Density plots to determine filled and empty phenotypes were done using Fiji (Schindelin et al., 2012). Contrast enhancement of some tomograms was done using the tom_deconv deconvolution filter (https://github.com/dtegunov/tom_deconv).

Sub-tomogram averaging

Request a detailed protocol

Tomograms used for structure identification and picking were binned by a factor of 4. Defocus was estimated using Gctf (Zhang, 2016) and CTF correction, exposure filtering and backprojection was done using IMOD. SR data were binned by a factor of 2 resulting in a pixel size of 4.29 Å/px. The discrete extended MAC structures were identified visually in individual tomograms and their longitudinal axes were modeled with open contours in 3dmod (Mastronarde, 2008). Individual model points were added at defined intervals of about 12 nm along the contours using the addModPts program from the PEET package (Heumann et al., 2011) resulting in 24’721 initial particles for filled tubes and 37’024 initial particles for empty tubes. Models were imported into Dynamo (Castaño-Díez et al., 2012), particles were extracted, the azimuth angle was randomized and all particles were averaged to obtain an initial reference. Four times binned subtomograms (17.14 Å/px) were used for four iterations of initial alignment with the reference low-pass filtered to about 50 Å. No symmetry was applied, but rotational search was limited to +/- 30°. Before unbinning, subtomograms were cleaned by distance and cross correlation coefficient leaving 20’358 filled and 20’782 empty tube particles. Two times binned subtomograms (8.57 Å/px) were extracted using the refined coordinates and the dataset was split in two half sets. Half sets were aligned independently for five iterations. Unbinned subvolumes (4.29 Å/px) were extracted using the refined coordinates and aligned for eight more iterations. Subvolumes were cleaned by cross correlation coefficient and final averages were generated using 13’039 particles and 13’425 particles for filled and empty tubes, respectively. UCSF Chimera (Pettersen et al., 2004) was used for visualization of the 3D models and to generate the difference map between wildtype and ∆mif1 structure.

Bacterial two-hybrid analysis

Request a detailed protocol

Bacterial two-hybrid Analysis was performed following the protocols detailed previously (Karimova et al., 2000). Briefly, proteins of interest were cloned into one of four Bacterial Two Hybrid (BTH) plasmids pUT18, pUT18C, pKT25, and pKNT25. These produced individual N- or C-terminal fusions between the proteins of interest and the T18 and T25 subunits on of the adenylate cyclase (CyaA) protein. All plasmid sequences were confirmed by PCR. Plasmid combinations containing the genes of interest were then electroporated into BTH101 electrocompetent cells that lacked a native CyaA gene. The BTH101 cells were grown on LB agar containing ampicillin (100 mg/ml), kanamycin (100 mg/ml) and 1% glucose. Glucose was used to suppress the expression of proteins before performing the assay. Protein–protein interactions were quantified by performing a β-galactosidase assay with cells being grown overnight at 37°C and shaking at 200 RPM. Protein expression was induced with 1.0 mM IPTG. The cultures were incubated at 25°C shaking at 200 RPM for 6 hr before being mixed with a one-step ‘β-gal’ mix (Schaefer et al., 2016). A plate reader was then used to measure the absorbance at 420 nm and 600 nm. The optical densities were used to calculate Miller Units as previously described (Miller, 1972).

Protein purification and electroporation

Request a detailed protocol

To purify JF50_12615, JF50_12605 and GFP proteins, genes of interest were cloned into the pET15b plasmid and grown in E. coli BL21 pLysE. Bacteria were struck out on LB agar plates with ampicillin (100 µg/µl) and grown at 37°C for 24 hr. A single colony was inoculated into 5 ml LB with ampicillin (100 µg/µl) and grown at 37°C shaking at 200 RPM for 14–16 hr. The overnight culture was diluted 1:500 into 500 ml LB with ampicillin (100 µg/µl), grown at 37°C shaking at 200 RPM until the culture reached an OD600 of 0.95. Protein expression was induced with 0.1 mM IPTG and grown for 25°C for 16 hr. The culture was centrifuged at 4000 g for 20 min and the supernatant was removed. The pellet was then resuspended in lysis buffer (20 mM imidazole, 25 mM tris-HCl, 500 mM NaCl, pH 8) with a protease inhibitor cocktail (100 µM leupeptin, 1 µM pepstatin and 5 µM bestatin). The culture was French pressed twice (1000 psi) and sonicated 3 times for 10–30 s each time. The lysed culture was then spun down at 12,000 g for 20 min and the supernatant was discarded. Inclusion bodies were purified from the pellet by first washing the pellet twice with 20 mM tris pH 8, 2 M urea, 2% triton X-100, 500 mM NaCl. The remaining pellet was resuspended using 5 ml 6M guanidinium HCl, 5 mM imidazole, 20 mM tris pH 8, 500 mM NaCl. The 6XHIS tagged proteins were then bound to Ni-agarose beads which had been pre-equilibrated to the resuspension buffer. The proteins were refolded by adding 1 ml/min of 5 mM imidazole, 20 mM tris pH 8, 500 mM NaCl up to a total of 50 ml. After refolding, the beads were loaded onto a vacuum column and washed twice with 10 ml of refolding buffer. The protein was then eluted using 250 mM imidazole, 20 mM tris pH 8, 500 mM NaCl. Fractions containing the protein were buffer exchanged into a storage buffer (25 mM tris, 250 mM NaCl, pH 7.6) and stored at −80°C. A Bradford protein assay (BioRad) was done in order to quantify the amount of protein present. An antibody produced against the Mif1-specific peptide sequence CERSKGEFTEGKPKP (Genscript) was used to confirm expression and purification.

Western blot

Request a detailed protocol

Protein samples and lysates were first normalized using Bradford protein assay to quantify protein concentrations. Equal concentrations of protein were loaded onto BioRad stain-Free SDS-PAGE gels 4–20% (catalog no. 4568093) and imaged prior to transfer to confirm equal loading using BioRad gel doc ez system and stain free tray. The protein gel was then used to transfer protein to a PVDF membrane via semi-dry transfer system. The membranes were blocked in 5% milk-TBST (50 mM Tris-Cl, pH 7.6; 150 mM NaCl, 0.1% tween-20) for 30 min. The primary antibody was added at 1:1000 dilution (unless otherwise stated) to 5% milk-TBST and rocked overnight at 4°C. The membrane was washed three times for 10 min each in TBST. Secondary antibody was added at 1:20,000 to TBST and rocked for 1 hr at room temperature. The membrane was washed three more times for 15 min each before chemiluminescent substrate was added and visualized using BioRad XRS imaging cabinet. Antibodies include a custom Mif1 antibody (Genscript), S-Tag antibody (GenScript catalog no. A00625, RRID:AB_915085), DYKDDDDK antibody (Thermo Fisher Scientific catalog no. 701629, RRID:AB_2532497), GFP antibody (Thermo Fisher Scientific catalog no. G10362, RRID:AB_2536526) and Goat anti-Rabbit IgG (H+L) secondary antibody, HRP (Thermo Fisher Scientific Catalog no. 31460, RRID:AB_228341).

Electroporation

Request a detailed protocol

The method for electroporation of Hydroides larvae was adapted from those established for ascidian embryos (Zeller, 2018; Zeller et al., 2006). Specifically, 50 µl of 0.77 M mannitol, 20 µl of concentrated larvae (approximately 30 larvae), and 10 µl of purified protein (1.25–12.5 µg, 15.6–156 ng/µl final concentration based on protein recovery from inclusion bodies) were mixed and added to a 2 mm electroporation cuvette. The mixture was then electroporated with 30 V (150 V/cm) at 10 ohms and 3000 µF using a custom electroporation apparatus as previously described (Zeller et al., 2006). After electroporation, the mixture was immediately removed from the cuvette and mixed with 1 ml filtered artificial sea water and transferred into a 24-well plate. The larvae were then observed for metamorphosis 24 to 72 hr later (dependent on WT MACs positive control). Purification of proteins was performed on three separate occasions and each purification was electroporated twice, for a total of six independent biological replicates, each yielding similar outcomes.

Quantification of electroporation

Request a detailed protocol

To test whether purified protein is transferred to tubeworm larvae by electroporation, larvae were concentrated to 30 larvae/µl. Final GFP concentration used was 0.625 µg/µl (50 µg total per electroporation). 20 µl of larvae were either electroporated by adding them to 50 µl 0.77 M mannitol and 10 µl of 5 µg/µl purified GFP, then electroporated at 30 V (150 V/cm) at 10 ohms and 3000 µF or not electroporated. Larvae were recovered from the electroporation cuvette by adding 1 ml instant ocean and moved to microcentrifuge tubes. Larvae were then washed 5 times with 1 ml instant ocean by first spinning down at 4000 g for 30 s and removing all but 50 µl of liquid. After the five washes larvae were then spun down at 4000 for 2 min and the sea water was removed. On ice, the larvae were then lysed in 100 µl 50 mM tris pH 8, 150 mM NaCl, 1% Triton X-100, and vortexed three times for 30 s each. Cell debris was pelleted by centrifuging at 21,000 g for 10 min and the pellet was discarded. The lysate was then quantified by first diluting a small aliquot of lysate (5 µl) 1:10 and using a Bradford protein assay. The GFP standard curve was created by performing 2-fold serial dilutions of the original purified GFP and using densitometry of the western blot. 8.76 µg of larvae lysate was loaded onto the same gel, with both the mock zap negative control and the electroporated larvae. Recovered protein was calculated using densitometry and the GFP standard curve. This was repeated for four biological replicates each with separate western blots.

Pulldown assays

Request a detailed protocol

E. coli containing a dual expression plasmid with 12605, Mif1, or both 12605 and Mif1 was grown in 50 ml of LB supplemented with chloramphenicol (100 µg/ml) until an OD600 0.6 at 37°C. The E. coli plasmid was induced with 1 mM IPTG and the temperature was lowered to 20°C, then expression was allowed to proceed overnight (16 hr). Cells were recovered by pelleting at 4000 g for 10 min and media was discarded. Cells were resuspended in 25 mM tris pH 7.6, 150 mM NaCl and protease inhibitor cocktail (100 µM leupeptin, 1 µM pepstatin and 5 µM bestatin). Cells were lysed twice by French press 1000 Psi and then centrifuged at 10,000 g to remove cellular debris where the supernatant was then transferred to a new tube and the pellet was discarded. The conjugated agarose beads (Ni-NTA agarose and S-Tag binding agarose, EMD Millipore 69704–3) were equilibrated with the lysis buffer and 1 ml of agarose was added in batch to the recovered supernatant. Agarose was then recovered on a column and washed an additional two times with the lysis buffer to remove non-specific bound proteins. Proteins were eluted using either, 500 µl 3 M MgCl2, 20 mM tris pH 7.6 (S-TAG beads), or 500 µl 250 mM imidazole, 500 mM NaCl, 20 mM Tris pH 7.6 (Ni-NTA beads). 20 µg protein was loaded onto SDS-PAGE gel and then transferred onto PVDF membrane for western blot using either the endogenous Mif1 antibody or S-Tag antibody (GenScript Cat# A00625, RRID:AB_915085).

Mass spectrometry

Request a detailed protocol

P. luteoviolacea was grown in 50 ml Marine Broth (MB) media in 250 ml flasks at 30°C for 6 hr or overnight (12–14 hr). Cells were centrifuged for 30 min at 7000 g and 4°C and resuspended in 5 ml cold extraction buffer (20 mM Tris, pH 7.5, 1 M NaCl). The resuspensions were centrifuged for 30 min at 4000 g and 4°C and the supernatant was isolated and centrifuged for 30 min at 7000 g and 4°C. The pellet was resuspended in 20–100 µl cold extraction buffer and stored at 4°C for further use. All mass spectrometry was done by the Functional Genomics Center Zurich (FGCZ). To prep the MAC extracts for mass spectrometry, the extracts were precipitated by mixing 30 µl of sample with 70 µl water and 100 µl 20% TCA. The samples were then washed twice with cold acetone. The dry pellets were dissolved in 45 µl buffer (10 mM Tris/2 mM CaCl2, pH 8.2) and 5 µl trypsin (100 ng/µl in 10 mM HCl). They were then microwaved for 30 min at 60°C. The samples were dried, then dissolved in 20 µl 0.1% formic acid and transferred to autosampler vials for LC/MS/MS. 1 µl was injected.

Data availability

Subtomogram averages were deposited in the Electron Microscopy Data Bank (accession numbers EMD-4730 and EMD-4731).

The following data sets were generated
    1. Fabian Eisenstein
    2. Joao Medeiros
    3. Martin Pilhofer
    (2019) Electron Microscopy Data Bank
    ID EMD-4730. Subtomogram average of MAC sheath and inner tube of P. luteoviolacea Mif1 mutant.
    https://www.ebi.ac.uk/pdbe/entry/emdb/EMD-4730
    1. Fabian Eisenstein
    2. Joao Medeiros
    3. Martin Pilhofer
    (2019) Electron Microscopy Data Bank
    ID EMD-4731. Subtomogram average of MAC sheath and inner tube of wildtype P. luteoviolacea.
    https://www.ebi.ac.uk/pdbe/entry/emdb/EMD-4731

References

    1. Hadfield MG
    2. Unabia CC
    3. Smith CM
    4. Michael TM
    (1994)
    Settlement preferences of the ubiquitous fouler Hydroides elegans
    Recent Developments in Biofouling Control pp. 65–74.
  22. Book
    1. Miller JH
    (1972)
    Experiments in Molecular Genetics
    Cold Spring Harbor Laboratory.
    1. Nedved BT
    2. Hadfield MG
    (2008)
    Hydroides Elegans (Annelida: Polychaeta)
    1–15, A model for biofouling research, Hydroides Elegans (Annelida: Polychaeta), Berlin, Heidelberg, Springer.
  47. Book
    1. Zeller RW
    (2018) Electroporation in Ascidians: History, Theory and Protocols
    In: Sasakura Y, editors. Transgenic Ascidians. Singapore: Springer. pp. 37–48.
    https://doi.org/10.1007/978-981-10-7545-2_5
    1. Zobell CE
    2. Allen EC
    (1935)
    The significance of marine Bacteria in the fouling of submerged surfaces
    Journal of Bacteriology 29:239–251.

Decision letter

  1. Misha Kudryashev
    Reviewing Editor; Max Planck Institute of Biophysics, Germany
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A contractile injection system stimulates tubeworm metamorphosis by translocating a proteinaceous effector" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Gisela Storz as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Ericson and colleagues investigates the Metamorphosis Associated Contractile (MAC) system that Pseudoalteromonas luteoviolacea employs to induce metamorphosis of host larvae of the tubeworm Hydroides elegans. The authors characterized a cluster of six genes, one of which, Mif1, was found to be essential for the functionality of the MAC system towards Hydroides. Structural analysis by electron-cryotomography and subtomogram averaging revealed that while in the wild-type MAC system there is a density inside the inner tube, the Mif1-deficient system is lacking this density, suggesting the location of the effector to be inside the inner tube. In agreement of Mif1 being the translocated effector, electroporation of Mif1 into tubeworm larvae was sufficient to trigger metamorphosis.

The manuscript is interesting and well written; however, several essential points have to be addressed.

Essential comments:

1) The reviewers think that the assignment of the localization of Mif1 in the MAC particle requires more validation. Biochemical techniques such as SDS-PAGE or Western blotting could be used to analyze the protein composition in purified WT and ΔJF50_12615 particles normalized to the same protein concentration. Furthermore, there is no interaction observed between Mif1 and the tube component by BTH. This could not be taken as conclusive, particularly since the gp19-like structure in the assembled MAC system is a hexamer in which Mif1 could be fitted similarly to the Tse2-Hcp1 interaction in T6SS (Silverman et al., 2013). The reviewers suggest that similar approaches be considered to test the fit of Mif1 within the MAC tube.

2) A standard test for validating the function of the protein is the complementation assay. While the functional complementation for JF50_12605 and JF50_12615 mutants is shown in Figure 1B, the reviewers wonder whether the tubes were also found full after complementation of JF50_12615?

3) Could the authors suggest a potential function or discuss functional units of JF50_12615 based on its the amino sequence or its location in the genome? Any conserved/hypervariable regions? Do Photorhabdus or Serratia contain orthologs? The authors suggest that Mif1 can make pores. Are there any hydrophobic domains that could be identified which would support this hypothesis? JF50_12615 occupies the central channel of the tube and thus it could be related to tape measure proteins. Do the WT and ΔJF50_12615 mutant have similar or different particle length distributions?

4) The authors show that a mutant lacking JF50_12605 is impaired in inducing metamorphosis but instead and in contrast to the Mif1 mutant, when extracellular MACs are prepared from the JF50_12605 mutant, there are no significant defect observed. There is no clear explanation on why this could be. Also there is no suggestion about the role of JF50_12605. Would that protein somehow be involved in helping loading Mif1 into the MACs, a kind of chaperone-like element? Is there any homology, or other features that stand out when examining the sequence of JF50_12605? The reviewers believe that this deserves a little bit more discussion, particularly because an interaction between Mif1 and JF50_12605 has been found using BTH. From this prospect, other methods should be used to validate this interaction, for example co-purification and pull down. This is even more true since the proportion of empty MACs appeared to be similar for the Mif1 and the JF50_12605 mutants.

5) The authors have debated whether the empty MACs could have been missing the inner tube homologous to the bacteriophage tube made of gp19 (JF50_12680). Would the MACs form in absence of the tube? If yes, how do MACs without a tube look like?

6) The authors report they have identified a second MACs effector, a nuclease they called Pne1 (preprint on bioRxiv). Are the authors suggesting that Pne1 is not in the lumen of the MACs? This is confusing and the relationship between Pne1 and Mif1 should be clarified either experimentally, i.e. by subtomogram averaging of Pne1-deficient MACs or in the Discussion.

7) To aid the interpretation of the electroporation experiment it would be great to know how much protein actually ends up in the worm (if any)? Can that amount be compared to the total protein content of the worm?

8) The quality of electron cryotomography and subtomogram averaging data is below the currently accepted standards in the field. The structures presented in Figure 2 have signs of overfitting as revealed by a texture outside of the protein density in the panel A. From the description in the Materials and methods section is not clear how the subtomogram alignment was performed, this should be briefly stated in the Materials and methods section additionally to the reference to Weiss et al. (2017). Each subtomogram average reconstruction has to have a corresponding resolution estimated by similarity between two statistically independently generated maps (so called "gold standard" processing). The similarity curves have to be presented in a supplementary figure. The pixel size at which the data is recorded is not needed in the figures. Figure 1—figure supplements 2 and 3 would benefit from noise reduction in the corresponding tomograms by i.e. non-linear anisotropic diffusion.

https://doi.org/10.7554/eLife.46845.023

Author response

Essential comments:

1) The reviewers think that the assignment of the localization of Mif1 in the MAC particle requires more validation. Biochemical techniques such as SDS-PAGE or Western blotting could be used to analyze the protein composition in purified WT and ΔJF50_12615 particles normalized to the same protein concentration. Furthermore, there is no interaction observed between Mif1 and the tube component by BTH. This could not be taken as conclusive, particularly since the gp19-like structure in the assembled MAC system is a hexamer in which Mif1 could be fitted similarly to the Tse2-Hcp1 interaction in T6SS (Silverman et al., 2013). The reviewers suggest that similar approaches be considered to test the fit of Mif1 within the MAC tube.

To address the reviewers’ comment, we generated strains with Mif1 (JF50-12615) tagged in three locations with FLAG epitopes in the native Mif1 chromosomal locus and performed western dot blot on purified MACs from each strain using an anti-FLAG antibody. We specifically detected the FLAG-tagged Mif1 proteins in each strain where Mif1 was tagged with FLAG. Results are now provided in Figure 3B and in the second paragraph of the subsection “The density within the MAC tube lumen represents a cargo protein”. This supports our imaging and mass spectrometry experiments and suggests that Mif1 is indeed found in the MAC structure.

Two different observations could explain the lack of interactions between Mif1 and the tube component. (1) We observed a low-density region between the density of the cargo and the density of the tube (shown by the black arrows in Figure 2B). (2) When expelled tubes were imaged by cryotomography, the tubes were always empty shown in the now added Figure 2—figure supplement 2. Together, these findings suggest that interactions between cargo and tube are weak or non-existent, which might facilitate the rapid release of the cargo into the target upon contraction (see subsection “The density within the MAC tube lumen represents a cargo protein”, first paragraph and Discussion, third paragraph).

As suggested, we purified heterologously-expressed tube protein and analyzed it by negative stain electron microscopy. Under the tested conditions, however, no ring structures were observed, which prevented us from performing the subsequent experiments according to Silverman et al. (2013).

2) A standard test for validating the function of the protein is the complementation assay. While the functional complementation for JF50_12605 and JF50_12615 mutants is shown in Figure 1B, the reviewers wonder whether the tubes were also found full after complementation of JF50_12615?

We visualized MACs from the ΔJF50_12605::JF50_12605 and Δmif1::mif1 strains and found that the inner tubes of both complemented strains showed a filled phenotype. These results are now included in the text (subsection “Two bacterial genes are responsible for densities within the inner tube lumen of MACs and are involved in metamorphosis induction”, last paragraph) and Figure 1—figure supplement 4.

3) Could the authors suggest a potential function or discuss functional units of JF50_12615 based on its the amino sequence or its location in the genome? Any conserved/hypervariable regions? Do Photorhabdus or Serratia contain orthologs? The authors suggest that Mif1 can make pores. Are there any hydrophobic domains that could be identified which would support this hypothesis? JF50_12615 occupies the central channel of the tube and thus it could be related to tape measure proteins. Do the WT and ΔJF50_12615 mutant have similar or different particle length distributions?

We thoroughly searched for domains that would yield clues to Mif1’s (JF50_12615’s) mechanism of inducing metamorphosis. Unfortunately, we did not identify any functional or transmembrane domains in Mif1. Other bacteria like Photorhabdus or Serratia do not contain orthologs of Mif1. This is consistent with the fact that contractile injection systems from these organisms are not known to induce metamorphosis. The Mif1-genomic context does not suggest a mechanism of function either. We have modified the Discussion to make our conclusions more clear (Discussion, second paragraph).

Mif1 does not show sequence similarities to tape measure proteins. Wildtype and ∆mif1 MACs did also not show differences in length distribution (see also Figure 1—figure supplement 2 and 3)

4) The authors show that a mutant lacking JF50_12605 is impaired in inducing metamorphosis but instead and in contrast to the Mif1 mutant, when extracellular MACs are prepared from the JF50_12605 mutant, there are no significant defect observed. There is no clear explanation on why this could be. Also there is no suggestion about the role of JF50_12605. Would that protein somehow be involved in helping loading Mif1 into the MACs, a kind of chaperone-like element? Is there any homology, or other features that stand out when examining the sequence of JF50_12605? The reviewers believe that this deserves a little bit more discussion, particularly because an interaction between Mif1 and JF50_12605 has been found using BTH. From this prospect, other methods should be used to validate this interaction, for example co-purification and pull down. This is even more true since the proportion of empty MACs appeared to be similar for the Mif1 and the JF50_12605 mutants.

We agree that the role of JF50_12605 deserves more attention. In regards to metamorphosis induction by ∆JF50_12605 strains, the discrepancy between bacterial biofilms and purified MACs is likely based on higher concentrations of MACs affecting the larvae when MAC extracts are used. In mass spectrometry analysis of ∆JF50_12605 MACs a low abundance of Mif1 was observed (Figure 3A) suggesting that Mif1 may be able to associate in rare cases with MACs independent of JF50_12605. We have revised the text (subsection “The density within the MAC tube lumen represents a cargo protein”, Discussion, third paragraph) to explain this.

In order to validate the interaction between Mif1 and JF50_12605, we performed the suggested reciprocal pull-down of JF50_12605-S-tag with Mif1-6xHis-tag. We detected JF50_12605 by western blot after pull-down (now Figure 3C, subsection “The density within the MAC tube lumen represents a cargo protein”, last paragraph), corroborating our bacterial two-hybrid analyses (Figure 3C-F).

5) The authors have debated whether the empty MACs could have been missing the inner tube homologous to the bacteriophage tube made of gp19 (JF50_12680). Would the MACs form in absence of the tube? If yes, how do MACs without a tube look like?

We showed in a previous paper that a mutant lacking the tube protein does not assemble MACs (Shikuma et al., 2014). In the previous version of the presented manuscript, we docked a homology model of the gp19 tube protein into the EM densities, in order to unambiguously show that the cargo density within the tube lumen was distinct from the tube itself. We realize that the way this was discussed might have been confusing and revised the text and figure (subsection “The density within the MAC tube lumen represents a cargo protein”, first paragraph, Figure 2).

6) The authors report they have identified a second MACs effector, a nuclease they called Pne1 (preprint on bioRxiv). Are the authors suggesting that Pne1 is not in the lumen of the MACs? This is confusing and the relationship between Pne1 and Mif1 should be clarified either experimentally, i.e. by subtomogram averaging of Pne1-deficient MACs or in the Discussion.

We agree that the localization of the second effector, Pne1, requires additional discussion. We have included the cryotomogram of the ∆pne1 (JF50_12610) mutant in Figure 1—figure supplement 3 and show that the tube has a filled phenotype. The filled phenotype suggests that Pne1 is not found within the inner tube, but instead could be loaded in a different location (e.g. spike) within the MACs complex. We have modified the labeling of Figure 1—figure supplement 3 to indicate that JF50_12610 is named Pne1 and added text to discuss this point (Discussion, fourth paragraph). The Pne1 paper has been recently published (Rocchi et al., 2019).

7) To aid the interpretation of the electroporation experiment it would be great to know how much protein actually ends up in the worm (if any)? Can that amount be compared to the total protein content of the worm?

To determine if electroporation facilitates protein association with tubeworm larvae, we electroporated larvae in the presence of GFP protein, thoroughly washed the larvae and performed western blot analysis. We found that larvae subjected to electroporation had a higher concentration of GFP associated when compared to non-electroporated larvae. These results are now included in the manuscript (subsection “Purified and electroporated Mif1 protein induces tubeworm metamorphosis” and as Figure 4—figure supplement 2).

8) The quality of electron cryotomography and subtomogram averaging data is below the currently accepted standards in the field. The structures presented in Figure 2 have signs of overfitting as revealed by a texture outside of the protein density in the panel A. From the description in the Materials and methods section is not clear how the subtomogram alignment was performed, this should be briefly stated in the Materials and methods section additionally to the reference to Weiss et al. (2017). Each subtomogram average reconstruction has to have a corresponding resolution estimated by similarity between two statistically independently generated maps (so called "gold standard" processing). The similarity curves have to be presented in a supplementary figure. The pixel size at which the data is recorded is not needed in the figures. Figure 1—figure supplements 2 and 3 would benefit from noise reduction in the corresponding tomograms by i.e. non-linear anisotropic diffusion.

Subtomogram averages were recalculated using the same raw data and initial particle coordinates. Instead of PEET, Dynamo was used and data sets were split according to the “gold standard” before calculating FSC curves (now shown in Figure 2—figure supplement 1). Materials and methods were updated to describe the averaging procedure in detail.

The subtomogram average of ∆JF50_12585 was removed, since it did not add any additional insight to this study.

Pixel sizes were removed from all figure legends.

Figure 1—figure supplement 2 was filtered using a deconvolution filter.

Figure 1—figure supplement 3 was adapted to show density plots that clearly indicate filled and empty phenotypes.

https://doi.org/10.7554/eLife.46845.024

Article and author information

Author details

  1. Charles F Ericson

    1. Department of Biology, San Diego State University, San Diego, United States
    2. Viral Information Institute, San Diego State University, San Diego, United States
    3. Department of Biology, Institute of Molecular Biology and Biophysics, Eidgenössische Technische Hochschule, Zürich, Switzerland
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Fabian Eisenstein
    Competing interests
    has two provisional patents pending related to MACs in the 507 United States, Application Number: 62/768,240 and 62/844,988
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2854-0696

  2. Fabian Eisenstein

    Department of Biology, Institute of Molecular Biology and Biophysics, Eidgenössische Technische Hochschule, Zürich, Switzerland
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing—review and editing
    Contributed equally with
    Charles F Ericson
    Competing interests
    No competing interests declared

  3. João M Medeiros

    Department of Biology, Institute of Molecular Biology and Biophysics, Eidgenössische Technische Hochschule, Zürich, Switzerland
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9075-548X

  4. Kyle E Malter

    1. Department of Biology, San Diego State University, San Diego, United States
    2. Viral Information Institute, San Diego State University, San Diego, United States
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3056-8751

  5. Giselle S Cavalcanti

    1. Department of Biology, San Diego State University, San Diego, United States
    2. Viral Information Institute, San Diego State University, San Diego, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared

  6. Robert W Zeller

    Department of Biology, San Diego State University, San Diego, United States
    Contribution
    Resources, Funding acquisition, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared

  7. Dianne K Newman

    1. Division of Biology and Biological Engineering, California Institute of Technology, Pasadena, United States
    2. Division of Geological and Planetary Sciences, California Institute of Technology, Pasadena, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1647-1918

  8. Martin Pilhofer

    Department of Biology, Institute of Molecular Biology and Biophysics, Eidgenössische Technische Hochschule, Zürich, Switzerland
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    pilhofer@biol.ethz.ch
    Competing interests
    has two provisional patents pending related to MACs in the 507 United States, Application Number: 62/768,240 and 62/844,988

  9. Nicholas J Shikuma

    1. Department of Biology, San Diego State University, San Diego, United States
    2. Viral Information Institute, San Diego State University, San Diego, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    nshikuma@sdsu.edu
    Competing interests
    has two provisional patents pending related to MACs in the 507 United States, Application Number: 62/768,240 and 62/844,988
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5518-5020

Funding

Harold and June Memorial Scholarship

  • Charles Ericson

Norma Sullivan Memorial Endowed Scholarship

  • Charles Ericson

Howard Hughes Medical Institute

  • Dianne K Newman

National Institute on Deafness and Other Communication Disorders (1R21DC013180-01A1)

  • Robert W Zeller

Office of Naval Research (N00014-17-1-2677)

  • Nicholas J Shikuma

Office of Naval Research (N00014-16-1-2135)

  • Nicholas J Shikuma

Office of Naval Research (N00014-14-1-0340)

  • Dianne K Newman
  • Nicholas J Shikuma

Alfred P. Sloan Foundation

  • Nicholas J Shikuma

European Research Council (679209)

  • Martin Pilhofer

Swiss National Science Foundation (31003A_179255)

  • Martin Pilhofer

Gebert Rüf Stiftung

  • Martin Pilhofer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. Anca Segall and Dr. Manal Swairjo for reagents, technical support and constructive suggestions. We thank Ms. Amanda Alker and Ms. Nathalie Delherbe for their constructive suggestions. ScopeM at ETHZ and Ohad Medalia at the University of Zürich are acknowledged for instrument access. We thank Paula Picotti and Marco Faini for discussions of mass spectrometry experiments. This work was supported by the Harold and June Memorial Scholarship (CFE), Norma Sullivan Memorial Endowed Scholarship (CFE), Howard Hughes Medical Institute (DKN), NIH NIDCD (1R21DC013180-01A1, RWZ), Office of Naval Research (N00014-17-1-2677, NJS and SB), Office of Naval Research (N00014-16-1-2135, NJS), Office of Naval Research (N00014-14-1-0340, NJS and DKN), Alfred P Sloan Foundation, Sloan Research Fellowship (NJS), San Diego State University (NJS), European Research Council (679209, MP), Swiss National Science Foundation (31003A_179255, MP) and Gebert Rüf Foundation (MP).

Senior Editor

  1. Gisela Storz, National Institute of Child Health and Human Development, United States

Reviewing Editor

  1. Misha Kudryashev, Max Planck Institute of Biophysics, Germany

Version history

  1. Received: March 14, 2019
  2. Accepted: August 5, 2019
  3. Version of Record published: September 17, 2019 (version 1)

Copyright

© 2019, Ericson et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,411
    Page views
  • 460
    Downloads
  • 37
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Charles F Ericson
  2. Fabian Eisenstein
  3. João M Medeiros
  4. Kyle E Malter
  5. Giselle S Cavalcanti
  6. Robert W Zeller
  7. Dianne K Newman
  8. Martin Pilhofer
  9. Nicholas J Shikuma
(2019)
A contractile injection system stimulates tubeworm metamorphosis by translocating a proteinaceous effector
eLife 8:e46845.
https://doi.org/10.7554/eLife.46845

Categories and tags

Further reading

    1. Genetics and Genomics
    2. Microbiology and Infectious Disease

    The Photorhabdus asymbiotica virulence cassettes deliver protein effectors directly into target eukaryotic cells

    Isabella Vlisidou, Alexia Hapeshi ... Nicholas R Waterfield
    Research Article

    Photorhabdus is a highly effective insect pathogen and symbiont of insecticidal nematodes. To exert its potent insecticidal effects, it elaborates a myriad of toxins and small molecule effectors. Among these, the Photorhabdus Virulence Cassettes (PVCs) represent an elegant self-contained delivery mechanism for diverse protein toxins. Importantly, these self-contained nanosyringes overcome host cell membrane barriers, and act independently, at a distance from the bacteria itself. In this study, we demonstrate that Pnf, a PVC needle complex associated toxin, is a Rho-GTPase, which acts via deamidation and transglutamination to disrupt the cytoskeleton. TEM and Western blots have shown a physical association between Pnf and its cognate PVC delivery mechanism. We demonstrate that for Pnf to exert its effect, translocation across the cell membrane is absolutely essential.

    1. Microbiology and Infectious Disease

    Bacterial Protein Secretion: Looking inside an injection system

    Sophie A Howard, Alain Filloux
    Insight

    The proteins injected by bacteria into eukaryotic organisms can lead to fates as diverse as death and metamorphosis

    1. Microbiology and Infectious Disease

    Evolution of a functionally intact but antigenically distinct DENV fusion loop

    Rita M Meganck, Deanna Zhu ... Longping V Tse
    Short Report

    A hallmark of dengue virus (DENV) pathogenesis is the potential for antibody-dependent enhancement, which is associated with deadly DENV secondary infection, complicates the identification of correlates of protection, and negatively impacts the safety and efficacy of DENV vaccines. Antibody-dependent enhancement is linked to antibodies targeting the fusion loop (FL) motif of the envelope protein, which is completely conserved in mosquito-borne flaviviruses and required for viral entry and fusion. In the current study, we utilized saturation mutagenesis and directed evolution to engineer a functional variant with a mutated FL (D2-FL), which is not neutralized by FL-targeting monoclonal antibodies. The FL mutations were combined with our previously evolved prM cleavage site to create a mature version of D2-FL (D2-FLM), which evades both prM- and FL-Abs but retains sensitivity to other type-specific and quaternary cross-reactive (CR) Abs. CR serum from heterotypic (DENV4)-infected non-human primates (NHP) showed lower neutralization titers against D2-FL and D2-FLM than isogenic wildtype DENV2 while similar neutralization titers were observed in serum from homotypic (DENV2)-infected NHP. We propose D2-FL and D2-FLM as valuable tools to delineate CR Ab subtypes in serum as well as an exciting platform for safer live-attenuated DENV vaccines suitable for naïve individuals and children.
