Coopted temporal patterning governs cellular hierarchy, heterogeneity and metabolism in Drosophila neuroblast tumors

  1. Sara Genovese
  2. Raphaël Clément
  3. Cassandra Gaultier
  4. Florence Besse
  5. Karine Narbonne-Reveau
  6. Fabrice Daian
  7. Sophie Foppolo
  8. Nuno Miguel Luis
  9. Cédric Maurange  Is a corresponding author
  1. Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, France
  2. Université Côte d’Azur, CNRS, Inserm, Institut de Biologie Valrose, France
Research Advance
  • Cited 0
  • Views 1,698
  • Annotations
Cite this article as: eLife 2019;8:e50375 doi: 10.7554/eLife.50375

Abstract

It is still unclear what drives progression of childhood tumors. During Drosophila larval development, asymmetrically-dividing neural stem cells, called neuroblasts, progress through an intrinsic temporal patterning program that ensures cessation of divisions before adulthood. We previously showed that temporal patterning also delineates an early developmental window during which neuroblasts are susceptible to tumor initiation (Narbonne-Reveau et al., 2016). Using single-cell transcriptomics, clonal analysis and numerical modeling, we now identify a network of twenty larval temporal patterning genes that are redeployed within neuroblast tumors to trigger a robust hierarchical division scheme that perpetuates growth while inducing predictable cell heterogeneity. Along the hierarchy, temporal patterning genes define a differentiation trajectory that regulates glucose metabolism genes to determine the proliferative properties of tumor cells. Thus, partial redeployment of the temporal patterning program encoded in the cell of origin may govern the hierarchy, heterogeneity and growth properties of neural tumors with a developmental origin.

https://doi.org/10.7554/eLife.50375.001

Introduction

Central nervous system (CNS) tumors are rare and constitute less than 2% of all cancers in adults. In contrast, they represent more than 25% of cancer cases in children (including medulloblastoma, retinoblastoma, rhabdoid tumors (AT/RT), gliomas etc), suggesting that the developing CNS is particularly sensitive to malignant transformation (Arora et al., 2009; Curado et al., 2007). Moreover, unlike most adult tumors, pediatric tumors are often genetically stable and their initiation and progression do not necessarily require the accumulation of mutations in multiple genes. For example, the biallelic inactivation of a single gene is sometimes sufficient to trigger malignant growth as illustrated by mutations in the RB1 and SMARCB1 genes in retinoblastoma and rhabdoid tumors respectively (Biswas et al., 2016; Gröbner et al., 2018; Marshall et al., 2014; Puisieux et al., 2018; Scotting et al., 2005; Vogelstein et al., 2013). Recent studies suggest that CNS pediatric tumors such as medulloblastomas recapitulate the fetal transcription program that was active in the cell of origin (Vladoiu et al., 2019). However, it remains unclear how the invalidation of single genes during fetal stages can disrupt on-going developmental programs to trigger malignant growth, and whether these fetal/developmental programs influence the heterogeneity, composition, and proliferative properties of cells composing CNS tumors.

Faced with the complexity of brain development and neural tumors in mammals, simple animal models can represent a powerful alternative to investigate basic and evolutionary conserved principles. The development of the CNS is undoubtedly best understood in Drosophila (Homem and Knoblich, 2012). The Drosophila CNS arises from a small pool of asymmetrically-dividing neural stem cells (NSCs), called neuroblasts (NBs). NBs possess a limited self-renewing potential. They divide all along development (embryonic and larval stages) to self-renew while generating daughter cells named Ganglion Mother Cells (GMCs) (Maurange and Gould, 2005). GMCs then usually divide once to produce two post-mitotic neurons or glia. NBs are the fastest cycling cells during development, able to divide every hour during larval stages when most of the neurons are produced (Truman and Bate, 1988). However, all NBs terminate during metamorphosis and are absent in adults. Two antagonistic RNA-binding proteins, IGF-II mRNA-binding protein (Imp) and Syncrip (Syp) are essential to first promote and then conclude this formidable period of activity. During early larval development (L1/L2), NBs express Imp that promotes NB self-renewal. Around late L2/early L3, NBs silence Imp to express Syp that remains expressed until NB decommissioning during metamorphosis (Yang et al., 2017). This Imp-to-Syp transition is essential to render NBs competent to respond to subsequent pupal pulses of the steroid hormone ecdysone and initiate a last differentiative division (Homem et al., 2014; Yang et al., 2017). Failure to trigger the transition results in NBs permanently dividing in adults (Maurange et al., 2008Narbonne-Reveau et al., 2016; Yang et al., 2017). The Imp-to-Syp transition appears to be mainly regulated by a NB intrinsic timing mechanism driven by the sequential expression of transcription factors (Narbonne-Reveau et al., 2016; Ren et al., 2017; Syed et al., 2017). This series of factors, also known as temporal transcription factors, has been first identified for its ability to specify different neuronal fates produced by NBs as they divide (Bayraktar and Doe, 2013; Isshiki et al., 2001; Li et al., 2013). In addition, temporal transcription factors also schedule the Imp-to-Syp transition to ensure that NBs will not continue cycling in adults. Recent transcriptomic analyses indicate that other genes are dynamically transcribed in NBs throughout larval stages, although their function and epistatic relationship with temporal transcription factors and the Imp/Syp module are unclear (Liu et al., 2015; Ren et al., 2017; Syed et al., 2017) All together, these studies highlight a complex, but still relatively unexplored, temporal patterning system in larval NBs.

Perturbation of the asymmetric division process during early development can lead to NB exponential amplification. In such conditions, the NB-intrinsic temporal program limiting self-renewal appears to become inoperant, and uncontrolled NB amplification is observed. Serial transplantations of asymmetric division-defective NBs have revealed an ability to proliferate for months, if not years, demonstrating tumorigenic characteristics (Caussinus and Gonzalez, 2005). Perturbation of asymmetric divisions can be induced by the inactivation of the transcription factor Prospero (Pros) in type I NB lineages (most lineages in the ventral nerve cord (VNC) and central brain (CB)). During development, Pros is strongly expressed in GMCs where it accumulates to induce cell cycle-exit and neuronal or glial differentiation (Choksi et al., 2006; Hirata et al., 1995; Matsuzaki et al., 1992). GMCs that lack pros fail to differentiate and revert to a NB-like state. This triggers rapid NB amplification at the expense of neuron production (Bello et al., 2006; Caussinus and Gonzalez, 2005). We have previously shown that inactivation of pros in NBs, and their subsequent GMCs, before mid-L3 (L3 being the last larval stage) leads to aggressive NB tumors that persist growing in adults. In contrast, inactivation of pros after mid-L3 leads to transient NB amplification and most supernumerary NB properly differentiate during metamorphosis, leading to an absence of growing tumors in adults (Narbonne-Reveau et al., 2016). Interestingly, propagation of NB tumor growth beyond normal developmental stages is caused by the aberrant maintenance of Imp and the transcription factor Chinmo from early-born GMCs, the latter representing the cells of origin of such aggressive tumors (Narbonne-Reveau et al., 2016). Chinmo and Imp positively cross-regulate and inactivation of either in NB tumors stops tumorigenic growth. Because pros-/- NB tumors can only be induced during an early window of development, and are caused by the biallelic inactivation of a single gene, they represent an exciting and simple model to investigate the basic mechanisms driving the growth of tumors with an early developmental origin, such as in the case of pediatric CNS cancers.

NB tumors can also be induced from type II NBs (a small subset of NBs in the central brain) or from neurons upon inactivation of the NHL-domain family protein Brat or Nerfin-1 respectively (Bello et al., 2006; Betschinger et al., 2006; Lee et al., 2006) (Froldi et al., 2015). In both cases, tumor growth appears to rely on the aberrant expression of the Chinmo/Imp module arguing for a general tumor-driving mechanism in the developing Drosophila CNS (Narbonne-Reveau et al., 2016). Interestingly, in the different types of NB tumors, Chinmo and Imp are only expressed in a subpopulation of cells, demonstrating heterogeneity in the population of tumor NBs (tNBs). However, the full repertoire of cells composing the tumor, the rules governing the cellular heterogeneity and the mechanisms determining the proliferative potential of each cell type remain to be investigated.

Here, we use single-cell RNA-seq, clonal analysis and numerical modeling to investigate these questions. We identify a subset of genes involved in the temporal patterning of larval NBs that are redeployed in tumors to generate a differentiation trajectory responsible for creating tumor cell heterogeneity. This cellular heterogeneity results in NBs with different types of metabolism and different proliferative properties. We also decipher a robust hierarchical scheme that drives reproducible heterogeneity through the dysregulated but fine-tuned transition between the two RNA-binding proteins Imp and Syp. This work thus identifies a core larval NB temporal patterning program, the disruption of which not only causes unlimited growth but has an overarching role in governing the cellular hierarchy, heterogeneity and metabolism of NB tumors.

Results

Single-cell RNA-seq reveals that a subset of larval NB temporal patterning genes are major contributors of cellular heterogeneity within NB tumors

To investigate the cellular heterogeneity existing in a given type of NB tumor, we performed single-cell RNA-seq experiments. To minimize inter-tumor heterogeneity that could result from inducing tumors with different NBs of origin, tumors were induced from the early L2 stage, when NBs exit quiescence, by knocking down pros in the six homologous poxn NBs of the VNC (one per hemisegment) using the poxn-Gal4, UAS-prosRNAi, UAS-GFP, UAS-dicer2 system - thereafter referred to as poxn > prosRNAi. We had previously demonstrated that early NB amplification triggered during early larval stages by the poxn > prosRNAi system led to tumors that persist and expand in adults (Narbonne-Reveau et al., 2016). Single-cell RNA-seq was performed on dissociated and FACS-sorted GFP+ tNBs obtained from 56 poxn > prosRNAi tumors dissected and pooled from adults aged between 4 to 6 days (tumors were therefore induced 11 to 13 days earlier).

Using the Chromium (10x Genomics) approach, we sequenced 5740 cells with a median number of 1806 genes/cell (Figure 1—figure supplement 1A). Filtering, normalization, variable gene identification, regression of cell-cycle genes, linear dimensional reduction, and principal component analysis (PCA) were performed with the R package Seurat (Butler et al., 2018) (Figure 1—figure supplement 1A,B). PC3, PC4 and PC7 in particular caught our attention, as they all identify the early and late larval NB temporal markers, Imp and Eip93F (E93) (Syed et al., 2017), being expressed in different subsets of tNBs (Figure 1A and Figure 1—figure supplement 1C). This indicates that early and late larval NB markers are major components defining cellular heterogeneity in NB tumors.

Figure 1 with 5 supplements see all

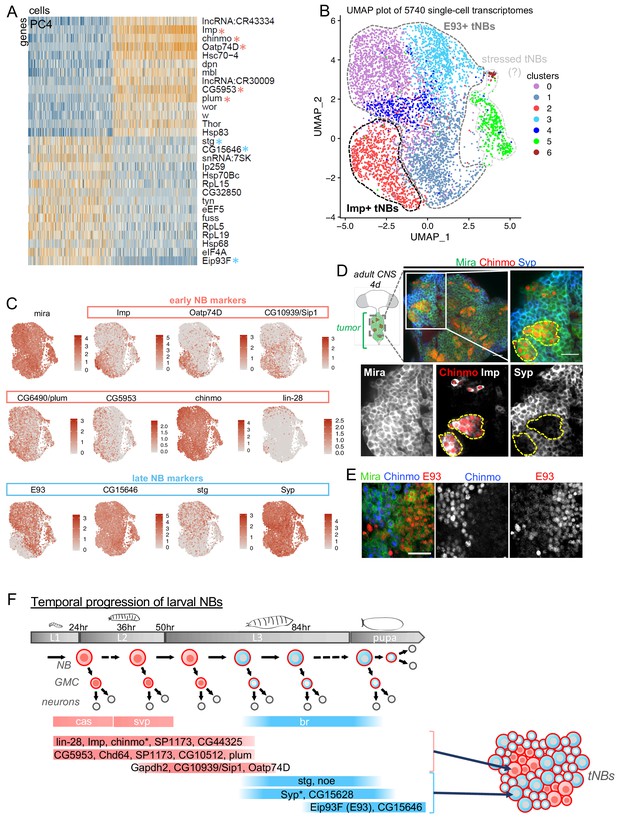

Single-cell RNA-seq identifies a subset of temporal patterning genes that are redeployed in NB tumors defining heterogeneity in NB states.

(A) PCA was performed on single-cell tNB transcriptomes to reduce the dimensions of the data for further analysis. Genes (rows) and cells (columns) are ordered by their PCA scores, and the 500 most extreme cells and 30 most extreme genes on both sides of the distribution are shown in the heatmap. PC4 reveals that tNBs can be discriminated by the expression of early (light red asterisks) vs late (light blue asterisks) larval NB temporal patterning genes. Other larval temporal genes are found in PC3 and PC7 (Figure 1—figure supplement 1C). (B) The UMAP representation of all single cells included in our analysis shows the separation of different clusters. We used a k-nearest neighbor algorithm to call seven clusters, which are shown in different colors on the UMAP plot. (C) Expression of Mira, early and late temporal markers on the UMAP map shown in B. (D) Cartoon representing a ventral view of an adult CNS containing a NB tumor induced during larval stages in the VNC. Green circles are tNBs. Green circles colored in red represent Chinmo+Imp+ tNBs. Immunostainings with anti-Chinmo, anti-Imp and anti-Syp, indicating that Imp/Chinmo and Syp are expressed in a complementary pattern in poxn > prosRNAi tumors found in 4-day-old adults. tNBs are labeled with Mira. Scale bar 20 µm. (E) Immunostainings with anti-Chinmo and anti-E93 indicating that these two transcription factors are expressed in a complementary pattern in poxn > prosRNAi tumors found in 4-day-old adults. tNBs are marked with anti-Mira. Scale bar 20 µm. (F) The light red and blue colors respectively designate ‘early’ and ‘late’ larval NB genes as determined by Liu et al. (2015), Syed et al. (2017) and Ren et al. (2017). A subset of these genes are redeployed in tumors to define distinct tNB states. Asterisks mark temporal patterning genes regulated at the post-transcriptional level in tNBs. Note that cas and svp transcription is associated with early Imp+ NBs, while br transcription is associated with late E93+ NBs during larval stages. In contrast, cas, svp and br transcription do not distinguish Imp+ and E93+ tNBs.

https://doi.org/10.7554/eLife.50375.002

We next proceeded to graph-based clustering. This led to a UMAP representation composed of five main clusters and two smaller ones (Figure 1B). Although tNBs poxn > prosRNAi tumors may occasionally differentiate in neurons (Narbonne-Reveau et al., 2016), poxn-GAL4 is only active in the tNB population. Therefore, we expected the population of GFP+ cells after FACS sorting to be exclusively composed of tNBs. Consistently, NB identity genes like miranda (mira) or deadpan (dpn), appeared homogeneously distributed on the UMAP representation while genes defining cholinergic (VAChT), GABAergic (Gad1) and glutamatergic (VGlut) neurons were absent (Figure 1C and Figure 1—figure supplement 2A). Similarly, pan-glial genes (repo) were not detected (Figure 1—figure supplement 2A). The two smaller clusters appear to be composed of tNBs expressing stress or growth arrest factors such as Gadd45, Irbp18, Xrp1 and GstE6 possibly composing a sub-population of tNBs under cellular stress (Figure 1—figure supplement 2B) (Akdemir et al., 2007; Francis et al., 2016; Lee et al., 2018). Differential expression analysis identifies ‘cluster 2’ (1268 out of 5740 cells (22%)) as being strongly defined by the expression of the early NB temporal marker Imp (Figure 1C and Figure 1—figure supplement 2C). In contrast, E93 expression inversely correlates with Imp expression on the UMAP representation, being strongly expressed throughout all other clusters (Figure 1C). The presence of 4 large clusters (clusters 0, 1, 3, 4) within the E93 expression domain on the UMAP representation implies further cellular heterogeneity within the E93+ tNB population (Figure 1B and Figure 1—figure supplement 2C). We then crossed the list of genes that discriminates the Imp+ cluster 2 from the E93+ clusters (0, 1, 3, 4) with the lists of genes that are temporally regulated in either the mushroom body NBs, antennal lobe NBs or the type II NBs during larval development (Liu et al., 2015; Ren et al., 2017) (Figure 1—figure supplement 3). We found that the genes encoding for the transmembrane transporters Oatp74D and SP1173, the Ig-superfamily transmembrane protein Plum, the glucose metabolism protein Gapdh2, the cytoskeleton protein Chd64, as well as CG10939, CG44325, CG10512 and CG5953 distinguish the Imp+ identity in both NBs during development and tNBs in tumors. In contrast, the CDC25 gene string (stg), CG15628, CG15646 and the long non-coding RNA noe constitute a subset of genes whose transcription distinguishes the E93+ identity in both NBs during development and tNBs in tumors (Figure 1C, Figure 1—figure supplement 3 and Figure 1—figure supplement 2D). Thus, a subset of larval NB temporal patterning genes is redeployed in tumors defining various tNB states.

Of note, chinmo mRNA is globally strongly expressed throughout all clusters (Figure 1C). This is reminiscent of its known post-transcriptional regulation in NBs throughout development (Dillard et al., 2018; Zhu et al., 2006). Consistent with a post-transcriptional regulation of chinmo in tumors, we found that forced transcription of a UAS-mCherrychinmoUTRs transgene, in which the mCherry ORF is flanked by the 5’ and 3’ UTRs of chinmo (Dillard et al., 2018), in the tumor led to mCherry expression only in the tNBs that express the endogenous Chinmo (Figure 1—figure supplement 4). Chinmo+ tNBs also co-express Imp (Figure 1D). Thus, as in NBs during development, chinmo is regulated at the post-transcriptional level in tumors. During development, chinmo is post-transcriptionally silenced by Syp whose expression is activated in late NBs (Liu et al., 2015; Ren et al., 2017; Syed et al., 2017). Surprisingly, in tumors, Syp mRNA is not restricted to E93+ tNBs, as it is also highly transcribed in the Imp+ tNBs of cluster 2 (Figure 1C). However, when Syp expression was assessed by immunostaining in 6 days-old adult tumors, Syp was absent from Chinmo+Imp+ tNBs. Instead anti-Syp immunostaining labeled most if not all other tNBs, that were also positive for anti-E93 (Figure 1D,E). Thus, unlike in larval NBs where Syp is transcriptionally controlled along development, its expression in tNBs appears to be regulated mainly at the post-transcriptional level. We also find that the temporal transcription factors cas and svp that are expressed in Imp+ NBs during early larval stages (Maurange et al., 2008; Ren et al., 2017; Syed et al., 2017) are not enriched in cluster 2 indicating further differences between Imp+ NBs during development and tumorigenesis (Figure 1—figure supplement 3). In addition, while the transcription factor Broad (Br) is a pan-NB marker of late temporal identity during larval development (Liu et al., 2015; Maurange et al., 2008; Ren et al., 2017; Syed et al., 2017) (Figure 1—figure supplement 3), it is not enriched in E93+ tNBs demonstrating differences with late larval NBs (Figure 1—figure supplement 3). Lastly, single-cell RNA-seq and immunostainings also showed that all tNBs express the late embryonic and larval temporal transcription factors Grh (Figure 1—figure supplement 5) (Brody and Odenwald, 2000). This suggests that tNBs do not reverse to an early embryonic temporal identity.

Although lin-28 is known to be expressed in early larval NBs and in Chinmo+Imp+ tNBs (Narbonne-Reveau et al., 2016), mRNA levels appear to stand below the detection limit of the 10x technology, a current limitation of droplet-based assays, as it is hardly detected and not enriched in ‘cluster 2’ containing Imp+ tNBs (Figure 1C and Figure 1—figure supplement 3). Low cellular levels of lin-28 mRNA are consistent with a previous RNA-seq experiment on bulk tumors performed by the lab (about 120 times lower than levels of Imp mRNAs) (Narbonne-Reveau et al., 2016).

In conclusion, single cell transcriptomics identify a number of larval NB temporal patterning genes that are redeployed in tumors to define distinct tNB subpopulations (Figure 1F). Of these, Chinmo+Imp+ tNBs and Syp+E93+ tNBs, as defined by immunostainings, compose two exclusive subpopulations encompassing most if not all tNBs.

poxn > prosRNAi NB tumors progress to reproducible heterogeneity

To investigate how tumor heterogeneity emerges and is regulated during the course of tumor growth, we co-stained tumors for Chinmo and Syp (respective markers for the Chinmo+Imp+ and Syp+E93+ tNBs) as they grow from their initiation during early larval to adult stages. Immuno-stainings performed about 24 hours after pros knockdown (late L2 stage) indicated that poxn+ NBs initially amplify to form small pools of Chinmo+Imp+ tNBs (Figure 2A).

Figure 2 with 1 supplement see all
Dynamics of cell heterogeneity in poxn > prosRNAi NB tumors.

(A,B) Cartoons represent a ventral view of the Drosophila CNS at late L2 and late L3. Gray circles represent normal NBs. Green circles are prosRNAi tNBs. Red tNBs express chinmo. Tumors were induced by knocking down pros in six NBs located in the VNC, throughout larval development, using the poxn-Gal4, UAS-prosRNAi, UAS-GFP, UAS-dicer2 system (poxn > prosRNAi). Because chinmo is always co-expressed with Imp in NBs, we use either anti-Chinmo or anti-Imp to label Chinmo+Imp+ tNBs. We also used Syp to label Syp+E93+ tNBs. (A) poxn > prosRNAi initially induces pools of tNBs all expressing Chinmo in early larvae (L2). tNBs are marked with anti-Mira and anti-GFP. (B) In late larvae (L3), poxn > prosRNAi tumors are composed by two distinct populations of tNBs respectively expressing Chinmo and Syp. Tumors are marked with anti-GFP and delineated by dashed lines. (C) Mitotic Imp+ tNBs and Syp+tNBs are marked with anti-PH3 in poxn > prosRNAi tumors persisting in 4-day-old adults. (D) Quantification of the mitotic index of Chinmo+Imp+ tNBs (n = 7 VNCs) and Syp+E93+ tNBs (n = 7 VNCs) in poxn > prosRNAi tumors of 4-day-old adults. p=0.0006. (E) Proportion of Chinmo+Imp+ tNBs over all tNBs composing tumors (volumes of each population are measured) at 8 days (8d) (n = 5), 10d (n = 6), 11d (n = 6) and 15d (n = 6) after tumor induction. Each dot represents the % for one tumor. (F) Scheme depicting the dynamics of tumor composition: from a homogeneous pool of Chinmo+Imp+ tNBs in early larvae to a heterogeneous tumor with a minor population of Chinmo+Imp+ and a majority of Syp+E93+ tNBs. Scale bars, 20 µm.

https://doi.org/10.7554/eLife.50375.008

No Syp+ tNBs are present at this stage. However, from early to late L3, a distinct population of Syp+ tNBs emerges within tumors (Figure 2B). Thus, Syp+ tNBs appear in tumors at about the time when normal NBs undergo the Imp-to-Syp switch regulated by the progression of temporal transcription factors (Maurange et al., 2008; Narbonne-Reveau et al., 2016; Ren et al., 2017; Syed et al., 2017). In adults, Chinmo+Imp+ tNBs are encountered in small clusters surrounded by large fields of Syp+ tNBs (Figure 1D). Thus, the initial pool of Chinmo+Imp+ tNBs evolves to generate tumors with two distinct compartments. Both the Chinmo+Imp+ and Syp+E93+ compartments show mitotic activity (Figure 2C), although the mitotic index is globally lower in the Syp+E93+ compartment (Figure 2D).

Then, following immunostaining, confocal imaging and 3D reconstruction, we quantified the proportion of Chinmo+Imp+ and Syp+E93+ tNBs within tumors aged of 8, 10, 11 and 15 days (induced in L2 and dissected in 1, 3, 4, and 8-day-old adults respectively). In total, more than 20 tumors were dissected and we reproducibly found a relatively invariant proportion of 20% of Chinmo+Imp+ tNBs (±10) at the different time-points (Figure 2E). This proportion is consistent with the proportion of Imp+ tNBs composing ‘cluster 2’ identified with the single-cell RNA-seq analysis performed from tumors of 4-to-6-day-old adults (tumors induced 11 to 13 days earlier) (Figure 1C,D). Thus, Chinmo+Imp+ tNBs globally exhibit a higher mitotic index but, counterintuitively, they rapidly become a minority compared to Syp+E93+ tNBs (Figure 2E,F). Note that neurons deriving from tNBs are rare in the bulk of the tumor and only mildly contribute to the tumor mass (Figure 2—figure supplement 1). In conclusion, poxn > prosRNAi tumors rapidly evolve from a homogenous population of Chinmo+Imp+ tNBs in early larvae to a heterogeneous population of Chinmo+Imp+ and Syp+E93+ tNBs in adults. In adults, tNB populations appear to reach a relatively stable equilibrium where Chinmo+Imp+ tNBs are in minority despite an apparent higher mitotic index. The intertumoral reproducibility of this population dynamics suggests the existence of robust intratumoral constraints.

poxn > prosRNAi NB tumors follow a rigid hierarchical scheme

To investigate in details the rules governing the population dynamics of Chinmo+Imp+ and Syp+E93+ tNBs, we designed lineage analysis experiments in vivo. We used the Flybow technique combined with our poxn > prosRNAi system to generate random mCherry-labeled clones in otherwise GFP+ tumors (Hadjieconomou et al., 2011). Clones were randomly induced at low frequency (in about 1% to 2% of tNBs) in 2-day-old adults containing poxn > prosRNAi tumors, and examined along a time course. Of note, even 12 days after clonal induction (ACI), clones could be easily delineated, with mCherry+ cells depicted no or little dispersion denoting no active migration (Figure 3—figure supplement 1). This allowed us to characterize individual mCherry+ clones 8 hours, 2 days, 4 days and 8 days ACI (Figure 3A). We used Chinmo as a marker for Chinmo+Imp+ tNBs and its absence as a marker for Syp+E93+ tNBs. Along this time lapse, we could observe three categories of clones: clones exclusively composed of Chinmo+Imp+ tNBs (further termed CI clones), MIXED clones composed of both Chinmo+Imp+ and Syp+E93+ tNBs (they therefore contain at least two tNBs), and clones exclusively composed of Syp+E93+ tNBs (further termed SYP clones) (Figure 3C). The existence of clones exclusively composed of either Chinmo+Imp+ or Syp+E93+ tNBs is consistent with the ability of both types of tNBs to undergo self-renewing divisions. In addition, the existence of a subset of MIXED clones implies that Chinmo+Imp+ or Syp+E93+ tNBs may derive from a common precursor of either identity. In addition, clones display a large heterogeneity in their size at 8 days ACI (Figure 3A,B), indicating that all tumor cells do not possess the same proliferation potential. Interestingly, we observed that the proportion of the different categories of clones is dynamic over the period of 8 days. The proportion of CI clones exhibits a rapid decrease that is paralleled with an increase in the proportion of MIXED clones and a slight increase in the proportion of SYP clones (Figure 3D). We sought to investigate whether these clonal dynamics could reflect hierarchical rules within the tumor.

Figure 3 with 1 supplement see all
Clonal analysis in poxn > prosRNAi NB tumors.

(A) Clones are labeled with mCherry and observed 8 hours (8h), 2 days (2d), 4 days (4d) and 8 days (8d) after clonal induction (ACI) in poxn > prosRNAi tumors. mCherry- tNBs are GFP+. Images represent one confocal section. (B) 3D projections of clones 8 hr, 2d, 4d and 8d ACI. The color-code labels clones according to their volume. (C) Three categories of clones can be identified in poxn > prosRNAi tumors: clones composed of Chinmo+Imp+ tNBs only (CI clones), clones composed of both Chinmo+Imp+ and Syp+E93+ tNBs (MIXED clones), and clones composed of Syp+E93+ tNBs only (SYP clones). Chinmo+Imp+ tNBs are identified by the presence of Chinmo. Syp+ tNBs are identified by the absence of Chinmo. (D) Proportion of CI (red), MIXED (gray) and SYP (blue) clones 8h, 2d, 4d and 8d ACI. Proportion of CI clones 8h ACI (n = 117 clones from 4 VNCs); 2d ACI (n = 75 clones from 4 VNCs); 4d ACI (n = 13 clones from 5 VNCs); 8d ACI (n = 17 clones from 5 VNCs). P between CI clones at 8h and 2d ACI -> PCI8h/2d = 0.2; PCI2d/4d = 0.016; PCI4d/8d = 0.88. Proportion of MIXED clones 8h ACI (n = 8 clones from 4 VNCs); 2d ACI (n = 28 clones from 4 VNCs); 4d ACI (n = 57 clones from 5 VNCs); 8d ACI (n = 66 clones from 5 VNCs). PMIXED8h/2d = 0.029; PMIXED2d/4d = 0.016; PMIXED4d/8d = 0.31. Proportion of SYP clones 8h ACI (n = 181 clones from 4 VNCs); 2d ACI (n = 196 clones from 4 VNCs); 4d ACI (n = 200 clones from 5 VNCs); 8d ACI (n = 255 clones from 5 VNCs). PSYP8h/8d = 0.016. Scale bars, 20 µm.

https://doi.org/10.7554/eLife.50375.010

For this purpose, we designed a stochastic numerical model of clone growth (see Materials and methods for details). The model follows a simple algorithm (Figure 4A). Each clone starts from a single tNB. In the model, Chinmo+Imp+ tNBs are referred to as C cells while Syp+E93+ tNBs are referred to as S cells. The initial tNB can either be Chinmo+Imp+ (probability pc) or Syp+E93+ (probability 1-pc). At each numerical time step, each cell in the clone (initially one) has a given probability to divide, set by its division time (Tc and Ts). Upon division, Chinmo+Imp+ tNBs can either duplicate (C→CC), generate two Syp+E93+ tNBs (C→SS), or undergo fate asymmetric division (C→CS). Similarly, Syp+E93+ tNBs can either duplicate (S→SS), generate two Chinmo+Imp+ tNBs (S→CC), or undergo fate asymmetric division (S→CS). Each new tNB has a probability to exit the cell-cycle and enter quiescence. In modeling terms, we asked whether hierarchical or plastic schemes of cell divisions are compatible with the proportions of clone categories observed experimentally.

Figure 4 with 2 supplements see all

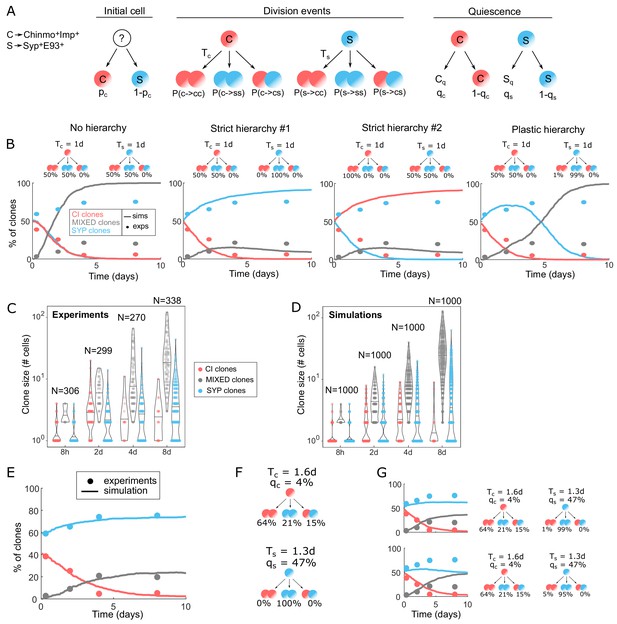

Modeling tumor hierarchy and the dynamics of cellular heterogeneity.

(A) Cartoon of the stochastic clone model. C stands for Chinmo+Imp+ tNBs, S stands for Syp+E93+ tNBs. Tc means ‘division time of Chinmo+Imp+ tNBs’, Ts means ‘division time of Syp+E93+ tNBs’. Cq stands for quiescent Chinmo+Imp+ tNB, Sq stands for quiescent Syp+E93+ tNB. qc and qs are the probabilities for Chinmo+Imp+ and Syp+E93+ tNBs to be quiescent after being generated. (B) Dynamics of proportion for each clone category in four extreme model scenarios: No hierarchy, Strict hierarchy #1, Strict hierarchy #2, Plastic hierarchy. Solid lines represent the simulations (n = 1000 clones), dots represent experimental measurements. Cartoons above graphs represent the division probabilities used to generate each graph. (C) Violin plots depicting distributions of clone sizes (number of cells) for each category calculated from the experiments. (D) Violin plots depicting distributions of clone sizes (number of cells) for each category of clones after simulation, using the set of parameters minimizing the error. Center lines of boxes show the medians. (E) Proportion of clones over time in each category using the set of parameters minimizing the error. Solid lines represent the simulations (n = 1000 clones), dots represent experimental measurements. (F) Hierarchical scheme able to recapitulate the dynamics of clone growth and composition, with the parameters measured from the experimental data and defined by the fit. (G) Proportion of clones in each category using the set of parameters minimizing the error while allowing a small chance of reverse division from S to C (top: 1%, bottom: 5%).

https://doi.org/10.7554/eLife.50375.012

We first tested four simplified scenarios, in which we neglected quiescence and asymmetric divisions, and assumed that C and S cells have the same division time. In each case, we simulated the growth of 1000 clones and plotted the proportion of clones in each category. In the first scenario (‘No hierarchy’), Chinmo+Imp+ tNBs have 50% chance to duplicate (symmetric self-renewing divisions C→CC), and 50% chance to divide into two Syp+E93+ tNBs (C→SS). Similarly, Syp+E93+ tNBs have 50% chance to duplicate (S→SS), and 50% chance to divide into two Chinmo+Imp+ tNBs (S→CC). Unlike our experimental observations, this non-hierarchical scenario leads to a symmetric outcome, in which all clones rapidly become mixed, while the proportion of CI and SYP clones rapidly decays to zero (Figure 4B). In the second scenario (‘Strict hierarchy #1’), Chinmo+Imp+ tNBs still have 50% chance to duplicate (C→CC), and 50% chance to divide into two Syp+E93+ tNBs (C→SS) but Syp+E93+ tNBs can only self-renew (S→SS). This hierarchical scheme leads to a fully different outcome, with a large proportion of clones remaining only composed of Syp+E93+ tNBs (SYP clones), while the proportion of clones only composed of Chinmo+Imp+ tNBs (CI clones) rapidly decays, which is consistent with our experimental observations (Figure 4B). In the third scenario, we also tested the reverse hierarchical scheme (‘Strict hierarchy #2’) where Syp+E93+ tNBs still have 50% chance to duplicate (S→SS), and 50% chance to divide into two Chinmo+Imp+ tNBs (S→CC) but Chinmo+Imp+ tNBs can only self-renew (C→CC). Consistently, we observed results opposite to the second scenario, with CI clones rapidly becoming dominant instead of SYP clones (Figure 4B). These scenarios therefore suggest that poxn > prosRNAi NB tumors follow a rather hierarchical scheme with Chinmo+Imp+ tNBs at the top of the hierarchy. Finally, we tested a fourth ‘Plastic hierarchy’ scenario for which we maintain this hierarchy, but also give Syp+E93+ tNBs a small probability (1%) to generate Chinmo+Imp+ tNBs (S→CC). This is sufficient to drastically change the outcome of the simulations, as it prevents the long-term maintenance of SYP clones (Figure 4B, right panel). These four model scenarios combined to our experimental observations therefore argue for a rigid, unidirectional, Chinmo+Imp+→Syp+E93+ hierarchy between tNBs.

The hierarchical division scheme that defines clonal growth and composition demonstrates a cancer stem cell-like role for Chinmo+Imp+ tNBs

We then sought to use the hierarchical model #1 as a basis to investigate more quantitatively the parameters that finetune tumor growth and heterogeneity. Interestingly, in vivo, significant differences in average clone size can be observed between the three categories at the different time points (Figure 4C). SYP clones grow slower than MIXED clones, suggesting either that Syp+E93+ tNBs have a slower cell-cycle speed or possess a limited self-renewing potential - similar to Syp+E93+ NBs during development – and rapidly end up exiting the cell cycle. On the other hand, the few clones that remain within the CI category at 8 days ACI tend to completely stop growing, suggesting that these clones may be composed by quiescent Chinmo+Imp+ tNBs. Consequently, we considered non-zero probabilities qs and qc for new S cells and C cells to enter quiescence. We also implemented a non-zero probability for C cells to undergo fate asymmetric divisions (Figure 4—figure supplement 1), and distinct division times for C and S cells. Thanks to a series of measurements, we could reduce the number of independent parameters to two (see Materials and methods): the probability P(ccc), and the division time Ts for S cells. We used these as free parameters to fit the model to the measurements of clone sizes and compositions at 8 hours, 2, 4 and 8 days ACI. To that end, we computed error maps for clone composition and clone size in the (Pccc, Ts) plane, and eventually a combined error map (Figure 4—figure supplement 2). We found that the error is minimized for Pccc=0.64 and Ts=1.3 days, from which we determine all the other parameters. Notably, Syp+ tNBs have a much higher probability (47%) to enter quiescence than Chinmo+Imp+ tNBs (4%), consistent with the slower growth of SYP clones. Using the set of parameters determined by the fit (Figure 4F), we found an excellent agreement between experiments and simulations, for both clone sizes (Figure 4C, D) and clone compositions (Figure 4E). Modulating these parameters to allow a small probability for S→CC reverse divisions (1% or 5%) significantly affected the simulations outcome, leading to an important loss of SYP clones and a concomitant increase of MIXED clones (Figure 4G). This further demonstrates that reverse divisions from Syp+E93+ tNBs to Chinmo+Imp+ tNBs are either very low or inexistent, at least during the first weeks of tumor growth.

Altogether, our clonal analysis demonstrates that NB tumors are strongly hierarchical. Chinmo+Imp+ tNBs are at the top at the hierarchy. They have a preference for symmetric self-renewing divisions, allowing their perpetuation, and rarely become quiescent allowing tumor growth propagation. They can also undergo fate asymmetric or symmetric differentiation divisions in order to generate Syp+E93+ tNBs, albeit with a lower probability. Subsequent Syp+E93+ tNBs can undergo symmetric self-renewing divisions but exhibit a high propensity for rapid cell-cycle exit and cannot generate Chinmo+Imp+ tNBs. Consequently, Syp+E93+ tNBs cannot generate large and heterogeneous clones in tumors unlike Chinmo+Imp+ tNBs. This set of characteristics (Figure 4F) thus confers cancer stem cell (CSC)-like properties to Chinmo+Imp+ tNBs (Nassar and Blanpain, 2016; Nguyen et al., 2012; Valent et al., 2012).

Tumor composition is predictable but varies according to the cell of origin

We then tested whether the set of parameters defined by our analysis of clonal growth could recapitulate the tNB population dynamics, from homogeneity (in early larvae) to stable heterogeneity (in adults). When applying the uncovered set of parameters to a homogenous pool of Chimo+Imp+ tNBs as observed in early larvae (Figure 2A), simulations via the stochastic or a deterministic version of the model (see Materials and methods) predict that Chimo+Imp+ and Syp+E93+ tNB populations rapidly reach an equilibrium with a 20/80 ratio (Figure 5A). Remarkably, this is consistent with our observations that the population of Chinmo+Imp+ tNBs invariably progresses to the minority, and reaches a similar equilibrium in vivo (Figure 2E). Our observation that all poxn > prosRNAi tumors invariably reach an approximate 20/80 equilibrium during adulthood suggests a robust hierarchical scheme able to buffer intrinsic or extrinsic perturbations inherent to biological systems. Interestingly, changing the initial proportions of tNBs in the simulation does not affect the final equilibrium (Figure 5B). Thus, the uncovered hierarchical scheme robustly reproduces the observed dynamics of intratumoral heterogeneity, at least during the first two and half weeks of tumor growth (from L1 to 10-day-old adults) and provides robustness to accommodate biological perturbations.

The final proportions of Chinmo+Imp+ and Syp+E93+ tNBs are not influenced by their initial proportions and depend on the tumor type.

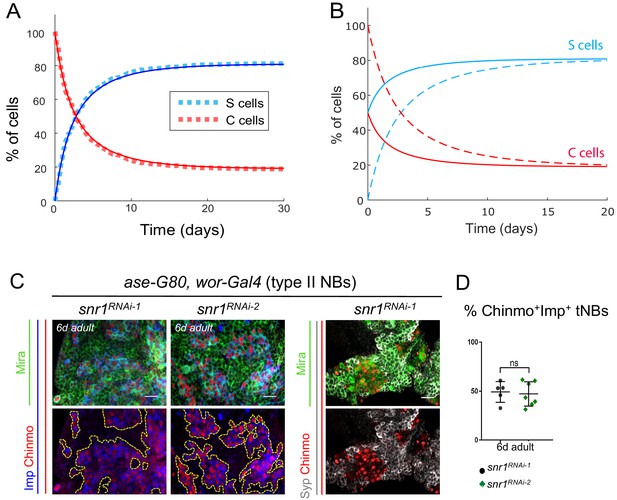

(A) Proportion of Syp+E93+ (blue) and Chinmo+Imp+ (red) tNBs over time using the set of parameter values determined by the error minimization and starting from 100% of Chinmo+Imp+ tNBs. Dashed lines represent a stochastic simulation (clone model), thin lines represent the prediction of the deterministic model. An equilibrium is rapidly reached were Chinmo+Imp+ tNBs represent about 20% of all tNBs. (B) Dashed curves: evolution of the proportions of Syp+E93+ (blue) and Chinmo+Imp+ (red) tNBs, as predicted by the deterministic model, when starting with 100% of Chinmo+Imp+. Plain curves: evolution of the proportions of Syp+E93+ (blue) and Chinmo+Imp+ (red) tNBs, as predicted by the deterministic model, when starting with 50% of Chinmo+Imp+ and 50% of Syp+E93+ tNBs. In both scenarios, the same equilibrium is reached. (C) UAS-snr1RNAi transgenes are expressed in type II NBs using the ase-Gal80, wor-Gal4, UAS-dicer2 system causing NB tumors that persist in the CB of adult flies. tNBs in 6-day-old adults are marked with Mira, Imp, Chinmo and Syp. (D) Proportion of Chinmo+Imp+ tNBs in ase-G80, wor > snrRNAiRNAi-1 (n = 5 CB) and ase-G80, wor > snrRNAiRNAi-2 (n = 7 CB) tumors in 6-day-old adults (volume of Chinmo+Imp+ tNBs over volume of all tNBs x 100) . p=0.0061. Scale bars, 20 µm.

https://doi.org/10.7554/eLife.50375.015

To investigate whether the 20/80 ratio is a property of all NB tumors, we measured this ratio in tumors induced by the loss of the SWI/SNF factor snr1 in larval type II NBs of the central brain (Eroglu et al., 2014; Koe et al., 2014). As for poxn > prosRNAi tumors, late larval and adult NB tumors induced by a null Snr1 allele or Snr1RNAi are composed by a mix of Chinmo+Imp+ tNBs and Syp+ tNBs (Figure 5C). As for poxn > prosRNAi tumors the ratio of Chinmo+Imp+ over Syp+ tNBs is reproducible from adult to adult tumors (Figure 5D). However, we observed that it is different from poxn > prosRNAi tumors with an approximate 50/50 ± 10 ratio encountered in Snr1RNAi tumors. Thus, the rules finetuning the parameters defining the hierarchical scheme in the different types of tumors are robust, but tumor-specific, possibly determined by the NB of origin.

Imp and Syp antagonistically regulate NB growth and self-renewal during development and tumorigenesis via chinmo

We then investigated the role of the two RNA-binding proteins Imp and Syp in tumor growth and cellular heterogeneity. We had previously demonstrated that Imp sustains NB tumor growth beyond normal developmental stages at least partially by promoting chinmo expression (Narbonne-Reveau et al., 2016). To investigate the function of Syp within the tumor context, we knocked it down in poxn > prosRNAi tumors from their initiation. Syp knockdown led to tumors almost exclusively constituted of Chinmo+Imp+ tNBs (Figure 6A,B). This is consistent with the finding that Syp knockdown induces maintenance of both Imp (Yang et al., 2017) and Chinmo in NBs during development (Figure 6—figure supplement 1). This suggests that in absence of Syp, Chinmo+Imp+ tNBs tend to exclusively undergo symmetric self-renewing divisions. As predicted by the numerical model, this should lead to an increased tumor growth rate, since Chinmo+Imp+ tNBs do not, or rarely enter quiescence, unlike Syp+E93+ tNBs (Figure 6C). Consistently, in vivo, the volume of prosRNAi; SypRNAi tumors in 1-day-old adults exhibited a 3.9-fold increase compared to control prosRNAi tumors (Figure 6D and Figure 6—figure supplement 2A). By contrast, over-expressing Syp (SypOE) within prosRNAi tumors blocked tumor growth in adults (Figure 6E and Figure 6—figure supplement 2A). In addition, knockdown of both Syp and Imp in prosRNAi, SypRNAi, ImpRNAi tumors arrested tumor growth in adults (Figure 6F and Figure 6—figure supplement 2), and tumors lacked or exhibited low levels of Chinmo (Figure 6—figure supplement 2) demonstrating that, even in the absence of Syp, Imp is essential for Chinmo expression in tumors and that is required for their continuous growth. Thus, the overgrowth phenotype observed in prosRNAi, SypRNAi tumors is mediated by the Chinmo/Imp module. Together, these experiments indicate that cellular heterogeneity is not required for tumor growth, and that Syp acts as a tumor suppressor. Syp restrains the population of Chinmo+Imp+ CSC-like tNBs and its inactivation in tumors abolishes the hierarchy.

Figure 6 with 2 supplements see all
Imp and Syp antagonistically regulate the growth and heterogeneity of prosRNAi tumors.

(A) Syp knockdown in poxn > prosRNAi tumors triggers a dramatic increase of Chinmo+Imp+ tNBs. tNBs are marked with an anti-Mira antibody. (B) Proportion of Chinmo+Imp+ tNBs in poxn > prosRNAi (n = 6 VNC) and poxn > prosRNAi, SypRNAi (n = 6 VNC) tumors in 4-day-old adults. p=0.0022. (C) Simulation of tumor growth (number of cells) in prosKD and prosKD, SypKD (red) tumors. Quiescence probabilities are those set by the error minimization. (D) Volume of poxn > prosRNAi (n = 6 VNC) and poxn > prosRNAi, SypRNAi (n = 6 VNC) tumors in 1-day-old adults. p=0.002. Volume of poxn > prosRNAi (n = 7 VNC) and poxn > prosRNAi, SypRNAi (n = 4 VNC) tumors in 4-day-old adults. p=0.0061. (E) Volume of poxn > prosRNAi tumors in 3-day-old (n = 10 VNC) and 8-day-old (n = 6 VNC) adults. p=0.00025. Volume of poxn > prosRNAi (n = 10 VNC) and poxn > prosRNAi, UAS-Syp (n = 8 VNC) tumors in 3-day-old adults. p=0.0005. Volume of poxn > prosRNAi (n = 6 VNC) and poxn > prosRNAi, UAS-Syp (n = 8 VNC) tumors in 8-day-old adults. p=0.00067. Volume of poxn > prosRNAi, SypOE tumors in 3-day-old (n = 8 VNC) and 8-day-old (n = 8 VNC) adults. p=0.7209. (F) Volume of poxn > prosRNAi, SypRNAi (n = 6 VNC) and poxn > prosRNAi, ImpRNAi, SypRNAi (n = 9 VNC) tumors in 4-day-old adults. p=0.0004.

https://doi.org/10.7554/eLife.50375.016

We then tested whether Imp and Syp exert their antagonistic activities by competing on the same RNAs. As revealed by affinity pull-down assays performed using in vitro synthesized chinmo 5’ and 3’UTRs, both Imp and Syp can associate with the UTRs of chinmo mRNA (Figure 6—figure supplement 1A). Therefore, Imp and Syp can have the same target genes. Interestingly, Syp appears to have a greater affinity for the 5’UTR (Figure 6—figure supplement 1A). This phenomenon provides a molecular explanation for the observation that chinmo 5’UTR is required for post-transcriptional silencing (Zhu et al., 2006). Together, our data indicate that NB tumor growth, hierarchy and cellular heterogeneity is governed by the finetuned activities of the two RNA-binding proteins Imp and Syp, largely via the post-transcriptional regulation of chinmo.

tNBs follow a trajectory partially recapitulating larval temporal patterning

We then thought to use our single-cell RNA-seq data to investigate in more details the genes expressed along the Imp/Syp-mediated tumor hierarchy. For this purpose, we used Monocle 2 to perform a pseudotime analysis (Qiu et al., 2017a; Qiu et al., 2017b; Trapnell et al., 2014). Pseudotime analysis determines trajectories of differentiation by ordering cells according to their transcriptional changes. Our numerical model demonstrated that Chinmo+Imp+ tNBs are at the top of the tumor hierarchy. Therefore, tNBs with high levels of Imp can be positioned at the root of the pseudotime trajectory. In contrast, Syp+E93+ tNBs lie further down in the hierarchy and E93 marks late NBs during development (Ren et al., 2017; Syed et al., 2017). In consequence, tNBs expressing high levels of E93 can be assigned to the end of a differentiation trajectory. Based on these assumptions, we ran a semi-supervised ordering to uncover genes that are dynamically expressed along the Imp→E93 differentiation trajectory that occurs within poxn > prosRNAi tumors. The pseudotime ordering generated a trajectory that is initially enriched in Imp+ tNBs and that splits into two main branches enriched in E93+ tNBs (Figure 7A,B). We then searched for the top 200 genes whose expression changes as a function of pseudotime. They could be separated in three main clusters (Figure 7C and Supplementary file 1): Cluster 1 contains genes that, similar to Imp, decrease their expression along the pseudotime (111 genes). They include Oatp74D, Sip1/CG10939, plum/CG6490, Chd64, SP1173, CG10512, Gapdh2 and CG44325 (Figure 7B) that are expressed in early larval NBs before the Imp-to-Syp switch (Figure 1F). Of note cas and svp, the upstream temporal transcription factors scheduling the Imp-to-Syp transition in larval NBs are absent from cluster 1 consistent with our observation that they are not enriched in Imp+ tNBs (Figure 1—figure supplement 3). Cluster 2 and 3 contains genes that, similar to E93, increase their expression along the pseudotime (71 and 18 genes respectively). However, they discriminate genes that are differentially expressed along the two branches of the differentiation trajectories (Figure 7A). Cluster 2 is enriched in ribosomal proteins, and also includes the late larval NB temporal markers: stg, lncRNA:noe, and CG15628 (Figure 7C,D and Supplementary file 1). In the tumor, stg is enriched in the branch defined by state three along the trajectory (Figure 7A). In contrast, cluster 3 pinpoints genes that are highly expressed in the branch defined by state 7 (Figure 7A) including the late temporal patterning gene CG15646. Interestingly, cluster 3 is also strongly enriched in genes of the E(spl) family, known targets of the Notch pathway (Figure 7B and Supplementary file 1). Thus, the expression of stg and E(spl) genes can discriminate two distinct states within the Syp+E93+ population of tNBs (Figure 7A,B).

Redeployment of temporal patterning genes generates differentiation trajectories within NB tumors.

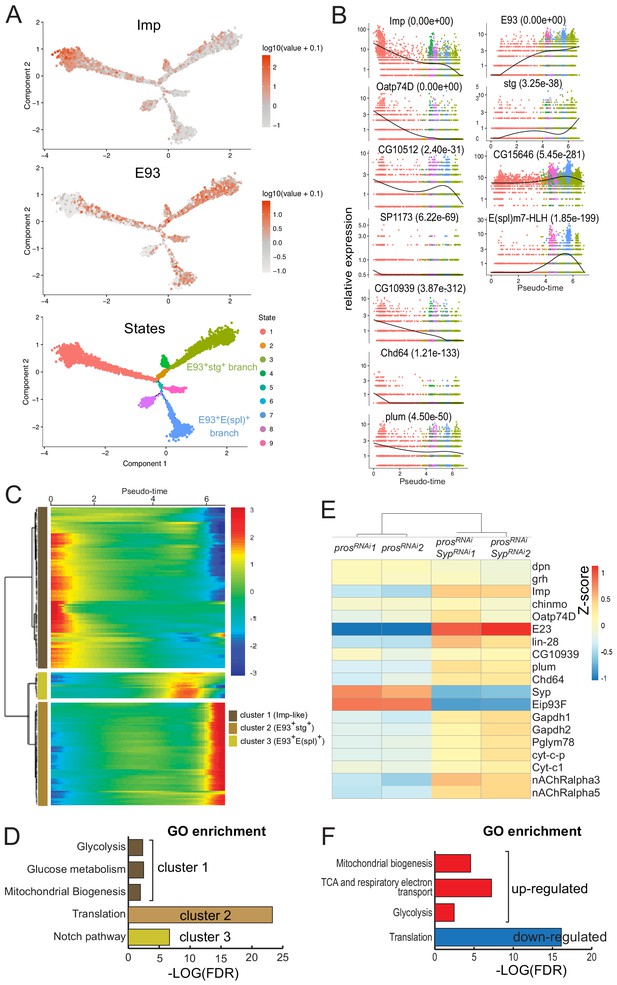

(A) Cell trajectory reconstructed from the population of tNBs using semi-supervised pseudotime ordering. Imp+ tNBs are enriched at the root of the trajectory while E93+ tNBs are enriched in the branches terminating the trajectories. tNBs are colored according to their State along the trajectory. (B) Dark spline indicates levels of gene expression along the pseudotime. Cells are colored according to their State along the trajectory in (A). p-values for differential expression along the pseudotime are indicated for each gene. (C) Kinetic heatmap depicting the expression of top 200 genes that vary as a function of pseudotime. Genes are grouped in three clusters based on expression kinetics. (D) Gene ontology (GO) enrichment analysis for each cluster identified in (C). (E) Heatmap depicting enrichment of various temporal patterning, metabolic and acetylcholine receptor genes when comparing poxn > prosRNAi tumors and poxn > prosRNAi, SypRNAi tumors. (F) Gene ontology (GO) enrichment analysis when comparing the transcriptome of poxn > prosRNAi, SypRNAi vs poxn > prosRNAi tumors.

https://doi.org/10.7554/eLife.50375.019

To investigate whether the Imp-to-Syp transition controls the progression of transcriptional states observed along the pseudotime, we performed RNA-seq on bulk poxn > prosRNAi and poxn > prosRNAi, SypRNAi adult tumors dissected with the VNCs on which tumors grow. Between the two conditions, the expression of generic larval NB identity genes (grh, dpn) did not significantly change (Figure 7E). In contrast, larval NB temporal markers varied greatly, as observed with early (e.g. Imp, Oatp74D, Sip1/CG10939, plum/CG6490 and Chd64) and late (E93, Syp, CG15646) markers being respectively strongly enriched and down-regulated in the poxn > prosRNAi, SypRNAi tumors (Figure 7E and Supplementary file 2). Note that lin-28 and E23 were not detected in Imp+ tNBs with the single-cell RNA-seq approach but are detected with the bulk-seq approach, and their expression dynamics matches those of other early temporal genes such as Imp (Figure 7E). This transcriptomic analysis thus identifies differentiation trajectories in tumors characterized by the dynamic expression of a subset of larval temporal patterning genes that is driven by the Imp-to-Syp switch.

The temporal trajectory governs the metabolic and proliferative properties of tNBs

In addition to temporal patterning genes, single-cell and bulk RNA-seq analyses identify other genes that are downregulated along the Imp/Syp-mediated trajectory followed by tNBs. These include for example the nicotinic acetylcholine receptors alpha3 and alpha5 (nAChRalpha3, nAChRalpha5) whose expression has not been reported to be temporally regulated in larval NBs (Figure 7E and Figure 8—figure supplement 1). They may therefore represent genes that are specifically activated in the tumor context and enriched in the Imp+Chinmo+ CSC-like tNBs. Glycolysis, TCA cycle and respiratory electron transport chain (OXPHOS) genes are also highly expressed in Chinmo+Imp+ tNBs and down-regulated along the Imp/Syp-dependent hierarchy (Figures 7D,E,F and 8A,B), a phenomenon that has not been reported in NBs during development (except for Gapdh2 expression that is high in early MB NBs) (Figure 1—figure supplement 2D and Figure 1—figure supplement 3). Highly expressed genes in the Imp+Chinmo+ tNBs also include the Glutamate dehydrogenase (Gdh) (Figure 8A,B). This suggests that Chinmo+Imp+ tNBs highly rely on glutamine and glucose metabolism.

Figure 8 with 3 supplements see all
The Imp-to-Syp transition triggers down-regulation of glutamine and glucose metabolism genes along the differentiation trajectory to reduce tNB growth and proliferative potential.

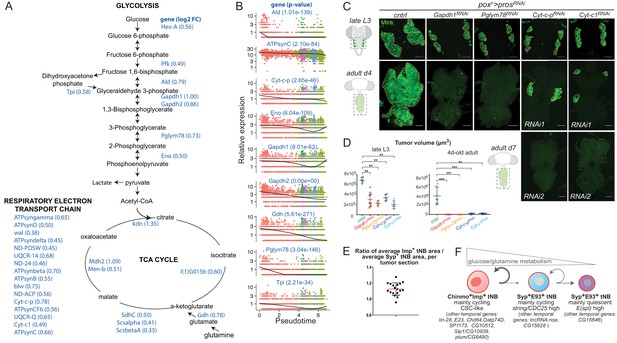

(A) Glucose metabolism pathways (glycolysis, TCA cycle and respiratory electron transport chain). Genes whose expression is enriched in poxn > prosRNAi, SypRNAi tumors compared to poxn > prosRNAi tumors are highlighted in blue. Log2 fold change is indicated in brackets. (B) Expression dynamics of various glycolytic, respiratory electron transport chain and glutamine metabolism genes along the tumor pseudotime. p-values for differential expression along the pseudotime are indicated for each gene. (C) poxn > prosRNAi NB tumors are marked with anti-Mira (green). Silencing of glycolytic (Gapdh-1RNAi, Pglym78RNAi) or respiratory genes (Cyt-c-pRNAi, Cyt-c1RNAi) leads to smaller poxn > prosRNAi tumors in late L3 larvae. Silencing of glycolytic or respiratory genes arrests tumor growth in 4-day-old and 7-day-old adults respectively. (D) Volumes of poxn > prosRNAi tumors (n = 5 VNC), poxn > prosRNAi, Gapdh-1RNAi tumors (n = 7 VNC); poxn > prosRNAi, Pglym78RNAi tumors (n = 5 VNC); poxn > prosRNAi,Cyt-c-pRNAi tumors (n = 5 VNC); and poxn > prosRNAi,Cyt-c1RNAi tumors (n = 5 VNC) in late L3. PCntrl/Gapdh-1RNAi = 0,002. PCntrl/Pglym78RNAi = 0,007. PCntrl/Cyt-c-pRNAi= 0,007. PCntrl/Cyt-c1RNAi = 0,007. Volumes of poxn > prosRNAi tumors (n = 6 VNC); poxn > prosRNAi, Gapdh-1RNAi tumors (n = 8 VNC); poxn > prosRNAi, Pglym78RNAi tumors (n = 9 VNC); poxn > prosRNAi, Cyt-c-pRNAi tumors (n = 10 VNC); and poxn > prosRNAi, Cyt-c1RNAi tumors (n = 6 VNC) in 4-day-old adults. PCntrl/Gapdh-1RNAi = 0,0007. PCntrl/Pglym78RNAi = 0,0002. PCntrl/Cyt-c-pRNAi = 0,0002. PCntrl/Cyt-c1RNAi = 0,002. Scale bars, 50 µm. (E) Each dot represents the average area of Chinmo+Imp+ tNBs over the average area of Syp+E93+ tNBs for a single confocal section of a poxn > prosRNAi NB tumor in a 4-day-old adult. (F) Schematic representation of the tumor hierarchy. Chinmo+Imp+ tNBs are proliferative and tend to self-renew. However, they can also engage in a differentiation process triggered by the Imp-to-Syp transition and involving a subset of larval temporal genes. Syp+E93+ tNBs can self-renew but also tend to exit the cell-cycle as they decrease expression of glucose/glutamine metabolism genes. Syp+E93+ tNBs, that have exited the cell-cycle, express genes of the E(spl) family. The mechanisms controlling the Imp-to-Syp transition in NB tumors, to determine the CSC proportion are unknown.

https://doi.org/10.7554/eLife.50375.020

A more careful investigation of differential expression along the two main branches of the pseudotime (Figure 8—figure supplement 2 and Supplementary file 3) indicates that the E93+stg+ branch is characterized by medium to low levels of glucose metabolism genes, when compared to early pre-branched cells (cluster 4), and a burst of cell cycle genes (cluster 4) followed by increased expression of ribosomal genes (cluster 3) (Figure 8—figure supplement 2). These data suggest that tNBs in the E93+stg+ branch exhibit transient cell cycle activity before progressing towards the end of their differentiation trajectory. In contrast, the E93+E(spl)+ branch exhibit low levels of glycolytic and cell cycle genes (cluster 4) all along (Figure 8—figure supplement 2 and Figure 8A). Thus, E(spl) genes appear to discriminate non-proliferative tNBs that are also possibly quiescent given their low levels of metabolic gene expression. Altogether, this transcriptomic and genetic analyses suggest that the Imp-to-Syp transition in tNBs induces a cell-autonomous down-regulation of glutamine and glucose metabolism genes and the production of two different types of E93+ tNBs with distinct metabolic and proliferative properties, consistent with the predictions of the numerical model.

To test the importance of glucose metabolism genes during tumor growth, we knocked down Gapdh1 and Pglym78 (glycolysis), as well as Cyt-c-p and Cyt-c1 (OXPHOS), in poxn > prosRNAi tumors, all being significantly enriched in poxn > prosRNAi, SypRNAi tumors and downregulated along the pseudotime (p-values=8,01e−63; 3,04e−146; 2,65e−46; 1,45e−26 respectively) (Figure 8A,B). In all knockdown conditions, tumors underwent a slower growth rate already detectable in late L3 (Figure 8C,D). Moreover, tumors systematically failed to be maintained in adults showing that the expression of both glycolytic and OXPHOS genes are necessary for long-term propagation of NB tumor growth (Figure 8C,D). In addition, when comparing the size of tNBs within poxn > prosRNAi tumors, we found that Syp+E93+ tNBs exhibited a smaller size than Chinmo+Imp+ tNBs in agreement with reduced glycolysis decreasing cell growth (Figure 8E and Figure 8—figure supplement 3). Together, this suggests that the Imp-to-Syp transition induces a metabolic switch that prevents long-term self-renewal and reduces cell growth as tNBs move down the hierarchy (Figure 8F). Thus, recapitulation of temporal patterning provides a tumor-intrinsic mechanism that generates metabolic heterogeneity leading totNBs with different growth properties..

Discussion

Our study demonstrates that temporal patterning, not only determines which cells are susceptible to cancer transformation during development (Narbonne-Reveau et al., 2016), but also has an overarching role in governing different aspects of CNS tumor organization such as hierarchy, heterogeneity and the proliferative properties of the different types of cells via the regulation of their metabolism.

Given the recent discovery that temporal patterning is conserved in the developing mammalian brain (Telley et al., 2019), our study could shed light on an ancestral mechanism that governs the progression of CNS tumors with developmental origins.

Subversion of a subset of larval NB temporal patterning genes triggers predictable hierarchical neural tumors

The rules governing the initiation and progression of CNS pediatric tumors that often exhibit stable genomes are still unclear. We had previously demonstrated that temporal patterning in Drosophila larval NBs delineates a window of time during which the Chinmo/Imp oncogenic module is expressed and makes early larval NBs prone to malignant transformation (Narbonne-Reveau et al., 2016). Here we find that after tumor initiation, temporal patterning is partly recapitulated in tNBs where it generates differentiation trajectories to constrain tumor composition and growth. This is illustrated by the presence of about 20 genes (Imp, chinmo, Lin-28, E23, Oatp74D, Gapdh2, Sip1/CG10939, plum/CG6490, SP1173, Chd64, CG10512, CG44325, CG5953, Syp, E93, lncRNA:noe, CG15646 and stg), previously identified to be temporally regulated in some larval NBs, that are differentially regulated along the pseudotime/differentiation trajectory reconstructed from single-cell RNA-seq analysis of tNBs, and/or differentially expressed in Imp+ vs Syp+ tNBs. Thus, we identify here what appears to be a subset of a core temporal patterning program encoded in central brain and ventral nerve cord NBs that becomes deregulated upon asymmetric-division defects during early development.

Notably, the larval temporal transcription factor Cas and Svp, known to schedule the Imp-to-Syp transition during development are not enriched in Imp+ tNBs suggesting that they do not play a role in regulating the Imp-to-Syp transition along the trajectory in tumors. Interestingly, while Syp is transcriptionally regulated in larval NBs, it seems rather post-transcriptionally regulated in tNBs as Syp RNAs are present throughout all clusters. This suggests that different mechanisms may be operating in tumors than during development to regulate the Imp-to-Syp transition.

We observed that the proportions of Imp+ and Syp+ tNBs systematically reach an equilibrium over a few days with a 20/80 (+ /- 10) ratio in poxn > prosRNAi tumors. This suggests that the regulation of the Imp-to-Syp transition in tumors is not random and the predictability of the final proportions possibly implies robust underlying constraints. By investigating the population dynamics of Imp+ and Syp+ tNBs in prosRNAi tumors, we have deciphered a finely tuned hierarchical division scheme that appears to constrain the growth and cellular heterogeneity of the tumor. We showed that Imp+ tNBs in the tumorigenic context favor a symmetric self-renewing mode of divisions (in more than 60% of divisions) while unlikely to exit the cell-cycle. This allows the perpetuation of a small subset of Imp+ tNBs that are endowed with a seemingly unlimited self-renewing potential by the Imp/Chinmo module. Imp+ tNBs can also make symmetric and asymmetric divisions that generate Syp+ tNBs, leading to the production of a population of Syp+E93+ tNBs that accumulates through limited self-renewal, and have a high propensity for exiting the cell-cycle. Moreover, we could show that Syp+E93+ tNBs are unable to generate Imp+ tNBs, demonstrating a rigid cellular hierarchy reminiscent of development. In addition, in this context, Syp acts as a tumor suppressor by limiting tNB proliferation while Imp acts as an oncogene by promoting tNB proliferation and propagation of tumor growth. Together, these data argue for a scenario where cooption of the Imp-to-Syp transition is responsible for installing a hierarchical mode of tumor growth with Imp+ tNBs propagating unlimited growth in a CSC-like manner, while Syp+E93+ tNBs acts as transient amplifying progenitors with limited self-renewing abilities. Although the Imp/Syp RNA-binding proteins have an essential and antagonistic role in governing the proliferative properties of tumor cells, the function of the other redeployed temporal patterning genes is unknown (except for chinmo, downstream to Imp and Syp, that is essential for tumor growth). As many are linked with the Imp+ tNB state, it will be important in the future to decipher how they contribute to establish or maintain the CSC-like identity.

The division parameters defined by our clonal analysis and modeling approach could capture both the hierarchical aspect of tumor growth as well as the global population dynamics: from an initial homogenous pool of larval Imp+ tNBs to the stable heterogeneity observed during adulthood. It could also resolve the paradoxical observation that Chinmo+Imp+ tNBs end up in minority despite exhibiting a higher average mitotic rate. Although, like all models, we don’t expect our model to perfectly recapitulate all the parameters regulating tumor growth and heterogeneity (for example, we have neglected apoptosis and neuronal differentiation that occur at low levels), we think it provides a reasonable and useful ground on which further studies can be performed for a more detailed understanding. On these lines, while the division pattern we have described with our numerical model provides estimates of division probabilities in pox> prosRNAi tumors, it says nothing as to how these probabilities are biologically set within the tumor. A possible scenario is that cell fate determination upon division relies on signals received by immediate neighboring tumor cells, resulting in effective probabilities at the scale of the whole tumor. Such a micro-environment dependent regulation of the Imp-to-Syp transition in tumors would strongly contrast with the cell-intrinsic regulation of the Imp-to-Syp transition that systematically occurs in NBs around early L3. Future studies will aim at deciphering the mechanisms that interfere with the developmental progression of the temporal patterning, upon asymmetric-division defects, to favor the self-renewing mode of divisions undergone by the Chinmo+Imp+ tNBs, allowing perpetuation of a population of CSC-like cells.

Noteworthy, prosRNAi and snr1/dSmarcb1RNAi tumors exhibit different but reproducible ratios of Imp+ and Syp+ tNBs. This suggests the existence of tumor-specific mechanisms that fine-tune the Imp-to-Syp transition. Such mechanisms may be related to the tumor cell of origin, or to the genetic insult that initiated NB amplification. Further analysis will help identifying tumor-intrinsic signals regulating the balance between Chinmo+Imp+ tNBs and Syp+E93+ tNBs in various types of NB tumors.

Until recently, the existence of temporal patterning in mammalian neural progenitors remained uncertain. Elegant single-cell transcriptomic studies of embryonic cortical and retinal progenitors in mice have now revealed that they transit through different transcriptional states that are transmitted to their progeny to generate neuronal diversity, similar to temporal patterning in Drosophila (Clark et al., 2019; Telley et al., 2019). However, it remains unknown whether temporal patterning determines the cell of origin and governs the growth of CNS tumors in children. Along these lines, the finding that the transcriptional programs operating in cerebellar progenitors during fetal development are recapitulated in medulloblastomas is promising (Vladoiu et al., 2019). By uncovering the overarching role of temporal patterning in governing tumor susceptibility during CNS development and in constraining tumor properties during cancer progression in Drosophila, our work thus possibly provides a new conceptual framework to better understand CNS tumors in children.

Tumor-intrinsic regulation of NB metabolism by the temporal patterning system

Because of the difficulty to investigate metabolism at the single-cell level, it has been difficult to determine how heterogeneous is the metabolic activity of cells in tumors, and how it is controlled. Here, using a combination of single-cell and bulk RNA-seq approaches, we find that progression of temporal patterning provides a tumor-intrinsic mechanism that generates heterogeneity in the proliferative abilities of tumor cells through the progressive silencing of glucose and glutamine metabolism genes.

Consequently, Chinmo+Imp+ tNBs, that lie at the top of the hierarchy, highly express glycolytic and respiratory/OXPHOS genes, as well as Gdh, that are down-regulated by the Imp-to-Syp transition. This default high expression of both glutamine and glucose metabolism genes in CSC-like Chinmo+Imp+ tNBs likely favors sustained self-renewal, but could also confer plasticity and a way to adapt cellular metabolism to different environmental conditions as frequently observed in CSCs (e.g. glutamine can compensate for glucose shortage) (Sancho et al., 2016).

We showed that Syp+E93+ tNBs exhibit a reduced size, and that knock-down of glycolytic (Gapdh1 or Pglym78) or respiratory/OXPHOS genes (Cyt-c-p or Cyt-C1) prevented propagation of tumor growth in adults. Thus, reduction of biosynthesis and energy production through down-regulation of glucose and glutamine metabolism genes after the Imp-to-Syp transition could progressively exhaust Syp+E93+ tNB growth and self-renewing ability, ultimately leading to cell-cycle exit.

With our demonstration that temporal patterning regulates glycolytic, TCA cycle and OXPHOS genes in NB tumors, our work provides a tumor-intrinsic mechanism that creates metabolic heterogeneity to control the proliferative potential of the various tumor cells. We have observed that Syp+E93+ tNBs associated with lowest levels of metabolic and cell-cycle genes also upregulate genes of the E(spl) genes. Interestingly, expression of Hes genes (orthologs of Enhancer of split genes) in vertebrate neural stem cells is associated with the maintenance of a quiescent state in adults (Chapouton et al., 2011; Sueda et al., 2019). Thus, E(spl) genes may promote the quiescent tNB state identified with our clonal and numerical analysis while preventing their differentiation in neurons.

Down-regulation of the mRNA levels of metabolic genes after the Imp-to-Syp transition could be due to the silencing of a transcriptional activator or to an increased mRNA degradation. On one hand, Chinmo is a likely candidate for the first scenario, as its inactivation reduces growth in NBs (Narbonne-Reveau et al., 2016) and we showed that it is a direct target of both Imp and Syp. On the other hand, the second scenario is consistent with Imp orthologs in human being able to promote OXPHOS and proliferation in glioma cells, through the post-transcriptional regulation of mitochondrial respiratory chain complex subunits (Janiszewska et al., 2012).

We have also identified a small population of tNBs expressing various stress or growth arrest factors. One of these factors, Xrp1, is a transcriptional target of p53 in the response to irradiation. Xrp1 expression has also recently been linked to defects in translation rates, together with the expression of Irbp18 and GstE6 (Lee et al., 2018). Thus, these factors may label a subset of tNBs undergoing DNA or translational stress. The reason and consequences of such cellular stresses in tumor progression need to be further investigated.

Our transcriptomic analyses have revealed strong similarities in the differentiation trajectories of tNBs in tumors and of NBs in larvae. Yet, it is surprising that the down-regulation of glutamine and glucose metabolism genes has not been detected in NBs during larval development, after the Imp-to-Syp transition (Ren et al., 2017). It is possible that the glial niche surrounding NBs, that is known to influence NB growth properties during larval stages (Chell and Brand, 2010; Cheng et al., 2011; Sousa-Nunes et al., 2011), somehow sustains high levels of glucose metabolism genes in late Syp+E93+ NBs. Given that this glial niche is absent in tumors, Syp+E93+ tNBs may not be able to sustain the high expression of metabolic genes imposed by the Imp/Chinmo module, leading to progressive cell-cycle exit.

Imp and syp: a conserved couple of antagonistic RNA-binding proteins regulating cell hierarchy in human tumors?

Chinmo and Imp are reminiscent to oncofetal genes in mammals, in that their expression decrease rapidly as development progresses while they are mis-expressed in tumors. Along these lines, the three IMP orthologs in humans (also called IGF2BP1-3) are also known as oncofetal genes. They emerge as important regulators of cell proliferation and metabolism in many types of cancers including pediatric neural cancers (Bell et al., 2015; Dai et al., 2017; Degrauwe et al., 2016a; Degrauwe et al., 2016b; Janiszewska et al., 2012). Along evolution, the ancestral Syncrip gene has been subjected to several rounds of duplication and has diverged into five paralogs in mammals, some of them emerging as tumor suppressors with an important role in tumor progression (Sakurai et al., 2016; Vanharanta et al., 2014).

Thus, the respective oncogenic and tumor suppressor roles of IMP and SYNCRIP gene families appear to have been conserved in humans and they may not be restricted to tumors of neural origin. Our study therefore raises the exciting possibility that these two families of RNA-binding proteins form a master module at the top of the self-renewal/differentiation cascades, that regulates CSC populations and hierarchy in a spectrum of human cancers.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (D. melanogaster)UAS-Flybow. 1.1Bloomington Drosophila Stock Center
(Hadjieconomou et al., 2011)
RRID:BDSC_35537
Genetic reagent (D. melanogaster)UAS-mCherrychinmoUTRsCédric Maurange
(Dillard et al., 2018)
mCherry reflects the post-transcriptional regulation of chinmo.
Genetic reagent (D. melanogaster)UAS-SypRNAi1VDRC33011RNAi1
Genetic reagent (D. melanogaster)UAS-SypRNAi2VDRC33012RNAi2
Genetic reagent (D. melanogaster)UAS-Syp-RB-HATzumin Lee
(Liu et al., 2015)
Genetic reagent (D. melanogaster)UAS-prosRNAi1Bloomington Drosophila Stock CenterRRID:BDSC_26745RNAi1
Genetic reagent (D. melanogaster)UAS-prosRNAi2VDRC101477RNAi2
Genetic reagent (D. melanogaster)UAS-ImpRNAiVDRC20322
Genetic reagent (D. melanogaster)UAS-chinmoRNAiBloomington Drosophila Stock CenterRRID:BDSC_33638
Genetic reagent (D. melanogaster)UAS-dicer2Bloomington Drosophila Stock CenterRRID:BDSC_24650
RRID:BDSC_24651
was used in combination with GAL4 lines in order to improve RNAi efficiency.
Genetic reagent (D. melanogaster)UAS-mCD8::GFPBloomington Drosophila Stock CenterRRID:BDSC_5130
RRID:BDSC_32185
Genetic reagent (D. melanogaster)UAS-myr::GFPBloomington Drosophila
Stock Center
RRID:BDSC_32197
Genetic reagent (D. melanogaster)UAS-mCherry.NLSBloomington Drosophila Stock CenterRRID:BDSC_38424
Genetic reagent (D. melanogaster)UAS-Snr1RNAi1VDRC108599RNAi1
Genetic reagent (D. melanogaster)UAS-Snr1RNAi2VDRC32372RNAi2
Genetic reagent (D. melanogaster)UAS-Gapdh1RNAiVDRC100596
Genetic reagent (D. melanogaster)UAS-Pglym78VDRC106818
Genetic reagent (D. melanogaster)UAS-Cyt-c1RNAi1VDRC9180RNAi1
Genetic reagent (D. melanogaster)UAS-Cyt-c1RNAi2VDRC109809RNAi2
Genetic reagent (D. melanogaster)UAS-Cyt-c-pRNAi1VDRC33019RNAi1
Genetic reagent (D. melanogaster)UAS-Cyt-c-pRNAi2VDRC106759RNAi2
Genetic reagent (D. melanogaster)w, tub-GAL4, UAS-nlsGFP::6xmyc::NLS, hsFLP122; FRT82B, tubP-GAL80/TM6BCédric Maurange
(Narbonne-Reveau et al., 2016)
MARCM line
Genetic reagent (D. melanogaster)FRT82B snr16C hdac36CBloomington Drosophila Stock Center
(Koe et al., 2014)
RRID:BDSC_34494
Genetic reagent (D. melanogaster)Imp-GFPFlorence Besseprotein trap line
Genetic reagent (D. melanogaster)poxn-Gal4Bloomington Drosophila Stock Center
(Boll and Noll, 2002)
RRID:BDSC_ 66685
Genetic reagent (D. melanogaster)ase-Gal80, wor-GAL4, UAS-dcr2Juergen Knoblich
(Eroglu et al., 2014)
Genetic reagent (D. melanogaster)nab-GAL4Kyoto DGRC6190
Genetic reagent
(D. melanogaster)
UAS-FLP, Ubi-p63EFRTstopFRTnEGFPBloomington Drosophila Stock Center
(Evans et al., 2009)
RRID:BDSC_28282G-trace
Genetic reagent (D. melanogaster)hs-mFLP5Bloomington Drosophila Stock Center
(Hadjieconomou et al., 2011)
RRID:BDSC_35534Flipase for Flybow
Antibodychicken polyclonal anti-GFPAves Labs
#GFP-1020
RRID:AB_100002401:1000
Antibodyrabbit polyclonal anti-RFPRockland
#600-401-379
RRID:AB_22097511:500
Antibodyrat monoclonal anti-RFPChromotek #5F8RRID:AB_23360641:500
Antibodymouse monoclonal anti-MirandaAlex Gould1:50
Antibodyrabbit polyclonal anti-PH3Millipore #06–570RRID:AB_3101771:500
Antibodyrat monoclonal anti-PH3Abcam #AB10543RRID:AB_22950651:500
Antibodyrat monoclonal anti-ElavDSHB#9F8A91:50
Antibodyrabbit polyclonal anti-cleaved Dcp-1Cell Signaling #9578RRID:AB_27210601:500
Antibodyrat polyclonal anti-ChinmoNick Sokol1:500
Antibodyrabbit polyclonal anti-ImpPaul Macdonald1:500
Antibodyguinea pig polyclonal anti-SypIlan Davis1:500
AntibodyRabbit polyclonal anti-SypIlan Davis1/200
Antibodyrabbit polyclonal anti-E93Daniel J. McKay1/2500
Antibodyguinea-pig polyclonal antibodyBill McGinnis1/200
Chemical compound, drugDapiVector Laboratories Cat# H-1400RRID:AB_2336787
Recombinant DNA reagentChinmo cDNA cloneDGRC, EST Collection#RE59755
Sequence-based reagentChin-5'UTR/pBS_ForwardThis paperPCR primersDescribed in Affinity pull-down assays section in the Materials and methods
Sequenced-based reagentChin-5'UTR/pBS_ReverseThis paperPCR primersDescribed in Affinity pull-down assays section in the Materials andmethods
Sequenced-based reagentChin-3'UTR/pBS_ForwardThis paperPCR primersDescribed in Affinity pull-down assays section in the
Materials and methods
Sequenced-based reagentChin-3'UTR/pBS_ReverseThis paperPCR primersDescribed in Affinity pull-down assays section in the Materials andmethods
Software, algorithmSeurat and Monocle codes used for single-cell RNA-seq data analysisThis paperhttps://github.com/cedricmaurange/Genovese-et-al.-2019See the Single-cell mRNA sequencing and analysis section in the Materials
and methods
Software, algorithmCode used for numerical modelThis paperhttp://dx.doi.org/10.17632/j2j9gmyb6m.1See the Numerical model section in the Materials and methods

Fly culture

Request a detailed protocol

Drosophila stocks were maintained at 18°C on standard medium (8% cornmeal/8% yeast/1% agar).

Fly lines

Request a detailed protocol

The protein trap line used was:

  • Imp-GFP (Bloomington Stock Centre #G0080)

The Gal4 lines used were:

  • poxn-Gal4 is active in six homologous thoracic NBs of the VNC (Boll and Noll, 2002).

  • ase-Gal80, wor-GAL4, UAS-dcr2 has been crossed with various UAS-RNAi transgenes for specific mis-expression in type II NBs of the central brain (Eroglu et al., 2014).

  • nab-Gal4, UAS-dicer2, UAS-GFP. nab-GAL4 (#6190 from Kyoto DGRC) is a GAL4 trap inserted into nab (CG33545) that is active in all NBs of the VNC and central brain from late embryogenesis

The UAS lines used were:

  • UAS-Flybow. 1.1 (Bloomington Stock Centre #35537) (Hadjieconomou et al., 2011).

  • UAS-mCherrychinmoUTRs (Dillard et al., 2018). In NB tumors carrying UAS-mCherrychinmoUTRs, expression of mCherry reflects the post-transcriptional regulation of endogenous chinmo. Consistently, we observe that mCherry always overlaps with endogenous Chinmo as detected by immunostaining (Figure 1—figure supplement 4).

  • UAS-SypRNAi1(Vienna Drosophila RNAi Center #33011)

  • UAS-SypRNAi2(Vienna Drosophila RNAi Center #33012)

  • UAS-Syp-RB-HA (T Lee, Janelia Research Campus, Virginia, USA) (Liu et al., 2015).

  • UAS-prosRNAi1 (Transgenic RNAi Project #JF02308, Bloomington Stock Centre #26745)

  • UAS-prosRNAi2 (Vienna Drosophila RNAi Center #101477)

  • UAS-ImpRNAi (Vienna Drosophila RNAi Center #20322)

  • UAS-chinmoRNAi (Transgenic RNAi Project #HMS00036, Bloomington Stock Centre #33638)

  • UAS-dicer2 (Bloomington Stock Centre #24650 and #24651) was used in combination with GAL4 lines in order to improve RNAi efficiency.

  • UAS-mCD8::GFP (Bloomington Stock Centre #5130 and #32185) and UAS-myr::GFP (Bloomington Stock Centre #32197) were used to follow the driver expression.

  • UAS-mCherry.NLS (Bloomington Stock Centre #38424)

  • UAS-ImpRNAi; UAS-SypRNAi2 (UAS-SypRNAi2 from Vienna Drosophila RNAi Center #33012)

  • UAS-SypRNAi1; UAS-chinmoRNAi (UAS-SypRNAi1 from Vienna Drosophila RNAi Center #33011)

  • UAS-prosRNAi1, UAS-mCD8::GFP (UAS-prosRNAi1 from Transgenic RNAi Project #JF02308)

  • UAS-prosRNAi2; UAS-mCherrychinmoUTRs(UAS-prosRNAi2 Vienna Drosophila RNAi Center #101477)

  • UAS-Snr1RNAi-1 (Vienna Drosophila RNAi Center #108599).

  • UAS-Snr1RNAi-2 (Bloomington Stock Centre #32372).

  • UAS-Gapdh1RNAi (Vienna Drosophila RNAi Center #100596)

  • UAS-Pglym78 RNAi (Vienna Drosophila RNAi Center #106818)

  • UAS-Cyt-c1RNAi1 (Vienna Drosophila RNAi Center #9180)

  • UAS-Cyt-c1RNAi2 (Vienna Drosophila RNAi Center #109809)

  • UAS-Cyt-c-pRNAi1 (Vienna Drosophila RNAi Center #33019)

  • UAS-Cyt-c-pRNAi2 (Vienna Drosophila RNAi Center #106759)

The MARCM and FRT stocks for used were:

Fly crosses were set up and raised at 29°C. To label all tumor cells with GFP, poxn-Gal4, UAS-prosRNAi, UAS-dicer2 flies were crossed with the G-TRACE system UAS-FLP, Ubi-p63EFRTstopFRTnEGFP (Bloomington Stock Centre #28282) (Evans et al., 2009). To generate mCherry+ clones in tumors, poxn-GAL4, UAS-prosRNAi1, UAS-mCD8::GFP; UAS-dicer2 flies were crossed to UAS-Flybow.1.1; hs-mFLP5 (Bloomington Stock Centre #35534 and #35537) (Hadjieconomou et al., 2011). The progeny of this cross was collected 48 hours after adult eclosion and heat-shocked for 1h30’ at 37°C. Flies were put back at 29°C after heat-shock. Note that differentiated neurons generated from mCherry+ tNBs will not retain mCherry expression due to the silencing of poxn-GAL4 in neurons. MARCM clones were induced by heat-shocking 1 hr at 37°C larvae that have just hatched.

Image processing

Request a detailed protocol

Confocal images were acquired on a Zeiss LSM780 microscope. FIJI-ImageJ was used to process confocal data and to compile area and volume data. Imaris Image Analysis Software (http://bitplane.com) was used to generate 3D representations of clones in tumors.

Tumor segmentation using tissue analyzer

Request a detailed protocol

For Figure 8E, poxn > prosRNAi tumors carrying an Imp-GFP marker were dissected, fixed in 4% paraformaldehyde and stained with antibodies against Miranda and GFP proteins. VNCs were visualized in a Zeiss LSM780 confocal microscope and co-planar images were made of several sections ranging from the tumor surface to its interior. Several confocal planes for four tumors (n = 21) were analyzed using the ‘Tissue Analyzer’ plugin for FIJI-ImageJ (Aigouy et al., 2016). This tool allows for cell membrane tracing, via the signal from Miranda which marks the cellular border of all tumor cells, segmentation and quantification of several parameters, including size, of each tumor cell individually. Chinmo+Imp+ tNBs are identified by their strong Imp-GFP signal. Initial automatic segmentation was further refined manually to ensure all cell boundaries were properly tracked and cells assigned a correct identity (Figure 8—figure supplement 3). Data points represent different planar sections within the same tumor, in order to account for variability within each tumor.

Statistical analysis

Request a detailed protocol

For each experiment, at least three biological replicates were performed. Biological replicates are defined as replicates of the same experiment with flies being generated by different parent flies. For all experiments, we performed a Mann-Whitney test for statistical analysis. Statistical analysis was performed using GraphPad Prism version 7.04 for Windows (GraphPad Software, La Jolla California USA, www.graphpad.com). Results are presented as dot plots. Error bars represent s.d. from the mean. The sample size (n) and the P-value are reported in the figure legends (****p≤0.0001; ***p≤0.001; **p≤0.01; *p≤0.05; ns, not significant).

Immunohistochemistry

Request a detailed protocol

Larval and adult VNCs were dissected in phosphate-buffered saline (PBS) and fixed for 10 min at room temperature (RT) in 4% paraformaldehyde/PBS. VNCs were rinsed in PBT (PBS containing 0.5% Triton X-100) and incubated with primary antibody overnight at 4°C. Secondary antibodies (Jackson ImmunoResearch) were incubated overnight at 4°C. VNCs were mounted in Vectashield (Clinisciences, France) with or without DAPI for image acquisition. The following primary antibodies were used: chicken anti-GFP (1:1000, Aves #GFP-1020), rabbit anti-RFP to label mCherry (1:500, Rockland #600-401-379), rat anti-RFP (1:500, Chromotek #5F8), mouse anti-Miranda (1:50, A Gould, Francis Crick Institute, London, UK), rabbit anti-PH3 (1:500, Millipore #06–570), rat anti-PH3 (1:500, Abcam #AB10543), rat anti-Elav (1:50, DSHB #9F8A9), rabbit anti-cleaved Dcp-1 (1:500, Cell Signaling #9578)), rat anti-Chinmo (1:500, N Sokol, Indiana University, Bloomington, USA), rabbit anti-Imp (1:500, P Macdonald), guinea pig anti-Syp (1/500, I Davis, Oxford University, UK), rabbit anti-Syp (1/200, I Davis, Oxford University, UK), rabbit anti-E93 (1/2500, DJ McKay, University of North Carolina, Chapel Hill).

Affinity pull-down assays

Request a detailed protocol

Affinity pull-down assays were performed as previously described (Medioni et al., 2014), and Western Blots performed using rat anti-Imp and rabbit anti-Syp antibodies. The 5’ and 3’ UTRs of chinmo were cloned from the cDNA clone #RE59755 (DGRC, EST Collection) using the following primers:

Chin-5'UTR/pBS_ForwardaatttctagaAGTCAAAAAGAAACTGCCGTG
Chin-5'UTR/pBS_ReversegatgaagcttGGTGCCAGCAGTGATGCT
Chin-3'UTR/pBS_ForwardtaaatctagaGAAGCAGCCGCAACAGCA
Chin-3'UTR/pBS_ReversettttaagcttGGTGAATTTTCATTTGTACGAAGAA

Capitals represents analogous or complementary parts of the chinmo sequence. In bold are the restriction sites used for cloned into pBS-KS(-) (TCTAGA = XbaI, AAGCTT = HindIII), and in lower case are extra bases for efficient digestion. This plasmid was used to generate the UTP-biotinylated-RNA probes (5’UTR and 3’UTR).

RNA extraction of bulk tumors

Request a detailed protocol

To generate NB tumors poxn-Gal4, UAS-mCherry.NLS; UAS-dicer2 flies were crossed to flies carrying:

  1. UAS-prosRNAi1

  2. UAS-SypRNAi1;UAS-prosRNAi1

Crosses were grown at 29°C. Sixteen adult females and 13 adult males (8 day-old) were killed in 70% ethanol and washed once in PBS. VNCs containing tumors were dissected in PBS and collected in a RNase-free Protein LoBinding tube filled with 750 μL of Lysis Buffer (Buffer RLT, RNeasy Mini Kit, Qiagen) supplemented with 7.5 μL of β-mercaptoethanol and 500 μL of glass beads (diameter 0.75–1 mm, Roth, A554.1). Samples were disrupted and homogenized using the tissue homogenizer Precellys 24 (Bertin Technologies).

Sample tubes were then stored at −80°C up to RNA extraction. Total RNA was extracted using the RNeasy Mini Kit (Qiagen). RNA quality and quantity were checked by running samples on an Agilent RNA 6000 Pico Chip (Agilent Technologies). For each condition, samples were made from 29 dissected VNCs pooled from adult flies born from several crosses (more than 3). For technical replicates, two samples of each condition were generated and treated in parallel until sequencing.

Library preparation and sequencing of bulk tumors

Request a detailed protocol

Total RNA-Seq libraries were generated from 130 ng of total RNA using TruSeq Stranded Total RNA LT Sample Prep Kit with Ribo-Zero Gold (Illumina, San Diego, CA), according to manufacturer's instructions. Briefly, cytoplasmic and mitochondrial ribosomal RNA (rRNA) was removed using biotinylated, target-specific oligos combined with Ribo-Zero rRNA removal beads. Following purification, the depleted RNA was fragmented into small pieces using divalent cations at 94°C for 2 min. Cleaved RNA fragments were then copied into first strand cDNA using reverse transcriptase and random primers followed by second strand cDNA synthesis using DNA Polymerase I and RNase H. Strand specificity was achieved by replacing dTTP with dUTP during second strand synthesis. The double stranded cDNA fragments were blunted using T4 DNA polymerase, Klenow DNA polymerase and T4 PNK. A single 'A' nucleotide was added to the 3' ends of the blunt DNA fragments using a Klenow fragment (3' to 5'exo minus) enzyme. The cDNA fragments were ligated to double stranded adapters using T4 DNA Ligase. The ligated products were enriched by PCR amplification (30 s at 98°C; [10 s at 98°C, 30 s at 60°C, 30 s at 72°C] x 12 cycles; 5 min at 72°C). Surplus PCR primers were further removed by purification using AMPure XP beads (Beckman-Coulter, Villepinte, France) and the final cDNA libraries were checked for quality and quantified using capillary electrophoresis.

The libraries were loaded in the flowcell at a concentration of 2.8 nM and clusters were generated using the Cbot and sequenced on an Illumina HiSeq 4000 system as paired-end 100 base reads following Illumina’s instructions.

RNA-Seq analysis of bulk tumors

Request a detailed protocol

Quality control of raw reads was done using FastQC. Reads were mapped to dmel6 reference genome with Subread aligner using default parameters (Liao et al., 2013). Read counts were calculated using Subread featureCount (Liao et al., 2014). Differential expression was computed using R package DESeq2 (Love et al., 2014). To concentrate on genes that are expressed in tNBs and remove those that are specific to wild type neurons and glia of the VNC, we excluded from the bulk RNA-seq analysis all genes that are not expressed in at least 0,5% of the 5740 cells used for the single-cell RNA-seq experiment. Among the remaining 6660 genes, we selected as significantly enriched genes those with an adjusted p-value<0001. Gene Ontology and Reactome Pathway analysis was made using Panther (http://www.pantherdb.org/). Sequencing data have been deposited in GEO under accession code GSE114562.

Preparation of tNBs for single-cell mRNA-seq

Request a detailed protocol

NB tumors were generated in poxn-Gal4, UAS-GFP UAS-prosRNAi2, UAS-dicer2 flies. Fifty-six adult females (6–8 day-old) were killed in 70% ethanol and washed once in PBS. VNCs were dissected in PBS, collected in a RNase-free Protein LoBinding tube filled with ice-cold PBS, and incubated in a freshly prepared dissociation solution containing 0,4% bovine serum albumin (BSA), 1 mg/mL collagenase I and papain (Sigma Aldrich) in PBS for 75 min at 29°C with lowest agitation. Tissues were then disrupted manually by pipetting up and down with a 200 µL tip. Dissociated cells were pelleted for 20 min at 300 g at 4°C to remove the dissociation solution and to resuspend cells in ice-cold PBS + 0,4% BSA. The cell suspension was filtered through a 30 µm mesh Pre-Separation Filter (Miltenyi) to remove debris and transferred in new RNase-free Protein LoBinding tube for FACS sorting. Forty thousand GFP+ tNBs cells were isolated using a FACSAriaII machine (BD) with an 85 μm nozzle, at 45 psi low pressure and according to viability, cell size and GFP intensity. In the next 30 min, sorted-cells were encapsidated using with the Single Cell Controller (10X genomics) for single-cell RNA-seq.

Single-cell mRNA sequencing and analysis

Codes used for single-cell RNA-seq analysis are available at: https://github.com/cedricmaurange/Genovese-et-al.-2019 (Maurange, 2019; copy archived at https://github.com/elifesciences-publications/Genovese-et-al.-2019).

Single-cell mRNA sequencing

Request a detailed protocol

Single cells were processed using the Single cell 3’ Library, Gel beads and multiplex kit (10X Genomics, Pleasanton) as per the manufacter’s protocol. Cells were partitioned into nanoliter-scale Gel Bead-In-Emulsions (GEMs) with the Chromium Single Cell Controller (10X genomics, Pleasanton), where all generated cDNA share a common 10x Barcode. Libraries were generated and sequenced from the cDNA and the10x Barcodes are used to associate individual reads back to the individual partitions. Analysis using molecular indexing information provides an absolute digital measurement of gene expression levels. Sequencing was performed using a NextSeq 500 Illumina device (1sample) containing transcript lengh of 57 bp. Sequencing data have been deposited in GEO under accession code GSE114986.

Data processing

Request a detailed protocol

Single-cell mRNA seq data were analyzed using the 10x Genomics suite Cell Ranger 2.0.1 with default settings for de-multiplexing, aligning reads to the Drosophila genome (10X Genomics pre-built dm6 reference genome) with STAR and counting unique molecular identifiers (UMIs) to build transcriptomic profiles of individual cells. This first level of analysis generates quality metrics (Q30, number of reads by sample…), FASTQ files and filtered genes matrices.

PC analysis, UMAP clustering and differential expression

Request a detailed protocol

Filtered gene matrices generated via Cell Ranger 2.0.1 was then processed with the R package Seurat v3.0.2, using the online tutorial as a guide (https://satijalab.org/seurat/v3.0/pbmc3k_tutorial.html). We kept all cells that had between 200 and 4000 genes/cell. Cells with more than 5% mitochondrial gene expression were removed. Cell cycle genes were regressed out using the CellCycleScoring and ScaleData functions.

PCA was then utilized to determine sources of variability. Twenty significant PCs were determined based on the JackStraw function. We used the PCHeatmap function to explore gene sets representing the main sources of heterogeneity in the dataset. Cells were then clustered with the FindClusters function a resolution parameter of 0.5. Differentially expressed genes were determined with the FindAllMarkers and function. Code available upon request.

Cell trajectory and pseudo time analysis by Single-cell mRNA sequencing

Request a detailed protocol

Filtered gene matrices generated via Cell Ranger 2.0.1 was processed with the R package Monocle version v2.10.1. for pseudotime analysis (Qiu et al., 2017a; Qiu et al., 2017b; Trapnell et al., 2014). Graphics were generated through ggplot2 R library. Analysis was performed following online tutorial as a guide (http://cole-trapnell-lab.github.io/monocle-release/docs/#constructing-single-cell-trajectories). UMI Counts were both normalized across cells using estimateSizeFactors function and gene expression variance was estimated using estimateDispersions functions to remove outlier genes using DESeq2 packages (Love et al., 2014). Semi-supervised ordering was performed with the classifyCells function. Only genes expressed in at least 10 cells were taken in account. Marker genes were selected for subsequent analysis based on their normalized average expression and variability across cells using markerDiffTable function. The top 200 genes were used for ordering.

Dimension reduction was performed with Monocle implementation of Discriminative Dimension Reduction Tree (DDRTree) algorithm (Qi Mao et al., 2017) using reduceDimension function. Minimum spanning tree computation, cell state assignations and pseudo time reconstruction was performed using orderCells functions. differentialGeneTest and plot_pseudotime_heatmap functions were used to uncover the top 200 genes that change as a function of pseudotime. The BEAM function was used to identify genes that are differentially expressed between the three main branches of the trajectory (qval <1e-20). Code available upon request.

Numerical model

Codes generated for the numerical model are available at: http://doi.org/10.17632/j2j9gmyb6m.1.

1. Algorithm of the clone model

Request a detailed protocol

In this section we detail the stochastic numerical model used to generate clones.

Each clone grows from a single initial cell. There are two cell types, Chinmo+Imp+ tNBs (which we will call C cells for simplicity) and Syp+E93+ tNBs (called S cells). The probability that the initial cell is a C cell is pc and the probability that the initial cell is a S cell is ps=1-pc.

We assume that C and S cells have constant division rates, kc and ks respectively. We define the division times as the inverses of the division rates, so that Tc=1/kc and Ts=1/ks. An implicit assumption is that we neglect any refractory period following a division. Divisions are considered as random events occurring at a certain rate.

We use T = 1 hr long time steps. The growth of a model clone during 10 days thus runs over 240 time steps.

At each time step, for each C cell (resp. S cell) in the clone, the probability to undergo division is equal to 0T1 Tce-t/Tc dt=1-e-T/Tc (resp.1-e-T/Ts).

If a C cell undergoes division, it can either:

  • Generate 2 C cells, with probability P(ccc)

  • Generate 1 C cell and 1 S cell, with probability P(ccs)

  • Generate 2 S cells, with probability Pcss=1-Pccc-P(ccs)

Similarly, if a S cell undergoes division, it can either:

  • Generate 2 S cells, with probability P(sss)

  • Generate 1 C cell and 1 S cell, with probability P(scs)

  • Generate 2 C cells, with probability Pscc=1-Psss-P(scs)

In addition, each newly created C cell (resp. S cell) has a probability qc (resp.qs) to be quiescent. Note that this also applies to the initial cell of the clone. Quiescent cells lose their ability to undergo further divisions. In this simplified model, this probability does not depend on cell generation (as cells have no age in the model). However, it is likely that “older” cells have a higher chance to become quiescent. This is not taken into account here.

To produce plots of size distributions and of composition ratios, we simply generate a large number of clones (N = 1000) by iterating this algorithm. Due to the stochastic nature of the algorithm, there is important size and composition variability among simulated clones, which we can compare to the variability observed in vivo.

2. Reducing the amount of independent parameters

Request a detailed protocol

This general model has 9 independent parameters: pc, Tc, Ts, P(ccc), P(ccs), P(sss), P(scs), qc and qs.

To reduce the number of independent parameters, we performed experimental measurements in clones that allow to establish quantitative relationships between the parameters.

a. Two-cell clones
Request a detailed protocol

First, we analyzed clones composed of exactly two cells. To that end, we chose to look tumors 2 days after clonal induction, as at this stage many clones are composed of two cells (Figure 4—figure supplement 1).

The probability for a two-cell clone to be composed of two C cells is:

(1) P(CC)=pc P(ccc)+ps P(scc)

Similarly,

(2) P(CS)=pc P(ccs)+ ps P(scs)

and

(3) P(SS)=pc P(css)+ ps P(sss)=1P(CC)P(CS)

We estimated P(CC), P(CS) and P(SS) from N=122 2-cell clones (7 animals), and found that P(CC)0.29, P(CS)0.07 and P(SS)0.64.

Using these values in Equations (1) and (2) reduces the number of independent parameters from 9 to 7 (as Equation (3) is not independent from Equations (1) and (2)).

b. Quiescent cells
Request a detailed protocol

We analyzed clones 8 days ACI. We reasoned that clones still composed of a single cell at this stage were most likely initiated from an initially quiescent cell. Hence the probability PQC to observe a clone composed of a single C cell at 8 days is equal to the probability for an initial cell to be a quiescent C cell, so that:

(4) PQC=pc qc

Similarly, the probability that a clone is composed of a single quiescent S cell is

(5) PQS=ps qs

We estimated PQC and PQS from N=338 clones 8 days after induction (5 animals), and found that PQC0.02 and QS0.26. Using these values in equations (4) and (5) reduces the number of independent parameters by another 2.

c. Hierarchical scenario
Request a detailed protocol

We are left with 5 independent parameters. We showed in the main text that experimental clone data has the signature of a hierarchical growth mode (maintenance of clones composed of S cells only). In the following we thus rule out the generation of C cells by S cells. Hence Psss=1, and Pscs= Pscc=0.

In addition, if C cells can only be generated by C cells, we can estimate the division time Tc of C cells. At time t, the number of cells in clones only composed of C cells should be on average equal to Nct=et/Tc.

At 2 days, we find that clones composed only of C cells are composed, on average, of 3.4 cells (N=75 clones from 5 animals). Hence Tc2ln3.4=1.6 days.

Hence, we are left with only two independent parameters, from which all the others can be determined. We arbitrarily chose Ts and P(ccc) as these two parameters, and used these as free parameters to perform the fits.

3. Fitting experimental data

Request a detailed protocol

To determine the values of Ts and P(ccc), we adopted a fitting approach. We want to determine the values of Ts and P(ccc) that fit best our experimental data. To that end we generated error maps in the (Pccc,Ts) space (Figure 4—figure supplement 2). To generate the error maps, we computed 1000 clones for each pixel (100x100) on the map.

We calculate the error on size as the Kolmogorov-Smirnov distance between model and experimental clone size distributions, for all clone categories and at all stages (12 terms).

We calculate the error on composition as the normalized sum of Euclidian distances between model and experimental proportions of each clone category at all stages (12 terms).

The combined error is the average between the normalized error on size and the normalized error on composition.

We find that the smallest error is found for Pccc0.64 and Ts1.3 days, and thus (Equations 1-5):

pc0.45
P(ccs)0.15
P(css)0.21
qc0.04
qs0.47

We use these values to generate Figures 4C–G and 5A,B, and Figure 4—figure supplement 2.

4. Tumor composition and deterministic version of the model

Request a detailed protocol
a. Proportion of S and C cells in tumors
Request a detailed protocol

To test whether our model also accounts for the stabilization of the volume fraction occupied by S and C cells in tumor, we simulated the growth of clones on longer periods (30 days), and plotted the overall proportion of each cell type as a function of time (Figure 5A).

b. Deterministic, continuous model
Request a detailed protocol

To better understand this homeostatic behavior without systematically simulating thousands of clones, we wrote a deterministic version of the model where the exact same ingredients and parameters are used.

For simplicity, we call C the number of C cells, S the number of S cells, Cq the number of quiescent C cells and Sq the number of quiescent S cells. The rate of change of C writes:

(6) dCdt=-kcC+1-qc2kccc+kccsC+1-qc2kscc+kscsS

With kxyz=kxP(xyz), where xy and z are cell types (C or S).

Each C cell division removes 1 C cell (first term). C cell divisions can also generate 1 or 2 C cells with given rates (second term), with a possibility that they are quiescent (prefactor 1-qc). S cell divisions can also generate C cells (third term), which can also be quiescent (prefactor).

Similarly, we can write the rate of change of S:

(7) dSdt=-ksS+1-qs2ksss+kscsS+1-qs2kcss+kccsC

And for quiescent cells:

(8) dCqdt=qc2kccc+kccsC+qc2kscc+kscsS
(9) dSqdt=qs2ksss+kscsS+qs2kcss+kccsC

Note that this continuous model is fully deterministic, and therefore not suited for the simulation of clone size distribution and composition, which are inherent to the stochastic aspects of divisions. However, it can recapitulate the overall proportion of cell types in a large population of cells. Integrating this system of equations, we thus computed the ratios C+CqNcells and S+SqNcells, that is, the respective proportions of C and S cells. We first compared the outcome of the deterministic model to the outcome of the clone model using the exact same parameters. We find that the deterministic model perfectly fits the stochastic model (Figure 5A), and reaches the same homeostatic state. Importantly, this is also a control that both algorithms were properly implemented. We also use this deterministic model to illustrate the influence of the initial proportions of C and S cells (Figure 5B).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    International Agency for Research on Cancer
    1. MP Curado
    2. B Edwards
    3. HR Shin
    4. H Storm
    5. J Ferlay
    6. M Heanue
    7. P Boyle
    (2007)
    Cancer incidence in five continents, International Agency for Research on Cancer, IX, IARC Press.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70

Decision letter

  1. Cayetano Gonzalez
    Reviewing Editor; Institute for Research in Biomedicine, Spain
  2. K VijayRaghavan
    Senior Editor; National Centre for Biological Sciences, Tata Institute of Fundamental Research, India
  3. Bart Deplancke
    Reviewer; EPFL, Switzerland

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Cooption of antagonistic RNA-binding proteins establishes cell hierarchy in Drosophila neuro-developmental tumors" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Bart Deplancke (Reviewer #1).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife at this point as there are a number of additional experiments needed that would likely take more than two months to complete. However, if you are able to address all the reviewers' concerns and wish to resubmit a revised article in the future, we would be happy to consider this.

The most important revision points are listed first but please address all the other points raised in the reviewers' reports too.

Essential Revisions:

1) The ubiquitous expression of Chinmo and Syp in all identified clusters possess a problem that weakens the model. Resolving the following issues is fundamental. As it is presented now, the model is not supported by the data.

While Chinmo and Syp are key genes to mark the early and late NBs, the scRNA data shows they are rather universally expressed in all clusters This may be under translational control, which is unfortunately not explored further despite being key for the model that they present in the Discussion.

Similarly, the binding of Imp and Syp to chinmo UTRs implies regulation at the RNA level, but chinmo and syp are both ubiquitously expressed. Here, post-transcriptional regulation seems unlikely given the striking mRNA expression overlap between chinmo and syp.

2) The authors indicate that Imp and Chinmo "form a positive feedback loop", which implies a high extent of co-expression, yet the scRNA-seq data shows that imp is expressed in a minor fraction of chinmo positive cells.

3) The concept of stable heterogeneity needs further experimental substantiation by, for instance, determining if the ratio/behaviour of cell types found in adult porsRNAi brain persists in implanted tumours. Linked to clonal analysis with flybow in the transplanted tumour the results from this experiment would be very informative about the validity of the model.

4) The states with high expression of Imp were put at the beginning of the pseudotime using Monocle. However, Monocle cannot be used to determine the root or the base state of the trajectory. Use RNA velocity to provide further substantiation of the pseudotime ordering.

5) Tumour tissue segmentation using Tissue Analyser must be validated by providing high quality images and their corresponding segmented processed images illustrating that (i) the Mira signal is recognised as a "membrane reference",(ii) the images are segmented accurately with respect to nuclei number, and (iii) cell size distribution is accurately generated.

6) Provide evidence showing that mixed clones result from a common precursor (as argued) rather than from cells moving around or from Chinmo+ cells turning down Chinmo protein levels and upregulating Syp.

7) Provide substantiating evidence when referring to asymmetric differentiation divisions.

8) Most of the analyses focuses on Chinmo, Imp, and Syp, which were already previously implicated in this process. Beyond providing a view on tumor heterogeneity, the scRNA-seq data remains underexplored with respect to new insights into tumor development. Related to this, the model prediction of growth being mostly due fast proliferation of Chinmo+ cells appears somewhat trivial. Please, make a clear statement of what we learned from this exercise.

9) Does experimental evidence derived from only one time-point substantiate the claims on "persistence"?

10) There is a long list of critical quality control data that must be provided (i.e. mapping rate of the sequencing reads; percentage of mitochondria and rRNA reads; scRNA-seq data normalization; clusters stability and others).

Reviewer #1:

Genovese et al., present a set of experiments investigating the hierarchical regulation of neural tumours stemming from asymmetrically-dividing neural progenitors (neuroblasts, NB) in Drosophila melanogaster, mainly focusing on a pair of established RNA-binding proteins Imp and Syncrip, whose antagonistic activity regulates self-renewing potential within the studied system.

The presented study encompasses an elegantly designed and executed collection of assays, which in a relatively comprehensive manner address the posed questions. These begin with the single-cell RNA sequencing experiment, and as much as the authors do not seem to explore the abundance and more global relevance of the obtained results to the fullest, they provide a thorough validation of NB tumours (tNB) development and hierarchical regulation- related phenomena. This validation includes refined clonal analysis and stochastic modelling of the hierarchical scheme of tumour development followed by quantitative analysis of tumour growth. This is completed by an in-depth molecular dissection of the dynamics of tNB development and progression upon silencing or overexpression of relevant regulatory actors as well as elegant in situ immunofluorescence assays incorporating analysis of the number, occurrence frequency and size of tNBs at different developmental stages. Finally, they interrogate the metabolic changes within the tumours by integrating their transcriptomic and molecular data sets.

In sum, this is a well-crafted study with a compelling message. However, several concerns need to be addressed prior to publication:

a) The authors started their study with an scRNA-seq analysis on tNBs. The resulting data are potentially a valuable resource, however, the description of the data is rather crude and its integration in the rest of the paper rather shallow (see also below). This is best illustrated by the fact that most downstream analyses focus on Chinmo, Imp, and Syp, genes that were already previously implicated in this process. Beyond providing a view on tumor heterogeneity, the scRNA-seq remain therefore somewhat underexplored with respect to providing novel molecular / regulatory insights regarding tumor development. Below, a few recommendations:

Technical:

• Quality control. Expect for indicating that "we sequenced 5796 cells with median number of 1806 genes/cell", the author did not provide any other QC measures. What is the mapping rate of the sequencing reads? What is the percentage of mitochondria and rRNA reads? <2,000 genes is rather low, what could be the reason for this? How many reads and UMI per cells were acquired?

• How are the scRNA-seq data normalized. Was any filtering performed? If yes, which criteria were used?

• How was the tSNE map plotted? Is it based on the most variable genes? If so, how were the most variable genes determined?

• The authors mention in the figure legend that "unsupervised clustering using the.… of the Cell Ranger". However, detailed parameters were not provided. Additionally, what are the differentially expressed genes in the clusters, especially cluster 7, onto which the entire study is based.

• As a sanity check, the authors should plot the expression level of pros in the scRNA-seq data.

• How stable are the clusters? Was any silhouette analysis performed?

Biological:

• While Chinmo and Syp are key genes to mark the early and late NBs, the scRNA data shows they are rather universally expressed in all identified clusters (Figure 1B, F). As the authors pointed out (e.g. Figure 1G), they may be under translational control, which is unfortunately not explored further despite being key for the model that they present in the Discussion. For example, the authors indicate that Imp and Chinmo "form a positive feedback loop", which implies a high extent of co-expression, yet the scRNA-seq data shows that imp is expressed in a minor fraction of chinmo positive cells. Similarly, the authors show that Imp and Syp both bind chinmo UTRs, implying (because not elaborated further) regulation at the RNA level with perhaps Imp having a stabilizing function and Syp a destabilizing one. But how can the authors then explain that chinmo and syp are both ubiquitously expressed? Again, one can evoke post-transcriptional regulation here, but given the striking mRNA expression overlap between chinmo and syp, such regulation (and thus large disconnect between mRNA and protein levels) would be rather striking. Resolving these questions seems fundamental to this study since, as it is presented now, the model is not supported by the presented data.

• The authors use Monocle to analyze the trajectory of tNBs, and find that "the states with highly expression of Imp were put at the beginning of the pseudotime". However, while Monocle is designed to find the transition trajectory/pseudotime based on transcriptome ordering, it cannot be used to determine the root or the base state of the trajectory. In addition, it is becoming common practice to seek independent analytical validation for such pseudotime analyses and in this regard, the "RNA velocity" tool (https://github.com/velocyto-team/velocyto.R) is a very exciting and intuitive approach. Finally, it would be valuable if staining of Chimo/Imp/Syp/E93 in one microscopy field would be performed to show that Chimo/Imp and Syp/E93 truly represent two different NB stages.

• The authors focus on cluster 7 and functionally validate its biological relevance. While functionally characterizing all clusters are beyond the scope of this manuscript, the author should at least discuss their significance. The cluster at the right side (Figure 1C, maybe cluster 1 or 8) for example is much separated from the other clusters. Which cells belong to this cluster? Any enrichment for specific biological processes? What can we learn here?

Reviewer #2:

The key question this study tries to answer is how cellular heterogeneity comes about in human neural tumors using Drosophila as a model system. Overall there are a lot of interesting observations in the manuscript, but the main weakness is that it is unclear whether the model system used is suitable to address the question. The manuscript suffers further from extensive borrowing of concepts and terminology that are often used in a very confusing and misleading manner and the paper is written in a highly convoluted way, which makes it a rather tough read. Perhaps the story tries to look at the problem from too many angles, many of them remain largely descriptive (e.g. single cell RNA seq, the modeling, the bulk tumor sequencing). Human tumor heterogeneity is apparent in complex factettes. One important idea is the co-existence of genetically divergent tumor cell clones and many concepts are around to explain their origin, aspects of deregulated development certainly contribute. This manuscripts addresses this later aspect. One could look at the data, however, by judging the analysed tissue as a relatively normal tissue in which certain aspects of normal neurogenesis are due to the applied manipulations not functional, which on its own right is interesting, but framing the findings in the context of the above question appears forced. For instance, many of the molecular mechanism already identified can be directly applied. This contrasts with the observation that in other malignant tumors, that can be experimentally induced, genome instability arises rapidly, if that were the case here, which we don't know, doing genetics (flybow) and interpreting the results becomes much more complex. If genetics works predictably, as for instance the clonal analysis suggests, then this casts doubt on the tumor-like state of the tissue analysed. Looking at the data from a developmental biology point of view, the findings may rather represent faulty neurogenesis in which decommissioning of neural stem cells and interfering with the temporal transcription factor cascades has not occur properly, but that it appears that the cells in question can responds to the normal constraints of fly development in as much as it can when a key regulatory factor is removed. Removing more factors alters/worsens of course the situation.

However, there are certainly valuable insights into fly specific developmental biology processes of neurogenesis and decommissioning of neuroblast divisions.

https://doi.org/10.7554/eLife.50375.034

Author response

Essential Revisions:

1) The ubiquitous expression of Chinmo and Syp in all identified clusters possess a problem that weakens the model. Resolving the following issues is fundamental. As it is presented now, the model is not supported by the data.

While Chinmo and Syp are key genes to mark the early and late NBs, the scRNA data shows they are rather universally expressed in all clusters This may be under translational control, which is unfortunately not explored further despite being key for the model that they present in the Discussion.

Similarly, the binding of Imp and Syp to chinmo UTRs implies regulation at the RNA level, but chinmo and syp are both ubiquitously expressed. Here, post-transcriptional regulation seems unlikely given the striking mRNA expression overlap between chinmo and syp.

The fact that chinmo mRNA is detected in most if not all tNBs is not surprising given that it is known to be regulated post-transcriptionally in NBs during development (Zhu et al., 2006; Liu et al., 2015; Dillard et al., 2018). Here, we clearly demonstrate that it is also regulated post-transcriptionally in tumors. First, because the Chinmo protein is only present in cells also expressing Imp, as shown by immunostainings in Figure 1E. Second, because when mis-expressing, in all tNBs, a UAS-transgene containing the coding sequence of mCherry flanked by the UTRs of the chinmo mRNA, we observe that the mCherry protein is only present in tNBs also expressing the endogenous Chinmo protein (new Figure 1—figure supplement 4). This demonstrates that regulation via the chinmo UTRs can recapitulate the expression pattern of endogenous Chinmo in tumors.

Intriguingly, Syp has been shown to be mainly regulated at the transcriptional level in NBs during development. In contrast, we clearly find that it is mainly regulated at the post-transcriptional level in tumors since Syp mRNA is detected in most tNBs while Syp protein is only present in Chinmo-negative tNBs (Figure 1D). This is thus an aspect of Syp regulation that appears to be tumor-specific and that we do not clearly understand. Consistently, we know that Syp is hardly detectable by immunostaining upon mis-expression of a UAS-Syp transgene in Chinmo+Imp+ NBs both during development and tumorigenesis (data not shown). This would be consistent with a post-transcriptional repression of Syp in Chinmo+Imp+ tNBs.

In essence, we do not really understand the mechanisms that post-transcriptionally silence Syp in Chinmo+Imp+ tNBs, but we do not think that this undermines our current model as our genetic experiments demonstrates the essential role of Syp in silencing chinmo in tumors. This aspect of chinmo and Syp post-transcriptional regulation is now more substantially discussed in the first paragraph of the Results section.

2) The authors indicate that Imp and Chinmo "form a positive feedback loop", which implies a high extent of co-expression, yet the scRNA-seq data shows that imp is expressed in a minor fraction of chinmo positive cells.

This positive feedback loop was described in our previous publication (Narbonne-reveau et al., 2016). In this loop, Chinmo promotes Imp expression at the transcriptional level while Imp promotes Chinmo expression at the post-transcriptional level. A consequence of this transcriptional/translational cross-regulatory interaction is that Chinmo protein can only be produced in tNBs expressing the Imp protein, while Imp can only be transcribed in tNBs expressing the Chinmo protein. Thus, even if chinmo mRNA is ubiquitous, the positive feedback loop is only functioning in the fraction of tNBs expressing the Imp protein. This feedback loop provides robustness to perpetuate the population of Chinmo+Imp+ tNBs that acts as cancer stem cells, as shown later in the manuscript.

3) The concept of stable heterogeneity needs further experimental substantiation by, for instance, determining if the ratio/behaviour of cell types found in adult porsRNAi brain persists in implanted tumours. Linked to clonal analysis with flybow in the transplanted tumour the results from this experiment would be very informative about the validity of the model.

We agree that this would be a very interesting experiment to perform. However, transplantation implies major changes from the initial microenvironment of the primary tumor and different types of stresses induced by cuts and wounding responses in the tumor for example… In our opinion, this is very likely to interfere with the tumor-intrinsic mechanisms that regulate the population of Chinmo+Imp+ cancer stem cell like-cells in the primary tumor. Therefore, the interpretation of this transplantation experiment might be complex, and the results may not be applicable to the primary tumor.

Although we did not perform transplantations for the aforementioned reasons, we nevertheless consolidated our claim that tumor heterogeneity evolves towards an equilibrium from larval stages to adulthood by measuring the proportions of the two major tNB types (Chinmo+Imp+ and Syp+E93+) at different time points during adult stages (now at d8, d10, d11 and d15 after tumor induction, respectively corresponding to d1, d3, d4 and d8 into adulthood) (Figure 2E). For every time points, we find that the proportion of Chinmo+Imp+ tNBs remains approximately stable (around 20% +/- 10%).

4) The states with high expression of Imp were put at the beginning of the pseudotime using Monocle. However, Monocle cannot be used to determine the root or the base state of the trajectory. Use RNA velocity to provide further substantiation of the pseudotime ordering.

We agree with the reviewer. In order to circumvent this problem, we made use of our clonal analysis/modeling approach that unambiguously demonstrates that Imp+ tNBs are at the top of the hierarchy in tumors (Figure 4). This allowed us to perform a semi-supervised pseudotime ordering using Monocle where tNBs expressing Imp where put at the root of the pseudotime. Since the pseudotime analysis now relies on the clonal and numerical analysis, it has now been moved to Figure 7. We think that this reorganization of the manuscript is more logic and reinforces the value of the clonal analysis and modelling.

5) Tumour tissue segmentation using Tissue Analyser must be validated by providing high quality images and their corresponding segmented processed images illustrating that (i) the Mira signal is recognised as a "membrane reference",(ii) the images are segmented accurately with respect to nuclei number, and (iii) cell size distribution is accurately generated.

We have added a new figure of better quality (Figure 8—figure supplement 3) with the mira staining used as a membrane reference. The segmentation was double-checked manually using the dapi staining for nuclear reference.

6) Provide evidence showing that mixed clones result from a common precursor (as argued) rather than from cells moving around or from Chinmo+ cells turning down Chinmo protein levels and upregulating Syp.

As for the possibility that cells from different clones may migrate and mix to generate mixed clones, we have now added a new picture showing a large clone stained 12 days after random induction at low frequency (Figure 3—figure supplement 1). As observed, the fact that the cells composing the clones remain grouped and do not disperse suggests that tNBs, in general, do not actively migrate although rearrangements with neighboring cells probably exist. We have also measured †that between 1 or 2% of cells undergo the mitotic recombination allowing mCherry expression in tumors. Therefore, the probability that two neighboring cells undergo a recombination event is rather rare. Together, these observations suggest that mixed clones are unlikely to results from tNBs originating from different clones and mixing together.

Having excluded this possibility, our numerical simulations suggests that mixed clones can only result from an initial Chinmo+Imp+ tNB that has divided to give rise to populations of Chinmo+Imp+ and populations of Syp+E93+ tNBs.

7) Provide substantiating evidence when referring to asymmetric differentiation divisions.

We now provide a new figure (Figure 4—figure supplement 1) with three examples of two-cell clones.

1) The two cells are chinmo+.

2) One cell is Chinmo+ the other is Chinmo-

3) The two cells are chinmo-

“Example 1” is likely to result from the symmetric self-renewing division of a Chinmo+Imp+ tNB.

“Example 2” could result from a fate asymmetric division of a Chinmo+Imp+ tNB.

“Example 3” may result from either a symmetric differentiating division of a Chinmo+Imp+ tNB or from a symmetric self-renewing division of a Syp+E93+ tNB.

8) Most of the analyses focuses on Chinmo, Imp, and Syp, which were already previously implicated in this process. Beyond providing a view on tumor heterogeneity, the scRNA-seq data remains underexplored with respect to new insights into tumor development. Related to this, the model prediction of growth being mostly due fast proliferation of Chinmo+ cells appears somewhat trivial. Please, make a clear statement of what we learned from this exercise.

We have now generated a much more extensive analysis of our scRNA-seq data, comparing our data in tumors with recent work performed in larval NBs to show that only a subset of the genes previously shown to be temporally regulated in larval NBs are also dynamically regulated in tumors, substantiating the fact that a large part of the temporal patterning system, other than Chinmo, Imp and Syp) is redeployed in tumors.

We have also performed a more thorough pseudotime analysis to consolidate our claims that glucose metabolism genes are down-regulated along the pseudotime, together with cell-cycle genes (Figure 7 and 8 and Figure 8—figure supplement 2:). This demonstrates that glucose metabolism genes during tumorigenesis are regulated by the coopted temporal patterning system.

Concerning what we can learn from the clonal and modelling approach:

1) The model uses the clonal analysis to demonstrate that tumor growth is governed by a hierarchical organization. This knowledge is important if one want, in the future, understand the rules that regulate the balance between CSC self-renewal and differentiation and therefore the proportion of CSCs in the tumor.

2) Thanks to the model, we could determine which cells compose the root of the pseudotime.

3) The model also resolves the paradoxical observation that Chinmo+Imp+ tNBs are in minority compared to Syp+E93+ tNBs (shown in Figure 2E), while exhibiting a higher average mitotic index than Syp+E93+ tNBs (shown in Figure 2D).

4) We find it remarkable that the model can predict a division scheme that can recapitulate both clonal growth (Figure 4D) and the dynamics of tumor heterogeneity along a period of 15 to 20 days (Figure 5), before adult flies are killed by the tumor. Although, like all models, we don’t expect our model to perfectly recapitulate all the parameters regulating tumor growth and heterogeneity (for example, we have neglected apoptosis and neuronal differentiation that occur at low levels), we think it provides a reasonable and useful ground on which further studies can be performed for a more detailed understanding.

5) The model predicts that there are 2 types of Syp+E93+ tNBs: a proliferative type and a quiescent type. Substantiating this prediction, we now find using Monocle that tNBs follow a differentiation trajectory that splits in two within the population of Syp+E93+ tNBs. One population keep expressing medium levels of glucose metabolism genes and cell-cycle genes, including high levels of the CDC25 gene string (stg). We now refer to this population as E93+stg+ tNBs. The second population express low levels of glucose metabolism genes, cell cycle genes but high levels of E(spl) genes. We therefore propose that this population of E93+E(spl)+ tNBs are quiescent. Interestingly, in vertebrates, the orthologous Hes genes are highly expressed in quiescent neural stem cells.

In conclusion, we believe that our clonal and modeling approach allowed us to make the first firm demonstration that hierarchical tumors exist in Drosophila, thus providing a new paradigm for cancer research.

More importantly, by uncovering a network of temporal patterning genes that is responsible:

i) for “transforming” a pool of proliferative neural stem cells into a hierarchical tumor,

ii) for governing the hierarchical, heterogeneity and metabolic properties of tumor cells, we demonstrate an overarching role of temporal patterning genes in the initiation and progression of neural tumors with an early developmental origin. Given the recent finding that temporal patterning is conserved in mammals, our work could have wide implications for understanding how pediatric neural cancers develop so rapidly despite often carrying very few mutations.

Moreover, we know describe many new genes associated with a cancer stem cell identity. Investigating their function will form the basis for future studies aiming at understanding how the balance between cancer stem cell self-renewal and differentiation is regulated in tumors.

9) Does experimental evidence derived from only one time-point substantiate the claims on "persistence"?

I think this question refers to the experiment described in the now Figure 6—figure supplement 1, where we inactivated Syp in larval NBs. This leads to the robust persistence of NBs in pharate adults. This “persistence” phenotype has been described in more details in a recent manuscript (Yang et al. 2017), therefore it was not our intention to repeat at different time points. Instead, we use this experiment to decipher the underlying mechanisms of persistence, and demonstrate that the positive feedback loop operating between chinmo and Imp is responsible for NB persistence in the SypKD context. These results demonstrate the key role of the chinmo/Imp module in promoting a default self-renewing state that is particularly active during early development.

10) There is a long list of critical quality control data that must be provided (i.e. mapping rate of the sequencing reads; percentage of mitochondria and rRNA reads; scRNA-seq data normalization; clusters stability and others).

The data were completely reanalyzed using the standard procedure for Seuratv3.0.2 described in https://satijalab.org/seurat/v3.0/pbmc3k_tutorial.html for clustering. Details are now given in the new Materials and methods section. This has led to a new Figure 1, Figure 1—figure supplement 1 and 2. QC metrics such as the number of UMI/cells, genes/cell and percentage of mitochondrial RNA are now shown. The data we have obtained are standard for Drosophila cells when comparing with other publications (Davie et al., 2018; PMID: 29909982).

The pseudotime analysis was also repeated with a semi-supervised procedure as described in http://cole-trapnell-lab.github.io/monocle-release/docs/#constructing-single-cell-trajectories (Figure 7).

Reviewer #1:

[…] In sum, this is a well-crafted study with a compelling message. However, several concerns need to be addressed prior to publication:

a) The authors started their study with an scRNA-seq analysis on tNBs. The resulting data are potentially a valuable resource, however, the description of the data is rather crude and its integration in the rest of the paper rather shallow (see also below). This is best illustrated by the fact that most downstream analyses focus on Chinmo, Imp, and Syp, genes that were already previously implicated in this process. Beyond providing a view on tumor heterogeneity, the scRNA-seq remain therefore somewhat underexplored with respect to providing novel molecular / regulatory insights regarding tumor development. Below, a few recommendations:

Technical:

• Quality control. Expect for indicating that "we sequenced 5796 cells with median number of 1806 genes/cell", the author did not provide any other QC measures. What is the mapping rate of the sequencing reads? What is the percentage of mitochondria and rRNA reads? <2,000 genes is rather low, what could be the reason for this? How many reads and UMI per cells were acquired?

• How are the scRNA-seq data normalized. Was any filtering performed? If yes, which criteria were used?

• How was the tSNE map plotted? Is it based on the most variable genes? If so, how were the most variable genes determined?

• The authors mention in the figure legend that "unsupervised clustering using the.… of the Cell Ranger". However, detailed parameters were not provided. Additionally, what are the differentially expressed genes in the clusters, especially cluster 7, onto which the entire study is based.

• As a sanity check, the authors should plot the expression level of pros in the scRNA-seq data.

• How stable are the clusters? Was any silhouette analysis performed?

Please look above at our detailed response to point 10.

Biological:

• While Chinmo and Syp are key genes to mark the early and late NBs, the scRNA data shows they are rather universally expressed in all identified clusters (Figure 1B, F). As the authors pointed out (e.g. Figure 1G), they may be under translational control, which is unfortunately not explored further despite being key for the model that they present in the Discussion. For example, the authors indicate that Imp and Chinmo "form a positive feedback loop", which implies a high extent of co-expression, yet the scRNA-seq data shows that imp is expressed in a minor fraction of chinmo positive cells. Similarly, the authors show that Imp and Syp both bind chinmo UTRs, implying (because not elaborated further) regulation at the RNA level with perhaps Imp having a stabilizing function and Syp a destabilizing one. But how can the authors then explain that chinmo and syp are both ubiquitously expressed? Again, one can evoke post-transcriptional regulation here, but given the striking mRNA expression overlap between chinmo and syp, such regulation (and thus large disconnect between mRNA and protein levels) would be rather striking. Resolving these questions seems fundamental to this study since, as it is presented now, the model is not supported by the presented data.

Please look above at our detailed response to point 1.

• The authors use Monocle to analyze the trajectory of tNBs, and find that "the states with highly expression of Imp were put at the beginning of the pseudotime". However, while Monocle is designed to find the transition trajectory/pseudotime based on transcriptome ordering, it cannot be used to determine the root or the base state of the trajectory. In addition, it is becoming common practice to seek independent analytical validation for such pseudotime analyses and in this regard, the "RNA velocity" tool (https://github.com/velocyto-team/velocyto.R) is a very exciting and intuitive approach. Finally, it would be valuable if staining of Chimo/Imp/Syp/E93 in one microscopy field would be performed to show that Chimo/Imp and Syp/E93 truly represent two different NB stages.

Concerning the identification of the root state, please look above at our detailed response to point 4.

We would love to be able to do a Chimo/Imp/Syp/E93 in one microscopy field. Unfortunately, this is currently impossible since two of the antibodies have been made in rabbits. However, our current pictures in Figure 1E and F convincingly show that all Chinmo and Imp overlap, that Chinmo/Imp-negative tNBs express Syp and that Chinmo and E93 expression pattern are complementary and not overlapping. Together, this shows that Chimo/Imp and Syp/E93 represents two different NB populations.

• The authors focus on cluster 7 and functionally validate its biological relevance. While functionally characterizing all clusters are beyond the scope of this manuscript, the author should at least discuss their significance. The cluster at the right side (Figure 1C, maybe cluster 1 or 8) for example is much separated from the other clusters. Which cells belong to this cluster? Any enrichment for specific biological processes? What can we learn here?

We now provide a more complete description of the clusters identified in the UMAP representation. In particular, we mention: “The presence of 4 large clusters (clusters 0, 1, 3, 4) within the E93 expression domain on the UMAP representation implies further cellular heterogeneity within the E93+ tNB population (Figure 1C, D). The two smaller clusters appear to be composed of tNBs expressing stress or growth arrest factors such as Gadd45, Irbp18, Xrp1 and GstE6 (Figure 1—figure supplement 2).”

Using Monocle, we clearly demonstrate that there are two main types of E93+ tNBs with different proliferative and metabolic properties (Figure 7 and 8 and Figure 8—figure supplement 2).

Reviewer #2:

[…] Looking at the data from a developmental biology point of view, the findings may rather represent faulty neurogenesis in which decommissioning of neural stem cells and interfering with the temporal transcription factor cascades has not occurred properly, but that it appears that the cells in question can responds to the normal constraints of fly development in as much as it can when a key regulatory factor is removed. Removing more factors alters/worsens of course the situation.

However, there are certainly valuable insights into fly specific developmental biology processes of neurogenesis and decommissioning of neuroblast divisions.

We thank reviewer 3 for the insightful thoughts on the manuscripts. Overall, we think that his impressions are right. Indeed, the predictability we observe, and that we have now strengthen in our revised version (Figure 2E), suggests that this type of tumors, with an early developmental origin, behaves more like developing tissues that somehow can’t fully terminate their developmental program, than like adult tumors that aberrantly activate signaling pathways because of the progressive accumulation of mutations and global genome instability. More generally, we think this might be a fundamental difference between pediatric tumors (usually carrying very few mutations) and adult tumors (usually carrying many mutations) (Grobner et al., 2018). For example, retinoblastoma is solely caused by the biallelic inactivation of RB1, while AT/RTs are caused by the biallelic inactivation of SMARCB1. Yet, despite the fact that retinoblastoma and AT/RTs are usually genetically stable, there is no doubt that they represent proper and highly aggressive tumors. We think this is also the case for the prosKD NB tumors we are investigating as it has been shown that they can be propagated for at least several months upon multiple transplantations in the abdomen of adult flies (Caussinus and Gonzalez, 2005, doi:10.1038/ng1632). We propose that transformation in such tumors with an early developmental origin is not due to genomic instability and accumulation of mutations but is rather due to the cooption of early developmental programs that favor embryonic-like proliferation.

More specifically, we identify here the coopted developmental program as being part of the larval NB-specific temporal patterning system. We show that the temporal patterning system is hijacked upon initial NB amplification due to the early loss of pros. Consequently, dysregulated temporal patterning creates a tissue that fails to ever stop growing and ultimately kills the fly (hence being considered as a tumor). We find that the temporal patterning is coopted with 100% penetrance if prosKD is induced during the correct early developmental window, generating reproducible tumors with predictable heterogeneity. Moreover, we find that two RNA-binding proteins Imp and Syp regulate the proliferative properties of the different types of tumor cells by regulating metabolic genes. Thus, coopted temporal patterning governs the growth, hierarchy and heterogeneity of NB tumors.

To our knowledge, this work provides the most detailed description of a hierarchical CNS tumor ever performed. Moreover, this work suggests that the presence of temporal patterning in neural stem cells makes the developing CNS particularly susceptible for cancer transformation. Given the recent demonstration that temporal patterning also exists in mammals (Telley et al. 2019), this could explain why CNS tumors are so prominent in children.

https://doi.org/10.7554/eLife.50375.035

Article and author information

Author details

  1. Sara Genovese

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Conceptualization, Formal analysis, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Raphaël Clément

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Cassandra Gaultier
    Competing interests
    No competing interests declared
  3. Cassandra Gaultier

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Raphaël Clément
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6401-9163
  4. Florence Besse

    Université Côte d’Azur, CNRS, Inserm, Institut de Biologie Valrose, Nice, France
    Contribution
    Conceptualization, Formal analysis, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4672-1068
  5. Karine Narbonne-Reveau

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Fabrice Daian

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Data curation, Visualization
    Competing interests
    No competing interests declared
  7. Sophie Foppolo

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Methodology, Project administration
    Competing interests
    No competing interests declared
  8. Nuno Miguel Luis

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5438-9638
  9. Cédric Maurange

    Aix Marseille Univ, CNRS, IBDM, Equipe Labellisée LIGUE Contre le Cancer, Marseille, France
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Writing—original draft, Writing—review and editing
    For correspondence
    cedric.maurange@univ-amu.fr
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8931-1419

Funding

Fondation ARC pour la Recherche sur le Cancer (PJA20141201621)

  • Cédric Maurange

Fondation ARC pour la Recherche sur le Cancer (Fin de thèse)

  • Sara Genovese

Canceropôle PACA (Starting Package Single Cell)

  • Cédric Maurange

Centre National de la Recherche Scientifique

  • Cédric Maurange

Aix-Marseille Université (Bio trail)

  • Sara Genovese

Ligue Contre le Cancer (Comprendre les principes fondamentaux régissant la hiérarchie cellulaire dans les tumeurs neurales)

  • Cédric Maurange

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank I Davis, P Macdonald, DJ McKay, C Meignin M Noll, N Sokol for flies and antibodies. We are grateful to B Aigouy for helping with the ‘Tissue Analyser’ plugin, C Hérouard-Molina for performing cDNA librairies and sequencing at the IGBMC GenomEast platform, A Saurin for alignment of RNA-seq data, P Outters at HalioDx (Marseille) for generating the single-cell transcriptomic data, F Hubert and J Oliver for discussions on mathematical modeling, JC Patel for help with image analysis and P Grenot at Ciphe for help with FACS. We also acknowledge the Bloomington Drosophila Stock Center (NIH P40OD018537), the Vienna Drosophila RNAi Center (VDRC), TRiP at Harvard Medical School (NIH/NIGMS R01-GM084947), Kyoto DGRC and NIG-Fly Stock Centers for flies, and the Developmental Studies Hybridoma Bank (DSHB) for monoclonal antibodies. Bulk tumor sequencing was performed by the IGBMC GenomEast platform, a member of the ‘France Génomique’ consortium (ANR-10-INBS-0009)”. We thank France-BioImaging/PICsL infrastructure (ANR-10-INSB-04–01). We thank S Kerridge for critical reading of the manuscript.

Senior Editor

  1. K VijayRaghavan, National Centre for Biological Sciences, Tata Institute of Fundamental Research, India

Reviewing Editor

  1. Cayetano Gonzalez, Institute for Research in Biomedicine, Spain

Reviewer

  1. Bart Deplancke, EPFL, Switzerland

Publication history

  1. Received: July 24, 2019
  2. Accepted: September 29, 2019
  3. Accepted Manuscript published: September 30, 2019 (version 1)
  4. Version of Record published: October 14, 2019 (version 2)

Copyright

© 2019, Genovese et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,698
    Page views
  • 292
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Computational and Systems Biology
    Adam C Palmer et al.
    Research Article
    1. Cancer Biology
    2. Cell Biology
    Hao Zeng et al.
    Research Article
