MYC and Twist1 cooperate to drive metastasis by eliciting crosstalk between cancer and innate immunity

  1. Renumathy Dhanasekaran
  2. Virginie Baylot
  3. Minsoon Kim
  4. Sibu Kuruvilla
  5. David I Bellovin
  6. Nia Adeniji
  7. Anand Rajan KD
  8. Ian Lai
  9. Meital Gabay
  10. Ling Tong
  11. Maya Krishnan
  12. Jangho Park
  13. Theodore Hu
  14. Mustafa A Barbhuiya
  15. Andrew J Gentles
  16. Kasthuri Kannan
  17. Phuoc T Tran
  18. Dean W Felsher  Is a corresponding author
  1. Stanford University, United States
  2. University of Iowa Hospitals and Clinics, United States
  3. Johns Hopkins University School of Medicine, United States
  4. Stanford University School of Medicine, United States
  5. NYU Langone Medical Center, United States
Research Article
  • Cited 0
  • Views 894
  • Annotations
Cite this article as: eLife 2020;9:e50731 doi: 10.7554/eLife.50731

Abstract

Metastasis is a major cause of cancer mortality. We generated an autochthonous transgenic mouse model whereby conditional expression of MYC and Twist1 enables hepatocellular carcinoma (HCC) to metastasize in >90% of mice. MYC and Twist1 cooperate and their sustained expression is required to elicit a transcriptional program associated with the activation of innate immunity, through secretion of a cytokinome that elicits recruitment and polarization of tumor associated macrophages (TAMs). Systemic treatment with Ccl2 and Il13 induced MYC-HCCs to metastasize; whereas, blockade of Ccl2 and Il13 abrogated MYC/Twist1-HCC metastasis. Further, in 33 human cancers (n = 9502) MYC and TWIST1 predict poor survival (p=4.3×10−10), CCL2/IL13 expression (p<10−109) and TAM infiltration (p<10−96). Finally, in the plasma of patients with HCC (n = 25) but not cirrhosis (n = 10), CCL2 and IL13 were increased and IL13 predicted invasive tumors. Therefore, MYC and TWIST1 generally appear to cooperate in human cancer to elicit a cytokinome that enables metastasis through crosstalk between cancer and immune microenvironment.

eLife digest

Cancer develops when cells in the body gain mutations that allow them to grow and divide rapidly and uncontrollably. As the disease progresses these cancer cells develop the ability to spread around the body. This process of spreading, called metastasis, is responsible for most cancer-related deaths in humans, but no current treatments target it.

Mutations that increase the levels of two proteins known as MYC and TWIST1 in cells cause many human cancers. In healthy adult cells, normal levels of MYC and TWIST1 act as key regulators that switch thousands of genes on or off. TWIST1 is known to control the movement and spread of cells in the embryo. However, it is not known how MYC and TWIST1 work together to promote the metastasis of cancer cells.

To address this question, Dhanasekaran, Baylot et al. used mice to investigate the roles of MYC and TWIST1 in the metastasis of cancer cells. The experiments showed that these two proteins work together to reprogram mouse cancer cells to release signal molecules known as cytokines. These molecules convert immune cells known as macrophages to a tumor-friendly state that allows cancers cells to spread around the body. Inhibiting two cytokines known as CCL2 and IL13 prevented the cancer cells from moving.

Further experiments analyzed tumor samples from around 10,000 human patients with 33 different cancers. This revealed that patients that had higher levels of MYC and TWIST1 proteins in their tumors also had increased levels of CCL2 and IL12, more activated macrophages and were less likely to recover from their cancer.

The findings of Dhanasekaran, Baylot et al. suggest that MYC and TWIST1 may instigate metastasis in many human cancers, and therapies targeting specific cytokines may prevent these cancers from spreading around the body. Furthermore, screening blood for the levels of cytokines may help to identify the cancer patients who would benefit from such therapies.

Introduction

Tumorigenesis is caused by specific oncogenes but tumor progression often involves the acquisition of metastasis (Chaffer and Weinberg, 2011). Metastasis occur when tumor cells gain the ability to invade, migrate and colonize distant sites, and this accounts for most of the morbidity and mortality associated with cancer (Mehlen and Puisieux, 2006). Many studies have examined human clinical specimens and/or tumor-derived cell lines to discern mechanisms of metastasis, and identified the role of specific genes (Ji et al., 2007; Sun et al., 2018; Zhu et al., 2017) and also the role of the tumor microenvironment (Fidler, 2003; Kalluri, 2016; Kim et al., 2017; Whitfield and Soucek, 2012). However, to date, there are very few mouse models that exhibit spontaneous metastasis, and even fewer in vivo models where the stepwise progression from a non-metastatic to metastatic cancer can be studied. Such a model would provide a tractable approach for studying specific mechanisms of metastasis, particularly the role of the immune microenvironment. Innate immune cells, especially tumor associated macrophages (TAMs), are known to contribute to metastasis through multiple mechanisms including effects on angiogenesis, production of specific cytokines, suppression of the immune system, and induction of epithelial-mesenchymal transition (EMT) (Gonzalez et al., 2018; Lu et al., 2011; Qian and Pollard, 2010; Wan et al., 2014). The specific discrete events in the cancer cell that modulate the tumor immune microenvironment and enable metastasis are not clear.

The MYC oncogene is a transcription factor that is one of the most commonly activated oncogenes in the pathogenesis of many types of human cancer including HCC (Schaub et al., 2018Dang, 2012; Gabay et al., 2014). Previously, we used the Tet System to generate a conditional transgenic mouse model for MYC-induced HCC that we and others have used to study mechanisms of oncogene addiction (Settleman, 2012) and identify potential therapies (Dhanasekaran et al., 2018; Kapanadze et al., 2013; Ma et al., 2016; Shachaf et al., 2004). But murine MYC-driven HCC do not metastasize. Twist1 is a transcription factor that is important during embryogenesis for normal cellular migration (Lee et al., 1999; Thisse et al., 1987). Twist1 has been shown to be an important gene product that can enable mouse and human tumor cell lines to acquire the ability to metastasize associated with EMT (Thiery et al., 2009; Xu et al., 2017). Here we used the Tet System to conditionally express Twist1 in combination with MYC to show that their co-expression leads to widely metastatic and invasive HCC.

We use this powerful in vivo model to uncover a surprising mechanism by which MYC and Twist1 drive metastasis. Cancer cell-intrinsic properties like proliferation, apoptosis or invasiveness were not different between the non-metastatic MYC-HCC and the metastatic MYC/Twist1-HCC. Instead, metastatic progression was dependent on the ability of MYC and Twist1 to dramatically reprogram the tumor innate immune microenvironment. Together, MYC and Twist1 induce the cancer cell to secrete cytokines like Ccl2 and Il13 that lead to recruitment and polarization of macrophages respectively, thus causing metastasis. Systemically, administering Ccl2 and Il13 is sufficient to cause metastasis of MYC-HCC and, conversely blocking these specific cytokines profoundly inhibits metastasis in MYC/Twist1 HCC. Our results are broadly generalizable to 33 different human cancers and predict invasive cancer in a pilot clinical study.

Results

Twist1 induces spontaneous metastatic progression of MYC-driven HCC in vivo

We first generated a transgenic mouse using the Tet system that conditionally expresses Twist1 in a liver specific manner (LAP-tTA/TRE-Twist1/Luc). We crossed TRE-Twist1/Luc mice which harbored the Twist1 and firefly luciferase (luc) genes under the control of a bidirectional tetracycline responsive element (TRE), with the LAP-tTA mice which contain the tetracycline-controlled transactivator protein (tTA) driven by the liver-enriched activator protein (LAP) promoter (Tran et al., 2012). Twist1 transgenic mice (LAP-tTA/TRE-Twist1/Luc) exhibited no disease nor gross or microscopic pathology for as long as 18 months of observation thus demonstrating that Twist1 did not play a role in autochthonous tumorigenesis when overexpressed in the liver (Figure 1—figure supplement 1a).

To examine the influence of Twist1 on tumor progression, LAP-tTA or LAP-tTA/TRE-Twist1/Luc mice were crossed with TRE-MYC (Shachaf et al., 2004) (Figure 1a) to generate transgenic mice that inducibly expressed MYC alone (MYC mice) or co-expressed MYC, Twist1 and luciferase (Luc) in a liver-specific manner (MYC/Twist1 mice) (Figure 1b). We induced transgene expression in adult mice at 6 weeks of age (Figure 1b). In vivo, Twist1 transgene expression was confirmed to be confined to the liver by measuring the luciferase reporter by bioluminescence imaging (BLI) (Figure 1c). We followed in vivo tumor progression with serial cross-sectional imaging. Both MYC and MYC/Twist1 mice were observed to develop multifocal liver cancer, while only MYC/Twist1 mice developed lung metastases (Figure 1d). MYC/Twist1 mice were moribund with HCC sooner and had a median survival of 25 months compared to 32 months in MYC mice (p<0.001, Figure 1e). MYC mice rarely exhibited metastasis even after extended observation (2%, n = 50, Figure 1f); whereas, MYC/Twist1 mice regularly exhibited rapid onset of metastasis with high penetrance (90%) -metastases to the lungs (70%), peritoneum (60%) and lymph nodes (20%) (n = 50, Figure 1f). Thus, Twist1 combined with MYC expression in liver cells elicits HCC metastasis.

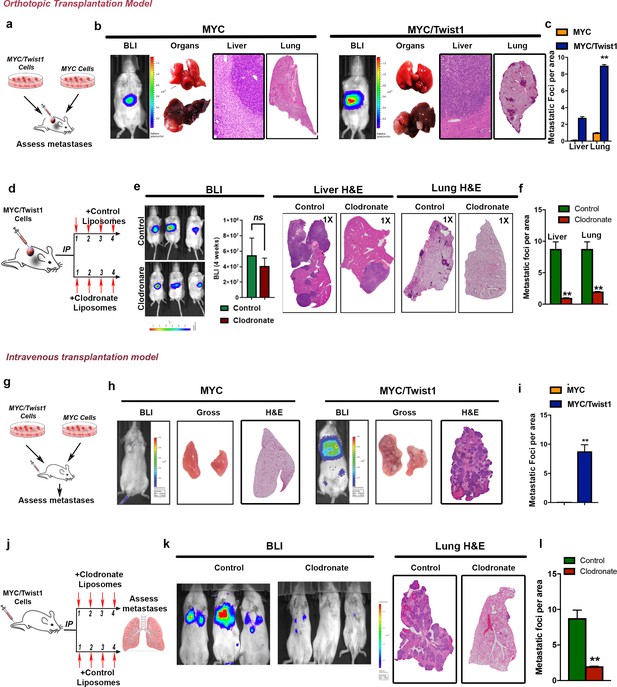

Figure 1 with 1 supplement see all
Twist1 induces spontaneous metastatic progression of MYC driven HCC in vivo.

(a) Mouse model of MYC induced HCC where MYC is under the control of a tetracycline responsive element (TRE) which contain the tetracycline-controlled transactivator protein (tTA) driven by the liver-enriched activator protein (LAP). Doxycycline (Dox) can be used to inactivate oncogene expression in adult mice. (b) Mouse model of MYC/Twist1-induced HCC which inducibly co-expressed MYC, Twist1 and firefly luciferase in a hepatocyte specific manner. (c) Bioluminescent imaging (BLI) confirms in vivo rapid induction of oncogenes by demonstrating liver specific luciferase expression upon withdrawal of Dox. (d) Serial cross sectional imaging of MYC- (n = 10) and MYC/Twist1-HCC (n = 10) using MRI scan for the abdomen and CT scan for the lungs demonstrate step-wise tumor progression. Both MYC and MYC/Twist1 mice develop multifocal liver tumors but only the latter develops lung metastases. (e) Kaplan Meier survival curves show that MYC/Twist1 mice (n = 16) had significantly shorter survival than MYC mice (n = 12) (**p<0.01) while Twist1 transgenic mice (n = 10) remained healthy. (f) Pie charts show incidence of metastasis in MYC- (n = 50) and MYC/Twist1 transgenic mice (n = 50). (g) Comparison of liver weights between MYC (n = 3) and MYC/Twist1 tumor bearing mice (n = 4) and control mice (n = 3) which were kept on Dox throughout (**p<0.01). (h) Gross and histopathologic appearance of tumors in MYC transgenic model confirming HCC. Lungs do not show any metastases. (i) Representative images showing MYC/Twist1-HCC have histologic appearance of HCC and lung histology shows metastatic disease. (j) Representative images from Immunohistochemistry to show phospho histone three (PH3) expression in MYC- and MYC/Twist1-HCC with quantification of IHC staining. (k) Representative images from Immunohistochemistry to show Cleaved Caspase three (CC3) expression in MYC- and MYC/Twist1-HCC with quantification of IHC staining.

A simple explanation for our results is that Twist1 was inducing more rapid onset and thereby progression of tumorigenesis. Against this possibility, the tumor burden in the liver was not statistically different between MYC and MYC/Twist1 mice (Figure 1g). Also, there was no difference in the gross or microscopic appearance of MYC- and MYC/Twist1-HCC (Figure 1h–i). The MYC- and MYC/Twist1-HCC tumors were confirmed to be HCC by a pathologist and by expression of hepatocyte marker glutamine synthetase (Figure 1—figure supplement 1b). We considered that Twist1 could be influencing MYC expression levels, but MYC levels were similar between the two tumor models, while Twist1 was only overexpressed in the MYC/Twist1-HCC (Figure 1—figure supplement 1c-d). Tumor cell proliferative index (phospho histone three expression) and apoptosis (cleaved caspase three) between MYC- and MYC/Twist1-HCC were not different (Figure 1j–1k). Primary tumor-derived cell lines from MYC- and MYC/Twist1-HCC did not show any difference in migratory capacity (Figure 1—figure supplement 1e). Lastly, Twist1 is a regulator of epithelial-mesenchymal transition (EMT) 26,37, but we did not observe significant differences in the expression of multiple epithelial and mesenchymal markers between MYC and MYC/Twist1 tumors (Figure 1—figure supplement 1f). Therefore, Twist1 drives metastasis of MYC-induced HCC without affecting primary tumor burden, MYC expression, tumor cell proliferation, apoptosis, invasiveness or EMT markers.

MYC and Twist1 cooperate to remodel the tumor immune microenvironment

The influence of Twist1 on global gene expression was measured in MYC- and MYC/Twist1-HCC (n = 5) using next generation sequencing (NGS) based RNA sequencing. Through unsupervised hierarchical clustering using principal component analysis (PCA), MYC- and MYC/Twist1-HCC were found to have overall distinct, non-overlapping expression profiles that clustered separately (Figure 2a). A comparative analysis identified 514 genes (220 up and 294 down) that were differentially expressed between MYC-HCC and MYC/Twist1-HCC (p<0.001, q < 0.05, fold change ≥2) (Figure 2b, Supplementary file 1). Functional pathway analysis revealed the top biological processes upregulated in MYC/Twist1-HCC involved inflammatory responses including leukocyte infiltration, myeloid cell and granulocyte recruitment (Figure 2b, Figure 2—figure supplement 1a, Supplementary file 2). CIBERSORT (Newman et al., 2015) identified M2 macrophages to be significantly enriched in MYC/Twist1 tumors, of the 22 immune subsets analyzed (Figure 2c). MYC/Twist1-HCC exhibited a 15-fold shift in the ratio of M2 to M1 macrophages when compared to MYC tumors (Figure 2c). No significant differences in other major immune compartments were seen including- B cells, T cells, NK cells, dendritic cells, neutrophils, or mast cells (Figure 2d). Increased macrophage infiltration in MYC/Twist1 primary and metastatic tumors (Figure 2e) with no change in neutrophils or CD4 T cells infiltration was confirmed by IHC (Figure 2—figure supplement 1b). TAMs isolated from primary MYC/Twist1-HCC had increased macrophages of the M2 phenotype (Cd206High/Arg1High), more specifically a M2a phenotype (Figure 2f). Induction of MYC and Twist1 expression is associated with tumor initiation and rapid onset of macrophage infiltration in early tumors which increases during tumor progression. Conversely, the inactivation of MYC and Twist1 in tumors shows rapid and complete tumor regression in all observed mice (n = 20) within 2 weeks (Figure 2—figure supplement 1c) and also prompt exodus of macrophages (Figure 2g–2h).

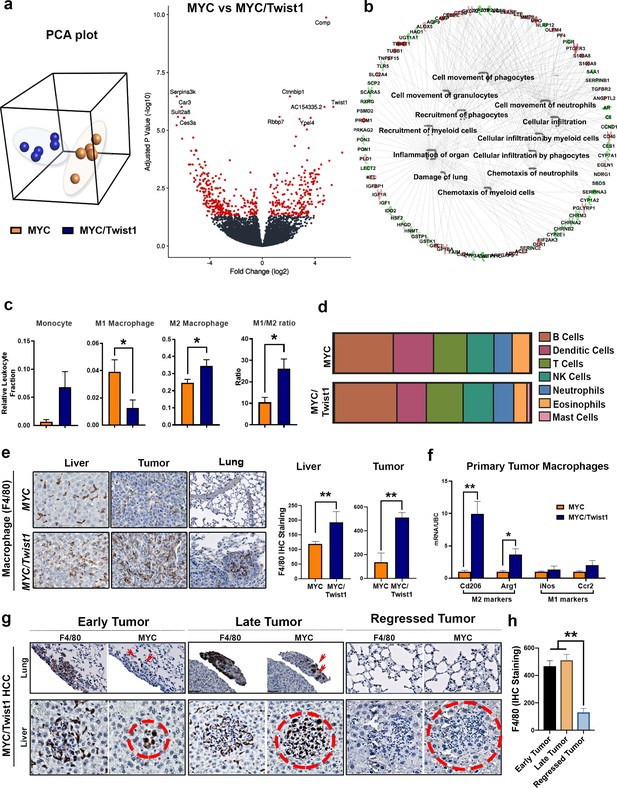

Figure 2 with 1 supplement see all
MYC and Twist1 cooperate to remodel the tumor immune microenvironment.

(a) Principal component analysis (PCA) showed that MYC- (n = 5) and MYC/Twist1-HCC (n = 5) overall had distinct, non-overlapping expression profiles. Volcano plot shows comparative analysis of differentially expressed genes between the MYC-HCC and MYC/Twist1-HCC. (b) Ingenuity pathway analysis of differentially expressed genes between MYC/Twist1- (n = 5) and MYC-HCC (n = 5) used to identify top biological processes upregulated in MYC/Twist1-HCC. (c) Comparison of relative percentage of monocyte and macrophage subpopulations, derived using CIBERSORT analysis, between MYC- (n = 5) and MYC/Twist1-HCC (n = 5) (*p<0.05). (d) Comparison of relative abundance of major immune subsets between MYC- (n = 5) and MYC/Twist1-HCC (n = 5) (p=ns). (e) Representative images from Immunohistochemistry staining for F4/80 in MYC and MYC/Twist1 normal liver (n = 4), primary tumor (n = 4) and lung (n = 4) with quantification in bar graph (*p<0.05, **p<0.01). (f) Macrophages were isolated from primary tumors and expression level of M2 markers (Cd206, Arg1) and M1 markers (iNos, Ccr2) was compared between MYC- and MYC/Twist1-HCC (*p<0.05). (g) Representative images from IHC staining for MYC and F4/80 in MYC/Twist1 HCC in temporal sequence from early tumor (n = 5) to later tumor (n = 5) and tumor regression (n = 5) upon oncogene inactivation. (h) Quantification of F4/80 staining in early tumor vs late tumor vs regressed MYC/Twist1-HCC (**p<0.01).

TAMs have been shown to increase the migratory capacity of tumor cells (Lin et al., 2001). Conditioned media from TAMs isolated from MYC/Twist1-HCC but not MYC-HCC increased the invasiveness of both MYC- and MYC/Twist1-HCC tumor cells in vitro (Figure 3a–3c).

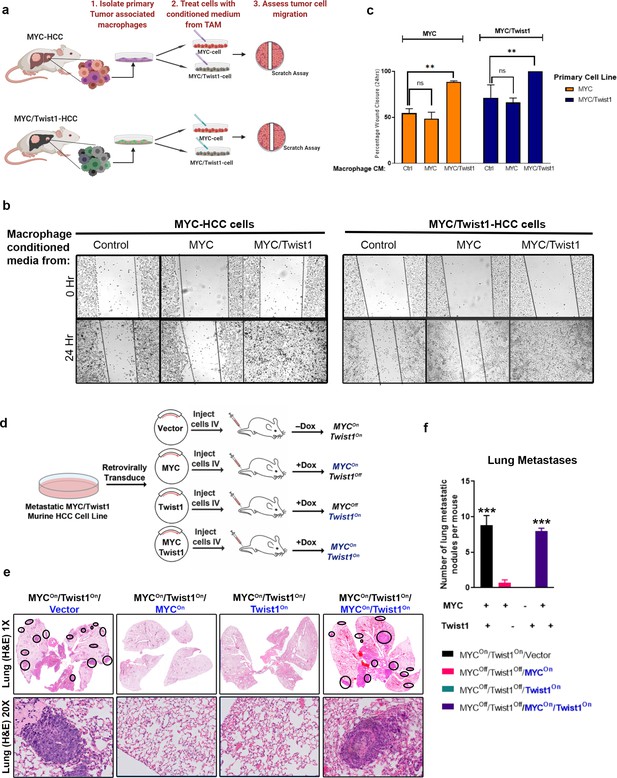

Figure 3 with 1 supplement see all
Coordinate expression of both MYC and Twist1 are necessary for inducing metastasis.

(a) Schematic of the experiment to extract tumor associated macrophages from the primary tumors of MYC- (n = 5) and MYC/Twist1-HCC (n = 5). Conditioned media from macrophages extracted from MYC-HCC (n = 3 biological replicates with three technical replicates each) or MYC/Twist1-HCC tumors (n = 3 biological replicates with three technical replicates each) was used to treat either MYC- or MYC/Twist1-HCC cells. (b) Wound healing assay was performed in MYC- or MYC/Twist1-HCC cells which were treated with conditioned media derived from TAMs isolated from primary MYC- or MYC/Twist1-HCC. (c) Bar graphs show quantification of percentage wound closure at 24 hr (**p<0.01). (d) Schematic showing generation of cell lines which constitutively express MYC and/or Twist1 (blue font) upon transgene inactivation with Dox treatment. (e) H and E (1X and 20X) of lungs of mice injected with the four different cell lines as shown in their individual titles. (f) Quantification of lung metastatic burden upon intravenous (IV) injection of cell lines expressing either MYC or Twist1 alone or both (***p<0.001).

To discriminate the independent roles of MYC and Twist1 in metastasis we developed cell lines where we could modulate the expression of MYC and Twist1 separately. Primary cell lines from MYC/Twist1 HCC were retrovirally transduced with MYC and/or Twist1, such that upon inactivation of transgene expression with Doxycycline, they now constitutively expressed MYC and/or Twist1 (Figure 3d). We confirmed that treatment of these cell lines with doxycycline resulted in the continued expression of constitutive MYC and/or Twist1 by qPCR (Figure 3—figure supplement 1a-b). We observed that the inactivation of either MYC or Twist1 abrogated the ability of the cells to develop lung metastasis when injected intravenously in NOD scid gamma (NSG) mice, while cells expressing both MYC and Twist1 led to development of extensive lung metastasis with prominent macrophage infiltration (Figure 3e–3f, Figure 3—figure supplement 1c). Thus, MYC and Twist1 cooperate, and are both required to induce metastasis of HCC by a macrophage dependent mechanism.

Tumor associated macrophages are required for Twist1 to induce metastasis

We determined if TAMs are required for Twist1 to drive metastasis on MYC-HCC in vivo. Primary tumor-derived cell lines which conditionally express MYC or MYC/Twist1 (Figure 4—figure supplement 1a) were re-introduced in vivo either by orthotopic transplantation into the liver or intravenous injection. Orthotopic implantation (Figure 4a) of MYC/Twist1- but not MYC-HCC tumor cells in NSG mice led to pulmonary and intrahepatic metastases with extensive macrophage infiltration (Figure 4b–c, Figure 4—figure supplement 1b). Macrophage depletion with clodronate liposomes (Moreno, 2018) but not control liposomes, in mice orthotopically transplanted with MYC/Twist1-HCC had reduced intrahepatic (p=0.0006, FC 4.4) and lung metastases (p<0.0001, FC 8.8) (Figure 4e–f). Quantification of BLI signal at the end of treatment did not show statistical difference in densitometry between control treated and clodronate treated mice (Figure 4e). Note, clodronate was confirmed to remove macrophages but not affect tumor cells (Figure 4—figure supplement 1c-d). A reduction in the number of macrophages was confirmed by IHC for F4/80 in normal liver, tumor and lungs (p<0.001) (Figure 4—figure supplement 1e-f).

Figure 4 with 1 supplement see all
Tumor associated macrophages are required for Twist1 to induce metastasis of MYC-HCC.

(a) Experimental scheme- MYC and MYC/Twist1 cells were implanted orthotopically and metastatic burden in liver and lung assessed after 4 weeks. (b) Representative BLI imaging, gross organ appearance, histopathology of liver (10X) and lungs (1X) from mice orthotopically implanted with MYC (n = 5) and MYC/Twist1 cells (n = 5). (c) Comparative quantification of liver and lung metastatic burden between MYC (n = 5) and MYC/Twist1 orthotopic HCC (n = 5). (**p<0.01). (d) Experimental model of orthotopic MYC/Twist1-HCC treatment either with control liposomes or clodronate liposomes for 4 weeks for macrophage depletion. (e) Representative BLI imaging, BLI quantification, gross organ appearance, histopathology of liver and lungs from MYC/Twist1 orthotopic HCC bearing mice treated with either control liposomes (n = 5) or clodronate liposomes (n = 4). (f) Comparative quantification of liver and lung metastatic burden between MYC/Twist1 orthotopic HCC bearing mice treated with either control liposomes (n = 5) or clodronate liposomes (n = 4) (**p<0.01). (g) Experimental scheme- MYC and MYC/Twist1 cells were injected intravenously and metastatic burden in lung assessed after 4 weeks. (h) Representative BLI imaging, gross organ appearance, histopathology of lungs from mice intravenously injected with MYC (n = 5) and MYC/Twist1 cells (n = 4). (i) Comparative quantification of lung metastatic burden between MYC (n = 5) and MYC/Twist1 intravenously injected HCC (n = 4). (**p<0.01). (j) Experimental model of intravenous MYC/Twist1-HCC treatment either with control or clodronate liposomes for 3 weeks for macrophage depletion. (k) Representative BLI imaging, and lung histopathology from MYC/Twist1 intravenous HCC injected mice treated with either control liposomes (n = 4) or clodronate liposomes (n = 5). (l) Comparative quantification of liver and lung metastatic burden between MYC/Twist1 intravenously injected HCC bearing mice treated with either control liposomes (n = 4) or clodronate liposomes (n = 5) (**p<0.01).

To evaluate if macrophages are required for the colonization step of metastasis, we used the lung trap assay. Intravenous injection of MYC/Twist1-HCC but not MYC-HCC cells resulted in pulmonary metastases associated with macrophage infiltration (Figure 4g–i, Figure 4—figure supplement 1g). Clodronate depletion of macrophages, almost completely abrogated pulmonary metastasis (p=0.0003, FC 4.3) (Figure 4j–4l). Therefore, Twist1 elicits metastasis of MYC-HCC and promotes the invasiveness and colonization of metastases by a macrophage-dependent mechanism.

MYC and Twist1 reprogram the crosstalk between cancer cells and macrophages

To evaluate if cytokines secreted by cancer cells mediate MYC and Twist1 driven macrophage recruitment and polarization, we evaluated the impact of tumor cell derived conditioned media on non-polarized macrophage cell lines. Conditioned media derived from MYC/Twist1- but not MYC-HCC cells (Figure 5a) was sufficient to promote the migration of macrophages towards cancer cells (Figure 5b). Conditioned media from MYC/Twist1- but not MYC-HCC cells was able to elicit changes in the morphology of macrophages to resemble M2 phenotype (McWhorter et al., 2013) (Figure 5c) and increased expression of M2 markers: Cd206, Arg1 and Cc3cr1 (Figure 5c), but not M1 markers: iNos, Ccr2, Ifnar2 (Figure 5—figure supplement 1a). A multiplex ELISA for 38 cytokines was performed (Figure 5d) identifying that MYC/Twist1-HCC cells had increased secretion of cytokines: Il13, Ccl2, Ccl5, Ccl7 and Cxcl1 (p<0.05; Fold change ≥2, mean ≥20 ng/ml) (Figure 5e, Figure 5—figure supplement 1b). These five cytokines were confirmed to be transcriptionally upregulated in MYC/Twist1- vs. to MYC cells by qPCR (Figure 5e).

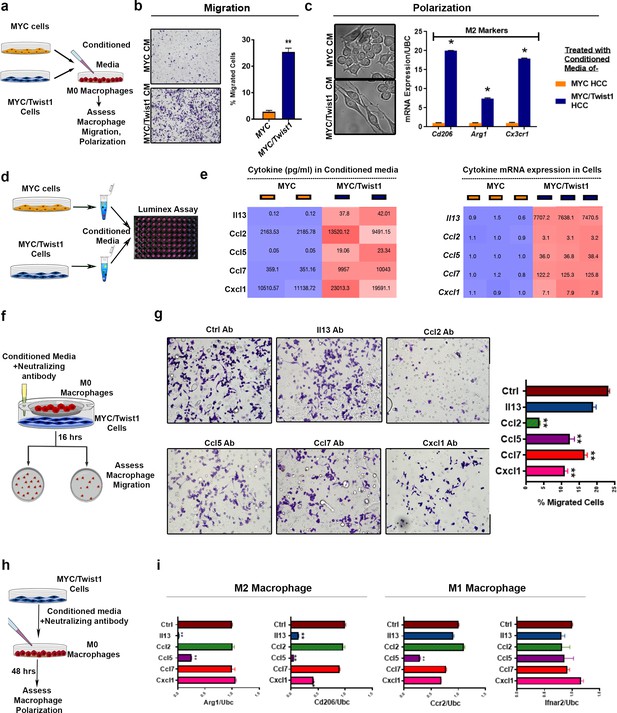

Figure 5 with 1 supplement see all
MYC and Twist1 reprogram the cytokinome to induce macrophage recruitment and polarization.

(a) Experimental scheme- conditioned media (CM) from MYC or MYC/Twist1 cells was used to treat non polarized macrophages for 48 hr. Following that, macrophage migration or polarization was assessed. (b) Transwell macrophage migration across a membrane insert when treated with CM from MYC-cells (n = 3 biological replicates, with three technical replicates each) or MYC/Twist1-cells (n = 3 biological replicates, with three technical replicates each). Bar graph shows quantification of migrated cells. (c) Morphologic appearance of macrophages treated with CM from MYC or MYC/Twist1 cells. Expression of M2 markers (CDd06, Arg1, Cx3cr1) in macrophages treated with CM from MYC (n = 3 biological replicates, with three technical replicates each) or MYC/Twist1 cells (n = 3 biological replicates, with three technical replicates each). (*p=0.05). (d) Experimental scheme- the CM from MYC or MYC/Twist1cells were analyzed using Luminex-plate based multiplex ELISA assay. (e) Heatmap showing expression levels of top five differentially secreted cytokines in CM of MYC (n = 3 biological replicates, with three technical replicates each) or MYC/Twist1 cells(n = 3 biological replicates, with three technical replicates each) by ELISA. Second heatmap showing mRNA expression levels of top five cytokines between MYC  or MYC/Twist1 cells by qPCR. (f) Experimental scheme- Co-culture of MYC/Twist1 cells and macrophages separated by a chamber to evaluate chemotaxis of macrophages towards the cancer cells was performed. Neutralizing antibodies to individual cytokines or control antibody were added to the CM of MYC/Twist1 cells. (g) Transwell chamber migration assay of macrophages in the upper chamber toward the MYC/Twist1 cells in the lower chamber. MYC/Twist cells CM was treated with control antibody or neutralizing antibody to Il13, Ccl2, Ccl5, Ccl7 or Cxcl1 respectively. (n = 3 biological replicates, with three technical replicates each)(**p<0.01). (h) Experimental scheme- CM of MYC/Twist1 cells treated with control antibody or neutralizing antibody to Il13, Ccl2, Ccl5, Ccl7 or Cxcl1 respectively was added to non-polarized macrophages for 48 hr. (i) Macrophage polarization was assessed by qPCR for M2 markers (ARG1, CD2016) and M1 markers (Ifnar2, Ccr2)(n = 3 biological replicates, with three technical replicates each) (***p<0.001).

The role of individual cytokines in macrophage recruitment was assessed. Antibodies that neutralize Ccl2, Ccl5, Ccl7 or Cxcl1 inhibited the ability of conditioned media from MYC/Twist1-HCC to promote migration of macrophages (Figure 5f–h). Neutralization of Ccl2 decreased migration 7-fold (p<0.0001), Ccl5 1.2-fold (p=0.001), Ccl7 1.8-fold (p=0.001) and Cxcl1 2.1-fold (p=0.0002). Neutralizing Il13 (p=ns, FC 1.2) did not affect macrophage migration. Also, we found that the neutralization of Ccl2 inhibited the recruitment of macrophages into MYC/Twist1-spheroids by 3D culture (Figure 5—figure supplement 1c).

Next, the role of cytokines on macrophage polarization was determined (Figure 5h). We found that neutralization of Il13 blocked M2 polarization by 50-fold reduction in Cd206 expression (p<0.0001) and 7-fold decrease in Arg1 (p<0.0001) without any change in M1 markers. Neutralization of Ccl5 led to a 4-fold reduction in Cd206 (p<0.001) and 1.1-fold decrease in Arg1 (p<0.05) and Cxcl1 led to 2.4-fold decrease in Cd206 (p<0.001) without significant change in Arg1 (p=ns) (Figure 5i). Conversely, adding the cytokines Il13, but not Ccl2, to co-cultured MYC-HCC cells increased M2 markers expression (Figure 5—figure supplement 1d).

MYC and TWIST1 are both transcription factors, so we evaluated if they epigenetically regulated CCL2 and IL13 expression. We identified MYC and TWIST1 promoter binding upstream of human CCL2 and IL13 protein-coding genes in Gene Transcription Regulation Database (GTRD), a meta-analysis of Chip-seq experiments (Dreos et al. 2017; Yevshin et al., 2019) (Figure 5—figure supplement 1e). Both MYC and Twist1 demonstrated binding at multiple sites in the promoter regions of CCL2 and IL13 in the ChIP-seq data from several different cancer cell lines (Figure 5—figure supplement 1e). We also looked for MYC and Twist1 promoter binding sites in mouse Ccl2 and Il13 promoters using motif finding analysis of the public data from JASPAR (Bryne et al., 2008) and Eukaryotic promoter database (EPD) (Dreos et al. 2017). Again, we found multiple potential MYC and Twist1 transcription factor binding sites for both Ccl2 and Il13 (Figure 5—figure supplement 1f). These data suggest that MYC and Twist1 cooperate to transcriptionally regulate expression of Ccl2 and Il13 in the cancer cells.

Ccl2 and Il13 are sufficient and required for metastasis of HCC

We examined if Ccl2 and/or Il13 are sufficient to elicit metastasis in vivo. Orthotopic transplants of non-metastatic MYC-HCC in NSG mice were treated with either PBS (control), or with recombinant Ccl2 alone or Il13 alone or their combination for 4 weeks (Figure 6a). Control mice did not develop metastatic nodules even though scattered, single cells were found in the lungs (Figure 6b). No mice treated with Ccl2 alone (p=0.390, FC = 3) or Il13 alone (p=0.99, FC = 1) exhibited intrahepatic or pulmonary metastases (Figure 6c, e and g). All orthotopic MYC-HCC mice treated with the combination of Ccl2 and Il13 developed intrahepatic metastases (p=0.008, FC 2.5) and multifocal pulmonary metastases (p=0.02, FC = 104.4) (Figure 6c, e and g). Hence, both Ccl2 and Il13 are sufficient to elicit MYC-HCC to metastasize, even if Twist1 is not expressed in the tumor cells.

Figure 6 with 1 supplement see all
MYC and TWIST1 require both Ccl2 and Il13 to promote metastasis.

(a) Experimental scheme- Mice orthotopically transplanted with MYC-HCC cells were treated either with PBS or Il13 or Ccl2 or Ccl2+Il13 recombinant cytokines for 4 weeks. (b) MYC expressing single cells scattered in the lungs of mice orthotopically bearing MYC-HCC. (c) Histopathology of liver (1X and 20X) of MYC-HCC bearing mice treated with PBS (n = 4) or Ccl2 (n = 4) or Il13 (n = 4) or Ccl2+Il13 (n = 4) and IHC for F4/80 and MYC expression in each group. (d) Quantification of number of metastatic nodules in the liver control treated or recombinant cytokine treated MYC-HCC bearing mice. (*p<0.05). (e) Quantification of macrophage infiltration in liver by IHC staining for F4/80 of MYC-HCC bearing mice liver treated with PBS (n = 4) or Ccl2 (n = 4) or Il13 (n = 4) or Ccl2+Il13 (n = 4). (f) Representative images from histopathology of lung (1X and 20X) of MYC-HCC bearing mice treated with PBS or Ccl2 or Il13 or Ccl2+Il13 and IHC for F4/80 and MYC expression in each group. (g) Quantification of number of metastatic nodules in the lung of control treated or recombinant cytokine treated MYC-HCC bearing mice. (**p<0.01). (h) Quantification of macrophage infiltration in lung by IHC staining for F4/80 of MYC-HCC bearing mice liver treated with PBS (n = 4) or Ccl2 (n = 4) or Il13 (n = 4) or Ccl2+Il13 (n = 4).

We evaluated if treatment with cytokines altered tumor macrophage infiltration. The combined treatment with Ccl2 and Il13 increased macrophage infiltration at both the orthotopic primary tumor in the liver and pulmonary metastases (p<0.0001) (Figure 6e and h), with enrichment of M2-like Cd206+ TAMs (Figure 6—figure supplement 1a-b). Treatment with Ccl2 alone increased macrophage recruitment 1.8-fold (p=0.001) but did not induce metastasis (Figure 6c, d, f and g). On the other hand, treatment with Il13 alone did not increase either macrophage infiltration or induce metastasis (Figure 6e and h). Also, in vivo treatment of MYC-HCC with combination of Ccl2 and Il13 stimulated angiogenesis. The most significant increase in angiogenesis, as assessed by Cd31 IHC staining, was noted in MYC-HCC tumors in mice treated with Ccl2 and Il13 (Figure 6—figure supplement 1c). As a negative control, treatment with recombinant Il4, a cytokine which was not increased in MYC/Twist1-HCC was performed. Il4 did not elicit either macrophage recruitment or increase metastasis (Figure 6—figure supplement 1d-e). Thus, combination of Ccl2 and Il13 induces metastasis of MYC-HCC associated with macrophage recruitment and polarization.

Combined inhibition of Ccl2 and Il13 synergistically inhibits metastasis in vivo

We examined if neutralizing antibodies to Ccl2 and/or Il13 influenced metastasis in vivo. Mice with orthotopic transplants of metastatic MYC/Twist1-HCC were treated either with control antibody, or anti-Ccl2 antibody alone or anti-Il13 antibody alone or their combination for 4 weeks (Figure 7a). We first confirmed that there was no statistical difference in orthotopic primary liver tumor burden between the four groups by quantifying primary tumor volume. Quantification of BLI imaging showed a trend towards decrease but no statistical difference in liver tumor burden between the four groups (Figure 7b–c). Control antibody treated mice, as expected, developed multifocal intrahepatic and pulmonary metastases with extensive macrophage infiltration (Figure 7c–e). Inhibition of Ccl2 alone led to 7-fold decrease (p=0.002) and Il13 alone to a 2.5-fold decrease (p=0.03) in lung metastasis (Figure 7c and e). Further, treatment with combination of anti-Ccl2 and anti-Il13 antibodies showed synergism, and led to a 12-fold decrease in liver metastases (p=0.0006, Figure 7c and d) and 14-fold decrease in lung metastases (p=0.0009) (Figure 7c and e).

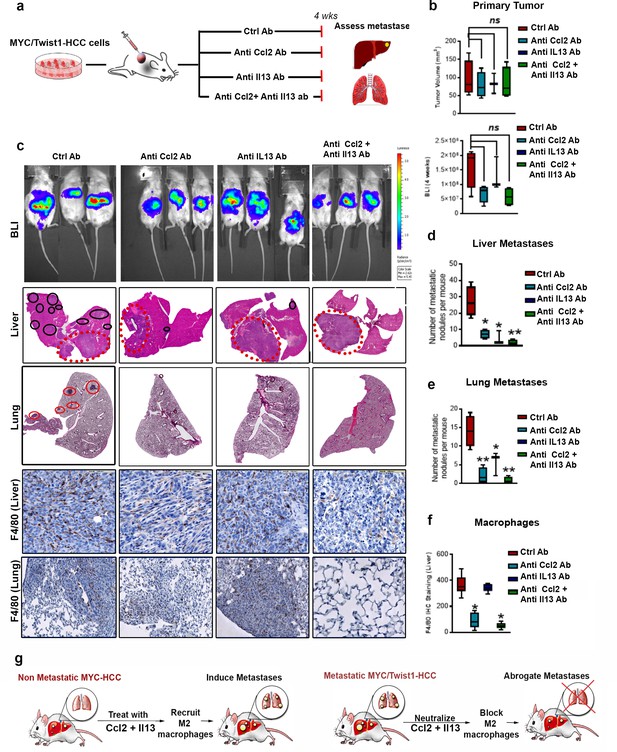

Figure 7 with 1 supplement see all
Combined inhibition of Ccl2 and Il13 has a synergistic effect on prevention of HCC metastasis.

(a) Experimental scheme- Mice orthotopically transplanted with MYC/Twist1-HCC cells were treated either with control (ctrl) antibody or anti-Ccl2 antibody (ab) or anti-Il13 ab or anti-Ccl2+Il13 abs for 4 weeks. (b) Quantification of tumor volume of primary tumor and bioluminescence signal at 4 weeks in mice treated with ctrl ab (n = 4), anti-Ccl2 ab (n = 4) or anti-Il13 ab (n = 3) or anti-Ccl2+Il13 abs (n = 4). (c) BLI images, histopathology of liver (1X) and lungs (1X) of MYC/Twist1-HCC bearing mice treated with ctrl ab (n = 4) or anti-Ccl2 ab (n = 4) or anti-Il13 ab (n = 3) or anti-Ccl2+Il13 abs (n = 4) and IHC for F4/80 (20X) expression in the liver tumors and lungs in each group. The red dotted circles represent primary orthotopic tumor and the black circles show the metastatic nodules. (d) Quantification of number of metastatic nodules in the liver in MYC/Twist1-HCC bearing mice treated with ctrl ab or anti-Ccl2 ab or anti-Il13 ab or anti-Ccl2+Il13 abs. (**p<0.01). (e) Quantification of number of metastatic nodules in the liver in MYC/Twist1-HCC bearing mice treated with ctrl ab or anti-Ccl2 ab or anti-Il13 ab or anti-Ccl2+Il13 abs. (**p<0.01). (f) Quantification of macrophage infiltration in liver by IHC staining for F4/80 of MYC/Twist1-HCC bearing mice treated with ctrl ab (n = 4) or anti-Ccl2 ab (n = 4) or anti-Il13 ab (n = 3) or anti-Ccl2+Il13 abs (n = 4). (**p<0.01). (g) Schematic representation of how combined treatment of non-metastatic MYC-HCC can now induce metastases and synergistic inhibition of Ccl2 and Il13 can inhibit metastasis of MYC/Twist1-HCC.

The combined inhibition of Ccl2 and Il13 was noted to lead to dramatic reduction in macrophage recruitment (p<0.0001, FC 7.1)(Figure 7c and f) and polarization to M2-like phenotype (Figure 7—figure supplement 1a). The inhibition of Ccl2 alone (p<0.001, FC 4.0), but not Il13 (p=0.435), decreased macrophage recruitment (Figure 7c and f). While inhibition of Il13, either alone or in combination with Ccl2, led to loss of M2-like Cd206+ or Arg1+ macrophages in primary or metastatic sites (Figure 7—figure supplement 1a–b). Thus, inhibition of Ccl2 and Il13 decrease macrophage recruitment and polarization respectively. As a control, mice bearing MYC/Twist1-HCC were treated with anti-Il4 antibody, which we show had no effect on metastasis or macrophage recruitment (Figure 7—figure supplement 1 c–e). Therefore, combined inhibition of Ccl2 and Il13 synergistically reduced macrophage recruitment and polarization thus blocking metastases (Figure 7g).

MYC and TWIST1 predict poor prognosis, TAM infiltration and pro-TAM cytokines in 33 human cancers

We examined if MYC and TWIST1 cooperated in human tumorigenesis by examining 9502 human patients with 33 different cancers from a TCGA study (Tang et al., 2017) and 144 HCC patients with metastatic HCC (Ye et al., 2003). Increased MYC and TWIST1 expression was associated with significantly worse disease-free survival (DFS) (p=4.3×10−10) in the pan-cancer cohort (Figure 8a). Combined overexpression of MYC, TWIST1, CCL2 and IL13 predicted a slightly worse disease-free survival than MYC+TWIST1 overexpression alone (p=2.9×10−12) (Figure 8a). In another cohort of 144 patients with metastatic HCC, combined overexpression of MYC and TWIST1 was associated with significantly worse prognosis than either MYC or TWIST1 alone (Figure 8b).

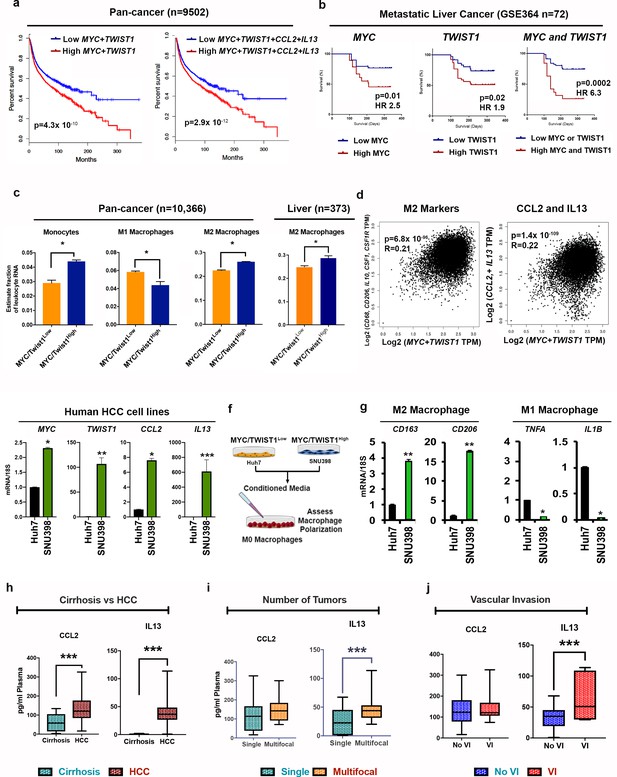

Figure 8 with 1 supplement see all
MYC and TWIST1 predict poor prognosis, TAM infiltration and pro-TAM cytokines in 33 human cancers.

(a) Disease-free survival in pan-cancer TCGA cohort of 9502 patients from 33 cancers stratified by median MYC+TWIST1 expression (first KM curve) and median MYC+TWIST1+ CCL2+IL13 (second KM curve). (b) Disease-free survival in GSE364 cohort of metastatic HCC patients (n = 144) stratified by median MYC and TWIST1 expression. (c) Comparison of relative percentage of monocyte and macrophage subpopulations, derived using CIBERSORT analysis of pan cancer TCGA cohort of 10366 patients from 33 cancers with tumors stratified as MYC/TWIST1High or MYC/TWIST1low (*p<0.05). Comparison of relative percentage of M2 macrophage subpopulation, derived using CIBERSORT analysis of Liver cancer TCGA cohort of 373 patients with tumors stratified as MYC/TWIST1High or MYC/TWIST1low (*p<0.05). (d) Correlation of MYC+TWIST1 expression with TAM markers in TCGA pan-cancer cohort and HCC cohort. Correlation of MYC+TWIST1 expression with CCL2 and IL13 in TCGA pan-cancer cohort (n = 9502). (e) Comparison of mRNA expression of MYC, TWIST1, CCL2 and IL13 between two HCC cell lines Huh7 (n = 3 biological replicates with three technical replicates each) and SNU398 (n = 3 biological replicates with three technical replicates each). (f) Experimental scheme for analysis of macrophage polarization in vitro assay. (g) Expression of M2 (CD163, CD206) and M1 markers (TNFA, IL1B) after treatment with conditioned media from Huh7 (n = 3 biological replicates with three technical replicates each) or SNU398 (n = 3 biological replicates with three technical replicates each). (*p<0.05, **p<0.01, ***p<0.001). (h) Prospective clinical study of plasma levels of cytokines in patients with cirrhosis (n = 10) versus patients with HCC (n = 25). (*p<0.05, **p<0.01, ***p<0.001). (i) Comparison of plasma levels of cytokines between patients with single HCC versus multifocal HCC (*p<0.05, **p<0.01, ***p<0.001). (j) Comparison of plasma levels of cytokines between patients with HCC with vascular invasion and without vascular invasion (*p<0.05, **p<0.01, ***p<0.001).

We determined if MYC and TWIST1 in human tumors cooperated to influence the tumor microenvironment through CIBERSORT analysis of 10,366 tumors from the human pan-cancer TCGA study (Thorsson et al., 2018). TAMs were the most common infiltrating immune cells in most types of human cancers (Figure 8—figure supplement 1a) including HCC (Figure 8—figure supplement 1b). Compared to MYC/TWIST1Low tumors, MYC/TWIST1High tumors were infiltrated with significantly higher proportion of monocytes (2.9% vs 4.4%; p<0.001) and M2 macrophages (22% vs 26%, p<0.001), while there was a lower proportion of M0 (10% vs 7%, p<0.001) and M1 macrophages (6% vs 4%, p<0.001) (Figure 8c). This was also true in the HCC cohort (M2 macrophages 24% vs 28% p=0.001; Figure 8c). Moreover, combined MYC and TWIST1 expression strongly correlated with the expression of M2 macrophage related genes in the pan-cancer TCGA data (Figure 8d). Increased TAM infiltration in HCC was highly prognostic of overall survival on univariate and multivariate analysis (p=0.01, HR 16.0, Figure 8—figure supplement 1c-e). Also, M2-like TAMs were associated with presence of vascular invasion, advanced stage and poor tumor grade (Figure 8—figure supplement 1f) in HCC. Further, combined MYC and TWIST1 expression correlated strongly with CCL2 and IL13 in the pan-cancer cohort (p=1.4×10−109) (Figure 8d). Thus, MYC and TWIST1 predict poor survival, CCL2/IL13 expression and M2-like TAM infiltration in human cancers.

We screened MYC and TWIST1 expression in four human HCC cell lines-Huh7, SNU398, SNU475 and SNU182. We identified Huh7 as a MYC/TWIST1Low cell line and SNU398 as MYC/TWIST1High cell line (Figure 8e). The other two cell lines had intermediate levels of TWIST1. The MYC/TWIST1High cells transcriptionally expressed significantly higher levels of CCL2 and IL13 when compared to the MYC/TWIST1Low cells (Figure 8e). We treated macrophages with conditioned media derived from either MYC/TWIST1Low or MYC/TWIST1High cells, in vitro, and assessed their effect on macrophage polarization (Figure 8f). Conditioned media from MYC/TWIST1High cells polarized macrophages to M2-like phenotype while conditioned media from MYC/TWIST1Low cells induced a M1-like phenotype (Figure 8g). Thus, combined MYC and TWIST1 in human HCC cells lines is associated with CCL2 and IL13 secretion and macrophage M2-like polarization.

Lastly, a prospective clinical study was performed to measure CCL2 and IL13 in human patients with HCC (n = 25) and in patients with cirrhosis of the liver (n = 10). Both CCL2 (p=0.006) and IL13 (p<0.0001), were significantly elevated in the plasma of patients with HCC but not cirrhosis (Figure 8h). Increased expression of IL13, but not CCL2, was associated with the presence of multifocal tumors (p=0.04), suggestive of association with aggressive phenotype (Figure 8i). Also, IL13 levels were higher in the plasma of patients with HCC with vascular invasion, which is a known indicator of metastatic tumor spread in HCC (p=0.01) (Figure 8j). Thus, the plasma levels of the cytokines CCL2 and IL13 are elevated in patients with HCC, and higher IL13 levels predict multifocal and invasive HCC.

Discussion

We found that MYC and TWIST1 drive metastasis by eliciting a transcriptional program in cancer cells that induces cytokines that in turn enable crosstalk between tumor and host, thus eliciting the recruitment and polarization of macrophages (Figure 9). To perform our studies, we have generated the first autochthonous transgenic mouse model of HCC metastasis by hepatocyte-specific expression of MYC and Twist1 that will be useful to study tumor progression and identify new therapies. We demonstrate that constitutive expression of both MYC and Twist1 is required for metastasis. MYC and Twist1 coordinate to regulate a cytokinome, including Ccl2 and Il13, that both are necessary and sufficient to elicit metastasis. Moreover, in 33 different human cancers, expression of both MYC and TWIST1 predict survival, expression of CCL2/IL13 and M2-like TAM infiltration. In a prospective clinical analysis, human patients with HCC but not cirrhosis had increased plasma levels of CCL2 and IL13 that was associated with invasive and multifocal disease. We conclude that MYC and TWIST1 are general drivers of metastasis.

MYC and Twist1 Drive Metastasis via CCL2/IL13 mediated macrophage activation.

Graphical representation showing that MYC and Twist1 elicit a cytokinome including CCL2/IL13 which mediate the crosstalk between cancer cells and macrophages. Therapeutic blockade of the cytokines can inhibit cancer metastasis.

We generated a new conditional transgenic mouse model of metastasis that has some features that are complementary to existing model systems (Gómez-Cuadrado et al., 2017). Our models enabled us to interrogate tumor and host interactions during malignant progression in an immunocompetent host. Through the Tet system, we were able to elicit inducible combined MYC and Twist1 expression restricted to the hepatocytes. In our model, greater than 90% of the mice predictably developing extrahepatic metastasis. This allowed us to directly compare the non-metastatic MYC-HCC and the metastatic MYC/Twist1-HCC, to identify specific mechanisms of metastasis. We believe our model will serve as a useful system for developing new therapies that block cancer metastasis.

Our work is the first to suggest that MYC and Twist1 generally cooperate to drive metastasis. By analyzing ChIP-seq data, we found MYC and Twist1 bind to both the promoters of human and mouse Ccl2 and Il13 genes. Our results are consistent with a recent report that Twist1 promotes the invasion of MYCN to enhancer sites thus potentiating its pro-proliferative function (Zeid et al., 2018). Thus, our results suggest that MYC and Twist1 may contribute to metastasis through a transcriptional mechanism of inducing a cytokinome that activates macrophages. We note that our observations are consistent with a multitude of reports that innate immunity contributes to metastasis (Kitamura et al., 2015; Pollard, 2004) and Twist1 contributes to metastasis (Xu et al., 2017; Yang et al., 2004). However, our work is the first to suggest that MYC and Twist1 together affect transcription in a manner that modulates innate immunity, thereby driving metastasis.

We propose as a possible general explanation for our findings that overexpression of MYC and TWIST1 in a tumor is activating an embryonic program of innate immune cell activation and cellular invasion. MYC and TWIST1 have been reported to cooperate during embryogenesis (Bellmeyer et al., 2003; Rodrigues et al., 2008). The two transcription factors also have been shown to transcriptionally modulate inflammation during embryogenesis (Hurlin, 2013; Rodrigues et al., 2008; Spicer et al., 1996). These microenvironment changes are required to enable mesodermal cells to migrate to their destination (Šošić et al., 2003). Both MYC and TWIST1 are overexpressed in multiple human cancers, suggesting there is a common embryonic transcriptional program they regulate in the embryonic microenvironment which is hijacked by cancer cells (Hendrix et al., 2007). Hence, MYC and TWIST1 overexpression in cancer may be eliciting tumor invasion by activating embryonic programs that otherwise physiologically enable mesodermal migration.

We identified that MYC and Twist1 generally elicit a cytokinome that includes Ccl2 and Il13 that we show are necessary and sufficient to drive metastasis. Our work is consistent with a prior report that Twist1 transcriptionally induces Ccl2 in breast cancer cell lines that leads to macrophage recruitment (Low-Marchelli et al., 2013). However, our study further demonstrates Ccl2 induced macrophage recruitment alone was not sufficient to cause metastasis in vivo and Il13 induced macrophage polarization plays an essential and complementary role in promoting angiogenesis and metastasis. Further, our results suggest that Ccl2 and Il13 alone can enable a non-metastatic cancer to become metastatic, cell non-autonomously. In this regard, it is notable that there are anecdotal reports suggesting that metastasis can occur during circumstances that would promote inflammation such as surgery (Tohme et al., 2017) or during infection (Smith and Kang, 2013).

Our findings have general relevance to human cancer. First, in 9502 patients with 33 different types of human cancer, the subset of tumors with MYC and TWIST1 predicts poor survival, CCL2/IL13 expression and TAM infiltration. Second, in human patients with HCC, we found that CCL2, and IL13, were elevated in the plasma of patients with HCC and IL13 levels predicted invasive and aggressive HCC. Stratifying patients based on cytokine expression may help direct therapy. Third, the combined inhibition of CCL2 and IL13 profoundly impeded metastasis in our in vivo experimental model of liver cancer. Inhibition of CCL2 alone has not been effective in clinical trials for solid tumors (Brana et al., 2015; Lim et al., 2016; Pienta et al., 2013). We suggest that personalized therapy that combines the inhibition of CCL2 and IL13 is more likely to be effective.

Our work identifies two transcription factors, MYC and TWIST1, are key drivers of metastasis. Together, they elicit a cytokinome, that includes CCL2 and IL13, enabling crosstalk between cancer cells and host macrophages that drives tumor progression.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
AntibodyMYC (Rabbit, Monoclonal)EpitomicsRRID:AB_11000313IHC (1:150), WB (1:1000)
AntibodyF4/80 (Rat, Monoclonal)ThermoFisherRRID: AB_10376289IHC (1:150)
AntibodyTwist1 (Mouse, Monoclonal)AbcamRRID:AB_883294WB (1:500)
AntibodyPhospho-Histone 3 (Rabbit, Polyclonal)Cell Signaling TechnologyRRID:AB_331535IHC (1:100)
AntibodyCleaved Caspase3 (Rabbit, Polyclonal)Cell Signaling TechnologyRRID:AB_2341188IHC (1:100)
AntibodyNeutrophil (Rat, Monoclonal)AbcamRRID:AB_881409IHC (1:100)
AntibodyCD4 (Mouse, Monoclonal)AbcamRRID:AB_2686917IHC (1:1000)
AntibodyGlutamine Synthetase (Rabbit, Monoclonal)AbcamRRID:AB_446132IHC (1:200)
AntibodyCD31 (Rabbit, Polyclonal)AbcamRRID:AB_726362IHC(1:100)
AntibodyCD206 (Mouse, Monoclonal)R and DRRID:AB_2745540ICC (1:100)
AntibodyCCL2 (Mouse, Monoclonal)BioXCellRRID:AB_10950302In vivo treatment (10 mg/kg body weight three times per week)
AntibodyIl-4 (Mouse, Monoclonal)GenentechPropreitaryIn vivo treatment (10 mg/kg body weight three times per week)
AntibodyIL-13 (Mouse, Monoclonal)GenentechPropreitaryIn vivo treatment (10 mg/kg body weight three times per week)
Genetic Reagent (M. musculus)Twist1-tetO7-lucPMID: 22654667Twist1 Transgenic mouse modelFelsher Lab
Genetic Reagent (M. musculus)LAP-tTAPMID: 15475948LAP-tTA mouseFelsher Lab
Genetic Reagent (M. musculus)TetO-MYCPMID: 10488335MYC Transgenic mouseFelsher Lab
Genetic Reagent (M. musculus)Nod Scid-Gamma (NSG) miceJackson LaboratoryMGI:3577020Felsher Lab
CytokineCCL2PeprotechRRID:AB_147738In vivo treatment (500 ng/mouse)
CytokineIL13PeprotechRRID:AB_147840In vivo treatment (250 ng/mouse)
CytokineIL4PeprotechRRID:AB_147635In vivo treatment (250 ng/mouse)
DrugClodronate liposomesLiposomaCP-005–005In vivo treatment (6.5 μl/g body weight/mouse)
Sequence-based reagentMYCStanford PAN facilityN/Af-CTGCGACGAGGAGGAGAACT r-GGCAGCAGCTCGAATTTCTT
Sequence-based reagentUBCStanford PAN facilityN/Af-AGCCCAGTGTTACCACCAAG r-ACCCAAGAACAAGCACAAGG
Sequence-based reagentTwist1Stanford PAN facilityN/Af-GGACAAGCTGAGCAAGATTCA r-CGGAGAAGGCGTAGCTGAG
Sequence-based reagentCD206Stanford PAN facilityN/Af-CTCTGTTCAGCTATTGGACGC r-TGGCACTCCCAAACATAATTTGA
Sequence-based reagentArginase-1Stanford PAN facilityN/Af-CTCCAAGCCAAAGTCCTTAGAG r-AGGAGCTGTCATTAGGGACATC
Sequence-based reagentCCR2Stanford PAN facilityN/Af-GTGTACATAGCAACAAGCCTCAAAG r-CCCCCACATAGGGATCATGA
Sequence-based reagentINFaRStanford PAN facilityN/Af-CTTCCACAGGATCACTGTGTACCT r-TTCTGCTCTGACCACCTCCC
Sequence-based reagentiNOSStanford PAN facilityN/Af-ACACCGACCCGTCCACAGTAT r-CAGAGGGGTAGGCTTGTCTC
Sequence-based reagentCX3CR1Stanford PAN facilityN/Af-TACCTTGAGGTTAGTGAACGTCA r-CGCTCTCGTTTTCCCCATAATC

Transgenic mice

Request a detailed protocol

Mouse Twist1 cDNA was PCR cloned into the bidirectional tetO7 vector S2f-IMCg at EcoRI and NotI sites, replacing the eGFP ORF. The resultant construct, Twist1-tetO7-luc (Tran et al., 2012), was sequenced, digested with KpnI and XmnI, and used for injection of FVB/N pronuclei by the Stanford Transgenic Facility. Founders were screened by genotyping using PCR. Founders were mated to LAP-tTA mice, and BLI was used to additionally screen for functional Twist1-tetO7-luc founders, subsequently termed LAP-tTA/TRE-Twist1/Luc. The LAP-tTA, and TetO-MYC transgenic lines have been described previously (Felsher and Bishop, 1999; Kistner et al., 1996; Shachaf et al., 2004). LAP-tTA/TRE-Twist1/Luc mice were mated to LAP-tTA/TRE-MYC mice, and progeny were screened by PCR. The final background of the mouse was FVB/N. Doxycycline (Dox- Sigma) was administered in the drinking water weekly at 0.1 mg/mL during mating and continuing until mice reached 6 weeks of age. Animals were euthanized upon disease morbidity as assessed by tumor burden. Macrometastases were assessed upon necropsy and tissues were collected and stored for further analysis. All procedures were performed in accordance with APLAC protocols and animals were housed in a pathogen-free environment.

Small animal imaging

Request a detailed protocol

in vivo bioluminescent imaging (BLI) was utilized to confirm oncogene activation in transgenic mice beginning one week before, and continuing each week following, Dox removal. BLI was performed on an IVIS Spectrum (Caliper Life Sciences, Hopkinton, MA). Briefly, mice were injected i.p. with the substrate D-Luciferin (150 mg/kg) and then anesthetized with 2.5% isoflurane delivered by the Xenogen XGI-8 5-port Gas Anesthesia System. Animals were then placed into the IVIS Spectrum, and Living Image Software was used to collect, archive, and analyze photon fluxes and transform them into pseudocolor images.

MRI scans were performed using a 7T small animal MRI scanner (Bruker Inc, Billerica, MA, Stanford Small Animal Imaging Facility, CA) equipped with a 40 mm Millipede RF coil (ExtendMR LLC, Milpitas, CA). Under anesthesia by inhalation of 1–3% isoflurane mixed in with medical-grade oxygen via nose-cone, and acquisitions were gated using the respiratory triggering. For tumor detection, a respiration triggered T2-weighted 3D turbo spin echo sequence was used (TR/TE 3000/205 ms, voxel size (0.22 mm3). The isotropic voxel size of 0.22 mm in all directions provides a high in plane and across plane resolution. Thereby, the location of one tumor could be defined in all three orientations using specific landmarks, such as major vessels or other tumors. T2-weighted anatomical imaging was performed approximately once weekly. Anatomical and parametric images were analyzed and tumor volumes were measured using Osirix image processing software (Osirix, UCLA, and Los Angeles, CA).

Cell culture

Request a detailed protocol

Conditional HCC cell lines were derived from LAP-tTA and TetO-MYC or -MYC/Twist1 mice. Cells were grown in DMEM (Invitrogen), supplemented with 10% FBS (Invitrogen), and cultured at 37°C in a humidified incubator with 5% CO2. Cell lines were confirmed to be negative for Mycoplasma contamination.

Orthotopic transplantation assay

Request a detailed protocol

An orthotopic mouse model was established by transplanting mouse MYC- or MYC/Twist1-HCC tumors (1 mm3) under the liver capsule of NOD/Scid/Gamma (NSG) recipient mice. Bioluminescent (BLI) and MRI scans monitoring are used to monitor tumor engraftment and growth. Mice are euthanized once predetermined specific endpoints are met or based on morbidity whichever occurs first.

Intravenous transplantation assay

Request a detailed protocol

An intravenous transplantation mouse model was established by tail vein intravenous injection of 500,000 MYC- or MYC/Twist1-HCC cells of NOD/Scid/Gamma (NSG) recipient mice. Bioluminescent (BLI) monitoring is used to monitor tumor metastasis in lungs. Mice are euthanized once predetermined specific endpoints are met or based on morbidity whichever occurs first.

RNA sequencing

Request a detailed protocol

RNA sequencing of MYC-HCC and MYC/Twist1-HCC was performed at the Beijing Genomics Institute (BGI) using their BGIseq 500 platform single end 150 bp, 20 million reads per sample. Genes expression level is quantified by a software package called RSEM. We counted the number of identified expressed genes and calculated its proportion to total gene number in database for each sample RNA sequencing data are deposited in Gene Expression Omnibus (GEO). DEseq software was used to perform differential expression analysis. Ingenuity Pathway Analysis (IPA, Qiagen) was used to perform functional pathway analysis.

Principal-component analysis (PCA; Qlucore Omics Explorer v. 2.2) was used to generate a visually interpretable overview of the transcriptional profile of MYC-HCC and MYC/Twist1 HCC. Qlucore Omics Explorer was used to structure data to verify if tumor subgroups could be identified. Variance filtering was used to reduce the noise, and the projection score to set the filtering threshold. The ‘mean = 0, var = 1’ setting was used to scale the data. PCA was used to visualize the data set in a three-dimensional space, after filtering out variables with low overall variance to reduce the impact of noise, and centering and scaling the remaining variables to zero mean and unit variance. The projection score was used to determine the optimal filtering threshold, retaining N variables (Soneson and Fontes, 2011).

In vivo treatment mouse models

Request a detailed protocol

For antibody treatment, mice were injected i.p. with isotype control IgG or anti-Ccl2 (BioXcell), -Il13 and –Il4 (Genentech) antibody (10 mg/kg body weight three times per week). For recombinant cytokines treatment, mice were injected i.p. three times per week with PBS or Ccl2 (Peprotech, 500 ng/mouse), Il4 and IL4 (Peprotech, 250 ng/mouse). For clodronate liposomes (CL) treatment, CL or control liposomes were administered i.p. at 6.5 μl/g body weight 3 times per week to NSGs mice. CL and control treatments were administered to NSG mice previously injected i.v. with 0.5 × 106 MYC/Twist1-HCC cells or orthotopically transplanted with MYC/Twist1-HCC tumors. Experimental and control mice were killed 4 weeks after tumor were transplanted. Primary tumors and lung metastases were collected for H and E staining and IHC.

Immunohistochemistry and immunofluorescence

Request a detailed protocol

Paraffin embedded tumor sections were deparaffinized by successive incubations in xylene, graded washes in ethanol, and deionized water. Epitope unmasking was performed by steaming in DAKO antigen retrieval solution for 45 min. Paraffin embedded sections were immunostained with MYC (1:150, Epitomics), or cleaved caspase 3 (1:100, Cell Signaling technology), phospho histone 3 (1:200, Cell Signaling Technology), F4/80 (1:50, ThermoFisher), Cd4 (1:1000, Abcam), Neutrophil (1:100, Abcam), overnight at 4°C. The tissue was washed with PBS and incubated with biotinylated anti-rabbit, anti-rat or anti-mouse for 30 min at room temperature (1:300 Vectastain ABC kit, Vector Labs). Sections were developed using 3,3'- Diaminobenzidine (DAB, Vector Labs), counterstained with hematoxylin, and mounted with Permount. Images were obtained on a Philips Ultrafast Scanner. All IF and IHC experiments were conducted using at least three biological replicates per group.

Quantification of IHC staining analysis

Request a detailed protocol

Images are analyzed in Icy (BioImage Analysis Unit, Paris, http://icy.bioimageanalysis.com). Areas of immunopositivity are selected for positive values in the Color Picker threshold tool in the support vector machine (SVM) tab. Unstained nuclei and cytoplasm areas are chosen for negative values. Default values are used for the kernel. Immunopositive areas are selected as regions of interest (ROIs). Subsequently, ROIs are separated. Those with interior size <68 pixels are eliminated from the ROI table as they correspond to small specks of non-specific immunopositivity, whereas larger areas corresponded closely to distinct positive cells. Counts were obtained from the ROI tables.

Wound healing assay

Request a detailed protocol

1 × 106 MYC- or MYC/Twist1-HCC cells per well were seeded in 6-well plate and cultured overnight in culture medium. Thereafter, a scratch (wound) was introduced in the confluent cell layer using a yellow tip. Cells were washed three times to remove detached cells. Cells were then incubated with supernatant of primary macrophages harvested from MYC- or MYC/Twist1-HCC primary tumors for 24 hr. Pictures of a defined wound spot were made with a Leica DM16000 microscope at t = 0, 24, 48 and 72 hr. The area of the wound in the microscopic pictures was measured using Image J software (National Institutes of Health, MD). The percentage wound healing after 72 hr was calculated in relative to the total wound area at t = 0 hr of the same wound spot. To isolate tumor associated macrophages from liver tumors, we first cut the tumor into small pieces, digested with collagenase and incubated in a culture dish at 37°C for 1–2 hr. We removed and discarded all detached cells and/or dead cells at 2 hr. Next, we maintained the remaining cells in culture for 24 hr and then removed any adherent tumor cells by fast trypsinization. Macrophages are highly adherent and are the main population that remains adherent beyond this step. We harvested the macrophages and confirmed their phenotype and polarization states by qPCR (Figure 2f).

Transwell chamber migration assay

Request a detailed protocol

Cell migration was assessed using a 12 well transwell chamber with 8 μm filter inserts (Corning). Raw macrophages (264.7 macrophage cell line (ATCC)) were seeded in the upper chamber and MYC/Twist1 cells were seeded in the lower chamber. Neutralizing antibody to Ccl2, Ccl5, Ccl7, Cxcl1, Il13 or Il4 were added to the lower chamber in triplicates. After 16 hr the migrated cells were fixed in 4% paraformaldehyde (PFA) and 100% methanol. The non-migrated cells were gently removed with a swab. Cells in the lower surface of the membrane were stained with 0.5% crystal violet for 20 mins. The membranes were imaged and number of macrophages in 10 random fields were counted. The experiment was performed in triplicates.

3d co-culture system of macrophages and HCC cells

Request a detailed protocol

The 24-well plates were precoated with 10 × 103 mouse Raw 264.7 macrophages (ATCC) resuspended in 200 ul of Matrigel growth factor reduced (Corning) for 30 min at 37°C. Then, 80 × 103 MYC or MYC/Twist1-HCC cells resuspended in 200 ul of Matrigel and directly seeded onto the 24-well plate precoated with matrigel+macrophage mixture. The cells were incubated at 37°C for up to 1 week to allow the spheroids to form. Recombinant Ccl2 (50 ng/ml) or Il13, IL4 (25 ng/ml each) and anti-Ccl2 antibody (30 ug/ml), or anti–Il13 antibody, anti-Il4 antibody (20 μg/ml each) were added directly to the coculture and refreshed every 48 hr. Spheroids were fixed with 10% PFA overnight, paraffin embedded and sectioned (4–5 μm) as previously described (Ootani et al., 2009). Sections were deparaffinized and stained with H and E for the initial histology analysis. For further immunohistochemistry analysis, we used F4/80 antibody as described above. All assays were performed at least 3 times.

Quantitative Real-Time PCR

Request a detailed protocol

RNA was isolated using RNeasy plus mini kit according to the manufacturer’s instructions (Qiagen). cDNA was synthesized using SuperScript III (ThermoFisher). qPCR was performed using specific primers (Key Resources) and SYBR Green (Roche) in an Applied Biosystems Real Time PCR System (Life Technologies). Data were normalized to UBC. A minimum of 3 biological and three technical replicates were used for all qPCR experiments.

Luminex – eBioscience/Affymetrix Magnetic bead Kits

Request a detailed protocol

This assay was performed in the Human Immune Monitoring Center at Stanford University. Human 62-plex or Mouse 38 plex kits were purchased from eBiosciences/Affymetrix and used according to the manufacturer’s recommendations with modifications as described below. Briefly: Beads were added to a 96 well plate and washed in a Biotek ELx405 washer. Samples were added to the plate containing the mixed antibody-linked beads and incubated at room temperature for 1 hr followed by overnight incubation at 4°C with shaking. Cold and Room temperature incubation steps were performed on an orbital shaker at 500–600 rpm. Following the overnight incubation plates were washed in a Biotek ELx405 washer and then biotinylated detection antibody added for 75 min at room temperature with shaking. Plate was washed as above and streptavidin-PE was added. After incubation for 30 min at room temperature wash was performed as above and reading buffer was added to the wells. Each sample was measured in duplicate. Plates were read using a Luminex 200 instrument with a lower bound of 50 beads per sample per cytokine. Custom assay Control beads by Radix Biosolutions are added to all wells.

Immune cell deconvolution analysis

Request a detailed protocol

The CIBERSORT gene expression deconvolution package was used to estimate the immune cell composition in the MYC- and MYC/Twist1-HCC. The LM22 signature was used as the immune cell gene signature. We modified it for studying mouse immune subsets by carefully converting the genes in the signature to their respective mouse orthologs. The settings for the run were: 1000 permutations with quantile normalisation disabled. The student T-test was used to infer the statistical significance of the predicted immune cell populations where p<0.05 was considered significant.

TCGA analysis

Request a detailed protocol

The pan cancer RNAseq data was downloaded from the GDC data portal https://portal.gdc.cancer.gov/ on Oct 15, 2018. Spearman test was used for correlation analysis. Kaplan Meier analysis was performed for survival analysis. K means clustering was used to stratify patients into two groups based on MYC and TWIST1 expression.

Clinical study

Request a detailed protocol

This study was approved by the institutional review board (IRB) of Stanford University (IRB Number: 28374), and all patients provided informed consent before being enrolled in this study. We prospectively collected blood from patients with HCC or cirrhosis alone. Blood samples were obtained at the time of diagnosis of HCC. Plasma was separated, aliquoted and stored at −80C. Luminex assay to measure cytokine levels was performed as mentioned above. Clinical data was gathered from their medical records.

Statistics

Differences between groups were analyzed using Student’s t-test or one-way analysis of variance (ANOVA). Chi square test was used to compare categorical variables. Kaplan Meier analysis with Log Rank test was performed for survival analysis. A P value of less than 0.05 was considered to be significant and is indicated by one asterisk (*), a P value of less than 0.01 is indicated by two asterisks (**), a P value of less than 0.001 is indicated by three asterisks (***), and a P value of less than 0.0001 is indicated by four asterisks (****). All graphs are presented as the mean + /- SEM. Analyses were performed with Prism, version 5 (GraphPad Software, San Diego, CA).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56

Decision letter

  1. Guido Kroemer
    Reviewing Editor; University of Paris Descartes, France
  2. Jeffrey Settleman
    Senior Editor; Pfizer, United States
  3. Jung-Eun Lee
    Reviewer; University of Michigan, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "MYC and Twist1 expression in cancer causes macrophage activation that enables metastasis" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Jeffrey Settleman as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Jung-Eun Lee (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The reviewers' comments can be addressed without performing extensive new experiments. Most of the points can be ironed out by textual changes or data re-analysis. In this spirit, major point 5 raised by reviewer 3 does not have to be addressed experimentally. It is sufficient to discuss this point.

Reviewer #1:

Summary:

1) The authors generated a transgenic mouse model whereby conditional expression of MYC and Twist11 promotes the metastasis of hepatocellular carcinoma (HCC) in most mice. Metastatic tumors are reversible upon inactivation of Twist1.

2) They find that tumor-associated macrophages (TAM) are recruited to HCC in this mouse model.

3) Treatment with CCL2 and IL13 induced MYC-HCCs to metastasize whereas blockade of CCL2 and IL13 or depletion of macrophages abrogated MYC/Twist1-HCC metastasis.

4) High expression of MYC and Twist1 predicts poor survival of cancer patients.

5) The plasma level of IL13 correlates with the vascular invasion in HCC.

General assessment:

To establish a model that enables the metastasis of murine MYC-driven HCC, the authors introduced Twist1, which is known to promote the metastasis of cancer cells, to their previously reported murine MYC-driven HCC model (Tet-off conditional expression system).

Here they present a mechanism by which MYC and Twist1 drive the metastasis of HCC. This study represents technically solid work. It is striking that Twist1 expression increases the probability of the metastasis of MYC-driven HCC by 45 folds.

However, the conceptual novelty of the suggested mechanism is somewhat limited by a previous publication (Cancer Res. 2013. Twist1 induces CCL2 and recruits macrophages to promote angiogenesis) that reported the same role of Twist1 for recruiting macrophages through CCL2 and promoting angiogenesis around carcinoma cells. Given that angiogenesis is required for metastasis, this study confirms the same role of CCL2 in the metastasis of liver cancer while reporting a new role of IL13 in M2 polarization in this process. The authors should discuss this reference in more detail to highlight the novelty of this study.

An interesting twist of this study is that Twist1 somehow needs MYC to promote the metastasis of liver cancer. Given that MYC and Twist1 have been reported to cooperate, if the authors can shed some light on the mechanism underlying this dependency, it will increase the impact of this study. Does MYC increase the transcriptional factor activity of Twist1, for example? Is IL13-mediated M2 polarization required for angiogenesis?

Regardless of this gap of knowledge, this study will be of interest to the liver cancer community now that the authors show that the combined inhibition of CCL2 and IL13 suppress the metastasis in a mouse model of liver cancer and that the plasma level of IL13 correlates with the vascular invasion in HCC.

Reviewer #2:

This paper first describes a model of liver cancer, induced by MYC+TWIST1 genes. The authors report the important discovery that tumors arising from the combination of the two genes induces metastasis, whereas only MYC or TWIST1 does not. The work shows that the MYC+TWIST1 tumors express the cytokines CCL2 and IL13, which polarize tumor-associated macrophages of the type M2. Moreover, systemic administration of CCL2 and IL13 was sufficient to induce metastasis. Although it is known that the tumor-associated macrophages promote tumor and metastasis development, the mechanism proposed to explain the higher metastatic potential of the MYC+TWIST1 tumors is novel and interesting.

Consistently, analysis of different human cancers shows that MYC and Twist1 are strongly associated with poor overall survival. In a prospective study, they show that higher plasmatic levels of CCL2 and IL13 are associated with metastasis. Finally, they also show that metastasis in this model are inhibited by Ccl2+Il13 neutralizing antibodies, which gives clues for anti-metastasis approaches in oncology.

Altogether, the work shows relevant and novel information, and the technological approach is sound. It is novel and interesting that MYC and Twist1 induce metastasis by modulating the immune microenvironment and not by inducing proliferation or invasion. However, the work does not elucidate whether MYC activate the transcription of the CCL2 and/or IL13 genes or a different mechanism is in place

1) The work shows that MYC induces the expression of CCL2 and IL13 and that these cytokines are sufficient for the MYC-induced liver tumors to metastasize. This is a relevant information. However, whether IL13 or CCL2 are direct transcriptional targets of MYC+TWIST1 remains to be elucidated. The authors may at least ask in the databases whether the DNA region around the transcription start site of IL13 and CCL2 genes contain MYC and Twist1 binding motifs and to show MYC and Twist1 binding by ChIP. Actually the binding of MYC to the genes can be also tested I many cell lines from the public data of the ENCODE consortium.

2) Figure 1C: It is difficult to tell from these images whether the luciferase is being expressed in the liver of the animal, or another organ of the body or in the peritoneum. Maybe they can use another technique to show Twist1 in the liver upon Dox withdrawal. For example, and IHQ or IF for Twist or Luc, a western blot or even RT-PCR showing the Twist1 RNA expression).

Also, they should give information on the penetrance of the MYC-Twist1/Luc – What percentage of mice show it? At the same intensity? It does not look so from the two mice of the figure.

3) Figure 1—figure supplement 1B: As the authors rightly say, it is important to rule out an effect of Twist1 on MYC levels. However, the figure apparently shows an increase in MYC levels in the Twist1-MYC livers, if the reduced levels of Actin are considered (compare lanes 1 and 3). A better western or a quantification of this blot normalizing against actin would be required to make the conclusion.

4) Subsection “MYC and Twist1 cooperate to remodel the tumor immune microenvironment” paragraph two, Figure 2—figure supplement 1E: "the inactivation of MYC and Twist1 in tumors shows rapid tumor regression". However, no quantification is given on the extent of tumor repression upon the addition of Dox to the water. In how many mice? Do the tumors completely regress? How long before they regress?

5) Figure 4C: It is known that the macrophage subtype M2a is the one activated by IL13. So it will be interesting to check whether this is the subtype polarized in the MYC+TWIST1 liver tumors.

6) Subsection “Combined inhibition of CCL2 and IL13 synergistically inhibits metastasis in vivo”: The liver tumor burden in response to the neutralizing antibodies must be quantified (e.g. by densitometry of the images).

Reviewer #3:

General assessment:

The manuscript by Baylot et al. shows a new metastastic mouse model of HCC, based on the cooperative function of MYC and Twist1. The authors provide evidence that MYC and Twist1 together are responsible for the induction of a cytokinome, including CCL2 and IL13, which cause macrophage tumor infiltration and their transition to a metastasis-promoting M2 phenotype. The story is very interesting by itself, but it is probably just the beginning of further studies needed to define the distinct contributions of MYC and Twist1 to the metastatic phenotype (unfortunately MYC and Twist1 are both under the same Tet System control and cannot be turned off separately in the MYC/Twist1 mice). Also, there is no mechanism explaining exactly how the macrophages are promoting metastasis, even though it is clear that they are needed for the process.

Summary of substantive concerns:

1) General comment for figures: the scale bars are missing and sometimes the same figure includes the comparison among panels with different magnifications (i.e. Figure 1J-K, lung and liver panels, or Figure 2G-H). That needs to be corrected in all figures.

2) Regarding the same Figures 1J-K, in subsection “Twist1 induces spontaneous metastatic progression of MYC-driven HCC in vivo” the authors state that MYC levels are similar in the two tumor models, but the images do not seem to agree with that statement: in MYC/Twist1 HCC top left panel, MYC seems much higher that the corresponding MYC HCC panel, while in the merge it looks exactly the opposite. The authors should quantify the images in order to make conclusions and correct for different exposure times.

3) The authors state that "Macrophage depletion with clodronate liposomes […] had reduced intrahepatic and lung metastases". However, the figure clearly shows a difference also in the primary tumor burden, which could in part account for the reduction in mets. This is definitely a point that needs to be clarified.

4) The authors should at least comment on the fact that Twist1 is a bHLH protein that can bind the same Ebox as MYC does, hence not only possibly cooperating, but even competing with it. Again, some characterization of this molecular aspects of target regulation might be relevant to future studies.

5) Orthotopic and intravenous transplantation assays: To perform this in vivo assay the authors state that the tumors or cells are inoculated into NSG mice. Why do the authors perform these experiments with an immunodeficient mouse strain? Why don't they use immune competent mice of the FVB/N background of their original transgenic mice?

https://doi.org/10.7554/eLife.50731.sa1

Author response

Reviewer #1:

General assessment:

To establish a model that enables the metastasis of murine MYC-driven HCC, the authors introduced Twist1, which is known to promote the metastasis of cancer cells, to their previously reported murine MYC-driven HCC model (Tet-off conditional expression system).

Here they present a mechanism by which MYC and Twist1 drive the metastasis of HCC. This study represents technically solid work. It is striking that Twist1 expression increases the probability of the metastasis of MYC-driven HCC by 45 folds.

However, the conceptual novelty of the suggested mechanism is somewhat limited by a previous publication (Cancer Res. 2013. Twist1 induces CCL2 and recruits macrophages to promote angiogenesis) that reported the same role of Twist1 for recruiting macrophages through CCL2 and promoting angiogenesis around carcinoma cells. Given that angiogenesis is required for metastasis, this study confirms the same role of CCL2 in the metastasis of liver cancer while reporting a new role of IL13 in M2 polarization in this process. The authors should discuss this reference in more detail to highlight the novelty of this study.

We thank the reviewer for this comment regarding conceptual novelty and mechanistic insight. We explain now, in more detail, the novelty of our work and we have revised the text to reflect the thoughtful comments of the reviewer.

We would like to briefly highlight what we believe is the conceptual novelty of our work.

First, we identify that MYC and Twist1 mediate a surprising non-cell intrinsic mechanism of cooperation through a novel autochthonous transgenic mouse model of metastatic HCC. We demonstrate that MYC and Twist1 cooperate to induce metastasis. MYC has not been thought of as a metastasis gene. Twist1 has been thought of as metastasis gene but through effects on EMT. We show that together they cooperate to drive a transcriptional program that elicits a change in the host immune system.

Second, we specifically identify that MYC and Twist1 cooperate to induce a cytokinome which is both required and sufficient to induce HCC metastasis.

Third, we show that MYC and Twist1 are part of a generalizable mechanism to human cancer by showing that it is combined overexpression of MYC and Twist1 that in 33 different human cancers (10,000 cancer specimens from TCGA) is generally associated with poor prognosis, pro-metastatic cytokines and TAM infiltration.

Fourth, we have gained specific new insights into how Twist1 through CCL2 and IL13 mediates metastasis. The reviewer is certainly very correct to note that Twist1 has been shown to induce CCL2 in breast cancer cell lines and recruit macrophages. However, we are able to show that Twist1 alone expression in the liver does not lead to immune activation or spontaneous tumorigenesis. Twist1 only in the context of cooperation with the MYC promotes metastasis. Moreover, treatment of MYC-HCC with CCL2 alone led to macrophage recruitment to the tumor but it was not sufficient to induce metastasis in the absence of the TAM-polarizing cytokine IL13.

To address the prior relevant work, we have now expanded the Discussion to include a specific reference of the Cancer Res. 2013 manuscript and also explained the novelty of our manuscript in this context as follows:

“Low-Marchelli and colleagues previously reported that Twist1 transcriptionally induces CCL2 in breast cancer cell lines which leads to macrophage recruitment (Low-Marchelli et al., 2013). Our study demonstrates that, in fact, CCL2 induced macrophage recruitment alone was not sufficient to cause metastasis in vivo and IL13 induced macrophage polarization plays an essential and complementary role in promoting angiogenesis and metastasis.”

An interesting twist of this study is that Twist1 somehow needs MYC to promote the metastasis of liver cancer. Given that MYC and Twist1 have been reported to cooperate, if the authors can shed some light on the mechanism underlying this dependency, it will increase the impact of this study. Does MYC increase the transcriptional factor activity of Twist1, for example?

The reviewer makes an outstanding point that our “twist” is that “Twist1” needs MYC and mechanistic insight on this dependency would be exciting. So, to address this mechanistic question, we now add two results. First, we examined if both MYC and Twist1 need to be constitutively active to sustain metastasis; and second we examined if MYC and Twist1 were directly coordinating to regulate cytokine expression we implicated in the mechanism of metastasis.

First, we provide evidence using additional new data that the mechanism really is that you need both transcription factors to be present simultaneously and constitutively proving this is an active cooperative and sustained mechanism, as opposed to Twist1 or MYC enabling distinct programs during tumor progression. To do this, we generated new tumor derived cell lines whereby we could discriminate the independent roles of MYC and Twist1 in metastasis by modulating the expression of MYC and Twist1 separately. Primary tumor derived cell lines from MYC/Twist1 HCC were retrovirally transduced with constitutive MYC and/or Twist1, such that upon inactivation of transgene expression with Doxycycline, they now constitutively expressed MYC and/or Twist1 (new Figure 3D). We confirmed that treatment of these cell lines with doxycycline resulted in the continued expression of constitutive MYC and/or Twist1 by qPCR (new Figure 3—figure supplement 1A). We observed that the inactivation of either MYC or Twist1 abrogated the ability of the cells to develop lung metastasis when injected intravenously in NSG mice, while cells expressing both MYC and Twist1 led to development of extensive lung metastasis with prominent macrophage infiltration (new Figure 3E-3F, Figure 3—figure supplement 1C). Thus MYC and Twist1 cooperate, and are both required to be active constitutively and function together to induce metastasis. Our results collectively suggest the mechanism is an active transcriptional mechanism, that enables resulting HCC to elicit macrophage recruitment and polarization to drive metastasis.

We have included this new data in paragraph three of subsection “MYC and Twist1 cooperate to remodel the tumor immune microenvironment”, new Figure 3 and new Figure 3—figure supplement 1.

Second, we examined whether MYC and Twist1 as transcription factors, were both required to epigenetically regulate the cytokines, CCL2 and IL13. We identified MYC and TWIST1 promoter binding upstream of human CCL2 and IL13 protein-coding genes in Gene Transcription Regulation Database (GTRD), a meta-analysis of ChIP-seq experiments (Dreos et al., 2017; Yevshin et al., 2017) (Figure 5—figure supplement 1E). Both MYC and Twist1 demonstrated binding at multiple sites in the promoter region of CCL2 and IL13 in the ChIP-seq data from several different cancer cell lines (Figure 5—figure supplement 1E). We also looked for MYC and Twist1 promoter binding sites in mouse CCL2 and IL13 promoters using motif finding analysis of the public data from JASPAR (Bryne et al., 2008) and Eukaryotic promoter database (EPD) (Dreos et al., 2017). Again, we found multiple potential MYC and Twist1 transcription factor binding sites for both CCL2 and IL13 (Figure 5—figure supplement 1F). These data suggest that MYC and Twist1 cooperate to transcriptionally regulate expression of CCL2 and IL13 in the cancer cells.

The new paragraph has been added in subsection “MYC and Twist1 reprogram the crosstalk between cancer cells and macrophages” paragraph four. New figures have been added to Figure 5—figure supplement 1.

We also modified the Discussion section to reflect the results and added the following paragraph: “Our data suggests that MYC and Twist1 cooperate to transcriptionally regulate the cytokinome landscape. We found multiple instances of MYC and Twist1 promoter binding both in human and mouse CCL2 and IL13 genes by analyzing publicly available ChIP-seq data. Twist1 is a basic helix loop helix (bHLH) transcription factor which has recently been shown to promote invasion of MYCN to enhancer sites thus potentiating its pro-proliferative function of MYCN in cancer (Zeid et al., 2018). We posit that a similar mechanism for epigenetic cooperation between MYC and Twist1 likely exists in the context of hepatocellular carcinoma.”

Is IL13-mediated M2 polarization required for angiogenesis?

We thank the authors for raising this questions about angiogenesis. We have now added data showing that in vivo treatment of MYC-HCC with combination of CCL2 and IL13 promoted metastasis by stimulating angiogenesis. The most significant increase in angiogenesis, as assessed by CD31 IHC staining, was noted in MYC-HCC tumors in mice treated with CCL2 and IL13.

The new text has been added to subsection “Ccl2 and Il13 are sufficient and required for metastasis of HCC”, paragraph two and the data to Figure 6—figure supplement 1B-C.

Regardless of this gap of knowledge, this study will be of interest to the liver cancer community now that the authors show that the combined inhibition of CCL2 and IL13 suppress the metastasis in a mouse model of liver cancer and that the plasma level of IL13 correlates with the vascular invasion in HCC.

Thank you very much for your kind comments regarding the potential value of our work to the liver cancer community.

Reviewer #2:

[…]

1) The work shows that MYC induces the expression of CCL2 and IL13 and that these cytokines are sufficient for the MYC-induced liver tumors to metastasize. This is a relevant information. However, whether IL13 or CCL2 are direct transcriptional targets of MYC+TWIST1 remains to be elucidated. The authors may at least ask in the databases whether the DNA region around the transcription start site of IL13 and CCL2 genes contain MYC and Twist1 binding motifs and to show MYC and Twist1 binding by ChIP. Actually the binding of MYC to the genes can be also tested I many cell lines from the public data of the ENCODE consortium.

We thank the reviewers for raising this question. We have now done precisely what the reviewer suggested. In this study and examined if CCL2 and IL13 are direct transcriptional targets. Also see answer to reviewer #1 above.

MYC and Twist1 are both transcription factors, so we evaluated if they epigenetically regulated CCL2 and IL13 expression. We identified MYC and TWIST1 promoter binding upstream of human CCL2 and IL13 protein-coding genes in Gene Transcription Regulation Database (GTRD), a meta-analysis of ChIP-seq experiments (Dreos et al., 2017; Yevshin et al., 2017) (Figure 5—figure supplement 1). Both MYC and Twist1 demonstrated binding at multiple sites in the promoter region of CCL2 and IL13 in the ChIP-seq data from several different cancer cell lines (Figure 5—figure supplement 1E). We also looked for MYC and Twist1 promoter binding sites in mouse CCL2 and IL13 promoters using motif finding analysis of the public data from JASPAR (Bryne et al., 2008) and Eukaryotic promoter database (EPD) (Dreos et al., 2017). Again, we found multiple potential MYC and Twist1 transcription factor binding sites for both CCL2 and IL13 (Figure 5—figure supplement 1F). These data suggest that MYC and Twist1 cooperate to transcriptionally regulate expression of CCL2 and IL13 in the cancer cells. The new paragraph has been added in subsection “MYC and Twist1 reprogram the crosstalk between cancer cells and macrophages” paragraph four. New figures have been added to Figure 5—figure supplement 1.

To discriminate the independent roles of MYC and Twist1 in metastasis we developed cell lines where we could modulate the expression of MYC and Twist1 separately. Primary cell lines from MYC/Twist1 HCC were retrovirally transduced with MYC and/or Twist1, such that upon inactivation of transgene expression with Doxycycline, they now constitutively expressed MYC and/or Twist1 (new Figure 3D). We confirmed that treatment of these cell lines with doxycycline resulted in the continued expression of constitutive MYC and/or Twist1 by qPCR (Figure 3—figure supplement 1A). We observed that the inactivation of either MYC or Twist1 abrogated the ability of the cells to develop lung metastasis when injected intravenously in NSG mice, while cells expressing both MYC and Twist1 led to development of extensive lung metastasis with prominent macrophage infiltration (new Figure 3E-3F, Figure 3—figure supplement 1C). Thus MYC and Twist1 cooperate, and are both required to induce metastasis of HCC by a macrophage dependent mechanism.

We have included this new data in paragraph three of subsection “MYC and Twist1 cooperate to remodel the tumor immune microenvironment”, new Figure 3 and new Figure 3—figure supplement 1.

2) Figure 1C: It is difficult to tell from these images whether the luciferase is being expressed in the liver of the animal, or another organ of the body or in the peritoneum. Maybe they can use another technique to show Twist1 in the liver upon Dox withdrawal. For example and IHQ or IF for Twist or Luc, a western blot or even RT-PCR showing the Twist1 RNA expression).

Also, they should give information on the penetrance of the MYC-Twist1/Luc. What percentage of mice show it? At the same intensity? It does not look so from the two mice of the figure.

Thank you very much for pointing out that the BLI images were not clear. We have now included new Figure 1Cwhere the luciferase activity in vivo, as assessed by bioluminescent imaging, is clearly localized to the liver.

We have now also included qPCR and immunoblotting data in new Figure 1—figure supplement 1B-Cshowing inducible MYC and Twist1 expression in the tumors upon oncogene activation and inactivation.

Also, you asked us a question about the penetrance of the mouse model. The MYC/Twist1-HCC model has high penetrance. We find that all transgenic mice show Luc expression in the liver when imaged on BLI. Almost all mice we have examined developed liver tumors with high MYC+TWIST1 (95%). Among the MYC/Twist1 mice who develop liver tumors, >90% develop metastases.

3) Figure 1—figure supplement 1B: As the authors rightly say, it is important to rule out an effect of Twist1 on MYC levels. However, the figure apparently shows an increase in MYC levels in the Twist1-MYC livers, if the reduced levels of Actin are considered (compare lanes 1 and 3). A better western or a quantification of this blot normalizing against actin would be required to make the conclusion.

To address the reviewers concern regarding analysis of MYC levels, we have now quantified the immunoblot and we found no significant difference in MYC and MYC/Twist1-HCC. But we agree with the reviewers that the immunoblotting images needed refinement. We have now repeated this experiment using three MYC- and three MYC/Twist1-HCC and added new Figure 1—figure supplement 1C with quantification of blot using relative densitometry. We do not find any statistic difference in MYC levels between MYC- and MYC/Twist1-HCC. We have also shown by new data added in Figure 1—figure supplement 1B (qPCR) that confirm that MYC mRNA and protein levels are statistically similar between MYC- and MYC/Twist1-HCC

4) Subsection “MYC and Twist1 cooperate to remodel the tumor immune microenvironment” paragraph two, Figure 2—figure supplement 1E: "the inactivation of MYC and Twist1 in tumors shows rapid tumor regression". However, no quantification is given on the extent of tumor repression upon the addition of Dox to the water. In how many mice? Do the tumors completely regress? How long before they regress?

Thank you for asking us to clarify details regarding tumor regression. We have now included more details on tumor regression timeline. We see complete macroscopic tumor regression in all observed mice (n=20). Tumors begin regressing within a day of oncogene inactivation and completely regress within 2-3 weeks. These details have now been added to the text.

5) Figure 4C: It is known that the macrophage subtype M2a is the one activated by IL13. So it will be interesting to check whether this is the subtype polarized in the MYC+TWIST1 liver tumors.

The reviewer brings up an interesting point regarding macrophage polarity and subclasses. M2a is classically characterized by expression of CD206, and Arg1. We have shown that, in fact, CD206 and Arg1 are significantly overexpressed in the MYC/Twist1-HCC compared to MYC-HCC (Figure 2F). Also treatment of monocytes with supernatant from MYC/Twist1-HCC cells in vitroleads to polarization to M2a-like phenotype with higher expression of Cd206 and Arg1 as shown in Figure 5C.

To further characterize these macrophages, we now additionally evaluated expression of another M2a macrophage marker CD163 and found that MYC/Twist1-HCC had significant higher infiltration of CD163+ M2a-like macrophages compared to MYC-HCC. We have now added a sentence to the Discussion clarifying that polarization to M2a-like state is observed in MYC/Twist1- HCC.

Lastly, we have included new data demonstrating polarization to CD206+ M2a-like macrophages when mice bearing MYC-HCC are treated with IL13 either alone or in combination with CCL2+IL13 (Figure 6—figure supplement 1A and 1B)

6) Subsection “Combined inhibition of CCL2 and IL13 synergistically inhibits metastasis in vivo”: The liver tumor burden in response to the neutralizing antibodies must be quantified (e.g. by densitometry of the images)

Thank you, we appreciate that quantification of the liver tumor burden is important. We have now compared the primary liver tumor burden in the antibody treated mice by quantifying the volume of the primary orthotopic tumor (new Figure 7A) and also quantified bioluminescent imaging (new Figure 7B). We do not find a statistical difference in the tumor burden although there is a trend for improvement between control antibody treated mice and mice treated with anti CCL2+IL13 (p=0.07). The slight difference in BLI signal is likely reflecting the metastatic tumor burden since the size of primary tumor was clearly not different between the 4 groups.

Reviewer #3:

General assessment:

The manuscript by Baylot et al. shows a new metastastic mouse model of HCC, based on the cooperative function of MYC and Twist 1. The authors provide evidence that MYC and Twist1 together are responsible for the induction of a cytokinome, including CCL2 and IL13, which cause macrophage tumor infiltration and their transition to a metastasis-promoting M2 phenotype. The story is very interesting by itself, but it is probably just the beginning of further studies needed to define the distinct contributions of MYC and Twist1 to the metastatic phenotype (unfortunately MYC and Twist1 are both under the same Tet System control and cannot be turned off separately in the MYC/Twist1 mice).

The reviewer raises an important concern that it would be invaluable if we could independently regulate MYC and Twist1. To address this great idea, we have now included substantial additional data (also see responses to reviewers 1 and 2). We hope the reviewer will consider the additional new data, further confirmation of the required dependency of combined and continued expression of both Twist1 and MYC to induce metastasis. To do this, we developed tumor derived cell lines where we could modulate the expression of MYC and Twist1 separately. Primary cell lines from MYC/Twist1 HCC were retrovirally transduced with constitutive MYC and/or Twist1, such that upon inactivation of transgene expression with Doxycycline, they now constitutively expressed MYC and/or Twist1 (new Figure 3D). We confirmed that treatment of these cell lines with doxycycline resulted in the continued expression of constitutive MYC and/or Twist1 by qPCR (Figure 3—figure supplement 1A). We observed that the inactivation of either MYC or Twist1 abrogated the ability of the cells to develop lung metastasis when injected intravenously in NSG mice, while cells expressing both MYC and Twist1 led to development of extensive lung metastasis with prominent macrophage infiltration (new Figure 3E-3F, Figure 3—figure supplement 1C). Thus MYC and Twist1 cooperate, and are both required to induce metastasis of HCC by a macrophage dependent mechanism.

We have included this new data in paragraph three of subsection “MYC and Twist1 cooperate to remodel the tumor immune microenvironment”, new Figure 3 and Figure 3—figure supplement 1.

Also, there is no mechanism explaining exactly how the macrophages are promoting metastasis, even though it is clear that they are needed for the process.

We thank the reviewers for raising this point about the mechanism by which macrophages promote metastasis in this model. We have added new data and demonstrate two mechanisms by which macrophages are promoting metastasis in MYC/Twist1-HCC (1) increasing invasiveness of cancer cells and (2) stimulating angiogenesis.

TAMs have been shown to increase the migratory capacity of tumor cells (Lin et al., 2001). To evaluate if this was the mechanism by which the M2-like TAMs in MYC/Twist1-HCC promote metastasis, we isolated TAMs from primary MYC-HCC and MYC/Twist1-HCC (Figure 3A). Conditioned media from TAMs isolated from MYC/Twist1-HCC but not MYC-HCC increased the invasiveness of both MYC- and MYC/Twist1-HCC tumor cells in vitro (Figure 3A-3C).

We have now added data showing that in vivo treatment of MYC-HCC with combination of CCL2 and IL13 promoted metastasis by stimulating angiogenesis. The most significant increase in angiogenesis, as assessed by CD31 IHC staining, was noted in tumors arising in mice treated with CCL2 and IL13 which showed recruitment and polarization to M2-like macrophages (new Figure 6—figure supplement 1C).

Summary of substantive concerns:

1) General comment for figures: the scale bars are missing and sometimes the same figure includes the comparison among panels with different magnifications (i.e. Figure 1J-K, lung and liver panels, or Figure 2G-H). That needs to be corrected in all figures.

We thank the reviewers for pointing out the figures would be improved with scale bars. We have redone the figures to make sure the magnifications and scale bars are uniform throughout.

2) Regarding the same Figures 1J-K, in subsection “Twist1 induces spontaneous metastatic progression of MYC-driven HCC in vivo” the authors state that MYC levels are similar in the two tumor models, but the images do not seem to agree with that statement: in MYC/Twist1 HCC top left panel, MYC seems much higher that the corresponding MYC HCC panel, while in the merge it looks exactly the opposite. The authors should quantify the images in order to make conclusions and correct for different exposure times.

We apologize for the confusion regarding our data showing similar MYC levels. We have repeated these experiments, now included a new Figure 1J and K with clear demonstrations of equivalent MYC levels in both models using qPCR and western blotting.

We have also confirmed by immunohistochemistry that MYC levels are not different between MYC-HC and MYC/Twist1-HCC (not included in paper).

3) The authors state that "Macrophage depletion with clodronate liposomes […] had reduced intrahepatic and lung metastases". However, the figure clearly shows a difference also in the primary tumor burden, which could in part account for the reduction in mets. This is definitely a point that needs to be clarified.

We appreciate the reviewer’s concern that macrophage depletion of macrophages may be associated with reduced primary tumor burden. We quantified mouse liver tumor burden but did not find a statistical difference between control or clodronate treated mice primary tumors. We have now included quantification of BLI imaging from primary liver tumor burden in all mice. We have also increased the representative BLI imaging to show 3 mice in each group (Figure 4E). There was no statistically significant difference in densitometry between control treated and clodronate treated mice (p=0.603). We do not believe that the complete abrogation of metastasis upon treatment with liposomal clodronate can be explained by the slight decrease, albeit nonsignificant, in primary tumor growth. We have included new text in paragraph one of subsection “MYC and Twist1 reprogram the crosstalk between cancer cells and macrophages” and the new data has been included in Figure 4E.

4) The authors should at least comment on the fact that Twist1 is a bHLH protein that can bind the same Ebox as MYC does, hence not only possibly cooperating, but even competing with it. Again, some characterization of this molecular aspects of target regulation might be relevant to future studies.

We appreciate this important suggestion that we should address possible epigenetic cooperation between MYC and Twist1 as they can bind to same Eboxes. We have now added new data exploring the mechanism by which MYC and Twist1 cooperate. Please also see our responses to reviewer #1 (point one) and reviewer #2 (point one).

Briefly, we evaluated epigenetic cooperation between MYC and Twist1 in the regulation of CCL2 and IL13 expression. We identified MYC and TWIST1 promoter binding upstream of human CCL2 and IL13 protein-coding genes in Gene Transcription Regulation Database (GTRD), a meta-analysis of ChIP-seq experiments (Dreos et al., 2017; Yevshin et al., 2017) (Figure 5—figure supplement 1E). Both MYC and Twist1 demonstrated binding at multiple sites in the promoter region of CCL2 and IL13 in the ChIP-seq data from several different cancer cell lines (Figure 5—figure supplement 1E). We also looked for MYC and Twist1 promoter binding sites in mouse CCL2 and IL13 promoters using motif finding analysis of the public data from JASPAR (Bryne et al., 2008) and Eukaryotic promoter database (EPD) (Dreos et al., 2017). Again, we found multiple potential MYC and Twist1 transcription factor binding sites for both CCL2 and IL13 (Figure 5—figure supplement 1F). These data suggest that MYC and Twist1 cooperate to transcriptionally regulate expression of CCL2 and IL13 in the cancer cells. The new paragraph has been added in subsection “MYC and Twist1 reprogram the crosstalk between cancer cells and macrophages” paragraph four. New figures have been added to Figure 5—figure supplement 1.

Based on the reviewer's suggestion to discuss the E box binding by MYC and Twist1, we have also added this new paragraph to the Discussion-

“Our data suggests that MYC and Twist1 cooperate to transcriptionally regulate the cytokinome landscape. We found multiple instances of MYC and Twist1 promoter binding both in human and mouse CCL2 and IL13 genes by analyzing public data. Twist1 is a basic helix loop helix (bHLH) transcription factor which has recently been shown to promote invasion of MYCN to enhancer sites thus potentiating its pro-proliferative function of MYCN in cancer (Zeid et al., 2018). We posit that a similar mechanism for epigenetic cooperation between MYC and Twist1 likely exists in the context of hepatocellular carcinoma.”

5) Orthotopic and intravenous transplantation assays: To perform this in vivo assay the authors state that the tumors or cells are inoculated into NSG mice. Why do the authors perform these experiments with an immunodeficient mouse strain? Why don't they use immune competent mice of the FVB/N background of their original transgenic mice?

The reviewer raises a good question of why the orthotopic transplantation assays were performed in immunocompromised mice and not in WT FVB mice. As has been observed for many transgenic models, we were not able to transplant primary tumors into new syngeneic wild type FVB/N with regularity (10% success rate). We believe this is likely explained by possible allogeneic rejection of donor-specific antigens in the transplanted tumor by the host immune system. Hence, we were concerned that experiments would reflect a strong selection that could markedly bias the results. However, we think it is very important to point out that most of the experiments we performed were done in a primary transgenic mouse model and that this strength and novelty of our findings is exactly that we did experiments in primary tumors in vivo.

We point out that the existing syngeneic allograft orthotopic transplant models have used immortalized cell lines like MC38 colon cancer and B16 melanoma cell lines in C57/B6 background. Our cell lines derived from primary tumors are semi-immortalized and likely are still highly antigenic. Another possibility is that the macrophages recruited by the MYC/Twist1- HCC cells are able to directly and specifically reject allografts in a CD8+ T cell dependent manner as has been shown recently (Chu et al., 2019).

Although experiments in wildtype mice would be ideal, we hope that the experiments we have done in NSG mice are adequate for the purposes of this study. Our focus is on macrophage recruitment to the orthotopic liver tumor and metastatic sites. Macrophages are functional in NSG mice and have been used by several investigators for this purpose (Sukocheva et al., 2010; Behan et al., 2013) (Hu et al., 2011) (Krepler et al., 2004). Moreover, the main mechanisms by which we show that M2-like macrophages promote metastasis in the MYC/Twist1 like stimulating angiogenesis and increasing cancer cell invasiveness are largely independent of adaptive immunity.

Finally, most of our experiments were performed in primary tumors in a new transgenic models of MYC/Twist1 HCC where we could study the natural history of stepwise progression of metastatic HCC in an immunocompetent host.

https://doi.org/10.7554/eLife.50731.sa2

Article and author information

Author details

  1. Renumathy Dhanasekaran

    Division of Gastroenterology and Hepatology, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Virginie Baylot
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8819-7511
  2. Virginie Baylot

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—review and editing
    Contributed equally with
    Renumathy Dhanasekaran
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1313-2857
  3. Minsoon Kim

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  4. Sibu Kuruvilla

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. David I Bellovin

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. Nia Adeniji

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7957-5987
  7. Anand Rajan KD

    Department of Pathology, University of Iowa Hospitals and Clinics, Iowa City, United States
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Ian Lai

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8662-7290
  9. Meital Gabay

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  10. Ling Tong

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4634-9462
  11. Maya Krishnan

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  12. Jangho Park

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6151-5193
  13. Theodore Hu

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  14. Mustafa A Barbhuiya

    1. Radiation Oncology and Molecular Radiation Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    2. The Sidney Kimmel Comprehensive Cancer Center, Johns Hopkins University School of Medicine, Baltimore, United States
    3. The James Buchanan Brady Urological Institute, Johns Hopkins University School of Medicine, Baltimore, United States
    4. Department of Urology, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Resources, Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8046-5064
  15. Andrew J Gentles

    1. Department of Medicine (Biomedical Informatics), Stanford University School of Medicine, Stanford, United States
    2. Department of Biomedical Data Sciences, Stanford University School of Medicine, Stanford, United States
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  16. Kasthuri Kannan

    1. Department of Pathology, NYU Langone Medical Center, New York, United States
    2. Genome Technology Center, NYU Langone Medical Center, New York, United States
    Contribution
    Formal analysis, Investigation, Visualization
    Competing interests
    No competing interests declared
  17. Phuoc T Tran

    1. Radiation Oncology and Molecular Radiation Sciences, Johns Hopkins University School of Medicine, Baltimore, United States
    2. The Sidney Kimmel Comprehensive Cancer Center, Johns Hopkins University School of Medicine, Baltimore, United States
    3. The James Buchanan Brady Urological Institute, Johns Hopkins University School of Medicine, Baltimore, United States
    4. Department of Urology, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Contributed equally with
    Dean W Felsher
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0147-0376
  18. Dean W Felsher

    1. Division of Oncology, Department of Medicine, Stanford University, Stanford, United States
    2. Division of Oncology, Department of Pathology, Stanford University, Stanford, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Contributed equally with
    Phuoc T Tran
    For correspondence
    dfelsher@stanford.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2496-523X

Funding

National Cancer Institute (CA208735)

  • Dean W Felsher

National Cancer Institute (CA222676)

  • Renumathy Dhanasekaran

National Cancer Institute (R01CA166348)

  • Phuoc T Tran

National Cancer Institute (U01CA212007)

  • Phuoc T Tran

National Cancer Institute (U01CA231776)

  • Phuoc T Tran

National Cancer Institute (1R21CA223403)

  • Phuoc T Tran

Fondation pour la Recherche Médicale (FRM grant)

  • Virginie Baylot

American College of Gastroenterology (ACG Career Development Grant)

  • Renumathy Dhanasekaran

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

RD- National Institutes of Health (NIH) grant CA222676 from the National Cancer Institute (NCI), American College of Gastroenterology Junior Faculty Career Development Grant. PTT- Ronald Rose and Joan Lazar; Movember Foundation, Prostate Cancer Foundation; NIH/NCI (R01CA166348, U01CA212007, U01CA231776 and 1R21CA223403). VB- FRM- Fondation pour la Recherche Médicale grant Joseph R Arron, Genentech, USA- for providing the control antibody, the anti-Il4 and the anti-Il13 antibodies. DF- National Institutes of Health (NIH) grant CA208735 from the National Cancer Institute (NCI). Mindie Nguyen- provided plasma samples from control patients with cirrhosis. Pauline Chu- Helped with mouse histology services.

Ethics

Human subjects: This study was approved by the institutional review board (IRB) of Stanford University (IRB Number: 28374), and all patients provided informed consent before being enrolled in this study.

Animal experimentation: All procedures were performed in strict accordance with APLAC protocols (#14045) and animals were housed in a pathogen-free environment. All invasive procedures and surgery were performed under appropriate anesthesia and analgesia, and every effort was made to minimize suffering.

Senior Editor

  1. Jeffrey Settleman, Pfizer, United States

Reviewing Editor

  1. Guido Kroemer, University of Paris Descartes, France

Reviewer

  1. Jung-Eun Lee, University of Michigan, United States

Publication history

  1. Received: July 31, 2019
  2. Accepted: December 3, 2019
  3. Version of Record published: January 14, 2020 (version 1)

Copyright

© 2020, Dhanasekaran et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 894
    Page views
  • 123
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Developmental Biology
    Alec K Gramann et al.
    Research Article Updated
    1. Cancer Biology
    2. Immunology and Inflammation
    Mark David Hayes et al.
    Research Article
