Tgfβ signaling is critical for maintenance of the tendon cell fate

  1. Guak-Kim Tan
  2. Brian A Pryce
  3. Anna Stabio
  4. John V Brigande
  5. ChaoJie Wang
  6. Zheng Xia
  7. Sara F Tufa
  8. Douglas R Keene
  9. Ronen Schweitzer  Is a corresponding author
  1. Shriners Hospital for Children, United States
  2. Oregon Health & Science University, United States
Research Article
  • Cited 4
  • Views 1,055
  • Annotations
Cite this article as: eLife 2020;9:e52695 doi: 10.7554/eLife.52695

Abstract

Studies of cell fate focus on specification, but little is known about maintenance of the differentiated state. In this study, we find that the mouse tendon cell fate requires continuous maintenance in vivo and identify an essential role for TGFβ signaling in maintenance of the tendon cell fate. To examine the role of TGFβ signaling in tenocyte function the TGFβ type II receptor (Tgfbr2) was targeted in the Scleraxis-expressing cell lineage using the ScxCre deletor. Tendon development was not disrupted in mutant embryos, but shortly after birth tenocytes lost differentiation markers and reverted to a more stem/progenitor state. Viral reintroduction of Tgfbr2 to mutants prevented and even rescued tenocyte dedifferentiation suggesting a continuous and cell autonomous role for TGFβ signaling in cell fate maintenance. These results uncover the critical importance of molecular pathways that maintain the differentiated cell fate and a key role for TGFβ signaling in these processes.

Introduction

Studies of cell fate determination are in most cases focused on the signaling pathways and transcription factors that direct naive cells to assume a specific cell fate (Li et al., 2012; James, 2013; Huang et al., 2015). It is commonly accepted that once fully differentiated the cells enter a stable cellular phenotype, but relatively little is known about the molecular mechanisms that reinforce and maintain this differentiated state. Maintenance of the differentiated state is, however, essential for tissue function and identifying the molecular pathways involved in these processes may be of great importance for understanding tissue homeostasis and pathology.

Tendons are connective tissues that transmit forces from muscle to bone to generate movement (Kannus, 2000). Despite their importance to overall musculoskeletal function and their slow and limited healing capabilities, relatively little is known about tendon development, the tendon cell fate, maturation and pathology. Elucidating the key molecular regulators of these processes is thus essential for improvements in the management of tendon healing, the treatment of tendinopathy and for bioengineering efforts for this tissue.

A limited number of transcription factors were so far identified as key regulators of the tendon cell fate including most notably, Scleraxis (Scx), a bHLH transcription factor expressed in tendon cells from progenitor stages and through development (Schweitzer et al., 2001) and Mohawk (Mkx), an atypical homeobox protein with essential roles in the development of the collagen matrix in tendons (Ito et al., 2010). Prototypic markers for the tendon cell fate also include the transmembrane protein tenomodulin (Tnmd) and collagen type I (Kannus, 2000; Huang et al., 2015), the major building blocks of the tendon fibrillar extracellular matrix that mediates the transmission of force by tendons.

Previous studies have also established a central role for the transforming growth factor-β (TGFβ) signaling pathway in early events of tendon development (Pryce et al., 2009; Havis et al., 2016). Notably, TGFβ is a potent inducer of Scx both in vivo and in cultured cells and disruption of TGFβ signaling in mouse limb bud mesenchyme resulted in complete failure of tendon formation (Pryce et al., 2009). This phenotype manifested at the onset of embryonic tendon development but robust expression of TGFβ ligands and associated molecules in later stages of tendon development suggested possible additional roles for TGFβ signaling in tendon development (Kuo et al., 2008; Pryce et al., 2009). Moreover, subcutaneous application of growth and differentiation factors (GDFs), members of the TGFβ superfamily, can induce ectopic neo-tendon formation in rats (Wolfman et al., 1997). The goal of this study was therefore to ask if TGFβ signaling plays essential roles at later stages of tendon development.

The TGFβ superfamily comprises secreted polypeptides that regulate diverse developmental processes ranging from cellular growth, differentiation and migration to tissue patterning and morphogenesis (Santibañez et al., 2011; Sakaki-Yumoto et al., 2013). These ligands act by binding to transmembrane type II receptors, which in turn recruit and activate a type I receptor. The activated receptor complex subsequently phosphorylates and activates receptor-regulated transcription factors called Smads (Smad2/3 for TGFβ signaling) that then complex with the common-mediator Smad4 and translocate into the nucleus where they promote or repress responsive target genes (Vander Ark et al., 2018). The TGFβ proper ligands (TGFβ1–3) all bind to a single type II receptor. Consequently, disrupting this one receptor is sufficient to abrogate all TGFβ signaling. To test for additional roles of TGFβ signaling in tendon development and biology, we wanted to bypass the early essential function in tendon formation, and decided to target TGFβ type II receptor (Tgfbr2) directly in tendon cells. We therefore targeted the receptor using ScxCre (Blitz et al., 2013), a tendon-specific Cre driver, so that TGFβ signaling will be disrupted specifically in tendon cells and only after the initial events of tendon formation.

We find that tendon differentiation function and growth during embryonic development was not disrupted following targeted deletion of TGFβ signaling in tenocytes, but shortly after birth the cells lost tendon cell differentiation markers and reverted to a more progenitor-like state. Moreover, viral reintroduction of Tgfbr2 to mutant cells was sufficient to prevent dedifferentiation and even to rescue the tendon cell fate in a cell autonomous manner, highlighting a continuous and essential role of TGFβ signaling in maintenance of the tendon cell fate.

Results

Targeting TGFβ type II receptor in Scx-expressing cells resulted in tendon disruption and limb abduction

Our previous studies showed that disruption of TGFβ signaling in mouse limb mesenchyme resulted in the complete failure of tendon formation (Pryce et al., 2009). To examine later roles of TGFβ signaling in mouse tendon development, the floxed Tgfbr2 gene was targeted conditionally with ScxCre (Tgfbr2f/-;ScxCre; called hereafter Tgfbr2;ScxCre mutant) to bypass the early role of TGFβ signaling in tendon development. ScxCre activity in tenocytes is not uniform during embryogenesis (Figure 1—figure supplement 1A) and complete targeting of tenocytes is achieved only in early postnatal stages. Indeed, immunostaining for TGFβ type II receptor revealed that by P0 mutant tendons displayed a nearly complete loss of receptor expression (Figure 1—figure supplement 1C). Consequently, Tgfbr2;ScxCre mutant embryos developed a complete network of tendons by E14.5, indicating they have bypassed the early requirement for TGFβ signaling in tendon development (Figure 1A).

Figure 1 with 4 supplements see all
Tendon phenotypes manifested in Tgfbr2;ScxCre mutants.

(A–D) Whole-mount imaging in fluorescent ScxGFP signal or brightfield. (A) Dorsally viewed embryo forelimb shows the formation of a complete network of tendons in both mutant and heterozygous control by E14.5. (B) Tendons of mutant pups appeared intact at birth, but by P3 lateral tendons disintegrated and were eventually eliminated (yellow arrowheads), whereas the majority of other tendons persisted with a substantial loss of the ScxGFP signal (white arrowheads). (C) Mutant pups appeared normal at birth but showed physical abnormalities including abducted paw and splayed limb (black arrowheads) by P3. (D–E) Substantial loss of ScxGFP signal was also detected in all tendons and related tissues. (D) Tail tendons and annulus fibrosus of the intervertebral disc (white arrowheads) in P7 pups. (E) Collateral ligaments of the metacarpophalangeal joint imaged in transverse section through the joints of heterozygous control and mutant pups at P7 (white arrowhead). Scale bar, 100 μm. Mutant: CKO, Heterozygous: Het.

Mutant tendon development was not perturbed through embryogenesis and mutant pups appeared normal at birth (Figure 1C). However, by day 3 after birth (P3), mutant pups showed physical abnormalities that manifested in abducted paws, splayed limbs (Figure 1C, black arrowhead) and severe movement limitations. Examination of forelimb tendons of P7 mutant pups using the tendon reporter ScxGFP revealed severe tendon disruptions. A few lateral limb tendons, for example the extensor carpi radialis longus tendon underwent fragmentation and disintegrated (Figure 1B, yellow arrowhead and Figure 1—figure supplement 3), whereas the majority of other tendons, notably the extensor digitorium communis tendons, retained structural integrity with a substantial loss of ScxGFP signal (Figure 1B, white arrowhead). Substantial loss of ScxGFP was also detected in all tendons and related tissues, including hindlimb and tail tendons, ligaments and the annulus fibrosus of the intervertebral disc (Figure 1D,E). Loss of ScxGFP signal was gradual starting around P2-P3, that is before the manifestation of physical abnormalities (Figure 1B and Figure 1—figure supplement 2). All mutant tendon cells lost ScxGFP at P7. We therefore performed most analyses of the mutant phenotype in this fully-phenotypic stage. The progressive nature of the phenotype also manifested in exacerbated movement limitations as mutant pups became older. This phenotypic progression was observed in most mutant pups but intriguingly, in rare cases (~2%) the mutant pups showed physical abnormalities and severe tendon phenotypes already at birth. Regardless, all mutants died at or before P14 likely due to ScxCre activity in developing cardiac valves (Levay et al., 2008), leading to enlarged heart as evidenced by gross examination and histological analysis (data not shown).

A closer examination of the mutant embryos identified the first indication of a tendon phenotype already at E16.5. The flexor carpi radialis tendons of mutant embryos were consistently torn by E16.5 (Figure 1—figure supplement 4). Interestingly, this phenotype was highly reproducible while the patterning and development of other tendons in mutant embryos was not perturbed through embryogenesis. Moreover, expression of the prototypic tenocyte markers Scx, tenomodulin and collagen I (Figure 2A–D) and the development of the collagen matrix were not disrupted in any tendon of mutant embryos (Figure 2E,F), including the flexor carpi radialis tendon before it snapped. A direct cause for the specific tear of the flexor carpi radialis tendon in mutant embryos was not identified to date.

Figure 2 with 1 supplement see all
Tendon development in Tgfbr2;ScxCre mutant embryos was not perturbed through embryogenesis.

(A) ScxGFP signal and (B) tenomodulin (Tnmd) immunofluorescence on transverse sections at wrist level of E16.5 mutant embryos demonstrate that the pattern and expression of prototypic tenocyte markers was not disrupted in mutant tendons. (C) Tnmd immunofluorescence in E16.5 wild-type tenocytes. (A’), (B’) and (C’) are higher magnifications of extensor digitorium communis tendons as boxed in (A), (B) and (C). (D) In situ hybridization for Col1a1 on transverse sections of the forelimb from E15.5 mutant and wild-type littermates reveals that expression of the major matrix genes was not altered in mutant embryos (black arrowhead). (E,F) TEM images of tendons from forelimbs of E18.5 mutant and wild-type embryos reveals that organization and accumulation of the tendon extracellular matrix was not disrupted in the mutant. (E’,F’) Higher magnification views of (E) and (F) for direct visualization of the collagen fibers. Scale bars, 200 μm (A–C) and 20 μm (A’–C’). Mutant: CKO, Wild-type: WT.

Tendons are rich in collagen fibers that provide structural integrity to the tendons and transmit the forces generated by muscle contraction (Kannus, 2000). Since young mutant pups exhibited movement difficulties, we first examined possible structural effects in the collagen matrix. The ultrastructure of mutant tendons that remained intact was therefore analyzed by transmission electron microscopy (TEM). Surprisingly, despite the functional defects and loss of ScxGFP signal starting around P3, collagen fibers in mutant tendons appeared organized and indistinguishable from those of wild-type (WT) littermates at this stage (Figure 3A,B). Apparent collagen degradation was observed only in older mutant pups (≥P7) (Figure 3C–G), suggesting the disruption to the matrix of these tendons may be a secondary consequence of the cellular changes in these mutants and/or of their movement difficulties. Furthermore, epitenon, a monolayer of cells that engulf and define the boundary of the tendon (Kannus, 2000) (Figure 3F, black arrowhead), was gradually disrupted and in some cases was almost undetectable in older mutant pups (Figure 3G, white arrowhead), suggesting that loss of the tendon boundary is an additional feature of the phenotype in these mutants.

Tendon degeneration observed in Tgfbr2;ScxCre mutants only at later postnatal stages.

TEM images of tendons from forelimbs of mutant and wild-type littermates at P3, P7 and P13. (A,B) Despite detectable functional defects starting around P3 in mutant pups, collagen matrix organization in mutant neonates was indistinguishable from that of their wild-type littermates. (C–E) By P7, the mutant tendon began to show signs of matrix degradation compared to the wild-type tendon. Collagen fibrils remained intact in some areas (D) and showed signs of deterioration in other areas (E). (F,G) Apparent collagen degradation and disrupted epitenon structures (white arrowhead) could be detected in tendons of P13 mutant pups. Black arrowhead indicates epitenon in wild-type pups. Boxed region in (G) is shown enlarged in (G’). Insets show transverse section TEM images of entire tendons at low-magnification (not to scale). Mutant: CKO, Wild-type: WT.

Loss of the tendon cell fate in mutant tenocytes

As mentioned earlier, the ScxGFP signal in mutant tendons appeared patchy contrary to the smooth appearance of WT tendons (Figure 1B), suggesting a disruption at the cellular level. To examine this phenotype at the cellular level, we analyzed cross-sections through the extensor communis tendons of P7 WT and mutant pups. In P7 WT pups, all tendon cells were positive for ScxGFP, Tnmd and Col1a1 (Figure 4A,C). Conversely, most cells in mutant tendons lost the ScxGFP signal and tendon marker gene expression (Figure 4B, white arrowhead and Figure 4C). Interestingly, some cells in mutant tendons retained ScxGFP signal and appeared rounded and enlarged from P3 onwards (Figure 4B, yellow arrowhead). Some of these cells exhibited weak or no expression of the Ai14 Rosa26-tdTomato (RosaT) Cre reporter (Madisen et al., 2010), suggesting a recent activation of the Scx enhancer in these cells and therefore that they are newly recruited tendon cells. Analysis of this aspect of the mutant phenotype will be published in a separate manuscript (Tan et al. in preparation).

Deletion of Tgfbr2 in Scx-expressing cells (Tgfbr2;ScxCre) results in loss of tenocyte differentiation markers.

(A–D) Transverse sections of extensor digitorium communis tendons of wild-type and mutant pups at wrist level. (A) In P7 wild-type pups, all tenocytes were positive for tendon reporter ScxGFP signal. (B) Conversely, most cells in P7 mutant tendons lost the ScxGFP signal (white arrowhead), whereas the cells positive for ScxGFP signal are newly recruited cells (yellow arrowhead) (Tan et al. in preparation). (C) In situ hybridization shows that the mutant cells also lost gene expression of tendon markers Col1a1 and Tnmd (images not to scale). (D) Lineage tracing using ScxCre shows that all ScxGFP-negative cells in (B) were positive for Ai14 Rosa26-tdTomato (RosaT) Cre reporter (white arrowhead), proving that the ScxGFP-negative cells in mutant tendons were derived from tenocytes. Dashed lines demarcate the mutant tendons. Scale bar, 20 μm. Mutant: CKO, wild-type: WT.

The fact that most cells in the mutant tendons do not express tendon markers is surprising, since the cells in these tendons were functional tenocytes at embryonic stages as evidenced by tendon marker gene expression and by the development of a functional collagen matrix (Figure 2). We next sought to determine if the ScxGFP-negative cells were indeed tendon cells that lost tendon gene expression or if the mutant tendons were simply repopulated by non-tenogenic cells. Using TUNEL assay, we did not detect cell death in mutant tendons and the rate of tenocyte proliferation as examined by EdU assay was also not altered in these tendons during different developmental stages ranging from E14.5 to P10 (Figure 2—figure supplement 1A,B), suggesting the cell population of mutant tendons was not altered. To directly determine if the cells in mutant tendons were tenocytes whose cell fate was altered, we took advantage of the fate mapping feature of the RosaT Cre reporter system (Madisen et al., 2010). When the reporter is activated by ScxCre, expression of the RosaT reporter is restricted to the Scx-expressing cells and their progeny. We found that all ScxGFP-negative cells within mutant tendons were positive for the RosaT Cre reporter (Figure 4D, white arrowhead). Notably, some non-tendon cells are also positive for the RosaT Cre reporter at this stage. However, given that there is no apparent elimination of the existing tenocytes, even if some of these cells were recruited into the mutant tendons that would not explain the absence of the original tenocytes in mutant tendons. This result thus indicates that the ScxGFP-negative cells in the mutant tendons were derived from tenocytes, and highlighted an unexpected reversibility for the tendon cell fate where it was possible for committed and functional tenocytes to lose their differentiation status.

Next, we wanted to ask if these results reflected that maintenance of the tendon cell fate was dependent on continuous activation of TGFβ signaling. Since the cellular phenotype manifestated mainly in post-natal stage, we targeted Tgfbr2 in all cells using the ubiquitous tamoxifen-inducible RosaCreERT2 driver (Hameyer et al., 2007). Tgfbr2;RosaCreERT2 pups were fed with tamoxifen at P1,P2 and P5, P6 (1.25 mg per pup for each time point) and harvested at P7-P14. Efficient recombination of the Tgfbr2 gene was confirmed by immunostaining of the receptor (Figure 1—figure supplement 1D,E). Interestingly, the cell fate of targeted cells was not disrupted in these mutants as evidenced by retention of tendon marker expression (Figure 1—figure supplement 1F). This result suggests that a mere loss of TGFβ signaling is not sufficient to cause tenocyte dedifferentiation, and additional factors associated with the loss of Tgfbr2 in the spatial and temporal features determined by ScxCre activity may also play a critical role in this process.

Mutant tenocytes acquired stem/progenitor features

Loss of cell differentiation marker can be the outcome of a few cellular processes, including most notably cell death, change of cell fate (transdifferentiation) or reversion to a less differentiated state (dedifferentiation) (Cai et al., 2007; Talchai et al., 2012; Tata et al., 2013). As aforementioned, we found no apparent cell death in mutant tendons (Figure 2—figure supplement 1A). Using histological staining for the prototypic markers of osteocytes, adipocytes and chondrocytes, we found that loss of tendon gene expression in the cells of mutant tendons was also not due to transdifferentiation (Figure 2—figure supplement 1C), suggesting that the changes in mutant tendons may reflect a process of cellular dedifferentiation.

One hallmark of cellular dedifferentiation is the loss of differentiation markers, which is what we observed in mutant tendon cells. When cells dedifferentiate they also assume stemness features for example colony-forming potential, and in most cases these cells also acquire expression of stem/progenitor cell markers (Sun et al., 2011; Tata et al., 2013; Nusse et al., 2018). To date, very little is known about the specific gene expression and cellular behavior of embryonic tendon progenitors. The only defined feature of these cells is the expression of the Scx tendon progenitor marker (Schweitzer et al., 2001), which was evidently lost in the mutant tendon cells. We therefore next directed our attention to similarities with stem/progenitor cells isolated from tendons (tendon-derived stem/progenitor cells) (Bi et al., 2007; Rui et al., 2010; Murchison et al., 2007; Mienaltowski et al., 2013) and with stem/progenitor cell markers reported in other studies (Blitz et al., 2013; Dyment et al., 2013; Tan et al., 2013; Runesson et al., 2015; Yin et al., 2016).

To test the colony-forming capacity of the mutant tendon cells, P7 mutant tendons were dissociated and FACS-sorted to collect ScxGFP-negative and RosaT-positive cells, which were then seeded at one cell per well in 96-well plates. As shown in Figure 5A, about 1–2% of cells (ScxGFP-positive and RosaT-positive) isolated from tendons of P7 WT and heterozygous controls formed colonies in culture, similar to the frequency of colony forming cells reported in other studies (Bi et al., 2007; Rui et al., 2010). On the other hand, we found a significant eightfold increase (p<0.01) in the frequency of colony-forming cells in mutant tendons (Figure 5A).

Figure 5 with 1 supplement see all

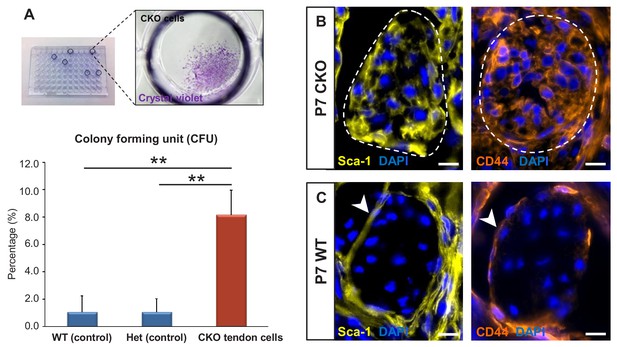

Tgfbr2;ScxCre mutant tenocytes acquired stem/progenitor features.

(A) The colony-forming efficiency of P7 wild-type and heterozygous tenocytes as well as mutant tendon cells were evaluated by seeding one cell per well of the FACS-sorted cells in 96-well plates, and colonies formed were visualized with crystal violet staining. Mutant tenocytes exhibited significantly higher clonogenic capacity compared to wild-type and heterozygous controls. The results shown are mean ± SD (n = 5–6, **p<0.01). (B) Immunofluorescence staining for stem/progenitor markers in transverse sections of mutant tendons shows that mutant tendon cells acquired in postnatal stages expression of stem cell antigen-1 (Sca-1) and CD44. (C) In wild-type littermate controls, expression of both markers was detected in epitenon (white arrowhead), but not in tenocytes. Dashed line demarcates the mutant tendon. Scale bars, 10 μm. Mutant: CKO, Wild-type: WT, Heterozygous: Het.

We next screened the mutant tendons for expression of stem/progenitor cell markers and found that the Tgfbr2;ScxCre mutant tendon cells gradually acquired expression of stem cell antigen-1 (Sca-1) and CD44 in postnatal stages (Figure 5B). Notably, expression of Sca-1 was undetectable and CD44 was detected only in very few WT tendon cells, but surprisingly robust expression of these markers was detected in the epitenon (Figure 5C, white arrowheads), a possible source of progenitor cells (Mendias et al., 2012; Dyment et al., 2013; Mienaltowski et al., 2013; Harvey et al., 2019). The similarity of marker expression between the mutant tenocytes and epitenon cells therefore reinforces the notion that the mutant tenocytes acquired progenitor features.

Dedifferentiation is frequently associated with reversion to an earlier progenitor cell fate (Cai et al., 2007). We therefore next examined the expression of these markers during embryonic tendon development. At E12.5, when tendon progenitors are first detected (Pryce et al., 2009), expression of Sca-1 and CD44 could not be detected in ScxGFP-positive tendon progenitors (data not shown). At E14.5, at the onset of tendon cell differentiation, we found low or no expression of both markers in the differentiating tendon cells. Robust positive staining for both markers was however detected in the cells that surround the tendon at this stage, likely the precursors of the epitenon/paratenon (Figure 5—figure supplement 1). Similar expression patterns were also found in mutant embryos (data not shown). These findings suggest that Sca-1 and CD44 are not markers for tendon progenitor in vivo, and possibly simply reflect a generic stemness state of the dedifferentiated mutant tendon cells.

Taken together, our findings show that mutant tendon cells acquired some generic stem/progenitor properties while losing their cell fate. It should be noted however that although these dedifferentiated tendon cells demonstrate some stem/progenitor properties, absence of TGFβ signaling in these cells might prevent them from acquiring the full spectrum of stemness or plasticity.

Molecular profile of the dedifferentiated mutant tenocytes

We next performed single-cell RNA sequencing analysis (scRNASeq) to establish a comprehensive profile of the cellular state and molecular changes in mutant tenocytes. A targeted retention of 2300–2600 cells from P7 WT and mutant tendon was obtained, and the transcriptomes were analyzed using the 10X Genomics platform. Using unsupervised hierarchical clustering analysis, we identified two major clusters corresponding to WT tenocytes and mutant (dedifferentiated) tendon cells in the respective samples (Figure 6A, Supplementary file 1A,B). The WT tenocyte cluster was defined by the expression of tendon markers including Scx, Fmod, Col11a1, Col1a1 and Tnmd. The mutant (dedifferentiated) tendon cell cluster is enriched for Ly6a (encoding Sca-1) and expresses undetectable level of tendon markers. Expression of close to 1000 genes (mean UMI count ≥0.5, adjusted p-value<0.05) was identified in each of these clusters.

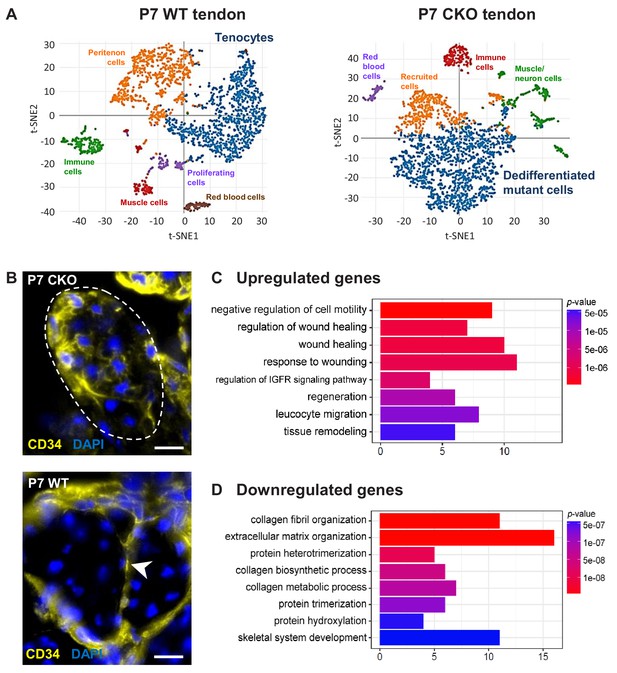

Molecular profile of the dedifferentiated mutant tenocytes.

(A) tSNE plots (K-means clustering) of enzymatically released cells from P7 wild-type and Tgfbr2;ScxCre mutant tendons reveals two major clusters corresponding to tenocytes and dedifferentiated mutant cells in the respective samples. Other cell type assignments are provided in the plots. See Supplementary file 1 for the list of genes highly expressed in these two clusters relative to other clusters. (B) Upregulated expression of Cd34 gene in P7 mutant tenocytes as revealed by scRNASeq analysis (see also Table 2) was determined using immunostaining. Transverse section of forelimb tendons shows that CD34 was indeed expressed by mutant tenocytes, while in wild-type controls CD34 was detected only in epitenon cells (white arrowhead). Dashed line demarcates the mutant tendon. (C,D) Gene ontology (GO) enrichment analysis in terms of biological processes associated with the (C) upregulated and (D) downregulated genes in P7 mutant compared with wild-type tenocytes. Selected GO terms are included in this figure, and genes annotated to the GO terms are available in Supplementary file 3. Scale bar, 10 μm. Mutant: CKO, Wild-type: WT.

Pairwise comparison of the gene sets between the P7 WT tenocyte and mutant cell clusters was next performed to determine changes in gene expression associated with tenocyte dedifferentiation. In total, expression of 186 genes was significantly different between the two cell populations (≥2 fold change and adjusted p-value<0.05), in which expression of 89 genes was upregulated and 97 genes was downregulated in the mutant tendon cells (Supplementary file 2). Almost 30% of the downregulated genes (29 genes) were identified in transcriptome analyses as tendon distinctive genes [(Havis et al., 2014) and our unpublished data]. Notably, the genes Scx, Fmod, Tnmd, Pdgfrl, Col1a1, Col1a2, Col11a1 and Col11a2 were among the top 25 down-regulated genes in Tgfbr2;ScxCre mutant tendon cells (Table 1), further confirming the loss-of-cell fate phenotype in these cells. On the other hand, expression of the Ly6a gene (encoding Sca-1) was greatly enriched in P7 mutant cells, corroborating the IHC findings presented above (Table 2 and Figure 5B). Moreover, we also found a significant increase in the expression of the Cd34 gene, another common marker for diverse progenitor cells. This observation was further confirmed at protein level, where positive immunostaining for CD34 was detected in mutant cells but not in normal tendon cells (Figure 6B). Interestingly, the genes upregulated in the mutant cells included several genes (Dpt, Anxa1, Cd34, Cd44, Mgp and Mfap5) whose expression was previously reported to be enriched during embryonic tendon development (Havis et al., 2014). These findings thus do not only lend support to our notion that the mutant cells lost their differentiation state, but also suggest the possibility of induction of some developmental programs in these cells, a general feature in cellular dedifferentiation (Tata et al., 2013; Stocum, 2017; Nusse et al., 2018).

Table 1
Top 25 downregulated genes in P7 Tgfbr2;ScxCre mutant cells compared with P7 wild-type tenocytes (≥2 fold change, adjusted p<0.05).

See also Supplementary file 2 for a complete list of the downregulated genes.

Gene symbolGene nameFold change
Wif1Wnt inhibitory factor 1157.4
Col11a2#Collagen, type XI, alpha 292.0
Scx#Scleraxis66.2
Col2a1δCollagen, type II, alpha 158.9
Car9Carbonic anhydrase 958.1
Sema3bSema domain, immunoglobulin domain (Ig), short basic domain, secreted, (semaphorin) 3B43.9
Cgref1Cell growth regulator with EF hand domain 133.2
Fmod#Fibromodulin27.9
Cilp2Cartilage intermediate layer protein 224.7
Matn4Matrilin 419.3
P4ha1δProcollagen-proline, 2-oxoglutarate 4-dioxygenase (proline 4-hydroxylase), alpha one polypeptide13.5
Pcolce2δProcollagen C-endopeptidase enhancer 211.8
Tpm1Tropomyosin 1, alpha10.0
Wisp1WNT1 inducible signaling pathway protein 19.7
Tnmd#Tenomodulin8.5
Loxl2δLysyl oxidase-like 28.3
1500015O10RikRIKEN cDNA 1500015O10 gene7.1
Col11a1#Collagen, type XI, alpha 17.1
PdgfrlδPlatelet-derived growth factor receptor-like7.0
Mfap4Microfibrillar-associated protein 46.5
Col1a1#Collagen, type I, alpha 16.4
PtgisProstaglandin I2 (prostacyclin) synthase6.4
Col1a2#Collagen, type I, alpha 26.2
Itgbl1Integrin, beta-like 15.7
Tpm2Tropomyosin 2, beta5.4
  1. Note:

    1) #=Tendon differentiation or specific marker; δ = genes related to tendons.

  2. 2) Note that the expression level detected for Scx also included that of ScxGFP, and therefore do not reflect the expression level of endogenous Scx.

Table 2
Top 25 upregulated genes in P7 Tgfbr2;ScxCre mutant cells compared with P7 wild-type tenocytes (≥2 fold change, adjusted p<0.05).

See also Supplementary file 2 for a complete list of the downregulated genes.

Gene symbolGene nameFold change
Dlk1Delta-like one homolog (Drosophila)137.9
Serpine2Serine (or cysteine) peptidase inhibitor, clade E, member 2118.2
DptDermatopontin95.7
Ly6aLymphocyte antigen six complex, locus A54.3
H19H1951.1
Cd34CD34 antigen47.8
LumLumican36.6
LgmnLegumain31.8
Cxcl12Chemokine (C-X-C motif) ligand 1226.1
Mfap5Microfibrillar associated protein 522.5
Ly6c1Lymphocyte antigen six complex, locus C121.7
Igf2Insulin-like growth factor 221.4
Serping1Serine (or cysteine) peptidase inhibitor, clade G, member 119.2
Mgst1Microsomal glutathione S-transferase 118.3
AspnAsporin15.9
Mt1Metallothionein 115.4
Mgst3Microsomal glutathione S-transferase 313.1
Col3a1δCollagen, type III, alpha 113.0
PostnPeriostin, osteoblast specific factor13.0
Itm2aIntegral membrane protein 2A12.7
PtnPleiotrophin10.3
Rps18-ps3Ribosomal protein S18, pseudogene 39.7
GsnGelsolin8.3
Ifitm3Interferon induced transmembrane protein 38.2
Col5a1δCollagen, type V, alpha 18.1
  1. Note: δ = genes related to tendons.

To gain insights into biological functions activated in the P7 mutant cells, differentially expressed genes (DEGs) in these cells (Supplementary file 2) were further analyzed via GO enrichment tools clusterProfiler (Yu et al., 2012) and PANTHER Classification System (http://pantherdb.org/). Intriguingly, GO enrichment analysis revealed that one of the prominent biological changes observed in P7 mutant cells was upregulation of gene sets associated with wound healing (Figure 6C and Supplementary file 3A). These genes include protease inhibitors (Serpine2, Serping1), inflammatory mediator Anxa1 and extracellular matrix (Col3a1 and Col5a1). This finding suggests a possible role for tendon cells in the responses to pathological conditions, in line with findings reported by others (Dakin et al., 2015; Stolk et al., 2017; Schoenenberger et al., 2018). On the other hand, many biological processes downregulated in P7 mutant cells involved collagen synthesis and organization (Figure 6D and Supplementary file 3B). Since tendon biology is not annotated in most databases, changes in the collagen matrix, the most prominent structural component in tendons is the best indicator for the disruption of the tendon cell fate. Disruption of the collagen matrix in tendons was also detected in older mutant pups by ultrastructural analysis using TEM (Figure 3E,G).

Using PANTHER, we also investigated which protein classes were significantly altered in P7 mutant cells relative to WT tenocytes. Genes found to be most downregulated in mutant cells encode for receptors, signaling molecules, membrane traffic proteins and ECM (Table 3A). On the other hand, the upregulated genes in the mutant cells encode most prominently for proteins involved in nucleic acid binding, enzyme modulators, cytoskeletal protein, signaling molecules and transcription factors (Table 3B). Notably, expression of the activating protein 1 (AP-1) transcriptional complex, associated with numerous cellular processes including cell fate regulation (Hess et al., 2004), was significantly induced in mutant cells. Expression of both AP-1 components, that is the Fos and Junb genes was induced more than twofold, and the Jun gene was induced only slightly less than twofold. Moreover, the Id3 gene encoding for a general bHLH transcription factor inhibitor was also induced. Due to its broad selection of targets, Id3 was also implicated in numerous cellular processes including the regulation of cellular differentiation (Norton, 2000). A possible role for these transcriptional activities in tenocyte dedifferentiation will be addressed in future studies.

Table 3
PANTHER protein class differentially expressed in P7 Tgfbr2;ScxCre mutant cells compared with P7 wild-type tenocytes.

A complete list of differentially expressed genes (≥2 fold change, adjusted p<0.05) used for the analysis is available in Supplementary file 2.

(A) Downregulated protein class
Protein classGene list
ReceptorPdgfrl, Col6a3, Kdelr3, Col6a1, Kdelr2, Itgbl1, Ssc5d, Col6a2, Ssr4, Col12a1, Matn4
Signaling moleculeSdc1, Wisp1, Sparc, Mfap4, Sema3b, Angptl2, Tgfbi
Membrane traffic proteinSec13, Kdelr3, Copz2, Kdelr2, Rabac1, Lman1
Extracellular matrix proteinSdc1, Crtap, Clec11a, P3h3, Sparc, P3h4
(B) Upregulated protein class
Protein classGene list
Nuclei acid bindingNdn, Eif3f, Rpl39, Rpl36a, Rpl3, Rpl9-ps6, Rpl22l1, Rps27, Rps4x, Cirbp, Rps19, Eif3e, Rps18, Rps5, Junb
Enzyme modulatorFstl1, Dbi, Sfrp2, Ctsb, Serpine2, Serping1, Igfbp3, Igfbp4
Cytoskeletal proteinGsn, Map1lc3b, Tuba1b, Arpc1b, Emp1, Tubb5
Signaling moleculeS100a16, Ptn, Dlk1, Efemp2, Postn, Sfrp2
Transcription factorEif3h, Naca, Fos, Id3, Junb

We next conducted PANTHER Pathway Analysis using different values of the filter parameter (mean UMI count and fold change) for enriching DEGs in P7 mutant cells. In general, we found that pathways that stood out as relevant for this study included integrin signaling, insulin/IGF, Wnt and inflammation mediated by chemokine and cytokine signaling pathways (Table 4). Insulin/IGF and Wnt signaling are often implicated in cell proliferation and cell fate specification (Stewart and Rotwein, 1996; Sadagurski et al., 2006; Goessling et al., 2009; Salazar et al., 2016). It is interesting to note that their activation has also been associated with cellular dedifferentiation in skin, gut and neuron (Weber et al., 2003; Zhang et al., 2012; Perekatt et al., 2018). Further investigation is required to determine the specific roles of these signaling pathways in tenocyte dedifferentiation.

Table 4
PANTHER pathway analysis of upregulated genes in P7 Tgfbr2;ScxCre mutant cells compared with P7 wild-type tenocytes.
PANTHER pathwayPANTHER accessionGene list
Integrin signaling pathwayP00034Arpc2, Col4a1, Rac1, Col5a2, Rap1b, Cdc42, Arpc5, Col5a1, Rap1a, Rhoc, Fn1, Arpc1b, Col3a1
Inflammation mediated by chemokine and cytokine signaling pathwayP00031Arpc2, Rac1, Cdc42, Nfkbia, Arpc5, Rhoc, Arpc1b, Arpc4, Jun, Junb
Wnt signaling pathwayP00057Fstl1, Sfrp2, Ppp3ca, Csnk1a1
Insulin/IGF pathwayP00032, P00033Igf1, Igf2, Fos
  1. Note:

    1A complete list of differentially expressed genes (DEGs) used for the analysis is available in Supplementary file 2.

  2. 2Different values of the filter parameter (mean UMI count and fold change) were applied for enriching DEGs in P7 mutant cells. Only pathways that stood out as relevant for this study are listed.

Tenocyte dedifferentiation is dependent on cell autonomous loss of TGFβ signaling

Lastly we wanted to ask if tenocyte dedifferentiation in these mutants reflected a cell autonomous requirement for TGFβ signaling in tenocytes, or if it was the result of global changes that occurred in mutant tendons. To address this question, we wanted to reactivate TGFβ signaling in isolated mutant tendon cells that will therefore still be exposed to the mutant tendon environment and determine the effects on tenocyte dedifferentiation. We previously found that transuterine injection of AAV viruses into embryonic limbs resulted in sporadic infection of limb tendons [(Huang et al., 2013) and unpublished data]. We therefore decided to address this question by injection of a Cre-activatable virus encoding an epitope tagged version of the receptor, AAV1-FLEX-Tgfbr2-V5 (Figure 7A). Injection of this virus into embryonic mutant limbs would result in expression of Tgfbr2-V5 only in infected tendon cells due to the tendon-restricted activity of ScxCre in mutant embryos.

Figure 7 with 1 supplement see all

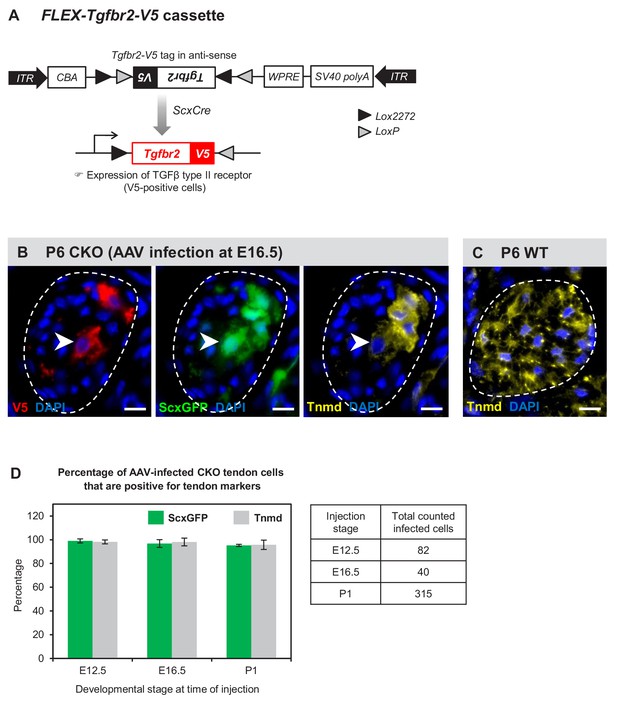

Tenocyte dedifferentiation is dependent on cell autonomous loss of TGFβ signaling.

(A) AAV1-FLEX-Tgfbr2-V5 virus contains the reverse-complement sequence of Tgfbr2 with a C-terminal V5 epitope tag. Cre activity will lead to a permanent inversion of the cassette that will then express the V5-tagged TGFβ type II receptor. (B) Targeted expression of TGFβ type II receptor in E16.5 mutant tendon cells using the AAV1-FLEX-Tgfbr2-V5 prevented the loss of tendon markers in the infected tenocytes. The forelimb of E16.5 mutant embryos was infected with AAV1-FLEX-Tgfbr2-V5 virus and harvested at P6. Transverse forelimb sections were stained with antibodies for V5 (red) to detect AAV-infected cells and tenomodulin (Tnmd; yellow), a prototypic tendon marker expressed by (C) all tenocytes in the wild-type tendon at this stage. Dashed line demarcates the mutant tendon. (D) Quantification shows that about 95–98% of the AAV-infected (V5-positive) mutant tendon cells retained or re-expressed tendon differentiation markers after viral injection at different developmental stages (n = 3 pups for each stage). Note that the embryonic infection was performed with Cre-activated AAV1-FLEX-Tgfbr2-V5 virus and the P1 infection was performed with the constitutive AAV1-Tgfbr2-FLAG virus. Scale bar, 10 μm. Mutant: CKO, Wild-type: WT.

AAV1-FLEX-Tgfbr2-V5 was injected into mutant limbs at two stages during embryonic tendon development: (a) E12.5 at the onset of ScxCre activity, ensuring that Tgfbr2-V5 expression will be activated in infected cells concurrent with the loss of the endogenous Tgfbr2, resulting in isolated Tgfbr2-expressing cells surrounded by mutant cells. (b) E16.5, before the onset of tenocyte dedifferentiation in mutant embryos. Infected limbs were harvested at P5-P7, and the effects of Tgfbr2 expression on mutant tendon cells was evaluated by analyzing cells with positive V5 signal. Interestingly, targeted re-expression of Tgfbr2-V5 in individual mutant tendon cell at both developmental stages was able to prevent the loss of tendon markers as observed in postnatal pups (Figure 7B–D), suggesting a cell autonomous role for TGFβ signaling in maintenance of the tendon cell fate.

Recognizing that cell autonomous activity of Tgfbr2-V5 was sufficient to prevent dedifferentiation of mutant tenocytes, we next wanted to test if reactivation of TGFβ signaling in a dedifferentiating tenocyte could also reverse the process and rescue a tenocyte from dedifferentiation. Activity of ScxCre may be lost in the dedifferentiating tenocytes due to the loss of Scx expression and therefore of Scx enhancer driven expression of Cre in tendons of Tgfbr2;ScxCre mice. We therefore used in this case a virus encoding constitutive expression of Tgfbr2 in which the virus was tagged with a FLAG Tag (AAV1-Tgfbr2-FLAG). The virus was injected locally into P1 mutant limbs and the limbs were harvested at P7. We found again that all infected mutant tendon cells expressed the tendon markers ScxGFP and tenomodulin (Figure 7D and Figure 7—figure supplement 1A), suggesting that reactivation of TGFβ signaling was indeed sufficient to rescue the dedifferentiated tenocytes. Taken together, these findings demonstrate that TGFβ signaling is sufficient to prevent and to rescue the loss-of-tendon cell fate in a cell autonomous manner.

The constitutive expression of Tgfbr2-FLAG driven by the AAV1-Tgfbr2-FLAG virus ensured that the neonatal infection with this virus resulted in Tgfbr2-FLAG expression both within and outside of tendons. Notably, induction of tendon gene expression following activation of Tgfbr2-FLAG expression was detected only in dedifferentiated tenocytes and not in cells located outside of tendons (Figure 7—figure supplement 1B). It was previously shown that TGFβ signaling is a potent inducer of ScxGFP and other tendon markers (Pryce et al., 2009; Maeda et al., 2011; Sakabe et al., 2018). This result however, reflects the fact that induction of tendon markers by TGFβ signaling is context-dependent and further indicates that the tenocytes in mutant pups have dedifferentiated to a state that retained tenogenic potential and the capacity to respond to TGFβ signaling.

Taken together these results highlight a surprising cell autonomous role for TGFβ signaling in maintenance of the tendon cell fate. In Tgfbr2;ScxCre mutants tenocyte differentiation and function are normal during embryonic development but the tenocytes dedifferentiate in early postnatal stages. Tenocyte dedifferentiation is directly dependent on the loss of TGFβ signaling since retention or reactivation of the TGFβ receptor in isolated cells prevents or reverses the process of dedifferentiation. TGFβ signaling is thus essential for maintenance of the tendon cell fate.

Discussion

In this study, we find that the tendon cell fate requires continuous maintenance in vivo and identify an essential role for TGFβ signaling in maintenance of the tendon cell fate. To examine the different roles that TGFβ signaling may play in tendon development the Tgfbr2 gene was targeted in Scx-expressing cells (Tgfbr2;ScxCre mutant), ensuring disruption of TGFβ signaling in tendon cells. Mutant embryos appeared normal at birth and showed movement difficulties from early neonatal stages. Tendon formation and maturation was not affected in mutant embryos, but one flexor tendon snapped consistently at E16.5 and a few additional tendons disintegrated in early postnatal stages. Surprisingly, we find that in all other tendons the resident tenocytes lost tendon gene expression and dedifferentiated, assuming behavior and gene expression associated with stem/progenitor cells. While a direct loss of TGFβ signaling in individual tenocytes was not sufficient to cause tenocyte dedifferentiation, we found that tenocyte dedifferentiation could be reversed by reactivation of TGFβ signaling in mutant cells (Figure 8). These results uncover an essential role for molecular pathways that maintain the differentiated cell fate in tenocytes and a key role for TGFβ signaling in these processes.

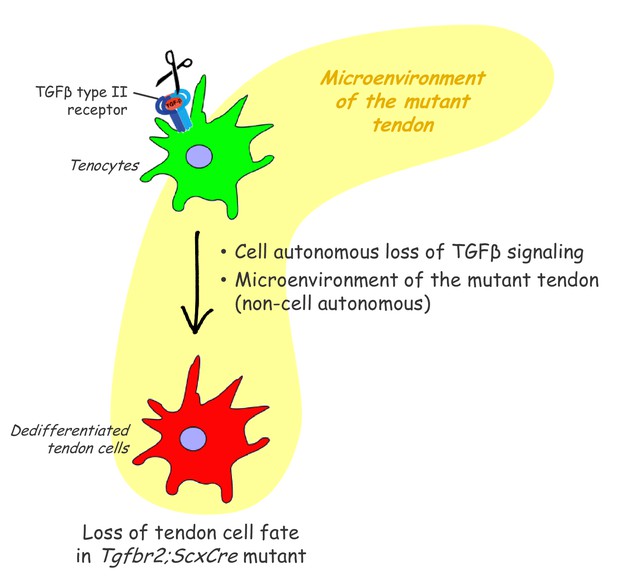

Proposed roles of TGFβ signaling in the maintenance of tendon cell fate.

Targeted disruption of the TGFβ type II receptor (Tgfbr2) by ScxCre resulted in tenocyte dedifferentiation in early postnatal stages. Tenocyte dedifferentiation was reversed by reactivation of TGFβ signaling in individual mutant cells, demonstrating a cell autonomous role for TGFβ signaling for maintenance of the cell fate. Conversely, a mere loss of the receptor in individual tendon cell was not sufficient to cause tenocyte dedifferentiation, suggesting that external factors may also play a critical role in this process. We therefore propose that maintenance of the tendon cell fate is dependent on a combination of a cell autonomous function of TGFβ signaling and an additional, likely non-cell autonomous factor, for example the microenvironment of the tendon in the Tgfbr2;ScxCre mutant (cell-matrix interaction, mechanical loading, cell-cell contacts etc).

Dedifferentiation has mostly been studied in vitro (Weinberg et al., 2007; Zhang et al., 2010; Pennock et al., 2015; Mueller et al., 2016; Guo et al., 2017; Nordmann et al., 2017) and there are only a handful of reported cases of dedifferentiation in vivo (Talchai et al., 2012; Tata et al., 2013; Zhang et al., 2019). It was therefore important to establish if the tenocytes of Tgfbr2;ScxCre mutants indeed dedifferentiated. Cellular dedifferentiation manifests in most cases by loss of features associated with the differentiated state and reversion to an earlier progenitor state within their cell lineage. In tendons of Tgfbr2;ScxCre mutants, we indeed found that the tenocytes lost tendon gene expression and showed enhanced clonogenic potential. Moreover, the mutant tenocytes gained expression of the prototypic somatic stem/progenitor markers Sca-1, CD34 and CD44 (Holmes and Stanford, 2007; Sung et al., 2008; Hittinger et al., 2013; Sidney et al., 2014). Notably, of these stem/progenitor markers only Sca-1 and CD44 are also expressed at high levels in cultured tendon-derived stem/progenitor cells (Bi et al., 2007; Mienaltowski et al., 2013). Neither of these markers has so far been established as markers for tenocytes or for tendon progenitors. However, both expression of the Cd34 and Cd44 genes and expression of some additional signature genes identified in the dedifferentiated tenocytes by the scRNASeq analysis was previously shown to be significantly enriched in E14.5 mouse limb tendon cells when compared to cells from E11.5 (Havis et al., 2014). These observations suggest that some aspects of the embryonic tendon development program may be reactivated in dedifferentiated mutant tendon cells. Interestingly, we found that Sca-1, CD34 and CD44 are expressed in the wild-type epitenon/paratenon, thin layers of cells that surround the tendon and has been implicated as a possible source of stem/progenitor cells for tendons (Mienaltowski et al., 2013; Cadby et al., 2014; Harvey et al., 2019). We further verified that mutant tendons are not repopulated by epitenon/paratenon cells since there is no evidence of elimination of the resident tenocytes by cell death.

Most studies of cellular dedifferentiation have focused on the regulation of this process in vitro. There is, however, evidence demonstrating this phenomenon in vivo especially in the context of pathological scenarios, as part of the regeneration process. One of the well-studied examples is limb regeneration in amphibians. Following limb amputation, cells near to the wound dedifferentiate to blastema, proliferate and eventually re-differentiate to replace all the components of the lost limb (McCusker et al., 2015). In zebrafish, it has also been reported that following partial heart amputation, sarcomeres in mature cardiomyocytes disassembled, lost their differentiation gene expression profile and switched to embryonic hyperplastic growth to replace the missing tissues (Poss et al., 2002). Cellular dedifferentiation has also been observed in murine mature hepatocytes (Gournay et al., 2002), pancreatic β cells (Talchai et al., 2012) and skeletal muscle cells (Mu et al., 2011). More recently, Nusse and colleagues (Nusse et al., 2018) have shown that disruption of the mouse intestinal barrier, via either parasitic infection or cell death, led to reversion of crypt (epithelial) cells to a fetal-like stem cell state. Interestingly, expression of Sca-1 was highly induced in these cells, and when cultured the Sca-1 positive crypt cells exhibited characteristics of fetal intestinal epithelium including re-expression of fetal signature genes and loss of differentiated markers. The results presented in this study therefore suggest that a similar process may be activated in tenocytes as part of the regenerative process in response to pathology. Taken together, this growing body of evidence suggests that dedifferentiation may be a generalized cellular response to tissue damage that warrants further investigation. Moreover, these observations may also suggest that induction of Sca-1 may serve as a marker for a pathology-related dedifferentiation process. Intriguingly, Sca-1-positive cells were also found in the wound window in rat patellar tendon incisional injury model, but in this case it was not determined if Sca-1 expression was associated with dedifferentiation (Tan et al., 2013). Sca-1 expression has been identified on putative stem/progenitor cell populations in various tissues (Holmes and Stanford, 2007; Hittinger et al., 2013), but little is known about its biological function. It may therefore be interesting to examine whether Sca-1 functions as a stemness marker in dedifferentiated cells or if it also plays additional roles in cellular responses to pathological conditions.

Tenocyte dedifferentiation as observed in this study reveals an unexpected flexibility in the tendon cell fate where differentiated tenocytes can revert to a progenitor state under the mutant conditions. Significantly, reintroduction of Tgfbr2 not only prevented tenocyte dedifferentiation when it was performed during embryogenesis but was also able to rescue the cell fate of dedifferentiated tenocytes when the virus was introduced after birth. This result suggests that TGFβ signaling may have a continuous role in protecting the differentiated tenocytes from dedifferentiation, identifying TGFβ signaling as a key regulator of tendon homeostasis. Moreover, these results also highlight the importance of the molecular pathways involved in maintenance of the differentiated cell fate not only for tissue homeostasis and function, but also for processes associated with tissue regeneration or with the onset and unfolding of pathology. Previous studies have implicated TGFβ signaling in cell fate maintenance in various tissues, for example preserving chondrocyte identity in cultures (Baugé et al., 2013) and suppressing intestinal cell dedifferentiation (Cammareri et al., 2017). While TGFβ signaling has been associated with different aspects of tendon biology (Pryce et al., 2009; Havis et al., 2016), to the best of our knowledge this is the first report of its role in maintenance of the tendon cell fate.

The fact that the mutant phenotype was caused by disruption of TGFβ signaling in tenocytes and the rescue of the tendon cell fate by virus mediated reintroduction of Tgfbr2 even to individual mutant cells provides direct evidence for a continuous and cell autonomous role for TGFβ signaling in maintenance of the tendon cell fate. However, targeting of Tgfbr2 using ubiquitous inducible cre drivers did not result in tenocyte dedifferentiation. These observations suggest that tenocyte dedifferentiation in these mutants may not merely be the result of the loss of intrinsic TGFβ signaling in tendon cells, but rather may be caused by an interplay between intrinsic loss of TGFβ signaling and additional external factors associated with the loss of Tgfbr2 with the specific spatial and temporal features of the ScxCre driver. These additional factors may involve cell-matrix interactions affected by the microenvironment of the mutant tendons or changes in cell-cell contacts in the mutant environment. The fact that the phenotype manifested in early post-natal stages may also suggest that mechanical loading experienced by the pups after birth may play a role in the initiation of cellular dedifferentiation. The close relationship between tendon function and mechanical stimulus has been underlined in several studies (Nabeshima et al., 1996; Heinemeier and Kjaer, 2011; Galloway et al., 2013). Enhanced mechanical loading may compound with altered features in the structure of the mutant tendons to trigger the initiation of the mutant phenotype.

The tendon phenotype of Tgfbr2;ScxCre mutants highlights a likely role for tenocyte dedifferentiation in regenerative processes in tendons and possibly also in the progression of tendon pathology. Uncovering the molecular pathways involved in this process may therefore be important for new strategies for treatments of tendon pathologies. The Tgfbr2;ScxCre mutants provide a unique opportunity to analyze these pathways, and the experimental approaches employed in this study may be developed into an experimental paradigm for molecular dissection of this process. Briefly, transcriptional and epigenetic analyses of the mutant tenocytes through the dedifferentiation process can provide a landscape of the molecular changes that initiate and drive the dedifferentiation process. Promising candidates can then be tested using the AAV-mediated cell fate rescue experiments to identify genes or groups of genes that can protect the tenocytes from dedifferentiation to establish the molecular process of cellular dedifferentiation. Of particular interest will be the early molecular changes in the mutant tenocytes that drive and promote the onset and progression of tenocyte dedifferentiation.

Our findings underscore the fact that the tendon cell fate requires continuous maintenance and that it is not an irreversible state, a long-standing biological dogma that has been challenged by recent research (Takahashi and Yamanaka, 2006; Ladewig et al., 2013). Nevertheless, it is important to recognize that the dramatic cell fate changes in Tgfbr2;ScxCre mutant happens in the context of a genetic modification. The occurrence of such phenomenon in vivo might not be a simple direct outcome of changes to TGFβ signaling. Most importantly, while the initiating events for tenocyte dedifferentiation may vary in different scenarios, it is likely that the molecular events that drive the dedifferentiation process downstream of the initiation event are similar or related. Uncovering these pathways in this experimental system may therefore facilitate the analysis of such processes in various other contexts.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent
(M. musculus)
Tgfbr2f/f(Chytil et al., 2002)NANA
Genetic reagent
(M. musculus)
ScxCre(Blitz et al., 2013)NANA
Genetic reagent
(M. musculus)
RosaCreERT(Hameyer et al., 2007)NANA
Genetic reagent
(M. musculus)
ScxGFP(Pryce et al., 2007)NANA
Genetic reagent
(M. musculus)
Ai14 Rosa26-tdTomato (RosaT)(Madisen et al., 2010)NANA
Recombinant DNA reagentpAAV1-FLEX-Tgfbr2-V5GenScriptThis paperNA
Recombinant DNA reagentpAAV1-Tgfbr2-FLAGGenScriptThis paperNA
AntibodyRat anti-CD34 (Clone RAM34)BD BiosciencesCat# 553731
RRID:AB_395015
IF(1:200), Antigen retrieval
AntibodyRat anti-CD44 (Clone IM7)BD BiosciencesCat# 550538
RRID:AB_393732
IF(1:40), Pre-treated with cold acetone for 10 min at −20°C
AntibodyRabbit anti-FLAG (DYKDDDDK)Thermo Fisher ScientificCat# 740001
RRID:AB_2610628
IF(1:200), Antigen retrieval
AntibodyRat anti-FLAG (DYKDDDDK)Novus BiologicalsCat# NBP1-06712SS
RRID:AB_1625982
IF(1:100), Antigen retrieval
AntibodyGoat anti-Sca-1/Ly6R and D SystemsCat# AF1226
RRID:AB_354679
IF(1:80)
AntibodyRat anti-Sca-1/Ly6R and D SystemsCat# MAB1226
RRID:AB_2243980
IF(1:50)
AntibodyGoat anti-tenomodulin
(Clone C-20)
Santa Cruz BiotechnologyCat# sc-49324
RRID:AB_2205971
IF(1:50), Antigen retrieval
AntibodyRabbit anti-TGFβ type II receptorBioworld IncCat# BS1360
RRID:AB_1663474
IF(1:250)
AntibodyRabbit anti-V5AbcamCat# ab206566
RRID:AB_2819156
IF(1:500), Antigen retrieval
AntibodyRat anti-V5AbcamCat# ab206570
RRID:AB_2819157
IF(1:500), Antigen retrieval
AntibodyCy5 donkey anti-goat secondaryJackson ImmunoResearchCat# 705-175-147
RRID:AB_2340415
IF(1:500)
AntibodyAlexaFluor647 donkey anti-rabbit secondaryJackson ImmunoResearchCat# 711-607-003
RRID:AB_2340626
IF(1:400)
AntibodyCy3 donkey anti-rabbit secondaryJackson ImmunoResearchCat# 711-166-152
RRID:AB_2313568
IF(1:800)
AntibodyAlexaFluor647 donkey anti-rat secondaryJackson ImmunoResearchCat# 712-606-153
RRID:AB_2340696
IF(1:800)
AntibodyCy3 donkey anti-rat secondaryJackson ImmunoResearchCat# 712-166-150
RRID:AB_2340668
IG(1:800)
Commercial assay or kitIn situ cell death detection kitRocheCat# 12156792910Follow the manufacturer’s instruction
Commercial assay or kitClick-iT EdU kitLife TechnologiesCat# C10340Follow the manufacturer’s instruction
OtherDAPI stainThermo Fisher ScientificD1306
RRID:AB_2629482
1 μg/ml
  1. Note:

    * Antigen retrieval: Incubated with warm citrate buffer (10 mM sodium citrate with 0.05% Tween 20, pH 6) at 550W, 50°C for 5 min using a PELCO BioWave.

Mice

All mouse works were performed in accordance to the guidelines issued by the Animal Care and Use Committee at Oregon Health and Science University (OHSU). Floxed TGFβ type II receptor (Tgfbr2f/f) mice (Chytil et al., 2002) were crossed with mice carrying the tendon deletor Scleraxis-Cre recombinase (ScxCre) (Blitz et al., 2013) to disrupt TGFβ signaling in tenocytes (called hereafter Tgfbr2;ScxCre mutant). All mice in this study also carried a transgenic tendon reporter ScxGFP (Pryce et al., 2007), and a Cre reporter Ai14 Rosa26-tdTomato (RosaT) (Madisen et al., 2010) for the lineage tracing of Scx-expressing cells. For embryo harvest, timed mating was set up in the afternoon, and identification of a mucosal plug on the next morning was considered 0.5 days of gestation (E0.5). Embryonic day 14.5 to postnatal day 13 (E14.5-P13) limb tendons were used for analysis. Mouse genotype was determined by PCR analysis of DNA extracted from tail snip using a lysis reagent (Viagen Biotech, Cat 102 T) and proteinase K digestion (55°C, overnight).

Transmission electron microscopy (TEM)

Request a detailed protocol

Skinned mouse forelimbs were fixed intact for several days in 1.5% glutaraldehyde/1.5% formaldehyde, rinsed, then decalcified in 0.2 M EDTA with 50 mM TRIS in a microwave (Ted Pella, Inc) operated at 97.5 watts for fifteen 99 min cycles. Samples were fixed again in 1.5% glutaraldehyde/1.5% formaldehyde with 0.05% tannic acid overnight, then rinsed and post-fixed overnight in 1% OsO4. Samples were dehydrated and extensively infiltrated in Spurr’s epoxy and polymerized at 70°C (Keene and Tufa, 2018). Ultrathin sections of tendons of interest were cut at 80 nm, contrasted with uranyl acetate and lead citrate, and imaged using a FEI G20 TEM operated at 120 kV with montages collected using a AMT XR-41 2 × 2K camera. The acquired images were stitched using ImageJ software (https://imagej.nih.gov/ij/) (Preibisch et al., 2009). Three pups per time point were harvested for TEM analysis.

In situ hybridization and histological staining

Request a detailed protocol

Dissected forelimbs were fixed with 4% paraformaldehyde in PBS, decalcified in 5 mM EDTA (1–2 weeks at 4°C) and incubated with a 5–30% sucrose/PBS gradient. The tissues were then embedded in OCT (Tissue-Tek, Inc), sectioned at 10 µm or 12 µm using a Microm HM550 cryostat (Thermo Scientific, Waltham, MA) and mounted on Superfrost plus slides (Fisher). In situ hybridization was performed as previously described (Murchison et al., 2007).

For immunofluorescence staining, sections were air-dried, rinsed thrice with PBS and blocked with 2% BSA and 2% normal goat serum in PBS for 1 hr at RT. The sections were then incubated overnight at 4°C with specific primary antibody as listed in Key Resources Table. This was followed by incubation with the matching Cy3- or Cy5/AlexaFluor647-conjugated secondary antibody (Jackson ImmunoResearch; diluted at 1:400 to 1:800; see Key Resources Table) in PBS containing 2% normal goat serum for 1 hr at RT. DAPI (4′,6-diamidino-2-phenylindole, dihydrochloride; Thermo Fisher Scientific) was used to counterstain cell nuclei. Immunolabelled sections were mounted in Fluorogel (Electron Microscopy Sciences, PA; Cat 17985–10) and visualized using a Zeiss ApoTome microscope. A washing step with PBS containing 0.1% Triton-X 100 was performed after the change of antibodies. Controls included omission of primary antibodies.

For examination of cell death and proliferation, TUNEL and EdU assays were performed using Click-iT EdU (Life Technologies) and In Situ Cell Death Detection (Roche) kits, respectively, following manufacturer’s instructions. For all studies, sections from two to four pups were examined to ensure reproducibility of results.

Isolation and culture of tendon-derived stem/progenitor cells

Request a detailed protocol

Mice at P7 were used for tendon progenitor cell isolation using a protocol modified from that in Mienaltowski et al. (2013). Briefly, both forelimbs and hindlimbs were harvested from euthanized mice, skinned and exposed to 0.5% collagenase type I (Gibco, Cat 17100–017) and 0.25% trypsin (Gibco, Cat 27250–018) in PBS for 15 min at 37°C with gentle shaking. The surfaces of tendons were then scraped carefully with a pair of forceps to remove epitenon/paratenon cells. The middle portion of tendons was then harvested, cut into small pieces and tendon cells were released by digestion for 30 min at 37°C with gentle shaking in a solution of 0.3% collagenase type I, 0.8% collagenase type II (Cat 17101–015), 0.5% trypsin and 0.4% dispase II (Cat 17105–041) (all from Gibco). The released cells were strained with a 70 μm cell strainer (BD Falcon, Cat 352350) and collected by centrifugation for 5 min at 300 g. The cells were then resuspended in PBS with 1% BSA, and fluorescence-activated cell sorting (FACS) was used to separate the cells for colony-forming assay.

Colony-forming unit (CFU) assay

Request a detailed protocol

CFU assay was used to examine the self-renewal potential of cells (Bi et al., 2007). The enzymatically-released WT and heterozygous tenocytes as well as dedifferentiated mutant tendon cells (i.e. ScxGFP-negative and RosaT-positive cells) were sorted by FACS and plated at one cell per well in a 96-well plate using a BD Influx cell sorter (BD Bioscience, USA). About 10–12 days into the culture, the colonies were fixed in 4% paraformaldehyde (10 min, RT), stained with 0.5% crystal violet for 30 min, and rinsed twice with water. Percentage of colony-forming unit was calculated as: Number of wells with colonies ÷ 96 × 100. Each data point represents the mean of duplicate plates from 3 to 5 separate experiments. Each experiment represents limb tendons collected from 2 to 4 pups.

Re-expression of Tgfbr2 in mutant cells using adeno-associated virus (AAV) vector

Request a detailed protocol

FLAG or V5 epitope tag sequences were added at the C-terminus of the murine TGFbR2 Consensus Coding Sequence (CCDS23601). The Tgfbr2-FLAG (Tgfbr2-FLAG) and reverse-compliment Tgfbr2-V5 (FLEX-Tgfbr2-V5) insert sequences were synthesized and subcloned by GenScript into an AAV1 vector. The FLEX backbone vector (Atasoy et al., 2008) was purchased from AddGene and modified. Vectors were then packaged into AAV1 capsid, purified, and titered by the OHSU Molecular Virology Support Core. AAV1 insert expression was under the control of a chicken beta-actin (CBA) promoter and an SV40 polyadenylation sequence. All experimental procedures were evaluated and approved by the institutional Animal Care and Ethics Committee.

Re-expression of Tgfbr2 in embryos was done by delivery of AAV1-FLEX-Tgfbr2-V5, a Cre-dependent expression cassette, specifically to Tgfbr2;ScxCre mutant tendon cells. Transuterine microinjection of the viral vector into embryos was performed according to a published protocol (Jiang et al., 2013). Briefly, a laparotomy was performed on anesthetized pregnant females to expose the uterus. The left wrist field of the forelimb bud of each embryo was injected with ~2 µl of concentrated viral inoculum (3.8 × 1013 vg/ml) using a borosilicate glass capillary pipette (25–30 µm outer diameter and 20 degree bevel). The abdominal and skin incisions were closed with resorbable sutures. The dams were recovered overnight with supplementary heating and then returned to main colony housing.

For postnatal constitutive re-expression of Tgfbr2,~10 µl of AAV1-Tgfbr2-FLAG inoculum (4.1 × 1012 vg/ml) was injected subcutaneously into the left forelimb of P1 pups using an 8 mm x 31G BD Ultra-Fine insulin syringe and needle (Becton Dickinson and Company, NJ). For both experiments, forelimbs from P5 to P7 mutant pups (n = 3 pups for each stage) were harvested, fixed, cryosectioned and examined for expression of tendon differentiation markers in infected tendon cells.

Single-cell RNA sequencing (scRNASeq) and data analysis

Request a detailed protocol

Tendons were collected and pooled from both forelimbs and hindlimbs as described above from two pups with the omission of tissue-scraping step. The enzymatically released cells were centrifuged, resuspended in α-MEM with 5% FBS and submitted to the OHSU Massively Parallel Sequencing Shared Resource (MPSSR) Core facility. scRNASeq analysis was then performed using the 10x Genomics Chromium Single Cell 3’ Reagent Kits and run on a Chromium Controller followed by sequencing using the Illumina NextSeq 500 Sequencing System (Mid Output), as per the manufacturer's instructions (10x Genomics Inc, CA; Illumina Inc, CA).

Sequencing data processing and downstream analysis were performed using Cell Ranger version 2.0 (10x Genomics, CA) (Zheng et al., 2017) with the default settings. Briefly, sequencing reads were aligned to the mm10 genome and demultiplexed and filtered using total UMI count per cell to generate the gene barcode matrix. Principle component analysis was performed and the first ten principle components were used for the t-distributed stochastic neighbor embedding (tSNE) dimensional reduction and clustering analysis. Cells were clustered using K-means clustering. For each cluster, genes with an average UMI count ≥0.5, fold change ≥1.5 and p-value<0.05 were identified as signature genes for each cluster. Gene Ontology (GO) enrichment analysis (clusterProfiler) (Yu et al., 2012) and the PANTHER Classification System (http://pantherdb.org/) were used to elucidate the biological process and signaling pathway associated with individual gene. Enriched canonical pathways were defined as significant if adjusted p-values were <0.05.

Statistical analysis

Request a detailed protocol

Unless stated otherwise, all graphs are presented as mean ± standard deviation (SD). Student’s t-tests were performed to determine the statistical significance of differences between groups (n ≥ 3). A value of p<0.05 is regarded as statistically significant.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    In vivo investigation of tendon responses to mechanical loading
    1. KM Heinemeier
    2. M Kjaer
    (2011)
    Journal of Musculoskeletal & Neuronal Interactions 11:115–123.
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Structure of the tendon connective tissue
    1. P Kannus
    (2000)
    Scandinavian Journal of Medicine and Science in Sports 10:312–320.
    https://doi.org/10.1034/j.1600-0838.2000.010006312.x
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    'ID helix-loop-helix proteins in cell growth, differentiation and tumorigenesis'
    1. JD Norton
    (2000)
    Journal of Cell Science 113:3897–3905.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    TGF-β family signaling in stem cells
    1. M Sakaki-Yumoto
    2. Y Katsuno
    3. R Derynck
    (2013)
    Biochimica Et Biophysica Acta (BBA) - General Subjects 1830:2280–2296.
    https://doi.org/10.1016/j.bbagen.2012.08.008
  57. 57
  58. 58
  59. 59
  60. 60
    Analysis of the tendon cell fate using Scleraxis, a specific marker for tendons and ligaments
    1. R Schweitzer
    2. JH Chyung
    3. LC Murtaugh
    4. AE Brent
    5. V Rosen
    6. EN Olson
    7. A Lassar
    8. CJ Tabin
    (2001)
    Development 128:3855–3866.
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
    Coexpression of insulin receptor-related receptor and insulin-like growth factor 1 receptor correlates with enhanced apoptosis and dedifferentiation in human neuroblastomas
    1. A Weber
    2. C Huesken
    3. E Bergmann
    4. W Kiess
    5. NM Christiansen
    6. H Christiansen
    (2003)
    Clinical Cancer Research 9:5683–5692.
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80

Decision letter

  1. Cheryl Ackert-Bicknell
    Reviewing Editor; University of Colorado, United States
  2. Clifford J Rosen
    Senior Editor; Maine Medical Center Research Institute, United States
  3. Nathanial Dyment
    Reviewer; University of Pennsylvania, United States
  4. Alayna E Loiselle
    Reviewer; University of Rochester Medical Center, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Overall, all the reviewers of this study found it to be highly thought provoking and definitely ground-breaking. That this paper convincingly challenged the canonical role of TGFβ in the tendon generated considerable positive discussion during the review of this manuscript. Many researchers in the field believe that TGFβ is critical to tendon growth/maturation via a role in the regulation of collagen synthesis and matrix assembly. This study suggests that TGFβ's role is more so related to the maintenance of tenogenic cell fate. Further, by demonstrating the temporal aspects of the phenotypic changes (i.e., loss of tenogenic cell fate prior to significant matrix changes), this paper shows that dedifferentiation of the tenocyte to a general stem/progenitor state is possible. Collectively this work has high potential to have considerable impact in shaping research in the tendon field for years to come.

Decision letter after peer review:

Thank you for submitting your article "TGF-β signaling is critical for maintenance of the tendon cell fate" for consideration by eLife. Your article has been reviewed by Clifford Rosen as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Nathanial Dyment (Reviewer #1); Alayna E Loiselle (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study continues years of work by this lab studying the role TGFβ signaling in tendon differentiation. Previously this group demonstrated that TGFβ is required for tendon specification and formation (Pryce, 2009). In the current study, they used ScxCre mice to target tendon cells after specification and established that TGFβ signaling needs to be maintained by tendon cells to continue their differentiation and preserve a normal ECM. Interestingly, the cell phenotype and ECM does not appear to be abnormal until approximately 7 days after birth. After this stage, the tendons begin to disintegrate and the mutant mice actually die before P14. Analysis of single-cell RNA-seq of Tgfbr2-depleted tendons showed that as the cells lose TGFβ, they also lose expression of tendon markers (Scx, Tnmd, etc.), increase their clonal potential, and gain expression of markers that have been reported as stem/progenitor markers (Sca-1, Cd34, and Cd44). However, the authors were unable to demonstrate that these genes were expressed by embryonic tendon progenitors within the tendon fascicle. This work putatively demonstrates the flexibility of tenocyte fate during development and growth, which could have implications for tendon pathology and regeneration. They then went on to rescue the phenotype within individual cells via viral expression of Tgfbr2, which is and interesting and elegant an innovative approach. This study is very thorough with innovative findings that will advance our understanding of tenogenic differentiation.

Essential revisions:

1) The amount of Tgfbr2 deletion in Scx-CreERt2 and RosaCreERt2 (which results in lack of a mutant phenotype) is critical data to argue the mutant phenotype is based the temporal nature of the Scx-Cre. These results imply that TGFβ signaling should active be in tendon cells during development and postnatal stages. Do we know the endogenous pattern of TGFβ signaling activity in tendons until P15? Is it possible to define if there is a specific stage when the presence of TGFβ signaling is critical to maintain tendon cell fate? This lack of phenotype generated a lot of discussion among the reviewers and it was not mentioned in the Materials and methods section when the tamoxifen injections were conducted, further confusing this issue. It was felt that is might be an interesting finding but that there must be proof showing that this was not a technical issue or a failure of the cre- to function. If a lack a technical issue explaining the lack of phenotype cannot ruled out, these data may need to be removed.

2) Related to the above issue, how efficient is the knockdown of Tgfbr2 in Scx-Cre? This would be an important comparison to confirm that the mutant phenotype is indeed time and lineage driven. In addition, understanding the degree of TgfBr2 knockdown is important as it is very likely that the specific effects of Tgfb signaling are highly dose dependent, that is, there is clearly a level of Tgfb signaling that is required to maintain tenocyte fate, but Tgfb is also a potent inducer of myofibroblast differentiation and fibrosis, which complicates the use of the Tgfb as a therapeutic.

3) The increased clonogenicity helps support the conclusion of dedifferentiation and the genes that are enriched in these cells (Sca-1, Cd34, Cd44, Dpt, Anxa1, CD34, CD44, Mgp and Mfap5) have been reported as general stem/progenitor markers or are expressed during early tendon development. The challenge with this conclusion, which the authors acknowledge, is that our understanding of markers at different stages of the tendon lineage is incomplete, which makes it even more difficult to prove that dedifferentiation occurs. As the authors noted and presented in Figure 6B, several of these genes are elevated in healing as well. The disintegration of the tendon likely elicits a healing response, which would almost certainly alter the cell phenotype. In addition, the phenotype is only seen with the ScxCre and not the CreERT2 models, suggesting that a large proportion of the tendon cell population needs to be modulated to elicit enough alterations in ECM and concurrent cell dedifferentiation. By the time the dedifferentiation occurs the ECM is already severely disrupted. Can the authors please discuss/defend their conclusion that this is dedifferentiation and not a general healing response?

4) The fact that the phenotype doesn't manifest until postnatal ages suggests that a mechanical loading threshold may exist that tips the scales towards disintegration of the tendon. Discussion of mechanics is warranted and would greatly benefit the manuscript.

5) Figure 4B- the authors state that the enlarged Scx-GFP cells in the mutant are newly recruited tendon cells- can they clarify what they mean by this? Are these cells from the tendon that actively express Scx-GFP or extrinsic Scx-expressing cells that migrate to the tendon. The reviewers respected that this is the basis for another manuscript but felt that this is very striking finding and an important statement that must be clarified.

6) Figure 4D- The authors trace with Scx-Cre; RosaAi9 to 'prove' that these green cells are tendon derived. However, there is evidence from the authors and other groups identifying non-tendon targeting with this cre, including muscle connective tissue cells, and bone (Mckenzie et al., 2017). A tendon graft may be the only way to 'prove' these are tendon derived. Given that these experiments are not feasible, the reviewers suggested a slight modification of this text to indicate that these data suggest these are tendon derived cells.

7) Do the authors know what percent of mutant cells were successfully targeted by the viral infection? That is, have they looked at V5 expression in Scx-Cre; RosaTd+ mutants since they say in subsection “Tenocyte dedifferentiation is dependent on cell autonomous loss of TGFβ signalling” that infected cells will be surrounded by mutant cells.

8) Is the data presented in Figure 7D from injection with the Cre dependent AAV or the constitutive Tgfbr2 construct? This is unclear from the Results section. If the P1 data are with the constitutive Tgfbr2 construct they should be plotted separately.

9) The authors performed single-cell RNA-seq and at the end only show differentially expressed genes that could have been obtained with bulk RNA-seq. It was strongly felt by all reviewers that the authors should exploit the scRNAseq data more fully to support their conclusions. Further, it was unanimously felt that the authors should show the clustering of both normal tendons and TGFBRII-depleted tendons. Researchers working in tendon area have been eagerly awaiting scRNAseq data of normal tendon to identify the different cell populations in tendon since tendon fibroblasts are uncharacterized. Further, the clustering of TGFBRII-depleted tendons will be very informative to determine which tendon cell types are affected in this mutant condition. An exhaustive analysis was not requested, and it was not felt that this should not take too long to do. Clustering with the Cell Rangers 10X software is immediate. A bioinformatics analysis could place the paper in a very attractive position which would he highly advantageous to the authors.

https://doi.org/10.7554/eLife.52695.sa1

Author response

Summary:

This study continues years of work by this lab studying the role TGFβ signaling in tendon differentiation. Previously this group demonstrated that TGFβ is required for tendon specification and formation (Pryce, 2009). In the current study, they used ScxCre mice to target tendon cells after specification and established that TGFβ signaling needs to be maintained by tendon cells to continue their differentiation and preserve a normal ECM. Interestingly, the cell phenotype and ECM does not appear to be abnormal until approximately 7 days after birth. After this stage, the tendons begin to disintegrate and the mutant mice actually die before P14. Analysis of single-cell RNA-seq of Tgfbr2-depleted tendons showed that as the cells lose TGFβ, they also lose expression of tendon markers (Scx, Tnmd, etc.), increase their clonal potential, and gain expression of markers that have been reported as stem/progenitor markers (Sca-1, Cd34, and Cd44). However, the authors were unable to demonstrate that these genes were expressed by embryonic tendon progenitors within the tendon fascicle. This work putatively demonstrates the flexibility of tenocyte fate during development and growth, which could have implications for tendon pathology and regeneration. They then went on to rescue the phenotype within individual cells via viral expression of Tgfbr2, which is and interesting and elegant an innovative approach. This study is very thorough with innovative findings that will advance our understanding of tenogenic differentiation.

Essential revisions:

1) The amount of Tgfbr2 deletion in Scx-CreERt2 and RosaCreERt2 (which results in lack of a mutant phenotype) is critical data to argue the mutant phenotype is based the temporal nature of the Scx-Cre. These results imply that TGFβ signaling should active be in tendon cells during development and postnatal stages. Do we know the endogenous pattern of TGFβ signaling activity in tendons until P15? Is it possible to define if there is a specific stage when the presence of TGFβ signaling is critical to maintain tendon cell fate? This lack of phenotype generated a lot of discussion among the reviewers and it was not mentioned in the Materials and methods section when the tamoxifen injections were conducted, further confusing this issue. It was felt that is might be an interesting finding but that there must be proof showing that this was not a technical issue or a failure of the cre- to function. If a lack a technical issue explaining the lack of phenotype cannot ruled out, these data may need to be removed.

We agree with the reviewers that pattern of TGFβ signaling activity and the efficiency of Cre activity in the inducible experiments are critical for a complete analysis of the phenotype.

The pattern of TGFβ signaling is usually detected by following the phosphorylation of Smad2 and has been of great importance both for our previous studies regarding TGFβ signaling and for this project. Unfortunately, despite numerous attempts to perform pSmad2 antibody staining to detect endogenous pattern of TGFβ signaling we could not achieve a reliable staining and therefore, cannot establish the pattern of TGFβ signaling.

For the inducible Cre studies, the existing ScxCreERT2 tendon inducible cre is active only in post-natal stages and so far there is no good inducible Cre to target tendons at embryonic stages. A systematic developmental targeting of the TGFβ type II receptor was therefore not feasible, precluding the ability to define if there is a specific stage when the presence of TGFβ signaling is critical to maintain the tendon cell fate.

Since the cellular phenotype manifested only in early post-natal stages, we performed the post-natal deletion of Tgfbr2 using both ScxCreCreERT2 and RosaCreERT2 and detected no loss of tendon markers. As requested, a more detailed description of the experiment and the specific timing and dose of tamoxifen injections were now added to the text (subsection “Loss of the tendon cell fate in mutant tenocytes”). Loss of the receptor in these experiments was verified using antibody staining for TGFβ type II receptor and the results are shown as a supplementary figure (Figure 1—figure supplement 1D,E).

While we recognize that these results do not provide an adequate developmental targeting of the receptor we feel that it is of great importance to include them in the text because they demonstrate that simple postnatal loss of TGFβ signaling is not sufficient to induce tenocyte dedifferentiation, suggesting that dedifferentiation involves a more complex process and also indicating to other researchers who may be interested to introduce this effect in their experimental systems that they cannot expect to achieve tenocyte dedifferentiation with a simple targeting of the receptor.

2) Related to the above issue, how efficient is the knockdown of Tgfbr2 in Scx-Cre? This would be an important comparison to confirm that the mutant phenotype is indeed time and lineage driven. In addition, understanding the degree of TgfBr2 knockdown is important as it is very likely that the specific effects of Tgfb signaling are highly dose dependent, that is, there is clearly a level of Tgfb signaling that is required to maintain tenocyte fate, but Tgfb is also a potent inducer of myofibroblast differentiation and fibrosis, which complicates the use of the Tgfb as a therapeutic.

Thank you for pointing this out. Our experience using Cre reporters is that ScxCre activity within tendons is not uniform during embryogenesis. However, the percentage of targeted tendon cells increases during development and reaches close to 100% [based on Ai14 Rosa26-tdTomato (RosaT) Cre reporter expression] at P0.

To directly determine the efficiency of Tgfbr2 knockdown in Tgfbr2;ScxCre mutants we performed immunostaining of TGFβ type II receptor in P0 samples and found complete loss of the receptor in tendons. The images have been added as a supplementary figure (Figure 1—figure supplement 1B,C). The manuscript text has also been revised accordingly (subsection “Targeting TGFβ type II receptor in Scx-expressing cells resulted in tendon disruption and limb abduction”).

For the second comment regarding levels of TGFβ signaling and therapeutic relevance. As noted above we cannot directly determine the changes in the levels of TGFβ signaling we certainly agree that our results should not be interpreted in the context of using TGFβ as a therapeutic agent and have not made any such inferences in the text.

3) The increased clonogenicity helps support the conclusion of dedifferentiation and the genes that are enriched in these cells (Sca-1, Cd34, Cd44, Dpt, Anxa1, CD34, CD44, Mgp and Mfap5) have been reported as general stem/progenitor markers or are expressed during early tendon development. The challenge with this conclusion, which the authors acknowledge, is that our understanding of markers at different stages of the tendon lineage is incomplete, which makes it even more difficult to prove that dedifferentiation occurs. As the authors noted and presented in Figure 6B, several of these genes are elevated in healing as well. The disintegration of the tendon likely elicits a healing response, which would almost certainly alter the cell phenotype. In addition, the phenotype is only seen with the ScxCre and not the CreERT2 models, suggesting that a large proportion of the tendon cell population needs to be modulated to elicit enough alterations in ECM and concurrent cell dedifferentiation. By the time the dedifferentiation occurs the ECM is already severely disrupted. Can the authors please discuss/defend their conclusion that this is dedifferentiation and not a general healing response?

The cell fate changes begin at P2 and actually precede the matrix disruption that is not observed before P7 (compare Figure 1—figure supplement 2 and Figure 3). We agree with the reviewers that this is a critical point for understanding the key drivers of tenocyte dedifferentiation in these mutants and therefore revised text to explicitly highlight this point (subsection “Targeting TGFβ type II receptor in Scx-expressing cells resulted in tendon disruption and limb abduction”). In respect to the inducible experiments, as noted above the loss of the receptor is nearly complete in the inducible mutants (Figure 1—figure supplement 1D,E), so the differences between the models are not due to extent of receptor targeting.

In regards to the issues of dedifferentiation vs. healing response, we agree and have noted in the text that mutant tenocytes did not turn on embryonic tendon progenitor genes, rather that they express more general progenitor markers. We believe and have now redoubled our efforts to explicitly discuss (subsection “Mutant tenocytes acquired stem/progenitor features”, Discussion section) that this kind of change in cell fate is also compatible with dedifferentiation and should be recognized as such. Moreover, since the identity and expression profile of tendon stem/progenitor cells that contribute to tendon healing has not been established so far it may well be possible that the cells will share more similarities with the dedifferentiated tenocytes in our mutants.

We further very much agree that the expression profile at P7 possibly represents a healing response. Notably it is usually suggested or implied that the cells with this expression profile are cells that were recruited to an injury site within the healing response. The important and it is the resident novel concept in this mutant analysis is that the resident tenocytes de-differentiate and they are the ones expressing these genes and assuming enhanced clonogenicity. This is also more explicitly stated in the Discussion section.

4) The fact that the phenotype doesn't manifest until postnatal ages suggests that a mechanical loading threshold may exist that tips the scales towards disintegration of the tendon. Discussion of mechanics is warranted and would greatly benefit the manuscript.

Thanks for the suggestion. Discussion of mechanics has been added into the revised manuscript (Discussion section).

5) Figure 4B- the authors state that the enlarged Scx-GFP cells in the mutant are newly recruited tendon cells- can they clarify what they mean by this? Are these cells from the tendon that actively express Scx-GFP or extrinsic Scx-expressing cells that migrate to the tendon. The reviewers respected that this is the basis for another manuscript but felt that this is very striking finding and an important statement that must be clarified.

The finding of these cells are recruited is based mainly on the fact that some of these ScxGFP-positive cells exhibited weak or no expression of the RosaT Cre reporter. By P0 the cre reporter is positive in all tendon cells of wild-type tendons. The absence of Cre reporter thus indicates a recent activation of the Scx enhancer in these cells. This finding was corroborated with other experiments including the double-fluorescent cre reporter mTmG. Subsection “Loss of the tendon cell fate in mutant tenocytes” has been revised to clarify this part. We agree that this is a very exciting finding; however, it is impossible to include the full description of the finding in this study. The manuscript is currently under preparation and will be submitted for publication soon.

6) Figure 4D- The authors trace with Scx-Cre; RosaAi9 to 'prove' that these green cells are tendon derived. However, there is evidence from the authors and other groups identifying non-tendon targeting with this cre, including muscle connective tissue cells, and bone (Mckenzie et al., 2017). A tendon graft may be the only way to 'prove' these are tendon derived. Given that these experiments are not feasible, the reviewers suggested a slight modification of this text to indicate that these data suggest these are tendon derived cells.

First a clarification, Figure 4D shows that the ScxGFP-negative cells, i.e. NOT green cells (ScxGFP-positive), in mutant tendons were tendon-derived based on the RosaT Cre reporter.

We agree that ScxCre labels also non-tendon cells and therefore that the mere fact that cells in mutant tendons are reporter-positive is not sufficient to indicate that these are tendon-derived cells. We therefore combined another rationale to address this issue. At P7, 75-80% of cells within all mutant tendons are both ScxGFP-negative and RosaT-positive (with the remaining are the recruited cells). Given that there is no apparent elimination of the existing tendon cells (i.e. no cell death), repopulation of the tendon by neighboring reporter positive cells would not explain the absence of cells that express tenocyte markers in these tendons. We thus suggest that the only logical explanation to these observations is that the dedifferentiated cells within the mutant tendon are the original tendon cells, i.e. tendon-derived cells (subsection “Loss of the tendon cell fate in mutant tenocytes”).

7) Do the authors know what percent of mutant cells were successfully targeted by the viral infection? That is, have they looked at V5 expression in Scx-Cre; RosaTd+ mutants since they say in subsection “Tenocyte dedifferentiation is dependent on cell autonomous loss of TGFβ signalling” that infected cells will be surrounded by mutant cells.

The efficiency of virus injections is highly variable in our experiments and quantification of infection efficiency may not be informative. However, our experience with AAV infection is that while muscle infection is robust (e.g. Huang et al., 2013) tenocyte infection is not efficient and therefore always results in sporadic and low infection (<10%). Therefore, we usually observed one or two individual infected cells surrounded by mutant cells, as also shown in Figure 7—figure supplement 1.

8) Is the data presented in Figure 7D from injection with the Cre dependent AAV or the constitutive Tgfbr2 construct? This is unclear from the Results section. If the P1 data are with the constitutive Tgfbr2 construct they should be plotted separately.

The reviewers are correct in stating that the data from embryonic injections are with a cre dependent virus while for P1 injection was of the constitutive Tgfbr2 AAV virus. The rationale behind this experimental design was the interest to test the outcome of maintenance of Tgfbr2 expression in isolated tenocytes for embryonic experiments that could use the cre activation scheme and of re-expression of TGFβ type II receptor in dedifferentiated cells that are therefore likely not ScxCre positive and therefore we used a ubiquitous expressor (see the Materials and Method section and subsection “Tenocyte dedifferentiation is dependent on cell autonomous loss of TGFβ signaling”). The main purpose of this data (Figure 7D) is to show that re-expression of Tgfbr2 at the designated stages is sufficient to prevent or rescue the loss of tendon cell fate, irrespective of the stage in which the receptor was reintroduced. By presenting data in one plot, we find it is much easier and more compelling to convey the message that reintroduction of the receptor is sufficient to reactivate the tendon cell fate irrespective of stage. Since only cells within tendons were evaluated for this data the difference in virus construction was not pertinent to the outcome for the cells. For clarity we added however a note of this different virus structure to the Figure 7 legend.

9) The authors performed single-cell RNA-seq and at the end only show differentially expressed genes that could have been obtained with bulk RNA-seq. It was strongly felt by all reviewers that the authors should exploit the scRNAseq data more fully to support their conclusions. Further, it was unanimously felt that the authors should show the clustering of both normal tendons and TGFBRII-depleted tendons. Researchers working in tendon area have been eagerly awaiting scRNAseq data of normal tendon to identify the different cell populations in tendon since tendon fibroblasts are uncharacterized. Further, the clustering of TGFBRII-depleted tendons will be very informative to determine which tendon cell types are affected in this mutant condition. An exhaustive analysis was not requested, and it was not felt that this should not take too long to do. Clustering with the Cell Rangers 10X software is immediate. A bioinformatics analysis could place the paper in a very attractive position which would he highly advantageous to the authors.

Our lab is funded to perform a comprehensive scRNASeq analysis of tendons from embryonic stages and up to adult mice. We recognize the urgency for the field to have reliable single cell data and have therefore expedited analysis of one stage that will be ready hopefully within a few months. Through these studies we however learned to appreciate the complexity of these analyses and the fact that clustering is not a simple objective result and it can be different by changing algorithm or parameters and that it is therefore advisable to publish “an atlas” describing the cells in a tissue only after careful examination and validation of the cell types that manifest. In a counterintuitive fashion WT analysis requires more validation and confirmation than that of a mutant analysis since in the mutant it is possible to simply focus on comparing one set of clusters and the focus is on the difference between such clusters irrespective of the definitions and identities of all the other clusters. We agree with the reviewers that this is similar to the results usually associated with bulk analysis which would not have been possible in these mutants due to the cell complexity of dedifferentiated and newly recruited cells. We therefore preferred to avoid a comprehensive discussion of the wild-type data – that may if it is too detailed also detract from the flow of logic in the manuscript.

However recognizing the need that was reflected in the reviewers’ comments t-SNE plots and a list of top signature genes for the normal and mutant tendons have been added (Figure 6A, Supplementary file 1).

Please also note that scRNASeq data for both P7 mutant and wild-type pups has been deposited onto GEO repository for open access to readers

(https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE139558; token to access the data: elkhqeqmppgpbgl).

https://doi.org/10.7554/eLife.52695.sa2

Article and author information

Author details

  1. Guak-Kim Tan

    Research Division, Shriners Hospital for Children, Portland, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Project administration
    Competing interests
    No competing interests declared
  2. Brian A Pryce

    Research Division, Shriners Hospital for Children, Portland, United States
    Contribution
    Resources, Data curation, Investigation
    Competing interests
    No competing interests declared
  3. Anna Stabio

    Research Division, Shriners Hospital for Children, Portland, United States
    Contribution
    Resources, Data curation, Investigation
    Competing interests
    No competing interests declared
  4. John V Brigande

    Oregon Hearing Research Center, Oregon Health & Science University, Portland, United States
    Contribution
    Funding acquisition, Investigation
    Competing interests
    No competing interests declared
  5. ChaoJie Wang

    Computational Biology Program, Oregon Health & Science University, Portland, United States
    Contribution
    Software, Formal analysis
    Competing interests
    No competing interests declared
  6. Zheng Xia

    Computational Biology Program, Oregon Health & Science University, Portland, United States
    Contribution
    Software, Formal analysis
    Competing interests
    No competing interests declared
  7. Sara F Tufa

    Research Division, Shriners Hospital for Children, Portland, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Douglas R Keene

    Research Division, Shriners Hospital for Children, Portland, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Ronen Schweitzer

    1. Research Division, Shriners Hospital for Children, Portland, United States
    2. Department of Orthopedics, Oregon Health & Science University, Portland, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Project administration
    For correspondence
    schweitz@ohsu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7425-5028

Funding

National Institutes of Health (R01AR055973)

  • Ronen Schweitzer

Shriners Hospitals for Children (SHC 5410-POR-14)

  • Ronen Schweitzer

National Institutes of Health (R01DC014160)

  • John V Brigande

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Dr Elazar Zelzer (Department of Molecular Genetics, Weizmann Institute of Science, Israel) for critical reading of the manuscript. We are grateful to staff from MPSSR and FACS core facilities, OHSU particularly Dr Robert Searles, Mrs Amy Carlos and Dr Miranda Gilchrist for their excellent technical assistance. This work was funded by NIH (R01AR055973, RS; R01DC014160, JVB) and Shriners Hospitals for Children (SHC 5410-POR-14). G.K.T was supported by Research Fellowship from Shriners Hospital for Children.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols IP00000717 and IP00000935 of the Oregon Health & Science University.

Senior Editor

  1. Clifford J Rosen, Maine Medical Center Research Institute, United States

Reviewing Editor

  1. Cheryl Ackert-Bicknell, University of Colorado, United States

Reviewers

  1. Nathanial Dyment, University of Pennsylvania, United States
  2. Alayna E Loiselle, University of Rochester Medical Center, United States

Publication history

  1. Received: October 12, 2019
  2. Accepted: January 17, 2020
  3. Accepted Manuscript published: January 21, 2020 (version 1)
  4. Version of Record published: February 17, 2020 (version 2)

Copyright

© 2020, Tan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,055
    Page views
  • 239
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
