1. Computational and Systems Biology
  2. Evolutionary Biology

Synteny-based analyses indicate that sequence divergence is not the main source of orphan genes

  1. Nikolaos Vakirlis
  2. Anne-Ruxandra Carvunis  Is a corresponding author
  3. Aoife McLysaght  Is a corresponding author
  1. Trinity College Dublin, University of Dublin, Ireland
  2. University of Pittsburgh, United States
https://doi.org/10.7554/eLife.53500
Share this article
Cite this article
  1. Nikolaos Vakirlis
  2. Anne-Ruxandra Carvunis
  3. Aoife McLysaght
(2020)
Synteny-based analyses indicate that sequence divergence is not the main source of orphan genes
eLife 9:e53500.
https://doi.org/10.7554/eLife.53500
  2. Download BibTeX
  3. Download .RIS

Abstract

The origin of ‘orphan’ genes, species-specific sequences that lack detectable homologues, has remained mysterious since the dawn of the genomic era. There are two dominant explanations for orphan genes: complete sequence divergence from ancestral genes, such that homologues are not readily detectable; and de novo emergence from ancestral non-genic sequences, such that homologues genuinely do not exist. The relative contribution of the two processes remains unknown. Here, we harness the special circumstance of conserved synteny to estimate the contribution of complete divergence to the pool of orphan genes. By separately comparing yeast, fly and human genes to related taxa using conservative criteria, we find that complete divergence accounts, on average, for at most a third of eukaryotic orphan and taxonomically restricted genes. We observe that complete divergence occurs at a stable rate within a phylum but at different rates between phyla, and is frequently associated with gene shortening akin to pseudogenization.

Introduction

Extant genomes contain a large repertoire of protein-coding genes which can be grouped into families based on sequence similarity. Comparative genomics has heavily relied on grouping genes and proteins in this manner since the dawn of the genomic era (Rubin, 2000). Within the limitations of available similarity-detection methods, we thus define thousands of distinct gene families. Given that the genome and gene repertoire of the Last Universal Common Ancestor (LUCA) was likely small relative to that of most extant eukaryotic organisms (Becerra et al., 2007; Goldman et al., 2013) (Figure 1A), what processes gave rise to these distinct gene families? Answering this question is essential to understanding the structure of the gene/protein universe, its spectrum of possible functions, and the evolutionary forces that ultimately gave rise to the enormous diversity of life on earth.

Figure 1
Download asset Open asset

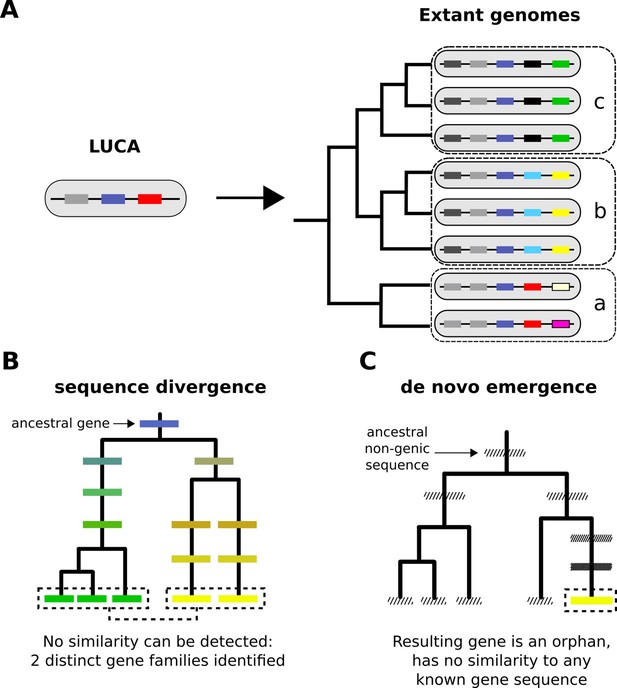

From a limited set of genes in LUCA to the multitudinous extant patterns of presence and absence of genes.

(A) Cartoon representation of the LUCA gene repertoire and extant phylogenetic distribution of gene families (shown in different colours, same colour represents sequence similarity and homology). Dashed boxes denote different phylogenetic species groups. Light grey and dark blue gene families cover all genomes and can thus be traced back to the common ancestor. Other genes may have more restricted distributions; for example, the yellow gene is only found in group b, the black gene in group c. The phylogenetic distribution of gene family members allows us to propose hypotheses about the timing of origination of each family. (B) Sequence divergence can gradually erase all similarity between homologous sequences, eventually leading to their identification as distinct gene families. Note that divergence can also occur after a homologous gene was acquired by horizontal transfer. Solid boxes represent genes. Sequence divergence is symbolized by divergence in colour. (C) De novo emergence of a gene from a previously non-genic sequence along a specific lineage will almost always result in a unique sequence in that lineage (cases of convergent evolution can in theory occur). Hashed boxes represent non-genic sequences.

To some extent, the distinction between gene families is operational and stems from our imperfect similarity-detection ability. But to a larger extent it is biologically meaningful because it captures shared evolutionary histories and, by extension, shared properties between genes that are useful to know (Gabaldón and Koonin, 2013; Koonin, 2005). Genes that cannot be assigned to any known gene family have historically been termed ‘orphan’. This term can be generalized to Taxonomically Restricted Gene (TRG), which includes genes that belong to small families found only across a closely related group of species and nowhere else (Wilson et al., 2005).

By definition, orphan genes and TRGs can be the result of two processes. The first process is divergence of pre-existing genes (Tautz and Domazet-Lošo, 2011). Given enough time, a pair of genes that share a common ancestor (homologous genes) can reach the ‘twilight zone' (Doolittle, 1981), a point at which similarity is no longer detectable. From a sequence-centric standpoint, we can consider such entities as bearing no more similarity than expected by chance. They are the seeds of two new gene families (Figure 1B). An example of this was found when examining yeast duplicates resulting from whole genome duplication (WGD) where it was reported that about 5% of the ~500 identified paralogue pairs had very weak or no similarity at all (Wolfe, 2004). Divergence of pre-existing genes can occur during vertical descent (Figure 1B), as well as following horizontal transfer of genetic material between different species (Dunning Hotopp, 2011). The second process is de novo emergence from previously non-genic sequences (Vakirlis et al., 2018; McLysaght and Guerzoni, 2015; Van Oss and Carvunis, 2019) (Figure 1C). For a long time, divergence was considered to be the only realistic evolutionary explanation for the origin of new gene families (Long et al., 2003), while de novo emergence has only recently been appreciated as a widespread phenomenon (Van Oss and Carvunis, 2019; Carvunis et al., 2012; Long et al., 2013; Tautz, 2014). De novo emergence is thought to have a high potential to produce entirely unique genes (Schlötterer, 2015) (though examples of convergent selection exist, see Baalsrud et al., 2018; Zhuang et al., 2019), whereas divergence, being more gradual, can stop before this occurs. What is the relative contribution of these two mechanisms to the ‘mystery of orphan genes' (Dujon, 1996)?

We set out to study the process of complete divergence of genes by delving into the ‘unseen world of homologs' (Wolfe, 2004). More specifically, we sought to understand how frequently homologues diverge beyond recognition, reveal how the process unfolds, and explicitly identify resulting TRGs. To do so, we developed a novel synteny-based approach for homology detection and applied it to three lineages. Our approach allowed us to trace the limits of similarity searches in the context of homologue detection. We show that genes which diverge beyond these limits exist, that they are being generated at a steady rate during evolution, and that they account, on average, for at most a third of all genes without detectable homologues. All but a small percentage of these undetectable homologues lack similarity at the protein domain level. Finally, we study specific examples of novel genes that have originated or are on the verge of originating from pre-existing ones, revealing a possible role of gene disruption and truncation in this process. We show that in the human lineage, this evolutionary route has likely given rise to at least two mammal-specific, cancer-related genes.

Results

A synteny-based approach to establish homology beyond sequence similarity

To estimate the frequency at which homologues diverge beyond recognition, we developed a pipeline that allows the identification of candidate homologous genes regardless of whether pairwise sequence similarity can be detected. The central idea behind our pipeline is that genes found in conserved syntenic positions in a pair of genomes will usually share ancestry. The same basic principle has been previously used to detect pairs of WGD paralogues in yeast (Wolfe and Shields, 1997; Kellis et al., 2004; Dietrich, 2004) and more recently to identify homologous long non-coding RNAs (Herrera-Úbeda et al., 2019). Coupled with the knowledge that biological sequences diverge over time, this allows us to estimate how often a pair of homologous genes will diverge beyond detectable sequence similarity in the context of syntenic regions. This estimate can then be extrapolated genome-wide to approximate the extent of origin by complete divergence for orphan genes and TRGs outside of syntenic regions, provided that genes outside regions of conserved synteny have similar evolutionary rates as genes inside syntenic regions. The estimates that we will provide of the rate of divergence beyond recognition inside synteny blocks are best viewed as an upper-bound of the true rate because some of the genes found in conserved syntenic positions in a pair of genomes will not be homologous. If we could remove all such cases, the rate of divergence beyond recognition would only decrease, but not increase, relative to our estimate (Figure 2A).

Figure 2 with 1 supplement see all
Download asset Open asset

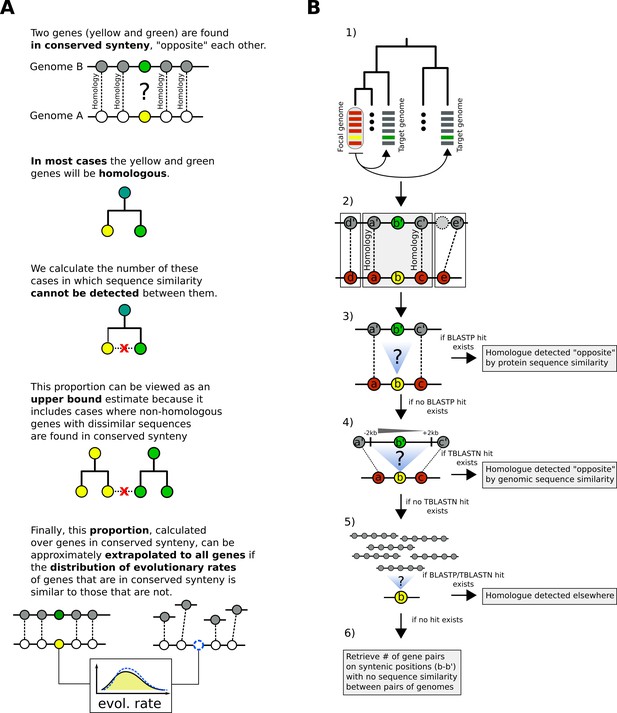

Summary of the main concept and pipeline of identification of putative homologous pairs with undetectable similarity between pairs of genomes.

(A) Summary of the reasoning we use to estimate the proportion of genes in a genome that have diverged beyond recognition. (B) Pipeline of identification of putative homologous pairs with undetectable similarity. 1) Choose focal and target species. Parse gene order and retrieve homologous relationships from OrthoDB for each focal-target pair. Search for sequence similarity by BLASTP between focal and target proteomes, one target proteome at a time. 2) For every focal gene (b), identify whether a region of conserved micro-synteny exists, that is when the upstream (a) and downstream (c) neighbours have homologues (a’, c’) separated by either one or two genes. This conserved micro-synteny allows us to assume that b and b’ are most likely homologues. Only cases for which the conserved micro-synteny region can be expanded by one additional gene are retained. Specifically, if genes d and e have homologues, these must be separated by at most one gene from a’ and c’, respectively. A per-species histogram of the number of genes with at least one identified region of conserved micro-synteny can be found in Figure 2—figure supplement 1. For all genes where at least one such configuration is found, move to the next step. 3) Check whether a precalculated BLASTP hit exists (by our proteome searches) between query (b) and candidate homologue (b’) for a given E-value threshold. If no hit exists, move to the next step. 4) Use TBLASTN to search for similarity between the query (b) and the genomic region of the conserved micro-synteny (-/+ 2 kb around the candidate homologue gene) for a given E-value threshold. If no hit exists, move to the next step. 5) Extend the search to the entire proteome and genome. If no hit exists, move to the next step. 6) Record all relevant information about the pairs of sequences forming the b – b’ pairs of step 2). Any statistically significant hit at steps 3–5 is counted as detected homology by sequence similarity. In the end, we count the total numbers of genes in conserved micro-synteny without any similarity for each pair of genomes.

Figure 2B illustrates the main steps of the pipeline and the full details can be found in Materials and methods. Briefly, we first select a set of target genomes to compare to our focal genome (Figure 2B, step 1). Using precomputed pairs of homologous genes (those belonging to the same OrthoDB [Kriventseva et al., 2008] group) we identify regions of conserved micro-synteny. Our operational definition of conserved micro-synteny consists of cases where a gene in the focal genome is found within a conserved chromosomal block of at least three genes: the immediate downstream and upstream neighbours of the focal gene must have homologues in the target genome that are themselves separated by at most one or two genes and, if the genes immediately next to these neighbours (second neighbours of the focal gene) have homologues in the target genome, these must also be separated from the homologues of the immediate neighbours by at most one gene (Figure 2B, step 2; see Materials and methods for details). Since the choice of synteny criterion can have an impact on downstream analyses we have also used one more relaxed and one more stringent definition (see Materials and methods; results using these alternative definitions are presented later). All focal genes for which at least one region of conserved micro-synteny, in any target genome, is identified, are retained for further analysis. This step establishes a list of focal genes with at least one presumed homologue in one or more target genomes (i.e., the gene located in the conserved location in the micro-synteny block).

We then examine whether the focal gene has any sequence similarity in the target species. We search for sequence similarity in two ways: comparison with annotated genes (proteome), and comparison with the genomic DNA (genome). First, we search within BLASTP matches that we have precomputed ourselves (these are different from the OrthoDB data) using the complete proteome of the focal species as query against the complete proteome of the target species. Within this BLASTP output we look for matches between the query gene and the candidate gene (that is, between b and b’, Figure 2B, step 3). If none is found then we use TBLASTN to search the genomic region around the candidate gene b’ for similarity to the query gene b (Figure 2B, step 4, see figure legend for details). If no similarity is found, the search is extended to the rest of the target proteome and genome (Figure 2B, step 5). If there is no sequence similarity after these successive searches, then we infer that the sequence has diverged beyond recognition. After having recorded whether similarity can be detected for all eligible query genes, we finally retrieve the focal-target pairs and produce the found and not found proportions for each pair of genomes.

We applied this pipeline to three independent datasets using as focal species Saccharomyces cerevisiae (yeast), Drosophila melanogaster (fly) and Homo sapiens (human). We included 17, 16 and 15 target species, respectively, selected to represent a wide range of evolutionary distances from each focal species (see Materials and methods). The numbers of cases of conserved micro-synteny detected for each focal-target genome pair is shown in Figure 2—figure supplement 1.

Selecting optimal BLAST E-value cut-offs

Homology detection is highly sensitive to the technical choices made during sequence similarity searches (Tautz and Domazet-Lošo, 2011; Arendsee et al., 2019). We therefore sought to explore how the choice of E-value threshold would impact interpretations of divergence beyond similarity. First, we performed BLASTP searches of the focal species’ total protein sequences against the total reversed protein sequences of each target species. Matches produced in these searches can safely be considered ‘false homologies’ since biological sequences do not evolve by reversal (Frith, 2011) (see Materials and methods). These false homologies were then compared to ‘undetectable homologies’: cases with conserved micro-synteny (presumed homologues) but without any detectable sequence similarity.

In Figure 3A, we can see how the ratios of undetectable and false homologies vary as a function of the BLAST E-value threshold used. The proportion of undetectable homologies depended quasi-linearly on the E-value cut-off. By contrast, false homologies depended exponentially on the cut-off, as expected from the E-value definition. Furthermore, the impact of E-value cut-off was more pronounced in comparisons of species separated by longer evolutionary distances, whereas it was almost non-existent for comparisons amongst the most closely related species. Conversely, there seems to be no dependence between percentage of false homologies and evolutionary time across the range of E-values that we have tested (all lines overlap in the graphs in the bottom panel of Figure 3A). This means that, when comparing relatively closely related species, failing to appropriately control for false homologies would have an overall more severe effect on homology detection than failing to account for false negatives.

Figure 3
Download asset Open asset

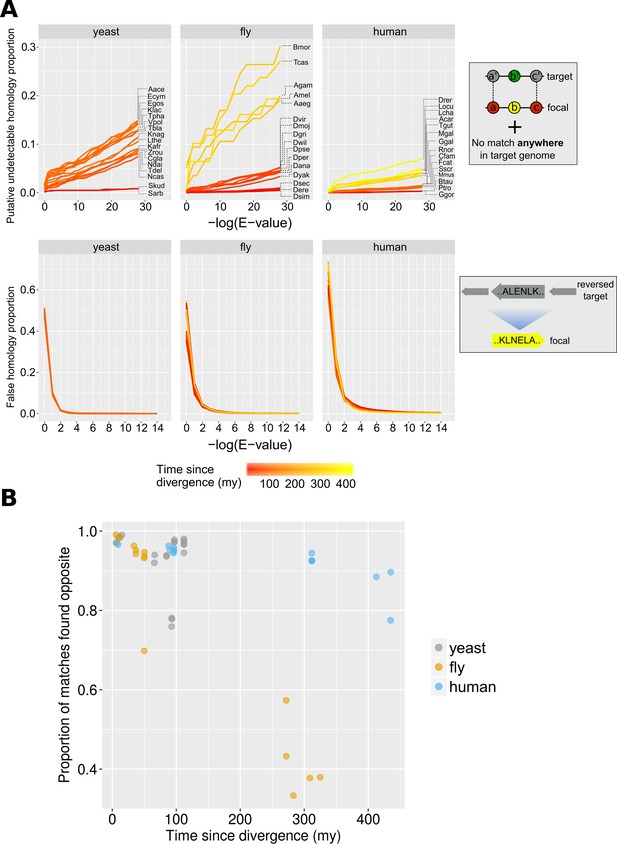

Proportions of false and undetectable homologies for a range of E-value cut-offs.

(A) Proportions of false and undetectable homologies as a function of the E-value cut-off used. Abbreviations of species names can be found in Table 1. Putative undetectable homology proportion (top row) is defined as the percentage of all genes with at least one identified region of conserved micro-synteny (and thus likely to have a homologue in the target genome) that have no significant match anywhere in the target genome (see Materials and methods and Figure 2). False homology proportion (bottom row) is defined as a significant match to the reversed proteome of the target species (see Materials and methods). Divergence time estimates were obtained from www.TimeTree.org. Data for this figure can be found in Figure 3—source data 2 (upper plots) and Figure 3—source data 3 (lower plots). (B) Proportion (out of all genes with sequence matches) where a match is found in the predicted region (‘opposite’) in the target genome for the three datasets, using the relaxed E-value cut-offs (0.01, 0.01, 0.001 for yeast, fly and human, respectively [10−4 for comparison with chimpanzee]), as a function of time since divergence from the respective focal species. Data can be found in Figure 3—source data 1.

Figure 3—source data 1

Data from focal-target genome comparisons.

‘div. time’: time since divergence from the focal species. ‘Phylostrat. E-value’: optimal E-value for use in phylostratigraphy. ‘general E-value’: optimal E-value maximizing Mathews Correlation Coefficient. ‘# residues’: number of residues in the complete proteome of the species. ‘found opposite’: genes in conserved micro-synteny whose sequence match is found at the predicted genomic location. ‘found elsewhere’: genes in conserved micro-synteny whose match is found elsewhere than the predicted location. ‘not found (and in micro-synteny)': genes in conserved micro-synteny that do not have a match. ‘total in micro-synteny’: total number of genes in conserved micro-synteny. ‘not found and outside micro-synteny’: number of genes without a match that are not found in conserved micro-synteny. ‘total genes checked’: number of focal genes examined.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig3-data1-v1.csv
Figure 3—source data 2

Data on undetectable homologies for different E-value cut-offs used to generate the top panel of Figure 3A.

Column names: ‘total’: total number of genes in conserved micro-synteny, ‘not_found’: number of genes without significant sequence similarity, ‘div’: time since divergence from focal species.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig3-data2-v1.csv
Figure 3—source data 3

Data on false homologies for different E-value cut-offs used to generate the bottom panel of Figure 3A.

Column names: ‘found’: number of genes with significant sequence similarity, the rest are the same as in Source Data 1.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig3-data3-v1.csv
Table 1
Names and abbreviations of target species included in the three datasets.
Full nameAbbr.Full nameAbbr.Full nameAbbr.
Saccharomyces kudriavzeviiSkudDrosophila sechelliaDsecPan troglodytesPtro
Saccharomyces arboricolaSarbDrosophila simulansDsimGorilla gorillaGgor
Naumovozyma castelliiNcasDrosophila erectaDereMus musculusMmus
Naumovozyma dairenensisNdaiDrosophila yakubaDyakRattus norvegicusRnor
Kazachstania naganishiiKnagDrosophila ananassaeDanaBos taurusBtau
Kazachstania africanaKafrDrosophila persimilisDperCanis familiarisCfam
Vanderwaltozyma polysporaVpolDrosophila pseudoobscuraDpseFelis catusFcat
Tetrapisispora blattaeTblaDrosophila mojavensisDmojSus scrofaSscr
Tetrapisispora phaffiiTphaDrosophila willistoniDwilAnolis carolinensisAcar
Torulaspora delbrueckiiTdelDrosophila grimshawiDgriGallus gallusGgal
Candida glabrataCglaDrosophila virilisDvirMeleagris gallopavoMgal
Zygosaccharomyces rouxiiZrouAnopheles gambiaeAgamTaeniopygia guttataTgut
Kluyveromyces lactisKlacAedes aegyptiAaegLatimeria chalumnaeLcha
Lachancea thermotoleransLtheBombyx moriBmorDanio rerioDrer
Eremothecium cymbalariaeEcymTribolium castaneumTcasLepisosteus oculatusLocu
Ashbya aceriAaceApis melliferaAmel
Eremothecium gossypiiEgos

In the context of phylostratigraphy (estimation of phylogenetic branch of origin of a gene based on its taxonomic distribution; Domazet-Loso et al., 2007), gene age underestimation due to BLAST ‘false negatives’ has been considered a serious issue (Moyers and Zhang, 2014), although the importance of spurious BLAST hits generating false positives has also been stressed (Domazet-Lošo et al., 2017). We defined a set of E-value cut-offs optimised for phylostratigraphy, by choosing the highest E-value that keeps false homologies under 5%. This strategy emphasizes sensitivity over specificity. We have also calculated general-use optimal E-values by using a balanced binary classification measure (see Materials and methods). The phylostratigraphy optimal E-value thresholds are 0.01 for all comparisons using yeast and fly as focal species and 0.001 for those of human, except for chimpanzee (10−4). These are close to previously estimated optimal E-value cut-offs for identifying orphan genes in Drosophila, found in the range of 10−3 - 10−5, see ref (Domazet-Loso and Tautz, 2003). These cut-offs have been used for all downstream analyses.

We find that, for the vast majority of focal genes examined that do have matches, the match occurs in the predicted region (‘opposite’), that is within the region of conserved micro-synteny. In 36/48 pair-wise species comparisons, at least 90% of the focal genes in micro-synteny for which at least one match was eventually found in the target genome, a match was within the predicted micro-syntenic region (Figure 3B). This finding supports the soundness of our synteny-based approach for homologue identification.

In total, we were able to identify 180, 81 and 156 unique focal species genes in the dataset of yeast, fly and human respectively, that have at least one undetectable homologue in at least one target species but no significant sequence similarity to that homologue or to any other part of the target genome (see Figure 4—figure supplement 1 for two exemplars of these findings).

The rate of ‘divergence beyond recognition’ and its contribution to the total pool of genes without similarity

How quickly do homologous genes become undetectable? In other words, given a pair of genomes from species separated by a certain amount of evolutionary time, what percentage of their genes will have diverged beyond recognition? Within phyla, the proportion of putative undetectable homologues correlated strongly with time since divergence, suggesting a continuous process acting during evolution (Figure 4). However, different rates were observed between phyla, represented by the slopes of the fitted linear models in Figure 4. Genes appeared to be diverging beyond recognition at a faster pace in the yeast and fly lineages than in the human lineage.

Figure 4 with 1 supplement see all
Download asset Open asset
Rates of divergence beyond recognition.

Putative undetectable homology proportion in focal - target species pairs plotted against time since divergence of species. The y axis represents the proportion of focal genes in micro-synteny regions for which a homologue cannot be detected by similarity searches in the target species. Linear fit significance is shown in the graph. Points have been jittered along the X axis for visibility. Two exemplars of focal-target undetectable homologues can be found in Figure 4—figure supplement 1. Data can be found in Figure 3—source data 1.

We next sought to estimate how much the process of divergence beyond recognition contributes to the genome-wide pool of genes without detectable similarity. To do so, we need to assume that the proportion of genes that have diverged beyond recognition in micro-synteny blocks (Figure 4) can be used as a proxy for the genome-wide rate of origin-by-divergence for genes without detectable similarity, irrespective of the presence of micro-synteny conservation. This in turn depends on the distribution of evolutionary rates inside and outside micro-synteny blocks.

We calculated the non-synonymous (dN) and synonymous (dS) substitution rates of genes found inside and outside regions of conserved micro-synteny relative to closely related species (Materials and methods). Figure 5A shows density plots of the distributions. The distributions of dS are statistically indistinguishable for genes inside and outside of micro-synteny regions in the yeast and fly datasets. The distributions of dN for all three datasets and dS for the human dataset show a statistically significant increase in genes outside conserved micro-synteny regions compared to genes inside such regions, but the effect size is minimal, almost negligible (Rosenthal’s R ~ 0.05, Figure 5B). It is impossible to directly compare the evolutionary rates of genes lacking homologues inside and outside conserved micro-synteny. However, such genes only account for a miniscule percentage of all genes in the genome: 0.0013, 0.008 and 0.029 in fly, human and yeast respectively. Despite these minimal caveats, evolutionary rates are globally very similar inside and outside regions of conserved micro-synteny, allowing to extrapolate with confidence.

Figure 5
Download asset Open asset

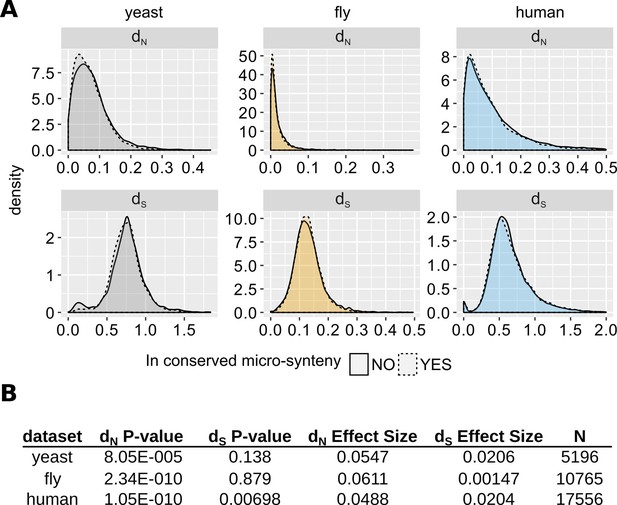

Comparison of evolutionary rates between genes inside and outside conserved micro-synteny regions.

(A) Density plots of dS and dN distributions. Outliers are not shown for visual purposes Data can be found in Figure 5—source data 1. (B) Statistics of unpaired Wilcoxon test comparisons between genes inside and outside of conserved micro-synteny. Effect size was calculated using Rosenthal’s formula (Rosenthal et al., 1994) (Z/sqrt(N)).

Figure 5—source data 1

dN and dS data used to generate Figure 5 and the accompanying statistics.

See Materials and methods section for how these data were generated. Column names: ‘micro-synteny’: whether the gene satisfies our conserved micro-synteny criteria with the relevant species (see Materials and methods).

https://cdn.elifesciences.org/articles/53500/elife-53500-fig5-data1-v1.csv

We extrapolated the proportion of genes without detectable similarity that have originated by complete divergence, as calculated from conserved micro-synteny blocks (Figure 4), to all genes without similarity in the genome (Figure 6, see Materials and methods and Figure 6—figure supplement 1 for detailed description). We found that, in most pairwise species comparisons, the observed proportion of all genes without similarity far exceeds that estimated to have originated by divergence (Figure 6A). The estimated contribution of divergence ranges from 0% in the case of D. sechellia (fly dataset), to 57% in the case of T. castaneum (fly dataset), with an overall average of 20.6% (Figure 6B).

Figure 6 with 3 supplements see all
Download asset Open asset

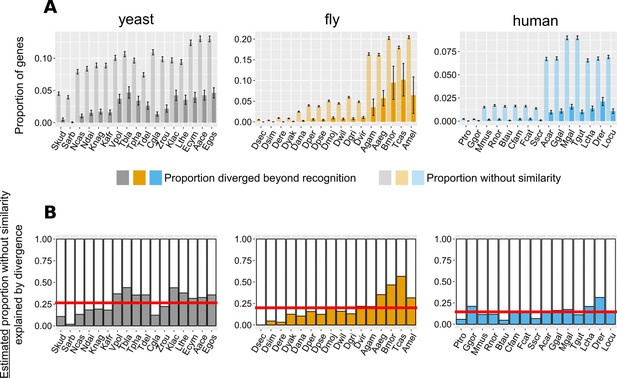

Contribution of divergence beyond recognition to observed numbers of genes without detectable similarity.

(A) Proportion of genes with undetectable homologues in micro-synteny regions (thus likely diverged beyond recognition, solid bars) and proportion of total genes without similarity, genome-wide (transparent bars), in the different focal - target genome pairs. Schematic representation for how these proportions are calculated can be found in Figure 6—figure supplement 1. Error bars show the standard error of the proportion. (B) Estimated proportions of genes with putative undetectable homologues (explained by divergence) out of the total number of genes without similarity genome-wide. This proportion corresponds to the ratio of the micro-synteny proportion (solid bars in top panel) extrapolated to all genes, to the proportion calculated over all genes (transparent bars in top panel). See text for details. Red horizontal lines show averages. Species are ordered in ascending time since divergence from the focal species. Abbreviations used can be found in Table 1. The equivalent results using the phylogeny-based approach can be found in Figure 6—figure supplement 3. The impact of more/less stringent conserved synteny definitions on this result can be found in Figure 6—figure supplement 2 (see also Materials and methods for details). Data for this figure and for Figure 6—figure supplement 3 can be found in Figure 6—source data 1.

Figure 6—source data 1

Excel file with one dataset per sheet, containing the similarity and micro-synteny conservation information for every focal - target species comparison.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig6-data1-v1.xlsx

The criteria used to define conserved micro-syntenic regions affect the number of regions identified (Figure 6—figure supplement 2A; Materials and methods) and can thus impact the proportions explained by divergence that are calculated based on such regions. Using a more relaxed conserved synteny definition (only one syntenic homologue on either side of the focal gene) had limited impact on these results (overall average of 23% explained by divergence; Figure 6—figure supplement 2B; Materials and methods). We also used a more stringent definition of conserved micro-syntenic regions (an additional syntenic homologue on either side), but the number of regions identified was too low to extract meaningful conclusions with the more distant species pairs in our data sets (e.g. <5 for comparisons to all non-Drosophila species in the fly dataset, Figure 6—figure supplement 2A). In the species where the number of identified regions was sufficient, the average proportion explained by divergence dropped from 16% (using our current definition in this subset of species) to 10.9% (see Figure 6—figure supplement 2B; Materials and methods). The more pronounced difference in the stringent-current comparison could be explained by the fact that these proportions are calculated as the ratio of two small ratios (see Figure 6—figure supplement 1), which can be sensitive as the small ratio in the numerator changes with the conserved synteny definition. An alternative explanation is that as the synteny criterion becomes stricter, genes that satisfy it could be under stronger evolutionary constraints and therefore less likely to diverge. For both reasons, we recommend avoiding the application of stringent conserved synteny criteria when undertaking similar analyses, although ultimately the choice depends on the evolutionary distance and the more general degree of synteny conservation between the species being compared.

We also applied the same reasoning to estimate how much divergence beyond recognition contributes to TRGs. To this aim we calculated the fraction of focal genes lacking detectable homologues in a phylogeny-based manner, in the target species and in all species more distantly related to the focal species than the target species (see Materials and methods and Figure 6—figure supplement 3A for a schematic explanation). Again, the observed proportion of TRGs far exceeded that estimated to have originated by divergence (the contribution of divergence ranging from 0% to 52% corresponding to the first and before-last ‘phylostratum’ of the fly dataset tree respectively, with an overall average of 30%; Figure 6—figure supplement 3B C). Changing the conserved synteny definition impacted the proportions of TRGs explained by divergence similarly to what was seen in the pairwise case (Figure 6—figure supplement 2B). We estimate that the proportion of TRGs which originated by divergence-beyond-recognition, at the level of Saccharomyces, melanogaster subgroup, and primates are at most 45%, 20% and 24%, respectively (Materials and methods). Thus, we conclude that the origin of most genes without similarity cannot be attributed to divergence beyond recognition. This implies a substantial role for other evolutionary mechanisms such as de novo emergence and horizontal gene transfer, although horizontal gene transfer is not known to be frequent in metazoa.

Properties of genes diverged beyond recognition

Even as homologous primary sequences diverge beyond recognition, it is conceivable that other ancestral similarities persist. We found weak but significant correlations between pairs of undetectable homologues in the human dataset when comparing G+C content (Spearman’s rho = 0.25, p-value=2×10−5) and CDS length (Spearman’s rho = 0.35, p-value=1.5×10−9). We also compared protein properties between the pairs of genes and found weak conservation for solvent accessibility, coiled regions and alpha helices only (yeast: % residues in solvent-exposed regions, rho = 0.14, p-value=0.0037; yeast and human: % residues in coiled protein regions, rho = 0.19, p-value=8.25×10−05 and rho = 0.14, p-value=0.017; human: % residues in alpha helices, rho = 0.2, p-value=0.00056).

We searched for shared Pfam (Finn et al., 2016) domains (protein functional motifs) and found that, in the yeast and human dataset, focal proteins had significantly fewer Pfam matches than their undetectable homologues (Figure 7A). Overall, a common Pfam match between undetectable homologues was found only for 12 pairs out of a total of 845 that we examined (1.4%). We also identified 13 additional cases of undetectable homologue pairs that, despite not sharing any pairwise similarity, belonged to the same OrthoDB group. Nonetheless, and despite the small sample size, genes forming these 25 pairs (corresponding to 17 distinct focal genes) were strongly correlated across 9 out of 10 features tested (Bonferroni-corrected P-values of <0.05; see Figure 7B and Figure 7—source data 1). Though rare, such cases of retention of similarity at the protein domain level, suggest the possibility of conservation of ancestral functional signals in the absence of sequence similarity.

Figure 7
Download asset Open asset

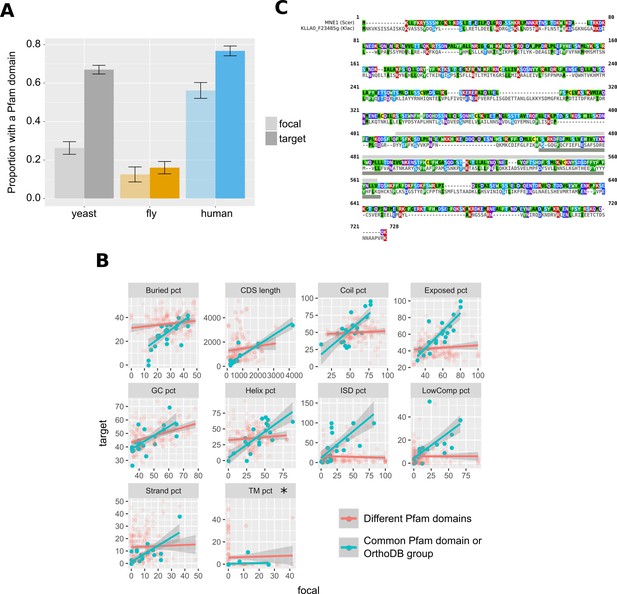

Pfam domains and other protein properties across undetectable homologue pairs.

(A) Pfam domain matches in undetectable homologues. ‘focal’ (transparent bars) corresponds to the genes in the focal species, while ‘target’ (solid bars) to their putative undetectable homologues in the target species. Whiskers show the standard error of the proportion. The yeast comparison is statistically significant at p-value<2.2×10−16 and the human comparison at p-value=2×10−5 (Pearson’s Chi-squared test). Raw numbers can be found in Figure 7—source data 2. (B) Distributions of properties of focal genes (‘focal’) and their undetectable homologues (‘target’), when both have a significant match (p-value<0.001) to a Pfam domain or are members of the same OrthoDB group (blue points; n = 25), and when they lack a common Pfam match but both have at least one (red points; n = 183). All blue points correlations are statistically significant (Spearman’s correlation, p-value<0.05; Bonferroni corrected) except from percentage of transmembrane residues (TM pct), marked with an asterisk. Details of correlations can be found in Figure 7—source data 1. All units are in percentage of residues, apart from ‘GC pct’ (nucleotide percentage) and CDS length (nucleotides). ‘Buried pct’: percentage of residues in regions with low solvent accessibility; ‘CDS length’: length of the CDS; ‘Coil pct’: percentage of residues in coiled regions; ‘Exposed pct’: percentage of residues in regions with high solvent accessibility; ‘GC pct’: Guanine Cytosine content; ‘Helix pct’: percentage of residues in alpha helices; ‘ISD pct’: percentage of residues in disordered regions; ‘LowComp pct’: percentage of residues in low complexity regions; ‘Strand pct’: percentage of residues in beta strands; ‘TM pct’: percentage of residues in transmembrane domains. Data can be found in Figure 7—source data 3. (C) Protein sequence alignment generated by MAFFT of MNE1 and its homologue in K. lactis. Pfam match location is shown with a light grey rectangle in S. cerevisiae, and a dark grey one in K. lactis.

Figure 7—source data 1

Correlations of different protein properties between undetectable homologues.

Full property names can be found in the legend of Figure 7.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig7-data1-v1.csv
Figure 7—source data 2

Numbers of focal and target genes with Pfam matches and total numbers.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig7-data2-v1.csv
Figure 7—source data 3

Data on common Pfam matches and gene/protein properties used to generate Figure 7.

Column names: ‘Gene_focal’: Name of the focal species gene, ‘Gene_ortho’: name of the target species gene, ‘same’: whether a common Pfam match was found or these genes are in the same OrthoDB group, ‘focal’: the value for the property in the focal gene, ‘ortho’: the value for the property in the target species gene, ‘var’: the name of the property.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig7-data3-v1.csv

One of these rare cases is MNE1, a 1992nt long S. cerevisiae gene encoding a protein that is a component of the mitochondrial splicing apparatus (Watts et al., 2011). The surrounding micro-synteny is conserved in five yeast species, and the distance from the upstream to the downstream neighbour is well conserved in all five (minimum of 2062nt and a maximum of 2379nt). In four of the five species the homologue can also be identified by sequence similarity, but MNE1 of S. cerevisiae has no detectable protein or genomic similarity to its homologous gene in Kluyveromyces lactis, KLLA0_F23485g. Both the conserved micro-synteny and lack of sequence similarity are confirmed by examination of the Yeast Gene Order Browser (Byrne and Wolfe, 2005). Despite the lack of primary sequence similarity, the S. cerevisiae and K. lactis genes share a significant (E-value <0.001) Pfam match (Pfam accession PF13762.5; Figure 7C) and are members of the same fast-evolving OrthoDB group (EOG092E0K2I). The two are also not statistically different in terms of the protein properties that we calculated (Paired t-test p-value=0.8). Thus, MNE1 exemplifies possible retention of ancestral properties in the absence of detectable pairwise sequence similarity.

Lineage-specific gene origination through divergence

We looked for cases of focal genes that resulted from complete lineage-specific divergence along a specific phylogenetic branch (Figure 8A). When comparing the CDS lengths of these focal genes to those of their undetectable homologues, we found that focal genes tend to be much shorter (Figure 8B). This finding could partially explain the shorter lengths frequently associated with young genes (Vakirlis et al., 2018; Carvunis et al., 2012; Wilson et al., 2017; Ruiz-Orera et al., 2015). Through a lineage-specific shift of selection pressure, truncation of the gene could initiate accelerated divergence in a process that may at first resemble pseudogenization.

Figure 8
Download asset Open asset

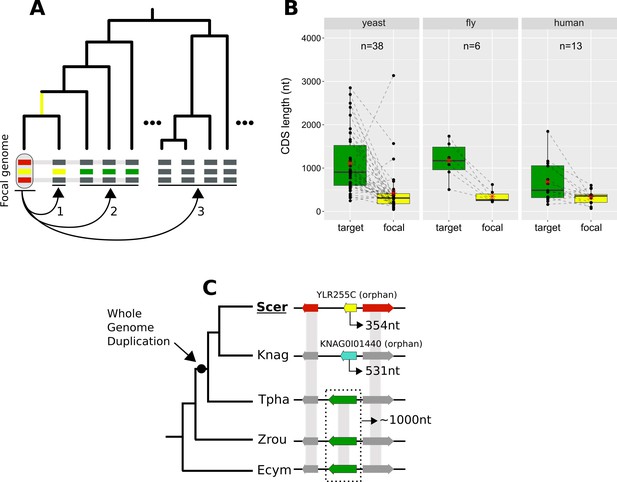

Lineage-specific divergence and gene length.

(A) Schematic representation of the criteria used to detect lineage-specific divergence. 1, identification of any lineages where a homologue with a similar sequence can be detected (example for one lineage shown). 2, identification of at least two non-monophyletic target species with an undetectable homologue. 3, search in proteomes of outgroup species to ensure that no other detectable homologue exists. The loss of similarity can then be parsimoniously inferred as having taken place, through divergence, approximately at the common ancestor of the yellow-coloured genes (yellow branch). Leftmost yellow box: focal gene; Red boxes: neighbouring genes used to establish conserved micro-synteny; Green boxes: undetectable homologues. Grey bands connecting genes represent homology identifiable from sequence similarity. (B) CDS length distributions of focal genes and their corresponding undetectable homologues (averaged across all undetectable homologous genes of each focal one) in the three datasets. Dashed lines connect the pairs. All comparisons are statistically significant at p-value<0.05 (Paired Student’s t-Test P-values: 2.5×10-5, 0.0037, 0.03 in yeast, fly and human respectively). Distribution means are shown as red stars. Box colours correspond to coloured boxes representing genes in A, but only the focal genome gene (leftmost yellow gene in A) is included in the ‘focal’ category. Data can be found in Figure 8—source data 1. All focal-target undetectable homologue pairs (not just the ones included in this figure) can be found in Figure 8—source data 2. (C) Schematic representation of the species topology of 5 yeast species (see Table 1 for abbreviations) and the genic arrangements at the syntenic region of YLR255C (shown at the ‘Scer’ leaf). Colours of boxes correspond to A. Gene orientations and CDS lengths are shown. The Whole Genome Duplication branch is tagged with a black dot. Genes grouped within dotted rectangles share sequence similarity with each other but not with other genes shown. Grey bands connecting genes represent homology identifiable from sequence similarity. Green genes: TPHA0B03620, ZYRO0E05390g, Ecym_2731.

Figure 8—source data 1

CDS lengths of focal genes and their undetectable homologues (averages), resulting from lineage-specific divergence.

https://cdn.elifesciences.org/articles/53500/elife-53500-fig8-data1-v1.csv
Figure 8—source data 2

All CDS and protein properties for all undetectable homologue pairs.

Relevant for Figure 8 are the columns ‘Gene_focal’, ‘Gene_ortho’ (name of target gene), ‘len_focal’ (CDS length of focal gene) and ‘len_ortho’ (CDS length of target gene).

https://cdn.elifesciences.org/articles/53500/elife-53500-fig8-data2-v1.csv

We sought a well-defined example to illustrate this process. YLR255C is a 354nt long, uncharacterized yeast ORF that is conserved across S. cerevisiae strains according to the Saccharomyces Genome Database (Cherry et al., 2012) (SGD). YLR255C is a species-specific, orphan gene. Our analyses identified undetectable homologues in four other yeast species. Three of them share sequence similarity with each other while the fourth one is another orphan gene, specific to K. naganishii (Figure 8C). The presence of two orphan genes in conserved synteny is strong evidence for extensive sequence divergence as an explanation of their origin. Based on the phylogenetic relationships of the species and the CDS lengths of the undetectable homologues, we can infer that the ancestor of YLR255C was longer (Figure 8C). Furthermore, given that S. cerevisiae and K. naganishii have both experienced a recent Whole Genome Duplication (WGD), a role of that event in the origination of the two shorter species-specific genes is plausible. The undetectable homologue in T. phaphii, another post-WGD species, has both similar CDS length to that of the pre-WGD ones and conserved sequence similarity to them, which is consistent with a link between shortening and loss of sequence similarity.

Finally, we investigated how orphan genes that have originated by divergence beyond recognition might impact human biology. Our approach identified thirteen human genes that underwent complete divergence along the human lineage and have no detectable homologues outside of mammals (see Figure 8—source data 1). Examining the ENSEMBL and UniProt resources revealed that three of these thirteen genes are associated with known phenotypes. One of them is ATP-synthase membrane subunit 8 (MT-ATP8), which has been implicated with infantile cardiomyopathy (Ware et al., 2009) and Kearns-Sayre syndrome (van der Westhuizen et al., 2010) among other diseases. The other two are both associated with cancer: DEC1 (Nishiwaki et al., 2000) and DIRC1 (Druck et al., 2001). It is curious that three out of three of these genes are associated with disease, two of which with cancer, although the small number prevents us from drawing conclusions. Nonetheless, this observation is consistent with previous findings showing that multiple novel human genes are associated with cancer and cancer outcomes suggesting a role for antagonistic evolution in the origin of new genes (McLysaght and Hurst, 2016).

Discussion

The persistent presence of orphans and TRGs in almost every genome studied to date despite the growing number of available sequence databases demands an explanation. Studies in the past 20 years have mainly pointed to two mechanisms: de novo gene emergence and sequence divergence of a pre-existing gene, either an ancestrally present or one acquired by horizontal transfer. However, the relative contributions of these mechanisms have remained elusive until now. Here, we have specifically addressed this problem and demonstrated that sequence divergence of ancestral genes explains only a minority of orphans and TRGs.

We were very conservative when estimating the proportion of orphans and TRGs that have evolved by complete divergence inside regions of conserved micro-synteny. Indeed, we simultaneously underestimated the number of orphans and TRGs while overestimating the number that originated by divergence. We underestimated the total number of orphans and TRGs by relying on relaxed similarity search parameters. As a result, we can be confident that those genes without detectable similarity really are orphans and TRGs, but in turn we also know that some will have spurious similarity hits giving the illusion that they have homologues when they do not in reality. Furthermore, the annotation that we used in yeast does not include the vast majority of dubious ORFs, labelled as such because they are not evolutionarily conserved even though most are supported by experimental evidence (Li et al., 2008).

We overestimated the number of genes that have undergone complete divergence by assuming that all genes in conserved micro-synteny regions share common ancestry. There are however limitations in using synteny to approximate common descent. First, with time, genome rearrangements shuffle genes around and synteny is lost. This means that when comparing distantly related species, the synteny signal will be more tenuous and eventually completely lost. Second, combinations of evolutionary events can place non-homologous genes in directly syntenic positions. Loss of a gene in a lineage followed by tandem duplication of a neighbouring gene, translocation of a distant one, or de novo emergence, could potentially contribute to placing in syntenic positions pairs of genes that are not in fact homologous. As such, the results of our pipeline can be viewed as an upper bound estimate of the true rate of divergence beyond recognition.

Previous efforts to measure the rate of complete divergence beyond recognition have done so using simulations (Vakirlis et al., 2018; Moyers and Zhang, 2014; Albà and Castresana, 2007; Moyers and Zhang, 2016; Jain et al., 2019), within a different context and with different goals, mainly to measure ‘BLAST error’. Interestingly, our estimates are of the same order of magnitude as previous results from simulations (Moyers and Zhang, 2014; Moyers and Zhang, 2016). Nonetheless, using the term ‘BLAST error’ or talking about ‘false negatives’ would be epistemologically incorrect in our case. When focusing on the outcome of divergence itself, it is clear that once all sequence similarity has been erased by divergence, BLAST, a similarity search tool, should not be expected to detect any.

Simulation-based studies have been valuable in quantifying the link between evolutionary distance and absence of sequence similarity. They are however limited in that they can only show that sequence divergence could explain a certain proportion of orphans and TRGs, not that it actually does explain it. Making the jump from ‘could’ to ‘does’ requires the assumption that divergence beyond recognition is much more plausible than, for example, de novo emergence. This is a prior probability which, currently, is at best uncertain. Our approach, on the other hand, does not make assumptions with respect to the evolutionary mechanisms at play, that is we do not need prior knowledge of the prevalence of divergence beyond recognition to obtain an estimate.

Many studies have previously reported that genes without detectable homologues tended to be shorter than conserved ones (Tautz and Domazet-Lošo, 2011; Wissler et al., 2013; Toll-Riera et al., 2009; Ekman and Elofsson, 2010; Palmieri et al., 2014; Vakirlis et al., 2016; Khalturin et al., 2009). This relationship has been interpreted as evidence that young genes can arise de novo from short open reading frames (McLysaght and Guerzoni, 2015; Carvunis et al., 2012; Zhao et al., 2014; Siepel, 2009) but also as the result of a bias due to short genes having higher evolutionary rates, which may explain why their homologues are hard to find (Moyers and Zhang, 2014; Moyers and Zhang, 2017). Our results enable another view of these correlations of evolutionary rate, gene age and gene length (Tautz and Domazet-Lošo, 2011; Wolf et al., 2009; Albà and Castresana, 2005). We have shown that an event akin to incomplete pseudogenization could be taking place, wherein a gene loses functionality through some disruption, thus triggering rapid divergence due to absence of constraint. After a period of evolutionary ‘free fall' (Wolf et al., 2009), this would eventually lead to an entirely novel sequence. If this is correct, then it could explain why some short genes, presenting as young, evolve faster.

Disentangling complete divergence from other processes of orphan and TRG origination is non-trivial and requires laborious manual inspection (Prabh and Rödelsperger, 2019; Zhou et al., 2008). Our approach allowed us to explicitly show that divergence can produce homologous genes that lack detectable similarity and to estimate the rate at which this takes place. We are able to isolate and examine these genes when they are found in conserved micro-synteny regions, but at this point we have only a statistical global view of the process of divergence outside of these regions. Since, for example, in yeast and in Arabidopsis,~50% of orphan genes are located outside of syntenic regions of near relatives (Arendsee et al., 2019), the study of their evolutionary origins represents exciting challenges for future work. Why do genes in yeast and fly appear to reach the ‘twilight zone’ of sequence similarity considerably faster than human? One potential explanation is an effect of generation time and/or population size on evolutionary rates (Martin and Palumbi, 1993; Bromham and Penny, 2003) and thereby on the process of complete divergence.

Overall, our findings are consistent with the view that multiple evolutionary processes are responsible for the existence of orphan genes and suggest that, contrary to what has been assumed, divergence is not the predominant one. Investigating the structure, molecular role, and phenotypes of homologues in the ‘twilight zone’ will be crucial to understand how changes in sequence and structure produce evolutionary novelty.

Materials and methods

All data and scripts necessary to reproduce all figures and analyses are available at https://github.com/Nikos22/Vakirlis_Carvunis_McLysaght_2019 (Vakirlis, 2020; copy archived at https://github.com/elifesciences-publications/Vakirlis_Carvunis_McLysaght_2019). Correspondence of scripts to figures can be found in each Materials and methods subsection and in the readme file available online on GitHub.

Data collection

Request a detailed protocol

Reference genome assemblies, annotation files, CDS and protein sequences were downloaded from NCBI’s GenBank for the fly and yeast datasets, and ENSEMBL for the human dataset. Species names and abbreviations used can be found in Table 1. The latest genome versions available in January 2018 were used. The yeast annotation used did not include dubious ORFs. OrthoDB v 9.1 flat files were downloaded from https://www.orthodb.org/?page=filelist. Divergence times for focal-target pairs were obtained from http://timetree.org/ (Hedges et al., 2006) (estimated times). dN and dS values where obtained for D. melanogaster and D. simulans from http://www.flydivas.info/ (Stanley and Kulathinal, 2016) and for human and mouse from ENSEMBL biomart. For S. cerevisiae, we calculated dN and dS over orthologous alignments of 5 Saccharomyces species (S. cerevisiae, S. paradoxus, S. mikatae, S. kudriavzevii, S. bayanus) downloaded from http://www.saccharomycessensustricto.org/cgi-bin/s3.cgi (Scannell et al., 2011) using yn00 from PAML (Yang, 2007) (average of 4 pairwise values for each gene).

Synteny-based pipeline for detection of homologous gene pairs

Request a detailed protocol

  1. Data preparation: Initially, OrthoDB groups were parsed and those that contained protein-coding genes from the focal species were retained. OrthoDB constructs a hierarchy of orthologous groups at different phylogenetic levels, and so we selected the highest one to ensure that all relevant species were included. For every protein-coding gene in the annotation GFF file of the three focal species (yeast, fly, human), we first matched its name to its OrthoDB identifier. Then, we stored a list of all the target species genes found in the same OrthoDB group for every focal gene. Finally, the OrthoDB IDs of the target genes too were matched to the annotation gene names.

  2. BLAST similarity searches: All similarity searches were performed using the BLAST+ (Altschul et al., 1997) suite of programs. Focal proteomes were used as query to search for similar sequences, using BLASTp, against their respective target proteomes. The search was performed separately for every focal-target pair. Default parameters were used and the E-value parameter was set at 1. Target proteomes were reversed using a Python script and the searches were repeated using the reversed sequences as targets. The results from the reverse searches were used to define ‘false homologies’.

  3. Identification of regions of conserved micro-synteny: For every focal-target genome pair, we performed the following: for every chromosome/scaffold/contig of the focal genome, we examine each focal gene in a serial manner (starting from one end of the chromosome and moving towards the other). For each focal protein-coding gene, if it does not overlap more than 80% with either its +1 or −1 neighbour, we retrieve the homologues of its +1,+2 and −1,–2 neighbours in the target genome, from the list established previously with OrthoDB (Kriventseva et al., 2008). We then examine every pair-wise combination of the +1,+2 and −1,–2 homologues and identify cases were the +1,–1 homologues are on the same chromosome and are separated by either one or two protein-coding genes. Out of these candidates, we only keep those for which, if it exists, the homologue of the −2 neighbour is adjacent or separated by one gene from the homologue of the −1 neighbour, and the homologue of the +two neighbour, if it exists, is adjacent or separated by one gene from the homologue of the +one neighbour. We further filter out all cases for which the homologues of +1 and −1 belong in the same OrthoDB group, that is they appear to be paralogues. The intervening gene(s) 'opposite' the focal gene (between the homologues of its −1 and +one neighbours) are stored in a list. The specific choice of synteny criterion was made after we conducted an initial trial with a minimum of one homologue on either side, which showed limited false positives, revealed by visual inspection (obvious cases of non-homologous genes which, due to rearrangements such as micro-inversions were placed ‘opposite’ each other, even though they did not originate by divergence). One of these false positives was the well-studied de novo yeast gene BSC4 (Cai et al., 2008). Requiring the additional syntenic homologous gene on both sides (when the homologues exist), provided a balanced solution: it removed the BSC4 gene along with all other identified similar cases, again verified by extensive visual inspection and comparison to other genomic synteny resources (ENSEMBL, Yeast Gene Order Browser), while retaining a number of conserved micro-syntenic regions that was high enough to allow us to perform our analyses. To explore the impact of the synteny definition on our main finding, namely that divergence accounts for a minority of orphan genes, we replicated the analysis using one more relaxed and one more stringent synteny criterion. The relaxed definition considered only one syntenic homologue on either side, with no examination of the homologues of the −2,+2 neighbors. The stringent definition added an additional syntenic homologue to either side relative to the current one: three genes on either side need to have syntenic homologues that are separated by one gene at most and, again, we retain cases where the outer neighbors (−3,+3) have no homologues at all to the target genome.

  4. Identification of similarity: Once all the focal genes for which a region of conserved micro-synteny has been identified have been collected for a focal-target genome pair, we test whether similarity can be detected at a given E-value threshold. First, we look at whether a precomputed (previously, by us, whole proteome-proteome comparison) BLASTp match exists between the translated focal gene and the its translated ‘opposite’ genes (taking into account all translated isoforms), where we predict the match should be found most of the time. If no match exists at the amino acid level there, we perform a TBLASTN search with default parameters, using the focal gene as query and the genomic region of the ‘opposite’ gene plus the 2 kb flanking regions as target. The search is repeated using the reversed genomic region as target. If no match is found, we look whether a BLASTP match exists to any translated gene of the target genome. Finally, for the genes for which no similarity has been detected, we perform a TBLASTN search against the entire genome of the target species. This final TBLASTN step is not included in the setting of the optimal E-value and a fixed E-value threshold of 10−6 is used.

Related to Figure 3, Figure 4, Figure 2—figure supplement 1, Figure 6—figure supplement 2; relevant scripts: Figure3A.R, Figure3B_4_fig2-supp1.R.

Calculation of undetectable and false homologies and definition of optimal E-values

Request a detailed protocol

For every focal-target pair and for every E-value cut-off, the proportions of focal genes with at least one identified region of conserved micro-synteny for which a match was found ‘opposite’ or elsewhere in the genome were calculated. The remaining proportion, that is those with conserved micro-synteny but no match, constitutes the percentage of putative undetectable homologies. To estimate the ‘false homologies’, we calculated the proportion of the focal proteome that had a BLASTp match to the reversed target proteome, or to their corresponding reversed syntenic genomic region for the ones with identified micro-synteny (see step 4 of previous section). Based on these proportions, we chose the highest value limiting ‘false homologies’ to 0.05 for our analyses.

We also calculated the Mathews Correlation Coefficient (MCC) measure of binary classification accuracy for every E-value cut-off. This is a balanced measure that takes into account true and false positives and negatives which can be used even in cases of extensive class imbalance. At every E-value cut-off, we treated undetectable homologies as False Negatives, and false homologies (matches to the reversed proteome) as False Positives. Similarly, sequence-detected homologies (defined based on micro-synteny) were treated as True Positives and genes for which the reversed-search gave no significant hit were treated as True Negatives. The MCC measure was then calculated at each E-value cut-off based on these four values using the mcc function of R package mltools. When multiple E-value cut-offs had the same MCC (rounded at the 3rd decimal), the highest (less stringent) E-value was retained. The results for each focal-target genome pair are shown in Figure 3—source data 1 (‘general E-value’ column).

Related to Figure 3, Figure 4; relevant scripts: Figure3A.R, Figure3B_4_fig2-supp1.R, Balanced_optimal_evalue_MCC.R.

Calculation of contribution of divergence beyond recognition to observed numbers of genes without detectable similarity

Request a detailed protocol

For a given pair of focal-target genomes, we estimate the proportion of all focal genes without detectable similarity that is due to processes other than sequence divergence in a pairwise manner (Figure 6) and in a phylogeny-based manner (Figure 6—figure supplement 3). The pairwise approach is calculated as follows (see also Figure 6—figure supplement 1 for a schematic explanation): an X number of the total n of focal genes will have no similarity with the target, based on a BLASTP search of the target’s proteome using the corresponding optimal E-value cut-off and a TBLASTN search of the target’s genome with an E-value cut-off of 10−6. We have also estimated the proportion d of total genes that have lost similarity due to divergence. This was calculated over genes in conserved micro-synteny but we assume that it can be used as a proxy for the entire genome since presence in a conserved micro-syntenic region does not significantly impact evolutionary rates (Figure 5). By calculating the ratio of d over X/n we can obtain the contribution of divergence to the total genes without similarity. Note that, for this calculation to be unbiased, d here is based on the same similarity searches used to define X (i.e. it does not include the local TBLASTN search shown in step 4 of Figure 2B). The phylogeny-based approach is performed as follows: for a given ‘phylostratum’ (a given ancestral branch of the focal species), we estimate the proportion of genes restricted to this phylostratum due to divergence, again calculated over genes in conserved micro-synteny and extrapolated to all genes as in the pairwise case. This is done by taking the number of genes restricted to the phylostratum (TRGs, i.e. those for which the phylogenetically farthest species with a sequence similarity match falls within the subtree defined by the phylostratum) that have a putative undetectable homologue (based on micro-synteny) in at least one lineage outside of that phylostratum, and dividing them by the number of all genes that are predicted to have a homologue (based on micro-synteny) in at least one lineage outside the phylostratum. In other words, the proportion out of all genes with at least one micro-synteny conserved region, and thus a putative homologue, with a species outside the phylostratum, that are restricted, based on sequence similarity, within the specific phylostratum. As in the pairwise case, this proportion is compared to the proportion calculated based on sequence similarity alone out of all genes, meaning the proportion of TRGs for a given phylostratum, out of all genes.

The proportion of TRGs that we predict can be explained by divergence at the phylostrata of Saccharomyces (S. kudriavzevii, S. arboricola), melanogaster subgroup (D. simulans, D. sechellia, D. yakuba, D. erecta, D. ananassae) and primates (P. trogrolydes, G. gorilla) is obtained by the phylogeny-based approach described above, at the phylostrata with branches of origin at 15, 37 and 9 million years ago respectively.

Related to Figure 5, Figure 6, Figure 6—figure supplements 1–3; relevant scripts: Figure6_fig6-supp2.R, Figure6-supp3.R, Figure_5_7_8.R.

Protein and CDS properties

Request a detailed protocol

Pfam matches were predicted using PfamScan.pl to search protein sequences against a local Pfam-A database downloaded from ftp://ftp.ebi.ac.uk/pub/databases/Pfam (Finn et al., 2016; Eddy, 2011). Guanine Cytosine content and CDS length was calculated from the downloaded CDSomes in Python. Secondary structure (Helix, Strand, Coil), solvent accessibility (buried, exposed) and intrinsic disorder were predicted using RaptorX Property (Wang et al., 2016). Transmembrane domains were predicted with Phobius (Käll et al., 2007). Low complexity regions in protein sequences were predicted with segmasker from the BLAST+ suite. In the correlation analysis of the various properties, when multiple isoforms existed for the focal or target gene in a pair, we only kept the pairwise combination (focal-target) with the smallest CDS length difference. For the protein and CDS properties analyses, we removed 23 pairs of undetectable homologues for which our bioinformatic pipeline failed to retrieve both the focal and target species homologue CDS sequence due to non-correspondence between the downloaded annotation and CDS files. Furthermore, in all undetectable homologues property analyses, we removed from our dataset 14 pairs of undetectable homologues whose proteins consisted of low complexity regions in more than 50% of their length, since we observed that such cases can often produce false positives (artificial missed homologies) because of BLASTP’s low complexity filter. Pairwise alignments were performed with MAFFT (Katoh and Standley, 2013). All statistical analyses were conducted in R version 3.2.3. All statistical tests performed are two-sided.

Related to Figure 7; relevant scripts: Figure_5_7_8 .R.

Identification of TRGs resulting from lineage-specific divergence within micro-syntenic regions

Request a detailed protocol

To identify novel genes likely resulting from lineage-specific divergence and restricted to a specific taxonomic group, we applied the following criteria. Out of all the candidate genes in the three focal species with at least two undetectable homologues in two non-monophyletic (non-sister) target species, we retained those that had no match, according to our pipeline, to target species that diverged before the most distant of the target species with an undetectable homologue (see Figure 8A for a schematic representation). For those genes, we also performed an additional BLASTP search against NCBI’s NR database with an E-value cut-off of 0.001 and excluded genes that had matches in outgroup species (i.e. in species outside of Saccharomyces, Drosophila and placental mammals for yeast, fly and human respectively).

Related to Figure 8; relevant scripts: Figure_5_7_8 .R.

Data availability

Data is available in the Supplementary Information and in Source Data files. All data and scripts necessary to reproduce all figures and analyses are also available at https://github.com/Nikos22/Vakirlis_Carvunis_McLysaght_2019 (copy archived at https://github.com/elifesciences-publications/Vakirlis_Carvunis_McLysaght_2019). Correspondence of scripts to figures can be found in each Methods subsection and in the readme file available online on GitHub.

References

  47. Book
    1. Rosenthal R
    2. Cooper H
    3. Hedges L
    (1994)
    Parametric measures of effect size
    In: Cooper H, Hedges L. V, Valentine J. C, editors. The Handbook of Research Synthesis. New York: Russell Sage Foundation. pp. 231–244.

Decision letter

  1. Diethard Tautz
    Senior and Reviewing Editor; Max-Planck Institute for Evolutionary Biology, Germany
  2. Neel Prabh
    Reviewer; MPI for Evolutionary Biology, Germany
  3. Eve Syrkin Wurtele
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

When the first orphan genes were discovered in the yeast genome project, there was a discussion that suggested that genes that do not match with other genes in the database would become fewer over time, once the databases are better filled. Now the databases are filled, but orphan genes are still identified in every evolutionary lineage. Hence, the discussion turned into the assumption that this is due to a lack of sensitivity of detecting remote homologues and that better algorithms need to be devised. Vakirlis et al. now argue that a careful analysis of syntenic genome stretches allows to distinguish between fast sequence divergence beyond recognition and de novo evolution out of non-coding stretches of DNA. By running this comparison in three major evolutionary lineages, they show that only about a third of the genes may be orphans due to rapid divergence, while the remainder are likely truly newly evolved orphan genes.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Synteny-based analyses indicate that sequence divergence is not the dominant source of orphan genes" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Eve Syrkin Wurtele (Reviewer #3).

Our decision has been reached after consultation between the reviewers. Unfortunately, we have to reject the paper at this stage, since the submission did not include the results tables that were used to generate the figures and conclusions. Please note that all primary results that are required to reproduce your conclusion need to be accessible and properly listed in the manuscript.

Apart of this, the reviewers were mostly positive, although some critical issues need close attention. In addition to the points raised by the reviewers, the following points need to be addressed for a possible re-submission (please provide line numbers in you next submission):

Taxon choice:

The Drosophila set includes C. elegans as an outgroup, which is not very appropriate. Although both belong to Ecdysozoa, the actual divergence of C. elegans to humans is probably less than to Drosophila, since evolutionary rates in the vertebrate lineage are much smaller than in the insect lineage (as it is also shown in the present analysis). Hence, C. elegans comparisons need to be removed.

The part on "Selecting the optimal E-value cutoff" is not really novel and has also no new results. It should be moved to supplementary material (with the updates suggested by Tomi).

"(we find no, or very limited, difference in evolutionary rate between the two groups in terms of dN, dS, dN/dS; see Materials and methods and Supplementary figure 4)." – this is a key statement that needs to be properly presented in the text, including appropriate statistics. To make it valid, it would have to consider the possibility of different rates in different pairwise comparisons. (See also the comments by reviewer #2)

"We therefore searched ENSEMBL and UniProt for phenotypes and involvement in

disease for the ten genes within micro-synteny regions that we predict originated through complete divergence along the human lineage" – this is a standard orphan gene search, unclear what it adds to the message in the present paper.

"We find that at most 33% of orphans and TRGs have possibly originated by complete

divergence." – it is not completely clear where this number comes from.. It needs to be properly justified, given that it is the key message of the paper.

Reviewer #1:

This is important work that tries to estimate relative contribution of sequence divergence in the origin of novel genes (also known as orphan genes or taxonomically restricted genes). To my knowledge this is the first study entirely focused on this question which is essential for understanding which mechanism (divergence or de novo route) prevails in creating evolutionary innovations at the genome/proteome level. The authors devised a very neat protocol that detects conserved synteny regions between species and then looks for proteins that lack sequence similarity in the target genome but are otherwise embedded within these conserved synteny regions. By extrapolating the findings from the conserved synteny regions to the whole genome the authors conclude that divergence mechanism accounts for at most a third of eukaryotic novel genes.

1) Subsection “Selecting optimal BLAST E-value cut-offs”, Figure 3A – It is really elegant how the authors estimated the proportion of false positive and false negative homologues. From their figures it is clear that the proportion of false positives changes quite differently from the proportion of false negatives depending on the e-value. The authors mention this in the text, but they don't discuss that controlling of false positives is more critical when deciding on the appropriate e-value cutoffs. This is evident from the shape of the Figure 3A curves, where false negatives show linear-like dependence and false positives exponential-like dependence, plus the false positive curves are not dependent on the evolutionary distance. In practice, this means that failing to properly control for false positives would generate spurious sequence similarity hits all over the place, whereas not perfectly adjusted e-value would not have a such profound effect on false negatives, especially in the phylogenetic context.

2) Linked to the previous comment: The authors discuss the BLAST "false negatives" debate but miss the balance by omitting to cite Domazet-Loso et al., 2017 paper which stresses the importance of evaluating BLAST "false positives". Given that the manuscript specifically deals with the false positives this paper should be cited.

3) Subsection “Calculation of undetectable and false homologies and definition of optimal E-values” – I had problems to understand how Mathews Correlation Coefficient was used to decide on the E-value cut-off. Could you please describe the protocol in more details here?

4) Subsection “The rate of “divergence beyond recognition” and its contribution to the

total pool of genes without similarity” – Presentation of the results in Figure 4B and 4C (Figure 6—figure supplement 2) is quite confusing.

5) Subsection “Calculation of proportion of orphan genes due to processes other than sequence divergence” – "This is done by taking…" This part were phylogeny-based proportions are obtained was not comprehensible to me. Could you please make some schematic representation of this part of the protocol?

Reviewer #2:

The authors have made a comprehensive attempt to quantify the contribution of sequence divergence as a source of orphan genes. They have ingeniously used micro-synteny to identify the orphan genes created by divergence. They estimate that at most one-third of the genes within the micro-syntenic regions result from sequence divergence. Subsequently, they extrapolate this result to the entire genome and conclude that the majority of orphan genes are not formed through sequence divergence. Although several studies have investigated orphan genes in various organisms, the relative contribution of processes such as de novo gene creation and sequence divergence in the formation of orphan genes remains largely unexplored. Hence, I consider that this work can significantly contribute to the progress of the field.

Major concern:

The authors assume that the similar distribution of evolutionary rates within and outside the syntenic blocks indicates that the proportion of orphan genes created through sequence divergence within the syntenic block can be extrapolated to the whole genome (Subsection “The rate of “divergence beyond recognition” and its contribution to the total pool of genes without similarity” paragraph 2). Given that the evolutionary rates cannot be estimated for the orphan genes lacking detectable homologs, the assumption made by the authors about the comparability of evolutionary rates across the genome is most likely based on a dataset that excludes such genes. Thus, their argument, although correct for the overall distribution of evolutionary rates, should not be used to extrapolate the proportion of orphan genes originated by divergence within the syntenic blocks to the whole genome.

Reviewer #3:

Orphan genes are an exciting addition to our understanding of speciation and adaptation of organisms to new environments. This research represents a unique and important approach to validate that rapidly-changing genes exist. The manuscript is well-written and clearly presents a very complex set of concepts.

The authors did something new. Rather than assuming (as many have done, but with no basis for this assumption) that any orphan gene that cannot positively be IDed as de novo is "rapidly changing divergent duplicates" the research in this manuscript take the opposite tact, and directly IDs the orphans genes that have arisen by rapid evolution. Indeed, this manuscript is the best evidence for orphans that arose via a " rapidly changing divergent duplicate gene mechanism".

Providing positive evidence for the set of genes that have rapidly diverged is particularly important because it opens the path for researchers to explore the mechanisms whereby particular genes can evolve so much more quickly than the typical gene.

The table with the abbreviations (e.g., ggor) should be moved from supplementary to the main text. That way the reader doesn't need to access supplementary to understand Figure 6.

In both yeast and Arabidopsis, ~50% of orphan genes are NOT located in (micro) syntenic regions of near relatives (Arendsee et al., 2019). These genes (and how they arose) are really interesting as well. The authors might want to mentioned this in the Discussion.

The manuscript mentions genes with "retention of structural similarity " that "suggest the possibility of conservation of ancestral signals in the absence of sequence similarity." Keeping at least some of a structure but losing homology!! Cool. How might this fit into evolution? or is it just a quirk?

The vocabulary the authors use (e.g., "twilight zone", "freefall") adds to the paper.

[Editors’ note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Synteny-based analyses indicate that sequence divergence is not the main source of orphan genes" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Diethard Tautz as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Neel Prabh (Reviewer #2); Eve Syrkin Wurtele (Reviewer #3).

The reviewers have discussed the reviews with one another and have come to the conclusion that the manuscript is basically acceptable. Only one reviewer has some small concerns and this review is provided in full below. Given that you had already indicated in your response letter that this issue is minor, we would hope that you can easily integrate this into your manuscript and that no further reviewing will be necessary.

Reviewer #2:

The authors have made a sincere effort to highlight the caveats of their method and adjusted their manuscript as requested by the reviewers. The only remaining concern I have is with the formula used to calculate the contribution of divergence (Figure 6—figure supplement 1). It’s a ratio of two ratios. The numerator is the ratio of orphan genes to all genes within the syntenic blocks, and the denominator is the ratio of orphan genes to all genes across the genome. Here, the criterion to define a syntenic block is pivotal, and to ensure that false positives are excluded the authors limit the block to minimum two homologues on either side of the focal gene separated by either one or two genes. This criterion leaves the majority of genes outside the syntenic blocks in all pairwise comparisons, especially the "match not found" genes (Figure 2—figure supplement 1, Figure 3—source data 3: Figure 3—figure supplement 1).

The authors accept that the proportion of orphan genes within the syntenic blocks decreases as the criterion is made more stringent. They suggest this is because a lesser number of genes were found within the syntenic regions, but the indicated change in the proportion of orphan genes suggests that as more genes are included within syntenic blocks, the proportion of orphan genes within the blocks rises. This is quite intuitive because in many pairwise comparisons (19/48) the number of "match not found" within syntenic blocks is in single-digit and can potentially increase many folds by the mere addition of few more genes (Supplementary Table: Figure 3—figure supplement 1).

Thus, with more relaxed criteria, the calculated divergence contribution will increase as higher fractions of orphan genes are included within syntenic blocks, but the total fraction of orphan genes does not change. Here, the compatibility of the evolutionary rates within and outside the blocks can still be maintained, while the calculated contribution made by divergence will vary.

In the rebuttal, the authors write:

"Note that, although, as expected, stricter synteny criteria led to fewer genes being found in conserved micro-syntenic blocks, overall results changed minimally between the two versions and hence can be considered robust."

It has to be clearly shown, that increasing the stringency of the synteny criterion does not specifically exclude "match not found" genes and their proportion within the syntenic blocks is not a function of this criterion. The authors are advised to make this clarification within the manuscript before making genome level extrapolation. The method established by the authors is robust, and certainly, it will be extensively used in the future. However, the formula used for the genome-level extrapolation appears extremely sensitive to the synteny criterion, unless shown otherwise. Given that the authors have data supporting that synteny criterion does not affect the overall result, they should show it.

https://doi.org/10.7554/eLife.53500.sa1

Author response

[Editors’ note: what follows is the authors’ response to the first round of review.]

Apart of this, the reviewers were mostly positive, although some critical issues need close attention. In addition to the points raised by the reviewers, the following points need to be addressed for a possible re-submission (please provide line numbers in you next submission):

Taxon choice:

The Drosophila set includes C. elegans as an outgroup, which is not very appropriate. Although both belong to Ecdysozoa, the actual divergence of C. elegans to humans is probably less than to Drosophila, since evolutionary rates in the vertebrate lineage are much smaller than in the insect lineage (as it is also shown in the present analysis). Hence, C. elegans comparisons need to be removed.

We thank the reviewers for this comment. We have now removed C. elegans and all comparisons involving it from the article.

The part on "Selecting the optimal E-value cutoff" is not really novel and has also no new results. It should be moved to supplementary material (with the updates suggested by Tomi).

While we understand the reason for this comment (the same idea has indeed been explored in the past) we feel that this approach is novel in methodology and in phylogenetic space. Additionally, reviewer #1 found this part interesting and “elegant” and requested that we discuss the impact of false positives compared to false negatives some more. To balance these different viewpoints, we have significantly shortened the relevant section of the manuscript and made the novelty more evident. We note that it is particularly interesting that, with our updated methodology and expanded species comparisons, we arrive at similar conclusions as past efforts, including those of this reviewer.

Here is the updated text from the revised manuscript:

“Homology detection is highly sensitive to the technical choices made during sequence similarity searches7,27. We therefore sought to explore how the choice of E-value threshold would impact interpretations of divergence beyond similarity. First, we performed BLASTP searches of the focal species’ total protein sequences against the total reversed protein sequences of each target species. Matches produced in these searches can safely be considered “false homologies” since biological sequences do not evolve by reversal28 (see Materials and methods). These false homologies were then compared to “undetectable homologies”: cases with conserved micro-synteny (presumed homologues) but without any detectable sequence similarity. In Figure 3A, we can see how the ratios of undetectable and false homologies vary as a function of the BLAST E-value threshold used. The proportion of undetectable homologies depended quasi-linearly on the E-value cut-off. By contrast, false homologies depended exponentially on the cut-off, as expected from the E-value definition. Furthermore, the impact of E-value cut-off was more pronounced in comparisons of species separated by longer evolutionary distances, whereas it was almost non-existent for comparisons amongst the most closely related species. Conversely, there seems to be no dependence between percentage of false homologies and evolutionary time across the range of E-values that we have tested (all lines overlap in the graphs in the bottom panel of Figure 3A). This means that, when comparing relatively closely related species, failing to appropriately control for false homologies would have an overall more severe effect on homology detection than failing to account for false negatives. In the context of phylostratigraphy (estimation of phylogenetic branch of origin of a gene based on its taxonomic distribution29), gene age underestimation due to BLAST “false negatives” has been considered a serious issue30, although the importance of spurious BLAST hits generating false positives has also been stressed31. We defined a set of E-value cut-offs optimised for phylostratigraphy, by choosing the highest E-value that keeps false homologies under 5%. This strategy emphasizes sensitivity over specificity. We have also calculated general-use optimal E-values by using a balanced binary classification measure (see Materials and methods). The phylostratigraphy optimal E-value thresholds are 0.01 for all comparisons using yeast and fly as focal species and 0.001 for those of human, except for chimpanzee (10-4). These are close to previously estimated optimal E-value cut-offs for identifying orphan genes in Drosophila, found in the range of 10-3 – 10-5, see ref 32. These cut-offs have been used for all downstream analyses. We find that, for the vast majority of focal genes examined that do have matches, the match occurs in the predicted region (“opposite”), i.e., within the region of conserved micro-synteny. In 36/48 pair-wise species comparisons, at least 90% of the focal genes in micro-synteny for which at least one match was eventually found in the target genome, a match was within the predicted micro-syntenic region (Figure 3B). This finding supports the soundness of our synteny-based approach for homologue identification.”

"(we find no, or very limited, difference in evolutionary rate between the two groups in terms of dN, dS, dN/dS; see Materials and methods and Supp Figure 4)." – this is a key statement that needs to be properly presented in the text, including appropriate statistics. To make it valid, it would have to consider the possibility of different rates in different pairwise comparisons. (See also the comments by reviewer #2)

We thank the reviewers for this important remark. Detailed statistics including effect sizes and better presentation of the results of evolutionary rate comparisons have now been added to the main text of the revised manuscript (Figure 5). We have added the following text:

“We calculated the non-synonymous (dN) and synonymous (dS) substitution rates of genes found inside and outside regions of conserved micro-synteny relative to closely related species (Materials and methods). […] Despite these minimal caveats, evolutionary rates are globally very similar inside and outside regions of conserved micro-synteny, allowing to extrapolate with confidence.”

We were not entirely sure what the reviewers mean in the clause “consider the possibility of different rates in different pairwise comparisons.”. We interpreted it as a concern over evolutionary rates varying across the different focal-target pairwise species comparisons and therefore not being captured by our dN and dS calculations. If this is an accurate interpretation of the comment, we would like to reassure the reviewer that, even if such a difference existed, it would not affect the comparison of rates of genes inside and outside of conserved syntenic blocks.

"We therefore searched ENSEMBL and UniProt for phenotypes and involvement in

disease for the ten genes within micro-synteny regions that we predict originated through complete divergence along the human lineage" – this is a standard orphan gene search, unclear what it adds to the message in the present paper.

We thank the reviewers for this comment. The way this was written in our original submitted manuscript did not make sufficiently clear the motivation and purpose of the search. The point of this analysis is not a general scan of UniProt and ENSEMBL, but rather a search for how the specific taxonomically restricted genes that have arisen in the human lineage through complete sequence divergence impact human biology, and especially evidence of involvement in disease. Since it has been reported that human novel genes in general are often associated to cancer and cancer outcomes, it is worth seeing whether our results seem to support previous findings or not. Since our study is the first to isolate novel genes that have evolved by complete divergence, this is the first look at the function of these genes in the human lineage. We have now rephrased the relevant part of the manuscript to clarify this point:

“Finally, we investigated how orphan genes that have originated by divergence beyond recognition might impact human biology. Our approach identified thirteen human genes that underwent complete divergence along the human lineage and have no detectable homologues outside of mammals (see Figure 8—figure supplement 1). Examining the ENSEMBL and UniProt resources revealed that three of these thirteen genes are associated with known phenotypes. One of them is ATP-synthase membrane subunit 8 (MT-ATP8), which has been implicated with infantile cardiomyopathy40 and Kearns-Sayre syndrome41 among other diseases. The other two are both associated with cancer: DEC142 and DIRC143. It is curious that three out of three of these genes are associated with disease, two of which with cancer, although the small number prevents us from drawing conclusions. Nonetheless, this observation is consistent with previous findings showing that multiple novel human genes are associated with cancer and cancer outcomes suggesting a role for antagonistic evolution in the origin of new genes44.”

"We find that at most 33% of orphans and TRGs have possibly originated by complete

divergence." – it is not completely clear where this number comes from. It needs to be properly justified, given that it is the key message of the paper.

We thank the reviewers for pointing out this insufficiency. This figure (which in the revised manuscript has dropped to 30% due to removal of C. elegans) is the average proportion, across the three datasets, of TRGs originated through divergence as estimated by our most stringent phylogeny-aware approach. We have now removed this discussion phrase from our revised manuscript; instead, the exact manner how the average proportion is calculated can be found with the appropriate context in the Results section.:

“We also applied the same reasoning to estimate how much divergence beyond recognition contributes to TRGs. To this aim we calculated the fraction of focal genes lacking detectable homologues in a phylogeny-based manner, in the target species and in all species more distantly related to the focal species than the target species (see Materials and methods and Figure 6—figure supplement 2A for a schematic explanation). Again, the observed proportion of TRGs far exceeded that estimated to have originated by divergence (the contribution of divergence ranging from 0% to 52% corresponding to the first and before-last “phylostratum” of the fly dataset tree respectively, with an overall average of 30%; Figure 6—figure supplement 2B and C).

Reviewer #1:

This is important work that tries to estimate relative contribution of sequence divergence in the origin of novel genes (also known as orphan genes or taxonomically restricted genes). To my knowledge this is the first study entirely focused on this question which is essential for understanding which mechanism (divergence or de novo route) prevails in creating evolutionary innovations at the genome/proteome level. The authors devised a very neat protocol that detects conserved synteny regions between species and then looks for proteins that lack sequence similarity in the target genome but are otherwise embedded within these conserved synteny regions. By extrapolating the findings from the conserved synteny regions to the whole genome the authors conclude that divergence mechanism accounts for at most a third of eukaryotic novel genes.

1) Subsection “Selecting optimal BLAST E-value cut-offs”, Figure 3A – It is really elegant how the authors estimated the proportion of false positive and false negative homologues. From their figures it is clear that the proportion of false positives changes quite differently from the proportion of false negatives depending on the e-value. The authors mention this in the text, but they don't discuss that controlling of false positives is more critical when deciding on the appropriate e-value cutoffs. This is evident from the shape of the Figure 3A curves, where false negatives show linear-like dependence and false positives exponential-like dependence, plus the false positive curves are not dependent on the evolutionary distance. In practice, this means that failing to properly control for false positives would generate spurious sequence similarity hits all over the place, whereas not perfectly adjusted e-value would not have a such profound effect on false negatives, especially in the phylogenetic context.

We thank the reviewer for this compliment and these suggestions. We have accordingly added the following descriptions and interpretation to our revised manuscript (section “Selecting optimal BLAST E-value cut-offs”):

“In Figure 3A, we can see how the ratios of undetectable and false homologies vary as a function of the BLAST E-value threshold used. […]This means that, when comparing relatively closely related species, failing to appropriately control for false homologies would have an overall more severe effect on homology detection than failing to account for false negatives.”

2) Linked to the previous comment: The authors discuss the BLAST "false negatives" debate but miss the balance by omitting to cite Domazet-Loso et al., 2017 paper which stresses the importance of evaluating BLAST "false positives". Given that the manuscript specifically deals with the false positives this paper should be cited.

We thank the reviewer for pointing out this omission. We have now mentioned the issue of false positives and cited this work in the relevant part of the section in p15 of our revised manuscript. The following phrase has been added:

“although the importance of spurious BLAST hits generating false positives has also been stressed (Domazet-Loso et al., 2017)”

3) Subsection “Calculation of undetectable and false homologies and definition of optimal E-values” – I had problems to understand how Mathews Correlation Coefficient was used to decide on the E-value cut-off. Could you please describe the protocol in more details here?

We apologize for the lack of clarity in this part of our submitted manuscript. The Mathews Correlation Coefficient was only used to calculate the general use E-value cut-offs found in Figure 3—figure supplement 1. The cut-offs used in the rest of the analyses in the article (0.01, 0.01, 0.001) were calculated by taking the highest E-value cut-off that keeps false positives under 5%. We nevertheless provide more details about the protocol relevant to this question in the Materials and methods section of our revised manuscript “Calculation of undetectable and false homologies and definition of optimal E-values”:

“We also calculated the Mathews Correlation Coefficient (MCC) measure of binary classification accuracy for every E-value cut-off. This is a balanced measure that takes into account true and false positives and negatives which can be used even in cases of extensive class imbalance. At every E-value cut-off, we treated undetectable homologies as False Negatives, and false homologies (matches to the reversed proteome) as False Positives. Similarly, sequence-detected homologies (defined based on micro-synteny) were treated as True Positives and genes for which the reversed-search gave no significant hit were treated as True Negatives. The MCC measure was then calculated at each E-value cut-off based on these four values using the mcc function of R package mltools. When multiple E-value cut-offs had the same MCC (rounded at the 3rd decimal), the highest (less stringent) E-value was retained. The results for each focal-target genome pair are shown in Figure 3—figure supplement 1 (“general E-value” column).”

4) Subsection “The rate of “divergence beyond recognition” and its contribution to the

total pool of genes without similarity” – Presentation of the results in Figure 4B and 4C (Figure 6—figure supplement 2) is quite confusing.

We thank the reviewer for this comment. We have now clarified these figures by removing the B panels and making the axis labels more straightforward.

5) Subsection “Calculation of proportion of orphan genes due to processes other than sequence divergence” – "This is done by taking…" This part were phylogeny-based proportions are obtained was not comprehensible to me. Could you please make some schematic representation of this part of the protocol?

We apologize for the lack of clarity. A schematic representation has now been added to Figure 6—figure supplement 2 in our revised manuscript.

Reviewer #2:

The authors have made a comprehensive attempt to quantify the contribution of sequence divergence as a source of orphan genes. They have ingeniously used micro-synteny to identify the orphan genes created by divergence. They estimate that at most one-third of the genes within the micro-syntenic regions result from sequence divergence. Subsequently, they extrapolate this result to the entire genome and conclude that the majority of orphan genes are not formed through sequence divergence. Although several studies have investigated orphan genes in various organisms, the relative contribution of processes such as de novo gene creation and sequence divergence in the formation of orphan genes remains largely unexplored. Hence, I consider that this work can significantly contribute to the progress of the field.

Major concern:

The authors assume that the similar distribution of evolutionary rates within and outside the syntenic blocks indicates that the proportion of orphan genes created through sequence divergence within the syntenic block can be extrapolated to the whole genome (Subsection “The rate of “divergence beyond recognition” and its contribution to the total pool of genes without similarity” paragraph 2). Given that the evolutionary rates cannot be estimated for the orphan genes lacking detectable homologs, the assumption made by the authors about the comparability of evolutionary rates across the genome is most likely based on a dataset that excludes such genes. Thus, their argument, although correct for the overall distribution of evolutionary rates, should not be used to extrapolate the proportion of orphan genes originated by divergence within the syntenic blocks to the whole genome.

We thank the reviewer for this insightful remark. Indeed, in our comparison of evolutionary rates inside and outside of syntenic blocks, orphan genes are not included, as it is impossible to do so. We wholeheartedly agree that is important to make this fact clear to the reader and explain its consequences for the conclusions of the article. Yet, while this is undoubtedly a caveat of our approach, it is crucial to understand that it is only a minor one.

We estimated the extent of the issue and found that the TRGs at the relevant phylogenetic levels only account for 0.0013, 0.008 and 0.029 of all genes in fruit fly, human and yeast respectively. This means that there is only a tiny fraction of the total information of genome-wide evolutionary rates not incorporated in the comparisons. Any effect of such a small percentage of genes can only be very limited. Yes, we cannot categorically reject the notion that, for this small fraction of genes, the same mutational processes that results in loss of synteny may also somehow result in more TRGs (although we show that they do not result in higher evolutionary rates in other genes). We therefore acknowledge this as a minor caveat of our methodology.

We now properly introduce this caveat when presenting the comparison of the evolutionary rates:

“It is impossible to directly compare the evolutionary rates of genes lacking homologues inside and outside conserved micro-synteny. However, such genes only account for a miniscule percentage of all genes in the genome: 0.0013, 0.008 and 0.029 in fly, human and yeast respectively. Despite these minimal caveats, evolutionary rates are globally very similar inside and outside regions of conserved micro-synteny, allowing to extrapolate with confidence”

We have also specified in all appropriate places in the revised manuscript that the extrapolation is approximative:

• In the schematic representation of the pipeline in Figure 2: “approximately extrapolated”.

• In the subsection “A synteny-based approach to establish homology beyond sequence similarity”: “This estimate can then be extrapolated genome-wide to approximate the extent of origin by complete divergence for orphan genes and TRGs outside of syntenic regions”.

• In the subsection “The rate of divergence beyond recognition and its contribution to the total pool of genes without similarity”: “can be used as a proxy for the genome-wide rate of origin-by-divergence for genes without detectable similarity”

• In the legend of Figure 6—figure supplement 2: “can be approximately extrapolated genome-wide”

In summary, thanks to the reviewer’s remark, we have taken great care to adjust the language around the extrapolation, to make evident in our revised manuscript that it is an approximation. We would like to stress that, since this is a novel solution to a hard, hitherto unsolved problem, this approximation still has much value despite certain caveats. Hence, we believe that, framed appropriately as in the revised manuscript, the extrapolation can and should be used.

Reviewer #3:

[…] Providing positive evidence for the set of genes that have rapidly diverged is particularly important because it opens the path for researchers to explore the mechanisms whereby particular genes can evolve so much more quickly than the typical gene.

The table with the abbreviations (e.g., ggor) should be moved from supplementary to the main text. That way the reader doesn't need to access supplementary to understand Figure 6.

We thank the reviewer for this remark. We have added this table to the main text in our resubmitted manuscript (Table 1) and find it much improves the interpretability if our figures.

In both yeast and Arabidopsis, ~50% of orphan genes are NOT located in (micro) syntenic regions of near relatives (Arendsee et al., 2019). These genes (and how they arose) are really interesting as well. The authors might want to mentioned this in the Discussion.

We thank the reviewer for this suggestion. We now mention this in the Discussion and cite the relevant article:

“We are able to isolate and examine these genes when they are found in conserved micro-synteny regions, but at this point we have only a statistical global view of the process of divergence outside of these regions. Since, for example, in yeast and in Arabidopsis, ~50% of orphan genes are located outside of syntenic regions of near relatives27, the study of their evolutionary origins represents exciting challenges for future work.

The manuscript mentions genes with "retention of structural similarity " that "suggest the possibility of conservation of ancestral signals in the absence of sequence similarity." Keeping at least some of a structure but losing homology!! Cool. How might this fit into evolution? or is it just a quirk?

We thank the reviewer for this interesting question. We do believe that this is a very intriguing question and that these cases where common Pfam matches are found but no pairwise similarity exists should be examined more closely in the future. However, another reviewer has pointed out that we have been a bit over-enthusiastic in our interpretation of this match and we should require further evidence of structural similarity; we have therefore edited this section to remove reference to the structural similarity idea. We hope that providing this evidence will be the focus of future investigations in the field.

The vocabulary the authors use (e.g., "twilight zone", "freefall") adds to the paper.

We appreciate the reviewer’s positive view of these terms.

[Editors’ note: what follows is the authors’ response to the second round of review.]

Reviewer #2:

[…] The authors accept that the proportion of orphan genes within the syntenic blocks decreases as the criterion is made more stringent. They suggest this is because a lesser number of genes were found within the syntenic regions (Rebuttal: Reviewer 2, Minor comment 3), but the indicated change in the proportion of orphan genes suggests that as more genes are included within syntenic blocks, the proportion of orphan genes within the blocks rises. This is quite intuitive because in many pairwise comparisons (19/48) the number of "match not found" within syntenic blocks is in single-digit and can potentially increase many folds by the mere addition of few more genes (Supplementary Table: Figure 3—figure supplement 1).

Thus, with more relaxed criteria, the calculated divergence contribution will increase as higher fractions of orphan genes are included within syntenic blocks, but the total fraction of orphan genes does not change. Here, the compatibility of the evolutionary rates within and outside the blocks can still be maintained, while the calculated contribution made by divergence will vary.

In the rebuttal, the authors write:

"Note that, although, as expected, stricter synteny criteria led to fewer genes being found in conserved micro-syntenic blocks, overall results changed minimally between the two versions and hence can be considered robust."

It has to be clearly shown, that increasing the stringency of the synteny criterion does not specifically exclude "match not found" genes and their proportion within the syntenic blocks is not a function of this criterion. The authors are advised to make this clarification within the manuscript before making genome level extrapolation. The method established by the authors is robust, and certainly, it will be extensively used in the future. However, the formula used for the genome-level extrapolation appears extremely sensitive to the synteny criterion, unless shown otherwise. Given that the authors have data supporting that synteny criterion does not affect the overall result, they should show it.

We thank the reviewer for their in-depth analysis of this aspect of our work. Clearly, the reviewer has perfectly understood the methodological details and has laid out a potential problem that could affect the main finding of our manuscript. We wholeheartedly agree that it is important that the reader and any future adopters of this method understand the relationship of the synteny criterion to the proportion explained by divergence. In order to be as exhaustive as possible, we performed additional analyses using one more relaxed and one more stringent conserved synteny definition. Our results clearly show that relaxing the synteny definition compared to the one we used in the study has only minimal impact on the proportion explained by divergence, despite allowing some known false positives and raising the number of conserved synteny regions almost by a factor of two. Using the even more stringent definition was problematic because in many cases the number of identified regions was too low to allow further analyses. Hence such a definition would be impractical for our study. Nevertheless, analysis of a subset of cases where the number of identified regions was sufficient, showed a larger impact than in the previous comparison (relaxed vs. the one used in the study) which was nonetheless still not dramatic.

We now mention these results in our Results section and include details in the legend of a new supplementary figure:

“We extrapolated the proportion of genes without detectable similarity that have originated by complete divergence, as calculated from conserved micro-synteny blocks (Figure 4), to all genes without similarity in the genome (Figure 6, see Materials and methods and Figure 6—figure supplement 1 for detailed description). […] This implies a substantial role for other evolutionary mechanisms such as de novoemergence and horizontal gene transfer, although horizontal gene transfer is not known to be frequent in metazoa.”

We also provide methodological details in Materials and methods:

The specific choice of synteny criterion was made after we conducted an initial trial with a minimum of one homologue on either side, which showed limited false positives, revealed by visual inspection (obvious cases of non-homologous genes which, due to rearrangements such as micro-inversions were placed “opposite” each other, even though they did not originate by divergence). […] The stringent definition added an additional syntenic homologue to either side relative to the current one: three genes on either side need to have syntenic homologues that are separated by one gene at most and, again, we retain cases where the outer neighbors (-3,+3) have no homologues at all to the target genome.”

https://doi.org/10.7554/eLife.53500.sa2

Article and author information

Author details

  1. Nikolaos Vakirlis

    Smurfit Institute of Genetics, Trinity College Dublin, University of Dublin, Dublin, Ireland
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7606-6987

  2. Anne-Ruxandra Carvunis

    Department of Computational and Systems Biology, Pittsburgh Center for Evolutionary Biology and Medicine, School of Medicine, University of Pittsburgh, Pittsburgh, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology
    For correspondence
    anc201@pitt.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6474-6413

  3. Aoife McLysaght

    Smurfit Institute of Genetics, Trinity College Dublin, University of Dublin, Dublin, Ireland
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology
    For correspondence
    Aoife.McLysaght@tcd.ie
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2552-6220

Funding

Seventh Framework Programme (309834)

  • Aoife McLysaght

Seventh Framework Programme (771419)

  • Aoife McLysaght

National Institute of General Medical Sciences (R00GM108865)

  • Anne-Ruxandra Carvunis

Kinship Foundation (Searle Scholars Program)

  • Anne-Ruxandra Carvunis

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors are grateful to Drs. Gilles Fisher, Ingrid Lafontaine, Laurence Hurst and Aaron Wacholder for reading the manuscript prior to submission.

Senior and Reviewing Editor

  1. Diethard Tautz, Max-Planck Institute for Evolutionary Biology, Germany

Reviewers

  1. Neel Prabh, MPI for Evolutionary Biology, Germany
  2. Eve Syrkin Wurtele

Version history

  1. Received: November 11, 2019
  2. Accepted: January 7, 2020
  3. Version of Record published: February 18, 2020 (version 1)

Copyright

© 2020, Vakirlis et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 8,067
    Page views
  • 815
    Downloads
  • 59
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Nikolaos Vakirlis
  2. Anne-Ruxandra Carvunis
  3. Aoife McLysaght
(2020)
Synteny-based analyses indicate that sequence divergence is not the main source of orphan genes
eLife 9:e53500.
https://doi.org/10.7554/eLife.53500

Categories and tags

Research organisms

Further reading

    1. Computational and Systems Biology
    2. Evolutionary Biology

    Genetic Novelty: How new genes are born

    Urminder Singh, Eve Syrkin Wurtele
    Insight

    Analysis of yeast, fly and human genomes suggests that sequence divergence is not the main source of orphan genes.

    1. Computational and Systems Biology
    2. Neuroscience

    Dynamic organization of cerebellar climbing fiber response and synchrony in multiple functional components reduces dimensions for reinforcement learning

    Huu Hoang, Shinichiro Tsutsumi ... Keisuke Toyama
    Research Article Updated

    Cerebellar climbing fibers convey diverse signals, but how they are organized in the compartmental structure of the cerebellar cortex during learning remains largely unclear. We analyzed a large amount of coordinate-localized two-photon imaging data from cerebellar Crus II in mice undergoing ‘Go/No-go’ reinforcement learning. Tensor component analysis revealed that a majority of climbing fiber inputs to Purkinje cells were reduced to only four functional components, corresponding to accurate timing control of motor initiation related to a Go cue, cognitive error-based learning, reward processing, and inhibition of erroneous behaviors after a No-go cue. Changes in neural activities during learning of the first two components were correlated with corresponding changes in timing control and error learning across animals, indirectly suggesting causal relationships. Spatial distribution of these components coincided well with boundaries of Aldolase-C/zebrin II expression in Purkinje cells, whereas several components are mixed in single neurons. Synchronization within individual components was bidirectionally regulated according to specific task contexts and learning stages. These findings suggest that, in close collaborations with other brain regions including the inferior olive nucleus, the cerebellum, based on anatomical compartments, reduces dimensions of the learning space by dynamically organizing multiple functional components, a feature that may inspire new-generation AI designs.

    1. Cancer Biology
    2. Computational and Systems Biology

    High-content microscopy reveals a morphological signature of bortezomib resistance

    Megan E Kelley, Adi Y Berman ... Gregory P Way
    Research Article

    Drug resistance is a challenge in anticancer therapy. In many cases, cancers can be resistant to the drug prior to exposure, i.e., possess intrinsic drug resistance. However, we lack target-independent methods to anticipate resistance in cancer cell lines or characterize intrinsic drug resistance without a priori knowledge of its cause. We hypothesized that cell morphology could provide an unbiased readout of drug resistance. To test this hypothesis, we used HCT116 cells, a mismatch repair-deficient cancer cell line, to isolate clones that were resistant or sensitive to bortezomib, a well-characterized proteasome inhibitor and anticancer drug to which many cancer cells possess intrinsic resistance. We then expanded these clones and measured high-dimensional single-cell morphology profiles using Cell Painting, a high-content microscopy assay. Our imaging- and computation-based profiling pipeline identified morphological features that differed between resistant and sensitive cells. We used these features to generate a morphological signature of bortezomib resistance. We then employed this morphological signature to analyze a set of HCT116 clones (five resistant and five sensitive) that had not been included in the signature training dataset, and correctly predicted sensitivity to bortezomib in seven cases, in the absence of drug treatment. This signature predicted bortezomib resistance better than resistance to other drugs targeting the ubiquitin-proteasome system. Our results establish a proof-of-concept framework for the unbiased analysis of drug resistance using high-content microscopy of cancer cells, in the absence of drug treatment.
