Genetic mapping of etiologic brain cell types for obesity

  1. Pascal N Timshel
  2. Jonatan J Thompson
  3. Tune H Pers  Is a corresponding author
  1. Novo Nordisk Foundation Center for Basic Metabolic Research, University of Copenhagen, Denmark
Research Article
  • Cited 2
  • Views 3,043
  • Annotations
Cite this article as: eLife 2020;9:e55851 doi: 10.7554/eLife.55851


The underlying cell types mediating predisposition to obesity remain largely obscure. Here, we integrated recently published single-cell RNA-sequencing (scRNA-seq) data from 727 peripheral and nervous system cell types spanning 17 mouse organs with body mass index (BMI) genome-wide association study (GWAS) data from >457,000 individuals. Developing a novel strategy for integrating scRNA-seq data with GWAS data, we identified 26, exclusively neuronal, cell types from the hypothalamus, subthalamus, midbrain, hippocampus, thalamus, cortex, pons, medulla, pallidum that were significantly enriched for BMI heritability (p<1.6×10−4). Using genes harboring coding mutations associated with obesity, we replicated midbrain cell types from the anterior pretectal nucleus and periaqueductal gray (p<1.2×10−4). Together, our results suggest that brain nuclei regulating integration of sensory stimuli, learning and memory are likely to play a key role in obesity and provide testable hypotheses for mechanistic follow-up studies.


Identification of genes and cell types underlying susceptibility to human obesity remains a critically important step toward a better understanding of mechanisms causing the disease (Hekselman and Yeger-Lotem, 2020). Studies of monogenic obesity syndromes and rodent models of obesity have identified melanocortin signaling circuits in the mediobasal and paraventricular hypothalamus as key components in energy homeostasis and obesity (Morton et al., 2014; Farooqi and O'Rahilly, 2006; Betley et al., 2013). Yet growing evidence suggests that susceptibility to obesity is distributed across numerous brain areas that receive signals emanating from internal sources (e.g. viscerosensory input from the gastrointestinal tract) or external stimuli (e.g. the sight or smell of food) that act in concert to regulate feeding behavior and energy stores (Grill, 2006; Zeltser, 2018; Grill and Hayes, 2012). However, despite an increasing number of genes, cell types and neuronal circuits being implicated in murine energy homeostasis, the identity of brain cell types that drive susceptibility to human obesity remains largely unknown and a systematic assessment of cell types’ relevance in obesity is currently lacking.

In recent years, genome-wide association studies (GWAS) have identified about a thousand common (minor allele frequency, MAF ≥0.1) single-nucleotide polymorphisms (SNPs) that associate with body mass index (BMI, defined as weight in kilogram divided by height in meters squared), a heritable and commonly used proxy phenotype for obesity (Locke et al., 2015; Yengo et al., 2018). In general, the far majority of trait-associated SNPs are located in regulatory regions and hence, unlike coding variants, tagging genetic intervals (or loci) rather than implicating specific genes. Importantly, these loci represent an unbiased set of biological sign posts to genes and biological mechanisms underlying susceptibility to obesity (Hirschhorn, 2009).

Genetic variants with rare frequencies (MAF <0.1) that are typically too low to be captured in GWAS are thought to contribute ~50% to the heritability of BMI (Wainschtein et al., 2019). Many such variants are coding mutations (Wainschtein et al., 2019) and hence well-suited to identify causal genes underlying obesity. Lately, rare variant association studies have identified 14 coding variants across 13 genes in an exome chip analysis across >750,000 individuals (Turcot et al., 2018). Interestingly, these genes, with the exception of MC4R, KSR2 and GIPR, have not previously been implicated in obesity, suggesting that key biologic mechanisms underlying obesity have yet to be identified.

Given that a majority of obesity-associated gene variants likely regulate gene expression rather than impact protein function, gene expression data provide an effective scaffold to inform GWAS data for obesity and other traits (Finucane et al., 2015; Calderon et al., 2017; Pers et al., 2015; Hao et al., 2018). In 2016, we used microarray-based gene expression data to show that genes in BMI GWAS loci are predominantly expressed in the brain (Locke et al., 2015) and we recently leveraged mouse; single-cell RNA-sequencing (scRNA-seq) to implicate mediobasal hypothalamic cell types in obesity (Campbell et al., 2017). The growing number of BMI GWAS loci and genes implicated through rare-variant association studies of common and syndromic forms of obesity, in conjunction with the growing number of large-scale scRNA-seq atlases, provide a unique opportunity to systematically uncover genes and cell types underlying biological circuits regulating susceptibility to human obesity.

Here, we developed two computational toolkits for human genetics-driven identification of cell types underlying disease and leveraged them to systematically identify cell types enriching for obesity susceptibility by combining publicly available BMI GWAS summary statistics from >457,000 individuals with scRNA-seq data spanning 380 cell types representing adult mouse organs especially the nervous system and 347 cell types from the adult mouse hypothalamus.


Devising a robust cell type expression specificity metric and prioritization framework

Similar to previous approaches (Campbell et al., 2017; Skene et al., 2018; Watanabe et al., 2019; Bryois et al., 2020), we hypothesized that cell types exhibiting detectable expression of genes colocalizing with BMI GWAS loci are more likely to underlie obesity than cell types in which these genes are not expressed. Based on this reasoning, we developed CELLECT (CELL type Expression-specific integration for Complex Traits) and CELLEX (CELL type EXpression-specificity), two toolkits for genetic identification of likely etiologic cell types. Given GWAS summary statistics and scRNA-seq data, CELLECT can quantify the enrichment of heritability in or near genes specifically expressed in a given cell type using established genetic prioritization models, such as S-LDSC (Finucane et al., 2015), RolyPoly (Calderon et al., 2017), DEPICT (Pers et al., 2015) or MAGMA covariate analysis (Skene et al., 2018) (Materials and methods; Figure 1a). Importantly, whereas previous frameworks for genetic prioritization of cell types have either relied on non-polygenic models (Campbell et al., 2017), used binary or discrete representations of cell type expression (Finucane et al., 2015; Skene et al., 2018) or used average expression profiles (Watanabe et al., 2019), CELLECT uses a robust continuous representation of cell type expression. In Appendix 1, we provide a discussion of our model, its assumptions and relationship to the ‘omnigenic’ model hypothesis (Liu et al., 2019; Boyle et al., 2017). Conjointly, CELLEX was built on the observation that different measures of gene expression specificity (ES) provide complementary information and it therefore combines four ES metrics (see Materials and methods) into a single measure (ESμ) representing the score that a gene is specifically expressed in the given cell type (Materials and methods; Figure 1b). We first tested and validated the ES approach on the Tabula Muris dataset (Tabula Muris Consortium et al., 2018), a Smart-Seq2 scRNA-seq dataset derived from 17 organs from adult male and female mice, and on the Mouse Nervous System dataset (Zeisel et al., 2018), a droplet-based scRNA-seq dataset derived from 19 central and peripheral nervous system regions from late-postnatal male and female mice. For both datasets, we computed gene expression specificities for the four metrics and combined them into ESμ across four cell types with known marker genes and found that ESμ correctly identified them as being among the most specifically expressed genes (Figure 1d,e). We respectively identified a median of 2810 and 4020 specifically expressed genes per cell type and hierarchical clustering of cell types based on the ESμ estimates largely reproduced the cell type dendrograms from the respective original publications (Tabula Muris Consortium et al., 2018; Zeisel et al., 2018), confirming that our ES approach enables cell types profiles to be compared across studies and single-cell protocols (Figure 1—figure supplements 1 and 2). In Appendix 2, we provide a detailed description of the CELLEX workflow, its assumptions and we use re-sampling to demonstrate the robustness of ESμ compared to individual ES metrics. We implemented and released CELLECT and CELLEX as open-source Python packages (see URLs). Here, we – due to its polygenic nature and well-controlled type I error rate – used CELLECT with S-LDSC as the genetic prioritization model to quantify the effects of cell type ES on BMI heritability. For each cell type, we reported the P-value for the one-tailed test for positive contribution of the cell type ES to trait heritability (conditional on a ‘baseline model’ that accounted for the non-random distribution of heritability across the genome, see Materials and methods).

Figure 1 with 2 supplements see all

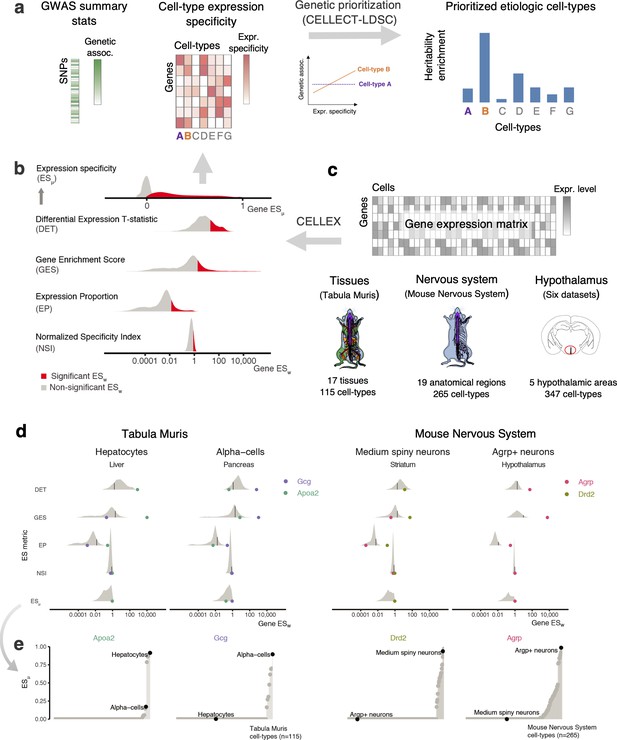

Overview of CELLECT and CELLEX and main datasets used (a) CELLECT quantifies the association between common polygenetic GWAS signal (heritability) and cell type expression specificity (ES) to prioritize relevant etiological cell types.

As input to CELLECT, we used BMI GWAS summary statistics derived from analysis of UK Biobank data (N > 457,000 individuals) and ES was calculated using CELLEX. (b) CELLEX uses a ‘wisdom of the crowd’ approach by averaging multiple ES metrics into ESμ, a robust ES measure that captures multiple aspects of expression specificity. Prior to averaging ES metrics, CELLEX determines the significance of individual ES metric estimates (ESw), indicated by the red and gray colored areas. (c) scRNA-seq datasets analyzed in this study. In total, the associations between 727 cell types and BMI heritability were analyzed. Anatograms modified from gganatogram (Maag, 2018). (d) Example of the CELLEX approach for selected cell types and relevant marker genes. The log-scale distribution plot of ESw illustrate differences of ES metrics. For each ES metric distribution, a black line is shown to indicate the cut-off value for ESw significance. In most cases, the ES metrics identified the relevant marker gene as having a significant ESw. In all cases, the marker gene was correctly estimated as having ESμ~1. We note that the majority of genes have ESμ=0 and were omitted from the log-scale plot. (e) ESμ plots showing the specificity and sensitivity of our approach. The plots depict ESμ for the genes shown in panel (d) across all cell types in the respective datasets. For each marker gene, the relevant cell type has the highest ESμ estimate (high sensitivity) and cell types in which the given gene is likely to have a lesser role have near zero ESμ estimates (high specificity). BMI, body mass index; ES, expression specificity; GWAS, genome-wide association study; UK, United Kingdom; scRNA-seq, single-cell RNA-sequencing.

BMI variants enrich for central nervous system rather than peripheral cell types

Using BMI GWAS summary statistics from a GWAS analysis of the UK Biobank (Bycroft et al., 2018) comprising >457,000 individuals (Loh et al., 2018) and the Tabula Muris cell types, we first assessed whether we could replicate the exclusive enrichment of BMI GWAS variants in brain tissues as reported by Locke et al., 2015. Applying CELLECT to the 115 – mostly peripheral – cell types, we identified two significantly enriched cell types, namely neurons and oligodendrocyte precursor cells (Bonferroni correction-based false-discovery rate, FDR < 0.05; Figure 2a). When rerunning CELLECT conditioning on the neuron cell type, the oligodendrocyte precursor cell type was no longer significant, suggesting that we primarily observed a neuronal signal for the BMI GWAS variants. In order to verify that our approach, in general, could identify relevant cell types for complex traits, we computed enrichments for nine GWAS including cognitive, psychiatric, neurological, immunological, lipid and anthropometric traits and disorders, and found that CELLECT prioritized etiologically relevant cell types across all six categories (Figure 2b). Cortical neurons were prioritized for cognitive traits and psychiatric disorders (educational attainment, intelligence, schizophrenia), neuronal cell types for insomnia, immune cells for multiple sclerosis and rheumatoid arthritis, growth-related cell types for waist-to-hip ratio (adjusted for BMI) and height, and hepatocytes for low-density lipoprotein levels (see Figure 2—source data 3 for results across additional 29 traits). Finally, using 1000 ‘null GWAS’ constructed based simulated Gaussian phenotypes with no genetic basis, we found that CELLECT had a properly controlled type I error and that results were not confounded by the median number of genes and transcripts per cell (there was a negligible correlation with the number of cells for a given cell type [Pearson’s rho = 0.01, p=4.0×10−4], which disappeared when we adjusted for the number of ESμ genes for a given cell population [Figure 2—figure supplement 1]). These data establish the ability of this approach to validate previous evidence (Locke et al., 2015) that BMI variants tend to colocalize with genes specifically expressed in neurons, while also demonstrating that CELLECT is able to prioritize relevant cell types across a number of complex traits.

Figure 2 with 1 supplement see all

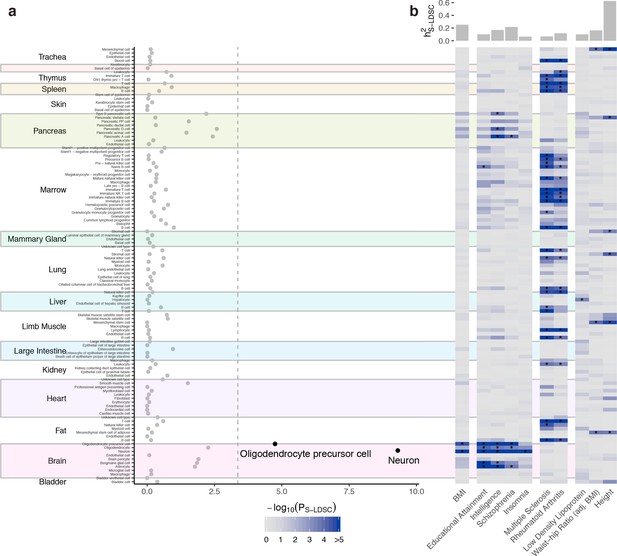

Cell type prioritization across 17 tissues highlights a key role of the brain in obesity.

(a) Prioritization of 115 Tabula Muris cell types identified two cell types from the brain as significantly associated with BMI, namely oligodendrocyte precursor cells and neurons (shown in black; Bonferroni significance threshold, PS-LDSC <0.05/115). (b) Heatmap of cell type prioritization for multiple GWAS traits. BMI results (first column) are the same as in panel (a) and projected onto the heatmap. The four brain-related traits (second column) were associated with cell types in the brain, the two immune traits (third column) were associated with immune cells, and anthropometric traits (fourth column) were associated with mesenchymal stem cells, which are progenitor cells for muscle, bone and fat. Asterisks (*) mark cell types passing the per-trait Bonferroni significance threshold. The top bar plot shows the estimated trait heritability. An overview of the GWAS files used in this work are available in the Figure 2—source data 1, metadata for the Tabula Muris dataset are available in Figure 2—source data 2 and the CELLECT results for the Tabula Muris dataset are available in Figure 2—source data 3. S-LDSC, stratified-linkage disequilibrium score regression; h2S-LDSC, trait SNP-heritability.

A distributed set of neuronal cell types enrich for obesity susceptibility

We next assessed whether we could identify specific CNS cell types enriching for BMI-associated variants. Applying CELLEX and CELLECT on 265 cell types from the across the Mouse Nervous System dataset, we identified 22 enriched cell types annotated to eight brain regions (Figure 3a). To assess the specificity of the BMI GWAS signal in these 22 cell types, we computed enrichments for the panel of nine other well-powered traits. As expected, none of the five traits primarily caused by peripheral etiologies enriched for any nervous system cell type and several of 22 BMI GWAS-enriched cell types also enriched for cognitive traits and psychiatric disorders (Figure 3b). Sixteen of the 22 cell types were also enriched ‘intelligence’ and ‘worry’, two traits genetically anticorrelated with obesity (overlapping sets of associated loci with opposite effect sizes) (Marioni et al., 2016; Nagel et al., 2018).

Figure 3 with 3 supplements see all

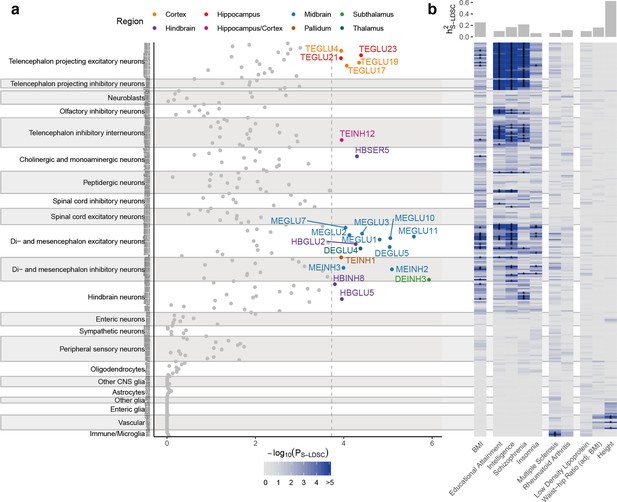

Cell type prioritization of mouse nervous system cell types highlights cell types outside canonical energy homeostasis circuits.

(a) Prioritization of 265 mouse nervous system cell types identified 22 cell types from eight distinct brain regions as significantly associated with BMI. The highlighted cell types passed the Bonferroni significance threshold, PS-LDSC <0.05/265. Cell types are grouped by the taxonomy described in Zeisel et al., 2018. (b) Heatmap of cell type prioritization for multiple GWAS traits. The four brain-related traits (second column) were primarily associated with cortical neurons (telencephalon projecting and interneuron cell types) and did not overlap with the BMI-associated cell types. The two immune traits (third column) were associated with microglia, and anthropometric traits (fourth column) were predominantly associated with vascular cell types. Asterisks (*) mark cell types passing the per-trait Bonferroni significance threshold. The top bar plot shows the estimated trait heritability. Metadata for the Mouse Nervous System dataset are available in Figure 3—source data 1, CELLECT results for the Mouse Nervous System dataset are available in Figure 3—source data 2, CELLEX expression specificity values for the BMI GWAS-enriched cell types are available in Figure 3—source data 3 and cognitive traits and psychiatric disorders CELLECT results limited to the 22 BMI GWAS-enriched cell types are available in Figure 3—source data 4.

Similar to previous work, we did not find any enrichment of genetic variants associated with BMI in non-neuronal cell types (Campbell et al., 2017; Watanabe et al., 2019) nor did we detect enrichment for a particular type of neurotransmitter type (Figure 3—figure supplement 1). Weighted gene correlation network analysis (WGCNA [Langfelder and Horvath, 2008]) on expression data from each of the 22 BMI-enriched cell types identified no significant modules (Figure 3—figure supplement 2; top associated module, p=1.88×10−4; FDR ≤ 0.1). These findings emphasize that the BMI-associated variants most likely are distributed across hundreds of genes rather than the relatively limited number of genes captured in cell-type-specific WGCNA modules (see Appendix 3 for a discussion on limitations of identifying gene co-expression networks from cell type scRNA-seq data).

To assess the dependence of the results on a given enrichment methodology and BMI GWAS, we re-computed enrichments using the Yengo et al., 2018 and Locke et al., 2015 BMI GWAS summary statistics and the MAGMA tool (de Leeuw et al., 2015). We observed that the results were robust to different GWAS sample sizes and inclusion of Metabochip array-based association data (Yengo et al. and Locke et al. GWAS Pearson’s R = 0.98 and R = 0.83, respectively), and largely invariant to the enrichment methodology used (Pearson’s R = 0.82; Figure 3—figure supplement 3). Finally, during finalizing this work another study focused on Parkinson’s disease, reported BMI GWAS enrichments for the same mouse nervous system cell types (overlap; 6/10) (Bryois et al., 2020). Together, these results demonstrate that BMI-associated variants are likely to exert their effect across multiple, predominantly neuronal cell types, several of which enrich for cognitive traits and psychiatric disorders genetically correlated with obesity.

The enriched neuronal cell types share transcriptional similarities

The 22 BMI GWAS-enriched cell types mapped to eight brain regions, namely the subthalamus, midbrain, hippocampus, thalamus, cortex, pons, medulla and pallidum (Figure 4a). To assess the extent to which shared transcriptional signatures could explain the enrichments across the 22 cell types, we clustered all cell types based on their genes’ ESμ values. Expectedly, midbrain cell types overall grouped by their neuroanatomical proximities and neurotransmitter types by midbrain, hindbrain, hippocampus/cortex clusters (Figure 4b). A notable exception was the DEINH3 cell type (isolated from the hypothalamus region and subsequently remapped to the subthalamic nucleus by Zeisel et al.) which grouped with the midbrain cell types. To further assess the transcriptional similarity between the enriched cell types, we computed enrichments conditioned on each prioritized cell type individually (Materials and methods). Contrary to our expectations, we found that none of the other cell types remained significant when conditioning on the top-ranked subthalamic cell type DEINH3 (Figure 4—figure supplements 1 and 2). Together these results indicate the brain cell types enriching for BMI GWAS signal, despite their neuroanatomical differences, share transcriptional signatures related to obesity, which current methods are not able to disentangle.

Figure 4 with 2 supplements see all

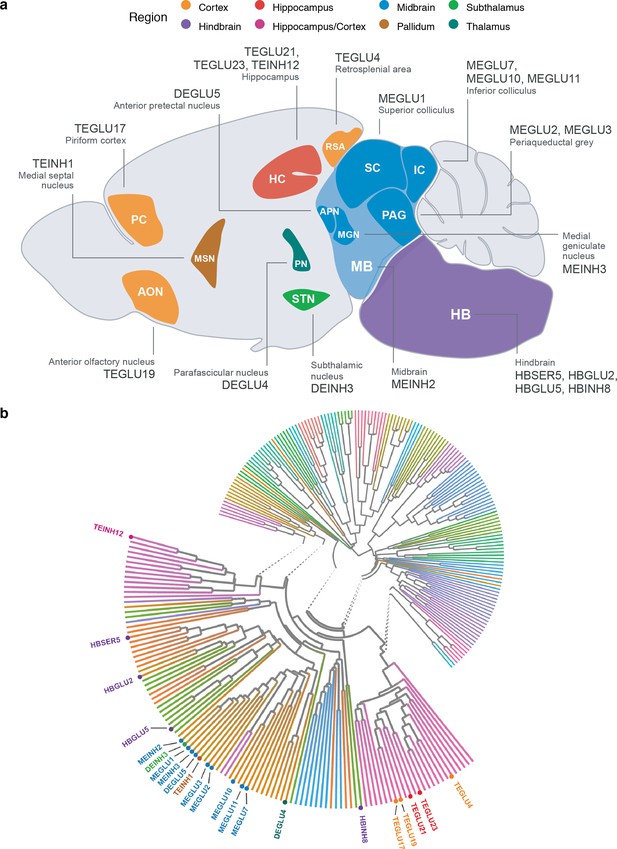

Neuroanatomical location and transcriptional similarity of brain cell types enriching for BMI GWAS variants.

(a) Sagittal mouse brain view showing the 22 BMI GWAS-enriched cell types. The first two letters in each cell type label denote the developmental compartment (ME, mesencephalon; DE, diencephalon; TE, telencephalon), letters three to five denote the neurotransmitter type (INH, inhibitory; GLU, glutamatergic) and the numerical suffix represents an arbitrary number assigned to the given cell type. (b) Circular dendrogram showing the similarity of all Mouse Nervous System dataset cell type expression specificity (ESμ) values. Dendrogram edges colored by taxonomy described in Zeisel et al., 2018. Expectedly, the cell types clustered according to their neuroanatomical origin. For clarity, only the labels of the 22 BMI GWAS enriched cell types are shown.

Ventromedial hypothalamic Sf1- and Cckbr-expressing cells enrich for BMI GWAS

The total number of cell types in the hypothalamus has been significantly underestimated (Kim et al., 2019a), therefore to assess whether the lack of enrichment for hypothalamic cell types was due to sparse sampling of hypothalamic cells in the Mouse Nervous System dataset, we computed enrichments for an additional set of 347 cell types sampled from the mediobasal hypothalamus (Campbell et al., 2017), the ventromedial hypothalamus (Kim et al., 2019a), the lateral hypothalamus (Mickelsen et al., 2019), the preoptic nucleus of the hypothalamus (Moffitt et al., 2018) and the entire hypothalamus (Chen et al., 2017; Romanov et al., 2017). We identified four non-overlapping significantly enriched cell populations, namely a ventromedial hypothalamic glutamatergic cell type (ARCME−NEURO29; p=4.9×10−5) expressing Sf1 (ESμ=0.98 and ESμ=0.99) and Cckbr (cholecystokinin B receptor; ESμ=0.98, ESμ=0.95); a glutamatergic cell type from the lateral hypothalamus (LHA-NEURO20; p=4.9×10−5); and two cell types from the preoptic area of the hypothalamus (POA-NEURO21 and POA-NEURO66; p<1.0×10−4; Figure 5). Interestingly, ventromedial hypothalamic neurons have previously been implicated in control of both body fat mass and blood glucose levels; disrupted leptin signaling in Sf1-expressing ventromedial hypothalamic neurons renders mice more susceptible to diet-induced weight gain (Kim et al., 2011) and activation of ventromedial hypothalamic Sf1 neurons causes hyperglycemia (Meek et al., 2016). The two cell types also expressed Bdnf (ESμ=0.91, ESμ=0.99); mutations in BDNF and its receptor, NTRK2, is a known cause of monogenic obesity in humans and, in mice, BDNF signaling is required for normal energy homeostasis and glucoregulatory control (Kamitakahara et al., 2016). (Bdnf and Ntrk2 were also specifically expressed in TEINH12 cell type, a cholecystokinin (Cck)-expressing interneuron, enriched in the mouse nervous system analysis.) Noteworthy, clustering of the 347 hypothalamic cell populations based on their ESμ values resulted in clusters predominantly separating by cell type rather than by study or single-cell technique, indicating that CELLEX is relatively robust to batch effects (Figure 1—figure supplement 2).

Figure 5 with 3 supplements see all

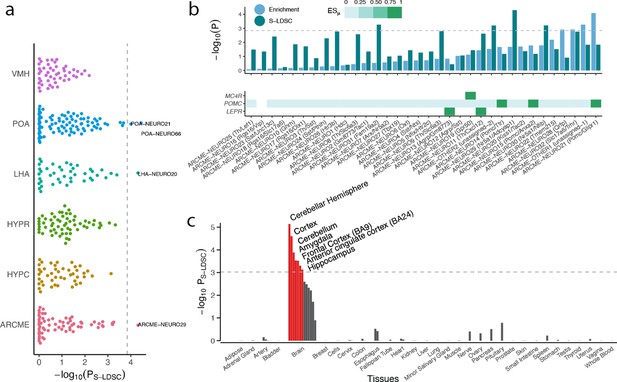

BMI GWAS enrichment across hypothalamic cells and human tissues.

(a) BMI GWAS enrichments across 347 hypothalamic cell types derived from studies of the Arc-ME (ARCME), the ventromedial hypothalamus (VMH), the lateral hypothalamus (LHA), the preoptic nucleus of the hypothalamus (POA) and the entire hypothalamus (HYPR and HYPC). For each study, CELLEX and CELLECT were run individually, and subsequently all cell types were pooled and significance was determine based on Bonferroni correction (p<0.05/347). Four cell types were significantly enriched, namely POA-NEURO66 (Reln+; Moffitt et al., 2018) and POA-NEURO21 (Cck+/Ebf3+; Moffitt et al., 2018) from the preoptic area of the hypothalamus, ARCME-NEURO29 (Sf1+/Adcyap1+; Campbell et al., 2017) from the Arc-ME, and LHA-NEURO20 (Ebf3/Otb+; Mickelsen et al., 2019) from the lateral hypothalamus. (b) CELLECT and high-confidence obesity genes enrichments for neuronal cell populations in the Arc-ME (upper panel). Expression of Mc4r, Pomc and Lepr across Arc-ME neuronal populations, white squares means that the given gene is not expressed in at least 10% of the cells in the given cell population, non-white squares denote increasingly specific gene expression (lower panel). (c) CELLECT enrichment analysis of Genotype-Tissue Expression Consortium (GTEx) RNA-seq data. Orange bars denote significantly enriched tissues. The hypothalamus datasets’ metadata, CELLECT results and expression specificity values for the enriched cell types are available in Figure 5—source datas 13. The GTEx tissue annotations, CELLECT and high-confidence obesity genes enrichment results are available in Figure 5—source datas 1012. POA, preoptic area of the hypothalamus; LHA, lateral hypothalamus; ARCME, arcuate nucleus and median eminence complex; S-LDSC, stratified-linkage disequilibrium score regression.

Figure 5—source data 1

Hypothalamus datasets metadata.

Figure 5—source data 2

Hypothalamus CELLECT results.

Figure 5—source data 3

Hypothalamus expression specificity results.

Figure 5—source data 4

High-confidence obesity genes.

Figure 5—source data 5

High-confidence obesity genes expression specificities.

Figure 5—source data 6

High-confidence obesity genes enrichments.

Figure 5—source data 7

High-confidence obesity genes CELLECT correlations.

Figure 5—source data 8

Expression specificity and cell type heterogeneity.

Figure 5—source data 9

High-confidence obesity genes CELLEX top quartile.

Figure 5—source data 10

Genotype-Tissue Expression data annotation.

Figure 5—source data 11

Genotype-Tissue Expression CELLECT enrichment results.

Figure 5—source data 12

Genotype-Tissue Expression obesity genes enrichment results.


There was no significant enrichment in neurons expressing the Pomc gene, a neuropeptide-encoding gene with known coding mutations causing monogenic obesity in humans (4/5 of Pomc+ cell populations were nominally enriched; HYPR-NEURO24 (Pomc/Ttr), p=0.002; ARCME-NEURO21 (Pomc/Glipr1), p=0.01; HYPC-NEURO23 (Pomc/Cartp), p=0.03; HYPR-NEURO24 (Pomc), p=3.0×10−3). We next tested whether the paucity of significant enrichments across hypothalamic populations could be explained by either a limited ability of current hypothalamus scRNA-seq datasets to capture expression of relevant obesity genes or by a limited ability of CELLEX to correctly detect these genes as being specifically expressed in relevant cell types. Towards that end, we first compiled a set of 23 high-confidence obesity genes by merging a set of genes harboring protein-altering variants associated with obesity and with a set of genes implicated in monogenic forms of early-onset extreme obesity (both sets were obtained from Turcot et al., 2018; Figure 5—source data 4). We then assessed whether these high-confidence obesity genes were robustly- (expressed in ≥10% of the cells in a given population) and specifically (ESμ>0) expressed within relevant mediobasal hypothalamic arcuate-median eminence complex (Arc-ME) cell populations. By design, Pomc expression was detected in each of the three Pomc+ cell populations; the leptin receptor was detected in agouti-related peptide- and Trh/Cxcl12+ cell populations, two known leptin-sensing cell populations; and, finally, Mc4r was only detected and specifically expressed in the Gpr50+ cell population, which expressed several genes encoding receptors previously related to energy homeostasis (Campbell et al., 2017) (Materials and methods; Figure 5b, lower panel). CELLEX correctly identified these three genes as specifically expressed in these six cell types. Among the 23 high-confidence obesity genes, 20 were part of the Arc-ME dataset and 17 of them robustly and specifically expressed in at least one neuronal Arc-ME cell population (Figure 5—figure supplement 1; Figure 5—source data 5). Moreover, four cell populations were enriched for the high-confidence obesity genes ARCME-NEURO21 (Pomc/Glipr1+), ARCME-OTHER1 (a population of non-Arc-ME neurons potentially from the retrochiasmatic area), ARCME-NEURO32 (Slc17a6/Trhr+; neurons shown to be necessary and sufficient to induce satiety [Fenselau et al., 2017]) and ARCME-NEURO28 (Qrfp+; an orexigenic neuropeptide involved in energy homeostasis [Chartrel et al., 2016]; Bonferroni threshold p<0.05/34; Figure 5b, upper panel). We observed a high correlation between the high-confidence obesity gene set- and CELLECT results across the hypothalamus cell types (Pearson's rho = 0.50, p=1.1×10−5; Figure 5—source data 7). Moreover, we observed that ES values increased with increasing cell population heterogeneity; 16 out of the 18 ARCME-detected high-confidence obesity genes increased expression specificity when running CELLEX on all Arc-ME cells compared to ARCME neurons-only (Figure 5—source data 8). Finally, we found that across the Tabula Muris, Mouse Nervous System and Arc-ME datasets, 22 of the 23 high-confidence obesity genes were among the 25% most specifically expressed genes in at least one cell type (Figure 5—source data 9). Together these results indicate (a) that current hypothalamic single-cell data and our CELLEX methodology are of a sufficient quality to detect relevant cell populations, that (b) upcoming regional atlases with increased cellular heterogeneity will drive discovery of additional relevant cell populations and cell states for complex traits, and that (c) the BMI GWAS and high-confidence obesity genes’ approaches yield comparable results with a few notable exceptions (such as the Pomc/Glipr1+ population).

Finally, to assess whether hypothalamic transcriptional patterns may explain less genetic heritability compared to other brain areas in humans, we applied CELLEX and CELLECT on RNA-seq data from the Genotype-Tissue Expression Consortium and found that the hippocampus and several other brain areas exhibited stronger genetic enrichment signal than the hypothalamus (Figure 5c). In contrast, the high-confidence obesity genes enriched most strongly for the hypothalamus (p=3.9×10−4, FDR < 0.05; Figure 5—source data 12). These results support our previous observation that despite overlaps, obesity risk genes identified through rare-variant studies and genes near associated BMI GWAS signals may point to slightly different regions of the brain, an observation highlighting the importance of leveraging polygenic methodologies to identify cell types regulating susceptibility to common obesity.

Genes with known links to human obesity genes implicate the dorsal midbrain

As the high-confidence obesity genes have been identified independently of the BMI GWAS, we reasoned that we could use them to validate the cell types exhibiting the polygenic BMI GWAS signal. We computed the enrichment of the high-confidence obesity genes within all 265 mouse nervous system cell types and identified eight significantly enriched cell types (one-sided Wilcoxon rank sum test, FDR < 0.05) of which two replicated cell types from the BMI GWAS analysis DEGLU5 and MEGLU2 from the anterior pretectal nucleus and the periaqueductal grey, respectively; p<1.2×10−4. The six remaining cell populations originated from areas implicated by the CELLECT analysis, namely the midbrain (MBDOP1, periaqueductal grey; MBDOP2, ventral tegmental area and substantia nigra; MEINH13, ventral/caudal midbrain; MEGLU14, the dorsal raphe nucleus), the hypothalamus (HYPEP3, ventromedial hypothalamus), and the medulla (HBSER4, nucleus raphe medulla). We observed a significant correlation between the high-confidence obesity genes enrichment- and CELLECT enrichment results (Pearson‘s R = 0.54, p=3.0×10−21; Figure 5—figure supplement 2a), further underscoring the validity of our findings, besides emphasizing that genes implicated in monogenic obesity or implicated by obesity-associated protein-altering variants tend to colocalize with BMI-associated GWAS loci (Figure 5—figure supplement 2b; Locke et al., 2015).

Interestingly, the leptin receptor, which regulates key energy homeostatic processes in the hypothalamus and when defective may cause syndromic obesity (Choquet and Meyre, 2011) was only specifically expressed in two out of the 22 BMI GWAS-enriched in the Mouse Nervous System dataset cell types, namely glutamatergic cells from the periaqueductal grey and anterior nucleus of the solitary tract (Figure 6a). By contrast, 17 of the enriched cell types expressed the serotonin receptor 5-Htr2c (5-hydroxytryptamine receptor 2C), a known regulator of energy and glucose homeostasis (Berglund et al., 2013) and a target for anti-obesity pharmacotherapy (Halford et al., 2011; Figure 6b). 5-Htr2c was most specifically expressed in the anterior pretectal nucleus (DEGLU5, ESμ=0.96), the cell type among our results which most specifically expressed Pomc (ESμ=0.41). Mice lacking the Htr2c in Pomc neurons are resistant to 5-Htr2c agonist Lorcaserin-induced weight loss (Berglund et al., 2013) (for ESμ plots of other selected genes, please refer to Figure 6—figure supplement 1).

Figure 6 with 1 supplement see all

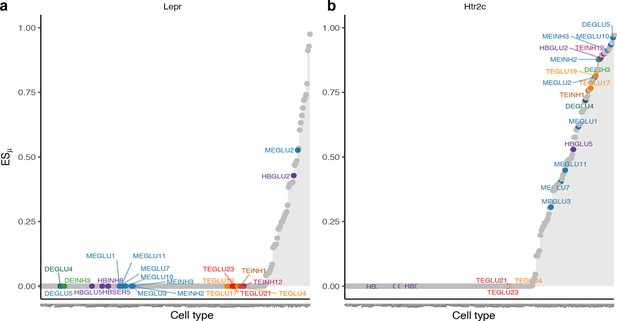

Expression specificity of the leptin- and serotonin receptors across BMI GWAS enriched cell types.

(a) In the lipostatic model of obesity originally defined by Kennedy, 1953, circulating concentrations of the leptin hormone signal the amount of energy stored in fat cells to the brain. The plot shows gene ESμ (y-axis) for each cell type (x-axis, ordered by increasing values of expression specificity, ESμ) with BMI-prioritized cell types from the Mouse Nervous System dataset highlighted. In our analysis, only two of the 22 BMI GWAS enriched cell types specifically expressed the leptin receptor (MEGLU2, periaqueductal grey; and HBGLU2, nucleus of the solitary tract). (b) Seventeen of the 22 BMI GWAS enriched cell types specifically expressed the serotonin (5-htr2c) receptor. The strongest enrichment was observed for DEGLU5, a glutamatergic cell type from the anterior pretectal nucleus. ESμ, expression specificity.

Together our results indicate that susceptibility to obesity conferred by common variants, while enriching for some hypothalamic cell types such as VMH Sf1-expressing neurons, is distributed across a mosaic of neuronal cell types of which a majority is involved in regulating integration of sensory stimuli, learning and memory.


Here, we developed two scRNA-seq computational toolkits called CELLEX and CELLECT and applied them to scRNA-seq data from a total of 727 mouse cell types, from late postnatal and adult mice, to derive an unbiased map of cell types enriching for human genetic variants associated with obesity. In total, we identified 26 BMI GWAS-enriched neuronal cell types, which, in line with previous considerations (Grill, 2006), demonstrates that susceptibility to human obesity is likely to be distributed across multiple, mainly neuronal, cell types across the brain, rather than being restricted to a limited number of canonical energy homeostasis- and reward-related brain areas in the hypothalamus, midbrain and hindbrain. Among the enriched hypothalamic cell types, we identified VMH Sf1- and Cckbr-expressing neurons, which previously have been implicated in glucose and energy homeostasis. We show that while the polygenic enrichment signal is highly correlated with enrichment of high-confidence obesity genes, this alignment diverges for hypothalamic neuron populations (including Pomc-positive neurons) suggesting that common genetic susceptibility to obesity acts on a more broadly distributed set of neuronal circuits across the brain.

Processing of sensory stimuli and feeding behavior

Several of the enriched cell types localized to nuclei integrating sensory input and directed behavior. The inferior colliculus (implicated by MEGLU7, MEGLU10 and MEGLU11) and medial geniculate nucleus (MEINH3) process auditory input, the superior colliculus for translation of visual input into directed behavior (MEGLU1 and MEGLU6), the anterior pretectal nucleus processes somatosensory input (DEGLU5 and MEINH4), and the piriform cortex (TEGLU17) and anterior olfactory nucleus (TEGLU19) processing odor perception. The superior colliculus and anterior pretectal nucleus have both been implicated in predatory behavior (Shang et al., 2019; Antinucci et al., 2019) and project to the zona incerta, a less well-described brain area situated between the thalamus and hypothalamus that receives direct input from mediobasal hypothalamic Pomc neurons (Wei et al., 2018). In rats, lesioning of the zona incerta impairs feeding responses (Stamoutsos et al., 1979) while, conversely, in mouse models, optogenetic stimulation of GABAergic neurons in the zona incerta leads to rapid, binge-like eating and body weight gain (Zhang and van den Pol, 2017). Activation of projections from the hypothalamic preoptic nucleus (DEINH5; POA-NEURO21, POA-NEURO66) to the ventral periaqueductal gray (MEGLU2 and MBDOP1) induce object craving (Park et al., 2018), whereas pharmacological inactivation of the periaqueductal gray decreases food consumption (Tryon and Mizumori, 2018). Together, these findings suggest that susceptibility to obesity is enriched in cell types processing sensory stimuli and directing actions related to feeding behavior and opportunity.

Evidence supporting a key role of the learning and memory in obesity

Feeding is not an unconditioned response to an energy deficiency but rather reflecting behavior conditioned by learning and experience (Woods and Begg, 2015). We previously showed that genes in BMI GWAS loci enrich for genes specifically expressed in hippocampal postmortem gene expression data (Locke et al., 2015). In this work, we identified specific brain cell types supporting a role of memory in obesity. First, the parafascicular nucleus (DEGLU4), when lesioned in mice, reduces object recognition memory (Castiblanco-Piñeros et al., 2011). Second, the retrosplenial cortex (TEGLU4) is responsible for decisions made on past experiences (Hattori et al., 2019). Third, among the two enriched glutamatergic hippocampal cell types (TEGLU21 and TEGLU23), the latter expresses lipoprotein lipase as one of its top marker genes, an enzyme that causes weight gain when pharmacological or genetically attenuated in mice (Picard et al., 2014). Similarly, fasting inhibits activation of hippocampal CA3 cells (based on c-fos levels) in mice (Azevedo et al., 2019) and activation of glutamatergic hippocampal pyramidal neurons increases future food intake in rats most likely by perturbing memory consolidation related to the previous meal (Holahan and Routtenberg, 2011). In sum, our results provide further evidence that processes related to learning and memory play a key role in human obesity, and provide insights into specific cell types underlying hippocampal-centric susceptibility to obesity.

Limitations of our approach

Our results should be interpreted in the light of the underlying data and methodologies used to prioritize the cell types. First, the scRNA-seq data analyzed here were derived from late postnatal, adult and predominantly wild-type mice; future work is needed to assess the role of Pomc+, Agrp+ and Mc4r+ and other hypothalamic cell types during developmental stages and relevant obesogenic perturbations in human obesity (Zeltser, 2018). Second, the datasets used in this work should not be regarded as complete atlases because they are likely to miss relevant cell types such as Mc4r-positive neurons, which are known to play a key role in obesity. Third, one should keep in mind the overall assumption behind our approach, namely that in order for a given gene to confer genetic susceptibility for a given disease it needs to be expressed in the given cell type or tissue, where increasing expression is associated with increasing relevance. Thus, our approach is not designed to detect cell types in which reduced expression of a specific gene predisposes to obesity. Fourth, while studies have shown that the largest amount of variation is explained by organ rather than species differences (Brawand et al., 2011), that the majority of neuronal genes showed similar laminal patterning between human and mouse cortical samples (Zeng et al., 2012), and that broadly defined cell types were conserved between mouse and human (Hodge et al., 2019), analyses of human tissues may identify additional cell types critical to obesity development. Finally, given the dependence of CELLECT results on other cell types in the given datasets, we, generally, recommend running a ‘tiered’ prioritization strategy for CELLECT, where one preferably starts with analyzing body-wide or organ-wide transcriptional atlases and then turns to more tissue-centric datasets. While the high polygenicity of obesity and the inaccessibility of the human brain complicate approaches to further establish the enriched cell types’ relevance in human obesity, we believe that combinations of functional imaging techniques, postmortem single-nucleus analyses, enhancers to gene maps and fine-mapping of BMI GWAS loci will be crucial to better understand their role in human obesity.

Strategies for follow-up

Having identified GWAS-enriched cell populations only marks the start of the journey towards understanding how genetic variants render us susceptible to obesity. Two key questions marking the outset of this journey are; What is the subset of associated GWAS variants acting through the enriched cell populations and what are the regulatory elements and effector genes (candidate causal genes) through which these variants exert their effects? And, how is the given cell population affecting physiology and downstream risk of obesity? Given that CELLECT is not specifically designed to identify effector genes but rather intended to identify cell populations enriching for GWAS signal, we suggest to address these questions by focusing on (a) identifying the set of candidate causal variants and effector genes conferring risk through the focal cell population, and (b) directly validating the relevance of the focal cell population under relevant physiological and pharmacological conditions.

Fulco et al. recently proposed an elegant model to map enhancers to effector genes in a given cell type (Fulco et al., 2019). Their so-called activity-by-contact model leverages single-cell chromatin accessibility and enhancer activity data to identify cell type-specific enhancers and their target genes. For the focal cell population, such an enhancer-gene map, when integrated with credible sets of fine-mapped GWAS variants, would bring forward a set of testable hypotheses on how a set of candidate causal variants act through a set of specific enhancers and effector genes to impact obesity (or any other disease of interest). Additional confidence could be gained by adding in computational gene prioritization approaches such as DEPICT or MAGMA, for example by up-weighing effector genes that are predicted to be functionally similar to candidate effector genes in the other relevant cell populations. Given species-specific differences in gene regulation, these analyses would need to be performed in animal models with at least partly conserved gene regulatory architectures, human postmortem brain samples (ideally obtained from relevant cases and controls) and/or in induced pluripotent stem cells models (ideally selected from individuals with relevant polygenic backgrounds).

Given the challenges typically encountered in the journey aimed at identifying causal variants and effector genes underlying obesity (for successful examples see Claussnitzer et al., 2015; Smemo et al., 2014), we suggest in parallel to leverage transgenic animal models to directly assess the relevance of the focal cell in obesity. Given that CELLEX provides marker genes specifically marking the focal cell population and that all enriched cell populations were of neuronal origin, transgenic animal model techniques such as designer receptors exclusively activated by designer drugs (DREADD)-based chemogenetic tools for activation or inhibition of neurons, transgenic techniques for cell ablation, and fiber photometry techniques for real-time monitoring the impact of relevant physiological environments or pharmacological treatments on the focal cell population, are well-positioned to provide relevant insights into the role of the given cell type in the control of energy homeostasis.

Relevance to human obesity

Despite these limitations, several lines of evidence suggest that the cell types identified herein to be enriched for BMI GWAS signal are relevant to human obesity. First, weight gain is the most pronounced side effect of subthalamic nucleus deep brain stimulation used to treat Parkinson patients (Limousin and Foltynie, 2019), an adverse side effect that may involve the DEINH3 cell type mapping to the subthalamic nucleus. Second, lorcaserin (Belviq), an anti-obesity drug, acts on the 5-HTR2C receptor to enhance serotonin signaling. Third, at the genetic level BMI is significantly correlated with attention deficit/hyperactivity disorder (ADHD) (Demontis et al., 2019), and growing evidence points to links between ADHD and eating disorders. For example, lisdexamfetamine (Vyvanse), a medication used to treat ADHD, is also used to treat binge eating (McElroy et al., 2016), while the ADHD medication methylphenidate (Ritalin) is known to reduce appetite (Faraone et al., 2008). These pharmacological observations suggest that the shared heritability of BMI and ADHD may involve pleiotropic gene variants acting through dorsal midbrain pathways. Fourth, genetic predisposition to obesity is protective to feelings of worry (Millard et al., 2019), supporting our findings that these two traits are potentially acting through overlapping cell types in the dorsal midbrain. Finally, BMI variants associated with BMI in a GWAS conducted in Japanese individuals enriched most highly for enhancers active in the hippocampus (Akiyama et al., 2017) and maternal obesity is associated with reduced total hippocampal volume in reduced CA3 volume in children (Page et al., 2018). Together these observations support a model in which integration of sensory signals, the dopamine system and memory are likely to play key roles in regulating susceptibility to obesity.

In conclusion, our results implicate specific brain nuclei regulating integration of sensory stimuli, learning and memory in human obesity and provide testable hypotheses for mechanistic follow-up studies. Our methodological framework provides a salient example of how human genetics data can be integrated with murine scRNA-data to identify and map components of brain circuits underlying obesity. We provide easy to use computational toolkits, CELLECT and CELLEX, which we envision will greatly facilitate future functional interpretation of genetic association data.

Materials and methods


Request a detailed protocol

For our primary analysis we obtained BMI GWAS summary statistics performed in UK Biobank participants (Nmax = 457,824) (Loh et al., 2018). To examine the robustness of our results to changes in GWAS cohort size, we performed secondary analyses on BMI GWAS summary statistics from two meta-analyses described in Yengo et al., 2018 Nmax = 795,640, UK Biobank and GIANT cohorts and Locke et al., 2015 (Nmax = 322,154; European subset). We note that these two studies include individuals genotyped on custom array chips (Illumina Metabochip), which violate certain assumptions of S-LDSC, however, we show that this has a negligible effect on our results. Figure 2—source data 1 provides the full list of GWAS summary statistics analyzed here. We used the script ‘munge_sumstats.py’ (LDSC v1.0.0, see URLs) to prepare all GWAS summary statistics. All prepared statistics were restricted to HapMap3 single nucleotide polymorphisms (SNPs), excluding SNPs in the major histocompatibility complex region (chr6:25Mb-34Mb).

Single-cell RNA-seq datasets

Request a detailed protocol

For the Tabula Muris dataset (Tabula Muris Consortium et al., 2018; SmartSeq2 protocol) cell types were defined as unique combinations of cell ontology and organ annotation (for example, ‘Lung-Endothelial_cell’) resulting in n = 115 cell type annotations (of which one was defined as neuronal). For the Mouse Nervous System dataset (Zeisel et al., 2018; 10x Genomics protocol), we used the ‘ClusterName’ option as cell type annotations (n = 265, of which 214 were defined as neuronal). For the hypothalamus, we leveraged datasets from six studies:

  • Arc-ME: Arcuate nucleus and median eminence complex (Campbell et al., 2017 DropSeq protocol). We used the ‘Subcluster’ annotations (n = 65, of which 34 were defined as neuronal).

  • POA: Preoptic area (Moffitt et al., 2018 10x Genomics protocol) dataset. We used the ‘Non-neuronal.cluster.(determined.from.clustering.of.all.cells)’ annotations for non-neuronal cell types (n = 21) and the ‘Neuronal.cluster.(determined.from.clustering.of.inhibitory.or.excitatory.neurons)’ annotation for neuronal cell types (n = 66).

  • LHA: Lateral Hypothalamic Area (Mickelsen et al., 2019, 10x Genomics protocol). We used the ‘dbCluster’ annotations (n = 43, 30 neuronal).

  • VMH: Ventromedial Hypothalamus (Kim et al., 2019a SMART-seq and 10x Genomics protocols). We used the ‘smart_seq_cluster_label’ annotations for the SMART-seq dataset (n = 48, of which 40 were defined as neuronal) and the ‘tv_cluster_label’ annotation for the 10x Genomics dataset (n = 29, all neuronal).

  • HYPC: Pan hypothalamus (Chen et al., 2017, DropSeq protocol). We used the ‘SVM_clusterID’ annotations (n = 45, 34 neuronal).

  • HYPR: Pan hypothalamus (Romanov et al., 2017, Fluidigm C1 protocol) dataset, we used the ‘level1 class’ annotation for non-neuronal populations (n = 6) and the ‘level2 class (neurons only)’ annotation for neurons (n = 54).

Code to download and reproduce preprocessing of all datasets are available via GitHub (see URLs). Figure 2—source data 2, Figure 3—source data 1 and Figure 5—source data 1 list cell type annotations, the number of cells per cell type and relevant metadata for the Tabula Muris, Mouse Nervous System and hypothalamus datasets (for each hypothalamus dataset we list the cell type labels used in this study as well as the cell type labels used in the original studies).

Single-cell RNA-seq data pre-processing

Request a detailed protocol

For each dataset, we began with a matrix of gene expression values. We normalized expression values to a common transcript count (with n = 10,000 transcripts as a scaling factor) and applied log-transformation (logx+1). Next we excluded ‘sporadically’ expressed genes following the approach described in Skene et al., 2018 using a one-way ANOVA with cell type annotations as the grouping factor and excluding all genes with p>10−5. We mapped mouse genes to orthologous human genes using Ensembl (v. 91), keeping only 1–1 mapping orthologs.

Cell type labels

Request a detailed protocol

For the Mouse Nervous System dataset, we used (Zeisel et al., 2018) cell type annotations: the first two letters in each cell type abbreviation denote the developmental compartment (ME, mesencephalon; DE, diencephalon; TE, telencephalon), letters three to five denote the neurotransmitter type (INH, inhibitory; GLU, glutamatergic) and the numerical suffix represents an arbitrary number assigned to the given cell type. Likewise, for the Tabular Muris dataset, we used the cell type labels as reported in their paper. For the six hypothalamic datasets, we added a label to allow the reader to more easily understand, from which part of the hypothalamus a given cell type was sampled in the original study (‘ARCME’, arcuate nucleus median eminence complex; ‘HYPC’, hypothalamus Chen et al., 2017; ‘HYPR’, hypothalamus Romanov et al., 2017; ‘LHA’, lateral hypothalamus; ‘POA’, preoptic area; ‘VMH’, ventromedial nucleus) and the cell type it was annotated to in the original work.

Mouse nervous system neurotransmitter annotation

Request a detailed protocol

We used the ‘Neurotransmitter’ column of the cell type metadata (from the mousebrain.org website) to group neuronal cell types into six neurotransmitter classes (transmitter listed in parenthesis): ‘excitatory’ (glutamate), ‘inhibitory’ (GABA or glycine), ‘monoamines’ (adrenaline, noradrenaline, dopamine, serotonin), ‘acetylcholine’ (acetylcholine), ‘nitric oxide’ (nitric oxide) and ‘undefined’ for neurons not matching these classes or without neurotransmitter data. When cell types were annotated with multiple transmitter classes in the ‘Neurotransmitter’ column (e.g. glutamate and adrenaline), excitatory or inhibitory class took precedence in our assignment.

CELLEX expression specificity

Request a detailed protocol

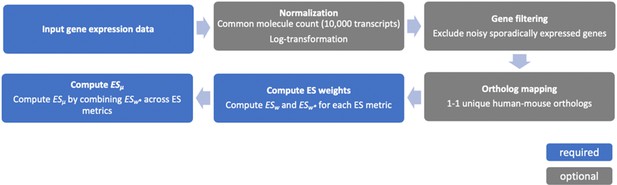

See Appendix 2 for a discussion on ES calculations, assumptions and limitations. CELLEX version 1.0.0 was used to produce all results reported in this manuscript. See URLs for a ready-to-use Python implementation of CELLEX. We calculated expression specificity separately for the Tabula Muris, the Mouse Nervous System and each of the hypothalamus datasets. Cell type expression specificity weights (ESw) were calculated using four ES metrics her referred to us as Gene Enrichment Score (GES) (Zeisel et al., 2018), Expression Proportion (EP) (Skene et al., 2018), Normalized Specificity Index (NSI) (Dougherty et al., 2010) and Differential Expression T-statistic (DET). The mathematical formulas for the ES metrics can be found in Appendix 2. For each ES metric, we separately computed gene-specific ESw values before averaging them into a single ES estimate (ESμ) using the following steps:

  1. For each cell type we determined the set of specifically expressed genes, Gs, by testing the null hypothesis that a gene is no more specific to a given cell type than to cells selected at random. We computed empirical P-values of ES weights by comparing observed weights for cell type c to ‘null’ weights obtained by sampling the dataset’s cell type annotations (including annotations from cell type c without replacement).

  2. For each cell type we calculated ESw* representing the genes’ score of being specifically expressed in a given cell type. We assumed that each cell type has a set of specifically expressed genes exhibiting a linearly increasing score reflecting its expression specificity. We modeled this linearity assumption by rank normalizing ESw for genes, g, in Gs:

    • ESw(g)=rankg(ESw(g))/|Gs|ifgGs

    • ESw(g)=0ifgGs

    • Note that ESw* are scaled such that ESw[0,1].

  3. For each cell type, we calculated ESμ, representing a gene’s score of being specifically expressed in a given cell type, by taking the mean ESw* across all ES metrics (we here assume equal weighing of ES metrics).

We use ‘ES genes’ to denote the set of genes with ESμ>0 for a given cell type. Hence, all genes being part of at least one Gs for a specific cell type will be included in the set of ES genes for this cell type. Figure 3—source data 3 and Figure 5—source data 3 show the number of ES genes for the BMI GWAS-enriched Mouse Nervous System and hypothalamus cell types. We note that ES genes include genes that were not only strictly specifically expressed (only expressed in the cell type) but also those that were loosely specifically expressed (i.e. have higher expression in the cell type). All cell type enrichment results were computed based on the ESμ estimates. CELLEX can take count data as well as transcripts per million-normalized data as input.

Expression specificity of known marker genes

Request a detailed protocol

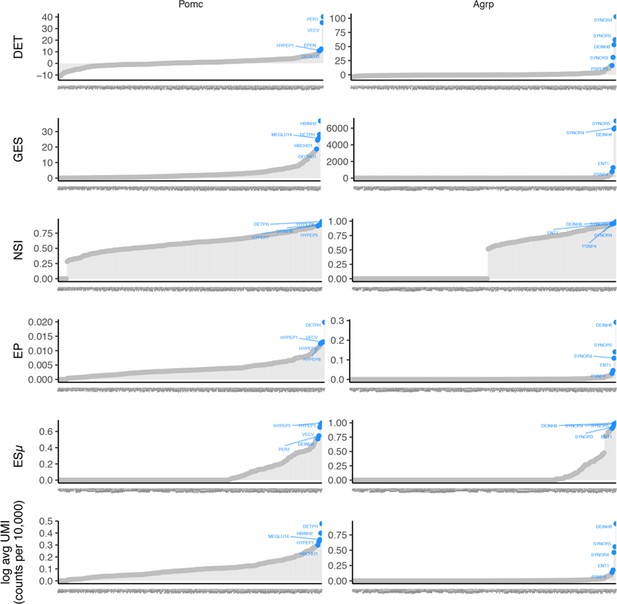

First, to validate that our ES approach was able to delineate cell type-specific genes, we, for each of the four ES metrics, computed ESw estimates across four cell types with genes known to be specifically expressed in these cell types, namely hepatocytes (Apoa2), pancreatic alpha-cells (Gcg), striatum medium spiny neurons (Drd2) and mediobasal hypothalamic agouti related peptide (Agrp)-expressing neurons (Agrp). The four ESw metrics and the combined ESμ metric correctly ranked the relevant genes at the top (Figure 1d). Conversely, plotting ESμ values for these four genes across all cell types revealed that hepatocytes and alpha-cells exhibited the highest ESμ for Apoa2 and Gcg, respectively, and that medium spiny neurons and Agrp-positive neurons exhibited the highest ESμ for Drd2 and Agrp, respectively (Figure 1e).

CELLECT genetic prioritization of trait-relevant cell types

Request a detailed protocol

See Appendix 1 for adiscussion on assumptions and limitations. CELLECT version 1.0.0 was used to produce all results reported in this manuscript. See URLs for a ready-to-use Python implementation of CELLECT. Throughout this paper, we report CELLECT cell type prioritization results using S-LDSC, as this model has been shown to produce robust results with properly controlled type I error (Finucane et al., 2018). Cell type prioritization results using MAGMA (de Leeuw et al., 2015) can be found in Figure 3—figure supplement 3b and Figure 3—source data 7.

Stratified linkage disequilibrium score regression

Request a detailed protocol

We used stratified S-LDSC (v. 1.0.0, URLs) to prioritize cell types after transforming cell type ESμ vectors into S-LDSC annotations. Running S-LDSC with custom annotations follows three steps: generation of annotation files, computation of annotation LD scores and fitting of annotation model coefficients. We created annotations for each cell type by assigning genes’ ESμ values to genetic variants utilizing a 100 kilobase (kb) window of the genes’ transcribed regions. Fulco et al. showed that most enhancers are located within 100 kb of their target promoters (Fulco et al., 2019). When a variant overlapped with multiple genes within the 100 kb window, we assigned the maximum ESμ value. The relatively large window size was chosen to capture effects of nearby regulatory variants, as the majority of trait-associated variants have been shown to be located in non-coding regions (Gusev et al., 2014). Our results were robust to changes in window size (data not shown), consistent with previous work (Skene et al., 2018; Finucane et al., 2018; Kim et al., 2019b). Following the recommendation in Finucane et al., 2018, we constructed an ‘all genes’ annotation for each expression dataset, by assigning the value 1 to variants within 100 kb windows of all genes in the dataset. We used hg19 (Ensembl v. 91) as the reference genome for genetic variant and gene chromosomal positions. When constructing annotations, we used same 1000 Genomes Project SNPs (Abecasis et al., 2012) as in the default baseline model used in S-LDSC. Next, we computed LD Scores for HapMap3 SNPs (Altshuler et al., 2010) for each annotation using the recommended settings.

For the primary cell type prioritization analysis, we jointly fit the following annotations: (i) the cell type annotation; (ii) all genes annotation (iii) the baseline model (v1.1). For cell type conditional analysis (Figure 4—figure supplement 1) we added (iv) the cell type annotation conditioned on when fitting the model.

We ran S-LDSC with default settings and the workflow recommended by the authors. We reported p-values for the one-tailed test of positive association between for trait heritability and cell type annotation ESμ. We note that the correlation structure among ESμ for cell type annotations can lead to a distribution of p-values that is highly non-uniform (Finucane et al., 2018). Highly significant p-values occur due to correlated cell types with true signal, whereas cell types negatively correlated with the true signal have p-values near 1. For all results, we used Bonferroni correction within a trait and dataset to control the FWER. We report the regression effect size estimate for each cell type (source data: ‘Coefficient’ column), which represents the change in per-SNP heritability due to the given cell type annotation, beyond what is explained by the set of all genes and baseline model. We also report standard errors of effect sizes (‘Coefficient std error’ column), computed using a block jackknife (Finucane et al., 2015). Finally, we report the ‘annotation size’ for each cell type, that measures the proportion of SNPs covered by the cell type annotation (0 means no SNPs were covered by the annotation; 1 means all SNPs were covered). Annotation size was computed as the mean of the cell type annotation.

S-LDSC heritability analysis

Request a detailed protocol

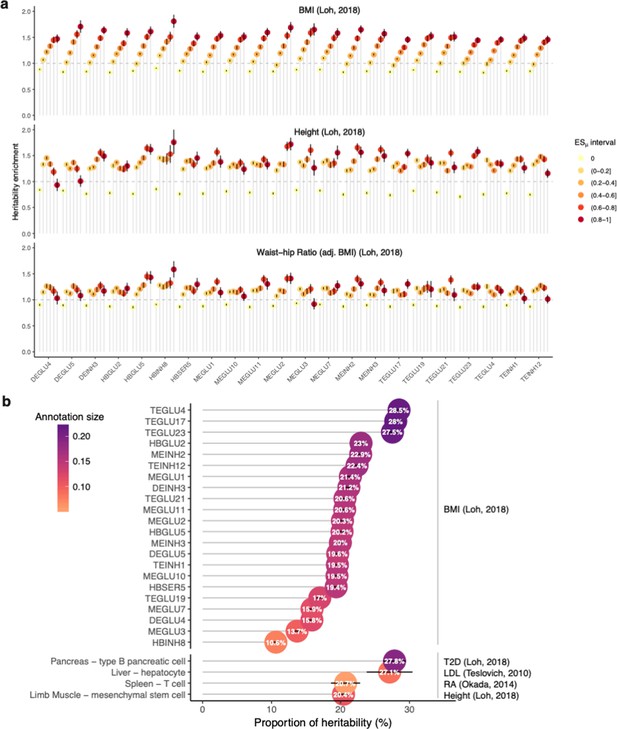

All S-LDSC heritability analyses and reported effect size estimates were obtained on the observed heritability scale, with the exception of heritability estimates for case-control traits shown in the barplots of Figure 2a and Figure 3b. Here, we report heritability estimates on the liability scale using population prevalences listed in Figure 2—source data 1. (The liability scale is needed when the aim of heritability analysis is to compare heritability estimates across traits. On a liability scale the case-control trait is treated as if it has an underlying continuous liability, and then the heritability of that continuous liability is quantified.) To interpret the heritability explained by our continuous-valued ESμ cell type annotations, we estimated the heritability of each ESμ quintile. We modified the script ‘quantile_M.pl’ (from the LDSC package) to compute heritability enrichment for five equally spaced intervals of the cell types ESμ annotations: (0–0.2), (0.2–0.4), (0.4–0.6), (0.6–0.8), (0.8–1), as well as the interval including zero values only ([0–0]).

MAGMA cell type prioritization

Request a detailed protocol

To assess the robustness of the SNP-level S-LDSC cell type prioritization, we used an alternative gene-level approach inspired by Skene et al., 2018 and tested the association of gene-level BMI association statistics with cell type ESμ using MAGMA (v1.07a) (de Leeuw et al., 2015). MAGMA was run with default settings to obtain gene-level association statistics calculated by combining SNP association p-values within genes and their flanking 100 kb windows into gene-level Z-statistics, while accounting for LD (computed using the 1000 Genomes Project phase 3 European panel; Abecasis et al., 2012). Gene-level Z-statistic were corrected for the default MAGMA covariates: gene size, gene density (a measure of within-gene LD) and inverse mean minor allele count, as well the log value of these variables. Next, we used the R statistical language to fit a linear regression model using MAGMA gene-level Z-statistics as the dependent variable and cell type ESμ as the independent variable. We report cell type prioritization p-values (from the linear regression model) as the positive contribution of cell type ESμ regression coefficient to BMI gene-level Z-statistics (one-sided test).

Cell type geneset enrichment analaysis

Request a detailed protocol

To assess cell type enrichment of genesets associated with obesity, we tested if members of the obesity geneset exhibited higher expression specificity (ESμ) in a given cell type than non-members of the geneset (all other genes in the dataset). Specifically, we used a Wilcoxon rank sum test with continuity correction to obtain one-sided geneset enrichment p-values. We controlled the FWER using the Bonferroni method calculated over all cell types and the rare variant obesity geneset tested. As a precaution against unknown confounders, we also computed empirical p-values by permuting the expression specificity gene labels 10,000 times to obtain ‘null genesets’ of identical size, and obtained near-identical results (data not shown). We obtained genes with rare coding variants associated with obesity (n = 13 genes) and genes implicated in early onset- and extreme obesity from Turcot et al. Table 1 and Supplementary Table 21, respectively. We combined these genes into a single set of 23 high-confidence obesity genes.

Cell type gene co-expression networks

Request a detailed protocol

We identified cell type gene co-expression networks using robust weighted gene correlation network analysis (rWGCNA) framework proposed by Langfelder and Horvath, 2008. To identify gene co-expression networks (or gene modules) operating within a cell type, the input to WGCNA is expression data for individual cell types. Briefly our framework consisted of the following steps:

  1. We normalized the raw expression values to a common transcript count (with n = 10,000 transcripts as a scaling factor), log-transformed the normalized counts (log(x+1)), and centered and scaled each gene’s expression to Z-scores. Cell clusters with fewer than 50 cells were omitted, and genes expressed in fewer than 20 cells were removed. We then used PCA to select the top 5000 highly loading genes on the first 120 principal components. We mapped mouse genes to orthologous human genes using Ensembl (v. 91), keeping only 1–1 mapping orthologs.

  2. We then used hierarchical clustering and hybrid tree cutting algorithms to identify gene modules. Module eigengenes, which summarize module expression in a single vector, were computed and used to identify and merge highly correlated modules.

  3. Finally, we computed gene-module correlations (kMEs), a measure of gene-module membership, filtering out any genes which were not significantly associated with their allocated module after correcting for multiple testing using the Benjamini-Hochberg method.

Genetic prioritization of cell type co-expression networks

Request a detailed protocol

Genetic prioritization of WGCNA gene modules followed the same framework as for prioritizing cell types. That is, we used S-LDSC controlling for the baseline and ‘all genes’ annotations. Gene modules annotations were constructed by assigning the module genes’ kME values to variants within a 100 kb window of the genes’ transcribed regions. We restricted modules to contain at least 10 genes and at most 500 genes (removing 8 out of 571 modules), because S-LDSC is not well-equipped for prioritizing annotations that span very small proportion of the genome, and unspecific modules with a large number of weakly connected genes may have limited biological relevance.

Co-expression network visualizations

Request a detailed protocol

To create the network visualization of the cell type rWGCNA gene modules (Figure 3—figure supplement 2b), we computed the Pearson’s correlation between module kME values (a measure of gene-module membership) and generate a weighted graph between modules using the positive correlation coefficients only. To create the network visualization of the M1 gene module (Figure 3—figure supplement 2c), we computed the Pearson’s correlation between genes within the module, using expression data from the cell type in which the module was identified (MEINH2). We then generate a weighted graph between genes using the positive correlation coefficients only. We then mapped MAGMA BMI gene-level Z-statistics (calculated using 100 kb windows, as described above) onto the network as node sizes. All networks were visualized using the R package ‘ggraph’ with weighted Fruchterman-Reingold force-directed layout.

Cell type enrichment of co-expressed gene networks

Request a detailed protocol

To assess if gene modules were enriched in the expression specific genes of specific cell types, we tested if module gene members exhibited higher expression specificity (ESμ) in the given cell type than non-members of the module (all other genes in the dataset). We obtained one-sided enrichment p-values using the Mann-Whitney U test. We controlled the FDR by using the Bonferroni method calculated over gene modules tested.

Tests for confounding factors and null GWAS construction

Request a detailed protocol

In order to test for technical bias in CELLECT genetic enrichment scores, we prioritized cell types using GWAS based on randomly distributed phenotypes ('null GWAS'). We computed 1000 GWAS based on 1000 Genomes Project Phase three genotyping data and simulated Gaussian phenotypes randomly drawn from a N(0,1) distribution with no genetic bias. We then performed genetic prioritization across 115 cell types in the Tabula Muris dataset using CELLECT with S-LDSC for each null GWAS.

S-LDSC prioritization p-values, which for null GWAS tend toward a uniform distribution, showed a slight enrichment for P-values closer to 1, and a slight depletion close to 0. To verify that CELLECT genetic prioritization p-values were not correlated with technical factors, we computed the Pearson correlation between the -log10(S-LDSC p-value) for a cell type and the number of cells, median number of genes expressed, and median number of UMIs, respectively for each null GWAS. We used a two-sided t-test to identify significant deviations from the expected mean correlation of zero.

The genotype-tissue expression consortium data and analysis

Request a detailed protocol

The genotype-tissue expression version eight gene expression read counts were obtained from their portal (download date 6 May 2020). An initial set of 17,382 RNA-seq samples were filtered on quality indicators using the same cutoffs as in GTEx Consortium et al., 2017. Next, to identify and remove outliers, we used an approach similar to that of Wright et al., 2014: within each tissue-type (SMTSD annotation), we computed the mean Pearson correlations of each sample to the others. We then removed any samples whose expression profile had a mean correlation falling below the first quartile by more than 1.5 times the interquartile range within that tissue-type, leaving 16,027 samples from 946 donors. Genes were then filtered, again using the cutoff from GTEx Consortium et al., 2017, that is keeping genes with at least six reads in at least 10 samples. To ensure positive expression values as required by CELLEX, and given that common batch-correction techniques typically incur partly negative expression values, we did not perform batch correction. The filtered gene read counts were normalized within each broad tissue-type (SMTS annotation) using the DESeqDataSetFromMatrix(), estimateSizeFactors() and counts() commands from the DESeq2 R package (v1.22.2) (Love et al., 2014). Finally, normalized counts were log-transformed (log2(x+1)), gene version number suffixes were removed from the GENCODE gene names, and samples were grouped by SMTSD annotations for downstream analysis with CELLEX and CELLECT.

Code availability

Request a detailed protocol

CELLECT toolkit is available at Timshel, 2020https://github.com/perslab/CELLECT (copy archived at https://github.com/elifesciences-publications/timshel-2020). CELLEX is available at https://github.com/perslab/CELLEX. Open source software implementations of CELLECT and CELLEX will be made available upon publication. Code to reproduce analyses, figures and tables for this manuscript is available at https://github.com/perslab/timshel-2020.


Appendix 1

CELLECT cell type prioritization


Here we discuss the detailed methods and limitations of the CELLECT framework.

The relevance of using mouse scRNA-seq datasets

Our BMI cell type prioritization analysis was performed using mouse scRNA-seq atlases. We here discuss the relevance of using mouse scRNA-seq datasets to define cell types for genetic prioritization for complex human traits.

Previous studies have compared the conservation of tissue gene expression. Brawand et al., 2011 used RNA-seq expression data across multiple organs (cortex, cerebellum, heart, kidney, liver, and testis) and 10 mammalian species (incl. human) and found the largest amount of variation was explained by organ rather than species differences.

Previous studies have assessed the convergence of mouse and human central nervous system (CNS) gene expression using gene co-expression analysis (Hawrylycz et al., 2015; Kelley et al., 2018; Miller et al., 2010) and found weaker conservation of glial co-expression modules than neuronal co-expression modules. In situ hybridization studies have reported that the majority of genes (79%) showed similar cortical laminar patterning (Zeng et al., 2012). Along those lines, recent scRNA-seq data from mouse and human midbrain found that cell types and gene expression levels were generally conserved across species (La Manno et al., 2016).

The current most extensive study of CNS cell type conservation compared single-nucleus expression data from human and mouse cerebral cortex (Hodge et al., 2019) and found that broadly defined cell types were conserved between mouse and human. However, they identified important differences between cell type proportions and expression of specific genes, including cell type marker genes exhibiting up to 10-fold expression differences.

In conclusion, although critical differences between mouse and human CNS gene expression data have been identified, the broad expression patterns are likely to be conserved. Moreover, glial cell types are more likely to exhibit weaker conservation compared to neuronal cell types. We believe our genetic prioritization of likely etiologic cell types is more likely to suffer from false negatives (cell types not prioritized because of lack of relevant human expression data) rather than false positives (spuriously enriched cell types among our positive results).

Choice of window size and position for connecting SNPs and genes

An important step in the CELLECT pipeline is assigning gene ESμ values to SNPs. As the majority of trait-associated SNPs are located in non-coding regions (Gusev et al., 2014), it is desirable to select a window size that maps the majority of regulatory GWAS variants to their proximal genes. Although our results were largely robust to changes in window size and consistent with previous work (Finucane et al., 2018; Kim et al., 2019a; Skene et al., 2018), we note that the SNP-to-gene mapping remains a critically important step that should be updated in subsequent versions of CELLECT.

In this work, we used the same window size as used in Finucane et al., 2018, that is, assigning genes’ ESμ values to SNPs within a 100 kb window on either side of a gene’s transcribed regions. A recent large eQTL analysis in blood from >31,000 individuals found that 92% of the lead cis-expression quantitative trait loci (eQTL) SNPs mapped within 100 kb of the gene (Võsa et al., 2018), suggesting that our mapping is likely to capture the majority of cis-regulatory variants. Consistent with this, Gasperini et al., 2018 used CRISPR/Cas9 followed by scRNA-seq to identify CRISPR/Cas9-induced eQTLs from >47,000 human cell line cells and found that regulatory variants were separated from the TSS of their target genes by a median distance of 34.3 kb. Finally, work by Fulco et al. reports that most enhancers are located within 100 kb of the target promoters (Fulco et al., 2019).

Limitations of CELLECT

Linear relationship between expression specificity and trait heritability

The overall assumption behind our approach is that in order for a disease to manifest in a given cell type the set of disease causal genes must be active and expressed in the given cell type. In other words, we assume that high/increased expression and not decreased/lack-of expression of a gene results in disease. This is a strong assumption to make about complex traits and it does not hold for all diseases (e.g. cancer).

Our model assumes a linear effect of cell type expression specificity and trait heritability. Although this assumption may not always hold, it appears to be reasonable in the continuous annotations that we analyzed (Appendix 4—figure 1).

We leave it for future work to explore non-linear relationships between expression specificity and trait heritability, and to investigate the effects of specificity for decreased or lack-of gene expression.

Genetic architecture

The approach assumes that a cell type is etiologic for a particular disease if and only if genetic variants near genes with high expression specificity in the cell type are enriched for heritability. Moreover, the CELLECT cell type prioritization assumes a polygenic trait architecture. Consequently, our approach is unlikely to yield relevant results for traits driven by rare genetic mutations (not covered by GWAS) or traits where the heritability is not mediated by transcriptional differences (i.e. changes related to other molecular modalities such as proteins, posttranslational modifications or the microbiome).

Common variation

We restricted our analysis to common variants (HapMap3 SNPs,>5% MAF), as S-LDSC has several limitations when applied to rare variants. Prioritizing cell types using a model that includes both common and rare variants could produce different results. We argue that our results are likely to be robust to changes in the allele frequency spectrum. Firstly, we found that cell types enriched for rare variant obesity genes overlapped with the S-LDSC BMI prioritized cell types (based on common variants). Secondly, a recent study by Zhu and Stephens, 2018 compared the ability of genetic enrichment methods (incl. S-LDSC) to detect the true enrichment signal based on 1000 Genomes Project SNPs and HapMap3 SNPs, and found that all methods (S-LDSC included) produced similar results using the two sets of SNPs as input. Thirdly, rare variants are unlikely to explain the majority of BMI heritability: Gazal et al. estimated the low-frequency variants (MAF <5%) to explain 15% of BMI heritability (Gazal et al., 2018) and recent work (under review) has reported that variants with MAF <10% might explain as much as 51% of BMI heritability [Wainschtein et al., 2019]. In conclusion, cell type prioritization results restricted to common variants are likely to converge with results including rare variants.

Expression heritability mediated by cis- vs trans-eQTLs

As our model assumes that SNPs near genes with high expression specificity in etiologic cell types are enriched for heritability, our model relies on the majority of gene regulatory variants (eQTLs) are located nearby (cis-acting) instead of distant (trans-acting) to the target gene. That is, we assume that heritability of gene expression can be sufficiently explained by cis-acting variation. There are notable examples where the causal regulatory variant act in trans, for example the causal variant located in the first intron of the FTO locus are located >1 Mb from its target regulatory genes IRX3/IRX5 (Claussnitzer et al., 2015; Smemo et al., 2014), but the question how prevailing trans-acting variation is remains unresolved. In support of the sufficiency of cis-variation, one study found that cis-eQTLs explain a substantial proportion of trait heritability (40–80%) (Gamazon et al., 2018). In addition, transcriptome-wide association studies (TWAS) leverage cis-eQTLs to predict expression levels with a 60–80% prediction accuracy (Gamazon et al., 2015; Gusev et al., 2016). In contrast, Liu et al., 2019 report that up to 60–90% of genetic variance in expression is due to trans-acting variation. We acknowledge that trans-acting effects are likely to play an important role in gene expression heritability, but despite promising efforts (Fulco et al., 2019) cell type-specific enhancer to gene maps have not been constructed yet and hence we based CELLECT on cis-regulatory variants only.

Future directions

We envision several improvements of our approach. SNP-to-gene mapping could be improved by levering for instance the ABC model propsed by Fulco et al., 2019 cell types to predict enhancer to promoter maps to assign regulatory variants to genes. Alternatively, SNP-to-gene mapping could be improved by using LD-informed loci definitions centered on SNPs. That is, each SNP would be assigned ESμ value based on the genes within the LD defined loci boundaries of the SNP (e.g. genes within the region spanned by r2 <0.7).

It would be of interest to explore non-linear relationships between expression specificity and heritability and to test whether down-regulated genes contribute to cell type heritability. Such analysis would be possible leverage an extension of LDSC referred to as signed linkage disequilibrium profile regression (Reshef et al., 2018), which allows detection of directional effects of signed functional annotations.

Finally, we envision a data-driven approach to select the parameters of our approach, for example SNP-to-gene parameters or non-linear transformation of expression specificity. A genetic trait with known etiologic cell types could be used to select the set of parameters resulting in the most significant prioritization of the known etiologic cell types.

Levering the omnigenic model to detect disease causal cell types

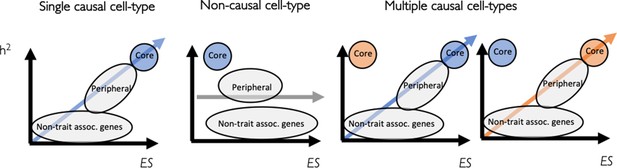

In the following we attempted to unify our cell type prioritization model with the so-called omnigenic hypothesis proposed by Prichard and colleagues (Boyle et al., 2017; Liu et al., 2019). We here describe the key assumptions and approach behind CELLECT.

Key assumptions and observations

Our key assumption is that in order for a disease to manifest in a given tissue or cell type the set of disease causal genes must be active and expressed in the given tissue or cell type. That is, we assume that high/increased expression and not decreased/lack-of expression of a gene results in the given trait or disease (henceforth simply referred to as disease). This is a strong assumption to make about complex traits and it may not hold for all diseases (e.g. cancer).

We assume that for a cell type to be causal to a given disease, it should express one or more core genes. We note an important distinction between this assumption and the stronger more commonly used assumption that causal, disease cell types enrich for expression of all core genes (e.g. testing for top expressed cell type genes for enrichment of genes harboring rare variants Skene et al., 2018). Because core genes can function in orthologous pathways, we only assume expression of one or more core genes.

We assume that core genes have cell type specific etiologic roles for common complex traits. This assumption is justified by the strong negative selection of mutations in genes with a ubiquitous function broadly affecting cellular function. (Detrimental mutations in genes with non-redundant basic cellular function will not manifest in the population as a common disease.) We note that this only holds true for heritable common diseases. for example core driver cancer genes may have basic biological functions as observed with de novo mutations in TP53.

We reason that the majority of genes localizing in GWAS loci are peripheral genes that are more likely than other genes to exhibit cell type-specific expression. This assumption is justified by two steps of reasoning. Firstly, peripheral genes can only exert their effect on core genes if they are co-expressed in a cell. They must operate within the same network of expressed genes in a cell (see Boyle et al., 2017 Figure 4b). Secondly, GWAS is more well-powered to detect peripheral genes in close proximity to core genes, if a shorter degree of separation between peripheral and core genes increases the effect of the peripheral gene on the core gene (ibid.; Figure 4a). We note that under the ‘small world’ network property of gene regulatory networks, most expressed genes in a cell type are only a few steps from the nearest core gene, possibly making the set of ‘peripheral genes in close proximity to core genes’ quite large.

Biological examples of potential mechanisms

It has been shown that impaired signaling from the primary cilia of MC4R-positive neurons can cause obesity in humans. In vitro and in vivo work from Siljee et al., 2018 demonstrated that MC4R obesity-causing mutations impair the localization of MC4R to the cilia. The discovery of obesity-causal mutations in ADCY3 provided evidence that ADCY3 plays a role in human obesity (Grarup et al., 2018; Saeed et al., 2018). This example may demonstrate how genetic variation in one, herein assumened, peripheral gene, ADCY3, can regulate/impair the function of a core gene, in this case, MC4R, within the energy-regulating melanocortin signaling pathway. The omnigenic model suggests that there are many yet unknown genetic regulators affecting MC4R (potentially also through primary cilia signaling or targeting) and hence contributing to the obesity heritability.

Our results for prioritized cell types could support this distinction between core and peripheral gene. We find that the core gene (MC4R) is co-expressed with the peripheral gene (ADCY3) (Appendix 1—figure 1). MC4R is highly specifically expressed and ADCY3 is moderately specifically expressed.

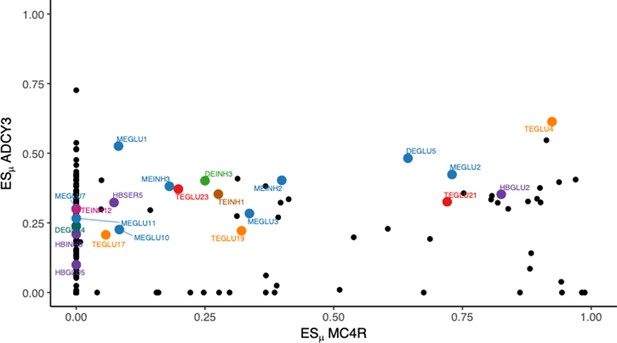

Appendix 1—figure 1
Co-specific expression of Mc4r and Adcy3.

The co-specific expression of Mc4r and Adcy3 may serve as an example on how certain cell types may co-express a core gene (Mc4r in this example) and peripheral genes (Adcy3 in this example). BMI-prioritized cell types are highlighted in color.

The model

Our framework, CELLECT uses continuous LDSC annotations to identify likely disease causal cell types. Here we explain why using continuous (i.e. weighted) annotations is an important improvement over existing studies.

We assume that if a gene is specifically expressed in a given cell type, it is functionally important for that cell type. That is, specifically expressed genes constitute the functionally distinct part of the cell type. For instance, we have shown that DRD2 is specifically expressed in certain cell types from the midbrain, suggesting the functional role of these cell types in the dopamine reward system. ES genes will, by definition, not contain ubiquitous/equally expressed genes (e.g. basic cellular/biological processes). Please also refer to Appendix 2.

Following our above assumptions, for a disease causal cell type we assume the following relationship of cell type specific expression:

ES(trait relevant core genes) ES(trait peripheral genes) >ES(non trait relevant genes)

We are now able to express our model for genetic identification of causal disease cell types. Formally we model a linear relationship between a gene’s disease heritability and cell type expression specificity:

Heritability(gene) ES(gene)

Appendix 1—figure 2 shows the concept of how the two above equations can be used to identify likely disease causal cell types.

Appendix 1—figure 2
Levering the omnigenic model to identify causal cell types using expression specificity.

A linear model can be used to identify causal cell types by testing for association between gene expression specificity and gene heritability. Three scenarios are shown: a causal cell type (left), a non-causal cell type (middle) and multiple causal cell types (right).

In support of this model, we showed that top expression specific genes in BMI-prioritized cell types exhibit higher BMI heritability enrichment than non-expression specific genes.


We here provide a brief summary of the points discussed in the above sections.

Model assumptions and observations

  • The ‘omnigenic’ genetic architecture of complex traits states that so-called peripheral genes (peripheral referring to the core molecular function encoded by the core genes in the cell type) explain the majority of heritability, and as a consequence, identifying heritability enrichment using only core genes, will fail.

  • To identify disease causal cell types, we estimate the disease heritability explained by specifically expressed genes.

  • Likely disease causal cell types have one or more core genes specifically expressed and the specifically expressed genes enrich for disease heritability.

  • Core genes have cell type specific roles and are specifically expressed.

  • Peripheral genes are co-expressed with at least one core gene in the disease-causal cell type.

  • Peripheral genes are more likely than other genes to be specifically expressed.

  • Many peripheral genes are shared among related traits. This leads to a partial overlap between prioritized cell types for related traits. Core genes have little overlap between related traits.


  • We show that the far majority of our prioritized cell types express one or more ‘core’ obesity genes (as defined by the high-confidence obesity genes geneset). See Figure 5—figure supplement 3.

  • We show that top expression specific genes in prioritized cell types have higher BMI heritability enrichment than non-specifically expressed genes (Appendix 4—figure 1).

Appendix 2

CELLEX expression specificity


At the core of using expression data for genetic identification of cell types underlying disease, lies the problem of finding a meaningful vector representation of cell type expression profiles. In our approach, we represent cell types by their expression specificity (ES) profile: a measure of relative gene expression levels. To robustly estimate ES, we developed CELLEX.

Here we provide additional details and limitations of the CELLEX expression specificity framework. We provide a comprehensive benchmark of ES metrics on single-cell RNA-sequencing (scRNA-seq) and show that our combined metric, ESμ, is most robust than single expression specificity measures. For an ES metric benchmark on bulk data we refer to Kryuchkova-Mostacci and Robinson-Rechavi, 2016.

CELLEX expression specificity


We use the term ‘ES metric’ to describe the given metric used to compute ESw (see Appendix 2—figure 1—source data 1 for an overview of the ES metrics used). ESw are gene-level statistics computed for a given ES metric. ESw* are the genes’ likelihood of being specifically expressed given the ES metric. ESμ are the genes’ marginal likelihood of being specifically expressed.

Note that ES values are computed separately for each dataset. Appendix 2—figure 1 provides an overview of the steps.

Appendix 2—figure 1
Overview of CELLEX expression specificity estimation In this work, we used the optional steps for normalization and gene filtering.

We also used ortholog mapping when analyzing mouse scRNA-seq data.

Expression data pre-processing and normalization

For this work we normalized gene expression values using the default normalization approach for CELLEX (described below). We note that the default CELLEX normalization can be disabled to allow a for data input that has been normalized using a customized approach. The customized normalization approach must not return negative values, as the ES metric calculation assumes that all normalized input values are positive or zero.

Default normalization

As described above, we scale expression values to a common transcript count with n = 10,000 transcripts as a scaling factor. Next, we apply log-transformation (xlog=log(x+1)). We apply this normalization procedure for the following three reasons:

  1. Common transcript count makes expression values comparable among cells.

  2. Log-normalization is a variance-stabilizing transformation that dampens the effect of the dynamic range. It transforms the expression data into a more well-behaved distribution that is better approximated by a normal distribution (we later compute ANOVA and t-statistics that assume normality of the data).

  3. This normalization procedure is a common, robust and proven-to-work method for scRNA-seq (it is the default normalization technique for standard single-cell analysis packages such as Seurat; Satija et al., 2015). This normalization method was also used by the authors of the two primary data sets analyzed in our study: the Mouse Nervous System (Zeisel et al., 2018) and Tabula Muris (Tabula Muris Consortium et al., 2018) datasets.

Despite the above strengths, we note two limitations of this normalization approach:

  • When estimating the common transcript count ‘scaling factors’ for each cell, we assume each cell has the same number of total molecules. This is an overly simplistic assumption as cell size is Townes et al., 2019 generally correlated with the amount of mRNA in the cell.

  • Log-transformation is an empirical choice for variance-stabilizing transformation. Recently developed generalized linear models might provide better normalization (Hafemeister and Satija, 2019; Townes et al., 2019).

We leave it for future work to explore additional normalization procedures and approaches to correct for confounding factors between cell types prior to estimating ES weights.

Gene filtering

We observed that the ES metrics were prone to falsely estimating genes with ‘sporadic’ gene expression levels as highly expression specific. We excluded these genes to reduce bias in the null expectation for ESw and hence reduce false positive ES genes. Most notably, the EP metric would estimate genes with very low expression appearing in few number of cells as highly expression specific. To solve this problem, we sought to estimate the background noise level for each gene, enabling us to distinguish between genes with undetectable sporadic expression levels and genes with confident expression levels. Following the approach described in Skene et al., 2018, we reasoned that genes with sporadic expression would fail to be statistically differentially expressed in at least one cell type. We modelled this using one-way ANOVA with cell type annotations as the grouping factor and excluded all genes with p>10−5.

Invariance to gene filtering

The gene filtering and mouse-human ortholog mapping steps considerably reduces the number of genes in the dataset. We computed ES weights after these gene filtering steps. All ES metrics except EP were invariant to the 'gene universe' of the dataset (all genes in the final dataset), consequently ESw are generally robust to gene filtering operations. However, ESw* (denoting a genes likelihood of being specifically expressed) is sensitive to the ‘gene universe’ as we use a null distribution pooled across genes to determine ESw significance (see the below section ‘Determining the set of ES genes for each ES metric’ for details).

Choice of ES metrics

To implement a ‘wisdom of the crowd’ approach, we aimed at combining a diverse set of ES metrics. We choose ES metrics based on their documented evidence to identify tissue expression specificity based on bulk expression data (Kryuchkova-Mostacci and Robinson-Rechavi, 2016) or if they had been successfully applied on scRNA-seq datasets. Lastly, we aimed for metrics to estimate over-expression and not under-expression compared to other cell types.

Although we incorporated a t-test for differential expression as part of our ES metrics, we reasoned that test statistics or P-values from differential expression tests – for example DESeq2 (Love et al., 2014), MAST (Finak et al., 2015) – were not sufficient for making a useful ES metric. As a result, we did not choose to build ESµ purely from DE test statistics. The result of DE tests was a list of genes ranked by the uncertainty or signal-to-noise ratio (P-value) of the estimate for difference in expression between cell type populations. For instance, a gene exhibiting a subtle difference in expression between two cell types and very low expression variance, would result in a highly significant DE P-value. A useful ES metric should not be biased towards assigning high expression specificity to identifying genes with low variance, in part because the variance of gene expression is confounded by the cell type clustering resolution. Cell types with high heterogeneity will have higher variance of expression, resulting in downward-biased estimates of expression specificity for these cell populations when using a DE test as ES metric. In summary, our ES metrics do not seek to capture the uncertainty of difference in expression, but instead the relative magnitude of difference in expression between cell types.

Overview of ES metrics used in this study

We here provide a short overview of ES metrics and their interpretation. In Appendix 2—source data 1 we use c to denote the focal cell type and g to denote the gene for expression specificity estimation.

ES metrics formula

For all formulas, we calculate μg, c as the average expression of gene g in cell type c in a dataset with C cell types and G genes.

Gene Enrichment Score

GES is computed as the fold-change weighted by the fraction of cells expressing the gene. Zeisel et al., 2018 showed that this measure was effective at identifying marker genes for cell types in the nervous system.

GESg, c =μg, c μg, c-fg, c fg, c-

Here  μg,c- is the average expression of all other cell types, fg, c is fraction of cells in cell type c with non-zero expression of gene g, and fg, c- is the fraction of cells with non-zero expression in all other cell types.

Expression Proportion

EP is calculated by dividing the expression of each gene in each cell type by the total expression of that gene in all cell types. Intuitively EP estimates the proportion of g’s total mean expression contributed by cell type c.

To remove the effect of differences in total expression between cell types, Skene et al., (2018) first normalize μg, c by the total expression of cell type:

μ*g, c=μg, cg'Gμg', c

EP is then calculated as:

EPg, c =μ*g, cc'Cμ*g, c'

We note that the first normalization step has no effect on our results, since we use common molecule count normalized expression data.

Normalized Specificity Index

The Normalized Specificity Index (NSI) is modified from Specificity Index (Dougherty et al., 2010). Intuitively NSI estimates the average quantile (or relative rank) of gene g’s mean expression fold-change across all cell types. NSI is given by the formula:

NSIg, c = kcKrankgμg, c+ϵμg, k+ϵ-1G-1/(k-1)

Where rankg(μg,c / μg,k) gives the position of gene g in a descending-ordered list of ‘fold-change’ values for all genes, ϵ is a small numerical constant to prevent the fold-change from going to infinity as the denominator of the fold-change goes to zero.

We modified the SI metric from Dougherty et al., 2010 for two reasons. Firstly, SI was originally developed for bulk gene expression data, which makes it less well-suited for count-based scRNA-seq, which is comprises an inflation of zero values. Secondly, SI values may take on arbitrary large values depending on the number of input genes, which makes the resulting SI values hard to interpret. We sought to normalize the SI scale to an intuitive [0–1] scale. Specially, we made three relevant modifications:

  1. NSI is scaled by the number of genes to obtain a [0–1] scale.

  2. NSI resolve ties using the minimum value instead of the average. This is relevant for sparse scRNA-seq where many genes will be tied for zero values.

  3. NSI contains a small constant, ϵ, to prevent SI from going to infinity as the denominator of the fold-change goes to zero.

We used the specificity.index() function of the pSI R package (v1.1, release 2014-01-30) as comparison for our modifications.

Differential Expression T-statistic

We compute the t-statistic for gene g as a measure of differential expression between the cell type c and all other cell types.

DETg, c =μg, c- μg, c-sg1/nc+1/nc-

Here, as above, μg, c- is the average expression of all other cell types, nc is the number of cells in cell type c, nc- is the number of cells in all other cell types, and sg is the pooled standard deviation estimate for gene g given by:


Determining the set of ES genes for each ES metric

A key step in our approach is determining the set of ES genes for each ES metric. For each cell type we determined the set of specifically expressed genes, Gs, by testing the null hypothesis that a gene is more specific to a given cell type compared to cells selected at random. We compute empirical P-values of ESw by comparing observed weights to ‘null’ weights obtained by permuting the dataset’s cell type annotations.

Null distribution

We use an empirical null distribution because ESw for GES, NSI and EP do not have analytic statistical distributions to assess their significance. In addition, the analytical distribution for DET is not well-calibrated for (genome-wide) single-cell DE tests.

To construct our empirical null distribution we shuffled cells corresponding to the null hypothesis: gene X is equally specific to cell type A as it is to randomly selected cells. We constructed the null distribution such that our 'null cell types' had the same number of cells as the observed cell types. We note that in our null distribution, we kept the 'cell entities' and only the genes' average expression will change. Side remark: an alternative approach to constructing the null distribution, would be to shuffle genes corresponding to the null hypothesis that gene A is not more specific for cell type X than randomly selected genes. However, this null variant is not 'scale resistant' and will hence not work if genes are not on the same normalized scale.

Nominal significance cut-off

We use an empirical P-value to find the cut-off between expression specific and non-expression specific genes. We use nominal significance (p<0.05) for this p-value (instead of an FDR adjusted cut-off) because we assume that our method is robust to inclusion of false positive ES genes.

Normalization assumptions for computing ESw*

For each cell type we calculate ESw*, representing the genes’ likelihood of being specifically expressed in a given cell type and for a given ES metric, by rank normalizing ESw for genes in Gs:

ESw*(gene) = rankg(ESw(gene))/|Gs | if gene Gs
ESw*(gene) = 0 if gene Gs

We set ESw*=0 for non-expression-specific genes (non-ES genes). This is important because we assume that we cannot meaningfully distinguish between non-ES genes, and hence they should all be given the same value.

Importantly, the rank normalization corresponds to the assumption that each cell type has a set of expression specific genes exhibiting a linearly increasing likelihood of being expression specific to the cell type. We apply this transformation to ensure ESw* have the same scale before combining into ESμ.

We note that this normalization strategy discards the ‘magnitude’ of the expression specificity (see below section ‘Expression specificity profiles for ES metrics and average expression’ for consequences of this). The linearity assumption essentially 'smooths' the non-linearity of ESw into a linear ESw* scale. We leave it for future work if other normalization strategies (e.g. inverse normal transformation or min/max) could offer an even better trade-off between dynamic range of expression specificity and robustness of the normalization.

Expression specificity profiles for ES metrics and average expression

As discussed above, the magnitude of expression specificity is not captured in ESw* and consequently ESμ. To illustrate this, we plotted expression specificity profiles for two genes from the Mouse Nervous System dataset (Appendix 2—figure 2). The Agrp gene shows the same expression specificity profiles for ES metrics and log-transformed mean expression; only few cell types have high average expression levels (several order of magnitudes higher than the other cell types). The Pomc gene exhibits a slightly different expression specificity profile as it is more ubiquitously expressed. For both genes, the cell types with the highest average expression were also the top expression specific genes across most ES metrics.

Appendix 2—figure 2
Expression specificity profile for POMC (left) and AGRP (right) AGRP is expressed in few cell types and POMC is expressed in slightly more cell types.

Each panel row shows a different ES metric (normalized average expression is shown in the bottom row panels). The plot shows gene ESw (y-axis) for each cell type (x-axis, ordered by increasing values of ESw). The five cell types with the largest ESw are highlighted. ESw values are estimated from the Mouse Nervous System dataset.

Limitations of ES

Expression specificity is a relative measure as it depends on the background compendium of cell types included in the dataset. This means that we would obtain dramatically different ESμ values for for example a neuronal cell type computed on the full Mouse Nervous System dataset and on a subset consisting only of the neuronal cell types. As a consequence, ESμ values for similar cell types in two different datasets might be difficult to compare if they are computed on different background cell type compendia. Because expression specificity is inherently context dependent, there is a need for a ‘common reference’ dataset to ensure uniformity of values. We leave this for future work to explore.

Future directions

Preprocessing of ES

Gene expression imputation methods could be used to alleviate drop-out effects (missing values) causing downward bias of the cell type average expression estimates.

Alternatives to rank ESw* normalization

We expect that other normalization strategies could offer a better trade-off between dynamic range of expression specificity and robustness of the normalization.

Explore additional ES metrics

We find it unlikely that the four ES metrics used in this work captures all aspects of cell type expression specificity. It would be highly relevant to explore additional ES metrics.

Context dependence of ES

We envision two strategies to combat the context dependency of ES values. One solution is to calculate a 'dataset diversity score' that measures diversity of the background compendium of cell types included in the dataset. This score could then potentially be taken into consideration when interpreting the results. A second solution could be including a ‘common reference’ dataset as background compendium of cell types. For example, use Seurat data integration methods (Stuart et al., 2019; Butler et al., 2018) to align the Tabula Muris dataset with the dataset of interest.

Expression specificity robustness analysis


ES is inherently dependent on the cell type composition of the dataset. Still, the ESw* should primarily reflect the properties of the cell type and not the context of the dataset. For example, we wish to obtain similar ESw* when we replicate a scRNA-seq experiment even if the cell type composition has shifted slightly. In other words, it is desirable for an ES metric to produce similar ESw* in varying contexts of cell type composition. We here aim at assess this characteristic: the robustness of ES metrics. A robust metric will yield similar results in changing cell type contexts.


To assess the robustness of ES metrics, we defined a Robustness Score (RS), which measures the ability of an ES metric to reproduce ESw* in changing cell type computations. We used ESw*-baseline to denote ESw* of a selected focal cell type computed on the full dataset, that is all cell types. Further, ESw*-subset denotes ESw* of the focal cell type computed on a random subset of the data. For a given focal cell type and data-subset-proportion, we performed the following procedure:

  1. Create a subset of the dataset by randomly sampling the specified subset proportion (e.g. 20%) of cell types from the full dataset. The focal cell type is excluded during sampling.

  2. Add the focal cell type to the sub-sampled dataset.

  3. Compute ESw* for the focal cell type to obtain ESw*-subset.

  4. Compute Pearson’s correlation coefficients between ESw*--baseline and ESw*--subset to obtain RS-subset.

The sampling procedure was repeated 100 times for each ES metric and data subset proportion. When computing RS-subset, we adjusted for zero-inflation by removing genes with zero values in both ESw*-baseline and ESw*-subset. We reported RS values averaged over the 100 repetitions.

We performed the above procedure using 12 distinct Mouse Nervous System cell types as focal cell types (ABC, ACNT1, ACTE1, COP1, DEINH3, EPMB, EPSC, MGL1, OPC, PVM1, TEGLU1, VLMC1). To ensure the generalizability of our results, the 12 focal cell types were selected as representatives of each major cell type class (astrocyte, ependymal, glia, neuronal, oligodendrocyte and vascular cells). We summarized the results of each subset proportion across the 12 focal cell types by computing the mean and standard deviation of the mean RS across cell types.


We observed that ESμ achieved the highest mean RS with low variation across all tested focal cell types (Appendix 2—figure 3). GES exhibited the lowest mean RS with high variation across focal cell types. The mean RS across all ES metrics was generally high (>0.8) for subsets greater than 10% of all cell types. All ES metrics exhibited similar mean RS for subsets greater than 50%. In summary, ESμ is the most robust ES metric to changes in cell type composition.

Appendix 2—figure 3
Robustness of ES metrics.

The figure depicts the robustness score (RS) for each ES metric as a function of cell type subset percentage. Each point represents the mean RS across 12 focal cell types. Error bars indicate standard error of the mean.

Appendix 3

Cell type gene co-expression networks


Here we provide detailed methods for the gene module analysis and its limitations.

Gene module analysis

We identified cell type gene co-expression networks using a modified version of the robust WGCNA (rWGCNA) framework proposed by Gandal et al., 2018. To identify gene co-expression networks (gene modules) operating within a cell type, the input to rWGCNA was expression data for individual cell types. Our framework consists of the following steps:


We used the Seurat R package (version 2.3). We filtered out genes expressed in fewer than 20 cells and removed any cell clusters containing fewer than 50 cells. The NormalizeData() function was used for normalizing raw expression values to a common transcript count (with n = 10,000 transcripts as a scaling factor), log-transformation (log(x+1)), before scaling and centering with the ScaleData() command to arrive at a matrix of Z-scores. Principal component analysis was carried out using the RunPCA() function to find 120 Principal Components (PCs). Genes were then ranked by their highest absolute loading value on any given PC and the top 5000 genes within each cell cluster were selected for co-expression analysis. We mapped mouse genes to orthologous human genes using Ensembl (v. 91), keeping only 1–1 mapping orthologs as done for the ES calcuations.

Robust weighted gene correlation network analysis and adjacency matrix calculation

We used the WGCNA R package (version 1.66). For computing the gene-gene adjacency matrix we used the Pearson correlation coefficient and the signed hybrid network parameter. The pickSoftThreshold() command was used to identify soft thresholding powers. Powers corresponding to the top 95th percentile of network connectivity or above were discarded and the lowest soft threshold power between 1 and 30 to achieve a scale free topology R squared fit of 0.93 was selected; if no powers reached 0.93, the thresholding power with the highest R squared was chosen instead.

rWGCNA consensus topological overlap matrix calculation

The expression data was resampled as described in Gandal et al., 2018; drawing two thirds of the cells at random without replacement 100 times. The consensusTOM() function was used with a consensusQuantile of 0.2 to compute a signed consensus topological overlap matrix (TOM), and genes were then filtered using the output of the goodGenesMS() function called by consensusTOM().

rWGCNA hierarchical clustering

The consensus TOM matrices were converted to distance matrices and the hclust() function was used with the average method to cluster genes hierarchically. The cutreeHybrid() function was used with a deepSplit of 2, minClusterSize of 15 and pamStage set to TRUE to carve the dendrogram into modules. The mergeCloseModules() function was used to compute module eigengenes, the vector of cell embeddings on the first principal component of each module’s expression submatrix. The same function was used to merge modules, using a cutHeight of 0.15 or less, corresponding to a Pearson correlation between module eigengenes of 0.85 or greater.

rWGCNA gene-module connectivity

The module eigengenes and expression matrices were used with the signedKME() function to compute gene-module Pearson correlations, or kMEs, a measure of how close each gene is to each module. To ensure tightly connected modules, genes whose correlations with their assigned modules eigengene was not statistically significant after correcting for multiple testing, using the Benjamini-Hochberg false discovery rate (FDR) method, were removed.

Limitations of identifying gene modules from scRNA-seq data

In this section we discuss the relevance and limitations of identifying gene co-expression networks on a by-cell type basis. Some of these limitations have also been discussed elsewhere (Chen and Mar, 2018; Crow and Gillis, 2018) and may explain the lack of identified BMI prioritized cell type gene co-expression networks. While WGCNA has primarily been applied to bulk RNA-seq expression data, several recent studies have demonstrated its effectiveness in single-cell data (Nowakowski et al., 2017; Tasic et al., 2016). As gene-gene correlations reflect gene expression variability, WGCNA analysis of heterogeneous bulk expression data consisting of several distinct cell type populations, will result in a coarse set of genes modules, largely reflecting cell type heterogeneity. WGCNA analysis of pure cell type populations from scRNA-seq data will result in more specific genes modules. However, constructing gene networks on pure cell type populations poses another problem: the true gene-gene correlations are more difficult to estimate in expression data with limited gene expression heterogeneity (expression variability). In addition, scRNA-seq data have increased technical noise (dropout effects) compared to bulk RNA-seq data, which reduces the ability to estimate the true gene-gene correlations.

Appendix 4

Heritability of prioritized BMI cell types

Heritability of prioritized BMI cell types

In CELLECT we utilized a continuous representation of cell type expression, assuming there is a positive relationship between genes’ ES values and their importance for a given trait. Stratifying genes into quintiles based on their ES values for a given cell type and calculating the enrichment of BMI heritability for each stratum, showed that an increase in ES was reflected in an increase in BMI heritability for the BMI-prioritized cell types (Appendix 4—figure 1a; first row). Other well-powered UKBB anthropometric traits GWAS did not exhibit any relationship between ES quintile and trait heritability for the BMI-prioritized cell types (Appendix 4—figure 1a; second and third rows). These results indicate, that our models are well calibrated. To better understand the proportion of BMI heritability explained by variants mapped to a certain cell type, we compared the proportion of BMI heritability explained by each of the 10 cell types to the proportion trait-heritability explained by cell types known to play a key role in the given trait or disease. We found that the most enriched cell type for BMI, was the cortical TEGLU4 cell type, which comprised specifically expressed genes with genetic variants accounting for 28.5% of the SNP heritability (h2g) for BMI (Appendix 4—figure 1b). Similarly, we estimated that SNPs mapped to genes specifically expressed in the pancreatic beta cells, an insulin secreting cell type playing a pivotal role in type 2 diabetes, explained 27.8% of the heritability for type 2 diabetes; hepatocytes explained 27.1% in the heritability for low-density lipoprotein (Teslovich et al., 2010); T cells explained 20.7% of the heritability for rheumatoid arthritis (Okada et al., 2014); and, finally, mesenchymal stem cells explained 20.4% of the heritability for human height (Loh et al., 2018Appendix 4—figure 1b). These results show that genetic susceptibility to obesity conferred by variants mapped to genes specifically expressed in the cortical cell type roughly corresponds to the heritability conferred by pancreatic beta cell variants on type 2 diabetes.

Appendix 4—figure 1
Heritability of BMI prioritized cell types.

(a) Heritability enrichment of cell type ESμ intervals. Heritability enrichment was estimated using S-LDSC on cell type ESμ annotations partitioned into five equally spaced intervals and an interval including ESμ=0. The intervals 0 and (0.8–1) represent the heritability enrichment of by the variants with the lowest and highest ESμ values, respectively. Error bars represent 95% confidence intervals. The top, middle and bottom panel show results for BMI, height and waist-hip ratio, respectively. BMI heritability enrichment increases with increasing ESμ value for prioritized cell types. (b) Proportion of BMI heritability explained by prioritized cell types. We used S-LDSC to estimate the proportion of trait SNP heritability explained by each cell type annotation. For comparison we report the proportion of heritability explained by cell types with known etiology for selected traits: type 2 diabetes (T2D), low-density lipoprotein (LDL), rheumatoid arthritis (RA) and human height. Circles are colored by annotation size reflecting the proportion of variants covered by the cell type annotation (a value of one means that all variants were covered). Error bars represent 95% confidence intervals.


    1. Kennedy GC
    (1953) The role of depot fat in the hypothalamic control of food intake in the rat
    Proceedings of the Royal Society of London. Series B, Biological Sciences 140:578–596.
    1. Locke AE
    2. Kahali B
    3. Berndt SI
    4. Justice AE
    5. Pers TH
    6. Day FR
    7. Powell C
    8. Vedantam S
    9. Buchkovich ML
    10. Yang J
    11. Croteau-Chonka DC
    12. Esko T
    13. Fall T
    14. Ferreira T
    15. Gustafsson S
    16. Kutalik Z
    17. Luan J
    18. Mägi R
    19. Randall JC
    20. Winkler TW
    21. Wood AR
    22. Workalemahu T
    23. Faul JD
    24. Smith JA
    25. Zhao JH
    26. Zhao W
    27. Chen J
    28. Fehrmann R
    29. Hedman ÅK
    30. Karjalainen J
    31. Schmidt EM
    32. Absher D
    33. Amin N
    34. Anderson D
    35. Beekman M
    36. Bolton JL
    37. Bragg-Gresham JL
    38. Buyske S
    39. Demirkan A
    40. Deng G
    41. Ehret GB
    42. Feenstra B
    43. Feitosa MF
    44. Fischer K
    45. Goel A
    46. Gong J
    47. Jackson AU
    48. Kanoni S
    49. Kleber ME
    50. Kristiansson K
    51. Lim U
    52. Lotay V
    53. Mangino M
    54. Leach IM
    55. Medina-Gomez C
    56. Medland SE
    57. Nalls MA
    58. Palmer CD
    59. Pasko D
    60. Pechlivanis S
    61. Peters MJ
    62. Prokopenko I
    63. Shungin D
    64. Stančáková A
    65. Strawbridge RJ
    66. Sung YJ
    67. Tanaka T
    68. Teumer A
    69. Trompet S
    70. van der Laan SW
    71. van Setten J
    72. Van Vliet-Ostaptchouk JV
    73. Wang Z
    74. Yengo L
    75. Zhang W
    76. Isaacs A
    77. Albrecht E
    78. Ärnlöv J
    79. Arscott GM
    80. Attwood AP
    81. Bandinelli S
    82. Barrett A
    83. Bas IN
    84. Bellis C
    85. Bennett AJ
    86. Berne C
    87. Blagieva R
    88. Blüher M
    89. Böhringer S
    90. Bonnycastle LL
    91. Böttcher Y
    92. Boyd HA
    93. Bruinenberg M
    94. Caspersen IH
    95. Chen YI
    96. Clarke R
    97. Daw EW
    98. de Craen AJM
    99. Delgado G
    100. Dimitriou M
    101. Doney ASF
    102. Eklund N
    103. Estrada K
    104. Eury E
    105. Folkersen L
    106. Fraser RM
    107. Garcia ME
    108. Geller F
    109. Giedraitis V
    110. Gigante B
    111. Go AS
    112. Golay A
    113. Goodall AH
    114. Gordon SD
    115. Gorski M
    116. Grabe HJ
    117. Grallert H
    118. Grammer TB
    119. Gräßler J
    120. Grönberg H
    121. Groves CJ
    122. Gusto G
    123. Haessler J
    124. Hall P
    125. Haller T
    126. Hallmans G
    127. Hartman CA
    128. Hassinen M
    129. Hayward C
    130. Heard-Costa NL
    131. Helmer Q
    132. Hengstenberg C
    133. Holmen O
    134. Hottenga JJ
    135. James AL
    136. Jeff JM
    137. Johansson Å
    138. Jolley J
    139. Juliusdottir T
    140. Kinnunen L
    141. Koenig W
    142. Koskenvuo M
    143. Kratzer W
    144. Laitinen J
    145. Lamina C
    146. Leander K
    147. Lee NR
    148. Lichtner P
    149. Lind L
    150. Lindström J
    151. Lo KS
    152. Lobbens S
    153. Lorbeer R
    154. Lu Y
    155. Mach F
    156. Magnusson PKE
    157. Mahajan A
    158. McArdle WL
    159. McLachlan S
    160. Menni C
    161. Merger S
    162. Mihailov E
    163. Milani L
    164. Moayyeri A
    165. Monda KL
    166. Morken MA
    167. Mulas A
    168. Müller G
    169. Müller-Nurasyid M
    170. Musk AW
    171. Nagaraja R
    172. Nöthen MM
    173. Nolte IM
    174. Pilz S
    175. Rayner NW
    176. Renstrom F
    177. Rettig R
    178. Ried JS
    179. Ripke S
    180. Robertson NR
    181. Rose LM
    182. Sanna S
    183. Scharnagl H
    184. Scholtens S
    185. Schumacher FR
    186. Scott WR
    187. Seufferlein T
    188. Shi J
    189. Smith AV
    190. Smolonska J
    191. Stanton AV
    192. Steinthorsdottir V
    193. Stirrups K
    194. Stringham HM
    195. Sundström J
    196. Swertz MA
    197. Swift AJ
    198. Syvänen AC
    199. Tan ST
    200. Tayo BO
    201. Thorand B
    202. Thorleifsson G
    203. Tyrer JP
    204. Uh HW
    205. Vandenput L
    206. Verhulst FC
    207. Vermeulen SH
    208. Verweij N
    209. Vonk JM
    210. Waite LL
    211. Warren HR
    212. Waterworth D
    213. Weedon MN
    214. Wilkens LR
    215. Willenborg C
    216. Wilsgaard T
    217. Wojczynski MK
    218. Wong A
    219. Wright AF
    220. Zhang Q
    221. Brennan EP
    222. Choi M
    223. Dastani Z
    224. Drong AW
    225. Eriksson P
    226. Franco-Cereceda A
    227. Gådin JR
    228. Gharavi AG
    229. Goddard ME
    230. Handsaker RE
    231. Huang J
    232. Karpe F
    233. Kathiresan S
    234. Keildson S
    235. Kiryluk K
    236. Kubo M
    237. Lee JY
    238. Liang L
    239. Lifton RP
    240. Ma B
    241. McCarroll SA
    242. McKnight AJ
    243. Min JL
    244. Moffatt MF
    245. Montgomery GW
    246. Murabito JM
    247. Nicholson G
    248. Nyholt DR
    249. Okada Y
    250. Perry JRB
    251. Dorajoo R
    252. Reinmaa E
    253. Salem RM
    254. Sandholm N
    255. Scott RA
    256. Stolk L
    257. Takahashi A
    258. Tanaka T
    259. van 't Hooft FM
    260. Vinkhuyzen AAE
    261. Westra HJ
    262. Zheng W
    263. Zondervan KT
    264. Heath AC
    265. Arveiler D
    266. Bakker SJL
    267. Beilby J
    268. Bergman RN
    269. Blangero J
    270. Bovet P
    271. Campbell H
    272. Caulfield MJ
    273. Cesana G
    274. Chakravarti A
    275. Chasman DI
    276. Chines PS
    277. Collins FS
    278. Crawford DC
    279. Cupples LA
    280. Cusi D
    281. Danesh J
    282. de Faire U
    283. den Ruijter HM
    284. Dominiczak AF
    285. Erbel R
    286. Erdmann J
    287. Eriksson JG
    288. Farrall M
    289. Felix SB
    290. Ferrannini E
    291. Ferrières J
    292. Ford I
    293. Forouhi NG
    294. Forrester T
    295. Franco OH
    296. Gansevoort RT
    297. Gejman PV
    298. Gieger C
    299. Gottesman O
    300. Gudnason V
    301. Gyllensten U
    302. Hall AS
    303. Harris TB
    304. Hattersley AT
    305. Hicks AA
    306. Hindorff LA
    307. Hingorani AD
    308. Hofman A
    309. Homuth G
    310. Hovingh GK
    311. Humphries SE
    312. Hunt SC
    313. Hyppönen E
    314. Illig T
    315. Jacobs KB
    316. Jarvelin MR
    317. Jöckel KH
    318. Johansen B
    319. Jousilahti P
    320. Jukema JW
    321. Jula AM
    322. Kaprio J
    323. Kastelein JJP
    324. Keinanen-Kiukaanniemi SM
    325. Kiemeney LA
    326. Knekt P
    327. Kooner JS
    328. Kooperberg C
    329. Kovacs P
    330. Kraja AT
    331. Kumari M
    332. Kuusisto J
    333. Lakka TA
    334. Langenberg C
    335. Marchand LL
    336. Lehtimäki T
    337. Lyssenko V
    338. Männistö S
    339. Marette A
    340. Matise TC
    341. McKenzie CA
    342. McKnight B
    343. Moll FL
    344. Morris AD
    345. Morris AP
    346. Murray JC
    347. Nelis M
    348. Ohlsson C
    349. Oldehinkel AJ
    350. Ong KK
    351. Madden PAF
    352. Pasterkamp G
    353. Peden JF
    354. Peters A
    355. Postma DS
    356. Pramstaller PP
    357. Price JF
    358. Qi L
    359. Raitakari OT
    360. Rankinen T
    361. Rao DC
    362. Rice TK
    363. Ridker PM
    364. Rioux JD
    365. Ritchie MD
    366. Rudan I
    367. Salomaa V
    368. Samani NJ
    369. Saramies J
    370. Sarzynski MA
    371. Schunkert H
    372. Schwarz PEH
    373. Sever P
    374. Shuldiner AR
    375. Sinisalo J
    376. Stolk RP
    377. Strauch K
    378. Tönjes A
    379. Trégouët DA
    380. Tremblay A
    381. Tremoli E
    382. Virtamo J
    383. Vohl MC
    384. Völker U
    385. Waeber G
    386. Willemsen G
    387. Witteman JC
    388. Zillikens MC
    389. Adair LS
    390. Amouyel P
    391. Asselbergs FW
    392. Assimes TL
    393. Bochud M
    394. Boehm BO
    395. Boerwinkle E
    396. Bornstein SR
    397. Bottinger EP
    398. Bouchard C
    399. Cauchi S
    400. Chambers JC
    401. Chanock SJ
    402. Cooper RS
    403. de Bakker PIW
    404. Dedoussis G
    405. Ferrucci L
    406. Franks PW
    407. Froguel P
    408. Groop LC
    409. Haiman CA
    410. Hamsten A
    411. Hui J
    412. Hunter DJ
    413. Hveem K
    414. Kaplan RC
    415. Kivimaki M
    416. Kuh D
    417. Laakso M
    418. Liu Y
    419. Martin NG
    420. März W
    421. Melbye M
    422. Metspalu A
    423. Moebus S
    424. Munroe PB
    425. Njølstad I
    426. Oostra BA
    427. Palmer CNA
    428. Pedersen NL
    429. Perola M
    430. Pérusse L
    431. Peters U
    432. Power C
    433. Quertermous T
    434. Rauramaa R
    435. Rivadeneira F
    436. Saaristo TE
    437. Saleheen D
    438. Sattar N
    439. Schadt EE
    440. Schlessinger D
    441. Slagboom PE
    442. Snieder H
    443. Spector TD
    444. Thorsteinsdottir U
    445. Stumvoll M
    446. Tuomilehto J
    447. Uitterlinden AG
    448. Uusitupa M
    449. van der Harst P
    450. Walker M
    451. Wallaschofski H
    452. Wareham NJ
    453. Watkins H
    454. Weir DR
    455. Wichmann HE
    456. Wilson JF
    457. Zanen P
    458. Borecki IB
    459. Deloukas P
    460. Fox CS
    461. Heid IM
    462. O'Connell JR
    463. Strachan DP
    464. Stefansson K
    465. van Duijn CM
    466. Abecasis GR
    467. Franke L
    468. Frayling TM
    469. McCarthy MI
    470. Visscher PM
    471. Scherag A
    472. Willer CJ
    473. Boehnke M
    474. Mohlke KL
    475. Lindgren CM
    476. Beckmann JS
    477. Barroso I
    478. North KE
    479. Ingelsson E
    480. Hirschhorn JN
    481. Loos RJF
    482. Speliotes EK
    483. LifeLines Cohort Study
    484. ADIPOGen Consortium
    485. AGEN-BMI Working Group
    486. CARDIOGRAMplusC4D
    487. ConsortiumCKDGen Consortium
    488. GLGC
    489. ICBP
    490. MAGIC Investigators
    491. MuTHER Consortium
    492. MIGen Consortium
    493. PAGE Consortium
    494. ReproGen Consortium
    495. GENIE Consortium
    496. International Endogene Consortium
    (2015) Genetic studies of body mass index yield new insights for obesity biology
    Nature 518:197–206.
    1. Teslovich TM
    2. Musunuru K
    3. Smith AV
    4. Edmondson AC
    5. Stylianou IM
    6. Koseki M
    7. Pirruccello JP
    8. Ripatti S
    9. Chasman DI
    10. Willer CJ
    11. Johansen CT
    12. Fouchier SW
    13. Isaacs A
    14. Peloso GM
    15. Barbalic M
    16. Ricketts SL
    17. Bis JC
    18. Aulchenko YS
    19. Thorleifsson G
    20. Feitosa MF
    21. Chambers J
    22. Orho-Melander M
    23. Melander O
    24. Johnson T
    25. Li X
    26. Guo X
    27. Li M
    28. Shin Cho Y
    29. Jin Go M
    30. Jin Kim Y
    31. Lee JY
    32. Park T
    33. Kim K
    34. Sim X
    35. Twee-Hee Ong R
    36. Croteau-Chonka DC
    37. Lange LA
    38. Smith JD
    39. Song K
    40. Hua Zhao J
    41. Yuan X
    42. Luan J
    43. Lamina C
    44. Ziegler A
    45. Zhang W
    46. Zee RY
    47. Wright AF
    48. Witteman JC
    49. Wilson JF
    50. Willemsen G
    51. Wichmann HE
    52. Whitfield JB
    53. Waterworth DM
    54. Wareham NJ
    55. Waeber G
    56. Vollenweider P
    57. Voight BF
    58. Vitart V
    59. Uitterlinden AG
    60. Uda M
    61. Tuomilehto J
    62. Thompson JR
    63. Tanaka T
    64. Surakka I
    65. Stringham HM
    66. Spector TD
    67. Soranzo N
    68. Smit JH
    69. Sinisalo J
    70. Silander K
    71. Sijbrands EJ
    72. Scuteri A
    73. Scott J
    74. Schlessinger D
    75. Sanna S
    76. Salomaa V
    77. Saharinen J
    78. Sabatti C
    79. Ruokonen A
    80. Rudan I
    81. Rose LM
    82. Roberts R
    83. Rieder M
    84. Psaty BM
    85. Pramstaller PP
    86. Pichler I
    87. Perola M
    88. Penninx BW
    89. Pedersen NL
    90. Pattaro C
    91. Parker AN
    92. Pare G
    93. Oostra BA
    94. O'Donnell CJ
    95. Nieminen MS
    96. Nickerson DA
    97. Montgomery GW
    98. Meitinger T
    99. McPherson R
    100. McCarthy MI
    101. McArdle W
    102. Masson D
    103. Martin NG
    104. Marroni F
    105. Mangino M
    106. Magnusson PK
    107. Lucas G
    108. Luben R
    109. Loos RJ
    110. Lokki ML
    111. Lettre G
    112. Langenberg C
    113. Launer LJ
    114. Lakatta EG
    115. Laaksonen R
    116. Kyvik KO
    117. Kronenberg F
    118. König IR
    119. Khaw KT
    120. Kaprio J
    121. Kaplan LM
    122. Johansson A
    123. Jarvelin MR
    124. Janssens AC
    125. Ingelsson E
    126. Igl W
    127. Kees Hovingh G
    128. Hottenga JJ
    129. Hofman A
    130. Hicks AA
    131. Hengstenberg C
    132. Heid IM
    133. Hayward C
    134. Havulinna AS
    135. Hastie ND
    136. Harris TB
    137. Haritunians T
    138. Hall AS
    139. Gyllensten U
    140. Guiducci C
    141. Groop LC
    142. Gonzalez E
    143. Gieger C
    144. Freimer NB
    145. Ferrucci L
    146. Erdmann J
    147. Elliott P
    148. Ejebe KG
    149. Döring A
    150. Dominiczak AF
    151. Demissie S
    152. Deloukas P
    153. de Geus EJ
    154. de Faire U
    155. Crawford G
    156. Collins FS
    157. Chen YD
    158. Caulfield MJ
    159. Campbell H
    160. Burtt NP
    161. Bonnycastle LL
    162. Boomsma DI
    163. Boekholdt SM
    164. Bergman RN
    165. Barroso I
    166. Bandinelli S
    167. Ballantyne CM
    168. Assimes TL
    169. Quertermous T
    170. Altshuler D
    171. Seielstad M
    172. Wong TY
    173. Tai ES
    174. Feranil AB
    175. Kuzawa CW
    176. Adair LS
    177. Taylor HA
    178. Borecki IB
    179. Gabriel SB
    180. Wilson JG
    181. Holm H
    182. Thorsteinsdottir U
    183. Gudnason V
    184. Krauss RM
    185. Mohlke KL
    186. Ordovas JM
    187. Munroe PB
    188. Kooner JS
    189. Tall AR
    190. Hegele RA
    191. Kastelein JJ
    192. Schadt EE
    193. Rotter JI
    194. Boerwinkle E
    195. Strachan DP
    196. Mooser V
    197. Stefansson K
    198. Reilly MP
    199. Samani NJ
    200. Schunkert H
    201. Cupples LA
    202. Sandhu MS
    203. Ridker PM
    204. Rader DJ
    205. van Duijn CM
    206. Peltonen L
    207. Abecasis GR
    208. Boehnke M
    209. Kathiresan S
    (2010) Biological, clinical and population relevance of 95 loci for blood lipids
    Nature 466:707–713.
    1. Turcot V
    2. Lu Y
    3. Highland HM
    4. Schurmann C
    5. Justice AE
    6. Fine RS
    7. Bradfield JP
    8. Esko T
    9. Giri A
    10. Graff M
    11. Guo X
    12. Hendricks AE
    13. Karaderi T
    14. Lempradl A
    15. Locke AE
    16. Mahajan A
    17. Marouli E
    18. Sivapalaratnam S
    19. Young KL
    20. Alfred T
    21. Feitosa MF
    22. Masca NGD
    23. Manning AK
    24. Medina-Gomez C
    25. Mudgal P
    26. Ng MCY
    27. Reiner AP
    28. Vedantam S
    29. Willems SM
    30. Winkler TW
    31. Abecasis G
    32. Aben KK
    33. Alam DS
    34. Alharthi SE
    35. Allison M
    36. Amouyel P
    37. Asselbergs FW
    38. Auer PL
    39. Balkau B
    40. Bang LE
    41. Barroso I
    42. Bastarache L
    43. Benn M
    44. Bergmann S
    45. Bielak LF
    46. Blüher M
    47. Boehnke M
    48. Boeing H
    49. Boerwinkle E
    50. Böger CA
    51. Bork-Jensen J
    52. Bots ML
    53. Bottinger EP
    54. Bowden DW
    55. Brandslund I
    56. Breen G
    57. Brilliant MH
    58. Broer L
    59. Brumat M
    60. Burt AA
    61. Butterworth AS
    62. Campbell PT
    63. Cappellani S
    64. Carey DJ
    65. Catamo E
    66. Caulfield MJ
    67. Chambers JC
    68. Chasman DI
    69. Chen Y-DI
    70. Chowdhury R
    71. Christensen C
    72. Chu AY
    73. Cocca M
    74. Collins FS
    75. Cook JP
    76. Corley J
    77. Corominas Galbany J
    78. Cox AJ
    79. Crosslin DS
    80. Cuellar-Partida G
    81. D’Eustacchio A
    82. Danesh J
    83. Davies G
    84. Bakker PIW
    85. Groot MCH
    86. Mutsert R
    87. Deary IJ
    88. Dedoussis G
    89. Demerath EW
    90. Heijer M
    91. Hollander AI
    92. Ruijter HM
    93. Dennis JG
    94. Denny JC
    95. Di Angelantonio E
    96. Drenos F
    97. Du M
    98. Dubé M-P
    99. Dunning AM
    100. Easton DF
    101. Edwards TL
    102. Ellinghaus D
    103. Ellinor PT
    104. Elliott P
    105. Evangelou E
    106. Farmaki A-E
    107. Farooqi IS
    108. Faul JD
    109. Fauser S
    110. Feng S
    111. Ferrannini E
    112. Ferrieres J
    113. Florez JC
    114. Ford I
    115. Fornage M
    116. Franco OH
    117. Franke A
    118. Franks PW
    119. Friedrich N
    120. Frikke-Schmidt R
    121. Galesloot TE
    122. Gan W
    123. Gandin I
    124. Gasparini P
    125. Gibson J
    126. Giedraitis V
    127. Gjesing AP
    128. Gordon-Larsen P
    129. Gorski M
    130. Grabe H-J
    131. Grant SFA
    132. Grarup N
    133. Griffiths HL
    134. Grove ML
    135. Gudnason V
    136. Gustafsson S
    137. Haessler J
    138. Hakonarson H
    139. Hammerschlag AR
    140. Hansen T
    141. Harris KM
    142. Harris TB
    143. Hattersley AT
    144. Have CT
    145. Hayward C
    146. He L
    147. Heard-Costa NL
    148. Heath AC
    149. Heid IM
    150. Helgeland Ø
    151. Hernesniemi J
    152. Hewitt AW
    153. Holmen OL
    154. Hovingh GK
    155. Howson JMM
    156. Hu Y
    157. Huang PL
    158. Huffman JE
    159. Ikram MA
    160. Ingelsson E
    161. Jackson AU
    162. Jansson J-H
    163. Jarvik GP
    164. Jensen GB
    165. Jia Y
    166. Johansson S
    167. Jørgensen ME
    168. Jørgensen T
    169. Jukema JW
    170. Kahali B
    171. Kahn RS
    172. Kähönen M
    173. Kamstrup PR
    174. Kanoni S
    175. Kaprio J
    176. Karaleftheri M
    177. Kardia SLR
    178. Karpe F
    179. Kathiresan S
    180. Kee F
    181. Kiemeney LA
    182. Kim E
    183. Kitajima H
    184. Komulainen P
    185. Kooner JS
    186. Kooperberg C
    187. Korhonen T
    188. Kovacs P
    189. Kuivaniemi H
    190. Kutalik Z
    191. Kuulasmaa K
    192. Kuusisto J
    193. Laakso M
    194. Lakka TA
    195. Lamparter D
    196. Lange EM
    197. Lange LA
    198. Langenberg C
    199. Larson EB
    200. Lee NR
    201. Lehtimäki T
    202. Lewis CE
    203. Li H
    204. Li J
    205. Li-Gao R
    206. Lin H
    207. Lin K-H
    208. Lin L-A
    209. Lin X
    210. Lind L
    211. Lindström J
    212. Linneberg A
    213. Liu C-T
    214. Liu DJ
    215. Liu Y
    216. Lo KS
    217. Lophatananon A
    218. Lotery AJ
    219. Loukola A
    220. Luan J
    221. Lubitz SA
    222. Lyytikäinen L-P
    223. Männistö S
    224. Marenne G
    225. Mazul AL
    226. McCarthy MI
    227. McKean-Cowdin R
    228. Medland SE
    229. Meidtner K
    230. Milani L
    231. Mistry V
    232. Mitchell P
    233. Mohlke KL
    234. Moilanen L
    235. Moitry M
    236. Montgomery GW
    237. Mook-Kanamori DO
    238. Moore C
    239. Mori TA
    240. Morris AD
    241. Morris AP
    242. Müller-Nurasyid M
    243. Munroe PB
    244. Nalls MA
    245. Narisu N
    246. Nelson CP
    247. Neville M
    248. Nielsen SF
    249. Nikus K
    250. Njølstad PR
    251. Nordestgaard BG
    252. Nyholt DR
    253. O’Connel JR
    254. O’Donoghue ML
    255. Olde Loohuis LM
    256. Ophoff RA
    257. Owen KR
    258. Packard CJ
    259. Padmanabhan S
    260. Palmer CNA
    261. Palmer ND
    262. Pasterkamp G
    263. Patel AP
    264. Pattie A
    265. Pedersen O
    266. Peissig PL
    267. Peloso GM
    268. Pennell CE
    269. Perola M
    270. Perry JA
    271. Perry JRB
    272. Pers TH
    273. Person TN
    274. Peters A
    275. Petersen ERB
    276. Peyser PA
    277. Pirie A
    278. Polasek O
    279. Polderman TJ
    280. Puolijoki H
    281. Raitakari OT
    282. Rasheed A
    283. Rauramaa R
    284. Reilly DF
    285. Renström F
    286. Rheinberger M
    287. Ridker PM
    288. Rioux JD
    289. Rivas MA
    290. Roberts DJ
    291. Robertson NR
    292. Robino A
    293. Rolandsson O
    294. Rudan I
    295. Ruth KS
    296. Saleheen D
    297. Salomaa V
    298. Samani NJ
    299. Sapkota Y
    300. Sattar N
    301. Schoen RE
    302. Schreiner PJ
    303. Schulze MB
    304. Scott RA
    305. Segura-Lepe MP
    306. Shah SH
    307. Sheu WH-H
    308. Sim X
    309. Slater AJ
    310. Small KS
    311. Smith AV
    312. Southam L
    313. Spector TD
    314. Speliotes EK
    315. Starr JM
    316. Stefansson K
    317. Steinthorsdottir V
    318. Stirrups KE
    319. Strauch K
    320. Stringham HM
    321. Stumvoll M
    322. Sun L
    323. Surendran P
    324. Swift AJ
    325. Tada H
    326. Tansey KE
    327. Tardif J-C
    328. Taylor KD
    329. Teumer A
    330. Thompson DJ
    331. Thorleifsson G
    332. Thorsteinsdottir U
    333. Thuesen BH
    334. Tönjes A
    335. Tromp G
    336. Trompet S
    337. Tsafantakis E
    338. Tuomilehto J
    339. Tybjaerg-Hansen A
    340. Tyrer JP
    341. Uher R
    342. Uitterlinden AG
    343. Uusitupa M
    344. Laan SW
    345. Duijn CM
    346. Leeuwen N
    347. van Setten J
    348. Vanhala M
    349. Varbo A
    350. Varga TV
    351. Varma R
    352. Velez Edwards DR
    353. Vermeulen SH
    354. Veronesi G
    355. Vestergaard H
    356. Vitart V
    357. Vogt TF
    358. Völker U
    359. Vuckovic D
    360. Wagenknecht LE
    361. Walker M
    362. Wallentin L
    363. Wang F
    364. Wang CA
    365. Wang S
    366. Wang Y
    367. Ware EB
    368. Wareham NJ
    369. Warren HR
    370. Waterworth DM
    371. Wessel J
    372. White HD
    373. Willer CJ
    374. Wilson JG
    375. Witte DR
    376. Wood AR
    377. Wu Y
    378. Yaghootkar H
    379. Yao J
    380. Yao P
    381. Yerges-Armstrong LM
    382. Young R
    383. Zeggini E
    384. Zhan X
    385. Zhang W
    386. Zhao JH
    387. Zhao W
    388. Zhao W
    389. Zhou W
    390. Zondervan KT
    391. Rotter JI
    392. Pospisilik JA
    393. Rivadeneira F
    394. Borecki IB
    395. Deloukas P
    396. Frayling TM
    397. Lettre G
    398. North KE
    399. Lindgren CM
    400. Hirschhorn JN
    401. Loos RJF
    (2018) Protein-altering variants associated with body mass index implicate pathways that control energy intake and expenditure in obesity
    Nature Genetics 50:26–41.
    1. Woods SC
    2. Begg DP
    (2015) Regulation of the motivation to eat
     Current Topics in Behavioral Neurosciences 27:15–34.

Decision letter

  1. Ruth Loos
    Reviewing Editor; The Icahn School of Medicine at Mount Sinai, United States
  2. Naama Barkai
    Senior Editor; Weizmann Institute of Science, Israel

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Mapping heritability of obesity by brain cell types" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Naama Barkai as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and I have drafted this summary to help you prepare a revised submission. As you can see, the concerns are substantial and will need to be addressed, before we can make a final decision. We typically allow two months for revisions, but given the COVID-19, we understand that activities in your lab may have slowed down or even cancelled. Therefore, we are happy to extend this timeframe, if needed.

The two main concerns can be summarized as follows (please, also find their specific concerns below):

For these tool kits to be useful they should be able to identify tissues, cell types and/or genes that are well-established for a given disease. We feel that the validation of the tool kits, at least for obesity, is not convincing at the moment. For example, in the context of obesity, it would seem that the tool kits would also identify PVH and ARH neuronal cell types, given that MC4R and POMC are among the GWAS-identified obesity loci.

Another concern, possibly related to the first concern, is the quality of data used. We believe that the currently used data may not have sufficient sequencing depth to identify all relevant cell types and that differences in the representation of cell types in brain regions that are very heterogeneous, such as the hypothalamus, may impact the results. It will be important to discuss how quality of data impacts results.

Taken together, we need to be convinced that the tool kits generate robust findings. However, this is currently hard to assess as the quality of the data used for this proof-of-principle does not seem great. Therefore, it will be important to discuss how the quality of the data may impact the results generated by the tool kits, ideally by using high-quality data relevant for the disease used in the proof-of-principle example (i.e. obesity).

Reviewer #1:

Thimshel et al. have developed two complimentary computational toolkits, CELLEX and CELLECT, to integrate single cell RNA sequencing data with GWAS data to prioritize cell types that are key in disease. It is based on the assumption that genes that cause disease are expressed in tissues and cell types that are key to the disease. In the past, the authors have shown with tissue enrichment analyses that the brain plays a key role in obesity, consistent with findings from monogenic forms of obesity. With these new pipelines, the aim to target the cell types involved. CELLEX combined 4 gene expression specificity measures into one score to indicate in which cell type a given gene is specifically expressed. CELLECT quantifies the enrichment of heritability in/near genes specifically expressed in certain cell types. By applying CELLEX and CELLECT to genes prioritized from GWAS for BMI, they identified 26 neuronal cell types across the brain, rather than being restricted to a limited number of tissues.

CELLECT depends on other prioritization software, such as S-LDSC, MAGMA, DEPICT, etc. For the current analyses, the authors used S-LDSC. How confident can we be that the genes prioritized are indeed the causal genes and what would the results look like if DEPICT (the authors' own software), or MAGMA were used? At least a justification for using S-LDSC needs to be given.

The assumption for CELLECT is that genes that have a high expression specificity (e.g. in the brain) are more important than genes that are widely expressed (or not expressed much) across cell types and tissues. How confident can one be that this is a correct assumption (across the board)? More specifically, are genes that are widely expressed or not expressed or expressed in other tissues not important in obesity? For example, LEP is predominantly expressed in adipose tissue, but is known to signal to the brain to influence food intake.

While there is indeed growing evidence that not only the hypothalamus plays a key role in obesity, one would expect that well-established obesity genes, tissues and cell types would be identified by new methods.

According to the Tabula Muris Nature paper (2018), it includes cerebellum, cortex, hippocampus and striatum. Can cell types be distinguished by these tissues, in particular given that the hippocampus was the most enriched tissue in Locke et al., one may expect some more specific evidence for this tissue/cell type.

It was stated that coding mutations in "syndromic" forms of obesity were chosen for replication of methods. It should be noted that this list includes genes identified for monogenic and syndromic forms of obesity– it seems the term "syndromic" is not used correctly (ie. include monogenic and syndromic). While not unimportant, it seems that mutations in monogenic forms of early-onset extreme obesity are more relevant for common forms of obesity than syndromic. Therefore, these analyses may be better when stratified.

Reviewer #2:

More than 250 genetic loci have been implicated in human obesity. While others have shown that the GWAS loci are disproportionately expressed in the brain, the key cell types affected is not known. The authors developed a computational pipeline that leverages the growing body of single cell RNA-seq data to identify specific cell types that are likely to be preferentially impacted by the GWAS variants. The authors developed two computational tools that are released as open-source packages for Python programming languages: CELLEX and CELLECT. Application of CELLEX (Cell type EXpression-specificity) to scRNA-seq data integrates four metrics of expression specificity into a single parameter (Expression Specificity, ES) to identify genes that are preferentially expressed in a particular cell type. CELLECT (Cell type Expression specific integration for Complex Traits) integrates the information from CELLEX with GWAS data to identify cell types that have enriched expression of nearby genes, and thus are likely to contribute to the pathophysiology of obesity. They validated the CELLECT tool by showing that it could identify relevant cell types for 10 different GWAS databases (i.e. neurons in the case of the BMI GWAS). Running this analytical pipeline on 256 from the mouse nervous system scRNA-seq and BMI GWAS databases identified 22 enriched cell types in 8 brain regions. Surprisingly, none of these cell types were hypothalamic, which could be explained by sparse sampling of the large number different hypothalamic cell types in the scRNA-seq datasets. Direct interrogation of 347 hypothalamic cell types identified 4 enriched cell types in the VMH, LHA and POA. If their assumptions and models work as predicted, these tools would significantly advance efforts to uncover cell types and circuits regulating susceptibility to obesity, or any other complex trait of interest. While any computational toolkit has its limitations, several issues must be addressed in order to evaluate the reliability of the data generated with this pipeline.

1) The authors need to explain why PVH and ARH neuronal cell types were not identified in their analyses. POMC and MC4R are GWAS loci, and mutations in these genes produce severe obesity in humans and in mouse models. CELLEX/CELLECT implicated a cortical cell type in mediating the effects of mutations in MC4R and the ciliary gene ADCY3. Genetic studies in mice provide strong evidence that disruptions of MC4R or cilia formation in the PVH is sufficient to cause obesity.

(1a) To what degree are the analyses impacted by differences in the representation of cell types in brain regions that are very heterogeneous? Are ES scores inflated in brain regions where the cell types are more homogeneous or better annotated? To what extent will this issue be mitigated as more scRNA-seq datasets are published in heterogeneous tissue such as the hypothalamus?

(1b) The implication of a cortical cell type in mediating influences of MC4R and ADY3 is novel and unexpected. Demonstration that disruption of MC4R or cilia formation in the cortex would go a long way to allay concerns about the validity of the CELLEX/CELLECT toolkit.

Reviewer #3:

The authors report the development of in silico tools that aspire to help identify cell types that participate in body weight regulation by aligning BMI GWAS loci with scRNA-seq datasets spanning an array of tissues. The key assumption for this analysis is that "in order for a disease to manifest in a given tissue or cell type the set of disease-causing genes must be active and expressed in the given tissue or cell type. In other words, the model presupposes that high/increased expression (and not decreased/lack-of expression) of a gene results in disease." The wording states poorly this important assumption. The authors assume that in order for a gene to be important in a specific tissue, it needs to be expressed. It has nothing to do with the change in expression of a certain gene per SNP allele. If the gene is not expressed in a certain cell type, it is unlikely that the presence of one allele or the other influences the disease or trait.

1) In addition to the narrow field of cell state (adult versus development) that Timshel et al. point out, two important limitations/confounds are not highlighted: a) scRNA-seq depth of sequencing limits the detection of lowly expressed upstream signaling components critical to body weight regulation and b) gene prioritization is based on a variety of criteria that vary from one GWAS study to the other. Calling the wrong gene would affect the input in the present analysis.

2) Given all these limitations, a proof of principle example should be tested. Mc4r is the perfect candidate, alas the absence of scRNA-seq data from highly relevant cell types including the PVH. The fact that hypothalamic BMI GWAS enrichment is low runs against the validation of the tool. So does the leptin receptor result, possibly indicative of the limitation of scRNA-seq transcript capture.

3) The authors state that CELLEX is currently not set up for adjustment of unwanted sources of variation such as batch effects. The authors should clarify the magnitude of variation that is tolerated without affecting the ES metrics.

4) Furthermore, given this limitation of CELLEX, how were the different datasets from the hypothalamus combined? Was each dataset run separately through CELLEX or were the 347 cell types combined to a CELLEX input? Does CELLEX take count data as input or does it work with other measures such as TPM?

5) The use of the WGCNA method does not seem to serve a purpose. If the authors need to undertake network analysis, they should utilize methods developed for scRNA-seq or completely omit this from the manuscript.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Genetic mapping of etiologic brain cell types for obesity" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Naama Barkai as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

The reviewers agreed that the paper has improved substantially and the authors have addressed their concerns. Nevertheless, there are some remaining concerns of which we'd like you to address the following [no need to address the individual reviewer comments at this point];

– Both reviewer 1 and 2 would like you to put your results/observations into context; what does one do next with the "identified" genes and tissues.

– Reviewer 2 would like to make sure your tool does readily identify the genes driving the link a specific tissue/cell type.

While experimental validation would be ideal, as suggested be reviewer 3, we don't expect you to do this within the context of the current submission.

For your information; below are the individual reviewer comments.

Reviewer #1:

The authors have been very thorough in addressing my (and other reviewers') concerns.

What's left is putting the generated findings in context; i.e. would you suggest to jump straight to functional follow up, or should researchers further validate observation, and if so, how would you suggest they do this.

Reviewer #2:

If they work as advertised, the analytical tools presented here would permit the unbiased identification of novel neural substrates of genetic influences on complex disease traits. While this information is very valuable if accurate, it also has the potential to lead investigators down a wild goose chase that would waste valuable resources. In their revised manuscript, the authors address concerns about the conspicuous absence of ARH POMC and PVH MC4R neurons from the list of cell types that are likely to be preferentially impacted by the BMI GWAS variants. They add a deeper analysis of existing datasets and are now able to detect a signal in a subset of POMC neurons. The lack of published PVH datasets is an obstacle to performing similar analyses to detect MC4R neurons.

The major question remaining is related to the reliability of the unexpected (and potentially exciting) targets identified. For example, analysis of schizophrenia and intelligence GWAS loci revealed a linkage with some pancreatic cell types and analysis of height loci revealed a linkage with tracheal cell types (Figure 2B). In the context of obesity GWAS loci, the strongest enrichment is in the cerebellum, cortex and amygdala (Figure 5C). For these tools to be valuable to biologists (beyond providing an easy way to generate another figure in a paper), it is critical that they provide a path forward to validating these unexpected associations. At a minimum, the tools should readily identify the specific genes that are driving the linkage to a specific cell type (for example, see the Enrichr platform https://amp.pharm.mssm.edu/Enrichr/). This information would permit biologists to design experiments to investigate the novel relationships identified here.

Reviewer #3:

Lack of "proof of principle" remains a major concern. Assertions to the effect that certain known players such as Pomc do not regulate body weight in adult neurons is questionable (Mol Endocrinol. July 1, 2013; 27(7): 1091-1102). Experimental proof of at least one of these assertions is critical for the demonstration of validity and physiological relevance. As is, it is hard to discern whether these findings were a consequence of methodology rather than biology.


Author response

The two main concerns can be summarized as follows (please, also find their specific concerns below):

For these tool kits to be useful they should be able to identify tissues, cell types and/or genes that are well-established for a given disease. We feel that the validation of the tool kits, at least for obesity, is not convincing at the moment. For example, in the context of obesity, it would seem that the tool kits would also identify PVH and ARH neuronal cell types, given that MC4R and POMC are among the GWAS-identified obesity loci.

We completely agree that Mc4r neurons from the paraventricular hypothalamus (PVH) and Pomc neurons from the arcuate nucleus of the hypothalamus (ARC) undoubtedly play a key role in human obesity. That being said, we have some reservations towards constructing a PVH single-cell validation dataset and about being too focused on using current ARC datasets and especially current Pomc populations as positive controls.

A single-cell atlas for the PVH yet needs to be published and, unfortunately, current datasets of the hypothalamus do not contain any PVH Mc4r+ populations. Campbell et al.(1) refer to one subtype enriching for Mc4r neurons namely n19.Gpr50; we found that Mc4r was specifically expressed in these neurons (ESμ=0.99) and that CELLECT exhibit nominal significance (P=0.04). However, this population likely resides in the ARC and may thus not represent a good robust positive control for canonical Mc4r+ neurons. Constructing a single-cell atlas of the PVH, which is a very heterogeneous area (2), constitutes a considerable effort both in terms of time and costs, and would in our view merit a publication in itself. We added the following sentence to the Discussion: “Second, the datasets used in this work should not be regarded as complete atlases because they are likely to miss relevant cell types such as Mc4r-positive neurons, which are known to play a key role in obesity”.

In the following we will discuss using current Pomc+ populations as positive controls. Despite substantial insights into the role of Pomc in energy regulation, insights into how it impacts predisposition to human obesity remain incomplete. For example, the exact timing during which Pomc exerts its effect on genetic susceptibility remains to be understood in greater detail. Kehra et al. showed that genetic variants associated with body mass index (BMI) start exerting their effect during early childhood and early adolescence which roughly corresponds to early postnatal development in mice (3). Recently, van der Klaauw et al. showed that coding variants associated with extreme obesity enrich for semaphorin genes regulating Pomc maturation, a process taking place during that postnatal developmental time period in mice (4). Consequently, because current hypothalamic transcriptomics data are based on hypothalami from adult mice, one has to be cautious when relying on them as a possible control.

Despite the above-mentioned limitations, we do agree that the paucity of hypothalamic signals needs to be investigated further. Towards that end we performed four additional analyses:

We first focused on confirming that the current hypothalamic single-cell data actually allow for detection of known obesity risk genes. Towards that we, we (a) identified Campbell et al. ARC neuronal subpopulations in which the “high-confidence obesity genes” (from studies of monogenic- and extreme obesity and genes with protein-altering variants associated with obesity) were expressed, and then (b) plotted their expression specificity. Pomc, Lepr and Mc4r were detected in the relevant neuronal cell populations (please see new panel b in Figure 5) and correctly identified by CELLEX as being specifically expressed in these cell types. Among the 23 high-confidence obesity genes, 20 were part of the ARC dataset (dropouts: Lep, Rapgef3, Znf169) and 18 of them had detectable expressio
