NAIP–NLRC4-deficient mice are susceptible to shigellosis

  1. Patrick S Mitchell
  2. Justin L Roncaioli
  3. Elizabeth A Turcotte
  4. Lisa Goers
  5. Roberto A Chavez
  6. Angus Y Lee
  7. Cammie F Lesser
  8. Isabella Rauch
  9. Russell E Vance  Is a corresponding author
  1. Division of Immunology & Pathogenesis, Department of Molecular & Cell Biology, University of California, Berkeley, United States
  2. Department of Microbiology, Harvard Medical School, United States
  3. Broad Institute of Harvard and MIT, United States
  4. Department of Medicine, Division of Infectious Diseases, Massachusetts General Hospital, United States
  5. Cancer Research Laboratory, University of California, Berkeley, United States
  6. Department of Molecular Microbiology and Immunology, Oregon Health and Science University, United States
  7. Immunotherapeutics and Vaccine Research Initiative, University of California, Berkeley, United States
  8. Howard Hughes Medical Institute, University of California, Berkeley, United States
Research Article
  • Cited 1
  • Views 999
  • Annotations
Cite this article as: eLife 2020;9:e59022 doi: 10.7554/eLife.59022

Abstract

Bacteria of the genus Shigella cause shigellosis, a severe gastrointestinal disease that is a major cause of diarrhea-associated mortality in humans. Mice are highly resistant to Shigella and the lack of a tractable physiological model of shigellosis has impeded our understanding of this important human disease. Here, we propose that the differential susceptibility of mice and humans to Shigella is due to mouse-specific activation of the NAIP–NLRC4 inflammasome. We find that NAIP–NLRC4-deficient mice are highly susceptible to oral Shigella infection and recapitulate the clinical features of human shigellosis. Although inflammasomes are generally thought to promote Shigella pathogenesis, we instead demonstrate that intestinal epithelial cell (IEC)-specific NAIP–NLRC4 activity is sufficient to protect mice from shigellosis. In addition to describing a new mouse model of shigellosis, our results suggest that the lack of an inflammasome response in IECs may help explain the susceptibility of humans to shigellosis.

Introduction

Shigella is a genus of Gram-negative enterobacteriaceae that causes ~269 million infections and ~200,000 deaths annually, a quarter of which are of children under the age of five (Khalil et al., 2018). Disease symptoms include fever, abdominal cramping, and inflammatory diarrhea characterized by the presence of neutrophils and, in severe cases, blood (Kotloff et al., 2018). There is no approved vaccine for Shigella and antibiotic resistance continues to rise (Ranjbar and Farahani, 2019). Shigella pathogenesis is believed to be driven by bacterial invasion, replication, and spread within colonic intestinal epithelial cells (IECs). Shigella virulence requires a plasmid-encoded type III secretion system (T3SS) that injects ~30 effectors into host cells (Schnupf and Sansonetti, 2019; Schroeder and Hilbi, 2008). The virulence plasmid also encodes IcsA, a bacterial surface protein that nucleates host actin at the bacterial pole to propel the pathogen through the host cell cytosol and into adjacent epithelial cells (Bernardini et al., 1989; Goldberg and Theriot, 1995).

A major impediment to studying Shigella is the lack of experimentally tractable in vivo models that accurately recapitulate human disease after oral inoculation. Although the infectious dose for Shigella in humans can be as low as 10–100 bacteria (DuPont et al., 1969; DuPont et al., 1989), mice are resistant to high doses of oral Shigella challenge (Freter, 1956; McGuire and Floyd, 1958). Rabbits, guinea pigs, zebrafish, piglets, and macaques have been used to model human infection (Islam et al., 2014; Jeong et al., 2010; Mostowy et al., 2013; Ranallo et al., 2014; Shim et al., 2007; West et al., 2005; Yum and Agaisse, 2020; Yum et al., 2019) but the cost and/or limited tools in these systems impair detailed studies of pathogenesis. Oral streptomycin administration and other treatments facilitate Shigella colonization of the mouse intestinal lumen by ablating the natural colonization resistance provided by the microbiome (Freter, 1956; Martino et al., 2005; Q S Medeiros et al., 2019). However, antibiotic-treated mice do not present with key hallmarks of human disease, likely due to the failure of Shigella to invade and/or establish a replicative niche within the mouse intestinal epithelium.

Inflammasomes are cytosolic multi-protein complexes that initiate innate immune responses upon pathogen detection or cellular stress (Lamkanfi and Dixit, 2014; Rathinam and Fitzgerald, 2016). The NAIP–NLRC4 inflammasome is activated when bacterial proteins, such as flagellin or the rod and needle proteins of the T3SS apparatus, are bound by NAIP family members. Importantly, the Shigella T3SS inner rod (MxiI) and needle (MxiH) proteins are both potent agonists of human and mouse NAIPs (Reyes Ruiz et al., 2017; Yang et al., 2013). Activated NAIPs then co-assemble with NLRC4 to recruit and activate the Caspase-1 (CASP1) protease (Vance, 2015; Zhao and Shao, 2015). CASP1 then cleaves and activates the pro-inflammatory cytokines IL-1β and IL-18 and the pore-forming protein Gasdermin-D (Kayagaki et al., 2015; Shi et al., 2015), initiating a lytic form of cell death called pyroptosis. We and others recently demonstrated that activation of NAIP–NLRC4 in IECs further mediates the cell-intrinsic expulsion of infected epithelial cells from the intestinal monolayer (Rauch et al., 2017; Sellin et al., 2014). In the context of Shigella infection, it is generally accepted that inflammasome-mediated pyroptosis of infected macrophages promotes pathogenesis by initiating inflammation, and by releasing bacteria from macrophages, allowing the bacteria to invade the basolateral side of intestinal epithelial cells (Ashida et al., 2014; Lamkanfi and Dixit, 2010; Schnupf and Sansonetti, 2019). However, it has not been possible to test the role of inflammasomes in the intestine after oral Shigella infection due to the lack of a genetically tractable model. Here, we develop the first oral infection mouse model for Shigella infection that recapitulates human disease, and demonstrate a specific host-protective function for inflammasomes in intestinal epithelial cells.

Results

Shigella appears to suppress the human NAIP–NLRC4 inflammasome

The Shigella T3SS effector OspC3 inhibits cytosolic LPS sensing by the human Caspase-4 (CASP4) inflammasome, but is reported not to bind to the mouse ortholog, Caspase-11 (CASP11) (Kobayashi et al., 2013). We reasoned that inflammasome inhibition may be a general strategy used by Shigella to establish infection, and that such inhibition might occur in a host-specific manner. To test this hypothesis, we compared inflammasome-dependent cell death following Shigella infection of mouse C57BL/6J (B6) bone marrow-derived macrophages (BMMs) and human PMA-differentiated THP1 cells. Infection with the wild-type (WT) Shigella flexneri strain 2457T but not the avirulent BS103 strain (which lacks the virulence plasmid) resulted in CASP1-dependent cell death in both mouse (Sandstrom et al., 2019) and human cells (Figure 1A,B). As reported previously, cell death was negligible in Shigella-infected mouse Nlrc4–/– BMMs (Suzuki et al., 2014; Figure 1A). In contrast, Shigella infection induced similar levels of cell death in WT and NLRC4–/– THP1 cells, indicating that the NAIP–NLRC4 inflammasome is not essential for Shigella-induced CASP1 activation in human cells (Figure 1B).

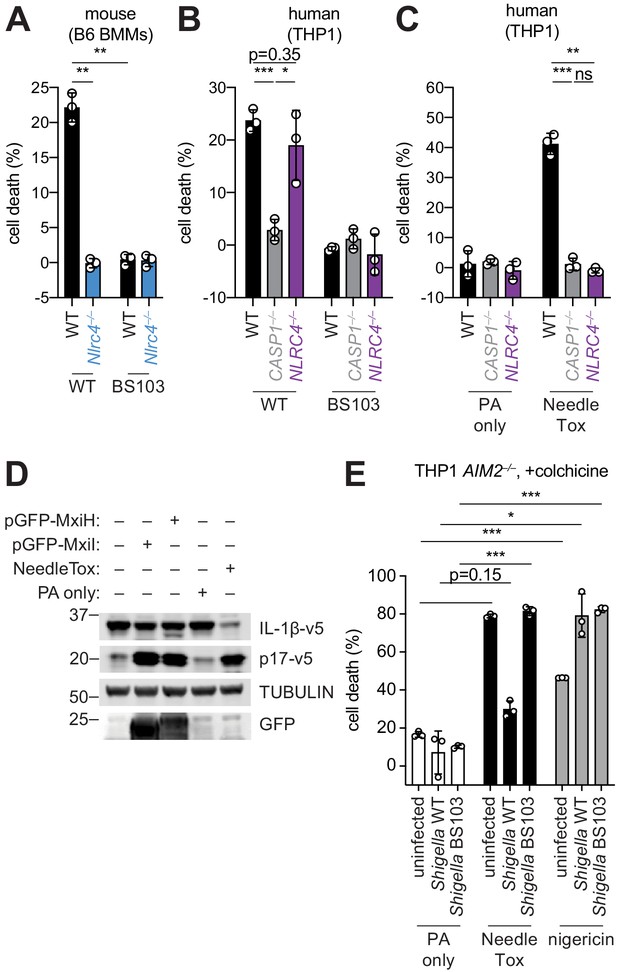

Shigella infection appears to suppress the NAIP–NLRC4 inflammasome.

(A) Shigella infection (MOI 10) of C57BL/6 WT or Nlrc4–/– bone-marrow-derived macrophages (BMMs). Cell death was measured 30 min post-infection (after spinfection, invasion, and washes) by propidium iodide uptake and reported as percent death relative to 100% killing by treatment with Triton X-100. (B) Cell death of Shigella infected THP1 WT, CASP1–/– or NLRC4–/– cells as in (A). Cell death was measured 30 min post-infection. (C) Cell death of THP1 WT, CASP1–/– or NLRC4–/– cells treated with 10 μg/mL PA alone or in combination with 10 μg/mL LFn-MxiH ('NeedleTox'). Cell death was measured 4 hr post-challenge. (D) Human NAIP–NLRC4 inflammasome reconstitution in 293T cells. Inflammasome activation was measured by CASP1-dependent processing of pro-IL-1β to p17 by co-transfection of an empty vector, pGFP-MxiH or pGFP-MxiI, or by treatment with 10 μg/mL PA alone or in combination with 10 μg/mL LFn-MxiH. (E) Colchicine (1 μM)-treated AIM2–/– THP1 cells were either left uninfected or infected for 1 hour (after spinfection, invasion, and washes) with WT or BS103 Shigella (MOI 10), and then treated with 10 μg/mL PA alone, PA + 1.0 μg/mL LFn-MxiH ('NeedleTox'), or 10 μM nigericin. Cell death was measured by PI staining and is reported as cell death relative to TX-100-treated controls per infection type. Data are representative of at least three independent experiments. Mean ± SD is shown, unpaired t-test with Welch’s correction: *p < 0.01, **p < 0.001, ***p < 0.0001, ns = not significant (p > 0.05).

To confirm prior reports (Yang et al., 2013) that the Shigella T3SS MxiH (needle) protein is a potent agonist of the human NAIP–NLRC4 inflammasome, and that THP1 cells express a functional NAIP–NLRC4 inflammasome (Kortmann et al., 2015; Reyes Ruiz et al., 2017), we produced recombinant LFn-MxiH for cytosolic delivery to cells via the protective antigen (PA) channel, as previously described (Rauch et al., 2017; Rauch et al., 2016; von Moltke et al., 2012). Treatment of THP1 cells with LFn-MxiH+PA (‘NeedleTox’), but not PA alone, induced a CASP1- and NLRC4-dependent cell death (Figure 1C). We also confirmed that Shigella MxiH and MxiI (rod) activate human NAIP–NLRC4 in a reconstituted inflammasome assay (Reyes Ruiz et al., 2017; Tenthorey et al., 2014; Figure 1D). These results confirm that the Shigella rod and needle proteins are capable of activating the human NAIP–NLRC4 inflammasome. Moreover, since we observe robust activation of NAIP–NLRC4 in mouse cells (Figure 1A), our data indicate that the Shigella T3SS needle and rod proteins are delivered to the cytosol during infection. However, the presence of other inflammasomes in THP1 cells likely obscures our ability to determine if Shigella activates human NLRC4.

As a strategy to eliminate cell death induced by the AIM2 and PYRIN inflammasomes, we used THP1 AIM2–/– cells treated with colchicine, an inhibitor of PYRIN (Gao et al., 2016). Interestingly, WT Shigella infection did not induce pyroptosis of colchicine-treated AIM2–/– THP1 cells (Figure 1E). Thus, although human THP1 cells express functional NAIP–NLRC4, and Shigella rod and needle proteins can activate NAIP–NLRC4, we nevertheless observe no such activation during Shigella infection. We therefore hypothesized that Shigella might antagonize the human NAIP–NLRC4 inflammasome. To test this hypothesis, AIM2–/– colchicine-treated THP1 cells were either uninfected or infected with the Shigella WT or BS103 strains for 1 hr, and then treated with NeedleTox to induce NAIP–NLRC4-dependent cell death. Interestingly, NeedleTox-induced pyroptosis was significantly reduced in cells previously infected with WT but not avirulent BS103 Shigella (Figure 1E). As a control, treatment with nigericin, an agonist of the NLRP3 inflammasome, induced cell death similarly in cells that were uninfected or infected with either WT or BS103 Shigella strains. Thus, WT Shigella infection appears to specifically suppress activation of the human NAIP–NLRC4 inflammasome in THP1 cells, leading us to hypothesize that NAIP–NLRC4 activation may be a mouse-specific mechanism of resistance to shigellosis. Future studies will be required to confirm these results with further genetic studies, and to address the mechanism of Shigella antagonism of human NAIP–NLRC4, as well as the mechanism of Shigella activation of AIM2 and/or PYRIN.

B6.Naip-deficient mice are susceptible to shigellosis

The mouse NAIP–NLRC4 and CASP11 inflammasomes protect the intestinal epithelium from Salmonella (Crowley et al., 2020; Rauch et al., 2017; Sellin et al., 2014). Thus, the above experiments led us to hypothesize that the failure of Shigella to antagonize mouse inflammasomes might explain the inborne resistance of mice versus humans to Shigella infection. A prediction from this hypothesis is that mice lacking inflammasomes might be susceptible to oral Shigella challenge. Previous studies have demonstrated that the intestinal microbiota of mice provides intrinsic colonization resistance to diverse enteric pathogens, including Shigella (Ducarmon et al., 2019; Freter, 1956; Martino et al., 2005; Q S Medeiros et al., 2019). Thus, to overcome this barrier, we pretreated B6 WT mice orally with streptomycin antibiotic. Consistent with prior studies, we found that antibiotic pre-treatment followed by oral infection allows for robust Shigella colonization of the intestinal lumen and feces compared to water-only controls (Figure 2—figure supplement 1). However, these high lumenal bacterial loads (>108 CFU/g feces) did not cause overt disease (Figure 2 and Figure 2—figure supplement 2). To determine if inflammasomes contribute to the resistance of mice to Shigella, we orally challenged WT and Casp1/11–/– mice with 5 × 107 CFU of Shigella. CASP1 has been previously reported to drive acute inflammation and Shigella clearance during mouse lung infection via the processing and release of IL-1β and IL-18 (Sansonetti et al., 2000). Mice that lack CASP1 and/or CASP11 are also more susceptible to oral infection with Salmonella typhimurium (Crowley et al., 2020). In contrast, B6 WT and Casp1/11–/– mice were similarly resistant to Shigella infection, showing no signs of intestinal inflammation or disease (Figure 2—figure supplement 2A–C). Thus, neither of the primary caspases associated with the canonical or non-canonical inflammasome are essential for resistance to Shigella in the mouse intestine. The NAIP–NLRC4 inflammasome can recruit Caspase-8 (CASP8) in the absence of CASP1, an event which leads to non-lytic cell death and delayed IEC expulsion (Rauch et al., 2017). We reasoned that this compensatory capacity of CASP8 may account for the resistance of Casp1/11–/– mice to Shigella infection. Thus, to test directly if the mouse NAIP–NLRC4 inflammasome mediates resistance to shigellosis, we orally infected streptomycin-pretreated B6 WT and ∆Naip mice with 5 × 107 CFU of Shigella. ∆Naip mice (also called Naip1-6∆/∆ mice Rauch et al., 2016) harbor a large chromosomal deletion that eliminates expression of all mouse Naip genes. Remarkably, Shigella-infected ∆Naip but not WT mice exhibited clear signs of disease (Figure 2). At 2 days post-challenge, ∆Naip mice had altered stool consistency (Figure 2A), cecum shrinkage, and thickening of the cecum and colon tissue (Figure 2A,B). Histological analysis of primary sites of infection (cecum, colon) revealed edema, epithelial hyperplasia, epithelial sloughing, and inflammatory infiltrate (predominantly neutrophils and mononuclear cells in the submucosa and mucosa) exclusively in ∆Naip mice (Figure 2C,D). In contrast, we did not observe any indicators of inflammation in ∆Naip mice infected with the avirulent BS103 strain (Figure 2C,D).

Figure 2 with 2 supplements see all

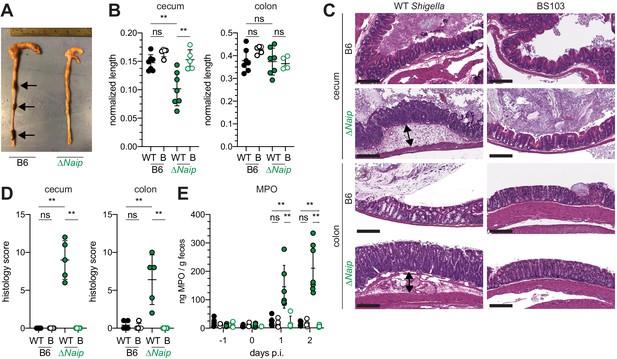

Shigella-infected B6.∆Naip mice exhibit intestinal inflammation.

(A–E) B6.WT and B6.∆Naip (green) mice (lacking expression of all Naip genes) treated orally with 25 mg streptomycin sulfate were orally challenged the next day with 5x107 CFU of WT or BS103 ('B', non-invasive) Shigella. Endpoint harvests were performed at 48 hr post-infection (p.i.). (A) Representative images of the cecum and colon dissected from B6.WT and B6.∆Naip mice. Note cecum tissue thickening (size reduction), macroscopic edema, and loose stool (absence of arrows). (B) Quantification of cecum and colon lengths. Values were normalized to mouse weight prior to infection; cecum length (cm) / mouse weight (g). WT, wild-type Shigella (filled symbols); B, BS103 (open symbols). (C) Representative images of H&E stained cecum and colon tissue from infected mice. Scale bar, 200 μm. (D) Blinded quantification of histology score (cumulative) for tissues in (C). Edema, hyperplasia, inflammatory infiltrate, and epithelial cell death were scored from 0 to 4. The final score is the sum of individual scores from each category. (E) MPO levels measured by ELISA from feces of B6.WT and B6.∆Naip mice collected -1 through 2 days p.i. (B, D, E) Each symbol represents one mouse. Filled symbols, WT Shigella; open symbols, BS103. Data are representative of two independent experiments. Mean ± SD is shown in (B,D,E), Mann-Whitney test, *p < 0.05, **p <0.01, ***p < 0.001, ns = not significant (p > 0.05).

A defining feature of human shigellosis is the presence of neutrophils in patient stools (Raqib et al., 2000). The levels of myeloperoxidase (MPO, a neutrophil marker) were low or undetectable in the feces of mice following antibiotic treatment (Figure 2E), indicating that microbiota disruption did not itself promote neutrophilic inflammation. Following Shigella infection, however, fecal MPO from ∆Naip mice dramatically increased (Figure 2E). In contrast, MPO levels remained low in both B6 WT and Casp1/11–/– mice (Figure 2—figure supplement 2D) or ∆Naip mice infected with the avirulent BS103 strain (Figure 2E). These results indicate that NAIP–NLRC4-deficient mice experience robust neutrophilic infiltrate consistent with human shigellosis.

B6.Nlrc4–/– mice are susceptible to shigellosis

To confirm that the NAIP–NLRC4 inflammasome confers resistance to Shigella, and to control for potential microbiota-associated phenotypes, we next infected streptomycin-pretreated B6.Nlrc4+/– and B6.Nlrc4–/– littermates, as well as B6 WT mice that had been co-housed for 3 weeks prior to inoculation (Nlrc4+/– and B6 WT mice are hereby referred to collectively as Nlrc4+). Consistent with our prior results in ∆Naip mice, we observed thickening of the intestinal mucosa (Figure 3A), cecum shrinkage (Figure 3A,B), increased fecal MPO levels (Figure 3C), and acute weight loss (Figure 3D) in Shigella-infected B6.Nlrc4–/– mice but not B6.Nlrc4+ littermates or co-housed mice. B6.Nlrc4–/– mice also had diarrhea, which was apparent by visual inspection of lumenal contents and quantified by the wet-to-dry ratio of fecal pellets (Figure 3E). Thus, B6.Nlrc4–/– mice phenocopy the disease susceptibility of B6.∆Naip mice, and strongly suggest that the NAIP–NLRC4 inflammasome mediates the resistance of mice to Shigella infection.

Figure 3 with 1 supplement see all

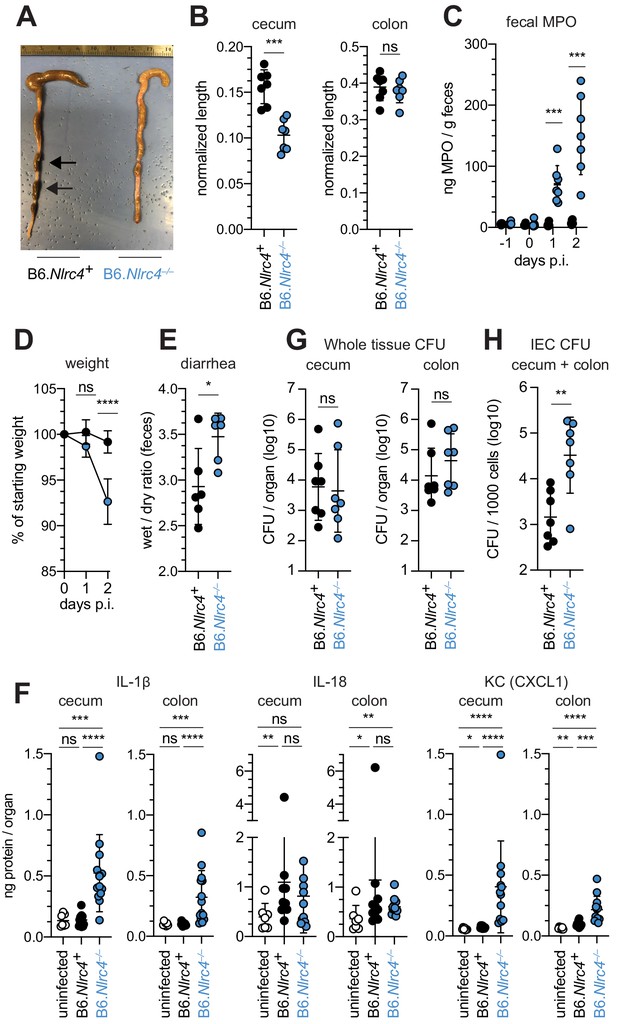

Shigella-infected B6.Nlrc4–/– mice exhibit intestinal inflammation and bacterial colonization of IECs.

(A–E) B6.Nlrc4+/– and B6.Nlrc4–/– littermates were cohoused with B6.WT mice for a minimum of three weeks. Mice were infected with only WT Shigella as described for Figure 2. Endpoint harvests were performed 48 hr post-infection (p.i.). B6.Nlrc4+/– and B6.WT mice are collectively referred to as B6.Nlrc4+. (A) Representative images of the cecum and colon dissected from B6.Nlrc4+ and B6.Nlrc4–/– mice. Note the cecum tissue thickening (size reduction), macroscopic edema, and loose stool (absence of arrows). (B) Quantification of cecum and colon lengths. Values were normalized to mouse weight prior to infection; cecum length (cm) / mouse weight (g). (C) MPO levels measured by ELISA from feces of B6.Nlrc4+ and B6.Nlrc4–/– mice collected -1 through 2 days p.i. (D) Mouse weights from 0 through 2 days p.i. Each symbol represents the mean for all mice of the indicated condition. (E) Quantification of feces weights before and after dehydration at 2 days p.i. A larger ratio indicates diarrhea. (F) IL-1β, IL-18, and KC levels measured by ELISA from tissue of B6.Nlrc4+ and B6.Nlrc4–/– mice collected 2 days p.i. (G) CFU determination from gentamicin-treated whole tissue homogenates from the cecum or colon of infected mice. (H) CFU determination from the IEC enriched fraction of gentamicin-treated cecum and colon tissue (combined). (B,C,E–H) Each symbol represents one mouse. Data are representative of three independent experiments. Mean ± SD is shown in (B-F). Geometric mean ± SD is shown in (F, G). Mann-Whitney test, *p < 0.05, **p < 0.01, ***p < 0.001, ns = not significant (p > 0.05).

To compare the cytokine profiles of B6.Nlrc4+ and B6.Nlrc4–/– mice, we performed ELISAs for pro-inflammatory cytokines IL-1β, IL-18, and the mouse chemokine and neutrophil attractant KC (CXCL1). IL-18 levels were similarly elevated in B6.Nlrc4+ and B6.Nlrc4–/– mice relative to uninfected mice (Figure 3F). By contrast, IL-1β and KC levels were significantly elevated in B6.Nlrc4–/– relative to B6.Nlrc4+ and uninfected mice (Figure 3F), consistent with the neutrophilic inflammation observed by histology and fecal MPO ELISAs. Since IL-1β is a pro-inflammatory cytokine released primarily from pyroptotic macrophages, we hypothesize that additional inflammasomes are likely active in this cell-type in the absence of NAIP–NLRC4 and may play a role in driving pathogenesis.

Surprisingly, despite the clear differences in disease between Shigella infected B6.Nlrc4+ and B6.Nlrc4–/– mice, we found no significant difference in the bacterial burdens of whole cecum or colon tissue (Figure 3G). To more directly measure the intracellular colonization of IECs, the primary replicative niche for Shigella, we enriched IECs from the ceca and colons of infected B6.Nlrc4+ and B6.Nlrc4–/– mice (see Methods). We found an ~20-fold difference in colonization in enriched IECs between B6.Nlrc4+ and B6.Nlrc4–/– mice (Figure 3H), indicating that disease in our model correlates with invasion of and replication in IECs. Importantly, we observed no CFU differences in feces at the time of harvest (Figure 3—figure supplement 1A), excluding the possibility that differences in IEC CFU were merely the result of differences in lumenal Shigella density. These data suggest that Shigella colonizes the intestinal tissue regardless of inflammasome activity, but can only specifically invade the epithelium and provoke disease in NAIP–NLRC4-deficient mice.

Shigella causes bloody diarrheal disease in 129.Nlrc4–/– mice

To determine whether the role of NAIP–NLRC4 in mediating protection against Shigella is robust across diverse mouse strains, we generated Nlrc4–/– mice on the 129S1 genetic background. 129.Nlrc4–/– mice have a 10 bp deletion in exon 5 of the Nlrc4 coding sequence, resulting in loss of NLRC4 function (Figure 4—figure supplement 1). Importantly, 129S1 mice are naturally deficient in CASP11, which responds to cytosolic LPS, and thus 129.Nlrc4–/– mice lack functional NAIP–NLRC4 and CASP11 signaling. Similar to the B6 genetic background, antibiotic-pretreated 129.Nlrc4–/– but not 129.Nlrc4+/– littermates challenged with WT (or BS103) Shigella exhibited severe signs of shigellosis, including pronounced edema, epithelial cell hyperplasia, and disruption of the columnar epithelium of infected tissues (Figure 4A,B). 129.Nlrc4–/– mice also exhibited dramatic cecum shrinkage and diarrhea (Figure 4C,D,K), lost between 8% and 18% of their starting weight within 2 days of infection (Figure 4E), and exhibited a massive increase in fecal MPO following infection (Figure 4F). We found no significant difference in the bacterial colonization of the whole cecum and colon tissue between 129.Nlrc4+/– and 129.Nlrc4–/– mice (Figure 4G). However, IECs enriched from infected 129.Nlrc4–/– mice again exhibited ~20-fold higher bacterial burdens than IECs enriched from 129.Nlrc4+/– mice (Figure 4H), despite similar levels of lumenal colonization (Figure 3—figure supplement 1B). A hallmark of severe human shigellosis (dysentery) is the presence of blood in patient stools. Using an assay to detect occult blood (see Materials and methods), we were unable to detect blood in the feces of NAIP–NLRC4-deficient mice on the B6 background (data not shown). However, when we tested 129.Nlrc4–/– mouse stools, we found that 4/5 mice infected with WT Shigella had occult blood in their feces (Figure 4I). In a subsequent infection, 80% (8/10) of 129.Nlrc4–/– mice had bloody stool (occult blood only, n = 5; macroscopically visible blood, n = 3) (Figure 4J). In mice with visible blood, we often observed ruptured blood vessels in the cecum or colon (Figure 4K). Thus, 129.Nlrc4–/– mice recapitulate the bloody stool (dysentery) that is a hallmark of severe human shigellosis.

Figure 4 with 1 supplement see all

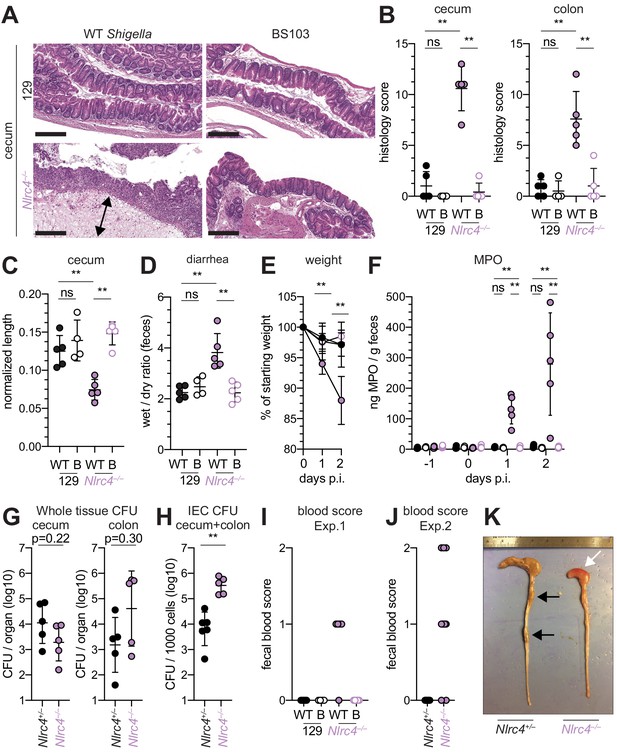

Shigella-infected 129.Nlrc4–/– mice exhibit hallmarks of severe human shigellosis.

(A–H) 129.Nlrc4+/– and 129.Nlrc4–/– littermates were infected as described for Figure 2. Endpoint harvests were performed at 48 hr post-infection (p.i.). (A) Representative images of H&E stained cecum and colon tissue from infected mice. Scale bar, 200 μm. (B) Blinded quantification of histology score (cumulative) for tissues in (A). Edema, hyperplasia, inflammatory infiltrate, and epithelial cell death were scored from 0 to 4. The final score is the sum of individual scores from each category. (C) Quantification of cecum and colon lengths. Values were normalized to mouse weight prior to infection; cecum length (cm) / mouse weight (g). (D) Quantification of feces weights before and after dehydration at 2 days p.i. A larger ratio indicates diarrhea. (E) Mouse weights at 0 through 2 days p.i. Each symbol represents the mean for all mice of the indicated condition. Statistics refer to both WT Shigella-infected 129.Nlrc4+/– and 129.Nlrc4–/– mice and WT versus BS103 Shigella-infected 129.Nlrc4–/– mice at both 1 and 2 days p.i. All other comparisons were non-significant. (F) MPO levels measured by ELISA from feces of 129.Nlrc4+/– and 129.Nlrc4–/– mice collected -1 through 2 days p.i. (G) CFU determination from gentamicin-treated whole tissue homogenates from the cecum or colon (H) CFU determination from the IEC enriched fraction of gentamicin-treated cecum and colon tissue (combined). (I,J) Fecal blood scores from feces at two days p.i. 1 = occult blood, 2 = macroscopic blood. (I and J) show scores from two representative experiments. (K) Representative images of the cecum and colon dissected from 129.Nlrc4+/– and 129.Nlrc4–/– mice. Note the cecum tissue thickening (size reduction), macroscopic edema, and loose stool (absence of arrows), and vascular lesions and bleeding. (B–D,F–J) Each symbol represents one mouse. Filled symbols, WT Shigella; open symbols, BS103. Data are representative of three independent experiments. Mean ± SD is shown in (B, C, D, E, F). Geometric mean ± SD is shown in (G and H). Mann-Whitney test, *p < 0.05, **p < 0.01, ***p < 0.001, ns = not significant (p > 0.05).

Epithelial NLRC4 is sufficient to protect mice from shigellosis

Given the difference in Shigella colonization of IECs between WT and NAIP–NLRC4-deficient mice, we next sought to determine if IEC-specific expression of the NAIP–NLRC4 inflammasome is sufficient to protect mice from Shigella infection. We thus infected B6 mice that selectively express NLRC4 in IECs. These mice encode a Cre-inducible Nlrc4 gene on an otherwise Nlrc4–/– background and are referred to as iNlrc4 mice (Figure 5A; Rauch et al., 2017). Crosses of iNlrc4 and Vil1-Cre mice generated animals with selective expression of NLRC4 in Villin+ IECs. Shigella infected Vil1-Cre+ iNlrc4 mice, but not Cre littermate controls, were protected from intestinal inflammation to a similar extent as co-housed Nlrc4+/– mice (Figure 5B–F). Thus, NLRC4 expression in IECs is sufficient to prevent shigellosis.

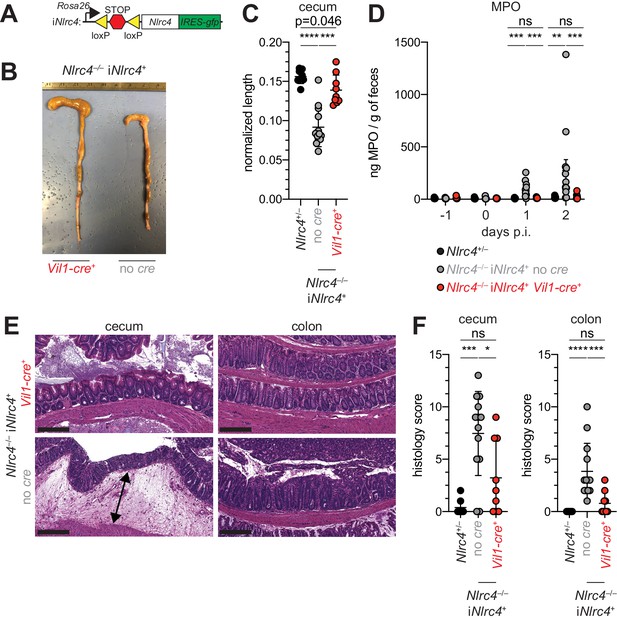

NLRC4 expression in IECs is sufficient to prevent shigellosis.

(A) Schematic of the B6 Rosa26 locus containing the iNlrc4 cassette, as described previously (Rauch et al., 2017). (B–F) Vil1-cre positive (+) or negative Nlrc4–/– iNlrc4 littermates, or iNlrc4+/– mice were orally infected with 5x107 CFU of WT Shigella 24 hr after oral streptomycin treatment. Endpoint harvests were done 48 hr post-infection (p.i.). (B) Representative images of the cecum and colon dissected from iNlrc4 Nlrc4–/–Vil1-cre positive or negative mice. (C) Quantification of cecum length reduction normalized to the weight of the animal prior to infection; cecum length (cm) / mouse weight (g). (D) MPO levels measured by ELISA of feces collected -1 through 2 days p.i. (E) Representative images of H&E stained cecum and colon tissue from infected mice. Scale bar, 200 μm. (F) Blinded quantification of histology score (cumulative) for cecum and colon tissue. Data are representative of two independent experiments. Mean ± SD is shown in (C, D, F), Mann-Whitney test, *p < 0.05, **p < 0.01, ***p < 0.001, ns = not significant (p > 0.05). (C,D,F) Each symbol represents one mouse.

To further characterize the role of the NAIP–NLRC4 inflammasome during Shigella infection of IECs, we generated intestinal epithelial stem cell-derived organoids from the ceca of 129.WT and 129.Nlrc4–/– mice and established a transwell monolayer infection assay (see Materials and methods). We were unable to recover CFUs from WT IEC monolayers infected with WT Shigella (Figure 6A). In contrast, 129.Nlrc4–/– IEC monolayers supported replication of WT Shigella. The avirulent non-invasive BS103 strain was detected sporadically at low levels, independent of NAIP–NLRC4, while a strain lacking IcsA, a protein essential for Shigella actin tail formation and cell-to-cell spread (Bernardini et al., 1989; Goldberg and Theriot, 1995), colonized 129.Nlrc4–/– IEC monolayers to a lesser extent than WT Shigella, consistent with loss of IcsA-mediated cell-to-cell spread. Immunostaining for Shigella in infected IEC organoid cultures also revealed intracellular replication and actin tail formation (detected by fluorescent phalloidin) exclusively in Nlrc4–/– IEC monolayers infected with WT Shigella (Figure 6B). Thus, IEC organotypic infections faithfully recapitulate the NAIP–NLRC4-dependent differences in Shigella replication observed in vivo. Our results suggest that NAIP–NLRC4 can provide resistance in a cell-type (IEC) intrinsic manner, though additional non-IEC intrinsic functions of NAIP–NLRC4 may also contribute to protection in vivo. In addition, our results demonstrate that key Shigella virulence factors are functional within mouse cells and can initiate invasion and actin-based motility in mouse IECs, as long as the NAIP–NLRC4 inflammasome is absent.

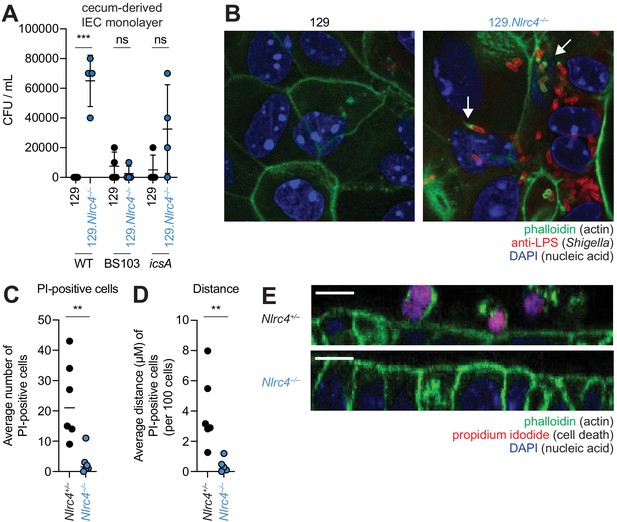

NLRC4 prevents Shigella colonization and cell expulsion in IEC monolayer cultures.

(A) Shigella (WT, BS103, or icsA) CFU from transwell culture of WT or 129.Nlrc4–/– cecum-derived IEC monolayers. CFU was determined 8 hr p.i. Each symbol represents one infected monolayer. (B) Immunofluorescent staining of WT Shigella-infected transwell cultures of WT or 129.Nlrc4–/– cecum-derived IEC monolayers: green, fluorescent phalloidin (actin); red, anti-Shigella LPS, blue, DAPI (nucleic acid). (C,D) Quantification of the number and position of propidium iodide (PI)-positive cells in Shigella-infected 129.Nlrc4+/– or 129.Nlrc4–/– cecum-derived IEC monolayers. In (C), each symbol represents the average number of PI-positive cells within an imaged field. In (D), each symbol represents the average distance of PI-positive cells from the lower boundary of the z-stack, per 100 cells. Two fields were counted for three independent slides. (E) A representative XZ-projection of Shigella-infected transwell cultures of 129.Nlrc4+/– or 129.Nlrc4–/– cecum-derived IEC monolayers showing expulsed PI+ cells above the monolayer. Green, fluorescent phalloidin (actin); red, PI (cell death); blue, DAPI (nucleic acid). Mann-Whitney test, **p < 0.01, ***p < 0.001, ns = not significant (p > 0.05).

We sought to determine whether the NAIP–NLRC4 inflammasome prevented Shigella colonization of the IEC monolayers by mediating expulsion of the infected cells. Using confocal microscopy, we quantified both cell death (the number of PI-positive cells) and cell expulsion (the z-position of PI-positive cells from the monolayer). There were more PI-positive cells in Shigella-infected WT versus Nlrc4–/– IEC monolayers (Figure 6C,E), and the average position of PI-positive cells was significantly above the monolayer (Figure 6D). Thus, data from our ex vivo IEC monolayer culture system, as well as from previous work (Rauch et al., 2017), suggest that the NAIP–NLRC4 inflammasome prevents Shigella invasion by coordinating the expulsion of infected IECs.

IcsA-dependent cell-to-cell spread is required for pathogenesis

The Shigella IcsA protein is required for virulence in humans (Collins et al., 2008; Mani et al., 2016; Orr et al., 2005). To test if icsA is required for pathogenesis in mice, we infected 129.Nlrc4–/– mice with isogenic WT, icsA mutant, or BS103 Shigella and monitored disease for 8 days. Mice infected with WT Shigella exhibited weight loss (Figure 7A), diarrhea (Figure 7B), increases in fecal MPO (Figure 7C), and blood in their stool (Figure 7D). Signs of disease in WT-infected mice peaked between 2 and 3 days post-infection with weight loss, stool consistency, and MPO signal returning to baseline levels at approximately seven days post-infection, consistent with the disease progression and resolution of human shigellosis. Interestingly, 129.Nlrc4–/– mice infected with icsA mutant Shigella did not experience weight loss, diarrhea, or fecal blood, and largely phenocopied mice infected with the non-invasive BS103 strain (Figure 7A–D). We did observe a slight but significant increase in fecal MPO levels at 1–3 days post-infection in these mice (Figure 7B). These results suggest that, as in humans (Coster et al., 1999; Kotloff et al., 1996), icsA mutants can provoke mild inflammation upon initial colonization of the intestinal epithelium, but that dissemination of bacteria among IECs is a critical driver of severe disease.

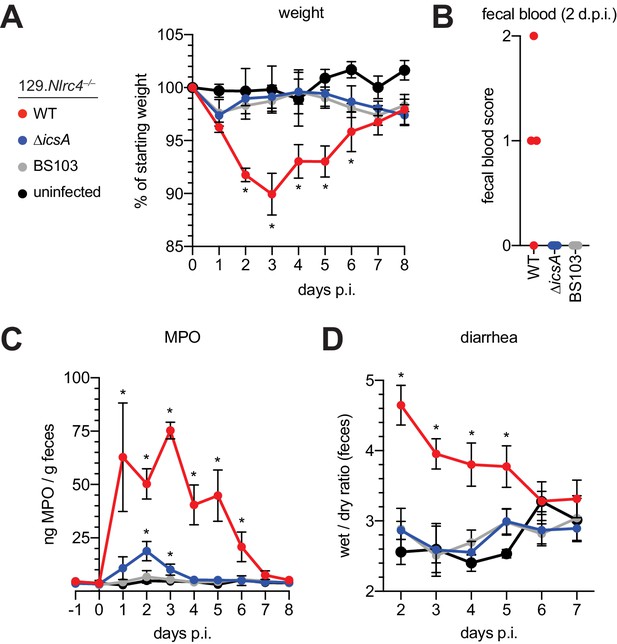

129.Nlrc4–/– mice are resistant to attenuated Shigella strains.

(A–D) 129.Nlrc4–/– littermates were uninfected (black) or inoculated orally with 5x107 CFU of WT (red), icsA mutant (blue), or BS103 (grey) Shigella 24 hours after oral streptomycin treatment and monitored for 8 days post-infection (p.i.). (A) Mouse weights. (B) Fecal blood scores from feces at 2 days post-infection (d.p.i.). 1 = occult blood, 2 = macroscopic blood. Each symbol represents feces from one mouse. (C) MPO levels measured by ELISA from feces collected -1 through 8 days p.i. (D) Quantification of diarrhea comparing weight of feces before and after dehydration. A larger ratio indicates diarrhea. (A–C) Each symbol represents the mean at a specific time point for four individual mice per infection condition. Data are representative of two independent experiments. Mean ± SEM is shown in (A–C) Mann-Whitney test, *p < 0.05. In (A,B) significance was determined by independently comparing to Day 0 and to BS103 + uninfected at the same day. In (C), significance was determined by comparing to BS103 and uninfected at the same day.

Antibiotic-treated Nlrc4–/– mice are susceptible to modest infectious doses

One hallmark of human Shigella infection is the low infectious dose relative to other enteric bacterial pathogens. While the reported infectious dose ranges widely from person to person, ingestion of as few as 10–100 bacteria are sufficient to cause symptoms in some humans, although some individuals are resistant to doses of 104 bacteria or more (DuPont et al., 1989). To determine the infectious dose in our NAIP–NLRC4-deficient mouse model, streptomycin pretreated 129.Nlrc4–/– mice were infected with either 2 × 106, 2 × 105, or 2 × 104 CFU of WT Shigella and compared to Nlrc4+ littermates infected with 2 × 106 CFU. Regardless of the inoculum, all mice showed similar levels of lumenal colonization (>108 CFU/g feces) at one and two days post-infection (Figure 8A). This suggests that even a relatively small bacterial population can rapidly expand within the intestines of antibiotic-treated mice. As expected, Nlrc4+ mice were largely resistant to disease (Figure 8B–E). In contrast, we observed robust disease, including weight loss, cecum shrinkage, elevated fecal MPO, and occult blood in Nlrc4–/– mice regardless of the infectious dose (Figure 8B–E). The rise in fecal MPO in mice receiving smaller inocula was delayed relative to previous infections with 5 × 107 CFU (Figure 8D, Figure 4F), suggesting that infectious dose correlates with disease onset. Importantly, there was a 100-fold difference in bacterial colonization of IECs between Nlrc4–/– mice and Nlrc4+ mice, regardless of infectious dose, but no difference in IEC colonization among Nlrc4–/– mice inoculated with 2 × 104 – 2 × 106 CFU (Figure 8F). These results indicate that in antibiotic treated mice, disease is fully penetrant at 2 × 104 CFU, a dose that recapitulates the infectious dose observed in at least some human patients.

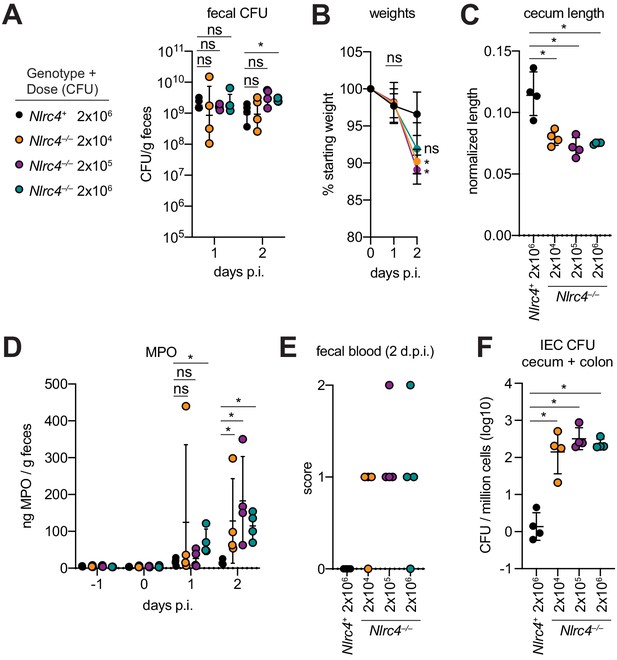

Antibiotic treated Nlrc4–/– mice are susceptible to modest infectious doses of Shigella.

(A–F) 129.Nlrc4+ mice were inoculated orally with 2x106 (black) and 129.Nlrc4–/– littermates were inoculated with 2x106 (teal), 2x105 (purple), or 2x104 (orange) CFU of WT Shigella 24 hr after oral streptomycin treatment. Endpoint harvests were done 48 hr post-infection (p.i.). (A) CFU determination from feces. (B) Mouse weights. Each symbol represents the mean at that time point. (C) Quantification of cecum length reduction normalized to the weight of the animal prior to infection; cecum length (cm) / mouse weight (g). (D) MPO levels measured by ELISA from feces collected -1 through 2 days p.i. (E) Fecal blood scores from feces at 2 days post-infection (d.p.i.). 1 = occult blood, 2 = macroscopic blood. (F) CFU determination from the IEC enriched fraction of gentamicin-treated cecum and colon tissue (combined). (A, C–F) Each symbol represents one mouse. Data are representative of two independent experiments. Mean ± SD is shown in (A–D). Geometric mean ± SD is show in (F). Figure Mann-Whitney 8 test, *p < 0.05, ns = not significant (p > 0.05).

Discussion

Here, we demonstrate that the NAIP–NLRC4 inflammasome is a formidable species-specific barrier to Shigella invasion of the intestinal epithelium. Shigella infection of antibiotic pre-treated, NAIP–NLRC4-deficient mice recapitulates key features of human shigellosis, including bacterial invasion of and replication in IECs, severe inflammatory disease at relevant sites (e.g. colon, cecum), and bloody diarrhea. While ocular, pulmonary, and intraperitoneal Shigella infections have been used to assess bacterial virulence in mice, these models do not feature bacterial colonization of intestinal epithelial cells, a key event required for pathogenesis in humans. Thus, inflammasome-deficient mice provide the first physiologically relevant mouse model of bacillary dysentery. The genetic and immunological tractability of this system relative to other small animal oral infection models (rabbit, guinea pigs) should pave the way for detailed genetic and mechanistic in vivo studies of the host factors underlying Shigella pathogenesis that have long been elusive.

There remain key differences between orogastric Shigella infection of NAIP–NLRC4-deficient mice and human infection. First, even genetically susceptible mice require oral antibiotic treatment to alter the mouse microbiome and allow Shigella to establish a replicative niche in the gut. However, this limitation is not unique to our Shigella model, as antibiotic pretreatment is a common practice in many mouse models of enteric bacterial infections (Barthel et al., 2003; Becattini et al., 2017; Bou Ghanem et al., 2013). Interestingly, S. sonnei encodes a type VI secretion system that mediates competition with other bacterial species (Anderson et al., 2017). This finding suggests that interbacterial interactions may also be an important selective pressure acting on Shigella in the human gut. An important next step will be to identify interactions between Shigella and the human versus mouse microbiome that define the species-specific differences in colonization resistance.

In our model, we were able to achieve shigellosis in mice inoculated with as few as 2 × 104 CFU. Although much is made of the low infectious dose of Shigella required to cause disease in humans, we note that experimental human infection studies only variably achieved disease with 100 CFU (39%) (DuPont et al., 1969) and even higher inocula failed to cause disease in some individuals 105–108 CFU (64%) (DuPont et al., 1989). We also note that Shigella rapidly expands in the antibiotic-treated mouse gut regardless of starting inoculum, suggesting that there is a threshold dose required to establish infection, beyond which a larger inoculum may have little significance to the disease outcome. Ultimately, infectious dose during natural infections likely varies depending on a multitude of environmental and host factors. While many questions remain, our model now provides a means by which to dissect these key questions, which will allow future refinement and greater utility of the model to understand human infection and disease.

A long-held belief is that Shigella exploits inflammasomes to induce pyroptosis. Pyroptotic cell death is presumed to allow bacteria to escape macrophages and invade the basolateral surface of polarized enterocytes (Ashida et al., 2014; Lamkanfi and Dixit, 2010; Schnupf and Sansonetti, 2019). Although we do not directly address this possibility, our experiments suggest that Shigella has instead evolved to inhibit or evade the human NAIP–NLRC4 inflammasome to limit intestinal epithelial cell death. Indeed, we find that the NAIP–NLRC4 inflammasome plays a critical role in host defense by restricting Shigella replication and spread in IECs. Further supporting this notion, only Nlrc4–/– but not WT IEC organoid monolayers are permissive to Shigella infection. Our data are consistent with the NAIP–NLRC4 inflammasome providing defense by coordinating the expulsion of Shigella-infected cells. Similarly, Salmonella infected IECs are expelled from the intestinal epithelial barrier in an NLRC4-dependent manner (Rauch et al., 2017; Sellin et al., 2014). Thus, epithelial inflammasomes coordinate the expulsion of infected IECs as a general defense strategy against enteric bacterial pathogens. A non-mutually exclusive possibility is that NAIP–NLRC4 (or other inflammasomes) are required for Shigella invasion and or pathogenesis in non-IECs, including macrophages. Interestingly, in Nlrc4–/– mice, IL-1β and KC levels in target tissues are elevated, indicating that Shigella may encounter multiple inflammasomes at distinct stages of infection with opposing consequences for bacterial replication and host pathogenesis.

We only observe bloody diarrhea in Nlrc4–/– mice generated on the 129 genetic background. 129 mice naturally harbor a null Casp11 allele (Kayagaki et al., 2011). Although other genetic differences may contribute to the variation in susceptibility to Shigella between B6 and 129 NAIP–NLRC4-deficient mice, we speculate that both the NAIP–NLRC4 and the CASP11 inflammasomes mediate protection in IECs against Shigella invasion. However, the susceptibility of B6 NAIP–NLRC4-deficient (but CASP11+) mice, as well as the resistance of Casp1/11–/– mice, suggest that these inflammasomes are not strictly redundant and that NAIP–NLRC4 alone is sufficient to confer resistance to shigellosis in mice. The Shigella effector OspC3 antagonizes the human LPS sensor CASP4 (Kobayashi et al., 2013), and IEC-expressed CASP4 provides protection against other human bacterial pathogens (Holly et al., 2020; Knodler et al., 2014), underscoring the importance of the LPS-sensing pathway during human infection. Similarly, our finding that Shigella appears to suppress the human NAIP–NLRC4 inflammasome implies that evasion and/or antagonism of inflammasomes is a general virulence strategy during human infections.

There is currently no licensed Shigella vaccine, and very limited knowledge of what vaccine-induced immune responses would be desirable to elicit to mediate protection (Barry et al., 2013; Mani et al., 2016). Our new shigellosis model will finally allow the field to leverage the outstanding genetic and immunological tools and reagents in the mouse to address fundamental questions about the immune response to Shigella. Our finding that NAIP–NLRC4 inflammasome-deficient mice clear the attenuated Shigella icsA strain, derivatives of which are currently deployed in human vaccine trials (Collins et al., 2008; Coster et al., 1999; Ranallo et al., 2014), speaks to the readiness of our model to support testing and development of Shigella therapeutics. More broadly, our results also provide a striking example of how inflammasomes provide an important species-specific barrier against infection.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Mus musculus, C57BL/6J)WTJax and Vance Lab colony, Jax stock No. 000664Source of BMDMs
Strain, strain background (Mus musculus, C57BL/6J)Nlrc4–/–Vance Lab colony, (Tenthorey et al., 2020)Source of BMDMs
Strain, strain background (Mus musculus, C57BL/6J)Naip mice (also called Naip1-6∆/∆)Vance Lab colony
(Rauch et al., 2016)
Strain, strain background (Mus musculus, C57BL/6J)Casp1/11–/–Vance Lab colony
(Li et al., 1995)
Strain, strain background (Mus musculus, C57BL/6J and C57BL/6N mixed)iNlrc4Vance Lab colony
(Rauch et al., 2017)
These mice encode a Cre-inducible Nlrc4 gene in theRosa26 locus.
Strain, strain background (Mus musculus, C57BL/6J)Vil1-CreVance Lab colony,
Jax stock No. 004586
Strain, strain background (Mus musculus, 129S1/SvImJ)WTJax and Vance Lab colony, Jax stock No. 002448Source of BMDMs, IECs
Strain, strain background (Mus musculus, 129S1/SvImJ)Nlrc4–/–Vance Lab colony; this paperSource of BMDMs, IECs; see Materials and methods,‘Animal Procedures’
Cell line (Homo-sapiens)THP-1, monocyte-like (WT)Gift from Hornung Lab
Cell line (Homo-sapiens)THP-1, monocyte-like (Nlrc4–/–)Gift from Hornung Lab
Cell line (Homo-sapiens)293T, embryonic kidneyBerkeley Cell Culture Facility
AntibodyPolyclonal Goat anti human IL-1βR and DAF-201-NA(1:1000)
AntibodyMonoclonal mouse anti Aequorea victoria
GFP
ClontechJL-8(1:1000)
AntibodyMonoclonal mouse anti rat b-TUBULINSigmaclone TUB 2.1(1:1000)
AntibodyRabbit polyclonal anti ShigellaAbcamab65282(1:100)
peptide,
recombinant protein
488-phalloidinCytoskeleton IncPHDG1-A(1:500)
Antibodyanti-IL-1β capture and detectionR and DDY401(concentration not indicated by manufacturer)
AntibodyAnti-MPO capture and detectionR and DDY3667(concentration not indicated by manufacturer)
AntibodyAnti-KC capture and detectionR and DDY453(concentration not indicated by manufacturer)
AntibodyCapture: moncloncal rat anti mouse IL-18BD Biosciences and eBiosciencecatalog # D047-3, clone 741:1000
AntibodyDetection: moncloncal rat anti mouse IL-18BD Biosciences and eBiosciencecatalog # D048-6, clone 93–10 c1:2000
Chemical compound, drugRock inhibitor Y27632Stem Cell72304
Chemical compound, drugTGF-Smad inhibitor SB431542Stem Cell72234
Peptide, recombinant proteinMouse TRANCE (RANKL) (carrier-free)BioLegend577102
Chemical compound, drugBasement Membrane Matrix (Matrigel)FisherCB-40234A
Peptide, recombinant proteinLFn-PAThis papersee Materials and methods, ‘Toxins’
Peptide, recombinant proteinLFn-MxiHThis papersee Materials and methods,
‘Toxins’
Peptide, recombinant proteinLFn-FlaARauch et al., 2017
Strain, strain background (Shigella flexneri serovar 2a)WT 2457T
Strain, strain background (Shigella flexneri serovar 2a)BS103Maurelli et al., 1984
Strain, strain background (Shigella flexneri serovar 2a)icsAGoldberg and Theriot, 1995

Cell culture

Request a detailed protocol

293T cells were cultured in DMEM supplemented with 10% FBS and 2 mM L-glutamine. THP1 cells were cultured in RPMI supplemented with 10% FBS and 2 mM L-glutamine. B6 primary BMMs were cultured in RPMI supplemented with 10% FBS, 5% 3T3-MCSF supernatant, 100 U/ml penicillin, 100 mg/ml streptomycin and 2 mM L-glutamine. THP1 cells were a gift from Veit Hornung, and generated as previously described (Gaidt et al., 2017). Cells were grown in media without antibiotics for infection experiments. All cell lines tested negative for mycoplasma.

Bacterial strains

Request a detailed protocol

All experiments were conducted with the S. flexneri serovar 2a WT 2457T strain, or the WT-derived virulence plasmid-cured strain BS103 (Maurelli et al., 1984) or icsA mutant (Goldberg and Theriot, 1995; Makino et al., 1986). The icsA mutant strain was a gift from Marcia Goldberg. Natural streptomycin resistant strains of 2457T and BS103 were generated by plating cultured bacteria on tryptic soy broth (TSB) plates containing 0.01% Congo Red (CR) and increasing concentrations of streptomycin sulfate. Streptomycin-resistant strains were confirmed to grow indistinguishably from parental strains in TSB broth lacking antibiotics, indicating an absence of streptomycin-dependence.

Toxins

Request a detailed protocol

Recombinant proteins for cytosolic delivery of Shigella MxiH were produced using the BD BaculoGOLD system for protein expression in insect cells. The MxiH coding sequence was subcloned into pAcSG2-6xHIS-LFn using the primers: PSMpr943 F (BamHI) 5’ - GAAAGG GGATCC ATG AGT GTT ACA GTA CCG GAT AAA GAT TGG ACT CTG - 3’ and PSMpr944 R (NotI) 5’ - GAAAGG GCGGCCGC TTA TCT GAA GTT TTG AAT AAT TGC AGC ATC AAC ATC C - 3’. The PA-6xHIS coding sequence was subcloned from pET22b-PA-6xHIS (Rauch et al., 2016) into pAcSG2 using the primers: PSMpr896 F (XhoI) 5’ - GAAAGG CTCGAG ATG GAA GTT AAA CAG GAG AAC CGG TTA TTA AAT GAA TC - 3’ and PSMpr897 R (NotI) 5’ - GAAAGG GCGGCCGC TCA GTG GTG GTG GTG GTG GTG T - 3’. Constructs were co-transfected with BestBac linearized baculovirus DNA (Expression Systems) into SF9 cells following the manufacturer’s protocol to generate infectious baculovirus. Primary virus was amplified in SF9 cells. Recombinant proteins were produced by infecting 2L of High Five cells with 1 ml of amplified virus/L cells. Cells were harvested ~ 60 hr after infection by centrifugation at 500xg for 15 min. Cell pellets were resuspended in lysis buffer (50 mM Tris pH7.4, 150 mM NaCl, 1% NP-40 with protease inhibitors) and lysed on ice using a dounce homogenizer. Samples were then clarified at 24,000xg for 30 min and supernatants were batch bound to 1 ml nickel resin for 2 hr at 4°C. Samples were column purified by gravity. Resin was washed with 100 ml of wash buffer (20 mM Tris pH7.4, 400 mM NaCl, 20 mM imidizole). Sample was eluted with 1 ml fractions of elution buffer (20 mM Tris pH7.4, 150 mM NaCl, 250 mM imidizole). Peak elutions were pooled and buffer exchanged into 20 mM Tris pH7.4.

Infection of cells in culture

Request a detailed protocol

S. flexneri was grown at 37°C on tryptic soy agar plates containing 0.01% Congo red (CR), supplemented with 100 μg/ml spectinomycin and 100 μg/ml carbenicillin for growth of the icsA strain. For infections, a single CR-positive colony was inoculated into 5 ml TSB and grown shaking overnight at 37°C. Saturated cultures were back-diluted 1:100 in 5 ml fresh TSB shaking for ~ 2 hr at 37°C. THP1 and BMM cells were seeded at 100,000 cells per well of a Nunc F96 MicroWell white polystyrene plate. Bacteria were washed three times in cell culture media, then spinfected onto cells for 10 min at 500xg. Bacterial invasion was allowed to proceed for an additional 20 min at 37°C, followed by three washes in with cell culture media containing 25 mg/ml gentamicin. Cells were then maintained in cell culture media containing 2.5 mg/ml gentamicin with propidium iodide (Sigma, diluted 1:100 from stock) at 37°C for the duration of the assay (30 min to 4 hr). A MOI of 10 was used unless otherwise specified. For suppression assays, PMA-differentiated THP1 cells were infected as described above for 1 hr. Media was then replaced with cell culture media containing 2.5 mg/ml gentamicin and propidium iodide (1:100) and either 10 μg/ml PA only, PA with 1.0 μg/ml LFn-MxiH, or 10 μM nigericin. PI uptake was measured using a SpectraMax M2 plate reader, and 100% cell death was set by normalizing values of infected wells to cells lysed with 1% Triton X-100 after background subtraction based on media only controls.

Establishment, propagation, and infection of IECs

Request a detailed protocol

Primary intestinal epithelial stem-cell-derived organoids from the cecum were isolated and maintained in culture as previously described (Miyoshi and Stappenbeck, 2013). Each transwell monolayer culture was established 1:1 from a confluent enteroid Matrigel (Corning, 356255) ‘dome.’ Enteroids were disassociated from Matrigel with 0.25% trypsin for 10 min, manually disrupted, resuspended in monolayer culture wash media (ADMEM/F12 supplemented with 20% FBS, 1% L-glutamine) and plated on polycarbonate transwells (Corning, 3413) that had been pre-coated for > 1 hr at 37°C with 1:30 Matrigel:wash media. Monolayer cultures were differentiated for 12–14 days in complete monolayer culture media (monolayer culture wash media mixed 1:1 with LWRN-conditioned media supplemented with 10 μM Y27632 (Stem Cell), and RANKL (BioLegend) in the absence of SB431542). Two days prior to infection, cells were cultured in antibiotic-free monolayer culture media. Monolayers were treated with 20 μM EGTA for 15 min prior to Shigella infection (MOI = 10). Bacterial invasion was allowed to proceed for 2 hr, followed by gentamicin washes as described above to both upper and lower compartments, then maintained in monolayer culture media containing 2.5 mg/ml gentamicin with propidium iodide (Sigma, diluted 1:100 from stock) at 37°C for the duration of the assay (1 hr for IF and 8 hr for CFU determination). For IF, cells were washed in PBS, fixed in 4% paraformaldehyde for 15 min, permeabilized in 0.1% Triton X-100 for 15 min, blocked in PBS with 2% BSA, 0.1% Tween-20 for 1 hr. Primary antibodies were incubated overnight, followed by a 1 hr incubation with fluorophore-conjugated secondary antibodies and a 10-min incubation with DAPI and fluorophore-conjugated phalloidin. Slides were analyzed on a Zeiss LSM710. The number and z-axis position of PI-positive cells was performed using Imaris. Reagents for immunofluorescence: anti-Shigella (Abcam, ab65282), 488 phalloidin (PHDG1-A, Cytoskeleton Inc), Alexfluor conjugated secondary antibodies (Invitrogen). To determine bacterial replication in IECs, 8 hr post-infection monolayers were washed three times with PBS, lysed in 1% Triton X-100, and bacteria were plated for CFU determination.

Reconstituted NAIP–NLRC4 inflammasome activity assays

Request a detailed protocol

To reconstitute inflammasome activity in 293T cells, constructs (100 ng of each) producing human NAIP, NLRC4, CASP1, and IL-1β were co-transfected with constructs (200 ng of each) producing Shigella MxiI, MxiH or empty vector (pcDNA3) using Lipofectamine 2000 (Invitrogen) following the manufacturer’s protocol and harvested 24 hr post-transfection. For experiments using recombinant proteins, fresh media containing 10 μg/ml PA and 1.0 μg/ml LFn-MxiH was added to cells for 3–4 hr. In all experiments, cells were lysed in RIPA buffer with protease inhibitor cocktail (Roche).

Immunoblot and antibodies

Request a detailed protocol

Lysates were clarified by spinning at 16,100xg for 10 min at 4°C. Clarified lysates were denatured in SDS loading buffer. Samples were separated on NuPAGE Bis-Tris 4–12% gradient gels (ThermoFisher) following the manufacturer’s protocol. Proteins were transferred onto Immobilon-FL PVDF membranes at 375mA for 90 min and blocked with Odyssey blocking buffer (Li-Cor). Proteins were detected on a Li-Cor Odyssey Blot Imager using the following primary and secondary antibodies: anti-IL-1β (R and D systems, AF-201-NA), anti-GFP (Clontech, JL8), anti-TUBULIN (Sigma, clone TUB 2.1), Alexfluor-680 conjugated secondary antibodies (Invitrogen).

Animal procedures

Request a detailed protocol

All mice were maintained in a specific pathogen free colony until 1–2 weeks prior to infection, maintained under a 12 hr light-dark cycle (7 am to 7 pm), and given a standard chow diet (Harlan irradiated laboratory animal diet) ad libitum. Wild-type C57BL/6J and 129S1/SvImJ mice were originally obtained from the Jackson Laboratories. 129.Nlrc4–/– animals were generated by targeting Nlrc4 via CRISPR-Cas9 mutagenesis. CRISPR/Cas9 targeting was performed by injection of Cas9 mRNA and sgRNA into fertilized zygotes, essentially as described previously (Wang et al., 2013). Founder mice were genotyped by PCR and sequencing using the primers: JLR035 F 5’ CAGGTCACAGAAG AAGACCTGAATG 3’ and JLR036 R 5’ CACCTGGACTCCTGGATTTGG 3’. Founders carrying mutations were bred one generation to wild-type mice to separate modified haplotypes. Homozygous lines were generated by interbreeding heterozygotes carrying matched haplotypes. B6.∆Naip mice were generated as described previously (Rauch et al., 2016). B6.Nlrc4–/– (Tenthorey et al., 2020) and iNlrc4 (Rauch et al., 2017) mice were previously described. iNlrc4 mice were crossed to the Nlrc4–/– line and then further crossed to Vil1-cre (Jax strain 004586) transgenic lines on a Nlrc4–/– background. Animals used in infection experiments were littermates or, if not possible, were co-housed upon weaning. In rare cases when mice were not co-housed upon weaning, mice were co-housed for at least one week prior to infection. Animals were transferred from a SPF colony to an ABSL2 facility at least one weeks prior to infection. All animal experiments complied with the regulatory standards of, and were approved by, the University of California, Berkeley Animal Care and Use Committee.

In vivo Shigella infections

Request a detailed protocol

Mouse infections were performed in 6–16 week old mice. Initially, mice deprived of food and water for 4–6 hr were orally gavaged with 100 µL of 250 mg/mL streptomycin sulfate dissolved in water (25 mg/mouse) and placed in a cage with fresh bedding. 24 hr later, mice again deprived of food and water for 4–6 hr were orally gavaged with 100 µL of log-phase, streptomycin resistant Shigella flexneri 2457T, BS103, or icsA mutant at the indicated dose, prepared as above and resuspended in PBS. Mouse weights and fecal pellets were recorded or collected daily from 1 day prior to infection to the day of euthanasia and harvest (usually 2 days post-infection) to assess the severity of disease and biomarkers of inflammation. Infection inputs were determined by serially diluting a fraction of the initial inoculum and plating on TSB plates containing 0.01% CR and 100 µg/mL streptomycin.

Fecal CFUs, fecal MPO ELISAs, wet/dry ratio, fecal occult blood

Request a detailed protocol

Fecal pellets were collected in 2 mL tubes, suspended in 2% FBS in 1 mL of PBS containing protease inhibitors, and homogenized. For CFU enumeration, serial dilutions were made in PBS and plated on TSB plates containing 0.01% CR and 100 µg/mL streptomycin sulfate. For MPO ELISAs, fecal homogenates were spun at 2,000 g and supernatants were plated in triplicate on absorbent immunoassay 96-well plates. Recombinant mouse MPO standard, MPO capture antibody, and MPO sandwich antibody were purchased from R&D Systems. Wet/dry ratios were determined by weighing fecal pellets before and after they had been dried in a fume hood. The presence or absence of fecal occult blood in fresh pellets was determined using a Hemoccult blood testing kit (Beckman Coulter).

Tissue ELISAs

Request a detailed protocol

The cecum and colon were isolated from mice at two days post infection and rinsed 5x in PBS to removal fecal contents. Organs were then homogenized in 1 mL of 2% FBS in PBS + protease inhibitors, spun down at 2000 g, and supernatants were plated in duplicate on absorbent immunoassay 96-well plates. Recombinant mouse IL-1β and KC standards, capture antibodies, and sandwich antibodies were purchased from R and D. IL-18 paired antibodies were purchased from BD Biosciences and eBioscience and recombinant IL-18 standard from eBiosciene.

Histology

Request a detailed protocol

Mice were euthanized at two days post-infection by CO2 inhalation and cervical dislocation. Ceca and colons from mice were isolated, cut longitudinally, removed of lumenal contents, swiss-rolled, and fixed in methacarn followed by transfer to 70% ethanol. Samples were processed by routine histologic methods on an automated tissue processor (TissueTek, Sakura), embedded in paraffin, sectioned at 4 µm thickness on a rotary microtome, and mounted on glass slides. Sections were stained with hematoxylin and eosin on an automated histostainer and coverslipped. Histopathological evaluation was performed by light microscopy (Olympus BX45, Olympus Corporation) at magnifications ranging from x20 to x600 by a board-certified veterinary pathologist (I.L.B.) who was blinded to the experimental groups at the time of evaluation. Representative images were generated as Tiff files from digitized histology slides scanned on a digital slide scanner (Leica Aperio AT2, Leica Biosystems). Images were taken using freely downloadable software (Image Scope, Leica Aperio, Leica Biosystems) and processed in Adobe Photoshop. Photo processing was confined to global adjustments of image size, white balance, contrast, brightness, sharpness, or correction of lens distortion and did not alter the interpretation of the image. Sample preparation, imaging, and histology scoring was conducted by the Unit for Laboratory Animal Medicine at the University of Michigan.

Intestinal CFU determination

Request a detailed protocol

To enumerate whole tissue intestinal CFU, ceca and colons from mice were isolated, cut longitudinally and removed of lumenal contents, placed in culture tubes containing 400 µg/mL gentamicin antibiotic in PBS, vortexed, and incubated in this solution for 1–2 hr. Organs were washed five times in PBS to dilute the gentamicin, homogenized in 1 mL of PBS, serially diluted, and plated on TSB agar plates containing 0.01% CR and 100 µg/mL streptomycin. To enumerate intracellular CFU from the intestinal epithelial cell fraction of the cecum and colon, organs prepared as above were incubated in RPMI with 5% FBS, 2 mM L-glutamine, and 400 µg/ml of gentamicin for 1–2 hr. Tissues were then washed five times in PBS, cut into 1 cm pieces, placed in 15 mL of stripping solution (HBSS, 10 mM HEPES, 1 mM DTT, 2.6 mM EDTA), and incubated at 37°C for 25 min with gentle agitation. Supernatants were passed through a 100 µm filter and the remaining pieces of tissue were shaken in a 50 mL conical with 10 mL of PBS and passed again through the 100 µm filter. This enriched epithelial cell fraction was incubated in 50 µg/mL gentamicin for 25 min on ice, spun at 300xg at 4°C for 8 min, and washed twice by aspirating the supernatant, resuspending in PBS, and spinning at 300xg at 4°C for 5 min. After the first wash, a fraction of cells were set aside to determine the cell count. After the second wash, the pellet was resuspended and lysed in 1 mL of 1% Triton X-100. Serial dilutions were made from this solution and plated on TSB agar plates containing 0.01% CR and 100 µg/ml streptomycin and CR+ positive colonies were counted following overnight incubation at 37°C.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Safety and colonization of two novel VirG(IcsA)-based live Shigella sonnei vaccine strains in rhesus macaques (Macaca mulatta)
    1. TA Collins
    2. S Barnoy
    3. S Baqar
    4. RT Ranallo
    5. KW Nemelka
    6. MM Venkatesan
    (2008)
    Comparative Medicine 58:88–94.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65

Decision letter

  1. Christina L Stallings
    Reviewing Editor; Washington University School of Medicine, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Edward A Miao
    Reviewer; Duke University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

In this manuscript, the authors introduce a new mouse model of Shigellosis, provide evidence for NAIP–NLRC4 activation as being important for epithelial cell defense, and apply these findings to observations made in humans infected by this pathogen. These are important findings and provide an opportunity to further advance the field in ways not previously possible. This is an important piece of work that will greatly influence the future directions of Shigella research. The revised manuscript also nicely addresses certain caveats in the model, while at the same time explaining how this model will advance the field.

Decision letter after peer review:

Thank you for submitting your article "NAIP-NLRC4-deficient mice are susceptible to shigellosis" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Gisela Storz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Edward A Miao (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation. However, all three reviewers agree that if histology sections or serum samples were available, it would be nice to more closely examine pathology and cytokine levels in the model.

Summary:

In this manuscript, the authors introduce a new mouse model of Shigellosis, provide evidence for NAIP–NLRC4 activation as being important for epithelial cell defense, and apply these findings to observations made in humans infected by this pathogen. These are important findings and provide an opportunity to further advance the field in ways not previously possible. However, there are areas where the in vitro and in vivo data presented contradict each other, and there are inconsistencies with previously published work by the authors. In addition, with the development of the new mouse model being a major highlight of this manuscript, significantly more detail and discussion must be added to explain this mouse model. Therefore, the reviewers are requesting a major revision to the text of the manuscript to address these concerns, as detailed below.

Essential revisions:

1) Since the authors are presenting the paper largely as the first published mouse model for shigellosis, it is important to discuss the model's caveats for the benefit of others who may wish to utilize this model, as well as emphasize how much more there is to learn. A more in depth discussion about the differences between human Shigella infection and the new model would be helpful. It is important to emphasize that the mouse model requires a much greater inoculum of the pathogen to induce disease and requires microbiota-deficiency to be effective. What are the implications of this finding on our understanding of human disease? The authors present the inhibition of human NAIP–NLRC4 as the main factor that effects the difference in infection between humans and mice but a high innolcum (5 x 10(7) cfu/mouse compared to approx. 100 cfu for humans) is still required in addition to streptomycin treatment. It is not discussed whether any refinement of these procedures was attempted or why such a high inoculum and streptomycin treatment is still required. Presumably microbiota differences in addition to Naip-/Nlrc4 is an important species specific determinant of infection, hence the streptomycin treatment.

2) In the second paragraph of the Discussion the authors present an either/or scenario in which either macrophage pyroptosis is required for IEC infection or inhibition of NAIP–NRLC4 pyroptosis in IECs is required for IEC infection. However, these scenarios are not mutually exclusive. For example, it is plausible that the extremely low burdens of Shigella required to infect humans (<100 CFUs) is due to the pathogen initially crossing the epithelial barrier (e.g. through M-cells) to infect macrophage, and then re-infection of IECs after macrophage pyroptosis. In this scenario, the NAIP–NLRC4 inflammasome could prevent further expansion of bacterial in IECs by eliminating the cell-to-cell spread that have been described by others. Importantly, the macrophage lifecycle stage may not be necessary in mice in which the microbiota has been removed and Shigella is delivered at a very high inoculum. While, additional ideas could be, and should be, put forth since the mouse model provides new insights or challenges an existing dogma in the field.

3) Many questions remain concerning why NLRC4-deficient THP1 cells still undergo pyroptosis. The authors provide evidence that Shigella activates PYRIN and/or AIM2 inflammasomes in humans, and that somehow mouse macrophages would fail to have this same detection. At face value, the data would suggest that humans are able to detect Shigella by PYRIN and AIM2, but for some reason these two inflammasomes are insufficient, and instead NLRC4 is required for in vivo defense. Then in mice, it would imply that everything is flipped – for some reason detection by PYRIN and AIM2 is not important, but now the bacteria can be detected by NLRC4 and this is important. The NLRC4 focused conclusions are consistent with the in vivo data, that NLRC4 in humans fails to detect, but NLRC4 in mice succeeds in detecting Shigella. However, the data that PYRIN and AIM2 in human cells successfully detect Shigella are inconsistent with the overall conclusions of the paper. I suspect that this is an artifact of THP1 cells, and that the in vivo situation in humans is that these two inflammasomes will fail to detect Shigella. There is published precedent from other infections where in vitro detection belies in vivo lack of detection (e.g. Listeria is detected by AIM2 in vitro, but probably not in vivo). It may be difficult to make direct comparisons between how inflammasomes act in THP1 cells as compared to BMMs, due to artifacts arising from the different origins and passage levels of the two cell types. It may be that the inflammasomes response is most important in IECs, as proposed by the authors, and that IECs may not express PYRIN or AIM2. There is evidence from publicly available IEC transcriptional profiles that IECs do not express PYRIN (Mefv) (Reikvam, doi: 10.1371/journal.pone.0017996), although this profile does show AIM2 expression in IEC. As it stands, the in vitro data appear to contradict one of the main conclusions of the paper, because it would seem that human PYRIN and AIM2 inflammasomes can detect Shigella, and so these should compensate for NLRC4. The explanation as to why PYRIN and AIM2 are insufficient to compensate for NLRC4 evasion in human infection should be addressed at least in discussions of the data to explain the apparent discrepancy.

4) The overall message of this manuscript directly contradicts the authors prior paper in Science just last year. They found that the Shigella effector IpaH7.8 directly and specifically ubiquitinates the mouse NLRP1B inflammasome, leading to activation of that inflammasome. How can the loss of NLRC4 be so important when mice still retain NLRP1B which the authors previously published to detect Shigella? Is this due to differences between murine NLRP1 alleles? This should be discussed in the text.

5) In the subsection “Shigella causes bloody diarrheal disease in 129.Nlrc4–/– mice", the authors say that no blood was seen in B6 background, but they do not present direct data or discuss whether this statement arises from macroscopic examination (which would be unable to detect low level bleeding). Considering that a large proportion of the 129 mice only displayed occult bleeding, could the B6 mice have occult bleeding? This should at least be discussed clearly.

6) The authors have an entire section titled "Epithelial NLRC4 protects mice from shigellosis via IEC expulsion," but they have only demonstrated that epithelial NLRC4 is sufficient to protect from shigellosis. As the Vance group itself has previously demonstrated (Rauch et al., 2017), inflammasome activation in intestinal epithelial cells has multiple effects, including pyroptosis, epithelial expulsion, and inflammatory cytokine release, all of which may (or may not) contribute to defense. Thus, their data cannot actually attribute the role of NLRC4 to epithelial expulsion. The title of the section needs to be modified.

7) If available, the following data would increase the impact of the manuscript:

A) Demonstration that IECs from NLRC4-/- mice undergo cell death.

B) Bacterial burden over the time course in Figure 6.

C) Measurement of markers of inflammation and histopathology during disease. Since Shigellosis is an inflammatory disease, it would have been nice to have seen some inflammatory molecules/cytokine levels measured, in addition to clinical features. The authors did measure levels of MPO, but that was as a marker for neutrophil recruitment. It would also be great to have a more thorough comparison of the histology observed in this mouse model as compared to human shigellosis. This could be a Discussion point as something that needs to be further considered in future work, but it should be pointed out to the reader who may be considering adopting this model that this step has not yet been taken.

https://doi.org/10.7554/eLife.59022.sa1

Author response

Essential revisions:

1) Since the authors are presenting the paper largely as the first published mouse model for shigellosis, it is important to discuss the model's caveats for the benefit of others who may wish to utilize this model, as well as emphasize how much more there is to learn. A more in depth discussion about the differences between human Shigella infection and the new model would be helpful. It is important to emphasize that the mouse model requires a much greater inoculum of the pathogen to induce disease and requires microbiota-deficiency to be effective. What are the implications of this finding on our understanding of human disease? The authors present the inhibition of human NAIP–NLRC4 as the main factor that effects the difference in infection between humans and mice but a high innolcum (5 x 10(7) cfu/mouse compared to approx. 100 cfu for humans) is still required in addition to streptomycin treatment. It is not discussed whether any refinement of these procedures was attempted or why such a high inoculum and streptomycin treatment is still required. Presumably microbiota differences in addition to naip-/nlrc4 is an important species specific determinant of infection, hence the streptomycin treatment.

We agree with the reviewer that the infectious dose in humans vs. mice merits more discussion in a revised manuscript. We used a dose of 5x107 CFU in our manuscript to ensure reproducible infection of all mice. Although it is often (correctly) stated that as few as 10-100 bacteria can infect humans with Shigella, there is actually considerable heterogeneity in the infectious dose. DuPont et al., 1989, summarizes several human challenge studies in their Table 1, which shows that while 25-39% of humans exhibit symptoms after low dose infection (<200 CFU), 36-44% of humans are resistant to high doses (104-108 CFU). Thus we do not consider the infectious dose in our mouse model to be out of the range of what is ‘normal’ in humans. Indeed, our new model may help us understand some of the factors that confer resistance to certain humans.

That being said, we have now conducted experiments to address the necessary infectious dose in our model, using inoculums of 2x104, 2x105, and 2x106 in NAIP–NLRC4-deficient mice compared to 2x106 in WT mice. We observed fully penetrant disease in NAIP–NLRC4-deficient mice inoculated with as few as 2x104 CFU. These data are included in a new Figure 8. We also observed that Shigella markedly expands in the antibiotic-cleared gut lumen, regardless of the starting inoculum, as early as 1d post-infection (Figure 8A), suggesting that there is a threshold dose above which the outcomes are largely similar.

Antibiotic pre-treatment is a common feature of many mouse models for enteric pathogens, including a very widely used model of Salmonella infection, but we agree this is important to highlight and have now added discussion to the manuscript to call attention to this point. We hope that this satisfies the concern of the reviewers regarding inoculum.

2) In the second paragraph of the Discussion the authors present an either/or scenario in which either macrophage pyroptosis is required for IEC infection or inhibition of NAIP–NRLC4 pyroptosis in IECs is required for IEC infection. However, these scenarios are not mutually exclusive. For example, it is plausible that the extremely low burdens of Shigella required to infect humans (<100 CFUs) is due to the pathogen initially crossing the epithelial barrier (e.g. through M-cells) to infect macrophage, and then re-infection of IECs after macrophage pyroptosis. In this scenario, the NAIP–NLRC4 inflammasome could prevent further expansion of bacterial in IECs by eliminating the cell-to-cell spread that have been described by others. Importantly, the macrophage lifecycle stage may not be necessary in mice in which the microbiota has been removed and Shigella is delivered at a very high inoculum. While, additional ideas could be, and should be, put forth since the mouse model provides new insights or challenges an existing dogma in the field.

We do clearly state in our manuscript (Discussion, fourth paragraph) that our results do not directly address the question of whether Shigella might benefit from inflammasome activation in macrophages. In the revised version of the manuscript we have further expanded on the discussion of the role of inflammasomes in macrophages and IECs to acknowledge multiple, non-mutually exclusive scenarios. We have also now measured cytokines from tissue and find that IL-1β is elevated in Nlrc4–/– mice (Figure 3F). We now also discuss the possibility that, in the absence of NAIP–NLRC4, the elevated IL-1β reflects inflammasome activation in Shigella-infected macrophages on the basolateral side of the gut epithelium.

3) Many questions remain concerning why NLRC4-deficient THP1 cells still undergo pyroptosis. The authors provide evidence that Shigella activates PYRIN and/or AIM2 inflammasomes in humans, and that somehow mouse macrophages would fail to have this same detection. At face value, the data would suggest that humans are able to detect Shigella by PYRIN and AIM2, but for some reason these two inflammasomes are insufficient, and instead NLRC4 is required for in vivo defense. Then in mice, it would imply that everything is flipped – for some reason detection by PYRIN and AIM2 is not important, but now the bacteria can be detected by NLRC4 and this is important. The NLRC4 focused conclusions are consistent with the in vivo data, that NLRC4 in humans fails to detect, but NLRC4 in mice succeeds in detecting Shigella. However, the data that PYRIN and AIM2 in human cells successfully detect Shigella are inconsistent with the overall conclusions of the paper. I suspect that this is an artifact of THP1 cells, and that the in vivo situation in humans is that these two inflammasomes will fail to detect Shigella. There is published precedent from other infections where in vitro detection belies in vivo lack of detection (e.g. Listeria is detected by AIM2 in vitro, but probably not in vivo). It may be difficult to make direct comparisons between how inflammasomes act in THP1 cells as compared to BMMs, due to artifacts arising from the different origins and passage levels of the two cell types. It may be that the inflammasomes response is most important in IECs, as proposed by the authors, and that IECs may not express PYRIN or AIM2. There is evidence from publicly available IEC transcriptional profiles that IECs do not express PYRIN (Mefv) (Reikvam, doi: 10.1371/journal.pone.0017996), although this profile does show AIM2 expression in IEC. As it stands, the in vitro data appear to contradict one of the main conclusions of the paper, because it would seem that human PYRIN and AIM2 inflammasomes can detect Shigella, and so these should compensate for NLRC4. The explanation as to why PYRIN and AIM2 are insufficient to compensate for NLRC4 evasion in human infection should be addressed at least in discussions of the data to explain the apparent discrepancy.

The reviewer states that our data that human PYRIN and AIM2 inflammasomes can detect Shigella in THP1 cells are “inconsistent” or “appear to contradict” the overall conclusion of our paper, which is that the NLRC4 inflammasome provides necessary defense of mouse intestinal epithelial cells. For reasons explained below, we do not agree that there is an inconsistency or contradiction and indeed many of the points the reviewer makes in their comments fit with our view, so perhaps there is less disagreement than it might seem. As the reviewer discusses, differences in inflammasome expression in humans vs. mice, and in IECs vs. macrophages vs. THP1 cells, and the kinetics of inflammasome responses, as well as several other factors, can easily account for the results we obtain. It appears that PYRIN is not well expressed in mouse IECs (Price et al., 2016), at least not uniformly at levels in all cells that are sufficient to confer protection. AIM2 is expressed in colonic IECs (Price et al., 2016), but it is not clear that it would be engaged in every infected IEC. For example, AIM2 detects bacterial DNA, which might only be released if the Shigella bacteria lysed in the cytosol. As noted by the reviewer, this may be a relatively rare event, as previously documented for AIM2 activation by Listeria-infected macrophages (Sauer JD et al., 2010). AIM2 activation may also be kinetically delayed in IECs.

It appears instead that NLRC4 is the main inflammasome that can respond to Shigella in mouse IECs; thus loss of NLRC4 is sufficient to lead to susceptibility of mice. It remains possible that there is some functional AIM2 or PYRIN (or CASP11 or NLRP1B) in mouse IECs; thus, the further removal of these inflammasomes might lead to even greater susceptibility. Alternatively, a low level of activation mediated by these additional inflammasomes (perhaps in macrophages instead of in IECs) might even be necessary to produce the inflammation that causes disease symptoms.

In humans, consistent with our data in Figure 1, we propose that the NLRC4 inflammasome is antagonized or otherwise evaded by Shigella. The reviewer wonders why PYRIN or AIM2 cannot compensate for NLRC4, and is suspicious that the activation of PYRIN/AIM2 we observe in THP1 cells is not representative of what would occur in vivo. Certainly we agree that THP1 cells are non-physiological and we do not attempt to make claims in the manuscript that our observation of AIM2/PYRIN activity in these cells means anything for human shigellosis.

The reviewer states: “the in vitro data [in THP1 cells] appear to contradict one of the main conclusions of the paper, because it would seem that human Pyrin and AIM2 inflammasomes can detect Shigella, and so these should compensate for NLRC4.” For all the reasons discussed above, we do not agree there is a contradiction. There are many reasons why PYRIN and AIM2 might function in THP1 cells (and possibly even human macrophages) but would not compensate for NLRC4 in IECs.

In sum, we agree that there is more to learn about which inflammasomes, if any, are activated by Shigella in human IECs, but given the many uncertainties, we do not feel it is fair to say that our results are internally contradictory. We now discuss some of these points in a revised manuscript.

We would also like to share new data with the reviewers (see Author response image 1). We have now made MEFV/AIM2–/– THP-1 cells (MEFV is the gene encoding PYRIN). We find that Shigella-induced cell death and IL-1β levels in MEFV/AIM–/– is greatly reduced, suggesting that MEFV and AIM2 are responsible for the cell death in Shigella infected cells. This also supports the idea that the NAIP–NLRC4 inflammasome is inactive during Shigella infection. Moreover, repeating the suppression assay in MEFV/AIM–/– clearly demonstrates that NeedleTox fails to activate the NAIP–NLRC4 inflammasome following infection with WT but not BS103 Shigella. However, because we were only able to generate a single DKO clonal line, we are being cautious in our interpretation and would not like to publish these data at the present time. We also concede that the discussion of Figure 1E, and the use of chemical inhibitors instead of genetic knockouts, limits our ability to make firm conclusions. We thus word our discussion of these data very cautiously and directly state that further follow up work will be required. The main purpose in our view is simply to set up the hypothesis that if there is a species-specific function of NLRC4 in restriction of Shigella, then loss of NLRC4 should render mice susceptible to Shigella – a hypothesis that the rest of the paper then addresses.

Author response image 1

4) The overall message of this manuscript directly contradicts the authors prior paper in Science just last year. They found that the Shigella effector IpaH7.8 directly and specifically ubiquitinates the mouse NLRP1B inflammasome, leading to activation of that inflammasome. How can the loss of NLRC4 be so important when mice still retain NLRP1B which the authors previously published to detect Shigella? Is this due to differences between murine NLRP1 alleles? This should be discussed in the text.

We respectfully disagree with the assertion that our current findings contradict our prior paper in Science. IpaH7.8 exclusively activates the 129 variant of mouse NLRP1B. Thus, we would not expect NLRP1B to play a role on the B6 background. We also note that it is currently unknown whether or not Nlrp1b is functional in IECs in 129 or B6 mice. Interestingly, CASP11, which is known to be both expressed and functional in IECs, does not compensate for a loss of NLRC4. Thus, the presence of a functional inflammasome (whether it be NLRP1B or CASP11) may not necessarily compensate for the function of NAIP–NLRC4 in IECs. As has been pointed out by the reviewers, it may also be possible that Shigella utilizes inflammasome activation in macrophages, a possibility that our current manuscript does not address. Thus, NLRP1B in macrophages may respond to Shigella and promote the more pronounced phenotype we observe on the 129 background. These are follow up questions that we are working on but we do not feel they are directly relevant to establish the claims of the current manuscript.

5) In the subsection “Shigella causes bloody diarrheal disease in 129.Nlrc4–/– mice", the authors say that no blood was seen in B6 background, but they do not present direct data or discuss whether this statement arises from macroscopic examination (which would be unable to detect low level bleeding). Considering that a large proportion of the 129 mice only displayed occult bleeding, could the B6 mice have occult bleeding? This should at least be discussed clearly.

Thank you for this suggestion. We now discuss in the text that we are unable to detect occult blood in the feces of B6 NAIP–NLRC4-deficient mice.

6) The authors have an entire section titled "Epithelial NLRC4 protects mice from shigellosis via IEC expulsion," but they have only demonstrated that epithelial NLRC4 is sufficient to protect from shigellosis. As the Vance group itself has previously demonstrated (Rauch et al., 2017), inflammasome activation in intestinal epithelial cells has multiple effects, including pyroptosis, epithelial expulsion, and inflammatory cytokine release, all of which may (or may not) contribute to defense. Thus, their data cannot actually attribute the role of NLRC4 to epithelial expulsion. The title of the section needs to be modified.

We have modified the title of this section to “Epithelial NLRC4 protects mice from shigellosis.” However, we have also made a very substantive addition to the manuscript in which we demonstrate, using organoids, that IECs are indeed expulsed from the epithelium in response to Shigella in an NLRC4-dependent manner. These new data are now shown in Figure 6.

7) If available, the following data would increase the impact of the manuscript:

A) Demonstration that IECs from NLRC4-/- mice undergo cell death.

We presume the reviewer means to ask us to show that IECs undergo NLRC4-dependent cell death (which is what we hypothesize must occur; whether or not IECs die in the absence of NLRC4 remains an open question. We suspect that this does occur eventually as a result of bacterial replication-induced lysis). To address the reviewers request, and consistent with our overall model, we now provide new data showing that PI-positive (dead) cells from Shigella-infected monolayers are expelled from IEC monolayer cultures in an NLRC4dependent manner. We now provide these data in Figure 6C-E.

B) Bacterial burden over the time course in Figure 6.

We appreciate that the inclusion of CFU data across multiple time points post-infection would add some information to our manuscript. However, given current restrictions and the considerable down-sizing of our mouse colony during the shelter-in-place order, we simply do not have the requisite numbers of mice to accommodate this request. Regardless, we do not feel such data are necessary to establish the main claims of our manuscript.

C) Measurement of markers of inflammation and histopathology during disease. Since Shigellosis is an inflammatory disease, it would have been nice to have seen some inflammatory molecules/cytokine levels measured, in addition to clinical features. The authors did measure levels of MPO, but that was as a marker for neutrophil recruitment. It would also be great to have a more thorough comparison of the histology observed in this mouse model as compared to human shigellosis. This could be a Discussion point as something that needs to be further considered in future work, but it should be pointed out to the reader who may be considering adopting this model that this step has not yet been taken.

We agree that additional readouts of inflammatory disease are warranted. We now present levels of pro-inflammatory cytokines IL-1β, IL-18 and KC from intestinal tissue in Figure 3H.

https://doi.org/10.7554/eLife.59022.sa2
