4-Hydroxy-2-nonenal antimicrobial toxicity is neutralized by an intracellular pathogen

  1. Hannah Tabakh
  2. Adelle P McFarland
  3. Maureen K Thomason
  4. Alex J Pollock
  5. Rochelle C Glover
  6. Shivam A Zaver
  7. Joshua J Woodward  Is a corresponding author
  1. Department of Microbiology, University of Washington, United States
  2. Molecular and Cellular Biology Program, University of Washington, United States
Research Article
  • Cited 0
  • Views 665
  • Annotations
Cite this article as: eLife 2021;10:e59295 doi: 10.7554/eLife.59295

Abstract

Pathogens encounter numerous antimicrobial responses during infection, including the reactive oxygen species (ROS) burst. ROS-mediated oxidation of host membrane poly-unsaturated fatty acids (PUFAs) generates the toxic alpha-beta carbonyl 4-hydroxy-2-nonenal (4-HNE). Although studied extensively in the context of sterile inflammation, research into 4-HNE’s role during infection remains limited. Here, we found that 4-HNE is generated during bacterial infection, that it impacts growth and survival in a range of bacteria, and that the intracellular pathogen Listeria monocytogenes induces many genes in response to 4-HNE exposure. A component of the L. monocytogenes 4-HNE response is the expression of the genes lmo0103 and lmo0613, deemed rha1 and rha2 (reductase of host alkenals), respectively, which code for two NADPH-dependent oxidoreductases that convert 4-HNE to the product 4-hydroxynonanal (4-HNA). Loss of these genes had no impact on L. monocytogenes bacterial burdens during murine or tissue culture infection. However, heterologous expression of rha1/2 in Bacillus subtilis significantly increased bacterial resistance to 4-HNE in vitro and promoted bacterial survival following phagocytosis by murine macrophages in an ROS-dependent manner. Thus, Rha1 and Rha2 are not necessary for 4-HNE resistance in L. monocytogenes but are sufficient to confer resistance to an otherwise sensitive organism in vitro and in host cells. Our work demonstrates that 4-HNE is a previously unappreciated component of ROS-mediated toxicity encountered by bacteria within eukaryotic hosts.

Introduction

Innate immune detection of bacterial infection initiates a complex inflammatory response characterized by production of cytokines and small molecule mediators involved in driving antimicrobial immunity. A key aspect of intrinsic cellular immunity is the production of highly reactive molecules, including reactive oxygen (ROS) and nitrogen (RNS) species (Nathan and Cunningham-Bussel, 2013). ROS and RNS encompass a broad group of distinct molecules, including nitric oxide, hydrogen peroxide, hypochlorite, and superoxide, among others. Unlike adaptive immune responses, which are highly specific toward infectious agents, ROS and RNS exhibit broad toxicity toward biological systems through their capacity to react with lipid, amino acid, and nucleic acid moieties that are conserved among both eukaryotic hosts and invading microbes (Patel et al., 1999; Jacobson, 1996). While such indiscriminate noxious metabolite production provides protection against infection, many bacterial pathogens have evolved a diverse array of mechanisms to directly detoxify or repair damaged cellular components following ROS and RNS encounters, such as superoxide dismutases, catalases, peroxidases, and nitric oxide reductases (Fang, 2004; Staerck et al., 2017).

While many of the distinct chemical agents that comprise ROS and RNS are well characterized molecular components of the innate immune response, these molecules give rise to numerous secondary metabolites that may also contribute to host defense against infection. An initial characteristic of the inflammatory response is the mobilization of arachidonic acid from cellular membranes. Although arachidonic acid is most commonly thought of as the chemical precursor of eicosanoids, upon exposure to oxygen radicals derived from the ROS burst it undergoes a peroxide-mediated structural rearrangement, leading to the generation of breakdown products, the best studied and most abundant of which is 4-hydroxy-2-nonenal (4-HNE), a highly reactive membrane-permeable molecule (Hanna and Hafez, 2018). Over the last 40 years, the production of 4-HNE has been well documented at sites of sterile inflammation and has been associated with many disease pathologies, including atherosclerosis (Uchida et al., 1994), Alzheimers’ (Sayre et al., 2002), diabetes (Pillon et al., 2012), obstructive pulmonary disease (Rahman et al., 2002), and chronic liver disease (Paradis et al., 1997).

4-HNE’s toxicity is driven by its highly reactive αβ-unsaturated aldehyde, which is subject to both Michael addition and electrophilic addition to the aldehyde. 4-HNE is thus highly reactive against all nucleophilic moieties present in the cell, including amino acids, nucleotides and lipids (Dalleau et al., 2013). To combat this reactivity, eukaryotic organisms utilize detoxification enzymes including oxidoreductases that reduce the carbon-carbon double bond to generate 4-hydroxynonanal (4-HNA) (Wang et al., 2019; Srivastata et al., 1996; Dick et al., 2001; Mano et al., 2002), aldo-keto reductases that reduce the carbonyl group, forming the alcohol 1,4-dihydroxynonene (1,4-DHN) (Hartley et al., 1995), and aldehyde dehydrogenases and P450s that oxidize the carbonyl bond to the corresponding carboxylic acid and 4-hydroxynonenic acid (4-HNEA) (Amunom et al., 2007; Guéraud, 2017). Michael addition by glutathione, a reaction that occurs spontaneously and is catalyzed by glutathione-S-transferases, forms glutathionyl-4-hydroxynonenal (GS-HNE), which is reduced to glutathionyl-1,4-dihydroxynonene (GS-DHN) by aldose reductases (Ramana et al., 2006). In addition to enzymatic detoxification, 4-HNE toxicity can be ameliorated non-enzymatically through buffering agents, including quenching reactions with the endogenous peptides carnosine and GHK (Gly-His-Lys), as well as the small molecule hydrogen sulfide (H2S) (Mol et al., 2017). Although reactive oxygen species generation and arachidonic acid mobilization and detoxification are well-known and well-studied components of innate immune responses, detailed studies characterizing the role of 4-HNE during infectious disease, particularly in the context of bacterial pathogens, are lacking.

In this study, we demonstrate that 4-HNE is generated during bacterial infection both in cell culture and in vivo. This mammalian metabolite is able to penetrate the bacterial cell envelope and access the cytoplasm, leading to bacterial growth delay or death. We observed that relative to a variety of bacterial species, the intracellular bacterial pathogen Listeria monocytogenes is highly resistant to the bactericidal effects of 4-HNE and that a broad transcriptional response is induced by toxic 4-HNE exposure, including two genes lmo0103 and lmo0613, deemed rha1 and rha2 (reductase of host alkenals), respectively. The loss of both rha1 and rha2 sensitizes L. monocytogenes to 4-HNE toxicity. Through in vitro analysis of recombinant Rha1 and Rha2, we found both enzymes reduce 4-HNE in an NADPH-dependent-manner to the saturated aldehyde 4-HNA. Importantly, when rha1/2 are expressed in the 4-HNE sensitive and avirulent organism B. subtilis, they significantly increase bacterial survival in the presence of 4-HNE in vitro and following phagocytosis by murine macrophages in a manner dependent upon ROS generation. Our findings are consistent with the premise that 4-HNE is a heretofore unrecognized component of ROS-toxicity encountered by bacteria during infection and that detoxification mechanisms used to counteract 4-HNE-mediated cytotoxicity facilitate bacterial survival within eukaryotic hosts.

Results

4-HNE accumulates during L. monocytogenes infection

4-HNE is a highly reactive electrophilic αβ-unsaturated aldehyde that undergoes Michael addition with nucleophilic amino acids, resulting in stable conjugates that correlate with cellular levels of free 4-HNE. Monoclonal antibodies to these adducts are routinely used to monitor 4-HNE levels in cells (Majima et al., 2002). To investigate 4-HNE production during bacterial infection, we infected murine hepatocytes with L. monocytogenes for 6 hr and quantified 4-HNE protein conjugates using dot blots of whole cell lysates at various times post-infection. As a control, we also quantified adducts that accumulated after treating uninfected cells with 10 µM pure 4-HNE. We found that at 6 hr post infection, 4-HNE adducts accumulate to a similar level as those observed with the addition of the pure compound (Figure 1A). To interrogate the impact of bacterial infection on host production of 4-HNE in vivo, mice were infected intravenously with L. monocytogenes constitutively expressing GFP. At 48 hr post infection, tissues were harvested, fixed, and analyzed by immunohistochemistry. Clear foci of infection were visible in the liver with no change in the abundance of 4-HNE protein conjugates (Figure 1—figure supplement 1A–D). In the spleen, however, bacteria were diffusely distributed throughout the organ and the entire spleen of infected mice exhibited increased staining for 4-HNE protein conjugates (Figure 1B–E).

Figure 1 with 1 supplement see all
4-HNE accumulates during intracellular bacterial infection by L. monocytogenes.

(A) 4-HNE accumulation in TIB73 murine hepatocytes during intracellular L. monocytogenes infection. 4-HNE adduct accumulation was assessed by dot blot of whole cell lysates normalized to actin levels. Data are normalized 4-HNE/actin levels as percent of 4-HNE/actin in untreated sample. Dot blot image below is representative. (B) 4-HNE accumulation in the spleen after 48 hr murine infection by GFP+ L. monocytogenes assessed by immunohistochemistry analysis with anti-4-HNE antibody. (C) Uninfected spleen with anti-4-HNE antibody. (D) Infected spleen at ×25 magnification with anti-GFP antibody. (E) Infected spleen at ×25 magnification with anti-4-HNE antibody. (F) Infected spleen at ×100 magnification with anti-GFP antibody. (G) Infected spleen at ×100 magnification with anti-4-HNE antibody. Red arrows in D and F indicate L. monocytogenes (GFP) detection in the tissue. Orange arrows in E and G indicate cells with concentrated 4-HNE staining. Antigens were detected with 3,3-diaminobenzidine staining by horseradish peroxidase and cellular nuclei imaged with Hematoxylin counterstain in panels B-G. Data in (A) are in biological quadruplicate. Statistics in (A) are an ordinary one-way ANOVA with a Dunnett’s multiple comparison test against untreated. Error bars are mean ± SD. *p<0.05.

At higher levels of magnification, we observed that 4-HNE conjugates within the spleen were not evenly distributed among all cells. Most of the tissue exhibited diffuse and constant staining and a subset of cells showed very dark and robust staining for 4-HNE conjugates (Figure 1E). At ×100 magnification, the most pronounced signal for L. monocytogenes exhibited punctate staining (Figure 1F) and a similar pattern was observed for 4-HNE conjugates at this magnification (Figure 1G). While these observations do not provide quantitative measures of 4-HNE levels, they establish that 4-HNE was indeed elevated in the spleen following bacterial infection and suggest that bacteria encounter this metabolite within the host.

4-HNE causes damage through the targeting of nucleophilic protein moieties and L. monocytogenes is resistant to 4-HNE-mediated death

Electrophilic stress due to 4-HNE conjugation to proteins causes eukaryotic cells to undergo apoptosis following intermediate 4-HNE exposure (5–40 µM) and necrosis at higher concentrations (40–100 µM) (Dalleau et al., 2013). However, due to 4-HNE’s lipophilicity it is believed to accumulate to significantly higher levels (0.3–5 mM) near and within membranes than what is typically considered cytotoxic (Zimniak, 2011; Esterbauer et al., 1991; Uchida, 2003).

To characterize bacterial sensitivity to 4-HNE toxicity, we exposed a panel of both Gram-positive and Gram-negative bacteria to a wide range of 4-HNE concentrations and assessed viability. We observed variability in survival, ranging from a 4-log reduction in CFU for B. subtilis and Francisella novicida, a 2-log reduction for Staphylococcus aureus, a 1-log reduction for Escherichia coli and Pseudomonas aeruginosa, to a half-log reduction for Enterococcus faecalis. For L. monocytogenes, less than a half-log reduction was observed up to 640 µM of 4-HNE (Figure 2A). The variability in survival did not appear to track with bacterial phylum or their cellular infection cycle, as L. monocytogenes and F. novicida, both intracellular pathogens, had markedly different survival capabilities following 4-HNE exposure.

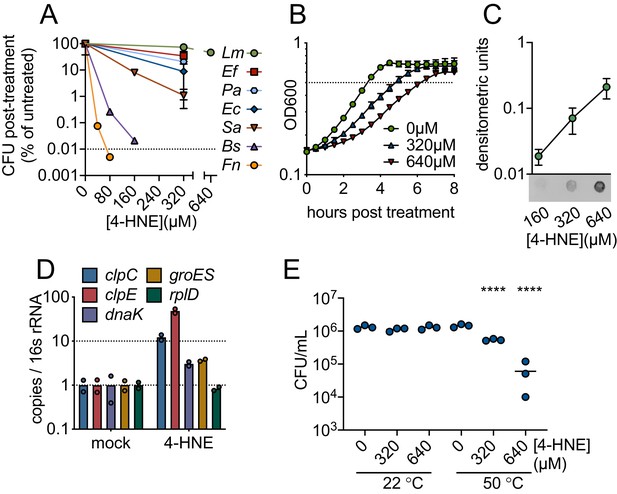

4-HNE is a bactericidal, cell-permeable and protein damaging molecule.

(A) Survival of mid-log (0.4–0.8 OD600) Listeria monocytogenes (Lm), Enterococcus faecalis (Ef), Pseudomonas aeruginosa (Pa), Escherichia coli (Ec), Staphylococcus aureus (Sa), Bacillus subtilis (Bs), and Francisella novicida (Fn) following exposure to various concentrations of 4-HNE or mock vehicle (ethanol) in PBS at 37°C for 1 hr. Data are reported as recovered CFU normalized to mock-treated controls. Dashed line is at the limit of detection. (B) Growth of L. monocytogenes in TSB at 37°C with various concentrations of 4-HNE added at time zero. Dashed line at OD600 0.5 (C) Anti-4-HNE dot blot of soluble bacterial lysates from mid-log L. monocytogenes resuspended in PBS and treated with increasing concentrations of 4-HNE for 30 min. Protein levels were normalized (3 µg total protein) and signal quantified by densitometry on a Licor Odyssey Fc. (D) RT-qPCR measurement of expression of the indicated genes from mid-log L. monocytogenes in TSB treated with 640 µM 4-HNE for 20 min. Expression normalized to 16S rRNA levels. (E) Recovered CFU of WT L. monocytogenes following exposure to 4-HNE or mock vehicle (ethanol) in PBS at 37°C for 1 hr, followed by heat shock (50°C) or no heat shock (22°C) treatment for 10 min. Data in figures (A) and (B) are in biological triplicate. Data in (C) and (D) are biological duplicate. Data in (E) are in technical triplicate and representative of at least two independent experiments. Statistics in (E) are an ordinary one-way ANOVA with a Dunnett’s multiple comparison test against each untreated. Error bars are mean ± SD. *p<0.05; **p<0.01; ***p<0.001; ****p<0.0001. In figure (E), the line is drawn at the median of data.

The significant resistance of L. monocytogenes to 4-HNE exposure was striking. Although 4-HNE exhibited limited bactericidal activity toward this organism, we observed a dose-dependent delay in growth of L. monocytogenes with increased exposure to 4-HNE (Figure 2B). Due to the conserved nature of 4-HNE targets, we hypothesized that 4-HNE would exert similar damaging effects on bacteria as on eukaryotic cells. Thus, we first interrogated the ability of 4-HNE to generate protein adducts within L. monocytogenes. Dot blots of L. monocytogenes cell lysates from bacteria exposed to increasing concentrations of 4-HNE indicated an accumulation of 4-HNE-protein adducts that correlated with increased 4-HNE exposure (Figure 2C), establishing that this aldehyde penetrates the bacterial cell envelope and impacts cytosolic proteins.

4-HNE adduct accumulation can result in protein misfolding and crosslink-induced aggregation. Eukaryotic cells clear 4-HNE damaged proteins through proteasome and autophagy-mediated pathways (Zhang and Forman, 2017). Bacteria target damaged proteins for degradation through the proteases that comprise the heat shock response (Parsell and Lindquist, 1993). Because this response is primarily transcriptionally regulated (Yura et al., 1993), RT-qPCR was performed on a subset of genes representing two major groups of heat shock genes in L. monocytogenes: HrcA-regulated chaperones and CtsR-regulated proteases (Roncarati and Scarlato, 2017). When L. monocytogenes was exposed to 640 µM 4-HNE for 20 min, the four genes tested (clpC, clpE, dnaK, groES) were induced 3-to-40-fold compared to vehicle controls (Figure 2D). These data, combined with the dot blot results, support the hypothesis that 4-HNE causes protein damage to which L. monocytogenes mounts a heat shock response. These observations are consistent with previous reports of electrophile stress induced expression of Clp proteases in B. subtilis (Nguyen et al., 2009). To further explore this connection, bacteria were treated with increasing concentrations of 4-HNE prior to a sublethal heat shock (50°C for 10 min) and bacterial survival was determined by CFU analysis. Consistent with 4-HNE-induced proteotoxic stress, elevated levels of 4-HNE exposure sensitized the bacteria to heat (Figure 2E). The elevated induction of cellular proteases relative to chaperones may indicate that L. monocytogenes primarily combats electrophilic 4-HNE stress through turnover of damaged proteins rather than chaperone-mediated stabilization. Collectively, these observations suggest that despite the formation of protein adducts and delayed growth following exposure, L. monocytogenes has a robust capacity to survive 4-HNE toxicity, although its exposure sensitizes this organism to other proteotoxic stressors.

L. monocytogenes expresses potential 4-HNE detoxification enzymes

Our data suggest that L. monocytogenes is exposed to 4-HNE during infection and that only high concentrations of this aldehyde impact its growth. We hypothesized that L. monocytogenes may express genes involved in countering the cytotoxic effects of 4-HNE. To probe further, we performed global transcriptome analysis during 4-HNE exposure using RNA sequencing. Over one hundred genes were induced greater than 10-fold in response to 4-HNE exposure, including several of the heat shock genes previously identified by RT-qPCR analysis (Figure 3A, Figure 3—figure supplement 1, Source data 1).

Figure 3 with 2 supplements see all

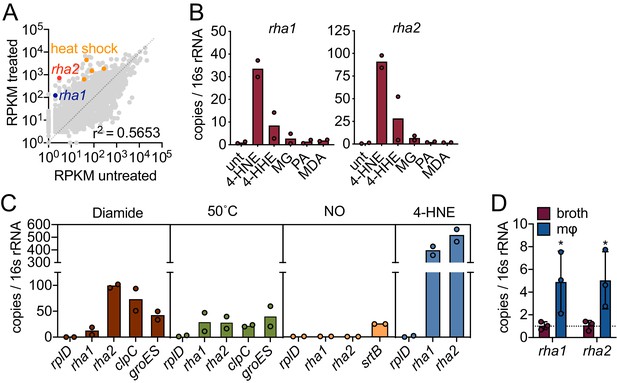

4-HNE exposure induces resistance genes in L. monocytogenes.

(A) Global gene expression of mid-log L. monocytogenes in TSB treated with 640 µM 4-HNE or ethanol control for 20 min. RPKM: reads per kilobase million. Genes of interest rha1, rha2, and heat shock class members are indicated in blue, red, and orange, respectively. (B) RT-qPCR of expression of rha1 and rha2 genes after 20 min treatment of mid-log bacteria in TSB media with 500 µM of selected aldehydes: 4-HNE (4-hydroxy-2-nonenal), 4-HHE (4-hydroxy-2-hexenal), MG (methylglyoxal), PA (propionaldehyde), and MDA (malondialdehyde). (C) RT-qPCR analysis of expression of rha1 and rha1 treated with sublethal levels of diamide (5 mM), heat (50°C), 4-HNE (640 µM), and nitric oxide (1 mM of the NO donor DEA/NO) for 20 min in TSB media. (D) RT-qPCR analysis of expression of rha1 and rha2 at 6 hr post infection in J774 macrophages (mφ). Data in figures (A) and (B) are in biological duplicate. (C) are two independent experiments, with two pooled biological duplicates within each experiment. (D) is in biological triplicate. The bar graphs in (B) (C) and (D) represent the mean of the data. Statistics in (D) are unpaired t-test between the ∆Ct values of broth and macrophage samples. Error bars are mean ± SD. *p<0.05.

Eukaryotic cells utilize several reductases to detoxify 4-HNE (Mol et al., 2017). Two reductases were highly induced in our global transcriptome, lmo0103 and lmo0613, which we refer to as rha1 and rha2 (reductase of host alkenals 1 and 2), respectively. Rha1 is annotated as a nitroreductase. Phyre2 analysis of Rha1 predicted high structural homology to CLA-ER (PDB: 4QLY), a flavin-dependent enone reductase from Lactococcus plantarum (Hou et al., 2015; Kelley et al., 2015). Rha2 is annotated as an alcohol/quinone reductase. A Phyre2 analysis of Rha2 revealed structural similarity to crotonyl-CoA carboxylase/reductases (PDBs: 3KRT, 4Y0K, and 5A3J) and a plant chloroplast oxoene reductase (PDB: 5A3V), two enzymes with the capacity to reduce enone-containing lipophilic substrates. Given the predicted reductase activity of Rha1 and Rha2 and their structural similarity to proteins that metabolize αβ-unsaturated carbonyl-containing compounds, we further investigated their role in 4-HNE resistance.

Induction of rha1 and rha2 in response to 4-HNE exposure was found to be 34 and 90-fold, respectively, compared to untreated control, by RT-qPCR (Figure 3B). We subsequently exposed L. monocytogenes to a panel of aldehydes at equimolar concentrations that did not reduce CFU (Figure 4—figure supplement 1A,BFigure 3—figure supplement 2A,B). This panel included 4-HNE; 4-HHE (4-hydroxy-2-hexenal), a similar but shorter chain αβ-unsaturated aldehyde produced from the oxidation of ω−3 fatty acids (Awada et al., 2012); methylglyoxal, a reactive byproduct of glycolysis; propionaldehyde, a short chain saturated aldehyde; and malondialdehyde, another product of lipid peroxidation (Esterbauer et al., 1991). Both rha1 and rha2 were most strongly induced by 4-HNE exposure, with much less induction by 4-HHE and negligible induction with the other tested compounds (Figure 3B), suggesting that their induction may be specific to this aldehyde.

To gain further insight into the regulation of these genes, we compared expression in a variety of stressors, including diamide-dependent disulfide stress, heat, and nitric oxide stress. Under all conditions tested the control gene rplD was unchanged (Figure 3C) and none of the conditions tested led to a reduction of bacterial CFU (Figure 4—figure supplement 1C; Figure 3—figure supplement 2C). We found that diamide induced rha1 by 11-fold and rha2 by 100-fold and both clpC and groES were induced by 70 and 40-fold, respectively. Heat shock induced both rha1 and rha2 by approximately 30-fold, comparable to the control genes clpC (20-fold) and groES (40-fold). NO was unable to induce either gene under the conditions tested, while the positive control gene srtB was induced approximately 25-fold (Leichert et al., 2003; Richardson et al., 2006). However, among the various stressors tested, the most robust induction of both rha1 and rha2 was with 4-HNE (300 and 500-fold, respectively), as we observed previously with the panel of aldehydes (Figure 3B,C).

We next assessed if rha1 and rha2 are induced by L. monocytogenes during intracellular infection. At 6 hr post infection of J774 macrophages, we found that there was significant induction of both genes compared to growth in BHI broth (Figure 3D). Together these transcriptional studies suggested that the rha1/2 genes are robustly induced in response to 4-HNE and to a lesser extent by other aldehydes or cellular stresses. The induction of rha2 by diamide suggests that rha1 and rha2 may be components of distinct stress regulons, with the latter also being involved in the disulfide stress response. However, 4-HNE is known to be reactive toward redox buffering thiols such as glutathione and therefore rha2 may play a role in both responses.

These intriguing transcriptional results suggested that rha1 and rha2 may function in mediating 4-HNE resistance. To test this, we generated individual and double mutants of rha1 and rha2 and assessed survival of these mutants by competition experiments relative to WT L. monocytogenes following 4-HNE exposure. Control mixtures left untreated in PBS exhibited no significant difference in competitive index between mutant and control strains (Figure 4—figure supplement 1D). Among mixtures exposed to 640 µM 4-HNE, unmarked WT and marked WT showed no significant difference in 4-HNE survival (Figure 4A). Loss of rha2 had no effect on 4-HNE survival while ∆rha1 had a modest fivefold reduction relative to WT. However, the ∆rha1∆rha2 mutant exhibited a 50-fold competitive defect compared to WT L. monocytogenes that was rescued by either rha1 or rha2 expression in trans, demonstrating that both genes must be absent for the toxic effect to manifest (Figure 4A). We also tested L. monocytogenes WT and ∆rha1∆rha2 survival in the presence of heat and diamide and found no significant difference between WT and the double mutant (Figure 4B,C).

Figure 4 with 1 supplement see all

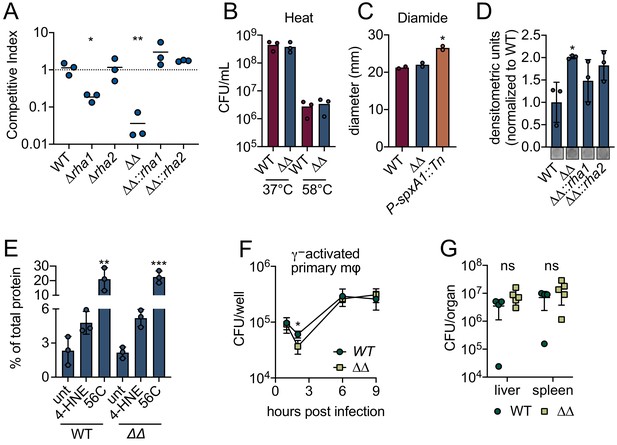

L. monocytogenes ∆rha1∆rha2 has reduced ability to survive 4-HNE toxicity.

(A) Competitive index of WT and mutant L. monocytogenes in PBS treated with 640 µM 4-HNE at 37°C for 1 hr. (B) CFU of WT and ∆rha1∆rha2 L. monocytogenes in TSB exposed to 58°C or 37°C for 15 min. (C) Diameter of zone of clearance by 1M diamide on lawns of WT, ∆rha1∆rha2 and positive control P-spxA1::tn L. monocytogenes on TSA plates as described in Reniere et al., 2016. (D) Accumulation of 4-HNE-adducted proteins in L. monocytogenes exposed to 640 µM 4-HNE for 3 hr in TSB media, assessed by dot blot and normalized to WT. Dot blot images below are representative. (E) Aggregated protein found in the insoluble fraction measured as percent of total protein in WT and ∆rha1∆rha2 L. monocytogenes. Untreated, 4-HNE treatment (640 µL for an hour) and heat shock (56°C for 10 min). (F) CFU/well of WT and ∆rha1∆rha2 L. monocytogenes in recombinant murine IFN-γ (100 ng) activated WT primary murine macrophages. (G) CFU/organ of WT and ∆rha1∆rha2 L. monocytogenes at 48 hr intravenous murine infection. Data in figures (A) and (D) are in technical triplicate, representative of at least three independent experiments. Data in (C) are two independent experiments, with two pooled biological duplicates within each experiment. Data in (B), (E), (F) and (G) are biological triplicate. Statistics in (A) are unpaired t-tests between WT and mutant L. monocytogenes competition pairs. Statistics in (C) are unpaired t-tests between WT and mutant L. monocytogenes. Statistics in (D) and (E) are an ordinary one-way ANOVA with a Dunnett’s multiple comparison test against WT (in D) or untreated sample (in E). Statistics in (F) are unpaired t-tests comparing WT and ∆rha1∆rha2 L. monocytogenes CFU at hour two post infection. Statistics in (G) are unpaired t-tests comparing WT and ∆rha1∆rha2 L. monocytogenes CFU within each organ. Error bars are mean ± SD. *p<0.05; **p<0.01; ***p<0.001. In figures (A) and (G), the line is drawn at the median of data.

We next assessed 4-HNE protein adduct accumulation by dot blot in WT, ∆rha1∆rha2, ∆rha1∆rha2::rha1 and ∆rha1∆rha2::rha2 strains after 4-HNE exposure. We found that following 4-HNE treatment there was a modest but significant twofold increase in 4-HNE adduct accumulation in the ∆rha1∆rha2 mutant compared to WT (Figure 4D). Interestingly, although there was a modest reduction in adduct levels in both complement strains, expression of neither gene in trans fully restored WT levels of adduct formation, even though either rha1 or rha2 complementation fully restored bacterial survival in our competition experiment. Because 4-HNE-mediated protein crosslinking may preclude detection of 4-HNE adducts by dot blot, we subsequently assessed total aggregation of proteins in WT L. monocytogenes and the ∆rha1∆rha2 mutant when exposed to 4-HNE by measuring protein content in the insoluble versus soluble fraction of cell lysates. We found that in WT L. monocytogenes 4-HNE does not lead to significant protein aggregation compared to the untreated control and significantly less insoluble protein accumulation compared to a 10-min exposure of 56°C (Figure 4E). In addition, the ∆rha1∆rha2 mutant did not exhibit an increase in protein aggregation after 4-HNE treatment compared to WT. Collectively, 4-HNE exposure had modest impacts on protein adduct formation and insoluble protein accumulation, supporting the conclusion that the resistance to the bactericidal effect of 4-HNE exposure conferred by Rha1/2 is independent of proteome damage.

Given the defect in the ∆rha1∆rha2 mutant viability compared to WT L. monocytogenes in vitro, we explored the impacts of these genes using tissue and murine infection models. During infection of IFN-γ activated primary murine macrophages, we observed no notable differences between the ∆rha1∆rha1 mutant and WT L. monocytogenes (Figure 4F). In mice infected via intravenous injection, no significant phenotype was observed at 48 hr post infection in either the spleen or the liver (Figure 4G). While Rha1 and Rha2 contribute to L. monocytogenes 4-HNE resistance in vitro, these genes are dispensable for this organism’s capacity to counteract this metabolite in vivo.

Recombinant Rha1 and Rha2 metabolize 4-HNE to 4-HNA

Our data suggested that Rha1 and Rha2 are expressed in response to 4-HNE and may contribute to L. monocytogenes’ resistance to this compound. The predicted function of both Rha1 and Rha2 suggested they might act to directly metabolize 4-HNE. In order to determine if these putative reductases can utilize 4-HNE as a substrate, we generated recombinant Rha1 and Rha2 proteins. As controls for these studies, we generated catalytically dead variants of the two proteins by mutating amino acids predicted to be involved in flavin binding by Rha1 (asparagine-47) and NADPH binding by Rha2 (tyrosine-195) to alanine (Figure 5A). All proteins were expressed and characterized for NADPH oxidation in the presence and absence of 4-HNE (Figure 5B). As a positive control for NADPH-dependent 4-HNE turnover, we used the human Aldo-Keto Reductase 1C1 (AKR1C1), which metabolizes 4-HNE in a NADPH-dependent manner (Burczynski et al., 2001; Figure 5C). Only the WT variants of Rha1 and Rha2 exhibited NADPH oxidation upon addition of 4-HNE, consistent with their capacity to mediate NADPH-dependent reduction of the αβ-unsaturated aldehyde. We then measured NADPH oxidation of Rha1 and Rha2 using the aldehyde panel we previously used for our expression specificity analysis (Figure 4—figure supplement 1A; Figure 3—figure supplement 2A). We found that both Rha1 and Rha2 showed the most robust NADPH oxidation in the presence of 4-HNE, although Rha2 in particular showed modest NADPH oxidation with 4-HHE, perhaps suggesting a wider substrate range for Rha2 than Rha1 (Figure 5D).

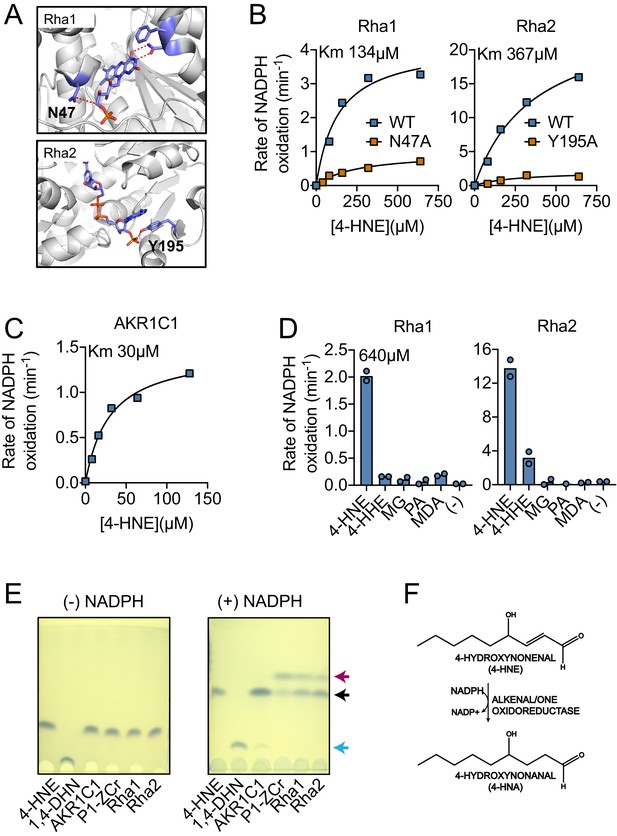

Recombinant Rha1 and Rha2 metabolize 4-HNE to 4-HNA.

(A) Phyre2 structural homology models predict that asparagine-47 interacts with the FMN in Rha1 (left) and tyrosine-195 coordinates NADPH in Rha2 (right). (B) Rates of NADPH oxidation (200 µM) by WT (blue) and mutant (orange) variants of Rha1 and Rha2 in the presence of 4-HNE. (C) Rate of NADPH oxidation (200 µM) by human enzyme AKR1C1 in the presence of 4-HNE. (D) NADPH oxidation rate by Rha1 and Rha2 in the presence of 640 µM final concentration of various aldehydes. (E) TLC plates showing the migration of reaction contents of Lane 1: 4-HNE, Lane 2: 1,4-DHN, and Lanes 3–6: indicated enzymes with 4-HNE in the absence and presence of NADPH after 1 hr of reaction at room temperature. 4-HNE -- black arrow, 4-HNA -- red arrow, 1,4-DHN -- blue arrow. (F) Diagram of 4-HNE to 4-HNA conversion. Data in (B), (C), (D) and (E) are representative of at least three independent experiments.

Generally, NADPH-dependent 4-HNE reduction can occur at either the carbon-carbon double bond, generating the saturated aldehyde 4-hydroxynonanal (4-HNA), or on the carbonyl moiety, generating the alcohol 1,4-dihydroxynonene (1,4-DHN) (Schaur et al., 2015). To elucidate which of these two products Rha1 and Rha2 may be generating, we performed thin-layer chromatography (TLC) on their enzymatic products. We concurrently utilized the human enzyme AKR1C1 as a positive control for 1,4-DHN production (Burczynski et al., 2001) and the Arabidopsis thaliana enzyme P1-ZCr as the positive control for 4-HNA (Mano et al., 2002). We also chemically generated 1,4-DHN as an additional control through sodium borohydride reduction of 4-HNE. In reactions with either Rha1 or Rha2, a new spot was observed which required addition of NADPH and that co-migrated with the 4-HNA product formed by P1-ZCr (Figure 5E). These results support the conclusion that both Rha1 and Rha2 have the capability to directly metabolize 4-HNE to 4-HNA (Figure 5F).

Ectopic expression of rha1 and rha2 confers 4-HNE resistance to the sensitive bacteria B. subtilis

Based on our recombinant protein data, we hypothesized that Rha1 and Rha2 could confer 4-HNE resistance to a sensitive organism. To this end, we utilized B. subtilis as the host for heterologous expression of rha1 and rha2. B. subtilis is exquisitely sensitive to 4-HNE toxicity, exhibiting 300-fold reduction in recoverable CFU compared to L. monocytogenes upon 4-HNE exposure as well as a significant growth delay (Figure 2A, Figure 6—figure supplement 1A). We ectopically expressed both rha1 and rha2, and their corresponding catalytically dead variants individually and in combination in B. subtilis in the presence of 4-HNE. We compared the growth of B. subtilis expressing the active forms of the enzymes to their catalytically dead counterparts. Consistent with our observations of the L. monocytogenes rha deletion mutants, expression of rha2 in B. subtilis had no effect on growth in the presence of 4-HNE under the conditions tested, rha1 reproducibly reduced lag time by approximately 50 min in treatment with 640 µM 4-HNE (Figure 6—figure supplement 1B). Expression of both rha1 and rha2 had the largest growth rescue, reducing lag time by up to 3 hr (Figure 6A). Further characterization focused on B. subtilis expressing both rha1 and rha2 genes, as this strain had the most robust phenotype. When assessed for bacterial survival following 4-HNE treatment, B. subtilis expressing the functional enzymes exhibited nearly a 2-log survival advantage relative to the control strain expressing enzymatically dead rha1/2 (Figure 6B). Additionally, soluble cellular fractions from B. subtilis exposed to 4-HNE and probed for 4-HNE protein adducts by dot blot revealed a ~ 70% reduction in 4-HNE conjugates in the B. subtilis strain expressing both of the active rha1 and rha2 genes versus their catalytically dead counterparts (Figure 6C, Figure 6—figure supplement 1C).

Figure 6 with 1 supplement see all

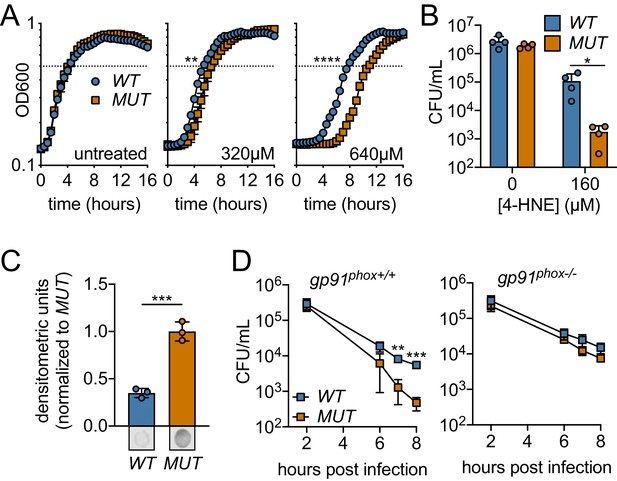

Ectopic expression or Rha1 and Rha2 confers 4-HNE resistance to sensitive bacteria.

(A) Growth of B. subtilis expressing either the WT or MUT (catalytically dead mutant) versions of rha1 and rha2 in TSB at 37°C in the presence of the indicated concentrations of 4-HNE added at time zero. Dotted line represents OD600 0.5. (B) Survival of B. subtilis WT and MUT in PBS at 37°C with 160 µM 4-HNE for 1 hr. (C) 4-HNE conjugates from B. subtilis WT and MUT soluble cell lysates (3 µg total protein) 3 hr after 4-HNE treatment as assessed by dot blot and quantified by densitometry on a Licor Odyssey Fc. Dot blots below are representative. (D) B. subtilis WT and MUT survival following phagocytosis by Interferon gamma-activated primary WT or phagosomal oxidase-deficient bone-marrow-derived macrophages (WT or gp91phox-/- pBMMs). All experiments were performed in biological triplicate. Statistics in (A) are unpaired t-tests comparing the hours to OD600 0.5 between WT and MUT B. subtilis pHT01::rha1/2. Statistics in (B), (C) and (D) are unpaired t-tests comparing WT and MUT B. subtilis pHT01::rha1/2. Error bars are mean ± SD. *p<0.05; **p<0.01; ***p<0.001; ****p<0.0001.

To determine if 4-HNE resistance conferred by expressing rha1/2 could contribute to bacterial survival within mammalian cells, B. subtilis rha1/2 strains were assessed for viability following phagocytosis by primary bone-marrow-derived macrophages. We found that B. subtilis expressing the active forms of Rha1 and Rha2 (WT) maintained a significantly higher CFU over the course of 8 hr than the B. subtilis expressing the catalytically dead forms (MUT) (Figure 6D). To determine whether this survival advantage was due to 4-HNE resistance, we measured B. subtilis survival within bone marrow-derived macrophages from gp91phox-/- mice deficient in oxidase cytochrome b-245, which are unable to produce the reactive oxygen burst and therefore 4-HNE (Esterbauer et al., 1991). Consistent with the role of rha1 and rha2 in mediating resistance to a ROS-derived factor, the protective effect of WT rha1/2 expression was eliminated in the absence of gp91phox (Figure 6D). Together, these observations revealed that expression of rha1 and rha2 in B. subtilis imparts resistance to 4-HNE toxicity and impacts bacterial survival in response to the host cell’s ROS burst.

Discussion

In this study, we provide evidence that the ROS-derived metabolite 4-HNE accumulates during L. monocytogenes infection in both tissue culture and in a murine model of infection. We also show that 4-HNE exhibits antimicrobial effects in several bacterial species and that in the highly resistant intracellular pathogen L. monocytogenes, exposure to this aldehyde induces a broad and robust transcriptional profile. Among the highest induced genes are components of the heat shock response, consistent with aldehyde induced protein damage, a known effect of 4-HNE exposure. In addition, two genes, rha1 and rha2, are highly and specifically induced by 4-HNE exposure, and these two enzymes reduce 4-HNE to 4-HNA in an NADPH-dependent manner in vitro. Disruption of rha1 and rha2 in L. monocytogenes results in a decrease in viability in the presence of 4-HNE in vitro but not in vivo, and heterologous expression of rha1 and rha2 in B. subtilis, a non-pathogenic 4-HNE-sensitive organism, conferred increased tolerance to 4-HNE toxicity. Rha1 and Rha2 expression in B. subtilis also allowed for greater survival following phagocytosis by bone-marrow-derived macrophages in a manner entirely dependent upon phagocyte ROS generation. Together this work supports the conclusion that 4-HNE represents one of the individual molecular components of ROS-mediated host defense through its direct antimicrobial effects on bacteria and that pathogens have likely evolved complex mechanisms of surviving its encounter within eukaryotic hosts.

There are many parallels between the chemical and biological functions of 4-HNE and other toxic metabolites that function in antimicrobial defense. The freely diffusible and highly reactive diatomic gas nitric oxide (NO) is produced during infection (Iyengar et al., 1987; Stuehr and Marletta, 1985) and has a direct role in preventing bacterial growth (Nathan and Hibbs, 1991). However, due to the conservation of its reactive targets, elevated levels of NO also exert pathological effects during both sterile inflammation and acute infections (Nagafuji et al., 1995; Galley and Webster, 1998). 4-HNE is membrane diffusible, highly reactive, and contributes to disease pathology due to its cytotoxic activity toward eukaryotic cells. These parallels, together with our findings that bacterial infection induces 4-HNE production are consistent with the premise that 4-HNE represents a component of ROS-mediated host defense, among such other toxic metabolites as superoxide, hydrogen peroxide, and hypochlorite.

While a role for 4-HNE in host antimicrobial defense has yet to be appreciated in mammals, plants utilize a variety of lipophilic molecules generated by the oxidation of polyunsaturated fatty acids (PUFAs), collectively referred to as oxylipins. While generally considered to be involved in signal transduction, many oxylipins can directly inhibit bacterial growth (Prost et al., 2005) and 4-HNE itself is a component of the oxylipin burst in soybean where it serves an anti-fungal function (Vaughn and Gardner, 1993). Because 4-HNE is one of several distinct metabolites produced following oxidation of PUFAs in mammals, it is conceivable that other reactive byproducts of this process also contribute to microbial defense in a similar manner.

The contrasting observations between the liver and spleen were somewhat surprising given our observation that infection of murine hepatocytes in tissue culture with L. monocytogenes in vitro induced accumulation of 4-HNE conjugates. These observations are likely a consequence of several factors. The liver is a major site of small molecule detoxification and hepatocytes are known to produce high levels of many of the 4-HNE metabolizing proteins, including aldo-keto reductases, alcohol dehydrogenase, and the 4-HNE glutathione transferase, GSTA4 (Zheng et al., 2014). Additionally, the immune-driven mobilization of arachidonic acid and ROS precursors that lead to 4-HNE generation may result in elevated accumulation of this host aldehyde in the spleen. These observations suggest that the need to counteract 4-HNE toxicity may be distinct depending upon the tissue tropism of an infecting pathogen.

To survive within the sterile tissues of eukaryotic hosts, bacterial pathogens often counteract the toxic effects of the immune response. Our discovery of two genes that confer synergistic resistance to 4-HNE in L. monocytogenes begin to provide insight into the mechanisms by which 4-HNE toxicity might be overcome. In vitro studies suggest that Rha1 and Rha2 both metabolize 4-HNE in an NADPH-dependent manner to 4-HNA, suggesting redundant functions. Redundancy in bacterial resistance to ROS is a relatively common phenomenon, including the need to eliminate five individual enzymes in Salmonella enterica Serovar Typhimurium to exhibit a phenotype in the presence of hydrogen peroxide (Hébrard et al., 2009) and simultaneous disruption of four enzymes in Bacillus anthracis to observe a phenotype in the presence of superoxide (Cybulski et al., 2009). Such redundancy in bacterial detoxification programs likely decreases the chances that genetic drift or other genomic damage would render an organism defenseless against oxidative stress. It remains unclear, however, why both Rha1 and Rha2, which have similar in vitro enzymatic properties, are both required for 4-HNE resistance following exposure to the pure compound. If their effects were simply redundant, the loss or addition of both genes in L. monocytogenes and B. subtilis, respectively, would be additive. Our findings are contrary to this expectation, suggesting a more complex role. We speculate that either alternative localization of these proteins resulting in detoxification within specific subcellular compartments or unidentified alternative roles in mediating 4-HNE resistance are at play.

A wide range of susceptibility to 4-HNE exposure was observed among the various bacterial species tested in this study. These observations may reflect unique mechanisms by which these organisms combat 4-HNE as well as potential conservation of the Rha1 and Rha2 proteins. Among the most 4-HNE-sensitive organisms, B. subtilis, which resides in the soil, likely does not encounter 4-HNE and appears to have no resistance to its exposure, while another highly 4-HNE-sensitive bacterium, F. novicida, is known to block the generation of ROS by the host NADPH oxidase, perhaps limiting the need to detoxify this metabolite directly (Mohapatra et al., 2010). E. faecalis and L. monocytogenes were the most resistant organisms tested. Among all organisms tested, E. faecalis has the clearest homologs based on sequence identity to Rha1 (59%) and Rha2 (71%) from L. monocytogenes. It is difficult to predict substrate specificity of flavin-dependent and NADPH-dependent reductases solely on sequence conservation, and without direct enzymological characterization, homologous function cannot be concluded. Additionally, while these two genes are most robustly induced by L. monocytogenes 4-HNE exposure, it cannot be concluded that they are not a part of a broader stress response. In particular, Rha2 is induced by diamide stress and exhibits enzymatic activity toward 4-HHE, suggesting a wider role in stress responses and substrate promiscuity. Given that many flavin and NADPH-dependent reductases have roles in detoxifying endogenous enone containing compounds, like quinones, or other exogenous electrophilic toxic metabolites susceptible to Michael-addition, including nitroaromatic compounds, it is certainly feasible that these enzymes play roles beyond 4-HNE resistance.

While Rha1 and Rha2 both contribute to 4-HNE resistance, the ∆rha1∆rha2 L. monocytogenes strain still exhibits several logs of survival benefit relative to the related organism B. subtilis, suggesting that other mechanisms of 4-HNE resistance remain to be identified. Among the many uncharacterized genes induced during 4-HNE exposure, lmo0796 shows homology to bcnA, a secreted lipocalin in Burkholderia cenocepacia which sequesters long-chain lipophilic antibiotics (El-Halfawy et al., 2017). 4-HNE, with its long hydrophobic tail, could conceivably be neutralized in an analogous manner. It is also possible that many intrinsic resistance properties of L. monocytogenes are not reflected through transcriptional responses. For instance, addition of amine containing constituents on the cell’s surface through lysinylation of teichoic acids and/or lipids, as well as deacetylation of peptidoglycan, may provide a nucleophile reactivity barrier that prevents 4-HNE entry into the bacterial cell. Additionally, αβ-unsaturated aldehydes have preferential reactivity toward sulfhydryl groups, including cysteine and glutathione, and it is expected that thiolate depletion would be the major mechanism of 4-HNE toxicity (LoPachin and Gavin, 2014). Indeed, the thiol responsive transcription factor spxA1 was induced >2 fold in response to 4-HNE and the magnitude of heat shock gene induction mirrored results reported for B. subtilis following diamide treatment, a potent inducer of disulfide stress (Leichert et al., 2003). While our findings provide initial molecular insight into one pathogen’s resistance to 4-HNE, it is clear that many details are yet to be revealed.

Taken together, our findings extend the range of antimicrobial molecules generated through the reactive oxygen burst to include the byproducts of lipid peroxidation. Additionally, bacteria whose infection cycles involve intimate exposure to these molecules, such as L. monocytogenes, have the capacity to resist this toxicity. Future investigation of the impacts of 4-HNE on a diverse array of organisms with varied infection models will highlight the importance of this metabolite on host defense and the varied mechanisms by which pathogens counteract its toxicity to promote infection.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Cell line (Mus musculus)J774A.1PMID:1612739Immortalized murine macrophages
Cell line (Mus musculus)TIB73ATCC: BNL CL.2Immortalized murine hepatocytes
Strain, strain background (Mus musculus)C57BL/6JJackson Laboratories: 000664
Strain, strain background (Mus musculus)gp91phox- (C57BL/6J backcross)Jackson Laboratories: 002365
Strain, strain background (Escherichia coli)DH10bInvitrogen: 10536193
Strain, strain background (Escherichia coli)SM10DOI: https://doi.org/10.1038/nbt1183-784
Strain, strain background (Escherichia coli)BL21 (DE3)EMD Millipore: 69450
Strain, strain background (Escherichia coli)Rosetta (DE3)EMD Millipore: 70954
Strain, strain background (Listeria monocytogenes)10403SPMID:2125302WT
Strain, strain background (Bacillus subtilis)168PMID:18723616WT
Strain, strain background (Francisella novicida)U112PMID:17550600WT
Strain, strain background (Pseudomonas aeruginosa)PAO1PMID:20023018WT
Strain, strain background (Staphylococcus aureus)NewmanPMID:17951380WT
Strain, strain background (Enterococcus faecalis)OG1RFPMID:18611278WT
Strain, strain background (Listeria monocytogenes)DP-L3903PMID:11500481Antibiotic marked competition strain
Strain, strain background (Listeria monocytogenes)DP-L4056PMID:12107135Phage-cured 10403S strain for use with pPL1 integration plasmid
Genetic reagentGenetically modified bacterial strains used in this workThis paperSupplementary file 1
recombinant DNA reagentpPL1077This studypPL1-GFP integration plasmid(Gift from Peter Lauer; Berkeley, CA)
Recombinant DNA reagentpKSV7PMID:8388529Shuttle vector for L. monocytogenes gene disruption
Recombinant DNA reagentpET20bNovagen: 69739C-terminus 6xHis tagged E. coli T7 expression vector
Recombinant DNA reagentpET28bNovagen: 69865N-terminus 6xHis tagged E. coli T7 expression vector
Recombinant DNA reagentpPL2-PspacPMID:25583510Integrative L. monocytogenes plasmid pPL2 engineered with constitutive Pspac promoter
Recombinant DNA reagentpHT01PMID:17624574B. subtilis expression vector
Recombinant DNA reagentsPlasmids generated and used in this workThis paperSupplementary file 2
Gene (Listeria monocytogenes)lmo0103 (LMRG_02352)GenBank: Gene ID 12552319Gene rha1
Gene (Listeria monocytogenes)lmo0613 (LMRG_00296)GenBank: Gene ID 12552833Gene rha2
Gene (Homo sapiens)akr1c1GenBank: Gene ID 1645Gene akr1c1
Gene (Arabidopsis thaliana)p1-zcrGenBank: Gene ID 831560Gene p1-zcr
Sequence-based reagentsRT-qPCR primersThis paper(See supplementary file 3)
Sequence-based reagentsCloning primersThis paper(See supplementary file 3)
Sequence-based reagentsGene coding sequences for protein expressionThis paper(See supplementary file 4)
Chemical, compound, drug4-HNECayman Chemical: 3210064 mM 4-HNE in absolute ethanol
AntibodyAnti-4-HNE adductAbcam: ab46545Rabbit IgG polyclonal antibody(1:200)
AntibodyAnti-actinAbcam: ab8226Mouse IgG monoclonal antibody(1:1000)
AntibodyAnti-rabbit secondary antibodyLicor: 926–32211Goat IgG monoclonal antibody(1:8000)
AntibodyAnti-mouse secondary antibodyLicor: 926–68072Donkey IgG monoclonal antibody(1:8000)
AntibodyAnti-GFP primary antibodyInvitrogen: MA5-15256Mouse IgG monoclonal antibody(1:500)
AntibodyIsotype control primary antibody, histologyR and D Systems: AB-105-CNormal Rabbit IgG(1:1000)
Commercial assay, kitOvation Complete Prokaryotic RNA-Seq SystemNugen: 0363–32RNA-seq processing kit
Software, algorithmRockhoppercs.wellesley.edu/~btjaden/Rockhopper/RNA-seq data analysis software

Statistics and reproducibility

Request a detailed protocol

Sample sizes were defined as at least n = 3 for all experiments unless otherwise noted. Biological replicates are defined as bacterial samples grown from independent colonies. Technical replicates are defined as bacterial samples grown from the same colony and split for treatment and processing. Independently performed experiments are defined as being done on different days. Type of replication, number of replicates, statistical tests performed, and definitions of significance symbols are indicated in figure legends. All statistics were performed using Prism Version 8.4.2 Software. Data points represent mean ± SD of replicate experiments. Statistical outliers were not excluded in this study. For murine infection studies a group size of five mice was selected. This was based upon the ability to detect a 1-log effect on bacterial burdens between groups, with a 45% standard deviation on log transformed CFU measures, an alpha of 0.05 and power of 0.9. These parameters were selected based upon previous L. monocytogenes infection studies performed in the laboratory.

Cell lines

Request a detailed protocol

TIB73 cells were purchased from ATCC. J774A.1 cells were obtained from the laboratory of Dr. Michelle Reniere and were confirmed via STR profiling by ATCC. Both cell lines were tested negative for Mycoplasma contamination.

Strains and routine growth conditions

Request a detailed protocol

Unless otherwise specified, L. monocytogenes was grown shaking at 37°C degrees in tryptic soy broth (TSB) media and E. coli at shaking at 37°C degrees in Luria-Bertani (LB) media with appropriate antibiotic selection. Unless otherwise noted, B. subtilis was struck on LB plates with appropriate antibiotics and induction agent overnight at 30°C, after which the biomass was scraped off the plates, resuspended in LB media, passed 6 to 10 times through a 27-gauge needle to break up clumps and chains, then normalized to an OD600 of 1. When required for selection, antibiotic concentrations used in this study were as follows – L. monocytogenes selections: streptomycin 200 µg/mL, chloramphenicol 5 µg/mL; E. coli selections: ampicillin 50 µg/mL; B. subtilis selections: chloramphenicol 10 µg/mL; tissue culture: gentamicin 50 µg/mL.

DNA manipulation and plasmid construction

Request a detailed protocol

All DNA manipulation procedures followed standard molecular biology protocols. Primers were synthesized and purified by Integrated DNA Technologies (IDT). HiFi polymerase (Kapa Biosystems, #KK2102), FastDigest restriction enzymes (Thermo Fisher Scientific #FD0274), and T4 DNA ligase (Thermo Scientific # K1423) were used for plasmid construction, with the exception of pHT01::rha1/2_WT and pHT01::rha1/2_MUT which were generated using Gibson Assembly MasterMix (NEB, #E2611S). DNA sequencing was performed by Genewiz Incorporated.

Bacterial infection and exogenous 4-HNE TIB73 dot blot

Request a detailed protocol

TIB73 cells were infected with L. monocytogenes following a previously developed protocol (McFarland et al., 2017). Exogenous 4-HNE (Cayman Chemical, #32100) was added to uninfected TIB73 cells by first washing the cells with sterile PBS and then adding 2 mL sterile PBS containing a final concentration of 10 µM 4-HNE for 10 min. TIB73 cells were lysed in whole cell lysis buffer (50 mM Tris pH 7.5, 150 mM NaCl, 1% Triton X-100) with EDTA (1 µM) and Halt Protease Inhibitor Cocktail (Thermo Fisher Scientific, #78442). Protein concentration was determined using the Pierce BCA protein assay kit (Fisher Scientific, #PI23227). Lysates were resuspended in 1X PBS to achieve 2 µg of protein per 3 µl, which was the volume spotted out onto nitrocellulose membrane (Bio-Rad, #1620115). The nitrocellulose was then dried, blocked for 45 min in 5% dry milk, washed three times with TBS-T (Tris-buffered saline with 0.1% Triton X-100) and primary 4-HNE antibody was added at 1:200 dilution (Abcam, #ab46545). The antibody was incubated overnight at 4°C with rocking. Primary actin antibody (Abcam, #ab8226) was added at 1:1000 for 3 hr at room temperature. The primary antibodies were then washed off with TBS-T three times and secondary antibodies (Licor, #926–32211, #926–68072) were added at 1:8000 for 45 min at RT. The secondary antibodies were then washed with TBS-T twice, then TBS once and the blot was imaged on a Licor Odyssey Fc (Li-Cor, Inc). Relative densitometric analysis was performed using Licor Image Studio software.

Mouse infections

Request a detailed protocol

L. monocytogenes was grown overnight statically at 30°C in Brain Heart Infusion (BHI) broth, then back-diluted using 1.2 mL of overnight culture to 4.8 mL of fresh BHI and grown for 1 hr at 37°C shaking. OD600 of these cultures were taken and, using the conversion of 1 OD600 = 1.7×109 CFU, diluted to 5 × 105 CFU/mL with PBS. 200 µl were then injected into female WT C57BL/6 mice between 6 and 8 weeks of age retro-orbitally (1 × 105 CFU/mouse) and livers and spleens were harvested at 48 hr post infection. Livers were homogenized in 10 mL of cold 0.1% IGEPAL and spleens were homogenized in 5 mL using a Tissue Tearor Model 985370 (Biospec Products) at 10,000 RPM for 5 s/organ. Homogenates were diluted in PBS and plated on LB plates to enumerate CFU. All protocols were reviewed and approved by the Institutional Animal Care and Use Committee at the University of Washington.

4-HNE histology

Request a detailed protocol

Two female WT C57BL/6 mice were infected as outlined above, in addition to one uninfected control mouse. The livers and spleens were harvested at 48 hr post infection and placed in 10% neutral buffered formalin for 24 hr, after which the organs were removed from formalin and placed in PBS for 24 hr. Paraffin-embedded tissues were sliced and prepared as slides. Slides were then deparaffinized for 30 min at 60°C. All subsequent manipulations were performed on a Leica Bond Automated Immunostainer. Antigen retrieval for GFP was performed by HIER 2 (EDTA) treatment for 20 min at 100°C. Antigen retrieval for 4-HNE was performed by citrate treatment for 20 min at 100°C. Then a Leica Bond peroxide block was performed for 5 min at room temperature, and normal goat serum (10% in TBS) was added for 20 min at room temperature. Primary antibody was added (GFP 1:500; Rabbit IgG 1:1000; 4-HNE 1:200) (Invitrogen: #MA5-15256; R and D Systems: #AB-105-C; Abcam: #ab46545) in Leica Primary antibody diluent (Leica: #AR9352), for 30 min at room temperature. Leica Bond Polymer was added for 8 min at room temperature, after which the samples were washed with Leica Bond Mixed Refine (DAB) (Leica: # DS9800) detection solution twice for 10 min at room temperature. Hematoxylin Counterstain was added for 4 min and the samples were cleared to xylene. Finally, samples were mounted with synthetic resin mounting medium on a 1.5 cm coverslip and imaged with a Hamamatsu Nanozoomer Whole Slide Scanner and a Keyence BZ-X710 Microscope.

L. monocytogenes PBS 4-HNE dot blots

Request a detailed protocol

L. monocytogenes were sub-cultured from overnight stationary phase cultures 1:100 into fresh media and grown to mid-log (0.4–0.8 OD600). The bacteria were normalized to OD600 1, washed twice and resuspended in sterile PBS. A range of 4-HNE concentrations were added to the bacteria and the samples were placed at 37°C for 30 min. Upon completion, the bacteria were washed twice with PBS and spun at 10,000 x g for 5 min, then resuspended in fresh PBS. The bacteria were then sonicated using a narrow tip sonicator at 20% power, 1 s on 1 s off for 10 s and placed on ice. The bacteria were then spun at 4°C at 10,000 x g for 30 min. The subsequent lysate was transferred to fresh Eppendorf tubes containing Halt Proteinase and Phosphatase Inhibitor (Thermo Fisher Scientific, #78442) and stored at −80°C until use. For dot blots, the protein concentration was normalized using BCA (Fisher Scientific, #PI23227) and 3 µg in 3 µL was spotted onto nitrocellulose membrane (Bio-Rad, #1620115). The nitrocellulose was then dried, blocked for 45 min in 5% dry milk, washed three times with TBS-T and primary 4-HNE antibody was added at 1:200 dilution (Abcam, #ab46545). The antibody incubated overnight at 4°C with rocking. The primary antibody was then washed off with TBS-T three times and secondary antibody (Licor, #926–32211) was added at 1:8000 for 45 min at room temperature. The secondary antibody was then washed off with TBS-T twice, TBS once and the blot was imaged on a Licor Odyssey Fc. Relative densitometric analysis was performed using Licor Image Studio software.

RNA extraction from broth cultures of L. monocytogenes

Request a detailed protocol

L. monocytogenes were sub-cultured from overnight stationary phase cultures 1:100 into fresh media and grown to mid-log (0.4–0.8 OD600). Then a final concentration of 640 µM 4-HNE (Cayman #32100) or vehicle (100% ethanol) was added to the bacteria, which continued to grow at 37°C shaking for 20 min. After 20 min, ice cold 100% methanol was added in equal volume to the culture flask and placed at −20°C overnight. The next day the bacteria were spun down and resuspended in 400 µL AE buffer (50 mM NaOAc pH 5.2, 10 mM EDTA in molecular grade water). The resuspended bacteria were then mixed with 400 µL acidified 1:1 phenol:chloroform pH 5.2 (Fisher Scientific, # BP1753I) and 40 µL 10% sodium dodecyl sulfate (SDS) and was vortexed for 10 min in a multi-tube vortexer. The tubes were then transferred to a 65°C heat block for 10 min, after which the mixture was transferred to a Heavy Phase-lock tube (VWR #10847–802) and spun down for 5 min at 17,000 x g. Then the aqueous layer was transferred into tubes containing 1 mL 100% ethanol and 40 µL 3M NaOAc and placed at −20°C for 6 hr. Then tubes were spun at 17,000 x g for 30 min at 4°C, the ethanol was aspirated and 500 µL 70% ethanol was added. The tubes were then centrifuged at 17,000 x g for 10 min at room temperature and the supernatant was aspirated. The RNA pellet was then dried in a speed vacuum concentrator for 5 min and resuspended in RNA-free molecular grade water. The extracted RNA was then treated with DNase (Ambion Life Technologies #AM1907) for an hour at 37°C and used for downstream processing.

RNA-sequencing

Request a detailed protocol

RNA was processed using the Ovation Complete Prokaryotic RNA-Seq Library System (NuGEN, #0363–32, 0326–32, 0327–32) according to the manufacturer’s instructions to a final pooled library concentration of 3 nM. Libraries were sequenced on an Illumina HiSeq 2500 (SR50) at The Genomics Resource at the Fred Hutchinson Cancer Research Center. Image analysis and base calling were performed using Illumina's Real Time Analysis v1.18.66.3 software, followed by 'demultiplexing' of indexed reads and generation of FASTQ files using Illumina's bcl2fastq Conversion Software v1.8.4. Reads determined by the RTA software to pass Illumina's default quality filters were concatenated for further analysis. The FASTQ files were aligned and analyzed using Rockhopper software (McClure et al., 2013). These data have been deposited to the GEO and are accessible using accession number GSE150188.

RT-qPCR

Request a detailed protocol

Bacteria were grown in the same manner as for RNA-seq except they were treated with either (a) 500 µM of each tested aldehyde (b) 5 mM diamide (c) heat (50°C) or (d) nitric oxide (1 mM of the NO donor DEA/NO) for 20 min in TSB media culture at mid-log (0.4–0.8 OD600). The RNA was extracted by the acidified phenol method as listed above and DNase treated and reverse-transcribed using the iScript Reverse Transcription Supermix (Bio-Rad, #1708840). SYBR Green (Thermo Fisher Scientific # K0223) was then used to amplify genes of interest and CT values and relative expression were normalized using CFX Maestro Software (Bio-Rad #12004110).

Intracellular RNA extraction

Request a detailed protocol

RNA extraction from macrophages was performed as previously described (Sigal et al., 2016). J774 macrophages were seeded at a density of 2.0 × 107 cells/dish in three 150 mm dishes in 30 mL media and incubated overnight. The next day, overnight L. monocytogenes culture grown at 30°C was washed twice with PBS and added to the cells at a MOI of 50. After 1 hr, the cells were washed twice with PBS and media containing gentamicin was added. Eight hours post-infection, cells were washed once with PBS and lysed by addition of cold nuclease-free water. Lysate was collected by scraping and centrifugation at 800 x g for 3 min at 4°C. Supernatants were passed through 0.45 µm filters in a vacuum apparatus, and filters were collected in conical tubes. Filters were vortexed with 650 µL sterile AE buffer for 1 min and centrifuged briefly. Bacteria-containing AE buffer was collected and used for immediate RNA extraction as described above.

4-HNE survival assays bacterial panel

Request a detailed protocol

Bacteria (Listeria monocytogenes, Enterococcus faecalis, Pseudomonas aeruginosa, Escherichia coli, Staphylococcus aureus, Bacillus subtilis, and Francisella novicida) were inoculated overnight in TSBC (TSB + cysteine 0.1% required for F. novicida growth) and grown at 37°C. The next day the bacteria were sub-cultured 1:1000 into fresh TSBC and allowed to reach mid-log (0.4–0.8 OD600). At mid-log, the ODs of the bacteria were normalized to OD600 1, washed twice in sterile PBS and resuspended in sterile PBS. Then the bacteria were diluted 1:100 into sterile PBS and various concentrations of 4-HNE were added. The bacteria were then placed at 37°C for an hour, then plated on TSAC (TSA + cysteine 0.1%) plates. Colonies were enumerated after overnight growth at 37°C.

L. monocytogenes competition experiments

Request a detailed protocol

Colonies of L. monocytogenes were picked off BHI plates and inoculated into 2 mL TSB which were then grown shaking at 37°C to mid-log (0.4–0.8 OD600). At mid-log the bacteria were normalized to OD600 1, washed twice in sterile PBS and resuspended in sterile PBS. Then the bacteria were diluted 1:100 into sterile PBS and appropriate strains were mixed together in a 1:1 ratio, after which 640 µM of 4-HNE or vehicle (ethanol) was added. The bacteria were then placed at 37°C for 1 hr. 2x concentrated TSB media was added to the bacterial-PBS solution and the cells recovered for an hour at 37°C. The bacteria were then plated on BHI-streptomycin and BHI-chloramphenicol (five plates for competitive strain differentiation. CFUs were enumerated after 24–48 hr of growth at 37°C). In competition between WT and WT, ∆rha1, ∆rha2 and ∆rha1∆rha2, the WT competition strain was the marked strain DPL-3903 (Auerbuch et al., 2001) In competition between WT and ∆∆::rha1 and ∆∆::rha2, WT L. monocytogenes were unmarked while the complemented strains carried resistance to chloramphenicol.

L. monocytogenes heat survival assay

Request a detailed protocol

Single colonies were inoculated into BHI-streptomycin and grown overnight at 37°C with shaking. Cultures were back diluted to OD600 0.03 in 25 mL fresh TSB- streptomycin in 125 mL flasks and grown with shaking at 37°C. At mid-log (OD6000.3–0.6) the bacteria were shifted to static growth at either 58°C or 37°C for 15 min. The bacteria were incubated at 30°C for CFU on BHI plates overnight.

L. monocytogenes diamide sensitivity assay

Request a detailed protocol

The protocol was adapted from Reniere et al., 2016. Briefly, 13 μL of overnight culture of L. monocytogenes grown in TSB were mixed with 4 mL of molten (55°C) top-agar (0.8% NaCl and 0.8% agar) spread evenly on tryptic soy agar plates. After the agar cooled, Whatman paper disks soaked in 5 μL 1M diamide solution were placed on top of the bacteria-agar. The zone of inhibition (including the disks, diameter 7.5 mm) was measured with a ruler after 18–20 hr of incubation at 37°C.

L. monocytogenes protein aggregation assay

Request a detailed protocol

The L. monocytogenes aggregation protocol was adapted from Tomoyasu et al with minor modifications (Tomoyasu et al., 2001). Colonies of L. monocytogenes were picked off a plate and then grown to mid-log in TSB (0.4–0.8 OD600). Bacteria were normalized to 0.5 OD600 and resuspended in 3 mL of sterile PBS per sample for untreated control, 4-HNE and heat shock. 640 µM 4-HNE was added to the 4-HNE sample and the bacteria were placed at 37°C for an hour. Control heat-shocked bacteria were placed at 37°C for 50 min and then transferred to 56°C for 10 min before being processed identically to 4-HNE and untreated samples. The bacteria were then removed, cooled on ice for 5 min and spun down at 5000 x g for 10 min at 4°C. Pellets were then resuspended in 40 µL buffer A1 (10 mM potassium phosphate buffer, pH 6.5, 1 mM EDTA, 20% w/vol sucrose, 50 units per sample mutanolysin [Sigma, #M9901]) and incubated on ice for 30 min. 360 µL Buffer B1 (10 mM potassium phosphate buffer, pH 6.5, 1 mM EDTA) was added and the sample was sonicated with a microtip sonicator at 40% power, 6 s total, 1 s on, 1 s off. Intact cells were spun out at 2000 x g for 10 min at 4°C and the supernatant was transferred to a fresh tube. Fifty µL of sample supernatant was taken to measure total protein concentration by BCA assay. The insoluble fraction was isolated by centrifuging the supernatant a 15,000 x g for 20 min at 4°C. The pellets were then frozen and stored at −80C. The pellets were resuspended in 400 µL buffer B1 by brief sonication (40% power, 2 s total, 1 s on, 1 s off) and centrifuged at 15,000 x g for 20 min at 4°C. The washed pellets were then resuspended in 320 µL buffer B1 by brief sonication, after which, 80 µL of 10% v/v IGEPAL was added to remove membrane proteins. The samples were mixed and then centrifuged at 15,000 x g for 30 min at 4°C. This washing procedure was performed twice in total. Finally, the pellets were washed by 400 µL buffer B1 and resuspended in 50 µL PBS by brief sonication. The insoluble protein concentration was measured by microBCA (Thermo, #23235) and the percent of total protein was calculated and plotted.

E. coli protein expression and purification

Request a detailed protocol

rha1, rha2, and p1-zcr ORFs were cloned into pET20B expression vectors and transformed into BL21 E. coli and grown overnight in LB-ampicillin. The akr1c1 ORF was cloned into the pET28B expression vector and transformed into Rosette E. coli and grown overnight in LB-ampicillin. The overnights were sub-cultured 1:100 in 2L baffled flasks until mid-log (0.4–0.8 OD600) after which 0.5 mM IPTG was added. The pET20b::rha2 E. coli were induced for 4 hr at 37°C with shaking. to E. coli pET20B::rha1, pENT20B::p1-zcr and pENT28B::akr1c1 were induced at 17°C for 18 hr with shaking. Immediately prior to induction 0.01% w/v riboflavin was added to E. coli pET20B::rha1. Upon induction completion, the bacteria were spun down, resuspended in buffer A (30 mM K2HPO4, 300 mM NaCl, pH 8) and sonicated on ice with a large sonicator tip at 80% power 1 s on 1 s off for 60 s total. They were then spun down at 15,000 x g for 45 min at 4°C and the supernatant was passed over a nickel resin column (Thermo Fisher Scientific, # PI88222) and eluted using buffer B (30 mM K2HPO4, 300 mM NaCl, 500 mM Imidazole, pH 8). The final protein was then transferred into PBS using a desalting column (Bio-Rad #7322010). For purification of Rha1, 10 µM FMN (Sigma #F2253) was added at every step of purification.

Purified enzyme kinetics assessments

Request a detailed protocol

Enzyme turnover assays were performed at 37°C in 96-well clear bottom plates (Genesee Scientific, #25–104) in a Synergy HTX plate reader in 200 µL PBS with 20% w/v PEG-8000 using 200 µM NADPH, 0.2 µM enzyme and a range of 4-HNE concentrations from 0 to 0.8 mM. For the aldehyde panel enzyme turnover assessment, 0.64 mM of each aldehyde was used. NADPH consumption was measured at the 340 nm wavelength. Rha1 turnover was performed in the presence of 10 µM FMN.

Chemical reduction of 4-HNE

Request a detailed protocol

One hundred µL of 64 mM 4-HNE was reduced by adding a molar excess (1 mg) of sodium borohydride (NaBH4), which was left to sit at room temperature for an hour. The reaction was quenched for 1 hr at room temperature with 100 µL 1.5% v/v glacial acetic acid in water. The final product of the reaction was 1,4-dihydroxynonene (1,4-DHN) as confirmed by TLC (described below).

Thin layer chromatography (TLC)

Request a detailed protocol

Enzyme turnover assays were performed as described above, except the reactions had final concentrations of 4 µM enzyme, 1.6 mM 4-HNE, and 1.6 mM NADPH. The reactions proceeded for 1 hr at room temperature. Once the reaction was complete, 6 µL of reaction volume was spotted on the bottom of the TLC plate (Millipore Sigma, #105554) and run using a 2:1 mix of diethyl ether:hexanes (Sigma, #296082; Thermo Fisher, #H303). The TLC plate was visualized by dipping the plate in a 10% w/v phosphomolybdic acid (Sigma, #221856) absolute ethanol solution and then vigorously heating the TLC plate on a ceramic hot plate until the appearance of black bands on a light yellow background (15 s to 1 min).

B. subtilis growth curves

Request a detailed protocol

B. subtilis expressing genes of interest on the pHT01 plasmid (Nguyen et al., 2007) were struck on LB-chloramphenicol plates on day one and grown overnight at 30°C. On day 2, colonies were re-struck on LB-chloramphenicol with 1 mM IPTG agar plates overnight at 30°C. On day 3, biomass was scraped and processed as described in the ‘bacterial culturing’ section above. The bacteria were then normalized to an OD600 of 1 and inoculated 1:100 into a 96-well plate containing TSB chloramphenicol and 0.5 mM IPTG. 4-HNE was then added to the bacteria at various concentrations and the bacteria were allowed to grow at 37°C in Synergy HTX plate reader for 12 hr with shaking.

4-HNE survival assays Bacillus subtilis rha1/2 expression strains

Request a detailed protocol

B. subtilis were grown and processed as for growth curves described above and then normalized to an OD600 of 1 in LB media. The bacteria were then washed twice in sterile PBS and resuspended in sterile PBS. Then the bacteria were diluted 1:100 into sterile PBS and a 160 µM concentration of 4-HNE or mock vehicle (ethanol) was added to the samples. The bacteria were placed at 37°C for an hour, then plated on LB plates. Colonies were enumerated after overnight growth at 30°C.

B. subtilis and L. monocytogenes rich media 4-HNE dot blots

Request a detailed protocol

B. subtilis were grown and processed in the same manner as for the growth curves above. L. monocytogenes were processed as described for competition experiments above. Upon OD600 normalization to 1, B. subtilis were resuspended in TSB-chloramphenicol with 0.5 mM IPTG and 250 µL of this mix was transferred to a sterile Eppendorf tube into which 640 µM 4-HNE was added. L. monocytogenes were resuspended in TSB with no antibiotic and no IPTG. The tubes were then incubated at 37°C for 3 hr. At 3 hr, the bacteria were spun down at 17,000 x g for 1 min. The supernatant was then aspirated and the pellet flash frozen in liquid nitrogen. At this point, the bacteria were stored at −80°C until further processing. Once removed from the −80°C, the bacteria were thawed at room temperature and resuspended in 250 µL PBS. The bacteria were then sonicated using a microtip sonicator at 20% power, 1 s on 1 s off for 10 s and placed on ice. The bacteria were then spun at 4°C at 5000 g for 10 min. The subsequent lysate was transferred to fresh Eppendorf tubes containing Halt Proteinase and Phosphatase Inhibitor (Thermo Fisher Scientific, #78442) and stored at −80°C until use. Dot blots were processed as described above.

L. monocytogenes macrophage infection

Request a detailed protocol

0.5 × 106 primary murine macrophages from WT C57BL/6 mice were plated in BMM media (DMEM with 10% heat inactivated fetal bovine serum, 1 mM L-glutamine, 2 mM sodium pyruvate and 10% L929-conditioned medium) in a tissue culture treated 24-well dish (Greiner Bio, #662165) with the addition of 100 ng recombinant murine IFN-γ (Peprotech, #315–05) for 18 hr. Inoculants of L. monocytogenes were statically grown at 30°C overnight, washed twice with sterile PBS and resuspended in PBS before an MOI of 0.1 was added to each macrophage well. The cells were left to sit for an hour after which all wells were washed twice with PBS and gentamicin was added to all but one well, which was lysed in 500 µL water and plated for CFU on LB plates. The remainder of the wells were washed twice with PBS and then lysed and plated for CFU at hours 2, 6, and 9 post-infection.

B. subtilis macrophage survival assay

Request a detailed protocol

B. subtilis were grown on LB-chloramphenicol with 1 mM IPTG plates and processed into LB chloramphenicol as described above. Once the bacteria were normalized to OD600 = 1 in LB chloramphenicol, an MOI of 100 was added to 0.5 × 106 primary murine macrophages from WT C57BL/6 or C57BL/6 deficient for phox (gp91phox-/-) mice (The Jackson Laboratory, stock # 002365) that have been activated using 100 ng/well recombinant murine IFN-γ (Peprotech, #315–05) for 18 hr. The cells were spinfected at 200 x g for 5 min. At 1.5 hr, cells were washed 2x with sterile PBS and gentamicin was added to the cells. pBMMs were lysed in 500 µL cold water at hours 2, 6, 7, and 8 and plated for CFU. Colonies were enumerated after overnight growth at 30°C on LB plates.

Data availability

All RNA sequencing data have been deposited to the GEO and are accessible using accession number GSE150188.

The following data sets were generated
    1. Tabakh H
    2. Woodward JJ
    (2020) NCBI Gene Expression Omnibus
    ID GSE150188. 4-hydroxy-2-nonenal (4-HNE) induced transcriptional changes in Listeria monocytogenes.

References

Decision letter

  1. Kim Orth
    Reviewing Editor; HHMI/University of Texas Southwestern Medical Center, United States
  2. Wendy S Garrett
    Senior Editor; Harvard T.H. Chan School of Public Health, United States
  3. Camille Danne
    Reviewer; Micalis Institute, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

As more is discovered about host-pathogen wars, this study reveals another host defense mechanism that can be neutralized by an intracellular pathogen. In this case, the under-appreciated toxic alpha-beta carbonyl 4-hydroxy-2-nonenal that is produced by ROS-mediated oxidation of host membrane poly-unsaturated fatty acids was found to be neutralized by two genes from Listeria monocytogenes when expressed in an avirulent bacteria.

Decision letter after peer review:

Thank you for submitting your article "4-hydroxy-2-nonenal antimicrobial toxicity is neutralized by an intracellular pathogen" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Wendy Garrett as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Camille Danne (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest but, as described below, essential additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option or use these reviews to revise and submit elsewhere.

Summary:

In this work, Tabakh et al. studied the ability of L. monocytogenes to detoxify 4- hydroxy-2-nonenal (4-HNE), a well-studied compound in inflammatory disease but a rather unexplored metabolite during infection. In this study, 4-HNE is shown to accumulate in mouse hepatocytes and spleens during infection by L. monocytogenes and is inhibitory to the growth of Firmicutes bacteria. However, L. monocytogenes is somewhat resistant to this compound as it encodes a detoxification system comprised of rha1 and rha2, which neutralize the ROS activity of 4- HNE via NADPH dependent reduction.

This study is intriguing, mostly well controlled and potentially opens up a new field of 4-HNE metabolism in infection. However, the mechanism by which rha1 and 2 mediate the turnover of 4-HNE needs to be further strengthened wit rigorous biochemistry. In addition, while the Rha proteins appear to affect 4-HNE, some of the claims need to be tempered based on the data presented. The most important being that this study does not convincingly show that 4-HNE production by the host contributes to L. monocytogenes control given that there was no phenotype in immunocompetent mice for the rha double mutant v. WT L. monocytogenes strains.

Essential revisions:

The following experiments are required for acceptance:

1. Rha1/Rha2 role as NADPH dependent oxidoreductases needs to be further established with rigorous biochemical studies. The in vitro 4-HNE L. monocytogenes resistance phenotype of the rha1 and rha2 mutants is somewhat convincing, however the authors should have followed up these results either by measuring 4-HNE levels or adducts in L. monocytogenes or by better delineating an enzyme mechanism in vitro. These data would be more supportive of the model that Rha1/2 breaks down 4-HNE or its derivatives in a physiological setting. It appears Rha1 and especially Rha2 are not very active under the conditions tested, barely showing a curve representative of catalytic activity. Characterization of this enzyme requires changes in assay conditions. and more rigorous analysis.

2. The authors proposed that Rha1/2 could specifically reduce 4-HNE based on similarity to various enone reductases, but 4-HNE does not contain an enone group. Also, although it was shown that other aldehydes did not induce rha1/2 expression, another aldehyde as potential Rha1/2 substrates in this assay could have been tested to support the specificity claim. Also, is it feasible to measure depletion of 4-HNE alongside NADPH oxidation over the course of the assay?

3. Are the rha1/rha2 genes conserved? What is the evolutionary picture for these genes. Some bioinformatics is warranted to understand how prevalent is this protection mechanism. Are there homologs found in B. subtilis? Did you test 4-HNE toxicity on bacterial species from a different phylum, such as Bacteroidetes or Proteobacteria? Another intracellular bacteria?

4. Many genes encoding general protein quality control factors were also strongly induced upon 4-HNE exposure (clpC, groS, dnaK among others). Based on the data presented, it is possible that Rha1 and Rha2 contribute to L. monocytogenes stress responses by another mechanism and not necessarily through the specific detoxification of 4-HNE. Does 4-HNE treatment make bacteria more susceptible to well-characterized proteotoxic stresses like heat shock given that several well known HSP genes were induced? Does 4-HNE lead to accumulation of insoluble proteins? How could you explain the interplay between rha1 and rha2? Do you think they have the same redundant function or rather a complementary function? If redundant functions, how do you explain that the expression of rha2 in B. subtilis does not provide at least partial resistance to 4-HNE?

5. In Figure 1A, a positive control with direct exposure to 4-HNE should be included along with infection to provide comparable levels of adduct formation during other inflammatory diseases.

6. In Figure 4A, a positive control should be included.

7. Figure 2 Show a gene that is not impacted by 4-HNE to highlight the specificity of the response.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "4-hydroxy-2-nonenal antimicrobial toxicity is neutralized by an intracellular pathogen" for further consideration by eLife. Your revised article has been evaluated by Wendy Garrett as the Senior Editor and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

Overall, the reviewers think the authors addressed the majority of concerns.

However, the text appears to be overstating results and unless complementation experiments are provided the text must correctly reflect the data. Please revise text and/or data and highlight modified text/data changes.

For Figure 1, the authors are incorrectly interpreting the histopathology; they claim the staining of 4HNE is around bacteria but what I am seeing is tons of 4HNE staining everywhere; The reddish color in the infected tissues clearly shows diffuse staining everywhere. It doesn't take away from their conclusion at all, they just need to reword their text to make them not try to claim the staining is only around the bacteria.

Concerning characterization of bacterial sensitivity to 4-HNE toxicity, authors use log to describe the reduction in bacterial CFU, except for Lmo where they use %. Please use consistent labeling of axis so comparisons can be made.

The abstract should be rewritten as the authors say that Rha1 and Rha2 mutations do not impact Lmo infectious potential, but in the Results section the message is not that clear. The finding are fine but the conclusions are over stated as it might be due to redundancy in stress response proteins. The authors need to rephrase to avoid excessive overstating conclusions.

Finally, the data is not convincing to support the statement that rha genes provide any fitness advantage in vivo to Lmo as all the other animal data are negative. The authors would need a complementation assay for panel F to rule out something else minor like polarity. In the absence of this data, the authors must temper their conclusions based on that figure. The Bacillus result is more robust if they want to claim Rha proteins CAN be protective but there is no convincing data to show they are necessary.

https://doi.org/10.7554/eLife.59295.sa1

Author response

Essential revisions:

The following experiments are required for acceptance:

1. Rha1/Rha2 role as NADPH dependent oxidoreductases needs to be further established with rigorous biochemical studies. The in vitro 4-HNE L. monocytogenes resistance phenotype of the rha1 and rha2 mutants is somewhat convincing, however the authors should have followed up these results either by measuring 4-HNE levels or adducts in L. monocytogenes or by better delineating an enzyme mechanism in vitro. These data would be more supportive of the model that Rha1/2 breaks down 4-HNE or its derivatives in a physiological setting. It appears Rha1 and especially Rha2 are not very active under the conditions tested, barely showing a curve representative of catalytic activity. Characterization of this enzyme requires changes in assay conditions. and more rigorous analysis.

“…however the authors should have followed up these results either by measuring 4-HNE levels or adducts in L. monocytogenes…”

We thank the reviewers for their suggestion. We have now added new data in Figure 4D to the manuscript showing a ~50% increase in 4-HNE adducts in L. monocytogenes∆∆rha1/2 mutant compared to WT upon incubation with 640µM 4-HNE by dot blot and that complementation with either gene had modest effects. Given the nominal magnitude of adduct accumulation it is difficult to draw much from this data. Because expression of these genes in B. subtilis had much larger impacts on adduct accumulation, these findings suggest that other mechanisms for clearing 4-HNE adducted proteins may be present in Listeria, which may mask the effects of Rha1/2. This is also consistent with the significant level of resistance that Listeria has over B. subtilis even when the latter organism expresses Rha1/2. Clearly Rha1/2 are only the beginning of the story for 4-HNE resistance in Listeria and future studies are warranted to explore this resistance in further detail.

“…by better delineating an enzyme mechanism in vitro.”

We agreed with the reviewers about our initial enzymatic data. As such, we assessed purified enzyme turnover in numerous conditions, including in bacterial lysates, in sterile bacterial media, with the addition of various salts, metals, crowding agents, and different buffers. From this comprehensive screening of in vitro biochemical conditions, we found that the addition of 20% PEG 8000 to the reactions significantly decreased the Km of both Rha1 and Rha2 to within the broad physiological range of 4-HNE (Rha1 134 µM, Rha2 367 µM). We have added these data as new Figure 5B. We suspect PEG-induced crowding is decreasing the Km of both the enzymes, either by shifting the protein to its predicted active dimer form (Rha1) or perhaps by generally reducing protein instability and therefore increasing the potential for successful 4-HNE-protein association (Ma and Nussinov, 2013). To provide a comparison to a known 4-HNE metabolizing enzyme, we tested turnover of the known human 4-HNE NADPH-dependent detoxification enzyme AKR1C1 under the same conditions. While AKR1C1 exhibits a lower Km, the turnover rates of Rha1/2 (kcat) are higher than the mammalian counterpart under these conditions. These data are now presented as new Figure 5C.

2. The authors proposed that Rha1/2 could specifically reduce 4-HNE based on similarity to various enone reductases, but 4-HNE does not contain an enone group.

Although the reviewers are correct in noting that 4-HNE does not contain an enone group, it does contain an enal group, which is often reduced by a similar enzymatic mechanism to enone reduction. Ene-reductases specifically have reduction activity against carbon-carbon double bonds both in enal and enone contexts and we have tried to clarify this in the text (Toogood and Scrutton, 2018).

Also, although it was shown that other aldehydes did not induce rha1/2 expression, another aldehyde as potential Rha1/2 substrates in this assay could have been tested to support the specificity claim.

As suggested by the reviewers, we expanded the panel of aldehydes we tested as potential substrates for both Rha1 and Rha2. Our findings largely mirrored observations of rha1 and rha2 gene induction by this same panel (Figure 3B), in which activity was not observed for any combination with one exception, Rha2 exhibited some turnover capacity with the lipid oxidation product of n-3 fatty acids 4-hydroxy 2hexenal. These observations are in line with our assignment of Rha1/2 as reductases of the αβ-double bond of 4-HNE, which is absent in other aldehydes tested in this panel. Collectively these observations are consistent with these genes functioning in response to enal induced stress and toxicity and that perhaps Rha2 is more promiscuous than Rha1. Of course, the conclusions of specificity for 4-HNE are limited by the substrates tested and we have toned down the language relating to specificity. In fact, we hypothesize that these enzymes may indeed have other αβ-carbonyl containing substrates, either endogenous (i.e. quinones) or other αβ-unsaturated compounds that induce electrophilic stress. These data are now presented as new Figure 5D.

Also, is it feasible to measure depletion of 4-HNE alongside NADPH oxidation over the course of the assay?

We successfully visualized Rha1 and Rha2 enzymatic conversion of 4-HNE using thin-layer chromatography with phosphomolybdic acid visualization. These data are now presented in new Figure 5E. As a control for direct comparison on the TLC plate, we included AKR1C1, known to generate the alcohol 1,4-dihydroxynonene (1,4-DHN) and P1-ZCr, an Arabidopsis thaliana enzyme known to perform a hydrogenation reaction to saturate 4-HNE to 4-hydroxynananal (4-HNA). We found 4-HNE was converted to 1,4-DHN by AKR1C1 as reported, to 4-HNA by P1-ZCr as reported and both Rha1 and Rha2 enzymes converted 4-HNE to 4-HNA. These studies were not done in parallel with NADPH consumption due to technical limitations. Specifically, the amount of enzyme and NADPH in the experiments for monitoring NADPH consumption is not sufficient to detect the 4-HNE and reaction product 4-HNA using TLC. As such, the two experiments were performed with different amounts of enzyme and NADPH. However, we found no 4-HNE conversion with any enzymes in the absence of NADPH. Overall, we were able to successfully demonstrate NADPH-dependent 4-HNE reduction to 4HNA by both Rha1 and Rha2.

3. Are the rha1/rha2 genes conserved? What is the evolutionary picture for these genes. Some bioinformatics is warranted to understand how prevalent is this protection mechanism.

We performed sequence homology analysis for both rha1 and rha2 across the set of bacteria we tested for 4-HNE sensitivity to obtain a sense of the distribution of both genes across a variety of prokaryotes. Author response table 1 reports the sequence identity of the closest matching Rha1 and Rha2-like proteins from tested organisms. E. faecalis, which we found to be both the second most 4-HNE tolerant bacteria we tested, had the closest homologs to both Rha1 and Rha2. Among other organisms, we found that the association between 4-HNE survival and closeness or presence of protein homologs was weak. This is not surprising, as functional homology and sequence homology are often not very strongly correlated among oxidoreductase enzymes (Todd, Orengo and Thornton, 2001). This is due to the fact that very small changes in the binding pocket completely alters substrate specificity and it’s very difficult, if not impossible, to predict with any confidence the substrate of many oxidoreductase enzymes from simple sequence homology. We speculate that some close relatives of L. monocytogenes, including perhaps E. faecalis, may utilize similar mechanisms of 4-HNE detoxification and that other bacteria that are distantly related, like P. aeruginosa likely have other enzymes with limited sequence homology to Rha1/2 that are capable of performing similar functions. Rigorous transcriptional, biochemical and other experimental analysis will be required to say with any confidence if other bacteria code for enzymes with similar 4-HNE detoxification roles.

Author response table 1
OrganismRha1 identity (%)Rha2 identity (%)
Pa2931
SAAbsent32
Ef5971
EcAbsent34
Fn2433
Bs5829

Are there homologs found in B. subtilis? Did you test 4-HNE toxicity on bacterial species from a different phylum, such as Bacteroidetes or Proteobacteria? Another intracellular bacteria?

We thank the reviewer for their suggestions. To address this point, we expanded our killing assay to include a set of Gram-negative bacteria: E. coli DH10b (K12), Pseudomonas aeruginosa PA01 and Francisella novicida U112, which is also an intracellular pathogen. These data are presented as new Figure 2A. We found that even among this expanded bacterial cohort, L. monocytogenes still showed the highest survival capabilities. Interestingly, F. novicida was uniquely sensitive to 4-HNE toxicity. Reports that F. novicida actively blocks ROS generating pathways during infection (Mohapatra et al., 2010) suggests that this organism may avoid 4-HNE mediated toxicity by halting its production rather than specific detoxification or resistance mechanisms. We have added discussion of these points to the Results and Discussion sections.

4. Many genes encoding general protein quality control factors were also strongly induced upon 4-HNE exposure (clpC, groS, dnaK among others). Based on the data presented, it is possible that Rha1 and Rha2 contribute to L. monocytogenes stress responses by another mechanism and not necessarily through the specific detoxification of 4-HNE.

Induction of heat shock proteins in response to electrophilic stress has been previously reported in B. subtilis (Huyen et al., 2009). We agree with the reviewers that while it is still formally possible that Rha1/2 contribute to the Listeria stress response through an indirect pathway to 4-HNE resistance rather than direct detoxification, our improved in vitro enzymology (new Figure 5) suggests the most parsimonious explanation is that they play a role in directly de-toxifying 4-HNE. However, to provide a more comprehensive picture of Rha1 and Rha2 expression in bacterial stress responses, we measured rha1/2 expression in response to a panel of non-aldehyde stressors, including heat, diamide induced disulfide stress, and the RNS agent nitric oxide. We found that NO was unable to induce either gene, but that heat did induce both genes by approximately 30-fold, and the disulfide stress agent diamide induced rha1 by 11-fold and rha2 by 100-fold. However, the most robust induction of both rha1 and rha2 was with 4-HNE, as we observed previously with our aldehyde panel in Figure 3B. Induction by heat and diamide suggests that rha1/2 are induced during other stress responses in L. monocytogenes. Despite their induction under both heat and diamide induced thiol stress, loss of each gene had no discernible impact on bacterial survival in these conditions. These data are now presented in Figure 3C and Figure 4B,C.

Does 4-HNE treatment make bacteria more susceptible to well-characterized proteotoxic stresses like heat shock given that several well known HSP genes were induced?

We found that indeed, 4-HNE treatment prior to heat shock (50°C for 10 minutes) does increase bacterial death. This is consistent with 4-HNE impacting proteotoxic stress responses. This data is now presented in Figure 2E. Given that many of the proteases involved in the heat shock require active site nucleophiles that are likely highly susceptible to 4-HNE adduction, it is feasible that 4-HNE poisons these proteins from functioning to clear damaged proteins during elevated temperature. While these observations are intriguing, detailing the mechanism of this synergy is beyond the scope of this manuscript.

Does 4-HNE lead to accumulation of insoluble proteins?

We found that in WT L. monocytogenes 4-HNE does not lead to significant total protein aggregation compared to untreated control, especially compared to the positive control of elevated temperature exposure. These data are now presented in Figure 4E. In addition, the ∆∆rha1/2 mutant does appear to have only a modest (10-15%) and not statistically significant increase in protein aggregation accumulation with 4-HNE treatment compared to WT. This suggests that the difference in WT versus ∆∆rha1/2 survival in 4-HNE is not driven by global adduct accumulation or protein aggregation but rather other molecular targets susceptible to 4-HNE reactivity. Such targets may be other macromolecules (i.e. lipids, nucleic acids, etc) or adduction to specific cellular proteins, namely inactivation of specific essential proteins that are not reflected in the global analyses conducted here.

How could you explain the interplay between rha1 and rha2? Do you think they have the same redundant function or rather a complementary function? If redundant functions, how do you explain that the expression of rha2 in B. subtilis does not provide at least partial resistance to 4-HNE?

Although we do not know exactly what the relationship between the two proteins is, we suspect that the two enzymes serve complimentary functions. Both enzymes reduce 4-HNE to 4-HNA (new Figure 5E) however, they appear to function non-redundantly, with both enzymes being expressed heterologously in B. subtilis allowing for greater than simply additive survival for the expressing B. subtilis (Supplemental Figure 3B, Figure 6A). The enzymes have different Km affinities for 4-HNE (Figure 5)

as well as different 4-HNE turnover specificity. Rha1 is seemingly specific for 4-HNE as a substrate for NADPH oxidation while Rha2 is able to perform the reduction of both 4-HNE and 4-HHE (Figure 5D). The differential induction of rha1 versus rha2 with our aldehyde and stress panel (Figure 3B-C; see our response to point 4 above) suggests that the two proteins may be regulated by different inputs or play specific roles during 4-HNE exposure possibly through distinct protein localization within the cell.

5. In Figure 1A, a positive control with direct exposure to 4-HNE should be included along with infection to provide comparable levels of adduct formation during other inflammatory diseases.

We repeated the TIB73 L. monocytogenes infection experiments with the included positive control of TIB73s that were treated for 10 minutes with 10µM 4-HNE in PBS. These data are presented in new Figure 1A. We found that the treated cells accumulate adducts at a similar level to 6 hours of L. monocytogenes infection. Although that suggests overall low levels of 4-HNE, we believe that this is due to the combination of (1) a small amount of cells infected with L. monocytogenes at 6 hours post infection and (2) the highly segregated nature of 4-HNE accumulation. We believe that 10µM overall 4HNE accumulation masks the much higher localized levels of 4-HNE in cells. Additionally, measurement of 4-HNE levels in cells actively producing the metabolite, as during infection, reflects the amount of protein conjugates that are accumulating and being degraded.

6. In Figure 4A, a positive control should be included.

We included the positive control of the human aldo-keto reductase AKR1C1 that is well-known to perform NADPH-dependent oxidation of 4-HNE. This data is now in the new Figure 5C.

7. Figure 2 Show a gene that is not impacted by 4-HNE to highlight the specificity of the response.

We included the gene rplD whose expression we found to not be impacted by 4-HNE exposure. This data is now in new Figure 2D.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

Overall, the reviewers think the authors addressed the majority of concerns.

However, the text appears to be overstating results and unless complementation experiments are provided the text must correctly reflect the data. Please revise text and/or data and highlight modified text/data changes.

For Figure 1, the authors are incorrectly interpreting the histopathology; they claim the staining of 4HNE is around bacteria but what I am seeing is tons of 4HNE staining everywhere; The reddish color in the infected tissues clearly shows diffuse staining everywhere. It doesn't take away from their conclusion at all, they just need to reword their text to make them not try to claim the staining is only around the bacteria.

We completely agree that there is an increase in 4-HNE staining throughout the spleen following L. monocytogenes infection as indicated by the overall reddish color between the infected and uninfected tissue sections shown in Figure 1B and C, respectively. With increased magnification as shown in Figure 1E, there are clearly regions of the tissue section that stand out as having a much darker staining than the diffuse background seen in much of the tissue section. These cells have such a strong signal for the 4HNE that they are very dark brown. We have added arrows to Figure E to highlight these regions. In comparison to the L. monocytogenes imaging in Figure 1D at the same magnification, the staining pattern looks similar. At 100X magnification, the 4-HNE labeled cells exhibiting the darkest staining have a punctate pattern (Figure 1G) that looks strikingly similar to the L. monocytogenes staining (Figure 1F). We completely agree that this comparison of staining is clearly not sufficient evidence to conclude that the bacteria are being directly labeled by the metabolite. It is equally possible that there is a subset of spleen cells that simply produce significantly elevated levels of 4-HNE. As such, we have removed the statement that this increased staining is around the bacteria (Lines 106-109) and added arrows to Figure 1E to further direct the reader’s attention to the enhanced staining in specific regions of the tissue.

Concerning characterization of bacterial sensitivity to 4-HNE toxicity, authors use log to describe the reduction in bacterial CFU, except for Lmo where they use %. Please use consistent labeling of axis so comparisons can be made.

We have changed the wording on Lines 130-131 to use log reduction to describe L. monocytogenes viability following 4-HNE exposure.

The abstract should be rewritten as the authors say that Rha1 and Rha2 mutations do not impact Lmo infectious potential, but in the Results section the message is not that clear. The finding are fine but the conclusions are over stated as it might be due to redundancy in stress response proteins. The authors need to rephrase to avoid excessive overstating conclusions.

We have included a statement highlighting that Rha1 and Rha2 are not necessary for L. monocytogenes infectious potential (Lines 22-23).

Finally, the data is not convincing to support the statement that rha genes provide any fitness advantage in vivo to Lmo as all the other animal data are negative. The authors would need a complementation assay for panel F to rule out something else minor like polarity. In the absence of this data, the authors must temper their conclusions based on that figure. The Bacillus result is more robust if they want to claim Rha proteins CAN be protective but there is no convincing data to show they are necessary.

We agree that the reduction in CFU following macrophage infection is not sufficient to make any claim about in vivo fitness associated with these genes in L. monocytogenes. We have made changes to the text to reflect this (Lines 240-244).

https://doi.org/10.7554/eLife.59295.sa2

Article and author information

Author details

  1. Hannah Tabakh

    Department of Microbiology, University of Washington, Seattle, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5786-9394
  2. Adelle P McFarland

    1. Department of Microbiology, University of Washington, Seattle, United States
    2. Molecular and Cellular Biology Program, University of Washington, Seattle, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7534-1158
  3. Maureen K Thomason

    Department of Microbiology, University of Washington, Seattle, United States
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Alex J Pollock

    Department of Microbiology, University of Washington, Seattle, United States
    Contribution
    Funding acquisition, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Rochelle C Glover

    Department of Microbiology, University of Washington, Seattle, United States
    Contribution
    Funding acquisition, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5699-0184
  6. Shivam A Zaver

    1. Department of Microbiology, University of Washington, Seattle, United States
    2. Molecular and Cellular Biology Program, University of Washington, Seattle, United States
    Contribution
    Funding acquisition, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Joshua J Woodward

    Department of Microbiology, University of Washington, Seattle, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - original draft, Project administration
    For correspondence
    jjwoodwa@uw.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4630-403X

Funding

National Institute of General Medical Sciences (PHS NRSA T32GM007270)

  • Hannah Tabakh
  • Alex J Pollock

National Science Foundation (DGE-1256082)

  • Adelle P McFarland

National Institute of Allergy and Infectious Diseases (R01AI116669)

  • Joshua J Woodward

National Institute of Allergy and Infectious Diseases (R21AI127833)

  • Joshua J Woodward

National Cancer Institute (1F30CA239659-01A1)

  • Shivam A Zaver

National Institute of Allergy and Infectious Diseases (5T32AI055396)

  • Rochelle C Glover

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Aruna Menon, Samantha Hopp and Qing Tang for assistance with experiments, Brian Johnson for performing the histology experiments at the Histology and Imaging Core at the University of Washington, Steven Libby for providing gp91 knockout mice and Peter Lauer and Kevin Lang for providing plasmids. We thank members of the Woodward-Reniere supergroup for helpful discussions, and the Mougous, Reniere and Lagunoff labs for reagents. This material is based upon work supported by PHS NRSA T32GM007270 from NIGMS (to HT and AJP), National Science Foundation Graduate Research Fellowship Program under grant no. DGE-1256082 (to APM), NIH grant 5T32AI055396 (to RCG), Ruth L Kirschstein Predoctoral Fellowship 1F30CA239659-01A1 (to SZ) and National Institutes of Allergy and Infectious Disease grants R01AI116669 and R21AI127833 (to JJW).

Ethics

Animal experimentation: All experiments involving mice were performed in compliance with guidelines set by the American Association for Laboratory Animal Science (AALAS) and were approved by the Institutional Animal Care and Use Committee (IACUC) at the University of Washington under protocol #4289-01.

Senior Editor

  1. Wendy S Garrett, Harvard T.H. Chan School of Public Health, United States

Reviewing Editor

  1. Kim Orth, HHMI/University of Texas Southwestern Medical Center, United States

Reviewer

  1. Camille Danne, Micalis Institute, France

Publication history

  1. Received: May 25, 2020
  2. Accepted: May 5, 2021
  3. Accepted Manuscript published: May 6, 2021 (version 1)
  4. Version of Record published: May 27, 2021 (version 2)

Copyright

© 2021, Tabakh et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 665
    Page views
  • 83
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Justin D Lormand et al.
    Research Advance

    RNA degradation is fundamental for cellular homeostasis. The process is carried out by various classes of endolytic and exolytic enzymes that together degrade an RNA polymer to mono-ribonucleotides. Within the exoribonucleases, nano-RNases play a unique role as they act on the smallest breakdown products and hence catalyze the final steps in the process. We recently showed that oligoribonuclease (Orn) acts as a dedicated diribonucleotidase, defining the ultimate step in RNA degradation that is crucial for cellular fitness (Kim et al., 2019). Whether such a specific activity exists in organisms that lack Orn-type exoribonucleases remained unclear. Through quantitative structure-function analyses we show here that NrnC-type RNases share this narrow substrate length preference with Orn. Although NrnC employs similar structural features that distinguish these two classes as dinucleotidases from other exonucleases, the key determinants for dinucleotidase activity are realized through distinct structural scaffolds. The structures together with comparative genomic analyses of the phylogeny of DEDD-type exoribonucleases indicates convergent evolution as the mechanism of how dinucleotidase activity emerged repeatedly in various organisms. The evolutionary pressure to maintain dinucleotidase activity further underlines the important role these analogous proteins play for cell growth.

    1. Microbiology and Infectious Disease
    Shida Shangguan et al.
    Research Article

    A gene signature previously correlated with mosaic adenovirus 26 vaccine protection in simian immunodeficiency virus (SIV) and SHIV challenge models in non-human primates (NHP). In this report we investigated presence of this signature as a correlate of reduced risk in human clinical trials and potential mechanisms of protection. The absence of this gene signature in the DNA/rAd5 human vaccine trial, which did not show efficacy, strengthens our hypothesis that this signature is only enriched in studies that demonstrated protection. This gene signature was enriched in the partially effective RV144 human trial that administered the ALVAC/protein vaccine, and we find that the signature associates with both decreased risk of HIV-1 acquisition and increased vaccine efficacy. Total RNA-seq in a clinical trial that used the same vaccine regimen as the RV144 HIV vaccine implicated antibody-dependent cellular phagocytosis (ADCP) as a potential mechanism of vaccine protection. CITE-seq profiling of 53 surface markers and transcriptomes of 53,777 single cells from the same trial showed that genes in this signature were primarily expressed in cells belonging to the myeloid lineage, including monocytes, which are major effector cells for ADCP. The consistent association of this transcriptome signature with vaccine efficacy represents a tool both to identify potential mechanisms, as with ADCP here, and to screen novel approaches to accelerate development of new vaccine candidates.
