Vascular control of the CO2/H+-dependent drive to breathe

  1. Colin M Cleary
  2. Thiago S Moreira
  3. Ana C Takakura
  4. Mark T Nelson
  5. Thomas A Longden
  6. Daniel K Mulkey  Is a corresponding author
  1. Department of Physiology and Neurobiology, University of Connecticut, United States
  2. Department of Physiology and Biophysics, University of São Paulo, Brazil
  3. Department of Pharmacology, University of São Paulo, Brazil
  4. Department of Pharmacology, University of Vermont, United States
  5. Institute of Cardiovascular Sciences, United Kingdom
  6. Department of Physiology, University of Maryland, United States
Research Advance
  • Cited 2
  • Views 778
  • Annotations
Cite this article as: eLife 2020;9:e59499 doi: 10.7554/eLife.59499

Abstract

Respiratory chemoreceptors regulate breathing in response to changes in tissue CO2/H+. Blood flow is a fundamental determinant of tissue CO2/H+, yet little is known regarding how regulation of vascular tone in chemoreceptor regions contributes to respiratory behavior. Previously, we showed in rat that CO2/H+-vasoconstriction in the retrotrapezoid nucleus (RTN) supports chemoreception by a purinergic-dependent mechanism (Hawkins et al., 2017). Here, we show in mice that CO2/H+ dilates arterioles in other chemoreceptor regions, thus demonstrating CO2/H+ vascular reactivity in the RTN is unique. We also identify P2Y2 receptors in RTN smooth muscle cells as the substrate responsible for this response. Specifically, pharmacological blockade or genetic deletion of P2Y2 from smooth muscle cells blunted the ventilatory response to CO2, and re-expression of P2Y2 receptors only in RTN smooth muscle cells fully rescued the CO2/H+ chemoreflex. These results identify P2Y2 receptors in RTN smooth muscle cells as requisite determinants of respiratory chemoreception.

Introduction

Blood flow in the brain is tightly coupled to neural activity. Typically, an increase in neural activity triggers vasodilation to increase delivery of nutrients and clear metabolic waste (Chow et al., 2020; Ladecola, 2017). Blood flow may also directly regulate neural activity and contribute to behavior; perhaps, the most compelling evidence supporting this involves vasoregulation by CO2/H+. In most cases, CO2/H+ function as potent vasodilators to provide support for metabolic activity and to maintain brain pH within the narrow range that is conducive to life (Ainslie and Duffin, 2009). However, CO2/H+ has the opposite effect on vascular tone in a brainstem region known as the retrotrapezoid nucleus (RTN) (Hawkins et al., 2017; Wenzel et al., 2020), where CO2/H+ is not just metabolic waste to be removed but also functions as a primary stimulus for breathing (Guyenet et al., 2019). Neurons (Guyenet et al., 2019; Kumar et al., 2015) and astrocytes (Gourine et al., 2010) in this region are specialized to regulate breathing in response to changes in tissue CO2/H+ (i.e. function as respiratory chemoreceptors) and so vasoconstriction may augment this function by preventing CO2/H+ washout and maintaining the stimulus to respiratory chemoreceptors. However, it is not known whether CO2/H+ induced vasoconstriction is unique to the RTN or also contributes to chemotransduction in other chemosensitive brain regions. Also, mechanisms underlying this specialized CO2/H+ regulation of vascular tone in the RTN are largely unknown. Previous work showed that RTN chemoreception involves CO2/H+-evoked ATP-purinergic signaling most likely from astrocytes (Gourine et al., 2010; Wenker et al., 2012); however, downstream cellular and molecular targets of this signal are not known.

Here, we show that CO2/H+ vascular reactivity in the RTN is unique compared to other chemoreceptor regions. Our evidence also suggests that CO2/H+ constriction in the RTN enhances chemoreceptor activity and respiratory output, while simultaneous dilation in other chemoreceptor regions may serve to limit chemoreceptor activity and stabilize breathing. We also show that endothelial cells and vascular smooth muscle cells in the RTN have a unique purinergic (P2) receptor expression profile compared to other levels of the respiratory circuit that is consistent with P2Y2-dependent vasoconstriction. Further, at the functional level, we show pharmacologically and genetically using P2Y2 conditional knockout (P2Y2 cKO) mice and RTN smooth muscle-specific P2Y2 re-expression that P2Y2 receptors on vascular smooth muscle cells in the RTN are required for CO2/H+-dependent modulation of breathing.

Results

P2Y2 receptors are differentially expressed by vascular smooth muscle cells in the RTN

Purinergic signaling is required for CO2/H+-induced constriction of RTN arterioles (Hawkins et al., 2017). Therefore, as a first step toward identifying the cellular and molecular basis of this response, we determined the repertoire of P2 receptors expressed by endothelial and smooth muscle cells associated with arterioles in the RTN. We also characterize the P2 receptor expression profile of vascular cells in the caudal aspect of the nucleus of the solitary tract (cNTS) and raphe obscurus (ROb), two putative chemoreceptor regions where P2 receptor signaling does not contribute to respiratory output (Sobrinho et al., 2014). For this experiment, we used Cre-dependent smooth muscle (Myh11Cre/eGFP) and endothelial cell (TekCre::TdTomato) reporter lines and performed fluorescence activated cell sorting to obtain enriched populations of endothelial or smooth muscle cells (Figure 1—figure supplement 1). Control tissue was obtained at the same level of brainstem but outside the region of interest. Each population of cells was pooled from three to eight adult mice per region for subsequent quantitative RT-PCR for each of the fourteen murine P2 receptor subtypes. The type and relative abundance of P2 receptor transcript expressed by each cell type was similar to the cortex (Vanlandewijck et al., 2018) and relatively consistent between brainstem regions. For example, endothelial cells from each region express ionotropic P2rx4 and P2rx7 and metabotropic P2ry1,2,6,12-14 receptor transcript, albeit at varying levels relative to control (Figure 1A). Also, P2rx1,4 and P2ry2,6,14 receptor transcript were detected in smooth muscle cells from each region and most were under-expressed relative to control (Figure 1B). The P2 transcript profile of vascular cells in the RTN was fairly similar to the ROb (Figure 1A–B) but differed from the cNTS in several ways including lower expression of P2ry6 in endothelial cells (Figure 1A) and higher expression of P2rx1, P2rx4, and P2ry14 in smooth muscle cells (Figure 1B). However, only P2ry2 in the RTN showed a distinct expression profile that was consistent across cell types with a role in vasoconstriction; P2ry2 transcript was detected at lower (−9.2 ± 0.3 log2 fold change, p=0.0013) and higher (6.8 ± 1.5 log2 fold change, p=0.0462) levels compared to control in RTN endothelial and vascular smooth muscle cells, respectively (Figure 1A–B). This is interesting because in other brain regions activation of endothelial P2Y2 receptors favors nitric-oxide-induced vasodilation (Marrelli, 2001), whereas activation of this same receptor in vascular smooth muscle cells mediates vasoconstriction (Brayden et al., 2013; Lewis et al., 2000). These results identify P2Y2 receptors in vascular smooth muscle cells as potential substrates for CO2/H+-induced ATP-dependent vasoconstriction in the RTN.

Figure 1 with 2 supplements see all

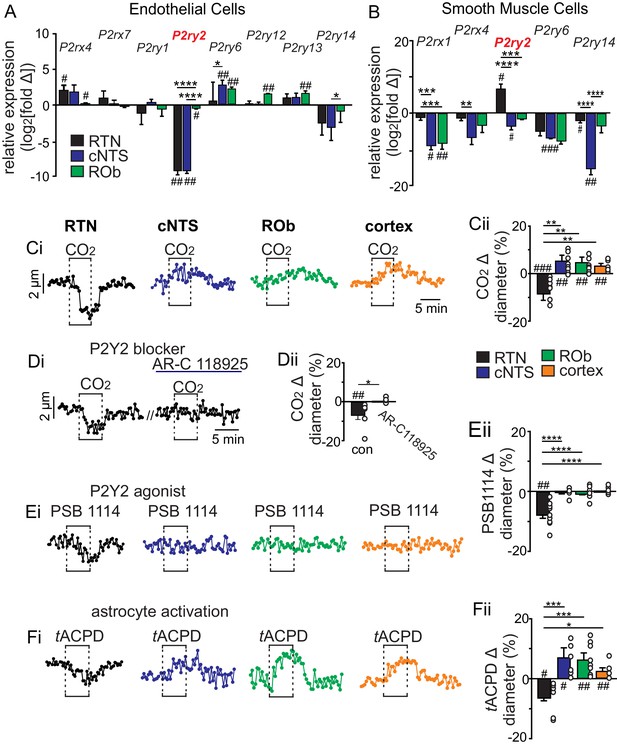

CO2/H+ differentially regulates arteriole tone in the RTN by a P2Y2 receptor dependent mechanism.

(A-B) Tissue sections containing the cNTS, ROb, and RTN were prepared from an endothelial cell (TekCre::TdTomato) and smooth muscle cell reporter mice (Myh11Cre/eGFP). Individual cells were dissociated and sorted to isolate enriched cell populations from each region (100–300 cells/region). Control cells for each region were prepared from slices with experimental regions removed. Fold change of each P2 receptor was determined for each region by normalizing to within group Gapdh expression as well as to control group receptor expression and plotted as log2[fold change]; 0 on the y-axis indicates control group expression for each receptor and negative values reflect less than the control group and positive values reflect greater than control group. Of all P2 receptors detected in each region, only P2ry2 showed an expression pattern consistent with a role in vasoconstriction in the RTN; low expression in endothelial cells (A) and above baseline expression in smooth muscle cells (B) from this region. (C-F) Diameter of arterioles in the RTN, cNTS, ROb and somatosenstory cortex was monitored in brain slices from adult mice over time by fluorescent video microscopy. (C-F) Diameter traces of individual arterioles in each region and corresponding summary bar graphs show that exposure to 15% CO2 (Ci-ii), activation of P2Y2 receptors by bath application of PSB1114 (100 µM) (Ei-ii), or activation of astrocytes by bath application of t-ACPD (50 μM) (Fi-ii) caused vasoconstriction in the RTN and dilation in all other regions of interest. (Di-Dii) The CO2/H+ response of RTN vessels was blocked by a selective P2Y2 receptor antagonist (AR-C118925; 10 μM) #, difference from baseline (one sample t-test). *, differences in each condition (one-way ANOVA with Tukey’s multiple comparison test). One symbol = p < 0.05, two symbols = p < 0.01, three symbols = p < 0.001, four symbols = p < 0.0001.

Figure 1—source data 1

Raw Ct values of P2 purinergic transcripts and control marker expression for endothelial and smooth muscle cells.

https://cdn.elifesciences.org/articles/59499/elife-59499-fig1-data1-v3.xlsx

CO2/H+ differentially effects vascular tone in the RTN by a P2Y2-dependent mechanism

To further test this possibility, we used the brain slice preparation, optimized for detecting increases or decreases in vascular tone, to characterize CO2/H+ vascular responses in each chemoreceptor region of interest as well in a non-respiratory region of the somatosensory cortex. For these experiments, we target arterioles based on previously described criteria (Filosa et al., 2004; Mishra et al., 2014). We verified that exposure to CO2/H+ (15% CO2; pH 6.9) under control conditions decreases the diameter of RTN arterioles by −11.2 ± 4.5% (N = 9 vessels), whereas this same stimulus consistently dilates arterioles in the cNTS (Δ +6.0 ± 2.2%; N = 9 vessels), ROb (Δ +6.5 ± 2.6%; N = 11 vessels) and somatosensory cortex (Δ +3.7 ± 0.9%; N = 9 vessels) (F3,34=13.49; p<0.0001) (Figure 1Ci–Cii). Consistent with a requisite role of P2Y2 receptors in this response, we found that CO2/H+-induced constriction of RTN arterioles was eliminated by blockade of P2Y2 receptors with AR-C118925 (10 μM) (Δ +0.2 ± 0.3%; N = 6 vessels) (T5 = 1.223; p>0.05) (Figure 1Di–Dii) and mimicked by application of a selective P2Y2 receptor agonist (PSB 1114; 200 nM) (Δ −2.3 ± 0.7%; N = 11 vessels) (T10 = 3.460; p<0.010) (Figure 1Ei–Eii). As a negative control, we confirmed that PSB 1114 (200 nM) minimally affects vascular tone in the cNTS (Δ −0.05 ± 0.09%; N = 6 vessels; T5 = 0.3898; p>0.05) and ROb (Δ −0.07 ± 0.19%; N = 7 vessels; T6 = 0.6076; p>0.05) (Figure 1Ei–Eii), where P2Y2 receptors were detected at low levels in both endothelial and smooth muscle cells (Figure 1A–B). We also confirmed that the response of RTN arterioles to CO2/H+ was retained when neural action potentials were blocked by bath application of TTX (0.5 μM) (Figure 1—figure supplement 2), indicating that CO2/H+ constriction of RTN arterioles differs from canonical neurovascular coupling both in terms of polarity and dependence (or lack thereof) on neuronal activity (Ladecola, 2017). Also, despite evidence that extracellular ATP can be rapidly metabolized to adenosine (a potent vasodilator including in the RTN [Hawkins et al., 2017]) the response of RTN arterioles to CO2/H+ was unaffected by 8-phenyltheophylline (8 PT; 10 μM) to block adenosine A1 receptors or sodium metatungstate (POM 1; 100 µM) to inhibit ectonucleotidase activity (Figure 1—figure supplement 2). Furthermore, exposure to CO2/H+ has been shown to trigger prostaglandin E2 (PGE2) release that may contribute to RTN chemoreception by a mechanism involving EP3 receptors (Forsberg et al., 2016); therefore, we also tested for a role of PGE2/EP3 signaling in CO2/H+-dependent regulation of RTN arteriole tone. We found bath application of PGE2 (1 µM) decreased RTN arteriole tone by −2.7 ± 0.4% (T9 = 2.787, p=0.0212, data not shown). However, CO2/H+ constriction of RTN vessels was retained in the presence of L-798,106 (0.5 µM) to block EP3 receptors (Δ −9.6 ± 4.0%, T7 = 2.675, p=0.0318) (Figure 1—figure supplement 2), suggesting PGE2/EP3 signaling is dispensable for CO2/H+ regulation of arteriole tone in the RTN.

Astrocytes are thought to contribute to CO2/H+induced vasodilation in the cortex (Howarth et al., 2017) and vasoconstriction in the RTN (Hawkins et al., 2017). Consistent with this, we found that exposure to t-ACPD (50 µM), an mGluR agonist widely used to elicit Ca2+ elevations in astrocytes (Howarth et al., 2017), caused constriction of RTN arterioles (Δ −5.9 ± 1.7%; N = 8 vessels) and dilation of arterioles in the cNTS (Δ +7.6 ± 2.5%; N = 8 vessels), ROb (Δ +6.8 ± 1.9%; N = 8 vessels) and somatosensory cortex (Δ +2.9 ± 0.8%; N = 5 vessels) (F3,25=10.18; p<0.0001) (Figure 1Fi–Fii). These results show that CO2/H+-dependent regulation of vascular tone and roles of astrocytes in this process are fundamentally different in the RTN compared to other brain regions, and point to differential purinergic signaling mechanisms downstream of astrocyte activation.

To determine whether P2Y2 receptors in the RTN regulate CO2/H+ vascular reactivity in vivo, we measured the diameter of pial vessels on the ventral medullary surface (VMS) in the region of the RTN during exposure to high CO2 under control conditions (saline) and when P2Y2 receptor are blocked with AR-C118925. Consistent with our slice data, we found under saline control conditions that increasing end-expiratory CO2 to 9–10%, which corresponds with an arterial pH of 7.2 pH units (Guyenet et al., 2005), constricted VMS vessels by −7.8 ± 0.7% (p=0.01, N = 7 animals) (Figure 2A). However, when P2Y2-receptors are blocked by application of AR-C118925 (10 µM) to the VMS, increasing inspired CO2 resulted in a vasodilation of 5.2 ± 0.9% (Figure 2A) (p=0.05; N = 7 animals). Thus, in the absence of functional P2Y2 receptors, RTN vessels respond to CO2/H+ in a manner similar to other brain regions. Also consistent with our slice data, we found that activation of P2Y2 receptors by application of PSB1114 (100 µM) to the VMS constricted vessels in the region of the RTN by −6.3 ± 0.9% (p=0.05, N = 7 animals) (Figure 2B).

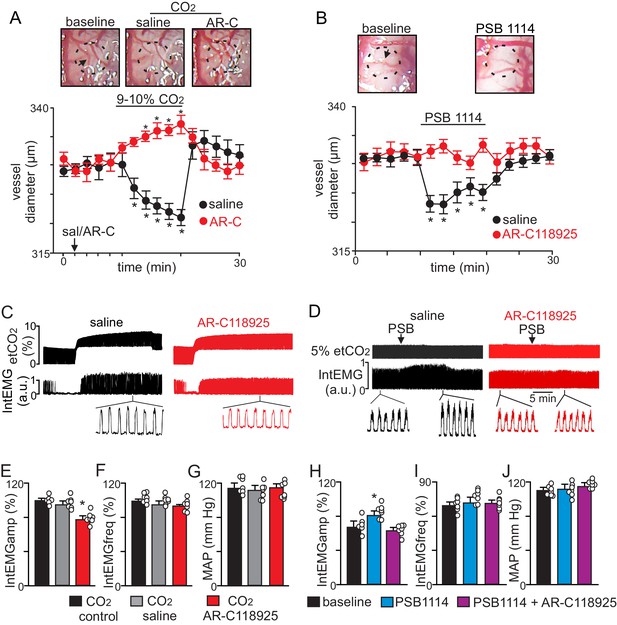

CO2 constricts pial vessels in the RTN region by a P2Y2 receptor-dependent mechanism to increase respiratory behavior in anesthetized mice.

(A) Images of RTN pial vessels and corresponding traces of vessel diameter (N = 6 mice/condition) show that exposure to 9–10% CO2 decreased vessel diameter under control conditions (saline) but not when P2Y2 receptors were blocked with AR-C118925 (1 mM). (B) Images of RTN pial vessels and corresponding traces vessel diameter show that application of a P2Y2 receptor agonist (PSB1114; 100 µM) caused a reversible constriction. (C-D) Traces of external intercostal EMG (IntEMG) and end expiratory CO2 (etCO2) show that blocking CO2/H+-induced vasoconstriction by ventral surface application of AR-C118925 minimally affected respiratory activity at low etCO2 levels but blunted the ventilatory response to 9–10% CO2 (C). Conversely, at a constant etCO2 of 5% the application of PSB1114 to mimic CO2/H+ constriction increased respiratory output (D). (E-J) Summary data show (N = 6 mice/condition) effects RTN application of saline, AR-C118925 or PSB1114 on intercostal EMG amplitude (E, H), frequency (F, I) and mean arterial pressure (MAP; G, J). *, Different (RM-ANOVA followed by Bonferroni multiple-comparison test; *, p<0.05). scale bar = 200 μm.

To correlate P2Y2-dependent vasoconstriction in the RTN region with respiratory behavior, we simultaneously measured systemic blood pressure and external intercostal electromyogram (IntEMG) activity (as a measure of respiratory activity) in urethane-anesthetized mice during exposure to low and high CO2 following VMS application of saline or AR-C118925. We found that VMS application of AR-C118925 (1 mM) minimally affected the CO2/H+ apneic threshold (3.3 ± 0.4% vs. saline: 3.1 ± 0.5%) (p>0.05; two-way RM ANOVA; N = 7). However, at high levels of CO(9–10% etCO2) AR-C118925 decreased intercostal EMG amplitude by 23 ± 5% (F2,74 = 69.83; p=0.021; N = 7 animals) (Figure 2C,E), but with no change in frequency (F2,74 = 1.09; p>0.05; N = 7 animals) (Figure 2C,F). Conversely, VMS application of PSB1114 (100 µM) while holding etCO2 constant at 5% increased intercostal EMG amplitude by 20 ± 3% (F2,74 = 96.14; p=0.02; N = 7 animals) (Figure 2D,H), again with no change in frequency (F2,74 = 0.79; p>0.05; N = 7 animals) (Figure 2D,I). These treatments had negligible effects on systemic mean arterial pressure (MAP) (AR-C118925: 113 ± 5; PSB1114: 112 ± 5; saline: 114 ± 4 mmHg; F2,74 = 1.29; p>0.05; N = 7 animals) (Figure 2G,J). These results indicate that P2Y2 dependent vasoconstriction in the RTN contributes to the drive to breathe.

If the mechanism underlying vascular control of RTN chemoreception involves maintenance of tissue CO2/H+ levels, then by this same logic, vasodilation in the cNTS and ROb should buffer tissue CO2/H+ and limit contributions of these regions to respiratory output. Such a braking mechanism may be important for stabilizing breathing since over-activation of the CO2/H+ chemoreflex is thought to cause unstable periodic breathing (Cherniack and Longobardo, 2006). To test this, we disrupted CO2/H+ dilation by injecting the vasoconstrictor U46619 (a thromboxane A2 receptor agonist) into the cNTS and ROb while measuring cardiorespiratory activity in anesthetized mice breathing a level of CO2 required to maintain respiratory activity (2–3% CO2). We found that injections of U46619 (1 μM) into the cNTS alone caused an increase in breathing frequency but together with the ROb resulted in unstable breathing as evidenced by frequent bouts of hyperventilation followed by apnea (Figure 3A) (1.2 ± 0.6, vs. saline: 0.4 ± 0.2 apneas/min; p<0.001) and increased breath to breath variability (Figure 3C–E). Consistent with increased chemoreceptor drive, we found that application of U46619 into these regions lowered the CO2 apneic threshold from 3.2 ± 0.3% to 2.1 ± 0.1% (p<0.05; two-way RM ANOVA; N = 7) (Figure 3F). Also, consistent with previous work (Yalcin and Savci, 2004), we found that injection of U46619 (1 μM) into the cNTS also increased systemic blood pressure (127 ± 11, vs. saline: 98 ± 4 mmHg), (F3,65 = 77.62; p<0.01, data not shown), whereas, application of this drug into the ROb alone had negligible effects on cardiorespiratory output. Together, these results show that CO2/H+ induced vasoconstriction in the RTN serves to enhance chemoreceptor drive, while simultaneous CO2/H+-dependent dilation in the cNTS and possibly the ROb limits chemoreceptor activity to stabilize CO2/H+ stimulated respiratory drive.

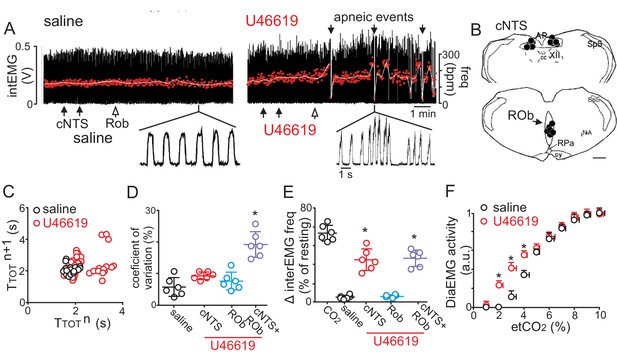

Disruption of CO2/H+ dilation in the cNTS and ROb causes unstable breathing and apnea.

(A) Trace of external intercostal muscle EMG (IntEMG) activity shows respiratory activity of an anesthetized wild type mouse breathing 2.5% CO2 following injections of saline or U46619 (1 μM; 30 nL/region) into the cNTS and ROb. (B) Location of injections in the cNTS and ROb. (C) Representative Poincaré plot (50 breaths) shows breath‐to‐breath (TTOT) interval variability following injections saline (black) or U46619 (red) conditions. (D-E) Summary data (N = 6 animals/group) shows effects of U46619 injections into the cNTS and ROb alone and in combination on the coefficient of variation of IntEMG frequency (C) and IntEMG frequency (E). (F) Summary data show that injections of U46619 injections into the cNTS and ROb lowered the CO2 apneic threshold from 3.2 ± 0.3% to 2.1 ± 0.1% (N = 7 mice). *, Difference in IntEMG activity under control conditions (saline) vs. during U46119 into the NTS and/or ROb (RM-ANOVA followed by Bonferroni multiple-comparison test, p<0.05). scale bar = 200 μm.

Smooth muscle specific P2Y2 cKO mice have a blunted chemoreflex that can be rescued by targeted re-expression of P2Y2 in RTN smooth muscle cells

To definitively test contributions of P2Y2 receptors in vascular smooth muscle cells to respiratory activity, we created a smooth muscle cell-specific P2Y2 knockout mouse (P2Y2 cKO maintained on a C57BL6/J background) by crossing TaglnCre (JAX #: 017491) with P2ry2f/f mice provided by Dr. Cheike Seye (Indiana Univ.). We confirmed that Cre recombinase expression was restricted to vascular smooth muscle cells (Figure 4—source data 1) and that P2ry2 transcript was not detectable in RTN smooth muscle cells from P2Y2 cKO mice (Figure 4A). Each genotype (TaglnCre only, P2ry2f/f only and P2Y2 cKO mice) was obtained at the expected ratios and gross motor activity, metabolic activity, blood gases, heart rate and blood pressure were all similar between genotypes and sexes (Table 1, Figure 4—figure supplement 1). Therefore, results from male and female mice of each genotype were pooled. To determine whether P2Y2 cKO mice exhibit respiratory problems, we used whole-body plethysmography to measure baseline breathing and the ventilatory response to CO2 in conscious unrestrained adult mice (mixed sex). Consistent with the possibly that smooth muscle P2Y2 receptor-mediated vasoconstriction in the RTN augments the ventilatory response to CO2, we found that P2Y2 cKO mice exhibit normal respiratory activity under room air conditions (Table 1) but pronounced hypoventilation during exposure to graded increases in CO2 (balance O2 to minimize input from peripheral chemoreceptors). For example, minute ventilation – the product of frequency and tidal volume – of P2Y2 cKO mice at 5% and 7% CO2 was 28% and 35% smaller than control counterparts (Figure 4C–F, Table 2). This chemoreceptor deficit involves a diminished capacity to increase both respiratory frequency (Figure 4D) and tidal volume (Figure 4E) during exposure to CO2 (Table 2). Similar results were obtained in P2Y2 cKO mice generated using a different smooth muscle cre line (Myh11Cre/eGFP) (Figure 4—figure supplement 2). Also, smooth muscle P2Y2 cKO mice showed a normal ventilatory response to hypoxia (10% O2; balance N2, T7 = 0.1089, p>0.05) (Figure 4—figure supplement 3). We confirmed in vitro that RTN arterioles in slices from P2Y2 cKO do not respond to PBS 1114 (0.4 ± 0.1%, T7 = 1661, p>0.05, N = 8 vessels). Interestingly, we also found that RTN arterioles in slices from P2Y2 cKO mice fail to constrict in response to CO2/H+ or tACPD, but rather respond in a manner similar to arterioles in other brain regions. For example, both CO2/H+ and tACPD dilated RTN (CO2/H+: 4.7 ± 0.2%, T9 = 3.312, p=0.009, N = 10 vessels; tACPD: 3.2 ± 0.7%, T7 = 2.864, p=0.035, N = 8 vessels) and cortical (CO2/H+: 7.3 ± 1.5%, T6 = 4.307, p=0.0051, N = 7 vessels; tACPD: 6.7 ± 0.9%, T6 = 2.739, p=0.0338, N = 7 vessels) arterioles in slices from P2Y2 cKO mice (Figure 4—figure supplement 4). This suggests CO2/H+ induced vasodilation is a general phenomenon mediated by undetermined mechanisms, but in the RTN is response is countered by smooth muscle P2Y2 receptor-mediated constriction.

Figure 4 with 5 supplements see all

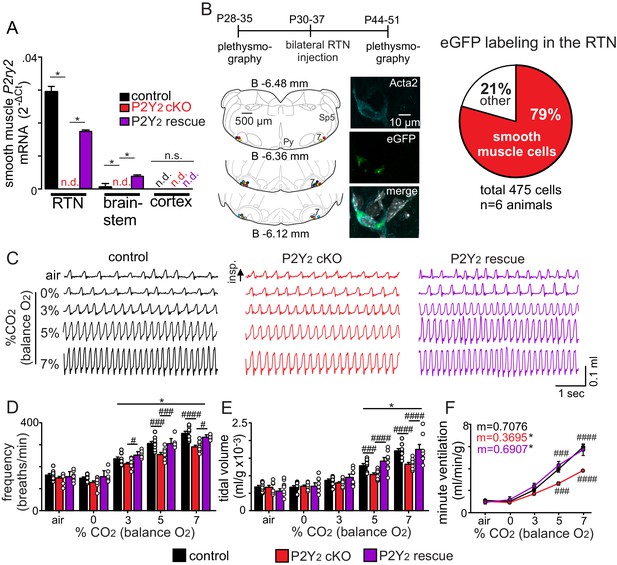

Smooth muscle P2Y2 cKO mice show a blunted CO2 chemoreflex that can be rescued by re-expression of P2Y2 only in RTN smooth muscle cells.

(A) P2Y2 transcript was detected in RTN, brainstem and cortical smooth muscle cells isolated from control mice (TaglnCre::TdTomato), P2Y2 cKO mice (TaglnCre::P2ry2f/f::TdTomato), and P2Y2 rescue mice (P2Y2 cKO animals that received bilateral RTN injections of AAV2-Myh11p-eGFP-2A-mP2ry2). P2ry2 transcript was not detected (n.d.) in smooth muscle cells from P2Y2 cKO mice (N = 3 runs/9 animals). P2ry2 was also not detected in cortical smooth muscle cells from either genotype. Conversely, RTN (p=0.0073) and brainstem (p=0.0073) but not cortical (p>0.05) smooth muscle cells from P2Y2 rescue mice show increased P2ry2 transcript compared to P2Y2 cKO but not to the same level as cells from control mice (p=0.0219) (ANOVA on ranks followed by Dunn multiple comparison test). (B) Left, computer-assisted plots show the center of all bilateral AAV2-Myh11p-eGFP-2A-mP2ry2 injections; each matching color pair of dots corresponds to one animal (N = 13 animals). Approximate millimeters behind bregma (Paxinos and Franklin, 2013) is indicated by numbers next to each section. Right, 2 weeks after injections we confirmed that ~80% of RTN smooth muscle α2 actin (Acta2)-immunoreactive cells were also GFP+(inset). (C-F) Representative traces of respiratory activity (C) and summary data show that smooth muscle-specific P2Y2 KO mice (TaglnCre::P2ry2f/f) breathe normally under room air conditions but fail to increase respiratory frequency (C) or tidal volume (D) during exposure to CO2, thus resulting in diminished minute ventilation at 5–7% CO2 (E). Re-expression of P2Y2 in only RTN smooth muscle cells rescued of the ventilatory response to CO2. Note that TaglnCre only and P2ry2f/f only control mice show similar baseline breathing and responses to CO2 and so were pooled. *, Different from 0% CO2 in condition as assessed by Tukey’s post-hoc multiple comparison test. ####, Different between genotypes (two-way ANOVA with Tukey’s multiple comparison test, p<0.0001).

Figure 4—source data 1

Raw Ct values of P2Y2 cKO and P2Y2 rescue mice.

https://cdn.elifesciences.org/articles/59499/elife-59499-fig4-data1-v3.xlsx
Figure 4—source data 2

Metabolic testing in light and dark cycles of control and P2Y2 cKO mice.

https://cdn.elifesciences.org/articles/59499/elife-59499-fig4-data2-v3.xlsx
Table 1
Respiratory parameters in control (TaglnCre only and P2ry2f/f only), P2Y2 cKO (TaglnCre::P2ry2f/f) and P2Y2 rescue animals 2 weeks after bilateral RTN injections of AAV2-Myh11p-eGFP-2A-mP2ry2.

No significant differences were observed (p>0.05).

TaglnCre only, P2ry2f/f onlyP2Y2 cKO
Frequency (breaths/min)163.4 ± 7.1149.8 ± 7.2
Tidal volume (mL/g x 10−3)6.8 ± 0.46.7 ± 0.5
Minute ventilation (mL/min/g)1.1 ± 0.11.0 ± 0.1
Systolic blood pressure (mmHg)124.2 ± 0.9123.0 ± 1.2
Diastolic blood pressure (mmHg)85.5 ± 0.886.7 ± 1.4
Heart rate (beats/min)473.8 ± 3.0465.0 ± 5.0
VO2 (mL/kg/hr)4886.5 ± 127.15067.0 ± 230.4
VCO2 (mL/kg/hr)4392.8 ± 101.94653.8 ± 204.5
Respiratory exchange ratio (RER)0.89 ± 0.010.91 ± 0.01
pH7.410 ± 0.0057.406 ± 0.008
pCO2 (mmHg)40.1 ± 0.440.7 ± 0.6
pO2 (mmHg)88.3 ± 0.988.0 ± 0.8
Table 2
Cardiorespiratory and metabolic parameters under room air conditions in control and P2Y2 cKO mice.
ATaglnCre or P2ry2f/f only
Frequency (breaths/minute)Tidal volume
(mL/g x 10−3)
Minute ventilation (mL/min/g)
Room air163.4 ± 7.16.8 ± 0.41.1 ± 0.1
0% CO2/100% O2149.1 ± 5.76.7 ± 0.51.0 ± 0.1
3% CO2/97% O2236.6 ± 8.5 ****8.7 ± 0.4 ****2.1 ± 0.1 ****
5% CO2/95% O2306.0 ± 9.4 ****12.9 ± 0.6 ****4.0 ± 0.3 ****
7% CO2/93% O2351.6 ± 9.8 ****17.1 ± 1.4 ****6.0 ± 0.3 ****
BP2Y2 cKO
Frequency (breaths/minute)Tidal volume
(mL/g x 10−3)
Minute ventilation (mL/min/g)
Room air149.8 ± 7.26.7 ± 0.51.0 ± 0.1
0% CO2/100% O2130.1 ± 7.47.1 ± 0.30.9 ± 0.1
3% CO2/97% O2213.7 ± 6.5 ****8.0 ± 0.31.7 ± 0.1 **
5% CO2/95% O2256.2 ± 9.6 ### ****10.4 ± 0.4 #### ****2.7 ± 0.2 #### ****
7% CO2/93% O2291.3 ± 7.5 #### ****13.3 ± 0.5 #### ****3.9 ± 0.1 #### ****
CP2Y2 cKO rescue
Frequency (breaths/minute)Tidal volume
(mL/g x 10−3)
Minute ventilation (mL/min/g)
Room air156.3 ± 9.05.6 ± 0.10.9 ± 0.2
0% CO2/100% O2158.3 ± 12.86.8 ± 0.11.1 ± 0.3
3% CO2/97% O2254.0 ± 6.2 ## ****9.5 ± 0.1 ***2.4 ± 0.3 ****
5% CO2/95% O2305.1 ± 9.8 #### ****14.0 ± 0.1 ## ****4.3 ± 0.4 #### ****
7% CO2/93% O2335.6 ± 4.1 ### ****17.0 ± 0.2 ### ****5.7 ± 0.6 #### ****
  1. *,difference from 0% CO2; #, differences between genotypes under an experimental condition (two-way ANOVA with Tukey's multiple comparison test). Two symbols = p < 0.01, three symbols = p < 0.001, four symbols = p < 0.0001.

We next tested whether targeted re-expression of P2Y2 in RTN smooth muscle cells would rescue the blunted chemoreflex in P2Y2 cKO mice. An adeno-associated virus (AAV2-Myh11p-eGFP-2A-mP2ry2, Vector Biolabs) was injected bilaterally into the RTN of adult P2Y2 cKO (TaglnCre::P2ry2f/f) to drive P2Y2 expression in smooth muscle cells. Two weeks after virus injection into the RTN region, we confirmed that ~80% of smooth muscle α2 actin (Acta2)-immunoreactive cells in the RTN are also GFP+ (Figure 4—figure supplement 5). Some background eGFP labeling was observed, but not associated with DAPI labeling (Figure 4—figure supplement 5). We also confirmed RTN smooth muscle cells from P2Y2 rescue mice show increased P2ry2 transcript levels compared to P2Y2 cKO (p=0.0073) but not to the same level as cells from control mice (H3 = 7.2, p=0.0219) (Figure 4A). Importantly, re-expression of P2Y2 receptors in RTN smooth muscle cells resulted in a full rescue of the minute ventilatory response to CO2 (Figure 4C–F, Table 2) (F1,7=17.75, p=0.004, N = 13 animals). Conversely, bilateral RTN injections of control virus (AAV2-Myh11p-eGFP, Vector Biolabs) minimally affected respiratory parameters of interest in P2Y2 cKO mice (Figure 4—figure supplement 2). Furthermore, re-expression of P2Y2 receptors in RTN smooth muscle cells also rescues CO2/H+ vascular reactivity. Specifically, we found that, in slices from P2Y2 cKO mice, RTN arterioles transfected with AAV showed a robust constriction in response to CO2 (−19.9 ± 6.9%, p=0.0421), tACPD (−6.2 ± 1.9%, p=0.0092) and PSB1114 (−9.3 ± 4.9%, p=0.0154) (Figure 4—figure supplement 4). These results identify the first vascular element of respiratory control by showing that P2Y2 receptors in RTN vascular smooth muscle cells are required for the normal ventilatory response to CO2.

Discussion

These results identify P2Y2 receptors in RTN smooth muscle cells as a novel vascular element of respiratory chemoreception. We show that CO2/H+ constriction by activation of smooth muscle P2Y2 receptors is unique to the RTN and is required for the normal ventilatory response to CO2, whereas simultaneous CO2/H+ vasodilation in other chemoreceptor regions like the cNTS and ROb may serve to stabilizes breathing. Considering these regions sense changes in CO2/H+ to regulate breathing, and since vasoconstriction and dilation are expected to increase and decrease tissue CO2/H+ levels respectively, we speculate that differential CO2/H+ vascular reactivity across multiple chemoreceptor regions serves to fine tune respiratory drive and stability during exposure to high CO2. Understanding this novel mechanism may lead to new treatment options for breathing problems, particularly those associated with cardiovascular disease.

Experimental limitations

There are several limitations of this work that should be recognized. First, our in vitro experiments utilized the slice preparation because it allows for easy visualization of vessels in each region of interest and pharmacological manipulation of candidate mechanisms independent of potential confounding effects of blood pressure on myogenic tone. However, because blood vessels in brain slice have limited myogenic tone these experiments were performed in the presence of U-46619 to pre-constrict vessels ~ 30% (Blanco et al., 2008). We also used a large stimulus (15% CO2) to characterize CO2/H+ vascular reactivity in vitro. For these reasons, we also confirmed in vivo in the absence of U-46619 that more physiological levels of CO(9–10%) constricted arterioles in the RTN by a P2Y2-dependent mechanism. Second, we and others (Yalcin and Savci, 2004) showed that administration of U46619 into the NTS increased blood pressure. Although baroreceptor activation has a fairly mild effect on respiratory activity (McMullan et al., 2009), it remains possible that the baroreflex contributed to respiratory instability observed during this experimental manipulation. Furthermore, neurons and astrocytes may express thromboxane A2 receptors (Gao et al., 1997; Nakahata et al., 1992) so it is possible respiratory instability caused by injections of U46619 into the cNTS and ROb may involve direct neural or astrocyte activation. Third, CO2/H+ typically increases minute ventilation by increasing both rate and depth of breathing (Souza et al., 2019; Takakura et al., 2014), yet ventral surface application of drugs to manipulate P2Y2 receptors only affected tidal volume (Figure 2E–J). Therefore, it is possible other nearby respiratory centers were affected in this experiment. However, this issue is mitigated by more targeted genetic approaches showing that deletion of P2Y2 from smooth muscle cells blunted the rate and depth of respiratory responses to CO2, and re-expression of P2Y2 receptors only in RTN smooth muscle cells fully rescued the CO2/H+ chemoreflex.

Mechanisms contributing to vascular control of breathing

Blood flow in the brain is controlled by several mechanisms including neural activity, which leads to vasodilation and increased blood flow by a process termed neurovascular coupling (Ladecola, 2017). Autoregulation is a mechanism that maintains cerebral blood flow in response to changes in perfusion pressure (Paulson et al., 1990). For example, myogenic tone increases with increased perfusion pressure and relaxes with decreased pressure. CO2/H+ also functions as a potent vasodilator in most brain regions (Hoiland et al., 2019) and is perhaps the most potent regulator of cerebrovascular tone since high CO2/H+ can impair both autoregulation (Ogoh and Ainslie, 2009; Perry et al., 2014) and neurovascular coupling (Maggio et al., 2013; Maggio et al., 2014). Since CO2/H+ is a waste product of metabolism, CO2/H+ vascular reactivity provides a means of matching local blood flow with tissue metabolic needs. However, at the level of the RTN this need appears secondary to chemoreceptor regulation of respiratory activity. For example, we (Hawkins et al., 2017) and others (Wenzel et al., 2020) showed that exposure to high CO2/H+ constricted RTN arterioles, and disruption of this response blunted the ventilatory response to CO2.

The cellular and transmitter basis for CO2/H+-induced constriction of RTN arterioles appears to involve CO2/H+-evoked ATP release from local astrocytes. For example, previous work showed that (i) CO2/H+ caused discrete release of ATP near the RTN region (Gourine et al., 2005); (ii) astrocytes in the RTN show Ca2+ responses to mild acidification (Gourine et al., 2010); and (iii) activation of astrocytes with tACPD, an mGluR agonist widely used to elicit Ca2+ elevations in astrocytes (Howarth et al., 2017), constricted RTN arterioles by a purinergic-dependent mechanism (Hawkins et al., 2017; Figure 2B), whereas application of an ATP receptor blocker to the ventral surface blunted CO2/H+-induced vasoconstriction and the ventilatory response to CO2 (18). Here, we extend this work by showing that CO2/H+ vascular responses in the RTN are opposite to other chemoreceptor regions, and we identify P2Y2 receptors in vascular smooth muscle cells as requisite determinants of RTN CO2/H+ vascular reactivity and chemoreception. For example, P2Y2 is a metabotropic receptor that couples with Gq, Go and G12 proteins (Erb and Weisman, 2012; activation of this receptor in smooth muscle is associated with vasoconstriction; Brayden et al., 2013; Lewis et al., 2000), whereas its activation in endothelial cells favors nitric oxide-mediated vasodilation (Marrelli, 2001). Consistent with a role in vasoconstriction, we found that P2Y2 transcript was expressed at higher than control levels in RTN smooth muscle cells and at lower than control levels in RTN endothelial cells (Figure 1A–B). Furthermore, pharmacological experiments show in vitro (Figure 1C–E) and in anesthetized mice (Figure 2A–B) that CO2/H+-induced constriction of RTN arterioles was eliminated by blocking P2Y2 receptors with AR-C118925 and mimicked by a selective P2Y2 receptor agonist (PSB 1114). We also show in awake mice that genetic deletion of P2Y2 from smooth muscle cells blunted the ventilatory response to CO2, and re-expression of P2Y2 receptors only in RTN smooth muscle cells fully rescued the CO2/H+ chemoreflex (Figure 4A–F). These results establish P2Y2 receptors in RTN smooth muscle cells as requisite determinants of respiratory chemoreception.

It should be noted that other cell types and signaling pathways may also contribute to RTN vascular reactivity. For example, endothelial cells including those in the RTN, express H+ activated GPR4 receptors that when activated facilitates release of vasoactive effectors including thromboxane to mediate vasoconstriction (Wenzel et al., 2020). Consistent with this, disruption of GPR4 signaling blunted CO2/H+ vascular reactivity in the RTN and the ventilatory response to CO2 (Wenzel et al., 2020). Although untested, it is also possible RTN endothelial cells release other vasoactive signals including ATP, and so may contribute to CO2/H+-evoked purinergic-dependent constriction of arterioles in this region. Prostaglandin E2 (PGE2) is also thought to contribute to CO2/H+ vascular reactivity. For example, in the cortex CO2/H+ facilitates Ca2+ oscillations in astrocytes (Gourine et al., 2010; Howarth et al., 2017) leading to enhanced arachidonic acid metabolism and release of PGE2, which triggered arteriole dilation by activation of prostaglandin (EP1) receptors (Howarth et al., 2017). In the RTN, CO2/H+ also causes PGE2 release most likely from astrocytes (Forsberg et al., 2017) and contributes to RTN chemoreception by a mechanism involving EP3 receptors (Forsberg et al., 2016). However, selective blockade of EP3 receptors minimally affected CO2/H+ constriction of RTN arterioles (Figure 1—figure supplement 2), suggesting PGE2/EP3 signaling contributes to RTN chemoreception by directly targeting CO2/H+-sensitive neurons or astrocytes.

In contrast to the RTN, we also found that CO2/H+ (Figure 1C) and astrocyte activation by bath application of t-ACPD (Figure 1F) dilatated arterioles in other chemoreceptor regions including the cNTS and ROb. This suggests that CO2/H+-dependent regulation of vascular tone and roles of astrocytes in this process are fundamentally different in the RTN compared to other chemoreceptor regions. Considering vasoconstriction and dilation are expected to increase and decrease tissue CO2/H+ levels respectively, we propose that CO2/H+ constriction in the RTN supports the drive to breathe by ensuring tissue acidification is maintained to stimulate chemoreceptors in this region, whereas CO2/H+ dilation in the cNTS and ROb provides a means of buffering tissue H+ and chemoreceptor activity to maintain respiratory stability. Conversely, if CO2/H+ were to cause vasoconstriction across multiple chemoreceptor regions simultaneously, this may exaggerate the ventilatory response to CO2 to the point of causing unstable periodic breathing (Cherniack and Longobardo, 2006). Indeed, this is thought to be the cause of unstable breathing in patients with global deficits in CO2/H+ vascular reactivity due to congestive heart failure or cerebrovascular disease (Cherniack et al., 2005; Cherniack and Longobardo, 2006). Consistent with this, we show that disruption of CO2/H+ dilatation in the cNTS and ROb by application of the vasoconstrictor U46619 while leaving RTN CO2/H+ constriction unperturbed, increased chemoreceptor drive as evidenced by a decrease in the CO2/H+ apneic threshold and caused unstable periodic breathing during exposure to higher levels of CO2/H+ (Figure 3). However, further work is needed to understand whether and how differential CO2/H+ vascular reactivity in these chemoreceptor regions contributes to breathing problems in disease states.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (M. musculus, Tie2-Cre, C57BL6/J background)B6.Cg-Tg(Tek-cre) 1Ywa/JJackson LaboratoriesRRID:IMSR_JAX:008863
Strain, strain background (M. musculus, smMHC-Cre/eGFP, C57BL6/J background)B6.Cg-Tg(Myh11-cre,-EGFP)2Mik/J Mus musculusJackson LaboratoriesRRID:IMSR_JAX:007742
Strain, strain background (aSM22-Cre, C57BL6/J background)B6.Cg-Tg(Tagln-cre)1Her/J Mus musculusJackson LaboratoriesRRID:IMSR_JAX:017491
Strain, strain background (TdTomato reporter Ai14, C57BL6/J background)B6.Cg-Gt(ROSA)26Sortm9(CAG-tdTomato)Hze/J Mus musculusJackson LaboratoriesRRID:IMSR_JAX:007909
Strain, strain background (P2ry floxed, C57BL6/J background)P2ry2f/f Mus musculusPMID:27856454Gifted by Dr. Cheike Seye (Indiana Univ.)
Transfected construct (M. musculus)AAV2-Myh11p-eGFP-2A-mP2ry2This paperCustom AAV product from Vector Biolabs
Transfected construct (M. musculus)AAV2-Myh11p-eGFPThis paperCustom AAV product from Vector Biolabs
Genetic reagent (TaKaRa TaqTM DNA Polymerase)Taq polymerasePromegaR001A
Antibody(mouse monoclonal) anti-α smooth muscle actinSigmaA5228(1:100 dilution)
Sequence-based reagentTaqman probe GapdhThermoFisherMm99999915_g1
Sequence-based reagentTaqman probe Rbfox3ThermoFisherMm01248771_m1
Sequence-based reagentTaqman probe Aldh1l1ThermoFisherMm03048957_m1
Sequence-based reagentTaqman probe Acta2ThermoFisherMm00725412_s1
Sequence-based reagentTaqman probe Flt1ThermoFisherMm00438980_m1
Sequence-based reagentTaqman probe P2rx1ThermoFisherMm00435460_m1
Sequence-based reagentTaqman probe P2rx2ThermoFisherMm00462952_m1
Sequence-based reagentTaqman probe P2rx3ThermoFisherMm00523699_m1
Sequence-based reagentTaqman probe P2rx4ThermoFisherMm00501787_m1
Sequence-based reagentTaqman probe P2rx5ThermoFisherMm00473677_m1
Sequence-based reagentTaqman probe P2rx6ThermoFisherMm00440591_m1
Sequence-based reagentTaqman probe P2rx7ThermoFisherMm01199500_m1
Sequence-based reagentTaqman probe P2ry1ThermoFisherMm02619947_s1
Sequence-based reagentTaqman probe P2ry2ThermoFisherMm02619978_s1
Sequence-based reagentTaqman probe P2ry4ThermoFisherMm00445136_s1
Sequence-based reagentTaqman probe P2ry6ThermoFisherMm02620937_s1
Sequence-based reagentTaqman probe P2ry12ThermoFisherMm01950543_s1
Sequence-based reagentTaqman probe P2ry13ThermoFisherMm01950543_s1
Sequence-based reagentTaqman probe P2ry14ThermoFisherMm01952477_s1
Chemical compound, drugPapainSigmaP4762
Chemical compound, drug1,4-DithioerythritolSigmaD8255
Chemical compound, drugCollagenase IVThermoFisher1714019
Chemical compound, drugBovine Serum AlbuminSigmaA2153
Chemical compound, drugTrypsin InhibitorSigmaT9253
Chemical compound, drugU46619Tocris1932
Chemical compound, drugTrans-ACPDTocris0187
Chemical compound, drugAR-C 118925XXTocris4890
Chemical compound, drugPSB 1114Tocris4333
Chemical compound, drugPOM 1Tocris2689
Chemical compound, drug1,3-dimethyl-8-phenyl-xantine (8-PT)SigmaP2278
Chemical compound, drugProstaglandin E2Cayman Chemical14010
Chemical compound, drugL-798, 106Cayman Chemical11129
Chemical compound, drugPapaverineSigmaP3510
Chemical compound, drugDiltiazemTocris0685
Commercial assay, kitTaqman Gene Expression Cells-to-CT kitThermoFisherAM1728
Commercial assay, kitTaqman Fast Advanced Master MixThermoFisher4444557
Software, algorithmImageJNIHRRID:SCR_003070Version 2.0.0
Software, algorithmMacro (for vessel analysis)PMID:28387198
Software, algorithmPonemahDSIRRID:SCR_017107Version 5.23
Software, algorithmQuantStudio Design and AnalysisThermoFisherRRID:SCR_018712Version 1.5.1
Software, algorithmPrism 7GraphPadRRID:SCR_011323Version 7.03
Other(Griffonia Simplicifolia Lectin I) isolectin B4, Dylight 594Vector LaboratoriesSL-1207-.5(6 µg/mL dilution)

Animals

All procedures were performed in accordance with National Institutes of Health and University of Connecticut Animal Care and Use Guidelines. All experiments used mixed sex C57BL6/J animals at least 3 weeks of age that housed in a 12:12 light dark cycle with normal chow ad libitum. The following transgenic Cre mouse lines were used to perform single cell isolation, FACS, and pooled qPCR: Myh11Cre/eGFP (Jax Stock #: 007742) and TekCre::TdTomato (Jax Stock #: 008863, 007909), and TaglnCre::TdTomato (Jax Stock #: 017491, 007909). TaglnCre and Myh11Cre/eGFP mice were crossed with P2ry2 floxed mice (gifted by Dr. Cheike Seye at Indiana University) to generate double floxed smooth muscle-specific P2Y2 cKO mice for in vitro and in vivo experimentation.

In vitro arteriole slice recordings

Brainstem and cortical slice preparation

Request a detailed protocol

Animals (P21 and older) were decapitated under isoflurane anesthesia and transverse brainstem slices (150 μm) were prepared using a vibratome in ice-cold substituted artificial cerebrospinal fluid (aCSF) solution containing (in mM): 130 NaCl, 3 KCl, 2 MgCl2, 2 CaCl2, 1.25 NaH2PO4, 26 NaHCO3, 10 glucose. 0.4 mM L-ascorbic acid was added into aCSF while slicing. Slices were incubated for 30 min at 37°C and subsequently at room temperature in aCSF, equilibrated with a 5% CO2-95% O2 gas mixture. Prior to imaging, each slice was incubated for 35 min with 6 mg/mL DyLight 594 Isolectin B4 conjugate (Vector Labs) to label vascular endothelium as previously described (Hawkins et al., 2017).

Imaging arterioles in vitro

Request a detailed protocol

Individual brain slices containing either the caudal NTS (cNTS), raphe obscurus (ROb), RTN, or somatosensory cortex were transferred to a Plexiglas recording chamber mounted on a fixed-stage upright fluorescent microscope (Zeiss Axioskop FS) and perfused with 37°C aCSF bubbled with a 5% CO2-21% O2 (balance N2). Hypercapnic solutions were made by allowing aCSF to equilibrate with a 15% CO2-21% O2 (balance N2). Arterioles were identified based on clear evidence of vasomotion under IR-DIC microscopy and bulky fluorescent labeling that indicates a thick layer of tightly wrapped smooth muscle surrounding the vessel lumen. Precapillary arterioles (as indicated by more sporadic, less uniform smooth muscle cell layer and thinner luminal diameter) were excluded from experimentation. All arterioles selected for experimentation had a luminal diameter between 8–50 µm. It should be noted that most, if not all, of the cNTS arterioles were small (average diameter was 9 µm) and ROb vasculature did not vary more than 10 µm from the midline of the slice. RTN vessels were located within 200 µm of the ventral surface and below the caudal end of the facial motor nucleus. Neocortical vessels were located in layers 1–5.

For an experiment, fluorescent images were acquired at a rate of 1 frame every 20 s using a 40X water objective lens, a Clara CCD Andor camera, and the NIS Advanced Research software suite (Nikon). To induce a partially constricted state in arterioles, we continuously bath applied 125 nM of a thromboxane A2 receptor agonist (U46619). U46619 has been previously shown to induce a 20–30% vasoconstriction at a concentration of 125 nM, enabling the vessel to either dilate or constrict further under experimental pharmacological studies (Girouard et al., 2010). As previously described (Hawkins et al., 2017), we assessed arteriole viability at the end of each experiment by inducing a large vasoconstriction with a 60 mM K+ solution and then a large vasodilation with a Ca+2-free solution containing EGTA (5 mM), a phosphodiesterase inhibitor (papaverine, 200 mM), and an L-type Ca+2 channel blocker (diltiazem, 50 mM). Only one vessel was recorded per experiment and slice. Any vessel that did not respond to these solutions were excluded in data analysis. The list of all drugs and concentrations used for in vitro and in vivo experimentation are detailed in Key Resource Table and text where appropriate.

Image analysis

Request a detailed protocol

Vessel diameter was determined using ImageJ. All images were calibrated, and pixel distance was converted to millimeters. Data files underwent StackReg (Biomedical Imaging Group) to stack each image over time and then three linear region of interests (ROI) were drawn orthogonal to the vessel. A macro (available at https://github.com/omsai/blood-vessel-diameter [Nanda, 2017]) was used to determine peak to peak distance using fluorescence intensity profile plots for all slices of the data file.

Single-cell isolation and qRT-PCR

At least three and no greater than eight, animals (postnatal days P21-P40) were used of either of the following genotypes: Myh11Cre/eGFP, TekCre::TdTomato, TaglnCre::TdTomato, or TaglnCre::TdTomato::P2ry2fl/fl. Animals were euthanized under isoflurane anesthesia and brainstem slices were prepared using a vibratome in ice cold, high sucrose slicing solution containing (in mM): 87 NaCl, 75 sucrose, 25 glucose, 25 NaHCO3, 1.25 NaH2PO4, 2.5 KCl, 7.5 MgCl2, 0.5 mM CaCl2 and 5 L-ascorbic acid. Slicing solution was equilibrated with a 5% CO2-95% O2 gas mixture before use. Transverse brainstem slices (400 μm thick) were prepared and then immediately enzymatically treated at 34°C with an initial incubation in a papain (6 mg/mL, Sigma) and dithioerythritol (10 mg/mL, ThermoFisher) mixture for 30 min in sucrose dissociation solution containing (in mM): 185 sucrose, 10 glucose, 30 Na2SO4, 2 K2SO4, 10 HEPES, 0.5 CaCl2, 6 MgCl2, 5 L-ascorbic acid, pH 7.4, 320 mOsm, followed by a collagenase IV (10 mg/mL, ThermoFisher) enzyme treatment for 6 min. After enzyme incubation, slices were washed three times in cold dissociation solution and then transferred to an enzyme inhibitor mix containing trypsin inhibitor (10 mg/mL, Sigma), bovine serum albumin (BSA, 10 mg/mL, Sigma), and sodium nitroprusside (SNP, 2 mg/mL, ThermoFisher) in cold sucrose dissociation solution. Shortly thereafter, slices were transferred to a glass Petri dish on ice. Using a plastic transfer pipette and a 15-blade scalpel, each region of interest was microdissected out of the slices and manually separated into sterile microcentrifuge tubes. The control samples were made up of two slices: one slice with the NTS removed and the other with the ROb and RTN removed. Once microdissection is completed, the tissue chunks were warmed to 34°C for 10 min before trituration. A single-cell suspension was achieved by trituration using a 25G and 30G needle sequentially, attached to a 3 mL syringe. Samples were triturated for an average of 5 min. Immediately after, the samples were placed back on ice and filtered through a 30-µm filter (Miltenyi Biotech) into round bottom polystyrene tube for fluorescence-activated cell sorting (FACS).

Florescence-activated cell sorting (FACS)

Request a detailed protocol

All cell types of interest were sorted on a BD FACSAria II Cell Sorter (UConn COR2E Facility, Storrs, CT) equipped with 407 nm, 488 nm, and 607 nm excitation lasers. Five minutes before sorting, 5 µL of 100 ng/mL DAPI was added to each sample. Cells were gated based on scatter (forward and side), for singlets, and for absence of DAPI. Finally, cells were gated either to TdTomato or GFP fluorescence and sorted by four-way purity into a sterile 96-well plate containing 5 µL of sterile PBS per sample. Between 100 and 500 cells were sorted per sample in any experiment and were processed immediately following FACS. To control for RNA contamination in FACS droplets, allophycocyanin (APC) beads were sorted based on green fluorescence and were treated alongside experimental samples (data not shown). See Figure 1—figure supplement 1 for FACS gating parameters.

Pooled cell qRT-PCR

Request a detailed protocol

A lysis reaction followed by reverse transcription was performed using the kit Taqman Gene Expression Cells-to-CT Kit (ThermoFisher) with ‘Lysis Solution’ followed by the ‘Stop Solution’ at room temperature, and then a reverse transcription with the ‘RT Buffer’, ‘RT Enzyme Mix’, and lysed RNA at 37°C for an hour. Following reverse transcription, cDNA was pre-amplified by adding 2 µL of cDNA from each sample to 8 µL of preamp master mix [5 µL TaKaRa premix Taq polymerase (Clontech), 2.5 µL 0.2X Taqman pooled probe, 0.5 µL H2O] and thermocycled at 95°C for 3 min, 55°C for 2 min, 72°C for 2 min, then 95°C for 15 s, 60°C for 2 min, 72°C for 2 min for 16–20 cycles, and then a final 10°C hold. Amplified cDNA was then diluted 2:100 in RNase-free H2O. Each qPCR assay contained the following reagents: 0.5 uL 20X Taqman probe, 2.5 µL RNase-free H2O, 5 µL Gene Expression Master Mix or Fast Advanced Master Mix (ThermoFisher), and 2 L diluted pre-amplified cDNA. qPCR reactions were performed in triplicate for each Taqman assay of interest on a QuantStudio 3 Real Time PCR Machine (ThermoFisher).

qRT-PCR data analysis

Request a detailed protocol

All three technical replicates were averaged to create one raw Ct values per Taqman assay. As a control, all samples were subject to cell markers of various cell types to confirm specificity: Rbfox3 for neurons, Aldh1l1 for astrocytes, Acta2 for smooth muscle cells, and Flt1 for endothelial cells (Figure 1A–B, Figure 1—source data 1). Any assay that did not give a discrete Ct value was given a Ct value of 40 for analysis. Fold change was determined by using the equation 2(-ΔΔCt). Gapdh was used as a sample-dependent internal control. Fold changes for all runs of each cell type were averaged; the log2 of the fold change was calculated, analyzed, and plotted on bar graphs.

In vivo anesthetized preparation

Animal use was in accordance with guidelines approved by the University of São Paulo Animal Care and Use Committee. A total of 26 adult male C57BL6 (25–28 g) were used for in vivo experiments. General anesthesia was induced with 5% isoflurane in 100% O2. A tracheostomy was made, and the isoflurane concentration was reduced to 1.4–1.5% until the end of surgery. The carotid artery was cannulated (polyethylene tubing, 0.6 mm o.d., 0.3 mm i.d., Scientific Commodities) for measurement of arterial pressure (AP). The jugular vein was cannulated for administration of fluids and drugs. Rats were placed supine onto a stereotaxic apparatus (Type 1760; Harvard Apparatus) on a heating pad and core body temperature was maintained at a minimum of 36.5°C via a thermocouple. The trachea was cannulated. Respiratory flow was monitored via a flow head connected to a transducer (GM Instruments) and CO2 via a capnograph (CWE, Inc,) connected to the tracheal tube. Paired EMG wire electrodes (AM-System) were inserted into the external intercostal muscle to record respiratory-related activity. After the anterior neck muscles were removed, a basio-occipital craniotomy exposed the ventral medullary surface, and the dura was resected. After bilateral vagotomy, the exposed tissue around the neck and the mylohyoid muscle was covered with mineral oil to prevent drying. Baseline parameters were allowed to stabilize for 30 min prior to recording.

In vivo recordings of physiological variables

Request a detailed protocol

Mean arterial pressure (MAP), external intercostal muscle activity (IntEMG) and end-expiratory CO2 (etCO2) were digitized with a micro1401 (Cambridge Electronic Design), stored on a computer, and processed off-line with version 7 of Spike two software (Cambridge Electronic Design). Integrated intercostal activity (∫IntEMG) was collected after rectifying and smoothing (τ = 0.03) the original signal, which was acquired with a 300–3000 Hz bandpass filter. Noise was subtracted from the recordings prior to performing any calculations of evoked changes in EMG. A direct physiological comparison of the absolute level of EMG activity across nerves is not possible because of non-physiological factors (e.g. muscle electrode contact, size of muscle bundle) and the ambiguity in interpreting how a given increase in voltage in one EMG relates to an increase in voltage in another EMG. Thus, muscle activity was defined according to its baseline physiological state, just prior to their activation. The baseline activity was normalized to 100%, and the percent change was used to compare the magnitude of increases or decreases across muscle from those physiological baselines.

In vivo experimental protocol

Request a detailed protocol

Each in vivo experiment began by testing responses to hypercapnia by adding CO2 to the breathing air supplied by artificial ventilation. The addition of CO2 was monitored to reach a maximum end-expiratory CO2 between 9% and 10%, which corresponds with an estimated arterial pH of 7.2 based on the following equation: pHa = 7.955–0.7215 × log10 (EtCO2). This maximum end-expiratory CO2 was maintained for 5 min and then replaced by 100% O2.

To determine whether local regulation of vascular tone in the region of the RTN contributes to the CO2/H+-dependent drive to breathe, we made injections of saline, PSB1114 (100 µM), AR-C118925 (1 mM) or U46619 (1 µM) while monitoring IntEMG amplitude and frequency. These drugs were diluted with sterile saline (pH 7.4) and applied using single-barrel glass pipettes (tip diameter of 25 µm) connected to a pressure injector (Picospritzer III, Parker Hannifin Corp, Cleveland, OH). For each injection, we delivered a volume of 30 nL over a period of 5 s. Injections in the VMS region were placed 1.9 mm lateral from the basilar artery, 0.9 mm rostral from the most rostral hypoglossal nerve rootlet, and at the VMS. The second injection was made 1–2 min later at the same level on the contralateral side. For injections located at the cNTS or ROb, we used the following coordinates: (a) cNTS: 0.2–0.3 mm rostral to the calamus scriptorius, 0.3 mm lateral to midline, and 0.3 mm below the dorsal surface of the brainstem and ROb: 1.2–1.3 mm caudal to the parietal-occipital suture, in the midline, and 5–5.3 mm below the cerebelar surface.

A cranial optical window was prepared using standard protocols. For the VMS, the anterior neck muscles were removed, a basio-occipital craniotomy exposed the ventral medullary surface, and the dura was resected. Pial vessels in the VMS were located 1.9 mm lateral from the basilar artery and 0.9 mm rostral to the most rostral portion of the hypoglossal nerve rootlet. The surface of the VMS was cleaned with buffer containing (in mmol/L) the following: 135 NaCl, 5.4 KCl, 1 MgCl2, 1.8 CaCl2, and 5 HEPES, pH 7.3., and a chamber (home-made 1.1-cm-diameter plastic ring was glued with dental acrylic cement attached to a baseplate). The chamber was sealed with a circular glass coverslip (#1943–00005, Bellco). The baseplate was affixed to the Digital Camera (Sony, DCR-DVD3-5) and a light microscope was used for vessel imaging (x40 magnification).

In vivo pial vessel imaging

Animal preparation

Request a detailed protocol

Mixed sex adult mice (>6 weeks of age) were briefly anesthetized with isoflurane (1–3%) followed with an IP injection of 300–500 mg urethane to ensure a deep anesthetic state. The animal was then fixed to stereotaxic ear bars with the ventral side of the animal facing up. The trachea of the animal was then cannulated with a 18G needle to provide 1.5 mL ventilations at a rate of 150 breaths per minute of 5% CO2-21% O2 (balance N2) via artificial ventilator (Kent Scientific). After cannulation, deep neck muscles were resected, and the cranial-pharyngeal canal and dura mater of the animal was removed. A digital camera was placed over the ventral surface and focused on the pial vasculature. Animals that did not have well-perfused pial vessels were not included in experimentation. Animals that were excessively bleeding from the surgical site were sacrificed and not included in any analyses.

In vivo image analysis

Request a detailed protocol

Three linear ROIs were drawn over the pial vasculature we recognize as supplying blood flow to the RTN, similar to the in vitro methods described above. Bright field imaging was analyzed using a macro in ImageJ. Briefly, the macro measured the drop and rise of the local maxima and minima, correlating to vessel boundaries. These boundaries were then used to make a linear measurement between the two points which was vessel diameter.

RTN viral injections

Request a detailed protocol

Adult mice (>20 grams) were anesthetized with 3% isoflurane. The right cheek of the animal was shaved, and an incision was made to expose the right marginal mandibular branch of the facial nerve. The animals were then placed in a stereotaxic frame and a bipolar stimulating electrode was placed directly adjacent to the nerve. Animals were maintained on 1.5% isoflurane for the remainder of the surgery. An incision was made to expose the skull and two 1.5 mm holes were drilled left and right of the posterior fontanelle, caudal of the lambdoidal suture. The facial nerve was stimulated using a bipolar stimulating electrode to evoke antidromic field potentials within the facial motor nucleus. In this way, the facial nucleus on the right side of the animal was mapped in the X, Y, and Z direction using a quartz recording electrode.

The viral vector was loaded into a 1.2 mm internal diameter borosilicate glass pipette on a Nanoject III system (Drummond Scientific). Virus was injected at least −0.02 mm ventral to the Z coordinates of the facial nucleus, to ensure injection into the RTN. These same coordinates were used for the left side of the animal. In all mice, incisions were closed with nylon sutures and surgical cyanoacrylate adhesive. Mice were placed on a heated pad until consciousness was regained. Meloxicam was administered 24 and 48 hr postoperatively.

Telemetry transmitter placement

Request a detailed protocol

Adult mice (>30 grams) were anesthetized with an induction dose of 3% isoflurane and placed into a sterile field. HD-X11 transmitters (Data Sciences International; DSI) were placed and fixed intraperitoneally with non-absorbable nylon sutures, followed by ECG lead placement on the left and right pectoralis on top of the rib cage. Finally, a pressure catheter was placed into the left carotid artery and threaded through to the aortic arch for continuous blood pressure measurements. Animals were closed with nylon sutures and placed on a heated pad u conscious. Mice were continuously watched for the next three days for any post-operative pain complications while meloxicam was administered 24 and 48 hr postoperatively. Mice were not used for any experimentation until post-operative day 7.

Unrestrained whole-body plethysmography

Request a detailed protocol

Respiratory activity was measured using a whole-body plethysmograph system (Data Scientific International; DSI), utilizing animal chamber maintained at room temperature and ventilated with air (1.3 L/min) using a small animal bias flow generator. Mice were individually placed into a chamber and allowed 1 hr to acclimate prior to the start of an experiment. Respiratory activity was recorded using Ponemah 5.32 software (DSI) for a period of 15 min in room air followed by exposure to graded increases in CO2 from 0% to 7% CO2 (balance O2). In separate experiments, we characterized the ventilatory response to 10% O2 (balance N2). Parameters of interests include respiratory frequency (FR, breaths per minute), tidal volume (VT, measured in mL; normalized to body weight and corrected to account for chamber and animal temperature, humidity, and atmospheric pressure), and minute ventilation (VE, mL/min/g). A 20 s period of relative quiescence after 5 min of exposure to each condition was selected for analysis. All experiments were performed between 9 a.m. and 6 p.m. to minimize potential circadian effects.

Comprehensive lab animal monitoring (CLAMS)

Request a detailed protocol

Metabolic monitoring (VCO2, VO2) was performed using comprehensive lab animal monitoring systems (CLAMS, Columbus Instruments). In short, mice were individually housed on a 12:12 light dark cycle in plastic cages with a running wheel, regular bedding, and regular chow for 1 week before experimentation. Three days before the metabolic experiment, each animal was placed in the CLAMS housing cage with metered water and waste collection. Mice had 2 days to acclimate to the metabolic chamber; on the third day, all results were recorded for a continuous 24 hr period. After data collection, all raw results were exported and averaged out per hour. Then, light and dark periods were determined and averaged per animal for statistical analysis. Both sexes were equally represented in the data set.

Blood gas analysis

Request a detailed protocol

Arterial blood gasses were collected from adult mice 6 weeks of age and older (>30 grams). A RAPIDLab 348 blood gas analyzer (Siemens) was used for all blood gas analysis; all calibrations, QC, and use were performed as indicated by the manufacturer. Animals were anesthetized with an induction dose of 3% isoflurane and then quickly switched to 1% isoflurane for the remainder of arterial blood collection. This level of isoflurane minimally affects blood gases (Constantinides et al., 2011; Loeven et al., 2018). The left carotid artery was exposed and quickly cannulated to allow for arterial blood to be collected and analyzed by the blood gas analyzer; no more than 5 s was spent between blood collection and analysis on the blood gas analyzer.

Immunohistochemistry

Request a detailed protocol

Adult mice were transcardially perfused with 20 mL of room temperature phosphate buffered saline (PBS, pH 7.4) followed by 20 mL of chilled 4% paraformaldehyde (pH 7.4). The brainstem was then removed from the animal and 150 um slices were made using a Zeiss VT100S vibratome. Slices were then incubated in a 0.5% Triton-X/PBS solution for 45 min to permeabilize the tissue. The slices remained in a 0.1% Triton-X/10% Fetal Bovine Serum (FBS, ThermoFisher)/PBS solution for a 12 hr primary antibody incubation of anti-mouse alpha smooth muscle actin (Sigma). The tissue was then washed three times in 0.1% Triton-X/10% FBS/PBS solution; the secondary antibody was incubated with the tissue after the third wash for 2 hr (donkey anti-mouse Alexa Fluor 647, ThermoFisher). The tissue was then washed three times in PBS before mounting on precleaned cover slides with Prolong Diamond with DAPI (ThermoFisher). Imaging of brain slices was achieved with a Leica SP8 confocal microscope.

Statistics

Data are reported as mean ± SE. Power analysis was used to determine sample size, all data sets were tested for normality using Shapiro-Wilk test, and comparisons were made using t-test, one-way or two-way ANOVA (parametric or non-parametric) followed by multiple comparison tests as appropriate. The specific test used for each comparison is reported in the figure legend and all relevant values used for statistical analysis are included in the results section.

Data availability

Source data files are included for all data sets that do not have individual points on summary figures.

References

    1. Constantinides C
    2. Mean R
    3. Janssen BJ
    (2011)
    Effects of isoflurane anesthesia on the cardiovascular function of the C57BL/6 mouse
    ILAR Journal 52:e21–e31.
    1. Erb L
    2. Weisman GA
    (2012) Coupling of P2Y receptors to G proteins and other signaling pathways
    Wiley Interdisciplinary Reviews: Membrane Transport and Signaling 1:789–803.
    https://doi.org/10.1002/wmts.62
    1. Gao H
    2. Peng B
    3. Welch WJ
    4. Wilcox CS
    (1997) Central thromboxane receptors: mrna expression and mediation of pressor responses
    American Journal of Physiology-Regulatory, Integrative and Comparative Physiology 272:R1493–R1500.
    https://doi.org/10.1152/ajpregu.1997.272.5.R1493
    1. Paulson OB
    2. Strandgaard S
    3. Edvinsson L
    (1990)
    Cerebral autoregulation
    Cerebrovascular and Brain Metabolism Reviews 2:161–192.
  1. Book
    1. Paxinos G
    2. Franklin KBJ
    (2013)
    The Mouse Brain in Stereotaxic Coordinates
    New York: Academic Press.

Decision letter

  1. Jeffrey C Smith
    Reviewing Editor; National Institute of Neurological Disorders and Stroke, United States
  2. Huda Y Zoghbi
    Senior Editor; Texas Children's Hospital, United States
  3. Adrianne G Huxtable
    Reviewer; University of Oregon, United States
  4. Jeffrey C Smith
    Reviewer; National Institute of Neurological Disorders and Stroke, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Vascular control of the CO2/H+ dependent drive to breathe" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Jeffrey C Smith as the Reviewing Editor and Reviewer #3, and the evaluation has been overseen by Huda Zoghbi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Adrianne G Huxtable (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional data are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This paper is an important extension of the authors' previous publication in eLife (Hawkins et al., 2017) that presented novel data suggesting that CO2/H+-mediated vasoconstriction in the brainstem retrotrapezoid nucleus (RTN) supports chemoreception by a purinergic-dependent mechanism. Here the investigators provide new data indicating that CO2/H+ dilates arterioles in other chemoreceptor regions (cNTS, raphe obscurus- ROb), thus suggesting that the CO2/H+ vascular reactivity in the RTN is unique compared to some other brain regions. The investigators significantly advance their previous work by applying a number of new experimental approaches to provide evidence that P2Y2 receptors in RTN vascular smooth muscle cells are responsible for the purinergic mechanism mediating the vascular reactivity and specifically contribute to RTN chemosensitivity. Importantly, pharmacological blockade or genetic deletion of P2Y2 from smooth muscle cells blunted the in vivo ventilatory response to CO2, and virally-driven re-expression of P2Y2 receptors in RTN smooth muscle cells rescued the ventilatory response to CO2, suggesting that these receptors are required for the normal ventilatory response to CO2. New pharmacological evidence is also presented that activation of RTN astrocytes is involved in purinergic signaling driving the RTN vasomotor responses. Overall these results advance the concept that specialized vasoreactivity to CO2/H+ in the RTN contributes to respiratory chemoreception.

Essential revisions:

1) Although authors are given leeway in the format of a Research Advance, this paper would benefit from more structure including delineation of Introduction, Results, and Discussion sections. The manuscript would be substantially improved in particular by including a more thorough, dedicated Discussion section with explicit elaboration on limitations of their experimental methods and conclusions, and including discussion of how the important P2Y2 receptor knockout and re-expression experiments represent a fundamental advance considering that the authors had already implicated (although not completely established) these receptors in their previous publication.

2) Presentation of the RT-PCR data of purinergic receptor expression profiles can be improved, particularly by providing a more convincing validation of this data such as giving supplementary data of raw numbers for GAPDH levels across areas to prove that GAPDH actually is a valid reference. The authors could also use 3-4 such genes as many investigators do for expression profile calibration. The reviewers note that for the argument it is not necessarily that important how the levels of receptors look in relation to a house keeping gene, but whether P2Y2 is the only receptor which is relatively highly expressed in RTN smooth muscle cells compared to other regions. Looking at Figure 1B, it seems that relative to the two other areas, P2X1, P2X4 and P2Y14 are also much higher in RTN smooth muscle cells compared to NTS. The reviewers agree that an important aspect is the remarkably low expression of P2Y2 in endothelium which in theory should oppose constriction by possibly releasing NO.

3) Additional information on measurements of vascular diameters would be useful. Have the authors obtained measurements from multiple vessels at each time point in the chosen field(s) of view for individual experiments? If so, how do such measurements compare to the representative single vessel measurements for a given experiment presented in the figures? How many vessels per experiment are included in the group summary data? Please explain more completely why it was necessary to induce a 20-30% vasoconstriction by the thromboxane A2 receptor agonist before the measurements.

4) Some additional validation of the specificity of the AAV2 used for the P2Y2 re-expression experiments would be helpful since this is not a well characterized virus and may lead to receptor overexpression. Additional nice clear images with proper co-localization would be good to see and additional details about non-smooth muscle cell expression should be provided.

5) The experiments showing unstable breathing in vivo produced by injecting a thromboxane A2 receptor agonist vasoconstrictor (U46119) into the cNTS and ROb under conditions of mild hypercapnia (2-3% inspired CO2) are intriguing, but these experiments lack the proper control of U46119 injections into the cNTS and ROb under normocapnic conditions to determine if this alters blood pressure and produces breathing instabilities independent of any "gain-up" of RTN activity. It would also be of interest to know whether the authors have tested if larger instabilities occur with cNTS/ROb vasoconstriction at higher levels of hypercapnia.

https://doi.org/10.7554/eLife.59499.sa1

Author response

Essential revisions:

1) Although authors are given leeway in the format of a Research Advance, this paper would benefit from more structure including delineation of Introduction, Results, and Discussion sections. The manuscript would be substantially improved in particular by including a more thorough, dedicated Discussion section with explicit elaboration on limitations of their experimental methods and conclusions, and including discussion of how the important P2Y2 receptor knockout and re-expression experiments represent a fundamental advance considering that the authors had already implicated (although not completely established) these receptors in their previous publication.

We have added an expanded Discussion section that includes experimental limitations section. We also make clear how this work extends our previous findings. Specifically, our previous work showed in vitro that a non-specific blocker of P2Y2 and P2Y6 blunted RTN CO2/H+ vascular reactivity. We also showed in anesthetized rats that blocking all P2 receptors disrupted CO2/H+ vascular reactivity and the ventilatory response to CO2. The current study builds on this work by showing i) CO2/H+ vascular responses in the RTN are opposite to other chemoreceptor regions; ii) vascular endothelial cells and smooth muscle cells in the RTN exhibit a P2 receptor profile that differs from other chemoreceptor regions and favors constriction via P2Y2; iii) specific pharmacological manipulations of P2Y2 mimic and block CO2/H+ vascular reactivity in vitro and in anesthetized mice; and iv) conditional ablation of P2Y2 from smooth muscle cells blunted the ventilatory response to CO2 in awake mice, and re-expression of P2Y2 only in RTN smooth muscle cells rescued the ventilatory response to CO2. These results definitively establish P2Y2 receptors in RTN smooth muscle cells as important determinants of the drive to breathe.

2) Presentation of the RT-PCR data of purinergic receptor expression profiles can be improved, particularly by providing a more convincing validation of this data such as giving supplementary data of raw numbers for GAPDH levels across areas to prove that GAPDH actually is a valid reference. The authors could also use 3-4 such genes as many investigators do for expression profile calibration. The reviewers note that for the argument it is not necessarily that important how the levels of receptors look in relation to a house keeping gene, but whether P2Y2 is the only receptor which is relatively highly expressed in RTN smooth muscle cells compared to other regions. Looking at Figure 1B, it seems that relative to the two other areas, P2X1, P2X4 and P2Y14 are also much higher in RTN smooth muscle cells compared to NTS. The reviewers agree that an important aspect is the remarkably low expression of P2Y2 in endothelium which in theory should oppose constriction by possibly releasing NO.

We have added a supporting table (Figure 1—source data 1) that includes all raw Ct values for Gapdh and cell-type specific genes including Rbfox3 (neurons), Aldh1L1 (astrocytes), Acta2 (smooth muscle cells) and Flt1 (endothelial cells) for both endothelial and smooth muscle cell populations. The presence/absence of cell type specific genes was used to confirm that we obtained enriched populations of endothelial cells (Figure 1A) or smooth muscle cells (Figures 1B and 4A). Gapdh showed fairly consistent and repeatable Ct values across all regions of interest, and so was used an internal control for results shown in Figures 1A-B and 4A.

The first section of the Results has been updated to include a comparison of P2 transcript levels between the regions of interest while continuing to highlight the unusual expression profile of P2ry2 in the RTN.

3) Additional information on measurements of vascular diameters would be useful. Have the authors obtained measurements from multiple vessels at each time point in the chosen field(s) of view for individual experiments? If so, how do such measurements compare to the representative single vessel measurements for a given experiment presented in the figures?

It was uncommon to find multiple vessels in focus within a field of view so for this work we zoomed in on just one vessel per experiment. For an experiment, we monitored vessel diameter over time at three locations along the vessel within the region of interest, and the average of those measurements was used to assess individual vascular responses.

In any case, we agree that it would be very interesting to understanding how CO2/H+ affects the larger vascular network within and near each chemoreceptor region. This is a direction we plan to pursue in the future.

How many vessels per experiment are included in the group summary data?

This information has been added to the text.

Please explain more completely why it was necessary to induce a 20-30% vasoconstriction by the thromboxane A2 receptor agonist before the measurements.

In intact tissue, blood flow subjects’ vascular smooth muscle to a degree of stretching that results in an autoregulatory increase in myogenic tone. The absence of blood flow in brain slices results in a loss of myogenic tone. In an effort to see vascular responses in either direction (dilation or constriction) we pre-constrict vessels ~30% from maximum dilation using a thromboxane A2 agonist U-46619. This approach is commonly used to study vascular regulation in the brain slice preparation (PMID: 18456724). It is important to note that RTN vascular responses to CO2/H+ and P2Y2 agonist/antagonist observed in vitro were also confirmed in vivo in the absence of U-46691. We have included this point in the limitations section of the Discussion.

4) Some additional validation of the specificity of the AAV2 used for the P2Y2 re-expression experiments would be helpful since this is not a well characterized virus and may lead to receptor overexpression.

Good suggestion. We characterized P2Y2 transcript in RTN, brainstem and cortical smooth muscle cells isolated from control mice (TaglnCre::TdTomato), P2Y2 cKO mice (TaglnCre::P2ry2f/f::TdTomato), and P2Y2 rescue mice (P2Y2 cKO animals that received bilateral RTN injections of AAV2-Myh11p-eGFP-2A-mP2ry2). P2Y2 transcript was not detected in smooth muscle cells from P2Y2 cKO mice. P2Y2 was also not detected in cortical smooth muscle cells from either genotype. Conversely, RTN and brainstem but not cortical smooth muscle cells from P2Y2 rescue mice show P2Y2 transcript levels in similar to control. These results have been added to Figure 4A.

Additional nice clear images with proper co-localization would be good to see and additional details about non-smooth muscle cell expression should be provided.

We have added a new supplementary figure (Figure 4—figure supplement 4) that provides several examples of viral transduced smooth muscle cells (eGFP+ and Acta2+). This figure also shows an example of small eGFP puncta in an Acta2-negative cell (Figure 4—figure supplement 4Aii) and examples of eGFP puncta not co-localized with DAPI. Because off-target eGFP labeling was relatively weak we did not attempt to identify non-smooth muscle cell types infected by this virus. Quantification of these results are shown in Figure 4B.

5) The experiments showing unstable breathing in vivo produced by injecting a thromboxane A2 receptor agonist vasoconstrictor (U46119) into the cNTS and ROb under conditions of mild hypercapnia (2-3% inspired CO2) are intriguing, but these experiments lack the proper control of U46119 injections into the cNTS and ROb under normocapnic conditions to determine if this alters blood pressure and produces breathing instabilities independent of any "gain-up" of RTN activity. It would also be of interest to know whether the authors have tested if larger instabilities occur with cNTS/ROb vasoconstriction at higher levels of hypercapnia.

It is important to note that this work was performed using isoflurane-anesthetized mice which require 2-3% CO2 in order to maintain respiratory activity (this level of CO2 is defined as the apneic threshold). Therefore, for this experiment we consider 2-3% CO2 optimum for detecting changes in respiratory activity in either direction. However, as suggested by the reviewer we did revisit these data to determine if injections of U46619 into the cNTS and ROb affected the CO2 apneic threshold. Consistent with the possibility that vasoconstriction increases tissue CO2/H+ levels and chemoreceptor drive, we found that in injections of U46619 into the cNTS and ROb lowered the CO2/H+ apneic threshold. These new results have been added as a new Figure 3F.

We have not tested whether this experimental manipulation results in larger instabilities at higher levels of CO2. This is something we plan to explore in the future in control and P2Y2 cKO mice.

https://doi.org/10.7554/eLife.59499.sa2

Article and author information

Author details

  1. Colin M Cleary

    Department of Physiology and Neurobiology, University of Connecticut, Storrs, United States
    Contribution
    Data curation, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0305-1324
  2. Thiago S Moreira

    Department of Physiology and Biophysics, University of São Paulo, São Paulo, Brazil
    Contribution
    Data curation, Formal analysis, Funding acquisition, Investigation, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9789-8296
  3. Ana C Takakura

    Department of Pharmacology, University of São Paulo, São Paulo, Brazil
    Contribution
    Data curation, Formal analysis, Funding acquisition, Investigation, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Mark T Nelson

    1. Department of Pharmacology, University of Vermont, Burlington, United States
    2. Institute of Cardiovascular Sciences, Manchester, United Kingdom
    Contribution
    Conceptualization, Funding acquisition, Project administration, Writing - review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6608-8784
  5. Thomas A Longden

    Department of Physiology, University of Maryland, Baltimore, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Daniel K Mulkey

    Department of Physiology and Neurobiology, University of Connecticut, Storrs, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    daniel.mulkey@uconn.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7040-3927

Funding

National Institutes of Health (HL104101)

  • Daniel K Mulkey

National Institutes of Health (HL137094)

  • Daniel K Mulkey

National Institutes of Health (NS099887)

  • Daniel K Mulkey

National Institutes of Health (NS110656)

  • Mark T Nelson

National Institutes of Health (HL140027)

  • Mark T Nelson

National Institutes of Health (HL142227)

  • Colin M Cleary

American Heart Association (17SDG33670237)

  • Thomas A Longden

American Heart Association (19IPLOI34660108)

  • Thomas A Longden

São Paulo Research Foundation (2016/23281-3)

  • Ana C Takakura

São Paulo Research Foundation (2015/23376-1)

  • Thiago S Moreira

Conselho Nacional de Desenvolvimento Científico e Tecnológico (408647/2018-3)

  • Ana C Takakura

Conselho Nacional de Desenvolvimento Científico e Tecnológico (301219/2016-8)

  • Ana C Takakura

Conselho Nacional de Desenvolvimento Científico e Tecnológico (301904/2015-4)

  • Thiago S Moreira

Fondation Leducq

  • Mark T Nelson

Horizon 2020 - Research and Innovation Framework Programme

  • Mark T Nelson

Henry M. Jackson Foundation (HU0001-18-2-001)

  • Mark T Nelson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Drs. Douglas Bayliss (Univ. Virginia) and Akiko Nishiyama (Univ. Connecticut) for their comments on the manuscript. This work was supported by funds from the National Institutes of Health Grants HL104101 (DKM), HL137094 (DKM), NS099887 (DKM) R01NS110656 (MTN), R35HL140027 (MTN) and F31HL142227 (CMC). Additional funds were also provided by the American Heart Association (17SDG33670237 and 19IPLOI34660108 to TAL), the São Paulo Research Foundation (FAPESP; grants: 2019/01236-4 to ACT; 2015/23376-1 to TSM) and the Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq; grant: 408647/2018–3 to ACT). CNPq fellowships were awarded to ACT (302288/2019-8) and to TSM (302334/2019-0). This study was also financed by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior - Brasil (CAPES) - Financial Code 001 and by Serrapilheira Institute (Serra-1812-26431 to ACT). This work was also supported by Fondation Leducq (Transatlantic Network of Excellence on the Pathogenesis of Small Vessel Disease of the Brain) (MTN), the European Union (Horizon 2020 Research and Innovation Programme SVDs@target under the grant agreement n° 666881) (MTN) and the Henry M Jackson Foundation for the Advancement of Military Medicine, HU0001-18-2-0016 (MTN).

Ethics

Animal experimentation: All procedures were performed in accordance with National Institutes of Health and University of Connecticut Animal Care and Use Guidelines as described in protocols A19-048 and A20-016.

Senior Editor

  1. Huda Y Zoghbi, Texas Children's Hospital, United States

Reviewing Editor

  1. Jeffrey C Smith, National Institute of Neurological Disorders and Stroke, United States

Reviewers

  1. Adrianne G Huxtable, University of Oregon, United States
  2. Jeffrey C Smith, National Institute of Neurological Disorders and Stroke, United States

Publication history

  1. Received: May 29, 2020
  2. Accepted: September 14, 2020
  3. Accepted Manuscript published: September 14, 2020 (version 1)
  4. Accepted Manuscript updated: September 16, 2020 (version 2)
  5. Version of Record published: September 28, 2020 (version 3)

Copyright

© 2020, Cleary et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 778
    Page views
  • 186
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Neuroscience
    Jana Masselink, Markus Lappe
    Research Article Updated

    Sensorimotor learning adapts motor output to maintain movement accuracy. For saccadic eye movements, learning also alters space perception, suggesting a dissociation between the performed saccade and its internal representation derived from corollary discharge (CD). This is critical since learning is commonly believed to be driven by CD-based visual prediction error. We estimate the internal saccade representation through pre- and trans-saccadic target localization, showing that it decouples from the actual saccade during learning. We present a model that explains motor and perceptual changes by collective plasticity of spatial target percept, motor command, and a forward dynamics model that transforms CD from motor into visuospatial coordinates. We show that learning does not follow visual prediction error but instead a postdictive update of space after saccade landing. We conclude that trans-saccadic space perception guides motor learning via CD-based postdiction of motor error under the assumption of a stable world.

    1. Neuroscience
    Diptendu Mukherjee et al.
    Research Article Updated

    Drug addiction develops due to brain-wide plasticity within neuronal ensembles, mediated by dynamic gene expression. Though the most common approach to identify such ensembles relies on immediate early gene expression, little is known of how the activity of these genes is linked to modified behavior observed following repeated drug exposure. To address this gap, we present a broad-to-specific approach, beginning with a comprehensive investigation of brain-wide cocaine-driven gene expression, through the description of dynamic spatial patterns of gene induction in subregions of the striatum, and finally address functionality of region-specific gene induction in the development of cocaine preference. Our findings reveal differential cell-type specific dynamic transcriptional recruitment patterns within two subdomains of the dorsal striatum following repeated cocaine exposure. Furthermore, we demonstrate that induction of the IEG Egr2 in the ventrolateral striatum, as well as the cells within which it is expressed, are required for the development of cocaine seeking.
