SNPC-1.3 is a sex-specific transcription factor that drives male piRNA expression in C. elegans

  1. Charlotte P Choi
  2. Rebecca J Tay
  3. Margaret R Starostik
  4. Suhua Feng
  5. James J Moresco
  6. Brooke E Montgomery
  7. Emily Xu
  8. Maya A Hammonds
  9. Michael C Schatz
  10. Taiowa A Montgomery
  11. John R Yates III
  12. Steven E Jacobsen
  13. John K Kim  Is a corresponding author
  1. Department of Biology, Johns Hopkins University, United States
  2. Department of Molecular, Cell and Developmental Biology, University of California, Los Angeles, United States
  3. Eli and Edythe Broad Center of Regenerative Medicine and Stem Cell Research, University of California, Los Angeles, United States
  4. Center for the Genetics of Host Defense, University of Texas Southwestern Medical Center, United States
  5. Department of Biology, Colorado State University, United States
  6. Department of Computer Science, Johns Hopkins University, United States
  7. Department of Molecular Medicine, The Scripps Research Institute, United States
  8. Howard Hughes Medical Institute, University of California, Los Angeles, United States
https://doi.org/10.7554/eLife.60681
Share this article
Cite this article
  1. Charlotte P Choi
  2. Rebecca J Tay
  3. Margaret R Starostik
  4. Suhua Feng
  5. James J Moresco
  6. Brooke E Montgomery
  7. Emily Xu
  8. Maya A Hammonds
  9. Michael C Schatz
  10. Taiowa A Montgomery
  11. John R Yates III
  12. Steven E Jacobsen
  13. John K Kim
(2021)
SNPC-1.3 is a sex-specific transcription factor that drives male piRNA expression in C. elegans
eLife 10:e60681.
https://doi.org/10.7554/eLife.60681
  2. Download BibTeX
  3. Download .RIS

Abstract

Piwi-interacting RNAs (piRNAs) play essential roles in silencing repetitive elements to promote fertility in metazoans. Studies in worms, flies, and mammals reveal that piRNAs are expressed in a sex-specific manner. However, the mechanisms underlying this sex-specific regulation are unknown. Here we identify SNPC-1.3, a male germline-enriched variant of a conserved subunit of the small nuclear RNA-activating protein complex, as a male-specific piRNA transcription factor in Caenorhabditis elegans. SNPC-1.3 colocalizes with the core piRNA transcription factor, SNPC-4, in nuclear foci of the male germline. Binding of SNPC-1.3 at male piRNA loci drives spermatogenic piRNA transcription and requires SNPC-4. Loss of snpc-1.3 leads to depletion of male piRNAs and defects in male-dependent fertility. Furthermore, TRA-1, a master regulator of sex determination, binds to the snpc-1.3 promoter and represses its expression during oogenesis. Loss of TRA-1 targeting causes ectopic expression of snpc-1.3 and male piRNAs during oogenesis. Thus, sexually dimorphic regulation of snpc-1.3 expression coordinates male and female piRNA expression during germline development.

Introduction

Piwi-interacting RNAs (piRNAs), a distinct class of small noncoding RNAs, function to preserve germline integrity (Batista et al., 2008; Carmell et al., 2007; Cox et al., 1998; Deng and Lin, 2002; Kuramochi-Miyagawa et al., 2008; Lin and Spradling, 1997; Wang and Reinke, 2008). In Drosophila, mutation of any of the three Piwi genes (piwi, aub, ago3) results in rampant activation of transposons in the germline and severe defects in fertility (Brennecke et al., 2007; Harris and Macdonald, 2001; Lin and Spradling, 1997; Vagin et al., 2006). In Mus musculus, mutation of the Piwi protein MIWI leads to the misregulation of genes involved in germ cell development, defective gametogenesis, and sterility (Deng and Lin, 2002; Zhang et al., 2015b). Caenorhabditis elegans piRNAs can be inherited across multiple generations and trigger the transgenerational silencing of foreign elements such as transgenes. Disruption of this inheritance results in eventual germline collapse and sterility, known as the germline mortal phenotype (Ashe et al., 2012; Buckley et al., 2012; Shirayama et al., 2012). Taken together, piRNAs are essential to preserve germline integrity and ensure the reproductive capacity in metazoans.

Loss of the piRNA pathway can have distinct consequences between the sexes and across developmental stages. Many species show sex-specific expression of piRNAs (Armisen et al., 2009; Billi et al., 2013; Williams et al., 2015; Yang et al., 2013; Zhou et al., 2010). Demonstrated by hybrid dysgenesis, the identity of maternal, but not paternal, piRNAs in flies is important for fertility of progeny (Brennecke et al., 2008). In contrast, the piRNA pathway in mammals appears to be dispensable for female fertility (Carmell et al., 2007; Murchison et al., 2007), but distinct subsets of piRNAs are required for specific stages of spermatogenesis (Aravin et al., 2003; Aravin et al., 2006; Carmell et al., 2007; Di Giacomo et al., 2013; Gainetdinov et al., 2018; Girard et al., 2006; Grivna et al., 2006; Kuramochi-Miyagawa et al., 2008; Li et al., 2013). In worms, most piRNAs are uniquely enriched in either the male or female germline (Billi et al., 2013; Kato et al., 2009). Nevertheless, in all of these contexts, how the specific expression of different piRNA subclasses is achieved is poorly understood.

piRNA biogenesis is strikingly diverse across organisms and tissue types. In the Drosophila germline, piRNA clusters are found within pericentromeric or telomeric heterochromatin enriched for H3K9me3 histone modifications. The HP1 homolog Rhino binds to H3K9me3 within most of these piRNA clusters and recruits Moonshiner, a paralog of the basal transcription factor TFIIA, which, in turn, recruits RNA polymerase II (Pol II) to enable transcription within heterochromatin (Andersen et al., 2017; Chen et al., 2016; Klattenhoff et al., 2009; Mohn et al., 2014; Pane et al., 2011). Two waves of piRNA expression occur in mouse testes: pre-pachytene piRNAs are expressed in early spermatogenesis and silence transposons, whereas pachytene piRNAs are expressed in the later stages of meiosis and have unknown functions. While the mechanisms of pre-pachytene piRNA transcription remain elusive, pachytene piRNAs require the transcription factor A-MYB, along with RNA Pol II (Li et al., 2013).

In C. elegans, SNPC-4 is essential for the expression of piRNAs in the germline (Kasper et al., 2014). SNPC-4 is the single C. elegans ortholog of mammalian SNAPC4, the largest DNA binding subunit of the small nuclear RNA (snRNA) activating protein complex (SNAPc). A complex of SNAPC4, SNAPC1, and SNAPC3 binds to the proximal sequence element (PSE) of snRNA loci to promote their transcription (Henry et al., 1995; Jawdekar and Henry, 2008; Ma and Hernandez, 2002; Su et al., 1997; Wong et al., 1998; Yoon et al., 1995). SNPC-4 occupies transcription start sites of other classes of noncoding RNAs across various C. elegans tissue types and developmental stages (Kasper et al., 2014; Weng et al., 2019). Furthermore, piRNA biogenesis factors PRDE-1, TOFU-4, and TOFU-5 are expressed in germ cell nuclei and interact with SNPC-4 at clusters of piRNA loci (Goh et al., 2014; Kasper et al., 2014; Weick et al., 2014; Weng et al., 2019). These data suggest that SNPC-4 has been co-opted by germline-specific factors to transcribe piRNAs.

The vast majority of the ~15,000 piRNAs in C. elegans are encoded within two large megabase genomic clusters on chromosome IV (Das et al., 2008; Ruby et al., 2006). Each piRNA locus encodes a discrete transcriptional unit that is individually transcribed as a short precursor by Pol II (Gu et al., 2012; Cecere et al., 2012; Billi et al., 2013). Processing of precursors yields mature piRNAs that are typically 21 nucleotides (nt) in length and strongly enriched for a 5′ uracil (referred to as 21U-RNAs). Transcription of these piRNAs requires a conserved eight nt core motif (NNGTTTCA) within their promoters (Billi et al., 2013; Cecere et al., 2012; Ruby et al., 2006). piRNAs enriched during spermatogenesis are associated with a cytosine at the 5′ most position of the core motif (CNGTTTCA); mutation of cytosine to adenine at this position results in ectopic expression of normally male-enriched piRNAs during oogenesis. In contrast, genomic loci expressing piRNAs enriched in the female germline show no discernable nucleotide bias at the 5′ position (Billi et al., 2013). While differences in cis-regulatory sequences contribute to the sexually dimorphic nature of piRNA expression, sex-specific piRNA transcription factors that drive distinct subsets of piRNAs in the male and female germlines remain to be identified.

Here, we demonstrate that SNPC-1.3, an ortholog of human SNAPC1, is required specifically for male piRNA expression. Furthermore, TRA-1, a master regulator of sex determination, transcriptionally represses snpc-1.3 during oogenesis to restrict its expression to the male germline. Taken together, our study reports the first example of a sex-specific piRNA transcription factor that drives the expression of male-specific piRNAs.

Results

SNPC-4 is a component of the core piRNA transcription complex that drives all piRNA expression

SNPC-4-specific foci are present in both male and female germ cell nuclei (Kasper et al., 2014), but the role of SNPC-4 in the male germline is not well understood. We hypothesized that SNPC-4 is required for piRNA biogenesis in both the male and female germline. To test this, we conditionally depleted the SNPC-4 protein using the auxin-inducible degradation system (Zhang et al., 2015a; Figure 1—figure supplement 1A). We added an auxin-inducible degron (AID) to the C-terminus of SNPC-4 using CRISPR/Cas9 genome engineering, and crossed this strain into worms expressing TIR1 under the germline promoter, sun-1. TIR1 is a plant-specific F-box protein that mediates the rapid degradation of C. elegans proteins tagged with an AID in the presence of the phytohormone auxin. Thus, addition of auxin to the snpc-4::aid; Psun-1::TIR1 strain is expected to degrade SNPC-4::AID, whereas strains with snpc-4::aid alone serve as a negative control; under these conditions, we examined a panel of spermatogenesis- and oogenesis-enriched piRNAs (Billi et al., 2013) during spermatogenesis and oogenesis. Unless otherwise stated, spermatogenesis and oogenesis stages will correspond to time points taken at 48 hr and 72 hr, respectively, post-L1 hatching at 20°C. Worms depleted of SNPC-4 showed decreased expression of both spermatogenesis- and oogenesis-enriched piRNAs during spermatogenesis and oogenesis time points, respectively (Figure 1A), confirming that SNPC-4 is a core piRNA transcription factor required for all piRNA expression.

Figure 1 with 1 supplement see all
Download asset Open asset

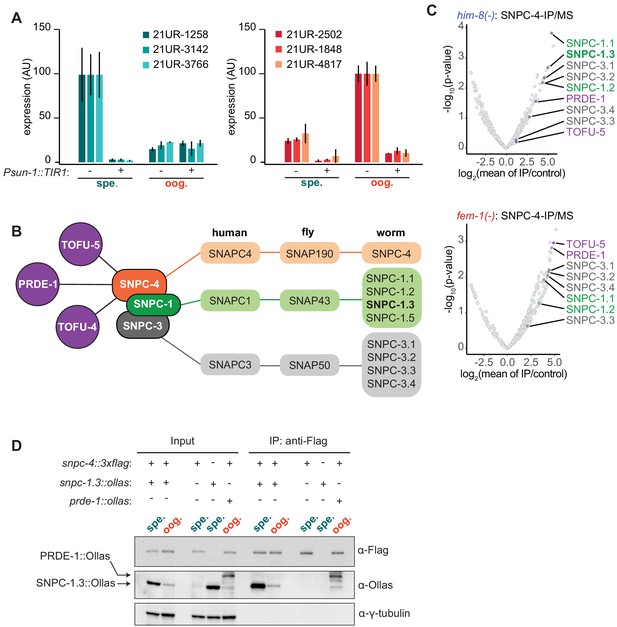

SNPC-4 and SNPC-1.3 are part of the male piRNA transcription complex.

(A) SNPC-4 is required for both male and female piRNA expression. Taqman qPCR of male (left) and female (right) piRNAs normalized to U18 small nucleolar RNA in snpc-4::aid (denoted as ‘−’) and snpc-4::aid; Psun-1::TIR1 (denoted as ‘+’) worms. Both genotypes were placed on auxin, and collected during spermatogenesis (spe., 48 hr) and oogenesis (oog., 72 hr). Error bars: ± SD from two technical replicates. (B) Schematic highlights the conservation of SNAPc homologs from C. elegans, D. melanogaster, and H. sapiens and catalogs all SNPC-4 (orange) interacting partners from previous work (Weick et al., 2014; Weng et al., 2019) or from our own analysis. Known piRNA biogenesis factors (purple), SNPC-1 paralogs (green), and SNPC-3 paralogs (gray) are indicated. (C) SNPC-1.3 interacts with SNPC-4 in only him-8(-) mutants. Volcano plots showing enrichment values of IP of SNPC-4 over control (control: him-8(-) mutants for top panel or fem-1(-) mutants for bottom panel) and analogous significance values for proteins that co-purified with SNPC-4::3xFlag from (top) him-8(-) mutants or (bottom) fem-1(-) mutants (n = 2 biological replicates). piRNA biogenesis factors (purple), SNPC-1 paralogs (green), and SNPC-3 paralogs (dark gray) are labeled in (B). Although SNPC-3.1 and SNPC-3.2 are reported to have the same amino acid sequence, we have picked up differential peptide coverage in the fem-1(-) mutant for these two proteins and represented them as two different data points. (D) SNPC-4 interacts with SNPC-1.3. Anti-Flag immunoprecipitation of SNPC-4::3xFlag and western blot for SNPC-1.3::Ollas during spermatogenesis (spe.) and oogenesis (oog.). PRDE-1::Ollas was used as a positive control for interaction with SNPC-4::3xFlag (Kasper et al., 2014). γ-Tubulin was used as the loading control.

Figure 1—source data 1

Source data for Figure 1A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig1-data1-v1.xlsx

Given that SNPC-4 activates transcription of piRNAs in both sexes, we hypothesized that sex-specific cofactors might associate with SNPC-4 to regulate sexually dimorphic piRNA expression. To test this hypothesis, we leveraged genetic backgrounds that masculinize or feminize the germline. Specifically, we used him-8(-) mutants, which have a higher incidence of males (∼30% males compared to <0.5% spontaneous males in the wild-type hermaphrodite population) (Hodgkin et al., 1979), and fem-1(-) mutants, which are completely feminized when grown at 25°C (Doniach and Hodgkin, 1984). We introduced a C-terminal 3xFlag tag sequence at the endogenous snpc-4 locus using CRISPR/Cas9 genome editing (Paix et al., 2015) and performed immunoprecipitation of SNPC-4::3xFlag followed by mass spectrometry. PRDE-1 and TOFU-5 co-purified with SNPC-4::3xFlag in both him-8(-) and fem-1(-) mutants, suggesting that these known piRNA biogenesis factors exist as a complex in both male and female germlines (Figure 1B,C, Figure 1—figure supplement 1B). While a single worm ortholog, SNPC-4, exists for human SNAPC4, the C. elegans genome encodes four homologs of human SNAPC1 (worm SNPC-1.1, -1.2, -1.3, and -1.5) and four homologs of human SNAPC3 (worm SNPC-3.1, -3.2, -3.3, and -3.4, Figure 1B; Li et al., 2004). From our mass spectrometry analysis, six of the eight C. elegans homologs of SNAPC1 and SNAPC3 co-purified with SNPC-4::3xFlag from both him-8(-) and fem-1(-) genetic backgrounds (Figure 1B,C). These results revealed that SNPC-4 interacts with both snRNA and piRNA transcriptional machinery.

SNPC-1.3 interacts with the core piRNA biogenesis factor SNPC-4 during spermatogenesis

We also identified proteins that co-purified with SNPC-4::3xFlag from him-8(-), but not fem-1(-) mutants. We were particularly interested in SNPC-1.3 because of its homology to the mammalian SNAPC1 subunit of the snRNA transcription complex. We confirmed that SNPC-1.3 interacts with SNPC-4 by using CRISPR/Cas9 genome editing to generate an endogenously tagged snpc-1.3::ollas strain. We then crossed snpc-1.3::ollas into the snpc-4::3xflag strain and performed immunoprecipitation with anti-Flag antibodies. In agreement with the mass spectrometry data, SNPC-4::3xFlag and SNPC-1.3:Ollas interacted robustly during spermatogenesis. The interaction was detectable at a much lower level during oogenesis (Figure 1D). The reciprocal co-immunoprecipitation of SNPC-1.3::3xFlag followed by western blotting for SNPC-4::Ollas confirmed this biochemical interaction (Figure 1—figure supplement 1H), suggesting that SNPC-1.3 forms a complex with the previously characterized piRNA biogenesis factor SNPC-4.

SNPC-1.3 is enriched in the male germline

To determine whether SNPC-1.3 expression is restricted to the germline, we first examined snpc-1.3 mRNA levels during early spermatogenesis (36 hr post-L1 hatching) in worms fed glp-1 RNAi, which abrogates germline development. The mRNA of snpc-4, which is highly expressed in the germline (Kasper et al., 2014), was used as a control. Knockdown of glp-1 mRNA markedly reduced both snpc-1.3 and snpc-4 mRNAs. SNPC-1.3::3xFlag protein expression was also reduced in a glp-4 temperature-sensitive mutant, which fails to develop fully expanded germlines at 25°C (Beanan and Strome, 1992), suggesting that SNPC-1.3 is predominantly expressed in the germline (Figure 2A).

Figure 2
Download asset Open asset

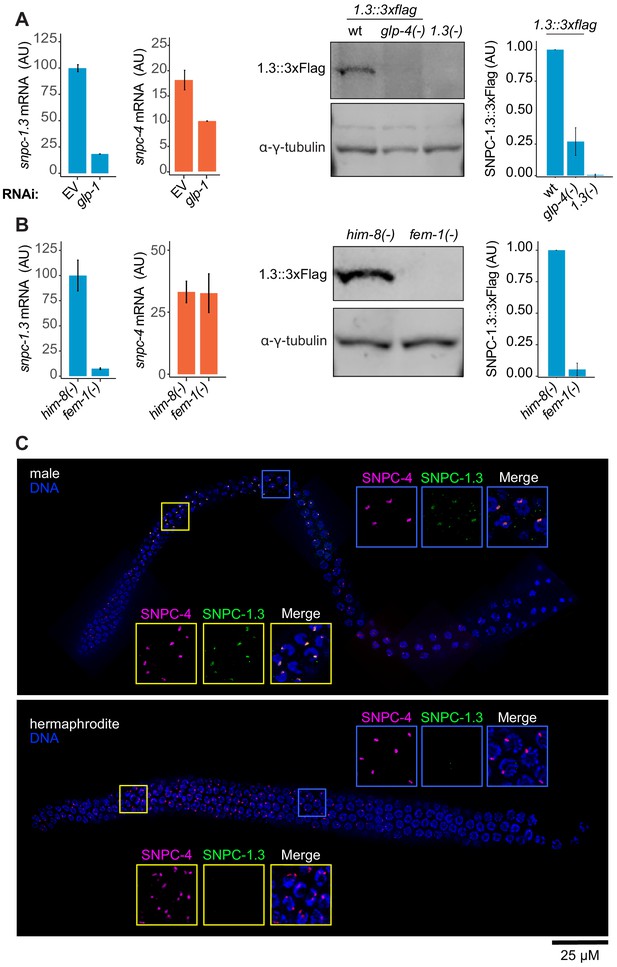

SNPC-1.3 is enriched in the male germline.

(A) SNPC-1.3 is predominantly germline-expressed. (Left) snpc-1.3 mRNA expression is reduced upon RNAi-mediated knockdown of glp-1 during early spermatogenesis (36 hr). The housekeeping gene eft-2 was used for normalization. Error bars: ± SD of two technical replicates. (Right) Western blot and quantification of SNPC-1.3::3xFlag in wild type, glp-4(-), and snpc-1.3(-) (no-Flag control) during spermatogenesis. Error bars: ± SD of two biological replicates. γ-Tubulin was used as the loading control. (B) SNPC-1.3 is more highly expressed in males. (Left) snpc-1.3 mRNA expression is dramatically enriched in him-8(-) males over fem-1(-) females during spermatogenesis, whereas snpc-4 mRNA expression shows no specific enrichment. eft-2 was used for normalization. Error bars: ± SD of two technical replicates. (Right) Western blot and quantification of SNPC-1.3::3xFlag in him-8(-) and fem-1(-). Error bars: ± SD of two biological replicates. γ-Tubulin was used as the loading control. (C) SNPC-1.3 colocalizes with SNPC-4 in the male germline. Dissected adult male (top) and hermaphrodite (bottom) germlines stained for DNA, SNPC-4::3xFlag (magenta) and SNPC-1.3::Ollas (green) in a N2 background. Yellow insets: transition zone. Blue insets: pachytene. Representative image of three biological replicates is shown (male, n = 21, 18, 15 and hermaphrodite, n = 18, 10, 10). Scale bar, 25 µm.

Figure 2—source data 1

Source data for Figure 2A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig2-data1-v1.xlsx
Figure 2—source data 2

Source data for Figure 2A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig2-data2-v1.xlsx
Figure 2—source data 3

Source data for Figure 2B.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig2-data3-v1.xlsx
Figure 2—source data 4

Source data for Figure 2B.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig2-data4-v1.xlsx

To examine differential snpc-1.3 expression between the sexes, we measured snpc-1.3 mRNA levels in him-8(-) males and fem-1(-) females. The expression of snpc-1.3 mRNA was greatly enriched in him-8(-) relative to fem-1(-), while snpc-4 mRNA did not show any differential expression. At the protein level, SNPC-1.3::3xFlag was also highly enriched in males as compared to females by western blotting (Figure 2B).

SNPC-4, along with other piRNA factors, such as PRDE-1, localize to one or two foci in each germline nuclei (Kasper et al., 2014; Weick et al., 2014; Weng et al., 2019). Given that SNPC-1.3 is present in a complex with SNPC-4 (Figure 1D), we hypothesized that SNPC-1.3 might show a similar localization pattern to these other piRNA factors. To examine the subcellular localization of SNPC-1.3, we performed immunofluorescence in snpc-4::3xflag; snpc-1.3::ollas adult males and hermaphrodites. In the male germline, SNPC-1.3::Ollas colocalized with SNPC-4::3xFlag in the same nuclear foci (Figure 2C). In contrast, no SNPC-1.3::Ollas signal was detected above background in hermaphrodites (Figure 2C). Taken together, these data indicate that SNPC-1.3 co-localizes with SNPC-4 specifically in the male germline.

SNPC-1.3 is required for transcription of male piRNAs

Given the prominent interaction between SNPC-1.3 and SNPC-4 in the male germline (Figure 1D), we hypothesized that SNPC-1.3 might be required for piRNA expression during spermatogenesis. To test this hypothesis, we generated a snpc-1.3 null allele by introducing mutations that result in a premature stop codon located eight amino acids away from the start codon at the snpc-1.3 locus. We examined spermatogenesis in hermaphrodites and him-8(-) males and examined oogenesis in adult hermaphrodites and fem-1(-) females. As a control, we analyzed the loss-of-function mutant of the C. elegans Piwi protein, prg-1(-), which almost completely lacked male and female piRNAs (Figure 3A), as expected. Levels of male piRNAs were dramatically reduced in snpc-1.3(-) hermaphrodites during spermatogenesis and in him-8(-); snpc-1.3(-) males, whereas female piRNAs were largely unaltered in snpc-1.3(-) adult hermaphrodites and in fem-1(-); snpc-1.3(-) females (Figure 3A,B). Unexpectedly, female piRNAs were also moderately upregulated by at least twofold in snpc-1.3(-) mutants undergoing spermatogenesis and in him-8(-); snpc-1.3(-) males. These findings suggest that, in addition to activating male piRNAs, SNPC-1.3 suppresses the expression of female piRNAs in the male germline, possibly by preferentially recruiting core factors such as SNPC-4 to male piRNA loci. As SNPC-4 is known to activate transcription of snRNAs as well as piRNAs (Kasper et al., 2014), we asked whether SNPC-1.3 is also required for transcribing snRNAs. To test this, we measured U1 snRNA levels in hermaphrodite adults after RNAi-mediated knockdown of snpc-1.3. In contrast to the reduction of U1 observed in snpc-4 RNAi, U1 levels were not significantly altered when snpc-1.3 was depleted (Figure 3—figure supplement 2A), suggesting that, unlike SNPC-4, SNPC-1.3 is likely specific to the transcription of male piRNAs and does not play a role in snRNA transcription.

Figure 3 with 2 supplements see all
Download asset Open asset

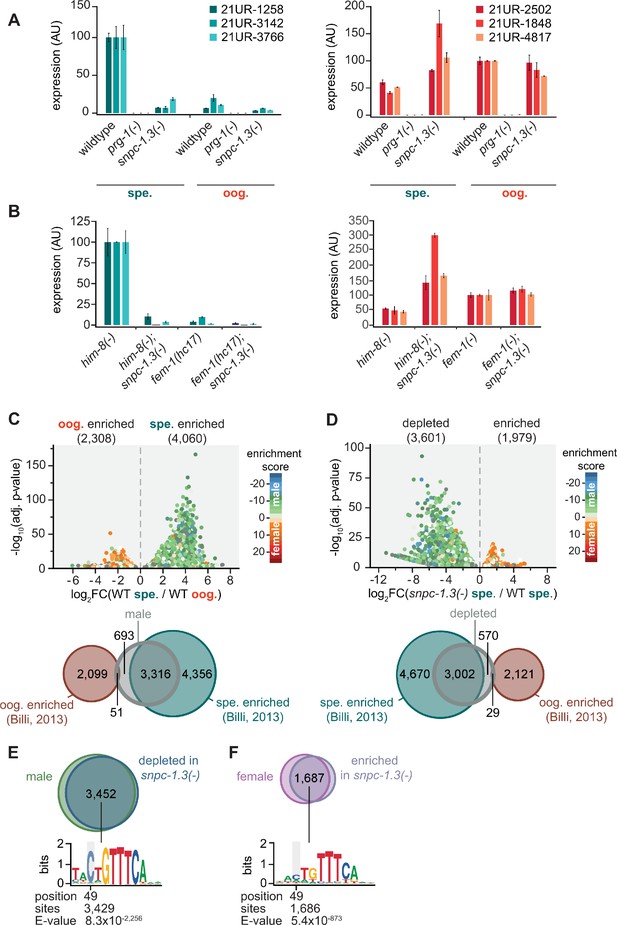

SNPC-1.3 is required for transcription of male piRNAs.

(A) snpc-1.3 is required for male piRNA expression (spe.) but is dispensable for female piRNA expression during oogenesis (oog.). Taqman qPCR and quantification of representative male (left) and female (right) piRNAs at spermatogenic and oogenic time points normalized to U18. Error bars: ± SD of two technical replicates. (B) him-8(-); snpc-1.3(-) mutant males exhibit severely impaired male piRNA expression and enhanced female piRNA expression. snpc-1.3 is not required for male or female piRNA expression in fem-1(-) females. Error bars: ± SD from two technical replicates. (C) piRNAs are differentially expressed during spermatogenesis (spe.) and oogenesis (oog.) in wild-type worms. (Top) Volcano plot showing piRNAs with ≥1.2 fold-change and FDR of ≤0.05 in 48 hr (spe.) versus 72 hr (oog.). piRNAs are colored according to male and female enrichment scores from Billi et al., 2013. (Bottom) Overlap of male piRNAs (spe.) in wild type at 48 hr with spermatogenesis-enriched and oogenesis-enriched piRNAs defined in Billi et al., 2013. (D) piRNAs depleted in snpc-1.3(-) comprise mostly of male piRNAs. (Top) Volcano plot shows piRNAs with ≥1.2 fold-change and FDR ≤ 0.05 in snpc-1.3(-) mutant versus wild type during spermatogenesis (spe.). piRNAs are colored according to male and female enrichment scores from Billi et al., 2013. (Bottom) Overlap of snpc-1.3-dependent piRNAs with spermatogenesis- and oogenesis-enriched piRNAs defined in Billi et al., 2013. (E) Male piRNAs that are depleted in snpc-1.3(-) have a conserved upstream motif with a strong 5′ C bias. (Top) Overlap of snpc-1.3-dependent piRNAs with male piRNAs shown in (C). (Bottom) Logo plot displays conserved motif upstream of each piRNA. Median position of the C-nucleotide of the identified motif, number of piRNAs, and associated E-value are listed. (F) Female piRNAs are upregulated in snpc-1.3(-) mutants during spermatogenesis. (Top) Overlap of piRNAs upregulated at 72 hr (oog.) with piRNAs enriched in snpc-1.3(-) at 48 hr (spe.). (Bottom) Logo plot displays conserved motif upstream of each piRNA. Median position of the C-nucleotide of the identified motif, number of piRNAs, and associated E-value are listed.

Figure 3—source data 1

Source data for Figure 3A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig3-data1-v1.xlsx
Figure 3—source data 2

Source data for Figure 3B.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig3-data2-v1.xlsx

To extend these findings, we identified piRNAs enriched during spermatogenesis and oogenesis by small RNA-seq in wild-type worms. Using a 1.2-fold threshold and false discovery rate (FDR) of ≤0.05, a total of 6,368 of 14,714 piRNAs on chromosome IV were differentially expressed (Figure 3C; Figure 3—figure supplements 1 and 2C; Supplementary file 1). Among these, 4,060 piRNAs were upregulated during spermatogenesis (hereafter referred to as male piRNAs) and 2,308 piRNAs were upregulated during oogenesis, which we define as female piRNAs. We compared this dataset with our previous study that identified and categorized spermatogenesis- and oogenesis-enriched piRNAs, as well as piRNAs that were not statistically enriched (NE) either during oogenesis or spermatogenesis (Billi et al., 2013). Most male piRNAs identified in this study were also identified in our previous study (82%; 3,316/4,060; Figure 3C). Next, we investigated how loss of snpc-1.3 affects global piRNA expression by performing small RNA-seq in wild type versus snpc-1.3(-) mutants during spermatogenesis. We identified 3,601 piRNAs that were downregulated in a snpc-1.3(-) mutant compared to wild type (Figure 3D, Figure 3—figure supplement 2D, Supplementary file 2). Of these, 3,002 overlapped with spermatogenesis-enriched piRNAs identified in our previous study (Billi et al., 2013; Figure 3D). Additionally, 85% (3,452/4,060) of male piRNAs were depleted in snpc-1.3(-) mutants, suggesting that male piRNAs are regulated by SNPC-1.3 (Figure 3E, Figure 3—figure supplement 2E). Consistent with our Taqman analysis (Figure 3A,B), 73% (1,687/2,308) of oogenesis-enriched piRNAs identified in our study were significantly upregulated in snpc-1.3(-) mutants during spermatogenesis (Figure 3F).

We next analyzed the genomic loci of male piRNAs and snpc-1.3-dependent piRNAs. As expected, the intersection of these two piRNA subsets displayed strong enrichment for the eight nt core motif and the 5′-most position of this core motif was enriched for cytosine (CNGTTTCA. Figure 3E; Figure 3—figure supplement 2E). In contrast, the core motif found upstream of female piRNAs upregulated upon loss of snpc-1.3 displayed a much weaker bias for the 5′ cytosine (Figure 3F). These observations validate our previous findings that male and female core motifs are distinct (Billi et al., 2013). Taken together, these data indicate that SNPC-1.3 is required for male piRNA expression.

SNPC-1.3 binds male piRNA loci in a SNPC-4-dependent manner

Given that SNPC-1.3 interacts with SNPC-4 and is required for expression of male piRNAs, we hypothesized that SNPC-1.3 might bind male piRNA loci in association with SNPC-4. To test this, we performed ChIP-qPCR to investigate SNPC-1.3 occupancy at regions of high piRNA density within the two large piRNA clusters on chromosome IV; an intergenic region lacking piRNAs served as a control. To determine whether SNPC-1.3 binding was dependent on SNPC-4, we again used the auxin-inducible degradation system to deplete SNPC-4 in the snpc-1.3::3xflag strain for 4 hr prior to our spermatogenesis time point. In the presence of SNPC-4 expression, SNPC-1.3 was enriched at both piRNA clusters, albeit to a lesser degree at the small cluster, and this enrichment was lost upon SNPC-4 depletion (Figure 4A, Figure 4—figure supplement 1A). These data indicate that SNPC-1.3 binds piRNA loci during spermatogenesis in a SNPC-4-dependent manner in vivo.

Figure 4 with 1 supplement see all
Download asset Open asset

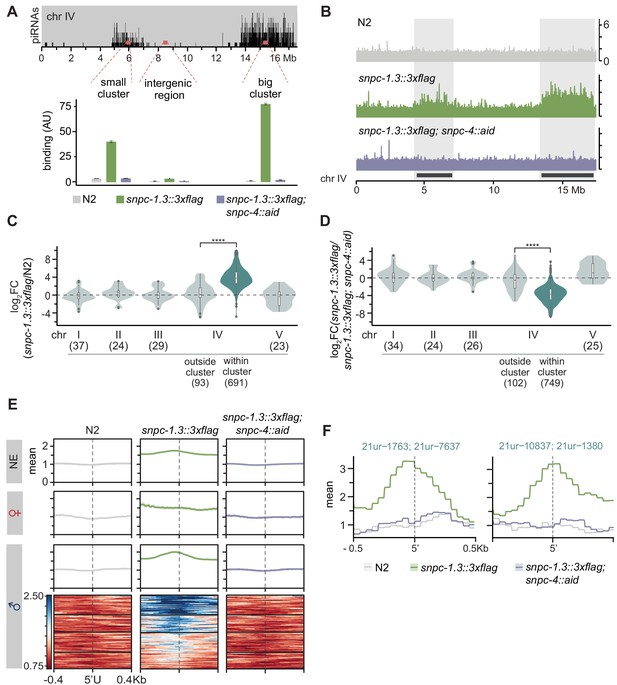

SNPC-1.3 binds male piRNA loci in a SNPC-4-dependent manner.

(A) SNPC-1.3 binding at the piRNA clusters requires SNPC-4. SNPC-1.3::3xFlag binding normalized to input (mean ± SD of two technical replicates) on chromosome IV by ChIP-qPCR in N2, snpc-1.3::3xflag, and snpc-1.3::3xflag; snpc-4::aid::ollas, which undergoes TIR-1-mediated degradation by addition of auxin (snpc-4::aid). Top panel depicts the density of piRNAs on chromosome IV with piRNAs predominantly found in the small (4.5–7 Mb) and big (13.5–17.2 Mb) clusters. (B) SNPC-1.3 binding profiles across chromosome IV in N2, snpc-1.3::3xflag, and snpc-1.3::3xflag; snpc-4::aid. The locations of the two piRNAs clusters are highlighted. (C) SNPC-1.3 binding is enriched at piRNA clusters on chromosome IV. SNPC-1.3-bound regions are enriched within piRNA clusters compared to regions outside of the piRNA clusters on chromosome IV (****p≤0.0001, Wilcoxon rank sum test). The number of bins analyzed is listed in parentheses. (D) SNPC-1.3 enrichment at piRNA clusters is dependent on SNPC-4. SNPC-1.3-bound regions within piRNA clusters are depleted compared to regions outside of the piRNA clusters on chromosome IV upon loss of SNPC-4 (****p≤0.0001, Wilcoxon rank sum test). The number of bins analyzed is listed in parentheses. (E) Distribution of SNPC-1.3 reads (mean density ± standard error) around the 5′ nucleotide of mature piRNAs at the piRNA clusters. To resolve SNPC-1.3 binding between male and female piRNAs despite the high density of piRNAs, we selected 1 kb bins with all male (100), female (19), or non-enriched (279) piRNAs. Heat maps represent ChIP signal in 1 kb bins around the 5′ nucleotide of all 100 mature male piRNAs, ranked according to SNPC-1.3 signal. (F) Examples of SNPC-1.3 binding at two regions containing two male piRNA loci. Regions are anchored on the 5′ nucleotide of each mature male piRNA and show mean read density ± standard error.

Figure 4—source data 1

Source data for Figure 4A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig4-data1-v1.xlsx

To examine the genome-wide binding profile of SNPC-1.3 and its dependency on SNPC-4, we performed ChIP-seq of N2, snpc-1.3::3xflag, and snpc-1.3::3xflag; snpc-4::aid; Psun-1::TIR1 worms during spermatogenesis (Figure 4—figure supplement 1B,C). Consistent with our ChIP-qPCR results, SNPC-1.3 binds piRNA clusters in a SNPC-4-dependent manner (Figure 4B, Figure 4—figure supplement 1D). By quantifying the SNPC-1.3 signal over consecutive, non-overlapping 1 kb bins across the entire genome, we identified 691 1 kb regions within the chromosome IV piRNA clusters that were enriched for SNPC-1.3 in snpc-1.3::3xflag compared to N2 (Figure 4C, Figure 4—figure supplement 1G). Relative to snpc-1.3::3xflag, worms depleted of SNPC-4 showed loss of SNPC-1.3 in 749 1 kb regions on chromosome IV piRNA clusters (Figure 4D, Figure 4—figure supplement 1F). Furthermore, SNPC-1.3 enrichment (p<2.2×10−16) and depletion (p<2.2×10−16) were specific to the piRNA clusters on chromosome IV, and more than half (393/691) of the SNPC-1.3-enriched regions in snpc-1.3::3xflag worms were depleted upon degradation of SNPC-4 (Figure 4C,D, Figure 4—figure supplement 1F,G).

To determine whether SNPC-1.3 preferentially binds male piRNA loci, we characterized the SNPC-1.3 signal around individual 5′ nucleotides of mature piRNAs. Again, we classified piRNAs as male, female, or not significantly enriched (NE) in either sex, based on our small RNA-seq analysis in wild-type hermaphrodites during spermatogenesis and oogenesis (Figure 3C). SNPC-1.3 binding at male piRNA loci was most enriched just upstream of the piRNA 5′ nucleotide, which overlaps the conserved core motif (Figure 4E, Figure 4—figure supplement 1E). This binding profile was very distinct for 1 kb bins that contained only male piRNAs (Figure 4F, Figure 4—figure supplement 1H). Upon depletion of SNPC-4, this peak in male piRNAs was lost (Figure 4E, Figure 4—figure supplement 1E). Although the binding profiles for individual female piRNAs exhibited more variability, there was little evidence for SNPC-1.3 binding and dependency on SNPC-4 at female loci (Figure 4E, Figure 4—figure supplement 1E). Compared to the binding profile in male piRNA loci, SNPC-1.3 binding was observed to a lesser extent in non-enriched piRNAs (Figure 4E, Figure 4—figure supplement 1E). Taken together, these observations indicate that SNPC-1.3 requires the core piRNA factor SNPC-4 to bind the piRNA clusters during spermatogenesis.

TRA-1 represses snpc-1.3 and male piRNA expression during oogenesis

As male piRNA expression and SNPC-1.3 protein expression are largely restricted to the male germline, we asked how snpc-1.3 mRNA expression is regulated across development. C. elegans hermaphrodites produce sperm during the L4 stage and transition to producing oocytes as adults. To understand the mRNA expression profile of snpc-1.3 relative to snpc-4 and other developmentally regulated genes, we performed qRT-PCR across hermaphrodite development. snpc-4 mRNA is expressed at low levels during spermatogenesis, but dramatically increases during oogenesis (Figures 5A and 1D; Figure 1—figure supplement 1H). These data suggest that low levels of SNPC-4 are sufficient for activating male piRNA biogenesis during spermatogenesis. Consistent with SNPC-1.3 protein expression (Figure 1D), snpc-1.3 mRNA levels peak in L3 to early L4 stages, during spermatogenesis (Figure 5A). Given that snpc-1.3 expression across development is regulated at the mRNA level, we examined the sequences upstream of the snpc-1.3 coding region to identify potential cis-regulatory motifs. Less than 200 bp upstream of the snpc-1.3 start codon, we identified three consensus binding sites for TRA-1 (Figure 5B), a transcription factor that controls the transition from spermatogenesis to oogenesis (Berkseth et al., 2013; Clarke and Berg, 1998; Zarkower and Hodgkin, 1993).

Figure 5 with 1 supplement see all
Download asset Open asset

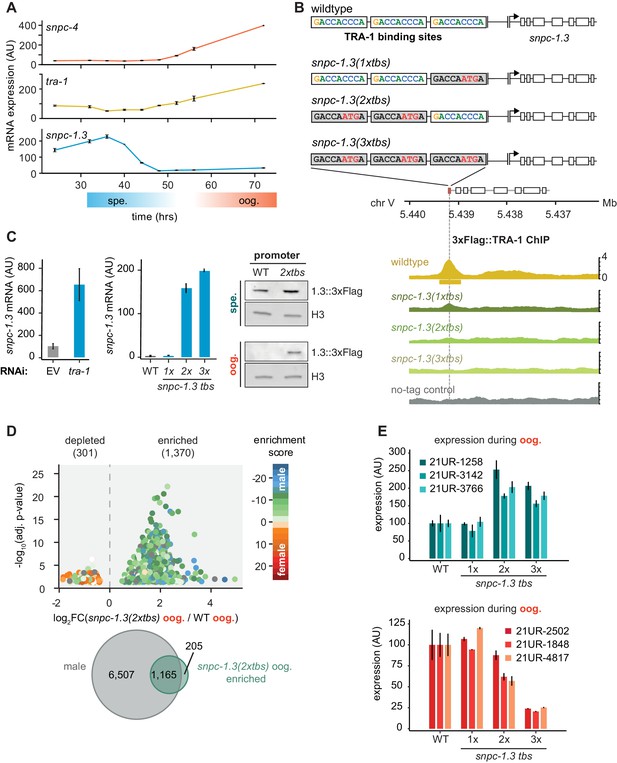

TRA-1 represses snpc-1.3 and male piRNAs expression during oogenesis.

(A) snpc-1.3 mRNA levels peak during early spermatogenesis (spe.) while tra-1 mRNA levels are highest during oogenesis (oog.). qRT-PCR and quantification of snpc-1.3, snpc-4, and tra-1 mRNA normalized to eft-2 mRNA across hermaphrodite development. Time zero corresponds to the time when synchronized L1s were plated. Error bars: ± SD of two technical replicates. (B) TRA-1 binds to the snpc-1.3 promoter. Schematic of the three TRA-1 binding sites upstream of the snpc-1.3 locus in wild type (top). Site-specific mutations shown in red were made in one, two, or three of the TRA-1 binding sites (gray denotes the mutated motifs). (Bottom) TRA-1 binding is reduced in TRA-1 binding site mutants assayed by TRA-1 ChIP-seq. (C) TRA-1 represses snpc-1.3 mRNA expression during oogenesis. (Left) snpc-1.3 mRNA expression is drastically upregulated upon RNAi-mediated knockdown of tra-1 and (middle) in strains bearing mutations in two (2xtbs) or three (3xtbs) TRA-1 binding sites. Error bars indicate ± SD from two technical replicates. (Right) Western blot of SNCP-1.3::3xFlag expression driven under the wild-type and 2xtbs mutant promoter during spermatogenesis (spe.) (top) and oogenesis (oog.) (bottom). H3 was used as the loading control. (D) A subset of male piRNAs are ectopically expressed during oogenesis in snpc-1.3 (2xtbs) mutants. (Top) Volcano plot showing differential piRNA expression between snpc-1.3 (2xtbs) mutants versus wild type during oogenesis (oog.). piRNAs are colored by enrichment scores from Billi et al., 2013. (Bottom) Overlap of male piRNAs defined in Figure 3C with upregulated piRNAs in snpc-1.3 (2xtbs) mutants. (E) Mutations at two (2xtbs) or three (3xtbs) TRA-1 binding sites enhance male piRNA expression (top) but attenuate female piRNA expression (bottom) during oogenesis. Error bars indicate ± SD from two technical replicates.

Figure 5—source data 1

Source data for Figure 5A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig5-data1-v1.xlsx
Figure 5—source data 2

Source data for Figure 5C,E.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig5-data2-v1.xlsx

In the germline, TRA-1, a Gli family zinc-finger transcription factor, controls the sperm-to-oocyte decision by repressing both fog-1 and fog-3, which are required for controlling sexual cell fate (Berkseth et al., 2013; Chen and Ellis, 2000; Lamont and Kimble, 2007; Zarkower and Hodgkin, 1993). Loss-of-function tra-1 hermaphrodites exhibit masculinization of the female germline and develop phenotypically male-like traits (Hodgkin, 1987). We used RNAi to knock down tra-1 and observed significant ectopic upregulation of snpc-1.3 mRNA during oogenesis (Figure 5C). However, this upregulation of snpc-1.3 expression could be an indirect effect of masculinization of the germline. Therefore, to test whether TRA-1 directly regulates snpc-1.3, we generated strains harboring mutations at the three TRA-1 binding sites (tbs) in the endogenous snpc-1.3 promoter. Specifically, we mutated one (1xtbs), two (2xtbs), or all three (3xtbs) consensus TRA-1 binding motifs (Figure 5B). Disruption of the TRA-1 binding sites led to reduced TRA-1::3xFlag binding upstream of snpc-1.3 as revealed by ChIP-seq, with the 3xtbs mutant showing the greatest reduction of binding (Figure 5B, Figure 5—figure supplement 1D). In addition, snpc-1.3 mRNA levels were highly upregulated when multiple TRA-1 binding sites were mutagenized (Figure 5C), consistent with TRA-1 directly repressing snpc-1.3 transcription during oogenesis. To confirm that SNPC-1.3 protein expression was also elevated in TRA-1 binding site mutants, we used CRISPR/Cas9 engineering to add a C-terminal 3xFlag tag at the snpc-1.3 locus in snpc-1.3 (2xtbs) mutants. Indeed, SNPC-1.3::3xFlag showed increased expression in the snpc-1.3::3xFlag(2xtbs) mutant during spermatogenesis and especially oogenesis (Figure 5C). Taken together, these findings demonstrate TRA-1 binds to the snpc-1.3 promoter to repress its transcription during oogenesis.

Given that snpc-1.3 is robustly de-repressed during oogenesis in TRA-1 binding site mutants, we hypothesized that male piRNAs would also be ectopically upregulated during oogenesis. To test this, we performed small RNA-seq and compared piRNA levels in wild-type and snpc-1.3 (2xtbs) worms during oogenesis (Supplementary file 3). Using a 1.2-fold threshold and FDR of ≤0.05, we observed 1,370 piRNAs in snpc-1.3 (2xtbs) mutants that were upregulated compared to wild type (Figure 5D). The majority of these upregulated piRNAs overlap with the male piRNAs that we identified in wild-type hermaphrodites (Figure 5D). We also confirmed this result by Taqman qPCR analysis, which showed that male piRNAs were significantly upregulated in snpc-1.3 (2xtbs) and snpc-1.3 (3xtbs) mutants compared to wild type during oogenesis (Figure 5E). Taken together, these data suggest that TRA-1 directly binds to tbs sites in the snpc-1.3 promoter to repress its transcription and consequently, male piRNA expression during oogenesis.

Our data showed that female piRNAs are inappropriately upregulated during spermatogenesis upon loss of snpc-1.3 (Figure 3A). Consistent with this result, female piRNAs show reduced expression during oogenesis upon upregulation of SNPC-1.3 expression in snpc-1.3 (2xtbs) and snpc-1.3 (3xtbs) mutants compared to wild type (Figure 5E). We posit that SNPC-1.3 plays a direct role in activating male piRNA transcription, while indirectly limiting female piRNA transcription by sequestering core piRNA transcription factors to male piRNA loci.

SNPC-1.3 is critical for male fertility

Given the global depletion of male piRNAs in snpc-1.3(-) mutants and the progressive fertility defects seen in prg-1(-) mutants (Batista et al., 2008; Wang and Reinke, 2008), we hypothesized that snpc-1.3(-) worms might also show fertility defects. Indeed, snpc-1.3(-) hermaphrodites exhibited significantly reduced fertility compared to wild type when grown at 25°C (Figure 6A). To address whether this decreased fertility was due to defects during spermatogenesis or oogenesis, we compared brood sizes from crosses of fem-1(-) females and him-8(-) males with or without snpc-1.3. Compared to him-8(-) males, him-8(-); snpc-1.3(-) males generated significantly smaller brood sizes when crossed with fem-1(-) females; in contrast, fem-1(-); snpc-1.3(-) and fem-1(-) females generated similar brood sizes when crossed with him-8(-) males (Figure 6B). As an orthogonal test, we crossed hermaphrodites to transgenic males expressing a fluorescent marker to facilitate counting of cross progeny. These transgenic males encode a reporter gene, Pcol-19::gfp, which drives GFP expression in the cuticle (Figure 6—figure supplement 1A). All Pcol-19::gfp; snpc-1.3(-) males produced fewer GFP+ progeny than wild-type Pcol-19::gfp males, whereas wild-type or snpc-1.3(-) hermaphrodites generated similar numbers of GFP+ progeny when crossed with wild-type Pcol-19::gfp males (Figure 6—figure supplement 1A). These results suggest that the reduced fertility of snpc-1.3(-) mutants likely reflect defects during spermatogenesis.

Figure 6 with 1 supplement see all
Download asset Open asset

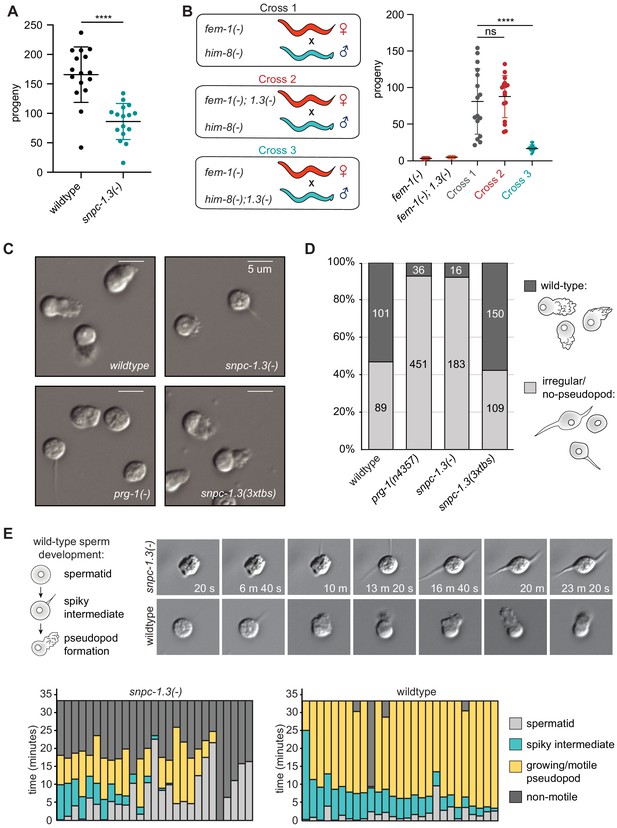

SNPC-1.3 is critical for male fertility.

(A) snpc-1.3(-) hermaphrodites exhibit sterility at 25°C. Circles correspond to the number of viable progeny from singled hermaphrodites (n = 16). Black bars indicate mean ± SD. Statistical significance was assessed using Welch’s t-test (****p≤0.0001). (B) snpc-1.3 promotes male fertility but is dispensable for female fertility. (Left) Diagram illustrates crosses between strains for mating assays (1.3(-) denotes snpc-1.3(-)). (Right) snpc-1.3(-); him-8(-) males crossed to fem-1(-) females show severe fertility defects (Cross 3). snpc-1.3; fem-1(-) females crossed to him-8(-) males (Cross 2) show equivalent fertility similar to fem-1(-) females crossed to him-8(-) males (Cross 1). Circles correspond to the number of viable progeny from cross (n = 16). Black bars indicate mean ± SD. Statistical significance was assessed using Welch’s t-test (ns: not significant; ****p≤0.0001). (C) snpc-1.3(-) spermatids exhibit severe morphological defects. Images of pronase-treated sperm of wild-type, prg-1(-), snpc-1.3(-), and snpc-1.3 (2xtbs) males. (D) snpc-1.3(-) spermatids exhibit severe sperm maturation defects. (E) (Top) Images depicted at 3 min intervals of a sperm undergoing activation and maturation. Imaging of spermatid commenced ~3 min after pronase treatment. (Bottom) Graphical display of individual sperm tracked over time after pronase treatment.

Figure 6—source data 1

Source data for Figure 6A.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig6-data1-v1.xlsx
Figure 6—source data 2

Source data for Figure 6B.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig6-data2-v1.xlsx
Figure 6—source data 3

Source data for Figure 6E.

https://cdn.elifesciences.org/articles/60681/elife-60681-fig6-data3-v1.xlsx

To investigate the cause of snpc-1.3-dependent loss of male fertility, we examined spermiogenesis and sperm morphology in snpc-1.3(-) males. After meiotic differentiation in the male germline, male spermatids are induced by ejaculation and undergo spermiogenesis, a process that converts immature spermatids to motile sperm with a functioning pseudopod. Spermiogenesis can be induced in vitro by isolating spermatids directly from males and treating them with pronase (Shakes and Ward, 1989). Males lacking prg-1 still generate differentiated spermatids, but rarely produce normal pseudopodia upon activation (Figure 6C,D; Wang and Reinke, 2008). Similar to prg-1(-) mutants, snpc-1.3(-) spermatids were rarely able to form normal pseudopodia. In contrast, snpc-1.3 (3xtbs) sperm formed normal pseudopodia at a frequency similar to wild type (Figure 6C,D). In addition, many of the snpc-1.3(-) spermatids resembled sperm undergoing intermediate stages of spermiogenesis. Spermiogenesis, in vivo, starts off with spherical spermatids that enter into an intermediate stage characterized by the growth of spiky protrusions. This stage is then followed by fusion of the spiky protrusions into a motile pseudopod (Figure 6E). To understand the dynamics of snpc-1.3(-) sperm progression through spermiogenesis, we treated spermatids with pronase and observed each activated spermatid over time. Wild-type spermatids spent an average of 6.2 min ± 4.5 min in the intermediate state before polarization and pseudopod development. In contrast, snpc-1.3(-) spermatids occupied the intermediate state for a significantly shorter period of time (2.9 min ± 3.7 min, p<0.05; Student’s t-test) before forming pseudopods. By tracking each individual spermatid across spermiogenesis, we found most snpc-1.3(-) spermatids were unable to sustain pseudopod growth. While wild-type spermatids exhibited pseudopod growth and motility for an average of 24 min ± 10.35 min, snpc-1.3(-) spermatids sustained growth for a significantly shorter period of time (7.3 min ± 5.7 min, p<0.05; Student’s t-test) before becoming immotile (Figure 6E). These results indicate that spnc-1.3(-) males have defective spermatogenesis processes and exhibit similar fertility defects as prg-1(-) mutants.

Discussion

Our data indicate that C. elegans SNPC-1.3, a human SNAPC1 ortholog, functions as a male piRNA transcription factor. SNPC-1.3 interacts with SNPC-4 in foci in male germ cell nuclei (Figure 2) and, by preferentially binding male piRNA promoters (Figure 4), is critical for their expression (Figure 3). SNPC-1.3 expression, reflecting the developmental profile of male piRNAs (Figure 5—figure supplement 1A), is highest during spermatogenesis. We demonstrate that the snpc-1.3 locus itself is regulated by the sex determination regulator, TRA-1 (Figure 5). During spermatogenesis, tra-1 expression is low, and snpc-1.3 and other male-promoting genes are licensed for expression. In contrast, tra-1 expression is upregulated during oogenesis and TRA-1 binds the snpc-1.3 promoter to repress its transcription, leading to the expression of female over male piRNAs (Figure 7). We propose that SNPC-1.3, via its interaction with SNPC-4, can direct the specificity of the core piRNA complex preferentially to male piRNA loci.

Figure 7
Download asset Open asset

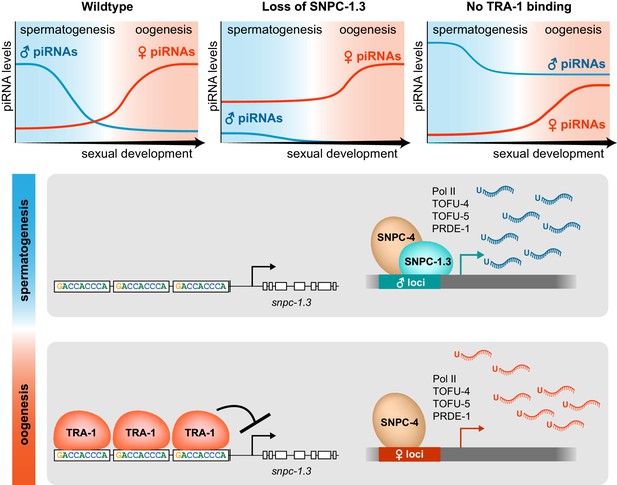

Model illustrating the dynamics of male and female piRNA transcription across C.

elegans sexual development. In wild-type worms, male and female piRNA expression peaks during spermatogenesis and oogenesis, respectively. (Top) In snpc-1.3(-) mutants, male piRNA expression is abrogated, and female piRNA expression is moderately enhanced across sexual development relative to wild type. In TRA-1 binding site mutants, snpc-1.3 expression is de-repressed causing ectopic upregulation of male piRNAs and moderate repression of female piRNA expression during oogenesis relative to wild type. (Bottom) During spermatogenesis, SNPC-1.3 interacts with SNPC-4 at male promoters to drive male piRNA transcription. During oogenesis, TRA-1 represses the transcription of snpc-1.3 which results in the suppression of male piRNA transcription, thus leading to enhanced transcription of female piRNAs.

How is the expression of male and female piRNAs coordinated?

Given its role as a putative male piRNA transcription factor, we expected that deletion of snpc-1.3 would result in loss of male piRNAs with no consequences to the expression of female piRNAs. However, loss of snpc-1.3 also results in increased female piRNA expression during spermatogenesis (Figure 3), whereas ectopic overexpression of snpc-1.3 during oogenesis leads to decreased female piRNA levels (Figure 5). Taken together, our findings suggest that transcription of male and female piRNAs is not completely separable from each other and that the balance in expression of the two piRNA subclasses may be dictated by the allocation of shared core transcription factors such as SNPC-4.

Similar to multiple gene classes activated by general transcription factors (Levine et al., 2014), we speculate that male and female promoters compete for access to a limited pool of the core transcription complex, which includes SNPC-4, PRDE-1, TOFU-4, and TOFU-5 (Figure 1). Therefore, we propose a model in which the expression and binding of SNPC-1.3 to core piRNA factors serves to ‘sequester’ the core complex away from female promoters. Mechanistically, we posit that the core piRNA transcription complex is specified to female promoters, and that only upon association with SNPC-1.3 is the core machinery directed to male promoters. We predict that when SNPC-1.3 is absent, more SNPC-4 and other previously identified cofactors are available to transcribe female piRNAs. Conversely, overexpression of SNPC-1.3 leads to the disproportionate recruitment of the core machinery to male promoters, leading to the indirect downregulation of female piRNAs. By controlling male piRNA expression, SNPC-1.3 is crucial for maintaining the balance between male and female piRNA levels across development.

While the default specification of the core complex to female promoters presents perhaps the most parsimonious explanation underlying male and female piRNA expression, we cannot exclude the possibility that an additional female-specific trans-acting factor may direct the core piRNA complex to female promoters. If true, we speculate that the developmental expression of such a factor (low during spermatogenesis and high during oogenesis), coupled with the developmental expression of SNPC-1.3, would coordinate the differential expression of male and female piRNAs. During spermatogenesis, SNPC-1.3 is more highly expressed such that the core machinery would primarily be directed to male promoters. In contrast, during oogenesis, SNPC-1.3 expression is low, concomitant with elevated expression of a female factor to license transcription of female piRNAs. This model, where both factors are present during both spermatogenesis and oogenesis, but in different ratios, would also be consistent with our piRNA expression analysis in snpc-1.3 loss-of-function and overexpression mutants.

The piRNA pathway co-opts snRNA biogenesis machinery

Our work adds to a growing body of evidence that snRNA machinery has been hijacked at multiple stages in C. elegans piRNA biogenesis, including transcription (Kasper et al., 2014; Weng et al., 2019) and termination (Beltran et al., 2019). Investigating potential parallels between snRNA and piRNA biogenesis may provide useful clues into the role of SNPC-1.3 in the piRNA complex.

The minimal snRNA SNAP complex consists of a 1:1:1 heterotrimer of the subunits SNAPC4, SNAPC1, and SNAPC3 in humans and SNAP190, SNAP43, and SNAP50 in flies (Henry et al., 1998; Hung and Stumph, 2011; Li et al., 2004; Ma and Hernandez, 2002; Mittal et al., 1999; Figure 1). In vitro studies have shown that the trimer must assemble before the complex is able to bind DNA. Similarly, our data show SNPC-1.3 requires SNPC-4 to bind at the piRNA clusters (Figure 4), although we cannot formally rule out that loss of SNPC-4 only affects the stability of SNPC-1.3, rather than directly recruiting SNPC-1.3 to piRNA promoters. We speculate the piRNA complex is assembled in a similar fashion to the snRNA complex. Based on this model, we expect that SNPC-4 binding at male piRNA loci is abolished in a snpc-1.3 mutant. However, conclusive evidence that SNPC-4 binding at male piRNA promoters requires SNPC-1.3 is still lacking. Due to the highly clustered nature of C. elegans piRNAs, we anticipate that detecting differences in SNPC-4 binding between male and female piRNAs in snpc-1.3(-) mutants may not be possible with traditional ChIP-seq methods, and may require application of higher resolution techniques.

Given that piRNAs have co-opted trans-acting factors from snRNA biogenesis (Kasper et al., 2014), it would not be surprising if piRNAs also co-evolved cis-regulatory elements for transcription factor binding from snRNA loci. Recently, Beltran et al., 2019 identified similarity between the 3′ end of PSEs of snRNA promoters and the eight nt piRNA core motif in nematodes. In addition, Pol II and Pol III transcription from snRNA promoters share a common PSE, but are distinguished by the presence of other unique motifs (Hung and Stumph, 2011). Correspondingly, the canonical Type I and less abundant Type II piRNAs can be discriminated by the presence or absence of the eight nt core motif, respectively. Factors such as TOFU-4 and TOFU-5 function in both Type I and II piRNA expression, whereas PRDE-1 is only required for Type I piRNAs (Kasper et al., 2014; Weng et al., 2019). Altogether, these observations highlight the importance of cis-regulatory elements in specifying the expression of snRNAs and piRNA classes. In addition to enrichment of cytosine at the 5′ position in the male core motif (Billi et al., 2013), we hypothesize that as-yet unidentified motifs may further discriminate male from female piRNA promoters. While we observed SNPC-1.3 binding to be enriched upstream of male piRNA loci (Figure 4), we cannot definitively conclude that SNPC-1.3 binds to the male-specific core motif, given the limitations of conventional ChIP-seq in resolving the SNPC-1.3 footprint. Identifying the factors that specifically bind the eight nt core motif and other potential cis-regulatory elements important for sex-specific piRNA expression will require further investigation.

What are the functions of male piRNAs in C. elegans?

Our data suggest that SNPC-1.3 is essential for proper spermiogenesis (Figure 6). We hypothesize the global loss of male piRNAs in a snpc-1.3(-) mutant is responsible for the higher incidence of spermiogenesis arrest and subsequent loss in fertility, although it is possible that SNPC-1.3 may have other or additional effects on male fertility. Characterization of prg-1(-) mutants during spermiogenesis agree with our findings that loss of piRNAs in the male germline leads to acute defects directly responsible for fertility (Wang and Reinke, 2008). Since the initial discovery of piRNA function in the targeting and silencing of transposons in Drosophila (Vagin et al., 2006; Brennecke et al., 2007), analyses in other systems have revealed that piRNAs have acquired neofunctions at later points along the evolutionary time scale (Ozata et al., 2019).

While it is estimated that as much as 45% of the human genome encodes for transposable elements (Lander et al., 2001), only 12% of C. elegans genome encodes such elements. Furthermore, nearly all of these regions are inactive in C. elegans (Bessereau, 2006). In contrast to Drosophila piRNAs that target and silence transposons with perfect complementarity (Brennecke et al., 2007), C. elegans piRNAs are thought to bind a broad range of endogenously expressed transcripts by partial complementarity (Ashe et al., 2012; Shen et al., 2018; Zhang et al., 2018). Together, these findings suggest that worm piRNAs function in capacities distinct from canonical transposon silencing. While a recent methodology used crosslinking, ligation, and sequencing of piRNA:target hybrids (CLASH) to determine that female piRNAs engage with almost every germline transcript (Shen et al., 2018), how female piRNAs select their targets has yet to be examined. Like piRNAs characterized in the female germline, male piRNAs may be interfacing with a broad range of targets to regulate gene expression for proper spermatogenesis. Loss of prg-1 in males causes the downregulation of a subset of spermatogenesis-specific genes (Wang and Reinke, 2008), suggesting male piRNAs serve a protective function for spermatogenic processes. The characterization of the in vivo landscape of male piRNA target selection using CLASH may provide insights into piRNA function during spermatogenesis.

Why are male piRNAs restricted from the female germline?

Sperm and oocytes pass epigenetic information such as noncoding RNAs to the next generation (Hammoud et al., 2014; Brykczynska et al., 2010; Tabuchi et al., 2018; Kaneshiro et al., 2019). Recent studies show maternal piRNAs trigger the production of endo-siRNAs, called 22G-RNAs for their 5′ bias for guanine and 22 nt length, to transmit an epigenetic memory of foreign versus endogenous elements to the next generation (Ashe et al., 2012; Buckley et al., 2012; Shirayama et al., 2012). We predict that misexpression of male piRNAs during oogenesis may perturb the native pool of female piRNAs necessary for appropriate recognition of self versus non-self elements. This may explain the decrease in fertility we observed in multiple TRA-1 binding site mutant hermaphrodites (Figure 6—figure supplement 1B). As snpc-1.3 (3xtbs) sperm do not seem to exhibit significant morphological defects (Figure 6), the fertility defects in the snpc-1.3 (3xtbs) mutants could be due to problems arising in oogenesis. However, based on our sequencing data in snpc-1.3 (2xtbs) mutants, we cannot distinguish whether fertility defects during oogenesis are due to upregulation of male piRNAs, downregulation of female piRNAs, a combination of the two, or misexpression of downstream endo-siRNAs triggered by piRNAs. Further study of snpc-1.3 gain-of-function mutants in oogenesis will enhance our understanding of the physiological consequences of expressing male piRNAs in the female germline.

The intersection between sex determination and sex specification of piRNA expression

We speculate that gene duplication of the snpc-1 family of genes occurred early during nematode evolution and allowed for the acquisition of new functions by snpc-1 paralogs, specifically, from snRNA to piRNA biogenesis. At least two SNPC-1 paralogs are present within the distantly related nematode species, Plectus sambesii. Furthermore, we predict that co-opting SNPC-1 paralogs for piRNA biogenesis may have occurred in parallel with the evolution of the nematode sex determination pathway. TRA-1 is a sex determination factor that acts to repress male-promoting gene expression in female germ cells to promote female germ cell fate. While Drosophila sex determination utilizes different factors than C. elegans, further investigation into the conservation of TRA-1 shows that it is a common feature in at least the nematode lineage (Pires-daSilva and Sommer, 2004). Additionally, just as we have shown that TRA-1 represses snpc-1.3 in C. elegans (Figure 5), TRA-1 binding motifs GGG(A/T)GG are present in the putative upstream promoter regions of snpc-1.3 homologs identified in C. briggsae, C. brenneri, and C. nigoni (Figure 6—figure supplement 1C). Taken together, these analyses point to a conserved link between sex determination and piRNA biogenesis pathways among nematodes.

In summary, our work reveals that SNPC-1.3 is specified to the male germline and is essential for male piRNA expression. We have identified SNPC-1.3 as a major target of TRA-1 repression in the female germline. Future studies will likely uncover additional factors required to coordinate the proper balance of sex-specific piRNAs required for proper germline development and animal fertility.

Contact for reagent and resource sharing

More details about resources and reagents can be found in the Key Resources Table found in Materials and methods. Further information and requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, John K. Kim (jnkim@jhu.edu).

Experimental model and subject details

C. elegans strains were maintained at 20°C according to standard procedures (Brenner, 1974), unless otherwise stated. Bristol N2 was used as the wild-type strain. Except for RNAi and ChIP experiments, worms were fed E. coli strain OP50. Worms used for ChIP were fed E. coli strain HB101.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyMouse monoclonal anti-FlagSigmaF1804; RRID: AB_262044Western – 1:1000; IF – 1:200
AntibodyRabbit polyclonal anti-H3AbcamAb12079; RRID: AB_2988341:15,000
AntibodyRabbit polyclonal anti-tubulinSigma–AldrichT1450; RRID:AB_2616551:5000
AntibodyGoat polyclonal anti-rabbitJackson Laboratories111035045; RRID:AB_23379381:15,000
AntibodySheep polyclonal anti-mouseGE HealthcareNA931; RRID:AB_7722101:5000
AntibodyRat monoclonal anti-OllasNovus BiologicalsNBP1-06713SSWestern – 1:8,000; IF – 1:200
AntibodyPolyclonal donkey anti-rabbit, AlexaFluor 488ThermoFisherA-212081:400
AntibodyPolyclonal goat anti-mouse, AlexaFluor 555ThermoFisherA-211271:400
AntibodyPolyclonal goat anti-mouse IgG (IRDye 800 CW)LI-COR Biosciences925–32210; RRID:AB_6218421:15,000
AntibodyPolyclonal goat anti-rabbit IgG (IRDye 680 RD)LI-COR Biosciences925–68071; RRID:AB_27211811:15,000
OtherDAPIThermoFisher622480.5 µg/mL
OtherVectashield with DAPIVector LaboratoriesH-1200; RRID:AB_2336790
OtherRoche Blocking BufferMillipore Sigma11096176001
OtherOdyssey Blocking Buffer (TBS)LI-COR Biosciences927–50003
Strain, strain background (E. coli)OP50Shared Fermentation Facility, The Pennsylvania State University
Strain, strain background (E. coli)HB101Shared Fermentation Facility, The Pennsylvania State University
Strain, strain background (E. coli)HT115 RNAi clonesKamath and Ahringer, 2003
OtherTriReagentThermoFisherAM9738
OtherBenzonaseSigma–AldrichE10141:1000
OtherRNA 5′ PolyphosphataseIlluminaRP8092H
OtherMultiscribe Reverse TranscriptaseThermoFisher4311235
OtherAbsolute Blue SYBR GreenThermoFisherAB4166B
OtherDimethyl pimelimidate dihydrochlorideSigma–AldrichD8388
OtherProtease inhibitor cocktailRoche46931590011:100
OtherPurelink RNAse AThermoFisher120910211:10
OtherPronase ESigma–Aldrich7433–220 µg/mL
OtherTaqMan Universal PCR Master Mix, No AmpErase UNGThermoFisher4324018
Sequence-based reagentU18 TaqMan probeThermoFisher1764TGGCAGTGATGATCACAAATCCGTGTTTCTGACAAGCGATTGACGATAGAAAACCGGCTGAGCCA
Sequence-based reagent21UR-1848 TaqMan probeThermoFisherUAAAGGCAGAAUUUUAUCAAC
Sequence-based reagent21UR-2502 TaqMan probeThermoFisherUGAAAUUGUAGUAGACUGCUG
Sequence-based reagent21UR-4807 TaqMan probeThermoFisherUGGGUGAAUUCUGUCCCGAAC
Sequence-based reagent21UR-1258 TaqMan probeThermoFisherUAGACUUGAGUUAGAACGGUU
Sequence-based reagent21UR-3142 TaqMan probeThermoFisherGUAGGGUCGUCUCUUGAGAGC
Sequence-based reagent21UR-3766 TaqMan probeThermoFisherUGGAAGCUUGAUGGAAAAUGC
Commercial assay kitNEBNext Multiplex Small RNA Library Prep Set for IlluminaNew England BiolabsE7330S
OtherSmall RNA-seq dataThis studyGEO: GSE152831
OtherChIP-seq dataThis studyGEO: GSE152831
OtherMass spec dataThis studyGEO: GSE152831
Strain, strain background (C. elegans)wild-type, Bristol isolateCGCN2
Strain, strain background (C. elegans)prg-1(n4357) ICGCSX922
Strain, strain background (C. elegans)snpc-1.3(xk27)[snpc-1.3(lof)] VThis studyQK171For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)fem-1(hc17) IVCGCBA17
Strain, strain background (C. elegans)him-8(e1489) IVCGCCB1489
Strain, strain background (C. elegans)snpc-1.3(xk28)[snpc-1.3 (1xtbs)] VThis studyQK172For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk29)[snpc-1.3 (2xtbs)] VThis studyQK173For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk30)[snpc-1.3 (3xtbs)] VThis studyQK174For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] IThis studyQK175For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] I; fem-1(hc17) IVThis studyQK176For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] I; him-8(e1489) IVThis studyQK177For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk27)[snpc-1.3(lof)] V; fem-1(hc17) IVThis studyQK178For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk27)[snpc-1.3(lof)] V; him-8(e1489) IVThis studyQK179For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)mals105[col-19::GFP] VXantha Karp labXV33
Strain, strain background (C. elegans)snpc-1.3(xk27)[snpc-1.3(lof)] V; mals105 VThis studyQK180For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] I, snpc-1.3(xk27)[snpc-1.3(lof)] VThis studyQK181For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk23) I [snpc-4::aid::ollas]This studyQK162For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk23) I; unc-11(ed3) III; ieSi38 IVThis studyQK163For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)unc-11(ed3) III; ieSi38 IV [sun-1p::TIR1::mRuby::sun-1 3' UTR + Crb-unc-119(+)] IVCGCCA1199
Strain, strain background (C. elegans)glp-4(bn2) ICGCSS104
Strain, strain background (C. elegans)snpc-1.3(xk32)[snpc-1.3a::3xflag] VThis studyQK182For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)glp-4(bn2) I; snpc-1.3(xk32)[snpc-1.3a::3xflag] VThis studyQK183For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk33)[snpc-1.3a::ollas] VThis studyQK184For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] I, snpc-1.3(xk33)[snpc-1.3a::ollas] VThis studyQK185For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)prde-1(xk34)[prde-1::ollas] VThis studyQK186For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] I; prde-1(xk34)[prde-1::ollas] VThis studyQK187For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk35)[snpc-4::ollas] IThis studyQK188For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk35)[snpc-4::ollas] I; snpc-1.3(xk32)[snpc-1.3a::3xflag] VThis studyQK189For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk31)[snpc-4::3xflag] I; snpc-1.3(xk29)[snpc-1.3 (2xtbs)] VThis studyQK190For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-4(xk23) I; unc-11(ed3) III; ieSi38 IV; snpc-1.3(xk32)[snpc-1.3a::3xflag] VThis studyQK191For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk36)[snpc-1.3a::3xflag(2xtbs)] VThis studyQK192For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)tra-1(xk37)[3xflag::tra-1] IIIThis studyQK193For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)tra-1(xk37)[3xflag::tra-1] III; snpc-1.3(xk28)[snpc-1.3 (1xtbs)] VThis studyQK194For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)tra-1(xk37)[3xflag::tra-1] III; snpc-1.3(xk29)[snpc-1.3 (2xtbs)] VThis studyQK195For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)tra-1(xk37)[3xflag::tra-1] III; snpc-1.3(xk30)[snpc-1.3 (3xtbs)] VThis studyQK196For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Strain, strain background (C. elegans)snpc-1.3(xk38) [snpc-1.3b::3xflag] VThis studyQK197For CRISPR/Cas9 reagents and methodology, see Supplementary file 4 and Method details.
Software, algorithmbbmap 38.23http://jgi.doe.gov/data-and-tools/bb-tools
Software, algorithmBowtie 1.1.1Langmead et al., 2009
Software, algorithmBowtie2 2.3.4.2Langmead and Salzberg, 2012
Software, algorithmCASHX 2.3Fahlgren et al., 2009
Software, algorithmdeepTools 3.3.1Ramírez et al., 2016
Software, algorithmDESeq2 1.18.1Love et al., 2014
Software, algorithmDESeq2 1.26.0Love et al., 2014
Software, algorithmFastQC 0.11.7http://www.bioinformatics.babraham.ac.uk/projects/fastqc/
Software, algorithmGraphPad Prismhttps://www.graphpad.com
Software, algorithmImageJImageJ
Software, algorithmMACS 2.1.2Zhang et al., 2008
Software, algorithmMEME suite 5.1.1Bailey et al., 2009
Software, algorithmRStudio 3.4.1https://www.rstudio.com
Software, algorithmSamtools 1.9Li et al., 2009
Software, algorithmSubread 1.6.3Liao et al., 2014
Software, algorithmTrim Galore! 0.5.0http://www.bioinformatics.babraham.ac.uk/projects/trim_galore/
Software, algorithmTrimmomatic 0.39Bolger et al., 2014
OtherDynabeads Protein GThermoFisher10004D
OtherDynabeads M280 sheep anti-mouse IgGThermoFisher11202D
OtherSuperScript III Reverse TranscriptaseThermoFisher18080085

Generations of strains

Request a detailed protocol

CRISPR/Cas9-generated strains were created as described in Paix et al., 2015 and are listed in Supplementary file 4. crRNA and repair template sequences of CRISPR-generated strains are listed in Supplementary file 4. After initial phenotyping of snpc-1.3a::3xflag and snpc-1.3b::3xflag (Figure 1—figure supplement 1C−G), snpc-1.3a::3xflag was used for all subsequent experiments (and is referred to as snpc-1.3::3xflag).

RNAi assays

Request a detailed protocol

Bacterial RNAi clones were grown from the Ahringer RNAi library (Kamath and Ahringer, 2003). Synchronized L1 worms were plated on HT115 bacteria expressing dsRNA targeting the gene interest or L4440 empty vector as a negative control as previously described (Timmons and Fire, 1998). All RNAi experiments were performed at 20°C unless otherwise stated.

RNA extraction, library preparation, and sequencing

Request a detailed protocol

After hypochlorite preparation and hatching in M9 buffer, snpc-4::aid::ollas and snpc-4::aid::ollas; Psun-1::TIR1 worms were transferred from NGM plates to plates containing 250 µM auxin 20 hr before collecting L4 and gravid worms, 48 hr and 72 hr after plating L1 worms at 20°C, respectively. Worms were collected in TriReagent (ThermoFisher Scientific) and subjected to three freeze–thaw cycles. Following addition of 1-bromo-3-chloropropane, the aqueous phase was then precipitated with isopropanol at −80°C for 2 hr. To pellet RNA, samples were spun at 21,000 × g for 30 min at 4°C. After three washes in 75% ethanol, the pellet was resuspended in water.

RNA concentration and quality were measured using a TapeStation (Agilent Technologies). We size-selected small RNAs of 16-30 nt in length from 5 µg total RNA on 17% denaturing polyacrylamide gels. Small RNAs were treated with 5′ polyphosphatase (Illumina) to reduce 5′ triphosphate groups to monophosphates to enable 5′ adapter ligation. Small RNA-sequencing libraries were prepared using the NEBNext Multiplex Small RNA Library Prep Set for Illumina (NEB). Small RNA amplicons were size-selected on 10% polyacrylamide gels and quantified using qRT-PCR. Samples for each developmental time point were pooled into a single flow cell and single-end, 75 nt reads were generated on a NextSeq 500 (Illumina). An average of 42.01 million reads (range 33.05–50.39 million) was obtained for each library.

Quantitative RT-PCR

Request a detailed protocol

Taqman cDNA synthesis was performed as previously described (Weiser et al., 2017). Briefly, for quantification of piRNA levels, TaqMan small RNA probes were designed and synthesized by Applied Biosystems. All piRNA species assessed by qPCR were normalized to U18 small nucleolar RNA. Fifty nanograms of total RNA was used for cDNA synthesis. cDNA was synthesized by Multiscribe Reverse Transcriptase (Applied Biosystems) using the Eppendorf Mastercycler Pro S6325 (Eppendorf). Detection of small RNAs was performed using the TaqMan Universal PCR Master Mix and No AmpErase UNG (Applied Biosystems). For quantification of mRNA levels, cDNA was made using 500 ng of total RNA using Multiscribe Reverse Transcriptase (Applied Biosystems). For quantification of snRNA levels, cDNA was made using 250 ng of total RNA using SuperScript III Reverse Transcriptase (ThermoFisher). Assays for mRNA and snRNA levels were performed with Absolute Blue SYBR Green (ThermoFisher) and normalized to eft-2 using CFX63 Real Time System Thermocyclers (Bio-Rad). All qPCR primers used are listed in Supplementary file 4.

Covalent crosslinking of Dynabeads

Request a detailed protocol

Protein G Dynabeads (ThermoFisher Scientific, 1003D) were coupled to monoclonal mouse anti-FLAG antibody M2 (Sigma–Aldrich, F1804). After three washes in 1× PBST (0.1% Tween), Dynabeads were resuspended with 1× PBST with antibody, for a final concentration of 50 µg antibody per 100 µL beads. The antibody-bead mixture was nutated for 1 hr at room temperature. After three washes in 1× PBST and two washes in 0.2 M sodium borate pH 9.0, beads were nutated in 22 mM DMP (Sigma–Aldrich, D8388) in 0.2 M sodium borate for 30 min at room temperature. Following two washes in ethanolamine buffer (0.2 M ethanolamine, 0.2 M NaCl pH 8.5), beads were nutated for 1 hr at room temperature in the same buffer. Beads were placed into the same volume of ethanolamine buffer as the starting bead volume for storage at 4°C until use.

Immunoprecipitation for mass spectrometry, co-IP experiments, and expression

Request a detailed protocol

For SNPC-4 IP mass spectrometry, synchronized populations of ~200,000,000 him-8(e1489) L4s and ~50,000,000 fem-1(hc17) females were grown at 25°C and collected on OP50. For co-IP experiments, ~500,000 L4 and ~250,000,000 gravid worms were grown and collected from OP50 plates. Due to low expression of SNPC-1.3 and appearance of background bands, samples examining SNPC-1.3 expression were subjected to immunoprecipitation before western blotting. For glp-4(bn2), him-8(e1489), and fem-1(hc17) temperature-shift experiments, worms were grown at 15°C before hypochlorite treatment to isolate embryos. Synchronized L1s were then transferred to 25°C. For SNPC-1.3 expression in males and females, snpc-1.3::3xflag; him-8(e1489) L4 worms and snpc-1.3::3xflag; fem-1(hc17) adult worms were collected.

Unless otherwise stated, all samples for mass spectrometry, co-IP, and western blotting used in this study were subjected to the following procedure. After three washes in M9 and one wash in water, worms were frozen and ground using the Retsch MM400 ball mill homogenizer for two rounds of 1 min at 30 Hz. Frozen worm powder was resuspended in 1× lysis buffer used previously (Moissiard et al., 2014, 50 mM Tris–HCl pH 8.0, 150 mM NaCl, 5 mM MgCl2, 1 mM EGTA, 0.1% NP-40, 10% glycerol) and protease inhibitor cocktail (Roche). After Bradford assay (ThermoFisher Scientific), lysates were normalized using lysis buffer and protease inhibitor. Benzonase (Sigma–Aldrich, E1014) was added to a final concentration of 1 µL/mL of lysate and nutated for 10 min at 4°C. After centrifugation for 10 min at 4,000 x g, 1 mL of supernatant was added to 50 µL of crosslinked Dynabeads and nutated for 15 min at 4°C. Samples were then washed three times in 1× lysis buffer with protease inhibitors before 1 hr nutation in 50 µL of 2 mg/mL FLAG peptide (Sigma–Aldrich, F4799) diluted in 1× lysis buffer. Complete eluate, as well as 5% of crude lysate (after addition of benzonase), input, pellet, and post-IP samples, were added to 2× Novex Tris–glycine sodium dodecyl sulfate sample buffer (ThermoFisher Scientific, LC2676) to 1×. Samples were then subjected to western blotting as described below.

Western blotting

Request a detailed protocol

Co-IP samples and SNPC-1.3::3xFlag westerns in snpc-1.3 tbs mutants were run on either 8–16% or 8% Novex WedgeWell Tris–glycine precast gels (ThermoFisher) and transferred to PVDF membrane (Millipore). Mouse anti-Flag, rat anti-Ollas, rabbit anti-gamma tubulin, and rabbit anti-H3 were used at 1:1000, 1:8000, 1:5000, and 1:15000, respectively. Anti-mouse and anti-rabbit (for tubulin) antibodies were used at 1:5,000. To blot for H3, anti-rabbit secondary was used at 1:15,000. Anti-rat antibodies were used at 1:8,000. Antibodies used were Sigma–Aldrich F1804 (mouse anti-Flag), Novus Biologicals NBP1-06713SS (rat anti-Ollas), Sigma–Aldrich T1450 (rabbit anti-gamma tubulin), Abcam ab1791 (rabbit anti-H3), GE Healthcare NA931 (sheep anti-mouse), and Jackson Laboratories 111035045 (goat anti-rabbit). Both high-sensitivity Amersham ECL Prime (GE Healthcare, RPN2232) (for SNPC-1.3 blotting) and regular sensitivity Pierce ECL (ThermoFisher, 32209) were used for exposure in a Bio-Rad ChemiDoc Touch system.

For measuring SNPC-1.3 expression levels in various backgrounds, input (for normalization) and immunoprecipitation samples were run on 10% Novex WedgeWell Tris–glycine precast gels (ThermoFisher). Following transfer, the membrane was dried for 20 min at room temperature. The blot was then recharged in 100% methanol for 1 min, followed by a water rinse and a wash in TBS for 2 min. Blocking was performed in LI-COR Odyssey Blocking Buffer (TBS). Primary antibodies were 1:1,000 mouse anti-Flag (Sigma–Aldrich F1804) and 1:5,000 rabbit anti-gamma-Tubulin (Sigma–Aldrich T1450) in LI-COR Odyssey Blocking Buffer with 0.1% Tween. Washes were performed in TBST (TBS + 0.1% Tween). LI-COR IRDye 800CW goat anti-mouse IgG and 680RD goat anti-rabbit IgG were used at 1:15,000 in Odyssey Blocking Buffer with 0.1% Tween and 0.01% SDS. After three washes in TBST, the membranes were incubated in TBS before imaging in the LI-COR Odyssey Fc.

Mass spectrometry and analysis

Request a detailed protocol

Proteins were precipitated with 23% TCA and washed with acetone. Protein pellets solubilized in 8 M urea, 100 mM Tris pH 8.5, and reduced with 5 mM Tris (2-carboxyethyl)phosphine hydrochloride (Sigma–Aldrich, St. Louis, MO, product C4706) and alkylated with 55 mM 2-chloroacetamide (Fluka Analytical, product 22790). Proteins were digested for 18 hr at 37°C in 2 M urea 100 mM Tris pH 8.5, 1 mM CaCl2 with 2 µg trypsin (Promega, Madison, WI, product V5111). Single-phase analysis (in replicate) was performed using a Dionex 3000 pump and a Thermo LTQ Orbitrap Velos using an in-house built electrospray stage (Wolters et al., 2001). Protein and peptide identification and protein quantitation were done with Integrated Proteomics Pipeline, IP2 (Integrated Proteomics Applications, Inc, San Diego, CA; http://www.integratedproteomics.com/). Tandem mass spectra were extracted from raw files using RawConverter (He et al., 2015) with monoisotopic peak option and were searched against protein database release WS260 from WormBase, with FLAG-tagged SNPC-4, common contaminants and reversed sequences added, using ProLuCID (Peng et al., 2003; Xu et al., 2006). The search space included all fully tryptic and half-tryptic peptide candidates with a fixed modification of 57.02146 on C. Peptide candidates were filtered using DTASelect (Tabb et al., 2002).

Using custom R scripts, average enrichment between SNPC-4::3xFlag and no-tag control immunoprecipitation experiments were calculated. For each experiment, enrichment was normalized by dividing the peptide count for each protein by the total peptide count. Adjusted p-values were calculated by applying the Bonferroni method using DESeq2 (Love et al., 2014). Although SNPC-3.1 and SNPC-3.2 are reported to have the same amino acid sequence, we have picked up differential peptide coverage in the fem-1(-) mutant for these two proteins and represented them as two different data points.

Immunofluorescence microscopy

Request a detailed protocol

Adult gonads were dissected into egg buffer (25 mM HEPES pH 7.4, 118 mM NaCl, 48 mM KCl, 2 mM EDTA, 0.5 mM EGTA) with 30 mM sodium azide and 0.1% Tween-20, and fixed for 10 s in 1% formaldehyde in egg buffer followed by 1 min in 100% methanol at −20°C. All washing and staining was completed in suspension. Germlines were blocked in normal goat serum or 1× Roche blocking buffer in PBST (PBS + 0.2% Tween) for 30 min at room temperature. Primary mouse anti-Flag (Sigma F1804) and rat anti-Ollas (NBP1-06713SS) antibodies were used at 1:200 in blocking agent in PBST. AlexaFluor 555 goat anti-mouse and AlexaFluor 488 goat anti-rat secondary antibodies (ThermoFisher) were used at 1:400 in blocking agent in PBST. Germlines were stained with 0.5 µg/mL DAPI and then mounted in Vectashield with DAPI (Vector Laboratories H-1200). Images were acquired at 63x on a Zeiss LSM700 confocal microscope. Publication images were acquired at 100× on a GE DeltaVision microscope. Image processing was performed using SoftWoRx to collect 3D image stacks, deconvolve (enhanced ratio, 20 cycles), and compile into a maximum intensity projection. Composite images were stitched and colored in Fiji using the Stitching plugin (Preibisch et al., 2009).

Chromatin immunoprecipitation, library prep, and sequencing

Request a detailed protocol

Worms were grown in liquid culture as previously described (Zanin et al., 2011). 250 µM auxin was added to snpc-1.3::3xflag; snpc-4::aid::ollas; Psun-1::TIR1 worms 4 hr before collection at 48 hr post-L1 at 20°C. After washing, the gut was cleared for 15 min by nutation in M9, followed by three washes in M9. Worms were live-crosslinked in 2.6% formaldehyde in water for 30 min at room temperature with nutation. Crosslinking was quenched with a final concentration of 125 mM glycine for 5 min with nutation. After three washes with water, worms were flash-frozen in liquid nitrogen. Frozen worm pellets were ground into powder using the Retsch MM40 ball mill homogenizer for 2 rounds of 1 min at 30 Hz. Frozen worm powder was resuspended in 1× RIPA buffer (1× PBS, 1% NP-40, 0.5% sodium deoxycholate, 0.1% SDS) for 10 min at 4°C. Crosslinked chromatin was sonicated using a Diagenode Bioruptor Pico for three 3 min cycles, 30 s on/off. We nutated 10 µg of chromatin overnight at 4°C with 2 µg of Flag antibody (Sigma–Aldrich, F1804) and then for 1.5 hr with 50 µL mouse IgG Dynabeads (Invitrogen). Input amount was 10% of IP. Chromatin was de-crosslinked and extracted as described previously (Weiser et al., 2017). Individual input and IP samples of each genotype were processed for both sequencing and quantitative PCR.

Libraries were prepared and multiplexed using the Ovation Ultralow Library Systems v2 (NuGEN Technologies) according to the manufacturer’s protocol. The Illumina HiSeq 4000 platform was used to generate 50 bp single-end reads for SNPC-1.3 ChIP-seq libraries. The NovaSeq 6000 platform was used to generate 50 bp paired-end reads for TRA-1 ChIP-seq libraries.

Quantitative PCR of ChIP samples

Request a detailed protocol

ChIP DNA was eluted in 18 µL of 1× TE pH 8.0 and 2 µL of 20 mg/mL RNase A (Invitrogen, ThermoFisher Scientific). For a final reaction volume of 25 µL, each reaction consisted of final 1× Absolute Blue SYBR Green (ThermoFisher Scientific), 35 nM each of forward and reverse primer, and 2 µL ChIP eluate. Reactions were performed in technical duplicates in a Bio-Rad CF96 Real Time PCR thermal cycler.

Hermaphrodite fertility assays

Request a detailed protocol

Gravid worms (previously maintained at 20°C) were subjected to hypochlorite treatment, and their progeny were plated onto NGM at 25°C (P0). At the L2 or L3 stage, worms were singled onto individual plates and their progeny (F1) counted.

Mating assays

Request a detailed protocol

To test male-dependent rescue of fem-1(hc17) fertility, 10–12 hermaphrodites of each strain were grown at 20°C and embryos were isolated by allowing egg lay for 2 hr before removal. Embryos were shifted to 25°C, and upon reaching the L4 stage (24 hr), ten him-8(e1489) L4 males were transferred and mated with two fem-1(hc17) females. Brood size was quantified by counting when a majority of progeny had at least reached the young adult stage (about 3 days after transfer). To test the fertility of the hermaphrodites upon mating, 10–12 hermaphrodites of each strain were grown at 20°C and embryos were isolated after egg lay for 2 hr before removal. Embryos were shifted to 25°C and 1ten col-19(GFP+) L4-staged males (24 hr) were then transferred with a single hermaphrodite (36 hr), and the number of live cross progeny was counted after reaching adulthood. Brood size was quantified by counting when the majority of progeny had at least reached the young adult stage (about 3 days after transfer).

Sperm activation assay and imaging

Request a detailed protocol

To perform sperm activation assays, spermatids were dissected from adult males that were shifted to 25°C during the embryo stage, and isolated prior to sexual maturity (about 48 hr post-L1). Dissection was performed directly on glass slides in sperm medium (50 mM HEPES pH 7.8, 50 mM NaCl, 25 mM KCl, 5 mM CaCl2, and 1 mM MgSO4) supplemented with 20 μg/mL pronase E (Millipore Sigma). For the characterization of sperm morphology, sperm were imaged 30 min after the addition of pronase E. Individual sperm were manually categorized into two types: spermatids with normal pseudopods or spermatids with irregular or no pseudopods (Shakes and Ward, 1989). For Figure 6E,Z, stacks were imaged in 10 s intervals for 30 min and a representative in-focus stack was chosen at every 3 min interval. To characterize sperm activation dynamics, sperm were individually followed across 10 s intervals for 30 min, and the different stages of sperm activation were designated into four categories based on these morphological changes: (1) undifferentiated spermatid, (2) spiky intermediate characterized by the presence of spike growth, (3) growing or motile pseudopod by the presence of a pseudopod, and (4) immobile sperm when little movement was observed either in the sperm body or pseudopod for longer than 30 s. Statistical significance was assessed using Student’s t-test.

Quantitative and statistical analysis

Request a detailed protocol

Unless otherwise stated, all quantitative analyses are shown as mean with standard deviation represented as error bars. For qRT-PCR, fertility and mating assays, and western blot, at least two independent experiments were performed; one representative biological replicate is shown.

Small RNA-seq analysis

Request a detailed protocol

Raw small RNA-seq reads were trimmed for Illumina adapters and quality (SLIDING WINDOW: 4:25) using Trimmomatic 0.39 (Bolger et al., 2014). Trimmed reads were then filtered using bbmap 38.23 (http://jgi.doe.gov/data-and-tools/bb-tools) to retain reads that were 15–30 nt in length. These filtered reads were aligned to the C. elegans WBcel235 (Cunningham et al., 2019) reference genome using Bowtie 1.1.1 (Langmead et al., 2009) with parameters -v 0 k 5 –best –strata –tryhard. Quality control of raw and aligned reads was performed using FastQC 0.11.7 (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/), SAMtools 1.9 (Li et al., 2009), and in-house Python and R scripts. Mapped reads were assigned to genomic features using featureCounts from Subread 1.6.3 (Liao et al., 2014), taking into account overlapping and multi-mapping reads (-O -M). Raw counts were normalized within DESeq2 1.26.0 (Love et al., 2014), and principal component analysis (PCA) was performed using the regularized log transform of normalized counts within DESeq2 (Figure 5—figure supplement 1C). In addition, we distributed mapped reads by size and 5′ nucleotide identity to verify the presence of small RNA species such as 22G-RNAs and 21U-RNAs (Figure 3—figure supplement 2B, Figure 5—figure supplement 1B).

To identify differentially expressed genes, DESeq2 was applied to piRNAs on chromosome IV. In this study (method 1), we define significant and differentially expressed genes as having an absolute value of log2(fold-change) ≥ 0.26 and FDR of ≤0.05 (Benjamini–Hochberg). The log2(fold-change) threshold and significance level were selected based on benchmarking the differential expression results against the Taqman piRNA expression assays. At the chosen cutoffs, differential expression analysis captures the Taqman assays results for the three male piRNAs (21UR-1258, 21UR-3142, and 21UR-3766) and three female piRNAs (21UR-1848, 21UR-2502, and 21UR-4817). Contrasts between mutant and wild type were designed without independent filtering.

For motif discovery, nucleotide sequences were extracted from the reference genome with 60 nt upstream of each piRNA and submitted to the MEME suite 5.1.1 (Bailey et al., 2009). Results from MEME were used to generate the sequence logo plot with the median position of the C-nucleotide of the identified motif, number of piRNAs, and the associated E-value.

A second, independent small RNA-seq analysis workflow (described in Figure 3—figure supplement 1) was implemented to validate our results. Results produced from this analysis are provided in Figure 3—figure supplement 2. We parsed - small RNA sequences that were 16-30 nt from adapters. Reads with >3 nt falling below a quality score of Q30 were discarded. Reads were mapped to the C. elegans WS230 (Stein et al., 2001) reference genome using CASHX v. 2.3 (Fahlgren et al., 2009) allowing for 0 mismatches. Custom Perl, Awk, and R scripts were used to count features and to generate PCA and size distribution plots. Multi-mapping reads were assigned proportionally to each possible locus. Differential expression analysis was done using DESeq2 v. 1.18.1 (Love et al., 2014). A reporting threshold was set at an absolute value of log2(fold-change) ≥ 0.26 and a Benjamini–Hochberg-corrected p≤0.20.

ChIP-seq analysis

Request a detailed protocol

De-multiplexed raw ChIP-seq data in FASTQ format were trimmed for adapters and sequencing quality score > Q25 using Trim Galore! 0.5.0 (http://www.bioinformatics.babraham.ac.uk/projects/trim_galore/) and aligned to C. elegans reference genome WBcel235 (Cunningham et al., 2019) using Bowtie2 2.3.4.2 (Langmead and Salzberg, 2012) with default parameters. Post-alignment filtering was then performed to remove PCR duplicates using the MarkDuplicates utility within Picard 2.22.1 (http://broadinstitute.github.io/picard/). In addition, SAMtools 1.9 was applied to remove unmapped reads and reads that mapped with MAPQ 30 but were not of primary alignment or failed sequence platform quality checks (SAMtools -F 1804 -q 30) (Li et al., 2009).

To identify and visualize binding sites and peaks for SNPC-1.3 ChIP-seq, filtered SNPC-1.3 ChIP-seq reads were extended to 200 bp to account for the average length of ChIP fragments. We then partitioned the genome into consecutive, non-overlapping 1 kb bins and calculated read coverage, normalized by sequencing depth of each library, based on the total read count in each bin. Bins with read coverages in the IP sample that fell below the median read coverage of piRNA-depleted bins on chromosome IV in the relevant input control were excluded from further analysis. Bins containing only male, female, and non-enriched piRNAs (as defined by small RNA-seq analysis) were then extracted to generate binding profiles and heatmaps. For this, the bamCompare tool in deepTools 3.3.1 (Ramírez et al., 2016) was used to calculate the ratio between read coverage of each ChIP sample and input control (--scaleFactorsMethod None --normalizeUsing CPM --operation ratio --binSize 50 --ignoreForNormalization MtDNA --extendReads 200). The ENCODE ce11 blacklist (Amemiya et al., 2019) was also supplied (https://github.com/Boyle-Lab/Blacklist/). The bamCompare output was then used in deepTools computeMatrix to calculate scores for plotting profiles and heatmaps with deepTools plotProfile and plotHeatmap.

TRA-1 ChIP-seq peaks were called by callpeak within MACS 2.1.2 (Zhang et al., 2008) (--p-value 0.05) with filtered TRA-1 ChIP-seq reads and relevant input controls. TRA-1 signal tracks were generated by calculating fold enrichment from read count-normalized genome-wide pileup and lambda track outputs by callpeak (bdgcmp in MACS2). The ENCODE ce 11 blacklist (Amemiya et al., 2019) was supplied in this analysis (https://github.com/Boyle-Lab/Blacklist/). The bamCompare tool in deepTools 3.3.1 (Ramírez et al., 2016) was used to quantify read coverage of each ChIP sample and input control.

Reproducibility between SNPC-1.3 and TRA-1 ChIP-seq replicates (Figure 4—figure supplement 1C, Figure 5—figure supplement 1E) was assessed by applying deepTools bamCompare, as described above, and deepTools plotCorrelation to depict pairwise correlations between replicates and compute the Pearson correlation coefficient.

Data and software availability

Request a detailed protocol

The mass spectrometry, small RNA-seq, and ChIP-seq data have been deposited in NCBI under GEO accession number: GSE152831. Processed data and scripts used for analysis are available at https://github.com/starostikm/SNPC-1.3; Choi, 2021; copy archived at swh:1:rev:b23f652341d999150edf5ae9c8de72e9192b2843.

Data availability

Sequencing data have been deposited in GEO under accession code GSE152831. All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 1–6.

The following data sets were generated
    1. Starostik MR
    (2020) NCBI Gene Expression Omnibus
    ID GSE152831. SNPC-1.3 is a sex-specific transcription factor that drives male piRNAs in C. elegans.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE152831

References

    1. Beanan MJ
    2. Strome S
    (1992)
    Characterization of a germ-line proliferation mutation in C. elegans
    Development 116:755–766.
  12. Book
    1. Bessereau J-L
    (2006)
    Transposons in C. elegans Wormbook, the C. Elegans Research Community
    WormBook.
    1. Brenner S
    (1974)
    The genetics of Caenorhabditis elegans
    Genetics 77:71–94.
    1. Chen P
    2. Ellis RE
    (2000)
    TRA-1 regulates transcription of fog-3, which controls germ cell fate in C. elegans
    Development 127:3119–3129.
    1. Harris AN
    2. Macdonald PM
    (2001)
    Aubergine encodes a Drosophila polar granule component required for pole cell formation and related to eIF2C
    Development 128:2823–2832.
    1. Hodgkin J
    2. Horvitz HR
    3. Brenner S
    (1979)
    Nondisjunction mutants of the nematode Caenorhabditis elegans
    Genetics 91:67–94.
    1. Jawdekar G
    2. Henry R
    (2008) Transcriptional regulation of human small nuclear RNA genes
    Biochimica Et Biophysica Acta (BBA) - Gene Regulatory Mechanisms 1779:295–305.
    https://doi.org/10.1016/j.bbagrm.2008.04.001
    1. Lander ES
    2. Linton LM
    3. Birren B
    4. Nusbaum C
    5. Zody MC
    6. Baldwin J
    7. Devon K
    8. Dewar K
    9. Doyle M
    10. FitzHugh W
    (2001)
    Initial sequencing and analysis of the human genome
    Nature 409:860–921.
    1. Lin H
    2. Spradling AC
    (1997)
    A novel group of pumilio mutations affects the asymmetric division of germline stem cells in the Drosophila ovary
    Development 124:2463–2476.
    1. Xu T
    2. Venable JD
    3. Park SK
    4. Cociorva D
    5. Lu B
    6. Liao L
    7. Wohlschlegel J
    8. Hewel J
    9. Yates JR
    (2006)
    ProLuCID, a fast and sensitive tandem mass spectra-based protein identification program
    Mol. Cell. Proteom 5:S174.

Decision letter

  1. Oliver Hobert
    Reviewing Editor; Howard Hughes Medical Institute, Columbia University, United States
  2. James L Manley
    Senior Editor; Columbia University, United States
  3. Scott Kennedy
    Reviewer; Harvard University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "SNPC-1.3 is a sex-specific transcription factor that drives male piRNA expression in C. elegans" for consideration by eLife. Your article has been reviewed by four peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by James Manley as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Scott Kennedy (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary and Essential revisions:

All reviewers and editors think that, in principle, this manuscript is suitable for publication in eLife. It provides intriguing novel insights into the regulation of piRNA expression and its sexually dimorphic nature, implicating an intriguing novel player in this regulatory phenomenon. However, there was also general consensus about the need for a number of revisions. They follow essentially into two parts:

1) The only necessary experimental revision that is required to bolster claims made in the manuscript relates to the demonstration of the specificity of SNPC-1.3 expression. You will see the criticism of the current approach detailed below (particularly by reviewer #1) and the request to use available reagents (epitope tagged alleles) to attempt in situ staining. smFISH is another option. Reviewer #4, a sperm expert, was pulled into the review process late, in order to corroborate the feasibility of these studies. In further discussion among the reviewers, reviewer #4 further states: "I think the question is male germline specificity of SNPC-1.3 rather than "sperm specificity". Sperm do not express any genes but the sperm producing germline does. Presumably, males will continually express snpc-1.3 while hermaphrodites will only express around L4. You can do antibody staining on whole worms or dissected gonads. You would expect expression in the germline of males but not in the germline of adult hermaphrodites." We hope these comments are helpful.

2) The other set of revisions all deal with further data analysis and textual revisions/explanations. Reviewer #2 has the most extensive comments here and they all seem reasonable to address and require no further experimentation. All other reviewers have additional requests for editorial changes.

Reviewer #1:

The manuscript submitted by Choi et al. entitled, "SNPC-1.3 is a sex-specific transcription factor that drives male piRNA expression in C. elegans" describes the identification of a novel sex-specific transcriptional regulator that controls the expression of Piwi interacting RNAs (piRNAs) in a sexually dimorphic manner. The authors do an excellent job of combining biochemical, genetic, and genomic approaches to support their conclusions. While a few questions remain, overall, the findings of the manuscript represent a significant advance in the field, and therefore, warrants publication in eLife.

A major point of the manuscript is that a seemingly generic transcriptional complex fulfils sperm-specific functions, via the sperm-expression of a specific subunit of the complex, SNPC-1.3. However, sperm-specificity of SNPC-1.3 is not satisfactorily shown. Only a single, non-quantified, Western Blot of whole animals is shown and the reader is asked to believe that the reduction in intensity of band(s) at specific stages/in specific mutant background(s) indicates sperm-specificity. Apart from a failure of proper quantification, this is not enough. The authors have engineered two different epitope tags into the SNPC-1.3 locus and this should enable in situ antibody staining of whole animals. This should conclusively show the sperm-specificity of expression (not only sperm vs. oocyte, but also no expression in somatic tissues). Previous studies have shown the feasibility of antibody staining of sperm-expressed proteins.

Reviewer #2:

In this manuscript, Kim and colleagues have identified a Transcription Factor (TF), SNPC-1.3, specifically expressed during spermatogenesis in the hermaphroditic gonad of C. elegans that drives the expression of male piRNAs. SNPC-1.3 forms a specific complex with the known piRNA TF SNPC-4 during spermatogenesis. Indeed, animals lacking SNPC-1.3 specifically lose the expression of male piRNAs, even though they acquire some expression of female piRNAs. Moreover, they have identified another TF, TRA-1, which restricts the expression of SNPC-1.3 exclusively during spermatogenesis. TRA-1 is expressed during oogenesis and binds the snpc-1.3 promoter to silence the expression of SNPC-1.3 during oogenesis. Thus, mutation of the binding sites of TRA-1 leads to ectopic expression of male piRNAs during spermatogenesis. Finally, snpc-1.3 mutation leads to spermatogenesis defects and loss of fertility similarly to piRNA mutants, suggesting a role for male piRNAs in spermatogenesis. Overall the experiments are well done and executed with appropriate controls. Even though the function of these male and female piRNAs are still uncharacterized, the study is certainly of general interests given the fact that is currently unknown how the transcription of male and/or female piRNAs are specifically achieved. The manuscript is well written, and the data are well presented, although some additional controls, experiments, and edits might help to solidify their findings. My only major concerns regard the specificity of binding and action of SNPC-1.3 for male-specific piRNAs. Given that mutation of sncp-1.3 affects both male and female piRNAs during spermatogenesis and there are not clear evidences of binding by ChIP of SNCP-1.3 on male piRNA promoters vs. the other piRNAs, it remains unclear from the present data how SNPC-1.3 drives the exclusive expression of male piRNAs, and how SNPC-1.3 cooperates with SNPC-4 to specifically bind the promoters of male piRNAs and not female piRNAs. The localization of SNPC-1.3, SNPC-4, and TRA-1 in hermaphrodite and male germlines might help to elucidate their temporal and sex-specific functions together with the specific binding of male piRNA consensus sequence. Below I have listed the specific comments that the authors should address in order that the paper may be considered for publication on eLife.

1) As I mention above, it remains unclear how SNPC-3.1 specifically binds the promoter of male piRNAs. The authors should evaluate whether the ChIP-seq signal is enriched around the consensus motif of male piRNAs and not the female (or neutral NE) piRNAs. Also, it is not clear how SNPC-1.3 provides the specificity to SNPC-4 in transcribing only male piRNAs. For instance, they have mentioned in the Discussion that SNPC-4 can still bind piRNA loci in absence of SNPC-1.3 (the authors should also provide such data, see other points). Moreover, in the Discussion they mentioned that they "cannot definitively conclude that SNPC-1.3 binds to the male-specific core motif, given the limitations of conventional ChIP-seq in resolving the SNPC-1.3 footprint. Identifying the factors that specifically bind the 8 nt core motif and other potential cis-regulatory elements important for sex-biased piRNA expression will require further investigation". I think the authors can at least assess whether SNPC-1.3 binds the male consensus motif and not the female one in vitro by EMSA.

2) In absence of any specific binding of SNPC-1.3 to male/spermatogenic piRNAs the only experiment that suggests such specific function is the piRNA quantification in snpc-1.3(-) mutants. However, as they mentioned in their manuscript: "oogenesis-enriched piRNAs were upregulated at least 2-fold in snpc-1.3(-) mutants undergoing spermatogenesis and in him-8(-); snpc-1.3(-) males. These findings suggest that, in addition to activating male piRNAs, SNPC-1.3 suppresses the expression of female piRNAs in the male germline, possibly by preferentially recruiting core factors such as SNPC-4 to male piRNA loci". This model should be demonstrated by SNPC-4 ChIP in sncp-1.3(-) mutants. However, they mention in the Discussion that sncp-1.3(-) mutants do not affect SNPC-4 binding. So, this is unlikely the case. An alternative explanation of these results might be that mutation in sncp-1.3 caused some developmental defects in the temporal switching between spermatogenesis and oogenesis. Also, the ChIP signal of SNPC-1.3 do not appear to occur specifically on male piRNA, but also on neutral non-enriched (NE) piRNAs and to some degree to female piRNAs (Figure 3E). Even in the context of tra-1 mutation there is not an exclusive upregulation of male piRNA, but also downregulation of female piRNA. Therefore, the specificity of SNPC-3.1 for male piRNA transcription is not clear.

3) Throughout the whole manuscript the authors wrote that SNPC-1.3 drives the expression of male piRNAs. However, the experiments have been conducted in hermaphrodite germlines (or mutants) and not in male germlines. Maybe it is more correct to talk about spermatogenic expressed/enriched and oogenic expressed/enriched piRNAs instead of male/female piRNAs. In this regard, the authors mention that SNPC-1.3 is expressed during spermatogenesis and is specific for male. But, this has been only deducted by RNA-seq at different time point of hermaphroditic germline development. Ideally the authors should create a fluorescent tag version of SNPC-1.3 to evaluate its specific temporal expression in hermaphrodite as well as in male. If this is not possible the authors should perform immunostaining using FLAG antibody. This can be combined with SNPC-4 and TRA-1 staining. Also, it would be interesting to evaluate the expression of PIWI by staining and/or WB during spermatogenesis and oogenesis in snpc-1.3(-) mutants.

4) In the legend of Figure 3 it is written "SNPC-1.3::3xFlag binding normalized to input (mean ± SD of two technical replicates) on chromosome IV by ChIP-qPCR in a no-tag control, the strain expressing SNPC-4::3xFlag (wildtype), and in the strain expressing SNPC-4::3xFlag::AID, which undergoes TIR-1-mediated degradation by addition of auxin (snpc-4::aid)". This is very confusing and if it is true it means that the SNPC-1.3 ChIP can detect also the binding of SNPC-4 (they are both tagged with FLAG), hence the specific binding of SNPC-3.1 vs. SNPC-4 cannot be determined. Maybe there is a mistake in the legend and the authors should clarify this (it was difficult for me to find this information in the strain list). Also, to avoid such confusion the authors should not call wild-type an edited strain and all the information about the strain should be clearer in the figures.

5) In the Discussion, the authors wrote "Due to the highly clustered nature of C. elegans piRNAs, we have been unable to discriminate detectable differences in SNPC-4 binding between male and female piRNAs in snpc-1.3(-) mutants, as assayed by traditional ChIP-seq methods." I was unable to find these data in the manuscript. Are they present in another publication? Or those are data not shown? I think it would be important to add these data and comment on why only SNPC-4 is required for SNPC-1.3 binding and not vice versa. Also, in case these data are included, the authors should comment on the point I raised above.

6) In Figure 2A the levels of male piRNAs is not completely abolished (like in piwi mutant). The authors should comment on this and whether they think there are additional TF factors that drive the expression of male piRNAs. This is also evident in the small RNA-seq experiment in Figure 2D. Here, not all the male piRNA are depleted at similar levels. Maybe the authors can look at the consensus motif of the most affected vs. less affected piRNA groups to see if they find any differences. Also, it would be interesting to analyze the expression levels of the most affected ones compared to the less affected ones to verify that the severity of the loss is not caused by their relative abundance.

7) In Figure 5A the authors show that snpc-3.1 mutant has reduced brood size at 25°C similarly to prg-1 mutant. However, prg-1 mutant is not shown for comparison. Also, given that prg-1 mutant shows progressive sterility or mortal germline at 20°C and 25°C, it would be important to know at which generation they have performed their experiment and whether snpc-3.1 mutant is also mortal. Finally, they need to evaluate the fertility at 20°C as well as at 25°C to have a good comparison with prg-1 mutant.

Reviewer #3:

piRNAs are major regulators of gene expression and transposable elements in animal germlines. Many aspects of piRNA biology are sexually dimorphic and the mechanistic underpinnings of this dimorphism are largely unknown. In this work, Choi et al. provide compelling evidence that they have defined the mechanism by which some piRNAs are expressed specifically in the male germline of the nematode C. elegans. The subject matter is of broad interest. The paper is very well written. The data are of very high quality. The conclusions are well supported by the data. I recommend publishing the work in eLife.

https://doi.org/10.7554/eLife.60681.sa1

Author response

All reviewers and editors think that, in principle, this manuscript is suitable for publication in eLife. It provides intriguing novel insights into the regulation of piRNA expression and its sexually dimorphic nature, implicating an intriguing novel player in this regulatory phenomenon. However, there was also general consensus about the need for a number of revisions. They follow essentially into two parts:

1) The only necessary experimental revision that is required to bolster claims made in the manuscript relates to the demonstration of the specificity of SNPC-1.3 expression. You will see the criticism of the current approach detailed below (particularly by reviewer #1) and the request to use available reagents (epitope tagged alleles) to attempt in situ staining. smFISH is another option. Reviewer #4, a sperm expert, was pulled into the review process late, in order to corroborate the feasibility of these studies. In further discussion among the reviewers, reviewer #4 further states: "I think the question is male germline specificity of SNPC-1.3 rather than "sperm specificity". Sperm do not express any genes but the sperm producing germline does. Presumably, males will continually express snpc-1.3 while hermaphrodites will only express around L4. You can do antibody staining on whole worms or dissected gonads. You would expect expression in the germline of males but not in the germline of adult hermaphrodites." We hope these comments are helpful.

Our major revisions aim to demonstrate that SNPC-1.3 is predominantly expressed in the male germline. We have included the following data in a new Figure 2:

new Figure 2:

Figure 2A. RT-qPCR and western blotting analyses in germline-less worms using RNAi knockdown and mutants show that snpc-1.3 mRNA and protein are mainly expressed in the germline.

Figure 2B: snpc-1.3 mRNA and protein expression in him-8(-) males and fem-1(-) females shows SNPC-1.3 enrichment in the male germline.

Figure 2C: Immunofluorescence of SNPC-1.3 and SNPC-4 demonstrate that these two factors colocalize into nuclear foci in the male, but not hermaphrodite, germline.

2) The other set of revisions all deal with further data analysis and textual revisions/explanations. Reviewer #2 has the most extensive comments here and they all seem reasonable to address and require no further experimentation. All other reviewers have additional requests for editorial changes.

We have extensively addressed these other comments raised by the reviewers. Please find our detailed, point-by-point responses to each of the reviewers’ comments below. Collectively, we believe our revisions, based on the reviewers’ comments, strengthen our study and feel that it is now acceptable for publication in eLife.

Reviewer #1:

The manuscript submitted by Choi et al. entitled, "SNPC-1.3 is a sex-specific transcription factor that drives male piRNA expression in C. elegans" describes the identification of a novel sex-specific transcriptional regulator that controls the expression of Piwi interacting RNAs (piRNAs) in a sexually dimorphic manner. The authors do an excellent job of combining biochemical, genetic, and genomic approaches to support their conclusions. While a few questions remain, overall, the findings of the manuscript represent a significant advance in the field, and therefore, warrants publication in eLife.

A major point of the manuscript is that a seemingly generic transcriptional complex fulfils sperm-specific functions, via the sperm-expression of a specific subunit of the complex, SNPC-1.3. However, sperm-specificity of SNPC-1.3 is not satisfactorily shown. Only a single, non-quantified, Western Blot of whole animals is shown and the reader is asked to believe that the reduction in intensity of band(s) at specific stages/in specific mutant background(s) indicates sperm-specificity. Apart from a failure of proper quantification, this is not enough.

We appreciate the reviewer’s concerns and hope we have addressed them by clarifying the text for the existing figures and including a new Figure 2. Specifically, Figure 2 now includes SNPC-1.3 expression data at both the mRNA and protein level, with quantification, in males and females.

The authors have engineered two different epitope tags into the SNPC-1.3 locus and this should enable in situ antibody staining of whole animals. This should conclusively show the sperm-specificity of expression (not only sperm vs. oocyte, but also no expression in somatic tissues). Previous studies have shown the feasibility of antibody staining of sperm-expressed proteins.

We agree and now provide this experiment in Figure 2C, which now includes antibody staining of dissected adult germlines in males and hermaphrodites. While whole-mount staining of SNPC-1.3 would be informative, we have addressed SNPC-1.3 specificity in the germline by examining snpc-1.3 mRNA and protein levels via glp-1 RNAi and a glp-4 mutant in Figure 2A.

Reviewer #2:

In this manuscript, Kim and colleagues have identified a Transcription Factor (TF), SNPC-1.3, specifically expressed during spermatogenesis in the hermaphroditic gonad of C. elegans that drives the expression of male piRNAs. SNPC-1.3 forms a specific complex with the known piRNA TF SNPC-4 during spermatogenesis. Indeed, animals lacking SNPC-1.3 specifically lose the expression of male piRNAs, even though they acquire some expression of female piRNAs. Moreover, they have identified another TF, TRA-1, which restricts the expression of SNPC-1.3 exclusively during spermatogenesis. TRA-1 is expressed during oogenesis and binds the snpc-1.3 promoter to silence the expression of SNPC-1.3 during oogenesis. Thus, mutation of the binding sites of TRA-1 leads to ectopic expression of male piRNAs during spermatogenesis. Finally, snpc-1.3 mutation leads to spermatogenesis defects and loss of fertility similarly to piRNA mutants, suggesting a role for male piRNAs in spermatogenesis. Overall the experiments are well done and executed with appropriate controls. Even though the function of these male and female piRNAs are still uncharacterized, the study is certainly of general interests given the fact that is currently unknown how the transcription of male and/or female piRNAs are specifically achieved. The manuscript is well written, and the data are well presented, although some additional controls, experiments, and edits might help to solidify their findings. My only major concerns regard the specificity of binding and action of SNPC-1.3 for male-specific piRNAs. Given that mutation of sncp-1.3 affects both male and female piRNAs during spermatogenesis and there are not clear evidences of binding by ChIP of SNCP-1.3 on male piRNA promoters vs. the other piRNAs, it remains unclear from the present data how SNPC-1.3 drives the exclusive expression of male piRNAs, and how SNPC-1.3 cooperates with SNPC-4 to specifically bind the promoters of male piRNAs and not female piRNAs. The localization of SNPC-1.3, SNPC-4, and TRA-1 in hermaphrodite and male germlines might help to elucidate their temporal and sex-specific functions together with the specific binding of male piRNA consensus sequence. Below I have listed the specific comments that the authors should address in order that the paper may be considered for publication on eLife.

1) As I mention above, it remains unclear how SNPC-3.1 specifically binds the promoter of male piRNAs. The authors should evaluate whether the ChIP-seq signal is enriched around the consensus motif of male piRNAs and not the female (or neutral NE) piRNAs.

We appreciate the reviewer’s comment. Given that we did not have the necessary nucleotide resolution in our ChIP-seq data to definitely discriminate whether SNPC-1.3 binds to the promoter of male piRNAs, we acknowledged this caveat and stated the following in our first submission:

“While we observed SNPC-1.3 binding to be enriched upstream of male piRNA loci (Figure 4), we cannot definitively conclude that SNPC-1.3 binds to the male-specific core motif, given the limitations of conventional ChIP-seq in resolving the SNPC-1.3 footprint. Identifying the factors that specifically bind the 8 nt core motif and other potential cis-regulatory elements important for sex-specific piRNA expression will require further investigation.”

Also, it is not clear how SNPC-1.3 provides the specificity to SNPC-4 in transcribing only male piRNAs. For instance, they have mentioned in the Discussion that SNPC-4 can still bind piRNA loci in absence of SNPC-1.3 (the authors should also provide such data, see other points).

We thank the reviewer for this point and agree that having SNPC-4 ChIP would enhance our understanding. Unfortunately, while we have tried very hard, we have not yet been able to successfully complete this experiment: ChIP signals for SNPC-4 are notoriously weak and therefore we did not include these experiments. However, we do not think the lack of SNPC-4 ChIP data in snpc-1.3(-) significantly detracts from answering the major hypotheses of this paper. In the Discussion, we have made sure to emphasize that we do not yet have conclusive evidence that SNPC-4 binding to piRNA promoters requires SNPC-1.3.

Moreover, in the Discussion they mentioned that they "cannot definitively conclude that SNPC-1.3 binds to the male-specific core motif, given the limitations of conventional ChIP-seq in resolving the SNPC-1.3 footprint. Identifying the factors that specifically bind the 8 nt core motif and other potential cis-regulatory elements important for sex-biased piRNA expression will require further investigation". I think the authors can at least assess whether SNPC-1.3 binds the male consensus motif and not the female one in vitro by EMSA.

We thank the reviewers for their suggestion. While an EMSA, in theory, is a good way to test specificity of the male motif, we do not find it feasible for this paper. Specifically, in vitro work done using fly cells shows that SNPC-1.3 binding can only occur within the context of the entire SNPC1/3/4 complex. Therefore, we decided against performing these types of experiments because we expect that an EMSA may not be feasible unless we also purify multiple SNAP complex proteins, as well as other piRNA factors (such as the TOFUs and PRDE-1). Additionally, the presence of the core motif may not be sufficient for SNPC-1.3 binding.

2) In absence of any specific binding of SNPC-1.3 to male/spermatogenic piRNAs the only experiment that suggests such specific function is the piRNA quantification in snpc-1.3(-) mutants. However, as they mentioned in their manuscript: "oogenesis-enriched piRNAs were upregulated at least 2-fold in snpc-1.3(-) mutants undergoing spermatogenesis and in him-8(-); snpc-1.3(-) males. These findings suggest that, in addition to activating male piRNAs, SNPC-1.3 suppresses the expression of female piRNAs in the male germline, possibly by preferentially recruiting core factors such as SNPC-4 to male piRNA loci". This model should be demonstrated by SNPC-4 ChIP in sncp-1.3(-) mutants. However, they mention in the Discussion that sncp-1.3(-) mutants do not affect SNPC-4 binding. So, this is unlikely the case.

Please see our previous comments on the feasibility of SNPC-4 ChIP. We have edited the Discussion to stress that the perturbation of SNPC-4 binding in snpc-1.3(-) is our working hypothesis and requires further investigation in future studies.

An alternative explanation of these results might be that mutation in sncp-1.3 caused some developmental defects in the temporal switching between spermatogenesis and oogenesis. Also, the ChIP signal of SNPC-1.3 do not appear to occur specifically on male piRNA, but also on neutral non-enriched (NE) piRNAs and to some degree to female piRNAs (Figure 3E). Even in the context of tra-1 mutation there is not an exclusive upregulation of male piRNA, but also downregulation of female piRNA. Therefore, the specificity of SNPC-3.1 for male piRNA transcription is not clear.

We thank the reviewers for these observations and agree that the loss of male piRNAs could be a consequence of increased female piRNA expression, but technical limitations make this difficult to test. While it is plausible that snpc-1.3 is involved in the sexual identity switch of the germline, we think this is highly unlikely as we do not observe any morphological defects that would suggest transformation of sexual identity from male to female in snpc-1.3 mutants.

In reference to the lack of specificity of SNPC-1.3 binding to male, female and NE piRNAs, we think this could be due to the technical limitations of our ChIP datasets. We have plotted the distance of the nearest neighboring piRNA for each piRNA in the two chromosome IV clusters (Author response image 1). As the distances between piRNAs fall below the average footprint obtained by conventional ChIP-seq methods, we were unable to identify distinct binding sites for individual piRNAs.

Author response image 1
Download asset Open asset
Distance of the nearest neighboring piRNA for each piRNA in the two chromosome IV clusters.

The SNAP complex is well defined as a transcription activator. We therefore believe that female piRNA repression is a result of sequestration of SNPC-4 by the male piRNA promoters rather than direct repression.We feel the novelty of our paper is based on the observation that SNPC-1.3-dependent regulation is required for the balance between male and female piRNAs. If the resolution of our ChIP was higher (e.g. to the level of Cut-N-Run or ChIP-exo), we hypothesize that we would be able to address whether or not SNPC-1.3 binds directly to male piRNA promoters.

3) Throughout the whole manuscript the authors wrote that SNPC-1.3 drives the expression of male piRNAs. However, the experiments have been conducted in hermaphrodite germlines (or mutants) and not in male germlines. Maybe it is more correct to talk about spermatogenic expressed/enriched and oogenic expressed/enriched piRNAs instead of male/female piRNAs. In this regard, the authors mention that SNPC-1.3 is expressed during spermatogenesis and is specific for male. But, this has been only deducted by RNA-seq at different time point of hermaphroditic germline development.

We thank the reviewer for these points and acknowledge that these terms can often be confusing. However, we would like to keep the existing designation of “male/female” piRNAs as we feel that the use “spermatogenic/oogenic” piRNAs would create additional confusion when describing piRNA populations that are inappropriately expressed during spermatogenesis and oogenesis in certain snpc-1.3 mutants. We also feel that this designation is appropriate as we used this terminology in our previous study (Billi et al., 2013), which validated that “male” and “female” piRNAs discovered by sequencing in male and female germlines are indeed expressed in hermaphrodites during spermatogenesis and oogenesis, respectively, by Taqman qPCR.

Ideally the authors should create a fluorescent tag version of SNPC-1.3 to evaluate its specific temporal expression in hermaphrodite as well as in male. If this is not possible the authors should perform immunostaining using FLAG antibody. This can be combined with SNPC-4 and TRA-1 staining.

Done. We have examined SNPC-1.3 and SNPC-4 expression by immunostaining in the new Figure 2C, which shows that SNPC-1.3 co-localizes with SNPC-4 and is detectable only in male germline nuclei.

Also, it would be interesting to evaluate the expression of PIWI by staining and/or WB during spermatogenesis and oogenesis in snpc-1.3(-) mutants.

Previous studies have shown that PRG-1 localizes to perinuclear granules and its function in the piRNA RISC complex is likely downstream of piRNA transcription. Nevertheless, while evaluating PRG-1 expression in the context of snpc-1.3(-) mutants could be interesting, we feel that this analysis is outside the scope of this study.

4) In the legend of Figure 3 it is written "SNPC-1.3::3xFlag binding normalized to input (mean ± SD of two technical replicates) on chromosome IV by ChIP-qPCR in a no-tag control, the strain expressing SNPC-4::3xFlag (wildtype), and in the strain expressing SNPC-4::3xFlag::AID, which undergoes TIR-1-mediated degradation by addition of auxin (snpc-4::aid)". This is very confusing and if it is true it means that the SNPC-1.3 ChIP can detect also the binding of SNPC-4 (they are both tagged with FLAG), hence the specific binding of SNPC-3.1 vs. SNPC-4 cannot be determined.

We apologize for this error in the text. The experiments were performed in snpc-1.3::3xflag worms in the N2 and snpc-4::aid::ollas backgrounds. We have corrected this in the legend.

Maybe there is a mistake in the legend and the authors should clarify this (it was difficult for me to find this information in the strain list). Also, to avoid such confusion the authors should not call wild-type an edited strain and all the information about the strain should be clearer in the figures.

We thank the reviewers for this point. The legends, figures, and text have been changed to clarify the genetic background of each strain.

5) In the Discussion, the authors wrote "Due to the highly clustered nature of C. elegans piRNAs, we have been unable to discriminate detectable differences in SNPC-4 binding between male and female piRNAs in snpc-1.3(-) mutants, as assayed by traditional ChIP-seq methods." I was unable to find these data in the manuscript. Are they present in another publication? Or those are data not shown? I think it would be important to add these data and comment on why only SNPC-4 is required for SNPC-1.3 binding and not vice versa. Also, in case these data are included, the authors should comment on the point I raised above.

We apologize for this confusion. We have not been able to generate our own SNPC-4 ChIP +/- snpc-1.3 in this manuscript. We have edited the text to stress that we anticipate resolving changes in SNPC-4 binding in snpc-1.3(-) will be difficult.

6) In Figure 2A the levels of male piRNAs is not completely abolished (like in piwi mutant). The authors should comment on this and whether they think there are additional TF factors that drive the expression of male piRNAs.

We agree with the reviewers that it is possible that other male transcription factors exist. However, we think the slightly elevated expression of male piRNA expression in snpc-1.3 compared to prg-1 mutants (Figure 3A) is likely a result of leaky transcription at piRNA loci. Given that PRG-1 is the major Argonaute that loads all piRNAs downstream of biogenesis, we do not find it surprising that prg-1 mutants exhibit more severe loss of piRNAs compared to snpc-1.3 mutants.

This is also evident in the small RNA-seq experiment in Figure 2D. Here, not all the male piRNA are depleted at similar levels. Maybe the authors can look at the consensus motif of the most affected vs. less affected piRNA groups to see if they find any differences.

Our motif analysis has demonstrated that the overwhelming majority of SNPC-1.3-dependent male piRNAs have the 5’C motif (3,429/3,452).

Also, it would be interesting to analyze the expression levels of the most affected ones compared to the less affected ones to verify that the severity of the loss is not caused by their relative abundance.

We thank the reviewers for this suggestion. To test if the degree of male piRNA expression changes seen in snpc-1.3(-) mutants are correlated to their relative abundance during wildtype spermatogenesis, we plotted the absolute value of the log2(fold-change) of each male piRNA depleted in snpc-1.3(-) mutants against its mean expression level during spermatogenesis in wildtype (Author response image 2). We conclude from this additional analysis that, overall, piRNAs with greater relative abundance in wildtype do show greater depletion in snpc-1.3(-) mutants during spermatogenesis.

Author response image 2
Download asset Open asset
Absolute value of the log2(fold-change) of each male piRNA depleted in snpc-1.3(-) mutants against its mean expression level during spermatogenesis in wildtype.

7) In Figure 5A the authors show that snpc-3.1 mutant has reduced brood size at 25°C similarly to prg-1 mutant. However, prg-1 mutant is not shown for comparison. Also, given that prg-1 mutant shows progressive sterility or mortal germline at 20°C and 25°C, it would be important to know at which generation they have performed their experiment and whether snpc-3.1 mutant is also mortal. Finally, they need to evaluate the fertility at 20°C as well as at 25°C to have a good comparison with prg-1 mutant.

We thank the reviewers for bringing up this point. We have made sure to include in the legends and Materials and methods that all brood count assays were shifted and assayed at the P0 generation at 25°C in Figure 6. We were careful not to make any direct comparisons between snpc-1.3(-) and prg-1(-) fertility, but we did want to show that snpc-1.3(-) mutants exhibit significant fertility defects. We also see a significant but attenuated fertility defect in snpc-1.3(-) at 20°C (see Author response image 3). Although we agree with the reviewers that investigating the transgenerational effects of sex-specific piRNAs could be very interesting, we think this area is beyond the scope of this paper. However, we hope to characterize sex-specific transgenerational effects in future studies.

Author response image 3
Download asset Open asset
Fertility defect in snpc-1.3(-) at 20°C.
https://doi.org/10.7554/eLife.60681.sa2

Article and author information

Author details

  1. Charlotte P Choi

    Department of Biology, Johns Hopkins University, Baltimore, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Rebecca J Tay
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1857-6599

  2. Rebecca J Tay

    Department of Biology, Johns Hopkins University, Baltimore, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Charlotte P Choi
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2270-0505

  3. Margaret R Starostik

    Department of Biology, Johns Hopkins University, Baltimore, United States
    Contribution
    Data curation, Formal analysis, Visualization, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5274-2765

  4. Suhua Feng

    1. Department of Molecular, Cell and Developmental Biology, University of California, Los Angeles, Los Angeles, United States
    2. Eli and Edythe Broad Center of Regenerative Medicine and Stem Cell Research, University of California, Los Angeles, Los Angeles, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  5. James J Moresco

    Center for the Genetics of Host Defense, University of Texas Southwestern Medical Center, Dallas, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  6. Brooke E Montgomery

    Department of Biology, Colorado State University, Fort Collins, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  7. Emily Xu

    Department of Biology, Johns Hopkins University, Baltimore, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  8. Maya A Hammonds

    Department of Biology, Johns Hopkins University, Baltimore, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  9. Michael C Schatz

    1. Department of Biology, Johns Hopkins University, Baltimore, United States
    2. Department of Computer Science, Johns Hopkins University, Baltimore, United States
    Contribution
    Formal analysis, Supervision, Methodology
    Competing interests
    No competing interests declared

  10. Taiowa A Montgomery

    Department of Biology, Colorado State University, Fort Collins, United States
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7857-3253

  11. John R Yates III

    Department of Molecular Medicine, The Scripps Research Institute, La Jolla, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5267-1672

  12. Steven E Jacobsen

    1. Department of Molecular, Cell and Developmental Biology, University of California, Los Angeles, Los Angeles, United States
    2. Howard Hughes Medical Institute, University of California, Los Angeles, Los Angeles, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared

  13. John K Kim

    Department of Biology, Johns Hopkins University, Baltimore, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Project administration, Writing - review and editing
    For correspondence
    jnkim@jhu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9838-3254

Funding

National Science Foundation (DGE-1746891)

  • Rebecca J Tay

National Institute of General Medical Sciences (R35 GM130272)

  • Suhua Feng
  • Steven E Jacobsen

National Institute of General Medical Sciences (R35 GM119775)

  • Brooke E Montgomery
  • Taiowa A Montgomery

National Institute of General Medical Sciences (R01 GM12301)

  • Charlotte P Choi
  • Rebecca J Tay
  • Margaret R Starostik
  • Emily Xu
  • Maya A Hammonds
  • John K Kim

National Institute of General Medical Sciences (R01 GM118875)

  • Charlotte P Choi
  • Rebecca J Tay
  • Margaret R Starostik
  • Emily Xu
  • Maya A Hammonds
  • John K Kim

National Institute of General Medical Sciences (P41 GM103533)

  • James J Moresco
  • John R Yates III III

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Himani Galagali and Natasha Weiser for helpful comments on the manuscript. We thank members of the Kim Lab (Amelia Alessi, Mindy Clark, Gregory Fuller, Jessica Kirshner, Alex Rittenhouse, Darius Mostaghimi, Lars Benner), Tatjana Trcek, Jocelyn Haversat, Yumi Kim, Angela Andersen, Aurelia Mapps, and Jacqueline Tay for helpful suggestions. Computational resources were provided by the Maryland Advanced Research Computing Center (MARCC). Some strains were provided by the Caenorhabditis Genetics Center, which is funded by the NIH Office of Research Infra-structure Programs (P40 OD010440). This work was supported by grants from the NSF DGE-1746891 (to RJT), NIH R35 GM130272 (to SEJ); NIH R35 GM119775 (to TAM); and NIH R01 GM129301 and NIH R01 GM118875 (to JKK).

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Oliver Hobert, Howard Hughes Medical Institute, Columbia University, United States

Reviewer

  1. Scott Kennedy, Harvard University, United States

Publication history

  1. Received: July 2, 2020
  2. Accepted: February 2, 2021
  3. Version of Record published: February 15, 2021 (version 1)

Copyright

© 2021, Choi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,434
    Page views
  • 173
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Charlotte P Choi
  2. Rebecca J Tay
  3. Margaret R Starostik
  4. Suhua Feng
  5. James J Moresco
  6. Brooke E Montgomery
  7. Emily Xu
  8. Maya A Hammonds
  9. Michael C Schatz
  10. Taiowa A Montgomery
  11. John R Yates III
  12. Steven E Jacobsen
  13. John K Kim
(2021)
SNPC-1.3 is a sex-specific transcription factor that drives male piRNA expression in C. elegans
eLife 10:e60681.
https://doi.org/10.7554/eLife.60681

Categories and tags

Research organism

Further reading

    1. Chromosomes and Gene Expression
    2. Developmental Biology

    The long noncoding RNA Charme supervises cardiomyocyte maturation by controlling cell differentiation programs in the developing heart

    Valeria Taliani, Giulia Buonaiuto ... Monica Ballarino
    Research Article Updated

    Long noncoding RNAs (lncRNAs) are emerging as critical regulators of heart physiology and disease, although the studies unveiling their modes of action are still limited to few examples. We recently identified pCharme, a chromatin-associated lncRNA whose functional knockout in mice results in defective myogenesis and morphological remodeling of the cardiac muscle. Here, we combined Cap-Analysis of Gene Expression (CAGE), single-cell (sc)RNA sequencing, and whole-mount in situ hybridization analyses to study pCharme cardiac expression. Since the early steps of cardiomyogenesis, we found the lncRNA being specifically restricted to cardiomyocytes, where it assists the formation of specific nuclear condensates containing MATR3, as well as important RNAs for cardiac development. In line with the functional significance of these activities, pCharme ablation in mice results in a delayed maturation of cardiomyocytes, which ultimately leads to morphological alterations of the ventricular myocardium. Since congenital anomalies in myocardium are clinically relevant in humans and predispose patients to major complications, the identification of novel genes controlling cardiac morphology becomes crucial. Our study offers unique insights into a novel lncRNA-mediated regulatory mechanism promoting cardiomyocyte maturation and bears relevance to Charme locus for future theranostic applications.

    1. Cancer Biology
    2. Chromosomes and Gene Expression

    eRNA profiling uncovers the enhancer landscape of oesophageal adenocarcinoma and reveals new deregulated pathways

    Ibrahim Ahmed, Shen-Hsi Yang ... Andrew D Sharrocks
    Research Article Updated

    Cancer is driven by both genetic and epigenetic changes that impact on gene expression profiles and the resulting tumourigenic phenotype. Enhancers are transcriptional regulatory elements that are key to our understanding of how this rewiring of gene expression is achieved in cancer cells. Here, we have harnessed the power of RNA-seq data from hundreds of patients with oesophageal adenocarcinoma (OAC) or its precursor state Barrett’s oesophagus coupled with open chromatin maps to identify potential enhancer RNAs and their associated enhancer regions in this cancer. We identify ~1000 OAC-specific enhancers and use these data to uncover new cellular pathways that are operational in OAC. Among these are enhancers for JUP, MYBL2, and CCNE1, and we show that their activity is required for cancer cell viability. We also demonstrate the clinical utility of our dataset for identifying disease stage and patient prognosis. Our data therefore identify an important set of regulatory elements that enhance our molecular understanding of OAC and point to potential new therapeutic directions.

    1. Cell Biology
    2. Chromosomes and Gene Expression

    Recruitment of Polo-like kinase couples synapsis to meiotic progression via inactivation of CHK-2

    Liangyu Zhang, Weston T Stauffer ... Abby F Dernburg
    Research Article Updated

    Meiotic chromosome segregation relies on synapsis and crossover (CO) recombination between homologous chromosomes. These processes require multiple steps that are coordinated by the meiotic cell cycle and monitored by surveillance mechanisms. In diverse species, failures in chromosome synapsis can trigger a cell cycle delay and/or lead to apoptosis. How this key step in ‘homolog engagement’ is sensed and transduced by meiotic cells is unknown. Here we report that in C. elegans, recruitment of the Polo-like kinase PLK-2 to the synaptonemal complex triggers phosphorylation and inactivation of CHK-2, an early meiotic kinase required for pairing, synapsis, and double-strand break (DSB) induction. Inactivation of CHK-2 terminates DSB formation and enables CO designation and cell cycle progression. These findings illuminate how meiotic cells ensure CO formation and accurate chromosome segregation.
