Mixed cytomegalovirus genotypes in HIV-positive mothers show compartmentalization and distinct patterns of transmission to infants

  1. Juanita Pang
  2. Jennifer A Slyker
  3. Sunando Roy
  4. Josephine Bryant
  5. Claire Atkinson
  6. Juliana Cudini
  7. Carey Farquhar
  8. Paul Griffiths
  9. James Kiarie
  10. Sofia Morfopoulou
  11. Alison C Roxby
  12. Helena Tutil
  13. Rachel Williams
  14. Soren Gantt
  15. Richard A Goldstein
  16. Judith Breuer  Is a corresponding author
  1. Division of Infection and Immunity, University College London, Cruciform Building, United Kingdom
  2. Departments of Global Health and Epidemiology, University of Washington, United States
  3. Institute of Immunology and Transplantation, Division of Infection and Immunity, University College London, United Kingdom
  4. Departments of Global Health, Epidemiology, Medicine (Div. Allergy and Infectious Diseases), University of Washington, United States
  5. University of Nairobi, Department of Obstetrics and Gynaecology, World Health Organization, Kenya
  6. Research Centre of the Sainte-Justine University Hospital, Department of Microbiology, Infectious Diseases and Immunology, University of Montréal QC, Canada
  7. Department of Infection, Immunity and Inflammation, UCL Great Ormond Street Institute of Child Health, University College London, United Kingdom
Research Article
  • Cited 0
  • Views 394
  • Annotations
Cite this article as: eLife 2020;9:e63199 doi: 10.7554/eLife.63199

Abstract

Cytomegalovirus (CMV) is the commonest cause of congenital infection and particularly so among infants born to HIV-infected women. Studies of congenital CMV infection (cCMVi) pathogenesis are complicated by the presence of multiple infecting maternal CMV strains, especially in HIV-positive women, and the large, recombinant CMV genome. Using newly developed tools to reconstruct CMV haplotypes, we demonstrate anatomic CMV compartmentalization in five HIV-infected mothers and identify the possibility of congenitally transmitted genotypes in three of their infants. A single CMV strain was transmitted in each congenitally infected case, and all were closely related to those that predominate in the cognate maternal cervix. Compared to non-transmitted strains, these congenitally transmitted CMV strains showed statistically significant similarities in 19 genes associated with tissue tropism and immunomodulation. In all infants, incident superinfections with distinct strains from breast milk were captured during follow-up. The results represent potentially important new insights into the virologic determinants of early CMV infection.

Introduction

Human cytomegalovirus (CMV) is the commonest infectious cause of congenitally acquired disability (Morton and Nance, 2006). Between 0.2% and 2% of all live births have congenital CMV infection (cCMVi), and of these, an estimated 15–20% develop permanent sequelae ranging from sensorineural hearing loss to severe neurocognitive impairment (Boppana et al., 2013; Dollard et al., 2007). Maternal coinfection with HIV, even when mitigated by antiretroviral treatment, is associated with higher CMV viral loads in plasma, saliva, cervix, and breast milk, and a greater risk of both congenital and postnatal CMV transmission (Gantt et al., 2016a; Gantt et al., 2016b; Slyker et al., 2017; Richardson et al., 2016). Numerous studies have highlighted the negative health impacts of CMV on both HIV-infected and HIV-exposed uninfected (HEU) infants and children (Garcia-Knight et al., 2017; Gompels et al., 2012; Hsiao et al., 2013).

Primary maternal CMV infection during pregnancy confers a 30–40% risk of transmission to the foetus (Kenneson and Cannon, 2007). Pre-existing maternal CMV immunity appears to reduce the risk of cCMVi, though it is clearly imperfect (Britt, 2017). Over two-thirds of infants with cCMVi are born to seropositive women, which constitute 88.4% of women in the Kenyan community from whom these study participants were drawn (Maingi and Nyamache, 2014). Moreover, the overall risk of cCMVi is directly proportional to the maternal seroprevalence in a population (de Vries et al., 2013). Increasing evidence points to the importance of maternal CMV reinfection with new antigenic strains during pregnancy as a major risk factor for non-primary cCMVi (Britt, 2017; Boppana et al., 1999). Evidence that household children may be a source of maternal reinfection provides additional support for this hypothesis (Boucoiran et al., 2018; Barbosa et al., 2018).

The CMV genome is the largest of the human herpesviruses. Regions of extensive sequence variability, together with high levels of recombination between different strains, result in high diversity for a DNA virus (Lassalle et al., 2016; Pokalyuk et al., 2017; Sackman et al., 2018). Individuals are often infected with multiple CMV strains. We have recently demonstrated that separate CMV haplotypes can be resolved from high-throughput sequencing data (Cudini et al., 2019). This advance, by enabling tracking of individual genomes within mixed CMV infections, has already revealed the impact of mutation, recombination, and selection in shaping the course of infection (Cudini et al., 2019). Here we apply these methods to CMV genomes sequenced from samples from five HIV-infected Kenyan women and their infants that were collected between 1993 and 1998 originally for studies of maternal–infant HIV transmission (Richardson et al., 2016). By reconstructing genome-wide haplotypes from these longitudinal samples, we are able to examine the diversity of CMV shed by HIV-infected women and the specific genotypes that are transmitted in congenital and postnatal infections, and to reconstruct the likely chronology with which specific CMV variants were transmitted from mothers to infants.

Results

Participant characteristics, sampling, and depth of sequencing

Details of the study cohort, follow-up, sample collection, and HIV and CMV infection status and transmission have been previously described (Drake et al., 2012; Roxby et al., 2014; Slyker et al., 2014). Sufficient residual sample was available from the five families analysed here. To maximize the chance of recovering near full genomes, we selected samples reported in the original publication (Roxby et al., 2014) to have >103 copies/ml, as this is the limit at which we generally can generate whole genomes from blood. Of the five mother–infant pairs analysed, four infants were HEU (infants 22, 123, 41, 14), and one was HIV infected (infant 12).

CMV viral loads and sequencing

Cervical, breast milk, and infant blood CMV viral loads; mother blood plasma HIV viral loads; and time of sample collection for the five mother–infant pairs studied are shown in Figure 1. The percentage of genome coverage and mean read depths are shown in Table 1. While breast milk samples had greater than 70% coverage at depths of 10× or more, the cervical and infant samples were generally of lower depth, likely due to degradation of DNA due to the age and handling of the samples; genome coverage and mean de-duplicated read depth were directly related to actual CMV genome copy number present in the input material (Figure 1—figure supplement 1). For all subsequent analysis, we removed samples with genome coverage of less than 20%. Fourteen of the remaining 20 cervical and baby samples had genome coverage above 70% and read depths of greater than 10× (Table 1).

Figure 1 with 1 supplement see all
Cytomegalovirus (CMV) viral loads of longitudinal samples for each family from breast milk (red), baby blood spots (green), and cervix (blue), and HIV viral loads from mother’s blood plasma.

Vertical line indicates date of delivery. Horizontal line indicates minimum threshold of detection. Red circles indicate the samples that were submitted for whole-genome sequencing.

Table 1
Sequencing characteristics for samples from each family.

% OTR, % of on target read; % Genome, % of genome coverage; % Dup, % of duplicated reads. Samples with genome coverages too low to be included in any analysis are shaded in grey. Cervical or baby samples with good coverage and read depth are highlighted in yellow.

Sample% OTR% Genome% DupMean depthViral load
Family 12
Breast milk 2W26.419929.49224.451,235,136.63
Breast milk 6W68.999913.84578.5614,926,741
Breast milk 14W76.4995.02683.047,309,960
Breast milk 6M77.47998.07730.0410,876,521
Breast milk 12M77.81997.68779.726,135,712.5
Cervix 38W pregnant14.739947.56325.9795,842
Baby delivery1.357682.2731.8627,393.9395
Baby 6W0.02281.790.294067.86694
Baby 10W0.11277.772.631959.9679
Baby 9M1.17879.4128.532501.75195
Family 14
Breast milk 2W13.549865.41101.66232,442.219
Breast milk 6W60.329849.85656.4720,485,190
Breast milk 14W11.159765.7780.09345,851.781
Cervix 38W pregnant0.226356.044.341377
Baby 6W1.49169.3521.3555,400.7148
Baby 14W3.339678.59113.923960.64233
Baby 6M0.346674.1111.42154.414169
Baby 12M0.02775.970.753054.47485
Family 22
Breast milk 2W6.089634.2254.3455,000.2891
Breast milk 6W43.189844.57352.49107,861.141
Breast milk 14W6.49744.4138.356,883.9805
Cervix 34W pregnant0.164654.952.971125
Cervix 38W pregnant0.166747.914.141377
Baby 2W0.01146.340.031703.49292
Baby 6W0.08143.610.0322,082.6465
Baby 14W2.299279.4246.5310,962.7197
Baby 6M0.33379.365.982124.86548
Baby 9M0.222579.335.0182,937.5
Family 41
Breast milk 2W43.339860.89224.537,163,743
Breast milk 6W37.059861.89289.61323,325.531
Breast milk 14W48.159868.02438.052,697,832.75
Cervix 38W pregnant0.619147.5312.6122
Baby 14W0.123274.474.671848.62402
Family 123
Breast milk 2W16.119860.11117.25518,071.875
Breast milk 6W16.969864.77107.35262,400.719
Breast milk 14W13.959864.01122.08518,071.875
Breast milk 6M15.819863.07101.92678,250.313
Cervix 34W pregnant2.459749.4641.917931
Cervix 38W pregnant1.369649.6128.074326
Baby delivery0.218410.936.1939.190735
Baby 10W2.199178.6443.9693,297.3047
Baby 6M0.132077.673.15428.83545
Baby 12M1.368580.1340.566205.88281

CMV genome sequence relatedness and diversity

We used multidimensional scaling to cluster CMV genomic sequences by nucleotide similarity (Figure 2), as use of phylogenetic trees is problematic due to the high levels of CMV recombination. Sequences from families 12, 14, and 41 all clustered by family. Families 22 and 123 clustered in two distinct spaces, suggesting infection with more than one strain. In all five cases, the first sample from each infant (indicated by an arrow) clustered most closely with that of its mother, indicating the likelihood of recent maternal–infant transmission.

Figure 2 with 2 supplements see all

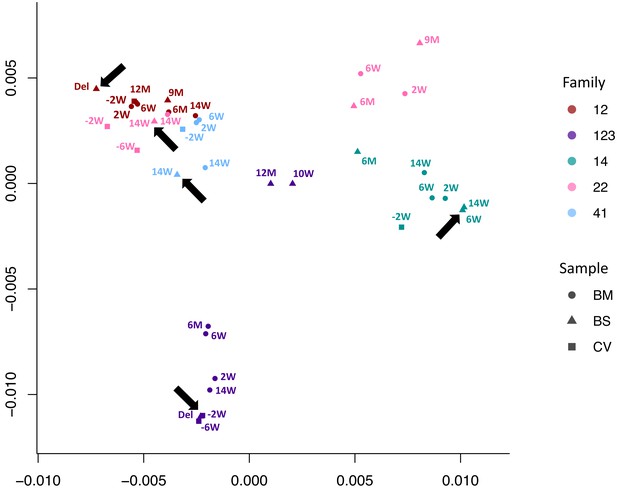

Multidimensional scaling showing clustering of consensus genome sequences for each sample by family.

Arrows indicate that the first baby blood spot clusters with their own maternal sequences in all cases.

To further investigate the possibility of mixed infections, we calculated the within-sample nucleotide diversity, a metric that we have shown previously can be used as a proxy for the likelihood of mixed strain infections (Cudini et al., 2019). It has previously been reported that a nucleotide diversity of 0.005 or above is likely to indicate a mixed infection (Cudini et al., 2019). Figure 2—figure supplement 1 shows that almost all the breast milk samples were highly diverse and therefore likely to contain multiple virus strains, a finding consistent with previous analyses of breast milk from HIV-infected women (Suárez et al., 2019). In contrast, the cervical and infant samples, with the exception of one cervical sample from family 12, showed lower diversity. We used subsampling to demonstrate that computed nucleotide diversities are robust down to sequencing depths of >10 (Figure 2—figure supplement 2). Low diversity was also observed in cervical and blood spots with higher coverage and read depths (Table 1).

Reconstruction of individual haplotypes reveals CMV compartmentalization

To resolve the individual viral sequences (haplotypes) within each sample, we used our previously described method HaROLD (Pang et al., 2020a). Figure 3 shows that haplotypes for each sample tended to cluster by family group albeit with clear evidence of distinct clusters even within a family, for example family 22.

Figure 3 with 3 supplements see all

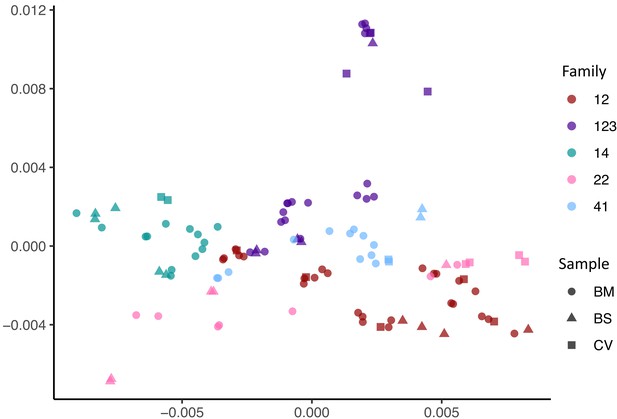

Multidimensional scaling showing clustering of haplotype sequences by family.

Colours indicate the families; shapes indicate the types of sample.

The presence of mixed infections within a single family was supported by data showing that a subset of the sequence haplotypes within each family had pairwise distances as great as those between unrelated GenBank sequences (Figure 3—figure supplement 1). Within-family phylogenetic analysis (Figure 3—figure supplement 2) shows distinct clusters of the phylogenetically related sequence haplotypes recovered from breast milk, cervix, and baby, likely to represent variants forming distinct viral strains (Figure 3—figure supplement 2). Based on the distribution of pairwise distances (see Materials and methods, Figure 3—figure supplement 3), we clustered similar haplotypes together into strains henceforth termed genotypes, so that all members of a cluster have a pairwise evolutionary distance with all other members less than 0.017, resulting in 26 clusters that we refer to as genotypes. In no cases did haplotypes from different families fulfil our clustering criterion confirming that haplotypes were not shared between unrelated families.

For ease of reference, genotypes were coloured differently, with the genotype predominating in the first cervical sample of each family coloured red (Figure 3—figure supplement 2). Other genotypes were coloured by their phylogenetic and pairwise distances from this genotype (Figure 3—figure supplement 2). From our data, we identified at total of 26 genotypes with between 3 and 9 genotypes for each family (Figure 3—figure supplement 2).

To elucidate the relationship between maternal and infant genotypes, we plotted the abundance of each within a sample over time (Figure 4). All five mothers were infected with multiple genotypes in breast milk. In many cases, genotypes within a single maternal sample were as genetically distant as unrelated database sequences, suggesting the presence of multiple distinct CMV strains (Figure 3—figure supplement 2, Figure 4). Relative genotype abundances present in breast milk changed over time. One unique genotype appeared in the breast milk of mother 22 at 6 weeks, disappearing from a subsequent sample (Figure 4). This genotype was genetically distinct not only from other genotypes in family 22 but also from genotypes in all other families, reducing the likelihood that it was a contaminant and may therefore have represented a new reinfection or reactivation of pre-existing latent infection. All cervical samples showed a single dominant genotype (Figure 4), including mother 12, whose sample was more diverse and found to contain low levels of other genotypes. Overall, the data point to compartmentalization of CMV populations between cervix and breast milk.

Figure 4 with 1 supplement see all

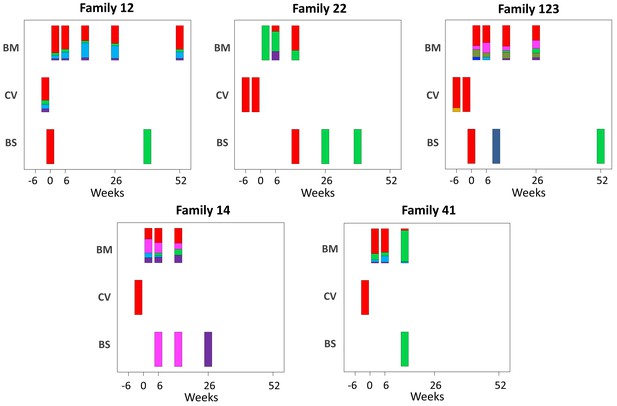

Abundance of haplotypes within each sample plotted for breast milk (BM), cervix (CV), and blood spots (BS).

The timing of sampling is shown along the x axis. For ease of reference, the genotype containing the most abundant haplotype present in the cervix is coloured red for each family. Thereafter sequences that are genetically closest to the red genotype (Figure 3—figure supplement 2) are coloured magenta. Genotypes that are as distant from the cervical genotype as unrelated GenBank sequences are coloured shades of green, blue, and purple. Single variants are coloured in shades of the nearest genotype.

Transmission bottlenecks

CMV genomes from individual infant blood spots also showed lower diversity (Figure 2—figure supplement 1), and predominance of one genotype (Figure 4), including samples with good sequence read depth, for example Baby12 DEL and 9M; Baby14 6W, 14W, and 6M; Baby22 14W; and Baby123 10W and 12M (Table 1), indicating the likelihood of a bottleneck in mother-to-child transmission. Two infants (families 12 and 123, Figure 1) who tested positive at birth were first infected with the genotype present in the greatest abundance in the cervix (Figure 4 and Figure 3—figure supplement 2). The same pattern was found in a third infant (family 22) whose first sample at 2 weeks of age tested positive (Figure 2, Figure 3—figure supplement 2, and Figure 4). Interestingly, all three of these congenitally infected infants were subsequently re-infected with distinct genotypes present in breast milk (Figure 4). Two infants with initially two (family 14) and three (family 41) negative tests from birth onwards, first became positive at 6 and 10 weeks, respectively. The genotypes detected in the blood spots from both of these infants were present in breast milk and differed from the most abundant genotype in cervix (Figure 4).

Subsampling to control for the impact of read depths

To determine the degree to which results were affected by the quality of sequence, we subsampled reads of different samples to show that sample diversity calculations are robust at read depths of ≥5 (Figure 2—figure supplement 2); eight of the 18 blood spots and four of seven cervical samples had mean read depth of ≥10 (Table 1) and all except one were of low diversity (Figure 2—figure supplement 1). To determine the extent to which read depth affected haplotype frequencies, the 12 month breast milk sample from mother 12, which had a mean read depth of 779.72 and five haplotypes (Figure 3—figure supplement 2), was subsampled down to mean read depth of <4 (Figure 4—figure supplement 1). All of the haplotypes in this sample were present for read depths of 22 or more, with three haplotypes identified even at the lowest read depth. Nine of 10 cervical and blood spot samples from four families with read depths of >20 (Table 1) had either single genotypes or multiple closely related variants (Figure 4), supporting previous conclusions around compartmentalization and transmission bottlenecks (Renzette et al., 2011).

Genotype compartmentalization

Given the observation of multiple haplotypes in each of the mother–baby pairs, we can ask whether certain genotypes are more likely than others to be found in different compartments and whether there are common characteristics of the genotypes observed in similar compartments in different individuals. In order to address this question, we considered all possible subsets of between two and five genotypes where each genotype was derived from a different mother–baby pair. We then used fixation index (FST) to compare the genetic similarities of all of the genotypes in this set relative to the remaining genotypes. p-Values and false discovery rates (FDRs) for each pair were calculated using non-parametric bootstrapping. In order to compare various subsets, we computed a confidence-weighted sum of FST (cwsFST) values for each subset. The distribution of cwsFST values is shown in Figure 5—figure supplement 1. As can be seen, there are a large number of subsets with significant cwsFST values, far in excess of what is observed for scrambled sequences (black line).

The sum weighted FST value for the subset of five genotypes that predominated in the cervical samples was not significantly different from other subsets, suggesting overall that genotypes that predominated in the cervix of these women were less closely related than most other comparisons (Figure 5—figure supplement 1, black arrow). Intriguingly, however, the subset of cervical genotypes from mother–baby pairs 12, 22, and 123 had a sum weighted FST with a value greater than 99.6% of the other subsets (Figure 5—figure supplement 1, blue arrow), indicating a strong signal of inter-patient viral convergence. These genotypes were from the three mother–baby pairs with proven congenital infection based on first detection of CMV in the baby at ≤2 weeks of age, and in whom the baby’s genotype was identical to that predominating in cervix. In contrast, the predominant cervical genotypes from mothers 14 and 41 showed low levels of relatedness (Figure 5—figure supplement 1, red arrow). The infant strains from 14 and 41 were most closely related to those from their mothers’ breast milk (Figure 3—figure supplement 2 and Figure 4).

The FST analysis identified 19 genes as likely to be contributing to the genetic similarity between congenitally transmitted genotypes from mothers 12, 22, and 123 (FDR < 0.05) (Figure 5). The comparison between these congenitally transmitted and other genotypes generally yielded the same genes when the pairwise difference was varied to cluster haplotypes into more or fewer genotypes (Figure 5—figure supplement 2), suggesting that this finding is not an artefact of decisions about haplotype clustering.

Figure 5 with 2 supplements see all

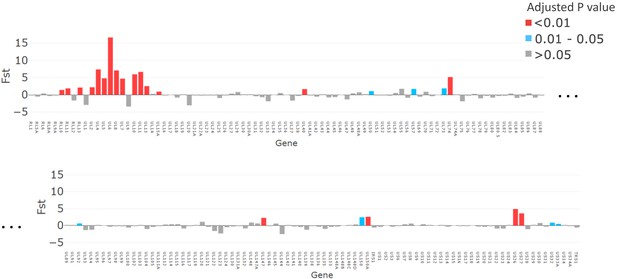

The magnitude of fixation index (FST) values plotted for each gene (x axis).

p-Values, adjusted with false discovery rate, are shown in red for p<0.01, grey for p>0.05, and turquoise for p=0.01–0.05.

Discussion

We used next-generation sequencing and haplotype reconstruction of individual CMV genomes, obtained from samples of HIV-infected women and their infants, to identify mixed infections, compartmentalization, and distinct viral-genotype associations with transmission of CMV from mother-to-infant. Breast milk CMV showed high nucleotide diversity and, as has been previously reported (Suárez et al., 2019), contained a mixture of viral genotypes, some of which were as genetically distant from each other as unrelated GenBank sequences and can therefore be considered distinct viral strains. Cervical samples were of low nucleotide diversity and dominated by a single viral genotype that was, with one exception, present in lower abundance in breast milk. Our data fit with most but not all (Puchhammer-Stöckl et al., 2006) previous reports of CMV within-host compartmentalization based on genotyping of subgenomic fragments (Hage et al., 2017; Kadambari et al., 2017; Ross et al., 2011; Renzette et al., 2013). We found little evidence for widespread new superinfecting or reactivating viruses in these mothers. In line with the findings from the immunosuppressed RhCMV monkey model of congenital infection, cCMVi (Vera Cruz et al., 2020) genotypes (strains) comprised families of closely related haplotypes. However, unlike the finding for congenitally transmitted gB and gL RhCMV variants, even where we found transmission of one genotype, maternal and infant haplotypes were not completely identical either in early, potentially congenital CMV infections or in postnatally transmitted viruses from breast milk. Neither were haplotypes sampled at different times from maternal breast milk conserved, suggesting a measure of de novo mutation in this patient group, in line with the previous findings (Sackman et al., 2018).

Our method of reconstructing viral haplotypes in serial samples provides insights into the natural history of CMV infection. While all mothers had mixtures of genotypes in breast milk, the proportions changed over time for some (families 22 and 41) and remained more stable in others. Whether expanding genotypes in mothers 22 and 41 had been recently acquired is not known but would be consistent with incident reinfection. In contrast, all infants were initially infected with a single genotype (Figure 4), supporting a bottleneck to CMV transmission (Cudini et al., 2019; Vera Cruz et al., 2020; Stanton et al., 2010). Apparent reinfection by viruses present in breast milk occurred in all four infants with multiple samples (Figure 4). We posit that the appearance of a new strain in an infant sampled from birth can confidently be interpreted as a newly acquired exogenous virus rather than reactivation of a previously undetected one. In all cases, the reinfecting strains were genetically distant from and replaced the previously dominant strain (Figure 4). Taken together with the rise and fall of infant CMV viral loads over time (Figure 1), this pattern is consistent with immunity against the infants’ first CMV strain not being protective against reinfection with antigenically distinct strains, a concept that can be further tested. Of note, reinfection with the closely related strains also appears to occur readily with both human CMV and animal models (Boucoiran et al., 2018; Hansen et al., 2010). Repeated reinfection with distinct strains may explain the high genetic variability observed between sequential samples in early sequencing studies of CMV genomes from congenitally infected infants (Pokalyuk et al., 2017; Renzette et al., 2013).

Those infants who tested positive at <3 weeks from birth were congenitally infected by definition (Boppana et al., 1999). In contrast, we cannot formally rule out cCMVi in the two others who were classified as having postnatal infection, since sensitivity of PCR detection of CMV DNA in newborn blood spots is only approximately 84% (Wang et al., 2015), and newborn saliva or urine were not available. However, this is unlikely given that only a small minority of infants have cCMVi, even among those born to HIV-infected women. Furthermore, it is striking that genotypes in babies with proven cCMVi were highly similar to maternal cervical genotypes, while those with negative tests for the first 6 weeks of life were not, and the strains detected later in the blood of these two infants were most similar to those in their mothers’ breast milk.

While it has previously been noted that a severe genetic bottleneck occurs during CMV transmission from mother to foetus or infant (Sackman et al., 2018; Renzette et al., 2013; Mayer et al., 2017), it remains unknown whether CMV transmitted/founder virus populations share genotypic features that confer a fitness advantage for establishing an initial infection, such as seen in HIV (Joseph et al., 2015). Notwithstanding the apparent dominance of one genotype in each of the cervical samples, our analysis did not show evidence for inter-patient convergence of cervical genotypes per se. Rather the three cervical genotypes that were detected in babies 12, 22, and 123, who were infected at birth showed a higher level of genetic similarity than over 99.6% of other subset comparisons and much greater than would be expected by chance (black line) (Figure 5—figure supplement 1). Nineteen genes (Figure 5, Table 2) had particularly high (p<0.01) similarity scores. Twelve of the 19 genes with the highest similarity scores (Figure 5) are part of the highly diverse RL11 gene family. Uniquely, RL11 genes form an island of linkage within the otherwise highly recombinant CMV genome (Lassalle et al., 2016). Phylogeny of primate CMV RL11 complexes recapitulates the evolutionary history of the cognate host, suggesting it to be a potential driver of CMV co-evolution and speciation (Lassalle et al., 2016). It is intriguing that RL11 family proteins influence tissue tropism (Stanton et al., 2010) or are immunomodulatory (Stanton et al., 2010; Cortese et al., 2012; Van Damme and Van Loock, 2014; Pérez-Carmona et al., 2018; Bruno et al., 2016; Gabaev et al., 2014). Together with its functional properties (Table 2) and extreme diversity (Lassalle et al., 2016), the possibility that within-species CMV RL11 gene-family variation may also influence within-host viral adaption to different compartments and/or transplacental transmission presents a tractable hypothesis that can now be tested. cCMVi is thought to occur primarily through maternal viremia followed by replication in placental cytotrophoblasts resulting in spread to the foetus (Pereira et al., 2017). The three mothers who transmitted their viruses congenitally had higher cervical viral loads than mothers whose babies become infected postpartum (Figure 1). Analysis of data from the whole cohort of mothers confirmed that women who transmitted CMV in utero had mean cervical CMV vial loads at 38 weeks that were 0.83 log10 copies/ml (SD = 1.0, p=0.02) higher than women who did not transmit CMV in utero (data not shown) (Roxby et al., 2014). We therefore speculate that virus sampled in the cervix is representative of CMV populations that infect and cross the placenta and that a possible explanation for our findings is that the properties that promote replication to higher titres in genital tissue may also predispose to transplacental infection.

Table 2
Open reading frames (ORFs) identified by fixation index (FST) as being significantly more similar in strains transmitted prenatally.

LD: Found to contain one of 33 hotspots of genetic linkage disequilibrium (Lassalle et al., 2016).

ORFLDFunction
UL10YPutative membrane glycoprotein. Immunosuppressive, Impairs T cell function (Bruno et al., 2016)
UL11YMembrane glycoprotein. Modulates T cell signalling/function (Gabaev et al., 2014; Arcangeletti et al., 2015)
UL13Unknown function
UL4YPutative membrane glycoprotein (Van Damme and Van Loock, 2014)
UL5Putative membrane glycoprotein (Van Damme and Van Loock, 2014)
UL6YPutative membrane glycoprotein (Van Damme and Van Loock, 2014)
UL7YMembrane glycoprotein. Modulates chemo- and/or cytokine-signalling function (Pérez-Carmona et al., 2018)
UL8YTransmembrane glycoprotein. Inhibits proinflammatory cytokines (Pérez-Carmona et al., 2018)
US26Unknown function
US27YMembrane glycoprotein. Activates CXCR4 signalling to increase human cytomegalovirus replication (Frank et al., 2019)
UL150AFibroblast and epithelial cell entry (Houldcroft et al., 2016)
UL2Putative membrane glycoprotein (Van Damme and Van Loock, 2014)
RL11YMembrane glycoprotein. Binds IgG Fc domain involved in immune regulation (Van Damme and Van Loock, 2014)
UL147α-Chemokine homologue (Katoh and Standley, 2013; Paradis and Schliep, 2019)
UL40Control of NK recognition (Heatley et al., 2013)
RL13YGlycoprotein, repression of replication, binds IgG domain immune regulation (Stanton et al., 2010; Cortese et al., 2012)
RL10Membrane glycoprotein
UL57Ss DNA binding protein (Van Damme and Van Loock, 2014)
UL50Nuclear Egress complex. Reduces interferon-mediated antiviral effect (DeRussy et al., 2016)

Other genes with high similarity (FST) scores include US27, which codes for a G-protein-coupled receptor homologue that modulates signalling of the CXCR4 chemokine and may have a role during viral entry and egress (Frank et al., 2019), and US26 whose function is unknown. Less marked but still significantly different from non-congenitally transmitted strains, UL40 protein (Heatley et al., 2013) modulates natural killer (NK) cell function. NK cells are the most abundant lymphocytes in placental tissue (Pereira et al., 2017), while UL50 is also immunomodulatory (Lee et al., 2018; DeRussy et al., 2016). Finally, UL74, coding for glycoprotein O, which is highly significantly similar in all bar one comparisons (Figure 5—figure supplement 2), is part of the glycoprotein complex that is critical for tropism and entry into both fibroblasts and epithelial cells (Wu et al., 2017). Of interest, gB and gL, which showed considerable diversity in the congenital RhCMV model, were, as might be expected, not represented among the genes sharing significant genetic similarity in our analysis. One possibility that would unite our findings and those of the congenital RhCMV model is that CMV transmission bottlenecks are agnostic of variation in genes not implicated in transmission.

Being born to HIV-infected women is a major risk factor for cCMVi as well as long-term CMV-related complications, whether or not the child acquires HIV (Garcia-Knight et al., 2017; Gompels et al., 2012). We show here that, irrespective of the route of first infection, HEU children frequently acquire repeated infections with different CMV viruses within the first year of life. Preliminary evidence suggests that breast milk of HIV-uninfected women may have lower CMV viral loads and carry fewer strains (Arcangeletti et al., 2015). If this is true, the possibility that HEU, as well as HIV-infected, infants are exposed to greater numbers of CMV strains during infancy when compared with HIV-uninfected infants may provide an explanation for their worse clinical outcomes, a hypothesis that can now be tested in prospective studies. Similarly, these methods promise to be invaluable for studying the role of maternal CMV reinfection during pregnancy, a question of central importance in the field (Britt, 2017).

This study potentially provides several new insights into the pathogenesis of CMV infection. However, the study is limited by the small number of subjects, the fact that all women were HIV-1 infected and the lack of samples and data to absolutely confirm the route of CMV acquisition by these infants. Because we were only able to analyse maternal breast milk, cervical samples, and infant blood, and only intermittently, it is possible that some transmitted viral variants were not captured. Some, particularly cervical and blood spot samples, had low CMV viral loads and, as a result, suboptimal genome coverage. Mapping data confirmed that in these cases, sequence loss was random, excluding the possibility of systematic bias. To further address this potential bias, we subsampled samples with good coverage to identify read-depth thresholds above which the diversity estimation is robust and haplotype frequency to 5% and above is preserved (Figure 2—figure supplement 2 and Figure 4—figure supplement 1). Analysis of only those samples with read depths above the identified thresholds supported our overall conclusions. The quality of the sequence and the numbers of samples allowed for conclusions to be drawn at gene level only and precluded robust identification of putative motifs or single-nucleotide polymorphisms associated with biological differences.

In summary, by reconstructing the individual CMV haplotypes, we found evidence for mixed CMV infection in HIV-infected women, and compartmentalization of viral strains between cervical and breast milk. Infants appeared usually to acquire one virus genotype initially, indicating a transmission bottleneck, though subsequent reinfection with a second virus from maternal breast milk was common. We also found that viruses transmitted congenitally resembled the virus genotypes that were present at highest abundance in cervix, and shared genetic features that distinguished them from CMV strains predominating in breast milk and in the cervices of women whose infants were apparently first infected post-partum. These data provide new testable insights into the pathogenesis of CMV transmission from mothers to their infants, as well as tools to unravel the importance of viral diversity for reinfection and congenital transmission, questions that are central to the development of a vaccine to prevent the global burden of disease due to CMV.

Materials and methods

Samples were approved for research by the Institutional Review Board of the University of Washington and the Ethics and Research Committee of Kenyatta National Hospital IRB NCT00530777 and sequenced under the ULCP Biobank REC approval. Approval for use of anonymized residual diagnostic specimens was obtained through the University College London/University College London Hospitals (UCL/UCLH) Pathogen Biobank National Research Ethics Service Committee London Fulham (Research Ethics Committee reference: 12/LO/1089). Informed patient consent was not required.

Patient specimens

Request a detailed protocol

Mother–child pairs were selected from a randomized, placebo-controlled trial to determine the impact of twice-daily valacyclovir (500 mg) on breast milk HIV RNA viral load in HIV-1/HSV-2 co-infected women (NCT 00530777). Trial design, participant characteristics, and follow-up have been reported elsewhere (Drake et al., 2012; Roxby et al., 2014; Slyker et al., 2014) and the University of Washington Institutional Review Board and Kenyatta National Hospital Research and Ethics Committee approved the research. Women received short course antiretrovirals for prevention of mother-to-child HIV transmission, but no women or infants received combination antiretroviral therapy, as the study was conducted before recommendations for universal treatment. All women were HIV-1, HSV-2, and CMV co-infected. For this CMV genomics study, we selected five mother–infant pairs from the placebo arm, who had well-defined timing of infant CMV infection. All infants were HIV exposed, and one was HIV infected. Women had cervical swabs and blood specimens collected at 34 and 38 weeks gestation. Maternal blood and infant dried blood spots were collected delivery, then postpartum at 2, 6, 10, 14, 24, 36, and 52 weeks. Breast milk was collected at all times after delivery. Blood plasma, cervical swabs, and breast milk supernatant (whey) were cryopreserved at –80°C for the study of HIV and other co-infections.

DNA extraction and CMV DNA measurement

Request a detailed protocol

Viral nucleic acids were extracted from blood plasma, dried blood spots, breast milk supernatant, and cervical swabs as previously described using the Qiagen UltraSens Viral Nucleic Acid extraction kit (Roxby et al., 2014). Quantitative real-time PCR was used to measure CMV DNA levels in these specimens (Roxby et al., 2014).

Sure-select sequencing

Request a detailed protocol

Hybridization and library preparation were performed as previously described (Houldcroft et al., 2016). Briefly, extracted DNA was sheared by acoustic sonication (Covaris e220, Covaris Inc). DNA fragments underwent end-repair, A’-tailing, and (Illumina) adaptor ligation. DNA libraries were hybridized with biotinylated 120-mer custom RNA baits designed using all available CMV full genomes in GenBank for 16–24 hr at 65°C and subsequently bound to MyOne Streptavidin T1 Dynabeads (ThermoFisher Scientific). Following washing, libraries were amplified (18 cycles) to generate sufficient input material for Illumina sequencing. Paired-end sequencing was performed on an Illumina MiSeq using the 500 cycle v2 Reagent Kit (Illumina, MS-102–2003). Samples were sequenced in four different batches by family group.

Reads generated were quality checked and mapped to the Merlin reference sequence followed by removal of duplicates using the CLC Genomics Workbench ver. 10.1. Consensus sequence was extracted with a minimum coverage of 2×. All consensus sequences along with other GenBank reference sequences were aligned using MAFFT 7.212 (Katoh and Standley, 2013) and refined by manual editing.

Clustering

Request a detailed protocol

Pairwise distances between sequences were calculated using the dist.dna function from R package Ape v.5.3 (Paradis and Schliep, 2019). Sequences were clustered using multidimensional scaling as implemented by the cmdscale function from R package Stats v.3.6 (Team, 2012).

Nucleotide diversity

Request a detailed protocol

Nucleotide diversity was calculated by fitting the observed variant frequency spectrum to the mixture of two distributions, one representing sequencing errors (represented by a Beta distribution) and the other representing true diversity (represented by a four-dimensional Dirichlet distribution plus delta function, the latter representing invariant sites). The parameters for these two distributions were optimized by maximizing the log likelihood. This framework allows all of the sequencing data to be used and does not require pre-filtering the data to remove sites with low read depth or few variants resulting in the favourable robustness to read depth, as shown in Figure 2—figure supplement 2. Software is available for download at GitHub Repository, https://github.com/ucl-pathgenomics/NucleotideDiversity (copy archived at swh:1:rev:20814eda934c539608b30e8fe21ead282046fa8bPang et al., 2020b).

Haplotype reconstruction

Request a detailed protocol

Haplotype reconstruction was accomplished using HaROLD with default settings (Pang et al., 2020a). Details of this procedure are described in the associated publications. In brief, HaROLD employs a two-step process. The first step is based on the assumption that there are a limited number of haplotypes that are the same for all of the samples from a given mother/child data set, so that the differences in the frequencies of polymorphisms represent different mixtures of these haplotypes. HaROLD creates a set of haplotypes from each data set by selecting the set of haplotypes whose linear combinations optimally accounts for the observed variant frequencies. The number of haplotypes is chosen to maximize the log likelihood of the observed frequencies. The second step involves relaxing the assumption of constant haplotypes, with each sample treated individually. For each sample, reads are assigned probabilistically to the various haplotypes generated by the first step. These haplotype sequences and frequencies are then adjusted based on the assigned reads. The reads are then re-assigned to these adjusted haplotypes, and the procedure is repeated until convergence. During this process, haplotypes can be merged if that decreases the Akaike information criterion (Akaike, 1973). This procedure results in a set of haplotypes for each sample, loosely based on the haplotypes derived from the first step.

Haplotype trees

Request a detailed protocol

Maximum-likelihood trees of the haplotypes from each family were computed using RaxML v8.2.10, implementing the GTR model, with 1000 bootstrap replicates (Stamatakis, 2014).

Haplotype clustering

Request a detailed protocol

The haplotypes for each mother/baby data set were divided into genotypes. We calculated the pairwise evolutionary distance (the sum of distances on the evolutionary tree between the haplotypes and their latest common ancestor) for all pairs of haplotypes in each family. As shown in Figure 3—figure supplement 3, the observed distribution of such pairwise distances fits the sum of a gamma distribution (69.3%, alpha = 19.5, beta = 0.0015) and an exponential distribution (30.7%, mean = 0.01), indicative of two classes of relationships – pairs of sequences that are highly similar, modelled by the exponential, representing small accumulated variations, and pairs that are more distinct, represented by the gamma distribution. We chose the crossing point of these two distributions, at a cut-off distance of 0.017, as differentiating small variations from larger differences (Figure 3—figure supplement 3). We then grouped the haplotypes into clusters so that all members of a cluster have a pairwise evolutionary distance with all other members less than 0.017, resulting in 26 clusters that we refer to as genotypes. We used these groups to assign colours to the different haplotype clusters (genotypes) in Figure 4 and Figure 3—figure supplement 2.

We used FST to identify sequence characteristics associated with sets of genotypes. Consensus sequences were constructed for each genotype. FST values, representing the genetic difference between a subset of genotypes and the other genotypes, were calculated for each gene. p-Values and corresponding FDRs were estimated by non-parametric bootstrapping, through scrambling the bases at each position amongst the clusters. The results are shown for the 26 genotypes obtained with a cut-off distance of 0.017; changing this cut-off resulted in increased or decreased numbers of genotypes, but yielded similar results, especially for the more confident identifications (Figure 5—figure supplement 2).

Evaluating the similarity between subsets of genotypes

Request a detailed protocol

We use FST values to identify similarities between individual genes from subsets of genotypes compared with the other genotypes. In order to compare the magnitude of the similarities of different subsets, we would like to take the sum of the FST values for all genes where the similarities are real and not the result of random associations. As we cannot definitively identify these genes, we instead consider the sum of the FST values for all genes weighted by our confidence that the FST value is significant, represented as one minus the FDR.

Data availability

Request a detailed protocol

Sequence reads have been deposited in NCBI Sequence Read Archive under BioProject ID PRJNA605798.

All software used are available for download at GitHub Repository, https://github.com/ucl-pathgenomics/NucleotideDiversity and https://github.com/ucl-pathgenomics/HAROLD.

Data availability

Sequence reads have been deposited in NCBI Sequence Read Archive under BioProject ID PRJNA605798.

The following data sets were generated

References

  1. Book
    1. Akaike H
    (1973)
    Information Theory and an Extension of the Maximum Likelihood Principle, 2nd International Symposium on Information Theory
    Akademiai Ki à do.

Decision letter

  1. Margaret Stanley
    Reviewing Editor; University of Cambridge, United Kingdom
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Nanda Ramchandar
    Reviewer; UC San Diego, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper reports studies using genome sequencing and computational tools that allow haplotype reconstruction to follow individual cytomegalovirus genomes (CMV) within mixed infections in transmission by HIV-positive mothers to their infants. The report shows how novel genomic approaches and computational tools can be used to gain insights into the biology of congenital and postnatal CMV transmission. The reported observations have major implications for the understanding of the viral genetic correlates of tissue tropism and other biological properties, as well as for the development of vaccines to prevent congenital infection.

Decision letter after peer review:

Thank you for submitting your article "Mixed CMV genotypes in HIV positive mothers show compartmentalization and distinct patterns of transmission to infants" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Nanda Ramchandar (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

This is an interesting study that investigates the role of CMV (cytomegalvirus) genotype in congenital and post-natal transmission of CMV to infants born to HIV-positive mothers. The authors describe in a small group of subjects evidence of infection involving multiple strains that cluster by sample type and by family. By sampling at least 3 different sites (Cervix, Breast milk and infant blood) they trace the course of congenital CMV transmission and infection. Advances in high throughput sequencing (HTS) and HTS analysis allow the resolution of CMV haplotypes and therefore the subsequent tracking of CMV genomes from mixed CMV populations. The data presented build upon and add to the literature on this important issue and contribute to our understanding of the underlying pathophysiology of CMV transmission from infected mothers to their infants.

Essential revisions:

Reviewer 1:

1) The authors state that cervical samples were of low nucleotide diversity and dominated by a single viral genotype. How can the authors be sure that this is not due to the clearly lower viral load in these specimens?

2) Has the coverage of all CMV genes been sufficient and at a degree, which does justify conclusions withdrawn from Figure 5?

3) In the Materials and methods it is stated that 5 non-HIV infected children were selected, while according to the results obviously one HIV-infected child was included.

Reviewer 2:

1) The Keys for the Figure 2 and Figure 2—figure supplement 1 MDS plots needs to be clarified (appears to be missing the colors and shapes). I imagine that there was clustering by both family and sample type.

2) What was the HIV viral load in the mothers? What was the HIV viral load in Infant 12? Why was maternal blood not available?

Reviewer 3:

1) Introduction: It would be helpful to have a brief breakdown of the geographical distribution for their figures for infection?

2) “Due to their abundance in the community” – I wasn't clear what “their abundance” was referring to here?

3) “Cervical, breast milk, and blood viral loads, and time of sample collection for the five mother infant pairs studied are shown in Figure 1.” I can only see infant blood – not maternal blood. If correct then the above should be changed to infant blood?

4) Figure 2—figure supplement 1. Unclear how to interpret this figure. No indication what samples the colours and symbols refer to – please correct. If the symbols are the same as shown for Figure 1, is breast milk really more diverse than infant blood and cervix – looks like there might just be more samples. Would benefit from statistical analysis.

5) The authors show evidence of what they refer to as “inter-patient” viral convergence. They need to explain much more clearly what is meant by this as it seems critical.

6) I didn't understand Figure 5 (nor were the x-axis labels legible) or Figure 5—figure supplement 2.

Nor did I understand the paragraph:

“The FST analysis identified 19 genes as likely to be contributing to the genetic similarity between congenitally transmitted genotypes from mothers 12, 22, 123 (FDR < 0.05) (Figure 5). The comparison between these congenitally-transmitted and other genotypes generally yielded the same genes when the pairwise difference was varied to cluster haplotypes into more or fewer genotypes (Figure 5—figure supplement 2), suggesting that this finding is not an artefact of decisions about haplotype clustering.”

“Rather the three cervical genotypes that were detected in babies 12, 22 and 123, who were infected at birth showed a higher level of genetic similarity than over 99.6% of other subset comparisons and much greater than would be expected by chance (black line) (Figure 5—figure supplement 1)” – so is this the explanation why they think there is a genetic bias towards the dominant virus that can get through the transit bottleneck – what might contribute to this bottleneck? Needs further explanation.

https://doi.org/10.7554/eLife.63199.sa1

Author response

Essential revisions:

Reviewer 1:

1) The authors state that cervical samples were of low nucleotide diversity and dominated by a single viral genotype. How can the authors be sure that this is not due to the clearly lower viral load in these specimens?

We thank the reviewer for highlighting this important point. We also identified that samples with lower viral load generally have sequences with lower read depth (Figure 1—figure supplement 1) and that this could potentially interfere with identification of mixed infections. To address this we carried out several analyses. First, we confirmed that lower input viral loads result in low read depths (Figure 1—figure supplement 1). To determine the degree to which estimated nucleotide diversity was affected by lower read depth (i.e. viral load), we created samples with lower read depths by subsampling reads from samples with high read depths, allowing us to see how reducing the read depth affected the estimated diversity. As shown in Figure 2—figure supplement 2, sample diversity calculations are robust at average read depths of ≥5. Moreover, eight of the 18 blood spots and four of seven cervical samples had mean read depth ≥10, while family 12: cervix, baby delivery, family 22: baby 14 weeks family 14, baby 14 weeks and family 123: cervix 34 weeks, baby 10 weeks, and baby 12 months had read depths >30 (Table 1). All except family 12: cervix were of low diversity (Figure 2—figure supplement 1).

Finally, to determine whether low read depths (viral loads) interfere with identification of haplotypes, we subsampled reads from the 12-month breastmilk sample from mother 12, which had a mean read depth of 779.72 and five haplotypes (Figure 3—figure supplement 2). All of the haplotypes in this sample were present at a mean read depth of 22 or more, with loss of one haplotype, present at around 5% at read depths below 22 and loss of a second haplotype present at around 8% below read depths of 11 (Figure 4—figure supplement 1).

Thus we are confident that the low nucleotide diversity we observed is not due to the lower viral load and read depth of these samples. Moreover, although there is some fall off of low level haplotypes (~5% abundance) below read depths of around 20, the method is still able to identify higher abundance haplotypes even at very low read depths.

2) Has the coverage of all CMV genes been sufficient and at a degree, which does justify conclusions withdrawn from Figure 5?

We used haplotype sequences for the FST analysis shown in Figure 5. As shown in Figure 4—figure supplement 1, the program we used for haplotype reconstruction (HaROLD) performs well even at low read depth. Moreover, HaROLD’s approach is to consider all reads at each position, integrating data from every sample in which the haplotype is found and give a confidence level on how likely the base is genuine at that position. If the read coverage is not sufficient, the position will be indicated as a gap (missing data) and this position is excluded in all downstream analyses. In the FST test, lack of data simply gives no statistical support to that gene, meaning that genes with low coverage would not result in false positives. Undoubtedly there might be a small number of genes that we have missed (false negatives); however, by reconstructing haplotypes using longitudinally taken samples and creating a consensus, the numbers of gaps are minimised and thus the number of missing significant genetic associations reduced.

3) In the Materials and methods it is stated that 5 non-HIV infected children were selected, while according to the results obviously one HIV-infected child was included.

We apologise for the confusion. Infant 12 was HIV-infected. We have now corrected it in the Materials and methods section.

Reviewer 2:

1) The Keys for the Figure 2 and Figure 2—figure supplement 1 MDS plots needs to be clarified (appears to be missing the colors and shapes). I imagine that there was clustering by both family and sample type.

The existing key shows the family by colour and sample type by shape. Clustering by family is observed, and the first sample from each infant clustered most closely with that of its mother.

2) What was the HIV viral load in the mothers? What was the HIV viral load in Infant 12? Why was maternal blood not available?

We have added the mothers’ blood plasma HIV viral load in Figure 1.

The Infant 12 blood sample was collected on dried blood spot for HIV PCR, which is the standard sample used for HIV diagnosis in infants. Unfortunately, no other blood was stored for the infants, and HIV viral loads were not estimated during the study.

Maternal blood samples from the first visit were available, and we estimated plasma CMV viral loads. However, the plasma CMV viral loads for all patients were below the limit of detection and thus whole genome sequencing was not possible.

Reviewer 3:

1) Introduction: It would be helpful to have a brief breakdown of the geographical distribution for their figures for infection?

We have added the CMV prevalence rate in Kenyan pregnant women into the Introduction.

2) “Due to their abundance in the community” – I wasn't clear what “their abundance” was referring to here?

This sentence has been rewritten.

“Over two-thirds of infants with cCMVi are born to seropositive women, which constitute 88.4% of women in the Kenyan community from whom these study participants were drawn.”

3) “Cervical, breast milk, and blood viral loads, and time of sample collection for the five mother infant pairs studied are shown in Figure 1.” I can only see infant blood – not maternal blood. If correct then the above should be changed to infant blood?

Only infant blood was available in this study. This is now clarified in the paragraph. “Cervical, breast milk, and infant blood viral loads, and time of sample collection for the five mother-infant pairs studied are shown in Figure 1.”

4) Figure 2—figure supplement 1. Unclear how to interpret this figure. No indication what samples the colours and symbols refer to – please correct. If the symbols are the same as shown for Figure 1, is breast milk really more diverse than infant blood and cervix – looks like there might just be more samples. Would benefit from statistical analysis.

The existing key shows the family by colour and sample type by shape.

“It has previously been reported that a nucleotide diversity of 0.005 or above is likely to indicate a mixed infection [Cudini et al., 2019].” Only 1 out of 7 cervix sample and none of the 12 baby blood spot samples had a nucleotide diversity of > 0.005, while 16 out of 18 breastmilk samples had a nucleotide diversity above 0.005. Mann-Whitney test gives a p value of 1.619e-07 and 9.69e-6 respectively for comparing cervix and baby blood spot to breastmilk samples, showing that breastmilk samples have significantly higher nucleotide diversity.

5) The authors show evidence of what they refer to as “inter-patient” viral convergence. They need to explain much more clearly what is meant by this as it seems critical.

We have rewritten this section to clarify this point. We are interested in understanding whether there are genetic similarities between the genotypes from different mother-baby pairs found in similar compartments. In our analysis, we observed such similarities between genotypes that underwent congenital transmission. Assuming that the distribution in genotypes occurred after infection of the mother, this indicates that similar genetic changes occurred in multiple mothers and that the viruses with these genetic changes were more likely to transmit congenitally. This is what we mean by “viral convergence”.

6) I didn't understand Figure 5 (nor were the x-axis labels legible) or Figure 5—figure supplement 2.

Nor did I understand the paragraph:

“The FST analysis identified 19 genes as likely to be contributing to the genetic similarity between congenitally transmitted genotypes from mothers 12, 22, 123 (FDR < 0.05) (Figure 5). The comparison between these congenitally-transmitted and other genotypes generally yielded the same genes when the pairwise difference was varied to cluster haplotypes into more or fewer genotypes (Figure 5—figure supplement 2), suggesting that this finding is not an artefact of decisions about haplotype clustering.”

“Rather the three cervical genotypes that were detected in babies 12, 22 and 123, who were infected at birth showed a higher level of genetic similarity than over 99.6% of other subset comparisons and much greater than would be expected by chance (black line) (Figure 5—figure supplement 1)” – so is this the explanation why they think there is a genetic bias towards the dominant virus that can get through the transit bottleneck – what might contribute to this bottleneck? Needs further explanation.

FST is a statistical way of identifying genetic similarity between a set of sequences relative to sequences not in that set. The FST test first identified that the genotypes present in the cervices of mothers who transmitted congenitally, and their congenitally infected infants were more similar than could be explained by chance (Figure 5—figure supplement 1). The genes responsible for this high level of genetic similarity were identified in Figure 5. These findings together with demonstration in Figure 4, that only a single genotype is transmitted from mother to baby at any one time, provides evidence that there is generally a bottleneck to maternal-fetal transmission of CMV, whether from breast milk or congenitally, and that certain genotypes may be preferentially transmitted in congenital infection

The y-axis of Figure 5 shows the FST values calculated from this analysis. The higher the FST value, the more significant it is. Each bar represents a gene. We have now increased the font size on the x-axis to make it more legible. The colour of the bars indicates the corresponding p values, with red being the most significant genes.

We know from studies of primary cCMV that maternal viral load is a key factor for transmission. The three mothers transmitting their virus congenitally had higher cervical viral loads than mothers whose babies become infected post-partum (Figure 1). Analysis of data from the whole cohort of mothers confirmed that women who transmitted CMV in utero had mean cervical CMV vial loads at 38 weeks that were 0.83 log10 copies/ml (SD=1.0, p=0.02) higher than women who did not transmit CMV in utero (data not shown). We therefore speculate that virus sampled in the cervix is representative of CMV populations that infect and cross the placenta, and that a possible explanation for our findings is that the properties that promote replication to higher titers in genital tissue may also predispose to transplacental infection. Such properties may include increased tropism for and replication in the urogenital tissues and it is possible that the genes identified by FST are contributary.

Alternatively, a number of genes identified in the FST analysis are known to control cell entry and NK cell recognition (the placenta is rich in NK cells) (Table 2). Thus the genotypes that were transmitted congenitally might have beneficial characteristics that allow them to better engage with the placental tissues and hence transmit to the infants.

We have added this to the Discussion.

https://doi.org/10.7554/eLife.63199.sa2

Article and author information

Author details

  1. Juanita Pang

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Project administration, Writing - review and editing
    Contributed equally with
    Jennifer A Slyker
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4792-5903
  2. Jennifer A Slyker

    Departments of Global Health and Epidemiology, University of Washington, Seattle, United States
    Contribution
    Resources, Data curation, Funding acquisition, Investigation, Writing - review and editing
    Contributed equally with
    Juanita Pang
    Competing interests
    No competing interests declared
  3. Sunando Roy

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Josephine Bryant

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Claire Atkinson

    Institute of Immunology and Transplantation, Division of Infection and Immunity, University College London, London, United Kingdom
    Contribution
    Data curation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Juliana Cudini

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Carey Farquhar

    Departments of Global Health, Epidemiology, Medicine (Div. Allergy and Infectious Diseases), University of Washington, Seattle, United States
    Contribution
    Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  8. Paul Griffiths

    Institute of Immunology and Transplantation, Division of Infection and Immunity, University College London, London, United Kingdom
    Contribution
    Funding acquisition, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  9. James Kiarie

    University of Nairobi, Department of Obstetrics and Gynaecology, World Health Organization, Nairobi, Kenya
    Contribution
    Conceptualization, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Sofia Morfopoulou

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  11. Alison C Roxby

    Departments of Global Health, Epidemiology, Medicine (Div. Allergy and Infectious Diseases), University of Washington, Seattle, United States
    Contribution
    Data curation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Helena Tutil

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Rachel Williams

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  14. Soren Gantt

    Research Centre of the Sainte-Justine University Hospital, Department of Microbiology, Infectious Diseases and Immunology, University of Montréal QC, Montréal, Canada
    Contribution
    Conceptualization, Validation, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5743-3606
  15. Richard A Goldstein

    Division of Infection and Immunity, University College London, Cruciform Building, London, United Kingdom
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Judith Breuer
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5148-4672
  16. Judith Breuer

    Department of Infection, Immunity and Inflammation, UCL Great Ormond Street Institute of Child Health, University College London, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Richard A Goldstein
    For correspondence
    j.breuer@ucl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8246-0534

Funding

EUFP7 (304875)

  • Judith Breuer

Wellcome Trust (204870)

  • Paul Griffiths

National Institute of Allergy and Infectious Diseases (AI087369)

  • Jennifer A Slyker

National Institute of Allergy and Infectious Diseases (AI027757)

  • Jennifer A Slyker

National Institute of Allergy and Infectious Diseases (AI076105)

  • Carey Farquhar

National Institute of Allergy and Infectious Diseases (AI087399)

  • Carey Farquhar

National Institute of Child Health and Human Development (HD057773-01)

  • Carey Farquhar

National Institute of Child Health and Human Development (HD054314)

  • Carey Farquhar

Rosetreees Trust PhD Studentship (M876)

  • Juanita Pang

UCL/UCLH NIHR Biomedical Research Centre

  • Judith Breuer

Sir Henry Wellcome Fellowship

  • Sofia Morfopoulou

Sir Henry Wellcome Fellowships

  • Josephine Bryant

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We acknowledge the support of the MRC/NIHR UCLH/UCL Biomedical Research Centre funded Pathogen Genomics Unit. This work was funded by EUFP7 grant 304875 (PI Breuer), Wellcome Trust grant 204870 (PI Griffiths), NIH National Institute of Allergy and Infectious Diseases grant AI087369 (PI Slyker), AI027757 (PI Slyker, Holmes), AI076105 and K24 AI087399 (Farquhar), National Institute of Child Health and Human Development HD057773–01, HD054314 (Farquhar). JP is funded by a Rosetrees Trust PhD Studentship M876. SM and J Bryant are funded by Henry Wellcome fellowships. J Breuer receives funding from the UCL/UCLH NIHR Biomedical Research Centre.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Margaret Stanley, University of Cambridge, United Kingdom

Reviewer

  1. Nanda Ramchandar, UC San Diego, United States

Publication history

  1. Received: September 17, 2020
  2. Accepted: December 31, 2020
  3. Accepted Manuscript published: December 31, 2020 (version 1)
  4. Version of Record published: January 13, 2021 (version 2)

Copyright

© 2020, Pang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 394
    Page views
  • 71
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Genetics and Genomics
    2. Immunology and Inflammation
    Terkild B Buus et al.
    Research Article

    Simultaneous measurement of surface proteins and gene expression within single cells using oligo-conjugated antibodies offers high-resolution snapshots of complex cell populations. Signal from oligo-conjugated antibodies is quantified by high-throughput sequencing and is highly scalable and sensitive. We investigated the response of oligo-conjugated antibodies towards four variables: concentration, staining volume, cell number at staining, and tissue. We find that staining with recommended antibody concentrations causes unnecessarily high background and amount of antibody used can be drastically reduced without loss of biological information. Reducing staining volume only affects antibodies targeting abundant epitopes used at low concentrations and is counteracted by reducing cell numbers. Adjusting concentrations increases signal, lowers background, and reduces costs. Background signal can account for a major fraction of total sequencing and is primarily derived from antibodies used at high concentrations. This study provides new insight into titration response and background of oligo-conjugated antibodies and offers concrete guidelines to improve such panels.

    1. Genetics and Genomics
    Astrid Hoermann et al.
    Research Article

    Gene drives for mosquito population replacement are promising tools for malaria control. However, there is currently no clear pathway for safely testing such tools in endemic countries. The lack of well-characterized promoters for infection-relevant tissues and regulatory hurdles are further obstacles for their design and use. Here we explore how minimal genetic modifications of endogenous mosquito genes can convert them directly into non-autonomous gene drives without disrupting their expression. We co-opted the native regulatory sequences of three midgut-specific loci of the malaria vector Anopheles gambiae to host a prototypical antimalarial molecule and guide-RNAs encoded within artificial introns that support efficient gene drive. We assess the propensity of these modifications to interfere with the development of Plasmodium falciparum and their effect on fitness. Because of their inherent simplicity and passive mode of drive such traits could form part of an acceptable testing pathway of gene drives for malaria eradication.
