Highly localized intracellular Ca2+ signals promote optimal salivary gland fluid secretion
Abstract
Salivary fluid secretion involves an intricate choreography of membrane transporters to result in the trans-epithelial movement of NaCl and water into the acinus lumen. Current models are largely based on experimental observations in enzymatically isolated cells where the Ca2+ signal invariably propagates globally and thus appears ideally suited to activate spatially separated Cl and K channels, present on the apical and basolateral plasma membrane, respectively. We monitored Ca2+ signals and salivary secretion in live mice expressing GCamp6F, following stimulation of the nerves innervating the submandibular gland. Consistent with in vitro studies, Ca2+ signals were initiated in the apical endoplasmic reticulum. In marked contrast to in vitro data, highly localized trains of Ca2+ transients that failed to fully propagate from the apical region were observed. Following stimuli optimum for secretion, large apical-basal gradients were elicited. A new mathematical model, incorporating these data was constructed to probe how salivary secretion can be optimally stimulated by apical Ca2+ signals.
Introduction
Salivary fluid secretion is vital to the health of the oral cavity (Pedersen et al., 2002). This is most clearly appreciated in disease states which result in hypofunction where patients experience difficulty chewing and swallowing food, speaking and are susceptible to oral infections that result in dental caries (Melvin, 1991). Fluid secretion from the salivary gland requires the trans epithelial movement of Cl- across polarized acinar cells (Foskett, 1990; Melvin, 1999; Melvin et al., 2005; Turner and Sugiya, 2002). The polarization of exocrine cells is a consequence of the presence of tight junction protein complexes which functionally separate the transport machinery in the apical PM from those in the functionally equivalent, basal and lateral PM (collectively termed basolateral PM). This structural specialization allows distinct proteins to be localized in each membrane to promote vectoral ion and fluid movement (Melvin et al., 2005). The current, widely accepted model for fluid secretion posits that Cl- are transported against their electrochemical gradient by the Na+/K+/2Cl- cotransporter, NKCC1 at the basolateral plasma membrane (PM) (Evans et al., 2000) and subsequently enters the lumen of the acinus across the apical PM through TMEM16a chloride channels (Romanenko et al., 2010a). Cl- accumulation imparts a negative potential to the lumen relative to the basolateral PM, which draws Na+ paracellularly through tight junctions (Melvin et al., 2005). Subsequently, water follows osmotically to generate the primary saliva which is modified by the ductal epithelia. An elevation in cytosolic [Ca2+] following neurotransmitter release plays a central role in the stimulation of fluid secretion from salivary gland acinar cells (Ambudkar, 2011; Ambudkar, 2016; Gallacher and Petersen, 1983; Putney, 1982; Weiss et al., 1982). Acetylcholine (ACh) is the primary neurotransmitter released following parasympathetic input to the major salivary glands after gustatory and olfactory stimulation (Matsui et al., 2000). ACh results in activation of muscarinic receptors, G-protein coupled stimulation of inositol 1,4,5 trisphosphate (IP3) production and subsequent Ca2+ release from endoplasmic reticulum stores via IP3 receptors (IP3R) (Futatsugi et al., 2005; Lee et al., 1997; Pages et al., 2019). The ER stores are subsequently refilled by store operated Ca2+ entry across the PM, which is required for sustained salivary secretion (Cheng et al., 2011a; Cheng et al., 2011b; Melvin et al., 1991; Takemura et al., 1989). To stimulate saliva flow, the primary effector of the increase in [Ca2+] are TMEM16a channels localized in the apical PM (Romanenko et al., 2010a; Arreola et al., 1996a; Arreola et al., 1996b; Begenisich and Melvin, 1998). As Cl- moves across the apical PM, the membrane potential approaches the equilibrium potential for Cl-; however, Ca2+ also increases the activity of K channels, conventionally thought to be localized predominantly at the basolateral PM, to maintain the membrane potential to favor continued Cl- exit and secretion (Maruyama et al., 1983; Nakamoto et al., 2008; Nakamoto et al., 2007; Romanenko et al., 2007; Romanenko et al., 2010b).
Over the past several decades, the spatiotemporal properties of the agonist-stimulated Ca2+ signal have been described in preparations of enzymatically isolated preparations of salivary gland acinar cells or lobules (Park et al., 2012; Warner et al., 2008) loaded with fluorescent Ca2+ indicators and imaged by time resolved wide field or confocal microscopy. In total, these studies indicate that the agonist stimulated Ca2+ signals exhibit characteristics which appear ideally tuned to activate these spatially separated Ca2+-dependent ion channels required for secretion. For example, stimulation with muscarinic agonists, or more directly by photolysis of caged-IP3, invariably results in the Ca2+ signal initiating in the extreme apical ER followed by a rapid Ca2+ wave which results in globalization of the signal throughout the cytoplasm (Bruce et al., 2004; Bruce et al., 2002; Giovannucci et al., 2002; Larina and Thorn, 2005; Tojyo et al., 1997; Won et al., 2007). The initiation sites, termed the ‘trigger zone’, correspond to the localization of the majority of type-2/3 IP3R (Lee et al., 1997; Pages et al., 2019), in ER in close apposition to TMEM16a in the PM. The intimate association of apical ER and apical PM is emphasized by the apparent co-localization of IP3R and TMEM16a by confocal microscopy, despite their localization in different membranes. Super-resolution STED imaging does resolve distinct distributions of the two proteins, such that the distance between apical ER and PM is estimated to be ~50–100 nm (Sneyd et al., 2021) and thus constitutes a region of privileged communication between messenger and effectors. The subsequent global spread is consistent with Ca2+-induced Ca2+ release through IP3R and ryanodine receptors (RyR) (Won et al., 2007) to allow the Ca2+ signal to efficiently activate the majority of K channels present on the basolateral PM. At low agonist concentrations, the cycle of apical Ca2+ release, global spread and subsequent Ca2+ sequestration is repeated, such that temporally, the Ca2+ signal is manifested as a series of oscillations with a relatively slow period (5–8/min) (Bruce et al., 2002). At higher concentrations of agonist, the initial globalization is maintained to produce a ‘peak and plateau’ type temporal response.
While in vitro studies of Ca2+ signaling have provided a wealth of information to greatly inform our models of salivary secretion, there are general caveats which apply to these data. Primarily, the cells are studied out of a physiological context with no extracellular matrix, basement membrane and with probable disruption of cellular junctions as a result of the enzymatic isolation. A further complication is that isolated cells are typically exposed for a period of time to a constant concentration of agonist which in many cases is a non-hydrolysable analog, as opposed to the neural delivery of transmitter occurring in a pulsatile fashion that is subject in vivo to enzymatic degradation. Whether these factors influence the spatiotemporal characteristics of Ca2+ signals in salivary glands is unknown. Additionally, since only indirect measurements of fluid secretion inferred from volume changes can be made in isolated acinar cell preparations (Teos et al., 2016), it is unclear how the concentration-dependent characteristics of stimulated Ca2+ signals in vitro relate to the physiological stimulation of fluid secretion in vivo.
In this study, we generated mice expressing a genetically encoded Ca2+ indicator specifically in exocrine acinar cells and imaged the Ca2+ signals in submandibular glands in living mice by intravital multiphoton (MP) microscopy. Notably, stimulation of the endogenous neural input to the gland induces Ca2+ signals with major spatiotemporal properties which are distinct from those observed in isolated acinar cells. Specifically, following moderate stimulation, apically localized Ca2+ signals are generated which did not propagate globally. Furthermore, the apical signals consist of rapid oscillations. At stimulation intensities optimum for secretion, a significant apical-basal standing Ca2+ gradient was also established. These striking disparities suggest a modification of our previous model is necessary (Pages et al., 2019; Sneyd et al., 2014) to incorporate the characteristics of physiological Ca2+ signals in vivo and thus provide a revised framework to better understand salivary fluid secretion.
Results
To generate mice expressing a fluorescent Ca2+ indicator in exocrine acinar cells, homozygous mice expressing the fast genetically encoded Ca2+ indicator GCaMP6f (B6J.Cg-Gt(ROSA)26Sortm95.1(CAG-GCaMP6f)Hze/MwarJ) (Chen et al., 2013) floxed by a STOP cassette, were crossed with heterozygous tamoxifen-inducible Mist1 Cre mice (B6.129-Bhlha15tm3(cre/ERT2)Skz/J) (Maruyama et al., 2016). The STOP codon was subsequently excised following tamoxifen gavage (Figure 1A). The expression of GCaMP6f was investigated in vivo in anaesthetized mice following surgery to expose the submandibular salivary glands (SMG). One SMG was lifted and placed on a small platform with a coverslip placed on top of the gland (Figure 1B). Bipolar stimulation electrodes were inserted to the duct bundle connecting to the imaged SMG tissue, in order to stimulate nerves innervating the SMG. A cover glass was placed on top of the SMG to gently hold the tissue and to maintain a saline solution bathing the gland. MP imaging in serial z sections through the gland revealed expression of GCaMP6f exclusively in acinar cells. GCaMP6f expression was uniformly observed in essentially all acinar cells while GCaMP6f expression was not evident in any other cell type such as blood vessels, nerves, myoepithelial cells or ductal cells. As expected by the size of GCaMP6f, the probe was largely excluded from nuclei. Large voids with lack of expression of GCaMP6f were evident in z planes distal from the surface of the gland likely representing the localization of ductal structures (Figure 1C).

In vivo SMG Ca2+ imaging.

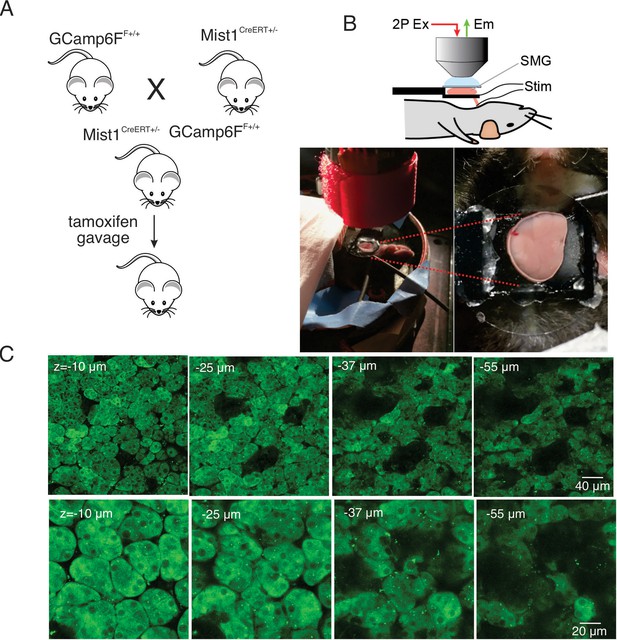

(A) Generation of transgenic mice expressing the GCaMP6f gene driven by Mist1 promotor. GCaMP6f is selectively expressed in acinar cells and appears uniformly through the cytoplasm but is largely excluded from the nucleus. (B) Animal preparation for in vivo imaging. A SMG was lifted and placed on a small platform, then held with a coverslip on top. Stimulation electrodes were inserted to a duct bundle that connect SMG to the body to stimulate nerves that innervate to SMG. (C) A series of z-projection images of SMG with GCaMP (green) expressed in acinar cells.
We next monitored changes in GCaMP6f fluorescence by intravital microscopy in live animals using MP excitation. Images were acquired at 30 frames per second (fps) as described in Materials and methods (each image a three frame average to result in acquisition at 10 fps). Under basal conditions, prior to stimulation, the cells were quiescent (Figure 2B). Electrical stimulation at various stimulus strengths delivered to nerves innervating the SMG (1–100 Hz, 12 s initiated at 10 s) induced increases in intracellular [Ca2+] in acinar cells (Figure 2A,B). Following 1 Hz stimulation, a minority of the cells exhibited small, rapid changes in fluorescence, (n = 4 fields from four animals, Figure 2A,B), while most cells were refractory. Following higher frequency stimulation (3–10 Hz), the majority of the cells in the field responded and the amplitude of the [Ca2+] signal increased as the stimulation strength was increased (Figure 2A,B). During the 12 s of stimulation, overall fluorescence gradually increased and immediately returned to baseline after the termination of the stimulation (Figure 2A,B). The maximum [Ca2+] signal evoked during the 12 s stimulation progressively increased and was maintained from 1 to 10 Hz throughout the period of stimulation, but this trend did not hold following higher frequency stimulation (n = 4 fields from four animals, Figure 2C). Following stimulation at 30–100 Hz, the [Ca2+] increase was not maintained for the duration of stimulation. Under these conditions, the [Ca2+] rapidly peaked in the initial 1–3 s then decreased thereafter (Figure 2A,B), probably as a result of exceeding the maximal firing rate of the neurons innervating the SMG. Of note, the stimulation likely led to increased neural activity specifically, rather than stimulating acinar cells directly, as a consequence of current leak through the saline depolarizing nerve endings, as the contralateral SMG were unresponsive to even the highest 100 Hz nerve bundle stimulation of the ipsilateral gland (p > 0.1 compared to without stimulation, n=4 fields from four animals, Figure 2C).

Ca2+ signals evoked in response to nerve stimulation.

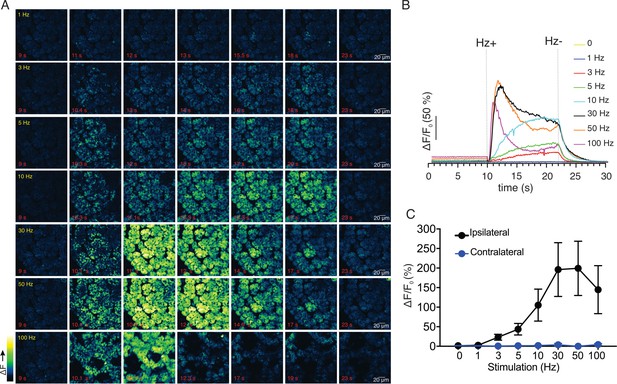

(A) Time-course images of Ca2+ (baseline fluorescence was subtracted) in response to 1–100 Hz stimulations. (B) Mean response of the entire field of view to stimulation at the indicated frequency. N = four fields from, four animals. (C) A summary of peak Ca2+ increases during each stimulation. Stimulation was only to the ipsilateral SMG, as the contralateral SMG failed to respond. N = 4 fields from four animals. Mean ± sem. *p <0.05 vs. contralateral gland, t test.
-
Figure 2—source data 1
Source data associated with Figure 2B and C.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig2-data1-v2.csv
To further confirm the physiological consequence of nerve stimulation, we monitored saliva secretion under identical stimulus conditions. There was no significant secretion activated by 1–3 Hz nerve stimulation for 1 min (p > 0.05 compared to the absence of nerve stimulation, n = four animals), but saliva secretion progressively increased following 5–10 Hz nerve stimulation (p < 0.05 compared to the absence of stimulation, n = four animals) (Figure 3A). Higher frequency stimulation did not result in augmented secretion, likely reflecting failure to sustain the rise in [Ca2+] (Figure 2A). At moderate stimulation intensity (0–10 Hz), there was a linear correlation between the peak [Ca2+] increases by stimulation and saliva secretion (r2 = 0.995, n = four animals, Figure 3B). These stimulus paradigms (1–10 Hz), therefore likely represent the range of physiological stimulation of both evoked Ca2+ signals and the resulting saliva secretion and thus characterization of these signals, represent the focus of the remainder of the study.

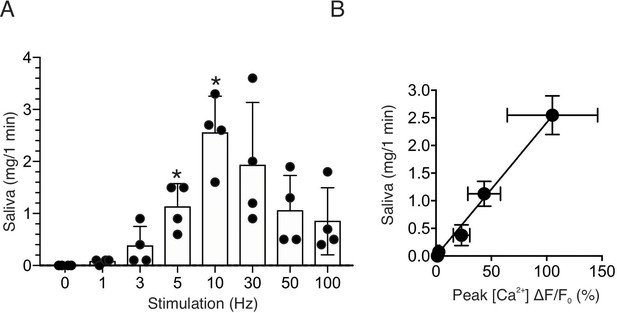

Saliva secretion following nerve stimulation.
(A) A summary histogram of total saliva secretion following 1 min stimulations at the indicated frequency. N = four animals. Mean ± sem. (B) A correlation plot of peak Ca2+ (shown in Figure 2C) vs. saliva secretion, which showed a linear regression of R2 = 0.995 (black line) for stimulation frequency 1–10 Hz. *p <0.05 vs. no stimulation ANOVA with Dunnett test.
-
Figure 3—source data 1
Source data associated with Figure 3A and B.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig3-data1-v2.csv
Sustained saliva secretion requires both Ca2+ release and subsequent Ca2+ influx (Ambudkar, 2011; Cheng et al., 2011b; Ambudkar et al., 2017). While the former is dependent on IP3-induced Ca2+ release, the latter phase is ultimately dependent on Orai based channels (Hong et al., 2011). To provide evidence that similar mechanisms operate in vivo, experiments were performed stimulating glands at 10 Hz for a more extended period of time (~5 min) and evaluating the effects of an Orai channel blocker, GSK7975A (Zhang et al., 2020) on the evoked Ca2+ signals. Stimulation resulted in an initial peak in [Ca2+]i which decayed to a new plateau level which was maintained throughout the 5 min of stimulation (Figure 4A, n = four animals). Animals were subsequently injected with GSK7975A (20 mg/kg ip) and restimulated 20–70 mins later. No significant effect was observed on the magnitude of the initial peak, presumably because sufficient refilling of the ER Ca2+ store had occurred during exposure to blocker. However, the plateau measured following 5 min of stimulation was significantly attenuated in drug injected animals vs. vehicle (Figure 4A, pooled data in Figure 4B/C) suggesting a requirement for Orai channel dependent influx for sustained Ca2+ signals and secretion.

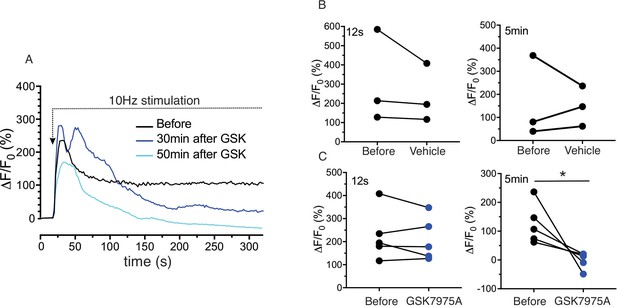

Sustained Ca2+ signals are dependent on Ca2+ influx through Orai channels.
(A) Continuous 10 Hz stimulation results in an initial peak followed by a sustained plateau. In animals injected with the Orai channel blocker GSK7975A following the initial stimulation, subsequent stimulation results in a substantial reduction in the sustained phase of the response monitored following 5 min of stimulation. (B/C) shows the pooled data showing the magnitude of [Ca2+] at initial peak (12 s after the initiation of stimulation, left) and sustained phase (5 min after the initiation, right) before and after 20–40 min of vehicle or GSK7975A administration. N = 3–5 from 3 to 5 animals. *p<0.05 paired t test.
We next investigated the characteristics of Ca2+ signals evoked by stimulation over this physiological range. Following nerve stimulation at low stimulation strengths (1–5 Hz), we observed both the recruitment of responding cells and an increase in the amplitude of the [Ca2+] response (Figure 5). To determine more closely how the increased stimulation intensity impacts the characteristics of Ca2+ responses to result in increased saliva secretion, a software-based work-flow was designed to post-process the image series. Imaged fields were sub-divided into 8 by 8 equal quadrants to yield 64 grid squares (Figure 5C,D). Each grid was 32 x 32 µm, and typically included a portion of an acinus consisting of 1–5 cells and was used to approximate the spatial and temporal behavior of individual cells or lobules in the field. In order to analyze the activity in each region, the image was then processed to show percent ΔF/F for each time-lapse frame in the sub-divided regions (Figure 5D,E). Using this general scheme, we compared information obtained from 8 x 8 grids, 16 x 16 grids and randomly manually selected regions of interest representing either acinar clusters or single acinar cells. Each scheme produced essentially equivalent data, ultimately validating the use of the 8 x 8 grid (Figure 5—figure supplement 1). At 1 Hz stimulation, the activity was sporadic, with the responding regions tending to give multiple responses while non-responding regions remained quiescent throughout the stimulus period (Figure 5F). Overall, 34.0 ± 5.1% (n = 19 fields from eight animals) of the sub-regions showed significant responses during the stimulation (Figure 5G). Moreover, the increase in [Ca2+] in the responding regions exhibited a prolonged latency prior to the initial rise following stimulation (6.72 ± 0.79 s, n = 19, Figure 5H). Stimulation at higher frequencies progressively recruited more grid regions and shortened the latency to the initial response (Figure 5G,H). At 10 Hz, virtually all regions responded to the stimulation (98.5 ± 0.6%, n = 19) with minimal latency (1.70 ± 0.27 s, n = 19) (Figure 5G,H). These data suggest that the increase in overall [Ca2+] and secretion by rising stimulation strength was at least in part due to the recruitment of responding cells and a faster time for cells to respond. Further, the amplitude of the maximal increase in [Ca2+] in the subdivided grids also increased as the strength of the stimulation was augmented (Figure 5I), indicating that enhancement of individual cellular [Ca2+] responses also contribute to the overall increase of [Ca2+] amplitudes.

Spatial analysis of Ca2+ responses to various stimulations.

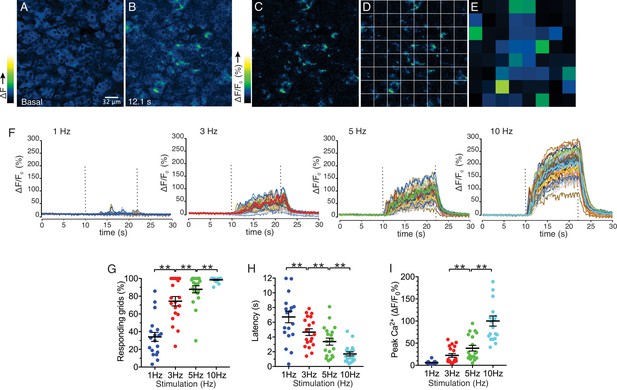

(A–B) An imaging field before (A) and during (B) a stimulation. (C–D) An imaging field was divided to grids of 32 x 32 µm, to yield 64 regions. (E) The average intensity per grid was obtained in each time frame. (F) Representative time-course plots of all 64 grids before, during, and after 1–10 Hz stimulations. Thick colored line represents the mean of the 64 grids for each stimulation. (G) A summary plot of average percent of responding grids in a field by the stimulations. N = 19 fields from eight animals. Mean ± sem. (H) A summary plot of average latencies to initiation of Ca2+ increases in all grids. Non-responding grids were excluded for the data. Mean ± sem. N = 19 from eight animals. (I) A summary plot of average peak Ca2+ increases in all grids. Mean ± sem. N = 19 from eight animals. **p<0.01 ANOVA with Tukey test.
-
Figure 5—source data 1
Source data associated with Figure 5G–I.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig5-data1-v2.csv
We observed that increased stimulus strength resulted in both a higher number of responding regions and a higher peak [Ca2+] amplitude in individual grids. We next examined whether grids which responded at lower stimulus intensity also strongly responded to higher frequency stimulation. Grids in an imaging field were ranked based on the peak [Ca2+] evoked by 5 Hz stimulation and then re-sorted based on progressively increasing amplitude (Figure 6A,B). We subsequently sorted the data obtained from 1, 3, and 10 Hz stimulation from the identical field in the grid rank order established for 5 Hz stimulation (Figure 6C). This analysis demonstrated a clear pattern whereby, at each stimulus strength, particular regions of the field of view were most susceptible to stimulation, such that grids giving the largest amplitude response at 1 Hz similarly responded by displaying the largest amplitude signals at 3, 5 and 10 Hz stimulation. (n = 5 fields from four animals) (Figure 6D).

Each sub-divided field possesses unique sensitivity.

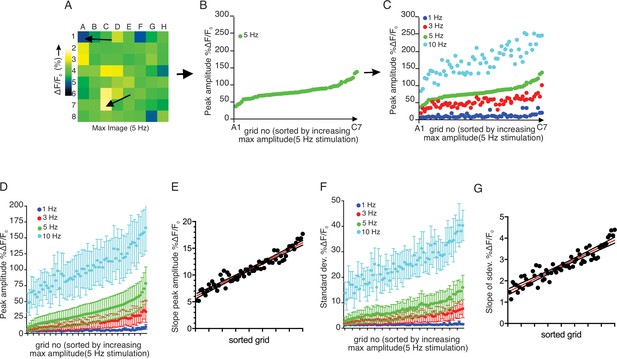

(A) An example image of a processed imaging field showing peak intensities during a stimulation in each grid. The grids consist of lowest intensity (arrow, grid A1) to highest (arrow, grid C7). (B) A representative plot of peak Ca2+ increases for each grid in a field to a 5 Hz stimulation. The grids in x axis were reordered from the lowest intensity to the left to the highest on the right. (C) Different stimulation strengths were applied to the same field, and the responses were plotted according to the order indexed by the responses to 5 Hz. (D) A summary plot of peak Ca2+ increases in each grid sorted by responses to 5 Hz. Mean ± sem. n = 5 from four animals. (E) A correlation plot of sorted grid, from low peak Ca2+ to high, vs. degree of Ca2+ increases in response to higher stimulation. Linear regression with R2 = 0.920. N = 5 from four animals. (F) A summary plot of standard deviations of Ca2+ changes during stimulations in each grid sorted by responses to 5 Hz. N = 5 from four animals. Mean ± sem. (G) A correlation plot of sorted grids, from low peak Ca2+ to high, vs. degree of standard deviation of Ca2+ flux in response to higher stimulation. Linear regression with R2 = 0.866. N = 5 from four animals.
-
Figure 6—source data 1
Source data associated with Figure 6D–G.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig6-data1-v2.csv
The extent of the increase in [Ca2+] following greater strengths of stimulation was not uniform throughout individual grids. High-responding grid regions showed linearly enhanced increases following stimulation (R2 = 0.9197, n = 4 fields from four animals), while the increase in Ca2+ signal following increased stimulation in less responsive regions was proportionately smaller (Figure 6E). This trend was not limited to the peak amplitude attained. During the 12 s stimulation, grid regions exhibited [Ca2+] fluctuations superimposed upon an elevated plateau (Figure 6F). We evaluated the extent of this fluctuation by comparing the standard deviation of the ΔF/F signal occurring during the stimulation period. With this analysis, a higher standard deviation reflects greater variability in the stimulated change in [Ca2+]. When the 5 Hz data was sorted according to the peak [Ca2+] ranking as in Figure 6D, the variation of grids with 5 Hz stimulation also demonstrated that low-responding grids had smaller variability than high-responding grids (n = 4 fields from four animals) (Figure 6F). Likewise, the same trend was exhibited at each stimulation strength, with a linearly increasing rate of enhancement as intensity increased (R2 = 0.8664, n = 4) (Figure 6G). Therefore, an increased fluctuation in the response is also a property of sensitive, highly responsive regions.
Stimulation of salivary fluid secretion is predominantly mediated through parasympathetic input as a result of the action of ACh released from nerve endings acting on muscarinic M3 receptors on acinar cells (Matsui et al., 2000). To gain direct evidence that neural release of ACh was responsible for the changes in [Ca2+] observed, we systemically administered a cholinesterase inhibitor to block the clearance of ACh and effectively increase the local [ACh]. Physostigmine (0.1 mg/kg body weight IP) enhanced the peak amplitude of the Ca2+ signals following stimulation (Figure 7A–D), indicating that acinar cell [Ca2+] changes reflect the extracellular availability of acetylcholine released by stimulation. The augmentation in the Ca2+ signal was not statistically significant at 1 Hz stimulation (p > 0.05, n = 5 fields from four animals), but became more prominent at 3 Hz with shorter latency, an increase in the number of responding grids and peak amplitude (p < 0.05 in % response and peak ΔF/F, n = 5) and following 5 Hz stimulation (p < 0.05 in latency and peak ΔF/F, n = 5 fields from four animals) (Figure 7E–G). At 10 Hz stimulation, no further increase in the grid responsiveness or latency was observed, reflecting the fact that all grids were active and exhibited minimal latency at this stimulus strength, however the peak ΔF/F showed a robust enhancement (p < 0.01, n = 5) (Figure 7E–G). While these data do not rule out the involvement of additional neurotransmitters, they confirm a prominent role for ACh in mediating the increase in [Ca2+] observed following neural stimulation.

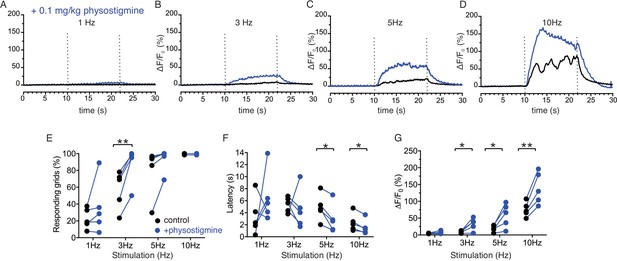

Enhancement of Ca2+ responses by cholinesterase inhibition.
(A–D) Representative average traces from 64 grids of changes in Ca2+ responses in a same field before (black) and after (blue) physostigmine. (E) A summary plot of average percent of responding grids in a field by the stimulations in paired fields. N = 5 from four animals. Mean ± sem. (F) A summary plot of average latency to initiation of Ca2+ increases in all grids in paired experiments. Non-responding grids were excluded for the data. N = 5 from four animals. Mean ± sem. (G) A summary plot in paired experiments of average peak Ca2+ rise in all grids. N = 5 from four animals. Mean ± sem. *p<0.05; **p<0.01 Paired t test.
-
Figure 7—source data 1
Source data associated with Figure 7E–G.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig7-data1-v2.csv
While the previous grid-based analysis yielded important information relating to the general properties of the evoked signals within an imaged field, this approach was not suited to provide spatial information on a sub-acinus or lobule scale. To interrogate the subcellular spatial characteristics of the Ca2+ signals evoked by neural stimulation, we generated standard deviation (SD) images from the stimulated portion of the image series. This analysis revealed that at all physiological stimulus strengths the increase in [Ca2+]i was highly heterogeneous, with the largest increases in signal occurring in the apical aspects of acinar clusters, directly below the apical PM (Figure 8—figure supplement 1). Figure 8A illustrates a field in which an acinar cluster is highlighted prior to neural stimulation at 5 Hz (red box and image series in Figure 8B). In marked contrast to in vitro experiments, analysis of the image series demonstrated that the signal consisted of brief (< 2 s in duration), repetitive increases in [Ca2+] (Figure 8B). The signals were highly localized, being initiated in, and almost entirely confined to the apical portions of individual cells, within a few μms of the apical PM (Figure 8B–E), with only very rare, small elevations in the basal aspects of the cell. This localization is illustrated by SD images of the whole field (Figure 8D) and a topographical SD representation of the highlighted cluster (Figure 8D) together with analysis of the fluorescent changes in time from regions of interest manually assigned to an apical Region of Interest (ROI) (red box), cytoplasmic ROI (blue box), and a basal ROI (green box) (Figure 8E). Consistent with tight coupling between acinar cells by gap junctions, signals often appeared to invade the apical region of neighboring cells (see images time stamped between 30.8 and 31.8 s in Figure 8B).

Ca2+ signals are restricted to the apical region during moderate stimulation.

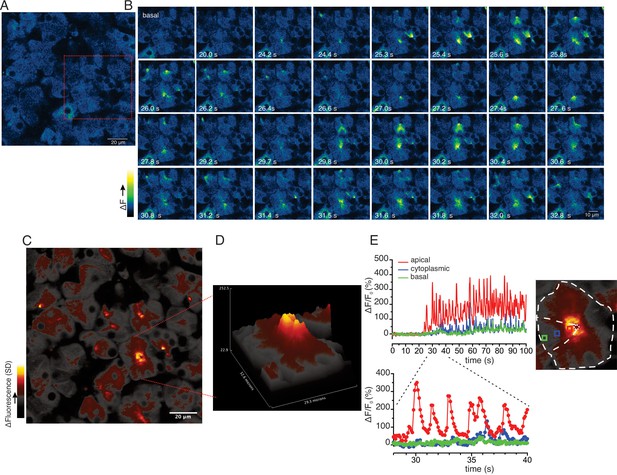

(A) A representative imaging field prior to stimulation. (B) Time-course images of a field containing an acinar cluster (red box in panel A) showing active Ca2+ signaling in the extreme apical portion in the cells. (C) A processed image mapping standard deviation values during stimulation period in the field shown in panel (A). (D) A 3D plot of the SD image of the acinar cluster in B, showing large fluctuations in [Ca2+] only in the apical domain with minimal Ca2+ signal transmission to the basal aspects of the cell. (E) Plot of Ca2+ changes in a single cell from the apical domain (red box in the in the right image), cytoplasmic (blue box in the right image) and basal (green box in right image).
At 10 Hz stimulation, a rise in [Ca2+] was also rapidly initiated in the extreme apical ER, close to the apical PM (imaging field in Figure 9A with red box showing the highlighted cluster depicted in Figure 9B). In contrast to lower stimulus strengths, Ca2+ signals were observed in the basal aspects of the cell (Figure 9B–E), but of considerably lower amplitude, approximately 20–30% of that observed in the apical domain. Effectively a standing apical-basal [Ca2+] gradient was established, as shown in the SD image of the field and the topographical representation of the SD of the highlighted region (Figure 9C/D), together with the analysis of manually positioned representative apical (red ROI), cytoplasmic (blue ROI) and basal regions (green ROI) (Figure 9E) to illustrate the magnitude of the gradient.

Apical to basal [Ca2+] gradients are established during optimal stimulation.

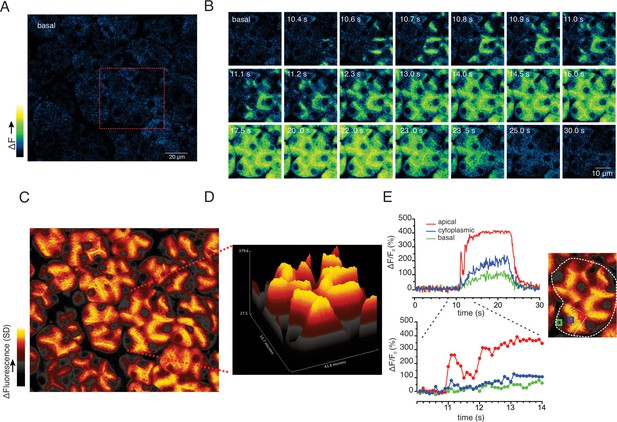

(A) A representative imaging field prior to stimulation. (B) Time-course images of a field containing an acinar cluster (red box in panel A) depicting predominant Ca2+ changes in the apical portion of cells with smaller changes in the basal regions. (C) A processed image mapping standard deviation values during the stimulation period in the whole field shown in panel (A). (D) A 3D plot of the SD image for the acinar cluster shown in (B). (E) Tracings of Ca2+ changes in the apical domain (red box in the image at right), cytoplasmic (blue box in the image on the right) and basal aspects of a single cell from this cluster (green box in the image at right).
To further investigate this spatial heterogenicity, we performed MP line scans following stimulation at 3–10 Hz stimulation where the scanned line was orientated to interrogate changes in fluorescence originating in the apical region extending through the nucleus to the base of an individual cell. Figure 10A shows a representative field with the position of the scanned line. Figure 10BI,CI and DI show the changes in line fluorescence over time evoked by 3, 5, 10 Hz stimulation, respectively. Consistent with the previous data, following 3 and 5 Hz stimulation the changes in fluorescence were largely confined to regions close to the apical PM of the cell (defined as a 3 μm line in the kinetic from apical, cytoplasmic, and basal ROIs shown in Figure 10BII and CII and pooled data in Figure 10E/F). Stimulation at 10 Hz again resulted in large amplitude apical signals which diminished rapidly, such that the magnitude of the signal was ~25% of the apical signal in the extreme basal aspects of the cell distal to the nucleus (Figure 10DI, kinetic in 10 DII and pooled data from 11 line scans from 3 animals in 10E/F). The apical-basal gradient was further analyzed by plotting the amplitude of the maximum fluorescent change across the line profile which further reinforces that at each stimulus intensity the signal rapidly decays away from the apical initiation sites to the nucleus and is ~25% of the apical signal in the extreme base of the cell (Figure 10. BIII, CIII and DIII). In total, these data demonstrate that in contrast to experiments performed in in vitro preparations, physiological stimulation results in prominent, apical Ca2+ signals which do not propagate and globalize to result in a homogeneous [Ca2+]i throughout the cell, such that steep apical-basal gradients are established.

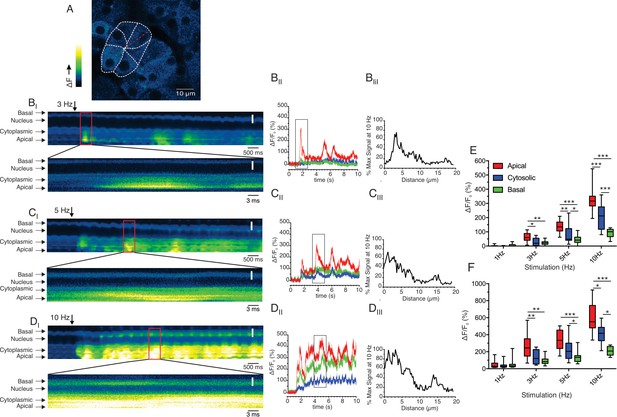

Apical-basal line scans reveal Ca2+ signal spatial homogeneity.
(A) Shows a field of view where the boundaries of an acinus and individual cells have been delimited. The red line indicates the progression of the scan line. (BI, CI and DI) Show consecutive lines stacked in time from left to right for 3, 5 and 10 Hz, respectively. The lower image for each stimulation is an expanded region encompassing the maximum increase in fluorescence for each stimulation. (BII, CII and DII) Show kinetic plots for a 1 pixel 3 μm line placed in the apical, cytoplasmic (prior to the nucleus) and basal (distal to the nucleus) for 3, 5, 10 Hz stimulation, respectively. (BIII, CIII and DIII) Show the profile of the fluorescence along the scan line for the maximum increase in fluorescence for each stimulation frequency expressed as a % of the maximum fluorescence observed at 10 Hz. (E) Shows the pooled data depicting the average increase in apical, cytoplasmic, and basal ROIs at each stimulation frequency. (F) Shows the pooled data for maximal Ca2+ in apical, cytoplasmic, and basal ROIs at each stimulation frequency. White scale bar is 5 μm. ***p<0.001; **p<0.01,* <p< 0.05. Two-way ANOVA with multiple comparisons.
-
Figure 10—source data 1
Source data associated with Figure 10E–F.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig10-data1-v2.csv
To further analyze the neurally evoked apical Ca2+ signals, Python software scripts were written in the Jupyter lab notebook environment to automate the designation of apical ROIs from masks generated from average or SD images. These apical ROIs were then subsequently used to quantitate the magnitude and frequency of signals within these regions (see Materials and methods for details). Figure 11A shows an imaging field depicting the stimulated-basal average image for the field generated during the 12 s of stimulation at 5 Hz from which 79 apical ROIs were generated from masks shown in Figure 11B/C. Figure 11D shows representative responses from 4 of the 79 ROIs to stimulation over the range of physiological stimulus strengths. Consistent with the previous grid analysis, few apical regions responded to 1 Hz stimulation while the majority of ROIs responded to stimulation at 5–10 Hz (see Videos 1–4). At both 3 and 5 Hz stimulation, individual apical ROIs typically responded by generating a rapid train of oscillations. A peak counting algorithm was used to analyze the frequency of the oscillations for each ROI. This demonstrated that the frequency of oscillations was markedly faster (~1 Hz) when measured in vivo than previously described in isolated cells (~0.2 Hz, this study, Figure 12) and further modestly increased between 3 and 5 Hz stimulation (Figure 11E; 79 ROIs experiment shown in Figure 11A–C and pooled data from 13 individual fields from five animals (Figure 11F)). In contrast to the robust correlation between saliva secretion and the magnitude of the evoked Ca2+ signal, the relationship between secretion and the frequency of Ca2+ oscillation was less strong (R2 = 0.824, Figure 11G).

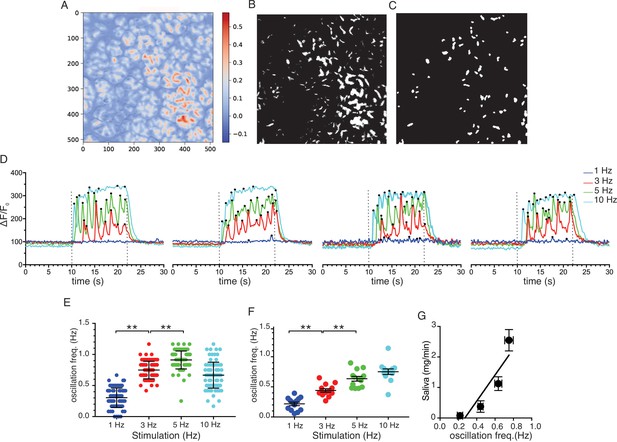

Ca2+ Oscillation frequencies mildly correlates with stimulation strengths.
(A) A representative image generated from averaging signal intensities during a 5 Hz stimulation, which highlights large fluorescence changes in the apical aspects of the cells. (B–C) Mask generated from the image in panel A using Python scripts running in the Jupyter lab environment, as described in Methods. (D) Representative Ca2+ responses from 4 of the ROIs defined in the image in panel C following stimulation at 1–10 Hz. Black dots designate positions of oscillation peaks detected by automated peak detector software written in python. (E) A summary of oscillation frequency of all 79 ROIs from the image in panel A-D. Mean ± sem. (F) A summary plot of oscillation frequencies in response to 1–10 Hz stimulation. N = 13 fields from five animals. Mean ± sem. (G) A correlation plot of oscillation frequency vs. saliva secretion (shown in Figure 3A), which showed a linear regression with R2 = 0.824 (black line). ** p<0.01 ANOVA with Tukey test.
-
Figure 11—source data 1
Source data associated with Figure 11E and F.
- https://cdn.elifesciences.org/articles/66170/elife-66170-fig11-data1-v2.csv

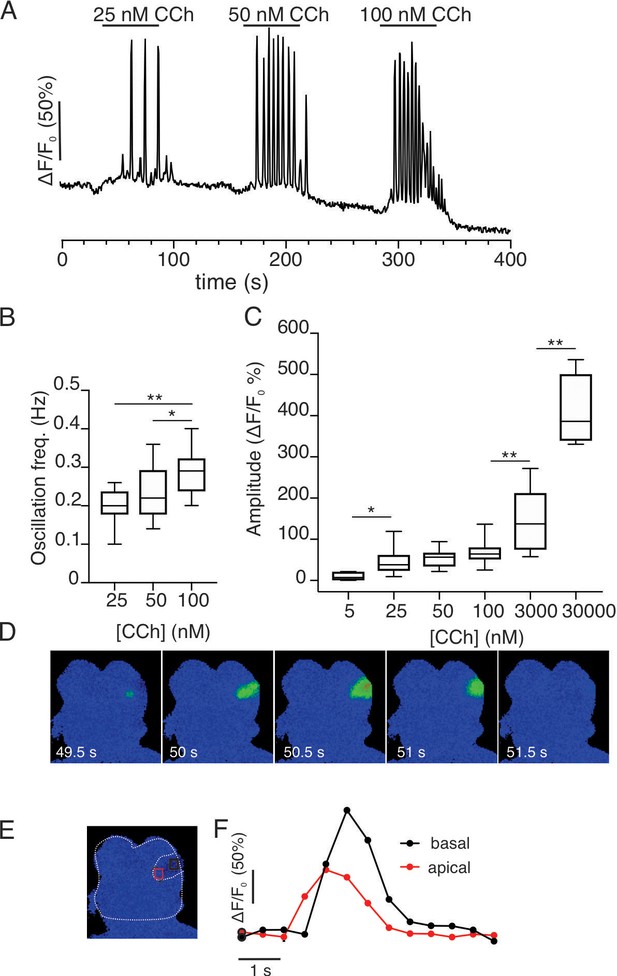

Imaging of acutely isolated acinar clusters from GCamp6f expressing SMG at 37°C.
(A) Cells were stimulated with increasing concentrations of CCh. (A) At concentrations greater than 25 nM, repetitive Ca2+ transients were evoked in a minority of cells. (B) Pooled data depicting changes in oscillation frequency with increasing concentrations of carbachol. (C) Pooled data depicting changes in maximum amplitude of CCh- induced Ca2+ signals. (D) Spatial changes in the Ca2+ signal evoked by 25 nM CCh illustrating that the Ca2+ signal is initiated in the extreme apical aspects of the cell and subsequently globalizes to reach the basal domain. (E) Shows a cartoon delimiting the cell shown in D and apical (red box) and basal (black box) ROIs. (F) Shows the kinetic illustrating the apical to basal Ca2+ wave. * p<0.05; **p<0.001 One-way ANOVA.
Movie generated by Python scripts running in the Jupyter lab environment following stimulation at 1 Hz.
Left panel shows ΔF/F0 image series. Bottom right panel depicts the change in F/F0 for the apical ROIs automatically generated by the software described in Figure 11.
Movie generated by Python scripts running in the Jupyter lab environment following stimulation at 3 Hz.
Left panel shows ΔF/F0 image series. Bottom right panel depicts the change in F/F0 for the apical ROIs automatically generated by the software described in Figure 11.
Movie generated by Python scripts running in the Jupyter lab environment following stimulation at 5 Hz.
Left panel shows ΔF/F0 image series. Bottom right panel depicts the change in F/F0 for the apical ROIs automatically generated by the software described in Figure 11.
Movie generated by Python scripts running in the Jupyter lab environment following stimulation at 10 Hz.
Left panel shows ΔF/F0 image series. Bottom right panel depicts the change in F/F0 for the apical ROIs automatically generated by the software described in Figure 11.
Although GCaMP6f and fura-2 have similar affinities (Badura et al., 2014; Lewis and Cahalan, 1989), a possibility exists that the marked differences in the spatiotemporal properties of Ca2+ signals observed in vivo vs. reported in vitro are a function of the genetically encoded indicator or alternatively because the vitro studies were largely performed at room temperature. We therefore prepared small acinar clumps from Mist1+/– x GCaMP6f+/– animals by enzymatic digestion and monitored Ca2+ signals stimulated by the muscarinic agonist carbachol (CCh) by wide field imaging at 37°C. Individual acinar cells failed to respond to 5 nM CCh; however, at 25 nM CCh single cells within an acinus responded by evoking repetitive Ca2+ transients (Figure 12) with a frequency ~0.2 Hz. The period of the transients tended to increase with increasing CCh concentrations (Figure 12B). In response to increasing concentrations of CCh, the initial peak increased (Figure 12C, n=14–32 cells, three animals) and the oscillations dampened to generate an elevated plateau. Oscillations evoked even by threshold concentrations of CCh were initiated below the apical PM and invariably globalized with all CCh concentrations (Figure 12D–F and Video 5). In experiments performed at room temperature in GCaMP6f expressing cells (~23°C), the spatiotemporal characteristics of the signal were identical to those previously reported with chemical indicators (Figure 12—figure supplement 1A–C). The peak [Ca2+]i evoked by CCh stimulation was similar at 37°C (Figure 12—figure supplement 1D), while the oscillation frequency was significantly faster than observed at room temperature (Figure 12—figure supplement 1E). In total, the spatiotemporal profile of the Ca2+ responses evoked in acutely isolated GCaMP6f expressing acini were strikingly similar to numerous reports documenting agonist-evoked Ca2+ responses with conventional chemical Ca2+ indicators and thus the properties of the genetically encoded indicator at physiological temperature per se do not explain the differences observed.
Movie showing ΔF/F0 images from acutely isolated acinar clusters from GCamp6f expressing cells exposed to 25 nM (25–100 s), 50 nM (150–225 s), and 100 nM CCh (275–350 s).
We have previously constructed a series of mathematical models to help understand and explain our experimental results and those from other groups (Pages et al., 2019; Sneyd et al., 2014; Almássy et al., 2018; Sneyd et al., 2017a; Sneyd et al., 2017b; Vera-Sigüenza et al., 2019). Briefly, these multiscale models were based on cyclical global increases in [Ca2+] activating spatially separated ion channels required for sustained secretion in a 3D collection of seven acinar cells forming an acinus. In these older models, apical initiation of the Ca2+ signal resulted in activation of Cl- flux through TMEM16a Cl- channels and the Ca2+ signal was subsequently transmitted across the cell cytoplasm by a process of Ca2+-induced Ca2+ release (via RyR or IP3R). This led to periodic increases of [Ca2+] in the basal regions of the cell and hence activation of basal Ca2+ activated K+ (KCa) channels. Activation of the KCa channels is critical for maintenance of the electrochemical potential driving the efflux of Cl- and thus secretion. However, the spatiotemporal information from the current in vivo data is obviously not compatible with these older models. We have therefore constructed a new model, as shown in Figure 13. The apical region is defined as the domain within 3 μm of the apical PM, which is itself demarcated by the tight junctions. This region now includes all the components necessary for saliva secretion, with KCa channels and Na/K ATPases in addition to the TMEM16a channels (Figure 13) which are poised to respond to Ca2+ released from the apical ER, from IP3R that are situated in close proximity to the TMEM16A (Pages et al., 2019). We emphasise that, in the model, KCa channels and Na/K-ATPases are also present in the basal lateral membranes, and therefore the secretory machinery is not restricted to the apical PM. A more detailed description of the model can be found in methods and in Pages et al., 2019; Vera-Sigüenza et al., 2019; Vera-Sigüenza et al., 2020. The structure of the three-dimensional cell upon which our model is solved is shown in Figure 14—figure supplement 1, from where it can be seen that the apical membrane is a fingered structure that partially wraps around the cell, whereas the basal membrane (including the lateral membrane) extends right to the edge of the apical membrane.

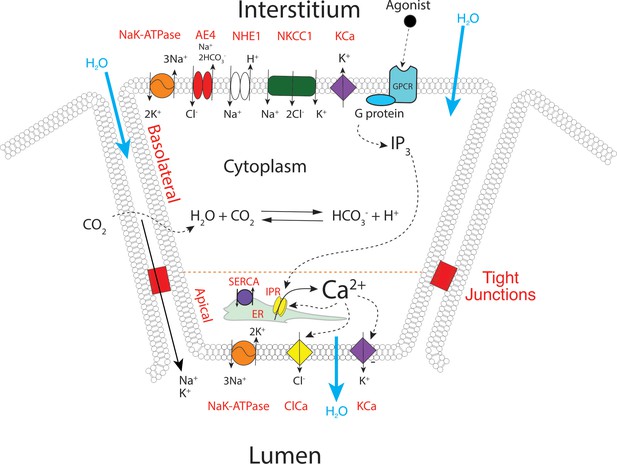

A proposed updated model for salivary secretion.
The mathematical model is based on the fluxes and processes shown here. In contrast to previous models, the apical region now contains all the machinery needed for saliva secretion, included KCa channels and Na/K ATPases. Ca2+ is released predominantly in the apical region, from IP3R that are situated in close proximity to TMEM16a, and there is no requirement for a propagated wave of increased [Ca2+] across the cell.
Figure 14A shows the average apical [Ca2+] for a range of values of VPLC in the new model. VPLC controls the rate of production of IP3, and is thus a proxy for frequency of neural stimulation. Simulations with a pulsatile VPLC (to mimic oscillatory neural stimulation) give identical qualitative results. As VPLC increases, the [Ca2+] oscillation frequency increases and the latency decreases. At high stimulation levels, the [Ca2+] oscillation frequency is approximately 0.5–1 Hz, and the oscillations are superimposed on an increasing baseline, which is due to a decreasing cell volume as a result of saliva secretion. These features all agree well with experimental data. One aspect of the data not reproduced by the model is the appearance of very low frequency baseline [Ca2+] spikes at the lowest stimulation frequencies. These baseline spikes are highly likely to be due to stochastic properties of the IP3R, as described by Falcke and others (Thurley et al., 2012; Thurley et al., 2014; Thurley et al., 2011). Our model contains no stochastic components and is therefore, a priori, unable to reproduce such low-frequency baseline spiking.

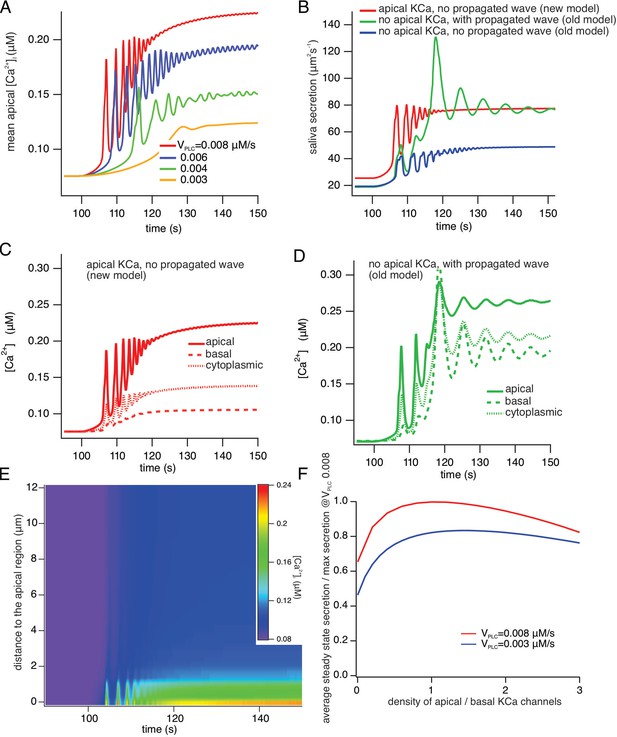

A comparison of model simulations incorporating new data.
(A) Average apical [Ca2+] in the new model for four different values of VPLC (which is a proxy for stimulation frequency). The stimulus was applied at t=100 s. As the stimulus increases the model oscillations increase in frequency, and are superimposed on an increasing baseline, as seen experimentally. (B) Fluid secretion in the new model compared to two versions of the old model of Vera-Sigüenza et al., 2019. When the propagating intracellular Ca2+ wave is removed from the old model (which has no apical KCa channels), secretion decreases significantly. (C and D) [Ca2+] traces averaged from three different regions of the cell in the new model and the old model of Vera-Sigüenza et al., 2019. (E) Line scan constructed from model simulations of the new model with VPLC = 0.008 μM/s. The stimulus was applied at t = 100 s. A line was drawn through the cell from the average of all the apical points to the average of all the basal points, and all grid points within 0.2 μm of this line were selected. The Ca2+ traces from each of these grid points was then plotted as a color density plot, and laid side by side in order of distance from the apical region. The limited spatial resolution is a result of the limited spatial resolution of the grid, as only 36 grid points were close enough to the apical/basal line to be included in the line scan plot. The Ca2+ responses are mostly confined to the apical region, although diffusion does cause a smaller basal response, as seen also in panel (F) Steady-state saliva secretion in the new model as a function of the relative density of apical KCa channels (relative to the density of basal KCa channels) at various vPLC. For all simulations the total number of KCa channels was the same. When there are no apical KCa channels (i.e. when the relative density is zero), fluid flow is decreased by approximately 35%. However, too many apical KCa channels also decreases secretion. Maximal secretion is attained approximately when the KCa channels have the same density in the apical and basal membranes. Note that, if the intracellular propagating Ca2+ wave is removed from the old model it has a similar structure to the new model with no apical KCa channels. However, because of the presence of RyR in the old model, and because of the Ca2+ dependence of PLC in the old model, there remain significant quantitative discrepancies between the old and new models even when they have a superficially similar structure.
Figure 14, panels B-D compare the new model with two older versions in which there were no apical KCa channels, but a Ca2+ wave was propagated from the apical ER, throughout the cell, thus allowing for activation of basal KCa. Figure 14B shows saliva secretion (with VPLC = 0.008 μM/s) in the new model (red curve) compared with the old model of Vera-Sigüenza et al., 2020 (green curve), which has no apical PM KCa but does exhibit a propagated [Ca2+] signal from apical ER throughout the cell, and also compared to a version of the old model (blue curve) which has neither apical KCa nor a propagated [Ca2+] wave. Note that the old model with no apical KCa is quantitatively different from the new model with no apical KCa. Fluid secretion in the new model with no apical KCa is slightly greater than that in the old model with no KCa, and is shown in panel F. These simulations show that absence of both a propagated [Ca2+] wave and apical KCa channels significantly decreases saliva secretion. The associated [Ca2+] traces, averaged from the apical and basal regions, as well as from the cytoplasmic region of the cell (representing a domain between these regions), are shown in Figure 14, C, D, using the same color scheme as in Figure 14B. In the new model (Figure 14C), basal [Ca2+] is between 25% and 35% of apical [Ca2+], as observed experimentally, while in the model of Vera-Sigüenza et al., 2020; Figure 14D basal [Ca2+] is a significantly greater fraction of apical [Ca2+]. The [Ca2+] traces for the model with neither apical KCa nor a propagated wave are very similar to those shown in Figure 14C, and so are not shown explicitly. The intracellular spatial gradient of [Ca2+] is illustrated by the model line scan shown in Figure 14E, which also agrees well with the experimental line scans, in that Ca2+ is largely restricted to the apical region of the cell. The experimental data show more spatial inhomogeneity (due to the presence of the nucleus and the mitochondria), features which are not included in the model.
It is important to note that, in the model, of the basal region, includes the lateral PM and extends right to the edge of the apical region, which is a thin, fingered region. Thus, even in the absence of a propagated [Ca2+] wave, diffusion of Ca2+ from the apical region will still activate a fraction of the KCa channels. This is illustrated in Figure 14F, in the new model and for a range of stimulation levels, which shows how saliva secretion depends on the relative density of KCa channels in the apical PM. Even when there are no apical KCa channels (i.e. a relative density of 0), diffusion of Ca2+ from the apical region can activate those basal KCa channels which are situated close to the apical membrane, and this is sufficient to cause significant fluid flow. Furthermore, consistently with previous theoretical work (Palk et al., 2012) there is an optimal density of apical KCa channels; if the apical membrane contains too high a fraction of the total number of KCa channels then fluid flow is hampered. Optimal fluid secretion occurs when the apical and basal KCa densities are approximately equal.
Discussion
An increase in [Ca2+] following neurotransmitter release from parasympathetic neurons is fundamentally important for the stimulation of salivary fluid secretion. It is also recognized that the spatiotemporal properties of intracellular Ca2+ signals in exocrine cells are pivotal for appropriately activating ion channels necessary for the underlying process (Almassy et al., 2012; Kasai and Augustine, 1990; Kidd and Thorn, 2000). Despite a wealth of information documenting agonist-stimulated Ca2+ signals, recorded in dissociated single cells, isolated acini or excised lobules, the properties of physiological Ca2+ signals in vivo following endogenous neural stimulation have not been reported. We therefore generated transgenic mice that express a genetically encoded Ca2+ indicator specifically in exocrine acinar cells and used MP microscopy in live mice to document the Ca2+ signals generated following stimulation of the submandibular nerve which innervates the SMG. By establishing stimulation parameters optimum for fluid secretion, we have inferred the spatiotemporal properties of Ca2+ signals that ultimately underlie the physiological stimulation of fluid secretion at the lobule level and subsequently at subcellular resolution.
Following threshold stimulation, a small proportion of the imaged field responded after a prolonged latency by eliciting a single, or a few brief transients. These Ca2+ spikes were initiated in the extreme apical ER, consistent with the localization of the majority of IP3R and previous in vitro data (Lee et al., 1997; Pages et al., 2019; Won et al., 2007). In stark contrast however, these signals did not globalize and were confined to a few μms distant from the apical PM. This threshold stimulation resulted in minor measurable fluid secretion. At greater stimulus strengths, where secretion was readily evident, an increasingly larger proportion of the field was recruited with shorter latency to yield multiple Ca2+ transients with increasing peak magnitude. The increase reflecting an [Ca2+]i rise in all cells within individual responding acini. Strikingly, these signals were again predominantly localized to regions immediately juxtaposed to the apical PM with limited propagation toward the basal aspects of the cell. Upon optimal stimulation for secretion, essentially the entire field was recruited to produce a sustained increase with periodic fluctuations superimposed on the plateau after a minimal latent period. Notably, while the affinity of the indicator may have masked a greater magnitude of apical Ca2+ rise, or more prominent fluctuations in the signal at these higher stimulus strengths, a prominent apical to basal gradient was readily evident, such that the signal in the basal region reached only ~25–30% of that in the apical region. Further increases in the intensity of the stimulation resulted in a rapid peak followed by a gradual waning of the signal and consistent with the absence of a sustained Ca2+ signal, the rate of fluid secretion was diminished. This reduced secretion likely results from a ‘tetanic’ stimulus where either neurons fail to fire during their refractory period, neurotransmitter release is exhausted or acinar cell Ca2+ signaling is perturbed, during this likely non-physiological stimulation. Over the range of physiological stimulus strengths, the extent of fluid secretion was strongly correlated with the magnitude of the peak Ca2+ rise, rather than necessarily the frequency of Ca2+ transients. This conclusion is consistent with our previous modeling and experimental work that has indicated that the integrated increase in [Ca2+] during stimulation is the primary driving factor for efficient fluid secretion (Sneyd et al., 2014).
Local, non-propagating Ca2+ signals are observed in isolated pancreatic acinar cell in response to IP3, low concentrations of secretagogues and physiological concentrations of the gut hormone cholecystokinin (Ashby et al., 2003; Thorn et al., 1993; Thorn et al., 1996; Thorn and Petersen, 1993). It should be noted that the majority of these studies have been performed in whole-cell patch clamped isolated acinar cells. Ca2+ buffering is established by the internal pipette solution in these experiments and thus could conceivably alter the spatial characteristics of the signal. Future in vivo experiments in the pancreas will address whether the spatial properties of Ca2+ signals differ from those observed in acutely isolated cells. Nevertheless, the spatial characteristics of the Ca2+ signal observed in vivo in the present study represents a major difference to previous work in isolated salivary acinar cells. The failure of the signal to propagate and standing [Ca2+] gradients observed are presumably established by SERCA, PMCA and mitochondrial buffering to efficiently reduce the local [Ca2+] to levels that do not support substantial CICR through IP3R and RYR that are presumed to be localized in the ER distant from the apical trigger zone. An obvious question is, what factors or mechanisms underlie these differences? At the level of the SMG lobule, the polarity of individual cells and their organization within an acinus is vital for function. The complex architecture is maintained by junctional complexes and interactions with the extracellular matrix and stromal cells (Baker, 2010). Clearly, these interactions may be disturbed when cells are isolated from an excised gland by enzymic digestion. An apparent consequence may be a disruption of the exquisite polarity of acinar cells. Perturbed localization of the Ca2+ signaling machinery could disrupt the balance between Ca2+ release and clearance to ultimately result in an alteration of the spatiotemporal characteristics of the signal. Conceivably, alterations in the polarization of the ER, such that IP3R or SERCA are not maintained in the extreme apical ER (Pages et al., 2019), or a change in distribution of mitochondria (Bruce et al., 2004) to disrupt ER-mitochondrial junctions and effective Ca2+ sequestration from release sites could contribute to the altered Ca2+ signals observed in vitro.
A further important consideration when interpreting the characteristics of these Ca2+ signals is the obvious difference in delivery of the secretagogue in these experiments. In contrast to superfusion of agonists in vitro, that results in a defined ‘square’ pulse of stimulating agent, in vivo, acinar cells likely experience a complex, stimulus intensity, and time-dependent gradient of neurotransmitter. In our studies, the concentration of ACh released from neurons would be predicted to rapidly increase and then decay as it is hydrolyzed by acetylcholinesterases. As the frequency of stimulation is increased, the residual concentration of ACh present in the vicinity of acinar cells would be predicted to increase with a ‘saw-tooth’ profile as the amount of ACh release exceeds the rate of degradation following more frequent, repetitive cycles of neurotransmitter exocytosis. In this scenario, when a threshold concentration of neurotransmitter is reached that generates sufficient IP3, an increase [Ca2+]i, will be triggered. The time to reach this threshold would define the latent period for that particular cell and the relative sensitivity to neurotransmitter will predicate whether an individual cell is responsive to a given stimulation. At optimum stimulation frequencies, the residual ACh concentration would further increase and remain above the threshold for the majority of acinar cells to respond. This would facilitate greater Ca2+ release manifested as an increased peak and Ca2+ oscillations by the entire field. Notably, neural stimulation does not simply ‘pace’ cells, as the frequency of oscillations does not correlate with the stimulus frequency. It is therefore likely, that the oscillations result from the inherent properties of IP3R and SERCA pumping activity but where the kinetics are influenced by the dynamic changes in neurotransmitter concentrations. This may contribute to the differences in oscillation frequency observed when comparing in vivo and in vitro data.
We observed considerable spatial heterogeneity in the responsiveness and peak amplitude of cells across the field of view. Specifically, there were sections of the field which exhibit the greatest sensitivity and largest responses at all stimulus intensities. Conceptually, this may reflect acini with expression of a higher density of cell surface receptors. Alternatively, highly responsive regions may represent cells physically closer to synapsing neurons and thus experiencing higher concentrations of ACh. The innervation of SMG lobules visualized in a reporter mouse expressing fluorescent protein in parasympathetic neurons has been reported to be fairly homogeneous (Sheu et al., 2017). Therefore, a further possibility is that spatial homogeneity arises in part because increasing numbers of axons are recruited to fire as stimulus intensity increases thus directly innervating a larger proportion of cells.
Clearly, our previous models describing how Ca2+ signals promote salivary secretion are not entirely consistent with the new in vivo data presented here. Fundamentally, if there is no obligatory global, propagating intracellular Ca2+ wave, activating the KCa channels in the basal PM would be predicted to be inefficient. Previously, however we have demonstrated, both functionally and physically, that the KCa channels, KCa3.1 (‘IK’) and KCa1.1 (‘BK’) together with Na/K ATPases are present in the apical PM of salivary acinar cells (Almássy et al., 2018; Almassy et al., 2012). Notably, we reported that KCa3.1 colocalized with apical markers including IP3R3 and Zona occludens-1. Further, focal, highly localized uncaging of Ca2+, directly below the apical PM resulted in activation of a K+ conductance with pharmacology consistent with KCa3.1. Additionally, apical uncaging of Ca2+ evoked a smaller current in acini prepared from KCa1.1 knockout transgenic mice (Almassy et al., 2012). At the time these results were puzzling, as there was no obvious reason, according to the current model, why the apical PM should express these transport proteins. Nevertheless, a previous modeling study has suggested that expression of a proportion of KCa to the apical PM could optimize fluid secretion. The new data, together with the localization of apical KCa, combined with simulations by the new model, strongly suggests the physiological importance of the apical KCa and Na/K-ATPases. Specifically, as [Ca2+] elevations occur and are maintained at greater magnitude in close apposition to apical KCa channels, it would seem likely that their activation contributes to maintaining the electrochemical driving force for Cl- secretion. Given the localization of IP3R to apical ER, ~ 50–100 nm from the apical PM (Sneyd et al., 2021), a tight coupling between Ca2+ release and activation of both major effectors would be reasonably predicted to promote efficient fluid secretion. The importance of apical KCa, while difficult to explicitly address experimentally, is supported by the new model which indicates that optimal secretion is achieved when KCa are expressed in both the apical and basolateral membranes. On the other hand, since the primary saliva has a low [K+], this K+ must be removed from the lumen. This is the proposed function of the Na/K-ATPase in the apical membrane.
Taken together, the present studies describe the spatial and temporal characteristics of physiological Ca2+ signals driving salivary fluid secretion. Further, our findings highlight that caution should be exerted in extrapolating conclusions from ex vivo studies to physiological Ca2+ signals and function in vivo. Finally, it is envisioned that the present studies will provide a framework for investigating if Ca2+ signaling is disrupted in disease states such as Sjögren's syndrome or radiation-induced xerostomia which result in pronounced hyposecretion of saliva (Teos et al., 2016; Baum et al., 2012).
Materials and methods
Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
---|---|---|---|---|
Strain, strain background (mouse) | B6J.Cg-Gt(ROSA)26Sortm95.1(CAG-GCaMP6f)Hze/MwarJ | Jackson Laboratory | RRID:IMSR_JAX:028865 | |
Strain, strain background (mouse) | B6.129-Bhlha15tm3(cre/ERT2)Skz/J | Jackson Laboratory | RRID:IMSR_JAX:029228 | |
Chemical compound, drug | Physostigmine | Tocris Bioscience | 0622 | |
Chemical compound, drug | GSK7975A | Sigma-Aldrich | 5.34351 | |
Chemical compound, drug | Carbachol | Sigma-Aldrich | 1092009 | |
Software, algorithm | FIJI/ImageJ | https://imagej.net/software/fiji/ | ||
Software, algorithm | Prism | GraphPad | ||
Software, algorithm | Jupyter Notebook | Jupyter labhttps://jupyter.org/ | ||
Software, algorithm | SciPy | https://www.scipy.org/ | ||
Software, algorithm | scikit-image | scikit-image https://scikit-image.org | ||
Other | Tamoxifen | Sigma-Aldrich | T5648 | |
Other | Collagenase Type II | Worthington Biochemical | LS004204 |
Tamoxifen, corn oil, ketamine, and Xylazine were purchased from Sigma Chemical, St Louis, Mo. Physostigmine was purchased from Tocris Minneapolis, Mn.
Generation of mice expressing GCaMP6f in exocrine acinar cells
View detailed protocolAdult female GCaMP6fflox mice (Jackson Laboratory; Jax 028865) were crossed with male heterogenous Mist1CreERT2 (Jackson Laboratory; Jax 029228, kindly donated by Dr. Catherine Ovitt, University of Rochester) to generate Mist1+/– x GCaMP6f+/– transgenic mice. Tamoxifen (0.25 mg/g body weight) dissolved in corn oil was administered to mice at least 6 weeks old of either gender, by oral gavage once a day for 3 consecutive days. Imaging was carried out 1–4 weeks after the last tamoxifen administration. All animal procedures were approved by University Committee on Animal Resources (UCAR-2001-214E).
In vivo MP imaging
View detailed protocolThe animal was anesthetized with Ketamine (80 mg/kg body weight, i.p.) and Xylazine (10 mg/kg body weight, i.p.). The animal was restrained with the ventral side up, and the animal’s body temperature was maintained at 37°C by a heat pad during surgery and imaging. A submandibular gland was exposed by making an incision in the skin on the ventral side of the neck. Connective tissue around the gland was teased away using forceps to allow the gland to be raised away from the body but remaining attached by a duct/nerve/blood vessels bundle. A pair of tungsten wires (WPI, Inc) was inserted to the bundle as stimulation electrodes. The lifted gland was placed on a 10 x 13 mm custom build small holder situated directly above the neck so that the position of the gland was not influenced by movement as a result of breathing. The gland was held by a cover glass to flatten the surface and to keep tissue moist with Hanks salt solution between the holder and the cover glass (Figure 1B). A 25x water immersion lens (Olympus XLPlan N 1.05 W MP) equipped with an objective heater (OKOLab COL2532) kept at 37°C was utilized for MP imaging. An upright two-photon microscope system (FVMPE-RS, Olympus) with an excitation laser (InSight X3, Spectra-Physics) tuned at 950 nm and emission collected at 495–540 nm was utilized. Images were captured using Olympus FV31s-SW software at 30 fps framerate then averaged every three frames to achieve 10 fps image collection rate. Imaging depths between 10 and 55 µm from the surface of the gland were routinely utilized. PMT settings were fixed at 600V, 1x gain, and 3% black level, with excitation laser power adjusted per animal and according to imaging depth. Stimulation was generated by a stimulus isolator (Iso-flex, A.M.P.I.) set 5 mA, 200 μs, at the indicated frequency with train frequency and duration controlled by a train generator (DG2A, Warner Instruments). Images were captured typically for 30 s continuously. At least 1 min interval was given before imaging in the same field at a different stimulation strengths. In selected experiments, physostigmine (0.1 mg/kg body weight, i.p.) was administered to the animal on the microscope stage, at least 15 min prior to the imaging of post-physostigmine Ca2+ signals.
For line scan imaging, an acinar cell cluster that arranged in the image plane such that that apical and basal sides of the acinar cell could be clearly identified and the imaging plane depth crossed near the center of the cell. A line was drawn from the apical end, passing through a nucleus, to the basal end of an acinar cell. The scanning speed was 1–1.6 ms per line for 10 s duration. The apical, cytosolic, and basal region were defined as 3 µm wide line within each image, and fluorescent intensity before stimulation for each region served as baseline intensity (F0 = 0%).
Saliva secretion measurement
Request a detailed protocolAn anesthetized animal with stimulation electrodes attached to the duct bundle were gently held with ventral side up. A piece of filter paper, roughly 2 x 10 mm, were weighed before placing it in the animal’s mouth. A stimulation of 0–100 Hz was given to a gland for 1 min, and the paper was immediately removed and weighed. The difference of the weight of the paper represents the amount of saliva secreted out in the animal’s mouth. A new paper was placed in the mouth for each stimulation train.
Acinar cell isolation and imaging
Request a detailed protocolSMG acinar cells were enzymatically isolated from 2- to 4-month-old, Mist1+/– x GCaMP6f+/– mice of both sexes. To isolate acinar cells, glands were extracted, connective tissue was removed, and glands were minced. Cells were placed in oxygenated dissociation media at 37°C for ~30 min with shaking. Dissociation media consisted of Hank’s Balanced Salt Solution containing CaCl2 and MgCl2 (HBSS), bovine serum albumin (0.5%), and Collagenase Type II (0.2 mg/mL, Worthington). Cells were washed twice in HBSS with 0.5% BSA and resuspended in a HBSS solution containing 0.5% BSA and 0.02% trypsin inhibitor. Cells were then resuspended in imaging buffer (10 mM HEPES, 1.26 mM Ca2+, 137 mM NaCl, 4.7 mM KCl, 5.5 mM glucose, 1 mM Na2HPO4, 0.56 mM MgCl2, at pH 7.4) and seeded onto a coverslip to allow attachment of cells. Cells were then perfused with imaging buffer and stimulated with agonist. Ca2+ imaging was performed using an inverted epifluorescence Nikon microscope with a 40 X oil immersion objective (NA=1.3) equipped with an environmental chamber allowing control of experimental temperature. Cells were excited at 488 nm from a monochromator, and emission was monitored at 530 nm. Images were captured every 500 ms with an exposure of 10 ms and 4 × four binning using a digital camera driven by TILL Photonics software. Image acquisition was performed using TILLvisION software and data was exported to Microsoft excel and analyzed in Prism (Graph Pad).
Image analysis
View detailed protocolAmplitude, latency, and percent of responding areas in fluorescence fields were analyzed using ImageJ software (NIH). Standard Deviation (SD) Images were generated from the image time series by using the Stacks Z project function in image J. XY drift during the imaging, when present, was corrected by applying the Descriptor-based series registration plugin (Stephan Preibisch). The imaging field was divided into 8 by eight grids to yield 64 regions of interest (ROIs) of dimension 32x32 µm square. The average intensity of each ROI grid was generated for each frame. The average of first 100 frames prior to stimulation served as baseline fluorescence (F0), and %ΔF/F0 ((F– F0)/ F0 x 100) was calculated using the Image calculator function, so that the converted 32-bit image series represents [Ca2+] changes over time expressed as %ΔF/F0 in 8x8 alley of grids in the XY dimension (Figure 5A). The standard deviation of the baseline 100 frames from grids in each image series provided an estimate of the noise level. A change greater than four times the standard deviation from the F0 value was considered as a stimulated Ca2+ signal and the ROI therefore designating a responding grid. To calculate latency prior to a response the time at the first incident Ca2+ signal meeting the criteria as a responding grid in each ROI after the initiation of the stimulation were recorded. Non-responding grids were excluded from this analysis. Statistical analyses were performed with paired t test, one-way ANOVA, and linear regression using Prism (GraphPad).
Subcellular image analysis
View detailed protocolA computer based, automated region-of-interest (ROI) detection method that specifically targets cellular regions with pronounced changes was developed since no off-the-shelf tool met our particular requirements to efficiently process the data (https://github.com/jrugis/cell_tools; Rugis, 2021; copy archived at swh:1:rev:c8fced9a9d8f3b7526a8f8eabfe547c618f2374b). The new software toolset consists of an assembly of Python (https://www.python.org) scripts deployed in a collection of Jupyter Lab (https://jupyter.org) ‘notebooks’. The notebooks were designed to automate repetitive analysis steps and give flexibility to interactively explore and analyze the image data sets and makes use of image processing algorithms in the scikit-image (https://scikit-image.org) package. ROI were identified by generating a difference image whereby the average image prior to stimulation was subtracted from the average image during the period of stimulation on a pixel-by-pixel basis (Figure 11A). An initial mask was created by simple pixel intensity thresholding (Figure 11B). Subsequent filtering by binary dilation and binary erosion removes undesired small regions and smooths the remaining regions (Figure 11C). The notebook then generates plots of pixel intensity over time for each ROI generated and utilizes the same mask for images sets generated from the same field at differing frequencies of stimulation (Figure 11D). A further script block was generated to objectively automate the identification of peaks generated by stimulation. For peak processing several signal processing operations from the scipy (https://www.scipy.org) package were employed. The script employs a sequence of signal resampling, low-pass zero phase filtering, high-pass zero phase filtering and a generic peak detector followed by a mapping back into the original response data. Detected peaks for each stimulation frequency were plotted in the notebook as black dots overlaid on region summary plots as shown in Figure 11D.
Model details
Request a detailed protocolThe model has two interconnected modules; a Ca2+ oscillation module and a fluid secretion module. The two modules are coupled via changes in cell volume, and by the activation of KCa and ClCa by Ca2+. The Ca2+ oscillation module is a reaction-diffusion equation and is solved in a three-dimensional domain reconstructed from experimental structural data (Vera-Sigüenza et al., 2020). All ions except Ca2+ are assumed to be homogeneously distributed in the cell, and are thus described by a system of ordinary differential equations. The apical membrane forms a fingered region that extends partially around the cell (Figure 14—figure supplement 1) and all the remainder of the membrane is assumed to be basolateral. No functional distinction is made between the basal and lateral membranes. TMEM channels are restricted to the apical membrane and are assumed to have a constant density there, and the other ion channels and/or transporters are assumed to be distributed on the basolateral membrane with a constant density. KCa channels and Na/K ATPases are assumed to be distributed on both the apical and basolateral membranes. A first-order implicit-explicit finite element method is used to solve the reaction-diffusion for [Ca2+], and this is coupled to the ordinary differential equations for the other ions by a stepwise process in which the Matlab routine ode15s is first used to solve for the volume over a single time step, and that volume is then used to advance the reaction-diffusion equation for [Ca2+]. The individual models for the various transporters, channels and exchangers are all given in Vera-Sigüenza et al., 2020. The model equations were solved in a single, uncoupled cell (cell four in the notation of Vera-Sigüenza et al., 2020. Similar results were obtained from all the other cells). The volume of the cell is taken into account, not by a full remeshing at each time step, but simply by a volume scaling factor in the reaction diffusion equation. The activity of the TMEM and KCa channels on a particular patch of membrane (described by a triangle in the finite element method) was assumed to be a function only of the mean [Ca2+] in the tetrahedron containing that surface triangle. Thus, the KCa are spatially distributed and activated in a manner that depends directly on the spatial distribution of [Ca2+] as a result of Ca2+ release. We note that this means that Ca2+ released from the apical region (which, in the model, means Ca2+ release directly apposed to the surface triangles corresponding to the apical membrane) can diffuse a short distance to activate those KCa channels situated on the basolateral membrane close to the apical membrane. This is why the model exhibits substantial fluid flow even when there are no apical KCa channels; in the absence of apical KCa channels only a small proportion of the basolateral KCa channels will be activated by Ca2+ diffusing from the apical region, but that is sufficient to allow for some fluid flow.
The Ca2+ oscillation module is based on a closed-cell Class I model in which oscillations arise via sequential activation and inactivation of the IP3R. [Ca2+] buffering is assumed to be fast and linear, and the IP3R model is taken from Sneyd et al., 2017a. Ca2+ obeys a reaction-diffusion equation in the cell interior, but the effective diffusion coefficient of Ca2+ is small (due to buffering) which allows for localized increases in [Ca2+] which are not propagated throughout the cell. Because the IP3R are situated 50–100 nm from the ClCa (which are on the apical membrane), release of Ca2+ through the IP3R is modeled as a boundary flux term, which avoids the necessity for a high-resolution finite element mesh in the apical region, which would greatly slow the calculations. The diffusion coefficient of IP3 is two orders of magnitude greater than that of Ca2+, and thus IP3 is effectively spatially homogeneous throughout the cell.
In the new model, all parameters and equations remain unchanged from those in the old model (Vera-Sigüenza et al., 2020) with the following exceptions.
The maximum Ca2+ flux through RyR (VRyR) was set to 0. This is the simplest way of removing RyR from the model.
A KCa channel, with the same conductance as the basal KCa channel, was introduced into the apical membrane, with the equations for cytosolic and lumenal [K+] altered to compensate. The apical/basolateral KCa current ratio was varied over a range of values (including 0, which corresponds to the absence of apical KCa), but for most computations the model assumes that the KCa channels have the same density on the apical and basolateral membranes. We note that the KCa current is also determined by the [Ca2+] immediately adjacent to the membrane, and thus the spatial distribution of Ca2+ will determine the exact apical/basolateral KCa current ratio. It is only when [Ca2+] is spatially homogeneous that this ratio will equal the apical/basolateral surface area ratio.
Na/K-ATPases were introduced into the apical membrane, using the same model and parameters as in Almássy et al., 2018. The only change is that the total Na/K-ATPase activity was assumed to be unchanged, with 70% occurring in the basolateral membrane, and 30% in the apical membrane.
VPLC , which controls the level of agonist stimulation, was set to 0.008 μM/s on the basal membrane, and 0 elsewhere (as in Pages et al., 2019; Vera-Sigüenza et al., 2019; Vera-Sigüenza et al., 2020). However, and in contrast to Pages et al., 2019; Vera-Sigüenza et al., 2019; Vera-Sigüenza et al., 2020, PLC activity was assumed to be independent of [Ca2+]. The spatial distribution of PLC has essentially no effect on the model results, and this remains true even when the diffusion coefficient of IP3 is decreased by two orders of magnitude (computations not shown).
The remaining parameters (taken directly from Vera-Sigüenza et al., 2020) have been derived from a variety of experimental data over the past decade. For example, the parameters of the IP3R model were determined by fitting to single-channel data (Cao et al., 2013; Cao et al., 2014; Siekmann et al., 2012), while the parameters of many of the ion transporters and exchangers were taken from a variety of published models by other groups, as described in Palk et al., 2010 and Vera-Sigüenza et al., 2019. The parameters of the apical KCa were determined by ensuring qualitative agreement with the experimental data of Almassy et al., 2012 while, similarly, the anion exchanger parameters were taken directly from the previous modeling work of Vera-Sigüenza et al., 2018.
Data availability
All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 2,3,5,6,7,10,11.Python scripts are available at https://github.com/jrugis/cell_tools (copy archived at https://archive.softwareheritage.org/swh:1:rev:c8fced9a9d8f3b7526a8f8eabfe547c618f2374b).
References
-
Apical Ca2+-activated potassium channels in mouse parotid acinar cellsJournal of General Physiology 139:121–133.https://doi.org/10.1085/jgp.201110718
-
New saliva secretion model based on the expression of Na+-K+ pump and K+ channels in the apical membrane of parotid acinar cellsPflügers Archiv - European Journal of Physiology 470:613–621.https://doi.org/10.1007/s00424-018-2109-0
-
Dissection of calcium signaling events in exocrine secretionNeurochemical Research 36:1212–1221.https://doi.org/10.1007/s11064-011-0465-7
-
Calcium signalling in salivary gland physiology and dysfunctionThe Journal of Physiology 594:2813–2824.https://doi.org/10.1113/JP271143
-
Activation of calcium-dependent chloride channels in rat parotid acinar cellsJournal of General Physiology 108:35–47.https://doi.org/10.1085/jgp.108.1.35
-
Three distinct chloride channels control anion movements in rat parotid acinar cellsThe Journal of Physiology 490:351–362.https://doi.org/10.1113/jphysiol.1996.sp021149
-
Long distance communication between muscarinic receptors and Ca2+ release channels revealed by carbachol uncaging in cell-attached patch pipetteJournal of Biological Chemistry 278:20860–20864.https://doi.org/10.1074/jbc.M302599200
-
Tight junctions in salivary epitheliumJournal of Biomedicine & Biotechnology 2010:278948.https://doi.org/10.1155/2010/278948
-
Regulation of chloride channels in secretory epitheliaJournal of Membrane Biology 163:77–85.https://doi.org/10.1007/s002329900372
-
Phosphorylation of inositol 1,4,5-trisphosphate receptors in parotid acinar cells. A mechanism for the synergistic effects of cAMP on Ca2+ signalingThe Journal of biological chemistry 277:1340–1348.https://doi.org/10.1074/jbc.M106609200
-
Modulation of [Ca2+]i signaling dynamics and metabolism by perinuclear mitochondria in mouse parotid acinar cellsJournal of Biological Chemistry 279:12909–12917.https://doi.org/10.1074/jbc.M309070200
-
A stochastic model of calcium puffs based on single-channel dataBiophysical Journal 105:1133–1142.https://doi.org/10.1016/j.bpj.2013.07.034
-
Contribution of TRPC1 and Orai1 to Ca(2+) entry activated by store depletionAdvances in experimental medicine and biology 704:435–449.https://doi.org/10.1007/978-94-007-0265-3_24
-
Severe impairment of salivation in Na+/K+/2Cl- cotransporter (NKCC1)-deficient miceJournal of Biological Chemistry 275:26720–26726.https://doi.org/10.1016/S0021-9258(19)61435-3
-
[Ca2+]i modulation of Cl- content controls cell volume in single salivary acinar cells during fluid secretionAmerican Journal of Physiology-Cell Physiology 259:C998–C1004.https://doi.org/10.1152/ajpcell.1990.259.6.C998
-
Stimulus-secretion coupling in mammalian salivary glandsInternational review of physiology 28:1–52.
-
Intracellular Ca2+ and Cl- channel activation in secretory cellsAnnual review of physiology 62:493–513.https://doi.org/10.1146/annurev.physiol.62.1.493
-
Polarized expression of Ca2+ channels in pancreatic and salivary gland cells. Correlation with initiation and propagation of [Ca2+]i wavesThe Journal of biological chemistry 272:15765–15770.https://doi.org/10.1074/jbc.272.25.15765
-
A capacitative Ca2+ influx is required for sustained fluid secretion in sublingual mucous aciniAmerican Journal of Physiology-Gastrointestinal and Liver Physiology 261:G1043–G1050.https://doi.org/10.1152/ajpgi.1991.261.6.G1043
-
Chloride channels and salivary gland functionCritical Reviews in Oral Biology & Medicine 10:199–209.https://doi.org/10.1177/10454411990100020601
-
Regulation of fluid and electrolyte secretion in salivary gland acinar cellsAnnual Review of Physiology 67:445–469.https://doi.org/10.1146/annurev.physiol.67.041703.084745
-
Functional and molecular characterization of the fluid secretion mechanism in human parotid acinar cellsAmerican Journal of Physiology-Regulatory, Integrative and Comparative Physiology 292:R2380–R2390.https://doi.org/10.1152/ajpregu.00591.2006
-
Apical maxi-K (KCa1.1) channels mediate K+ secretion by the mouse submandibular exocrine glandAmerican Journal of Physiology-Cell Physiology 294:C810–C819.https://doi.org/10.1152/ajpcell.00511.2007
-
A Model of [Formula: see text] Dynamics in an Accurate Reconstruction of Parotid Acinar CellsBulletin of mathematical biology 81:1394–1426.https://doi.org/10.1007/s11538-018-00563-z
-
A dynamic model of saliva secretionJournal of Theoretical Biology 266:625–640.https://doi.org/10.1016/j.jtbi.2010.06.027
-
Modelling the effects of calcium waves and oscillations on saliva secretionJournal of Theoretical Biology 305:45–53.https://doi.org/10.1016/j.jtbi.2012.04.009
-
Regulation of Ca²⁺ release through inositol 1,4,5-trisphosphate receptors by adenine nucleotides in parotid acinar cellsAmerican Journal of Physiology-Gastrointestinal and Liver Physiology 302:G97–G104.https://doi.org/10.1152/ajpgi.00328.2011
-
Tmem16A encodes the Ca2+-activated Cl- channel in mouse submandibular salivary gland acinar cellsJournal of Biological Chemistry 285:12990–13001.https://doi.org/10.1074/jbc.M109.068544
-
A kinetic model for type I and II IP3R accounting for mode changesBiophysical Journal 103:658–668.https://doi.org/10.1016/j.bpj.2012.07.016
-
Multiscale modelling of saliva secretionMathematical Biosciences 257:69–79.https://doi.org/10.1016/j.mbs.2014.06.017
-
Modeling calcium waves in an anatomically accurate three-dimensional parotid acinar cellJournal of Theoretical Biology 419:383–393.https://doi.org/10.1016/j.jtbi.2016.04.030
-
Calcium Dynamics and Water Transport in Salivary Acinar CellsBulletin of Mathematical Biology 83:31.https://doi.org/10.1007/s11538-020-00841-9
-
Activation of calcium entry by the tumor promoter thapsigargin in parotid acinar cells. Evidence that an intracellular calcium pool and not an inositol phosphate regulates calcium fluxes at the plasma membraneThe Journal of biological chemistry 264:12266–12271.
-
Fundamental properties of Ca2+ signalsBiochimica et Biophysica Acta (BBA) - General Subjects 1820:1185–1194.https://doi.org/10.1016/j.bbagen.2011.10.007
-
A Mathematical Model Supports a Key Role for Ae4 (Slc4a9) in Salivary Gland SecretionBulletin of Mathematical Biology 80:255–282.https://doi.org/10.1007/s11538-017-0370-6
-
A Mathematical Model of Fluid Transport in an Accurate Reconstruction of Parotid Acinar CellsBulletin of Mathematical Biology 81:699–721.https://doi.org/10.1007/s11538-018-0534-z
-
A Multicellular Model of Primary Saliva Secretion in the Parotid GlandBulletin of Mathematical Biology 82:38.https://doi.org/10.1007/s11538-020-00712-3
-
Visualizing form and function in organotypic slices of the adult mouse parotid glandAmerican Journal of Physiology-Gastrointestinal and Liver Physiology 295:G629–G640.https://doi.org/10.1152/ajpgi.90217.2008
-
Regulation of phosphatidate synthesis by secretagogues in parotid acinar cellsBiochemical Journal 204:587–592.https://doi.org/10.1042/bj2040587
-
Ca2+ release dynamics in parotid and pancreatic exocrine acinar cells evoked by spatially limited flash photolysisAmerican Journal of Physiology-Gastrointestinal and Liver Physiology 293:G1166–G1177.https://doi.org/10.1152/ajpgi.00352.2007
Decision letter
-
Richard S LewisReviewing Editor; Stanford University School of Medicine, United States
-
Kenton J SwartzSenior Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
-
Peter ThornReviewer; University of Sydney, Australia
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Acceptance summary:
This paper applies intravital 2-photon microscopy to describe the intracellular calcium signals that drive fluid secretion from salivary gland cells in vivo. Secretion of saliva depends on calcium-dependent chloride and potassium channels, and based on studies of isolated salivary gland cells in vitro, these were previously thought to reside in different regions of the cell and require a propagating calcium wave for their activation. This study reveals a much more localized pattern of calcium signals in the intact organ, providing the first view of how calcium is coupled to secretion in vivo and new insights into how ion channel activity is coordinated to optimize secretion.
Decision letter after peer review:
Thank you for submitting your article "The characteristics of intracellular Ca2+ signals in vivo necessitate a new model for salivary fluid secretion" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen Kenton Swartz as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Peter Thorn (Reviewer #3).
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.
Essential revisions:
The major significance of this work rests on the novel pattern of Ca2+ signals associated with secretion in vivo and demonstrating a consequent need for a revised model of apical K channel activation to maintain the driving force for Cl-efflux across the apical membrane and fluid secretion.
1. Is a new model needed to describe secretion in vivo? The argument for a new model in which Ca2+ activates KCa channels in the apical membrane is based on the observation of low levels of secretion (<5 Hz stimulation) associated with apically localized Ca oscillations. However, these signals are not strictly localized to the apical membrane and would likely activate KCa channels in the basolateral membrane that are close to the tight junctions. In addition, a large increase in secretion is seen for stimuli (5-10 Hz) that propagate Ca to the basal pole, consistent with previous models incorporating activation of basal KCa channels. The contribution of KCa channels in the apical membrane needs to be demonstrated experimentally. This could be addressed by applying blockers to the apical surface, although this may be difficult. Overall, to justify the model, a need for apical KCa channels or evidence of their contribution to secretion, needs to be shown.
2. The apical Ca signals are ascribed solely to release through IP3R, but Orai1 channels, known to be expressed in these cells, are likely to contribute as well. Preferably, Orai1 inhibitors applied systemically (as was done for the cholinesterase inhibitor) should be tested for effects on Ca2+ signals and secretion. At the least the contributions of Orai1 channels should be discussed, taking into account previously published work.
3. The computational model does not adequately reproduce the main features of the Ca2+ response. It shows a large initial spike upon stimulation (Figure 11B) that is not seen experimentally (Figure 9). It also oscillates at a much lower frequency (<0.2 Hz, similar to in vitro) than measured in vivo (0.5-1 Hz). In addition, the model needs to be tested under more conditions to confirm that it can account for the experimental data; e.g., does it predict the intracellular [Ca2+]i gradients, and how increasing stimulation frequency changes the Ca2+ response? More data are needed to justify the choice of model parameter values.
4. The absence of local apical Ca2+ signals in vitro is not the case for all exocrine acinar cells. The authors should acknowledge that local apical responses have been seen in other acinar cells (e.g. pancreatic acinar cells) in vitro, upon stimulation with physiological concentrations of hormones, low concentrations of neurotransmitter, or directly by IP3.
5. The current data do not allow a fair comparison of the spatiotemporal aspects of Ca2+ signaling in vivo and in vitro. While the use of GCaMP6f is a good way to rule out effects of different indicators (e.g., fura-2), other factors are likely to contribute and can be easily tested:
(a) The in vivo experiments were conducted at 37 deg C while the in vitro imaging seems to have been done at room temperature (temperature was not indicated in the Methods). Cooler temperature is likely to affect oscillation frequency as well as the rate of pumping or sequestration which could affect propagation.
(b) The concentrations of ACh used in vitro may not relate to the neural stimulation frequencies in vivo. The 100 nM response in vitro is quite large, so it may not be fair to compare this with low- frequency stimulation in vivo where signals are confined to the apical pole. Perhaps more localized signals would result from lower ACh concentrations.
6. The method for standard deviation (SD) image processing should be described. This approach highlights areas that oscillate, but may de-emphasize areas of tonic elevation which would also be expected to drive secretion. At 5 Hz stimulation it shows that oscillations are confined mostly to the apical region (Figure 7C), but at 10 Hz the cells don't seem to oscillate (Figure 8), so it is not clear why SD images are presented here. It would be more informative to plot a cross-section of GCaMP6 signal from apical to basal before and during stimulation.
Reviewer #1:
This work offers a new look at the calcium signals that drive secretion in salivary gland cells. Based on studies of isolated cells in vitro, the common view was that calcium signals originating in the apical pole of the cell propagate to the basal pole, so that chloride channels allow chloride ions to exit across the apical membrane while K channels in the basal membrane are opened to maintain the electrical driving force for chloride exit. Through an elegant use of 2-photon microscopy to monitor the spatial spread of calcium signals in intact glands in vivo, the authors describe a different pattern, in which the signals do not propagate but are much more confined to the apical pole of the cell, and they show that secretion occurs even without significant spread of calcium to the basal pole. These results are significant as they challenge current mechanistic models for secretion, and they imply a functional role for K channels in the apical membrane, which until now have been commonly considered to only function in the basolateral membrane.
However, the paper has several shortcomings that need to be addressed to better support a need for revising the current secretion model. It is not clear whether KCa channels in proximal regions of the basolateral membrane are activated by the apically confined Ca2+ and therefore are sufficient to support secretion. A modified computational model intended to support the need for apical KCa channels does not offer strong support, as it does not faithfully reproduce several of the experimentally observed Ca2+ responses. Finally, the differences between the spatiotemporal aspects of Ca2+ signaling in vivo and in vitro are difficult to assess as critical conditions such as temperature and agonist concentration were not matched in the two experimental scenarios.
Reviewer #2:
In this study Dr. Yule and his colleagues describe very impressive and painstaking work in which they have monitored for the first time Ca2+ signals and salivary secretion in vivo in a mouse model which expressed the Ca2+ indicator protein, GCamp6F, in salivary glands. Previously reported studies measured fluid secretion in vivo by injecting the animals with pilocarpine and collecting the oral secretion or by using protocols where the gland is perfused. However, cytosolic [Ca2+] changes, which are correlated with, and required for, salivary fluid secretion have been predominantly measured in isolated acinar or cell cluster preparations and some in tissue slices. By using intravital multiphoton (MP) microscopy together with stimulation of the neural input to the gland, the authors were able to measure the spatiotemporal properties of Ca2+ signals within the acinar cells and collect saliva that is secreted into the oral cavity. Thus, this study is an important breakthrough in this field as it reveals the exact [Ca2+] changes associated with salivary gland fluid secretion.
This study shows that major spatiotemporal properties of the Ca2+ signals detected in vivo are markedly different from those previously reported using isolated acinar cells (by this group and others) which demonstrated that Ca2+ signals are initiated apically but propagate as a wave globally across the cell without generation of Ca2+ gradients. The present findings show that following moderate stimulation, apically localized oscillatory Ca2+ signals are generated that do not propagate globally and cause minimal secretion. However, at stimulation intensities optimum for secretion, there is a spread of Ca2+ across the cell although with an apical-basal standing Ca2+ gradient. Based on these differences the authors have proposed a revised model which suggests that the apical region contains all the machinery needed for saliva secretion and that Ca2+ released predominately in the apical region, via IP3R, can regulate the function of locally situated ion channels without requirement for a propagated wave of increased [Ca2+] across the cell. As I have noted above the data described in this manuscript provide new understanding of the physiological response of salivary gland to neuronal stimulation and how fine-tuning of the spatiotemporal properties of the Ca2+ signals regulate fluid secretion.
The main question I have is regarding stimulus strengths that induce optimal levels of secretion (10 and 30Hz) where there is propagation of Ca2+ across the cell and almost 3-fold higher secretion relative to that at 5Hz. While increase in % responding cells at higher stimulus strengths could result in higher total secretion, possible contribution of Ca2+ influx pathways in the spread of Ca2+ in individual acinar cells, e.g. via Orai1 that is localized in the apical region of the cell, cannot be ruled out. Also not clear is whether the spread enhances secretion. Thus, when stimulus is low, secretion is minimal and supported only by release and oscillatory apical [Ca2+]. At higher stimulus strengths there might be an additional Ca2+ influx component which is activated very early after stimulation, likely during IP3-mediated Ca2+ release. Since the basolateral membrane extends all the way to the tight junction, is it possible that several components shown basally localized in the model could actually be quite close to the apical membrane region, near the tight junctions.
Thus, it is important to distinguish between initial stimulation of secretion vs regulation of sustained secretion. For example; the last sentence in the abstract clearly, and correctly, states "salivary secretion can be efficiently stimulated by apically localized Ca2+ signals".
Reviewer #3:
This paper describes a nice set of experiments where the authors have measured calcium responses in salivary acinar cells from living animals and, importantly, correlated these with measures of salivary secretion. The work is very well performed and the data interesting and definitely an advance in the field. I cannot think of another study that combines, so well, cellular calcium responses with genuine physiological output.
Strengths
Intravital images are very good and the combination with fluid secretion gives a nice correlation between calcium responses and physiological output – something which is impossible in vitro.
Good initial analysis of the images and convincing data where the calcium responses are further analysed.
The conclusions that local calcium responses can drive physiological responses is interesting in the context of salivary glands.
Weaknesses
The authors claim that local responses are not seen in vitro is dependent on taking a very narrow view of exocrine cells. Local responses are readily seen in other exocrine cells, like pancreatic acinar cells. These local responses can be driven directly by IP3, low concentrations of neurotransmitter, or physiological concentrations of hormones. Furthermore, these responses drive enzyme secretion. Therefore, although these local responses have not been measured intravitally, it is highly likely that they are the native response in the pancreas.
The new model put forward is conjecture. It is built entirely around the observations of localised calcium responses but has no supporting data on changes in membrane potential or activation of specific channels.
The in vitro GCaMP data is not convincing. GCaMP and Fura have different affinities for calcium and so this is a serious potential confounder in their experiments. For the in vitro work, the isolated cells are clearly fragmented and the cell chosen is at the edge of the cell cluster. It would be expected that the cells will completely lose their polarisation and structural factors that might limit the calcium response.
While I like the analysis, I think that much of it is unnecessary. The authors, for example, show that regions that respond well at low stimulation also respond well at high levels of stimulation. That's fine, but the authors then do not explore what the basis of these differences are.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "The characteristics of intracellular Ca2+ signals in vivo necessitate a new model for salivary fluid secretion" for further consideration by eLife. Your revised article has been evaluated by Kenton Swartz (Senior Editor) and a Reviewing Editor.
Thank you for the revised manuscript with the additional data and clarifications. Your responses have addressed most of the major concerns of the reviewers. The only remaining issue is whether KCa channels in the apical membrane are required for secretion. I think this is central to the significance of the paper. The study shows beautifully how Ca signals are mostly apical and do not propagate to the basal membrane in vivo, but the most interesting implication is that it necessitates having KCa channels near or in the apical membrane. To broaden the appeal of your paper to more than exocrine gland physiologists it will be important to establish this point clearly.
We understand that an experimental approach (luminal application of blockers) to establish the role of apical KCa channels is not feasible. Thus, the model offers the best opportunity to test this idea. The model needs a fuller description, not including all the details and equations, but rather a description of the salient features that will allow the reader to grasp how it works, and what assumptions it makes. The comments below summarize the uncertainties in the model's operation that need to be addressed:
1. How are apical, cytoplasmic, and basal regions defined in the model, and how do they correspond to the same regions in the experimental data? Throughout the paper there are references to "apical PM" or "apical region." The apical PM is the membrane bounded by tight junctions, but what does "apical region" mean – does this include lateral membrane between the apical PM and the nucleus? The model cartoon in Figure 13 does not explain the distinction between apical and basolateral. Likewise, on p. 12: "We emphasise that, in the model, KCa channels and Na/K- ATPases are also present in the basal membrane, and thus the secretory machinery is not restricted to the apical membrane." Is "basal" here referring to lateral membrane as well? I imagine that some of this vagueness is because the anatomy is complex and the localization of channels is not precisely known, but this needs to be clarified, particularly for non-expert readers.
2. How is the KCa current simulated? This is a crucial part of the model, but it is not clear how this was done. The only description is (p. 25) "The apical/basal K+ current ratio was determined by the apical/basal surface area ratio." After Ca2+ is released from the ER, is it assumed to diffuse to the lateral membrane where it activates KCa channels? (lateral membrane is defined here as basolateral membrane between the tight junction and the nucleus, corresponding to the "cytoplasmic" region in the experimental Ca measurements.) Or is only the basal Ca2+ signal being used to determine KCa current? The data in Figure 10 show that there is significant Ca2+ elevation in the cytoplasmic region below the apical membrane even at low stimulation frequencies, which could activate channels in the lateral membrane. What spatial distribution of KCa channels is assumed in the model? These things need to be clearly and simply explained.
3. The model shows that with no apical KCa channels (but the same total number) you still get ~80% of the maximal response (Figure 14F). This is almost maximal and implies only a modest effect of true apical PM channels. Figure 14F Y axis should be plotted from 0 rather than 60, in order to give a truer impression of the effect of KCa channel localization. There is also some confusion here: Figure 14B shows only 50% of max response if you remove apical KCa channels – but I assume that this is because the total number of channels was not constant in this case, resulting in fewer KCa channels than in Figure 14F. If so, that is not a fair comparison.
4. On p. 17 there is a reference to Supp. Figure 4, but that figure was not included.
5. I would suggest some rewording of the title, as it seems too focused on what was done, rather than the most significant result. Perhaps you can revise it to focus on localized calcium signaling that engages apical K channels in vivo.
https://doi.org/10.7554/eLife.66170.sa1Author response
Essential revisions:
The major significance of this work rests on the novel pattern of Ca2+ signals associated with secretion in vivo and demonstrating a consequent need for a revised model of apical K channel activation to maintain the driving force for Cl-efflux across the apical membrane and fluid secretion.
1. Is a new model needed to describe secretion in vivo? The argument for a new model in which Ca2+ activates KCa channels in the apical membrane is based on the observation of low levels of secretion (<5 Hz stimulation) associated with apically localized Ca oscillations. However, these signals are not strictly localized to the apical membrane and would likely activate KCa channels in the basolateral membrane that are close to the tight junctions. In addition, a large increase in secretion is seen for stimuli (5-10 Hz) that propagate Ca to the basal pole, consistent with previous models incorporating activation of basal KCa channels. The contribution of KCa channels in the apical membrane needs to be demonstrated experimentally. This could be addressed by applying blockers to the apical surface, although this may be difficult. Overall, to justify the model, a need for apical KCa channels or evidence of their contribution to secretion, needs to be shown.
While a direct demonstration that apical KCa channels participate in the secretory mechanism would be ideal, we believe that the experiments proposed (local application of blockers to the apical face of acini) is not practically feasible. Specifically, given the architecture of an acinus, it is not possible to effectively isolate the apical plasma membrane (~1-5 % of PM in the center of a group of cells) to apply a pharmacological agent locally with any degree of certainty without it acting basolaterally. In addition, it is difficult to imagine how this could be performed in every apical domain in the gland to assess its effect on fluid secretion into the oral cavity following neural stimulation. Further, this problem is not obviously amenable to any straightforward genetic approach. Our previous data has demonstrated the presence of apical KCa channels in salivary gland acinar cells and we provide a more complete discussion of evidence for their functional importance.
2. The apical Ca signals are ascribed solely to release through IP3R, but Orai1 channels, known to be expressed in these cells, are likely to contribute as well. Preferably, Orai1 inhibitors applied systemically (as was done for the cholinesterase inhibitor) should be tested for effects on Ca2+ signals and secretion. At the least the contributions of Orai1 channels should be discussed, taking into account previously published work.
We have performed new in vivo experiments using the Orai channel blocker, GSK7975A, which show that the sustained phase of the Ca2+ signal following extended stimulation with physiological stimulus strengths is blunted by the Orai antagonist. The initial peak is largely unaffected, consistent with the Ca2+ response to sustained stimulation being mediated by Ca2+ release and subsequent Ca2+ influx.
3. The computational model does not adequately reproduce the main features of the Ca2+ response. It shows a large initial spike upon stimulation (Figure 11B) that is not seen experimentally (Figure 9). It also oscillates at a much lower frequency (<0.2 Hz, similar to in vitro) than measured in vivo (0.5-1 Hz). In addition, the model needs to be tested under more conditions to confirm that it can account for the experimental data; e.g., does it predict the intracellular [Ca2+]i gradients, and how increasing stimulation frequency changes the Ca2+ response? More data are needed to justify the choice of model parameter values.
The model has been modified and the computational aspects of these studies have been expanded to test more conditions. The modified model now also more faithfully reflects the characteristics of the Ca2+ signals observed experimentally. A more detailed discussion of the model and predictions is also now provided, specifically to explicitly state that basolateral KCa channels in the original (and present) model are present throughout the PM to regions directly adjacent to tight junctions. We now test the model responses under more conditions. We show that increasing stimulation increases the frequency of oscillations, and decreases the latency (new Figure 14A), in agreement with data. We also compare model and experimental line scans and show that the [Ca2+] gradient through the cell in the model is qualitatively similar to that observed experimentally. We test model behaviour for lower values of the IP3 diffusion coefficient, and show that the behaviour remains unchanged (results not shown, as they are so similar to the results obtained with a larger IP3 diffusion coefficient. However, these results can be included as supplementary data should this be required). We simulated the model with periodic stimulation of PLC activity, to mimic the effects of periodic neural stimulation, and showed that the [Ca2+] traces and secretion remain essentially unchanged (although there are some minor quantitative differences). Again, because of the similarity with the results already shown here we do not include these results explicitly, we just state the result. We now give a more detailed discussion of where the model parameter values are derived. Since these parameter values have been developed over many years, and have already been presented in multiple papers, we do not give full details again in the present submission. For example, the parameters that govern our model of the IPR were determined by fitting the model to single-channel data, and this work is described in a series of papers between 2009 and 2019 (Refs 1-7 below). However, any interested reader is now told more precisely where further details about parameter values can be found.
1. Gin, E., L.E. Wagner, D.I. Yule, and J. Sneyd, Inositol trisphosphate receptor and ion channel models based on single-channel data. Chaos, 2009. 19(3): p. 037104.
2. Gin, E., M. Falcke, L.E. Wagner, 2nd, D.I. Yule, and J. Sneyd, A kinetic model of the inositol trisphosphate receptor based on single-channel data. Biophys J, 2009. 96(10): p. 4053-62.
3. Gin, E., M. Falcke, L.E. Wagner, D.I. Yule, and J. Sneyd, Markov chain Monte Carlo fitting of single-channel data from inositol trisphosphate receptors. J Theor Biol, 2009. 257(3): p. 460-74.
4. Siekmann, I., L.E. Wagner, 2nd, D. Yule, E.J. Crampin, and J. Sneyd, A kinetic model for type I and II IP3R accounting for mode changes. Biophys J, 2012. 103(4): p. 658-68.
5. Siekmann, I., L.E. Wagner, D. Yule, E.J. Crampin, and J. Sneyd, A Park/Drive Model for the Inositol-Trisphosphate Receptor (IPR). Biophysical Journal, 2012. 102(3): p. 110a-110a.
6. Cao, P., X. Tan, G. Donovan, M.J. Sanderson, and J. Sneyd, A deterministic model predicts the properties of stochastic calcium oscillations in airway smooth muscle cells. PLoS Comput Biol, 2014. 10(8): p. e1003783.
7. Cao, P., G. Donovan, M. Falcke, and J. Sneyd, A stochastic model of calcium puffs based on single-channel data. Biophys J, 2013. 105(5): p. 1133-42.
4. The absence of local apical Ca2+ signals in vitro is not the case for all exocrine acinar cells. The authors should acknowledge that local apical responses have been seen in other acinar cells (e.g. pancreatic acinar cells) in vitro, upon stimulation with physiological concentrations of hormones, low concentrations of neurotransmitter, or directly by IP3.
A discussion of the numerous reports of apically localized Ca2+ signals in acutely isolated pancreatic acinar cells is now included.
5. The current data do not allow a fair comparison of the spatiotemporal aspects of Ca2+ signaling in vivo and in vitro. While the use of GCaMP6f is a good way to rule out effects of different indicators (e.g., fura-2), other factors are likely to contribute and can be easily tested:
(a) The in vivo experiments were conducted at 37 deg C while the in vitro imaging seems to have been done at room temperature (temperature was not indicated in the Methods). Cooler temperature is likely to affect oscillation frequency as well as the rate of pumping or sequestration which could affect propagation.
(b) The concentrations of ACh used in vitro may not relate to the neural stimulation frequencies in vivo. The 100 nM response in vitro is quite large, so it may not be fair to compare this with low- frequency stimulation in vivo where signals are confined to the apical pole. Perhaps more localized signals would result from lower ACh concentrations.
We have now provided new in vitro data that demonstrates that acini are more sensitive to agonist stimulation and oscillations are more rapid at 37oC, but the Ca2+ are still invariably global at physiological temperature.
6. The method for standard deviation (SD) image processing should be described. This approach highlights areas that oscillate, but may de-emphasize areas of tonic elevation which would also be expected to drive secretion. At 5 Hz stimulation it shows that oscillations are confined mostly to the apical region (Figure 7C), but at 10 Hz the cells don't seem to oscillate (Figure 8), so it is not clear why SD images are presented here. It would be more informative to plot a cross-section of GCaMP6 signal from apical to basal before and during stimulation.
We describe the method for SD image generation. While we contend that this method is an effective means of visualizing the sub-cellular gradients (“average” images generated from the time series are essentially indistinguishable from the SD image and highlight apical-basal gradients), we now provide plots of multiple ROI across the acinus to better visualize the gradients (Figures 8/9). We also provide a new figure where line scans have been performed across an acinus (figure 10). Both these approaches demonstrate that the magnitude of the basal Ca2+ signal is ~20-30% of that in the apical domain.
Reviewer #1:
[…] The paper has several shortcomings that need to be addressed to better support a need for revising the current secretion model. It is not clear whether KCa channels in proximal regions of the basolateral membrane are activated by the apically confined Ca2+ and therefore are sufficient to support secretion.
We appreciate the opportunity to clarify this point. In the model the basolateral membrane extends all the way to the tight junction, and thus a fraction of the basal KCa channels are close enough to the apical membrane to be activated by Ca2+. This fact has been explicitly stated in the new version of the manuscript. The effect of this localization can be seen in the blue curve in new Figure 14B, which shows how, in the old model modified to have no propagated apical-to-basal Ca2+ wave, there is still an increase in secretion upon stimulation. However, this increase is only about 50% of the saliva secretion attained if apical KCa channels are included, as in the new version of the model (new Figure 14B, red curve).
A modified computational model intended to support the need for apical KCa channels does not offer strong support, as it does not faithfully reproduce several of the experimentally observed Ca2+ responses.
The large initial peak in the first version of the model has now been corrected by making a slight change to the way in which we model the activity of PLC. In the first version of the model PLC activity was a function of [Ca2+]. In the new version of the model this dependence on [Ca2+] has been removed (as described on new page 24). This change has removed the artifact of the large initial spike, but has made no difference to the conclusions drawn from the model results. The model simulations now closely resemble the data, in that they are oscillations (with the correct frequency of around 0.5 to 1 Hz at high stimulation) superimposed on an increasing baseline as seen in new figure 14 A and discussed on page 12.
Finally, the differences between the spatiotemporal aspects of Ca2+ signaling in vivo and in vitro are difficult to assess as critical conditions such as temperature and agonist concentration were not matched in the two experimental scenarios.
We agree with the reviewer and have now included data which investigates the characteristics of the Ca2+ signals at 37oC in isolated GCamp6F expressing acinar cells. We now show that the individual cells are more sensitive to secretagogue stimulation and exhibit more rapid oscillations at 37oC. Nevertheless, at all concentrations of secretagogues, the signals originate in the apical aspects of the cell and invariably globalize and thus the indicator or experimental temperature cannot explain the in vivo data.
Reviewer #2:
[…] The main question I have is regarding stimulus strengths that induce optimal levels of secretion (10 and 30Hz) where there is propagation of Ca2+ across the cell and almost 3-fold higher secretion relative to that at 5Hz. While increase in % responding cells at higher stimulus strengths could result in higher total secretion, possible contribution of Ca2+ influx pathways in the spread of Ca2+ in individual acinar cells, e.g. via Orai1 that is localized in the apical region of the cell, cannot be ruled out.
This is an important point because it is highly likely that Ca2+ influx pathways play a major role in maintaining the Ca2+ signal, and thus secretion, especially during prolonged stimulation. We now include data which shows that systemic administration of an Orai channel blocker GSK7579A markedly inhibits in vivo Ca2+ signals to physiologically optimum nervous stimuli. Notably, but only after extended stimulation (~5 min) and has little impact on the initial phase of the Ca2+ rise. These data are included as new figure 4.
Also not clear is whether the spread enhances secretion. Thus, when stimulus is low, secretion is minimal and supported only by release and oscillatory apical [Ca2+]. At higher stimulus strengths there might be an additional Ca2+ influx component which is activated very early after stimulation, likely during IP3-mediated Ca2+ release. Since the basolateral membrane extends all the way to the tight junction, is it possible that several components shown basally localized in the model could actually be quite close to the apical membrane region, near the tight junctions.
Thus, it is important to distinguish between initial stimulation of secretion vs regulation of sustained secretion. For example; the last sentence in the abstract clearly, and correctly, states "salivary secretion can be efficiently stimulated by apically localized Ca2+ signals".
We obviously accept this idea and as stated in response to the Reviewer 1, our model originally incorporated KCa channels in the basolateral membrane immediately abutting the tight-junctions and incorporates the evidence that some will be activated by the reduced Ca2+ signal seen in the basal region. Secretion predictions from the model varying the ratio of apical:basal KCa are now included and support the idea that secretion is optimum with a proportion of apical KCa, activated by the large increase in Ca2+ which occur in the extreme apical domain.
Reviewer #3:
[…] The authors claim that local responses are not seen in vitro is dependent on taking a very narrow view of exocrine cells. Local responses are readily seen in other exocrine cells, like pancreatic acinar cells. These local responses can be driven directly by IP3, low concentrations of neurotransmitter, or physiological concentrations of hormones. Furthermore, these responses drive enzyme secretion. Therefore, although these local responses have not been measured intravitally, it is highly likely that they are the native response in the pancreas.
The Authors acknowledge that there is a rich literature in isolated pancreatic acinar cells demonstrating that local Ca2+ signals occur at low agonist concentrations and exposure to IP3. Additional references have been added to the text to reflect this. A discussion point is that the majority of these studies were performed in whole-cell patch clamped isolated cells, where cytoplasmic buffering is imposed by the internal pipette solution and which itself could influence the spatial characteristics of the Ca2+ signals and thus it would still be informative to observe Ca2+ signals stimulated in vivo in the exocrine pancreas.
The new model put forward is conjecture. It is built entirely around the observations of localised calcium responses but has no supporting data on changes in membrane potential or activation of specific channels.
The model has been developed over a number of years and is faithfully built on experimental data. More details are given regarding the model parameters in the revised paper, which have been derived experimentally and published over many years. While it is correct that the present study did not monitor any effectors of the local Ca2+ signal in vivo, a previous study (Almassy et al., JGP 139. 121-133. 2012) exhaustively demonstrated that there were apical KCa3.1 and KCa1.1 in the apical PM of salivary acinar cells, which were activated by local uncaging of Ca2+. A more extensive discussion of this previous data has been added to the text in the revised manuscript.
The in vitro GCaMP data is not convincing. GCaMP and Fura have different affinities for calcium and so this is a serious potential confounder in their experiments. For the in vitro work, the isolated cells are clearly fragmented and the cell chosen is at the edge of the cell cluster. It would be expected that the cells will completely lose their polarisation and structural factors that might limit the calcium response.
We agree that a more thorough characterization of the attributes of the Ca2+ signal in vitro would strengthen our case that there is a real difference between in vivo and isolated cells. However, we stress that in 20 years working on Ca2+ signaling in salivary gland acinar cells, stimulated by secretagogue or IP3 directly, we have never observed an apical confined Ca2+ rise. We now include additional data, from experiments performed at 37oC and over a wider range of secretagogue concentrations.
While I like the analysis, I think that much of it is unnecessary. The authors, for example, show that regions that respond well at low stimulation also respond well at high levels of stimulation. That's fine, but the authors then do not explore what the basis of these differences are.
The Authors contend that this analysis establishing the “baseline” characteristics of in vivo Ca2+ signals in salivary acinar cells for the first time is important per se. The response heterogeneity observed is a feature which can only really be meaningful when studied in vivo, given that any variability in response in isolated cells could be due to the isolation procedure. Exploring further the underlying mechanisms will be the subject of future study.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for the revised manuscript with the additional data and clarifications. Your responses have addressed most of the major concerns of the reviewers. The only remaining issue is whether KCa channels in the apical membrane are required for secretion. I think this is central to the significance of the paper. The study shows beautifully how Ca signals are mostly apical and do not propagate to the basal membrane in vivo, but the most interesting implication is that it necessitates having KCa channels near or in the apical membrane. To broaden the appeal of your paper to more than exocrine gland physiologists it will be important to establish this point clearly.
We understand that an experimental approach (luminal application of blockers) to establish the role of apical KCa channels is not feasible. Thus, the model offers the best opportunity to test this idea. The model needs a fuller description, not including all the details and equations, but rather a description of the salient features that will allow the reader to grasp how it works, and what assumptions it makes. The comments below summarize the uncertainties in the model's operation that need to be addressed:
The Authors wish to thank the Reviewers and Editor for their constructive comments. In response we have made changes to the text and modified figures. We believe this has further clarified our description of the architecture of the acini as it relates to the experimental and computational approaches with the overarching goal of making the paper more accessible to a wider readership. Specifically, this includes a more extensive description of the model, including an additional supplemental figure and additional results of the model simulations. We provide a point-by-point response to the comments provided below.
1. How are apical, cytoplasmic, and basal regions defined in the model, and how do they correspond to the same regions in the experimental data? Throughout the paper there are references to "apical PM" or "apical region." The apical PM is the membrane bounded by tight junctions, but what does "apical region" mean – does this include lateral membrane between the apical PM and the nucleus? The model cartoon in Figure 13 does not explain the distinction between apical and basolateral. Likewise, on p. 12: "We emphasise that, in the model, KCa channels and Na/K- ATPases are also present in the basal membrane, and thus the secretory machinery is not restricted to the apical membrane." Is "basal" here referring to lateral membrane as well? I imagine that some of this vagueness is because the anatomy is complex and the localization of channels is not precisely known, but this needs to be clarified, particularly for non-expert readers.
In the introduction, we now provide a paragraph describing the general architecture of exocrine acinar cells, including making it clear that basal and lateral membranes are functionally identical. The cartoon in Figure 13 has been amended to illustrate this architecture. In an effort to define the “apical region” we also highlight published data demonstrating that the apical ER and apical plasma membrane are intimately associated and can be considered a region of privileged communication. In the experimental figures, the apical domain is defined as in the line scan data, where the apical domain is considered to be 3 μm from the apical PM. The line scan and positioning of ROIs in experimental data is designed primarily to illustrate the spatial heterogeneity of the Ca2+ signal. It is possible this volume encompasses some lateral membrane in the region defined as “cytoplasmic”, however this does not impact the secretion model because of how this Ca2+ release is modelled (see below).
In the model the apical, basal and lateral membranes of the model are clearly defined by anatomical reconstructions from Z stacks in which the TMEM channels and the Na/K ATPases are labelled. This procedure is discussed in detail in previous papers, but here, for clarity, we now include a three-dimensional plot of the cell (supplemental figure 5) on which all the computations in this paper were performed. The acinar membranes are labelled in red and the basolateral membranes in blue. Thus, the reader can now obtain a much clearer intuitive understanding of the model domain, without having to read our previous papers. Although there is no such clear-cut experimentally-based definition of apical or basal “regions”, this is unimportant for the model, in which the concept of apical and basal “regions” plays essentially no role. This is because the IPR flux is modelled as a boundary flux through the apical membrane, while PLC activity is restricted to the basal membrane. Thus, the spatial positioning of these two critical Ca pathways is determined directly (and reasonably precisely) by experimental data. Of course, this requires some simplifying assumptions in the model; for example, the IPR Ca2+ flux is not exactly a boundary flux, but comes through IPR which we know are situated very close (within approximately 50 nm) of the TMEM channels, which are certainly on the apical membrane. However, this simplifying assumption appears to introduce no significant quantitative differences; we know this because we have also run simulations in which the IPR Ca2+ flux occurs in an apical “region” consisting of all the grid points within 3 (or 2, or 1, or 0.5) microns of the apical membrane, and the model simulations show no significant quantitative differences in any of these cases. We now explain this in more detail on new pages 24 and 25.
Although the model does technically make a distinction between the basal membranes and the lateral membranes (i.e., the lateral surface triangles are labelled differently, can be colored differently, and are constructed so as to be conformal with the lateral surface triangles of the immediately adjacent cell) this distinction is of no importance in
the current simulations, which (without exception) assume that all the ion channels and transporters (with the exception of TMEM, which is restricted to the apical membrane) are uniformly distributed across both the basal and lateral membranes. This means that Ca2+ released from the apical “region” (which, in the model, means Ca2+ influx across the surface triangles corresponding to the apical membrane) can diffuse to neighboring basolateral surface triangles and activate KCa channels on the basolateral surface. This is why the model exhibits substantial fluid flow even when there are no KCa channels in the apical membrane.
2. How is the KCa current simulated? This is a crucial part of the model, but it is not clear how this was done. The only description is (p. 25) "The apical/basal K+ current ratio was determined by the apical/basal surface area ratio." After Ca2+ is released from the ER, is it assumed to diffuse to the lateral membrane where it activates KCa channels? (lateral membrane is defined here as basolateral membrane between the tight junction and the nucleus, corresponding to the "cytoplasmic" region in the experimental Ca measurements.) Or is only the basal Ca2+ signal being used to determine KCa current? The data in Figure 10 show that there is significant Ca2+ elevation in the cytoplasmic region below the apical membrane even at low stimulation frequencies, which could activate channels in the lateral membrane. What spatial distribution of KCa channels is assumed in the model? These things need to be clearly and simply explained.
We now explain in much more detail (new page 25) exactly how activation of the KCa channels works in the model. Briefly (and as we describe above also), the channels on each surface triangle are affected only by the average [Ca2+] in the tetrahedron that contains that triangle. Thus Ca2+ released from the apical region can diffuse a short distance to the neighboring basolateral membrane to activate KCa channels there.
3. The model shows that with no apical KCa channels (but the same total number) you still get ~80% of the maximal response (Figure 14F). This is almost maximal and implies only a modest effect of true apical PM channels. Figure 14F Y axis should be plotted from 0 rather than 60, in order to give a truer impression of the effect of KCa channel localization. There is also some confusion here: Figure 14B shows only 50% of max response if you remove apical KCa channels – but I assume that this is because the total number of channels was not constant in this case, resulting in fewer KCa channels than in Figure 14F. If so, that is not a fair comparison.
In the previous resubmission we acknowledged that the model predicts that the absence of apical KCa channels reduces salivary secretion by ~25%. We contend that this is not insignificant. Nevertheless, there is indeed only a partial effect from the presence of apical KCa channels, as the model is capable of significant fluid secretion in their absence. We now emphasize more strongly throughout that the model predicts that apical KCa channels, although not necessary for fluid flow, appear to be required for optimal fluid flow, hence the change in the title for the manuscript. We have modified the figure as requested by the reviewer and added simulations for additional levels of stimulus strengths.
We also now explain at greater length (and, we hope, more clearly) that the curve with no apical KCa in Figure 14B corresponds to simulations from the old model, not the new one, which explains the quantitative differences with Figure 14F. The curves in Figure 14 B are designed to show how the old model is poor at generating fluid flow in the absence of apical KCa, and thus a new model is needed. Of course, we note that even the old model can generate some fluid flow even in the absence of apical KCa. In both models it is simply a matter of how much fluid flow there is, not whether fluid flow exists at all.
4. On p. 17 there is a reference to Supp. Figure 4, but that figure was not included.
Supp Figure 4- (Figure 5-Supp Figure 4) is now included.
5. I would suggest some rewording of the title, as it seems too focused on what was done, rather than the most significant result. Perhaps you can revise it to focus on localized calcium signaling that engages apical K channels in vivo.
We have amended the title to “Highly Localized intracellular Ca2+ signals promote optimal salivary gland fluid secretion”, which we feel better reflects the data.
https://doi.org/10.7554/eLife.66170.sa2Article and author information
Author details
Funding
National Institute of Dental and Craniofacial Research (DE019245)
- David I Yule
National Institute of Dental and Craniofacial Research (DE014756)
- David I Yule
Marsden Fund
- James Sneyd
National Institute of Dental and Craniofacial Research (F31 DE030670)
- Amanda Wahl
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
This work was supported by NIH grants RO1DE019245 and RO1DE014756 to DIY, and by a Marsden Fund grant from the Royal Society of New Zealand to JS. AW was supported by F31 DE030670-01A1 from NIH (NIDCR). The authors wish to thank members of the lab for their helpful contributions and discussions during the acquisition of these data.
Ethics
Animal experimentation: All animal procedures were approved by University Committee on Animal Resources (UCAR-2001-214E).
Senior Editor
- Kenton J Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
Reviewing Editor
- Richard S Lewis, Stanford University School of Medicine, United States
Reviewer
- Peter Thorn, University of Sydney, Australia
Publication history
- Received: December 31, 2020
- Preprint posted: January 1, 2021 (view preprint)
- Accepted: July 8, 2021
- Accepted Manuscript published: July 9, 2021 (version 1)
- Version of Record published: August 9, 2021 (version 2)
Copyright
© 2021, Takano et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 1,274
- Page views
-
- 184
- Downloads
-
- 9
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Cell Biology
- Neuroscience
Prolonged exposure to loud noise has been shown to affect inner ear sensory hair cells in a variety of deleterious manners, including damaging the stereocilia core. The damaged sites can be visualized as ‘gaps’ in phalloidin staining of F-actin, and the enrichment of monomeric actin at these sites, along with an actin nucleator and crosslinker, suggests that localized remodeling occurs to repair the broken filaments. Herein, we show that gaps in mouse auditory hair cells are largely repaired within 1 week of traumatic noise exposure through the incorporation of newly synthesized actin. We provide evidence that Xin actin binding repeat containing 2 (XIRP2) is required for the repair process and facilitates the enrichment of monomeric γ-actin at gaps. Recruitment of XIRP2 to stereocilia gaps and stress fiber strain sites in fibroblasts is force-dependent, mediated by a novel mechanosensor domain located in the C-terminus of XIRP2. Our study describes a novel process by which hair cells can recover from sublethal hair bundle damage and which may contribute to recovery from temporary hearing threshold shifts and the prevention of age-related hearing loss.
-
- Biochemistry and Chemical Biology
- Cell Biology
Autophagy is an essential catabolic pathway which sequesters and engulfs cytosolic substrates via autophagosomes, unique double-membraned structures. ATG8 proteins are ubiquitin-like proteins recruited to autophagosome membranes by lipidation at the C-terminus. ATG8s recruit substrates, such as p62, and play an important role in mediating autophagosome membrane expansion. However, the precise function of lipidated ATG8 in expansion remains obscure. Using a real-time in vitro lipidation assay, we revealed that the N-termini of lipidated human ATG8s (LC3B and GABARAP) are highly dynamic and interact with the membrane. Moreover, atomistic MD simulation and FRET assays indicate that N-termini of LC3B and GABARAP associate in cis on the membrane. By using non-tagged GABARAPs, we show that GABARAP N-terminus and its cis-membrane insertion are crucial to regulate the size of autophagosomes in cells irrespectively of p62 degradation. Our study provides fundamental molecular insights into autophagosome membrane expansion, revealing the critical and unique function of lipidated ATG8.
