Extracellular signal-regulated kinase mediates chromatin rewiring and lineage transformation in lung cancer

  1. Yusuke Inoue
  2. Ana Nikolic
  3. Dylan Farnsworth
  4. Rocky Shi
  5. Fraser D Johnson
  6. Alvin Liu
  7. Marc Ladanyi
  8. Romel Somwar
  9. Marco Gallo
  10. William W Lockwood  Is a corresponding author
  1. Department of Integrative Oncology, BC Cancer Agency, Canada
  2. Department of Biochemistry and Molecular Biology, Arnie Charbonneau Cancer Institute, Alberta Children’s Hospital Research Institute, Cumming School of Medicine, University of Calgary, Canada
  3. Human Oncology and Pathogenesis Program, Memorial Sloan Kettering Cancer Center, United States
  4. Department of Pathology & Laboratory Medicine, University of British Columbia, Canada
Research Article
  • Cited 1
  • Views 2,386
  • Annotations
Cite this article as: eLife 2021;10:e66524 doi: 10.7554/eLife.66524

Abstract

Lineage transformation between lung cancer subtypes is a poorly understood phenomenon associated with resistance to treatment and poor patient outcomes. Here, we aimed to model this transition to define underlying biological mechanisms and identify potential avenues for therapeutic intervention. Small cell lung cancer (SCLC) is neuroendocrine in identity and, in contrast to non-SCLC (NSCLC), rarely contains mutations that drive the MAPK pathway. Likewise, NSCLCs that transform to SCLC concomitantly with development of therapy resistance downregulate MAPK signaling, suggesting an inverse relationship between pathway activation and lineage state. To test this, we activated MAPK in SCLC through conditional expression of mutant KRAS or EGFR, which revealed suppression of the neuroendocrine differentiation program via ERK. We found that ERK induces the expression of ETS factors that mediate transformation into a NSCLC-like state. ATAC-seq demonstrated ERK-driven changes in chromatin accessibility at putative regulatory regions and global chromatin rewiring at neuroendocrine and ETS transcriptional targets. Further, ERK-mediated induction of ETS factors as well as suppression of neuroendocrine differentiation were dependent on histone acetyltransferase activities of CBP/p300. Overall, we describe how the ERK-CBP/p300-ETS axis promotes a lineage shift between neuroendocrine and non-neuroendocrine lung cancer phenotypes and provide rationale for the disruption of this program during transformation-driven resistance to targeted therapy.

Introduction

Lung cancer, the leading cause of cancer-related mortality worldwide, is divided into two main histological classes, small cell lung cancer (SCLC) and non-small cell lung cancer (NSCLC). SCLC is notable due to its highly aggressive and lethal clinical course, defined by rapid tumor growth, early dissemination, and metastasis (Gazdar et al., 2017). SCLC is a neuroendocrine (NE) tumor (Travis et al., 2015), and recent studies have demonstrated that it is a molecularly heterogeneous disease comprising discrete tumor subtypes defined by expression of different transcriptional regulators, namely achaete-scute homolog 1 (ASCL1) and neurogenic differentiation factor 1 (NEUROD1), which together account for approximately 80% of SCLC cases (Borromeo et al., 2016; Rudin et al., 2019). ASCL1 and NEUROD1, along with insulinoma-associated protein 1 (INSM1) and POU class 3 homeobox 2 (BRN2), are recognized as important master regulators for NE differentiation in SCLC (Rudin et al., 2019; Fujino et al., 2015; Ishii et al., 2013). Besides NE differentiation, SCLC is further distinguished from other major NSCLC subtypes such as lung adenocarcinoma (LUAD) and squamous cell carcinoma by its unique cellular morphology (Rudin et al., 2019) and genetic hallmarks including frequent inactivation of tumor suppressors TP53 and RB1 (Peifer et al., 2012George et al., 2015). SCLC is also characterized by the absence of EGFR expression (Gamou et al., 1987) and low activity of the downstream mitogen-activated protein kinase (MAPK) pathway (Byers et al., 2012). Furthermore, activating alterations in EGFR and KRAS, which are highly prevalent in LUAD (Cancer Genome Atlas Research Network, 2014), are rarely identified in SCLC (Peifer et al., 2012; George et al., 2015) (Summarized in Figure 1a). Despite developing in the same organ and having exposure to the same etiological agent in most instances, no biological rationale aside from cell of origin has been provided to explain these divergent molecular characteristics. Therefore, elucidating the factors that underlie the selection of specific genetic drivers in different lineage contexts may yield insights toward the development and progression of these lung cancer types.

Figure 1 with 3 supplements see all

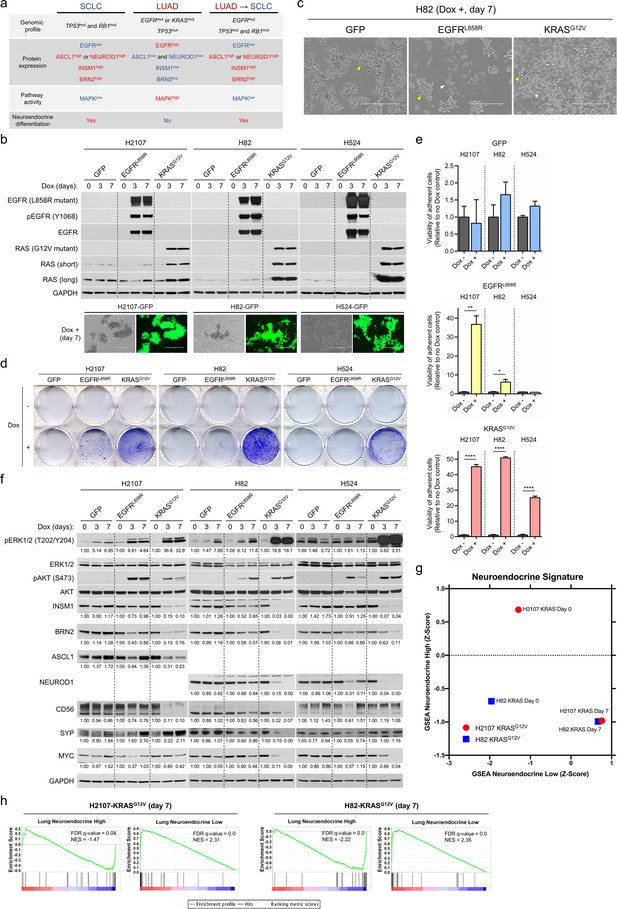

Effects of mutant KRAS or EGFR expression on phenotype and neuroendocrine markers in small cell lung cancer cells.

(a) Overview of representative somatic alterations, protein expression profiles, MAPK pathway activity, and neuroendocrine differentiation in small cell lung cancer (SCLC), lung adenocarcinoma (LUAD), and transformed SCLC from EGFR-mutated LUAD. (b) Induction of EGFRL858R or KRASG12V as assessed by western blot and of GFP assessed by fluorescence phase contrast images in SCLC cell lines, H2107, H82, and H524 cells, upon treatment with 100 ng/mL doxycycline (dox) for 3 and 7 days. GAPDH was used as a loading control. (c) Photomicrographs showing the growing morphology in suspending aggregates of GFP-overexpressing H82 cells (left) and in mixed adherent and suspended states of EGFRL858R- (middle) or KRASG12V- (right) overexpressing H82 cells upon treatment with 100 ng/mL dox for 7 days. Yellow and white arrowheads indicate suspending aggregates and adherent cells, respectively. Scale bars, 400 μm. (d) Crystal violet assay of adherent cells with or without induction of GFP, EGFRL858R, or KRASG12V in H2107 (on day 7), H82 (on day 7), and H524 (on day 5) cells. Medium containing suspended cells was removed, and adherent cells were washed with PBS and then fixed and stained with crystal violet. (e) Quantification of cell attachment after GFP, EGFRL858R, or KRASG12V induction in H2107 (on day 7), H82 (on day 7), and H524 (on day 5) cells. After incubation, medium containing suspended cells was removed and adherent cells were washed with PBS. Adherent cells were then cultured in fresh media and viability was assessed using an alamarBlue cell viability agent. Values relative to a no dox control for each cell line are graphed as mean (three biological replicates) ± SEM. The Student’s t test, ****p<0.0001; **p<0.01; and *p<0.05. (f) Representative immunoblot showing the effects of induction of GFP, EGFRL858R, or KRASG12V on neuroendocrine markers as well as phosphorylation status of ERK and AKT upon treatment with 100 ng/mL dox for 3 and 7 days in H2107, H82, and H524 cells. GAPDH was used as a loading control. Numbers below blots show the amounts of respective band relative to the corresponding non-dox-treated control values after normalization to ERK1/2 (for pERK1/2) or GAPDH (for INSM1, BRN2, ASCL1, NEUROD1, CD56, SYP, and MYC) in each condition for each cell line. (g) Gene set enrichment analysis (GSEA) neuroendocrine differentiation scores of H2107-KRASG12V and H82-KRASG12V cells pre- and post-dox treatment (day 7). (h) Enrichment plots of the 50-gene lung-cancer-specific neuroendocrine expression signature gene sets in H2107-KRASG12V and H82-KRASG12V cells post-dox treatment for 7 days compared with GFP-overexpressing controls. Immunoblots are representative of at least two biological replicates.

In contrast to SCLC, for which no major treatment breakthroughs have been made in the last two decades, LUAD treatment has greatly benefitted from targeted therapies for driver oncogenes, highlighted by the success of those inhibiting EGFR-mutant tumors (Maemondo et al., 2010; Soria et al., 2018). However, resistance to molecular targeted therapy is inevitable and long-term cures remain elusive. Histological transformation from LUAD to SCLC (Memorial Sloan-Kettering Cancer Center Lung Cancer OncoGenome Group et al., 2006) occurs in 5–15% of cases with acquired resistance to EGFR tyrosine kinase inhibitors (TKIs) (Sequist et al., 2011; Westover et al., 2018), typically after a long duration (median ≥13 months) of TKI treatment (Ferrer et al., 2019; Offin et al., 2019). This lineage transition may become a more prominent and important resistance mechanism in the future with the approval of the third-generation EGFR-TKI osimertinib (Leonetti et al., 2019) as a first-line therapy, as this drug has better on-target inhibition and overcomes the most common resistance mechanism to earlier generation EGFR-TKIs, the T790M mutation (Mok et al., 2017), and provides longer progression-free survival (Soria et al., 2018). EGFR-mutant LUADs undergoing TKI treatment are known to be at unique risk of histological transformation to SCLC (Ferrer et al., 2019) particularly when p53 and RB are concurrently inactivated (Offin et al., 2019; Niederst et al., 2015; Lee et al., 2017). Surprisingly, EGFR-mutant tumors lose EGFR protein expression (Niederst et al., 2015) after small cell transformation, mimicking de novo SCLC, despite retaining the initial activating mutation in EGFR (Ferrer et al., 2019; Niederst et al., 2015). Furthermore, TKI-resistant EGFR-mutant LUADs that have undergone SCLC transformation typically lack the acquisition of other genetic alterations associated with TKI resistance that are known to reactivate MAPK signaling (Roper et al., 2020). However, the biological mechanisms regulating the SCLC transformation process remain unknown, because no in vitro or in vivo model systems have been established to date that enable the comprehensive study of this phenomenon.

Based on the above observations, and that SCLC-transformed LUAD resembles de novo SCLC in terms of molecular features, we hypothesized that there is a unique interplay between MAPK signaling and suppression of NE differentiation in lung cancer. Further, we anticipated that understanding this interplay would reveal the factors that underpin the selection of specific genetic alterations in the development of the different lung cancer subtypes and acquisition of drug resistance. Therefore, we aimed to investigate the consequences of LUAD oncogene expression and activation of MAPK pathway signaling in SCLC cells in order to potentially provide mechanistic insight into the programs driving small cell lineage transformation in the context of EGFR-TKI resistance.

Results

Mutually exclusive association between MAPK activation and NE marker expression in lung cancer

Previous studies have demonstrated that SCLC and LUAD differ in their expression and activation of MAPK signaling components, and that SCLC-transformed LUAD loses EGFR expression. To first assess the relationship between EGFR status and NE marker expression in lung cancer, we performed western blot analysis across a diverse panel of lung cancer cell lines. Lysates from eight EGFR-mutant, four KRAS-mutant, and two EGFR/KRAS wild-type LUAD, as well as two large cell carcinoma and four SCLC cell lines were assessed (Figure 1—figure supplement 1a). All the SCLC cell lines completely lacked EGFR protein expression and a large cell carcinoma with NE differentiation cell line, H1155, weakly expressed EGFR, whereas all other cell lines universally expressed high levels of EGFR. Inversely, expression of four NE transcription factors (TFs) – INSM1, BRN2, ASCL1, and NEUROD1 – as well as NE markers CD56 and synaptophysin (SYP) were largely specific to SCLC cell lines. Thus, there was a clear inverse association between NE differentiation and EGFR expression in lung cancer. We also observed a mutually exclusive expression pattern between ASCL1 and NEUROD1 in the five NE cell lines, whereas INSM1 and BRN2 were broadly expressed in these cell lines (Figure 1—figure supplement 1a). We next explored mutation and copy number alteration status of KRAS and EGFR using publicly available whole-genome sequencing, whole-exome sequencing, and The Cancer Genome Atlas (TCGA) data sets. As reported (Peifer et al., 2012; George et al., 2015), the prevalence of genomic alterations in these two oncogenes in SCLC was low. In particular, genomic alterations in the KRAS gene were never identified in SCLC (Figure 1—figure supplement 1b).

Expression of mutant KRAS or EGFR in SCLC induces trans-differentiation into a NSCLC-like state with suppressed NE differentiation

To determine whether the inverse association between MAPK activity and NE differentiation is due to differences in cell of origin for the specific cancer types or instead attributed to the direct signaling pathways regulated by the mutated oncogenes, we conditionally expressed either EGFRL858R or KRASG12V, which are the most prevalent drivers in LUAD (Cancer Genome Atlas Research Network, 2014), as well as a GFP control in three SCLC cell lines; H2107 (ASCL1-high; SCLC-A Rudin et al., 2019), H82 (NEUROD1-high; SCLC-N Rudin et al., 2019), and H524 (SCLC-N). Western blots confirmed successful induction of these oncoproteins under the tight control of an inducible TetO promoter using doxycycline (Figure 1b). Consistent with the results shown in previous reports (Falco et al., 1990; Calbo et al., 2011) in which HRAS or RASV12 were retrovirally transduced in SCLC cell lines, the SCLC-N cell lines both demonstrated a phenotypic transition from a suspended to adherent state after KRASG12V induction, with the most striking change occurring in H82 cells (Figure 1c–e). However, in contrast to a previous study where the cell lines representing the classic subtype of SCLC, which are currently classified as SCLC-A (Rudin et al., 2019), showed no discernible phenotypic changes in response to HRAS expression (Mabry et al., 1988), we found that H2107 SCLC-A cells also demonstrated this phenotypic transition (Figure 1d and e). While EGFRL858R transduction also induced a shift to an adherent state in H2107 and H82 cells, this growth pattern was more modest than that observed with KRASG12V (Figure 1d and e). Furthermore, the phenotypic effect of EGFRL858R expression was temporally delayed compared to KRASG12V with cells forming suspension clusters first, then subsequently migrating to become adherent, whereas KRASG12V induced direct formation of adherent cells that were diffusely distributed (Figure 1d and Figure 1—figure supplement 2a). The impact of oncogene induction on cell viability was also assessed, and we observed variable effects across the three cell lines (Figure 1—figure supplement 2b and c). Concordant with the positive effect of KRASG12V on cell viability in H82 cells, forced expression of KRASG12V increased anchorage-independent growth in soft agar (Figure 1—figure supplement 2d). There was a clear increase in cleaved PARP after doxycycline treatment in H2107 cells (both EGFRL858R and KRASG12V) as well as in H524 cells (EGFRL858R), suggesting that cell death, at least partially, accounts for the decreased cellular viability in these cells (Figure 1—figure supplement 2e).

Given that established SCLC cell lines typically grow in suspension as aggregated cells (Gazdar et al., 1980) and the NE type H1155 large cell carcinoma cells also grow partly in suspension clusters, we considered that there might be a relationship between a suspended cellular growing phenotype and NE differentiation. Thus, shift in cell growth patterns of SCLC cells from suspension to an adherent state after induction of LUAD mutant oncogene expression suggested that oncogenic signaling may lead to lineage transformation in SCLC. To further assess this, we determined the impact of induced mutant EGFR or KRAS on the expression of the main neuroendocrine transcription factors (NETFs) - including INSM1, BRN2, ASCL1, and NEUROD1 – in the SCLC cell lines. The four NETFs were all downregulated by the oncoproteins, which was again more prominently observed with KRASG12V expression than with EGFRL858R (Figure 1f). To globally assess lineage status, we profiled the transcriptional changes in H2107 and H82 cells following doxycycline treatment to induce EGFRL858R or KRASG12V for both acute (24 hr) and long-term (7 days) durations and compared to respective GFP controls. Gene set enrichment analysis (GSEA) using a 50-gene lung cancer-specific NE expression signature (Zhang et al., 2018) revealed a shift from high NE differentiation at baseline to low NE differentiation after induction of KRASG12V at the day seven time point, with genes associated with NE status becoming downregulated and those typically low in SCLC demonstrating high expression (Figure 1g and h). Importantly, extracellular signal-regulated kinases (ERK1 and ERK2) were more strongly phosphorylated by KRASG12V than EGFRL858R (Figure 1f), suggesting a potential rationale for the differential effects of induction of these oncoproteins on phenotype and NE marker expression. Based on these results, we used the KRASG12V transduction model for further experiments.

Recent evidence has demonstrated that MYC can dynamically drive a shift of master NETFs of SCLC from ASCL1 to NEUROD1 to YAP1 in the context of RB and p53 loss (Ireland et al., 2020). We found that MYC protein levels were downregulated by EGFRL858R and KRASG12V (Figure 1f) despite previous reports that ERK-mediated phosphorylation of MYC prevents MYC degradation (Sears et al., 2000). Furthermore, GSEA indicated downregulation of an MYC target gene set in H82-KRASG12V cells compared with GFP control cells on day 7 of doxycycline treatment (Figure 1—figure supplement 2f). To further determine whether the downregulation of NETFs after oncogene induction is in the context of MYC-driven master NETF shift, we next evaluated YAP1 expression in SCLC cell lines after KRASG12V transduction, as YAP1 is a marker of non-NE SCLC (Rudin et al., 2019). Despite all three SCLC cell lines demonstrating suppression of NETFs after KRASG12V induction, YAP1 was significantly upregulated only in H82-KRASG12V cells treated with doxycycline for 7 days (3.3-fold, Supplementary file 1), which was mirrored by the weakly detectable YAP1 protein level in the same cell line by western blot (Figure 1—figure supplement 2g). These results suggest that the mutant EGFR- and KRAS-induced shift from a high to low NE phenotype in SCLC cell lines is unlikely to be a subclass transition driven by a MYC-YAP1 axis.

We noted that mutant EGFR or KRAS-induced SCLC cell lines showed a mixed phenotype comprising both suspended and adherent cells after doxycycline treatment. Thus, we asked whether this heterogeneity in growth pattern was derived from the polyclonal nature of transduced cells. To address this, we established single cell-derived clones and found that clonal cells also showed a mixture of adherent and suspended cells after KRASG12V induction (Figure 1—figure supplement 3a). We also profiled the expression status of the NE factors in adherent, suspended, or mixed populations, separately, in the subacute (doxycycline day 3) and chronic (doxycycline day 28) phases after KRASG12V induction using polyclonal cells (Figure 1—figure supplement 3b). Despite relatively similar induced levels of KRASG12V as well as phospho-ERK1/2 in the subacute phase, adherent cells lost NE factors to a greater degree than suspended cells. In terms of the growth state, isolated adherent cells gave rise to both adherent and suspended cells after serial passages under doxycycline treatment; however, the proportion of adherent cells became lower with each passage, with a dramatic reduction observed after 2 weeks. Nonetheless, NE markers were still suppressed in the remaining adherent cell population. Importantly, isolated suspended cells did not give rise to adherent cells after serial passages and KRASG12V expression was highly attenuated in this subset of cells, even in H82 cells in which forced expression of mutant-KRAS exhibited an advantageous effect on cell proliferation. This suggests negative selection of KRASG12V-positive cells or epigenetic silencing of transduced KRASG12V in the long-term (28 day) culture driven by the incompatibility of KRAS activation in SCLC biology. Together, these data suggest that constitutive activation of MAPK pathway by mutant KRAS and EGFR affects the growth phenotype and suppresses NE differentiation program in SCLC in a heterogenous manner.

ERK activation inhibits expression of NETFs in SCLC

ERK is the central pathway node of MAPK signaling and acts to phosphorylate hundreds of downstream targets and control many fundamental cellular processes (Yoon and Seger, 2006). Thus, we hypothesized that ERK may be the main mediator of the multiple effects observed in SCLC cells after mutant EGFR or KRAS induction. This was suggested by the differential effects of mutant EGFR versus mutant KRAS transduction in SCLC cells, where the latter induced more prominent changes and was associated with increased levels of phospho-ERK1/2 (Figure 1f). We tested this by treating TetO-KRASG12V-transduced SCLC cells with an ERK1/2 inhibitor, SCH772984, and found that this compound rescued the suppression of NETFs after doxycycline induction (Figure 2a). To confirm that this rescue was not attributed to off-target effects of SCH772984, we also performed genetic knockdown of either ERK1 (MAPK3), ERK2 (MAPK1), or both. As shown in Figure 2b, expression of NE factors was restored by transfection of siRNAs targeting ERK2 but not ERK1, indicating that ERK2 is a dominant node mediating this process. ERK1 knockdown likely augmented ERK2 activity by disruption of negative feedback signaling as previously described (Unni et al., 2018), and therefore did not restore the repressed NE factors when inhibited alone.

Figure 2 with 5 supplements see all

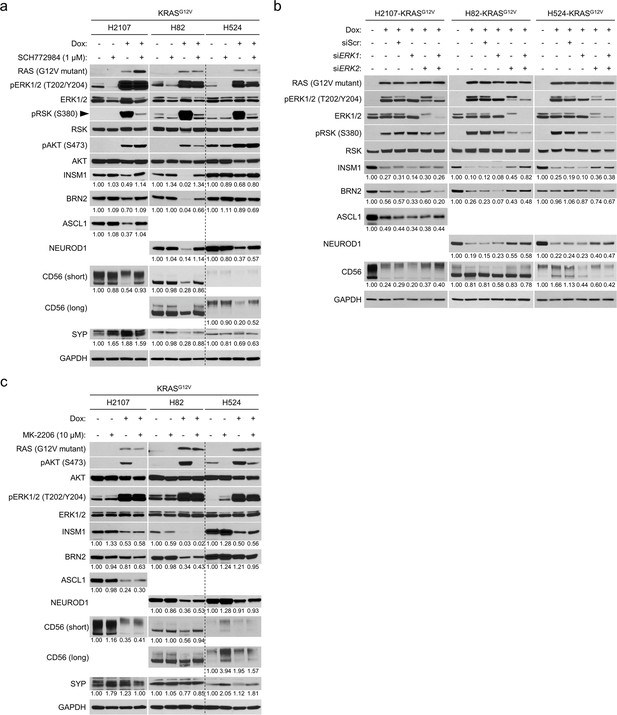

Hyperactivated ERK represses expression of neuroendocrine transcription factors in small cell lung cancer.

(a) Western blot showing the ERK inhibitor (SCH772984 [1 μM])-mediated restoration of neuroendocrine transcription factors that are repressed by KRASG12V induction in small cell lung cancer cell lines H2107, H82, and H524. Cells were treated with indicated agents for 72 hr. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-doxycycline (dox)-treated and non-SCH772984-treated (DMSO-treated) control values (set to one in each cell line panel) after normalization to GAPDH. (b) Western blot demonstrating the effects of KRASG12V induction and treatment with siRNA pools targeting ERK1, ERK2, or both on expression of neuroendocrine transcription factors in the small cell lung cancer cell lines. Cells were treated with 100 ng/mL dox and indicated siRNAs for 72 hr. Scrambled siRNA (siScr) was used as a negative control. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated and non-siRNA-treated control values (set to one in each cell line panel) after normalization to GAPDH. (c) Western blot showing the effects of AKT inhibition using MK-2206 (10 μM) on expression of neuroendocrine factors that are suppressed by KRASG12V in the small cell lung cancer cell lines. Cells were treated with indicated agents for 72 hr. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated and non-MK-2206-treated (DMSO-treated) control values (set to one in each cell line panel) after normalization to GAPDH. Immunoblots are representative of at least two biological replicates.

In addition to MAPK, the phosphoinositide 3-kinase (PI3K)/AKT pathway is another major signaling arm-activated downstream of EGFR and RAS. Indeed, phospho-AKT levels were increased after oncogenic EGFR or KRAS induction in our model (Figure 1f). To test whether this pathway was also involved in suppression of NE factors in SCLC cells after oncogene induction, we treated KRASG12V-induced cells with an AKT-inhibitor, MK-2206. Despite near complete suppression of phosphorylated AKT with MK-2206, decreased NETF expression was still observed upon doxycycline treatment, suggesting that the PI3K/AKT pathway was not responsible for the NE dedifferentiation effects observed (Figure 2c).

ERK in combination with AKT activation drives phenotypic growth state change in SCLC after Oncogene induction

To assess mediators of the attached growth phenotype, we quantified cellular state and viability of KRASG12V-induced SCLC cells with or without SCH772984, MK-2206, or combination of these drugs. To minimize the bias from potential toxicities of KRASG12V induction combined with drug treatments, we used an acute incubation time of 72 hr. In H82 and H524 cells, the combined inhibition of ERK and AKT reversed the suspended-to-adherent phenotypic transition which was not seen with either ERK or AKT inhibition alone (Figure 2—figure supplement 1a and b). To exclude the possibility that applied drugs might have a lethal impact on cells, resulting in less adhesion in a non-specific manner, we also assessed the viability of the whole cell population after the combination drug treatment and observed no obvious adverse effects (Figure 2—figure supplement 1c). In contrast to H82 and H524, KRASG12V-induced cell attachment was significantly enhanced by ERK inhibition in H2107 cells, which was not completely rescued by additional AKT inhibition (Figure 2—figure supplement 1a and b).

Lastly, we aimed to determine potential downstream effectors of ERK that are responsible for mediating the cellular phenotypic state change in conjunction with AKT after mutant KRAS induction in SCLC. We assessed mitogen- and stress-activated protein kinase (MSK)/ribosomal S6 kinase (RSK) for this purpose as they are direct downstream effectors of ERK1/2 and inhibited these alone or in combination with AKT after doxycycline induction. Interestingly, cell attachment was not reversed by the combined MSK/RSK and AKT inhibition but was instead enhanced in the context of MSK/RSK suppression, particularly in H2107 cells (Figure 2—figure supplement 2a–c). We conducted phospho-kinase profiling with or without MSK/RSK inhibition using H82- and H2107-KRASG12V cells under doxycycline treatment and this revealed that phospho-AKT as well as phospho-ERK1/2 levels were increased after MSK/RSK inhibition, particularly in H2107-KRASG12V cells (Figure 2—figure supplement 3). This feedback activation explains why MSK/RSK inhibition did not rescue the phenotypic change after KRASG12V induction and suggests that other ERK effectors mediate these effects in conjunction with AKT. Together, these results suggest that the activation of both ERK and AKT is required for the transition of the growth phenotype in SCLC, while ERK2 is a central hub of the oncogene-induced suppression of NE regulators.

NOTCH signaling is activated by ERK upon KRAS induction in SCLC but is not responsible for repression of NE factors

To examine the mechanisms of ERK-mediated suppression of NETFs in SCLC, we identified differentially expressed genes between EGFRL858R vs GFP and KRASG12V vs GFP cells at each time point for both H82 and H2107 with and without doxycycline (Supplementary file 1). As summarized in Figure 2—figure supplement 4a, the overlap between the two cell lines following KRASG12V induction included 65 and 381 upregulated (>1.5 fold) and 3 and 70 downregulated (<0.67 fold) genes on day 1 and day 7, respectively. Mirroring the differential activation of ERK and NE suppression by the oncogenes, there were fewer genes differentially expressed in the cell lines upon EGFRL858R induction (Figure 2—figure supplement 4b), and therefore, we focused on the KRASG12V model system to identify candidates. Among the commonly upregulated genes in the two cell lines after 7 days of KRASG12V induction, hairy and enhancer of split 1 (HES1) was one of the top differentially expressed genes in H2107 cells. HES1 was of interest as a candidate gene suppressing NE differentiation in our model as it functions as a critical transcriptional repressor of neuronal differentiation under control of NOTCH signaling (Iso et al., 2003). Furthermore, decreased HES1 expression was recently shown to be associated with NE differentiation upon osimertinib resistance in EGFR-mutant LUAD patient samples (Roper et al., 2020). Immunoblots validated the strong induction of HES1 protein in H2107 and H524 cells by mutant EGFR and KRAS, while the activated form of NOTCH1, cleaved NOTCH1, was paradoxically decreased (Figure 2—figure supplement 4c). Further, HES1 was weakly induced without the presence of cleaved NOTCH1 in H82 cells, which harbor a NOTCH1 missense mutation (V776M), while induction of HES1 was completely suppressed by pharmacological ERK inhibition (Figure 2—figure supplement 4d). We then tested whether blockade of NOTCH signaling by a γ-secretase inhibitor, RO4929097, prevents HES1 induction by KRASG12V and found no effect in H82 and H524 cells, although it was partially attenuated in H2107 cells (Figure 2—figure supplement 4e). Likewise, suppressed NETFs were not rescued by this treatment. We next carried out HES1 knockout in KRASG12V-inducible cells, but elimination of HES1 did not restore NE factors suppressed by activated ERK (Figure 2—figure supplement 4f). These data suggest that oncogene-mediated ERK activation in SCLC induces HES1 independently from NOTCH signaling; however, induced HES1 does not underlie the ERK-mediated suppression of NETFs.

SOX9 and REST transcription programs are mediated by mutant KRAS induction in SCLC cells

As HES1 upregulation was not responsible for the suppression of NE differentiation, we next assessed whether the differentially expressed genes in SCLC after mutant KRAS induction were enriched for specific transcriptional programs that could indicate a potential mediator of this effect. We identified enrichment for targets regulated by RE1-silencing TF (REST) and SRY-related high-mobility group box 2 (SOX2) in both H82 and H2107 cells after mutant KRAS induction (Figure 2—figure supplement 5a). REST is a transcriptional repressor of neuronal genes and is a direct target of NOTCH1 (Lim et al., 2017), making it a logical candidate for repressing NE factors under control of activated ERK in our system. In fact, in addition to its downstream targets, microarray data also showed upregulation of REST itself by KRASG12V in H2107 and H82 cells (Figure 2—figure supplement 5b), which was validated by RT-qPCR (Figure 2—figure supplement 5c). As opposed to a previous study (Lim et al., 2017), however, introduction of REST siRNAs – while effective at knocking down REST levels – did not contribute to restoration of ERK-mediated suppression of NE factors (Figure 2—figure supplement 5c).

The SOX family TFs are potent drivers of direct somatic cell reprogramming into multiple lineages (Julian et al., 2017). We reasoned that SOX9 but not SOX2 might be a candidate TF to explain the lineage transition in our model, because SOX2 was expressed in only H2107 cells both before and after doxycycline treatment (Figure 2—figure supplement 5d), while SOX9 expression has been reported to negatively associate with SOX2 expression (Lin et al., 2016). In addition, distal lung cells including alveolar epithelial type 2 cells are identified by SOX9 expression (Laughney et al., 2020), and SOX9 was shown to associate with POU class 2 homeobox 3 (POU2F3)-driven subtype of SCLC (Huang et al., 2018), which represents a subtype of SCLC lacking typical NE markers (Rudin et al., 2019). Furthermore, a recent study demonstrated that SOX9 expression is enriched in ASCL1-low human SCLC cell lines and that SOX9 target genes are enriched in ASCL1-low human SCLC tumors (Olsen, 2020). Despite SOX9 transcript being upregulated by KRASG12V only in H2107 cells in the microarray data, we found that SOX9 protein was upregulated by mutant KRAS in all the three cell lines (Figure 2—figure supplement 5d), and this was prevented by ERK inhibition (Figure 2—figure supplement 5e). However, CRISPR/Cas9-mediated SOX9 knockout demonstrated no effects on expression levels of NE factors after KRASG12V induction (Figure 2—figure supplement 5f). Together, these data suggest that while ERK signaling induces expression of HES1, REST and SOX9, these TFs are not responsible for the lineage transformation observed after LUAD oncogene induction in SCLC.

ERK activation in SCLC induces global chromatin modifications

We next investigated whether ERK causes chromatin remodeling in SCLC that could explain the mechanisms by which NETFs are suppressed by constitutive activation of ERK. Indeed, global levels of histone marks – which can be used to classify enhancers – were revealed to be altered after EGFRL858R or KRASG12V induction in SCLC cells (Figure 3). Specifically, these oncoproteins dramatically increased the active enhancer marks histone 3 lysine 9 acetylation (H3K9ac), H3K14ac, and H3K27ac in H82 and H524 cells, whereas they decreased histone 3 lysine 4 tri-methylation (H3K4me3) in H2107 cells. These data suggest that hyperactivated ERK-mediated suppression of NE factors in SCLC might be dependent on altered chromatin structures, which vary depending on the subtype of SCLC defined based on the corresponding master regulator, ASCL1 or NEUROD1.

Oncogene-mediated ERK activation alters the global chromatin modifications characterized by histone marks.

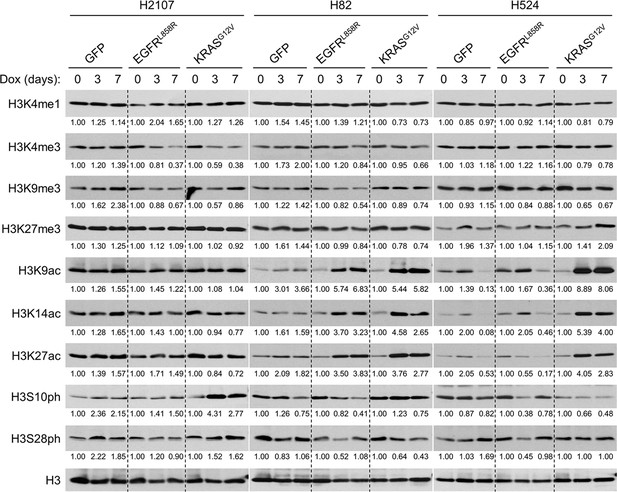

Western blot showing the effects of transduction of GFP, EGFRL858R, or KRASG12V on histone marks upon treatment with 100 ng/mL doxycycline (dox) for 3 and 7 days in H2107, H82, and H524 cells. H3 was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated control values after normalization to H3 in each condition for each cell line. Immunoblots are representative of at least two biological replicates.

ERK activation suppresses NETFs through reorganization of active chromatin

Prominently increased H3K27ac after mutant oncogene induction in SCLC was of interest as over 90% of H3K27ac in cells is dependent on two histone acetyltransferases (HATs) – cAMP-response-element-binding protein (CREB)-binding protein (CBP)/CREBBP and its homologous p300/EP300 (Jin et al., 2011) – which are recurrently inactivated by mutations in SCLC (Peifer et al., 2012; George et al., 2015; Rudin et al., 2012). In addition, a clonal evolution study showed an EP300 rearrangement in an EGFR-mutant tumor before transforming to SCLC through EGFR-TKI treatment (Lee et al., 2017). CREBBP mutations were also shown to be enriched in EGFR-mutant LUAD tumors that subsequently underwent TKI-induced SCLC transformation (Offin et al., 2019). Reciprocally, ERK1 and ERK2 are known to directly phosphorylate and activate CBP (Ait-Si-Ali et al., 1999) and p300 (Liu et al., 2016), respectively. ERK also indirectly activates HAT activity of CBP/p300 through phosphorylation of MSK1/2, which results in phosphorylation of histone 3 serine 28 (Soloaga et al., 2003) and recruitment and activation of CBP/p300 (Josefowicz et al., 2016; Figure 4a). Together, this suggests that SCLC tumors evolve in a manner that selects for decreased H3K27ac levels to maintain their NE phenotype, and that activation of CBP and p300 by ERK may lead to lineage transformation.

Figure 4 with 1 supplement see all

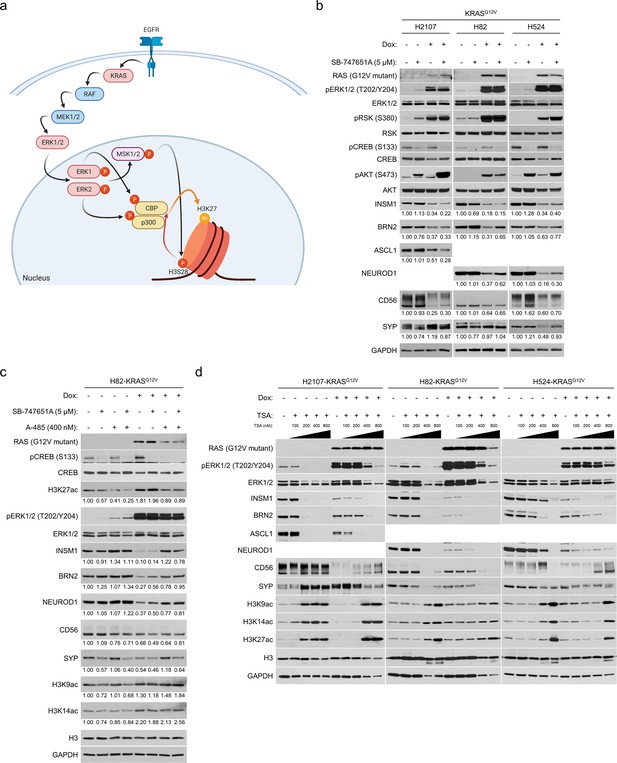

ERK-mediated histone 3 lysine 27 acetylation (H3K27ac) is responsible for suppression of neuroendocrine transcription factors in small cell lung cancer.

(a) Known model of receptor tyrosine kinase/RAS/ERK pathway-mediated promotion of H3K27ac. Illustration was created with BioRendrer.com. (b) Western blot showing the effects of MSK/RSK inhibition using 5 μM SB-747651A on expression of neuroendocrine factors as well as on ERK/RSK/CREB pathway activity and AKT phosphorylation with or without KRASG12V transduction for 72 hr. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-doxycycline (dox)-treated and non-SB-747651A-treated (DMSO-treated) control values (set to one in each cell line panel) after normalization to GAPDH. (c) Western blot of neuroendocrine markers and histone 3 lysine acetylation marks in H82-KRASG12V cells. The cells were treated with SB-747651A (5 μM), a CBP/p300 inhibitior A-485 (400 nM), or both, as well as 100 ng/mL dox for 72 hr. H3 and GAPDH were used as loading controls. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated and non-drug-treated (DMSO-treated) control values (set to lane 1) after normalization to H3 (for H3K27ac, H3K9ac, and H3K14ac) or GAPDH (for INSM1, BRN2, NEUROD1, CD56, and SYP). (d) Western blot of neuroendocrine markers after inhibition of histone deacetylases using trichostatin A (TSA) at different concentrations with or without KRASG12V transduction for 72 hr. H3 and GAPDH were used as loading controls. Immunoblots are representative of at least two biological replicates.

To clarify the dependency on MSK1/2 in the regulation of NE factors by ERK, we treated KRASG12V-inducible cells with or without doxycycline and a compound (SB-747651A) that inhibits MSK as well as RSK (Naqvi et al., 2012). As shown in Figure 4b, phosphorylation of CREB, a downstream target of MSK1/2, was well inhibited by this compound and phospho-AKT levels were again upregulated in H2107 and H524 cells as shown in Figure 2—figure supplement 3. MSK inhibition modestly prevented the suppression of BRN2 and NEUROD1, but INSM1 was not rescued in H82 and H524 cells. Furthermore, no effects were observed in H2107 cells by this treatment. We next inhibited CBP/p300 in KRASG12V-inducible cells using A-485, a potent and selective inhibitor of the catalytic function of CBP/p300 (Lasko et al., 2017), and revealed that at an optimized concentration (400 nM), A-485 restored INSM1, BRN2, and NEUROD1 expression and reduced H3K27ac to a basal level in H82 cells after mutant KRAS induction (Figure 4c and Figure 4—figure supplement 1a). Treatment with A-485 did not affect the levels of two other histone three lysine acetylation marks, H3K9ac and H3K14ac, and inhibition of MSK/RSK did not consistently show additive rescue effects for NE markers (Figure 4c). We also treated H82-KRASG12V cells with a p300-HAT-specific inhibitor C646 (Ogiwara et al., 2016) and found that this drug more modestly restored INSM1 and NEUROD1, particularly when MSK is co-inhibited (Figure 4—figure supplement 1b). Inversely, the expression of NE factors was eliminated in SCLC by inhibition of histone deacetylases (HDACs) using trichostatin A, even in the absence of KRASG12V induction, suggesting that H3K27ac levels must be restricted to maintain SCLC lineage (Figure 4d). Although A-485 treatment did not rescue the ERK-mediated suppression of NE factors in H2107 and H524 cells even when combined with MSK inhibition (Figure 4—figure supplement 1a) or with HES1 knockout (Figure 4—figure supplement 1c), these results collectively suggest that constitutively activated ERK suppresses NETFs partly through MSK but mostly via reconfiguration of chromatin structure by CBP/p300 in a subset of SCLC.

Chromatin accessibility analysis demonstrates enrichment for binding sites of ETS family TFs

The sequencing-based assay for transposase-accessible chromatin (ATAC-seq) (Buenrostro et al., 2013) was employed to tease out mechanisms used by ERK and CBP/p300 to reconfigure lung cancer epigenomes. ATAC-seq was performed on H2107, H524, and H82 cells (three biological replicates per condition) with and without treatment with doxycycline to induce KRASG12V and SCH772984 (ERK inhibitor) for 72 hr, as well as on H82 cells treated with doxycycline in the presence of SB-747651A (MSK/RSK inhibitor), A-485 (CBP/p300 inhibitor), or both. Quality metrics showed good enrichment of accessible chromatin in our ATAC libraries (Figure 5—figure supplement 1a) and strong concordance between replicates (Pearson R (Travis et al., 2015) >0.90; Figure 5—figure supplement 1b). Overall, induction of KRASG12V expression with doxycycline caused an overall increase in chromatin accessibility (H82: 88 peaks of chromatin accessibility gained; 36 lost; H2107: 38 gained, one lost; H524 638 gained,703 lost). On the contrary, addition of the ERK inhibitor SCH772984 led to a reduction in the number of peaks of accessible chromatin (H82: 131 lost, 58 gained; H2107: 36 lost, one gained; H524: 503 lost, 345 gained; Figure 5a and b). The locales of altered accessibility were primarily located in intergenic and intronic regions, in keeping with shifts primarily occurring in regulatory regions, including putative enhancers (Figure 5—figure supplement 1c and d). Motif analysis showed that doxycycline treatment led to increased accessibility around ETV1 and ETV4 DNA binding motifs, as well as motifs associated with AP-1 family members, and reduced accessibility at NEUROD1 and ASCL1 motifs (Figure 5c). A reversal of this pattern was observed upon treatment with SCH772984 (Figure 5d). Motif analyses in individual cell lines showed the same changes in accessibility around these TFs with doxycycline treatment with or without SCH772984 (Figure 5—figure supplement 2a,b and f–i). Importantly, the ranked motif order plot with combined inhibition of MSK/RSK and CBP/p300 (Figure 5—figure supplement 2e) mimicked that with ERK inhibition (Figure 5—figure supplement 2b) in H82 cells. Permutation testing showed that peaks gained upon doxycycline induction, with or without SCH779284, were associated with areas of chromatin decorated with H3K27ac (p=0.002, hypergeometric test; Figure 5e and f), a histone post-translational modification associated with open chromatin, in control normal human lung. Motif accessibility profiles within differentially accessible regions showed that doxycycline induction led to markedly increased accessibility at the ETV1 and ETV4 binding motifs in H524 and H82 cells (Figure 5g). In contrast, chromatin accessibility was reduced at putative binding motifs for neuroendocrine lineage TFs, including ASCL1 and NEUROD1 in H524 and H2107 (Figure 5h). No significant changes in overall occupancy were observed at these motifs in H82 cells (Figure 5—figure supplement 2j). The overall occupancy profiles of cells treated with SCH772984 most closely resembled those of the untreated cells, in keeping with rescue of the neuroendocrine phenotype.

Figure 5 with 2 supplements see all

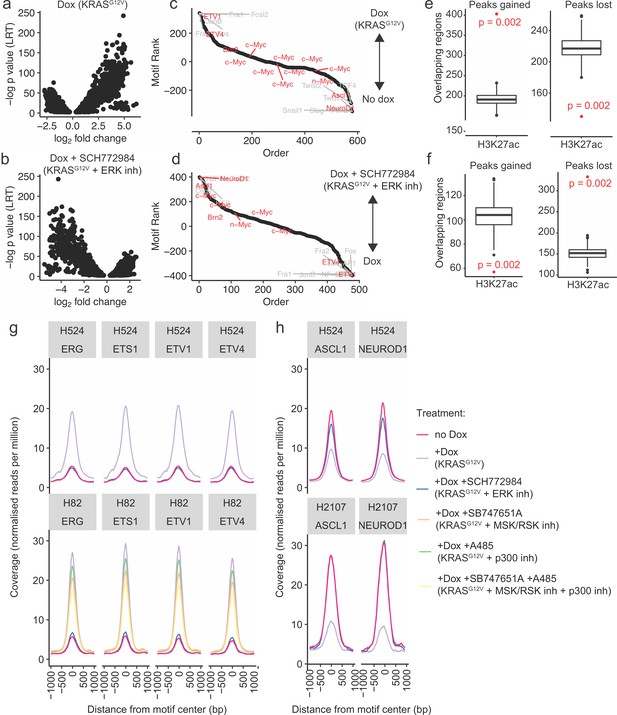

ATAC-seq analysis demonstrates chromatin remodeling upon mutant KRAS transduction.

(a) Distribution of differentially accessible regions in H524-KRASG12V cells upon treatment with doxycycline (dox), and (b) treatment with dox + SCH772984 (an ERK inhibitor [inh]). (c) Ranked list of motif enrichment and depletion over differentially accessible regions in H82-KRASG12V, H524-KRASG12V, and H2107-KRASG12V cells upon dox induction. (d) Ranked list of motif enrichment and depletion over differentially accessible regions in H82-KRASG12V, H524-KRASG12V, and H2107-KRASG12V cells upon dox induction with or without SCH772984 treatment. (e) Permutation testing of co-occupancy of H3K27ac with peaks gained and lost in H524-KRASG12V cells upon dox treatment (p value: hypergeometric test). (f) Permutation testing of co-occupancy of H3K27ac with peaks gained and lost in dox-treated H524-KRASG12V cells upon SCH772984 treatment (p value: hypergeometric test). (g and h) Occupancy profiles of selected motifs of the (g) ETS family, and (h) selected proneural motifs.

ERK activates ETS factors and promotes suppression of NE factors

ATAC-seq demonstrated global chromatin rewiring at ETS transcriptional targets upon KRASG12V induction in SCLC cells. Furthermore, ETS TFs – including the PEA3 family of ETS TFs, ETV1, ETV4, and ETV5 – were upregulated at the mRNA level by activation of MAPK (Supplementary file 1 and Figure 6a), suggesting that an ETS TFs-mediated program may play a role in suppressing NE differentiation. Indeed, microarray data of SCLC and LUAD cell lines indicated the clear inverse relationship of expression of PEA3 family ETS TFs with that of NETFs (Figure 6b). At the protein level, we found that mutant KRAS upregulates ETV4 in H82 and H524 cells and ETV5 in all the three SCLC lines, which was completely reversed by ERK inhibition with SCH772984 (Figure 6c). As ETS TFs bind to a common motif (Hollenhorst et al., 2011), we anticipated that overexpression of any one of these proteins in SCLC cells may phenocopy the effects of ERK activation and potentially lead to downregulation of NE factors. To test this, we conditionally expressed ETV1 in the three SCLC cell lines, which led to suppression of specific NETFs – notably ASCL1 in H2107, INSM1 and NEUROD1 in H82, and BRN2 in H524 (Figure 6d). Conditional expression of ETV5 also significantly downregulated INSM1 and NEUROD1 in H82, and NEUROD1 in H524 (Figure 6e). Furthermore, ETV1- or ETV5-overexpressing cells unexpectedly transformed to an adherent phenotype, with this morphological change most strongly observed in H82 cells, similar to what is observed with KRASG12V induction (Figure 6—figure supplement 1). Next, we conducted knockdown of ETV4, ETV5, or both using siRNAs in mutant KRAS-inducible H82 cells and found that ETV4 knockdown modestly restored suppressed INSM1 while ETV5 knockdown restored NEUROD1 (Figure 6f). Importantly, dual knockdown of ETV4 and ETV5 jointly increased INSM1 and CD56 expression, suggesting the functional redundancy of different ETS factors, such that knockdown of a single or two factors is unable to completely mitigate the effects of ERK activation.

Figure 6 with 5 supplements see all

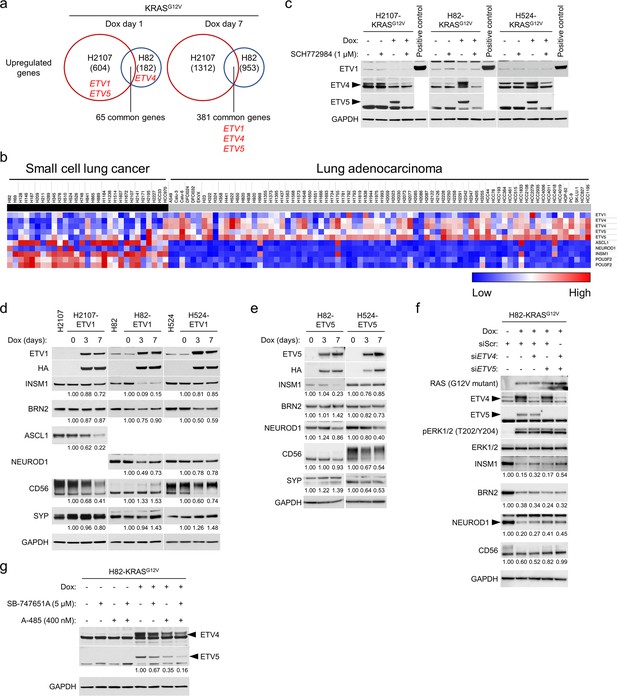

The roles of ETS family transcription factors in the regulation of neuroendocrine differentiation in small cell lung cancer cell lines.

(a) Upregulated genes by KRASG12V overexpression for 1 day and 7 days in comparison with a GFP overexpression control in H2107 and H82 cells. The numbers of genes upregulated (>1.5 fold) are indicated. ETV1, ETV4, and ETV5 are shown in red. (b) Heat map of the PEA3 family ETS transcription factors (ETV1, ETV4, and ETV5) and neuroendocrine transcription factors (ASCL1, NEUROD1, INSM1, and POU3F2 [BRN2]) in small cell lung cancer and lung adenocarcinoma cell lines. Red and blue denote high and low expression, respectively. (c) Western blot showing the effects of ERK inhibition using 1 μM SCH772984 on the expression of ETV1, ETV4, and ETV5 with or without KRASG12V transduction for 72 hr. Lysates from HA-tagged ETV1-overexpressing H524 cells were used as a positive control for ETV1. GAPDH was used as a loading control. (d) Effects of HA-tagged ETV1 induction as assessed by western blot in H2107, H82, and H524 cells, upon treatment with 100 ng/mL doxycycline (dox) for 3 and 7 days. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated control values (set to two in each panel) after normalization to GAPDH. (e) Effects of HA-tagged ETV5 induction as assessed by western blot in H82 and H524 cells, upon treatment with 100 ng/mL dox for 3 and 7 days. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated control values (set to one in each cell line panel) after normalization to GAPDH. (f) Western blot showing the effects of KRASG12V induction and treatment with siRNA pools targeting ETV4, ETV5, or both on expression of neuroendocrine transcription factors in H82 cells. Cells were treated with 100 ng/mL dox and indicated siRNAs for 72 hr. Scrambled siRNA (siScr) was used as a negative control. GAPDH was used as a loading control. Numbers below blots show the amounts of each band relative to the corresponding non-dox-treated and siScr-treated control values (set to 1) after normalization to GAPDH. (g) Western blot showing the effects of MSK/RSK and/or CBP/p300 inhibition on KRASG12V-mediated expression of ETV4 and ETV5 in H82 cells. Cells were treated with 5 μM SB-747651A (a MSK-RSK inhibitor) and/or 400 nM A-485 (a CBP/p300 inhibitor) as well as 100 ng/mL dox for 72 hr. GAPDH was used as a loading control. Numbers below the ETV5 blots indicate the amounts of ETV5 relative to the dox-treated and non-drug-treated (DMSO-treated) control values (set to lane 5) after normalization to GAPDH. Immunoblots are representative of at least two biological replicates.

CIC/Capicua is a transcriptional repressor of ETV1, ETV4, and ETV5 and a key mediator of MAPK signaling (Wang et al., 2017). When the MAPK pathway is activated, ERK and RSK phosphorylate CIC (Dissanayake et al., 2011), which is then exported from the nucleus to the cytoplasm and degraded (Grimm et al., 2012). We therefore assessed whether CIC is required to maintain the suppression of ETS factors in SCLC and whether its inactivation downstream of ERK modulates NE marker suppression. We confirmed that nuclear CIC was expressed in SCLC cells and downregulated after KRASG12V induction, which was restored by ERK inhibition (Figure 6—figure supplement 2a). siRNA knockdown of CIC led to downregulation of INSM1, NEUROD1, and to a lesser extent BRN2 in H82 cells and potentiated the effects of mutant KRAS induction on NE factor suppression in H82 and H524 cells (Figure 6—figure supplement 2b). However, CIC knockdown was not sufficient to induce ETV1, ETV4, and ETV5. Likewise, overexpression of CIC did not inhibit suppression of NE factors after KRASG12V induction (Figure 6—figure supplement 2c), as exogenous CIC was putatively inactivated following immediate phosphorylation by activated ERK. These results suggest that ERK-mediated upregulation of the PEA3 family of ETS TFs does not occur via CIC inhibition in SCLC cells. However, as we demonstrated that the PEA3 family of ETS TFs are – at least in part – a mediator of ERK-induced suppression of NETFs, we next asked if CBP/p300 activation by ERK regulates PEA3 TFs in a CIC-independent manner. Indeed, we found that A-485 treatment downregulates ERK-induced ETV4 and ETV5 in H82-KRAS cells but not in H2107- and H524-KRAS cells, providing a potential biological explanation why CBP/p300 inhibition rescues ERK-mediated suppression of NE differentiation only in H82 cells (Figure 6g and Figure 4—figure supplement 1a).

Lastly, it has been reported that oncogenic fusion proteins produced by chromosomal translocations are the major mechanism of genetic activation of ETS family proteins in cancer. In prostate cancer, the ETS family members ERG as well as ETV1 are commonly rearranged (Tomlins et al., 2005) and ectopic ERG expression by TMPRSS2-ERG fusion blocks NE differentiation (Mounir et al., 2015). Based on these findings, we treated KRASG12V-inducible SCLC cells with an ERG inhibitor, ERGi-USU (Mohamed et al., 2018), with or without MSK/RSK inhibition (Figure 6—figure supplement 3a). ERG was not basally expressed in the three SCLC cell lines but was induced by KRASG12V in H82 and H524 cells. Inhibition of ERG in H82 cells after KRASG12V activation provided modest restoration of INSM1, BRN2, and NEUROD1 at the optimal concentration of 0.6 μM, which synergized with MSK/RSK co-inhibition. Interestingly, treatment of H82-KRASG12V cells with different combinations of inhibitors targeting MSK/RSK, CBP/p300, or ERG revealed that suppression of MYC by KRASG12V was well rescued by combined MSK/RSK and ERG inhibition that did not rescue suppressed expression of key NETFs, suggesting that oncogene-mediated ERK activation in SCLC modulates essential TFs through multiple regulatory mechanisms (Figure 6—figure supplement 3b). It should be noted that ERGi-USU treatment also inhibited ETV5 expression in a dose-dependent manner in H2107 and H82 cells (Figure 6—figure supplement 3a), showing that this compound may work broadly on ETS factors and not exclusively through ERG. Together, these results suggest that ERK-induced ETS factor expression suppresses NE lineage factors in SCLC and that induction of the PEA3 family of ETS TFs is mediated by the HAT activity of CBP/p300 in H82 cells but not in H2107 and H524 cells.

CIC inactivation in EGFR-mutant LUAD upon osimertinib resistance suppresses SCLC transformation in p53/RB-inactivated cells

Using the information obtained from expression of mutant EGFR and KRAS in SCLC, we aimed to assess the potential clinical importance of these mechanisms in driving the transformation of LUAD to SCLC during EGFR-TKI resistance. Dual p53/RB inactivation is ubiquitous in SCLC (Peifer et al., 2012; George et al., 2015), and EGFR-mutant LUADs with p53/RB loss are more likely to undergo SCLC transformation after TKI treatment (Offin et al., 2019; Niederst et al., 2015; Lee et al., 2017). Furthermore, p53/RB inactivation in androgen receptor (AR)-dependent prostate luminal epithelial tumors increases SOX2 expression and causes lineage shift into basal-like or NE tumors that are AR-independent (Mu et al., 2017). Therefore, we tested whether this scenario is also applicable in EGFR-dependent LUAD cells. We selected two TP53/EGFR double-mutant and RB1 wild-type cell lines, PC9 and H1975, and performed RB1 knockout through CRISPR/Cas9, establishing TP53/RB1/EGFR triple-mutant clones (Figure 6—figure supplement 4a). We then treated these clones, along with RB1-proficient control cells, with osimertinib to assess the influence of EGFR/MAPK inactivation on NE differentiation in the p53/RB-deficient background. Unlike the prostate cancer scenario, deregulation of SOX2 was not observed following osimertinib treatment, irrespective of the RB1 status (Figure 6—figure supplement 4b). In addition, NE factors were not induced in the triple-mutant clones, suggesting that the LUAD lineage is more strictly maintained than the lineage of AR-dependent prostate cancer in the context of dual p53/RB inactivation, confirming a previous study (Niederst et al., 2015).

We then attempted to force SCLC transformation from these triple-mutant LUAD cells by long-term exposure to osimertinib. Although RB1 knockout shifted the initial IC50 values to the drug with statistical significance in H1975 cells (Figure 6—figure supplement 4c), the effects were modest. We derived resistant cells through two methods – dose escalation or with an initial high-dose – and confirmed insensitivity to osimertinib in comparison to equally passaged control cells (Figure 6—figure supplement 4d). As resistant cells remained adherent, we asked if EGFR-independent reactivation of ERK inhibited NE trans-differentiation in these cells and assessed acquired genetic alterations using MSK-IMPACT targeted genomic profiling (Figure 6—figure supplement 4e). This revealed mutations and amplifications that reactivate MAPK pathway in resistant clones compared to their parental counterparts, including ARAF, NRAS, and ERBB4 mutations as well as amplifications of MAPK3 and NRAS in three of 12 resistant clones. Correspondingly, pERK was still detectable in the majority of resistant clones in the presence of osimertinib (Figure 6—figure supplement 4f), unlike parental cell lines with acute treatment (Figure 6—figure supplement 4b). Western blot analysis also confirmed no induced expression of the main NE factors in resistant cells (Figure 6—figure supplement 4f). Importantly, CIC mutations that bypass the requirement for upstream MAPK pathway reactivation were recurrently identified in H1975 resistant clones (Figure 6—figure supplement 4e), which was validated by western blot (Figure 6—figure supplement 4g). Among the PEA3 family of ETS TFs, ETV5 was most prominently upregulated in osimertinib-resistant clones harboring acquired CIC alterations (Figure 6—figure supplement 4g). These data collectively suggest that recurrently observed resistance mechanisms that reactivate the ERK/CIC/ETS axis might suppress the NE differentiation program during chronic inhibition of drivers even in the context of p53/RB loss.

Inhibition of ERK and MSK/RSK in stem cell culture media induces neuronal-like differentiation and suppression of EGFR in EGFR-mutant lung adenocarcinoma

Based on our findings that ERK, MSK/RSK, and CBP/p300 play critical roles in the regulation of NETFs in SCLC cell lines, we treated EGFR/TP53/RB1 triple-mutant H1975 cells with inhibitors for EGFR, ERK, MSK/RSK, and/or CBP/p300 to inhibit effectors that suppress NE differentiation with the anticipation that it would eventually cause histological transformation into SCLC. To this end, we cultured cells using stem cell culture media (SCCM) as well as RPMI 1640, as a previous study used SCCM in conjunction with genetic manipulations to reprogram normal human lung epithelial cells to neuroendocrine lineage (Park et al., 2018). When cultured in SCCM, H1975 cells grew in suspension as floating clusters (Figure 6—figure supplement 5a). Interestingly, inhibition of ERK and MSK/RSK in SCCM inhibited the phenotypic change into floating suspension. Furthermore, cells developed a neuronal-like appearance showing bipolar or multipolar cells with axonal processes after combined inhibition of ERK and MSK/RSK regardless of RB1 status (Figure 6—figure supplement 5a), which was coupled with suppression of EGFR (Figure 6—figure supplement 5b). Immunoblotting showed that phospho-AKT was highly upregulated after combined inhibition of ERK and MSK/RSK (Figure 6—figure supplement 5b), highlighting the potential importance of AKT signaling in cell morphology and growing phenotype. However, the triple-mutant cells, including the neuronal-like cells, showed no induction of NETFs over 3 (Figure 6—figure supplement 5b) or 7 (Figure 6—figure supplement 5c) days of culture with different combinations of inhibitors, both in normal media and SCCM.

Discussion

In addition to differences in RB and p53 status, SCLC differs from LUAD in the absence of activating mutations in the MAPK pathway. Furthermore, LUAD tumors that transform to SCLC during TKI resistance lack MAPK signaling, suggesting an inverse relationship between the activity of this pathway and NE differentiation. Here, we have investigated how constitutively activated MAPK signaling driven by exogenous expression of mutant KRAS or EGFR affects the NE program in SCLC cell lines. We found that activation of the downstream signaling node of MAPK pathway, ERK2, suppresses the expression of crucial NE lineage master regulators in SCLC. Furthermore, we found that chromatin regions bound by NETFs were rendered less accessible by activated ERK and that this chromatin remodeling was associated with activation of CBP/p300 HAT activity and corresponding changes in H3K27ac-marked regions. ETS transcription factors were also upregulated as a result of this remodeling, which we showed was an additional mechanism of ERK-mediated suppression of NETFs. Together, this suggests that an ERK-MSK/RSK-CBP/p300-ETS axis, acting through multiple points, synergizes to suppress NE differentiation, providing biological rationale for the absence of MAPK pathway activation in SCLC (Figure 7a).

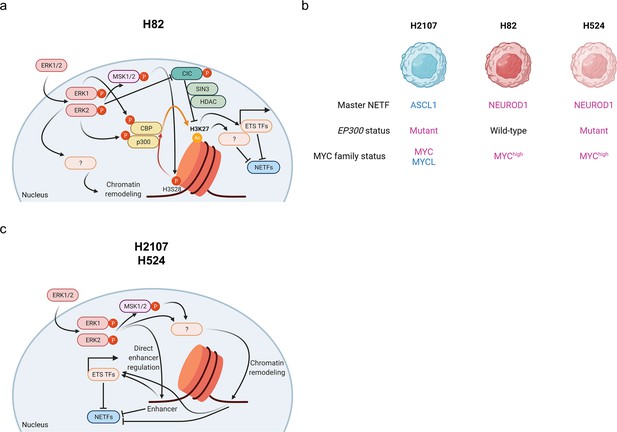

Schematic representation of the mechanism of ERK-mediated repression of neuroendocrine differentiation through chromatin dysregulation in small cell lung cancer.

(a) and (c) Different mechanisms according to cell lines ((a), for H82; (c), for H2107 and H524) are depicted. (b) Overview of characteristics of cell lines used in this study. Illustration was created with BioRendrer.com. HDAC, histone deacetylase; TFs, transcription factors; NETFs, neuroendocrine transcription factors.

However, it should be noted that this mechanism was not applicable across all cell lines we assessed, indicative of the multifactorial mechanisms by which ERK suppresses NE differentiation in a context-dependent manner. This likely relates to differences in expression of master NE regulators such as ASCL1 and NEUROD1, mutation status of epigenomic modifiers including CREBBP (Jia et al., 2018) and EP300, basal ERK activity, cell-specific mechanisms in MAPK pathway feedback loops, and cross-talk with other signaling pathways. Indeed, H2107 and H524 harbor mutations in EP300 while H82 is EP300 wild-type (Figure 7b), which might contribute to relatively low NE differentiation in H82 (Figure 1g) and its increased permissiveness to ERK-induced CBP/p300 HAT activity and NE factor suppression. Furthermore, MYC status has been attributed to phenotypic diversity of SCLCs, with MYCL- and MYC-driven SCLC cell lines differing in numerous aspects from transcriptional signatures, super enhancer usage, metabolic regulation, and therapeutic response (Ireland et al., 2020). As H2107 expresses MYCL while H82 and H524 are MYC high (Figure 7b), this could also underlie the differential response to ERK induction, such as those seen on cell growth and the involvement of CBP/p300 activation and H3K27ac in mediating NETF suppression. Nevertheless, our work clearly demonstrated that ERK2 kinase activity plays a central role in inhibition of NE differentiation in all SCLC cell lines assessed. As ERK2 is known to directly shift transcriptional machinery in a kinase-dependent manner (Hamilton et al., 2019; Göke et al., 2013), direct enhancer regulation by ERK2 may be involved in our model, with ERK-mediated chromatin remodeling independent of CBP/p300 activity also playing an important role in specific contexts (Figure 7c).

Our findings provide biological bases for the mutual exclusivity between gene alterations in MAPK pathway and NE differentiation in lung cancer. We showed that mutant-KRAS induction in SCLC more robustly suppresses NE differentiation and affects growth morphology than mutant-EGFR induction. The former is explained by the different potency of ERK activation between these two LUAD oncoproteins and is in line with the fact that KRAS mutations are not detected in SCLC specimens (Peifer et al., 2012; George et al., 2015). Moreover, a recent study highlighted the potentially deleterious effect of activated ERK in NE tumors by demonstrating that loss of ERK2 and negative ERK2 expression are specific features of the neuroendocrine carcinoma component of gastric mixed adenoneuroendocrine carcinoma (Sun et al., 2020). Although one major exception for this scenario is FGFR amplification that is observed in 6% of SCLC cases (Peifer et al., 2012; George et al., 2015) and is anticipated to activate the MAPK pathway, another recent study showed that FGFR1 is disadvantageous for the development of typical central SCLC with NE differentiation using a Rb1flox/flox;Trp53flox/flox;LSL-Fgfr1K656E mouse model (Ferone et al., 2020).

The recurrently observed inactivating gene alterations of CREBBP/EP300 (Peifer et al., 2012; George et al., 2015; Rudin et al., 2012) in SCLC, as well as in EGFR-mutant LUAD tumors that subsequently undergo TKI-induced SCLC transformation (Offin et al., 2019), suggest that a global or local increase in H3K27ac is incompatible with SCLC. Indeed, HDAC inhibitor treatment, which was shown to inhibit SCLC growth (Jia et al., 2018), strongly suppressed NETFs in SCLC cells (Figure 4d), despite potential specificity issues related to these inhibitors. However, we were unable to conclusively demonstrate that CBP/p300 inhibition promotes SCLC transformation in conjunction with loss of p53 and RB in EGFR-TKI-treated EGFR-mutant LUAD cells as hypothesized. Given that CBP/p300 involvement was observed in only H82 cells, other mechanisms may be required to cause SCLC transformation of EGFR-mutant LUAD. It may also be attributed to the concentrations of A-485 (100–400 nM) and C646 (10 μM) tested. Although these ranges of the drugs most potently restored NETFs which were suppressed in mutant KRAS-transduced H82 cells, complete elimination of H3K27ac by higher-doses of A-485 paradoxically downregulated NETFs (Figure 4—figure supplement 1a), highlighting the challenges of using A-485 to induce NETFs, particularly when combined with additional compounds that inhibit RTK-MAPK components that also downregulate H3K27ac levels. The optimal decrease of H3K27ac level required to restore suppressed NETFs by ERK activation is likely cell-line-specific and context-dependent, making it difficult to employ genomic methodologies such as CRIPSR and shRNA for such rescue experiments. Nevertheless, our results imply that the use of HDAC inhibitors during treatment with EGFR-TKIs might be an option to prevent SCLC transformation in EGFR-mutant LUAD at a high risk of SCLC transformation.

Our results revealed that ERK-mediated upregulation of the PEA3 family of ETS TFs as well as ERG suppresses NE differentiation in SCLC. Because ETS TFs recognize the same ETS DNA-binding motif (Hollenhorst et al., 2011), upregulation of these factors is likely to work in collaboration. However, it is notable that even ETV1 or ETV5 overexpression alone or knockdown of ETV4 or ETV5 alone showed effects on NETFs expression. Surprisingly, a well-described upstream repressor of these factors, CIC, was not involved in the ERK-mediated upregulation of ETV4 and ETV5 in SCLC cells. Similar to the observation of NOTCH-independent HES1 upregulation observed in the present and a previous (Stockhausen et al., 2005) studies, oncogene-activated ERK in SCLC induces ETS TFs independent of CIC inhibition, which will require further investigation. Nonetheless, we found that CIC knockdown suppressed NETFs in H82 cells. Given that CBP/p300 inhibition restored ERK-mediated suppression of NETFs only in H82 cells, an ETS-independent repressor function of CIC, perhaps the previously reported role of interacting with the SIN3 deacetylation complex and recruiting HDACs (Weissmann et al., 2018), may be involved in this process (Figure 7a).

In summary, we provide the first reported biological rationale for why alterations in MAPK pathway are rarely found in SCLC and describe the molecular underpinnings of how the central node in this pathway, ERK2, suppresses the NE differentiation program. However, we could not force EGFR-mutated LUAD to transform to SCLC as a resistance mechanism to osimertinib, despite our attempts to reverse engineer this process based on this knowledge. Our strategy using extensively passaged established cell lines might not be suitable to cause lineage transformation, and applications of patient-derived tumor organoids or genetically engineered mouse models that potentially possess the ability of differentiation into different lineage might be promising options in the future. In addition, there are a number of reported mechanisms of SCLC transformation in prostate cancer (Mu et al., 2017; Bishop et al., 2017; Guo et al., 2019; Cerasuolo et al., 2015), suggesting genetic heterogeneity may complicate efforts to model this process in lung cancer. We propose that SCLC transformation from LUAD requires specific conditions in the background of p53/RB loss, including lack of both second site EGFR mutations and bypass pathway mutations that reactivate MAPK signaling and ETS TFs, and alterations in epigenetic modifiers such as CBP/p300 to reduce H3K27ac levels and alter chromatin accessibility, rendering gene expression suitable for NE differentiation. While this work provides fundamental information regarding lineage plasticity in lung cancer, further studies are required to identify novel therapeutic approaches targeting histological trans-differentiation between LUAD and SCLC in the context of EGFR-TKI resistance.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Cell line (Homo sapiens)NCI-H2107ATCCCRL-5983_FL
Cell line (Homo sapiens)NCI-H82ATCCHTB-175
Cell line (Homo sapiens)NCI-H524ATCCCRL-5831
Cell line (Homo sapiens)NCI-H526ATCCCRL-5811
Cell line (Homo sapiens)PC-9Adi Gazdar
Cell line (Homo-sapiens)NCI-H1650ATCCCRL-5883
Cell line (Homo sapiens)NCI-H1975ATCCCRL-5908
Cell line (Homo-sapiens)HCC827ATCCCRL-2868
Cell line (Homo sapiens)HCC2279ATCCCRL-2870
Cell line (Homo sapiens)HCC2935ATCCCRL-2869
Cell line (Homo sapiens)HCC4006ATCCCRL-2871
Cell line (Homo sapiens)HCC4011Adi GazdarRRID:CVCL_S700
Cell line (Homo-sapiens)NCI-H23ATCCCRL-5800
Cell line (Homo sapiens)NCI-H1792ATCCCRL-5895
Cell line (Homo sapiens)A549ATCCCCL-185
Cell line (Homo sapiens)NCI-H358ATCCCRL-5807
Cell line (Homo sapiens)NCI-H1395ATCCCRL-5868
Cell line (Homo sapiens)NCI-H2347ATCCCRL-5942
cell line (Homo sapiens)NCI-H460ATCCHTB-177
Cell line (Homo sapiens)NCI-H1155ATCCCRL-5818
Transfected construct (human)lentiCRISPRv2AddgeneRRID:Addgene_52961Lentiviral construct to transfect and express hSpCas9 and sgRNA.
Transfected construct (human)pcDNA4/TOWong et al., 2019
PMID:30093628
Tetracycline-regulated mammalian expression vector
Transfected construct (human)siRNA to MAPK3
(SMARTpool)
Horizon DiscoveryL-003592–00transfected construct (human)
Transfected construct (human)siRNA to MAPK1
(SMARTpool)
Horizon DiscoveryL-003555–00transfected construct (human)
Transfected construct (human)siRNA to REST
(SMARTpool)
Horizon DiscoveryL-006466–00transfected construct (human)
Transfected construct (human)siRNA to CIC
(SMARTpool)
Horizon DiscoveryL-015185–01transfected construct (human)
Transfected construct (human)siRNA to ETV4
(SMARTpool)
Horizon DiscoveryL-004207–00transfected construct (human)
Transfected construct (human)siRNA to ETV5
(SMARTpool)
Horizon DiscoveryL-008894–00transfected construct (human)
Antibodyanti-phospho-EGFR (Tyr1068) (Rabbit polyclonal)Cell Signaling TechnologyCat. #: 2234WB (1:1000)
Antibodyanti-EGFR (Rabbit polyclonal)Cell Signaling TechnologyCat. #: 2232WB (1:1000)
Antibodyanti-Brn2/POU3F2 (D2C1L) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 12137WB (1:1000)
Antibodyanti-INSM1 (A-8) (Mouse monoclonal)Santa Cruz BiotechnologyCat. #: sc-271408WB (1:1000)
Antibodyanti-MASH1 (24B72D11.1) (Mouse monoclonal)BD Pharmingen IncCat. #: 556604WB (1:1000)
Antibodyanti-NeuroD1 (D35G2) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 4373WB (1:1000)
Antibodyanti-NCAM1 (CD56) (123C3) (Mouse monoclonal)Cell Signaling TechnologyCat. #: 3576WB (1:1000)
Antibodyanti-Synaptophysin (Rabbit polyclonal)Cell Signaling TechnologyCat. #: 4329WB (1:1000)
Antibodyanti-phospho-p44/42 MAPK (Thr202/Tyr204) (Rabbit polyclonal)Cell Signaling TechnologyCat. #: 9101WB (1:1000)
Antibodyanti-p44/42 MAPK (137F5) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 4695WB (1:1000)
Antibodyanti-Akt (Ser473) (D9E) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 4060WB (1:2000)
Antibodyanti-Akt (pan) (C67E7) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 4691WB (1:1000)
Antibodyanti-Ras (G12V mutant specific) (D2H12) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 14412WB (1:1000)
Antibodyanti-Ras (D2C1) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 8955WB (1:1000)
Antibodyanti-c-Myc (D84C12) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 5605WB (1:1000)
Antibodyanti-cleaved PARP (Asp214) (D64E10) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 5625WB (1:1000)
Antibodyanti-YAP (D8H1X) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 14074WB (1:1000)
Antibodyanti-phospho-p90RSK (Ser380) (D3H11) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 11989WB (1:1000)
Antibodyanti-RSK1/RSK2/RSK3 (D7A2H) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 14813WB (1:1000)
Antibodyanti-phospho-CREB (Ser133) (1B6) (Mouse monoclonal)Cell Signaling TechnologyCat. #: 9196WB (1:1000)
Antibodyanti-CREB (48H2) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 9197WB (1:1000)
Antibodyanti-Notch1 (D1E11) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 3608WB (1:1000)
Antibodyanti-cleaved Notch1 (Val1744) (D3B8) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 4147WB (1:1000)
Antibodyanti-Notch2 (D76A6) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 5732WB (1:1000)
Antibodyanti-HES1 (D6P2U) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 11988WB (1:1000)
Antibodyanti-Sox2 (D6D9) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 3579WB (1:1000)
Antibodyanti-Sox9 (D8G8H) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 82630WB (1:1000)
Antibodyanti-H3K4me3 (C42D8) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 9751WB (1:1000)
Antibodyanti-H3K9me3 (D4W1U) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 13969WB (1:1000)
Antibodyanti-H3K9ac (C5B11) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 9649WB (1:1000)
Antibodyanti-H3K14ac (D4B9) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 7627WB (1:1000)
Antibodyanti-H3K27ac (D5E4) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 8173WB (1:1000)
Antibodyanti-H3S10ph (Ser10) (Rabbit polyclonal)Cell Signaling TechnologyCat. #: 9701WB (1:1000)
Antibodyanti-H3S28ph (Ser28) (Rabbit polyclonal)Cell Signaling TechnologyCat. #: 9713WB (1:1000)
Antibodyanti-Histone H3 (D1H2) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 4499WB (1:2000)
Antibodyanti-CIC (Rabbit polyclonal)Thermo Fisher ScientificCat. #: PA1-46018WB (1:1000)
Antibodyanti-HA-Tag (C29F4) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 3724WB (1:1000)
Antibodyanti-ETV1 (Rabbit polyclonal)Thermo Fisher ScientificCat. #: PA5-41484WB (1:1000)
Antibodyanti-Pea3 (Rabbit polyclonal)AbcamCat. #: ab189826WB (1:1000)
Antibodyanti-ERM/Etv5 (Rabbit polyclonal)AbcamCat. #: ab102010WB (1:1000)
Antibodyanti-ERG (A7L1G) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 97249WB (1:1000)
Antibodyanti-Rb (4H1) (Mouse monoclonal)Cell Signaling TechnologyCat. #: 9309WB (1:2000)
Antibodyanti-β-Actin (D6A8) (Rabbit monoclonal)Cell Signaling TechnologyCat. #: 12620WB (1:1000)
Antibodyanti-GAPDH (0411) (Mouse monoclonal)Santa Cruz BiotechnologyCat. #: sc-47724WB (1:3000)
Recombinant DNA reagentpInducer20 (plasmid)AddgeneRRID:Addgene_44012Tet-inducible lentiviral vector for ORF expression
Recombinant DNA reagentpInducer20-GFP (plasmid)Unni et al., 2015
PMID:26047463
GFP version of pInducer20
Recombinant DNA reagentpInducer20-EGFRL858R (plasmid)Unni et al., 2015
PMID:26047463
EGFRL858R version of pInducer20
Recombinant DNA reagentpInducer20-KRASG12V (plasmid)Unni et al., 2015
PMID:26047463
KRASG12V version of pInducer20
Recombinant DNA reagentpInducer20-ETV1 (plasmid)This paper – Materials and methods SectionLockwood LabETV1 version of pInducer20
Recombinant DNA reagentpInducer20-ETV5
(plasmid)
This paper – Materials and methods SectionLockwood LabETV5 version of pInducer20
Recombinant DNA reagentpcDNA4/TO/FLAG-CIC-LWong et al., 2019
PMID:30093628
Tetracycline-regulated CIC-L expression vector
Recombinant DNA reagentpcDNA4/TO/FLAG-CIC-SWong et al., 2019
PMID:30093628
Tetracycline-regulated CIC-S expression vector
Recombinant DNA reagentpcDNA4/TO/FLAG-CIC-SV41GWong et al., 2019
PMID:30093628
Tetracycline-regulated CIC-SV41G expression vector
Sequence-based reagentsgHES1-1This papersgRNA sequenceGTGCTGGGGAAGTACCGAGC
Sequence-based reagentsgHES1-2This papersgRNA sequenceGGTATTAACGCCCTCGCACG
Sequence-based reagentsgSOX9-1This papersgRNA sequenceCAAAGGCTACGACTGGACGC
Sequence-based reagentsgSOX9-2This papersgRNA sequenceAGGTGCTCAAAGGCTACGAC
Sequence-based reagentsgRB1-1PMID:26314710
Nicolay et al., 2015
sgRNA sequenceGCTCTGGGTCCTCCTCAGGA
Sequence-based reagentsiRNA: non-targeting controlHorizon DiscoveryD-001810–10transfected construct (human)
Commercial assay or kitProteome Profiler Human Phospho-Kinase Array KitR and D SystemsCat. #: ARY003B
Commercial assay or kitQuick-RNA Miniprep KitZymo ResearchCat. #: R1054
Commercial assay or kitDNeasy Blood and Tissue KitQiagenCat. #: 69506
Commercial assay or kitHigh-Capacity RNA-to-cDNA KitThermo Fisher ScientificCat. #: 4387406
Commercial assay or kitGateway LR Clonase II enzyme mixThermo Fisher ScientificCat. #: 11791020
Commercial assay or kitTaqMan Gene Expression Assay Mix for RESTThermo Fisher ScientificCat. #: Hs05028212_s1
Commercial assay or kitTaqMan Gene Expression Assay Mix for ACTBThermo Fisher ScientificCat. #: Hs99999903_m1
Commercial assay or kitNE-PER Nuclear and Cytoplasmic Extraction ReagentsThermo Fisher ScientificCat. #: 78833
Chemical compound, drugDoxycycline hyclateSigma AldrichD9891
Chemical compound, drugSCH772984Selleck ChemicalsS7101
Chemical compound, drugMK-2206 2HClSelleck ChemicalsS1078
Chemical compound, drugRO4929097Selleck ChemicalsS1575
Chemical compound, drugSB-747651A dihydrochlorideTocris Bioscience4630
Chemical compound, drugA-485Tocris Bioscience6387
Chemical compound, drugTrichostatin ASelleck ChemicalsS1045
Chemical compound, drugC646Selleck ChemicalsS7152
Chemical compound, drug
ERGi-USUTocris Bioscience6632
Chemical compound, drugOsimertinibSelleck ChemicalsS7297
Software, algorithmR softwareR Foundation for Statistical ComputingVersion 3.6.1
Software, algorithmGSEA softwarePMID:16199517Version 4.0.3
Software, algorithmGraphPad PrismGraphPad SoftwareVersion 8.2.1

Cell lines and cell culture

Request a detailed protocol

Cells were cultured at 37°C with 5% CO2 in humidified atmosphere. All cell lines except for H2107 (NCI-H2107) and 293T were cultured in RPMI 1640 medium (Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum (Thermo Fisher Scientific). H2107 cells were cultured in DMEM medium (Thermo Fisher Scientific) supplemented with 5% fetal bovine serum and 1% Glutamax (Thermo Fisher Scientific). 293 T cells were cultured in DMEM medium supplemented with 10% FBS. H1975 cells were cultured in stem cell culture media (Advanced DMEM/F12 [Thermo Fisher Scientific], 1% Glutamax, B-27 supplement [Thermo Fisher Scientific], 10 ng/mL recombinant human HB-EGF [PeproTech, Cranbury, NJ, USA], and 10 ng/mL recombinant human FGF-basic [PeproTech]) (Park et al., 2018) when indicated. H2107, H82 (NCI-H82), H524 (NCI-H524), H526 (NCI-H526), PC9 (PC-9), H1650 (NCI-H1650), H1975 (NCI-H1975), HCC827, HCC2279, HCC2935, HCC4006, HCC4011, H23 (NCI-H23), H1792, (NCI-H1792) A549, H358 (NCI-H358), H1395 (NCI-H1395), H2347 (NCI-H2347), H460 (NCI-H460), H1155 (NCI-H1155), and 293 T cells were obtained from American Type Tissue Culture (ATCC) or were a kind gift from Dr. Adi Gazdar (UTSW). Mycoplasma contamination check was carried out using a LookOut Mycoplasma PCR Detection Kit (Sigma-Aldrich, St. Louis, MO, USA). Cells were validated by STR profiling.

Chemicals

Where indicated, the following chemicals were added to the media as indicated in the text: doxycycline hyclate (Sigma-Aldrich), SCH772984 (Selleck Chemicals, Houston, TX, USA), MK-2206 (Selleck Chemicals), RO4929097 (Selleck Chemicals), SB-747651A (Tocris Bioscience, Bristol, UK), A-485 (Tocris Bioscience), trichostatin A (Selleck Chemicals), C646 (Selleck Chemicals), ERGi-USU (Tocris Bioscience), and osimertinib (Selleck Chemicals).

Microscopy

Request a detailed protocol

Fluorescence microscopy was performed using a digital inverted microscope AMF4300 (Thermo Fisher Scientific).

Exploring mutation and copy number alteration data of KRAS and EGFR using cBioPortal

Request a detailed protocol

We collected the data of mutations and copy number alterations (amplification and deep deletion) of the KRAS and EGFR genes from 1314 lung cancer patients and 1316 samples using the cBio Cancer Genomics Portal (cBioPortal) database from the five studies as follows: TCGA, Firehose Legacy for adenocarcinoma (N = 586); TCGA, Firehose Legacy for squamouns cell carcinoma (N = 511); the Clinical Lung Cancer Genome Project (CLCGP) for SCLC (Peifer et al., 2012) (N = 29); Johns Hopkins University (JHU) Nat Genet 2012 for SCLC (Rudin et al., 2012) (N = 80); and U Cologne (UCOLOGNE) Nature 2015 for SCLC (George et al., 2015) (N = 110).

Plasmids and generation of stable or transient cell lines

Request a detailed protocol

Plasmids used for expressing mutant KRAS (KRASG12V), mutant EGFR (EGFRL858R), or GFP were identical to those described in our previous works (Unni et al., 2018; Unni et al., 2015). In brief, DNAs encoding mutant KRAS, mutant EGFR, or GFP were cloned into pInducer20 that carries a tetracycline response element for doxycycline-dependent gene control and the tetracycline transactivator, rtTA, driven from the constitutive UbC promoter. Human ETV1 (Addgene, Cambridge, MA, USA; plasmid #82209) and ETV5 (Horizon Discovery, Cambridge, UK; clone 100008315) were transferred to pInducer20 using Gateway LR Clonase II enzyme mix (Thermo Fisher Scientific). Lentivirus was generated using the pInducer20-KRASG12V, -EGFRL858R, -GFP, -ETV1, or-ETV5 as well as psPAX2 (Addgene; plasmid #12260) and pMD2.G (Addgene; plasmid #12259) in 293 T cells. After transduction, stable polyclonal cells were selected with geneticin (Thermo Fisher Scientific) and single-cell-derived clonal cells were also established. Where indicated, doxycycline was added at the time of cell seeding at 100 ng/mL and cells were cultured for 72 hr and harvested unless otherwise stated. For 7-day time course experiments, medium was changed and doxycycline was refreshed on day 4. For other time course experiments, medium was changed and drugs were refreshed every 24 hr.

For transient overexpression of CIC-L, CIC-S, or CIC-SV41G, three cell lines (H2107-KRASG12V, H82-KRASG12V, and H524-KRASG12V) were transfected with the corresponding constructs or with an empty pcDNA4/TO vector which had been kindly gifted from Dr. Wong (Wong et al., 2019) using Lipofectamine 2000 Reagent (Thermo Fisher Scientific). After 24 hr of transfection, medium was changed and doxycycline was added at 100 ng/mL. Cells were further cultured for 72 hr and harvested.

CRISPR/Cas9 modification

Request a detailed protocol

The sgRNA sequences targeting HES1 (sgHES1-1, 5’-GTGCTGGGGAAGTACCGAGC-3’; sgHES1-2, 5’-GGTATTAACGCCCTCGCACG-3’), SOX9 (sgSOX9-1, 5’-CAAAGGCTACGACTGGACGC-3’; sgSOX9-2, 5’-AGGTGCTCAAAGGCTACGAC-3’), or RB1 (5’-GCTCTGGGTCCTCCTCAGGA-3’) were cloned into the lentiCRISPRv2 (Addgene #52961) plasmid. 293 T cells were transfected with recombinant lentiCRISPRv2 together with psPAX2 and pMD2.G using Lipofectamine 2000 (Thermo Fisher Scientific). Undigested lentiCRISPRv2 plasmid lacking sgRNA sequence was used for pseudovirus production as a control. H2107-KRASG12V, H82-KRASG12V, and H524-KRASG12V cells were infected with virus to knockout HES1 or SOX9. PC9 and H1975 cells were infected with virus to knockout RB1. After maximally eliminating uninfected cells by selection with puromycin (Sigma-Aldrich), polyclonal cells were collected. Single cell-derived clonal cells were also established after HES1 or RB1 knockout.

Western blot analysis

Request a detailed protocol

Cells were lysed in RIPA Lysis and Extraction Buffer (G-Biosiences, St. Louis, MO, USA) containing Halt protease and phosphatase inhibitor cocktail (Thermo Fisher Scientific). For experiments of SCLC cell lines (H2107, H82, and H524) after mutant KRAS or mutant EGFR induction, both suspended and adherent cells were lysed and mixed together. Thus, lysates were representative of the entire population of cells. The only exception was lysates collected from adherent and non-adherent populations separately as well as from both populations together to assess the heterogeneity of SCLC cells (Figure 1—figure supplement 3b). For experiments of acute and subacute treatment with osimertinib for up to 5 days, cells were serum starved for 24 hr and treated with osimertinib or 0.1% DMSO. Medium was changed and osimertinib was refreshed every 24 hr. Protein concentration was determined using a Pierce BCA protein assay kit (Thermo Fisher Scientific). 20 μg of lysates were denatured in NuPAGE LDS Sample Buffer (Thermo Fisher Scientific) and loaded on 4–12% Bis-Tris (Thermo Fisher Scientific) or 3–8% Tris-Acetate (Thermo Fisher Scientific) gradient gels. After electrophoretic separation, the proteins were transferred onto PVDF membranes (MilliporeSigma, Billerica, MA, USA). The protein of interest was detected using an appropriate antibody specific for phospho-EGFR (Tyr1068) (2234; Cell Signaling Technology [CST], Danvers, MA, USA), EGFR (2232; CST), BRN2 (12137; CST), INSM1 (sc-271408; Santa Cruz Biotechnology, Dallas, TX), MASH1 (556604; BD Pharmingen Inc; San Diego, CA, USA), NEUROD1 (4373; CST), CD56 (3576; CST), SYP (4329; CST), phospho-ERK1/2 (Thr202/Tyr204; 9101; CST), ERK1/2 (4695; CST), phospho-AKT (Ser473; 4060; CST), AKT (4691; CST), RAS G12V mutant specific (14412; CST), RAS (8955; CST), MYC (5605; CST), cleaved PARP (5625; CST), YAP1 (14074; CST), phospho-RSK (Ser380; 11989; CST), RSK1/RSK2/RSK3 (14813; CST), phospho-CREB (Ser133; 9196; CST), CREB (9197; CST), NOTCH1 (3608; CST), cleaved NOTCH1 (4147; CST), NOTCH2 (5732; CST), HES1 (11988; CST), SOX2 (3579; CST), SOX9 (82630; CST), H3K4me3 (9751; CST), H3K9me3 (13969; CST), H3K9ac (9649; CST), H3K14ac (7627; CST), H3K27ac (8173; CST), H3S10ph (9701; CST), H3S28ph (9713; CST), Histone H3 (4499; CST), CIC (PA1-46018; Thermo Fisher Scientific), HA-Tag (3724; CST), ETV1 (PA5-41484; Thermo Fisher Scientific), ETV4 (ab189826; Abcam), ETV5 (ab102010; Abcam), ERG (97249; CST), RB (9309; CST), β-Actin (12620; CST), or GAPDH (sc-47724; Santa Cruz Biotechnology) with ECL (Thermo Fisher Scientific).

Cell proliferation assay

Request a detailed protocol

To determine the viability of cells over a 5-, 7-, or 8-day time course for H82, H524, or H2107 derivatives, respectively, cells with doxycycline-inducible constructs were seeded in triplicate in 6-well plates with (100 ng/mL) or without doxycycline at 8.0 × 104 (H2107 derivatives), 1.5 × 104 (H82 derivatives), and 4.0 × 104 (H524 derivatives) cells/well. Medium was not changed during the experiments. At indicated time points, an alamarBlue cell viability agent (Thermo Fisher Scientific) was added and intensities were measured for each well using a Cytation 3 Multi Modal Reader with Gen5 software (BioTek Instruments, Inc, Winooski, VT, USA). Along with cell viability, cell numbers were also counted at indicated time points in triplicate.

Soft agar colony formation assay

Request a detailed protocol

Soft agar colony formation assay was performed using a CytoSelect 96-Well Cell Transformation Assay Kit (Cell BioLabs, Inc, San Diego, CA) following the manufacturer’s protocol. In brief, 0.6% CytoSelect agar was added to the bottom of a 96-well plate prior to seeding each well with 10,000 cells suspended in 0.3% CytoSelect agar. After the agar had solidified, cells were then treated with either with media control or media supplemented with 100 ng/mL doxycycline. Cells were cultured for 5 days prior to solubilizing the agar, lysing the cells, and subsequent quantification by CyQuant GR Dye (fluorescence: 485/520 nm).

Assessment of phenotypic change from a suspended to adherent state

Request a detailed protocol

To determine the ability of phenotypic change in the growing pattern from a suspended to adherent state, cells with doxycycline-inducible constructs were seeded in triplicate in 6-well plates with (100 ng/mL) or without doxycycline at 1.7 × 106 (H2107 derivatives), 4.0 × 104 (H82 derivatives), and 1.0 × 106 (H524 derivatives) cells/well. After incubation of cells for 7 days (H2107 and H82 derivatives) or 5 days (H524 derivatives) without medium change, medium containing suspended cells was removed and adherent cells were washed with PBS and then medium was replaced. Viability of adherent cells was assessed using an alamarBlue cell viability agent. Adherent cells were also fixed and stained with crystal violet.

To assess the impact of SCH772984 (1 μM) and/or MK-2206 (10 μM), or SB-747651A (5 μM) and/or MK-2206 (10 μM) on the phenotypic change from a suspended to adherent state, doxycycline-inducible KRASG12V cells were seeded in triplicate in six-well plates with (100 ng/mL) or without doxycycline and with or without indicated drugs at 2.0 × 106 cells/well. After incubation for 72 hr, medium containing cells in suspension was aspirated and then medium containing indicated doxycycline and/or drugs was replaced. Cell viability of adherent cells was evaluated using an alamarBlue cell viability agent. Adherent cells were also fixed and stained with crystal violet.

Gene expression profiling and gene set enrichment analysis

Request a detailed protocol

Total RNA was extracted in triplicate using a Quick-RNA Miniprep Kit (Zymo Research, Irvine, CA, USA) according to the manufacturer’s protocol from mutant KRAS-, mutant EGFR-, or GFP-transduced stable H2107 and H82 cells on doxycycline treatment day 1 and day seven as well as from non-doxycycline-treated control cells. Sample quality was assessed using an Agilent Bioanalyzer (Agilent, Santa Clara, CA) and subsequent sample preparation, array hybridization, and data acquisition was performed by the Centre for Applied Genomics Microarray Facility (Toronto, Ontario). The GeneChip Human Gene 2.0 ST Assay (Thermo Fisher Scientific) was used according to the manufacturer’s protocols. Raw data were normalized by robust multiarray analysis via the RMA package (Irizarry et al., 2003) and subsequently analyzed to detect genes differentially expressed between EGFRL858R- vs GFP-expressing cells and KRASG12V- vs GFP-expressing cells at each time point for each cell line using a generalized linear regression model and applying an empirical Bayesian fit through the limma package (Ritchie et al., 2015) in R (R Foundation for Statistical Computing, Vienna, Austria, version 3.6.1). Differentially expressed genes in EGFRL858R or KRASG12V vs GFP at each time point with Benjamini–Hochberg corrected P values < 0.05 were considered significant. Significantly upregulated or downregulated genes in KRASG12V-induced cells over GFP controls were analyzed by Enrichr (Chen et al., 2013; Kuleshov et al., 2016) separately to identify enriched ENCODE and ChEA consensus TFs from the ChIP-X database. Gene Set Enrichment Analysis (GSEA) was performed using GSEA software version 4.0.3 with default parameters using the gene set obtained from hallmark gene sets (Subramanian et al., 2005). Gene expression data has been deposited in the Gene Expression Omnibus (GEO, accession number GSE160482). Additional microarray data for a panel of LUAD and SCLC cell lines was downloaded from GEO (GSE4824) and plotted using Morpheus (https://software.broadinstitute.org/morpheus) as previous described (Lockwood et al., 2008).

Phospho-kinase array analysis

Request a detailed protocol

The Proteome Profiler Human Phospho-Kinase Array Kit (R and D Systems, Minneapolis, MN, USA) was purchased and phosphorylation profiles of kinases were analyzed according to the manufacturer’s protocol.

Reverse transcription and quantitative real-time PCR analysis

Request a detailed protocol

Total RNA was isolated from cell lines as described above and was reverse transcribed to cDNA using a High-Capacity RNA-to-cDNA Kit (Thermo Fisher Scientific). Real-time quantitative PCR reactions were performed using TaqMan Gene Expression Assay Mix and TaqMan Universal PCR Master Mix (Thermo Fisher Scientific) with the 7500 Fast Real Time PCR System (Thermo Fisher Scientific). The TaqMan Gene Expression Assay Mix for REST (Hs05028212_s1) was obtained from Thermo Fisher Scientific. The ΔΔCt method was used for relative expression quantification using the average cycle thresholds. The relative expression of REST represents an average of triplicates that are normalized to the transcription levels of beta-actin (Hs99999903_m1; Thermo Fisher Scientific).

RNA interference

Request a detailed protocol

Approximately 1.5 × 106 cells were transfected with ON-TARGETplus siRNA pools (Horizon Discovery) using DharmaFECT one transfection reagent (Horizon Discovery) at a final concentration of 50 nM against the following targets: MAPK3 (L-003592–00), MAPK1 (L-003555–00), REST (L-006466–00), CIC (L-015185–01), ETV4 (L-004207–00), and ETV5 (L-008894–00) as well as a non-targeting control (D-001810–10). Cells were cultured for 72 hr after transfection and used for further analyses. Where indicated, doxycycline was added at 100 ng/mL at the time of transfection.

Dose-response analysis

Request a detailed protocol

Cells of PC9 and H1975 derivatives were seeded in 96-well plates at a density of 1.5 × 103 cells per well. After 24 hr, osimertinib was added at different concentrations. Cells were allowed to grow for 72 hr after osimertinib addition and cell viability was assessed using alamarBlue cell viability agent.

Generation of osimertinib-resistant cells

Request a detailed protocol

To generate resistant cell lines to osimertinib, we exposed RB1-proficient or -deficient PC9 and H1975 cells to the drug by either stepwise dose-escalation (starting at 10 nM or 30 nM and ending with 1 μM or 2 μM for PC9 and H1975, respectively) or initial high-dose (1 μM) method. Osimertinib was refreshed every 3 or 4 days. To capture possible SCLC-transformed cells which were anticipated to be likely in suspension, we passaged both adherent and suspended cells together during making cells resistant to osimertinib. Resistant cells were maintained as polyclonal populations under constant exposure to the drugs.

Analysis of acquired genomic alterations by MSK-IMPACT

Request a detailed protocol

Cell lines were profiled by the MSK-IMPACT (Integrated Mutation Profiling of Actionable Cancer Targets) platform which is a hybridization capture-based next generation sequencing (NGS) assay for targeted deep sequencing of exons and selected introns of 468 cancer-associated genes and gene fusions (Cheng et al., 2015). The assay detects mutations and copy-number alterations. Genomic DNA was extracted from osimertinib-resistant cells as well as matched parental cells using a DNeasy Blood and Tissue Kit (Qiagen, Hilden, Germany). We reviewed all candidate alterations identified in resistant cells as well as parental cells and considered those identified only in resistant cells as candidate acquired resistance genomic alterations to osimertinib.

Subcellular fractionation

Request a detailed protocol

H2107, H82, and H524 cell lines were subjected to subcellular fractionation using NE-PER Nuclear and Cytoplasmic Extraction Reagents (Thermo Fisher Scientific) according to the manufacturer’s instruction. Fractionation efficiency was confirmed by western blot analysis using MYC as nuclear and GAPDH as cytoplasmic protein controls, respectively.

ATAC-seq analysis

Request a detailed protocol

H2107-KRASG12V and H524-KRASG12V cells were treated with doxycycline ±SCH772984 (1 μM) for 72 hr. H82-KRASG12V cells were treated with the following chemicals: doxycycline; doxycycline +SCH772984 (1 μM); doxycycline +SB-747651A (5 μM); doxycycline +A-485 (400 nM); or doxycycline +SB-747651A (5 μM)+A-485 (400 nM). After 72 hr treatment, these cells as well as corresponding non-treated control cells were collected and frozen. ATAC-seq was performed using the Omni-ATAC protocol (Corces et al., 2017) with slight modifications as below. In brief, cells were resuspended in nuclear lysis buffer (10 mM Tris-HCl pH 7.4; 10 mM NaCl; 3 mM MgCl2; 0.1% NP-40 0.1% Tween-20, 0.01% Digitonin) on ice, then spun down in a cold centrifuge at 600 x g for 10 min, resuspended in RSB Tween and nuclei were quantified using Trypan Blue (Invitrogen) on a Countess II Counter (Invitrogen). An aliquot of 50,000 nuclei per sample was transferred to a fresh tube, spun down, resuspended in transposition solution and transposed for 30 min at room temperature as described previously (Corces et al., 2017). Libraries were prepared using standard Illumina Nextera indices. Library cleanup and dual-sided size selection was performed using SPRIselect beads (Beckman Coulter) with 0.4X and 1.2X ratios. Sequencing was performed on a NextSeq 500 (Illumina) with 150 cycles on a high-output cartridge in paired-end mode at the Center for Genomics and Health Informatics (CHGI) at the Cumming School of Medicine (University of Calgary). On average, 73,950,218 reads were generated for each library (range: 50,913,762–94,506,244 reads). Data has been deposited in GEO (GSE160204).

Sequencing data were aligned using bwa (0.7.17) to the hg38 assembly of the human genome (Li and Durbin, 2009). Extraneous chromosomes and low-quality reads were removed using SAMtools (v 1.10) (Li et al., 2009) and PCR duplicates were removed using Picard tools (Broad Institute). Peaks were called using MACS2 (Zhang et al., 2008) using the following parameters: -g hs -q 0.05 --shift −100 --extsize 200 --nomodel -B --keep-dup all, followed by pileup construction and fold-change graph generation using macs2 bdgcmp. A union peaklist across all samples was generated using BEDTools (Quinlan and Hall, 2010), and absolute signal at each peak was extracted from each sample. These counts tables were analyzed using DESeq2 (Love et al., 2014) in R to identify differentially accessible regions, with the following cut-offs: absolute log fold change greater than 1.5, p<0.01, and minimum peak signal of 20,000. Motif analysis of differentially accessible regions was performed using the findMotifsGenome function of HOMER (v4.11) (Heinz et al., 2010). Motif profiles were generated using HOMER. Motif enrichment rankings were computed using a method described previously (Park et al., 2018). In brief, for each condition, motif enrichment lists in regions of lost and increased accessibility were arranged by fold change and p value, assigning each a separate rank for regions of lost and increased accessibility. Motif ranks in regions of lost and increased accessibility were averaged over all samples. Final score was obtained by subtracting the rank order of each motif in the increased accessibility regions from rank order in the regions of lost accessibility, and motifs were arranged in descending order by score. Permutation analysis was conducted using regioneR (Gel et al., 2016), with 500 permutations, using publicly available H3K27ac data for human lung from the Roadmap Epigenomics consortium (Bernstein et al., 2010) (GEO ID: GSM906395).

Statistical analysis

Request a detailed protocol

Differences in continuous variables were analyzed by the Student’s t tests or one-way ANOVA followed by the Holm’s multiple comparisons post-test. IC50 values in dose-response analyses were compared by the extra sum-of-squares F test. The statistical analyses were performed using R software, version 3.6.1 and GraphPad Prism, version 8.2.1 (GraphPad Software, San Diego, CA, USA). All statistical tests were two-sided. p Values < 0.05 were considered statistically significant. Data are presented as mean ± SEM or mean ± SD of a minimum of three independent experiments.

Data availability

Gene expression data has been deposited to GEO under the accession code GSE160482. ATAC seq data has been deposited to GEO under the accession code GSE160204.

The following data sets were generated
    1. Inoue Y
    2. Nikolic A
    3. Liu A
    4. Ladanyi M
    5. Somwar R
    6. Gallo M
    7. Lockwood WW
    (2020) NCBI Gene Expression Omnibus
    ID GSE160204. ATAC-seq of lung cancer cell lines with doxycycline KRAS G12V and drug treatments.
    1. Lockwood WW
    2. Inoue Y
    (2020) NCBI Gene Expression Omnibus
    ID GSE160482. Response of SCLC to mutant KRAS or EGFR induction.

References

    1. Gamou S
    2. Hunts J
    3. Harigai H
    4. Hirohashi S
    5. Shimosato Y
    6. Pastan I
    7. Shimizu N
    (1987)
    Molecular evidence for the lack of epidermal growth factor receptor gene expression in small cell lung carcinoma cells
    Cancer Research 47:2668–2673.
    1. Gazdar AF
    2. Carney DN
    3. Russell EK
    4. Sims HL
    5. Baylin SB
    6. Bunn PA
    7. Guccion JG
    8. Minna JD
    (1980)
    Establishment of continuous, clonable cultures of small-cell carcinoma of lung which have amine precursor uptake and decarboxylation cell properties
    Cancer research 40:3502–3507.

Decision letter

  1. Maureen E Murphy
    Senior and Reviewing Editor; The Wistar Institute, United States
  2. Igor Astsaturov
    Reviewer; Fox Chase Cancer Center, United States
  3. Trudy Oliver
    Reviewer; Huntsman Cancer Institute, United States
  4. John Minna
    Reviewer; University of Texas Southwestern Medical Center, United States

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

Inoue and colleagues show that RAS-driven ERK signaling suppresses neuro-endocrine differentiation in lung cancer via a mechanism that requires ERK2 and CBP/p300-driven chromatin changes. This is consistent with the frequent loss in small cell lung carcinoma of CBP/p300. The authors show that Ras-Erk signaling induces multiple ETV family members in an ERK-dependent manner. They provide data that ETVs can suppress neuro-endocrine differentiation, and that knockdown of ETVs can provide rescue of Ras/Erk-mediated neuro-endocrine suppression. This manuscript will be of interest to cancer biologists studying cell fate transitions, particularly adenocarcinoma-to-small cell transitions that occur in prostate and lung cancer.

Decision letter after peer review:

Thank you for submitting your article "Extracellular signal-regulated kinase mediates chromatin rewiring and lineage transformation in lung cancer" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Maureen Murphy as the Senior and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Igor Astsaturov (Reviewer #1); Trudy Oliver (Reviewer #2); John Minna (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

The reviewers agree that this is a copious amount of careful work that will be important for the field. In addition, this appears to be an important new area for SCLC work, with potential therapeutic implications. Addressing as many as possible of the major concerns below is encouraged; it is at the authors discretion as to which concerns they will choose to address experimentally, and which they choose to address in the text. A revised manuscript that addresses at least some of the concerns below experimentally is anticipated, and might be expected to fare well upon re-review.

1) The manuscript is densely, and at times confusingly, written. The authors need to edit their manuscript to make it easier to read and understandable for non-experts in the field. While they have some summary figures, I think the manuscript, in terms of editing, would benefit from having a main summary figure, or discussion that clearly depicts the overarching conclusions from the experiments.

2) The paper provides no conclusive evidence that epithelial -to-NE transdifferentiation is possible to model in vitro. Even the opposite NE-to-epithelial trans-differentiation is only partial. The authors are encouraged to provide data which demonstrate the existence of dynamic switch from the epithelial to neuroendocrine differentiation based on the model proposed; the idea that withdrawal of upstream signaling and shutting down the MAPK pathway leads to de-repression of NE TFs should be illustrated. One model, for example, is the iKRAS mouse model, either Tet-ON or Tet-OFF. There are also many cell lines available derived from these tumors. The authors could potentially pull back KRAS expression and show acquired NE features. Other alternatives may include using DN-MEK to address this issue. In addition, the authors do not really demonstrate that this mechanism takes place in vivo. For example, the authors could use Tet-regulated KRAS model to illustrate a morphological switch to adenocarcinoma from SCLC upon KRAS upregulation.

3) Despite zeroing in on ETVs downstream of ERK1/2, the paper does not go as far as showing the direct effect of these TFs as repressors of NE differentiation (ASCL1, BRN2, NEUROD1 etc.). The authors should be encouraged to demonstrate an association of ETS-high profile with adenocarcinoma and a negative association with SCLC. Can the authors address the question, would overexpression of ETV (ETV5 in one of their cell lines) produce similar results to KRAS overexpression?

4) The authors are encouraged to add some biologically relevant data regarding therapeutics (that is, data that MAPK ERK activation inhibits the in vitro or in vivo growth of SCLC), for example as xenografts or in colony formation assays. For example, what are the effects of EGFR, KRAS oncogene activation in vivo in xenografts or in colony formation assays?

5) There is an excessive amount of data and some of the negative data detracts from the focus of the story. I would suggest the authors remove some figures that are either irrelevant to the key points and are not further validated like Supp Figures S5, S6, S7, or are simply confirmatory of what should be known such as Supp Figure S17. S9 could easily be combined with S8. Lines 279-286 discuss "data not shown" related to HEY1 that could easily be omitted.

6) One recurring issue in the manuscript is that the observations are often not consistent across the three cell lines and are context-specific effects, and the potential reasons could be better explained. The cell lines chosen unfortunately (but interestingly) represent some of the major cell states of SCLC. H2107 represents the ASCL1+ NE-high subset of SCLC (and has some MYCL). H82 and H524 represent the C-Myc (MYC)-high subset of SCLC, with H82 having a MYC amplification, and both representing the NEUROD1 subtype (which tend to be associated with more MYC). Assessment of NE score using a common approach in the field (Zhang et al., TLCR) shows that H82 cells are already considerably NE-low, with H524 as NE-intermediate/high, and H2017 as NE-high. So, this may be related to why H82 seemed to be the most permissive cell line to change NE fate in multiple assays. In addition, H2107 and H524 appear to have EP300 mutations, which may contribute to their NE-high nature and contribute to the refractory response to A485 treatment based on the author's model. It's known that MYCL and MYC-driven cell lines differ in numerous aspects from transcriptional signatures, super enhancer usage, metabolic regulation, therapeutic response, etc. This information could be mentioned in the results and discussed when mentioned as a factor near line 540.

7) Related to Figure 4, the authors show that p300 pharmacological inhibition can restore NE fate in presence of Kras. Given that drugs can have off-target effects, it would be helpful to know if genetic knockdown/knockout of p300 phenocopies these effects. Given that CREBBP (CBP) or EP300 (p300) mutations are common in SCLC, it is also relevant whether any of these cell lines have CREBBP (CBP) or EP300 (p300) mutations. It appears H2107 and H524 may have EP300 mutations. Have they tried to restore EP300 function?

8) Related to Figure 6, did the authors test whether ETV4 is sufficient to reduce NE markers? Given that multiple ETV family members can repress NE markers, it seems plausible that it might take knockdown of all of them to rescue Kras-induced NE suppression. This could be understandably technically difficult, so perhaps the authors could just make this point clear in the text.

9) Related to FiguresS8/S10, did the authors look at REST protein levels in S8 and/or S10? The functional studies for REST knockdown appear performed in only 1 of the 3 cell lines?

10) Related to Figure S18e and S18g: This figure is confusing and could better explained in the text. In S18e, the mutation status of these genes in parental/sgControl cells prior to Osimertinib treatment should be included. Mutation status appears to be presented only after two different types of Osimertinib exposure. Second, in S18g, sgControl resistant cell lose expression of CIC protein expression entirely in the stepwise and initial exposure conditions. Consistently, sgControl Resistant cells seem to increase ETV4 and ETV5 protein levels compared to sgControl parental cells. The authors could explain whether this is due to the gain of the specific nonsense mutation. Since gain of ETV4/5 presumably inhibits NE fate conversion; does ETV knockout induce NE fate in this context?

11) The authors may need to address certain aspects of the principal observation that the MAPK blockade resistant cells acquire NE features. Specifically, these differentiation switches typically occur in complex multiclonal populations of cancer cells in vivo, not in established cell lines. Using human PDX models or mouse models of KRAS/EGFR-driven lung cancers, the authors could have the opportunity to demonstrate the existence of such clonal shifts. Starting with in vitro established stable NE or epithelial clones could be an exceedingly difficult model in which to observe these differentiation switches. Can the authors address this point in the Discussion.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Extracellular signal-regulated kinase mediates chromatin rewiring and lineage transformation in lung cancer" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by Maureen Murphy as the Senior and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Igor Astsaturov (Reviewer #1); Trudy Oliver (Reviewer #2); John Minna (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. A few revisions are requested for clarity; these are detailed below.

Reviewer #1:

The authors largely addressed the critical points raised in the review process. While the study was designed to determine the effect of MAPK pathway activation on NE differentiation, a more clinically relevant epithelial-to-NE switch upon MAPK blockade with TKI in lung adenocarcinoma has not been modeled here, which is the limitation of this paper. With this limitation in mind, the presented work has shown several important regulatory mechanisms, namely, that hyperactive ERK signaling is a default repressor of neuroendocrine differentiation transcriptional regulators. ERK2 appears to be the dominant kinase in this process, and the downstream-induced ETV family TFs are important in executing this mechanism.

1. Certain statements in the text of the paper need to be made more consistent. For example, in line 252 and below, the authors state that both, AKT and ERK are important "for the phenotypic transition", whereas the preceding discussion (line 225) states the opposite.

2. In the results and discussion, the authors should explicitly state that long-term induction with Doxy of KRAS has been toxic as early as day 7. Longer cultures (day 28) showed complete loss of KRAS suggesting a negative selection.

3. Since many Western blot images are not statistically processed (which would be a reasonable request to the authors), explain if the figure legends whether the presented changes are representative of a certain number of repeats. It remains unclear how robust and reproducible are the results at the protein level. Certainly, concordant changes in transcriptional signatures and Westerns is a plus.

4. Figure 1e presents "viability of adherent cells": please explain or correct the label to reflect exactly what was measured. If this is colony or adherent cell density based on the colony formation, then it should be stated. Unclear if the non-adherent population was simply removed in the process of staining.

5. As relevant to most Western blot images, the Method section should state if an effort was made to retain the non-adherent population during cell collection for lysates, and if the presented lysates are representative of the total or adherent population only. This technical detail is important to interpret the results since the authors noticed growth pattern changes with introduction of MAPK-activating oncogenes.

Reviewer #2:

Overall, Inoue et al. have significantly improved the manuscript by consolidating and removing some figures, and making the data more organized and concise. The Discussion is also significantly improved by detailing the caveats and considerations of the study.

Reviewer #3:

The authors have responded appropriately to all of the reviewers' comments including extensive editing and providing additional new data.

https://doi.org/10.7554/eLife.66524.sa1

Author response

Essential revisions:

The reviewers agree that this is a copious amount of careful work that will be important for the field. In addition, this appears to be an important new area for SCLC work, with potential therapeutic implications. Addressing as many as possible of the major concerns below is encouraged; it is at the authors discretion as to which concerns they will choose to address experimentally, and which they choose to address in the text. A revised manuscript that addresses at least some of the concerns below experimentally is anticipated, and might be expected to fare well upon re-review.

1) The manuscript is densely, and at times confusingly, written. The authors need to edit their manuscript to make it easier to read and understandable for non-experts in the field. While they have some summary figures, I think the manuscript, in terms of editing, would benefit from having a main summary figure, or discussion that clearly depicts the overarching conclusions from the experiments.

We appreciate the reviewers highlighting the dense nature of our manuscript and that this may convolute our overall message, especially to non-experts in the field. We have substantially edited the manuscript (see attached version with changes tracked) to streamline the Results sections and revamped the discussion to better articulate our main conclusions. We feel this now better reflects the major findings from our work.

2) The paper provides no conclusive evidence that epithelial -to-NE transdifferentiation is possible to model in vitro. Even the opposite NE-to-epithelial trans-differentiation is only partial. The authors are encouraged to provide data which demonstrate the existence of dynamic switch from the epithelial to neuroendocrine differentiation based on the model proposed; the idea that withdrawal of upstream signaling and shutting down the MAPK pathway leads to de-repression of NE TFs should be illustrated. One model, for example, is the iKRAS mouse model, either Tet-ON or Tet-OFF. There are also many cell lines available derived from these tumors. The authors could potentially pull back KRAS expression and show acquired NE features. Other alternatives may include using DN-MEK to address this issue. In addition, the authors do not really demonstrate that this mechanism takes place in vivo. For example, the authors could use Tet-regulated KRAS model to illustrate a morphological switch to adenocarcinoma from SCLC upon KRAS upregulation.

The reviewers are correct that we were unable to conclusively model the epithelial to NE transdifferentiation process that underlies EGFR TKI resistance in lung adenocarcinoma. As I am sure the reviewers appreciate, despite great effort in the lung cancer research community, this has been a very difficult process to model to date, either in vitro or in vivo. While our initial intent was to use the information from the NE to epithelial switch to “reverse engineer” the reciprocal process in EGFR-mutant lung adenocarcinoma, the combination of molecular changes and treatments we employed, in addition to specific culture conditions, was insufficient to initiate this process. We argue that this highlights the complex nature of this transformation, and suggests that multiple factors, potentially occurring in a specific order, are required for LUAD to SCLC transformation to occur. However, we feel that our findings regarding the NE to epithelial transformation process will be essential for modeling this process in the future as it indicates a key role for ERK and CBP/p300 suppression in mediating this shift, along with TP53 and RB1 mutation. The multifactorial nature of this process is also why we have focused on cell models for the current studies. While the experiments that the reviewers propose, specifically inducible mutant KRAS mouse models of LUAD, have the potential to investigate the impact of ERK signaling on NE differentiation, our results suggest that they would likely require additional genetic alterations, including TP53 and RB1 knockout and CBP (CREBBP)/p300 (EP300) mutation, for a phenotype to be observed. However, generating mouse model systems with such a background (TetO-Mutant-KRAS, p53 knockout, RB knockout, CBP/p300 knockout) is unfeasible for the timeline of this manuscript, and the experiments with these systems will likely take many months to conduct. For example, our in house TetO-KRAS-G12D mouse models take upwards of 10 months to establish LUAD tumors. Our future plans will employ these models as well as TetO-Mutant-EGFR mice combined with clinically relevant treatments (osimertinib etc) and genetic alterations based on our current work to explore this concept in greater detail.

Along with issues related to clonality and heterogeneity (Comment 12) we have now stated the potential limitations of our focus on established cancer cell lines for this work and described experimental systems that may provide useful for future studies in the Discussion section. However, we feel that despite our inability to achieve LUAD to SCLC transformation, our work still provides extremely valuable information regarding the factors that control cell state transformations in lung cancer that will be useful to the research community.

3) Despite zeroing in on ETVs downstream of ERK1/2, the paper does not go as far as showing the direct effect of these TFs as repressors of NE differentiation (ASCL1, BRN2, NEUROD1 etc.). The authors should be encouraged to demonstrate an association of ETS-high profile with adenocarcinoma and a negative association with SCLC. Can the authors address the question, would overexpression of ETV (ETV5 in one of their cell lines) produce similar results to KRAS overexpression?

We appreciate the reviewers’ encouragement to further define the association between ETVs and NE differentiation and have added substantial experimental data to address this as part of the revised Figure 6. First, using expression data for a panel of lung adenocarcinoma and SCLC cell lines, we demonstrate the exclusivity between ETV1/4/5 expression – which are upregulated in adenocarcinomas – and NE transcription factors (ASCL1, BRN2, NEUROD1 and INSM1) – which are up in SCLC – as suggested (Figure 6B). Furthermore, we have now conditionally expressed ETV1 in all three SCLC cell lines (H82, H2107 and H524) and ETV5 in two SCLC cell lines (H82 and H524) which both induced the downregulation of NE transcription factors, similar to the results with forced mutant KRAS expression (Figures 6D and 6E). Together, we feel this additional work clearly demonstrates the association between ETV expression and suppression of the NE differentiation program, further defining these factors as primary downstream drivers of ERK in this context.

4) The authors are encouraged to add some biologically relevant data regarding therapeutics (that is, data that MAPK ERK activation inhibits the in vitro or in vivo growth of SCLC), for example as xenografts or in colony formation assays. For example, what are the effects of EGFR, KRAS oncogene activation in vivo in xenografts or in colony formation assays?

The reviewers bring up an interesting point regarding the therapeutic potential of our findings for SCLC treatment. While we do demonstrate that activation of mutant KRAS has inhibitory effects in some of the cell lines tested, namely the ASCL1+ H2107 cell line (Figure 1—figure supplement 2b and c), it also had a stimulatory effect on the NEUROD1+ H82 cell line, despite the downregulation of NE differentiation. Thus, it is possible that there are distinct SCLC contexts in which ERK activation may be lethal, and this warrants further investigation, especially given our previous observation that hyperactivation of ERK is also lethal in NSCLC (Unni et al. eLife 2018). However, despite differences in regard to cell growth, the transdifferentiation phenotype upon ERK induction was consistent across all SCLC cell lines, which is why we focused on this aspect for the study. Given the reviewers have already suggested that the manuscript is very dense, and contains copious amounts of data, we feel that further exploring the therapeutic potential of ERK induction in a larger panel of SCLC cells is better suited as a focus for a follow up study.

However, as suggested by the reviewers, we have now added soft agar colony formation assay data for all three SCLC cell lines with activated KRAS, demonstrating similar results as those seen in proliferation assays. This is now presented as Figure 1—figure supplement 2d.

5) There is an excessive amount of data and some of the negative data detracts from the focus of the story. I would suggest the authors remove some figures that are either irrelevant to the key points and are not further validated like Supp Figures S5, S6, S7, or are simply confirmatory of what should be known such as Supp Figure S17. S9 could easily be combined with S8. Lines 279-286 discuss "data not shown" related to HEY1 that could easily be omitted.

We agree with the reviewers that some of the supplemental data was excessive and likely not needed to assert the conclusions of our study. As suggested, we have now revised the Supplemental Figures (including renaming in accordance with eLife guidelines), removing original Supplemental Figures S5 and S17 as well as panels from original Supplemental Figure S13. In addition, the original Supplemental Figure S9 was combined with Supplementary Figure S8 as suggested by the reviewers. Finally, we have minimized or removed much of the results related to negative data, mainly the data and section in reference HEY1 that were highlighted as a distraction from the reviewers. Together, we feel these changes have streamlined the manuscript, allowing the reader to better follow the main premise and findings of the work.

6) One recurring issue in the manuscript is that the observations are often not consistent across the three cell lines and are context-specific effects, and the potential reasons could be better explained. The cell lines chosen unfortunately (but interestingly) represent some of the major cell states of SCLC. H2107 represents the ASCL1+ NE-high subset of SCLC (and has some MYCL). H82 and H524 represent the C-Myc (MYC)-high subset of SCLC, with H82 having a MYC amplification, and both representing the NEUROD1 subtype (which tend to be associated with more MYC). Assessment of NE score using a common approach in the field (Zhang et al., TLCR) shows that H82 cells are already considerably NE-low, with H524 as NE-intermediate/high, and H2017 as NE-high. So, this may be related to why H82 seemed to be the most permissive cell line to change NE fate in multiple assays. In addition, H2107 and H524 appear to have EP300 mutations, which may contribute to their NE-high nature and contribute to the refractory response to A485 treatment based on the author's model. It's known that MYCL and MYC-driven cell lines differ in numerous aspects from transcriptional signatures, super enhancer usage, metabolic regulation, therapeutic response, etc. This information could be mentioned in the results and discussed when mentioned as a factor near line 540.

We appreciate the reviewers pointing out this important consideration. As mentioned above (Response 4), we also see a variable growth phenotype upon KRAS induction depending on SCLC subtype. We have now addressed this important information, including the EP300 mutation status, in results and in the discussion – with appropriate citations – where indicated by the reviewers.

7) Related to Figure 4, the authors show that p300 pharmacological inhibition can restore NE fate in presence of Kras. Given that drugs can have off-target effects, it would be helpful to know if genetic knockdown/knockout of p300 phenocopies these effects. Given that CREBBP (CBP) or EP300 (p300) mutations are common in SCLC, it is also relevant whether any of these cell lines have CREBBP (CBP) or EP300 (p300) mutations. It appears H2107 and H524 may have EP300 mutations. Have they tried to restore EP300 function?

The reviewers bring up an interesting experiment we had previously considered. Once identifying H3K27ac as a major change upon KRAS/ERK induction in SCLC, we originally considered genetic knockout to determine whether it could rescue transdifferentiation. However, using a different compound, C646, which only inhibits p300, we saw modest rescue of NE factor suppression upon KRAS induction, suggesting that dual p300/CBP inhibition was necessary (Figure 4—figure supplement 1). For this reason, we decided to use A-485, which inhibits both p300 and CBP, as opposed to a genetic approach of dual knockdown which would prove more complicated to achieve.

As mentioned above in Response 6, we have now clearly indicated the mutation status of EP300 in the SCLC cell lines used in the study, and the potential influence these mutations could have on the results observed. Restoring EP300 function in these mutant SCLC cell lines is a very interesting experiment that would be predicted to increase H3K27ac levels mimicking the effects of ERK induction, leading to the downregulation of NE factors. While we have not tried this specific experiment, the same logic was behind our experiments using the HDAC inhibitor Trichostatin A to increase H3K27ac in SCLC. We found that HDAC inhibitors could increase this histone mark, leading to downregulation of NE factors in all SCLC cell lines, even the EP300 mutant H2107 and H524 cells (Figure 4D). We have modified the text to better reflect this result and feel that greater exploration of this mechanism through re-expression of EP300 is better suited for follow-up studies.

8) Related to Figure 6, did the authors test whether ETV4 is sufficient to reduce NE markers? Given that multiple ETV family members can repress NE markers, it seems plausible that it might take knockdown of all of them to rescue Kras-induced NE suppression. This could be understandably technically difficult, so perhaps the authors could just make this point clear in the text.

While we exogenously expressed ETV1 and ETV5 individually and found that they can recapitulate the effects of mutant KRAS induction on NE factor suppression in SCLC cells, we did not express ETV4. We hypothesized that, given their similar function, overexpression of anyone of these PEA3 transcription factors would phenocopy the effects of mutant KRAS induction on NE factor downregulation. Furthermore, we predicted – as highlighted by the reviewers – that it would likely require knockdown of all the ETV family members to rescue KRAS-induced NE suppression and attributed the partial rescue in suppression upon ETV5 knockdown alone to this reasoning.

However, as ETV4 and ETV5 were the most dramatically increased upon mutant KRAS induction, we have now optimized dual knockdown to observe the combined effect on the rescue of NE factor suppression. While technically challenging as indicated by the reviewers, this experiment revealed increased rescue of NE suppression after mutant KRAS induction upon dual ETV4/5 knockdown compared to knockdown of ETV4 or ETV5 alone. These results have been added to manuscript as Figure 6f and are further described in the text. We feel this new experimental data addresses the questions posted by the reviewers regarding the effects of ETV4.

9) Related to FiguresS8/S10, did the authors look at REST protein levels in S8 and/or S10? The functional studies for REST knockdown appear performed in only 1 of the 3 cell lines?

The reviewers bring up an important point regarding REST protein levels that we had originally tried to assess. However, despite multiple attempts using two different antibodies (Millipore [07-579] and Abcam [ab21635]), we were unable to sufficiently optimize REST detection by western blot. In the absence of protein assessment, we relied on qRT-PCR to validate the induction of REST after KRAS activation in SCLC as originally discovered through microarray profiling (Figure 2—figure supplement 5b). Further, we performed siRNA mediated knockdown of REST in H2107 cells as this cell line demonstrated the greatest increase in REST mRNA levels upon mutant KRAS induction as indicated by the microarray experiments. Knockdown of REST was confirmed by qRT-PCR and demonstrated no effect on the suppression of NE factors (Figure 2—figure supplement 5b). As no effects were observed in the line with greatest REST induction, we did not knockdown REST in additional cell lines and focused our efforts on exploring other mechanisms of action, namely the effects on chromatin modification.

10) Related to Figure S18e and S18g: This figure is confusing and could better explained in the text. In S18e, the mutation status of these genes in parental/sgControl cells prior to Osimertinib treatment should be included. Mutation status appears to be presented only after two different types of Osimertinib exposure. Second, in S18g, sgControl resistant cell lose expression of CIC protein expression entirely in the stepwise and initial exposure conditions. Consistently, sgControl Resistant cells seem to increase ETV4 and ETV5 protein levels compared to sgControl parental cells. The authors could explain whether this is due to the gain of the specific nonsense mutation. Since gain of ETV4/5 presumably inhibits NE fate conversion; does ETV knockout induce NE fate in this context?

We apologize for the confusion regarding this figure. All mutations indicated in this figure panel have been identified through comparison to the respective parental (drug naïve) cell line counterpart. Thus, only genes that have mutated in the resistant cells are indicated, as these would be predicted to potentially drive drug resistance. We have better explained this now in both the text and the respective figure legend.

For the second part of the comment, the reviewers again bring up an important potential experiment that we had previously considered. We had anticipated that knockdown of ETV4/5 or re-expression of CIC in the resistant cell lines with CIC mutation would lead to a potential shift to a NE line state. However, our attempts to accomplish this through pharmacological means – using the pan-ETS inhibitor YK-4-279 – was complicated by a great deal of toxicity, likely due to the dependence of the resistant lines on ETV expression in the absence of ERK activity. Therefore, future experiments that circumvent this issue will be required to further explore this concept.

11) The authors may need to address certain aspects of the principal observation that the MAPK blockade resistant cells acquire NE features. Specifically, these differentiation switches typically occur in complex multiclonal populations of cancer cells in vivo, not in established cell lines. Using human PDX models or mouse models of KRAS/EGFR-driven lung cancers, the authors could have the opportunity to demonstrate the existence of such clonal shifts. Starting with in vitro established stable NE or epithelial clones could be an exceedingly difficult model in which to observe these differentiation switches. Can the authors address this point in the Discussion.

We agree that this is an important consideration that needs to be highlighted. We have now elaborated on the potential caveats of our in vitro experiments in more detail in the discussion to address this point.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Reviewer #1:

The authors largely addressed the critical points raised in the review process. While the study was designed to determine the effect of MAPK pathway activation on NE differentiation, a more clinically relevant epithelial-to-NE switch upon MAPK blockade with TKI in lung adenocarcinoma has not been modeled here, which is the limitation of this paper. With this limitation in mind, the presented work has shown several important regulatory mechanisms, namely, that hyperactive ERK signaling is a default repressor of neuroendocrine differentiation transcriptional regulators. ERK2 appears to be the dominant kinase in this process, and the downstream-induced ETV family TFs are important in executing this mechanism.

1. Certain statements in the text of the paper need to be made more consistent. For example, in line 252 and below, the authors state that both, AKT and ERK are important "for the phenotypic transition", whereas the preceding discussion (line 225) states the opposite.

We apologize for this inconsistency and have reworded the second sentence to accurately reflect the results as suggested.

2. In the results and discussion, the authors should explicitly state that long-term induction with Doxy of KRAS has been toxic as early as day 7. Longer cultures (day 28) showed complete loss of KRAS suggesting a negative selection.

We have now added the following to the Results section: “This suggests negative selection of KRASG12V-positive cells or epigenetic silencing of transduced KRASG12V in the long-term (28 day) culture driven by the incompatibility of KRAS activation in SCLC biology.”

3. Since many Western blot images are not statistically processed (which would be a reasonable request to the authors), explain if the figure legends whether the presented changes are representative of a certain number of repeats. It remains unclear how robust and reproducible are the results at the protein level. Certainly, concordant changes in transcriptional signatures and Westerns is a plus.

We have now added this information to the figure legends where appropriate.

4. Figure 1e presents "viability of adherent cells": please explain or correct the label to reflect exactly what was measured. If this is colony or adherent cell density based on the colony formation, then it should be stated. Unclear if the non-adherent population was simply removed in the process of staining.

We have clarified the methodology used in the representative legend for Figure 1e.

5. As relevant to most Western blot images, the Method section should state if an effort was made to retain the non-adherent population during cell collection for lysates, and if the presented lysates are representative of the total or adherent population only. This technical detail is important to interpret the results since the authors noticed growth pattern changes with introduction of MAPK-activating oncogenes.

The methods section now states that the lysates are representative of the total cell population (adherent and non-adherent).

https://doi.org/10.7554/eLife.66524.sa2

Article and author information

Author details

  1. Yusuke Inoue

    Department of Integrative Oncology, BC Cancer Agency, Columbia, Canada
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8075-0597
  2. Ana Nikolic

    Department of Biochemistry and Molecular Biology, Arnie Charbonneau Cancer Institute, Alberta Children’s Hospital Research Institute, Cumming School of Medicine, University of Calgary, Calgary, Canada
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Competing interests
    No competing interests declared
  3. Dylan Farnsworth

    Department of Integrative Oncology, BC Cancer Agency, Columbia, Canada
    Contribution
    Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2402-159X
  4. Rocky Shi

    Department of Integrative Oncology, BC Cancer Agency, Columbia, Canada
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Fraser D Johnson

    Department of Integrative Oncology, BC Cancer Agency, Columbia, Canada
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Alvin Liu

    Department of Integrative Oncology, BC Cancer Agency, Columbia, Canada
    Contribution
    Data curation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  7. Marc Ladanyi

    Human Oncology and Pathogenesis Program, Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Data curation, Supervision, Methodology
    Competing interests
    No competing interests declared
  8. Romel Somwar

    Human Oncology and Pathogenesis Program, Memorial Sloan Kettering Cancer Center, New York, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  9. Marco Gallo

    Department of Biochemistry and Molecular Biology, Arnie Charbonneau Cancer Institute, Alberta Children’s Hospital Research Institute, Cumming School of Medicine, University of Calgary, Calgary, Canada
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  10. William W Lockwood

    1. Department of Integrative Oncology, BC Cancer Agency, Columbia, Canada
    2. Department of Pathology & Laboratory Medicine, University of British Columbia, Columbia, Canada
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    wlockwood@bccrc.ca
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9831-3408

Funding

Canadian Institutes of Health Research (PJT-148725)

  • William W Lockwood

British Columbia Lung Association (Research Grant)

  • Yusuke Inoue
  • William W Lockwood

Terry Fox Research Institute (New Investigator Award)

  • William W Lockwood

Canadian Institutes of Health Research (PJT-156278)

  • Marco Gallo

Canada Research Chairs (Brain Cancer Epigenomics (Tier 2))

  • Marco Gallo

Alberta Health Services (Clinician Investigator Program fellowship)

  • Ana Nikolic

Alberta Innovates (Fellowship)

  • Ana Nikolic

Japanese Respiratory Society (Lilly Oncology Fellowship Program Award)

  • Yusuke Inoue

Michael Smith Foundation for Health Research (Fellowship)

  • Yusuke Inoue

Michael Smith Foundation for Health Research (Scholar Award)

  • William W Lockwood

Canadian Institutes of Health Research (New Investigator Award)

  • William W Lockwood

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was funded by the Canadian Institutes of Health Research (CIHR; PJT-148725), the British Columbia Lung Association (Research Grant) and the Terry Fox Research Institute (New Investigator Award) to WWL; a Canada Research Chair in Brain Cancer Epigenomics (tier 2) from the Government of Canada and a Project grant from CIHR (PJT-156278) to MG; a Clinician Investigator Program fellowship from Alberta Health Services and a fellowship from Alberta Innovates to AN; and a Lilly Oncology Fellowship Program Award from the Japanese Respiratory Society and a fellowship from the Michael Smith Foundation for Health Research (MSFHR) to YI. WWL. is a MSFHR Scholar and CIHR New Investigator.

Senior and Reviewing Editor

  1. Maureen E Murphy, The Wistar Institute, United States

Reviewers

  1. Igor Astsaturov, Fox Chase Cancer Center, United States
  2. Trudy Oliver, Huntsman Cancer Institute, United States
  3. John Minna, University of Texas Southwestern Medical Center, United States

Publication history

  1. Received: January 13, 2021
  2. Accepted: June 11, 2021
  3. Accepted Manuscript published: June 14, 2021 (version 1)
  4. Accepted Manuscript updated: June 18, 2021 (version 2)
  5. Version of Record published: August 4, 2021 (version 3)

Copyright

© 2021, Inoue et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,386
    Page views
  • 243
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
