Abstract

In algae, it is well established that the pyrenoid, a component of the carbon-concentrating mechanism (CCM), is essential for efficient photosynthesis at low CO₂. However, the signal that triggers the formation of the pyrenoid has remained elusive. Here, we show that, in Chlamydomonas reinhardtii, the pyrenoid is strongly induced by hyperoxia, even at high CO₂ or bicarbonate levels. These results suggest that the pyrenoid can be induced by a common product of photosynthesis specific to low CO₂ or hyperoxia. Consistent with this view, the photorespiratory by-product, H₂O₂, induced the pyrenoid, suggesting that it acts as a signal. Finally, we show evidence for linkages between genetic variations in hyperoxia tolerance, H₂O₂ signaling, and pyrenoid morphologies.

Introduction

The maximal primary productivity of algae is often determined by the efficiency of photosynthesis, which is strongly impacted by environmental factors. In turn, the products of photosynthesis can also impact local environmental conditions, leading to feedback- (or self-) limitations (Livansky, 1996; Pulz, 2001; Raso et al., 2012; Torzillo et al., 1998; Vonshak et al., 1996; Weissman et al., 1988). One important, but relatively little studied feedback factor is hyperoxia, which results when O₂ is emitted as a by-product of photosynthesis more rapidly than it diffuses away or is consumed by respiration. Microalgae cultures are often observed with dissolved oxygen levels of up to 100–400% of air – or even higher (Peng et al., 2013), especially when the local supply of inorganic carbon (C_i) is high but consumption or diffusion of O₂ slow. In some species, hyperoxia constitutes a major hurdle in achieving low cost, highly productive micro-algae farms (Peng et al., 2013). Hyperoxia has been directly associated with loss of productivity in a wide range of algal and cyanobacterial species, including Nannochroposis (Raso et al., 2012), Chlamydomonas reinhardtii (Kliphuis et al., 2011), Neochloris oleabundans (Peng et al., 2016a; Sousa et al., 2012), Chlorella sorokiniana (Ugwu et al., 2007), and Spirulina (Vonshak et al., 1996).

Despite being recognized as a problem, how hyperoxia interferes with photosynthetic growth is not fully understood, and various mechanisms have been proposed, including reactive oxygen (ROS)-induced damage to the photosynthetic machinery, membrane structure, DNA, and other cellular components (Marquez et al., 1995; Santabarbara et al., 2002; Ugwu et al., 2007). Another mechanism by which high O₂ has been proposed to decrease productivity is photorespiration, a process initiated when the ribulose bisphosphate carboxylase/oxygenase (rubisco) enzyme fixes O₂ rather than CO₂, resulting in the production of the toxic side product phosphoglycolate, which is detoxified through the photorespiratory pathway, at the cost of lost energy and the release of fixed carbon (Bauwe et al., 2010). Oxygenation of rubisco can also result in the formation of rubisco inhibitors (Kim and Portis, 2004) that can further slow photosynthesis. If rubisco becomes inactivated, then ROS accumulation can lead to chlorosis and cell death, particularly in high light (Spreitzer and Mets, 1981).

Because photorespiration depends on competition between CO₂ and O₂ at rubisco, it can also contribute to loss of productivity under low inorganic carbon (Wang et al., 2015). The current atmospheric CO₂ concentration is well below the saturated concentration for rubisco’s carboxylase activity (Raven et al., 2008) and CO₂ diffuses through aquatic environments 10,000 times slower than in air (Moroney and Ynalvez, 2007). Thus, many aquatic phototrophs, including the chlorophyte Chlamydomonas reinhardtii, possess carbon concentrating mechanisms (CCMs) that concentrate CO₂ above its K_M at rubisco, which has been reported to be 29 µM (Jordan and Ogren, 1981) to 57 µM (Berry et al., 1976), in order to increase the relative rates of carboxylation relative to oxygenation (Aizawa and Miyachi, 1986; Badger et al., 1980).

The expression and function of green algal CCMs in eukaryotic algae is highly regulated; cells grown on or below air levels of CO₂ (0.04%) develop active CCMs (Aizawa and Miyachi, 1986; Badger et al., 1980), whereas those grown with high CO₂ levels lack them, and thus show low apparent affinities for CO₂. Cells grown at high CO₂ and rapidly transferred to low CO₂ show strong inhibition of photosynthesis (Badger et al., 1980; Spalding et al., 1983) until the CCM is induced and activated (Aizawa and Miyachi, 1986; Badger et al., 1980; Manuel and Moroney, 1988). Induction can then result in about 25 % of all genes being affected (Fang et al., 2012). It is thought that this acclimation is mediated by some mechanism in the cell to sense CO₂ availability, although CCM1 (also known as CIA5), the regulatory gene and protein thought to control the induction of the CCM in Chlamydomonas, is expressed at both high and low CO₂ conditions (Fukuzawa et al., 2001). Analysis of the dark-to-light transition in synchronized Chlamydomonas cells reveals that mechanisms, independent of gene transcription of known CCM components, are likely to play a role in the CCM’s induction (Mitchell et al., 2014). The CCM in Chlorophytes involves a large number of components, including proteins that serve enzymatic and structural functions as well as a starch sheath that surrounds the pyrenoid, forming a subcellular compartment which acts as a trap to concentrate pumped inorganic carbon near localized rubisco (Mackinder et al., 2017; Ramazanov et al., 1994; Wang et al., 2015).

Pyrenoids are thought to have evolved multiple times (Barrett et al., 2021; Mackinder et al., 2016; Meyer et al., 2020a). The vast majority of data on pyrenoid formation is based on Chlamydomonas, where the pyrenoid forms by liquid-liquid phase separation (Banani et al., 2016; Barrett et al., 2021; Wunder et al., 2018), and several lines of evidence suggest that across the diverse lineages liquid-liquid phase separation is an integral part of pyrenoid formation (Barrett et al., 2021). Although across algal lineages it appears that rubisco catalytic properties are CCM dependent, it remains difficult to differentiate limitations in carbon uptake versus the leakiness of CO₂ as the selective pressure operating on rubisco; more detailed physiological experiments are needed to deduce these and other competing processes (Goudet et al., 2020). In Chlamydomonas, recent studies have indicated that a correctly formed starch sheath is required for normal pyrenoid operation of the CCM (Itakura et al., 2019; Toyokawa et al., 2020), although one study (Villarejo et al., 1996) had called that into question. Besides starch, the sheath contains several proteins which appear to be distributed over or in close proximity to the starch plates (Mackinder et al., 2017). The functional implication of these proteins, and their distribution patterns, remains unclear (Toyokawa et al., 2020). The starch plates are penetrated by tubule-like extensions of the thylakoid membranes, which are thought to supply CO₂ to the trapped rubisco by dehydration of luminal HCO₃^- (Engel et al., 2015; Mitra et al., 2004; Moroney and Ynalvez, 2007). How the organelle’s subcompartments of membrane tubules, surrounding phase separated rubisco matrix, and peripheral starch sheath are all held together is unknown (Meyer et al., 2020b). Although, it has recently been found that some pyrenoid proteins share a sequence motif that is necessary to target proteins to the pyrenoid and bind to rubisco (Meyer et al., 2020b).

Extensive genetic and biochemical studies have identified a large number of components essential for CCM function (Goodenough and Levine, 1970; Henk et al., 1995; Itakura et al., 2019; Spalding et al., 1983; Toyokawa et al., 2020). Of particular interest to the current work are factors that contribute to the pyrenoid compartment itself, especially those that affect the localization of rubisco within its starch sheath or those that modify the structure of the starch sheath. A range of mutants in diverse genetic components fail to form pyrenoids (Goodenough and Levine, 1970; Henk et al., 1995; Spreitzer et al., 1985), or have altered pyrenoid ultrastructure with disorganized or missing starch sheaths (Henk et al., 1995; Itakura et al., 2019; Toyokawa et al., 2020). These mutants tend to require high CO₂ for growth, emphasizing the importance of the pyrenoid structure for the function of the CCM. However, the pyrenoid is not necessary in all cases for survival under low CO₂, as some species of Chloromonas, despite lacking pyrenoids, have functioning CCMs (Morita et al., 1998).

In this work, we explore the importance of an aspect of the CCM, in particular the pyrenoid, in responses to hyperoxia, rather than low C_i availability. Since both low CO₂ and hyperoxia involve a lowering of the CO₂:O₂ ratio, we hypothesized that (1) the pyrenoid is induced by hyperoxia; (2) that differences in its induction and/or formation can be related to hyperoxia tolerance. Furthermore, since both low CO₂ and hyperoxia result in increased photorespiration, we hypothesized that (3) the signal for pyrenoid formation might be a by-product of photorespiration, H₂O₂. In order to address these hypotheses, we examined two natural isolates of Chlamydomonas with varying tolerances to hyperoxia, and their progeny, with the goal of better understanding the physiological mechanisms that underly responses to hyperoxia. Understanding such traits can give insights into the mechanisms and tradeoffs of adaptations for specific environmental niches. By extension, such traits and tradeoffs have strong relevance to applications ranging from algae cultivation to bioengineering crops for increase productivity (Long et al., 2015). Engineering the algal CCM into land plants is seen as a key route to improving crop photosynthesis (Fei et al., 2021; Hennacy and Jonikas, 2020; Mackinder, 2018; Meyer et al., 2016; Rae et al., 2017). If the algal pyrenoid CO₂ concentration system were engineered into crops such as rice, wheat, or soya yields could increase by up to 60 % (Long et al., 2019); yet these improvements will likely only occur if a complete algal-like CCM is assembled in angiosperms (Atkinson et al., 2020; Barrett et al., 2021). Such ambitions necessitate an understanding of the signals and trade-offs of pyrenoid formation, for which Chlamydomonas is an excellent model system.

Materials and methods

Chlamydomonas strains and mating

Request a detailed protocol

Strain CC-2343 (mt+), in a search for strains resistant to heavy metals CdCl₂ and HgCl₂, was isolated from soil in Melbourne, Florida in 1988 (Spanier et al., 1992). Strain CC-1009 (mt-) is a wild type strain tracing back to the 1945 collection of G.M. Smith, isolated in Amherst MA, but has been a separate line from the sequenced and widely regarded reference strain c137 (CC-124 and CC-125) and Sagar (CC-1690) since about 1950 (Pröschold et al., 2005). CC-5357 was generated by Luke MacKinder in the laboratory of Martin Jonikas (Mackinder et al., 2016). These (Appendix 1—figure 1) and other strains were obtained from the Chlamydomonas Resource Center (https://www.chlamycollection.org). CC-2343 and CC-1009 were mated using an established protocol (Jiang and Stern, 2009).

Key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers	Additional information
Strain, strain background (Chlamydomonas reinhardtii)	CC-2343	https://www.chlamycollection.org	CC-2343 wild type mt+ [Jarvik #224, Melbourne, FL]	Wild type isolated from Florida in 1988 Spanier et al., 1992
Strain, strain background (Chlamydomonas reinhardtii)	CC-1009	https://www.chlamycollection.org	CC-1009 wild type mt- [UTEX 89]	A descendant of a wild type collected in Amherst, MA in 1945 Pröschold et al., 2005
Strain, strain background (Chlamydomonas reinhardtii)	CC-5357	https://www.chlamycollection.org	CC-5357 RbcS1-Venus mt-	Contains a YFP tagged rubisco Mackinder et al., 2016
Strain, strain background (Chlamydomonas reinhardtii)	CC-2702	https://www.chlamycollection.org	CC-2702 mt+	Cia5 mutant, lacks carbon concentrating mechanism Xiang et al., 2001
Strain, strain background (Chlamydomonas reinhardtii)	c1_1	This study	c1_1 mt+	Tolerant to hyperoxia
Strain, strain background (Chlamydomonas reinhardtii)	c1_2	This study	c1_2 mt+	Tolerant to hyperoxia
Strain, strain background (Chlamydomonas reinhardtii)	c1_3	This study	c1_3 mt-	Intolerant to hyperoxia
Strain, strain background (Chlamydomonas reinhardtii)	c1_4	This study	c1_4 mt-	Intolerant to hyperoxia

Growth and biomass

Request a detailed protocol

Cultures (i.e. CC-2343, CC-1009, and progeny) were grown autotrophically in environmental photobioreactors (ePBRs) (Lucker et al., 2014), or in some cases in 125 mL Erlenmeyer flasks, in either a medium called 2NBH (Davey et al., 2012), which is a modified Bristol’s medium (Supplementary file 1A), or (i.e. CC-5357 and other strains descendant from CC-4533) in Sueoka’s high-salt medium (HS) (Sueoka, 1960) because of their requirement for ammonium rather than nitrate as a nitrogen source. When grown in ePBRs, culture density was maintained by turbidostat-controlled automatic dilution, adjusted to give chlorophyll concentrations of approximately 3 μg/mL. The media filled the columns to 15 cm in height, bringing the total volume to 330 mL. Following inoculation, all cultures were maintained for at least three days at constant chlorophyll prior the measuring of productivity. Standard illumination was provided on a 14:10 hr (light:dark) sinusoidal diurnal cycle, with the peak light intensity of 2000 μmol m^–2 s^–1 PAR. Gas was filtered with using a HEPA-Cap disposable air filtration capsule (Whatman, #67023600), and bubbled through a 5 mm gas dispersion stone with a porosity of 10–20 µm at a flow rate of 350 ml/min.

In our ePBRs, we used a series of sparging protocols to establish a range of CO₂ and O₂ levels as well as to simulate fluctuations in CO₂ that might occur during production culturing, including: (1) rapid sparges (one min on and one min off) during illumination; (2) ‘raceway sparges’, one min sparge each hour during illumination. For normoxic conditions, the sparge gas was 5 % CO₂, 21 % O₂, balance N₂. For ‘hyperoxia’ treatments, the sparge gas was 5 % CO₂ and 95 % O₂.

Biomass productivity in units of g ^. m^–2 ^. day^–1 was estimated by multiplying the volume of eluted culture as a result of turbidostatic dilutions by the measured Ash Free Dry Weight (AFDW) per unit volume, then normalizing to m² by dividing by the surface area of the ePBR water column. The column height was 15 cm and the surface area is 26.6 cm². Unless noted otherwise, all experiments were done in biological triplicate, each separate bioreactor or flask representing a different biological replicate.

When grown in the Erlenmeyer flasks, the cultures were grown in batch mode (Anderson, 2005) under ~80 μmol m^–2 s^–1 PAR of light and bubbled continuously via a glass Pasteur pipette with 5 % CO₂.

In our aerophilic, mixotrophic assays (i.e. Appendix 1—figure 7), cells were grown at steady state in 2NBH media in photobioreactors and then counted using a Beckman Coulter Z2 Coulter Counter at sizes between 3–10 microns. 50000, 5000, 500, 50 cells were then spotted onto Tris Acetate Phosphate (TAP) plates (Gorman and Levine, 1965) and grown under 80 μmol m^–2 s^–1 of PAR.

Estimation of culture bicarbonate concentrations

Request a detailed protocol

Dissolved bicarbonate levels were estimated using an approach based on the release of CO₂ upon acidification of the media (Hawkes et al., 1993) using an in-house built instrument consisting of a 250 mL sealed glass reactor (a standard canning jar, Mason, USA) that houses a small but sensitive atmospheric CO₂ sensor (S8, https://www.senseair.com), a 3 cm long Teflon-coated magnetic stir bar and a small septum for introducing reagents. During experiments, the output of the CO₂ sensor was continuously collected at a rate of 1 Hz using a microcontroller (Teensy 3.2, PJCR, Sherwood, OR, USA) and analyzed with a Python Jupyter (https://www.jupyter.org) notebook. The experiments started with the addition of 10 mL of sample and continuous stirring (approximately 30 Hz rotation frequency). Similar results were obtained when samples were drawn directly from the ePBR or passed through a 4 micron filter to remove cells. After introducing the sample, the system was allowed to equilibrate for 3 min, at which time the sample was acidified to pH <4 by addition of 200 µL of 1 N HCl. The acidification leads to hydrolysis of HCO₃^- to CO₂ + H₂O, resulting in release (outgassing) of CO₂ into the chamber. To account for differential partitioning of CO₂ into the medium and atmosphere, responses were then calibrated by spiking the samples with a known concentrations of sodium bicarbonate.

Estimation of O₂ and C_i compensation points

Request a detailed protocol

The C_i compensation point was estimated by measuring the extent to which steady-state photosynthesis in a suspension of cells could draw down CO₂ levels above the samples. Note that this approach will monitor the overall competition between CO₂ uptake by assimilation and CO₂ release by photorespiration and respiration. In the absence of the CCM, cells will directly fix CO₂ that diffuses into the chloroplast, but when the CCM is active, the cell will actively transport of HCO₃^- to the chloroplast. In both cases, we expect equilibration between HCO₃^- and CO₂ (in the medium and atmosphere), so that at a constant pH, the atmospheric CO₂ level should provide a measure of the ability of cells to draw down C_i. Freshly harvested cells were centrifuged (800 x g for 5 min) and then placed into 2 mL of well buffered medium (HS +20 mM HEPES, pH 7.0) within a sealed, 25 mL plastic cuvette (Coulter, cat. no. A35471) and stirred with a 0.5 cm diameter magnetic stir bar rotating at approximately 3 Hz. Changes in CO₂ levels were monitored with a small CO₂ sensor (Senseair, cat. no. 004-0-0013), placed in the headspace above the sample. The suspension was sparged with nitrogen gas for 5 min to deplete the medium of CO₂ and O₂, then illuminated for 20 min to allow photorespiration, mitochondrial respiration and photosynthetic assimilation to achieve the steady state atmospheric CO₂ level, which was taken as the C_i compensation point.

Microscopy

Request a detailed protocol

At each time point of interest, 1 mL of culture (at ~3 μg/mL chlorophyll) were removed from our bioreactors, placed in Eppendorf tubes and mixed with 2 µl of Lugol’s Solution (Sigma-Aldrich, cat. no. L6146) before being viewed in a Leica DMi90 inverted light microscope.

Transmission Electron Microscopy (TEM) was performed using a JEOL 1400 Flash instrument, and images were photographed with a Metattaki Flash cMOS camera. To prepare cells for microscopy, samples were resuspended in 2.5 % glyceraldehyde in cultures of 2NBH media, and then treated as previously described (Du et al., 2018). To quantify the relative size of the starch sheaths, using ImageJ (Schindelin et al., 2012) the area around the inner parameter of the pyrenoid was subtracted from the area around the outer parameter of the starch sheath. The remaining area was then divided by the total area of the cells to give the relative pyrenoid sheath size. To determine the percent exposure of the pyrenoid matrix, using ImageJ lines were drawn across the length of the starch plates or matrix holding the plates together, and total length of these lines was then assessed. Similarly, lines were drawn across gaps in the pyrenoid structures and the total length of the gap was also assessed. The total gap length was then divided by combined length of the gap and plates to give the ‘percent exposure.’

Subcellular localization of Rubisco labeled with Venus fluorescence protein was imaged using an Olympus FluoView 1000 Confocal Laser Scanning Microscope, configured on an Olympus IX81 inverted microscope using either a 60 x PlanApo (NA 1.42) oil objective or a 100 x UplanApo (NA 1.40) oil objective. Venus fluorescence protein was excited using the 515 nm Argon laser emission line, and fluorescence emission was detected using a 530–620 nm band pass filter. We also repeated the analysis using a Nikon A1 Confocal Laser Scanning Microscope, configured on a Nikon Ti Eclipse inverted microscope using a 100 x Apo TIRF (NA 1.49) oil objective. Venus fluorescence protein was excited using the 515 nm Argon laser emission line, and fluorescence emission was detected using a 530–600 nm band pass filter. Transmitted laser light was simultaneously collected using brightfield optics. Confocal Z-series through the thickness of the algal cells were collected in 0.5 μm increments, typically through a 5 μm thickness, and the Z-stacked images were compressed into a 2D image, displayed as a Maximum Intensity Projection.

Confocal work to probe cellular reactive oxygen species (ROS) production was performed on the Olympus confocal microscope setup described above, using methods previously described (Du et al., 2018).

H₂O₂ measurements

Request a detailed protocol

For H₂O₂ measurements, cells were treated with reagents of an Amplex Red Hydrogen Peroxide/Peroxidase Assay Kit (Molecular Probes/Invitrogen, Carlsbad, CA, USA), as has been used by previous researchers (Lin et al., 2013). In brief, 5 mL of the culture was collected by centrifugation, and the pellet was flash frozen in liquid nitrogen. The cells were then broken in 1 mL of 1 X reaction buffer from the assay kit, ground with glass beads, and briefly sonicated. The mixture was then centrifuged and the supernatant was then used to measure the cellular H₂O₂ concentrations after incubation with horseradish peroxidase at 25 °C for 30 min. The H₂O₂ concentrations were determined by a standard curve developed using 0.25–2.5 μM and normalized by calculating the amount of protein in the extract using a standard Bradford Assay (Bradford, 1976) with Bradford Reagent (Sigma-Aldrich, cat no. B6916).

Rubisco activity assay

Request a detailed protocol

Rubisco enzymatic activity was assayed using an established protocol (Li et al., 2019; Roeske and O’Leary, 1985; Sharkey et al., 1986), with slight adjustments to make the protocol suitable specifically for Chlamydomonas. Briefly, cultures were harvested from the bioreactors, flash frozen in liquid nitrogen, and stored at –80 °C. Just prior to assay, samples were suspended in extraction buffer [50 mM 4-2(2-hydroxyethyl)–1-piperazine propane sulfonic acid (EPPS), pH 8, 30 mM NaCl, 10 mM mannitol, 5 mM MgCl₂, 2 mM EDTA, 5 mM DTT, 0.5 % (v/v) Triton X-100, 1 % polyvinylpolypyrrolidone (PVPP), 0.5 % casein, and 1 % protease inhibitor cocktail (P9599; Sigma-Aldrich)], sonicated, and vortexed to extract proteins. Aliquots of 20 μL of the extract was added to 80 μL of assay buffer [50 mM 4-2(2-hydroxyethyl)–1-piperazine propane sulfonic acid, pH 8, 5 mM MgCl₂, 0.2 mM EDTA, 0.5 mM Ribulose bisphosphate, and 15 mM NaH¹²CO₃, and 0.3 mM H¹⁴CO₃^-]. The suspensions were vortexed for three seconds, incubated for one minute, and then the reaction was halted by adding 100 μL of 1 M formic acid. The resulting acidification liberates unfixed inorganic C by converting HCO₃^- to CO₂, which escapes from the buffer. The mixtures were vortexed again for 3 s and then dried on a hotplate at 75 °C. For measurements of total rubisco activity, the extracts were pre-incubated with activation solution (to give final concentrations of 20 mM MgCl₂, 15 mM H¹²CO₃, and 61 mM 6-phosphogluconate) for ten minutes before being mixed with the assay buffer. The amount of fixed radioactivity was determined using a liquid scintillation counter (TriCarb 2800TR, Perkin Elmer). Each day, radioactivity in 10 µL of the assay buffer was counted to determine specific activity. Based on 1mCi = 2.22 x 10⁹ disintegrations min^–1, initial and total rubisco activity was calculated as expressed as μmol m^–2 s^–1. The rates were divided by 0.943 to account for the discrimination against ¹⁴C (Li et al., 2019; Roeske and O’Leary, 1985). Three algal samples, each constituting a biological replicate, were run per treatment or condition, and three technical replicates were run for each biological replicate.

Chlorophyll measurements

Request a detailed protocol

Chlorophyll content was measured using the method of Porra (Balcerzak et al., 2021; Porra, 2002), but with the modifications that the extraction solution contained 60 % acetone and 40 % DMSO, instead of 80 % acetone.

Oxygen evolution and quantum yield of photosystem II (Φ_II)

Request a detailed protocol

Cell suspensions growing at steady state were removed from the bioreactors and concentrated in fresh media to 50 μg/mL of chlorophyll in a cuvette. To drive out the oxygen, the cultures were then sparged with 1 % CO₂ and 99% N₂ gas. Subsequently also supplemented with 6.25 mM sodium bicarbonate, the cultures were illuminated with approximately 750 µmol photons m^–2 s^–1 of photosynthetically active radiation (PAR), measured using a submersible spherical micro quantum sensor (US-SQS/L, Walz) attached to a light meter (Li-250A, LiCor) from two red LEDs (emission at approximately 630 nm) aimed at opposing sides of the cuvette. Oxygen evolution was then measured using a Neofox oxygen sensor via a fiber optic fluorescent probe by Ocean Optics (Dunedin, Florida). The Φ_II measurements of the TAP plates were made in our dynamic environmental photosynthesis imager (DEPI), using methods described previously in detail (Cruz et al., 2016) but, to avoid direct reflection of the measuring light into the camera, the plates were tilted by approximately 5^o from the horizontal position.

Results

Hyperoxia differentially affects rubisco activity in the tolerant and sensitive lines

In an initial screen of sequenced Chlamydomonas isolates (Jang and Ehrenreich, 2012), we found two with contrasting tolerances to hyperoxia, with strain CC-1009 relatively tolerant to hyperoxia, continuing to grow, albeit at a suppressed rate, when exposed to 95 % oxygen and 5 % CO₂, while CC-2343 showed severely suppressed growth and eventual chlorosis or photobleaching in our ePBRs (Hall, 2017). Qualitatively, this varying tolerance was also observed when cultures were continuously sparged in batch culture (Appendix 1—figure 2), when the cultures were CO₂ saturated, indicating that the differential sensitivity was caused by hyperoxia rather than depletion of inorganic carbon sources (see also results on rapid sparging in the ePBR system, below).

Spreitzer and Mets, 1981 found that rubisco activity-deficient mutants exhibited chlorotic phenotypes similar to those observed with CC-2343 under hyperoxia. We conjectured that rubisco inhibition may be playing a role in CC-2343’s intolerance to hyperoxia. To be clear, while Spreitzer and Mets, 1981 were screening for mutants that were highly sensitive to even low light (~90 μmoles m^–2 s^–1 PAR), we grew our wild-type strains of Chlamydomonas under hyperoxia with diurnal sinusoidal light with peak light intensities of 2000 μmoles m^–2 s^–1 PAR. We found that, when sparged with 5 % CO₂, CC-1009 and CC-2343 grow very well at such light intensities. We measured rubisco activity of both strains prior to and after 31 hr exposure to hyperoxia (Figure 1). Rubisco activity was measured immediately after isolation to estimate steady-state activity at the time point of interest, which is controlled by both the total enzyme content and the fraction of the enzyme in the inactive state related to carbamylation state or the presence of inhibitors (Li et al., 2019; Roeske and O’Leary, 1985). Pre-incubating for ten minutes in the presence of MgCl₂, HCO₃^-, and 6-phosphogluconate (6 PG) promotes activation of the enzyme by stabilizing the Enzyme-CO₂-Mg-Complex of rubisco, allowing for the estimation of the maximal rubisco activity (Badger and Lorimer, 1981; Chu and Bassham, 1973; Matsumura et al., 2012). Using this method, we estimate that, under atmospheric levels of O₂, approximately 60 % of the enzyme was in its active form for both CC-1009 and CC-2343. After 31 hrs of exposure to hyperoxia, the total (maximal) activity of rubisco decreased in both lines, by about 10% and 28% in CC-1009 and CC-2343, respectively. However, in the case of CC-1009, the loss in total activity was compensated for by a large increase (to about 95%) in the fraction of active enzyme, leading to an overall increase of about 23 % in steady-state activity. By contrast, the fraction of activated rubisco was unchanged in CC-2343, leading to an overall decrease of about 13 % in steady-state activity.

Figure 1

Download asset Open asset

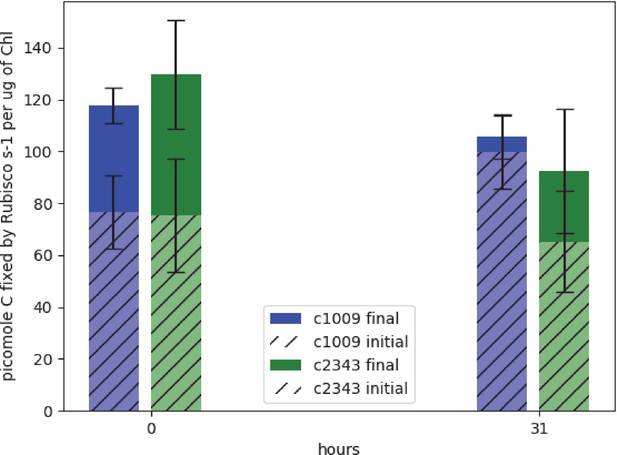

Graph of effects of hyperoxia on activity of rubisco in CC-1009 and CC-2343.

Raw extracts of the cells prior to (zero hours) and after exposure to hyperoxia (31 hr, see Materials and methods) were assayed rapidly (hatched bars), reflecting the native activation state, or after pre-incubation for 10 min in the presence of MgCl₂, H¹²CO₃^-, and 6-phosphogluconate, which promotes reactivation of inhibited enzyme (solid bars). For the table of values see Supplementary file 1B. Error bars represent the standard deviation of the three biological replicates, each with three technical replicates.

Although we cannot ascribe the differences in photosynthetic phenotypes solely to rubisco deactivation, these results do suggest that the CO₂/O₂ concentrations or metabolic environments near rubisco are different under hyperoxia in the two lines. Apart from the metabolic environment, the activation state of rubisco can also be affected by the levels or activity of the rubisco activase (Pollock et al., 2003). But we found no consistent differences in the cellular contents of the rubisco activase protein between the cell lines. Another important factor that could affect the activity of rubisco and its metabolic environment in Chlamydomonas is its pyrenoid, a distinct, well-structured starch sheath surrounding localized rubisco that, under low CO₂, plays a key role in trapping CO₂ in the CCM (del Campo et al., 1995; Harris, 1989; Harris, 2009; Ramazanov et al., 1994). It has also been proposed to shield rubisco from high O₂ levels generated by PSII (McKay and Gibbs, 1991; Toyokawa et al., 2020). We thus initially hypothesized that: (1) the pyrenoid could be important for responses to hyperoxia and (2) differences in pyrenoid structure or regulation may then contribute to the distinct photosynthetic responses in the two lines. Consistent with these hypotheses, under saturating CO₂ conditions (Appendix 1—figure 3), the pyrenoid starch sheaths are not clearly discernable, in agreement with previous research showing that the pyrenoid starch sheath is not expressed under C_i replete conditions (Borkhsenious et al., 1998; Ramazanov et al., 1994). Exposure to hyperoxia (95 % O₂ and 5 % CO₂), both when sparged rapidly (a square wave cycle one minute sparge and one minute rest, see Materials and methods) (Appendix 1—figure 4 and 5) or under high light with our raceway sparging regime (one minute sparge every hour) strongly induced starch sheath formation in our strains, but with genotype-dependent morphologies (Figure 2). The tolerant line, CC-1009, exhibited clearly defined, continuous starch sheath rings around its pyrenoid compartment, punctuated only in places where thylakoid tubules enter the pyrenoid matrix (Figure 2A). By contrast, CC-2343 showed more fragmented and porous structures, with gaps that were not clearly association with tubules (Figure 2B).

Figure 2

Download asset Open asset

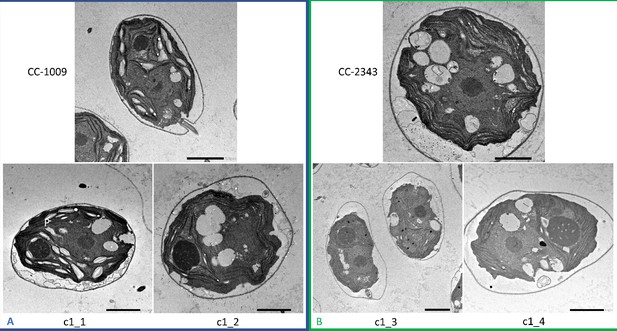

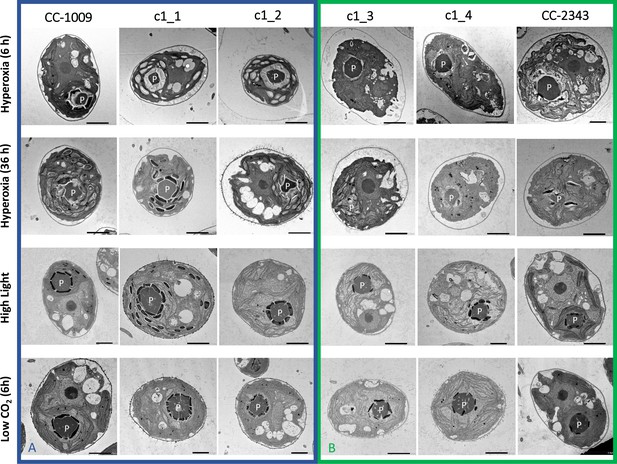

Representative TEM images of *Chlamydomonas* strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4.

Panel A shows strains with clearly defined, continuous starch sheath rings around the pyrenoid compartments, while the strains in Panel B have fragmented and porous pyrenoids, particularly under hyperoxia. Under steady state conditions, cells are grown with 5 % CO₂ with 14:10 hr (light:dark) sinusoidal illumination with peak light intensity of 2000 μmol m^–2 s^–1 PAR, in minimal 2NBH media. Here we show cells growing under hyperoxia (i.e. 95 % O₂ and 5 % CO₂) for 6 and 36 hr, near peak high light intensity under steady state, and low CO₂ (6 hr). Cells were fixed at 11:00 am, at 1945 μmoles m^–2 s^–1 PAR. Pyrenoids are labeled with ‘P’. Scale bar = 2 μm.

To test if decreased CO₂ or inorganic carbon levels could account for induction of pyrenoid synthesis, we directly assayed levels at various times during the sparge cycle, using the method described in Materials and methods. For the rapid sparging protocol, the estimated [HCO₃^-] under both normoxia and hyperoxia remained between 2 and 3 mM, and for the ‘raceway’ sparging protocol, between 1.3 and 1.7 mM a few minutes after sparging and 1.0–1.4 mM just prior to the following sparge. In all cases, the pH of the medium remained below 7.4. Thus, based on the known pK_a values for the CO₂/bicarbonate system, we estimate the lowest CO₂ levels experienced by the cultures, which occurred under raceway sparging conditions, remained above 100 µM, above the K_m of rubisco (~29 μM – 57 μM) in Chlamydomonas (Berry et al., 1976; Jordan and Ogren, 1981). This is also in excess of the concentration found by Toyokawa et al., 2020 to induce the formation of the pyrenoid starch sheath (2.1–3.1 μM). The CCM in C. reinhardtii is typically induced when the concentration of CO₂ in the air bubbled through the culture is decreased to around 0.5 % or lower (Vance and Spalding, 2005).

Similar genotype-dependent pyrenoid morphologies were also observed, in a 2:2 segregation pattern, in four daughter cells dissected from a single tetrad (Figure 2 & Appendix 1—figure 6). Two of the progenies, designated c1_1 and c1_2, when exposed to hyperoxia, developed completely sealed and robust rings, like CC-1009, while two others, designated c1_3 and c1_4, showed fragmented, porous structures, like CC-2343 (Figure 2). These differences were even more apparent after 31 hr of hyperoxia (Figure 2). Strains with fragmented pyrenoids (CC-2343, c1_3 ad c1_4) showed an abrupt inhibition of growth after one day of exposure to hyperoxia, whereas those with sealed pyrenoids (CC-1009, c1_1 and c1_2) continued to grow rapidly and produce biomass (Figure 3). Both progeny with fragmented pyrenoid sheaths grew even more slowly than the sensitive parent, CC-2343. On the other hand, those progeny with sealed pyrenoids (c1_1 and c1_2) initially grew more slowly than CC-1009, but maintained steady growth even on the fourth day of hyperoxia (Figure 3). These results suggest that the ultrastructural differences in the pyrenoid starch sheath (Figure 2) are related to the observed tolerances of growth to hyperoxia in both parent and progeny lines (Figure 3). However, the differences among the tolerant and sensitive lines, particularly the observation that the progeny have phenotypes more extreme than those of the parent lines, imply that additional genetic factors (beyond those that control pyrenoid morphology) likely contribute to productivity under hyperoxia.

Figure 3

Download asset Open asset

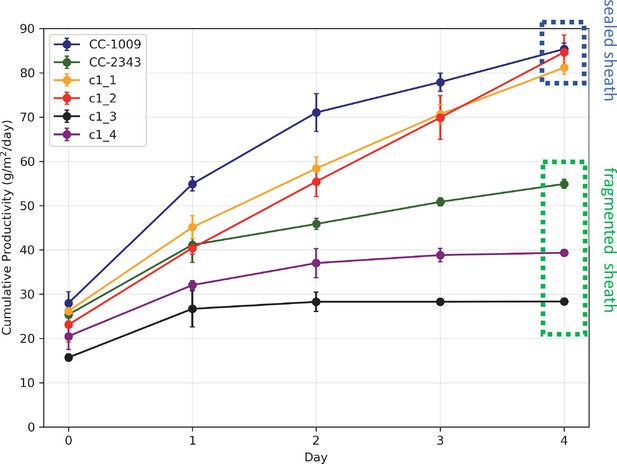

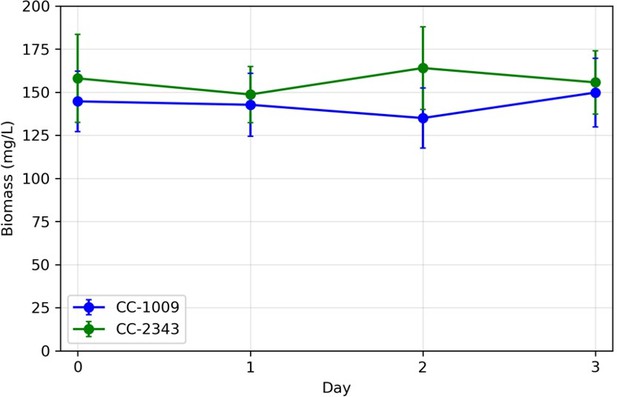

Cumulative biomass productivity following switching the bioreactors over to hyperoxia at dawn on day 0.

Strains CC-1009, c1_1, and c1_2, which all showed continuous, sealed pyrenoids at 6 hours (see Figure 2A) all continued to accumulate biomass after three days of hyperoxia, while CC-2343, c1_3, and c1_4, which had fragmented, porous pyrenoid (Figure 2B) structures, did not, with daily productivities hovering at zero. Visual inspection (via light microscopy) also revealed that the cultures of the intolerant lines by day 3 consisted of severely stressed or dead cells, while the tolerant lines showed cells with continued viability. Prior to exposure to hyperoxia, cultures were grown at steady state (with 5 % CO₂ with 14:10 hr (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media) and at Day 0, the gas was switched to hyperoxia not at midnight but at dawn. Even at steady state, c1_3 had lower growth than the other strains, although this was not true when grown at other conditions (i.e. see Appendix 1—figure 7). Error bars represent standard deviation for three separate reactor experiments. By day 3, c1_3 always ceased growth. Even though productivities had just begun to decline at 6 hr, the pyrenoid structure (i.e. sealed vs. porous Figure 2) paralleled the eventual tolerances.

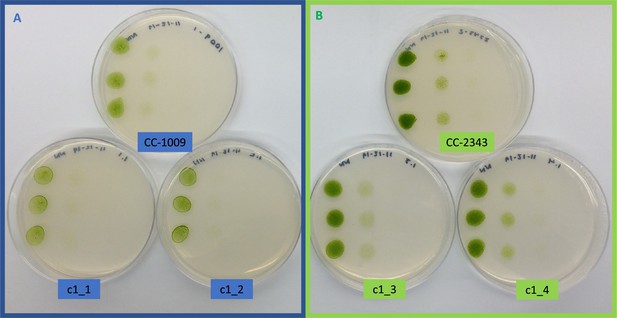

We also plated cultures of the CC-2343 and CC-1009 and the four progenies on TAP agar plates. Interestingly, growing the cells under aerophilic, mixotrophic conditions, we found that CC-2343 and the progeny that were intolerant to hyperoxia (c1_3 and c1_4) grew more rapidly than the hyperoxia tolerant lines which had exhibited the sealed, continuous pyrenoid starch sheaths (CC-1009, c1_1, c1_2) (Appendix 1—figure 7), despite exhibiting similar Φ_II values (Appendix 1—figure 8). In addition, when we grew the parent cells under steady state supplemented with 5 % CO₂, CC-2343 synthesized more starch (Appendix 1—figure 9).

Consistent with studies which have shown the pyrenoid is light dependent (Kuchitsu et al., 1988; Lin and Carpenter, 1997), CC-1009, CC-2343, and the F1 tetrad offspring also lost visible pyrenoid structures after dark exposure during the night (sparging once every hour with 5 % CO₂ in air), and the pyrenoid starch sheaths did not appear fully formed during the morning when PAR was low (Appendix 1—figure 10). As the light levels increased over 6 hr, though, the pyrenoid structures still formed under raceway sparging. Rather than a specific light level, this could be because it takes several hours to form pyrenoid structures and that photosynthesis is likely required. Under these conditions, CC-1009, c1_1, and c1_2 exhibited more tightly structured pyrenoids (Figure 2), although the differences were not as great as those exhibited under hyperoxia (Figure 2).

Consistent with previous work (Borkhsenious et al., 1998), pyrenoid formation was observed in all lines when cells were grown at high light and low CO₂, but with some differences in morphology among the lines. After exposure to low CO₂ (i.e. ambient air) for 6 hours, c1_1, c1_2 showed tightly closed sheath morphology similar to CC-1009 (Figure 2A). However, after 31 hr of exposure to low CO₂, the genotype differences in morphology became less apparent as all lines made starch sheaths of some integrity (Appendix 1—figure 11). All lines also grew similarly under ambient CO₂ in flasks under approximately 85 µmol photons m^–2 s^–1 (Appendix 1—figure 12). Taken together, these results suggest that low inorganic carbon, high O₂ and high light can all promote synthesis of the starch sheath, and that genetic variations modulate these responses.

Pyrenoid formation is induced by exogenous and endogenously produced H₂O₂, and inhibited by the ROS scavenger, ascorbic acid

The above results suggest that a product of photosynthesis common to high light, low CO₂ and high O₂ may trigger pyrenoid formation. As discussed below, one possible signal is H₂O₂. Figure 4 shows the effects of exogenous addition of H₂O₂ on the pyrenoid ultrastructure of Chlamydomonas parent lines. Cultures were harvested from photobioreactors in the morning (2 hr after the start of illumination) and diluted by half with fresh minimal 2NBH media with 5 mM bicarbonate – without (control) or with addition of 100 μM of H₂O₂. After 6 hr in low light (~85 μmol photons m^–2 s^–1), cells were fixed for EM as described in Materials and methods. Strikingly, treatment with H₂O₂ resulted in the appearance of thick, well-sealed starch sheaths, for both CC-1009 (Figure 4A and B) and CC-2343 (Figure 4C and D). Image J Analysis of the cells confirmed that there was a clear change in the size of the starch sheath (Figure 5). It is evident that hydrogen peroxide leads to significant increases in the prevalence of the starch sheath; which likely also coincides with a greater appearance of the pyrenoid periphery mesh – that is perhaps specifically related to LCI9 (Mackinder et al., 2017) - which appears to cement the starch plates together.

Figure 4

Download asset Open asset

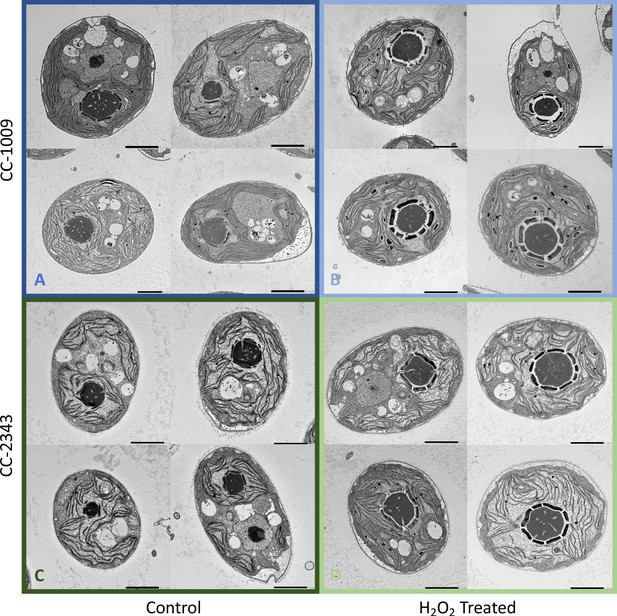

Representative TEM images of CC-1009 (Panels A and B) and CC-2343 (Panels C and D) control and cells treated, at 7:00 am in the morning, 2 hr after our sinusoidal light had turned on, with 100 μM of H₂O₂, and then exposed to 6 hr of low light (~85 μmol m^–2 s^–1 PAR) with saturating 5 mM bicarbonate in minimal 2NBH media.

Scale bar = 2 μm.

Figure 5

Download asset Open asset

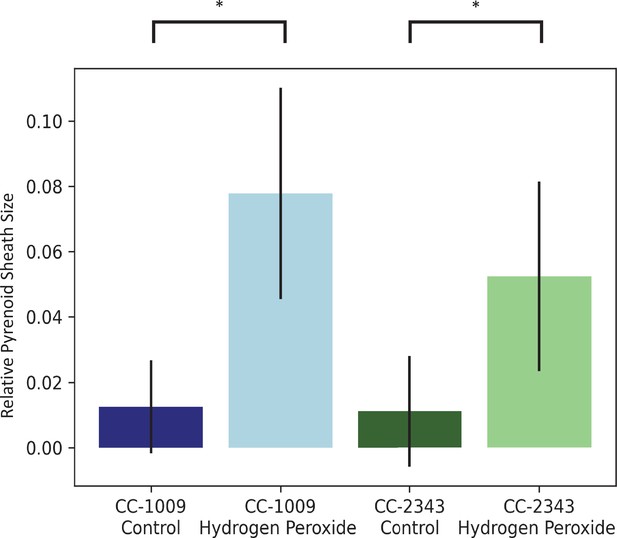

Image J Analysis of **CC-2343** and **CC-1009** cells, control (**green**, **blue**) and exposed to H₂O₂ (**light green**, **light blue**), normalized to cell size.

In response to pre-treatment with H₂O₂, pyrenoid sheath size increased. Relative pyrenoid sizes were estimated using the ImageJ program by measuring the visible projected areas of starch sheath in TEM images and compared to that of the projected areas of the cells. Error bars represent the standard deviation between the approximately 30 cells analyzed (See Figure 4 and Transparent Reporting Image 7-10). * p < 0.001.

We also found that pyrenoids could also be induced in the presence of high bicarbonate via treatment with low concentrations of methyl viologen (Appendix 1—figure 13) or metronidazole (Appendix 1—figure 14), compounds known to induce internal hydrogen peroxide production by accepting electrons from PSI and passing them to O₂, forming superoxide, which is converted to H₂O₂ by superoxide dismutase (Aksmann et al., 2016; Chang et al., 2013; Schmidt et al., 1977). The concentrations of these compounds did not inhibit growth or motility over the time scale of the experiment (~6 hr) and thus their effects are likely to be caused by ROS production or altered metabolic status rather than severe cell damage. Complementing these findings, treatment with two known H₂O₂ scavengers, ascorbic acid (Kuo et al., 2020; Nagy et al., 2015; Appendix 1—figure 15) or dimethylthiourea (Chang et al., 2013; Appendix 1—figure 16) prevented the formation of the pyrenoid starch sheath under low CO₂ conditions. Overall, these results are consistent with the role of H₂O₂ in triggering the formation of the pyrenoid, though it remains to be determined whether such effects are direct or indirect, for example resulting of altered metabolic status.

Hydrogen peroxide treatment was found also to affect the localization of rubisco (Figure 6), which is sequestered in the pyrenoid at low CO₂ (Borkhsenious et al., 1998). We assessed changes in localization using a modified Chlamydomonas reinhardtii strain, CC-5357, expressing rubisco small subunit (RbcS1) tagged with the Venus fluorescent protein (Mackinder et al., 2016). Under control conditions (5 mM bicarbonate, no H₂O₂ treatment), labelled rubisco was present throughout the chloroplast, with some localization in a pyrenoid matrix-like structure (Figure 6A). However, approximately six hours after treatment with 100 μM H₂O₂, rubisco became strongly localized to the pyrenoid matrix (Figure 6B; Appendix 1—figure 17; Transparent Reporting Image 11), with very little fluorescent signal outside this structure (see quantification of fluorescence signal, Figure 6C). Similar results were also found with the addition of methyl viologen and metronidazole (Appendix 1—figure 18), although the confocal laser in combination with the inhibitors appeared to make the samples unstable and not allow for multiple observations of the same slide. We also found evidence that even when sparged with saturating CO₂, hyperoxia may result in an apparent increase in the aggregation of rubisco in the pyrenoids (Appendix 1—figure 19), indicating that oxygen has some control of this aggregation. Previously, the aggregation of rubisco into the pyrenoid has been associated with the CCM (Freeman Rosenzweig et al., 2017; Mitchell et al., 2014).

Figure 6

Download asset Open asset

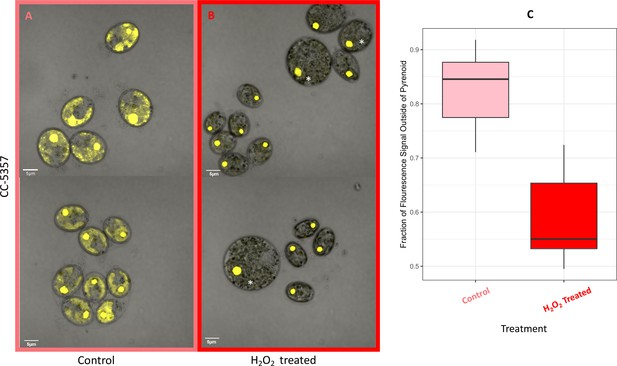

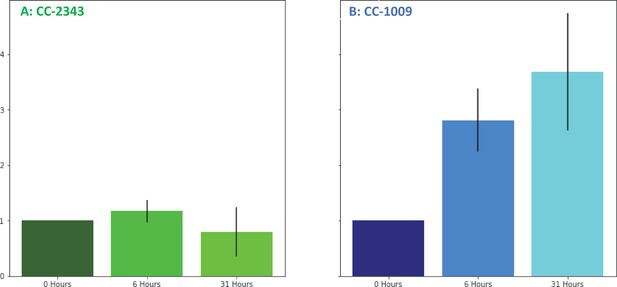

(Photos) Localization of rubisco determined by confocal microscopy of strain CC-5357, containing a RbcS1-Venus (Bar Graph, Panel C).

Average intensity of fluorescent signal within a cell, outside of the pyrenoid region, without (A, minus) and with (B, plus) the addition of hydrogen peroxide. The average fluorescence intensity of the delocalized Venus Fluorescent Protein-labeled rubisco within *Chlamydomonas* cells was measured using the Olympus FluoView 1,000 Advanced Software. For each cell measurement, a region encircling the *Chlamydomonas* cell membrane but excluding the pyrenoid was delineated and the average fluorescence intensity within the designated region was calculated. For each treatment, measurements were performed on approximately 20 cells from three separate areas, although more areas of cells were viewed to verify the consistency of the phenotype. Cells with * were excluded from analysis to allay concerns that they may be bloated and could bias results. Fluorescence was excited using 3 % Argon gas laser intensity. Fluorescence emission was recorded through 530–630 nm band pass filter using a photomultiplier detector with a high voltage of 831. Differences were statistically significant (p < 0.001). Scale bar = 5 μm.

By contrast, no significant changes in rubisco localization were observed when upon addition of 100 μM H₂O₂ to TAP-grown cells (Appendix 1—figure 20), the media used in another study testing the effects of hydrogen peroxide on Chlamydomonas (Blaby et al., 2015), implying that the effect was dependent on the photosynthetic state of the cells and/or suppressed in the presence of this organic carbon source. Consistent with this interpretation, cells grown on TAP plates showed no observable pyrenoid starch sheath by light microscopy or starch staining (Appendix 1—figure 21) in contrast with what we observed with cells grown in liquid minimal media. Furthermore, when CC-5357 was grown on TAP plates, rubisco became completely dispersed throughout the stroma, with no evidence of a pyrenoid matrix-like structure (Figure 7).

Figure 7

Download asset Open asset

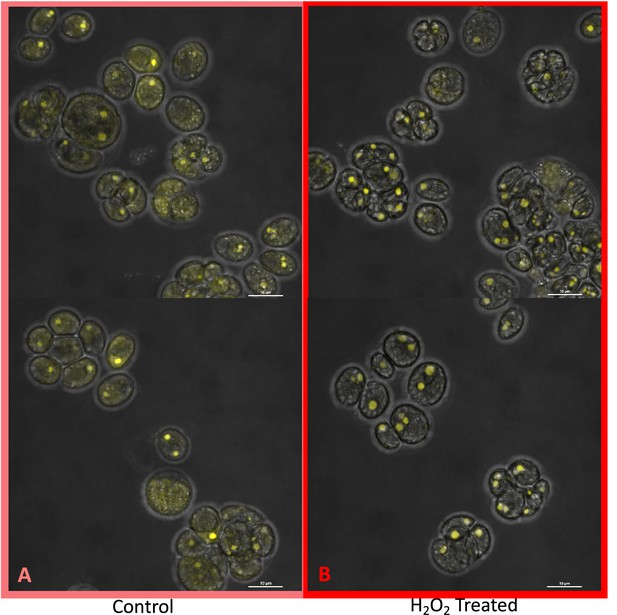

Confocal microscopy of CC-5357, which has a Venus labeled RbcS1, after being grown in on a TAP plate (Top, Panel A) showing rubisco completely de-localized and liquid TAP (bottom, Panel B), showing that rubisco has de-localized to some extent, but remains largely localized.

Scale bar = 10 μm.

We next tested for differences in H₂O₂ production under hyperoxia in CC-2343 and CC-1009. We found that 6 and 31 hr of exposure to hyperoxia resulted in a ~ 3 fold increase in H₂O₂ in CC-1009, but no significant changes in CC-2343 (Figure 8), though CC-2343 showed a somewhat higher basal level of H₂O₂ on a per cell basis. Figure 9 shows confocal laser-scanning microscope images of cells taken at steady state (Figure 9A and B) and at 31 hr hyperoxia (Figure 9C and D) and stained with 2’,7’-dichlorodihydrofluorescein diacetate (H₂DCFDA), a general stain for reactive oxygen, sensitive to H₂O₂, singlet oxygen, superoxide, hydroxyl radical and various peroxide and hydroperoxides. Both cell lines accumulated ROS in response to hyperoxia. However, cells of CC-1009 showed accumulation of ROS that was highly localized in small structures (Figure 9D) consistent with peroxisomal microbodies (Lauersen et al., 2016). By contrast, CC-2343 cells showed weaker, more diffuse, staining throughout the cell, seeming to accumulate ROS throughout the thylakoids, which may be a result of rubisco inhibition, chloro-respiration, or superoxide formation (Figure 9C). We also observed, in CC-2343, cells uniformly stained with the H₂DCFDA (Figure 9C), reflecting severe ROS accumulation/stress in CC-2343 in subpopulations of cells, stress that did not appear to occur as much in CC-1009.

Figure 8

Download asset Open asset

Changes in H₂O₂ in cellular extracts upon exposure to hyperoxia.

Cells of CC-2343 (Panel A) and CC-1009 (Panel B) were rapidly broken and extracts assayed using the Amplex Red method just prior to (0 hr) and at 6 and 31 hr exposure to 95 % O₂, 5 % CO₂, as described in Materials and methods. Values shown are normalized to those taken at 0 hr, when the values normalized to the extract’s protein contents were 3.37 μM for CC-2343 (Panel A) and 0.456 μM for CC-1009 (Panel B). Error bars represent the standard deviation among three biological replicates.

Figure 9

Download asset Open asset

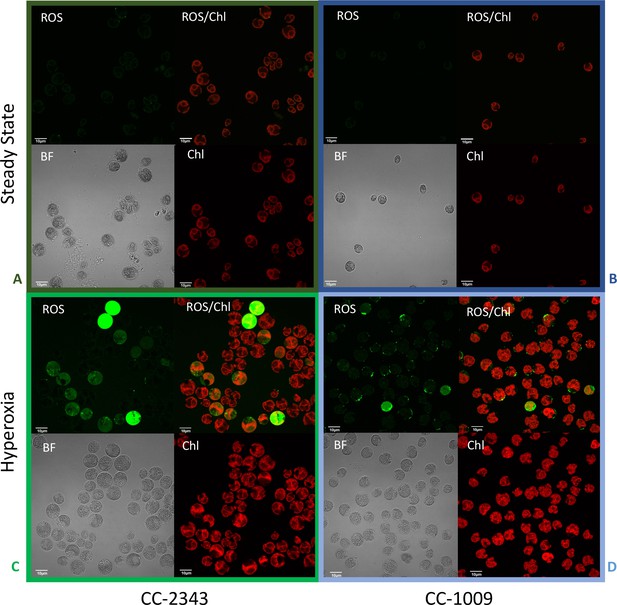

Confocal microscopy images of CC-2343 and CC-1009 showing ROS in cells growing at steady state (Panels A and B) and following exposure to approximately 31 hr of hyperoxia (Panels C and D) of CC-2343 and CC-1009.

H₂DCFDA, a nonfluorescent probe that is converted into fluorescent dichlorofluorescein (DCF) by ROS, was used to detect the ROS. The ROS is indicated by the green fluorescence, while the auto-fluorescence of the chloroplasts is displayed in red. ROS, reactive oxygen species; Chl, chlorophyll; BF, bright field. Scale bars = 10 μm.

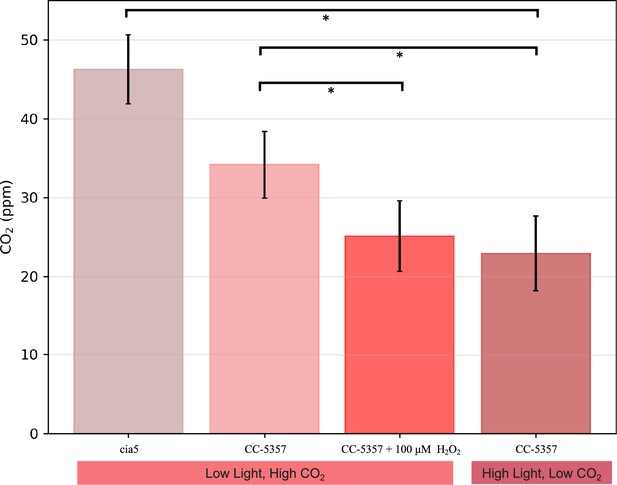

Cells pre-treated with exogenous H₂O₂ display higher oxygen compensation points and lower CO₂ compensation points

Figure 10 shows the effects of H₂O₂ pre-treatment on O₂ levels in cell suspensions of CC-1009 and CC-2343 under saturating actinic illumination. In these experiments, we tested whether H₂O₂-induced formation of pyrenoids with tight sheaths allowed photosynthesis to occur at higher levels of O₂. Prior to the traces, suspensions with 5 mM NaHCO₃ were sparged with air to establish low dissolved O₂ levels. At time zero, sparging was stopped and changes in dissolved O₂ were monitored with a luminescence-based O₂ sensor (see Materials and methods). The initial rise in O₂ reflects when the rate of net assimilation was maximal, under conditions when inorganic C supply was replete (5 mM HCO₃^-) and O₂ levels were low. These slopes were within 15 % of one another for both control and H₂O₂-treated CC-1009 (128 and 143 μM O₂ min^–1) and CC-2343 (104 and 110 μM O₂ min^–1) suspensions. After about 20 min, the rise in O₂ levels slowed, eventually reaching quasi-steady-state levels that represented the ‘oxygen compensation point’ where O₂ evolution from PSII was counterbalanced by O₂ uptake. Switching off the actinic light at ~57 min led to O₂ uptake, the initial rate of which likely represents the gross O₂ uptake, which is counterbalanced by O₂ evolution. Nearly equal during steady-state illumination, the two canceled each other out during the periods of light exposure. For control cells, the O₂ compensation points (the O₂ levels when the rate of O₂ uptake balanced that of evolution) for CC-2343 and CC-1009 were approximately 1,070 and 1230 μM O₂ (p < 0.05), respectively, implying, because it reaches the compensation point at a higher O₂ level, that CC-1009 was able to more effectively select for CO₂ uptake over O₂ reduction. The rates of uptake of O₂ after illumination were slightly slower in CC-2343 (36 μM O₂ min^–1) than CC-1009 (44 μM O₂ min^–1) indicating that the lower compensation point was caused by a combination of decreased linear electron flow and increased O₂ uptake. Strikingly, pre-treatment with H₂O₂ led to significant (p < 0.05) increases in the O₂ compensation points for both CC-2343 and CC-1009, to about 1,233 and 1356 μM O₂ min^–1 respectively, confirming that treated cells were better able to discriminate between uptakes of CO₂ and O₂. After the cells reached (essentially) steady-state levels of O₂, the actinic light was switched off. The initial slopes of O₂ uptake were then measured (by fitting the decay to pseudo-first order decay kinetics and taking the initial rate), to give an estimate of the rates of O₂ evolution and uptake. CC-1009 cells showed similar O₂ uptake slopes in treated H₂O₂-treated (46 μM O₂ min^–1) and untreated (44 μM O₂ min^–1) suspensions, likely indicating that the rates of electron flow were also similar, but that the preferential fluxes of electron into assimilation allowed for a greater accumulation of O₂ in the treated cells. By contrast, CC-2343 cells showed a significant increase in the initial slopes of O₂ consumption in the treated (42 μM O₂ min^–1) compared to control (36 μM O₂ min^–1) suspensions, suggesting that the high O₂ levels suppressed overall rates of linear electron flow (LEF) in the untreated cells (Supplementary file 1C).

Figure 10

Download asset Open asset

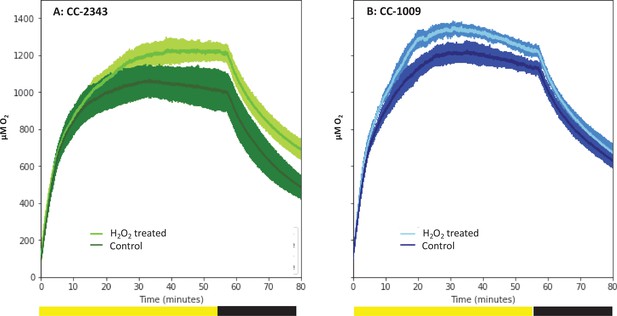

Oxygen evolution of strain CC-2343 (Panel A) and CC-1009 (Panel B) with and without the pre-treatment of 100 µM H₂O₂.

Shading represents 95 % confidence intervals between the three biological replicates for each treatment. At approximately 3500 seconds (denoted by yellow bar on x axis), the light was turned off denoted by black bar on x axis. All measurements were done on centrifugation-concentrated cells resuspended to the same chlorophyll concentration (40 μg/ml).

The above results imply that the formation of the pyrenoid after H₂O₂ treatment increased the ability of the cells to evolve O₂, either by excluding O₂ from or by concentrating CO₂ within the pyrenoid. We also measured the levels to which CO₂ above a cell suspension can be decreased by photosynthesis. We call this parameter the C_i compensation point because it reflects the competition between assimilatory CO₂ uptake and the sum of photorespiration and respiration, regardless of whether the uptake occurs through diffusion and direct fixation of CO₂, or the active pumping of HCO₃^- by the CCM (see Methods for details). As shown in Appendix 1—figure 22, the apparent Ci compensation point was highest (46±4.4 ppm) for the cia5 mutant (Xiang et al., 2001), which is defective in the CCM, and somewhat lower (34±4.2 ppm) in CC-5357 grown under high CO₂ and low light, where we expect low CCM activity, and lowest (23±4.7 ppm) in CC-5357 grown at low CO₂ and high light, where we expect the CCM to be fully activated. Importantly, CC-5357 cells grown under low light and high CO₂, but treated with H₂O₂, also showed a low Ci compensation point (25±4.5 ppm), indicating that the H₂O₂ induced pyrenoid can act effectively in the CCM. We thus conclude that the H₂O₂-induced pyrenoid can act to exclude O₂ and/or trap CO₂ pumped by the CCM.

Discussion

The induction of pyrenoid biosynthesis under hyperoxia and the role of H₂O₂

Photosynthesis can be inhibited by one of its major products, molecular oxygen. This is known to occur in certain aqueous environments, such as when algae ponds are enriched with CO₂ and photosynthesis can proceed rapidly, but diffusion of O₂ is slow, leading to super-saturated oxygen levels, which can feedback limit productivity (Livansky, 1996; Pulz, 2001; Raso et al., 2012; Torzillo et al., 1998; Vonshak et al., 1996; Weissman et al., 1988). Little is known about the physiological impact of hyperoxia or the mechanisms by which some species algae are able to ameliorate its effects. Here, we took advantage of an observation that two strains of C. reinhardtii – and their meiotic progeny – showed distinct tolerances to hyperoxia to probe such adaptations.

Most previous work on the pyrenoid has focused on its activation by low CO₂ and its role in the CCM (Borkhsenious et al., 1998; Freeman Rosenzweig et al., 2017; Mackinder et al., 2017; Ramazanov et al., 1994). Both parent lines in our study and all progeny showed low CO₂-dependent pyrenoid formation. When cells were sparged with 5 % CO₂ for one minute every hour and under normoxia (~21%), the pyrenoid starch sheaths dissociated at night. This result was consistent with previous observations which demonstrated that starch formation around the pyrenoid is correlated with light and the state of the CCM (Borkhsenious et al., 1998; Kuchitsu et al., 1988; Lin and Carpenter, 1997; Ramazanov et al., 1994). Also consistent with the cited previous work, low-light with mixotrophic conditions resulted in rubisco delocalization. We further show that the most complete degree of rubisco delocalization occurs when algae is grown on a TAP agar plate exposed to air, rather than aquatically in liquid TAP (Figure 7). At high light, pyrenoids were formed even when CO₂ or bicarbonate levels were maintained at high levels (Figure 2), agreeing with previous assertions that light plays a role in pyrenoid biosynthesis (Kuchitsu et al., 1988; Lin and Carpenter, 1997).

Strikingly, we also observed strong pyrenoid formation, with especially tight, thick and well-sealed starch sheaths in CC-1009, c1_1, and c1_2 under hyperoxia (95 % O₂), despite the high CO₂ levels (Figure 2). One possible explanation for this observation is that an in-common by-product of photosynthesis and photorespiration under low CO₂ and hyperoxia acts to induce pyrenoid formation. Hydrogen peroxide is an obvious candidate for such a role because it is well-documented to act as a signal molecule (Foyer et al., 2009) and its production is increased under high light (Roach et al., 2015), high O₂ as a misfired product of oxygenation (Kim and Portis, 2004) or low CO₂ (Foyer et al., 2009). H₂O₂ is also a product of the light reactions, through an alternative electron acceptor pathway such as the Mehler peroxidase reaction (MPR) or the water-water cycle, which is expected to be more active under conditions when light input exceeds the capacity of assimilation (Osmond et al., 2000; Mehler, 1951; Strizh, 2008). H₂O₂ can also be produced as a by-product of photorespiration (Janssen et al., 2014). Chlamydomonas possesses two pathways for oxidation of glycolate during photorespiration, one involving glycolate oxidase in the peroxisome, which uses O₂ as an electron acceptor and produces H₂O₂, and another involving glycolate dehydrogenase (GLYDH) in the mitochondrion, which uses ubiquinone as an electron acceptor and presumably does not produce H₂O₂ (Janssen et al., 2014). A reasonable explanation is that, under conditions of high light, low CO₂ or high O₂ production of H₂O₂ by the glycolate pathway can act as a signal to induce pyrenoid formation.

We found that in autotrophically grown cells, exogenous addition of H₂O₂ in the presence of light strongly induced within approximately 6 hr the formation pyrenoid starch sheaths (Figure 4; Figure 5; Appendix 1—figure 23), and caused rubisco to localize into the pyrenoid (Figure 6). The H₂O₂ did not induce the pyrenoid when the cells were kept in the dark (Appendix 1—figure 24). The starch sheaths formed after addition of H₂O₂ had tight, thick structures in both parent lines, though CC-1009 seemed to still display slightly more robust starch plates (Figure 4). These structural changes were accompanied by increased O₂ compensation points (Figure 10), indicating an increased ability to discriminate between O₂ and CO₂ as O₂ levels increased. Our working hypothesis is that H₂O₂-induced formation of pyrenoids with tight sheaths allowed the accumulation of higher concentrations of CO₂ at the active site of rubisco, outcompeting or shielding out higher levels of O₂. Further, the formation of these pyrenoids enhance the discrimination of CO₂/O₂, implying that H₂O₂ induction of pyrenoids could convey performance advantages under hyperoxia. Consistent with this hypothesis, the induction of the CCM has been found to be coordinated with that of genes for photorespiratory enzymes, although the specific metabolic control of this co-regulation had remained unknown (Tirumani et al., 2019). Interestingly, a separate RNA expression study (Blaby et al., 2015) did not show strong induction of pyrenoid components by H₂O₂, but, importantly, was conducted on TAP-grown cells, which we found do not show H₂O₂-induced formation of the pyrenoid (Appendix 1—figure 20).

Debate remains about the signal that induces the CCM (Spalding, 2009; Spalding et al., 2002; Vance and Spalding, 2005), which consists not only of the pyrenoid but also the inorganic carbon transporters (Spalding, 2008) and carbonic anhydrases (Moroney et al., 2011); some have argued that the signal is CO₂ itself, while others have proposed that the signal is a metabolite produced under low CO₂ during photosynthesis or photorespiration. The later, termed the ‘metabolic signal hypothesis,’ (Spalding, 2009) proposed that photorespiratory intermediates could serve as a trigger for CCM induction (Marcus et al., 1983; Suzuki et al., 1990). The hypothesis was rooted in observations that, unlike wild type cells, various photosynthetic mutants did not exhibit CCM activity under low CO₂, and that CCM induction in wild type cells required light (Dionisio et al., 1989a; Dionisio et al., 1989b; Dionisio-Sese et al., 1990; Spalding and Ogren, 1982; Spencer et al., 1983; Tirumani et al., 2014; Villarejo et al., 1996). Also implying that other factors, apart from CO₂, played a role in CCM induction, decreased O₂ tension and photorespiratory inhibitors, in low CO₂ conditions, also decreased carbonic anhydrase induction (Ramazanov and Cardenas, 1992; Spalding and Ogren, 1982; Villarejo et al., 1996).

Bozzo et al., 2000 argued against the metabolite hypothesis in Chlorella, based on observations that: (1) photorespiratory inhibitors, which should result in an accumulation of photorespiration intermediates, failed to induce the CCM under high CO₂ and (2) the expression of transcripts for a subset of carbonic anhydrases increased under low CO₂ even in the dark (although to a lesser extent than in the light). Similar results have been found in several Chlorella species (Matsuda and Colman, 1995; Shiraiwa and Miyachi, 1985; Umino et al., 1991), suggesting that the induction of at least some CCM components can occur in the dark. However, it is unclear how relevant these results are, considering that the pyrenoid is not formed in the dark (Kuchitsu et al., 1988; Lin and Carpenter, 1997). It was also found in Chlamydomonas that changing O₂ levels (from 2% to 20%) did not affect growth, photosynthetic rate, or the induction of periplasmic carbonic anhydrase (Cah1) or glycolate dehydrogenase (Gdh) genes, over a wide range of CO₂ levels (Vance and Spalding, 2005). It is worth noting, though, that none of these previous experiments were conducted under true hyperoxia (O₂ levels above partial pressure of 21%), where we observe strong induction of the pyrenoid, and thus they do not exclude product signaling under our observed conditions.

There remains the possibility of multiple signals for the CCM. There is differential regulation of low CO₂ induced polypeptides in Chlamydomonas, with some only being induced in the light, while for others light is not necessary (Villarejo et al., 1996). Also, the observation that there are multiple acclimation states, with some mutants tolerant to very low CO₂ but not low CO₂, suggests the existence of multiple types of signaling (Spalding et al., 2002). Our findings that a key aspect of the CCM, the pyrenoid, can be induced, even under high CO₂ (i.e. with hyperoxia and H₂O₂) disproves, to our knowledge for the first time, that low CO₂ is a necessary condition for any aspect of CCM induction. Our results lead us to propose that H₂O₂, a by-product of photosynthesis, particularly under low CO₂ and high O₂, may fulfill the previous proposed ‘metabolic’ signal. Hydrogen peroxide is widely known to be a signal for a variety of stress related responses (Blaby et al., 2015; Zalutskaya et al., 2019), and has been found to alter the state of redox homeostasis in Chlamydomonas (Pokora et al., 2018). It has also been assigned roles in regulating a range of photosynthetic and associated processes in plants and algae (Berens et al., 2019; Foyer and Noctor, 2009), particularly those related to responses to CO₂ levels and the induction of photorespiration (Foyer et al., 2009). Interestingly, in higher plants, H₂O₂ has been suggested to play a role in the response to varying levels of CO₂ (Foyer et al., 2009). For example, Sorghum (C₄) plants grown under conditions with lower amounts of photorespiration (i.e. elevated CO₂) have decreased thickening of the bundle sheath cells (Watling et al., 2000), which, since they restrict the diffusion of CO₂ out of bundle sheath cells and thereby allow for efficient capture by rubisco, can be interpreted as structures analogous to the starch sheath of the pyrenoid.

Hydrogen peroxide has also been implicated in regulating cyclic electron flow (CEF) in vascular plants, both by inducing the expression of the thylakoid Complex I (or NDH) (Casano et al., 2001; Gambarova, 2008) and by activation of existing enzymes (Strand et al., 2015). It is not known, however, if H₂O₂ acts directly as a signaling agent, or indirectly, for example by altering the activities of assimilatory enzymes (Strand et al., 2015) possibly through redox balancing enzymes such as the peroxiredoxins (Vaseghi et al., 2018). CEF is thought also to play central role in providing the energy needed to power CCMs, including that in Chlamydomonas (Lucker and Kramer, 2013). Our findings indicating that H₂O₂ may be the signal for the synthesis of a central component of the CCM, the pyrenoid, suggests that a common molecular by-product of photorespiration can set off a coordinated response; inducing the formation of the pyrenoid and also the metabolic processes to power the pumping of bicarbonate into it.

It has been argued that mixotrophic conditions alter the relationship between the onset of photorespiration and the expression of the CCM (Tirumani et al., 2019), and that photorespiration, hydrogen peroxide detoxification, and acetate assimilation (i.e. the glyoxolate cycle) are all localized in the peroxisomal microbodies (Lauersen et al., 2016). In this regard, it is intriguing that ROS labeling under hyperoxia was strongly localized in CC-1009 but not CC-2342 (Figure 9), hinting that H₂O₂ produced in a specific subcellular location and process may play a role in the differential development of the pyrenoid in the two parent lines, as discussed below. Taken together, these data sets are consistent with control of pyrenoid morphology at multiple levels, perhaps similar to the processes that regulate the expression of LHCSR3, involved in photoprotective nonphotochemical quenching, which is regulated by light quality and CO₂ availability (Maruyama et al., 2014; Semchonok et al., 2017). Future studies can also investigate how hyperoxia plays a role in the gene regulatory network for antennae size, which has been shown to be affected by low CO₂ (Blifernez-Klassen et al., 2021).

Possible linkages between H₂O₂ signaling, pyrenoid morphology and natural variations in responses to hyperoxia

By comparing genetically distinct isolates and their progeny, one can potentially explore possible mechanistic bases for responses to hyperoxia. We present here data from a limited set of progeny, which nevertheless reveals a segregation pattern which allows us to test certain future hypotheses. A more detailed analysis of a large number of progeny will be presented elsewhere. The most striking differences we observed between the lines were in the morphology of the pyrenoids (Figure 2), with the hyperoxia tolerant lines (CC-1009, c1_1, c1_2) showing thick, tightly sealed starch sheaths, while the sensitive lines (CC-2343, c1_3, c1_4) tending to have pores or gaps in the starch sheaths, suggesting that structural/functional differences in these sub-organelle compartments may play a role in the distinct responses to high O₂. That the miotic progeny with reduced biomass accumulation and fractured starch sheaths exhibited 2:2 segregation suggests that the phenotype variations were due to allelic differences in the nuclear genes. These differences appear to be most obvious during hyperoxia, and all lines showed disappearance of the pyrenoid structures under high CO₂/low light (Appendix 1—figure 10). Most interestingly, exogenous H₂O₂ led to synthesis of thick, tight pyrenoids in all lines, implying that the distinct morphologies is caused at least in part from differences in signaling, rather than structural components.

Given the possibility that H₂O₂ acts as a signal for pyrenoid biosynthesis, we tested for differences in its production under hyperoxia. Only in CC-1009 does H₂O₂ increase under hyperoxia (Figure 8). Furthermore, the localization of ROS production assessed by H₂DCFDA fluorescence in confocal microscopy showed distinct localization patterns, with CC-1009 showing strongly localized dye fluorescence (Figure 9B and D), whereas CC-2343 showed diffuse staining throughout the cell (Figure 9A and C). Because the H₂DCFDA is a general ROS indicator, it is not possible to unambiguously identify the specific reactive oxygen species, but one possible interpretation is that different localization patterns reflect the mechanism of ROS formation. The localized staining in CC-1009 is consistent with H₂O₂ produced in the peroxisome through photorespiration. By contrast, in CC-2343, the diffuse staining may reflect a range of different ROS, including but not limited to H₂O₂, ¹O₂ and O₂^•– produced by excitation of the light reactions and other processes (Osmond et al., 2000).

We have several hypotheses regarding why the two lines may have differences in the signaling and formation of their pyrenoid starch sheaths. One is that there might be variations in the strains’ utilization of the alternative photorespiration route that uses the glycolate dehydrogenase (GLYDH) enzyme, a route which does not result in hydrogen peroxide formation (Janssen et al., 2014).

Similarly, in the future we will investigate how the pyrenoid ameliorates the stresses of hyperoxia, with possibilities beyond photorespiration. Our rubisco assays (Figure 1) suggest that increased O₂ fixation or ROS production may lead to greater inhibition of rubisco in CC-2343 compared to CC-1009, possibly leading or concomitant to a general breakdown of the cell’s machinery, as evidenced by the lower autotrophic grow rates of CC-2343 at high O₂ (Figure 3) and lower rates of oxygen evolution (Figure 10). Such a model is also consistent with the diffuse ROS staining observed in CC-2343, as the mismatch in light input and downstream assimilatory capacity could result in the accumulation of not just H₂O₂, but also ¹O₂ and O₂.^- (Peng et al., 2016b), forms of ROS that may reflect high levels of oxidative damage.

Eco-physiological implications

For over a hundred years it has been known that Chlamydomonas strains show distinct pyrenoid structures (Pasher, 1918), although the physiological implications of these natural variations remain poorly understood. A few studies have noted structural differences in pyrenoid starch sheaths, and linked these differences to environmental CO₂ or organic carbon availability (Morita et al., 1998; Morita et al., 1999; Nozaki et al., 1994).

As discussed above, it is well established that the pyrenoid can allow algae to overcome critical limitations of low CO₂ levels often encountered in aqueous environments. However, under very high CO₂ levels, which are also encountered in certain environments, the sequestering of rubisco into the pyrenoid may impose rate limitations, or additional energy requirements, at the level of pumping of bicarbonate. Also, when rubisco is outside of the pyrenoid, it is thought that more of its surface area is exposed and its catalytic rate increases (Badger et al., 1998). A fragmented starch sheath may more easily allow migration in and out of the pyrenoid matrix. In two species of Gonium, the species with the more porous starch sheaths exhibited a higher ratio of rubisco migrating out of the pyrenoid in response to the addition of sodium acetate (Nozaki et al., 1994). Among closely related Chlamydomonas and Chloromonas strains, those with tight (which were termed ‘typical’) pyrenoids were able to accumulate higher levels of inorganic carbon when CO₂ was low compared to those with fragmented or porous (termed ‘atypical’) pyrenoid starch sheaths (Morita et al., 1999). On the other hand, Chloromonas species closely related to Chlamydomonas but lacking pyrenoids showed higher rates of max O₂ evolution when grown under elevated CO₂ (Morita et al., 1998), which could be attributed to the greater accessibility of rubisco to diffusible CO₂.

Some algae lack pyrenoids altogether and are found in environments expected to have high CO₂ and low or atmospheric oxygen levels. For example, Coccomyxa, an aerial grown lichen photobiont, completely lacks pyrenoids (Palmqvist et al., 1994; Palmqvist et al., 1995). Compared to that in Chlamydomonas, Coccomyxa prefers CO₂ as a substrate over HCO₃^-, similar to C₃ plant cells (Palmqvist et al., 1994; Palmqvist et al., 1995). It is important to note, though, that exposure to air allows for rapid diffusion of O₂: Even high rates of photosynthesis in Coccomyxa will not result in hyperoxia. In light of these studies, it seems fitting that CC-2343 and the progeny with porous pyrenoids grew better on a TAP plate exposed to air, and that rubisco most freely distributes through the chloroplast in Chlamydomonas when grown mixotrophically exposed to air, rather than aquatically (Appendix 1—figure 7).

By contrast, green algae can generate strongly hyperoxic conditions in the water specifically when inorganic carbon is plentiful. Our demonstration that pyrenoids are induced under these conditions suggests that they can function, in addition to overcoming slow assimilation when CO₂ is limiting, in preventing damage caused by high levels of the product O₂. Inducing the CCM should both increase the concentration of CO₂ above its K_M at rubisco and outcompete O₂ at the rubisco active site. Higher O₂ levels (under hyperoxia) will require correspondingly higher local CO₂ levels, in turn requiring tighter diffusional barriers to the escape of CO₂ from the pyrenoid (Wang et al., 2015; Yamano et al., 2015). It is also possible that the tight starch sheaths will partially block O₂ from diffusing into the pyrenoid, and if the uptake of O₂ by rubisco is faster than its replacement by diffusion across the sheath, such a barrier could effectively decrease the O₂ levels in the matrix.

Conclusions

The work presented above leads us to propose that, under combinations of light, high O₂ and/or low CO₂, the production of H₂O₂ becomes elevated, activating the formation of the pyrenoid and thickening of the starch sheath, leading to the classical response that allows cells to better discriminate between CO₂ and O₂ (Aizawa and Miyachi, 1986; Badger et al., 1980; Borkhsenious et al., 1998; Manuel and Moroney, 1988; Ramazanov et al., 1994; Spalding et al., 1983). We demonstrate that the pyrenoid, a key component of the algal CCM, can be induced under high CO₂, by hyperoxia or H₂O₂. Our results strengthen the ‘metabolite signaling hypothesis,’ (Spalding, 2009), which can explain the regulation of pyrenoid formation by multiple photosynthetic conditions, including CO₂, O₂, and its light dependence. Our results further suggest that differences in this signaling contribute, at least in part, to the observed natural varaition in pyrenoids (Pasher, 1918) as well as tolerances to hyperoxia. Several open questions remain, including whether a H₂O₂ signal works alone or in conjunction with a CO₂ signal for some aspects of the CCM, the precise nature and scope of the H₂O₂ response, the biochemical and genetic components involved, and whether more robust pyrenoid structures, by themselves, can improve growth under hyperoxia.

Appendix 1

Appendix 1—figure 1

Download asset Open asset

Exemplary pictures of ecotypes which were examined in this study showing various pyrenoid formations, with CC-1009 and CC-1010 exhibiting “closed” types.

Cultures were grown within flasks in minimal (2NBH) media under 50 μmoles m^–2 s^–1 of PAR.

Appendix 1—figure 2

Download asset Open asset

Panel (A) Photo of five days after 50 ml of fresh 2NBH media was inoculated to 1 × 10⁵ cells/ml, and cultures were continuously bubbled with 5 % CO₂ and 95 % O₂.

Panel (B) Graph of cell counts and chlorophyll content. Error bars represent the standard deviation of the two biological replicates.

Appendix 1—figure 3

Download asset Open asset

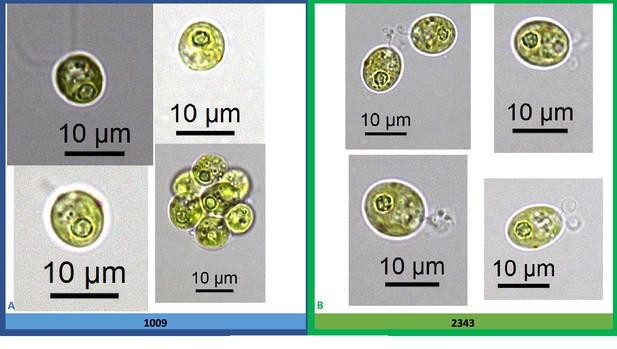

Exemplary light microscopy images of *Chlamydomonas* strains CC-1009 (Panel A) and CC-2343 (Panel B), while growing under saturating CO₂.

Cells are growing with 5 % CO₂ with one minute on/one minute off sparging, and 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media. Cells here were viewed at approximately noon, at 2000 μmoles m^–2 s^–1.

Appendix 1—figure 4

Download asset Open asset

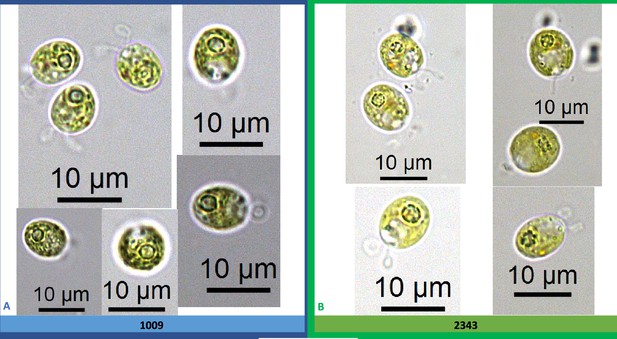

Exemplary light microscopy images of *Chlamydomonas* strains CC-1009 (Panel A) and CC-2343 (Panel B), after growing under saturating CO₂ and hyperoxia for over 6 hours.

Pyrenoid starch sheaths were clearly visible. Cells are sparged with 5 % CO₂ and 95 % O₂, with one minute on/one minute off sparging, and 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media. Prior to switching the gas to hyperoxia (i.e. 95 % O₂ and 5 % CO₂) cells had been grown in steady state conditions. Cells here were viewed around 1:00 pm, at ~1945 μmoles m^–2 s^–1.

Appendix 1—figure 5

Download asset Open asset

Exemplary light microscopy images of *Chlamydomonas* strains (CC-1009 & CC-2343), after growing under saturating CO₂ and hyperoxia for 31 hours.

Differences were observed between the pyrenoids of the cells in Panel A and Panel B, with the cells in Panel A showing more robust, continuous, sealed pyrenoids. Cells are sparged with 5 % CO₂ and 95 % O₂, with one minute on/one minute off sparging, and 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media. Prior to switching the gas to hyperoxia (i.e. 95 % O₂ and 5 % CO₂) cells had been grown in steady state conditions. Cells here were viewed at noon, at 2000 μmoles m^–2 s^–1.

Appendix 1—figure 6

Download asset Open asset

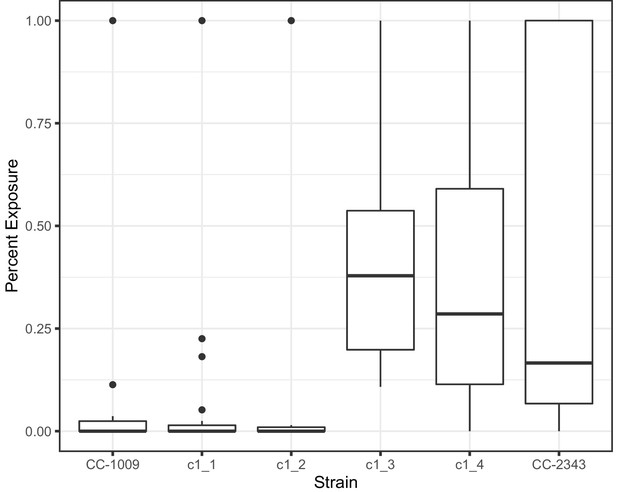

Measurement of percent of pyrenoid with gaps present in respective cell lines at 6 hours hyperoxia.

Statistically significant differences (P < 0.05) were found when comparing any of the lines with continuous pyrenoids (CC-1009, c1_1, and c1_2) to the lines with porous pyrenoids (CC-2343, c1_3, c1_4). At least 24 randomly selected cells were analyzed of each strain.

Appendix 1—figure 7

Download asset Open asset

Growth of parents (CC-1009 and CC-2343) and F1 tetrad offspring following the serial dilution, by column, of a cultures on TAP agar plates.

Rows are replicate dilutions. Photo was taken 3 days after plating. The oxygen intolerant lines (Panel B) all clearly grew better than the tolerant line (Panel A). See Figure 3 for graph of oxygen tolerance.

Appendix 1—figure 8

Download asset Open asset

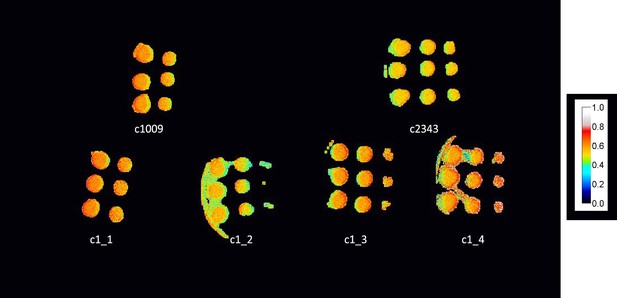

Φ_II values of spotted plates of parents and tetrad after one week, with c1_3, and c1_4 not showing any obvious higher level of electron transport, despite higher growth rates.

Measurements shown here were under 50 μmoles m^–2 s^–1 PAR, though similar results were obtained up to 1500 μmoles m^–2 s^–2.

Appendix 1—figure 9

Download asset Open asset

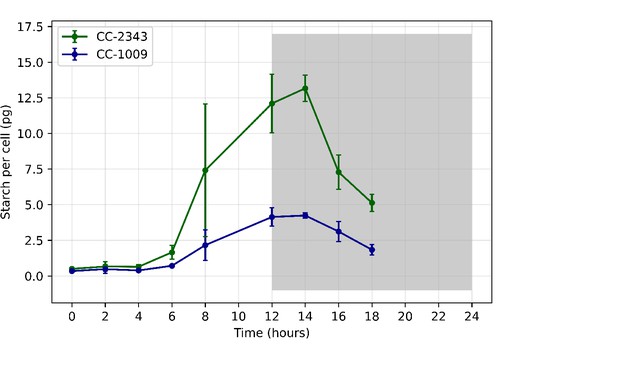

Total starch accumulated (pg/cell) in CC-1009 and CC-2343 cultures grown at steady state conditions, with 5 % CO₂ with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media.

Appendix 1—figure 10

Download asset Open asset

Representative TEM images of *Chlamydomonas* strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4, having been sparged with CO₂ for 30 seconds every hour during the night.

Under these conditions, both the strains in Panel A and B have not formed a pyrenoid starch sheath. Cells had been grown in steady state conditions in minimal 2NBH media, with 5 % CO₂ in air with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1. Cells here were fixed two hours after dawn, at 7:00 am, when light levels were 825 μmoles m^–2 s^–1. Pyrenoids appeared absent or mostly unsheathed in these conditions. Scale bar = 2 μm.

Appendix 1—figure 11

Download asset Open asset

Representative TEM microscopy images of *Chlamydomonas* strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4.

Images taken 31 hours after the culture had been switched to from 5 % to low (i.e. ambient) levels of CO₂. Prior to switching the gas to ambient levels of CO₂, cells had been grown in steady state conditions, with 5 % CO₂ with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media. At this time point, the differences in the pyrenoids were not as apparent between the two groups (Panel A vs. B). Cells here were fixed at 11:00 am, at 1945 μmoles m^–2 s^–1. Pyrenoids are labeled with “P.” Scale bar = 2 μm.

Appendix 1—figure 12

Download asset Open asset

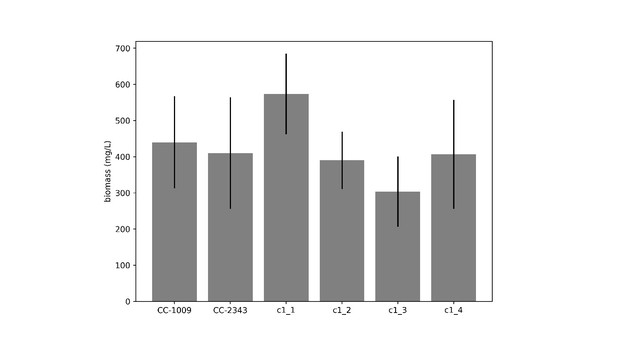

Biomass measurement of CC-1009, CC-2343, and tetrad progeny grown in flasks under 85 μmoles m^–2 s^–1 PAR and low CO₂ for 4 days, after each flask was inoculated with 1 × 10⁵ cells/ml.

Measurements were based on ash free dry weight of three different biological replicates for each strain. Error bars represent the standard deviation of three biological replicates. There was no statistical difference between the parents (CC-1009 and CC-2343) and any progeny. Though c1_1 did have higher productivity that two of the other progeny, all of the lines were able to grow under low CO₂ (i.e. none were high CO₂ requiring).

Appendix 1—figure 13

Download asset Open asset

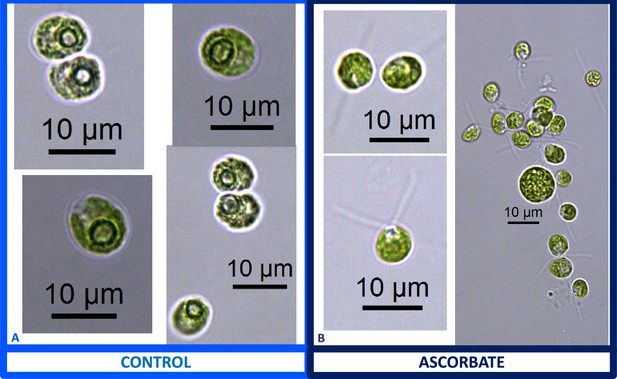

Representative light microscopy images of CC-2343 control (Panel A) and treated (Panel B) cells, two hours after our sinusoidal light had turned on, with 0.1 μM of methyl viologen, and then exposed to 6 hours of low light (~50 μmol m^–2 s^–1 PAR) with saturating (5 mM) bicarbonate in minimal 2NBH media.

Appendix 1—figure 14

Download asset Open asset

Appendix 1—figure 15

Download asset Open asset

Representative light microscopy images of CC-1009 control (Panel A) and 10 mM ascorbate treated (Panel B) cells, grown for 24 hours while being bubbled with air (low CO₂) in minimal 2NBH media under ~85 μmol m^–2 s^–1 PAR.

Appendix 1—figure 16

Download asset Open asset

Representative light microscopy images of CC-1009 control (Panel A) and 15 mM dimethylthiourea treated (Panel B) cells, grown for 24 hours while being bubbled with air (low CO₂) in minimal 2NBH media under ~85 μmol m^–2 s^–1 PAR.

Appendix 1—figure 17

Download asset Open asset

Localization of rubisco, control cells (Panel A) and cells exposed to 100 μM H₂O₂ (Panel B), visualized by the Nikon A1 Confocal Laser Scanning Confocal Microscope confocal microscopy, in strain CC-5357, containing at RBCS1-Venus tag.

Scale bar = 10 μm. These images, along with those with the Olympus (Figure 6), indicate a clear change in rubisco localization, rather the simply a change in rubisco amount. Since confocal microscopy is designed to acquire a very thin optical section through the thickness of a single cell, it can be difficult to use confocal fluorescence microscopy to accurately measure total protein content within the 3-dimensional volume of a single cell. Acquisition of several images through the thickness of the cell may actually over estimate or under estimate the total fluorescence intensity, depending on the Z-step increment. However, when comparing these images of Venus Fluorescent Protein-labeled rubisco within *Chlamydomonas* cells acquired using the Nikon A1 confocal microscope, the fluorescence intensity of the pyrenoid matrix of most cells under control conditions (5 mM bicarbonate, no H₂O₂ treatment) was similar to or dimmer than the fluorescence intensity of the pyrenoid matrix within cells treated for six hours with 100 μM H₂O₂. In contrast, the fluorescence intensity of the Venus Fluorescent Protein-labeled rubisco located outside of the pyrenoid matrix was measurably higher in cells under control conditions compared to H₂O₂-treated cells. If the decrease in Venus Fluorescent Protein-labeled rubisco fluorescence located outside of the pyrenoid matrix in H₂O₂-treated cells was due to an overall decrease in rubisco production within the cell and not due to delocalization of the protein from the pyrenoid to the cytoplasm of the cell, then fluorescence intensity of the pyrenoid within H₂O₂-treated cells should show a comparable decrease in fluorescence intensity, which is not seen. Fluorescence was detected using 0.5 % 514 nm diode laser intensity. Fluorescence emission was recorded through 565/70 nm band pass filter using a Gallium Arsenide Phosphide (GaASP) detector (High Voltage = 47, offset –7).

Appendix 1—figure 18

Download asset Open asset

Localization of rubisco, control cells (Panel A), cells exposed to 0.1 μM methyl viologen (Panel B), and 8 mM metronidazole (Panel C) visualized by an Olympus FluoView 1,000 Confocal Laser Scanning Microscope, in strain CC-5357, containing a RBCS1-Venus tag.

Scale bar = 10 μm.

Appendix 1—figure 19

Download asset Open asset

Strain CC-5357, containing a RbcS1-Venus, with Chlorophyll shown in red and RbcS1-Venus in yellow.

All cells were grown with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmol m^-2 s^-1 PAR, in HS media. Cells were sparged for 60 seconds every 15 minutes with either 5% CO₂ (Panel A), 5% CO₂ and 95% Oxygen (Panel B), or ambient air (i.e. low CO₂) (Panel C). The average fluorescence intensity of the localized Venus Fluorescent Protein-labeled rubisco within the pyrenoids of *Chlamydomonas* cells was measured using the Nikon A1 Confocal Laser Scanning Microscope. Because the tagged rubisco was expressed with a PsaD (Photosystem I reaction center subunit II) promoter, the fluorescent signal may not be a conclusive proxy for rubisco amount and cannot be attributed to transcriptional responses to hyperoxia. However, the results are consistent with the fluorescent-tagged rubisco accumulating to a greater extent in the pyrenoids of cells exposed to hyperoxia, similar to what has been observed when cell are exposed to low CO₂. Panel D shows the mean intensity of the Venus-tagged rubisco of the three treatments. Panels A, B, and C show representative images used to quantify this mean intensity. Significant differences (P < .0001) were found between the High CO₂ and Hyperoxia; High CO₂ and Low CO₂ treatments. No difference was found between Hyperoxia and Low CO₂. Scale bar = 10 μm.

Appendix 1—figure 20

Download asset Open asset

Confocal microscopy of liquid TAP-grown CC-5357, which has a Venus labeled RbcS1, treated without (Panel A) and with H₂O₂ (Panel B), showing no change in localization of rubisco.

Cultures were harvested from photobioreactors in the morning (two hours after the start of illumination) and diluted by half with fresh TAP media – without (control) or with addition of 100 μM of H₂O₂. After ten hours in low light (~85 μmol photons m^–2 s^–1), cells were then viewed with the confocal microscope. Scale bar = 10 μm.

Appendix 1—figure 21

Download asset Open asset

Comparison of cells grown under steady state in liquid media (with 5 % CO₂) versus cells grown on the surface of a TAP plate.

Both CC-2343 (Panel A) and CC-1009 (Panel B) showed losses of the starch sheath when grown on a TAP plate.

Appendix 1—figure 22

Download asset Open asset

Ci compensation points, determined as in Methods, for a mutant defective in the CCM (*cia5*); CC-5357 cells grown under low light (10 µmol photons m^–2 s^–1 PAR) and high CO₂, where CCM activity is expected to be low; CC-5357 cells grown under high CO₂ and low light (10 µmol photons m^–2 s^–1 PAR) but pretreated for a minimum of 3 hours with 100 uM H₂O₂ to induce pyrenoid formation; and CC-5357 cells grown under high light (100 µmol photons m–2 s–1 PAR) and low CO₂, where we expect high CCM activity.

Error bars represent standard deviation of at least five biological replicates. *P≤0.01.

Appendix 1—figure 23

Download asset Open asset

Representative light microscopy images of CC-1009 (Panels A & B) and CC-2343 (Panels C & D) control and cells treated, two hours after our sinusoidal light had turned on, with 100 μM of H₂O₂, and then exposed to 7 hours of low light (~50 μmoles photons m^–2 s^–1) with saturating 5 mM bicarbonate in minimal 2NBH media.

Appendix 1—figure 24

Download asset Open asset

Representative light microscopy images of CC-1009 (Panels A & B) and CC-2343 (Panels C & D) control and cells treated, the light remaining off, with 100 μM of H₂O₂, and kept at 7 hours of dark with saturating 5 mM bicarbonate in minimal 2NBH media.

Data availability

The raw images and data for all our figures can be found on our github site (https://github.com/protonzilla/Neofotis2021_Pyrenoid_Hyperoxia copy archived at https://archive.softwareheritage.org/swh:1:rev:7eb4a1b1118aa081ab140fd5ced951164f3ea66c).

The Transparent Reporting Images can also be found on the github site, (https://github.com/protonzilla/Neofotis2021_Pyrenoid_Hyperoxia/blob/main/PyrenoidPaper_TransparentReportingImages.pptx)

References

1. Aizawa K
2. Miyachi S
(1986) Carbonic anhydrase and CO₂ concentrating mechanisms in microalgae and cyanobacteria
FEMS Microbiology Letters 39:215–233.
https://doi.org/10.1111/j.1574-6968.1986.tb01860.x
- Google Scholar
(2016) High hydrogen peroxide production and antioxidative enzymes expression in the Chlamydomonas reinhardtii cia3 mutant with an increased tolerance to cadmium and anthracene
Phycological Research 64:300–311.
https://doi.org/10.1111/pre.12147
- Google Scholar
Book
1. Anderson RA
(2005)
Algal Culturing Techniques

Cambridge, MA: Academic Press.
- Google Scholar
1. Atkinson N
2. Mao Y
3. Chan KX
4. McCormick AJ
(2020) Condensation of Rubisco into a proto-pyrenoid in higher plant chloroplasts
Nature Communications 11:6303.
https://doi.org/10.1038/s41467-020-20132-0
- PubMed
- Google Scholar
(1980) Internal inorganic carbon pool of Chlamydomonas reinhardtii: evidence for a carbon dioxide-concentrating mechanism
Plant Physiology 66:407–413.
https://doi.org/10.1104/pp.66.3.407
- PubMed
- Google Scholar
1. Badger MR
2. Lorimer GH
(1981) Interaction of sugar phosphates with the catalytic site of ribulose-1,5-bisphosphate carboxylase
Biochemistry 20:2219–2225.
https://doi.org/10.1021/bi00511a023
- PubMed
- Google Scholar
1. Badger MR
2. Andrews TJ
3. Whitney SM
4. Ludwig M
5. Yellowlees DC
6. Leggat W
7. Price GD
(1998) The diversity and coevolution of Rubisco, plastids, pyrenoids, and chloroplast-based CO₂-concentrating mechanisms in algae
Canadian Journal of Botany 76:1052–1071.
https://doi.org/10.1139/b98-074
- Google Scholar
(2021) Influence of monoterpenoids on the growth of freshwater cyanobacteria
Applied Microbiology and Biotechnology 105:5675–5687.
https://doi.org/10.1007/s00253-021-11260-8
- PubMed
- Google Scholar
1. Banani SF
2. Rice AM
3. Peeples WB
4. Lin Y
5. Jain S
6. Parker R
7. Rosen MK
(2016) Compositional control of phase-separated cellular bodies
Cell 166:651–663.
https://doi.org/10.1016/j.cell.2016.06.010
- PubMed
- Google Scholar
(2021) Pyrenoids: CO₂-fixing phase separated liquid organelles
Biochimica et Biophysica Acta (BBA) - Molecular Cell Research 1868:118949.
https://doi.org/10.1016/j.bbamcr.2021.118949
- Google Scholar
(2010) Photorespiration: players, partners and origin
Trends in Plant Science 15:330–336.
https://doi.org/10.1016/j.tplants.2010.03.006
- PubMed
- Google Scholar
1. Berens ML
2. Wolinska KW
3. Spaepen S
4. Ziegler J
5. Nobori T
6. Nair A
7. Krüler V
8. Winkelmüller TM
9. Wang Y
10. Mine A
11. Becker D
12. Garrido-Oter R
13. Schulze-Lefert P
14. Tsuda K
(2019) Balancing trade-offs between biotic and abiotic stress responses through leaf age-dependent variation in stress hormone cross-talk
PNAS 116:2364–2373.
https://doi.org/10.1073/pnas.1817233116
- PubMed
- Google Scholar
1. Berry J
2. Boynton J
3. Kaplan A
4. Badger M
(1976)
Growth and photosynthesis of Chlamydomonas reinhardtii as a function of carbon dioxide concentration

Carnegie Institute Washington Yearbook 1976:423–432.
- Google Scholar
(2015) Genome-wide analysis on Chlamydomonas reinhardtii reveals the impact of hydrogen peroxide on protein stress responses and overlap with other stress transcriptomes
The Plant Journal 84:974–988.
https://doi.org/10.1111/tpj.13053
- PubMed
- Google Scholar
(2021) A gene regulatory network for antenna size control in carbon dioxide-deprived Chlamydomonas reinhardtii cells
The Plant Cell 33:1303–1318.
https://doi.org/10.1093/plcell/koab012
- PubMed
- Google Scholar
(1998) The intracellular localization of ribulose-1,5-bisphosphate Carboxylase/Oxygenase in Chlamydomonas reinhardtii
Plant Physiology 116:1585–1591.
https://doi.org/10.1104/pp.116.4.1585
- PubMed
- Google Scholar
(2000)
Active transport of CO₂ and bicarbonate is induced in response to external CO₂ concentration in the green alga Chlorella kessleri

Journal of Experimental Botany 51:1341–1348.
- PubMed
- Google Scholar
1. Bradford MM
(1976) A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding
Analytical Biochemistry 72:248–254.
https://doi.org/10.1006/abio.1976.9999
- PubMed
- Google Scholar
(2001) Hydrogen peroxide mediates the induction of chloroplastic Ndh complex under photooxidative stress in barley
Plant Physiology 125:1450–1458.
https://doi.org/10.1104/pp.125.3.1450
- PubMed
- Google Scholar
1. Chang HL
2. Kang CY
3. Lee TM
(2013) Hydrogen peroxide production protects Chlamydomonas reinhardtii against light-induced cell death by preventing singlet oxygen accumulation through enhanced carotenoid synthesis
Journal of Plant Physiology 170:976–986.
https://doi.org/10.1016/j.jplph.2013.02.001
- PubMed
- Google Scholar
1. Chu DK
2. Bassham JA
(1973) Activation and inhibition of ribulose 1,5-diphosphate carboxylase by 6-phosphogluconate
Plant Physiology 52:373–379.
https://doi.org/10.1104/pp.52.4.373
- PubMed
- Google Scholar
1. Cruz JA
2. Savage LJ
3. Zegarac R
4. Hall CC
5. Satoh-Cruz M
6. Davis GA
7. Kovac WK
8. Chen J
9. Kramer DM
(2016) Dynamic environmental photosynthetic imaging reveals emergent phenotypes
Cell Systems 2:365–377.
https://doi.org/10.1016/j.cels.2016.06.001
- PubMed
- Google Scholar
1. Davey PT
2. Hiscox WC
3. Lucker BF
4. O’Fallon JV
5. Chen S
6. Helms GL
(2012) Rapid triacylglyceride detection and quantification in live micro-algal cultures via liquid state 1H NMR
Algal Research 1:166–175.
https://doi.org/10.1016/j.algal.2012.07.003
- Google Scholar
Book
(1995)
The pyrenoid starch sheath formation in high CO₂-requiring mutants of Chlamydomonas reinhardtii

In: Mathis P, editors. Photosynthesis: From Light to Biosphere. Kluwer Academic Publishers. pp. 551–554.
- Google Scholar
(1989a) Blue light induction of carbonic anhydrase activity in Chlamydomonas reinhardtii
Plant and Cell Physiology 30:215–219.
https://doi.org/10.1093/oxfordjournals.pcp.a077732
- Google Scholar
(1989b) Light requirement for carbonic anhydrase induction in Chlamydomonas reinhardtii
Plant and Cell Physiology 30:207–213.
https://doi.org/10.1093/oxfordjournals.pcp.a077731
- Google Scholar
(1990) Light-induced carbonic anhydrase expression in Chlamydomonas reinhardtii
Plant Physiology 94:1103–1110.
https://doi.org/10.1104/pp.94.3.1103
- PubMed
- Google Scholar
1. Du Z-Y
2. Lucker BF
3. Zienkiewicz K
4. Miller TE
5. Zienkiewicz A
6. Sears BB
7. Kramer DM
8. Benning C
(2018) Galactoglycerolipid lipase PGD1 is involved in thylakoid membrane remodeling in response to adverse environmental conditions in Chlamydomonas
The Plant Cell 30:447–465.
https://doi.org/10.1105/tpc.17.00446
- PubMed
- Google Scholar
(2015) Native architecture of the Chlamydomonas chloroplast revealed by in situ cryo-electron tomography
eLife 4:e04889.
https://doi.org/10.7554/eLife.04889
- PubMed
- Google Scholar
1. Fang W
2. Si Y
3. Douglass S
4. Casero D
5. Merchant SS
6. Pellegrini M
7. Ladunga I
8. Liu P
9. Spalding MH
(2012) Transcriptome-wide changes in Chlamydomonas reinhardtii gene expression regulated by carbon dioxide and the CO₂-concentrating mechanism regulator CIA5/CCM1
The Plant Cell 24:1876–1893.
https://doi.org/10.1105/tpc.112.097949
- PubMed
- Google Scholar
Preprint
1. Fei C
2. Wilson AT
3. Mangan NM
4. Wingreen NS
5. Jonikas MC
(2021) Diffusion barriers and adaptive carbon uptake strategies enhance the modeled performance of the algal CO₂-concentrating mechanism
bioRxiv.
https://doi.org/10.1101/2021.03.04.433933
- Google Scholar
1. Foyer CH
2. Bloom AJ
3. Queval G
4. Noctor G
(2009) Photorespiratory metabolism: genes, mutants, energetics, and redox signaling
Annual Review of Plant Biology 60:455–484.
https://doi.org/10.1146/annurev.arplant.043008.091948
- Google Scholar
1. Foyer CH
2. Noctor G
(2009) Redox regulation in photosynthetic organisms: signaling, acclimation, and practical implications
Antioxidants & Redox Signaling 11:861–905.
https://doi.org/10.1089/ars.2008.2177
- Google Scholar
(2017) The eukaryotic CO₂-concentrating organelle is liquid-like and exhibits dynamic reorganization
Cell 171:148–162.
https://doi.org/10.1016/j.cell.2017.08.008
- Google Scholar
1. Fukuzawa H
2. Miura K
3. Ishizaki K
4. Kucho KI
5. Saito T
6. Kohinata T
7. Ohyama K
(2001) Ccm1, a regulatory gene controlling the induction of a carbon-concentrating mechanism in Chlamydomonas reinhardtii by sensing CO₂ availability
PNAS 98:5347–5352.
https://doi.org/10.1073/pnas.081593498
- PubMed
- Google Scholar
1. Gambarova NG
(2008) Activity of photochemical reactions and accumulation of hydrogen peroxide in chloroplasts under stress conditions
Russian Agricultural Sciences 34:149–151.
https://doi.org/10.3103/S106836740803004X
- Google Scholar
1. Goodenough UW
2. Levine RP
(1970) Chloroplast structure and function in ac-20, a mutant strain of Chlamydomonas reinhardi. 3. Chloroplast ribosomes and membrane organization
The Journal of Cell Biology 44:547–562.
https://doi.org/10.1083/jcb.44.3.547
- PubMed
- Google Scholar
1. Gorman DS
2. Levine RP
(1965) Cytochrome f and plastocyanin: their sequence in the photosynthetic electron transport chain of Chlamydomonas reinhardi
PNAS 54:1665–1669.
https://doi.org/10.1073/pnas.54.6.1665
- PubMed
- Google Scholar
(2020) Rubisco and carbon-concentrating mechanism co-evolution across chlorophyte and streptophyte green algae
The New Phytologist 227:810–823.
https://doi.org/10.1111/nph.16577
- PubMed
- Google Scholar
Book
1. Hall CC
(2017)
Photosynthesis and Hyperoxia

Michigan, United States: Disseration Thesis for Doctor of Philosophy Michigan State University East.
- Google Scholar
Book
1. Harris EH
(1989)
The Chlamydononas Sourcebook: Introduction to Chlamydomonas and Its Laboratory Use

San Diego: Academic Press.
- Google Scholar
Book
1. Harris EH
(2009)
The Chlamydomonas Sourcebook: Introduction to Chlamydomonas and Its Laboratory Use

Amsterdam: Elsevier.
- Google Scholar
1. Hawkes FR
2. Guwy AJ
3. Rozzi AG
4. Hawkes DL
(1993) A new instrument for on-line measurement of bicarbonate alkalinity
Water Research 27:167–170.
https://doi.org/10.1016/0043-1354(93)90208-Y
- Google Scholar
Book
1. Henk MC
2. Rawat M
3. Hugghins SY
4. Lavigne LL
5. Ramazanov Z
6. Mason CB
7. Moroney J
(1995) Pyrenoid morphology in rubisco and CO₂ concentrating mechansm mutants in Chlamydomonas reinhardi.
In: Mathis P, editors. Photosynthesis: From Light to Biosphere. Netherlands: Kluwer Academic Publishers. pp. 595–598.
https://doi.org/10.1007/978-94-009-0173-5
- Google Scholar
1. Hennacy JH
2. Jonikas MC
(2020) Prospects for engineering biophysical CO₂ concentrating mechanisms into land plants to enhance yields
Annual Review of Plant Biology 71:461–485.
https://doi.org/10.1146/annurev-arplant-081519-040100
- PubMed
- Google Scholar
1. Itakura AK
2. Chan KX
3. Atkinson N
4. Pallesen L
5. Wang L
6. Reeves G
7. Patena W
8. Caspari O
9. Roth R
10. Goodenough U
11. McCormick AJ
12. Griffiths H
13. Jonikas MC
(2019) A Rubisco-binding protein is required for normal pyrenoid number and starch sheath morphology in Chlamydomonas reinhardtii
PNAS 116:18445–18454.
https://doi.org/10.1073/pnas.1904587116
- Google Scholar
1. Jang H
2. Ehrenreich IM
(2012) Genome-wide characterization of genetic variation in the unicellular, green alga Chlamydomonas reinhardtii
PLOS ONE 7:e41307.
https://doi.org/10.1371/journal.pone.0041307
- PubMed
- Google Scholar
(2014) Photosynthesis at the forefront of a sustainable life
Frontiers in Chemistry 2:1–22.
https://doi.org/10.3389/fchem.2014.00036
- Google Scholar
1. Jiang X
2. Stern D
(2009) Mating and tetrad separation of Chlamydomonas reinhardtii for genetic analysis
Journal of Visualized Experiments JoVE:1–2.
https://doi.org/10.3791/1274
- Google Scholar
1. Jordan DB
2. Ogren WL
(1981) Species variation in the specificity of ribulose biphosphate carboxylase/oxygenase
Nature 291:513–515.
https://doi.org/10.1038/291513a0
- Google Scholar
1. Kim K
2. Portis AR
(2004) Oxygen-dependent H₂O₂ production by Rubisco
FEBS Letters 571:124–128.
https://doi.org/10.1016/j.febslet.2004.06.064
- PubMed
- Google Scholar
(2011) Light respiration in Chlorella sorokiniana
Journal of Applied Phycology 23:935–947.
https://doi.org/10.1007/s10811-010-9614-7
- PubMed
- Google Scholar
(1988) Changes of starch localization within the chloroplast induced by changes in CO₂ concentration during growth of Chlamydomonas reinhardtii: Independent regulation of pyrenoid starch and stroma starch
Plant and Cell Physiology 29:1269–1278.
https://doi.org/10.1093/oxfordjournals.pcp.a077635
- Google Scholar
1. Kuo EY
2. Cai MS
3. Lee TM
(2020) Ascorbate peroxidase 4 plays a role in the tolerance of Chlamydomonas reinhardtii to photo-oxidative stress
Scientific Reports 10:70247.
https://doi.org/10.1038/s41598-020-70247-z
- Google Scholar
1. Lauersen KJ
2. Willamme R
3. Coosemans N
4. Joris M
5. Kruse O
6. Remacle C
(2016) Peroxisomal microbodies are at the crossroads of acetate assimilation in the green microalga Chlamydomonas reinhardtii
Algal Research 16:266–274.
https://doi.org/10.1016/j.algal.2016.03.026
- Google Scholar
1. Li J
2. Weraduwage SM
3. Preiser AL
4. Tietz S
5. Weise SE
6. Strand DD
7. Froehlich JE
8. Kramer DM
9. Hu J
10. Sharkey TD
(2019) A cytosolic bypass and G6P shunt in plants lacking peroxisomal hydroxypyruvate reductase
Plant Physiology 180:783–792.
https://doi.org/10.1104/pp.19.00256
- PubMed
- Google Scholar
1. Lin S
2. Carpenter EJ
(1997) Rubisco of Dunaliella tertiolecta is redistributed between the pyrenoid and the stroma as a light/shade response
Marine Biology 127:521–529.
https://doi.org/10.1007/s002270050041
- Google Scholar
1. Lin YH
2. Pan KY
3. Hung CH
4. Huang HE
5. Chen CL
6. Feng TY
7. Huang LF
(2013) Overexpression of ferredoxin, PETF, enhances tolerance to heat stress in Chlamydomonas reinhardtii
International Journal of Molecular Sciences 14:20913–20929.
https://doi.org/10.3390/ijms141020913
- PubMed
- Google Scholar
1. Livansky K
(1996) Effect of O₂, CO₂ and temperature on the light saturated growth of Scenedesmus obliquus
Archiv Fuer Hydrobiologie 116:69–82.
https://doi.org/10.1127/algol_stud/82/1996/69
- Google Scholar
(2015) Meeting the global food demand of the future by engineering crop photosynthesis and yield potential
Cell 161:56–66.
https://doi.org/10.1016/j.cell.2015.03.019
- PubMed
- Google Scholar
Book
(2019)
Sustaining Global Food Security: The Nexus of Science and Policty

ProQuest Ebook.
- Google Scholar
1. Lucker B
2. Kramer DM
(2013) Regulation of cyclic electron flow in Chlamydomonas reinhardtii under fluctuating carbon availability
Photosynthesis Research 117:449–459.
https://doi.org/10.1007/s11120-013-9932-0
- Google Scholar
1. Lucker BF
2. Hall CC
3. Zegarac R
4. Kramer DM
(2014) The environmental photobioreactor (ePBR): An algal culturing platform for simulating dynamic natural environments
Algal Research 6:242–249.
https://doi.org/10.1016/j.algal.2013.12.007
- Google Scholar
1. Mackinder L
2. Meyer MT
3. Mettler-Altmann T
4. Chen VK
5. Mitchell MC
6. Caspari O
7. Freeman Rosenzweig ES
8. Pallesen L
9. Reeves G
10. Itakura A
11. Roth R
12. Sommer F
13. Geimer S
14. Mühlhaus T
15. Schroda M
16. Goodenough U
17. Stitt M
18. Griffiths H
19. Jonikas MC
(2016) A repeat protein links Rubisco to form the eukaryotic carbon-concentrating organelle
PNAS 113:5958–5963.
https://doi.org/10.1073/pnas.1522866113
- Google Scholar
1. Mackinder L
2. Chen C
3. Leib RD
4. Patena W
5. Blum SR
6. Rodman M
7. Ramundo S
8. Adams CM
9. Jonikas MC
(2017) A spatial interactome reveals the protein organization of the algal CO₂-concentrating mechanism
Cell 171:133–147.
https://doi.org/10.1016/j.cell.2017.08.044
- PubMed
- Google Scholar
1. Mackinder L
(2018) The Chlamydomonas CO₂-concentrating mechanism and its potential for engineering photosynthesis in plants
The New Phytologist 217:54–61.
https://doi.org/10.1111/nph.14749
- PubMed
- Google Scholar
1. Manuel LJ
2. Moroney JV
(1988) Inorganic carbon accumulation by Chlamydomonas reinhardtii: New proteins are made during adaptation to low CO₂
Plant Physiology 88:491–496.
https://doi.org/10.1104/pp.88.2.491
- PubMed
- Google Scholar
(1983) Adaptation of the cyanobacterium Anabaena variabilis to low CO₂ concentration in their environment
Plant Physiology 71:208–210.
https://doi.org/10.1104/pp.71.1.208
- PubMed
- Google Scholar
1. Marquez FJ
2. Sasaki K
3. Nishio N
4. Nagai S
(1995) Inhibitory effect of oxygen accumulation on the growth of Spirulina platensis
Biotechnology Letters 17:225–228.
https://doi.org/10.1007/BF00127993
- Google Scholar
(2014) Transcriptional regulation of the stress-responsive light harvesting complex genes in Chlamydomonas reinhardtii
Plant & Cell Physiology 55:1304–1310.
https://doi.org/10.1093/pcp/pcu068
- PubMed
- Google Scholar
1. Matsuda Y
2. Colman B
(1995) Induction of CO₂ and bicarbonate transport in the green alga Chlorella ellipsoidea (II. evidence for induction in response to external CO₂ concentration)
Plant Physiology 108:253–260.
https://doi.org/10.1104/pp.108.1.253
- PubMed
- Google Scholar
1. Matsumura H
2. Mizohata E
3. Ishida H
4. Kogami A
5. Ueno T
6. Makino A
7. Kai Y
(2012) Crystal structure of rice Rubisco and implications for activation induced by positive effectors NADPH and 6-phosphogluconate
Journal of Molecular Biology 422:75–86.
https://doi.org/10.1016/j.jmb.2012.05.014
- Google Scholar
1. McKay RML
2. Gibbs SP
(1991) Composition and function of pyrenoids: cytochemical and immunocytochemical approaches
Canadian Journal of Botany 69:1040–1052.
https://doi.org/10.1139/b91-134
- Google Scholar
1. Mehler AH
(1951) Studies on reactions of illuminated chloroplasts. I. Mechanism of the reduction of oxygen and other Hill reagents
Archives of Biochemistry and Biophysics 33:65–77.
https://doi.org/10.1016/0003-9861(51)90082-3
- PubMed
- Google Scholar
(2016) Will an algal CO₂-concentrating mechanism work in higher plants?
Current Opinion in Plant Biology 31:181–188.
https://doi.org/10.1016/j.pbi.2016.04.009
- PubMed
- Google Scholar
Book
(2020a) The Algal Pyrenoid
In: Larkum AWD, Grossman AR, Raven JA, editors. Photosynthesis in Algae: Biochemical and Physiological Mechanisms. Cham: Springer International Publishing. pp. 179–203.
https://doi.org/10.1007/978-3-030-33397-3
- Google Scholar
1. Meyer M
2. Itakura AK
3. Patena W
4. Wang L
5. He S
6. Emrich-Mills T
7. Lau CS
8. Yates G
9. Mackinder LCM
10. Jonikas MC
(2020b) Assembly of the algal CO₂-fixing organelle, the pyrenoid, is guided by a Rubisco-binding motif
Science Advances 6:eabd2408.
https://doi.org/10.1126/sciadv.abd2408
- Google Scholar
(2014) Dynamics of carbon-concentrating mechanism induction and protein relocalization during the dark-to-light transition in synchronized Chlamydomonas reinhardtii
Plant Physiology 166:1073–1082.
https://doi.org/10.1104/pp.114.246918
- PubMed
- Google Scholar
1. Mitra M
2. Lato SM
3. Ynalvez RA
4. Xiao Y
5. Moroney JV
(2004) Identification of a new chloroplast carbonic anhydrase in Chlamydomonas reinhardtii
Plant Physiology 135:173–182.
https://doi.org/10.1104/pp.103.037283
- PubMed
- Google Scholar
1. Morita E
2. Abe T
3. Tsuzuki M
4. Fujiwara S
5. Sato N
6. Hirata A
7. Sonoike K
8. Nozaki H
(1998) Presence of the CO₂-concentrating mechanism in some species of the pyrenoid-less free-living algal genus Chloromonas (Volvocales, Chlorophyta)
Planta 204:269–276.
https://doi.org/10.1007/s004250050256
- PubMed
- Google Scholar
1. Morita Eiko
2. Abe T
3. Tsuzuki M
4. Fujiwara S
5. Sato N
6. Hirata A
7. Sonoike K
8. Nozaki H
(1999) Role of pyrenoids in the CO₂-concentrating mechanism: comparative morphology, physiology and molecular phylogenetic analysis of closely related strains of Chlamydomonas and Chloromonas (Volvocales)
Planta 208:365–372.
https://doi.org/10.1007/s004250050571
- Google Scholar
1. Moroney JV
2. Ynalvez RA
(2007) Proposed carbon dioxide concentration mechanism in Chlamydomonas reinhardtii
Eukaryotic Cell 6:1251–1259.
https://doi.org/10.1128/EC.00064-07
- PubMed
- Google Scholar
1. Moroney JV
2. Ma Y
3. Frey WD
4. Fusilier KA
5. Pham TT
6. Simms TA
7. DiMario RJ
8. Yang J
9. Mukherjee B
(2011) The carbonic anhydrase isoforms of Chlamydomonas reinhardtii: intracellular location, expression, and physiological roles
Photosynthesis Research 109:133–149.
https://doi.org/10.1007/s11120-011-9635-3
- Google Scholar
1. Nagy V
2. Tengölics R
3. Schansker G
4. Rákhely G
5. Kovács KL
6. Garab G
7. Tóth SZ
(2015) Corrigendum to “Stimulatory effect of ascorbate, the alternative electron donor of photosystem II, on the hydrogen production of sulphur-deprived Chlamydomonas reinhardtii” [Int J Hydrogen Energy 37 (2012) 8864–8871]
International Journal of Hydrogen Energy 40:1267.
https://doi.org/10.1016/j.ijhydene.2014.11.092
- Google Scholar
(1994) Light and electron microscopic characterization of two types of pyrenoids in Gonium (Goniaceae, Chlorophyta)
Journal of Phycology 30:279–290.
https://doi.org/10.1111/j.0022-3646.1994.00279.x
- Google Scholar
1. Osmond CB
2. Foyer CH
3. Bock G
4. Badger MR
5. von Caemmerer S
6. Ruuska S
7. Nakano H
(2000) Electron flow to oxygen in higher plants and algae: rates and control of direct photoreduction (Mehler reaction) and rubisco oxygenase
Philosophical Transactions of the Royal Society of London. Series B 355:1433–1446.
https://doi.org/10.1098/rstb.2000.0704
- Google Scholar
(1994) The CO₂-concentrating mechanism is absent in the green alga Coccomyxa: a comparative study of photosynthetic CO₂ and light responses of Coccomyxa, Chlamydomonas reinhardtii and barley protoplasts
Plant, Cell and Environment 17:65–72.
https://doi.org/10.1111/j.1365-3040.1994.tb00266.x
- Google Scholar
(1995) Characterisation of inorganic carbon fluxes, carbonic anhydrase(s) and ribulose-1,5-biphosphate carboxylase-oxygenase in the green unicellular alga Coccomyxa
Planta 197:352–361.
https://doi.org/10.1007/BF00202657
- Google Scholar
Book
1. Pasher A
(1918)
Uber die Bezihung der Reduktionsteilung zu Mendelschen Spaltung. Ber. Dtsch. Bot. Ges. 36, 163-168 [Engl. transl. by R. E. Reichle

In: Lewin RA, editors. Genetics of Algae. Blackwell, Oxford, and University of California Press, Berkely, 1976. pp. 302–306.
- Google Scholar
1. Peng L
2. Lan CQ
3. Zhang Z
(2013) Evolution, detrimental effects, and removal of oxygen in microalga cultures: A review
Environmental Progress & Sustainable Energy 32:982–988.
https://doi.org/10.1002/ep.11841
- Google Scholar
1. Peng LC
2. Zhang ZS
3. Cheng PY
4. Wang ZH
5. Lan CQ
(2016a) Cultivation of Neochloris oleoabundans in bubble column photobioreactor with or without localized deoxygenation
Bioresource Technology 206:255–263.
https://doi.org/10.1016/j.biortech.2016.01.081
- PubMed
- Google Scholar
1. Peng LC
2. Zhang ZS
3. Lan CQ
4. Basak A
5. Bond N
6. Ding XH
7. Du JJ
(2016b) Alleviation of oxygen stress on Neochloris oleoabundans: effects of bicarbonate and pH
Journal of Applied Phycology 29:143–152.
https://doi.org/10.1007/s10811-016-0931-3
- Google Scholar
(2018) Exogenously applied hydrogen peroxide modifies the course of the Chlamydomonas reinhardtii cell cycle
Journal of Plant Physiology 230:61–72.
https://doi.org/10.1016/j.jplph.2018.07.015
- PubMed
- Google Scholar
(2003) Rubisco activase is required for optimal photosynthesis in the green alga Chlamydomonas reinhardtii in a low-CO₂ atmosphere
Plant Physiology 133:1854–1861.
https://doi.org/10.1104/pp.103.032078
- PubMed
- Google Scholar
1. Porra RJ
(2002) The chequered history of the development and use of simultaneous equations for the accurate determination of chlorophylls a and b
Photosynthesis Research 73:149–156.
https://doi.org/10.1023/A:1020470224740
- PubMed
- Google Scholar
(2005) Portrait of a species: Chlamydomonas reinhardtii
Genetics 170:1601–1610.
https://doi.org/10.1534/genetics.105.044503
- PubMed
- Google Scholar
1. Pulz O
(2001) Photobioreactors: production systems for phototrophic microorganisms
Applied Microbiology and Biotechnology 57:287–293.
https://doi.org/10.1007/s002530100702
- PubMed
- Google Scholar
1. Rae BD
2. Long BM
3. Förster B
4. Nguyen ND
5. Velanis CN
6. Atkinson N
7. Hee WY
8. Mukherjee B
9. Price GD
10. McCormick AJ
(2017) Progress and challenges of engineering a biophysical CO₂-concentrating mechanism into higher plants
Journal of Experimental Botany 68:3717–3737.
https://doi.org/10.1093/jxb/erx133
- PubMed
- Google Scholar
1. Ramazanov Z
2. Cardenas J
(1992) Involvement of photorespiration and glycolate pathway in carbonic anhydrase induction and inorganic carbon concentration in Chlamydomonas reinhardtii
Physiologia Plantarum 84:502–508.
https://doi.org/10.1111/j.1399-3054.1992.tb04697.x
- Google Scholar
1. Ramazanov Z
2. Rawat M
3. Henk MC
4. Mason CB
5. Matthews SW
6. Moroney J
(1994) The induction of the CO₂-concentrating mechanism is correlated with the formation of the starch sheath around the pyrenoid of Chlamydomonas reinhardtii
Planta 195:210–216.
https://doi.org/10.1007/BF00199681
- Google Scholar
(2012) Effect of oxygen concentration on the growth of Nannochloropsis sp. at low light intensity
Journal of Applied Phycology 24:863–871.
https://doi.org/10.1007/s10811-011-9706-z
- PubMed
- Google Scholar
(2008) The evolution of inorganic carbon concentrating mechanisms in photosynthesis
Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences 363:2641–2650.
https://doi.org/10.1098/rstb.2008.0020
- PubMed
- Google Scholar
(2015) High light-induced hydrogen peroxide production in Chlamydomonas reinhardtii is increased by high CO₂ availability
The Plant Journal 81:759–766.
https://doi.org/10.1111/tpj.12768
- PubMed
- Google Scholar
1. Roeske CA
2. O’Leary MH
(1985) Carbon isolate effect on carboxylation of ribulose bisphosphate catalyzed by ribulosebisphasphate carboxylaste from Rhodospirillum rubrum
Biochemistry 24:1603–1607.
https://doi.org/10.1021/bi00328a005
- PubMed
- Google Scholar
(2002) Photoinhibition in vivo and in vitro involves weakly coupled chlorophyll-protein complexes
Photochemistry and Photobiology 75:613–618.
https://doi.org/10.1562/0031-8655(2002)075<0613:pivaiv>2.0.co;2
- PubMed
- Google Scholar
1. Schindelin J
2. Arganda-Carreras I
3. Frise E
4. Kaynig V
5. Longair M
6. Pietzsch T
7. Preibisch S
8. Rueden C
9. Saalfeld S
10. Schmid B
11. Tinevez J-Y
12. White DJ
13. Hartenstein V
14. Eliceiri K
15. Tomancak P
16. Cardona A
(2012) Fiji: an open-source platform for biological-image analysis
Nature Methods 9:676–682.
https://doi.org/10.1038/nmeth.2019
- PubMed
- Google Scholar
(1977) A rapid procedure for selective enrichment of photosynthetic electron transport mutants
PNAS 74:610–614.
https://doi.org/10.1073/pnas.74.2.610
- PubMed
- Google Scholar
1. Semchonok DA
2. Sathish Yadav KN
3. Xu P
4. Drop B
5. Croce R
6. Boekema EJ
(2017) Interaction between the photoprotective protein LHCSR3 and C2S2 Photosystem II supercomplex in Chlamydomonas reinhardtii
Biochimica et Biophysica Acta. Bioenergetics 1858:379–385.
https://doi.org/10.1016/j.bbabio.2017.02.015
- PubMed
- Google Scholar
(1986) Regulation of Ribulose-1,5-Bisphosphate Carboxylase Activity in response to changing partial pressure of O₂ and light in Phaseolus vulgaris
Plant Physiology 81:788–791.
https://doi.org/10.1104/pp.81.3.788
- PubMed
- Google Scholar
1. Shiraiwa Y
2. Miyachi S
(1985) Effects of temperature and CO₂ concentration on induction of carbonic anhydrase and changes in efficiency of photosynthesis in Chlorella vulgaris 11h
Plant and Cell Physiology 26:543–549.
https://doi.org/10.1093/oxfordjournals.pcp.a076938
- Google Scholar
(2012) Growth of the microalgae Neochloris oleoabundans at high partial oxygen pressures and sub-saturating light intensity
Bioresource Technology 104:565–570.
https://doi.org/10.1016/j.biortech.2011.10.048
- PubMed
- Google Scholar
1. Spalding MH
2. Ogren WL
(1982) Photosynthesis is required for induction of the CO₂-concentrating system in Chlamydomonas reinhardii
FEBS Letters 145:41–44.
https://doi.org/10.1016/0014-5793(82)81202-7
- Google Scholar
(1983) Carbonic anhydrase-deficient mutant of Chlamydomonas reinhardii requires elevated carbon dioxide concentration for photoautotrophic growth
Plant Physiology 73:268–272.
https://doi.org/10.1104/pp.73.2.268
- PubMed
- Google Scholar
1. Spalding MH
2. Van K
3. Wang Y
4. Nakamura Y
(2002) Acclimation of Chlamydomonas to changing carbon availability
Functional Plant Biology 29:221–230.
https://doi.org/10.1071/PP01182
- PubMed
- Google Scholar
1. Spalding MH
(2008) Microalgal carbon-dioxide-concentrating mechanisms: Chlamydomonas inorganic carbon transporters
Journal of Experimental Botany 59:1463–1473.
https://doi.org/10.1093/jxb/erm128
- PubMed
- Google Scholar
Book
1. Spalding MH
(2009) The CO₂-concentrating mechanism and carbon assimilation.
In: Harris EH, editors. The Chlamydomonas Sourcebook: Introduction to Chlamydomonas and Its Laboratory Use (second edition). Elsevier Amsterdam. pp. 257–301.
https://doi.org/10.1016/B978-0-12-370873-1.00016-2
- Google Scholar
(1992) Isolation and preliminary characterization of three chlamydomonas strains interfertile with Chlamydomonas reinhardtii (chlorophyta)
Journal of Phycology 28:822–828.
https://doi.org/10.1111/j.0022-3646.1992.00822.x
- Google Scholar
(1983) Carbonic anhydrase in Chlamydomonas reinhardtii 2. Requirement for carbonic anhydrase induction
Plant and Cell Physiology 24:301–304.
https://doi.org/10.1093/pcp/24.2.301
- Google Scholar
1. Spreitzer RJ
2. Mets L
(1981) Photosynthesis-deficient mutants of Chlamydomonas reinhardii with associated light-sensitive phenotypes
Plant Physiology 67:565–569.
https://doi.org/10.1104/pp.67.3.565
- PubMed
- Google Scholar
(1985) Nonsense mutations in the Chlamydomonas chloroplast gene that codes for the large subunit of ribulosebisphosphate carboxylase/oxygenase
PNAS 82:5460–5464.
https://doi.org/10.1073/pnas.82.16.5460
- PubMed
- Google Scholar
(2015) Activation of cyclic electron flow by hydrogen peroxide in vivo
PNAS 112:5539–5544.
https://doi.org/10.1073/pnas.1418223112
- PubMed
- Google Scholar
Book
1. Strizh I
(2008) The Mehler reaction as an essential link between environmental stress and chloroplast redox signaling
In: Allen JF, Gantt E, Golbeck JH, Osmond B, editors. Photosynthesis, Energy from the Sun: 14th International Congress on Photosynthesis. Berlin: Springer. pp. 1343–1346.
https://doi.org/10.1007/978-1-4020-6709-9_289
- Google Scholar
1. Sueoka N
(1960) Mitotic replication of deoxyribonucleic acid in Chlamydomonas reinhardi
PNAS 46:83–91.
https://doi.org/10.1073/pnas.46.1.83
- PubMed
- Google Scholar
(1990) A Photorespiratory Mutant of Chlamydomonas reinhardtii
Plant Physiology 93:231–237.
https://doi.org/10.1104/pp.93.1.231
- PubMed
- Google Scholar
1. Tirumani S
2. Kokkanti M
3. Chaudhari V
4. Shukla M
5. Rao BJ
(2014) Regulation of CCM genes in Chlamydomonas reinhardtii during conditions of light-dark cycles in synchronous cultures
Plant Molecular Biology 85:277–286.
https://doi.org/10.1007/s11103-014-0183-z
- PubMed
- Google Scholar
(2019) Coordination between photorespiration and carbon concentrating mechanism in Chlamydomonas reinhardtii: transcript and protein changes during light-dark diurnal cycles and mixotrophy conditions
Protoplasma 256:117–130.
https://doi.org/10.1007/s00709-018-1283-4
- PubMed
- Google Scholar
(1998) On-line monitoring of chlorophyll fluorescence to assess the extent of photoinhibition of photosynthesis induced by high oxygen concentration and low temperature and its effect on the productivity of outdoor cultures of spirulina platensis (cyanobacteria)
Journal of Phycology 34:504–510.
https://doi.org/10.1046/j.1529-8817.1998.340504.x
- Google Scholar
(2020) Pyrenoid starch sheath is required for LCIB localization and the CO₂-concentrating mechanism in green algae
Plant Physiology 182:1883–1893.
https://doi.org/10.1104/pp.19.01587
- PubMed
- Google Scholar
(2007) Influence of irradiance, dissolved oxygen concentration, and temperature on the growth of Chlorella sorokiniana
Photosynthetica 45:309–311.
https://doi.org/10.1007/s11099-007-0052-y
- Google Scholar
(1991) Factors controlling induction of external carbonic anhydrase and change in K½(CO₂) of photosynthesis in Chlorella Regularis
Plant and Cell Physiology 32:379–384.
https://doi.org/10.1093/oxfordjournals.pcp.a078091
- Google Scholar
1. Vance P
2. Spalding MH
(2005) Growth, photosynthesis, and gene expression in Chlamydomonas over a range of CO₂ concentrations and CO₂/O₂ ratios: CO₂ regulates multiple acclimation states
Canadian Journal of Botany 83:796–809.
https://doi.org/10.1139/b05-064
- Google Scholar
1. Vaseghi MJ
2. Chibani K
3. Telman W
4. Liebthal MF
5. Gerken M
6. Schnitzer H
7. Mueller SM
8. Dietz KJ
(2018) The chloroplast 2-cysteine peroxiredoxin functions as thioredoxin oxidase in redox regulation of chloroplast metabolism
eLife 7:e38194.
https://doi.org/10.7554/eLife.38194
- Google Scholar
(1996) Regulation of the low-CO₂-inducible polypeptides in Chlamydomonas reinhardtii
Planta 199:481–485.
https://doi.org/10.1007/BF00195176
- Google Scholar
(1996) Light and oxygen stress in Spirulina platensis (cyanobacteria) grown outdoors in tubular reactors
Physiologia Plantarum 97:175–179.
https://doi.org/10.1111/j.1399-3054.1996.tb00494.x
- Google Scholar
(2015) The CO₂ concentrating mechanism and photosynthetic carbon assimilation in limiting CO₂ : how Chlamydomonas works against the gradient
The Plant Journal 82:429–448.
https://doi.org/10.1111/tpj.12829
- PubMed
- Google Scholar
(2000) Elevated CO₂ induces biochemical and ultrastructural changes in leaves of the C₄ cereal sorghum
Plant Physiology 123:1143–1152.
https://doi.org/10.1104/pp.123.3.1143
- PubMed
- Google Scholar
(1988) Photobioreactor design: Mixing, carbon utilization, and oxygen accumulation
Biotechnology and Bioengineering 31:336–344.
https://doi.org/10.1002/bit.260310409
- PubMed
- Google Scholar
1. Wunder T
2. Cheng SLH
3. Lai SK
4. Li HY
5. Mueller-Cajar O
(2018) The phase separation underlying the pyrenoid-based microalgal Rubisco supercharger
Nature Communications 9:5076.
https://doi.org/10.1038/s41467-018-07624-w
- PubMed
- Google Scholar
1. Xiang Y
2. Zhang J
3. Weeks DP
(2001) The Cia5 gene controls formation of the carbon concentrating mechanism in Chlamydomonas reinhardtii
PNAS 98:5341–5346.
https://doi.org/10.1073/pnas.101534498
- PubMed
- Google Scholar
1. Yamano T
2. Sato E
3. Iguchi H
4. Fukuda Y
5. Fukuzawa H
(2015) Characterization of cooperative bicarbonate uptake into chloroplast stroma in the green alga Chlamydomonas reinhardtii
PNAS 112:7315–7320.
https://doi.org/10.1073/pnas.1501659112
- PubMed
- Google Scholar
(2019) Generation of hydrogen peroxide and transcriptional regulation of antioxidant enzyme expression in Chlamydomonas reinhardtii under hypothermia
Russian Journal of Plant Physiology 66:223–230.
https://doi.org/10.1134/S1021443719020171
- Google Scholar

Decision letter

Heather E McFarlane

Reviewing Editor; University of Toronto, Canada
Jürgen Kleine-Vehn

Senior Editor; University of Freiburg, Germany

Our editorial process produces two outputs: (i) public reviews designed to be posted alongside the preprint for the benefit of readers; (ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "The Induction of Pyrenoid Synthesis by Hyperoxia and its Implications for the Natural Diversity of Photosynthetic Responses in Chlamydomonas" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Jürgen Kleine-Vehn as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

1) All reviewers agree that the presentation of the manuscript should be dramatically revised to improve readability. Generally, figures should be consistently organized, single panel figures should be combined into meaningful multipaneled figures, and the text should be refined. Please see specific suggestions made by each reviewer (particularly Reviewer #4) for detailed guidance.

2) Currently, the pyrenoid formation phenotypes under different conditions are descriptive and should be supported by quantification of multiple cells. Please add quantification of TEM images and appropriate statistical analyses. Additionally, please add further quantitative analysis of the Venus-RuBisCO line under additional conditions (see comments from Reviewer #1).

3) The finding that pyrenoid formation can be induced by hydrogen peroxide is exciting, but it remains unresolved whether CCM is also induced under these conditions, or whether, as Reviewer 1 suggests, the pyrenoid and starch sheath might act to exclude O2. This important question could be addressed by assessing the induction of CCM by measuring affinity for Ci under different conditions and for the different genotypes. If these experiments are not conducted, please revise the discussion to include the distinction between the induction of pyrenoid structure, which has been thoroughly studied in this work, and the induction of CCM, which has not yet been addressed by the experiments presented here.

4) Reviewer #3 made some excellent suggestions about using published datasets to generate hypotheses about the genetic basis of the responses documented in this paper. These analyses are not strictly necessary as part of a revised manuscript but are very constructive and pragmatic.

Reviewer #1 (Recommendations for the authors):

Presentation: The homogeneity of the different TEM Figures (and their legends) made it challenging to follow the manuscript. In every Figure it required some effort to find the specific growth conditions employed in the legend, and to independently interpret the implications. The first suggestion would be to ensure the Lead sentence of the Legend summarizes the main interpretation/finding communicated by the Figure. In addition it would help greatly if every Figure (and Supplementary Figure) showing TEM or light microscopy images of cells were supplemented with a standardized visual legend (possibly including some schematic cues) that clearly allowed rapid assessment of the growth conditions used (light, minimal media, hyperoxia, high CO2 etc.. ).

Points for improvement:

Clearly the findings shown leave many questions unaddressed, as is to be expected for a significant novel discovery. There is a key question that I am surprised was not addressed however. The induction of the CO2 concentrating mechanism is generally assessed by measuring the photosynthetic affinity for Ci. High CO2 acclimated cells have a much lower affinity than CCM induced cells. Since the work only addresses the pyrenoid, it would be extremely informative to understand whether the cells acclimated to hyperoxia (or H2O2) and 5% CO2 now also possess a high affinity for Ci. If not, it could support the notion that the pyrenoid and starch sheath here then really acts to exclude O2, rather than forming part of a powered CCM. It would also have profound energetic implications.

The introduction of the strain expressing fluorescently labelled Rubisco is critical to the manuscript. It provides powerful data, as shown in Figure 11b for instance, that pyrenoid formation (or Rubisco localization) is highly homogenous among large numbers of cells. This is in contrast to the majority of pyrenoid data in the manuscript that largely relies on representative images, and does not easily permit generation of quantitative data regarding pyrenoid formation. So it is somewhat surprising that this strain was not utilized a bit more extensively to generate quantitative data regarding the effect of the H2O2, hyperoxia, the speed of the response etc. (rather than the 6h and 31h timepoints that are shown now).

If such data exists, well-presented inclusion would greatly enhance the manuscript.

Detailed points:

1. P.13L16 – here it is stated that the conditions are not hyperoxia, but the Legend to Figure 6 (p.15) states sparging with 95%O2. I assume this is a mistake? Or does this refer to the different types of sparging? This needs to be much clearer for every Figure as pointed out above.

2. P14 Figure 5 legend – specify 5% CO2 in air.

3. P18: Here additional chemicals are utilized that induce internal H2O2. In addition, H2O2 scavengers are shown to prevent pyrenoid formation. The readout is the representative light microscopy images, where pyrenoid starch can be discerned. Were these experiments also performed for the fluorescent Rubisco strain? This would strengthen the data and the conclusions.

4. P22: Figure 11 (and 13)- the scale bars are invisible in these panels

5. P23: Figure 12 – why are there units on the y axis, if what is shown is normalized values?

6. P25: On this page especially, it is very noticeable in many instances that numbers are being reported to meaningless significant figures. E.g. what does 104.28 μm O2 min-1 mean? Does your instrument permit this type of accuracy? Do your replicates suggest that the numbers after the decimal point have any scientific meaning? Reasonable numbers of significant figures should be reported in the text to enhance readability. Numbers in biology by Ron Milo (available online) provides good guidance.

7. P27L17 – Kim and Portis 2004 relates to H2O2 production by Rubisco directly (misfire product of oxygenation). Oxidation of glycolate during photorespiration in the peroxisome is a separate issue. This is currently not clear in the description.

8. P41: Supplementary Material Table 2: If immunoblotting is maintained in the manuscript, then these antibodies need to be correctly described here with catalogue number etc.

9. Regarding Supplementary Figure 4: At this point the immunoblot finding does not really play a role in the manuscript/ negative finding. I understand here an unusual capillary method is utilized, it is very difficult to understand the outcome, and validity of the experiment. I can see the authors have utilized the method previously in Du Plant Cell 2018. At this point I would advise removing this data, or carefully presenting it, permitting it to be critically scrutinized (e.g. is it possible to assess equal loading- Ponceau equivalent etc..). There is great variability shown – is there any meaning?

10. On a related note, there are a number of proteins known to change in abundance when the CCM is induced. Were any of these probed (e.g. LCIB,C)? These could have potentially given more insights?

11. P51: Legend: how many micrographs were analyzed here for the morphometric analysis?

12. P55: Legend: greatly elaborate here what the specific conditions were. Maybe mention that this experiment is to explain/is consistent with the finding of Blaby et al. 2015 (no CCM induction on TAP medium.) (also in the text on page 20, at the moment the rationale of this experiment is not quite clear until we get to the discussion)

Reviewer #3 (Recommendations for the authors):

The manuscript presents exciting novel insights into the induction of the pyrenoid in Chlamydomonas and goes some way to probe a mechanistic explanation for this. Whilst a good job of probing the cellular response to hyperoxia is done, a genetic basis for these cellular changes is the obvious omittance that needs addressing to strengthen the manuscript. The recommendations below pertaining to this point are not necessarily requirements, but suggestions that the authors could further explore to try and identify the underlying genetic cause of the pyrenoid response to H2O2. Other recommendations refer to specific points of the existing methodologies that could be improved.

Suggestions for highlighting the genetic basis for pyrenoid response to hyperoxia:

Genomic analysis:

– Using data from the cited Jang and Ehrenreich 2012 paper, a genomic comparison between the strains used in the study could be completed to identify genetic candidates for that underpin the differences in strain response.

– If candidate genetic variants are found, simple comparisons between isolates with analogous genetic variations could provide a satisfactory starting point for the genetic explanation for the observed phenotypes.

Transcriptomic analysis:

– Transcriptomic comparison between strains upon H2O2 exposure or hyperoxia could give considerable insights into the underlying mechanism and also allow a time-course analysis of the induction process.

– A more targeted transcriptomic approach, following identification of candidate genes/pathways by other means (or based on your suggested pathways) could also provide satisfactory genetic evidence.

Mutant analysis:

– Phenotypic analysis of mutants in appropriate pathways (H202 production etc.) that show perturbed pyrenoid induction would provide convincing genetic evidence.

– Analysis of the huge dataset from Vilarrasa-Blasi et al., 2020 (BioRxiv), where pooled mutant collections were exposed to a wide range of chemical/growth conditions including H2O2, should allow identification of strong candidate genes in this process that could be further investigated.

Other general points:

Overall, the presentation of data in figures could be greatly improved.

– Several figures could be combined: Figures 1/2 can be combined and panelled, and should include non-treated cells as an introduction to the 'steady-state' morphology of these cells.

– Some figures should be swapped between the main text and supplementary information: Figures S3 and S11 should be incorporated in main text. Figure 4 should be moved to the supplementary information.

– Some figures are unclear: The methodology and labelling of S4 is unclear to the reader. Figure 10C labelling consistency with other figures. Light microscopy in figure S15 and S21 shows contrary evidence to in-text work.

Currently only light microscopy is used to assess pyrenoid phenotypes in a few instances, particularly where compound treatments are concerned. TEM images, and/or morphometric quantification of treatments potentially alongside quantification of pyrenoid localisation by confocal microscopy should be employed to thoroughly address the claims made in the text (pertaining to figures S12/13/14/15). The sporadic reuse of re-cropped images of the same cells (in figure S12/13), imaging of small cells (S14/15) and contradictory images (S15) should be addressed if these figures are kept also.

The authors could provide a better framing for the work in the place of significant recent literature in both the introduction and discussion. The introduction to the molecular details of pyrenoid assembly (P3, lines 1-9) fall short and should either be described in full or the reader referred to recent appropriate reviews of literature (Barrett et al., 2021; Wunder et al., 2020; Meyer, Goudet and Griffiths, 2020). Specific recent literature missing from the introduction and directly applicable to the study include Meyer et al., 2020, Sci. Adv. and Fei et al., 2021, bioRxiv. A better introduction to the current understanding of CCM/pyrenoid induction in Chlamydomonas could also be provided (see Fukuzawa et al., 2001, PNAS; Mitchell et al., 2014, Plant Physiology; Fang et al., 2012, Plant Cell). For the discussion, the authors should consider the physiological implications of an ROS-based signal for pyrenoid induction. The authors should also consider integrating recent literature on CCM induction upon limiting CO2 (Blifernez-Klassen et al., 2021, The Plant Cell) in Chlamydomonas, and how this hyperoxia response may fit into this network.

To ease comprehension for readers, and related to the above, it would be hugely beneficial for the authors to schematically summarise the findings of the study in the context of what is already known about pyrenoid-induced states in differing nutrient states.

Reviewer #4 (Recommendations for the authors):

These are comments in addition to observations and concerns expressed in my public review. The following comments and suggestions are meant to help enhance clarity, and even though I have proposed additional experimental work, I like to re-iterate that most of the experiments would exceed the scope of this work. It may be worthwhile though to use them as discussion points.

The two key findings, hypoxia induced pyrenoid formation and H2O2 signalling are very well demonstrated and represent exciting new insight into pyrenoid function. The manuscript addresses many interesting details but leaves also certain observation a little unexplained and confusing.

Since pyrenoid function is central to this research, the introduction would prepare the reader better if pyrenoid structure and function, as known mostly from studies of the CCM, was described in detail. Likewise, an overview of H2O2 signalling and ROS signalling, particularly in Chlamydomonas, would add helpful background information. In this context, a more detailed review of the CCM and pyrenoid structure and function in particular would help in particular to follow the rationale and conclusions of the physiological analyses presented.

I suggest to modify the hypotheses and leave out reference to identifying genetic loci since gene identification is not part of the work presented.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The Induction of Pyrenoid Synthesis by Hyperoxia and its Implications for the Natural Diversity of Photosynthetic Responses in Chlamydomonas" for further consideration by eLife. Your revised article has been evaluated by Jürgen Kleine-Vehn (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1) Overall, the text has improved, but reviewer 5 found some changes that should be made to the final version to improve clarity and concision of the title and text.

2) The figures are also improved, but will still benefit from more consistent and careful preparation. The third reviewer makes some excellent suggestions in the last paragraph of their review, particularly regarding image cropping and arrangement; the choice of images (inconsistent planes of section in TEM and inconsistent white balancing in light microscopy); lettering size, position, and font; scale bar size and position; the use and appearance of statistics; and the use of different colours across different figures.

Reviewer #1 (Recommendations for the authors):

My comments have been satisfactorily addressed in this revision. The manuscript is now much easier to follow. Combining the EM panels into one Figure 2 is especially helpful.

Reviewer #4 (Recommendations for the authors):

In my view, the authors have addressed all of the previous reviewer's points very satisfactorily.

The manuscript has been greatly improved with respect to data presentation. Additions to the introduction and discussion make the manuscript very easily accessible to expert and more general audiences.

I compliment the authors on their novel and, after revision, elegantly presented and impressive work.

Reviewer #5 (Recommendations for the authors):

The finding that hyperoxia, possibly through the signalling compound H2O2, can elicit a low-CO2 type acclimation in Chlamydomonas, even in the presence of large excess of CO2 concentrations is, truly, a remarkable result. It forces the CO2-concentrating mechanism community to reconsider part of the prevailing paradigm (consider O2/CO2 ratio rather than just CO2). It also opens exciting research avenues to identify the elicitors and signalling pathway related to CO2 (or O2/CO2) sensing. I have little doubts that this manuscript can attract a high citation. It is also timely as H2O2 sensors for Chlamydomonas have now been developed, which will help further test the H2O2 hypothesis (doi:10.1093/plcell/koab176).

The authors have made an excellent effort at improving the manuscript and data presentation, but I feel there is still room for improving both text and figures. Here are a number of suggestions the authors may want to consider, but also some questions which were not raised by previous reviewers.

Figures

Figure 1.A: Is this the best, unbiased way to normalize the data? It is not clear from Material and Methods and figure caption whether the data normalized the Rubisco concentration. Do CC-1009 and CC-2343 (who differ five-fold in terms of chlorophyll concentration) accumulate similar or different amounts of the CO2-fixing enzyme? The text suggests for Figure 19 in SI that total fluorescence signal is an acceptable proxy for Rubisco concentration. It isn't. See also comment on Figure 6.

Figure 1.B: The initial/final data is redundant and could be in SI. Why not plot the activity on the same graph (as a floating dot or something more elegant), using a second-Y scale?

Figure 4: are four rather than a single representative image really needed for a main figure? You have a neat median section for all four. A, top left; B, top right; C, bottom right; D, top left. These would be sufficient and help focus attention.

Figure 6: the use of the Chlamydomonas Culture Collection strain #5357 (RbcS1-Venus mt-) is a judicious choice but comes with limitations. Firstly, the parent strain is genetically different from CC-1009 and CC-2343, and no data is shown on its capacity to handle the high concentrations of H2O2 used in the experiment. Secondly, the tagged variant is co-expressed (under a strong promoter) with the native, untagged Rubisco (and therefore cannot serve as a quantification proxy). It is unclear whether the H2O2 treatment might affect stability of the tagged protein. Thirdly, and maybe more importantly, I would be good to augment the Supplementary Data Set with the Confocal Settings. The raw data on Github suggests that control ('Minus') signal is oversaturated, compared to the H2O2 treated cells. The laser intensity and signal collection settings should be the same for the two treatments. Also, images of the channel showing chlorophyll-autofluorescence should be shown (if available). It is difficult to gage from the images whether the treated cells are still alive. The bloated cells probably have lost their intracellular structures, except the pyrenoid who will resist proteolysis for a while should be excluded from the calculation (cells #1 and #3 for Plus^-1; cell #1 for Plus-2). This would address any concerns that the near fourfold difference shown in Figure 6.C is not biased by imaging artefacts. Lastly, the bar char (Figure 6.C) would benefit from a more meaningful Y-scale, e.g. fraction of fluorescence signal outside the pyrenoid.

Figure 7 and L711-713: This data makes more sense if presented in the context of optimizing experimental conditions, building up to experiment in Figure 6, rather than on its own. Why not move this to supporting information? I would also err on the side of caution before stating "this is the first study, to our knowledge, to show that the most complete degree of rubisco delocalization occurs when an alga(e) is grown on a TAP agar plate exposed to air, rather than aquatically in liquid TAP". The phenomenon is well known to anyone who has worked with Chlamydomonas and looked under a microscope. There are probably numerous earlier publications that used EM, where the pyrenoid is either not visible or massively reduced. I understand the authors' desire to maximize priority on any data, but this data is not relevant to the overall narrative. It distracts from the highly original and remarkable findings of your main work.

Title

"Induction of Pyrenoid Synthesis", is rather broad and does not really capture the essence of your paper. In your rebuttal, you state "Because the main point of the paper is that hyperoxia and hydrogen peroxide induce starch sheath formation, we focused on measurements of the starch sheath." There are numerous instances of "pyrenoid induction" in the text, but the dynamics or Rubisco relocation or starch deposition are not really investigated. Let alone the tubules around which the matrix/starch sheath form. Why not consider a positive statement, for example: "Chlamydomonas grown in hyperoxia and elevated CO2 has a pyrenoid: Implications for the natural diversity of photosynthetic acclimation".

Material and methods, Experimental design

Algal growth conditions: 2000 micromols m-2 s^-1 is 20x more than what Spreitzer and Mets (1981) used to assay light sensitive mutants, namely 2000 and 4000 Lux (cited in L322). Maybe add a note justifying such high intensities, to show that this was not a double stress experiment.

Experimental design (see also comment on Figure 1, above): in the opening sentence of results (L322-327), you explain the rational for choosing CC-1009 and CC-2343. It is, however, unclear to a non-specialist how wildtype like CC-1009 is, relative to (for example) the reference strain used for the genome or the widely used CLiP mutant library. Is CC-1009 particularly good at handling hyperoxia or is just as good as any of the WT used by the Chlamydomonas community?

https://doi.org/10.7554/eLife.67565.sa1

Author response

Essential revisions:

1) All reviewers agree that the presentation of the manuscript should be dramatically revised to improve readability. Generally, figures should be consistently organized, single panel figures should be combined into meaningful multipaneled figures, and the text should be refined. Please see specific suggestions made by each reviewer (particularly Reviewer #4) for detailed guidance.

Thank you for this suggestion. We felt that Reviewer 1 also made a very a constructive criticism, pointing out how the “homogeneity of the different TEM figures (and their legends) makes it challenging to follow the manuscript. In response, we have decided to combine the TEM images into one, as was suggested, more easily understandable and meaningful “multipaneled figure.”

2) Currently, the pyrenoid formation phenotypes under different conditions are descriptive and should be supported by quantification of multiple cells. Please add quantification of TEM images and appropriate statistical analyses. Additionally, please add further quantitative analysis of the Venus-RuBisCO line under additional conditions (see comments from Reviewer #1).

We have quantified the differences observed in the TEM images of the cells in our experiments related to H2O2’s induction of the pyrenoid using Image J. Because the main point of the paper is that hyperoxia and hydrogen peroxide induce starch sheath formation, we focused on measurements of the starch sheath.

The quantification indicates that hyperoxia and H2O2 induce increased pyrenoid formation and strengthens our conclusion that the signal for pyrenoid formation is not merely low CO₂ (Figure 5). This result is also consistent with other data in the paper indicating that H2O2 raises the oxygen compensation point CC-1009 and CC-2343 (Figure 10), and decreases the CO₂ compensation points (see Appendix 1 – Figure 22).

All of the strains showed some induction of the pyrenoid under hyperoxia, but there were significant differences between the strains in the degree to which they were “porous” or “sealed.” To quantify this attribute, we measured a parameter we term “percent exposure” that measures the percentage of the projected pyrenoid surfaces that were not enclosed by (in contact with) visible starch sheath. The quantification (See Appendix 1 Figure 6) confirms the qualitatively visible phenotype that the percentage of exposure was much higher in the sensitive lines, CC-2343 and progenies c1_3 and C1_4. We also provided at least 20 additional images for each strain, in addition to the ones provided in previous version and transparent reporting (See Voluntary Reporting Image Set 12).

Also, we have also now used the fluorescent labeled rubisco strain to compare the amount of rubisco in the pyrenoid when cells are grown under high CO₂, hyperoxia, and low CO₂. We found clear evidence that, even when sparged with saturating CO₂, hyperoxia increased the rubisco content of the pyrenoids (Appendix 1-Figure 19), which has previously been associated with the formation of functional CCM in the pyrenoid (Freeman Rosenzweig et al., 2017; Mitchell et al., 2014).

3) The finding that pyrenoid formation can be induced by hydrogen peroxide is exciting, but it remains unresolved whether CCM is also induced under these conditions, or whether, as Reviewer 1 suggests, the pyrenoid and starch sheath might act to exclude O2. This important question could be addressed by assessing the induction of CCM by measuring affinity for Ci under different conditions and for the different genotypes. If these experiments are not conducted, please revise the discussion to include the distinction between the induction of pyrenoid structure, which has been thoroughly studied in this work, and the induction of CCM, which has not yet been addressed by the experiments presented here.

Thank you for this excellent suggestion. We note that, because of the interconversion of CO₂ and HCO₃^-, the Ci compensation point could include contributions from both forms. Thus, the experiments were not trivial to perform, but we felt that the point was interesting and thus, we developed a method to estimate the degree to which the Ci in the medium is depleted by the combination of photosynthesis, photorespiration and respiration. We found that H2O2 induced a decrease in Ci compensation to levels similar to those achieved by low CO₂. As controls we used both cells grown at low light and high CO₂ and a mutant (cia5) that lacks functional CCM, both of which showed higher Ci compensation points. These results are included in the revised manuscript as Appendix 1-Figure 22.

4) Reviewer #3 made some excellent suggestions about using published datasets to generate hypotheses about the genetic basis of the responses documented in this paper. These analyses are not strictly necessary as part of a revised manuscript but are very constructive and pragmatic.

We appreciate the suggestion. We are pursuing this type of approach in a separate manuscript for two reasons: (1) We found that conditions of the published works were sufficiently different to make direct comparisons difficult. For example, some were taken in TAP-grown cells where CCM is probably not induced. (2) We have produced and obtained sequence data for the parents and the progeny as well as RNAseq results, but these go far beyond the scope of the current paper.

Reviewer #1 (Recommendations for the authors):

Presentation: The homogeneity of the different TEM Figures (and their legends) made it challenging to follow the manuscript. In every Figure it required some effort to find the specific growth conditions employed in the legend, and to independently interpret the implications. The first suggestion would be to ensure the Lead sentence of the Legend summarizes the main interpretation/finding communicated by the Figure. In addition, it would help greatly if every Figure (and Supplementary Figure) showing TEM or light microscopy images of cells were supplemented with a standardized visual legend (possibly including some schematic cues) that clearly allowed rapid assessment of the growth conditions used (light, minimal media, hyperoxia, high CO2 etc..).

We thank the reviewer to the comment. We have condensed the TEM figures accordingly into one figure (Figure 2) in the main text to clarify the presentation.

Points for improvement:

Clearly the findings shown leave many questions unaddressed, as is to be expected for a significant novel discovery. There is a key question that I am surprised was not addressed however. The induction of the CO2 concentrating mechanism is generally assessed by measuring the photosynthetic affinity for Ci. High CO2 acclimated cells have a much lower affinity than CCM induced cells. Since the work only addresses the pyrenoid, it would be extremely informative to understand whether the cells acclimated to hyperoxia (or H2O2) and 5% CO2 now also possess a high affinity for Ci. If not, it could support the notion that the pyrenoid and starch sheath here then really acts to exclude O2, rather than forming part of a powered CCM. It would also have profound energetic implications.

We thank the reviewer for this suggestion. We have found that cells treated with H2O2 indeed, even in the presence of high bicarbonate (5mM) possess a high affinity for Ci (see Appendix 1 – Figure 22). Please see our reply to Editor’s point #3.

The introduction of the strain expressing fluorescently labelled Rubisco is critical to the manuscript. It provides powerful data, as shown in Figure 11b for instance, that pyrenoid formation (or Rubisco localization) is highly homogenous among large numbers of cells. This is in contrast to the majority of pyrenoid data in the manuscript that largely relies on representative images, and does not easily permit generation of quantitative data regarding pyrenoid formation. So it is somewhat surprising that this strain was not utilized a bit more extensively to generate quantitative data regarding the effect of the H2O2, hyperoxia, the speed of the response etc. (rather than the 6h and 31h timepoints that are shown now).

If such data exists, well-presented inclusion would greatly enhance the manuscript.

We agree and have added new data about how hyperoxia effects the rubisco content of the pyrenoid (Appendix 1 – Figure 19). While using the fluorescently labeled strain to measure the speed of the response via confocal microscopy is interesting, it would not directly impact our conclusions that high oxygen (even in the presence of high CO₂) will lead to an increase in size and rubisco content of the pyrenoid, much the same as low CO₂.

Detailed points:

1. P.13L16 – here it is stated that the conditions are not hyperoxia, but the Legend to Figure 6 (p.15) states sparging with 95%O2. I assume this is a mistake? Or does this refer to the different types of sparging? This needs to be much clearer for every Figure as pointed out above.

We thank the reviewer for catching this error. We have now corrected and condensed the figure so that this should no longer be an issue.

2. P14 Figure 5 legend – specify 5% CO2 in air.

We have made this change. Figure Caption now reads:

Appendix 1-Figure 9: Representative TEM images of Chlamydomonas strains, the parents (CC-1009 and CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4, having been sparged with CO₂ for 30 seconds every hour during the night. Cells had been grown in steady state conditions, with 5% CO₂ in air with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^-2 s^-1, in minimal 2NBH media. Cells here were fixed two hours after dawn, at 7:00 am, when light levels were 825 μmoles m^-2 s^-1. Pyrenoids appeared absent or mostly unsheathed in these conditions. Scale bar = 2 μm.

Please note this figure is being moved to Appendix 1.

3. P18: Here additional chemicals are utilized that induce internal H2O2. In addition, H2O2 scavengers are shown to prevent pyrenoid formation. The readout is the representative light microscopy images, where pyrenoid starch can be discerned. Were these experiments also performed for the fluorescent Rubisco strain? This would strengthen the data and the conclusions.

We thank the reviewer for the interesting suggestion and we had performed some experiments using methyl viologen and metronidazole using the confocal microscope. The initial results looked promising, and consistent with the induction of pyrenoid by H2O2 produced in the presence of these chemicals. However, we found that exposure to the confocal laser induced severe damage to cells treated with these chemicals, most likely because they produce large amounts of ROS production during illumination with the confocal laser. We thus concluded that such results would be difficult to interpret. However, we also now included in the paper an examination of how oxygen, even in the presence of high CO₂, increased rubisco content of the pyrenoid. We found that, indeed, it did, and feel that this demonstrates that a signal apart from low CO₂ can influence pyrenoid formation (Appendix 1 – Figure 19).

4. P22: Figure 11 (and 13)- the scale bars are invisible in these panels

We have enlarged the scale bars for these images. We have also changed the color of the image so that it yellow, to reflect that we are showing YFP.

5. P23: Figure 12 – why are there units on the y axis, if what is shown is normalized values?

We agree, and have deleted the units. Thank you for catching this.

6. P25: On this page especially it is very noticeable in many instances that numbers are being reported to meaningless significant figures. E.g. what does 104.28 μm O2 min-1 mean? Does your instrument permit this type of accuracy? Do your replicates suggest that the numbers after the decimal point have any scientific meaning? Reasonable numbers of significant figures should be reported in the text to enhance readability. Numbers in biology by Ron Milo (available online) provides good guidance.

We agree and have truncated the reported numbers to reasonable significant digits.

7. P27L17 – Kim and Portis 2004 relates to H2O2 production by Rubisco directly (misfire product of oxygenation). Oxidation of glycolate during photorespiration in the peroxisome is a separate issue. This is currently not clear in the description.

This is an excellent point. We have corrected the sentence to read

“…signal molecule (Foyer et al., 2009) and its production is increased under high light (Roach et al., 2015), high O₂ as a misfired product of oxygenation (Kim and Portis, 2004) or low CO₂ (Foyer et al., 2009). H2O2 is a product of the light reactions, through an alternative electron acceptor pathway such as the Mehler peroxidase reaction (MPR) or the water-water cycle, which is expected to be more active under conditions when light input exceeds the capacity of assimilation (Badger et al., 2000; Mehler, 1951; Strizh, 2008). H2O2 can also be produced as a by-product of photorespiration (Janssen et al., 2014).”

We also made a correction in the introduction, where we cite the Kim and Portis (2004) as follows:

“Oxygenation of rubisco can also result in the formation of rubisco inhibitors (Kim and Portis, 2004)” Instead of our previous statement that “This intermediate of photorespiration can also act as inhibitors of Rubisco” (Kim and Portis 2004).

8. P41: Supplementary Material Table 2: If immunoblotting is maintained in the manuscript, then these antibodies need to be correctly described here with catalogue number etc.

Based on the reviewer’s suggestion (below), the figure is not needed and was thus removed.

9. Regarding Supplementary Figure 4: At this point the immunoblot finding does not really play a role in the manuscript/ negative finding. I understand here an unusual capillary method is utilized, it is very difficult to understand the outcome, and validity of the experiment. I can see the authors have utilized the method previously in Du Plant Cell 2018. At this point I would advise removing this data, or carefully presenting it, permitting it to be critically scrutinized (e.g. is it possible to assess equal loading- Ponceau equivalent etc..). There is great variability shown – is there any meaning?

The meaning of the figure was just to show that, from what we could discern, no protein segregated in a 2:2 manner like the pyrenoid morphology. However, based on the reviewer’s suggestion, we have decided to remove the figure from the manuscript.

10. On a related note, there are a number of proteins known to change in abundance when the CCM is induced. Were any of these probed (e.g. LCIB,C)? These could have potentially given more insights?

We did not, but we are looking into probing these in a future study.

11. P51: Legend: how many micrographs were analyzed here for the morphometric analysis?

Details are presented in the legend. Approximately 30 cells were analyzed.

12. P55: Legend: greatly elaborate here what the specific conditions were. Maybe mention that this experiment is to explain/is consistent with the finding of Blaby et al. 2015 (no CCM induction on TAP medium..) (also in the text on page 20, at the moment the rationale of this experiment is not quite clear until we get to the discussion)

We have elaborated on methods and details in the Figure caption. The text now reads:

“Appendix 1 – Figure 20: Confocal microscopy of liquid TAP grown CC-5357, which has a Venus labeled RBCS1, treated without (Panel A) and with H2O2 (Panel B), showing no change in localization of rubisco. Cultures were harvested from photobioreactors in the morning (two hours after the start of illumination) and diluted by half with fresh TAP media – without (control) or with addition of 100 μM of H2O2. After ten hours in low light (~85 μmol photons m^-2 s^-1), cells were then viewed with the confocal.”

We have also added a line in the results, to better describe the system:

“By contrast, no significant changes in rubisco localization were observed when upon addition of 100 μM H2O2 to TAP-grown cells (Appendix 1-Figure 20), the media used in another study testing the effects of hydrogen peroxide on Chlamydomonas (Blaby et al., 2015), implying that the effect was dependent on the photosynthetic state of the cells and/or suppressed in the presence of this organic carbon source.”

Reviewer #3 (Recommendations for the authors):

The manuscript presents exciting novel insights into the induction of the pyrenoid in Chlamydomonas and goes some way to probe a mechanistic explanation for this. Whilst a good job of probing the cellular response to hyperoxia is done, a genetic basis for these cellular changes is the obvious omittance that needs addressing to strengthen the manuscript. The recommendations below pertaining to this point are not necessarily requirements, but suggestions that the authors could further explore to try and identify the underlying genetic cause of the pyrenoid response to H2O2. Other recommendations refer to specific points of the existing methodologies that could be improved.

Suggestions for highlighting the genetic basis for pyrenoid response to hyperoxia:

Genomic analysis:

– Using data from the cited Jang and Ehrenreich 2012 paper, a genomic comparison between the strains used in the study could be completed to identify genetic candidates for that underpin the differences in strain response.

– If candidate genetic variants are found, simple comparisons between isolates with analogous genetic variations could provide a satisfactory starting point for the genetic explanation for the observed phenotypes.

As we discussed above, we now have genomic sequences for the parent and progeny lines, but give the large numbers of polymorphisms, it will be difficult to identify the causative loci at this stage. Thus, while we completely agree that this is a worthwhile pursuit, it is beyond the scope of the current paper.

Transcriptomic analysis:

– Transcriptomic comparison between strains upon H2O2 exposure or hyperoxia could give considerable insights into the underlying mechanism and also allow a time-course analysis of the induction process.

This is an interesting suggestion and are pursuing this type of approach in a separate work, as discussed in the response to the Editors’ comments.

– A more targeted transcriptomic approach, following identification of candidate genes/pathways by other means (or based on your suggested pathways) could also provide satisfactory genetic evidence.

We agree that these are worthwhile research goals, but feel they are beyond the scope of this paper. We are working on it for a future study.

Mutant analysis:

– Phenotypic analysis of mutants in appropriate pathways (H202 production etc.) that show perturbed pyrenoid induction would provide convincing genetic evidence.

While we agree that such work would be interesting, we feel it is best reserved for a future study. The mutants that we know of that have altered hydrogen peroxide/ROS can be very challenging to grow in media outside of TAP and the mutations likely have pleiotropic effects, and it is not clear to us how we would unambiguously attribute particular effect to H2O2 production in these mutants.

– Analysis of the huge dataset from Vilarrasa-Blasi et al., 2020 (BioRxiv), where pooled mutant collections were exposed to a wide range of chemical/growth conditions including H2O2, should allow identification of strong candidate genes in this process that could be further investigated.

Thank you for the suggestion, and we agree that this will be of interest for future directions.

Other general points:

Overall, the presentation of data in figures could be greatly improved.

– Several figures could be combined: Figures 1/2 can be combined and panelled, and should include non-treated cells as an introduction to the 'steady-state' morphology of these cells.

We agree and have combined Figures 1 and 2 also with Figures 6 and 7.

– Some figures should be swapped between the main text and supplementary information: Figures S3 and S11 should be incorporated in main text. Figure 4 should be moved to the supplementary information.

We have added Figure S3 to the main text now. Figure S11 has been replaced with our Image J analysis bar graph. Figure 4 has been moved to the supplementary information (now called Appendix 1).

– Some figures are unclear: The methodology and labelling of S4 is unclear to the reader.

We have removed this figure from the paper, in response to reviewer #1.

Figure 10C labelling consistency with other figures.

We have revised the labeling of the axis in the bar graph. We hope this makes the figure clearer.

Light microscopy in figure S15 and S21 shows contrary evidence to in-text work.

The point that the experiment was done in the dark, in order to demonstrate a light dependence of pyrenoid formation even with hydrogen peroxide. We have now clarified this in the text to avoid confusion.

“We found that in autotrophically-grown cells, exogenous addition of H2O2 in the presence of light strongly induced within approximately 6 hours the formation pyrenoid starch sheaths (Figure 4; Figure 5; Appendix 1- Figures 23), and caused rubisco to localize into the pyrenoid (Figure 6). The H2O2 did not induce the pyrenoid when the cells were kept in the dark (Appendix 1-Figure 24).”

Currently only light microscopy is used to assess pyrenoid phenotypes in a few instances, particularly where compound treatments are concerned. TEM images, and/or morphometric quantification of treatments potentially alongside quantification of pyrenoid localisation by confocal microscopy should be employed to thoroughly address the claims made in the text (pertaining to figures S12/13/14/15).

We have now included quantification of the TEM images related to the effects of hydrogen peroxide on the pyrenoid (See Figure 5) and the differences in pyrenoid starch sheaths of the parents and progeny after being exposed to hyperoxia (Appendix 1-Figure 6). With regard to rubisco localization, see response to reviewer 1 with regard to the use of the inhibitors:

We did quantify the differences in rubisco amount in response to oxygen in Appendix 1-Figure 19 (see Panel D).

The sporadic reuse of re-cropped images of the same cells (in figure S12/13), imaging of small cells (S14/15) and contradictory images (S15) should be addressed if these figures are kept also.

We have fixed S12/13 (now Appendix 1-Figure 13; Appendix 1-Figure 14), and with regard to the use of small cells (i.e. Appendix 1-Figure 15), the image we assume is referred to is included because it shows many cells, none of which show a pyrenoid. The microscope image includes a scale bar, and the cells are not particularly small (as indicated when comparing the scale bar to the other images). What is just clear from this image of many cells is that none have apparent starch sheaths. Like all of our images, the raw file of this image is available (See Ascorbate2.tif in images for Appendix 1-Figure 15).

We are unsure what is contradictory about the image in S15 (what is now Appendix 1_Figure 16). The control cells do have apparent starch sheaths, while those treated with dimethylthiourea do not.

The authors could provide a better framing for the work in the place of significant recent literature in both the introduction and discussion. The introduction to the molecular details of pyrenoid assembly (P3, lines 1-9) fall short and should either be described in full or the reader referred to recent appropriate reviews of literature (Barrett et al., 2021; Wunder et al., 2020; Meyer, Goudet and Griffiths, 2020). Specific recent literature missing from the introduction and directly applicable to the study include Meyer et al., 2020, Sci. Adv. and Fei et al., 2021, bioRxiv. A better introduction to the current understanding of CCM/pyrenoid induction in Chlamydomonas could also be provided (see Fukuzawa et al., 2001, PNAS; Mitchell et al., 2014, Plant Physiology; Fang et al., 2012, Plant Cell). For the discussion, the authors should consider the physiological implications of an ROS-based signal for pyrenoid induction. The authors should also consider integrating recent literature on CCM induction upon limiting CO2 (Blifernez-Klassen et al., 2021, The Plant Cell) in Chlamydomonas, and how this hyperoxia response may fit into this network.

Thank you for recommending these stimulating articles:

The introduction now reads:

“The expression and function of green algal CCMs in eukaryotic algae is highly regulated; cells grown on or below air levels of CO₂ (0.04%) develop active CCMs (Aizawa and Miyachi, 1986; Badger et al., 1980), whereas those grown with high CO₂ levels lack them, and thus show low apparent affinities for CO₂. [….] Although, it has recently been found that pyrenoid proteins share a sequence motif that is necessary to target proteins to the pyrenoid and binds to rubisco (Meyer et al., 2020b).”

And in the discussion, we now write:

“In this regard, it is intriguing that ROS labeling under hyperoxia was strongly localized in CC-1009 but not CC-2342 (Figure 13), hinting that H2O2 produced in a specific subcellular location and process may play a role in the differential development of the pyrenoid in the two parent lines, as discussed below. Taken together, these data sets are consistent with control of pyrenoid morphology at multiple levels, perhaps similar to the processes that regulate the expression of LHCSR3, involved in photoprotective nonphotochemical quenching, which is regulated by light quality and CO₂ availability (Maruyama et al., 2014; Semchonok et al., 2017). Future studies can also investigate how hyperoxia plays a role in the gene regulatory network for antennae size, which has been shown to be affected by low CO₂ (Blifernez-Klassen et al., 2021).”

To ease comprehension for readers, and related to the above, it would be hugely beneficial for the authors to schematically summarise the findings of the study in the context of what is already known about pyrenoid-induced states in differing nutrient states.

We now include a summary with bulleted points describing what is already known about pyrenoid-induced states under different conditions, with reference how our work fits in with it. This can be found in Appendix 2.

Reviewer #4 (Recommendations for the authors):

These are comments in addition to observations and concerns expressed in my public review. The following comments and suggestions are meant to help enhance clarity, and even though I have proposed additional experimental work, I like to re-iterate that most of the experiments would exceed the scope of this work. It may be worthwhile though to use them as discussion points.

We thank the reviewer for the suggestion, and for the comment about exceeding the scope of this work. We are pursuing many of them for future studies.

The two key findings, hypoxia induced pyrenoid formation and H2O2 signalling are very well demonstrated and represent exciting new insight into pyrenoid function. The manuscript addresses many interesting details but leaves also certain observation a little unexplained and confusing.

Since pyrenoid function is central to this research, the introduction would prepare the reader better if pyrenoid structure and function, as known mostly from studies of the CCM, was described in detail. Likewise, an overview of H2O2 signalling and ROS signalling, particularly in Chlamydomonas, would add helpful background information. In this context, a more detailed review of the CCM and pyrenoid structure and function in particular would help in particular to follow the rationale and conclusions of the physiological analyses presented.

We have now added a more detailed review of the CCM and pyrenoid structure in the introduction, as also discussed in our response to Reviewer 3.

I suggest to modify the hypotheses and leave out reference to identifying genetic loci since gene identification is not part of the work presented.

We have modified the hypothesis to remove references to identifying the genetic loci.

“In order to address these hypotheses, we examined two natural isolates of Chlamydomonas with varying tolerances to hyperoxia, and their progeny, with the goal of better understanding the physiological mechanisms that underly responses to hyperoxa. Understanding such traits can give insights into the mechanisms and tradeoffs of adaptations for specific environmental niches. By extension, such traits and tradeoffs have strong relevance to applications ranging from algae cultivation to bioengineering crops for increase productivity (Long et al., 2015).”

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed, as outlined below:

1) Overall, the text has improved, but reviewer 5 found some changes that should be made to the final version to improve clarity and concision of the title and text.

2) The figures are also improved, but will still benefit from more consistent and careful preparation. The third reviewer makes some excellent suggestions in the last paragraph of their review, particularly regarding image cropping and arrangement; the choice of images (inconsistent planes of section in TEM and inconsistent white balancing in light microscopy); lettering size, position, and font; scale bar size and position; the use and appearance of statistics; and the use of different colours across different figures.

Reviewer #5 (Recommendations for the authors):

The finding that hyperoxia, possibly through the signalling compound H2O2, can elicit a low-CO2 type acclimation in Chlamydomonas, even in the presence of large excess of CO2 concentrations is, truly, a remarkable result. It forces the CO2-concentrating mechanism community to reconsider part of the prevailing paradigm (consider O2/CO2 ratio rather than just CO2). It also opens exciting research avenues to identify the elicitors and signalling pathway related to CO2 (or O2/CO2) sensing. I have little doubts that this manuscript can attract a high citation. It is also timely as H2O2 sensors for Chlamydomonas have now been developed, which will help further test the H2O2 hypothesis (doi:10.1093/plcell/koab176).

The authors have made an excellent effort at improving the manuscript and data presentation, but I feel there is still room for improving both text and figures. Here are a number of suggestions the authors may want to consider, but also some questions which were not raised by previous reviewers.

Figures

Figure 1.A: Is this the best, unbiased way to normalize the data? It is not clear from Material and Methods and figure caption whether the data normalized the Rubisco concentration. Do CC-1009 and CC-2343 (who differ five-fold in terms of chlorophyll concentration) accumulate similar or different amounts of the CO2-fixing enzyme?

It is important to note that our main goal was to assess if the rates of carbon fixation were determined by the fraction activation of rubisco. This was expressed as the ratio of activities of as-isolated and fully activated forms of rubisco. This value will be unitless (self-normalized fraction) and will not depend on the procedure used to normalized the activities, because the units cancel out.

Nevertheless, we are grateful that the reviewer took the time to think about the method of normalization, which we agree is important for interpreting the total activity of rubisco. In this regard, we are comfortable with the normalization by chlorophyll and note that renormalizing to other parameters will not substantially affect the interpretation, as detailed in the following:

The differences in chlorophyll contents of the cultures were also quite similar, e.g. we found that CC-2343 had only about 17% higher chlorophyll than CC-1009 (see, e.g., measurement at 31 hours).

1. As we state in the methods, our assay was based on an established protocol for plants (Li et al., 2019; Roeske and Oleary 1985; Sharkey et al., 1986), with the slight adjustments to make the protocol suitable specific for Chlamydomonas. In plants, the normalization is usually done according to leaf area (Li et al., 2019). This makes sense because the larger the leaf, the more light it can intercept, and light (the ultimate substrate) is expressed in units of moles photons per second per area.

2. The photobioreactors differ from leaves in three important respects:

a. The exposed area was determined by the geometry of the photobioreactor and was thus constant between samples;

b. Light intensities were set to be equal between the samples;

c. The turbidostat function of the photobioreactor held the cells at approximately the same densities. The biomass density (g per unit volume) in the cultures were measured over time and were nearly identical (not significantly different) between the genotypes, with no significant difference between cultures at day 1 (31 hours hyperoxia). For transparency, we show biomass measurements (ash free dry weight) for CC1009 and CC2343 across our hyperoxia treatment. Note that the turbidostat will maintain approximately the same cell density even when growth rates differ.

Author response image 1

Download asset Open asset

Variations in biomass (ash free dry weight) measured in turbidostat cultures in ePBR units.

Overall, we note that changing the normalization to exposed area, or total biomass would not alter the overall interpretation, i.e., that “although we cannot ascribe the differences in photosynthetic phenotypes solely to rubisco deactivation, these results do suggest that the CO₂/O₂ concentrations or metabolic environments near rubisco are different under hyperoxia in the two lines”.

The text suggests for Figure 19 in SI that total fluorescence signal is an acceptable proxy for Rubisco concentration. It isn't. See also comment on Figure 6.

We appreciate the point and agree that the total fluorescence is not a quantitative indicator of rubisco concentration, but that the results are qualitatively consistent with our interpretation. Also, though the increase in rubisco content may not be due to increase in mRNA, there remains post translational mechanisms that could be at play. We clarified this in the text by changing this section:

“Most importantly, we found very clear evidence that even when sparged with saturating CO₂, hyperoxia increased the rubisco content of the pyrenoids (Appendix 1-Figure 19), asserting that there is some control of rubisco in the pyrenoid in response to oxygen.”.

To instead say:

“We also found evidence that even when sparged with saturating CO₂, hyperoxia may result in an apparent increase in the aggregation of rubisco in the pyrenoids (Appendix 1-Figure 19), indicating that oxygen has some control of this aggregation.”

We have also modified the figure caption accordingly:

“Appendix 1-Figure 19: Strain CC-5357, containing a RBCS1-Venus. All cells were grown with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmol m^-2 s^-1 PAR, in HS media. Cells were sparged for 60 seconds every 15 minutes with either 5% CO₂ (Panel A), 5% CO₂ and 95% Oxygen (Panel B), or ambient air (Panel C). The average fluorescence intensity of the localized Venus Fluorescent Protein-labeled rubisco within the pyrenoids of Chlamydomonas cells was measured using the Nikon A1 Confocal Laser Scanning Microscope. Because the tagged rubisco was expressed with a PsaD (Photosystem I reaction center subunit II) promoter, the fluorescent signal may not be a conclusive proxy for rubisco amount and cannot be attributed to transcriptional responses to hyperoxia. However, the results are consistent with the fluorescently-tagged rubisco accumulating to a greater extent in the pyrenoids of cells exposed to hyperoxia, similar to what has been observed when cell are exposed to low CO₂. Panel D shows the mean intensity of the Venus-tagged rubisco of the three treatments. Significant differences (P <.0001) were found between the High CO₂ and Hyperoxia; High CO₂ and Low CO₂ treatments. No difference was found between Hyperoxia and Low CO₂. Scale bar = 2 μm.”

Figure 1.B: The initial/final data is redundant and could be in SI. Why not plot the activity on the same graph (as a floating dot or something more elegant), using a second-Y scale?

We tried several ways to plot these results, but in the end determined that this was the least confusing, albeit perhaps less “elegant.” In response to the reviewer’s comment, we have moved this particular data to the SI.

Figure 4: are four rather than a single representative image really needed for a main figure? You have a neat median section for all four. A, top left; B, top right; C, bottom right; D, top left. These would be sufficient and help focus attention.

We thank the reviewer for suggesting that a single image would be sufficient. We attempted to rework this figure as suggested, but concluded that the single figure lost some of the details that we feel are important for understanding the consistencies and commonalities in the images. We thus prefer to keep the composite image.

Figure 6: the use of the Chlamydomonas Culture Collection strain #5357 (RbcS1-Venus mt-) is a judicious choice but comes with limitations. Firstly, the parent strain is genetically different from CC-1009 and CC-2343, and no data is shown on its capacity to handle the high concentrations of H2O2 used in the experiment. Secondly, the tagged variant is co-expressed (under a strong promoter) with the native, untagged Rubisco (and therefore cannot serve as a quantification proxy). It is unclear whether the H2O2 treatment might affect stability of the tagged protein. Thirdly, and maybe more importantly, I would be good to augment the Supplementary Data Set with the Confocal Settings. The raw data on Github suggests that control ('Minus') signal is oversaturated, compared to the H2O2 treated cells. The laser intensity and signal collection settings should be the same for the two treatments. Also, images of the channel showing chlorophyll-autofluorescence should be shown (if available). It is difficult to gage from the images whether the treated cells are still alive. The bloated cells probably have lost their intracellular structures, except the pyrenoid who will resist proteolysis for a while should be excluded from the calculation (cells #1 and #3 for Plus^-1; cell #1 for Plus-2). This would address any concerns that the near fourfold difference shown in Figure 6.C is not biased by imaging artefacts. Lastly, the bar char (Figure 6.C) would benefit from a more meaningful Y-scale, e.g. fraction of fluorescence signal outside the pyrenoid.

We do not believe that 100 μm of hydrogen peroxide is high, and previous studies (Blaby 2015) used as much as 1mM. More importantly, we show data indicating that CC-5357 grows well under these conditions, i.e., there is no indication that it is deleterious (SI Figure 22). Indeed, CC-5357 appears to have a greater capacity to take up CO₂ (a lower CO₂ compensation point) when treated with this hydrogen peroxide when compared to the non-treated sample. We also noticed when conducting our light microscopy of CC-5357 that the addition of 100 μm H2O2 did not appear to inhibit cell motility, though we do not present those results.

With regard to the confocal settings, we can assure the reviewer that we used the same confocal settings for both the H2O2 treated and non-treated cells (For the images acquired on Figure 6 on the Olympus FV1000, fluorescence was excited using 3% Argon gas laser intensity. Fluorescence emission was recorded through 530-630 nm band pass filter using a Photomultiplier detector with a high voltage 831). The reviewer is correct, though, in that there may be oversaturation in the images. It was partially because of the concern for oversaturation, though, that we repeated the procedure with the Nikon. The Nikon is MSU’s premier confocal instrument, with great sensitivity, and getting time on it is very difficult at the MSU’s Center for Advanced Microscopy, so we began with the Olympus. When we repeated the experiment and examined the cells with the Nikon, we got the similar results (see Appendix 1 – Figure 17). We have now also included the settings we used when we used the Nikon instrument in the figure caption Fluorescence was detected using 0.5% 514 nm diode laser intensity. Fluorescence emission was recorded through 565/70 nm band pass filter using a Gallium Arsenide Phosphide (GaASP) detector (High Voltage = 47, offset -7). Lastly, we repeated the test one more time on the Olympus and, again, observed similar results (See Transparent Reporting Figure 11). The settings we used for the images in Transparent Reporting Figure 11 were nearly the same as that what we used with Figure 6, we just raised the voltage from 831 to 850. We have added these settings to the figure caption for Transparent Reporting Figure 11. But to be clear, whenever we had a session with a confocal, we took images of both control and treated cells with the same settings!

We have redone Figure 6, as requested, excluding the bloated cells and improving the overall appearance of the figure with a box plot. The effect of hydrogen peroxide on the “fraction of fluorescence signal outside of the pyrenoid” was highly significant (P<.001), and we thank the reviewer for their suggestion.

Figure 7 and L711-713: This data makes more sense if presented in the context of optimizing experimental conditions, building up to experiment in Figure 6, rather than on its own. Why not move this to supporting information? I would also err on the side of caution before stating "this is the first study, to our knowledge, to show that the most complete degree of rubisco delocalization occurs when an alga(e) is grown on a TAP agar plate exposed to air, rather than aquatically in liquid TAP". The phenomenon is well known to anyone who has worked with Chlamydomonas and looked under a microscope. There are probably numerous earlier publications that used EM, where the pyrenoid is either not visible or massively reduced. I understand the authors' desire to maximize priority on any data, but this data is not relevant to the overall narrative. It distracts from the highly original and remarkable findings of your main work.

We find the statement that “the phenomenon is well known to anyone who has worked with Chlamydomonas and looked under a microscope,” both comforting (in that it offers some confirmation of our observations) and perplexing, because we have not been able to find a description of the phenomenon in the literature.

Please note that we found the lack of reports of this phenomenon surprising and made some effort to track down any previous references. Further, we already used caution in stating that “to our knowledge…” the phenomenon has not been reported.

We emphasize that the phenomenon--regardless of whether is it well known to anyone withing with Chlamydomonas (expect perhaps us!)—is both non-trivial and important for interpreting our and others’ results. Specifically, the observation is important to our study because it suggests that factors other than simply CO₂ levels control the pyrenoid and CCM. We would like to keep Figure 7 in the main part of the paper, because we do feel like it is important result.

Nevertheless, we have revised the text to remove the implied novelty of the observation, so that we now write,

“Also consistent with the cited previous work, low-light with mixotrophic conditions resulted in rubisco delocalization. We further show that the most complete degree of rubisco delocalization occurs when algae is grown on a TAP agar plate exposed to air, rather than aquatically in liquid TAP (Figure 7).”

Title

"Induction of Pyrenoid Synthesis", is rather broad and does not really capture the essence of your paper. In your rebuttal, you state "Because the main point of the paper is that hyperoxia and hydrogen peroxide induce starch sheath formation, we focused on measurements of the starch sheath." There are numerous instances of "pyrenoid induction" in the text, but the dynamics or Rubisco relocation or starch deposition are not really investigated. Let alone the tubules around which the matrix/starch sheath form. Why not consider a positive statement, for example: "Chlamydomonas grown in hyperoxia and elevated CO2 has a pyrenoid: Implications for the natural diversity of photosynthetic acclimation".

We will remove the word “synthesis” from the title based on the reviewers comments, but the word induction is necessary to convey that hyperoxia (and H2O2) induces the pyrenoid. We show that hyperoxia is condition where the pyrenoid forms and that H2O2 can also induce the pyrenoid, even under high CO₂. Based on the reviewer’s comments, we may change the comment to the following:

The Induction of a Pyrenoid by Hyperoxia: Implications for the Natural Diversity of Photosynthetic Responses in Chlamydomonas

Material and methods, Experimental design

Algal growth conditions: 2000 micromols m-2 s^-1 is 20x more than what Spreitzer and Mets (1981) used to assay light sensitive mutants, namely 2000 and 4000 Lux (cited in L322). Maybe add a note justifying such high intensities, to show that this was not a double stress experiment.

Very good point. We have added this: “Spreitzer and Mets (1981) found that rubisco activity-deficient mutants exhibited chlorotic phenotypes similar to those observed with CC-2343 under hyperoxia. We conjectured that rubisco inhibition may be playing a role in CC-2343’s intolerance to hyperoxia. To be clear, while Spreitzer and Mets (1981) were screening for mutants that were highly sensitive to even low light (~90 μmoles m^-2 s^-1 PAR), we grew our wild type strains of Chlamydomonas under hyperoxia with diurnal sinusoidal light with peak light intensities of 2000 μmoles m^-2 s^-1 PAR. We found that, when sparged with 5% CO₂, CC-1009 and CC-2343 grow very well at such light intensities.”

Experimental design (see also comment on Figure 1, above): in the opening sentence of results (L322-327), you explain the rational for choosing CC-1009 and CC-2343. It is, however, unclear to a non-specialist how wildtype like CC-1009 is, relative to (for example) the reference strain used for the genome or the widely used CLiP mutant library. Is CC-1009 particularly good at handling hyperoxia or is just as good as any of the WT used by the Chlamydomonas community?

Thank you for the point. We did test a number of strains for sensitivity to hyperoxia and cite the work of Hall (Ph.D. Thesis of former student in the Kramer lab) in our results.

This work is available online so it should be accessible. Another paper (Lucker et al.) describing these characteristics is under review, and we will cite it when accepted. We tested CC-1009 with several different non-lab strains (CC-1009 was chosen because it was closely related to the widely used lab strains).

Also, in the Methods we state that “Strain CC-1009 (mt-) is a wild type strain tracing back to the 1945 collection by G.M. Smith, collected from Amherst MA, but has been a separate line from the c137c (CC-124 and CC-125) and Sagar (CC-1690) since about 1950 (Pröschold et al., 2005).”

However, we did not clarify that c137 is the reference strain. Thus, we have modified the text as follows,

“Strain CC-1009 (mt-) is a wild type strain tracing back to the 1945 collection by G.M. Smith, collected from Amherst MA, but has been a separate line from the sequenced and widely regarded reference strain c137 (CC-124 and CC-125) and Sagar (CC-1690) since about 1950 (Pröschold et al., 2005).”

https://doi.org/10.7554/eLife.67565.sa2

Article and author information

Author details

Peter Neofotis

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Supervision, Visualization, Writing – original draft, Writing – review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-0360-9933
Joshua Temple
1. MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States
2. Department of Plant Biology, Michigan State University, East Lansing, United States
Contribution
Formal analysis, Investigation, Methodology, Validation, Resources, Visualization, Writing – original draft, Writing – review and editing

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0002-9295-1422
Oliver L Tessmer

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Data curation, Formal analysis, Validation, Visualization

Competing interests
No competing interests declared
Jacob Bibik

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Funding acquisition, Writing – review and editing

Competing interests
No competing interests declared
Nicole Norris

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Investigation

Competing interests
No competing interests declared
Eric Pollner

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Investigation, Writing – review and editing

Competing interests
No competing interests declared
Ben Lucker

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Methodology, Funding acquisition, Writing – review and editing

Competing interests
No competing interests declared
Sarathi M Weraduwage
1. MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States
2. Great Lakes Bioenergy Research Center, Michigan State University, East Lansing, United States
Contribution
Formal analysis, Investigation, Methodology, Writing – original draft, Writing – review and editing

Competing interests
No competing interests declared
Alecia Withrow

Center for Advanced Microscopy, Michigan State University, East Lansing, United States

Contribution
Visualization

Competing interests
No competing interests declared
Barbara Sears

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Investigation

Competing interests
No competing interests declared
Greg Mogos

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Investigation

Competing interests
No competing interests declared
Melinda Frame

Center for Advanced Microscopy, Michigan State University, East Lansing, United States

Contribution
Formal analysis, Visualization, Writing – original draft, Writing – review and editing

Competing interests
No competing interests declared
David Hall

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Investigation, Visualization, Writing – original draft, Writing – review and editing

Competing interests
No competing interests declared
Joseph Weissman

Corporate Strategic Research, ExxonMobil, Annandale, United States

Contribution
Project administration, Investigation, Methodology, Writing – review and editing

Competing interests
Joseph Weissman is affiliated with ExxonMobil. The author has no financial interests to declare
David M Kramer

MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, United States

Contribution
Conceptualization, Investigation, Software, Writing – original draft, Writing – review and editing

For correspondence
kramerd8@msu.edu

Competing interests
Reviewing editor, eLife

"This ORCID iD identifies the author of this article:" 0000-0003-2181-6888

Funding

U.S. Department of Energy (DE-FG02-91ER20021)

Peter Neofotis
Oliver L Tessmer
Jacob Bibik
Nicole Norris
Eric Pollner
Ben Lucker
Sarathi Wijetilleke
Alecia Withrow
Greg Mogos
David Hall
David M Kramer
Joshua Temple

ExxonMobil Research and Engineering Company

Peter Neofotis
Oliver L Tessmer
Jacob Bibik
Nicole Norris
Eric Pollner
Ben Lucker
Sarathi Wijetilleke
Alecia Withrow
Greg Mogos
Melinda Frame
Joseph Weissman
David M Kramer
Joshua Temple

AgBioResearch, Michigan State University

David M Kramer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Senior Editor

Jürgen Kleine-Vehn, University of Freiburg, Germany

Reviewing Editor

Heather E McFarlane, University of Toronto, Canada

Version history

Received: March 12, 2021
Accepted: November 13, 2021
Version of Record published: December 22, 2021 (version 1)

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

1,634

Page views
217

Downloads
9

Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Article PDF

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Peter Neofotis
Joshua Temple
Oliver L Tessmer
Jacob Bibik
Nicole Norris
Eric Pollner
Ben Lucker
Sarathi M Weraduwage
Alecia Withrow
Barbara Sears
Greg Mogos
Melinda Frame
David Hall
Joseph Weissman
David M Kramer

(2021)

The induction of pyrenoid synthesis by hyperoxia and its implications for the natural diversity of photosynthetic responses in Chlamydomonas

eLife 10:e67565.

https://doi.org/10.7554/eLife.67565

Categories and tags

Research organism

Chlamydomonas reinhardtii

Share this article

Cite this article

Graph of effects of hyperoxia on activity of rubisco in CC-1009 and CC-2343.

Representative TEM images of Chlamydomonas strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4.

Cumulative biomass productivity following switching the bioreactors over to hyperoxia at dawn on day 0.

Image J Analysis of CC-2343 and CC-1009 cells, control (green, blue) and exposed to H2O2 (light green, light blue), normalized to cell size.

(Photos) Localization of rubisco determined by confocal microscopy of strain CC-5357, containing a RbcS1-Venus (Bar Graph, Panel C).

Confocal microscopy of CC-5357, which has a Venus labeled RbcS1, after being grown in on a TAP plate (Top, Panel A) showing rubisco completely de-localized and liquid TAP (bottom, Panel B), showing that rubisco has de-localized to some extent, but remains largely localized.

Changes in H2O2 in cellular extracts upon exposure to hyperoxia.

Confocal microscopy images of CC-2343 and CC-1009 showing ROS in cells growing at steady state (Panels A and B) and following exposure to approximately 31 hr of hyperoxia (Panels C and D) of CC-2343 and CC-1009.

Oxygen evolution of strain CC-2343 (Panel A) and CC-1009 (Panel B) with and without the pre-treatment of 100 µM H2O2.

Exemplary pictures of ecotypes which were examined in this study showing various pyrenoid formations, with CC-1009 and CC-1010 exhibiting “closed” types.

Panel (A) Photo of five days after 50 ml of fresh 2NBH media was inoculated to 1 × 105 cells/ml, and cultures were continuously bubbled with 5 % CO2 and 95 % O2.

Exemplary light microscopy images of Chlamydomonas strains CC-1009 (Panel A) and CC-2343 (Panel B), while growing under saturating CO2.

Exemplary light microscopy images of Chlamydomonas strains CC-1009 (Panel A) and CC-2343 (Panel B), after growing under saturating CO2 and hyperoxia for over 6 hours.

Exemplary light microscopy images of Chlamydomonas strains (CC-1009 & CC-2343), after growing under saturating CO2 and hyperoxia for 31 hours.

Measurement of percent of pyrenoid with gaps present in respective cell lines at 6 hours hyperoxia.

Growth of parents (CC-1009 and CC-2343) and F1 tetrad offspring following the serial dilution, by column, of a cultures on TAP agar plates.

ΦII values of spotted plates of parents and tetrad after one week, with c1_3, and c1_4 not showing any obvious higher level of electron transport, despite higher growth rates.

Total starch accumulated (pg/cell) in CC-1009 and CC-2343 cultures grown at steady state conditions, with 5 % CO2 with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m–2 s–1, in minimal 2NBH media.

Representative TEM images of Chlamydomonas strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4, having been sparged with CO2 for 30 seconds every hour during the night.

Representative TEM microscopy images of Chlamydomonas strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4.

Biomass measurement of CC-1009, CC-2343, and tetrad progeny grown in flasks under 85 μmoles m–2 s–1 PAR and low CO2 for 4 days, after each flask was inoculated with 1 × 105 cells/ml.

Representative light microscopy images of CC-1009 control (Panel A) and 10 mM ascorbate treated (Panel B) cells, grown for 24 hours while being bubbled with air (low CO2) in minimal 2NBH media under ~85 μmol m–2 s–1 PAR.

Representative light microscopy images of CC-1009 control (Panel A) and 15 mM dimethylthiourea treated (Panel B) cells, grown for 24 hours while being bubbled with air (low CO2) in minimal 2NBH media under ~85 μmol m–2 s–1 PAR.

Localization of rubisco, control cells (Panel A) and cells exposed to 100 μM H2O2 (Panel B), visualized by the Nikon A1 Confocal Laser Scanning Confocal Microscope confocal microscopy, in strain CC-5357, containing at RBCS1-Venus tag.

Localization of rubisco, control cells (Panel A), cells exposed to 0.1 μM methyl viologen (Panel B), and 8 mM metronidazole (Panel C) visualized by an Olympus FluoView 1,000 Confocal Laser Scanning Microscope, in strain CC-5357, containing a RBCS1-Venus tag.

Strain CC-5357, containing a RbcS1-Venus, with Chlorophyll shown in red and RbcS1-Venus in yellow.

Confocal microscopy of liquid TAP-grown CC-5357, which has a Venus labeled RbcS1, treated without (Panel A) and with H2O2 (Panel B), showing no change in localization of rubisco.

Comparison of cells grown under steady state in liquid media (with 5 % CO2) versus cells grown on the surface of a TAP plate.

Representative light microscopy images of CC-1009 (Panels A & B) and CC-2343 (Panels C & D) control and cells treated, the light remaining off, with 100 μM of H2O2, and kept at 7 hours of dark with saturating 5 mM bicarbonate in minimal 2NBH media.

Variations in biomass (ash free dry weight) measured in turbidostat cultures in ePBR units.

Author details

Peter Neofotis

Contribution

Competing interests

Joshua Temple

Contribution

Competing interests

Oliver L Tessmer

Contribution

Competing interests

Jacob Bibik

Contribution

Competing interests

Nicole Norris

Contribution

Competing interests

Eric Pollner

Contribution

Competing interests

Ben Lucker

Contribution

Competing interests

Sarathi M Weraduwage

Contribution

Competing interests

Alecia Withrow

Contribution

Competing interests

Barbara Sears

Contribution

Competing interests

Greg Mogos

Contribution

Competing interests

Melinda Frame

Contribution

Competing interests

David Hall

Contribution

Competing interests

Joseph Weissman

Contribution

Competing interests

David M Kramer

Contribution

For correspondence

Competing interests

Downloads (link to download the article as PDF)

Image J Analysis of CC-2343 and CC-1009 cells, control (green, blue) and exposed to H₂O₂ (light green, light blue), normalized to cell size.

Changes in H₂O₂ in cellular extracts upon exposure to hyperoxia.

Oxygen evolution of strain CC-2343 (Panel A) and CC-1009 (Panel B) with and without the pre-treatment of 100 µM H₂O₂.

Panel (A) Photo of five days after 50 ml of fresh 2NBH media was inoculated to 1 × 10⁵ cells/ml, and cultures were continuously bubbled with 5 % CO₂ and 95 % O₂.

Exemplary light microscopy images of Chlamydomonas strains CC-1009 (Panel A) and CC-2343 (Panel B), while growing under saturating CO₂.

Exemplary light microscopy images of Chlamydomonas strains CC-1009 (Panel A) and CC-2343 (Panel B), after growing under saturating CO₂ and hyperoxia for over 6 hours.

Exemplary light microscopy images of Chlamydomonas strains (CC-1009 & CC-2343), after growing under saturating CO₂ and hyperoxia for 31 hours.

Φ_II values of spotted plates of parents and tetrad after one week, with c1_3, and c1_4 not showing any obvious higher level of electron transport, despite higher growth rates.

Total starch accumulated (pg/cell) in CC-1009 and CC-2343 cultures grown at steady state conditions, with 5 % CO₂ with 14:10 hour (light:dark) sinusoidal illumination with peak light intensity of 2000 μmoles m^–2 s^–1, in minimal 2NBH media.

Representative TEM images of Chlamydomonas strains, the parents (CC-1009 & CC-2343), as well as their progeny c1_1, c1_2, c1_3, c1_4, having been sparged with CO₂ for 30 seconds every hour during the night.

Biomass measurement of CC-1009, CC-2343, and tetrad progeny grown in flasks under 85 μmoles m^–2 s^–1 PAR and low CO₂ for 4 days, after each flask was inoculated with 1 × 10⁵ cells/ml.

Representative light microscopy images of CC-1009 control (Panel A) and 10 mM ascorbate treated (Panel B) cells, grown for 24 hours while being bubbled with air (low CO₂) in minimal 2NBH media under ~85 μmol m^–2 s^–1 PAR.

Representative light microscopy images of CC-1009 control (Panel A) and 15 mM dimethylthiourea treated (Panel B) cells, grown for 24 hours while being bubbled with air (low CO₂) in minimal 2NBH media under ~85 μmol m^–2 s^–1 PAR.

Localization of rubisco, control cells (Panel A) and cells exposed to 100 μM H₂O₂ (Panel B), visualized by the Nikon A1 Confocal Laser Scanning Confocal Microscope confocal microscopy, in strain CC-5357, containing at RBCS1-Venus tag.

Confocal microscopy of liquid TAP-grown CC-5357, which has a Venus labeled RbcS1, treated without (Panel A) and with H₂O₂ (Panel B), showing no change in localization of rubisco.

Comparison of cells grown under steady state in liquid media (with 5 % CO₂) versus cells grown on the surface of a TAP plate.

Representative light microscopy images of CC-1009 (Panels A & B) and CC-2343 (Panels C & D) control and cells treated, the light remaining off, with 100 μM of H₂O₂, and kept at 7 hours of dark with saturating 5 mM bicarbonate in minimal 2NBH media.
