Generation of a CRF1-Cre transgenic rat and the role of central amygdala CRF1 cells in nociception and anxiety-like behavior

  1. Marcus M Weera  Is a corresponding author
  2. Abigail E Agoglia
  3. Eliza Douglass
  4. Zhiying Jiang
  5. Shivakumar Rajamanickam
  6. Rosetta S Shackett
  7. Melissa A Herman
  8. Nicholas J Justice
  9. Nicholas W Gilpin
  1. Department of Physiology, Louisiana State University Health Sciences Center, United States
  2. Department of Pharmacology, University of North Carolina, United States
  3. Institute of Molecular Medicine, University of Texas Health Sciences Center, United States
  4. Bowles Center for Alcohol Studies, University of North Carolina, United States
  5. Department of Integrative Biology and Pharmacology, McGovern Medical School at UT Health, United States
  6. Neuroscience Center of Excellence, Louisiana State University Health Sciences Center, United States
  7. Alcohol & Drug Abuse Center of Excellence, Louisiana State University Health Sciences Center, United States
  8. Southeast Louisiana VA Healthcare System (SLVHCS), United States

Abstract

Corticotropin-releasing factor type-1 (CRF1) receptors are critical to stress responses because they allow neurons to respond to CRF released in response to stress. Our understanding of the role of CRF1-expressing neurons in CRF-mediated behaviors has been largely limited to mouse experiments due to the lack of genetic tools available to selectively visualize and manipulate CRF1+ cells in rats. Here, we describe the generation and validation of a transgenic CRF1-Cre-tdTomato rat. We report that Crhr1 and Cre mRNA expression are highly colocalized in both the central amygdala (CeA), composed of mostly GABAergic neurons, and in the basolateral amygdala (BLA), composed of mostly glutamatergic neurons. In the CeA, membrane properties, inhibitory synaptic transmission, and responses to CRF bath application in tdTomato+ neurons are similar to those previously reported in GFP+ cells in CRFR1-GFP mice. We show that stimulatory DREADD receptors can be targeted to CeA CRF1+ cells via virally delivered Cre-dependent transgenes, that transfected Cre/tdTomato+ cells are activated by clozapine-n-oxide in vitro and in vivo, and that activation of these cells in vivo increases anxiety-like and nocifensive behaviors. Outside the amygdala, we show that Cre-tdTomato is expressed in several brain areas across the brain, and that the expression pattern of Cre-tdTomato cells is similar to the known expression pattern of CRF1 cells. Given the accuracy of expression in the CRF1-Cre rat, modern genetic techniques used to investigate the anatomy, physiology, and behavioral function of CRF1+ neurons can now be performed in assays that require the use of rats as the model organism.

Editor's evaluation

This manuscript details the generation and characterization of a new transgenic rat line presenting an exciting new tool to the field.

https://doi.org/10.7554/eLife.67822.sa0

Introduction

Corticotropin-releasing factor (CRF) is a 41 amino acid neuropeptide that acts on various cell populations in the brain and elicits stress-related behavioral (e.g. anxiety) and physiological (e.g. sympathomimetic) responses (Vale et al., 1981; Henckens et al., 2016). In the hypothalamic-pituitary-adrenal (HPA) axis, CRF released by neurons in the paraventricular nucleus of the hypothalamus (PVN) into the hypophyseal portal system stimulates adrenocorticotropic hormone (ACTH) release from the pituitary, which in turn stimulates release of glucocorticoids from the adrenal cortex. Glucocorticoids released into the circulatory system serve as effectors of the HPA axis by modulating various physiological (e.g. cardiovascular, respiratory, and immune) functions (Smith and Vale, 2006). Extrahypothalamic CRF neurons are located in many brain areas that modulate affective states and behaviors, such as the amygdala, cortex, hippocampus, midbrain, and locus coeruleus (Peng et al., 2017). Among these brain areas, the extended amygdala, particularly the central amygdala (CeA) and bed nucleus of stria terminalis (BNST), contain the highest densities of CRF neurons (Peng et al., 2017).

CRF type-1 (CRF1) receptors are Gs- or Gq-coupled metabotropic receptors (Milan-Lobo et al., 2009; Wanat et al., 2008) that are highly expressed in brain areas that contain high densities of CRF fibers and/or CRF neurons, including the CeA, BNST, and medial amygdala. CRF signaling via CRF1 modulates neurophysiological processes underlying stress reactivity, anxiety-related behaviors, learning and memory processes including fear acquisition and/or expression, pain signaling, and addiction-related behaviors (see reviews by Dedic et al., 2018; Henckens et al., 2016). Therefore, elucidation of the circuit-specific and cell-specific mechanisms by which CRF1 signaling mediates these processes represents an important avenue of research for understanding behaviors related to stress, anxiety, fear, pain, and addiction.

The central amygdala (CeA) is a key nucleus in modulating affective states and behaviors related to stress, anxiety, fear, pain, and addiction (Gilpin et al., 2015). Functionally, the CeA serves as a major output nucleus of the amygdala and can be anatomically divided into lateral (CeAl) and medial (CeAm) subdivisions (Duvarci and Pare, 2014). In mice and rats, CRF-expressing (CRF+) neurons are densely localized to the CeAl, whereas CRF1-expressing (CRF1+) neurons are mostly localized to the CeAm (Day et al., 1999; Jolkkonen and Pitkänen, 1998; Justice et al., 2008; Pomrenze et al., 2015). In addition to receiving CRF input from CRF+ neurons in the CeAl, the CeAm receives CRF inputs from distal brain areas such as the bed nucleus of stria terminalis (BNST) (Dabrowska et al., 2016) and dorsal raphe nucleus (Commons et al., 2003). CeA CRF1 signaling plays an important role in modulating affective states and behaviors. For example, pharmacological blockade of CeA CRF1 attenuates stress-induced increases in anxiety-like behavior (Henry et al., 2006), nociception (Itoga et al., 2016), and alcohol drinking (Roberto et al., 2010; Weera et al., 2020), as well as fear acquisition and expression (Sanford et al., 2017). Work using transgenic CRF and CRF1 reporter and Cre-driver mice have shed light on circuit- and cell-specific mechanisms by which CeA CRF+ and CRF1+ cells mediate affective behaviors (e.g. Fadok et al., 2017; Sanford et al., 2017). However, mice have a limited behavioral repertoire when compared to rats, making the study of more complex behaviors (e.g. drug self-administration and social interaction; Homberg et al., 2017) difficult.

Here, we describe the generation of a novel CRF1-Cre-tdTomato transgenic rat line. We show that Crhr1 and iCre mRNA are expressed in the same neurons in the CeA and BLA using hybridization histochemistry. In the CeA, we show that tdTomato+ neurons are abundant in the CeAm, and that they are surrounded and in contact with CRF-containing puncta. We recorded membrane properties, inhibitory synaptic transmission, and spontaneous firing in CeA CRF1-Cre-tdTomato cells and show that these cells are sensitive to CRF. In addition, we show that Cre-dependent DREADD receptors can be targeted for expression by CeA CRF1 cells such that DREADD stimulation of CRF1+ CeA neurons increases nociception and anxiety-like behaviors, recapitulating prior work using pharmacological strategies. Outside the amygdala, we analyzed the expression of CRF1-Cre-tdTomato cells in several brain areas across the rostrocaudal axis and show that these cells are found in brain areas known to contain CRF1-expressing cells. These anatomical, electrophysiological, and functional data support the utility of this CRF1-Cre-tdTomato transgenic rat line for the study of CRF1 neural circuit function, and will be an important new resource that will complement CRFR1:GFP and CRFR1:Cre mice (Justice et al., 2008; Jiang et al., 2018; Sanford et al., 2017), and CRF-Cre rats (Pomrenze et al., 2015) for the study of CRF signaling in physiology and behavior.

Results

Generation of CRF1-Cre-tdTomato rats and validation of iCre (TdTomato) expression in CRF1-expressing cells in the CeA

Design of CRF1-Cre bacterial artificial chromosome (BAC) transgene

Please refer to Figure 1 for a schematic of the BAC generation. The design of the CRF1:Cre rat BAC transgene is similar to the design used to generate CRFR1:Cre BAC transgenic mice (Jiang et al., 2018), with the exception that a BAC clone from rat was used (clone RNB2-336H12 from Riken Rat genomic BAC library). The BAC clone used lacks any other identified protein encoding genetic sequences, reducing the possibility that other genes will be expressed from BAC when introduced into the rat genome. We obtained the RNB2-336H12 clone from the Riken Rat BAC clone collection (STAR Consortium et al., 2008). This BAC was inserted using recombineering techniques such that sequences encoding Crhr1 were replaced, beginning at the translation ATG start site, with sequences encoding a bicistronic iCre-2A-tdTomato transgene (Figure 1C). iCre is a codon-optimized Cre that produces consistent Cre activity (Koresawa et al., 2000). tdTomato encodes a red fluorescent protein that allows cells expressing the transgene to be visualized (Shaner et al., 2004). The poly A and WPRE sequences stabilize the mRNA to achieve more robust expression (Glover et al., 2002). To insert the iCre-p2A-tdTomato cassette into the BAC, we transformed bacterial cells that contain the BAC with a helper plasmid (Portmage-4) which contains a heatshock-inducible element that drives expression of lambda red recombinase and confers chloramphenicol resistance (Liu et al., 2003). These cells were then transformed with the iCre-p2A-tdTomato homology arm targeting cassette, after a 15 min heatshock. Cells were selected on kanamycin (for neoR) and colonies were screened by PCR for insertion of the cassette at the site of Crhr1 in the BAC. BAC DNA from a single clone that contained the correct insertionwas purified, then transformed into EL250 cells, which carry an arabinose inducible flipase construct. Cultures of EL250 carrying the inserted BAC were induced to express flp recombinase by incubating in L-arabinose for 1 hr, then selected on ampicillin (the resistance of the BAC) and screened for loss of kanamycin resistance (removed by flp recombinase; Figure 1). Colonies were PCR screened to confirm that they contained BAC DNA containing the Cre-2A-Tom transgene inserted in the Crhr1 locus, and lacked the f3 flanked neoR cassette. A single bacterial clonecontaining the final full-length inserted BAC construct was sent to the University of North Carolina (UNC) Transgenic Core, where BAC DNA was purified, checked for integrity by DNA laddering with EcoR1 and XbaI followed bypulsed-gel electrophoresis, and by PCR, linearized, then injected into single-cell Wistar rat oocytes.

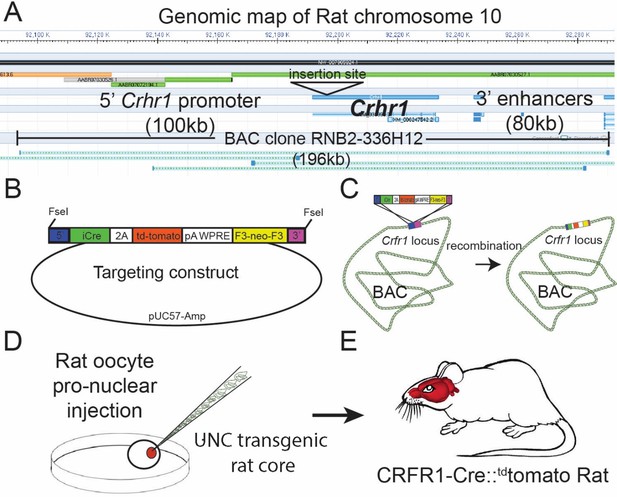

Design of the Crhr1-Cre2aTom BAC transgene.

(A)Crhr1 is located on chromosome 10 in the rat. A BAC clone containing 196 kb of DNA surrounding the Crhr1 coding region includes 100 kb of upstream and 80 kb of downstream DNA, where the majority of promoter and enhancer sequences that control Crhr1 expression are located, was obtained (Riken, RNB2-336H12). There are no other sequences within this 196 kb DNA clone have been annotated as coding sequences for genes other than Crhr1. (B) A transgene containing 5’ (blue) and 3’ (magenta) targeting sequences, a bicistronic iCre 2 A fused tdTomato (red) sequence, 3’ polyA/WPRE stabilizing sequence, and a F3 flanked neomycin resistance sequence (yellow) was constructed then transformed into E. coli containing the RNB2-336H12 BAC construct. (C) Using recombineering techniques we isolated BAC clones in which targeted insertion of the transgene at the translation start site of Crhr1 (ATG) was confirmed by PCR/sequencing. A single Bacterial clone containing the transgene inserted BAC was sent to the UNC transgenic facility where BAC DNA was purified and injected into single cell, fertilized rat oocytes. Two independent rat lines were recovered in which the entire BAC sequence (confirmed by PCR) was inserted into genomic DNA, of which one line displayed transgenic expression in a pattern representative of known Crhr1 expression patterns.

Generation of transgenic rats

Transgenic rats were generated by the UNC Transgenic Core by injecting single-cell rat oocytes with the modified BAC described above (Figure 1D and E). DNA from F1 offspring were tested for the presence of the introduced BAC transgene using PCR. Complete BAC insertion was determined using four primer sets representing unique junctions in the BAC. Two animals containing BAC insertions were further tested using this procedure and were found to contain the entire BAC sequence. Transgenic rats were first outcrossed to wildtype Wistar animals, then intercrossed to maximize the genetic similarity of transgenic offspring. Transgenic animals were generated on a Wistar backgroud because Wistar rats are commonly used in models of alcohol and substance use disorders, and other models of behavioral and physiological disorders.

Validation of iCre (tdTomato) expression in CeA CRF1 cells

The purpose of this experiment was to determine the pattern of tdTomato protein expression and Crhr1 and iCre mRNA expression within the CeA. Immunohistochemical labeling of tdTomato in the amygdala showed that tdTomato+ cells were located in the lateral, basolateral, central, and medial amygdala (Figure 2A). Within the CeA, tdTomato+ cells were found to be concentrated in the CeAm, whereas the CeAl was largely devoid of tdTomato+ cells (Figure 2B).

Validation of transgenic expression of iCre/tdTomato in CRF1+ expressing neurons located in the medial central nucleus of the amygdala (CeAm).

(A) A low-magnification image of a section containing the amygdala from a CRF1-Cre rat, immunohistochemically labeled for tdTomato. Expression of the CRF1-Cre transgene is broadly very similar to previous reports of CRF1 expression in both rat and mouse. (B) Within the boxed region of panel A, higher magnification reveals CRF1+ cells in the lateral amygdala (LA), basolateral amygdala (BLA), medial portion central amygdala (CeAm), and medial amygdala (MeA). The lack of significant labeling in the CeAl is consistent with reports using both in situ hybridization and transgenic reporters to detect CRF1 expression. (C) Micrograph of the CeA from the region boxed in panel B allows visualization of mRNA encoding iCre (red) and Crhr1 (green) along with nuclei stained with DAPI (blue). (D–G) Higher magnification images of the boxed region in (C) allows visualization of mRNA for Crhr1 (D, green), and iCre (E, red), with nuclei visualized by DAPI staining (F). (G) Merged images reveals that many CeAm neurons that are positive for Crhr1 mRNA are also positive for iCre mRNA (arrows point to double positive neurons). Quantification of coincidence of in situ hybridization for both Crhr1 and iCre mRNAs demonstrates that >90% of Crhr1-positive cells are also positive for iCre in the CeAm (n = 3). (H) Graphical representation of quantification of coincident labeling, or (I) a table of the precise counts from each of three male and three female CRF1-Cre transgenic animals. We observed greater than 90% of neurons positive for both Crhr1 and iCre in the CeAm.

We used RNAscope ISH to test the hypothesis that Crhr1 and iCre mRNA are highly colocalized within the CeA. tdTomato mRNA was not probed because iCre and tdTomato are expressed as a single polypeptide (iCre-2A-tdTomato) that is cleaved at the 2 A site. RNAscope ISH probing of Crhr1 and iCre mRNA showed strong expression of these molecules within the CeAm (Figure 2C–G). Since previous work (e.g., Justice et al., 2008) and our data show that CRF1+ cells are largely localized to the CeAm, analysis of Crhr1 and iCre mRNA expression was focused on this subregion. Quantification of Crhr1- and iCre-expressing cells within the CeAm showed that more than 90% of Crhr1-expressing cells co-express iCre (Figure 2H, I). There were no significant sex differences in the number of Crhr1+, Cre+, and Crhr1+/Cre+ +, but there was a trend for more Crhr1+ cells in the CeAm of male rats (p = 0.07).

Previous work showed that CeA CRF+ cells are concentrated in the CeAl, whereas CRF1+ cells are mostly located in the CeAm (Day et al., 1999; Jolkkonen and Pitkänen, 1998; Justice et al., 2008; Pomrenze et al., 2015). Immunofluorescent labeling of CRF and tdTomato protein in the CeA of CRF1-Cre-tdTomato rats shows that the topography of CRF+ and tdTomato+ (CRF1-Cre) cells in these rats is consistent with previous studies (Figure 3).

CRF1-driven expression of Cre/tdTomato in the CeA.

(A) Visualization of CRF using immunofluorescent labeling (green) in a rat carrying the CRF1-Cre2aTom transgene (red) reveals minimal cellular expression of CRF1 in the lateral central nucleus of the amygdala (CeAl) where CRF is highly abundant. This discrepancy in CRF localization compared to CRF1 expression is consistent with previous reports of CRF1 expression in both rat and mouse. In contrast to the CeAl, the medial central nucleus of the amygdala (CeAm) contains many CRF1+ neurons (reported by the CRF1-Cre2Atom transgene), in contact with puncta positive for CRF peptide. (B) High-resolution images from the boxed regions of CeAl and CeAm in panel A. CRF staining is dense in both the CeAl and CeAm (top panels); however, cellular expression of the CRF1-Cre2aTom transgene is low in the CeAl, while many neurons in the CeAm are positive for CRF1 expression (middle panels). Merged images (lower panels) display the coincident staining of CRF1+neurons with CRF puncta in the CeAm, suggesting that stress driven CRF release directly signals to CRF1+ neurons in the CeAm to modulate neural excitability to influence the output of CeAm neurons. LA – lateral amygdala, BLA – basolateral amygdala.

Electrophysiological characterization of CeA CRF1-Cre-tdTomato neurons

Membrane properties and inhibitory transmission

tdTomato+ CRF1+ neurons were identified and differentiated from unlabeled CeA neurons using fluorescent optics and brief ( < 2 s) episcopic illumination in slices from adult male and female CRF1-Cre-tdTomato rats. Consistent with our immunohistochemical studies (Figure 3), the majority of CRF1+ neurons were observed in the medial subnucleus of the CeA (CeAm) and this region was targeted for recordings. Passive membrane properties were determined during online voltage-clamp recordings using a 10 mV pulse delivered after break-in and stabilization. The resting membrane potential was determined online after breaking into the cell using the zero current (I = 0) recording configuration. No differences were observed between male and female membrane properties including membrane capacitance, membrane resistance, decay time constant, or resting membrane potential (Figure 4A). CRF1+ CeA neurons were then placed in current clamp configuration and a depolarizing step protocol was conducted to allow cell-typing based on previously described firing properties (Chieng et al., 2006; Herman and Roberto, 2016). The majority of CRF1+ CeA neurons were of the low-threshold bursting type (Figure 4B). Voltage-clamp recordings of pharmacologically-isolated GABAA receptor-mediated spontaneous inhibitory postsynaptic currents (sIPSCs) revealed that CRF1+ neurons are under a significant amount of phasic inhibition (Figure 4C) with no significant sex differences in sIPSC frequency (Figure 4D, left) or sIPSC amplitude (Figure 4D, right).These data indicate that male and female CRF1+ CeA neurons have similar basal membrane properties and are under similar levels of basal inhibitory transmission.

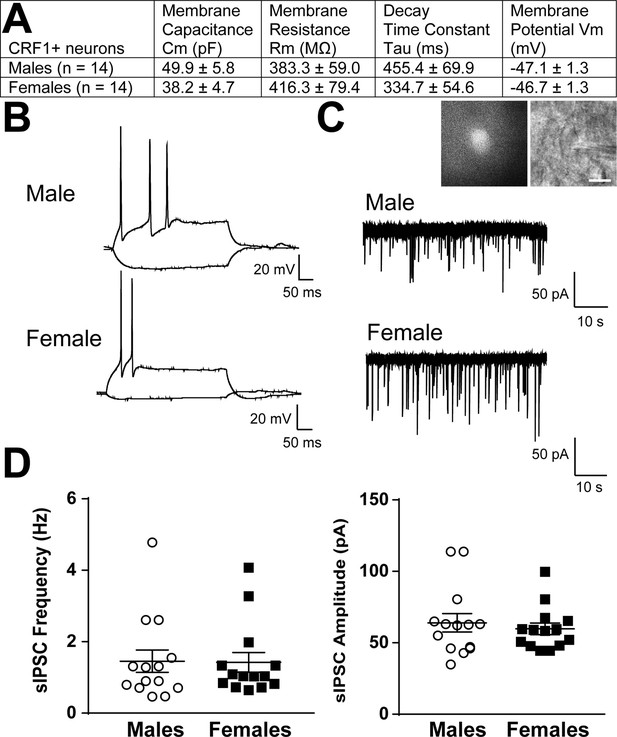

Basal membrane properties and inhibitory synaptic transmission in CeAm CRF1-Cre-tdTomato neurons.

(A) Basal membrane properties (Membrane Capacitance, Cm; Membrane Resistance, Rm; Decay Constant, Tau; Membrane Potential, Vm) from male and female CRF1+ CeAm neurons. (B) Representative current-evoked spiking properties from male (top) and female (bottom) CRF1+ CeAm neurons. (C) Basal spontaneous inhibitory postsynaptic currents (sIPSCs) from male (top) and female (bottom) CRF1+ CeAm neurons (right). Inset: representative fluorescent (left) and infrared differential interference contract (IR-DIC, right) image of a CRF1+ CeAm neuron targeted for recording. Scale bar = 20 μm. (D) Average sIPSC frequency (left) and sIPSC amplitude (right) from male and female CRF1+ CeAm neurons. Raw data are available in Source Data File 1.

CRF sensitivity

Spontaneous firing activity was recorded in CRF1+ CeA neurons from male and female CRF1-Cre-tdTomato rats using the cell-attached configuration. After a stable baseline period of regular firing was established, CRF (200 nM) was focally applied and the firing activity was recorded for a sustained application period of 7–12 min. CRF1+ CeA neurons from male rats had an average baseline firing rate of 2.1 ± 0.5 Hz and focal application of CRF significantly increased the firing activity to 3.4 ± 0.7 Hz (t = 3.5, p = 0.011; Figure 5A and C). CRF1+ CeA neurons from female rats had an average baseline firing rate of 0.8 ± 0.2 Hz and focal application of CRF significantly increased the firing activity to 1.3 ± 0.3 Hz (t = 3.1, p = 0.016 by paired t-test; Figure 5B and D). When firing activity was normalized to baseline values, CRF application significantly increased firing in CRF1+ CeA neurons from male rats to 192.3% ± 25.6% of Control (t = 3.6, p = 0.009; Figure 5E) and significantly increased firing in CRF1+ CeA neurons from female rats to 166.5% ± 13.9% of Control (t = 4.8, p = 0.002; Figure 5E) with no significant difference in the change in firing in response to CRF between male and female CRF1+ neurons.

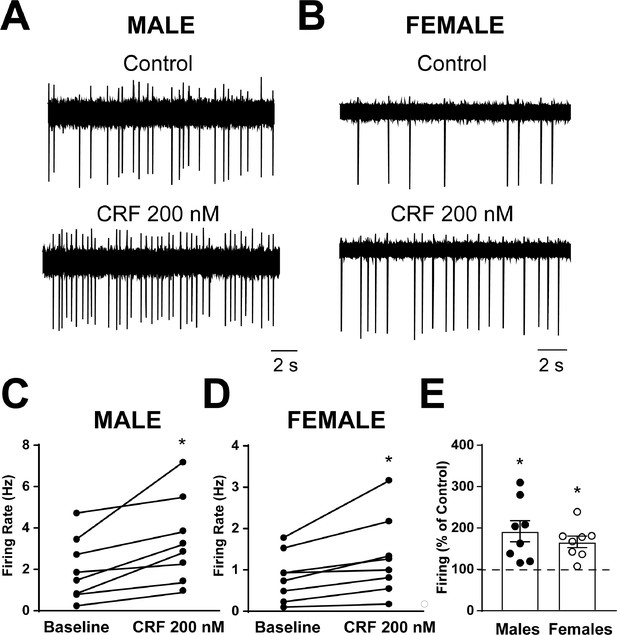

Spontaneous firing activity and CRF sensitivity of CeAm CRF1-Cre-tdTomato neurons.

(A) Representative cell-attached recording of spontaneous firing activity in a CRF1+ CeAm neuron from a male CRF1-Cre-tdTomato rat before and during CRF (200 nM) application. (B) Representative cell-attached recording of spontaneous firing activity in a CRF1+ CeAm neuron from a female CRF1-Cre-tdTomato rat before and during CRF (200 nM) application. (C) Summary of changes in spontaneous firing activity with CRF application in CRF1+ CeAm neurons from male CRF1-Cre-tdTomato rats.*p < 0.05 by paired t-test. (D) Summary of changes in spontaneous firing activity with CRF application in CRF1+ CeAm neurons from female CRF1-Cre-tdTomato rats.*p < 0.05 by paired t-test. (E) Normalized change in firing activity in CRF1+ CeAm neurons from male and female CRF1-Cre-tdTomato rats.*p < 0.05 by one-sample t-test. Raw data are available in Source Data File 1.

Targeting of Cre-dependent Gq-DREADDs to the CeA increases c-Fos+ CRF1-Cre-tdTomato cells and CeA CRF1-Cre-tdTomato cell activity following CNO treatment c-Fos immunohistochemistry: Four weeks after CRF1-Cre-tdTomato male and female rats were given intra-CeA microinjections of AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine (Active Virus) or AAV5-hSyn-DIO-EGFP (Control Virus), rats were given an injection (i.p.) of CNO (4 mg/kg) and were sacrificed 90 min later. Brain sections containing the CeA were processed for c-Fos immunohistochemistry and the number of c-Fos+ tdTomato cells were quantified. An overwhelming majority of tdTomato cells were located in the CeAm as shown above (Figure 3). Therefore, quantification of c-Fos and tdTomato cells was focused on this subregion. We found that rats in the active virus group had a higher percentage of c-Fos+ tdTomato cells than rats in the control virus group (t = 7.1, p < 0.001; Figure 6A and B).

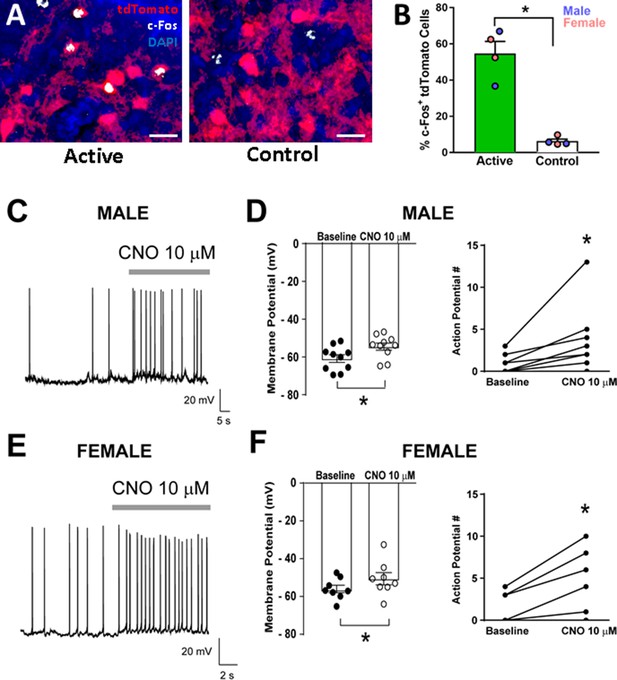

Validation of DREADD expression and function in CeA CRF1-Cre-tdTomato neurons.

(A) Representative images of CRF1-Cre-tdTomato cells (red) and c-Fos immunostaining (white) in CeAm of rats that were given intra-CeA microinjections of AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine (active virus) or AAV5-hSyn-DIO-EGFP (control virus). Scale bar: 50 µm. (B) CNO treatment 90 min before sacrifice increased the percentage of c-Fos+ tdTomato cells in CeAm of rats that were given active virus compared to rats that were given control virus microinjections. *p < 0.05. (C) Representative whole-cell current clamp recording of membrane potential and firing activity in a CRF1+ CeAm neuron from a male CRF1-Cre-tdTomato rat before and during CNO (10 μM) application. (D) Summary of the change in membrane potential (left) and action potentials (right) in male CRF1+ CeAm neurons after CNO application. *p < 0.05 by paired t-test. (E) Representative whole-cell current clamp recording of membrane potential and firing activity in a CRF1+ CeAm neuron from a female CRF1-Cre-tdTomato rat before and during CNO (10 μM) application. (D) Summary of the change in membrane potential (left) and action potentials (right) in female CRF1+ CeAm neurons after CNO application. *p < 0.05 by paired t-test. Raw data are available in Source Data File 1.

Slice electrophysiology

Coronal sections containing the CeA were prepared from male and female CRF1-Cre-tdTomato rats > 4 weeks after rats were given intra-CeA microinjections of AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine. tdTomato+ and mCitrine+ neurons were identified by brief episcopic illumination using fluorescent optics and positively-identified neurons were targeted for recording in whole-cell current clamp configuration to measure changes in resting membrane potential and spontaneous firing. CNO (10 μM) significantly increased membrane potential and number of action potentials in both male (t = 4.3, p = 0.002; t = 2.6, p = 0.030, respectively; Figure 6C and D) and in female CRF1+ mCitrine+ neurons in the CeA (t = 3.2, p = 0.016; t = 3.6, p = 0.006, respectively; Figure 6E and F), suggesting that hM3D(Gq) receptor expression was functional and could be stimulated by CNO application with no sex differences in expression or agonist sensitivity.

Chemogenetic stimulation of CeA CRF1-Cre-tdTomato cells increases mechanical nociception and anxiety-like behaviors

Rats were given intra-CeA microinjections of a viral vector for Cre-dependent expression of Gq-DREADD receptors (AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine) or control fluorophore (AAV5-hSyn-DIO-EGFP) (Figure 7A). Behavioral procedures began ≥4 weeks later (Figure 7B).

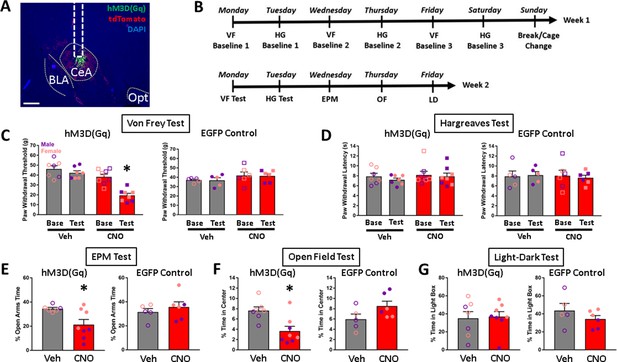

Effects of chemogenetic stimulation of CeA CRF1-Cre-tdTomato neurons on nociception and anxiety-like behaviors.

(A) Representative image of AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine expression (green) in the CeA. Scale bar: 500 µm. BLA: basolateral amygdala, Opt: optic tract. (B) Timeline of experimental procedures. (C) CNO treatment decreased paw withdrawal thresholds in the Von Frey test of mechanical nociception in rats that were given intra-CeA hM3D(Gq) virus microinjections. There were no effects of treatment on paw withdrawal thresholds in the EGFP control group. (D) CNO treatment had no effects on paw withdrawal latencies in either the hM3D(Gq) or EGFP groups in the Hargreaves test of thermal nociception. (E) CNO treatment decreased the percent time spent in open arms in the EPM test in the hM3D(Gq) group, but had no effect in the EGFP group. (F) CNO treatment decreased the percent time spent in the center of the arena in the OF test in the hM3D(Gq) group, but had no effect in the EGFP group. (G) CNO treatment had no effect on percent time spent in the light box in the LD test. *p < 0.05. Raw data are available in Source Data File 2. iCre and Crhr1 mRNA are highly co-expressed in BLA.

Nociception

In the Von Frey test of mechanical nociception, CNO treatment decreased paw withdrawal thresholds in rats that have hM3D(Gq) expression targeted to CeA CRF1+ cells [repeated measures ANOVA; test x treatment interaction (F1,13 = 14.0, p = 0.002)]. There was a significant effect of test within the CNO group only [(F1,7 = 38.0, p < 0.001)], suggesting that chemogenetic stimulation of CeA CRF1+ cells increases mechanical sensitivity. CNO treatment had no effect on paw withdrawal thresholds in rats that received the control EGFP fluorophore (Figure 7C). In the Hargreaves test of thermal nociception, CNO did not affect paw withdrawal latencies in either the hM3D(Gq) or control EGFP groups (Figure 7D).

Anxiety-like behaviors

In the EPM test, in the hM3D(Gq) group, rats that were given CNO treatment had lower open arms time compared to rats that were given vehicle treatment (t-test; t = 2.6, p = 0.022), suggesting that chemogenetic stimulation of CeA CRF1+ cells increases anxiety-like behavior on the EPM. Control EGFP virus rats did not show differences in open arms times after CNO treatment (Figure 7E). One rat in the hM3D(Gq) group that was given vehicle injection fell off the maze >3 times and was therefore excluded from analysis. In the OF field test, hM3D(Gq) rats that were given CNO treatment spent less time in the center of the arena compared to rats that were given vehicle treatment (t-test; t = 3.3, p = 0.006), suggesting that chemogenetic stimulation of CeA CRF1+ cells increases anxiety-like behavior in the OF. EGFP control rats did not show differences in time spent in the center of the arena after CNO treatment (Figure 7F). In the LD test, CNO treatment did not produce differences in time spent in the light box in either hM3D(Gq) or EGFP control groups (Figure 7G). There were also no differences in latency to enter the light box (data not shown; 20.14 ± 5.63 s, 29.38 ± 10.42 s, 23.00 ± 3.94 s, and 16.17 ± 4.48 s, respectively, for rats in hM3D(Gq) – Veh, hM3D(Gq) – CNO, EGFP – Veh, and EGFP Virus – CNO groups).

Given that most cells in the CeA are GABAergic, we next tested if Crhr1 and iCre mRNA are also highly colocalized in the BLA, which contains a high density of glutamatergic neurons that express CRF1 receptors. RNAscope ISH of brain sections containing BLA show dense Crhr1 and iCre mRNA expression in BLA and surrounding areas (Figure 8A). Quantification of Crhr1 and iCre mRNA in the BLA showed that 98.5% of Crhr1-expressing cells co-express iCre (Figure 8B, top), and that 99.4% of iCre-expressing cells co-express Crhr1 (Figure 8B, bottom).

Crhr1 and iCre mRNA expression in BLA of CRF1-Cre-tdTomato rats.

(A) Crhr1 (green) and iCre (red) mRNA are highly co-expressed in BLA and surrounding areas. (B) Within the BLA, 98.5% of Crhr1+ + co-express iCre (top), and 99.4% of iCre+ + co-express Crhr1 (bottom).

Cre-tdTomato cells are found throughout the brain in areas known to contain CRF1 cells

The purpose of this experiment is to examine if the Cre-tdTomato transgene is expressed in brain areas outside of the amygdala in a pattern that is consistent with known CRF1 expression patterns. Fluorescence imaging of coronal sections across the rostrocaudal axis of CRF1-Cre-tdTomato rat brains show that Cre-tdTomato cells are found in brain areas known to contain CRF1 cells, including the prelimbic and infralimbic cortex, BNST, piriform cortex (PIR), PVN, lateral hypothalamus (LHA), paraventricular thalamus (PVT), hippocampus, ventral tegmental area (VTA), periaqueductal grey (PAG), and dorsal raphe (DR) (Figure 9). The density of Cre-tdTomato cells in these brain areas were surveyed and compared to published reports of Crhr1 mRNA expression patterns in the wildtype rat brain (Van Pett et al., 2000) and of CRF1-GFP cell densities in CRF1-GFP mouse brain (Justice et al., 2008; Table 1). We found that a majority of cells in the BNST and PIR, that a substantial number of cells in the PrL, IL, PVT, VTA, PAG, and DR, and that some cells in the ventral lateral septum (LSv), PVN, LHA, and hippocampus are tdTomato+. The lateral (LHb) and medial habenula (MHb) were largely devoid of tdTomato+ cells, but a small number of tdTomato cells were found in the ventricular zone of the MHb (Figure 9Q). The locus coeruleus (LC) was devoid of tdTomato cells, but a small number of tdTomato puncta was detected (Figure 9X). These tdTomato expression patterns are mostly consistent with Crhr1 mRNA expression patterns in wildtype rats, but some species-specific differences are seen when compared to GFP expression patterns in CRF1-GFP mice. Please see Table 1.

Fluorescent images of brainwide tdTomato expression.

(A) A schematic summary of brain areas that were surveyed for tdTomato expression. Solid red circles indicate brain areas that contain tdTomato cells and dashed circles indicate brain areas that were devoid of tdTomato cells. (B–X) Low (4 x) and high-magnification (×20 ) images of tdTomato (red) and DAPI (blue) fluorescent signals. Yellow boxes demarcate areas from which high-magnification (×20 ) images were acquired. (B) 4 x image of the PrL, IL, and surrounding landmarks. (C) 20 x image of PrL and IL. (D) 4 x of BNST and LSv. (E) 20 x image of BNST and (F) LSv. (G) 4 x and (H) 20 x image of PVN. (I) 4 x image of PIR, MeA, and LHA. (J) 20 x image of PIR, (K) MeA, and (L) LHA. (M) 4 x and (N) 20 x image of hippocampus. (O) 4 x image PVT, LHB, and MHb. (P) 20 x image of PVT and (Q) LHb/MHb. (R) 4 x and (S) 20 x image of VTA. (T) 4 x image of PAG and DR. (U) 20 x image of PAG and (V) DR. (W) 4 x and (X) 20 x image of LC. 3 V: 3rd ventricle, 4 V: 4th ventricle, D3V: dorsal 3rd ventricle, Aq: cerebral aqueduct.

Table 1
Comparison of CRF1-Cre-tdTomato cell densities with Crhr1 mRNA expression levels in rats and CRF1-GFP cell densities in mice in several areas across the rostrocaudal axis of the brain.

+: Some cells are positive, ++: A substantial number of cells are positive, +++: Most cells are positive.

Brain areaDensity of tdTomato cells in CRF1-Cre-tdTomato ratsExpression level of Crhr1 mRNA in wildtype rats (Van Pett et al., 2000)Density of GFP cells in CRF1-GFP Mice (Justice et al., 2008)
PrL++++++
IL++++++
BNST+++++++/++
LSv++-
PVN++++
PIR++++++++/+++
MeA++++/++
LHA++++
Hipp+ (subiculum, CA3)/+++ (CA1)++ (CA1, CA3, subiculum)+ (subiculum, CA3)/+++ (CA1)
PVT++++-
LHb--++
MHb+--
VTA++++++
PAG++++
DR+++++
LC--+/-

Discussion

We generated a new transgenic CRF1-Cre-tdTomato rat line to allow genetic manipulation and visualization of neurons that express CRF1 receptors in the rat brain. We report that, within the CeA of CRF1-Cre-tdTomato rats, CRF1-Cre-tdTomato cells are located in the medial subdivision (CeAm), consistent with previous reports of Crhr1 expression in rats (Potter et al., 1994; Van Pett et al., 2000; Day et al., 1999) and mice (Van Pett et al., 2000; Justice et al., 2008), and that there is strong concordance ( > 90%) between Crhr1 and iCre mRNA expression in the CeAm of male and female CRF1-Cre-tdTomato rats. We also characterized the basal membrane properties, inhibitory synaptic transmission, and validated the CRF sensitivity of tdTomato-expressing CeA CRF1+ cells in male and female rats. In addition, we showed that stimulatory DREADD receptors [hM3D(Gq)] can be targeted to CeA CRF1-Cre-tdTomato cells using a Cre-dependent expression strategy, that systemic CNO treatment induces c-Fos in hM3D(Gq)-transduced CRF1+ cells in CeA, and that CNO induces membrane depolarization and spontaneous firing activity in hM3D(Gq)-transduced CRF1+ cells in CeA. We showed that hM3D(Gq)-mediated stimulation of CeA CRF1+ cells increases anxiety-like behavior, as measured by EPM and open field tests, as well as mechanical nociception as measured by the Von Frey test. Finally, we report that Crhr1 and iCre mRNA expression are highly colocalized in the BLA, and that Cre-tdTomato is expressed in several brain areas across the rostrocaudal axis of the rat brain in expected patterns. Collectively, this work provides cellular, electrophysiological, and behavioral data demonstrating the validity and reliability of a new transgenic rat model for the identification and selective manipulation of CRF1+ neurons in the CeA.

CRF1-Cre-tdTomato rats were generated by modifying a BAC clone derived from F344 rats, that was injected into oocytes derived from Wistar rats. Because the originating strain of the BAC DNA differs from the strain used for transgenesis, DNA sequence differences between F344 and Wistar rats in the 200 + kb region surrounding the Crhr1 genomic locus may impact expression of iCre-2A-tdTomato in the CRF1-Cre transgenic rat. Moreover, because transgenic BAC DNA insertion was not directed, position effect, copy number, and fragmentation of the BAC insertion may possibly alter expression of reporter genes. These sources of variability were minimized by the expertise of the UNC Transgenic Core Facility, where BAC DNA was prepared, cleaved at a single site to produce full-length single stranded BAC DNA, then injected into oocytes. Two transgenic founders were isolated that contained unique DNA sequences near the Crhr1 genomic locus in the BAC, as well as DNA sequence from both terminal ends of the injected BAC, indicating insertion of full-length BAC DNA. Of these two rats, one displayed expression of tdTomato in a pattern reflecting Crhr1 expression patterns reported in rats (Potter et al., 1994; Van Pett et al., 2000), as well as transgenic expression of reporter genes reported in similarly designed BAC transgenic mice (Justice et al., 2008; Jiang et al., 2018; Hunt et al., 2018). The genomic locus and copy number of transgenic BAC insertion have not been further characterized. However, the high degree of alignment of Cre-tdTomato expression with known CRF1 expression patterns broadly throughout the brain suggests that position, copy number, or fragmentation did not substantially alter expression of the transgene. In addition, the behavioral and physiological phenotypes of CRF1-Cre-tdTomato rats reported here closely resemble those seen in wild-type Wistar rats (e.g., Itoga et al., 2016; Albrechet-Souza et al., 2020; see below), suggesting that BAC insertion did not produce observable anomalous phenotypes.

The intrinsic properties of CRF1+ (tdTomato+) CeA neurons in CRF1-Cre-tdTomato rats are similar to those reported in wild-type rat CeA neurons (Herman and Roberto, 2016), suggesting that the transgene did not significantly impact the overall health or activity of CRF1+ CeA neurons. Previous studies have employed a CRFR1:GFP transgenic mouse model to examine CRF1+ CeA neurons in local CeA microcircuitry (Herman et al., 2013; Herman et al., 2016). Although prior work was conducted in mouse and some species differences would be expected, the electrophysiological properties of CRF1+ neurons in the CeA are relatively consistent between the mouse and rat transgenic models. Recent work specifically examining sex differences in CRF1+ neurons from CRFR1:GFP mice reported similar intrinsic membrane properties, cell-typing, and baseline inhibitory transmission as reported here and noted no sex differences in basal properties between male and female CRF1+ neurons in the CeA (Agoglia et al., 2020), consistent with our current findings. In contrast to previous work, however, we found no sex differences in CRF sensitivity of CRF1+ cells in CeA. Although CRF was previously found to increase firing in CRF1+ CeA neurons in both male and female mice, CRF1+ CeA neurons from male mice displayed a significantly greater increase in firing in response to CRF application (Agoglia et al., 2020). This discrepancy may be driven by differences in sampling size (although the current study was not sufficiently powered to detect sex differences), high variability in male baseline firing rates observed here, sex differences in baseline firing rates observed here, or it may reflect a species difference in sex-dependent sensitivity to CRF. Additional studies are required for a more comprehensive examination of sex- and/or species-specific differences in CRF-stimulated CRFR1+ neuronal activity in distinct brain regions. CRF1+ neurons in the CeA have also previously been implicated in the neuroplastic changes associated with acute and chronic ethanol exposure in mice (Herman et al., 2013; Herman et al., 2016), and future work will determine if this is also the case in rats.

To test the feasibility of using Cre-dependent stimulatory DREADDs to interrogate the role of CeA CRF1+ cells in behavior, we targeted Gq-coupled DREADD receptors [DIO-hM3D(Gq)] to CeA CRF1-Cre cells and first tested the effects of CeA CRF1+ cell stimulation on nociception. We showed that DREADD stimulation of CeA CRF1+ cells increases mechanical sensitivity as measured by the Von Frey test, but not thermal sensitivity measured by the Hargreaves test. Numerous studies have implicated CeA CRF-CRF1 signaling in nociception. For instance, pain induced by carrageenan injection into the knee joint produces hyperactivity of CeA neurons in rats, a phenomenon that is CRF1 dependent (Ji and Neugebauer, 2007). Conversely, latency for hind limb withdrawal reflex induced by knee joint pressure application is decreased (reflecting hyperalgesia) by CRF infusion into the CeA, a phenomenon that is blocked by co-infusion of a CRF1 antagonist (Ji et al., 2013). With regard to mechanical sensitivity, our finding that DREADD activation of CeA CRF1 neurons produces mechanical hypersensitivity extends previous work showing that ablation or inhibition of CeA CRF neurons blocks neuropathic pain-induced mechanical hypersensitivity, as measured by the Von Frey test (Andreoli et al., 2017). Various studies have also previously reported that CeA CRF1 antagonism attenuates mechanical hypersensitivity produced by chronic drug or alcohol exposure (e.g. Cohen et al., 2015; Edwards et al., 2012). Collectively, this prior work suggests that activation of CeA CRF-CRF1 signaling by chronic injuries or insults facilitates a hyperalgesic state, which was recapitulated in the current study via chemogenetic stimulation of CeA CRF1 cells. It should be noted that chemogenetic stimulation of CeA CRF+ cells has been shown to potentiate stress-induced analgesia (Andreoli et al., 2017), although this effect may be due to CRF release outside the CeA (e.g. locus coeruleus) or due to changes in GABA release from CRF+ cells. Within the CeA, pharmacological studies suggest that pro- and anti-nociceptive effects of CRF signaling may be mediated by CRF1 and CRF2 receptors, respectively (Ji and Neugebauer, 2007; Ji and Neugebauer, 2008), but further studies are required to delineate the precise mechanisms by which CeA CRF signaling supports hyperalgesia and analgesia. The CRF1-Cre-tdTomato rat described here represents a useful tool for these studies.

Our lab has shown that predator odor stress-induced hyperalgesia, as measured by the Hargreaves test, is mediated by increased CRF-CRF1 signaling in the CeA (Itoga et al., 2016). Contrary to our hypothesis, we did not observe any effect of DREADD activation of CeA CRF1 cells on thermal sensitivity. It is not clear why CRF1-Cre rats exhibited mechanical hypersensitivity but not thermal hyperalgesia in this study. It is possible that specific CeA cell populations are involved in specific types of nociceptive processing, or it is possible that the engagement/recruitment of CeA CRF1+ cells in mediating specific types of nociception depends on the animal’s history or affective state. Using the CRF1-Cre-tdTomato rat line reported here, future work will elucidate the role of specific CRF1+ circuits in mechanical and thermal sensitivity (which may or may not be partially overlapping) under basal and challenged conditions such as neuropathic or inflammatory pain, stress exposure and/or withdrawal from chronic exposure to drugs or alcohol.

CeA CRF-CRF1 signaling generally promotes anxiogenic responses, particularly under challenged conditions such as stress or withdrawal from chronic exposure to drugs of abuse. For instance, in mice, intra-CeA infusion of a CRF1 antagonist attenuates anxiety-like behavior, as measured by open field and light-dark box tests, following immobilization stress but not under basal conditions (Henry et al., 2006). Similarly, blockade of CRF-CRF1 signaling in the CeA attenuates alcohol withdrawal-induced anxiety in rats, as measured by the EPM test (Rassnick et al., 1993). Exposure to stressors (Merlo Pich et al., 1995) and alcohol withdrawal (Zorrilla et al., 2001) both increase extracellular CRF levels in the CeA. Messing and colleagues used CRF-Cre rats to show that CeA CRF cell activation (using DREADDs) increases anxiety-like behavior and that this effect is blocked by CeA CRF knockdown using RNA interference (Pomrenze et al., 2019). Collectively, these studies show that increased CRF-CRF1 signaling in CeA, whether produced by stress exposure, drug withdrawal, or the use of viral genetic tools, supports anxiogenesis. Here, we showed that chemogenetic stimulation of CeA CRF1+ cells increases anxiety-like behavior, as measured by EPM and open field tests. Interestingly, we did not observe an effect of chemogenetic stimulation of CeA CRF1+ cells on light-dark box measures, including time spent in the light vs. dark boxes, latency to enter light box, and number of crosses between the two compartments. Previous studies reported that the light-dark box test may be more suited for detecting anxiolytic rather than anxiogenic effects (Crawley and Davis, 1982), and that animals’ responses in this test is affected by the intensity of illumination in the animal’s regular housing room (File et al., 2004). Future studies will test if Cre-dependent expression of inhibitory chemogenetic or optogenetic strategies can be applied to inhibit CeA CRF1 cells, and if inhibition of CeA CRF1 cells reduces anxiety-like behavior at baseline or after stress exposure.

Although the CeA is generally not thought to exhibit strong sexual dimorphism, sex differences have been reported for CRF and CRF1 properties in the CeA. For example, female rats in proestrus have higher levels of CeA Crf mRNA than male rats and footshock stress induces greater CeA Crf expression in female proestrus than in male rats (Iwasaki-Sekino et al., 2009). However, using autoradiography, Cooke and colleagues reported no sex differences in CRF1 receptor binding in the CeA of rats (Weathington et al., 2014). Using a transgenic CRFR1:GFP mouse line, the CeA of male animals was shown to contain more CRF1+ cells than female animals (Agoglia et al., 2020). In the current study, although underpowered to detect sex effects, we found that male CRF1-Cre-tdTomato rats tend to have more CRF1+ cells within the CeA than female rats, as detected via RNAscope in situ hybridization. Previous work using CRFR1:GFP mice (Agoglia et al., 2020) and our current work using CRF1-Cre-tdTomato rats revealed no sex differences in basal membrane properties and inhibitory synaptic transmission in CeA CRF1+ neurons. Our previous work in CRFR1:GFP mice showed that, while CRF application increased firing in CRF1+ CeA neurons from both female and male mice, larger increases were observed in CRF1+ neurons from male mice, an effect that we did not observe in rats potentially due to differences in variability or sex differences in firing rate.

The overwhelming majority of published studies examining the role of CeA CRF1 signaling in nocifensive and anxiety-like behaviors has employed only male subjects. Here, we used both sexes in tests of nociception and anxiety-like behavior and we did not detect any sex differences. However, we observed that the anxiogenic effect of CeA CRF1+ cell activation in the EPM test was driven by stronger effects in male subjects. One interpretation is that CeA CRF1+ cell activation affects specific components of anxiety-related behavior, that these components are aligned with specific ‘anxiety-like behavior’ phenotypes in male versus female rats that are more or less detectable by these various tests. In support of this idea, a meta-analysis of studies of anxiety-like behavior in rats and mice revealed a discordance in results between the EPM and open field tests (Mohammad et al., 2016). However, due to the small number of studies testing female animals, the role of sex in this discordance is still unknown. Within the EPM literature, studies have shown that the EPM test is more reliable for detecting anxiogenic effects in male rather than female rodents (e.g. Scholl et al., 2019). Collectively, these findings demonstrate the importance of behavioral assay selection and of using both male and female subjects.

In summary, we present a novel CRF1-Cre-tdTomato rat line that allows for the visualization and manipulation of CRF1-expressing cells. The CRF1-Cre rat can be used to study the role of distinct CRF1+ cell populations and circuits in physiology and behavior. In addition, the expression of the fluorescent reporter tdTomato in CRF1-expressing cells will allow for high resolution, detailed analysis of the expression pattern of CRF1 that has not been possible due to the lack of CRF1-specific antibodies.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Rattus norvegicus)BAC containing the Crfr1 genomic locusRiken Gene Engineering DivisionRNB2-336H12
Transfected construct (Rattus norvegicus)iCre-2a-tdTomato BAC transgeneThis paperSee Results, Design of CRF1-Cre BAC; Contact Justice Lab
Genetic reagent (Rattus norvegicus)CRF1-Cre-tdTomato ratThis paperSee Results, Generation of Transgenic Rats; Contact Gilpin Lab
Recombinant DNA reagentAAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrineAddgeneCat# 50454-AAV8
Recombinant DNA reagentAAV5-hSyn-DIO-EGFPAddgeneCat# 50457-AAV5
AntibodyAnti-c-Fos (Rabbit polyclonal)AbcamCat# ab190289, RRID:AB_2737414(1:1000)
AntibodyAnti-HA-Tag (Rabbit monoclonal)Cell SignalingCat# 3724, RRID:AB_1549585(1:250)
AntibodyAnti-RFP (Rabbit monoclonal)AbcamCat# ab34771, RRID:AB_777699(1:500)
AntibodyAnti-CRF (Rabbit monoclonal)The Salk InstituteRc-68(1:2000)
Commercial assay or kitRNAscope Multiplex Fluorescent Kit v2ACD BioiCre and Crfr1 probes
Commercial assay or kitTSA Detection KitAkoya BiosciencesCat# NEL701A001KT
Commercial assay or kitProlong Gold Antifade Reagent with DAPIInvitrogenCat# P36935
Chemical compound, drugClozapine-n-oxideNIH Drug Supply Program
Chemical compound, drugCorticotropin-releasing factorTocrisCat# 1,607
Software, algorithmMini AnalysisSynaptosoft Inc.RRID:SCR_002184
Software, algorithmClampfit 10.6Molecular Devices
Software, algorithmPrism 7.0GraphPadRRID:SCR_002798
Software, algorithmSPSS 25IBM SPSSRRID:SCR_019096

Subjects

Adult male and female CRF1-Cre-tdTomato rats were used in all experiments. Rats bred from the original founder F1 line were group-housed in humidity- and temperature-controlled (22 °C) vivaria at UNC, LSUHSC, or UTHSC on a reverse 12 hr light/dark cycle (lights off at 7:00 or 8:00 AM) and had ad libitum access to food and water. All behavioral procedures occurred in the dark phase of the light-dark cycle. Sample sizes were estimated using published work from our labs. In situ hybridization and immunohistochemistry experiments were performed in a single pass. Behavioral experiments were performed in two independent, fully counterbalanced replicates. Slice electrophysiology experiments were conducted in a single pass, such that one experiment was performed in each slice and each experimental group contained neurons from a minimum of three rats. All procedures were approved by the Institutional Animal Care and Use Committee of the respective institutions at which procedures occurred (LSUHSC IACUC Protocol #3749; UNC IACUC Protocol #19–190; UTHSC IACUC Protocol #21–075) and were in accordance with National Institutes of Health guidelines.

Stereotaxic surgeries

Request a detailed protocol

Rats were anesthetized with isoflurane (2 min at 4% for induction, 1%–3% for maintenance) and mounted into a stereotaxic frame (Kopf Instruments) for all stereotaxic surgeries. The following coordinates (from bregma) were used for bilateral intra-CeA microinjections: –2.5 mm posterior, ± 4.0 mm lateral, and –8.4 mm ventral for male rats and –2.2 mm posterior, ± 4.0 mm lateral, and –8.2 mm ventral for female rats. Viral vectors for Cre-dependent expression of Gq-DREADDs or control (see below) were injected into each side of the CeA at a volume of 0.5 µL over 5 min and injectors were left in place for an additional 2 min. Viral titers were between 1.0–1.5 x 1013 GC/mL. At the end of surgeries, rats were monitored to ensure recovery from anesthesia and were given a minimum of 4 weeks to recover before the start of procedures. Rats were treated with the analgesic flunixin (2.5 mg/kg, s.c.) and, in some rats, the antibiotic cefazolin (20 mg/kg, i.m.) before the start of surgeries and once the following day.

Immunohistochemistry

Rats were deeply anesthetized with isoflurane and were transcardially perfused with ice-cold phosphate buffered saline (PBS) followed by 4% paraformaldehyde (PFA). Brains were extracted and post-fixed in 4% PFA for 24 hr (at 4 °C), cryoprotected in 20% sucrose for 48–72 hr (at 4 °C), and frozen in 2-methylbutane on dry ice. Coronal sections were collected using a cryostat and stored in 0.1% sodium azide in PBS at 4 °C until further processing.

c-Fos immunofluorescent labeling

Request a detailed protocol

Sections (40 µm) containing the CeA were washed 3 × 10 min in PBS and incubated in blocking buffer (2.5% normal goat serum with 0.3% Triton X-100) for 2 hr at RT. Subsequently, sections were incubated in rabbit anti-c-Fos polyclonal antibody (1:1000 in blocking buffer; catalog no. 190289, Abcam, Cambridge, United Kingdom) for 48 hr at 4 °C. Sections were then washed 3 × 10 min in PBS and incubated in goat anti-rabbit Alexa Fluor 647 (1:500 in blocking buffer; catalog no. A32733, Invitrogen, Carlsbad, CA) for 2 hr at RT. After 3 × 10 min washes in PBS, sections were mounted on microscope slides and coverslipped with Prolong Gold Antifade Reagent with DAPI (Invitrogen, catalog no. P36935). Sections were imaged using a Keyence (Osaka, Japan) BZ-X800 fluorescent microscope at ×20 magnification and Fos+ cells were quantified manually by a blinded experimenter. Four sections representative of the CeA anterior-posterior axis (~bregma –1.8––2.8) from each animal were used for analysis.

HA-tag immunofluorescent labeling

Request a detailed protocol

Sections (40 µm) containing the CeA were washed 3 × 10 min in PBS and incubated in 3% hydrogen peroxide for 5 min. Sections were then washed 3 × 10 min in PBS and incubated in a blocking buffer containing 1% (w/v) bovine serum albumin and 0.3% Triton X-100 in PBS for 1 h at room temperature (RT). Then, sections were incubated in a rabbit anti-HA monoclonal antibody (1:250 in blocking buffer; catalog no. 3724, Cell Signaling, Danvers, MA) for 48 hr at 4 °C. Sections were then washed for 10 min in TNT buffer (0.1 M Tris base in saline with 0.3% Triton X-100), incubated for 30 min in 0.5% (w/v) Tyramide Signal Amplification (TSA) blocking reagent in 0.1 M Tris base, and incubated for 30 min in ImmPRESS horseradish peroxidase horse anti-rabbit antibody (catalog no. MP-7401, Vector Laboratories, Burlingame, CA) at RT. Following 4 × 5 min washes in TNT buffer, sections were incubated in fluorescein TSA reagent (1:50 in TSA amplification diluent) for 10 min at RT. TSA blocking reagent, fluorescein TSA reagent, and TSA amplification diluent are part of the TSA detection kit (catalog no. NEL701A001KT, Akoya Biosciences, Marlborough, MA). Sections were washed 3 × 10 min in TNT buffer, mounted on microscope slides, and coverslipped with Prolong Gold Antifade Reagent with DAPI (Invitrogen, catalog no. P36935). Sections were imaged using a Keyence BZ-X800 fluorescent microscope at ×2 and ×20 magnification.

tdTomato DAB immunostaining

Request a detailed protocol

Because tdTomato signal degrades over time, to create a permanent set of slides for anatomical analysis, we performed immunohistochemistry to label tdTomato protein permanently. Briefly, fixed, free-floating sections (30 µm) were incubated overnight in monoclonal rabbit anti-RFP, biotin-tagged antibody (1:500; Abcam, catalog no. ab34771). Sections were then washed 3 x with PBS and incubated in streptavidin-conjugated peroxidase (DAB-elite kit) for 1 hr. After incubation with streptavidin, sections were washed 2 x in PBS, then 2 x in 0.1 M NaOAc (pH 6.0), then stained in a solution of 0.1 M NaOAC (pH 6.0) containing nickel ammonium sulfate (3%) and 5 µl of 3% H202. Sections were stained for up to 10 min, then washed 2 x in NaOAc (pH 6.0), then in PBS, before being mounted on gelatin coated slides, dehydrated, and coverslipped in DPX. Bright-field images were acquired using a Cytation 5 imager (BioTek Instruments, Winooski, VT). tdTomato and CRF immunofluorescent labeling: Tissue processing procedures were similar to the immunofluorescent procedures described above. Sections through the amygdala were incubated in antibodies against CRF (rabbit anti-CRF, # rc-68, 1:2000, The Salk Institute) and goat-anti-RFP (1:1000; Rockland, catalog no. 200-101-379). Primary antibodies were detected by secondary anti-rabbit antibody conjugated with Alexa Fluor 488 and anti-goat antibody conjugated with Alexa Fluor 555 (Invitrogen), resulting in tdTomato protein being visible as red fluorescence and CRF peptide visible as green fluorescence. High-magnification images of the CeA were taken using a Leica (Wetzlar, Germany) Sp5 confocal microscope.

In situ hybridization

Request a detailed protocol

All solutions were prepared with DEPC treated water and all tools and surfaces were wiped with RNAzap followed by DEPC treated water. Adult Crhr1:Cre -tdTomato rats (3 males and 3 females) were deeply anesthetized with Avertin (2,2,2,-tribromoethanol, 1.25% solution, 0.2 ml/10 g BW, IP), then transcardially perfused with PBS followed by 4% PFA in PBS. Brains were removed, fixed in 4% PFA at 4 °C overnight, then equilibrated in 30% sucrose, sectioned into six series of sections (30 µM, coronal sections) on a frozen sliding microtome (SM 2000R, Leica), and stored in PBS at 4 °C. Brain slices were mounted onto glass slides, dried, and went through in situ hybridization (ISH) using a RNAscope Multiplex Fluorescent kit v2 (ACDbio, Newark, CA) following the manufacturer’s protocol.

Slice electrophysiology

Request a detailed protocol

Following rapid decapitation, brains were extracted and sectioned as previously described (Herman and Roberto, 2016). Briefly, brains were placed in ice-cold high sucrose solution containing (in mM): sucrose 206.0; KCl 2.5; CaCl2 0.5; MgCl2 7.0; NaH2PO4 1.2; NaHCO3 26; glucose 5.0; HEPES 5. Coronal sections (300 µm) were prepared on a vibrating microtome (Leica VT1000S, Leica Microsystem) and placed in an incubation chamber with oxygenated (95% O2/5% CO2) artificial cerebrospinal fluid (aCSF) containing (in mM): NaCl 120; KCl 2.5; EGTA 5; CaCl2 2.0 MgCl2 1.0; NaH2PO4 1.2; NaHCO3 26; Glucose 1.75; HEPES 5. Slices were incubated for 30 min at 37 °C, followed by a 30 min acclimation at room temperature. Patch pipettes (3–6 MΏ; King Precision Glass Inc, Claremont, CA) were filled with an internal solution containing (in mM): potassium chloride (KCl) 145; EGTA 5; MgCl2 5; HEPES 10; Na-ATP 2; Na-GTP 0.2 (for whole cell voltage-clamp recordings) or containing potassium gluconate 145; EGTA 5; MgCl2 5; HEPES 10; Na-ATP 2; Na-GTP 0.2 (for whole cell current clamp experimental recordings). Data acquisition was performed with a Multiclamp 700B amplifier (Molecular Devices, San Jose, CA), low-pass filtered at 2–5 kHz, coupled to a digitizer (Digidata 1,550B; Molecular Devices) and stored on a PC using pClamp 10 software (Molecular Devices). Whole-cell voltage-clamp recordings were performed at Vhold = –60 mV. Cell-attached recordings were performed with no holding parameters (0 mV). All recordings were performed at room temperature. Series resistance was continuously monitored and cells with series resistance >15 MΩ were excluded from analysis. Properties of sIPSCs were analyzed and visually confirmed using a semi-automated threshold detection program (Minianalysis). The frequency of firing discharge was evaluated and visually confirmed using threshold-based event detection analysis in Clampfit 10.2 (Molecular Devices). Experimental drugs were applied by bath application or y tube for focal application. Analysis was performed on recordings containing >60 events or that encompassed a period of 2–5 min.

Drugs

Clozapine-n-oxide (CNO, NIH Drug Supply Program) was dissolved in 5% DMSO (v/v in saline). CRF was purchased from Tocris Bioscience (Bristol, United Kingdom), dissolved in stock solutions in ultra-pure water, and diluted to final experimental concentration in aCSF.

Crhr1 and iCre expression in CeA

Request a detailed protocol

The purpose of this experiment was to determine the pattern of tdTomato protein expression and Crhr1 and iCre mRNA expression within the CeA. Coronal brain sections containing the CeA were processed for immunohistochemical DAB labeling of tdTomato protein or RNAscope ISH for labeling Crhr1 and iCre mRNA, as described above. A separate set of brain sections containing CeA were processed for immunofluorescent labeling of tdTomato and CRF to map the expression pattern of these proteins in the CeA of Crhr1-Cre-tdTomato rats. Images were captured using a confocal microscope (model TCS SP5, Leica) and processed with Fiji ImageJ. Coronal sections containing the CeA were identified by neuroanatomical landmarks with reference to a rat brain atlas and captured at ×20 magnification at one single focal plane (1 µm). For analysis of Crhr1 and iCre RNAscope images, punctate signals from each channel were quantified separately following the manufacturer’s guideline (ACDbio SOP45-006). Quantification was performed by an experimenter blinded to experimental groups. Based on pilot studies, cells that had more than 3 puncta were considered positive. At least 3 sections representative of the anterior-posterior axis of the CeA were analyzed in each animal.

Membrane properties, inhibitory synaptic transmission, and CRF sensitivity of CeA CRF1-Cre-tdTomato cells

Request a detailed protocol

The purpose of this experiment was to characterize intrinsic properties, inhibitory synaptic transmission, and CRF sensitivity in CRF1+ neurons in the CeA. These neurons were identified using fluorescent optics and brief ( < 2 s) episcopic illumination. All labeled neurons were photographed, recorded, and saved. Intrinsic membrane properties were determined in voltage clamp configuration (Vhold = –60 mV) using pClamp 10 Clampex software. Current clamp recordings were performed to determine current-voltage (I-V) changes and the firing type of each neuron. Voltage clamp recordings of pharmacologically-isolated GABAA receptor-mediated spontaneous inhibitory postsynaptic currents (sIPSCs) were performed with bath application of the glutamate receptor blockers 6,7-dinitroquinoxaline-2,3-dione (DNQX, 20 µM) and DL-2-amino-5-phosphonovalerate (AP-5, 50 µM) and the GABAB receptor antagonist GCP55845A (1 µM). Cell-attached recordings were made in close juxtacellular (i.e., membrane intact) cell-attached configuration and only cells with regular spontaneous firing were included in analysis. After a stable baseline period, CRF (200 nM) was applied for a period of 7–10 min and changes in firing were measured and compared to baseline. Experiments were performed in individual slices to ensure that drug application was never repeated in the same slice.

Functional validation of Cre-dependent expression of Gq-DREADD receptors in CeA CRF1-Cre -tdTomato cells

The purpose of this experiment was to test if CeA CRF1-Cre-tdTomato cells can be activated using chemogenetics via Cre-mediated targeting of Gq-DREADD receptors [hM3D(Gq)] to these cells.

c-Fos validation

Request a detailed protocol

To test if Cre-dependent expression of Gq-DREADD receptors can stimulate CeA CRF1-Cre-tdTomato cells, CRF1-Cre-tdTomato rats were given bilateral microinjections of AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine (50454-AAV8, Addgene, Watertown, MA) or a control virus (AAV5-hSyn-DIO-EGFP; Addgene, 50457-AAV5) targeting the CeA. Four weeks later, rats were given a systemic CNO injection (4 mg/kg, i.p.) and sacrificed 90 min later. Brain sections (4 sections/rat x 4 rats/group) were processed for c-Fos immunohistochemistry and the percentage of c-Fos+ tdTomato+ cells in the CeA was calculated. Cell counts were performed by an experimenter blinded to experimental groups.

Electrophysiological validation

Request a detailed protocol

To functionally validate Cre-dependent expression of Gq-DREADD receptors in CeA CRF1-Cre -tdTomato cells, CRF1-Cre-tdTomato rats were given bilateral microinjections as described above. After a minimum of 4 weeks, brain slices of CeA were prepared as described above. CeA neuronal expression of mCitrine and tdTomato were confirmed by fluorescent optics and neurons were targeted for electrophysiological recording. After a stable baseline period, CNO (10 μM) was applied and changes in membrane potential and action potential firing were measured and compared to baseline.

Effects of chemogenetic stimulation of CeA CRF1-Cre -tdTomato cells on nociception and anxiety-like behavior

The purpose of these experiments was to test the effects of chemogenetic stimulation of CeA CRF1 cells on nociception and anxiety-like behavior. Rats were given intra-CeA microinjections of AAV8-hSyn-DIO-HA-hM3D(Gq)-IRES-mCitrine (Addgene, 50454-AAV8; Active Virus) or AAV5-hSyn-DIO-EGFP (Addgene, 50457-AAV5; Control Virus) and were given 4 weeks for recovery and viral expression (Figure 7A). Please refer to Figure 7B for a timeline schematic of this experiment. All rats were habituated to handling before the start of behavioral procedures. On behavioral procedure days, rats were given at least 30 min to acclimate to the procedure room.

Nociception

Request a detailed protocol

Mechanical and thermal nociception were measured using the Von Frey (Pahng et al., 2017) and Hargreaves (Avegno et al., 2018) assays, respectively, as previously described. Briefly, the Von Frey apparatus consists of clear chambers placed on top of a mesh floor. To measure sensitivity to mechanical nociception, each hind paw was perpendicularly stimulated with a Von Frey filament (Electronic Von Frey 38450, Ugo Basile, Gemonio, Italy) calibrated to measure the amount of force applied using the up-down method and the force (g) threshold required to elicit a paw withdrawal response was recorded. Force thresholds were measured twice for each hind paw in alternating fashion, with at least 1 min between measurements, and an average threshold was calculated for each animal. The Hargreaves apparatus consists of clear chambers placed on top of a glass pane suspended above a tabletop. To measure sensitivity to thermal nociception, each hind paw was stimulated by a halogen light heat source (Model 309 Hargreaves Apparatus, IITC Life Sciences, Woodland Hills, CA) and latency (s) for hind paw withdrawal was measured. Withdrawal latencies were measured twice for each hind paw in alternating fashion, with at least 1 min between measurements, and an average withdrawal latency was calculated for each animal.

Baseline paw withdrawal thresholds in the Von Frey assay and withdrawal latencies in the Hargreaves assay were measured over 3 sessions (1 baseline session/day; baseline sessions for each assay occurred on alternating days; Figure 7B) that were each preceded 30 min earlier by a vehicle (5% DMSO in saline, i.p.) pretreatment. After the final baseline session, rats were counterbalanced into CNO (4 mg/kg) or Vehicle (5% DMSO) treatment groups based on paw withdrawal latencies during the 3rd (final) Hargreaves baseline session. During Von Frey and Hargreaves test sessions, rats were given CNO (4 mg/kg) or vehicle injections (i.p.) 30 min before the start of testing. All Von Frey and Hargreaves procedures occurred under regular white light illumination.

Anxiety-like behaviors

Request a detailed protocol

One day after Hargreaves testing, rats were tested for anxiety-like behaviors in the elevated plus maze (EPM), open field (OF), and light-dark box (LD) on consecutive days (Figure 7B). All procedures occurred under indirect, dim illumination (~10 lux). Rats were given CNO (4 mg/kg) or vehicle injections (i.p.) 30 min before the start of each test. The EPM and OF tests were performed as previously described (Albrechet-Souza et al., 2020; Fucich et al., 2020). Briefly, the EPM consists of two open and two closed arms elevated 50 cm above the floor. Rats were individually placed in the center of the maze facing an open arm and were given 5 min to explore the maze. Time spent in the open and closed arms of the maze was measured. The OF consists of a square arena with a checkerboard patterned floor (4 × 4 squares). Rats were individually placed in one corner of the arena and were given 5 min to explore the arena. Time spent in the periphery and the center of the arena (defined as the 3 × 3 squares in the center of the arena) was measured. The LD box consists of a two compartments; one with black walls and a black floor, and the other with white walls and a white floor. The black compartment was protected from light (dark box) and the white compartment was illuminated (light box; ~ 1000 lux). Rats were able to freely explore both dark and light boxes through an opened door. Rats were individually placed in the dark box and were given 5 min to explore the apparatus. Time spent in dark and light boxes, as well as the latency to enter the light box were measured. EPM, OF, and LD tests were recorded via a camera mounted above the apparatus and videos were scored by an experimenter blinded to treatment groups. At the end of the experiment, rats were sacrificed and brain sections were analyzed for virus placement.

Crhr1 and iCre expression in BLA

Request a detailed protocol

The purpose of this experiment was to examine Crhr1 and iCre mRNA expression in a brain area outside the CeA. The basolateral amygdala (BLA) was selected for analysis because CRF1 receptors are highly expressed in, and functionally regulate the activity of pyramidal glutamatergic neurons in this area (as opposed to GABAergic neurons in CeA) (Refojo et al., 2011; Rostkowski et al., 2013). Brain sections containing BLA were processed for Crhr1 and iCre RNAscope and analyzed as described above.

Cre-tdTomato fluorescent expression across the brain

Request a detailed protocol

The purpose of this experiment was to examine if the Cre-tdTomato transgene is expressed in brain areas outside of the amygdala in a pattern that is consistent with known CRF1 expression patterns. Male and female (n = 2/sex) CRF1-Cre-tdTomato rats were perfused transcardially with PBS and 4% PFA, and brains were post-fixed in 4% PFA overnight. Brains were cryoprotected, snap-frozen, and sectioned with a cryostat. Coronal sections (40 µm) were collected across the rostrocaudal axis, mounted onto microscope slides, and coverslipped with Fluorogel-II containing DAPI (Electron Microscopy Sciences). Brain sections were imaged using a Keyence BZ-X800 fluorescent microscope. For each brain region, at least three sections were analyzed.

Statistical analyses

Request a detailed protocol

Electrophysiology data on frequency and amplitude of spontaneous inhibitory postsynaptic currents (sIPSCs) were analyzed and manually confirmed using a semi-automated threshold-based detection software (Mini Analysis, Synaptosoft Inc, Decatur, GA). Cell-attached firing discharge data were analyzed and manually confirmed using a semi-automated threshold-based detection software (Clampfit 10.6, Molecular Devices). Electrophysiological characteristics were determined from baseline and experimental drug application containing a minimum of 65 events each. Event data were represented as mean ± SEM or mean % change from baseline ± SEM and analyzed for independent significance using a one-sample t-test, compared by paired or unpaired t-test where appropriate. Data analysis and visualization were completed using Prism 7.0 (GraphPad, San Diego, CA). Behavioral data were analyzed using multifactorial repeated measures ANOVAs (for Von Frey and Hargreaves tests) or t-tests (for anxiety tests). For RM ANOVAs, between-subjects factors include sex and treatment, and the within-subjects repeated measure was test session (i.e. baseline vs. test). Data from the active and control virus groups were analyzed separately (i.e. the control virus group was treated as a replication of the experiment; Weera et al., 2021). Data from experiments that only have two groups (e.g. c-Fos immunohistochemistry) were analyzed using t-tests. Data were analyzed using the Statistical Package for Social Sciences (Version 25, IBM Corporation, Armonk, NY). Statistical significance was set at p < 0.05.

Data availability

All data generated during this study are included in the manuscript.

References

    1. Day HE
    2. Curran EJ
    3. Watson SJ
    4. Akil H
    (1999)
    Distinct neurochemical populations in the rat central nucleus of the amygdala and bed nucleus of the stria terminalis: evidence for their selective activation by interleukin-1beta
    The Journal of Comparative Neurology 413:113–128.

Decision letter

  1. Matthew N Hill
    Reviewing Editor; University of Calgary, Canada
  2. Kate M Wassum
    Senior Editor; University of California, Los Angeles, United States
  3. James P Herman
    Reviewer; University of Cincinnati, United States
  4. Eric Zorrilla
    Reviewer

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Decision letter after peer review:

Thank you for submitting your article "Cellular, physiological, and behavioral validation of a CRFR1:Cre-td Tomato rat for use in basic neuroscience research" for consideration by eLife. Your article has been reviewed by 4 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Kate Wassum as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: James P Herman (Reviewer #2); Eric Zorrilla (Reviewer #3).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission. (We suggest resubmitting as a Tools and Resources paper.)

Essential revisions:

1) As previous transgenic rat lines have shown some issues with cell specific fidelity, and since this is the initial characterization paper of the rat line, it was felt that a broader characterization of the expression in different cell types and in different brain regions was necessary. For example, the Pomerenze Crh-Cre rat was found to only express in GABAergic but not glutamatergic neurons, and so for the field to be able to understand the breadth of utility of this model and the fidelity across cell types, more characterization is required. This does not need to involve in depth electrophysiology as was done in the CeA, but could be done by mapping the expression of iCre/tdTomato in brain regions beyond the CeA, such as prefrontal cortex, hypothalamic nuclei and the BNST, where CRHR1 neurons are widely expressed. Ideally this would be compared to ISH quantification as is done in the CeA but if this is unfeasible then comparing to established in situ hybridization maps of expression of CRHR1 would still provide an idea of the fidelity with endogenous CRFR1 expression. It was felt necessary that at least in one other brain region, preferably one where CRHR1 is expressed in glutamatergic neurons, a side by side comparison of tdTomato and CRFR1 would be necessary to be sure it is not restricted to discrete cell types. It would also be good to establish if expression of tdTomato is seen in microglia or astrocytes to know if this model recapitulates the cell type specificity of CRFR1 expression.

Concerns that require addressing but can be dealt with via reanalysis of existing data or modifications within the manuscript.

1) The authors contextualize the necessity of developing a rat model of the CRFR1-Cre line because they state that this will allow more for the investigation of more complex behaviors then mice engage in. While this point may have some validity, it was felt that this statement and justification also required more validity. Please expand this rationale including examples of complex behavioral assays that can only be performed in rats and not mice.

2) The manuscript does not discuss possible genetic strain of origin issues. The rat was generated using a BAC that involves DNA from a different strain (F344) than that bred into (Wistar), so potential strain of origin differences in regulatory or enhancer elements for the Crhr1 gene might co-segregate in early generations with the transgene. Similar considerations are true with respect to linked alleles if the strain of the gamete donors, which was not specified, differed from Wistar. Such issues would become of lesser concern with continued Wistar breeding but are not mentioned.

Additionally, the location, copy #, fidelity or potential mosaicism of BAC transgene insertions after germline transmission was not mentioned. It is recommended that analysis of F1 or F2 offspring to establish location, copy #, fidelity and mosaicism of transgene insertion in order to disseminate the most desirable pedigree from this line (e.g., PMID: 17882484, 29703985, 30354251). If already done, please add relevant findings.

3) For the electrophysiology studies, adding the resting potential on the rep traces in Figure 5 and describing if Vm was adjusted for these experiments would provide clarity and is requested. Also, it could be very useful to compare intrinsic membrane results with published work on these cells to establish the normality of these measures in this line and see if the transgene expression impacted the physiological properties of these cells. It was also felt that the many of the traces used in the figures didn't seem representative and these should be modified to include genuine representative traces.

4) The reviewers all appreciate the authors inclusion of both sexes, but there are some issues here that need to be addressed. First, it is likely that this study was not appropriately powered for identifying sex differences. This is recognized in some experiments, such as the anxiety behavior experiments, but it was agreed that the same level of preliminary interpretation should be exercised with the Cre fidelity data and the impacts of CRF in firing rates. However, sex differences in baseline firing rates are important and it would benefit the manuscript to discuss this in greater depth.

5) The statistics on the behavior (Figure 7) should be checked as it was felt that repeated measures ANOVA would be more appropriate for these then t-tests.

6) Consistent with IUPHAR consensus (p.24, PMID: 12615952), the receptor protein should be referred to as CRF(subscript)1. Per both IUPHAR and RGD (RGD ID: 61276) nomenclature, the gene should be referred to as Crhr1.

7) As the DREADD studies performed did not include an approach that inhibited these cells, the discussion should clarify that it remains to be determined if this approach will work for inhibition of cell activity using actuators like DREADDs.

8) Some aspects of histochemical concordance were not provided or explored. For example, the proportion of Cre-expressing neurons that expressed CRF1 mRNA was not reported to confirm specificity (it appears to be even higher which would be good)? Cellular co-expression of Tomato with CRF1 mRNA also was not explicitly quantified.

To address this, it is recommended to: (a) justify the current binary thresholds for + vs. – expression similar to PMID: 31451604, (b) analyze whether there is a semi-continuous, rather than only binary, relation between puncta expression of CRF1 vs. iCre, (c) clarify whether there are statistically significant sex differences in binary or continuous concordance (CRF1-iCre), and (d) discuss concordance of Tomato with CRF1 mRNA.

9) While anxiety-like behavior was viewed as an appropriate behavioral readout for validation of the rats, it was felt that the consensus around the role of the CeA in pain was less widely accepted and had more nuance. As such, it is requested that authors to cite the work on CeA CRF and analgesia and acknowledge that their chemogenetic manipulation seem to mimic injury-induced hyperalgesic states but not stress-induced analgesic states. The authors can use this opportunity to highlight that the transgenic rat would be an excellent tool for future studies aimed at studying stress-induced analgesia.

10. If you have not already done so, please attend to the important information below "Information to help as you revise your submission" including inclusions of a key resource table and statistical reporting.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Generation of a CRF1-Cre transgenic rat and the role of central amygdala CRF1 receptors in nociception and anxiety-like behavior" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Kate Wassum as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

The authors did an adequate job in answering many of the reviewer’s concerns, however, it does seem that the author response fell short in answering two of the reviewers' concerns.

Specifically, there was a consensus amongst reviewers that analysis of the penetrance and specificity of transgene across several regions should be included in this first demonstration of a new transgenic tool. While the inclusion of the BLA is an improvement, it still does not survey several regions. Rather the authors indicate that a full analysis of the specificity and penetrance of the transgene across brain regions will be reserved for a follow-up manuscript. While this may be, the reviewers agreed that it is paramount to this first publication to include more than two regions. From discussion, it was agreed amongst the reviewers that the authors should include characterization of the following brain regions: BNST, Hippocampus, VTA, LC, RN, PAG, PVN, and at least one cortical region.

The second concern that does not seem to be sufficiently addressed in the revision is the need to perform experiments to determine where the BAC incorporated in the genome in the CRF1-Cre rat. This is particularly important when considering fluorescent reporter expression. The reviewers appreciated the additional discussion of potential caveats but agreed that additional experiments and analysis to validate this component of a new tool are needed. The issues that have arisen from other BAC mice and rats are believed to be a result of less than rigorous validation upon their initial introduction. As such, it seems incumbent on the authors to be as rigorous as possible in this first publication in order to avoid these recurrent issues with this particular rat tool.

https://doi.org/10.7554/eLife.67822.sa1

Author response

Essential revisions:

1) As previous transgenic rat lines have shown some issues with cell specific fidelity, and since this is the initial characterization paper of the rat line, it was felt that a broader characterization of the expression in different cell types and in different brain regions was necessary. For example, the Pomerenze Crh-Cre rat was found to only express in GABAergic but not glutamatergic neurons, and so for the field to be able to understand the breadth of utility of this model and the fidelity across cell types, more characterization is required. This does not need to involve in depth electrophysiology as was done in the CeA, but could be done by mapping the expression of iCre/tdTomato in brain regions beyond the CeA, such as prefrontal cortex, hypothalamic nuclei and the BNST, where CRHR1 neurons are widely expressed. Ideally this would be compared to ISH quantification as is done in the CeA but if this is unfeasible then comparing to established in situ hybridization maps of expression of CRHR1 would still provide an idea of the fidelity with endogenous CRFR1 expression. It was felt necessary that at least in one other brain region, preferably one where CRHR1 is expressed in glutamatergic neurons, a side by side comparison of tdTomato and CRFR1 would be necessary to be sure it is not restricted to discrete cell types. It would also be good to establish if expression of tdTomato is seen in microglia or astrocytes to know if this model recapitulates the cell type specificity of CRFR1 expression.

We now show Crhr1 and iCre co-expression in the basolateral amygdala, a brain area that contains a high density of Crhr1-expressing glutamatergic neurons (page 20, lines 263-271; page 39, lines 692-698). A follow-up manuscript will characterize Crhr1 and iCre co-expression throughout the rat brain.

Concerns that require addressing but can be dealt with via reanalysis of existing data or modifications within the manuscript.

1) The authors contextualize the necessity of developing a rat model of the CRFR1-Cre line because they state that this will allow more for the investigation of more complex behaviors then mice engage in. While this point may have some validity, it was felt that this statement and justification also required more validity. Please expand this rationale including examples of complex behavioral assays that can only be performed in rats and not mice.

Please see page 4, lines 70-71, and page 8, lines 143-145.

2) The manuscript does not discuss possible genetic strain of origin issues. The rat was generated using a BAC that involves DNA from a different strain (F344) than that bred into (Wistar), so potential strain of origin differences in regulatory or enhancer elements for the Crhr1 gene might co-segregate in early generations with the transgene. Similar considerations are true with respect to linked alleles if the strain of the gamete donors, which was not specified, differed from Wistar. Such issues would become of lesser concern with continued Wistar breeding but are not mentioned.

Additionally, the location, copy #, fidelity or potential mosaicism of BAC transgene insertions after germline transmission was not mentioned. It is recommended that analysis of F1 or F2 offspring to establish location, copy #, fidelity and mosaicism of transgene insertion in order to disseminate the most desirable pedigree from this line (e.g., PMID: 17882484, 29703985, 30354251). If already done, please add relevant findings.

We agree that the insertion site and copy number are important considerations that may influence transgenic expression of reporter genes. We have not yet performed experiments to determine where the BAC incorporated in the genome in the CRF1-Cre rat, however, we have included these as important caveats to consider when analyzing transgenic expression, in the Discussion (pages 21 and 22, lines 295-313).

3) For the electrophysiology studies, adding the resting potential on the rep traces in Figure 5 and describing if Vm was adjusted for these experiments would provide clarity and is requested. Also, it could be very useful to compare intrinsic membrane results with published work on these cells to establish the normality of these measures in this line and see if the transgene expression impacted the physiological properties of these cells. It was also felt that the many of the traces used in the figures didn't seem representative and these should be modified to include genuine representative traces.

The cell-attached recordings of neuronal firing were performed with no holding parameters (0 mV) and no adjustments to Vm were made. The intrinsic properties of CRF1+ CeA neurons are in line with what has previously been reported in rat CeA neurons (Herman & Roberto, 2016; PMID: 25170988), suggesting that the transgene did not significantly impact the overall health or activity of CRF1+ CeA neurons (please see page 22, lines 315-317). The figures were edited to include traces that were more representative of the CRF1+ population in males and females (please see Figure 5).

4) The reviewers all appreciate the authors inclusion of both sexes, but there are some issues here that need to be addressed. First, it is likely that this study was not appropriately powered for identifying sex differences. This is recognized in some experiments, such as the anxiety behavior experiments, but it was agreed that the same level of preliminary interpretation should be exercised with the Cre fidelity data and the impacts of CRF in firing rates. However, sex differences in baseline firing rates are important and it would benefit the manuscript to discuss this in greater depth.

Please see page 23, lines 330-331; page 26, lines 410-413. Given that our studies here were not sufficiently powered to conclusively determine the presence or absence of sex differences, we feel that the sex difference in baseline firing rate of CeA CRF1 cells that we observed should not be over-interpreted.

5) The statistics on the behavior (Figure 7) should be checked as it was felt that repeated measures ANOVA would be more appropriate for these then t-tests.

Data from Von Frey and Hargreaves tests were analyzed using repeated measures ANOVA. Data from elevated plus maze, open field, and light-dark tests were analyzed using t-tests because there are 2 between-subjects groups in these experiments. This is now clarified in the manuscript (please see Results, page 18, lines 241, 249 and 255; Statistical Analyses, page 40, lines 710713).

6) Consistent with IUPHAR consensus (p.24, PMID: 12615952), the receptor protein should be referred to as CRF(subscript)1. Per both IUPHAR and RGD (RGD ID: 61276) nomenclature, the gene should be referred to as Crhr1.

This has been edited throughout the manuscript.

7) As the DREADD studies performed did not include an approach that inhibited these cells, the discussion should clarify that it remains to be determined if this approach will work for inhibition of cell activity using actuators like DREADDs.

This has been clarified in the Discussion (please see page 23, line 339; page 25, lines 399-401).

8) Some aspects of histochemical concordance were not provided or explored. For example, the proportion of Cre-expressing neurons that expressed CRF1 mRNA was not reported to confirm specificity (it appears to be even higher which would be good)? Cellular co-expression of Tomato with CRF1 mRNA also was not explicitly quantified.

To address this, it is recommended to: (a) justify the current binary thresholds for + vs. – expression similar to PMID: 31451604, (b) analyze whether there is a semi-continuous, rather than only binary, relation between puncta expression of CRF1 vs. iCre, (c) clarify whether there are statistically significant sex differences in binary or continuous concordance (CRF1-iCre), and (d) discuss concordance of Tomato with CRF1 mRNA.

Please see edits on page 35, line 590 for information on our RNAscope quantification thresholding. Beyond counting cells as being positively or negatively labeled with an RNAscope probe, we did not quantify the number of puncta within each cell as this re-analysis would be difficult without specialized software. We feel that this level of analysis is beyond the scope of the current manuscript. Regarding potential sex differences, we did analyze RNAscope data with sex as a factor, using binary thresholds (page 9, lines 161-153). Regarding concordance between tdTomato and Crhr1 mRNA expression, we probed for iCre and not tdTomato because iCre and tdTomato are expressed as a single polypeptide (please see edits on page 9, lines 154-156). Therefore, there is no reason to suspect any difference between iCre and tdTomato expression, and we probed for iCre because it is more relevant for functional studies.

9) While anxiety-like behavior was viewed as an appropriate behavioral readout for validation of the rats, it was felt that the consensus around the role of the CeA in pain was less widely accepted and had more nuance. As such, it is requested that authors to cite the work on CeA CRF and analgesia and acknowledge that their chemogenetic manipulation seem to mimic injury-induced hyperalgesic states but not stress-induced analgesic states. The authors can use this opportunity to highlight that the transgenic rat would be an excellent tool for future studies aimed at studying stress-induced analgesia.

Please see Discussion, page 24, lines 355-365.

10. If you have not already done so, please attend to the important information below "Information to help as you revise your submission" including inclusions of a key resource table and statistical reporting.

A key resources table is now included at the beginning of the Materials and methods section (pages 28-29). Statistical reporting has been checked per eLife instructions.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

Essential revisions:

The authors did an adequate job in answering many of the reviewer’s concerns, however, it does seem that the author response fell short in answering two of the reviewers' concerns.

Specifically, there was a consensus amongst reviewers that analysis of the penetrance and specificity of transgene across several regions should be included in this first demonstration of a new transgenic tool. While the inclusion of the BLA is an improvement, it still does not survey several regions. Rather the authors indicate that a full analysis of the specificity and penetrance of the transgene across brain regions will be reserved for a follow-up manuscript. While this may be, the reviewers agreed that it is paramount to this first publication to include more than two regions. From discussion, it was agreed amongst the reviewers that the authors should include characterization of the following brain regions: BNST, Hippocampus, VTA, LC, RN, PAG, PVN, and at least one cortical region.

We agree with the reviewers, and we have performed additional experiments to image and quantify Cre-tdTomato-expressing cells in multiple areas across the CRF1-Cre-tdTomato rat brain. We now show that Cre-tdTomato-expressing cells are found in brain areas known to contain CRF1 cells, including the prelimbic and infralimbic cortex, piriform cortex, bed nucleus of stria terminalis, hippocampus, paraventricular nucleus of hypothalamus, lateral hypothalamus, paraventricular thalamus, ventral tegmental area, dorsal raphe, and locus coeruleus (Pg. 19-22, Figure 9). We compared the density of Cre-tdTomato cells in these areas to expression levels of Crhr1 mRNA in wild type rats (Van Pett et al., 2001), and density of GFP cells in CRF1-GFP mice (Justice et al.,2008), and found that they are similar (Pg. 22, Table 1).

The second concern that does not seem to be sufficiently addressed in the revision is the need to perform experiments to determine where the BAC incorporated in the genome in the CRF1-Cre rat. This is particularly important when considering fluorescent reporter expression. The reviewers appreciated the additional discussion of potential caveats but agreed that additional experiments and analysis to validate this component of a new tool are needed. The issues that have arisen from other BAC mice and rats are believed to be a result of less than rigorous validation upon their initial introduction. As such, it seems incumbent on the authors to be as rigorous as possible in this first publication in order to avoid these recurrent issues with this particular rat tool.

We understand this concern and we performed additional experiments to try to identify the genomic insertion site of the BAC. Unfortunately, these experiments were not successful, and we were not able to conclusively determine the insertion site. We explored a commercial sequencing option, but we currently do not have the resources for this option. Given that the expression pattern of the fluorescent reporter in CRF1-Cre-tdTomato rats is consistent with the known expression pattern of CRF1 cells throughout the brain, we are confident that genomic incorporation of the transgene produced expected Cre-tdTomato expression patterns. In addition, the behavioral and physiological phenotypes of CRF1-Cre-tdTomato rats reported in this manuscript closely resemble those seen in wild-type Wistar rats, suggesting that BAC insertion into the genome did not produce observable anomalous phenotypes (added to Discussion on Pg. 24).

https://doi.org/10.7554/eLife.67822.sa2

Article and author information

Author details

  1. Marcus M Weera

    Department of Physiology, Louisiana State University Health Sciences Center, New Orleans, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Writing – original draft, Writing – review and editing
    For correspondence
    mweera@lsuhsc.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2451-0350
  2. Abigail E Agoglia

    Department of Pharmacology, University of North Carolina, Chapel Hill, United States
    Contribution
    Data curation, Formal analysis, Investigation, Writing – original draft
    Competing interests
    No competing interests declared
  3. Eliza Douglass

    Department of Pharmacology, University of North Carolina, Chapel Hill, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  4. Zhiying Jiang

    Institute of Molecular Medicine, University of Texas Health Sciences Center, Houston, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  5. Shivakumar Rajamanickam

    Institute of Molecular Medicine, University of Texas Health Sciences Center, Houston, United States
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
  6. Rosetta S Shackett

    Department of Physiology, Louisiana State University Health Sciences Center, New Orleans, United States
    Contribution
    Data curation, Investigation
    Competing interests
    No competing interests declared
  7. Melissa A Herman

    1. Department of Pharmacology, University of North Carolina, Chapel Hill, United States
    2. Bowles Center for Alcohol Studies, University of North Carolina, Chapel Hill, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft, Writing – review and editing
    Contributed equally with
    Nicholas J Justice and Nicholas W Gilpin
    Competing interests
    No competing interests declared
  8. Nicholas J Justice

    1. Institute of Molecular Medicine, University of Texas Health Sciences Center, Houston, United States
    2. Department of Integrative Biology and Pharmacology, McGovern Medical School at UT Health, Houston, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Project administration, Resources, Supervision, Validation, Writing – review and editing
    Contributed equally with
    Melissa A Herman and Nicholas W Gilpin
    Competing interests
    No competing interests declared
  9. Nicholas W Gilpin

    1. Department of Physiology, Louisiana State University Health Sciences Center, New Orleans, United States
    2. Neuroscience Center of Excellence, Louisiana State University Health Sciences Center, New Orleans, United States
    3. Alcohol & Drug Abuse Center of Excellence, Louisiana State University Health Sciences Center, New Orleans, United States
    4. Southeast Louisiana VA Healthcare System (SLVHCS), New Orleans, United States
    Contribution
    Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Writing – review and editing
    Contributed equally with
    Melissa A Herman and Nicholas J Justice
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8901-8917

Funding

National Institute on Alcohol Abuse and Alcoholism (R01 AA023305)

  • Nicholas W Gilpin

National Institute on Alcohol Abuse and Alcoholism (R21 AA026022)

  • Melissa Herman
  • Nicholas W Gilpin

National Institute on Alcohol Abuse and Alcoholism (R00 AA023002)

  • Melissa Herman

National Institute on Alcohol Abuse and Alcoholism (National Research Service Award AA027145)

  • Marcus M Weera

National Institute on Alcohol Abuse and Alcoholism (Institutional Training Grant AA007577)

  • Marcus M Weera

United States Department of Veterans Affairs (Merit Award #I01 BX003451)

  • Nicholas W Gilpin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by National Institutes of Health Grants AA023305 (NWG), AA026022 (to NWG and MAH), AA023002 (MAH), AA027145 (MMW), and AA007577 (institutional NRSA training grant that supported MMW). This work was also supported in part by a Merit Review Award #I01 BX003451 (to NWG) from the United States Department of Veterans Affairs, Biomedical Laboratory Research and Development Service.

Ethics

All animal procedures were conducted in accordance with recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health, and were approved by the Institutional Animal Care and Use Committee of the respective institutions at which procedures occurred (Louisiana State University Health Sciences Center, University of North Carolina - Chapel Hill, University of Texas Health Sciences Center). (LSUHSC IACUC Protocol #3749; UNC IACUC Protocol #19-190; UTHSC IACUC Protocol #21-075).

Senior Editor

  1. Kate M Wassum, University of California, Los Angeles, United States

Reviewing Editor

  1. Matthew N Hill, University of Calgary, Canada

Reviewers

  1. James P Herman, University of Cincinnati, United States
  2. Eric Zorrilla

Publication history

  1. Preprint posted: February 23, 2021 (view preprint)
  2. Received: February 24, 2021
  3. Accepted: April 6, 2022
  4. Accepted Manuscript published: April 7, 2022 (version 1)
  5. Version of Record published: April 22, 2022 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 866
    Page views
  • 137
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Marcus M Weera
  2. Abigail E Agoglia
  3. Eliza Douglass
  4. Zhiying Jiang
  5. Shivakumar Rajamanickam
  6. Rosetta S Shackett
  7. Melissa A Herman
  8. Nicholas J Justice
  9. Nicholas W Gilpin
(2022)
Generation of a CRF1-Cre transgenic rat and the role of central amygdala CRF1 cells in nociception and anxiety-like behavior
eLife 11:e67822.
https://doi.org/10.7554/eLife.67822
  1. Further reading

Further reading

    1. Neuroscience
    Mingchao Yan et al.
    Tools and Resources

    Resolving trajectories of axonal pathways in the primate prefrontal cortex remains crucial to gain insights into higher-order processes of cognition and emotion, which requires a comprehensive map of axonal projections linking demarcated subdivisions of prefrontal cortex and the rest of brain. Here, we report a mesoscale excitatory projectome issued from the ventrolateral prefrontal cortex (vlPFC) to the entire macaque brain by using viral-based genetic axonal tracing in tandem with high-throughput serial two-photon tomography, which demonstrated prominent monosynaptic projections to other prefrontal areas, temporal, limbic, and subcortical areas, relatively weak projections to parietal and insular regions but no projections directly to the occipital lobe. In a common 3D space, we quantitatively validated an atlas of diffusion tractography-derived vlPFC connections with correlative green fluorescent protein-labeled axonal tracing, and observed generally good agreement except a major difference in the posterior projections of inferior fronto-occipital fasciculus. These findings raise an intriguing question as to how neural information passes along long-range association fiber bundles in macaque brains, and call for the caution of using diffusion tractography to map the wiring diagram of brain circuits.

    1. Medicine
    2. Neuroscience
    Simon Oxenford et al.
    Tools and Resources

    Background: Deep Brain Stimulation (DBS) electrode implant trajectories are stereotactically defined using preoperative neuroimaging. To validate the correct trajectory, microelectrode recordings (MER) or local field potential recordings (LFP) can be used to extend neuroanatomical information (defined by magnetic resonance imaging) with neurophysiological activity patterns recorded from micro- and macroelectrodes probing the surgical target site. Currently, these two sources of information (imaging vs. electrophysiology) are analyzed separately, while means to fuse both data streams have not been introduced.

    Methods: Here we present a tool that integrates resources from stereotactic planning, neuroimaging, MER and high-resolution atlas data to create a real-time visualization of the implant trajectory. We validate the tool based on a retrospective cohort of DBS patients (𝑁 = 52) offline and present single use cases of the real-time platform. Results: We establish an open-source software tool for multimodal data visualization and analysis during DBS surgery. We show a general correspondence between features derived from neuroimaging and electrophysiological recordings and present examples that demonstrate the functionality of the tool.

    Conclusions: This novel software platform for multimodal data visualization and analysis bears translational potential to improve accuracy of DBS surgery. The toolbox is made openly available and is extendable to integrate with additional software packages.

    Funding: Deutsche Forschungsgesellschaft (410169619, 424778381), Deutsches Zentrum für Luftund Raumfahrt (DynaSti), National Institutes of Health (2R01 MH113929), Foundation for OCD Research (FFOR).
